Article

A Model Assessment of the Occurrence and Reactivity of the Nitrating/Nitrosating Agent Nitrogen Dioxide (NO2) in Sunlit Natural Waters

Dipartimento di Chimica, Università degli Studi di Torino, Via Pietro Giuria 5, 10125 Torino, Italy
Molecules 2022, 27(15), 4855; https://doi.org/10.3390/molecules27154855
Submission received: 17 June 2022 / Revised: 26 July 2022 / Accepted: 27 July 2022 / Published: 29 July 2022
(This article belongs to the Section Photochemistry)

Abstract

:
Nitrogen dioxide (NO2) is produced in sunlit natural surface waters by the direct photolysis of nitrate, together with OH, and upon the oxidation of nitrite by OH itself. NO2 is mainly scavenged by dissolved organic matter, and here, it is shown that NO2 levels in sunlit surface waters are enhanced by high concentrations of nitrate and nitrite, and depressed by high values of the dissolved organic carbon. The dimer of nitrogen dioxide (N2O4) is also formed in the pathway of NO2 hydrolysis, but with a very low concentration, i.e., several orders of magnitude below NO2, and even below OH. Therefore, at most, N2O4 would only be involved in the transformation (nitration/nitrosation) of electron-poor compounds, which would not react with NO2. Although it is known that nitrite oxidation by CO3 in high-alkalinity surface waters gives a minor-to-negligible contribution to NO2 formation, it is shown here that NO2 oxidation by Br2 can be a significant source of NO2 in saline waters (saltwater, brackish waters, seawater, and brines), which offsets the scavenging of OH by bromide. As an example, the anti-oxidant tripeptide glutathione undergoes nitrosation by NO2 preferentially in saltwater, thanks to the inhibition of the degradation of glutathione itself by OH, which is scavenged by bromide in saltwater. The enhancement of NO2 reactions in saltwater could explain the literature findings, that several phenolic nitroderivatives are formed in shallow (i.e., thoroughly sunlit) and brackish lagoons in the Rhône river delta (S. France), and that the laboratory irradiation of phenol-spiked seawater yields nitrophenols in a significant amount.

1. Introduction

Photochemical reactions are important processes in sunlit natural surface waters. They play a significant role in the transformation of biorecalcitrant pollutants, and of some natural compounds, and often result in decontamination. However, sometimes photochemistry yields secondary contaminants, which may be more harmful than the parent molecules [1,2]. Phototransformation by direct photolysis is operational for those compounds, which absorb sunlight, and get degraded as a consequence, because they have a non-nil quantum yield of direct photolysis [3,4]. Conversely, indirect photochemistry is the transformation of dissolved compounds upon reaction with the so-called photochemically produced reactive intermediates (PPRIs), independent of sunlight absorption by the molecules that get transformed [5,6]. The main PPRIs in natural surface waters are the hydroxyl (OH) and carbonate (CO3•−) radicals, the excited triplet states of chromophoric dissolved organic matter (3CDOM*, where CDOM is the chromophoric fraction of the dissolved organic matter, DOM), and singlet oxygen (1O2) [7]. PPRIs are produced upon sunlight absorption by photosensitisers, i.e., naturally occurring compounds such as nitrate and nitrite (OH sources), as well as CDOM (source of 3CDOM*, 1O2, and OH) [8,9,10]. Moreover, CO3•− is generated upon oxidation of HCO3/CO32 by OH, and of CO32 by 3CDOM* [11,12]. After being produced, PPRIs can be quickly quenched/scavenged by DOM, either chromophoric or not. In particular, DOM scavenges OH and CO3•−, but it scavenges 3CDOM*/1O2 only to a very minor extent. Other important scavengers/quenchers are inorganic carbon, i.e., HCO3/CO32 (for OH), dissolved oxygen (for 3CDOM*, to yield 1O2), and collision with the water solvent (for 1O2) [6]. A schematic of the main processes involving photosensitizers, PPRIs’ production, their scavenging/quenching, and interaction with pollutants is provided in Figure 1.
In addition to OH, CO3•−, 3CDOM*, and 1O2, there are other PPRIs that are either lesser known at the moment, e.g., longer-lived species such as superoxide and organic peroxyl radicals [13,14], or have the potential to produce harmful secondary contaminants to a higher extent compared to the PPRIs depicted in Figure 1. Examples are the dibromine (or dibromide) radical (Br2•−), which is mainly produced upon OH scavenging by bromide in saltwater [15] and is an effective brominating agent, especially for phenols [16], as well as nitrogen dioxide (NO2). The latter is mostly generated by nitrate photolysis together with OH, and by the oxidation of nitrite by OH itself [8,17]. Other NO2 formation processes, the environmental importance of which is still to be conclusively elucidated, consist in the oxidation of nitrite by either 3CDOM* [18], or irradiated Fe(III) oxides [19].
NO2 is a nitrating/nitrosating agent, which is involved in the production of toxic nitroderivatives from aromatic compounds [20], as well as of toxic and, possibly, mutagenic/carcinogenic nitrosoderivatives from amines and amino acids [21,22]. NO2 is not the only possible nitrating agent in an aqueous solution, but it is probably the most likely one to be involved in photonitration processes in circumneutral conditions. Actually, studies on the (photo)nitration pathways of phenols and other aromatic compounds have found a plethora of nitrating agents (NO2, HNO2, HOONO, H2OONO+, and possibly also N2O4), but most of them tend to be operational at an acidic pH only [20,23]. Indeed, although in (often acidic) atmospheric waters the actual (photo)nitration pathways, and the reactive species involved, may still be open to debate [24], in the case of natural surface waters, NO2 is more likely to play a substantial role [25].
In this work, a model approach based on (photo)reaction kinetics and a steady-state approximation is applied to assess the conditions that would most favor the occurrence of NO2 (as well as its dimer, N2O4) in sunlit natural surface waters. Model findings help explain why, so far, literature reports about environmental photonitration processes in natural surface waters have focused on shallow and brackish lagoons, near the sea [26,27,28].

2. Kinetic Model Development

Nitrogen dioxide is produced in natural surface waters upon the photolysis of nitrate, and upon the oxidation of nitrite by OH [29]:
NO 3 + h ν + H +     OH +   NO 2   [ R O H N O 3 ]
NO2 + OH → NO2 + OH   [k2 = 1×1010 M−1 s−1]
The quenching/scavenging processes of NO2 in an aqueous solution involve dimerization into dinitrogen tetroxide (N2O4), another potential nitrating agent, followed by the hydrolysis of the latter, as well as an NO2 reaction with the dissolved natural organic matter (DOM) [8]:
2 NO2 ⇆ N2O4  [k3 = 4.5 × 108 M−1 s−1; k−3 = 6.9 × 103 s−1]
NO2 + DOM → Products   [k4]
N2O4 + H2O → NO3 + NO2 + 2 H+  [k5 = 1 × 103 s−1]
The value of k4 is still to be conclusively assessed. However, in the case of phenolic compounds, it is reported that k4~104 M−1 s−1 [30]. Moreover, it is well known that phenolic moieties are ubiquitous in DOM. When considering the dissolved organic carbon (DOC) contents of phenols [31], one may assume k4 = 0.14 L mgC−1 s−1.
By assuming the formation rate of NO2 ( R N O 2 ), as R N O 2 = R O H N O 3 + k 2 × [ O H ] × [ N O 2 ] , and applying the steady-state approximation to both NO2 and N2O4 (i.e., d [ N O 2 ] / d t = 0 , and d [ N 2 O 4 ] / d t = 0 ), from reactions (1–5), one gets the following:
{ [ N O 2 ] = ( k 3 + k 5 ) k 4 D O C + ( k 4 D O C ) 2 + 8 k 3 k 5 R N O 2 ( k 3 + k 5 ) 1 4 k 3 k 5 [ N 2 O 4 ] = k 3 [ N O 2 ] 2 k 3 + k 5
Preliminary calculations showed that reaction (4) would strongly prevail over (3,5) as an NO2 sink. The rate difference between the two kinds of processes is so big that the conclusion would not change even if k4 = 0.14 L mgC−1 s−1 turned out to be a generously high estimate for the reaction rate constant between NO2 and DOM. Therefore, when neglecting reactions (3,5) as NO2 sinks, one gets a considerable simplification for (6):
{ [ N O 2 ] = R N O 2 k 4 D O C [ N 2 O 4 ] = k 3 [ N O 2 ] 2 k 3 + k 5
Again, the same preliminary calculations suggested that (7) approximates (6) to better than 4‰, in a wide variety of conditions that are significant for surface waters. Based on the above reactions, it appears that the main water components that are expected to impact [NO2] and [N2O4] the most are the following:
  • DOC (dissolved organic carbon), when considering that DOM is the main NO2 scavenger [18], and that it also scavenges OH [32], which plays a key role in the oxidation of NO2 to NO2 [19];
  • Inorganic carbon (HCO3 and CO32−), because it enhances nitrate photolysis due to a solvent cage effect (see Figure 2) [33], but also acts as an OH scavenger [32]. Interestingly, there is evidence that nitrite oxidation by CO3•− does not contribute to NO2 formation significantly [18];
  • Bromide (Br), as a major OH scavenger in saltwater and seawater [15,32].
The effect of different water components on [NO2] and [N2O4] was modeled by assessing the values of R O H N O 3 and [OH], which are needed to calculate R N O 2 , by means of the APEX software (Apex Srl; Modena, Italy). APEX (Aqueous Photochemistry of Environmentally occurring Xenobiotics) computes steady-state concentrations of reactive transient species (OH, CO3−•, 1O2, and 3CDOM*) as a function of water chemistry, depth, and seasonal sunlight irradiance [34,35,36]. In this case, typical irradiance conditions for APEX were assumed: 22 W m−2 UV irradiance, i.e., 290–400 nm, which corresponds to fair weather 15 July at 45° N latitude, at 9 a.m. or 3 p.m., solar time. By doing so, it was possible to compute R N O 2 = R O H N O 3 + k 2 × [ O H ] × [ N O 2 ] , as well as the steady-state [NO2] and [N2O4], as per Equation (6) or Equation (7).

3. Results and Discussion

3.1. Effect of Water Parameters on NO2 Formation and Occurrence

First of all, the environmental occurrence of NO2 and N2O4 was assessed and compared with the other transient species (PPRIs). The effect of the two main NO2/N2O4 sources (NO3 and NO2) was modeled first, to check whether or not the steady-state [NO2] and [N2O4] were linearly dependent on [NO3] and [NO2]. The steady-state concentrations of the reactive transient species were thus calculated as a function of the concentration values of nitrate and nitrite, letting all the other parameters (DOC, HCO3, CO32−, and water depth) constant. Calculation results are shown in Figure 3 for NO2, N2O4, OH, and CO3•−. It is suggested that the concentration values of all these transient species increased with increasing nitrate and nitrite. At the same time, [3CDOM*] and [1O2] were constant at around 10−16 M in all conditions. These results are easily explained by the fact that nitrate and nitrite are both OH sources, and OH plays an important role in the production of both NO2 from NO2, and CO3−• from HCO3/CO32 [6]. Moreover, the production of OH by NO3 is closely associated with the formation of NO2 (reaction (1)).
Increasing the [NO2] leads to increasing [OH] and, considering that R N O 2 N O 2 = k 2 × [ O H ] × [ N O 2 ] , there is a higher-than-linear effect of [NO2] on the formation rate of NO2 by NO2 itself. Moreover, because [N2O4] ∝ [NO2]2 (Equation (7)), one explains the faster-than-linear increase of [N2O4] with the increasing nitrite, reported in Figure 3b.
An interesting issue is that [N2O4] is 6–7 orders of magnitude or more lower than [NO2], and it is even lower than [OH]. This means that, for N2O4 to be a competitive nitrating agent with NO2, it should react much faster than NO2 with organic compounds. This is highly unlikely, with the possible exception of very electron-poor aromatics, which would not react with NO2 to a significant extent. Therefore, the reported finding, that the nitration of some pyridine derivatives involves N2O4 as a nitrating agent [37], looks more like an exception rather than a typical event.
Additionally, the steady-state [CO3•−] follows the same trend as [OH], because OH is the main CO3•− source through the oxidation of HCO3/CO32− [11] (Figure 3d). Interestingly, there is evidence that NO2 oxidation by CO3•− does not contribute much to NO2 production [18].
As reported in Figure 4, nitrate photolysis (reaction (1)) would prevail as an NO2 source over nitrate oxidation by OH (reaction (2)) in the vast majority of the conditions depicted in Figure 3. For nitrite oxidation to prevail, one needs [NO3] < 10 [NO2]. In contrast, in natural waters, it is often found that [NO3]~102 [NO2] [38]. Note that NO3 and NO2 play comparable roles as OH sources when [NO3]~102 [NO2] [34].
The possible role of HCO3 and CO32− in NO2 formation is depicted in Figure 5, where conditions were chosen so that nitrate and nitrite contributed equally to NO2 generation (11 µM NO3, 0.85 µM NO2). It appears that inorganic carbon species would play a limited and slightly negative role towards the occurrence of NO2, presumably because their role as OH scavengers in the solution bulk prevails over the solvent cage effect that enhances nitrate photolysis by inhibiting the geminate recombination of O•− and NO2 (see Figure 2 for such a solvent cage effect).
DOM as an OH scavenger is expected to inhibit NO2 formation by quenching reaction (2), that is, the nitrite route to NO2. Moreover, the chromophoric moieties within DOM (i.e., CDOM) compete with radiation absorption by both nitrate and nitrite, thereby inhibiting their photolysis [34]. As a consequence, the photogeneration of NO2 by nitrate, and that of OH by nitrate and nitrite, are both inhibited by CDOM. Last but not least, reaction with DOM is the main scavenging process for NO2. For all of these reasons, the overall DOM effect to decrease [NO2] is very important, as shown in Figure 6a.
Figure 6b,c additionally shows the decreasing formation rates of NO2 from nitrate and nitrite with increasing DOC, mostly due to competition for irradiance by CDOM (both cases), and OH scavenging by DOM (NO2 formation from NO2).
The results shown in Figure 6a were obtained under the hypothesis that (C)DOM mostly operates as an irradiance competitor and OH scavenger. However, there is also the possibility that 3CDOM* oxidizes NO2 to NO2, and such a process is expected to contribute to NO2 production to a higher extent when the DOC is higher. There is evidence that a rate constant around 109 M−1 s−1 would be an upper limit for the reaction kinetics between 3CDOM* and NO2 [18]. That would be an upper limit, as well, for the ability of 3CDOM* to offset the inhibition effects by (C)DOM, shown in Figure 6a. As reported in Figure 6d (compare with Figure 6a), [NO2] would undergo almost negligible variations, even when considering such an upper-limit 3CDOM* contribution. Therefore, the overall role of (C)DOM towards the occurrence of [NO2] is strongly negative.
The bromide anion plays a minor role as an OH scavenger in most freshwaters, but its importance increases considerably with increasing salinity, until it becomes the main OH scavenger in seawater, where [Br]~0.8 mM [6,15]. Indeed, the second-order reaction rate constant between Br and OH is 1.1 × 1010 M1 s1, while the reaction rate constant between OH and DOM is in the (2–5) × 104 L mgC1 s1 range [6,15]. This means that one would need DOC = 160–400 mgC L1, which is hardly reasonable for a water matrix, to scavenge OH at a comparable level as 0.8 mM Br.
It is shown in Figure 7 that despite the important role of Br as an OH scavenger in saltwater and seawater, increasing [Br] decreases [NO2] only to a rather limited extent, because Br is only able to inhibit the nitrite pathway to NO2 (reaction (2)). Indeed, differently from (C)DOM, Br is not able to inhibit nitrate or nitrite photolysis, or to directly scavenge NO2. Figure 7 also shows that doubling the DOC from 1 to 2 mgC L−1 has a far more important effect on [NO2] than an increase in [Br] by an order of magnitude.
The reaction between Br and OH yields Br, and then Br2•− upon further reaction with Br [15]. Br2•− is able to oxidize NO2 to NO2 (reaction rate constant of 2×107 M−1 s−1) [39], thereby contributing to NO2 generation. The radical Br2•− can dimerize to form Br and Br2, with a rate constant of 1.8 × 109 M−1 s−1 [39], but the main quenching reaction of Br2•− in natural waters is scavenging by DOM, with an estimated rate constant of 3 × 102 L mgC−1 s−1 [40]. A schematic of the mentioned processes involving Br2•− is provided in Figure 8. As shown in Figure 7, when taking into account the oxidation of NO2 by Br2•− (see the curve highlighted as “Br2•−” in the plot), [NO2] would significantly increase over the levels obtained by neglecting the Br2•− reactions. Indeed, when considering the whole process, Br does not appear to inhibit NO2 occurrence to a significant extent. On the one side, these results show that NO2 is more sensitive to the DOC than to Br. However, Br is able to enhance the formation of NO2 through Br2•−, presumably because Br acts as an effective electron shuttle between OH and NO2 (see Figure 8). Indeed, the reaction rate constant between Br2•− and DOM is a couple of orders of magnitude lower than the rate constant between OH and DOM [6,40].

3.2. Role of NO2 in the Transformation/Nitrosation of Glutathione (GSH)

GSH is a tripeptide that plays an important role as an antioxidant in living organisms [41,42]. GSH does not undergo direct photolysis because it does not absorb sunlight [43], but it is photochemically degraded by OH in sunlit natural waters (second-order reaction rate constant of 3.5 × 109 M−1 s−1) and by 3CDOM* (8 × 107 M−1 s−1). In saltwater, some role is also played by Br2•− (2 × 108 M−1 s−1) [44]. NO2 reacts with GSH by transforming it into nitroso-GSH, with a second-order reaction rate constant in the order of 107 M−1 s−1 [45].
In the case of freshwaters, it is suggested in Figure 9a that NO2 would play a minor role in the photochemical transformation of GSH, which is dominated by OH and by 3CDOM*. In this circumstance, the relative role of OH decreases and that of 3CDOM* increases with increasing DOC, because OH is scavenged by organic matter, the chromophoric fraction of which is, vice versa, the source of 3CDOM*.
The scenario gets very different in saltwater (Figure 9b), where OH is effectively scavenged by bromide, and where the OH role in GSH degradation is strongly decreased as a consequence. At the same time, the contribution of NO2 oxidation by Br2•− enhances the role of NO2 in the transformation of GSH. In seawater conditions (0.8 mM Br), NO2 and 3CDOM* would be the main reactive species for GSH transformation, with their relative role depending on the DOC, which enhances 3CDOM* and inhibits NO2, and on nitrate and nitrite concentration values.

4. Conclusions

The nitrating and nitrosating agent NO2 is produced in sunlit natural waters upon nitrate photolysis and upon nitrite oxidation by OH. The nitrate process would usually prevail in typical conditions found in natural waters, except when [NO2] > 0.1 [NO3]. Obviously, elevated concentration values of nitrate and nitrite are very favorable to the occurrence of NO2. Inorganic carbon has a limited effect on the steady-state [NO2], because small positive and negative effects offset each other, while elevated DOC is highly detrimental to the occurrence of NO2. Indeed, organic matter competes with nitrate and nitrite for sunlight irradiance and, therefore, for OH photoproduction. Moreover, DOM scavenges OH that is needed for NO2 oxidation, and it also directly scavenges NO2.
It is suggested here that bromide occurring in saltwater and seawater would favor the degradation processes induced by NO2 (e.g., glutathione nitrosation) by decreasing the role of OH and by enhancing that of NO2: indeed, in the presence of bromide, a further source of NO2 is operational, which is represented by NO2 oxidation by Br2•−. In these conditions, the couple Br/Br2•− acts as an effective electron shuttle between OH and NO2. This latter issue might explain why the photonitration of several phenolic compounds has been observed in the brackish waters of the Rhône delta lagoons (Southern France) [26,27,28]. In these environments, the concentration of nitrate (around 50 µM [26]) is not particularly high, despite there being important impact by agricultural activities, partly because of the elevated denitrification ability of paddy fields, and partly perhaps because of the assimilation of inorganic nitrogen by algae during the summer season [38]. By comparison, these levels are just double when compared to some mountain lakes (over 2000 m asl, NW Italy, 30 km as the crow flies off the city of Torino [46]), where nitrate occurs because of atmospheric depositions, but microorganisms are not much able to consume it. They are also comparable to the nitrate levels occurring in presently oligotrophic Lago Maggiore (NW Italy [47]). In the Rhône delta lagoons, bromide would play a role in inhibiting the degradation of the parent phenols by OH, and it would allow NO2 to significantly contribute to the production of the nitrophenols. When also considering the ability of DOM to scavenge NO2, the mentioned photonitration processes are more likely to take place in lagoon water (DOC = 4–5 mgC L1) compared to the flooded rice fields (DOC around 12 mgC L1) [26]. Similarly, bromide could also play a role in the photonitration of phenol in seawater [48].

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data supporting this study can be provided by the author on request.

Conflicts of Interest

The author declares no conflict of interest.

Sample Availability

Not applicable.

References

  1. Schwarzenbach, R.P.; Escher, B.I.; Fenner, K.; Hofstetter, T.B.; Johnson, C.A.; von Gunten, U.; Wehrli, B. The challenge of micropollutants in aquatic systems. Science 2006, 313, 1072–1077. [Google Scholar] [CrossRef]
  2. Fenner, K.; Canonica, S.; Wackett, L.P.; Elsner, M. Evaluating pesticide degradation in the environment: Blind spots and emerging opportunities. Science 2013, 341, 752–758. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Yan, S.; Song, W. Photo-transformation of pharmaceutically active compounds in the aqueous environment: A review. Environ. Sci. Process. Impacts 2014, 16, 697. [Google Scholar] [CrossRef] [PubMed]
  4. Challis, J.K.; Hanson, M.L.; Friesen, K.J.; Wong, C.S. A critical assessment of the photodegradation of pharmaceuticals in aquatic environments: Defining our current understanding and identifying knowledge gaps. Environ. Sci. Process. Impacts 2014, 16, 672–696. [Google Scholar] [CrossRef] [Green Version]
  5. Remucal, C.K. The role of indirect photochemical degradation in the environmental fate of pesticides: A review. Environ. Sci. Process. Impacts 2014, 16, 628–653. [Google Scholar] [CrossRef]
  6. Vione, D.; Minella, M.; Maurino, V.; Minero, C. Indirect photochemistry in sunlit surface waters: Photoinduced production of reactive transient species. Chem.-Eur. J. 2014, 20, 10590–10606. [Google Scholar] [CrossRef] [PubMed]
  7. Rosario-Ortiz, F.L.; Canonica, S. Probe compounds to assess the photochemical activity of dissolved organic matter. Environ. Sci. Technol. 2016, 50, 12532–12547. [Google Scholar] [CrossRef] [Green Version]
  8. Mack, J.; Bolton, J. Photochemistry of nitrite and nitrate in aqueous solution: A review. J. Photochem. Photobiol. A Chem. 1999, 128, 1–13. [Google Scholar] [CrossRef]
  9. McNeill, K.; Canonica, S. Triplet state dissolved organic matter in aquatic photochemistry: Reaction mechanisms, substrate scope, and photophysical properties. Environ. Sci. Process. Impacts 2016, 18, 1381–1399. [Google Scholar] [CrossRef] [Green Version]
  10. Ossola, R.; Jönsson, O.M.; Moor, K.; McNeill, K. Singlet oxygen quantum yields in environmental waters. Chem. Rev. 2021, 121, 4100–4146. [Google Scholar] [CrossRef]
  11. Canonica, S.; Kohn, T.; Mac, M.; Real, F.J.; Wirz, J.; Von Gunten, U. Photosensitizer method to determine rate constants for the reaction of carbonate radical with organic compounds. Environ. Sci. Technol. 2005, 39, 9182–9188. [Google Scholar] [CrossRef]
  12. Yan, S.; Liu, Y.; Lian, L.; Li, R.; Ma, J.; Zhou, H.; Song, W. Photochemical formation of carbonate radical and its reaction with dissolved organic matters. Water Res. 2019, 161, 288–296. [Google Scholar] [CrossRef]
  13. Canonica, S.; Freiburghaus, M. Electron-rich phenols for probing the photochemical reactivity of freshwaters. Environ. Sci. Technol. 2001, 35, 690–695. [Google Scholar] [CrossRef]
  14. Ma, J.; Nie, J.; Zhou, H.; Wang, H.; Lian, L.; Yan, S.; Song, W. Kinetic consideration of photochemical formation and decay of superoxide radical in dissolved organic matter solutions. Environ. Sci. Technol. 2020, 54, 3199–3208. [Google Scholar] [CrossRef]
  15. Parker, K.M.; Mitch, W.A. Halogen radicals contribute to photooxidation in coastal and estuarine waters. Proc. Nat. Acad. Sci. USA 2016, 113, 5868–5873. [Google Scholar] [CrossRef] [Green Version]
  16. Vione, D.; Maurino, V.; Cucu Man, S.; Khanra, S.; Arsene, C.; Olariu, R.I.; Minero, C. Formation of organobrominated compounds in the presence of bromide under simulated atmospheric aerosol conditions. ChemSusChem 2008, 1, 197–204. [Google Scholar] [CrossRef]
  17. Zhou, C.Z.; Chen, J.W.; Xie, H.J.; Zhang, Y.N.; Li, Y.J.; Wang, Y.; Xie, Q.; Zhang, S.Y. Modeling photodegradation kinetics of organic micropollutants in water bodies: A case of the Yellow River estuary. J. Hazard. Mat. 2018, 349, 60–67. [Google Scholar] [CrossRef]
  18. Maddigapu, P.R.; Minero, C.; Maurino, V.; Vione, D.; Brigante, M.; Mailhot, G. Enhancement by anthraquinone-2-sulphonate of the photonitration of phenol by nitrite: Implications for the photoproduction of nitrogen dioxide by coloured dissolved organic matter in surface waters. Chemosphere 2010, 81, 1401–1406. [Google Scholar] [CrossRef] [PubMed]
  19. Vione, D.; Maurino, V.; Minero, C.; Pelizzetti, E. New processes in the environmental chemistry of nitrite: Nitration of phenol upon nitrite photoinduced oxidation. Environ. Sci. Technol. 2002, 36, 669–676. [Google Scholar] [CrossRef] [PubMed]
  20. Marussi, G.; Vione, D. Secondary formation of aromatic nitroderivatives of environmental concern: Photonitration processes triggered by the photolysis of nitrate and nitrite ions in aqueous solution. Molecules 2021, 26, 2550. [Google Scholar] [CrossRef] [PubMed]
  21. Ohta, T.; Suzuki, J.; Iwano, Y.; Suzuki, S. Photochemical nitrosation of dimethylamine in aqueous solution containing nitrite. Chemosphere 1982, 11, 797–801. [Google Scholar] [CrossRef]
  22. Scholes, R.C. Contributions of reactive nitrogen species to transformations of organic compounds in water: A critical review. Environ. Sci. Process. Impacts 2022, 24, 851–869. [Google Scholar] [CrossRef]
  23. Vione, D.; Maurino, V.; Minero, C.; Borghesi, D.; Lucchiari, M.; Pelizzetti, E. New processes in the environmental chemistry of nitrite. 2. The role of hydrogen peroxide. Environ. Sci. Technol. 2003, 37, 4635–4641. [Google Scholar] [CrossRef]
  24. Vione, D.; Maurino, V.; Minero, C.; Pelizzetti, E. Aqueous atmospheric chemistry: Formation of 2,4-dinitrophenol upon nitration of 2-nitrophenol and 4-nitrophenol in solution. Environ. Sci. Technol. 2005, 39, 7921–7931. [Google Scholar] [CrossRef]
  25. Vione, D.; Maurino, V.; Minero, C.; Pelizzetti, E. Phenol photonitration upon UV irradiation of nitrite in aqueous solution II: Effects of pH and TiO2. Chemosphere 2001, 45, 903–910. [Google Scholar] [CrossRef]
  26. Chirón, S.; Minero, C.; Vione, D. Occurrence of 2,4-dichlorophenol and of 2,4-dichloro-6-nitrophenol in the Rhône River Delta (Southern France). Environ. Sci. Technol. 2007, 41, 3127–3133. [Google Scholar] [CrossRef]
  27. Chirón, S.; Comoretto, L.; Rinaldi, E.; Maurino, V.; Minero, C.; Vione, D. Pesticide by-products in the Rhône delta (Southern France). The case of 4-chloro-2-methylphenol and of its nitroderivative. Chemosphere 2009, 74, 599–604. [Google Scholar] [CrossRef]
  28. Maddigapu, P.R.; Vione, D.; Ravizzoli, B.; Minero, C.; Maurino, V.; Comoretto, L.; Chirón, S. Laboratory and field evidence of the photonitration of 4-chlorophenol to 2-nitro-4-chlorophenol and of the associated bicarbonate effect. Environ. Sci. Pollut. Res. 2010, 17, 1063–1069. [Google Scholar] [CrossRef] [Green Version]
  29. Machado, F.; Boule, P. Photonitration and photonitrosation of phenolic derivatives induced in aqueous solution by excitation of nitrite and nitrate ions. J. Photochem. Photobiol. A Chem. 1995, 86, 73–80. [Google Scholar] [CrossRef]
  30. Scholes, R.C.; Prasse, C.; Sedlak, D.L. The role of reactive nitrogen species in sensitized photolysis of wastewater-derived trace organic contaminants. Environ. Sci. Technol. 2019, 53, 6483–6491. [Google Scholar] [CrossRef]
  31. Vione, D.; Fabbri, D.; Minella, M.; Canonica, S. Effects of the antioxidant moieties of dissolved organic matter on triplet-sensitized phototransformation processes: Implications for the photochemical modeling of sulfadiazine. Water Res. 2018, 128, 38–48. [Google Scholar] [CrossRef] [PubMed]
  32. Buxton, G.V.; Greenstock, C.L.; Helman, W.P.; Ross, A.B. Critical review of rate constants for reactions of hydrated electrons, hydrogen atoms and hydroxyl radicals (OH/O in aqueous solution. J. Phys. Chem. Ref. Data 1988, 17, 513–886. [Google Scholar] [CrossRef] [Green Version]
  33. Vione, D.; Khanra, S.; Cucu Man, S.; Maddigapu, P.R.; Das, R.; Arsene, C.; Olariu, R.I.; Maurino, V.; Minero, C. Inhibition vs. enhancement of the nitrate-induced phototransformation of organic substrates by the OH scavengers bicarbonate and carbonate. Water Res. 2009, 43, 4718–4728. [Google Scholar] [CrossRef] [PubMed]
  34. Vione, D. A critical view of the application of the APEX software (Aqueous Photochemistry of Environmentally-occurring Xenobiotics) to predict photoreaction kinetics in surface freshwaters. Molecules 2020, 25, 9. [Google Scholar] [CrossRef] [Green Version]
  35. Lastre-Acosta, A.M.; Barberato, B.; Parizi, M.P.S.; Teixeira, A.C.S.C. Direct and indirect photolysis of the antibiotic enoxacin: Kinetics of oxidation by reactive photo-induced species and simulations. Environ. Sci. Pollut. Res. 2019, 26, 4337–4347. [Google Scholar] [CrossRef] [Green Version]
  36. Parizi, M.P.S.; Acosta, A.M.L.; Ishiki, H.M.; Rossi, R.C.; Mafra, R.C.; Teixeira, A.C.S.C. Environmental photochemical fate and UVC degradation of sodium levothyroxine in aqueous medium. Environ. Sci. Pollut. Res. 2019, 26, 4393–4403. [Google Scholar] [CrossRef] [Green Version]
  37. Beitz, T.; Bechmann, W.; Mitzner, R. Investigation on the photoreactions of nitrate and nitrite ions with selected azaarenes in water. Chemosphere 1999, 38, 351–361. [Google Scholar] [CrossRef]
  38. Vione, D.; Scozzaro, A. Photochemistry of surface fresh waters in the framework of climate change. Environ. Sci. Technol. 2019, 53, 7945–7963. [Google Scholar] [CrossRef]
  39. Neta, P.; Huie, R.E.; Ross, A.D. Rate constants for reactions of inorganic radicals in aqueous-solution. J. Phys. Chem. Ref. Data 1988, 17, 1027–1284. [Google Scholar] [CrossRef]
  40. De Laurentiis, E.; Minella, M.; Maurino, V.; Minero, C.; Mailhot, G.; Sarakha, M.; Brigante, M.; Vione, D. Assessing the occurrence of the dibromide radical (Br2−•) in natural waters: Measures of triplet-sensitized formation, reactivity, and modelling. Sci. Total Environ. 2012, 439, 299–306. [Google Scholar] [CrossRef]
  41. Paulsen, C.E.; Carroll, K.S. Cysteine-mediated redox signaling: Chemistry, biology, and tools for discovery. Chem. Rev. 2013, 113, 4633–4679. [Google Scholar] [CrossRef]
  42. Swarr, G.J.; Kading, T.; Lamborg, C.H.; Hammerschmidt, C.R.; Bowman, K.L. Dissolved low-molecular weight thiol concentrations from the U.S. GEOTRACES North Atlantic Ocean zonal transect. Deep Sea Res. Part I 2016, 116, 77–87. [Google Scholar] [CrossRef] [Green Version]
  43. Chu, C.; Stamatelatos, D.; McNeill, K. Aquatic indirect photochemical transformations of natural peptidic thiols: Impact of thiol properties, solution pH, solution salinity and metal ions. Environ. Sci. Process. Impacts 2017, 19, 1518–1527. [Google Scholar] [CrossRef] [Green Version]
  44. Vione, D. A model assessment of the role played by the carbonate (CO3•−) and dibromide (Br2•−) radicals in the photodegradation of glutathione in sunlit fresh- and salt-waters. Chemosphere 2018, 209, 401–410. [Google Scholar] [CrossRef]
  45. D’Ischia, M.; Napolitano, A.; Manini, P.; Panzella, L. Secondary targets of nitrite-derived reactive nitrogen species: Nitrosation/nitration pathways, antioxidant defense mechanisms and toxicological implications. Chem. Res. Toxicol. 2011, 24, 2071–2092. [Google Scholar] [CrossRef]
  46. De Laurentiis, E.; Minella, M.; Maurino, V.; Minero, C.; Brigante, M.; Mailhot, G.; Vione, D. Photochemical production of organic matter triplet states in water samples from mountain lakes, located below or above the tree line. Chemosphere 2012, 88, 1208–1213. [Google Scholar] [CrossRef] [Green Version]
  47. Minella, M.; Rogora, M.; Vione, D.; Maurino, V.; Minero, C. A model approach to assess the long-term trends of indirect photochemistry in lake water. The case of Lake Maggiore (NW Italy). Sci. Total Environ. 2011, 409, 3463–3471. [Google Scholar] [CrossRef] [Green Version]
  48. Calza, P.; Massolino, C.; Pelizzetti, E.; Minero, C. Photochemically induced production of toxic halogenated and nitroaromatic compounds in seawater. Sci. Total Environ. 2008, 398, 196–202. [Google Scholar] [CrossRef]

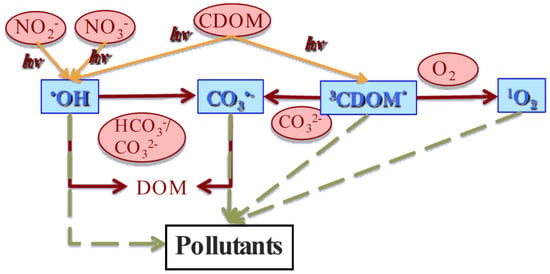

Figure 1. Schematic of the main processes involving photochemical production and scavenging/quenching of the main PPRIs (OH, CO3•−, 3CDOM*, and 1O2) in natural surface waters. DOM = dissolved organic matter; CDOM = chromophoric dissolved organic matter. Circles: photosensitizers and scavengers/quenchers; rectangles: PPRIs.
Figure 1. Schematic of the main processes involving photochemical production and scavenging/quenching of the main PPRIs (OH, CO3•−, 3CDOM*, and 1O2) in natural surface waters. DOM = dissolved organic matter; CDOM = chromophoric dissolved organic matter. Circles: photosensitizers and scavengers/quenchers; rectangles: PPRIs.
Molecules 27 04855 g001

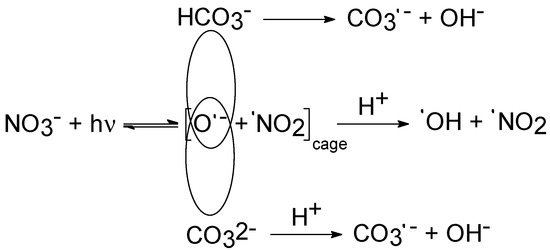

Figure 2. Schematic of the solvent-cage enhancement of nitrate photolysis by HCO3 and CO32−, which inhibits geminate recombination between the photo-fragments O•− (OH precursor) and NO2.
Figure 2. Schematic of the solvent-cage enhancement of nitrate photolysis by HCO3 and CO32−, which inhibits geminate recombination between the photo-fragments O•− (OH precursor) and NO2.
Molecules 27 04855 g002

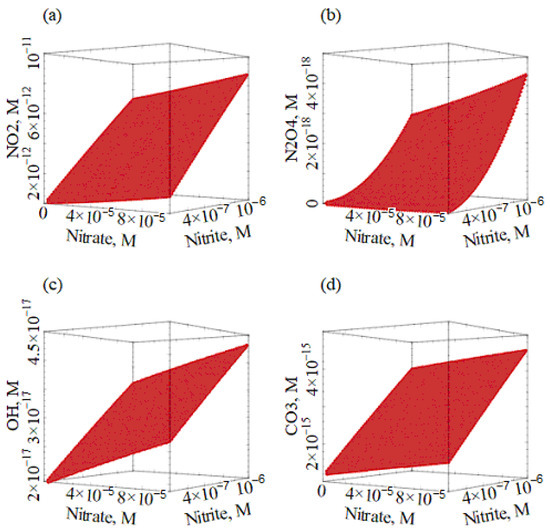

Figure 3. Modeled steady-state concentrations of NO2 (a), N2O4 (b), OH (c), and CO3•− (d) as a function of nitrate and nitrite concentrations. Other conditions: 5 m water depth, 1 mM HCO3, 10 µM CO32−, 1 mgC L−1 DOC, and 22 W m−2 sunlight UV irradiance, which is equivalent to fair weather, 45° N latitude 15 July, at 9 a.m. or 3 p.m.
Figure 3. Modeled steady-state concentrations of NO2 (a), N2O4 (b), OH (c), and CO3•− (d) as a function of nitrate and nitrite concentrations. Other conditions: 5 m water depth, 1 mM HCO3, 10 µM CO32−, 1 mgC L−1 DOC, and 22 W m−2 sunlight UV irradiance, which is equivalent to fair weather, 45° N latitude 15 July, at 9 a.m. or 3 p.m.
Molecules 27 04855 g003

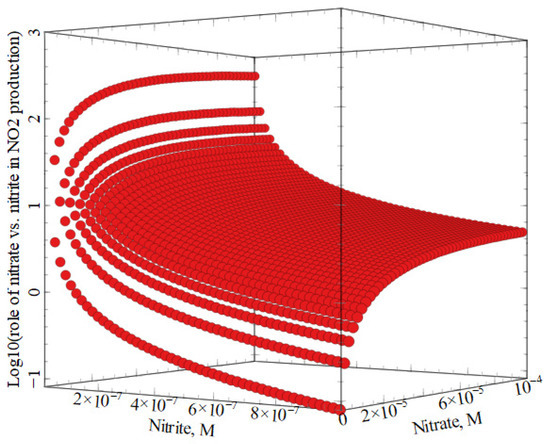

Figure 4. Comparison between the contributions to NO2 generation by nitrate photolysis ( R N O 2 N O 3 = R O H N O 3 ), and by nitrite oxidation by OH ( R N O 2 N O 2 = k 2 × [ O H ] × [ N O 2 ] ). Nitrate and nitrite concentrations and other conditions are the same as for Figure 3. The nitrate process prevails when the logarithm is positive (most cases), whereas the nitrite process prevails when the logarithm is negative.
Figure 4. Comparison between the contributions to NO2 generation by nitrate photolysis ( R N O 2 N O 3 = R O H N O 3 ), and by nitrite oxidation by OH ( R N O 2 N O 2 = k 2 × [ O H ] × [ N O 2 ] ). Nitrate and nitrite concentrations and other conditions are the same as for Figure 3. The nitrate process prevails when the logarithm is positive (most cases), whereas the nitrite process prevails when the logarithm is negative.
Molecules 27 04855 g004

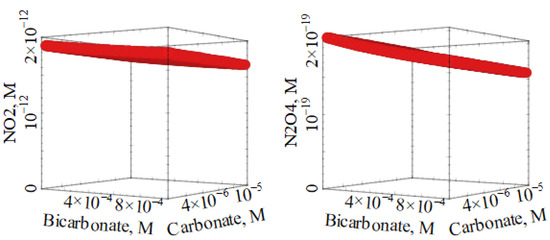

Figure 5. Effects of the concentration values of carbonate and bicarbonate on the steady-state concentrations of [NO2] and [N2O4]. Other conditions: 5 m water depth, 11 µM NO3, 0.85 µM NO2, 1 mgC L−1 DOC, and 22 W m−2 sunlight UV irradiance, which is equivalent to fair weather, 45° N latitude 15 July, at 9 a.m. or 3 p.m.
Figure 5. Effects of the concentration values of carbonate and bicarbonate on the steady-state concentrations of [NO2] and [N2O4]. Other conditions: 5 m water depth, 11 µM NO3, 0.85 µM NO2, 1 mgC L−1 DOC, and 22 W m−2 sunlight UV irradiance, which is equivalent to fair weather, 45° N latitude 15 July, at 9 a.m. or 3 p.m.
Molecules 27 04855 g005

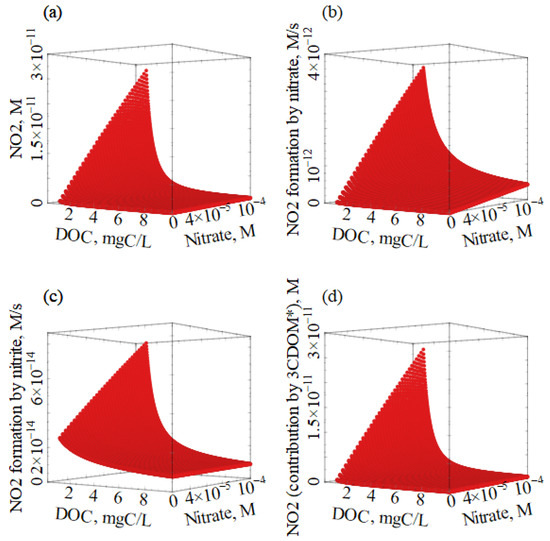

Figure 6. (a) Steady-state [NO2], assumed to be generated by nitrate photolysis and nitrite oxidation by OH, as a function of DOC and nitrate concentration. Other conditions: 5 m water depth, [NO2] = 10−2 [NO3], 1 mgC L−1 DOC, and 22 W m−2 sunlight UV irradiance (equivalent to fair weather, 45° N latitude 15 July, at 9 a.m. or 3 p.m.). In the same conditions: (b) NO2 formation rate by nitrate photolysis; (c) NO2 formation rate upon OH oxidation of nitrite, and (d) steady-state [NO2], assumed to be generated by nitrate photolysis, nitrite oxidation by OH, and nitrite oxidation by 3CDOM*. The second-order rate constant of the latter process was assumed to be 109 M−1 s−1.
Figure 6. (a) Steady-state [NO2], assumed to be generated by nitrate photolysis and nitrite oxidation by OH, as a function of DOC and nitrate concentration. Other conditions: 5 m water depth, [NO2] = 10−2 [NO3], 1 mgC L−1 DOC, and 22 W m−2 sunlight UV irradiance (equivalent to fair weather, 45° N latitude 15 July, at 9 a.m. or 3 p.m.). In the same conditions: (b) NO2 formation rate by nitrate photolysis; (c) NO2 formation rate upon OH oxidation of nitrite, and (d) steady-state [NO2], assumed to be generated by nitrate photolysis, nitrite oxidation by OH, and nitrite oxidation by 3CDOM*. The second-order rate constant of the latter process was assumed to be 109 M−1 s−1.
Molecules 27 04855 g006

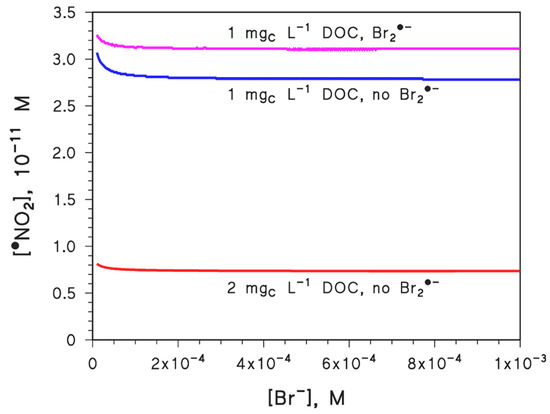

Figure 7. Steady-state [NO2] as a function of bromide concentration (in typical seawater, it is [Br] = 0.8 mM). The three curves differ on the value of the DOC and on whether or not the oxidation of nitrite by Br2•− was taken into account as an NO2 source. Other conditions: 5 m water depth, 0.1 mM NO3, 1 µM NO2, 1 mM HCO3, 10 µM CO32, and 22 W m−2 sunlight UV irradiance, which is equivalent to fair weather, 45°N latitude 15 July, at either 9 a.m. or 3 p.m.
Figure 7. Steady-state [NO2] as a function of bromide concentration (in typical seawater, it is [Br] = 0.8 mM). The three curves differ on the value of the DOC and on whether or not the oxidation of nitrite by Br2•− was taken into account as an NO2 source. Other conditions: 5 m water depth, 0.1 mM NO3, 1 µM NO2, 1 mM HCO3, 10 µM CO32, and 22 W m−2 sunlight UV irradiance, which is equivalent to fair weather, 45°N latitude 15 July, at either 9 a.m. or 3 p.m.
Molecules 27 04855 g007

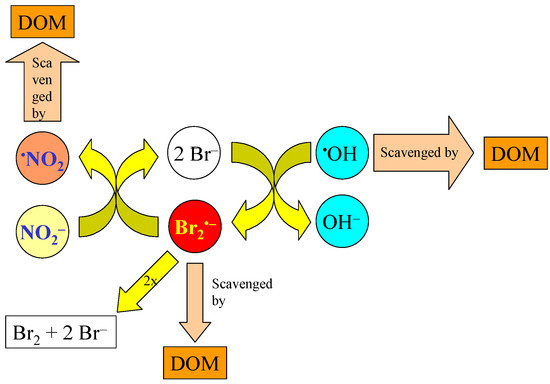

Figure 8. Schematic of the main processes involving Br2 in sunlit saltwater. The thickness of the scavenging arrows is intended to suggest that OH reacts with DOM much faster compared to Br2•−. Therefore, when Br outcompetes DOM as an OH scavenger, the couple Br/Br2•− acts as a very effective electron shuttle between OH and NO2.
Figure 8. Schematic of the main processes involving Br2 in sunlit saltwater. The thickness of the scavenging arrows is intended to suggest that OH reacts with DOM much faster compared to Br2•−. Therefore, when Br outcompetes DOM as an OH scavenger, the couple Br/Br2•− acts as a very effective electron shuttle between OH and NO2.
Molecules 27 04855 g008

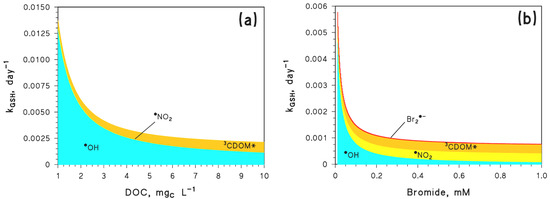

Figure 9. Pseudo-first order rate constants of the GSH’s indirect phototransformation, as a function of (a) the DOC, and (b) the bromide concentration. Other conditions (when the given parameter is not set to vary on the X-axis): 5 m water depth, 0.1 mM NO3, 1 µM NO2, 1 mM HCO3, 10 µM CO32−, 1 mgC L−1 DOC, negligible Br, and 22 W m−2 sunlight UV irradiance (equivalent to fair weather, 45°N latitude 15 July, at 9 a.m. or 3 p.m.). The color code depicts the relative importance of the different phototransformation processes.
Figure 9. Pseudo-first order rate constants of the GSH’s indirect phototransformation, as a function of (a) the DOC, and (b) the bromide concentration. Other conditions (when the given parameter is not set to vary on the X-axis): 5 m water depth, 0.1 mM NO3, 1 µM NO2, 1 mM HCO3, 10 µM CO32−, 1 mgC L−1 DOC, negligible Br, and 22 W m−2 sunlight UV irradiance (equivalent to fair weather, 45°N latitude 15 July, at 9 a.m. or 3 p.m.). The color code depicts the relative importance of the different phototransformation processes.
Molecules 27 04855 g009
