Article

Structural and Functional Analysis of the Pyridoxal Phosphate Homeostasis Protein YggS from Fusobacterium nucleatum

1
Department of Bioengineering, College of Life Science, Dalian Minzu University, Dalian 116600, China
2
Key Laboratory of Biotechnology and Bioresources Utilization of Ministry of Education, College of Life Science, Dalian Minzu University, Dalian 116600, China
3
School of Life Science and Biotechnology, Dalian University of Technology, No. 2 Linggong Road, Dalian 116024, China
4
Shandong Provincial Key Laboratory of Energy Genetics, Key Laboratory of Biofuel, Qingdao Institute of Bioenergy and Bioprocess Technology, Chinese Academy of Sciences, Qingdao 266101, China
5
Department of Agricultural Biotechnology, College of Agriculture and Life Sciences, Seoul National University, Gwanak-gu, Seoul 00826, Korea
6
Department of Life Science, Pohang University of Science and Technology, Pohang 37673, Korea
7
POSTECH Biotech Center, Pohang University of Science and Technology, Pohang 37673, Korea
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Molecules 2022, 27(15), 4781; https://doi.org/10.3390/molecules27154781
Submission received: 16 June 2022 / Revised: 15 July 2022 / Accepted: 23 July 2022 / Published: 26 July 2022
(This article belongs to the Special Issue Protein Structure, Function and Interaction)

Abstract

:
Pyridoxal 5′-phosphate (PLP) is the active form of vitamin B6, but it is highly reactive and poisonous in its free form. YggS is a PLP-binding protein found in bacteria and humans that mediates PLP homeostasis by delivering PLP to target enzymes or by performing a protective function. Several biochemical and structural studies of YggS have been reported, but the mechanism by which YggS recognizes PLP has not been fully elucidated. Here, we report a functional and structural analysis of YggS from Fusobacterium nucleatum (FnYggS). The PLP molecule could bind to native FnYggS, but no PLP binding was observed for selenomethionine (SeMet)-derivatized FnYggS. The crystal structure of FnYggS showed a type III TIM barrel fold, exhibiting structural homology with several other PLP-dependent enzymes. Although FnYggS exhibited low (<35%) amino acid sequence similarity with previously studied YggS proteins, its overall structure and PLP-binding site were highly conserved. In the PLP-binding site of FnYggS, the sulfate ion was coordinated by the conserved residues Ser201, Gly218, and Thr219, which were positioned to provide the binding moiety for the phosphate group of PLP. The mutagenesis study showed that the conserved Ser201 residue in FnYggS was the key residue for PLP binding. These results will expand the knowledge of the molecular properties and function of the YggS family.

1. Introduction

Fusobacterium nucleatum is an anaerobic gram-negative bacterium that plays a key role in oral pathological conditions [1,2,3]. It has frequently been associated with a wide spectrum of human diseases [4,5]. Recent studies have shown that F. nucleatum is a causative agent of appendicitis, gingivitis, osteomyelitis, and pregnancy complications, leading to increasing attention in this species [5,6,7,8,9,10,11,12,13]. Interestingly, it is associated with colorectal cancer (CRC) progression via its ability to activate the autophagy pathway in CRC, and it is linked to the progression and severity of CRC and chronic inflammatory periodontitis [14,15]. F. nucleatum has been identified as an urgent threat to human health [16,17,18]. Considering the increasing antibiotic resistance of F. nucleatum, the development of new drugs is urgently needed [19,20].
The physiologically active form of vitamin B6, pyridoxal 5′-phosphate (PLP), is an essential cofactor for dozens of bacterial and hundreds of human enzymes that are involved in diverse cellular processes [21,22,23,24]. YggS, a PLP-dependent enzyme that is involved in cell wall metabolism and information processing, belongs to the COG0325 gene family in bacteria [25]. The pyridoxine toxicity phenotype and amino acid-related metabolic disorders are caused by the inactivity of YggS [26]. The PLP-binding proteins are cotranscribed with proline biosynthesis genes; hence, this group of proteins is also named the proline synthetase cotranscribed homolog (PROSC) family [27]. Several crystal structures of YggS proteins from Synechococcus elongatus (Protein Data Bank (PDB) ID: 5NM8, named SePipY) [28], Saccharomyces cerevisiae (1B54, ScP007) [29], Escherichia coli (1W8G, EcYggS; unpublished), and Bifidobacterium adolescentis (3CPG, BaPipY; unpublished) are currently deposited in the PDB. The above proteins contain the typical type III fold of PLP-dependent enzymes [30,31], and these structural studies have provided fundamental information on how YggS recognizes PLP molecules.
Aiming to define the role of YggS, we identified a protein annotated as YggS in the F. nucleatum genome (UniProt accession no. Q8RFW9); this protein exhibited less than 35% sequence similarity with previously reported YggS proteins. Therefore, we considered F. nucleatum YggS (abbreviated FnYggS) to be a potential target. Understanding the potential molecular mechanisms of the FnYggS protein is thus important for the development of anti-F. nucleatum drugs. Although considerable effort is being devoted to understanding the action mechanism of YggS proteins, research on the regulation of PLP levels and the means by which PLP is transferred from the product to the catalytic site is challenging [32].
To improve the understanding of the molecular function of YggS, we report a structural and functional analysis of FnYggS. Moreover, to understand the molecular interaction between FnYggS and the YggS-interacting protein SepF, we performed a pull-down assay. Our results can provide valuable information for improving the understanding of the molecular functions of PLP-binding proteins and elucidating the binding properties.

2. Results and Discussion

2.1. Characterization of FnYggS

After the purification of native FnYggS, the concentrated FnYggS solution exhibited a yellow color. Since free PLP is yellowish, with an absorbance peak at 380 nm [27], we concluded that the PLP produced in E. coli may bind to FnYggS (Figure 1A). To verify the binding of PLP to FnYggS, the purified native FnYggS solution was subjected to spectroscopic analysis. The native FnYggS showed an absorption peak at 425 nm, indicating that PLP was bound to FnYggS (Figure 1B). Free PLP showed an absorption peak at 380 nm, as previously reported [27]. On the other hand, the absorbance peak of fresh PLP-bound S. elongatus PipY (SePipY) was observed at 425 nm [27]. Taken together, these findings indicate that PLP-bound YggS proteins exhibit absorption peaks at approximately 420–425 nm, but the maximum absorption peak of each YggS occurs at a distinct wavelength.
Meanwhile, in the crystallographic study, we substituted the methionine residues of FnYggS with SeMet (abbreviated FnYggS-SeMet) to address the phasing problem by using the Se-single-wavelength anomalous diffraction (Se-SAD) method. Interestingly, the purified FnYggS-SeMet solution was not yellow (Figure 1A), indicating that FnYggS-SeMet most likely did not bind PLP. To verify the absence of PLP binding, the absorbance of purified FnYggS-SeMet was measured. A very low absorption peak corresponding to the PLP molecule was observed at 425 nm, indicating a very weak interaction of PLP with FnYggS-SeMet (Figure 1B). We concluded that the presence of SeMet around the PLP binding site interferes with PLP binding (see below).
Next, to determine whether the oligomerization state of FnYggS is influenced by PLP, purified FnYggS (PLP-bound state) and FnYggS-SeMet (PLP-unbound state) were analyzed by analytical gel filtration chromatography (Figure 1C). Both native FnYggS and FnYggS-SeMet existed as monomers in solution (Figure 1C). These results demonstrate that PLP does not impact the oligomeric state of FnYggS.

2.2. Overall Structure of FnYggS

To better understand the properties underlying PLP recognition, we determined the crystal structure of FnYggS at 2.08 Å resolution by Se-SAD. The crystal structure belonged to the monoclinic space group P21 with a = 37.929 Å, b = 146.375 Å, c = 74.128 Å, α = γ = 90° and β = 93.355°. The Rfactor and Rfree of the final FnYggS model were 18.39% and 21.77%, respectively (Table 1).
The electron density map showed a clear electron density for all of the amino acid residues from Met1 to Lys223 in the A chain and C chain, while in the B chain of FnYggS, most amino acid residues from Met1 to Lys223 showed a clear electron density, except for Glu128-Gln132. FnYggS consists of 8 β-strands and 10 α-helices and forms a TIM barrel fold typical of the type III fold of PLP-dependent enzymes (Figure 2A).
The DaliLite server was used to search for structural homologs of the FnYggS protein [31]. FnYggS exhibited structural similarity with S. elongatus PipY (Z score = 32.3), EcYggS (31.0), B. adolescentis PipY (29.0), and S. cerevisiae PipY (27.7). Although FnYggS shared low sequence identities with SePipY (sequence identity: 33.18%), EcYggS (31.05%), AfPipY (30.19%), BaPipY (34.86%), and ScP007 (31.96%), the superimposition of FnYggS with SePipY, EcYggS, AfPipY, BaPipY, and ScP007 revealed high structural similarity, with an r.m.s. deviation of 1.3–2.0 Å (Figure 2B). Conserved surface and sequence alignment of YggS proteins showed that the PLP-binding site was highly conserved, whereas other regions had no amino acid conservation (Figure 2C,D).

2.3. PLP-Binding Site of FnYggS

The PLP-binding pocket is formed by six amino acids (Lys31, Asn52, Ser201, Gly218, Arg216, and Thr219), which are highly conserved in YggS family members (Figure 2D) and form a positively charged surface (Figure 3A). The crystal structure of FnYggS-SeMet did not exhibit the electron density considered to represent the PLP molecule, consistent with our spectroscopy experiments showing the absence of PLP binding in FnYggS-SeMet. Instead, a sulfate ion was observed in the PLP-binding site of FnYggS. This sulfate ion was coordinated by the hydroxyl oxygen atom of Ser201 (2.7 Å), the nitrogen atom of Ser201 (3.0 Å), the nitrogen atom of Gly218 (2.8 Å), and the nitrogen atom of Thr219 (2.9 Å) (Figure 3B). Interestingly, the position of the sulfate ion in FnYggS-SeMet was almost the same as that of the phosphate group of PLP in the EcYggS structure (Figure 3C). This result indicates that the sulfate ion in FnYggS-SeMet is positioned to provide the binding moiety, as is the phosphate group in PLP. On the other hand, PLP was not bound to FnYggS-SeMet (Figure 1). These results indicate that the substitution of the SeMet residue interferes with the binding of PLP. FnYggS contains seven methionine residues, among which Met200 is located at the PLP-binding site and is downstream of Ser201, which is involved in PLP binding. During structural refinement, the side chain of SeMet200 showed two distinct conformations (Figure 3C). In particular, one methionine residue was oriented toward the PLP-binding pocket (Figure 3C).
Among the phosphate-binding residues, Ser201 is a conserved amino acid in YggS proteins (Figure 2D), and compared to other residues, it is tightly bound to the sulfate group (Figure 3B). Ser201 of FnYggS was substituted with an alanine residue (abbreviated FnYggS-S201A) through mutagenesis to determine whether Ser201 of FnYggS is responsible for PLP binding. The purified FnYggS-S201A solution was not yellow, indicating that PLP was not bound (Figure 4A). To verify the absence of PLP binding, spectroscopic analysis was performed. The absorbance peak at approximately 420 nm indicated that bound PLP was not observed for FnYggS-S201A (Figure 4B), indicating that the conserved Ser201 residue of FnYggS is a key residue for PLP binding.
To confirm the binding affinity of PLP with FnYggS, FnYggS-S201A, and FnYggS-SeMet, microscale thermophoresis (MST) assays were used for quantitative analysis. The MST results revealed that wild-of FnYggS bound to PLP with a Kd of 9.03 μM; however, the binding affinity values of PLP with FnYggS-S201A were significantly decreased, with a Kd value of 223 μM (Figure 4C). The results indicated that FnYggS could bind to the PLP ligand and that Ser201 played crucial roles in the binding of PLP and FnYggS. These results were consistent with the spectroscopic analysis results mentioned above.
Next, the PLP-binding site of FnYggS was compared with those in ScP007 (PLP-bound state), EcYggS (PLP-bound state), SePipY (PLP-bound state), and BaPipY (PLP-unbound state). The binding pockets of YggS proteins are commonly positively charged, but the PLP-binding pocket of each YggS protein has not only a unique shape but also a distinct size (Figure 5). In the PLP-unbound state, FnYggS contains a wider PLP-binding pocket than other YggS proteins, but we concluded that the size of the PLP-binding pocket in FnYggS is changed upon binding of the PLP molecule.

3. Materials and Methods

3.1. Protein Preparation

The genomic DNA of F. nucleatum was used as a template. The gene encoding FnYggS (UniProt: A0A117MW82, residues 1–223) was cloned into the expression vector pET-28a(+) (Invitrogen, Waltham, MA, USA) at the NcoI and XhoI restriction sites. The expression and purification of FnYggS have been previously described [32]. Site-directed mutagenesis for FnYggS-S201A was performed using two subsequent PCRs. The mutant sequence was confirmed through DNA sequencing, and the expression and purification of the recombinant protein were found to be the same as those of native FnYggS.

3.2. Analysis of PLP Binding

PLP binding to FnYggS was verified by absorbance measurements using ultraviolet–visible (UV-Vis-2450) spectroscopy (Shimadzu Corporation). Native FnYggS (0.15 mM), SeMet-derivatized FnYggS (0.15 mM), or FnYggS-S201A (0.15 mM) (200 μL each) were added to cuvettes, and the absorbance was measured at room temperature across the wavelength range of 250–600 nm.

3.3. Crystallization, Data Collection, and Structural Determination

Crystallization and preliminary X-ray analysis of FnYggS have been published previously [32]. The structure of FnYggS was determined by single-wavelength anomalous diffraction (SAD). X-ray diffraction datasets were collected on beamline 5C at Pohang Light Source II (PLS-II, Pohang, Republic of Korea) at −173.15 °C. The data were then indexed, integrated, and scaled using the HKL2000 software suite [33]. The visualization of the electron density maps and the manual rebuilding of the atomic model were performed using the program COOT [34]. Refinement was performed using the PHENIX package [35]. Then, cycles of structural refinement were carried out using PHENIX refinement in the PHENIX package [35]. The geometry of the final model was validated with MolProbity [36]. The refinement statistics are provided in Table 1. Surface conservation within the YggS family of proteins was calculated using the Consurf server [37]. All structural figures were generated with PyMOL [38]. Multiple sequence alignment was performed using the Clustal Omega server [39].

3.4. Size Exclusion Chromatography

The oligomeric state of FnYggS was assessed by performing size exclusion chromatography with a Superdex 200 10/600 GL column (GE Healthcare, Chicago, IL, USA). A microsyringe was used to inject 500 μL of purified FnYggS (0.5 mg mL−1) into the column. The column was pre-equilibrated with a column buffer consisting of 20 mM HEPES (pH 8.0), 150 mM NaCl, and 2 mM BME, and the absorbance of the protein was monitored at 280 nm. The molecular weights of the eluted samples were calculated based on the calibration curves by several standard samples (Gel Filtration Markers Kit for Protein Molecular Weights 12,000–200,000 Da, Sigma–Aldrich, St. Louis, MO, USA), such as cytochrome c, carbonic anhydrase, albumin, alcohol dehydrogenase, β-amylase, and blue dextran.

3.5. Mutagenesis

The plasmids used for the expression of the FnYggS mutants, which were used in the analysis of PLP binding, were constructed by two subsequent PCRs. The first round of PCR was used to amplify the upstream mutated segment using the forward primer F 5′-GGG CCA TGG GCC ACC ATC ACC ATC ACC ATA TGA GTA TAA AAG CAA ATG TTG AAG-3′ and the reverse primer 5′-TAT CTT ATA ATC ACT AGC CAT TCC CAT TGA AAG-3′. The first round of PCR was used to amplify the downstream mutated segment using the forward primer 5′-CTT TCA ATG GGA ATG GCT AGT GAT TAT AAG ATA-3′ and the reverse primer R 5′-GGG CTC GAG TTA TTT AAA AAT TTT TGT TCC AAC-3′. The second round of PCR introduced an overhang using DNA fragments generated in the first round of PCR as templates and the primers F and R, and they were cloned into the expression vector pET-28a(+) (Invitrogen, USA) at the NcoI and XhoI restriction sites. Furthermore, the plasmids were transformed into E. coli BL21 (DE3) cells that were cultured in Luria-Bertani (LB) medium. The FnYggS mutant was expressed and purified by a method similar to that used for native FnYggS.

3.6. Microscale Thermophoresis

The affinities of the YggS and YggS variants for the ligand PLP were measured by MST. Briefly, the binding reactions contained 20 mM Tris-HCl (pH 7.5), 150 mM NaCl, 10 mM MgCl2, and 0.05% (v/v) Tween-20 in a total volume of 20 μL. The FnYggS and FnYggS-S201A proteins without PLP were cultured in M9 medium, using methionine instead of L-(+)-selenomethionine (SeMet). For the binding reaction, different concentrations of ligand (PLP) and a constant concentration of YggS labeled with RED-NHS (MonolithTM Series Protein Labeling Kit RED-NHS 2nd Generation, Nanotemper) were used. MST analysis was performed using standard capillaries from Nanotemper. MST analysis was performed on a Monolith NT.115 instrument (Nanotemper Technologies) using 20% LED and 40% MST power at room temperature. The Kd was calculated by taking the average of triplicate F norm measurements at each concentration from three independent MST measurements. Data analyses were performed using Nanotemper Analysis software, v 2.3.

Author Contributions

Y.X., K.H.N. and C.Q. conceived the study and designed the experiments; Y.C. and L.W. performed crystallization and solved the structure. S.H., Y.C., L.W., X.B., T.B. and J.Z. performed the experiments for the in vitro binding assay. Y.X. and K.H.N. analyzed the data. S.H., Y.X. and K.H.N. wrote the manuscript; M.L., N.-C.H. and C.Q. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Natural Science Foundation of Liaoning Province (grant no. 2019-MS-065 to Y.X.) and the National Research Foundation of Korea (grant No. NRF-2017M3A9F6029736; NRF-2020M3H1A1075314; NRF-2021R1I1A1A01050838 to K.H.N.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The atomic coordinates and structural factors for FnYggS (PDB ID: 7YGF) have been deposited in the Protein Data Bank.

Acknowledgments

The authors acknowledge the staff at beamline 5C at Pohang Light Source II (PLS-II, Pohang, Republic of Korea) for their help with data collection.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Han, Y.W. Fusobacterium nucleatum: A commensal-turned pathogen. Curr. Opin. Microbiol. 2015, 23, 141–147. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Stokowa-Soltys, K.; Wojtkowiak, K.; Jagiello, K. Fusobacterium nucleatum-Friend or foe? J. Inorg. Biochem. 2021, 224, 111586. [Google Scholar] [CrossRef] [PubMed]
  3. Signat, B.; Roques, C.; Poulet, P.; Duffaut, D. Fusobacterium nucleatum in periodontal health and disease. Curr. Issues Mol. Biol. 2011, 13, 25–36. [Google Scholar] [PubMed]
  4. Han, Y.W.; Ikegami, A.; Rajanna, C.; Kawsar, H.I.; Zhou, Y.; Li, M.; Sojar, H.T.; Genco, R.J.; Kuramitsu, H.K.; Deng, C.X. Identification and characterization of a novel adhesin unique to oral fusobacteria. J. Bacteriol. 2005, 187, 5330–5340. [Google Scholar] [CrossRef] [Green Version]
  5. Kumar, A.; Thotakura, P.L.; Tiwary, B.K.; Krishna, R. Target identification in Fusobacterium nucleatum by subtractive genomics approach and enrichment analysis of host-pathogen protein-protein interactions. BMC Microbiol. 2016, 16, 84. [Google Scholar] [CrossRef] [Green Version]
  6. Strauss, J.; Kaplan, G.G.; Beck, P.L.; Rioux, K.; Panaccione, R.; Devinney, R.; Lynch, T.; Allen-Vercoe, E. Invasive potential of gut mucosa-derived Fusobacterium nucleatum positively correlates with IBD status of the host. Inflamm. Bowel. Dis. 2011, 17, 1971–1978. [Google Scholar] [CrossRef]
  7. Heckmann, J.G.; Lang, C.J.; Hartl, H.; Tomandl, B. Multiple brain abscesses caused by Fusobacterium nucleatum treated conservatively. Can. J. Neurol. Sci. 2003, 30, 266–268. [Google Scholar] [CrossRef]
  8. Han, Y.W.; Fardini, Y.; Chen, C.; Iacampo, K.G.; Peraino, V.A.; Shamonki, J.M.; Redline, R.W. Term stillbirth caused by oral Fusobacterium nucleatum. Obstet. Gynecol. 2010, 115, 442–445. [Google Scholar] [CrossRef] [Green Version]
  9. Wells, C.D.; Balan, V.; Smilack, J.D. Pyogenic liver abscess after colonoscopy in a patient with ulcerative colitis. Clin. Gastroenterol. Hepatol. 2005, 3, 24. [Google Scholar] [CrossRef]
  10. Storm, J.C.; Ford, B.A.; Streit, J.A. Myocardial infection due to Fusobacterium nucleatum. Diagn. Microbiol. Infect. Dis. 2013, 77, 373–375. [Google Scholar] [CrossRef]
  11. Hill, G.B. Preterm birth: Associations with genital and possibly oral microflora. Ann. Periodontol. 1998, 3, 222–232. [Google Scholar] [CrossRef]
  12. Liu, H.; Hong, X.L.; Sun, T.T.; Huang, X.W.; Wang, J.L.; Xiong, H. Fusobacterium nucleatum exacerbates colitis by damaging epithelial barriers and inducing aberrant inflammation. J. Dig. Dis. 2020, 21, 385–398. [Google Scholar] [CrossRef]
  13. Han, Y.W.; Redline, R.W.; Li, M.; Yin, L.; Hill, G.B.; McCormick, T.S. Fusobacterium nucleatum induces premature and term stillbirths in pregnant mice: Implication of oral bacteria in preterm birth. Infect. Immun. 2004, 72, 2272–2279. [Google Scholar] [CrossRef] [Green Version]
  14. Zhang, S.; Cai, S.; Ma, Y. Association between Fusobacterium nucleatum and colorectal cancer: Progress and future directions. J. Cancer. 2018, 9, 1652–1659. [Google Scholar] [CrossRef] [Green Version]
  15. Yu, M.R.; Kim, H.J.; Park, H.R. Fusobacterium nucleatum Accelerates the Progression of Colitis-Associated Colorectal Cancer by Promoting EMT. Cancers 2020, 12, 2728. [Google Scholar] [CrossRef]
  16. Wang, H.F.; Li, L.F.; Guo, S.H.; Zeng, Q.Y.; Ning, F.; Liu, W.L.; Zhang, G. Evaluation of antibody level against Fusobacterium nucleatum in the serological diagnosis of colorectal cancer. Sci. Rep. 2016, 6, 33440. [Google Scholar] [CrossRef] [Green Version]
  17. Mehta, R.S.; Nishihara, R.; Cao, Y.; Song, M.; Mima, K.; Qian, Z.R.; Nowak, J.A.; Kosumi, K.; Hamada, T.; Masugi, Y.; et al. Association of Dietary Patterns with Risk of Colorectal Cancer Subtypes Classified by Fusobacterium nucleatum in Tumor Tissue. JAMA Oncol. 2017, 3, 921–927. [Google Scholar] [CrossRef] [Green Version]
  18. Batty, A.; Wren, M.W.; Gal, M. Fusobacterium necrophorum as the cause of recurrent sore throat: Comparison of isolates from persistent sore throat syndrome and Lemierre’s disease. J. Infect. 2005, 51, 299–306. [Google Scholar] [CrossRef]
  19. Li, Y.Y.; Ge, Q.X.; Cao, J.; Zhou, Y.J.; Du, Y.L.; Shen, B.; Wan, Y.J.; Nie, Y.Q. Association of Fusobacterium nucleatum infection with colorectal cancer in Chinese patients. World J. Gastroenterol. 2016, 22, 3227–3233. [Google Scholar] [CrossRef]
  20. Bullman, S.; Pedamallu, C.S.; Sicinska, E.; Clancy, T.E.; Zhang, X.; Cai, D.; Neuberg, D.; Huang, K.; Guevara, F.; Nelson, T.; et al. Analysis of Fusobacterium persistence and antibiotic response in colorectal cancer. Science 2017, 358, 1443–1448. [Google Scholar] [CrossRef] [Green Version]
  21. Merrill, A.H.; Henderson, J.M. Vitamin B6 Metabolism by Human Liver. Ann. N. Y. Acad. Sci. 1990, 585, 110–117. [Google Scholar] [CrossRef]
  22. Prunetti, L.; El Yacoubi, B.; Schiavon, C.R.; Kirkpatrick, E.; Huang, L.; Bailly, M.; El Badawi-Sidhu, M.; Harrison, K.; Gregory, J.F.; Fiehn, O.; et al. Evidence that COG0325 proteins are involved in PLP homeostasis. Microbiology 2016, 162, 694–706. [Google Scholar] [CrossRef]
  23. Kiruba, G.S.M.; Wong, M.W. Tautomeric Equilibria of Pyridoxal-5‘-phosphate (Vitamin B6) and 3-Hydroxypyridine Derivatives: A Theoretical Study of Solvation Effects. J. Org. Chem. Res. 2003, 68, 2874–2881. [Google Scholar] [CrossRef]
  24. Ubbink, J.B.; Serfontein, W.J.; De Villiers, L.S. Stability of pyridoxal-5-phosphate semicarbazone: Applications in plasma vitamin B6 analysis and population surveys of vitamin B6 nutritional status. J. Chromatogr. B Biomed. Appl. 1985, 342, 277–284. [Google Scholar] [CrossRef]
  25. Labella, J.I.; Cantos, R.; Espinosa, J.; Forcada-Nadal, A.; Rubio, V.; Contreras, A. PipY, a Member of the Conserved COG0325 Family of PLP-Binding Proteins, Expands the Cyanobacterial Nitrogen Regulatory Network. Front. Microbiol. 2017, 8, 1244. [Google Scholar] [CrossRef] [Green Version]
  26. Darin, N.; Reid, E.; Prunetti, L.; Samuelsson, L.; Husain, R.A.; Wilson, M.; El Yacoubi, B.; Footitt, E.; Chong, W.K.; Wilson, L.C.; et al. Mutations in PROSC Disrupt Cellular Pyridoxal Phosphate Homeostasis and Cause Vitamin-B6-Dependent Epilepsy. Am. J. Hum. Genet. 2016, 99, 1325–1337. [Google Scholar] [CrossRef] [Green Version]
  27. Tremiño, L.; Forcada-Nadal, A.; Contreras, A.; Rubio, V. Studies on cyanobacterial protein PipY shed light on structure, potential functions, and vitamin B6-dependent epilepsy. FEBS Lett. 2017, 591, 3431–3442. [Google Scholar] [CrossRef]
  28. Eswaramoorthy, S.; Gerchman, S.; Graziano, V.; Kycia, H.; Studier, F.W.; Swaminathan, S. Structure of a yeast hypothetical protein selected by a structural genomics approach. Acta Crystallogr. D Biol. Crystallogr. 2002, 59, 127–135. [Google Scholar] [CrossRef]
  29. Knight, A.M.; Nobili, A.; van den Bergh, T.; Genz, M.; Joosten, H.-J.; Albrecht, D.; Riedel, K.; Pavlidis, I.V.; Bornscheuer, U.T. Bioinformatic analysis of fold-type III PLP-dependent enzymes discovers multimeric racemases. Appl. Microbiol. Biotechnol. 2016, 101, 1499–1507. [Google Scholar] [CrossRef] [Green Version]
  30. Denesyuk, A.I.; Denessiouk, K.A.; Korpela, T.; Johnson, M.S. Phosphate group binding “cup” of PLP-dependent and non-PLP-dependent enzymes: Leitmotif and variations. Biochim. Biophys. Acta-Proteins Proteom. 2003, 1647, 234–238. [Google Scholar] [CrossRef]
  31. Holm, L.; Park, J. DaliLite workbench for protein structure comparison. Bioinformatics 2000, 16, 566–567. [Google Scholar] [CrossRef] [PubMed]
  32. He, S.; Yuan, C.; Bai, X.; Bu, T.; Zhang, J.; Wang, L.; Quan, C.; Xu, Y. Pyridoxal phosphate homeostasis protein FnYggS from Fusobacterium nucleatum: Purification, crystallization, and X-ray crystallographic analysis. Biodesign 2022, 10, 34–38. [Google Scholar] [CrossRef]
  33. Otwinowski, Z.; Minor, W. Processing of X-ray diffraction data collected in oscillation mode. Methods Enzymol. 1997, 276, 307–326. [Google Scholar] [CrossRef] [PubMed]
  34. Emsley, P.; Cowtan, K. Coot: Model-building tools for molecular graphics. Acta Crystallogr. D Biol. Crystallogr. 2004, 60, 2126–2132. [Google Scholar] [CrossRef] [Green Version]
  35. Liebschner, D.; Afonine, P.V.; Baker, M.L.; Bunkoczi, G.; Chen, V.B.; Croll, T.I.; Hintze, B.; Hung, L.W.; Jain, S.; McCoy, A.J.; et al. Macromolecular structure determination using X-rays, neutrons and electrons: Recent developments in Phenix. Acta Crystallogr. D Struct. Biol. 2019, 75, 861–877. [Google Scholar] [CrossRef] [Green Version]
  36. Williams, C.J.; Headd, J.J.; Moriarty, N.W.; Prisant, M.G.; Videau, L.L.; Deis, L.N.; Verma, V.; Keedy, D.A.; Hintze, B.J.; Chen, V.B.; et al. MolProbity: More and better reference data for improved all-atom structure validation. Protein Sci. 2018, 27, 293–315. [Google Scholar] [CrossRef]
  37. Ashkenazy, H.; Abadi, S.; Martz, E.; Chay, O.; Mayrose, I.; Pupko, T.; Ben-Tal, N. ConSurf 2016: An improved methodology to estimate and visualize evolutionary conservation in macromolecules. Nucleic Acids Res. 2016, 44, W344–W350. [Google Scholar] [CrossRef] [Green Version]
  38. The PyMOL Molecular Graphics System, Version 1.8; Schrödinger: New York, NY, USA, 2002; Available online: https://pymol.org/2/ (accessed on 1 June 2022).
  39. Sievers, F.; Wilm, A.; Dineen, D.; Gibson, T.J.; Karplus, K.; Li, W.; Lopez, R.; McWilliam, H.; Remmert, M.; Soding, J.; et al. Fast, scalable generation of high-quality protein multiple sequence alignments using Clustal Omega. Mol. Syst. Biol. 2011, 7, 539. [Google Scholar] [CrossRef]

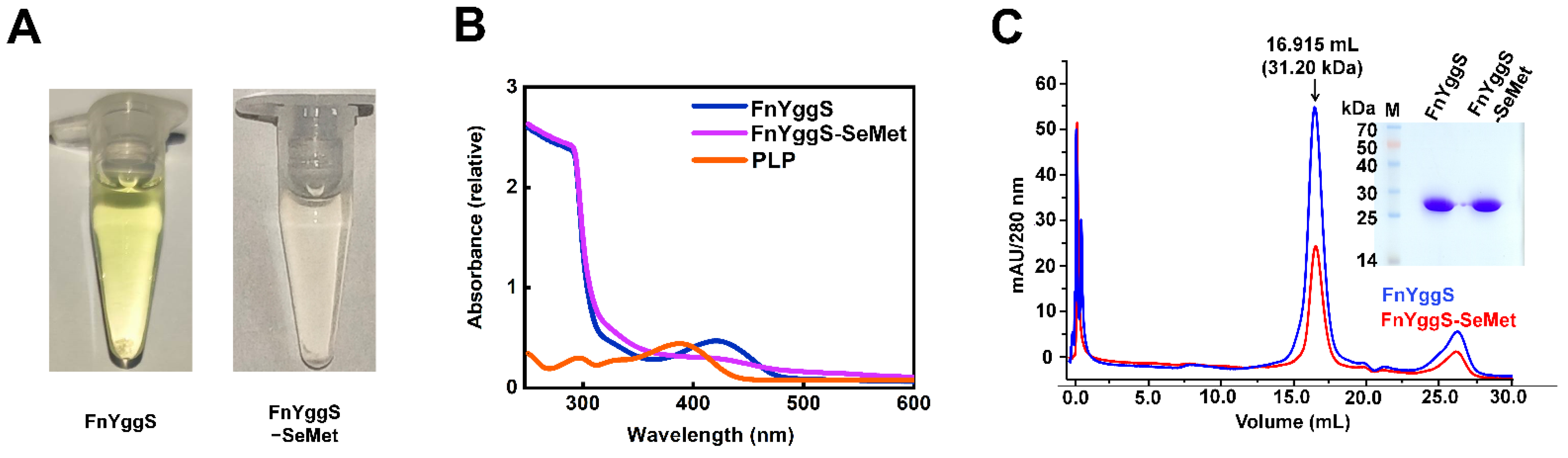

Figure 1. Characterization of PLP binding to FnYggS. (A) The FnYggS and FnYggS-SeMet solutions were yellow and colorless, respectively. (B) Native FnYggS exhibited an absorption peak at 425 nm due to PLP binding, whereas FnYggS-SeMet did not exhibit an absorption peak, indicating the absence of PLP binding. The absorption peak of PLP was seen at 380 nm. (C) Purified native and SeMet-derivatized FnYggS solutions and size exclusion chromatography results. Both proteins existed as monomers in solution.
Figure 1. Characterization of PLP binding to FnYggS. (A) The FnYggS and FnYggS-SeMet solutions were yellow and colorless, respectively. (B) Native FnYggS exhibited an absorption peak at 425 nm due to PLP binding, whereas FnYggS-SeMet did not exhibit an absorption peak, indicating the absence of PLP binding. The absorption peak of PLP was seen at 380 nm. (C) Purified native and SeMet-derivatized FnYggS solutions and size exclusion chromatography results. Both proteins existed as monomers in solution.
Molecules 27 04781 g001

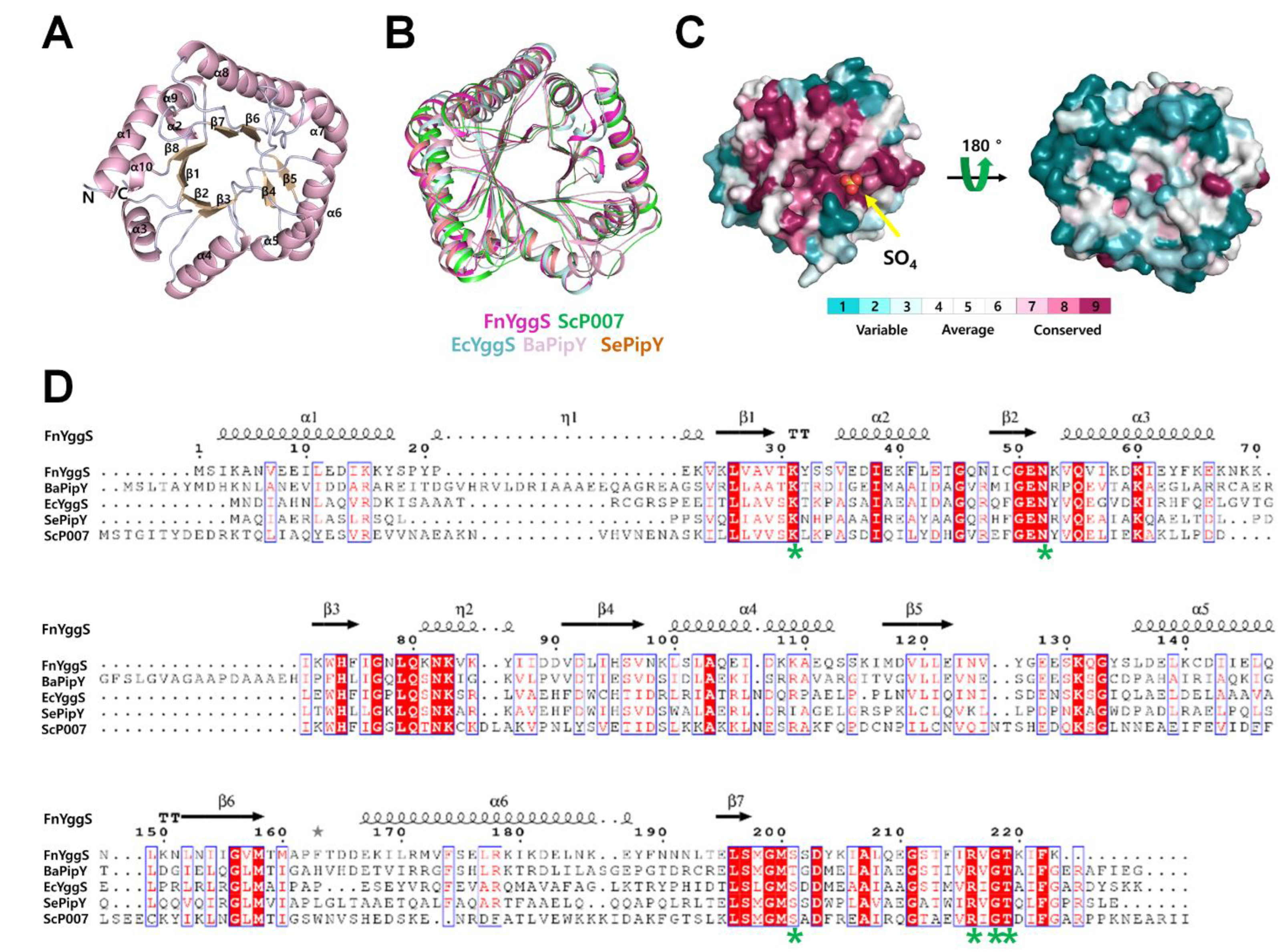

Figure 2. Crystal structure of FnYggS. (A) Cartoon representation of the FnYggS monomer consisting of a typical TIM barrel fold. (B) Superimposition of FnYggS (purple, PDB ID: 7YGF) onto ScP007 (green, PDB ID: 1B54), EcYggS (blue, 1W8G), BaPipY (pink, 3CPG), and SePipY (brown, 5NM8). (C) Surface conservation of PipY proteins. The PLP-binding site showed high conservation, whereas other regions were not conserved. The PLP-binding site is indicated by the yellow arrow. (D) Sequence alignment of FnYggS (UniProt accession no. Q8RFW9) with BaPipY (A1A3G9), EcYggS (P67080), SePipY (Q31LH9), and ScP007 (P38197). The residues forming the PLP-binding site are indicated by the green asterisks.
Figure 2. Crystal structure of FnYggS. (A) Cartoon representation of the FnYggS monomer consisting of a typical TIM barrel fold. (B) Superimposition of FnYggS (purple, PDB ID: 7YGF) onto ScP007 (green, PDB ID: 1B54), EcYggS (blue, 1W8G), BaPipY (pink, 3CPG), and SePipY (brown, 5NM8). (C) Surface conservation of PipY proteins. The PLP-binding site showed high conservation, whereas other regions were not conserved. The PLP-binding site is indicated by the yellow arrow. (D) Sequence alignment of FnYggS (UniProt accession no. Q8RFW9) with BaPipY (A1A3G9), EcYggS (P67080), SePipY (Q31LH9), and ScP007 (P38197). The residues forming the PLP-binding site are indicated by the green asterisks.
Molecules 27 04781 g002
Figure 3. PLP-binding site and mutagenesis of FnYggS. (A) Electrostatic surface of the PLP-binding site of FnYggS. (B) The sulfate ion in the PLP-binding pocket of FnYggS is coordinated by Ser201, Gly218, and Thr219. (C) Superimposition of the PLP-binding site of FnYggS (purple) onto PLP-bound EcYggS (cyan, PDB ID: 1W8G).
Figure 3. PLP-binding site and mutagenesis of FnYggS. (A) Electrostatic surface of the PLP-binding site of FnYggS. (B) The sulfate ion in the PLP-binding pocket of FnYggS is coordinated by Ser201, Gly218, and Thr219. (C) Superimposition of the PLP-binding site of FnYggS (purple) onto PLP-bound EcYggS (cyan, PDB ID: 1W8G).
Molecules 27 04781 g003
Figure 4. (A) Purification and (B) spectroscopic analysis of FnYggS (blue) and FnYggS-S201A (green), indicating that Ser201 is critical for PLP binding. (C) The binding affinity of FnYggS or FnYggS-S201A and PLP was measured by MST.
Figure 4. (A) Purification and (B) spectroscopic analysis of FnYggS (blue) and FnYggS-S201A (green), indicating that Ser201 is critical for PLP binding. (C) The binding affinity of FnYggS or FnYggS-S201A and PLP was measured by MST.
Molecules 27 04781 g004
Figure 5. Electrostatic surface of the PLP-binding pocket of (A) ScP007 (PDB ID: 1B54), (B) EcYggS (1W8G), (C) BaPipY (3CPG), and (D) SePipY (5NM8).
Figure 5. Electrostatic surface of the PLP-binding pocket of (A) ScP007 (PDB ID: 1B54), (B) EcYggS (1W8G), (C) BaPipY (3CPG), and (D) SePipY (5NM8).
Molecules 27 04781 g005
Table 1. Data collection and refinement statistics for DendFP.
Table 1. Data collection and refinement statistics for DendFP.
Data CollectionFnYggS
Diffraction sourceBeamline 5A, PLS-II
Wavelength0.9793
DetectorADSC Q315r CCD
Rotation range per image (°)1
Total rotation range (°)360
Exposure time per image (s)0.5
Space groupP21
Cell dimensions
a, b, c (Å)37.929, 146.375, 74.128
Resolution (Å)36.59–2.08
Completeness96.03 (86.73)
Redundancy4.2 (2.7)
I/σ(I)27.1304 (4.33)
Rsym (%)27.1 (60.7)
Refinement statistics
Rwork (%)18.39 (19.59)
Rfree (%)21.77 (22.86)
B-factor (Averaged)
Protein28.83
R.m.s. deviations
Bond lengths (Å)0.009
Bond angles (°)1.23
Ramachandran plot (%)
favored97.59
allowed2.26
disallowed regions0.15
PDB code7YGF
Values in parentheses are for the outermost shell.
