A Multifunctional N-Doped Cu–MOFs (N–Cu–MOF) Nanomaterial-Driven Electrochemical Aptasensor for Sensitive Detection of Deoxynivalenol

Abstract

Deoxynivalenol (DON) is one of the most common mycotoxins in grains, causing gastrointestinal inflammation, neurotoxicity, hepatotoxicity and embryotoxicity, even at a low quantity. In this study, a facile electrochemical aptasensor was established for the rapid and sensitive determination of DON based on a multifunctional N-doped Cu-metallic organic framework (N–Cu–MOF) nanomaterial. The N–Cu–MOF, with a large specific surface area and good electrical conductivity, served not only as an optimal electrical signal probe but also as an effective supporting substrate for stabilizing aptamers through the interactions of amino (-NH₂) and copper. Under the optimal conditions, the proposed sensor provided a wide linear concentration range of 0.02–20 ng mL⁻¹ (R² = 0.994), showing high sensitivity, with a lower detection limit of 0.008 ng mL⁻¹, and good selectivity. The sensor’s effectiveness was also verified in real spiked wheat samples with satisfactory recoveries of 95.6–105.9%. The current work provides a flexible approach for the rapid and sensitive analysis of highly toxic DON in food samples and may also be easily extended to detect other hazardous substances with alternative target-recognition aptamers.

1. Introduction

Deoxynivalenol (DON), a toxic secondary metabolite produced by the Fusarium genus, is one of the most frequently found mycotoxins in various foodstuffs, particularly wheat. DON is also called the vomiting toxin and results in acute and chronic toxicities in humans and animals, even at low concentrations. Symptoms include diarrhea, vomiting, gastrointestinal inflammation, anorexia, neurotoxicity and embryotoxicity [1,2,3]. To protect human health, the European Union (EU) has established a maximum DON limit of 1750 µg kg⁻¹ both in wheat and maize, and the US Food and Drug Administration (FDA) has suggested an action level of 1000 µg kg⁻¹ for DON in foods intended for human consumption [4,5]. Therefore, it is critical to develop a sensitive and rapid detection method to monitor DON in food.

A wide range of chromatographic approaches has been established for the detection of DON, including gas chromatography (GC) [6], high-performance liquid chromatography (HPLC) [7] and liquid chromatography-mass spectrometry (LC–MS) [8,9]. These methods are highly sensitive, accurate, and reliable. However, most are time-consuming and require complex sample preprocessing procedures, professional instrument operators, and expensive equipment. To solve these problems, rapid detection techniques for DON are emerging, such as enzyme-linked immunosorbent assay (ELISA) [10], lateral flow immunoassay (LFI) [11], dual near-infrared fluorescence-based lateral flow immunosensor [12], immunochromatographic test strip [13], multiplex luminescent detection [14] and electrochemical biosensors. Among these, electrochemical biosensors have received increasing attention due to the advantages of simple operation, high sensitivity, low cost and portability. As an effective recognition element in electrochemical biosensors, aptamers are widely used and have the advantages of specific recognition of target, simple synthesis, cost-effectiveness, good stability, and convenient storage [15].

The concentrations of DON are frequently low in crops, and therefore, subsurface materials that can enlarge the surface area, improve the conductivity and steadily immobilize a large number of aptamers are essential for constructing sensitive and selective immunosensors. A metallic organic framework (MOF) is a crystalline material composed of inorganic metal centers (metal ions, clusters) assembled with organic ligands. It has a large surface area, high porosity, excellent catalytic performance, rich active sites, and an unrivaled degree of tunability [16]. A variety of MOF materials have been applied to construct electrochemical sensors, including copper-based MOF (Cu–MOF) [17], zirconium-based MOF [18], nickel-based MOF [19] and cobalt-based MOF [20]. Among these, Cu–MOF, due to its superior electrocatalytic features [21] and excellent electrical signals generated from the variable valence of Cu [22], has been extensively applied in electrochemical sensors for the detection of glucose, hepatitis B virus DNA, patulin, etc. [23,24,25]. However, these Cu–MOF crystals frequently show irregular shapes, large particle sizes and poor conductivity. To further endow additional functionalities and improve its performance, the modification of Cu–MOF (by the introduction of heteroatoms, functional groups, and metal ions) is an effective strategy [26]. Cu–MOF doped with nitrogen (N–Cu–MOF), as a novel material, has attracted increasing attention due to its controllable architectural excellence, well-defined order and high electrochemical activity [27]. However, sensors using N–Cu–MOF have rarely been reported and remain at an early stage.

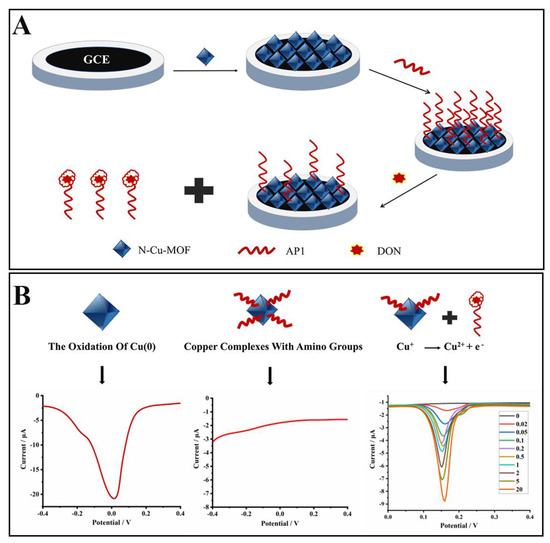

In the current research, a novel N–Cu–MOF-based aptasensor was successfully developed for the quick, highly sensitive and selective detection of DON (Figure 1). For the first time, N–Cu–MOF was not only used as an effective supporting material, which facilitated accommodation with a large number of aptamers, thus greatly improving the stability and the selectivity, but also served as an electrochemical probe with excellent electrical signals, significantly enhancing the sensitivity of the established sensor. The current work is expected to provide a promising and novel strategy for the construction of aptasensors with good performance for DON detection, which also could be easily extended to other hazardous compounds.

2. Results

2.1. Characterization of the N–Cu–MOF

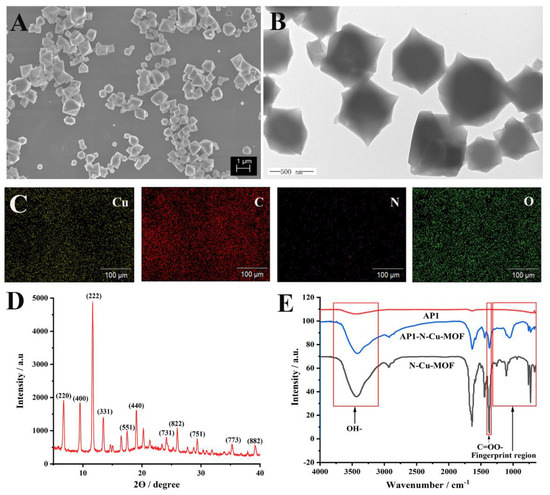

The morphology and microstructures of the N–Cu–MOF were characterized by scanning electron microscope (SEM) and transmission electron microscope (TEM). The prepared N–Cu–MOF nanoparticles with regular octahedral crystal structures were uniformly distributed (Figure 2A,B). In AP1/N–Cu–MOF (Figure S1), DNA molecules are clearly located on the scaffolds of N–Cu–MOF, resulting in vague crystal edges. The average diameter of the N–Cu–MOF crystallite was roughly 540 nm. In the element mapping image of N–Cu–MOF (Figure 2C), Cu, C, N and O elements were clearly observed, indicating the successful incorporation of nitrogen elements into the synthesized nanoparticles. In addition, the X-ray powder diffraction (XRD) pattern of N–Cu–MOF (Figure 2D) presented the characteristic peaks at 2θ = 11.6°, 13.4°, 19.0° and 23.3°, which were consistent with the previously reported HKUST-1-type Cu-based MOF crystals, with the exception of some changes of Bragg intensities [27]. The high diffraction intensities and sharp peaks in XRD patterns of N–Cu–MOF (Figure 2D) confirmed the high crystallinity of the synthesized nanomaterials, indicating that the framework structure of Cu–MOF was not destroyed by the introduction of poly(vinylpyrrolidone) (PVP) in the preparation stage [28].

Furthermore, the Fourier-transform infrared (FT-IR) spectra of PVP, ligand 1,3,5-benzenetricarboxylic acid (H₃BTC) and N–Cu–MOF were investigated, as shown in Figure S2. The effective coordination of the carboxylate moiety of the H₃BTC ligand with metal ions was confirmed by the asymmetric (1639 and 1446 cm⁻¹) and symmetric (1368 cm⁻¹) vibrations of the C=OO- group in N–Cu–MOF. In addition, compared with PVP, it was observed that N–Cu–MOF had analog characteristic bands at 2750–3080 cm⁻¹ (C-H stretching). The bands in the regions of 3100–3800 cm⁻¹ and 729–761 cm⁻¹ were assigned to the OH-bond stretching of the surface’s active carbon and the phenyl C-H bending, respectively. All of these results matched well with those of reported HKUST-1 crystals [27,29], demonstrating the successful preparation of N–Cu–MOF.

FT-IR was also employed to confirm the interactions between AP1 and N–Cu–MOF (Figure 2E). The fingerprint region (1300–650 cm⁻¹) in the infrared spectrum of AP1–N–Cu–MOF was significantly different from that of N–Cu–MOF and AP1, proving the successful complexation of the aptamer and N–Cu–MOF [30]. The FT-IR absorption peaks at around 3100–3800 cm⁻¹ (OH-), 729–761 cm⁻¹ (C–H) and 1368 cm⁻¹ (C=OO-) were observed in AP1–N–Cu–MOF and N–Cu–MOF, verifying the good maintenance of the structure of N–Cu–MOF.

The influence of the amino groups and copper for the stabilization of the aptamers was further explained by investigating the UV-vis spectra of N–Cu–MOF, AP1 and AP1–N–Cu–MOF. A characteristic UV-vis absorption peak at 258 nm was clearly observed for AP1, whereas N–Cu–MOF showed no obvious UV-vis adsorptions (Figure S3). Regarding AP1–N–Cu–MOF, the typical peak of 258 nm was blue-shifted to 230 nm, verifying the complexion of the amino groups in AP1 with the copper in N–Cu–MOF for the stabilization of the aptamers.

X-ray photoelectron spectroscopy (XPS) measurements were also performed for AP1–N–Cu–MOF. Two peaks appeared at 933.6 and 953.4 eV, which corresponded to the 2p_3/2 and 2p_1/2 peaks of Cu⁺ and Cu (0), respectively (Figure S4).

Nitrogen adsorption–desorption analysis (Figure S5) was also carried out to determine the Brunauer–Emmett–Teller (BET)-specific surface area and pore size of N–Cu–MOF. The results showed that the BET-specific surface area and average pore size of N–Cu–MOF were 1855 m² g⁻¹ and 2.42 nm, respectively, verifying the large specific surface area of the synthesized nanomaterials, which could serve as an effective electrochemical sensing material.

2.2. Electrochemical Behaviors of Fabricated Electrodes

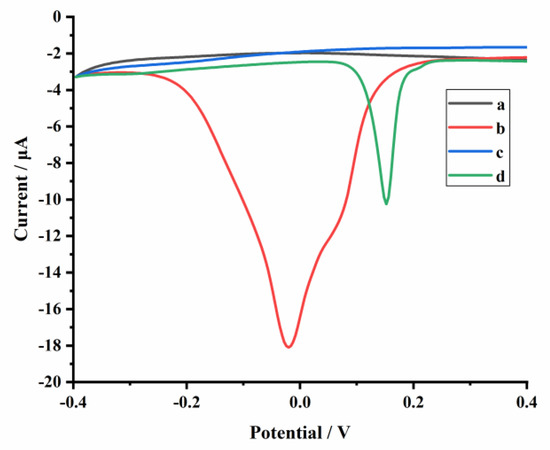

The electrochemical behaviors of the aptasensor were investigated in PBS (1 mmol L⁻¹, pH 5.0). As shown in Figure 3, compared to a bare glassy carbon electrode (GCE) (curve a), an obvious peak appeared at around −0.02 V when the GCE was modified with N–Cu–MOF nanoparticles (curve b), which was ascribed to the electrochemical oxidation of Cu (0) [31,32]. The electrical signal of N–Cu–MOF disappeared when the electrode was further assembled with aptamer (AP1) due to the complexation of amino groups (-NH₂) in AP1 with copper. After incubation of the AP1-grafted N–Cu–MOF/GCE into DON solution (10 ng mL^–1), a new oxidation peak at about 0.15 V appeared (curve d), implying the restoration of electrochemical activity of copper-based nanomaterial after the removal of AP1 from the N–Cu–MOF-modified electrode. The peak from 0.15 V belonged to the oxidation of Cu⁺: Cu⁺ →Cu²⁺ + e⁻, which is consistent with the previous publications [33]. The anodic peak may be related to the change of the valence state of Cu. The peak current at 0.15 V increased as the amount of the aptamer located on the electrode decreased, which was attributed to the nonconductive aptamer increasingly blocking the electron transfer by N–Cu–MOF. When detecting DON, aptamers were removed from N–Cu–MOF; thus, the signal appeared and was proportional to the concentration of DON.

2.3. Optimization of Assay Conditions

Several key parameters, including the amount of N–Cu–MOF and AP1, the incubation time of the aptasensor in the PBS buffer containing DON, and the PBS buffer’s pH value, were all thoroughly investigated to achieve optimal electrochemical performance.

The loading amount of N–Cu–MOF as supporting material and the electrical signal probe are critical to improving the electrochemical performance. Therefore, 5 µL of various concentrations of N–Cu–MOF solutions (2, 3, 4 and 5 mg mL⁻¹) were investigated to prepare the AP1/N–Cu–MOF/GCE electrode. The highest differential pulse voltammetry (DPV) response was obtained with 4 mg mL⁻¹ (Figure S6A). Then, 5 µL of different concentrations of AP1 solutions (4, 6, 8, 10 and 12 μmol L⁻¹) were also evaluated in 2 ng mL⁻¹ DON solution. As shown in Figure S6B, the DPV response reached the maximum value when the concentration of AP1 was 10 μmol L⁻¹. The pH value of electrolyte solution was also investigated, and the DPV measurement showed that the peak currents increased with the pH values from 4.0 to 5.0, then decreased from 5.0 to 8.0 (Figure S6C). The highest peak current was achieved at pH 5.0, which could be attributed to the proton-coupled electron transfer occurring in N–Cu–MOF [34]. As a result, pH 5.0 PBS was chosen as the optimal electrolyte solution for DON detection. When the established sensor was used for 2 ng mL⁻¹ DON detection, the DPV response magnified with the incubation time from 10 to 40 min and then reached a plateau (Figure S6D). Hence, 40 min was chosen as the optimal incubation time.

2.4. Analytical Performance of the Optimized Electrochemical Aptasensor

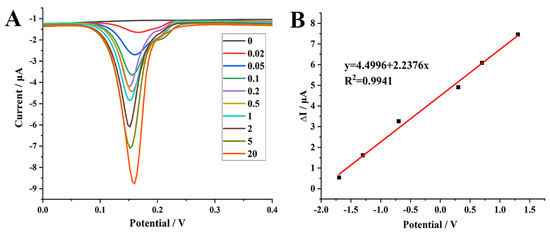

Under the optimal experimental conditions, the current responses increased gradually with the increase in DON level (Figure 4A). Furthermore, a good linear relationship was obtained between the change of the oxidation peak currents (ΔI) and the logarithm of DON concentrations in the range of 0.02–20 ng mL⁻¹ (Figure 4B). The linear regression equation was ΔI (μA) = 4.4996 + 2.2376 lgC_DON (ng mL⁻¹), with a correlation coefficient (R²) of 0.9941, and the detection limit was 0.008 ng mL⁻¹ (S/N = 3).

2.5. Selectivity and Reproducibility

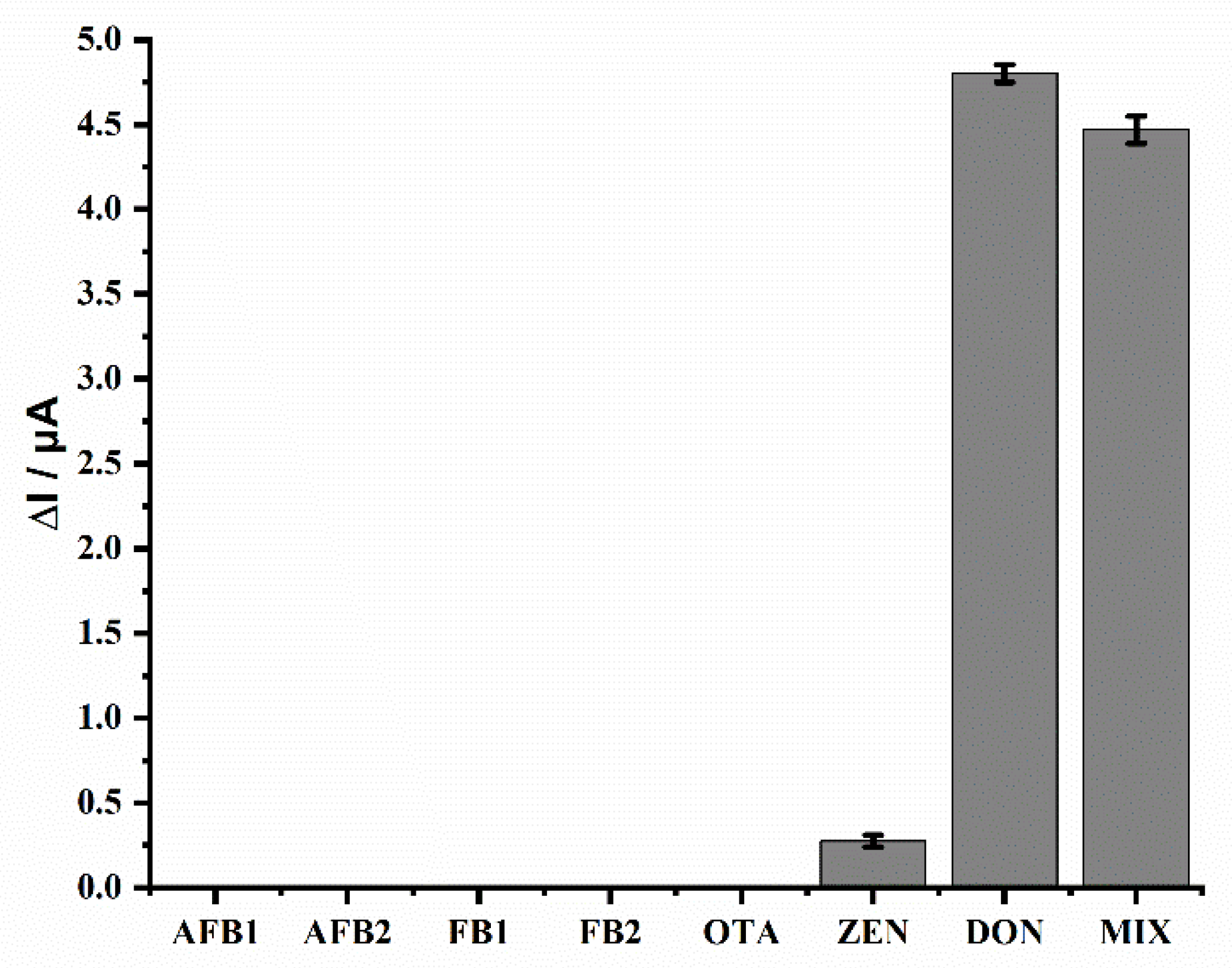

The selectivity of the electrochemical aptasensor was evaluated by the determination of DON and other frequently co-occurring mycotoxins, including aflatoxin B1 (AFB1), aflatoxin B2 (AFB2), fumonisin B1 (FB1), fumonisin B2 (FB2), zearalenone (ZEN) and ochratoxin A (OTA) [35]. The concentration of all analytes was 2 ng mL⁻¹. As shown in Figure 5, negligible signal responses were observed when different interferences were analyzed, indicating that these commonly co-existing mycotoxins have no significant effects on the N–Cu–MOF-based aptasensor. Considering that a sample may contain multiple mycotoxins, we also investigated the recognition performance of DON in the presence of various interfering substances. Even when different mycotoxins were mixed together, the influence of these interfering substances on the detection of DON was insignificant. These results indicate that the designed aptasensor possesses satisfactory selectivity for the detection of DON due to the high specific binding of AP1 to DON.

To prove the reliability of the established sensor, its reproducibility was also studied. The signal changes of the DPV measurements using five different batches of sensors modified with N–Cu–MOF were in the range of 15.56 μA–16.41 μA (Figure S7), with a relative standard deviation (RSD) of 2.1%. In addition, the DPV responses of five different AP1/N–Cu–MOF-modified electrodes to 2 ng mL⁻¹ DON were studied, and the RSD was 6.43%. All of these results confirmed the acceptable reproducibility of the established electrode. To further characterize the advantages, the proposed sensor was compared to the previously reported methods. Excellent analytical performance with much higher detection limit (LOD) values was obtained, as shown in

Table 1. Comparison of DON determination using different electrochemical sensors.

Materials	Signal Molecule	Bioreceptors	LOD	Linear Range	Ref
Gold nanoparticles and polypyrrole -electrochemically reduced graphene oxide nanocomposite film	[Fe (CN)6]3–/4–	Antibody	8.6 ng mL−1	100–4500 ng mL−1	[36]
Molecular imprinting	QD@SiO2	Molecular imprinting	35 ng mL−1	55–420 ng mL−1	[14]
Screen-printed gold electrode	[Fe (CN)6]3–/4–	Molecular imprinting	0.3 ng mL−1	5–500 ng mL−1	[37]
Polyaniline and gold nanoparticles	[Fe (CN)6]3–/4–	Aptamer	3.2 ng mL−1	0–50 ng mL−1	[38]
Iron nanoflorets graphene nickel	--	Aptamer	2.11 pg mL−1	1 fg mL−1– 1 ng mL−1	[39]
N–Cu–MOF	N–Cu–MOF	Aptamer	0.008 ng mL−1	0.02–20 ng mL−1	This work

. However, this aptasensor was not suitable for recycling, and reversible sensors will be investigated in our future research.

2.6. Applications to Real Samples

To further evaluate its feasibility, the AP1/N–Cu–MOF-based electrochemical sensor was applied to detect DON in real wheat samples. Blank wheat samples (DON-free) were spiked with different concentrations of DON (0.05, 0.5, 2.5, 5 μg kg⁻¹) in triplicate (n = 3), and three additional blank samples (DON-free) were tested as the control. As shown in

Table 2. DON recoveries in wheat samples analyzed by the proposed aptasensor platform (n = 3).

Analytes	Added (μg kg−1)	Found (μg kg1)	Recovery (%)	RSD (%)
DON	0.05	0.051	101.5	5.59
	0.50	0.530	105.9	3.54
	2.50	2.389	95.6	4.70
	5.00	4.990	99.8	6.01

, satisfactory recoveries in the range of 95.6–105.9% were obtained with RSDs of 3.54–6.01%, demonstrating the sensor’s feasibility and exhibiting a considerable application potential to detect DON in a complex sample matrix.

3. Materials and Methods

3.1. Materials and Instruments

H₃BTC was purchased from Shanghai Titan Technology Co. Ltd. (Adamas, Shanghai, China). PVP (average M.W. K17) was purchased from Beijing Bailingwei Technology Co., Ltd. (damas-beta, Beijing, China). Copper (II) nitrate (Cu (NO₃)₂·3H₂O), N, N-dimethylformamide (DMF, ≥99.8%) and sulfuric acid (H₂SO₄) were all obtained from Sigma-Aldrich Co. Ltd. (St Louis, MO, USA).

DON, AFB1, AFB2, FB1, FB2, ZEN and OTA were purchased from Sigma-Aldrich (St. Louis, MO, USA). Wheat samples were collected from Shanghai Pujiang Storage Co. Ltd. (Shanghai, China). The oligonucleotide sequence of the aptamers specific for DON was selected according to the previous reports [39]: 5′–C6–GCATCACTACAGTCATTACGCATCGTAGGGGGGATCGTTAAGGAAGTGCCCGGAGGCGGTATCGTGTGAAGTGCTGTCCC–3′ (AP1, specific for DON), which was synthesized by Sangon Biotech Co. Ltd. (Shanghai, China).

The synthesized nanomaterials were characterized by a ZEISS Sigma 500/VP SEM (Carl Zeiss AG Co., Jena, Germany) and a JEM-1200EX TEM (JEOL Ltd., Tokyo, Japan). XRD spectra were collected on a Bruker D8 Advance XRD (Bruker Technology Co., Ltd., Karlsruhe, Germany). The composition of the synthesized nanomaterials was analyzed by energy dispersive spectroscopy (EDS, Thermo Fisher Scientific Inc., Bartlesville, OK, USA). Nicolet iS10 FT-IR (Thermo Fisher Scientific Inc.) was used to determine the functional group in the chemical structure of the synthesized materials at the frequency range of 500–4000 cm⁻¹. Nitrogen adsorption–desorption analysis was performed using an automated gas sorption analyzer (Autosorb-IQ, Konta Instruments Inc., Florida, FL, USA). UV-vis absorption spectroscopy was performed on a NanoDrop 2000/2000c (Genomics Ltd., Shenzhen, China). XPS was performed on an AXIS Supra (Kratos Analytical Ltd., Stretford, UK).

All the electrochemical measurements were acquired with a CHI660D electrochemical workstation (Chenhua Instruments Co., Shanghai, China). A conventional three-electrode system was used. A glassy carbon electrode (GCE, 3.0 mm diameter) was used as the working electrode, and a saturated calomel electrode and a Pt electrode were used as the reference electrode and the counter electrode, respectively.

3.2. Synthesis of N-Doped Cu–MOF (N–Cu–MOF)

The N–Cu–MOF was prepared, referring to the related literature [34]. Briefly, 0.875 g Cu (NO₃)₂·3H₂O and 0.3 g PVP were dissolved in DMF solution and stirred for 5 min to obtain a homogenous solution. Then, 0.42 g H₃BTC was added to the solution, which was stirred for 10 min. Subsequently, the mixture was transferred into a 100 mL Teflon-lined stainless-steel autoclave, which was placed in a furnace at 80 °C for 24 h. The obtained blue solid was collected by centrifugation, washed with fresh DMF twice and ethanol three times, and then dried at 60 °C for 12 h.

3.3. Fabrication of the Electrochemical Aptasensor

The GCE was successively polished with 1, 0.3 and 0.05 μm alumina powder and then washed with ultrapure water. N–Cu–MOF powders were dispersed in deionized water and ultrasonicated for 30 min to obtain a homogeneous dispersion (4 mg mL⁻¹). Afterward, an aliquot (5 μL) of the N–Cu–MOF aqueous dispersion was coated onto the electrode surface and dried at room temperature. The electrode was then gently rinsed with PBS (1 mmol L⁻¹, pH 5.0) to remove poorly adhered N–Cu–MOF and dried. After this, 5 μL of AP1 (10 μmol L⁻¹) was dropped on the modified electrode surface and incubated for 12 h at 37 °C to conjugate AP1 with N–Cu–MOF. The obtained AP1-grafted N–Cu–MOF/GCE was also rinsed with PBS (1 mmol L⁻¹, pH 5.0) to remove any unbound AP1 and stored at 4 °C until use.

3.4. Electrochemical Measurements

For the detection of DON, differential pulse voltammetry (DPV) measurements were performed in 5 mL f PBS (1 mmol L⁻¹, pH 5.0) with the experimental parameters as follows: voltage scan range was from −0.4 V to 0.4 V, and the amplitude, pulse width and pulse period were 0.05 V, 0.05 s and 0.5 s, respectively. The current difference (ÄI) was calculated according to Equation (1):

ΔI = I_p–I_p0

(1)

where I_p0 is the peak current for the blank PBS and I_p represents the peak current for PBS containing DON.

3.5. Sample Preparation

The wheat flour samples (2.0 g) were macerated with 10 mL of acetonitrile/water (84:16, v/v) for 5 min, followed by ultrasonic extraction for 40 min. After centrifugation at 8000 r/min for 5 min, an aliquot of 100 μL of supernatant was collected, diluted with 9.9 mL of PBS (1 mmol L⁻¹, pH 5.0), and then analyzed with the proposed aptasensor.

4. Conclusions

In this study, we successfully prepared an electrochemical aptasensor based on N–Cu–MOF for the rapid detection of DON for the first time. The multifunctional N–Cu–MOF nanomaterials with a large specific surface area were not only used as an effective supporting platform but also as a sensitive electrical signal probe. The present study determined the signals generated from the variable valence of Cu and revealed the signal changes under different experimental conditions. Under optimized experimental conditions, the proposed sensor showed a wide linear range, low detection limit, high selectivity and good reproducibility and was successfully applied for the rapid detection of DON in real wheat samples. In addition, the proposed strategy could be easily expanded to other mycotoxins or hazardous materials by altering specific aptamers.
