Effect of Substituents of Cerium Pyrazolates and Pyrrolates on Carbon Dioxide Activation

by
Uwe Bayer
,
Adrian Jenner
,
Jonas Riedmaier
,
Cäcilia Maichle-Mössmer
and
Reiner Anwander
*
Institute of Inorganic Chemistry, Eberhard Karls Universität Tübingen, Auf der Morgenstelle 18, 72076 Tübingen, Germany
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(7), 1957; https://doi.org/10.3390/molecules26071957
Submission received: 12 March 2021 / Revised: 22 March 2021 / Accepted: 24 March 2021 / Published: 31 March 2021
(This article belongs to the Special Issue Organometallic Compounds and Their Applications)
Browse Figures
Versions Notes

Abstract

Homoleptic ceric pyrazolates (pz) Ce(RR’pz)4 (R = R’ = tBu; R = R’ = Ph; R = tBu, R’ = Me) were synthesized by the protonolysis reaction of Ce[N(SiHMe2)2]4 with the corresponding pyrazole derivative. The resulting complexes were investigated in their reactivity toward CO2, revealing a significant influence of the bulkiness of the substituents on the pyrazolato ligands. The efficiency of the CO2 insertion was found to increase in the order of tBu2pz < Ph2pz < tBuMepz < Me2pz. For comparison, the pyrrole-based ate complexes [Ce2(pyr)6(µ-pyr)2(thf)2][Li(thf)4]2 (pyr = pyrrolato) and [Ce(cbz)4(thf)2][Li(thf)4] (cbz = carbazolato) were obtained via protonolysis of the cerous ate complex Ce[N(SiHMe2)2]4Li(thf) with pyrrole and carbazole, respectively. Treatment of the pyrrolate/carbazolate complexes with CO2 seemed promising, but any reversibility could not be observed.

1. Introduction

Rare-earth–metal complexes are capable of efficiently activating carbonylic compounds including carbon dioxide [1,2,3,4,5,6]. Due to its environmental impact, atmospheric CO2 management and, in particular, sustainable solutions for CO2 emission control evolved as a top-priority issue in academic and industrial research [7,8,9,10,11]. On the one hand, this can be realized by capturing and storing carbon dioxide with tailor-made surface-reactive materials [12,13,14,15,16]. On the other hand, the use of CO2 as a cheap, abundant, and nontoxic C1 building block in the synthesis of higher-value chemicals is a main goal in sustainable chemistry [17,18,19,20,21,22,23]. For example, rare-earth metals have successfully been studied as catalysts for the copolymerization of carbon dioxide and epoxides to yield polycarbonates [24,25,26,27,28,29,30]. Various rare-earth-metal-based (pre)catalysts are known to promote the catalytic cycloaddition of carbon dioxide and epoxide-producing cyclic carbonates, which then, in case of propylene carbonate, can be used as electrolyte solvent in lithium-ion batteries [30,31,32,33,34,35,36,37]. However, these complexes often lack the catalytic activity and superb performance of zinc or cobalt-based systems [4].
We have recently described the application of homoleptic ceric pyrazolate [Ce(Me2pz)4]2 in the catalytic cycloaddition of carbon dioxide and epoxides as well as the reversible capture of CO2 [38,39]. To study the scope and efficiency of such pyrazolate-promoted CO2 insertion reactions, we extended our study with a broader comparison to differently substituted pyrazole derivatives as ligands for cerium(IV). Since we hypothesized that the basicity of the ligand plays a crucial role in any reversible CO2 uptake, we also envisaged different N-proligands. Pyrroles feature a mono-aza five-membered ring, exhibiting a pKa value that is larger than that of pyrazoles, but close to silylamines (Figure 1) [40]. Metal silylamides, however, were shown to engage in a cascade of reactions with CO2, ultimately affording metal siloxides [41,42,43]. Whereas pyrrole-derived pincer-type ligands are quite popular in rare-earth–metal coordination chemistry [44,45,46,47,48,49,50,51], examples of pure pyrrolyl ligands have remained scarce [52,53,54,55]. Likewise, rare-earth–metal complexes bearing a carbazolyl ligand have been reported [56,57,58,59,60,61,62]. As a pyrrole derivative, carbazole exhibits a pKa value that matches that of pyrazole (Figure 1).

2. Results and Discussion

2.1. Homoleptic Ceric Pyrazolates

Homoleptic cerium di-tert-butyl pyrazolate Ce(tBu2pz)4 (1) was synthesized by treatment of Ce[N(SiHMe2)2]4 with four equivalents of tBu2pzH as previously described (Scheme 1) [65]. Likewise, Ce(Ph2pz)4 (2) and Ce(tBuMepz)4 (3) were synthesized using the corresponding pyrazole (Scheme 1). The 1H NMR spectrum of 2 shows a singlet for the proton in the pyrazolato backbone at 7.11 ppm and two multiplets at 6.91 and 7.78 ppm for the aromatic protons (Figure S1, Supporting Information). In contrast to the complexes bearing symmetric pyrazolato ligands, compound 3 with the asymmetric 3-tert-butyl-5-methyl pyrazolato ligand could not be obtained as a crystalline material, but as a dark red sticky solid upon removing the volatiles in vacuo. The general composition of [Ce(tBuMepz)4]n was confirmed by 1H NMR spectroscopy showing singlets at 1.24 ppm for the tBu groups, at 2.22 ppm for the methyl groups, and at 6.15 ppm for the C−H proton of the five-membered pyrazole ring (Figure S2, Supporting Information). However, elemental analysis displayed some extent of impurification, indicated by an increased carbon value most likely stemming from retained solvent.
Crystals of complex 2 suitable for an X-ray diffraction (XRD) study could be obtained from a concentrated solution in toluene. The crystal structure revealed an eight-coordinate cerium center surrounded by four η2-coordinated diphenylpyrazolato moieties (Figure 2). The Ce1–N distances (2.3381(16) to 2.3790(16) Å) are comparable to other terminal CeIV–N(pz) bonds (1: 2.322(4) to 2.365(4) Å; Ce(Me2pz)4: 2.319(3) to 2.384(2) Å) [65].

2.2. Cerium Pyrrolates and Carbazolates

As the synthesis pathway via protonolysis reaction of Ce[N(SiHMe2)2]4 with pyrazole emerged as a feasible route for the synthesis of homoleptic ceric pyrazolates, the envisaged pyrrolates were accessed accordingly. Unexpectedly, treatment of the silylamide with four equivalents of pyrrole did not yield any reaction. Therefore, we reacted the cerous ate complex Ce[N(SiHMe2)2]4Li(thf) [66] with four equivalents of pyrrole (Hpyr) and carbazole (Hcbz), yielding the complexes [Ce2(pyr)6(µ-pyr)2(thf)2][Li(thf)4]2 (4) and [Ce(cbz)4(thf)2][Li(thf)4] (5), respectively (Scheme 2). The 1H NMR spectrum of 4 shows two broadened singlets for the pyrrolato protons at 4.23 and 7.39 ppm (Figure S3, Supporting Information). For complex 5, various broadened proton signals could be detected as well but due to the paramagnetic CeIII center, assignment of the signals was inconclusive (Figure S5, Supporting Information). The persistence of ion-separated intermolecular ate complexes in THF-d8 was evidenced by 7Li NMR spectroscopy (4: δLi = 2.0 ppm; 5: δLi = −0.3 ppm; (Figures S4 and S6, Supporting Information)) [67].
Crystallization from a concentrated THF solution gave 4 as colorless crystals. The crystal structure of 4 revealed a separated ion pair featuring a dicerium dianionic entity (Figure 3). Each cerium center is eight-coordinated and surrounded by three terminal pyrrolato moieties (Ce1–N 2.475(2) to 2.515(2) Å), two bridging pyrrolato ligands connecting the cerium centers in an η1 (Ce1–N4′ 2.622(2) Å) and η5 fashion (Ce1–Ct 2.575(16) Å), and one THF donor molecule. The Ce–N distances are slightly elongated compared with other CeIII ate complexes like [Ce{N(SiHMe2)2}4][Li(do)x] (do, x = py, 4; tmeda, 2; 12-crown-4, 1 and thf, 4; Ce–N 2.377(6) to 2.438(6) Å), KCe[N(SiHMe2)2]4 (2.3820(12) to 2.4379(12) Å), and [Ce{N(SiMe3)2}4][Na(thf)4(Et2O)] (Ce–N 2.434(6) to 2.448(6) Å), due to the higher coordination number CN of 4 (CN 8 vs. 4) [67,68,69]. The σ,π-bridging motif of the pyrrolato ligands has been detected previously, for example, in complexes [Me2In(µ-pyr)]n, [Me2Al2(µ-Cl)](µ-Me4pyr)Li, [Mg{µ-C4H2N(2-CH2NHtBu)}{N(SiMe3)2}]2, and (AlMe3)(µ-C4H3N)[2-CH2NH(tBu)Li(tmeda)] [70,71,72,73].
Complex 5 was recrystallized from a 1:1 mixture of THF and Et2O to yield off-white crystals suitable for XRD analysis. The crystal structure of 5 shows a six-coordinate cerium center surrounded by four carbazolyl ligands, two THF donor molecules and a [Li(thf)4]+ counter ion (Figure 4). As seen before, the Ce1–N distances (2.480(4) to 2.531(4) Å) are slightly elongated compared with other separated ion-pair type ate complexes due to the higher coordination number of 6 compared with 4.
Targeted oxidations of the ate complexes 4 and 5 with p-benzoquinone led to an immediate color change to dark green and dark purple, respectively. Although indicative of a redox reaction, the isolation and characterization of a tetravalent cerium pyrrolate or carbazolate was unsuccessful. Dissolving the resulting crude product in THF-d8 resulted in the decolorization of the solution and the obtained 1H NMR spectrum showed only paramagnetically broadened and shifted signals. This play of colors clearly indicated a reduction in the putatively formed tetravalent species. The use of other solvents was not possible due to the insolubility of the cerium pyrrolates and carbazolates in nondonating solvents.

2.3. Reactivity toward CO2

Preliminary studies on the reactivity of the silylamide Ce[N(SiHMe2)2]4 (red color) [74] as well as Ce(NiPr2)4 (purple) [75] and Ce(NiPr2)4Li(thf) (orange) [75], bearing the very basic diisopropylamido ligand (Figure 1), with CO2 resulted in an instant decolorization of the solutions and the formation of colorless precipitates. 1H NMR spectroscopic measurements of the reaction mixtures provided inconclusive results. As noted in the Introduction, for rare-earth–metal silylamides, the formation of siloxide species and the elimination of isocyanates via silyl migration has been previously described [41,42,43]. Therefore, we focused on cerium pyrazolates and pyrrolates and their reactivity toward CO2. The possible insertion of CO2 into the Ce−N(pyrazolato) bond was examined via in situ IR spectroscopic measurements in toluene. Because compounds 1 and 2 did not display any insertion of CO2 at ambient temperature, the reactions were conducted at −20 °C. It was shown previously for dimethyl pyrazolate [Ce(Me2pz)4]2 that the CO2 insertion is more efficient at lower temperatures [38]. These experiments revealed no (1), slow (2) and fast insertion (3), as indicated by an increasing intensity of the characteristic C−O vibrations at around 1600 to 1750 cm−1 in the DRIFT (diffuse reflectance infrared Fourier transform) spectra (Figure 5). However, the insertion processes were slower and less efficient than observed previously for the dimethyl pyrazolate [Ce(Me2pz)4]2 [38]. 1H NMR spectroscopic investigations revealed only minor insertion of CO2 into the Ce−N(pyrazolato) bond of complex 1 (Figure S7, Supporting Information). Notwithstanding, a new signal set appeared assignable to a tBu2pzCO2 ligand (Figure 6), displaying two singlets at 1.02 and 1.50 ppm for the tBu-groups and one singlet at 5.97 ppm for the C−H proton of the pyrazole backbone. For the reaction of compound 2 with CO2, the respective 1H NMR spectrum showed a shift of all signals, indicating complete conversion (Figure S8, Supporting Information). However, unlike what was expected for an asymmetrically CO2-inserted pyrazolato ligand, a splitting of the phenyl signals was not detected. For the reaction of compound 3 with CO2, the formation of two signal sets with a ratio of 9:1 was observed (Figure S9, Supporting Information). Both sets displayed singlets for the tBu and Me groups and one for the pyrazole C−H. This signal pattern might have resulted from a favorable insertion of CO2 into the methyl site of the pyrazolato ligand due to the lower steric hindrance (Figure 6). These results and previous findings clearly show that the steric demand of the substituents on the pyrazolato ligands is the key factor in the CO2-insertion reaction [38]. Therefore, the efficiency of the CO2 insertion with complexes [Ce(RR’pz)4] increases in the order of tBu2pz < Ph2pz < tBuMepz < Me2pz. Unfortunately, any crystallization and structural elucidation of a CO2-inserted product was not successful.
Similarly, pyrrole-derived complexes 4 and 5 were treated with CO2 resulting in a shift of the signals in the 1H NMR spectra (Figures S10 and S11, Supporting Information). For pyrrolate 4, two broadened singlets were observed at 6.82 and 9.99 ppm, indicating the formation of a carbamato-like ligand CO2∙pyr (Figure 6). Similar ligand formation was already found in the reaction of nBuLi, pyrrole, and carbon dioxide [76]. The 1H NMR spectrum of the reaction of carbazolate 5 with CO2 shows various paramagnetically broadened and shifted signals ruling out any conclusive interpretation. Nevertheless, the DRIFT spectra of the crude products, after removal of all volatiles under reduced pressure, clearly revealed an intense band for the C−O vibrations at 1600 to 1750 cm−1 (Figure 7). This finding also indicated that, unlike [Ce(Me2pz)4]2 [38], the CO2 insertion into the Ce−N(pyrrolato) bond is not reversible at ambient temperature under reduced pressure. Regrettably, a structural elucidation of the reaction products was not feasible.

2.4. Difference between Pyrazolates and Pyrrolates/Carbazolates

Based on our findings, it can be hypothesized that CO2 insertion into the Ce−N(RR’pz) bond is mainly affected by the sterics of the pyrazole substituents. This is clearly indicated by the performance of [Ce(Me2pz)4]2 being far superior to that of Ce(tBu2pz)4. Accordingly, any significant electronic effect caused by differently alkyl-substituted pyrazolato ligands can be ruled out. However, our results suggest that the reversibility of the CO2 insertion is most likely driven by the two adjacent N-donor atoms of the pyrazolato ligand, preserving a Ce–N coordination also in the Ce−pz∙CO2 fragments (Scheme 3). Apparently, the formation of a five-membered heterocyclic ring with κ2(N,O) coordination mode is outperforming a four-membered ring with terminal κ2(O,O) carboxylato coordination. The latter κ2(O,O) coordination would result from the insertion of CO2 into the Ce−N(pyr) or Ce−N(cbz) bonds (Scheme 3). Note that any reversible CO2 insertion has not yet been evidenced for such simple carbamates.

3. Materials and Methods

3.1. General Procedures

All manipulations were performed under an inert atmosphere (Ar) using a glovebox (MBraun 200B; <0.1 ppm O2, <0.1 ppm H2O), or according to standard Schlenk techniques in oven-dried glassware. The solvents were purified with Grubbs-type columns (MBraun SPS, solvent purification system) and stored in a glovebox. Ce[N(SiHMe2)2]4Li(thf), Ce[N(SiHMe2)2]4, and Ce(tBu2pz)4 (1) were synthesized according to published procedures [65,66,67]. HMe2pz, HtBu2pz, pyrrole, and carbazole were purchased from Sigma Aldrich (St. Louis, MO, USA) and used as received. HPh2pz and HtBuMepz were synthesized according to the literature [77]. C6D6, toluene-d8, and THF-d8 were purchased from Euriso-top (Saint-Aubin, France) and pre-dried over NaK alloy and filtered off prior use; THF-d8 was re-condensed. NMR spectra were recorded at 26 °C on a Bruker AVII+400 (1H: 400.13 MHz) or a Bruker AVIIIHD-300 (1H: 300.13 MHz, 7Li 116.64 MHz) using J. Young-valved NMR tubes. 1H NMR shifts are referenced to a solvent resonance and reported in parts per million (ppm) relative to tetramethylsilane. 7Li NMR spectra are reported relative to LiCl. Analyses of NMR spectra were performed with ACD/NMR Processor Academic Edition (product version: 12.01). Infrared spectra were recorded on a ThermoFisher Scientific (Waltham, MA, USA) NICOLET 6700 FTIR ( ν ˜ = 4000–400 cm−1) spectrometer using a DRIFTS chamber with dry KBr/sample mixtures and KBr windows. Elemental analysis (C, H, and N) was performed on an Elementar vario MICRO cube. In situ IR spectra were recorded on a METTLER TOLEDO (Columbus, OH, USA) ReactIR 15. For details on XRD analyses and crystallographic data, see Supporting information.

3.2. Synthesis of Ce(Ph2pz)4∙tol (2)

Ce[N(SiHMe2)2]4 (0.40 g, 0.60 mmol) in n-hexane (2 mL) was added to a suspension of HPh2pz (0.33 g, 2.4 mmol) in toluene (2 mL). After 1 h, all volatiles were removed under reduced pressure. Crystallization from concentrated toluene solutions produced 2 as dark purple crystals. Yield: 0.52 g (0.47 mmol, 79%). 1H NMR (C6D6, 400.13 MHz, 26 °C): = 7.78 (m, 16 H, C−H Ph), 7.11 (s, 4 H, C−H pz), 6.91 (m, 24 H, C−H Ph) ppm; IR (DRIFT): ν ˜ = 3064 (w), 3036 (w), 2916 (w), 1944 (w), 1883 (w), 1807 (w), 1755 (w), 1682 (w), 1602 (w), 1562 (w), 1489 (w), 1467 (s), 1421 (m), 1401 (m), 1335 (w), 1282 (w), 1254 (w), 1151 (w), 1103 (w), 1072 (w), 1018 (m), 999 (m), 965 (m), 914 (w), 837 (w), 809 (w), 760 (s), 731 (s), 700 (s), 692 (m), 678 (m), 666 (w), 537 (w), 481 (w), 465 (w), 429 (m), 422 (m), 405 (w) cm−1; elemental analysis (%) calcd. for C67H52CeN8 (1109.33): C 72.54, H 4.73, N 10.10; found: C 72.40, H 4.52, N 10.68.

3.3. Synthesis of [Ce(tBuMepz)4]n (3)

Ce[N(SiHMe2)2]4 (0.40 g, 0.60 mmol) in toluene (2 mL) was added to a suspension of HtBuMepz (0.53 g, 2.4 mmol) in toluene (2 mL). After 2 h, all volatiles were removed in vacuo, producing 3 as a dark red sticky solid. Yield of the crude product: 0.41 g. 1H NMR (C6D6, 400.13 MHz, 26 °C): = 6.15 (s, 4 H, C−H pz), 2.22 (s, 12 H, Me), 1.24 (s, 36 H, tBu) ppm; IR (DRIFT): ν ˜ = 3105 (w), 2961 (vs), 2924 (s), 2901 (s), 2862 (m), 1558 (w), 1508 (s), 1474 (m), 1458 (m), 1425 (s), 1387 (m), 1362 (m), 1291 (w), 1237 (s), 1210 (w), 1124 (w), 1084 (w), 1032 (w), 1020 (w), 994 (m), 962 (w), 819 (w), 797 (m), 718 (w), 700 (w), 686 (w), 567 (w), 507 (m) cm−1; elemental analysis (%) calcd. for C32H52CeN8 (688.94): C 55.79, H 7.61, N 16.26; found: C 57.17, H 7.49, N 16.29. The slightly increased carbon value might be a result of retained solvent.

3.4. Synthesis of [Ce2(pyr)6(µ-pyr)2(thf)2][Li(thf)4]2 (4)

Pyrrole (141 mg, 2.11 mmol) in n-hexane (3 mL) was added to a stirred solution of Ce[N(SiHMe2)2]4Li(thf) (394 mg, 0.526 mmol) in n-hexane (5 mL). Immediately, a colorless precipitate was formed. After 1 h, all volatiles were removed under reduced pressure. The resulting solid was recrystallized from THF, producing 4 as colorless crystals. Yield: 189 mg (0.122 mmol, 46%). 1H NMR (THF-d8; 400.11 MHz, 26 °C) δ = 7.39 (bs), 4.23 (bs) ppm; 7Li NMR (THF-d8, 116.64 MHz, 25 °C) δ = 2.0 ppm. DRIFTS: ν ˜ = 3085 (w), 1441 (w), 1365 (w), 1213 (vw), 1200 (vw), 1140 (w), 1078 (m), 1048 (w), 1021 (s), 894 (w), 858 (w), 789 (vs), 751 (m), 670 (w), 660 (m), 416 (w) cm−1; elemental analysis (%) calcd. for C72H112Ce2Li2N8O10 (1543.85): C 56.02, H 7.31, N 7.36; found: C 46.96, H 3.90, N 13.74. Calculated without THF donor ligands for C42H54Ce2N8O2 (983.18): C 51.31, H 5.54, N 11.40. On multiple attempts, no better elemental analysis could be obtained.

3.5. Synthesis of [Ce(cbz)4(thf)2][Li(thf)4] (5)

Ce[N(SiHMe2)2]4Li(thf) (406 mg, 0.557 mmol) in n-hexane (5 mL) was added to a stirred suspension of carbazole (363 mg, 2.23 mmol) in n-hexane (5 mL). After 1 h, a yellow precipitate formed, and volatiles were removed under reduced pressure. The resulting solid was recrystallized from THF/Et2O (1:1), giving 5 as off-white crystals. Yield: 486 mg (0.415 mmol, 74%). 1H NMR (THF-d8; 400.11 MHz, 26 °C) δ = 8.64 (d), 7.90 (bs), 7.70 (d), 7.32 (d), 7.02 (bs), 6.70 (bs) 6.28 (s), 6.04 (s), 5.30 (s), 4.22 (d), 3.62 (s, α-CH(thf)), 1.77 (s, β-CH(thf)), 0.33 (bs), −10.16 (bs) ppm; 7Li NMR (THF-d8, 116.64 MHz, 25 °C) δ: −0.3 ppm. DRIFTS: ν ˜ = 3418 (vw), 3054 (w), 2979 (w), 2878 (w), 1635 (m), 1576 (m), 1541 (m), 1489 (m), 1479 (m), 1447 (s), 1395 (vs), 1329 (vs), 1312 (s), 1287 (m), 1216 (m), 1151 (w), 1121 (vw), 1043 (w), 934 (vw), 889 (vw), 826 (m), 797 (m), 753 (s), 725 (m), 684 (m), 658 (w), 617 (vw), 567 (vw), 526 (vw), 458 (w), 425 (m) cm−1; elemental analysis (%) calcd. for C72H80CeLiN4O6 (1244.51): C 69.49, H 6.48, N 4.50; found: C 68.42, H 6.42, N 3.97.

4. Conclusions

The feasibility of CO2 insertion reactions was further substantiated for homoleptic ceric pyrazolates [Ce(RR’pz)4]. Crucially, with increasing bulkiness of the substituents R/R’ on the pyrazolato ligand, the insertion of carbon dioxide becomes increasingly hindered; therefore, the least bulky dimethyl-substituted pyrazolato ligand performed best in CO2 insertions. En route to homoleptic CeIV pyrrolates and carbazolates, we were able to isolate cerous ate complexes [Ce2(pyr)6(µ-pyr)2(thf)2][Li(thf)4]2 and [Ce(cbz)4(thf)2][Li(thf)4]. Such Ce(III) pyrrolates and carbazolates are also capable of CO2 activation, but most likely in an irreversible manner. Oxidation attempts to form ceric pyrrolate or carbazolate compounds were conducted; however, the structural elucidation of any CeIV species was not feasible.

Supplementary Materials

The following are available online. The 1H (2, 3, 4, and 5, and their reactions with CO2) and 7Li (4 and 5). NMR spectra as well as selected crystallographic data for compounds 2, 4, and 5 are available online. Complete crystallographic data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif, Deposition Number 2069959-2069961.

Author Contributions

All reactions and analyses described were planned and conducted by U.B., A.J. and J.R. Analyses included NMR and DRIFT spectroscopies as well as elemental analysis. Publication writing was completed by U.B. and R.A. The XRD analyses were performed by U.B. and C.M.-M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank Doris Kunz for providing access to ReactIR 15 for in situ IR measurements.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Sample Availability

Samples of the compounds are not available from authors.

References

  1. Hou, Z.; Wakatsuki, Y. Reactions of Ketones with Low-Valent Lanthanides: Isolation and Reactivity of Lanthanide Ketyl and Ketone Dianion Complexes. In Lanthanides: Chemistry and Use in Organic Synthesis; Kobayashi, S., Ed.; Topics in Organometallic Chemistry; Springer: Berlin/Heidelberg, Germany, 1999; pp. 233–253. ISBN 978-3-540-69801-2. [Google Scholar]
  2. Bayer, U.; Anwander, R. Carbonyl Group and Carbon Dioxide Activation by Rare-Earth-Metal Complexes. Dalton Trans. 2020, 49, 17472–17493. [Google Scholar] [CrossRef] [PubMed]
  3. Martín, C.; Fiorani, G.; Kleij, A.W. Recent Advances in the Catalytic Preparation of Cyclic Organic Carbonates. ACS Catal. 2015, 5, 1353–1370. [Google Scholar] [CrossRef]
  4. Grice, K.A. Carbon Dioxide Reduction with Homogenous Early Transition Metal Complexes: Opportunities and Challenges for Developing CO2 Catalysis. Coord. Chem. Rev. 2017, 336, 78–95. [Google Scholar] [CrossRef]
  5. Huang, J.; Worch, J.C.; Dove, A.P.; Coulembier, O. Update and Challenges in Carbon Dioxide-Based Polycarbonate Synthesis. ChemSusChem 2020, 13, 469–487. [Google Scholar] [CrossRef] [PubMed]
  6. Bresciani, G.; Biancalana, L.; Pampaloni, G.; Marchetti, F. Recent Advances in the Chemistry of Metal Carbamates. Molecules 2020, 25, 3603. [Google Scholar] [CrossRef]
  7. Falkowski, P.; Scholes, R.J.; Boyle, E.; Canadell, J.; Canfield, D.; Elser, J.; Gruber, N.; Hibbard, K.; Högberg, P.; Linder, S.; et al. The Global Carbon Cycle: A Test of Our Knowledge of Earth as a System. Science 2000, 290, 291–296. [Google Scholar] [CrossRef]
  8. Solomon, S.; Plattner, G.-K.; Knutti, R.; Friedlingstein, P. Irreversible Climate Change Due to Carbon Dioxide Emissions. Proc. Natl. Acad. Sci. USA 2009, 106, 1704–1709. [Google Scholar] [CrossRef]
  9. Haszeldine, R.S. Carbon Capture and Storage: How Green Can Black Be? Science 2009, 325, 1647–1652. [Google Scholar] [CrossRef] [PubMed]
  10. Keith, D.W. Why Capture CO2 from the Atmosphere? Science 2009, 325, 1654–1655. [Google Scholar] [CrossRef] [PubMed]
  11. von der Assen, N.; Voll, P.; Peters, M.; Bardow, A. Life Cycle Assessment of CO2 Capture and Utilization: A Tutorial Review. Chem. Soc. Rev. 2014, 43, 7982–7994. [Google Scholar] [CrossRef] [PubMed]
  12. D’Alessandro, D.M.; Smit, B.; Long, J.R. Carbon Dioxide Capture: Prospects for New Materials. Angew. Chem. Int. Ed. 2010, 49, 6058–6082. [Google Scholar] [CrossRef] [PubMed]
  13. Yu, C.-H.; Huang, C.-H.; Tan, C.-S. A Review of CO2 Capture by Absorption and Adsorption. Aerosol Air Qual. Res. 2012, 12, 745–769. [Google Scholar] [CrossRef]
  14. Sumida, K.; Rogow, D.L.; Mason, J.A.; McDonald, T.M.; Bloch, E.D.; Herm, Z.R.; Bae, T.-H.; Long, J.R. Carbon Dioxide Capture in Metal–Organic Frameworks. Chem. Rev. 2012, 112, 724–781. [Google Scholar] [CrossRef] [PubMed]
  15. Sanz-Pérez, E.S.; Murdock, C.R.; Didas, S.A.; Jones, C.W. Direct Capture of CO2 from Ambient Air. Chem. Rev. 2016, 116, 11840–11876. [Google Scholar] [CrossRef] [PubMed]
  16. Lin, Y.; Kong, C.; Zhang, Q.; Chen, L. Metal-Organic Frameworks for Carbon Dioxide Capture and Methane Storage. Adv. Energy Mater. 2017, 7. [Google Scholar] [CrossRef]
  17. Sakakura, T.; Choi, J.-C.; Yasuda, H. Transformation of Carbon Dioxide. Chem. Rev. 2007, 107, 2365–2387. [Google Scholar] [CrossRef] [PubMed]
  18. Centi, G.; Perathoner, S. Opportunities and Prospects in the Chemical Recycling of Carbon Dioxide to Fuels. Catal. Today 2009, 148, 191–205. [Google Scholar] [CrossRef]
  19. Cokoja, M.; Bruckmeier, C.; Rieger, B.; Herrmann, W.A.; Kühn, F.E. Transformation of Carbon Dioxide with Homogeneous Transition-Metal Catalysts: A Molecular Solution to a Global Challenge? Angew. Chem. Int. Ed. 2011, 50, 8510–8537. [Google Scholar] [CrossRef] [PubMed]
  20. Aresta, M.; Dibenedetto, A.; Angelini, A. Catalysis for the Valorization of Exhaust Carbon: From CO2 to Chemicals, Materials, and Fuels. Technological Use of CO2. Chem. Rev. 2014, 114, 1709–1742. [Google Scholar] [CrossRef]
  21. Liu, Q.; Wu, L.; Jackstell, R.; Beller, M. Using Carbon Dioxide as a Building Block in Organic Synthesis. Nat. Commun. 2015, 6, 5933. [Google Scholar] [CrossRef]
  22. Artz, J.; Müller, T.E.; Thenert, K.; Kleinekorte, J.; Meys, R.; Sternberg, A.; Bardow, A.; Leitner, W. Sustainable Conversion of Carbon Dioxide: An Integrated Review of Catalysis and Life Cycle Assessment. Chem. Rev. 2018, 118, 434–504. [Google Scholar] [CrossRef] [PubMed]
  23. Modak, A.; Bhanja, P.; Dutta, S.; Chowdhury, B.; Bhaumik, A. Catalytic Reduction of CO2 into Fuels and Fine Chemicals. Green Chem. 2020, 22, 4002–4033. [Google Scholar] [CrossRef]
  24. Vitanova, D.V.; Hampel, F.; Hultzsch, K.C. Rare Earth Metal Complexes Based on β-Diketiminato and Novel Linked Bis(β-Diketiminato) Ligands: Synthesis, Structural Characterization and Catalytic Application in Epoxide/CO2-Copolymerization. J. Organomet. Chem. 2005, 690, 5182–5197. [Google Scholar] [CrossRef]
  25. Cui, D.; Nishiura, M.; Hou, Z. Alternating Copolymerization of Cyclohexene Oxide and Carbon Dioxide Catalyzed by Organo Rare Earth Metal Complexes. Macromolecules 2005, 38, 4089–4095. [Google Scholar] [CrossRef]
  26. Lazarov, B.B.; Hampel, F.; Hultzsch, K.C. Synthesis and Structural Characterization of β-Diketiminato Yttrium Complexes and Their Application in Epoxide/CO2-Copolymerization. Z. Anorg. Allg. Chem. 2007, 633, 2367–2373. [Google Scholar] [CrossRef]
  27. Cui, D.; Nishiura, M.; Tardif, O.; Hou, Z. Rare-Earth-Metal Mixed Hydride/Aryloxide Complexes Bearing Mono(Cyclopentadienyl) Ligands. Synthesis, CO2 Fixation, and Catalysis on Copolymerization of CO2 with Cyclohexene Oxide. Organometallics 2008, 27, 2428–2435. [Google Scholar] [CrossRef]
  28. Zhang, Z.; Cui, D.; Liu, X. Alternating Copolymerization of Cyclohexene Oxide and Carbon Dioxide Catalyzed by Noncyclopentadienyl Rare-Earth Metal Bis(Alkyl) Complexes. J. Polym. Sci. Part A Polym. Chem. 2008, 46, 6810–6818. [Google Scholar] [CrossRef]
  29. Decortes, A.; Haak, R.M.; Martín, C.; Belmonte, M.M.; Martin, E.; Benet-Buchholz, J.; Kleij, A.W. Copolymerization of CO2 and Cyclohexene Oxide Mediated by Yb(Salen)-Based Complexes. Macromolecules 2015, 48, 8197–8207. [Google Scholar] [CrossRef]
  30. Xu, B.; Wang, P.; Lv, M.; Yuan, D.; Yao, Y. Transformation of Carbon Dioxide into Oxazolidinones and Cyclic Carbonates Catalyzed by Rare-Earth-Metal Phenolates. ChemCatChem 2016, 8, 2466–2471. [Google Scholar] [CrossRef]
  31. Yasuda, H. Organo-Rare-Earth-Metal Initiated Living Polymerizations of Polar and Nonpolar Monomers. J. Organomet. Chem. 2002, 647, 128–138. [Google Scholar] [CrossRef]
  32. Ion, A.; Parvulescu, V.; Jacobs, P.; de Vos, D. Sc and Zn-Catalyzed Synthesis of Cyclic Carbonates from CO2 and Epoxides. Appl. Catal. Gen. 2009, 363, 40–44. [Google Scholar] [CrossRef]
  33. Qin, J.; Wang, P.; Li, Q.; Zhang, Y.; Yuan, D.; Yao, Y. Catalytic Production of Cyclic Carbonates Mediated by Lanthanide Phenolates under Mild Conditions. Chem. Commun. 2014, 50, 10952–10955. [Google Scholar] [CrossRef]
  34. Wang, C.; Liu, X.; Dai, Z.; Sun, Y.; Tang, N.; Wu, J. Yttrium Complex Supported by a Sterically Encumbering N-Anchored Tris-Arylphenoxide Ligand: Heteroselective ROP of Rac-Lactide and CO2/Epoxide Coupling. Inorg. Chem. Commun. 2015, 56, 69–72. [Google Scholar] [CrossRef]
  35. Martínez, J.; Fernández-Baeza, J.; Sánchez-Barba, L.F.; Castro-Osma, J.A.; Lara-Sánchez, A.; Otero, A. An Efficient and Versatile Lanthanum Heteroscorpionate Catalyst for Carbon Dioxide Fixation into Cyclic Carbonates. ChemSusChem 2017, 10, 2886–2890. [Google Scholar] [CrossRef]
  36. Zhao, Z.; Qin, J.; Zhang, C.; Wang, Y.; Yuan, D.; Yao, Y. Recyclable Single-Component Rare-Earth Metal Catalysts for Cycloaddition of CO2 and Epoxides at Atmospheric Pressure. Inorg. Chem. 2017, 56, 4568–4575. [Google Scholar] [CrossRef] [PubMed]
  37. Sodpiban, O.; Gobbo, S.D.; Barman, S.; Aomchad, V.; Kidkhunthod, P.; Ould-Chikh, S.; Poater, A.; D’Elia, V.; Basset, J.-M. Synthesis of Well-Defined Yttrium-Based Lewis Acids by Capturing a Reaction Intermediate and Catalytic Application for Cycloaddition of CO2 to Epoxides under Atmospheric Pressure. Catal. Sci. Technol. 2019, 9, 6152–6165. [Google Scholar] [CrossRef]
  38. Bayer, U.; Werner, D.; Maichle-Mössmer, C.; Anwander, R. Effective and Reversible Carbon Dioxide Insertion into Cerium Pyrazolates. Angew. Chem. Int. Ed. 2020, 59, 5830–5836. [Google Scholar] [CrossRef] [PubMed]
  39. Bayer, U.; Liang, Y.; Anwander, R. Cerium Pyrazolates Grafted onto Mesoporous Silica SBA-15: Reversible CO2 Uptake and Catalytic Cycloaddition of Epoxides and Carbon Dioxide. Inorg. Chem. 2020, 59, 14605–14614. [Google Scholar] [CrossRef] [PubMed]
  40. Bordwell, F.G. Equilibrium Acidities in Dimethyl Sulfoxide Solution. Acc. Chem. Res. 1988, 21, 456–463. [Google Scholar] [CrossRef]
  41. Bochkarev, M.; Fedorova, E.A.; Radkov, Y.F.; Ya, S.; Kalinina, G.S.; Razuvaev, G.A. Carbon Dioxide Fixation by Lanthanide Complexes. J. Organomet. Chem. 1983, 258, C29–C33. [Google Scholar] [CrossRef]
  42. Radkov, Y.F.; Fedorova, E.A.; Khorshev, S.Y.; Kalinina, G.S.; Bochkarev, M.N.; Razuvaev, G.A. Reactions of Carbon Dioxide with Bis(Trimethylsilyl)Amino Derivaties of Lanthanides. Zhur. Obshchei Khimii 1986, 56, 386–389. [Google Scholar]
  43. Yin, H.; Carroll, P.J.; Schelter, E.J. Reactions of a cerium(iii) amide with heteroallenes: Insertion, silyl-migration and de-insertion. Chem. Commun. 2016, 52, 9813–9816. [Google Scholar] [CrossRef] [PubMed]
  44. Jenter, J.; Gamer, M.T.; Roesky, P.W. 2,5-Bis{N-(2,6-Diisopropylphenyl)Iminomethyl}pyrrolyl Complexes of the Divalent Lanthanides: Synthesis and Structures. Organometallics 2010, 29, 4410–4413. [Google Scholar] [CrossRef]
  45. Wang, L.; Liu, D.; Cui, D. NNN-Tridentate Pyrrolyl Rare-Earth Metal Complexes: Structure and Catalysis on Specific Selective Living Polymerization of Isoprene. Organometallics 2012, 31, 6014–6021. [Google Scholar] [CrossRef]
  46. Johnson, K.R.D.; Hannon, M.A.; Ritch, J.S.; Hayes, P.G. Thermally Stable Rare Earth Dialkyl Complexes Supported by a Novel Bis(Phosphinimine)Pyrrole Ligand. Dalton Trans. 2012, 41, 7873–7875. [Google Scholar] [CrossRef]
  47. Kaneko, H.; Dietrich, H.M.; Schädle, C.; Maichle-Mössmer, C.; Tsurugi, H.; Törnroos, K.W.; Mashima, K.; Anwander, R. Synthesis of Rare-Earth-Metal Iminopyrrolyl Complexes from Alkyl Precursors: Ln→Al N-Ancillary Ligand Transfer. Organometallics 2013, 32, 1199–1208. [Google Scholar] [CrossRef]
  48. Levine, D.S.; Tilley, T.D.; Andersen, R.A. Evidence for the Existence of Group 3 Terminal Methylidene Complexes. Organometallics 2017, 36, 80–88. [Google Scholar] [CrossRef]
  49. Knott, J.P.; Hänninen, M.M.; Rautiainen, J.M.; Tuononen, H.M.; Hayes, P.G. Insights into the Decomposition Pathway of a Lutetium Alkylamido Complex via Intramolecular C–H Bond Activation. J. Organomet. Chem. 2017, 845, 135–143. [Google Scholar] [CrossRef]
  50. Sampson, J.; Choi, G.; Akhtar, M.N.; Jaseer, E.A.; Theravalappil, R.; Garcia, N.; Agapie, T. Early Metal Di(Pyridyl) Pyrrolide Complexes with Second Coordination Sphere Arene−π Interactions: Ligand Binding and Ethylene Polymerization. ACS Omega 2019, 4, 15879–15892. [Google Scholar] [CrossRef] [PubMed]
  51. McPherson, J.N.; Galan, L.A.; Iranmanesh, H.; Massi, M.; Colbran, S.B. Synthesis and Structural, Redox and Photophysical Properties of Tris-(2,5-Di(2-Pyridyl)Pyrrolide) Lanthanide Complexes. Dalton Trans. 2019, 48, 9365–9375. [Google Scholar] [CrossRef]
  52. Schumann, H.; Lee, P.R.; Dietrich, A. Organometallic Compounds of the Lanthanides, 57. Pyrrolyl Complexes of Yttrium and Lutetium. Molecular Structure of Dicyclopentadienyl(2,5-Dimethylpyrrolyl)(Tetrahydrofuran)Lutetium(III). Chem. Ber. 1990, 123, 1331–1334. [Google Scholar] [CrossRef]
  53. Arndt, S.; Trifonov, A.; Spaniol, T.P.; Okuda, J.; Kitamura, M.; Takahashi, T. Metalation of Aromatic Heterocycles by Yttrium Alkyl Complexes That Contain a Linked Amido-Cyclopentadienyl Ligand: Synthesis, Structure and Lewis Base Adduct Formation. J. Organomet. Chem. 2002, 647, 158–166. [Google Scholar] [CrossRef]
  54. Quitmann, C.C.; Müller-Buschbaum, K. [Sm(NH3)9][Sm(Pyr)6], ein komplexes Salz mit zwei homoleptischen Ionen aus der Synthese in flüssigem Ammoniak. Z. Anorg. Allg. Chem. 2005, 631, 564–568. [Google Scholar] [CrossRef]
  55. Arnold, P.L.; Cadenbach, T.; Marr, I.H.; Fyfe, A.A.; Bell, N.L.; Bellabarba, R.; Tooze, R.P.; Love, J.B. Homo- and Heteroleptic Alkoxycarbene f-Element Complexes and Their Reactivity towards Acidic N–H and C–H Bonds. Dalton Trans. 2014, 43, 14346–14358. [Google Scholar] [CrossRef]
  56. Deacon, G.B.; Forsyth, C.M.; Gatehouse, B.M. Organoamido- and Aryloxo-Lanthanoids. I. The Preparation and Characterization of Some Lanthanoid(II) Organoamides, and the X-Ray Crystal Structure of Cis-Bis(Carbazol-9-Yl)Tetrakis(Tetrahydrofuran)Europium(II). Aust. J. Chem. 1990, 43, 795–806. [Google Scholar] [CrossRef]
  57. Abrahams, C.T.; Deacon, G.B.; Gatehouse, B.M.; Ward, G.N. Cis-Bis(9-Carbazolyl)(1,2-Dimethoxyethane)-Cis-Bis(Tetrahydrofuran)Ytterbium(II). Acta Crystallogr. C 1994, 50, 504–507. [Google Scholar] [CrossRef]
  58. Evans, W.J.; Rabe, G.W.; Ziller, J.W. Stereochemical Variability in Samarium(II) Reagents Using Carbazole as an Alternative to Iodide: Synthesis and Structure of Cis-(C12H8N)2Sm(THF)4 and Trans-(C12H8N)2Sm(N-MeIm)4. Organometallics 1994, 13, 1641–1645. [Google Scholar] [CrossRef]
  59. Quitmann, C.C.; Müller-Buschbaum, K. Verdrängung von η6-π-Wechselwirkungen durch N-Donor-Liganden: Von ein-dimensionalen Samarium- und Ytterbium-Carbazolaten zu monomeren Einheiten mit N-Phenylpiperazin. Z. Anorg. Allg. Chem. 2005, 631, 350–354. [Google Scholar] [CrossRef]
  60. Müller-Buschbaum, K.; Zurawski, A. On the Mechanisms of Electride Induced Synthesis of Ytterbium Carbazolates, Formation of Coordination Polymers by Condensation and Polymer Degradation by Chemical Scissors. Z. Anorg. Allg. Chem. 2007, 633, 2300–2304. [Google Scholar] [CrossRef]
  61. Basalov, I.V.; Roşca, S.C.; Lyubov, D.M.; Selikhov, A.N.; Fukin, G.K.; Sarazin, Y.; Carpentier, J.-F.; Trifonov, A.A. Divalent Heteroleptic Ytterbium Complexes – Effective Catalysts for Intermolecular Styrene Hydrophosphination and Hydroamination. Inorg. Chem. 2014, 53, 1654–1661. [Google Scholar] [CrossRef] [PubMed]
  62. Long, J.; Selikhov, A.N.; Mamontova, E.; Lyssenko, K.A.; Guari, Y.; Larionova, J.; Trifonov, A.A. Single-Molecule Magnet Behavior in Luminescent Carbazolyl Dy(III) Octahedral Complexes with a Quasi Linear N–Dy–N Angle. Dalton Trans. 2020, 49, 4039–4043. [Google Scholar] [CrossRef]
  63. Eppinger, J.; Spiegler, M.; Hieringer, W.; Herrmann, W.A.; Anwander, R. C2-Symmetric Ansa-Lanthanidocene Complexes. Synthesis via Silylamine Elimination and β-SiH Agostic Rigidity. J. Am. Chem. Soc. 2000, 122, 3080–3096. [Google Scholar] [CrossRef]
  64. Fraser, R.R.; Mansour, T.S.; Savard, S. Acidity Measurements on Pyridines in Tetrahydrofuran Using Lithiated Silylamines. J. Org. Chem. 1985, 50, 3232–3234. [Google Scholar] [CrossRef]
  65. Werner, D.; Deacon, G.B.; Junk, P.C.; Anwander, R. Pyrazolates Advance Cerium Chemistry: A CeIII/CeIV Redox Equilibrium with Benzoquinone. Dalton Trans. 2017, 46, 6265–6277. [Google Scholar] [CrossRef]
  66. Werner, D.; Deacon, G.B.; Junk, P.C.; Anwander, R. Cerium(III/IV) Formamidinate Chemistry, and a Stable Cerium(IV) Diolate. Chem. Eur. J. 2014, 20, 4426–4438. [Google Scholar] [CrossRef] [PubMed]
  67. Bayer, U.; Bock, L.; Maichle-Mössmer, C.; Anwander, R. A Facile Route toward Ceric Silylamide [Ce{N(SiHMe2)2}4]. Eur. J. Inorg. Chem. 2020, 101–106. [Google Scholar] [CrossRef]
  68. Evans, W.J.; Lee, D.S.; Rego, D.B.; Perotti, J.M.; Kozimor, S.A.; Moore, E.K.; Ziller, J.W. Expanding Dinitrogen Reduction Chemistry to Trivalent Lanthanides via the LnZ3/Alkali Metal Reduction System:  Evaluation of the Generality of Forming Ln2(μ-η2:η2-N2) Complexes via LnZ3/K. J. Am. Chem. Soc. 2004, 126, 14574–14582. [Google Scholar] [CrossRef] [PubMed]
  69. Williams, U.J.; Schneider, D.; Dorfner, W.L.; Maichle-Mössmer, C.; Carroll, P.J.; Anwander, R.; Schelter, E.J. Variation of Electronic Transitions and Reduction Potentials of Cerium(iv) Complexes. Dalton Trans. 2014, 43, 16197–16206. [Google Scholar] [CrossRef] [PubMed]
  70. Hausen, H.-D.; Locke, K.; Weidlein*, J. Die Molekül- und Kristallstruktur von (CH3)2InNC4H4. J. Organomet. Chem. 1992, 423, C1–C4. [Google Scholar] [CrossRef]
  71. Hausen, H.-D.; Tödtmann, J.; Weidlein, J. [(CH3C)4N-(CH3)2Al⋯Cl⋯Al(CH3)2-N(CCH3)4]Li-Ein Ungewöhnlicher Sandwich-Komplex Des Lithiums. J. Organomet. Chem. 1994, 466, C1–C4. [Google Scholar] [CrossRef]
  72. Hsueh, L.-F.; Chuang, N.-T.; Lee, C.-Y.; Datta, A.; Huang, J.-H.; Lee, T.-Y. Magnesium Complexes Containing η1- and η3-Pyrrolyl or Ketiminato Ligands: Synthesis, Structural Investigation and ϵ-Caprolactone Ring-Opening Polymerisation. Eur. J. Inorg. Chem. 2011, 5530–5537. [Google Scholar] [CrossRef]
  73. Guo, Z.; Xu, Y.; Chao, J.; Wei, X. Lithium Organoaluminate Complexes as Catalysts for the Conversion of CO2 into Cyclic Carbonates. Eur. J. Inorg. Chem. 2020, 2835–2841. [Google Scholar] [CrossRef]
  74. Crozier, A.R.; Bienfait, A.M.; Maichle-Mössmer, C.; Törnroos, K.W.; Anwander, R. A Homoleptic Tetravalent Cerium Silylamide. Chem. Commun. 2013, 49, 87–89. [Google Scholar] [CrossRef]
  75. Schneider, D.; Spallek, T.; Maichle-Mössmer, C.; Törnroos, K.W.; Anwander, R. Cerium Tetrakis(Diisopropylamide)—A Useful Precursor for Cerium(iv) Chemistry. Chem. Commun. 2014, 50, 14763–14766. [Google Scholar] [CrossRef] [PubMed]
  76. Gauld, R.M.; Kennedy, A.R.; McLellan, R.; Barker, J.; Reid, J.; Mulvey, R.E. Diverse Outcomes of CO2 Fixation Using Alkali Metal Amides Including Formation of a Heterobimetallic Lithium–Sodium Carbamato-Anhydride via Lithium–Sodium Bis-Hexamethyldisilazide. Chem. Commun. 2019, 55, 1478–1481. [Google Scholar] [CrossRef] [PubMed]
  77. Zelenin, K.N.; Tugusheva, A.R.; Yakimovich, S.I.; Alekseev, V.V.; Zerova, E.V. 5-Hydroxy-2-Pyrazolines and Some of Their 1-Substituted Analogs. Chem. Heterocycl. Compd. 2002, 38, 668–676. [Google Scholar] [CrossRef]
Molecules 26 01957 g001

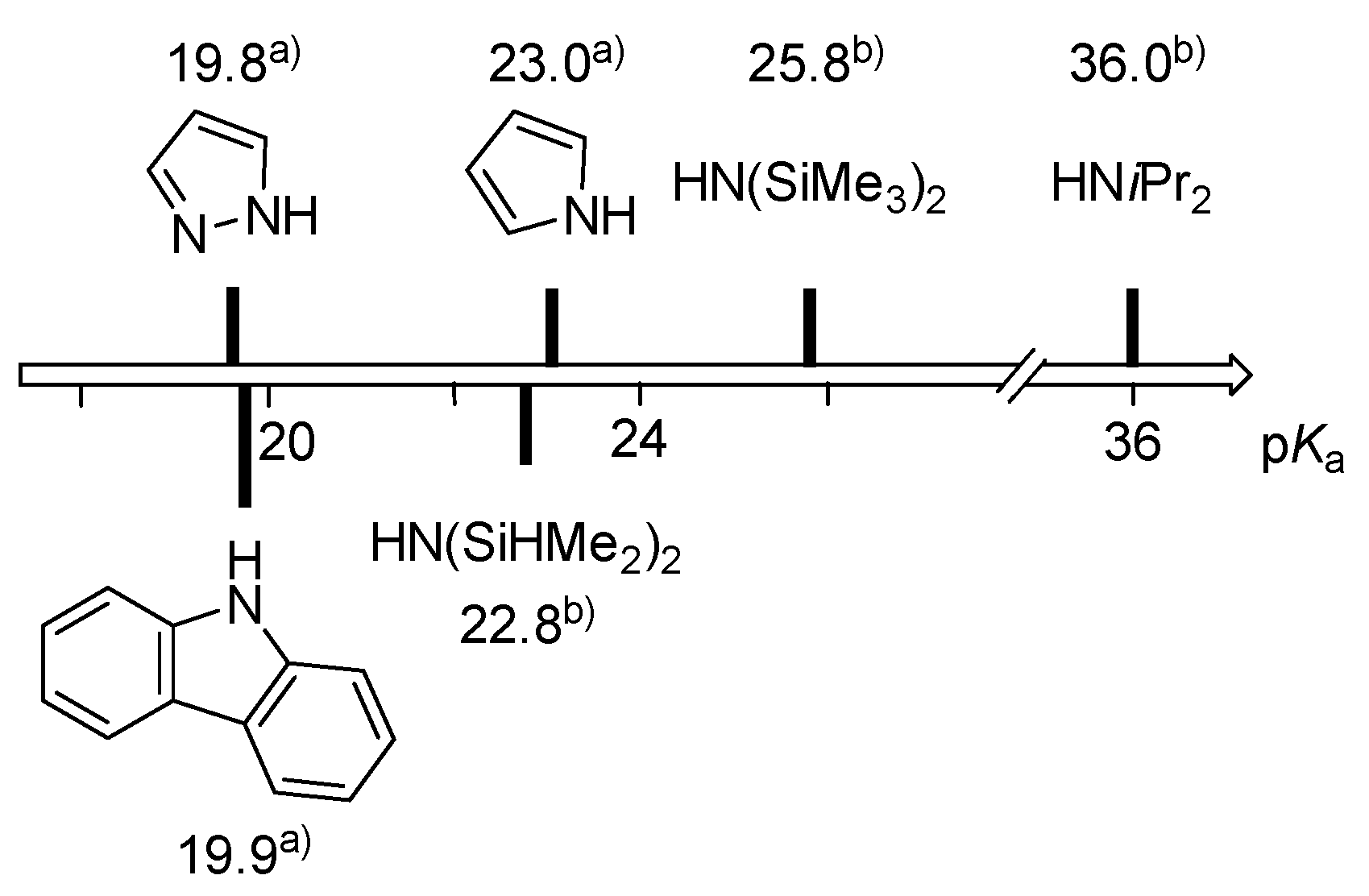

Figure 1. pKa values of the different N-proligands [40,63,64]. a) Determined in DMSO, b) determined in THF.
Figure 1. pKa values of the different N-proligands [40,63,64]. a) Determined in DMSO, b) determined in THF.
Molecules 26 01957 g001
Molecules 26 01957 sch001

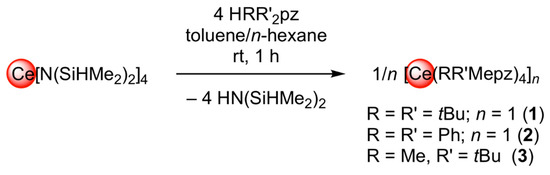

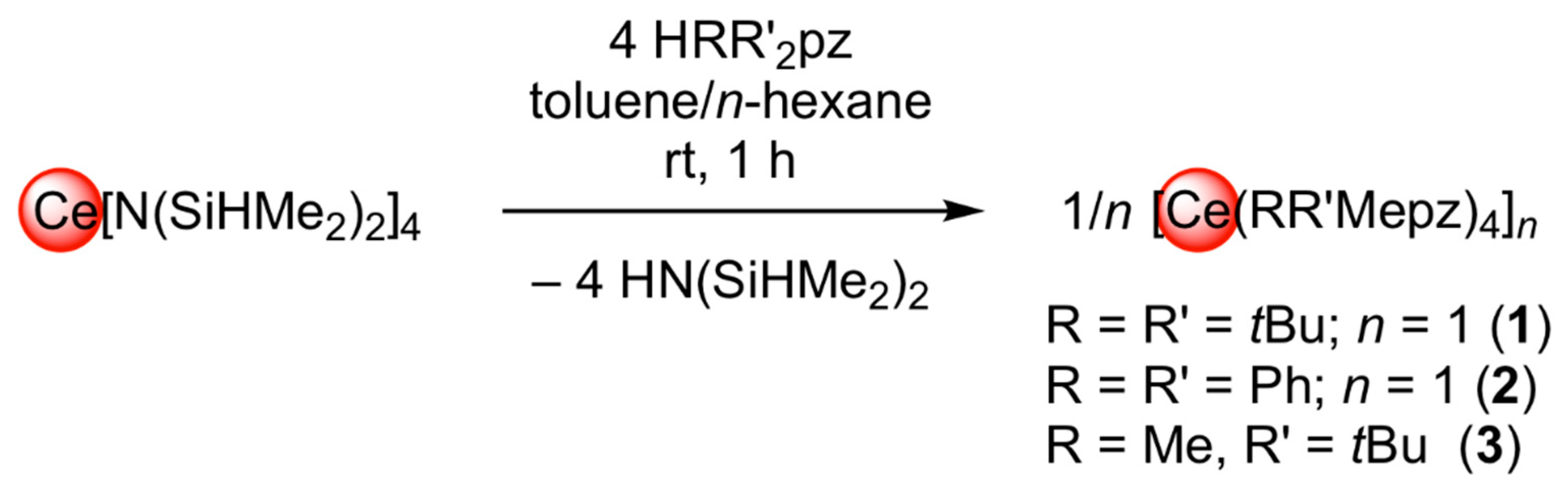

Scheme 1. Synthesis of ceric pyrazolates 1 to 3.
Scheme 1. Synthesis of ceric pyrazolates 1 to 3.
Molecules 26 01957 sch001
Molecules 26 01957 g002

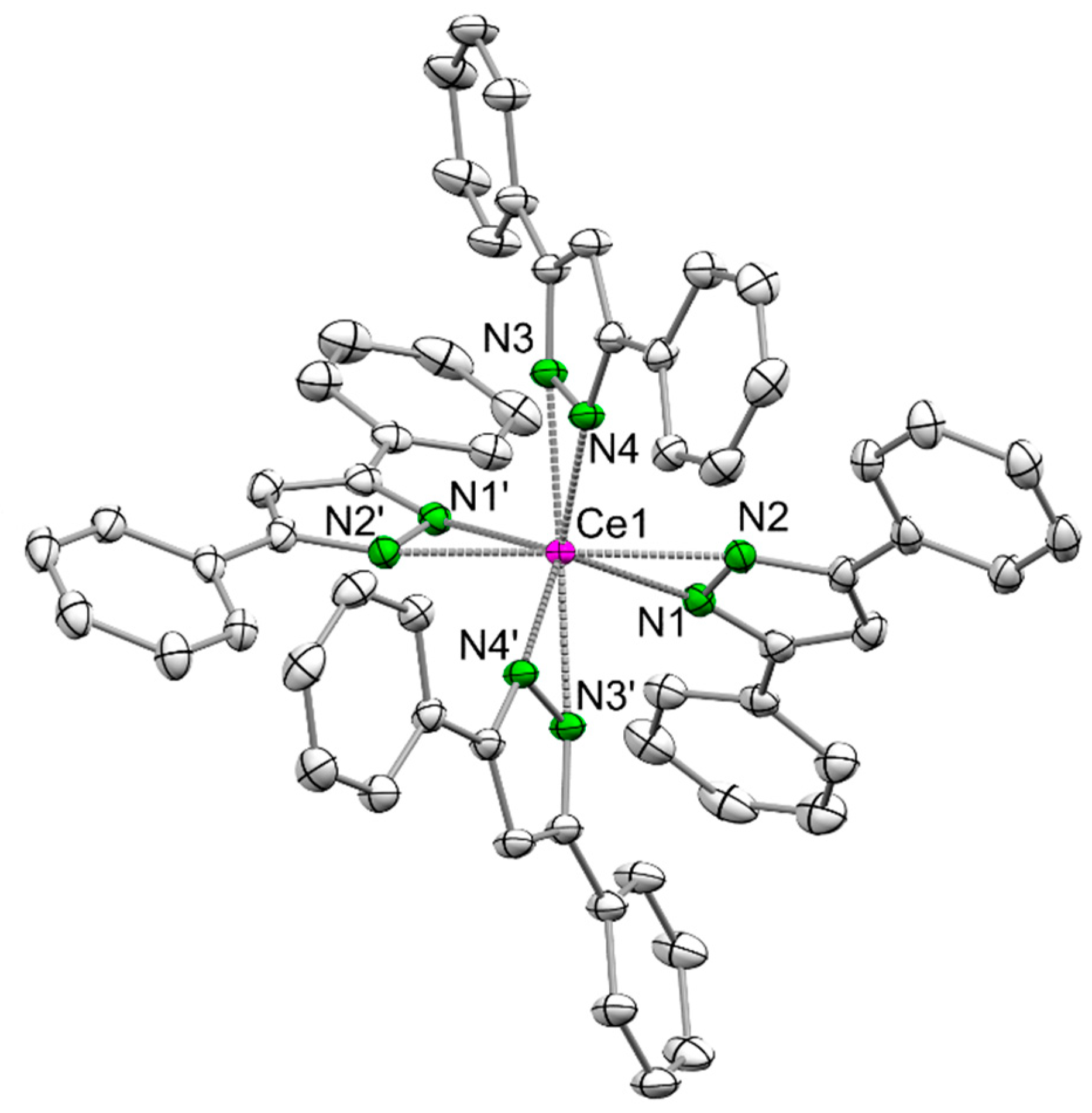

Figure 2. Crystal structure of Ce(Ph2pz)4 (2). Ellipsoids are shown at the 50% probability level. Hydrogen atoms and lattice toluene are omitted for clarity. Selected interatomic distances (Å) and angles (°): Ce1−N1 2.3790(16), Ce1−N2 2.3381(16), Ce1−N3 2.3409(15), Ce1−N4 2.3575(16); N1−Ce1−N3 113.41(6), N1−Ce1−N4 118.73(5), N2−Ce1−N3 96.05(6), and N2−Ce1−N4 87.76(5).
Figure 2. Crystal structure of Ce(Ph2pz)4 (2). Ellipsoids are shown at the 50% probability level. Hydrogen atoms and lattice toluene are omitted for clarity. Selected interatomic distances (Å) and angles (°): Ce1−N1 2.3790(16), Ce1−N2 2.3381(16), Ce1−N3 2.3409(15), Ce1−N4 2.3575(16); N1−Ce1−N3 113.41(6), N1−Ce1−N4 118.73(5), N2−Ce1−N3 96.05(6), and N2−Ce1−N4 87.76(5).
Molecules 26 01957 g002
Molecules 26 01957 sch002

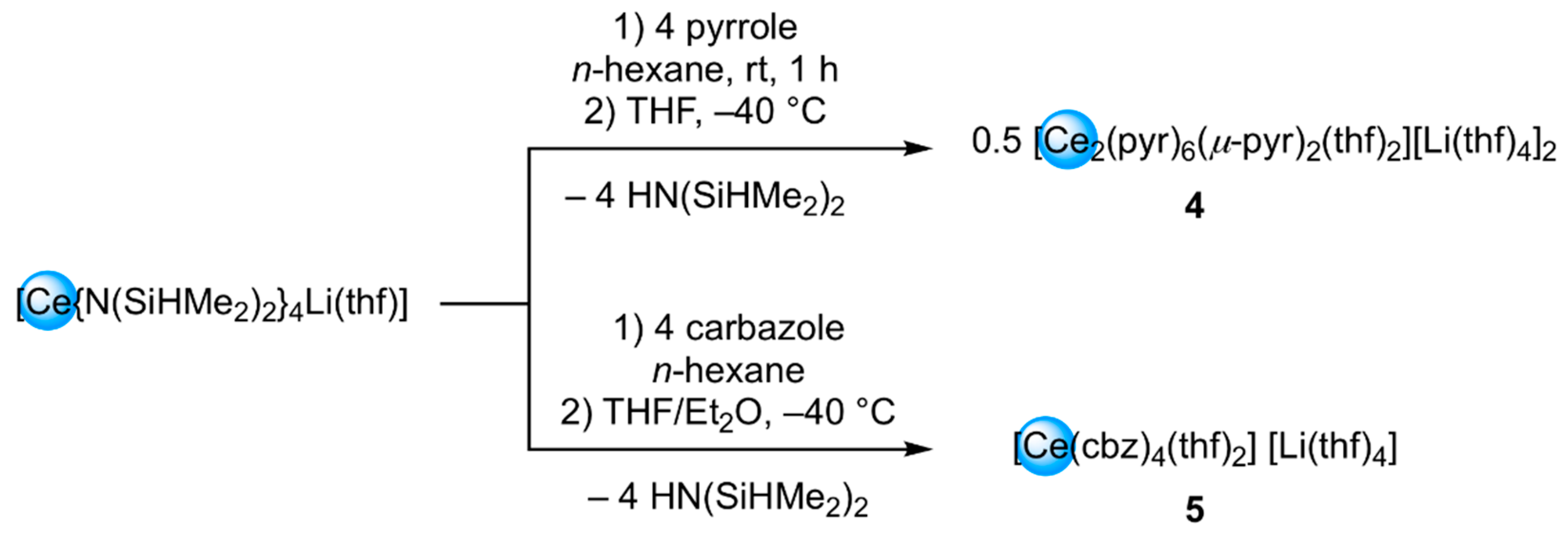

Scheme 2. Synthesis of cerous pyrrolate and carbazolate ate complexes 4 and 5.
Scheme 2. Synthesis of cerous pyrrolate and carbazolate ate complexes 4 and 5.
Molecules 26 01957 sch002
Molecules 26 01957 g003

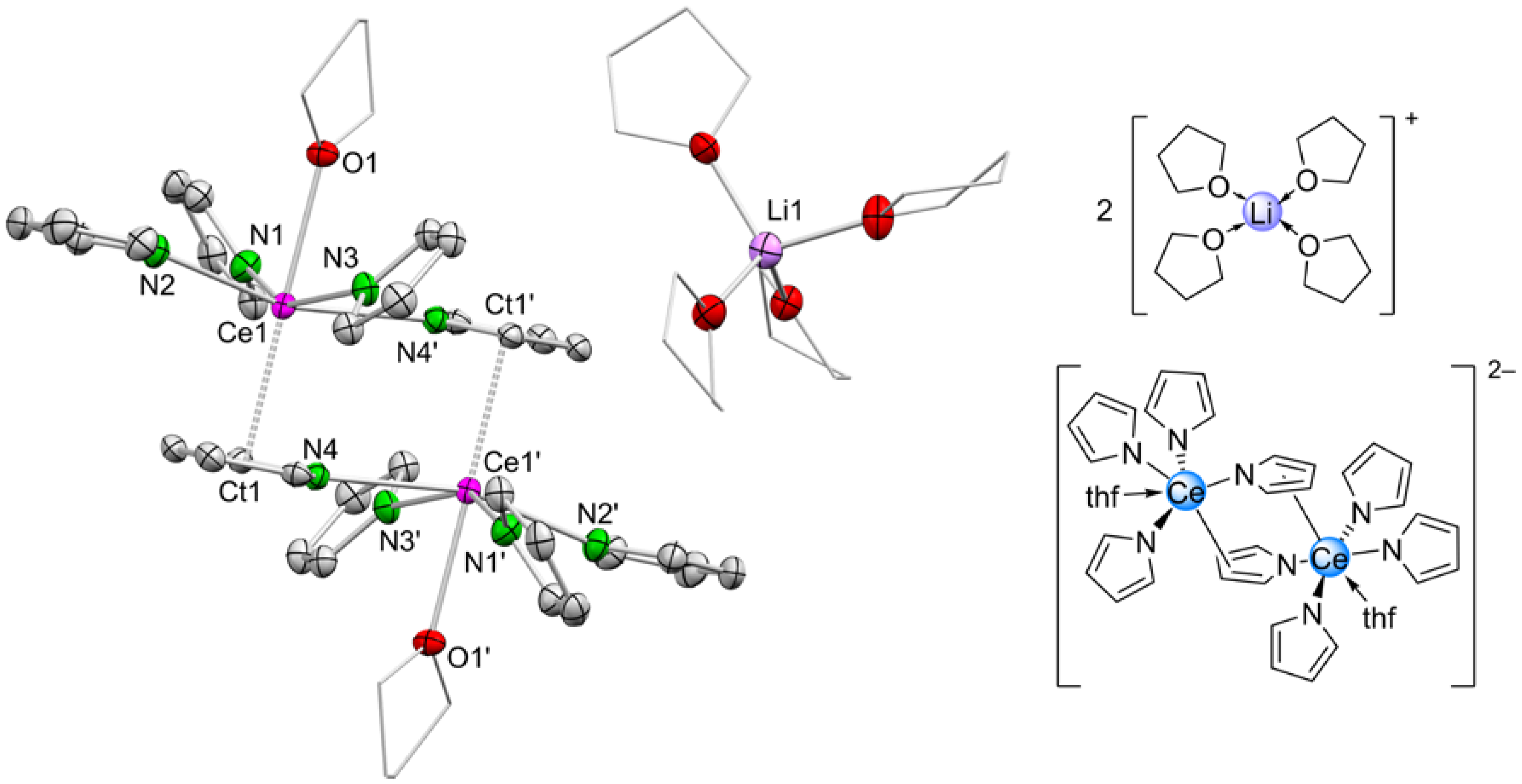

Figure 3. Crystal structure of [Ce2(pyr)6(µ-pyr)2(thf)2][Li(thf)4]2 (4). Ellipsoids are shown at the 50% probability level. Hydrogen atoms and the second [Li(thf)4]+ counter ion are omitted for clarity. Selected interatomic distances (Å) and angles (°): Ce1−N1 2.512(2), Ce1−N2 2.475(2), Ce1−N3 2.515(2), Ce1−N4′ 2.622(2), Ce1−Ct1 2.575(16), Ce1−O1 2.5138(17); N1−Ce1−N2 97.21(7), N1−Ce1-N3 153.53(8), N1−Ce1−N4 86.15(7), N1−Ce1−O1 78.80(7), and N4−Ce1′−Ct1′ 97.8(5).
Figure 3. Crystal structure of [Ce2(pyr)6(µ-pyr)2(thf)2][Li(thf)4]2 (4). Ellipsoids are shown at the 50% probability level. Hydrogen atoms and the second [Li(thf)4]+ counter ion are omitted for clarity. Selected interatomic distances (Å) and angles (°): Ce1−N1 2.512(2), Ce1−N2 2.475(2), Ce1−N3 2.515(2), Ce1−N4′ 2.622(2), Ce1−Ct1 2.575(16), Ce1−O1 2.5138(17); N1−Ce1−N2 97.21(7), N1−Ce1-N3 153.53(8), N1−Ce1−N4 86.15(7), N1−Ce1−O1 78.80(7), and N4−Ce1′−Ct1′ 97.8(5).
Molecules 26 01957 g003
Molecules 26 01957 g004

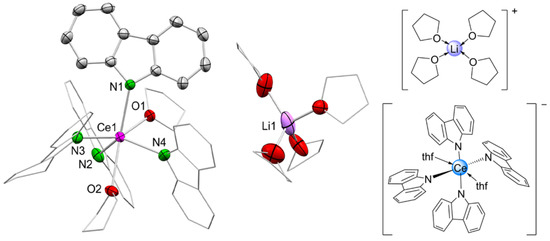

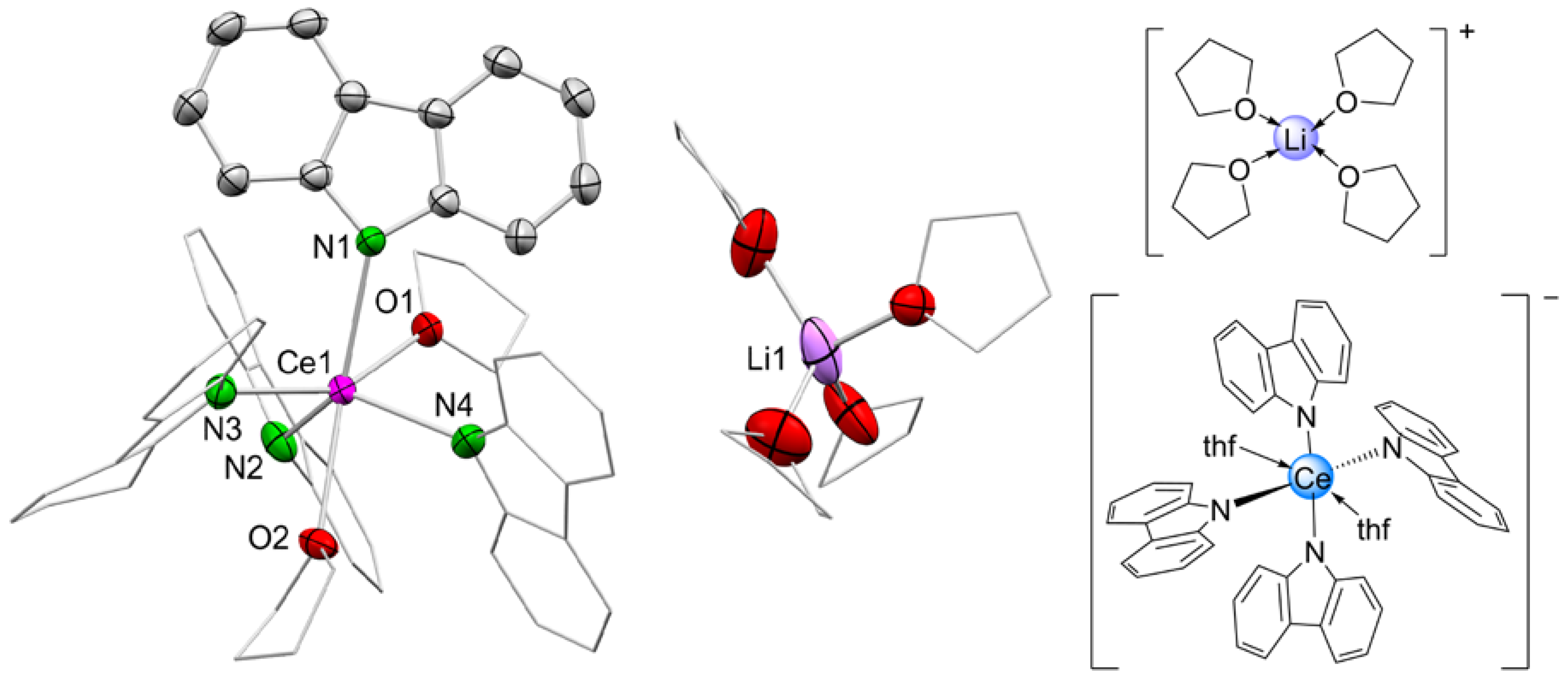

Figure 4. Crystal structure of [Ce(cbz)4(thf)2][Li(thf)4] (5). Ellipsoids are shown at the 50% probability level. Hydrogen atoms and disordered atoms are omitted for clarity. Selected interatomic distances (Å) and angles (°): Ce1−N1 2.531(4), Ce1−N2 2.480(4), Ce1−N3 2.497(4), Ce1−N4 2.484(4), Ce1−O1 2.577(4), Ce1−O2 2.583(3); N1−Ce1−N2 128.14(14), N1−Ce1−N3 90.91(13), N1−Ce1−N4 92.69(13), and O1−Ce1−O2 129.06(11).
Figure 4. Crystal structure of [Ce(cbz)4(thf)2][Li(thf)4] (5). Ellipsoids are shown at the 50% probability level. Hydrogen atoms and disordered atoms are omitted for clarity. Selected interatomic distances (Å) and angles (°): Ce1−N1 2.531(4), Ce1−N2 2.480(4), Ce1−N3 2.497(4), Ce1−N4 2.484(4), Ce1−O1 2.577(4), Ce1−O2 2.583(3); N1−Ce1−N2 128.14(14), N1−Ce1−N3 90.91(13), N1−Ce1−N4 92.69(13), and O1−Ce1−O2 129.06(11).
Molecules 26 01957 g004
Molecules 26 01957 g005

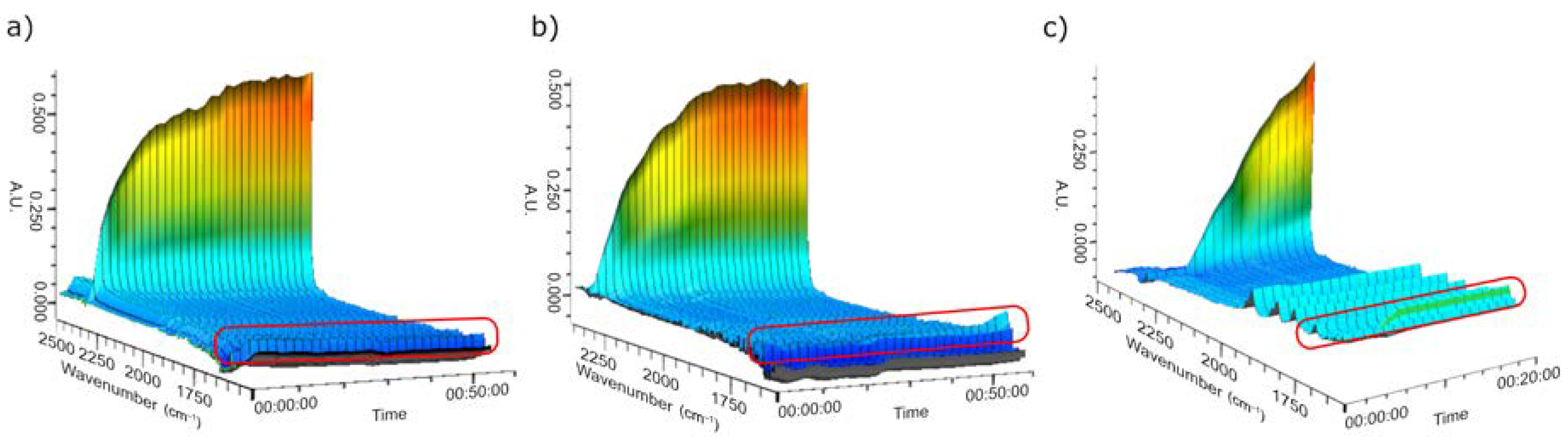

Figure 5. In situ IR spectroscopic measurements of the reaction of CO2 and (a) Ce(tBu2pz)4 (1), (b) Ce(Ph2pz)4 (2), and (c) Ce(tBuMepz)4 (3) at −20 °C. The wavenumber of the C=O band is marked with a red box.
Figure 5. In situ IR spectroscopic measurements of the reaction of CO2 and (a) Ce(tBu2pz)4 (1), (b) Ce(Ph2pz)4 (2), and (c) Ce(tBuMepz)4 (3) at −20 °C. The wavenumber of the C=O band is marked with a red box.
Molecules 26 01957 g005
Molecules 26 01957 g006

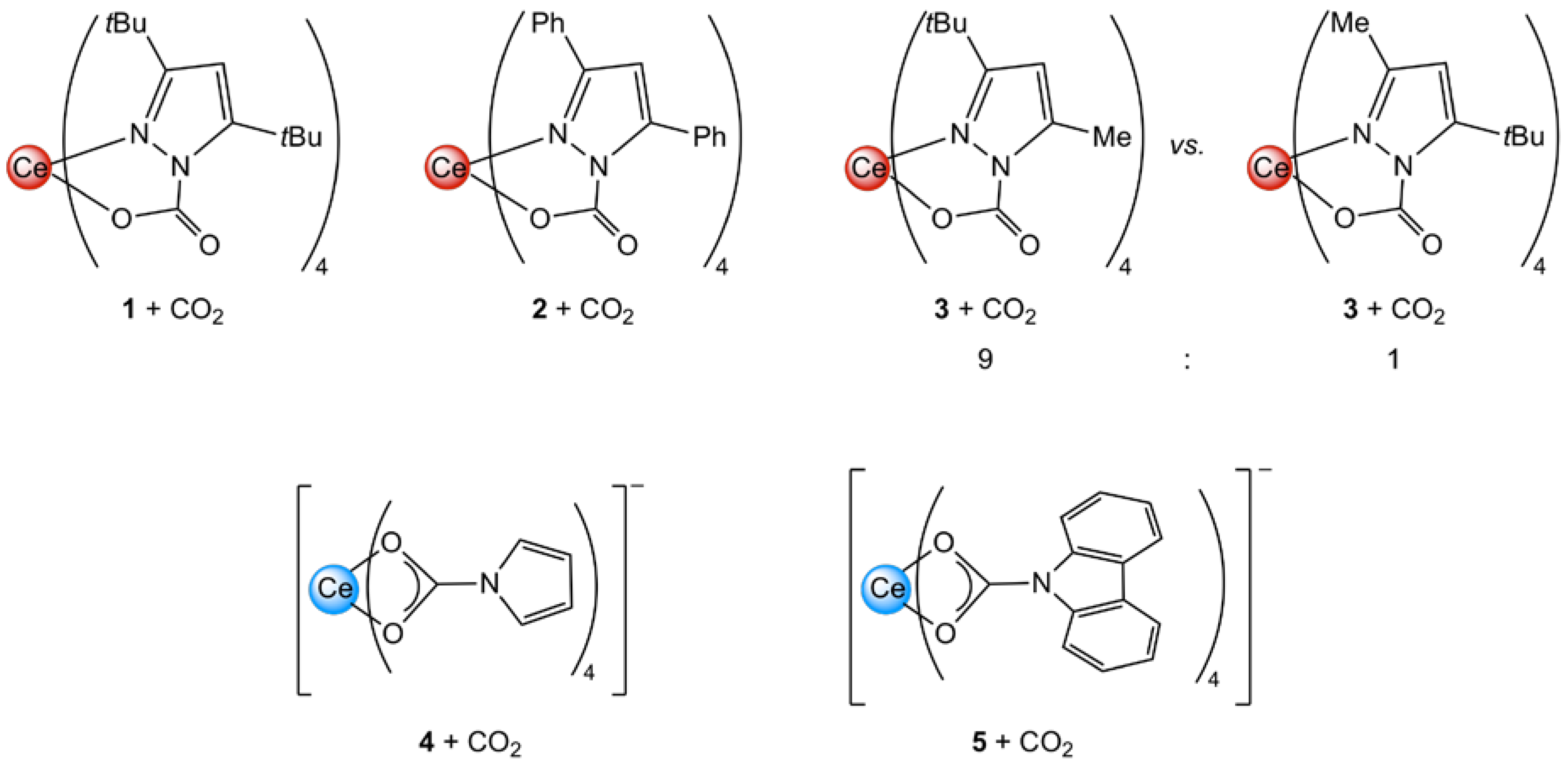

Figure 6. Putative insertion products of the reaction of complexes 1 to 5 with CO2.
Figure 6. Putative insertion products of the reaction of complexes 1 to 5 with CO2.
Molecules 26 01957 g006
Molecules 26 01957 g007

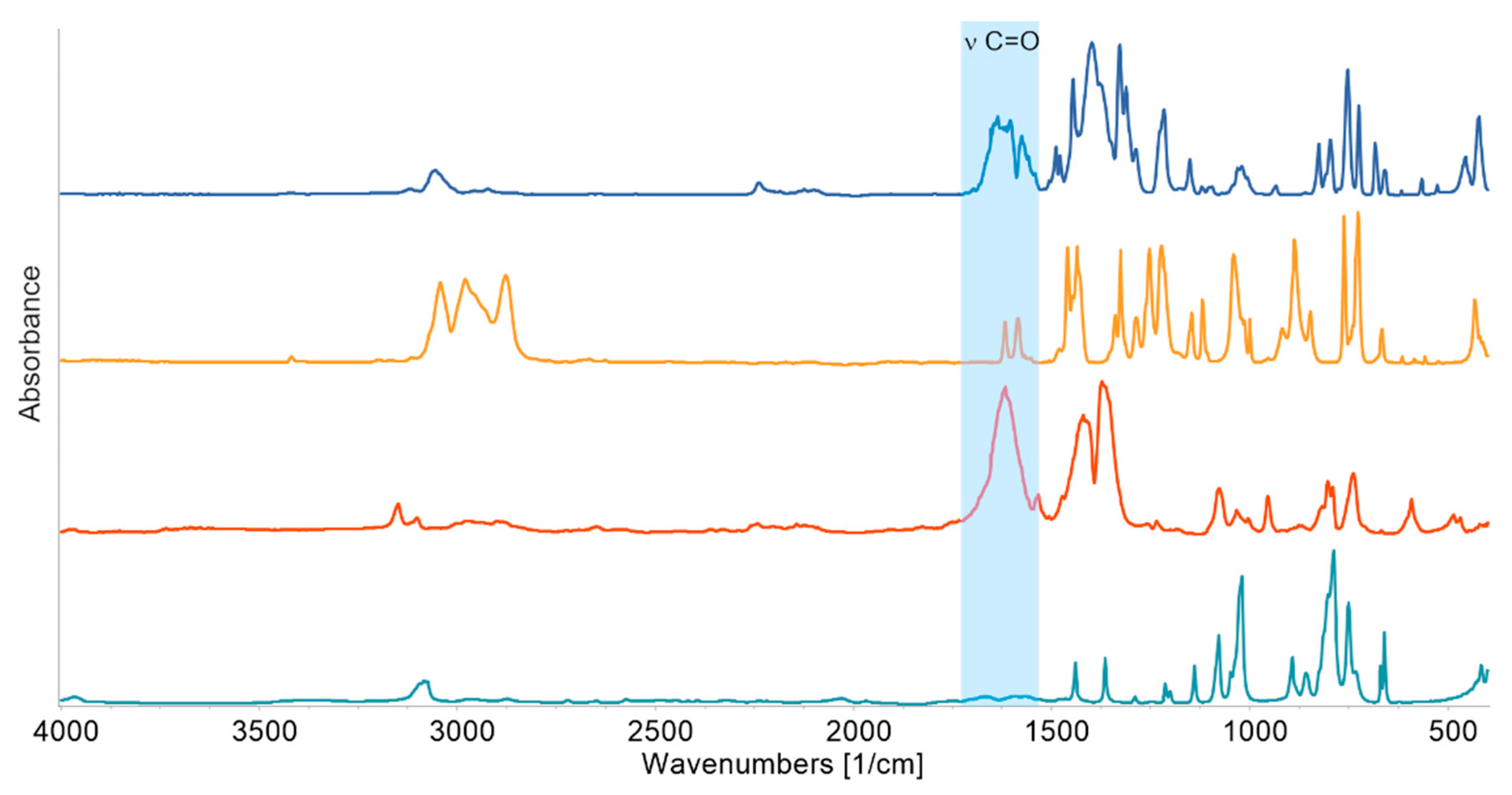

Figure 7. Stacked DRIFT (diffuse reflectance infrared Fourier transform) spectra of the reactions of 4 before (green trace) and after treatment with CO2 (orange trace) as well as 5 before (yellow) and after treatment with CO2 (blue) from bottom to top. The region for C−O vibrations is highlighted in blue.
Figure 7. Stacked DRIFT (diffuse reflectance infrared Fourier transform) spectra of the reactions of 4 before (green trace) and after treatment with CO2 (orange trace) as well as 5 before (yellow) and after treatment with CO2 (blue) from bottom to top. The region for C−O vibrations is highlighted in blue.
Molecules 26 01957 g007
Molecules 26 01957 sch003

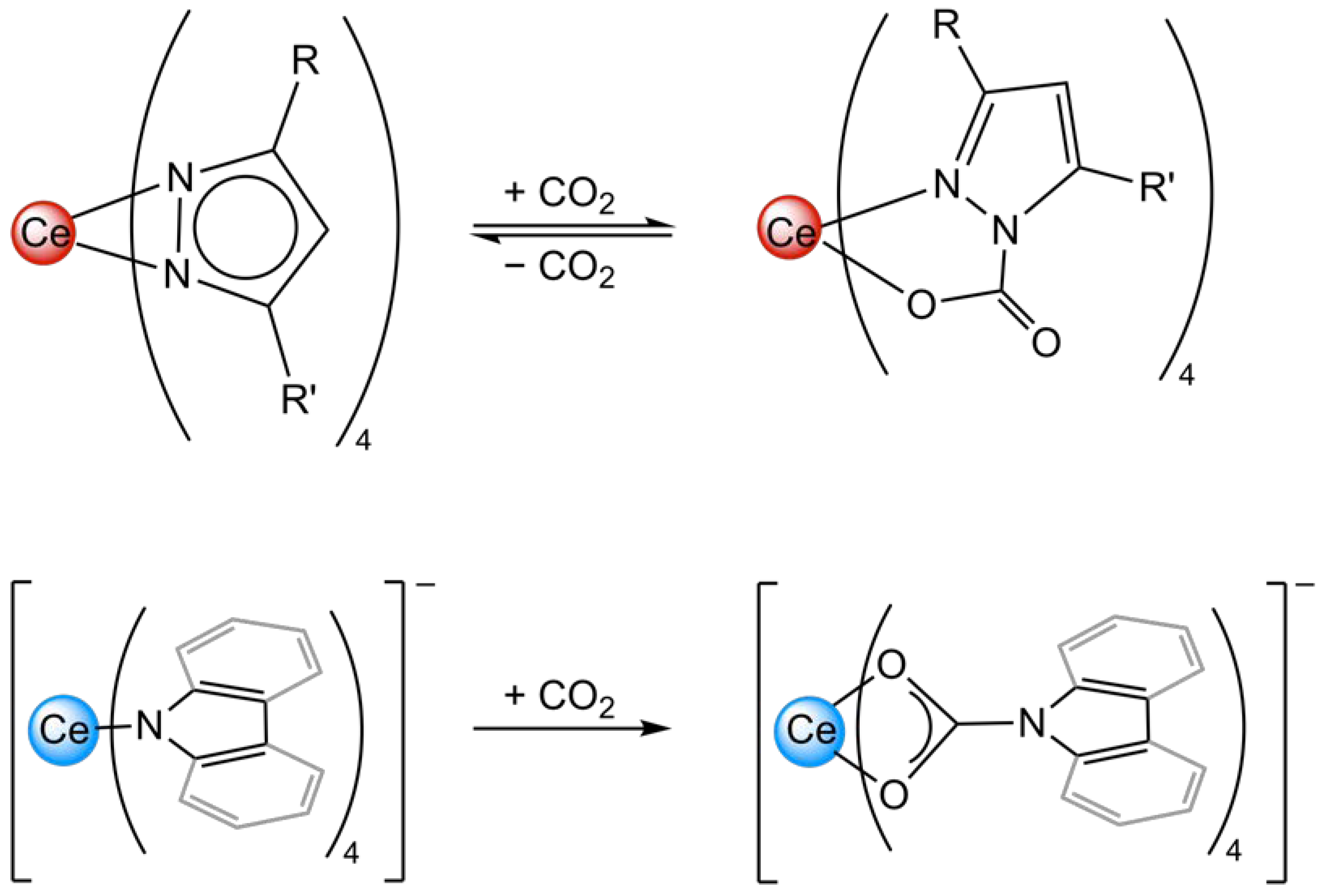

Scheme 3. Reversible and irreversible CO2 insertion into Ce−N(pz) and Ce−N(pyr)/Ce−N(cbz) bonds, respectively.
Scheme 3. Reversible and irreversible CO2 insertion into Ce−N(pz) and Ce−N(pyr)/Ce−N(cbz) bonds, respectively.
Molecules 26 01957 sch003
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bayer, U.; Jenner, A.; Riedmaier, J.; Maichle-Mössmer, C.; Anwander, R. Effect of Substituents of Cerium Pyrazolates and Pyrrolates on Carbon Dioxide Activation. Molecules 2021, 26, 1957. https://doi.org/10.3390/molecules26071957

AMA Style

Bayer U, Jenner A, Riedmaier J, Maichle-Mössmer C, Anwander R. Effect of Substituents of Cerium Pyrazolates and Pyrrolates on Carbon Dioxide Activation. Molecules. 2021; 26(7):1957. https://doi.org/10.3390/molecules26071957

Chicago/Turabian Style

Bayer, Uwe, Adrian Jenner, Jonas Riedmaier, Cäcilia Maichle-Mössmer, and Reiner Anwander. 2021. "Effect of Substituents of Cerium Pyrazolates and Pyrrolates on Carbon Dioxide Activation" Molecules 26, no. 7: 1957. https://doi.org/10.3390/molecules26071957

APA Style

Bayer, U., Jenner, A., Riedmaier, J., Maichle-Mössmer, C., & Anwander, R. (2021). Effect of Substituents of Cerium Pyrazolates and Pyrrolates on Carbon Dioxide Activation. Molecules, 26(7), 1957. https://doi.org/10.3390/molecules26071957

Article Metrics

Back to TopTop
