Article

Construction of a Stable Lanthanide Metal-Organic Framework as a Luminescent Probe for Rapid Naked-Eye Recognition of Fe3+ and Acetone

by
Jiayishuo Wang
1,2,
Muxin Yu
1,3,
Lian Chen
1,*,
Zhijia Li
1,2,
Shengchang Li
1,2,
Feilong Jiang
1 and
Maochun Hong
1,*
1
Key Laboratory of Optoelectronic Materials Chemistry and Physics, Fujian Institute of Research on the Structure of Matter, Chinese Academy of Sciences, Fuzhou 350002, China
2
University of the Chinese Academy of Sciences, Beijing 100049, China
3
Organic Optoelectronics Engineering Research Centre of Fujian’s Universities, College of Electronics and Information Science, Fujian Jiangxia University, Fuzhou 350108, China
*
Authors to whom correspondence should be addressed.
Molecules 2021, 26(6), 1695; https://doi.org/10.3390/molecules26061695
Submission received: 9 February 2021 / Revised: 14 March 2021 / Accepted: 15 March 2021 / Published: 18 March 2021
(This article belongs to the Special Issue Explorations in Luminescent Complexes)
Browse Figures
Versions Notes

Abstract

:
Four lanthanide metal-organic frameworks (Ln-MOFs), namely {[Me2NH2][LnL]·2H2O}n (Ln = Eu 1, Tb 2, Dy 3, Gd 4), have been constructed from a new tetradentate ligand 1-(3,5-dicarboxylatobenzyl)-3,5-pyrazole dicarboxylic acid (H4L). These isostructural Ln-MOFs, crystallizing in the monoclinic P21/c space group, feature a 3D structure with 7.5 Å × 9.8 Å channels along the b axis and the point symbol of {410.614.84} {45.6}2. The framework shows high air and hydrolytic stability, which can keep stable after exposed to humid air for 30 days or immersed in water for seven days. Four MOFs with different lanthanide ions (Eu3+, Tb3+, Dy3+, and Gd3+) ions exhibit red, green, yellow, and blue emissions, respectively. The Tb-MOF emitting bright green luminescence can selectively and rapidly (<40 s) detect Fe3+ in aqueous media via a fluorescence quenching effect. The detection shows excellent anti-inference ability toward many other cations and can be easily recognized by naked eyes. In addition, it can also be utilized as a rapid fluorescent sensor to detect acetone solvent as well as acetone vapor. Similar results of sensing experiments were observed from Eu-MOF. The sensing mechanism are further discussed.

Graphical Abstract

1. Introduction

Environmental and ecological problems have caused widespread concern of scientists in recent years. As an essential metal element in human metabolisms, Fe3+ ion plays a crucial role in muscle function, brain function, and hemoglobin [1,2]. Serious problems can be caused by the overloading or deficiency in the Fe3+ ion, such as immunosuppression, cognitive decline, and iron deficient anemia [3]. Likewise, acetone (CH3COCH3), which is one of the critical members of volatile organic solvents (VOCs), has experienced an ever-growing attention not only in the laboratory and industry but also in the household, since it can cause irreversible damage to the human body, such as inhibiting breathing and causing dyspnea [4]. Accordingly, rapid and convenient detection of Fe3+ and acetone are increasingly essential for the environmental and ecological system.
In the recent decades, metal-organic frameworks (MOFs) have drawn increasing research interest on account of their unique features in their structures, such as permanent porosity, tunable structures, functions, and so on [5,6,7,8]. The potential applications of MOFs include but not limit to catalysis [9,10,11], sensing [12,13,14,15,16,17,18,19,20], optics [21,22,23,24,25], gas storage and separation [26,27,28,29], bio-imaging, and drug delivery [30,31,32,33]. In particular, lanthanide metal-organic frameworks (Ln-MOFs), displaying bright luminescence with large Stokes shifts, high quantum yields, and long lifetimes, are widely used as versatile materials in optics and sensing [34]. The forerunners have made great efforts on the recognition of environmentally and biologically relative species based on luminescent Ln-MOFs [35,36]. However, most of the MOFs reported for luminescent sensing are applied in nonaqueous media because of their poor hydrolytic stabilities [37]. In addition, the reports of rapid detection are few. The poor stabilities of the structures and the time consumption in the detection limit the further applications of MOFs in luminescent sensing. In light of these facts, we attempt to construct multifunctional Ln-MOFs for sensing in aqueous media conveniently and rapidly. Herein, a tetracarboxylic acid ligand, 1-(3,5-dicarboxylatobenzyl)-3,5-pyrazole dicarboxylic acid (H4L, Scheme 1), which can provide versatile coordination modes and Lewis base sites, was employed to construct four novel MOFs {[Me2NH2][LnL]·2H2O}n (Ln = Eu 1, Tb 2, Dy 3, and Gd 4). The MOFs demonstrate excellent air and water stabilities as well as colorful luminescence. Based on these virtues, a convenient and fast-response luminescent sensor toward the Fe3+ ion in aqueous solution with good anti-inference ability was fabricated. It also shows the potential for quickly sensing acetone solvent as well as its vapor in the air. The simplicity, visualization, and high time efficiency of this method make it a competitive dual-functional fluorescent probe.

2. Results and Discussion

2.1. Structure Description of {[Me2NH2][LnL]·2H2O}n (Ln = Eu 1, Tb 2, Dy 3, Gd 4) (Compounds 1–4)

Crystal data and refinement results for compounds 1–4 are listed in Table 1.
Single crystal X-ray diffraction analysis (SCXRD) shows that the four compounds are isomorphic. Therefore, we choose 4 (Gd-MOF) as a representative to elaborate the structure. Crystal structure analysis reveals that it crystallizes in space group P21/c. The asymmetric unit contains a crystallographically-independent Gd3+ ion, a fully deprotonated [L]4− ligand, and an isolated dimethylamine cation (Figure S2). In the compound, the coordination environment of the nine-coordinated gadolinium center is composed of six oxygen atoms from three chelating bidentate carboxylate groups and three oxygen atoms from three μ2-bridging carboxylate groups (Figure 1a). The Gd1 atom and its corresponding symmetrically generated one are bridged by four bidentate carboxylic groups of four [L]4− ligands to form a binuclear metal cluster unit [Gd2(COO)4] (Figure 1b). The coordination mode of the ligand is a μ6-bridging mode connecting with six Gd3+ ions from four [Gd2(COO)4] clusters, where two carboxylate groups adopt a chelating bidentate mode and the other two carboxylate groups adopt a μ2-bridging bidentate mode, respectively (Figure 1c and Figure S3). Each [Gd2(COO)4] cluster is connected with the other 14 binuclear clusters through eight [L]4− ligands (Figure 1d). As shown in Figure 1e, the binuclear metal cluster units are further interconnected to form an infinite 3D framework through the organic linkers, showing a 1D open channel along the b-axis with the approximate size of 7.5 Å × 9.8 Å.
Topological analysis [38] shows that the structure can be simplified as a new (4, 8)-connected net with stoichiometry (4−c) (8−c)2 and point symbol of {410.614.84} {45.6}2 when the binuclear metal cluster units and ligands are considered as eight-connected nodes and four-connected linkers, respectively (Figure 2). Powder X-ray diffraction (PXRD) patterns were then recorded to analyze the phase purity of the obtained compounds. The results reveal that the samples of four MOFs are of high purity (Figure S4).

2.2. Framework Stability

The framework stability of MOFs is of vital importance for their practical applications. Therefore, the following experiments were carried out. First, thermogravimetry analyses (TGA) for the four compounds were studied (Figure S5). The results show that the thermogravimetric curves of the four samples overlap together. When the temperature rises to 180 °C, the weight loss is about 6.3%, which should be the escape of two water molecules. The frameworks keep stable up to 288 °C and begin to collapse when the temperature exceeds 288 °C. Since the MOFs have the same frameworks, 2 is selected for the further tests. A thermo-diffractogram obtained from 30 °C to 450 °C demonstrates the crystalline structure keeps stable from 30–200 °C, slightly changes at 300 °C, and finally collapses when the temperature comes up to 400 °C (Figure S6a). The observation is in accordance with the result from TGA. The air stability is determined by collecting PXRD patterns after a period of exposure in the atmosphere with a humidity of ca. 55%. The unchanged PXRD patterns reveal that the framework can survive in the humid air for more than 30 days (Figure S6b). The PXRD patterns of the samples immersed in water shows that the water stability of the framework is excellent (remain stable for more than 7 days (Figure S6c)). Chemical stability of the MOF was also evaluated. The samples were immersed in aqueous solutions with the pH values varying from 2 to 11 for 42 h. Then, the filtered samples were dried in air. The nearly unchanged PXRD patterns with pH values from 5 to 10 indicate relatively good chemical stability (Figure S6d).

2.3. Luminescent Properties

The luminescence properties of the ligand and compounds 1–4 in a solid state are shown in Figure 3 and Figure S7. Ln3+ ions suffer from weak light absorption with the absorption coefficients generally less than 10 M−1 cm−1 due to the “Laporte forbidden” feature of the transitions between the 4fn configurations of the Ln3+ Ions. According to the famous “antenna effect” theory founded by Weissman in 1942 [39,40,41], the organic ligand can efficiently absorb light and transfer this energy to the excited states of the central lanthanide ions by overcoming the weak absorption of lanthanide and, thus, leading to the improvement of the emission efficiency. When excited at 297 nm, 1 shows the characteristic red emission with the emissions at 580 nm, 591 nm, 613 nm, 615 nm, and 700 nm corresponding to 5D0 → 7FJ (J = 1–4) transitions of Eu3+ centers, respectively (Figure 3a). Under the excitation of 299 nm, 2 exhibits characteristic green emission with the peaks at 488 nm, 619 nm, 543 nm, 584 nm, and 619 nm, ascribed to 5D4 → 7FJ (J = 6, 5, 4, and 3) transitions of Tb3+ ions (Figure 3b). 3 displays yellow emission bands at 479 nm, 573 nm, 663 nm, and 751 nm upon excitation at 287 nm, which are due to 7F9/2 → 6HJ (J = 12/2, 13/2, 11/2, 7/2) transitions of Dy3+ ions (Figure 3c). Similar bands around 300 nm observed in the excitation spectra (dash lines, Figure 3) of the three complexes may be ascribed to the n→ π* or π→ π* transitions of the ligand. The ligand displays a broad band at 370–550 nm on the excitation of 346 nm (Figure S7a). Apart from Eu3+, Tb3+, and Dy3+ ions, the energy levels of Gd3+ ion are too high so that the energy from the lowest triplet state energy level (T1) of the ligand cannot be transferred to the Gd3+ center, bringing about the broad blue emission similar to that of the pure ligand (Figure S7b). The phosphorescence spectrum of 4 at 77 K reveals that the triplet state energy level T1 of the ligand is 24,570 cm−1 (407 nm). The Commission Internationale de l’Éclairage (CIE) 1931 chromaticity diagram shows the different emission colors of the compounds (Figure 3d). The room temperature quantum yields and lifetimes of compounds 1, 2, and 3 were also measured and shown in Table S1 and Figure S8. Compared with the low quantum yield of 3, those of 1 and 2 are as high as 39.29% and 57.77%, respectively, indicating that Eu3+ and Tb3+ can be better sensitized by the ligand when compared with Dy3+. This can be further proven by the larger lifetimes of compounds 1 and 2.

2.4. Sensing of Cations

Porous characteristics, excellent hydrolytic stability, and intensive luminescence presented above inspire us to explore the potential of the Ln-MOFs for chemical sensing in aqueous media. 2 was selected for cation detection in consideration of its highest luminescent efficiency in four compounds. Then, 3 mg of 2 was dispersed into 3 mL of water, and the fluorescence intensity of the suspension was measured as the blank sample. Then 2 was dispersed into aqueous solution of 1 mM M(NO3)x of different kinds of metal ions (M = Li+, Ni2+, Mg2+, In3+, K+, Al3+, Zn2+, Ca2+, Cu2+, or Fe3+). The fluorescence spectra of suspensions show that the intensity of 543 nm has slight or negligible changes in the presence of most ions except the Fe3+ cation (Figure 4a and Figure S9). A remarkable quenching occurs in the Fe3+ ion solution, which can be easily observed under the irradiation of ultraviolet (UV) light with naked eyes. This indicates that 2 can be used to selectively detect the Fe3+ ion in aqueous solution.
The concentration-dependent luminescence of Fe3+ was studied in the presence of Fe3+ from 0 to 5 × 10−4 M (Figure 4b). The quenching effect can be clearly observed at the concentration of 6 × 10−6 M (Figure 4c,d). The fluorescence quenching efficiency is measured by using the formula: (1 − I/I0) × 100%), suggesting that 2 shows a high sensitivity in fluorescence quenching sensing. The quenching effect coefficient (Ksv), which verifies the quenching effect, is calculated according to the Stern–Volmer (SV) equation: I0/I = 1 + Ksv [M], where I0 and I represent the luminescent intensities before and after analyte addition, respectively. [M] represents the molar concentration of metal ions. In the concentration from 0 to 3 × 10−4 M, the Stern-Volmer quenching curve is close to the first-order linearity, with the correlation coefficient of linear fitting 0.993, and the fitted linear equation I0/I = 1.02288 + 6800 [Fe3+]. However, there is no linear correlation but only an upward curve when the concentration reaches up to 3 × 10−4 M. The non-linear nature suggests the mechanism of the quenching can be attributed to the combination of dynamic and static quenching [42,43].
During the experiment, it was found that the fluorescence of the sample can be quenched by Fe3+ ions in a remarkably short contact time, so we studied the relationship between the Fe3+ contact time and the fluorescence intensity. The result showed that the maximum quenching efficiency is achieved in 40 s, and then it remains unchanged (Figure 5a and Figure S10). The phenomenon indicates that the 2 has an ultrafast fluorescence response to the Fe3+ ion, which is expected to be applied to real-time sensing.
In order to study the anti-interference ability toward other cations, sensing experiments were carried out in aqueous solution with a mixture of Fe3+ ion and other metal cations. The emission intensity of 2 in aqueous solution of mixed cations (Li+, Ni2+, Mg2+, In3+, K+, Al3+, Zn2+, Ca2+ and Cu2+, 1 × 10−3 M each) shows only a slight quenching compared with the intensity in pure water (Figure S11). Once the Fe3+ ion (1 × 10−3 M) was added, the slightly changed fluorescence intensity of 2 in other cationic solutions immediately shows a dramatic decrease (Figure 5b). It indicates that the presence of interference ions has little influence on fluorescence detection of 2 toward the Fe3+ ion.
Furthermore, a fluorescent test paper was made to realize a simple, portable, and real-time Fe3+ ion sensor. The capillary dipped in 0.01 M Fe3+ ion aqueous solution was used to write “Fe” on the fluorescent test paper. The position with writing marks was quenched immediately under the irradiation of a UV lamp (Figure 5c). The above experimental results indicate that the 2 could be employed as a convenient, rapid, and easily-recognized probe for Fe3+ with good anti-interference ability.

2.5. Sensing of Organic Molecules

Volatile organic solvents (VOCs) are widely used in laboratory and industrial products. However, they have adverse impact on human health and the environment. As one of the most burgeoning fluorescent probe materials, MOFs are widely used in the detection of organic molecules. To explore the potential application of 2 as a fluorescent sensor for VOCs, a certain amount of its powder was ground and dispersed in different organic solvents, including n-BuOH, EtOH, MeOH, N,N′-dimethylformamide (DMF), i-PrOH, CH2Cl2, C4H10O, CH3CN, tetrahydrofuran (THF), benzene, toluene, n-pentane, and acetone. The photoluminescence test was carried out after ultrasonic dispersing the sample evenly. As shown in Figure 6a and Figure S12, the 5D4 → 7F5 fluorescence intensity of 2 shows no significant change in most organic solvents while the intensity drops abruptly when 2 is dispersed in acetone. It suggests that 2 may be a selective sensor toward acetone solvent. Then, a concentration-dependent experiment was carried out. Different concentrations of acetone were dissolved in 3 mL of DMF and 3 mg of 2 was then added. The quenching efficiency of the emulsion shows a gradual increase with the growing acetone concentration. A significant variation can be observed when the concentration of acetone is as low as 0.04 vol.%. From 0.04 vol.% to 0.2 vol.%, the increasing trend of the luminescent quenching efficiency of 2 at 543 nm versus the volume ratio of acetone can be fitted with a first-order exponential decay. In addition, the quenching efficiency of 2 toward acetone comes up to 70% at 0.5 vol.% (Figure 6b,c).
The response time of 2 to acetone in liquid was also tested. The result demonstrates that the response of 2 to Fe3+ ion has already finished in 40 s (Figure 6d and Figure S13). The phenomenon indicates that the probe responds to acetone very quickly. The apparent brightness change, which can be observed with the naked-eye under the irradiation of the UV light, indicates that 2 can be used to detect acetone conveniently (Figure 6e).
Since acetone is an extremely volatile and highly toxic gas, the detection of acetone vapor is of vital importance. Despite some luminescent sensors for acetone solvent being reported, few efforts have been made for the exploration of the rapid detection of acetone vapor [44,45]. Upon exposure to saturated acetone vapor for 40 s, the fluorescence intensity of solid sample 2 drastically decreases 69.2% (Figure 6f). At 60 s, the decrease comes to 87.8%. Moreover, the decline of the intensity turns to 94.5% when 2 is exposed to acetone for 140 s. These phenomena indicate that compound 2 can detect acetone vapor in an extremely short time.

2.6. Sensing Mechanism

The superb detection performance of the compounds prompts us to explore the possible mechanism of luminescence quenching caused by Fe3+ and acetone. First, the PXRD patterns of the samples after sensing experiments were recorded (Figures S14 and S15). The nearly unchanged patterns show the samples keep their crystalline structure after treatment, indicating that the luminescence quenching is not caused by the collapse of the framework.
In light of previous studies, competitive energy absorption between analytes and Ln-MOFs may be a very possible reason for the luminescence quenching. With this in mind, the UV-vis spectra of the Fe3+ as well as other metal ions (measured in aqueous solution, 2 × 10−4 M) and the acetone (measured in DMF solution, 0.2 vol.%) were recorded. As shown in Figure S16, only the UV–vis absorption spectrum of Fe3+ has significant absorption around 295 nm, which shows a clear overlap with the excitation spectrum of 2 (Figure 3b). This implies that there is competitive absorption of the light source energy between Fe3+ and 2, and, hence, leads to the quenching behavior. Similarly, spectral overlap is observed between the excitation spectrum of compound 2 and the UV-vis absorption spectrum of acetone ranging from 260 nm to 323 nm (Figure S17).
Based on the above results, we surmise that the main reason of fluorescence quenching can be attributed to the competitive energy absorption between analytes (Fe3+ and acetone) and Ln-MOFs. However, we still wonder if there are any other possible mechanisms involved in the luminescence quenching. UV-vis adsorption spectra of Fe3+ aqueous solution with different concentrations were then recorded. As Figure S18 shows, there is almost no absorption near 300 nm when the concentration of Fe3+ ions is lowered to 6 × 10−6 M, but still ca. 8.5% luminescence quenching occurs. This indicates that there may be another reason for the quenching. Furthermore, it is worth noting that 2 shows clear fluorescence quenching towards acetone vapor. In this sensing experiment, luminescence of solid samples instead of suspension was recorded. Thus, the influence caused by the absorption of acetone can be nearly neglected. These facts give us a clue that there may be another mechanism in the quenching process.
To further investigate the other possible mechanism, the isomorphic 1 was chosen to implement the same sensing tests of metal ions and organic solvents. The outcomes of the experiments are consistent with those of 2 (Figures S19 and S20). The luminescence of Eu-MOF also shows selectivity responses towards Fe3+ and acetone. The results give a reasonable indication that the other sensing mechanism does not come from the Tb3+ ions, but may be associated with the features of the framework itself. According to the famous “antenna effect” theory, we know that the emissions are attributed to energy transfer from the ligand to lanthanide ions. If guest molecules enter the framework, energy transfer may be perturbed, thereby, affecting the intensity of the luminescence [39,40,41]. In light of previous research [46,47,48,49], we assume the other possible reason of quenching is that the Fe3+ ions and acetone molecules may be adsorbed by the MOFs and may form interactions with the naked Lewis basic pyridyl active sites introduced by the ligand, ultimately resulting in a decrease in the efficiency of the transfer process from the ligand to the lanthanide centers.
In a word, multiple quenching mechanisms may co-work in the Fe3+ ions and acetone sensing process. Both competitive energy absorption and the influence of guest molecules on energy transfer may account for the quenching behavior of compounds toward Fe3+ ions and acetone.

3. Materials and Methods

3.1. Chemicals and Reagents

All chemicals and solvents including the H4L ligand were purchased commercially and used without further purification.

3.2. Apparatus

Powder X-ray diffraction (PXRD) data were recorded using a Rigaku Miniflex 600 diffractometer (Rigaku, Tokyo, Japan). Infrared (IR) spectra using KBr slices were recorded using a PerkinElmer Spectrum One FT-IR (Fourier-transform infrared spectroscopy) spectrometer (PerkinElmer, Dublin, Ireland) ranging from 400 to 4000 cm−1. Element analyses (C, H, and N) were measured by a German Elemental Vario EL III instrument (Elementar Analysensysteme GmbH, Langenselbold, Germany). Thermogravimetric analyses (TGA) were measured by a Netzsch STA 449c instrument (Netzsch Corporation, Selb, Germany)and were performed in the temperature range of ambient temperature to 900 °C with a heating rate of 10 °C/min under the flowing nitrogen environment. UV-vis study was recorded on a Lambda 365 (PerkinElmer, Waltham, MA, USA). The photoluminescence spectra of solid-state samples were collected by a Horiba Jobin-Yvon Fluorolog-3 fluorescence spectrometer (HORIBA Jobin Yvon, Kyoto, Japan). An Edinburgh Analytical Instruments FLS920 (Edinburgh Instruments, Edinburgh, UK) was used to capture the fluorescence lifetimes, and the overall photoluminescence quantum yields were investigated by using the integrating sphere covered with barium sulfate at room temperature.

3.3. Synthesis of {[Me2NH2][LnL]·2H2O}n (Ln = Eu 1, Tb 2, Dy 3, Gd 4) (Compounds 1–4)

In total, 45 mg of Ln(NO3)3·6H2O and 33 mg of H4L were dissolved in DMF (N,N-dimethylformamide) (5 mL) and H2O (5 mL). The solution was sealed in a 25-mL Teflon-lined stainless-steel autoclave, and heated at 160 °C for 72 h. Then the mixture was cooled to room temperature at a rate of 1 °C/min. The resulting colorless crystals, {[Me2NH2][LnL]·2H2O}n, were washed with DMF and methanol several times, and then evacuated to remove the co-assembled DMF and methanol in the pores of MOFs. The yields are 68%, 72%, 76%, and 75% for compounds 1–4 based on the metal ions. Elemental analysis (%) calculated for the various crystals are listed as follows.
{[Me2NH2][EuL]·2H2O}n (1) Elemental analysis (%): calcd for C16H18EuN3O10, C, 34.06; H, 3.22; N, 7.45. Found: C, 34.31; H, 3.12; N, 7.50. Infrared (KBr pellet, cm−1): 3626(w), 3390(m), 3153(w), 3064(m), 2999(m), 2796(m), 2476(w), 1909(w), 1570(s), 1460(s), 1301(s), 850(s).
{[Me2NH2][TbL]·2H2O}n (2) Elemental analysis (%): calcd for C16H18TbN3O10, C, 33.64; H, 3.18; N, 7.36. Found: C, 33.74; H, 3.09; N, 7.45. Infrared (KBr pellet, cm−1): 3626(w), 3396(m), 3151(w), 3064(m), 2999(m), 2794(m), 2476(w), 1909(w), 1568(s), 1460(s), 1296(s), 850(s).
{[Me2NH2][DyL]·2H2O}n (3) Elemental analysis (%): calcd for C16H18DyN3O10, C, 33.43; H, 3.16; N, 7.31. Found: C, 33.61; H, 3.04; N, 7.40. Infrared (KBr pellet, cm−1): 3622(w), 3394(m), 3151(w), 3064(m), 2999(m), 2794(m), 2474(w), 1911(w), 1568(s), 1460(s), 1301(s), 850(s).
{[Me2NH2][GdL]·2H2O}n (4) Elemental analysis (%): calcd for C16H18GdN3O10, C, 33.74; H, 3.19; N, 7.38. Found: C, 33.97; H, 3.12; N, 7.46. Infrared (KBr pellet, cm−1): 3626(w), 3398(m), 3149(w), 3064(m), 3000(m), 2792(m), 2476(w), 1909(w), 1568(s), 1460(s), 1305(s), 850(s).

3.4. Single-Crystal X-ray Crystallography

All the single-crystal X-ray diffraction data for the crystals were recorded on a supernova diffractometer with a multilayer mirror Cu Kα radiation (λ = 1.5418 Å) or Mo Kα (λ = 0.7107 Å). All the structures of compounds 1–4 were solved by a direct method of SHELX-97 and full-matrix least-squares refinement on F2 was performed using SHELX-97 [50]. Except for some disordered water molecules, all non-hydrogen atoms were anisotropic refined on F2 by the full-matrix least-squares technique using the SHELXL-97. Only the [Me2NH2]+ counterion in Gd3+ MOF can be solved from single crystal X-ray diffraction. The existences of [Me2NH2]+ in the other three MOFs and water molecules were further verified by the IR spectra, elemental analysis, and TGA data, obtaining the final chemical formulas of compounds 1–4. The CCDC (Cambridge Crystallographic Data Centre) numbers for compounds 1–4 are 2043852, 2043854, 2043855, and 2043853, respectively. See Tables S2–S5 for detailed crystallographic data.

3.5. Sensing Experiment

In metal ions sensing, 3 mg of activated MOFs was ground to fine powder prepared for the experiments in aqueous solutions. The samples were then dispersed into 3 mL of various M(NO3)x aqueous solutions and ultrasonically dispersed to obtain uniform suspensions. Then the suspensions were loaded in the cuvettes for collecting the photoluminescence spectra. The fluorescence intensity of the suspension in water was measured as the blank sample.
In the Tb-MOF paper sensor, uniformly dispersed suspension was obtained via an ultrasonic dispersal of Tb-MOF in di-chloromethane (CH2Cl2), and then the suspension was evenly spread over the filter paper. After the dichloromethane volatilized and the filter paper dried, the Tb-MOF-coated paper sensor was obtained. The capillary dipped in 0.01 M Fe3+ ion aqueous solution was used to write “Fe” on the fluorescent test paper.
In organic solvents sensing, the experiments were carried out by dispersing 3 mg of activated and ground MOFs into 3 mL of different organic solvents. After ultrasonic dispersing the sample evenly, the suspensions were added into the cuvettes and the photoluminescence tests were carried out. The fluorescence intensity of the suspension in DMF was measured as the blank sample.
In acetone vapor sensing, the ground Tb-MOF powder was tiled on the quartz slide to detect acetone vapor. The culture dish containing acetone was put into the inverted crystallizing dish to obtain saturated acetone vapor. After three hours, the quartz slide was put into the inverted crystallizing dish rapidly to make the sample power exposure to the saturated acetone vapor. After the reaction, the quartz slide was put into the fluorescence spectrometer for solid fluorescence detection.

4. Conclusions

In summary, a tetradentate carboxylic ligand with naked Lewis basic pyridyl active sites was employed to construct a series of lanthanide MOFs by the solvothermal method. The synthesized compounds have isomorphic structures with the topology point symbol of {410.614.84} {45.6}2. Eu-, Tb-, and Dy-MOFs display red, green, and yellow emissions with the maximum peaks at 614, 543, and 574 nm, respectively. The high quantum yields of Eu- and Tb-MOFs suggest that Eu3+ and Tb3+ can be better sensitized by the ligand than Dy3+, which is also proven by their decay lifetimes. The material can detect Fe3+ in aqueous solution by a luminescence quenching effect with high selectivity, high sensitivity, and a rapid response (˂40 s). The detection shows excellent anti-inference ability toward many other cations and can be easily recognized by naked eyes. The MOF can also sense acetone solvent and vapor selectively and rapidly. Thus, it may be a rapid luminescent probe for detecting Fe3+ and acetone, which can work at complicated circumstances. Furthermore, the framework shows not only good thermal stability but also excellent air and water stabilities, providing a basis for practical applications.

Supplementary Materials

The following are available online. Figure S1: IR spectra of compounds 1 (a), 2 (b), 3 (c), and 4 (d). Figure S2: The asymmetric unit of 4. Figure S3: The coordination mode of the [L]4− ligand. Figure S4: PXRD patterns of compounds 1–4. Figure S5: TGA curves of compounds 1–4. Figure S6: (a) X-ray thermodiffractogram, (b) air stability, (c) water stability and (d) pH stability analyses of 2. Figure S7: (a) The excitation and emission spectra of ligand at room temperature. (b) The emission spectrum of 4 at 77 K. Figure S8: Luminescence decay curves for 1 excited at 297 nm (a) and 2 excited at 299 nm (b) at 298 K. Figure S9: Photoluminescence spectra of 2 in water and aqueous solutions containing different metal ions (1 ×10−3 M) when excited at 299 nm. Figure S10: Time-dependent photoluminescence spectra of 2 in Fe3+ aqueous solutions (3 × 10−4 M). Figure S11: Photoluminescence spectra of 2 in pure water, aqueous solution of Fe3+ ion, other cations (Li+, Ni2+, Mg2+, In3+, K+, Al3+, Zn2+, Ca2+, Cu2+) and all the cations, 1 × 10−3 M each. Figure S12: Photoluminescence spectra of 2 in different organic solvents when excited at 299 nm. Figure S13: Time-dependent photoluminescence spectra of 2 in the presence of acetone in DMF (0.1 vol.%). Figure S14: PXRD patterns of 2 after dispersed in water and aqueous solutions containing different metal ions. Figure S15: PXRD patterns of 2 after immersed in acetone. Figure S16: UV-vis adsorption spectra of different metal ions in aqueous solution (2 ×10−4 M). Figure S17: UV-vis adsorption spectrum of acetone in DMF (0.2 vol.%). Figure S18: UV-vis adsorption spectra of Fe3+ aqueous solutions with different concentrations. Figure S19: (a) Photoluminescence spectra of 1 in water and aqueous solutions containing different metal ions (1 ×10−3 M) when excited at 297 nm. (b) Comparison of the 5D0→7F2 photoluminescence intensity of 1 in water and aqueous solutions con-taining different metal ions when excited at 297 nm. Figure S20: (a) Photoluminescence spectra of 1 in different organic solvents when excited at 297 nm. (b) Comparison of the 5D0→7F2 photoluminescence intensity of 1 in different organic solvents when excited at 297 nm. Table S1: Room temperature quantum yields and lifetimes of compounds 1–3. Table S2: Selected bond lengths/Å and bond angles/º for compounds 1. Table S3: Selected bond lengths/Å and bond angles/º for compounds 2. Table S4: Selected bond lengths/Å and bond angles/º for compounds 3. Table S5: Selected bond lengths/Å and bond angles/º for compounds 4.

Author Contributions

Conceptualization, J.W. and L.C. Investigation, J.W. Methodology, M.Y. and S.L. Data analysis, J.W., L.C. and Z.L. Supervision, M.H. and L.C. Visualization, J.W., M.Y. and Z.L. Writing—original draft, J.W. Writing—review and editing, J.W., M.Y. and L.C. Project administration and funding acquisition, F.J. and M.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Research and Development Program of China (2018YFA0704502, 2019YFA0210402, 2017YFA0206800), “Strategic Priority Research Program” of the Chinese Academy of Sciences (XDB20000000), Key Research Program of Frontier Science CAS (QYZDY-SSW-SLH025), and the National Natural Science Foundation of China (21671189 and 21731006).

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was financially supported by the National Key Research and Development Program of China (2018YFA0704502, 2019YFA0210402, 2017YFA0206800), “Strategic Priority Research Program” of the Chinese Academy of Sciences (XDB20000000), Key Research Program of Frontier Science CAS (QYZDY-SSW-SLH025), and the National Natural Science Foundation of China (21671189 and 21731006).

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Yu, C.; Sun, X.; Zou, L.; Li, G.; Zhang, L.; Liu, Y. A pillar-layered Zn-LMOF with uncoordinated carboxylic acid sites: High performance for luminescence sensing Fe3+ and TNP. Inorg. Chem. 2019, 58, 4026–4032. [Google Scholar] [CrossRef]
  2. Li, X.; Tang, J.; Liu, H.; Gao, K.; Meng, X.; Wu, J.; Hou, H. A highly sensitive and recyclable Ln-MOF Luminescent sensor for the efficient detection of Fe(3+) and Cr(VI) anions. Chem. Asian J. 2019, 14, 3721–3727. [Google Scholar] [CrossRef]
  3. Yang, C.X.; Ren, H.B.; Yan, X.P. Fluorescent metal-organic framework MIL-53(Al) for highly selective and sensitive detection of Fe3+ in aqueous solution. Anal. Chem. 2013, 85, 7441–7446. [Google Scholar] [CrossRef]
  4. Zhou, T.; Chen, S.; Wang, X.; Xie, C.; Zeng, D. Catalytic activation of cobalt doping sites in ZIF-71-coated ZnO nanorod arrays for enhancing gas-sensing performance to acetone. ACS Appl. Mater. Interfaces 2020, 12, 48948–48956. [Google Scholar] [CrossRef]
  5. Ryu, U.; Jee, S.; Rao, P.C.; Shin, J.; Ko, C.; Yoon, M.; Park, K.S.; Choi, K.M. Recent advances in process engineering and upcoming applications of metal-organic frameworks. Coord. Chem. Rev. 2021, 426, 213544. [Google Scholar] [CrossRef]
  6. Qin, G.; Wang, J.; Li, L.; Yuan, F.; Zha, Q.; Bai, W.; Ni, Y. Highly water-stable Cd-MOF/Tb3+ ultrathin fluorescence nanosheets for ultrasensitive and selective detection of Cefixime. Talanta 2021, 221, 121421. [Google Scholar] [CrossRef]
  7. Batten, S.R.; Neville, S.M.; Turner, D.R. Coordination Polymers: Design, Analysis and Application; Royal Society of Chemistry: London, UK, 2009. [Google Scholar] [CrossRef]
  8. MacGillivray, L.R.; Lukehart, C.M. Metal-Organic Framework Materials; MacGillivray, L.R., Lukehart, C.M., Eds.; John Wiley & Sons: Chichester, UK, 2014. [Google Scholar] [CrossRef]
  9. Zhang, J.; Biradar, A.V.; Pramanik, S.; Emge, T.J.; Asefa, T.; Li, J. A new layered metal–organic framework as a promising heterogeneous catalyst for olefin epoxidation reactions. Chem. Commun. 2012, 48, 6541–6543. [Google Scholar] [CrossRef]
  10. Cha, G.Y.; Chun, H.; Hong, D.Y.; Kim, J.; Cho, K.H.; Lee, U.H.; Chang, J.S.; Ryu, S.G.; Lee, H.W.; Kim, S.J.; et al. Unique design of superior metal-organic framework for removal of toxic chemicals in humid environment via direct functionalization of the metal nodes. J. Hazard. Mater. 2020, 398, 122857. [Google Scholar] [CrossRef]
  11. Ardila-Suárez, C.; Díaz-Lasprilla, A.M.; Díaz-Vaca, L.A.; Balbuena, P.B.; Baldovino-Medrano, V.G.; Ramírez-Caballero, G.E. Synthesis, characterization, and post-synthetic modification of a micro/mesoporous zirconium–tricarboxylate metal–organic framework: Towards the addition of acid active sites. CrystEngComm 2019, 21, 3014–3030. [Google Scholar] [CrossRef]
  12. Lai, W.; Guo, J.; Zheng, N.; Nie, Y.; Ye, S.; Tang, D. Selective determination of 2,4,6-trinitrophenol by using a novel carbon nanoparticles as a fluorescent probe in real sample. Anal. Bioanal. Chem. 2020, 412, 3083–3090. [Google Scholar] [CrossRef] [PubMed]
  13. Kim, K.J.; Culp, J.T.; Ohodnicki, P.R.; Cvetic, P.C.; Sanguinito, S.; Goodman, A.L.; Kwon, H.T. Alkylamine-integrated metal-organic framework-based waveguide sensors for efficient detection of carbon dioxide from humid gas streams. ACS Appl. Mater. Interfaces 2019, 11, 33489–33496. [Google Scholar] [CrossRef]
  14. Liu, Q.; Tan, J.Y.; Zhang, J.Y.; Zhang, N.; Deng, W. R-Substituent induced structural diversity, synergistic effect and highly selective luminescence sensing for Fe3+ detection by post-synthetically modified Cd-MOFs. CrystEngComm 2020, 22, 3871–3883. [Google Scholar] [CrossRef]
  15. Gogoi, C.; Reinsch, H.; Biswas, S. A pyrazine core-based luminescent Zr(iv) organic framework for specific sensing of Fe3+, picric acid and Cr2O72−. CrystEngComm 2019, 21, 6252–6260. [Google Scholar] [CrossRef]
  16. Zhan, Z.Z.; Liang, X.Y.; Zhang, X.L.; Jia, Y.J.; Hu, M. A water-stable europium-MOF as a multifunctional luminescent sensor for some trivalent metal ions (Fe3+, Cr3+, Al3+), PO43− ions, and nitroaromatic explosives. Dalton Trans. 2019, 48, 1786–1794. [Google Scholar] [CrossRef] [PubMed]
  17. Zhang, Q.S.; Jiang, X.; Kirillov, A.M.; Zhang, Y.; Hu, M.Y.; Liu, W.; Yang, L.Z.; Fang, R.; Liu, W.S. Covalent Construction of Sustainable Hybrid UiO-66-NH2@Tb-CP Material for Selective Removal of Dyes and Detection of Metal Ions. ACS Sustain. Chem. Eng. 2019, 7, 3203–3212. [Google Scholar] [CrossRef]
  18. Yang, L.Z.; Wang, J.; Kirillov, A.M.; Dou, W.; Xu, C.; Fang, R.; Xua, C.L.; Liu, W.S. 2D lanthanide MOFs driven by a rigid 3,5-bis(3-carboxy-phenyl)pyridine building block: Solvothermal syntheses, structural features, and photoluminescence and sensing properties. CrystEngComm 2016, 18, 6425–6436. [Google Scholar] [CrossRef]
  19. Liu, Y.; Xie, X.Y.; Cheng, C.; Shao, Z.S.; Wang, H.S. Strategies to fabricate metal–organic framework (MOF)-based luminescent sensing platforms. J. Mater. Chem. C 2019, 7, 10743–10763. [Google Scholar] [CrossRef]
  20. Jaros, S.W.; Sokolnicki, J.; Wołoszyn, A.; Haukka, M.; Kirillov, A.M.; Smoleński, P. A novel 2D coordination network built from hexacopper(i)-iodide clusters and cagelike aminophosphine blocks for reversible “turn-on” sensing of aniline. J. Mater. Chem. C 2018, 6, 1670–1678. [Google Scholar] [CrossRef]
  21. Li, Y.; Qin, C.; Li, Q.; Wang, P.; Miao, X.; Jin, H.; Ao, W.; Cao, L. Supramolecular organic frameworks with controllable shape and aggregation-induced emission for tunable luminescent materials through aqueous host–guest complexation. Adv. Opt. Mater. 2020, 8, 1902154. [Google Scholar] [CrossRef]
  22. Masoomi, M.Y.; Morsali, A.; Dhakshinamoorthy, A.; Garcia, H. Mixed-metal MOFs: Unique opportunities in metal-organic framework (MOF) functionality and design. Angew. Chem. Int. Ed. Engl. 2019, 58, 15188–15205. [Google Scholar] [CrossRef] [PubMed]
  23. Yang, Y.; Jiang, F.; Liu, C.; Chen, L.; Gai, Y.; Pang, J.; Su, K.; Wan, X.; Hong, M. Self-assembly syntheses, structural characterization, and luminescent properties of lanthanide coordination polymers constructed by three triazole-carboxylate ligands. Cryst. Growth Des. 2016, 16, 2266–2276. [Google Scholar] [CrossRef]
  24. Gao, X.; Sun, G.; Ge, F.; Zheng, H. Three anionic indium-organic frameworks for highly efficient and selective dye adsorption, lanthanide adsorption, and luminescence regulation. Inorg. Chem. 2019, 58, 8396–8407. [Google Scholar] [CrossRef]
  25. Peng, C.; Song, X.; Yin, J.; Zhang, G.; Fei, H. Intrinsic white-light-emitting metal-organic frameworks with structurally deformable secondary building units. Angew. Chem. Int. Ed. Engl. 2019, 58, 7818–7822. [Google Scholar] [CrossRef] [PubMed]
  26. Meng, W.; Zeng, Y.; Liang, Z.; Guo, W.; Zhi, C.; Wu, Y.; Zhong, R.; Qu, C.; Zou, R. Tuning expanded pores in metal-organic frameworks for selective capture and catalytic conversion of carbon dioxide. ChemSusChem 2018, 11, 3751–3757. [Google Scholar] [CrossRef] [PubMed]
  27. Liu, X.; Liu, J.; Sun, C.; Liu, H.; Wang, W.; Smith, E.; Jiang, L.; Chen, X.; Snape, C. Design and development of 3D hierarchical ultra-microporous CO2-sieving carbon architectures for potential flow-through CO2 capture at typical practical flue gas temperatures. J. Mater. Chem. A 2020, 8, 17025–17035. [Google Scholar] [CrossRef]
  28. Aryanejad, S.; Motlagh, N.V. Investigation of the carbon dioxide adsorption behavior and the heterogeneous catalytic efficiency of a novel Ni-MOF with nitrogen-rich channels. RSC Adv. 2020, 10, 29772–29779. [Google Scholar] [CrossRef]
  29. Singh, G.; Lee, J.; Karakoti, A.; Bahadur, R.; Yi, J.; Zhao, D.; AlBahily, K.; Vinu, A. Emerging trends in porous materials for CO2 capture and conversion. Chem. Soc. Rev. 2020, 49, 4360–4404. [Google Scholar] [CrossRef] [PubMed]
  30. Wang, D.; Jana, D.; Zhao, Y. Metal-organic framework derived nanozymes in biomedicine. Acc. Chem. Res. 2020, 53, 1389–1400. [Google Scholar] [CrossRef]
  31. Ma, D.D.; Zhu, Q.L. MOF-based atomically dispersed metal catalysts: Recent progress towards novel atomic configurations and electrocatalytic applications. Coord. Chem. Rev. 2020, 422, 213483. [Google Scholar] [CrossRef]
  32. Chen, L.J.; Zhao, X.; Liu, Y.Y.; Yan, X.P. Macrophage membrane coated persistent luminescence nanoparticle@MOF-derived mesoporous carbon core-shell nanocomposites for autofluorescence-free imaging-guided chemotherapy. J. Mater. Chem. B 2020, 8, 8071–8083. [Google Scholar] [CrossRef]
  33. Ding, Y.; Xu, H.; Xu, C.; Tong, Z.; Zhang, S.; Bai, Y.; Chen, Y.; Xu, Q.; Zhou, L.; Ding, H.; et al. A nanomedicine fabricated from gold nanoparticles-decorated metal-organic framework for cascade chemo/chemodynamic cancer therapy. Adv. Sci. 2020, 7, 2001060. [Google Scholar] [CrossRef] [PubMed]
  34. Liao, W.M.; Li, C.J.; Wu, X.; Zhang, J.H.; Wang, Z.; Wang, H.P.; Fan, Y.N.; Pan, M.; Su, C.Y. Homometallic Ln(iii)-complexes from an ILCT ligand with sensitized vis-NIR emission, excitation-dependent PL color tuning and white-light emission. J. Mater. Chem. C 2018, 6, 3254–3259. [Google Scholar] [CrossRef]
  35. Guo, H.; Wu, N.; Xue, R.; Liu, H.; Wang, M.; Yao, W.; Wang, X.; Yang, W. An Eu(III)-functionalized Sr-based metal-organic framework for fluorometric determination of Cr(III) and Cr(VI) ions. Mikrochim. Acta 2020, 187, 374. [Google Scholar] [CrossRef] [PubMed]
  36. Harbuzaru, B.V.; Corma, A.; Rey, F.; Atienzar, P.; Jordá, J.L.; García, H.; Ananias, D.; Carlos, L.D.; Rocha, J. Metal–organic nanoporous structures with anisotropic photoluminescence and magnetic properties and their use as sensors. Angew. Chem. Int. Ed. 2008, 47, 1080–1083. [Google Scholar] [CrossRef] [PubMed]
  37. Wu, S.; Min, H.; Shi, W.; Cheng, P. Multicenter metal-organic framework-based ratiometric fluorescent sensors. Adv. Mater. 2020, 32, e1805871. [Google Scholar] [CrossRef] [PubMed]
  38. Blatov, V.A.; Shevchenko, A.P.; Proserpio, D.M. Applied Topological Analysis of Crystal Structures with the Program Package ToposPro. Cryst. Growth Des. 2014, 14, 3576–3586. [Google Scholar] [CrossRef]
  39. Wang, L.N.; Zhang, Y.H.; Jiang, S.; Liu, Z.Z. Three coordination polymers based on 3-(3′,5′-dicarboxylphenoxy)phthalic acid and auxiliary N-donor ligands: Syntheses, structures, and highly selective sensing for nitro explosives and Fe3+ ions. CrystEngComm 2019, 21, 4557–4567. [Google Scholar] [CrossRef]
  40. Duan, L.; Zhang, C.; Cen, P.; Jin, X.; Liang, C.; Yang, J.; Liu, X. Stable Ln-MOFs as multi-responsive photoluminescence sensors for the sensitive sensing of Fe3+, Cr2O72−, and nitrofuran. CrystEngComm 2020, 22, 1695–1704. [Google Scholar] [CrossRef]
  41. Hao, Z.; Yang, G.; Song, X.; Zhu, M.; Meng, X.; Zhao, S.; Song, S.; Zhang, H. A europium(iii) based metal–organic framework: Bifunctional properties related to sensing and electronic conductivity. J. Mater. Chem. A 2014, 2, 237–244. [Google Scholar] [CrossRef]
  42. Nagarkar, S.S.; Desai, A.V.; Ghosh, S.K. A fluorescent metal–organic framework for highly selective detection of nitro explosives in the aqueous phase. Chem. Commun. 2014, 50, 8915–8918. [Google Scholar] [CrossRef]
  43. Nagarkar, S.S.; Joarder, B.; Chaudhari, A.K.; Mukherjee, S.; Ghosh, S.K. Highly Selective Detection of Nitro Explosives by a Luminescent Metal–Organic Framework. Angew. Chem. Int. Ed. 2013, 52, 2881–2885. [Google Scholar] [CrossRef]
  44. Wu, Z.F.; Fu, Z.H.; Velasco, E.; Xing, K.; Wang, H.; Zou, G.D.; Huang, X.Y.; Li, J. A robust and multifunctional calcium coordination polymer as a selective fluorescent sensor for acetone and iron (+3) and as a tunable proton conductor. J. Mater. Chem. C 2020, 8, 16784–16789. [Google Scholar] [CrossRef]
  45. Yang, Y.; Chen, L.; Jiang, F.; Wu, M.; Pang, J.; Wan, X.; Hong, M. A water-stable 3D Eu-MOF based on a metallacyclodimeric secondary building unit for sensitive fluorescent detection of acetone molecules. CrystEngComm 2019, 21, 321–328. [Google Scholar] [CrossRef]
  46. Tao, Y.; Zhang, P.; Liu, J.; Chen, X.; Guo, X.; Jin, H.; Chai, J.; Wang, L.; Fan, Y. Multi-responsive luminescent sensor based on three dimensional lanthanide metal–organic framework. New J. Chem. 2018, 42, 19485–19493. [Google Scholar] [CrossRef]
  47. Liu, H.; Liu, Y.; Meng, Y.; Shi, X.; Sun, J.; Zhao, L.; Chen, D.; Hao, H.; Li, D.; Dou, J.; et al. Di-functional luminescent sensors based on Y3+ doped Eu3+ and Tb3+ coordination polymers: Fast response and visible detection of Cr3+, Fe3+ ions in aqueous solutions and acetone. RSC Adv. 2020, 10, 32232–32240. [Google Scholar] [CrossRef]
  48. Gao, L.L.; Zhao, Q.N.; Li, M.M.; Fan, L.M.; Niu, X.Y.; Wang, X.Q.; Hu, T.P. Magnetic properties and luminescence sensing of five coordination polymers based on a rigid terphenyl-tetracarboxylic acid. CrystEngComm 2017, 19, 6651–6659. [Google Scholar] [CrossRef]
  49. Xiao, Y.; Wang, L.; Cui, Y.; Chen, B.; Zapata, F.; Qian, G. Molecular sensing with lanthanide luminescence in a 3D porous metal-organic framework. J. Alloys Compd. 2009, 484, 601–604. [Google Scholar] [CrossRef]
  50. Sheldrick, G. SHELXL-97, Program for Crystal Structure Refinement; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
Molecules 26 01695 sch001 550

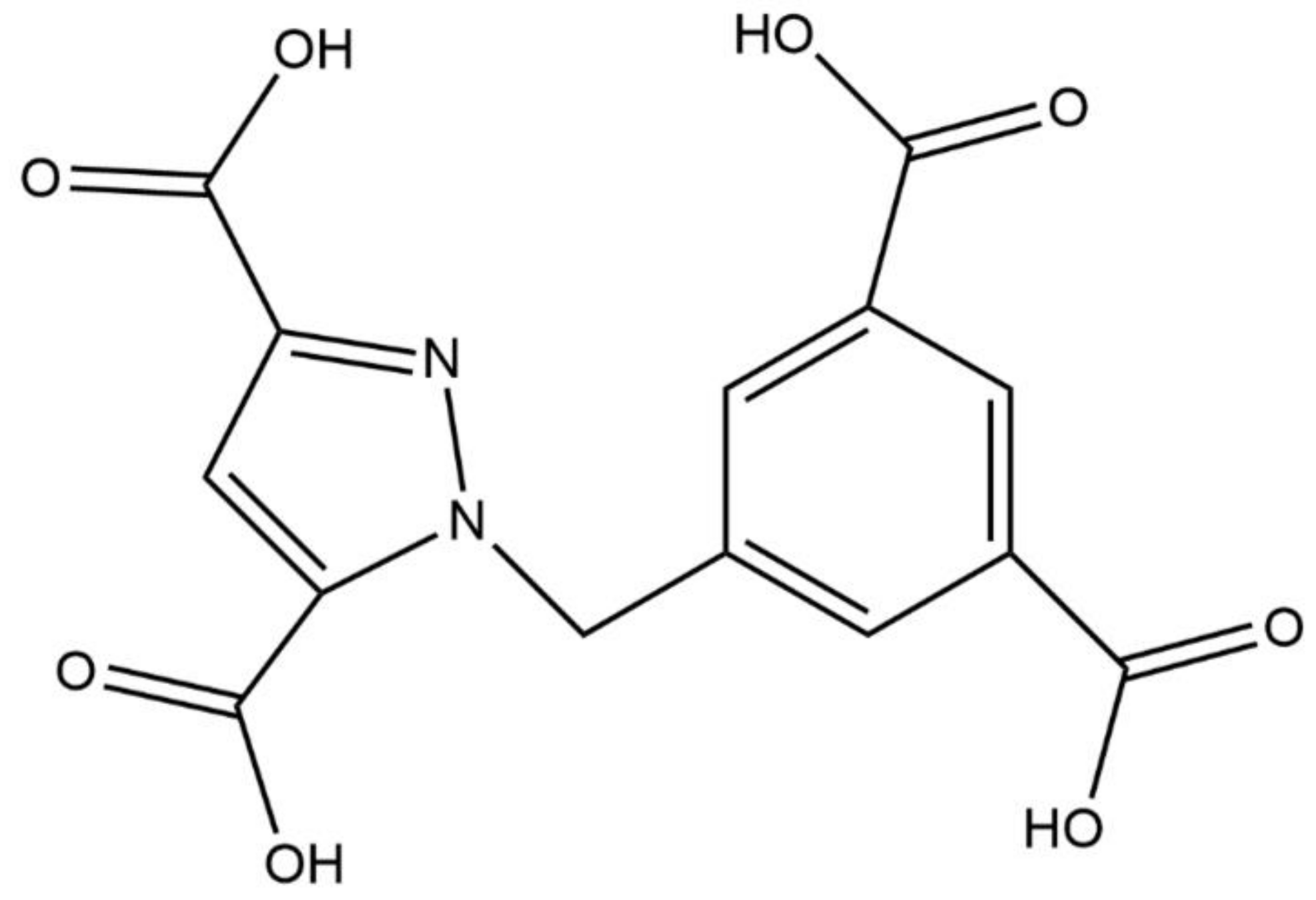

Scheme 1. 1-(3,5-dicarboxylatobenzyl)-3,5-pyrazole dicarboxylic acid (H4L).
Scheme 1. 1-(3,5-dicarboxylatobenzyl)-3,5-pyrazole dicarboxylic acid (H4L).
Molecules 26 01695 sch001
Molecules 26 01695 g001 550
Figure 1. (a) Coordination environment of the Gd3+ ion in Gd-metal-organic frameworks (MOF) (Gd, green, O, red, N, blue, C, gray). (b) The binuclear metal cluster unit [Gd2(COO)4]. (c) The coordination mode of the [L]4− ligand. (d) The coordination mode of the binuclear metal cluster unit [Gd2(COO)4]. (e) The 3D framework viewed along the b-axis.
Figure 1. (a) Coordination environment of the Gd3+ ion in Gd-metal-organic frameworks (MOF) (Gd, green, O, red, N, blue, C, gray). (b) The binuclear metal cluster unit [Gd2(COO)4]. (c) The coordination mode of the [L]4− ligand. (d) The coordination mode of the binuclear metal cluster unit [Gd2(COO)4]. (e) The 3D framework viewed along the b-axis.
Molecules 26 01695 g001
Molecules 26 01695 g002 550

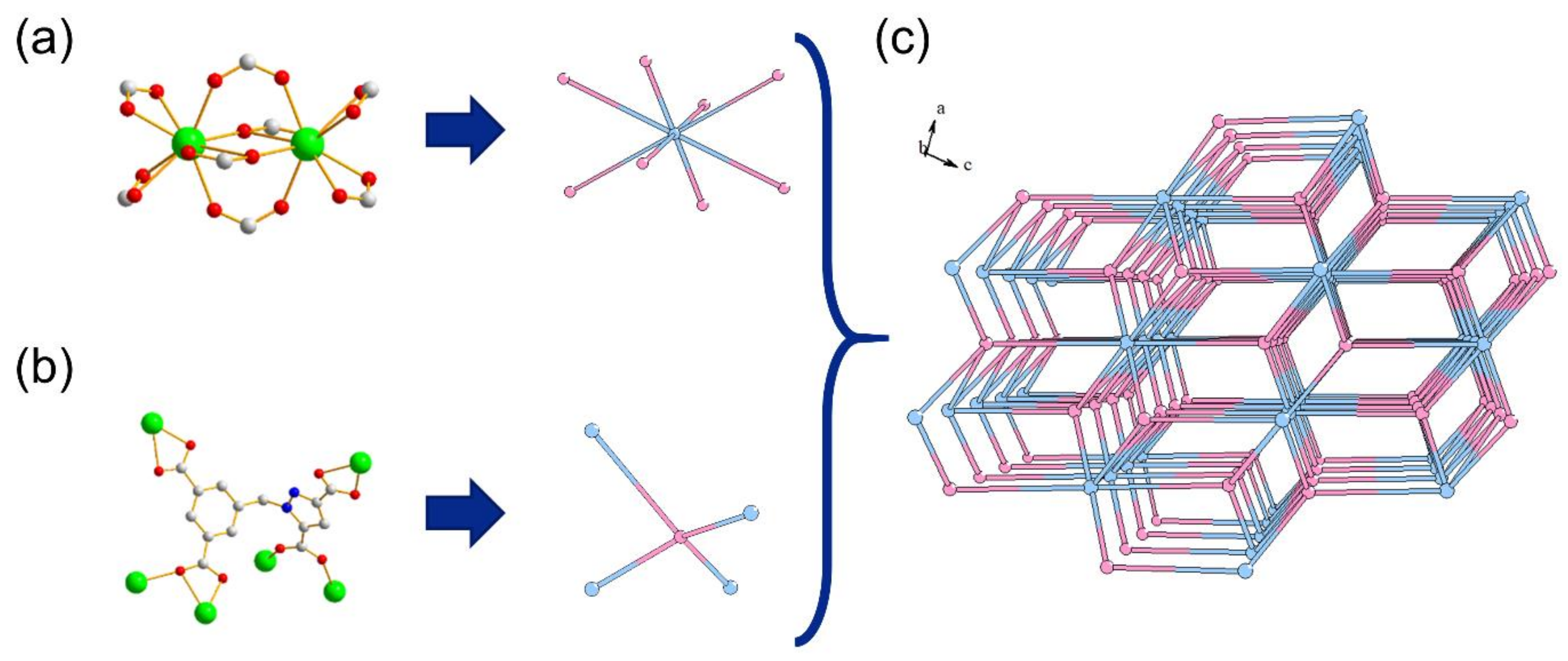

Figure 2. (a) The simplified eight-connected node of the binuclear unit. (b) The simplified 4-connected linker. (c) The (4, 8)-connected topological 3D net with the Schläfli symbol {410.614.84} {45.6}2.
Figure 2. (a) The simplified eight-connected node of the binuclear unit. (b) The simplified 4-connected linker. (c) The (4, 8)-connected topological 3D net with the Schläfli symbol {410.614.84} {45.6}2.
Molecules 26 01695 g002
Molecules 26 01695 g003 550
Figure 3. (a) The excitation (λem = 614 nm) and emission spectra (λex = 297 nm) of 1. (b) The excitation (λem = 543 nm) and emission spectra (λex = 299 nm) of compound 2. (c) The excitation (λem = 574 nm) and emission spectra (λex = 287 nm) of compound 3. (d) CIE-1931 chromaticity diagram shows the luminescence colors of compounds 1 (0.66, 0.33), 2 (0.32,0.61), 3 (0.38, 0.43), and 4 (0.19, 0.21).
Figure 3. (a) The excitation (λem = 614 nm) and emission spectra (λex = 297 nm) of 1. (b) The excitation (λem = 543 nm) and emission spectra (λex = 299 nm) of compound 2. (c) The excitation (λem = 574 nm) and emission spectra (λex = 287 nm) of compound 3. (d) CIE-1931 chromaticity diagram shows the luminescence colors of compounds 1 (0.66, 0.33), 2 (0.32,0.61), 3 (0.38, 0.43), and 4 (0.19, 0.21).
Molecules 26 01695 g003
Molecules 26 01695 g004 550
Figure 4. (a) Comparison of the 5D4 → 7F5 photoluminescence intensity of 2 in water and aqueous solutions containing different metal ions when excited at 299 nm. (b) Photoluminescence spectra, (c) quenching efficiency, and (d) a Stern-Volmer plot of 2 with a gradual increase of the Fe3+ concentration in aqueous solution.
Figure 4. (a) Comparison of the 5D4 → 7F5 photoluminescence intensity of 2 in water and aqueous solutions containing different metal ions when excited at 299 nm. (b) Photoluminescence spectra, (c) quenching efficiency, and (d) a Stern-Volmer plot of 2 with a gradual increase of the Fe3+ concentration in aqueous solution.
Molecules 26 01695 g004
Molecules 26 01695 g005 550

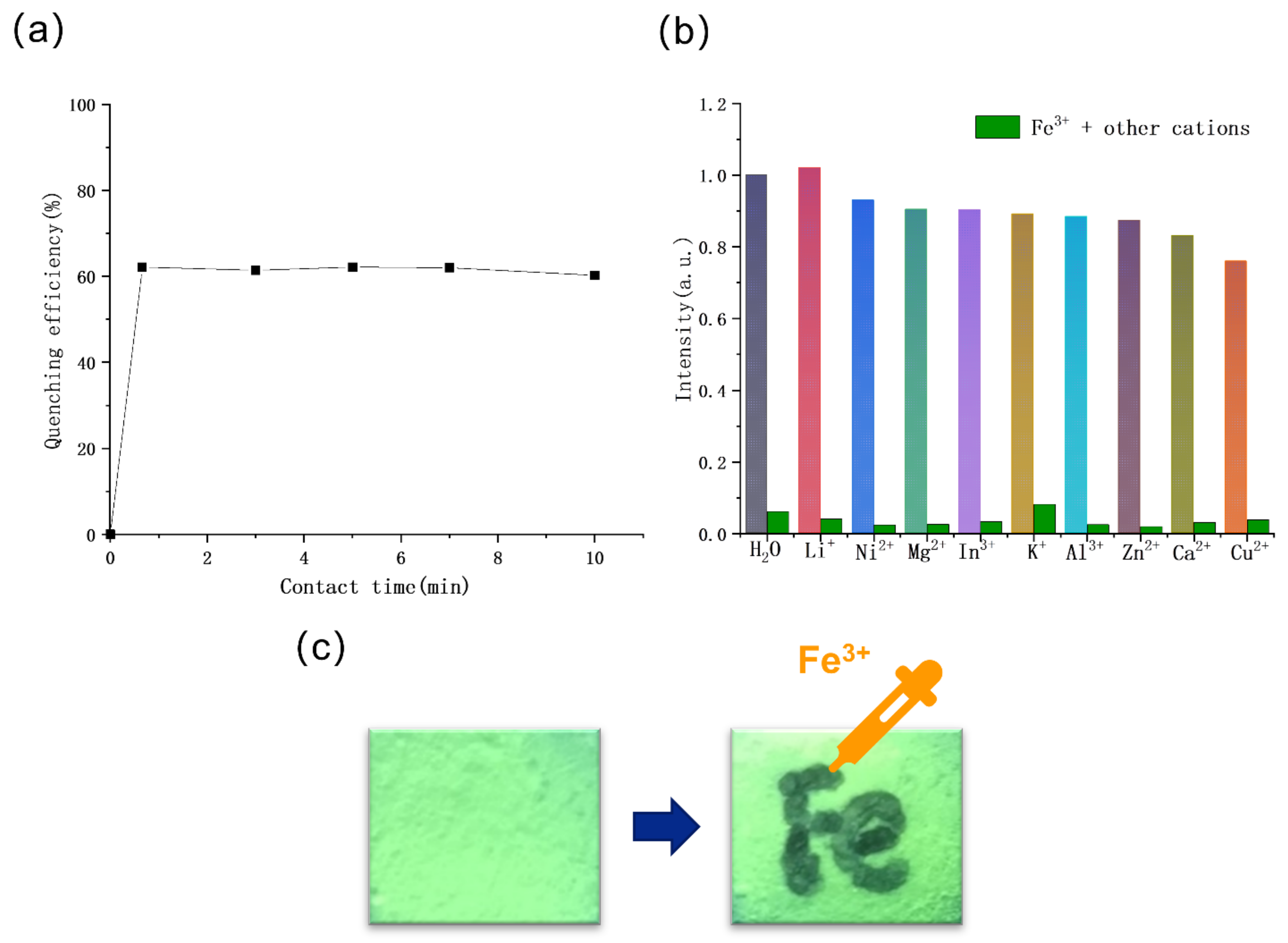

Figure 5. (a) Time-dependent quenching efficiency of 2 in the presence of Fe3+ solutions (3 × 10−4 M). (b) Comparison of the 5D4 → 7F5 photoluminescence intensity of compound 2 in the pure individual metal ions and mixed metal ions containing 1 mM of Fe3+ ion. (c) The image of 2 paper-coated sensor treated with 0.01 M Fe3+ solution.
Figure 5. (a) Time-dependent quenching efficiency of 2 in the presence of Fe3+ solutions (3 × 10−4 M). (b) Comparison of the 5D4 → 7F5 photoluminescence intensity of compound 2 in the pure individual metal ions and mixed metal ions containing 1 mM of Fe3+ ion. (c) The image of 2 paper-coated sensor treated with 0.01 M Fe3+ solution.
Molecules 26 01695 g005
Molecules 26 01695 g006 550
Figure 6. (a) Comparison of the 5D4 → 7F5 photoluminescence intensity of 2 in different organic molecules when excited at 299 nm. (b) Photoluminescence spectra and (c) quenching efficiency of 2 with a gradual increase in the concentration of acetone in N,N′-dimethylformamide (DMF). (d) Time-dependent quenching efficiency of 2 suspension in the presence of acetone in DMF (0.1 vol.%). (e) Photographs of 2 suspension before and after adding acetone. (f) Time-dependent solid photoluminescence spectra of solid-state 2 upon exposure to acetone vapor.
Figure 6. (a) Comparison of the 5D4 → 7F5 photoluminescence intensity of 2 in different organic molecules when excited at 299 nm. (b) Photoluminescence spectra and (c) quenching efficiency of 2 with a gradual increase in the concentration of acetone in N,N′-dimethylformamide (DMF). (d) Time-dependent quenching efficiency of 2 suspension in the presence of acetone in DMF (0.1 vol.%). (e) Photographs of 2 suspension before and after adding acetone. (f) Time-dependent solid photoluminescence spectra of solid-state 2 upon exposure to acetone vapor.
Molecules 26 01695 g006
Table
Table 1. Crystal data and refinement results for compounds 1–4.
Table 1. Crystal data and refinement results for compounds 1–4.
Compound 1234
Empirical formulaC16H14EuN3O8C16H14TbN3O8C16H14DyN3O8C16H14GdN3O8
Formula weight528.27535.23538.80533.55
Crystal systemmonoclinicmonoclinicmonoclinicmonoclinic
Space groupP21/cP21/cP21/cP21/c
a/Å9.1791(2)9.2477(2)9.1815(5)9.2303(5)
b/Å10.1636(3)10.1192(2)10.1647(4)10.1530(4)
c/Å21.7390(5)21.7150(5)21.7438(9)21.8214(9)
α/°90909090
β/°99.829(2)100.542(2)99.809(4)100.353(4)
γ/°90909090
Volume/Å31998.32(9)1997.78(8)1999.62(16)2011.70(16)
Z4444
F (000)9249099361076
Goodness-of-fit on F21.0821.0211.071.03
R1 (I > 2σ (I))0.03110.02820.03870.0259
wR2 (reflections)0.08480.05870.07010.1056
a, b and c are the unit vectors of unit cell. α, β, and γ are the unit cell parameters (angles between a, b and c). Z is the number of molecules in unit cell. F (000) is the total number of electrons in unit cell. R1 is residual factors. I is diffraction intensity. σ is standard deviation. wR2 is residual factors.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, J.; Yu, M.; Chen, L.; Li, Z.; Li, S.; Jiang, F.; Hong, M. Construction of a Stable Lanthanide Metal-Organic Framework as a Luminescent Probe for Rapid Naked-Eye Recognition of Fe3+ and Acetone. Molecules 2021, 26, 1695. https://doi.org/10.3390/molecules26061695

AMA Style

Wang J, Yu M, Chen L, Li Z, Li S, Jiang F, Hong M. Construction of a Stable Lanthanide Metal-Organic Framework as a Luminescent Probe for Rapid Naked-Eye Recognition of Fe3+ and Acetone. Molecules. 2021; 26(6):1695. https://doi.org/10.3390/molecules26061695

Chicago/Turabian Style

Wang, Jiayishuo, Muxin Yu, Lian Chen, Zhijia Li, Shengchang Li, Feilong Jiang, and Maochun Hong. 2021. "Construction of a Stable Lanthanide Metal-Organic Framework as a Luminescent Probe for Rapid Naked-Eye Recognition of Fe3+ and Acetone" Molecules 26, no. 6: 1695. https://doi.org/10.3390/molecules26061695

Article Metrics

Back to TopTop
