Compounds from the Medicines for Malaria Venture Box Inhibit In Vitro Growth of Babesia divergens, a Blood-Borne Parasite of Veterinary and Zoonotic Importance

by
Mohamed Abdo Rizk
1,2,*,†,
Shimaa Abd El-Salam El-Sayed
1,3,†,
Mahmoud S. Alkhoudary
4,
Khalaf F. Alsharif
5,
Mohamed M. Abdel-Daim
6 and
Ikuo Igarashi
1,*
1
National Research Center for Protozoan Diseases, Obihiro University of Agriculture and Veterinary Medicine, Inada-Cho, Obihiro 080-8555, Hokkaido, Japan
2
Department of Internal Medicine and Infectious Diseases, Faculty of Veterinary Medicine, Mansoura University, Mansoura 35516, Dakahlia, Egypt
3
Department of Biochemistry and Chemistry of Nutrition, Faculty of Veterinary Medicine, Mansoura University, Mansoura 35516, Dakahlia, Egypt
4
Faculty of Pharmacy, Mansoura University, Mansoura 35516, Dakahlia, Egypt
5
Department of Clinical Laboratory Sciences, College of Applied Medical Sciences, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
6
Pharmacology Department, Faculty of Veterinary Medicine, Suez Canal University, Ismailia 41522, Egypt
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this study.
Molecules 2021, 26(23), 7118; https://doi.org/10.3390/molecules26237118
Submission received: 29 September 2021 / Revised: 18 November 2021 / Accepted: 23 November 2021 / Published: 24 November 2021
(This article belongs to the Special Issue Phenotypic Screening)
Browse Figures
Versions Notes

Abstract

:
Babesiosis is an infectious disease with an empty drug pipeline. A search inside chemical libraries for novel potent antibabesial candidates may help fill such an empty drug pipeline. A total of 400 compounds (200 drug-like and 200 probe-like) from the Malaria Box were evaluated in the current study against the in vitro growth of Babesia divergens (B. divergens), a parasite of veterinary and zoonotic importance. Novel and more effective anti-B. divergens drugs than the traditionally used ones were identified. Seven compounds (four drug-like and three probe-like) revealed a highly inhibitory effect against the in vitro growth of B. divergens, with IC50s ≤ 10 nanomolar. Among these hits, MMV006913 exhibited an IC50 value of 1 nM IC50 and the highest selectivity index of 32,000. The atom pair fingerprint (APfp) analysis revealed that MMV006913 and MMV019124 showed maximum structural similarity (MSS) with atovaquone and diminazene aceturate (DA), and with DA and imidocarb dipropionate (ID), respectively. MMV665807 and MMV665850 showed MMS with each other and with ID. Of note, a high concentration (0.75 IC50) of MMV006913 caused additive inhibition of B. divergens growth when combined with DA at 0.75 or 0.50 IC50. The Medicines for Malaria Venture box is a treasure trove of anti-B. divergens candidates according to the obtained results.

1. Introduction

Babesiosis is a tick-borne parasitic disease causing serious economic losses in the livestock industry worldwide [1]. In general, babesiosis is manifested by fever, hemoglobinuria, hemolytic anemia, jaundice, and death [2,3].
Babesia divergens (B. divergens) is considered one of the main causes of veterinary and human babesiosis in Europe [3]. The currently available drugs used to control Babesia infection in animals, imidocarb dipropionate (ID) and diminazene aceturate (DA), have proven their limitations regarding toxicity to hosts and parasite resistance [4]. Safety and residue problems have led to the withdrawal of these anti-B. divergens drugs from the market [5]. Severe cases of human babesiosis have not responded to treatment with the most commonly used anti-B. divergens drugs, such as clindamycin, azithromycin, quinine, atovaquone, and tetracycline [5]. Therefore, the discovery and development of more effective and safer antibabesial agents have become an urgent need. The Malaria Box, a collection of 400 compounds, was designed to be the starting point for drug discovery for Plasmodium falciparum (P. falciparum) and other medically important pathogens [6]. Since Plasmodium and Babesia parasites belong to the phylum Apicomplexa and both of them have close biological similarities, in the present study, we have evaluated the inhibitory effects of Malaria Box compounds against the in vitro growth of a Babesia species with veterinary and zoonotic importance, namely B. divergens.
The in vitro potency of a given chemotherapeutic can be a good preclinical marker of the therapeutic potential in vivo [7]. In this regard, promising MMV compounds for further development as novel therapies for animal or human babesiosis were identified through this study, reflecting the importance of the Malaria Box as a rich source of potential screening hits and biological probes for non-Plasmodium applications, which might help fill the empty anti-Babesia drug pipeline.

2. Results and Discussion

The Malaria Box is a valuable source of commercially available compounds, representing families of structures identified in phenotypic screens of pharmaceutical and academic libraries against P. falciparum, and was made available to identify novel drugs to combat other apicomplexan parasites [8]. Malaria Box, a collection of 400 compounds, is divided into 200 diverse drug-like compounds and 200 diverse probe-like ones [6]. The compounds that are absorbed by the oral route and toxophores are defined as drug-like compounds. Other hits are assigned to the probe-like category [2,8]. The in vitro inhibitory effects of Malaria Box compounds against 16 protozoa, 7 helminths, 9 bacterial and mycobacterial species, and the NCI60 human cancer cell line were published within a large, complete dataset [6]. The promising candidates identified from such wide screening of Malaria Box compounds, together with the zoonotic importance of B. divergens, encouraged us to perform, in the present study, a large-scale in vitro screening of MMV compounds (n = 400) against B. divergens.
In fact, a previous study [9] measured the susceptibilities of multiple blood-stage Plasmodium and Babesia parasite species to the Malaria Box compounds to investigate the possible sharing of the erythrocyte-specific apicomplexans to chemical sensitivities during the clinically relevant stages of parasitic infection. In this previous study, the authors evaluated the inhibitory effects of MMV compounds from Malaria Box against B. divergens only without either determination of the parasite viability after stopping the treatment, evaluating the possible synergistic or antagonistic interaction between MMV compounds and other antibabesial drugs, or preforming any bioinformatic analysis to the identified potent MMV hits. In our study, we have evaluated the inhibitory effects of MMV compounds from the Malaria Box on B. divergens growth. Then, we have evaluated the parasite viability after four days of treatments by the identified potent MMV hits. Of note, we have calculated the structural similarity between the drug-like MMV compounds and drugs commonly used to treat babesiosis using APfp. Additionally, combination therapies of MMV compounds with the lowest IC50s and the highest SIs with DA against the in vitro growth of B. divergens parasite were evaluated in our study. In the study performed by Paul et al. [9], the authors evaluated the inhibitory effects of MMV compounds from Malaria Box against B. divergens using a [3H]-hypoxanthine uptake assay. Indeed, radiolabeled precursors of phospholipids, such as the sources of phospholipid polar head groups, [3H]-hypoxanthine, are widely used radioisotopes for the antimalarial in vitro drug-sensitivity assay [10,11,12]. This assay is based on the inability of either platelets or uninfected erythrocytes to synthesize their RNA, DNA, and proteins, or their membranes or leukocytes to multiply during the in vitro malaria parasite culture. Thus, only malaria parasites have actively dividing cells during the in vitro culture process, and the addition of radioactive substances into the culture enables the parasites to integrate the radioactive precursors themselves, which is considered an indirect measurement of the parasite metabolic activity [10,11]. Generally, Plasmodium spp. are unable to synthesize purines de novo [13], which force Plasmodium parasites to use exogenous purines. Therefore, the incorporation of a radioisotope, such as [3H]-hypoxanthine, which is the main purine base needed by P. falciparum, is directly related to the count of P. falciparum-infected erythrocytes [11,12]. For Babesia parasites, there is paucity on the occurrence or the absence of de novo synthetic pathways of purines. Studies on the uptake of purines by Babesia-infected erythrocytes indicate that hypoxanthine is likely to be the major purine source in vivo [14]. For B. divergens, the findings indicate that the parasite can synthesize purine nucleotides by two routes, one involving PRTases and the other employing nucleoside kinases [15]. Thus, the parasite does not need to use exogenous purines. Subsequently, the incorporation of a radioisotope, such as [3H]-hypoxanthine, with the parasite does not have a significant value for counting of Babesia-infected erythrocytes. Therefore, in the current study, we used a recently established, accurate, and automatic fluorescence assay using SGI stain to screen the huge library-like Malaria Box against the in vitro growth of B. divergens.
The in vitro inhibitory effects of MMV Malaria Box compounds against the growth of the B. divergens parasite were varied: potent (IC50 < 1µM, n = 156), moderate (IC50 1–10 µM, n = 186), or weak (IC50 > 10µM, n = 58) (Tables S1–S20). Subsequently, Malaria Box compounds exhibited a 39% hit rate against the in vitro growth of the screened parasite (Figure S1). This hit rate is higher than those caused by Malaria Box compounds against the in vitro growth of Babesia bovis, Babesia bigemina, Theileria equi, and Babesia caballi, respectively (Figure S1) [2]. Such high in vitro susceptibility of B. divergens to compounds derived from Malaria Box may be attributed to the fact that B. divergens and P. falciparum use common receptors, glycophorins A and B, to invade the infected red blood cell [16]. Future studies are required to explore whether glycophorin receptors located on the RBCs’ surface are drug targets where the identified potent MMV compounds produce their inhibitory effects in B. divergens infection. Indeed, previous studies [17,18,19,20,21] have demonstrated that certain compounds other than MMV compounds could inhibit the parasite invasion of RBCs through targeting the parasite secretory proteins on RBCs in both B. divergens and P. falciparum. Boyle, et al. [19] reported that heparin inhibits the invasion process of P. falciparum through inhibiting the earliest step in the invasion of merozoite to RBCs, initial RBC attachment, and binding merozoite surface protein 1 (MSP1). Additionally, heparin inhibits the merozoite invasion of RBCs in P. falciparum by binding to rhoptry and microneme proteins that are involved in reorientation and signaling steps of the invasion process [18,20]. For Babesia spp. (B. bovis, B. bigemina, B. equi, and B. caballi in vitro and B. microti in vivo), Bork, et al. [17] established that heparin covers the surfaces of babesial merozoites and inhibits their subsequent invasion of erythrocytes.
The hit rate of MMV compounds against the in vitro growth of B. divergens is considered higher than that observed by the in vitro screening of Malaria Box compounds against either Toxoplasma gondii (T. gondii) and Entamoeba histolytica [22], Schistosoma mansoni [23], or Cryptosporidium parvum [24] (Figure S1).
A total of 99 MMV drug-like and 57 MMV probe-like compounds exhibited potent anti-B. divergens activity in vitro, with nanomole levels of IC50 (Figure 1). From these compounds, 38 compounds (19 drug-like and 19 probe-like) were more effective than DA (Figure 2 and Figure 3, Figure S2, and Tables S1–S20). Treatment with 100 nM of these potent 38 compounds significantly inhibited (p < 0.05) the in vitro growth of B. divergens (Figure 2 and Figure 3).
Interestingly, seven compounds (four drug-like and three probe-like) exhibited a highly inhibitory effect against the in vitro growth of B. divergens, with IC50s less than 10 nanomolar (Table 1 and Figure 4). MMV019124, MMV006913, MMV019995, MMV000699, and MMV666054 exhibited IC50s lower than those observed for P. falciparum (Table 1). In general, several characteristics associated with the screening parasite, such as parasite species, strain, and size, have an impact on the therapeutic efficacy of the tested drugs [2,4]. In vitro culture parameters, such as the utilized medium, HCT, and the presence or absence of serum, also influence the calculated IC50s of the tested medication [25,26]. As a result, differences in parasite species or culture conditions between Babesia and Plasmodium might explain the inconsistencies in MMV compound IC50 values between two parasites.
Of note, MMV006913 was the most promising hit for further medicinal chemistry/biological screenings, with SI 32000 and IC50 1 nM (Table 1). To the best of our knowledge, the inhibitory effect of this hit in an animal model of babesiosis remains unknown. Moreover, the mechanism by which MMV006913 inhibits either Plasmodium or Babesia needs more deep investigation. Some theories suggested cGMP-dependent or mitogen-activated protein kinases (PK) as targets of this MMV hit in the Plasmodium parasite [6]. Generally speaking, PK has important physiological functions in the mammalian system, e.g., in vascular and gastrointestinal smooth muscles, platelets, kidneys, bones, and the central nervous system [27]. Among protozoan parasites, PKs are found in P. falciparum, T. gondii, and Babesia spp. [27]. The PK similarity between Babesia and P. falciparum is over 70% [27], possibly explaining why antimalarial compounds that target the PK gene are effective against Babesia parasites.
The inhibitory assay results obtained in the current study showed some differences from those previously published by Paul et al. [9]. Several factors affect the parasite susceptibility to the screened chemicals, including parasite strain and species, the inhibitory assay used for chemical screening, and the in vitro culture conditions [4,26]. Subsequently, the differences in the used parasite strain (Rouen 1987 vs. German bovine strain), the used inhibitory assay (3H-hypoxanthine uptake assay vs. fluorescence assay using SGI stain assay), and the in vitro culture conditions (standard hypoxic conditions (e.g., 1% O2, 5% CO2, 94% N2), 2%-hematocrit, RPMI 1640 medium supplemented with 25 mM HEPES, 50 mg/l hypoxanthine, 2.42 mM sodium bicarbonate, and 4.31 mg/mL AlbuMAX II, 6.75 pH of the media vs. RPMI 1640 medium containing 40% normal bovine serum; 60 units per milliliter of penicillin G, 60 µg/mL of streptomycin, and 0.15 µg/mL of amphotericin B; cultures of parasitized RBCs (pRBCs) incubated at 37 °C in an atmosphere of 5% CO2, 5% O2, and 90% N2), explain the discrepancies in the results between our results and the results obtained from the previous study that screened Malaria Box compounds against B. divergens parasite [9].
To determine the ability of potent identified MMV hits to suppress the regrowth of B. divergens after four days of in vitro treatment, viability testing was performed. Results showed that there was no regrowth of the screened parasite after treatment by all MMV compounds, even at the lowest concentration (0.1 µM) (Table S21).
The HCA analysis revealed that MMV006913 (CID: 780973) showed the maximum structural similarity with either atovaquone or DA (Figure 5). In the same way, the MMV019124 compound (CID: 1347726) exhibited the maximum structural similarity with either DA or ID (Figure 5). MMV665807 (CID: 5065884) and MMV665850 (787413) showed the maximum structural similarity with each other or with ID (Figure 5). Compounds falling under different clusters indicate structural dissimilarity among them and in comparison with other commonly used antibabesial drugs, indicating a probable different antibabesial mechanism. Subsequently, MMV hits that showed the lowest IC50s against the growth of B. divergens and the highest SIs (MMV006913 and MMV666054) were selected to further evaluate their inhibitory effects when used in combination with the commonly used antibabesial drug, DA. All combination ratios of MMV006913, when used with DA, revealed additive and indifference inhibitory effects against the in vitro growth B. divergens (Table 2). Of note, a very high concentration (0.75 IC50) of MMV006913 caused an additive interaction on the growth of B. divergens when used in combination, with either 0.75 IC50 or 0.50 IC50 of DA (Table 2). On the contrary, the combined use of MMV666054 and DA revealed indifference and antagonistic interactions regarding the in vitro growth of B. divergens (Table 2). Further in vivo experiments are required to confirm the in vitro enhancement in the inhibitory effect of MMV006913 when used in combination with DA.
Of the hits with an IC50 less than 10 nM, five compounds (two drug-like and three probe-like) exhibited SI ranging from 1195.64 to 7785.47 (Table 1 and Figure 4). Future in vivo experiments are required to evaluate the inhibitory effects of these MMV compounds using B. microti as the infectious agent.

3. Materials and Methods

3.1. Chemical Reagents

SYBR Green I (SGI) nucleic acid stain (Lonza, Rockland, NY, USA; 10,000×) was stored at –20 °C and thawed before use. A lysis buffer consisting of Tris (130 mM; pH 7.5), ethylenediaminetetraacetic acid (EDTA) (10 mM), saponin (0.016%; w/v), and TritonX-100 (1.6%; v/v) was prepared in advance and stored at 4 °C. DA (Novartis, Tokyo, Japan) and MMV compounds (MolPort, Riga, Latvia) were prepared as a 100 mM stock solution and stored at –30 °C until use. The Malaria Box compounds were supplied in V-shaped 96-well plates in 20 µL of a 10 mM DMSO (Sigma-Aldrich, Tokyo, Japan) solution and shipped frozen. Plate mapping and full data on the Malaria Box with original GSK/St. Jude/Novartis compound number, ID, set, molecular weight, canonical SMILES, source, and biological data are provided as supporting information for the Malaria Box (in pone.0062906.s002-supporting information). A list of vendors used to supply compounds for the Malaria Box, including the vendor’s web address and the number of compounds from each vendor in the Malaria Box, is also available (in pone.0062906.s002-supporting information).

3.2. In Vitro Cultivation of B. divergens Parasite

Babesia divergens (German bovine strain of catalog number 201708-4) used in this study were cultivated in purified bovine red blood cells (RBCs) using a microaerophilic, stationary-phase culture system [26,28]. Briefly, B. divergens [26,29] was cultivated in RPMI 1640 medium (Sigma-Aldrich) containing 40% normal bovine serum. Sixty units per milliliter of penicillin G, 60 µg/mL of streptomycin, and 0.15 µg/mL of amphotericin B (all from Sigma-Aldrich) were added to all of the culture medium used. Antibiotics were added to the parasite culture at a concentration that did not harm the RBCs to prevent bacterial contamination and, subsequently, minimize the loss of valuable cells, reagents, time, and effort due to contamination. Cultures of parasitized RBCs (pRBCs) were incubated at 37 °C in an atmosphere of 5% CO2, 5% O2, and 90% N2.

3.3. Malaria Box Compound Screening against B. divergens

The inhibitory effects of 400 compounds (200 drug-like and 200 probe-like) from the Malaria Box on B. divergens growth were tested using the fluorescence-based high-throughput screening (HTS) assay [26]. Briefly, B. divergens pRBCs were cultivated in 96-well plates at 1% parasitemia with nonparasitized RBCs to 5% hematocrit (HCT). RPMI 1640 medium alone or with indicated concentrations of 400 MMV compounds (0.1, 1, 10, and 25 µM) in 100 µL final volume was added to the culture. The medium containing 0.1% dimethyl sulfoxide (DMSO) with infected RBCs (iRBCs) and uninfected RBCs was used as positive and negative controls, respectively. DA was used as the positive control and tested at a final concentration of 10 µM. One plate was used in each drug experiment for 50% inhibitory concentration (IC50) value calculation on the fourth day of culture. A lysis buffer containing SGI was added to each well, as reported above. The mean fluorescence values were then plotted against the logarithm of drug concentrations. Selectivity indices (SIs) for the identified potent compounds were calculated as the ratio of the cytotoxic concentration 50 (CC50) to the IC50 for each MMV compound. The cytotoxicity was evaluated using the human fibroblast cell line MRC-5 and retrieved from ChEMBL.

3.4. Viability Test

MMV hits that exhibited potent anti-B. divergens efficacy with IC50 ≤ 10 nM were selected to evaluate the B. divergens parasite viability after four days of treatments by these compounds, as previously described by [26]. Briefly, experiments similar to those described in Section 3.3 were performed. On the fourth day of treatment, 3.5 µL of the DMSO- or MMV-treated infected RBCs were removed and diluted in a fresh growth medium. Then, the plates were incubated at 37 °C for the next four days. The amount of parasite DNA was measured using a fluorescence spectrophotometer and used as an indicator of parasite recrudescence. Each experiment was repeated three times.

3.5. Structural Similarity Measurements

To calculate the structural similarity between the drug-like MMV compounds (n = 4) and drugs commonly used to treat babesiosis (DA, ID, and atovaquone), we used atom pair fingerprints (APfp) [30]. APfp was calculated using the chemical ID obtained from the PubChem for each compound. The CIDs were then loaded into the ChemMine tools software for calculating APfp of all compounds [31]. The APfp was submitted to ChemmineR software for hierarchical clustering analysis (HCA) [32].

3.6. In Vitro Drug Combination Test

Combination therapies of MMV compounds (MMV006913 and MMV666054) that exhibited the lowest IC50s (1 nM) and the highest SIs with the commonly used antibabesial drug DA against the in vitro growth of B. divergens parasite were evaluated. The combination ratios ranged from 0.75 IC50 MMV compounds:0.75 IC50 DA to 0.50 IC50 MMV compounds:0.50 IC50 DA (Table 2), as previously described [3], with some modifications. Each combination was loaded in triplicate wells in 96-well plates and incubated with the parasite at 1% parasitemia and 5% HCT for 4 consecutive days. RBCs collected from healthy cattle were loaded into each well in triplicate with the medium and DMSO and used as blank controls. On the fourth day of culture, 100 µL of a lysis buffer containing a 2 × SGI nucleic acid stain was added directly to each well on the plates, and then the plates were incubated for 6 h in a dark place at room temperature and the fluorescence values were determined as described above. Three independent experiments were performed for each combination therapy.

3.7. Statistical Analyses

The IC50 values of MMV compounds were calculated using the nonlinear regression curve fit in GraphPad Prism 5.0 (GraphPad Software, Inc., San Diego, CA, USA). The differences in the emitted fluorescence signals for the in vitro cultures and drug combination test were analyzed with a commercial statistical software program (GraphPad Prism) using the independent unpaired Student’s t-test [33]. A p value of < 0.05 was considered statistically significant for all tests. The regrowth of the parasite in the viability test was determined based on the statistically significant differences between the MMV-hits-treated and the positive control group (Babesia treated with RPMI 1640 medium containing the vehicle only, DMSO) [26].

4. Conclusions

Screening the Malaria Box compounds against the in vitro growth of B. divergens assisted in the discovery of new, more effective drugs than the traditionally used ones, either at the animal level, DA and ID, or human level, clindamycin, azithromycin, and quinine. Attractively, seven novel potent anti-B. divergens, including MMV665807, MMV665850, MMV019124, MMV006913, MMV019995, MMV000699, and MMV666054, were identified. One hit, MMV006913, exhibited the lowest IC50 and the highest selectivity indices, highlighting the possible promising in vivo inhibitory effect of this hit when administrated in either a mouse infected with B. microti or gerbil infected by B. divergens. Seven other MMV hits showed excellent SIs. Although the present study helped in the discovery of novel MMV with potential anti-B. divergens efficacy, the inhibitory effects of these hits may be enhanced when used in combination with each other. Future studies are required to analyze the two-drug interactions of MMV hits when used in combination with each other for further clinical application. The obtained results indicate that the Malaria Box is a treasure trove of anti-B. divergens candidates. Knowledge of the targets and action mechanisms of these compounds might provide new insights into Babesia biology. Therefore, further researches are essential to calculate the distance matrix between the identified MMV compounds with anti-B. divergens activity and the commonly used antibabesial drugs, including highlighting the structural differences between these compounds using PubChem fingerprint for similarity workbench. Furthermore, future studies are required to establish a simple mathematical relationship between structural or property structural molecular features (descriptors) of the identified potent MMV compounds and their physicochemical activities using quantitative structure–activity relationships (QSAR). Such physicochemical descriptors, which include parameters to account for hydrophobicity, topology, electronic properties, and steric effects, will be determined empirically or, more recently, by computational methods. Three main steps are required for accomplishing QSAR modeling: (1) collect or, if possible, design a training set of chemicals; (2) choose descriptors that can properly relate chemical structure to biological activity; and (3) apply statistical methods that correlate changes in structure with changes in biological activity.

Supplementary Materials

The following are available online, Figure S1. A heatmap showing the hit rates percentages for the Malaria Box compounds against several piroplasm parasites (B. divergens, B. bovis, B. bigemina, T. equi, and B. caballi), Toxoplasma gondii, Entamoeba histolytica, Schistosoma mansoni, and Cryptosporidium parvum. B. divergens exhibited the highest hit rate %.* data adopted from [2], # data adopted from [22], ** data adopted from [23], ## data adopted from [24]. Figure S2. Fluorescence-based monitoring of diminazene aceturate-induced growth inhibition of B. divergens. Correlation between RFUs (y-axis) and log concentration of diminazene aceturate (nM) (x-axis). Each value represents a mean of triplicate wells after subtraction of the background fluorescence for non-parasitized RBCs. Table S1: Characterization and IC50 values of malaria box compounds number 2 to 21 from plate (A) evaluated for 2; Table S2: Characterization and IC50 values of malaria box compounds number 22 to 41 from plate (A) evaluated for 8; Table S3: Characterization and IC50 values of malaria box compounds number 42 to 61 from plate (A) evaluated for 23; Table S4: Characterization and IC50 values of malaria box compounds number 62 to 81 from plate (A) evaluated for Babesia divergens parasites; Table S5: Characterization and IC50 values of malaria box compounds number 82 to 101 from plate (B) evaluated for Babesia divergens parasites; Table S6: Characterization and IC50 values of malaria box compounds number 102 to 121 from plate (B) evaluated for Babesia divergens parasites; Table S7: Characterization and IC50 values of malaria box compounds number 122 to 141 from plate (B) evaluated for Babesia divergens parasites; Table S8. Characterization and IC50 values of malaria box compounds number 142 to 161 from plate (B) evaluated for Babesia divergens parasites; Table S9: Characterization and IC50 values of malaria box compounds number 162 to 181 from plate (C) evaluated for Babesia divergens parasites; Table S10: Characterization and IC50 values of malaria box compounds number 182 to 201 from plate (C) evaluated for Babesia divergens parasites; Table S11: Characterization and IC50 values of malaria box compounds number 202 to 221 from plate (C) evaluated for Babesia divergens parasites; Table S12: Characterization and IC50 values of malaria box compounds from 222 to 241 from plate (C) evaluated for Babesia divergens parasites; Table S13: Characterization and IC50 values of malaria box compounds number 242 to 261 from plate (D) evaluated for Babesia divergens parasites; Table S14: Characterization and IC50 values of malaria box compounds number 262 to 281 from plate (D) evaluated for Babesia divergens parasites; Table S15: Characterization and IC50 values of malaria box compounds number 282 to 301 from plate (D) evaluated for Babesia divergens parasites; Table S16: Characterization and IC50 values of malaria box compounds number 302 to 321 from plate (D) evaluated for Babesia divergens parasites; Table S17: Characterization and IC50 values of malaria box compounds number 322 to 341 from plate (E) evaluated for Babesia divergens parasites; Table S18: Characterization and IC50 values of malaria box compounds umber 342 to 361 from plate (E) evaluated for Babesia divergens parasites; Table S19: Characterization and IC50 values of malaria box compounds number 362 to 381 from plate (E) evaluated for Babesia divergens parasites; Table S20: Characterization and IC50 values of malaria box compounds number 382 to 401 from plate (E) and diminazene aceturate evaluated for Babesia divergens parasites; Table S21: Viability test results of potent MMV hits evaluated for Babesia divergens.

Author Contributions

Conceptualization: M.A.R., I.I. Data curation: M.A.R. Formal analysis: M.A.R., S.A.E.-S.E.-S. Funding acquisition: I.I., K.F.A., M.M.A.-D. Investigation: M.A.R., I.I. Methodology: M.A.R., S.A.E.-S.E.-S. Project administration: I.I. Resources: I.I. Software: M.A.R., M.S.A. Supervision: I.I. Validation: I.I. Visualization: M.A.R., I.I. Writing—original draft: M.A.R. Writing—review and editing: All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported financially by the Medicines for Malaria Venture Malaria Box Challenge Grant. Mohamed Abdo Rizk was supported by a research grant fellowship for young scientists from the Japan Society for the Promotion of Science (JSPS) (ID no. P18091). This work was supported by the Taif University Researchers Supporting Program (Project number: TURSP-2020/153), Taif University, Saudi Arabia.

Institutional Review Board Statement

All animal experiments in this study were conducted in accordance with the Standard Relating to the Care and Management of Experimental Animals set by the National Research Center for Protozoan Diseases, Obihiro University of Agriculture and Veterinary Medicine, Hokkaido, Japan (approval no. 27-65).

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets generated during and/or analysed during the current study are available from the corresponding author on reasonable request.

Acknowledgments

Mohamed Abdo Rizk was supported by a research grant fellowship for young scientists from the Japan Society for the Promotion of Science (JSPS) (ID no. P18091). This work was supported by the Taif University Researchers Supporting Program (Project number: TURSP-2020/153), Taif University, Saudi Arabia. The authors would like to thank Naoaki Yokoyama, National Research Center for Protozoan Diseases, Obihiro University of Agriculture and Veterinary Medicine, Inada-Cho, Obihiro, Hokkaido, Japan for his scientific support and discussion.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Suarez, C.E.; Alzan, H.F.; Silva, M.G.; Rathinasamy, V.; Poole, W.A.; Cooke, B.M. Unravelling the cellular and molecular pathogenesis of bovine babesiosis: Is the sky the limit? Int. J. Parasitol. 2019, 49, 183–197. [Google Scholar] [CrossRef]
  2. Rizk, M.A.; El-Sayed, S.A.E.; El-Khodery, S.; Yokoyama, N.; Igarashi, I. Discovering the in vitro potent inhibitors against Babesia and Theileria parasites by repurposing the Malaria Box: A review. Vet. Parasitol 2019, 274, 108895. [Google Scholar] [CrossRef]
  3. Rizk, M.A.; AbouLaila, M.; El-Sayed, S.A.E.; Guswanto, A.; Yokoyama, N.; Igarashi, I. Inhibitory effects of fluoroquinolone antibiotics on Babesia divergens and Babesia microti, blood parasites of veterinary and zoonotic importance. Infect. Drug Resist. 2018, 11, 1605–1615. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Rizk, M.A.; El-Sayed, S.A.E.; Nassif, M.; Mosqueda, J.; Xuan, X.; Igarashi, I. Assay methods for in vitro and in vivo anti-Babesia drug efficacy testing: Current progress, outlook, and challenges. Vet. Parasitol 2020, 279, 109013. [Google Scholar] [CrossRef]
  5. Zintl, A.; Mulcahy, G.; Skerrett, H.E.; Taylor, S.M.; Gray, J.S. Babesia divergens, a bovine blood parasite of veterinary and zoonotic importance. Clin. Microbiol Rev. 2003, 16, 622–636. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Van Voorhis, W.C.; Adams, J.H.; Adelfio, R.; Ahyong, V.; Akabas, M.H.; Alano, P.; Alday, A.; Aleman Resto, Y.; Alsibaee, A.; Alzualde, A.; et al. Open Source Drug Discovery with the Malaria Box Compound Collection for Neglected Diseases and Beyond. PLoS Pathog. 2016, 12, e1005763. [Google Scholar] [CrossRef] [PubMed]
  7. Bennett, T.N.; Paguio, M.; Gligorijevic, B.; Seudieu, C.; Kosar, A.D.; Davidson, E.; Roepe, P.D. Novel, rapid, and inexpensive cell-based quantification of antimalarial drug efficacy. Antimicrob. Agents Chemother. 2004, 48, 1807–1810. [Google Scholar] [CrossRef] [Green Version]
  8. Spangenberg, T.; Burrows, J.N.; Kowalczyk, P.; McDonald, S.; Wells, T.N.; Willis, P. The open access malaria box: A drug discovery catalyst for neglected diseases. PLoS ONE 2013, 8, e62906. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Paul, A.S.; Moreira, C.K.; Elsworth, B.; Allred, D.R.; Duraisingh, M.T. Extensive Shared Chemosensitivity between Malaria and Babesiosis Blood-Stage Parasites. Antimicrob. Agents Chemother. 2016, 60, 5059–5063. [Google Scholar] [CrossRef] [Green Version]
  10. Elabbadi, N.; Ancelin, M.L.; Vial, H.J. Use of radioactive ethanolamine incorporation into phospholipids to assess in vitro antimalarial activity by the semiautomated microdilution technique. Antimicrob. Agents Chemother. 1992, 36, 50–55. [Google Scholar] [CrossRef] [Green Version]
  11. Chulay, J.D.; Haynes, J.D.; Diggs, C.L. Plasmodium falciparum: Assessment of in vitro growth by [3H]hypoxanthine incorporation. Exp. Parasitol. 1983, 55, 138–146. [Google Scholar] [CrossRef]
  12. Geary, T.G.; Divo, A.A.; Jensen, J.B. An in vitro assay system for the identification of potential antimalarial drugs. J. Parasitol. 1983, 69, 577–583. [Google Scholar] [CrossRef] [PubMed]
  13. Sherman, I.W. Transport of amino acids and nucleic acid precursors in malarial parasites. Bull. World Health Organ. 1977, 55, 211–225. [Google Scholar]
  14. Irvin, A.D.; Young, E.R. Further studies on the uptake of tritiated nucleic acid precursors by Babesia spp. of cattle and mice. Int. J. Parasitol. 1979, 9, 109–114. [Google Scholar] [CrossRef]
  15. Hassan, H.F. Purine-metabolising enzymes in Babesia divergens. Zeit. Parasitenkund. 1987, 73, 121–125. [Google Scholar]
  16. Lobo, C.A. Babesia divergens and Plasmodium falciparum use common receptors, glycophorins A and B, to invade the human red blood cell. Infect. Immun. 2005, 73, 649–651. [Google Scholar] [CrossRef] [Green Version]
  17. Bork, S.; Yokoyama, N.; Ikehara, Y.; Kumar, S.; Sugimoto, C.; Igarashi, I. Growth-inhibitory effect of heparin on Babesia parasites. Antimicrob. Agents Chemother. 2004, 48, 236–241. [Google Scholar] [CrossRef] [Green Version]
  18. Baum, J.; Chen, L.; Healer, J.; Lopaticki, S.; Boyle, M.; Triglia, T.; Ehlgen, F.; Ralph, S.A.; Beeson, J.G.; Cowman, A.F. Reticulocyte-binding protein homologue 5-an essential adhesin involved in invasion of human erythrocytes by Plasmodium falciparum. Int J. Parasitol. 2009, 39, 371–380. [Google Scholar] [CrossRef]
  19. Boyle, M.J.; Richards, J.S.; Gilson, P.R.; Chai, W.; Beeson, J.G. Interactions with heparin-like molecules during erythrocyte invasion by Plasmodium falciparum merozoites. Blood 2010, 115, 4559–4568. [Google Scholar] [CrossRef] [Green Version]
  20. Kobayashi, K.; Kato, K.; Sugi, T.; Takemae, H.; Pandey, K.; Gong, H.; Tohya, Y.; Akashi, H. Plasmodium falciparum BAEBL binds to heparan sulfate proteoglycans on the human erythrocyte surface. J. Biol. Chem. 2010, 285, 1716–1725. [Google Scholar] [CrossRef] [Green Version]
  21. Kobayashi, K.; Takano, R.; Takemae, H.; Sugi, T.; Ishiwa, A.; Gong, H.; Recuenco, F.C.; Iwanaga, T.; Horimoto, T.; Akashi, H.; et al. Analyses of interactions between heparin and the apical surface proteins of Plasmodium falciparum. Sci. Rep. 2013, 3, 3178. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Boyom, F.F.; Fokou, P.V.; Tchokouaha, L.R.; Spangenberg, T.; Mfopa, A.N.; Kouipou, R.M.; Mbouna, C.J.; Donfack, V.F.; Zollo, P.H. Repurposing the open access malaria box to discover potent inhibitors of Toxoplasma gondii and Entamoeba histolytica. Antimicrob. Agents Chemother. 2014, 58, 5848–5854. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Ingram-Sieber, K.; Cowan, N.; Panic, G.; Vargas, M.; Mansour, N.R.; Bickle, Q.D.; Wells, T.N.; Spangenberg, T.; Keiser, J. Orally active antischistosomal early leads identified from the open access malaria box. PLoS Negl. Trop Dis. 2014, 8, e2610. [Google Scholar] [CrossRef] [Green Version]
  24. Bessoff, K.; Spangenberg, T.; Foderaro, J.E.; Jumani, R.S.; Ward, G.E.; Huston, C.D. Identification of Cryptosporidium parvum active chemical series by Repurposing the open access malaria box. Antimicrob. Agents Chemother. 2014, 58, 2731–2739. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Rizk, M.A.; El-Sayed, S.A.; Terkawi, M.A.; Youssef, M.A.; El Said el Sel, S.; Elsayed, G.; El-Khodery, S.; El-Ashker, M.; Elsify, A.; Omar, M.; et al. Optimization of a Fluorescence-Based Assay for Large-Scale Drug Screening against Babesia and Theileria Parasites. PLoS ONE 2015, 10, e0125276. [Google Scholar] [CrossRef]
  26. Rizk, M.A.; El-Sayed, S.A.; AbouLaila, M.; Tuvshintulga, B.; Yokoyama, N.; Igarashi, I. Large-scale drug screening against Babesia divergens parasite using a fluorescence-based high-throughput screening assay. Vet. Parasitol. 2016, 227, 93–97. [Google Scholar] [CrossRef]
  27. Lau, A.O.; Pedroni, M.J.; Bhanot, P. Target specific-trisubstituted pyrrole inhibits Babesia bovis erythrocytic growth. Exp. Parasitol. 2013, 133, 365–368. [Google Scholar] [CrossRef]
  28. El-Sayed, S.A.E.; Rizk, M.A.; Terkawi, M.A.; Yokoyama, N.; Igarashi, I. Molecular identification and antigenic characterization of Babesia divergens Erythrocyte Binding Protein (BdEBP) as a potential vaccine candidate. Parasitol. Int. 2017, 66, 721–726. [Google Scholar] [CrossRef]
  29. Rizk, M.A.; El-Sayed, S.A.E.; AbouLaila, M.; Yokoyama, N.; Igarashi, I. Evaluation of the inhibitory effect of N-acetyl-L-cysteine on Babesia and Theileria parasites. Exp. Parasitol. 2017, 179, 43–48. [Google Scholar] [CrossRef]
  30. O’Boyle, N.M.; Sayle, R.A. Comparing structural fingerprints using a literature based similarity benchmark. J. Cheminformatics 2016, 8, 2206–2219. [Google Scholar] [CrossRef] [Green Version]
  31. Backman, T.W.; Cao, Y.; Girke, T. ChemMine tools: An online service for analyzing and clustering small molecules. Nucleic Acids Res. 2011, 39, W486–W491. [Google Scholar] [CrossRef] [PubMed]
  32. Cao, Y.; Charisi, A.; Cheng, L.C.; Jiang, T.; Girke, T. ChemmineR: A compound mining framework for R. Bioinformatics 2008, 24, 1733–1744. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. El-Sayed, S.A.E.; Rizk, M.A.; Yokoyama, N.; Igarashi, I. Evaluation of the in vitro and in vivo inhibitory effect of thymoquinone on piroplasm parasites. Parasit. Vectors 2019, 12, 37. [Google Scholar] [CrossRef] [PubMed]
Molecules 26 07118 g001 550

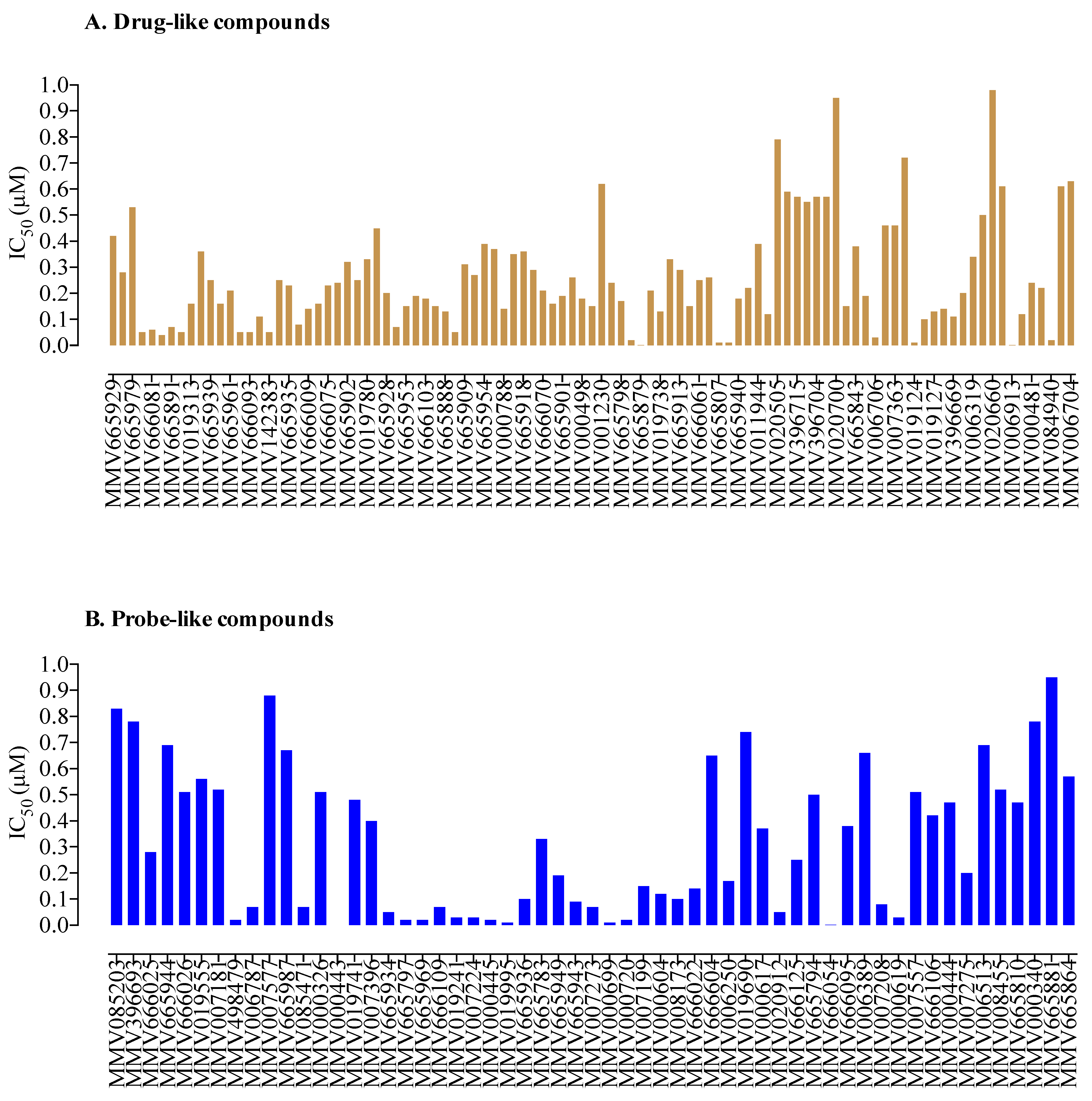

Figure 1. Drug-like and probe-like compounds with potential (IC50 < 1 µM) against B. divergens identified from in vitro screening of the Malaria Box. (A). Drug-like compounds. (B). Probe-like compounds. The data are the means of two independent experiments.
Figure 1. Drug-like and probe-like compounds with potential (IC50 < 1 µM) against B. divergens identified from in vitro screening of the Malaria Box. (A). Drug-like compounds. (B). Probe-like compounds. The data are the means of two independent experiments.
Molecules 26 07118 g001
Molecules 26 07118 g002 550

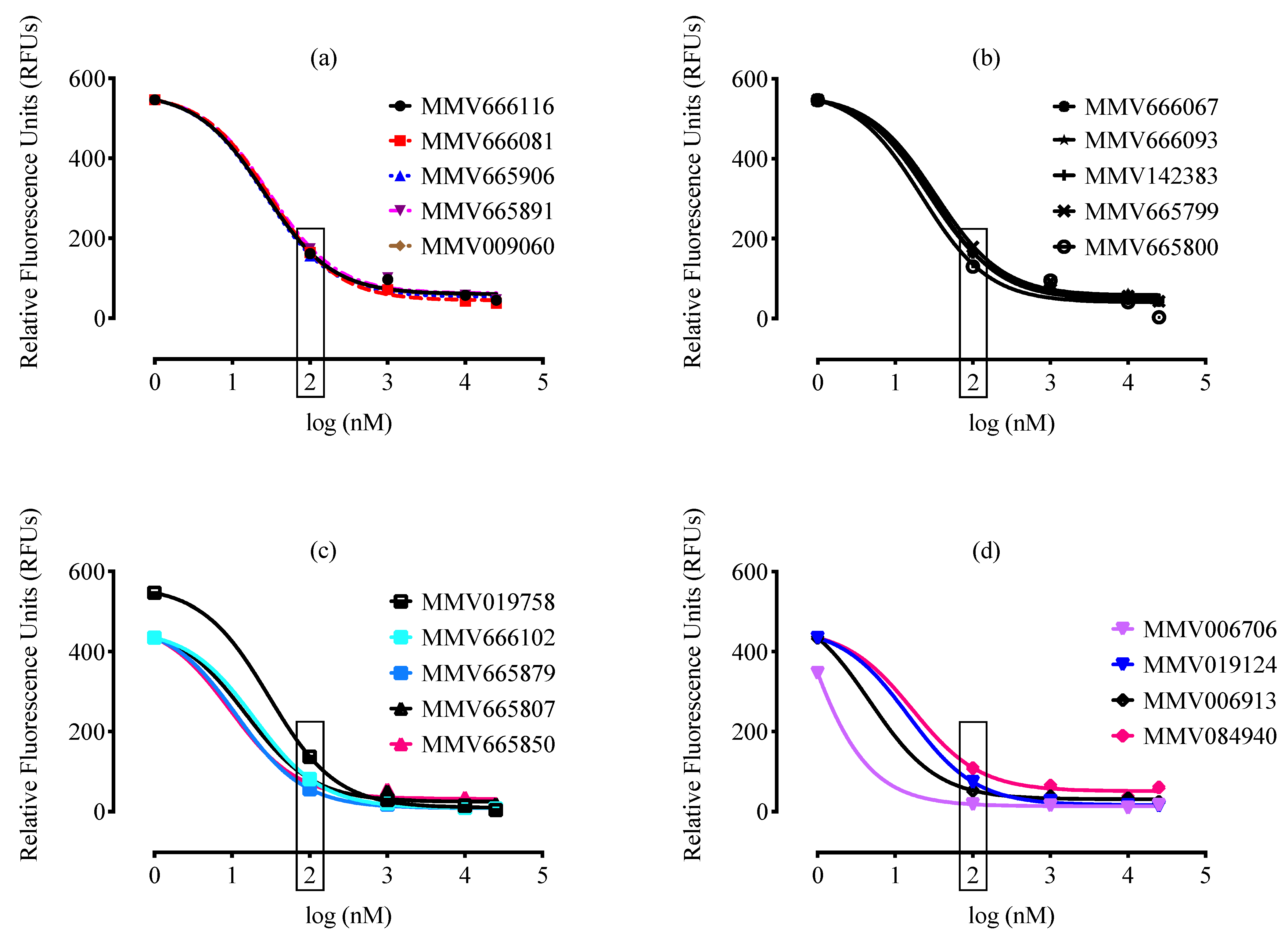

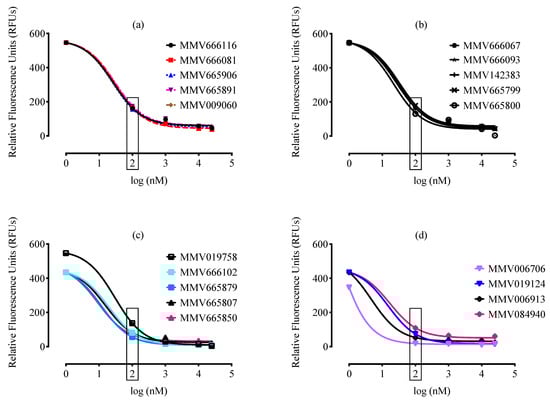

Figure 2. Inhibition of B. divergens in vitro growth by MMV drug-like compounds. (a). Relationship between MMV666116, MMV666081, MMV665906, MMV665891, and MMV009060 concentrations (nM) and RFUs for the parasite. (b). Relationship between MMV666067, MMV666093, MMV142383, MMV665799, and MMV665800 concentrations (nM) and RFUs for the parasite. (c). Relationship between MMV019758, MMV666102, MMV665879, MMV665807, and MMV665850 concentrations (nM) and RFUs for the parasite. (d). Relationship between MMV006706, MMV019124, MMV006913, and MMV084940 concentrations (nM) and RFUs for the parasite. Each value is presented as the mean of three independent experiments after subtraction of the background fluorescence for nonparasitized RBCs. The lowest drug concentrations for which inhibition of B. divergens growth was statistically significant (p < 0.05) are indicated by a rectangle.
Figure 2. Inhibition of B. divergens in vitro growth by MMV drug-like compounds. (a). Relationship between MMV666116, MMV666081, MMV665906, MMV665891, and MMV009060 concentrations (nM) and RFUs for the parasite. (b). Relationship between MMV666067, MMV666093, MMV142383, MMV665799, and MMV665800 concentrations (nM) and RFUs for the parasite. (c). Relationship between MMV019758, MMV666102, MMV665879, MMV665807, and MMV665850 concentrations (nM) and RFUs for the parasite. (d). Relationship between MMV006706, MMV019124, MMV006913, and MMV084940 concentrations (nM) and RFUs for the parasite. Each value is presented as the mean of three independent experiments after subtraction of the background fluorescence for nonparasitized RBCs. The lowest drug concentrations for which inhibition of B. divergens growth was statistically significant (p < 0.05) are indicated by a rectangle.
Molecules 26 07118 g002
Molecules 26 07118 g003 550

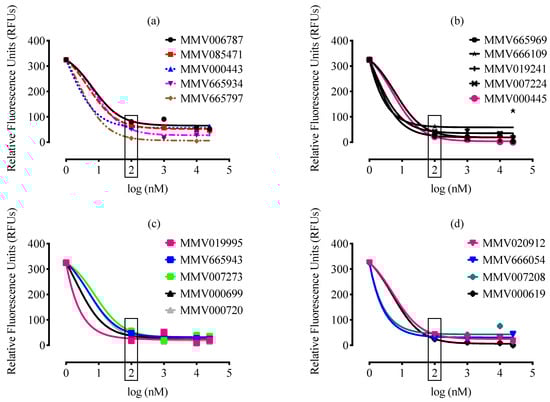

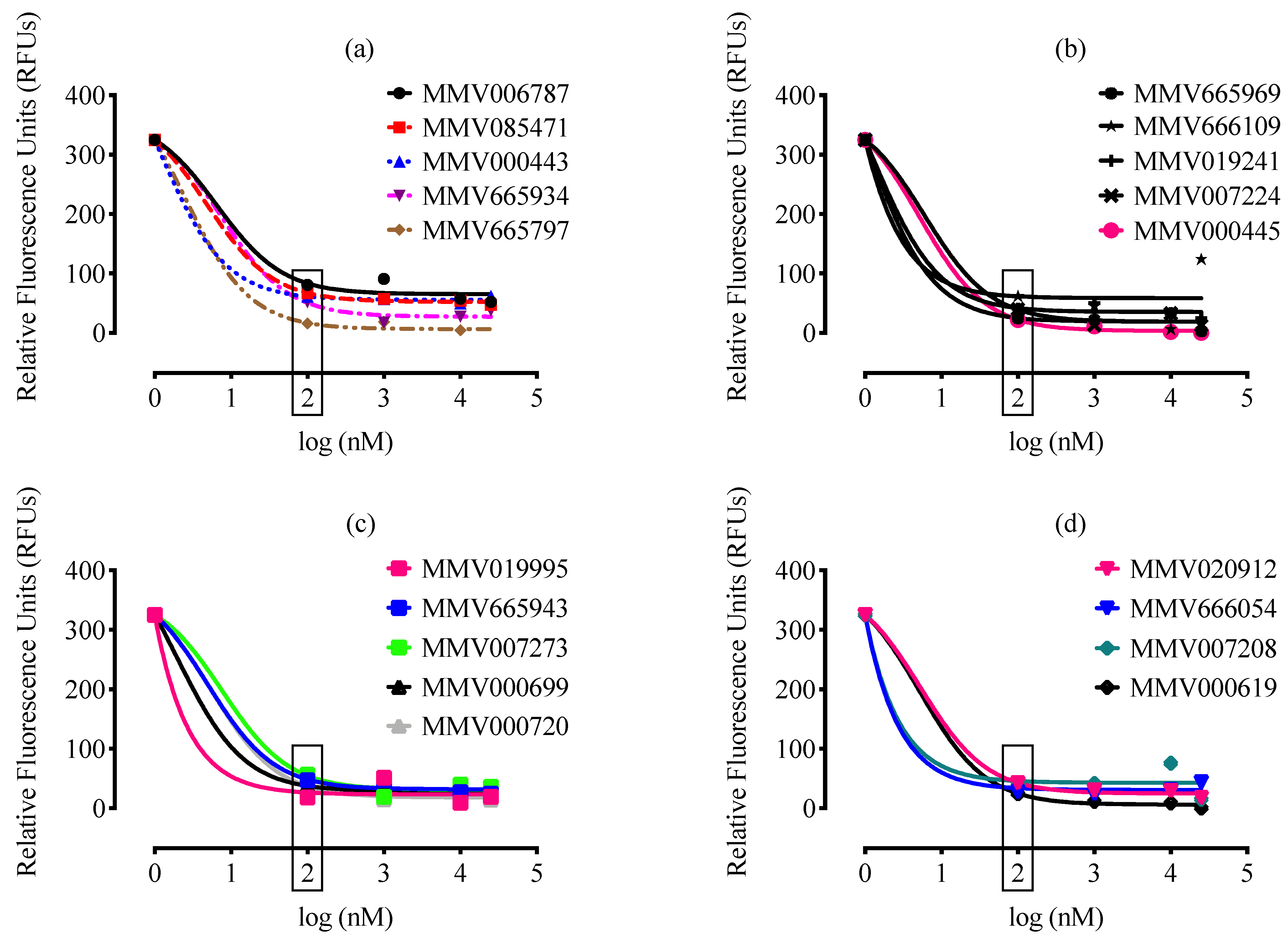

Figure 3. Inhibition of B. divergens in vitro growth by MMV probe-like compounds. (a). Relationship between MMV006787, MMV085471, MMV000443, MMV665934, and MMV665797 concentrations (nM) and RFUs for the parasite. (b). Relationship between MMV665969, MMV666109, MMV019241, MMV007224, and MMV000445 concentrations (nM) and RFUs for the parasite. (c). Relationship between MMV019995, MMV665943, MMV007273, MMV000699, and MMV000720 concentrations (nM) and RFUs for the parasite. (d). Relationship between MMV020912, MMV666054, MMV007208, and MMV000619 concentrations (nM) and RFUs for the parasite. Each value is presented as the mean of three independent experiments after subtraction of the background fluorescence for nonparasitized RBCs. The lowest drug concentrations for which inhibition of B. divergens growth was statistically significant (p < 0.05) are indicated by a rectangle.
Figure 3. Inhibition of B. divergens in vitro growth by MMV probe-like compounds. (a). Relationship between MMV006787, MMV085471, MMV000443, MMV665934, and MMV665797 concentrations (nM) and RFUs for the parasite. (b). Relationship between MMV665969, MMV666109, MMV019241, MMV007224, and MMV000445 concentrations (nM) and RFUs for the parasite. (c). Relationship between MMV019995, MMV665943, MMV007273, MMV000699, and MMV000720 concentrations (nM) and RFUs for the parasite. (d). Relationship between MMV020912, MMV666054, MMV007208, and MMV000619 concentrations (nM) and RFUs for the parasite. Each value is presented as the mean of three independent experiments after subtraction of the background fluorescence for nonparasitized RBCs. The lowest drug concentrations for which inhibition of B. divergens growth was statistically significant (p < 0.05) are indicated by a rectangle.
Molecules 26 07118 g003
Molecules 26 07118 g004 550

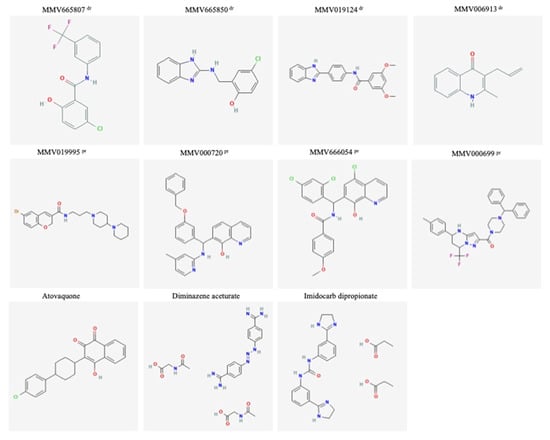

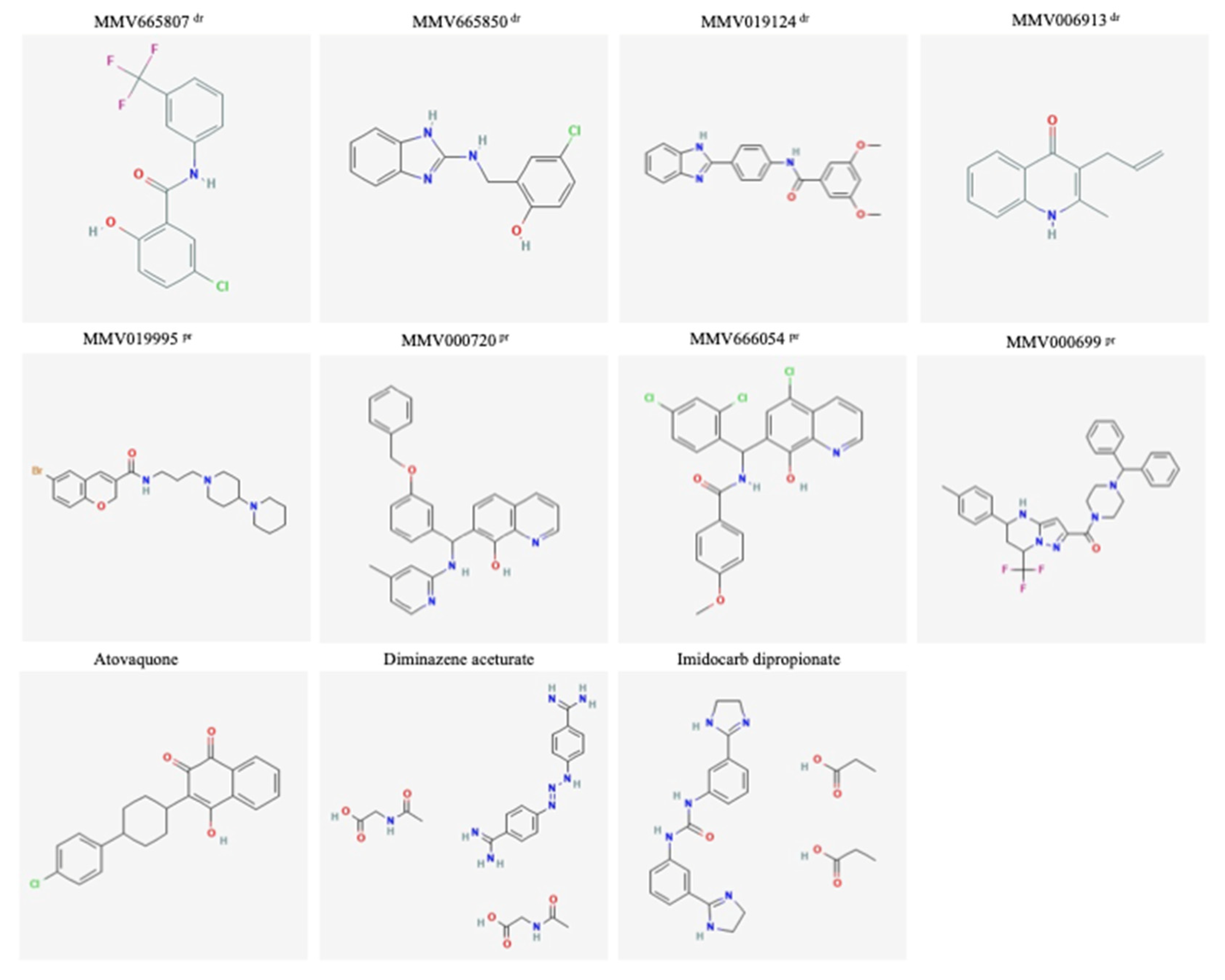

Figure 4. Chemical structures of drug-like and probe-like compounds exhibited a high potential (IC50 ≤ 10 nM) against B. divergens identified from in vitro screening of the Malaria Box. MMV structures were provided by the MMV as part of the supporting information for the Malaria Box. dr drug-like compounds. pr probe-like compound.
Figure 4. Chemical structures of drug-like and probe-like compounds exhibited a high potential (IC50 ≤ 10 nM) against B. divergens identified from in vitro screening of the Malaria Box. MMV structures were provided by the MMV as part of the supporting information for the Malaria Box. dr drug-like compounds. pr probe-like compound.
Molecules 26 07118 g004
Molecules 26 07118 g005 550

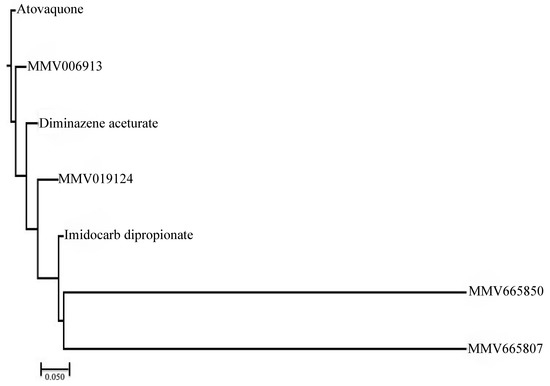

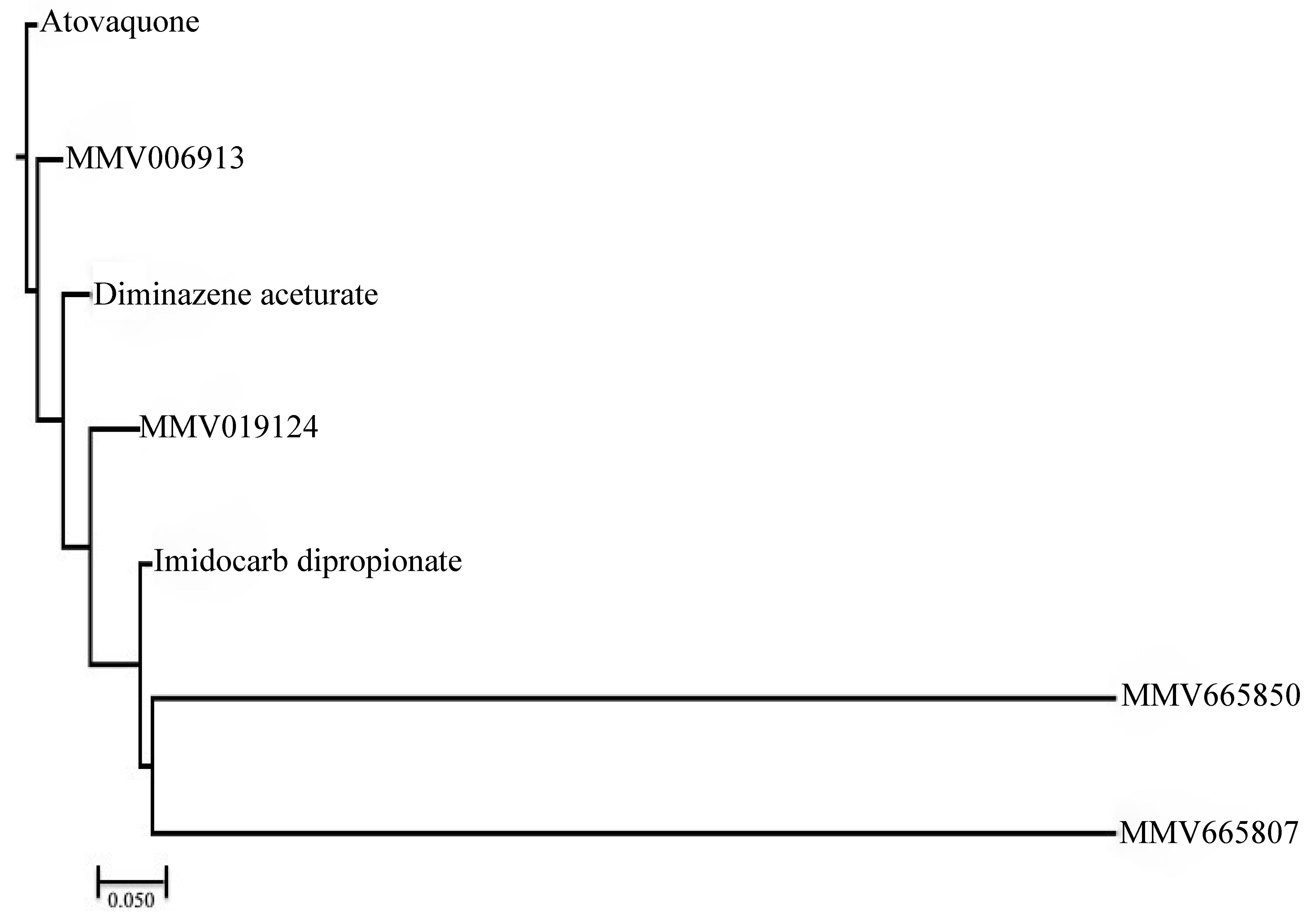

Figure 5. Hierarchical clustering analysis. The hierarchical clustering analysis was performed using ChemmineR software and highlights the structural similarities between the MMV compounds with potent anti-B. divergens activity and the commonly used antibabesial drugs (diminazene aceturate, imidocarb dipropionate, and atovaquone). Dissimilarity is reported using a scale unit of 0.05.
Figure 5. Hierarchical clustering analysis. The hierarchical clustering analysis was performed using ChemmineR software and highlights the structural similarities between the MMV compounds with potent anti-B. divergens activity and the commonly used antibabesial drugs (diminazene aceturate, imidocarb dipropionate, and atovaquone). Dissimilarity is reported using a scale unit of 0.05.
Molecules 26 07118 g005
Table
Table 1. MMV hits with potent inhibitory activity against B. divergens in vitro.
Table 1. MMV hits with potent inhibitory activity against B. divergens in vitro.
Compound ID aSet *MW * (g/mol)IC50 (nM) *
P. falciparum		IC50 (nM) b
B. divergens		CC50 (nM) c
Against MRC-5		SI d
MMV665807Drug-like315.67ND1024024
MMV665850Drug-like273.71ND10158781587
MMV019124Drug-like373.401089.510320003200
MMV006913Drug-like199.24129013200032000
MMV019995Probe-like462.4256310119561195
MMV000699Probe-like559.6245410320003200
MMV666054Probe-like487.76513177857785
a Compounds are designated by their MMV identifier codes. b IC50 values for each drug were calculated on the fourth day based on the growth inhibitions determined using the fluorescence-based method. Results are means from duplicate experiments. c Cytotoxicity data were evaluated using the human fibroblast cell line MRC-5 and retrieved from the CHEMBL database (https://www.ebi.ac.uk/chembl/, accessed on August 2021). d Selectivity indices (SIs) are the ratios of CC50 values over IC50 values for the MMV compounds tested. ND, not determined. * The set, molecular weight (MW), and P. falciparum IC50 data are provided in the supporting information for the open-access Malaria Box.
Table
Table 2. Effects of diminazene aceturate combined with MMV006913 or MMV666054 on in vitro growth of B. divergens.
Table 2. Effects of diminazene aceturate combined with MMV006913 or MMV666054 on in vitro growth of B. divergens.
Drug CombinationC aFICD1FICD2ΣFICDegree of Interaction b
MMV006913 + DA0.75 + 0.750.410.460.87Additive
0.75 + 0.500.470.390.86Additive
0.50 + 0.750.740.931.67Indifference
0.50 + 0.500.881.031.91Indifference
MMV666054 + DA0.75 + 0.751.60.221.82Indifference
0.75 + 0.501.010.11.11Indifference
0.50 + 0.751.290.051.34Indifference
0.50 + 0.502.510.513.02Antagonism
a C refers to the different concentrations of potent MMV hits with IC50s = 1 nM against B. divergens in combination with diminazene aceturate. b The degree of drug interaction was determined based on the following fractional inhibitory concentration (FIC) index: >0.5–1 (additive), >1 to <2 (indifferent), and ≥2 (antagonistic). FICD1 refers to the fractional inhibitory concentration of either MMV006913 or MMV666054. FICD2 refers to the fractional inhibitory concentration of diminazene aceturate (DA).
