Separation of ⁴⁴Sc from ⁴⁴Ti in the Context of A Generator System for Radiopharmaceutical Purposes with the Example of [⁴⁴Sc]Sc-PSMA-617 and [⁴⁴Sc]Sc-PSMA-I&T Synthesis

Abstract

Today, ⁴⁴Sc is an attractive radionuclide for molecular imaging with PET. In this work, we evaluated a ⁴⁴Ti/⁴⁴Sc radionuclide generator based on TEVA resin as a source of ⁴⁴Sc. The generator prototype (5 MBq) exhibits high ⁴⁴Ti retention and stable yield of ⁴⁴Sc (91 ± 6 %) in 1 mL of eluate (20 bed volumes, eluent—0.1 M oxalic acid/0.2 M HCl) during one year of monitoring (more than 120 elutions). The breakthrough of ⁴⁴Ti did not exceed 1.5 × 10⁻⁵% (average value was 6.5 × 10⁻⁶%). Post-processing of the eluate for further use in radiopharmaceutical synthesis was proposed. The post-processing procedure using a combination of Presep^® PolyChelate and TK221 resins made it possible to obtain ⁴⁴Sc-radioconjugates with high labeling yield (≥95%) while using small precursor amounts (5 nmol). The proposed method takes no more than 15 min and provides ≥90% yield relative to the ⁴⁴Sc activity eluted from the generator. The labeling efficiency was demonstrated on the example of [⁴⁴Sc]Sc-PSMA-617 and [⁴⁴Sc]Sc-PSMA-I&T synthesis. Some superiority of PSMA-I&T over PSMA-617 in terms of ⁴⁴Sc labeling efficiency was demonstrated (likely due to presence of DOTAGA chelator in the precursor structure). It was also shown that microwave heating of the reaction mixture considerably shortened the reaction time and improved radiolabeling yield and reproducibility of [⁴⁴Sc]Sc-PSMA-617 and [⁴⁴Sc]Sc-PSMA-I&T synthesis.

1. Introduction

The advantages of nuclear medicine methods have led to its sustainable development over the past few decades and its transformation into an integral part of clinical practice in developed countries. The active introduction of positron emission tomography (PET) and radionuclide therapy (RNT) in medical institutions, together with constantly developing new radiopharmaceuticals (RP), has made it possible to raise the possibilities of diagnostics and therapy in a variety of socially significant diseases to new levels.

⁶⁸Ga (T_½ = 67.83 min., β⁺—88.9%, E_β^max = 1899.1 keV [1]), obtained from the ⁶⁸Gе/⁶⁸Ga radionuclide generator, is the most actively used radiometal for synthesis of PET radiopharmaceuticals in the world today. For all its merits, its short physical half-life limits the available imaging period to just a few hours. PET scans at later times after injection (when the contrast of images increases due to biodistribution), as well as reliable dosimetry calculations and therapy planning (for long-lived therapeutic radionuclides, such as ¹⁷⁷Lu) cannot be performed with gallium-68. In the light of these considerations, the interest of researchers in scandium-44 has increased [2].

⁴⁴Sc (T_½ = 3.97 h, β⁺—94.3%, E_β^max = 1474.3 keV [1]) has a physical half-life almost four times longer than ⁶⁸Ga. This fact allows for imaging in a longer time interval (up to 24 h after administration), which increases the efficiency of lesion imaging by increasing the target to nontarget ratio. Clinical studies have demonstrated that PET/CT with [⁴⁴Sc]Sc-DOTATOC 4 h after injection allows the detection of tumor foci that were not visualized with [⁶⁸Ga]Ga-DOTATOC [3]. The mean positron energy of ⁴⁴Sc (Ē_β—0.63 MeV) is lower than that of ⁶⁸Ga (Ē_β—0.83 MeV), which leads to better spatial image resolutions of ⁴⁴Sc-PET [4,5,6]. Additionally, the coordination chemistry of ⁴⁴Sc is similar to that of ⁹⁰Y and lanthanides, so it forms stable radioconjugates with a similar structures and, apparently, similar receptor affinities [7]. Thus, ⁴⁴Sc is a very promising radiometal with significant practical potential that may be used in preclinical and clinical PET studies, and most importantly, as a diagnostic match to therapeutical radionuclides of rare-earth elements (e.g., ⁴⁷Sc, ⁹⁰Y, ¹⁵³Sm, ¹⁶¹Tb, ¹⁷⁷Lu) in a theragnostic approach [8]. The results of clinical applications of [⁴⁴Sc]Sc-DOTATOC [3] for the diagnosis of neuroendocrine tumors, as well as [⁴⁴Sc]Sc-PSMA-617 [9,10] for the diagnosis of prostate cancer have been published. It is hypothesized, however, that the clinical application of ⁴⁴Sc may be compromised by the high dose exposure caused by the co-emission of 1157 keV γ-rays (99.9%) [11]. These concerns of radiation safety may be addressed by using tungsten-based containers that are employed for other commercial PET nuclides with high energy γ-emission (such as ⁸⁹Zr). On the other hand, this γ-co-emission of ⁴⁴Sc could be relevant to a new imaging approach based on the three-dimensional measurement of the emitter location using β⁺/γ emitters [8,12].

⁴⁴Sc can be obtained by both using a cyclotron from a calcium target [13,14,15] and using a radionuclide generator from the parent radionuclide ⁴⁴Ti (T_½ = 60.0 a [1]). Regarding the potentially wide clinical application of ⁴⁴Sc (up to the current level of ⁶⁸Ga use), the cyclotron method of production is preferable, considering the cross sections and yields of ⁴⁴Ca(p,n)⁴⁴Sc and ⁴⁵Sc(p,2n)⁴⁴Ti→⁴⁴Sc reactions [16]. At the same time, a ⁴⁴Ti/⁴⁴Sc generator could be a useful tool for universities and research centers wishing to start working with ⁴⁴Sc but without a cyclotron of their own, and/or those who are far enough from suitable accelerators. Based on the ratio of the decay constants of ⁴⁴Ti (λ₁ = 3.66 × 10⁻¹⁰·s⁻¹) and ⁴⁴Sc (λ₂ = 4.85 × 10⁻⁵·s⁻¹), the maximum time required to reach the secular equilibrium in this pair is ∼67.5 h. At the same time, after 4 h, the level of accumulation of the daughter radionuclide is already 50%, after 12 h—87.7%, after 24 h—98.5%, and after 40 h—99.9 %. Thus, in the presence of a sufficiently effective separation method for ⁴⁴Ti and ⁴⁴Sc, characterized by low ⁴⁴Ti breakthrough and a high ⁴⁴Sc yield, the separation of the daughter radionuclide for research purposes can be carried out daily. The half-life of ⁴⁴Ti, in turn, provides, in theory, an extremely long possible generator operation period.

The earliest published (and probably the first) work about ⁴⁴Ti/⁴⁴Sc generators belongs to Margaret Greene [17], who, based on data on the anion-exchange separation of scandium, vanadium, and titanium [18], suggested using Dowex 1×8 resin as a sorbent for ⁴⁴Ti and a mixture of 0.1 M oxalic acid in 0.2 M HCl for ⁴⁴Sc elution. The yield of ⁴⁴Sc was 60–70%, while the breakthrough of titanium-44 was at the level of 0.02% and increased to 0.1% after 40 elutions. Later, different prototypes of ⁴⁴Ti/⁴⁴Sc generators were described using hydrous zirconium oxide [19], Bio-Rad AG 1×8 anion-exchange resin [20], and ZR hydroxamate resin [21] as a sorbent (see Discussion). The generator presented by Filosofov et al. [20] has the highest load of titanium-44 to date (185 MBq). The yield of ⁴⁴Sc is 97% in 20 mL of eluate, which is a mixture of 0.005 M oxalic acid/0.07 M HCl (preconcentration of activity for further radiolabeling is required), and for the stability of the sorption front of titanium-44 it is necessary to use reverse elution. This generator was used for the first in-human study of [⁴⁴Sc]Sc-PSMA-617 for PET imaging of metastasized castrate-resistant prostate cancer [10].

This article is devoted to the evaluation of a ⁴⁴Ti/⁴⁴Sc generator prototype based on Greene’s concept [17], but using TEVA resin (TEtraValent Actinides; quaternary ammonium salt, also called Aliquat^® 336 as extractant) [22,23]. Evaluation of suitability of the obtained scandium-44 solutions for radiolabeling was carried out using PSMA-617 and PSMA-I&T precursors (Figure S1).

2. Results

Two generator columns (PEEK 100 mm × Ø2.1 mm, 150 mg of TEVA resin) with an initial load of 0.5 and 5.0 MBq ⁴⁴Ti were prepared for this study and used throughout the work. During the study, several additional generator columns with ∼1.5 MBq ⁴⁴Ti were prepared. They were used to evaluate and optimize the separation parameters of ⁴⁴Ti and ⁴⁴Sc in dynamic conditions, as well as to collect data for statistics, but they have not been operated for a long time. This work was started with one tentative experiment as proof-of-concept for Greene’s method [17] with 0.1 M H₂C₂O₄/0.2 M HCl as eluent but with TEVA resin instead of Dowex 1 × 8 as sorbent. The very first generator prototype with an initial ⁴⁴Ti load of 0.5 MBq demonstrated 90% ⁴⁴Sc yield and ≤5.5 × 10⁻⁵% of ⁴⁴Ti breakthrough. The results obtained made it possible to continue further work, starting with the determination of the distribution coefficients of ⁴⁴Ti and ⁴⁴Sc on TEVA resin.

2.1. Distribution Coefficients of ⁴⁴Ti and ⁴⁴Sc on TEVA Resin in HCl-Oxalic Acid Media

Results of the Dg values obtained for ⁴⁴Ti and ⁴⁴Sc on TEVA resin in HCl-oxalic acid media are shown in

Table 1. Distribution coefficients (Dg) of ⁴⁴Ti and ⁴⁴Sc in various H₂C₂O₄/HCl mixtures for TEVA resin.

Liquid Phase Composition		Dg, mL/g
Oxalic Acid, mol/L	HCl, mol/L	44Ti	44Sc
0	4	0.31	1.27
0.1	0	7.2 × 104	2800
	0.01	6.1 × 104	25.1
	0.05	4.7 × 104	9.3
	0.1	3.6 × 104	4.9
	0.2	2.2 × 104	2.7
	0.5	6800	2.1
	1.0	2200	1.3
0.025	0.125	1.8 × 104	6.8
0.005	0.007	1.1 × 104	24.5

. Since we took the Greene’s concept as a basis, attention was mainly paid to the oxalic acid concentration of 0.1 M and various concentrations of hydrochloric acid. The determination of the distribution coefficients of ⁴⁴Ti and ⁴⁴Sc in pure 4 M HCl was carried out to assess the possibility of ⁴⁴Ti recovery from the resin. Blends of 0.005 M H₂C₂O₄/0.007 M HCl and 0.025 M H₂C₂O₄/0.125 M HCl presented by Filosofov et al. [20] have been added for comparison.

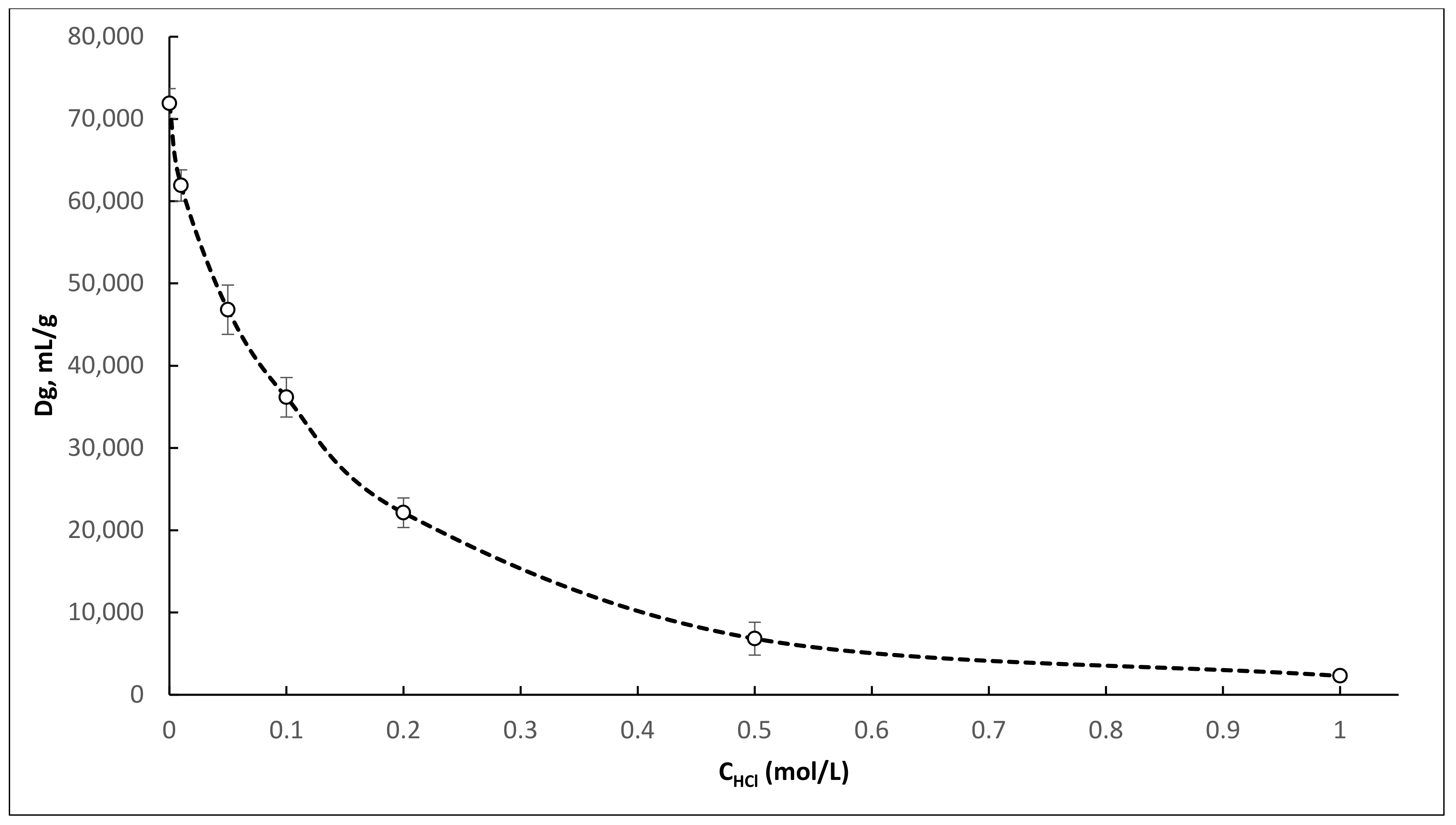

Obtained distribution coefficients for ⁴⁴Ti on TEVA resin in a mixture of 0.1 M oxalic acid with 0.01–1.0 M HCl (Figure 1) are significantly higher than those presented by McAlister [24] for Ti on TEVA resin in a mixture of 0.05 M H₂C₂O₄/0.01–1.0 M HCl. However, the obtained dependences have a similar form and correlate well with each other. Based on the obtained Dg values, the mixtures of 0.1 M H₂C₂O₄/0.05–0.2 M HCl, and 0.025 M H₂C₂O₄/0.125 M HCl are the most suitable for the separation of ⁴⁴Ti and ⁴⁴Sc. These mixtures were selected for further study under dynamic conditions.

2.2. Dynamic Column Separation Experiments

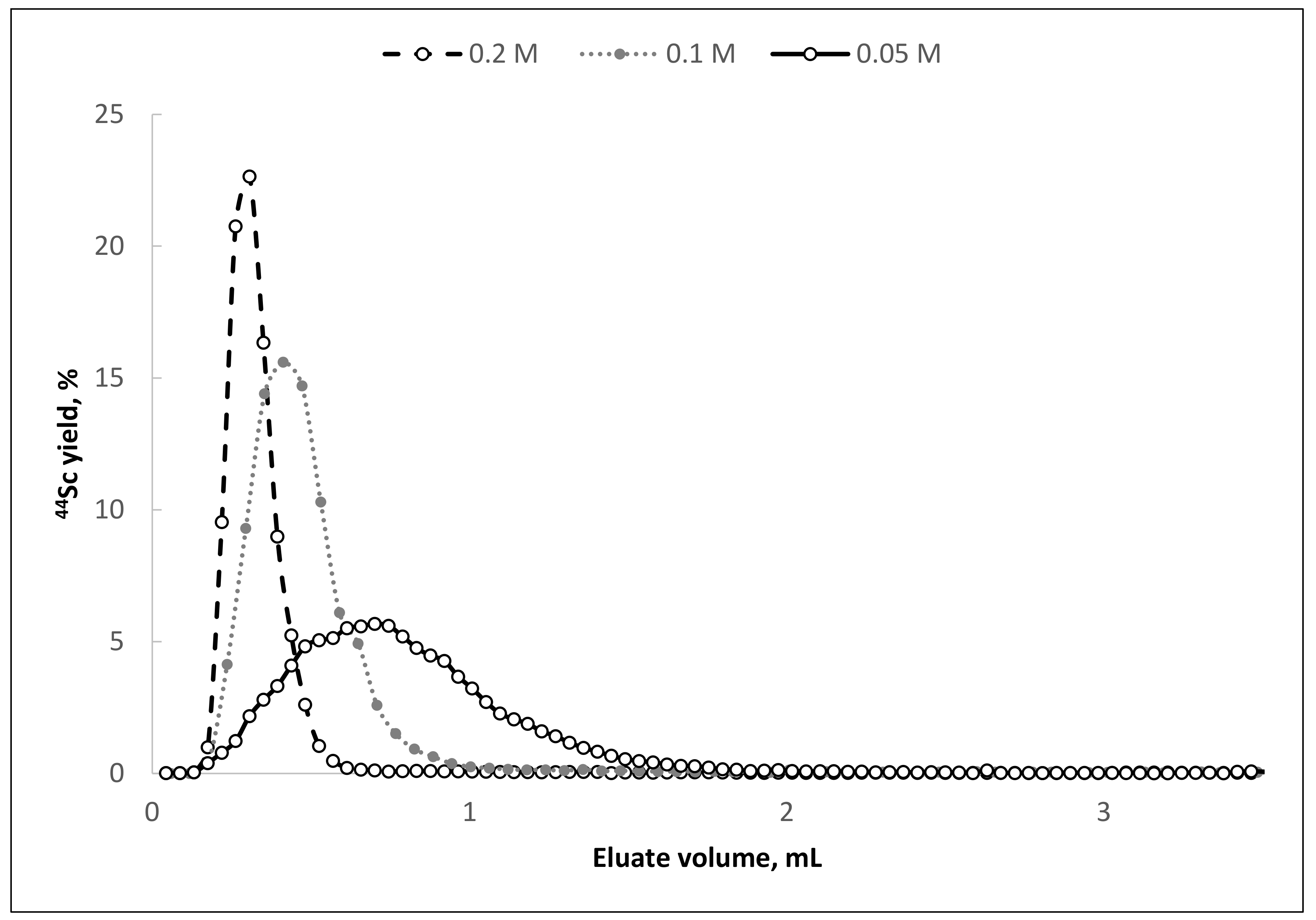

The results of ⁴⁴Ti and ⁴⁴Sc separation under dynamic conditions for the selected eluents are presented in

Table 2. Dependence of ⁴⁴Sc yield on eluent composition (mean ± SD, n = 10).

Eluent Composition		Elution Volume, mL	44Sc Yield, %
Oxalic Acid, mol/L	HCl, mol/L
0.1	0.05	5	90 ± 3
	0.1		91 ± 3
	0.2		93 ± 4
0.025	0.125		21 ± 4
0.005	0.007		13 ± 3

(a mixture of 0.005 M H₂C₂O₄/0.007 M HCl was also added for comparison). For each selected composition, a separate column with a load of ∼1.5 MBq ⁴⁴Ti was used.

Unlike the Bio-Rad AG 1 × 8 anion exchange resin [20], in the case of TEVA resin, mixtures of 0.005 M H₂C₂O₄/0.007 M HCl and 0.025 M H₂C₂O₄/0.125 M HCl did not show satisfactory scandium-44 yield (despite the good Dg values obtained under static conditions). At the same time, eluents with compositions of 0.1 M H₂C₂O₄/0.05–0.2 M HCl made it possible to achieve a sufficiently high yield of ⁴⁴Sc. The breakthrough of ⁴⁴Ti was about ≤5.5 × 10⁻⁵% when those compositions of eluent were used (except the very first elution directly after column loading). This corresponds to an exceptionally good separation factor of ≥1.8 × 10⁶.

Using pure 4.0 M HCl as eluent, almost quantitative (≥ 99 %) recovery of ⁴⁴Ti from TEVA resin can be achieved (in 0.5 mL of eluate). No statistically significant difference in desorption rate of ⁴⁴Ti from the columns that have been in use for 1 to 11 months was observed. This fact facilitating the regeneration and loading of new generator columns is also noteworthy.

All three investigated HCl concentrations with 0.1 M oxalic acid content are attractive for further study. However, based on the elution profiles of the generator columns with different concentrations of hydrochloric acid (Figure 2), the mixture 0.1 M H₂C₂O₄/0.2 M HCl (giving the highest average value of scandium-44 yield in the smallest eluate volume) was chosen to continue the study. This choice was made with the assumption that if, during long-term evaluation the behavior of titanium-44 will be satisfactory, then for eluents with a lower content of hydrochloric acid, the behavior of titanium-44 will be the same or better.

2.3. Elution Characteristics of TEVA-Based ⁴⁴Ti/⁴⁴Sc Generator Prototype (Long-Term Evaluation)

The 5.0 MBq TEVA-based ⁴⁴Ti/⁴⁴Sc generator prototype was used for long-term evaluation of its elution characteristics. The typical elution profile of ⁴⁴Sc (as well as content of ⁴⁴Ti in eluate fractions) are presented in Figure 3.

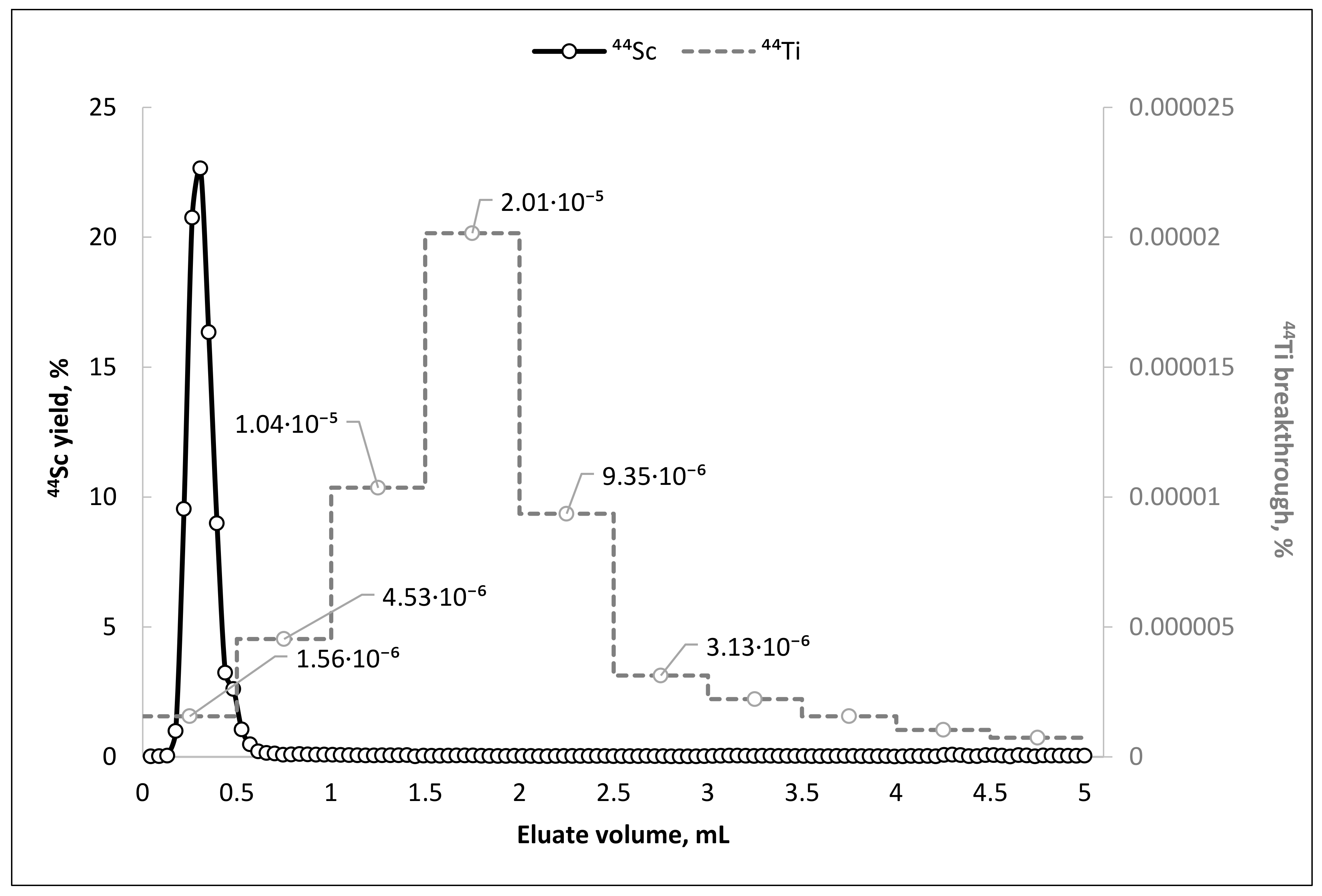

The experimental data show that, as in the case of pilot dynamic column separation experiments, elution of the main ⁴⁴Sc activity (≥95% of all eluted activity) occurs in the first 0.5 mL. The ⁴⁴Ti breakthrough strongly depends on the eluate volume and has a pronounced maximum (∼2 × 10⁻⁵%) at 1.5–2.0 mL fraction. This feature, in combination with the ability to elute scandium-44 in the first 1.0 mL of the eluate, makes it possible to achieve an extremely high separation factor of 1.6 × 10⁷.

During 1 year of regular ⁴⁴Sc elutions (at least 3 times a week, no more than 1 time a day), the ⁴⁴Sc yield was 91 ± 6%, and the breakthrough of titanium-44 did not exceed 1.5 × 10⁻⁵% (Figure 4). The TEVA-based ⁴⁴Ti/⁴⁴Sc generator prototype had consistently high yields of ⁴⁴Sc with no significant decreases with an increasing number of elutions. The ⁴⁴Sc yield SD of 6% is due to the fact that elution was performed manually using a syringe and cannula, which, in turn, led to deviations in the eluent flow rate (decreases in the ⁴⁴Sc yield are due to slightly faster elution rates; this aspect was subsequently fixed by the use of a syringe pump).

Only the very first eluate obtained directly after column loading contained relatively high amounts of ⁴⁴Ti (3.5 × 10⁻⁴%). ⁴⁴Ti breakthrough of 1.5 × 10⁻⁴% was obtained as soon as within the second elution. After 10 elutions, no more than 1.5 × 10⁻⁵% of ⁴⁴Ti breakthrough was detected in the eluate. It is noteworthy that unlike other published ⁴⁴Ti/⁴⁴Sc generator prototypes (in the “direct” elution mode), there was a tendency towards decreasing the average value of ⁴⁴Ti breakthrough for TEVA resin.

The autoradiography image of the ⁴⁴Ti/⁴⁴Sc generator column after 120 elutions showed main activity disposition in the top of the column (Figure S2), i.e., no dramatic spreading and blurring of ⁴⁴Ti sorption zone in the column was observed for 1 year of testing.

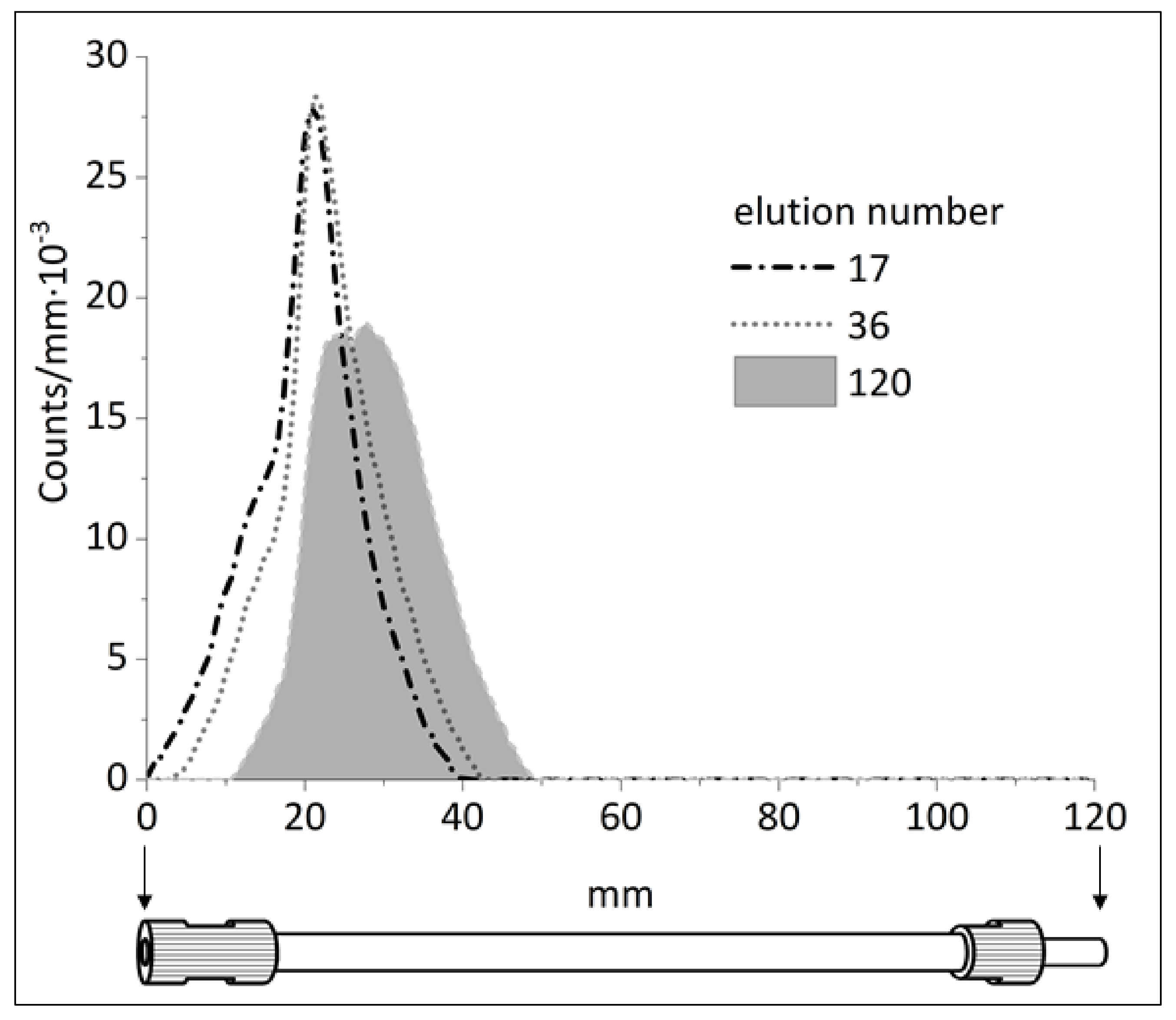

The results of regular radiometry of the generator column demonstrates that some drifting of ⁴⁴Ti sorption zone is nonetheless observed (Figure 5). Аfter 120 elutions, the maximum activity of the ⁴⁴Ti zone shifted by almost 7 mm. Furthermore, after 120 elutions the full width at half maximum of the ⁴⁴Ti zone increased from 13 to 19 mm.

Given that the column was eluted continuously only in direct mode, this shift of the ⁴⁴Ti sorption zone still corresponds to good ⁴⁴Ti retention on the resin. Based on the data on ⁴⁴Sc elution yield and ⁴⁴Ti breakthrough, as well as the absence of significant changes in the elution profile, the shift of ⁴⁴Ti zone did not have any negative effect on the basic characteristics of the generator. The column is currently being monitored to establish the critical elution number after which the column will need to be regenerated.

2.4. Post-Elution Processing of Generator Eluate for Radiolabeling

For successful application in the field of radiopharmaceutical R&D, a generator should not only give satisfactory results in the separation of the parent and daughter radionuclides, but the resulting solution of the daughter radionuclide should also be suitable for the synthesis of RP with a high yield. The TEVA-based ⁴⁴Ti/⁴⁴Sc generator prototype has exceptionally good separation characteristics, but unfortunately its eluate is not suitable for direct use in radiopharmaceutical synthesis: after incubation of buffered eluate (pH 4.5, 1 mL) for 30 min at 95 °C with 50 nmol of PSMA-617 or PSMA-I&T precursors, no complex ([⁴⁴Sc]Sc-PSMA-617 and [⁴⁴Sc]Sc-PSMA-I&T) formation was observed. The high concentration of oxalic acid in the eluate interferes with the incorporation of scandium-44 into the structure of chelator-conjugated vector molecules. Thus, post-processing of the eluate is necessary for further use in radiopharmaceutical synthesis.

2.4.1. Decomposition (Decarboxylation) of Oxalic Acid with H₂O₂ Followed by Evaporation

One of the classical approaches to remove oxalate from metal solutions, including solutions of n.c.a. metal radionuclides, is decarboxylation using hydrogen peroxide [25,26]. This method was successfully used, for example, in the case of ⁸⁹Zr solutions [27], and was also proposed by Green in her work on the ⁴⁴Sc generator [17].

After two evaporations of TEVA-based ⁴⁴Ti/⁴⁴Sc generator eluate (1 mL) with 500 μL of 30% H₂O₂, ⁴⁴Sc was dissolved in 100 μL of 1.0 M HCl and then diluted to 1.0 mL with water (0.1 M HCl in final solution). As a result of this procedure, the concentration of residual oxalic acid in the final solution was 0.0001–0.0003 mol/L. The ⁴⁴Sc recovery was about 87 ± 3%.

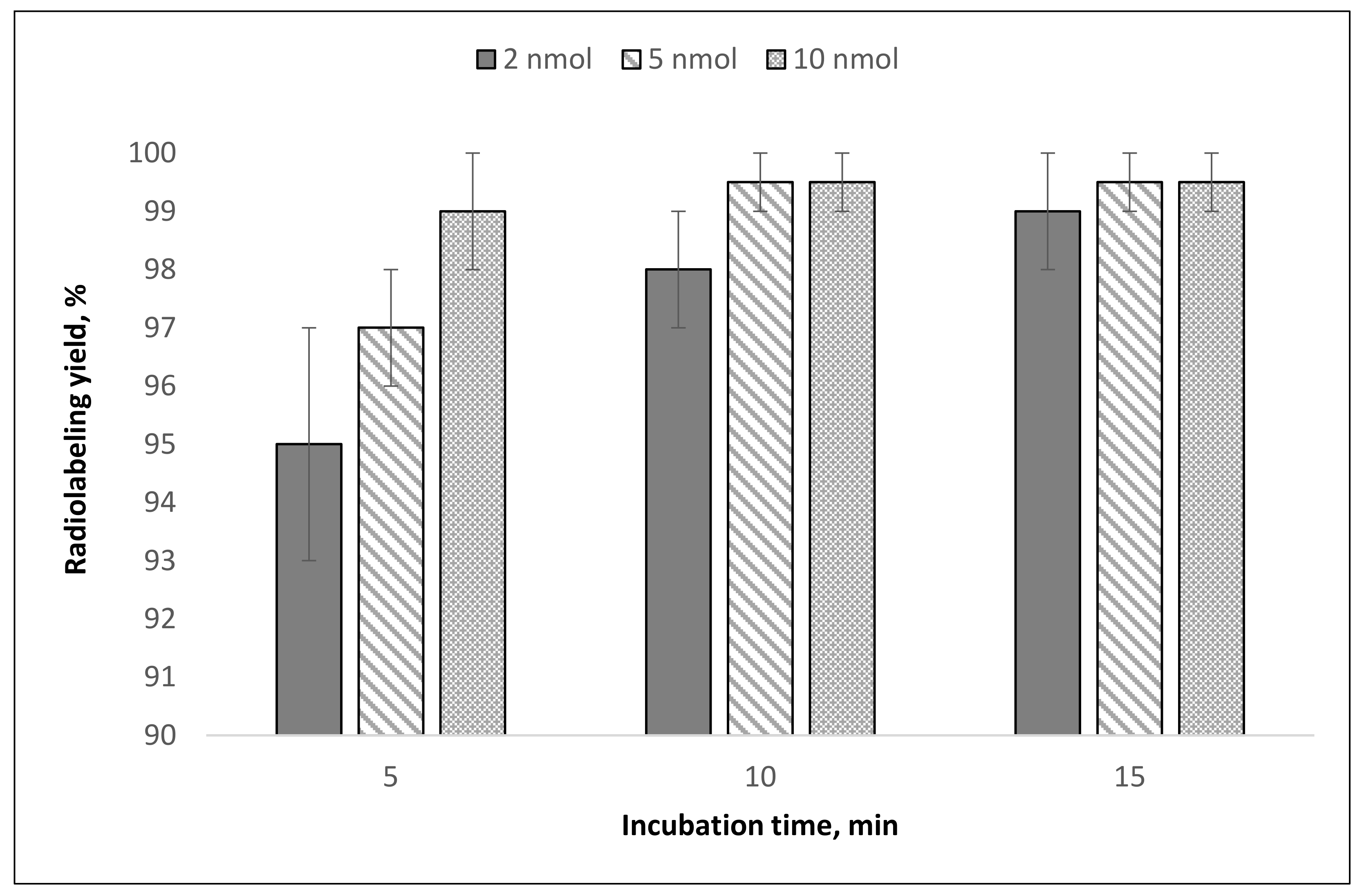

The results of [⁴⁴Sc]Sc-PSMA-617 synthesis demonstrates that even with 2 nmol of precursor, a radiolabeling yield of >95% can be achieved within 15 min (Figure 6).

Using these solutions of ⁴⁴Sc spiked with oxalic acid, the maximum permissible concentration of oxalic acid for sufficient radiolabeling yield was determined (Figure 7). According to experimental data, for a radiolabeling yield of [⁴⁴Sc]Sc-PSMA-617 higher than 95%, the content of oxalate anion in reaction mixture should be ≤0.001 mol/L. Even though the decarboxylation allows us to achieve good ⁴⁴Sc-radiolabeling yields (it was also successfully used in a study on the complexation of ⁴⁴Sc with oxabis(ethylenenitrilo)tetramethylenephosphonic acid [28]) this approach is not very technological and not very convenient for automatization and implementation in a synthesis module. It was decided to replace this approach with SPE chromatographic methods.

2.4.2. Presep^® PolyChelate Resin

Various ion-exchange- and SPE-resins have been tested in search of one suitable for efficient trapping of ⁴⁴Sc directly from the generator eluate (

Table 3. The results of ⁴⁴Sc sorption on different resins from TEVA-based ⁴⁴Ti/⁴⁴Sc generator eluate.

Resin Type	Amount of Resin in Column, mg	Sorption of 44Sc, %
Сation Exchange Resins
Chromafix HR-XC	80 ± 5	35–55
Sep-Pak Plus light CM		32–40
Dowex 50 W × 4		37–45
OASIS MCX		49–53
Purelite Сhromalite 50 × 2		37–45
Strata XC		48–57
SPE resins
TRU	70 ± 5	12–15
TK200		8–10
DGA		13–20
TBP		11–15
UTEVA		9–12

). Unfortunately, none of them showed satisfactory retention of scandium-44 in this case.

Considering the published results on the successful extraction of n.c.a. scandium radionuclides (^43,44,47Sc) using chelating resins Chelex 100 [13,29,30,31] and NOBIAS Chelate-PA1 [32], as well as our results on the efficient isolation of medical radionuclides from oxalate solutions with Chelex 100 (e.g., ⁸⁹Zr [33]), this type of resin has also been tested for the recovery of scandium-44 from the generator eluate.

Unfortunately, it turned out that Chelex 100 (iminodiacetic acid) is not capable of retaining scandium-44 from the generator eluate with sufficient efficiency (

Table 4. Sorption of ⁴⁴Sc from TEVA-based ⁴⁴Ti/⁴⁴Sc generator eluate on different chelating resins.

Resin Type	Amount of Resin in Column, mg	Sorption of 44Sc, %
Chelex 100	80 ± 5	13 ± 1
Lewatit MonoPlus TP 207		26 ± 2
Presep PolyChelate		≥99

). NOBIAS Chelate-PA1 resin (iminodiacetic acid and ethylenediaminetriacetic acid) was not available for use. However, fortunately, we had a different resin at our disposal—Presep^® PolyChelate, а chelate resin immobilizing carboxymethylated pentaethylenehexamine [34,35]. Published data suggests that its performance is comparable to those of Nobias Chelate-PA1 and superior to those of some other commercially available aminocarboxilyc acid-type chelating resins [36,37].

Experiments under static conditions have shown that ⁴⁴Sc distribution coefficient for this resin is: in 0.1 M HCl—3.8 ± 1.1 mL/g; in 0.2 M HCl—1.9 ± 0.7 mL/g; and for mixture of 0.1 M oxalic acid / 0.2 M HCl—>3 × 10⁴ mL/g.

Experiments under dynamic conditions (80 mg of the resin, column 50 mm × Ø2 mm, 1 mL/min) showed that ⁴⁴Sc from the generator eluate is quantitatively trapped on this resin (sorption rate is ≥99%). To remove the residues of the sorption solution, the resin could be washed with both water and ethanol (1–5 mL). In both cases, the loss of activity during washing did not exceed 1%.

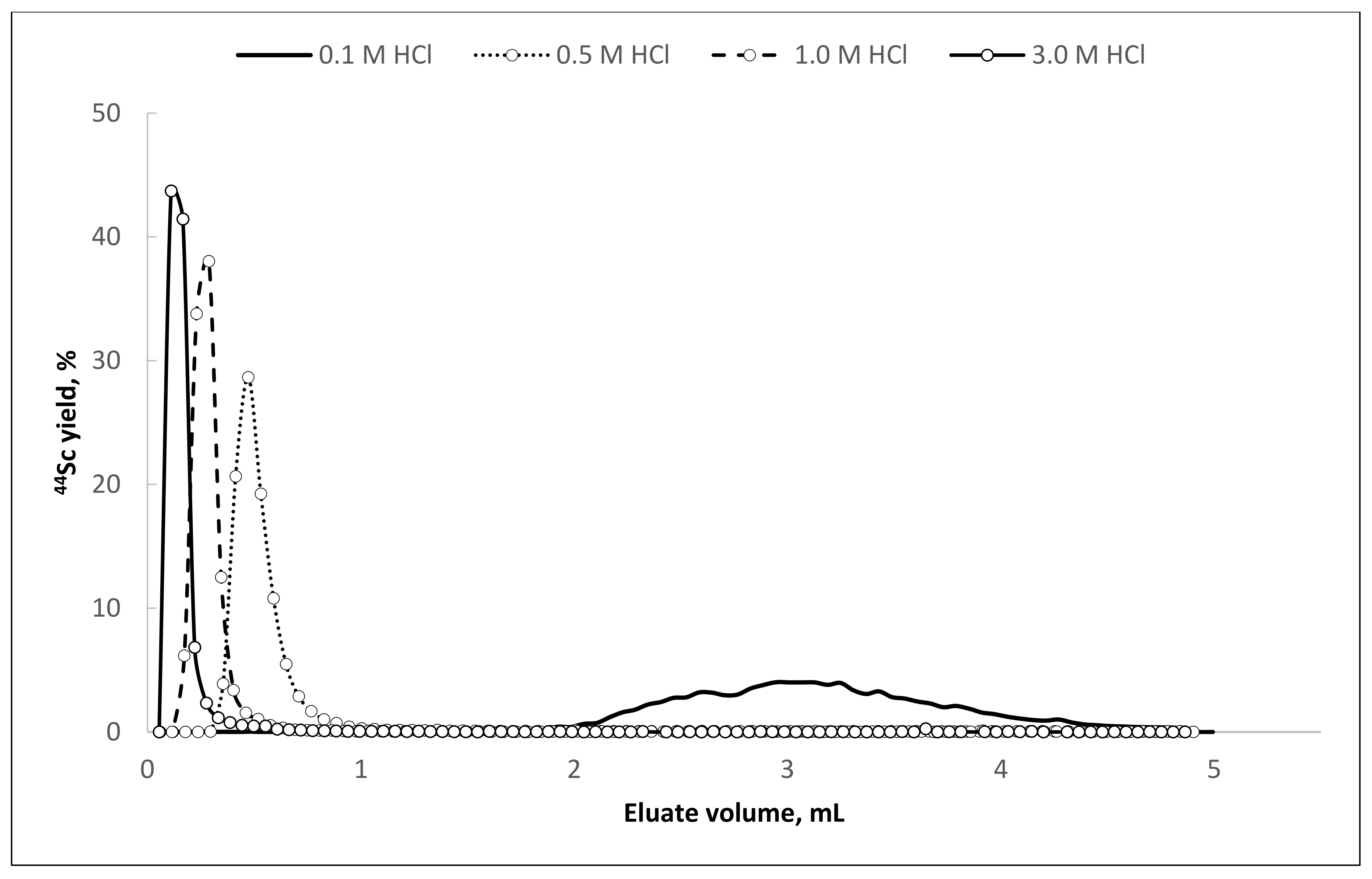

It is noteworthy that ⁴⁴Sc desorption can be performed using hydrochloric acid in the concentration range from 0.1 to 3.0 mol/L. With an increase of hydrochloric acid concentration in the eluent, ⁴⁴Sc recovery rate increases, and the required volume of the eluate decreases (

Table 5. Desorption of ⁴⁴Sc from Presep^® PolyChelate resin with HCl of different concentration (mean ± SD, %; n = 5).

HCl Concentration in Eluent, mol/L	Desorption of 44Sc, %	Eluate Volume, mL	Concentration of Residual Oxalic Acid in Eluate, mol/L
0.1	87 ± 3	5.0	0.001–0.005
0.5	89 ± 2	1.5	0.005–0.008
1.0	93 ± 3	1.0	0.008–0.010
3.0	95 ± 4	0.5–1.0	0.008–0.010

, Figure 8).

Experimental data show that Presep^® PolyChelate resin is very promising for recovery of ⁴⁴Sc from oxalate media, e.g., from TEVA-based ⁴⁴Ti/⁴⁴Sc generator eluate. At the same time, an unexpected fact was discovered: relatively high amounts of oxalic acid still remain present in the obtained ⁴⁴Sc solutions. This amount is equal to the maximum permissible concentration of oxalic acid for sufficient radiolabeling and even exceeds it. Increased volumes of water and ethanol used for resin washing (till 10–15 mL) did not lead to significant improvements in residual oxalic acid content. The highest yield of [⁴⁴Sc]Sc-PSMA-617 synthesis with ⁴⁴Sc in 0.1 M HCl after Presep^® PolyChelate resin was about 92% (95 °C, 30 min, V = 1.0 mL, pH = 4.5, 20 nmol of PSMA-617). However, the average radiolabeling reaction yield at these conditions was only 75 ± 10%. It was found that microwave heating could significantly improve the radiolabeling reaction yield in this case (Figure 9).

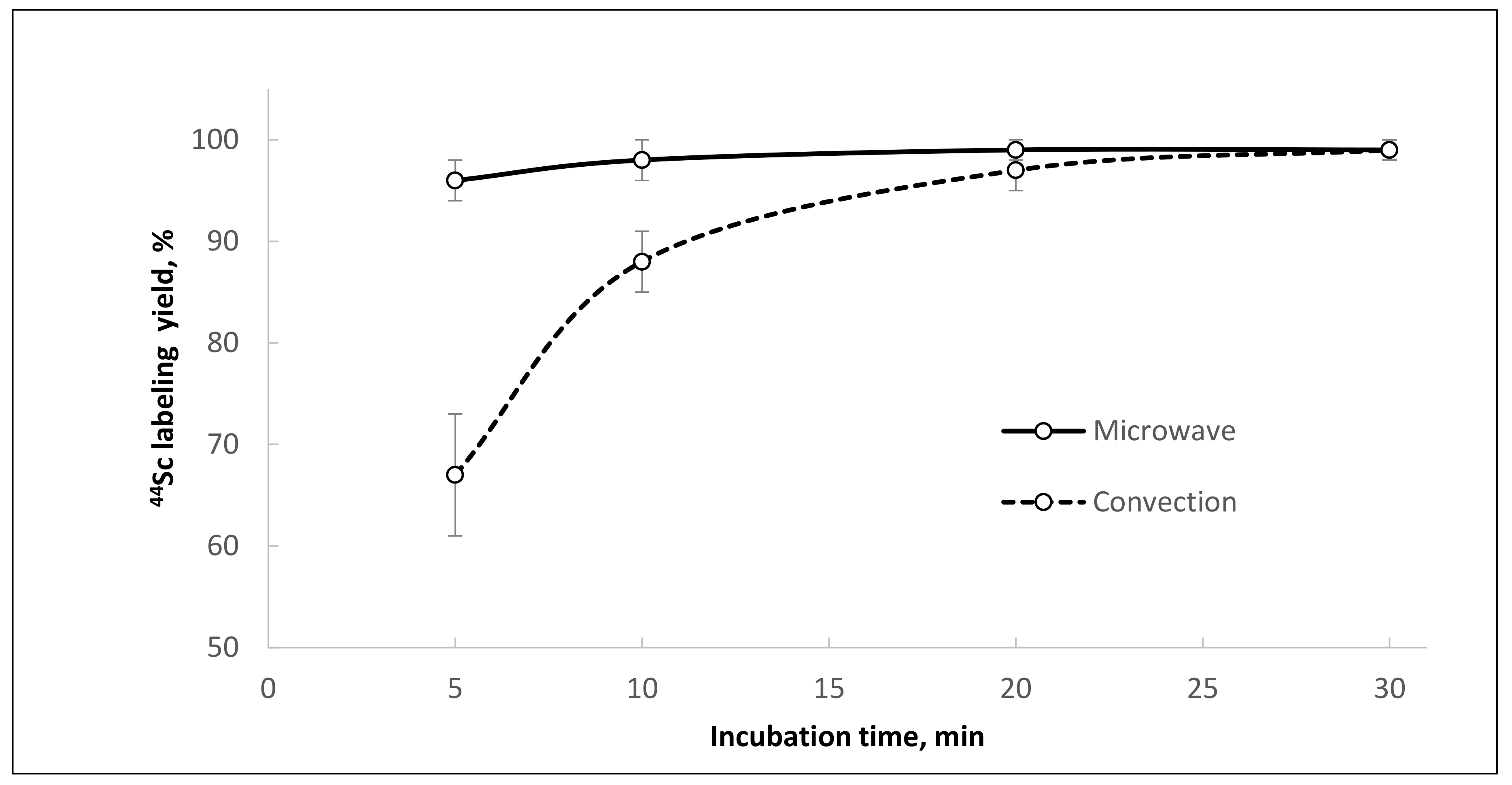

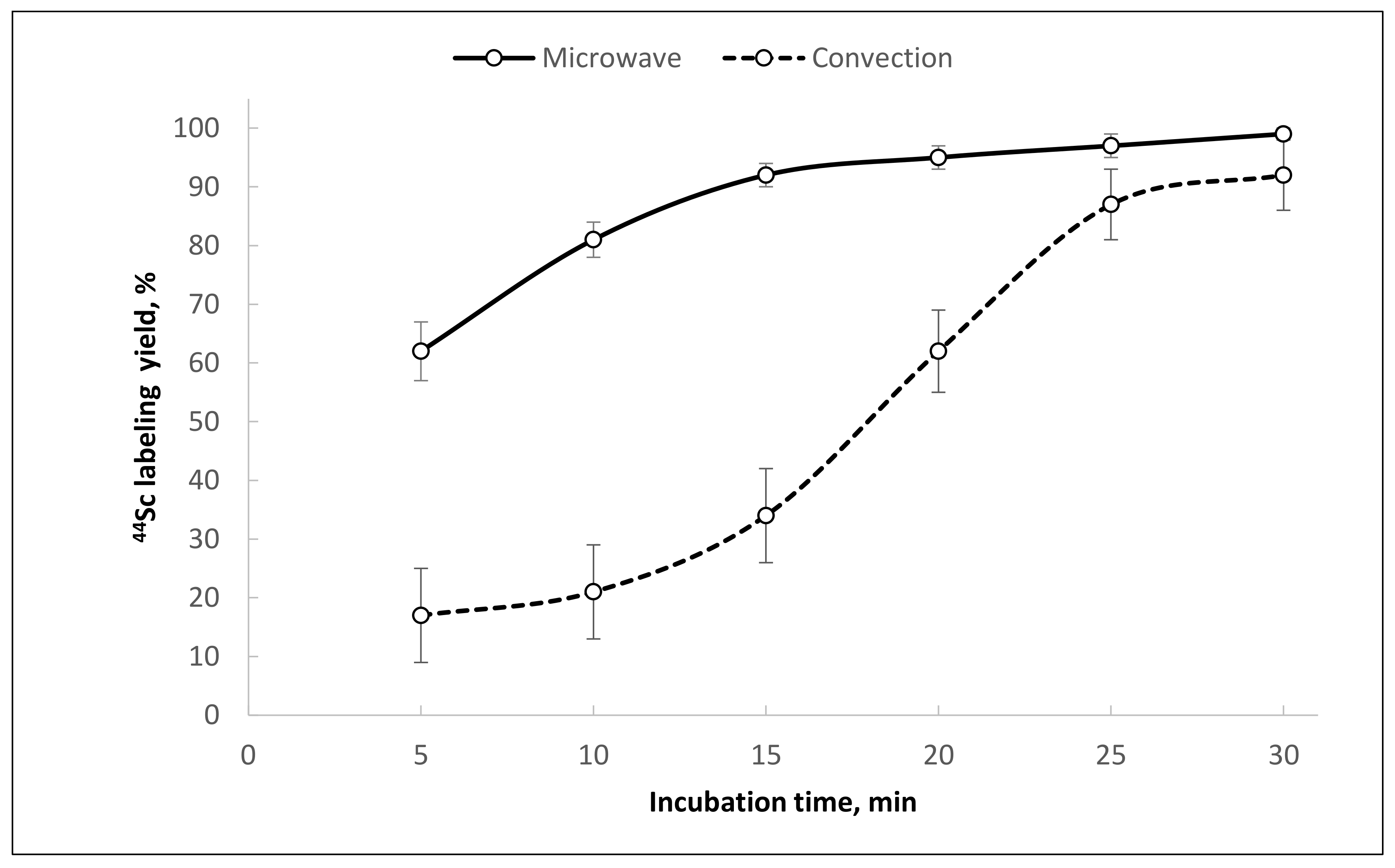

The use of microwave heating allowed a consistently high [⁴⁴Sc]Sc-PSMA-617 synthesis yield (>95%) to be achieved in comparison to convective heating and stirring. This effect has already been demonstrated with ⁶⁸Ga during synthesis of [⁶⁸Ga]Ga-DOTATOC [38]. The kinetics of [⁴⁴Sc]Sc-PSMA-617 formation indicate that even under microwave heating, the reaction is hampered and takes at least 25 min to reach sufficient yield (Figure 10).

Of particular interest is the fact that synthesis of [⁴⁴Sc]Sc-PSMA-I&T under similar conditions (after reformulation of ⁴⁴Sc with Presep^® PolyChelate into 0.1 M HCl, 95 °C, 30 min, V = 1.0 mL, pH = 4.5) gives consistently high yields (≥95%) with convective heating. The chelating agent DOTAGA (used in the structure of PSMA-I&T) appears to be less sensitive to the presence of chemical impurities compared to DOTA (used in the structure of PSMA-617) and much more readily forms complex with scandium-44 (

Table 6. The yield of ⁴⁴Sc radioconjugate formation using different amounts of precursors (mean ± SD, %; n = 5; 95 °C, 30 min, V = 1.0 mL, pH = 4.5).

Radioconjugate	Heating Mode	Precursor Amount, nmol
		10	20	30	40	50
[44Sc]Sc-PSMA-617	microwave	98 ± 2	98 ± 1	≥99	≥99	≥99
	convection	61 ± 14	75 ± 10	85 ± 8	89 ± 7	91 ± 6
[44Sc]Sc-PSMA-I&T	microwave	≥99	≥99	≥99	≥99	≥99
	convection	98 ± 2	98 ± 2	98 ± 2	99 ± 1	99 ± 1

).

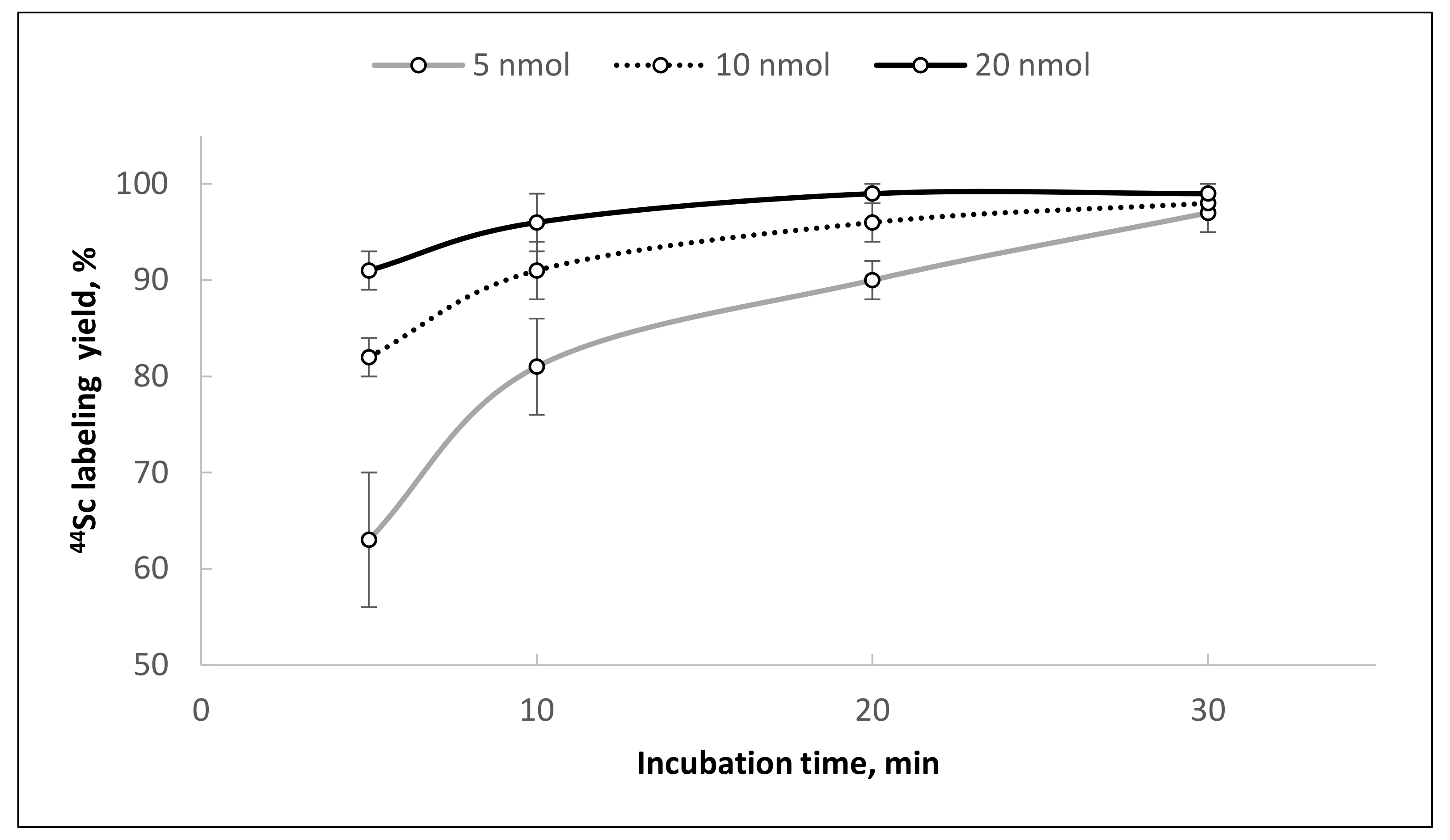

Using ⁴⁴Sc after reformulation with Presep^® PolyChelate into 0.1 M HCl and microwave heating for synthesis of [⁴⁴Sc]Sc-PSMA-I&T achieved a labeling yield of >95% in only five minutes (with 5 nmol of precursor), and in 20 min with convective heating and stirring (Figure 11).

Since [⁴⁴Sc]Sc-PSMA-I&T synthesis is less dependent on ⁴⁴Sc solution quality, [⁴⁴Sc]Sc-PSMA-617 labelling yield was further used to indicate its suitability. In this context, the solution obtained using Presep^® PolyChelate resin is much inferior to those obtained after decarboxylation. So, in this way an additional processing stage is required.

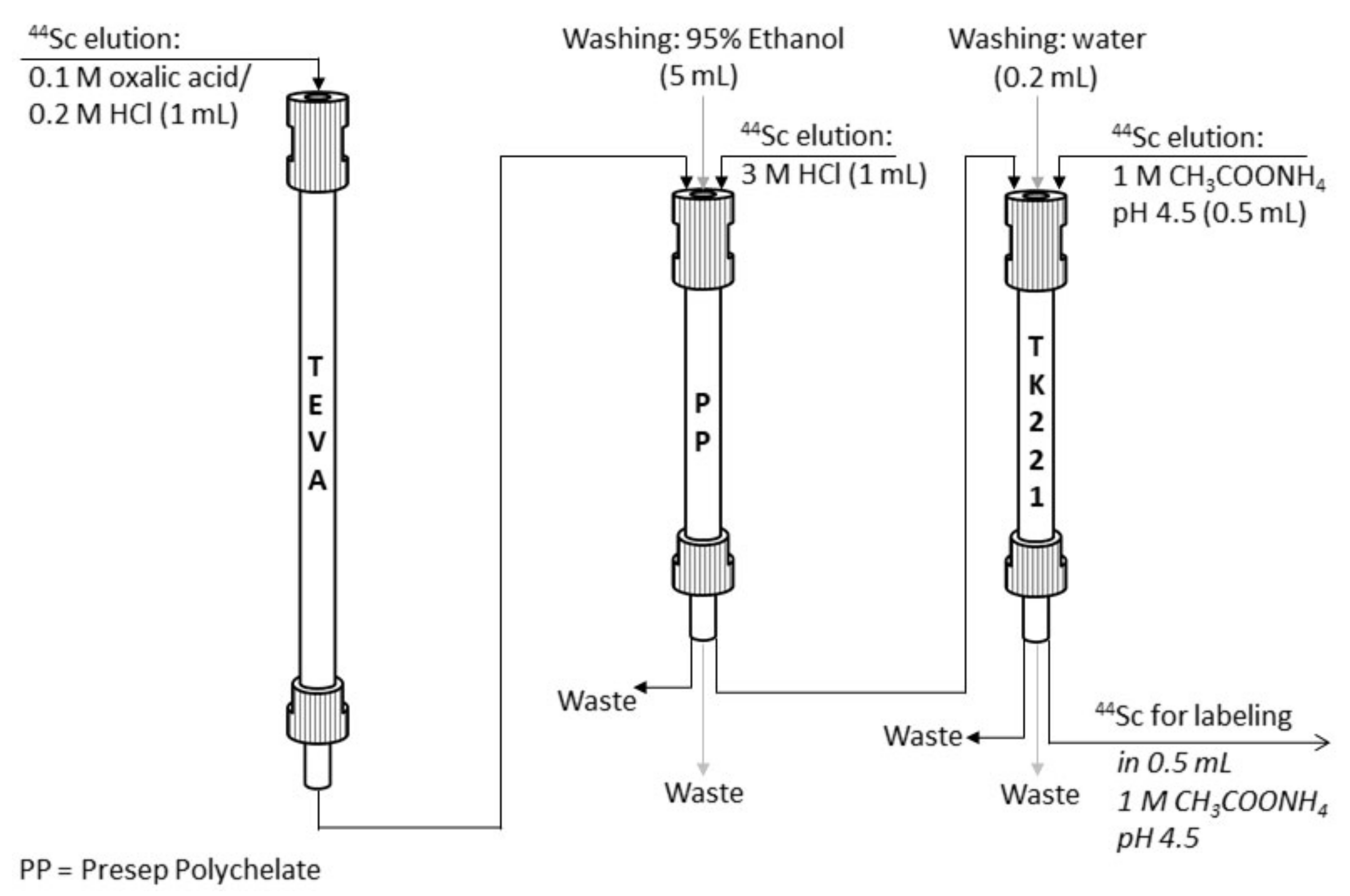

2.4.3. Additional Reformulation Stage (Presep^® PolyChelate Resin + TK221 Resin)

The fact that ⁴⁴Sc desorption from Presep^® PolyChelate resin can be carried out with hydrochloric acid of different concentrations (0.1–3.0 mol/L) opens a wide range of possible options for an additional purification stage, which may be either a cation exchange resin or a solid-phase extractant. In the course of this work, it was decided to test TK221 resin for this purpose [39,40].

Experiments under static conditions have shown that ⁴⁴Sc distribution coefficients for TK221 resin in HCl media are as follows (mL/g): 0.01 M—24 ± 3, 0.1 M—33 ± 7, 0.5 M—41 ± 4, 1.0 M—61 ± 8, 2.0 M—1300 ± 200, 3.0 M—>1.5 × 10⁴. Experiments under dynamic conditions (80 mg of the resin, column 50 mm × Ø2 mm, 1 mL/min) showed that ⁴⁴Sc in 3.0 M HCl after Presep^® PolyChelate resin is quantitatively trapped by TK221 resin (sorption rate is ≥99%).

As for desorption of scandium from TK221 resin it is necessary to use eluents with reduced acidity (mainly dilute acids according to the manufacturers data), several different eluents were investigated during this work (

Table 7. The rate of ⁴⁴Sc desorption from TK221 resin with different eluents and resin washing conditions.

Eluent	Column Wash before Elution	Desorption of 44Sc, %	Eluate Volume, mL
H2O	-	7 ± 4	1
0.05 M HCl	-	34 ± 2	1
0.1 M HCl	-	31 ± 3	1
0.1 M HCl	5 M NaCl in 0.1 M HCl (1 mL)	90 ± 4	3
1 M CH3COONH4, рН = 7.0	-	91 ± 2	1
1 M CH3COONH4, рН = 7.0	3 M HCl (1 mL)	35 ± 3	1
1 M CH3COONH4, рН = 4.5	H2O (0.2 mL)	97 ± 2	0.5

).

The highest ⁴⁴Sc recovery was achieved with 1 M CH₃COONH₄ (0.5 mL, pH 4.5) after column flushing with a small (0.2 mL = 8 column bed volumes) volume of water. The characteristics of the final ⁴⁴Sc solution are suitable for direct use in radioconjugate synthesis. The results of [⁴⁴Sc]Sc-PSMA-617 synthesis demonstrate that a high radiolabeling yield (≥95%) can be achieved with 5 nmol of precursor after 30 min of incubation at 95 °C (V = 1.0 mL, pH = 4.5), and increasing the amount of PSMA-617 increased radiochemical yield (Figure 12).

The obtained data indicate that ⁴⁴Sc solutions obtained by Presep^® PolyChelate + TK221 reformulation are suitable for synthesis of ⁴⁴Sc-radioconjugates with sufficient yields. No ⁴⁴Ti was detected in all samples of ⁴⁴Sc solutions after combined post-processing. Thus, at this stage of our research, we can suggest that this method of TEVA-based ⁴⁴Ti/⁴⁴Sc generator eluate post-processing is preferable for ⁴⁴Sc-radiopharmaceutical synthesis (Figure 13). The proposed method is simple to perform; it takes no more than 15 min (in manual mode), and the decay-corrected yield is ≥90% relative to the activity eluted from the generator.

3. Discussion

Today ⁴⁴Sc seems to be an attractive and very promising radionuclide for small-molecule-based PET imaging. Growing interest in scandium-44 motivated research on different methods of its production, of course, mainly by using cyclotrons. However, development of the ⁴⁴Ti/⁴⁴Sc generator concept can be characterized by significant progress in recent years as well (

Table 8. Characteristics of various chromatographic ⁴⁴Ti/⁴⁴Sc generators reported so far.

Sorbent	Eluent	Loaded 44Ti Activity, MBq	Eluate Volume, mL	Elution Mode		Ref.
				44Sc Yield, %	44Ti Breakthrough, %
Dowex 1 × 8	0.1 M oxalic acid /0.2 M HCl	Not specified	30–50	Direct		[17]
				60–70	0.02 → 0.1 (after 40 elutions)
ZrO2·nH2O	0.01 M HCl	0.037	30	Direct		[19]
				42–46	0.02
Bio-Rad AG 1 × 8	0.005 M oxalic acid /0.07 M HCl	185	20	Reversed		[20]
				97	5 × 10−5
ZR resin	0.05 M HCl	3.7	5	Reversed		[21]
				Not clearly specified	Forward direction—no detectable, Reverse direction—4.1 × 10−4
TEVA resin	0.1 M oxalic acid /0.2 M HCl	5.0	1	Direct		This work
				91 ± 6	≤1.5 × 10−5 (Normally 6.6 × 10−6)

).

After the first research by Greene [17], a 5 mCi ⁴⁴Ti/⁴⁴Sc radionuclide generator presented by Filosofov et al. [20], which was used in the first in-human use of [⁴⁴Sc]Sc-PSMA-617 [10], became a real breakthrough in this area. An advanced generator concept involving alternating directions of elution flow, also proposed by Filosofov et al. [20], was an impressive solution. Only due to this, the characteristics of the generator reached the required values for further use. In the direct elution mode, the (0.1 M H₂C₂O₄/0.2 M HCl) Bio-Rad AG 1 × 8 based generator results in increasing breakthrough of ⁴⁴Ti with 50% desorption of ⁴⁴Ti after 30 elutions, and an almost complete release of ⁴⁴Ti after 50 elutions. In contrast to this, the TEVA-based ⁴⁴Ti/⁴⁴Sc generator, evaluated in this work, demonstrates high titanium-44 retention over 120 elutions with high ⁴⁴Sc yield in small volumes and exceptionally low ⁴⁴Ti breakthrough. Some drifting of ⁴⁴Ti sorption zone is nonetheless observed. This ⁴⁴Ti shift did not have any negative effect on the main characteristics of the generator so far. The generator column is currently being monitored.

Based on the experimental data under static and dynamic conditions obtained during this work, we believe that the use of increased column length, as well as an eluent with a lower hydrochloric acid concentration (0.1 M H₂C₂O₄/0.1–0.05 M HCl instead of 0.1 M H₂C₂O₄/0.2 M HCl) will significantly extend the generator’s shelf-life. These studies are being carried out by our team at the moment. Meanwhile, it is proposed that obtained separation characteristics for the TEVA-based ⁴⁴Ti/⁴⁴Sc generator demonstrate its ease of use and prospects for further work.

The investigation of described 5 MBq generator prototype may be considered as proof-of-concept for a TEVA-based ⁴⁴Ti/⁴⁴Sc generator. The radiolitic stability of TEVA and, therefore, the possibility to scale up ⁴⁴Ti activity in the generator to at least 200 MBq remains to be addressed.

Considering all the difficulties associated with the presence of oxalic acid in the eluate and its negative effect on the radioconjugation efficiency (established in the course of this study), the ⁴⁴Ti/⁴⁴Sc generator proposed by Radchenko et al. [21] seems to be the most convenient for radiopharmaceutical purposes (since the eluent is 0.05 M HCl). At the same time, a ZR-based generator also requires alternating directions of elution flow, and ⁴⁴Ti breakthrough in reverse mode exceeded that for Bio-Rad AG 1×8 and TEVA resins (although this was likely due to an off-center ⁴⁴Ti loading activity placement). In only the direct elution mode did ⁴⁴Ti breakthrough reach a value of 0.23% after ∼40 resin bed volumes. Thus, if we compare only the data for direct elution modes, TEVA-based generators provide the best retention of ⁴⁴Ti. To our best knowledge, unfortunately, no additional studies have appeared with ZR-based ⁴⁴Ti/⁴⁴Sc generator so far. Additional comparison of ZR- and TEVA-based generators is also in our plans.

Radiolabeling experiments show that scandium-44 obtained from the generator is suitable for the synthesis of radiopharmaceuticals with high yield only after some post-processing because of the oxalic acid content. Apart from the problems with residual oxalate, a lucky find was that Presep^® PolyChelate resin captures scandium-44 quantitatively from the TEVA-based generator eluate. This resin looks very promising for recovery of ⁴⁴Sc from oxalate solutions or similar media. The combination of Presep^® PolyChelate and TK221 resins made it possible to obtain ⁴⁴Sc-radioconjugates with a high yield (≥95%), even with 5 nmol of precursor. Since ⁴⁴Sc desorption from Presep^® PolyChelate resin can be carried out with hydrochloric acid of different concentrations, there is still a lot of room for improvement. For example, in addition to a variety of extraction resins, a cation exchange resin could be used if scandium-44 elution from Presep^® PolyChelate were performed with 0.1 M HCl. Or, finally, the eluate of the generator could be easily diluted to make scandium-44 trapping by cation exchange resin possible (by analogy with an already published method [41]).

Microwave heating of the reaction mixture considerably shortened the reaction time and improved radiolabeling yield and reproducibility. For [⁴⁴Sc]Sc-PSMA-617, the radiochemical yield increased from 61 ± 14% to 98 ± 8% (10 nmol of precursor) with microwave heating, even at relatively high levels of oxalate anions. For [⁴⁴Sc]Sc-PSMA-I&T, the labeling reaction was complete within 5 min (5 nmol of precursor), and the incorporation of ⁴⁴Sc was almost quantitative (≥99%). The microwave heating method is still not convenient for radiopharmaceutical preparation, although its advantages in various aspects of radiochemical synthesis have already been shown [42,43,44]. Probably, in the future, with the expansion of production and organization of centralized supplies of radiopharmaceuticals, the use of microwave heating will take its rightful place.

The difference in the labeling efficiency of the DOTAGA-conjugated precursor (PSMA-I&T) over the DOTA-conjugated one (PSMA-617) is noteworthy. According to experimental data, the chelating agent DOTAGA appears to be less sensitive to the presence of chemical impurities compared to DOTA and much more readily forms a complex with scandium-44. Similar differences between DOTAGA- and DOTA-derivates of PSMA-ligands have also been demonstrated for ¹⁷⁷Lu [45]. This fact should be considered in the development of new radiopharmaceuticals for diagnostics and therapy with radionuclides of Sc, Y, and the heaviest lanthanides.

4. Materials and Methods

4.1. Chemicals and Reagents

Only deionized water 18.2 MΩ·cm (Milli-Q Millipore, Merck, Darmstadt, Germany ) was used. All chemicals and solvents were of high purity or pharmaceutical grade. The chemicals were purchased from Sigma-Aldrich/Merck (St. Louis, MO, USA) or Panreac Quimica (Barcelona, Spain), unless otherwise indicated. The SPE resins TEVA (Aliquat^® 336) [46,47], TK221 (mixture of a diglocylamide and a phosphine oxide), UTEVA (diamyl, amylphosphonate, DAAP) [48], DGA (N,N,N′,N′-tetra-n-octyldiglycolamide) [49], and TRU (octylphenyl-N,N-di-isobutyl carbamoylphosphine oxide (CMPO) dissolved in tri-n-butyl phosphate (TBP)) [50] were kindly provided by TrisKem International (Bruz, France). The Presep PolyChelate resin was purchased from FUJIFILM Wako Pure Chemical Corporation (Osaka, Japan). The precursors PSMA-617 and PSMA-I&T were purchased from ABX advanced biochemical compounds GmbH (Radeberg, Germany) and were also kindly provided by Center of Molecular Research (Moscow, Russia).

4.2. Titanium-44

Titanium-44 as [⁴⁴Ti]TiCl₄ in 4.0 M HCl (36 MBq/mL, 30 MBq, specific activity >3.7×10¹⁰ Bq/g, metal impurities (μg/Bq): Sc < 1.05 × 10⁻⁴, Cu < 1.35 × 10⁻⁵, Fe < 2.07 × 10⁻⁷) was purchased from Cyclotron Ltd. (Obninsk, Russia).

4.3. Measurement of Radioactivity

Measurement of ⁴⁴Sc radioactivity was accomplished using an Atomlab^TM 500 Dose Calibrator (Biodex, Shirley, NY, USA) and RIS-A1 (Amplituda Scientific and Technical Center, Moscow, Russia) dose calibrator. The relative activity (count rate) of the samples was measured with Wizard² 2480 automatic γ-counter (PerkinElmer, Waltham, MA, USA). The absolute radioactivity of ⁴⁴Sc and ⁴⁴Ti was measured by γ-spectrometry using GR4020 spectrometer with a high-purity germanium detector (Mirion Technologies (Canberra) SAS, San Ramon, CA, USA) at γ-lines 511 and 1157.02 keV for both radionuclides being in secular equilibrium. Measurements of ⁴⁴Ti breakthrough radioactivity as well as ⁴⁴Ti distribution coefficients were accomplished using ultra-shielded γ-spectrometer with a highly-sensitive semiconductor detector GC10021 (Mirion Technologies (Canberra) SAS, (San Ramon, CA, USA) with a relative efficiency of 106.8% (⁶⁰Co), FWHM 1.02 keV (⁵⁷Co) and 2.03 keV (⁶⁰Co)), with a DSA-1000 multichannel pulse amplitude analyzer, and Genie-2000 software (V3.2.1) at specific γ-lines 67.9 and 78.3 keV (with a control at 1157.02 keV) at the Laboratory of radiometric and spectroscopic research of human and environment (Burnasyan Federal Medical Biophysical Center). Measurements of ⁴⁴Ti were performed at least after 300 h after samples preparation. The acquisition time for ⁴⁴Ti breakthrough measurements was at least 24 h to achieve no less than 1×10⁴ full energy peak net counts in the regions of interest. A ²²Na, ⁴⁴Ti/⁴⁴Sc, ⁵⁷Co, ⁶⁰Co calibration source (LLC “STC Amplituda”, Moscow, Russia) certified with k = 2.1 (Mendeleyev Institute for Metrology, St. Petersburg, Russia) was used. The breakthrough of ⁴⁴Ti was calculated as the ratio of ⁴⁴Ti activity in the generator eluate to its activity on the generator column.

Radiography of chromatographic columns (generator prototypes) and TLC-strips was carried out using PET-MiniGita radio-TLC scanner (Elysia-Raytest, Straubenhardt, Germany) as well as Cyclone^® Plus storage phosphor system (PerkinElmer, Waltham, MA, USA).

4.4. Distribution Coefficients

The mass distribution coefficient Dg was measured by the batch static method [51]. The sorption of ⁴⁴Ti and ⁴⁴Sc by resins from hydrochloric acid/oxalic acid solutions was measured by equilibration of a known volume (1 mL) of radionuclide spiked solution (80-500 kBq for ⁴⁴Sc, and ∼12 kBq for ⁴⁴Ti(⁴⁴Sc)) of appropriate concentration with known weight of resin (typically 15 mg). Resins were weighed and used without preconditioning. The samples were mixed in the mechanical mixer with temperature control Bioer Mixing block MB-102 (Bioer, Hangzhou, China) for 24 h at 20 °C with stirring speed 1350 rpm. After that, the samples were centrifuged (Heidolph, Schwabach, Germany) for one minute at 15,000 rpm. The tubes were removed carefully (to avoid phase mixing). Then, the aliquots (100–500 μL) of every solution were taken and their relative activities were measured. The mass distribution coefficient (mL/g) was defined according to the following Equation (1):

$$D_g=\frac{A_0-A}{A}\times \raisebox{1ex}{$V_{mL}$}\!\left/ \!\raisebox{-1ex}{$m_g$}\right.$$

(1)

where A₀—count rate of the solution aliquot before the contact with the resin (decay corrected); A—count rate of the solution aliquot after the contact with the resin (decay corrected); V—solution volume, mL; m—weight of dry resin, g. Every Dg coefficient was determined at least in 5 parallel experiments.

4.5. Dynamic Column Separation Experiments and ⁴⁴Ti/⁴⁴Sc Generators Preparation

Evaluation of the ion exchange behavior of ⁴⁴Sc and ⁴⁴Ti in dynamic conditions was performed using PEEK chromatographic columns 100 mm × Ø2.1 mm and 50 mm × Ø2.1 mm (VICI Jour, Schenkon, Switzerland). Transfer of solutions was performed using syringes (BBraun Injekt) manually or with a syringe pump.

For ⁴⁴Ti/⁴⁴Sc generators, only 100 mm × Ø2.1 mm columns were used. The columns were filled with TEVA resin (148–150 mg per column) and stuffed with PEEK-encased polyethylene frits and 1/4–28 female to Luer PEEK adapters. A sample of ⁴⁴Ti solution in 4.0 M HCl with desired activity was evaporated to dryness, and ⁴⁴Ti was taken up with 150 μL of 0.1 M oxalic acid. The resulting solutions were slightly opalescent, so 5 μL of 1.0 M HCl was added to make them transparent. The obtained solutions were transferred quantitatively to generator columns (using 1–2 additional portions (150 μL) of 0.1 M oxalic acid). The elution of the generators was carried out with the selected solutions of hydrochloric and oxalic acids at least 3 times a week, no more than 1 time a day. Elution was carried out fractionally (each fraction—1 mL, total elution volume—1–5 mL) except the experiments when elution curves were determined (each fraction—45–50 μL).

4.6. Radiolabeling of PSMA-617 and PSMA-I&T

Radiolabeling of PSMA-617 and PSMA-I&T with ⁴⁴Sc was carried out at pH 4.5 using 1.0–2.0 M CH₃COONH₄ as buffer. In the case of convective heating, the reaction was performed using a 2.0 mL Eppendorf test tube and Bioer Mixing block MB-102 (Hangzhou, China) at 95 °C (5–30 min). In the case of microwave heating, the reaction was performed with CEM Discover 908005 Microwave Synthesis System in Biotage^® Microwave Reaction Vials (Uppsala, Sweden) of 0.5–2 mL (95 °C, 5–30 min). The necessary amount of precursor (2-50 nmol) was mixed in the tube/vial with the ⁴⁴Sc solution (∼1.0–4.0 MBq of ⁴⁴Sc in 0.1 M HCl or in 1.0 M CH₃COONH₄, рН 4.0–4.5). If needed, the required pH was achieved by adjustment with 3.0 M HCl. The CH₃COONH₄ concentration in the reaction mixture was kept at a level of 1.0 mol/L, and the final volume of the reaction mixture was 1 mL.

A number of radio TLC methods were used to analyze the radiochemical purity (radiochemical yield) of the preparations obtained. The main TLC methods were: (a) ITLC-SG paper (Agilent, Santa Clara, CA, USA) with 0.05 M citric acid water solution as solvent; (b) ITLC-SG paper with 1 M CH₃COONH₄ in methanol–water mixture (1:1) as solvent; and (c) silica gel coated aluminum TLC plates (5553, Merck, Darmstadt, Germany) with acetonitrile-water mixture (1:1) as solvent. In method (a) the Rf of unbounded ⁴⁴Sc is 0.9–1.0, and the Rf of [⁴⁴Sc]Sc-PSMA-617 and [⁴⁴Sc]Sc-PSMA-I&T is 0.0-0.1. In method (b), the Rf of unbounded ⁴⁴Sc is 0.0–0.1, and the Rf of [⁴⁴Sc]Sc-PSMA-617 and [⁴⁴Sc]Sc-PSMA-I&T is 0.8–1.0. In method (c), the Rf of unbound ⁴⁴Sc is 0.0–0.1 and the Rf of [⁴⁴Sc]Sc-PSMA-617 and [⁴⁴Sc]Sc-PSMA-I&T is 0.9–1.0. For HPLC analysis, one method was used. In short: a Knauer Smartline HPLC system (Berlin, Germany) equipped with an fLumo radiometric detector (Berthold, Bad Wildbad, Germany) and reversed phase C₁₈ column (250 × 4.6 mm column; Jupiter, Phenomenex Inc.,) was used. The column thermostat temperature was 55 °C, gradient flow (0.85 mL·min⁻¹): 0–13–13.5–21 min = 85–28–85–85 % A (A—0.1% TFA_aq., B—methanol). Retention time using this method for [⁴⁴Sc]Sc-PSMA-617 and [⁴⁴Sc]Sc-PSMA-I&T was 13.2 ± 0.3 min, and for [⁴⁴Sc]Sc³⁺ was 4.1 ± 0.2 min.

4.7. Determination of Oxalic Acid

Determination of oxalic acid content in hydrochloric acid samples was accomplished using HPLC. LC-20AD Prominence chromatograph (Shimadzu Co. Ltd., Kyoto, Japan) was used. The analysis was conducted on a Shodex 1C SI-90 4E column (4.0 mm Ø × 250 mm, Shodex Group, Tokyo, Japan). Detection was performed using diode array detector SPD-M20A at 210 nm. The column thermostat temperature was 33 °C, isocratic flow (1.5 mL·min⁻¹): 1.7 mM NaHCO₃ + 1.8 mM Na₂CO₃. Retention time for oxalate anion using this method is 28.2 ± 0.2 min.

5. Conclusions

Based on the results obtained in different studies, to date it is believed that ⁴⁴Sc has significant clinical potential for PET imaging as a diagnostic match to therapeutical radionuclides of rare-earth elements (e.g., ⁴⁷Sc, ⁹⁰Y, ¹⁵³Sm, ¹⁶¹Tb, ¹⁷⁷Lu) in the concept of theragnostic approaches. The more scientific groups involved in the development of the radiopharmaceutical chemistry of scandium, the easier and faster it will be to introduce it into routine clinical practice. From this point of view, evaluation of the ⁴⁴Ti/⁴⁴Sc generator (and in particular the TEVA-based ⁴⁴Ti/⁴⁴Sc generator) will allow scientific groups, deprived of a cyclotron, to begin their work with ⁴⁴Sc-radioconjugates. We also hope that our data on the efficacy of TEVA resin will stimulate the development of new extractants suitable for titanium-44 retention with improved efficiency.
