Isomers of Terpyridine as Ligands in Coordination Polymers and Networks Containing Zinc(II) and Cadmium(II)

Abstract

The use of divergent 4,2′:6′,4″- and 3,2′:6′,3″-terpyridine ligands as linkers and/or nodes in extended coordination assemblies has gained in popularity over the last decade. However, there is also a range of coordination polymers which feature 2,2′:6′,2″-terpyridine metal-binding domains. Of the remaining 45 isomers of terpyridine, few have been utilized in extended coordination arrays. Here, we provide an overview of coordination polymers and networks containing isomers of terpyridine and either zinc(II) and cadmium(II). Although the motivation for investigations of many of these systems is their luminescent behavior, we have chosen to focus mainly on structural details, and we assess to what extent assemblies are reproducible. We also consider cases where there is structural evidence for competitive product formation. A point that emerges is the lack of systematic investigations.

1. Introduction

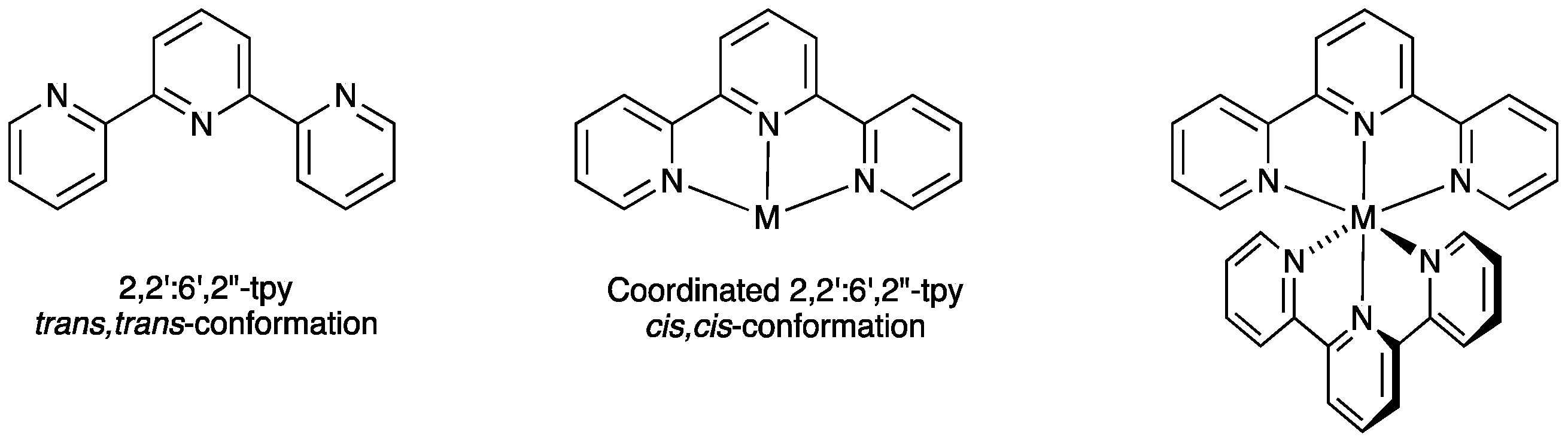

The archetypal terpyridine (tpy) is 2,2′:6′,2″-tpy (Scheme 1) which, as undergraduates learn, prefers a terdentate, bis-chelating mode of coordination to a metal ion. A conformational change from s-trans,s-trans to s-cis,s-cis accompanies metal binding (Scheme 1), and mononuclear complexes containing {M(2,2′:6′,2″-tpy)₂} (Scheme 1) or {M(2,2′:6′,2″-tpy)X_n} domains are ubiquitous [1,2,3,4]. Two points are often missed in discussions of terpyridine coordination chemistry. The first is that metal coordination compounds in which 2,2′:6′,2″-tpy ligands exhibit hypodentate modes are well represented [5]. The second is that, while 2,2′:6′,2″-tpy is indeed the most studied isomer of terpyridine, another 47 isomers can be drawn (Figure S1 in the Supporting Material). In terms of synthesis, some are certainly far more accessible than others. For example, the Kröhnke [6] and one-pot Hanan [7] strategies allow straightforward routes to symmetrical (with respect to the equivalence of the outer pyridine rings) compounds including 3,2′:6′,3″-tpy and 4,2′:6′,4″-tpy (Scheme 2), albeit with occasional examples where cyclic products are favored [8]. These synthetic routes also permit functionalization of the tpy unit, in particular, at the 4′-position in 2,2′:6′,2″-tpy, 3,2′:6′,3″-tpy and 4,2′:6′,4″-tpy as illustrated in Scheme 3 for the introduction of an aryl group.

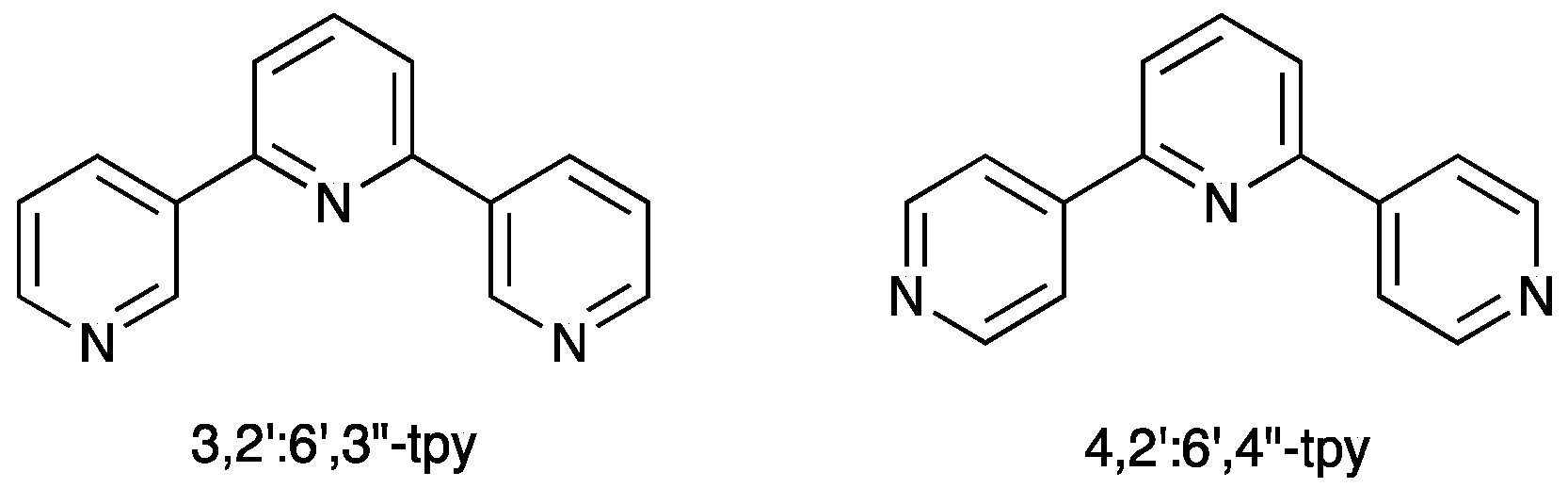

This review concerns coordination polymers and networks, and the latter are conveniently considered in terms of combinations of organic linkers and metal nodes, organic nodes and metal linkers, or organic nodes and metal nodes. The coordination geometries of the metal centers, combined with the vectorial properties of the ligand donor sites, are key starting points in the design of an assembly. Inspection of Figure S1 quickly leads to the conclusion that (organic synthetic aspects aside), the choice of an isomer of terpyridine is fundamental to selecting building blocks suitable for a polymeric rather than a discrete molecular assembly. For example, 2,2′:6′,3″-tpy (Figure S1) offers a bidentate, chelating site and a remote monodentate site that direct the assembly of a metallomacrocycle rather than a coordination polymer in the reaction of cadmium(II) acetate with ligand 1 (Figure 1) in MeOH to give [Cd₂(1)₂(MeOH)₂(O₂CMe)₂]²⁺ (Figure 1a) [9]. Some isomers of tpy are conformationally flexible, and this is illustrated in Scheme 4 for 3,2′:6′,3″-tpy for which three planar limiting conformations exist. The ligand conformation can be switched in the solid-state structure by introducing different substituents [10], and this impacts the structures of coordination polymers containing such ligands [11,12,13]. Note that while conformations A and B in Scheme 4 are divergent, conformation C is convergent and often leads to discrete molecular complexes, for example, the dizinc(II) macrocycle [14] shown in Figure 1b.

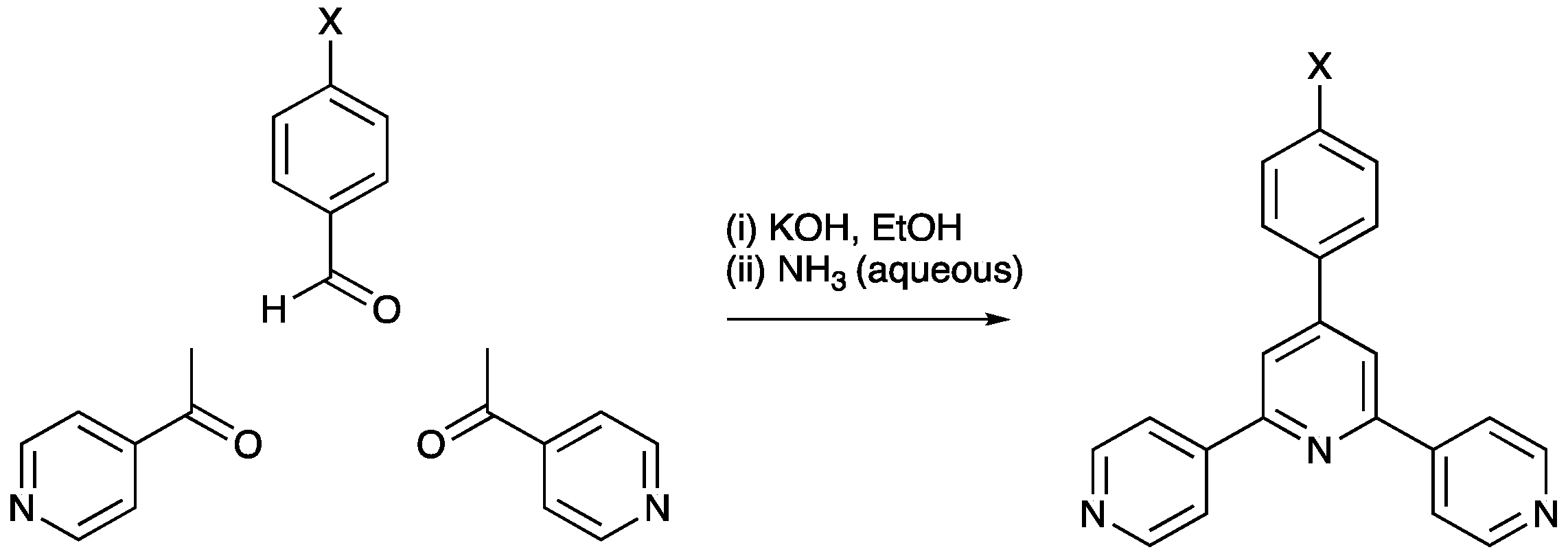

In this review, we focus on coordination polymers and networks that contain zinc(II) and cadmium(II) in combination with isomers of terpyridine. A comprehensive survey of compounds that have been structurally characterized is presented and the content is based upon searches of the Cambridge Structural Database (CSD) [15] made using CSD version 2020.3.1 [16] and ConQuest version 2020.3.1 [16]. We have chosen to exclude detailed discussion of assemblies including co-ligands which function as building blocks. However, we note that co-ligands are one means of extending the dimensionalities of assemblies. We also draw attention to cases where a potential co-ligand added to the reaction mixture (usually under solvothermal conditions) appears to act as a template rather than being incorporated into the coordination assembly. The review is organized according to terpyridine isomer, and the functional groups that the ligand carries, and whether the latter are coordinatively innocent or not. Structural diagrams in this review have been drawn using Mercury 2020.3.1 [17] with coordinates retrieved from the CSD.

2. 2,2′:6′,2″-Terpyridine

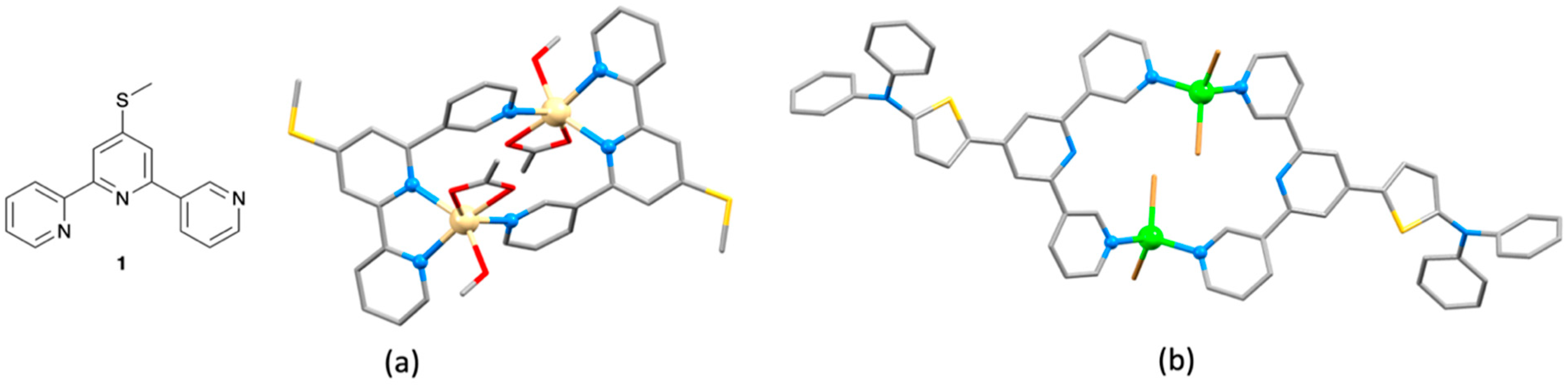

The propensity for 2,2′:6′,2″-tpy to form chelates and thereby function as a monotopic ligand means that the introduction of a coordinatively non-innocent substituent into the 2,2′:6′,2″-tpy unit is typically required to transform an {M(2,2′:6′,2″-tpy)₂} or {M(2,2′:6′,2″-tpy)X_n} unit into a building block within an extended assembly. There are no examples in the CSD (v. 2020.3.1) [16] of coordination polymers or networks containing {Zn(2,2′:6′,2″-tpy)₂} or {Cd(2,2′:6′,2″-tpy)₂} units, and the assemblies described in the following sections incorporate {M(2,2′:6′,2″-tpy)X_n} domains.

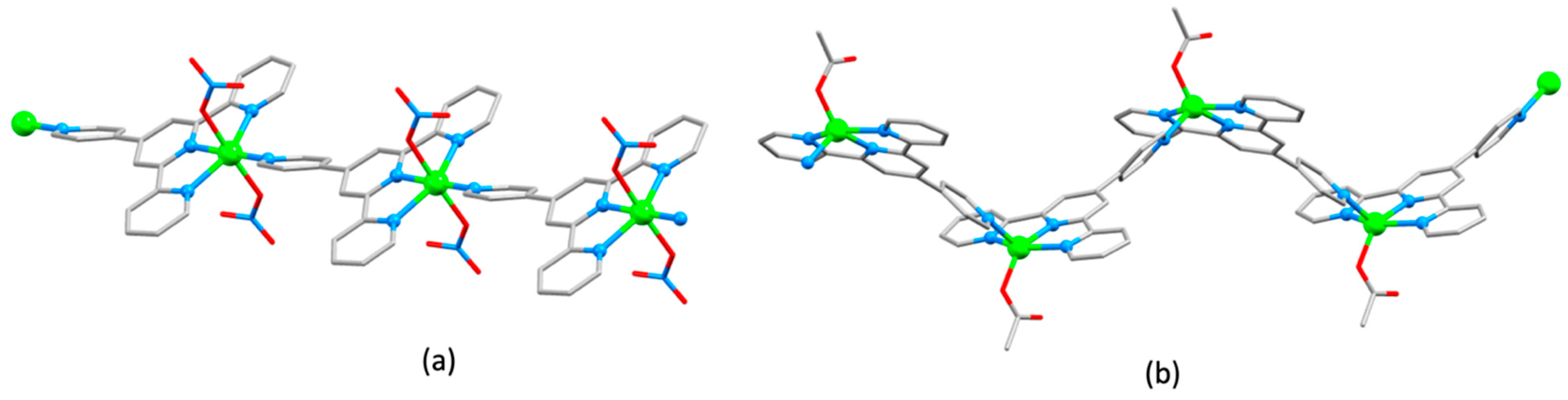

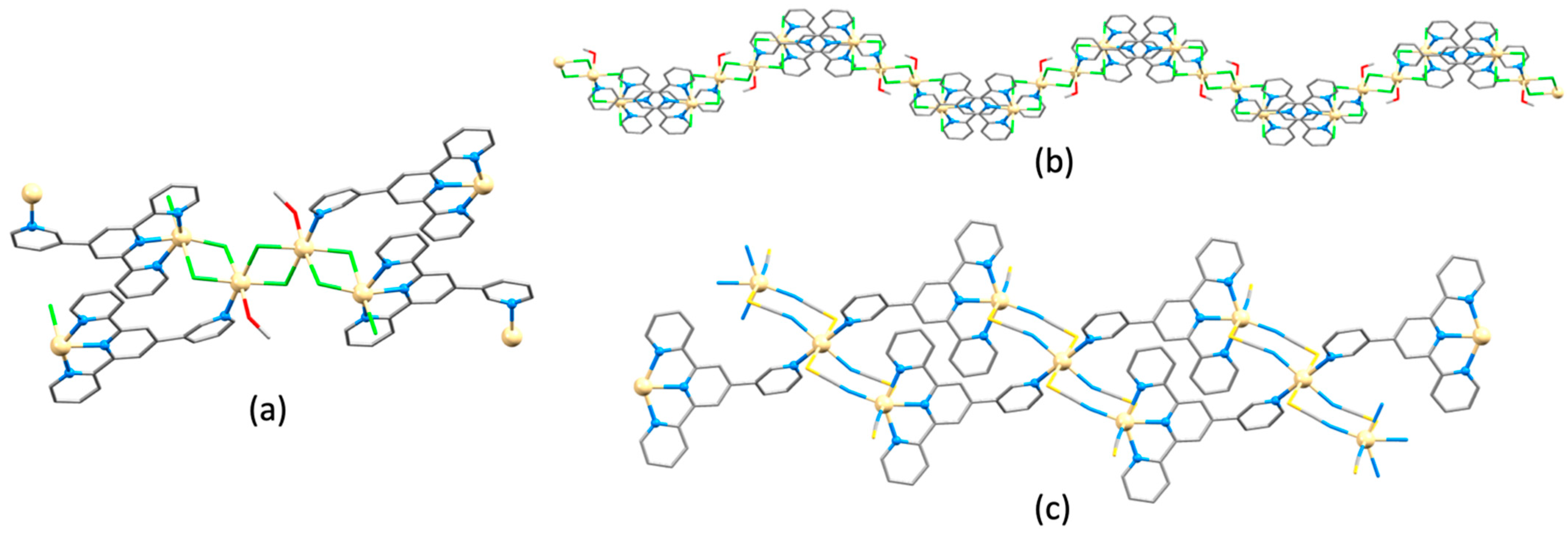

2.1. Assemblies with {M(4′-pyridinyl-2,2′:6′,2″-tpy)X_n} (M = Zn, Cd) Building Blocks

The incorporation of a 4′-pyridinyl substituent, in particular, 4′-pyridin-4-yl, into 2,2′:6′,2″-tpy is frequently employed to transform the ligand into a divergent metal-binding domain. The 1D-coordination polymer [Zn(4′-(4-py)tpy)(ONO₂)₂]_n (Figure 2a) (4′-(4-py)tpy = 4′-pyridin-4-yl-2,2′:6′,2″-terpyridine) assembles under solvothermal conditions from Zn(NO₃)₂·6H₂O and 4′-(4-py)tpy [18]. The chain is linear as a consequence of the octahedral Zn(II) centers with trans-nitrato ligands (Figure 2a). This contrasts with the zigzag cationic chain found in [{Zn(4′-(4-py)tpy)(OAc)}_n][PF₆]_n, in which the Zn(II) centers are 5-coordinate (Figure 2b) [19].

The vectorial properties of the M(4′-pyridinyl-2,2′:6′,2″-tpy) unit can be altered by the movement from a pyridin-4-yl to pyridin-3-yl or pyridin-2-yl substituent. Crystal growth by layering an MeOH solution of CdCl₂·H₂O over a THF solution of 4′-pyridin-3-yl-2,2′:6′,2″-tpy (4′-(3-py)tpy) under ambient conditions resulted in the assembly of [Cd₂Cl₄(4′-(3-py)tpy)(MeOH)]_n in which the heterocyclic ligands are linked by tetranuclear 4-connecting nodes (Figure 3a). The structure propagates into a 2D-sheet with a wave-like profile (Figure 3b). In contrast, when thiocyanate replaces chloride ion, a 1D-chain assembles with ditopic ligands interconnected through trinuclear {Cd₃(μ-NCS)₄} units (Figure 3c). Face-to-face π-interactions between pairs of ligands arranged in a head-to-tail fashion are key packing interactions in both structures shown in Figure 3 [20]. Related assemblies incorporating [1,1′-biphenyl]-2,2′-dicarboxylate as a co-ligand have also been reported [21].

2.2. Assemblies with {Cd(4′-(4-(5-tetrazolato)phenyl)-2,2′:6′,2″-tpy)X_n} Building Blocks

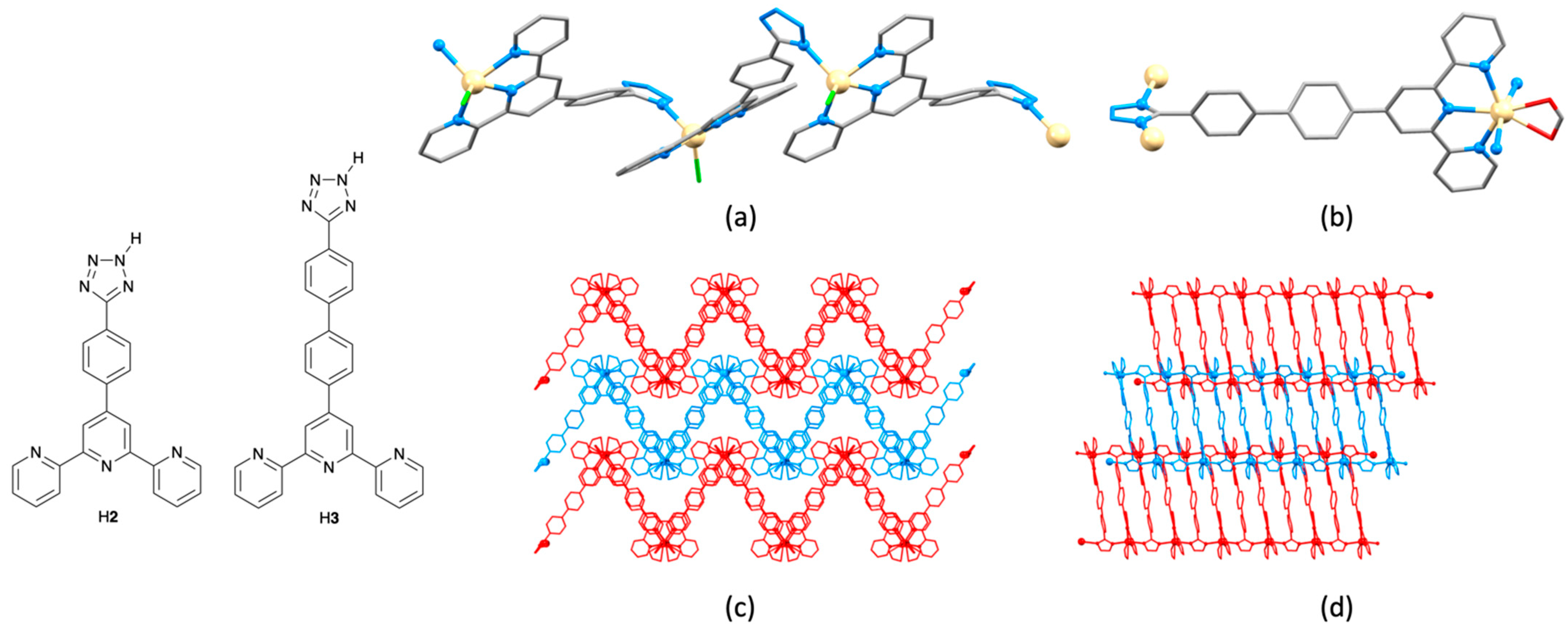

Several cadmium(II)-containing coordination polymers featuring the conjugate bases of 4′-(4-(tetrazol-5-yl)phenyl)-2,2′:6′,2″-terpyridine, H2, and 4′-(4′-(tetrazol-5-yl)-[1,1′-biphenyl]-4-yl)-2,2′:6′,2″-terpyridine, H3, have been described, four as communications to the CSD [22,23,24,25]. [CdCl(2)]_n·nH₂O and [CdBr(2)]_n·nH₂O] are isostructural [22,23] and form 1D-chains (Figure 4a) with π-interactions between the phenylene ring of one ligand and one outer pyridine ring of the adjacent ligand (centroid…centroid = 3.84 Å). The corresponding iodido-derivative has a similar structure [24]. As Figure 4a shows, only one N-donor of the tetrazole is coordinated and ligand 2^– is ditopic, with each Cd(II) center being 5-coordinate. In contrast, 3^– acts as a tritopic ligand in [Cd(O₂CH)(3)]_n·2nH₂O and the Cd(II) is 7-coordinate (the formate ion is bidentate, Figure 4b) [25,26]. The structure propagates into a corrugated 2D-sheet and the sheets pack together as shown in Figure 4c,d. Terpyridine H3 was designed to possess intra-ligand charge-transfer (ICT) properties to facilitate singlet−triplet inter-system crossing. [Cd(O₂CH)(3)]_n·3nH₂O [26] loses water while retaining the coordination network structure, and the process is fully reversible with a concomitant color change from yellow to orange. This remarkable material exhibits a long persistent luminescence in the dehydrated state, and this is suppressed when water re-enters the lattice. The incorporation of the triazole unit is key to these noteworthy photophysical properties, as is also demonstrated in [Cd(2)₂]_n·6.5nH₂O, which exhibits a white-light emission when excited over a range of wavelengths (286−386 nm). The [Cd(2)₂]_n polymer consists of a double-stranded 1D chain with the Cd(II) center in a distorted tetrahedral environment; each 2,2′:6′,2″-tpy and each triazole unit coordinates to a Cd(II) center through only one N-donor [27].

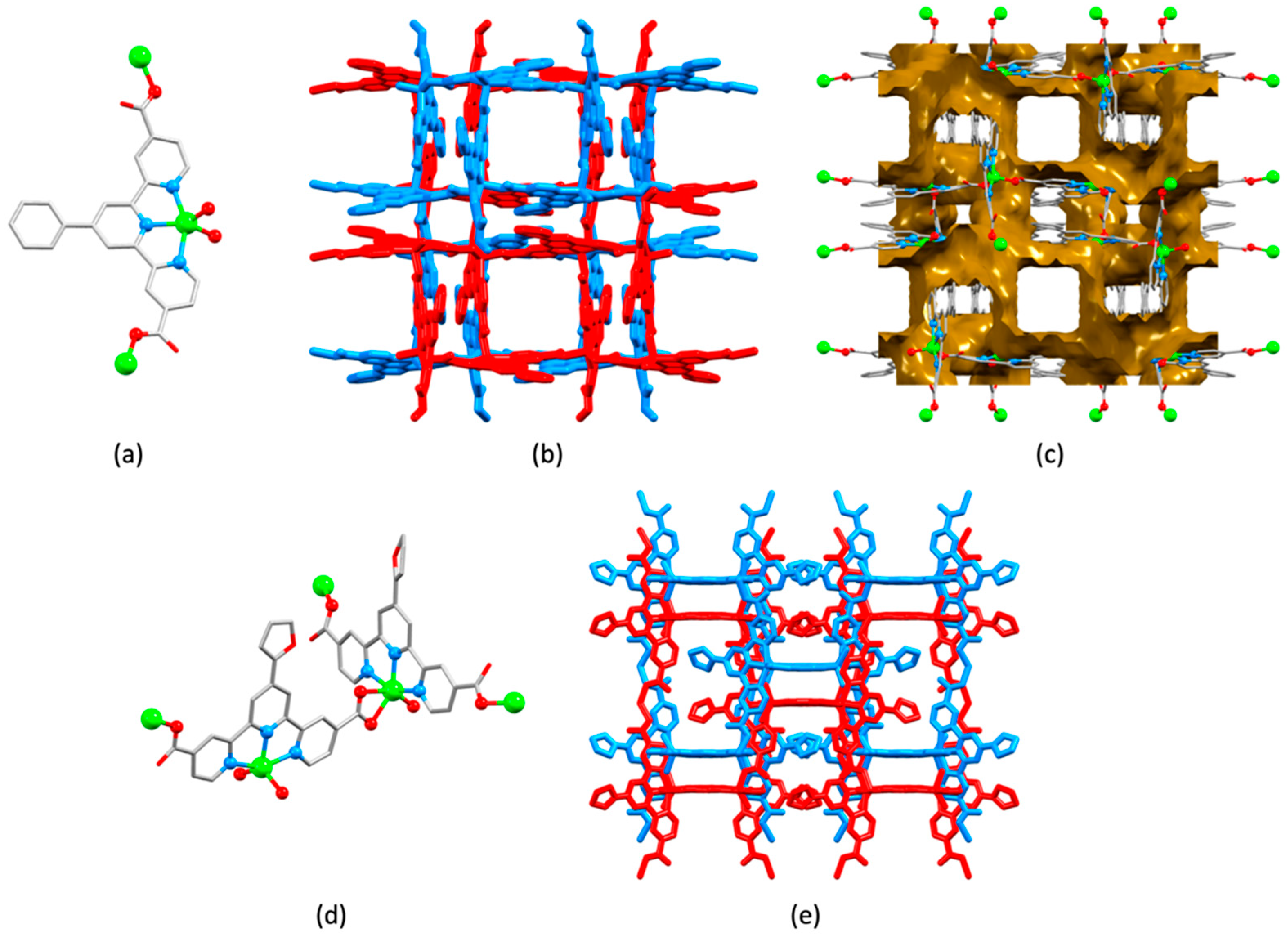

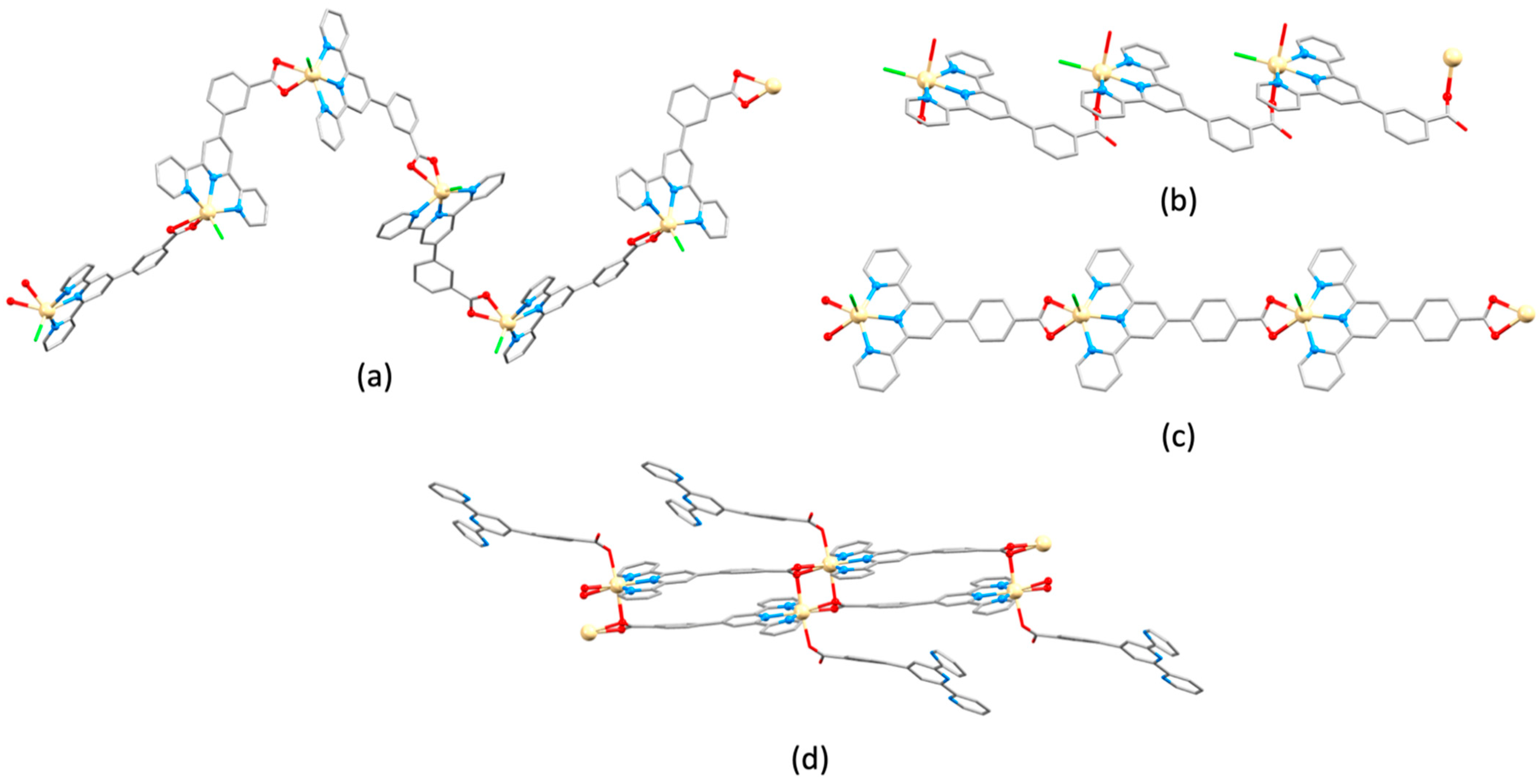

2.3. Assemblies Containing Zn(II) and 2,2′:6′,2″-tpy Ligands Functionalized with Carboxylate Donors

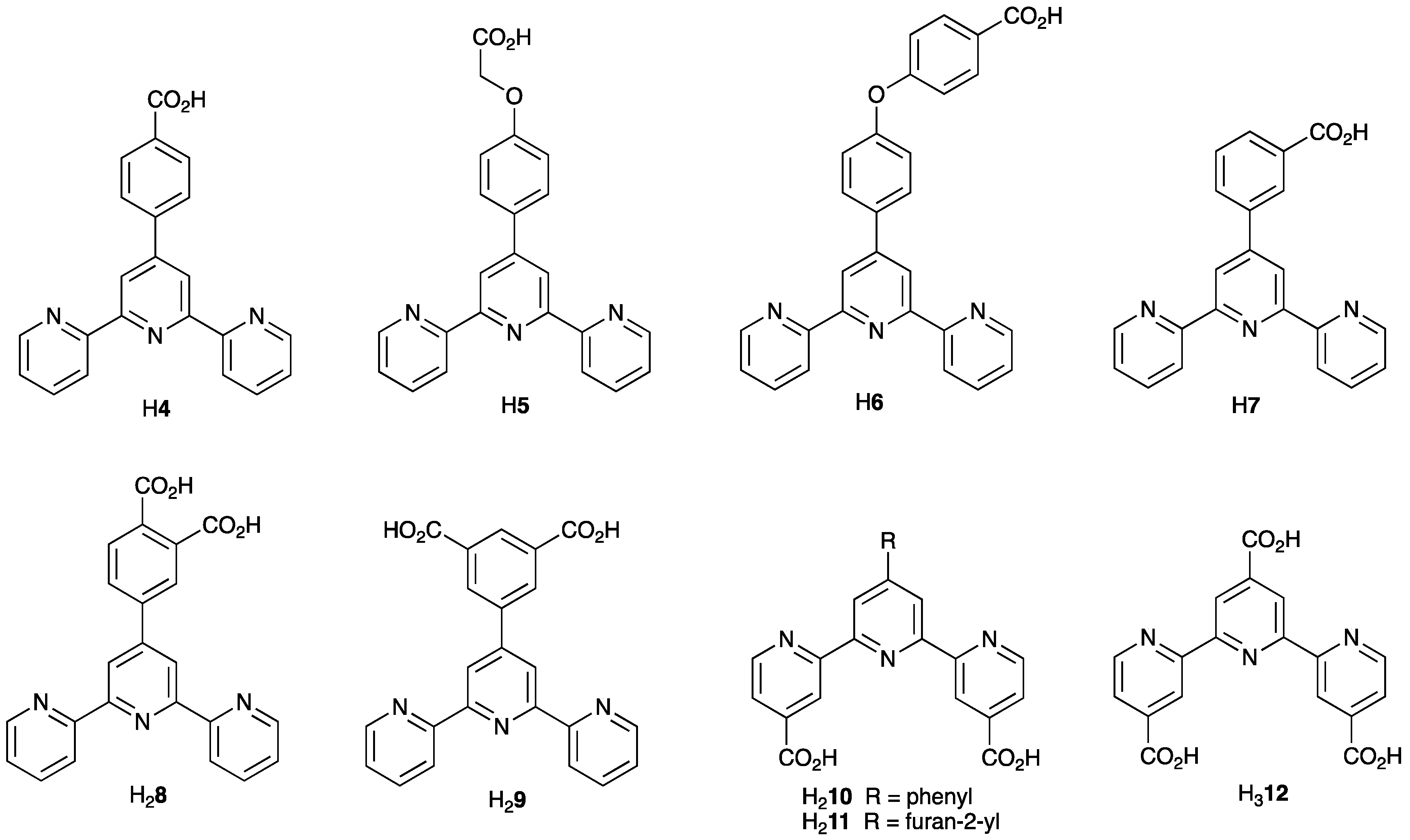

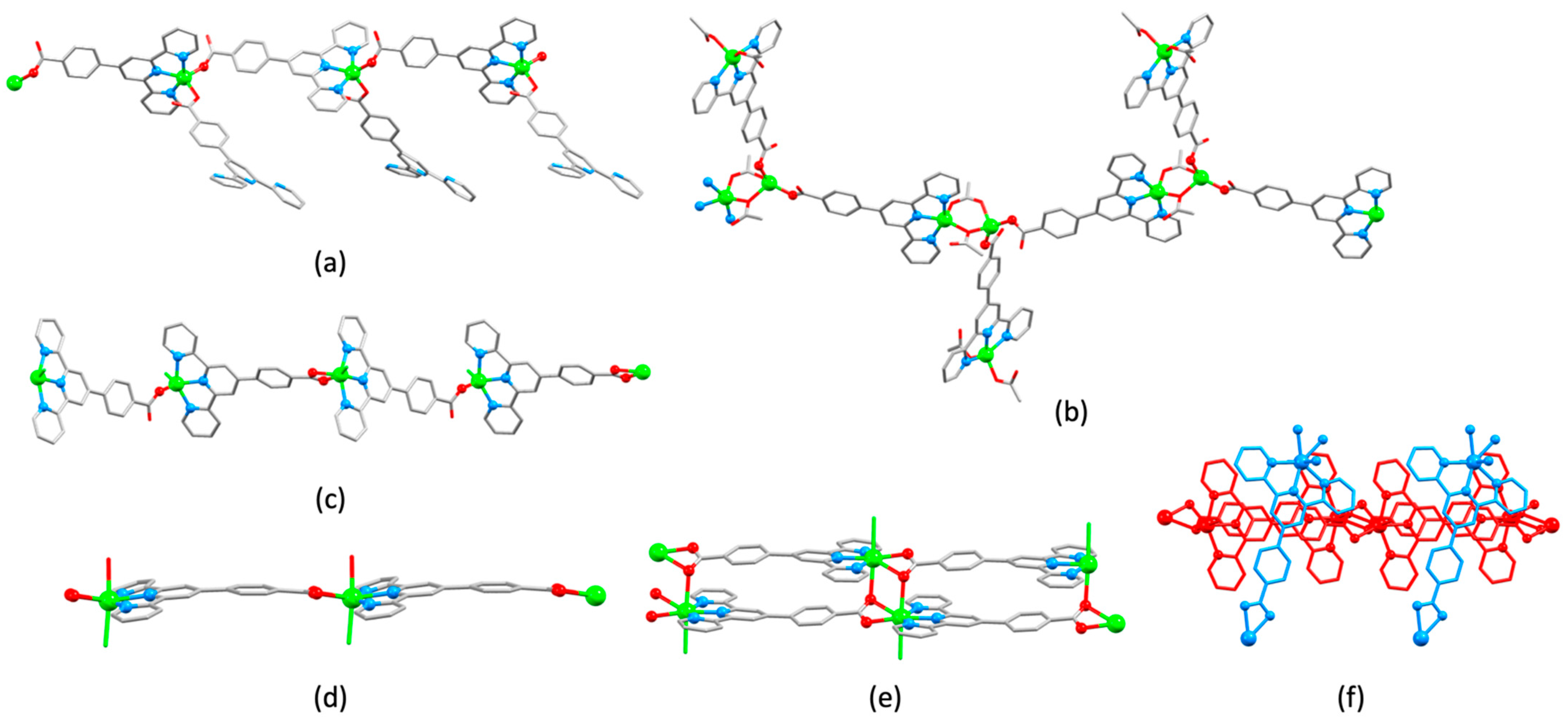

Scheme 5 presents the structures of 2,2′:6′,2″-tpy ligands bearing carboxylic acid functionalities that have been combined with zinc(II) or cadmium(II) in structurally characterized assemblies. In this section, we focus on zinc(II)-containing coordination polymers. Although the conjugate base of H4 (Scheme 5) is regularly observed to interconnect Zn(II) centers into 1D-chains, the choice of zinc(II) salt and the reaction conditions are critical to the detailed assembly. Under hydrothermal conditions at pH 11.0, Zn(OAc)₂·2H₂O reacts with H4 to give [Zn(4)₂]_n·0.5nH₂O. The structure is a 1D-chain and contains 5-coordinate Zn(II) centers. As Figure 5a shows, there are two crystallographically independent ligands, one monodentate, binding only through the CO₂^– unit and one utilizing both a chelating 2,2′:6′,2″-tpy and monodentate carboxylate to connect two Zn(II) centers [28]. The structure contrasts with the double-chain exhibited by [Cd(4)₂]_n·nH₂O (see Section 2.4). Zinc(II) acetate reacted with H4 under solvothermal conditions in DMF to produce [{Zn₂(μ-OAc)₂}Zn(OAc)₂(4)₂]_n·nH₂O (Figure 5b) [29]. The structure of the 1D-chain is related to that in [Zn(4)₂]_n·0.5nH₂O in that only one of two crystallographically independent 4^– ligands supports the backbone of the chain. However, the propensity for acetato ligands to be involved in the assembly of dinuclear zinc units makes the two chains in Figure 5a,b distinct from one another. Moreover, each pendant 2,2′:6′,2″-tpy domain in [{Zn₂(μ-OAc)₂}Zn(OAc)₂(4)₂]_n·nH₂O binds a Zn(OAc)₂ unit (Figure 5b), in contrast to the non-coordinated 2,2′:6′,2″-tpy units in [Zn(4)₂]_n·0.5nH₂O. Combining zinc(II) acetate with H4 under solvothermal conditions (H₂O/MeCN concentrated HCl, 160 °C) led to the assembly depicted in Figure 5c. Chlorido ligands are incorporated at the expense of acetato units and a simple 1D-chain forms in [Zn₂Cl₂(4)₂]_n·0.5nH₂O. Although Figure 5c illustrates alternating 5- and 6-coordinate Zn(II) centers, the difference is described by the authors as ‘subtle′; the Zn–O distances are 2.047(4) and 2.468(5) Å for the bidentate CO₂^–, and 1.947(4) and 3.408(4) Å for the monodentate CO₂^–. An interesting feature of this structure is that adjacent chains interact through efficient face-to-face π-stacking of arene rings, and Hong and coworkers [30] describe the final assembly as a ‘2D + 2D→3D inclined polycatenated coordination polymer′ with the interchain π-stacking underpinning the higher dimensionality description. In the same work, Hong and coworkers showed that a change from zinc(II) acetate to nitrate and reaction with H4 under the same conditions (solvothermal in H₂O/MeCN with concentrated HCl at 160 °C) leads to the formation of [Zn(4)₂]_n·2.5nH₂O. This comprises a 1D-chain analogous to that shown in Figure 5a. However, in [Zn(4)₂]_n·2.5nH₂O (which crystallizes in the triclinic P–1 space group, refcode GEYTIP), the pendant 2,2′:6′,2″-tpy unit was presented with a cis,cis conformation [30] rather than the trans,trans conformation found in [Zn(4)₂]_n·0.5nH₂O (space group C2/c) [28]. The latter is more usual for a non-coordinated 2,2′:6′,2″-tpy, and the atypical conformation in [Zn(4)₂]_n·2.5nH₂O is not discussed by the authors. Finally in this series, a communication to the CSD [31] provides the structure of [ZnCl(4)]_n·[ZnCl(OH₂)(4)]_n. Two different 1D-coordination polymers are present in the lattice. The first comprises single [ZnCl(OH₂)(4)]_n chains in which each 6-coordinate Zn(II) center is bound by chelating 2,2′:6′,2″-tpy, bidentate CO₂^– and an aqua ligand. The backbone of the bridging ligand 4^– is markedly bowed (Figure 5d). The second polymer [ZnCl(4)]_n differs from the first in having no coordinated H₂O and in possessing a double-stranded chain (Figure 5e). The Zn–O bond lengths within the carboxylate chelate ring are 2.226(5) and 2.399(3) Å, while the Zn–O distance between the two strands is 2.573(4) Å. Figure 5f illustrates the role of π-stacking within the double-stranded chain, and between the two different chains in [ZnCl(4)]_n·[ZnCl(OH₂)(4)]_n.

Compounds H5 and H6 (see Section 2.4) are related to H4 by the introduction of OCH₂ and OC₆H₄ spacers, respectively (Scheme 5). The reaction of ZnCl₂ with H5 under hydrothermal conditions produced the 1D-coordination polymer [ZnCl(5)]_n·0.5nH₂O [32]. Structurally, this is similar to [Zn₂Cl₂(4)₂]_n·0.5nH₂O (Figure 5c), but differs in having one crystallographically independent {ZnCl(tpy)} unit (Figure 6a). The lattice H₂O molecules are involved in C–H…O hydrogen bonds and link the polymer chains into a 2D-sheet. Hu and coworkers extended this investigation to include the co-ligands terephthalic acid, fumaric acid, succinic acid and adipic acid [32]. Although coordination assemblies between Cd(II) and H7 (Scheme 5) have been reported (see Section 2.4), no coordination polymers with Zn(II) have been structurally characterized. Both dicarboxylic acids H₂8 and H₂9 form extended structures with Zn(II). Under solvothermal conditions (DMF/H₂O, 160 °C), ZnSO₄·6H₂O and H₂8 combine to give [Zn(8)]_n (Figure 6b). The presence of the two CO₂^– groups per ligand facilitates the assembly of a double-stranded chain [33]. This may be compared to the double-stranded chain found in [ZnCl(4)]_n·[ZnCl(OH₂)(4)]_n (Figure 5e), but the additional carboxylate groups lead to distinct differences in the dinuclear building blocks in the 1D-chain. Polymer [Zn(8)]_n was used as a sensor for Cr³⁺ ions through enhancement of fluorescence. H₂9 reacts with zinc(II) nitrate under solvothermal conditions (MeCN/H₂O, 120 °C) to give single crystals of [Zn(9)]_n·nH₂O which possesses a 2D-network (Figure 6c). Each Zn(II) center is 5-coordinate and each 9^2– ligand is tritopic through the use of a chelating tpy unit and two monodentate carboxylates. The assembly is, therefore, a {6³} net. When the reaction is carried out in N-methyl-2-pyrrolidone (NMP) and methanol at 95 °C, the assembly switches to a 3D-net (Figure 6d) with a ths topology. Although ligand 9^2– again acts as a 3-connecting node in [Zn(9)]_n·2nMeOH·nNMP; the difference in the [Zn(9)]_n structure found for the two solvates arises from a change in directionality of the O–Zn vectors (Figure 6e). It is interesting to note that the change in topology is associated with a change from the monoclinic P2₁/n space group to the orthorhombic Fdd2 space group. [Zn(9)]_n·2nMeOH·nNMP exhibits a high capture capacity for CO₂ with an unusual multistep gas-adsorption process [34].

Dicarboxylic acid H₂10 is representative of a series of compounds reported by Kruger and coworkers in which the R group (Scheme 5) is non-coordinating [35]. The reaction between Zn(NO₃)₂·6H₂O and H₂10 under solvothermal conditions (DMF/H₂O, concentrated HNO₃, 90 °C) produced crystals of [Zn(10)]_n. In this 3D-assembly, the local environment at each Zn center (Figure 7a) is the same as in [Zn(8)]_n and [Zn(9)]_n (Figure 6b–d). Kruger describes the unit shown in Figure 7a as a 4-connecting node, and the assembly (as well as those with analogous ligands with R = 2-methylphenyl, 4-chlorophenyl, 4-nitrophenyl, thien-2-yl, thien-3-yl, pyridin-4-yl) propagates into a zeolitic gismondine gis-c (4³·6²·8) topology; the framework is 2-fold interpenetrating (Figure 7b). Channels with a square cross-section (ca. 9.0 Å across) follow the c-axis and Figure 7c illustrates the solvent accessible void space. For [Zn(10)]_n, this is 40%, and varies from 32% to 41% for the family of structures. Gas adsorption measurements using N₂, H₂, CO₂ and CH₄ confirm that the solid-state structures exhibit permanent porosity [35]. The reaction of dicarboxylic acid H₂11 (Scheme 5) with zinc(II) acetate has been investigated by Lu and coworkers. Despite the structural similarity between H₂11 and H₂10, the 3D-assembly observed for [Zn(11)]_nin the pentahydrate contrasts with that found for [Zn(10)]_n and its analogs (see above). [Zn(11)]_n·5nH₂O was formed under hydrothermal conditions starting with K₂11; the pH was adjusted to 2.0 using MeCO₂H [36]. These conditions contrast with those employed in Kruger′s work [35]. There are two independent Zn centers and ligands in the solid-state structure of [Zn(11)]_n·5nH₂O, as shown in Figure 7d. The assembly extends into a 4-connected sra net with (4².6³.8) topology, and 2-fold interpenetration occurs (Figure 7e). The structure possesses interconnected channels that run parallel to the a, b and c-axes, although, as Figure 7e illustrates, the furan-2-yl substituents are accommodated within some of the channels. The solvent-accessible void space is ca. 29% [36]. The same sra topology was reported by Wang, Sun and coworkers for [Zn₂(11)₂]_n·5nH₂O (CSD refcode TACTUP) which was prepared solvothermally from Zn(NO₃)₂·6H₂O and H₂11 [37]. A comparison of the two structure-types depicted in Figure 7 serves to emphasize the variation that is possible with similar building blocks.

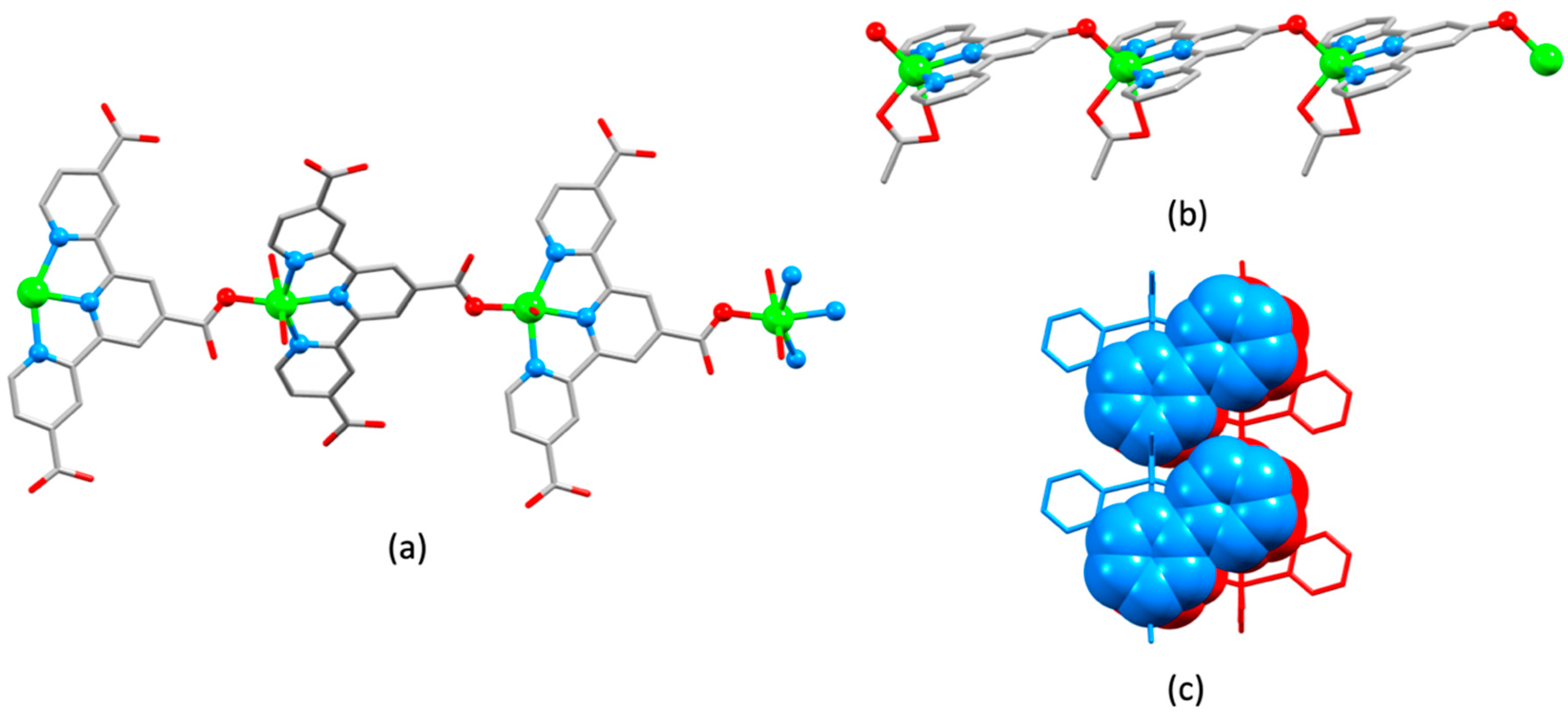

The introduction of a third carboxylic acid functionality in H₃12 (Scheme 5) might be expected to lead to a high-dimensionality assembly. However, the hydrothermal reaction of H₃12 with zinc(II) sulfate led to a 1D-coordination polymer [Zn(H12)(OH₂)₂]_n·2nH₂O in which only one CO₂^– group is involved in coordination. Although written here as H12^2–, the protonation state of the coordinated ligand is unclear. Each Zn center is 6-coordinate (Figure 8a), and the chain is built up by a glide plane. The coordination polymer functions as a sensor for Hg²⁺ in aqueous solutions with its fluorescence being quenched by trace amounts of the heavy metal ion [38].

2.4. An Assembly Containing Zn(II) and the Conjugate Base of 4′-Hydroxy-2,2′:6′,2″-terpyridine

The compound [Zn(4′-O-2,2′:6′,2″-tpy)(OAc)]_n is an unusual example of a coordination polymer employing the conjugate base of 4′-hydroxy-2,2′:6′,2″-terpyridine (4′-HO-2,2′:6′,2″-tpy). This appears to be the only structurally characterized coordination polymer of any metal ion incorporating this ligand. The zinc(II) complex was prepared on a preparative scale from the reaction of Zn(OAc)₂·2H₂O with 4′-HO-2,2′:6′,2″-tpy, and single crystals grown by diffusion of n-hexane into a methanol solution of the compound proved to be [Zn(4′-O-2,2′:6′,2″-tpy)(OAc)]_n. NMR spectroscopic data for the bulk material are consistent with a degree of dissociation in solution. The structure of the 1D-polymer is shown in Figure 8b. The Zn–O_tpy bond length of 1.999(4) Å compares with distances of 2.028(4) and 2.576(4) Å for the coordinated acetato ligand. Neighboring chains are associated through π-stacking of 2,2′:6′,2″-tpy domains (Figure 8c) [19].

2.5. Assemblies Containing Cd(II) and 2,2′:6′,2″-tpy Ligands Functionalized with Carboxylate or Sulfonate Donors

The conjugate base of H7 (Scheme 5) forms 1D-coordination polymers when reacted with CdCl₂·2.5H₂O under solvothermal conditions. Depending upon the pH, the isolated single crystals were determined to be [Cd₂(7)₂Cl₂]_n·nH₂O or [Cd(7)Cl(H₂O)]_n·n[Cd(H7)Cl₂]·nH₂O. Figure 9a illustrates the polymer chain in the former complex; the 6-coordinate Cd(II) center is bound by chelating CO₂^– and 2,2′:6′,2″-tpy domains and a chlorido ligand. The co-crystal resulting from assembly under acidic conditions contains 1D [Cd(7)Cl(H₂O)]_n chains with octahedral Cd(II) (Figure 9b) and discrete [Cd(H7)Cl₂] molecules with 5-coordinate Cd(II) centers [39]. On going from H7 to H4 (Scheme 5), the vectorial properties of the ligand change, and the effect on the structure of the 1D chain in [Cd(4)Cl(H₂O)]_n·3.75nH₂O [40] compared to that in [Cd₂(7)₂Cl₂]_n·nH₂O can be seen by comparing Figure 9b,c. Tseng et al. [40] also illustrated that introducing a co-ligand (thiophene-2,5-dicarboxylic acid) had a significant impact on the assembly, directing it towards an 8-fold (4,2) interpenetrated network. The reaction of H4 with cadmium(II) nitrate under hydrothermal conditions at pH 7.5 resulted in the formation of single crystals of [Cd(4)₂]_n·nH₂O. The assembly consists of a double chain in which half of the ligands bridge between Cd(II) centers and half coordinate only through the carboxylate group (Figure 9d). The head-to-tail arrangement of the ligands along the chain leads to efficient inter-ligand π-stacking [41]. A similar situation is observed in the 1D-coordination polymer [Cd(6)₂]_n·nH₂O (see Scheme 5 for the structure of H6) in which half of the ligands exhibit a pendant, non-coordinated 2,2′:6′,2″-tpy domain. The 1D-chain comprises Cd(II) centers linked by ditopic ligands 6^–, and each Cd(II) is additionally bound by a monodentate 6^– ligand. Once again, π-stacking between 2,2′:6′,2″-tpy units is a dominant packing interaction [42].

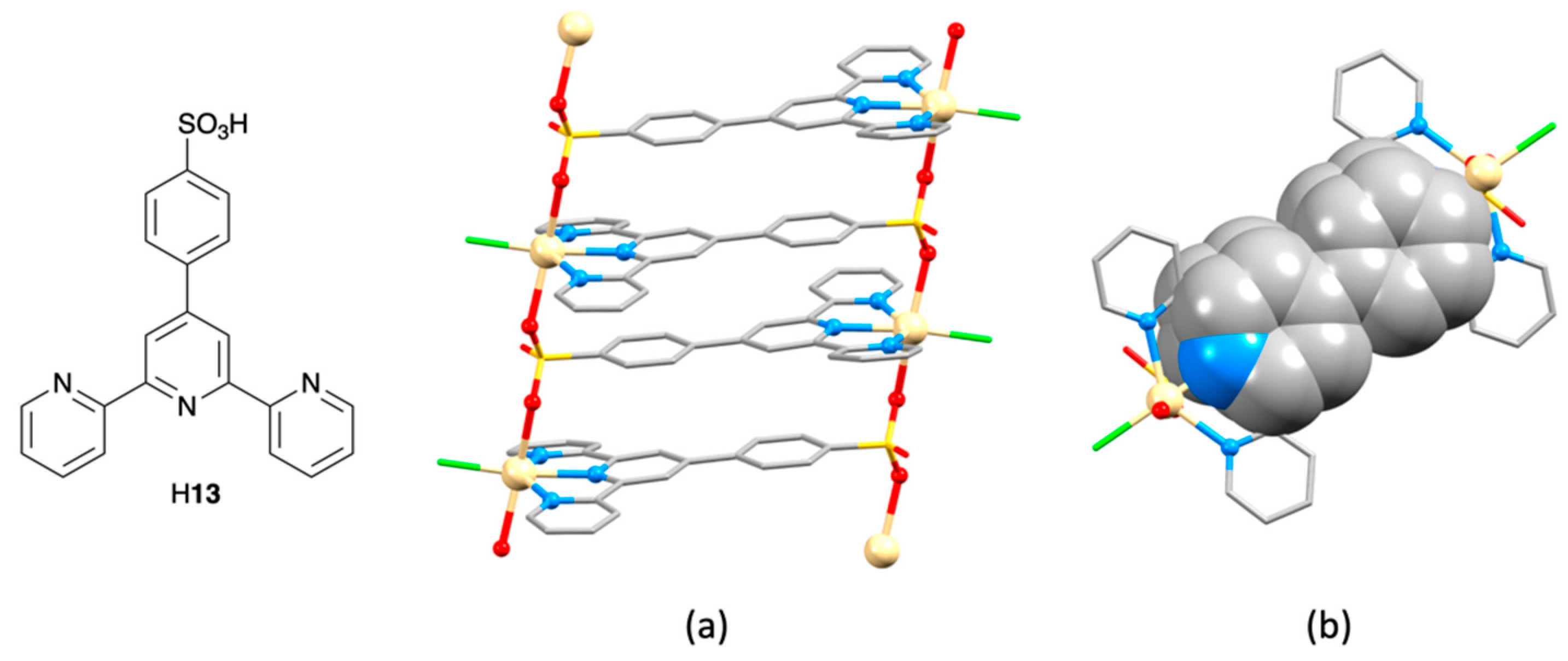

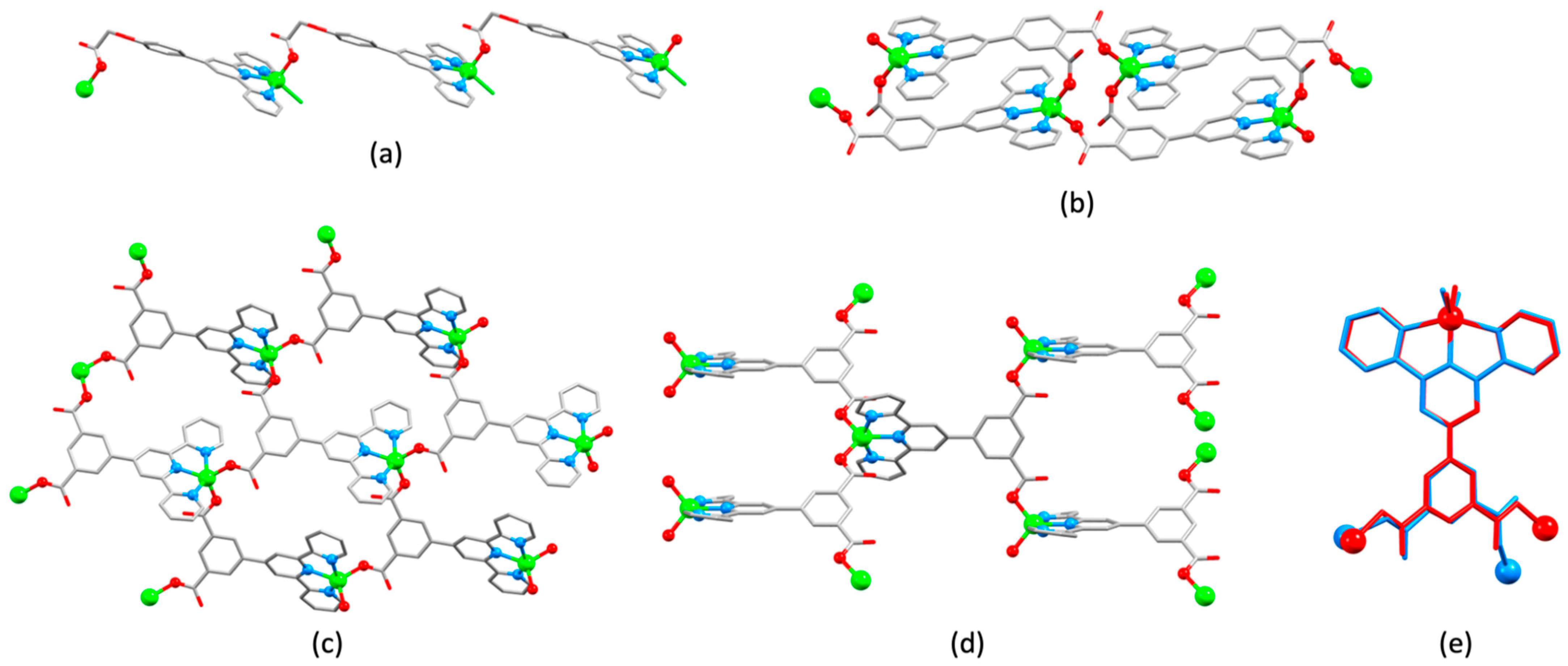

Replacing the carboxylic acid functionality in ligand H4 by a sulfonic acid to give H13 (Figure 6) has an interesting effect on the assembly. The reaction between Na13 and CdCl₂ under hydrothermal conditions produced [Cd(13)Cl]_n which possesses a 1D-ladder structure. The compound was prepared as a model system with which to compare the photophysical behaviors of lanthanoid(III) metal analogs, and the structure is described only in the supporting information in the original work [43]. Figure 10a shows the ladder assembly, in which the rungs comprise the heterocyclic ligands, and the struts comprise the Cd(II) centers and sulfonate groups. The phenylpyridine units of the ligands are arranged in a head-to-tail fashion and engage in face-to-face π-stacking interactions (Figure 10b).

3. 4,2′:6′,4″-Terpyridine

3.1. A 1D-Coordination Polymer with an Unfunctionalized 4,2′:6′,4″-tpy

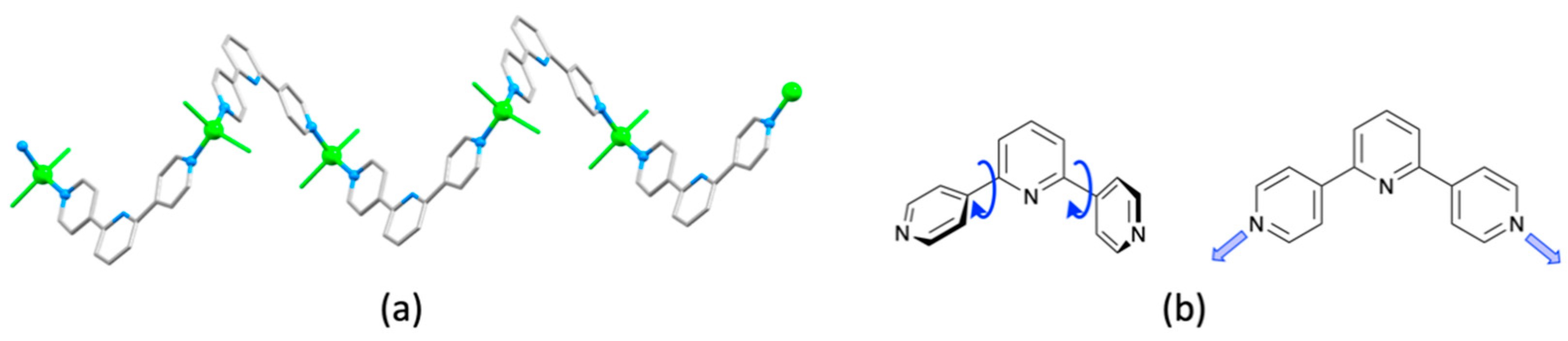

In 1998, González-Garmendia and coworkers reported the synthesis and single crystal structure of [Zn(4,2′:6′,4″-tpy)Cl₂]_n (Figure 11a), which was the first example of a coordination polymer containing the 4,2′:6′,4″-tpy metal-binding domain [44]. The structure demonstrates several features that recur in the related structures, described below. Most significantly, the central pyridine ring 4,2′:6′,4″-tpy is non-coordinating. At the time of writing this review, this feature was common to all structurally characterized coordination compounds involving 4,2′:6′,4″-tpy and its derivatives. Secondly, the V-shaped building block of 4,2′:6′,4″-tpy is moderately rigid, with the directional properties of the outer N-donors being independent of conformational changes involving rotation about the inter-ring C–C bonds (Figure 11b). Compare this with the situation for 3,2′:6′,3″-tpy (Scheme 4). [Zn(4,2′:6′,4″-tpy)Cl₂]_n crystallizes as a heterochiral polymer with equal numbers of left-handed (M) and right-handed (P) helices in the crystal lattice. Such helical 1D-polymers feature regularly in the structures of Zn(II)/4,2′:6′,4″-tpy assemblies, although the pitch of the helix is markedly varied [45]. However, not all [Zn(4′-X-4,2′:6′,4″-tpy)Y₂]_n (X is a coordinatively innocent group and Y^– is a monodentate ligand) are helical (see below). The Zn…Zn distance between adjacent Zn atoms in a chain in [Zn(4,2′:6′,4″-tpy)Cl₂]_n is 12.528(4) Å (

Table 1. 1D-coordination polymers of general formula [Zn(4′-X-4,2′:6′,4″-tpy)Cl₂]_n.

Compound	CSD Refcode	Space Group	N–Zn–N/°	Zn…Zn/Å	Ref.
[Zn(4,2′:6′,4″-tpy)Cl2]n	GAQYUS	P21/n	98.6(2)	12.528(4)	[44]
[Zn(14)Cl2]n	FEPRUO	P21/n	105.96(11)	13.040(1)	[46]
[Zn(15)Cl2]n	LOCTED	P21/n	99.5(1)	12.992(1)	[47]
[Zn(15)Cl2]n a	NOGFIZ	P3121	107.9; 100.3(2)	12.564; 13.029(2)	[47]
[Zn(16)Cl2]n·nEtOH·n/2H2O	NOGFOF	P21/n	93.5(1)	12.379(2)	[47]
[Zn2(H17)Cl2]n·2nEtOH·nH2O	DIRMEY	Pnna	101.1; 97.6	12.626	[48]
[Zn(18)Cl2]n	DOMBIS	P21/n	100.06(1)	13.037(1)	[49]
[Zn(19)Cl2]n·nH2O	SEBRID	Pna21	100.3(2)	12.706(1)	[50]
[Zn(20)Cl2]n	AJURIG	P21/c	104.01(10)	12.8502(6)	[51]
[Zn(21)Cl2]n	ELAMOV	P21/c	103.88(8)	12.523(2)	[14]
[Zn(22)Cl2]n	QOJBOI	P–1	97.4(1), 98.1(1), 102.8(1), 104.4(1)	12.400(1), 12.325(2), 12.863(2)	[52]
[Zn(23)Cl2]n	QOJBAU	P–1	104.6(1), 94.3(2), 100.2(1), 103.0(1)	12.899(1), 12.4525(9), 13.062(1), 12.3425(9)	[52]

^a Homochiral.

).

3.2. Assemblies Containing Zinc(II) and 4′-Functionalized 4,2′:6′,4″-tpy Ligands with Coordinatively Innocent Substituents

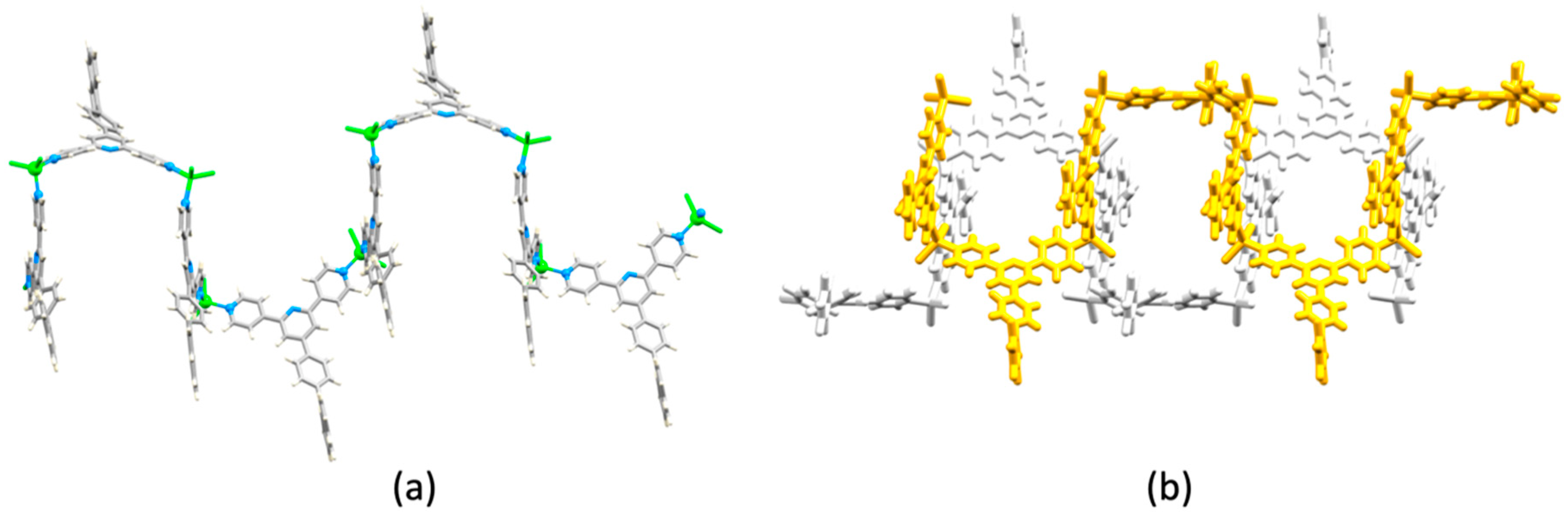

A wide variety of coordinatively innocent 4′-functionalities has been introduced into 4,2′:6′,4″-tpy ligands; note that 4′-(pyridinyl)-substituted ligands and their zinc(II) complexes are discussed later in Section 3.5. Scheme 6 illustrates those ligands (14–16, H17, 18–23) which react with ZnCl₂ to produce 1D-coordination polymers. Some details of the structures are given in Table 1, and can be compared with [Zn(4,2′:6′,4″-tpy)Cl₂]_n (Section 3.1). The chains are typically built up along a 2-fold screw axis (refcodes GAQYUS [44], FEPRUO [46], LOCTED [47], NOGFOF [47], DOMBIS [49], AJURIG [51], ELAMOV [14]), a 2-fold rotation axis (NOGFIZ [47], DIRMEY [48]), or a glide plane (SEBRID [50]). The coordination polymers [Zn(22)Cl₂]_n and [Zn(23)Cl₂]_n with 4′-(4-(1-naphthyl)phenyl)- and 4′-(2′,3′,4′,5′,6′-pentafluorobiphenyl-4-yl)-substituents, respectively, are of particular note. The asymmetric unit in each possesses four crystallographically independent Zn atoms, and the chain is built up by translational symmetry to generate a polymer with a distinctive crenelated profile (Figure 12a). Adjacent chains are related to each other by inversion (Figure 12b). Each embrasure in the crenelation can be likened to three sides of a metallocycle and it is significant that the assembly of [Zn(23)Cl₂]_n polymer chains competes with the formation of the metallosquare [Zn(23)Cl₂]₄ [52]. In Figure 11b, we described the V-shaped 4,2′:6′,4″-tpy as a moderately rigid building block. In Table 1, the range of Zn…Zn distances between adjacent zinc atoms in a chain (12.325(2)–13.062(1) Å) gives an indication of the flexibility of 4,2′:6′,4″-tpy, and Figure 13 illustrates that the ligand is noticeably bowed when associated with shorter Zn…Zn distances. We have previously commented upon the bowing of terpyridine backbones in solid-state structures [53]; this mode of flexibility is additional to conformational changes arising from bond rotation.

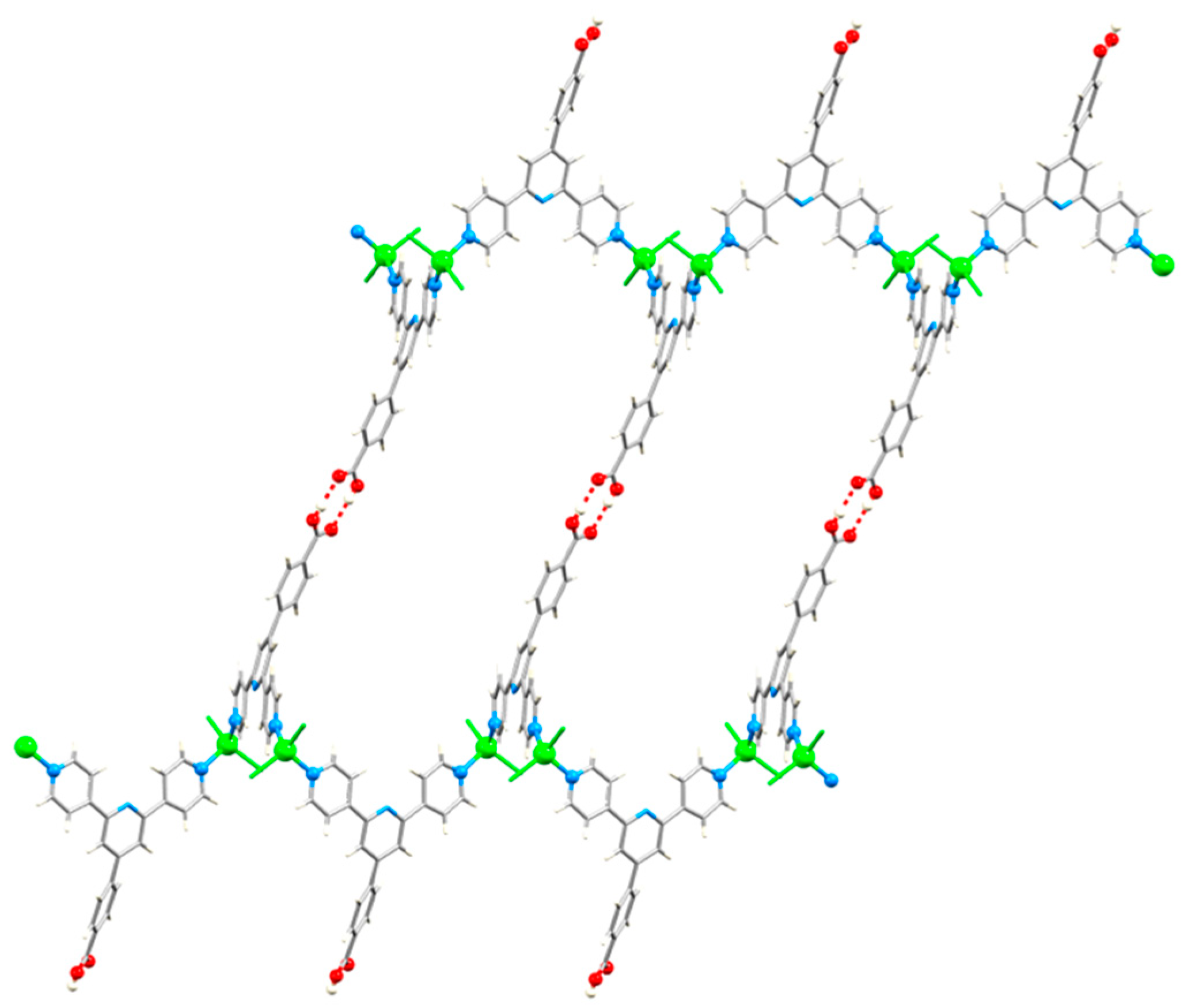

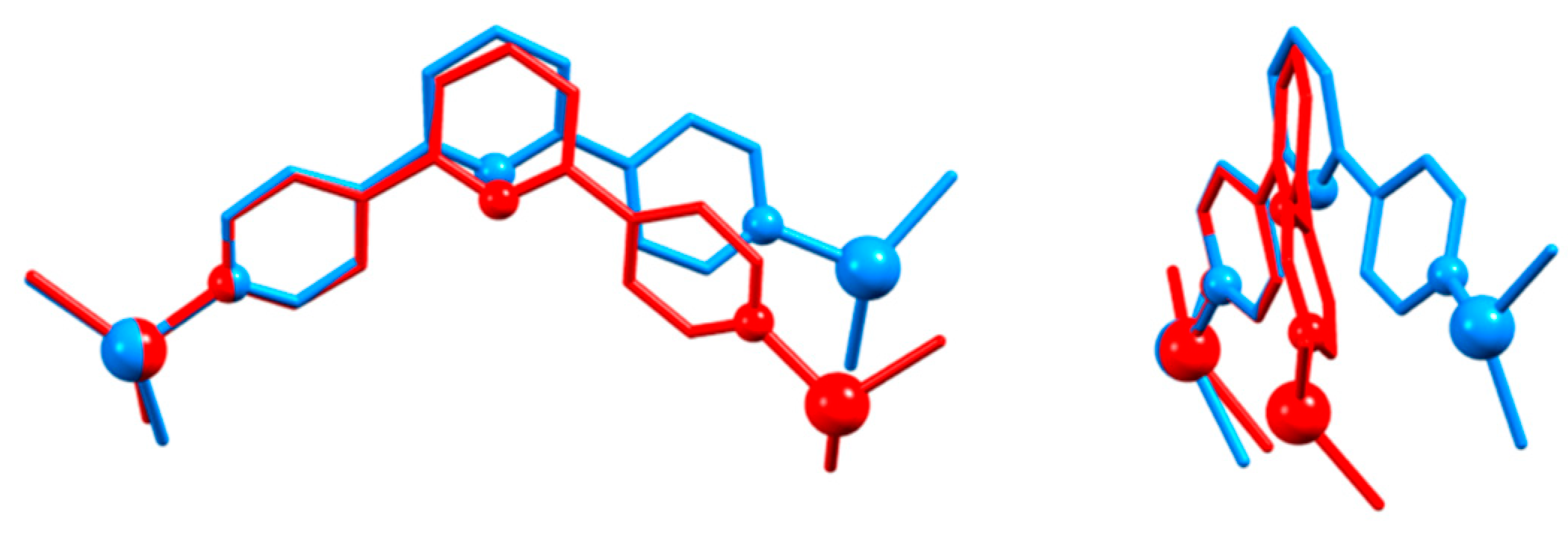

Ligand H17 (Scheme 6) is noteworthy because it remains protonated in [Zn₂(H17)₂Cl₄]_n·2nEtOH·nH₂O, in contrast to the assemblies containing carboxylates described in Section 3.4. Pairs of peripheral CO₂H groups in adjacent chains engage in hydrogen-bonding, leading to interconnection of the chiral [Zn₂(H17)₂Cl₄]_n chains into 2D-sheets (Figure 14). Each layer contains alternating left- and right-handed helical polymer chains [48].

A number of 1D-coordination polymers related to those described above incorporate different ZnX₂ units (X^– = I^–, NCS^–, monodentate AcO^–) and these are summarized in

Table 2. 1D-coordination polymers of general formula [Zn(4′-X-4,2′:6′,4″-tpy)X₂]_n with X^– = I^–, AcO^–, NCS^–.

Compound	CSD Refcode	Space Group	N–Zn–N/°	Zn…Zn/Å	Ref.
[Zn(14)(OAc)2]n	CUXDOP	P21/n	106.99(5)	12.583(2)	[54]
[Zn(21)I2]n·nH2O	ELAMEL	P21/c	98.1(1)	12.583(2)	[14]
[Zn(24)I2]n·nC6H4Cl2	FAKRUG	P21/c	105.0(1)	12.6858(7)	[55]
[Zn(25)I2]n·2nCHCl3	TUNKEU	P21/c	104.5(1)	12.771(2)	[56]
[Zn(25)(OAc)2]n·2nH2O	TUNCIQ	P21/n	106.8(2)	12.516(5)	[56]
[Zn(25)(NCS)2]n·nCHCl3	TUNNIB	P21/n	111.7(1) a	12.416(3)	[56]
[Zn(25)(OAc)2]n·nMeOH·nH2O	NEFWED	Pbca	110.06(9)	12.1240(9)	[57]
(M)-[Zn(26)(OAc)2]n	OFIVOQ	P212121	103.2(2)	12.5757(9)	[58]
[2{Zn(26)(OAc)2}]n·nCHCl3·5nMeOH·2nH2O	OFIWEH	Pnna	114.29	13.194	[58]

^a N–Zn–N angle within the polymer chain.

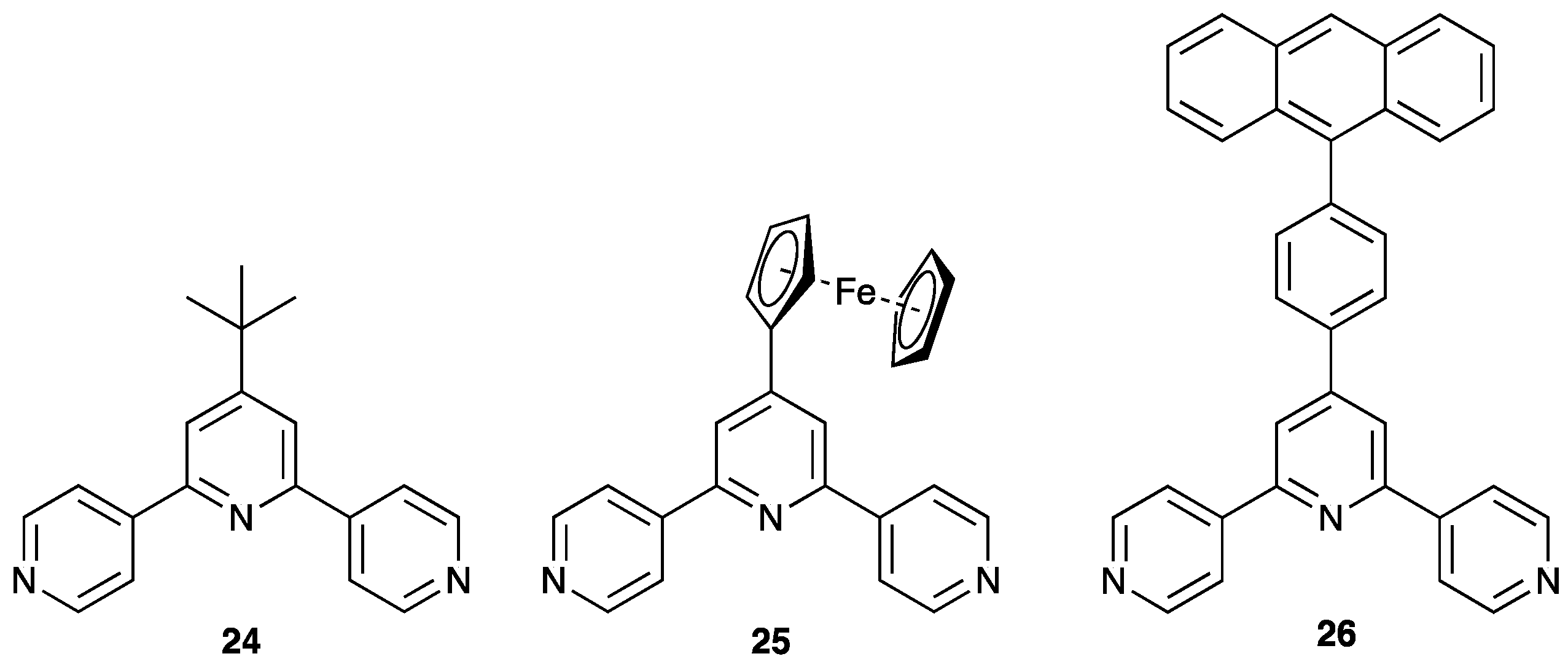

. The structures of ligands 24 and 25 are depicted in Scheme 7. Each of the [Zn(25)(NCS)₂]_nand [Zn(25)(OAc)₂]_n chains (TUNNIB and TUNCIQ in Table 2) is built up by a glide plane and is achiral, whereas each chain in [Zn(14)(OAc)₂]_n, [Zn(21)I₂]_n, [Zn(24)I₂]_n, and [Zn(25)I₂]_n (CUXDOP, ELAMEL, FAKRUG and TUNKEU in Table 2) is propagated along a 2-fold screw axis, with the lattice containing equal numbers of right- and left-handed helical polymers [14,54,55,56]. A second solvate of [Zn(25)(OAc)₂]_n has been structurally characterized (NEFWED in Table 2), and although the chains in [Zn(25)(OAc)₂]_n·2nH₂O [56] and [Zn(25)(OAc)₂]_n·nMeOH·nH₂O [57] are very similar, the change in space group (Table 2) leads to the 1D-polymer in [Zn(25)(OAc)₂]_n·nMeOH·nH₂O being built up by translational symmetry. Crystals of [Zn(14)(OAc)₂]_n were formed under ambient conditions (by layering) after a period of about a month. In contrast, crystals harvested from the same crystallization tube after three days comprised the 1D-polymer [Zn₂(OAc)₄(14)]_n with {Zn₂(OAc)₄} paddle-wheel building blocks [54] (see Section 3.3). Both [Zn₂(OAc)₄(14)]_n and [Zn(14)(OAc)₂]_n are emissive, and exposure to CF₃CO₂H vapor resulted in a red-shift in the emission from 384 to 435 nm for [Zn₂(OAc)₄(14)]_n, and from 390 to 441 nm for [Zn(14)(OAc)₂]_n. This most likely arises from protonation of the central pyridine ring of coordinated ligand 14. However, attempts to alkylate the polymers using MeI or EtI resulted in degradation of the chain and formation of [R₂14][ZnI₄], ROAc and Zn(OAc)₂ (R = Me, Et) [54]. Helical polymers are also formed in reactions of zinc(II) acetate with 4′-(4-(anthracen-9-yl)phenyl)-4,2′:6′,4″-terpyridine (26), and both homochiral polymers and racemates were isolated from the same crystallization tubes (Table 2) [58].

Earlier, we detailed how the assembly of the polymeric [Zn(23)Cl₂]_n competes with the formation of the metallosquare [Zn(23)Cl₂]₄ [52]. In this case, both polymer and discrete metallomacrocycle were observed in the same crystallization tube. In other cases, only cyclic or polymeric structures were isolated and structurally characterized. Wu, Tian and coworkers reported that reactions of 25 (Scheme 7) with ZnCl₂ and ZnBr₂ under conditions of crystal growth by layering (MeOH solution of ZnX₂ layered over a CHCl₃ solution of 25) gave single crystals of the metallohexacycles [Zn₆(25)₆Cl₁₂]·6H₂O·6CHCl₃ and [Zn₆(25)₆Br₁₂]·6H₂O·6CHCl₃ [56]. In contrast, we have observed that, under similar conditions of crystal growth to those used by Wu and Tian [56], ZnCl₂ and ligand 25 react to give the metallosquare [Zn₄(25)₄Cl₈]·2CHCl₃ [57]. The factors that direct the assembly are not understood [59], and, in the absence of powder X-ray diffraction (PXRD) data for the bulk material, it is difficult to assess the competitive nature of these assemblies. We return to the critical need for routine PXRD later.

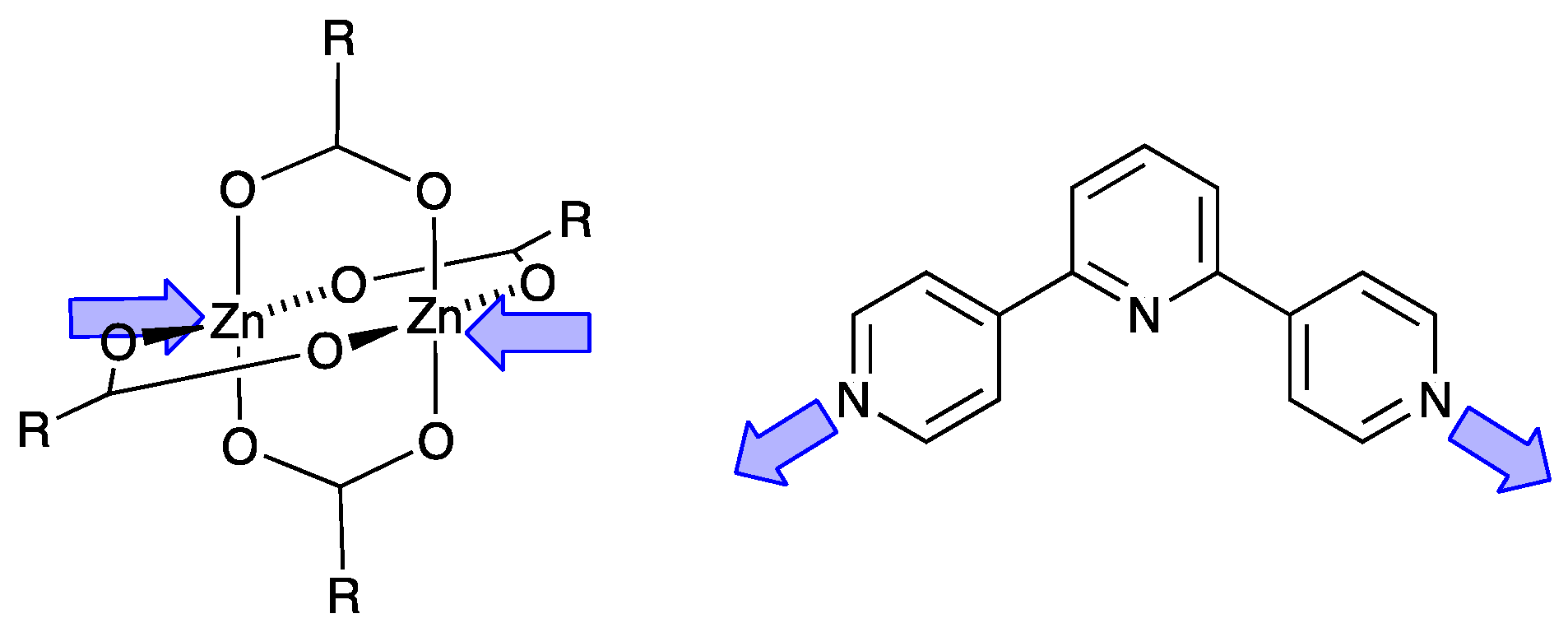

3.3. Assemblies Containing 4′-Functionalized 4,2′:6′,4″-tpy Ligands Connected by {Zn₂μ-OAc)₄} Paddle-Wheel Units

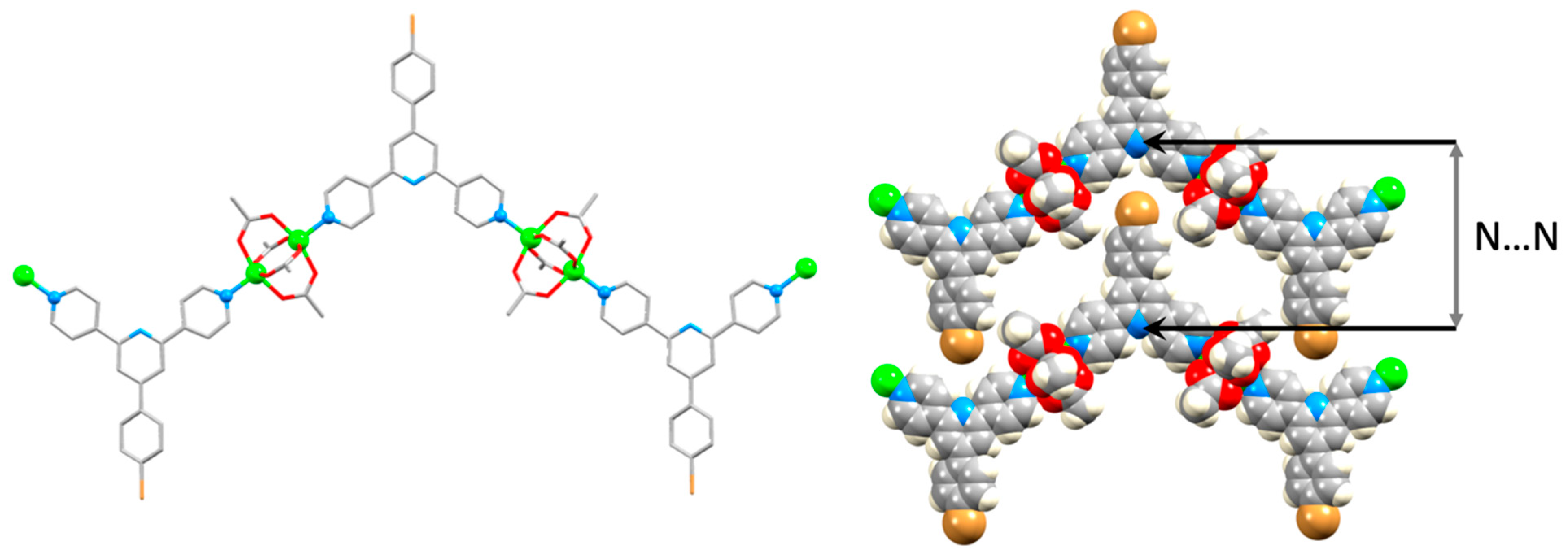

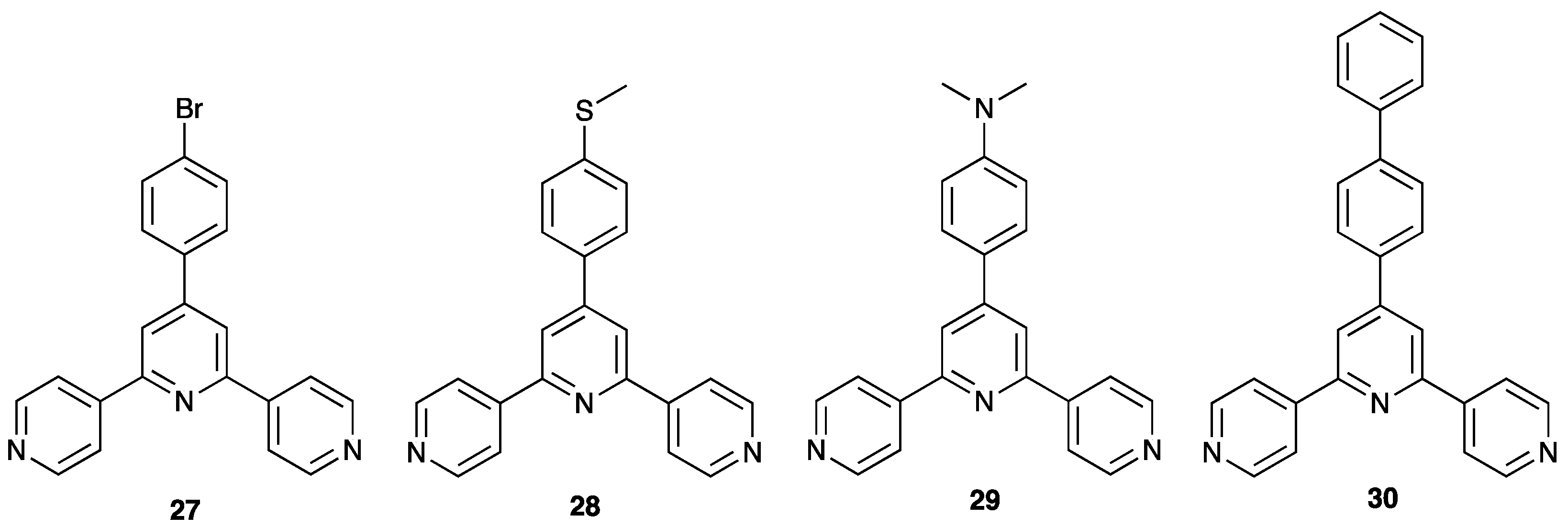

Although Table 2 shows examples of 1D-coordination polymers with mononuclear {Zn(OAc)₂} building blocks, the tendency for dimerization to form {Zn₂(μ-OAc)₄} paddle-wheel units means that reactions between zinc(II) acetate and 4′-functionalized 4,2′:6′,4″-tpy ligand might typically be expected to lead to 1D-chains of general formula [Zn₂(μ-OAc)₄L]_n. The combination of the linear and V-shaped directional properties, respectively, of the paddle-wheel and the ligand (Scheme 8) results in the formation of zigzag chains. A characteristic example is [Zn₂(μ-OAc)₄(27)]_n (see Scheme 9 for 27 and related ligands), the structure of which is shown in Figure 15 [60]. This also shows the typical packing of adjacent zigzag chains into 2D-sheets. Packing of the layers involves face-to-face π-stacking of 4,2′:6′,4″-tpy domains, with the acetato groups from one layer accommodated in pockets in an adjacent layer. Structures analogous to that observed for [Zn₂(μ-OAc)₄(27)]_n are found for [Zn₂(μ-OAc)₄(14)]_n·0.3nCH₂Cl₂ (refcode CUXDUV) [54], [Zn₂(μ-OAc)₄(28)]_n(refcode CUXCUU) [60], and [Zn₂(μ-OAc)₄(29)]_n(refcode QOTROI) [61]. Note that in the case of [Zn₂(μ-OAc)₄(14)]_n·0.3nCH₂Cl₂, crystals grew from a layering experiment under ambient conditions within 3 days and the polymer was isolated in 82% yield. However, over longer crystallization periods under the same conditions, the colorless needles of [Zn₂(μ-OAc)₄(14)]_n·0.3nCH₂Cl₂ which initially formed were largely replaced by pale-yellow blocks of [Zn(14)(OAc)₂]_n (see Table 2) [54]. Once again, this highlights the competitive nature of the assembly processes, and underlines the need for routine analysis of bulk samples by using PXRD.

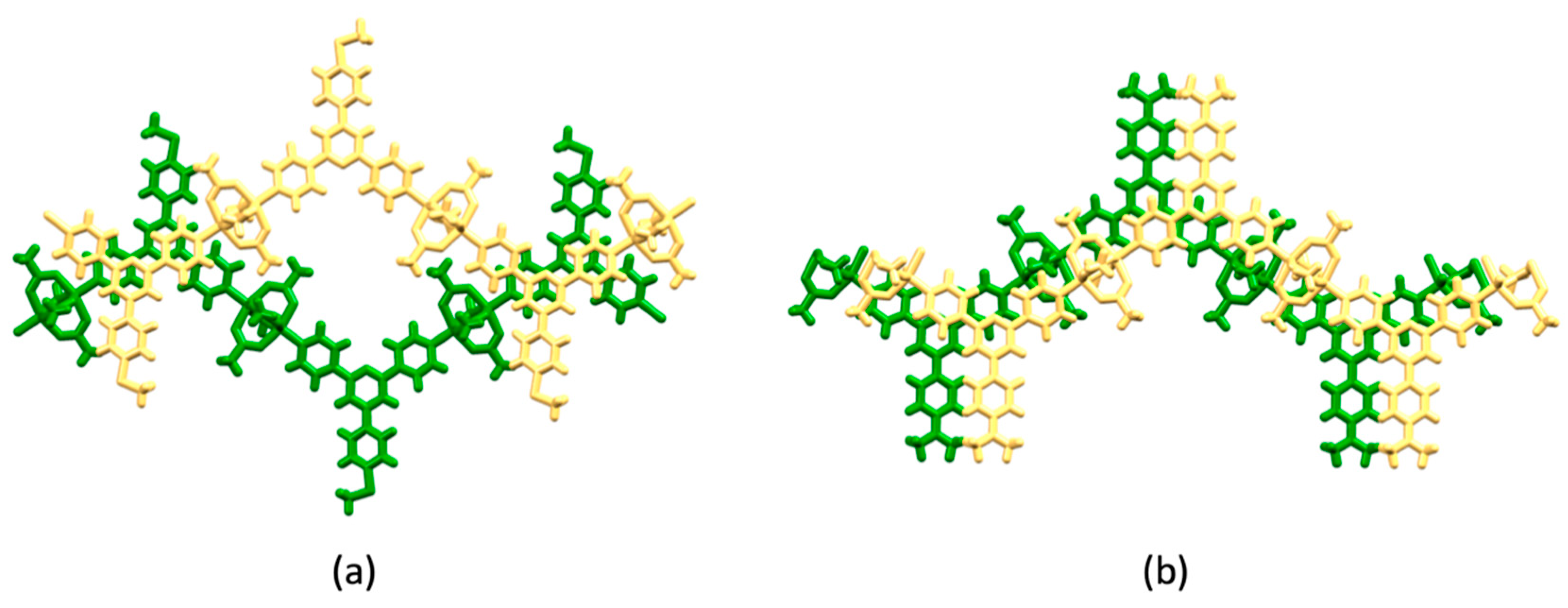

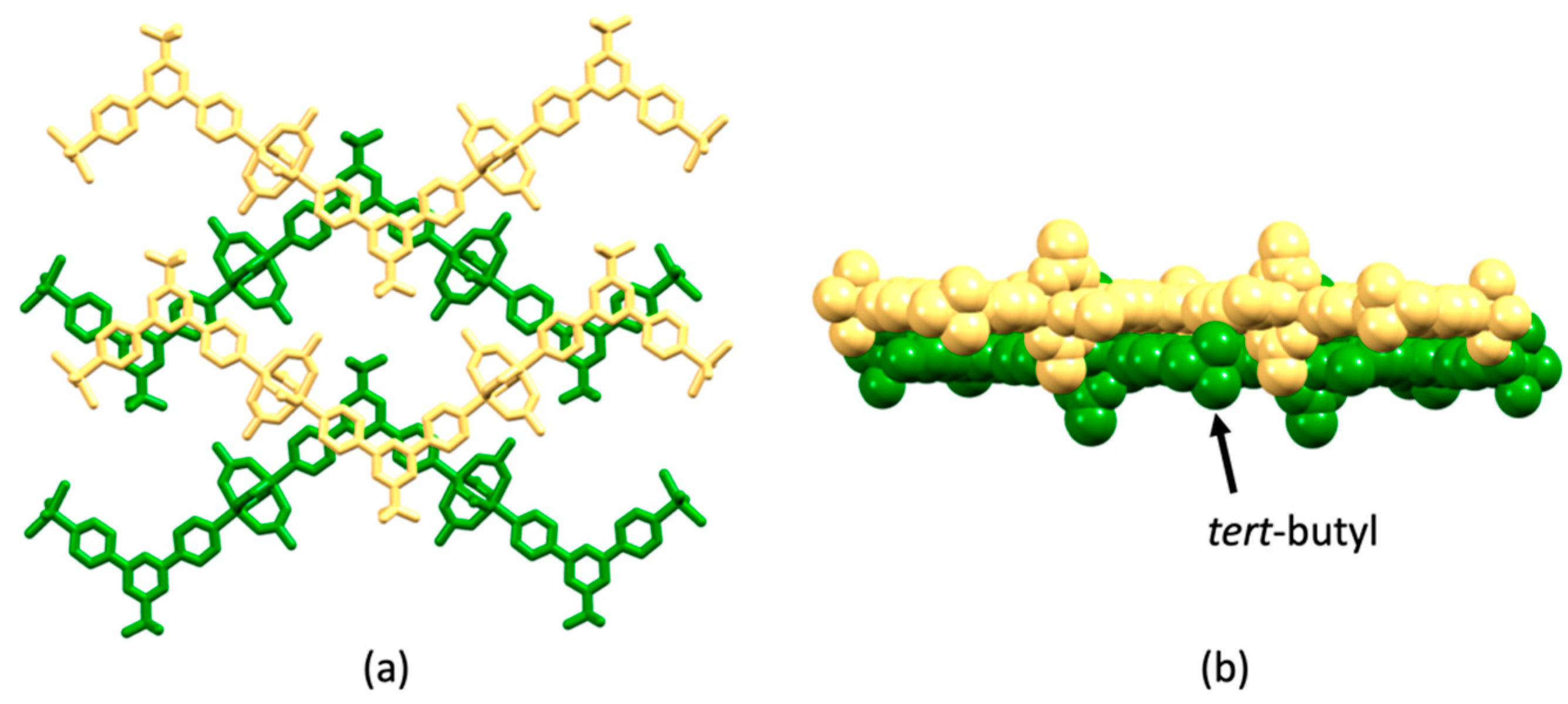

A zigzag polymer is also assembled when ligand 30 reacts with zinc(II) acetate under conditions of crystal growth by layering. In [Zn₂(μ-OAc)₄(30)]_n, (CSD refcode RIJFUN), face-to-face π-stacking of both pairs of biphenyl domains and pairs of 4,2′:6′,4″-tpy units contribute to packing interactions [62]. The zigzag chains are arranged into 2D-sheets in a similar manner to the chains in polymers containing 14, 27, 28, and 29, but the greater steric demands of the biphenyl unit force the chains further apart. The N…N distance defined in Figure 15 is 16.151 Å in [Zn₂(μ-OAc)₄(30)]_n, and this compares to 15.294, 15.077, 14.902 and 14.898 Å in the assemblies with 14, 27, 28 and 29. While the mode of packing of chains into 2D-sheets remains the same in [Zn₂(μ-OAc)₄(4′-X-4,2′:6′,4″-tpy)]_n assemblies with 4′-X-4,2′:6′,4″-tpy = 14, 27, 28, 29, and 30, the different substituents influence the arrangement of the layers with respect to one another (as exemplified in Figure 16) in order to optimize packing interactions. Note that the solvent-accessible void space is small, and within this series, only [Zn₂(μ-OAc)₄(14)]_n·0.3nCH₂Cl₂ with the 4′-phenyl substituent in ligand 14 incorporates solvent.

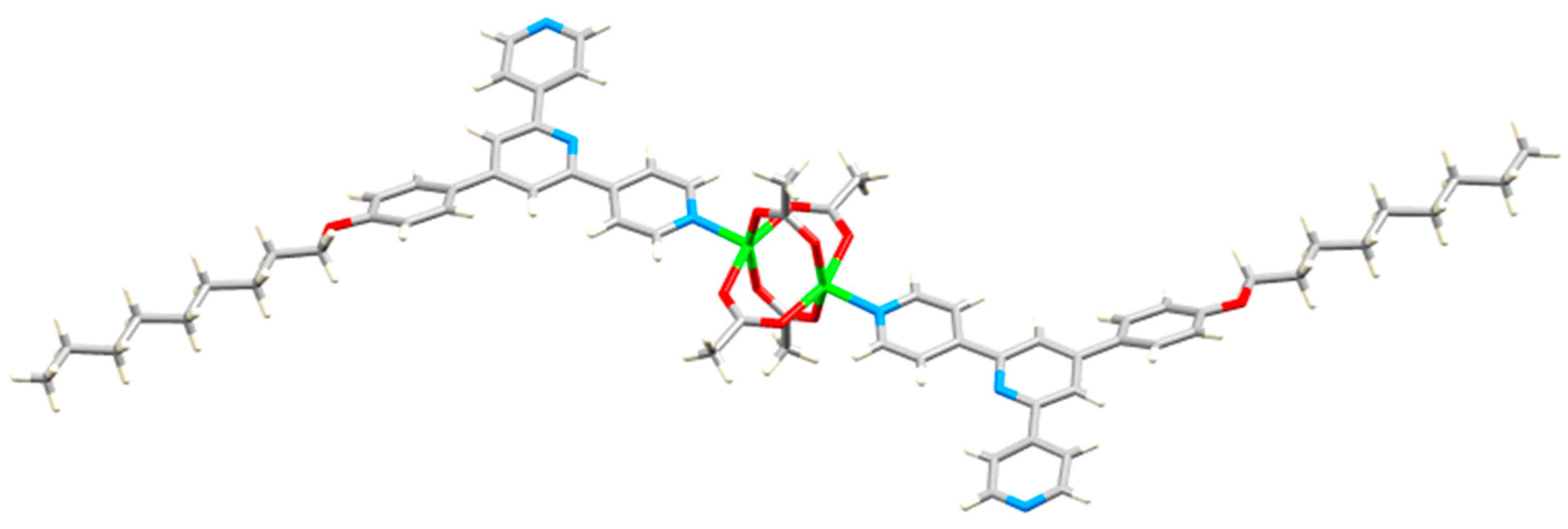

Systematic investigations are typically lacking for coordination polymers containing a given family of ligands. We have carried out one such study for combinations of zinc(II) acetate and 4′-(4-ROC₆H₄)-4,2′:6′,4″-tpy ligands in which R = methyl, ethyl, ⁿpropyl, ⁿbutyl, ⁿpentyl, ⁿhexyl, ⁿheptyl, ⁿoctyl, ⁿnonyl and ⁿdecyl [63]. For the smaller substituents (OMe, OEt, OⁿPr), [Zn₂(μ-OAc)₄(4′-X-4,2′:6′,4″-tpy)]_n assemblies were observed (CSD refcodes SOXSEF, SOXSIJ, SOXSOP) which are similar to that found for [Zn₂(μ-OAc)₄(28)]_n with the SMe substituent (CSD refcode CUXCUU) [60]. The N…N distance (defined in Figure 15) increases from 15.214 to 16.077 Å from OMe to OⁿPr. On going to the longer chains, several changes occur. Firstly, there is competition between the assembly of a coordination polymer and a discrete complex of type [Zn₂(μ-OAc)₄(4′-(4-ROC₆H₄)-4,2′:6′,4″-tpy)₂]. The latter is the sole isolated product for the ligands with ⁿoctyl, ⁿnonyl and ⁿdecyl tails, and the structure of one example is shown in Figure 17. Single-crystal structures for the coordination polymers with the ⁿpentyl, ⁿhexyl and ⁿheptyl tails (refcodes SOXTUW, SOXGIX and SOXTAC, respectively) confirm the presence of 1D-zigzig polymer chains and packing into 2D sheets in the manner depicted in Figure 15; cavities within a sheet are occupied by solvent. Changes in the packing of sheets demonstrate the response to the increased steric demands of the alkyloxy tails [63].

In all the assemblies discussed in the section so far, the ligands have contained a phenyl group or phenylene spacer in the 4′-position of the 4,2′:6′,4″-tpy. The structural similarities between the ligands in [Zn₂(μ-OAc)₄(4′-X-4,2′:6′,4″-tpy)]_n 1D-coordination polymers result in similar packing interactions within this series of compounds. In contrast, ligand 24 (Scheme 7) contains a tert-butyl substituent attached directly to the central ring of the 4,2′:6′,4″-tpy metal-binding domain. Once again, zigzig chains that pack together to form 2D-sheets are assembled, and it is significant that in [Zn₂(μ-OAc)₄(24)]_n, packing between the zigzag 1D-chains, is dominated by face-to-face π-stacking of 4,2′:6′,4″-tpy units (Figure 18a). The ball-like tert-butyl groups are accommodated in cavities between acetato units in the next sheet (Figure 18b) [55]. Note how the stacking of chains in [Zn₂(μ-OAc)₄(24)]_n differs from the arrangement in chains with phenylene spacers (compare Figure 18a with Figure 16). The N…N separation in [Zn₂(μ-OAc)₄(24)]_n (see Figure 15) is 14.892 Å.

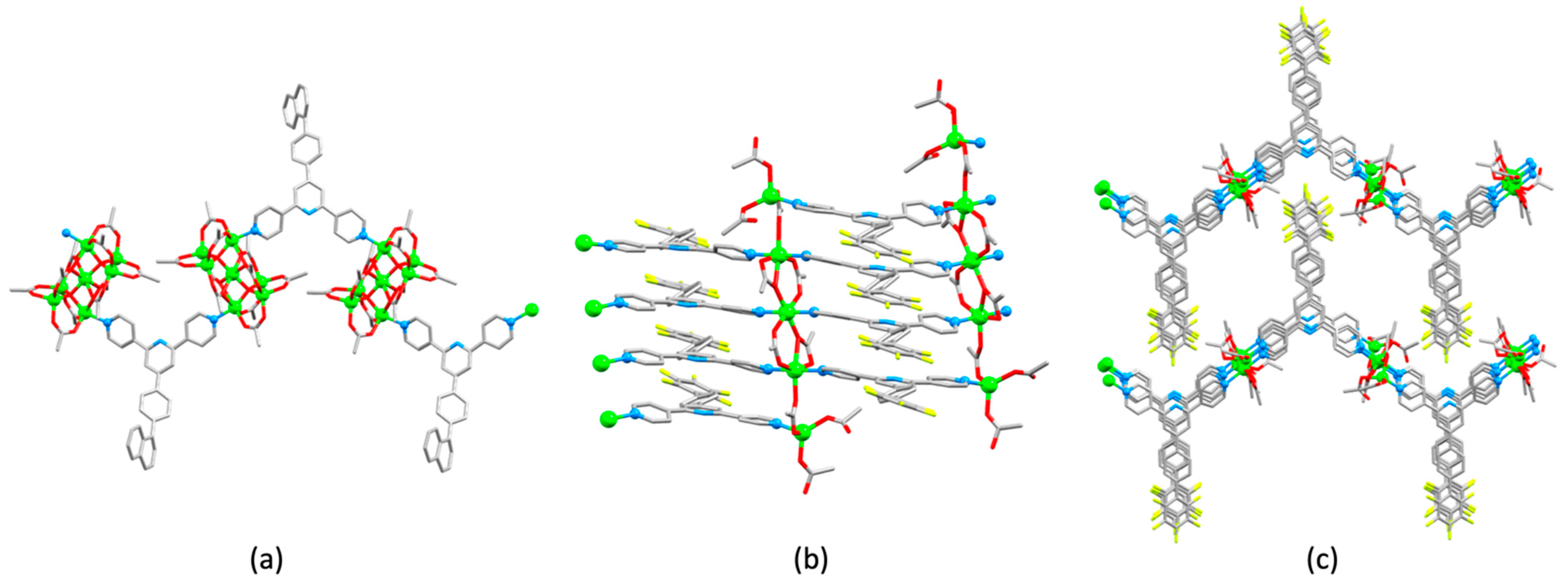

Before leaving this section, two examples of reactions of zinc(II) acetate with 4,2′:6′,4″-tpy ligands illustrate, not for the first time, that serendipity contributes significantly to assembly processes. Ligand 22 (Scheme 6) and Zn(OAc)₂·2H₂O react under conditions of crystal growth by layering to produce the expected 1D-polymer [Zn₂(μ-OAc)₄(22)]_n. However, only preliminary crystallographic data could be obtained for this compound, and during attempts to grow better single crystals, a few X-ray quality crystals of the 1D-coordination polymer [2{Zn₇(μ-OAc)₁₀(μ₄-O)₂(22)}]_n·nCH₂Cl₂ were obtained. The compound crystallizes in the P2₁2₁2₁ space group, and the chiral 1D-chain (Figure 19a) is built up along a 2-fold screw axis. Although crystallization in P2₁2₁2₁ space group precludes the presence of crystallographic inversion centers, the {Zn₇(μ-OAc)₁₀(μ₄-O)₂} cluster is close to being centrosymmetric. It appears that the packing of chains of the same handedness allows the peripheral naphthyl groups in 22 to be accommodated within a cleft between a pair of 4,2′:6′,4″-tpy units [58]. A layering method was also used to grow single crystals from the reaction between ligand 23 (Scheme 6) and Zn(OAc)₂·2H₂O [64]. Both block- and plate-shaped crystals were obtained in the same crystallization tube. Preliminary crystallographic data for the blocks confirmed the assembly of the 1D-polymer [Zn₂(μ-OAc)₄(23)]_n with a zigzag structure analogous to that shown in Figure 15. However, the plates proved to be an unusual 1D, quadruple-stranded chain containing {Zn₅(OAc)₁₀} units (Figure 19b). The packing of the chains in [Zn₅(OAc)₁₀(23)₄]_n·11nH₂O (Figure 19c) resembles that of the single zigzag chains (Figure 15). PXRD analysis of the bulk material revealed that the dominant product was [Zn₅(OAc)₁₀(23)₄]_n·11nH₂O, rather than the more typical single chain [Zn₂(μ-OAc)₄(23)]_n. However, the reasons for this remain obscure.

The discussion in this section has revealed that, although {Zn₂(μ-OAc)₄} paddle-wheel building blocks are ubiquitous [65] and are ideally suited for connecting divergent 4,2′:6′,4″-tpy metal-binding domains into 1D-coordination polymers, crystallization conditions may lead to competing assemblies. These may involve the incorporation of Zn(OAc)₂ units with monodentate acetato ligands, or the assembly of Zn_x(OAc)_y clusters. Single products from a reaction cannot be assumed, and we again emphasize the need for routine PXRD to ensure that a single crystal structure is representative of the bulk crystalline material.

3.4. Assemblies Containing Zinc(II) and 4,2′:6′,4″-tpy Ligands Functionalized in the 4′-Position with Carboxylates

In Section 3.2, we described the structure of the 1D-coordination polymer [Zn₂(H17)₂Cl₄]_n [48]. Rather atypically, the carboxylic acid group in H17 (Scheme 6) remains protonated upon coordination. In other coordination assemblies involving H17 (see below) and those with ligands H31–H34 and H₂35–H₂37 (Scheme 10), deprotonation leads to 4,2′:6′,4″-tpy ligands with carboxylate coordination sites. As we shall see, the presence of an anionic carboxylate donor often leads to preferential coordination of the latter with respect to metal-binding by pyridine donors, with the result that a significant number of assemblies feature pendant, non-coordinated pyridine units.

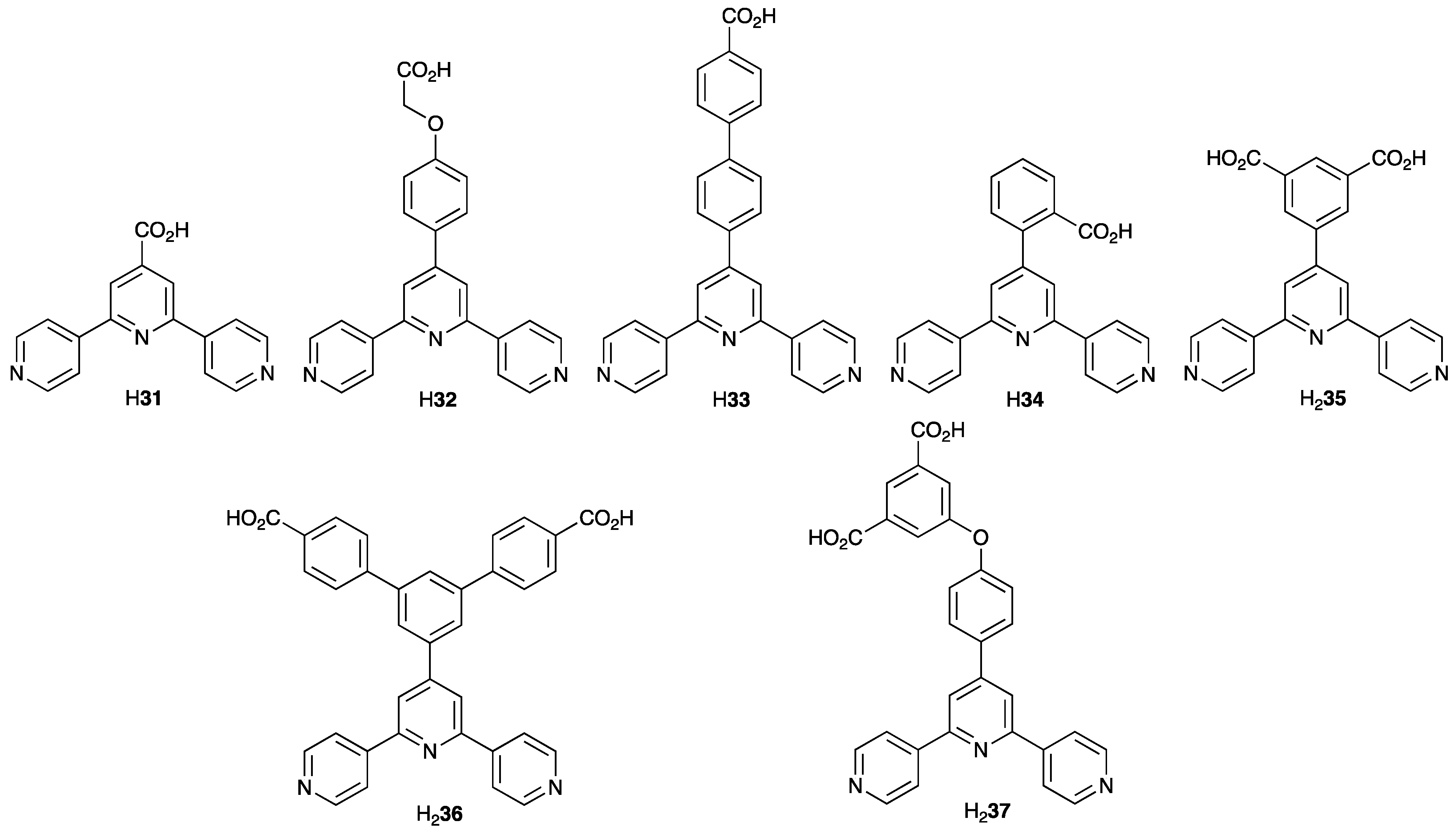

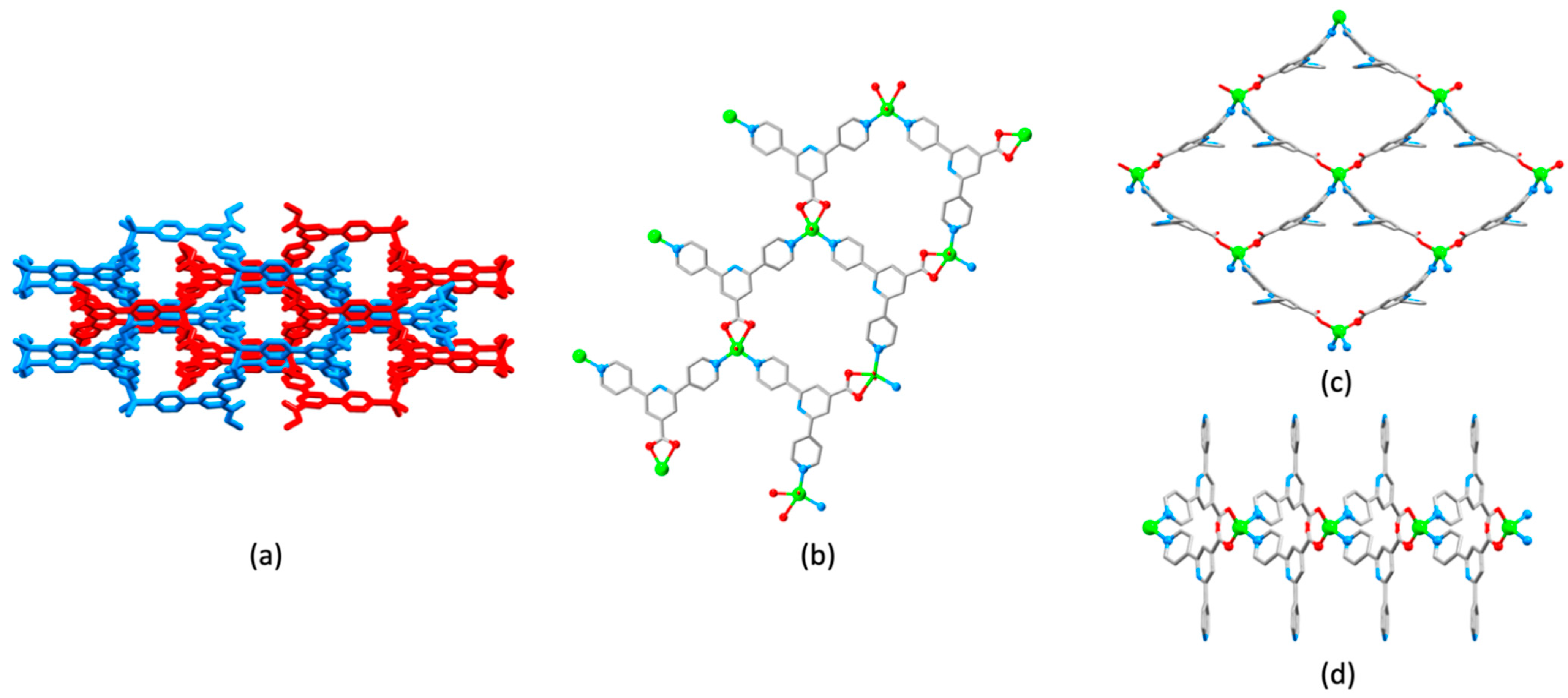

The reaction of zinc(II) acetate and H31 (Scheme 10) under solvothermal conditions (H₂O/DMF, pH 4.0, 140 °C) resulted in the formation of [Zn₂(31)₂(O₂CH)₂]_n·3.5nH₂O, with the formato ligand being derived from hydrolysis of DMF. Adjusting the ratio of solvents from 4:1 to 3:2, and raising the pH to 4.5 switches the assembly to [Zn₂(31)₂(O₂CH)₂(OH₂)₂]_n·nH₂O. In contrast, keeping the original conditions but replacing DMF by DMA (DMA = dimethylacetamide) led to [{Zn₂(31)₂(OH₂)₄}_n]·[MeCO₂]_2n·nH₂O. A further change in solvent ratio (H₂O:DMA = 7:3) and an increase in temperature to 160 °C resulted in crystals of [Zn₂(31)₂(O₂CMe)₂]_n·nH₂O. [Zn₂(31)₂(O₂CH)₂]_n·3.5nH₂O and [Zn₂(31)₂(O₂CMe)₂]_n·nH₂O possess similar 2-fold interpenetrating 3D-nets, and Figure 20a depicts part of the [Zn₂(31)₂(O₂CH)₂]_n network. Each Zn(II) center is tetrahedrally sited, being bound by two N-donors from two different 31^– ligands, one carboxylate group from a 31^– ligand, and one monodentate formato ligand. In [Zn₂(31)₂(O₂CMe)₂]_n·nH₂O, the acetato ligand is classed as bidentate (Zn–O = 2.037(5) and 2.482(7) Å). Both [Zn₂(31)₂(O₂CH)₂(OH₂)₂]_n·nH₂O and [{Zn₂(31)₂(OH₂)₄}_n]·[MeCO₂]_2n·nH₂O feature 2D-nets with 6³ (hcb) topology (Figure 20b). Each net is essentially planar with axial H₂O, or H₂O and HCO₂^– ligands decorating the upper and lower surfaces of a sheet [66]. Under hydrothermal conditions (pH 4.0, 160 °C), H31 reacts with ZnSO₄·7H₂O, giving single crystals of [Zn(31)₂]_n·nH₂O. This assembly comprises a 2D (4,4) net (Figure 20c) and a noticeable feature is that the 4,2′:6′,4″-tpy unit binds to zinc(II) through only one N-donor. Thus, each 31^– ligand is ditopic. In other (4,4) nets, 4,2′:6′,4″-tpy typically acts as a ditopic N,N′-linker (see Section 3.7) and, therefore, the presence of the 4′-CO₂^– is a critical factor is switching the coordination mode. Figure 20d shows that in [Zn(31)₂]_n·nH₂O, the uncoordinated terminal pyridyl groups protrude from above or below the sheet. Zhu and coworkers describe the 2D-sheet as being constructed from left- and right-handed helical chains, the chains being connected through Zn(II) centers, to give 2D-sheets based either on left- or right-handed helices [66]. Under hydrothermal conditions at pH 4.0, H31 reacts with ZnCl₂ to give crystals of [Zn(31)Cl]_n·nH₂O. Phthalic acid was present in the reaction mixture but was not incorporated as a co-ligand. However, in the absence of phthalic acid, no crystalline material was obtained [67]. This phenomenon is seen repeatedly, and we highlight further examples later in the review. A comparison of Figure 21a with Figure 20a illustrates that the 2-fold interpenetrating assembly in [Zn(31)Cl]_n·nH₂O mimics that in [Zn₂(31)₂(O₂CH)₂]_n·3.5nH₂O. Both compounds crystallize in the Pbcn space groups and the cell dimensions are similar: for [Zn(31)Cl]_n·nH₂O (refcode XEXPUN), a = 20.452(3), b = 7.2803(10), c = 21.203(3) Å, and for [Zn₂(31)₂(O₂CH)₂]_n·3.5nH₂O (refcode KEPKEY), a = 20.453(3), b = 7.6063(13), c = 21.826(3) Å.

Ligands H17 and H31 (Scheme 6 and Scheme 10) differ in that the former contains a phenylene spacer between the 4,2′:6′,4″-tpy and carboxylic acid domains. Solvothermal conditions (H₂O/DMA, HNO₃, 80 °C) were used for the reaction of Zn(NO₃)₂·6H₂O with H17, and the product was shown by X-ray diffraction to be [{Zn₃(17)₃(NO₃)₂(OH₂)₄}_n][NO₃]_n·5nDMF·2nH₂O [68]. A 2D-net assembles (Figure 21b) and is closely related to that observed in [{Zn₂(31)₂(OH₂)₄}_n]·[MeCO₂]_2n·nH₂O (Figure 20b). Under different solvothermal conditions (H₂O/MeCN, HNO₃, 160 °C), the reaction between Zn(NO₃)₂·6H₂O and H17 led to [Zn₂(17)₄]_n·0.875nH₂O, consisting of 2-fold interpenetrating 2D-nets in which ligand 17^– binds to Zn(II) through only one pyridine ring [30]. The same assembly is produced from Zn(NO₃)₂·6H₂O and H17 under different conditions (H₂O/DMA, pH 6.0, 180 °C), although it is formulated as [Zn₂(17)₄]_n·nH₂O [69]. A comparison of the two structures (both in space group P–1) reveals them to be isostructural. Cell dimensions for [Zn₂(17)₄]_n·0.875nH₂O (CSD refcode GEYTEL) are a = 15.120(4), b = 15.143(4), c = 17.514(5) Å, α = 69.388(7), β = 86.529(8), γ = 79.694(9)° [30], while those reported for [Zn₂(17)₄]_n·nH₂O (CSD recode JEYYUK) are a = 15.102(6), b = 15.117(6), c = 17.397(7) Å, α = 86.631(5) β = 69.642(4), γ = 79.346(5)° [69]. The 2D→2D parallel interpenetration is shown in Figure 21c. Figure 21d illustrates the projection of arene substituents above and below the 2D-sheets, and face-to-face π-stacking between arene rings in adjacent layers locks the assembly together. In [Zn₂(17)₂Cl₂]_n·0.5nH₂O (refcode JUHYOC), 17^– behaves in a tritopic manner, and a 6³ net assembles, and undergoes 2-fold interpenetration [70].

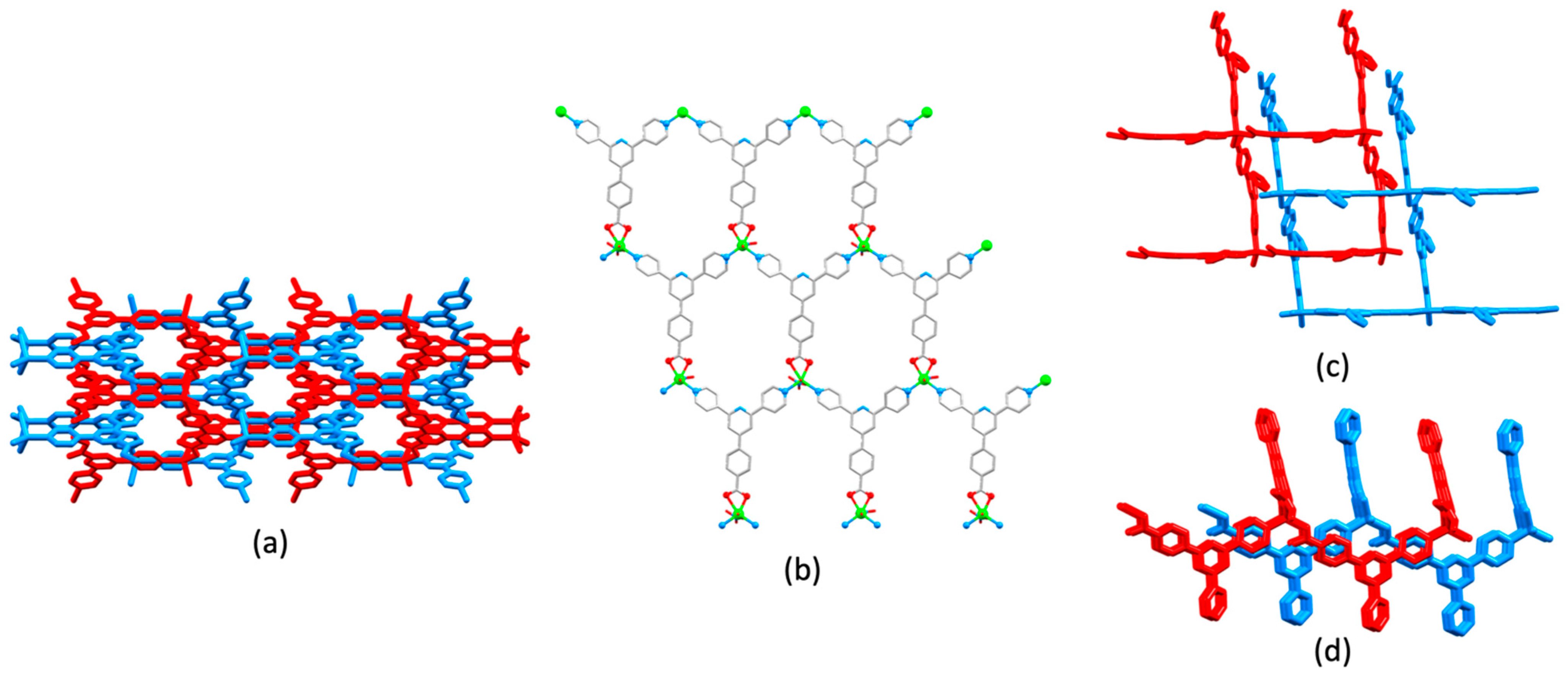

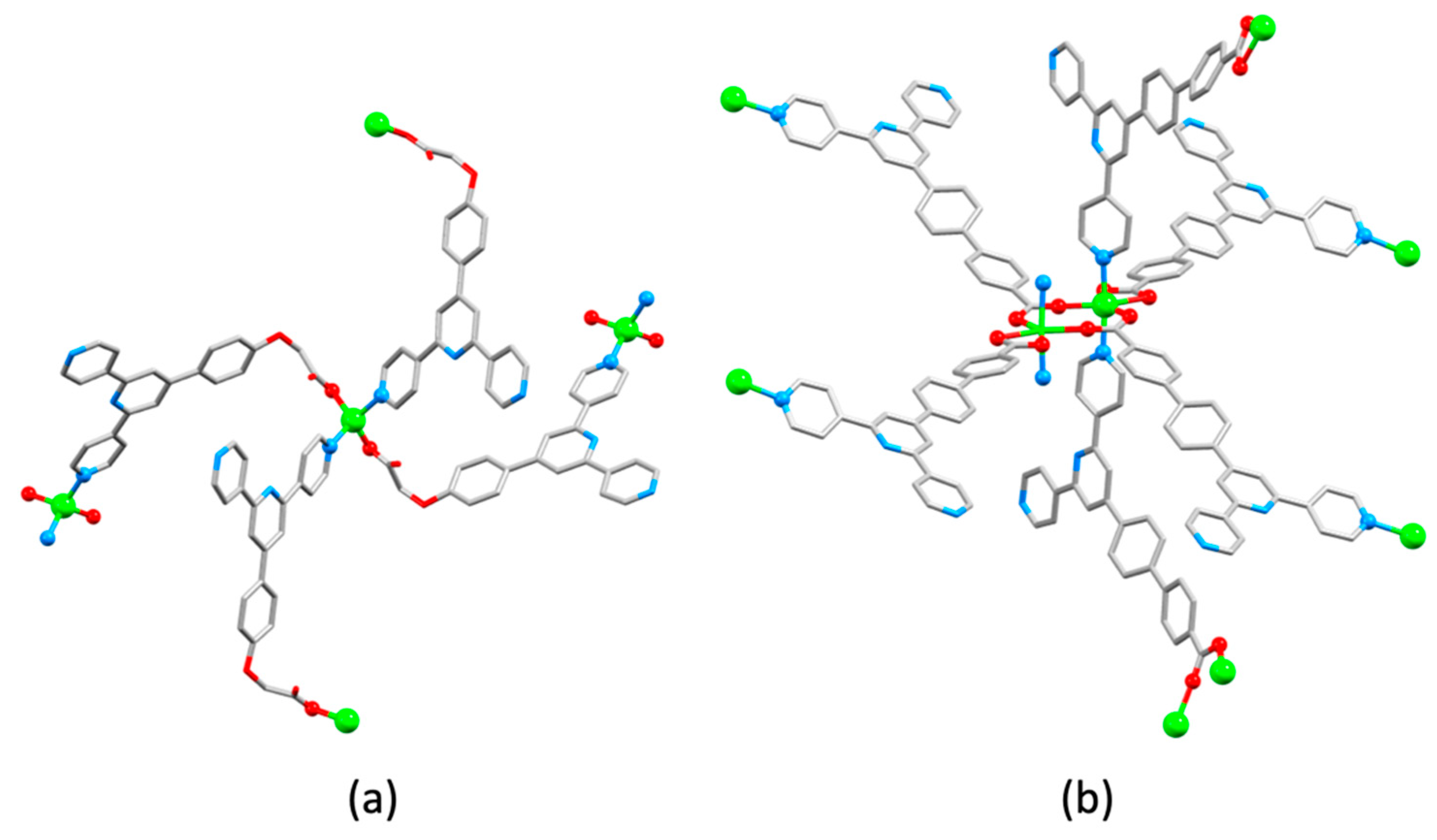

In [Zn₂(17)₄]_n·nH₂O and [Zn₂(17)₄]_n·0.875nH₂O (Figure 21c,d), the 4,2′:6′,3″-tpy unit was monodentate, and this is also observed in [Zn(32)₂]_n (see Scheme 10 for H32). Note that ligands H17 and H32 differ only by the introduction of an OCH₂ unit, and this has a significant effect on the assembly. [Zn(32)₂]_n was prepared under hydrothermal conditions (pH 4.0, 160 °C) and adopts an interpenetrated 4-connected 3D network. Each Zn(II) center is bound by two pyridine rings (from different ligands) and two monodentate carboxylates (from different ligands) as shown in Figure 22a, and the structure propagates into a dia network which undergoes 3-fold interpenetration [71]. Upon moving from H17 and H32 to H33 (Scheme 10), the distance between the 4,2′:6′,4″-tpy and carboxylic acid domains increases further; note that H33 possesses a relatively rigid backbone. The reaction of H33 with Zn(NO₃)₂·6H₂O under solvothermal conditions (H₂O/DMF, 120 °C) produced [Zn(33)₂]_n·xnH₂O (x was not determined). As in the examples above, the 4,2′:6′,4″-tpy domain in 33^– coordinates only through one pyridine ring, but in contrast to the coordination environment in [Zn(32)₂]_n (Figure 22a), the Zn(II) centers in [Zn(33)₂]_nare dinuclear (Figure 22b). Each unit acts as an 8-connected node (only six ligand linkers are shown in Figure 22b for clarity). The 3D-assembly is described by the authors as a (2,8)-connected network with a topological point symbol of {4²⁴·6⁴}; see Section 3.8 for a comparison with the cadmium analog. The MOF was used as a multi-responsive fluorescent sensor for simultaneously detecting Hg²⁺, [CrO₄]²⁻ and [Cr₂O₇]²⁻ ions in aqueous solution with low detection limits [72].

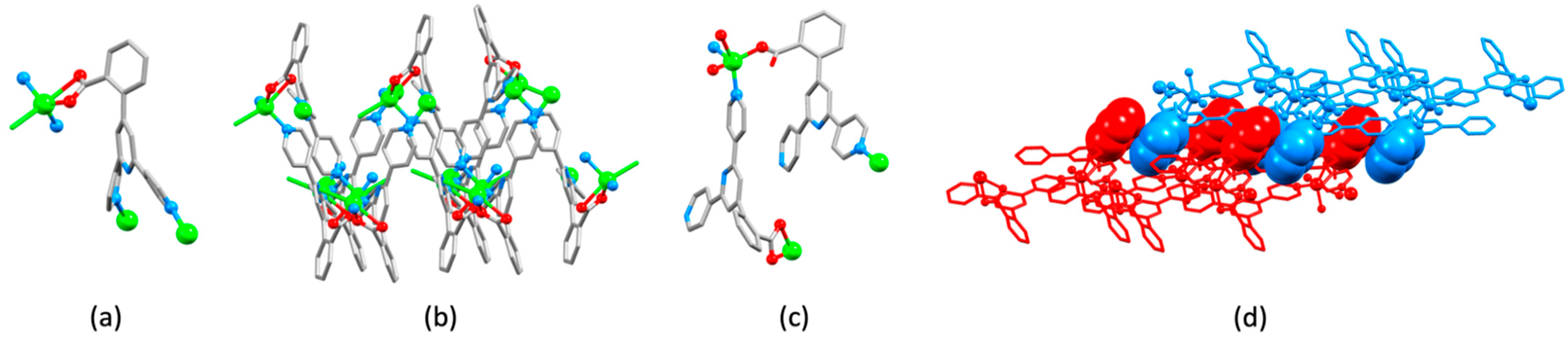

Hu and coworkers have reported a series of six zinc(II)-containing assemblies with the conjugate base of H34 (Scheme 10) [73]. Crystals were all grown under hydrothermal conditions (180 °C), and we include here only those structures in which there is no co-ligand. The reaction of ZnCl₂ and H34 gave [Zn(34)Cl]_n, while with Zn(OAc)₂·2H₂O, crystals of [Zn₂(34)₄]_n·2nH₂O were obtained. It is relevant to compare the structures of these assemblies with those containing 17^–, because linkers 17^– and 34^– are isomers. We described earlier that in [Zn₂(17)₂Cl₂]_n·0.5nH₂O [70], the ligand bound three Zn centers and assembled a 6³ net. In [Zn(34)Cl]_n, the ligand is again tritopic (Figure 23a), but the differing vectorial properties of the donor atoms compared to those in 17^– lead to a 2D-sheet architecture which the authors describe in terms of 1D-loop chains, which are further linked by a terminal nitrogen atom and carboxylate group. As Figure 23b illustrates, the structure is not easy to envisage. [Zn₂(34)₄]_n·2nH₂O is also a 2D-network, but in this assembly, 34^– is ditopic and coordinates through one pyridine ring and the carboxylate group. Figure 23c shows the coordination modes of the two independent ligands. The structure propagates into a 2D sheet, and the phenyl rings are involved in face-to-face contacts between the layers (Figure 23d). Figure 23 shows that a feature common to both [Zn(34)Cl]_n and [Zn₂(34)₄]_n·2nH₂O is that the arene rings of the 2-carboxyphenyl groups are located on the upper and lower surfaces of the 2D-nets.

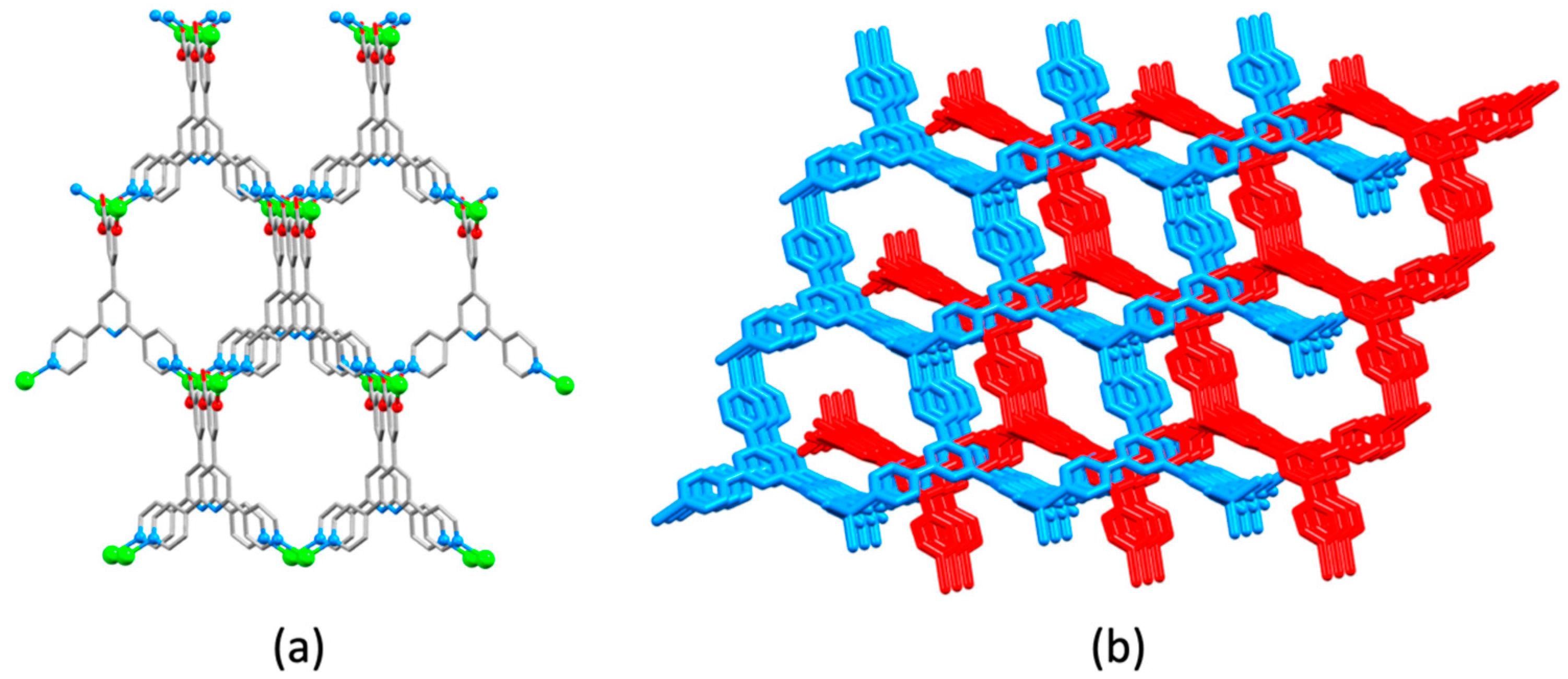

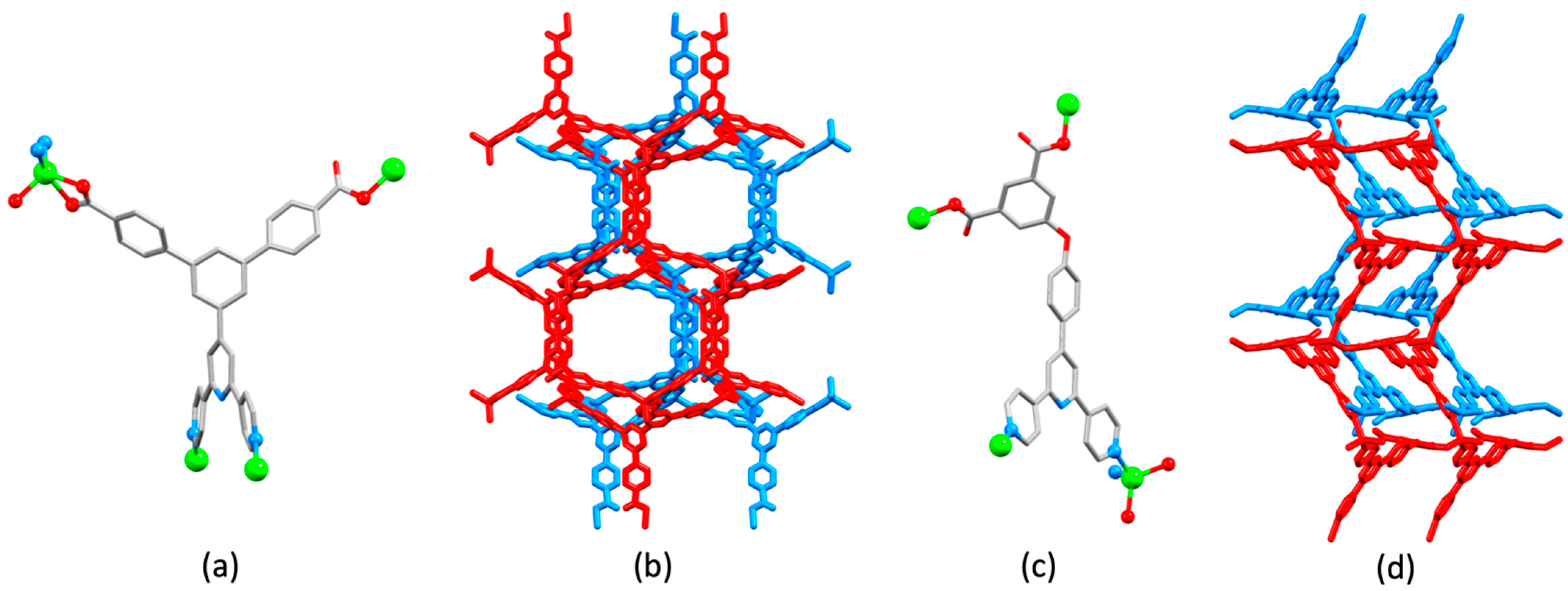

Dicarboxylic acids H₂35, H₂36 and H₂37 (Scheme 10) all act as tetratopic ligands with zinc(II). Feng and coworkers have described the solvothermal reaction of H₂35 with Zn(NO₃)₂·6H₂O (DMA, 120 °C) leading to crystals of [Zn(35)]_n·nDMA·2nH₂O [74]. The compound (refcode WUWBUO) crystallizes in the triclinic P–1 space group and cell dimensions are identical to those of [Zn(35)]_n·1.25nH₂O and [Zn(35)]_n·4.17nH₂O, the structures of which have been deposited to the CSD as communications [75,76]. Both the Zn(II) center and 35^2– ligand in [Zn(35)]_n are 4-connecting nodes, and both are distorted tetrahedral. Figure 24a illustrates part of the 3D-network (with dia topology) that is assembled; the view highlights the hexagonal channels running parallel to the a-axis. Two-fold interpenetration occurs as shown in Figure 24b. On going from H₂35 to H₂36, additional phenylene spacers are introduced (Scheme 10). The solvothermal reaction of H₂36 with Zn(NO₃)₂·6H₂O (DMF, 100 °C) yielded crystals of [Zn(36)]_n·4nDMF [77]. As in [Zn(35)]_n, both Zn(II) and 36^2– in [Zn(36)]_n·4nDMF are 4-connecting, approximately tetrahedral nodes (Figure 25a). However, in this case a lon net assembles, with 2-fold interpenetration (Figure 25b). The lon net includes boat-form six-membered rings which are not present in a dia net [78]. The activated [Zn(36)]_n MOF has high porosity with a micropore volume of 0.89 m³ g^–1. In addition, [Zn(36)]_n·4nDMF exhibits efficient luminescence sensing for Cu²⁺ ions [77]. The conformational flexibility of H₂37 (Scheme 10) contrasts with that of H₂35 and H₂36. The reaction of H₂37 with Zn(NO₃)₂·6H₂O under solvothermal conditions (MeCN/H₂O/NaOH, 140 °C) produced crystals of solvated [Zn(37)]_n. Both the ligand (Figure 25c) and Zn(II) center are 4-connecting nodes. A complex 3D-net assembles and, as in the previous examples, the large voids present in the net, lead to 2-fold interpenetration. In common with related MOFs, the presence of solvent-accessible voids coupled with the non-coordinated pyridine ring of the 4,2′:6′,4″-tpy domain make [Zn(37)]_n a candidate for fluorescence sensing for both metal cations and small molecules [79].

3.5. Assemblies Containing Zinc(II) and 4,2′:6′,4″-tpy Ligands Functionalized in the 4′-Position with a Pyridinyl Group or Other Nitrogen Heterocycles

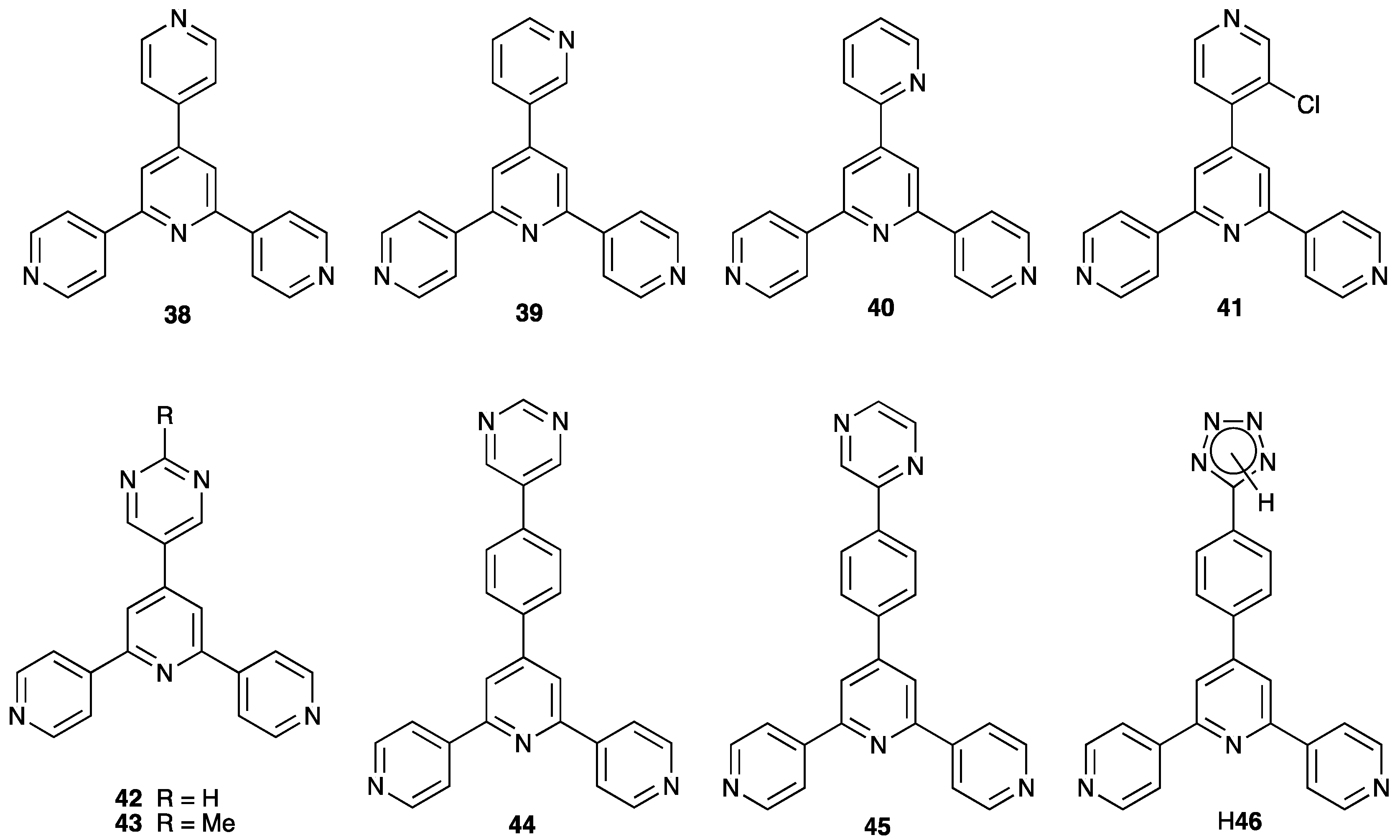

The introduction into a 4,2′:6′,4″-tpy unit of an additional nitrogen-containing heterocyclic substituent is a popular strategy for increasing the dimensionality of a coordination assembly. However, just as we have noted that the 4,2′:6′,4″-tpy may bind in either a mono- or ditopic manner, it is difficult to predict whether the added heterocyclic substituent will be coordinatively active or innocent. Scheme 11 summarizes the ligands discussed in this section; note that ligands 38, 39 and 40 are isomers of each other.

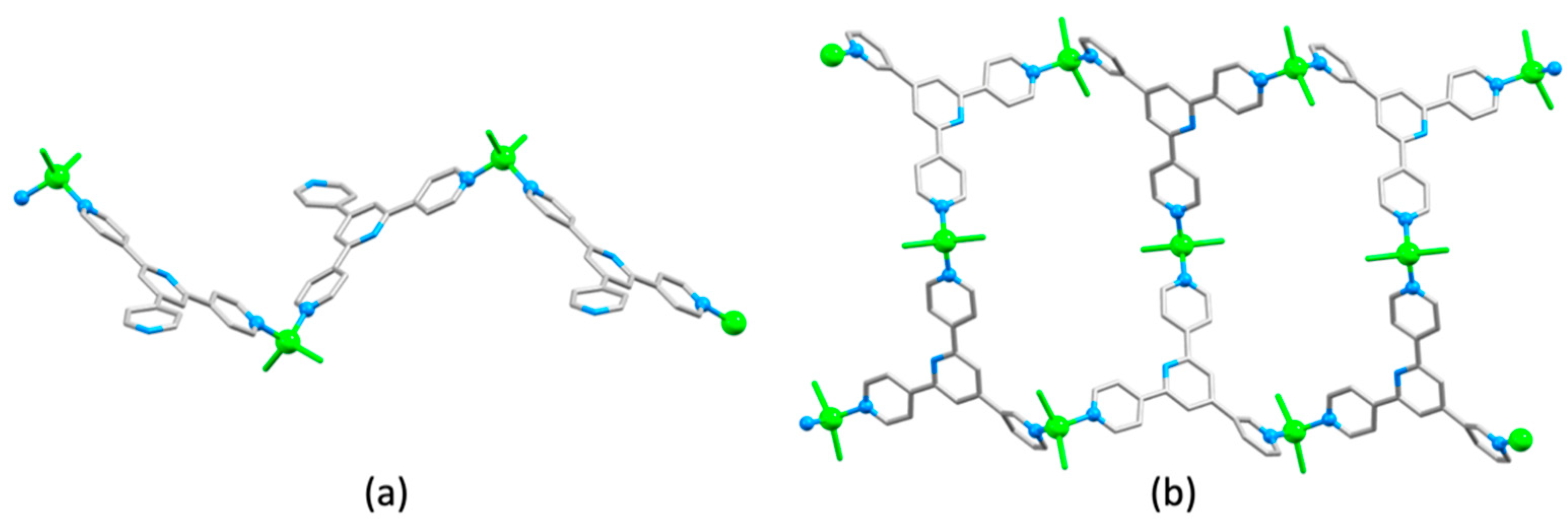

Ligand 38 appears both as a ditopic and tritopic building block in coordination assemblies with zinc(II). Reactions with zinc(II) halides yield varying products, and whether this is a consequence of reactions conditions or serendipity is difficult to assess in the absence of PXRD data for bulk materials. Hu and coworkers reported that, under hydrothermal conditions (160 °C), ZnCl₂·2H₂O and 38 react to give single crystals of [Zn(38)Cl₂]_n. The structure is a helical 1D-coordination polymer with pendant, non-coordinated pyridin-4-yl substituents (Figure 26a) [80]. In contrast, Dehnen and coworkers observed the assembly of interlocked molecular cages in [Zn₁₂(38)₈Cl₂₄]_n·nCHCl₃ when crystals were grown by layering a chloroform solution of 38 over a methanol solution of ZnCl₂ [81]. Dehnen reported that a change to ZnI₂ resulted in the assembly of a 1D-chain [81], but in contrast, we have observed that reacting ZnI₂ with 38 under conditions of crystal growth by layering resulted in the assembly of polycatenated icosahedral [Zn₁₂(38)₈I₂₄] cages [59], analogous to those in [Zn₁₂(38)₈Cl₂₄]_n·nCHCl₃ [81]. Retaining a layering technique, we also demonstrated that the introduction of a chloro-substituent on going from ligand 38 to 41 (Scheme 11) affects the outcome of the reaction with ZnI₂. Instead of the assembly of an [Zn₁₂(38)₈I₂₄] cage, crystals of the 1D-polymer [Zn(41)I₂]_n·0.25nH₂O were isolated. A combination of 41 and zinc(II) chloride also gave a 1D-coordination polymer, [Zn(41)Cl₂]_n [59].

We saw earlier that, under hydrothermal conditions, Hu and coworkers assembled [Zn(38)Cl₂]_n with a simple 1D-polymer assembly (Figure 26a) [80]. An interesting change occurs when moving from 38 to its isomer 39. Again, under solvothermal conditions, ZnCl₂ reacts with 39 to produce [Zn₃(39)₂Cl₆]_n·nH₂O. This consists of a 1D-coordination polymer in which 39 acts as a tritopic ligand, leading to a ladder-type of assembly (Figure 26b) [82]. Unfortunately, there is no example of a coordination assembly featuring the third ligand isomer 40 with a zinc(II) halide, so no direct comparisons are possible. However, a comparison can be made between the structures of the coordination polymers formed in the reactions of Zn(OAc)₂·2H₂O and ligands 38 or 40. Zhang et al. reported that crystal growth by layering at room temperature led to the assembly of [Zn₂(μ-OAc)₄(38)]_n·1.5nMeOH and [Zn(OAc)₂(40)]_n [61]. Both contain 1D-chains, and the 4′-pyridinyl substituent is non-coordinated. The assembly in [Zn₂(μ-OAc)₄(38)]_n·1.5nMeOH falls into the category of the structures described in Section 3.3, while [Zn(OAc)₂(40)]_n possesses a helical 1D-polymer. In both crystal growth experiments, a ratio of Zn:ligand of 2:1 was used, and the difference in the assemblies is not unique (see Table 2 and discussion) but is not easily explained.

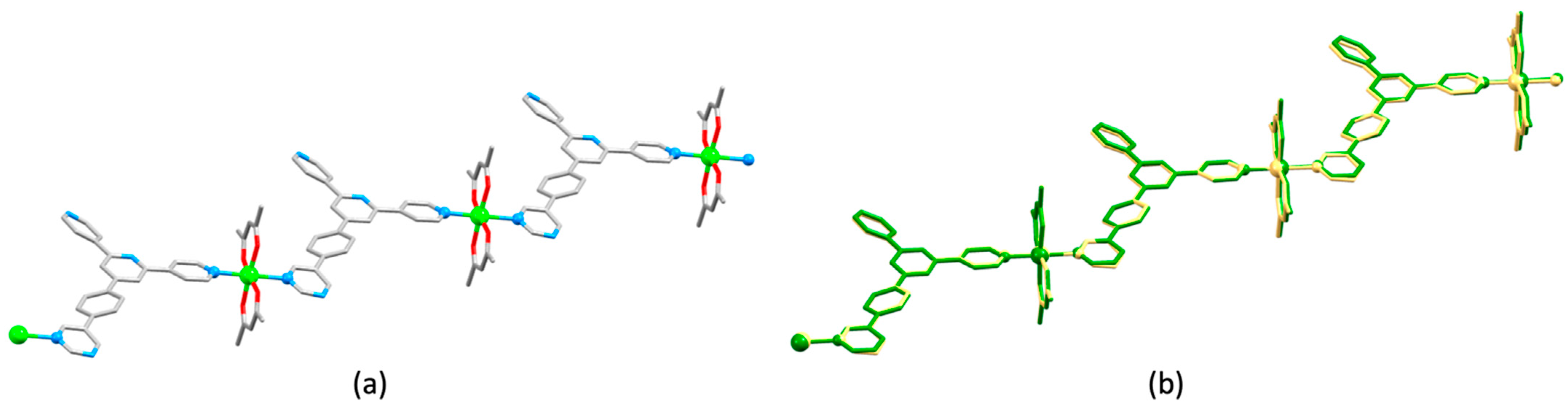

The pyrimidin-5-yl functionalities in ligands 42 and 43 remain non-coordinated in the 1D-coordination polymers [Zn(42)Cl₂]_n, [Zn(42)I₂]_n and [Zn(43)I₂]_n·nMeOH [83]. In contrast, Granifo et al. reported that 44 combined with Zn(acac)₂ (Hacac = pentane-2,4-dione) in a preparative scale reaction to give a mixture of needle-like and block-like crystals. These were separated by hand, and structural analysis confirmed the assembly of the mononuclear complex [Zn(44)₂(acac)₂] (in which 44 is monodentate, coordinating through one pyridine ring) and a coordination polymer [Zn(44)(acac)₂]_n (Figure 27b) [84]. The coordination mode of 44 is atypical since, although the ligand is ditopic, the preference is for coordination through one pyridine and one pyrimidine ring rather than through both the outer pyridine rings of the 4,2′:6′,4″-tpy unit. The formation of [Zn(44)₂(acac)₂] and [Zn(44)(acac)₂]_n is yet another example of competition between assemblies formed under the same synthetic conditions, and illustrates once again, the difficulties in predictive crystal engineering with these families of ligands. Granifo and coworkers have also prepared 45 in which a pyrazin-2-yl group replaces the pyrimidin-5-yl functionality in 44. The coordination behavior of 45 in [Zn(45)(acac)₂]_n [85] mimics that of 44 in [Zn(45)(acac)₂]_n as can be seen from the overlay of the two polymer chains in Figure 27b.

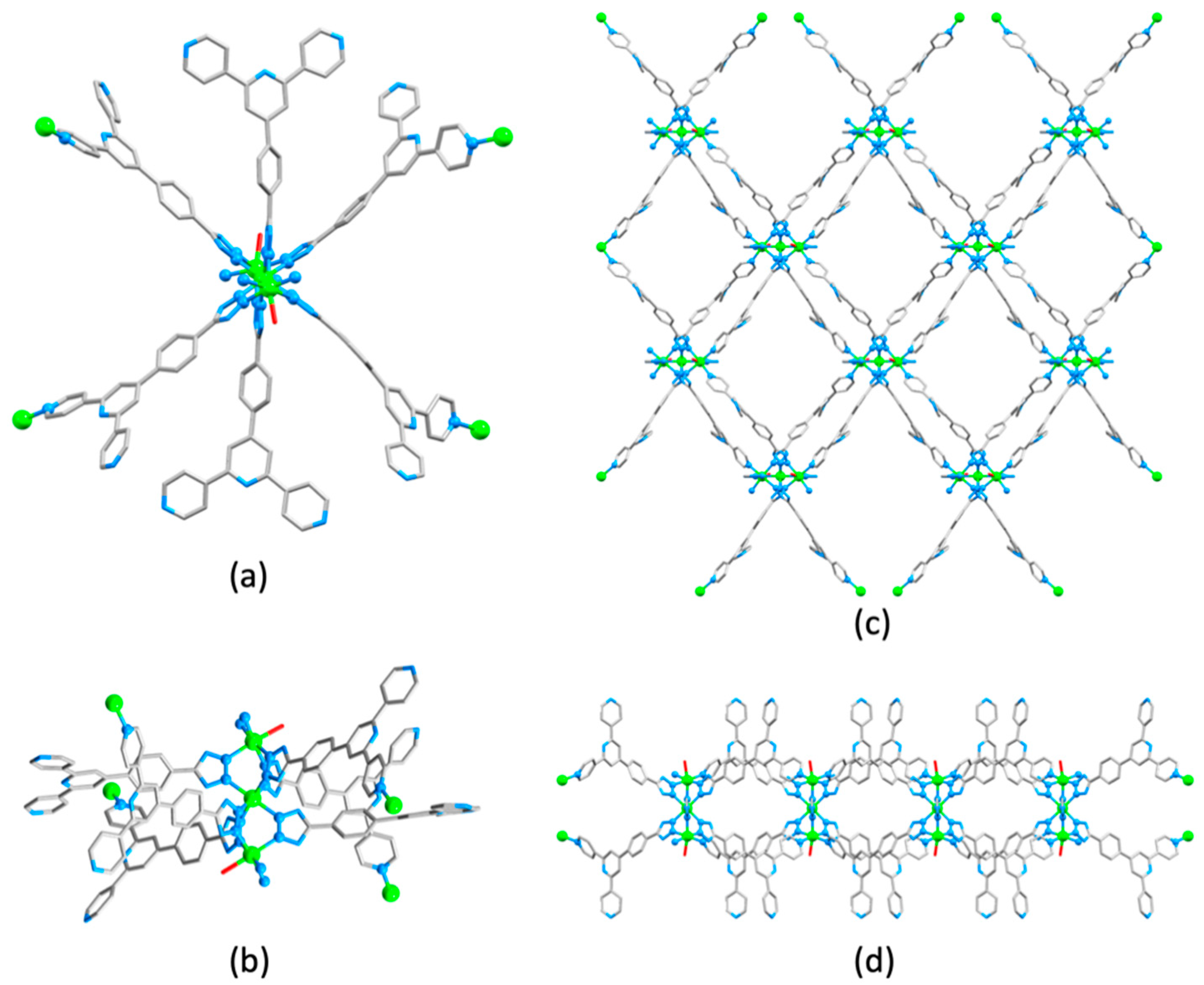

The tetrazole-functionalized compound H46 (Scheme 11) binds zinc(II) to form [Zn₃(46)₆(OH₂)₂]_n·2H₂O No synthetic details are available for this CSD communication [86]. [Zn₃(46)₆(OH₂)₂]_n·2H₂O crystallizes in the monoclinic space group C2/c, and Figure 28a,b displays two views of the basic building block. Central to this is a linear Zn₃ core, with each Zn…Zn vector bridged by three triazolato-units. Of the six 4,2′:6′,4″-tpy domains associated with this trinuclear core, four bind to Zn(II) centers in neighboring Zn₃ units, and two are non-coordinating (Figure 28a). The assembly propagates into a 2D-network, as illustrated in Figure 28c,d. Although the architecture is unusual in terms of the coordination mode of the 4,2′:6′,4″-tpy domains, it is pertinent to note that a search of the CSD [16] revealed that the {Zn₃(μ-triazolato)₆} unit is well represented, and it is therefore likely that the assembly of this motif directs the assembly in [Zn₃(46)₆(OH₂)₂]_n·2H₂O.

3.6. An Assembly Containing Zinc(II) and a 4,2′:6′,4″-tpy Ligand Functionalized in the 4′-Position with an Oxygen Heterocycle

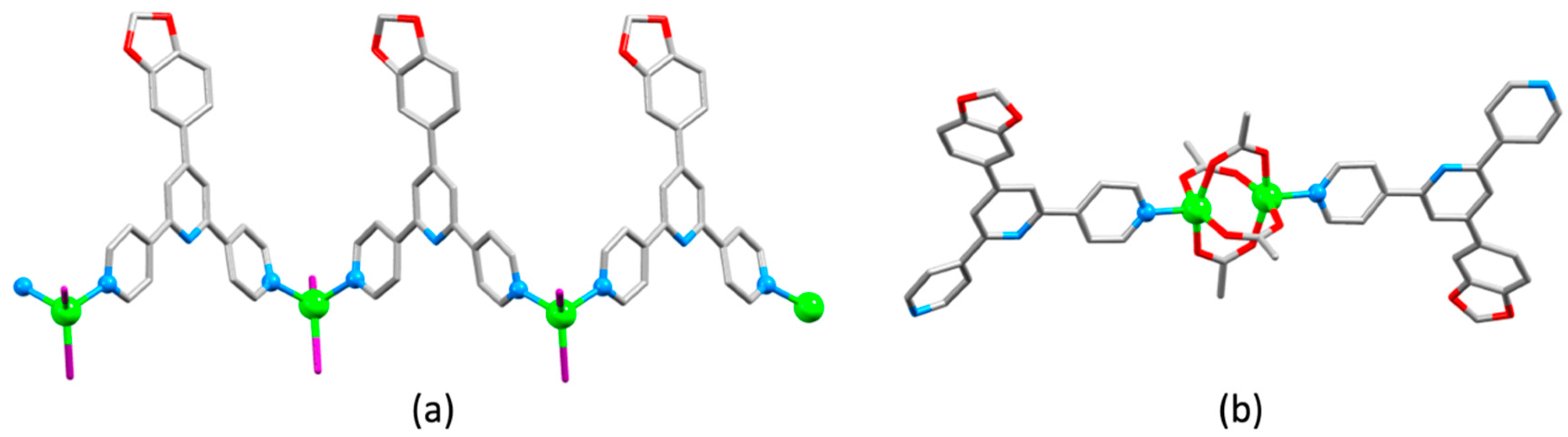

4′-(1,3-Benzodioxol-5-yl)-4,2′:6′,4″-terpyridine (47) appears to be the sole example of a 4,2′:6′,4′′-tpy bearing a 4′-substituent with an O-heterocyclic unit. Its reactions with ZnI₂ and Zn(OAc)₂·2H₂O under ambient conditions of crystal growth by layering, led to crystals of [Zn(47)I₂]_n and [Zn₂(μ-OAc)₄(47)₂], respectively. The iodido complex is a 1D-coordination polymer with the chain (Figure 29a) built up by a glide plane. In contrast, [Zn₂(μ-OAc)₄(47)₂] is a discrete molecular complex (Figure 29b), again illustrating a 4,2′:6′,4′′-tpy acting as a monodentate ligand. Little can be concluded about the differences in the assemblies, since the PXRD for the bulk material for [Zn(47)I₂]_n indicates the presence of another phase, and PXRD data could not be obtained for the bulk sample of [Zn₂(μ-OAc)₄(47)₂] because of decomposition in air [61].

3.7. Assemblies Containing Cadmium(II) and 4′-Functionalized 4,2′:6′,4″-tpy Ligands with Coordinatively Innocent Substituents

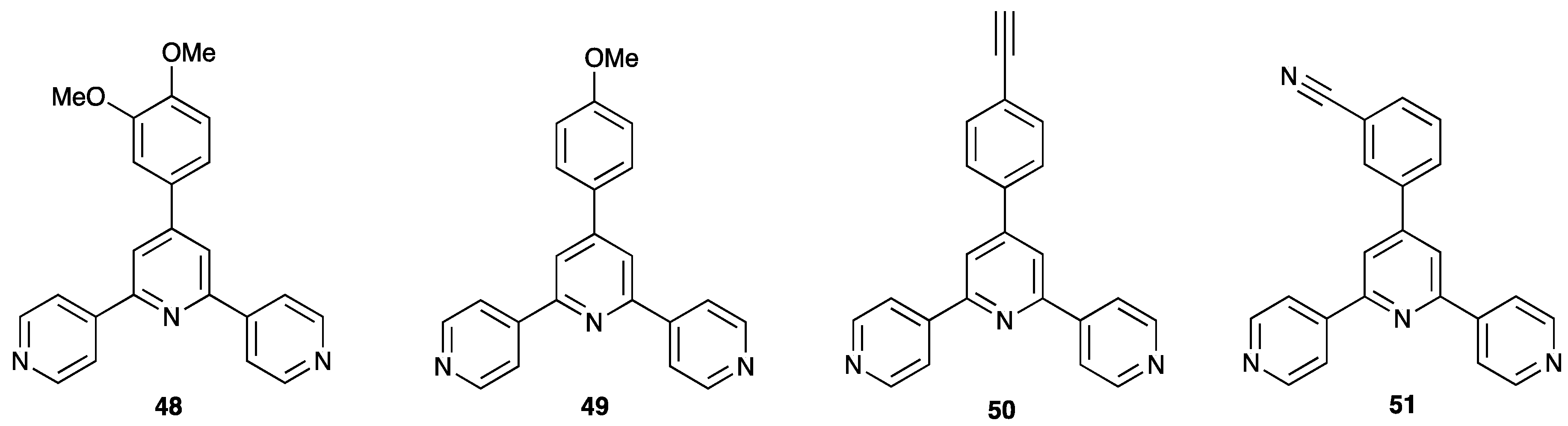

We now move to cadmium(II) coordination polymers containing 4,2′:6′,4″-tpy linkers. No structurally characterized example with a simple 4,2′:6′,4″-tpy has been reported, although assemblies with coordinatively innocent substituents in the 4′-position of 4,2′:6′,4″-tpy are well represented. Scheme 12 summarizes some of the ligands referred to in this section.

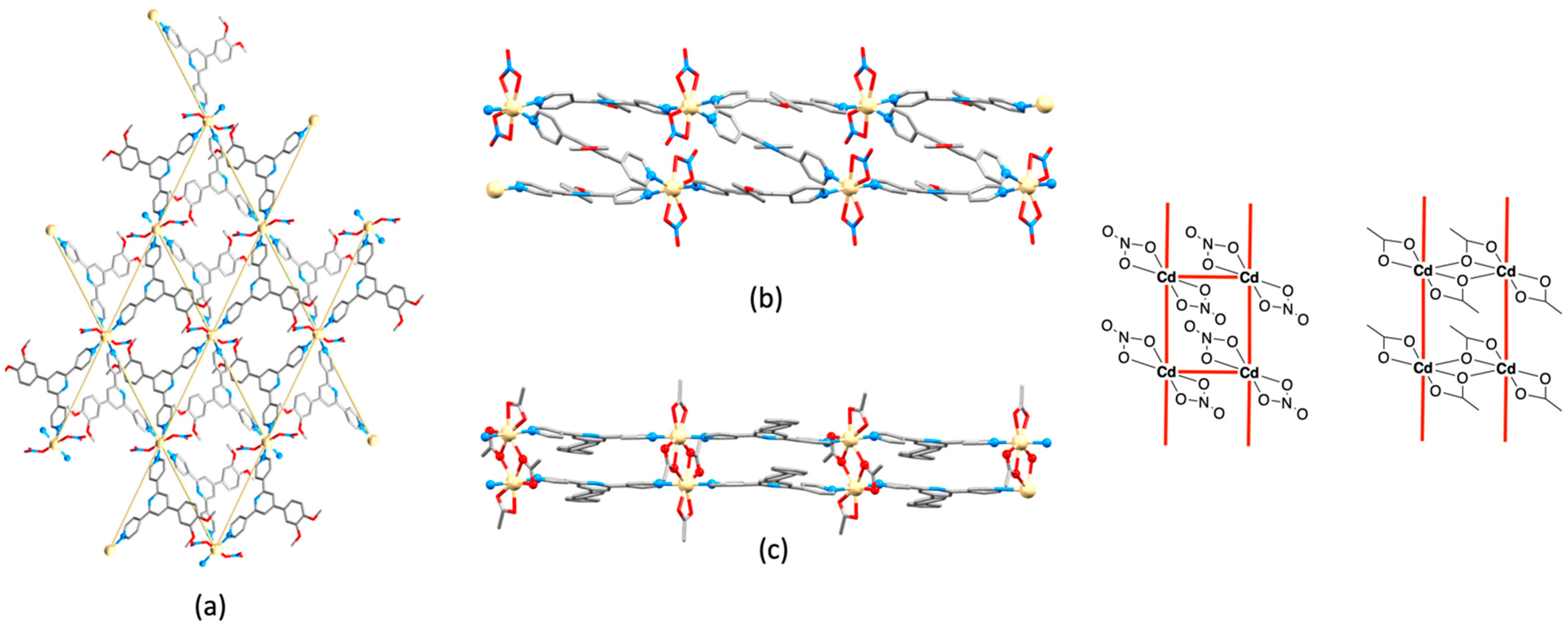

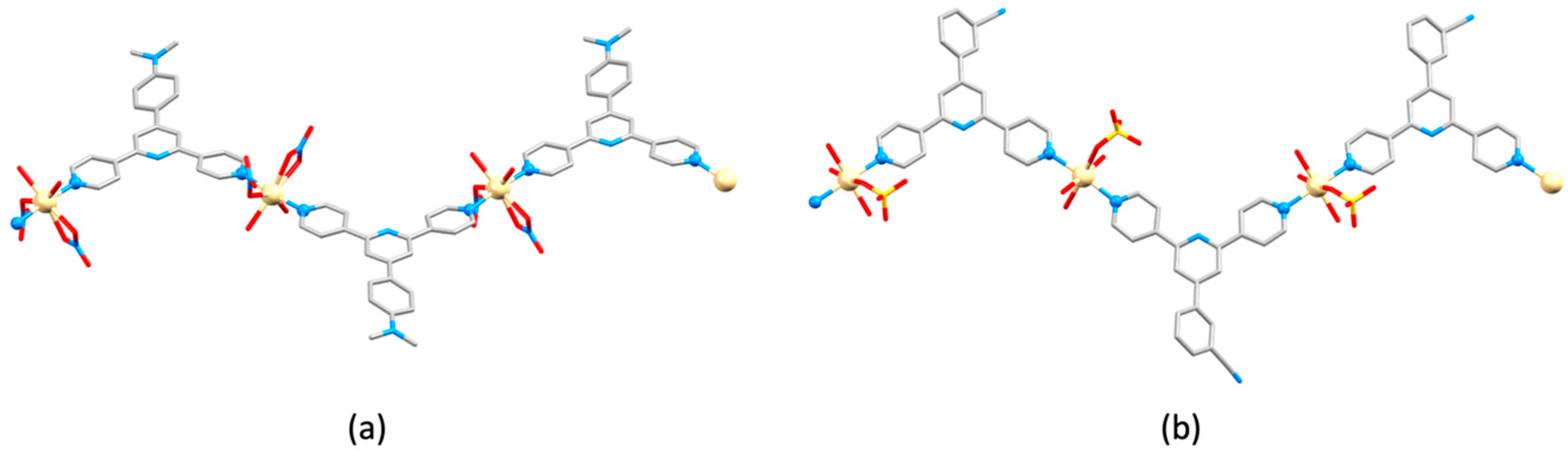

Crystal growth by layering has been used for the assembly of [Cd(14)₂(NO₃)₂]_n·nMeOH^.nCHCl₃ [87], which consists of a (4,4) net with Cd(II) acting as a 4-connecting node. This contrasts with the numerous 1D-polymers that are observed for combinations of zinc(II) salts with 4,2′:6′,4″-tpy ligands with non-coordinating substituents, and highlights the fact that the higher coordination numbers favored by Cd(II) can lead to higher dimensionality assemblies. Similar (4,4)-nets are formed when Cd(NO₃)₂·4H₂O, CdBr₂ or CdI₂ reacts with 48 (Figure 30a) [88], or when Cd(NO₃)₂·4H₂O combines with 4′-(4-ROC₆H₄)-4,2′:6′,4″-tpy in which R = ⁿpentyl, ⁿhexyl, or ⁿheptyl [89]. However, for smaller R groups, the assembly switches to either a ladder (for R = Me, ligand 49) [90] or a (6,3) net (for R = ⁿpropyl) [89]. The ladder in [Cd₂(49)₃(NO₃)₄]_n·nMeOH^.nCHCl₃ is of interest because ditopic 4,2′:6′,4″-tpy units comprise both the rungs and the rails of the ladder (Figure 30b). This is also observed in [Cd₂(28)₃(NO₃)₄]_n·4nMeOH·2nCHCl₃ [91], and [Cd₂(50)₃(NO₃)₄]_n·2nMeOH·3nCHCl₃·nH₂O [91]. In contrast, when Cd(OAc)₂·H₂O is used in place of the nitrate salt, the tendency for dinuclear {Cd₂(OAc)₄} units to form directs the assembly to a ladder in which each rung is built from a {Cd₂(OAc)₄} group and the 4,2′:6′,4″-tpy linkers form the rails (Figure 30c) [62]. This latter polymer, [Cd₂(OAc)₄(30)₂]_n·1.75nMeOH·0.5nH₂O, also incorporates 4′-biphenyl substituents, and the structure shown in Figure 30c illustrates that face-to-face π-stacking of biphenyl groups within a chain occurs. To what extent this also helps to direct the assembly is difficult to assess. We noted above that, when compared to Zn(II), the higher coordination numbers typically found for Cd(II) may be a means of accessing higher dimensionality structures. However, there are always examples to underline the dangers of ‘rule making′. Under ambient conditions, ligand 29 (Scheme 6) reacted with Cd(NO₃)₂·4H₂O to give crystals of the 1D-coordination polymer [Cd(29)(OH₂)₂(NO₃)₂]_n·nH₂O (Figure 31a) [91]. The coordinated aqua ligands block sites for extension of the assembly into a 2D-sheet (e.g., as in [Cd₂(28)₃(NO₃)₄]_n, see above). The zig-zag chains in [Cd(29)(OH₂)₂(NO₃)₂]_n·nH₂O nest into one another to form 2D-sheets, and the latter pack in a similar manner to the [Zn₂(OAc)₄(4′-X-4,2′:6′,4″-tpy)]_n chains described in Figure 15 and Figure 16. The 1D-polymer [Cd₂(51)₂(SO₄)₂(H₂O)₆]_n·nH₂O assembled in the reaction of CdSO₄ with ligand 51 (Scheme 12) under solvothermal conditions (EtOH/H₂O, 120 °C). As in [Cd(29)(OH₂)₂(NO₃)₂]_n, the trans-arrangement of coordinated 4,2′:6′,4″-tpy units leads to a zig-zag chain in [Cd₂(51)₂(SO₄)₂(H₂O)₆]_n (Figure 31b).

3.8. Assemblies Containing Cadmium(II) and 4,2′:6′,4″-tpy Ligands Functionalized in the 4′-Position with Carboxylate or Sulfonate Donors

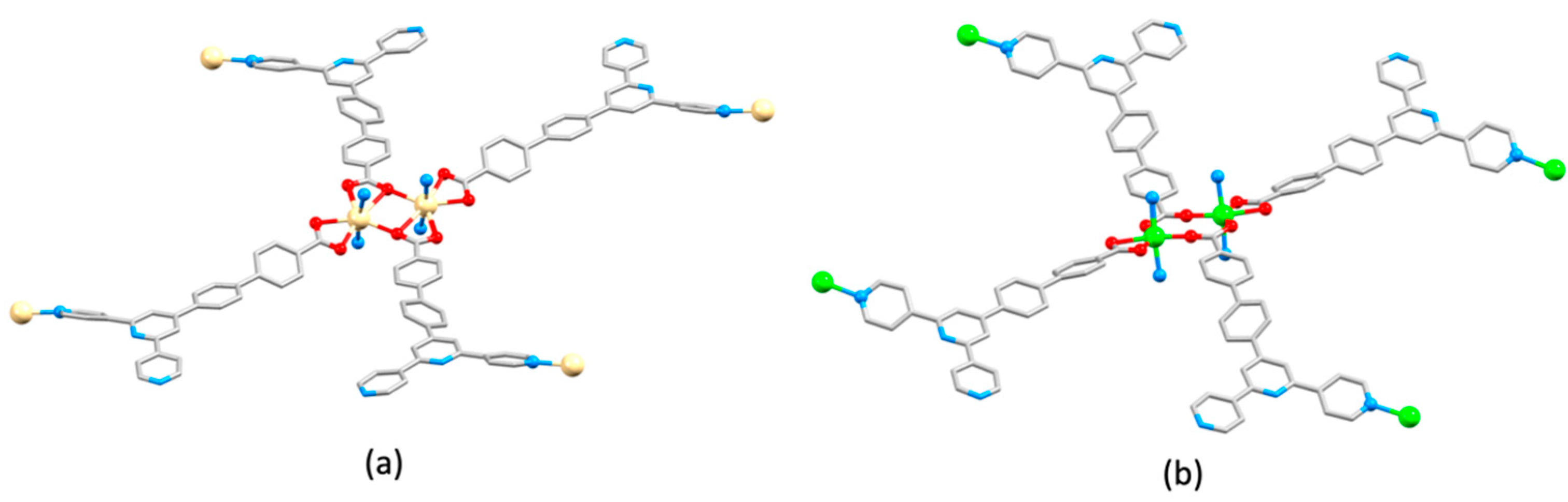

In Section 3.4, we reviewed coordination polymers and networks derived from reactions of zinc(II) salts and 4,2′:6′,4″-tpy ligands functionalized with carboxylate donors. We now turn to assemblies combining some of the same ligands (H17, H31, H33, H34 and H₂37) with cadmium(II). The structures of these ligands are given in Scheme 6 and Scheme 10.

Carboxylic acids H31, H17, and H33 differ in having no, one and two phenylene spacers, respectively, between the 4,2′:6′,4″-tpy and carboxylic acid domains. The solvothermal reaction (DMF/H₂O, pH 4.0, 160 °C) of CdBr₂ and H31 produced crystals of [Cd₂(31)₄]_n [66]. The compound crystallizes in the monoclinic space group P2₁/n and the asymmetric unit contains two crystallographically independent ligands and two independent Cd(II) centers. Both metal centers are bound by three N-donors of three different 31^– ligands and by two bidentate carboxylates from two different ligands, making each Cd(II) center a 5-connecting node (Figure 32a). The coordination behaviors of the 4,2′:6′,4″-tpy units in the two independent 31^– ligands differ in that one coordinates through both outer pyridine rings, and the second through only one (Figure 32a). Thus, every other 31^– ligand is a 3-connecting node, and the remaining ligands are purely linkers. The structure extends into a (3,5)-connected 3D-network, and is 2-fold interpenetrating (Figure 32b). A comparison should be made between this structure and that of [Zn(31)₂]_n·nH₂O (Figure 20d), and the effects of the higher coordination number of Cd(II) versus Zn(II) are clear. In addition to [Zn(31)₂]_n·nH₂O and [Cd₂(31)₄]_n, Zhou and coworkers have also investigated the consequences of introducing a series of co-ligands [66]. Hu and coworkers have reported [Cd₂(31)₄]_n·2nH₂O, which was formed under hydrothermal conditions (pH 7.5, 160 °C) in the presence of oxalic acid. Although oxalate is not incorporated into the assembly as a coligand, the presence of oxalic acid in the reaction mixture was essential for the growth of single crystals of [Cd₂(31)₄]_n·2nH₂O [92]. This is reminiscent of separate observations from the same group that, under hydrothermal conditions, single crystals of [Zn(31)Cl]_n·nH₂O could only be obtained if phthalic acid were present [67]. [Cd₂(31)₄]_n·2nH₂O crystallizes in the orthorhombic space group Pbcn, making it structurally distinct from [Cd₂(31)₄]_n described above. However, a comparison of Figure 32a and c reveals that in both [Cd₂(31)₄]_n and the dihydrate, one ligand 31^– acts as a 3-connecting node, and one ligand bridges two Cd(II) centers. The assembly in [Cd₂(31)₄]_n·2nH₂O is, like, [Cd₂(31)₄]_n, a 2-fold interpenetrating, (3,5)-connected 3D-network [92].

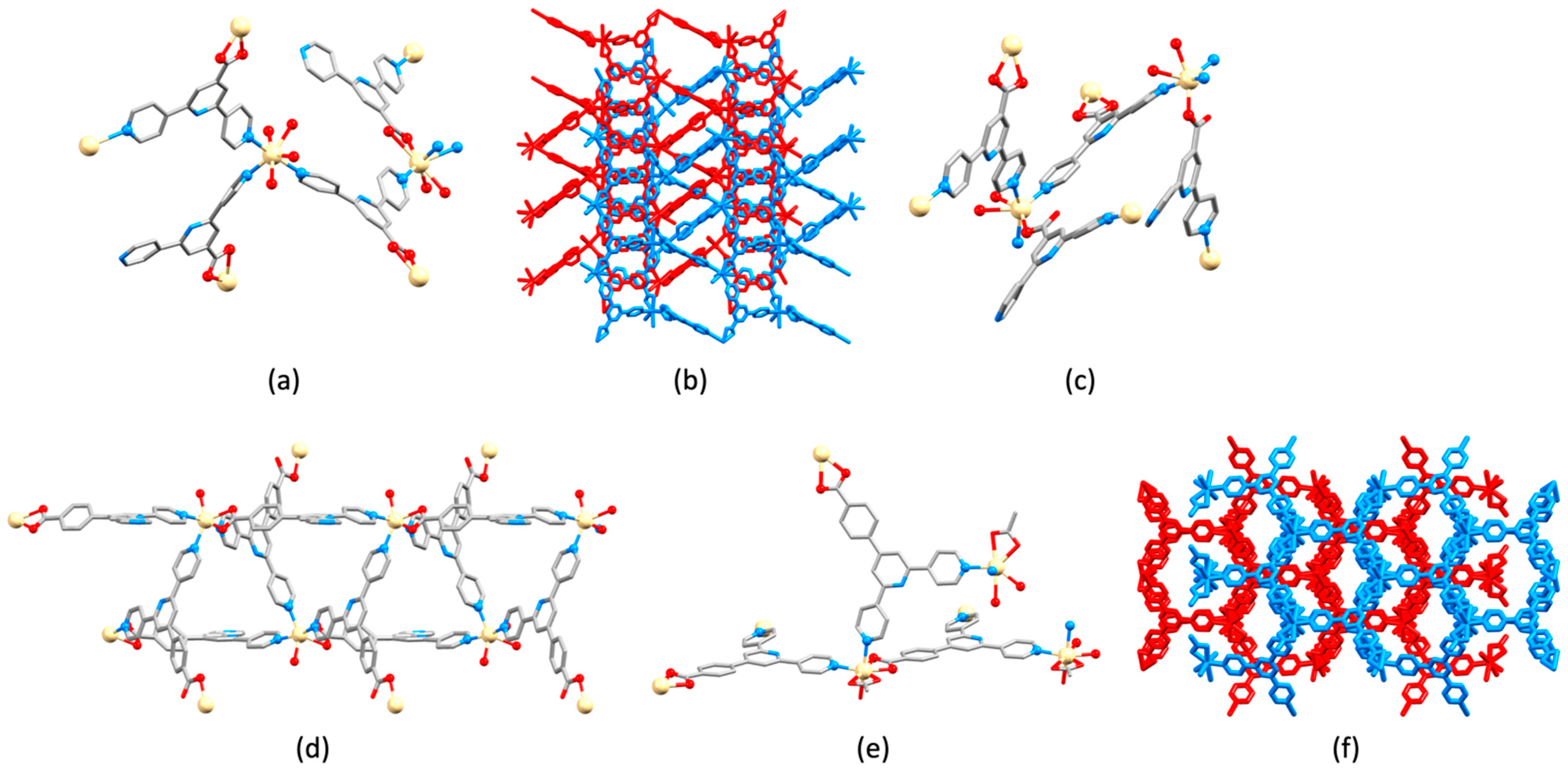

Ligand H17 and H34 are isomers (Scheme 6 and Scheme 10). [Cd(17)₂]_n·2nDMF and [Cd(17)(OAc)(OH₂)]_n·nDMA·nH₂O were formed under solvothermal conditions using Cd(OAc)₂·2H₂O and H17 in DMA/H₂O, or Cd(NO₃)₂·4H₂O and H17 in DMF/H₂O with, in the latter case, 4,4′-oxybis(benzoic acid) added, presumably, as a potential coligand. Consistent with observations described above, crystal growth was dependent upon the presence of this additional component, suggesting a possible templating role. The structure of [Cd(17)₂]_n·2nDMF (which crystallizes in the monoclinic C2/c space group) is a (3,5)-connected 2D network, part of which is displayed in Figure 32d. This contrasts with the interpenetrated (3,5)-connected 3D nets in [Cd₂(31)₄]_n·2nH₂O and [Cd₂(31)₄]_n, and the change in assembly appears to be associated with the introduction of the phenylene spacer in 17^–. As in [Cd₂(31)₄]_n·2nH₂O and [Cd₂(31)₄]_n, there are two crystallographically independent ligands in [Cd(17)₂]_n·2nDMF. One acts as a 3-connecting node, and one coordinates only through one pyridine ring and the CO₂^– unit [93]. In [Cd(17)(OAc)(OH₂)]_n·nDMA·nH₂O, every 17^– ligand is crystallographically equivalent, as is every Cd(II) center. Each act as a 3-connecting node (Figure 32e), generating a (10–3)-b (or ths) 3D-net. The large voids in the net lead to 2-fold interpenetration (Figure 32f). The activated forms of [Cd(17)(OAc)(OH₂)]_n and [Cd(17)₂]_n show selective adsorption of CO₂ over N₂, and of H₂O over MeOH [93]. Hu and coworkers reacted H17 with CdCl₂ under hydrothermal conditions and obtained single crystals of [Cd₂(17)₄]_n·3.5nH₂O. Another variation of the coordination mode of 17^– is exemplified in this compound; every ligand is a linker, coordinating through one pyridine N-donor and a bidentate carboxylate group. Each Cd(II) center is a 4-connecting node and a (4,4) (or sql) net assembles (Figure 33a). As Figure 33b illustrates, 2D→2D parallel interpenetration of the nets occurs to reduce the void space [70]. In Figure 23, we illustrated coordination assemblies formed between Zn(II) and the conjugate base of H34 (Scheme 10). These networks from the group of Hu [73] are complemented by that of [Cd₂(34)₄]_n·nH₂O, single crystals of which were grown under hydrothermal conditions (pH 5, 180 °C) from the reaction between CdCl₂·2.5H₂O and H34. Whereas the analogous reaction between ZnCl₂ and H34 gave [Zn(34)Cl]_n, the cadmium-containing assembly contains no chlorido ligands. Each 34^– ligand coordinates to one Cd(II) through one pyridine ring and to a second Cd(II) through a bidentate carboxylate group. Each Cd(II) center is a 4-connecting node, leading to the (4,4) net depicted in Figure 33c.

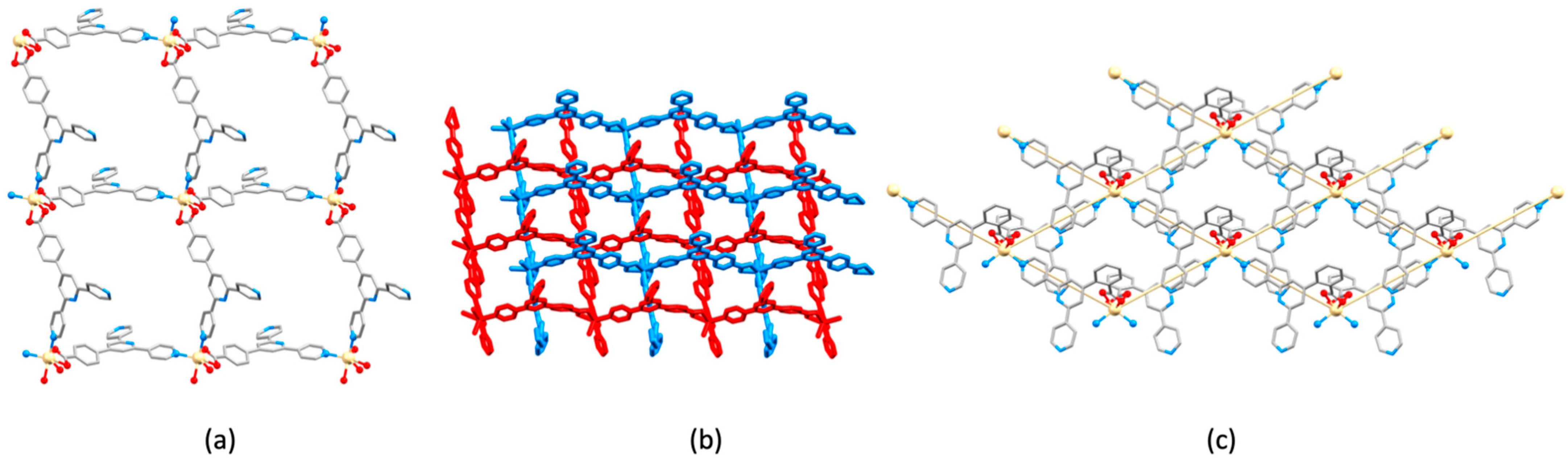

The introduction of an additional phenylene spacer on going from H17 to H33 (Scheme 6 and Scheme 10) had a significant influence on the coordination assembly formed with Zn(II) (Figure 21 and Figure 22 and accompanying discussion). Similarly, whereas the structure of [Cd(17)₂]_n·2nDMF is a 2D-net (Figure 32d), that of [Cd(33)₂]_n·nDMF·2nH₂O is a 3D-network. [Cd(33)₂]_n·nDMF·2nH₂O was formed under solvothermal conditions (DMF/H₂O, 120 °C) from the reaction of Cd(NO₃)₂·4H₂O and H33. Interestingly, {Cd₂(O₂C)₄} units assemble (Figure 34a) and bear a resemblance to the 8-connecting dizinc nodes in [Zn(33)₂]_n (Figure 34b, and see also Figure 22b). The 3D-network in [Cd(33)₂]_n·nDMF·2nH₂O is described by the authors as having a topological point symbol of {3³.4⁷.5⁸.6} [94]. A comparison of the structure of [Cd(33)₂]_n·nDMF·2nH₂O (CSD refcode BOBRIW) with that of [Zn(33)₂]_n (refcode TEZJOA) reveals that both compounds crystallize in the monoclinic space group P2₁/c with similar cell dimensions (a = 21.8088(7), b = 10.3071(3), c = 29.9710(12) Å, β = 126.602(2)° for [Cd(33)₂]_n·nDMF·2nH₂O, and a = 21.5531(7), b = 10.2884(4), c = 29.7127(12) Å, β = 126.180(2)° for [Zn(33)₂]_n) consistent with very similar assemblies. [Cd(33)₂]_n was shown to be a selective and very sensitive luminescent probe to detect ascorbic acid [94]. The dicarboxylic acid H₂37 forms single crystals of [Cd(37)(OH₂)]_n·nMeCN·2nH₂O when reacted with H₂37 under solvothermal conditions. The [Cd(37)(OH₂)]_n assembly comprises 2-fold interpenetrated 3D-networks and is essentially isostructural with solvated [Zn(37)]_n (see Figure 25) [79].

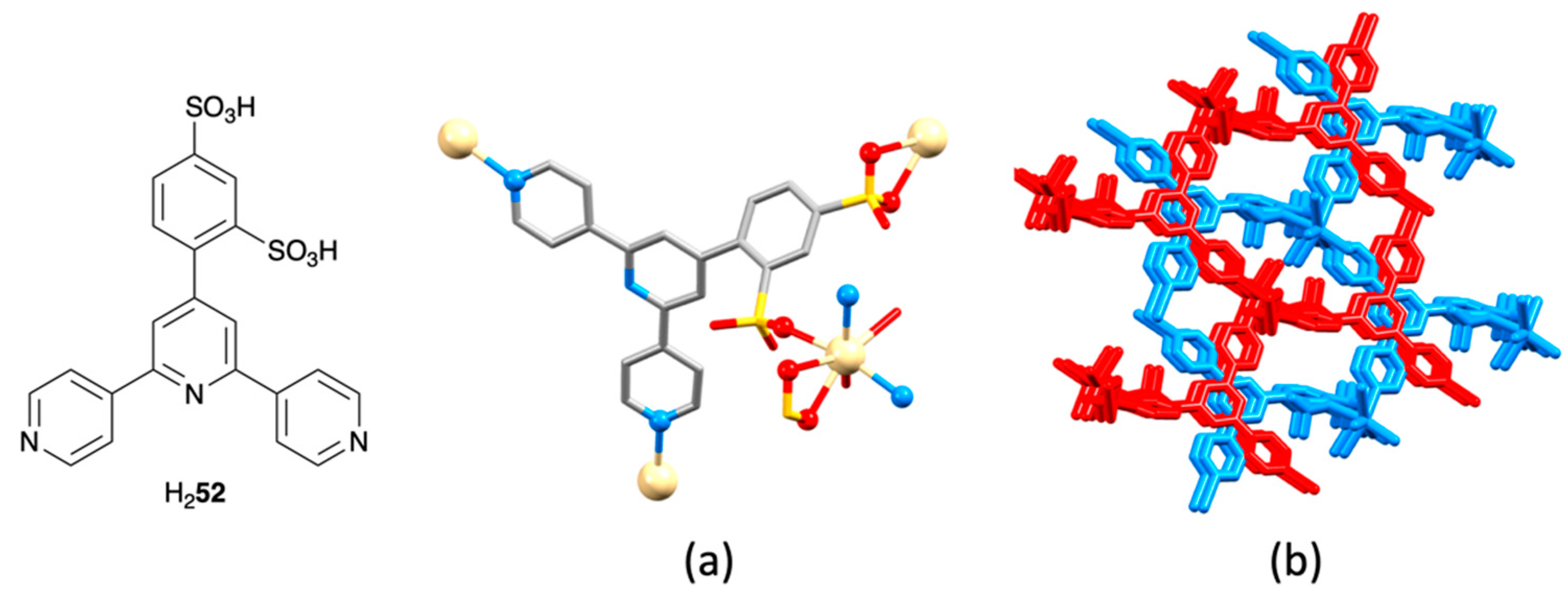

In comparison for carboxylato-functionalized terpyridine ligands, there are far fewer examples bearing sulfonato metal-binding domains. Figure 6 illustrated the 1D-ladder assembly in [Cd(13)Cl]_n in which H13 contains a 2,2′:6′,2″-tpy unit [43]. For the divergent 4,2′:6′,4″-tpy, [Cd(52)(OH₂)₂]_n (H₂52 is defined in Figure 35) is a sole example of a cadmium(II)-containing coordination polymer with a sulfonato-functionalized 4,2′:6′,4″-tpy ligand for which structural data are available. Two independent reports of the synthesis and structure of [Cd(52)(OH₂)₂]_n appeared in 2015 [95,96]. The compound was prepared under hydrothermal conditions from H₂52 and either CdCO₃ or CdCl₂·2.5H₂O, and crystallizes in the triclinic space group P–1. As Figure 35a shows, the Cd(II) center is 7-coordinate (distorted pentagonal bipyramidal), being bound by a monodentate SO₃^– group from one 52^2– ligand, a bidentate SO₃^– from a second 52^2–, as well as by pyridine rings from two different 52^2– ligands, and two aqua ligands. Both 52^2– and Cd(II) are, therefore, 4-connecting nodes, and the structure propagates into a 3D dia network. The large voids in a single net result in 2-fold interpenetration (Figure 35b). Interestingly, when zinc(II) acetate combined with H₂52 under the same hydrothermal conditions as for the preparation of [Cd(52)(OH₂)₂]_n, single crystals of the mononuclear complex [Zn(H52)₂(OH₂)₄]·6H₂O were obtained and PXRD data confirmed that the single crystal was representative of the bulk material [95]. The preference for mononuclear over polymeric assembly is not readily explained.

3.9. Assemblies Containing Cadmium(II) and 4,2′:6′,4″-tpy Ligands Functionalized in the 4′-Position with a Pyridinyl Group

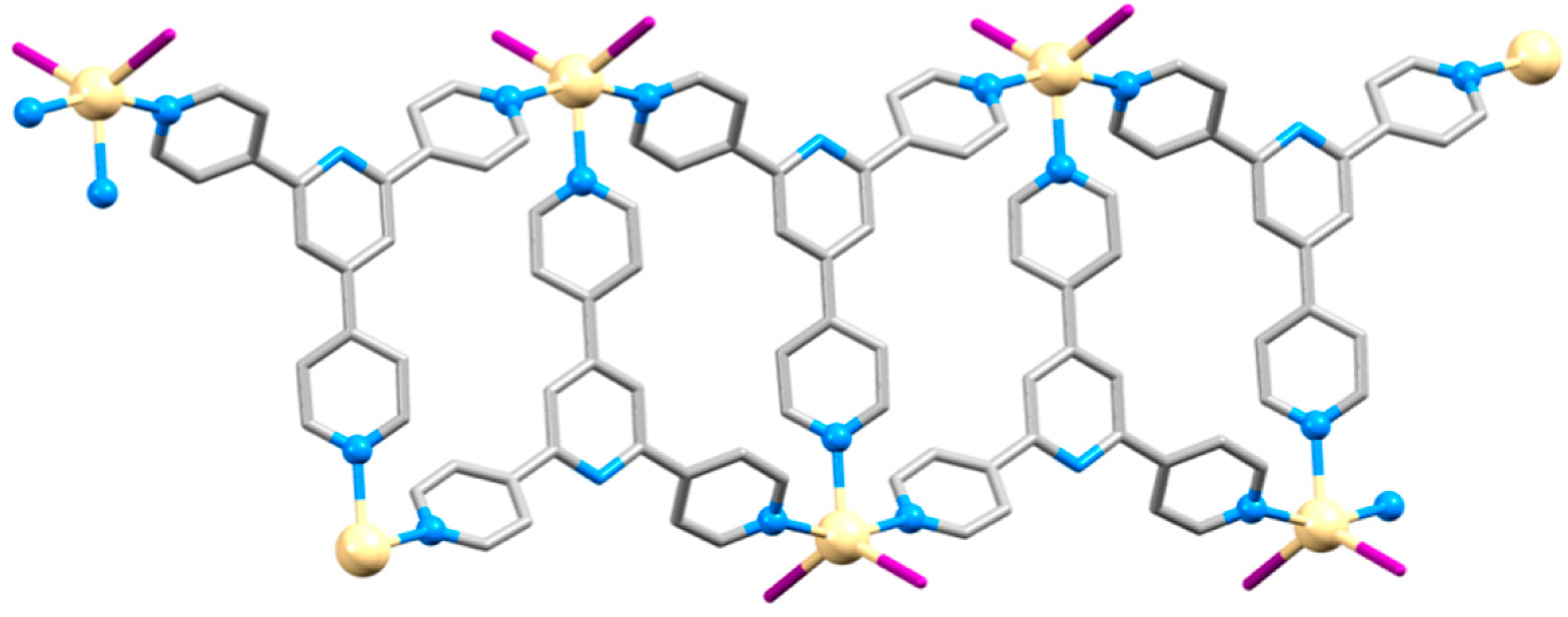

Rather surprisingly, there are few examples of structurally characterized coordination assemblies incorporating Cd(II) and 4,2′:6′,4″-tpy ligands with pyridinyl functionalities. Zhang and Li reported the formation of [Cd(38)I₂]_n under hydrothermal conditions (see Scheme 11 for ligand 38) [97]. The assembly is a 1D-polymer (Figure 36) which may be described as a ladder. Each Cd(II) center is 5-coordinate, and is bound by three different molecules of 38. The structure is in contrast to the 1D-ladder in [Zn₃(39)₂Cl₆]_n·nH₂O (Figure 26b), in which each Zn(II) ion is tetrahedrally sited [82]. Zhang et al. also demonstrated that when the co-ligand benzene-1,4-dicarboxylic acid was added to the CdI₂/38 reaction mixture, the role of 38 was reduced to that of a pendant, monodentate ligand and the network was directed purely by benzene-1,4-dicarboxylic acid [97].

3.10. Ligands Containing Two 4,2′:6′,4″-tpy Metal-Binding Domains: 4-Connecting Nodes

A strategy for increasing the dimensionality of a coordination assembly is to incorporate ligands that can function as directing nodes. Ditopic ligands such as those in Scheme 9 function only as linkers. In contrast, we have described examples in which the introduction into a 4,2′:6′,4″-tpy unit of a substituent capable of binding a metal ion may allow the ligand to act as a directing node. For example, 36^2– in [Zn(36)]_n·4nDMF is a 4-connecting node (Figure 25a). Another strategy is to design ligands which possess more than one divergent tpy unit. Examples of ligands which form coordination networks with zinc(II) are displayed in Scheme 13. Crystals of all the zinc(II) complexes described in the section were grown under ambient conditions using layering methods. In an extension of the Hanan one-pot strategy [7] shown in Scheme 3, ligands 53–58 were prepared by reaction of an appropriate dialdehyde with four equivalents of 4-acetylpyridine under basic conditions [98,99,100,101].

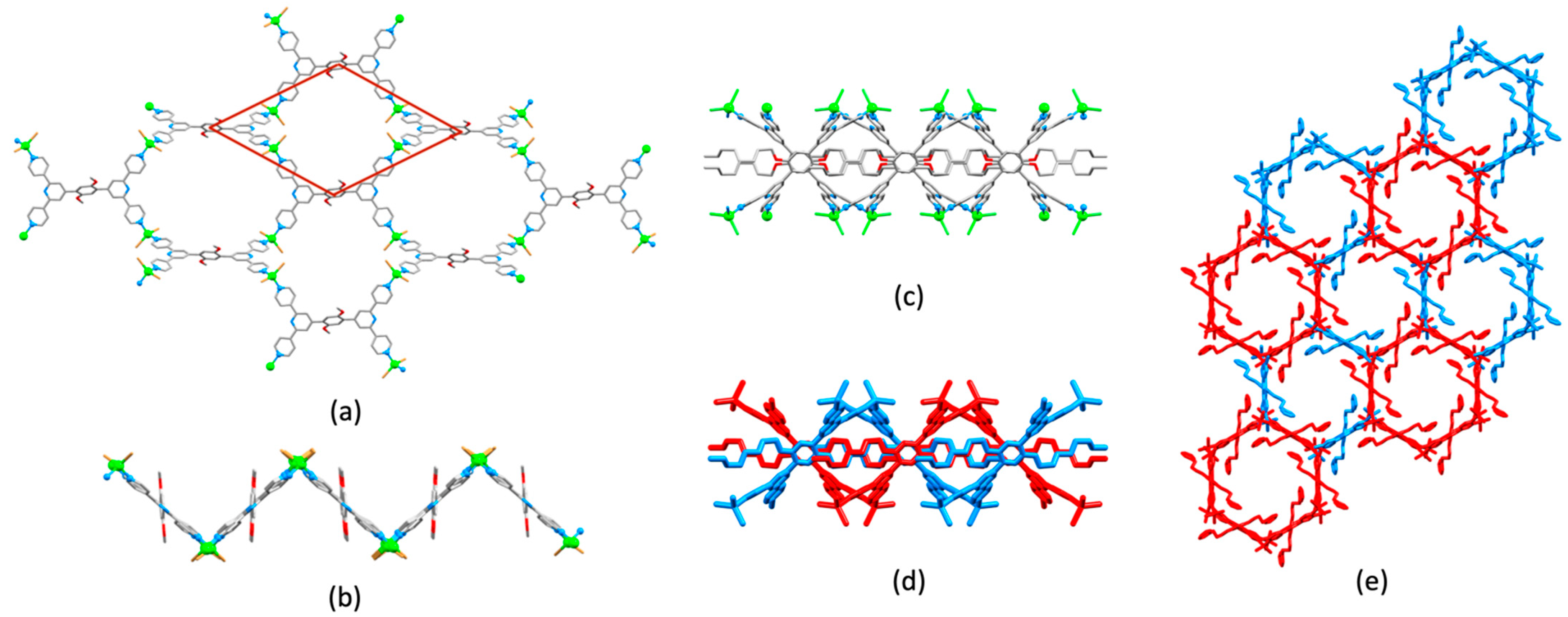

A combination of 53 and ZnBr₂ or ZnI₂ in a 1,2-C₆H₄Cl₂/MeOH solvent system resulted in the growth of crystals of [Zn₂Br₄(53)]_n·2nC₆H₄Cl₂ or [Zn₂I₄(53)]_n·2.3nC₆H₄Cl₂, respectively. Both compounds crystallize in the monoclinic space group P2₁/n and are isostructural. Ligand 53 acts as a 4-connecting node and directs the assembly of a 2D-network. The (4,4) net is shown in Figure 37a for [Zn₂Br₄(53)]_n·2nC₆H₄Cl₂. The net has a corrugated profile and the methoxy substituents point above and below the sheet (Figure 37b) [99]. When the n-alkyloxy substituent is lengthened to hexyl, octyl or decyl in ligands 54, 55 or 56, reactions with zinc(II) chloride or bromide lead to the formation of the 2D→2D parallel interpenetrated networks [Zn₂Cl₄(54)]_n, [Zn₂Cl₄(55)]_n·4nH₂O, [Zn₂Br₄(55)]_n, and [Zn₂Cl₄(56)]_n·2nMeOH [98,99,100,101]. The topology of a single (4,4) net in each compound mimics that in [Zn₂Br₄(53)]_n·2nC₆H₄Cl₂ and [Zn₂I₄(53)]_n·2.3nC₆H₄Cl₂. However, the long alkyloxy chains are directed through the sheet (Figure 37c) and this appears to contribute to the assembly process. Figure 37d illustrates the interpenetrated networks in [Zn₂Cl₄(55)]_n·4nH₂O [98] and this is representative of the series [Zn₂Cl₄(54)]_n, [Zn₂Cl₄(55)]_n·4nH₂O, [Zn₂Br₄(55)]_n, and [Zn₂Cl₄(56)]_n·2nMeOH. The introduction of a phenyl substituent in a terminal position in the chain as in ligand 57 (Scheme 13) has a profound effect on the assembly process. The reaction between 57 and ZnBr₂ yielded single crystals of [Zn₂Br₄(57)]_n·nH₂O. This crystallizes in the trigonal space group R–3 with a 3D-architecture, consisting of 2-fold interpenetrating nbo nets (Figure 37e). The assembly is directed by the 4-connecting ligand nodes, and the nets are closely associated by virtue of π-stacking between the pendant phenyl rings in 57 and 4,2′:6′,4″-tpy domains in an adjacent net. This results in a highly porous network with a solvent accessible void space of ca. 65% [101].

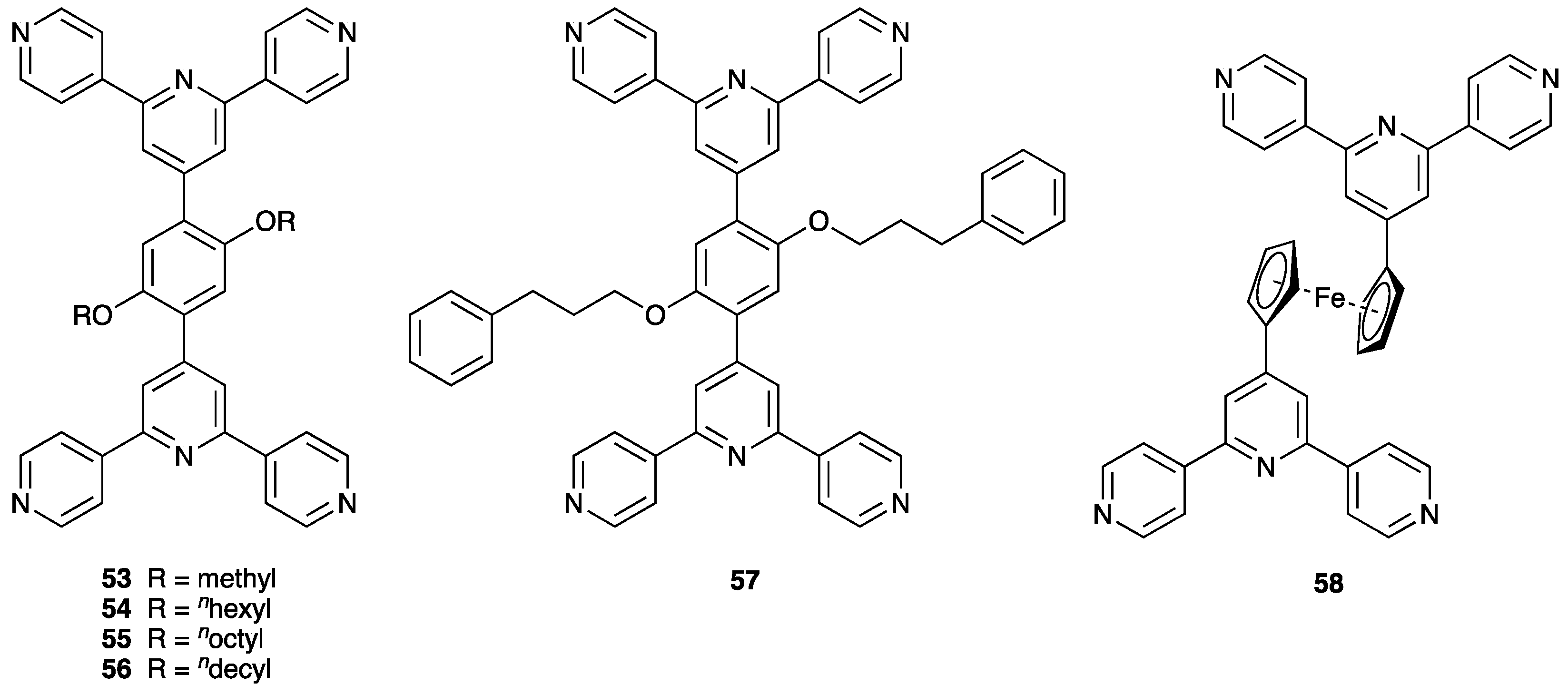

Ligand 58 is related to 25 (Scheme 7) but offers two 4,2′:6′,4″-tpy metal-binding domains. However, unlike ligands 53–57, compound 58 exhibits rotational freedom about the ferrocenyl core that allows the ligand to adopt a cisoid conformation with the 4,2′:6′,4″-tpy units lying over one another. This impacts on the assembly formed with 58 reacts with ZnCl₂. In contrast to the networks described above and in Figure 37, [ZnCl₂(58)]_n·3nCHCl₃ is a 1D-coordination polymer (Figure 38a). This appears to be driven by face-to-face π-stacking between 4,2′:6′,4″-tpy units of the same coordinated ligand (Figure 38b) [100].

4. 3,2′:6′,3″-Terpyridine

Compared to those involving 4,2′:6′,4″-tpy domains, far fewer coordination assemblies have been reported in which the ligands bear 3,2′:6′,3″-tpy metal binding domains. For those which incorporate zinc(II), we consider them in families of those with coordinatively innocent functionalities attached to the 3,2′:6′,3″-tpy, and those with carboxylate or sulfonate groups which increase the connectivity of the ligand. No structurally characterized zinc(II)-containing assemblies with unfunctionalized 3,2′:6′,3″-tpy or pyridinyl-substituted 3,2′:6′,3″-tpy ligands had been reported in the CSD at the time of writing this review.

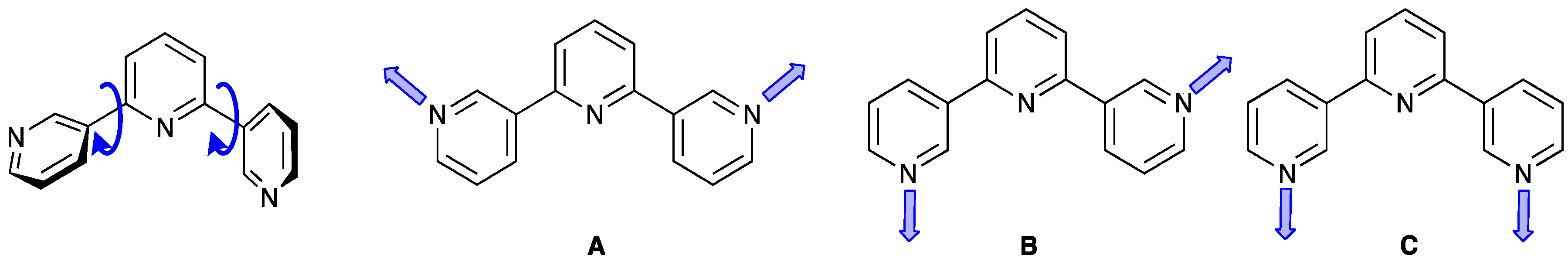

In this section, we provide schematic representations of the conformations of the coordinated 3,2′:6′,3″-tpy units to emphasize its flexibility. Note, however, that in these diagrams, we use the three limiting, planar conformations.

4.1. Assemblies Containing Zinc(II) and 4′-Functionalized 3,2′:6′,3″-tpy Ligands with Coordinatively Innocent Substituents

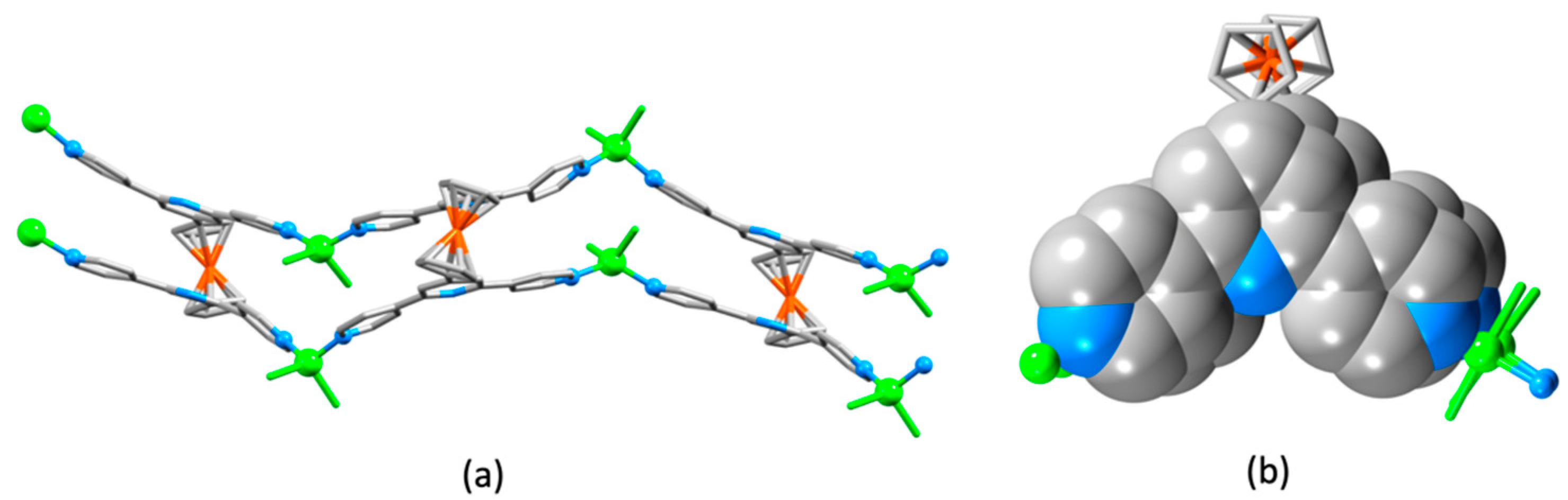

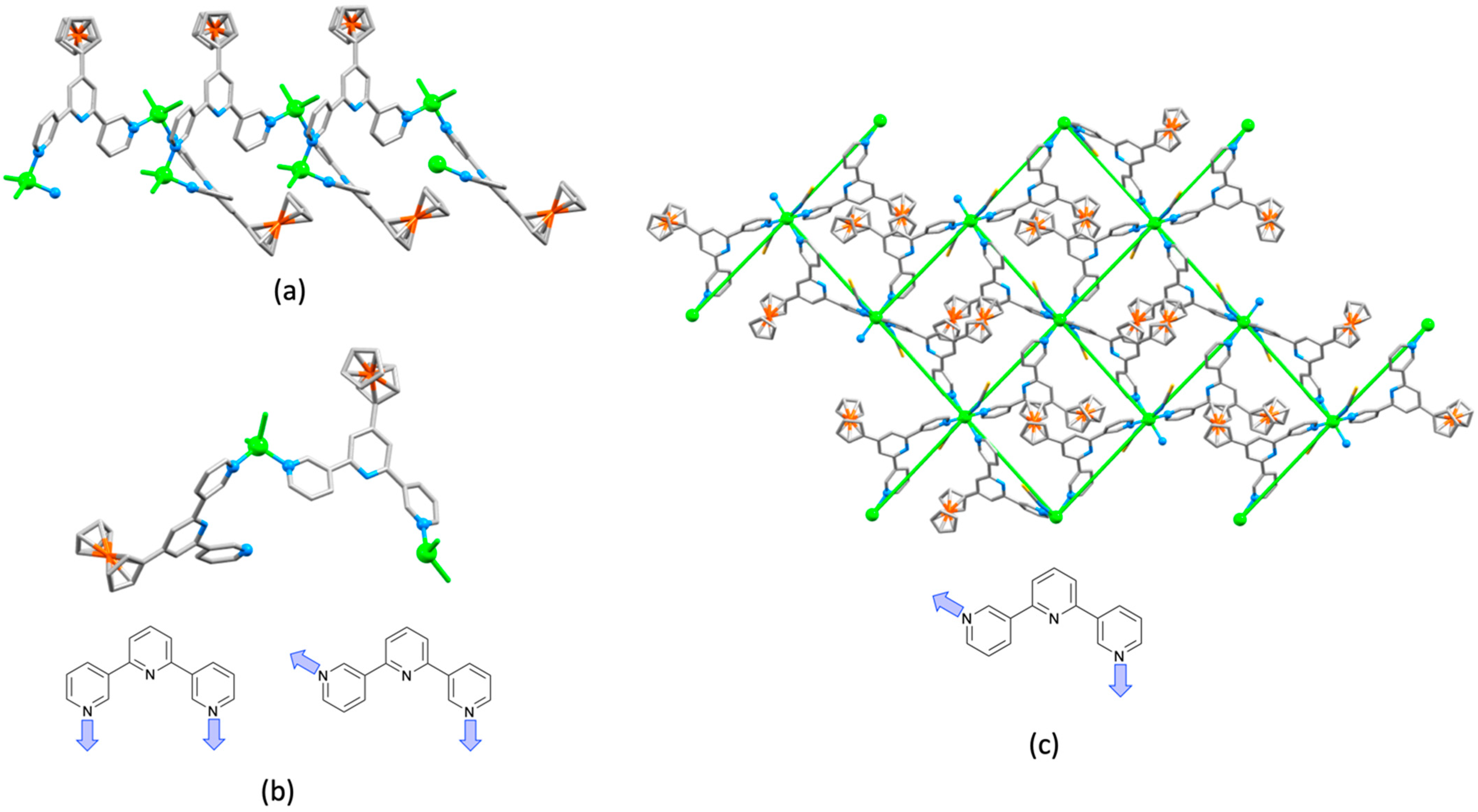

In Section 3.2, we described competition between the formation of polymeric and discrete molecular assemblies when zinc(II) salts reacted with 1-(4,2′:6′,4′′-terpyridin-4′-yl)ferrocene (25, Scheme 7). Under conditions of crystal growth by layering, the isomer of 25, 1-(3,2′:6′,3′′-terpyridin-4′-yl)ferrocene (59) combines with ZnCl₂ to yield single crystals of the discrete metallosquare [Zn₄Cl₈(59)₄]·3CHCl₃·3MeOH [57]. However, only a few crystals were obtained, and the bulk material was an amorphous powder for which PXRD data could not be obtained. Significantly, Xiao and Tian reported the formation of the 1D-polymer [Zn₂Cl₄(59)₂]_n·3nH₂O (Figure 39a), but no synthetic details are available [102]. However, this observation provides support for possible competition between molecular and polymer assembly. [Zn₂Cl₄(59)₂]_n·3nH₂O crystallizes in the triclinic space group P–1 and the chain is built up by translation. The asymmetric unit contains two crystallographically independent ligands which differ in their conformations as shown in Figure 39b. This demonstrates the conformational flexibility of the 3,2′:6′,3′′-tpy unit (see Scheme 4), which sets it apart from the isomeric 4,2′:6′,4′′-tpy. We have also shown that the reaction of ZnBr₂ and 59 yielded [Zn₂Br₄(59)₂]_n·2nMeOH (CSD refcode TAYSIY) which has a very similar polymeric structure [57] to [Zn₂Cl₄(59)₂]_n·3nH₂O. Xiao and Tian [103] have reported [Zn₂I₄(59)₂]_n which is structurally analogous to the chlorido and bromido complexes. Changing to zinc(II) thiocyanate has the effect of switching the assembly with ligand 59 to a 2D-network. The structure of [Zn₃(NCS)₆(59)₆]·6nCHCl₃ is a communication to the CSD (refcode OGOYIU [104]). Each Zn center is bound by four pyridine rings from four different ligands 59, and the octahedral coordination sphere is completed by two thiocyanato ligands in a trans arrangement. The resulting (4,4) net is shown in Figure 39c. The asymmetric unit contains three independent molecules of 59 but all the 3,2′:6′,3′′-tpy units have similar conformations (Figure 39c).

4.2. Assemblies Containing Zinc(II) and 3,2′:6′,3″-tpy Ligands Functionalized with Carboxylate or Sulfonate Donors

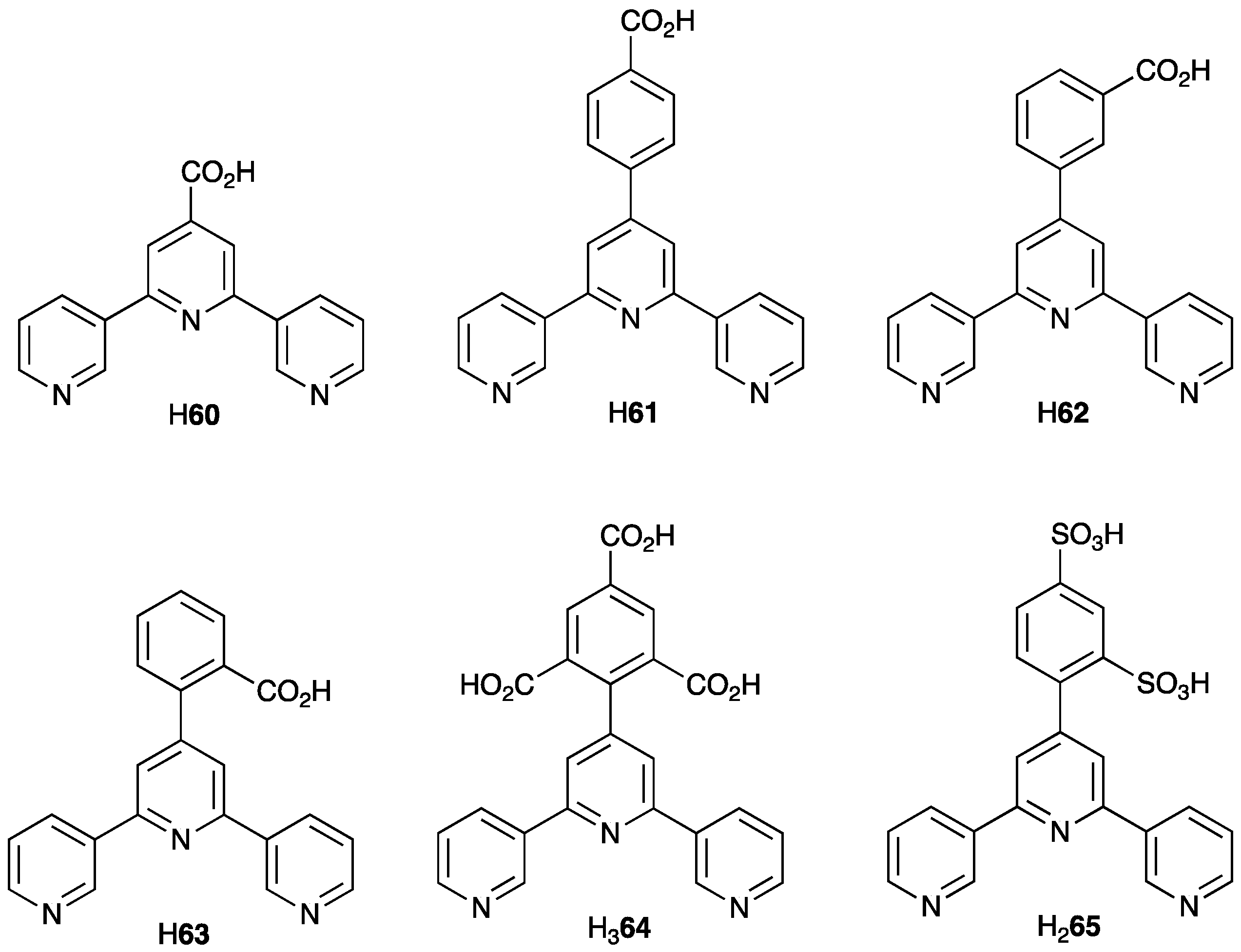

The structures of the ligands relevant to this section are depicted in Scheme 14. As has already been discussed, the 3,2′:6′,3″-tpy metal-binding domain is conformationally flexible and only one planar conformation is shown for each ligand in Scheme 14. Crystals of zinc(II) complexes incorporating H60–H63, H₃64, and H₂65 described in this section were grown under solvothermal conditions.

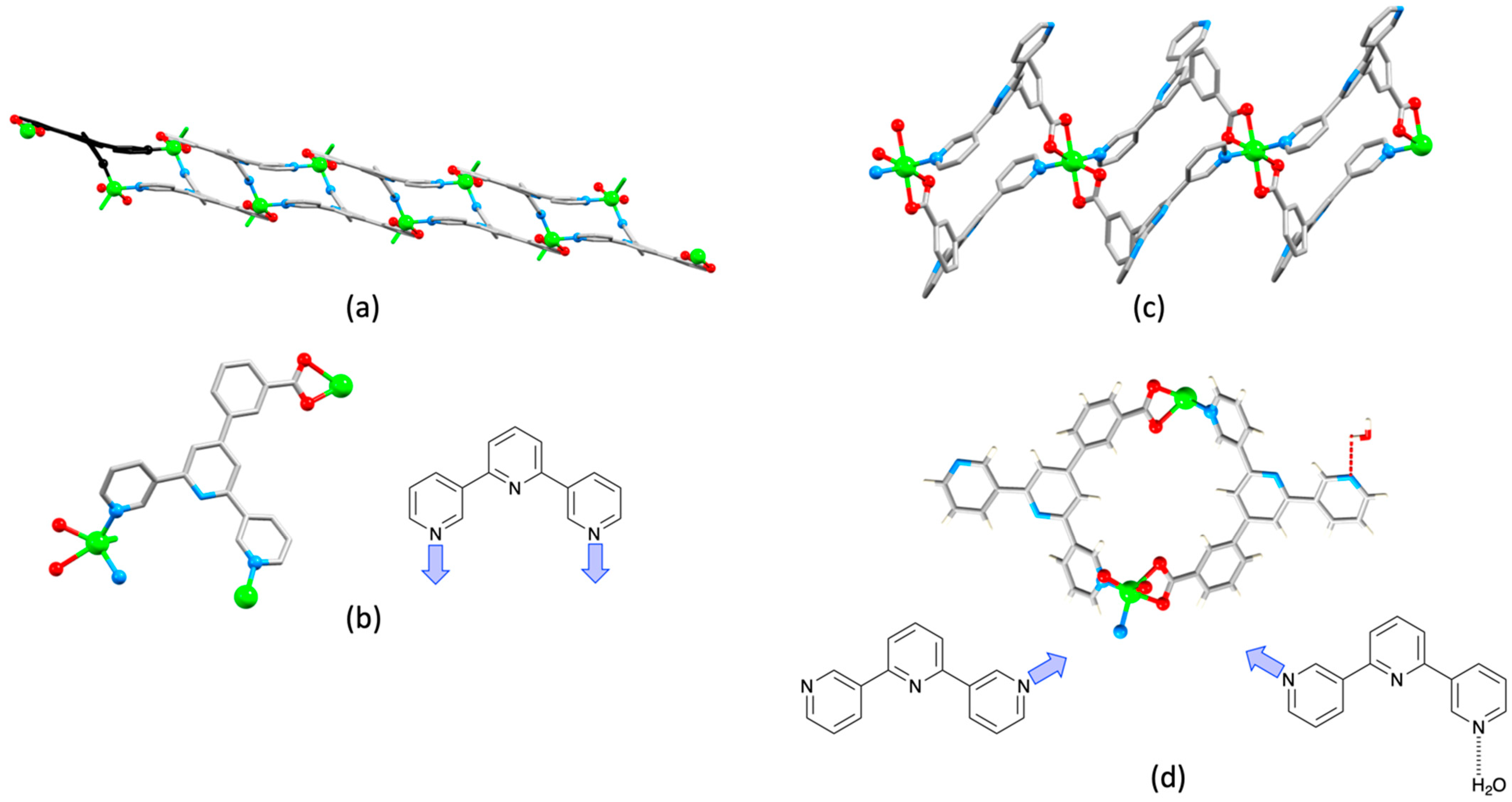

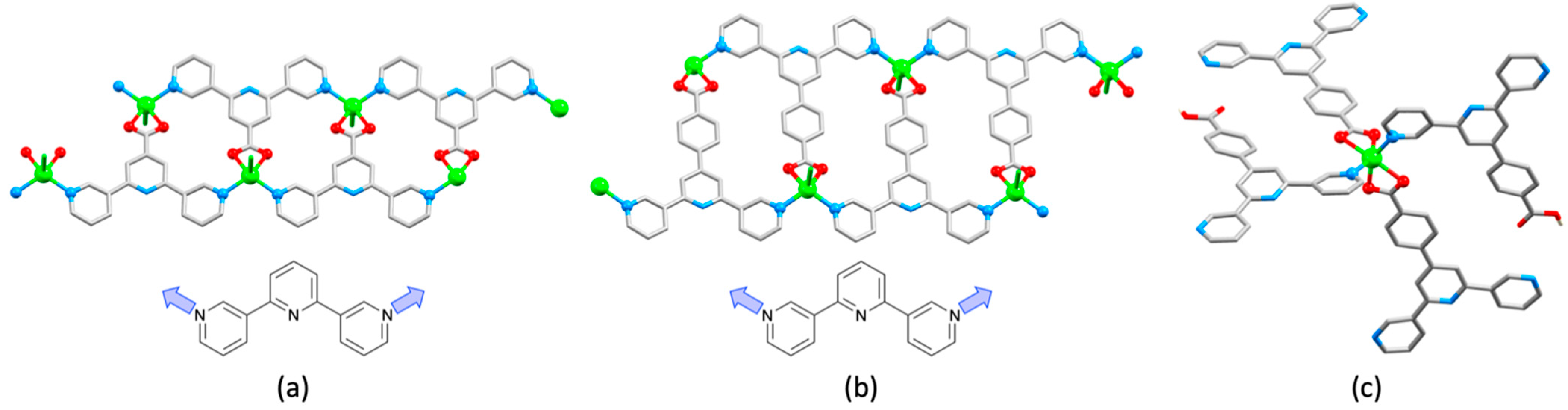

Hu and coworkers have reported that a combination of H60 with ZnCl₂ under hydrothermal conditions (pH 4.0, 180 °C) produced [Zn₂Cl₂(60)₂]_n which is a 1D-coordination polymer in which each 60^– binds to three Zn(II) centers [105]. Note that the conformational flexibility of the 3,2′:6′,3″-tpy unit facilitates this ladder-like assembly (Figure 40a) and should be contrasted with the V-shaped building block offered by the 4,2′:6′,4″-tpy unit in H31 (an isomer of H60) and discussed in Section 3.4. In related work, Hu and coworkers used H61 in reactions with ZnCl₂. Depending upon the pH, either [Zn(61)₂(H61)₂]·2nH₂O (at pH 4, see below) or [ZnCl(61)]_n (at pH 5) was produced under hydrothermal conditions in the presence of 1,10-phenanthroline (phen) at 180 °C [106]. It appears that phen plays a templating role; other examples in which template seemed to be required were described earlier, and we see a further example with ligand H62 (see below). The preparation and structure of [ZnCl(61)]_n has also been reported by Zhang et al. (CSD refcode FIJJIP01) [107]. As in [Zn₂Cl₂(60)₂]_n (Figure 40a), a 1D-polymer is observed in [ZnCl(61)]_n and Figure 40b illustrates that the 3,2′:6′,3″-tpy unit adopts a common conformation in both polymers. In the investigation from Hu [106], the product [Zn(61)₂(H61)₂]·2nH₂O formed at pH 4 is a discrete molecular complex. The Zn(II) center is bound by two monodentate H61 ligands and two 61^– coordinated through bidentate carboxylate groups (Figure 40c). The conformation of the 3,2′:6′,3″-tpy unit is the same as in the 1D-polymers in Figure 40a,b. Since H61 is an isomer of H17 and both offer divergent N-donor sets, it is instructive to compare their reactions with ZnCl₂. As we detailed earlier, combinations of ZnCl₂ and H17 have led to [Zn₂(H17)Cl₂]_n·2nEtOH·nH₂O (Figure 14) [48], and [Zn₂(17)₂Cl₂]_n·0.5nH₂O (a 2-fold interpenetrated 6³ net) [70]. Carboxylic acids H62 and H63 are isomers of H61 (Scheme 14), and a comparison can be made between the reactions of H61 or H62 with ZnCl₂ (all under solvothermal conditions). A combination of ZnCl₂ and H62 (pH 6, 180 °C) resulted in single crystals of [ZnCl(62)]_nwhich possesses a 2D-network with each Zn(II) center and each 62^– ligand acting as a 3-connecting node [108]. Figure 41a shows a side-view of the 2D-network, and illustrates how the conformation of the ligand facilitates the assembly of the double-decker type architecture; the angles between the planes of pairs of connected pyridine rings are 19.3 and 37.7°. The building block in the network is shown in Figure 41b, with a schematic representation of the conformation of the 3,2′:6′,3″-tpy unit. Hu and coworkers also carried out the reaction of H62 and ZnCl₂ in the presence of malonic acid. The latter does not act as a co-ligand and the assembly is another example of a possible templating effect. Crystals of [Zn(62)₂]_n·2nH₂O were obtained and structural characterization revealed a 1D-coordination polymer with a loop-like architecture (Figure 41c). Each pair of adjacent Zn(II) centers is bridged by two ligands 62^–, each ligand coordinating through a bidentate CO₂^– group and one pyridine N-donor. Although not discussed in the original work [108], inspection of the packing interactions in the structure (CSD refcode IKEXIH) indicates that hydrogen bonding from one non-coordinated N_py atom to a water molecule may be responsible for the different conformations of the 3,2′:6′,3″-tpy units (Figure 41d).

On going from H61 and H62 to H63 (Scheme 14), there are no data available to directly compare reactions of ZnCl₂ with the final isomer in the series. However, crystals of [ZnCl(63)]_n·nH₂O were prepared in the hydrothermal reaction of H63 and Zn(OAc)₂ with the addition of EuCl₃·6H₂O and glutaric acid (pH 3.5, 180 °C). The assembly in [ZnCl(63)]_n·nH₂O is unlike either of those in [ZnCl(61)]_n [106,107] or [ZnCl(62)]_n [109]. In [ZnCl(63)]_n·nH₂O, each Zn(II) is bound by two N-donors of two different 63^– ligands, a bidentate CO₂^– from a third 63^– ligand, and a chlorido ligand. Each Zn(II) and each 63^– is a 3-connecting node and the assembly propagates into a 3D-network with a utp topology [11]. Note that the building block in [ZnCl(63)]_n·nH₂O (Figure 42a) is similar to that in [ZnCl(62)]_n (Figure 41b) and adopts an analogous conformation of the 3,2′:6′,3″-tpy unit. Hu and coworkers have also reported the single crystal structure of [Zn(63)₂]_n [11] and this exhibits a similar loop-like 1D-coordination polymer as observed in [Zn(62)₂]_n·2nH₂O (see above). However, a comparison of Figure 42b with Figure 41d reveals a ‘tighter′ loop in [Zn(63)₂]_n than in [Zn(62)₂]_n·2nH₂O, as well as a change in the conformation of the 3,2′:6′,3″-tpy unit.

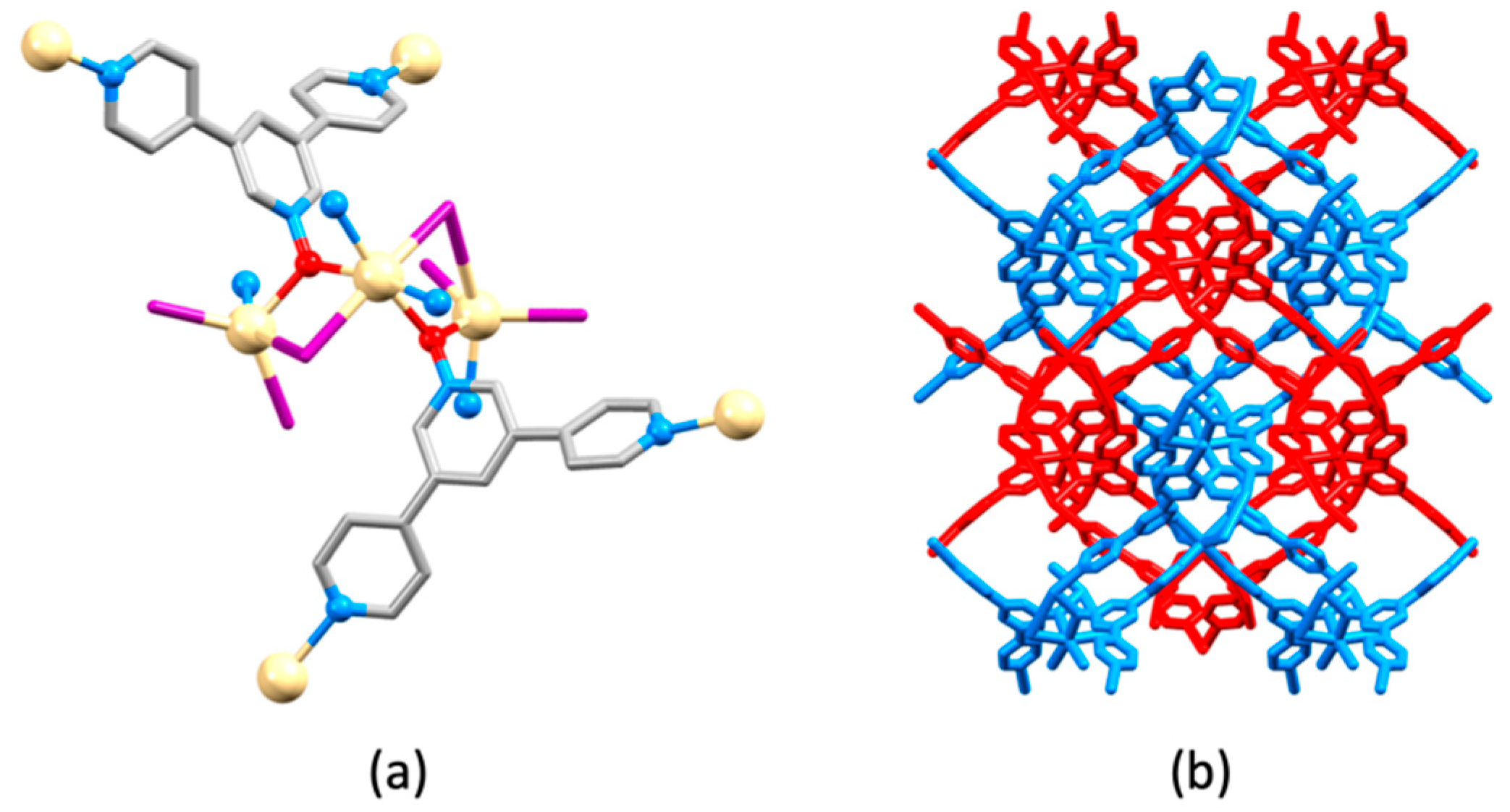

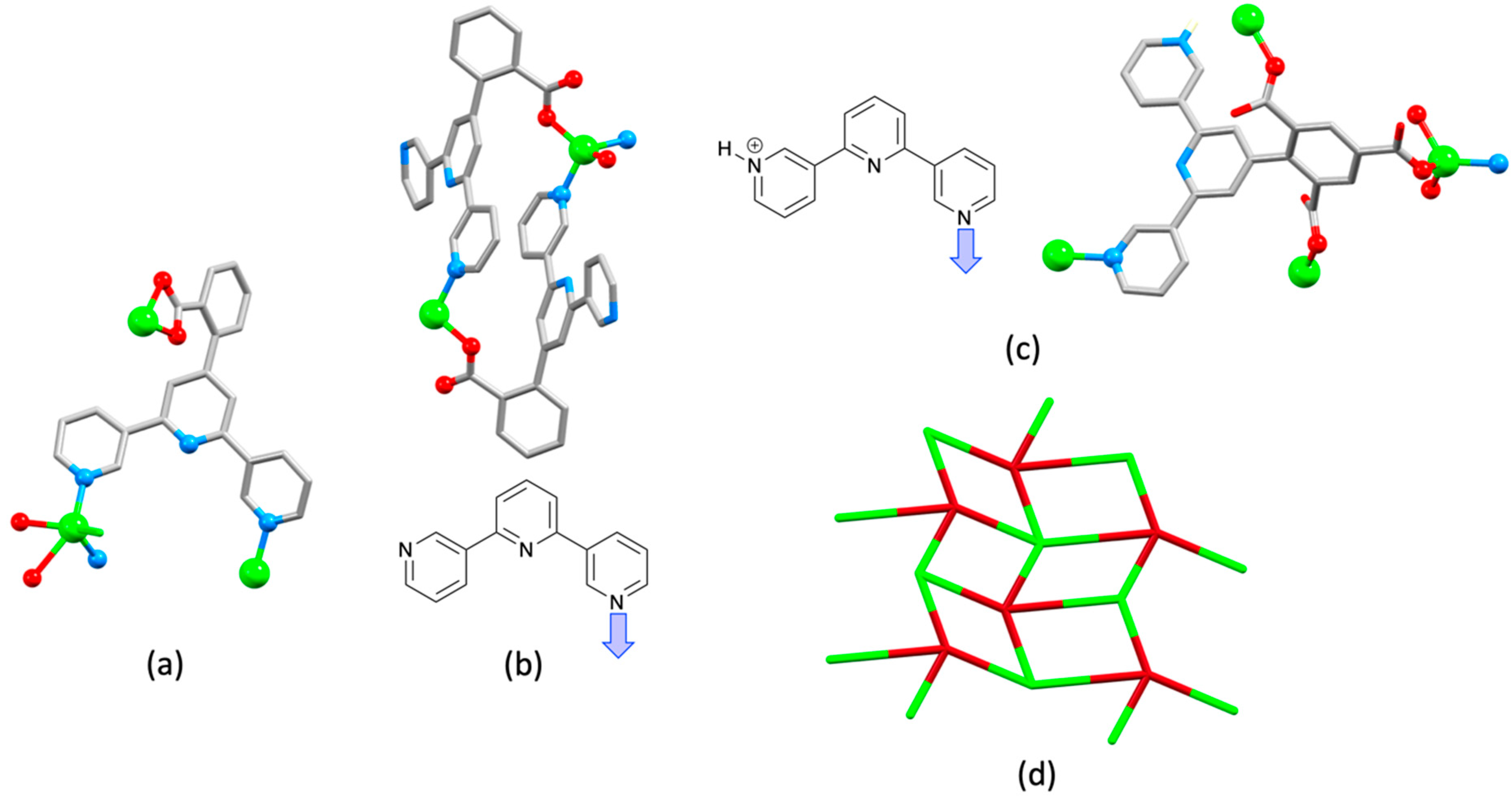

The tricarboxylic acid H₃64 (Scheme 14) has been combined with Zn(NO₃)₂·6H₂O under hydrothermal conditions with phen added to the reaction mixture. As with many of the investigations reviewed in this section, the aim was to prepare a fluorescent material for sensing applications. Crystals of [Zn(H64)]_n·1.5nH₂O (CSD refcode MUNDEH) were isolated, and contain H64^2– in which one outer pyridine ring bears the proton. The asymmetric unit with symmetry-generated atoms is shown in Figure 42c. Both H64^2– and Zn(II) are 4-connecting nodes, and a 2D (4,4)-net (Figure 42d) is assembled [109].

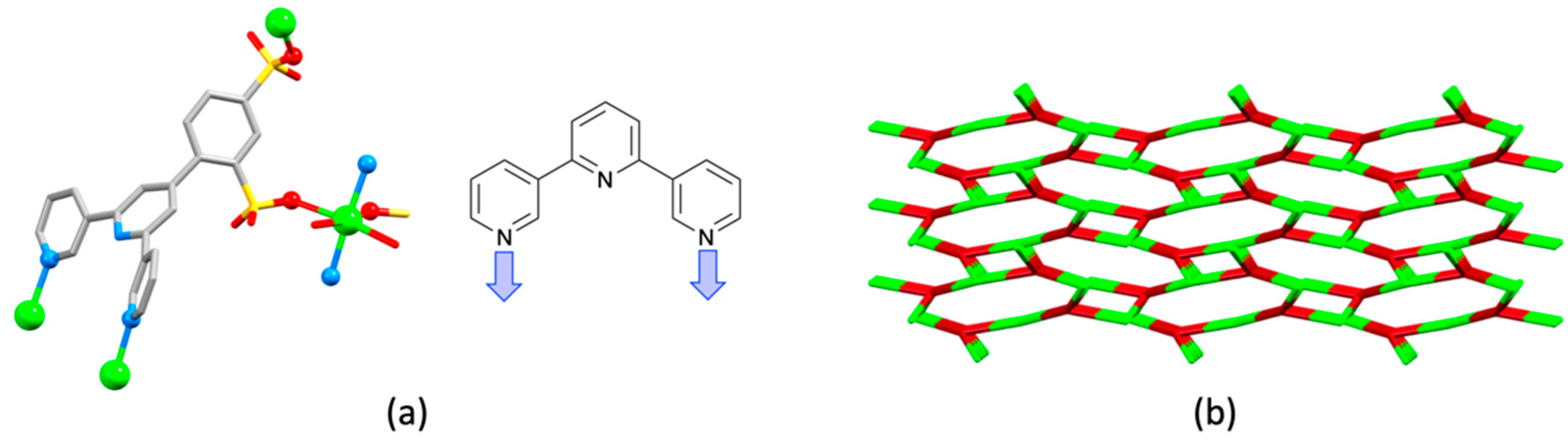

Finally in this section, we consider the assembly formed when Zn(NO₃)₂·6H₂O was treated with the disulfonic acid H₂65 (Scheme 14) under hydrothermal conditions (pH 7, 120 °C). Crystals of [Zn(65)(OH₂)₂]_n·2nH₂O were isolated in 78% yield, and the coordination compound is isostructural with that of the cadmium(II) analog [110]. Ligand 65^2– is a 4-connecting node as shown in Figure 43a, and each Zn(II) center is octahedrally sited, bound by two pyridine N-donors in a trans-arrangement, two monodentate sulfonato groups (cis with respect to one another) from two different 65^2– ligands, and two aqua ligands. Like ligand 65^2–, the Zn(II) center is a 4-connecting node, and a 3D-network with a sar topology is produced (Figure 43b).

4.3. Assemblies Containing Cadmium(II) and 3,2′:6′,3″-tpy Ligands

Only a few examples of coordination polymers and networks comprising Cd(II) and 3,2′:6′,3″-tpy ligands have been described. With one exception (CSD refcode HATFOA, see below), in all cases, the 3,2′:6′,3″-tpy is functionalized in the 4′-position with either a carboxylic or sulfonic acid. The exception is the ligand [3,2′:6′,3′′-terpyridine] N′-oxide (66) which was combined with CdI₂ under conditions of crystal growth by layering. The interest in using an N-oxide was to incorporate catalytically active species into solid coordination polymer frameworks [111]. Crystals of the 1D-coordination polymer [CdI₂(66)]_n were isolated. The polymer chain (Figure 44a) is built up by a 2-fold rotation axis and equal numbers of left- and right-handed helical chains are present in the crystal lattice. The angle between the planes of the middle and terminal pyridine rings is 43.3°, and Figure 44a shows the most appropriate limiting planar conformation of the 3,2′:6′,3″-tpy unit. Dong and coworkers also confirmed that [HgI₂(66)]_n is isostructural with [CdI₂(66)]_n. These and related coordination polymers (see Section 5) were shown to be heterogeneous catalysts for Knoevenagel condensation reactions under ambient conditions [111].

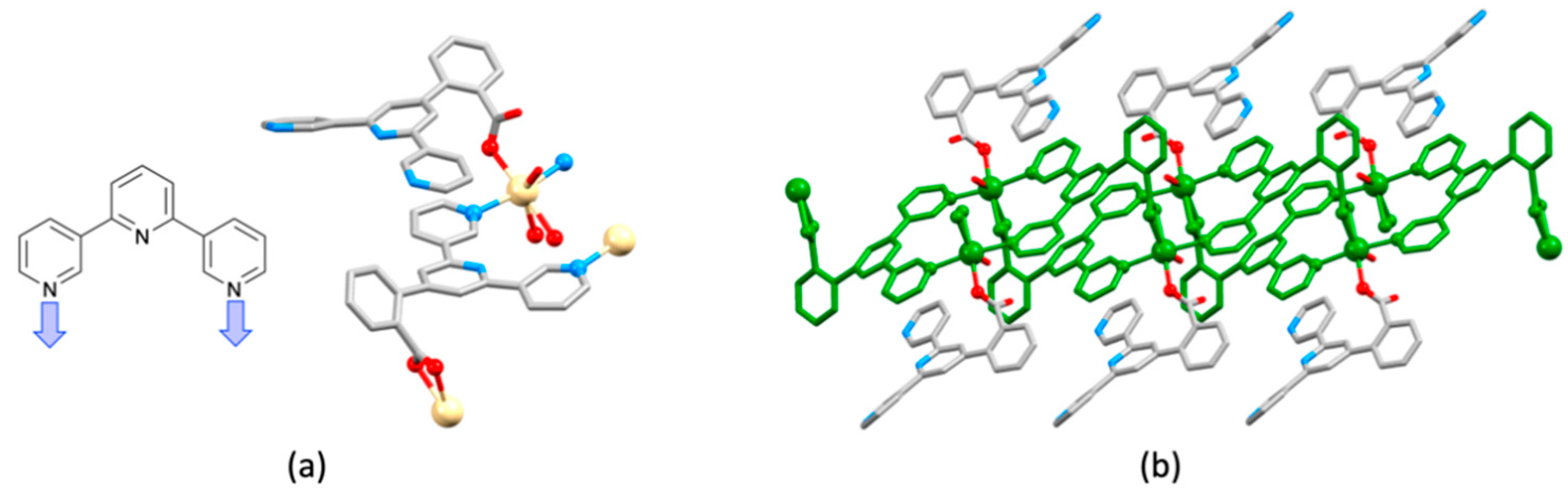

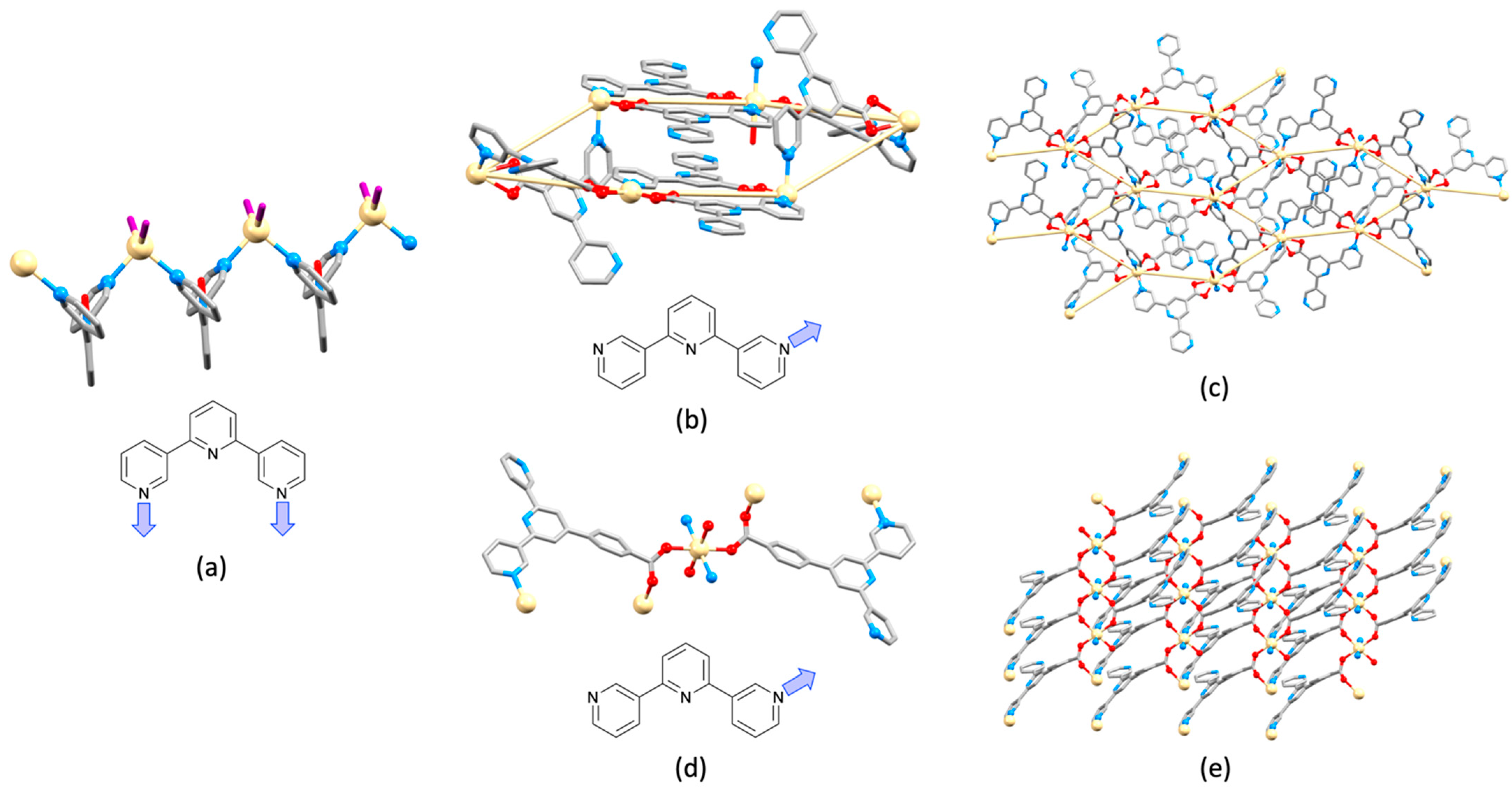

Zinc(II) coordination polymers and networks involving carboxylic and sulfonic acid functionalized ligands H60, H61, H63 and H₂65 (Scheme 14) were discussed in Section 4.2. We now compare the effects of moving from Zn(II) to Cd(II). For H60, a direct comparison between Zn and Cd cannot be made since H60 has been combined with zinc(II) chloride (hydrothermal conditions, pH 4, 180 °C) as opposed to cadmium(II) nitrate (hydrothermal, pH 5, 180 °C) [105]. In the latter reaction, crystals of [Cd(60)₂(OH₂)]_n were obtained. The Cd(II) center is 7-coordinate, being bound by two bidentate carboxylates from two different ligands, by two terminal pyridine rings of two additional ligands, and by an aqua ligand. The remaining two N-donors of each ligand are uncoordinated. The assembly of a 2D-network is thereby directed by the Cd(II) nodes, and each 60^– ligand serves as a linker. In contrast to the (4,4) net in [Cd₂(34)₄]_n·nH₂O (see Figure 33) in which each Cd(II) is 4-connecting and each Cd…Cd vector is bridged by one ligand, the assembly in [Cd(60)₂(OH₂)]_n is a (6,3) net in which Cd(II) is a 3-connecting node. Two of the six Cd…Cd vectors in the 6-membered circuit are each bridged by two 60^– ligands, and four Cd…Cd vectors are each bridged by one ligand (Figure 44b). Part of the 2D-network is depicted in Figure 44c [105]. Going from H60 to H61 introduces a phenylene spacer, and under solvothermal conditions (MeCN/H₂O, 160 °C), the reaction of H61 and Cd(NO₃)₂·6H₂O leads to crystals of [Cd(61)₂]_n. The Cd(II) center lies on a center-of-symmetry and is 6-coordinate, and bound to six different ligands (Figure 44d). Given the availability of both pyridine and carboxylato donors, we again see the preference for CO₂^– coordination to Cd(II), and the 3,2′:6′,3″-tpy domain retains two uncoordinated pyridine rings and adopts the conformation shown in Figure 44d. The combination of 6-connecting Cd(II) and 3-connecting 61^– ligand leads to the 2D-network shown in Figure 44e. A noteworthy feature of the 2D-sheet is the incorporation of infinite {Cd₂(μ-O₂CR)₂}_n chains. [Cd(61)₂]_n is strongly luminescent and its application as a luminescence sensor for 2,4,6-trinitrophenol was demonstrated [112]. When H63 was combined with CdCl₂·2.5H₂O under hydrothermal conditions (pH 6, 180 °C) and in the presence of benzene-1,2-dicarboxylic acid, crystals of [Cd(63)₂(OH₂)₂]_n (CSD refcode MICTIE) were isolated. The structure is a loop-like 1D-polymer [11], similar to that found in [Zn(63)₂]_n (Figure 42b). The major difference is the incorporation of two aqua ligands per Cd(II), consistent with the preference for a higher coordination number for the larger metal ion. A change in the pH from 6.0 to 4.0 resulted in the assembly of [Cd(63)₂(OH₂)]_n which is again a 1D-polymer comprising loop-like building blocks [11]. The structure is rather unusual. [Cd(63)₂(OH₂)]_ncrystallizes in the monoclinic space group P2₁/c and Figure 45a shows the asymmetric unit with symmetry generated atoms. There are two independent 63^– ligands, and the two different 3,2′:6′,3″-tpy units adopt the same conformation. However, while one 3,2′:6′,3″-tpy coordinates to two Cd(II) centers, the second is non-coordinated and simply decorates the periphery of the chain (Figure 45b). The assembly in [Cd(63)₂(OH₂)]_n once again illustrates the dominance of the anionic carboxylato donor over coordination through the terpyridine domain. Finally, for the sulfonato-functionalized ligand 65^2–, [Cd(65)(OH₂)₂]_n·2nH₂O (CSD refcode DUWFAE) is isostructural with [Zn(65)(OH₂)₂]_n·2nH₂O (Figure 43) [110].

5. 4,3′:5′,4″-Terpyridine

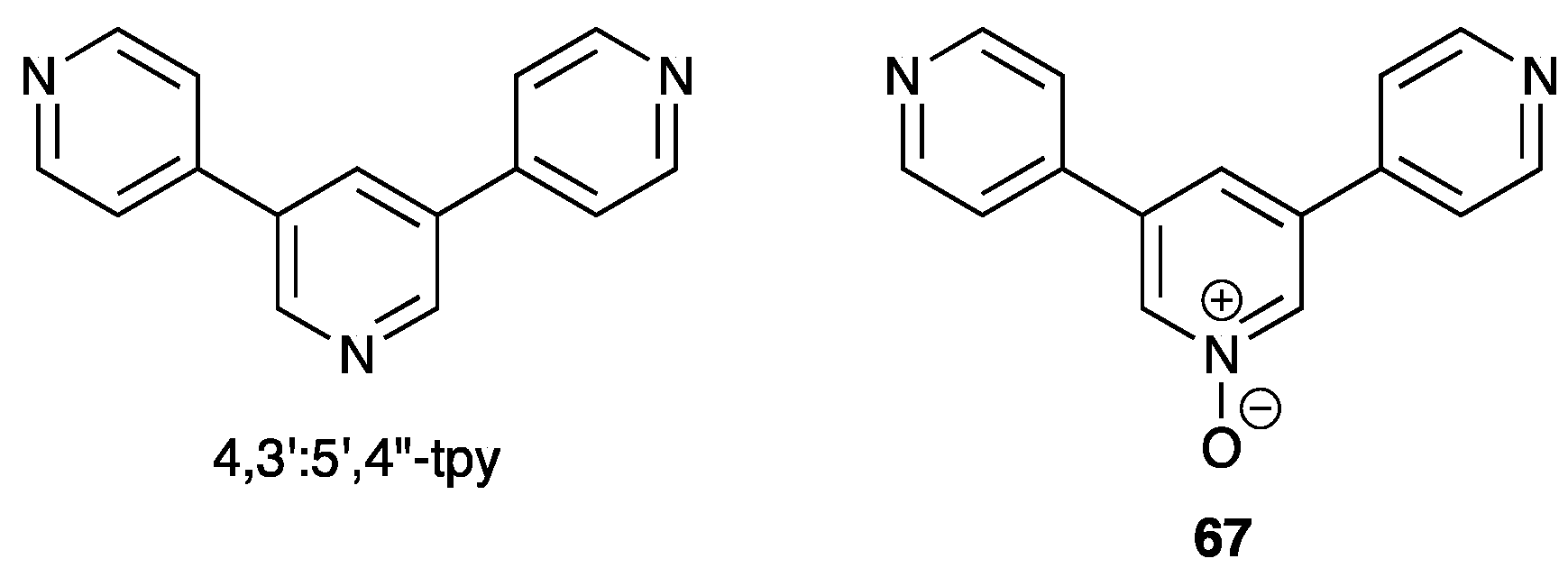

Like 4,2′:6′,4″-tpy, the isomer 4,3′:5′,4″-tpy offers a V-shaped building block for coordination polymer assembly. However, this ligand has been little utilized, and coordination polymers involving Zn(II) and Cd(II) are limited to those directed by ligand 67 (Scheme 15), plus one example which also involves a co-ligand [113].

As discussed in Section 4.3, Dong and coworkers have been interested in incorporating catalytically active species in the form of terpyridine N-oxides into coordination polymer frameworks [111]. In addition to using [3,2′:6′,3′′-terpyridine] N′-oxide (66), they have reported the reactions of ZnCl₂ and ZnI₂ with [4,3′:5′,4′′-terpyridine] N′-oxide (67). Crystal growth was under ambient conditions, and the structurally similar 1D-coordination polymers [ZnCl₂(67)]_n and [ZnI₂(67)]_n were formed (CSD refcodes HATFAM and HATFEQ). Both contain helical chains which are built up by a screw axis. In contrast, the reaction of CdI₂ with 67 (carried out under similar layering conditions to ZnI₂ with 67) gave crystals of [Cd₃I₆(67)₂]_n which crystallizes in the tetragonal space group I4₁/a. Both the outer pyridine rings of 67 and the N-oxide bind to Cd(II). Trinuclear {Cd₃I₄(μ-I)₂(μ-O)₂N₄} units assemble (Figure 46a). Ligand 67 acts as a 3-connecting node, and the central Cd(II) of the Cd₃ cluster is a 4-connecting node. The structure propagates into the 2-fold interpenetrating 3D network shown in Figure 46b [111].

Given the relative rigidity of 4,3′:5′,4″-tpy, and the fact that there is precedent for all three pyridine rings to be involved in coordination [114,115], there is significant scope for further exploration of this ligand in coordination polymer assemblies.

6. Conclusions

In this review, we have presented a survey of coordination polymers and networks containing isomers of terpyridine combined with zinc(II) or cadmium(II). Although 48 isomers of terpyridine can be drawn, three dominate the coordination chemistry of Zn(II) and Cd(II) in infinite assemblies. These are 2,2′:6′,2″-tpy, 4,2′:6′,4″-tpy, and 3,2′:6′,3″-tpy. A few examples utilizing 4,3′:5′,4″-tpy or its N′-oxide have also been described. For 2,2′:6′,2″-tpy, the propensity for chelation means that extended assemblies rely on the introduction of substituents that incorporate additional coordination sites. All of the coordination polymers containing Zn(II) or Cd(II) with 2,2′:6′,2″-tpy involve {M(2,2′:6′,2″-tpy)X_n} domains, and there are no examples containing {M(2,2′:6′,2″-tpy)₂} cores. Both 4,2′:6′,4″-tpy, and 3,2′:6′,3″-tpy can be classed as divergent ligands, and there is a wide range of extended structures incorporating these ligands bound to Zn(II) or Cd(II). The addition of functionalities such as carboxylic acid or pyridinyl units has led to a wealth of different networks, but predictive crystal engineering in these systems is difficult. What is clear, however, is that the presence of an anionic carboxylate donor in functionalized 4,2′:6′,4″-tpy and 3,2′:6′,3″-tpy ligands often leads to preferential coordination by the CO₂^– to Zn(II) or Cd(II), with the result that a significant number of assemblies exhibit pendant, non-coordinated pyridine units.

Our focus has been on structural data. Where possible, we have demonstrated the effects of going from Zn(II) to the larger Cd(II) while retaining the same ligand. However, in trying to make such comparisons, we have noted a significant lack of systematic investigations, and without such studies, it is difficult to even begin to understand why a particular assembly arises from a given combination of metal ion and terpyridine ligand.

We have also highlighted cases where there is structural evidence for the competitive assembly of different products, for example, competition between the formation of a 1D-polymer and a metallomacrocycle. In these cases, in particular, the need for PXRD analysis of bulk materials is essential but is, often, lacking. Indeed, since coordination polymer chemistry typically involves the growth of single crystals, the selection of one crystal, and a structure determination, bulk sample characterization is essential if one is to be able to say anything about the significance of the singe crystal structure that is presented.
