Article

Statistical Based Bioprocess Design for Improved Production of Amylase from Halophilic Bacillus sp. H7 Isolated from Marine Water

1
Department of Microbiology, K.R.T. Arts, B.H. Commerce, and A.M. Science College, Nashik 422002, Maharashtra, India
2
Department of Microbiology, PSGVP Mandal’s, Arts, Science & Commerce College, Shahada 425409, Maharashtra, India
3
Institute of Bioproduct Development (IBD), Universiti Teknologi Malaysia, Skudai 81310, Johor, Malaysia
4
School of Chemical and Energy Engineering, Faculty of Engineering, Universiti Teknologi Malaysia, Skudai 81310, Johor, Malaysia
5
Hainan Key Laboratory for Sustainable Utilization of Tropical Bioresource, College of Tropical Crops, Hainan University, Haikou 570228, China
6
Department of Geology and Pedology, Mendel University in Brno, 613 00 Brno-sever-Černá Pole, Czech Republic
*
Authors to whom correspondence should be addressed.
Molecules 2021, 26(10), 2833; https://doi.org/10.3390/molecules26102833
Received: 17 March 2021 / Revised: 11 April 2021 / Accepted: 14 April 2021 / Published: 11 May 2021

Abstract

:
Amylase (EC 3.2.1.1) enzyme has gained tremendous demand in various industries, including wastewater treatment, bioremediation and nano-biotechnology. This compels the availability of enzyme in greater yields that can be achieved by employing potential amylase-producing cultures and statistical optimization. The use of Plackett–Burman design (PBD) that evaluates various medium components and having two-level factorial designs help to determine the factor and its level to increase the yield of product. In the present work, we are reporting the screening of amylase-producing marine bacterial strain identified as Bacillus sp. H7 by 16S rRNA. The use of two-stage statistical optimization, i.e., PBD and response surface methodology (RSM), using central composite design (CCD) further improved the production of amylase. A 1.31-fold increase in amylase production was evident using a 5.0 L laboratory-scale bioreactor. Statistical optimization gives the exact idea of variables that influence the production of enzymes, and hence, the statistical approach offers the best way to optimize the bioprocess. The high catalytic efficiency (kcat/Km) of amylase from Bacillus sp. H7 on soluble starch was estimated to be 13.73 mL/s/mg.

Graphical Abstract

1. Introduction

Currently, enzymes have been in huge demand at the industrial level due to their eco-friendly, economic advantages catalysis over the chemical in various processing practices [1]. Amylase (EC 3.2.1.1) is a starch-hydrolyzing enzyme that produces branched and linear oligosaccharides of different chain length. Amylase enzyme has different applications in a wide variety of industries such as textiles, food, detergent, paper, sugar industries and pharmaceuticals [2,3,4]. Amylase has covered more than 65% of the world enzyme market [5], and the microbial originated amylase is more in demand due to its wide working range of pH, temperature, broad biochemical diversity, feasibility of mass culture, high enzymatic stability under extreme conditions and ease of genetic manipulation [6,7,8,9].
Due to the importance of amylases, isolation of new microbial producers capable of producing amylase provides potential new sources of the enzyme [10,11]. Isolates from extreme environments are considered a rich source for active enzymes that have numerous industrial applications and suitable for harsh conditions compared to their counterparts [12]. The comparative analysis of DNA sequences using phylogenetic methods becomes more significant with the rapid accumulation of molecular sequence detail. Gene sequencing and phylogenetic analysis are helpful to detect the nature and extent of selective forces that shape the evolution of genes and species [13]. For the identification of new isolates, 16S rRNA gene sequencing has become the most preferable method, because the 16S gene is a highly conserved as well as a variable in the genomic DNA for each species [14].
Selection of hyper amylase producers and the optimization of a bioprocess play the crucial role in cost management at the industrial level [8]. The cell mass and enzyme secretion mainly depend on the physic-chemical parameters and their levels. Therefore, to increase the production and decrease the production cost, optimization of these parameters is a must [15]. The process optimization can be done by the one variable at a time (OVAT) approach, but this only has the limitation of studying one parameter at a time, which is why it is tedious, expensive and not suitable for the large numbers of variables [16]. Whereas the statistical approaches such as response surface methodology (RSM) facilitate the study of the different parameters in combination for the interactive effects on the production and also highlight the significant variables with their optimum level quantifying the relationships between one or more measured responses [17]. Due to the smaller number of individual experiments, the RSM becomes cost effective [18]. The present study was aimed to ascertain the parameters and the level of an individual parameter that enhance the production of amylase at shake-flask level and, then, laboratory-scale bioreactor.

2. Results

2.1. Screening and Quantitative Estimation of Amylase Production by Halophilic Isolates

Microorganisms with amylolytic activity were isolated from marine water samples on starch agar medium. Among the morphologically distinct isolates, fourteen isolates (H1–H14) showed good growth in laboratory conditions and so were preliminary selected based on the zone of starch hydrolysis formed on the medium. The amylase activity of these isolates was tested by inoculating in APM after 24 h of incubation isolate H1, H2, H4, H5, H6, H10, H11, H13 and H14 showed the amylase activity ranging from 37–96 U/mL, while the amylase activity of 108, 120, 102, 110 and 113 U/mL for the isolates H3, H7, H8, H9 and H12, respectively. The highest amylase production was exhibited by isolate H7. As H7 produced the highest amylase activity, it was selected for further studies.

2.2. Identification of Potent Isolate

2.2.1. Phenotypic Characterization

The colony of isolate H7 was characterized as opaque, milky-white, convex, entire margin, while morphologically, the isolate H7 was Gram-positive, rod-shaped, non-motile and consisted of non-spore-forming bacteria.

2.2.2. Genetic Identification of Isolate Using 16S rRNA Sequencing

The comparison by multiple alignments of 16S rRNA sequence of isolate H7 with the available sequences of gene bank showed the 99.62% similarity with Bacillus aquimaris TF-12 (NR_025241) (Figure 1). The isolate was found to belong to the Bacillus genus, and it was identified as Bacillus sp. H7. The 16S rRNA gene sequence of the isolate was submitted to the gene bank under the name Bacillus sp. H7 with Genebank bank accession number MT422535.

2.3. Influence of Physico-Chemical Media Variables on Amylase Production

The influence of the incubation period on the amylase production revealed the beginning of enzyme production after 6 h in the initial lag phase that continued until the late log phase of 96 h. The maximum amylase yield was observed after 37 h (130.53 ± 2.0 U/mL). An improved yield of amylase was observed at a varying temperature ranging from 20–50 °C, the maximum yield was observed at 35 °C (127.24 ± 2.1 U/mL). The alkaline pH (8.0) of media was found to be the optimum condition for amylase production. At alkaline pH, the isolate showed the maximum productivity, i.e., 133.53 ± 1.2 U/mL. The soluble starch was found as the best carbon source, as the isolate produced maximum (144.64 ± 2.1 U/mL) amylase with starch as a carbon source. Among the nitrogen sources, yeast extract supported the maximum production of amylase (152.96 ± 3.2 U/mL) (Table 1).

2.4. The Effect of Salt Concentrations on Growth and Amylase Production

The effect of salt concentration growth and amylase production revealed that the organism grows well over the varying concentrations of salt (NaCl). Maximum growth occurred at 5.5 M of NaCl. Amylase production also showed an increasing trend with an increase in salt concentration. Maximum amylase activity was observed at 6.0 M (154.1 ± 0.8 U/mL). Further increase in the salt concentration did not significantly affect the production of amylase (Figure 2).

2.5. Evaluation of Significant Production Media Variable by Plackett-Burman Design (PBD)

Eight media variables were investigated to determine the optimum medium components suitable for amylase production. The amylase activities from the twelve runs are shown in Table 2. Fractional factorial Plackett–Burman design was used to screen and evaluate the significant variables that can influence enzyme yield, because this model does not explain the interaction among various variables [18].
The results (Table 2) indicate a variation in amylase production in the range from 119.17 ± 0.76 to 161.30 ± 0.68 U/mL by Bacillus sp. H7. The variations obtained in production revealed the importance of medium optimization to achieve the maximum amylase yield [12]. The ninth run was found to be the best combination of variables composed of (g/L); KH2PO4 (0.1); NaCl (0.1); (NH4)SO4 (0.1); yeast extract (15); soluble starch (15); inoculum concentration 1%; pH 9 at 37 °C for the maximum production of amylase.
The resulting production variables were analyzed by multiple linear regression analysis, the estimated t- and p-values of each media variable. On basis of high t-values and (p-value < 0.05), the significant variables were identified, among the variables soluble starch (p = 0.002), media pH (p = 0.008) and incubation period (p = 0.002) showed a positive effect. The statistical model itself is significant with a p-value of 0.008 (Table 3). The Pareto chart illustrates the level of significance of all the media variables on the amylase production (Figure 3). The goodness of fit model was checked by the coefficient of determination (R2), which indicated that the model could explain up to 98.88% variation of the data.

2.6. Estimation of Optimization Concentration of Significant Variables Using Central Composite Design (CCD) of Response Surface Methodology (RSM)

The optimum levels of significant variables and the effect of their interactions on amylase production were determined by CCD experiments. Soluble starch, media pH and incubation period were selected as variables based on the results of the PBD. The experimental design was carried out to determine the optimum concentrations/levels. The coded and actual values of the three independent variables for amylase production are tabulated in Table 4. The results of 20 runs from CCD experiments for studying the effects of three independent variables on amylase production are represented in Table 4. From the RSM results, the maximum experimental value for amylase production was 196.66 ± 1.09 U/mL.
The regression analysis data were fitted to a quadratic model and second-order regression
Y = −21011 − 190.3 (E) + 212.8 (F) + 1138.2 (H) − 6.69 (E·E) − 10.983 (F * F) − 15.866 (H·H) − 0.43 (E·F)
+ 5.64 (E·H) − 0.729 (F * H)
where Y is the yield of amylase (U/mL), E is the concentration of soluble starch (%), F is the media pH, and H is the incubation period (h).
The statistical significance was determined by the f-test, and the analysis of variance (ANOVA) for the response surface quadratic model is presented in Table 5. The f-value of 186.2 from ANOVA for amylase production implies that the model is significant. This is also evident from the model f-value and the probability value at p < f value, which was about 0.0 (less than 0.05). The goodness of the model can be determined from the determination coefficient (R2) and the correlation coefficient (R) [19]. The R2 value of 0.9941 suggests 99.41% variability in amylase production. The closer the value of R (R = multiple correlation coefficient) to 1, the better the correlation between the experimental and predicted values is [20]. The p-values correlate with the significance of each coefficient. It is important to indicate the pattern of mutual interaction between the coefficients (Table 5). The smaller the p-value, the more significant the corresponding coefficient is [21]. The all linear, quadratic coefficients and one interaction coefficient, i.e., E·F, were observed to be significant. Since it is a hierarchical model, insignificant coefficients were not omitted. RSM 3D surface plots (Figure 4A–C) provide the relation between the response and experimental levels of each variable. These plots are useful in understanding the type of interaction among test variables to deduce the optimum conditions [15,16]. The results of the PBD evidenced that an increase in soluble starch level (1.5%), interaction with pH at a maximum level of 9 and incubation of 37 h increased the amylase production (Figure 4C).

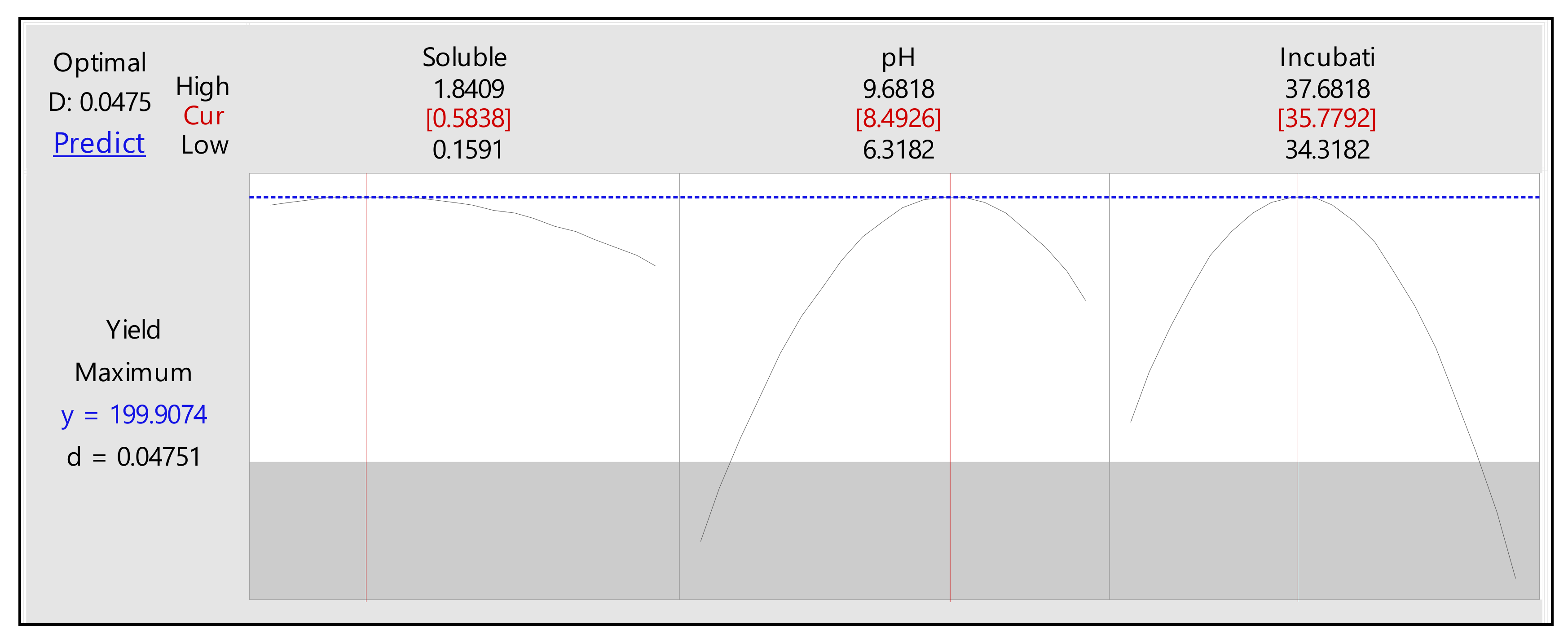

Using the above results from RMS analysis, the optimum values were predicted for the independent significant variables (Figure 5), the optimized levels of these variables in combination with other media variables, the maximum production was predicted to be 199.90 U/mL. A 1.29-fold increase in amylase activity was achieved in the present study authenticating the efficacy of RSM in process optimization (Figure 5).

2.7. Model Validation and Scale-Up Using a Laboratory-Scale (5L) Bioreactor

Once the parameters were standardized in the shake-flask culture, the experiment was scaled-up to a laboratory-scale bioreactor (5 L). The yield of amylase increased by 1.01-fold (205.69 U/mL); it could be possible because the enzyme production in a bioreactor is higher than in shake-flask culture, as the various critical variable factors such as the dissolved oxygen and the pH can be optimally controlled at the desired levels [22].

2.8. Characterization and Determination of Kinetic Parameters of Amylase from Bacillus sp. H7

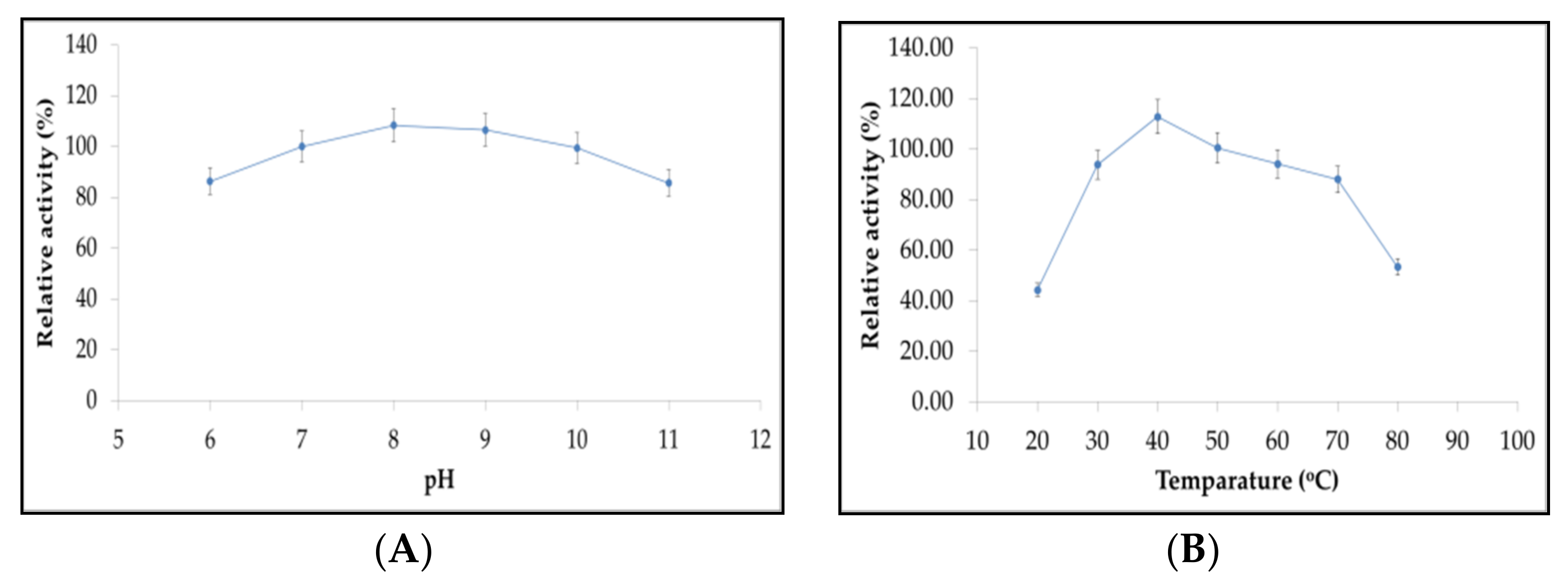

Amylase from Bacillus sp. H7 exhibited good stability over the wide range of pH (7.00 to 10.00) and temperature (30–70 °C). The enzyme activity remained unaffected over the wide range of pH and temperature. Maximum enzyme activity occurred at pH 8.0 (Figure 6A) and at 40 °C (Figure 6B). Among the various metal ions, Mg2+, Ca2+, Fe2+ and K+ exhibited positive impact and enhanced the activity of amylase at 1mM concentration. However, the presence of Ca2+ showed significant improvement in amylase activity approximately 40%, while Mn2+, Zn2+ and Hg2+ ions negtively impacted the enzyme activity (Figure 6C).

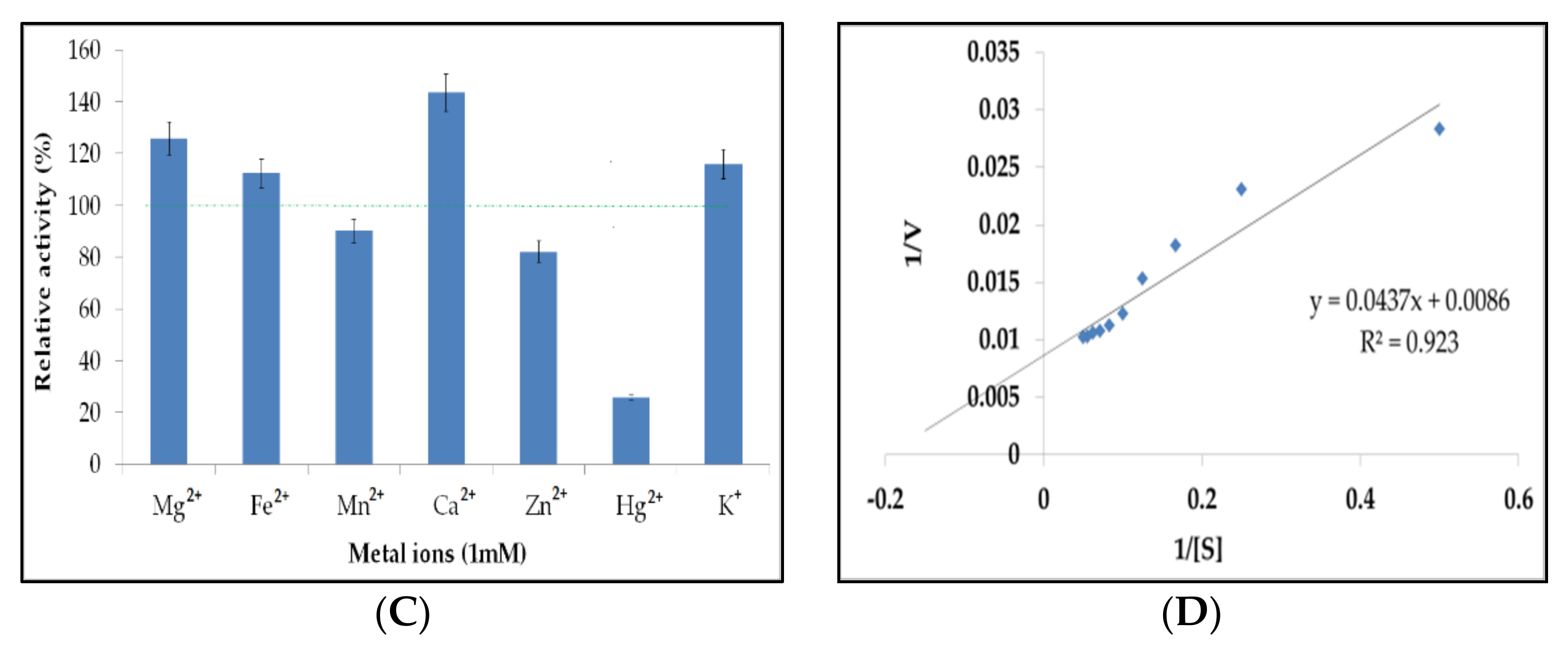

Michaelis–Menten kinetics profile and linear equation generated by Lineweaver–Burk plot of amylase from the Bacillus sp. H7 and revealed the Km and Vmax values of 5.1 mg/mL and 116.28 μM/min/mL, respectively (Figure 6D). The Kcat value and catalytic efficiency (Kcat/Km) of Bacillus sp. H7 amylase were 69.77/s and 13.73 mL/s/mg, respectively (Table 6).

3. Discussion

The extraordinary metabolic and physiological capabilities of marine isolates to produce metabolites with unique characteristics and tolerance to extreme marine environmental conditions such as high salt concentration, temperature and pressure, which are rarely found in terrestrial microorganisms [26,27].
The incubation period plays an important role in the growth rate of microbial cells as well as in enzyme production [28]. The yield amylase was observed much less in the initial lag phase of growth, as the isolate begins to adapt to the in vitro growth conditions; with the increasing incubation period, a notable increase in the amylase was observed and the optimum yield was obtained at 36 h of incubation (130.53 ± 2.0 U/mL). Further increment in the incubation period decreased the amylase production. At 72 h of incubation, it was extremely reduced, which could be due to the microbial cell death, exhaustion of nutrients, accumulation of byproducts in the culture medium, such as toxins and growth inhibitors, in addition to the cells that showed diminished amylase enzyme biosynthesis during its decline phase of growth [29]. Abdel-Fattah et al. [30] reported similar results where they observed the maximum amylase at 32 h of incubation in the case of Bacillus licheniformis AI20. Whereas Rehman et al. [28] reported the maximum production of amylase by Bacillus cereus AS2 after 72 h of the incubation period.
The temperature and the pH both are the most important variables to regulate a bioprocess. Optimum amylase yield was recorded at a temperature of 35 °C. This is because 35 °C is the optimum temperature for both of the responses, i.e., bacterial growth as well as enzyme production. Even after the 40 °C the enzyme production was not much affected, while at 50 °C, the decrease in production was observed in a much lower amount, which suggests that the isolate has good thermal stability. In case the production media pH of the amylase production was observed in pH ranging from 6.00 to 12.00 and at pH 9.00, the maximum amylase production was achieved. The alkali nature of the isolate reviles from the amylase production at such high alkali conditions. The obtained results show the similarities with the production results of Bacillus US147 where the incubation temperature was 45 °C and pH 9 resulted as the optimum condition for the amylase production [31].
The concentration of the inoculum is a significant parameter in any bioprocess for enzyme production. The production will be affected by high concentration due to the increase in moisture contains as well as biomass production, whereas the low concentration results in the prolonged production period to transform the substrate into the product [32]. Similarly, Mishra et al. [33] and Nithya et al. [34] have reported that 1.5% of inoculum concentration was optimum for maximum amylase production for Bacillus sp. and Bacillus licheniformis KSU-6, respectively.
The source and concentration of nitrogen and carbon are crucial aspects to achieve the maximum production of an enzyme, as the various physiological pathways require carbon as a substrate to regulate the enzyme production [35]. In the present study, the maximum amylase production was observed at 1.0% soluble starch as a sole source of carbon when compared to other carbon sources tested for isolate Bacillus sp. H7. These results are supported by the previous reports stated that the amylase production was increased when soluble starch was used as carbon sources [36,37,38].
The nitrogen sources have influenced the extracellular amylase enzyme production, and also, supplement with specific nitrogen source on enzyme production differs from organism to organism; nitrogen stimulates and down-regulates the enzyme production by microorganisms [39].
Yeast extract is a complex nitrogen source, it provides all essential amino acids required for the synthesis of the enzyme, and hence, it supports higher yields of the enzyme [40]. In the case of isolate Bacillus sp. H7, yeast extract is drawn out as the best source of nitrogen as compared to the other nitrogen sources tested in presence of 1% yeast extract isolate showed the maximum amylase production. Similarly, Saxena et al. [36] and Teodoro and Martins [41] have reported that yeast extract influenced the amylase production in Bacillus sp.
The salinity of the growth medium strongly influenced the amylases production, wherein low concentrations the production were moderately low, and the increase was observed with increasing concentrations. The isolate Bacillus sp. H7 showed the maximum production at high salinity, which suggests the halo-tolerant nature of the isolate. Rehman et al. [28] demonstrated the induction of amylase production in the increasing concentration of NaCl.
The optimum concentrations or levels of the various physicochemical media variables have resulted from the OVAT approach, but their interactive effect of amylase production was studied using the CCD and RSM; these studies revealed the significant independent variables having an important role in the bioprocess as well as their combined effect on the production. The statistical approach resulted in the maximization of amylase production by 1.29-fold as compared to the classical OVAT approach at shake-flask level, and upon scale-up, the production was further increased up to 1.01-fold. Elmansy et al. [18] reported the enhanced production of α-amylase by the thermo-halophilic bacterial strain Bacillus sp. NRC22017 isolated from marine environment, where they tested the various physico-chemical parameters for the optimum production (15.15 ± 0.47 U/mL). The results obtained by optimization of the production process were found higher than the previous experimental reports by Blanco et al. [42] and Ahmed et al. [21] on the extracellular amylase production by Bacillus subtilis (9.26 and 145.4 U/mL, respectively). The obtained results demonstrate that the statistical approaches have a significant role in the amylase production by Bacillus spp. over the classical optimization approaches for process optimization [43].
The enzymes having acidic and nutral working range of pH are not generally preferred, as most of the indutrial enzymatic catalysis practices are performed in the alklaine conditions, so that the enzymes that have stability and activity over a wide range of alkaline pH are more in demand, and the amylase from the Bacillus spp. H7 has the property to be stable at high alkaline pH even at 11.00. Similarly, Simair et al. [5] reported the alkaline amylase from the Bacillus sp. BCC has high stability over a wide range of alkaline pH ranging from 8 to 12. In case of temperature, the enzymes able to be active at high temperatures are mainly required in industrial applications, as most of the processes are carried out in more than 30–40 °C temperature. Thus, the enzymes having high thermostability are more in demand, in case of amylase from Bacillus sp. H7, it has been noticed that the enzymes have high thermal stability and activity over a temperature range of 30–70 °C, and this is the basic requirement of industries. The obtained pH/temperature activity and stability of an enzyme are similar to the amylase from Bacillus subtilis S8–18 [24], Bacillus megaterium NL3 [44] and Bacillus pacificus [45]. Divalent cations viz. Ca++, Mg++, Fe++ as well as monovalents such as K+ induced the crude amylase activity. Previous reporting on the influence of divalent cations on the enhancement of amylase activity supports the present findings [24]. Due to the major amount of substrate utilization for the maximum amylolytic activity make the enzyme the best candidate for industrial applications [44,46].

4. Materials and Methods

4.1. Sample Collection, Screening and Quantitative Estimation of Amylase Production by Halophilic Isolates

The marine water samples were collected from surface and deep one to two meters from the different locations in the radius of five kilometers of Harihareshwar beach in India (18°00′11.5″ N 73°01′01.6″ E); samples were collected in sterile plastic containers and mixed to make a composite sample and used for the isolation. Before isolation, the marine water samples were serially diluted, and 0.1 mL of an aliquot (10−4) was spread on nutrient agar medium. Morphologically different bacterial isolates were purified and preserved in 20% (v/v) glycerol with phosphate buffer saline (pH 7.0) until further use. In order to screen amylase-producing isolates, colonies were separately grown on starch agar and incubated at 30 °C for 24 h. The amylolytic activity of isolates was confirmed by the starch hydrolysis test using iodine [47].
Amylase production was carried out in modified amylase production medium (APM) [48] containing (g/L); (NH4)2SO4; 0.5, KH2PO4; 0.1, MgSO4; 0.1, CaCl2; 0.01, NaCl; 10 and starch; 10.0. Log phase culture of each isolate was grown in the production medium at 30 °C for 24 h. Amylase activity was estimated by centrifugation of culture broth at 10,000 rpm for 10 min, and the cell-free supernatant was assayed by 3,5-dinitro salicylic acid (DNSA) method [49]. One unit of the amylase activity was defined as the amount of enzyme required to produce 1 μM of maltose from soluble starch per minute under the assay conditions at 25 °C. The total protein content of the sample was estimated using bovine serum albumin as standard [35].

4.2. Characterization of the Potent Isolate

4.2.1. Phenotypic Characterization

For this, isolates were grown on nutrient agar at 30 °C for 24 h. The morphological characteristics were studied followed by Gram staining, motility and spore staining.

4.2.2. Molecular Identification of Isolate Using 16S rRNA Sequencing

Identification of amylase-producing isolate was carried out using 16S rRNA sequencing approach. The Genomic DNA (gDNA) isolation was performed as per the protocol of Sambrook and Russell [50]. By using the gDNA as a template, 16S rRNA genomic region was amplified with help of universal primers 27F (5′-GAGTTTGATCMTGGCTCAG-3′) and 1525R (5′-AAGGAGGTGATCCAGCC-3′) in Gene Amplifier PCR System 9700 (Perkin Elmer, Waltham, MA, USA). For the polymerase chain reaction (PCR), 20–50 ng of template DNA was used for amplification in the PCR condition, initial denaturation at 94 °C for 5 min, 35 cycles of denaturation at 94 °C for 1 min, annealing at 55 °C for 1 min and extension at 72 °C for 1 min, final extension at 72 °C for 7 min with a final hold at 20 °C, followed by the purification of PCR products on 1.0% agarose gel and sequenced on ABI 3730Xl automated sequencer using a ready reaction kit (Perkin Elmer Applied Biosystems Division, Waltham, Massachusetts, USA). Amplified sequences were identified from NCBI (http://www.ncbi.nlm.nih.gov) and EzTaxon (http://www.eztaxon.org) database, and phylogenetic trees were constructed by using the neighbor-joining method with the help of MEGA5 software (Pennsylvania State University, USA) [13].

4.3. Influence of Physico-Chemical Media Variables of Amylase Production

The media variable such as the incubation period and temperature, media pH, inoculum concentration, carbon and nitrogen sources were examined for the amylase production by Bacillus sp. H7 using the one variable at a time (OVAT) approach. For the examination of the incubation period on the amylase production, the culture was incubated for 6–96 h by keeping an interval of 6 h. The amylase production was also examined for incubation temperature by incubating the culture at a different temperature ranging from 20 to 50 °C. The effect of media pH on enzyme production was examined by the production of amylase in the varying media pH range 4.0–14.0. The optimum inoculum concentration was estimated by inoculating culture with different inoculum volumes (0.5–2.0%). The influence of various carbon sources such as glucose, starch, fructose, sucrose, lactose, maltose, dextrose and nitrogen sources such as peptone, casein, tryptone, yeast extract, urea, NH4NO3 and NH4CL2 were tested at 1% concentration.

4.4. Statistical Analyses

All the OVAT experimental result data mentioned are the mean of triplicates followed by the standard deviation analyzed using the Student’s t-test, and the observations that had p ≤ 0.05 were considered significant [51,52].

4.5. Effect of Salinity on Growth and Amylase Production

The effect of various concentrations (0–10 M) of salt (NaCl) on the growth and production of amylase by the isolate was evaluated by separately growing the log phase culture (5 × 105 cells/mL) of isolate in each production broth containing varying amounts of NaCl salt (0–10 M) at 30 °C for 48 h. Following the incubation, cell growth was measured in terms of absorbance (optical density (OD)) at 620 nm, and amylase activity was estimated as described above.

4.6. Evaluation of Significant Variable of Production Media by Plackett–Burman Design (PBD)

Among the various variables of production media identification, the most significant one is the major process in bioprocess optimization [53,54]. Regarding this, the investigation was initiated using the eight variables viz. KH2PO4 (A), NaCl (B), (NH4)2SO4 (C), yeast extract (D), soluble starch (E), pH (F), inoculum concentration (G) and incubation time (H). These variables were analyzed at their high (+1) and low (−1) levels composing Plackett–Burman design of 12 sets of different experiments illustrated in Table 2 [55,56].
The media variables that gave the confidence level greater than 95% were considered significant for amylase production by recording response in the form of amylase activity. The Pareto chart analysis represents the magnitude of each media variable (Figure 3).

4.7. Estimation and Optimization Concentration of Significant Variables Using Central Composite Design (CCD) of Response Surface Methodology (RSM)

The PBD results proposed that incubation period (F), soluble starch (E) and media pH (H) variables have the significant role in the amylase production by Bacillus sp. H7. As a result, these three variables were further processed for the estimation of optimum concentration or levels for the maximum production of amylase using the central composite design (CCD) of response surface methodology (RSM) [44]. In CCD, these variables were tested in 20 sets of experiments at five different levels consisting of axial, factorial and central positions (−α, −1, 0, +1, +α) (Table 4 and Table 7). The experimental results were obtained in the form of amylase activity and correlated with the predicted yield using analysis of variance (ANOVA) and fitted into the second-order polynomial equation (Equation (1)) to represent the confidence of the algorithm processed.
The second-order polynomial equation (Equation (2)) generated an empirical model that relates to the responses obtained in the independent variable to the experiment. A second-order polynomial equation (Equation (1)) was then fitted to the response by multiple regression procedures. This resulted in an empirical model that related the response measured in the independent variables to the experiment.
Yi = β0 + ∑ βiXi + ∑ βiiXi2 + ∑ βijXiXj
where
  • Yi—predicted response, XiXj—input variables (influence the response variable Y),
  • β0—constant, βi—ith linear coefficient,
  • βii—quadratic coefficient, βij—ijth interaction coefficient.

4.8. Model Validation and Scale-Up Using a Laboratory-Scale (5L) Bioreactor

The amylase production with the optimized levels of the significant media variables was performed at flask level followed by scale-up using laboratory bioreactor [Model LF-5 Murhopye Scientific Co., Mysore, India—5 L capacity].

4.9. Software and Data Analysis

The PBD and RSM modeling and statistical analysis of optimization were performed with software Minitab 18 (Minitab GmbH, Munich, Germany).

4.10. Characterization and Determination of Kinetic Parameters of Crude Amylase from Bacillus sp. H7

In order to determine the optimum pH and temperature for the maximum activity and stability of crude amylase, the enzyme activity was carried out in a different pH system ranging from pH 6.0 to 11.0 [5]. While to study the effect of temperature, the crude amylase was pre-incubated at varying temperatures (20–80 °C) for 60 min and assayed in the same way as for pH [23]. Similarly, metal ions Mg2+, Fe2+, Mn2+, Ca2+, Zn2+, Hg2+ and K+ at 1 mM concentration were assayed for their influence in amylase activity; the sample without metal ion was considered as a control (100%) and used to compare the relative activity [44].
The enzyme kinetic parameters of amylase from Bacillus sp. H7 were estimated using the various concentrations of substrate-soluble starch (2.0–20.0 mg/mL) in standard assay condition at pH 8 for 10 min at 40 °C, where the amount of enzyme was kept constant at 0.1 moles/mL. Different enzyme parameters such as Vmax, Km, Kcat and Kcat/Km were estimated by plotting a Lineweaver–Burk plot of initial reaction rate against concentrations of substrate soluble starch, followed by the Michaelis–Menten equation [23].

5. Conclusions

Production of amylase from halophillic organisms offers aided advantages of using it under extreme conditions. The statistical approach facilitates the combinations of experiments to elucidate the significant variables of the production medium for optimum production of extracellular amylase. The successful scale-up of the statistical-based shake-flask process to a laboratory-scale (5L) bioreactor validated the variables and their concentrations studied at the shake-flask level and further enhanced the enzyme yield by 1.29-fold. This reflects the usefulness of the application of statistical optimization in amylase production. Thus, the present results illustrated that the statistically optimized bioprocess could be the best suitable approach for enhancing the productivity of extracellular amylase at an industrial scale. The alkaliphilic thermostable amylase produced from halophilic Bacillus sp. H7 could become a good candidate for a wide range of applications in various sectors such as food, fermentation and pharmaceutical.

Author Contributions

Conceptualization, supervision and project administration, J.N.B. and R.Z.S.; data curation, H.P.J.; formal analysis and investigation, J.N.B., and V.A.T.; methodology, J.N.B. and V.A.T.; validation, R.Z.S. and H.P.J.; writing—original draft, J.N.B. and V.A.T.; writing—review and editing, R.Z.S., N.I.W.A., S.D. and R.D. Fund acquisition; N.I.W.A. and R.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by Universiti Teknologi Malaysia through UTM Transdisciplinary Research Grant (UTM-TDRG) No. Q.J130000.3551.05G64.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All the data are available in the manuscript.

Acknowledgments

We greatly appreciate Universiti Teknologi Malaysia funding through UTM Transdisciplinary Research Grant (UTM-TDRG).

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.

References

  1. Cherry, H.M.; Hossain, M.T.; Anwar, M.N. Extracellular glucoamylase from the isolate Aspergillus fumigatus. Pak. J. Biol. Sci. 2004, 7, 1988–1992. [Google Scholar] [CrossRef][Green Version]
  2. Pandey, G.; Munguambe, D.; Tharmavaram, M.; Rawtani, D.; Agrawal, Y. Halloysite nanotube—An efficient ‘nano-support’ for the immobilization of α-amylase. Appl. Clay. Sci. 2017, 136, 184–191. [Google Scholar] [CrossRef]
  3. Asrat, B.; Girma, A. Isolation, production and characterization of amylase enzyme using the isolate Aspergillus niger FAB-211. Int. J. Biotechnol. Mol. Biol. Res. 2018, 9, 7–14. [Google Scholar]
  4. El Enshasy, H.; Abdel Fattah, Y.; Othman, N.Z. Amylases. In Bioprocessing Technologes in Integrated Biorefinery from Production of Biofuels, Biochemicals, and Biopolymers from Biomass; Yang, S.-T., El Enshasy, H.A., Thongchul, N., Eds.; John Wiley & Sons: New Jersey, NJ, USA, 2013; pp. 111–130. ISBN 978-0-470-54195-1. [Google Scholar]
  5. Simair, A.A.; Qureshi, A.S.; Khushk, I.; Ali, C.H.; Lashari, S.; Bhutto, M.A.; Mangrio, G.S.; Lu, C. Production and partial characterization of α-amylase enzyme from Bacillus sp. BCC 01-50 and potential applications. BioMed Res. Int. 2017, 2017, 9173040. [Google Scholar] [CrossRef][Green Version]
  6. Kumar, S.; Karan, R.; Kapoor, S.; Singh, S.P.; Khare, S.K. Screening and isolation of halophilic bacteria producing industrially important enzymes. Braz. J. Microbiol. 2012, 43, 1595–1603. [Google Scholar] [CrossRef] [PubMed][Green Version]
  7. Vijayaraghavan, P.; Kalaiyarasi, M.; Vincent, S.G.P. Cow dung is an ideal fermentation medium for amylase production in solid-state fermentation by Bacillus cereus. J. Gen. Eng. Biotechnol. 2015, 13, 111–117. [Google Scholar] [CrossRef][Green Version]
  8. Sreena, C.P.; Sebastian, D. Augmented cellulase production by Bacillus subtilis strain MU S1 using different statistical experimental designs. J. Gen. Eng. Biotechnol. 2018, 16, 9–16. [Google Scholar] [CrossRef]
  9. Elsayed, E.A.; Omar, H.G.; Galil, S.A.; El-Enshasy, H.A. Optimization of fed-batch cultivation for extracellular α-amylase production by Bacillus amyloliquefaciens in submerged culture. J. Sci. Ind. Res. 2016, 75, 480–486. [Google Scholar]
  10. Nurkhasanah, S.; Nur Afifah, Z.; Al Husna, S.N.; Widowati, R.; El Enshasy, H.; Dailin, D.J. Metagenomic-based approach for the analysis of yeast diversity associated with amylase production in Lai (Durio kutejensis). J. Pure Appl. Microbiol. 2021, 15, 75–90. [Google Scholar] [CrossRef]
  11. Aullybux, A.; Puchooa, D. α-Amylase production on low-cost substrates by Naxibacter sp. isolated from Mauritian soils. Br. Microbiol. Res. J. 2013, 3, 478–491. [Google Scholar] [CrossRef]
  12. Mahapatra, P.D.; Mishra, B.B. Isolation and molecular identification of an extreme alkali-tolerant Pseudomonas mendocina 2E from brackish water of Chilica Lake. Cibte. J. Bio Proto 2014, 3, 11–18. [Google Scholar]
  13. Huma, T.; Maryam, A.; Rehman, S.; Tahir ul qamar, M.; Shaheen, T.; Haque, A.; Shaheen, B. Phylogenetic and comparative sequence analysis of thermostable alpha amylases of kingdom Archea, Prokaryotes and Eukaryotes. Bioinformation 2014, 10, 443–448. [Google Scholar] [CrossRef][Green Version]
  14. Sonawane, M.S.; Chaudhary, R.D.; Shouche, Y.S.; Sayyed, R.Z. Insect gut bacteria: A novel source for siderophore production. Proc. Natl. Acad. Sci. India Sect. B Biol. Sci. 2016, 88, 567–572. [Google Scholar] [CrossRef]
  15. Saha, S.P.; Mazumdar, D. Optimization of process parameter for alpha-amylase produced by Bacillus cereus amy3 using one factor at a time (OFAT) and central composite rotatable (CCRD) design based response surface methodology (RSM). Biocatal. Agric. Biotechnol. 2019, 19, 101168. [Google Scholar] [CrossRef]
  16. Khusro, A.; Barathikannan, K.; Aarti, C.; Agastian, P. Optimization of thermo-alkali stable amylase production and biomass yield from Bacillus sp. under submerged cultivation. Fermentation 2017, 3, 7. [Google Scholar] [CrossRef]
  17. Abdel Wahab, W.A.; Ahmed, S.A. Response surface methodology for production, characterization and application of solvent, salt and alkali-tolerant alkaline protease from isolated fungal strain Aspergillus niger WA 2017. Int. J. Biol. Macromol. 2018, 115, 447–458. [Google Scholar] [CrossRef]
  18. Elmansy, E.A.; Asker, M.; El-Kady, E.M.; Hassanein, S.M.; Fawkia, M. Production and optimization of α-amylase from thermo-halophilic bacteria isolated from different local marine environments. Bull. Natl. Res. Cent. 2018, 42, 31. [Google Scholar] [CrossRef][Green Version]
  19. Balakrishnan, D.; Shilpa Shaji, V.S. Molecular Identification and Optimization of Amylase Producing Bacillus gingshengii SNB12 Using Response Surface Methodology. Int. J. Adv. Biotechnol. Res. 2020, 10, 1–16. [Google Scholar]
  20. Ojha, S.K.; Singh, P.K.; Mishra, S.; Pattnaik, R.; Dixit, S.; Verma, S.K. Response surface methodology based optimization and scale-up production of amylase from a novel bacterial strain, Bacillus aryabhattai KIIT BE-1. Biotechnol. Rep. 2020, 27, e00506. [Google Scholar] [CrossRef] [PubMed]
  21. Ahmed, S.A.; Abdella, M.A.; El-Sherbiny, G.M.; Ibrahim, A.M.; El-Shamy, A.R.; Atalla, S.M. Application of one-factor-at-a-time and statistical designs to enhance α-amylase production by a newly isolate Bacillus subtilis strain-MK1. Biocatal. Agric. Biotechnol. 2019, 22, 101397. [Google Scholar] [CrossRef]
  22. Hashemi, M.; Razavi, S.H.; Shojaosadati, S.A.; Mousavi, S.M.; Khajeh, K.; Safari, M. Development of a solid-state fermentation process for production of an alpha amylase with potentially interesting properties. J. Biosci. Bioeng. 2010, 110, 333–337. [Google Scholar] [CrossRef] [PubMed]
  23. Xie, F.; Quan, S.; Liu, D.; Ma, H.; Li, F.; Zhou, F.; Chen, G. Purification and characterization of a novel α-amylase from a newly isolated Bacillus methylotrophicus strain P11-2. Proc. Biochem. 2014, 49, 47–53. [Google Scholar] [CrossRef]
  24. Kalpana, B.J.; Pandian, S.K. Halotolerant, acid-alkalistable, chelator resistant and raw starch digesting α-amylase from a marine bacterium Bacillus subtilis S8–18. J. Basic Microbiol. 2014, 54, 802–811. [Google Scholar] [CrossRef]
  25. Carvalho, R.V.D.; Côrrea, T.L.R.; Silva, J.C.M.D.; Mansur, L.R.C.D.O.; Martins, M.L.L. Properties of an amylase from thermophilic Bacillus sp. Braz. J. Microbiol. 2008, 39, 102–107. [Google Scholar] [CrossRef] [PubMed][Green Version]
  26. Tripathi, L.; Irorere, V.U.; Marchant, R.; Banat, I.M. Marine derived biosurfactants: A vast potential future resource. Biotechnol. Lett. 2018, 40, 1441–1457. [Google Scholar] [CrossRef][Green Version]
  27. Nayak, N.S.; Thacker, S.C.; Tipre, D.R.; Dave, S.R. Bacillus pumilus—A marine bacteria: Unexplored source for potential biosurfactant production. Biosci. Biotechnol. Res. Comm. 2020, 13, 180–187. [Google Scholar]
  28. Rehman, A.; Saeed, A.; Asad, W.; Kiran, T.; Baloch, M.N.; Eijaz, S. Optimization of physicochemical parameters for maximum amylase production by indigenously isolated Bacillus cereus AS2 strain. Pak. J. Pharm. Sci. 2019, 32, 889–894. [Google Scholar] [PubMed]
  29. Aiyer, P.V. Amylases and their applications. Afr. J. Biotechnol. 2005, 4, 1525–1529. [Google Scholar]
  30. Abdel-Fattah, Y.R.; Soliman, N.A.; El-Toukhy, N.M.; El-Gendi, H.; Ahmed, R.S. Production, purification, and characterization of thermostable α-amylase produced by Bacillus licheniformis isolate AI20. J. Chem. 2013, 2013, 673173. [Google Scholar] [CrossRef][Green Version]
  31. Ghorbel, R.E.; Maktouf, S.; Massoud, E.B.; Bejar, S.; Chaabouni, S.E. New thermostable amylase from Bacillus cohnii US147 with a broad pH applicability. Appl. Biochem. Biotechnol. 2009, 157, 50. [Google Scholar] [CrossRef]
  32. Balkan, B.; Ertan, F. Production of α-Amylase from Penicillium chrysogenum under solid-state fermentation by using some agricultural by-products. Food Technol. Biotechnol. 2007, 45, 439–442. [Google Scholar]
  33. Mishra, T.; Ahluwalia, S.; Joshi, M. Isolation and medium optimization for amylase producing bacterial strain isolated from potato field of Bhatinda, Punjab, India. Eur. J. Exp. Biol. 2014, 4, 588–594. [Google Scholar]
  34. Nithya, K.; Muthukumar, C.; Dhanasekaran, D.; Kadaikunnan, S.; Alharbi, N.S.; Khaled, J.M.; Thajuddin, N. Production, optimization and partial characterization of thermostable and alkaline amylase from Bacillus licheniformis KSU-6. Int. J. Agric. Biol. 2016, 18, 1188–1194. [Google Scholar] [CrossRef]
  35. Jadhav, H.P.; Sonawane, M.S.; Khairnar, M.H.; Sayyed, R.Z. Production of alkaline protease by rhizospheric Bacillus cereus HP_RZ17 and Paenibacillus xylanilyticus HP_RZ19. Environ. Sustain. 2020, 3, 5–13. [Google Scholar] [CrossRef]
  36. Saxena, R.; Dutt, K.; Agarwal, L.; Nayyar, P. A highly thermostable and alkaline amylase from a Bacillus sp. Bioresour. Technol. 2007, 98, 260–265. [Google Scholar] [CrossRef]
  37. Božić, N.; Ruiz, J.; Lόoez-Santin, J.; Vujčić, Z. Optimization of the growth and alpha-amylase production of Bacillus subtilis IP 5832 in shake flask and laboratory fermenter batch cultures. J. Serb. Chem. Soc. 2011, 76, 965–972. [Google Scholar] [CrossRef]
  38. Al-Johani, N.B.; Al-seeni, M.N.; Ahmed, Y.M. Optimization of alkaline α-amylase production by thermophilic Bacillus subtilis. Afr. J. Tradit. Complement. Altern. Med. 2017, 14, 288–301. [Google Scholar] [CrossRef][Green Version]
  39. Hillier, P.; Wase, D.A.J.; Emery, A.N. Production of α-amylase (E.C.3.2.1.1.) by Bacillus amyloliquefaciens in batch and continuous culture using a defined synthetic medium. Biotechnol. Lett. 1996, 18, 795–800. [Google Scholar] [CrossRef]
  40. Habicher, T.; John, A.; Scholl, N.; Daub, A.; Klein, T.; Philip, P.; Büchs, J. Introducing substrate limitations to overcome catabolite repression in a protease producing Bacillus licheniformis strain using membrane-based fed-batch shake flasks. Biotechnol. Bioeng. 2019, 116, 1326–1340. [Google Scholar] [CrossRef]
  41. Teodoro, C.E.; Martins, M.L. Culture conditions for the production of thermostable amylase by Bacillus sp. Braz. J. Microbiol. 2000, 31, 298–302. [Google Scholar] [CrossRef]
  42. Blanco, A.S.; Durive, O.P.; Pérez, S.B.; Montes, Z.D.; Guerra, N.P. Simultaneous production of amylases and proteases by Bacillus subtilis in brewery wastes. Braz. J. Microbiol. 2016, 47, 665–674. [Google Scholar] [CrossRef] [PubMed][Green Version]
  43. Poddar, A.; Ghara, T.K.; Jana, S.C. Critical process parameters optimization for hyperthermostable βamylase production by Bacillus subtilis DJ5 using response surface methodology. Acta Sci. Biol. Sci. 2014, 36, 87–93. [Google Scholar] [CrossRef][Green Version]
  44. Shofiyah, S.S.; Yuliani, D.; Widya, N.; Sarian, F.D.; Puspasari, F.; Radjasa, O.K.; Natalia, D. Isolation, expression, and characterization of raw starch degrading α-amylase from a marine lake Bacillus megaterium NL3. Heliyon 2020, 6, e05796. [Google Scholar] [CrossRef] [PubMed]
  45. Alonazi, M.; Karray, A.; Badjah-Hadj-Ahmed, A.Y.; Ben Bacha, A. Alpha Amylase from Bacillus pacificus Associated with Brown Algae Turbinaria ornata: Cultural Conditions, Purification, and Biochemical Characterization. Processes 2021, 9, 16. [Google Scholar] [CrossRef]
  46. Ghollasi, M.; Khajeh, K.; Naderi-Manesh, H.; Ghasemi, A. Engineering of a Bacillus alpha-amylase with improved thermostability and calcium independency. Appl. Biochem. Biotechnol. 2010, 162, 444–459. [Google Scholar] [CrossRef] [PubMed]
  47. Vaidya, S.O.; Srivastava, P.K.; Rathore, P.R.; Pandey, A.K. Amylases: A prospective enzyme in the field of biotechnology. J. Appl. Biosci. 2015, 41, 1–8. [Google Scholar]
  48. Thebti, W.; Riahi, Y.; Gharsalli, R.; Belhadj, O. Screening and characterization of thermo-active enzymes of biotechnological interest produced by thermophilic Bacillus isolated from hot springs in Tunisia. Acta Biochim. Pol. 2016, 63, 581–587. [Google Scholar] [CrossRef]
  49. Kunamneni, A.; Kumar, K.S.; Singh, S. Response surface methodological approach to optimize the nutritional parameters for enhanced production of-amylase in solid state fermentation by Thermomyces lanuginosus. Afr. J. Biotechnol. 2005, 4, 708–716. [Google Scholar]
  50. Sambrook, J.; Russell, D.W. Molecular Cloning-Sambrook and Russel, 3rd ed.; Cold Springs Harbor Laboratory Press: New York, NY, USA, 2001. [Google Scholar]
  51. Parker, R.E. Continuous distribution: Tests of significance. In Introductory Statistics for Biology, 2nd ed.; Parker, R.E., Ed.; Cambridge University Press: London, UK, 1979; pp. 18–42. [Google Scholar]
  52. Deepa, T.; Gangwane, A.K.; Sayyed, R.Z.; Jadhav, H.P. Optimization and scale-up of laccase production by Bacillus sp. BAB-4151 isolated from the waste of the soap industry. Environ. Sustain. 2020, 3, 471–479. [Google Scholar] [CrossRef]
  53. Jadhav, H.P.; Sayyed, R.Z.; Shaikh, S.S.; Bhamre, H.M.; Sunita, K.; El Enshasy, H.A. Statistically designed bioprocess for enhanced production of alkaline protease in Bacillus cereus HP_RZ17. J. Sci. Ind. Res. 2020, 79, 491–498. [Google Scholar]
  54. Bhamare, H.M.; Jadhav, H.P.; Sayyed, R.Z. Statistical optimization for enhanced production of extracellular laccase from Aspergillus sp. HB_RZ4 isolated from bark scrapping. Environ. Sustain. 2018, 1, 159–166. [Google Scholar] [CrossRef]
  55. Plackett, R.L.; Burman, J.P. The design of optimum multifactorial experiments. Biometrika 1946, 33, 305–325. [Google Scholar] [CrossRef]
  56. Box, G.E.; Wilson, K.B. On the experimental attainment of optimum conditions. J. R. Stat. Soc. Ser. B 1951, 13, 1–38. [Google Scholar] [CrossRef]

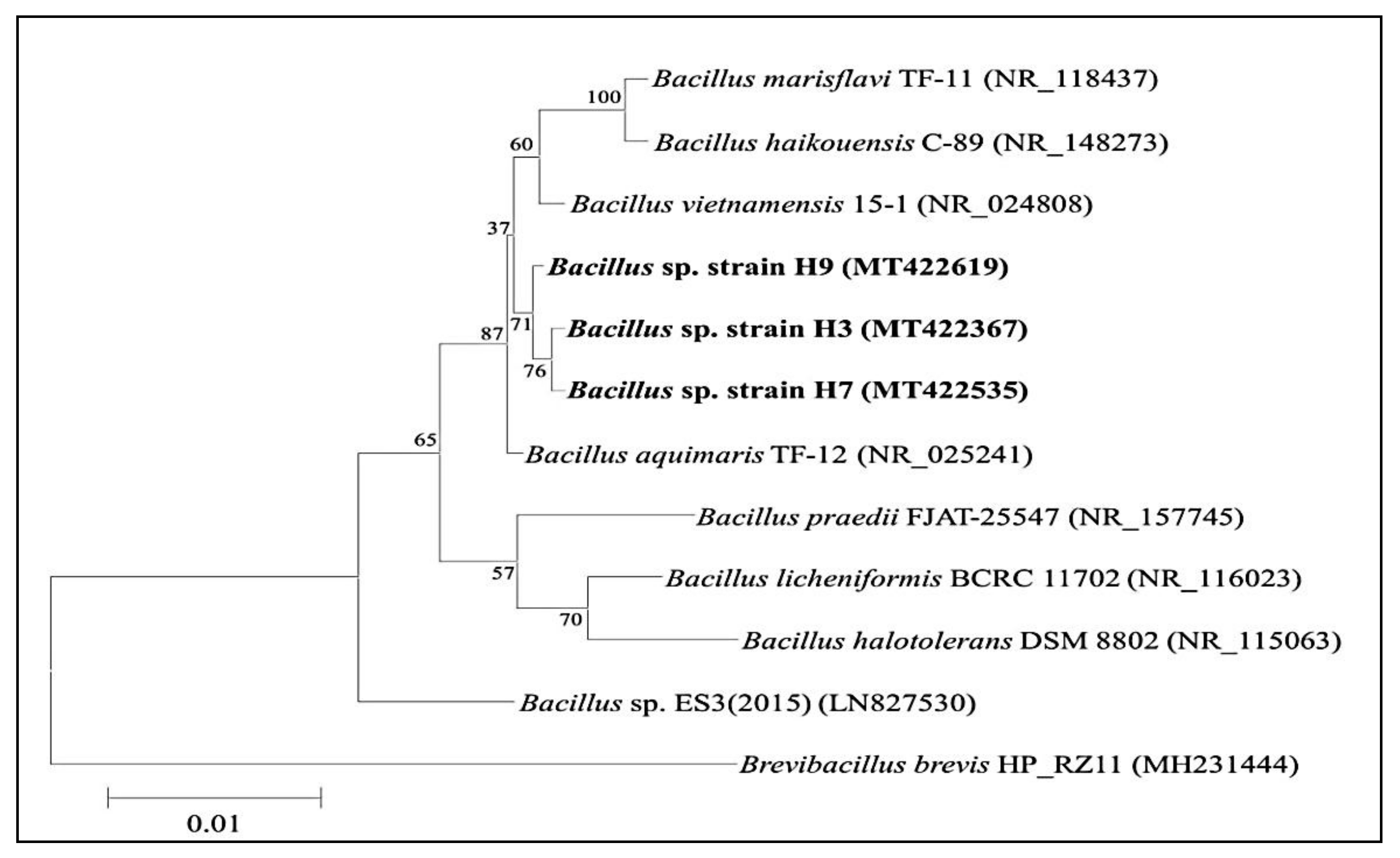

Figure 1. Phylogenetic tree of Bacillus sp. H7 drawn using the neighbor-joining method.
Figure 1. Phylogenetic tree of Bacillus sp. H7 drawn using the neighbor-joining method.
Molecules 26 02833 g001

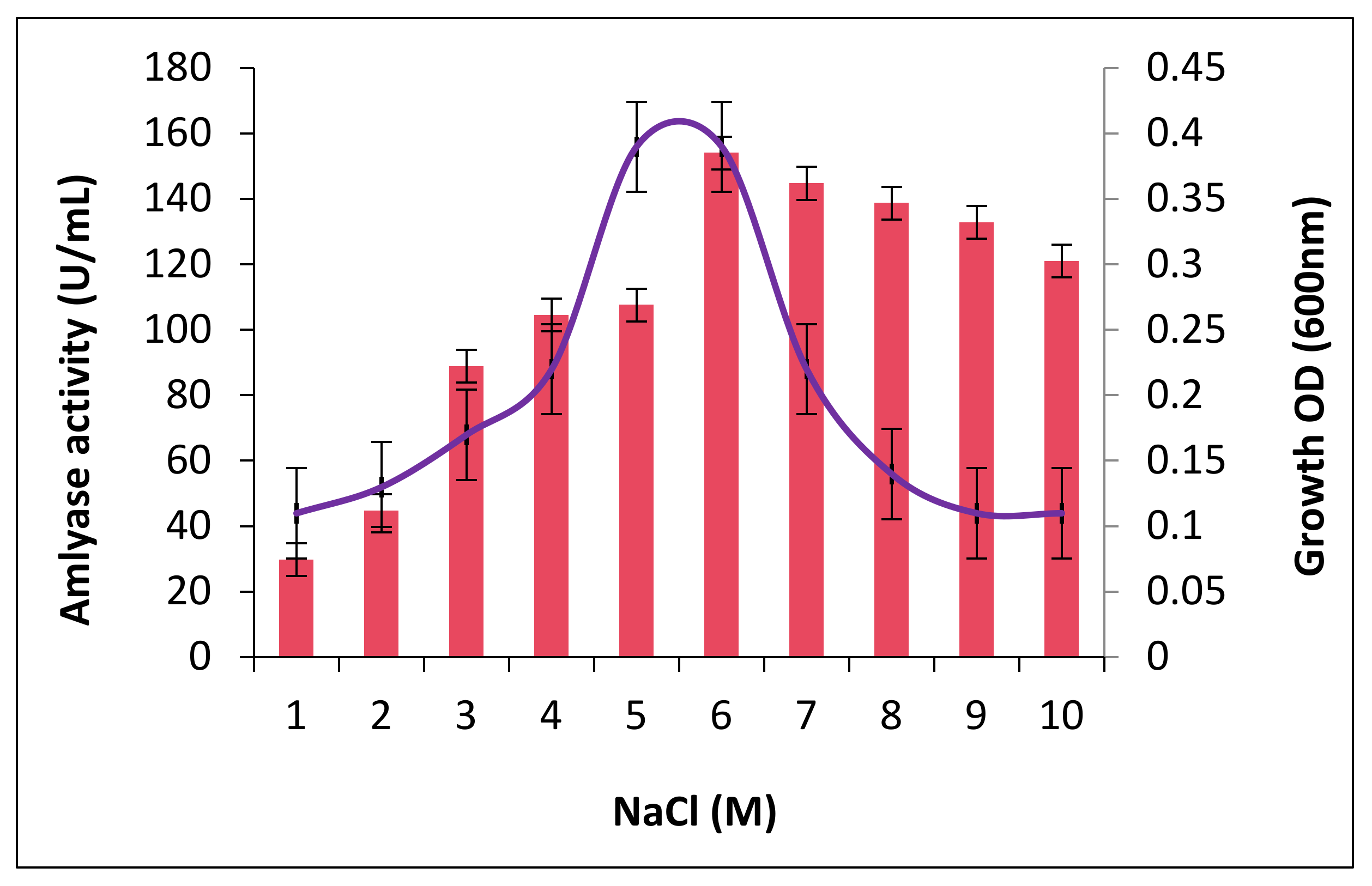

Figure 2. Influence of salt concentration on growth and amylase production in Bacillus sp. H7.
Figure 2. Influence of salt concentration on growth and amylase production in Bacillus sp. H7.
Molecules 26 02833 g002

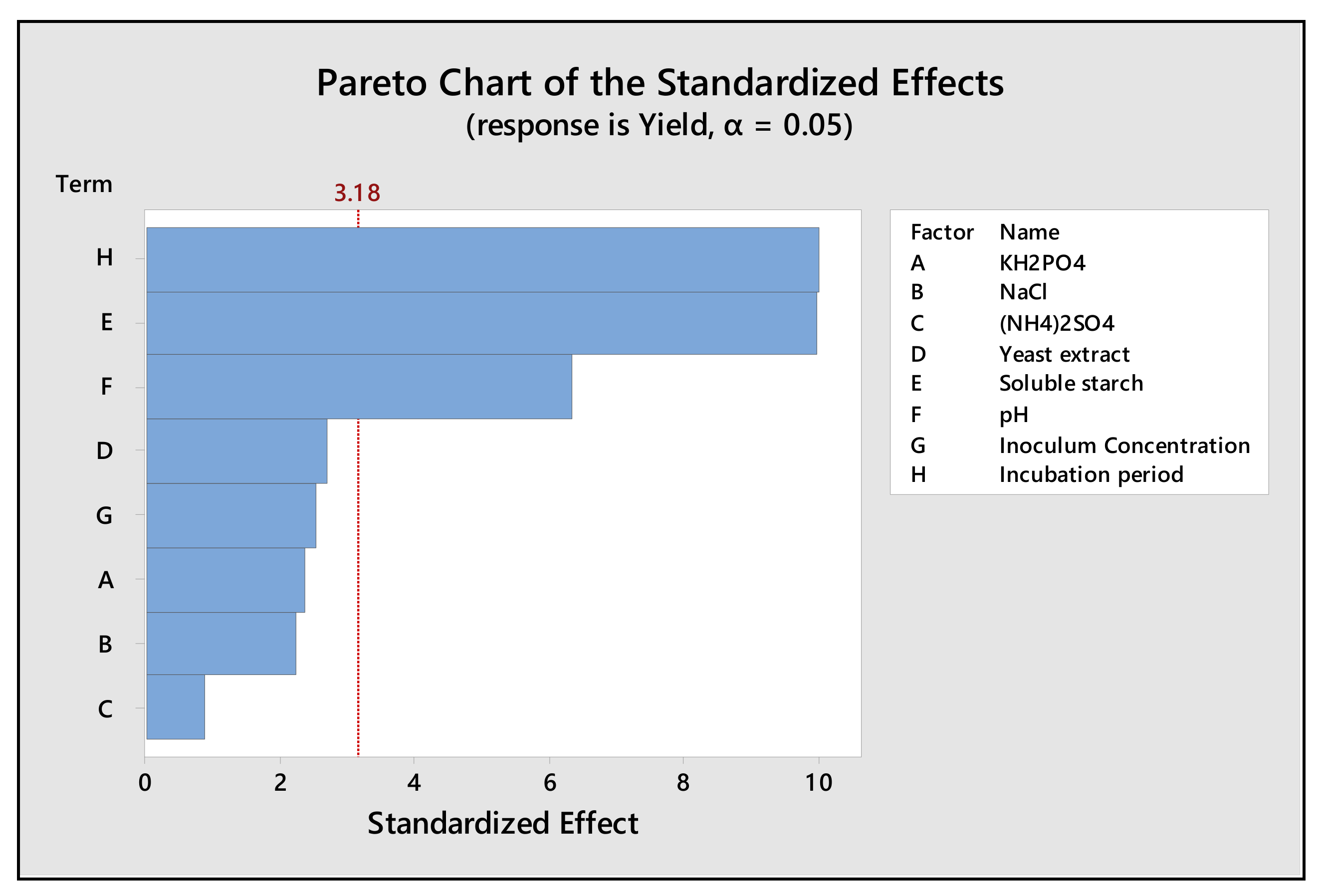

Figure 3. Pareto chart representing the effects of medium variables on amylase production by Bacillus sp. H7 (p < 0.05).
Figure 3. Pareto chart representing the effects of medium variables on amylase production by Bacillus sp. H7 (p < 0.05).
Molecules 26 02833 g003

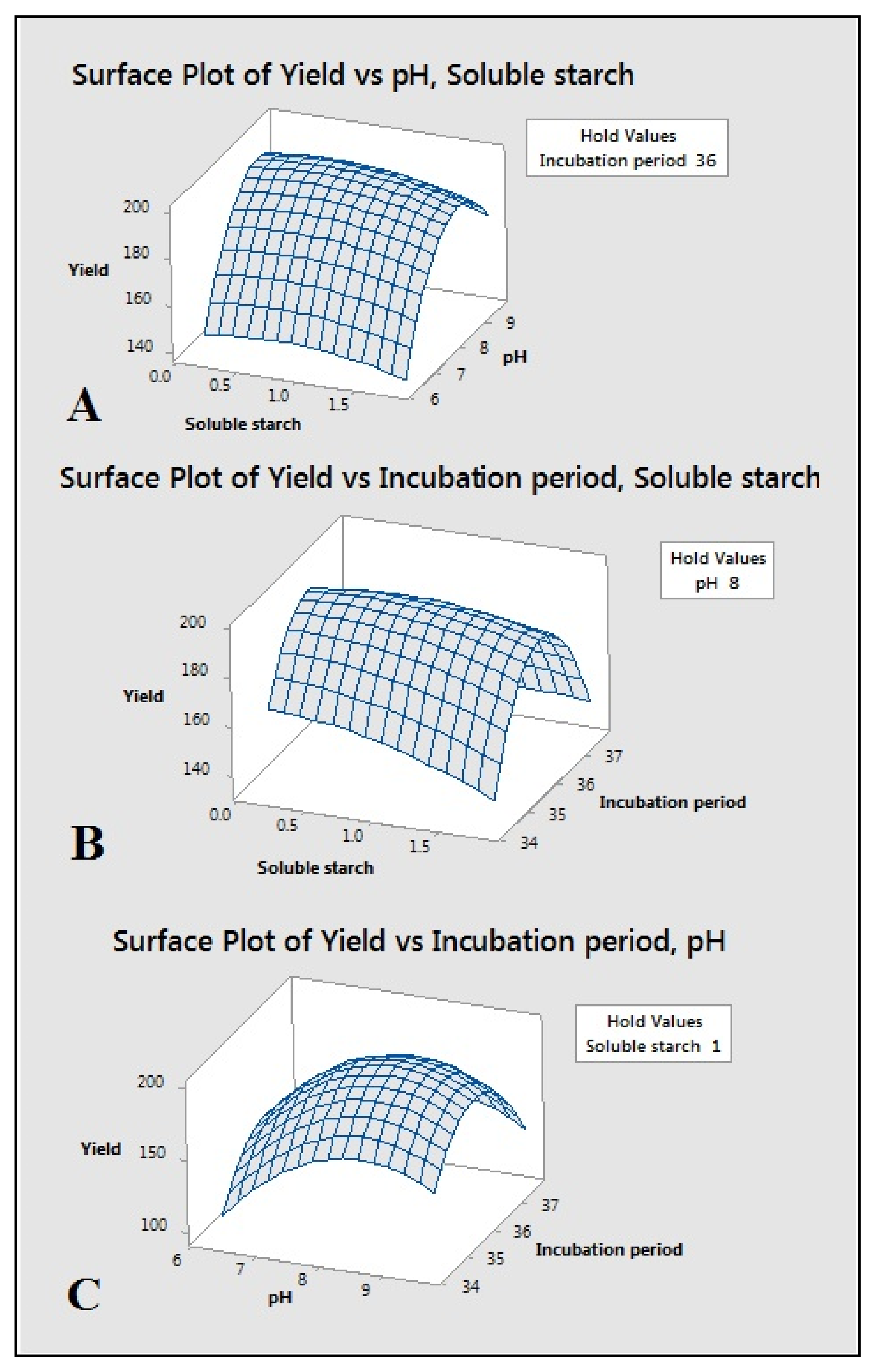

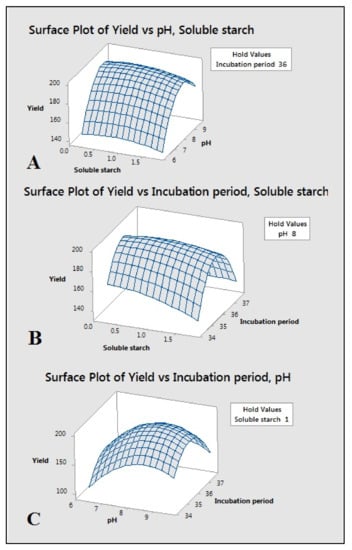

Figure 4. Response surface 3D contour plots representing the interaction between variables affecting amylase production (A) soluble starch and pH (B) soluble starch and incubation period (C) incubation period and pH. While the other variable were kept constant and indicated as hold value.
Figure 4. Response surface 3D contour plots representing the interaction between variables affecting amylase production (A) soluble starch and pH (B) soluble starch and incubation period (C) incubation period and pH. While the other variable were kept constant and indicated as hold value.
Molecules 26 02833 g004
Figure 5. Response optimizer plot illustrating the optimum levels of variables for maximum amylase production by Bacillus sp. H7.
Figure 5. Response optimizer plot illustrating the optimum levels of variables for maximum amylase production by Bacillus sp. H7.
Molecules 26 02833 g005
Figure 6. (A) Profile of amylase activity at different pH and (B) temperature, where optimum pH and temperature is obtained 8 and 40 °C, respectively. (C) Influence of various metal ions on the amylase activity. (D) Lineweaver–Burk plot of initial rate of reaction against the substrate concentration of soluble starch illustrating amylase activity kinetics parameters.
Figure 6. (A) Profile of amylase activity at different pH and (B) temperature, where optimum pH and temperature is obtained 8 and 40 °C, respectively. (C) Influence of various metal ions on the amylase activity. (D) Lineweaver–Burk plot of initial rate of reaction against the substrate concentration of soluble starch illustrating amylase activity kinetics parameters.
Molecules 26 02833 g006aMolecules 26 02833 g006b
Table 1. Influence of various physico-chemical variables on amylase production by Bacillus sp. H7.
Table 1. Influence of various physico-chemical variables on amylase production by Bacillus sp. H7.
INC
(h)
Amylase
(U/mL)
pHAmylase
(U/mL)
Temp
(°C)
Amylase
(U/mL)
CS
(1%)
Amylase
(U/mL)
NSAmylase
(U/mL)
INO
(1%)
Amylase
(U/mL)
00.00456.89 ± 5.32090.1 ± 5Glucose144.64 ± 2.1Peptone132.6 ± 3.20.50%126.53 ± 0.5
659.81 ± 7.5587.53 ± 6.725109.8 ± 4.3Starch149.1 ± 2.1Casein121.24 ± 5.01.00%133.17 ± 0.6
1287.24 ± 6.66113.61 ± 0.630121.24 ± 2.1Fructose129.81 ± 2.1Tryptone111.6 ± 9.01.50%140.03 ± 0.7
18102.89 ± 1.07128.89 ± 1.035127.24 ± 2.1Sucrose121.24 ± 7.5Yeast ext.152.96 ± 3.22.00%132.6 ± 3.2
24117.24 ± 2.88133.53 ± 1.240122.81 ± 1.7Lactose109.17 ± 0.6Urea88.24 ± 7.0
30125.89 ± 1.09131.53 ± 1.545112.8 ± 5.5Maltose127.81 ± 4.0NH4NO375.89 ± 7.5
36130.53 ± 2.010125.17 ± 1.550101.24 ± 4.9Dextrose97.1 ± 4.3NH4CL260.96 ± 4.4
42128.89 ± 2.711119.23 ± 4.7
48125.53 ± 1.512111.17 ± 4.0
54120.53 ± 1.51398.24 ± 5.0
60113.89 ± 4.01493.83 ± 7.2
66107.53 ± 4.7
72100.53 ± 8.4
7898.89 ± 7.0
8495.17 ± 7.5
9092.89 ± 6.2
9690.24 ± 7.5
INC—incubation; pH—media pH; NaCL—NaCl concentration (M); Temp—temperature; CS—carbon source; NS—nitrogen source INO—inoculum level.
Table 2. Placket–Burman Design (PBD experimental design for screening and evaluating factors influencing amylase production from Bacillus sp. H7.
Table 2. Placket–Burman Design (PBD experimental design for screening and evaluating factors influencing amylase production from Bacillus sp. H7.
RunABCDEFGHAmylase Activity (U/mL)
PredictedExperimental
1+1−1+1−1−1−1+1+1135.60133.49 ± 1.22
2+1+1−1+1−1−1−1+1122.86121.89 ± 0.48
3−1+1+1−1+1−1−1−1130.90128.60 ± 0.68
4+1−1+1+1−1+1−1−1118.38119.17 ± 0.76
5+1+1−1+1+1−1+1−1127.68128.65 ± 0.79
6+1+1+1−1+1+1−1+1158.06160.36 ± 1.18
7−1+1+1+1−1+1+1−1123.50122.71 ± 0.34
8−1−1+1+1+1−1+1+1154.32156.43 ± 0.77
9−1−1−1+1+1+1−1+1163.41161.30 ± 0.68
10+1−1−1−1+1+1+1−1149.51148.54 ± 1.04
11−1+1−1−1−1+1+1+1149.81150.60 ± 1.53
12−1−1−1−1−1−1−1−1117.53119.82 ± 0.82
Table 3. ANOVA of PBD model for amylase yield (coded units).
Table 3. ANOVA of PBD model for amylase yield (coded units).
TermEffectCoefSE Coeft-Valuep-Value
Constant 137.6300.969141.970.000
KH2PO4−4.563−2.2810.969−2.350.100
NaCl−4.325−2.1620.969−2.230.112
(NH4)2SO4−1.673−0.8360.969−0.860.452
Yeast extract−5.211−2.6050.969−2.690.075
Soluble starch19.3679.6840.9699.990.002 *
pH12.3016.1500.9696.340.008 *
Inoculum concentration4.8792.4400.9692.520.086
Incubation period19.4299.7150.96910.020.002 *
* statistically significant at p > 0.05.
Table 4. Experimental data obtained for significant variables obtained from PBD in CCD.
Table 4. Experimental data obtained for significant variables obtained from PBD in CCD.
Run OrderTypeSoluble StarchpHIncubation PeriodAmylase Activity (U/mL)
CodedExperimentalCodedExperimentalCodedExperimentalPredictedExperimental
1Factorial−10.50−17.00−135.00165.29165.70 ± 0.64
2Factorial11.50−17.00−135.00156.06158.86 ± 0.29
3Factorial−10.5019.00−135.00188.04188.61 ± 0.97
4Factorial11.5019.00−135.00177.95178.85 ± 1.05
5Factorial−10.50−17.00137.00152.51153.79 ± 0.95
6Factorial11.50−17.00137.00154.57156.19 ± 0.64
7Factorial−10.5019.00137.00172.34171.74 ± 1.62
8Factorial11.5019.00137.00173.54175.32 ± 0.75
9Axial−1.680.1608.00036.00194.70194.78 ± 0.88
10Axial1.681.8408.00036.00187.95184.79 ± 0.20
11Axial01.00−1.686.32036.00147.45144.88 ± 0.34
12Axial01.001.689.68036.00182.54182.02 ± 1.51
13Axial01.000.08.00−1.6834.32158.41156.69 ± 0.69
14Axial01.000.08.001.6837.68143.96142.59 ± 0.99
15Central01.000.08.000.036.00196.06196.25 ± 1.22
16Central01.000.08.000.036.00196.06196.62 ± 0.95
17Central01.000.08.000.036.00196.06195.68 ± 1.02
18Central01.000.08.000.036.00196.06195.15 ± 0.35
19Central01.000.08.000.036.00196.06196.53 ± 0.79
20Central01.000.08.000.036.00196.06196.66 ± 1.09
Table 5. ANOVA of CCD model using RSM of amylase yield in Bacillus sp. H7.
Table 5. ANOVA of CCD model using RSM of amylase yield in Bacillus sp. H7.
SourceDFCoefSE CoefAdj SSAdj MSt-Valuef-Valuep-Value
Constant 196.0600.821 238.89 0.000
Model9 6785.68753.96 186.200.000
Soluble starch1−2.0070.54555.0155.01−3.6913.590.004
pH110.4310.5451485.931485.9319.16366.970.000
Incubation period1−4.2980.545252.30252.30−7.8962.310.000
Soluble starch * soluble starch1−1.6730.53040.3140.31−3.169.960.010
pH * pH1−10.9830.5301738.311738.31−20.72429.290.000
Incubation period * incubation period1−15.8660.5303627.723627.72−29.93895.900.000
Soluble starch * pH1−0.2170.7110.380.38−0.300.090.767
Soluble starch * incubation period12.8220.71163.6963.693.9715.730.003
pH * incubation period1−0.7290.7114.254.25−1.021.050.330
Lack-of-Fit5 38.647.73 20.880.002
Pure error5 1.850.37
Table 6. Comparative account of characteristics of amylase of Bacillus sp. H7 and amylase of other Bacillus spp.
Table 6. Comparative account of characteristics of amylase of Bacillus sp. H7 and amylase of other Bacillus spp.
PropertiesBacillus sp. H7Bacillus Methylotrophicus [23]Bacillus sp. BCC 01-50 [5]Bacillus Subtilis S8-18 [24]Bacillus sp. SMIA-2 [25]
Production time (h)2442602432
Enzyme yield (U/mL)130.5333.50906137
Salt (NaCl) tolerance threshold (M)6.000002.82.0
pH range7.00–10.007.0–9.007.00–9.004.00–12.007.00–8.50
pH optima8.07.09.09.008.0
Temperature range (°C)30–7040–7060–7030–4040–50
Temperature optima (°C)3570603040
Yield after statistical optimization (U/mL) (fold increase)199.90 (1.29)NDNDNDND
Activating metal ionsMg2+, Ca2+, Fe2+ and K+Mg2+, Ba2+, and Al3+Mg2+, Ca2+Mn2+, Mg2+, Ca2+ Ca2+
Inhibitory metal ionsMn2+, Zn2+ and Hg2+NDNDND Mg, Na+ and K+
Km (mg/mL)5.1 3.94.34.5ND
Vmax (μM/min/mL)116.2896.2298.11103.02ND
Kcat (per second)69.7757.6263.3168.33ND
ND = not determined.
Table 7. Range of values for the response surface method, CCD.
Table 7. Range of values for the response surface method, CCD.
Independent VariableCodeCoded Level
−α−10+1
Soluble starch (%)E0.160.511.51.84
Media pHF6.327.008.009.009.68
Incubation period (h)H34.3235.0363737.68
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bandal, J.N.; Tile, V.A.; Sayyed, R.Z.; Jadhav, H.P.; Azelee, N.I.W.; Danish, S.; Datta, R. Statistical Based Bioprocess Design for Improved Production of Amylase from Halophilic Bacillus sp. H7 Isolated from Marine Water. Molecules 2021, 26, 2833. https://doi.org/10.3390/molecules26102833

AMA Style

Bandal JN, Tile VA, Sayyed RZ, Jadhav HP, Azelee NIW, Danish S, Datta R. Statistical Based Bioprocess Design for Improved Production of Amylase from Halophilic Bacillus sp. H7 Isolated from Marine Water. Molecules. 2021; 26(10):2833. https://doi.org/10.3390/molecules26102833

Chicago/Turabian Style

Bandal, J. N., V. A. Tile, R. Z. Sayyed, H. P. Jadhav, N. I. Wan Azelee, Subhan Danish, and Rahul Datta. 2021. "Statistical Based Bioprocess Design for Improved Production of Amylase from Halophilic Bacillus sp. H7 Isolated from Marine Water" Molecules 26, no. 10: 2833. https://doi.org/10.3390/molecules26102833

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
