Article

A Density-Functional Study of the Conformational Preference of Acetylcholine in the Neutral Hydrolysis

1
Research Center for Quantum Engineering Design, Faculty of Science and Technology, Universitas Airlangga, Jl. Mulyorejo, Surabaya 60115, Indonesia
2
Department of Engineering Physics, Faculty of Industrial Engineering, Institut Teknologi Bandung, Bandung 40132, Indonesia
3
Department of Physics, Faculty of Science and Technology, Universitas Airlangga, Jl. Mulyorejo, Surabaya 60115, Indonesia
4
Precision Sciences & Technology and Applied Physics, Graduate School of Engineering, Osaka University, Suita 565-0871, Japan
5
Engineering Physics Study Program, Institut Teknologi Sumatera, Jl. Terusan Ryacudu, Lampung Selatan 35365, Indonesia
6
Department of Physics, Faculty of Mathematics and Science, Institut Pertanian Bogor, Bogor 16680, Indonesia
7
Department of Chemistry, Faculty of Mathematics and Science, Universitas Gadjah Mada, Yogyakarta 55281, Indonesia
8
Information System Study Program, Faculty of Science and Technology, Universitas Airlangga, Jl. Mulyorejo, Surabaya 60115, Indonesia
*
Author to whom correspondence should be addressed.
Visiting Researcher at Osaka University, Japan.
Molecules 2020, 25(3), 670; https://doi.org/10.3390/molecules25030670
Submission received: 27 October 2019 / Revised: 24 January 2020 / Accepted: 29 January 2020 / Published: 5 February 2020
(This article belongs to the Section Computational and Theoretical Chemistry)

Abstract

:
Acetylcholine, which is associated with Alzheimer’s disease, is widely known to have conformers. The preference of each conformer to undergo neutral hydrolysis is yet to be considered. In this study, we employed density-functional calculations to build the conformers and investigated their preference in one-step neutral hydrolysis. The results showed the preference in ten possible hydrolysis pathways involving seven acetylcholine conformers (reactant), four transition state structures, and two choline conformers (product). Three out of the seven acetylcholine conformers predicted from the results confirmed experimental findings on the conformers stability. We suggested that two out of ten possible pathways were observed in the experimental results based on agreement in reaction energy. Eventually, this study will emphasize the importance of considering acetylcholine conformers in its hydrolysis study.

1. Introduction

Acetylcholine ( ACh + ), the organic molecule acting as neurotransmitter in the brain, is associated with the treatment of Alzheimer’s disease (AD) [1]. AD is a progressive brain disease that slowly impairs coordination among neurons and leads to loss of body function [2]. A common explanation for AD is the cholinergic hypothesis, which states the cause as ACh + depletion [3,4]. Since the role of ACh + is to transmit signals among neurons [5], its depletion can disturb the signal transmission in the brain and can lead to loss of body function.
One way to treat AD is by reducing the rate of ACh + neutral hydrolysis [1,6], which decomposes ACh + into acetic acid (AA) and choline ( Ch + ) [7]. The reaction is essential to return ACh + into its resting state after being activated during the signal transmission [8]. Because it is also important to preserve sufficient ACh + concentration in the brain of AD patients, reducing the rate of ACh + neutral hydrolysis becomes an option to compensate for ACh + depletion.
Generally, the rate of neutral hydrolysis depends on the conformers [9,10,11,12]. For example, the rate constant of bornyl acetate differs from iso-bornyl acetate acid hydrolysis up to 2.6 × 10 4 /min, which has been the object of conformational study [13]. Therefore, the rate of ACh + neutral hydrolysis is also conformation dependent. The dependency is stronger when the reaction involves an enzyme as a catalyst [14,15]. In the ACh + case, at least three conformers have been investigated to understand their stability and the interconversion among the conformers and to explore the fluorination and solvent effects on each of them [16,17,18,19,20,21,22,23,24,25,26,27]. However, to the best of our knowledge, studies of ACh + conformers remain limited to its stability as an individual molecule. None have considered ACh + conformers when they interact with water in a neutral hydrolysis.
In this study, we report the preference of ACh + conformers in a neutral hydrolysis. We consider two important things: a one-step mechanism for the reaction model and the conformation of ACh + backbone dihedral angles. Despite its simplicity, the former worked well in revealing the conformational effects in the ethyl acetate neutral hydrolysis [28]. Therefore, we can focus on the conformation in one particular transition state (TS). We use the same model for ACh + neutral hydrolysis to obtain the standard enthalpy of reaction and standard Gibbs energy of activation.

2. Computational Methods

2.1. Reaction and Molecular Model

Scheme 1 represents the one-step mechanism of ACh + neutral hydrolysis. Our interest is the ACh + conformers because they potentially affect the activated complex in the TS and the final state (fs; products). In the TS, the activated complex is in the form of [ ACh + H 2 O ] . Consequently, they can affect the reaction energy and energy barrier. We assume that the initial state (is) and the fs of the reaction are infinitely separated molecules. Figure 1 shows the generic molecular models of ACh + , Ch + , and AA. Table 1 lists the geometrical parameters of interest for this study.

2.2. Conformer Formation

We built our initial ACh + conformer based on the acetylcholine bromide ( ACh + Br ) crystal structure [29]. We removed the acetyl group ( C H 3 C O ) from the ACh + initial conformer (Figure 1a) to build our Ch + initial conformer. We divided ACh + into three parts, backbone (represented by D 1 , D 2 , and D 3 ), head (represented by D 4 ), and tail (represented by D 5 ), and Ch + into two parts, backbone (represented by D 6 and D 7 ) and tail (represented by D 8 ), as listed in Table 1.
We varied the dihedral angles of the backbone, the head, and the tail of the initial conformer to build the potential conformers. For the ACh + backbone, we varied the dihedral angles ( D 1 , D 2 , and D 3 ) with the values of 0 ° , 90 ° , + 90 ° , and 180 ° that yielded 4 3 (four values for each of the three dihedral angles) permutations. We applied the same procedure for the Ch + backbone ( D 6 and D 7 ) that yielded 4 2 (four values for each of two dihedral angles) permutations. For the head and the tail, we varied the dihedral angles ( D 4 , D 5 , and D 8 ) between 0 ° and 180 ° , with increments of 20 ° .
Figure 2 depicts the criteria for the nomenclature of stable conformers. Figure 2a shows the criteria for each of the dihedral angles constructing the backbone. For the ACh + backbone, three letters representing D 1 , D 2 , and D 3 describe the conformation type. The letters are written in a bracket following the corresponding conformer. For example, ACh + (ctg) that indicates an ACh + conformer with D 1 , D 2 , and D 3 are “c” (cis), “t” (trans), and “g” (gauche), respectively, and “g*” is for the anticlinal conformation. Figure 2b,c shows the criteria to define the head and the tail conformations, which can be eclipsed or staggered. We used the same nomenclature for Ch + conformers.

2.3. Energy and Structure Calculations

We employed routines of calculations based on density functional theory (DFT) [30,31] to determine the energy and the structure of molecules in the ground state and in the TS. We used B3LYP functionals and the 6-311++G(d,p) basis set integrated in Gaussian 09 software [32]. The use of B3LYP functionals follows its success in our previous similar study on chemical reactions [28,33,34] and other similar cases [35,36]. The optimization–routine calculations are to obtain the stable structures and the total electronic energy of ACh + Br , water, and AA and, more importantly, to find the stable conformers of ACh + and Ch + . For the TS, we followed the same procedure used in our previous study [28], where we applied the TS optimization and the intrinsic reaction coordinate routines of calculation. Besides the energy and the structure, we also calculated the charge population using the Natural Bond Orbital (NBO) program [37].

2.4. Thermochemistry Calculations

We calculated the standard enthalpy of reaction ( Δ r H ° ) and the standard Gibbs energy of activation ( Δ G ° ) of ACh + neutral hydrolysis using the following formula:
Δ r H ° = ( H ° ACh + + H ° H 2 O ) ( H ° AA + H ° Ch + )
Δ G ° = ( G ° T S ) ( G ° ACh + + G ° H 2 O )
Both H ° and G ° in Equations (1) and (2) are temperature dependent, and we assumed the reaction occurred at room temperature (298.15 K). The values were determined from the total electronic energy of the respective systems with thermal corrections.

3. Results and Discussion

3.1. The Ground-State Structure

Table 2 presents the discrepancy in geometry between the experimental value and our calculations for ACh + Br in the ground state. The experimental values are from the crystal structure [29], which is comparable to our calculations in the gas phase. Overall, the values of Δ b a are within the accuracy limit, according to Young [38]. It implies that B3LYP functional and the 6-311++G(d,p) basis set are appropriate for studying ACh + .
The optimization routine calculations predict the stable conformer for both ACh + and Ch + . The cartesian coordinates of the stable conformers are given in the Supplementary Materials. Only seven out of 64 potential ACh + conformers are stable in the ground state, as shown in Figure 3. For Ch + , there are only two possible out of 16 potential conformers. Table 3 and Table 4 resume the results for ACh + and Ch + , respectively. In both ACh + and Ch + , the spans of the dihedral angle are more significant than those of bond lengths and bond angles, which is as expected. That is to say that the backbone determines the conformation, whereas the head (for ACh + only) is always eclipsed and the tail is always staggered.
Figure 4 shows the energy level diagram (ELD) for the seven stable ACh + conformers in eV (1 eV ≈ 23.06 kcal/mol). It is clear from the energy level that there are two groups of conformers, which are low and high level. The low-level group is more stable than the high-level group. The five ACh + conformers (tg*g, tgg, ttg, tgt, and ttt) are in the low-level group (Figure 3a–e), and the other two conformers (ctg and ctt) are in the high-level group (Figure 3f,g). Other computational studies [20,23,39,40] also conclude the stability of the five low-level conformers. It is important to note that our results support the experiments that observed ACh + (tg*g), (tgg), and (ttg) in their stable states [29,41,42].
The ELD displays three noticeable patterns of the conformation related to ACh + stability as individual molecules. The first is that gauche conformation at D 1 cannot achieve stability, whereas trans and cis can. The second is that cis at D 2 and D 3 cannot achieve the stability, whereas trans and gauche (and anticlinal) can. The second pattern is as expected because the cis conformation causes two bulky groups (acetyl and trimethylamine) to be ecliptic, leading to a repulsive interaction among atoms of the two groups. The third is that gauche conformation at D 2 and D 3 makes ACh + more stable than when they are trans; therefore, at the same D 1 , it is possible to arrange the order of ACh + stability (based on D 2 and D 3 ), from the most to the least stable, as gg, tg, gt, and tt. In addition to the third pattern, it appears that the ACh + stability is more dependent on D 3 than D 2 .
Charge distributions align with this pattern. The overall NBO calculations determine that more electrons are distributed in the head, resulting in the tail being positively charged (see Table 5). It agrees with the typical ACh + structure [43]. The shorter the head–tail distance, the stronger the coulombic interaction and, consequently, the more stable the conformer. Therefore, the backbone and the tail must curl up in order to shorten the head–tail distance. Such curling behavior does not only exist in gas phase but also in solvent [18,20,23,27]. The gauche conformation at D 2 and D 3 meets the condition, particularly at D 3 , where the head–tail distance is the shortest. Figure 3 depicts the circumstance, in which the distance gradually increases from the shortest in the g*g conformation to the longest in the tt conformation for the low-level group and from the shortest tg to the longest tt for the high-level group.
Additionally, the charge distribution shown in Table 5 indicates an electrophilic site of all ACh + stable conformers. It is in the backbone, where C1 is located. This site is typical for the ester family. According to our study on ethyl acetate neutral hydrolysis [28], the activated complex ( ACh + –water) forms between C1 and O3, the nucleophilic site of water.
The electrophilic site of the ACh + conformers gives a hint to the cleaving location during the hydrolysis. The cleaving location shall be the C1–O2 bond. Therefore, we extracted the C1–O2 bonding atomic orbital from the NBO calculations as listed in Table 6. All conformers have an average bonding orbital of 0.5464 C ( s p 2.90 ) + 0.8375 O ( s p 2.19 ) . This bonding is relatively weaker than the C1–O2 bond of ethyl acetate, which is 0.5898 C ( s p 1.91 ) + 0.8076 O ( s p 1.42 ) [28]. It suggests that the neutral hydrolysis of ACh + is easier than that of ethyl acetate.

3.2. The Transition State Structure

The calculations narrow down the TS geometry from seven possible reactants to four [ ACh + –water] activated complexes. The cartesian coordinates of the four activated complexes are given in the Supplementary Materials. Table 7 lists the seven possible reactants (codes Re1–Re7). Figure 5 displays the optimized activated complex of these four [ ACh + –water]. The overall orientation of water with respect to ACh + is similar to our previous study on [ethyl acetate–water] activated complex [28]. This similarity suggests that ACh + neutral hydrolysis resembles base-induced ester hydrolysis.
The ACh + –water interaction in all four possible TSs elongates C1–O2, which makes it an important parameter since it is the cleaving location, as we have discussed in Table 6. The elongation of C1–O2 is around 50% (from 1.40 Å (Table 3) to 2.10 Å (Figure 5)). It is significantly larger than that of the C1–O2 in ethyl acetate–water interaction, which is around 33% [28]. The large C1–O2 elongation is explainable according to the bonding orbital of C1–O2 described in Table 6. The bond in ACh + is weaker than that in ethyl acetate; therefore, the bond is easier to break in ACh + relative to ethyl acetate. Consequently, ACh + neutral hydrolysis is expected be faster than that of ethyl acetate. This expectation agrees with the experimental data showing that, at room temperature, the rate constant of the former is 10 9 /s [44], whereas that of the latter is 10 10 /s [45].
In addition to the C1–O2 elongation, there are two other similarities among the four TS geometries. First, the elongation is large enough to split the acetyl group from the rest of ACh + . For comparison, the generalization of C–O bond lengths in saturated molecules, like ACh + , has been widely assumed as 1.43 Å. Meanwhile, the O3 of water is still too far from C1 to form a covalent bond. The activated complex thus consists of three groups: water, acetyl, and choline. The three groups interact with each other through noncovalent interactions to form the activated complex, which lies on the TS. Second, ACh + prefers the curling D 2 and D 3 in the presence of water. The curling D 2 and D 3 relates the ACh + in the TS to the one in the ground state: (ttg), (tgt), (ctg), and (ctt). Since the curling, D 2 and D 3 also affect the C2–N distance and the seven ACh + conformers are grouped into three curling levels. The levels are extreme (d < 5.20 Å), medium (5.30 < d < 5.70 Å), and low (d > 5.70 Å). Accordingly, all TS geometries require the medium curling level of ACh + conformers.
Among the four TS geometries, TS-b is the most favorable one for product formation. Generally, the product formation requires the elongation of C1–O2 and O3–H in the TS with respect to the ground state, as well as shortening the distances of C1–O3 and O2–H (distances between groups in the activated complex). The shortened C1–O3 and O2–H promote the formation of AA and Ch + , respectively. TS-b meets most of the requirements for product formation as its O3–H is the longest, whereas its C1–O3 and O2–H are the shortest among the four TS geometries.

3.3. The Reaction Coordinate

Figure 6 shows the neutral hydrolysis reaction coordinate in the ELD. The ELD involves four out of the seven potential reactants (see Table 7) capable of forming the activated complex at the TS through a one-step mechanism. The possible reactants are Re3, Re4, Re6, and Re7, which are related to the aforementioned ACh + curling levels. The possible products are Pr1 and Pr2, which comprise Ch + (tg) and Ch + (tt) from Table 4. Although the TS depends on the curling levels of D 2 and D 3 of the ACh + conformers, the products depend only on D 3 . Since D 3 does not contain the electrophilic site, it does not change when ACh + is hydrolyzed into Ch + .
Figure 7 shows the pre-hydrolysis reaction coordinate in the ELD. There are three out of seven potential reactants that require a pre-hydrolysis process (Re1, Re2, and Re5). These reactants need to undergo conformational isomerization to form either ACh + (ttg) or (tgt) with the energy barriers at no more than 0.11 eV. It implies that the conformational isomerization can occur by thermal energy. Together with Figure 6, Figure 7 suggests that all seven potential reactants can perform hydrolysis in four pathways. The reactants with the low-level group of ACh + conformers go through Re3 or Re4 before going to either TS-a or TS-b. Both pathways are possible because the energy barrier to form Re3 and Re4 is no more than 0.11 eV. Meanwhile, the reactants with the high-level group of ACh + conformers go directly to TS-c and TS-d.
Table 8 shows the Δ r H ° for all possible reaction coordinates in Figure 6 and Figure 7. The calculations of Δ r H ° suggest that reactants with the high-level ACh + conformers are always exothermic and go toward either Pr1 or Pr2. Meanwhile, reactants from the low-level group are exothermic if they go toward Pr1, but they are endothermic if they go toward Pr2. Experimentally, the reaction is endothermic, with Δ r H ° being + 0.28 kcal/mol [46]. According to our results, Pr2 is mostly the product of the hydrolysis. In particular, the experiment observed mostly reactions (viii) or (ix), suggesting that the practically preferred ACh + conformer undergoes neutral hydrolysis, which is (tgt) or (ttt). It is worthwhile to mention that our results are in line with the study of Zhorov et al. [47], which suggest that ACh + with D 2 and D 3 being trans is productive for the ACh + hydrolysis catalyzed by acetylcholinesterase (AChE), as well as the study of Chothia and Pauling [48], which suggests that the ACh + conformation relevant for its interaction with AChE is the one with D 1 , D 2 , and D 3 being trans.
In addition to Δ r H ° , Table 8 shows Δ G ° . As expected, Δ G ° of reactants with the high-level ACh + conformers are lower than that of reactants with the low-level conformers. Consequently, reactions (v) and (x) are favorable to occur due to the low activation energy and the high exothermicity. However, the energy level of both ACh + (ctt) and (ctg) are more than 0.30 eV higher than the most stable conformer. They can transform to ACh + (tgt) and (ttg) via conformational isomerization according to the reaction coordinate depicted in Figure 8. The energy barrier is no more than 0.33 eV, which is still in the order of thermal energy. It implies that, despite a low Δ G ° , the number of ACh + (ctt) and (ctg) in nature is likely lower than that in the low-level group.

4. Conclusions

We have reported that each ACh + conformer exhibited different conformational preferences when existing as an individual molecule and as an activated [ ACh + –water] complex of a neutral hydrolysis. As an individual molecule, we obtained seven possible ACh + conformers: five low-level and two high-level conformers, each with a unique backbone conformation. Three out of the five low-level conformers were observed in the experiments. However, only four out of the seven conformers were capable of undergoing direct neutral hydrolysis via four distinct TSs, while the others had to go through some possible pre-hydrolysis pathways before forming the TS. Among the four TS structures, TS-b was the most favorable one to form the product of the neutral hydrolysis. The structure offered an insight for constructing the starting TS structure of ACh + neutral hydrolysis catalyzed by AChE.
In this study, we proposed ten possible reaction pathways of ACh + neutral hydrolysis. The most favorable reactions involved the high-level conformer with Δ G ° being 38.95 kcal/mol and Δ r H ° being −10.33 kcal/mol. Importantly, we suggested two possible reactions involving low-level conformers ((trans, gauche, trans) and (trans, trans, trans)) with Δ r H ° values of +1.38 and +0.10 kcal/mol, agreeing with the experimental observations. Furthermore, we argued that one had to consider ACh + conformers when studying its hydrolysis.
Rizka N. Fadilla, Febdian Rusydi, Nufida D. Aisyah, Vera Khoirunisa, Hermawan K. Dipojono, Faozan Ahmad, Mudasir, and Ira Puspitasari

Supplementary Materials

Supplementary Materials are provided. The supplementary materials are available online.

Author Contributions

Conceptualization: F.R.; formal analysis: R.N.F., F.A., M.M., and I.P.; investigation: R.N.F., N.D.A., and V.K.; methodology: F.R. and R.N.F.; writing—original draft preparation: R.N.F.; writing—review and editing: F.R., H.K.D., and R.N.F. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by Directorate General of Higher Education, Research, and Technology Ministry, Republic of Indonesia through National Collaboration Research grant number 563/UN3.14/LT/2018.

Acknowledgments

The authors thank to Lusia Silfia Pulo Boli (Research Center for Quantum Engineering Design, Universitas Airlangga, Surabaya, Indonesia), Adhitya Gandaryus Saputro, and Ganes Shukri (Engineering Physics Department, Institut Teknologi Bandung (ITB), Bandung, Indonesia) for the valuable discussions. H.K.D., R.N.F., N.D.A., and V.K. thank the Indonesia Ministry of Research, Technology, and Higher Education through World Class University (WCU) project managed by ITB. F.R. thanks Diño Wilson Agerico Tan and Yoshitada Morikawa (Precision Sciences & Technology and Applied Physics, Graduate School of Engineering, Osaka University, Japan) for their insight and valuable discussions. R.N.F. and V.K. particularly thank LPDP for the scholarship. All calculations using Gaussian 09 software are performed in the computer facility at Research Center for Nanoscience and Nanotechnology, ITB, Indonesia.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
AA Acetic Acid
ACh + Acetylcholine
Ch + Choline
ELDEnergy Level Diagram
TSTransition State

References

  1. Gauthier, S. Advances in the pharmacotherapy of Alzheimer’s disease. J. Can. Med Assoc. 2002, 166, 616–623. [Google Scholar]
  2. Ferreira-Vieira, T.H.; Guimaraes, I.M.; Silva, F.R.; Ribeiro, F.M. Alzheimer’s disease: Targeting the cholinergic system. Curr. Neuropharmacol. 2016, 14, 101–115. [Google Scholar] [CrossRef] [Green Version]
  3. Bartus, R.T.; Dean, R.L.; Beer, B.; Lippa, A.S. The cholinergic hypothesis of geriatric memory dysfunction. Science 1982, 217, 408–417. [Google Scholar] [CrossRef]
  4. Francis, P.T.; Palmer, A.M.; Snape, M.; Wilcock, G.K. The cholinergic hypothesis of Alzheimer’s disease: A review of progress. J. Neurol. Neurosurg. Psychiatry 1999, 66, 137–147. [Google Scholar] [CrossRef]
  5. Tiwari, P.; Dwivedi, S.; Singh, M.P.; Mishra, R.; Chandy, A. Basic and modern concepts on cholinergic receptor: A review. Asian Pac. J. Trop. Dis. 2013, 3, 413–420. [Google Scholar] [CrossRef]
  6. Vats, C.; Dhanjal, J.K.; Goyal, S.; Bharadvaja, N.; Grover, A. Computational design of novel flavonoid analogues as potential AChE inhibitors: Analysis using group-based QSAR, molecular docking and molecular dynamics simulations. Struct. Chem. 2015, 26, 467–476. [Google Scholar] [CrossRef]
  7. Offermanns, S.; Rosenthal, W. (Eds.) Encyclopedia of Molecular Pharmacology, 2nd ed.; Springer: Berlin/Heidelberg, Germany, 2008. [Google Scholar]
  8. Čolović, M.B.; Kristić, D.Z.; Lazarević-Pašti, T.D.; Bondžić, A.M.; Vasić, V.M. Acetylcholinesterase inhibitors: Pharmacology and toxicology. Curr. Neuropharmacl. 2013, 11, 315–335. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Seeman, J.I. Effect of conformational change on reactivity in organic chemistry. Evaluations, applications, and extensions of Curtin-Hammett Winstein-Holness kinetics. Chem. Rev. 1983, 83, 83–134. [Google Scholar] [CrossRef]
  10. Carey, F.A.; Sundberg, R.J. Advanced Organic Chemistry Part A. Structure and Mechanisms, 5th ed.; Springer: Berlin/Heidelberg, Germany, 2007. [Google Scholar]
  11. Lemke, T.L.; William, D.A.; Roche, V.F.; Zito, S.W. (Eds.) Foye’s Principle of Medicinal Chemistry, 7th ed.; Lippincott Williams & Wilkins: Philadephia, PA, USA, 2013. [Google Scholar]
  12. Fan, Q.; Wang, Y.; Yan, H. An NMR and DFT investigation on the interconversion of 9-substituented-N6- hydrazone-8-azaadenine derivatives: Proton migration or conformational isomerization? Struct. Chem. 2018, 29, 871–879. [Google Scholar] [CrossRef]
  13. Radhakrishnamurti, P.S.; Patra, P.C. Conformational studies in ester hydrolysis. Proc. Indian Acad. Sci. Sect. A 1970, 71, 181–188. [Google Scholar] [CrossRef]
  14. Wolfenden, R. Conformational aspects of inhibitor design: Enzyme–substrate interactions in the transition state. Bioorg. Med. Chem. 1999, 7, 647–652. [Google Scholar] [CrossRef]
  15. Zhan, D.; Yu, L.; Jin, H.; Guan, S.; Han, W. Molecular modeling and MM-PBSA free energy analysis of endo-1,4-β-Xylanase from Ruminococcus albus 8. Int. J. Mol. Sci. 2014, 15, 17284–17303. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Liquori, A.M.; Damiani, A.; Coen, J.L.D. Calculated Minimun Energy Conformations of Acetylcholine. J. Mol. Biol. 1968, 33, 445–450. [Google Scholar] [CrossRef]
  17. Beveridge, D.L.; Radna, R.J. Structural Chemistry of Cholinerhic Neutral Transmission Systems. I. A Quantum Theoretical Study of the Molecular Electronic Structure of Acetylcholine. J. Am. Chem. Soc. 1971, 93, 3759–3764. [Google Scholar] [CrossRef]
  18. Langlet, J.; Claverie, P.; Pullman, B.; Piazolla, D.; Daudey, J.P. Studies of solvent effects-III. Solvent effect on the conformation of acetylcholine. Theor. Chim. Acta 1977, 46, 105–116. [Google Scholar] [CrossRef]
  19. Genson, D.W.; Christoffersen, R.E. Ab initio Calculations on Large Molecules Using Molecular Fragments. Electronic and Geometric Characterization of Acetylcholine. J. Am. Chem. Soc. 1973, 95, 362–368. [Google Scholar] [CrossRef]
  20. Kim, Y.J.; Kim, S.C.; Kang, Y.K. Conformation and hydration of acetylcholine. J. Mol. Struct. 1992, 269, 231–241. [Google Scholar] [CrossRef]
  21. Egan, M.A.; Zoellner, R.W. Srtuctural and electronic characteristics of the monoboro-analogs of the acetylcholinec cation as determined by the semiempirical MNDO computational method. J. Org. Chem. 1993, 58, 1719–1729. [Google Scholar] [CrossRef]
  22. Segall, M.D.; Payne, M.C.; Boyes, R.N. An ab initio study of the conformational energy map of acetylcholine. Mol. Phys. 1998, 93, 365–370. [Google Scholar] [CrossRef]
  23. Marino, T.; Russo, N.; Tocci, E.; Toscano, M. Molecular dynamics, density functional and second-order Moller-Plesset theory study of the structure and conformation of acetylcholine in vacuo and in solution. Theor. Chem. Accounts 2001, 107, 8–14. [Google Scholar] [CrossRef]
  24. Song, J.; Gordon, M.S.; Deakyne, C.A.; Zheng, W. Theoretical Investigations of Acetylcholine (ACh) and Acetylthiocholine (ATCh) using ab initio and Effective Fragment Potential Methods. J. Phys. Chem. A 2004, 10, 11419–11432. [Google Scholar] [CrossRef] [Green Version]
  25. Lee, J.S.; Park, Y.C. Stability and interconversion of acetylcholine conformers. Bull.-Korean Chem. Soc. 2014, 35, 2911–2916. [Google Scholar] [CrossRef] [Green Version]
  26. Silla, J.M.; Silva, D.R.; Freitas, M.P. Theoretical study on the conformational bioeffect of the fluorination of acetylcholine. Mol. Informa. 2017, 36. [Google Scholar] [CrossRef] [PubMed]
  27. Lee, J.S. Structure and Energetics of Acetylcholine in Aqueous Solution. Bull.-Korean Chem. Soc. 2018, 39, 269–272. [Google Scholar] [CrossRef]
  28. Rusydi, F.; Aisyah, N.D.; Fadilla, R.N.; Dipojono, H.K.; Ahmad, F.; Puspitasari, I.; Rusydi, A. The transition State conformational effect on the activation energy of ethyl acetate neutral hydrolysis. Heliyon 2019, 5, e02409. [Google Scholar] [CrossRef]
  29. Svinning, T.; Sørum, H. A reinvestigation of the crystal structure of acetylcholine bromide. Acta Crystallogr. 1975, B31, 1581–1585. [Google Scholar] [CrossRef]
  30. Hohernberg, P.; Kohn, W. Inhomogeneous electron gas. Phys. Rev. 1964, 136, B864–B871. [Google Scholar] [CrossRef] [Green Version]
  31. Kohn, W.; Sham, L.J. Self-consistent equations including exchange and correlation effects. Phys. Rev. 1965, 140, A1133–A1138. [Google Scholar] [CrossRef] [Green Version]
  32. Frisch, M.; Trucks, G.; Schlegel, H.; Scuseria, G.; Robb, M.; Cheeseman, J.; Scalmania, G.; Barone, V.; Mennucci, B.; Petersson, G.; et al. Gaussian09, Revision C.01; Technical Report; Gaussian Inc.: Wallingford, CT, USA, 2010. [Google Scholar]
  33. Khoirunisa, V.; Rusydi, F.; Kasai, H.; Saputro, A.G.; Dipojono, H.K. A first principle study on the interaction between acetylcholinesterase and acetylcholine, and also rivastigmine in alzheimer’s disease case. J. Phys. Conf. Ser. 2016, 739, 012136. [Google Scholar] [CrossRef] [Green Version]
  34. Rusydi, F.; Agusta, M.K.; Saputro, A.G.; Kasai, H. A first principle study on zinc porphyrin interaction with O2 in zinc porphyrin(oxygen) complex. J. Phys. Soc. Jpn. 2012, 81, 124301. [Google Scholar] [CrossRef]
  35. Brycki, B.; Szulc, A.; Kowalczyk, I. Study of cyclic quaternary ammonium bromides by B3LYP calculations, NMR and FTR spectroscopies. Molecules 2010, 15, 5644–5657. [Google Scholar] [CrossRef] [PubMed]
  36. Cottone, G.; Noto, R.; Manna, G.L. Density functional theory study of the Trans-Trans-Cis (TTC) → Trans-Trans-Trans (TTT) isomerization of a Photochromic Spiropyran Merocyanine. Molecules 2008, 13, 1246–1252. [Google Scholar] [CrossRef] [PubMed]
  37. Glendening, E.D.; Reed, A.E.; Carpenter, J.E.; Weinhold, F. NBO Version 3.1. Available online: http://cup.uni-muenchen.de/ch/compchem/pop/nbo2.html (accessed on 5 February 2020).
  38. Young, D.C. Computational Chemistry: A Practical Guide for Applying Techniques to Real-World Problems; John Wiley & Sons Inc.: New York, NY, USA, 2001. [Google Scholar]
  39. Sax, M.; Rodrigues, M.; Blank, G.; Wood, M.K.; Pletcher, J. The conformation of acetylcholine and the crystal structure of 2,2-dimethylbutyl 3,5-dinitrobenzoate. Acta Crystallogr. 1976, B32, 1953–1956. [Google Scholar] [CrossRef] [Green Version]
  40. Edvarsen, Ø.; Dahl, S.G. Molecular structure and dynamics of acetylcholine. J. Neurotransm. 1991, 83, 157–170. [Google Scholar] [CrossRef]
  41. Wilson, K.J.; Derreumaux, P.; Vergoten, G.; Peticolas, W.L. Conformational studies of neuroactive ligands 2. Solution-state conformations of acetylcholine. J. Phys. Chem. 1989, 93, 1351–1357. [Google Scholar] [CrossRef]
  42. Frydenvang, K.; Jensen, B. Conformational analysis of acetylcholine and related choline esters. Acta Crystallogr. 1996, B52, 184–193. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. National Center for Biotechnology Information. Acetylcholine, CID=187. Available online: https://pubchem.ncbi.nlm.nih.gov/compound/Acetylcholine (accessed on 8 October 2019).
  44. Wolfenden, R.; Yuan, Y. The “neutral” hydrolysis of simple carboxylic esters in water and the rate enhancements produced by acetylcholineserase and other carboxylic acid esterases. J. Am. Chem. Soc. 2011, 133, 13821–13823. [Google Scholar] [CrossRef]
  45. Skrabal, A.; Zahorka, A. Die Wasserverseifung des Äthylazetats. Monatshefte Chem. 1929, 53, 562–576. [Google Scholar] [CrossRef]
  46. Sturtevant, J.M. The enthalpy of hydrolysis of acetylcholine. J. Biol. Chem. 1972, 247, 968–975. [Google Scholar]
  47. Zhorov, B.S.; Shestakova, N.N.; Rozengart, E.V. Determination of productive conformation of acetylcholinesterase substrates using molecular mechanics. Mol. Inform. 1991, 10, 205–210. [Google Scholar] [CrossRef]
  48. Chothia, C.; Pauling, P. Conformation of cholinergic molecules relevant to acetylcholinesterase. Nature 1969, 223, 919–921. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are not available from the authors.

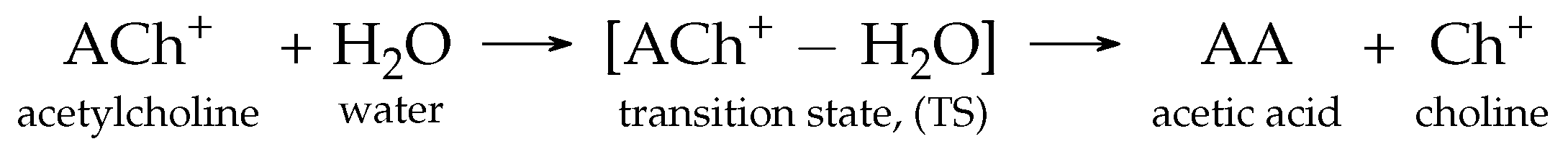

Scheme 1. A one-step mechanism for acetylcholine neutral hydrolysis.
Scheme 1. A one-step mechanism for acetylcholine neutral hydrolysis.
Molecules 25 00670 sch001

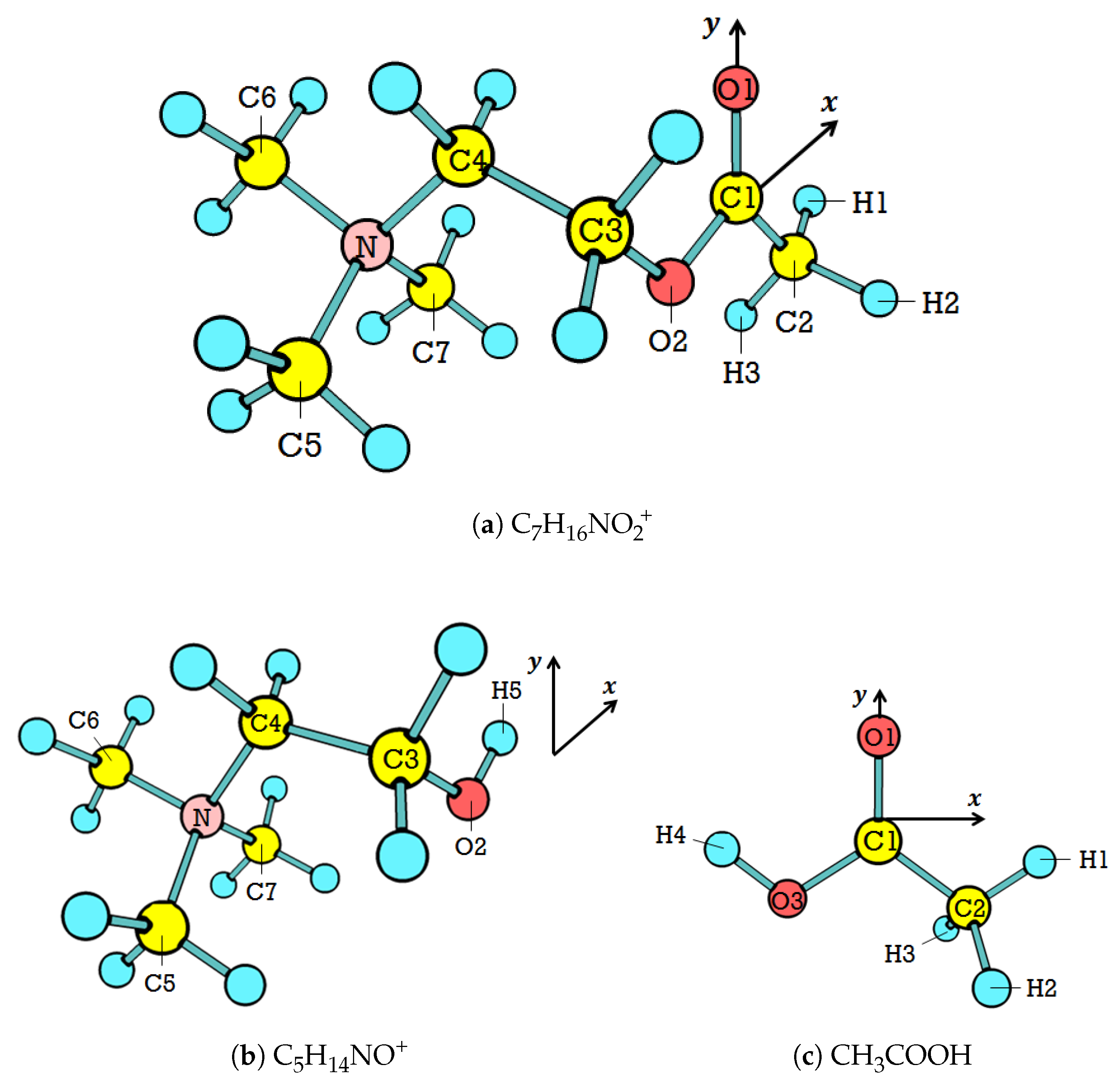

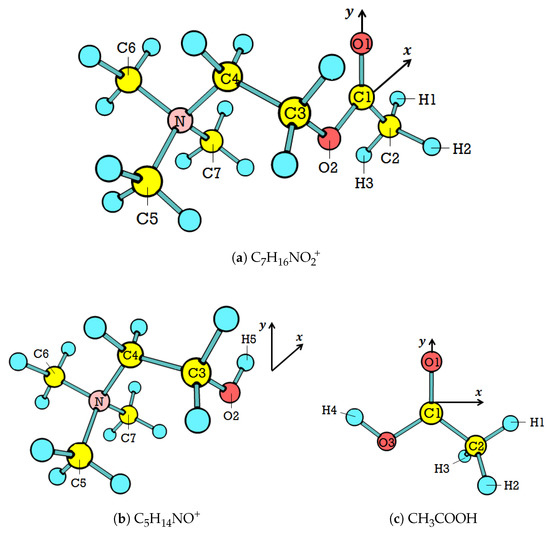

Figure 1. The molecular models of (a) ACh + , (b) Ch + , and (c) AA.
Figure 1. The molecular models of (a) ACh + , (b) Ch + , and (c) AA.
Molecules 25 00670 g001

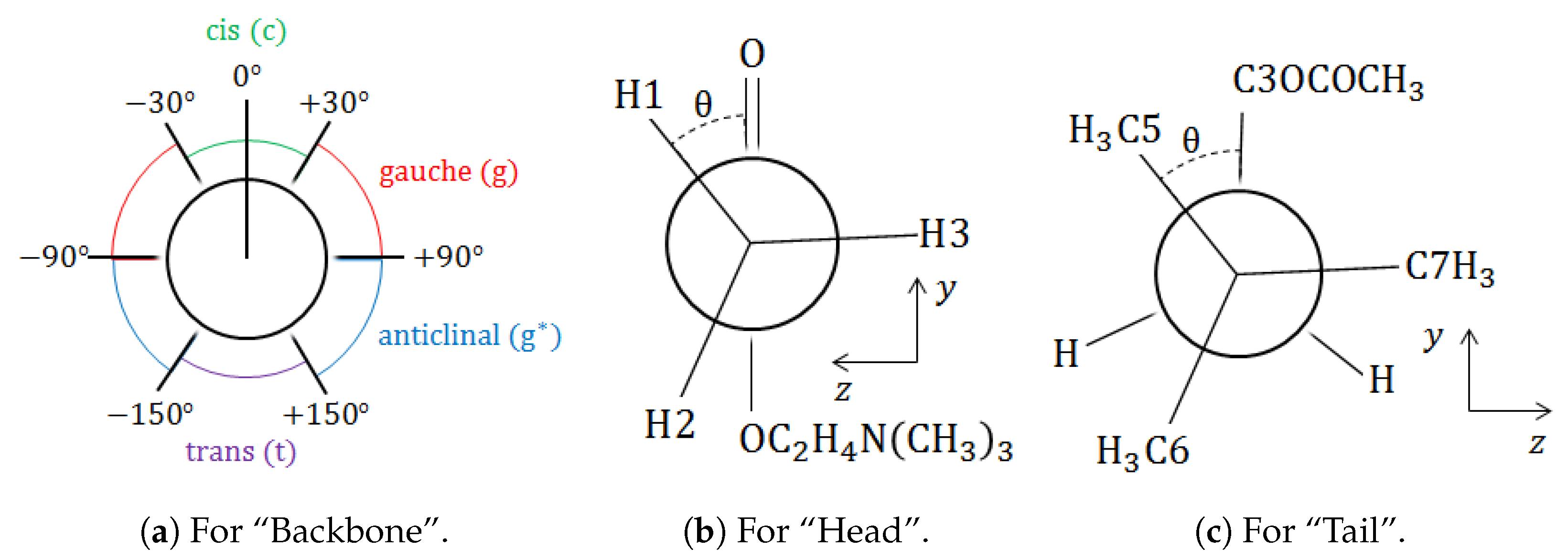

Figure 2. (a) The criteria to define the conformation of each dihedral angle. A line lying on 0° represents the bond of the first two atoms describing the dihedral angle. Newman projections (b) along C2–C1 and (c) along N–C4. For Figure 2b,c, θ 0 ° means eclipsed conformation and θ 60 ° means staggered conformation.
Figure 2. (a) The criteria to define the conformation of each dihedral angle. A line lying on 0° represents the bond of the first two atoms describing the dihedral angle. Newman projections (b) along C2–C1 and (c) along N–C4. For Figure 2b,c, θ 0 ° means eclipsed conformation and θ 60 ° means staggered conformation.
Molecules 25 00670 g002

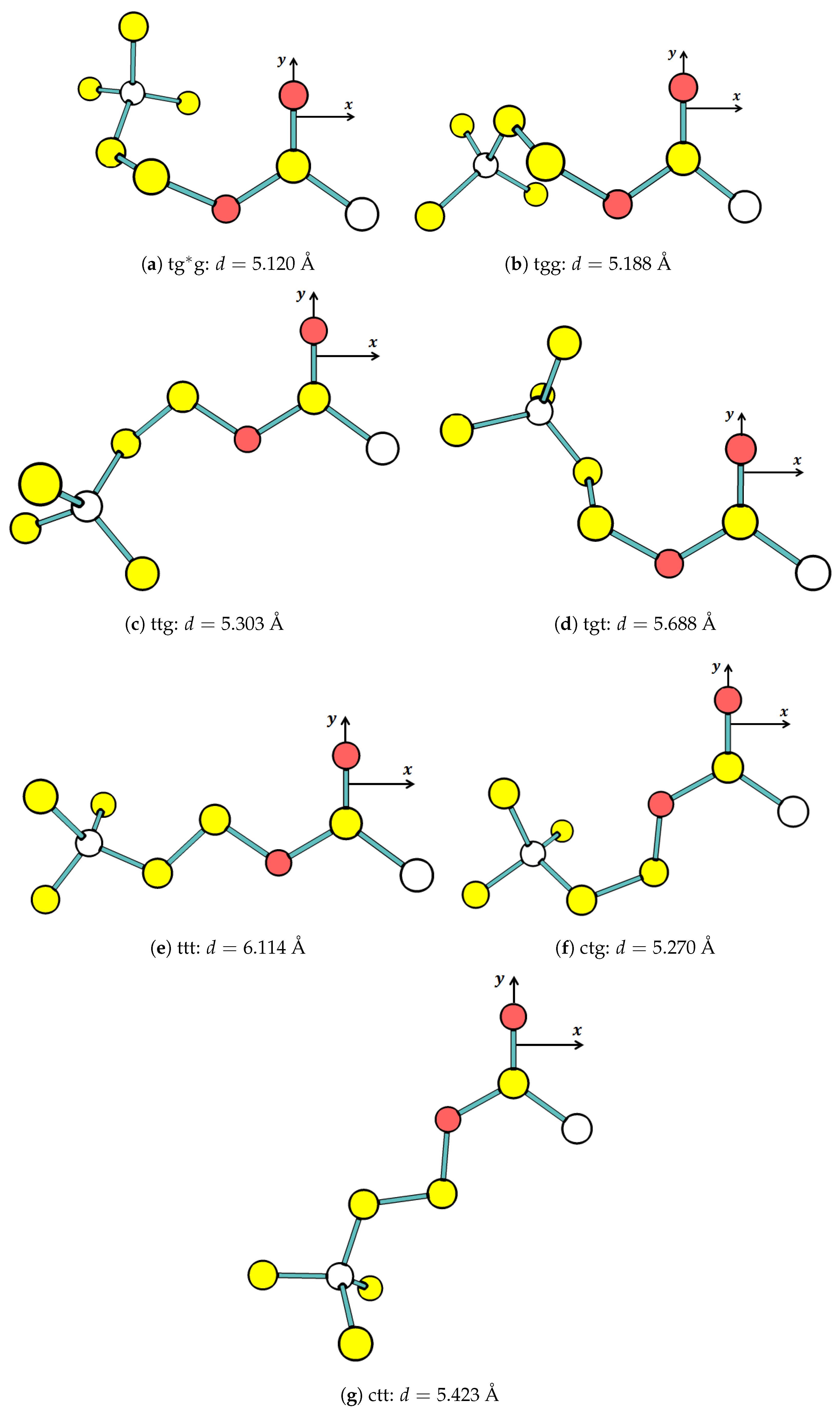

Figure 3. The optimized structure of ACh + conformers: For clarity, all H atoms are not displayed. The distance, d, is between C2 and N atom (white).
Figure 3. The optimized structure of ACh + conformers: For clarity, all H atoms are not displayed. The distance, d, is between C2 and N atom (white).
Molecules 25 00670 g003

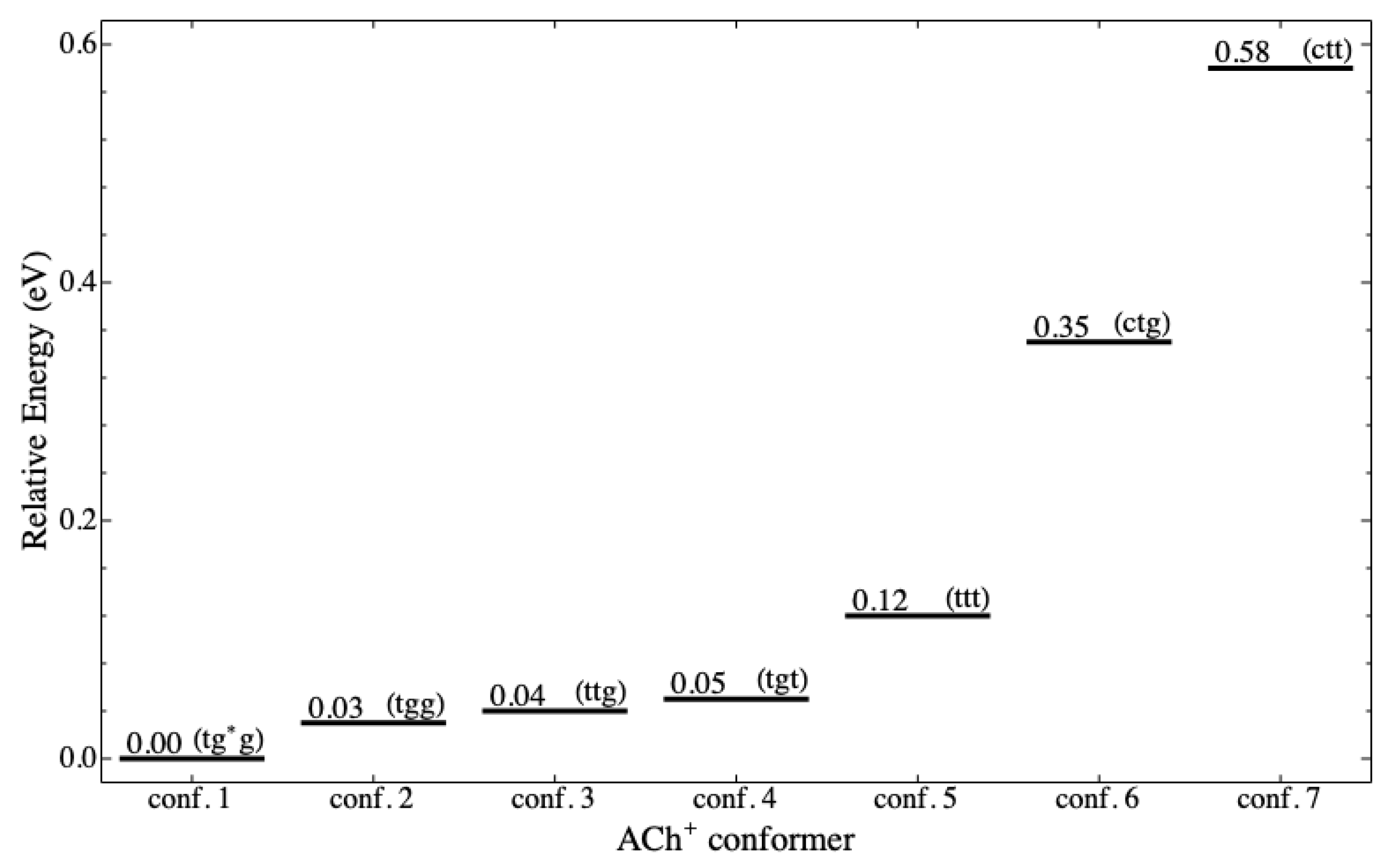

Figure 4. The energy level diagram (ELD) of the seven stable ACh + conformers. The energy is relative to ACh + (tg*g).
Figure 4. The energy level diagram (ELD) of the seven stable ACh + conformers. The energy is relative to ACh + (tg*g).
Molecules 25 00670 g004

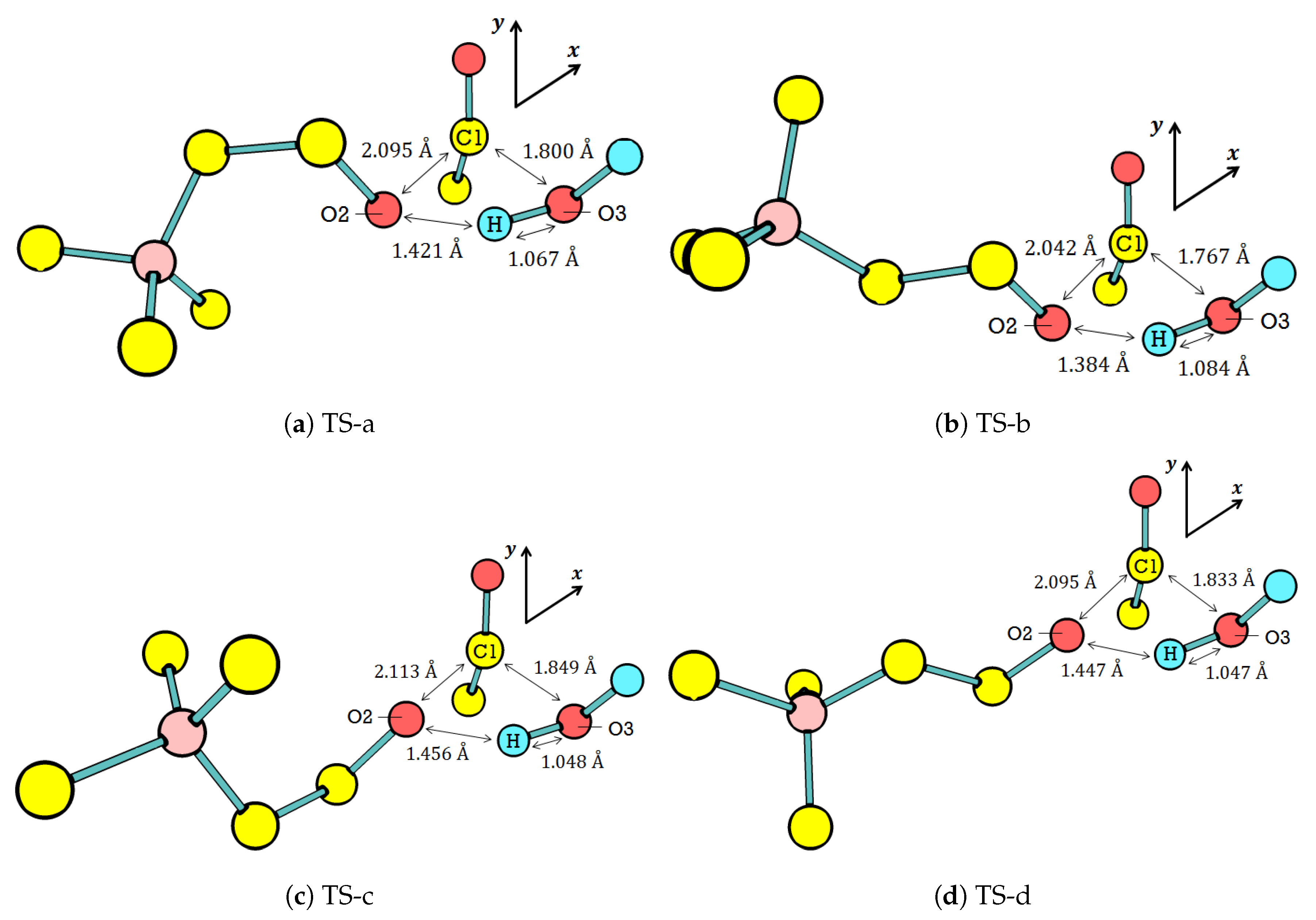

Figure 5. The four possible TS geometries.
Figure 5. The four possible TS geometries.
Molecules 25 00670 g005

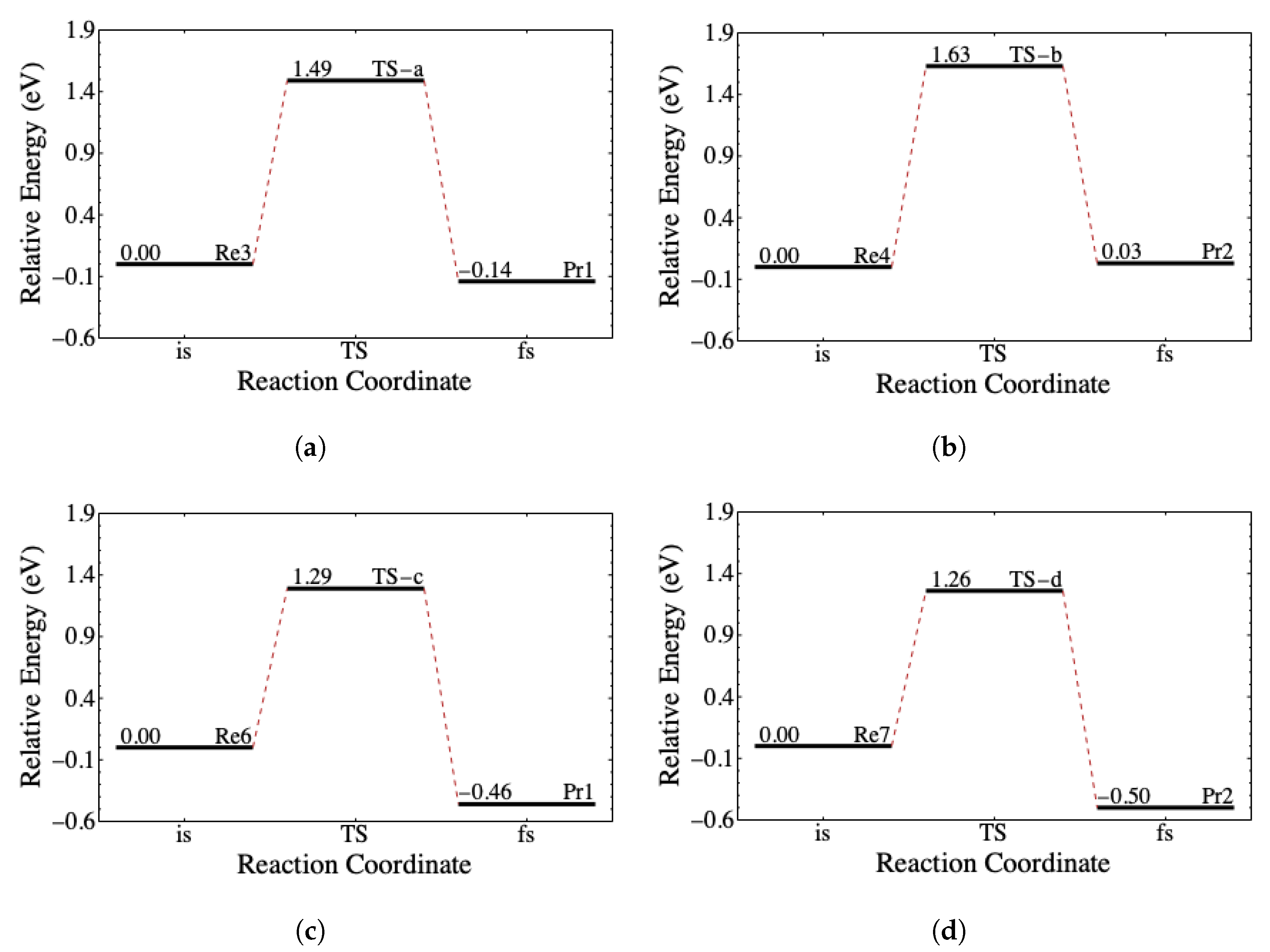

Figure 6. The ELDs for four possible TSs: (a) TS-a, (b) TS-b, (c) TS-c, and (d) TS-d, and their related initial (is) and final states (fs). The code of the reactants and the products follows Table 7. The relative energy of each TS corresponds to the energy barrier, whereas the relative energy of the fs corresponds to the reaction energy.
Figure 6. The ELDs for four possible TSs: (a) TS-a, (b) TS-b, (c) TS-c, and (d) TS-d, and their related initial (is) and final states (fs). The code of the reactants and the products follows Table 7. The relative energy of each TS corresponds to the energy barrier, whereas the relative energy of the fs corresponds to the reaction energy.
Molecules 25 00670 g006

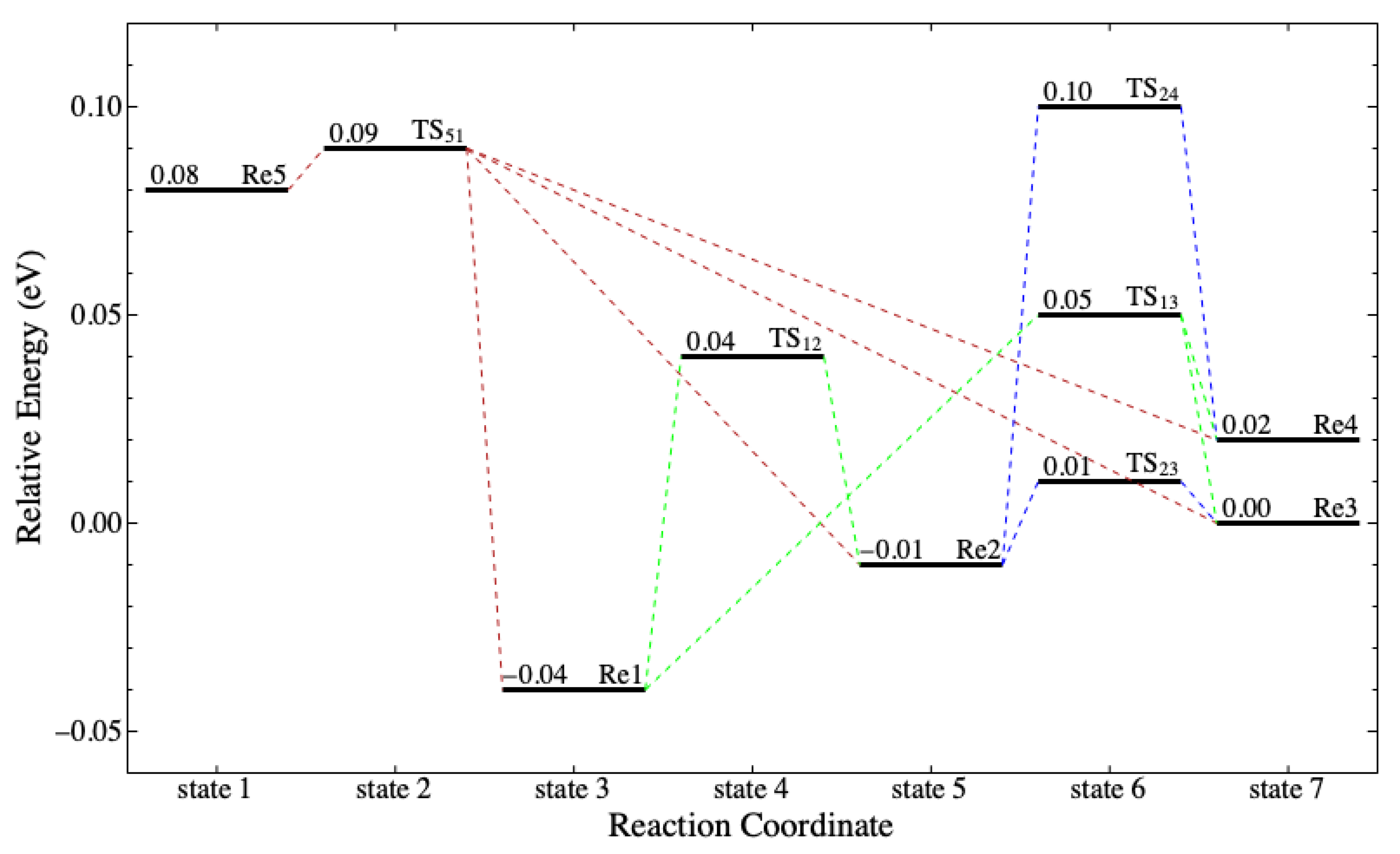

Figure 7. The reaction coordinates for all potential reactants in Table 7 before forming the activated complex (TS-a, TS-b, TS-c, and TS-d): TS12 means the transition state of conformational isomerization from Re1 to Re2.
Figure 7. The reaction coordinates for all potential reactants in Table 7 before forming the activated complex (TS-a, TS-b, TS-c, and TS-d): TS12 means the transition state of conformational isomerization from Re1 to Re2.
Molecules 25 00670 g007

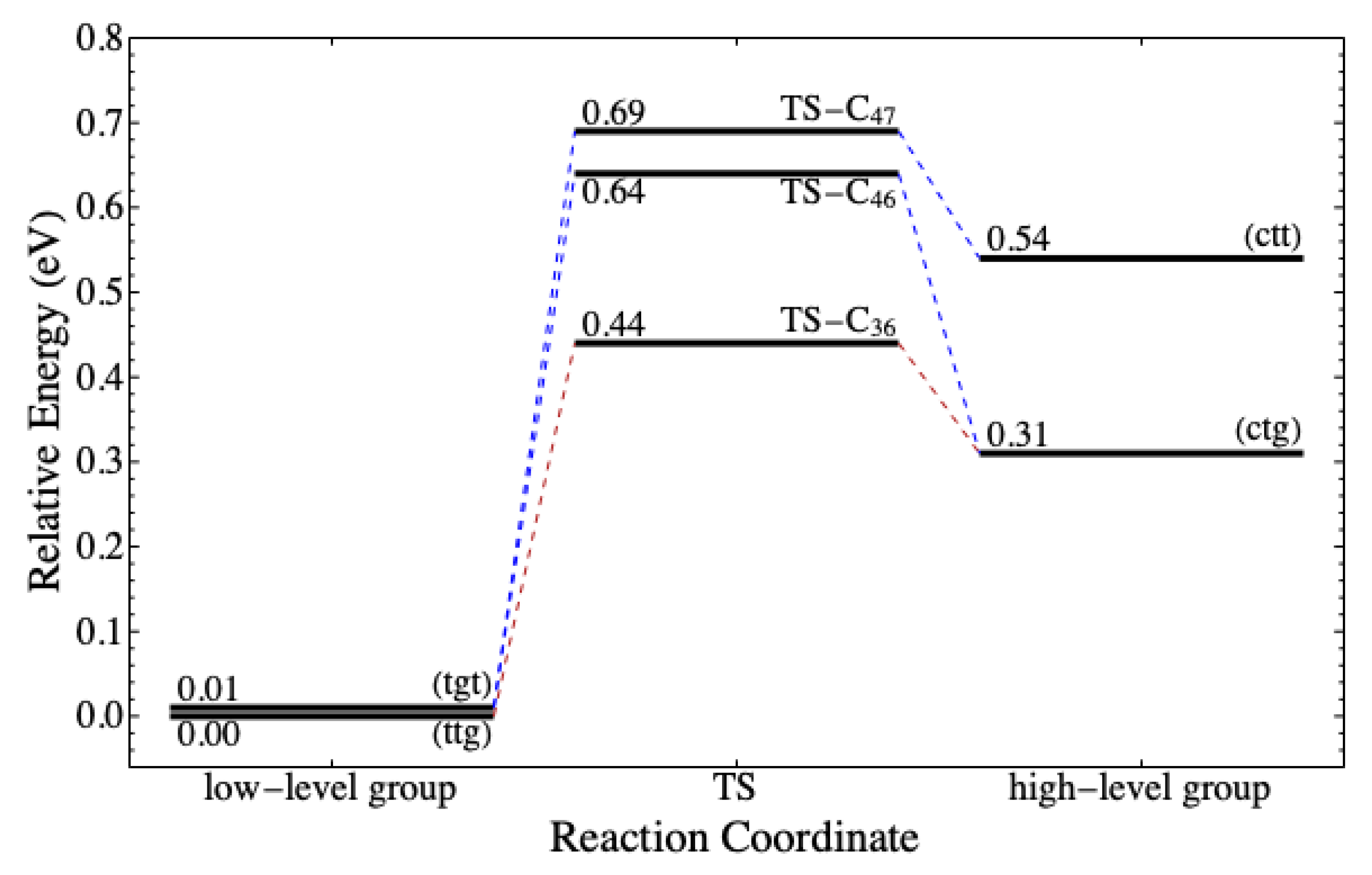

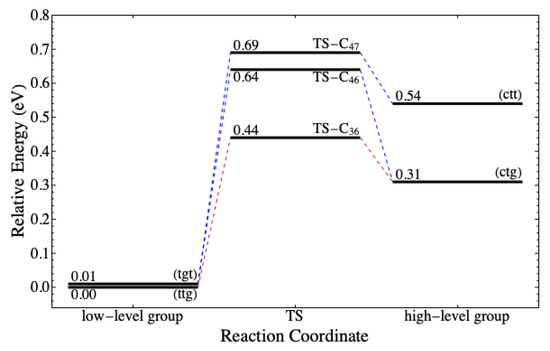

Figure 8. The reaction coordinates from low- to high-level groups of ACh + conformers: The TS between ACh + (ttg) and (ctt) is almost 3 eV, and it is not displayed for the sake of clarity.
Figure 8. The reaction coordinates from low- to high-level groups of ACh + conformers: The TS between ACh + (ttg) and (ctt) is almost 3 eV, and it is not displayed for the sake of clarity.
Molecules 25 00670 g008
Table 1. The geometrical parameters of interest from Figure 1 and the corresponding notations used throughout the manuscript.
Table 1. The geometrical parameters of interest from Figure 1 and the corresponding notations used throughout the manuscript.
ParameterDefinitionUnit
(a) ACh +
D 1 dihedral angle of C2–C1–O2–C3(backbone)deg.
D 2 dihedral angle of C1–O2–C3–C4(backbone)deg.
D 3 dihedral angle of O2–C3–C4–N(backbone)deg.
D 4 dihedral angle of O1–C1–C2–H1(head)deg.
D 5 dihedral angle of C3–C4–N–C5(tail)deg.
(b) Ch +
D 6 dihedral angle of H5–O2–C3–C4(backbone)deg.
D 7 dihedral angle of O2–C3–C4–N(backbone)deg.
D 8 dihedral angle of C3–C4–N–C5(tail)deg.
Table 2. The optimized geometrical parameters of ACh + Br from (a) experimental values [29] and (b) our calculations (R (in Å); A (in deg.)). The discrepancy Δ b a is the value of (b) minus (a).
Table 2. The optimized geometrical parameters of ACh + Br from (a) experimental values [29] and (b) our calculations (R (in Å); A (in deg.)). The discrepancy Δ b a is the value of (b) minus (a).
Parameter(a)(b) Δ ba
R(C1,O1)1.1921.2020.010
R(C1,C2)1.4871.4960.009
R(C1,O2)1.3581.3810.023
R(O2,C3)1.4521.431−0.021
R(C3,C4)1.5001.5210.021
R(C4,N)1.5131.5320.019
A(O1,C1,C2)125.9126.91.0
A(O1,C1,O2)122.8122.3−0.5
A(C2,C1,O2)111.3110.8−0.5
A(C1,O2,C3)115.7116.50.8
A(O2,C3,C4)111.6111.1−0.5
A(C3,C4,N)116.4116.40.0
Table 3. The optimized conformation type and geometrical parameters of the stable ACh + conformers (R (in Å); A and D (in deg.)).
Table 3. The optimized conformation type and geometrical parameters of the stable ACh + conformers (R (in Å); A and D (in deg.)).
Backbone ConformationParameters
R 1 R 2 R 3 A 1 A 2 D 1 D 2 D 3
tg*g1.4971 3691.532111.5121.8166.6110.4−79.7
tgg1.4981.3831.531111.4121.4170.681.767.0
ttg1.4991.3891.533111.2121.1−178.4166.065.9
tgt1.4971.3741.525111.5121.3174.980.7−157.2
ttt1.4981.3841.525111.1121.1180.0180.0180.0
ctg1.5051.4001.533117.4116.4−7.4166.756.7
ctt1.5071.3971.523117.3116.80.0180.0180.0
span0.0110.0310.0106.35.5180.099.3124.3
R 1 C2–C1; R 2 C1–O2; R 3 C4–N; A 1 C2–C1–O2; A 2 O1–C1–O2.
Table 4. The optimized conformation type and geometrical parameters of the stable Ch + conformers (R (in Å); A and D (in deg.)).
Table 4. The optimized conformation type and geometrical parameters of the stable Ch + conformers (R (in Å); A and D (in deg.)).
Backbone ConformationParameters
R 4 R 5 R 6 A 3 A 4 D 6 D 7
tg1.4191.5211.533110.2109.6167.758.3
tt1.4141.5301.522110.3102.6179.5178.4
span0.0040.0090.0110.17.011.8121.2
R 4 O2–C3; R 5 C3–C4; R 6 C4–N; A 3 H5–O2–C3; A 4 C3–C4–N.
Table 5. The atomic charge populations (in unit e) of ACh + and water: Not available values are indicated by “n.a.”.
Table 5. The atomic charge populations (in unit e) of ACh + and water: Not available values are indicated by “n.a.”.
MoleculesHeadBackboneTail
O1C2 H 3 C1O2C3C4N3( C H 3 )O3
(a) ACh +
tg*g−0.610.060.82−0.57−0.07−0.18−0.361.00n.a.
tgg−0.580.050.81−0.59−0.07−0.19−0.351.00n.a.
ttg−0.550.040.82−0.61−0.07−0.17−0.341.00n.a.
tgt−0.550.060.82−0.61−0.07−0.17−0.351.00n.a.
ttt−0.560.050.82−0.58−0.06−0.17−0.351.00n.a.
ctg−0.520.020.82−0.62−0.05−0.17−0.351.01n.a.
ctt−0.510.010.81−0.59−0.05−0.17−0.351.00n.a.
(b) Watern.a.n.a.n.a.n.a.n.a.n.a.n.a.n.a.−0.91
Table 6. The Natural Bond Orbital (NBO) calculation for the C1–O2 bonding based on the linear combination of atomic orbitals a C 1 ( s p n ) + b O 2 ( s p m ) .
Table 6. The Natural Bond Orbital (NBO) calculation for the C1–O2 bonding based on the linear combination of atomic orbitals a C 1 ( s p n ) + b O 2 ( s p m ) .
MoleculesC1O2
a sp n b sp m
(1) ACh +
tg*g0.55072.820.83472.11
tgg0.54812.870.83642.20
ttg0.54442.910.83882.24
tgt0.55032.840.83502.19
ttt0.54552.900.83812.24
ctg0.54193.010.84042.17
ctt0.54362.980.83932.21
average0.54642.900.83752.19
(2) Ethyl acetate
trans0.59011.910.80731.42
gauche0.58951.910.80781.41
average0.58981.910.80761.42
Table 7. The code for reactants (initial state (is)) and products (final state (fs)) from Scheme 1.
Table 7. The code for reactants (initial state (is)) and products (final state (fs)) from Scheme 1.
CodeSystemsState
Re1 ACh + (tg*g) + wateris
Re2 ACh + (tgg) + wateris
Re3 ACh + (ttg) + wateris
Re4 ACh + (tgt) + wateris
Re5 ACh + (ttt) + wateris
Re6 ACh + (ctg) + wateris
Re7 ACh + (ctt) + wateris
Pr1 AA + Ch + (tg)fs
Pr2 AA + Ch + (tt)fs
Table 8. The standard enthalpy of reaction ( Δ r H ° ) and the standard Gibbs energy of activation ( Δ G ° ) at 298.15 K (in kcal/mol): For Re5, only the shortest pathway is listed.
Table 8. The standard enthalpy of reaction ( Δ r H ° ) and the standard Gibbs energy of activation ( Δ G ° ) at 298.15 K (in kcal/mol): For Re5, only the shortest pathway is listed.
NumberReaction Δ r H ° Δ G °
a) Reactions that yield Pr1
(i)Re1 → Re2 → Re3 → Ts-a → Pr1 1.67 45.28
(ii)Re2 → Re3 → Ts-a → Pr1 2.14 45.28
(iii)Re3 → Ts-a → Pr1 2.33 45.28
(iv)Re5 → Re3 → Ts-a → Pr1 4.17 45.28
(v)Re6 → Ts-c → Pr1 9.45 39.28
b) Reactions that yield Pr2
(vi)Re1 → Re4 → Ts-b → Pr2 + 2.61 47.04
(vii)Re2 → Re4 → Ts-b → Pr2 + 2.14 47.04
(viii)Re4 → Ts-b → Pr2 + 1.38 47.04
(ix)Re5 → Re4 → Ts-b → Pr2 + 0.10 47.04
(x)Re7 → Ts-d → Pr2 10.33 38.95

Share and Cite

MDPI and ACS Style

Fadilla, R.N.; Rusydi, F.; Aisyah, N.D.; Khoirunisa, V.; Dipojono, H.K.; Ahmad, F.; Mudasir, M.; Puspitasari, I. A Density-Functional Study of the Conformational Preference of Acetylcholine in the Neutral Hydrolysis. Molecules 2020, 25, 670. https://doi.org/10.3390/molecules25030670

AMA Style

Fadilla RN, Rusydi F, Aisyah ND, Khoirunisa V, Dipojono HK, Ahmad F, Mudasir M, Puspitasari I. A Density-Functional Study of the Conformational Preference of Acetylcholine in the Neutral Hydrolysis. Molecules. 2020; 25(3):670. https://doi.org/10.3390/molecules25030670

Chicago/Turabian Style

Fadilla, Rizka N., Febdian Rusydi, Nufida D. Aisyah, Vera Khoirunisa, Hermawan K. Dipojono, Faozan Ahmad, Mudasir Mudasir, and Ira Puspitasari. 2020. "A Density-Functional Study of the Conformational Preference of Acetylcholine in the Neutral Hydrolysis" Molecules 25, no. 3: 670. https://doi.org/10.3390/molecules25030670

APA Style

Fadilla, R. N., Rusydi, F., Aisyah, N. D., Khoirunisa, V., Dipojono, H. K., Ahmad, F., Mudasir, M., & Puspitasari, I. (2020). A Density-Functional Study of the Conformational Preference of Acetylcholine in the Neutral Hydrolysis. Molecules, 25(3), 670. https://doi.org/10.3390/molecules25030670

Article Metrics

Back to TopTop
