Signalling and Bioactive Metabolites from Streptomyces sp. RK44

Marine Biodiscovery Centre, Department of Chemistry, University of Aberdeen, Meston Walk, Aberdeen AB24 3UE, UK
College of Science, Department of Biology and Environmental Science, University of the Philippines Cebu, Lahug, Cebu 6000, Philippines
Marine and Plant Research Laboratory of Ghana, Department of Chemistry, University of Ghana, P.O. Box LG56 Legon, Accra, Ghana
Marbio, UiT—The Arctic University of Norway, N-9037 Tromsø, Norway
Fundación MEDINA, Avda. del Conocimiento 34, 18016 Armilla, Granada, Spain
Instituto de Parasitología y Biomedicina “López-Neyra”, Consejo Superior de Investigaciones Científicas (CSIC) Avda. del Conocimiento 17, 18016 Armilla, Granada, Spain
Author to whom correspondence should be addressed.
Molecules 2020, 25(3), 460;
Submission received: 22 December 2019 / Revised: 17 January 2020 / Accepted: 21 January 2020 / Published: 22 January 2020


Streptomyces remains one of the prolific sources of structural diversity, and a reservoir to mine for novel natural products. Continued screening for new Streptomyces strains in our laboratory led to the isolation of Streptomyces sp. RK44 from the underexplored areas of Kintampo waterfalls, Ghana, Africa. Preliminary screening of the metabolites from this strain resulted in the characterization of a new 2-alkyl-4-hydroxymethylfuran carboxamide (AHFA) 1 together with five known compounds, cyclo-(L-Pro-Gly) 2, cyclo-(L-Pro-L-Phe) 3, cyclo-(L-Pro-L-Val) 4, cyclo-(L-Leu-Hyp) 5, and deferoxamine E 6. AHFA 1, a methylenomycin (MMF) homolog, exhibited anti-proliferative activity (EC50 = 89.6 µM) against melanoma A2058 cell lines. This activity, albeit weak is the first report amongst MMFs. Furthermore, the putative biosynthetic gene cluster (ahfa) was identified for the biosynthesis of AHFA 1. DFO-E 6 displayed potent anti-plasmodial activity (IC50 = 1.08 µM) against P. falciparum 3D7. High-resolution electrospray ionization mass spectrometry (HR ESIMS) and molecular network assisted the targeted-isolation process, and tentatively identified six AHFA analogues, 712 and six siderophores 1318.

1. Introduction

Streptomyces have been, for decades, one of the most prolific sources of pharmacologically-active compounds, contributing for more than half of the naturally-derived antibiotics that are in clinical use today, such as chloramphenicol (from S. venezuelae) [1], fosfomycin (from S. fradiae) [2], clavulanic acid (from S. clavuligerus) [3], and avermectin (from S. avermitilis) [4]. In our efforts to discover natural products, we have isolated a new bacterial strain, Streptomyces sp. RK44 from the underexplored areas of Kintampo waterfalls, Ghana, Africa [5,6].
Chemical profiling of the RK44 extract using high-resolution electrospray ionization mass spectrometry (HR-ESIMS) and Global Natural Product Social (GNPS) molecular network (MN) [7] showed a cluster of low molecular weight metabolites with a characteristic 250 nm UV absorption, suggesting that they share a common chromophore skeleton. Database dereplication using AntiBase 2017 (WILEY) and other online databases (The Natural Products Atlas, ChemSpider) [8,9] revealed that these metabolites have not been previously described in the literature [10,11].
The isolation was carried out and afforded a new metabolite 1 (1.0 mg). Interpretation of the spectroscopic data demonstrated that 1 is 2-alkyl-4-hydroxymethylfuran-3-carboxamide (AHFA), a new methylenomycin furan (MMF) homolog which bears an amide moiety at C-3 instead of carboxylic acid [12] in the former. MMFs are signalling molecules or autoregulators identified in 2008 in the model actinomycete Streptomyces coelicolor, which induce methylenomycin antibiotic production [10]. Examples of the well-characterized autoregulators include acylhomoserine lactones (AHLs) in Gram-negative bacteria [13] and γ-butyrolactones (GBLs) in Gram-positive bacteria of the genus Streptomyces [14,15].
Genome mining revealed that the furan-type autoregulators may be widespread in Streptomyces species [10], however, only one class of MMFs has been identified to date [12]. The discovery of this new class of 2-alkyl-4-hydroxymethylfuran-3-carboxamide signalling molecule, AHFA 1 further expanded the chemical space of the under-explored class of furan-based autoregulators, and the MMF biosynthetic machinery. Furthermore, the presence of AHFA 710, bearing various alkyl substituents at C-2 of the furan ring was also detected by high-pressure liquid chromatography (HPLC)-Ultraviolet (UV)-HRESIMS-GNPS analyses, but they were not isolated due to their trace quantities in the extract.
Along with AHFA 1, we also isolated known compounds, cyclo-(L-Pro-Gly) 2, cyclo-(L-Pro-L-Phe) 3, cyclo-(L-Pro-L-Val) 4, cyclo-(L-Leu-Hyp) 5, and deferoxamine E 6. Moreover, the MN analysis also identified the clusters corresponding to diketopiperazines 25, and siderophores 6 and 1318.

2. Results and Discussion

A large-scale fermentation (6 L) of Streptomyces sp. RK44 in Modified Bennett’s broth [16] was performed for seven days (28 °C, 180 rpm). Subsequently, Diaion® HP-20 (3 g/50 mL) was added to the culture broth and incubated overnight under the same culture conditions. The mixture was filtered under vacuum, after which the residue consisting of the mycelium and HP-20 resin was submerged in 100% methanol (3 × 500 mL) for 24 h. The methanol extract was then decanted and concentrated under reduced pressure to give a crude extract (5.8 g) which was then fractionated by solid-phase extraction (SPE) using Strata® C18-E to give six fractions (S1–S6).
Dereplication of SPE extracts of RK44 using GNPS and a survey of databases (e.g., Dictionary of Natural Products, AntiBase, The Natural Products Atlas) suggested the presence of potentially new metabolites cluster in fraction S3. Consequently, S3 was selected for further purification using semi-preparative reversed-phase HPLC to yield 1 (1.0 mg), along with a number of diketopiperazines 2 (1.2 mg), 3 (2.0 mg), 4 (2.1 mg), 5 (2.3 mg), and the known siderophore, deferoxamine E 6 (3.0 mg) (Figure 1).

2.1. Structure Elucidation

The structures of the diketopiperazines (DKPs), cyclo-(L-Pro-Gly) 2, cyclo-(L-Pro-L-Phe) 3, cyclo-(L-Pro-L-Val) 4, and cyclo-(L-Leu-Hyp) 5, were determined by comparison of the UV spectra, molecular formulae, and a series of Nuclear magnetic resonance (NMR) spectra with literature data [17,18,19,20,21] (Figure S21–S24, Table S2). The configuration of 25 were determined by advanced Marfey’s analysis, suggesting that all the proteogenic amino acids are in L-configuration (Table S4). Compound 6 was identical to the reported siderophore, desferrioxamine E 6 [22,23,24] (Figure S22, Table S3).
Compound 1 was obtained as a yellow powder. The molecular formula of 1 (Figure 1) was established as C10H15NO3 by High-Resolution Electrospray Ionization Mass Spectrometry (HR-ESIMS) (calculated [M + H]+ = 198.1123; observed [M + H]+ = 198.1125; ∆ = −0.5047 ppm), indicating 4 degrees of unsaturation (Figure S1). The UV absorption maximum at 250 nm found in its spectrum is a characteristic feature of MMF molecules.
Analysis of the 1H, HMBC, and HSQC spectra revealed the presence of 1 sp2 methine, 4 methylenes, 1 methyl, and 4 quaternary carbons leading to the sub-formula C10H12 (Table 1). The 1H-NMR spectrum in CD3OD contained signals for 12 of the 15 protons accounted by the molecular formula, suggesting three exchangeable protons. These protons were observed in the DMSO-d6 spectrum at δH 6.53 (NH2) and δH 4.05 (OH). The remaining oxygen atom and the 13C chemical shifts (δC 162.1, 123.1, 139.1, 115.8), and the number of double bond equivalents suggested the presence of a furan core in the structure, which is supported by the heteronuclear multiple bond correlations (HMBC) from H-5 (δH 7.38, s) to C-2 (δC 162.1), C-3 (δC 115.8), and C-4 (δC 123.1).
Inspection of the 1H-1H COSY data identified one spin system from H-1′to H-4′, indicative of a butyl alkyl chain. The cross peak from H2-1′ (δH 2.95, t) to C-2 (δC 162.1) established the connectivity of the butyl alkyl group to the furan framework. The observed downfield signal at δH 4.52 (H2-7, s) suggested a hydroxymethylene group, and it was placed at C-4 based on the strong HMBC from H-7 (δH 4.52) to C-3 (δC 115.8), C-4 (δC 123.1), and C-5 (δC 139.1). The carbonyl carbon at C-6 (δC 171.6) and the N-H signal (δH 6.53, 2H) obtained in DMSO-d6 accounted for an amide moiety, and its connectivity was assigned to the remaining quaternary carbon C-3 (δC 115.8) of the furan ring.
Final structural analysis of 1 was confirmed by comparison with the spectroscopic data reported for MMF4 [12], which differs with 1 in the presence of a carboxylic acid in the former instead of the amide at position C-3. Compound 1 was therefore identified as 2-alkyl-4-hydroxymethylfruan carboxamide (AHFA).
MMFs share the common furan core in the structure, and the alkyl substituents at position C-2 of the ring can vary depending on which starter unit is incorporated during fatty acid biosynthesis [12,25]. Based on the HR ESIMS/GNPS analysis of the Streptomyces sp. RK44 extract, we have tentatively identified six AHFA 1 analogues, 712, with various lengths in their carbon alkyl chains at C-2 of the furan ring (Figures S10–S16, Table S1). However, they could not be isolated due to their presence in the extract in minute amounts. AHFA 712 clustered together in the molecular network (MN) signifying that they share a common structural motif evident in the presence of the furan framework (Figure S10). Detailed analysis of the UV pattern, MS and MS2 fragmentation data showed that they exhibit the characteristic UV absorption at 250 nm of MMFs, and the alkyl chain substitution at position C2 of the ring, analogous to the MMFs that have been reported previously [12].
Further MN analysis also identified the clusters corresponding to the DKPs 25, deferoxamines (DFO) B and E 6 and the 2.5kDa RIPP peptide (Figure S9). The observed molecular ion peaks of 1318 matched with the known ions in the GNPS library and they clustered together in the network, suggesting that they could be potentially new siderophores. Moreover, their fragmentation pathway were proposed based on the observed MS/MS data (Figure S20). Characterization of the peptide is currently underway in our laboratory.

2.2. Proposed MMF Biosynthetic Gene Cluster and Pathway

The biological function of AHFA 1 in the host cell is still unknown but is believed to be regulators of antibiotic biosynthesis in Streptomyces sp. RK44, analogous to the MMFs in S. coelicolor and GBLs in Streptomyces species [12,25]. Given the structural similarity of 1 with MMF4 [12], we predicted that 1 originated from an analogous biosynthetic pathway of MMF4. In silico analysis of the annotated RK44 genome using antiSMASH 3.0 [26] revealed one putative biosynthetic gene cluster, BGC (ahfa) that is likely to be involved in the biosynthesis of AHFA 1. Pairwise comparison of the annotated proteins using BLAST [27] and the sequence similarity network (SSN) [28] between the ahfa cluster with the mmf BGC showed high amino acid identity, supporting its role in MMF homolog biosynthesis (Figure 2).
The ahfa gene cluster spans about 4.5 kb of genomic DNA and contains three biosynthetic genes (ahfaL, ahfaP, ahfaH) that are likely involved in the biosynthesis of AHFA 1 in Streptomyces sp. RK44 (Table 2, Scheme 1). The incorporation of stereospecifically 13C-labeled glycerols into the MMFs suggested that they are biosynthesized via a butenolide phosphate intermediate 22 [25], derived from the MmfL-catalysed condensation of coenzyme A β-ketothioesters 19 in fatty acid biosynthesis with dihydroxyacetone (DHAP) 20. The isotope-labelled studies indicated that the hydroxymethyl group in MMFs originated from the hydroxymethyl of DHAP, suggesting an analogous role of AhfaL to the AfsA in the biosynthesis of A-factor [29], in contrary to the alternative roles proposed by Sello and colleagues (2009) [30]. AhfaL which encodes for butenolide synthase in RK44 with 53% identity to mmfL and 42.0% similarity to afsa is proposed to catalyse a similar condensation reaction between 3-oxohexanoyl-thioester 19 and DHAP 20 to yield 21, then 22. AhfaP encoded for phosphatase and has 58% identity to MmfP is likely responsible for the dephosphorylation of butenolide 22 to form 23, followed by rearrangement to 24 catalysed by the flavin-dependent monooxygenase, AhfaH. The formation of the furan ring in 1 and other AHFA analogues remains elusive.
Furthermore, two putative genes, ahfaR and ahfaS which encode for TetR/AcR transcriptional repressor showed high amino acid identities to MmfR and MmyR (46/62, WP_011039544.1; 62/75, WP_011039548.1) in S. coelicolor [31], respectively, were likely responsible for the antibiotic regulation in RK44.
The deduced function of ahfaL,H,P genes, based on their homology to autoregulatory genes (mmf or afs) of known function, supports the structure and the probable role of AHFA 1 as a signalling molecule.

2.3. Biological Test

AHFA 1 inhibited proliferation and viability of human A2058 melanoma cells and induced anoikis (EC50 = 89.6 µM) (Figure 3B) compared to control (treated with culture media alone, Figure 3C). It is worth noting that, although weak, this activity is the first time to be reported amongst MMFs (Figure S23). Compounds 26 did not display any bioactivity at the highest concentration tested (50 µM).
Compounds 16 were also investigated for their anti-plasmodial activities against Plasmodium falciparum 3D7. Only 6 showed potent antimalarial activity (IC50 = 1.08 µM), and 15 did not display any bioactivity at the highest concentration tested (50 µM). The activity of 6 may result from the strong chelation of DFO-E 6 with iron from the culture medium of P. falciparum, causing iron deficit and finally cell death [32]. This observation was consistent with the reported antiplasmodial activities of siderophores in literature [33,34,35,36].
On the other hand, there are no significant antimicrobial activities observed in 16 against the Gram-negative pathogens, Pseudomonas aeruginosa ATCC 27853 and Escherichia coli ATCC 25922 at concentrations between 0–50 µg/mL.

3. Materials and Methods

3.1. Fermentation

Streptomyces sp. RK44 was isolated from the soil near Kintampo waterfall, Ghana, Africa. The soil isolate was streaked on an ISP2 agar plate (yeast extract 4 g, malt extract 10 g, glucose 4 g, 15 g agar, in 1L H2O) to get pure single colonies. One single colony was inoculated into 50 mL of Modified Bennett’s liquid medium (glycerol 10.0 g, Oxoid yeast extract 1.0 g, Bacto-Casitone 2.0, Lab-Lemco 0.8 g in 1000 mL MilliQ H2O), and incubated for three days at 28 °C with shaking at 180 rpm (Incu-shake FL16-2). This seed culture was used to inoculate 6.0 L of MB broth (1:100) in 12 baffled flasks (CorningTM polycarbonate flasks), each containing autoclaved MB medium (500 mL) and plugged with Fisherbrand™ polyurethane foam stoppers (Fisher Scientific, UK). The cultures were fermented for seven days under the same condition as the seed culture. On day 7, Diaion® HP-20 (3 g/50 mL) was added to the fermentation culture under sterile conditions. The flasks were left in the same shaking temperature and conditions for 16–22 h. The culture broth was filtered under vacuum (Buchi pump V100, UK), and the HP-20 resin was washed with MilliQ water and extracted thrice with 100% methanol (Fisher Chemical HPLC grade). All the methanol extracts were combined, concentrated under reduced pressure (Buchi Rotavapor R200, BUCHI, UK), and subjected to High-resolution Electrospray Ionization Liquid Chromatography Mass Spectrometry (HRESI-LC-MS, Thermo Scientific, UK) analysis.

3.2. Molecular Network Analysis

MSConvert software (3.0, Proteowizard, CA, US) was used to convert LCMS.RAW data to the mzXML format files. MZmine was used to preprocess the data and exported to the GNPS platform for molecular networking data analysis [37]. The GNPS analysis was achieved through the GNPS data analysis workflow using the spectral clustering algorithm [38]. Data analysis was performed using the following settings: parent mass tolerance 0.02 Da, ion tolerance 0.02 Da, minimum pairs cosine 0.7, minimum matched peaks 6, network TopK 10, minimum cluster size 2, and maximum connected component size 100. The spectral library matching was performed with a similar cosine threshold and minimum matched peaks. The spectral networks were imported into Cytoscape 3.6.1 and visualized using the force-directed layout [39].

3.3. Spectroscopic Analysis

HR-ESI-LC-MS was obtained using an LTQ Orbitrap LC-MS system (Thermo Scientific, UK) coupled to a Thermo Instrument HPLC system (Accela PDA detector, Accela PDA autosampler and Accela Pump) on a positive ESI mode (30,000), MS/MS resolution 7500, C18 (Sunfire 150 × 46 mm column). 0.1% formic acid in water and 0.1% formic acid in acetonitrile was used for reverse-phase separation using a gradient from 0–100% in 25 min. The instrument parameters were set as following: Capillary voltage 45 V, spray voltage 4.5 kV, capillary temperature 200 °C, auxiliary gas flow rate 10–20 arbitrary units, sheath gas flow rate 5 arbitrary units, mass range 150–2000 amu (maximum resolution 30,000×), MS scan 150–2000Da coupled with an automated full dependent MS-MS scan.
1D and 2D NMR data were obtained on a Bruker AVANCE III HD 600 MHz (AscendTM14.1 Tesla, UK) with Prodigy TCITM cryoprobe at 298 K in DMSO-d6 and CD3OD (Goss Scientific). Trimethylsilane (TMS) was used as an internal standard.

3.4. Fractionation of the Extract

Fractionation of the crude methanol extract was achieved by using Strata® C18-E solid-phase extraction (SPE) (55 µm, 70 Å, 20 g/60 mL) cartridges. The SPE column was initially washed with two column volumes (CV) of methanol and MilliQ water separately, and then, the crude sample was loaded onto the column. The column was then eluted stepwise with solvent mixtures of decreasing polarity (8CV/solvent mixture): Milli-Q H2O, 25% MeOH, 50% MeOH, 75% MeOH, 100% MeOH, and 100% MeOH with 0.05% trifluoroacetic acid (Acros Organics). The eluents were collected separately and labelled as fractions S1–S6. All the fractions were concentrated under reduced pressure (Buchi Rotavapor R200) and subjected to HR-ESI-MS analysis.
Mass spectrometry (MS) analysis was carried out in all the fractions (S1–S6) to target the MMF signalling molecules. Analysis of the HRESI-LC-MS data of fraction S3 revealed seven resolved peaks with [M + H]+ ions at m/z 184.0967, 198.1123, 212.128, respectively. Dereplication of these masses was achieved using AntiBase (2017), indicating that these molecules were previously unreported but might share a similar furan core as MMF molecules. Thus, fraction S3 was selected for further fractionation by reversed-phase semi-prep (C18 ACE 10 µM 10 × 250 mm column) HPLC (Agilent 1260 Infinity). The purification was carried out using a linear gradient from 20% H2O: MeOH (95:5) to 100% MeOH for 28 min with a solvent flow rate of 1.5 mL/min, to yield AHFA 1 (1.0 mg). Six other furan derivatives, 712 were identified in the same fraction by HRESI-LC-MS and molecular network analyses (Figure S9, Table S1). However, these molecules could not be isolated due to their presence in trace quantities in the extract. Compound 26 were isolated in the fraction S2, using a linear gradient from 10% H2O: MeOH (95:5) to 100% MeOH for 28 min with a solvent flow rate of 1.5 mL/min.
Along with 1, we also isolated cyclo-(L-Pro-Gly) 2, cyclo-(L-Pro-L-Phe) 3, cyclo-(L-Pro-L-Val) 4, cyclo-(L-Leu-Hyp) 5, and deferoxamine E 6.
AHFA 1: 1.0mg; pale yellow powder. UV (CH3OH): 250 nm; 1H, 13C-NMR data, see Table 1; HRESIMS (positive mode) m/z calculated [M + H]+ = 198.1125; observed [M + H]+ = 198.1123; ∆ = −0.5050 ppm.
cyclo-(L-Pro-Gly) 2: 1.2 mg; white solid; 1H, 13C-NMR data, see Figure S21, Table S2; HRESIMS (positive mode) m/z calculated [M + H]+ = 155.0815; observed [M + H]+ = 155.0821; ∆ = 2.870 ppm.
cyclo-(L-Pro-L-Phe) 3: 2.0 mg; pale yellow solid; 1H, 13C-NMR data, see Figure S22, Table S2; [α]25D = −17.2 (c 1.0, MeOH); HRESIMS (positive mode) m/z calculated [M + H]+ = 245.1285; observed [M + H]+ = 245.1276; ∆ = −2.631 ppm.
cyclo-(L-Pro-L-Val) 4: 2.1 mg; pale yellow solid; 1H, 13C-NMR data, see Figure S23, Table S2; [α]25D = −31.0 (c 1.0, MeOH); HRESIMS (positive mode) m/z calculated [M + H]+ = 197.1285; observed [M + H]+ = 197.1284; ∆ = −0.5070 ppm.
cyclo-(L-Leu-Hyp) 5: 2.3 mg; yellow solid; 1H, 13C-NMR data, see Figure S24, Table S2; [α] 25D = −11.6 (c 1.0, MeOH); HRESIMS (positive mode) m/z calculated [M + H]+ = 227.1390; observed [M + H]+ = 227.1392; ∆ = −0.7040 ppm.
Deferoxamine E 6: 3.0 mg; pale yellow solid; 1H, 13C-NMR data, see Figure S25, Table S3; HRESIMS (positive mode) m/z calculated [M + H]+ = 601.3356; observed [M + H]+ = 601.3350; ∆ = −1.031 ppm.

3.5. Advanced Marfey’s Experiment

Compounds 25 (0.5mg) were hydrolysed in 6 N HCl (1 mL) for 17 h at 115 °C. The hydrolysate was evaporated to dryness, dissolved in H2O (100 µL), and then, treated with 1 M NaHCO3 (20 µL), and FDLA, fluorodinitrophenyl-5-L-leucine amide (1% solution in acetone, 100 µL). The mixture was incubated at 40 °C for 1 h. The reaction was neutralized by addition of 2 N HCl (20 µL) and evaporated to dryness at 40 °C under a stream of dry N2. The residue was dissolved in CH3OH (500 µL) and filtered (0.45 μm PTFE) prior to HPLC-Diode Array Detection (DAD) analysis. The separation was carried out using gradient elution CH3CN/H2O with 0.1% TFA (from 0% to 100% for 30 min, flow rate 1.0 mL/min, UV detection λmax 340 nm).
The standard amino acids were derivatized with FDLA and analyzed by HPLC-DAD in the same manner as the test compounds.

3.6. Genome Sequencing of Streptomyces sp. RK44

The genome sequencing of Streptomyces sp. RK44 and the sequencing assembly service were provided by BGI-Shenzhen, China. A 300 bp paired-end genomic library of RK44 was prepared for Illumina sequencing. A total of 11,820,095 bp were obtained and assembled by SOAP denovo software. The assembled genome was submitted to the RAST server for annotation [40]. The open reading frames (ORFs) of the ahfa gene cluster was identified using the key enzymes encoded in the known mmf gene cluster as a sequence query. The 16s rDNA sequences and the ahfa cluster has been deposited in the NCBI (MN906804).
Based on the partial 16s DNA gene sequence analysis it was identified that the strain belongs to the class Streptomyces and was most closely related to three strains with 82.49% sequence similarity: Streptomyces hoynatensis S1412, Streptomyces carpaticus NRRL B-16359, Streptomyces yeochonensis NBRC 100782. The strain formed a well-separated clade in the genus Streptomyces (Figure 4) based on the 16S rRNA gene analysis, indicating that Streptomyces sp. RK44 is a new Streptomyces species (MEGA 7, Neighbor-Joining method) [41,42]. The optimum pH for growth was determined to be 7.2. The DNA G+C content of the strain was determined to be 71.4 mol%.

3.7. Sequence Similarity Network

The sequence similarity network (Figure 2) of the biosynthetic gene clusters of Streptomyces sp. Rk44 and Streptomyces coelicolor A3(2) was constructed by all-to-all BLASTP comparison of sequences found in strains containing essential biosynthetic genes involved in the MMF and AHFA biosynthesis. Each node represents a gene and each edge represents the BLASTP pairwise comparison (E-value > 1 × 10−10) between two gene sequences. The results generated were visualized using Cytoscape 3.6.1. The genes, mmfL, H, P, are coloured with red, green, and blue, respectively. Other genes in the clusters were coloured with grey [28].

3.8. Anti-Proliferative/Cytotoxicity Test

The anti-proliferative activity of AHFA 1 was tested on the human melanoma A2058 cancer cell line (American Type Culture Collection (ATCC) CRL-11147TM, Manassas, VA, USA). Cell lines were seeded in 96-well-microtitre plates (Nunc, Thermo Fisher Scientific, NY, USA) at 2000 cells/well in Dulbecco’s Modified Eagle Medium (DMEM, Thermo Fisher Scientific, USA) with fetal bovine serum (10%, FBS, Sigma Aldrich, USA) and gentamicin (10 µg/mL, Sigma Aldrich, USA). Cells were grown at 37 °C in a humidified atmosphere of 5% CO2 and maintained at low passage.
Toxicity assay was tested on the lung normal cell (ATCC CCL-171).Cell lines were seeded in 96-well-microtitre plates (Nunc, Thermo Fisher Scientific, CA, USA) at 4000 cells/well in DMEM with FBS (10%) and gentamicin (10 µg/mL). Cells were grown at 37 °C in a humidified atmosphere of 5% CO2 and maintained at low passage.
Cells were incubated for 24 h before AHFA 1 was added and thereafter incubated for 72 h. Cell viability was determined by a colorimetric 3-(4,5-dimethylthiazol-2-yl)-5-(3 carboxymethoxyphenyl)-2-(4-sulfophenyl)-2H-tetrazolium (MTS) assay. At the end of the exposure time, 10 µL Cell Titer 96® Aqueous One Solution Reagent (Promega, Madison, WI, USA) was added to each well. Results were measured after 1 h at 485 nm. The dose-dependent response of AHFA 1 (100 ng/mL, 1, 2.5, 5, 10, 12.5, 25, and 50 µg/mL) was tested in triplicates.

3.9. Antibacterial Assay

Minimum inhibitory concentrations (MIC) were determined using a conventional broth dilution assay in accordance with standards recommended by the National Committee for Clinical Laboratory Standards (NCCLS) [43]. Gram-negative bacteria Escherichia coli (ATCC 25922) and Pseudomonas aeruginosa (ATCC 27853) were used as test organisms. All bacteria were cultured in Mueller–Hinton broth. The assays were performed in 96-well plates (Nunc, Thermo Fisher Scientific, NY, USA), wherein a 50 µL suspension (log phase) of actively growing bacteria was incubated overnight at 37 °C and then treated with 50 µL of the test extract (final concentration of 50 μg/mL, for the three biological triplicates). The negative control comprised the growth media and Milli-Q water, while the positive control consisted of the bacteria plus Milli-Q water. The absorbance was recorded after 24 h (OD600) in a Victor3 multilabel plate reader. The growth medium appeared clear in wells where the test compound prevented the growth or killed the bacteria; otherwise, it was cloudy. Activity threshold was set below 0.05 (OD600).

3.10. Plasmodium Falciparum 3D7 Lactate Dehydrogenase Assay

The antiplasmodial activities of 16 were assessed by lactate dehydrogenase assay using Plasmodium falciparum 3D7 as the test organism. The assay was performed according to the method previously described by Pérez-Moreno et al., 2016 [36], in triplicate using a sixteen points dose-response curve (1⁄2 serial dilutions) with concentrations ranging from 50 μM to 1.5 nM to determine the IC50 of the pure compounds. Chloroquine was used as the standard reference.

4. Conclusions

Herein, we report the discovery of AHFA 1 from the novel soil bacterium Streptomyces sp. RK44. The structure of 1 was deduced by analysis of the HRESIMS, UV, 1D, and 2D NMR, and identified as a new AHFA-type natural product. Seven AHFA analogues, 712 and siderophores 1318 were tentatively identified in the extract of RK44 by HRESIMS and GNPS molecular network analyses. A putative AHFA biosynthetic pathway was proposed for 1. AHFA 1 displayed antiproliferative activity against melanoma A2058 cells (EC50 = 89.6 µM). Albeit weak, this represents the first report of such activity amongst MMF molecules. Five other known metabolites, cyclo-(L-Pro-Gly) 2, cyclo-(L-Pro-L-Phe) 3, cyclo-(L-Pro-L-Val) 4, cyclo-(L-Leu-Hyp) 5, and deferoxamine E 6 were isolated and structurally characterized, one of which, DFO-E 6 displayed potent activity against P. falciparum 3D7 (IC50 = 1.08 µM).

Supplementary Materials

The supplementary materials are available online.

Author Contributions

Q.F., R.E., F.A., G.P.-M., F.R., J.H., L.W., F.M., H.D. formal analysis and investigation. H.D., K.K., J.H.A. funding acquisition and methodology. Q.F., F.M., H.D. writing original draft. H.D., J.H.A., F.R., K.K. review and editing. H.D. supervision and project administration. All authors have read and agreed to the published version of the manuscript.


Q.F. is grateful to the University of Aberdeen Elphinstone Scholarship and Scottish Funding Council/ScotCHEM for financial support through the PEER/PERCE Funding. FM thanks the University of the Philippines for the Faculty, Reps and Staff Development Program (FRAS DP) for the PhD grant fellowship. HD and KK thank the financial supports of Leverhulme Trust-Royal Society Africa award (AA090088) and the jointly funded UK Medical Research Council-UK Department for International Development (MRC/DFID) Concordat agreement African Research Leaders Award (MR/S00520X/1).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Eliakim-Raz, N.; Lador, A.; Leibovici-Weissman, Y.; Elbaz, M.; Paul, M.; Leibovici, L. Efficacy and Safety of Chloramphenicol: Joining the Revival of old Antibiotics? Systematic Review and Meta-Analysis of Randomized Controlled Trials. J. Antimicrob. Chemother. 2014, 70, 979–996. [Google Scholar] [CrossRef] [Green Version]
  2. Falagas, M.E.; Vouloumanou, E.K.; Samonis, G.; Vardakas, K.Z. Fosfomycin—Microbiology Review. Clin. Microbiol. Rev. 2016, 29, 321–347. [Google Scholar] [CrossRef] [Green Version]
  3. Vons, C.; Barry, C.; Maitre, S.; Pautrat, K.; Leconte, M.; Costaglioli, B.; Karoui, M.; Alves, A.; Dousset, B.; Valleur, P.; et al. Amoxicillin Plus Clavulanic Acid Versus Appendicectomy for Treatment of Acute Uncomplicated Appendicitis: An Open-Label, Non-Inferiority, Randomised Controlled Trial. Lancet 2011, 377, 1573–1579. [Google Scholar] [CrossRef]
  4. Kitani, S.; Miyamoto, K.T.; Takamatsu, S.; Herawati, E.; Iguchi, H.; Nishitomi, K.; Uchida, M.; Nagamitsu, T.; Omura, S.; Ikeda, H.; et al. Avenolide, a Streptomyces Hormone Controlling Antibiotic Production in Streptomyces Avermitilis. Proc. Natl. Acad. Sci. USA 2011, 108, 16410–16415. [Google Scholar] [CrossRef] [Green Version]
  5. Maglangit, F.; Fang, Q.; Leman, V.; Soldatou, S.; Ebel, R.; Deng, H. Accramycin A, a New Aromatic Polyketide, from the Soil Bacterium, Streptomyces sp. MA37. Molecules 2019, 24, 3384. [Google Scholar] [CrossRef] [Green Version]
  6. Maglangit, F.; Fang, Q.; Kyeremeh, K.; Sternberg, J.M.; Ebel, R.; Deng, H. A Co-Culturing Approach Enables Discovery and Biosynthesis of a Bioactive Indole Alkaloid Metabolite. Molecules 2020, 25, 256. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Wang, M.; Carver, J.J.; Phelan, V.V.; Sanchez, L.M.; Garg, N.; Peng, Y.; Nguyen, D.D.; Watrous, J.; Kapono, C.A.; Luzzatto-Knaan, T.; et al. Sharing and community curation of mass spectrometry data with Global Natural Products Social Molecular Networking. Nat. Biotechnol. 2016, 34, 828–837. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Santen, J.; Van, A.; Jacob, G.; Singh, A.L.; Aniebok, V.; Balunas, M.J.; Bunsko, D.; Neto, F.C.; Castaño-Espriu, L.; Chang, C.; et al. The Natural Products Atlas: An Open Access Knowledge Base for Microbial Natural Products Discovery. ACS Cent. Sci. 2019. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Pence, H.E.; Williams, A. Chemspider: An online chemical information resource. J. Chem. Educ. 2010, 87, 1123–1124. [Google Scholar] [CrossRef]
  10. Ito, T.; Masubuchi, M. Dereplication of Microbial Extracts and Related Analytical Technologies. J. Antibiot. (Tokyo) 2014, 67, 353–360. [Google Scholar] [CrossRef] [PubMed]
  11. Crüsemann, M.; O’Neill, E.C.; Larson, C.B.; Melnik, A.V.; Floros, D.J.; Da Silva, R.R.; Jensen, P.R.; Dorrestein, P.C.; Moore, B.S. Prioritizing Natural Product Diversity in a Collection of 146 Bacterial Strains Based on Growth and Extraction Protocols. J. Nat. Prod. 2017, 80, 588–597. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Corre, C.; Song, L.; O’Rourke, S.; Chater, K.F.; Challis, G.L. 2-Alkyl-4-hydroxymethylfuran-3-carboxylic acids, Antibiotic Production Inducers Discovered by Streptomyces Coelicolor Genome Mining. Proc. Natl. Acad. Sci. USA 2008, 105, 17510–17515. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Schuster, M.; Joseph Sexton, D.; Diggle, S.P.; Peter Greenberg, E. Acyl-Homoserine Lactone Quorum Sensing: From Evolution to Application. Annu. Rev. Microbiol. 2013, 67, 43–63. [Google Scholar] [CrossRef] [PubMed]
  14. Sidda, J.D.; Poon, V.; Song, L.; Wang, W.; Yang, K.; Corre, C. Overproduction and Identification of Butyrolactones SCB1-8 in the Antibiotic Production Superhost: Streptomyces M1152. Org. Biomol. Chem. 2016, 14, 6390–6393. [Google Scholar] [CrossRef] [Green Version]
  15. Du, Y.L.; Shen, X.L.; Yu, P.; Bai, L.Q.; Li, Y.Q. Gamma-Butyrolactone Regulatory System of Streptomyces Chattanoogensis Links Nutrient Utilization, Metabolism, and Development. Appl. Environ. Microbiol. 2011, 77, 8415–8426. [Google Scholar] [CrossRef] [Green Version]
  16. Bhasin, S.; Modi, H.A. Optimization of Fermentation Medium for the Production of Glucose Isomerase Using Streptomyces sp. SB-P1. Biotechnol. Res. Int. 2012, 2012, 1–10. [Google Scholar] [CrossRef] [Green Version]
  17. Li, X.; Dobretsov, S.; Xu, Y.; Xiao, X.; Hung, O.; Qian, P.Y. Antifouling Diketopiperazines Produced by a Deep-Sea Bacterium, Streptomyces Fungicidicus. Biofouling 2006, 22, 201–208. [Google Scholar] [CrossRef]
  18. Campo, V.L.; Duarte, M.C.T.; Bastos, J.K. Diketopiperazines Produced by an Aspergillus Fumigatus Brazilian Strain. J. Braz. Chem. Soc. 2005, 16, 1448–1453. [Google Scholar]
  19. Lee, S.R.; Beemelmanns, C.; Tsuma, L.M.M.; Clardy, J.; Cao, S.; Kim, K.H. A New Diketopiperazine, cyclo(d-trans-Hyp-l-Leu) from a Kenyan Bacterium Bacillus Licheniformis LB 8CT. Nat. Prod. Commun. 2016, 11, 461–463. [Google Scholar] [CrossRef] [Green Version]
  20. Alshaibani, M.; Jalil, J.; Sidik, N.; Ahmad, S.; Kamal, N.; Edrada-Ebel, R.; MohamadZin, N. Isolation, Purification and Characterization of five Active Diketopiperazine Derivates from Endophytic Strptomyces SUK 25 with Antimicrobial and Cytotoxic Activities. J. Microbiol. Biotechnol. 2017, 27, 1–22. [Google Scholar]
  21. Nishanth Kumar, S.; Mohandas, C.; Siji, J.V.; Rajasekharan, K.N.; Nambisan, B. Identification of Antimicrobial Compound, Diketopiperazines, from a Bacillus sp. N Strain Associated with a Rhabditid Entomopathogenic Nematode against Major Plant Pathogenic Fungi. J. Appl. Microbiol. 2012, 113, 914–924. [Google Scholar] [CrossRef] [PubMed]
  22. Maglangit, F.; Tong, M.H.; Jaspars, M.; Kyeremeh, K.; Deng, H. Legonoxamines A-B, Two New Hydroxamate Siderophores from the Soil Bacterium, Streptomyces sp. MA37. Tetrahedron Lett. 2019, 60, 75–79. [Google Scholar] [CrossRef]
  23. Yamanaka, K.; Oikawa, H.; Ogawa, H.O.; Hosono, K.; Shinmachi, F.; Takano, H.; Sakuda, S.; Beppu, T.; Ueda, K. Desferrioxamine E Produced by Streptomyces Griseus Stimulates Growth and Development of Streptomyces Tanashiensis. Microbiology 2005, 151, 2899–2905. [Google Scholar] [CrossRef] [PubMed]
  24. Meiwes, J.; Fiedler, H.P.; Zähner, H.; Konetschny-Rapp, S.; Jung, G. Production of Desferrioxamine E and New Analogues by Directed Fermentation and Feeding Fermentation. Appl. Microbiol. Biotechnol. 1990, 32, 505–510. [Google Scholar] [CrossRef]
  25. Corre, C.; Haynes, S.W.; Malet, N.; Song, L.; Challis, G.L. A Butenolide Intermediate in Methylenomycin Furan Biosynthesis is Implied by Incorporation of Stereospecifically 13C-Labelled Glycerols. Chem. Commun. 2010, 46, 4079–4081. [Google Scholar] [CrossRef] [PubMed]
  26. Weber, T.; Blin, K.; Duddela, S.; Krug, D.; Kim, H.U.; Bruccoleri, R.; Lee, S.Y.; Fischbach, M.A.; Müller, R.; Wohlleben, W.; et al. AntiSMASH 3.0-A Comprehensive Resource for the Genome Mining of Biosynthetic Gene Clusters. Nucleic Acids Res. 2015, 43, W237–W243. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Sayers, E.W.; Agarwala, R.; Bolton, E.E.; Brister, J.R.; Canese, K.; Clark, K.; Connor, R.; Fiorini, N.; Funk, K.; Hefferon, T.; et al. Database Resources of the National Center for Biotechnology Information. Nucleic Acids Res. 2019, 47, D23–D28. [Google Scholar] [CrossRef] [Green Version]
  28. Zallot, R.; Oberg, N.O.; Gerlt, J.A. ‘Democratized’ Genomic Enzymology Web Tools for Functional Assignment. Curr. Opin. Chem. Biol. 2018, 47, 77–85. [Google Scholar] [CrossRef]
  29. Horinouchi, S.; Beppu, T. A-factor and Streptomycin Biosynthesis in Streptomyces Griseus. Antonie Van Leeuwenhoek 1993, 64, 177–186. [Google Scholar] [CrossRef]
  30. Davis, J.B.; Bailey, J.D.; Sello, J.K. Biomimetic Synthesis of a New Class of Bacterial Signaling Molecules. Org. Lett. 2009, 11, 2984–2987. [Google Scholar] [CrossRef]
  31. Alberti, F.; Leng, D.J.; Wilkening, I.; Song, L.; Tosin, M.; Corre, C. Triggering the Expression of a Silent Gene Cluster from Genetically Intractable Bacteria Results in Scleric Acid Discovery. Chem. Sci. 2019, 10, 453–463. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Gordeuk, V.R.; Thuma, P.E.; Brittenbam, G.M. Iron Chelation Therapy for Malaria. Adv. Exp. Med. Biol. 1994, 356, 371–383. [Google Scholar] [PubMed]
  33. Rotheneder, A.; Fritsche, G.; Heinisch, L.; Heggemann, S.; Larcher, C.; Möllmann, U.; Weiss, G. Effects of Synthetic Siderophores on Proliferation of Plasmodium falciparum in Infected Human Erythrocytes. Antimicrob. Agents Chemother. 2013, 46, 9–13. [Google Scholar]
  34. Ferrer, P.; Tripathi, A.K.; Clark, M.A.; Hand, C.C.; Rienhoff, H.Y.; Sullivan, D.J. Antimalarial Iron Chelator, FBS0701, Shows Asexual and Gametocyte Plasmodium Falciparum Activity and Single Oral Dose Cure in a Murine Malaria Model. PLoS ONE 2012, 7, 1–7. [Google Scholar] [CrossRef]
  35. Pradines, B.; Rolain, J.M.; Ramiandrasoa, F.; Fusai, T.; Mosnier, J.; Rogier, C.; Daries, W.; Baret, E.; Kunesch, G.; Le Bras, J.; et al. Iron Chelators as Antimalarial Agents: In Vitro Activity of Dicatecholate against Plasmodium falciparum. J. Antimicrob. Chemother. 2002, 50, 177–187. [Google Scholar] [CrossRef] [Green Version]
  36. Pérez-Moreno, G.; Cantizani, J.; Sánchez-Carrasco, P.; Ruiz-Pérez, L.M.; Martín, J.; El Aouad, N.; Pérez-Victoria, I.; Tormo, J.R.; González-Menendez, V.; González, I.; et al. Discovery of new Compounds Active against Plasmodium Falciparum by High Throughput Screening of Microbial Natural Products. PLoS ONE 2016, 11, 1–16. [Google Scholar] [CrossRef]
  37. Pluskal, T.; Castillo, S.; Villar-Briones, A.; Orešič, M. MZmine 2: Modular Framework for Processing, Visualizing, and Analyzing Mass Spectrometry-based Molecular Profile Data. BMC Bioinformatics 2010, 11, 395. [Google Scholar] [CrossRef] [Green Version]
  38. Pylayeva-Gupta, Y. The Spectral Networks Paradigm in High Throughput Mass Spectrometry. Bone 2011, 23, 1–7. [Google Scholar]
  39. Shannon, P.; Markiel, A.; Ozier, O.; Baliga, N.S.; Wang, J.T.; Ramage, D.; Amin, N.; Schwikowski, B.; Ideker, T. Cytoscape: A Software Environment for Integrated Models of Biomolecular Interaction Networks. Genome Res. 2003, 2498–2504. [Google Scholar] [CrossRef]
  40. Aziz, R.K.; Bartels, D.; Best, A.A.; DeJongh, M.; Disz, T.; Edwards, R.A.; Formsma, K.; Gerdes, S.; Glass, E.M.; Kubal, M.; et al. The RAST Server: Rapid Annotations Using Subsystems Technology. BMC Genomics 2008, 9, 75. [Google Scholar] [CrossRef] [Green Version]
  41. Saitou, N.; Nei, M. The Neighbor-Joining Method: A New Method for Reconstructing Phylogenetic Trees. Mol. Biol. Evol. 1987, 4, 406–425. [Google Scholar] [PubMed]
  42. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Carpenter, D.E.; Karen Anderson Diane Citron, C.M.; JoAnn Dzink-Fox, B.L.; Meredith Hackel, M.; Jenkins, S.G.; Cindy Knapp, F.; Laura Koeth, M.; Audrey Schuetz, M.N.; Hannah Wexler, D. Methods for Antimicrobial Susceptibility Testing of Anaerobic Bacteria, 9th ed.; CLSI standard M11; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2018; pp. 11–19. [Google Scholar]
Sample Availability: Samples of the compounds are not available from the authors.

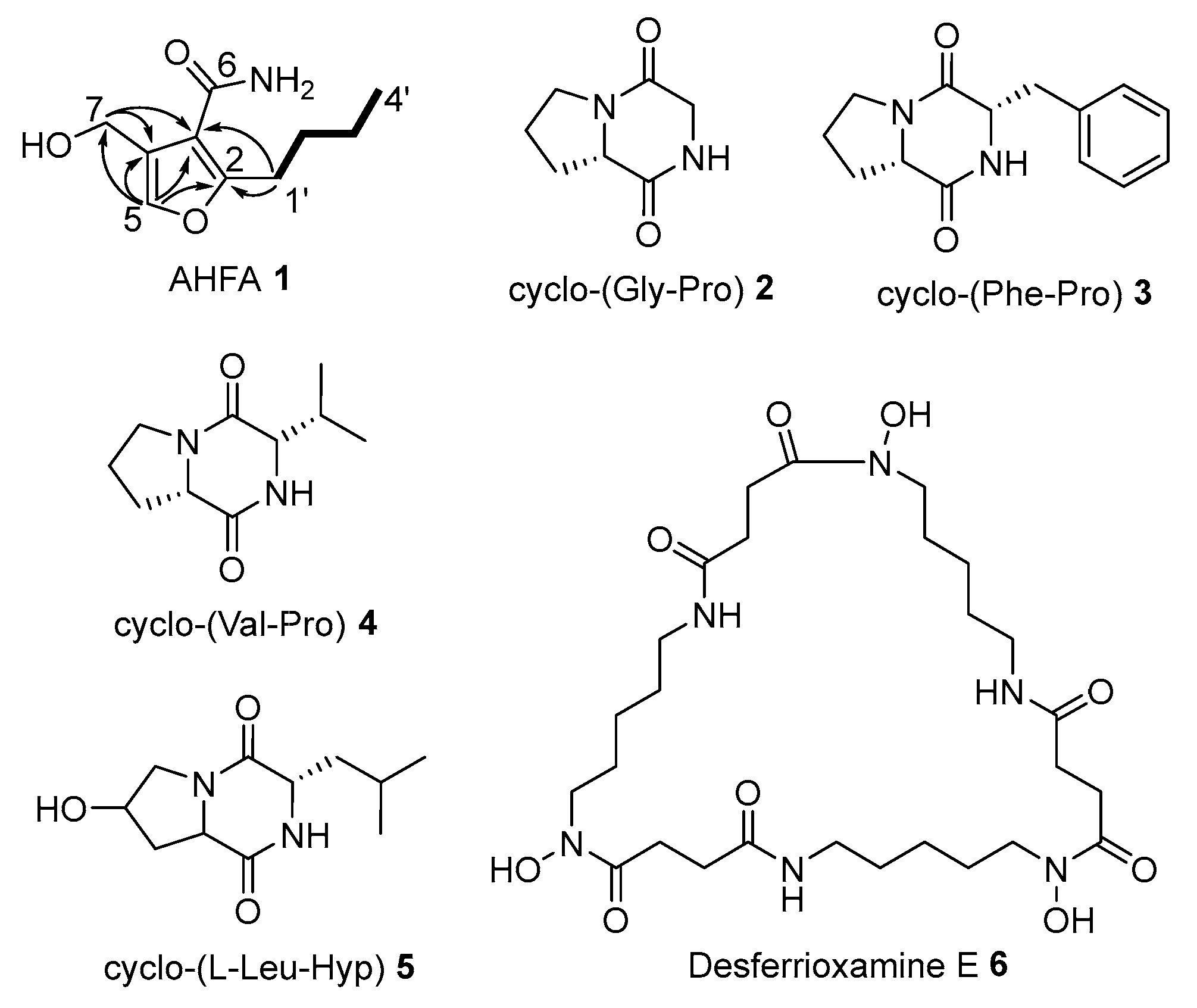

Figure 1. Isolated metabolites from Streptomyces sp. RK44. structures of which were elucidated by NMR. Structure of AHFA 1 with COSY () and key HMBC () correlations.
Figure 1. Isolated metabolites from Streptomyces sp. RK44. structures of which were elucidated by NMR. Structure of AHFA 1 with COSY () and key HMBC () correlations.
Molecules 25 00460 g001

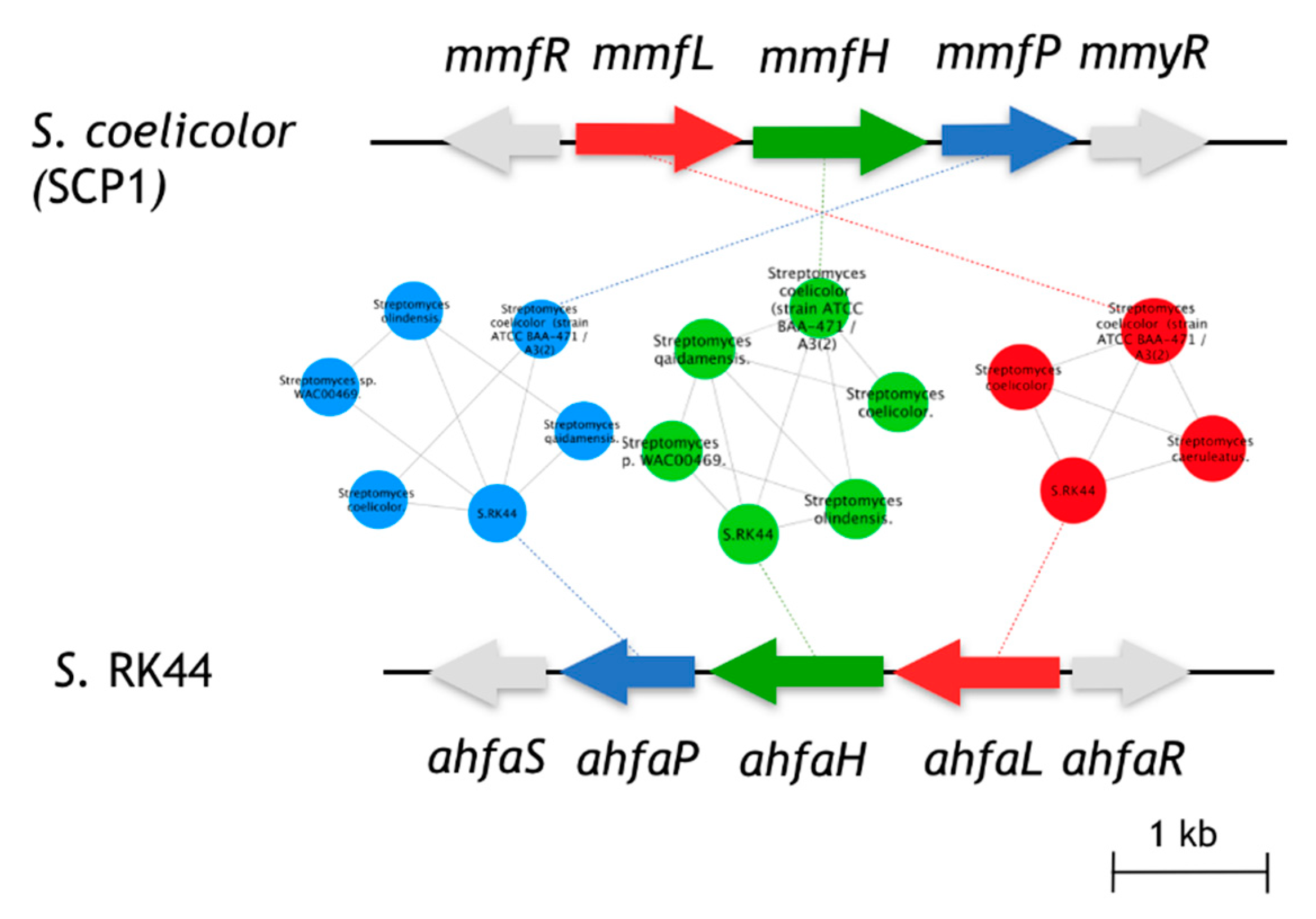

Figure 2. Comparison of the ahfa BGC in Streptomyces sp. RK44 with the mmf gene cluster on the SCP1 plasmid of S. coelicolor A3(2). Homologous genes are colored the same, and sequence identities between each of the encoded proteins are indicated in Table 2.
Figure 2. Comparison of the ahfa BGC in Streptomyces sp. RK44 with the mmf gene cluster on the SCP1 plasmid of S. coelicolor A3(2). Homologous genes are colored the same, and sequence identities between each of the encoded proteins are indicated in Table 2.
Molecules 25 00460 g002

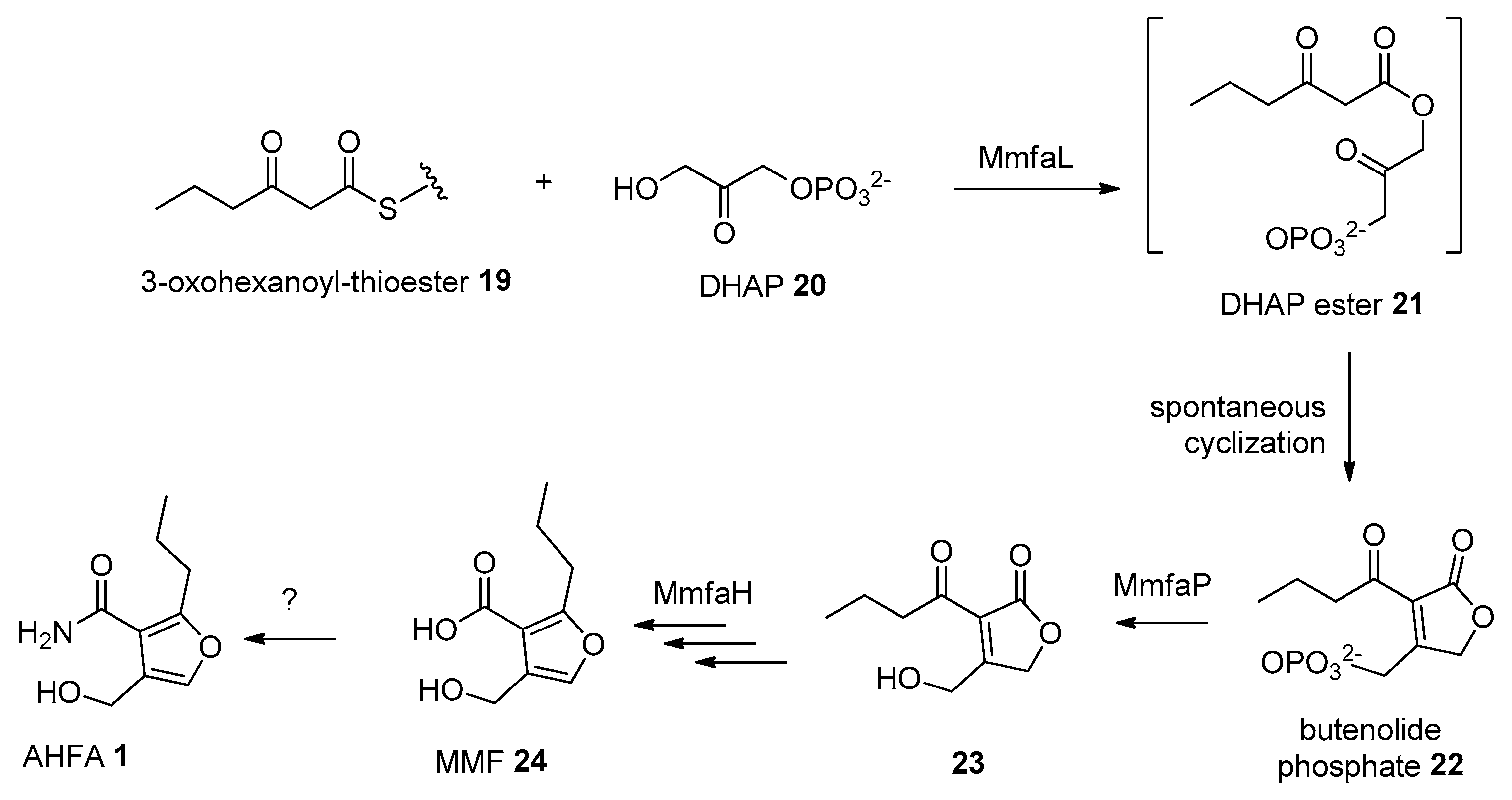

Scheme 1. Proposed biosynthesis pathway of 1.
Scheme 1. Proposed biosynthesis pathway of 1.
Molecules 25 00460 sch001
Figure 3. (A) A2058 cell treated with 50µg/mL staurosporine (B) A2058 cell treated with 50µg/mL AHFA 1 (C) A2058 cell treated with culture media. Cell viability was quantified by Aqueous One Solution Reagent by a colourimetric method for determining the number of viable cells in proliferation or cytotoxicity assays. A2058 cells were left untreated or were treated with AHFA 1 for 72 h and morphological changes of the cells were observed by light microscope (Scale bar 26 μm).
Figure 3. (A) A2058 cell treated with 50µg/mL staurosporine (B) A2058 cell treated with 50µg/mL AHFA 1 (C) A2058 cell treated with culture media. Cell viability was quantified by Aqueous One Solution Reagent by a colourimetric method for determining the number of viable cells in proliferation or cytotoxicity assays. A2058 cells were left untreated or were treated with AHFA 1 for 72 h and morphological changes of the cells were observed by light microscope (Scale bar 26 μm).
Molecules 25 00460 g003

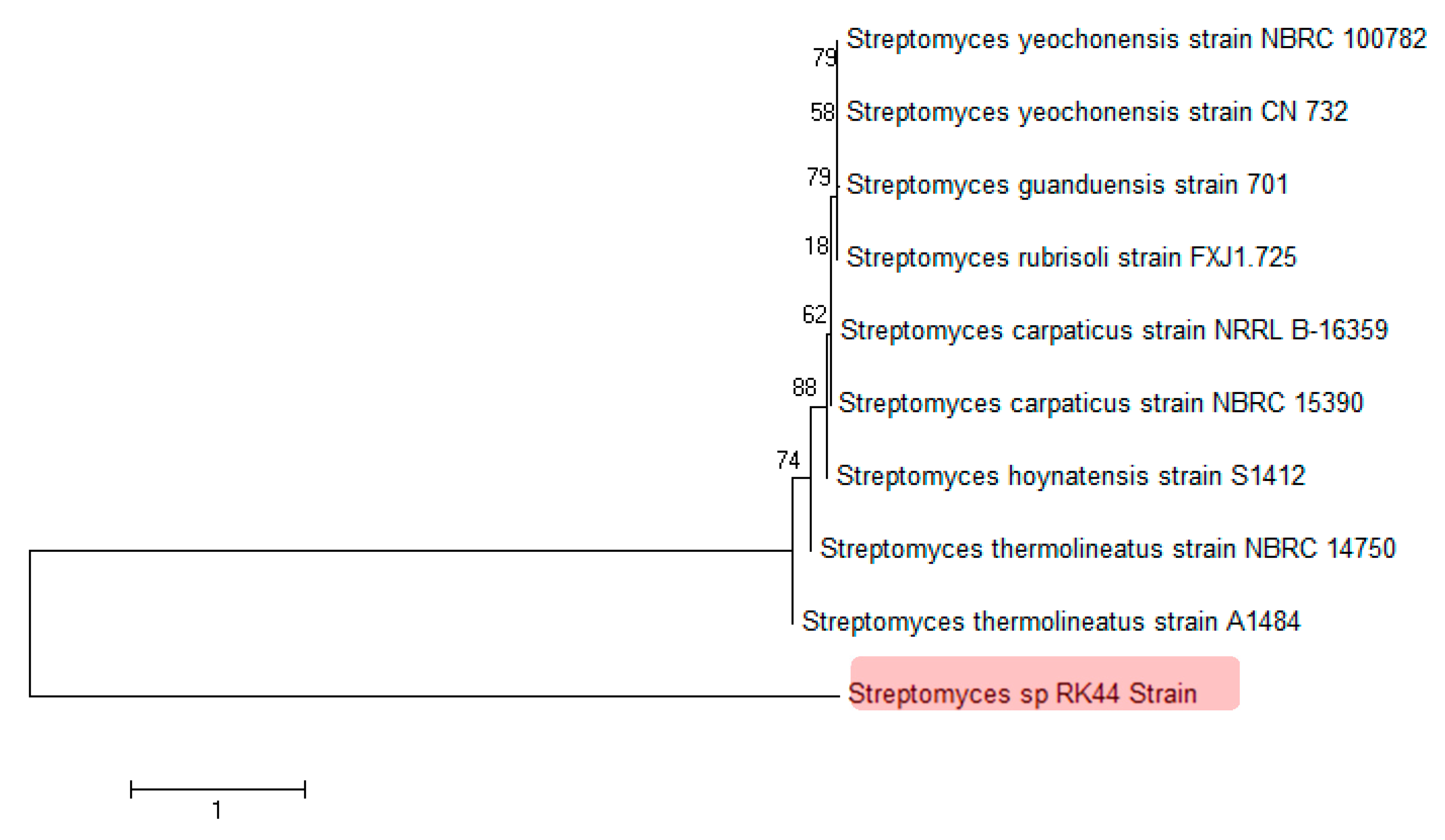

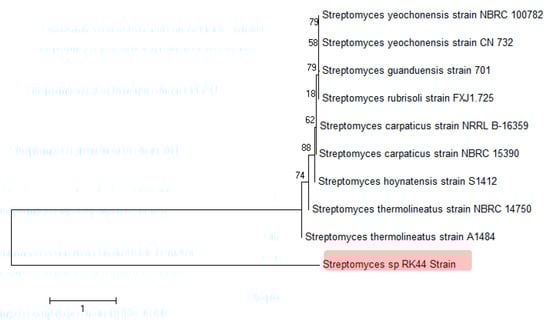

Figure 4. Phylogenetic analysis of 16S rDNA sequences of Streptomyces sp. RK44 and other known Streptomyces species, indicating that Streptomyces sp. RK44 is a new Streptomyces species.
Figure 4. Phylogenetic analysis of 16S rDNA sequences of Streptomyces sp. RK44 and other known Streptomyces species, indicating that Streptomyces sp. RK44 is a new Streptomyces species.
Molecules 25 00460 g004
Table 1. NMR data of AHFA 1 in CD3OD and DMSO-d6 at 600 MHz and 298 K.
Table 1. NMR data of AHFA 1 in CD3OD and DMSO-d6 at 600 MHz and 298 K.
POSITION13C (ppm)1H (Integral, Mult.)13C (ppm)1H (Integral, Mult.)
4′12.70.92 (3H, t)13.91.01 (3H, t)
3′21.91.35 (2H, hep)21.91.41 (2H, hep)
2′29.81.63 (2H, pent)29.91.68 (2H, pent)
1′26.62.95 (2H, t)26.43.03 (2H, t)
2162.1-161.3 -
754.14.52 (2H, s)54.14.53 (2H, s)
5139.17.38 (1H, s)138.97.64 (1H, s)
NH2---6.53 (2H, br)
OH---4.05 (1H, br)
Table 2. Deduced functions of open reading frames (ORFs) in ahfa biosynthetic gene cluster.
Table 2. Deduced functions of open reading frames (ORFs) in ahfa biosynthetic gene cluster.
(% Identity/% Similarity)
Predicted Encoded Function
AhfaR210MmyR (62/75) S. coelicolor A3(2)
A factor receptor (30/48) S. griseus
TetR/AcR family transcriptional regulator
AhfaP243MmfP (46/58) S. coelicolor A3(2)Phosphatase/Hydrolase
AhfaH384MmfH (58/66) S. coelicolor A3(2)Oxidoreductase
AhfaL334MmfL (42/53) S. coelicolor A3(2)
AfsA (32/42) S. griseus
Butenolide synthase/
A factor biosynthesis
AhfaS216MmfR (46/62) S. coelicolor A3(2)TetR/AcR family transcriptional regulator
