Review

Application of Sorbents for Oil Spill Cleanup Focusing on Natural-Based Modified Materials: A Review

1
Institute of Chemical Engineering Sciences, Foundation for Research and Technology-Hellas, 26504 Patras, Greece
2
Department of Chemistry, University of Patras, 26504 Patras, Greece
*
Authors to whom correspondence should be addressed.
Academic Editors: Rui L. Reis and Emanuel M. Fernandes
Molecules 2020, 25(19), 4522; https://doi.org/10.3390/molecules25194522
Received: 31 August 2020 / Revised: 29 September 2020 / Accepted: 1 October 2020 / Published: 2 October 2020
(This article belongs to the Special Issue Lignocellulosic Materials)

Abstract

Conventional synthetic sorbents for oil spill removal are the most widely applied materials, although they are not the optimal choices from an economic and environmental point of view. The use of inexpensive, abundant, non-toxic, biodegradable, and reusable lignocellulosic materials might be an alternative to conventional sorbents, with obvious positive impact on sustainability and circular economy. The objective of this paper was to review reports on the use of natural-based adsorbing materials for the restoration of water bodies threatened by oil spills. The use of raw and modified natural sorbents as a restoration tool, their sorption capacity, along with the individual results in conditions that have been implemented, were examined in detail. Modification methods for improving the hydrophobicity of natural sorbents were also extensively highlighted. Furthermore, an attempt was made to assess the advantages and limitations of each natural sorbent since one material is unlikely to encompass all potential oil spill scenarios. Finally, an evaluation was conducted in order to outline an integrated approach based on the terms of material–environment–economy.
Keywords: oil spill cleanup; sorbent; lignocellulosic materials; modification methods; bio-based aerogels oil spill cleanup; sorbent; lignocellulosic materials; modification methods; bio-based aerogels

1. Introduction

Nowadays, the rising number of accidents and oil leakages has led to the continuous improvement of oil spill cleaning techniques in order to address them immediately, minimizing their disastrous effects [1,2]. This need is intensified by the fact that oil spill pollution is one of the most visible examples of water quality degradation due to human activities, affecting aquatic ecosystems worldwide [3,4]. Notable cases are the “Prestige” shipwreck (NA Atlantic) in 2002 [5], “Sea Diamond” shipwreck (Santorini) in 2007 [6], Deep Horizon (Gulf of Mexico) in 2010 [3], and “Agia Zoni II” (Saronic Gulf) in 2017 [4]. On the 10th of September 2017, the vessel Agia Zoni II sank in the Saronic Gulf, Greece, releasing an estimated 2.500 tons of crude oil, which profoundly contaminated the coasts of Salamina and the Athens Riviera [7].
Oil disperses very quickly in water, forms a slick on the water surface, and progressively submerges and accumulates in the sediments. Currents and wind tend to cause an even faster distribution, leading to degradation and even the extinction of vast expanses of marine life and environment [8,9]. In combination with the above conditions, a variety of physicochemical parameters such as temperature and salinity may also determine the spread rates of oil spills in a natural water body [10,11]. Figure 1 shows that the most significant volume of oil spilled into water derives from vessels (25%), tankers (20%), and tank barges (15%), while an additional percentage comes from refinery terminals (25%) and platforms (15%). The most typically encountered oil types are crude oil (35%), diesel oil (20%), marine oil (10%), gasoline (8%), and oil condensates (3%).
Once the oil becomes dispersed on the water surface, it undergoes a number of processes, such as spreading, evaporation, dissolution, biodegradation, emulsification, photo-oxidation, sinking, and tarball formation, making cleanup highly complex [12]. For these reasons, it is crucial to remove oil spills as quickly as possible. A literature overview indicates that a variety of materials have been examined extensively for this purpose and can be categorized into (a) inorganic mineral sorbents [13,14,15,16,17], (b) synthetic organic sorbents [18,19,20,21,22], and (c) natural organic sorbents [23,24,25] (Figure 2). The large number of published articles (from 2000 to 2020) addressing oil spill cleanup indicates the current growing attention being paid to environmental protection (Figure 2). Moreover, the linear regression line shows a rising trend during the study period of the last 20 years, revealing the growing interest of many researchers in this field. Undoubtedly, sorption is an efficient method in which the aforementioned materials absorb oil in amounts multiple times their self-weight, transforming it into a solid or semi-solid state for appropriate disposal or reuse. Several studies have been carried out on the sorption of oil by oleophilic–hydrophobic synthetic materials (Figure 2). The major drawback of these materials is the extensive chemical modification that they have undergone, making them economically and environmentally non-friendly. More specifically, some materials can form hazardous species or low molecular weight organic complexes, bioavailable for aquatic organisms [26]. Besides, mineral sorbents have a severe shortcoming, as the majority of them sink into the water column, contaminating the seabed. They also usually leach some of the oil, while precipitating, due to their low retention capability [26].
Currently, there is growing interest in finding inexpensive, abundant, and effective materials as oil spill sorbents in water, focusing on natural organic sorbents mainly from agriculture (Figure 2). A wide variety of cellulosic materials such as banana fibers [27], corn stalk [25], cotton [28], milkweed fiber [29] curauna fibers [30], kapok [31], luffa [32], nettle fibers [33], orange peel [34], palm fibers [35], pineapple leaves [36], pistia leaves and roots [37], pomelo peel [38], rice husks [39], sawdust [40], wheat straw [41], sugarcane bagasse [42], and walnut shell [43] have shown good results, making them potential candidates for oil spill treatment.
Although natural-based materials are low cost, abundant, eco-friendly, and support proper utilization of waste, their sorption efficiency is inferior compared to some synthetic materials. Their main disadvantages stem from their poor oleophilic/hydrophobic properties. In order to improve these characteristics, the sorbents can be modified using mechanical [44], thermal [45], and chemical [46] modification methods. Mechanical modification methods affect the adsorption capacity but do not improve the hydrophobicity of the adsorbent. On the other hand, the use of thermal [47], hydrothermal [48], and also chemical modification methods such as mercerization [49], acetylation [50], benzoylation [51], and grafting [52] may improve significantly the sorption properties of natural-based materials.
The objective of this paper was to review the restoration methods of degraded waters threatened by oil spills, emphasizing lignocellulosic adsorbing materials. The use of raw and modified natural sorbents as a restoration tool, their sorption capacity, as well as the individual results in conditions that have been implemented were examined in detail. Modification methods for improving the hydrophobicity of natural sorbents were also extensively highlighted. Furthermore, an attempt was made to assess the advantages and limitations of each natural sorbent since one material is unlikely to be fitting in all potential oil spill scenarios. Finally, an evaluation was conducted in order to outline an integrated approach based on the terms of material–environment–economy.

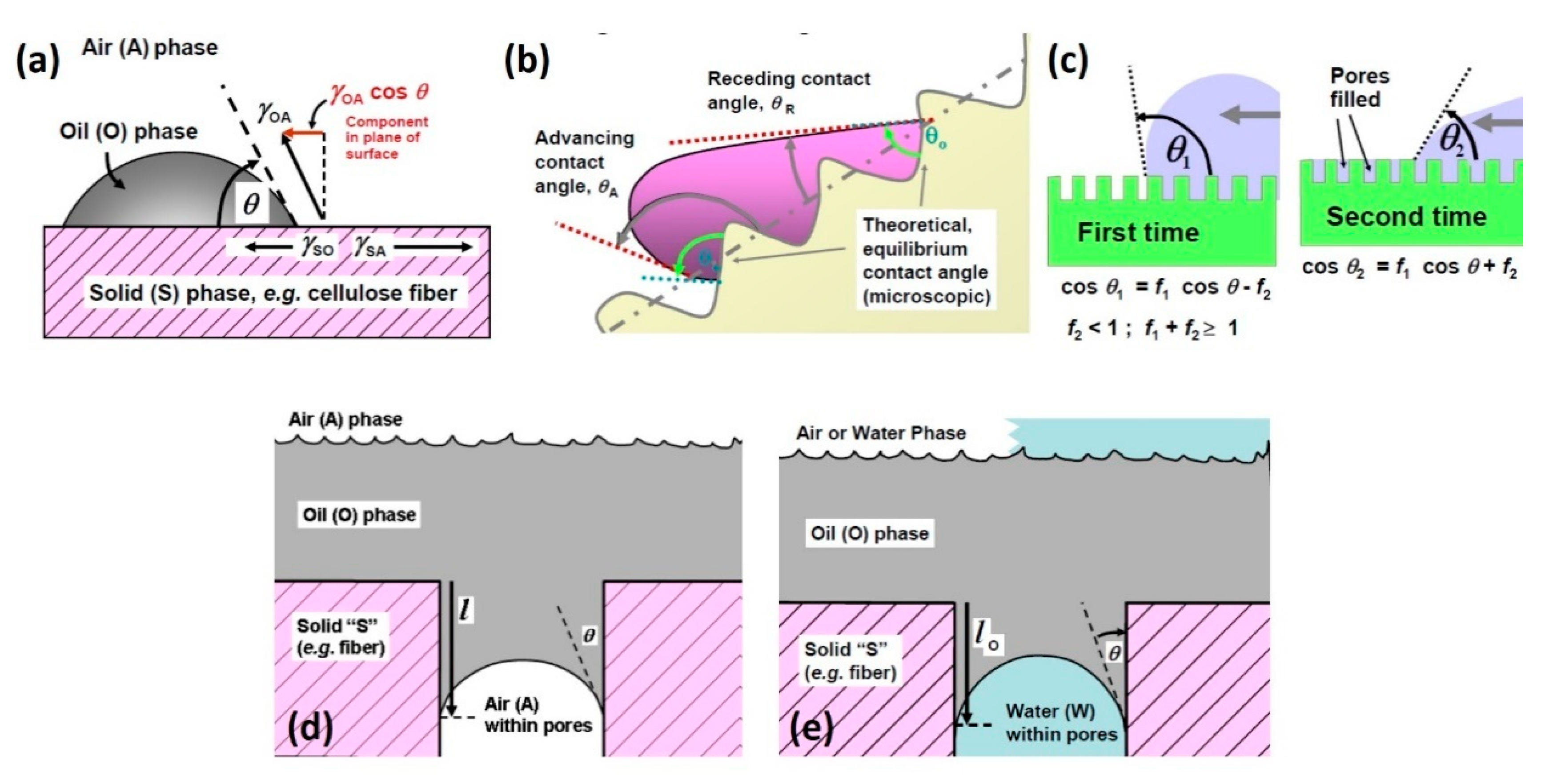

2. The Liquid–Solid Interface between Oil and Sorbent Materials

Surface chemical state and morphology define surface wettability, which strongly correlates with the oil spill sorption. The contact angle is applied to evaluate wettability. In case the contact angle of a droplet on a smooth surface is less than 90°, it is categorized as wettable [53]. If the contact angle is higher than 90°, the liquid will avoid diffusing, and the material is classified as non-wettable by the liquid (Figure 3a). In case the liquid is oil, the sorbent can be categorized as oleophilic and oleophobic, respectively. Similar measurements can be conducted for water droplets, and the sorbent can be likewise categorized as hydrophilic or hydrophobic [53]. The hydrophobicity of the material surface blocks water adsorption and hence boosts oil sorption efficiency because of the absence of competition between water and oil molecules. Under realistic conditions, several factors interact to prevent the initial wetting of a surface, which also tends to oppose the retraction of fluid after wetting has taken place [54]. The roughness and heterogeneity of real surfaces can alter contact angles and wettability with advancing and receding sites on the surface (Figure 3b). Furthermore, in the beginning, during the gradual wetting of the surface, the existing pores do not cause any attractive force on the nearing liquid phase. Contrariwise, when the surface has been saturated by a liquid, voids will tend to remain loaded, impacting the interfacial force [54].
Additionally, numerous publications mention that capillary action is a crucial process via which a porous structure holds oil, and contact angle phenomena control the flow rate of petroleum into porous substrates (Figure 3d,e). Figure 3d,e take into account the condition whereby a dry and a water-saturated, porous substrate are applied for oil spill cleanup. Water presence in the sorbent can alter the contact angle, and such a change will not be beneficial for oil removal by a natural-based material.

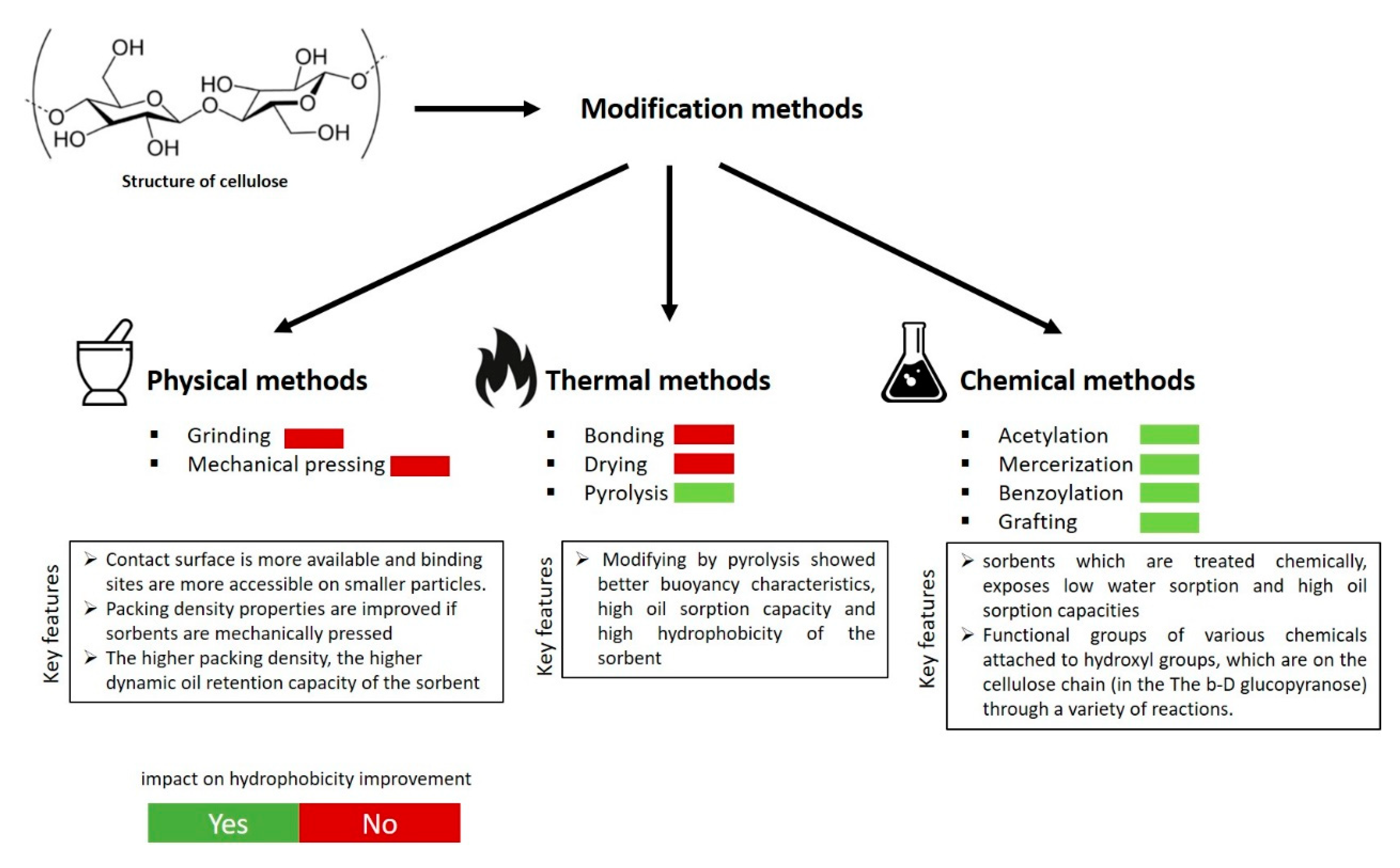

3. Modification Methods for Hydrophobicity Improvement

3.1. Physical and Thermal Treatment

Natural sorbent media that are grinded show high oil sorption capacity per unit mass, due to better accessibility with the contact surface of the material, with binding sites being more available on smaller particles. Several articles confirm this general observation relating natural-based materials to oil spill removal. For example, Bayat et al. [56] ground up bagasse—a byproduct of sugar extraction from sugarcane—and tested samples with varying particle sizes. Experiments were conducted with samples having different fraction sizes of bagasse (from 14 to 45 mm) to verify the effect of particle size on oil spill cleanup treatment. The results reveal that oil removal efficiency rises with a decrease in particle size [56]. Likewise, Husseien et al. [45] noted the highest sorption capacity for oil when using fibrous bio-sorbents such as corn stalk in the form of fine fibers.
Thermal treatment at low temperatures, i.e., drying, does not affect the oleophilic and hydrophobic properties of the sorbent (Figure 4). Its main effect is to remove some impurities of the surface, allowing easier adsorption of oil [34]. On the other hand, a high-temperature thermal treatment like pyrolysis [57] leads to the carbonization of the sorbent. Thus, the oil sorption capacity and oil to water selectivity are highly enhanced [58] (Figure 4).
Vlaev et al. [59] reported on BRHA (brown rice husk ash) and WRHA (white rice husk ash) functionalized by pyrolysis. The new products showed a sorption capacity of 5.02 and 6.22 g/g (BRHA) and 2.78 and 2.98 g/g (WRHA) for diesel and crude oil, respectively. Besides, BRHA showed better hydrophobic and buoyancy characteristics than WRHA. Kudaybergenov et al. [60] demonstrated thermally treated rice husk (heating under CO2 at 800 °C) having a sorption efficiency of ~15 g/g for crude oil. Uzunov et al. [61] examined the impact of pyrolysis at temperatures between 250 and 700 °C on crude oil sorption capacity. Rice husk pyrolyzed at 350 °C showed a maximum sorption capacity of ~10 g/g, in comparison with raw rice husk (~6.5 g/g).
In the same study, the authors assumed that the capacity of the pyrolyzed rice husk on oil sorption is affected by the porous substrate instead of the impact of the surface functional groups [61]. Furthermore, the oil sorption efficiency of pyrolyzed rice husk was studied in a similar work [58]. The authors examined the capacity of rice husk pyrolyzed at 480 °C on oil sorption. The capacities of the studied material on different forms of oil follow the order of heavy crude oil > motor oil > light crude oil > diesel > gasoline, showing that the permeation of the oils into the sorbent reduced with the increase in bulk density [58]. Husseien et al. [62] evaluated the sorption properties of barley straw pyrolyzed at temperatures between 200 and 500 °C. Oil sorption capacity was found to be 7.6 g/g and 9.2 g/g for diesel and heavy oil, respectively (Table 1). Carbonized barley straw applied as a pad indicated highly hydrophobic characteristics, adsorbing oil at more excessive amounts than polypropylene commercial pads (Table 1). Moreover, they were reusable for two absorption/desorption cycles [62]. Τhe surface alteration of thermally treated natural-based materials is reflected in the SEM images of El Gheriany’s study [34]. The SEM images (Figure 5a) revealed that the originally smooth and homogeneous structure of the raw orange peel appeared rough and of high porosity after thermal decomposition at 500 °C. The occurrence of pores is ascribed to material decomposition and desorption of gases/vapors during pyrolysis (Figure 5a).

3.2. Hydrothermal Treatment

Hydrothermal treatment is an alternative to thermal pyrolysis for the production of carbonaceous materials. It is one of the most widely used treatment methods in sub- or supercritical water conditions [63,64]. Hydrothermal treatment diminishes the oxygen-containing functional groups and volatile elements, enhancing the carbon content of the natural sorbents [64]. Consequently, the hydrophobicity of the prepared cellulosic materials is significantly improved. Hydrothermal treatment is advantageous, especially for the fabrication of sorbents derived from natural biomass [48,64]. Several types of biomass like wood, plants, and vegetables have a high water content that may exceed 70% of their total weight. Thus, simple thermal techniques can be expensive and time-consuming because of the necessity of material drying before modification in order to lower the water content. On the contrary, hydrothermal treatment allows the thermal modification of the natural material in solution. Therefore, the energy and time-consuming step of drying is avoided [65,66,67,68]. Li et al. studied the efficiency of winter melon aerogel on oil sorption made by a hydrothermal process [68]. The aerogel had a density of 0.048 g/cm3 and adsorption capacity of 25 g/g. The natural-based aerogel showed remarkable hydrophobicity (water contact angle 135°), low density, and high porosity, enhancing the oleophilic properties [69].

3.3. Chemical Modification Methods

3.3.1. Mercerization

Cellulose is a polymer with β-glucose as its structural units, which are joined together by β-1,4 glycosidic bonds. The molecular weight of cellulose varies depending on its origin. Each glucose structural unit contains three free hydroxyl groups, two secondary and one primary. Cellulose is found in more than one crystalline form, with the most important being cellulose I and cellulose II [70]. The cellulose surface is quite hydrophilic, which is not advantageous for efficient oil–water separation, as hydrophobic and oleophilic characteristics are both needed. Cellulose I is found in natural fibers [71]. Forcible swelling of the cotton, e.g., treated with NaOH (mercerization), changes the crystal lattice and converts cellulose I to cellulose II. Specifically, mercerization is an alkali treatment of the sorbent’s fibers with hot or cold NaOH solution leading to the removal of natural and artificial impurities. Moreover, the fibers do not change their form, but they change their crystallinity from cellulose I to cellulose II. Thus, the surface of the material becomes rough and rigid, increasing the contact area, which leads to higher and more effective adsorption [72,73]. Morphological information regarding the effects of mercerization on sawdust was derived by Gulati et al. [74]. SEM shows the smooth surface of the raw sawdust and the substantial change in the morphology of the mercerized new material [74].
Modification of the surface will provide better contact between material and oil. Thus, mercerized cellulose attains properties that make it favorable for oil spill removal from water media [74]. According to Wong [49], mercerization increased the crude oil sorption capacity of soybean residue up to 5 g/g and the motor oil sorption capacity of cattail fibers up to 4 g/g (Table 1). Moreover, rice husks have been applied as feedstock for the fabrication of mercerized natural-based oil sorbents [75]. According to Bazargan [75], alkali treatment was shown to alter the rice husk structure, creating a material with adequate oil sorption capacity (19 g/g). The suggested method occurs at low temperatures, resulting in high product yields. BET (Brunauer–Emmett–Teller) and FTIR (Fourier Transform Infrared) analyses have indicated that microporosity, along with surface functional groups, are not the main controlling factors in the oil sorption capacity. The marine diesel uptake capacity was shown to have a strong inverse relationship with the bulk density [75]. The modified rice husk exhibits a reduced bulk density, which permits oil to diffuse internally into the substrate [75].

3.3.2. Acetylation

Acetylation is a technique for increasing the sorption efficiency of the sorbent and can be facilitated by the use of a catalyst (N-bromosuccinimide, N-methylpyrrolidone, 4-dimethylaminopyridine) or not. In acetylation, the hydroxyl groups in the cellulose structure are converted to oleophilic acetate groups (O-CO-CH3) through reaction with acetic anhydride, lowering the hydrophilic properties of the sorbent and enhancing the oleophilic ones [46,50,76,77,78]. As a result of this modification, the oil uptake is drastically increased, while the water sorption is respectively reduced. Acetylated sorbents have bulkier forms because of the difference in molecular weight between OH and O-CO-CH3, which is referred to as weight percent gain [46,78].
Many studies have revealed its efficiency in increasing the hydrophobicity of natural fibers. In one of them, the usage of acetylated rice straw produced through catalytic and non-catalytic processes was examined [77]. Acetylation, without the presence of a catalyst, led to an increase in sorbent weight of 11.2% and to oil sorption efficiency in the range of 16.8–20 g/g. Acetylation in the presence of a catalyst (4-dimethyl-aminopyridine) indicated a slightly higher increase in sorbent weight (15.4%), with sorption ranging between 20.9 and 24 g/g. It is noteworthy to mention that the sorption efficiency of the acetylated rice husk increases pro rata with the degree of acetylation [77]. Deschamps et al. [79] examined the efficiency of unmodified and acetylated cotton fibers on the sorption of different oil forms (fuel, crude, mineral, vegetable) from aqueous solutions. In this study, oil uptake capacities ranged from 19 to 23 g/g and 23 to 30 g/g for raw and treated cotton, respectively. Moreover, the material could be reused by simple mechanical pressing for up to 10 times. As shown therein, after the 10th cycle, sorption efficiencies decreased from 15 and 21 g/g to 11.5 to 12.5 g/g for raw and acetylated cotton, respectively. Remarkably, the treated fibers sorb smaller amounts of oil compared to the unmodified ones. Nevertheless, they exhibited stronger lipophilic properties and better stability in the aqueous solution during the sorption experiments. Furthermore, Hussein et al. [80] pointed out that cotton fiber in the form of loose fiber or pad displayed good results for oil spill removal, with sorption efficiencies varying between 18.43 and 22.5 g/g. A subsequent study by Li et al. [81] focused on the characterization of acetylated corn straw fibers in aqueous solutions containing crude, diesel, and vacuum pump oil, respectively. The results showed that the acetylated cellulose fiber, an ultra-oleophilic material, revealed uptake capacities of 67.54, 52.65, and 42.53 g/g for crude oil, diesel oil, and vacuum pump oil, respectively. It is also noteworthy that modified material floated on the oil–water surface for several days without sinking. Furthermore, the water contact angle was 51.1° and 120.65° for the unmodified and acetylated fiber, respectively. Teli and Valia [50] modified coconut fiber via acetylation at 100 °C with a NBS catalyst (1%). Adsorption efficiencies of 3.5 g/g for the unmodified coconut coir were enhanced to 15.75 g/g for the acetylated material. Moreover, Asadpour et al. [76] studied the efficiency of the acetylated oil palm fibers on oil spill removal. The BET surface area of oil palm fibers was found to be 0.40 and 0.35 m2/g for raw and modified fibers, respectively. The acetylated fibers reached a maximum uptake capacity of 6.8 and 7.0 g/g for tapis and arabian crude oils, respectively. Ιn addition, they achieved buoyancy in the order of 93.7% and 95.3%, respectively.
Moreover, the acetylation method was used to enhance the hydrophobicity of kapok fibers. Kapok is considered one of the best natural-based materials, with high oil sorption efficiency and excellent buoyancy characteristics. According to Wang et al. [82], kapok fibers were effectively acetylated, and the subsequent fibers adsorbed a greater amount (36.7 g/g) than raw fibers (27 g/g) for diesel oil. The nonpolar nature of acetyl groups makes the surface of modified kapok fibers hydrophobic. Consequently, a significant amount of oil was favorably absorbed into the fibers, with small volumes of water retained on them. The reported results can be correlated with the SEM images (Figure 5b) of raw and modified kapok fibers. Raw kapok has a hollow shape and smooth surface with a closed orifice. At the same time, acetylated materials PAKF and NAKF show a tiny groove on the surface and an open lumen orifice. This implies that the smooth surface (raw material) is less beneficial for oil sorption, and the improved new materials with a rough surface are favorable for oil sorption [82].

3.3.3. Grafting

Polymerization is an effective and straightforward process to graft monomers onto the fiber surface [83]. This method has been applied by researchers both for synthetic and natural-based sorbents, such as polypropylene [84], banana [52], and coir [85]. The aforementioned studies indicated that the maximum oil sorption capacity of grafted banana fibers was 14.45 g/g [52] and for grafted coir 13.45 g/g [85]. Banana fibers are grafted to form esters, replacing the hydroxyl group in the cellulose surface [52]. Nevertheless, the percentage of the synthetic polymer chain in the new grafted material was controlled in order to not interfere with swelling of separated fibers in water. This factor is crucial in a grafted natural-based sorbent for removing emulsified oil from water. The surface structure of banana fiber and grafted banana fiber was evaluated using SEM. Images from SEM indicated that there was a substantial alteration between the surface of raw and modified banana fiber. Chemically grafted banana fiber was coated with poly butyl acrylate species in a heterogeneous way on the surface. Moreover, some fibers were cross-linked together as a result of the reaction. Thus, the fiber becomes bulkier and hydrophobic, giving high absorptivity toward oil [52].
Figure 5. SEM images of (a) raw orange peel (OP) and orange peel thermally modified (TMOP) at 500 °C (adapted from [34] with permission from Elsevier), (b) of raw kapok fiber (RKF), pyridine-catalyzed kapok fiber (PAKF), and NBS-catalyzed kapok fiber (NAKF) (adapted from [82] with permission from Elsevier), (c) raw pomelo peel, pomelo sponge aerogels (PSA), and hydrophobic sponge aerogels (HPSA) with MTMS (adapted from [86] with permission from RS).
Figure 5. SEM images of (a) raw orange peel (OP) and orange peel thermally modified (TMOP) at 500 °C (adapted from [34] with permission from Elsevier), (b) of raw kapok fiber (RKF), pyridine-catalyzed kapok fiber (PAKF), and NBS-catalyzed kapok fiber (NAKF) (adapted from [82] with permission from Elsevier), (c) raw pomelo peel, pomelo sponge aerogels (PSA), and hydrophobic sponge aerogels (HPSA) with MTMS (adapted from [86] with permission from RS).
Molecules 25 04522 g005
In addition, Viju et al. pointed out the significance of the grafting method in determining the oil sorption efficiency of nettle fibers [83]. The maximum oil uptake capacity of grafted nettle was 36.60 and 25.56 g/g for crude oil and vegetable oil, respectively (Table 1). Reusability experiments revealed that modified nettle showed better oil uptake capacity than raw nettle fibers following seven sorption–desorption cycles (Table 1). An important finding was that modified nettle had higher oil uptake capacity than a commercial polypropylene material [83].
Natural rubber (NR) foam was modified via graft copolymerization with an oleophilic monomer such as methyl methacrylate (MMA). NR foam was successfully modified by graft copolymerization with Poly(methyl methacrylate) (PMMA) [87]. The maximum oil sorption capacity of gasoline, diesel, engine oil, toluene, and xylene were 9.9, 8.6, 6.0, 11.8, and 10.9 g/g, respectively. The oil absorbency of PMMA-NR foam was higher than the unmodified NR foam (6.7, 7.0, 2.5, 9.6, 9.7 g/g) [87]. Furthermore, the capability of raw and grafted sugarcane bagasse in oil sorption was investigated by Said et al. [88]. The chemical modification was performed by grafting raw sugarcane bagasse with fatty acid adding hydrophobic properties to the bagasse matrix. Τhe attained oil uptake capacity for the grafted bagasse was 3 g/g.

4. Bio-Based Aerogels for Oil Spill Cleanup

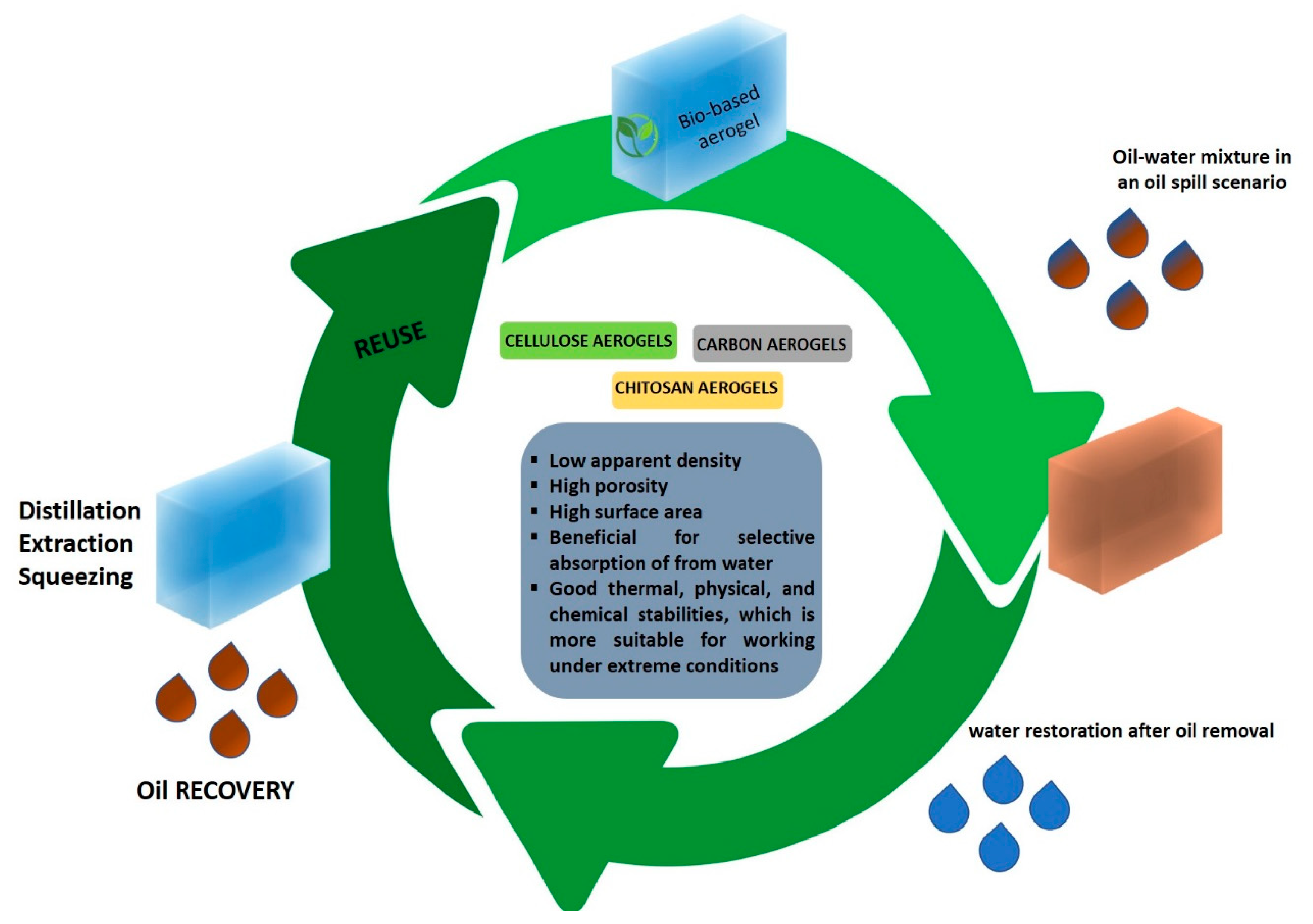

The main advantage of aerogels for oil spill cleanup is the recovery of the adsorbed oil and the reusability/recyclability of the sorbent (Figure 6). Several types of recovery methods have been described, such as extraction [89], distillation [90], and squeezing [91]. Combustion has also been reported as a way to recover the absorbent but not the oil [92]. Mechanical squeezing (Figure 7) is the most environmentally friendly method to retrieve the oil, compared to the other methods, following the order of squeezing–distillation–extraction. Extraction is the least eco-friendly recovery method in which organic solvents have been used to extract oil, producing an oil/solvent mixture that has to be further processed.
However, the stability of the sorbents in terms of their mechanical and chemical properties is crucial for their reuse. Mechanical pressure during the recovery of oil might cause deformations in the pore structure of the sorbent, resulting in decreased oil sorption capacity. Moreover, the lignocellulosic materials should be stable in the presence of elevated temperatures and solvents during oil recovery by distillation and/or extraction, respectively [93].
Two of the above methods were presented in the study of Bi et al. [94]. The recovery tests were performed for carbon microbelt (CMB) aerogel through distillation and squeezing. At first, oil was sorbed by the CMB aerogel. After this, the material was heated to release the oil vapor. This sorption–distillation process was repeated for up to five cycles. As shown in Figure 7a, less than 1 wt% of residual oil remained in the CMB aerogel after each cycle, and no obvious change in sorption capacity was observed after five cycles, showing the steady sorption and recycling efficiency of the CMB aerogel [94]. Moreover, according to the SEM image, no structural damage was observed to the material after five cycles of liquid recovery (Figure 7a).

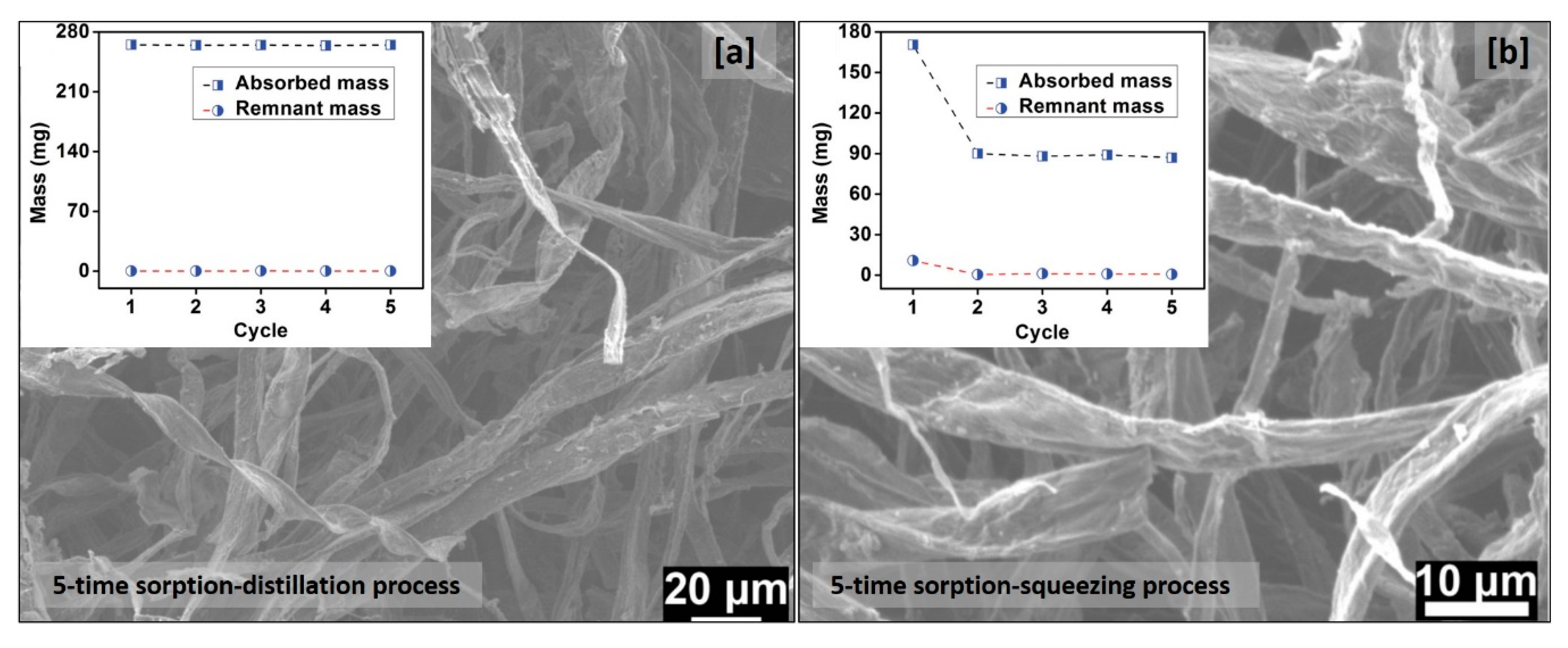

Figure 7. (a) Effect of cycles on oil sorption capacity of the CMB aerogel and SEM image after 5-time sorption/distillation process. (b) Effect of cycles on oil sorption capacity of the CMB aerogel and SEM image after 5-time sorption/squeezing process (modified from [94]).
Figure 7. (a) Effect of cycles on oil sorption capacity of the CMB aerogel and SEM image after 5-time sorption/distillation process. (b) Effect of cycles on oil sorption capacity of the CMB aerogel and SEM image after 5-time sorption/squeezing process (modified from [94]).
Molecules 25 04522 g007
Figure 7b shows the oil recovery test through squeezing. In the first cycle, 170 mg of the oil was sorbed by the CMB aerogel, but the residue mass was up to 10.8 mg after squeezing. From the second cycle onwards, the of CMB aerogel became stable, i.e., the weight gain remained constant; however, the oil adsorption capacity was significantly reduced (from 170 to 90 mg) [94].

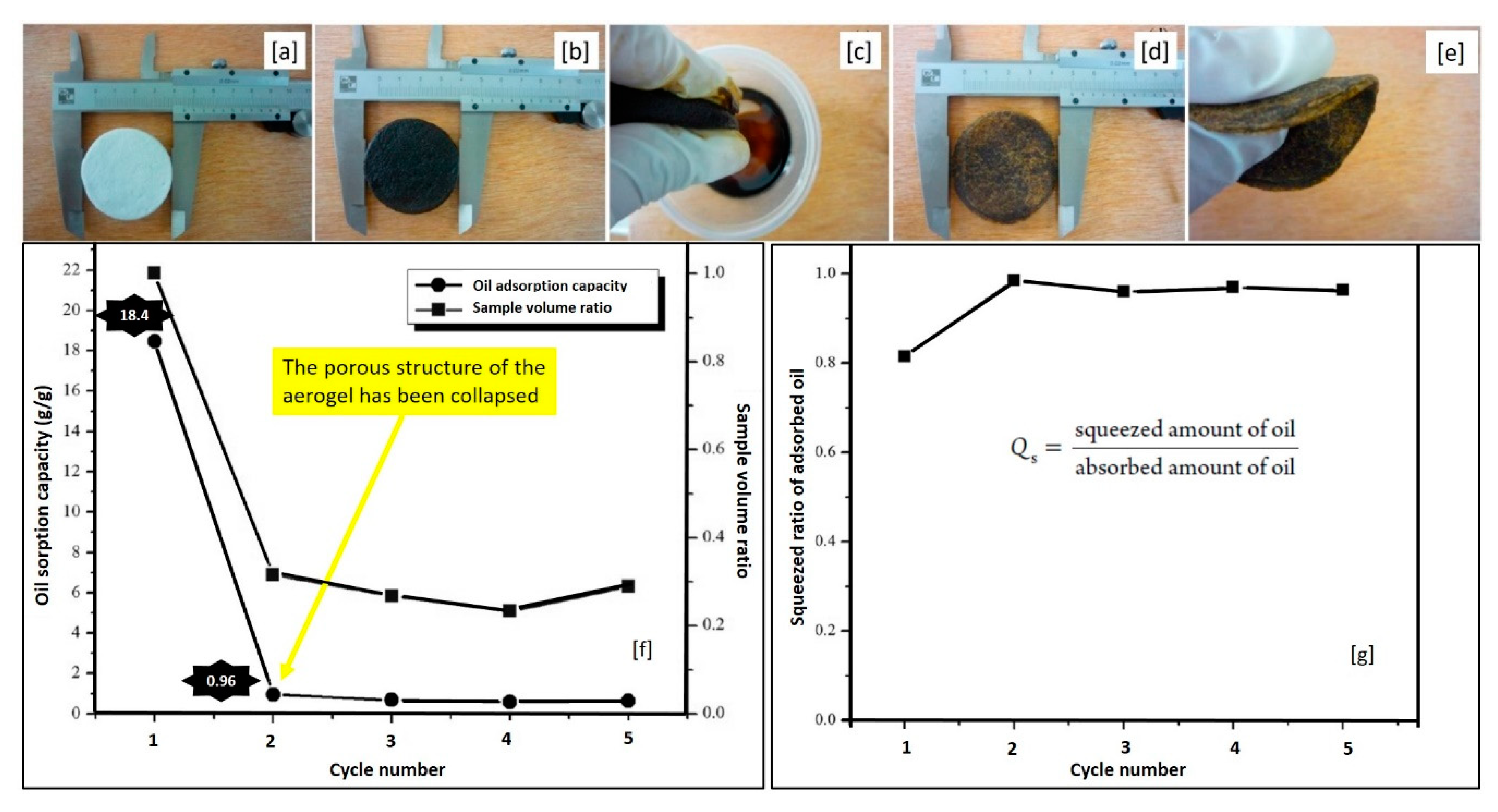

In another study, the impact of squeezing on the oil absorption capacity of a bio-based aerogel from paper waste was investigated by Nguyen et al. [95]. Figure 8a,b depict the cellulose aerogel sample before and after the first oil sorption cycle. The sizes of the material were almost unchanged after oil sorption. To recover the absorbed crude oil, a simple mechanical squeezing was performed (Figure 8c). In addition, Figure 8d shows the material after squeezing, where its shape had not changed significantly, and Figure 8e illustrates the good flexibility of the aerogel after oil recovery [95]. Afterwards, the utilized material was reused for the next absorption test cycle.
The material reached a high absorption capacity of 18.4 g/g in the first cycle, but the capacity dropped dramatically during the following cycles. This phenomenon can be explained based on the change in the cellulose aerogel volume (Figure 8f). After the first cycle, the ratio of the volume of the squeezed sample and its original volume was 0.32, indicating that the porous structure of the aerogel largely collapsed (Figure 8f). Consequently, the oil absorption capacity of the aerogel sharply decreased to 0.96 g/g after the second cycle. In the next cycles, the volume ratio values were similar to the first value, indicating that the material structure did not alter anymore [95]. Regarding the squeezed amount of the absorbed oil (calculated by the equation presented in Figure 8g), 81.5, 98.5, 95.9, 96.9, and 96.4% of the absorbed oil was released after the 1st, 2nd, 3rd, 4th and 5th cycle respectively.

Super-Hydrophobic Bio-Based Aerogels

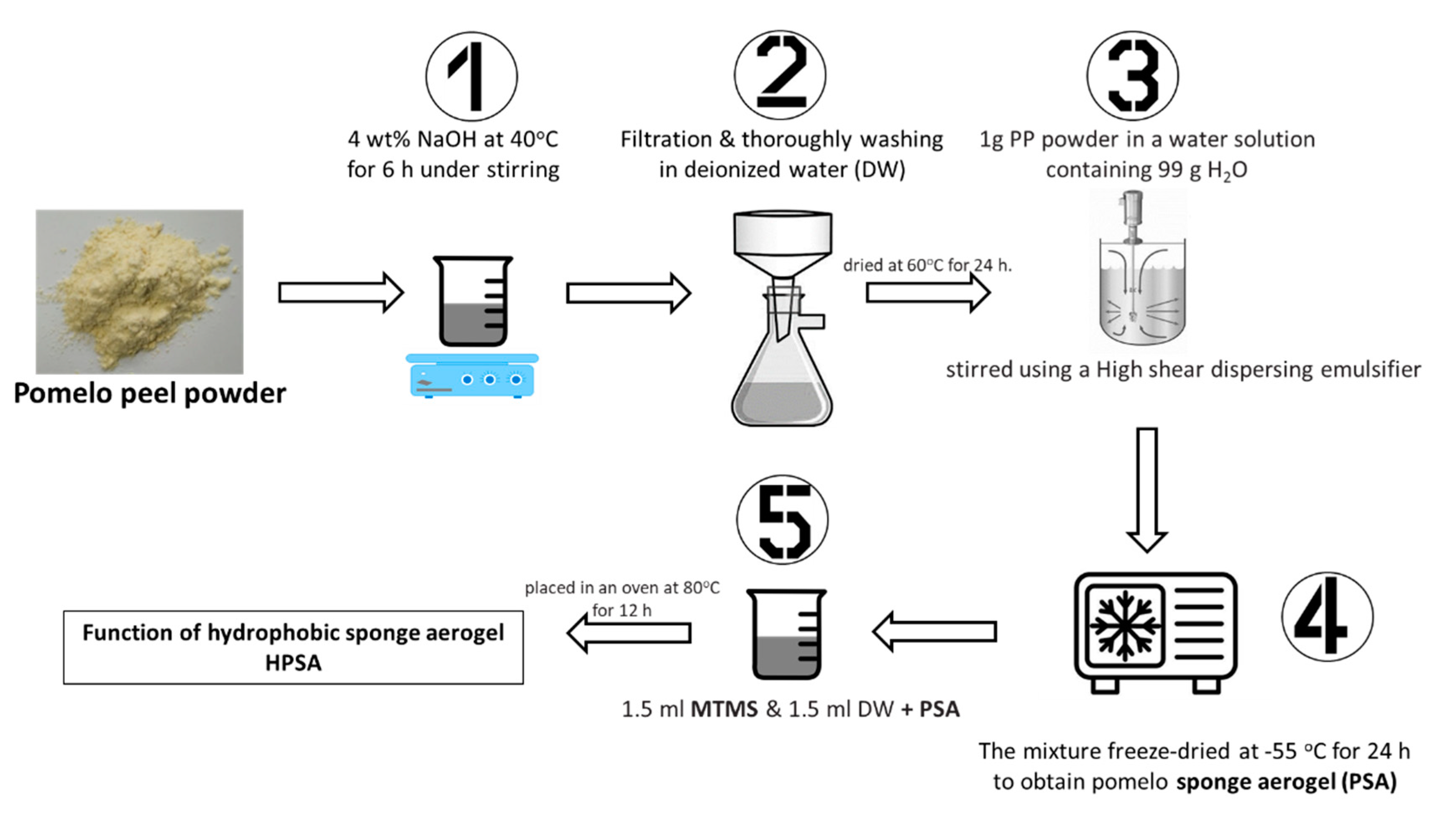

Several cellulose-based materials were modified by methyltrimethoxysilane (MTMS) as the modification reagent, achieving excellent hydrophobicity and operational stability [96,97]. For instance, Feng et al. [98] utilized MTMS on cellulose fibers, formulating a super-hydrophobic aerogel which indicated high hydrophobicity and oil sorption efficiency. The natural-based aerogel was able to sorb the motor oil within 7 min, reaching a maximum adsorption capacity of ~95 g/g. Shi et al. [86] fabricated natural-based aerogels with lamellar structures (Figure 5c) using pomelo peel powder. The authors used MTMS to modify the initial pomelo peel-based sponge aerogels (PSA) to enhance their hydrophobicity. The new HPSA (hydrophobic pomelo peel-based sponge aerogel) indicated good oil/water sorption selectivity, with a crude oil sorption capacity of ~48 g/g. Additionally, the oil that adsorbed onto the aerogel can be retrieved by simple mechanical squeezing, maintaining a high oil sorption capacity upon several sorption cycles, indicating excellent recyclability [86]. It is noteworthy that the key advantage of the studied material was its simplicity, inexpensiveness, and eco-friendliness. The simplicity of the method is shown in Figure 9.
Zhang et al. (2014) used MTMS to modify cellulose for the preparation of a superhydrophobic sponge. MTMS was added into the cellulose solution and refluxed for 2 h under acidic conditions (pH = 4). Subsequently, the cellulosic aerogel was fabricated via freeze-drying. Its density (17.3 mg/cm3) and high porosity (99%) were easily manipulated by the freeze-drying of water suspensions of nano-fibrillated cellulose (NFC). The prepared aerogel had a superior hydrophobic/lipophilic surface with a very high recovery rate even after ten oil absorption/desorption cycles, and the absorption capacity was as high as 102 g/g. The aerogels modified with MTMS (Figure 9) possessed a layered structure, the surface shape was unchanged, and the pore size was kept constant [86].

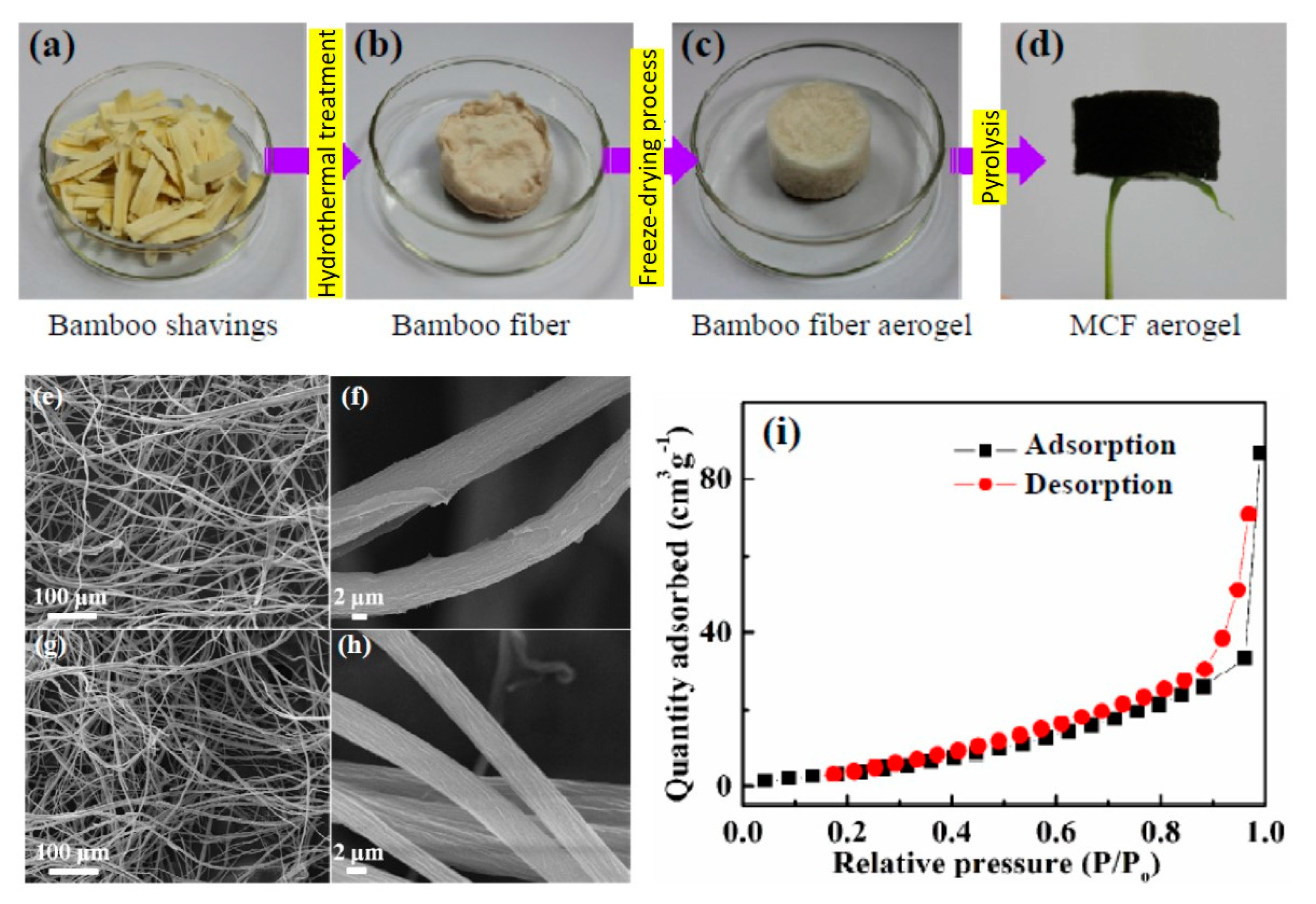

Yang et al. [67] fabricated MCF (multi-functional carbon fiber) aerogel by a simple method using natural bamboo chopsticks as raw material (Figure 8). The SEM images (Figure 10e–h) revealed that a porous structure could be observed among the neighboring fibers (Figure 10e), with the diameter of fibers ranging from 8 to 10 µm (Figure 10f). Moreover, after the pyrolysis procedure, the porous structure was maintained (Figure 10g), and the pyrolyzed MCF aerogel displayed a hollow shape and smoother surface with a smaller diameter (Figure 10h). Nitrogen adsorption–desorption isotherm of multi-functional carbon fiber aerogel is presented in Figure 10i, indicating the formation of multilayer adsorption of nitrogen in MCF aerogel [67]. The MCF aerogel shows a moderate oil uptake capacity (~80 g/g) in comparison with some ultra-flyweight synthetic aerogels. Nevertheless, the material can be recycled easily using distillation, combustion, or squeezing, due to its porous and hydrophobic nature. Moreover, it shows high thermal and mechanical stability [67].
Based on the analysis above, the main research outcomes are critically represented in Figure 11a below. In this figure, the outcomes from the literature review were evaluated in terms of weighted indicators. It can be concluded that the lignocellulosic materials and bio-based aerogels are mostly advantageous from an environmental point of view and in the context of cost performance (Figure 11a). Moreover, according to the assumptions of Yang et al. [67], the sorption capacity and estimated cost (with considerations on availability of resources, fabrication process, applicability of materials) of lignocellulosic materials were compared with other inorganic minerals and ultra-flyweight synthetic aerogels (Figure 11b). It was apparent that the lignocellulosic materials displayed higher sorption capacity than activated perlite and graphite, and bio-based aerogels exhibited similar sorption to the synthetic aerogel/foam, i.e., carbon nanotubes (CNTs) and graphene CNT foam (Figure 11b). Moreover, the fabrication method of bio-based aerogels was much simpler and their precursors, i.e., bamboo fibers or pomelo peel powder and others, are abundant and low-cost (Figure 11a,b).
Figure 11. (a,b) Evaluation of materials as a process of an integrated approach based on the terms of material–environment–economy (authors’ own study, data from [99,100,101,102,103,104,105,106]).
Figure 11. (a,b) Evaluation of materials as a process of an integrated approach based on the terms of material–environment–economy (authors’ own study, data from [99,100,101,102,103,104,105,106]).
Molecules 25 04522 g011
Table 1. Oil sorption capacity of selected lignocellulosic materials.
Table 1. Oil sorption capacity of selected lignocellulosic materials.
SorbentForm of SorbentModification MethodOil Sorption MethodAdsorption CapacityType of OilRecoveryRefs
Banana peelpowderrawASTM *5–7Crude oil20 cycles[24]
Sawdustfiberraw-4.1–6.4Crude oiln/a[32]
Coir fiberfiberraw-1.8–5.4Crude oiln/a[32]
Luffafiberraw-1.9–4.6Crude oiln/a[32]
Luffafiberraw-14Diesel oil3 cycles[107]
Orange peelpowderraw-3–5Crude, diesel, and used engine oil5 cycles[34]
Barley strawpowderraw-6.5–12Crude oil3 cycles[44]
JutefiberrawASTM2.6Engine oiln/a[50]
CottonfiberrawASTM18.4–22.5Used lube oil5 cycles[80]
CottonfiberrawASTM30.5Motor oiln/a[108]
Sugarcane bagasse raw-10.5–19.9Diesel oiln/a[103]
Kapokfiberraw-19.4–49.9Diesel, crude, engine oil, used engine oiln/a[103]
KapokfiberrawASTM36–45Engine, diesel, and hydraulic oil4 cycles[109]
KapokfiberrawASTM50Engine oil15 cycles[110]
KapokfiberrawASTM38Diesel oil8 cycles[104]
Walnut shellgranularraw-0.30–0.58Mineral oil, vegetable oil and Bright-Edge oiln/a[111]
Rice huskpowderraw 6.2 n/a[112]
Rice huskpowderpyrolysis-3.7–9.2Diesel oil, gasoline, light crude, motor oil, heavy, crude oiln/a[58]
Rice huskpowderpyrolysis-15Crude oil [47]
Rice huskpowderpyrolysis-2.7–6.2Diesel oil, crude oil [59]
Rice huskpowderpyrolysisJIS technical standards6Heavy crude oiln/a[112]
Barley strawfiberpyrolysisASTM7.6–9.2Diesel, heavy crude oil2 cycles[62]
Rice huskpowdermercerization-4–19Marine oiln/a[75]
SoybeanpowdermercerizationASTM5Crude oiln/a[49]
CattailfibermercerizationASTM4Motor oiln/a[49]
Oil palm empty fruit bunchgranularacetylation-7Crude oiln/a[46]
Cocoa podsfiberacetylation-8Crude oiln/a[46]
JutefiberacetylationASTM21.8Engine oil3 cycles[50]
bambooaerogelaerogel-38Engine oil5 cycles[105]
Pomelo peelaerogelaerogel-5Castor oil5 cycles[106]
Waste paperaerogelAerogel with MTMS-24.4Crude oil5 cycles[95]
Pomelo peelaerogelAerogel with MTMS-49.8Crude oil10 cycles[86]
* American society for testing and materials (ASTM)

5. Conclusions

The study of the applicability of raw lignocellulosic sorbents for oil spill cleanup is driven by their abundance, inexpensiveness, non-toxicity, reusability, and biodegradability. The drawbacks of these materials are low hydrophobicity, compromised oil sorption performance, and buoyancy properties. These properties can be enhanced by modification with specific agents. Thus, in the present study, various modification methods for hydrophobicity improvement of lignocellulosic materials have been reviewed. Material performance indicators, i.e., sorption capacity and reusability, as a function of specific application and testing conditions were examined in detail. Based on the review outcomes, we can conclude that the effectiveness of lignocellulosic sorbents classifies them among the best and most eco-friendly materials compared to other synthetic sorbents. Lignocellulosic sorbents are abundant in nature and their use for oil spill cleanup has been attracting significant attention lately. Some of the natural-based materials (bio-aerogels) have shown better or similar oil sorption capacities to commercial synthetic sorbents. Bio-based aerogels can be recycled easily using distillation, combustion, or squeezing, due to their porous and hydrophobic nature. However, in many studied aerogels, oil recovery methods (distillation and squeezing) tend to decrease the absorption capacity during several cycles, leading to degradation of the sorbent’s structure. On the other hand, synthesis of aerogels can be very environmentally friendly when the biomaterial is dispersed in water, freeze-dried, and, in some cases, also pyrolyzed during synthesis, avoiding additional chemicals or reagents. The multi-functional character of bio-based aerogels as depicted by their (a) superhydrophobicity, (b) satisfactory oil uptake efficiency, (c) recyclability, and (d) low-cost make them potential eco-sorbents for oil spill cleanup.

Author Contributions

Writing—original draft preparation, M.Z. and D.T.; writing—review and editing, M.Z., V.D. and T.I.; supervision, M.Z. and T.I. All authors have read and agreed to the published version of the manuscript.

Funding

We acknowledge financial support of this work by the project “High capacity, eco-nonwoven composites for oil spill response (OilSpill)” (Τ6ΥΒΠ-00088, MIS 5048492) which is implemented under the “EPAnEK 2014–2020 Operational Programme”, funded by the Operational Programme “Competitiveness, Entrepreneurship and Innovation” (NSRF 2014–2020) and co-financed by Greece and the European Union (European Regional Development Fund).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chang, S.E.; Stone, J.; Demes, K.; Piscitelli, M. Consequences of oil spills: A review and framework for informing planning. Ecol. Soc. 2014, 19. [Google Scholar] [CrossRef]
  2. Michel, J.; Fingas, M. Oil Spills: Causes, Consequences, Prevention, and Countermeasures. In Fossil Fuels: Current Status and Future Directions; WSPC: Singapore, 2016; pp. 159–201. ISBN 9789814699983. [Google Scholar]
  3. Brody, T.M.; Bianca, P.D.; Krysa, J. Analysis of Inland Crude Oil Spill Threats, Vulnerabilities, and Emergency Response in the Midwest United States. Risk Anal. 2012, 32, 1741–1749. [Google Scholar] [CrossRef] [PubMed]
  4. Kolokoussis, P.; Karathanassi, V. Oil Spill Detection and Mapping Using Sentinel 2 Imagery. J. Mar. Sci. Eng. 2018, 6, 4. [Google Scholar] [CrossRef]
  5. Varela, M.; Bode, A.; Lorenzo, J.; Álvarez-Ossorio, M.T.; Miranda, A.; Patrocinio, T.; Anadón, R.; Viesca, L.; Rodríguez, N.; Valdés, L.; et al. The effect of the “Prestige” oil spill on the plankton of the N–NW Spanish coast. Mar. Pollut. Bull. 2006, 53, 272–286. [Google Scholar] [CrossRef] [PubMed]
  6. Dimitrakakis, E.; Hahladakis, J.; Gidarakos, E. The “Sea Diamond” shipwreck: Environmental impact assessment in the water column and sediments of the wreck area. Int. J. Environ. Sci. Technol. 2014, 11, 1421–1432. [Google Scholar] [CrossRef]
  7. Zodiatis, G.; Coppini, G.; Perivoliotis, L.; Lardner, R.; Alves, T.; Pinardi, N.; Liubartseva, S.; De Dominicis, M.; Bourma, E.; Sepp Neves, A.A. Numerical Modeling of Oil Pollution in the Eastern Mediterranean Sea. In Handbook of Environmental Chemistry; Springer: Berlin/Heidelberg, Germany, 2017; pp. 215–254. [Google Scholar]
  8. Fodrie, F.J.; Heck, K.L. Response of Coastal Fishes to the Gulf of Mexico Oil Disaster. PLoS ONE 2011, 6, e21609. [Google Scholar] [CrossRef]
  9. D’Andrea, M.A.; Reddy, G.K. Health Consequences among Subjects Involved in Gulf Oil Spill Clean-up Activities. Am. J. Med. 2013, 126, 966–974. [Google Scholar] [CrossRef]
  10. Fingas, M. Oil Spill Dispersants: A Technical Summary. In Oil Spill Science and Technology; Elsevier: Amsterdam, The Netherlands, 2011; pp. 435–582. ISBN 9781856179430. [Google Scholar]
  11. Zekri, A.Y.; Chaalal, O. Effect of Temperature on Biodegradation of Crude Oil. Energy Sources 2005, 27, 233–244. [Google Scholar] [CrossRef]
  12. Warnock, A.M.; Hagen, S.C.; Passeri, D.L. Marine Tar Residues: A Review. Water Air Soil Pollut. 2015, 226, 68. [Google Scholar] [CrossRef]
  13. Teas, C.; Kalligeros, S.; Zanikos, F.; Stournas, S.; Lois, E.; Anastopoulos, G. Investigation of the effectiveness of absorbent materials in oil spills clean up. Desalination 2001, 140, 259–264. [Google Scholar] [CrossRef]
  14. Chaerun, S.K.; Tazaki, K. How kaolinite plays an essential role in remediating oil-polluted seawater. Clay Min. 2005, 40, 481–491. [Google Scholar] [CrossRef]
  15. Qi, P.; Lin, N.; Liu, Y.; Zhao, J. Improvement of oil/water selectivity by stearic acid modified expanded perlite for oil spill cleanup. J. Shanghai Jiaotong Univ. 2013, 18, 500–507. [Google Scholar] [CrossRef]
  16. Zadaka-Amir, D.; Bleiman, N.; Mishael, Y.G. Sepiolite as an effective natural porous adsorbent for surface oil-spill. Microporous Mesoporous Mater. 2013, 169, 153–159. [Google Scholar] [CrossRef]
  17. Roulia, M.; Chassapis, K.; Fotinopoulos, C.; Savvidis, T.; Katakis, D. Dispersion and Sorption of Oil Spills by Emulsifier-Modified Expanded Perlite. Spill Sci. Technol. Bull. 2003, 8, 425–431. [Google Scholar] [CrossRef]
  18. Wang, J.; Wang, H.; Geng, G. Highly efficient oil-in-water emulsion and oil layer/water mixture separation based on durably superhydrophobic sponge prepared via a facile route. Mar. Pollut. Bull. 2018, 127, 108–116. [Google Scholar] [CrossRef] [PubMed]
  19. Adebajo, M.O.; Frost, R.L.; Kloprogge, J.T.; Carmody, O.; Kokot, S. Porous Materials for Oil Spill Cleanup: A Review of Synthesis and Absorbing Properties. J. Porous Mater. 2003, 10, 159–170. [Google Scholar] [CrossRef]
  20. Narayanan, P.; Ravirajan, A.; Umasankaran, A.; Prakash, D.G.; Kumar, P.S. Theoretical and experimental investigation on the removal of oil spill by selective sorbents. J. Ind. Eng. Chem. 2018, 63, 1–11. [Google Scholar] [CrossRef]
  21. Piperopoulos, E.; Calabrese, L.; Khaskhoussi, A.; Proverbio, E.; Milone, C. Thermo-Physical Characterization of Carbon Nanotube Composite Foam for Oil Recovery Applications. Nanomaterials 2020, 10, 86. [Google Scholar] [CrossRef]
  22. Zhu, H.; Qiu, S.; Jiang, W.; Wu, D.; Zhang, C. Evaluation of Electrospun Polyvinyl Chloride/Polystyrene Fibers As Sorbent Materials for Oil Spill Cleanup. Environ. Sci. Technol. 2011, 45, 4527–4531. [Google Scholar] [CrossRef]
  23. Teli, M.D.; Valia, S.P. Acetylation of banana fibre to improve oil absorbency. Carbohydr. Polym. 2013, 92, 328–333. [Google Scholar] [CrossRef]
  24. Alaa El-Din, G.; Amer, A.A.; Malsh, G.; Hussein, M. Study on the use of banana peels for oil spill removal. Alex. Eng. J. 2018, 57, 2061–2068. [Google Scholar] [CrossRef]
  25. Husseien, M.; Amer, A.A.; El-Maghraby, A.; Hamedallah, N. Oil spill removal from water by using corn stalk: Factors affecting sorption process. Int. J. Environ. Waste Manag. 2015, 16, 281. [Google Scholar] [CrossRef]
  26. Al-Majed, A.A.; Adebayo, A.R.; Hossain, M.E. A sustainable approach to controlling oil spills. J. Environ. Manag. 2012, 113, 213–227. [Google Scholar] [CrossRef] [PubMed]
  27. SciDev Net, S.D. Study on Banana Fibre Oil Spill Absorbency. Available online: https://officerofthewatch.com/2012/11/02/study-on-banana-fibre-oil-spill-absorbency/ (accessed on 22 May 2019).
  28. Cao, S.; Dong, T.; Xu, G.; Wang, F. Oil Spill Cleanup by Hydrophobic Natural Fibers. J. Nat. Fibers 2017, 14, 727–735. [Google Scholar] [CrossRef]
  29. Panahi, S.; Moghaddam, M.K.; Moezzi, M. Assessment of milkweed floss as a natural hollow oleophilic fibrous sorbent for oil spill cleanup. J. Environ. Manag. 2020, 268, 110688. [Google Scholar] [CrossRef]
  30. Elias, E.; Costa, R.; Marques, F.; Oliveira, G.; Guo, Q.; Thomas, S.; Souza, F.G., Jr. Oil-spill cleanup: The influence of acetylated curaua fibers on the oil-removal capability of magnetic composites. J. Appl. Polym. Sci. 2015, 132. [Google Scholar] [CrossRef]
  31. Dong, T.; Xu, G.; Wang, F. Oil spill cleanup by structured natural sorbents made from cattail fibers. Ind. Crop. Prod. 2015, 76, 25–33. [Google Scholar] [CrossRef]
  32. Annunciado, T.R.; Sydenstricker, T.H.D.; Amico, S.C. Experimental investigation of various vegetable fibers as sorbent materials for oil spills. Mar. Pollut. Bull. 2005, 50, 1340–1346. [Google Scholar] [CrossRef]
  33. Viju, S.; Thilagavathi, G.; Vignesh, B.; Brindha, R. Oil sorption behavior of acetylated nettle fiber. J. Text. Inst. 2019, 110, 1415–1423. [Google Scholar] [CrossRef]
  34. El Gheriany, I.A.; Ahmad El Saqa, F.; Abd El Razek Amer, A.; Hussein, M. Oil spill sorption capacity of raw and thermally modified orange peel waste. Alex. Eng. J. 2020, 59, 925–932. [Google Scholar] [CrossRef]
  35. Abdelwahab, O.; Nasr, S.M.; Thabet, W.M. Palm fibers and modified palm fibers adsorbents for different oils. Alex. Eng. J. 2017, 56, 749–755. [Google Scholar] [CrossRef]
  36. Cheu, S.C.; Kong, H.; Song, S.T.; Saman, N.; Johari, K.; Mat, H. High removal performance of dissolved oil from aqueous solution by sorption using fatty acid esterified pineapple leaves as novel sorbents. RSC Adv. 2016, 6, 13710–13722. [Google Scholar] [CrossRef]
  37. Sánchez-Galván, G.; Mercado, F.J.; Olguín, E.J. Leaves and Roots of Pistia stratiotes as Sorbent Materials for the Removal of Crude Oil from Saline Solutions. Water Air Soil Pollut. 2013, 224, 1421. [Google Scholar] [CrossRef]
  38. Chai, W.; Liu, X.; Zou, J.; Zhang, X.; Li, B.; Yin, T. Pomelo peel modified with acetic anhydride and styrene as new sorbents for removal of oil pollution. Carbohydr. Polym. 2015, 132, 245–251. [Google Scholar] [CrossRef] [PubMed]
  39. Kenes, K.; Yerdos, O.; Zulkhair, M.; Yerlan, D. Study on the effectiveness of thermally treated rice husks for petroleum adsorption. J. Non-Cryst. Solids 2012, 358, 2964–2969. [Google Scholar] [CrossRef]
  40. Mojžiš, M.; Bubeníková, T.; Zachar, M.; Kačíková, D.; Štefková, J. Comparison of natural and synthetic sorbents’ efficiency at oil spill removal. BioResources 2019, 14, 8738–8752. [Google Scholar] [CrossRef]
  41. Lv, E.; Xia, W.; Tang, M.; Pu, Y. Preparation of an Efficient Oil-Spill Adsorbent Based on Wheat Straw. BioResources 2016, 12, 296–315. [Google Scholar] [CrossRef]
  42. Behnood, R.; Anvaripour, B.; Jaafarzadeh, N.; Farasati, M. Oil spill sorption using raw and acetylated sugarcane bagasse. J. Cent. South Univ. 2016, 23, 1618–1625. [Google Scholar] [CrossRef]
  43. Srinivasan, A.; Viraraghavan, T. Removal of oil by walnut shell media. Bioresour. Technol. 2008, 99, 8217–8220. [Google Scholar] [CrossRef]
  44. Husseien, M.; Amer, A.A.; El-Maghraby, A.; Taha, N.A. Availability of barley straw application on oil spill clean up. Int. J. Environ. Sci. Technol. 2009, 6, 123–130. [Google Scholar] [CrossRef]
  45. Husseien, M.; Amer, A.A.; El-Maghraby, A.; Hamedallah, N. A comprehensive characterization of corn stalk and study of carbonized corn stalk in dye and gas oil sorption. J. Anal. Appl. Pyrolysis 2009, 86, 360–363. [Google Scholar] [CrossRef]
  46. Onwuka, J.C.; Agbaji, E.B.; Ajibola, V.O.; Okibe, F.G. Treatment of crude oil-contaminated water with chemically modified natural fiber. Appl. Water Sci. 2018, 8, 86. [Google Scholar] [CrossRef]
  47. Kudaybergenov, K.K.; Ongarbayev, E.K.; Mansurov, Z.A. Petroleum Sorption by Thermally Treated Rice Husks Derived from Agricultural Byproducts. Eurasian Chem. J. 2012, 15, 57. [Google Scholar] [CrossRef]
  48. Wang, J.; Han, F.; Liang, B.; Geng, G. Hydrothermal fabrication of robustly superhydrophobic cotton fibers for efficient separation of oil/water mixtures and oil-in-water emulsions. J. Ind. Eng. Chem. 2017, 54, 174–183. [Google Scholar] [CrossRef]
  49. Wong, C.; McGowan, T.; Bajwa, S.G.; Bajwa, D.S. Impact of Fiber Treatment on the Oil Absorption Characteristics of Plant Fibers. BioResources 2016, 11, 6452–6463. [Google Scholar] [CrossRef]
  50. Teli, M.D.; Valia, S.P. Acetylation of Jute fiber to improve oil absorbency. Fibers Polym. 2013, 14, 915–919. [Google Scholar] [CrossRef]
  51. Bhatia, J.K.; Kaith, B.S.; Singla, R.; Mehta, P.; Yadav, V.; Dhiman, J.; Bhatti, M.S. RSM optimized soy protein fibre as a sorbent material for treatment of water contaminated with petroleum products. Desalin. Water Treat. 2016, 57, 4245–4254. [Google Scholar] [CrossRef]
  52. Teli, M.D.; Valia, S.P. Grafting of Butyl Acrylate on to Banana Fibers for Improved Oil Absorption. J. Nat. Fibers 2016, 13, 470–476. [Google Scholar] [CrossRef]
  53. Wenzel, R.N. RESISTANCE OF SOLID SURFACES TO WETTING BY WATER. Ind. Eng. Chem. 1936, 28, 988–994. [Google Scholar] [CrossRef]
  54. Cassie, A.B.D.; Baxter, S. Wettability of porous surfaces. Trans. Faraday Soc. 1944, 40, 546. [Google Scholar] [CrossRef]
  55. Hubbe, M.A.; Rojas, O.J.; Fingas, M.; Gupta, B.S. Cellulosic Substrates for Removal of Pollutants from Aqueous Systems: A Review. 3. Spilled Oil and Emulsified Organic Liquids. BioResources 2013, 8, 3038–3097. [Google Scholar] [CrossRef]
  56. Bayat, A.; Aghamiri, S.F.; Moheb, A.; Vakili-Nezhaad, G.R. Oil Spill Cleanup from Sea Water by Sorbent Materials. Chem. Eng. Technol. 2005, 28, 1525–1528. [Google Scholar] [CrossRef]
  57. Lam, S.S.; Liew, R.K.; Cheng, C.K.; Rasit, N.; Ooi, C.K.; Ma, N.L.; Ng, J.-H.; Lam, W.H.; Chong, C.T.; Chase, H.A. Pyrolysis production of fruit peel biochar for potential use in treatment of palm oil mill effluent. J. Environ. Manag. 2018, 213, 400–408. [Google Scholar] [CrossRef] [PubMed]
  58. Angelova, D.; Uzunov, I.; Uzunova, S.; Gigova, A.; Minchev, L. Kinetics of oil and oil products adsorption by carbonized rice husks. Chem. Eng. J. 2011, 172, 306–311. [Google Scholar] [CrossRef]
  59. Vlaev, L.; Petkov, P.; Dimitrov, A.; Genieva, S. Cleanup of water polluted with crude oil or diesel fuel using rice husks ash. J. Taiwan Inst. Chem. Eng. 2011, 42, 957–964. [Google Scholar] [CrossRef]
  60. Kudaybergenov, K.K.; Ongarbayev, E.K.; Mansurov, Z.A. Carbonaceous Composites from Agricultural Wastes for Adsorption of Hydrocarbon Contamination in Water. Eurasian Chem. J. 2010, 12, 151. [Google Scholar] [CrossRef]
  61. Uzunov, I.; Uzunova, S.; Angelova, D.; Gigova, A. Effects of the pyrolysis process on the oil sorption capacity of rice husk. J. Anal. Appl. Pyrolysis 2012, 98, 166–176. [Google Scholar] [CrossRef]
  62. Husseien, M.; Amer, A.A.; El-Maghraby, A.; Taha, N.A. Experimental Investigation of Thermal Modification Influence on Sorption Qualities of Barley Straw. J. Appl. Sci. Res. 2008, 4, 652–657. [Google Scholar]
  63. Hrnčič, M.K.; Kravanja, G.; Knez, Ž. Hydrothermal treatment of biomass for energy and chemicals. Energy 2016, 116, 1312–1322. [Google Scholar] [CrossRef]
  64. Karakasi, O.K.; Moutsatsou, A. Surface modification of high calcium fly ash for its application in oil spill clean up. Fuel 2010, 89, 3966–3970. [Google Scholar] [CrossRef]
  65. Hammerschmidt, A.; Boukis, N.; Hauer, E.; Galla, U.; Dinjus, E.; Hitzmann, B.; Larsen, T.; Nygaard, S.D. Catalytic conversion of waste biomass by hydrothermal treatment. Fuel 2011, 90, 555–562. [Google Scholar] [CrossRef]
  66. Yang, S.; Chen, L.; Mu, L.; Hao, B.; Ma, P.-C. Low cost carbon fiber aerogel derived from bamboo for the adsorption of oils and organic solvents with excellent performances. RSC Adv. 2015, 5, 38470–38478. [Google Scholar] [CrossRef]
  67. Wang, J.; Wang, A.; Wang, W. Robustly superhydrophobic/superoleophilic kapok fiber with ZnO nanoneedles coating: Highly efficient separation of oil layer in water and capture of oil droplets in oil-in-water emulsions. Ind. Crop. Prod. 2017, 108, 303–311. [Google Scholar] [CrossRef]
  68. Li, Y.-Q.; Samad, Y.A.; Polychronopoulou, K.; Alhassan, S.M.; Liao, K. Carbon Aerogel from Winter Melon for Highly Efficient and Recyclable Oils and Organic Solvents Absorption. ACS Sustain. Chem. Eng. 2014, 2, 1492–1497. [Google Scholar] [CrossRef]
  69. Sharma, A.; Thakur, M.; Bhattacharya, M.; Mandal, T.; Goswami, S. Commercial application of cellulose nano-composites—A review. Biotechnol. Rep. 2019, 21, e00316. [Google Scholar] [CrossRef]
  70. Gert, E.V.; Shishonok, M.V.; Torgashov, V.I.; Kaputskii, F.N. Crystallization of amorphous cellulose in the form of inclusion compounds. J. Polym. Sci. Part C Polym. Lett. 1990, 28, 163–166. [Google Scholar] [CrossRef]
  71. Sidik, S.M.; Jalil, A.A.; Triwahyono, S.; Adam, S.H.; Satar, M.A.H.; Hameed, B.H. Modified oil palm leaves adsorbent with enhanced hydrophobicity for crude oil removal. Chem. Eng. J. 2012, 203, 9–18. [Google Scholar] [CrossRef]
  72. Hassan, M.A.; Onyekwere, O.S.; Yami, A.M.; Raji, A. Effects of Chemical Modification on Physical And Mechanical Properties of Rice Husk—Stripped Oil Palm Fruit Bunch Fiber Polypropylene Hybrid Composite. IOSR J. Mech. Civ. Eng. 2014, 11, 01–05. [Google Scholar] [CrossRef]
  73. Gulati, I.; Park, J.; Maken, S.; Lee, M.-G. Production of carboxymethylcellulose fibers from waste lignocellulosic sawdust using NaOH/NaClO2 pretreatment. Fibers Polym. 2014, 15, 680–686. [Google Scholar] [CrossRef]
  74. Bazargan, A.; Tan, J.; Hui, C.W.; McKay, G. Utilization of rice husks for the production of oil sorbent materials. Cellulose 2014, 21, 1679–1688. [Google Scholar] [CrossRef]
  75. Asadpour, R.; Sapari, N.B.; Isa, M.H.; Kakooei, S. Acetylation of oil palm empty fruit bunch fiber as an adsorbent for removal of crude oil. Environ. Sci. Pollut. Res. 2016, 23, 11740–11750. [Google Scholar] [CrossRef] [PubMed]
  76. Sun, X.-F.; Sun, R.; Sun, J.-X. Acetylation of Rice Straw with or without Catalysts and Its Characterization as a Natural Sorbent in Oil Spill Cleanup. J. Agric. Food Chem. 2002, 50, 6428–6433. [Google Scholar] [CrossRef]
  77. Nwadiogbu, J.O.; Okoye, P.A.C.; Ajiwe, V.I.; Nnaji, N.J.N. Hydrophobic treatment of corn cob by acetylation: Kinetics and thermodynamics studies. J. Environ. Chem. Eng. 2014, 2, 1699–1704. [Google Scholar] [CrossRef]
  78. Deschamps, G.; Caruel, H.; Borredon, M.-E.; Bonnin, C.; Vignoles, C. Oil Removal from Water by Selective Sorption on Hydrophobic Cotton Fibers. 1. Study of Sorption Properties and Comparison with Other Cotton Fiber-Based Sorbents. Environ. Sci. Technol. 2003, 37, 1013–1015. [Google Scholar] [CrossRef]
  79. Hussein, M.; Amer, A.A.; Sawsan, I.I. Heavy oil spill cleanup using law grade raw cotton fibers: Trial for practical application. J. Pet. Technol. Altern. Fuels 2011, 2, 132–140. [Google Scholar]
  80. Li, D.; Zhu, F.Z.; Li, J.Y.; Na, P.; Wang, N. Preparation and Characterization of Cellulose Fibers from Corn Straw as Natural Oil Sorbents. Ind. Eng. Chem. Res. 2013, 52, 516–524. [Google Scholar] [CrossRef]
  81. Wang, J.; Zheng, Y.; Wang, A. Investigation of acetylated kapok fibers on the sorption of oil in water. J. Environ. Sci. 2013, 25, 246–253. [Google Scholar] [CrossRef]
  82. Viju, S.; Brindha, R.; Thilagavathi, G. Surface modification of nettle fibers by grafting to improve oil sorption capacity. J. Ind. Text. 2019. [Google Scholar] [CrossRef]
  83. Zhou, X.; Wang, F.; Ji, Y.; Chen, W.; Wei, J. Fabrication of Hydrophilic and Hydrophobic Sites on Polypropylene Nonwoven for Oil Spill Cleanup: Two Dilemmas Affecting Oil Sorption. Environ. Sci. Technol. 2016, 50, 3860–3865. [Google Scholar] [CrossRef]
  84. Teli, M.D.; Valia, S.P.; Mifta, J. Application of functionalized coir fibre as eco-friendly oil sorbent. J. Text. Inst. 2017, 108, 1106–1111. [Google Scholar] [CrossRef]
  85. Shi, G.; Qian, Y.; Tan, F.; Cai, W.; Li, Y.; Cao, Y. Controllable synthesis of pomelo peel-based aerogel and its application in adsorption of oil/organic pollutants. R. Soc. Open Sci. 2019, 6, 181823. [Google Scholar] [CrossRef] [PubMed]
  86. Ratcha, A.; Yoosuk, B.; Kongparakul, S. Grafted Methyl Methacrylate and Butyl Methacrylate onto Natural Rubber Foam for Oil Sorbent. Adv. Mater. Res. 2013, 844, 385–390. [Google Scholar] [CrossRef]
  87. Said, A.; Ludwick, A.; Aglan, H. Usefulness of raw bagasse for oil absorption: A comparison of raw and acylated bagasse and their components. Bioresour. Technol. 2009, 100, 2219–2222. [Google Scholar] [CrossRef] [PubMed]
  88. Meng, Y.; Young, T.M.; Liu, P.; Contescu, C.I.; Huang, B.; Wang, S. Ultralight carbon aerogel from nanocellulose as a highly selective oil absorption material. Cellulose 2015, 22, 435–447. [Google Scholar] [CrossRef]
  89. Cheng, H.; Gu, B.; Pennefather, M.P.; Nguyen, T.X.; Phan-Thien, N.; Duong, H.M. Cotton aerogels and cotton-cellulose aerogels from environmental waste for oil spillage cleanup. Mater. Des. 2017, 130, 452–458. [Google Scholar] [CrossRef]
  90. Jin, C.; Han, S.; Li, J.; Sun, Q. Fabrication of cellulose-based aerogels from waste newspaper without any pretreatment and their use for absorbents. Carbohydr. Polym. 2015, 123, 150–156. [Google Scholar] [CrossRef]
  91. Gupta, S.; Tai, N.-H. Carbon materials as oil sorbents: A review on the synthesis and performance. J. Mater. Chem. A 2016, 4, 1550–1565. [Google Scholar] [CrossRef]
  92. Doshi, B.; Sillanpää, M.; Kalliola, S. A review of bio-based materials for oil spill treatment. Water Res. 2018, 135, 262–277. [Google Scholar] [CrossRef]
  93. Bi, H.; Huang, X.; Wu, X.; Cao, X.; Tan, C.; Yin, Z.; Lu, X.; Sun, L.; Zhang, H. Carbon Microbelt Aerogel Prepared by Waste Paper: An Efficient and Recyclable Sorbent for Oils and Organic Solvents. Small 2014, 10, 3544–3550. [Google Scholar] [CrossRef]
  94. Nguyen, S.T.; Feng, J.; Le, N.T.T.; Le, A.T.T.; Hoang, N.; Tan, V.B.C.; Duong, H.M. Cellulose Aerogel from Paper Waste for Crude Oil Spill Cleaning. Ind. Eng. Chem. Res. 2013, 52, 18386–18391. [Google Scholar] [CrossRef]
  95. Tang, Z.; Hess, D.W.; Breedveld, V. Fabrication of oleophobic paper with tunable hydrophilicity by treatment with non-fluorinated chemicals. J. Mater. Chem. A 2015, 3, 14651–14660. [Google Scholar] [CrossRef]
  96. Do, N.H.N.; Luu, T.P.; Thai, Q.B.; Le, D.K.; Chau, N.D.Q.; Nguyen, S.T.; Le, P.K.; Phan-Thien, N.; Duong, H.M. Advanced fabrication and application of pineapple aerogels from agricultural waste. Mater. Technol. 2020, 35, 807–814. [Google Scholar] [CrossRef]
  97. Feng, J.; Nguyen, S.T.; Fan, Z.; Duong, H.M. Advanced fabrication and oil absorption properties of super-hydrophobic recycled cellulose aerogels. Chem. Eng. J. 2015, 270, 168–175. [Google Scholar] [CrossRef]
  98. Bastani, D.; Safekordi, A.A.; Alihosseini, A.; Taghikhani, V. Study of oil sorption by expanded perlite at 298.15K. Sep. Purif. Technol. 2006, 52, 295–300. [Google Scholar] [CrossRef]
  99. Li, A.; Sun, H.-X.; Tan, D.-Z.; Fan, W.-J.; Wen, S.-H.; Qing, X.-J.; Li, G.-X.; Li, S.-Y.; Deng, W.-Q. Superhydrophobic conjugated microporous polymers for separation and adsorption. Energy Environ. Sci. 2011, 4, 2062–2065. [Google Scholar] [CrossRef]
  100. Gui, X.; Wei, J.; Wang, K.; Cao, A.; Zhu, H.; Jia, Y.; Shu, Q.; Wu, D. Carbon Nanotube Sponges. Adv. Mater. 2010, 22, 617–621. [Google Scholar] [CrossRef]
  101. Dong, X.; Chen, J.; Ma, Y.; Wang, J.; Chan-Park, M.B.; Liu, X.; Wang, L.; Huang, W.; Chen, P. Superhydrophobic and superoleophilic hybrid foam of graphene and carbon nanotube for selective removal of oils or organic solvents from the surface of water. Chem. Commun. 2012, 48, 10660. [Google Scholar] [CrossRef]
  102. Ali, N.; El-Harbawi, M.; Jabal, A.A.; Yin, C.-Y. Characteristics and oil sorption effectiveness of kapok fibre, sugarcane bagasse and rice husks: Oil removal suitability matrix. Environ. Technol. 2012, 33, 481–486. [Google Scholar] [CrossRef]
  103. Wang, J.; Zheng, Y.; Wang, A. Superhydrophobic kapok fiber oil-absorbent: Preparation and high oil absorbency. Chem. Eng. J. 2012, 213, 1–7. [Google Scholar] [CrossRef]
  104. Jiao, Y.; Wan, C.; Li, J. Synthesis of carbon fiber aerogel from natural bamboo fiber and its application as a green high-efficiency and recyclable adsorbent. Mater. Des. 2016, 107, 26–32. [Google Scholar] [CrossRef]
  105. Zhu, L.; Wang, Y.; Wang, Y.; You, L.; Shen, X.; Li, S. An environmentally friendly carbon aerogels derived from waste pomelo peels for the removal of organic pollutants/oils. Microporous Mesoporous Mater. 2017, 241, 285–292. [Google Scholar] [CrossRef]
  106. Abdelwahab, O. Assessment of raw luffa as a natural hollow oleophilic fibrous sorbent for oil spill cleanup. Alex. Eng. J. 2014, 53, 213–218. [Google Scholar] [CrossRef]
  107. Singh, V.; Jinka, S.; Hake, K.; Parameswaran, S.; Kendall, R.J.; Ramkumar, S. Novel Natural Sorbent for Oil Spill Cleanup. Ind. Eng. Chem. Res. 2014, 53, 11954–11961. [Google Scholar] [CrossRef]
  108. Lim, T.-T.; Huang, X. Evaluation of kapok (Ceiba pentandra (L.) Gaertn.) as a natural hollow hydrophobic–oleophilic fibrous sorbent for oil spill cleanup. Chemosphere 2007, 66, 955–963. [Google Scholar] [CrossRef] [PubMed]
  109. Abdullah, M.A.; Rahmah, A.U.; Man, Z. Physicochemical and sorption characteristics of Malaysian Ceiba pentandra (L.) Gaertn. as a natural oil sorbent. J. Hazard. Mater. 2010, 177, 683–691. [Google Scholar] [CrossRef]
  110. Srinivasan, A.; Viraraghavan, T. Oil removal from water using biomaterials. Bioresour. Technol. 2010, 101, 6594–6600. [Google Scholar] [CrossRef]
  111. Wang, Z.; Barford, J.P.; Hui, C.W.; McKay, G. Kinetic and equilibrium studies of hydrophilic and hydrophobic rice husk cellulosic fibers used as oil spill sorbents. Chem. Eng. J. 2015, 281, 961–969. [Google Scholar] [CrossRef]
  112. Kumagai, S.; Noguchi, Y.; Kurimoto, Y.; Takeda, K. Oil adsorbent produced by the carbonization of rice husks. Waste Manag. 2007, 27, 554–561. [Google Scholar] [CrossRef]
Figure 1. (a) Percentage (%) of origin of oil spills in the water. (b) Percentage (%) of oil types (authors’ own study, data collected from [2]).
Figure 1. (a) Percentage (%) of origin of oil spills in the water. (b) Percentage (%) of oil types (authors’ own study, data collected from [2]).
Molecules 25 04522 g001

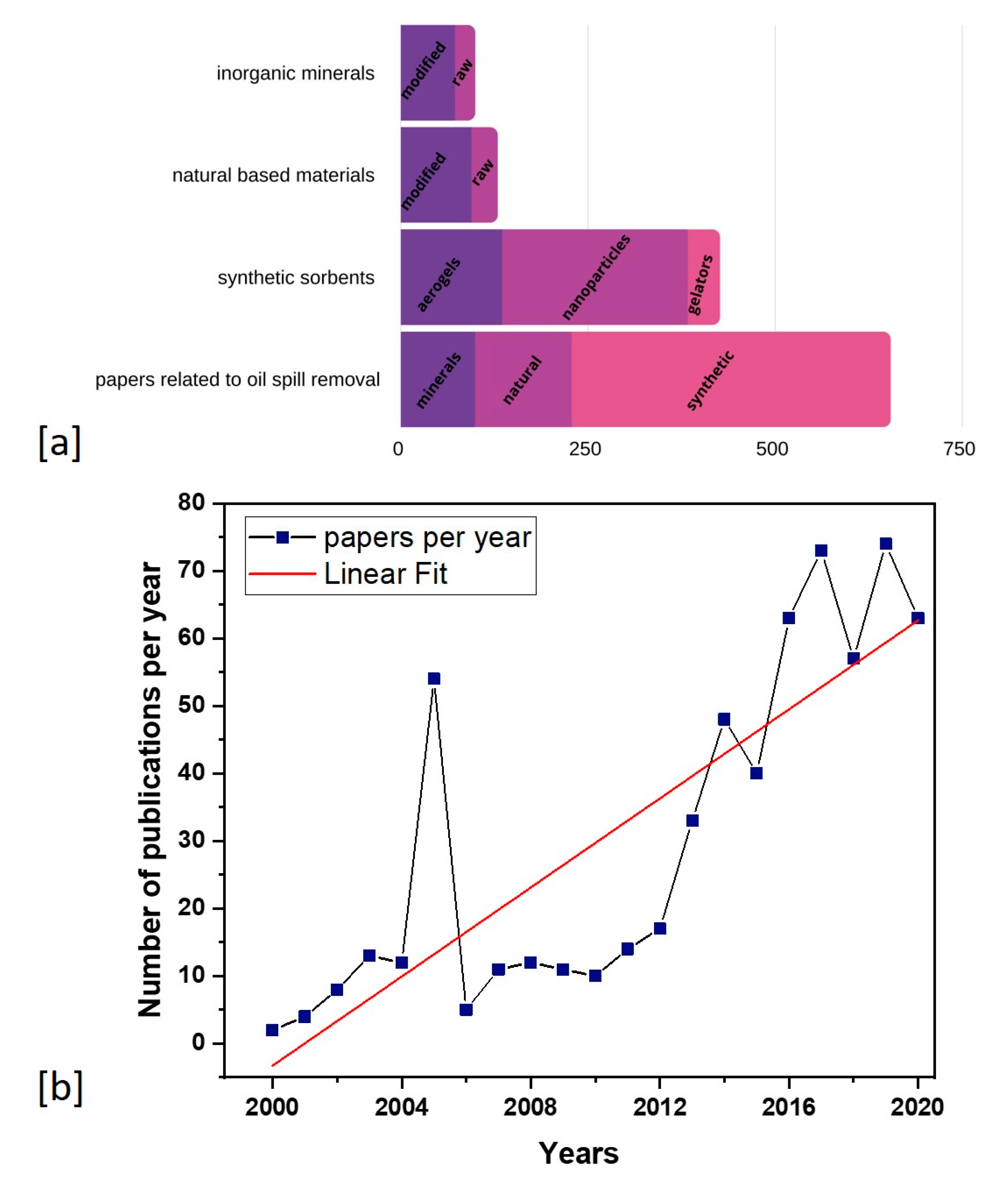

Figure 2. (a) Publications related to oil spill removal separated into basic categories. (b) Publications related to oil spill per year from 2000 to 2020. The linear regression line shows a rising trend of publications related to oil spill cleanup during the study period of the last 20 years (authors’ own study, data from Scopus).
Figure 2. (a) Publications related to oil spill removal separated into basic categories. (b) Publications related to oil spill per year from 2000 to 2020. The linear regression line shows a rising trend of publications related to oil spill cleanup during the study period of the last 20 years (authors’ own study, data from Scopus).
Molecules 25 04522 g002
Figure 3. Processes taking place at the liquid–solid interface between oil and sorbent materials. (a) Wettability of oil on the surface of a sorbent, (b) advancing and receding angles on a rough surface, (c) Cassie and Baxter’s theory relative to initial and following wetting of a porous surface, (d) penetration of oil into an idealized pore of a dry sorbent, (e) penetration of oil into an idealized pore of a water-wet sorbent (adapted and modified from [55]).
Figure 3. Processes taking place at the liquid–solid interface between oil and sorbent materials. (a) Wettability of oil on the surface of a sorbent, (b) advancing and receding angles on a rough surface, (c) Cassie and Baxter’s theory relative to initial and following wetting of a porous surface, (d) penetration of oil into an idealized pore of a dry sorbent, (e) penetration of oil into an idealized pore of a water-wet sorbent (adapted and modified from [55]).
Molecules 25 04522 g003
Figure 4. Classification of modification methods for hydrophobicity improvement in natural-based sorbents (authors’ own study).
Figure 4. Classification of modification methods for hydrophobicity improvement in natural-based sorbents (authors’ own study).
Molecules 25 04522 g004
Figure 6. Natural-based aerogels for removing oil emulsified from water.
Figure 6. Natural-based aerogels for removing oil emulsified from water.
Molecules 25 04522 g006
Figure 8. The squeezing process. (a) Cellulose aerogel from paper waste, (b) cellulose aerogel after first sorption cycle, (c) mechanical squeezing, (d) cellulose aerogel sample after squeezing, (e) good flexibility of the material, (f) effect of cycles on oil sorption capacity and sample volume of the aerogel, (g) effect of cycles on squeezed ratio of absorbed oil (adapted and modified from [95] with permission from ACS).
Figure 8. The squeezing process. (a) Cellulose aerogel from paper waste, (b) cellulose aerogel after first sorption cycle, (c) mechanical squeezing, (d) cellulose aerogel sample after squeezing, (e) good flexibility of the material, (f) effect of cycles on oil sorption capacity and sample volume of the aerogel, (g) effect of cycles on squeezed ratio of absorbed oil (adapted and modified from [95] with permission from ACS).
Molecules 25 04522 g008
Figure 9. Preparation of hydrophobic sponge aerogels based on pomelo peel powder (based on information from [85]).
Figure 9. Preparation of hydrophobic sponge aerogels based on pomelo peel powder (based on information from [85]).
Molecules 25 04522 g009
Figure 10. (ad) Preparation of MCF aerogel, (e,f) bamboo fiber aerogel; (g,h) MCF aerogel, and (i) nitrogen adsorption–desorption isotherm of MCF aerogel (adapted and modified from [67] with permission from RSC).
Figure 10. (ad) Preparation of MCF aerogel, (e,f) bamboo fiber aerogel; (g,h) MCF aerogel, and (i) nitrogen adsorption–desorption isotherm of MCF aerogel (adapted and modified from [67] with permission from RSC).
Molecules 25 04522 g010
Back to TopTop
