Synthesis of New Planar-Chiral Linked [2.2]Paracyclophanes-N-([2.2]-Paracyclophanylcarbamoyl)-4-([2.2]Paracyclophanylcarboxamide, [2.2]Paracyclophanyl-Substituted Triazolthiones and -Substituted Oxadiazoles

by
Ashraf A. Aly
1,*,
Stefan Bräse
2,3,*,
Alaa A. Hassan
1,
Nasr K. Mohamed
1,
Lamiaa E. Abd El-Haleem
1,2 and
Martin Nieger
4
1
Chemistry Department, Faculty of Science, Minia University, El-Minia 61519, Egypt
2
Institute of Organic Chemistry, Karlsruhe Institute of Technology, 76131 Karlsruhe, Germany
3
Institute of Biological and Chemical Systems–Functional Molecular Systems (IBCS-FMS), Karlsruhe Institute of Technology, Hermann-von-Helmholtz-Platz 1, D-76344 Eggenstein-Leopoldshafen, Germany
4
Department of Chemistry, University of Helsinki, PO Box 55 (A. I. Virtasen aukio I), 00014 Helsinki, Finland
*
Authors to whom correspondence should be addressed.
Molecules 2020, 25(15), 3315; https://doi.org/10.3390/molecules25153315
Submission received: 24 June 2020 / Revised: 13 July 2020 / Accepted: 14 July 2020 / Published: 22 July 2020
Browse Figures
Review Reports Versions Notes

Abstract

:
The manuscript describes the synthesis of new racemic and chiral linked paracyclophane assigned as N-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carbamoyl)-5’-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carboxamide. The procedure depends upon the reaction of 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)hydrazide with 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)isocyanate. To prepare the homochiral linked paracyclophane of a compound, the enantioselectivity of 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carbaldehyde (enantiomeric purity 60% ee), was oxidized to the corresponding acid, which on chlorination, gave the corresponding acid chloride of [2.2]paracyclophane. Following up on the same procedure applied for the preparation of racemic-carbamoyl and purified by HPLC purification, we succeeded to obtain the target Sp-Sp-N-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carbamoyl)-5’-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carboxamide. Subjecting N-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)hydrazide to various isothiocyanates, the corresponding paracyclophanyl-acylthiosemicarbazides were obtained. The latter compounds were then cyclized to a new series of 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-2,4-dihydro-3H-1,2,4-triazol-3-thiones. 5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)-1,3,4-oxadiazol-2-amines were also synthesized in good yields via internal cyclization of the same paracyclophanyl-acylthiosemicarbazides. NMR, IR, and mass spectra (HRMS) were used to elucidate the structure of the obtained products. The X-ray structure analysis was also used as an unambiguous tool to elucidate the structure of the products.

1. Introduction

Compounds comprising the −NH–NH–C=O moiety are known as acylhydrazide linkers. More specifically, acylhydrazide-based compounds have shown antioxidant activities [1,2,3,4]. Hydrazides and carbohydrazides have been described as useful building blocks for the assembly of various heterocyclic rings [5]. A large number of aliphatic, alicyclic, aromatic and heterocyclic carbohydrazides [6,7,8,9], their derivatives, and related compounds are reported to present a plethora of biological activities [10,11,12,13,14,15,16].
3,4-Disubstituted-1H-1,2,4-triazole-5(4H)thiones have gained considerable importance in medicinal chemistry due to their potential anticancer [17,18,19], antimicrobial [20], antioxidant, antitumor [21], anti-tuberculosis [22], anticonvulsant [23], fungicidal [24], antiepileptic drugs [25], and anti-inflammatory activity [26]. Although they have mainly been screened for antibacterial, antifungal, anti-inflammatory, and antiproliferative activity [27,28,29,30,31], only a few studies describe their use as metalloenzyme inhibitors such as the dicopper dopamine-β-hydroxylase [32], the TNF-α converting enzyme [33], ADAMTS-5 [34], and urease [35]. A few triazolthione analogues with no amino group at the 4-position were reported to be modest inhibitors of the IMP-1 MBL [36,37] or were shown to be inactive against the CcrA, ImiS, and L1 MBLs at 50 μM [38]. Other triazolthione compounds with an alkylated sulfur atom have also been published more recently [39,40], and the structure of the complex formed by one of these compounds with VIM-2 showed that the two zinc atoms were coordinated by the nitrogen atoms at the 1- and 2-positions of the heterocycle [41,42]. 1,2,4-Triazolthione derivatives have been prepared successfully by various methods. The most common classical method is the dehydrative cyclization of different hydrazinecarbothioamides in the presence of basic media using various reagents such as sodium hydroxide [43], potassium hydroxide [44], sodium bicarbonate [45], and besides that, the acidic ionic liquid condition can be used for such cyclization followed by neutralization [46].
1,3,4-Oxadiazoles are an interesting class widely applied in the development of advanced electroluminescent and electron-transport materials [47,48]. In other cases, they have exhibited a variety of biological effects such as antiviral [49], antitumor [50], and anti-inflammatory [51] activities. As a design element in medicinal chemistry, 1,3,4-oxadiazoles are deployed for several purposes [52,53]. The commonly used synthetic route for 1,3,4-oxadiazoles includes reactions of acid hydrazides (or hydrazine) with acid chlorides/carboxylic acids and direct cyclization of diacylhydrazines using a variety of dehydrating agents such as phosphorous oxychloride [54], thionyl chloride [55], phosphorous pentaoxide [55], triflic anhydride [56], polyphosphoric acid [57], and a direct reaction of the acid with (N-isocyanimino)triphenylphosphorane [58,59,60,61].
More than six decades ago from the discovery of [2.2]paracyclophane, its derivatives have been the subject of particular interest [62,63,64,65]. Most of the unique properties of these cyclophanes are the result of the rigid framework and the short distance between the two aromatic rings within the [2.2]paracyclophane unit. The synthesis of [2.2]paracyclophane derivatives has suffered from multi-step procedures and consequently, poor yields of the desired products have been obtained [66], therefore, finding out simple methods of moderate to good yields of these compounds have been given considerable attention [66].
Prompted by the aforesaid properties about acylhydrazide linkers and their biological activity, in addition to the fact that planar chiral [2.2]paracyclophanes are useful synthons, from a material perspective, they can be incorporated into conjugated polymeric systems for chiroptical and optoelectronic properties. These compounds show broad applications in bio- and materials science, therefore, we decided to investigate the synthesis of homochiral linked paracyclophanes such as N-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carbamoyl)-5’-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carboxamide (Figure 1).
We previously reported that some paracyclophane-heterocycles such as methyl 2-(2-(4’-[2.2]paracyclophanyl)-hydrazinylidene)-3-substituted-4-oxothiazolidin-5-ylidene)acetates displayed anticancer activity against a leukemia subpanel, namely, RPMI-8226 and SR cell lines. The cytotoxic effect showed selectivity ratios ranging between 0.63 and 1.28 and between 0.58 and 5.89 at the GI50 and total growth inhibition (TGI) levels, respectively [62]. Therefore, we are aiming to prepare other classes such as triazolethione and oxadiazole moieties linked to the paracyclophane molecule. Figure 2 summarizes some of the routes utilized to prepare paracyclophanyl-triazole-3-thiones and -paracyclophanyl-2-substituted amino-1,3,4-oxadiazoles from acylhydrazinecarbothioamides [62].

2. Results and Discussion

The synthesis of N-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carbamoyl)-5’-(1,4(1,4)-dibenzenacyclohexaphane-12- yl)carboxamide (3) could be obtained from the reaction of racemic-N-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)hydrazide (rac-1) with racemic-N-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)isothiocyanate (rac-2) (Scheme 1).

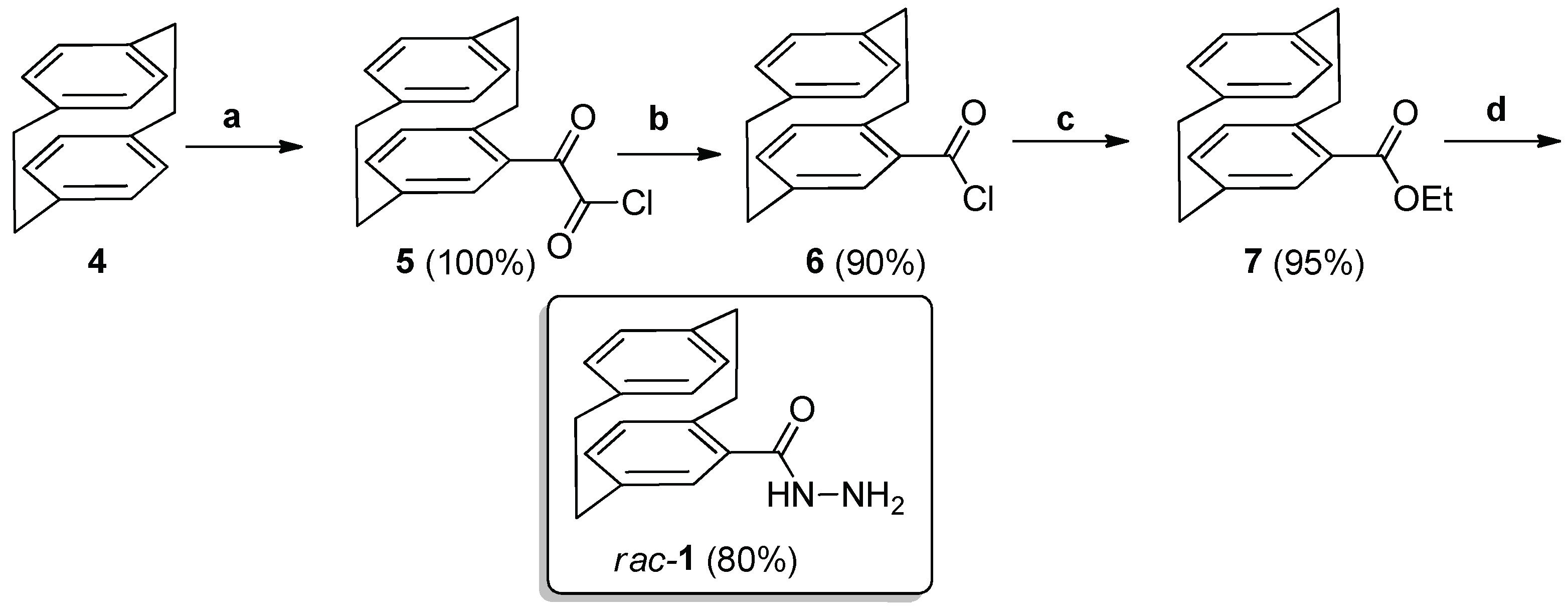

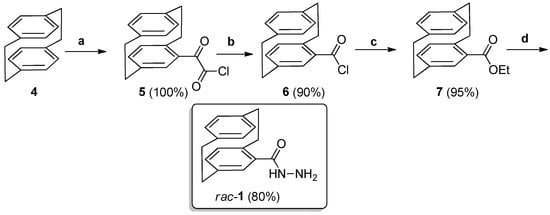

The strategy of preparing compounds 1 and 2 was divided into two parts; firstly, starting by the parent hydrocarbon 4 as a commercial product. Compound 4 was then converted into the acid chloride derivative 6 [67], by the procedure described in Scheme 2, which consisted first of the conversion of 4 into 5 with the oxalyl chloride/aluminium trichloride. Heating of 5 in refluxing chlorobenzene caused decarbonylation to give 6. Subsequently, the resulting acid chloride 6 was subjected toward esterification using ethanol to give compound 7 [67] (Scheme 2). Finally, the ester 7 was refluxed with a hydrazine hydrate in different solvents; however, the reaction failed to give the target α-ketohydrazine 1 in good yields. Whereas, heating 7 directly with an excess of the hydrazine hydrate afforded the corresponding racemic-carbohydrazide 1 in 80% yield (Scheme 2). Secondly, conversion of 6 into 2, was achieved by the reaction of 6 with sodium azide in acetone/H2O to give the corresponding carbonylazide 8 [68] in 95% yield (Scheme 3). Whereas heating 8, under Ar, in toluene afforded the second target molecule 2 [68] in 70% yield (Scheme 3).
The structure of newly prepared compound 1 was proved by NMR spectra. The 1H-NMR spectrum revealed two singlets at δ = 9.09 and 4.46 assigned to NH and NH2 protons. The 13C-NMR spectrum showed the carbonyl-carbon at δ = 167.8 (C=O), whereas the four distinctive CH2-bridged carbons resonated at δ = 34.8 (CH2-1’), 34.7 (CH2-10’), 34.5 (CH2-9’), and 34.2 (CH2-2’). The IR spectrum revealed the absorption of NH2, NH, and the carbonyl groups at ṽ = 3352–3214 NH2, 3196, and 1632, respectively. The X-ray structure analysis was used to elucidate the structure feature of compound 1 as shown in Figure 3.

2.1. Preparation of Compound 3

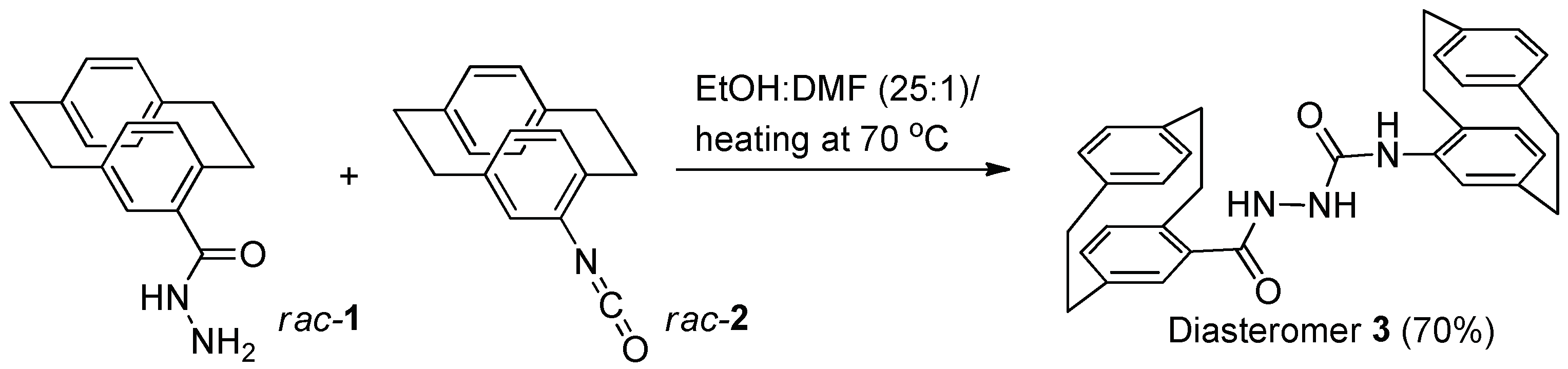

As above mentioned in Scheme 1, the diastereomer 3 was obtained via the reaction of carbohydrazide paracyclophane (1) and paracyclophane isocyanate (2) in a mixture of absolute EtOH:DMF (i.e., 25:1 by volume in mL). Several trials including different solvents such as EtOH, EtOH/Et3N, DMF, Toluene/Et3N, and propanol failed to give good yields. However, a mixture of EtOH to DMF (25:1) gave compound 3 in 70% yield.

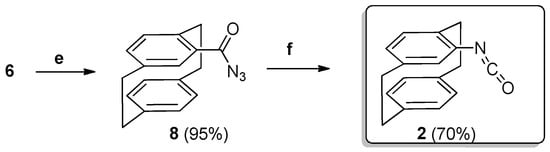

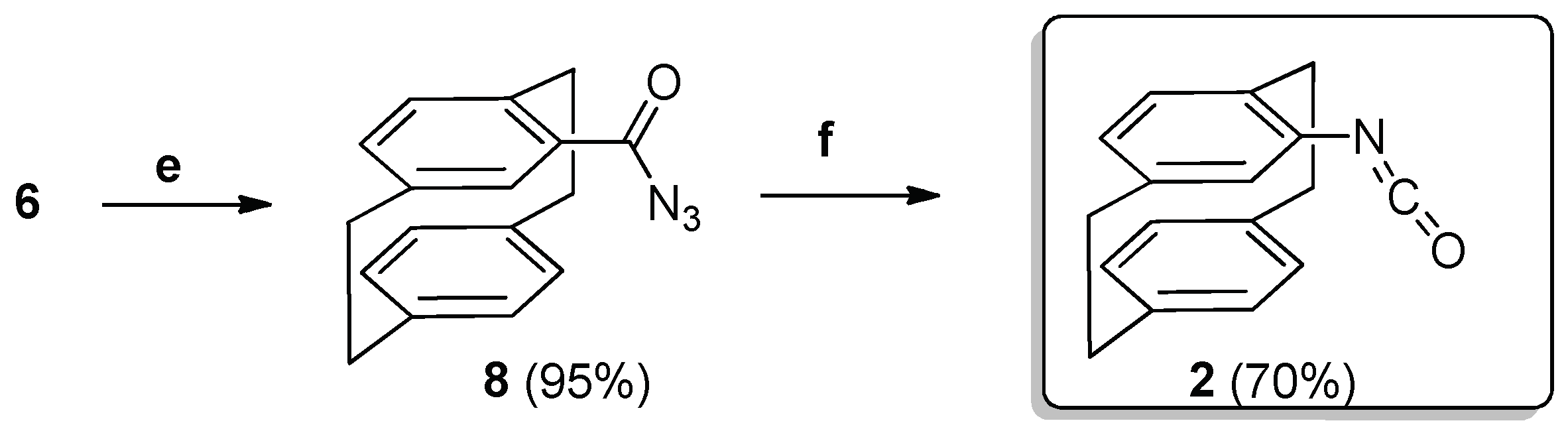

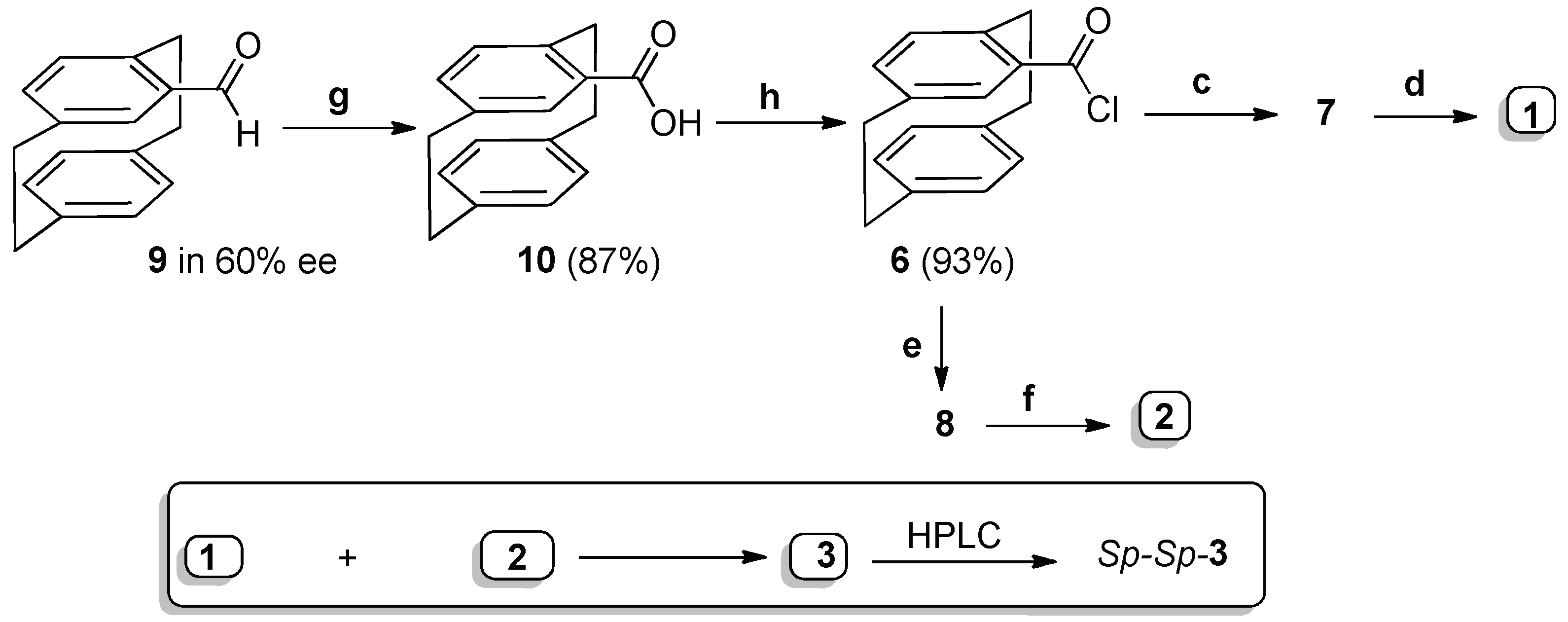

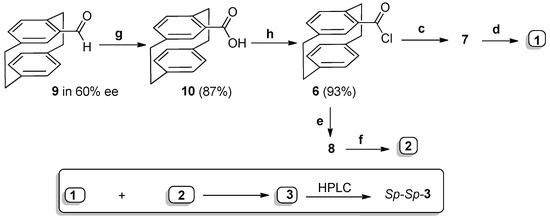

The strategy of preparing Sp-Sp-3 was started by preparation of Sp-4-formyl([2.2]paracyclophane (9) (60% ee) [68]. To prove the enantiomeric purity of 9, a chiral HPLC analysis was conducted, it was found that 9 has an enantiomeric excess of 60% (Figure 4), meaning it is not completely Sp-pure. Oxidation of 9 gave the target acid 10 [68], which on chlorination via reaction with thionyl dichloride/DMF gave 6 [67] (Scheme 4). Subsequently, repeating the previous steps in Scheme 1, Scheme 2 and Scheme 3, compounds 1–3 were prepared in their ralemic forms. Applying the HPLC separation on 3, the desired pure chiral (Sp-Sp)-N-([2.2]-paracyclophanylcarbamoyl)-4-([2.2]paracyclophanylamide (3) (Figure 5) was obtained.
The structure of the compounds diastereomer-3 and/or pure chiral Sp-Sp-3 was proved by the NMR spectroscopic analysis. It is clearly apparent that the same number of protons and carbon signals was assigned for both aforesaid compounds. The twenty-four paracyclophanyl (PC)-aromatic carbons and eight PC-CH2-bridged carbons in addition to the two carbonyl carbons appeared in the 13C-NMR spectrum of pure chiral Sp-Sp-3, since the two paracyclophanyl moieties were electronically different via attachment with two different functional groups.

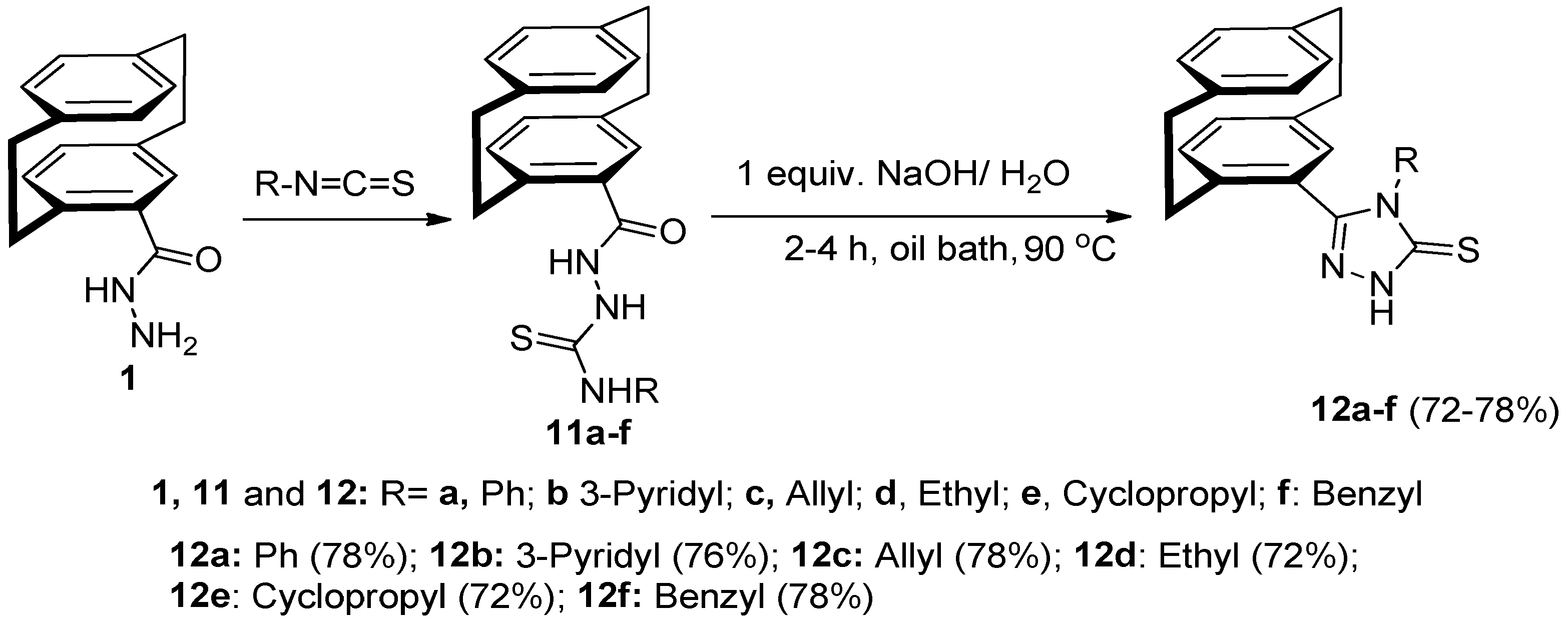

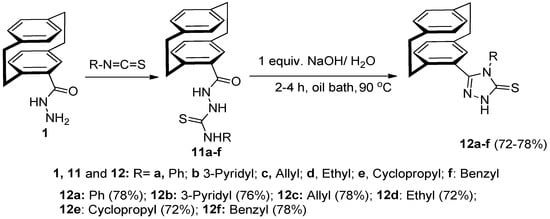

2.2. Synthesis of Triazolethiones 12a–f

The synthesis of these nitrogen-containing heterophanes led to the idea that the heterophane 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-4-substituted-2,4-dihydro-3H-1,2,4-triazol-3-thiones 12a–f in 72–78% yields could be obtained from the cyclization of 11a–f [62] in an alkaline medium (Scheme 5). Compounds 11a–f were previously prepared by the reaction of compound 1 with isothiocyanates (Scheme 5) [62]. All compounds of the series 12a–f provided analytical data in full agreement with the desired structures (see Experimental and Supplementary Materials). The structures of compounds 12a and 12d were completely proved by the X-ray structure analyses, as shown in Figure 6 and Figure 7, respectively.

2.3. Conversion of N-Substituted-5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)Hydrazinecarbothioamides 11a–f into 5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)-N-Substituted-1,3,4-Oxadiazol-2-Amines 13a–e

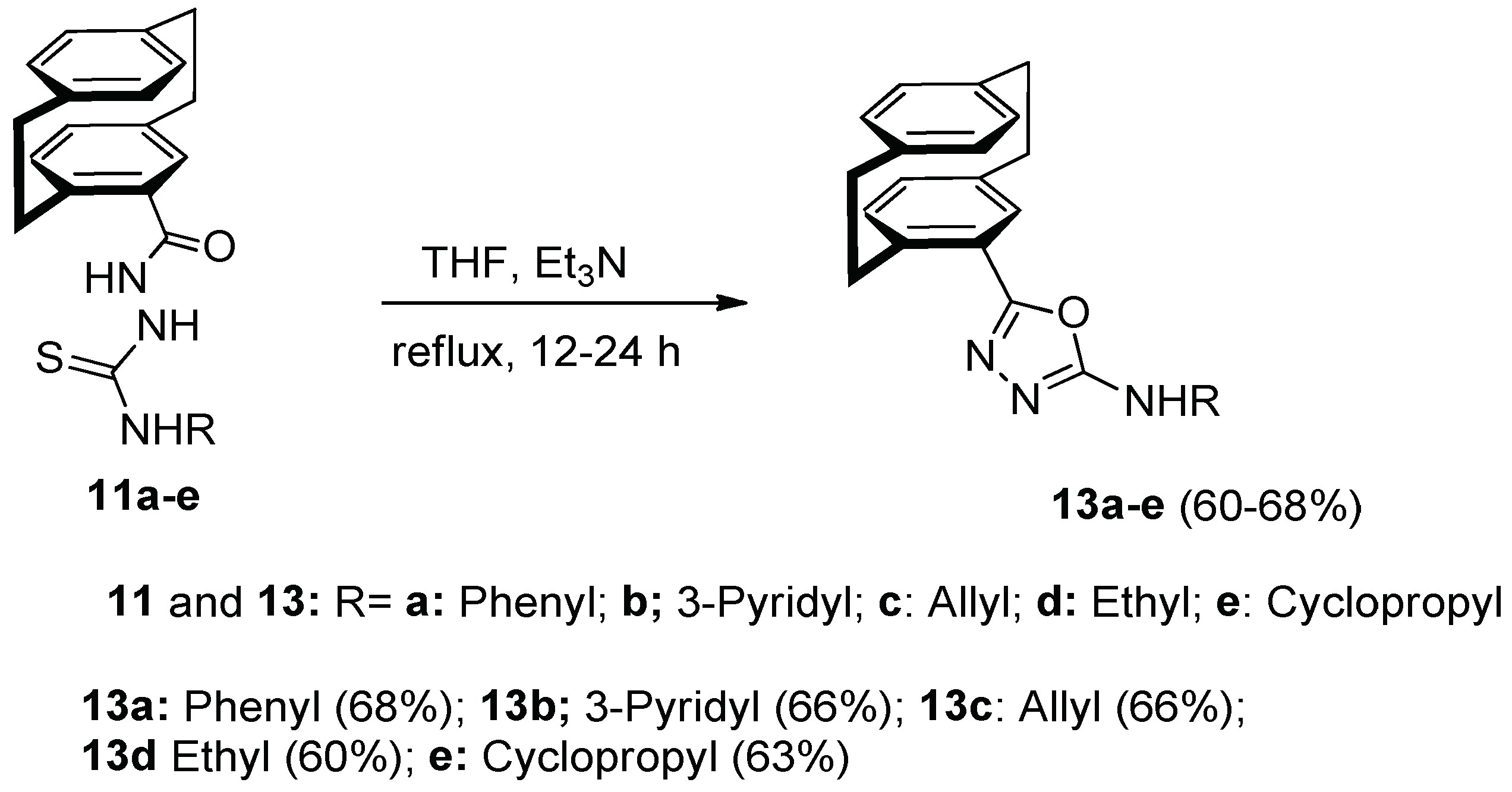

The one-pot synthesis including gentle heating of 1a–f in tetrahydrofuran (THF) together with 0.5 mL of Et3N afforded directly the corresponding 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-N-substituted-1,3,4-oxadiazol-2-amines 13a–f in 63–68% yields (Scheme 6). Compound 13a was identified from spectroscopic data as 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-1,3,4-oxadiazol-2-amine. As an example, the 1H-NMR spectrum showed two broad singlets at δ = 10.04 for NH and CH-5-PC. The 13C-NMR spectrum revealed the oxadiazole-C-2 and oxadiazole carbons at δ = 162.7 for-C-2 and δ = 160.0 for C-5. The four PC-CH2 carbons appeared at δ = 36.2, 36.1, 36.0, and 35.9. Elemental and mass spectroscopy indicated the molecular formula of 13a as C24H21N3O. The structure of 13a was proved by the X-ray structure analysis as shown in Figure 8. The X-ray was used to prove the structure of compounds 13a and 13e, as shown in Figure 8 and Figure 9, respectively.

3. Experimental

3.1. Material and Methods

The IR spectra were recorded by the ATR technique (ATR (Attenuated Total Reflection)) with an FT device (FT-IR Bruker IFS 88, Bremen, Germany), Institute of Organic Chemistry, Karlsruhe University, Karlsruhe, Germany. The NMR spectra (Figures S1–S32) were measured in DMSO-d6 on a Bruker AV-400 spectrometer (Germany), 400 MHz for 1H, and 100 MHz for 13C; and the chemical shifts are expressed in δ (ppm), versus internal tetramethylsilane (TMS) = 0 for 1H and 13C, and external liquid ammonia = 0. The description of signals includes: s (singlet), d (doublet), t (triplet), q (quartet), m (multiplet), dd (doublet of doublet), ddd (doublet of dd), dt (doublet of triplet), td (triplet of doublet), bs (broad singlet), and m (multiplet). Mass spectra were recorded on a FAB (fast atom bombardment) Thermo Finnigan Mat 95 (70 eV) (Thermo Electron (Bremen) GmbH, Barkhausenstr. 2 D-28197 Bremen). For the high-resolution mass, the following abbreviations were used: Calc.: Theoretical calculated mass; found: Mass found in the analysis, Institute of Organic Chemistry, Karlsruhe Institute of Technology, Karlsruhe, Germany. The TLC was performed on analytical Merck 9385 silica aluminium sheets (Kieselgel 60) with a Pf254 indicator; the TLCs were viewed at λmax = 254 nm, crude products were purified by flash chromatography with Silica gel 60 (0.040 × 0.063 mm, Geduran) (Merck, Germany).
Compounds 2 and 5–10 were prepared according to the literature [67,68]. Compounds 11a–f were prepared according to the methodology mentioned in reference [62].

3.2. Racemic-N-5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)hydrazide (1)

Under an argon atmosphere, a mixture of ethyl [2.2]paracyclophane-4-carboxylate (8) [39] (5.00 g, 18.0 mmol, 1.00 equiv.) was dissolved in 25 mL of hydrazine monohydrate and heated under reflux for 14 h. The reaction mixture was then cooled to room temperature until a precipitate was formed (24 h). The precipitate was then filtered and washed with 150 mL of water (three times) followed by 100 mL of heptane and then dried. The white product of racemic- or Sp-1 was obtained and recrystallized from ethanol.
Racemic-N-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)hydrazide (1). Colorless crystals (EtOH), yield 3.80 g, (80%), m.p. 230–232 °C, 1H-NMR (400 MHz, DMSO-d6, ppm) δ = 9.09 (s, 1H, NH), 6.66 (d, J = 1.9 Hz, 1H, PC-H), 6.60 (d, J = 7.7 Hz, 1H, PC-H), 6.57 (dd, J = 7.7, 1.9 Hz, 1H, PC-H), 6.53 (d, J = 1.3 Hz, 2H, PC-H), 6.47 (d, J = 7.7 Hz, 1H, PC-H), 6.42 (d, J = 7.8 Hz, 1H, PC-H), 4.46 (brs, 2H, NH2), 3.08 (dddd, J = 12.7, 9.9, 6.4, 3.1 Hz, 3H, CH2-CH2), 3.04–2.85 (m, 4H, CH2-CH2), 2.81 (ddd, J = 12.5, 9.5, 6.3 Hz, 1H, CH2-CH2). 13C-NMR (100 MHz, DMSO-d6, ppm) δ = 167.8 (C=O), 139.3 (PC-C-6’), 139.3 (PC-C-11’), 139.0 (PC-C-14’), 138.8 (PC-C-3’), 135.5, 134.5, 133.7, 132.5, 132.4, 131.6, 131.43 (PC-CH), 131.4 (PC-C-4’), 34.8 (PC-CH2-1’), 34.7 (PC-CH2-10’), 34.5 (PC-C CH2-9’), 34.2 (PC-C CH2-2’). IR (ATR, cm-1) ṽ = 3352–3214 (br, NH2), 3196 (w, NH), 2927 (s, Ar-CH), 2848 (m, aliph-CH), 1632 (s, CO). MS (FAB) m/z (%) = 266.3 [M]+ (100). HRMS (EI, [M]+, C17H18O1N2) calc.: 266.1419, found: 266.1418.

3.3. Preparation of Compound Diasteromer-3 or Sp-Sp-3

In a 100 mL round-bottomed flask, a mixture of carbohydrazide paracyclophane (1, 160 mg, 601 μmol, 1.00 equiv.) and paracyclophane isocyanate (2, 150 mg, 601 μmol, 1.00 equiv.) in a mixture of absolute EtOH: DMF (25:1 by volume in mL) was heated in an oil bath at 70 °C for 4 h. The formed precipitate was filtered and washed with heptane several times (3 × 20 mL).
Diastereomeric Mixture of N-5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)carbamoyl)-5’-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carboxamide (3). Colorless crystals (EtOH), yield 0.36 g (70%), m.p. 310–2 °C, 1H-NMR (400 MHz, DMSO-d6, ppm) δ = 9.72 (d, J = 2.4 Hz, 1H, NH1-hydrazide), 8.39 (dd, 1H, NH2-hydrazide), 7.99 (s, 1H, NH-amide), 6.93–6.87 (m, 2H, PC-H), 6.76–6.71 (m, 2H, PC-H), 6.65–6.63 (m, 1H, PC-H), 6.55–6.48 (m, 5H, PC-H), 6.44–6.31 (m, 4H, PC-H), 3.79 (ddd, J = 12.6, 9.0, 3.4 Hz, 1H, PC-CH2-CH2), 3.17–3.09 (m, 2H, PC-CH2-CH2), 3.09–2.99 (m, 4H, PC-CH2-CH2), 2.99–2.90 (m, 6H, PC-CH2-CH2), 2.90–2.67 (m, 3H, PC-CH2-CH2). 13C-NMR (100 MHz, DMSO-d6, ppm) δ = 168.8 (C=O-hydrazide), 156.3 (C=O-amide), 140.7, 140.3 (PC-C-6’,6”), 140.2, 140.1 (PC-C-11’,11”), 139.9, 139.7 (PC-C-14’,14”), 139.6, 139.4 (PC-C-3’,3”), 139.1, 138.1, 136.4, 135.4, 133.5, 133.3, 133.2, 133.1, 132.9, 132.8, 132.3, 132.2, 131.9 (PC-CH), 128.8, 127.7 (PC-C-4’), 126.2 (PC-CH), 35.5 (PC-CH2), 35.2 (PC-2CH2), 34.9 (PC-2CH2), 34.7, 33.5, 33.2 (PC-CH2). IR (ATR, cm−1) ṽ = 3428–3224 (br, NH), 3104–3087 (w, NH), 2955–2893 (w, NH), 2864 (w, Ar-CH), 2853 (w, aliph-CH), 1642, 1572 (s, CO). MS (FAB) m/z (%) = 516.3 [M + H]+ (70). HRMS (EI, [M + H]+, C34H34O2N3) calc.: 516.2651, found: 516.2652.
(Sp-Sp)-N-5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)carbamoyl)-5’-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carboxamide (3). Colorless crystals (EtOH), yield 0.26 g (50%), m.p. 310–2 °C, [α]D= + 41.8 (c 0.004, CH2Cl2). 1H-NMR (400 MHz, DMSO-d6, ppm) δ = 9.73, (s, 1H, NH1-hydrazide), 8.40 (s, 1H, NH2-hydrazide), 8.00 (s, 1H, NH-amide), 7.07–6.85 (m, 2H, PC-H), 6.84–6.74 (m, 2H, PC-H), 6.65 (dd, J = 7.7, 1.8 Hz, 1H, PC-H), 6.58–6.45 (m, 6H, PC-H), 6.40 (d, J = 0.7 Hz, 2H, PC-CH), 6.33 (dd, J = 7.8, 1.8 Hz, 1H, PC-H), 3.84–3.77 (m, 1H, PC-CH2-CH2), 3.16–3.08 (m, 2H, PC-CH2-CH2), 3.06–2.91 (m, 10H, PC-CH2-CH2), 2.89–2.69 (m, 3H, PC-CH2-CH2). 13C-NMR (100 MHz, DMSO-d6, ppm) δ = 168.6 (C=O-hydrazide), 156.2 (C=O-amide), 140.6, 140.2 (PC-C-6’,6”), 139.9 (2C-PC-C-11’,11”), 139.5, 139.4 (PC-C-14’,14”), 139.0, 138.5 (PC-C-3’,3”), 136.2, 135.5, 135.3, 133.6 (PC-CH), 133.5 (PC-2CH), 133.1 (PC-CH), 132.9 (PC-2CH), 132.4, 132.3, 132.1 (PC-CH), 128.8, 127.2 (PC-C-4’,4’’), 125.9 (PC-2CH), 35.3, 35.2, 35.1, 35.0, 34.9, 33.5, 33.4, 33.2 (PC-CH2). IR (ATR, cm-1) ṽ = 3342–3275 (br, NH), 3197–3012 (w, NH), 2962–2893 (w, NH), 2856 (w, Ar-CH), 1643, 1572 (s, CO). MS (FAB) m/z (%) = 516.3 [M + H]+ (30). HRMS (EI, [M + H]+, C34H34O2N3) calc.: 516.2651, found: 516.2652.

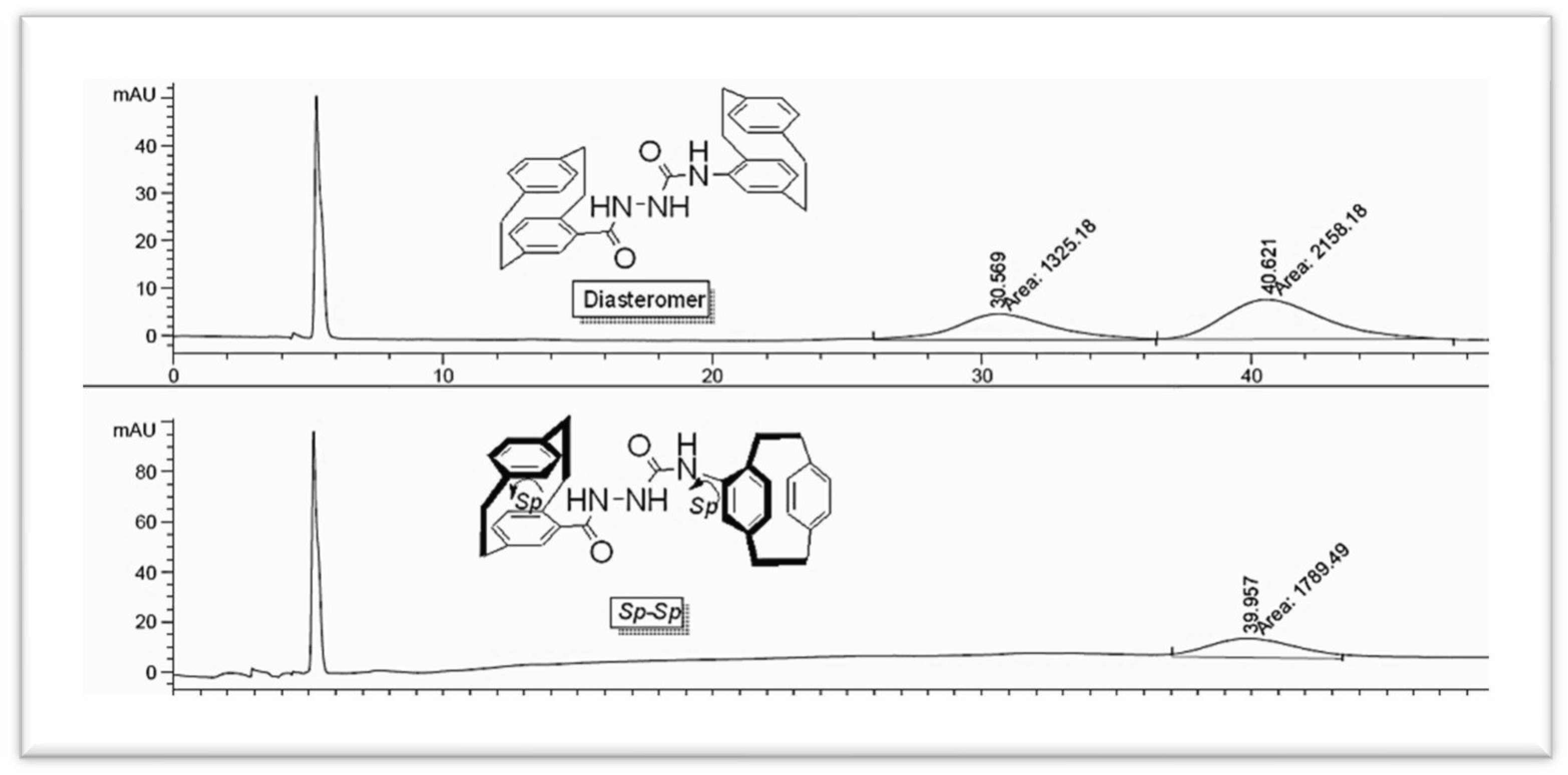

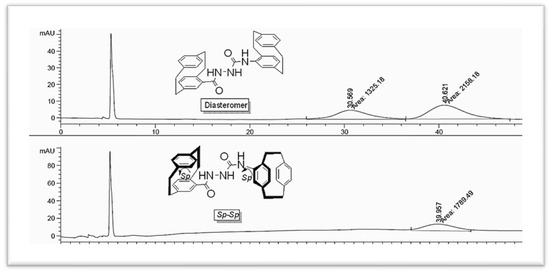

3.4. High-Performance Liquid Chromatography (HPLC)

Purification of N-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carbamoyl)-5’-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carboxamide (Sp-Sp-3) (60% ee) were conducted using preparative HPLC setups: The JASCO HPLC System (LC-NetII/ADC) (JASCO, Inc., Pfungstadt, Germany) equipped with two PU-2087 Plus pumps, a CO-2060 Plus thermostat, an MD-2010 Plus diode array detector, and a CHF-122SC fraction collector of ADVANTEC (München, Germany). For the purification, a Daicel Chiralpak (AZ-H 20 × 250 mm, particle size of 5 µm) (Daicel Chiralpak, Tokyo, Japan) was used with the HPLC-grade acetonitrile as a mobile phase. Detection was conducted at 256 nm.

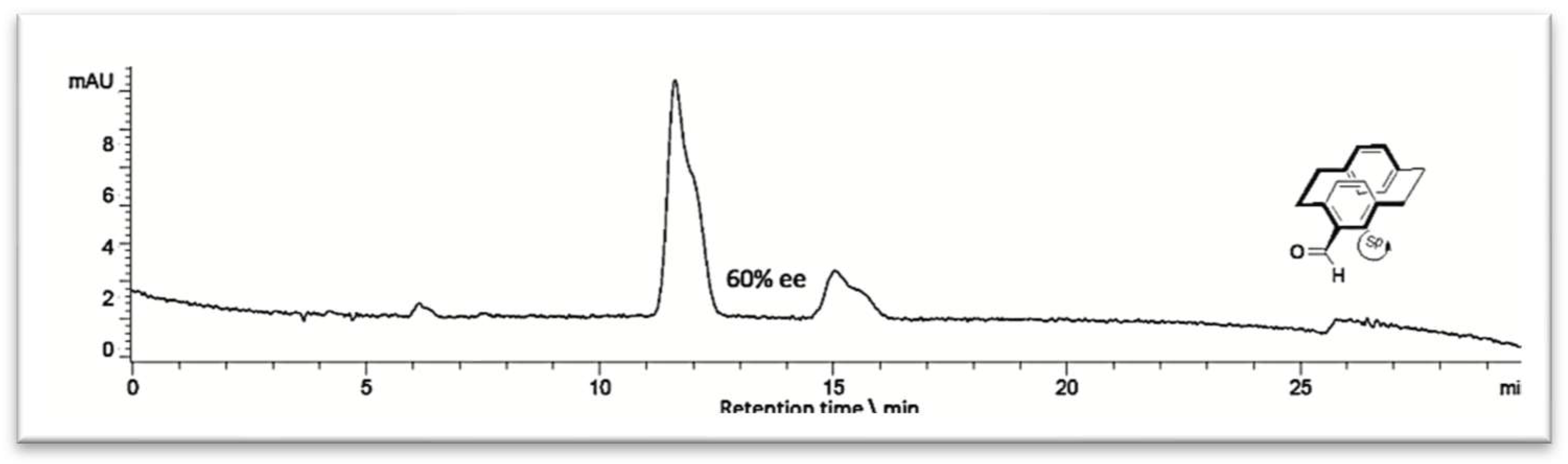

Analysis of the enantiomeric excess was conducted using an AGILENT HPLC 1100 series system with a G1322A degasser, a G1211A pump, a G1313A autosampler, a G1316A column oven, and a G1315B diode array system (Agilent, Waldbronn, Germany). Chiralpak OD-H (4.6 × 250 mm, 5 µm particle size) columns (Agilent, Waldbronn, Germany) were used with the HPLC-grade n-hexane/isopropanol as a mobile phase. The y-axis of the chromatogram is a measure of the intensity of absorbance (in units of mAU, or milli-Absorbance Units). The x-axis is in units of time (typically minutes), and is used to determine the retention time (tR) for each peak.

3.5. Preparation of 5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)-2,4-dihydro-3H-1,2,4-triazol-3-thiones 12a–f

A stirring mixture of hydrazinecarbothioamide derivatives 11a–f (1 mmol) and 100 mL of sodium hydroxide (1 mmol, as a 2N solution) was refluxed for 2–4 h. After cooling, the solution was acidified with 100 mL of hydrochloric acid (6M) and the formed precipitate was filtered. The precipitate was then recrystallized from ethanol.
5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)-4-phenyl-2,4-dihydro-3H-1,2,4-triazol-3-thione (12a). Colorless crystals (DMSO), 300 mg (78%), m.p. 150–2 °C, Rf = 0.5 (Hexane: Ethyl acetate; 10:1). 1H-NMR (400 MHz, DMSO-d6, ppm) δ = 14.20 (s, 1H, NH), 7.31–7.27 (m, 3H, Ph-H), 7.07–7.03 (m, 2H, Ph-H), 673–6.69 (m, 1H, PC-H), 6.63 (d, J = 2.0 Hz, 1H, PC-H), 6.58–6.49 (m, 3H, PC-H), 6.36–6.30 (m, 2H, PC-H), 3.10–2.89 (m, 6H, PC-CH2), 2.86–2.77 (m, 2H, PC-CH2). 13C-NMR (100 MHz, DMSO-d6, ppm) δ = 167.8 (C=S), 151.7 (triazole-C5), 139.7 (PC-C-6’), 139.2 (PC-C-11’), 139.1 (PC-C-14’), 139.0 (PC-C-3’), 135.7 (Ph-C), 135.0, 134.1, 133.5 (PC-CH), 132.9 (PC-2CH), 132.0, 131.0 (PC-CH), 128.8 (PC-C-4’), 128.6, 128.4 (Ph-2CH), 125.3 (Ph-CH), 34.8 (PC-CH2-1’), 34.7 (PC-CH2-10’), 34.4 (PC-C H2-9’), 33.6 (PC-CH2-2’). IR (ATR, cm−1) ṽ = 3099 (m, Ar-CH), 2924 (s, aliph-CH), 1499 (s, C-S), 1333 (s, C-N). MS (FAB) m/z (%) = 384.1 [M + H]+ (100). HRMS (FAB, [M + H]+, C24H22N332S1) calc.: 384.1534, found: 384.1526.
5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)-4-(pyridine-3-yl)-2,4-dihydro-3H-1,2,4-triazol-3-thione (12b). Colorless crystals (DMSO), 290 mg (76%), m.p. 170–2 °C, Rf = 0.4 (Hexane: Ethyl acetate; 10:1). 1H-NMR (400 MHz, DMSO-d6, ppm) δ = 14.16 (s, 1H, NH), 8.55–8.28 (m, 2H, Pyr-H), 7.71–7.17 (m, 2H, Pyr-H), 6.96–6.94 (m, 1H, PC-H), 6.74–6.65 (m, 2H, PC-H), 6.59–6.33 (m, 4H, PC-H), 3.16– 2.91 (m, 6H, PC-CH2), 2.88–2.78 (m, 2H, PC-CH2). 13C-NMR (100 MHz, DMSO-d6, ppm) δ = 167.9 (C=S), 151.4 (triazole-C5), 149.3, 148.7 (Pyr-CH), 140.0 (PC-C-6’), 139.5 (PC-C-11’), 139.2 (PC-C-14’), 139.1 (PC-C-3’), 136.5 (Pyr-C), 135.9, 135.1, 133.6, 133.1, 132.5, 132.0, 131.1 (PC-CH), 130.9 (PC-C-4’), 124.9, 123.6 (Pyr-CH), 34.7 (PC-CH2-1’), 34.6 (PC-CH2-10’), 34.4 (PC-CH2-9’), 33.4 (PC-CH2-2’). IR (ATR, cm−1) ṽ = 2924 (s, Ar-CH), 2850 (m, aliph-CH), 1483 (s, C-S), 1313 (s, C-N). MS (FAB) m/z (%) = 385.2 [M + H]+ (60). HRMS (FAB, [M + H]+, C23H21N432S1) calc.: 385.1487, found: 385.1488.
4-Allyl-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-2,4-dihydro-3H-1,2,4-triazol-3-thione (12c). Colorless crystals (DMSO), 270 mg (78%), m.p. 142–4 °C, Rf = 0.6 (Hexane: Ethyl acetate; 10:1). 1H-NMR (400 MHz, DMSO-d6, ppm) δ = 14.05 (s, 1H, NH), 6.75 (dd, J = 7.8, 1.9 Hz, 1H, PC-H), 6.69–6.58 (m, 5H, PC-H), 6.38 (dd, J = 7.9, 1.8 Hz, 1H, PC-H), 5.55–5.48 (m, 1H, allyl-CH=), 4.90–4.52 (m, 2H, allyl-CH2=), 4.51–4.20 (m, 2H, allyl-CH2), 3.13–2.90 (m, 7H, PC-CH2), 2.82–2.77 (m, 1H, PC-CH2). 13C-NMR (100 MHz, DMSO-d6, ppm) δ = 166.9 (C=S), 151.6 (triazole-C5), 140.4 (PC-C-6’), 139.4 (PC-C-11’), 139.0 (PC-C-14’), 138.9 (PC-C-3’), 135.9 (allyl-CH=), 135.5 (PC-C-4’), 133.5, 133.1, 133.0, 132.3, 131.5, 131.2, 125.3 (PC-CH), 117.5 (allyl-CH2=), 45.4 (allyl-CH2), 34.9 (PC-CH2-1’), 34.8 (PC-CH2-10’), 34.5 (PC-CH2-9’), 33.5 (PC-CH2-2’). IR (ATR, cm−1) ṽ = 3187 (m, Ar-CH), 2929 (s, aliph-CH), 1435 (s, C-S), 1268 (s, C-N). MS (FAB) m/z (%) = 348.2 [M + H]+ (65). HRMS (FAB, [M + H]+, C21H22N332S1) calc.: 347,1456, found: 347,1457.
5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)-4-ethyl-2,4-dihydro-3H-1,2,4-triazol-3-thione (12d). Colorless crystals (DMSO), 240 mg (72%), m.p. 138–40 °C, Rf = 0.65 (Hexane: Ethyl acetate; 10:1). 1H-NMR (400 MHz, DMSO-d6, ppm) δ = 13.98 (s, 1H, NH), 6.74 (dd, J = 7.8, 1.8 Hz, 1H, PC-H), 6.71–6.57 (m, 5H, PC-H), 6.38 (dd, J = 7.9, 1.8 Hz, 1H, PC-H), 3.86–3.58 (m, 2H, ethyl-CH2), 3.12–2.97 (m, 5H, PC-CH2), 2.96–2.91 (m, 2H, PC-CH2), 2.79–2.72 (m, 1H, PC-CH2), 0.81 (t, J = 7.1 Hz, 3H, ethyl-CH3). 13C-NMR (100 MHz, DMSO-d6, ppm) δ = 166.1 (C=S), 151.1 (triazole-C5), 140.4 (PC-C-6’), 139.2 (PC-C-11’), 138.7 (PC-C-14’), 138.6 (PC-C-3’), 135.8, 135.3, 133.2 (PC-CH), 132.8 (PC-2CH), 132.1 (PC-CH), 131.3 (PC-CH), 125.0 (PC-C-4’), 38.4 (ethyl-CH2), 34.7 (PC-CH2-1’), 34.6 (PC-CH2-10’), 34.3 (PC-CH2-9’), 33.1 (PC-CH2-2’), 13.0 (ethyl-CH3). IR (ATR, cm−1) ṽ = 3122 (m, Ar-CH), 2932 (s, aliph-CH), 1500 (s, C-S), 1283 (s, C-N). MS (FAB) m/z (%) = 336.2 [M + H]+ (95). HRMS (FAB, [M + H]+, C20H22N332S1) calc.: 336.1534, found: 336.1534.
4-Cyclopropyl-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-2,4-dihydro-3H-1,2,4-triazol-3-thione (12e). Colorless crystals (DMSO), 250 mg (72%), m.p. 167–9 °C, Rf = 0.65 (Hexane: Ethyl acetate; 10:1). 1H-NMR (400 MHz, DMSO-d6, ppm) δ = 14.27 (s, 1H, NH), 6.75–6.70 (m, 1H, PC-H), 6.67 (d, J = 1.8 Hz, 1H, PC-H), 6.62–6.55 (m, 4H, PC-H), 6.36 (dd, J = 7.8, 1.7 Hz, 1H, PC-H), 3.13–2.98 (m, 8H, PC-CH2), 2.91–2.86 (m, 1H, cyclopropyl-CH), 0.79–0.52 (m, 2H, cyclopropyl-CH2), 0.45–0.05 (m, 2H, cyclopropyl-CH2). 13C-NMR (100 MHZ, DMSO-d6, ppm) δ = 167.6 (C=S), 152.6 (triazole-C5), 139.3 (PC-C-6’), 139.2 (PC-C-11’), 139.0 (PC-C-14’), 138.9 (PC-C-3’), 134.7, 134.6, 133.0, 132.9, 132.8, 132.0, 131.0 (PC-CH), 126.8 (PC-C-4’), 34.8 (PC-CH2-1’), 34.7 (PC-CH2-10’), 34.5 (PC-CH2-9’), 33.4 (PC-CH2-2’), 25.9 (cyclopropyl-CH), 8.3 (cyclopropyl-CH2), 8.2 (cyclopropyl-CH2). IR (ATR, cm−1) ṽ = 3091 (m, Ar-CH), 2922 (s, aliph-CH), 1429 (s, C-S), 1362 (s, C-N). MS (FAB) m/z (%) = 348.2 [M + H]+ (100). HRMS (FAB, [M + H]+, C22H22N332S1) calc.: 348.1534, found: 348.1599.
4-Benzyl-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-2,4-dihydro-3H-1,2,4-triazol-3-thione (12f). Colorless crystals (DMSO), 310 mg (78%), m.p. 185–7 °C, Rf = 0.4 (Hexane: Ethyl acetate; 10:1). 1H-NMR (400 MHz, DMSO-d6, ppm) δ = 14.13 (s, 1H, NH), 7.12–7.07 (m, 3H, Ph-H), 6.78–6.76 (m, 2H, Ph-H), 6.74–6.65 (m, 2H, PC-H), 6.61–6.54 (m, 3H, PC-H), 6.30–6.36 (m, 2H, PC-H), 4.98 (s, 2H, Benzyl-CH2), 3.06–2.89 (m, 6H, PC-CH2), 2.73–2.66 (m, 2H, PC-CH2). 13C-NMR (100 MHz, DMSO-d6, ppm) δ = 167.4 (C=S), 151.8 (triazole-C5), 140.4 (PC-C-6’), 140.2 (PC-C-11’), 139.4 (PC-C-14’), 139.1 (PC-C-3’), 137.2 (Ph-C), 136.1 (PC-2CH), 135.7, 135.5 (PC-CH), 133.5 (PC-2CH), 133.1 (PC-CH), 133.0, 128.8 (Ph-CH), 128.6 (Ph-2CH), 128.4 (PC-C-4’), 125.3 (Ph-CH), 46.4 (Benzyl-CH2), 35.5 (PC-CH2-1’), 34.9 (PC-CH2-10’), 34.6 (PC-C H2-9’), 33.3 (PC-C H2-2’). IR (ATR, cm−1) ṽ = 3054 (w, Ar-CH), 2925 (w, aliph-CH), 1510 (w, C-S), 1183 (w, C-N). MS (FAB) m/z (%) = 398.2 [M + H]+ (100). HRMS (FAB, [M + H]+, C25H24N332S1) calc.: 398.1691, found: 398.1692.

3.6. Preparation of N-Substituted 5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)-1,3,4-Oxadiazol-2-Amines 13a–e

A stirring mixture of hydrazinecarbothioamide derivatives 11a–f (1 mmol) in 100 ml tetrahydrofuran (THF) together with 0.5 mL of Et3N was refluxed for 12–24 h (the reaction was monitored by thin-layer chromatography). After removal of the solvent on vacuum, the crude residue was purified by column chromatography (cyclohexane/ethyl acetate 10:5) as an eluent to afford compounds 3a–e.
5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)-N-phenyl-1,3,4-oxadiazol-2-amine (13a). Yellow crystals (Acetonitrile), 250 mg (68%), m.p. 192–4 °C, Rf = 0.5 (Hexane: Ethyl acetate; 5:1). 1H-NMR (400 MHz, Acetone-d6, ppm) δ = 10.03 (s, 1H, NH), 7.80–7.77 (m, 1H, Ph-H), 7.48–7.38 (m, 2H, Ph-H), 7.10–7.03 (m, 2H, Ph-H), 6.99–6.96 (m, 1H, PC-H), 6.92–6.73 (m, 2H, PC-H), 6.70–6.45 (m, 4H, PC-H), 3.23–3.13 (m, 3H, PC-CH2), 3.12–3.01 (m, 4H, PC-CH2), 3.00–2.94 (m, 1H, PC-CH2). 13C-NMR (100 MHz, Acetone-d6, ppm) δ = 162.7 (oxadiazole-C2), 160.0 (oxadiazole-C5), 141.3 (PC-C-6’), 141.1 (PC-C-11’), 140.5 (PC-C-14’), 140.2 (PC-C-3’), 139.6 (Ph-C), 137.1, 135.4, 134.0, 133.9, 133.6, 133.0, 132.9 (PC-CH), 131.3, 130.3, 129.9 (Ph-CH), 125.8 (PC-C-4’), 122.8, 121.6, (Ph-CH), 35.9 (PC-CH2-1’), 35.7 (PC-CH2-10’), 35.5 (PC-CH2-9’), 34.7 (PC-CH2-2’). IR (ATR, cm−1) ṽ = 3378 (m, NH), 2927 (m, Ar-CH), 2850 (s, aliph-CH), 1587 (C=N), 1482 (Ar-C=C), 1044 (C-O-C). MS (FAB) m/z (%) = 368.3 [M + H]+ (75). HRMS (FAB, [M + H]+, C24H22O1N3) calc.: 368.1763, found: 368.1761.
5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)-N-(pyridin-4-yl)-1,3,4-oxadiazol-2-amine (13b). Yellow crystals (Acetonitrile), 240 mg (66%), m.p. 212–4 °C, Rf = 0.3 (Hexane: Ethyl acetate; 5:1). 1H-NMR (400 MHz, CDCl3-d, ppm) δ = 9.06 (br, 1H, NH), 8.68 (d, J = 6.1 Hz, 2H, Pyr-H), 7.75–7.72 (m, 1H, Pyr-H), 7.28–7.26 (m, 1H, Pyr-H), 6.99–6.93 (m, 2H, PC-H), 6.90–6.73 (m, 5H, PC-H), 3.21–3.12 (m, 4H, PC-CH2), 3.10–3.01 (m, 3H, PC-CH2), 2.99–2.93 (m, 1H, PC-CH2). 13C-NMR (100 MHz, CDCl3-d, ppm) δ = 167.1 (oxadiazole-C2), 159.9 (oxadiazole-C5), 140.4 (pyr-2CH), 139.9 (PC-C-6’), 139.8 (PC-C-11’), 139.3 (PC-C-14’), 138.7 (PC-C-3’), 137.2 (Pyr-C), 136.3, 135.1, 133.1 (PC-CH), 132.5, 132.2, 130.9 (PC-CH), 130.6 (Pyr-CH), 130.0 (PC-CH), 125.0 (PC-C-4’), 124.2 (Pyr-CH), 35.5 (PC-CH2-1’), 35.3 (PC-CH2-10’), 35.1 (PC-CH2-9’), 34.3 (PC-CH2-2’). IR (ATR, cm−1) ṽ = 3017 (m, NH), 2922 (s, Ar-CH), 2850 (s, aliph-CH), 1581 (s, C=N), 1548 (s, Ar-C=C), 1043 (s, C-O-C). MS (FAB) m/z (%) = 369.2 [M + H]+ (100). HRMS (FAB, [M + H]+, C23H21O1N4) calc.: 369.1715, found: 369.1714.
N-Allyl-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-1,3,4-oxadiazol-2-amine (13c). Yellow crystals (Acetonitrile), 220 mg (66%), m.p. 206–8 °C, Rf = 0.7 (Hexane: Ethyl acetate; 5:1). 1H-NMR (400 MHz, Acetone-d6, ppm) δ = 6.91 (s, 1H, NH), 6.70–6.55 (m, 5H, PC-H), 6.44–6.37 (m, 2H, PC-H), 6.10–6.02 (m, 1H, allyl-CH=), 5.38–5.17 (m, 2H, allyl-CH2=), 4.07–4.05 (m, 2H, allyl-CH2), 3.18–3.10 (m, 3H, PC-CH2), 3.08–2.96 (m, 4H, PC-CH2), 2.95–2.89 (m, 1H, PC-CH2). 13C-NMR (100 MHz, Acetone-d6, ppm) δ = 164.3 (oxadiazole-C2), 160.0 (oxadiazole-C5), 141.3 (PC-C-6’), 140.6 (PC-C-11’), 140.3 (PC-C-14’), 139.8 (PC-C-3’), 137.1, 135.7, 135.1, 134.2 (PC-CH), 134.1 (allyl-CH=), 133.1, 132.9, 131.3 (PC-CH), 126.5 (PC-C-4’), 116.5 (allyl-CH2=), 46.4 (allyl-CH2), 36.1 (PC-CH2-1’), 35.8 (PC-CH2-10’), 35.6 (PC-CH2-9’), 34.8 (PC-CH2-2’). IR (ATR, cm−1) ṽ = 3165 (w, NH), 2929 (s, Ar-CH), 2861 (m, aliph-CH), 1557 (s, C=N), 1442 (s, Ar-C=C), 1035 (s, C-O-C). MS (FAB) m/z (%) = 332.2 [M + H]+ (100). HRMS (FAB, [M + H]+, C21H22O1N3) calc.: 332.1763, found: 332.1764.
5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)-N-ethyl-1,3,4-oxadiazol-2-amine (13d). Yellow crystals (Acetonitrile), 190 mg (60%), m.p. 211–4 °C, Rf = 0.7 (Hexane: Ethyl acetate; 5:1). 1H-NMR (400 MHz, DMSO-d6, ppm) δ = 6.83 (s, 1H, NH), 6.69–6.63 (m, 2H, PC-H), 6.59–6.54 (m, 3H, PC-H), 6.41 (d, J = 8.1, 1.4 Hz, 1H, PC-H), 6.31 (d, J = 7.9 Hz, 1H, PC-H), 4.03–3.82 (m, 2H, ethyl-CH2), 3.14–2.89 (m, 6H, PC-CH2), 2.94–2.89 (m, 2H, PC-CH2), 1.23 (t, J = 7.2 Hz, 3H, ethyl-CH3). 13C-NMR (100 MHz, DMSO-d6, ppm) δ = 163.1 (oxadiazole-C2), 158.1 (oxadiazole-C5), 140.1 (PC-C-6’), 139.2 (PC-C-11’), 139.1 (PC-C-14’), 138.3 (PC-C-3’), 136.1, 134.1, 133.2, 133.0, 131.9, 131.6, 130.1 (PC-CH), 125.0 (PC-C-4’), 37.5 (ethyl-CH2), 34.8 (PC-CH2-1’), 34.7 (PC-CH2-10’), 34.5 (PC-CH2-9’), 33.8 (PC-CH2-2’), 14.6 (ethyl-CH3). IR (ATR, cm−1) ṽ = 3196 (w, NH), 2928 (s, Ar-CH), 2853 (m, aliph-CH), 1553 (s, C=N), 1435 (s, Ar-C=C), 1034 (s, C-O-C). MS (FAB) m/z (%) = 320.2 [M + H]+ (95). HRMS (FAB, [M + H]+, C20H22O1N3) calc.: 320.1763, found: 320.1762.
5-(1,4(1,4)-Dibenzenacyclohexaphane-12-yl)-N-cyclopropyl-1,3,4-oxadiazol-2-amine (13e). Violet crystals (Acetonitrile), 210 mg (63%), m.p. 222–4 °C, Rf = 0.3 (Hexane: Ethyl acetate; 5:1). 1H-NMR (400 MHz, Methanol-d4, ppm) δ = 6.91 (s, 1H, NH), 6.67–6.59 (m, 2H, PC-H), 6.58–6.51 (m, 3H, PC-H), 6.45–6.35 (m, 2H, PC-H), 3.18–3.11 (m, 3H PC-CH2), 3.09–3.01 (m, 3H, PC-CH2), 2.98–2.91 (m, 2H, PC-CH2-CH2), 2.75–2.69 (m, 1H, cyclopropyl-CH), 0.84–0.79 (m, 2H, cyclopropyl-CH2), 0.67–0.63 (m, 2H, cyclopropyl-CH2). 13C-NMR (100 MHz, Methanol-d4, ppm) δ = 165.6 (oxadiazole-C2), 160.9 (oxadiazole-C5), 141.9 (PC-C-6’), 140.09 (PC-C-11’), 140.8 (PC-C-14’), 140.5 (PC-C-3’), 137.5, 136.0, 134.4, 134.3, 133.3, 133.2, 131.6 (PC-CH), 126.0 (PC-C-4’), 36.3 (PC-CH2-1’), 36.1 (PC-CH2-10’), 36.0 (PC-CH2-9’), 35.4 (PC-CH2-2’), 25.2 (cyclopropyl-CH), 7.4 (cyclopropyl-2CH2). IR (ATR, cm−1) ṽ = 3197 (w, NH), 2927 (s, Ar-CH), 2853 (m, aliph-CH), 1555 (s, C=N), 1435 (s, Ar-C=C), 1074 (s, C-O-C). MS (FAB) m/z (%) = 332.2 [M + H]+ (100). HRMS (FAB, [M + H]+, C21H22O1N3) calc.: 332.1763, found: 332.1762.

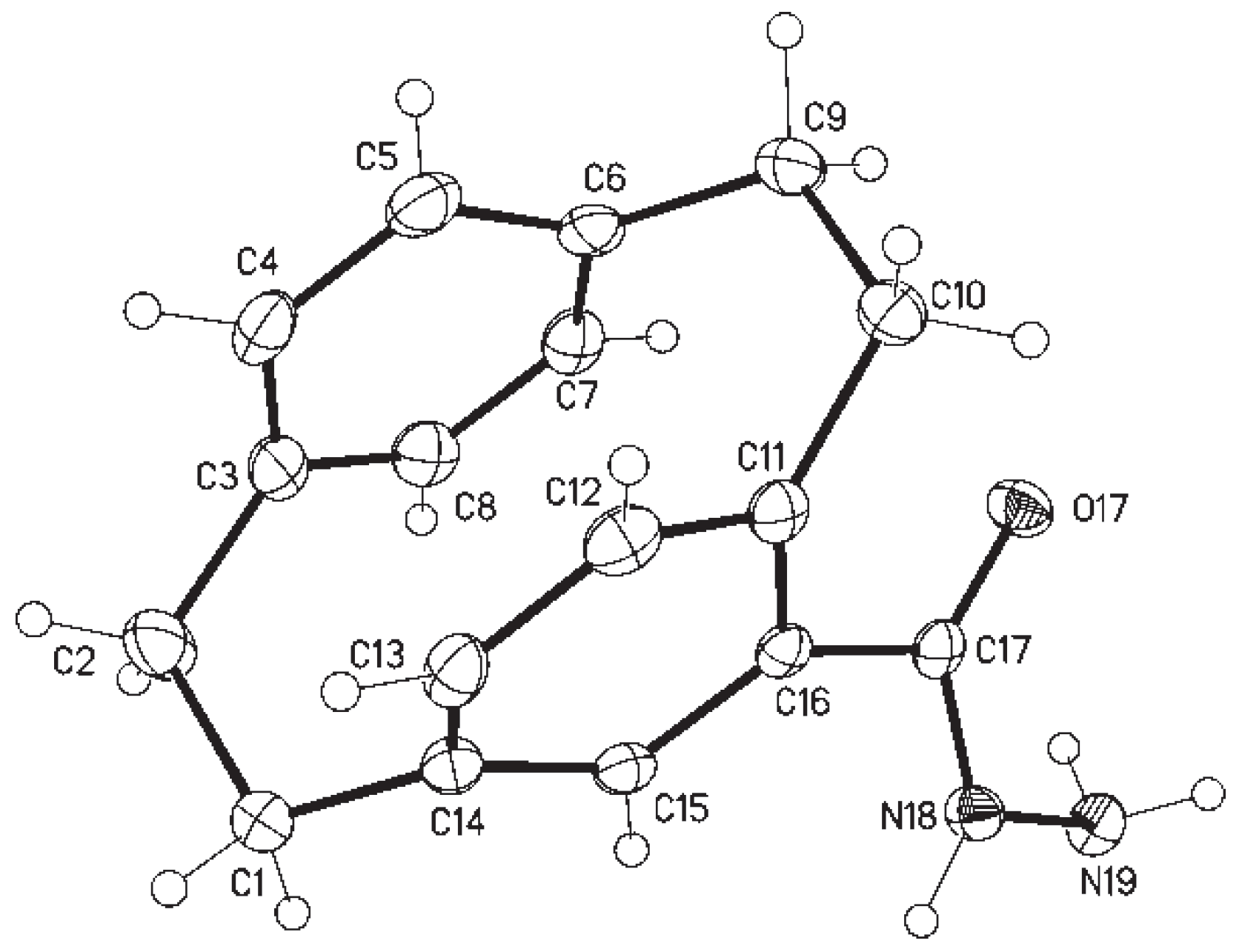

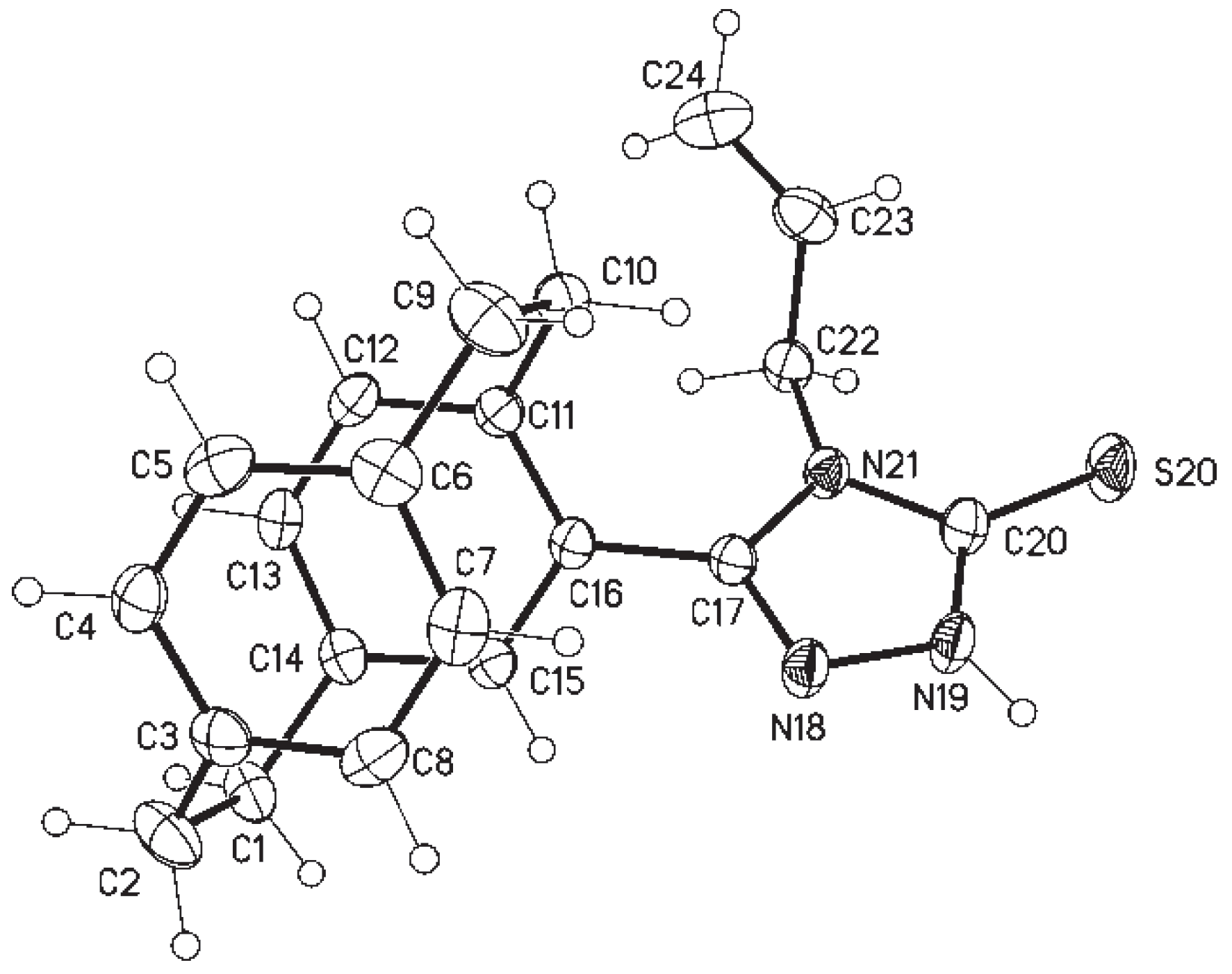

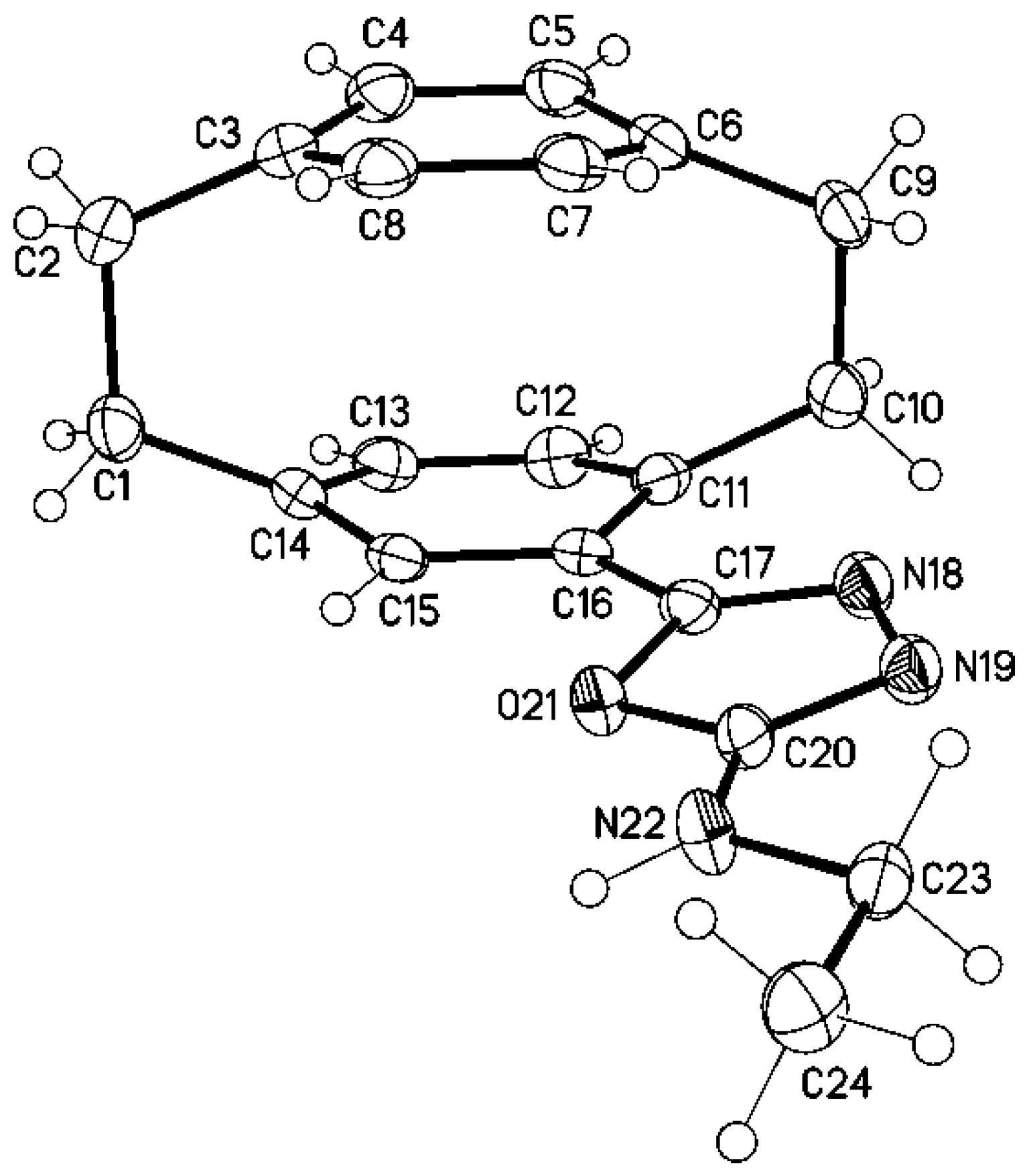

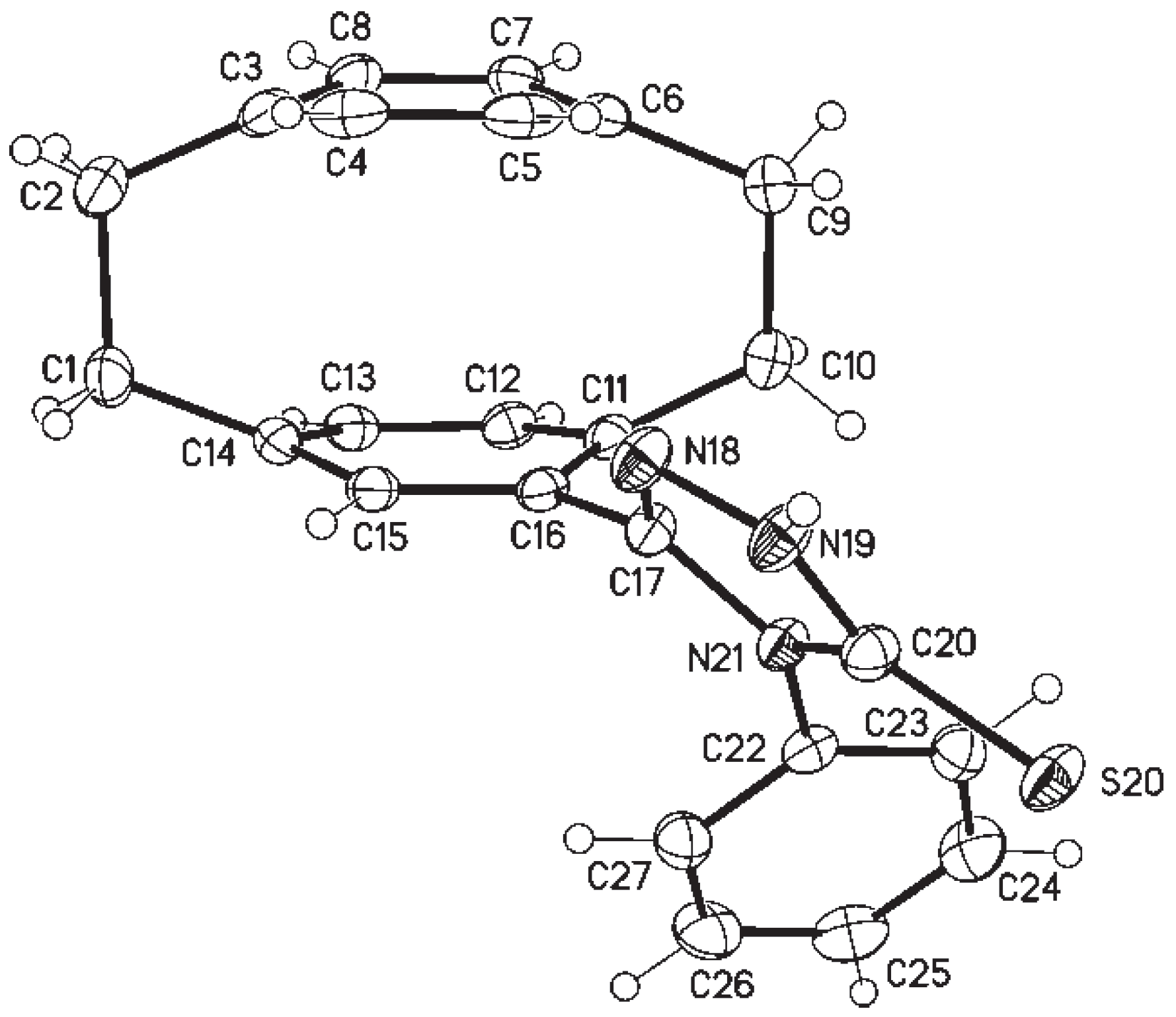

3.7. Crystal Structure Determinations of 1, 12a, 12d, 13a, and 13c

The single-crystal X-ray diffraction studies were carried out on a Bruker D8 Venture diffractometer with the PhotonII detector at 123(2) K using a Cu-Kα radiation (λ = 1.54178 Å). Dual space methods (SHELXT) [69] were used for the structure solution and refinement was carried out using SHELXL-2014 (full-matrix least-squares on F2) [70]. Hydrogen atoms were localized by the difference electron density determination and refined using a riding model (H(N) free, except 13a). Semi-empirical absorption corrections were applied. Due to the bad quality of the data of 13a the data were not deposited with The Cambridge Crystallographic Data Centre.
1: Colorless crystals, C17H18N2O, Mr = 266.33, crystal size 0.16 × 0.06 × 0.02 mm, monoclinic, space group C2/c (No. 15), a = 11.8196(4) Å, b = 7.9087(3) Å, c = 28.2370(10) Å, β = 92.708(2)°, V = 2636.58(16) Å3, Z = 8, ρ = 1.342 Mg/m-3, µ(Cu-Kα) = 0.67 mm-1, F(000) = 1136, 2θmax = 144.6°, 10645 measured reflections (2589 independent reflection in the HKLF 5 file, Rint = 0.000), 191 parameters, three restraints, R1 = 0.071 (for 2452 I > 2σ(I)), wR2 = 0.174 (all data), S = 1.16, largest diff. peak/hole = 0.33/−0.37 e Å-3. Refined as a two-component twin (BASF 0.139(4)). The option TwinRotMat of the program package PLATON [71] was used to create a HKLF 5 file, which was used for the refinement. Therefore, only unique reflections were used for the refinement (Rint = 0.00) (see cif-file for details).
12a: Colorless crystals, C24H21N3S, Mr = 383.50, crystal size 0.24 × 0.04 × 0.02 mm, orthorhombic, space group Pccn (No. 56), a = 19.8459(4) Å, b = 25.4981(5) Å, c = 7.5772(2) Å, V = 3834.31(15)) Å3, Z = 8, ρ = 1.329 Mg/m-3, µ(Cu-Kα) = 1.60 mm-1, F(000) = 1616, 2θmax = 144.2°, 28166 reflections, of which 3777 were independent (Rint = 0.039), 256 parameters, one restraint, R1 = 0.040 (for 3376 I > 2σ(I)), wR2 = 0.106 (all data), S = 1.04, largest diff. peak/hole = 0.46/−0.36 e Å−3.
12d: Colorless crystals, C21H21N3S·C2H6OS, Mr = 425.59, crystal size 0.24 × 0.06 × 0.02 mm, monoclinic, space group P21/c (No. 14), a = 24.8195(8) Å, b = 7.6344(2) Å, c = 11.6051 (4) Å, β = 101.468(1)°, V = 2155.06(12) Å3, Z = 4, ρ = 1.312 Mg/m-3, µ(Cu-Kα) = 2.38 mm−1, F(000) = 904, 2θmax = 144.6°, 28028 reflections, of which 4256 were independent (Rint = 0.030), 267 parameters, one restraint, R1 = 0.050 (for 4009 I > 2σ(I)), wR2 = 0.134(all data), S = 1.07, largest diff. peak/hole = 0.89/−0.63 e Å-3.

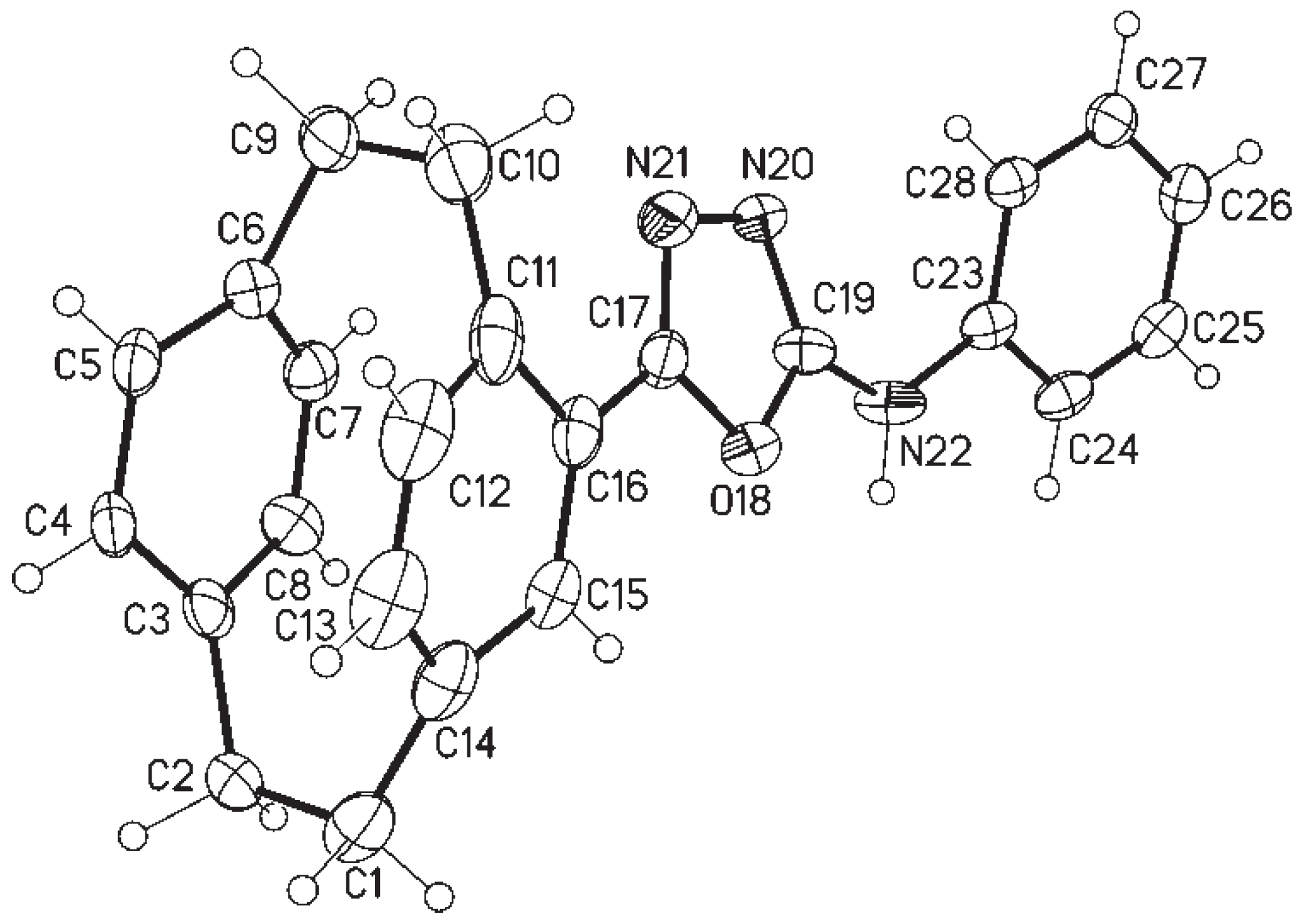

13a: Yellow crystals, C24H21N3O, Mr = 367.44, crystal size 0.20 × 0.12 × 0.03 mm, monoclinic, space group P21/c (No. 14), a = 13.0346(7) Å, b = 14.2304(8) Å, c = 10.0713(6) Å, β = 94.353(3)°, V = 1862.71(18) Å3, Z = 4, ρ = 1.310 Mg/m-3, µ(Cu-Kα) = 0.64 mm−1, F(000) = 776, 2θmax = 144.4°, 16984 reflections, of which 3674 were independent (Rint = 0.032).
13c: Violet crystals, C20H21N3O, Mr = 319.40, crystal size 0.16 × 0.08 × 0.02 mm, monoclinic, space group P21/c (No. 14), a = 17.2016(7) Å, b = 8.9605(4) Å, c = 10.6470(4) Å, β = 104.112(2)°, V = 1591.55 (11)Å3, Z = 4, ρ = 1.333 Mg/m-3, µ(Cu-Kα) = 0.66 mm-1, F(000) = 680, 2θmax = 145.4°, 26077 measured reflections (3119 independent reflection in the HKLF 5 file, Rint = 0.000), 221 parameters, one restraint R1 = 0.066 (for 2906 I > 2σ(I)), wR2 = 0.167 (all data), S = 1.17, largest diff. peak/hole = 0.29/−0.32 e Å−3. Refined as a two-component twin (BASF 0.194(5)). The option TwinRotMat of the program package PLATON [71] was used to create a HKLF 5 file, which was used for the refinement. Therefore, only unique reflections were used for the refinement (Rint = 0.00) (see cif-file for details).
CCDC 1971268 (1), 1998187 (12a), 1998188 (12d), and 1998189 (13c) contain the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif. Due to the bad quality of the data of 13a, the data were not deposited with The Cambridge Crystallographic Data Centre.

4. Conclusions

In this paper, enantiomerically pure Sp-Sp-N-([2.2]paracyclophanylcarbamoyl)-4-([2.2]paracyclophanylamide was synthesized from of 4-formyl-[2.2]paracyclophane (60% ee) and separated by preparative HPLC with chiral columns. We also synthesized two different classes of paracyclophanyl-heterocycles; named as 4’-[2.2]paracyclophanyl)-2,4-dihydro-3H-1,2,4-triazol-3-thiones and 2-amino-5-(4-[2.2]paracyclophanyl)-1,3,4-oxadiazoles. We would extend that work to include various classes of heterocyclic-paracyclophane derivatives, aiming to investigate the prospective biological and/or optical activity of these compounds.

Supplementary Materials

The following are available online (Figures S1–S32).

Author Contributions

A.A.A. (writing, editing, and submitting); S.B. (writing and editing); A.A.H. (supervision); N.K.M. (supervision); L.E.A.E.-H. (experiment); M.N. (X-ray analysis). All authors have read and agreed to the published version of the manuscript.

Funding

Support by the KIT-Publication Fund of the Karlsruhe Institute of Technology.

Acknowledgments

The authors thank the Egyptian Mission, Ministry of Higher Education, Egypt or its financial support to Lamiaa E. Abd El-Haleem during her accommodation at the Karlsruhe Institute for Technology, Karlsruhe, Germany. The authors also thank the DFG for providing Ashraf A. Aly with a one-month fellowship, enabling him to carry out the compound analysis at the Karlsruhe Institute of Technology, Karlsruhe, Germany in July–August 2019. We also acknowledge support by the KIT-Publication Fund of the Karlsruhe Institute of Technology.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Majerz, I.; Dziembowska, T. Substituent effect on inter-ring interaction in paracyclophanes. Mol. Divers. 2020, 24, 11–20. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Mielczarek, M.; Thomas, R.V.; Ma, C.; Kandemir, H.; Yang, X.; Bhadbhade, M.; Black, D.S.; Griffith, R.; Lewis, P.J.; Kumar, N. Synthesis and biological activity of novel mono-indole and mono-benzofuran inhibitors of bacterial transcription initiation complex formation. Bioorg. Med. Chem. 2015, 23, 1763–1775. [Google Scholar] [CrossRef] [PubMed]
  3. Kandemir, H.; Ma, C.; Kutty, S.K.; Black, D.S.; Griffith, R.; Lewis, P.J.; Kumar, N. Synthesis and biological evaluation of 2,5-di(7-indolyl)-1,3,4-oxadiazoles, and 2- and 7-indolyl 2-(1,3,4-thiadiazolyl)ketones as antimicrobials. Bioorg. Med. Chem. 2014, 22, 1672–1679. [Google Scholar] [CrossRef] [PubMed]
  4. Attanasi, O.A.; Spinelli, D. Target in heterocyclic systems. Ital. Soc. Chem. 2010, 14, 1. Available online: http://www.soc.chim.it/it/libriecollane/target_hs (accessed on 17 July 2020).
  5. Dutta, M.M.; Goswami, B.N.; Kataky, J.C.S. Studies on biologically active heterocycles. Part, I. Synthesis and antifungal activity of some new aroyl hydrazones and 2,5-disubstituted-1,3,4-oxadiazoles. J. Heterocycl. Chem. 1986, 23, 793–795. [Google Scholar] [CrossRef]
  6. Bernardino, A.M.R.; Gomes, A.O.; Charret, K.S.; Freitas, A.C.C.; Machado, G.M.C.; Canto-Cavalheiro, M.M.; Leon, L.L.; Amaral, V.F. Synthesis and leishmanicidal activities of 1-(4-X-phenyl)-N′-[(4-Y-phenyl)methylene]-1H-pyrazole-4-carbohydrazides. Eur. J. Med. Chem. 2006, 41, 80–87. [Google Scholar] [CrossRef]
  7. Terzioglu, N.; Gürsoy, A. Synthesis and anticancer evaluation of some new hydrazone derivatives of 2,6-dimethylimidazo [2,1-b][1,3,4]thiadiazole-5-carbohydrazide. Eur. J. Med. Chem. 2003, 38, 781–786. [Google Scholar] [CrossRef]
  8. Xia, Y.; Fan, C.-D.; Zhao, B.-X.; Zhao, J.; Shin, D.-S.; Miao, J.-Y. Synthesis of novel substituted pyrazole-5-carbohydrazide hydrazone derivatives and discovery of a potent apoptosis inducer in A549 lung cancer cells. Eur. J. Med. Chem. 2008, 43, 2347–2353. [Google Scholar] [CrossRef]
  9. Zheng, L.-W.; Wu, L.-L.; Zhao, B.-X.; Dong, W.-L.; Miao, J.-Y. Synthesis of novel substituted pyrazole-5-carbohydrazide hydrazone derivatives and discovery of a potent apoptosis inducer in A549 lung cancer cells. Bioorg. Med. Chem. 2009, 17, 1957–1962. [Google Scholar] [CrossRef]
  10. Wu, E.S.; Kover, A.; Loch, J.T., III; Rosenberg, L.P.; Semus, S.F.; Verhoest, P.R.; Gordon, J.C.; Machulskis, A.C.; McCreedy, S.A.; Zongrone, J. Acylhydrazones as M1/M3 selective muscarinic agonists. Bioorg. Med. Chem. Lett. 1996, 6, 2525–2530. [Google Scholar] [CrossRef]
  11. Markham, P.; Klyachko, E.; Crich, D.; Jaber, M.; Johnson, M.; Mulhearn, D.; Neyfakh, A. Bactericidal Antimicrobial Methods and Compositions for Use in Treating Gram Positive Infections. WO/2001/070213, 27 September 2020. [Google Scholar]
  12. Loits, D.; Braese, S.; North, A.J.; White, J.M.; Donnelly, P.S.; Rizzacasa, M.A. Synthesis of homochiral CoIII– and MnIV–[2.2]paracyclophane-schiff base complexes with predetermined chirality at the metal centre. Eur. J. Inorg. Chem. 2016, 22, 3541–3544. [Google Scholar] [CrossRef]
  13. An, P.; Huo, Y.; Chen, Z.; Song, C.; Ma, Y. Metal-free enantioselective addition of nucleophilic silicon to aromatic aldehydes catalyzed by a [2.2]paracyclophane-based N-heterocyclic carbene catalyst. Org. Biomol. Chem. 2017, 15, 3202–3206. [Google Scholar] [CrossRef] [PubMed]
  14. Dasgupta, A.; Ramkumar, V.; Sankararaman, S. Catalytic asymmetric hydrogenation using a [2.2]paracyclophane based chiral 1,2,3-triazol-5-ylidene–Pd complex under ambient conditions and 1 atmosphere of H2†. RSC Adv. 2015, 5, 21558–21561. [Google Scholar] [CrossRef]
  15. Glover, J.E.; Plieger, P.G.; Rowlands, G.J. An enantiomerically pure pyridine NC-palladacycle derived from [2.2]paracyclophane. Aust. J. Chem. 2014, 67, 374–380. [Google Scholar] [CrossRef] [Green Version]
  16. Wang, L.; Ye, M.; Wang, L.; Duan, W.; Song, C.; Ma, Y. Synthesis of fluorine-substituted [2.2]paracyclophane-based carbene precursors for copper-catalyzed enantioselective boration of α,β-unsaturated ketones. Tetrahedron Asymm. 2017, 28, 54–61. [Google Scholar] [CrossRef]
  17. Eweiss, N.; Bahajaj, A.; Elsherbini, E. Synthesis of heterocycles. Part VI. Synthesis and antimicrobial activity of some 4-amino-5-aryl-1, 2, 4-triazole-3-thiones and their derivatives. J. Heterocycl. Chem. 1986, 23, 1451–1458. [Google Scholar] [CrossRef]
  18. Ashok, M.; Holla, B.S.; Poojary, B. Convenient one pot synthesis and antimicrobial evaluation of some new Mannich bases carrying 4-methylthiobenzyl moiety. Eur. J. Med. Chem. 2007, 42, 1095–1101. [Google Scholar] [CrossRef]
  19. Tozkoparan, B.; Gökhan, N.; Aktay, G.; Yeşilada, E.; Ertan, M. 6-benzylidenethiazolo [3,2-b]-1,2,4-triazole-5 (6H)-ones-substituted with ibuprofen: Synthesis, characterization and evaluation of anti-inflammatory activity. Eur. J Med. Chem. 2000, 35, 743–750. [Google Scholar] [CrossRef]
  20. Mavrova, A.T.; Wesselinova, D.; Tsenov, Y.A.; Denkova, P. Synthesis, cytotoxicity and effects of some 1, 2, 4-triazole and 1, 3, 4-thiadiazole derivatives on immunocompetent cells. Eur. J Med. Chem. 2009, 44, 63–69. [Google Scholar] [CrossRef]
  21. Li, Z.; Gu, Z.; Yin, K.; Zhang, R.; Deng, Q.; Xiang, J. Synthesis of substituted-phenyl-1,2,4-triazol-3-thione analogues with modified d-glucopyranosyl residues and their antiproliferative activities. Eur. J. Med. Chem. 2009, 44, 4716–4720. [Google Scholar] [CrossRef]
  22. Kruse, L.I.; Kaiser, C.; DeWolf, W.E.; Finkelstein, J.A.; Frazee, J.S.; Hilbert, E.L.; Ross, S.T.; Flaim, K.E.; Sawyer, J.L. Some benzyl-substituted imidazoles, triazoles, tetrazoles, pyridinethiones, and structural relatives as multisubstrate inhibitors of dopamine. β-hydroxylase. 4. Structure-activity relationships at the copper binding site. J. Med. Chem. 1990, 33, 781–789. [Google Scholar] [CrossRef] [PubMed]
  23. Gilmore, J.L.; King, B.W.; Asakawa, N.; Harrison, K.; Tebben, A.; Sheppeck, J.E., II; Liu, R.-Q.; Covington, M.; Duan, J.J.-W. Synthesis and structure–activity relationship of a novel, non-hydroxamate series of TNF-α converting enzyme inhibitors. Bioorg. Med. Chem. Lett. 2007, 17, 4678–4682. [Google Scholar] [CrossRef]
  24. Maingot, L.; Leroux, F.; Landry, V.; Dumont, J.; Nagase, H.; Villoutreix, B.; Sperandio, O.; Deprez-Poulain, R.; Deprez, B. New non-hydroxamic ADAMTS-5 inhibitors based on the 1, 2, 4-triazole-3-thiol scaffold. Bioorg. Med. Chem. Lett. 2010, 20, 6213–6216. [Google Scholar] [CrossRef]
  25. Amtul, Z.; Rasheed, M.; Choudhary, M.I.; Rosanna, S.; Khan, K.M. Kinetics of novel competitive inhibitors of urease enzymes by a focused library of oxadiazoles/thiadiazoles and triazoles. Biochem. Biophy. Res. Commu. 2004, 319, 1053–1063. [Google Scholar] [CrossRef] [PubMed]
  26. Vella, P.; Hussein, W.M.; Leung, E.W.; Clayton, D.; Ollis, D.L.; Mitić, N.; Schenk, G.; McGeary, R.P. The identification of new metallo-β-lactamase inhibitor leads from fragment-based screening. Bioorg. Med. Chem. Lett. 2011, 21, 3282–3285. [Google Scholar] [CrossRef]
  27. Hussein, W.M.; Vella, P.; Islam, N.U.; Ollis, D.L.; Schenk, G.; McGeary, R.P. 3-Mercapto-1, 2, 4-triazoles and N-acylated thiosemicarbazides as metallo-β-lactamase inhibitors. Bioorg. Med. Chem. Lett. 2012, 22, 380–386. [Google Scholar]
  28. Feng, L.; Yang, K.-W.; Zhou, L.-S.; Xiao, J.-M.; Yang, X.; Zhai, L.; Zhang, Y.-L.; Crowder, M.W. N-heterocyclic dicarboxylic acids: Broad-spectrum inhibitors of metallo-β-lactamases with co-antibacterial effect against antibiotic-resistant bacteria. Bioorg. Med. Chem. Lett. 2012, 22, 5185–5189. [Google Scholar] [CrossRef] [PubMed]
  29. Yang, S.-K.; Kang, J.S.; Oelschlaeger, P.; Yang, K.-W. Azolylthioacetamide: A highly promising scaffold for the development of metallo-β-lactamase inhibitors. ACS Med. Chem. Lett. 2015, 6, 455–460. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Christopeit, T.; Yang, K.-W.; Yang, S.-K.; Leiros, H.-K. The structure of the metallo-β-lactamase VIM-2 in complex with a triazolylthioacetamide inhibitor. Acta Crystallogr. F 2016, 72, 813–819. [Google Scholar] [CrossRef]
  31. Franklim, T.N.; Freire-de-Lima, L.; De Nazareth Sá Diniz, J.; Previato, J.O.; Castro, R.N.; Mendonça-Previato, L.; De Lima, M.E.F. Design, synthesis and trypanocidal evaluation of novel 1,2,4-triazoles-3-thiones derived from natural piperine. Molecules 2013, 18, 6366–6382. [Google Scholar] [CrossRef]
  32. Hassan, G.S.; El-Messery, S.M.; Al-Omary, F.A.; Al-Rashood, S.T.; Shabayek, M.I.; Abulfadl, Y.S.; Habib, E.-S.E.; El-Hallouty, S.M.; Fayad, W.; Mohamed, K.M. Nonclassical antifolates, part 4. 5-(2-Aminothiazol-4-yl)-4-phenyl-4H-1,2,4-triazole-3-thiols as a new class of DHFR inhibitors: Synthesis, biological evaluation and molecular modeling study. Eur. J. Med. Chem. 2013, 66, 135–145. [Google Scholar] [CrossRef] [PubMed]
  33. Boraei, A.T.; Gomaa, M.S.; El Sayed, H.; Duerkop, A. Design, selective alkylation and X-ray crystal structure determination of dihydro-indolyl-1,2,4-triazole-3-thione and its 3-benzylsulfanyl analogue as potent anticancer agents. Eur. J. Med. Chem. 2017, 125, 360–371. [Google Scholar] [CrossRef] [PubMed]
  34. Aouad, M.R.; Mayaba, M.M.; Naqvi, A.; Bardaweel, S.K.; Al-blewi, F.F.; Messali, M.; Rezki, N. Design, synthesis, in silico and in vitro antimicrobial screenings of novel 1,2,4-triazoles carrying 1,2,3-triazole scaffold with lipophilic side chain tether. Chem. Cent. J. 2017, 11, 117. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Timur, İ.; Kocyigit, Ü.M.; Dastan, T.; Sandal, S.; Ceribası, A.O.; Taslimi, P.; Gulcin, İ.; Koparir, M.; Karatepe, M.; Çiftçi, M. In vitro cytotoxic and in vivo antitumoral activities of some aminomethyl derivatives of 2,4-dihydro-3H-1,2,4-triazole-3-thiones—Evaluation of their acetylcholinesterase and carbonic anhydrase enzymes inhibition profiles. J. Biochem. Mol. Tox. 2019, 33, e22239. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Küçükgüzel, I.; Tatar, E.; Küçükgüzel, Ş.G.; Rollas, S.; De Clercq, E. Synthesis of some novel thiourea derivatives obtained from 5-[(4-aminophenoxy) methyl]-4-alkyl/aryl-2,4-dihydro-3H-1,2,4-triazole-3-thiones and evaluation as antiviral/anti-HIV and anti-tuberculosis agents. Eur. J. Med. Chem. 2008, 43, 381–392. [Google Scholar] [CrossRef]
  37. Kaproń, B.; Łuszczki, J.J.; Płazińska, A.; Siwek, A.; Karcz, T.; Gryboś, A.; Nowak, G.; Makuch-Kocka, A.; Walczak, K.; Langner, E. Development of the 1, 2, 4-triazole-based anticonvulsant drug candidates acting on the voltagegated sodium channels. Insights from in-vivo, in-vitro, and in-silico studies. Eur. J. Pharm. Sci. 2019, 129, 42–57. [Google Scholar] [CrossRef]
  38. Sun, X.H.; Tao, Y.; Liu, Y.F.; Chen, B.; Jia, Y.Q.; Yang, J.W. Synthesis and biological activities of alkyl substituted triazolethione Schiff base. Chin. J. Chem. 2008, 26, 1133–1136. [Google Scholar] [CrossRef]
  39. Luszczki, J.J.; Plech, T.; Wujec, M. Effect of 4-(4-bromophenyl)-5-(3-chlorophenyl)-2, 4-dihydro-3H-1,2,4-triazole-3-thione on the anticonvulsant action of different classical antiepileptic drugs in the mouse maximal electroshock-induced seizure model. Eur. J. Pharmacol. 2012, 690, 99–106. [Google Scholar] [CrossRef]
  40. Tozkoparan, B.; Kuepeli, E.; Yesilada, E.; Isik, S.; Oezalp, M.; Ertan, M. Synthesis and evaluation of analgesic/anti-inflammatory and antimicrobial activities of 3-substituted-1,2,4-triazole-5-thiones. Arzneimittelforschung 2005, 55, 533–540. [Google Scholar] [CrossRef]
  41. Idrees, M.; Nasare, R.D.; Siddiqui, N.J. Synthesis of S-phenacylated trisubstituted 1,2,4-triazole incorporated with 5-(benzofuran-2-yl)-1-phenyl-1H-pyrazol-3-yl moiety and their antibacterial screening. Der Chem. Sin. 2016, 7, 28–35. [Google Scholar]
  42. Barot, K.P.; Manna, K.S.; Ghate, M.D. Design, synthesis and antimicrobial activities of some novel 1, 3, 4-thiadiazole, 1,2,4-triazole-5-thione and 1,3-thiazolan-4-one derivatives of benzimidazole. J. Saudi Chem. Soc. 2017, 21, S35–S43. [Google Scholar] [CrossRef] [Green Version]
  43. Hanif, M.; Saleem, M.; Hussain, M.T.; Rama, N.H.; Zaib, S.; Aslam, M.A.M.; Jones, P.G.; Iqbal, J. Synthesis, urease inhibition, antioxidant and antibacterial studies of some 4-amino-5-aryl-3H-1,2,4-triazole-3-thiones and their 3,6-disubstituted 1,2,4-triazolo[3,4-b]1,3,4-thiadiazole derivatives. J. Braz. Chem. Soc. 2012, 23, 854–860. [Google Scholar] [CrossRef] [Green Version]
  44. Özadalı, K.; Özkanlı, F.; Jain, S.; Rao, P.P.; Velázquez-Martínez, C.A. Synthesis and biological evaluation of isoxazolo[4,5-d]pyridazin-4-(5H)-one analogues as potent anti-inflammatory agents. Bioorg. Med. Chem. 2012, 20, 2912–2922. [Google Scholar] [CrossRef] [PubMed]
  45. Patil, P.B.; Patil, J.D.; Korade, S.N.; Kshirsagar, S.D.; Govindwar, S.P.; Pore, D.M. An efficient synthesis of anti-microbial 1,2,4-triazole-3-thiones promoted by acidic ionic liquid. Res. Chem. Intermed. 2016, 42, 4171–4180. [Google Scholar] [CrossRef]
  46. Adachi, C.; Tsutsui, T.; Saito, S. Blue light-emitting organic electroluminescent devices. Appl. Phy. Lett. 1990, 56, 799–801. [Google Scholar] [CrossRef] [Green Version]
  47. Lee, J.; Shizu, K.; Tanaka, H.; Nomura, H.; Yasuda, T.; Adachi, C. Oxadiazole-and triazole-based highly-efficient thermally activated delayed fluorescence emitters for organic light-emitting diodes. J. Mat. Chem. 2013, 1, 4599–4604. [Google Scholar] [CrossRef]
  48. Deeks, S.G.; Kar, S.; Gubernick, S.I.; Kirkpatrick, P. Raltegravir. Nat. Rev. Drug Discov. 2008, 7, 117–118. [Google Scholar] [CrossRef]
  49. James, N.D.; Growcott, J.W. Zibotentan endothelin ETA receptor antagonist oncolytic. Drug. Future 2009, 34, 624–633. [Google Scholar] [CrossRef]
  50. Ducharme, Y.; Blouin, M.; Brideau, C.; Châteauneuf, A.; Gareau, Y.; Grimm, E.L.; Juteau, H.; Laliberté, S.; MacKay, B.; Massé, F. The discovery of setileuton, a potent and selective 5-lipoxygenase inhibitor. ACS Med. Chem. Lett. 2010, 1, 170–174. [Google Scholar] [CrossRef] [Green Version]
  51. Boström, J.; Hogner, A.; Llinàs, A.; Wellner, E.; Plowright, A.T. Oxadiazoles in medicinal chemistry. J. Med. Chem. 2012, 55, 1817–1830. [Google Scholar] [CrossRef]
  52. Frost, J.R.; Scully, C.C.; Yudin, A.K. Oxadiazole grafts in peptide macrocycles. Nat. Chem. 2016, 8, 1105–1111. [Google Scholar] [CrossRef] [PubMed]
  53. Kadi, A.A.; El-Brollosy, N.R.; Al-Deeb, O.A.; Habib, E.E.; Ibrahim, T.M.; El-Emam, A.A. Synthesis, antimicrobial, and anti-inflammatory activities of novel 2-(1-adamantyl)-5-substituted-1,3,4-oxadiazoles and 2-(1-adamantylamino)-5-substituted-1,3, 4-thiadiazoles. Eur. J. Med. Chem. 2007, 42, 235–242. [Google Scholar] [CrossRef] [PubMed]
  54. Mickevičius, V.; Vaickelionienė, R.; Sapijanskaitė, B. Synthesis of substituted 1,3,4-oxadiazole derivatives. Chem. Heterocycl. Compds. 2009, 45, 215–218. [Google Scholar] [CrossRef]
  55. Bentiss, F.; Lagrenee, M. A new synthesis of symmetrical 2,5-disubstituted 1,3,4-oxadiazoles. J. Heterocycl. Chem. 1999, 36, 1029–1032. [Google Scholar] [CrossRef]
  56. Liras, S.; Allen, M.P.; Segelstein, B.E. A mild method for the preparation of 1,3,4-oxadiazoles: Triflic anhydride promoted cyclization of diacylhydrazines. Synth. Commun. 2000, 30, 437–443. [Google Scholar] [CrossRef]
  57. Gomes, D.; Borges, C.; Pinto, J. Study of the synthesis of poly (4,4′-diphenylether-1,3,4-oxadiazole) in solutions of poly (phosphoric acid). Polymer 2001, 42, 851–865. [Google Scholar] [CrossRef]
  58. Souldozi, A.; Ramazani, A. The reaction of (N-isocyanimino) triphenylphosphorane with benzoic acid derivatives: A novel synthesis of 2-aryl-1,3,4-oxadiazole derivatives. Tetrahedron Lett. 2007, 48, 1549–1551. [Google Scholar] [CrossRef]
  59. Ramazani, A.; Abdian, B.; Nasrabadi, F.Z.; Rouhani, M. The reaction of N-isocyaniminotriphenylphosphorane with biacetyl in the presence of (E)-cinnamic acids: Synthesis of fully substituted 1,3,4-oxadiazole derivatives via intramolecular aza-wittig reactions of in situ generated iminophosphoranes. Phosphorus Sulfur 2013, 188, 642–648. [Google Scholar] [CrossRef]
  60. Ramazani, A.; Zeinali Nasrabadi, F.; Ahmadi, Y. One-pot, four-component synthesis of fully substituted 1,3,4-oxadiazole derivatives from (isocyanoimino) triphenylphosphorane, a primary amine, an aromatic carboxylic acid, and chloroacetone. Helv. Chim. Acta 2011, 94, 1024–1029. [Google Scholar] [CrossRef]
  61. Ramazani, A.; Souldozi, A. Iminophosphorane-mediated one-pot synthesis of 1,3,4-oxadiazole derivatives. Arkivoc 2008, 16, 235–242. [Google Scholar]
  62. Aly, A.A.; Bräse, S.; Hassan, A.A.; Mohamed, N.K.; El-Haleem, L.E.A.; Nieger, M.; Morsye, N.M.; Abdelhafez, E.M.N. New paracyclophanylthiazoles of anti-leukemia activity; design, synthesis molecular docking and mechanistic studies. Molecules 2020, 25, 3089. [Google Scholar] [CrossRef] [PubMed]
  63. Brown, C.; Farthing, A. Preparation and structure of di-p-xylylene. Nature 1949, 164, 915–916. [Google Scholar] [CrossRef]
  64. Aly, A.A.; Brown, A.B.; El-Emary, T.I.; Ewas, A.M.; Ramadan, M. Hydrazinecarbothioamide group in the synthesis of heterocycles. Arkivoc 2009, i, 150–197. [Google Scholar]
  65. Vögtle, F.; Neumann, P. The synthesis of [2.2]phanes. Synthesis 1973, 2, 85–103. [Google Scholar] [CrossRef]
  66. Zitt, H.; Dix, I.; Hopf, H.; Jones, P.G. 4,15-Diamino[2.2]paracyclophane, a Reusable Template for Topochemical Reaction Control in Solution. Eur. J. Org. Chem. 2002, 2298–2307. [Google Scholar] [CrossRef]
  67. Hopf, H.; Narayanan, S.V.; Jones, P.G. The preparation of new functionalized [2.2]paracyclophane derivatives with N-containing functional groups. Beilstein J. Org. Chem. 2015, 11, 437–445. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Braun, C.; Bräse, S.; Schafer, L.L. Planar-chiral [2.2]Paracyclophane-based amides as proligands for titanium- and zirconium-catalyzed hydroamination. Eur. J. Org. Chem. 2017, 1760–1764. [Google Scholar] [CrossRef]
  69. Sheldrick, G.M. SHELXT-Integrated space-group and crystal-structure determination. Acta Crystallogr. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  70. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  71. Spek, A.L. Structure validation in chemical crystallography. Acta Crystallogr. D 2009, 65, 148–155. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 25 03315 g001 550

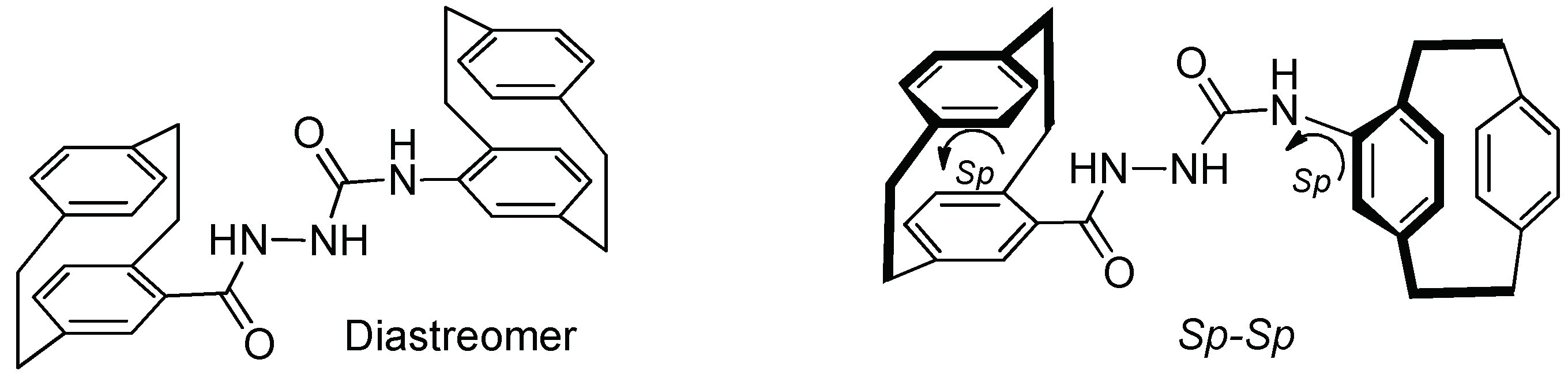

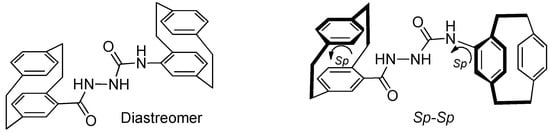

Figure 1. The structure of the diastereomeric and homochiral linked paracyclophanes such as N-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carbamoyl)-5’-(1,4(1,4)-dibenzenacyclohexaphane-12-ylcarboxamide.
Figure 1. The structure of the diastereomeric and homochiral linked paracyclophanes such as N-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carbamoyl)-5’-(1,4(1,4)-dibenzenacyclohexaphane-12-ylcarboxamide.
Molecules 25 03315 g001
Molecules 25 03315 g002 550

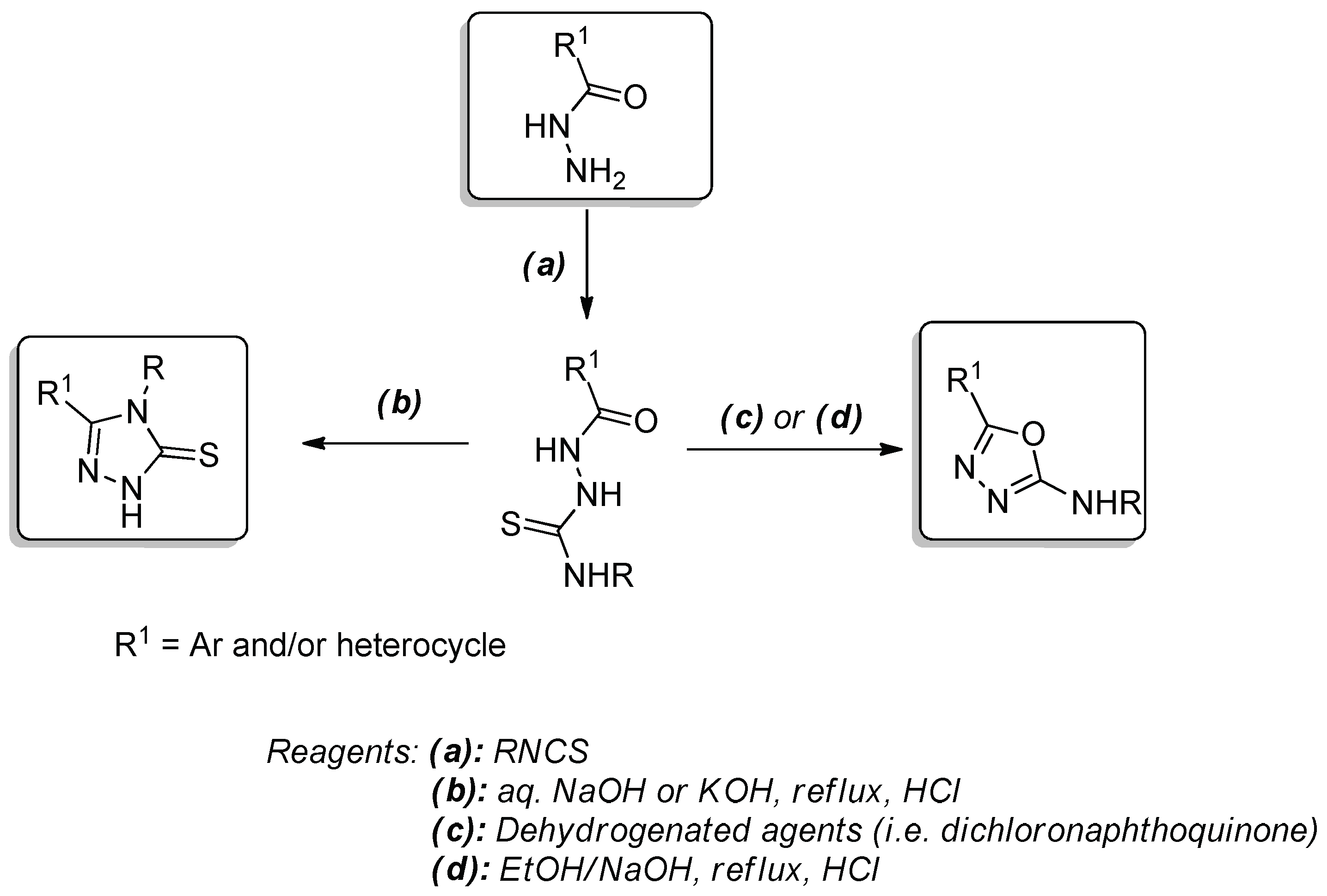

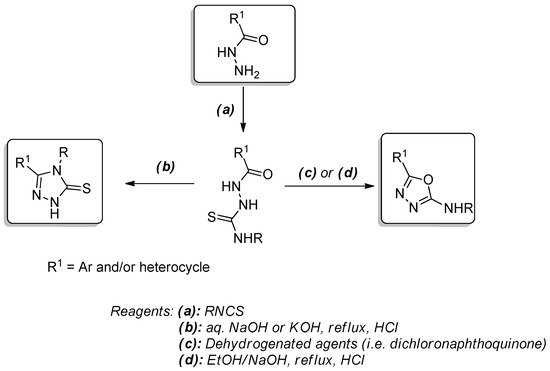

Figure 2. Different methods of preparation of 1,2,4-triazole-3-thiones and 2-substituted amino-1,3,4-oxadiazoles.
Figure 2. Different methods of preparation of 1,2,4-triazole-3-thiones and 2-substituted amino-1,3,4-oxadiazoles.
Molecules 25 03315 g002
Molecules 25 03315 sch001 550
Scheme 1. Synthesis of the racemic and Sp-Sp-N-([2.2]-paracyclophanylcarbamoyl)-4-([2.2]paracyclophanylcarboxamide (3).
Scheme 1. Synthesis of the racemic and Sp-Sp-N-([2.2]-paracyclophanylcarbamoyl)-4-([2.2]paracyclophanylcarboxamide (3).
Molecules 25 03315 sch001
Molecules 25 03315 sch002 550
Scheme 2. Strategy of preparing the racemic-1. Reagents and conditions: (a) (COCl)2/AlCl3, -10 to 5 °C, 20 min [68]; (b) PhCl, ∆, 40 h [67]; (c) EtOH, reflux 24 h [67]; (d) NH2NH2 as a solvent, ∆, 14 h.
Scheme 2. Strategy of preparing the racemic-1. Reagents and conditions: (a) (COCl)2/AlCl3, -10 to 5 °C, 20 min [68]; (b) PhCl, ∆, 40 h [67]; (c) EtOH, reflux 24 h [67]; (d) NH2NH2 as a solvent, ∆, 14 h.
Molecules 25 03315 sch002
Molecules 25 03315 sch003 550
Scheme 3. Strategy of preparing racemic-2. Reagents and conditions: (e) NaN3/acetone/water (3:1 by v.), room temperature 2 h [68]; (f) Toluene, heat, Ar, 80 °C, 1 h [68].
Scheme 3. Strategy of preparing racemic-2. Reagents and conditions: (e) NaN3/acetone/water (3:1 by v.), room temperature 2 h [68]; (f) Toluene, heat, Ar, 80 °C, 1 h [68].
Molecules 25 03315 sch003
Molecules 25 03315 g003 550
Figure 3. Molecular structure of compound 1 identified according to the IUPAC nomenclature as 1,4(1,4)-dibenzenacyclohexaphane-12-carbohydrazide.
Figure 3. Molecular structure of compound 1 identified according to the IUPAC nomenclature as 1,4(1,4)-dibenzenacyclohexaphane-12-carbohydrazide.
Molecules 25 03315 g003
Molecules 25 03315 sch004 550
Scheme 4. Preparation of enantiomeric pure Sp-Sp-3. Reagents and conditions: (g) aq. KOH, ∆, 22 h, then 35% H2O2, 10 °C, 20 min then six days, room temperature [68]; (h) SOCl2/DMF, ∆ [68]; (c,d), (e,f) as mentioned in Scheme 2, Scheme 3, respectively.
Scheme 4. Preparation of enantiomeric pure Sp-Sp-3. Reagents and conditions: (g) aq. KOH, ∆, 22 h, then 35% H2O2, 10 °C, 20 min then six days, room temperature [68]; (h) SOCl2/DMF, ∆ [68]; (c,d), (e,f) as mentioned in Scheme 2, Scheme 3, respectively.
Molecules 25 03315 sch004
Molecules 25 03315 g004 550
Figure 4. Analytical HPLC of 60% ee-8.
Figure 4. Analytical HPLC of 60% ee-8.
Molecules 25 03315 g004
Molecules 25 03315 g005 550
Figure 5. HPLC separation of Sp-Sp-N-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carbamoyl)-5’-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carboxamide (3).
Figure 5. HPLC separation of Sp-Sp-N-5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carbamoyl)-5’-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)carboxamide (3).
Molecules 25 03315 g005
Molecules 25 03315 sch005 550
Scheme 5. Preparation of 4-substituted 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-2,4-dihydro-3H-1,2,4-triazol-3-thiones 12a–f.
Scheme 5. Preparation of 4-substituted 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-2,4-dihydro-3H-1,2,4-triazol-3-thiones 12a–f.
Molecules 25 03315 sch005
Molecules 25 03315 g006 550
Figure 6. Molecular structure of compound 12a identified according to the IUPAC nomenclature as 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-4-phenyl-2,4-dihydro-3H-1,2,4-triazol-3-thione (displacement parameters are drawn at a 50% probability level).
Figure 6. Molecular structure of compound 12a identified according to the IUPAC nomenclature as 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-4-phenyl-2,4-dihydro-3H-1,2,4-triazol-3-thione (displacement parameters are drawn at a 50% probability level).
Molecules 25 03315 g006
Molecules 25 03315 g007 550
Figure 7. Molecular structure of compound 12d identified according to the IUPAC nomenclature as 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-4-allyl-2,4-dihydro-3H-1,2,4-triazol-3-thione (solvent omitted for clarity; displacement parameters are drawn at a 50% probability level).
Figure 7. Molecular structure of compound 12d identified according to the IUPAC nomenclature as 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-4-allyl-2,4-dihydro-3H-1,2,4-triazol-3-thione (solvent omitted for clarity; displacement parameters are drawn at a 50% probability level).
Molecules 25 03315 g007
Molecules 25 03315 sch006 550
Scheme 6. Internal cyclization of N-substituted 11a–f into 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-N-substituted-1,3,4-oxadiazol-2-amines 13a–f.
Scheme 6. Internal cyclization of N-substituted 11a–f into 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-N-substituted-1,3,4-oxadiazol-2-amines 13a–f.
Molecules 25 03315 sch006
Molecules 25 03315 g008 550
Figure 8. Molecular structure of compound 13a identified according to the IUPAC nomenclature as 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-N-phenyl-1,3,4-oxadiazol-2-amine (displacement parameters are drawn at a 30% probability level).
Figure 8. Molecular structure of compound 13a identified according to the IUPAC nomenclature as 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-N-phenyl-1,3,4-oxadiazol-2-amine (displacement parameters are drawn at a 30% probability level).
Molecules 25 03315 g008
Molecules 25 03315 g009 550
Figure 9. Molecular structure of compound 13c identified according to the IUPAC nomenclature as 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-N-ethyl-1,3,4-oxadiazol-2-amine (displacement parameters are drawn at a 50% probability level).
Figure 9. Molecular structure of compound 13c identified according to the IUPAC nomenclature as 5-(1,4(1,4)-dibenzenacyclohexaphane-12-yl)-N-ethyl-1,3,4-oxadiazol-2-amine (displacement parameters are drawn at a 50% probability level).
Molecules 25 03315 g009

Share and Cite

MDPI and ACS Style

Aly, A.A.; Bräse, S.; Hassan, A.A.; Mohamed, N.K.; El-Haleem, L.E.A.; Nieger, M. Synthesis of New Planar-Chiral Linked [2.2]Paracyclophanes-N-([2.2]-Paracyclophanylcarbamoyl)-4-([2.2]Paracyclophanylcarboxamide, [2.2]Paracyclophanyl-Substituted Triazolthiones and -Substituted Oxadiazoles. Molecules 2020, 25, 3315. https://doi.org/10.3390/molecules25153315

AMA Style

Aly AA, Bräse S, Hassan AA, Mohamed NK, El-Haleem LEA, Nieger M. Synthesis of New Planar-Chiral Linked [2.2]Paracyclophanes-N-([2.2]-Paracyclophanylcarbamoyl)-4-([2.2]Paracyclophanylcarboxamide, [2.2]Paracyclophanyl-Substituted Triazolthiones and -Substituted Oxadiazoles. Molecules. 2020; 25(15):3315. https://doi.org/10.3390/molecules25153315

Chicago/Turabian Style

Aly, Ashraf A., Stefan Bräse, Alaa A. Hassan, Nasr K. Mohamed, Lamiaa E. Abd El-Haleem, and Martin Nieger. 2020. "Synthesis of New Planar-Chiral Linked [2.2]Paracyclophanes-N-([2.2]-Paracyclophanylcarbamoyl)-4-([2.2]Paracyclophanylcarboxamide, [2.2]Paracyclophanyl-Substituted Triazolthiones and -Substituted Oxadiazoles" Molecules 25, no. 15: 3315. https://doi.org/10.3390/molecules25153315

Article Metrics

Back to TopTop
