The Role of Percent Volume Buried in the Characterization of Copper(I) Complexes for Lighting Purposes

by
Murat Alkan-Zambada
1,*,
Edwin C. Constable
2 and
Catherine E. Housecroft
2
1
Laboratory of Inorganic Synthesis and Catalysis, Institute of Chemical Sciences and Engineering, École Polytechnique Fédérale de Lausanne (EPFL), ISIC-LSCI, BCH 3305, 1015 Lausanne, Switzerland
2
Department of Chemistry, University of Basel, BPR 1096, Mattenstrasse 24a, CH-4058 Basel, Switzerland
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(11), 2647; https://doi.org/10.3390/molecules25112647
Submission received: 20 May 2020 / Revised: 2 June 2020 / Accepted: 3 June 2020 / Published: 6 June 2020
(This article belongs to the Special Issue Researches on Photonics and Plasmonics)
Browse Figures
Versions Notes

Abstract

:
The usefulness of percent volume buried (%Vbur) as a readily quantifiable property is investigated with regard to [Cu(NN)(PP)]+ complexes of interest for lighting purposes. Photoluminescence quantum yields (PLQYs) and single crystal X-ray structures of 100 reported compounds were assembled, %Vbur of the ligand systems were calculated and analyzed for correlations. We found that increased shielding of the central Cu(I) cation relying on shared contributions of both (NN) and (PP) ligand systems led to increased PLQYs. These findings are of relevance for future characterizations of Cu(I)-based complexes and their photophysical behavior in the solid-state.

Graphical Abstract

1. Introduction

Ionic transition metal complexes (iTMCs) are widely present in chemistry for e.g., catalysis or lighting purposes. Understanding of the electronic and steric effects of ligands on the iTMCs is essential to improve rational design of iTMCs for their varied purposes. While quantifying electronic effects of ligands onto metal complexes can be performed by spectroscopic methods such as IR, [1] similar quantification of the steric impact is less straight-forward. Tolman cone-angles have been introduced for the calculation of steric parameters [2] and widely used but suffer limitations as its usefulness is greatly diminished when applied to more elaborate mono- or bi-dentate ligands. Consequently, Nolan and Cavallo introduced the percent volume buried (%Vbur) as a quantifiable parameter to describe any given ligand [3]. The %Vbur describes the volume occupied by any given ligand inside a sphere with a 3.5 Å radius around the metal center and topographical steric maps [4] are created using SambVca 2.1 package [5]. Since its introduction, the %Vbur parameter has proven to be useful as a descriptor of iTMCs in catalysis [6,7,8,9]. In the field of iTMC-based lighting devices, however, it has not gained attention despite its potential in structural analysis.
Heteroleptic copper(I)-based iTMCs have been employed in light-emitting electrochemical cells (LECs) and represent a promising avenue towards cost-efficient and sustainable lighting devices [10,11,12]. Consequently, understanding of the photophysical behavior of these complexes has guided their improved design for applications in LECs [13,14,15,16,17,18]. Electronic properties such as redox potentials, absorption and emission spectra are among the descriptors used in the analysis of Cu(I) complexes. Quantifiable descriptors of steric factors, however, are mostly limited to discussions regarding angles and/or bond-lengths in X-ray single crystal structures. We have recently evaluated the effect that Cu···O distances in the {Cu(POP)} and {Cu(xantphos)} domains of [Cu(P^P)(N^N)][X] (POP = bis(2-(diphenylphosphanyl)phenyl)ether; xantphos = 4,5-bis(diphenylphosphanyl)-9,9-dimethyl-9H-xanthene) compounds have on solid-state photoluminescence quantum yield (PLQY) values [19]. Discussions regarding steric shielding of the copper(I) complex cation by the ligands are mostly limited to simplistic comparisons of steric bulk imposed by ligand-substituents [19,20,21,22,23,24,25,26,27]. Therefore, we sought to investigate the usefulness of %Vbur with regard to Cu(I)-based iTMCs in lighting devices. As a case study we chose [Cu(NN)(PP)]+ systems (where NN and PP refer to bidentate diimine and mono- or bi-dentate bisphosphane ligands) due to its popularity and photoluminescence quantum yields (PLQYs) because of the importance of large PLQY values for lighting purposes.

2. Results and Discussion

2.1. General Strategies

The Cambridge Structural Database (CSD) [28] was searched for compounds consisting of mononuclear [Cu(NN)(PP)]+ units where NN and PP refer to diimine and bisphosphane ligands. Searches were made using CSD version 5.4.1 and ConQuest version 2.0.4. [29]. The results were then further reduced to compounds with reported solid-state photoluminescence quantum yields (PLQYs). Particularly, values for thin-film PLQYs were not included as such values can differ from PLQYs of powder or crystal samples [11,18,25]. Moreover, PLQY values for crystalline samples were chosen over powder samples where such differentiations were made [30]. Similarly, PLQY values obtained under air were chosen over values obtained under an Ar atmosphere where such differentiations were made [31]. A total of 100 compounds were found and their %Vbur was calculated for the (NN), (PP) and (NN)(PP) units which are referred to as %Vbur(NN), %Vbur(PP) and %Vbur(NN + PP) (Table S1, supporting information) [17,18,19,20,21,23,24,25,26,27,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48]. All compounds contain bidentate diimine and bisphosphane ligands with one exception containing a bidentate diimine and two monodentate triphenylphosphano ligands (CCDC: 1558486) [45]. Where a compound contained more than one independent cation in the asymmetric unit, the %Vbur values were calculated for each independent cation, resulting in a total of 123 data points for 100 compounds. An inherent bias is present in these values as compounds with low PLQYs may be inevitably not fully investigated or reported with regards to solid state PLQY values and X–ray single crystal structures. Furthermore, the spread of %Vbur is biased by virtue of the commercial availability of ligands, the synthetic feasibility of ligand scaffolds as well as the synthetic feasibility of different [Cu(NN)(PP)]+ complexes. As the PLQY values were measured by different groups or by different means, those values may thus be subject to varying errors. Consequently, we assume an error of ±10% of a given PLQY value, e.g., ±5% for a PLQY of 50%. The end result of an analysis for a given compound is summarized in Figure 1 for the archetypical [Cu(bpy)(xantphos)]+ (1) (bpy = 2,2′-bipyridine). Topographical steric maps for the (NN), (PP) and (NN)(PP) subunits are shown including the total %Vbur as well as the %Vbur for the four quadrants. The topographical steric maps plot the metal at the center of the reference axes (X, Y) splitting the plot into four quadrants. The volume occupied by the ligands is indicated by contour lines (Z axis) where positive values refer to the upper hemisphere of the sphere.

2.2. Macroscopic Level

Scatter plots of the results for all 123 data points of the 100 compounds are shown in Figure 2. Careful analysis of these scatter plots suggests that, firstly, there is a small positive impact of increased %Vbur(NN) on the PLQY (Figure 2a), and, second, an optimal %Vbur(PP) seems to be located at ca 56%. An increase or decrease of %Vbur(PP) negatively impacts the PLQY (Figure 2b). Thirdly, similar to %Vbur(PP), there seems to be an optimal %Vbur(NN + PP) located at ca 92% (Figure 2c). The fourth point is that %Vbur(NN + PP) strongly depends on %Vbur(PP) while the %Vbur(NN) has little impact (Figure 2d–f).
For a more detailed analysis of the results, color-coded three-dimensional scatter plots were generated including all four variables (Figure 3 and Figures S1–S3, Supplementary Materials). The PLQY was plotted against two %Vbur values with the remaining third %Vbur color-coded in the scatter plots. All three iterations of such plots support the dependence of large %Vbur(NN + PP) for large PLQYs as seen in Figure 2c. Furthermore, these plots reveal that the best outcome is achieved by a shared %Vbur between the NN and PP ligands. A large %Vbur(NN + PP) relying mostly on the PP ligand, on the other hand, yields low PLQYs. This shared contribution from both ligand units to the %Vbur(NN + PP) seems to be the cause for the above mentioned observation regarding a perceived optimal %Vbur(PP) at ca 56%. Most likely, a shared contribution of %Vbur(NN) and %Vbur(PP) within the [Cu(NN)(PP)]+ framework is more difficult to achieve for %Vbur(PP) > 60% resulting in only three data-points in that regime. At this point it should be mentioned again that the values presented here are biased by synthetic feasibility and only serve to reflect empirical trends in reported values and the usefulness of %Vbur.

2.3. Case Study 1: Importance of Steric Effects

In 2018, we reported twelve copper(I) complexes with 6-alkoxy- or 6-alkylthio-substituted bpy ligands in combination with xantphos (2a–7a) or POP (2b–7b) (Figure 4) [26]. The complexes were investigated by means of single crystal X-ray analysis, NMR spectroscopy, absorption and emission spectra, cyclic voltammetry as well as excited state lifetime measurements and density functional theory (DFT) calculations. The observed PLQY values (Table 1) were analyzed and a trend was established of increased PLQY by increased rigidity of xantphos compared to POP as well as increased steric bulk of the NN ligand in the order of bpyXMe < bpyXEt < bpyXPh (X = O, S). However, %Vbur is not included in this discussion and the explanation as such is only partially supported by the reported values (compare PLQYs of 2a and 4a or 2b and 4b). Thus, the available photophysical properties in combination with the relatively large set of substrates renders this set of compounds a suitable case study for the inclusion of %Vbur as a descriptor in the discussion of photophysical properties.
The PLQY values for the series of complexes shown in Figure 4 as well as %Vbur are summarized in Table 1 and Figure 5. An analysis of the %Vbur(NN) values shows that the intuitive assignment of increased steric bulk in the order of bpyXMe < bpyXEt < bpyXPh (× = O, S) is not reflected in the percent volume buried. Instead the following order is more appropriate based on the calculated %Vbur(NN):
For P^P = Xantphos: bpyOPh < bpyOMe ≈ bpyOEt < bpySEt ≈ bpySPh ≈ bpySMe
For P^P = POP:    bpyOPh < bpyOMe ≈ bpyOEt < bpySPh ≈ bpySMe < bpySEt
Overall, the %Vbur(PP) values for POP are larger than those for xantphos with the exception of compounds 7a and 7b. Moreover, %Vbur(NN + PP) seems to increase with %Vbur(NN) while the largest %Vbur(NN + PP) appears to be located at a medium %Vbur(PP) of ca. 56.5%. Visualization of all four properties in color-coded three-dimensional scatter plots reveals that the highest PLQY values are reached when a high %Vbur(NN + PP) is achieved by a combination of high %Vbur(NN) and %Vbur(PP) (Figure 6), in agreement with the interpretation of all 100 compounds (vide supra). Notably, comparing 5a or 6a to 7a shows an increased PLQY with an increased %Vbur(PP) or %Vbur(NN + PP) while a similar correlation is not present when comparing 5a to 6a which only differ in %Vbur(NN). Consequently, the nature of the differing PLQYs when comparing 5a and 6a is not due to the steric effects of the particular ligand system. Alternative explanations may be based on crystal packing such as improved accessibility of atmospheric O2 to the complex [20].

2.4. Case Study 2—Investigating Electronic Effects

Tsubomura and co-workers reported a series of seven heteroleptic copper(I) complexes in 2015 with the aim of investigating oxygen-responsive luminescence in the solid state. The single crystal X-ray structures of compounds 8–12 (Figure 7) were reported as well as powder PLQY values under air and under an argon atmosphere (Table 2) [31]. Given the choice of N^N and P^P ligands made by the authors, it is assumed that differences in PLQY are mostly due to electronic effects with the exception of 8 and 10. The authors rationalize the trends in the observed PLQYs through differences in the crystal packing preventing structural rearrangement and differences in the transitions based on DFT calculations. Special emphasis was placed on the presence of voids in the crystal lattices which allows for excited state quenching by atmospheric O2. While significant differences in shielding by the ligands of the central copper(I) cation are not expected, we considered that an analysis of %Vbur may provide further insight. Most importantly, %Vbur values allow for a straight-forward, quantitative comparison of steric effects if these are indeed present.
An analysis of the scatter plots in Figure 8 indicates that steric effects may participate in the decrease of PLQY in the case of 8 and 10. The remaining compounds are almost identical in the %Vbur values and any differences in PLQY may be attributed to electronic effects. On the other hand, effects due to differences in crystal packing can be excluded as changes in PLQY under air or under Ar atmosphere are absent or negligible. Only complex 10 exhibits a significant increase in PLQY upon removal of atmospheric O2. Structural shielding by the ligand system for compound 10 may be present but is negated by the presence of voids in the crystal packing and effective quenching of the excited state by O2 and energy transfer occurs instead. The lack of change in the PLQYs for the remaining compounds may be explained by structural rigidity inferred by the crystal packing rather than shielding of the central copper(I) cation.

2.5. Case Study 3—Differentiating Steric from Electronic Factors

In 2016, two of us reported a series of heteroleptic [Cu(NN)(PP)]+ complexes with 6- or 6,6’-substituted bpy ligands in combination with POP or xantphos (13–18, Figure 9) [18]. Following investigations of the structural and photophysical properties, the complexes were tested in LECs and were also investigated using DFT calculations. While high PLQY values were obtained for complexes 13, 14, 16 and 17 (Figure 9), it was observed that replacing the Me or Et substituent with a Ph group resulted in a significantly lower PLQY (Table 3). We ascribed this sharp drop in PLQY to a lower T1 state leading to increased feasibility of non-radiative decay pathways for 15 and 18. We note that the structural discussions in the original publication did not provide a conclusive relationship between steric effects on the observed PLQYs. While %Vbur does not yield any insight into electronic effects, it does offer a concise overview of possible steric effects.
Analysis of the %Vbur values does not result in a clear correlation between the shielding of the central Cu(I) cation and PLQY values (Table 3). Graphical representation of these values further shows that the observed low PLQYs for 15 and 18 do not fit any possible correlation (Figure 10). Lastly, color-coded three-dimensional scatter plots clearly reveal that large PLQY values are obtained by virtually any combination of %Vbur with no correlation (Figure 11) as opposed to the correlations seen in case study 1 or in the analysis of all 100 complexes. This further supports the original hypothesis of lowered PLQY values due to a lowered T1 state by virtue of the phenyl substituent.

3. Materials and Methods

The Cambridge Structural Database (CSD) [28] was searched for compounds consisting of mononuclear [Cu(NN)(PP)]+. Searches were made using CSD version 5.4.1 and ConQuest version 2.0.4 [29]. Literature sources of the results were searched for reports of appropriate PLQY values which were collected together with the CIF files (Table S1 in the Supplementary Material). Topographical steric maps [4] were created using SambVca 2.1 package (https://www.molnac.unisa.it/OMtools/sambvca2.1/index.html) [5]. XYZ of the crystal structures were uploaded and the Cu(I) cation was defined as the center of the sphere. The negative Z-axis was defined by the N-atoms of the diimine for %Vbur(NN) and %Vbur(NN + PP) or by the P-atoms of the bisphosphane for %Vbur(PP). The P-atoms of the bisphosphane defined the XZ-plane for %Vbur(NN) and %Vbur(NN + PP) and the N-atoms of the diimine for %Vbur(PP). All atoms, except for the diimine ligand, bisphosphane ligand or both ligands, were deleted to calculate %Vbur(NN), %Vbur(PP) and %Vbur(NN + PP), respectively. The Bondi radii were scaled by 1.17 and the sphere radius chosen as r = 3.5 Å. Mesh spacing of 0.10 Å was used for the numerical integration and H-atoms were excluded.

4. Conclusions

We have demonstrated that values of %Vbur represent a means of quantifying relationships between structure and PLQYs of heteroleptic [Cu(NN)(PP)]+ complexes. Using the CSD as a source of structural data, we were able to analyze 100 [Cu(NN)(PP)]+ complexes for which solid state PLQYs and single-crystal X-ray structures were available; this provided 123 data points. Analysis of all complexes showed that PLQY values are the highest when %Vbur(NN + PP) is maximized by an increased %Vbur(NN) and %Vbur(PP). Three case studies underline the potential usefulness of including %Vbur as an addition in the structural discussion of [Cu(NN)(PP)]+ complexes as it relates to solid-state photophysical behavior.

Supplementary Materials

The following are available online: Figure S1–S3: 3-Dimensional scatter plot with color-coded %Vbur(PP), %Vbur(NN + PP) or PLQY of all 100 compounds found, Table S1: Reported PLQY values for powder samples for Cu(I) complexes and %Vbur for (NN), (PP), and (NN)(PP) units.

Author Contributions

Conceptualization, investigation, formal analysis, M.A.-Z.; manuscript draft: M.A.-Z., Manuscript editing and discussion of concepts and interpretation of data: C.E.H. and E.C.C. All authors have read and agreed to the published version of the manuscript.

Funding

There was no external funding for this project.

Acknowledgments

C.E.H. and E.C.C. thank the University of Basel for continued support. M.A.-Z. thanks Xile Hu for discussion.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Strohmeier, W.; Müller, F.-J. Klassifizierung phosphorhaltiger Liganden in Metallcarbonyl-Derivaten nach der π-Acceptorstärke. Chemische Berichte 1967, 100, 2812–2821. [Google Scholar] [CrossRef]
  2. Tolman, C.A. Steric effects of phosphorus ligands in organometallic chemistry and homogeneous catalysis. Chem. Rev. 1977, 77, 313–348. [Google Scholar] [CrossRef]
  3. Poater, A.; Ragone, F.; Giudice, S.; Costabile, C.; Dorta, R.; Nolan, S.P.; Cavallo, L. Thermodynamics of N-Heterocyclic Carbene Dimerization: The Balance of Sterics and Electronics. Organometallics 2008, 27, 2679–2681. [Google Scholar] [CrossRef]
  4. Poater, A.; Ragone, F.; Mariz, R.; Dorta, R.; Cavallo, L. Comparing the Enantioselective Power of Steric and Electrostatic Effects in Transition-Metal-Catalyzed Asymmetric Synthesis. Chem. Eur. J. 2010, 16, 14348–14353. [Google Scholar] [CrossRef] [PubMed]
  5. Falivene, L.; Cao, Z.; Petta, A.; Serra, L.; Poater, A.; Oliva, R.; Scarano, V.; Cavallo, L. Towards the online computer-aided design of catalytic pockets. Nat. Chem. 2019, 11, 872–879. [Google Scholar] [CrossRef] [Green Version]
  6. Clavier, H.; Correa, A.; Cavallo, L.; Escudero-Adán, E.C.; Benet-Buchholz, J.; Slawin, A.M.Z.; Nolan, S.P. [Pd(NHC)(allyl)Cl] Complexes: Synthesis and Determination of the NHC Percent Buried Volume (%Vbur) Steric Parameter. Eur. J. Inorg. Chem. 2009, 2009, 1767–1773. [Google Scholar] [CrossRef]
  7. Clavier, H.; Nolan, S.P. Percent buried volume for phosphine and N-heterocyclic carbene ligands: Steric properties in organometallic chemistry. Chem. Commun. 2010, 46, 841–861. [Google Scholar] [CrossRef]
  8. Gómez-Suárez, A.; Nelson, D.J.; Nolan, S.P. Quantifying and understanding the steric properties of N-heterocyclic carbenes. Chem. Commun. 2017, 53, 2650–2660. [Google Scholar] [CrossRef] [Green Version]
  9. Cervantes-Reyes, A.; Rominger, F.; Hashmi, A.S.K. Sterically Demanding AgI and CuI N-Heterocyclic Carbene Complexes: Synthesis, Structures, Steric Parameters, and Catalytic Activity. Chem. Eur. J. 2020, 26, 5530–5540. [Google Scholar] [CrossRef]
  10. Armaroli, N.; Accorsi, G.; Holler, M.; Moudam, O.; Nierengarten, J.-F.; Zhou, Z.; Wegh, R.T.; Welter, R. Highly Luminescent CuI Complexes for Light-Emitting Electrochemical Cells. Adv. Mater. 2006, 18, 1313–1316. [Google Scholar] [CrossRef]
  11. Costa, R.D.; Tordera, D.; Ortí, E.; Bolink, H.J.; Schönle, J.; Graber, S.; Housecroft, C.E.; Constable, E.C.; Zampese, J.A. Copper(I) complexes for sustainable light-emitting electrochemical cells. J. Mater. Chem. 2011, 21, 16108–16118. [Google Scholar] [CrossRef]
  12. Costa, R.D.; Ortí, E.; Bolink, H.J.; Monti, F.; Accorsi, G.; Armaroli, N. Luminescent Ionic Transition-Metal Complexes for Light-Emitting Electrochemical Cells. Angew. Chem. Int. Ed. 2012, 51, 8178–8211. [Google Scholar] [CrossRef] [PubMed]
  13. Hofbeck, T.; Monkowius, U.; Yersin, H. Highly Efficient Luminescence of Cu(I) Compounds: Thermally Activated Delayed Fluorescence Combined with Short-Lived Phosphorescence. J. Am. Chem. Soc. 2015, 137, 399–404. [Google Scholar] [CrossRef] [PubMed]
  14. Elie, M.; Sguerra, F.; Di Meo, F.; Weber, M.D.; Marion, R.; Grimault, A.; Lohier, J.-F.; Stallivieri, A.; Brosseau, A.; Pansu, R.B.; et al. Designing NHC–Copper(I) Dipyridylamine Complexes for Blue Light-Emitting Electrochemical Cells. ACS Appl. Mater. Interfaces 2016, 8, 14678–14691. [Google Scholar] [CrossRef] [PubMed]
  15. Hamze, R.; Shi, S.; Kapper, S.C.; Muthiah Ravinson, D.S.; Estergreen, L.; Jung, M.-C.; Tadle, A.C.; Haiges, R.; Djurovich, P.I.; Peltier, J.L.; et al. “Quick-Silver” from a Systematic Study of Highly Luminescent, Two-Coordinate, d10 Coinage Metal Complexes. J. Am. Chem. Soc. 2019, 141, 8616–8626. [Google Scholar] [CrossRef] [PubMed]
  16. Hamze, R.; Peltier, J.L.; Sylvinson, D.; Jung, M.; Cardenas, J.; Haiges, R.; Soleilhavoup, M.; Jazzar, R.; Djurovich, P.I.; Bertrand, G.; et al. Eliminating nonradiative decay in Cu(I) emitters:>99% quantum efficiency and microsecond lifetime. Science 2019, 363, 601–606. [Google Scholar] [CrossRef]
  17. Keller, S.; Constable, E.C.; Housecroft, C.E.; Neuburger, M.; Prescimone, A.; Longo, G.; Pertegás, A.; Sessolo, M.; Bolink, H.J. [Cu(bpy)(P^P)]+ containing light-emitting electrochemical cells: Improving performance through simple substitution. Dalton Trans. 2014, 43, 16593–16596. [Google Scholar] [CrossRef] [Green Version]
  18. Keller, S.; Pertegás, A.; Longo, G.; Martínez, L.; Cerdá, J.; Junquera-Hernández, J.M.; Prescimone, A.; Constable, E.C.; Housecroft, C.E.; Ortí, E.; et al. Shine bright or live long: Substituent effects in [Cu(N^N)(P^P)]+-based light-emitting electrochemical cells where N^N is a 6-substituted 2,2′-bipyridine. J. Mater. Chem. C 2016, 4, 3857–3871. [Google Scholar] [CrossRef] [Green Version]
  19. Keller, S.; Alkan-Zambada, M.; Prescimone, A.; Constable, E.C.; Housecroft, C.E. Extended π-Systems in Diimine Ligands in [Cu(P^P)(N^N)][PF6] Complexes: From 2,2′-Bipyridine to 2-(Pyridin-2-yl)Quinoline. Crystals 2020, 10, 255. [Google Scholar] [CrossRef] [Green Version]
  20. Smith, C.S.; Branham, C.W.; Marquardt, B.J.; Mann, K.R. Oxygen Gas Sensing by Luminescence Quenching in Crystals of Cu(xantphos)(phen)+ Complexes. J. Am. Chem. Soc. 2010, 132, 14079–14085. [Google Scholar] [CrossRef]
  21. Li, X.-L.; Ai, Y.-B.; Yang, B.; Chen, J.; Tan, M.; Xin, X.-L.; Shi, Y.-H. Syntheses, structures and photophysical properties of a series of luminescent copper(I) mixed-ligand complexes. Polyhedron 2012, 35, 47–54. [Google Scholar] [CrossRef]
  22. Tsubomura, T.; Kimura, K.; Nishikawa, M.; Tsukuda, T. Structures and photophysical properties of copper(I) complexes bearing diphenylphenanthroline and bis(diphenylphosphino)alkane: The effect of phenyl groups on the phenanthroline ligand. Dalton Trans. 2015, 44, 7554–7562. [Google Scholar] [CrossRef] [PubMed]
  23. Cabrera, A.R.; Gonzalez, I.A.; Cortés-Arriagada, D.; Natali, M.; Berke, H.; Daniliuc, C.G.; Camarada, M.B.; Toro-Labbé, A.; Rojas, R.S.; Salas, C.O. Synthesis of new phosphorescent imidoyl-indazol and phosphine mixed ligand Cu(I) complexes – structural characterization and photophysical properties. RSC Adv. 2016, 6, 5141–5153. [Google Scholar] [CrossRef]
  24. Brunner, F.; Martínez-Sarti, L.; Keller, S.; Pertegás, A.; Prescimone, A.; Constable, E.C.; Bolink, H.J.; Housecroft, C.E. Peripheral halo-functionalization in [Cu(N^N)(P^P)]+ emitters: Influence on the performances of light-emitting electrochemical cells. Dalton Trans. 2016, 45, 15180–15192. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Keller, S.; Brunner, F.; Junquera-Hernández, J.M.; Pertegás, A.; La-Placa, M.-G.; Prescimone, A.; Constable, E.C.; Bolink, H.J.; Ortí, E.; Housecroft, C.E. CF3 Substitution of [Cu(P^P)(bpy)][PF6] Complexes: Effects on Photophysical Properties and Light-Emitting Electrochemical Cell Performance. ChemPlusChem 2018, 83, 217–229. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Alkan-Zambada, M.; Keller, S.; Martínez-Sarti, L.; Prescimone, A.; Junquera-Hernández, J.M.; Constable, E.C.; Bolink, H.J.; Sessolo, M.; Ortí, E.; Housecroft, C.E. [Cu(P^P)(N^N)][PF6] compounds with bis(phosphane) and 6-alkoxy, 6-alkylthio, 6-phenyloxy and 6-phenylthio-substituted 2,2′-bipyridine ligands for light-emitting electrochemical cells. J. Mater. Chem. C 2018, 6, 8460–8471. [Google Scholar] [CrossRef] [Green Version]
  27. Fresta, E.; Volpi, G.; Milanesio, M.; Garino, C.; Barolo, C.; Costa, R.D. Novel Ligand and Device Designs for Stable Light-Emitting Electrochemical Cells Based on Heteroleptic Copper(I) Complexes. Inorg. Chem. 2018, 57, 10469–10479. [Google Scholar] [CrossRef]
  28. Groom, C.R.; Bruno, I.J.; Lightfoot, M.P.; Ward, S.C. The Cambridge Structural Database. Acta Crystallogr. 2016, B72, 171–179. [Google Scholar] [CrossRef]
  29. Bruno, I.J.; Cole, J.C.; Edgington, P.R.; Kessler, M.; Macrae, C.F.; McCabe, P.; Pearson, J.; Taylor, R. New software for searching the Cambridge Structural Database and visualizing crystal structures. Acta Crystallogr. 2002, B58, 389–397. [Google Scholar] [CrossRef]
  30. Linfoot, C.L.; Leitl, M.J.; Richardson, P.; Rausch, A.F.; Chepelin, O.; White, F.J.; Yersin, H.; Robertson, N. Thermally Activated Delayed Fluorescence (TADF) and Enhancing Photoluminescence Quantum Yields of [CuI(diimine)(diphosphine)]+ Complexes—Photophysical, Structural, and Computational Studies. Inorg. Chem. 2014, 53, 10854–10861. [Google Scholar] [CrossRef] [Green Version]
  31. Nishikawa, M.; Wakita, Y.; Nishi, T.; Miura, T.; Tsubomura, T. Long-lived and oxygen-responsive photoluminescence in the solid state of copper(i) complexes bearing fluorinated diphosphine and bipyridine ligands. Dalton Trans. 2015, 44, 9170–9181. [Google Scholar] [CrossRef] [PubMed]
  32. Keller, S.; Prescimone, A.; Bolink, H.; Sessolo, M.; Longo, G.; Martínez-Sarti, L.; Junquera-Hernández, J.M.; Constable, E.C.; Ortí, E.; Housecroft, C.E. Luminescent copper(i) complexes with bisphosphane and halogen-substituted 2,2′-bipyridine ligands. Dalton Trans. 2018, 47, 14263–14276. [Google Scholar] [CrossRef] [PubMed]
  33. Brunner, F.; Babaei, A.; Pertegás, A.; Junquera-Hernández, J.M.; Prescimone, A.; Constable, E.C.; Bolink, H.J.; Sessolo, M.; Ortí, E.; Housecroft, C.E. Phosphane tuning in heteroleptic [Cu(N^N)(P^P)]+ complexes for light-emitting electrochemical cells. Dalton Trans. 2019, 48, 446–460. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Keller, S.; Prescimone, A.; Constable, E.C.; Housecroft, C.E. Copper(i) and silver(i) complexes of 9,9-dimethyl-4,5-bis(di-tert-butylphosphino)xanthene: Photophysical properties and structural rigidity under pressure. Photochem. Photobiol. Sci. 2018, 17, 375–385. [Google Scholar] [CrossRef] [Green Version]
  35. Brunner, F.; Graber, S.; Baumgartner, Y.; Häussinger, D.; Prescimone, A.; Constable, E.C.; Housecroft, C.E. The effects of introducing sterically demanding aryl substituents in [Cu(N^N)(P^P)]+ complexes. Dalton Trans. 2017, 46, 6379–6391. [Google Scholar] [CrossRef] [Green Version]
  36. Mazzeo, F.; Brunner, F.; Prescimone, A.; Constable, C.E.; Housecroft, E.C. Intra-Cation versus Inter-Cation π-Contacts in [Cu(P^P)(N^N)][PF6] Complexes. Crystals 2020, 10, 1. [Google Scholar] [CrossRef] [Green Version]
  37. Nohara, I.; Keller, A.; Tarassenko, N.; Prescimone, A.; Constable, C.E.; Housecroft, E.C. Heteroleptic [Cu(P^P)(N^N)][PF6] Compounds with Isomeric Dibromo-1,10-Phenanthroline Ligands. Inorganics 2020, 8, 4. [Google Scholar] [CrossRef] [Green Version]
  38. Keller, S.; Bantle, M.; Prescimone, A.; Constable, C.E.; Housecroft, E.C. Hinged and Wide: A New P^P Ligand for Emissive [Cu(P^P)(N^N)][PF6] Complexes. Molecules 2019, 24, 3934. [Google Scholar] [CrossRef] [Green Version]
  39. Murray, N.S.; Keller, S.; Constable, E.C.; Housecroft, C.E.; Neuburger, M.; Prescimone, A. [Cu(N^N)(P^P)]+ complexes with 2,2′:6′,2′′-terpyridine ligands as the N^N domain. Dalton Trans. 2015, 44, 7626–7633. [Google Scholar] [CrossRef] [Green Version]
  40. Weber, M.D.; Viciano-Chumillas, M.; Armentano, D.; Cano, J.; Costa, R.D. σ-Hammett parameter: A strategy to enhance both photo- and electro-luminescence features of heteroleptic copper(I) complexes. Dalton Trans. 2017, 46, 6312–6323. [Google Scholar] [CrossRef]
  41. Nishikawa, M.; Tsubomura, T. Photophysical Properties of a Copper(I) Complex Bearing 4,4′-Dimethoxy-2,2′-bipyridine and 1,3-Bis(diphenylphosphino)propane. Bull. Chem. Soc. Jpn. 2014, 87, 912–914. [Google Scholar] [CrossRef]
  42. Arnosti, N.; Brunner, F.; Susic, I.; Keller, S.; Junquera-Hernández, J.M.; Prescimone, A.; Bolink, H.J.; Sessolo, M.; Ortí, E.; Housecroft, C.E.; et al. Remote Modification of Bidentate Phosphane Ligands Controlling the Photonic Properties in Their Complexes: Enhanced Performance of [Cu(RN-xantphos)(N^N)][PF6] in Light-Emitting Electrochemical Cells. Adv. Opt. Mater. 2020, 1901689. [Google Scholar] [CrossRef]
  43. González, I.A.; Henríquez, M.A.; Cortés-Arriagada, D.; Natali, M.; Daniliuc, C.G.; Dreyse, P.; Maze, J.; Rojas, R.S.; Salas, C.O.; Cabrera, A.R. Heteroleptic Cu(i) complexes bearing methoxycarbonyl-imidoylindazole and POP ligands—An experimental and theoretical study of their photophysical properties. New J. Chem. 2018, 42, 12576–12586. [Google Scholar] [CrossRef]
  44. Yang, M.; Li, X.-N.; Jia, J.-H.; Chen, X.-L.; Lu, C.-Z. A rationally designed vapoluminescent compound with adsorptive channels and responsive luminophores for volatile organic compounds (VOCs). Dalton Trans. 2019, 48, 1179–1183. [Google Scholar] [CrossRef]
  45. Zhu, N.; Wang, G.; Lin, S.; Li, Z.-F.; Xin, X.-L.; Yang, Y.-P.; Liu, M.; Jin, Q.-H. New discovery in crystallography: Correlation of terahertz time-domain spectra with crystal structures and photoluminescence properties of mononuclear/binuclear diimine–Cu(i)-phosphine complexes. CrystEngComm 2019, 21, 4275–4288. [Google Scholar] [CrossRef]
  46. Kuang, X.-N.; Lin, S.; Liu, J.-M.; Han, H.-L.; Liu, M.; Xin, X.-L.; Yang, Y.-P.; Li, Z.-F.; Jin, Q.-H.; Li, S.-F.; et al. Heteroleptic Cu(I) complexes with aromatic diimines and phosphines: Synthesis, structure, photophysical properties and THz time domain spectroscopy. Polyhedron 2019, 165, 51–62. [Google Scholar] [CrossRef]
  47. Liu, R.; Huang, M.-M.; Yao, X.-X.; Li, H.-H.; Yang, F.-L.; Li, X.-L. Synthesis, structures and aggregation-induced emissive properties of copper(I) complexes with 1H-imidazo[4,5-f][1,10]phenanthroline derivative and diphosphine as ligands. Inorg. Chim. Acta 2015, 434, 172–180. [Google Scholar] [CrossRef]
  48. Meyer, M.; Brunner, F.; Prescimone, A.; Constable, E.C.; Housecroft, C.E. Chimera Diimine Ligands in Emissive [Cu(P^P)(N^N)][PF6] Complexes. Inorganics 2020, 8, 33. [Google Scholar] [CrossRef]
Sample Availability: No new compounds were prepared in this work; no samples are available from the authors.
Molecules 25 02647 g001 550

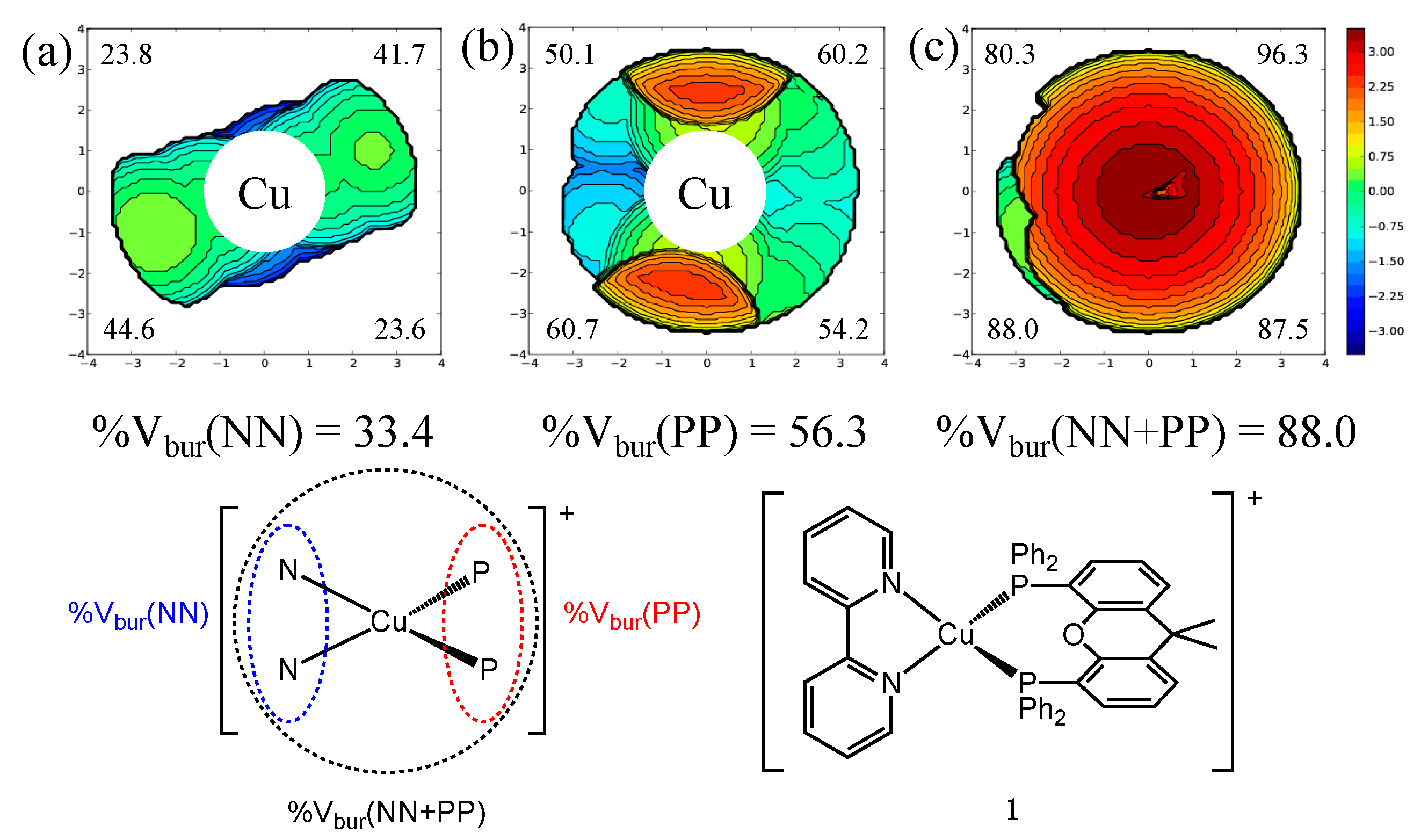

Figure 1. Topographical steric maps for bpy (a), xantphos (b) and for {(bpy)(xantphos)} (c) of [Cu(bpy)(xantphos)]+ (1) and a schematic representation of (NN), (PP) and (NN)(PP) subunits indicated in dotted lines used for the calculations of the respective percent volume buried (%Vbur). Values in the corners of the topographical steric maps refer to the %Vbur of the respective quadrants and the total %Vbur are listed below. Axes of the topographical steric maps (in Å) refer to the X and Y reference axes and the Z axis is indicated by the contour lines (positive values refer to the upper hemisphere).
Figure 1. Topographical steric maps for bpy (a), xantphos (b) and for {(bpy)(xantphos)} (c) of [Cu(bpy)(xantphos)]+ (1) and a schematic representation of (NN), (PP) and (NN)(PP) subunits indicated in dotted lines used for the calculations of the respective percent volume buried (%Vbur). Values in the corners of the topographical steric maps refer to the %Vbur of the respective quadrants and the total %Vbur are listed below. Axes of the topographical steric maps (in Å) refer to the X and Y reference axes and the Z axis is indicated by the contour lines (positive values refer to the upper hemisphere).
Molecules 25 02647 g001
Molecules 25 02647 g002 550

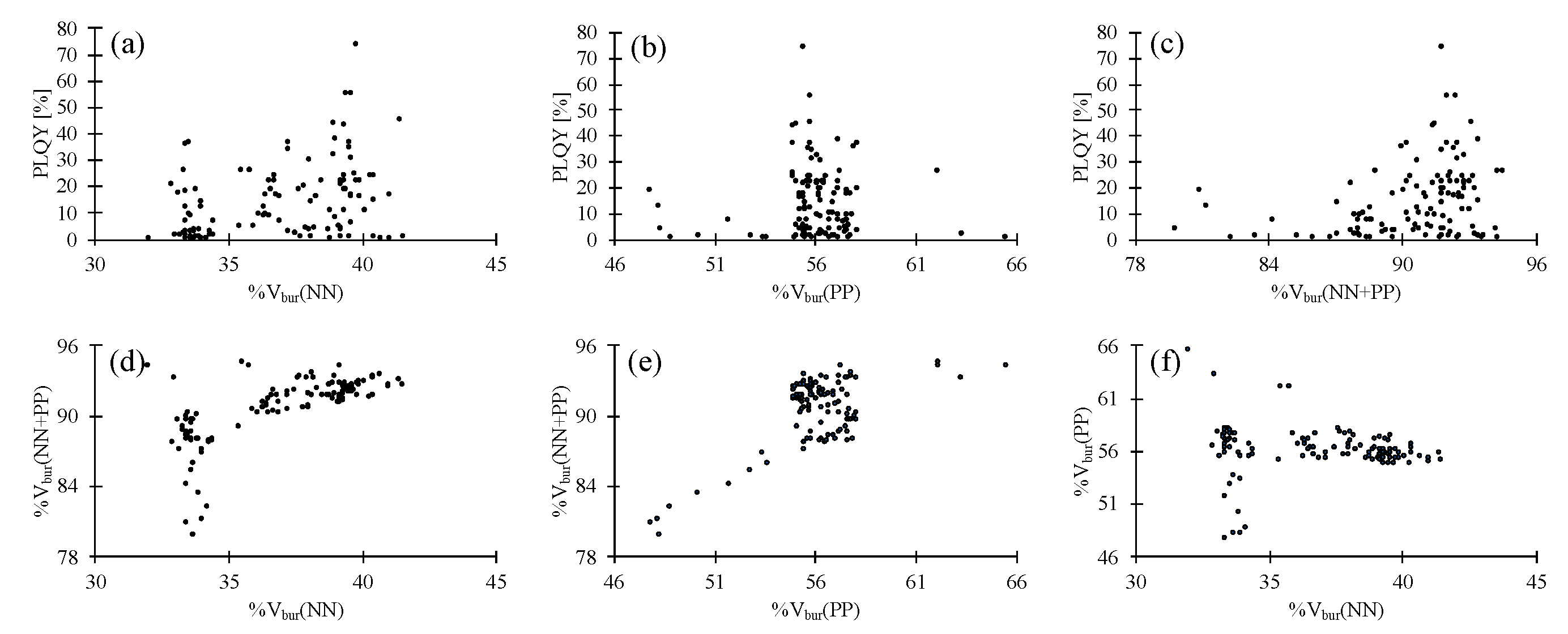

Figure 2. Scatter plots of photoluminescence quantum yield (PLQY), %Vbur(NN), %Vbur(PP) and %Vbur(NN + PP) for all 100 compounds [17,18,19,20,21,23,24,25,26,27,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48]. (a) Scatter plot of PLQY vs. %Vbur(NN). (b) Scatter plot of PLQY vs. %Vbur(PP). (c) Scatter plot of PLQY vs. %Vbur(NN + PP). (d) Scatter plot of %Vbur(NN) vs. %Vbur(NN + PP). (e) Scatter plot of %Vbur(PP) vs. %Vbur(NN + PP). (f) Scatter plot of %Vbur(NN) vs. %Vbur(PP).
Figure 2. Scatter plots of photoluminescence quantum yield (PLQY), %Vbur(NN), %Vbur(PP) and %Vbur(NN + PP) for all 100 compounds [17,18,19,20,21,23,24,25,26,27,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48]. (a) Scatter plot of PLQY vs. %Vbur(NN). (b) Scatter plot of PLQY vs. %Vbur(PP). (c) Scatter plot of PLQY vs. %Vbur(NN + PP). (d) Scatter plot of %Vbur(NN) vs. %Vbur(NN + PP). (e) Scatter plot of %Vbur(PP) vs. %Vbur(NN + PP). (f) Scatter plot of %Vbur(NN) vs. %Vbur(PP).
Molecules 25 02647 g002
Molecules 25 02647 g003 550

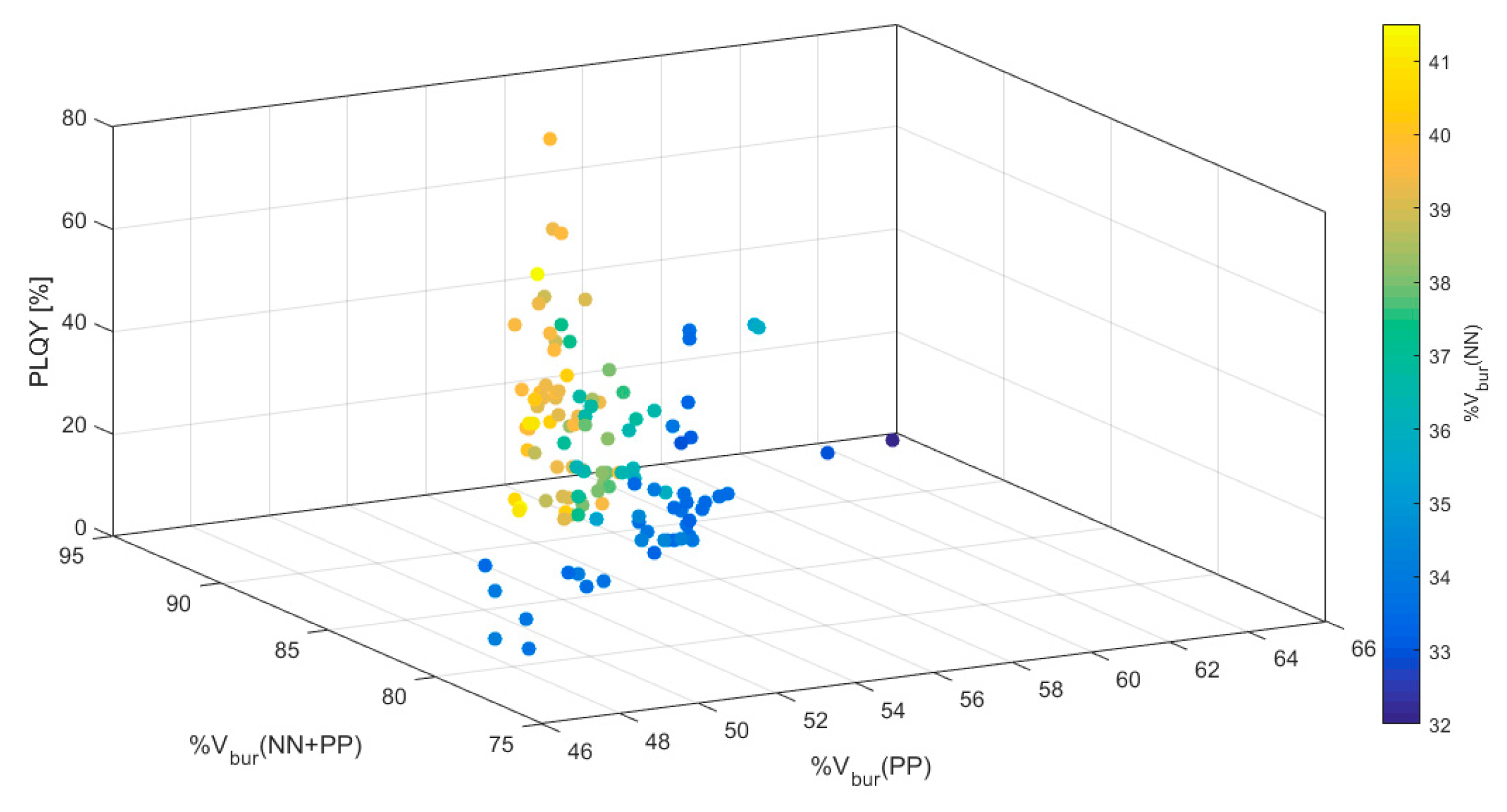

Figure 3. 3-Dimensional scatter plot with color-coded %Vbur(NN) of all 100 compounds found in the Cambridge Structural Database (CSD) (Table S1, Supplementary Materials) [17,18,19,20,21,23,24,25,26,27,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48].
Figure 3. 3-Dimensional scatter plot with color-coded %Vbur(NN) of all 100 compounds found in the Cambridge Structural Database (CSD) (Table S1, Supplementary Materials) [17,18,19,20,21,23,24,25,26,27,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48].
Molecules 25 02647 g003
Molecules 25 02647 g004 550

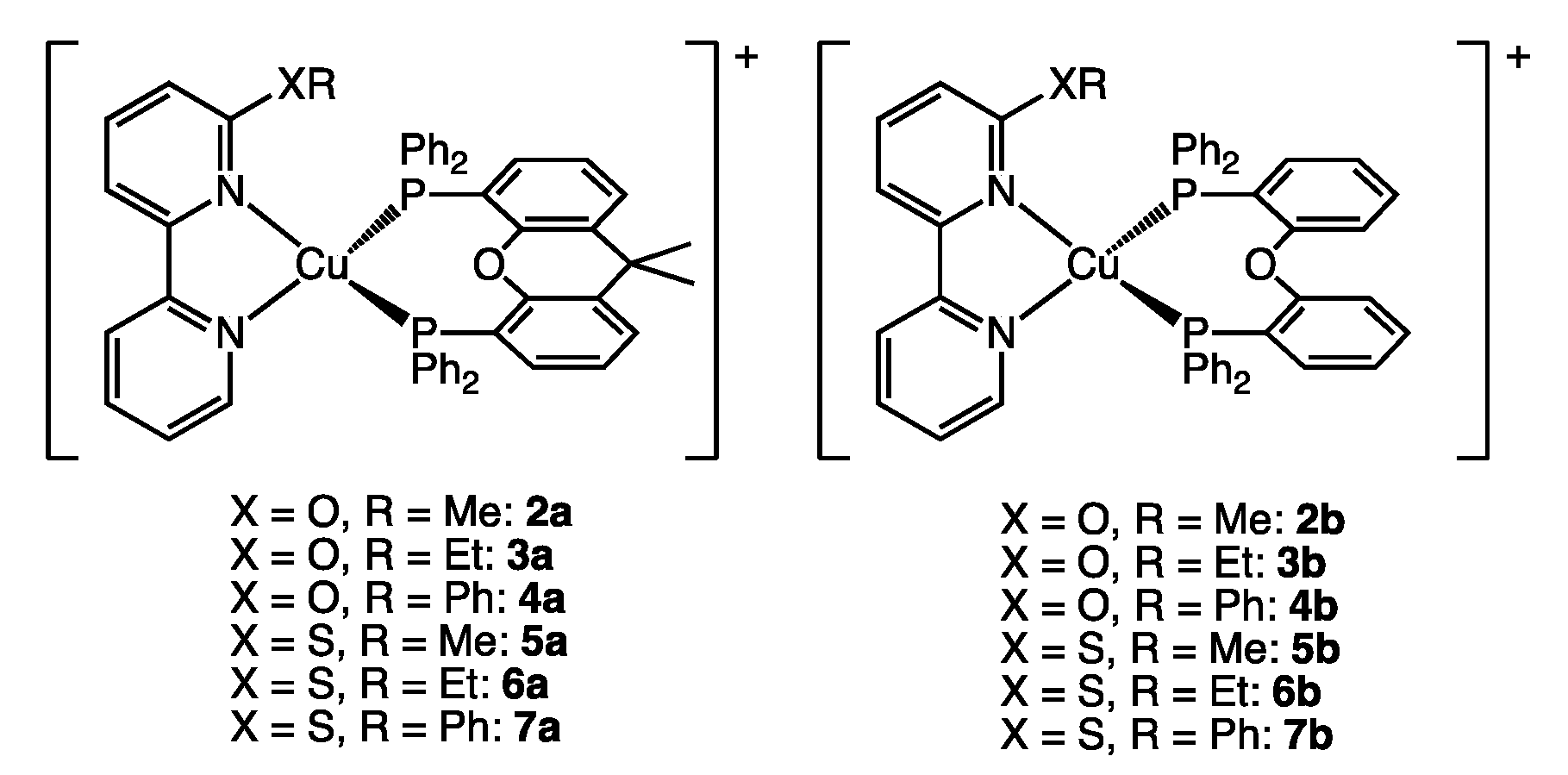

Figure 4. Structures of the [Cu(NN)(PP)]+ cations reported in reference [26] and used in case study 1.
Figure 4. Structures of the [Cu(NN)(PP)]+ cations reported in reference [26] and used in case study 1.
Molecules 25 02647 g004
Molecules 25 02647 g005 550

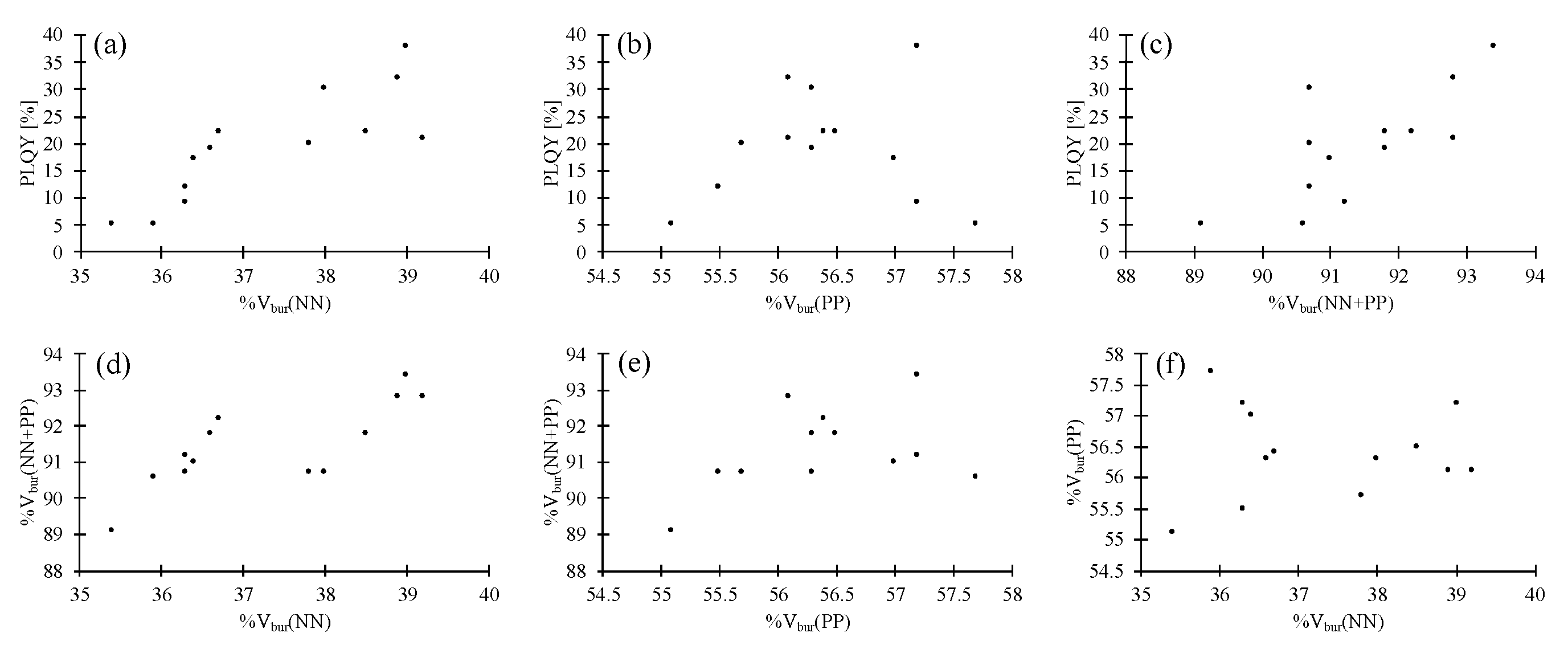

Figure 5. Scatter plots of PLQY, %Vbur(NN), %Vbur(PP) and %Vbur(NN + PP) for compounds 2a/b–7a/b [26]. (a) Scatter plot of PLQY vs. %Vbur(NN). (b) Scatter plot of PLQY vs. %Vbur(PP). (c) Scatter plot of PLQY vs. %Vbur(NN + PP). (d) Scatter plot of %Vbur(NN) vs. %Vbur(NN + PP). (e) Scatter plot of %Vbur(PP) vs. %Vbur(NN + PP). (f) Scatter plot of %Vbur(NN) vs. %Vbur(PP).
Figure 5. Scatter plots of PLQY, %Vbur(NN), %Vbur(PP) and %Vbur(NN + PP) for compounds 2a/b–7a/b [26]. (a) Scatter plot of PLQY vs. %Vbur(NN). (b) Scatter plot of PLQY vs. %Vbur(PP). (c) Scatter plot of PLQY vs. %Vbur(NN + PP). (d) Scatter plot of %Vbur(NN) vs. %Vbur(NN + PP). (e) Scatter plot of %Vbur(PP) vs. %Vbur(NN + PP). (f) Scatter plot of %Vbur(NN) vs. %Vbur(PP).
Molecules 25 02647 g005
Molecules 25 02647 g006 550

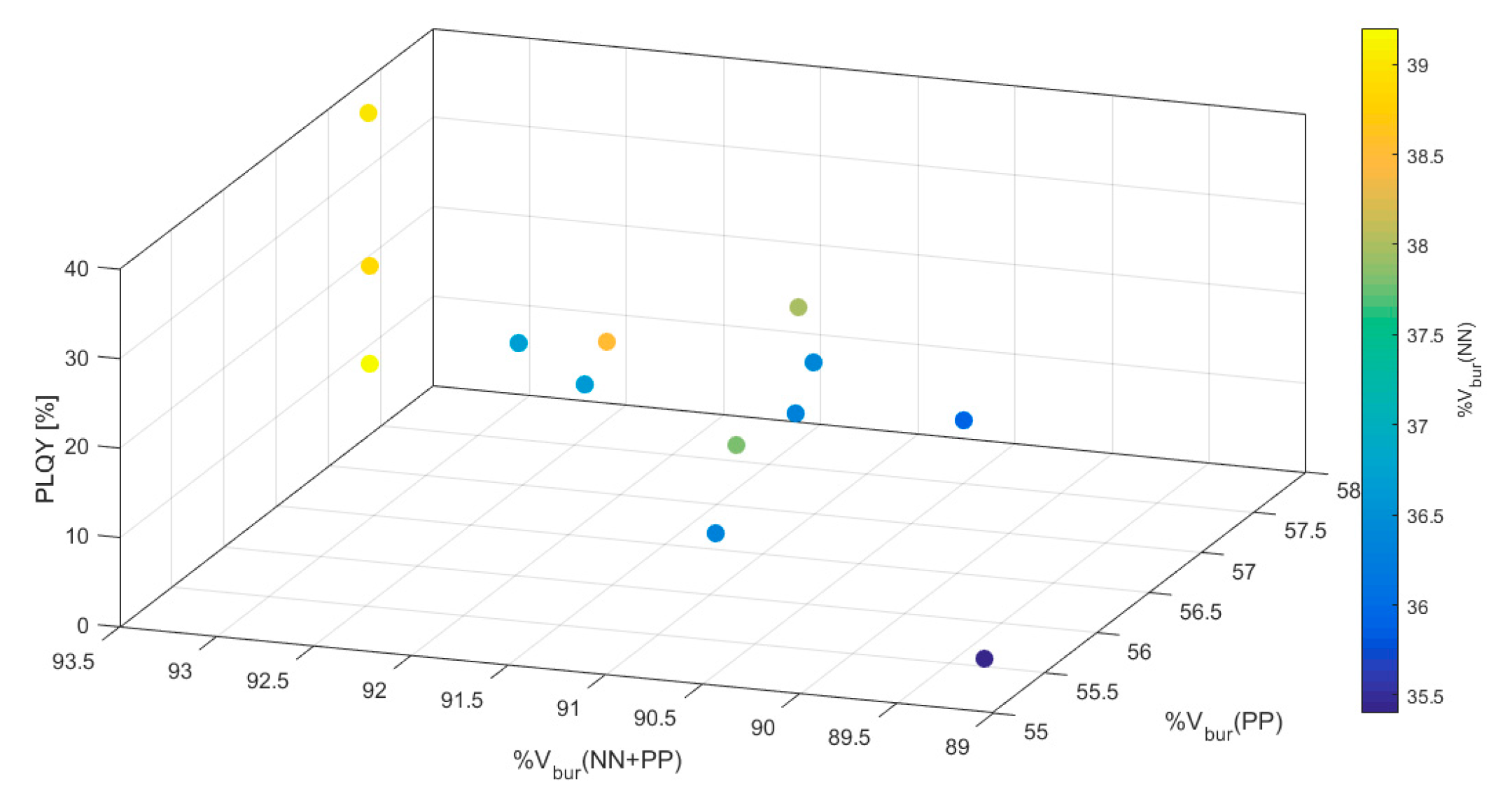

Figure 6. 3-Dimensional scatter plot with color-coded %Vbur(NN) for compounds 2a/b–7a/b [26].
Figure 6. 3-Dimensional scatter plot with color-coded %Vbur(NN) for compounds 2a/b–7a/b [26].
Molecules 25 02647 g006
Molecules 25 02647 g007 550

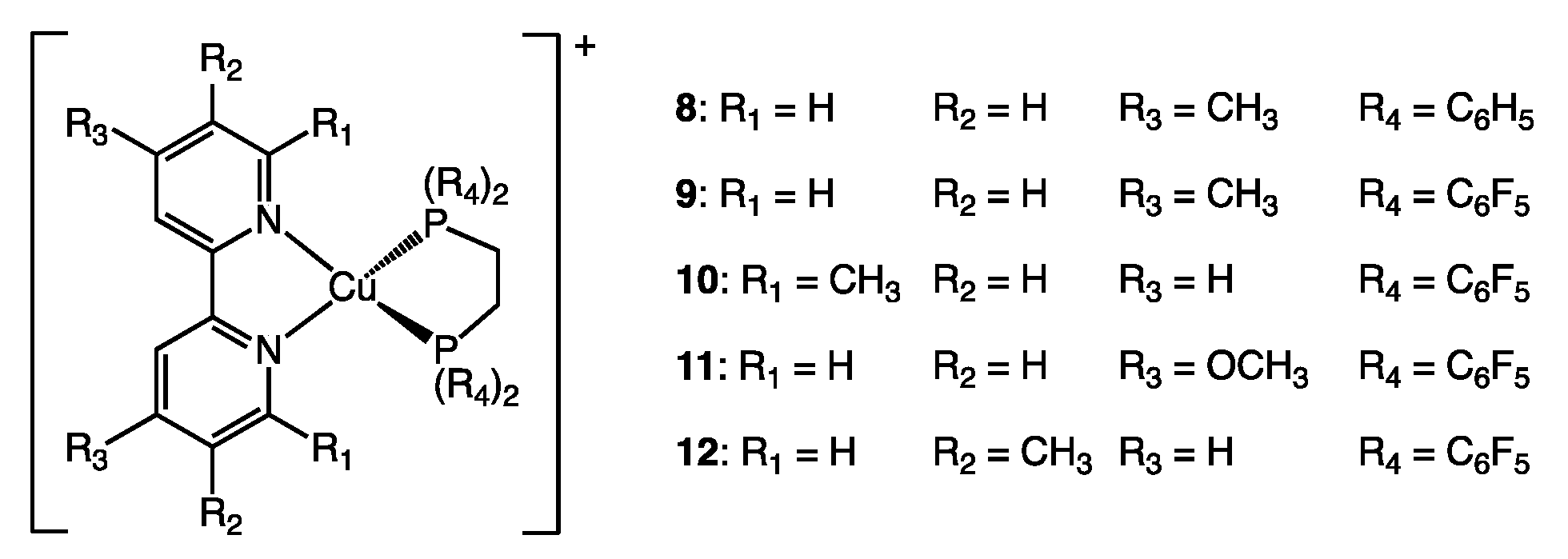

Figure 7. Structures of complexes 8–12 studied by Tsubomura and co-workers in 2015 [31].
Figure 7. Structures of complexes 8–12 studied by Tsubomura and co-workers in 2015 [31].
Molecules 25 02647 g007
Molecules 25 02647 g008 550

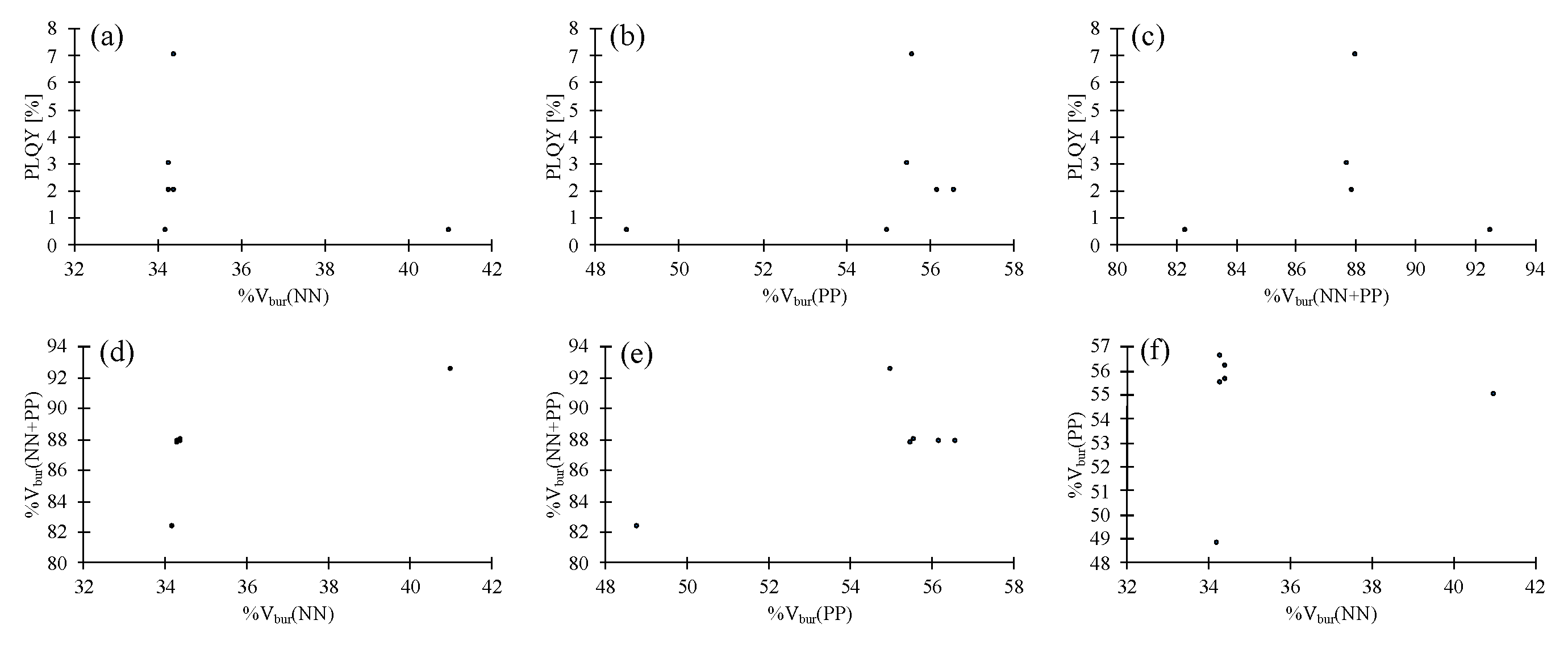

Figure 8. Scatter plots of PLQY, %Vbur(NN), %Vbur(PP) and %Vbur(NN + PP) for compounds 8–12 [31]. (a) Scatter plot of PLQY vs. %Vbur(NN). (b) Scatter plot of PLQY vs. %Vbur(PP). (c) Scatter plot of PLQY vs. %Vbur(NN + PP). (d) Scatter plot of %Vbur(NN) vs. %Vbur(NN + PP). (e) Scatter plot of %Vbur(PP) vs. %Vbur(NN + PP). (f) Scatter plot of %Vbur(NN) vs. %Vbur(PP).
Figure 8. Scatter plots of PLQY, %Vbur(NN), %Vbur(PP) and %Vbur(NN + PP) for compounds 8–12 [31]. (a) Scatter plot of PLQY vs. %Vbur(NN). (b) Scatter plot of PLQY vs. %Vbur(PP). (c) Scatter plot of PLQY vs. %Vbur(NN + PP). (d) Scatter plot of %Vbur(NN) vs. %Vbur(NN + PP). (e) Scatter plot of %Vbur(PP) vs. %Vbur(NN + PP). (f) Scatter plot of %Vbur(NN) vs. %Vbur(PP).
Molecules 25 02647 g008
Molecules 25 02647 g009 550

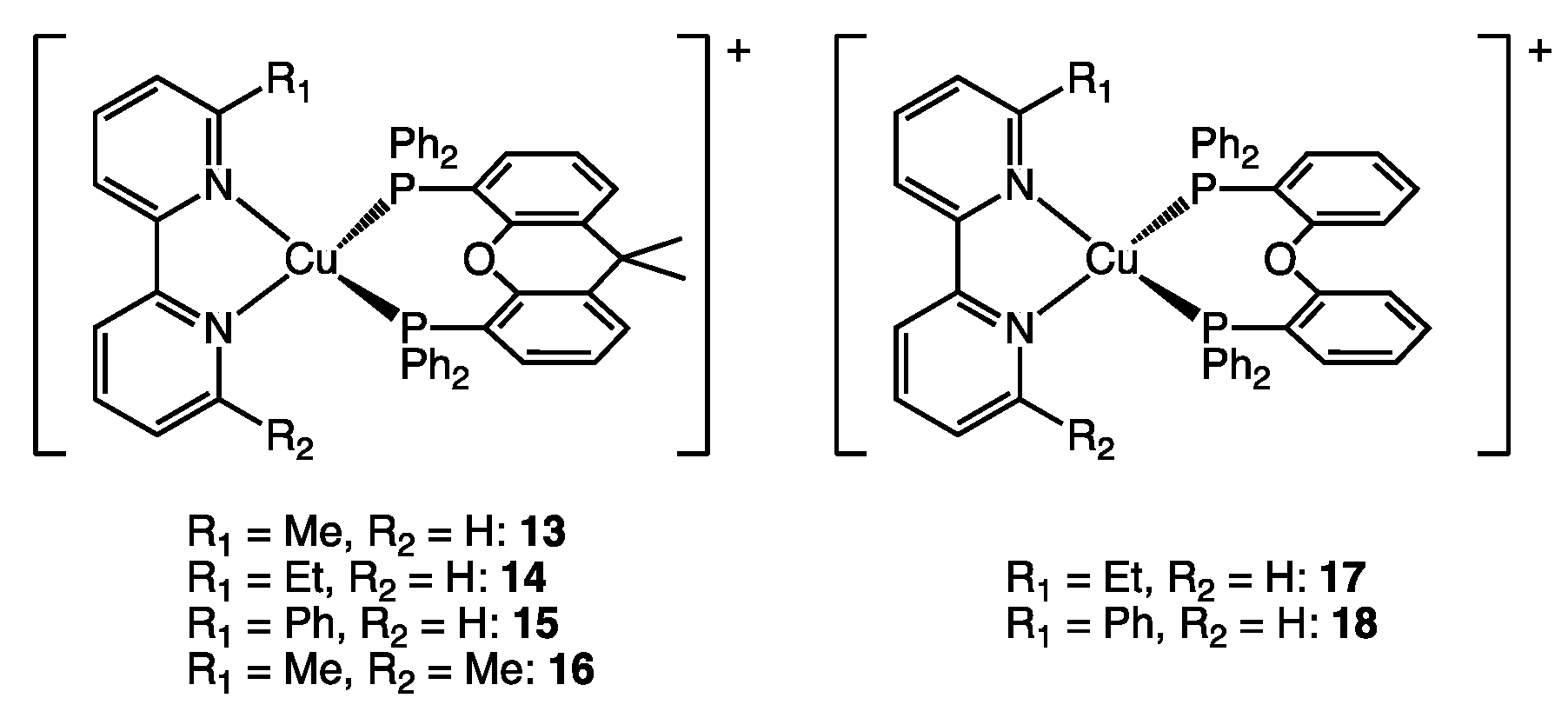

Figure 9. Structures of complexes 13–18 from reference [18].
