Molecules 2019, 24(7), 1405; https://doi.org/10.3390/molecules24071405

Article
Rhinoclactones A-E, Resorcylic Acid Analogs from Desert Plant Endophytic Fungus Rhinocladiella similis
1
Institute of Medicinal Plant Development, Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing 100193, China
2
Institute of Microbiology, Chinese Academy of Sciences, Beijing 100101, China
3
Biology Institute, Qilu University of Technology (Shandong Academy of Sciences), Jinan 250353, China
*
Correspondence: [email protected] (B.W.); [email protected] (Y.Z.); [email protected] or [email protected] (G.D.); Tel.: +86-010-5783-3281 (G.D.)
These authors contributed equally to this paper.
Academic Editor: Josphat Matasyoh
Received: 12 March 2019 / Accepted: 8 April 2019 / Published: 10 April 2019

Abstract

:
Seven resorcylic acid lactones (RALs) including five new analog rhinoclactones, A–E (1, 2, 46), were isolated from an endophytic fungus Rhinocladiella similis in the plant Agriophyllum squarrosum collected from the Tengger Desert of the Ningxia Province, China. The structures of these new compounds were determined by HR-ESI-MS (High Resolution Electrospray Ionization Mass Spectrometry), NMR data, modified Mosher’s method, and X-ray diffraction experiments. All compounds isolated from this fungus possessed the 16-OMe/14-OH, not the common 16-OH/14-OH or 16-OH/14-OMe groups on the aromatic ring, which are rarely found in nature. Compound 7 displayed cytotoxic activities against HCT116 and HeLa cancer cell lines. The possible biosynthesis of 17 is suggested, and the potential ecological roles of these fungal secondary metabolites is discussed.
Keywords:
desert plant; Agriophyllum squarrosum; endophytic fungus; Rhinocladiella similis; rhinoclactones; cytotoxic activities

1. Introduction

Resorcylic acid lactones (RALs) are fungal polyketides constructed by a 1, 3-benzenediol moiety fused with a macrocyclic lactone ring. The different degree of oxidation, unsaturation, and rearrangement on the macrolide ring together with methylation and chlorination on the aromatic ring diversify this group of natural products [1,2,3,4]. Resorcylic lactone analogs (such as radicicol) also display a wide range of biological activities, including inhibition of Hsp90 and kinases, antimicrobial, cytotoxic and anti-inflammatory effects [1,5,6,7,8]. Recently, our lab initiated chemical investigation of endophytes collected from desert, arid and grassland areas of West China [9,10,11,12,13,14,15]. In order to further mine new/novel and bioactive secondary metabolites from this special member of fungi, seven RAL analogs (17), including five new varieties (1, 2, 46) with different modifications on the macrolactone ring and phenolic ring, were isolated from an endophytic fungus Rhinocladiella similis from the plant Agriophyllum squarrosum (L.) Moq. (Amaranthaceae), collected from the Tengger Desert of the Ningxia Province, China (Figure 1). In this article, the structures of these new compounds (1, 2, 46), including the relative and absolute configurations, were established by NMR data, X-ray diffraction experiments, and chemical reactions. Bioactive evaluations of cytotoxicity, and the possible biogenetic pathways of 17 are presented, and the potentially ecological roles of this endophytic fungus are discussed.

2. Results and Discussion

The molecular formula of rhinoclactone A (1) was determined to be C19H25ClO5 on the basis of HR-ESI-MS (m/z 391.1289 [M + Na]+, Calcd 391.1288) with seven degrees of unsaturation. The 1H, 13C, and HSQC NMR data of 1 (Table 1) revealed the presence of two methyls (one methoxyl), eight methylenes, one oxymethine unit, six aromatic carbons, and two carbonyl carbons (one ester carboxyl). These data accounted for all the 1H (except for one free hydroxyl group) and 13C-NMR resonances, suggesting two rings present in Structure 1. A detailed comparison of the NMR and MS data of 1 with those of 8, 9-dihyrogreensporone C implied their similar structural features with the exception of the extra chloride atom and missing aromatic proton (H-13) in 1 [16]. Considering other known chloro-RAL analogs isolated from this fungus, the remaining chloride atom was suggested to be present at C-13. The 1H and 13C signals of 1 were characterized by 2D NMR experiments. Fortunately, the suitable crystal of 1 was obtained, which gave its absolute configuration as 2S, determined by a single crystal X-ray diffraction experiment (Figure 2). The X-ray diffraction experiments of 1 and 14-O-(4-bromobenzoyl)-8,9-dihydrogreensporone C revealed that the intramolecular hydrogen bond was formed between 14-OH and 13-Cl [16].
Rhinoclactone B (2) had the molecular formula as C19H25ClO6 on the basis of HR-ESI-MS (m/z 407.1233 [M + Na]+, Calcd 407.1237). The 2D NMR spectra confirmed that 2 possessed the same planar structure as that of 8, 9-dihyrogreensporone D [16]. The NMR data in these two compounds were the same, except that the chemical shift values of H/C-5 differed significantly, implying that C-5 had the opposite configuration compared with that of 8, 9-dihyrogreensporone D. Considering the absolute confirmation of C-5 in 8, 9-dihyrogreensporone D as S, the stereochemistry of C-5 in 2 was suggested to be R. This conclusion was further supported by the modified Mosher’s method (Figure 3) [17]. Three MeO groups were observed in the 1H-NMR spectra of products, implying that both 5-OH and 14-OH reacted with Mosher’s acyl chloride. A comparison of the 1H-NMR spectrum of products with that of 2 revealed that the chemical shift value of H-5 was significantly down-fielded. The difference in chemical shifts (Δδ = δSδR) for 2a ((S)-OMTPA) and 2b ((R)-OMTPA) was calculated and the absolute configuration of C-5 was assigned to 5R (Figure 3).
Compound (3) was identified to be 8, 9-dihyrogreensporone A based on HR-ESI-MS and NMR data [16]. The molecular formula of rhinoclactone C (4) was determined to be C19H23ClO7 on the basis of HR-ESI-MS (m/z 421.1031 [M + Na]+, Calcd 421.1030). A comparison of the molecular formula with that of 3 displayed that 4 had one more hydroxyl group. The peak shape of H-9a (δH = 2.63, J = 14.0, 3.5 Hz) and H-9b (δH = 2.33, J = 14.0, 9.5 Hz) was observed to be a doublet of doublets (dd), respectively, revealing that a methine unit must be connected with C-9, and this suggested that the additional hydroxyl group must have been at C-8. The conclusion was further supported by the HMBC (Heteronuclear Multiple Bond Correlation) correlation from the oxymethine (δH = 3.82) to C-10. The stereo-center of C-8 in 4 was determined by the modified Mosher’s method, the difference in chemical shifts (Δδ = δSδR) for 4a ((S)-OMTPA) and 4b ((R)-OMTPA) was calculated and the absolute configuration of C-8 was assigned to R (Figure 3).
The HR-ESI-MS (m/z 435.1187 [M + Na]+, Calcd 435.1187) gave the molecular formula of rhinoclactone D (5) to be C20H25ClO7 with 14 Dalton more than that of 4. The 1H and 13C-NMR spectra revealed one more methoxyl group present in 5. Considering the intramolecular hydrogen bond between 14-OH and 13-Cl, it was suggested that this methoxyl should be connected at C-8 not C-14, and this was confirmed by the HMBC correlation from the peak of the methyl (δH = 3.56) to C-8. The chemical shift values and coupling constants of H-9a and H-9b were δH = 3.00 (J = 8.0, 14.5 Hz) and δH = 2.52 (J = 1.5, 14.5 Hz), respectively, different from those of 4 (H-9a, δH = 2.63, J = 3.5, 14.0 Hz; H-9b, δH = 2.33, J = 9.5, 14.0 Hz), which implied that the configuration at C-8 in 5 was opposite to that found in 4. The planar structure of rhinoclactone E (6) was determined to be the same as that of 5 on the basis of HR-ESI-MS and NMR data. The chemical shift values and coupling constants of H-9a (δH = 2.68, J = 3.5, 14.5 Hz), and H-9b (δH = 2.21, J = 9.0, 14.5 Hz) were similar to those of 4, but different to those of 5, implying that the configuration of C-5 in 6 was similar to that in 4.
Compound 7 possessed the same planar structure as that of greensporone A according to the NMR data analysis [16].
Based on a similar biosynthetic pathway, the stereochemistry of C-2 in compounds (2, 46) was suggested to be the same as that found in 1, which was determined by X-ray diffraction experiment, and the known compounds 3 and 7 also possessed the same absolute configuration at C-2 as that of new analogs 1, 2, and 46.
RALs are an important member of polyketides isolated from diverse fungi inhabiting niches. All compounds (17) isolated from R. similis possessed unique 16-OMe/14-OH, not the common 16-OH/14-OH or 16-OH/14-OMe groups on the aromatic ring, and all compounds (17) contained a chloride atom at C-13, implying that a halogenase should be contained in the biosynthetic gene cluster of these secondary metabolites [18]. The possible biosynthetic pathway of 17 was suggested as depicted in Figure S8.1 (Supplementary Materials).
Compounds 17 were evaluated for cytotoxic activities against HCT116, MCF7 and HeLa cancer cell lines, whereas only compound (7) displayed weak biological activities against HCT116 and HeLa cancer cell lines with IC50 values of 43.51 ± 1.04, 40.61 ± 0.32 μM, respectively, compared with the positive control cis-platinum (IC50 value of 11.36 ± 0.42, 3.54 ± 0.12 μM, respectively).
Heat shock protein 90 (Hsp90) is an ATP-dependent chaperone and a vital drug target related to a wide range of pathologies from oncology to neurodegenerative and other diseases [4]. The RAL analog radicicol displayed significantly inhibitory activities against Hsp90 with IC50 values lower than 20 nM. Structure–activity relationship studies revealed that 14,16-hydroxyls and the ester carbonyl (at C-18) in RAL structures play a crucial role in the inhibition of Hsp90 [4]. This might explain non or low-cytotoxic activities of compounds 17 against different cancer cell lines due to the absence of the free hydroxyl group at C-16 by precluding their binding with Hsp90.
Actually, 14-membered ring RALs with a 16-OMe group do not often occur in nature, and, to date, only three rare analogs have been found. This raised a very interesting question: Why did the endophytic fungus Rhinocladiella similis biosynthesize 14-membered ring RAL analogs (17) with the 16-OMe group? We postulated that methylation of 16-OH in 14-membered ring RALs might reduce cell cytotoxicity against the host plant cell to ensure that the endophytic fungus is not kicked out of the host plant’s immunologic system. In addition, all compounds 17 possessed a unique chloride atom at C-13, something that does not often occur in terrestrial fungi, though there were some analogs isolated from different fungi [4]. However, it should be taken into account that the host plant A. squarrosum grows in desert areas and has higher saline stress than that of other plants. It raised another interesting question: Might this endophytic fungus help its host defense of saline stress by metabolizing redundant chloride present in the desert soil to form chlorinated secondary metabolites (17), and thus help its host adapt to adversely abiotic environments? Clearly, more evidence is needed to elucidate the ecological roles of compounds 17.

3. Experimental Section

3.1. General Experimental Procedures

Optical rotations were taken on a Perkin-Elmer 241 polarimeter (PerkinElmer, Waltham, MA, USA). The UV spectra were recorded on a Thermo Genesys-10S UV-Vis spectrometer (Shimadzu, Kyoto, Japan). The IR spectra were measured using a Nicolet IS5FT-IR spectrophotometer (Shimadzu, Kyoto, Japan). The 1D and 2D NMR spectra were measured in Acetone-d6 (δH 2.09/δC 206.0) on a Bruker 600 spectrometer (1H: 600MHz, 13C: 150MHz) (Bruker, Rheinstetten, Germany). HR-ESI-MS were obtained using a TOF-ESI-MS (Time of Flight Electrospray Ionization Mass Spectrometry) (Waters Synapt G2, Milford, American). Semi-preparative HPLC separation was performed on a Shimadzu LC-6AD instrument packed with a YMC-Pack ODS-A column (5 μm, 250 mm × 10 mm). Sephadex LH-20 was purchased from Pharmacia Biotech (Uppsala, Sweden). Silica gel (200–300 mesh) for column chromatography was produced by Qingdao Marine Chemical Factory, Qingdao, China.

3.2. Fungal Material

The strain of R. similis (CGMCC3.18889) was isolated from asymptomatic leaf tissue of A. squarrosum and was identified by morphological examination and analysis of internal transcribed spacer (ITS) of ribosomal RNA (GenBank accession No. MF511725). The fungus was grown on potato dextrose agar plates at 25 °C for 7 days. Then the fresh mycelium was inoculated into an autoclaving sterilized solid medium with a formula of rice (60.0 g) and distilled water (80 mL) in Fernbach flasks (500 mL) for further fermentation at 25 °C for 40 days.

3.3. Extraction and Isolation

The fermented rice substrate was extracted with EtOAc (500 mL × 3 times) three times, and the organic solvent was dried under a vacuum to afford 3.7 g of crude extract. The original extract was fractionated on a silica gel column using petroleum ether-acetone (50:1–1:1) progressively to give ten fractions (fraction 1 to fraction 10). Fraction 3 (120 mg) was purified by semi-preparative HPLC (UV 210nm, 75% MeOH in H2O) to obtain compound 1 (20.0 mg, tR 19.3 min). Fraction 5 (124 mg) was purified by semi-preparative HPLC (UV 210 nm, 55% MeOH in H2O) to yield compound 3 (9.0 mg, tR 15.2 min). Fraction 6 (233 mg) was subjected to silica gel using petroleum ether-acetone (6:1) isocratic elution to give five subfractions (fraction 6.1 to fraction 6.5). Fraction 6.2 (90 mg) was then purified by semi-preparative HPLC (UV 210 nm, 55% MeOH in H2O) to yield compound 6 (6.8 mg, tR 14.9 min). Fraction 6.4 (31 mg) was then purified by semi-preparative HPLC (UV 210 nm, 55% MeOH in H2O) to yield compound 5 (11.6 mg, tR 14.5 min) and compound 7 (21.7 mg, tR 14.3 min). Fraction 8 (86 mg) was purified by semi-preparative HPLC (UV 210 nm, 50% MeOH in H2O) to obtain compound 2 (2.6 mg, tR 14.9 min) and compound 4 (5.6 mg, tR 12.5 min)
Rhinoclactone A (1) was colorless oil, [ α ] D 20 +10.0° (c 0.1, MeOH), UV (MeOH) λmax: 292 nm, IR (KBr)νmax: 3412, 2930, 2852, 1717, 1587, 1464, 1257, 1214, 1108 and 1023 cm−1. HR-ESI-MS m/z: 391.1289 [M + Na]+ (calcd for C19H25ClO5Na, 391.1288). 1H-(Acetone-d6, 600 MHz) and 13C-(Acetone-d6, 150 MHz) NMR data; see Table 1.
Rhinoclactone B (2) was colorless oil, [ α ] D 20 −42.0° (c 0.1, MeOH), UV (MeOH) λmax: 205 nm, IR (KBr)νmax: 3459, 2931, 1708, 1588, 1463, 1211, 993 and 835 cm−1. HR-ESI-MS m/z: 407.1238 [M + Na]+ (calcd for C19H25ClO6Na, 407.1237). 1H-(Acetone-d6, 600 MHz) and 13C-(Acetone-d6, 150 MHz) NMR data; see Table 1.
Rhinoclactone C (4) was colorless oil, [ α ] D 20 −12.0° (c 0.1, MeOH), UV (MeOH) λmax: 270 nm; IR (KBr)νmax: 3398, 2935, 1714, 1589, 1456, 1257, 1102 and 834 cm−1. HR-ESI-MS m/z: 421.1031 [M + Na]+ (calcd for C19H23ClO7Na, 421.1030). 1H-(Acetone-d6, 600 MHz) and 13C-(Acetone-d6, 150 MHz) NMR data; see Table 1.
Rhinoclactone D (5) was colorless oil, [ α ] D 20 −12.0° (c 0.1, MeOH), UV (MeOH) λmax: 202 nm, IR (KBr)νmax: 3389, 2923, 2848, 1718, 1674, 1249 and 1027 cm−1. HR-ESI-MS m/z: 435.1187 [M + Na]+ (calcd for C20H25ClO7Na, 435.1187). 1H-(Acetone-d6, 600 MHz) and 13C-(Acetone-d6, 150 MHz) NMR data; see Table 1.
Rhinoclactone E (6) was colorless oil, [ α ] D 20 +36.0° (c 0.1, MeOH), UV (MeOH) λmax: 208nm; IR (KBr)νmax: 3390, 2921, 2850, 1715, 1599, 1457, 1255 and 1100 cm−1. HR-ESI-MS m/z: 435.1185 [M + Na]+ (calcd for C20H25ClO7Na, 435.1187). 1H-(Acetone-d6, 600 MHz) and 13C-(Acetone-d6, 150 MHz) NMR data; see Table 1.

3.4. X-ray Crystallographic Analysis of 1

Upon crystallization from CH3OH–H2O (10:1) using the vapor diffusion method, colorless crystals were obtained for 1. A crystal (0.15 mm × 0.14 mm × 0.10 mm) was separated from the sample and the crystal data were obtained on the Agilent GEMINITME instrument (CrysAlisPro software, Version 1.171.35.11, Palo Alto, CA, USA) with enhanced Cu Kα radiation (λ = 1.54184 Å). The structure solution and refinement were performed with the SHELXL-97 by full-matrix least-square techniques. Crystal data was C19H25ClO5, M = 368.84, orthorhombic, space group P212121 with unit cell dimensions a = 7.75828 (14) Å, b = 15.2428(3) Å, c = 15.3442(3), V = 1814.57(6) Å3, Z = 4, T = 107.3 K, ρcalcd = 1.350 mg mm−3, μ (Cu Kα) = 2.091 mm−1, F (000) = 784. A total of 6157 reflections were collected in the range 11.53° < θ < 142.27° with 3435 independent reflections [R(int) = 0.0245]. The final R indexes [I > 2σ(I)] were R1 = 0.0325, wR2 = 0.0823, and R indexes (all data) were R1 = 0.0338, wR2 = 0.0834. The flack parameter was −0.006(10). The crystallographic data for the structure of 1 was deposited in the Cambridge Crystallographic Data Centre [deposition number: CCDC 1580280].

3.5. Cytotoxic Evaluation (MTT Assay)

The cytotoxic activities of isolated 17 were evaluated against HCT116, MCF7 and HeLa cancer cell lines on the basis of the MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) colorimetric approach with the cis-platinum as the positive control. The procedure of cytotoxic evaluation described was as in Reference [19].

4. Conclusions

Seven RALs including five new analog rhinoclactones A–E (1, 2, 46) were isolated from the endophytic fungus R. similis, which diversified the structural types of RALs. Our results implied that endophytic fungi from desert plants will be a potential resource for finding bioactive secondary metabolites, which will benefit the drug discovery and could elucidate the, potentially, ecological roles between endophytic fungi and their plant hosts.

Supplementary Materials

The following are available online.

Author Contributions

All the authors discussed and planned the paper; L.L. performed the isolation; X.Z. and X.T. fermented the fungus and obtained the crude extract; G.D., B.W., L.L., X.Z. and Y.Z. wrote the first draft version; S.N. did the evaluation of bioactivities; B.S. provided the fungal material; M.Y. recorded the MS data of new compounds, T.Z. made comments and suggestions to the first draft.

Funding

This research was funded by National Natural Science Foundation of China (31670011), National Key Research and Development Program of China (2017YFD0201402), CAMS Initiative for Innovative Medicine (2017-I2M-4-004).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Winssinger, N.; Barluenga, S. Chemistry and biology of resorcylic acid lactones. Chem. Commun. 2007, 1, 22–36. [Google Scholar] [CrossRef] [PubMed]
  2. Thomas, R. ChemInform Abstract: A Biosynthetic Classification of Fungal and Streptomycete Fused-Ring Aromatic Polyketides. Chem. Biol. Chem. 2001, 2, 612–627. [Google Scholar] [CrossRef]
  3. Xu, Y.; Zhou, T.; Zhou, Z.; Su, S.; Roberts, S.A.; Montfort, W.R.; Zeng, J.; Chen, M.; Zhang, W.; Zhan, J.; et al. Rational reprogramming of fungal polyketide first-ring cyclization. Proc. Natl. Acad. Sci. USA 2013, 110, 5398–5403. [Google Scholar] [CrossRef][Green Version]
  4. Shen, W.; Mao, H.; Huang, Q.; Dong, J. Benzenediol lactones: A class of fungal metabolites with diverse structural features and biological activitie. Eur. J. Med. Chem. 2015, 97, 747–777. [Google Scholar] [CrossRef] [PubMed]
  5. Winssinger, N.; Fontaine, J.G.; Barluenga, S. Hsp90 Inhibition with Resorcylic Acid Lactones (RALs). Curr. Top. Med. Chem. 2009, 9, 1419–1435. [Google Scholar] [CrossRef] [PubMed]
  6. Ayers, S.; Graf, T.N.; Adcock, A.F.; Kroll, D.J.; Matthew, S.; Carcache de Blanco, E.J.; Shen, Q.; Swanson, S.M.; Wani, M.C.; Pearce, C.J.; et al. Resorcylic Acid Lactones with Cytotoxic and NF-κB Inhibitory Activities and Their Structure–Activity Relationships. J. Nat. Prod. 2011, 74, 1126–1131. [Google Scholar] [CrossRef] [PubMed]
  7. Matsushita, N.; Akinaga, S.; Agatsuma, T. International Patent 2004. No. WO 2004/024141, 25 March 2004. [Google Scholar]
  8. Ninomiya-Tsuji, J.; Kajino, T.; Ono, K.; Ohtomo, T.; Matsumoto, M.; Shiina, M.; Mihara, M.; Tsuchiya, M.; Kunihiro, M. A Resorcylic Acid Lactone, 5Z-7-Oxozeaenol, Prevents Inflammation by Inhibiting the Catalytic Activity of TAK1 MAPK Kinase Kinase. J. Biol. Chem. 2003, 278, 18485–18490. [Google Scholar] [CrossRef]
  9. Tan, X.M.; Chen, A.J.; Wu, B.; Zhang, G.S.; Ding, G. Advance of swainsonine biosynthesis. Chin. Chem. Lett. 2018, 29, 417–422. [Google Scholar] [CrossRef]
  10. Li, L.Y.; Sun, B.D.; Zhang, G.S.; Deng, H.; Wang, M.H.; Tan, X.M.; Zhang, X.Y.; Jia, H.M.; Zhang, T.; Zou, Z.M.; et al. Polyketides with different post-modifications from desert endophytic fungus Paraphoma sp. Nat. Prod. Res. 2017, 32, 939–943. [Google Scholar] [CrossRef] [PubMed]
  11. Li, L.Y.; Zhang, X.Y.; Sun, B.D.; Deng, H.; Zou, Z.M.; Ding, G. Phenolic acid analogs from the endophytic fungus Embellisia chlamydospora isolated from desert medicinal plant Artemisia desertorum. Mycosystema 2018, 37, 88–94. [Google Scholar]
  12. Li, L.Y.; Song, B.; Chen, A.J.; Sun, B.D.; Zhang, G.S.; Deng, H.; Ding, G. Advance on secondary metabolites of grassland and desert plants endophytic fungi. Microbiol. China 2018, 45, 1146–1160. [Google Scholar]
  13. Zhang, X.Y.; Liu, Z.L.; Sun, B.D.; Niu, S.N.; Wang, M.H.; Tan, X.M.; Zou, Z.M.; Ding, G. Bioactive resorcylic acid lactones with different ring systems from desert plant endophytic fungus Chaetosphaeronema hispidulum. J. Agric. Food Chem. 2018, 66, 8976–8982. [Google Scholar] [CrossRef] [PubMed]
  14. Tan, X.M.; Li, L.Y.; Sun, L.Y.; Sun, B.D.; Niu, S.B.; Wang, M.H.; Zhang, X.Y.; Sun, W.S.; Zhang, G.S.; Deng, H.; et al. Spiciferone analogs from an endophytic fungus Phoma betae collected from desert plants in West China. J. Antibiot. 2018, 71, 613–617. [Google Scholar] [CrossRef] [PubMed]
  15. Song, B.; Li, L.Y.; Shang, H.; Liu, Y.; Yu, M.; Ding, G.; Zou, Z.M. Trematosphones A and B, Two Unique Dimeric Structures from the Desert Plant Endophytic Fungus Trematosphaeria terricola. Org. Lett. 2019, 21, 2139–2142. [Google Scholar] [CrossRef] [PubMed]
  16. El-Elimat, T.; Raja, H.A.; Day, C.S.; Chen, W.; Swanson, S.M.; Oberlies, N.H. Greensporones: Resorcylic Acid Lactones from an Aquatic Halenospora sp. J. Nat. Prod. 2014, 77, 2088–2098. [Google Scholar] [CrossRef] [PubMed]
  17. Ikuko, O.; Takenori, K.; Yoel, K.; Hiroshi, K. High-Field FT NMR Application of Mosher’s Method. The Absolute Configurations of Marine Terpenoids. J. Am. Chem. Soc. 1991, 113, 4092–4096. [Google Scholar]
  18. Zhou, H.; Qiao, K.J.; Gao, Z.Z.; Vederas, J.C.; Tang, Y. Insights into Radicicol Biosynthesis via Heterologous Synthesis of Intermediates and Analogs. J. Biol. Chem. 2010, 285, 41412–41421. [Google Scholar] [CrossRef] [PubMed]
  19. Chen, L.; Niu, S.B.; Li, L.; Ding, G.; Yu, M.; Zhang, G.S.; Wang, M.H.; Li, L.Y.; Zhang, T.; Jia, H.M.; et al. Trichoderpyrone, a Unique Polyketide Hybrid with a Cyclopentenone–Pyrone Skeleton from the Plant Endophytic Fungus Trichoderma gamsii. J. Nat. Prod. 2017, 80, 1944–1947. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds (17) are available from the authors.

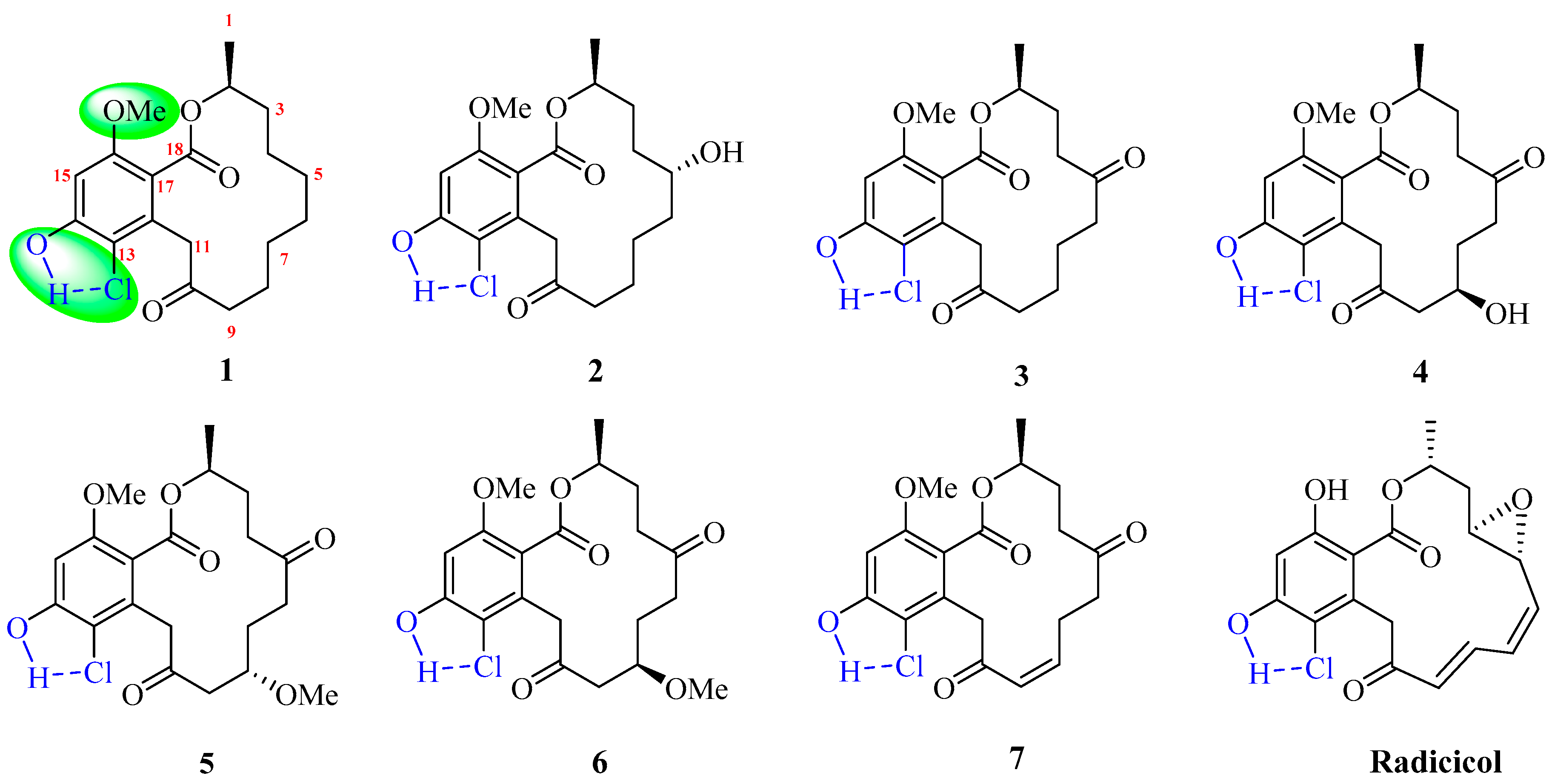

Figure 1. Structures of compounds 17.
Figure 1. Structures of compounds 17.
Molecules 24 01405 g001

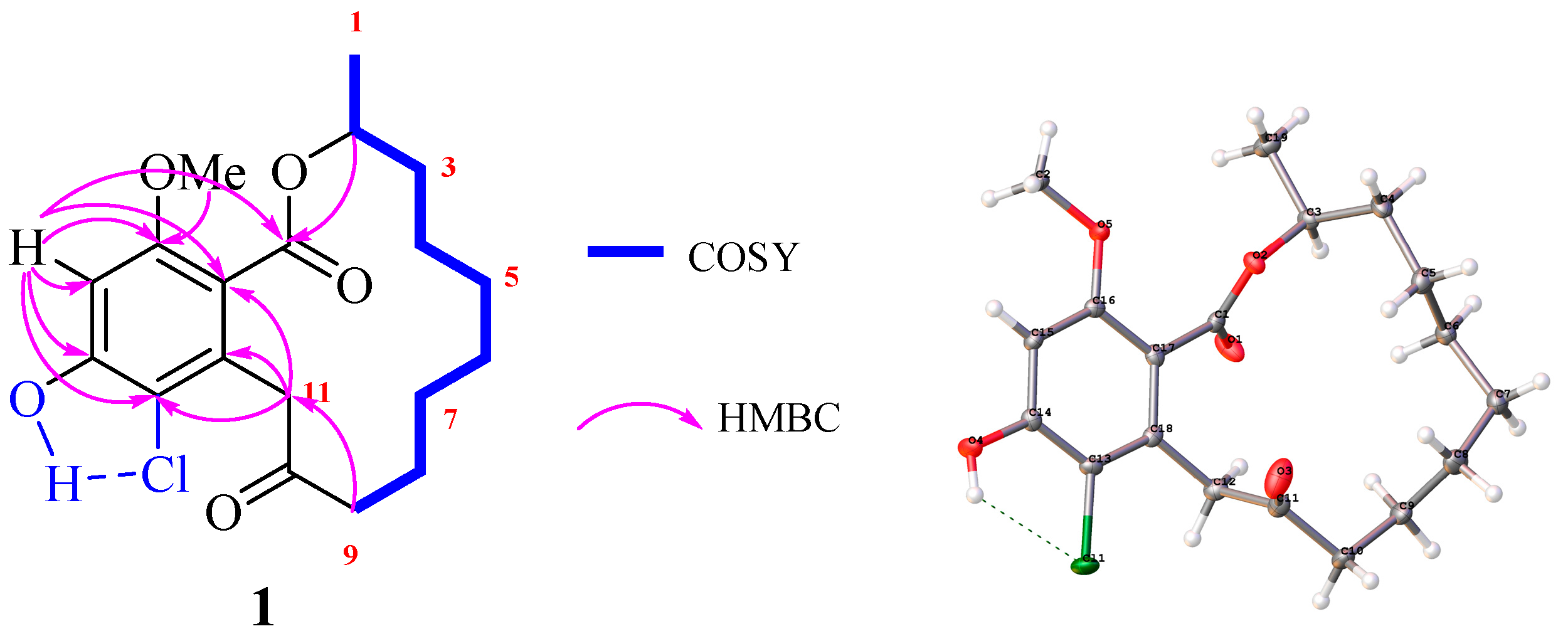

Figure 2. Key 2D NMR correlations and X-ray structure of 1.
Figure 2. Key 2D NMR correlations and X-ray structure of 1.
Molecules 24 01405 g002

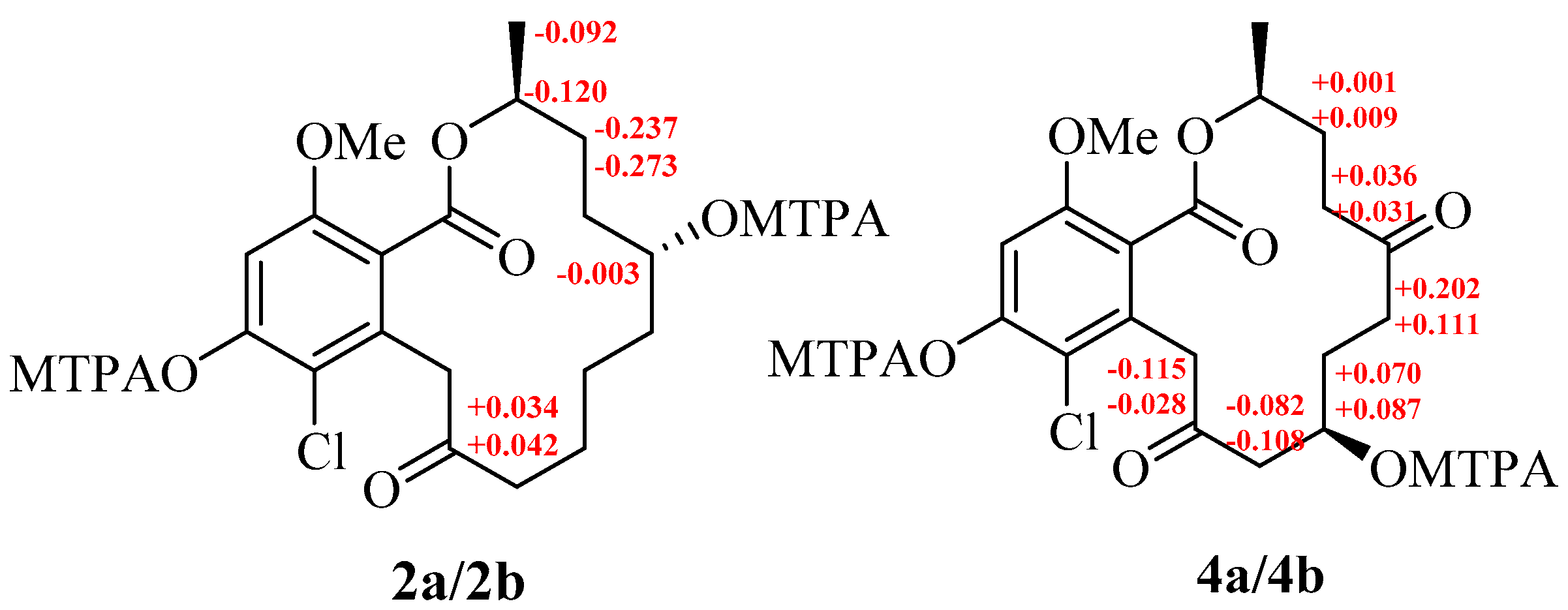

Figure 3. Δδ values (in ppm) = δSδR for (R)- and (S)-OMTPA diesters (2a/2b and 4a/4b).
Figure 3. Δδ values (in ppm) = δSδR for (R)- and (S)-OMTPA diesters (2a/2b and 4a/4b).
Molecules 24 01405 g003
Table 1. NMR spectroscopic data for compounds 1, 2, 46 in Acetone-d6 (δ in ppm, J in Hz).
Table 1. NMR spectroscopic data for compounds 1, 2, 46 in Acetone-d6 (δ in ppm, J in Hz).
No.12456
δHaδCbδHaδCbδHaδCbδHaδCbδHaδCb
11.27, d (7.2)19.61.28, d (7.8)19.61.28, d (7.8)19.51.27, d (7.2)20.61.29, d (7.2)19.5
25.17, m70.45.20, m72.05.12, m70.94.90, m71.45.16, m70.9
31.60, m34.71.48, m30.82.16, m27.91.50, m29.52.21, m27.9
1.60, m1.28, m1.60, m1.50, m1.58, m
41.33, m22.11.51, m31.62.62, m37.32.64, ddd (18.5, 10.0, 4.0)35.22.66, m35.4
1.33, m1.28, m2.37, m2.16, ddd (18.5, 5.0, 5.0)2.38, m
51.36, m25.73.45, m70.3 209.7 209.6 209.6
1.36, m
61.34, m24.91.64, m34.62.64, m35.22.43, ddd (15.0, 7.5, 3.5)40.62.55, m36.7
1.34, m1.29, m2.64, m2.24, ddd (15.0, 11.5, 3.5)2.34, m
71.70, m22.71.40, m22.41.87, m30.22.09, m21.31.89, m26.6
1.50, m1.40, m1.87, m1.76, m1.89, m
81.70, m25.91.41, m22.83.82, m65.63.56, m79.13.37, m75.3
1.52, m1.17, m
8-OMe 3.27 s57.13.27 s55.5
92.71, ddd (14.5, 9.5, 3.0)40.52.79, ddd (17.0, 7.5, 3.0)39.52.63, dd (14.0, 3.5)48.83.00, dd (14.5, 8.0)45.52.68, dd (14.5, 3.5)45.2
2.30, ddd (14.5, 9.0, 3.0)2.46, ddd (17.0, 10.5, 3.5)2.33, dd (14.0, 9.5)2.52, dd (14.5, 1.5)2.21, dd (14.5, 9.0)
10 204.4 204.1 203.9 205.0 203.4
114.13, d (18.5)44.14.03, d (18.5)44.54.10, d (18.0)45.34.07, d (18.5)46.84.12, d (17.5)44.9
3.97, d (18.5)3.97, d (18.5)3.89, d (18.0)4.01, d (18.5)3.89, d (17.5)
12 132.6 132.3 132.4 133.2 132.4
13 113.7 113.5 113.5 114.8 113.4
14 154.9 154.6 155.3 156.8 155.2
156.68, s99.36.68, s99.26.71, s99.56.67, s100.56.69, s99.5
16 156.4 156.1 156.6 157.3 156.7
17 117.9 118.6 117.8 118.6 117.9
18 167.0 166.7 167.0 168.2 167.0
16-OMe3.77, s55.53.79, s55.63.78, s55.63.74, s56.53.78, s55.6
a Recorded at 600 MHz. b Recorded at 150 MHz.
