A New 3-D Open-Framework Zinc Borovanadate with Catalytic Potentials in α-Phenethyl Alcohol Oxidation

by
Xinxin Liu
1,2,
Biao Guo
2,
Xuejiao Sun
1,
Le Zhang
1 and
Hongming Yuan
1,*
1
State Key Laboratory of Inorganic Synthesis and Preparative Chemistry, College of Chemistry, Jilin University, Changchun 130012, China
2
Institute of Catalysis for Energy and Environment, College of Chemistry and Chemical Engineering, Shenyang Normal University, Shenyang 110034, China
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(3), 531; https://doi.org/10.3390/molecules24030531
Submission received: 24 December 2018 / Revised: 27 January 2019 / Accepted: 30 January 2019 / Published: 1 February 2019
(This article belongs to the Special Issue Polyoxometalates and Polyoxometalate-Based Systems)
Browse Figures
Review Reports Versions Notes

Abstract

:
A novel 3-D open-framework zinc borovanadate [Zn6(en)3][(VIVO)6(VVO)6O6(B18O36(OH)6)·(H2O)]2·14H2O (1, en = ethylenediamine) was hydrothermally obtained and structurally characterized. The framework was built from [V12B18O54(OH)6(H2O)]10− polyanion clusters bridged by Zn(en) complex fragments. The compound not only possessed a three-dimensional open-framework structure with unique plane-shaped channels, but also exhibited excellent catalytic activities for the oxidation of α-phenethyl alcohol.

1. Introduction

Research on inorganic framework solids possessing open architectures continues to attract great interest due to their many potential applications [1,2,3,4,5,6]. Inorganic open-framework solids with large channels or cavities have been developed for adsorption and catalysis studies [7,8]. It is becoming equally important to search for new framework solids with attractive structures and promising properties [9,10,11]. To date, almost half of the elements on the periodic table can be used to construct open-framework materials. The scope of such frameworks is no longer confined to traditional silicates [12], phosphates [13], etc., but also includes emerging borates and their derivatives, such as borogermanates [14], borophosphates [15], and borovanadates [16].
In recent years, borovanadates have attracted extensive attention in solid-state material chemistry owing to their fascinating architectures and wide applications in adsorption [7], catalysis [17], and magnetism [18]. A vast range of applications has led to great efforts toward rationally designing and synthesizing such compounds. Until now, various BVO clusters have been observed, as exemplified by V6B20 in [(VO)6{B10O16(OH)6}2]3− [19], V6B22 in [V6B22O44(OH)10]8− [20], V10B28 in [Mn4(C2O4)(V10B28O74H8)]10− [21], V12B16 in [(VO)12O4{B8O17(OH)4}2]8− [22,23], V12B17 in [(VO)12B17O38(OH)8}9− [24], V12B18 in [(VO)12O6{B3O6(OH)}6]10− [24], and V12B32 in [(VO)12{B16O32(OH)4}2]12− [23,25]. As is well known, borovanadate anions are a class of discrete transition metal oxide clusters with high negative charges and oxygen-rich surfaces. These anions are one of the most ideal multi-dentate nucleophilic candidates for the construction of extended open frameworks [26]. Therefore, an approach that is widely used for designing such open frameworks is to link borovanadate polyanion clusters with different types of linkers of transition metal (TM) ions [21] or TM complex moieties [27]. For example, in 2012, Zhou et al. addressed a Na borovanadate with a 1-D framework [28]. In 2015, Han et al. reported a 2-D Ni borovanadate [Ni(en)2]6[(VO)12O6B18O3(OH)3]·5H2O by using ethylenediamine (en) as a template [29]. Although many extended borovanadates have now been reported [22,30,31], relatively little progress has been made in the preparation of three-dimensional open-framework borovanadates, which are known thus far only for SUT-6 [17], SUT-7-Zn [7], {[Cu(dien)(H2O)]3V12B18O54(OH)6(H2O)}·4H3O·5.5H2O [32], etc., (as listed in Table S1), likely due to the difficulty of controlling the terminal or bridging oxygen atoms of polyanions that bond bridging transition metal complex moieties. Thus, the preparation of 3-D open-framework polyoxoborovanadates based on the linkages of borovanadate polyanions and TM/TM complex bridges still remains challenging.
Herein, we hydrothermally synthesized a new 3-D open-framework borovanadate (1), which was constructed by the linkages of Zn(en) complex fragments and [V12B18] clusters. This process resulted in a rare example of extended borovanadate with unique plane-shaped channels. This compound not only enriches the family of open-framework borovanadates, but also displays high catalytic activities for the oxidation of α-phenethyl alcohol.

2. Results and Discussion

2.1. Synthetic Aspects and Characterization

The preparation of compound 1 was conducted at 180 °C for seven days using a hydrothermal method. When the temperature declined or reaction time was reduced, crystals could not be obtained. The number of amines used in the synthesis had a significant effect on the dimensionality of the resulting vanadoborate structures. Compound 1 was only obtained when the amount of ethanediamine and NH4VO3 was in a molar ratio of 10:1. In our reaction conditions, when the amount of ethanediamine was between 0.5 and 5 mmol, only amorphous products were obtained. When the amount of ethanediamine varied from 6 to 9 mmol, a 0-D cage structure [Zn(en)2]6[(VO)12O6B18O39(OH)3]·13H2O [33] was formed, together with black impurities. When the amount of ethanediamine was increased to 10 mmol, pure compound 1 could be synthesized. When the amount of ethanediamine was further increased to 11 mmol, a mixture of compound 1 with poor crystallinity and brown block impurities was obtained. Otherwise, in order to further investigate the influence of the distinct metal ions on the structural construction of 3-D products, Mn(CH3COO)2·4H2O, Cu(NO3)2·3H2O, and Ni(NO3)2·6H2O were used instead of Zn(NO3)2·6H2O. However, isotypic compounds could not be obtained. This result demonstrates that Zn2+ ions played a pivotal structure-directing role in the formation of the open framework.
As shown in Figure 1, the experimental powder X-ray diffraction pattern is consistent with the simulated one originating from single-crystal structural data, indicating the phase purity of the as-synthesized product. The result of the thermogravimetric analyses is shown in Figure S1. The thermogravimetric (TG) analysis curve shows a weight loss of 5.60% between room temperature and 140 °C, which is the calculated value for 14 water molecules. The successive weight loss of 10.84% from 140 to 420 °C can be assigned to the release of three ethylenediamine (en) ligands, two central water molecules, and twelve -OH groups formed in the {(VO)6[B10O16(OH)6]2}3− polyanion (calc. 9.60%). Subsequently, gradual weight loss above 420 °C may be attributed to oxygen release by the decomposition of V2O5.
In the IR spectrum (Figure S2), the absorption bands from 3400 to 3000 cm−1 are due to O–H and N–H stretching vibration. The bands at about 1621 and 1517 cm−1 are assigned to O–H and N–H bending vibration. The band at 1385 cm−1 is ascribed to the B–O asymmetric stretching of [BO3] units, whereas that of the [BO4] units appears at 1054 cm−1. The bands at 926–942 cm−1 are assigned to the terminal V–O asymmetrical stretching. A series of bands in the 662–791 cm−1 region can be attributed to symmetrical and asymmetrical V–O–V stretching [34,35]. The V–O–B asymmetric stretching is located at 521 cm−1 [36]. Figure S3 presents the UV-Vis-NIR spectrum of compound 1. The absorption band centered at 550 nm presumably arises from an intervalence charge transfer transition (IVCT) between the VIV/VV centers of the mixed valence vanadoborate unit. The absorptions in the high-energy UV region at 224 and 350 nm can be assigned to the O→V and O→B charge transfers of the [V12B18O54(OH)6(H2O)]10− cluster [26,37].

2.2. Structure Description

The single-crystal X-ray diffraction analysis showed that compound 1 crystallized in a cubic space group of Pn-3. Relevant crystal data and structural refinement details are summarized in Table 1. The asymmetric unit of compound 1 is shown in Figure 2, including one [Zn(en)]2+ ion, two distinct V atoms, three distinct B, and seventeen O atoms. Within the asymmetric unit, the Zn2+ ion is in a 6-fold coordination of two N atoms from one ethanediamine ligand and four O atoms from two adjacent borovanadate anions, forming a distorted octahedron geometry. The Zn–N bond length is 2.035(9) Å, and the N–Zn–N angles are 23.7(5)°, which are similar to those in other zinc borovanadates [33]. For the three different B atoms, the B(3) atom is triangularly coordinated by one -OH group and two oxygen atoms, while B(1) and B(2) atoms are tetrahedrally coordinated by four O atoms. The B–O distances vary from 1.353(6) to 1.507(5) Å and O–B–O angles are in the range of 100.6(3)–122.3(4)°. Each V atom is coordinated by four bridging oxygen atoms and one terminal oxygen atom, giving a distorted square pyramidal geometry with V-O bond lengths varying from 1.609(3) to 2.021(3) Å and O–V–O angles from 78.09(12) to 143.72(12)°. Details of the selected bond lengths and angles are given in Tables S2 and S3. Bond valence calculations [38,39] revealed that the V atoms were present as an average valence of 4.50, close to a VIV:VV ratio of 1:1. The existence of VIV and VV was further confirmed by the X-ray photoelectron spectroscopy (XPS) results, as shown in Figure S4.
Compound 1 exhibited a 3-D open-framework built from [Zn(en)]2+ cations and [V12B18O54(OH)6(H2O)]10− polyanions. In the structure, one trigonal-planar BO2(OH) group and two neighboring BO4 tetrahedra were joined together to form a {B3O7(OH)} 3-MR motif. Each {B3O7(OH)} motif was linked by the adjacent {B3O7(OH)} motifs via ụ2-O atoms to give a puckered {B18O36(OH)6} ring. Six VO5 square pyramids were connected with each other, constructing a triangular [V6O18] unit. Two [V6O18] units sandwiched one puckered {B18O36(OH)6} ring through ụ3-O atoms, leading to one [V12B18O54(OH)6(H2O)]10− anion with an H2O molecule at the center. The sandwich-type borovanadate anion was further linked by six [Zn(en)]2+ cations, forming the molecular structural unit of compound 1 (Figure 3). Then, the molecular structural units were extended along the a, b, or c axes into a 3-D open-framework architecture (Figure 4a). Within this 3-D framework, 1-D infinite plane-shaped channels built from four Zn2+ cations and four borovanadate anions could be observed, the size of the pore opening was about 11.8 Å × 7.1 Å (Figure 4b).

2.3. Catalytic Performance

The oxidation of alcohols to corresponding carbonyls is one of the most important synthetic transformations in organic chemistry with respect to the useful intermediates obtained for the synthesis of fine chemicals [40,41,42,43]. Compound 1, having V species with mixed oxidation states, may have potential catalytic activity in the oxidation of benzyl-alcohol compounds [44,45]. Thus, we were prompted to investigate the activity of compound 1 in the catalytic oxidation of α-phenethyl alcohol. The optimized reaction conditions were chosen on the basis of the relevant literatures as follows: 1.5 mmol α-phenethyl alcohol as a reaction product, 0.01 mmol compound 1 as a catalyst, 4 ml 30% (wt) H2O2 solution as the oxidant, 20 mL acetonitrile as the solvent, reaction temperature 75 °C, and reaction time from 1 to 8 h [45,46]. The gas chromatography–mass spectrometry instrument was used to analyze the reaction products. Each yield of the reaction products was determined by the results of multiple parallel experiments.
GC-MS analysis of the crude reaction mixture showed that acetophenone was the only product of the catalytic reaction that formed in a yield of 45.6% (Figure S5). A control experiment in the absence of compound 1 gave only <6% yield of product under the same conditions, which confirmed that compound 1 plays a significant role in the oxidation of α-phenethyl alcohol. To achieve reaction conditions for maximum yields, the effects of H2O2 dosage (1,2,4, and 8 mL) on the oxidation of α-phenethyl alcohol to acetophenone were especially investigated. As shown in Figure 5, the yield of acetophenone increased sharply from av. 17.3% to 45.6% when the H2O2 dosage increased from 1 to 4 mL. Afterward, further increasing the H2O2 dosage to 8 mL decreased the yield of acetophenone slightly to 45.3%, possibly due to the further oxidation of α-phenethyl to hyperoxide by excess H2O2. Analogous phenomena have been reported in other literature [46,47,48]. In addition, the catalyst could be easily separated by centrifugation and filtration after completion of the catalytic reaction, and further reused in the successive five-run tests without significant change in the activity (Figure 6). The powder X-ray powder diffraction (XRD) pattern after the oxidation reaction (Figure S6) was collected to estimate the structural stability of 1. Compared with the powder XRD pattern before the oxidation reaction, no obvious difference was observed, which indicates that the structure of 1 was retained during the catalytic reaction.
As reported earlier, the reaction of benzyl-alcohol with H2O2/O2 used as the oxidant proceeded by means of a radical mechanism [44,46]. According to Okuhara’s opinion [49], the pentavalent vanadium in compound 1 was present in the form of VO2+ ions, which could rapidly react with H2O2 to generate large numbers of unstable VO(O2)+ ions. These VO(O2)+ ions further reacted with α-phenethyl alcohol and resulted in reactive intermediates that were easily converted into acetophenone.

3. Materials and Methods

3.1. Synthesis

Compound 1 was synthesized from a mixture of NH4VO3 (1 mmol, 0.117 g), (NH4)2B10O16·4H2O (6 mmol, 2.83 g), H3BO3 (6 mmol, 0.371 g), Zn(NO3)2·6H2O (1 mmol, 0.297 g), ethanediamine (10 mmol, 0.671 mL), and H2O (5.00 mL) under hydrothermal conditions. The mixture was treated in a 23 mL Teflon-lined stainless-steel autoclave at 180 °C for 7 days. After cooling to room temperature, red block crystals were obtained and gave a yield of 71.3% (based on NH4VO3). The elemental analysis showed that the mass ratio of C:H:N was 1.73:1.62:2.15, which is consistent with the stoichiometry.

3.2. Characterization

X-ray powder diffraction (XRD) was obtained on a Rigaku D/max-2550 diffractometer (Rigaku, Tokyo, Japan) with Cu-Kα radiation (λ = 1.5418 Å). The elemental analysis of the as-synthesized samples was carried out on a Vario MICRO elemental analyzer (PerkinElmer, Waltham, MA, USA). The UV-Vis-NIR diffuse reflectance spectrum was measured at room temperature in the wavelength range of 200–1200 nm using a Shimadzu UV-3600 UV-Vis-NIR spectrophotometer (Shimadzu, Tokyo, Japan). The FT-IR spectrum was recorded on a Bruker-IFS 66 V/S spectrometer (Bruker, Karlsruhe, Germany) using KBr pellets in the 4000–400 cm−1 range. The XPS analysis was performed on a VG Scienta R3000 spectrometer (Thermo Nicolet Corporation, Markham, ON, Canada) with a Al-Ka X-ray source (1486.6 eV). Thermogravimetric analysis (TGA) was conducted in a Perkin-Elmer TG-7 analyzer under nitrogen (PerkinElmer, Waltham, MA, USA).

3.3. Crystal Structure Determination

Single-crystal X-ray diffraction data for compound 1 was collected at a temperature of 20 ± 2 °C on a Bruker SMART CCD APEX II diffractometer with graphite-monochromated Mo-Kα radiation (λ = 0.71073 Å). The structure of compound 1 was solved by the direct method and refined by full-matrix least-squares on F2 with the SHELXTL crystallographic software package [50]. Solvent molecules could not be located properly due to severe disorder. Consequently, the PLATON/SQUEESE program [51] was used to calculate the disorder area and remove its contribution to the overall intensity data. The V, Zn, B, O, C, and N atoms of the framework were refined with anisotropic displacement parameters. The hydrogen atoms were added geometrically. The number of H2O was also comparable by the thermogravimetric analysis and elemental analysis. Crystallographic data for the structure was deposited with the Cambridge Crystallographic Data Centre, CCDC No. 1882299.

4. Conclusions

A new 3-D open-framework zinc borovanadate [Zn6(en)3][(VIVO)6(VVO)6O6(B18O36(OH)6)·(H2O)]2·14H2O (1) with unique plane-shaped channels was hydrothermally obtained and structurally characterized. Its framework was comprised of trigonal-planar BO2(OH) groups, BO4 tetrahedra, VO5 groups, and ZnO4N2 polyhedra. Compound 1 exhibited excellent catalytic activities, high recyclability, and stability in the process of catalytic reaction for the oxidation of α-phenethyl alcohol, proving that compound 1 was an effective heterogeneous oxidation precatalyst.

Supplementary Materials

The following are available online: Figure S1: TG curve of compound 1 in N2, Figure S2: The FT-IR spectrum of compound 1, Figure S3: UV-Vis-NIR diffuse reflectance spectrum of compound 1, Figure S4: XPS spectrum of vanadium in compound 1. The peak at 516.2 eV is attributed to V4+ and a shoulder at about 517.1 eV is assigned to for V5+, Figure S5: The chromatogram for the oxidation of α-phenethyl alcohol to acetophenone. (a) Products; (b) α-phenethyl alcohol standard sample; (c) acetophenone standard sample, Figure S6: The XRD patterns of compound 1 collected before and after the catalytic reactions, Table S1: Comparison of crystal structure of compound 1 obtained in this study with other reprehensive reports on three-dimensional open-framework borovanadates; Table S2: Bond lengths [Å] for compound 1; Table S3: Bond angles [deg] for compound 1.

Author Contributions

X.L. designed the experiments and synthesized compound 1 and wrote the original draft. B.G. performed the activity in the catalytic oxidation of α-phenethyl alcohol. X.S. and L.Z. performed the characterization of compound 1. H.Y. analyzed the data and revised the manuscript. All authors read and approved the final manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Maspoch, D.; Ruiz-Molina, D.; Veciana, J. Old Materials with New Tricks: Multifunctional Open-Framework Materials. Chem. Soc. Rev. 2007, 36, 770–818. [Google Scholar] [CrossRef] [PubMed]
  2. Barrer, R.M. Hydrothermal chemistry of zeolites. Gynaecol. Endosc. 1982, 9, 191–194. [Google Scholar]
  3. Meng, L.; Cheng, Q.; Kim, C.; Gao, Y.W.; Lukasz, W.; Chen, Y.S.; Michael, J.Z.; Zhang, X.P.; Ma, S.Q. Crystal Engineering of a Microporous, Catalytically Active fcu Topology MOF Using a Custom-Designed Metalloporphyrin Linker. Angew. Chem. Int. Ed. 2012, 51, 10082–10085. [Google Scholar] [CrossRef] [PubMed]
  4. Clearfield, A. The early history and growth of metal phosphonate chemistry. In Metal Phosphonate Chemistry: From Synthesis to Applications; RSC Publishing: London, UK, 2012. [Google Scholar]
  5. Yücesan, G.; Zorlu, Y.; Stricker, M.; Beckmann, J. Metal-organic solids derived from arylphosphonic acids. Coord. Chem. Rev. 2018, 369, 105–122. [Google Scholar] [CrossRef]
  6. Taddei, M.; Costantino, F.; Vivani, R. Robust Metal-Organic Frameworks Based on Tritopic Phosphonoaromatic Ligands. Eur. J. Inorg. Chem. 2016, 4300–4309. [Google Scholar] [CrossRef]
  7. Chen, H.; Yu, Z.B.; Bacsik, Z.; Zhao, H.; Yao, Q.; Sun, J. Construction of mesoporous frameworks with vanadoborate clusters. Angew. Chem. Int. Ed. 2014, 53, 3608–3611. [Google Scholar] [CrossRef] [PubMed]
  8. Leithall, R.M.; Shetti, V.N.; Maurelli, S.; Chiesa, M.; Gianotti, E.; Raja, R. Toward understanding the catalytic synergy in the design of bimetallic molecular sieves for selective aerobic oxidations. J. Am. Chem. Soc. 2013, 135, 2915–2918. [Google Scholar] [CrossRef]
  9. Volodin, A.D.; Korlyukov, A.A.; Zorina-Tikhonova, E.N.; Chistyakov, A.S.; Sidorov, A.A.; Eremenko, I.L.; Vologzhanin, A.V. Diastereoselective solid-state crossed photocycloaddition of olefins in a 3D Zn(II) coordination polymer. Chem. Commun. 2018, 54, 13861–13864. [Google Scholar] [CrossRef]
  10. Karmakar, A.; Paul, A.; Mahmudov, K.T.; Guedes da Silva, M.F.C.; Pombeiro, A.J.L. pH dependent synthesis of Zn(II) and Cd(II) coordination polymers with dicarboxylfunctionalized arylhydrazone of barbituric acid: Photoluminescence properties and catalysts for Knoevenagel condensation. New J. Chem. 2016, 40, 1535–1546. [Google Scholar] [CrossRef]
  11. Mahmudov, K.T.; Kopylovich, M.N.; Sabbatini, A.; Drew, M.G.B.; Martins, L.M.D.R.S.; Pettinari, C.; Pombeiro, A.J.L. Cooperative Metal−Ligand Assisted E/Z Isomerization and Cyano Activation at CuII and CoII Complexes of Arylhydrazones of Active Methylene Nitriles. Inorg. Chem. 2014, 53, 9946–9958. [Google Scholar] [CrossRef]
  12. Spoon, H.W.W.; Tielens, A.G.G.M.; Armus, L.; Sloar, G.C.; Sargent, B.; Cami, J.; Charmandaris, V.; Houck, J.R.; Soifer, B.T. The Detection of Crystalline Silicates in Ultraluminous Infrared Galaxies. Astrophy. J. 2008, 638, 759–765. [Google Scholar] [CrossRef]
  13. Murugavel, R.; Choudhury, A.; Walawalkar, M.G.; Pothiraja, R.; Rao, C.N.R. Metal Complexes of Organophosphate Esters and Open-Framework Metal Phosphates: Synthesis, Structure, Transformations, and Applications. Chem. Rev. 2008, 108, 3549–3655. [Google Scholar] [CrossRef] [PubMed]
  14. Dadachov, M.S.; Sun, K.; Conradsson, T.; Zou, X.D. The First Templated Borogermanate (C2N2H10)2[(BO2.5)2(GeO2)3]: Linkage of Tetrahedra of Significantly Different Sizes. Angew. Chem. Int. Ed. 2000, 39, 3674–3676. [Google Scholar] [CrossRef]
  15. Zhao, D.; Cheng, W.D.; Zhang, H.; Huang, S.P.; Xie, Z.; Zhang, W.L.; Yang, S.L. KMBP2O8 (M = Sr, Ba): A new kind of noncentrosymmetry borophosphate with the three-dimensional diamond-like framework. Inorg. Chem. 2009, 48, 6623–6629. [Google Scholar] [CrossRef] [PubMed]
  16. Chen, H.; Zhao, H.; Yu, Z.B.; Wang, L.; Sun, L.; Sun, J. Construct Polyoxometalate Frameworks through Covalent Bonds. Inorg. Chem. 2015, 54, 8699–8704. [Google Scholar] [CrossRef] [PubMed]
  17. Chen, H.; Deng, Y.; Yu, Z.; Zhao, H.; Yao, Q.; Zou, X.; Bäckvall, J.-E.; Sun, J. 3D Open-Framework Vanadoborate as a Highly Effective Heterogeneous Pre-catalyst for the Oxidation of Alkylbenzenes. Chem. Mater. 2013, 25, 5031–5036. [Google Scholar] [CrossRef]
  18. Feng, Y.; Li, M.; Fan, H.; Huang, Q.; Qiu, D.; Shi, H. A novel open-framework copper borophosphate containing 1-D borophosphate anion with 10-MR windows and 12-MR channels. Dalton Trans. 2015, 44, 894–897. [Google Scholar] [CrossRef]
  19. Warren, C.J.; Rijssenbeek, J.T.; Rose, D.J.; Haushalter, R.C.; Zubieta, J. Hydrothermal synthesis and characterization of an unusual polyoxovanadium borate cluster structure of Rb4[(VO)6{B10O16(OH)6}2]·0.5H2O. Polyhedron 1998, 17, 2599–2605. [Google Scholar] [CrossRef]
  20. Liu, X.; Zhou, J.; An, L.; Chen, R.; Hu, F.; Tang, Q. Hydrothermal syntheses, crystal structures and characterization of new vanadoborates: The novel decorated cage cluster [V6B22O44(OH)10]. J. Solid State Chem. 2013, 201, 79–84. [Google Scholar] [CrossRef]
  21. Wu, M.; Law, T.S.; Sung, H.H.; Cai, J.; Williams, I.D. Synthesis of elliptical vanadoborates housing bimetallic centers [Zn4(B2O4H2)(V10B28O74H8)]8− and [Mn4(C2O4)(V10B28O74H8)]10−. Chem. Commun. 2005, 1827–1829. [Google Scholar] [CrossRef]
  22. Warren, C.J.; Haushalter, R.C.; Rose, D.J.; Zubieta, J. A bimetallic main group oxide cluster of the oxovanadium borate system:(H3NCH2CH2NH3)4[(VO)12O4{B8O17(OH)4}2 {Mn(H2O)2}2]·H2O. lnorg. Chim. Acta 1998, 282, 123–129. [Google Scholar] [CrossRef]
  23. Warren, C.J.; Rose, D.J.; Haushalter, R.C.; Zubieta, J. A New Transition Metal-Main Group Oxide Cluster in the Oxovanadium-Borate System: Hydrothermal Synthesis and Structure of (H3O)12[(VO)12{B16O32(OH)4}2]·28H2O. Inorg. Chem. 1998, 37, 1140–1141. [Google Scholar] [CrossRef] [PubMed]
  24. Rijssenbeek, J.T.; Rose, D.J.; Haushalter, R.C.; Zubieta, J. Novel Clusters of Transition Metals and Main Group Oxides in the Alkylamine/Oxovanadium/Borate System. Angew. Chem. Int. Ed. Engl. 1997, 36, 9. [Google Scholar] [CrossRef]
  25. Yamase, T.; Suzuki, M.; Ohtaka, K. Structures of photochemically prepared mixed-valence polyoxovanadate clusters: Oblong [V18O44(N3)]14−, superkeggin [V18O42(PO4)]11− and doughnut-shaped [V12B32O84Na4]15− anions. J. Chem. Soc. Dalton Trans. 1997, 14, 2463–2472. [Google Scholar] [CrossRef]
  26. Hermosilla-Ibáñez, P.; Muñoz-Becerra, K.; Paredes-García, V.; Fur, E.; Spodine, E.; Venegas-Yazigi, D. Structural and Electronic Properties of Polyoxovanadoborates Containing the [V12B18O60] Core in Different Mixed Valence States. Inorganics 2015, 3, 309–331. [Google Scholar] [CrossRef]
  27. Hermosilla-Ibáñez, P.; Car, P.E.; Vega, A.; Costamagna, J.; Caruso, F.; Pivan, J.-Y.; Fur, E.L.; Spodine, E.; Venegas-Yazigi, D. New structures based on the mixed valence polyoxometalate cluster [V12B18O60H6]n−. Cryst. Eng. Comm. 2012, 14, 5604–5612. [Google Scholar] [CrossRef]
  28. Zhou, J.; Liu, X.; Hu, F.; Zou, H.; Li, X. A new 1-D extended vanadoborate containing triply bridged metal complex units. Inorg. Chem. Commun. 2012, 25, 51–54. [Google Scholar] [CrossRef]
  29. Jiang, X.; Dong, X.; Pan, S.; Han, J.; Yang, Y.; Zhang, F.; Yu, H. Synthesis, crystal structure, and properties of an interesting elliptical vanadoborate housing crystal: [Ni(en)2]6[(VO)12O6B18O39(OH)3]·5H2O. J. Alloys Compd. 2015, 624, 126–130. [Google Scholar] [CrossRef]
  30. Cao, Y.; Zhang, H.; Huang, C.; Yang, Q.; Chen, Y.; Sun, R.; Zhang, F.; Guo, W. Synthesis, crystal structure and two-dimensional infrared correlation spectroscopy of a layer-like transition metal (TM)-oxalate templated polyoxovanadium borate. J. Solid State Chem. 2005, 178, 3563–3570. [Google Scholar] [CrossRef]
  31. Hermosilla-Ibanez, P.; Canon-Mancisidor, W.; Costamagna, J.; Vega, A.; Paredes-Garcia, V.; Garland, M.T.; Le Fur, E.; Cador, O.; Spodine, E.; Venegas-Yazigi, D. Crystal lattice effect on the quenching of the intracluster magnetic interaction in [V12B18O60H6]10− polyoxometalate. Dalton Trans. 2014, 43, 14132–14141. [Google Scholar] [CrossRef]
  32. Zhou, J.; Liu, X.; Chen, R.; Xiao, H.-P.; Hu, F.; Zou, H.; Zhou, Y.; Liu, C.; Zhu, L. New 3-D polyoxovanadoborate architectures based on [V12B18O60]16− clusters. Cryst. Eng. Comm. 2013, 15, 5057–5063. [Google Scholar] [CrossRef]
  33. Zhang, L.R.; Shi, Z.; Yang, G.Y.; Chen, X.M.; Feng, S.H. Hydrothermal Synthesis and X-Ray Single Crystal Structure of [Zn(en)2]6[(VO)12O6B18O39(OH)3]·13H2O. J. Solid State Chem. 1999, 148, 450–454. [Google Scholar] [CrossRef]
  34. Muñoz-Becerra, K.; Hermosilla-Ibáñez, P.; Le Fur, E.; Cador, O.; Paredes-García, V.; Spodine, E.; Venegas-Yazigi, D. First Non-Centrosymmetric Deca-Vanadoborate with Borate Vacancies, Self-Assembled around a 1,3-Propanediammonium Cation. Cryst. Growth Des. 2015, 15, 2561–2564. [Google Scholar] [CrossRef]
  35. An, L.; Zhou, J.; Xiao, H.-P.; Liu, X.; Zou, H.; Pan, C.-Y.; Liu, M.; Li, J. A series of new 3-D boratopolyoxovanadates containing five types of [KxOy]n building units. Cryst. Eng. Comm. 2014, 16, 4236–4244. [Google Scholar] [CrossRef]
  36. Feng, Y.; Ding, C.; Fan, H.; Zhong, Z.; Qiu, D.; Shi, H. Employing a new 12-connected topological open-framework copper borovanadate as an effective heterogeneous catalyst for oxidation of benzyl-alkanes. Dalton Trans. 2015, 44, 18731–18736. [Google Scholar] [CrossRef] [PubMed]
  37. Hermosilla-Ibáñez, P.; Costamagna, J.; Vega, A.; Paredes-Garcia, V.; Le Fur, E.; Spodine, E.; Venegas-Yazigi, D. Coordination interactions in the crystalline lattice of alkaline ions with the polyoxometalate [V12B18O60H6]10− ligand. J. Coord. Chem. 2014, 67, 23–24. [Google Scholar] [CrossRef]
  38. Brown, I.D.; Altermatt, D. Bond-valence parameters obtained from a systematic analysis of the Inorganic Crystal Structure Database. Acta Crystallogr. Sect. B Struct. Sci. 1985, 41, 244–247. [Google Scholar] [CrossRef] [Green Version]
  39. Keene, T.D.; D’Alessandro, D.M.; Kramer, K.W.; Price, J.R.; Price, D.J.; Decurtins, S.; Kepert, C.J. [V16O38(CN)]9−: A Soluble Mixed-Valence Redox-Active Building Block with Strong Antiferromagnetic Coupling. Inorg. Chem. 2012, 51, 9192–9199. [Google Scholar] [CrossRef]
  40. Mallat, T.; Baiker, A. Oxidation of alcohols with molecular oxygen on platinum metal catalysts in aqueous solutions. Catal. Today 1994, 19, 247–283. [Google Scholar] [CrossRef]
  41. Musawir, M.; Davey, P.N.; Kelly, G.; Kozhevnikov, I.V. Highly efficient liquid-phase oxidation of primary alcohols to aldehydes with oxygen catalysed by Ru–Co oxide. Chem. Commun. 2003, 34, 1414–1415. [Google Scholar] [CrossRef]
  42. Mizuno, N.; Kamata, K. Catalytic oxidation of hydrocarbons with hydrogen peroxide by vanadium-based polyoxometalates. Coord. Chem. Rev. 2011, 255, 2358–2370. [Google Scholar] [CrossRef]
  43. Mahmudov, K.T.; Sutradhar, M.; Martins, L.M.D.R.S.; Guedes da Silva, M.F.C.; Ribera, A.; Nunes, A.V.M.; Gahramanova, S.I.; Marchettid, F.; Pombeiro, A.J.L. MnII and CuII complexes with arylhydrazones of active methylene compounds as effective heterogeneous catalysts for solvent- and additive-free microwave-assisted peroxidative oxidation of alcohols. RSC Adv. 2015, 5, 25979–25987. [Google Scholar] [CrossRef]
  44. Marui, K.; Higashiura, Y.; Kodama, S.; Hashidate, S.; Nomoto, A.; Yano, S.; Ueshima, M.; Ogawa, A. Vanadium-catalyzed green oxidation of benzylic alcohols in water under air atmosphere. Tetrahedron 2014, 70, 2431–2438. [Google Scholar] [CrossRef] [Green Version]
  45. Feng, Y.; Qiu, D.; Fan, H.; Li, M.; Huang, Q.; Shi, H. A new 3-D open-framework cadmium borovanadate with plane-shaped channels and high catalytic activity for the oxidation of cyclohexanol. Dalton Trans. 2015, 44, 8792–8796. [Google Scholar] [CrossRef] [PubMed]
  46. Kodama, S.; Nomoto, A.; Yano, S.; Ueshima, M.; Ogawa, A. Novel Heterotetranuclear V2Mo2 or V2W2 Complexes with 4,4′-Di-tert-butyl-2,2′-bipyridine: Syntheses, Crystal structures, and Catalytic Activities. Inorg. Chem. 2011, 50, 9942–9947. [Google Scholar] [CrossRef] [PubMed]
  47. Maurya, M.R.; Kumar, U.; Manikandan, P. Synthesis and Characterisation of Polymer-Anchored Oxidovanadium(IV) Complexes and Their Use for the Oxidation of Styrene and Cumene. Eur. J. Inorg. Chem. 2007, 2303–2314. [Google Scholar] [CrossRef]
  48. Bikas, R.; Shahmoradi, E.; Noshiranzadeh, N.; Emami, M.; Reinoso, S. The effects of halogen substituents on the catalytic oxidation of benzylalcohols in the presence of dinuclear oxidovanadium(IV) complex. Inorg. Chim. Acta 2017, 466, 100–109. [Google Scholar] [CrossRef]
  49. Okuhara, T.; Mizuno, N.; Misono, M. Catalysis by heteropoly compounds—Recent developments. Appl. Catal. A Gen. 2001, 222, 63–77. [Google Scholar] [CrossRef]
  50. Sheldrick, G.M. SHELXL-97; Program for Crystal Structure Solution; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  51. Spek, A.L. Single-crystal structure validation with the program PLATON. J. Appl. Cryst. 2003, 36, 7–13. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds 1 are available from the authors.
Molecules 24 00531 g001 550

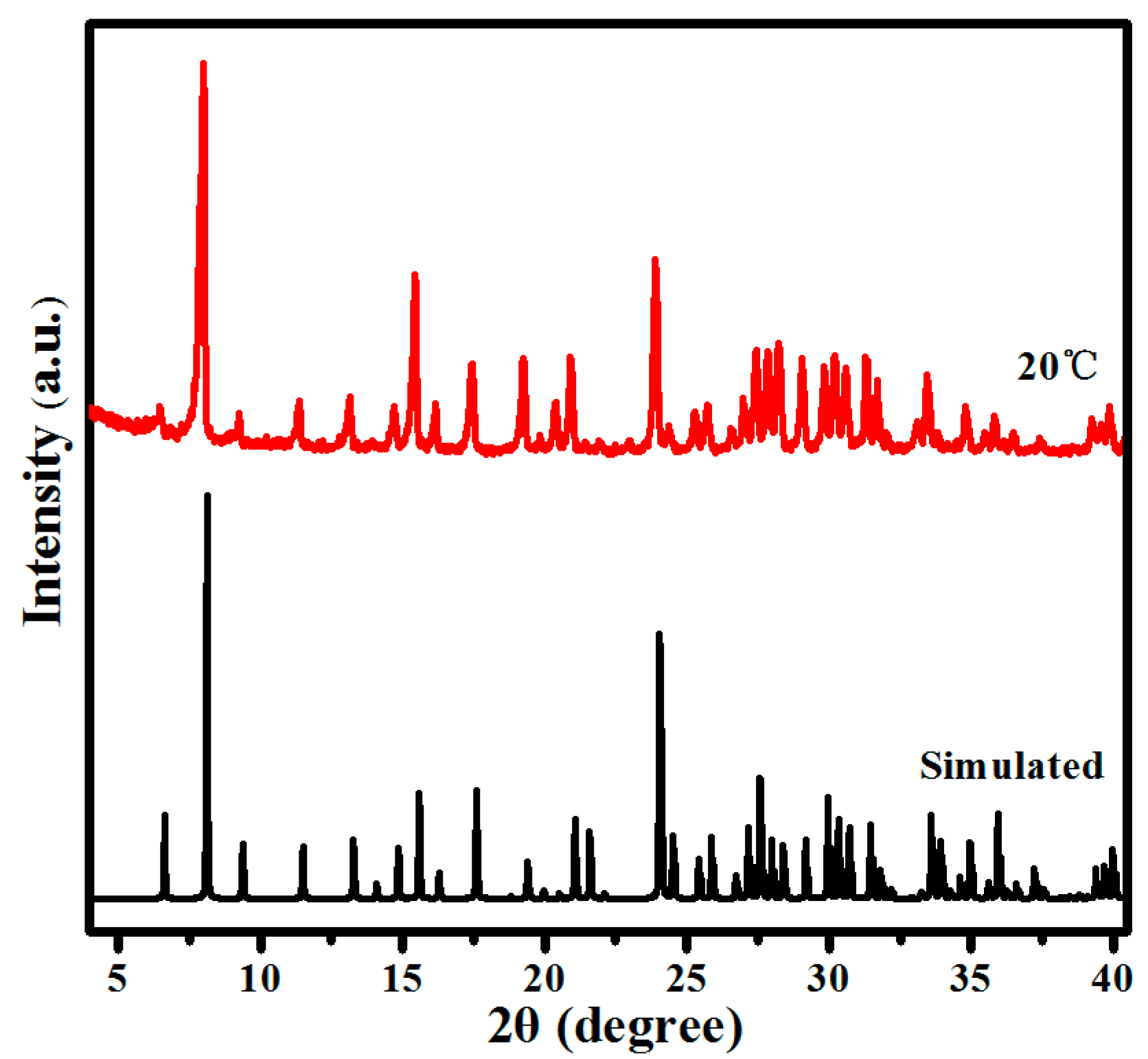

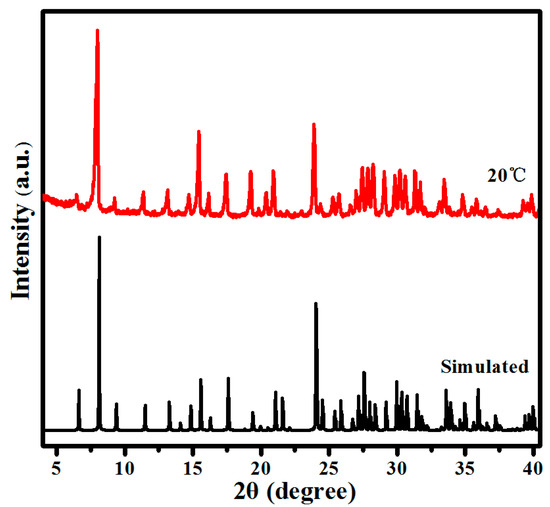

Figure 1. Simulated and experimental X-ray powder diffraction (XRD) patterns of compound 1 in air.
Figure 1. Simulated and experimental X-ray powder diffraction (XRD) patterns of compound 1 in air.
Molecules 24 00531 g001
Molecules 24 00531 g002 550

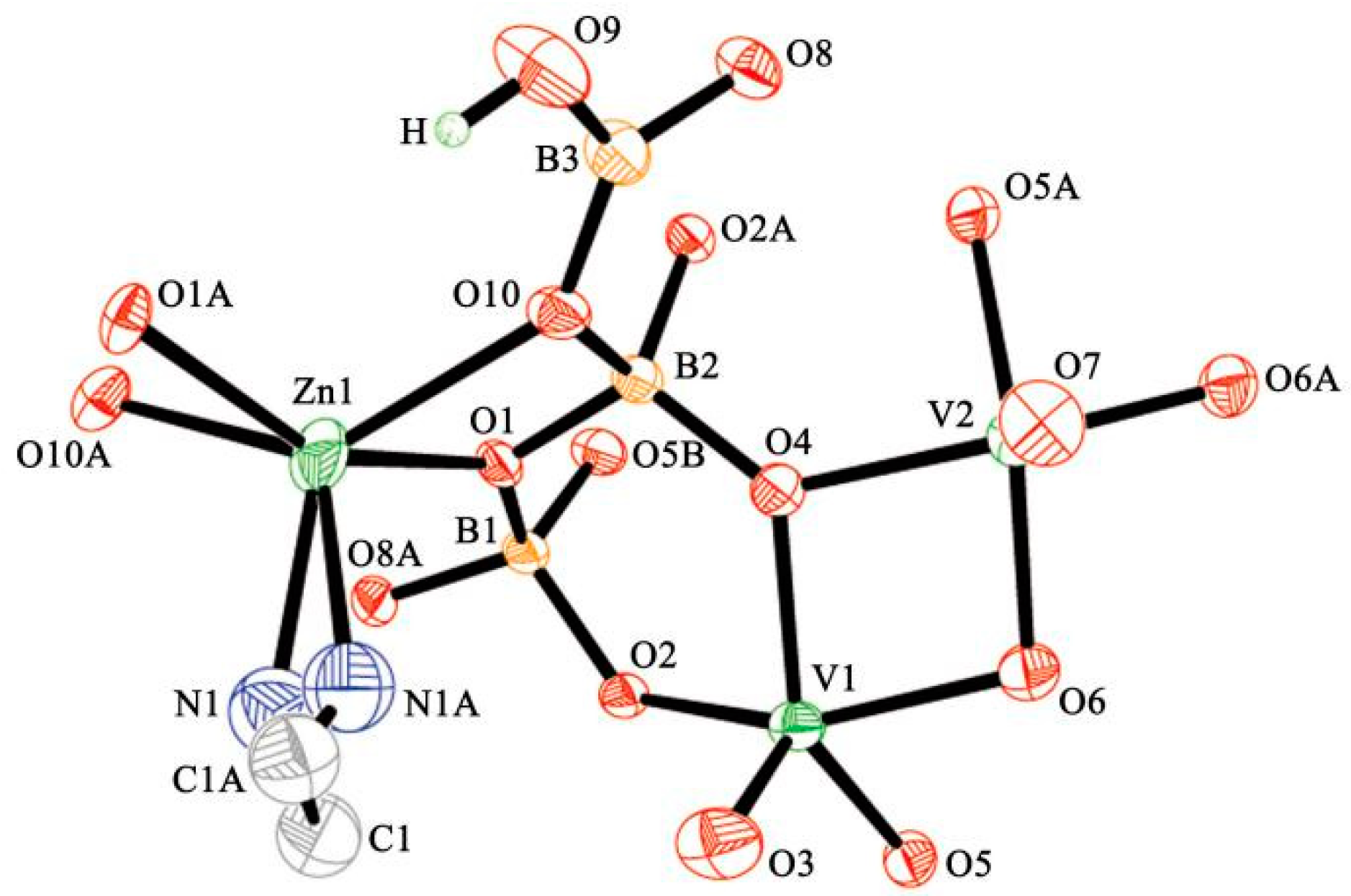

Figure 2. An asymmetric unit of compound 1.
Figure 2. An asymmetric unit of compound 1.
Molecules 24 00531 g002
Molecules 24 00531 g003 550

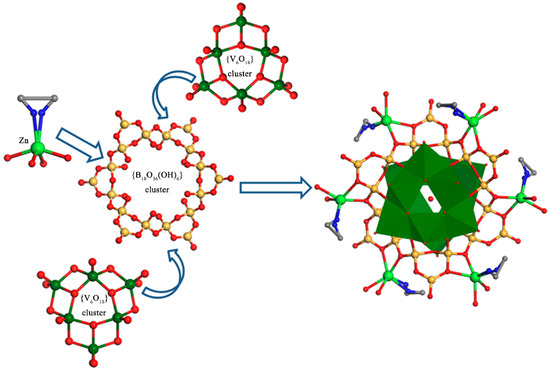

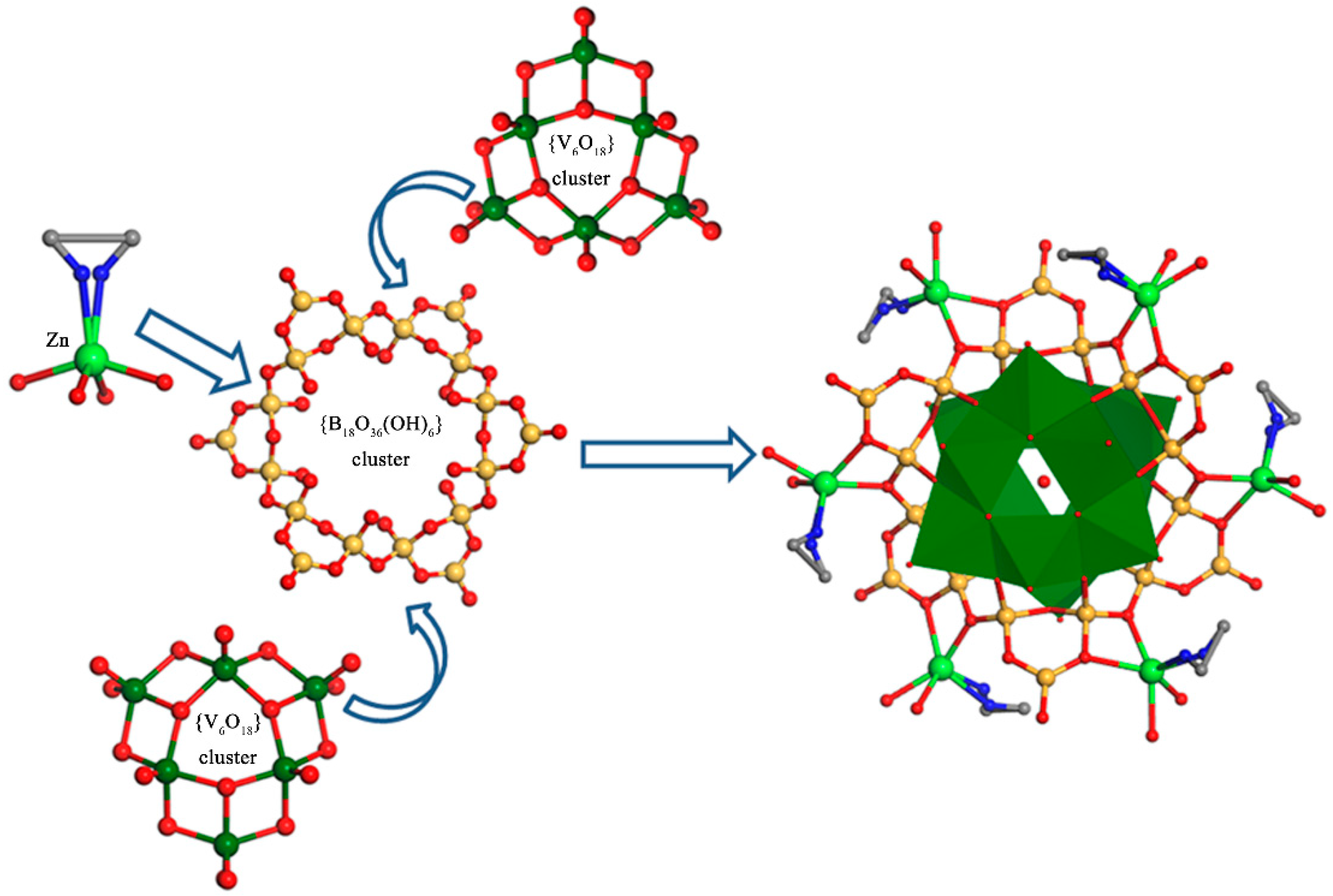

Figure 3. An illustration of the formation of the molecular structural unit of compound 1. Color code: O, red; V, dark green; B, yellow; Zn, green.
Figure 3. An illustration of the formation of the molecular structural unit of compound 1. Color code: O, red; V, dark green; B, yellow; Zn, green.
Molecules 24 00531 g003
Molecules 24 00531 g004 550

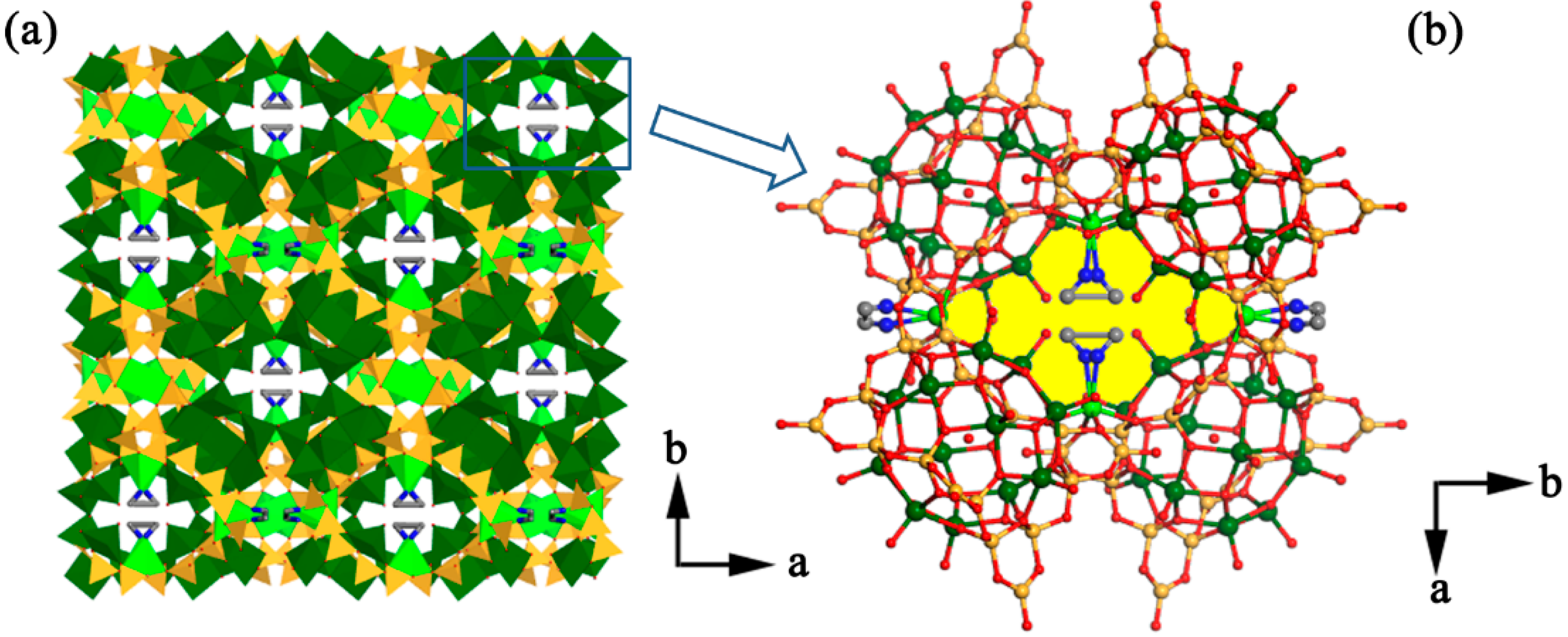

Figure 4. (a) View of the 3-D open-framework of 1; (b) view of the plane-shaped channels in 1. Color code: O, red; V, dark green; B, yellow; Zn, green.
Figure 4. (a) View of the 3-D open-framework of 1; (b) view of the plane-shaped channels in 1. Color code: O, red; V, dark green; B, yellow; Zn, green.
Molecules 24 00531 g004
Molecules 24 00531 g005 550

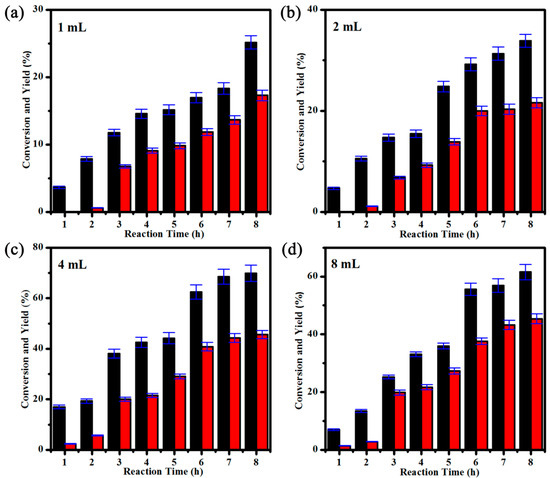

Figure 5. Effect of H2O2 dosage (a) 1 mL; (b) 2 mL; (c) 4 mL and (d) 8 mL on the oxidation of α-phenethyl alcohol (1.5 mmol α-phenethyl alcohol, 0.01 mmol 1, 20 mL acetonitrile, 75 °C, 8 h). The black bars represent the conversion of α-phenethyl alcohol; the red bars represent the yield of acetophenone.
Figure 5. Effect of H2O2 dosage (a) 1 mL; (b) 2 mL; (c) 4 mL and (d) 8 mL on the oxidation of α-phenethyl alcohol (1.5 mmol α-phenethyl alcohol, 0.01 mmol 1, 20 mL acetonitrile, 75 °C, 8 h). The black bars represent the conversion of α-phenethyl alcohol; the red bars represent the yield of acetophenone.
Molecules 24 00531 g005
Molecules 24 00531 g006 550

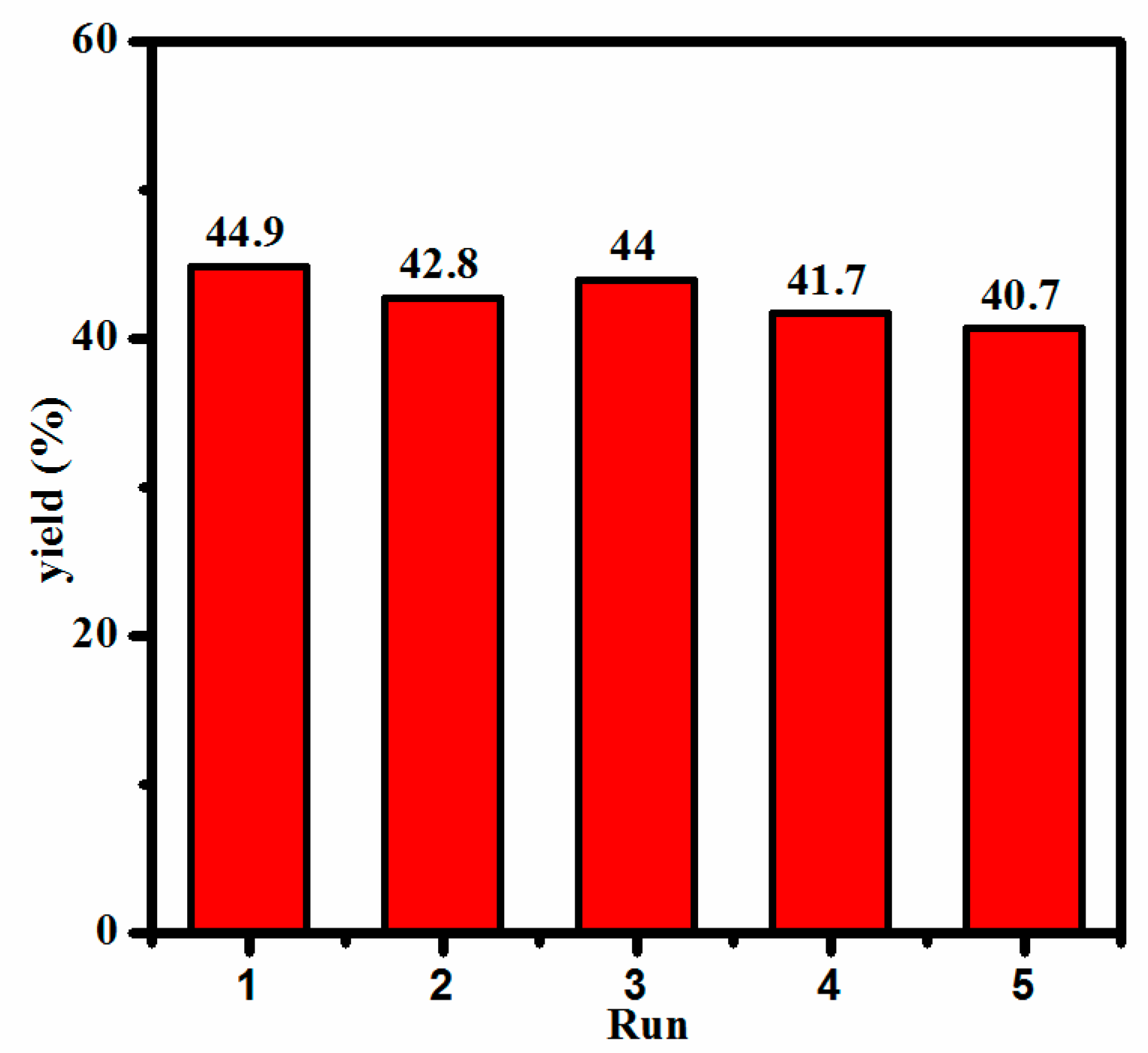

Figure 6. Catalytic oxidation of α-phenethyl alcohol by 1 in different runs.
Figure 6. Catalytic oxidation of α-phenethyl alcohol by 1 in different runs.
Molecules 24 00531 g006
Table
Table 1. Crystallographic data of compound 1.
Table 1. Crystallographic data of compound 1.
[Zn6(en)3] [V12B18O54(OH)6(H2O)]2·14H2O
Empirical formulaC6H68B36Zn6N6O136V24
Formula weight4404.60
Temperature/K293(2)
Crystal systemCubic
Space groupPn-3
a/Å18.850(2)
b/Å18.850(2)
c/Å18.850(2)
α/°90
β/°90
γ/°90
Volume/Å36698(2)
Z2
Density (calc.)/Mg m−32.184
Absorption coeff./mm−12.772
F(000)4292
Crystal size/mm30.32 × 0.25 × 0.15
2θ range for data collection6.11 to 54.85°
Index ranges−24 ≤ h ≤ 24
−24 ≤ k ≤ 23
−24 ≤ l ≤ 24
Reflections collected63889
Independent reflections2569[R(int) = 0.0917]
Data/restraints/parameters2569/12/160
Goodness-of-fit on F21.118
Final R indexes [I >= 2σ(I)]R1 = 0.0473, wR2 = 0.1138
Final R indexes [all data]R1 = 0.0576, wR2 = 0.1197
Largest diff. peak/hole/e Å−31.323/−1.263
