Communication

Direct Transformation from Arylamines to Aryl Naphthalene-1,8-diamino Boronamides: A Metal-Free Sandmeyer-Type Process

by
Siyi Ding
,
Qiang Ma
,
Min Zhu
,
Huaping Ren
,
Shaopeng Tian
,
Yuzhen Zhao
and
Zongcheng Miao
*
Key Laboratory of Organic Polymer Photoelectric Materials, School of Science, Xijing University, Xi’an 710123, Shaanxi, China
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(3), 377; https://doi.org/10.3390/molecules24030377
Submission received: 21 December 2018 / Revised: 10 January 2019 / Accepted: 16 January 2019 / Published: 22 January 2019
(This article belongs to the Special Issue Recent Development on Metal-Free Catalysis)
Browse Figures
Versions Notes

Abstract

:
A direct metal-free transformation from arylamines to aryl naphthalene-1,8-diamino boronamides, a type of masked boronic acid, has been developed based on Sandmeyer-type reactions. A nonsymmetrical diboron reagent, B(pin)-B(dan), was utilized as the borylating reagent, and the B(dan) moiety was transferred to the aim products selectively. This conversion tolerated a series of functional groups, including chloro, bromo, fluoro, ester, hydroxy, cyano and amide.

Graphical Abstract

1. Introduction

Organoboron compounds, because of their increasing utilization in synthetic chemistry, drug discovery and materials science, have attracted significant attention in recent years [1]. They can react with various functional groups to construct new carbon-carbon bonds or carbon-heteroatom bonds, which can rapidly construct the complex structures of target molecules [2,3]. Therefore, much effort has been devoted to the exploration of synthesizing organoboron compounds [4,5,6]. On the other hand, to take best advantage of their diverse reactivity, chemists have also focused on adjusting their reactivity by varying masking groups on the boron atoms [2]. When naphthalene-1,8-diaminato (dan) ligand is used as the masking group, which has two nitrogen atoms that may donate their lone pair electrons to the vacant p-orbital of the boron atoms, the formed naphthalene-1,8-diamino boronamide (Bdan) compounds are robust enough to avoid undesirable organic reactions, such as Suzuki-Miyaura coupling reactions. Moreover, such compounds can be easily transformed to their corresponding boronic acids by simple treatment under aqueous acidic conditions. These features enable their wide application as modular synthetical building blocks [4,7,8], especially in the iterative cross-coupling reactions [9,10,11,12] and the application of di-boron compounds [13,14,15,16,17,18].
When it comes to the synthesis of aryl B(dan) compounds, the most common strategy is condensation between commercially available aryl boronic acids and 1,8-diaminonaphthalene in refluxing toluene (Scheme 1, Path 1) [9]. If aryl halides are used as the starting materials, free boronic acids can be initially obtained via the traditional reactions between aryl magnesium, or –lithium, which derive from metal halogen exchanges, with trimethyl borate followed by hydrolytic workup (Scheme 1, Path 2). Then, aryl B(dan) compounds are accessible via the condensation process (Scheme 1, Path 1). The common products of Miyaura borylation reactions of aryl halides via the catalysis of transition metal such as Pd [19,20], Cu [21] and Ni [22,23] (Scheme 1, Path 3), aryl B(pin), can be converted to their B(dan) derivatives in the presence of FeCl2 [24] (Scheme 1, Path 4). In addition to these two indirect approaches, in 2015, Xu and Li reported a direct synthetical pathway of aryl B(dan) from aryl halides [25], which utilized a Pd-catalyzed selective boronyl transfer process of the non-symmetrical diboron reagent B(pin)-B(dan) (Scheme 1, Path 5). Later, similarly processed catalyzed Cu was also proved to be feasible by the Yoshida group [26,27]. As mentioned above, to the best of our knowledge, the synthesis of aryl B(dan) is largely dependent on the accessibility of aryl halides. Moreover, these approaches suffer from sensitivity to air and moisture, in view of the intermediation of aryl metallic compounds [28]. Such a situation inspired our exploration towards metal-free synthesis of aryl B(dan) compounds.
Arylamines, as cheap and abundant organic feedstock, can go through Sandmeyer-type reactions [29,30,31,32], being easily converted into various functional groups. Generally, two steps are required to complete the transformation from arylamines to aryl boronic acids or their derivatives. The amino groups can first be replaced by halides which are then utilized in the borylation reactions, as indicated in Scheme 1. Recently, Wang and co-workers reported a novel metal-free borylation method using arylamines as the starting materials [33,34,35,36] (Scheme 1, Path 6). In this process, symmetrical B(pin)-B(pin) was utilized as the borylating reagent [37,38,39]. In order to obtain aryl B(dan) from arylamines, an additional step is required to complete the conversion (Scheme 1, Path 4). So far, no one has ever realized the conversion from arylamines into their aryl B(dan) derivatives. It was envisaged that the nonsymmetrical B(pin)-B(dan) might be useful to achieve such a process [40,41,42,43,44,45,46]. Inspired by this idea, we sought to apply B(pin)-B(dan) in Sandmeyer-type reactions of arylamines.

2. Results

At the outset, we carried out the reactions under the reaction conditions that were similar to the previously reported Sandmeyer-type borylation reactions [47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62], with MeCN as the solvent. We chose 4-methoxyl aniline as the starting material, and no target product could be observed under the classical reaction conditions [t-BuONO, MeCN, room temperature]. However, by increasing the reaction temperature to 80 °C, a low yield of 28% was obtained. As the Sandmeyer reaction was well known to involve a radical mechanism, we added the radical initiator benzoyl peroxide (BPO) in subsequent experiments. Consequently, 13% of compound 1a could be obtained at room temperature, compared with 31% at 80 °C (Table 1, entries 1–4). In view that a base could accelerate the trans-borylation of B2pin2, we expected that a base could also play the same role for B(pin)-B(dan). Then, our expectations were met. After extensive variation of bases, the yield of reaction was significantly improved by the addition of NaOAc (Table 1, entries 5 and 18–20). Further experiments were conducted to improve the yield and it was noted that the addition of phase-transfer catalyst tetrabutylammonium iodide (TBAI) could enhance the yield of 1a to 75% (Table 1, entry 9). Lowering the loading of aryl amines was detrimental to this transformation, and 2.0 equivalent of 4-methoxyl aniline worked best in terms of reactivity (Table 1, entries 9, and 14–17). Finally, further assessment of the reaction temperature effect indicated that decreasing or increasing the temperature led to dramatically lower yields (Table 1, entries 9–13).
Having defined an appropriate set of reaction conditions, we briefly investigated the scope of arylamines with various functional groups (Scheme 2). For most of the para-substituted arylamines (compounds 1a–1f) and meta-substituted substrates (compounds 1g–1q), moderate yields were obtained. Then, relatively low yields of compounds 1r or 1s were obtained, in which ortho-methylphenylamine and ortho-(ethoxycarbonyl)aniline were used. These results hinted that this reaction was sensitive to the steric hindrance. Compared with electron-rich arylamines, the anilines with electron-withdrawing groups showed higher reactivity. This new strategy featured broad functional-group tolerance. The anilines bearing functional groups, such as ester (compounds 1f, 1l and 1s), were suitable substrates. Additionally, the moieties with hydroxy (compound 2d), cyano (compound 1e) and amide (compound 1m) were compatible. Halogen atoms of arylamines, such as bromo (compound 1b, 1j), chloro (compound 1q) and fluoro (compound 1c, 1i, 1k and 1p) atoms, remained intact under the standard conditions, demonstrating the mild nature of the reaction condition. In order to confirm the practicality and potential application of this metal-free borylation process, the reaction was carried out on a 2.0 mmol scale under the standard reaction conditions for selected substrates (ortho-, meta- and para-substituted compounds). The reactions provided the desired derivatives in moderate yields.

3. Discussion

Based on our previous work on the synthesis and application of differentiated di-boron compounds [18], we applied this new strategy to the preparation of di-boron reagents containing the B(dan) group. Taking the di-functionalized compound 1j as an example (Scheme 3), the potential application of this product was checked (The details were shown in Supplementary). Firstly, in the presence of Pd(II) catalyst, the Br atom could react with B2(pin)2 to synthesize the site-differentiated diboron arene 2. As anticipated [9,14], the reactivities of B(pin) and B(dan), with two effective masking groups for boronic acids on 2, could be differentiated in the Suzuki-Miyaura coupling reaction. The B(pin) group could be selectively transformed into the aryl while the B(dan) group remained intact. After the workup and purification process, the compound 3 was obtained in 81% yield. In agreement with previous experience, the B(dan) group on compound 3 could be activated by hydrolysis under aqueous condition to obtain its boronic acid, which can be used in the sequential Suzuki-Miyaura cross-coupling reaction to form compound 4. Therefore, we have demonstrated the usefulness of the naphthalene-1,8-diamino borylation in the facile preparation of boron-differentiated di-boron compounds, which may serve as polyvalent nucleophiles for the modular construction of multifunctionalized poly(hetero)arenes by consecutive cross coupling reactions.

4. Materials and Methods

4.1. Methods and Material

4.1.1. General Information

Unless otherwise noted, all reactions were carried out in a flame-dried, sealed Schlenk reaction tube under an atmosphere of nitrogen. Analytical thin-layer chromatography (TLC) was performed on glass plates coated with 0.25 mm 230–400 mesh silica gel containing a fluorescent indicator. Preparative thin-layer chromatography (PTLC) was performed on pre-coated, glass-backed GF254 silica gel plates. Visualization was accomplished by exposure to a UV lamp. All the products in this article are compatible with standard silica gel chromatography. Column chromatography was performed on silica gel (200–300 mesh) using standard methods.

4.1.2. Structural Analysis

NMR spectra were measured on a nuclear magnetic resonance apparatus (Avance III HD 400M, Bruker, Germany) and chemical shifts (δ) are reported in parts per million (ppm). 1H-NMR spectra were recorded at 400 MHz in NMR solvents and referenced internally to corresponding solvent resonance, and 13C-NMR spectra were recorded at 100 MHz and referenced to corresponding solvent resonance. Carbons bearing boron substituents were generally not observed due to quadrupolar relaxation. Coupling constants are reported in Hz with multiplicities denoted as s (singlet), d (doublet), t (triplet), q (quartet), m (multiplet) and br (broad). Infrared spectra were collected on a Thermo Fisher Nicolet 6700 FT-IR spectrometer (Waltham, MA, USA) using ATR (Attenuated Total Reflectance) method. Absorption maxima (ν max) are reported in wavenumbers (cm−1). High resolution mass spectra (HRMS) were acquired with an ESI source or APCI source (MTQ III q-TOP, Bruker, Germany).

4.1.3. Materials

Commercial reagents and solvent were purchased from J&K, Energy, Sigma-Aldrich, Alfa Aesar, Acros Organics, Strem Chemicals, TCI and used as received unless otherwise stated.

4.2. General Procedure for the Direct Transformation from Arylamines to Aryl Naphthalene-1,8-diamino Boronamides

In air, Bpin-B(dan) (0.1 mmol, 1.0 eq.), aryl amide (0.2 mmol, 2.0 eq.), TBAI (0.01 eq.), NaOAc (0.15 eq.), and BPO (0.01 eq.) were sequentially weighed and added to a screw-capped Schenk tube containing a magnetic stir bar. The vessel was evacuated and refilled with nitrogen for three times. t-BuONO (0.2 eq.) and MeCN (0.6 mL) were added in turn under N2 atmosphere using syringes through a septum which was temporarily used to replace the screw cap. The reaction mixture was then vigorously stirred at 80 °C for the indicated time. The resulting mixture was filtered through a pad of Celite®, and the filter cake was washed with ethyl acetate (3 mL × 2). The combined filtrate was evaporated under vacuum to dryness and the residue was purified by column chromatography to yield the desired product.

4.3. Analytical Data of Products 1a–1t

2-(4-methoxyphenyl)-2,3-dihydro-1H-naphtho[1,8-de][1,3,2]diazaborinine (1a, CAS: 1159803-53-8) [25]. Yield: 20.6 mg (75%); white solid; m.p.: 163.2~165.6 °C; IR (cm−1): 3407, 1594, 1495, 1407, 1224, 1181, 1029; 1H-NMR (400 MHz, CDCl3) δ 7.59 (d, J = 8.8 Hz, 2H), 7.15 (t, J = 8.0 Hz, 2H), 7.05 (d, J = 8.0 Hz, 2H), 6.98 (d, J = 8.4 Hz, 2H), 6.42 (d, J = 7.2 Hz, 2H), 6.00 (s, 2H), 3.86 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 161.4, 141.2, 140.3, 136.4, 133.0, 127.6, 117.7, 113.9, 105.9, 55.2; 11B-NMR (128 MHz, CDCl3) δ 29.1; HRMS (APCI) m/z calcd for C17H14BN2O (M−): 273.1205, found: 273.1203.
2-(4-bromophenyl)-2,3-dihydro-1H-naphtho[1,8-de][1,3,2]diazaborinine (1b) [9]. Yield: 20.0 mg (62%); white solid; m.p.: 135.6~136.2 °C; IR (cm−1): 3408.9, 2921.3, 2851.4, 2362.0, 2342.0, 1596.0, 1511.4, 1400.3, 1373.3, 817.5, 752.2, 690.0; 1H-NMR (400 MHz, CDCl3) δ 7.57 (d, J = 8.2 Hz, 2H), 7.48 (d, J = 8.2 Hz, 2H), 7.14 (t, J = 7.8 Hz, 2H), 7.06 (d, J = 8.0 Hz, 2H), 6.40 (d, J = 7.2 Hz, 2H), 5.96 (s, 2H); 13C-NMR (100 MHz, CDCl3) δ 140.8, 136.3, 133.0, 131.5, 127.7, 124.9, 119.9, 118.1, 106.2; HRMS (APCI) m/z calcd for C16H12BBrN2 (M−): 322.0282, found: 322.0279.
2-(4-(trifluoromethyl)phenyl)-2,3-dihydro-1H-naphtho[1,8-de][1,3,2]diazaborinine (1c) [25]. Yield: 23.7 mg (76%); white solid; m.p.: 127.0~130.3 °C; IR (cm−1): 3414.2, 2365.0, 2341.9, 1527.7, 1493.5, 1398.9, 1166.0, 1035.0, 826.8, 747.1; 1H-NMR (400 MHz, CDCl3) δ 7.75 (d, J = 7.9 Hz, 2H), 7.69 (d, J = 8.0 Hz, 2H), 7.13 (t, J =7.8 Hz, 2H), 7.09 (d, J = 7.8 Hz, 2H), 6.44 (dd, J = 7.2, 0.8 Hz, 2H), 6.01 (s, 2H); 13C-NMR (100 MHz, CDCl3) δ 140.8, 136.5, 132.2 (q, J = 32 Hz), 131.9, 127.8, 125.1 (q, J = 4 Hz), 124.2 (q, J = 272 Hz), 120.1, 118.4, 103.8; 11B-NMR (128 MHz, CDCl3) δ 30.1; 19F-NMR (377 MHz, CDCl3) δ −62.88; HRMS (APCI) m/z calcd for C17H11BF3N2 (M−): 311.0973, found: 311.0974.
4-(1H-naphtho[1,8-de][1,3,2]diazaborinin-2(3H)-yl)phenol (1d) [25]. Yield: 13.5 mg (52%); white solid; m.p.: 222.6~225.7 °C; IR (cm−1): 3441.0, 3414.9, 3028.7, 2361.5, 2343.2, 1582.3, 1487.1, 1404.1, 1200.2, 1177.8, 813.5, 753.2; 1H-NMR (400 MHz, CDCl3) δ 7.55 (d, J = 8.2 Hz, 2H), 7.14 (t, J = 7.8 Hz, 2H), 7.05 (d, J = 8.2 Hz, 2H), 6.91 (d, J = 8.3 Hz, 2H), 6.41 (d, J = 7.3 Hz, 2H), 5.98 (s, 2H), 4.90 (s, 1H); 13C-NMR (100 MHz, CDCl3) δ 157.4, 141.2, 136.3, 133.3, 127.6, 119.7, 117.7, 115.3, 105.9; HRMS (APCI) m/z calcd for C16H12BN2O (M−): 259.1048, found: 259.1049.
4-(1H-naphtho[1,8-de][1,3,2]diazaborinin-2(3H)-yl)benzonitrile (1e) [25]. Yield: 13.7 mg (51%); white solid; m.p.: 220.4~225.1 °C; IR (cm−1): 3409.3, 3401.7, 3393.0, 3370.2, 2362.0, 2220.1, 1516.3, 1593.4, 1405.2, 1082.6, 818.4; 1H-NMR (400 MHz, CDCl3) δ 7.72 (dd, J = 8.0, 3.2 Hz, 4H), 7.14 (t, J = 7.7 Hz, 2H), 7.09 (d, J = 8.0 Hz, 2H), 6.43 (d, J = 7.2 Hz, 2H), 5.99 (s, 2H); 13C-NMR (100 MHz, CDCl3) δ 140.4, 136.3, 132.0, 131.7, 127.7, 120.0, 118.7, 118.5, 113.7, 106.4; 11B-NMR (128 MHz, CDCl3) δ 28.8; HRMS (ESI) m/z calcd for C17H12BN3Na (M+): 292.1022, found: 292.1014.
methyl 4-(1H-naphtho[1,8-de][1,3,2]diazaborinin-2(3H)-yl)benzoate (1f). Yield: 24.5 mg (81%); white solid; m.p.: 202.2~203.6 °C; IR (cm−1): 3387.9, 2920.4, 2849.8, 2364.4, 2342.4, 1705.0, 1592.7, 1397.3, 759.4, 704.7; 1H-NMR (400 MHz, CDCl3) δ 8.09 (d, J = 8.0 Hz, 2H), 7.71 (d, J = 7.9 Hz, 2H), 7.15 (t, J = 7.8 Hz, 2H), 7.07 (d, J = 8.2 Hz, 2H), 6.43 (d, J = 7.2 Hz, 2H), 6.05 (s, 2H). 3.95 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 167.0, 140.8, 136.4, 131.6, 131.5, 129.2, 127.6, 120.0, 118.2, 106.2, 52.3; HRMS (APCI) m/z calcd for C18H15BN2O2 (M−): 302.1232, found: 302.1230.
2-(m-tolyl)-2,3-dihydro-1H-naphtho[1,8-de][1,3,2]diazaborinine (1g) [25]. Yield: 18.3 mg (71%); white solid; m.p.: 103.8~106.3 °C; IR (cm−1): 3409.1, 3050.8, 3029.9, 1593.0, 1581.1, 1326.2, 817.9, 762.0, 702.8; 1H-NMR (400 MHz, CDCl3) δ 7.44 (d, J = 8.2 Hz, 2H), 7.34 (m, 2H), 7.14 (t, J = 7.8 Hz, 2H), 7.05 (d, J = 8.2 Hz, 2H), 6.41 (d, J = 7.3 Hz, 2H), 6.02 (s, 2H), 2.42 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 141.2, 137.7, 136.4, 132.2, 131.1, 128.5, 128.2, 127.6, 119.9, 117.8, 106.0, 21.6; 11B NMR (128 MHz, CDCl3) δ 30.4; HRMS (APCI) m/z calcd for C17H14BN2 (M−): 257.1256, found: 257.1257.
2-(3-methoxyphenyl)-2,3-dihydro-1H-naphtho[1,8-de][1,3,2]diazaborinine (1h) [25]. Yield: 19.2 mg (70%); white solid; m.p.: 113.7~116.4 °C; IR (cm−1): 3452.9, 3409.8, 3049.7, 3032.7, 1593.0, 1515.4, 1478.6, 1406.1, 1243.3, 693.5, 658.1; 1H-NMR (400 MHz, CDCl3) δ 7.37 (t, J = 7.7 Hz, 1H), 7.21 (d, J = 7.2 Hz, 1H), 7.14 (m, 3H), 7.05 (d, J = 8.1 Hz, 2H), 7.00 (dd, J = 8.1, 2.0 Hz, 1H), 6.40 (d, J = 7.3 Hz, 2H), 6.00 (s, 2H), 3.86 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 159.5, 141.1, 136.4, 129.6, 127.7, 123.9, 119.9, 117.9, 117.0, 115.5, 106.1, 55.3; 11B-NMR (128 MHz, CDCl3) δ 30.1; HRMS (APCI) m/z calcd for C17H14BN2O (M−): 273.1205, found: 273.1207.
2-(3-(trifluoromethoxy)phenyl)-2,3-dihydro-1H-naphtho[1,8-de][1,3,2]diazaborinine (1i). Yield: 21.3 mg (65%); brown oil; IR (cm−1): 3414.2, 2365.0, 2341.9, 1527.7, 1493.5, 1398.9, 1166.0, 1035.0, 826.8, 747.1; 1H-NMR (400 MHz, CDCl3) δ 7.56 (d, J = 7.4 Hz, 2H), 7.48 (m, 2H), 7.33 (d, J = 8.1 Hz, 1H), 7.16 (t, J = 7.7 Hz, 2H), 7.08 (d, J = 8.2 Hz, 2H), 6.43 (d, J = 7.2 Hz, 2H), 5.98 (s, 2H); 13C-NMR (100 MHz, CDCl3) δ 149.4, 140.7, 136.3, 129.8, 127.7, 123.7, 122.7, 119.9, 118.2, 106.1; HRMS (APCI) m/z calcd for C17H12BF3N2O (M−): 328.1000, found: 328.1002.
2-(3-bromophenyl)-2,3-dihydro-1H-naphtho[1,8-de][1,3,2]diazaborinine (1j) [9]. Yield: 19.3 mg (60%); white solid; m.p.: 86.6~87.9 °C; IR (cm−1): 3408.9, 2921.3, 2851.4, 2362.0, 2342.0, 1596.0, 1511.4, 1400.3, 1373.3, 817.5, 752.2, 690.0; 1H-NMR (400 MHz, CDCl3) δ 7.73 (s, 1H), 7.57 (d, J = 8.0 Hz, 1H), 7.51 (d, J = 7.4 Hz, 1H), 7.29 (t, J = 7.7 Hz, 1H), 7.13 (t, J = 7.8 Hz, 2H), 7.05 (d, J = 7.9 Hz, 2H), 6.39 (d, J = 7.2 Hz, 2H), 5.94 (s, 2H); 13C-NMR (100 MHz, CDCl3) δ 140.7, 136.3, 134.4, 133.2, 130.1, 129.9, 127.7, 123.1, 119.9, 118.1, 106.3; HRMS (APCI) m/z calcd for C16H12BBrN2 (M−): 322.0282, found: 322.0280.
2-(3-fluorophenyl)-2,3-dihydro-1H-naphtho[1,8-de][1,3,2]diazaborinine (1k). Yield: 16.8 mg (64%); yellow solid; m.p.: 103.3~104.6 °C; IR (cm−1): 3442.7, 3435.4, 3032.2, 1595.8, 1520.5, 1371.4, 757.1, 749.4, 686.3; 1H-NMR (400 MHz, CDCl3) δ 7.41 (m, 2H), 7.33 (dd, J = 2.4, 9.2 Hz, 1H), 7.14 (m, 3H), 7.06 (d, J = 8.0 Hz, 2H), 6.41 (d, J = 7.3 Hz, 2H), 5.97 (s, 2H); 13C-NMR (100 MHz, CDCl3) δ 162.9 (d, J = 246 Hz), 140.8, 136.3, 130.1 (d, J = 7 Hz), 127.7, 127.0 (d, J = 3 Hz), 119.9, 118.1, 118.0 (d, J = 23 Hz), 117.1 (d, J = 20 Hz), 106.2; HRMS (APCI) m/z calcd for C16H12BFN2 (M−): 262.1083, found: 262.1080.
Methyl 3-(1H-naphtho[1,8-de][1,3,2]diazaborinin-2(3H)-yl)benzoate (1l). Yield: 23.6 mg (78%); pink solid; m.p.: 178.9~179.8 °C; IR (cm−1): 3452.9, 3409.8, 2049.7, 1515.4, 1478.6, 1077.0, 816.1; 1H-NMR (400 MHz, CDCl3) δ 8.33 (s, 1H), 8.13 (dt, J = 8.8, 1.4 Hz, 1H), 7.83 (d, J = 7.4 Hz, 1H), 7.52 (t, J = 7.6 Hz, 1H), 7.15 (t, J = 7.8 Hz, 2H), 7.07 (d, J = 8.0 Hz, 2H), 6.45 (d, J = 7.2 Hz, 2H), 6.09 (s, 2H), 3.97 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 167.2, 140.8, 136.3, 135.9, 132.6, 131.3, 130.0, 128.4, 127.7, 119.9, 118.1, 106.2, 52.3; HRMS (APCI) m/z calcd for C18H15BN2O2 (M−): 302.1232, found: 302.1228.
3-(1H-naphtho[1,8-de][1,3,2]diazaborinin-2(3H)-yl)benzamide (1m). Yield: 15.5 mg (54%); brown solid; m.p.: 168.4~169.5 °C; IR (cm−1): 3382.8, 3101.1, 3048.7, 2341.2, 2366.2, 1599.3, 1568.7, 1506.6, 816.3, 758.5, 668.6; 1H-NMR (400 MHz, CDCl3) δ 7.85 (s, 1H), 7.49 (m, 1H), 7.36 (m, 3H), 7.30 (s, 1H), 7.13 (t, J = 7.7 Hz, 2H), 7.05 (d, J = 8.2 Hz, 2H), 6.39 (d, J = 7.0 Hz, 2H), 6.05 (s, 2H); 13C-NMR (100 MHz, CDCl3) δ 168.6, 141.0, 137.8, 136.3, 129.0, 127.6, 127.5, 122.9, 121.7, 119.9, 117.8, 106.1; HRMS (APCI) m/z calcd for C17H14BN3O (M−): 287.1235, found: 287.1233.
2-(3,4-dimethoxyphenyl)-2,3-dihydro-1H-naphtho[1,8-de][1,3,2]diazaborinine (1n). Yield: 18.8 mg (62%); light pink solid; m.p.: 174.5~175.0 °C; IR (cm−1): 3407.2, 1594.4, 1495.9, 1407.7, 1224.1, 1181.2, 1029.0; 1H-NMR (400 MHz, CDCl3) δ 7.24 (d, J = 7.9 Hz, 1H), 7.13 (m, 3H), 7.06 (d, J = 8.2 Hz, 2H), 6.96 (d, J = 7.9 Hz, 1H), 6.43 (d, J = 7.2 Hz, 2H), 5.99 (s, 2H), 3.97 (s, 3H), 3.93 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 150.9, 148.9, 141.1, 136.4, 127.6, 124.9, 119.7, 117.8, 113.8, 111.1, 106.0, 56.1, 55.8; HRMS (APCI) m/z calcd for C18H17BN2O2 (M−): 304.1389, found: 304.1385.
2-(benzo[d][1,3]dioxol-5-yl)-2,3-dihydro-1H-naphtho[1,8-de][1,3,2]diazaborinine (1o) [25]. Yield: 19.9 mg (69%); white solid; m.p.: 173.5~175.8 °C; IR (cm−1): 3399.2, 1594.3, 1478.2, 1402.7, 1232.1, 1034.0; 1H-NMR (400 MHz, CDCl3) δ 7.15 (t, J = 7.4 Hz, 3H), 7.06 (t, J = 6.6 Hz, 3H), 6.91 (d, J = 7.6 Hz, 1H), 6.40 (d, J = 7.2 Hz, 2H), 6.00 (s, 2H), 5.94 (s, 2H); 13C-NMR (100 MHz, CDCl3) δ 149.4, 147.8, 141.1, 136.3, 127.6, 125.8, 119.7, 117.8, 110.9, 108.8, 106.0, 101.0; HRMS (ESI) m/z calcd for C17H14BN2O2 (M+): 289.1148, found: 289.1147.
2-(3,5-difluorophenyl)-2,3-dihydro-1H-naphtho[1,8-de][1,3,2]diazaborinine (1p). Yield: 17.9 mg (64%); yellow solid; m.p.: 113.2~114.6 °C; IR (cm−1): 3414.2, 2365.0, 2341.9, 1398.8, 1317.8, 1105.6, 1082.3, 818.4; 1H-NMR (400 MHz, CDCl3) δ 7.75 (d, J = 7.9 Hz, 2H), 7.68 (d, J = 8.0 Hz, 2H), 7.16 (t, J = 7.8 Hz, 2H), 7.08 (d, J = 7.8 Hz, 2H), 6.43 (dd, J = 7.2, 0.6 Hz, 2H), 6.01 (s, 2H); 13C-NMR (100 MHz, CDCl3) δ 160.7 (dd, J = 249 Hz, 6 Hz), 137.9, 133.8, 125.1, 117.4, 115.8, 111.3 (dd, J = 17 Hz, 6 Hz), 103.8, 102.9 (t, J = 25 Hz); HRMS (APCI) m/z calcd for C16H11BN2F2 (M−): 280.0989, found: 280.0991.
2-(3,5-dichlorophenyl)-2,3-dihydro-1H-naphtho[1,8-de][1,3,2]diazaborinine (1q) [63]. Yield: 20.6 mg (66%); green solid; m.p.: 164.2~165.8 °C; IR (cm−1): 3381.9, 2946.7, 2364.1, 1559.7, 1507.0, 1266.1, 1068.1, 746.4; 1H-NMR (400 MHz, CDCl3) δ 7.46 (dd, J = 8.3, 1.7 Hz, 3H), 7.15 (t, J = 8.0 Hz, 2H), 7.08 (d, J = 8.0 Hz, 2H), 6.42 (d, J = 7.2 Hz, 2H), 5.94 (s, 2H); 13C-NMR (100 MHz, CDCl3) δ 140.4, 136.3, 135.3, 130.1, 129.7, 127.7, 120.0, 118.4, 106.4; HRMS (APCI) m/z calcd for C16H11BN2Cl2 (M−): 312.0398, found: 312.0395.
2-(o-tolyl)-2,3-dihydro-1H-naphtho[1,8-de][1,3,2]diazaborinine (1r) [25]. Yield: 11.6 mg (45%); white solid; m.p.: 73.2~75.1 °C; IR (cm−1): 3420.1, 3404.9, 2360.8, 2341.0, 1594.1, 1506.1, 1325.8, 1318.1, 1077.9, 818.4, 656.0; 1H-NMR (400 MHz, CDCl3) δ 7.44 (d, J = 7.3 Hz, 1H), 7.31 (t, J = 7.5 Hz, 1H), 7.21 (m, 2H), 7.12 (t, J = 7.8 Hz, 2H), 7.05 (d, J = 8.5 Hz, 2H), 6.33 (d, J = 7.2 Hz, 2H), 5.80 (s, 2H), 2.49 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 141.1, 140.7, 136.4, 132.3, 129.7, 129.3, 127.7, 125.3, 119.8, 117.9, 105.9, 22.4; 11B NMR (128 MHz, CDCl3) δ 30.0; HRMS (APCI) m/z calcd for C17H14BN2 (M−): 257.1256, found: 257.1257.
Methyl 2-(1H-naphtho[1,8-de][1,3,2]diazaborinin-2(3H)-yl)benzoate (1s) [25]. Yield: 15.4 mg (51%); white solid; m.p.: 160.3~164.5 °C; IR (cm−1): 3381.9, 2946.7, 2364.1, 1699.4, 1507.6, 1134.7, 1266.1, 1068.1, 816.3, 746.4; 1H-NMR (400 MHz, CDCl3) δ 8.04 (d, J = 7.8 Hz, 1H), 7.54 (m, 2H), 7.47 (m, 1H), 7.11 (t, J = 7.8 Hz, 2H), 7.04 (d, J = 7.8 Hz, 2H), 6.31 (d, J = 7.2 Hz, 2H), 5.73 (s, 2H), 3.86 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 168.3, 141.3, 136.4, 133.2, 132.7, 132.1, 129.6, 128.9, 127.6, 119.6, 117.6, 105.8, 52.4; 11B NMR (128 MHz, CDCl3) δ 31.0; HRMS (APCI) m/z calcd for C18H14BN2O2 (M−): 301.1154, found: 301.1157.
2-(naphthalen-1-yl)-2,3-dihydro-1H-naphtho[1,8-de][1,3,2]diazaborinine (2t) [25]. Yield: 14.1 mg (48%); white solid; m.p.: 140.2~143.6 °C; IR (cm−1): 3420.2, 3402.4, 1594.6, 1508.8, 1498.6, 1315.5, 1167.3; 1H-NMR (400 MHz, CDCl3) δ 8.22 (dd, J = 6.4, 3.2 Hz, 1H), 7.91 (m, 2H), 7.70 (d, J = 6.4 Hz, 1H), 7.52 (m, 3H), 7.17 (t, J = 8.0 Hz, 2H), 7.11 (d, J = 8.0 Hz, 2H), 6.38 (d. J = 7.2 Hz, 2H), 6.02 (s, 2H); 13C-NMR (100 MHz, CDCl3) δ 141.1, 136.4, 135.4, 133.3, 130.7, 129.6, 128.8, 127.9, 127.7, 126.3, 125.9, 125.4, 120.0, 118.0, 106.1; 11B-NMR (128 MHz, CDCl3) δ 30.7; HRMS (ESI) m/z calcd for C20H16BN2 (M+): 295.1407, found: 295.1399.

5. Conclusions

In conclusion, by employing the non-symmetrical di-boron compound, B(pin)-B(dan), as the borylating reagent, we have realized a metal-free Sandmeyer-type borylation reaction under relatively mild conditions and afforded various aryl B(dan) compounds in moderate yields. The procedure tolerates a series of functional groups, including chloro, bromo, fluoro, ester, hydroxy, cyano and amide groups. Further studies on the mechanism are in progress in our laboratory (The proposed mechanism was shown in the Supporting Information). We anticipate that this protocol described herein could serve as an important supplement to the existing strategies for preparing the aryl-B(dan) compounds and will then find wide application in organic synthesis and related fields.

Supplementary Materials

Experimental procedures and spectral data for the borylated products. This material is available free of charge via the Internet.

Author Contributions

S.D. conceived and designed the experiment; Q.M. and M.Z. performed the experiments; S.D. and H.R. analyzed the data; S.T. and Y.Z. contributed reagents/materials/analysis; S.D. and Z.M. wrote the paper.

Funding

This research was funded by the Special Fund for Talent Research of Xijing University, Grant number XJ17B01, Scientific Research Program Funded by Shaanxi Provincial Education Department (Program No.18JK1196) and the National Natural Science Foundation of Shaanxi, Grant number 2017JQ2037.

Acknowledgments

We would like to thank Pengfei Li (Xi’an Jiaotong University) very much for his guidance and advices during this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hall, D.J. Boronic Acids; Wiley: Weinheim, Germany, 2011. [Google Scholar]
  2. Lennox, A.J.; Lloyd-Jones, G.C. Selection of Boron Reagents for Suzuki-Miyaura Coupling. Chem. Soc. Rev. 2014, 43, 412–443. [Google Scholar] [CrossRef] [PubMed]
  3. Fyfe, J.W.B.; Watson, A.J.B. Recent Developments in Organoboron Chemistry: Old Dogs, New Tricks. Chem 2017, 3, 31–55. [Google Scholar] [CrossRef]
  4. Xu, L.; Zhang, S.; Li, P. Boron-Selective Reactions as Powerful Tools for Modular Synthesis of Diverse Complex Molecules. Chem. Soc. Rev. 2015, 44, 8848–8858. [Google Scholar] [CrossRef] [PubMed]
  5. Neeve, E.C.; Geier, S.J.; Mkhalid, I.A.I.; Westcott, S.A.; Marder, T.B. Diboron(4) Compounds: From Structural Curiosity to Synthetic Workhorse. Chem. Rev. 2016, 116, 9091–9161. [Google Scholar] [CrossRef] [PubMed]
  6. Xu, L.; Wang, G.; Zhang, S.; Wang, H.; Wang, L.; Liu, L.; Jiao, J.; Li, P. Recent Advances in Catalytic C−H Borylation Reactions. Tetrahedron 2017, 73, 7123–7157. [Google Scholar] [CrossRef]
  7. Takaya, J.; Iwasawa, N. Catalytic, Direct Synthesis of Bis(boronate) Compounds. ACS Catal. 2012, 2, 1993–2006. [Google Scholar] [CrossRef]
  8. Xu, L.; Li, P. Differentiated Di- and Polyboron Compounds: Synthesis and Application in Successive Suzuki–Miyaura Coupling. Synlett 2014, 25, 1799–1802. [Google Scholar] [CrossRef]
  9. Noguchi, H.; Hojo, K.; Suginome, M. Boron-Masking Strategy for the Selective Synthesis of Oligoarenes via Iterative Suzuki−Miyaura Coupling. J. Am. Chem. Soc. 2007, 129, 758–759. [Google Scholar] [CrossRef]
  10. Iwadate, N.; Suginome, M. Synthesis of B-Protected β-Styrylboronic Acids via Iridium-Catalyzed Hydroboration of Alkynes with 1,8-Naphthalenediaminatoborane Leading to Iterative Synthesis of Oligo(phenylenevinylene)s. Org. Lett. 2009, 11, 1899–1902. [Google Scholar] [CrossRef]
  11. Wang, C.; Glorius, F. Controlled Iterative Cross-Coupling: On the Way to the Automation of Organic Synthesis. Angew. Chem. Int. Ed. 2009, 48, 5240–5244. [Google Scholar] [CrossRef]
  12. Gillis, E.P.; Burke, M.D. A Simple and Modular Strategy for Small Molecule Synthesis:  Iterative Suzuki−Miyaura Coupling of B-Protected Haloboronic Acid Building Blocks. J. Am. Chem. Soc. 2007, 129, 6716–6717. [Google Scholar] [CrossRef] [PubMed]
  13. Molander, G.A.; Sandrock, D.L. Orthogonal Reactivity in Boryl-Substituted Organotrifluoroborates. J. Am. Chem. Soc. 2008, 130, 15792–15793. [Google Scholar] [CrossRef] [Green Version]
  14. Noguchi, H.; Shioda, T.; Chou, C.-M.; Suginome, M. Differentially Protected Benzenediboronic Acids:  Divalent Cross-Coupling Modules for the Efficient Synthesis of Boron-Substituted Oligoarenes. Org. Lett. 2008, 10, 377–380. [Google Scholar] [CrossRef] [PubMed]
  15. Tobisu, M.; Chatani, N. Devising Boron Reagents for Orthogonal Functionalization through Suzuki–Miyaura Cross-Coupling. Angew. Chem. Int. Ed. 2009, 48, 3565–3568. [Google Scholar] [CrossRef] [PubMed]
  16. Iwadate, N.; Suginome, M. Differentially Protected Diboron for Regioselective Diboration of Alkynes: Internal-Selective Cross-Coupling of 1-Alkene-1,2-diboronic Acid Derivatives. J. Am. Chem. Soc. 2010, 132, 2548–2549. [Google Scholar] [CrossRef] [PubMed]
  17. Hyodo, K.; Suetsugu, M.; Nishihara, Y. Diborylation of Alkynyl MIDA Boronates and Sequential Chemoselective Suzuki–Miyaura Couplings: A Formal Carboborylation of Alkynes. Org. Lett. 2013, 16, 440–443. [Google Scholar] [CrossRef] [PubMed]
  18. Xu, L.; Ding, S.; Li, P. Site-Differentiated Polyboron Arenes Prepared by Direct C–H Borylation and Their Highly Selective Suzuki–Miyaura Cross-Coupling Reactions. Angew. Chem. Int. Ed. 2014, 53, 1822–1826. [Google Scholar] [CrossRef]
  19. Ishiyama, T.; Murata, M.; Miyaura, N. Palladium(0)-Catalyzed Cross-Coupling Reaction of Alkoxydiboron with Haloarenes: A Direct Procedure for Arylboronic Esters. J. Org. Chem. 1995, 60, 7508–7510. [Google Scholar] [CrossRef]
  20. Ishiyama, T.; Itoh, Y.; Kitano, T.; Miyaura, N. Synthesis of Arylboronates via the Palladium(0)-Catalyzed Cross-Coupling Reaction of Tetra(alkoxo)diborons with Aryl Triflates. Tetrahedron Lett. 1997, 38, 3447–3450. [Google Scholar] [CrossRef]
  21. Kleeberg, C.; Dang, L.; Lin, Z.; Marder, T.B. A Facile Route to Aryl Boronates: Room-Temperature, Copper-Catalyzed Borylation of Aryl Halides with Alkoxy Diboron Reagents. Angew. Chem. Int. Ed. 2009, 48, 5350–5354. [Google Scholar] [CrossRef]
  22. Yamamoto, T.; Morita, T.; Takagi, J.; Yamakawa, T. NiCl2(PMe3)2-Catalyzed Borylation of Aryl Chlorides. Org. Lett. 2011, 13, 5766–5769. [Google Scholar] [CrossRef] [PubMed]
  23. Molander, G.A.; Cavalcanti, L.N.; García-García, C. Nickel-Catalyzed Borylation of Halides and Pseudohalides with Tetrahydroxydiboron [B2(OH)4]. J. Org. Chem. 2013, 78, 6427–6439. [Google Scholar] [CrossRef] [PubMed]
  24. Wood, J.L.; Marciasini, L.D.; Vaultier, M.; Pucheault, M. A Synergy for Refunctionalization of Boron. Synlett 2014, 25, 0551–0555. [Google Scholar] [CrossRef]
  25. Xu, L.; Li, P. Direct Introduction of a Naphthalene-1,8-Diamino Boryl [B(dan)] Group by a Pd-Catalysed Selective Boryl Transfer Reaction. Chem. Commun. 2015, 51, 5656–5659. [Google Scholar] [CrossRef] [PubMed]
  26. Yoshida, H.; Takemoto, Y.; Kamio, S.; Osaka, I.; Takaki, K. Copper-Catalyzed Direct Borylation of Alkyl, Alkenyl and aryl Halides with B(dan). Org. Chem. Front. 2017, 4, 1215–1219. [Google Scholar] [CrossRef]
  27. Yoshida, H.; Kamio, S.; Osaka, I. Copper-Catalyzed Borylation of Bromoaryl Triflates with Diborons: Chemoselective Replacement of an Ar–Br Bond. Chem. Lett. 2018, 47, 957–959. [Google Scholar] [CrossRef]
  28. Dang, L.; Lin, Z.; Marder, T.B. Boryl Ligands and Their Roles in Metal-Catalysed Borylation Reactions. Chem. Commun. 2009, 3987–3995. [Google Scholar] [CrossRef]
  29. Hodgson, H.H. The Sandmeyer Reaction. Chem. Rev. 1947, 40, 251–277. [Google Scholar] [CrossRef]
  30. Galli, C. Radical Reactions of Arenediazonium Ions: An Easy Entry into the Chemistry of the Aryl Radical. Chem. Rev. 1988, 88, 765–792. [Google Scholar] [CrossRef]
  31. Mo, F.; Qiu, D.; Zhang, Y.; Wang, J. Renaissance of Sandmeyer-Type Reactions: Conversion of Aromatic C–N Bonds into C–X Bonds (X = B, Sn, P, or CF3). Acc. Chem. Res. 2018, 51, 496–506. [Google Scholar] [CrossRef]
  32. Mo, F.; Dong, G.; Zhang, Y.; Wang, J. Recent Applications of Arene Diazonium Salts in Organic Synthesis. Org. Biomol. Chem. 2013, 11, 1582–1593. [Google Scholar] [CrossRef] [PubMed]
  33. Mo, F.; Jiang, Y.; Qiu, D.; Zhang, Y.; Wang, J. Direct Conversion of Arylamines to Pinacol Boronates: A Metal-Free Borylation Process. Angew. Chem. Int. Ed. 2010, 49, 1846–1849. [Google Scholar] [CrossRef] [PubMed]
  34. Qiu, D.; Jin, L.; Zheng, Z.; Meng, H.; Mo, F.; Wang, X.; Zhang, Y.; Wang, J. Synthesis of Pinacol Arylboronates from Aromatic Amines: A Metal-Free Transformation. J. Org. Chem. 2013, 78, 1923–1933. [Google Scholar] [CrossRef] [PubMed]
  35. Qiu, D.; Wang, S.; Tang, S.; Meng, H.; Jin, L.; Mo, F.; Zhang, Y.; Wang, J. Synthesis of Trimethylstannyl Arylboronate Compounds by Sandmeyer-Type Transformations and Their Applications in Chemoselective Cross-Coupling Reactions. J. Org. Chem. 2014, 79, 1979–1988. [Google Scholar] [CrossRef]
  36. Qiu, D.; Zhang, Y.; Wang, J. Direct Synthesis of Arylboronic Pinacol Esters from Arylamines. Org. Chem. Front. 2014, 1, 422–425. [Google Scholar] [CrossRef]
  37. Erb, W.; Albini, M.; Rouden, J.; Blanchet, J. Sequential One-Pot Access to Molecular Diversity through Aniline Aqueous Borylation. J. Org. Chem. 2014, 79, 10568–10580. [Google Scholar] [CrossRef]
  38. Qi, X.; Li, H.-P.; Peng, J.-B.; Wu, X.-F. Borylation of Aryldiazonium Salts at Room Temperature in an Aqueous Solution under Catalyst-Free Conditions. Tetrahedron Lett. 2017, 58, 3851–3853. [Google Scholar] [CrossRef]
  39. Xu, Y.; Yang, X.; Fang, H. Additive- and Photocatalyst-Free Borylation of Arylazo Sulfones under Visible Light. J. Org. Chem. 2018, 83, 12831–12837. [Google Scholar] [CrossRef]
  40. Cid, J.; Carbó, J.J.; Fernández, E. A Clear-Cut Example of Selective Bpin-Bdan Activation and Precise Bdan Transfer on Boron Conjugate Addition. Chem. Eur. J. 2014, 20, 3616–3620. [Google Scholar] [CrossRef] [PubMed]
  41. Yoshida, H.; Takemoto, Y.; Takaki, K. A Masked Diboron in Cu-Catalysed Borylation Reaction: Highly Regioselective Formal Hydroboration of Alkynes for Synthesis of Branched Alkenylborons. Chem. Commun. 2014, 50, 8299–8302. [Google Scholar] [CrossRef] [PubMed]
  42. Yoshida, H.; Takemoto, Y.; Takaki, K. Direct Synthesis of Boron-Protected Alkenyl- and Alkylborons via Copper-Catalyzed Formal Hydroboration of Alkynes and Alkenes. Asian J. Org. Chem. 2014, 3, 1204–1209. [Google Scholar] [CrossRef]
  43. Miralles, N.; Cid, J.; Cuenca, A.B.; Carbo, J.J.; Fernandez, E. Mixed Diboration of Alkenes in a Metal-Free Context. Chem. Commun. 2015, 51, 1693–1696. [Google Scholar] [CrossRef] [PubMed]
  44. Yoshida, H.; Takemoto, Y.; Takaki, K. Borylstannylation of Alkynes with Inverse Regioselectivity: Copper-Catalyzed Three-Component Coupling using a Masked Diboron. Chem. Commun. 2015, 51, 6297–6300. [Google Scholar] [CrossRef] [PubMed]
  45. Kageyuki, I.; Osaka, I.; Takaki, K.; Yoshida, H. Copper-Catalyzed B(dan)-Installing Carboboration of Alkenes. Org. Lett. 2017, 19, 830–833. [Google Scholar] [CrossRef] [PubMed]
  46. Verma, A.; Snead, R.F.; Dai, Y.; Slebodnick, C.; Yang, Y.; Yu, H.; Yao, F.; Santos, W.L. Substrate-Assisted, Transition-Metal-Free Diboration of Alkynamides with Mixed Diboron: Regio- and Stereoselective Access to trans-1,2-Vinyldiboronates. Angew. Chem. Int. Ed. 2017, 56, 5111–5115. [Google Scholar] [CrossRef] [PubMed]
  47. Yan, G.; Huang, D.; Wu, X. Recent Advances in C–B Bond Formation through a Free Radical Pathway. Adv. Synth. Catal. 2018, 360, 1040–1053. [Google Scholar] [CrossRef]
  48. Chen, K.; Wang, L.; Meng, G.; Li, P. Recent Advances in Transition-Metal-Free Aryl C–B Bond Formation. Synthesis 2017, 49, 4719–4730. [Google Scholar] [CrossRef]
  49. Chen, K.; Cheung, M.S.; Lin, Z.; Li, P. Metal-Free Borylation of Electron-Rich Aryl (Pseudo)Halides under Continuous-Flow Photolytic Conditions. Org. Chem. Front. 2016, 3, 875–879. [Google Scholar] [CrossRef]
  50. Chen, K.; Zhang, S.; He, P.; Li, P. Efficient Metal-Free Photochemical Borylation of Aryl Halides under Batch and Continuous-Flow Conditions. Chem. Sci. 2016, 7, 3676–3680. [Google Scholar] [CrossRef]
  51. Jiang, M.; Yang, H.; Fu, H. Visible-Light Photoredox Borylation of Aryl Halides and Subsequent Aerobic Oxidative Hydroxylation. Org. Lett. 2016, 18, 5248–5251. [Google Scholar] [CrossRef]
  52. Liu, W.; Yang, X.; Gao, Y.; Li, C.-J. Simple and Efficient Generation of Aryl Radicals from Aryl Triflates: Synthesis of Aryl Boronates and Aryl Iodides at Room Temperature. J. Am. Chem. Soc. 2017, 139, 8621–8627. [Google Scholar] [CrossRef] [PubMed]
  53. Zhang, L.; Jiao, L. Pyridine-Catalyzed Radical Borylation of Aryl Halides. J. Am. Chem. Soc. 2017, 139, 607–610. [Google Scholar] [CrossRef] [PubMed]
  54. Zhu, C.; Yamane, M. Transition-Metal-Free Borylation of Aryltriazene Mediated by BF3·OEt2. Org. Lett. 2012, 14, 4560–4563. [Google Scholar] [CrossRef] [PubMed]
  55. Yu, J.; Zhang, L.; Yan, G.-B. Metal-Free, Visible Light-Induced Borykation of Aryldiazonium Salts: A Simple and Green Synthetic Route to Arylboronates. Adv. Synth. Catal. 2012, 354, 2625–2628. [Google Scholar] [CrossRef]
  56. Zhang, J.-M.; Wu, H.-H.; Zhang, J.-L. Cesium Carbonate Mediated Borylation of Aryl Iodides with Diboron in Methanol. Eur. J. Org. Chem. 2013, 6263–6266. [Google Scholar] [CrossRef]
  57. Erb, W.; Hellal, A.; Albini, M.; Rouden, J.; Blanchet, J. An Easy Route to (Hetero)arylboronic Acids. Chem. Eur. J. 2014, 20, 6608–6612. [Google Scholar] [CrossRef] [PubMed]
  58. Zhao, C.-J.; Xue, D.; Jia, Z.-H.; Wang, C.; Xiao, J.-L. Methanol-Promoted Borylation of Arylamines: A Simple and Green Synthetic Method to Arylboronic Acid and Arylboronates. Synlett 2014, 25, 1577–1584. [Google Scholar] [CrossRef]
  59. Ahammed, S.; Nandi, S.; Kundu, D.; Ranu, B.-C. One-pot Suzuki coupling of aromatic amines via visible light photocatalyzed metal free borylation using t-BuONO at room temperature. Tetrahedron Lett. 2016, 57, 1551–1557. [Google Scholar] [CrossRef]
  60. Pinet, S.; Liautard, V.; Debiais, M.; Pucheault, M. Radical Metal-Free Borylation of Aryl Iodides. Synthesis 2017, 49, 4759–4768. [Google Scholar] [CrossRef]
  61. Mfuh, A.-M.; Nuyen, V.-T.; Chhetri, B.; Burch, J.-E.; Doyle, J.-D.; Nesterov, V.-N.; Arman, H.-D.; Larionov, O.-V. Additive- and Metal-Free, Predictably 1,2- and 1,3-Regioselective, Photoinduced Dual C-H/C-X-Borylation of Haloarenes. J. Am. Chem. Soc. 2016, 138, 8408–8411. [Google Scholar] [CrossRef]
  62. Mfuh, A.-M.; Doyle, J.-D.; Chhetri, B.; Arman, H.-D.; Larionov, O.-V. Scalable, Metal- and Additive-Free, Photoinduced Borylation of Haloarenes and Quaternary Arylammonium Salts. J. Am. Chem. Soc. 2016, 138, 2985–2988. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Iwadate, N.; Suginome, M. Synthesis of masked haloareneboronic acids via iridium-catalyzed aromatic C–H borylation with 1,8-naphthalenediaminatoborane (danBH). J. Orgomet. Chem. 2009, 694, 1713–1717. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds (1a–1t, 2, 3 and 4) are available from the authors.
Molecules 24 00377 sch001 550
Scheme 1. Different routes to synthesize aryl B(dan) derivatives.
Scheme 1. Different routes to synthesize aryl B(dan) derivatives.
Molecules 24 00377 sch001
Molecules 24 00377 sch002 550

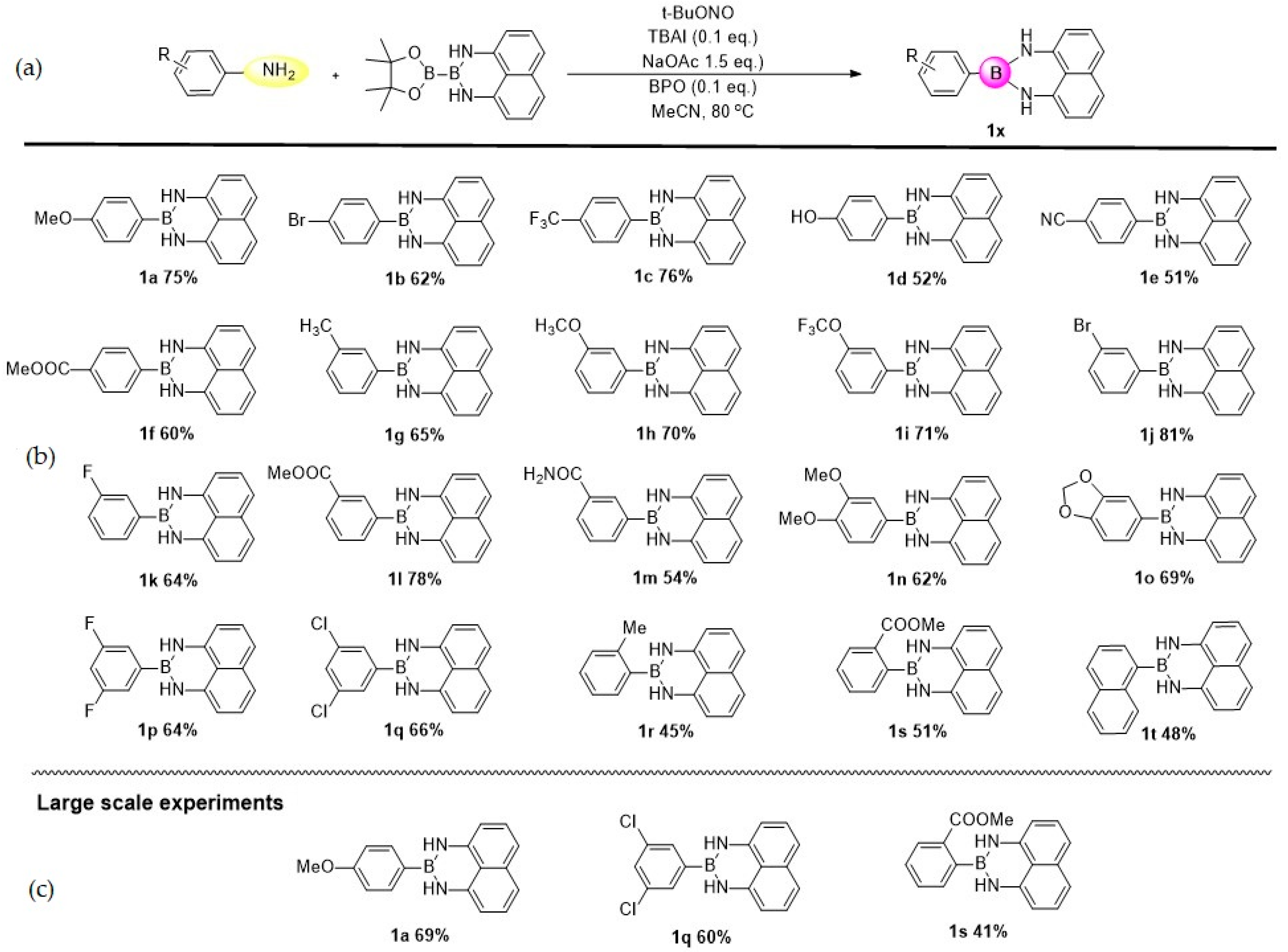

Scheme 2. Different routes to synthesize aryl B(dan) derivatives. (a) Unless otherwise noted, the reaction conditions are as follows: aryl amine (0.2 mmol, 2.0 eq.), B(pin)-B(dan) (0.1 mmol, 1.0 eq.), t-BuONO (0.2 mmol, 2.0 eq.), TBAI (0.01 mmol, 0.1 eq.), NaOAc (0.15 mmol, 1.5 eq.), BPO (0.01 mmol, 0.1 eq.), MeCN (0.6 mL), 80 °C. (b) Yield of isolated product. (c) Large scale experiments, reaction conditions: aryl amine (2 mmol, 2.0 eq.), B(pin)-B(dan) (1 mmol, 1.0 eq.), t-BuONO (2 mmol, 2.0 eq.), TBAI (0.1 mmol, 0.1 eq.), NaOAc (1.5 mmol, 1.5 eq.), BPO (0.1 mmol, 0.1 eq.), MeCN (6.0 mL), 80 °C.
Scheme 2. Different routes to synthesize aryl B(dan) derivatives. (a) Unless otherwise noted, the reaction conditions are as follows: aryl amine (0.2 mmol, 2.0 eq.), B(pin)-B(dan) (0.1 mmol, 1.0 eq.), t-BuONO (0.2 mmol, 2.0 eq.), TBAI (0.01 mmol, 0.1 eq.), NaOAc (0.15 mmol, 1.5 eq.), BPO (0.01 mmol, 0.1 eq.), MeCN (0.6 mL), 80 °C. (b) Yield of isolated product. (c) Large scale experiments, reaction conditions: aryl amine (2 mmol, 2.0 eq.), B(pin)-B(dan) (1 mmol, 1.0 eq.), t-BuONO (2 mmol, 2.0 eq.), TBAI (0.1 mmol, 0.1 eq.), NaOAc (1.5 mmol, 1.5 eq.), BPO (0.1 mmol, 0.1 eq.), MeCN (6.0 mL), 80 °C.
Molecules 24 00377 sch002
Molecules 24 00377 sch003 550

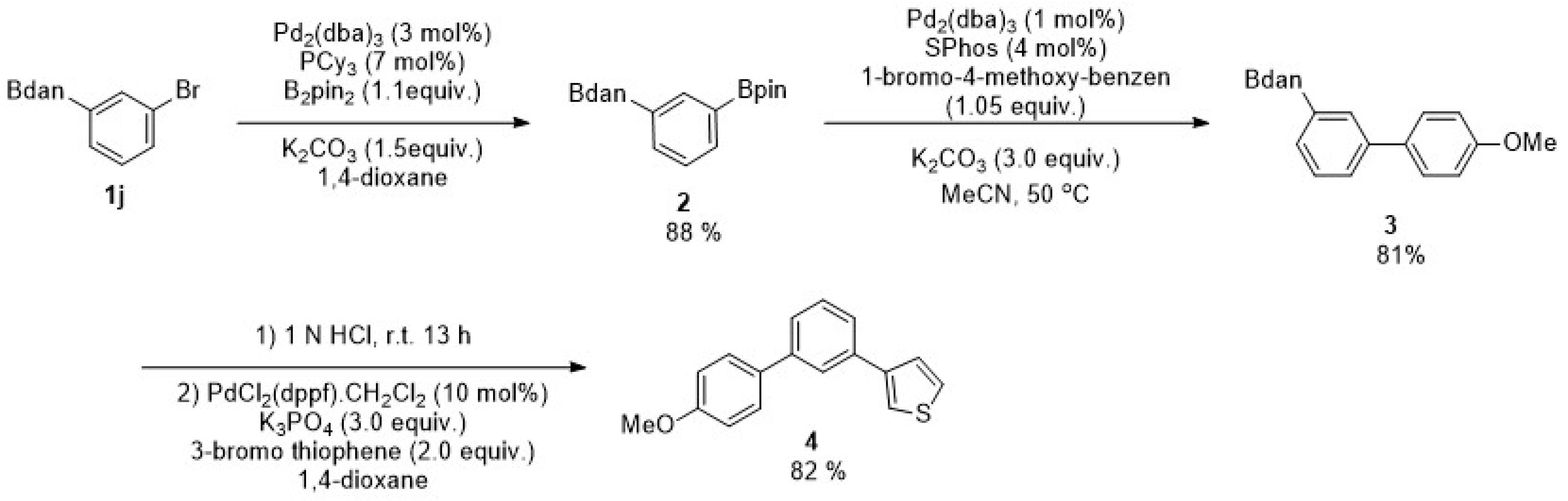

Scheme 3. Successive and selective Suzuki-Miyaura cross-coupling reaction using 3-bromophenyl B(dan) 2j as the starting material.
Scheme 3. Successive and selective Suzuki-Miyaura cross-coupling reaction using 3-bromophenyl B(dan) 2j as the starting material.
Molecules 24 00377 sch003
Table

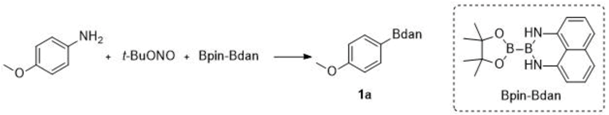

Table 1. Optimization of reaction conditions.
