Article

Inhibitory Effects of Ginsenoside Ro on the Growth of B16F10 Melanoma via Its Metabolites

1
Institute of Special Animal and Plant Sciences, Chinese Academy of Agricultural Sciences, Changchun 130112, China
2
National & Local Joint Engineering Research Center for Ginseng Breeding and Development, Changchun 130118, China
3
School of Pharmaceutical Sciences Changchun University of Chinese Medicine, Changchun 130117, China
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(16), 2985; https://doi.org/10.3390/molecules24162985
Received: 23 July 2019 / Revised: 14 August 2019 / Accepted: 15 August 2019 / Published: 17 August 2019
(This article belongs to the Section Natural Products Chemistry)

Abstract

Ginsenoside Ro (Ro), a major saponin derived and isolated from Panax ginseng C.A. Meyer, exerts multiple biological activities. However, the anti-tumour efficacy of Ro remains unclear because of its poor in vitro effects. In this study, we confirmed that Ro has no anti-tumour activity in vitro. We explored the anti-tumour activity of Ro in vivo in B16F10 tumour-bearing mice. The results revealed that Ro considerably suppressed tumour growth with no significant side effects on immune organs and body weight. Zingibroside R1, chikusetsusaponin IVa, and calenduloside E, three metabolites of Ro, were detected in the plasma of Ro-treated tumour-bearing mice and showed excellent anti-tumour effects as well as anti-angiogenic activity. The results suggest that the metabolites play important roles in the anti-tumour efficacy of Ro in vivo. Additionally, the haemolysis test demonstrated that Ro has good biocompatibility. Taken together, the findings of this study demonstrate that Ro markedly suppresses the tumour growth of B16F10-transplanted tumours in vivo, and its anti-tumour effects are based on the biological activity of its metabolites. The anti-tumour efficacy of these metabolites is due, at least in part, to its anti-angiogenic activity.
Keywords: ginsenoside Ro; metabolites; anti-tumour; B16F10 ginsenoside Ro; metabolites; anti-tumour; B16F10

1. Introduction

Skin cancer is a common type of cancer with an increasing incidence rate and public health burden [1]. As the most aggressive form of skin cancer, melanoma is a devastating disease as it is highly metastatic and has a poor prognosis once metastasis has occurred; there is no therapy that has consistently improved overall survival in patients with metastatic melanoma [2,3]. Melanoma originates from melanocytes, specialised pigmented cells found in the epidermis [4]. Patients with this disease have an increased risk of developing subsequent primary melanoma [5]. Its incidence has increased faster than that of any other cancer type during recent decades. In 2018, 287,723 new cases were diagnosed, with 60,712 associated deaths around the world [6]. National Cancer Institute’s Surveillance, Epidemiology, and End Results (SEER) is an authoritative source for cancer statistics in the United States. According to the SEER database, malignant melanoma is the fifth most common cancer for both men and women, with a rising incidence and an estimated 96,480 new cases in 2019 in the United States alone [7]. Therefore, development of potential treatments for melanoma is an important clinical problem.
Chemotherapy is one of the most effective approaches to cure malignant melanoma, but its toxicity and the development of drug resistance represents important limits in determining its efficacy [8]. Enucleation can significantly worsen a melanoma patient’s quality of life, considering their poor prognosis and high fees [9]. In addition, indications of radiotherapy are currently reduced, since melanoma is traditionally considered to be a radioresistant tumour [10]. Therefore, the development of novel agents and strategies for malignant melanoma has become a priority and an important global medical issue. Accordingly, there is a need to identify alternative approaches that can improve survival and quality of life.
Natural compounds derived from potential herbs were able to effectively interfere with tumour progression, inhibit angiogenesis, and block metastasis [11]. Due to its affordability and good therapeutic efficacy, natural products have garnered increasing attention as cancer treatments [12,13]. Natural products could be used as adjuvants to existing treatments to improve efficacy and/or reduce drug-induced toxicity [14]. These compounds can be clinically used on their own or in combination with other natural products or drugs [15]. The therapeutic potential in melanoma growth and metastasis has been demonstrated for several species of natural compounds including alkaloids, polyphenols, vitamin-related compounds, terpenoids, peptides, and herbal extracts [16].
Ginseng (Panax ginseng C.A. Meyer) is traditionally used as an herbal medicine in Far Eastern countries and has gained popularity in Western countries in recent decades [17]. It is also frequently used as tonics and dietary supplements [18]. Ginsenosides are the main bioactive ingredients responsible for various pharmacological effects [19,20] and can be divided into three types: protopanaxadiol (PPD), protopanaxatriol (PPT), and oleanolic acid (OA) [21]. During the past 30 years, great efforts have been made to identify ginsenosides with anti-cancer activity, especially PPD- and PPT-type ginsenosides. These compounds possess anti-cancer activity in multiple cell types including hepatic [22,23], pulmonary [24,25], prostate [26,27], colonic [28], ovarian [29,30], gastric [31,32], glioma [33,34], leukaemia [35,36], and breast [37,38] cancer cells. In particular, PPD-type ginsenosides have higher anti-cancer activity than PPT-type [39,40,41]. Although the anti-tumour activities of PPD- and PPT-type ginsenosides have been relatively well documented, OA-type ginsenosides have been less studied.
Ginsenoside Ro (Ro) is a highly abundant OA-type ginsenoside in ginseng [42], which sensitises esophageal cancer cells to 5-fluorouracil-induced cell death by inhibiting autophagosome–lysosome fusion [43]. It also possesses a potential skin anti-photoaging property against ultraviolet B radiation in fibroblasts [44]. Moreover, Ro has anti-complementary [45], anti-inflammatory [46,47], anti-hepatitic [48], anti-diabetogenic [49], and hair re-growth promoting [50] activities. OA is an aglycone of Ro, in fact, OA and its derivatives have proven effective for inducing apoptosis and inhibiting the proliferation of cancer cells [51,52,53,54,55,56]. The cytotoxicity of OA has been established in several cell lines, including the A549, SK-OV-3, SK-MEL-3, HCT15, HONE-1, KB, and HT29 cell lines, with IC50s ranging from 12.1 to 18.5 μg/mL [57,58]. Furthermore, OA is also effective in inhibiting the invasion and metastasis of tumour cells; OA decreased the expression of angiogenic vascular endothelial growth factor (VEGF) and decreased the development of melanoma-induced lung metastasis [59,60]. The anti-tumour effect of OA is evident, so how about Ro? Due to the fact that Ro has not shown significant cytotoxicity in tumour cells in vitro [61], there have been few attempts to evaluate the anti-tumour activity in vivo.
Here, we determined if Ro has efficacy against tumours in mice. To this end, B16F10 melanoma cells were subcutaneously injected into experimental mice, after which Ro was intraperitoneally administered to the tumour-bearing mice for 15 days. The metabolites of Ro were analysed using high-performance liquid chromatography-mass spectrometry (HPLC-MS). Subsequently, the efficacy of Ro and its metabolites was investigated in vivo and in vitro. The results showed that Ro has anti-tumour activity, and its efficacy is through its metabolites. The anti-tumour efficacy of these metabolites is due, at least in part, to its anti-angiogenic activity. The findings in the present study provide a theoretical basis for Ro to be used in the clinic for melanoma treatment and indicate that Ro has the potential to be an efficient anticancer drug in the treatment of melanoma in the future.

2. Results

2.1. Anti-Tumour Effects of Ro In Vivo

The anti-tumour effects of Ro were evaluated in a xenograft mouse model. Intraperitoneal injection of Ro (25 mg/kg) for 15 days resulted in a significant decrease in tumour weight compared to the model group (Figure 1). This finding revealed that 25 mg/kg Ro injection significantly reduced the tumour weight with a tumour inhibition rate of 75.7%. These results suggest that Ro considerably inhibits tumour growth in the xenograft mouse model. To determine if Ro administration resulted in any side effects on the immune system, we determined the thymus and spleen indices of the host animals at the end of the study. The results showed great weight loss of the thymus and spleen after cyclophosphamide (CTX, 20 mg/kg) treatment, which accounted for the immunosuppressive side effects caused by CTX during therapy (Table 1). However, the thymus and spleen indices in the Ro group were comparable to those in the normal group. Additionally, no significant loss of body weight was observed among the animals after treatment with Ro. These data suggested that Ro has no side effects on the immune organs and body weight in B16F10 tumour-bearing mice.

2.2. Effects of Ro on the Viability of B16F10 Melanoma Cells In Vitro

The effects of Ro on B16F10 cell viability were evaluated using the 3-(4,5-dimethylthiazol-2-yl)-2, 5-diphenyltetrazolium bromide (MTT) assay. B16F10 cells were exposed to various concentrations of Ro (0, 1, 3, 10, 30, and 100 μg/mL) for 24 h. The results are shown in Figure 2, and the MTT cell viability assay shows that Ro has little effect on B16F10 cell growth in vitro.

2.3. Determination and Identification of Metabolites in the Plasma of Tumour-Bearing Mice Treated with Ro

After 15 consecutive days of Ro treatment, all mice were sacrificed, and the blood was collected. The plasma samples were prepared by centrifugation for 10 min at 3800 rpm and stored at −80 °C. Figure 3 shows the detection results of the plasma in tumour-bearing mice treated with Ro. The identification of the metabolites was based on retention times and MS/MS data. In the negative mode, the daughter ions of oleanolic glycosides were all observed from the cleavage of its glycosidic bond. A high abundance of fragments originated from cleavage of the glycolipid glycoside bond at position C-28. Conversely, a lower abundance of fragments originated from dissociation of the glucosyl ether bond. This result indicates that the glucosyl ester bond is more liable to be dissociated than the glucosyl ether. Therefore, fragments of deglycosylated can serve as a basis for determining the position of glycosylation [62]. The negative collision-induced dissociation (CID) spectrum of compounds 14 is shown in Figure 4. The retention time of compound 1 was 27.0 min (Figure 3A). It showed a deprotonated molecular ion at m/z 955 [M − H] in the negative all-scan MS spectrum, suggesting that its molecular weight was 956. The observation of deglycosylated fragments in the negative CID spectrum (shown in Figure 4-1) at m/z 793 [M − H − 162], m/z 613 [M − H − 342], and m/z 455 [M − H − 500] indicates that there are two hexoses and one hexuronic acid located on the aglycone. A high abundance of fragments was found at 793 [M − H − 162]. Therefore, one molecule of hexose should be located at C-28. The fragment ion at m/z 455 [M − H − 500] was a characteristic fragment of OA. This observation suggests that the structure of compound 1 was Ro. Compounds 2 and 3 both showed a deprotonated molecular ion at m/z 793 [M − H], with retention times of 29.2 and 31.1 min, respectively. Thus, we inferred that they were isomers. The high abundance of a fragment in compound 2 was at 631 [M − H − 162], suggesting that it may be related to the location of the glycoside. The glucosyl ester bond was more liable dissociated than the glucosyl ether. Therefore, it was judged that one molecule of hexose was located at C-28 for compound 2, and one molecule of hexanoic acid was attached to C-3. In contrast, the high abundance of the fragment in compound 3 was at 613 [M − H – 162 − 18], due to the glycosidic bond dissociating with a drop of water. Therefore, it was determined that the hexose and hexanoic acid contained in compound 3 were both located at the C-3 position. Both of them contained characteristic fragment ions m/z 455 [M − H − 338] of OA, which were identified as chikusetsusaponin IVa (IVa) and zingibroside R1 (R1) by the literature. Compound 4 showed a deprotonated molecular ion at m/z 631 [M − H] in the negative all-scan MS spectrum and also contained an OA characteristic fragment ion m/z at 455 [M − H − 176]. Simultaneously, fragment ions m/z 613 [M − H − 18], m/z 555 [M − H − 76], and m/z 509 [M − H − 122] were produced by cleavage of the glycosidic ring, proving that the glycosidic bond was stable. The results indicate that the hexanoic acid is located at the C-3 position and is identified as calenduloside E (E) by the literature. The MS results show that the fragment ions of the abovementioned compounds are similar; thus, IVa, R1, and E are determined to be metabolites of Ro. R1 was found to be the most abundant metabolite in the plasma. The signal intensity of R1 was approximately two-fold that of Ro, 10-fold that of IVa, and 100-fold that of E. Glycosyl oleanolate and OA were not detected in the plasma (Figure 3), possibly due to interference from the high background signals. The structures of Ro and its metabolites are shown in Figure 5.

2.4. Effects of R1, IVa, and E on the Viability of B16F10 Melanoma Cells In Vitro

The cytotoxic activities of metabolites of Ro are shown in Figure 6. The MTT assay showed that R1 and E induced dose-dependent cytotoxicity in B16F10 cells. The half maximal inhibitory concentration (IC50) of R1 and E were 24.52 and 2.58 µg/mL, respectively. IVa showed no cytotoxic effects at 1–30 µg/mL, and the viability was slightly decreased at a high concentration (100 µg/mL).

2.5. Anti-Tumour Effects of R1, IVa, and E In Vivo

The in vivo anti-tumour activities of R1, IVa, and E were evaluated in the same way as Ro. The anti-tumour effects of R1, IVa, and E on B16F10 tumour-bearing mice are summarised in Figure 7. At the end of the experiment, the average tumour weight in the model group was 1.50 g. Compared to the model group, the mean tumour weights in the R1 (25 mg/kg), IVa (25 mg/kg), and E (5 mg/kg) groups were significantly decreased to 0.80, 0.53, and 0.22 g, respectively. Accordingly, the tumour inhibitory rates of R1-, IVa-, and E-treated groups were 46.6%, 64.7%, and 85.4%, respectively. Figure 6 shows the tumour volume growth curves. The results indicate that the tumour volumes of mice in the model group rapidly increased during the 15 days of treatment, with the mean volumes reaching more than 1.04 × 103 mm3 at the end of the experiment. In contrast, treatment with R1, IVa, E, and CTX significantly suppressed tumour growth (p < 0.05). From day 11, the average tumour volume in R1-, IVa-, E-, and CTX-treated mice increased relatively slowly.

2.6. Effects of R1, IVa, and E on Tube Formation of Human Umbilical Vein Endothelial Cells

To examine the effects of Ro and its metabolites on crucial functions in blood vessel formation, we investigated whether the compounds decreased the formation of tubes by human umbilical vein endothelial cells (HUVECs) in vitro. Our results showed that IVa, R1, and E markedly inhibited HUVEC tube formation. Tube formation was imaged, and the tube length was determined (Figure 8). Low concentrations of Ro (1–30 μg/mL) had no effects on the tube formation of HUVECs. However, Ro stimulated tube formation at 100 μg/mL.

2.7. Effects of Ro in the Haemolysis Test

Haemolysis rate is an important parameter for evaluating blood compatibility, and less than 5% haemolysis is regarded as a nontoxic effect level [63]. Nearly no haemolysis was observed for the negative control (−), and complete haemolysis was observed for the positive control (+). The solution colour of Ro at different concentrations did not significantly change compared with the negative control group (Figure 9). It can be seen that the haemolysis ratio (HR%) was much lower than 5% (shown in Table 2), so we concluded that Ro exhibited good biocompatibility even at a high concentration of 100 μg/mL.

3. Discussion

Ginseng is a popular herbal medicine worldwide, and its anti-cancer activity has been proven by numerous studies. Asian ginseng (Panax ginseng) and American ginseng (Panax quinquefolius) are two species in ginseng genus [64]. Although most ginseng species contain both PPD- and PPT-type ginsenosides, their content vary greatly, leading to potentially different and unpredictable therapeutic effects [65]. In general, American ginseng contains higher level of PPD-type ginsenosides while Asian ginseng is more abundant in PPT-type ginsenosides. Thus, given the predominant PPD-type ginsenosides have higher anti-cancer activity than PPT-type, American ginseng may be more pharmacologically effective than Asian ginseng in terms of anticancer [66]. According to different processing methods, ginseng can be divided into fresh ginseng (FG), white ginseng (WG), red ginseng (RG), and black ginseng (BG) [67]. RG is obtained by steaming FG for a reasonable time, while WG is obtained by drying FG. BG is developed from WG by repetitive steaming nine times. Differences in pharmacological effects of the ginseng processed products can also be attributed to the heat-induced chemical degradation and conversion during the steaming treatment [67,68]. Steamed ginseng produces new constituents, not present in WG, such as (20(S)-, 20(R)-Rg3, Rk3, Rh4, Rk1, Rg5, etc.) [8,67]. After nine cycles of steaming, BG exhibits more powerful biological activities than WG or RG [69]; red ginseng has more potent anticancer effects than white ginseng [70].
It is worth mentioning that many bulky ginsenoside molecules are chemically transformed in the gut upon consumption and are absorbed as smaller metabolites [21]. These metabolites have more pharmacological activity than their parent compounds [71] and have high bioavailability. Taking PPD-type ginsenoside as an example, PPD-type ginsenoside is metabolized primarily to compound K (CK) by intestinal bacteria via the stepwise cleavage of sugar moieties [72]. Ginsenoside Rb1 (Rb1), one of the main components of ginseng, is a PPD-type ginsenoside consisting of a non-sugar component (aglycone) with a dammarane skeleton and a sugar component comprising of four sugar moieties [73]. When compared with Rb1, CK has significantly stronger anti-cancer effects [74]. However, previous studies have mainly investigated PPD- or PPT-type ginsenosides, OA-type ginsenosides have been less studied (the structures of Rb1, CK, Ro and its metabolites are summarized in Figure S1 and Table S1). Ro is a highly abundant ingredient in ginseng that acts as an OA-type ginsenoside. Due to its weak anti-tumour activity in vitro, Ro has received little attention by researchers. In this study, Ro had little effect on B16F10 cell viability. The result partially agreed with previous studies on the effects of ginsenosides on cell growth [61]. However, to our surprise, Ro showed high anti-tumour activity in vivo. The tumour volume and tumour weight of tumour-bearing mice were reduced after intraperitoneal injection of Ro.
In a previous study, Wang et al. [62] identified 14 metabolites of Ro in both the faeces and urine of rats after oral administration. Therefore, HPLC detection was done to identify the metabolites. Although OA was not detected in the plasma of the mice, it was detected in the urine of the rats after oral administration of Ro, which indicated that this metabolite had been recruited into the circulation from where it was produced. OA and glycosyl oleanolate might also have been produced after the intraperitoneal administration of Ro, but the noise in the chromatogram prevented their detection. These results demonstrate that R1, IVa, and E are the metabolites and deglycosylation products of Ro, formed by the cleavage of glucose and glycolic acid at C-3 and/or C-28. It has been reported that these metabolites can be produced by intestinal microflora. R1 is degraded by intestinal microbiota and then converted into E [75]. In this study, IVa, R1, and E all reduced tumour weight in vivo. Therefore, E was thought to be the main factor leading to the anti-tumour activity after intraperitoneal administration of Ro. Based on the abovementioned results, we deem that the anti-tumour effects of Ro are based on its metabolites. Since studies of parent ginsenoside activities in vitro may not accurately depict their pharmacological effects in vivo conferred by metabolite effects, the metabolism of ginseng compound should be further investigated. In fact, Ro can also convert to IVa, R1, and E in vitro. After ginseng is steamed at 120 °C for 6 h, Ro levels sharply decrease, and the contents of IVa, R1, and E increase [76]. The improvement of biological activity after ginseng is steamed is possibly attributed to this form of composition transformation.
Angiogenesis is an essential component of tumour growth and metastasis and is a key point in the control of cancer progression. Its inhibition represents a significant new approach for improving anti-angiogenic and anti-cancer activities. Several anti-cancer drugs are specifically designed to interfere with the biochemical stimuli regulating angiogenesis. The present data proved that the three metabolites of Ro exhibit anti-angiogenic activity and inhibit the tube formation of HUVECs. Therefore, our findings suggest that R1-, IVa-, and E-mediated inhibition of B16F10 melanoma is associated with their anti-angiogenic activity. Haemolysis of the blood is an important problem associated with the bioincompatibility of materials. The haemolysis results in this experiment showed that Ro will not cause haemolysis. Thus, Ro displays excellent hemocompatibility and may serve as a promising platform for cancer treatment.

4. Materials and Methods

4.1. Reagents, Cell Lines, and Animals

Fetal bovine serum (FBS) and Dulbecco’s Modified Eagle’s Medium (DMEM) were purchased from Gibco (BRL Co. Ltd., Gaithersburg, MD, USA). MTT was purchased from Sigma (St. Louis, MO, USA). Ro, R1, IVa, and E were purchased from Chemfaces (Wuhan, China). The purities of all of the compounds were higher than 98%. B16F10 melanoma cell lines and HUVECs were purchased from the Type Culture Collection of the Chinese Academy of Sciences (Shanghai, China). The cells were cultured in DMEM containing 10% FBS (v/v) routinely supplemented with penicillin and streptomycin. Both B16F10 cells and HUVECs were cultured at 37 °C in a humidified atmosphere containing 5% carbon dioxide (CO2). Male C57BL/6J mice (6–8 weeks old) and male Sprague Dawley rats (10 weeks old) were purchased from Vital River Laboratories (License No. SCXK (Jing) 2012-0001; Beijing, China). The animals were maintained in plastic cages with a 12 h light/dark cycle and given free access to food and water. All animals were handled in strict accordance with good animal practice according to the Animal Ethics Procedures and Guidelines of the People’s Republic of China, and the study was approved by The Animal Administration and Ethics Committee of the Institute of Special Animal and Plant Sciences, Chinese Academy of Agricultural Sciences (Permit No. ISAPSAEC-2018-001).

4.2. Tumour Xenograft Experiment

An anti-tumour assay was conducted in a mouse xenograft model [23]. B16F10 cells were cultured in DMEM containing 10% FBS. After the collection of cells, the cells were re-suspended in normal saline to the appropriate concentrations. Next, 0.1 mL of the B16F10 cell suspension (1 × 106 cells) was subcutaneously injected via the right axillary region of the C57BL/6J mice. The tumour-bearing mice were randomly divided into three groups (n = 6/group): model control group, positive control group, and Ro (25 mg/kg) administration group. In addition, a group of mice that did not receive tumour inoculation was used as the normal control. Normal and model mice were administered normal saline. The mice in the positive control group received CTX (20 mg/kg). The successive intraperitoneal injection of drugs into the mice from the day after tumour inoculation and the body weights were monitored every 2 days. After 15 days, all mice were sacrificed, and tumours were taken out and measured as previously described [77]. The thymus and spleen were also removed and weighed to calculate the thymus and spleen indices. The tumour inhibition rate was calculated. The blood samples were collected from the retrobulbar vessels and added into tubes containing heparin. Subsequently, plasma samples were prepared by centrifugation for 10 min at 3800 rpm and stored at −80 °C for HPLC-MS analysis.

4.3. Effects of Ro on B16F10 Cell Viability

In this study, Ro was dissolved in dimethyl sulfoxide (DMSO) and diluted in DMEM and then filtered using a 0.22 μm membrane. The final concentration of DMSO in cell culture medium was 0.1%, and 0.1% DMSO-treated cells were used as controls. The effect of Ro on B16F10 cell growth in vitro was performed using the MTT assay [78]. Briefly, exponentially growing B16F10 (1 × 104 cells/well) cells were seeded onto 96-well plates and incubated for 24 h in complete medium. After 24 h incubation, the cells were treated with various concentrations of Ro (0, 1, 3, 10, 30, 100 μg/mL) for 24 h, and MTT (0.5%, 20 μL) was then added to each well and incubated for an additional 4 h at 37 °C. The formazan crystals were dissolved in DMSO (150 μL), and the absorbance at 490 nm was measured using a microplate reader (BioTek Epoch; BioTek, Winooski, VT, USA)

4.4. Determination of Ro Metabolites by HPLC-MS

Identification of the metabolites of Ro was done using the same HPLC Trap MS system as previously described [62]. Briefly, an aliquot of 60 μL plasma samples was removed from the −80 °C storage and thawed under ambient temperature and mixed vigorously with 300 μL cold methanol. The supernatant was placed in a centrifuge tube (1500 μL) after 10 min of centrifugation at 10,000 rpm. The precipitate was washed three times using 100 μL cold methanol. All of the supernatants were combined and dried under nitrogen flow at ambient temperature. The residue was dissolved using 80 μL methanol (3 min of vortexing), and the solution was diluted in 240 μL pure water. The mixture was centrifuged at 10,000 rpm for 10 min. All of the supernatant was loaded onto a flash column (25 × 2 mm id, Chromolith; Merck, Darmstadt, Germany). This flash column was connected to an analytical column (50 × 2 mm id, Chromolith; Merck) for HPLC-MS analysis. The separation was conducted using a gradient mobile phase consisting of water (A, containing 0.01% ammonium hydroxide) and acetonitrile (B). The program of the mobile phase was as follows: 10% B for the first 5 min; then a linear gradient of 10–15% B for 5–7 min, 15–40% B for 7–40 min, and 40–70% B for 40–45 min; this composition was maintained for 45–60 min and then returned to the initial condition for 5 min. The flow rate was 0.2 mL/min. The method for the Trap MS detection was the same as previously described [62].

4.5. Cell Viability Assay for the Ro Metabolites

The metabolites (standard substance) of Ro were dissolved in the same manner as Ro. Briefly, IVa, R1, and E were dissolved in dimethyl sulfoxide (DMSO), diluted in DMEM, and then filtered using a 0.22 μm membrane. The final concentration of DMSO in cell culture medium was 0.1%, and 0.1% DMSO-treated cells were used as controls. The effects of IVa, R1, and E on B16F10 cell growth were evaluated using the MTT assay as previously described. The cells were treated with various concentrations of IVa (0, 1, 3, 10, 30, 100 μg/mL), R1 (0, 5, 10, 20, 30, 40 μg/mL), and E (0, 2, 4, 6 μg/mL) for 24 h. After incubation, MTT (0.5%, 20 μL) was added and incubated for 4 h at 37 °C. Then the supernatants were carefully removed, and 150 μL DMSO was added to each well. After 10 min of incubation and vibration, the absorbance was read at a wavelength of 490 nm. IC50 values were calculated using Probit Analysis with SPSS 22.0 (SPSS Inc., Chicago, IL, USA).

4.6. Anti-Tumour Assay for the Metabolites of Ro In Vivo

A xenograft experiment was performed using the same method as described in Section 2.2. Briefly, after the mice were inoculated with tumour cells, they were randomly divided into six groups (n = 6/group): model control group, positive control group (CTX, 20 mg/kg), R1 (25 mg/kg), IVa (25 mg/kg), and E (5 mg/kg) administration groups. In addition, a normal control group of mice did not receive tumour inoculation. Normal and model mice were administered normal saline. Drugs were intraperitoneally injected into the mice for 15 consecutive days. Tumour volumes were measured every 2 days, and tumour growth curves were plotted. At the end of the experiment, the mice were sacrificed, and the tumour weight and tumour growth inhibition rates were calculated.

4.7. Tube Formation Assay

The tube formation assay was performed as previously described with some modifications [79]. Matrigel (BD Biosciences, San Jose, CA, USA) was thawed overnight at 4 °C. Next, 50 μL Matrigel was coated on each well of the pre-chilled 96-well plates and then incubated at 37 °C for 1 h. HUVECs (5 × 104 cells/well) were seeded on the Matrigel and treated with various concentrations of Ro (0, 1, 3, 10, 30, 100 μg/mL), R1 (0, 5, 10, 20, 30, 40 μg/mL), IVa (0, 1, 3, 10, 30, 100 μg/mL), and E (0, 2, 4, 6, 8, 10 μg/mL). After incubation for 5 h, the formation of HUVEC tubular structures was captured using a microscope (Nikon eclipse Ti; Nikon, Tokyo, Japan). The tube length was quantified using Image-Pro Plus 6.0 software.

4.8. Haemolysis Test

To evaluate the haemocompatibility of Ro, the haemolysis test was performed as previously described [80]. Arterial blood was obtained from healthy Sprague Dawley rats. Then erythrocytes were separated from the plasma and lymphocytes by centrifugation (3000 rpm, 5 min) at 4 °C, washed three times with normal saline, and suspended in normal physiological saline at a haematocrit of 2%. Erythrocytes were used immediately after isolation. Next, 2.5 mL erythrocyte suspension and 2.5 mL medicated saline solution were added to a 10 mL centrifuge tube. The final concentrations of Ro were 1, 3, 10, 30, and 100 μg/mL. The negative and positive controls were normal physiological saline and 0.2% Triton X-100, respectively. The samples were incubated for a specific time period at 37 °C for 60 min. Next, the tube was centrifuged at 3000 rpm for 5 min. Finally, the optical density (OD) was obtained at a wavelength of 545 nm. Three parallel samples were laid in each group. The mean value of the three samples was obtained as the group OD value. The HR was expressed as the percentage and calculated according to the equation:
HR = (ODt − ODn)/(ODp − ODn) × 100%,
where ODt indicates the OD value of the tested group, and ODn and ODp are the OD values of the negative and positive control groups, respectively. A haemolysis rate less than 5% is regarded as a nontoxic effect level.

4.9. Statistical Analyses

Statistical analyses were performed with SPSS 22.0 and GraphPad Prism 6.0 (GraphPad Software, La Jolla, CA, USA). All data were expressed as the mean ± standard deviation (SD). Data were analysed by ANOVA with Tukey’s multiple comparison test and Dunnet’s multiple comparison test. Differences were considered significant if p < 0.05 and extremely significant if p < 0.01.

5. Conclusions

The results of this study clearly demonstrate that Ro inhibits tumour growth in B16F10 tumour-bearing mice but has no effects on B16F10 cell growth in vitro. IVa, R1, and E, metabolites of Ro, had anti-tumour effects both in vitro and in vivo and also inhibited angiogenesis to some extent. Our findings provide substantial evidence that Ro might be beneficial for the therapeutic management of melanoma. These findings indicate that the metabolites of Ro may underlie its pharmacological anti-cancer mechanisms.

Supplementary Materials

The following are available online, Figure S1: The skeleton structures of ginsenosides. (A) PPD-type; (B) OA-type. R1, R2, and R3 are the sites of sugar attachment on the skeleton of ginsenosides. Sugar moieties are listed in Table S1. Table S1: Summary of ginsenoside structures.

Author Contributions

Conceptualization, Y.W.; data curation and formal analysis, S.Z., S.X. and J.W.; methodology and validation, S.Z. and S.X.; supervision, Y.W.; writing—original draft, S.Z.; writing—review and editing, S.Z. and W.H.

Funding

This research was funded by the Natural Science Foundation of Jilin Province (20170101011JC) and National Key R&D Program of China (2017YFC1702102).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Sharma, P.; Montes de Oca, M.K.; Alkeswani, A.R.; McClees, S.F.; Das, T.; Elmets, C.A.; Afaq, F. Tea polyphenols for the prevention of UVB-induced skin cancer. Photodermatol. Photoimmunol. 2018, 34, 50–59. [Google Scholar] [CrossRef] [PubMed]
  2. Chandra, R.A.; Wilhite, T.J.; Balboni, T.A.; Alexander, B.M.; Spektor, A.; Ott, P.A.; Ng, A.K.; Hodi, F.S.; Schoenfeld, J.D. A systematic evaluation of abscopal responses following radiotherapy in patients with metastatic melanoma treated with ipilimumab. Oncoimmunology 2015, 4, e1046028. [Google Scholar] [CrossRef] [PubMed]
  3. Duh, P.-D.; Chen, Z.-T.; Lee, S.-W.; Lin, T.-P.; Wang, Y.-T.; Yen, W.-J.; Kuo, L.-F.; Chu, H.-L. Antiproliferative activity and apoptosis induction of Eucalyptus Citriodora resin and its major bioactive compound in melanoma B16F10 cells. J. Agr. Food Chem. 2012, 60, 7866–7872. [Google Scholar] [CrossRef] [PubMed]
  4. Gray-Schopfer, V.C.; Karasarides, M.; Hayward, R.; Marais, R. Tumor necrosis factor-alpha blocks apoptosis in melanoma cells when BRAF signaling is inhibited. Cancer Res. 2007, 67, 122–129. [Google Scholar] [CrossRef] [PubMed]
  5. Vakharia, P.; Yousif, R.; Patel, K.; Rangel, S.; West, D.; Nardone, B. Overall risk of second primary malignancies in patients with malignant melanoma: A national US population-based study. J. Am. Acad. Dermatol. 2018, 79, AB212. [Google Scholar]
  6. Bray, F.; Ferlay, J.; Soerjomataram, I.; Siegel, R.L.; Torre, L.A.; Jemal, A. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2018, 68, 394–424. [Google Scholar] [CrossRef]
  7. National Cancer Institute: Surveillance, Epidemiology and End Results Program (SEER). Cancer Stat Facts: Melanoma of the Skin. 2019. Available online: https://seer.cancer.gov/statfacts/html/melan.html (accessed on 22 July 2019).
  8. Tedesco, I.; Russo, G.L. Panax ginseng: More Than an Adaptogen Remedy. In Nonvitamin and Nonmineral Nutritional Supplements; Academic Press: Cambridge, MA, USA, 2019; pp. 251–256. [Google Scholar]
  9. Espenel, S.; Vallard, A.; Rancoule, C.; Garcia, M.A.; Guy, J.B.; Chargari, C.; Deutsch, E.; Magne, N. Melanoma: Last call for radiotherapy. Crit. Rev. Oncol. Hematol. 2017, 110, 13–19. [Google Scholar] [CrossRef] [PubMed]
  10. Mahadevan, A.; Patel, V.L.; Dagoglu, N. Radiation therapy in the management of malignant melanoma. Oncology 2015, 29, 743–751. [Google Scholar]
  11. Cui, Q.; Yang, D.H.; Chen, Z.S. Special Issue: Natural Products: Anticancer and Beyond. Molecules 2018, 23, 1246. [Google Scholar] [CrossRef]
  12. Wang, C.Y.; Bai, X.Y.; Wang, C.H. Traditional Chinese medicine: A treasured natural resource of anticancer drug research and development. Am. J. Chin. Med. 2014, 42, 543–559. [Google Scholar] [CrossRef]
  13. Mitra, S.; Dash, R. Natural Products for the Management and Prevention of Breast Cancer. Evid. Based Complement. Altern. Med. 2018, 2018, 8324696. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, C.-Z.; Calway, T.; Yuan, C.-S. Herbal medicines as adjuvants for cancer therapeutics. Am. J. Chin. Med. 2012, 40, 657–669. [Google Scholar] [CrossRef] [PubMed]
  15. Mignani, S.; Rodrigues, J.; Tomas, H.; Zablocka, M.; Shi, X.; Caminade, A.M.; Majoral, J.P. Dendrimers in combination with natural products and analogues as anti-cancer agents. Chem. Soc. Rev. 2018, 47, 514–532. [Google Scholar] [CrossRef] [PubMed]
  16. AlQathama, A.; Prieto, J. Natural products with therapeutic potential in melanoma metastasis. Nat. Prod. Rep. 2015, 32, 1170–1182. [Google Scholar] [CrossRef] [PubMed]
  17. Yun, J.; Kim, B.G.; Kang, J.S.; Park, S.-K.; Lee, K.; Hyun, D.-H.; Kim, H.M.; In, M.-J.; Kim, D.C. Lipid-Soluble Ginseng Extract Inhibits Invasion and Metastasis of B16F10 Melanoma Cells. J. Med. Food 2015, 18, 102–108. [Google Scholar] [CrossRef] [PubMed]
  18. Kamohara, S.; Kageyama, M.; Sunayama, S.; Denpo, K. Safety and efficacy of a dietary supplement containing functional food ingredients for erectile dysfunction. Personal. Med. Univ. 2014, 3, 38–41. [Google Scholar] [CrossRef]
  19. Ramesh, T.; Kim, S.-W.; Sung, J.-H.; Hwang, S.-Y.; Sohn, S.-H.; Yoo, S.-K.; Kim, S.-K. Effect of fermented Panax ginseng extract (GINST) on oxidative stress and antioxidant activities in major organs of aged rats. Exp. Gerontol. 2012, 47, 77–84. [Google Scholar] [CrossRef]
  20. Chen, T.; Li, B.; Qiu, Y.; Qiu, Z.; Qu, P. Functional mechanism of Ginsenosides on tumor growth and metastasis. Saudi J. Biol. Sci. 2018, 25, 917–922. [Google Scholar] [CrossRef]
  21. Shi, Z.Y.; Zeng, J.Z.; Wong, A.S.T. Chemical Structures and Pharmacological Profiles of Ginseng Saponins. Molecules 2019, 24, 2443. [Google Scholar] [CrossRef]
  22. Zhang, C.; Liu, L.; Yu, Y.; Chen, B.; Tang, C.; Li, X. Antitumor effects of ginsenoside Rg3 on human hepatocellular carcinoma cells. Mol. Med. Rep. 2012, 5, 1295–1298. [Google Scholar]
  23. Chen, F.; Sun, Y.; Zheng, S.-L.; Qin, Y.; Julian McClements, D.; Hu, J.-N.; Deng, Z.-Y. Antitumor and immunomodulatory effects of ginsenoside Rh2 and its octyl ester derivative in H22 tumor-bearing mice. J. Funct. Foods 2017, 32, 382–390. [Google Scholar] [CrossRef]
  24. Wang, J.; Tian, L.; Khan, M.N.; Zhang, L.; Chen, Q.; Zhao, Y.; Yan, Q.; Fu, L.; Liu, J. Ginsenoside Rg3 sensitizes hypoxic lung cancer cells to cisplatin via blocking of NF-κB mediated epithelial–mesenchymal transition and stemness. Cancer Lett. 2018, 415, 73–85. [Google Scholar] [CrossRef] [PubMed]
  25. Ge, G.; Yan, Y.; Cai, H. Ginsenoside Rh2 inhibited proliferation by inducing ROS mediated ER stress dependent apoptosis in lung cancer cells. Biol. Pharm. Bull. 2017, 40, 2117–2124. [Google Scholar] [CrossRef] [PubMed]
  26. Peng, Y.; Zhang, R.; Yang, X.; Zhang, Z.; Kang, N.; Bao, L.; Shen, Y.; Yan, H.; Zheng, F. Ginsenoside Rg3 suppresses the proliferation of prostate cancer cell line PC3 through ROS-induced cell cycle arrest. Oncol. Lett. 2019, 17, 1139–1145. [Google Scholar] [CrossRef] [PubMed]
  27. Huang, Y.; Huang, H.; Han, Z.; Li, W.; Mai, Z.; Yuan, R. Ginsenoside Rh2 Inhibits Angiogenesis in Prostate Cancer by Targeting CNNM1. J. Nanosci. Nanotechnol. 2019, 19, 1942–1950. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, L.; Meng, Y.; Sun, Q.; Zhang, Z.; Guo, X.; Sheng, X.; Tai, G.; Cheng, H.; Zhou, Y. Ginsenoside compound K sensitizes human colon cancer cells to TRAIL-induced apoptosis via autophagy-dependent and-independent DR5 upregulation. Cell Death Dis. 2016, 7, e2334. [Google Scholar] [CrossRef] [PubMed]
  29. Li, J.; Liu, T.; Zhao, L.; Chen, W.; Hou, H.; Ye, Z.; Li, X. Ginsenoside 20 (S)-Rg3 inhibits the Warburg effect through STAT3 pathways in ovarian cancer cells. Int. J. Oncol. 2015, 46, 775–781. [Google Scholar] [CrossRef]
  30. Zhou, Y.; Zheng, X.; Lu, J.; Chen, W.; Li, X.; Zhao, L. Ginsenoside 20 (S)-Rg3 inhibits the warburg effect via modulating DNMT3A/MiR-532-3p/HK2 pathway in ovarian cancer cells. Cell. Physiol. Biochem. 2018, 45, 2548–2559. [Google Scholar] [CrossRef]
  31. Mao, Q.; Zhang, P.-H.; Wang, Q.; Li, S.-L. Ginsenoside F2 induces apoptosis in humor gastric carcinoma cells through reactive oxygen species-mitochondria pathway and modulation of ASK-1/JNK signaling cascade in vitro and in vivo. Phytomedicine 2014, 21, 515–522. [Google Scholar] [CrossRef]
  32. Qian, J.; Li, J.; Jia, J.-G.; Jin, X.; Yu, D.-J.; Guo, C.-X.; Xie, B.; Qian, L.-Y. Ginsenoside-Rh2 inhibits proliferation and induces apoptosis of human gastric cancer SGC-7901 side population cells. Asian Pac. J Cancer Prev. 2016, 17, 1817–1821. [Google Scholar] [CrossRef]
  33. Gu, B.; Wang, J.; Song, Y.; Wang, Q.; Wu, Q. The inhibitory effects of ginsenoside Rd on the human glioma U251 cells and its underlying mechanisms. J. Cell. Biochem. 2019, 120, 4444–4450. [Google Scholar] [CrossRef] [PubMed]
  34. Li, K.F.; Kang, C.M.; Yin, X.F.; Li, H.X.; Chen, Z.Y.; Li, Y.; Zhang, Q.; Qiu, Y.R. Ginsenoside Rh2 inhibits human A172 glioma cell proliferation and induces cell cycle arrest status via modulating Akt signaling pathway. Mol. Med. Rep. 2018, 17, 3062–3068. [Google Scholar] [CrossRef] [PubMed]
  35. Chung, K.-S.; Cho, S.-H.; Shin, J.-S.; Kim, D.-H.; Choi, J.-H.; Choi, S.Y.; Rhee, Y.K.; Hong, H.-D.; Lee, K.-T. Ginsenoside Rh2 induces cell cycle arrest and differentiation in human leukemia cells by upregulating TGF-β expression. Carcinogenesis 2013, 34, 331–340. [Google Scholar] [CrossRef] [PubMed]
  36. Zhuang, J.; Yin, J.; Xu, C.; Mu, Y.; Lv, S. 20 (S)-ginsenoside Rh2 induce the apoptosis and autophagy in U937 and K562 Cells. Nutrients 2018, 10, 328. [Google Scholar] [CrossRef] [PubMed]
  37. Kim, S.-J.; Kim, A.K. Anti-breast cancer activity of Fine Black ginseng (Panax ginseng Meyer) and ginsenoside Rg5. J. Ginseng Res. 2015, 39, 125–134. [Google Scholar] [CrossRef] [PubMed]
  38. Lee, H.; Lee, S.; Jeong, D.; Kim, S.J. Ginsenoside Rh2 epigenetically regulates cell-mediated immune pathway to inhibit proliferation of MCF-7 breast cancer cells. J. Ginseng Res. 2018, 42, 455–462. [Google Scholar] [CrossRef] [PubMed]
  39. Ha, Y.W.; Ahn, K.S.; Lee, J.-C.; Kim, S.-H.; Chung, B.C.; Choi, M.H. Validated quantification for selective cellular uptake of ginsenosides on MCF-7 human breast cancer cells by liquid chromatography–mass spectrometry. Anal. Bioanal. Chem. 2010, 396, 3017–3025. [Google Scholar] [CrossRef] [PubMed]
  40. Quan, K.; Liu, Q.; Wan, J.Y.; Zhao, Y.J.; Guo, R.Z.; Alolga, R.N.; Li, P.; Qi, L.W. Rapid preparation of rare ginsenosides by acid transformation and their structure-activity relationships against cancer cells. Sci Rep. 2015, 5, 8598. [Google Scholar] [CrossRef]
  41. Zhang, Y.; Chen, S.; Ma, L.; Wang, X.; Su, G.; Zhao, Y. Structure activity relationships and antinociceptive activity of two novel dammarane-type sapogenins with notable anticancer effect. Phytochem. Lett. 2018, 27, 49–54. [Google Scholar] [CrossRef]
  42. Zhu, S.; Zou, K.; Cai, S.; Meselhy, M.R.; Komatsu, K. Simultaneous determination of triterpene saponins in ginseng drugs by high-performance liquid chromatography. Chem. Pharm. Bull. 2004, 52, 995–998. [Google Scholar] [CrossRef]
  43. Zheng, K.; Li, Y.; Wang, S.; Wang, X.; Liao, C.; Hu, X.; Fan, L.; Kang, Q.; Zeng, Y.; Wu, X. Inhibition of autophagosome-lysosome fusion by ginsenoside Ro via the ESR2-NCF1-ROS pathway sensitizes esophageal cancer cells to 5-fluorouracil-induced cell death via the CHEK1-mediated DNA damage checkpoint. Autophagy 2016, 12, 1593–1613. [Google Scholar] [CrossRef]
  44. Kang, H.J.; Oh, Y.; Lee, S.; Ryu, I.W.; Kim, K.; Lim, C.-J. Antioxidative properties of ginsenoside Ro against UV-B-induced oxidative stress in human dermal fibroblasts. Biosci. Biotechnol. Biochem. 2015, 79, 2018–2021. [Google Scholar] [CrossRef]
  45. Kim, D.S.; Oh, S.R.; Jung, K.Y.; Park, J.D.; Kim, S.I.; Lee, H.-K. Anticomplementary activity of ginseng saponins and their degradation products. Phytochemistry 1998, 47, 397–399. [Google Scholar] [CrossRef]
  46. ZHANG, X.-H.; Xian-Xiang, X.; Tao, X. Ginsenoside Ro suppresses interleukin-1β-induced apoptosis and inflammation in rat chondrocytes by inhibiting NF-κB. Chin. J. Nat. Med. 2015, 13, 283–289. [Google Scholar] [CrossRef]
  47. Matsuda, H.; Samukawa, K.; Kubo, M. Anti-inflammatory activity of ginsenoside Ro. Planta Med. 1990, 56, 19–23. [Google Scholar] [CrossRef]
  48. Matsuda, H.; Samukawa, K.; Kubo, M. Anti-hepatitic activity of ginsenoside Ro. Planta Med. 1991, 57, 523–526. [Google Scholar] [CrossRef]
  49. Yoshikawa, M.; Matsuda, H. Antidiabetogenic activity of oleanolic acid glycosides from medicinal foodstuffs. Biofactors 2000, 13, 231–237. [Google Scholar] [CrossRef]
  50. Murata, K.; Takeshita, F.; Samukawa, K.; Tani, T.; Matsuda, H. Effects of ginseng rhizome and ginsenoside Ro on testosterone 5α-reductase and hair re-growth in testosterone-treated mice. Phytother. Res. 2012, 26, 48–53. [Google Scholar] [CrossRef]
  51. Li, J.; Guo, W.J.; Yang, Q.Y. Effects of ursolic acid and oleanolic acid on humancolon carcinoma cell line HCT15. World J. Gastroenterol. 2002, 8, 493–495. [Google Scholar] [CrossRef]
  52. Yan, S.; Huang, C.; Wu, S.; Yin, M. Oleanolic acid and ursolic acid induce apoptosis in four human liver cancer cell lines. Toxicol. In Vitro 2010, 24, 842–848. [Google Scholar] [CrossRef]
  53. Shyu, M.-H.; Kao, T.-C.; Yen, G.-C. Oleanolic acid and ursolic acid induce apoptosis in HuH7 human hepatocellular carcinoma cells through a mitochondrial-dependent pathway and downregulation of XIAP. J. Agric. Food Chem. 2010, 58, 6110–6118. [Google Scholar] [CrossRef]
  54. Wu, J.; Yang, C.; Guo, C.; Li, X.; Yang, N.; Zhao, L.; Hang, H.; Liu, S.; Chu, P.; Sun, Z. SZC015, a synthetic oleanolic acid derivative, induces both apoptosis and autophagy in MCF-7 breast cancer cells. Chem. Biol. Interact. 2016, 244, 94–104. [Google Scholar] [CrossRef]
  55. Kim, G.-J.; Jo, H.-J.; Chung, K.-H.; Lee, K.-J.; An, J.H. Oleanolic Acid Induces p53 Dependent Apoptosis via the ERK/JNK/AKT Pathway in Cancer Cell Lines. Oncotarget 2018, 9, 26370–26386. [Google Scholar] [CrossRef]
  56. Li, L.; Wei, L.; Shen, A.; Chu, J.; Lin, J.; Peng, J. Oleanolic acid modulates multiple intracellular targets to inhibit colorectal cancer growth. Int. J. Oncol. 2015, 47, 2247–2254. [Google Scholar] [CrossRef]
  57. Dzubak, P.; Hajduch, M.; Vydra, D.; Hustova, A.; Kvasnica, M.; Biedermann, D.; Markova, L.; Urban, M.; Sarek, J. Pharmacological activities of natural triterpenoids and their therapeutic implications. Nat. Prod. Rep. 2006, 23, 394–411. [Google Scholar] [CrossRef]
  58. Takemura, M.; Endo, S.; Matsunaga, T.; Soda, M.; Zhao, H.-T.; El-Kabbani, O.; Tajima, K.; Iinuma, M.; Hara, A. Selective inhibition of the tumor marker aldo-keto reductase family member 1B10 by oleanolic acid. J. Nat. Prod. 2011, 74, 1201–1206. [Google Scholar] [CrossRef]
  59. Lúcio, K.A.; Rocha Gda, G.; Monção-Ribeiro, L.C.; Fernandes, J.; Takiya, C.M.; Gattass, C.R. Oleanolic acid initiates apoptosis in non-small cell lung cancer cell lines and reduces metastasis of a B16F10 melanoma model in vivo. PLoS ONE 2011, 6, e28596. [Google Scholar] [CrossRef]
  60. Hua, Y.; Zhang, Z.; Li, J.; Li, Q.; Hu, S.; Li, J.; Sun, M.; Cai, Z. Oleanolic acid derivative Dex-OA has potent anti-tumor and anti-metastatic activity on osteosarcoma cells in vitro and in vivo. Investig. New Drugs 2011, 29, 258–265. [Google Scholar] [CrossRef]
  61. Baek, N.-I.; Kim, D.S.; Lee, Y.H.; Park, J.D.; Lee, C.B.; Kim, S.I. Cytotoxicities of ginseng saponins and their degradation products against some cancer cell lines. Arch. Pharm. Res. 1995, 18, 164–168. [Google Scholar] [CrossRef]
  62. Wang, J.; Zheng, P.; Zheng, S.; Wang, Y.; Zhu, Y.; Zhou, H.; Wang, Y.; Xiao, S. Profiling and identification of the metabolites of ginsenoside Ro in rat faeces and urine after oral administration. Eur. Food Res. Technol. 2016, 242, 199–210. [Google Scholar] [CrossRef]
  63. Du, Q.; Fu, C.; Tie, J.; Liu, T.; Li, L.; Ren, X.; Huang, Z.; Liu, H.; Tang, F.; Li, L. Gelatin microcapsules for enhanced microwave tumor hyperthermia. Nanoscale 2015, 7, 3147–3154. [Google Scholar] [CrossRef]
  64. Qi, L.W.; Wang, C.Z.; Yuan, C.S. Isolation and analysis of ginseng: Advances and challenges. Nat. Prod. Rep. 2011, 28, 467–495. [Google Scholar] [CrossRef]
  65. Yu, C.; Wang, C.Z.; Zhou, C.J.; Wang, B.; Han, L.; Zhang, C.F.; Wu, X.H.; Yuan, C.S. Adulteration and cultivation region identification of American ginseng using HPLC coupled with multivariate analysis. J. Pharm. Biomed. Anal. 2014, 99, 8–15. [Google Scholar] [CrossRef]
  66. Dai, D.; Zhang, C.F.; Williams, S.; Yuan, C.S.; Wang, C.Z. Ginseng on Cancer: Potential Role in Modulating Inflammation-Mediated Angiogenesis. Am. J. Chin. Med. 2017, 45, 13–22. [Google Scholar] [CrossRef]
  67. Jin, Y.; Kim, Y.J.; Jeon, J.N.; Wang, C.; Min, J.W.; Noh, H.Y.; Yang, D.C. Effect of white, red and black ginseng on physicochemical properties and ginsenosides. Plant Foods Hum. Nutr. 2015, 70, 141–145. [Google Scholar] [CrossRef]
  68. Yun, T.-K. Panax ginseng—A non-organ-specific cancer preventive? Lancet Oncol. 2001, 2, 49–55. [Google Scholar] [CrossRef]
  69. Saba, E.; Jeon, B.R.; Jeong, D.-H.; Lee, K.; Goo, Y.-K.; Kim, S.-H.; Sung, C.-K.; Roh, S.-S.; Kim, S.D.; Kim, H.-K. Black ginseng extract ameliorates hypercholesterolemia in rats. J. Ginseng Res. 2016, 40, 160–168. [Google Scholar] [CrossRef]
  70. Qi, L.-W.; Wang, C.-Z.; Yuan, C.-S. American ginseng: Potential structure–function relationship in cancer chemoprevention. Biochem. Pharmacol. 2010, 80, 947–954. [Google Scholar] [CrossRef]
  71. Li, W.; Liu, Y.; Zhang, J.W.; Ai, C.Z.; Xiang, N.; Liu, H.X.; Yang, L. Anti-androgen-independent prostate cancer effects of ginsenoside metabolites in vitro: Mechanism and possible structure-activity relationship investigation. Arch. Pharm. Res. 2009, 32, 49–57. [Google Scholar] [CrossRef]
  72. Cho, S.-H.; Chung, K.-S.; Choi, J.-H.; Kim, D.-H.; Lee, K.-T. Compound K, a metabolite of ginseng saponin, induces apoptosis via caspase-8-dependent pathway in HL-60 human leukemia cells. BMC Cancer 2009, 9, 449. [Google Scholar] [CrossRef]
  73. Li, J.; Li, R.; Li, N.; Zheng, F.; Dai, Y.; Ge, Y.; Yue, H.; Yu, S. Mechanism of antidiabetic and synergistic effects of ginseng polysaccharide and ginsenoside Rb1 on diabetic rat model. J. Pharm. Biomed. Anal. 2018, 158, 451–460. [Google Scholar] [CrossRef]
  74. Yao, H.; Wan, J.Y.; Zeng, J.; Huang, W.H.; Sava-Segal, C.; Li, L.; Niu, X.; Wang, Q.; Wang, C.Z.; Yuan, C.S. Effects of compound K, an enteric microbiome metabolite of ginseng, in the treatment of inflammation associated colon cancer. Oncol. Lett. 2018, 15, 8339–8348. [Google Scholar] [CrossRef]
  75. Wang, H.Y.; Hua, H.Y.; Liu, X.Y.; Liu, J.H.; Yu, B.Y. In vitro biotransformation of red ginseng extract by human intestinal microflora: Metabolites identification and metabolic profile elucidation using LC-Q-TOF/MS. J. Pharm. Biomed. Anal. 2014, 98, 296–306. [Google Scholar] [CrossRef]
  76. Huang, X.; Liu, Y.; Zhang, Y.; Li, S.P.; Yue, H.; Chen, C.B.; Liu, S.Y. Multicomponent assessment and ginsenoside conversions of Panax quinquefolium L. roots before and after steaming by HPLC-MS(n). J. Ginseng Res. 2019, 43, 27–37. [Google Scholar] [CrossRef]
  77. Park, J.C.; Lee, Y.J.; Choi, H.Y.; Shin, Y.K.; Kim, J.D.; Ku, S.K. In Vivo and In Vitro Antitumor Effects of Platycodin D, a Saponin Purified from Platycodi Radix on the H520 Lung Cancer Cell. Evid. Based Complement. Altern. Med. 2014, 2014, 478653. [Google Scholar] [CrossRef]
  78. Gerlier, D.; Thomasset, N. Use of MTT colorimetric assay to measure cell activation. J. Immunol. Methods 1986, 94, 57–63. [Google Scholar] [CrossRef]
  79. Li, Q.; Wang, Y.; Zhang, L.; Chen, L.; Du, Y.; Ye, T.; Shi, X. Naringenin exerts anti-angiogenic effects in human endothelial cells: Involvement of ERRalpha/VEGF/KDR signaling pathway. Fitoterapia 2016, 111, 78–86. [Google Scholar] [CrossRef]
  80. Zheng, S.; Li, W.; Wang, J.; Chen, Y.; Hou, W.; Gao, W.; Liu, Q.; Wang, Y. Platycodin D inhibits B16F10 melanoma metastasis via antiangiogenic activity. RSC Adv. 2016, 6, 10606–10614. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.

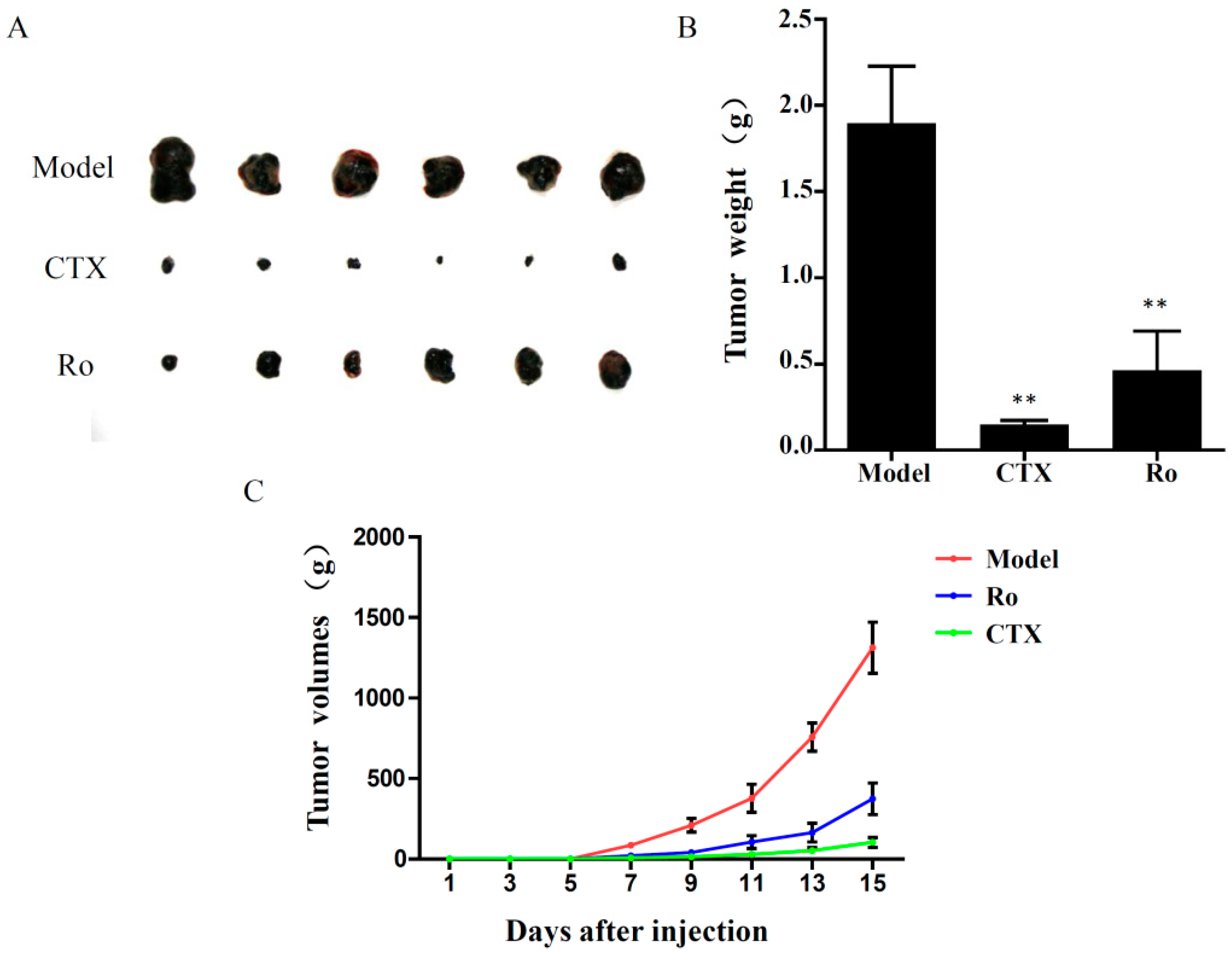

Figure 1. Effects of Ro on tumour growth in B16F10 tumour-bearing mice. (A) Image of tumour masses. (B) Weight of tumour masses. (C) Tumour volume changes in B16F10 tumour xenograft mice. ** p < 0.01 vs. model group. CTX: cyclophosphamide.
Figure 1. Effects of Ro on tumour growth in B16F10 tumour-bearing mice. (A) Image of tumour masses. (B) Weight of tumour masses. (C) Tumour volume changes in B16F10 tumour xenograft mice. ** p < 0.01 vs. model group. CTX: cyclophosphamide.
Molecules 24 02985 g001

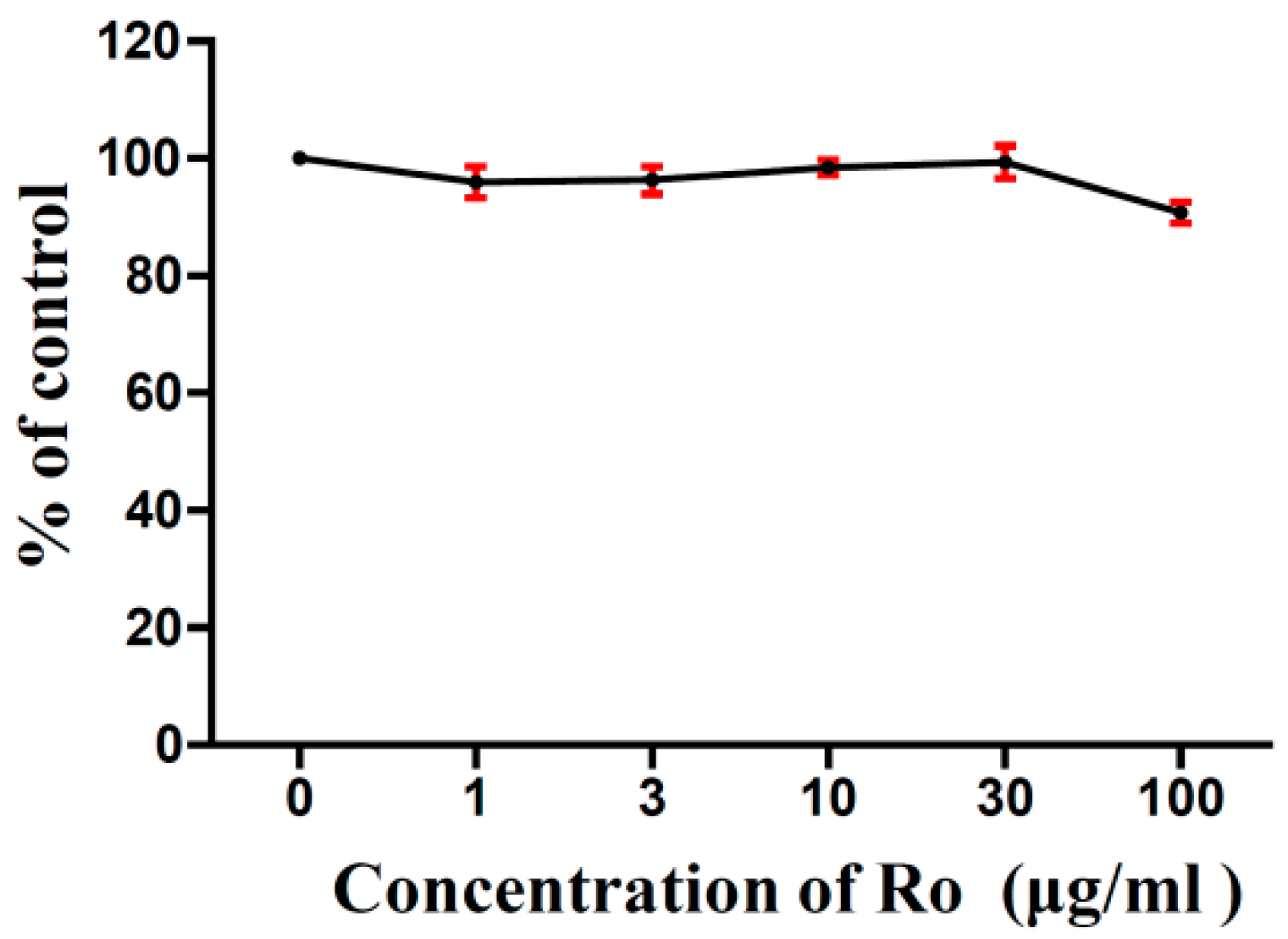

Figure 2. Effects of Ro on B16F10 melanoma cell viability. The results of the control (0 µg/mL) were normalised to 100%, and the results from Ro-treated cells were expressed as % of the control.
Figure 2. Effects of Ro on B16F10 melanoma cell viability. The results of the control (0 µg/mL) were normalised to 100%, and the results from Ro-treated cells were expressed as % of the control.
Molecules 24 02985 g002

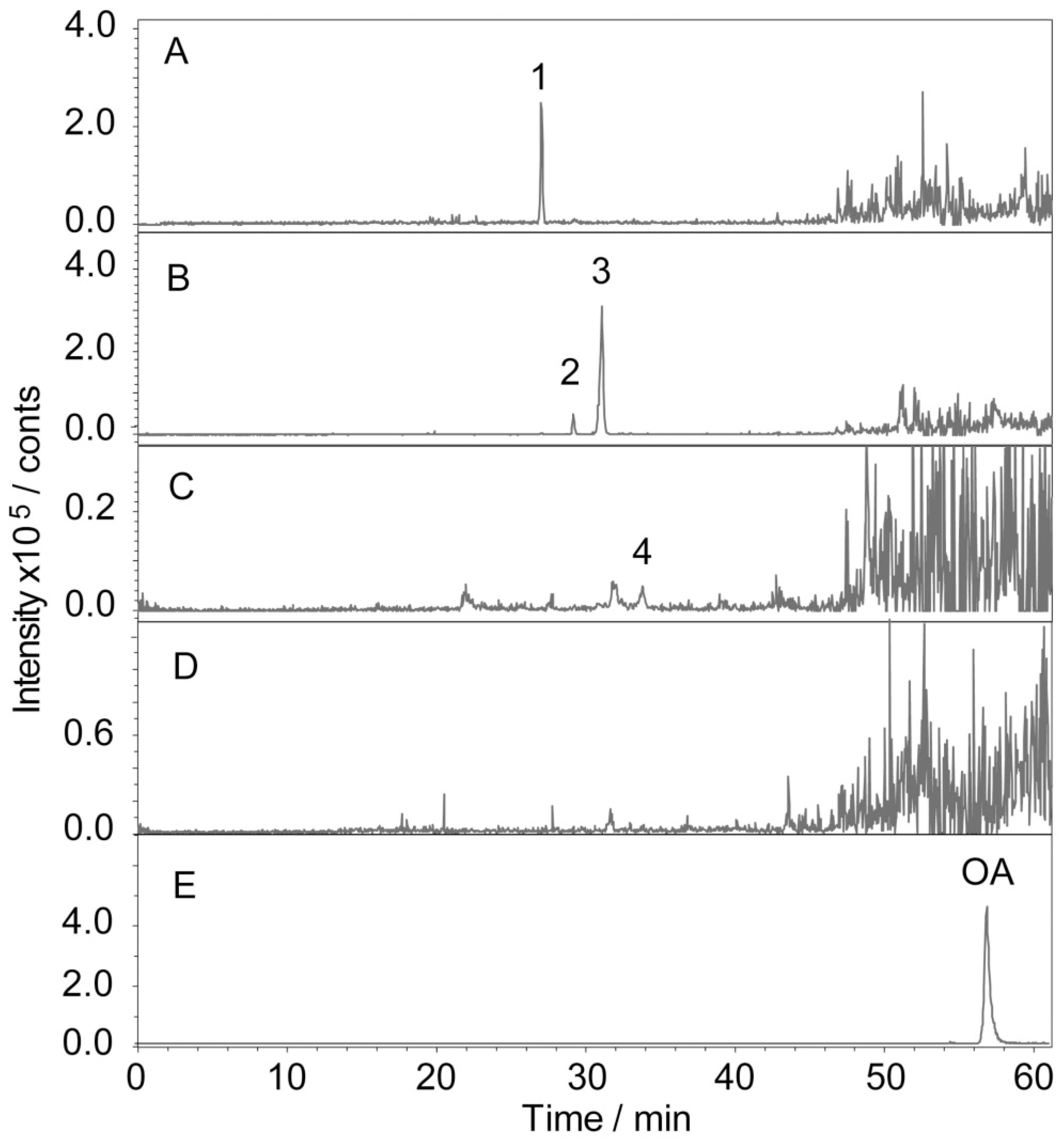

Figure 3. Representative chromatograms of Ro and its metabolites in the plasma. The tumour-bearing mice were administered Ro for 15 successive days, after which they were sacrificed, and the plasma was collected and evaluated. (A) Extracted ion chromatogram (EIC) at m/z 955.5; (B) EIC at m/z 794.5; (C) EIC at m/z 631.5; (D) EIC at m/z 455.5; (E) chromatogram of standard oleanolic acid (OA) (45.2 ng/inj, EIC at m/z 455.5). (1) Ro: ginsenoside Ro; (2) IVa: chikusetsusaponin IVa; (3) R1: zingibroside R1; (4) E: calenduloside E.
Figure 3. Representative chromatograms of Ro and its metabolites in the plasma. The tumour-bearing mice were administered Ro for 15 successive days, after which they were sacrificed, and the plasma was collected and evaluated. (A) Extracted ion chromatogram (EIC) at m/z 955.5; (B) EIC at m/z 794.5; (C) EIC at m/z 631.5; (D) EIC at m/z 455.5; (E) chromatogram of standard oleanolic acid (OA) (45.2 ng/inj, EIC at m/z 455.5). (1) Ro: ginsenoside Ro; (2) IVa: chikusetsusaponin IVa; (3) R1: zingibroside R1; (4) E: calenduloside E.
Molecules 24 02985 g003

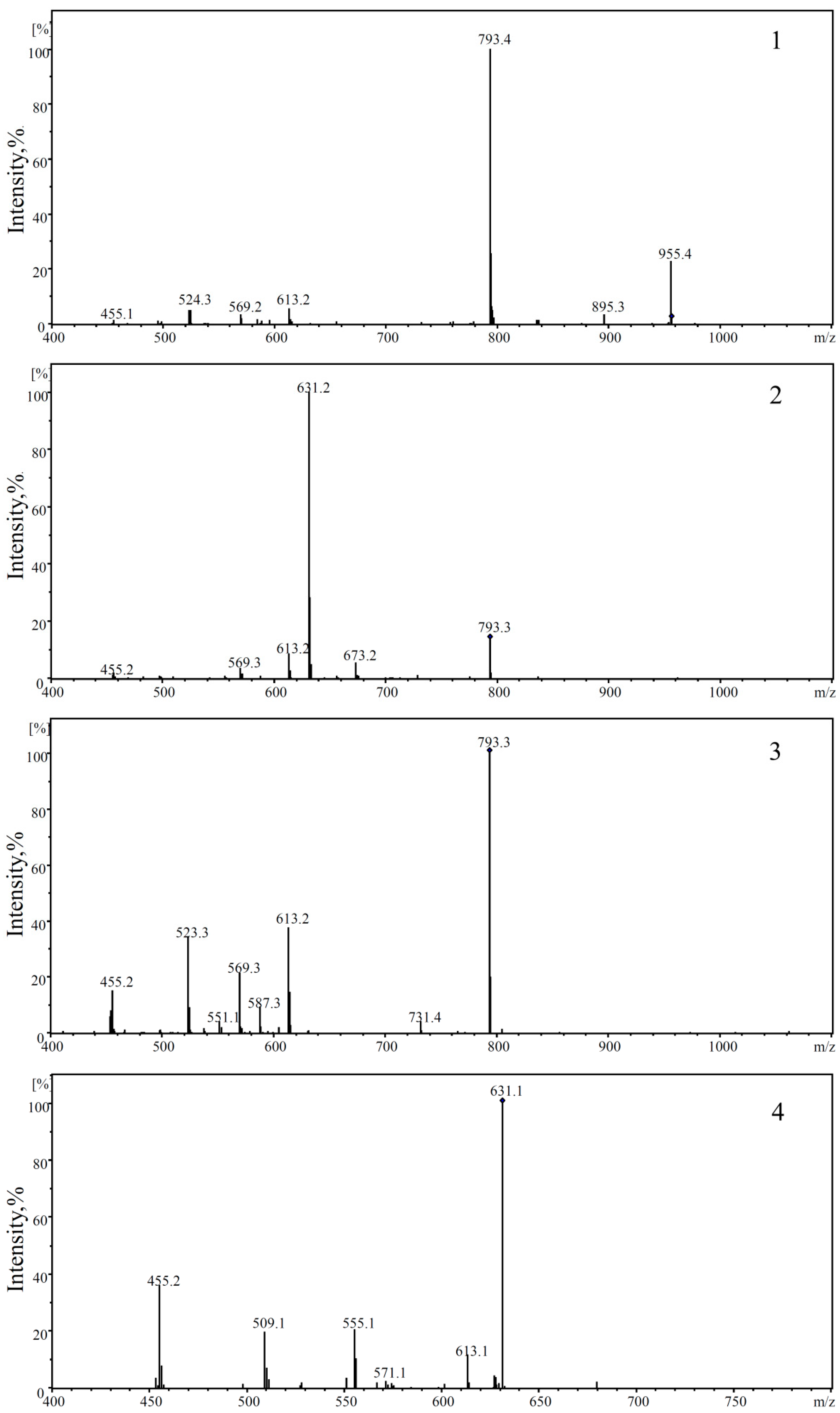

Figure 4. Negative collision-induced dissociation (CID) spectrum of compounds 14. (1) Ro: ginsenoside Ro; (2) IVa: chikusetsusaponin IVa; (3) R1: zingibroside R1; (4) E: calenduloside E.
Figure 4. Negative collision-induced dissociation (CID) spectrum of compounds 14. (1) Ro: ginsenoside Ro; (2) IVa: chikusetsusaponin IVa; (3) R1: zingibroside R1; (4) E: calenduloside E.
Molecules 24 02985 g004

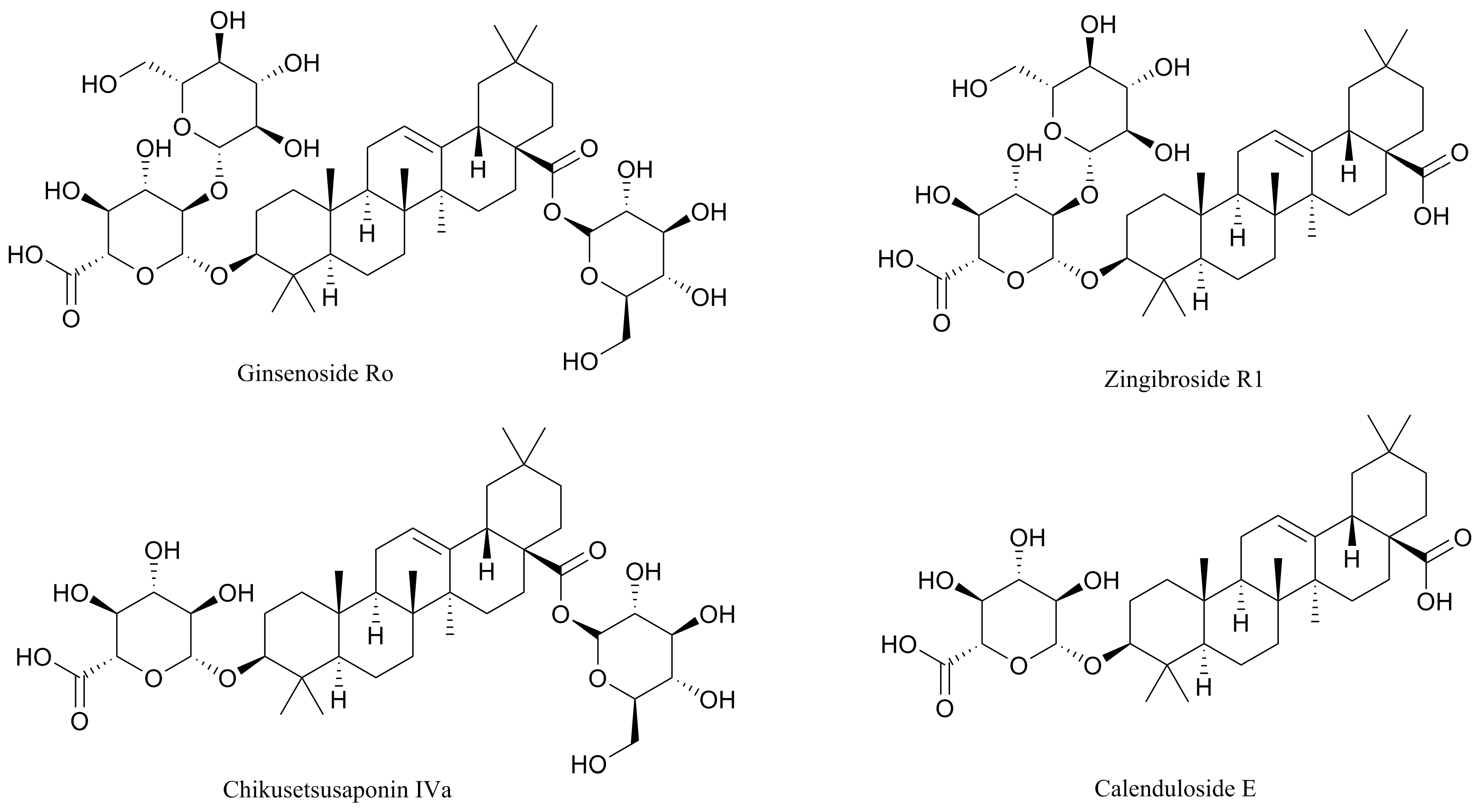

Figure 5. Structures of Ro, R1, IVa, and E.
Figure 5. Structures of Ro, R1, IVa, and E.
Molecules 24 02985 g005

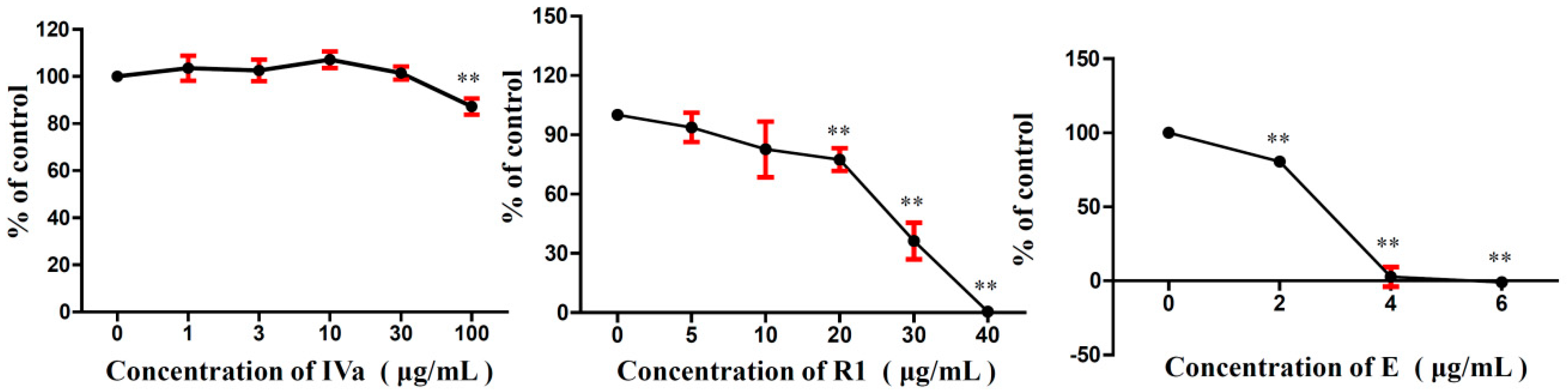

Figure 6. Effects of IVa, R1, and E on B16F10 melanoma cells in vitro. The results of the control (0 µg/mL) were normalised to 100%, and the results from treated cells were expressed as % of the control (* p < 0.05, ** p < 0.01).
Figure 6. Effects of IVa, R1, and E on B16F10 melanoma cells in vitro. The results of the control (0 µg/mL) were normalised to 100%, and the results from treated cells were expressed as % of the control (* p < 0.05, ** p < 0.01).
Molecules 24 02985 g006

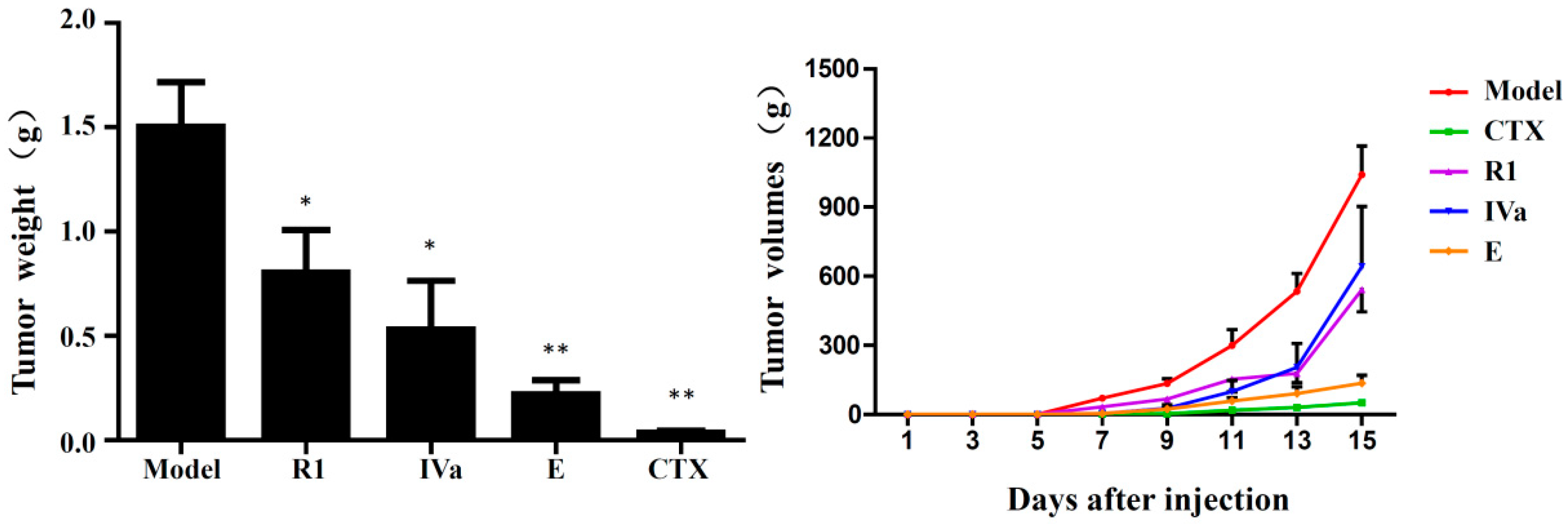

Figure 7. Effects of Ro metabolites on changes in tumour weight and tumour volume in B16F10 tumour xenograft mice. R1 (25 mg/kg), IVa (25 mg/kg), and E (5 mg/kg) were intraperitoneally injected into mice for 15 consecutive days. Values are expressed as the mean ± standard deviation (SD) of six mice.
Figure 7. Effects of Ro metabolites on changes in tumour weight and tumour volume in B16F10 tumour xenograft mice. R1 (25 mg/kg), IVa (25 mg/kg), and E (5 mg/kg) were intraperitoneally injected into mice for 15 consecutive days. Values are expressed as the mean ± standard deviation (SD) of six mice.
Molecules 24 02985 g007

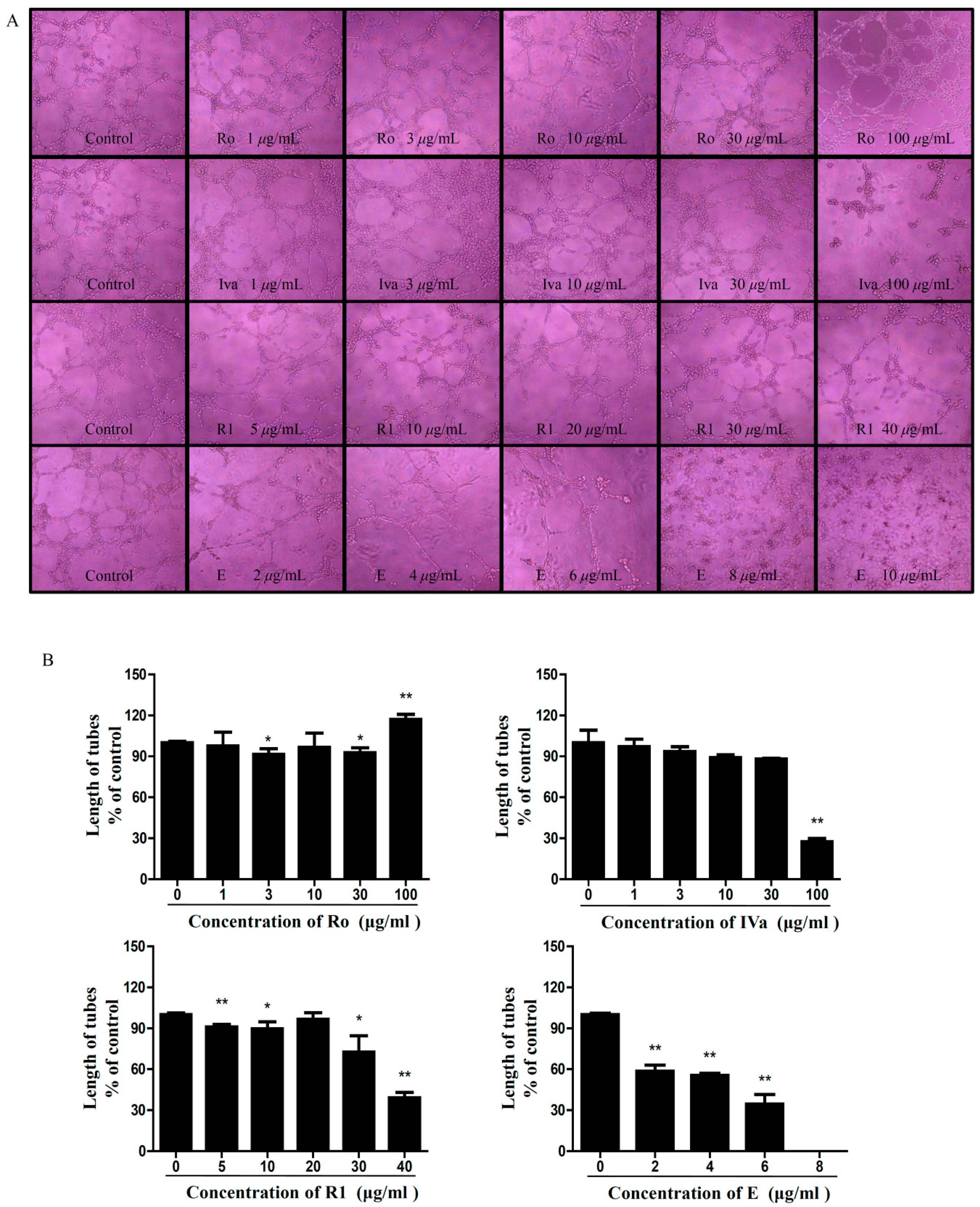

Figure 8. Results of tube formation. (A) The human umbilical vein endothelial cells (HUVECs) tubular structures were imaged under a microscope at 100× magnification. (B) Tube networks were quantified using Image-Pro Plus 6.0 software (Media Cybernetics, Silver Spring, MD, USA). The tube length was calculated (* p < 0.05, ** p < 0.01).
Figure 8. Results of tube formation. (A) The human umbilical vein endothelial cells (HUVECs) tubular structures were imaged under a microscope at 100× magnification. (B) Tube networks were quantified using Image-Pro Plus 6.0 software (Media Cybernetics, Silver Spring, MD, USA). The tube length was calculated (* p < 0.05, ** p < 0.01).
Molecules 24 02985 g008
Figure 9. Haemolysis test result of Ro.
Figure 9. Haemolysis test result of Ro.
Molecules 24 02985 g009
Table 1. Effects of Ro on body weight and organ indices in B16F10 tumour-bearing mice.
Table 1. Effects of Ro on body weight and organ indices in B16F10 tumour-bearing mice.
GroupsDosage (mg/kg)Weight (g)Organ Indices (×100, mg/g)
BeforeAfterThymusSpleen
Normal-23.11 ± 0.6724.27 ± 0.991.97 ± 0.143.46 ± 0.33
Model-22.27 ± 0.7124.89 ± 1.261.23 ± 0.27 ##4.74 ± 1.21 #
CTX2022.29 ± 0.8522.27 ± 1.020.56 ± 0.09 **2.98 ± 0.86 *
Ro2522.91 ± 1.1224.73 ± 1.431.67 ± 0.25 *3.54 ± 1.03
#p < 0.05, ## p < 0.01 vs. normal group; * p < 0.05, ** p < 0.01 vs. model group.
Table 2. Haemolysis rate of Ro at different concentrations.
Table 2. Haemolysis rate of Ro at different concentrations.
Ro (μg/mL)Haemolysis Rate (%)
10.15 ± 0.13
30.31 ± 0.13
100.23 ± 0.23
300.15 ± 0.13
1000.31 ± 0.35
Back to TopTop
