From Fish Eggs to Fish Name: Caviar Species Discrimination by COIBar-RFLP, an Efficient Molecular Approach to Detect Fraud in the Caviar Trade

Anna Maria Pappalardo
Agnese Petraccioli
Teresa Capriglione
2 and
Venera Ferrito
Department of Biological, Geological and Environmental Sciences–Section of Animal Biology “M. La Greca”, University of Catania, Via Androne 81, 95124 Catania, Italy
Department of Biology, University of Naples “Federico II”, Via Cinthia Ed7, 80126 Naples, Italy
Author to whom correspondence should be addressed.
Molecules 2019, 24(13), 2468;
Submission received: 15 May 2019 / Revised: 2 July 2019 / Accepted: 3 July 2019 / Published: 5 July 2019
(This article belongs to the Special Issue Food Analytical Chemistry–Advance Instrumental Methods and Sensors)


The demand for caviar is growing as is its price on the market. Due to the decline of true caviar production from sturgeons, eggs from other fish species and other animals have been used as substitutes for caviar. The labels on these products should indicate the species from which the eggs were derived, but the label can be misleading in some cases. In this context, species identification using DNA analysis is crucial for traceability and authentication of caviar products. In this work, we applied the COIBar-RFLP procedure to obtain species-specific endonuclease restriction patterns useful to discriminate “caviar” species. The tested caviar products were identified as originating from eight species: Acipenser transmontanus, A. gueldenstaedtii, A. stellatus, A. baerii, Mallotus villosus, Huso huso, Cyclopterus lumpus and Eumicrotremus orbis. The results demonstrated that 14% of the caviar products examined have a label that does not indicate the species from which the eggs were originated. The MboI restriction enzyme produced specific profiles discriminating the eight species, confirming that the COIBar-RFLP is a useful approach for routine screening of seafood products due to its ease and rapid execution, as the results of screening can be obtained within 7 h, by-passing the need for sequencing.

Graphical Abstract

1. Introduction

Sturgeon eggs, known as “caviar”, represent one of the most valuable delicacies on the world’s food market. As of 1997, all sturgeon species were included in the Appendices of the Convention on International Trade in Endangered Species (CITES). Since then, sturgeon species identification has been a challenge of primary importance [1]. The standard for sturgeon caviar [2], adopted in 2010, indicates that caviar is the product made from fish eggs, treated with grade salt, of the Acipenseridae family (including the genera Acipenser, Huso, Pseudoscaphirhynchus and Scaphirhynchus). In regards to the labeling of commercial products, the term “caviar” must be used only for sturgeon eggs and labels should include the common name of the species, such as Beluga for Huso huso, Osetra for Acipenser gueldenstaedtii/A. persicus and Sevruga for Acipenser transmontanus. Furthermore, caviar products include not only the aforementioned true caviar, but also caviar substitutes obtained from eggs of other fish species or other animal organisms, and a variety of other products called “caviar” that have no trace of fish eggs but simulate the taste of caviar [3]. Of course, the prices of the various types of caviar vary considerably, with only true caviar considered a luxury high-priced product (sold for about 900–1500 euro per kilo depending on the sturgeon species, but beluga caviar has also been sold for as much as 4500 euro per kilo). Caviar substitutes are sold at more affordable prices (generally less than 200 euro per kilo). The limited production of true caviar due to the drastic reduction in native sturgeon populations and the global growing demand of caviar products, has led to an increase in both the aquaculture production of sturgeon and caviar on the one hand, and the use of caviar substitutes on the other. In fact, the latter include the eggs of at least 38 non-sturgeon fish species [3]. In this context, there is a high risk of fraud, poaching and illegal trade of caviar, and while the amount of illegal trade is unknown, it has been estimated by the CITES Secretariat that levels of poaching far exceed legal harvesting. The European countries are particularly interested in this problem due to the fact that the EU is the world’s largest importer of caviar from the exporters states such as China, which accounted for 85% of EU imports in 2016 [4].
Currently, a growing scientific literature on seafood product authentication has demonstrated that the highly automated biomolecular techniques can greatly improve species identification in processed seafood products. This is especially relevant because of industrial processing, which leads to the loss of identifiable morphological characters of the species [5,6,7]. Together with advances in large-scale integrated molecular technology, many assays based on DNA analysis have been developed for species identification in several food products. Among them, DNA barcoding, targeting a fragment of about 650 bp of the mitochondrial cytochrome oxidase I (COI) gene, is currently being used to differentiate and discriminate more than 98% of animal species [8,9,10,11,12,13,14,15,16,17,18,19] and has been validated for forensic species identification [20]. However, most of the DNA-based techniques adopted for the authentication of fish species have focused on a high sensitivity and short analysis time to make species identification quick and easy for routine screening for detection of seafood product mislabeling [21,22,23,24].
PCR-RFLP, for example, is a simple, inexpensive, reliable and promising technique, as polymorphic markers are generated by PCR amplification followed by restriction digestion with endonucleases [25,26,27,28]. Recently, the two consolidated approaches of COI barcodes and PCR-RFLP were combined in a new molecular strategy (COIBar-RFLP, cytochrome oxidase I barcode-restriction fragment length polymorphism) for fish species identification in processed seafood products [29,30,31,32]. PCR-RFLP of the cytochrome b gene has already been used to discriminate caviar species, but exhibited limitations in the differentiation of closely related species, such as A. gueldenstaedti, A. baerii, A. persicus and A. naccarii [33]. Based on the considerations above, to assess the efficacy of the COIBar-RFLP in caviar species identification, we first applied conventional DNA barcoding to verify the labeling accuracy of several “caviar” products and then performed the COIBar-RFLP molecular strategy to reduce both analysis costs and time of fish species authentication for the most common commercial caviar products.

2. Results

2.1. COI Sequences

The COI barcode sequences of each species were the same length, ranging between species from 646 to 664 bp, without stop codons, and were functional mitochondrial sequences. Therefore, NUMT, (nuclear DNA sequences originating from mitochondrial DNA) were not sequenced (vertebrate NUMTs are generally smaller than 600 bp) [34]. The NJ tree (Figure 1) built using the sequences of the twenty species downloaded from GenBank (Table 1) and the sequences obtained from the commercial samples, identified by the BLAST search (Table 2), confirmed that the eight caviar species belong to three families: Acipenseridae (H. huso, A. transmontanus, A. gueldenstaedtii, A. stellatus and A. baerii), Cyclopteridae (Cyclopterus lumpus and Eumicrotremus orbis) and Osmeridae (Mallotus villosus). The nodes connecting the sequences belonging to the same species in the tree were well supported by high bootstrap values (>70%).

2.2. COIBar-RFLP

PCR amplification of the mitochondrial COI gene of the examined species generated a fragment of variable size ranging from 700 to 760 bp. Unique restriction patterns of MboI for each species were found to satisfactorily differentiate between all eight tested species. The preliminary screening of suitable restriction enzymes generated using the EMBOSS (European Molecular Biology Open Software Suite) remap, showed that only MboI was able to simultaneously distinguish the different validated species of fish examined in this study. As illustrated in Figure 2, PCR product digestion resulted in specific profiles for the eight species: E. orbis has three MboI restriction sites and four fragments of about 300, 200, 150 and 100 bp. Five species have two restriction sites producing 410, 200 and 120 bp fragments in A. stellatus; 420, 140 and 100 bp in A. gueldenstaedtii; 380, 210 and 100 bp in A. transmontanus; 430, 150 and 110 bp in H. huso and finally 480, 220 and 130 bp in C. lumpus. Two species have only one MboI restriction site yielding 420 and 130 bp in A. baerii and 510 and 170 bp in M. villosus.

3. Discussion

The results obtained in this study provide insight into the identification of species in commercial caviar products using COI DNA barcoding. COIBar-RFLP, a method coupling the consolidated COI barcode and the random fragment length polymorphism techniques, was shown to effectively discriminate species by using the specific profiles of the MboI restriction enzyme. The COI gene sequences allowed the identification of four species of Acipenser, H. huso and three caviar substitute species, all forming well-supported clusters in the NJ tree. In this regard, our data showed the inclusion of H. huso within the genus Acipenser as already suggested by Birstein et al. [35] based on Cytb sequences. The authentication of caviar species is both a concern and a challenge to counter the illegal trade of caviar and sturgeon products as a high proportion of Acipenseriformes species are classified by the IUCN as “Critically Endangered” as a result of sturgeon habitat deterioration and overexploitation for caviar production [36]. For these reasons, resolution 12.7 (Rev. CoP17) of the Conference of the parties to CITES on “Conservation on and trade in sturgeons and paddlefish” established rules for controlling the trade, and recommended that the range of state-level export quotas for caviar and meat of Acipenseriformes species be followed. Furthermore, guidelines for a universal labeling system for the trade in and identification of caviar have also been established. On the other hand, our investigation of other brands highlighted that 14% of caviar products examined lacked a label declaring the name of the species from which the eggs originated. Worthy of note, using COIBar-RFLP, we succeeded in identifying the species M. villosus in almost all products uncorrectly labeled and one product resulted even contained the species E. orbis, belonging to Cyclopteridae, which is not on the list of fish species known to be used for caviar production [3]. One could speculate that a species commonly used as a caviar substitute, the lumpfish, Cyclopterus lumpus, another Cyclopteridae, was misidentified leading to unintentional fraud. However, this would not explain our case because the product was labeled as “caviar” and not as “lumpfish caviar”. Accurate species identification is very important for regulating trade of high value animal products such as sturgeon caviar. The most well-known and highly-prized caviars are Beluga from the Beluga sturgeon (H. huso), Osetra from the Russian sturgeon (A. gueldenstaedtii), and Sevruga from the Starry sturgeon (A. stellatus) [4]. However, most caviar on the market today is from the most common species, such as the White sturgeon (A. transmontanus) or the more highly-prized Siberian sturgeon (A. baerii). All of these species were correctly declared on the label of the caviar products examined here, probably because they derive from traceable aquaculture as stated on the website of the seller. In this regard, although our data indicate that the true caviar-based products were correctly labeled, poaching and illegal trade of sturgeon species have been recognized globally [37,38] in spite of trade limitations imposed by CITES. In our investigation, the most common species detected in caviar products sold in supermarkets was the capelin M. villosus, identified both in correctly-labeled products (declaring the words “caviar substitute” as required by the Italian law, art. 9 Reg. 1169/11) and mislabeled products (labeled as caviar only). The production of caviar substitutes and imitations was estimated to be about 50,000 t year−1 in 2011 due to the high demand of low price caviar by new consumers [3,39]. The consumption of products from caviar substitutes has grown considerably in recent years among large retailers and the capelin roe are the least expensive among the substitutes of true caviar, as their price is 1/3 lower than lumpfish caviar. Thus, a product not compliant with labeling guidelines would be easily considered as commercial fraud.
In this context, the identification of fish species using a molecular approach is the only way to determine if commercial fraud has occurred. Among the various molecular identification methodologies, PCR-RFLP is one of the most commonly used for fish species discrimination [40]. However, it should be noted that this method is very useful only when the commercial products contain single species. In the case of samples with mixed species, other techniques must be performed for taxonomic identification, such as next generation sequencing or species-specific multiplex PCR. Cytb gene sequencing and RFLP has been recommended by Ludwig [33,37,41] to discriminate caviar species, but the authors noted the limitations of this molecular marker for the differentiation of closely related species such as A. gueldenstaedtii, A. baerii, A. persicus and A. naccarii (the Russian complex species). More recently, PCR-RFLP of Cytb was also used by Trocchia et al. [42] to discriminate A. baeri from caviar substitute species such as C. lumpus, M.villosus and Trisopterus minutus minutus. In this case, Cytb RFLP produced a restriction pattern useful to differentiate the four species, but the discrimination within the genus Acipenser was not explored. Differently from PCR-RFLP of Cytb used by other researchers, our results based on COIBar-RFLP allowed us to simultaneously discriminate not only the four species of Acipenser, including A. baerii and A. gueldenstaedtii belonging to the Russian complex species and H. huso, but also the three caviar substitute species.
Recently, the COI barcode region has been coupled with high resolution melting analysis (Bar-HRM) for fish species discrimination [43]. However, this methodology requires experience for mini-barcode primer design and for testing their efficacy and specificity. Conversely, COIBar-RFLP does not require a high level of expertise in molecular genetics, has a very good performance in terms of ease and rapidity of execution (results of screening can be obtained in 7 h) and encourages further validation and application. We could explore building a database of restriction enzyme profiles to be used to validate this method, first identifying the species through the RFLP banding pattern and then confirming the species authentication by DNA sequencing. After validation, COIBar-RFLP could be used in routine screening for seafood product species authentication.

4. Materials and Methods

4.1. Sampling

A total of 31 different commercial caviar products were bought from several Italian markets and online websites in 2018. The fish species from which the eggs purportedly came was stated on the label of 27 out of 31 commercial products; the remaining products were labeled only as caviar. For each commercial brand, up to three eggs, for a total of 90 samples, were randomly chosen and independently processed to investigate the presence of multiple species in the caviar products (Table 2). Each sample was preserved in 1.5 mL labeled tubes filled with 95% ethanol, stored at −20 °C and subsequently processed in the laboratory.

4.2. COI Barcode Amplification, Sequencing and Data Analysis

Total genomic DNA was extracted from fish eggs using the DNeasy tissue kit (Qiagen, Hilden, Germany) following the manufacturer’s instructions with some modifications.
Cytochrome oxidase I amplifications were carried out in 20 µL volumes using the M13 tailed primers VF2_t1 and FishR2_t1 described in Ivanova et al. 9 [44] and the PCR conditions reported by Pappalardo and Ferrito [29]. Double-stranded products were checked by agarose gel electrophoresis, visualized with SYBR® Safe (Thermo Fisher, Waltham, MA USA) and displayed through “Safe Imager TM 2.0 Blue Light Transilluminator” (Thermo Fisher, Waltham, MA USA). All PCR products were then purified with the QIAquick PCR purification kit (Qiagen) and subsequently sequenced in the forward and reverse direction by Genechron ( using M13 forward and M13 reverse primers. Sequence chromatograms obtained were checked visually, assembled and subsequently queried against the publicly accessible databases Basic Local Alignment Search Tool (BLAST, NCBI, Bethesda, MD USA) and the Barcode of Life Database (BOLD,, with the species level barcode records selected [45]. All sequences derived from this study were deposited in GenBank ( nk/) (Table 2). The sequences were aligned using the default settings in ClustalX software [46] and the alignment was manually revised in BioEdit ( MEGA v 6.0 software (Biodesign Institute, Arizona, MA, USA) [47] was used to construct a COI neighbor-joining (NJ) dendrogram using K2P distance. To validate the COI sequences of the species, another twenty COI sequences were downloaded from GenBank and BOLD SYSTEMS ( and used to build the NJ tree (Table 1). Bootstrap values were calculated with 1000 replicates [48]. Ambiguous sequences were trimmed after alignment.

4.3. COIBar-RFLP

The restriction enzymes and their restriction sites were preliminarily detected using the “Remap” software ( to scan several validated DNA barcoding sequences (650 bp) of reference caviar species downloaded from GenBank. The selected enzymes for carrying out the COI-RFLP analysis were: HpaII (C*CGG), HinfI (G*ANTC), MboI (*GATC) and RsaI (GT*AC) (New England Biolabs, Inc., Ipswich, MA, USA). Then, the COI barcode PCR products of samples obtained from Acipenser baerii Brandt, 1869, A. gueldenstaedtii Brandt, 1833, A. stellatus Pallas, 1771, A. transmontanus Richardson, 1837, Huso huso L., 1758, Mallotus villosus, (Müller 1776), Cyclopterus lumpus Linnaeus, 1758, and Eumicrotremus orbis (Günther, 1861) were digested with the selected restriction enzymes. A total volume of 15 μL containing 1 μL of enzyme buffer, 13 μL of unpurified PCR product and 1 μL of each endonuclease (10 U each) was used to carry out the digestion reaction. The reaction mixture was incubated in a water bath for 1 h at 37 °C. The digested PCR products were then separated on a 2.5% agarose gel and their sizes were determined by comparison with a Trackit TM 100 bp DNA ladder (Invitrogen). The pattern of bands obtained from the validated samples was used to identify the unknown commercial samples (figure not shown).

5. Conclusions

DNA-based techniques and a wide range of developed methodologies have become the most accurate molecular tools for fish species identification. However, to select a method to use in regular screening programs, several factors should be considered including complexity, cost and application range [49]. COIBar-RFLP has been used to discriminate the species of a wide number of taxonomic groups including fish at various stages of their life cycle (eggs, larval and adult) and as whole samples or processed samples, proving to be a reliable technique to fight commercial fraud based on unintentional or deliberate species substitutions in seafood products [29,30,31,32]. In addition, this method could also be successfully applied to fight illegal, unreported and unregulated fishing affecting critically-endangered species such as sturgeons.

Author Contributions

A.M.P. and V.F. conceived and designed the experiments; A.M.P and A.P. performed the experiments; A.M.P. and T.C. analyzed the data; A.M.P., T.C. and V.F. wrote the paper.


This research was funded by University of Catania [Grant number #22722132134].

Conflicts of Interest

The authors declare no conflict of interest.


  1. Raymakers, C. CITES, the convention on international trade in endangered species of wild Fauna and Flora: Its role in the conservation of Acipenseriformes. J. Appl. Ichthyol. 2006, 22, 53–65. [Google Scholar] [CrossRef]
  2. CAC, Codex Alimentarius Commission. Codex Stan 291-2010. Standard for Sturgeon Caviar. Available online: (accessed on 5 July 2019).
  3. Bronzi, P.; Rosenthal, H. Present and future sturgeon and caviar production and marketing: A global market overview. J. Appl. Ichthyol. 2014, 30, 1536–1546. [Google Scholar] [CrossRef]
  4. EUMOFA, The caviar market. Production, trade and consumption in and outside the EU. Available online: (accessed on 5 July 2019).
  5. Pappalardo, A.M.; Guarino, F.; Reina, S.; Messina, A.; De Pinto, V. Geographically widespread swordfish barcode stock identification: A case study of its application. PLoS ONE 2011, 6, e25516. [Google Scholar] [CrossRef]
  6. Pappalardo, A.M.; Ferrito, V. DNA barcoding species identification unveils mislabeling of processed flatfish products in southern Italy markets. Fish. Res. 2015, 164, 153–158. [Google Scholar] [CrossRef]
  7. Pappalardo, A.M.; Copat, C.; Ferrito, V.; Grasso, A.; Ferrante, M. Heavy metal content and molecular species identification in canned tuna: Insights into human food safety. Mol. Med. Rep. 2017, 15, 3430–3437. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Hebert, P.D.N.; Cywinska, A.; Ball, S.; deWaard, J.R. Biological identifications through DNA barcodes. Proc. Roy. Soc. Lond. B. 2003, 270, 313–321. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Hebert, P.D.N.; Ratnasingham, S.; deWaard, J.R. Barcoding animal life: Cytochrome c oxidase subunit 1 divergence, among closely related species. Proc. Roy. Soc. Lond. B 2003, 270, S96–S99. [Google Scholar] [CrossRef]
  10. Paquin, R.; Hedin, M. The power and perils of ‘molecular taxonomy’: A case study of eyeless and endangered Cicurina (Araneae: Dictynidae) from Texas caves. Mol. Ecol. 2004, 13, 3239–3255. [Google Scholar] [CrossRef] [PubMed]
  11. Ward, R.D.; Zemlak, T.S.; Innes, B.H.; Last, P.R.; Hebert, P.D.N. DNA barcoding Australia’s fish species. Phil. Trans. Roy. Soc. B. 2005, 360, 1847–1857. [Google Scholar] [CrossRef] [PubMed]
  12. Hajibabaei, M.; Smith, M.A.; Janzen, D.H.; Rodriguez, J.J.; Whitfield, J.B.; Hebert, P.D.N. A minimalist barcode can identify a specimen whose DNA is degraded. Mol. Ecol. Notes 2006, 6, 959–964. [Google Scholar] [CrossRef]
  13. Lefebure, T.; Douady, C.J.; Gouy, M.; Gibert, J. Relationship between morphological taxonomy and molecular divergence within Crustacea: Proposal of a molecular threshold to help species delimitation. Mol. Phyl. Evol. 2006, 40, 435–447. [Google Scholar] [CrossRef] [PubMed]
  14. Benard-Capelle, J.; Guillonneau, V.; Nouvian, C.; Fournier, N.; Le Loët, K.; Dettai, A. Fish mislabeling in France: Substitution rates and retail types. PeerJ 2015, 2, e714. [Google Scholar] [CrossRef] [PubMed]
  15. Pappalardo, A.M.; Cuttitta, A.; Sardella, A.; Musco, M.; Maggio, T.; Patti, B.; Mazzola, S.; Ferrito, V. DNA barcoding and COI sequence variation in Mediterranean lanternfishes larvae. Hydrobiologia 2015, 745, 155–167. [Google Scholar] [CrossRef]
  16. Pappalardo, A.M.; Federico, C.; Sabella, G.; Saccone, S.; Ferrito, V. A COI nonsynonymous mutation as diagnostic tool for intraspecific discrimination in the European Anchovy Engraulis encrasicolus (Linnaeus). PLoS ONE 2015, 10, e0143297. [Google Scholar] [CrossRef] [PubMed]
  17. Vitale, D.G.M.; Viscuso, R.; D’Urso, V.; Gibilras, S.; Sardella, A.; Marletta, A.; Pappalardo, A.M. Morphostructural analysis of the male reproductive system and DNA barcoding in Balclutha brevis Lindberg 1954 (Homoptera, Cicadellidae). Micron 2015, 79, 36–45. [Google Scholar] [CrossRef]
  18. Christiansen, H.; Dettai, A.; Heindler, F.M.; Collins, M.A.; Duhamel, G.; Hautecoeur, M.; Steinke, D.; Volckaert, A.M.; Van de Putte, A.P. Diversity of Mesopelagic fishes in the Southern Ocean–A phylogeographic perspective using DNA barcoding. Front. Ecol. Evol. 2018, 6, 120. [Google Scholar] [CrossRef]
  19. Conti, E.; Mulder, C.; Pappalardo, A.M.; Ferrito, V.; Costa, G. How soil granulometry, temperature and water predict genetic differentiation in namibian Ariadna spiders and explain their behaviour. Ecol. Evol. 2019, 9, 4382–4391. [Google Scholar] [CrossRef]
  20. Dawnay, N.; Ogden, R.; McEwing, R.; Carvalho, G.R.; Thorpe, R.S. Validation of the barcoding gene COI for use in forensic genetic species identification. Forensic Sci. Int. 2007, 173, 1–6. [Google Scholar] [CrossRef]
  21. Kappel, K.; Schröder, U. Substitution of high-priced fish with low-priced species: Adulteration of common sole in German restaurants. Food Control 2016, 59, 478–486. [Google Scholar] [CrossRef]
  22. Pardo, M.A.; Jimenez, E.; Viđarsson, J.R.; Olafsson, K.; Olafsdottir, G.; Danielsdottir, A.K.; Perez-Villareal, B. DNA barcoding revealing mislabeling of seafood in European mass caterings. Food Control 2018, 92, 7–16. [Google Scholar] [CrossRef]
  23. Sultana, S.; Ali, M.E.; Hossain, M.A.M.; Asing Naquiah, N.; Zaidul, I.S.M. Universal mini COI barcode for the identification of fish species in processed products. Food Res. Int. 2018, 105, 19–28. [Google Scholar] [CrossRef] [PubMed]
  24. Xiong, X.; Yao, L.; Ying, X.; Lu, L.; Guardone, L.; Armani, A.; Guidi, A.; Xiong, X. Multiple fish species identified from China’s roasted Xue Yu fillet products using DNA and mini-DNA barcoding: Implications on human health and marine sustainability. Food Control 2018, 88, 123–130. [Google Scholar] [CrossRef]
  25. Aranishi, F.; Okimoto, T.; Izumi, S. Identification of gadoid species (Pisces, Gadidae) by PCR-RFLP analysis. J. Appl. Genet. 2005, 46, 69–73. [Google Scholar]
  26. Hsieh, C.; Chang, W.; Chang, H.C.; Hsieh, H.; Chung, Y.; Hwang, D. Puffer fish-based commercial fraud identification in a segment of cytochrome b region by PCR-RFLP analysis. Food Chem. 2010, 121, 1305–1311. [Google Scholar] [CrossRef]
  27. Rea, S.; Storani, G.; Mascaro, N.; Stocchi, R.; Loschi, A.R. Species identification in anchovy pastes from the market by PCR-RFLP technique. Food Control 2009, 20, 515–520. [Google Scholar] [CrossRef]
  28. Chen, S.; Zhang, Y.; Li, H.; Wang, J.; Chen, W.; Zhou, Y.; Zhou, S. Differentiation of fish species in Taiwan Strait by PCR-RFLP and lab-on-a-chip system. Food Control 2014, 44, 26–34. [Google Scholar] [CrossRef]
  29. Pappalardo, A.M.; Ferrito, V. A COIBar-RFLP strategy for the rapid detection of Engraulis encrasicolus in processed anchovy products. Food Control 2015, 57, 385–392. [Google Scholar] [CrossRef]
  30. Ferrito, V.; Bertolino, V.; Pappalardo, A.M. White fish authentication by COIBar-RFLP: Toward a common strategy for the rapid identification of species in convenience seafood. Food Control 2016, 70, 130–137. [Google Scholar] [CrossRef]
  31. Ferrito, V.; Pappalardo, A.M. Seafood species identification by DNA barcoding, a molecular tool for food traceability. Biodivers. J. 2017, 8, 65–72. [Google Scholar]
  32. Pappalardo, A.M.; Federico, C.; Saccone, S.; Ferrito, V. Differential flatfish species detection by COIBar-RFLP in processed seafood products. Eur. Food Res. Technol. 2018, 244, 2191–2201. [Google Scholar] [CrossRef]
  33. Ludwig, A. Identification of Acipenseriformes species in trade. J. Appl. Ichthyol. 2008, 24, 2–19. [Google Scholar] [CrossRef]
  34. Zhang, D.X.; Hewitt, G.M. Nuclear integrations: Challenges for mitochondrial DNA markers. Trends Ecol. Evol. 1996, 11, 247–251. [Google Scholar] [CrossRef]
  35. Birstein, V.J.; Doukakis, P.; Sorkin, B.; DeSalle, R. Population aggregation analysis of three caviar-producing species of sturgeons and implications for the species identification of black caviar. Conserv. Biol. 1998, 12, 766–775. [Google Scholar] [CrossRef]
  36. Bronzi, P.; Rosenthal, H.; Gessner, J. Global sturgeon aquaculture production: An overview. J. Appl. Ichthyol. 2011, 27, 169–175. [Google Scholar] [CrossRef]
  37. Ludwig, A.; Lieckfeldt, D.; Jahrll, J. Mislabeled and counterfeit sturgeon caviar from Bulgaria and Romania. J. App. Ichthyol. 2015, 31, 587–591. [Google Scholar] [CrossRef]
  38. Fain, S.R.; Straughan, D.J.; Hamlin, B.C.; Hoesch, R.M.; LeMay, J.P. Forensic genetic identification of sturgeon caviars traveling in world trade. Conserv. Genet. 2013, 14, 855–874. [Google Scholar] [CrossRef]
  39. Sicuro, B. The future of caviar production on the light of social changes: A new dawn for caviar? Rev. Aquac. 2019, 11, 204–219. [Google Scholar] [CrossRef]
  40. Teletchea, F. Molecular identification methods of fish species: Reassessment and possible applications. Rev. Fish. Biol. Fish. 2009, 19, 265–293. [Google Scholar] [CrossRef]
  41. Ludwig, A.; Debus, L.; Jenneckens, I. A molecular approach to control the international trade in black caviar. Int. Rev. Hydrob. 2002, 87, 661–674. [Google Scholar] [CrossRef]
  42. Trocchia, S.; Rabbito, D.; D’Angelo, R.; Ciarcia, G.; Abdel-Gawad, F.K.; Guerriero, G. Blue economy and biodiversity surveillance: Fish caviar substitute rapid discrimination. Biodivers. Endanger. Species 2015, S1, 2. [Google Scholar] [CrossRef]
  43. Behrens-Chapuis, S.; Malewski, T.; Suchecka, E.; Geiger, M.F.; Herder, F.; Bogdanowicz, W. Discriminating European cyprinid specimens by barcode high-resolution melting analysis (Bar-HRM)–A cost efficient and faster way for specimen assignment? Fish. Res. 2018, 204, 61–73. [Google Scholar] [CrossRef]
  44. Ivanova, N.V.; Zemlak, T.S.; Hanner, R.H.; Hebert, P.D.N. Universal primer cocktails for fish DNA barcoding. Mol. Ecol. Notes 2007, 7, 544–548. [Google Scholar] [CrossRef]
  45. Ratnasingham, S.; Hebert, P.D.N. The Barcode of Life Data System. Mol. Ecol. Notes 2007, 7, 225–364. [Google Scholar] [CrossRef]
  46. Larkin, M.A.; Blackshields, G.; Brown, N.P.; Chenna, R.; McGettigan, P.A.; McWilliam, H.; Valentin, F.; Wallace, I.M.; Wilm, A.; Lopez, R.; et al. Clustal W and Clustal X version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular Evolutionary Genetics Analysis Version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Felsenstein, J. Confidence limits on phylogenies: An approach using the bootstrap. Evolution 1985, 39, 783–791. [Google Scholar] [CrossRef] [PubMed]
  49. Lago, F.C.; Alonso, M.; Vieites, J.M.; Espiñeira, M. Fish and Seafood Authenticity–Species Identification. In Seafood Processing: Technology, Quality and Safety; John Wiley & Sons Ltd.: Hoboken, NJ, USA, 2014. [Google Scholar]
Sample Availability: Not available.

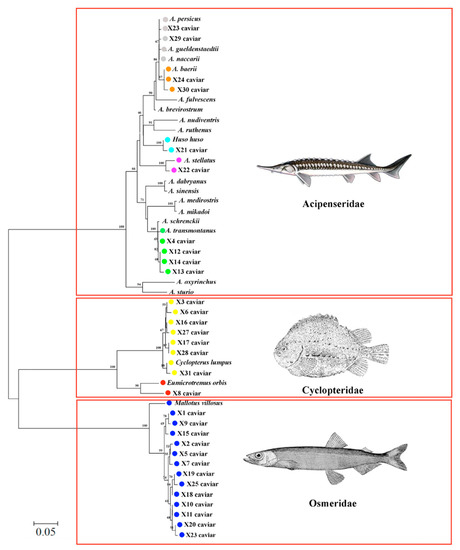

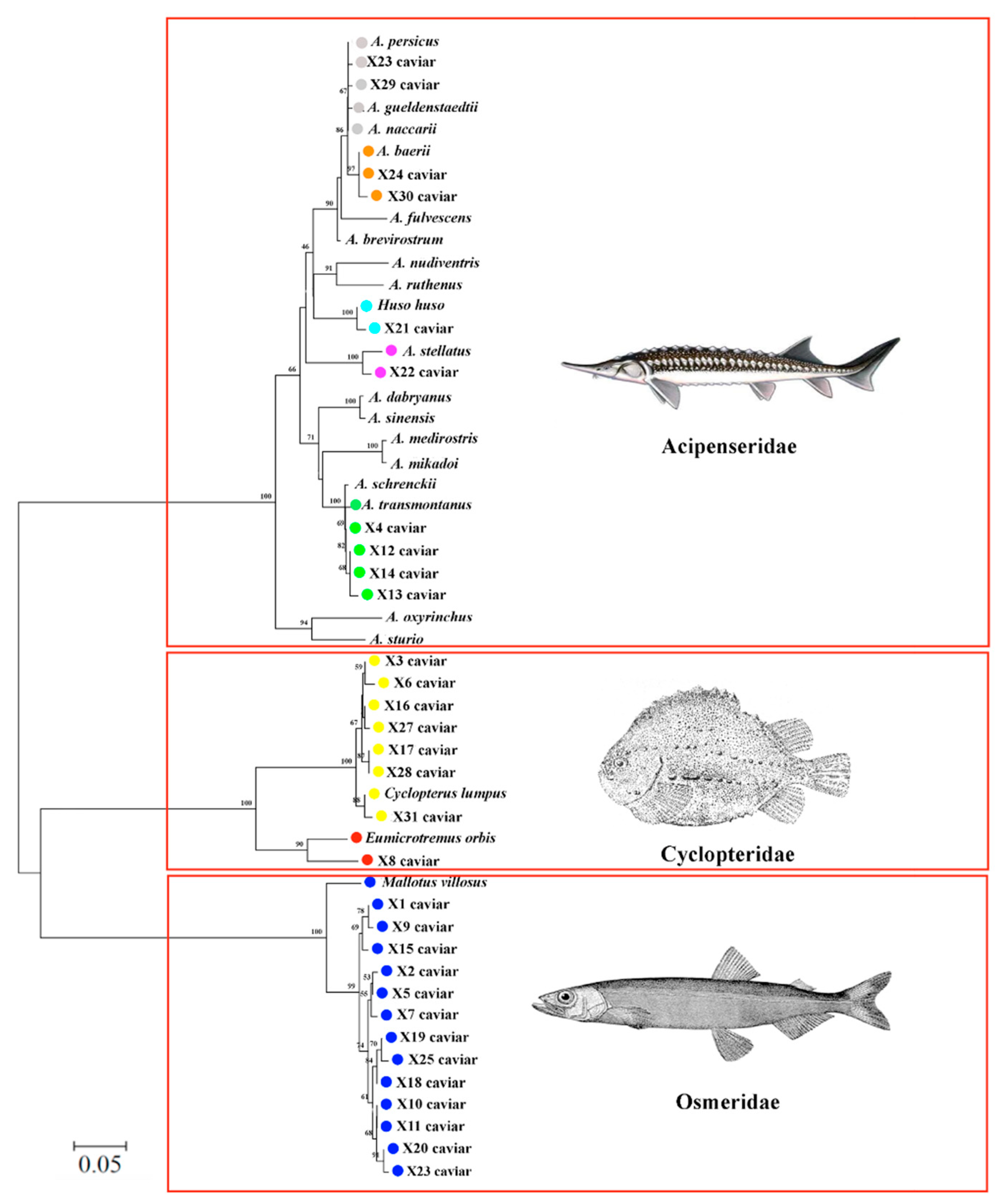

Figure 1. COI-neighbor-joining (CO-NJ) dendrogram showing the relationship of unknown sample sequences (X) to validated reference barcode sequences. The numbers above the nodes represent bootstrap analysis after 1000 replicates.
Figure 1. COI-neighbor-joining (CO-NJ) dendrogram showing the relationship of unknown sample sequences (X) to validated reference barcode sequences. The numbers above the nodes represent bootstrap analysis after 1000 replicates.
Molecules 24 02468 g001

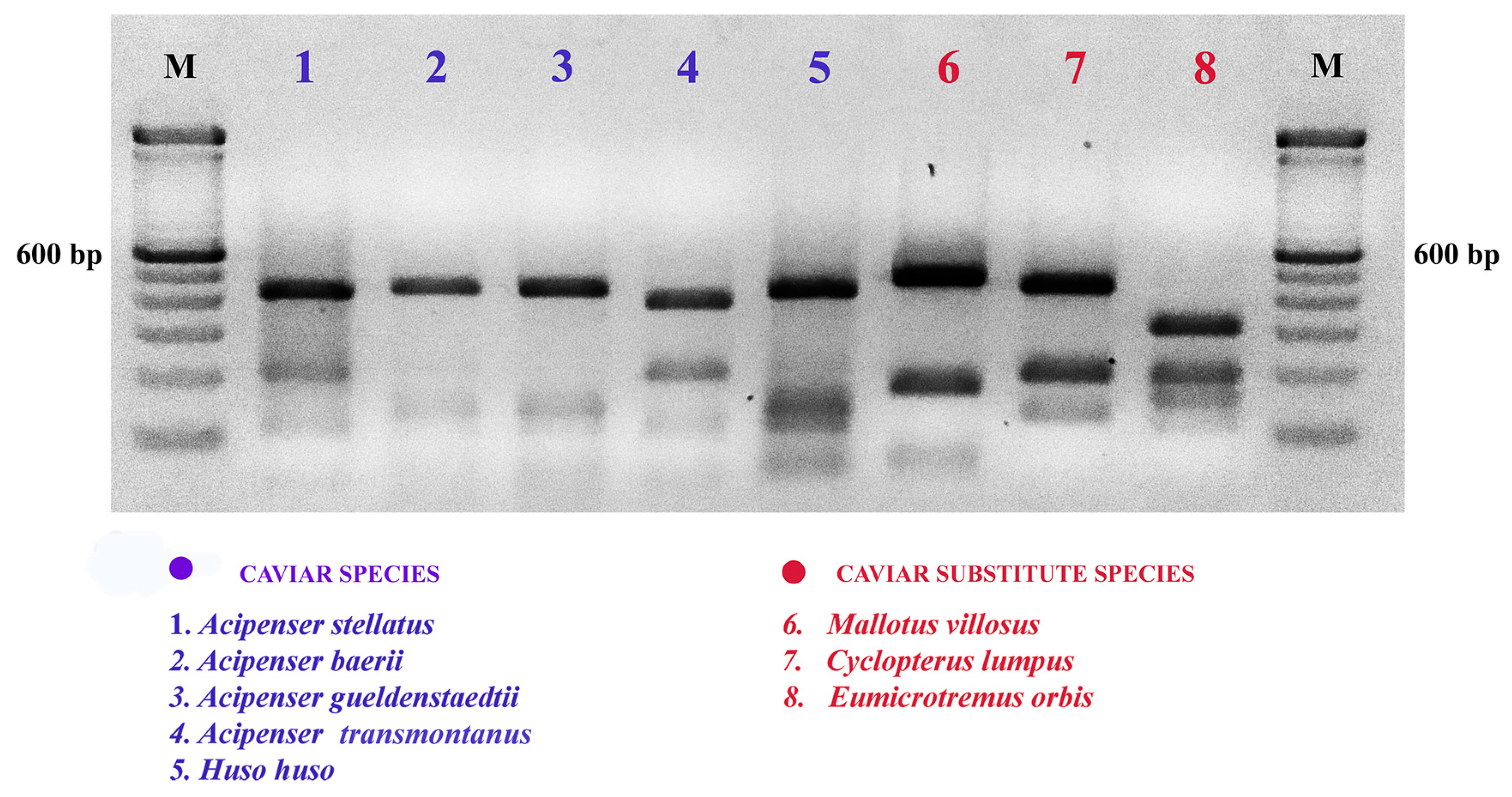

Figure 2. Example of COIBar-RFLP identification on a 3% agarose gel of caviar and substitute caviar species with restriction by MboI of the cytochrome c oxidase I gene. M = molecular weight marker (Trackit TM 100 bp DNA ladder, Invitrogen). All digestion experiments were conducted in triplicate.
Figure 2. Example of COIBar-RFLP identification on a 3% agarose gel of caviar and substitute caviar species with restriction by MboI of the cytochrome c oxidase I gene. M = molecular weight marker (Trackit TM 100 bp DNA ladder, Invitrogen). All digestion experiments were conducted in triplicate.
Molecules 24 02468 g002
Table 1. GenBank accession numbers of the reference caviar and substitute fish species COI sequences.
Table 1. GenBank accession numbers of the reference caviar and substitute fish species COI sequences.
SpeciesCommon NameGenBank Accession NumberReferences
Acipenser baeriiSiberian sturgeonKP833625Unpublished
Acipenser brevirostrumShortnose sturgeonEU523870Hubert et al. 2008
Acipenser dabryanusYangtze sturgeonKP218558Li et al. 2015
Acipenser fulvescensLake sturgeonEU524392Hubert et al. 2008
Acipenser gueldenstaedtiiRussian sturgeonJQ623904Unpublished
Acipenser medirostrisGreen sturgeonEU523879Hubert et al. 2008
Acipenser mikadoiSakhalin sturgeonNC031188Unpublished
Acipenser naccariiAdriatic sturgeonKJ552424Geiger et al. 2014
Acipenser nudiventrisShip sturgeonJQ 623905Unpublished
Acipenser oxyrinchusAtlantic sturgeonKX145066Unpublished
Acipenser persicusPersian sturgeonFJ809724Unpublished
Acipenser ruthensSterletHQ960576Unpublished
Acipenser schrenckiiAmur sturgeonKP218530Li et al. 2015
Acipenser sinensisChinese sturgeonKP218545Li et al. 2015
Acipenser stellatusStellate sturgeonKC500131Keskin & Atar 2013
Acipenser sturioCommon sturgeonKJ552406Geiger et al. 2014
Acipenser transmontanusWhite sturgeonEU523889Hubert et al. 2008
Huso husoBeluga sturgeonEHSI214-06 *Unpublished
Mallotus villosusCapelinHQ712650Macklenburg et al. 2011
Cyclopterus lumpusLumpfishMG421955Unpublished
Eumicrotremus orbisPacific spiny lumpsucker)JQ354090Unpublished
* BOLD SYSTEM sequence ID.
Table 2. Samples of caviar and caviar substitute included in this work. In bold mislabeled seafood products.
Table 2. Samples of caviar and caviar substitute included in this work. In bold mislabeled seafood products.
CodeProcessed Fish Productn° SampleDeclared SpeciesGenBank Access N°Species Matched by BLASTMatched Accession from BLAST% Identity
X1capelin3Mallotus villosusMK903699Mallotus villosusFJ20557999.70
X2capelin3Mallotus villosusMK903700Mallotus villosusFJ20557999.24
X3lumpfish3Cyclopterus lumpusMK903701Cyclopterus lumpusKJ20482699.85
X4white caviar3Acipenser transmontanusMK903717Acipenser transmontanusKX14503299.85
X5black capelin3Mallotus villosusMK903702Mallotus villosusFJ20557999.39
X6lumpfish3Cyclopterus lumpusMK903703Cyclopterus lumpusKJ20482699.54
X7capelin3Mallotus villosusMK903704Mallotus villosusFJ20557999.09
X8caviar3not specifiedMK903718Eumicrotremus orbisJQ35409096.91
X9caviar3not specifiedMK903705Mallotus villosusFJ20557999.55
X10red capelin3Mallotus villosusMK903706Mallotus villosusFJ20557999.09
X11black capelin3Mallotus villosusMK903706Mallotus villosusFJ20557999.09
X12white caviar3Acipenser transmontanusMK903719Acipenser transmontanusKX14503299.85
X13white caviar3Acipenser transmontanusMK903720Acipenser transmontanusKX14503299.54
X14white caviar3Acipenser transmontanusMK903719Acipenser transmontanusKX14503299.85
X15capelin3Mallotus villosusMK903707Mallotus villosusFJ20557998.94
X16lumpfish3Cyclopterus lumpusMK903708Cyclopterus lumpusKJ20482699.69
X17lumpfish3Cyclopterus lumpusMK903709Cyclopterus lumpusKJ20482699.38
X18red capelin 3Mallotus villosusMK903710Mallotus villosusFJ20558198.94
X19caviar3not specifiedMK903711Mallotus villosusFJ20558198.79
X20capelin3Mallotus villosusMK903712Mallotus villosusFJ20557998.79
X21beluga caviar2Huso husoMK903721Huso husoAY44235199.69
X22sevruga caviar2Acipenser stellatusMK903722Acipenser stellatusHQ96058599.08
X23oscietra caviar2Acipenser gueldenstaedtiiMK903723Acipenser gueldenstaedtiiKC50008899.85
X24baeri caviar3Acipenser baeriiMK903724Acipenser baeriiKM28642099.85
X25caviar3not specifiedMK903713Mallotus villosusFJ20558198.49
X26red capelin 3Mallotus villosusMK903714Mallotus villosusFJ20557998.64
X27lumpfish3Cyclopterus lumpusMK903715Cyclopterus lumpusKJ20482699.54
X28lumpfish3Cyclopterus lumpusMK903709Cyclopterus lumpusKJ20482699.38
X29oscietra caviar3Acipenser gueldenstaedtiiMK903725Acipenser gueldenstaedtiiKC50008899.85
X30baeri caviar3Acipenser baeriiMK903726Acipenser baeriiKM28642099.69
X31lumpfish3Cyclopterus lumpusMK903716Cyclopterus lumpusKJ20482699.38
