Article

A Redox-Switchable Colorimetric Probe for “Naked-Eye” Detection of Hypochlorous Acid and Glutathione

by
Qian Han
1,2,†,
Fang Zhou
1,†,
Yue Wang
1,
Huan Feng
1,
Qingtao Meng
1,*,
Zhiqiang Zhang
1,* and
Run Zhang
1,3,*
1
School of Chemical Engineering, University of Science and Technology Liaoning, Anshan, Liaoning 114051, China
2
School of Chemistry and Life Science, Anshan Normal University, Anshan 114007, China
3
Australian Institute for Bioengineering and Nanotechnology, The University of Queensland, Brisbane 4072, Australia
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work and they should be regarded as co-first authors.
Molecules 2019, 24(13), 2455; https://doi.org/10.3390/molecules24132455
Submission received: 30 May 2019 / Revised: 27 June 2019 / Accepted: 3 July 2019 / Published: 4 July 2019
(This article belongs to the Special Issue Probes for Detection, Sensing and Imaging)
Browse Figures
Versions Notes

Abstract

:
We report the development of a new colorimetric probe (L-ol) for investigations of the redox process regulated by hypochlorous acid (HOCl) and glutathione (GSH). The HOCl/GSH redox-switching cycle process was investigated in detail by UV-vis absorption spectroscopy, colorimetric analysis assay and high-resolution mass spectrometry (HRMS). The switchable absorbance responses were attributed to the HOCl-induced oxidation of the p-methoxyphenol unit to the benzoquinone derivative (L-one) and sequential reduction of L-one to hydroquinone (L-ol’) by GSH. In phosphate-buffered saline (PBS) buffer, the absorbance of L-ol at 619 nm underwent a remarkable bathochromic-shift, accompanied by a color change from pale yellow to blue in the presence of HOCl. With further addition of GSH, the absorbance of L-one exclusively recovered to the original level. Meanwhile, the blue-colored solution returned to the naive pale yellow color in the presence of GSH. The detection limits for HOCl and GSH were calculated to be 6.3 and 96 nM according to the IUPAC criteria. Furthermore, L-ol-loaded chromatography plates have been prepared and successfully applied to visualize and quantitatively analyze HOCl in several natural waters.

1. Introduction

The redox balance between reducing and oxidizing species is important in the regulation of a signal pathway in biosystems. The redox process is normally achieved by a series of elaborate mechanisms [1,2,3,4]. The reduction–oxidation state of the cell is primarily a consequence of the precise balance between the levels of reactive oxygen species (ROS) and antioxidant [5,6,7,8]. Among these ROS, hypochlorous acid (HOCl) is an endogenous microbicidal agent and a highly potent oxidant that is mainly generated by the catalysis of myeloperoxidase (MPO) in the presence of chloride and hydrogen peroxide under physiological conditions [9,10,11]. Owing to the strong oxidizing effect, HOCl could defend against the invasion of bacteria and regulate the life cycle of the cell [12]. Nevertheless, the excessive or misplaced production of HOCl in living systems may lead to extensive oxidative stress and oxidative damage, which can induce serious diseases such as arthritis, cardiovascular diseases, atherosclerosis, neuron degeneration, and cancer [13,14,15,16,17]. Glutathione (GSH) is the most abundant non-protein biothiol in mammalian cells, which was considered to be the main player in combating oxidative stress and regulating the redox environment of the internal cellular compartments [18,19,20,21,22,23]. Variations in GSH concentration have been linked to many pathological processes including cancer, aging, and diabetes [24,25,26,27]. It is reported that endogenous GSH was found to protect cells from the damage caused by HOCl [28]. Therefore, much effort has been focused on the development of effective detection methods for visualizing or monitoring the redox cycle between HOCl and GSH, which will be beneficial for fully understanding and treating numerous pathological diseases [29,30,31,32,33]. In comparison with other technologies, organic colorimetric probes are desirable for detecting various kinds of highly reactive species such as HOCl and GSH, owing to their high sensitivity, excellent selectivity, real-time analysis and in situ observation [34].
Although increasing amounts of molecular probes for HOCl and GSH detection have been reported, only few of them have been applied to monitor the redox changes mediated by HOCl and antioxidants, such as GSH, simultaneously [35,36,37,38]. In this work, a novel redox-switchable molecular probe, L-ol was designed and synthesized by introduction of p-methoxyphenol as a redox response unit. It is reported that p-methoxyphenol can be selectively oxidized to benzoquinone by HOCl [39,40,41,42,43]. After further treatment of the obtained p-benzoquinone (L-one) by glutathione (GSH) [44], a new reduced product of L-ol’ was obtained (Scheme 1). In addition, the redox process was accompanied by a visual pale yellow to blue to pale yellow color change, which is consistent with the UV−vis spectra. Furthermore, L-ol-based test plates have been successfully prepared for the visualization and quantitative analysis of HOCl in natural water.

2. Results and Discussion

2.1. Design, Synthesis and Characterization of the Molecular Probe

L-ol was synthesized by one-step condensation reaction between 1-ethyl-2-methylquinolinium iodide and 2-hydroxy-5-methoxy benzaldehyde in the presence of a catalytic amount of piperidine (2 drops) in methanol (Scheme 2). The chemical structure of L-ol was characterized by 1H NMR, 13C NMR and high-resolution mass spectrometry (HRMS) (Figure S1–3). Absorbance of L-ol in aqueous media (dimethylformamide (DMF):phosphate-buffered saline (PBS) = 7:3, 20 mM, pH = 7.4) was not changed within 24 h (Figure S4), indicating the high optical stability of L-ol under the test condition.
The HOCl/GSH regulated redox-switching process was first monitored by the HRMS. As shown in Figure S3, the peak at 306.1484 was obtained as the molecular ion peak of [L-ol]+ (calcd. 306.1489). Upon addition of HOCl into the aqueous solution of L-ol, the peak at m/z = 306.1484 disappeared and a new molecular ion peak emerged which can be assigned to p-benzoquinone derivative (L-one) at m/z = 290.1173 (Figure S5). After further treatment of the generated L-one with GSH, the appearance of the peak at m/z = 292.1328 indicated the generation of the reduced product of L-ol’ (Figure S6). The HRMS titration analysis confirmed the proposed redox-switchable behaviors of L-ol regulated by HOCl and GSH (Scheme 1).

2.2. Oxidation of L-ol by HOCl and UV-vis Spectra Studies

Upon addition of increasing amounts of HOCl, UV-vis absorption spectra of L-ol in PBS aqueous buffer (DMF:PBS = 7:3, 20 mM, pH = 7.4) were recorded. As shown in Figure 1, free L-ol exhibited strong absorption band centred at 366 nm and 435 nm (logε1 = 3.50). Upon the addition of HOCl, the two peaks decreased notably and an intense absorption band centred at 619 nm appeared (logε2 = 4.36). The new absorption was attributed to the oxidation of the p-methoxyphenol to the corresponding benzoquinone derivative (L-one) [45]. Absorbance at 619 nm became constant when the concentration of HOCl was >40 μM (Figure 1, inset (B)). Three clear isosbestic points were found to be at 378, 404 and 496 nm, which indicated the quantitative reaction of L-ol with HOCl. In agreement with the obvious bathochromic-shift changes for L-ol after introducing HOCl, the color of the L-ol solution changed from pale yellow to blue (Figure 1, inset (A)). Obvious color changes of the solution suggest that L-ol can serve as a potential “naked-eye” indicator for HOCl detection in water samples. In addition, the absorbance at 619 nm of L-ol exhibited a good linear relationship with the concentration of HOCl (2.5–25.0 μM) (Figure S7). According to the IUPAC criteria (LOD = 3σ/k), the detection limit (LOD) was calculated to be 6.3 nM.
It has been found that p-methoxyphenol was stable toward most other common ROS [46]. The selectivity of L-ol towards HOCl over other competitive ROS (1O2, ONOO–, •OH, H2O2), anions (Br–, AcO–, Cl–, F–, HSO3–, HSO4–, S2–, NO2–, NO3–, PO42–, SO32–, SO42–, HCO3–, OH–, Pi, PPi) and biothiols (Cys, Hcy and GSH) were investigated by UV-vis absorption spectra. The change in the absorption spectra was found to be specific towards HOCl. Significant changes in the absorption spectra were not observed upon addition of the aforementioned competitive species (Figure S8). In addition, addition of 1.0 equiv. of HOCl to the above solution led to the increase of absorbance, and the increased absorbance was similar to the one of the addition of 1.0 equiv. of HOCl alone to L-ol solution (Figure 2). These observations indicate that the HOCl-specific responses were not disturbed by competitive species.
The specificity of L-ol to HOCl was also confirmed by a “naked-eye” colorimetric assay. The color of L-ol solution specifically changed from pale yellow to blue with the titration of HOCl, while distinct color changes were not found upon addition of other biological species including ROS, anions and biomolecules (Figure 3). The results of colorimetric analysis suggest that L-ol can be employed as a specific probe for “naked-eye” discrimination of HOCl without any spectroscopic instrumentation.

2.3. Reduction of L-one by GSH and UV-vis Spectra Studies

The reduction process of the obtained L-one in the presence of GSH was also evaluated by recording the changes of the corresponding UV-Vis absorption spectra. After further treatment of L-one with GSH in phosphate buffer (20 mM, pH = 7.4), the absorption band at 619 nm was decreased gradually (logε3 = 3.24), accompanied with the increase of the absorption band at 435 nm (Figure 4). The final absorption spectrum is almost identical to the one of that of L-ol under identical conditions, suggesting that the hydroquinone (L-ol’) was quantitatively obtained in the presence of GSH. Furthermore, the solution of L-one recovered to be pale yellow color (Figure 4, inset). After the GSH reduction process, the recovery of the absorption spectra and the color of the solution can be easily observed by the naked eye. Corresponding changes in UV-vis absorbance of L-one are linearly proportional to the concentration of GSH in the range of 0–60 µM (Figure S9). The detection limit for GSH was calculated to be 96 nM according to the methods defined by IUPAC.
To further explore the reduction specificity of L-one to GSH in the presence of competitive species, the absorbance responses towards several amino acids, biothiols and anions, such as Leu, His, Val, Tyr, Gerl, Try, Phe, Leu, Thr, Lys, Gly, Pro, Ary, Gln, Asn, Asp, Ala, Met, Hcy, Cys, S2–, HSO4–, HSO3–, SO42–, SO32– and ascorbic acid (Vc) were investigated. As shown in Figure S10, the absorption peak of L-one centered at 619 nm remarkably decreased upon addition of GSH, while only a small decrease of the absorbance of L-one was observed upon addition of Met and Vc. An obvious decrease of the UV-vis absorption was not observed in the presence of other competitive species. In addition, the absorbance response of L-one towards GSH in the presence of other interfering species is nearly identical to that in the absence of these species (Figure 5). The results illustrated that L-one does have a specific response toward GSH over other common interfering species. The GSH-specific reduction process of L-one was also tested by colorimetric assay with a verity of competitive species. Upon addition of GSH, the solution color of L-one recovered to pale yellow from blue, while negligible color changes were found for the L-one solution in the presence of Met and Vc. The specific response of GSH over Met and Vc is attributed to the powerful reducibility of GSH [35]. Moreover, no obvious solution color changes were noticed upon addition of other competitive amino acids, biothiols and anions, further indicating that L-one was specifically reduced by GSH (Figure S11).
Reversible regulation of the redox-switching process was then examined by alternate addition of HOCl and GSH into the solution of L-ol in PBS aqueous buffer. As shown in Figure 6, the absorbance of L-ol gives rise to a switchable change at 619 nm. Such a reversible absorbance increase/decrease of L-ol could be repeated at least 6 times. Simultaneously, the redox process was accompanied by a visual pale yellow to blue to pale yellow color change cycle (Figure 6, inset), which is consistent with the absorbance response. The time-dependent redox cycle of L-ol regulated by HOCl/GSH was then investigated. As shown in Figure 7, upon the addition of HOCl, absorbance at 619 nm of L-ol was rapidly increased and reached the maximum value within 1 s, and then kept at a steady level. When another amount of HOCl was added, absorbance was increased rapidly again and reached another plateau rapidly. In addition, the reduction process of L-one towards GSH was also completed within 1 s. The results indicate that L-ol could be used to monitor the HOCl/GSH regulated redox-switching process in real-time.
The pH-dependent absorbance behavior of L-ol was also explored. As shown in Figure 8, in the absence of HOCl, L-ol emerges weak absorbance of 619 nm over the whole pH range investigated. In the assessment of pH responses of L-ol in the presence of HOCl, it was found that the absorbance of L-ol at 619 nm was pH independent in the range of 3.0–11.5. The results indicated that L-ol feature high tolerance in a wide pH range.

2.4. Application of L-ol-Loaded Chromatography Plates in the Quantitative Analysis of HOCl in Natural Water Samples

HOCl is widely used in our daily life, such as in the disinfection of drinking water. High concentrations of HOCl used in water treatments is a potential health threat to human and animal lives [47]. Therefore, it is of great significance to monitor the level of HOCl in environmental samples in real time. Accordingly, L-ol-coated chromatography plates were prepared for the “naked-eye” quantitative analysis of HOCl in several water samples. As shown in Figure 9, after being exposed to different concentrations of HOCl (0–0.5 mM) in distilled water, the L-ol-coated chromatography plates presented immediately a color change from pale yellow to blue under sunlight. Next, the performances of L-ol-coated test plates for the detection of HOCl in potential practical water samples, such as Qianshan Spring water, NONGFU SPRING water and Anshan tap water. It has been found that similar color changes were observed for the water samples containing various amounts of HOCl. Clearly, the test plates can detect HOCl in an aqueous solution at a low limit of about 0.01 mM, indicating the potential application for quantitative analysis of HOCl levels without any spectroscopic instrumentation.

3. Experimental

3.1. Reagents and Materials

1-Ethyl-2-methylquinolinium iodide was prepared according to our reported methods [48,49]. 2-Methylquinoline, iodoethane, 2-hydroxy-5-methoxy benzaldehyde were purchased from Aladdin reagent Co. (Shanghai, China). Anions (sodium salts), sodium hypochlorite (NaOCl), 3-morpholinosydnonimine (SIN-1) (ONOO− donor) were purchased from Alfa Aesar (Zhengzhou, China). The chromatography plates were purchased from commercial source with specifications of 25 cm × 75 cm2, 0.20–0.25 mm thickness. Unless otherwise stated, solvents and reagents were of analytical grade from commercial suppliers and were used without further purification. Deionized water was used throughout.

3.2. Apparatus

1H-NMR and 13C-NMR spectra were recorded with an AVANCE600MHZ spectrometer (Bruker, Fällanden, Switzerland) with chemical shifts reported as ppm (in DMSO, TMS as internal standard). High resolution mass spectra (HR MS) were recorded on an Agilent 6530 QTOF spectrometer (Singapore). Absorption spectra were measured with a Perkin Elmer Lambda 900 UV/VIS/NIR spectrophotometer (Perkin Elmer, Waltham, MA, USA). Quartz cuvettes with a 1 cm path length and 3 mL volume were involved in fluorescence and UV-vis spectrum measurements. The pH was recorded by OHAUS ST3100 digital pH-meter (Changzhou, China).

3.3. Synthesis and Characterization of L-ol

1-Ethyl-2-methylquinolinium iodide (0.299 g, 1 mmol) and 2-hydroxy-5-methoxy benzaldehyde (0.152 g, 1 mmol) were dissolved in moderate amounts of absolute methanol, respectively. The mixture was then refluxed at 80 oC for 8 h to form a dark green precipitate. The crude product was immediately filtered, and washed with cooled methanol to obtain L-ol in 73.4% yield. 1H NMR (DMSO-d6, 600 MHz), δ(ppm) 10.29 (s, 1H), 9.04 (d, J = 13.44 Hz, 1H), 8.54-8.59 (2H), 8.39 (t, J = 11.16 Hz, 1H), 8.25-8.29 (d, J = 23.64 Hz, 1H), 8.20 (t, J = 11.19 Hz, 1H), 7.95 (d, J = 8.4, 1H), 7.93 (t, J = 3.66 Hz, 1H), 7.46 (d, J = 4.26 Hz, 1H), 7.02 (d, J = 13.32 Hz, 1H), 6.94 (d, J = 13.32, 1H), 5.12 (q, J = 10.74 Hz, 2H), 3.79 (s, 3H),1.60 (t, J = 10.65 Hz, 3H). 13C NMR (DMSO-d6, 125 MHz), δ (ppm) 155.1, 152.9, 151.4, 143.1, 137.5, 134.4, 129.7, 126.3, 123.8, 121.2, 120.5, 119.8, 118.1, 117.3, 115.1, 112.7, 54.9, 46.0, 18.0, 13.1. HRMS-API (positive mode, m/z) for [L-ol]+: calcd 306.1489, found: 306.1484.

3.4. Preparation of Stock Solutions of Probes and Analyte

Stock solution of L-ol at the concentration of 0.5 mM was prepared by dissolving certain amounts of probes in DMF. For the detection of HOCl in buffer, the stock solution of L-ol was diluted into 20 mM PBS of pH 7.4 (DMF:H2O = 7:3, v/v) for all spectrometric measurements. For the absorption response of L-ol to HOCl and L-one to GSH, the spectra were recorded after mixing the analyte and probe for 5 min at room temperature. Solutions of a series of anions and biothiols (20 mM) were freshly prepared by dissolving corresponding chemicals in deionized water. The ROS species were prepared in deionized water according to previous literature [50,51,52,53]. A stock solution of HOCl was prepared by diluting the commercial NaOCl solution and stored. Hydroxylradical (·OH) was generated in the Fenton system from ferrous ammonium sulfate and hydrogen peroxide. Superoxide anion radical (O2−) was generated from the xanthine-xanthine oxidase system. Singlet oxygen (1O2) was generated from the Na2MoO4-H2O2 system in 0.05 M carbonate buffer of pH 10.5. ONOO− was obtained by using SIN-1 as a donor. Hydrogen peroxide (H2O2) was diluted immediately from a stabilized 30% solution, and was assayed using its molar absorption coefficient of 43.6 M−1 cm−1 at 240 nm.

3.5. “Naked-Eye” Analysis of HOCl in Natural Water Samples by L-ol-Based Chromatography Plates

The silica gel plates (25 × 75 mm) were immersed into 50 mL dichloromethane solution of L-ol (0.5 mM) for 10 min. Then, the L-ol-coated silica gel plates were dried in air for further measurements.
Water samples were from four different sources: distilled water (DW), tap water (TW) from Anshan City (Liaoning Province, China), commercial drinking water (CW) (NONGFU Spring, China) and spring water (SW) from the Qianshan Mountain (Liaoning Province, China). Different stock solutions of HOCl were prepared using the above water samples. For “naked-eye” analysis of HOCl in the above natural water samples, the L-ol-coated chromatography plates were immersed in the HOCl aqueous solution with different concentrations for several seconds then dried in air. Then, the color changes of L-ol-coated chromatography plates were recorded under visible light.

4. Conclusions

In summary, a novel p-methoxyphenol-based reversible colorimetric probe, L-ol, has been developed to selectively detect the HOCl/GSH redox cycle in aqueous solution. By the reversible redox reaction, L-ol exhibited a switchable absorbance response along with a pale yellow to blue to pale yellow color change cycle. The redox-switchable responses of L-ol in ROS/GSH couple with excellent reversibility. The desirable features of L-ol for the detection of HOCl in aqueous solutions, such as its high sensitivity and selectivity, observable color response and reliability at physiological pH enabled its application in the detection of HOCl in natural water samples. The easy-to-prepare L-ol-loaded chromatography plates have been successfully prepared. The preliminary investigations in natural water samples offer direct and immediate detection of HOCl in complex media in real time.

Supplementary Materials

The following are available online, Figure S1-3: NMR and HRMS characterizations of L-ol, Figure S4: The stability of L-ol, Figure S5,6: HRMS of L-ol sequential addition of HOCl and GSH, Figure S7: Linear relationship of L-ol with the concentration of HOCl. Figure S8: Absorption spectra of L-ol upon addition of various anions, Figure S9: Linear relationship of L-one with the concentration of GSH, Figure S10: UV-vis absorption spectra of L-one in the presence of various analytes, Figure S11: The color changes of L-one towards various competitive species.

Author Contributions

Q.M. and R.Z. conceived the ideas and designed the molecular probe wrote and revised the paper; Q.M, Z.Z. and R.Z analyzed the data, supervised the work; Q.H., F.Z., Y.W. and H.F. performed the experiments. Q.H. and F.Z. contributed equally to this work.

Funding

This research was funded by the Talent Program-Outstanding Youth Science Project, Liaoning (No. XLYC1807199), National Natural Science Foundation of China (No. 21601076), and the Australian Research Council (DE170100092).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fruehauf, J.P.; Meyskens, F.L. Reactive oxygen species: A breath of life or death? Clin. Cancer Res. 2007, 13, 789–794. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, B.; Li, P.; Yu, F.; Chen, J.; Qu, Z.; Han, K. A near-infrared reversible and ratiometric fluorescent probe based on Se-BODIPY for the redox cycle mediated by hypobromous acid and hydrogen sulfide in living cells. Chem. Commun. 2013, 49, 5790–5792. [Google Scholar] [CrossRef] [PubMed]
  3. Curtis, M.P.; Hicks, A.J.; Neidigh, J.W. Toxic effect of gestational exposure to nonylphenol on F1 male rats. Chem. Res. Toxicol. 2011, 24, 418–428. [Google Scholar] [CrossRef] [PubMed]
  4. Chiu, J.; Dawes, I.W. Redox control of cell proliferation. Trends Cell Biol. 2012, 22, 592–601. [Google Scholar] [CrossRef] [PubMed]
  5. Xu, K.; Chen, H.; Tian, J.; Ding, B.; Xie, Y.; Qiang, M.; Tang, B. A near-infrared reversible fluorescent probe for peroxynitrite and imaging of redox cycles in living cells. Chem. Commun. 2011, 47, 9468–9470. [Google Scholar] [CrossRef] [PubMed]
  6. Dooley, C.T.; Dore, T.M.; Hanson, G.T.; Jackson, W.C.; Remington, S.J.; Tsien, R.Y. Imaging dynamic redox changes in mammalian cells with green fluorescent protein indicators. J. Biol. Chem. 2004, 279, 22284–22293. [Google Scholar] [CrossRef] [PubMed]
  7. Winterbourn, C.C. Reconciling the chemistry and biology of reactive oxygen species. Nat. Chem. Biol. 2008, 4, 278–286. [Google Scholar] [CrossRef]
  8. Nordberg, J.; Arner, E. Reactive oxygen species, antioxidants, and the mammalian thioredoxin system. Free Radic. Biol. Med. 2001, 31, 1287–1312. [Google Scholar] [CrossRef]
  9. Feng, H.; Zhang, Z.Q.; Meng, Q.T.; Jia, H.M.; Wang, Y.; Zhang, R. Rapid Response Fluorescence Probe Enabled in vivo Diagnosis and Assessing Treatment Response of Hypochlorous Acid Mediated Rheumatoid Arthritis. Adv. Sci. 2018, 5, 1800397. [Google Scholar] [CrossRef]
  10. Zhu, H.; Fan, J.L.; Wang, J.Y.; Mu, H.Y.; Peng, X.J. An “Enhanced PET”-Based Fluorescent Probe with Ultrasensitivity for Imaging Basal and Elesclomol-Induced HClO in Cancer Cells. J. Am. Chem. Soc. 2014, 136, 12820–12823. [Google Scholar] [CrossRef]
  11. Prokopowicz, Z.M.; Arce, F.; Biedron, R.; Chiang, C.L.L.; Ciszek, M.D.; Katz, R.; Nowakowska, M.; Zapotoczny, S.; Marcinkiewicz, J.; Chain, B.M. Hypochlorous acid: A natural adjuvant that facilitates antigen processing, cross-priming, and the induction of adaptive immunity. J. Immunol. 2010, 184, 824–835. [Google Scholar] [CrossRef] [PubMed]
  12. Lv, J.; Wang, F.; Wei, T.; Chen, X. Highly Sensitive and Selective Fluorescent Probes for the Detection of HOCl/OCl− Based on Fluorescein Derivatives. Ind. Eng. Chem. Res. 2017, 56, 3757–3764. [Google Scholar] [CrossRef]
  13. Eugene, A.P.; Husam, M.A.; Stanley, L.H. Myeloperoxidase-generated oxidants and atherosclerosis. Biol. Med. 2000, 28, 1717–1725. [Google Scholar]
  14. Pattison, D.I.; Davies, M.J. Evidence for Rapid Inter- and Intramolecular Chlorine Transfer Reactions of Histamine and Carnosine Chloramines:  Implications for the Prevention of Hypochlorous-Acid-Mediated Damage. Biochemistry 2006, 45, 8152–8162. [Google Scholar] [CrossRef] [PubMed]
  15. Zheng, L.; Nukuna, B.; Brennan, M.L.; Sun, M.; Goormastic, M.; Settle, M.; Schmitt, D.; Fu, X.; Thomson, L.; Fox, P.L.; et al. Apolipoprotein A-I is a selective target for myeloperoxidase-catalyzed oxidation and functional impairment in subjects with cardiovascular disease. J. Clin. Investig. 2004, 114, 529–541. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Winterbourna, C.C.; Kettle, A. Biomarkers of myeloperoxidase-derived hypochlorous acid. J. Biol. Med. 2000, 29, 403–410. [Google Scholar] [CrossRef]
  17. Winter, J.; Ilbert, M.; Graf, P.C.F.; Ӧzcelik, D.; Jakob, U. The relationship between basic need satisfaction and emotional eating. Cell 2008, 135, 691–701. [Google Scholar] [CrossRef]
  18. Wang, C.; Ji, H.; Li, M.; Cai, L.; Wang, Z.; Li, Q.; Li, Z. A highly sensitive and selective fluorescent probe for hypochlorite in pure water with aggregation induced emission characteristics. Faraday Discuss. 2017, 196, 427–438. [Google Scholar] [CrossRef]
  19. Mari, M.; Morales, A.; Colell, A.; Garcia-Ruiz, C.; Kaplowitz, N.; Fernandez-Checa, J.C. Mitochondrial glutathione: Features, regulation and role in disease. Biochim. Biophys. Acta 2013, 1830, 3317–3328. [Google Scholar] [CrossRef] [Green Version]
  20. Soni, D.; Gangada, S.; Duvva, N.; Roy, T.K.; Nimesh, S.; Arya, G.; Giribabu, L.; Chitta, R. Hypochlorite-promoted inhibition of photo-induced electron transfer in phenothiazine–borondipyrromethene donor–acceptor dyad: A cost-effective and metal-free “turn-on” fluorescent chemosensor for hypochlorite. New J. Chem. 2017, 41, 5322–5333. [Google Scholar] [CrossRef]
  21. Mari, M.; Morales, A.; Colell, A.; Garcia-Ruiz, C.; Fernandez-Checa, J.C. Mitochondrial glutathione, a key survival antioxidant. Antioxid. Redox Signal. 2009, 11, 2685–2700. [Google Scholar] [CrossRef] [PubMed]
  22. Lou, Z.; Li, P.; Sun, X.; Yang, S.; Wang, B.; Han, K. A fluorescent probe for rapid detection of thiols and imaging of thiols reducing repair and H2O2 oxidative stress cycles in living cells. Chem. Commun. 2013, 49, 391–393. [Google Scholar] [CrossRef] [PubMed]
  23. Forman, H.J.; Zhang, H.; Rinna, A. Glutathione: Overview of its protective roles, measurement, and biosynthesis. Mol. Asp. Med. 2009, 30, 1–12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Jiang, X.; Yu, Y.; Chen, J.; Zhao, M.; Chen, H.; Song, X.; Matzuk, A.J.; Carroll, S.L.; Tan, X.; Sizovs, A.; et al. Quantitative Imaging of Glutathione in Live Cells Using a Reversible Reaction-Based Ratiometric Fluorescent Probe. ACS Chem. Biol. 2015, 10, 864–874. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Balaban, R.S.; Nemoto, S.; Finkel, T. Mitochondria, oxidants, and aging. Cell 2005, 120, 483–495. [Google Scholar] [CrossRef]
  26. Banerjee, R. Redox outside the box: Linking extracellular redox remodeling with intracellular redox metabolism. J. Biol. Chem. 2012, 287, 4397–4402. [Google Scholar] [CrossRef] [PubMed]
  27. Lomaestro, B.M.; Malone, M. Glutathione in health and disease: Pharmacotherapeutic issues. Ann. Pharmacother. 1995, 29, 1263–1273. [Google Scholar] [CrossRef]
  28. Zuo, Y.; Zhang, Y.; Dong, B.; Gou, Z.; Yang, T.; Lin, W. Binding Reaction Sites to Polysiloxanes: Unique Fluorescent Probe for Reversible Detection of ClO−/GSH Pair and the in situ Imaging in Live Cells and Zebrafish. Anal. Chem. 2019, 91, 1719–1723. [Google Scholar] [CrossRef]
  29. Lou, Z.; Li, P.; Han, K. Redox-Responsive Fluorescent Probes with Different Design Strategies. Acc. Chem. Res. 2015, 48, 1358–1368. [Google Scholar] [CrossRef]
  30. Lv, X.; Yuan, X.; Wang, Y.; Guo, W. A naphthalimide based fast and selective fluorescent probe for hypochlorous acid/hypochlorite and its application for bioimaging. New J. Chem. 2018, 42, 15105–15110. [Google Scholar] [CrossRef]
  31. Liu, S.-R.; Wu, S.-P. Hypochlorous Acid Turn-on Fluorescent Probe Based on Oxidation of Diphenyl Selenide. Org. Lett. 2013, 15, 878–881. [Google Scholar] [CrossRef] [PubMed]
  32. Manjare, S.T.; Kim, J.; Lee, Y.; Churchill, D.G. Facile meso-BODIPY Annulation and Selective Sensing of Hypochlorite in Water. Org. Lett. 2014, 16, 520–523. [Google Scholar] [CrossRef] [PubMed]
  33. Lou, Z.; Li, P.; Pan, Q.; Han, K. A reversible fluorescent probe for detecting hypochloric acid in living cells and animals: Utilizing a novel strategy for effectively modulating the fluorescence of selenide and selenoxide. Chem. Commun. 2013, 49, 2445–24472. [Google Scholar] [CrossRef] [PubMed]
  34. Liu, F.; Gao, Y.; Wang, J.; Sun, S. Reversible and selective luminescent determination of ClO–/H2S redox cycle in vitro and in vivo based on a ruthenium trisbipyridyl probe. Analyst 2014, 139, 3324–3329. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, B.; Yang, X.; Zhang, R.; Liu, Y.; Ren, X.; Xian, M.; Ye, Y.; Zhao, Y. Lysosomal-Targeted Two-Photon Fluorescent Probe to Sense Hypochlorous Acid in Live Cells. Anal. Chem. 2017, 89, 10384–10390. [Google Scholar] [CrossRef]
  36. Yu, F.; Li, P.; Wang, B.; Han, K. Reversible Near-Infrared Fluorescent Probe Introducing Tellurium to Mimetic Glutathione Peroxidase for Monitoring the Redox Cycles between Peroxynitrite and Glutathione in vivo. J. Am. Chem. Soc. 2013, 135, 7674–7680. [Google Scholar] [CrossRef]
  37. Zhang, W.; Liu, W.; Li, P.; Kang, J.; Wang, J.; Wang, H.; Tang, B. Reversible two-photon fluorescent probe for imaging of hypochlorous acid in live cells and in vivo. Chem. Commun. 2015, 51, 10150–10153. [Google Scholar] [CrossRef]
  38. Venkatesan, P.; Wu, S.-P. A turn-on fluorescent probe for hypochlorous acid based on the oxidation of diphenyl telluride. Analyst 2015, 140, 1349–1355. [Google Scholar] [CrossRef]
  39. Yue, Y.; Huo, F.; Yin, C.; Escobedoc, J.O.; Strongin, R.M. Recent progress in chromogenic and fluorogenic chemosensors for hypochlorous acid. Analyst 2016, 141, 1859–1873. [Google Scholar] [CrossRef] [Green Version]
  40. Sun, Z.-N.; Liu, F.-Q.; Chen, Y.; Tam, P.K.H.; Yang, D. A highly specific BODIPY-based fluorescent probe for the detection of hypochlorous acid. Org. Lett. 2008, 10, 2171–2174. [Google Scholar] [CrossRef]
  41. Kenmoku, S.; Urano, Y.; Kojima, H.; Nagano, T. Development of a highly specific rhodamine-based fluorescence probe for hypochlorous acid and its application to real-time imaging of phagocytosis. J. Am. Chem. Soc. 2007, 129, 7313–7329. [Google Scholar] [CrossRef] [PubMed]
  42. Hu, J.J.; Wong, N.-K.; Gu, Q.; Bai, X.; Ye, S.; Yang, D. HKOCl-2 Series of Green BODIPY-Based Fluorescent Probes for Hypochlorous Acid Detection and Imaging in Live Cells. Org. Lett. 2014, 16, 3544–3547. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, R.; Song, B.; Yuan, J. Bioanalytical methods for hypochlorous acid detection: Recent advances and challenges. Trends Anal. Chem. 2018, 99, 1–33. [Google Scholar] [CrossRef]
  44. McCord, J.M. Free radicals and inflammation: Protection of synovial fluid by superoxide dismutase. Science 1974, 185, 529–531. [Google Scholar] [CrossRef] [PubMed]
  45. Cui, K.; Zhang, D.; Zhang, G.; Zhu, D. A highly selective naked-eye probe for hypochlorite with the p-methoxyphenol-substituted aniline compound. Tetrahedron Lett. 2010, 51, 6052–6055. [Google Scholar] [CrossRef]
  46. Zhang, W.; Guo, C.; Liu, L.; Qin, J.; Yang, C. Naked-eye visible and fluorometric dual-signaling chemodosimeter for hypochlorous acid based on water-soluble p-methoxyphenol derivative. Org. Biomol. Chem. 2011, 9, 5560–5563. [Google Scholar] [CrossRef] [PubMed]
  47. Wang, Q.; Liu, C.; Chang, J.; Lu, Y.; He, S.; Zhao, L.; Zeng, X. Novel water soluble styrylquinolinium boronic acid as a ratiometric reagent for the rapid detection of hypochlorite ion. Dyes Pigments 2013, 99, 733–739. [Google Scholar] [CrossRef]
  48. Feng, H.; Meng, Q.T.; Wang, Y.; Duan, C.C.; Wang, C.P.; Jia, H.M.; Zhang, Z.Q.; Zhang, R. Responsive Fluorescence Probe for Selective and Sensitive Detection of Hypochlorous Acid in Live Cells and Animals. Chem. Asian J. 2018, 13, 2611–2618. [Google Scholar] [CrossRef] [PubMed]
  49. Zhou, F.; Sultanbawa, Y.; Feng, H.; Wang, Y.L.; Meng, Q.T.; Wang, Y.; Zhang, Z.Q.; Zhang, R. A New Red-emitting Fluorescence Probe for Rapid and Effective Visualisation of Bisulfite in Food Samples and Live Animals. J. Agric. Food Chem. 2019, 67, 4375–4383. [Google Scholar] [CrossRef]
  50. Zhang, R.; Ye, Z.; Wang, G.; Zhang, W.; Yuan, J. Development of a Ruthenium (II) Complex Based Luminescent Probe for Imaging Nitric Oxide Production in Living Cells. Chem. Eur. J. 2010, 16, 6884–6891. [Google Scholar] [CrossRef]
  51. Setsukinai, K.; Urano, Y.; Kakinuma, K.; Majima, H.J.; Nagano, T. Development of Novel Fluorescence Probes That Can Reliably Detect Reactive Oxygen Species and Distinguish Specific Species. J. Biol. Chem. 2003, 278, 3170–3175. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Xiao, Y.; Zhang, R.; Ye, Z.; Dai, Z.; An, H.; Yuan, J. Lanthanide complex-based luminescent probes for highly sensitive time-gated luminescence detection of hypochlorous acid. Anal. Chem. 2012, 84, 10785–10792. [Google Scholar] [CrossRef] [PubMed]
  53. Hu, J.J.; Wong, N.-K.; Ye, S.; Chen, X.; Lu, M.-Y.; Zhao, A.Q.; Guo, Y.; Ma, A.C.-H.; Leung, A.Y.-H.; Shen, J.; et al. Fluorescent Probe HKSOX-1 for Imaging and Detection of Endogenous Superoxide in Live Cells and in vivo. J. Am. Chem. Soc. 2015, 137, 6837–6843. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Molecular probe L-ol is not available from the authors.
Molecules 24 02455 sch001 550

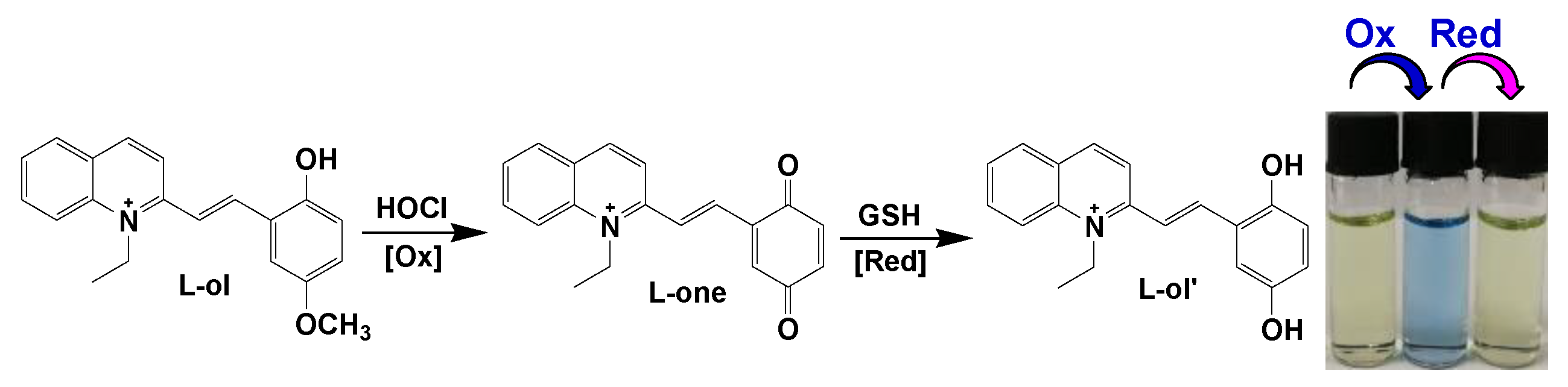

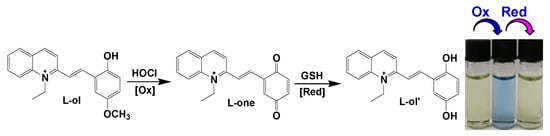

Scheme 1. The redox-switchable behaviors of L-ol regulated by hypochlorous acid (HOCl) and glutathione (GSH).
Scheme 1. The redox-switchable behaviors of L-ol regulated by hypochlorous acid (HOCl) and glutathione (GSH).
Molecules 24 02455 sch001
Molecules 24 02455 sch002 550

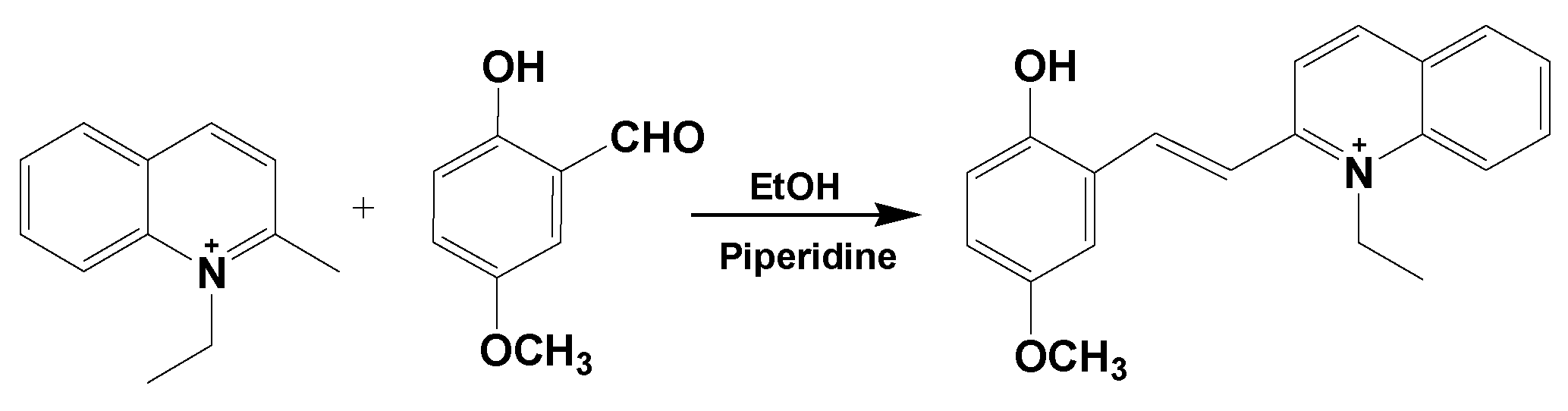

Scheme 2. Synthetic procedure of L-ol.
Scheme 2. Synthetic procedure of L-ol.
Molecules 24 02455 sch002
Molecules 24 02455 g001 550

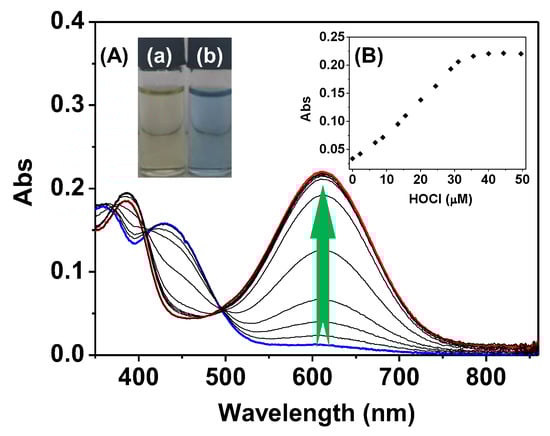

Figure 1. UV-vis absorption spectra of L-ol (10 μM) in the presence of different amounts of HOCl (0–50 μM) in phosphate-buffered saline (PBS) aqueous buffer (dimethylformamide (DMF):PBS = 7:3, 20 mM, pH = 7.4). Inset: A. Colorimetric changes of L-ol in the (a) absence and (b) presence of HOCl; B. Plot of the absorbance at 619 nm of L-ol against the concentration of HOCl.
Figure 1. UV-vis absorption spectra of L-ol (10 μM) in the presence of different amounts of HOCl (0–50 μM) in phosphate-buffered saline (PBS) aqueous buffer (dimethylformamide (DMF):PBS = 7:3, 20 mM, pH = 7.4). Inset: A. Colorimetric changes of L-ol in the (a) absence and (b) presence of HOCl; B. Plot of the absorbance at 619 nm of L-ol against the concentration of HOCl.
Molecules 24 02455 g001
Molecules 24 02455 g002 550

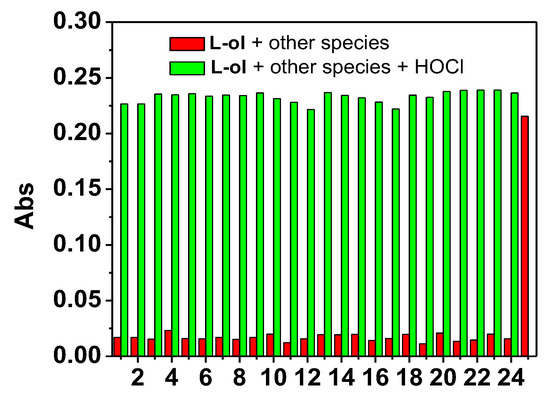

Figure 2. Absorption spectra responses of L-ol (10 μM) towards various competitive species (50 μM) in PBS aqueous buffer (DMF:PBS = 7:3, 20 mM, pH = 7.4). 1. Br–, 2. AcO–, 3. Cl–, 4. F–, 5. HSO3–, 6. HSO4–, 7. S2–, 8. NO2–, 9. NO3–, 10. OH–, 11. PO42–, 12. SO32–, 13. HCO3–, 14. Pi, 15. PPi, 16. HOCl, 17. 1O2, 18. ONOO–, 19. ·OH, 20. H2O2, 21. Cys, 22. Hcy, 23. GSH, 24. mixed competitive species, 25. HOCl.
Figure 2. Absorption spectra responses of L-ol (10 μM) towards various competitive species (50 μM) in PBS aqueous buffer (DMF:PBS = 7:3, 20 mM, pH = 7.4). 1. Br–, 2. AcO–, 3. Cl–, 4. F–, 5. HSO3–, 6. HSO4–, 7. S2–, 8. NO2–, 9. NO3–, 10. OH–, 11. PO42–, 12. SO32–, 13. HCO3–, 14. Pi, 15. PPi, 16. HOCl, 17. 1O2, 18. ONOO–, 19. ·OH, 20. H2O2, 21. Cys, 22. Hcy, 23. GSH, 24. mixed competitive species, 25. HOCl.
Molecules 24 02455 g002
Molecules 24 02455 g003 550

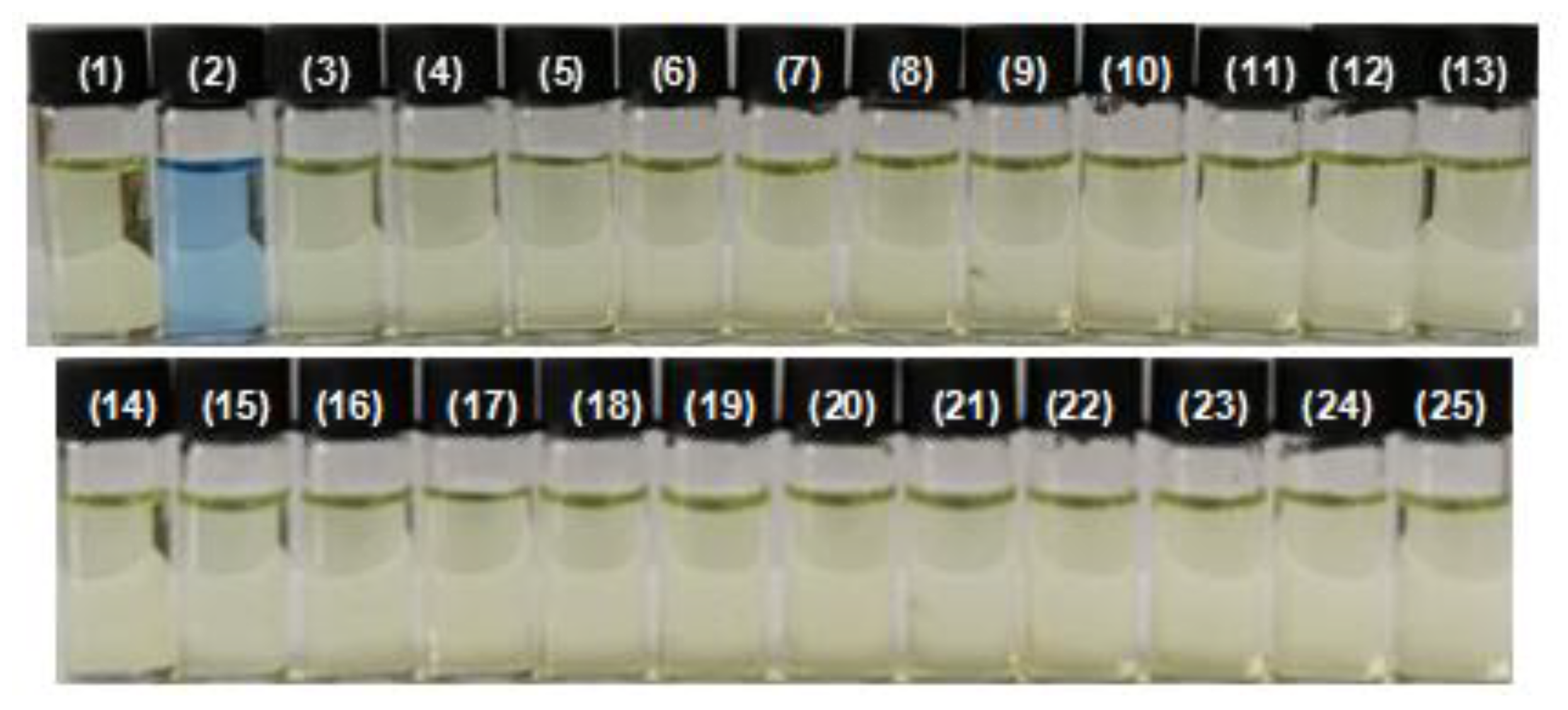

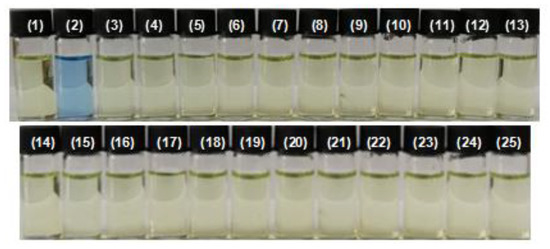

Figure 3. The color changes of L-ol (10 μM) towards various competitive species (50 μM) in PBS aqueous buffer (DMF:PBS = 7:3, 20 mM, pH = 7.4). 1. Free L-ol, 2. HOCl, 3. Br–, 4. AcO–, 5. Cl–, 6. F–, 7. HSO3–, 8. HSO4–, 9. S2–, 10. NO2–, 11. NO3–, 12. OH–, 13. PO42–, 14. SO32–, 15. HCO3–, 16. Pi, 17. PPi, 18. HOCl, 19. 1O2, 20. ONOO–, 21. ·OH, 22. H2O2, 23. Cys, 24. Hcy, 25. GSH.
Figure 3. The color changes of L-ol (10 μM) towards various competitive species (50 μM) in PBS aqueous buffer (DMF:PBS = 7:3, 20 mM, pH = 7.4). 1. Free L-ol, 2. HOCl, 3. Br–, 4. AcO–, 5. Cl–, 6. F–, 7. HSO3–, 8. HSO4–, 9. S2–, 10. NO2–, 11. NO3–, 12. OH–, 13. PO42–, 14. SO32–, 15. HCO3–, 16. Pi, 17. PPi, 18. HOCl, 19. 1O2, 20. ONOO–, 21. ·OH, 22. H2O2, 23. Cys, 24. Hcy, 25. GSH.
Molecules 24 02455 g003
Molecules 24 02455 g004 550

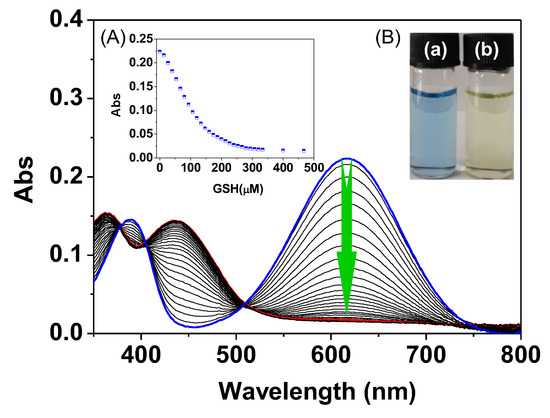

Figure 4. UV-vis absorption spectra of L-one (10 μM) in the presence of different amounts of GSH (0–500 μM) in PBS aqueous buffer (DMF:PBS = 7:3, 20 mM, pH = 7.4). Inset: (A) Plot of the absorbance at 617 nm of L-one against the concentration of GSH; (B) Colorimetric changes of L-one in the (a) absence and (b) presence of GSH.
Figure 4. UV-vis absorption spectra of L-one (10 μM) in the presence of different amounts of GSH (0–500 μM) in PBS aqueous buffer (DMF:PBS = 7:3, 20 mM, pH = 7.4). Inset: (A) Plot of the absorbance at 617 nm of L-one against the concentration of GSH; (B) Colorimetric changes of L-one in the (a) absence and (b) presence of GSH.
Molecules 24 02455 g004
Molecules 24 02455 g005 550

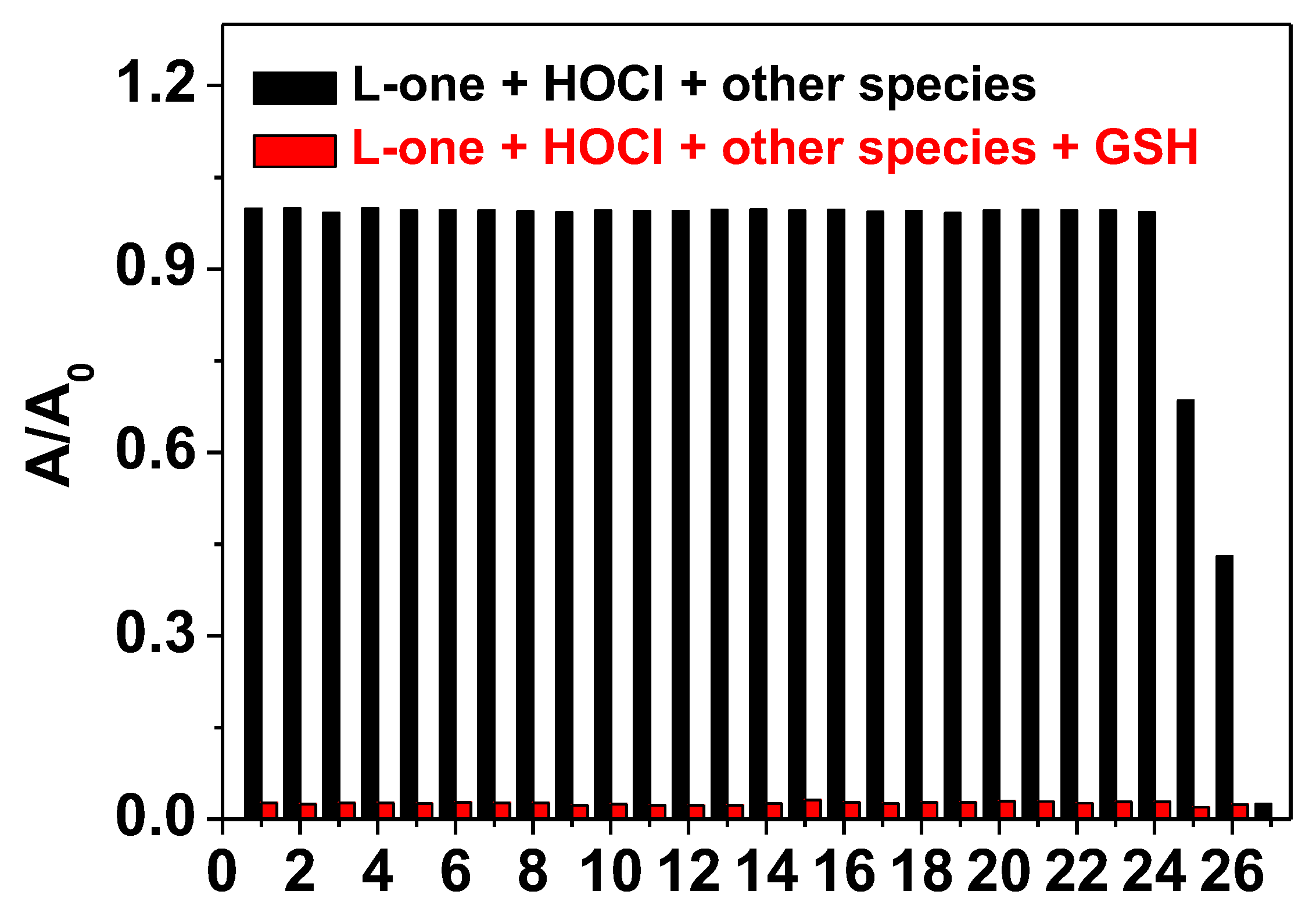

Figure 5. UV-vis absorption spectra of L-one (10 μM) in the presence of various analytes (500 μM) in PBS aqueous buffer (DMF:PBS = 7:3, 20 mM, pH = 7.4): 1. Leu, 2. His, 3. Val, 4. Tyr, 5. Gerl, 6. Try, 7. Phe, 8. Leu, 9. Thr, 10. Lys, 11. Gly, 12. Pro, 13. Ary, 14. Gln, 15. Asn, 16. Asp, 17. Ala, 18. Hcy, 19. Cys, 20. S2–, 21. HSO4–, 22. HSO3–, 23. SO42–, 24. SO32–, 25. Met, 26, Vc, 27. GSH.
Figure 5. UV-vis absorption spectra of L-one (10 μM) in the presence of various analytes (500 μM) in PBS aqueous buffer (DMF:PBS = 7:3, 20 mM, pH = 7.4): 1. Leu, 2. His, 3. Val, 4. Tyr, 5. Gerl, 6. Try, 7. Phe, 8. Leu, 9. Thr, 10. Lys, 11. Gly, 12. Pro, 13. Ary, 14. Gln, 15. Asn, 16. Asp, 17. Ala, 18. Hcy, 19. Cys, 20. S2–, 21. HSO4–, 22. HSO3–, 23. SO42–, 24. SO32–, 25. Met, 26, Vc, 27. GSH.
Molecules 24 02455 g005
Molecules 24 02455 g006 550

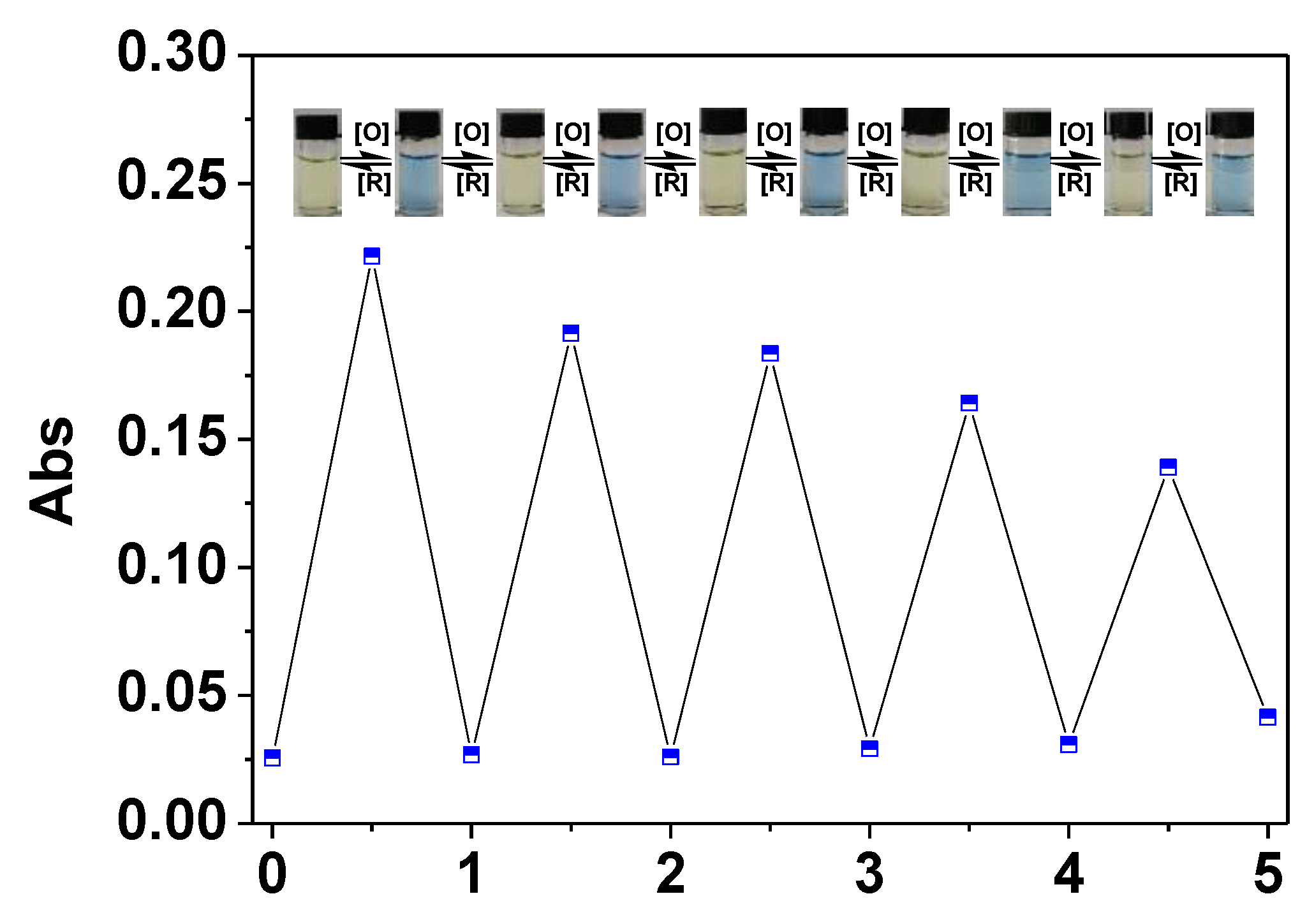

Figure 6. UV-vis absorption spectra changes at 619 nm of L-ol (10 μM) in PBS aqueous buffer (DMF:PBS = 7:3, 20 mM, pH = 7.4) upon the alternate addition of HOCl/GSH with several concentration ratios (0:0, 20:0, 20:50, 40:50, 40:100, 60:100, 80:100, 80:150, 100:150, 120:150 and 120:200 μM, respectively). [O], oxidation; [R], reduction.
Figure 6. UV-vis absorption spectra changes at 619 nm of L-ol (10 μM) in PBS aqueous buffer (DMF:PBS = 7:3, 20 mM, pH = 7.4) upon the alternate addition of HOCl/GSH with several concentration ratios (0:0, 20:0, 20:50, 40:50, 40:100, 60:100, 80:100, 80:150, 100:150, 120:150 and 120:200 μM, respectively). [O], oxidation; [R], reduction.
Molecules 24 02455 g006
Molecules 24 02455 g007 550

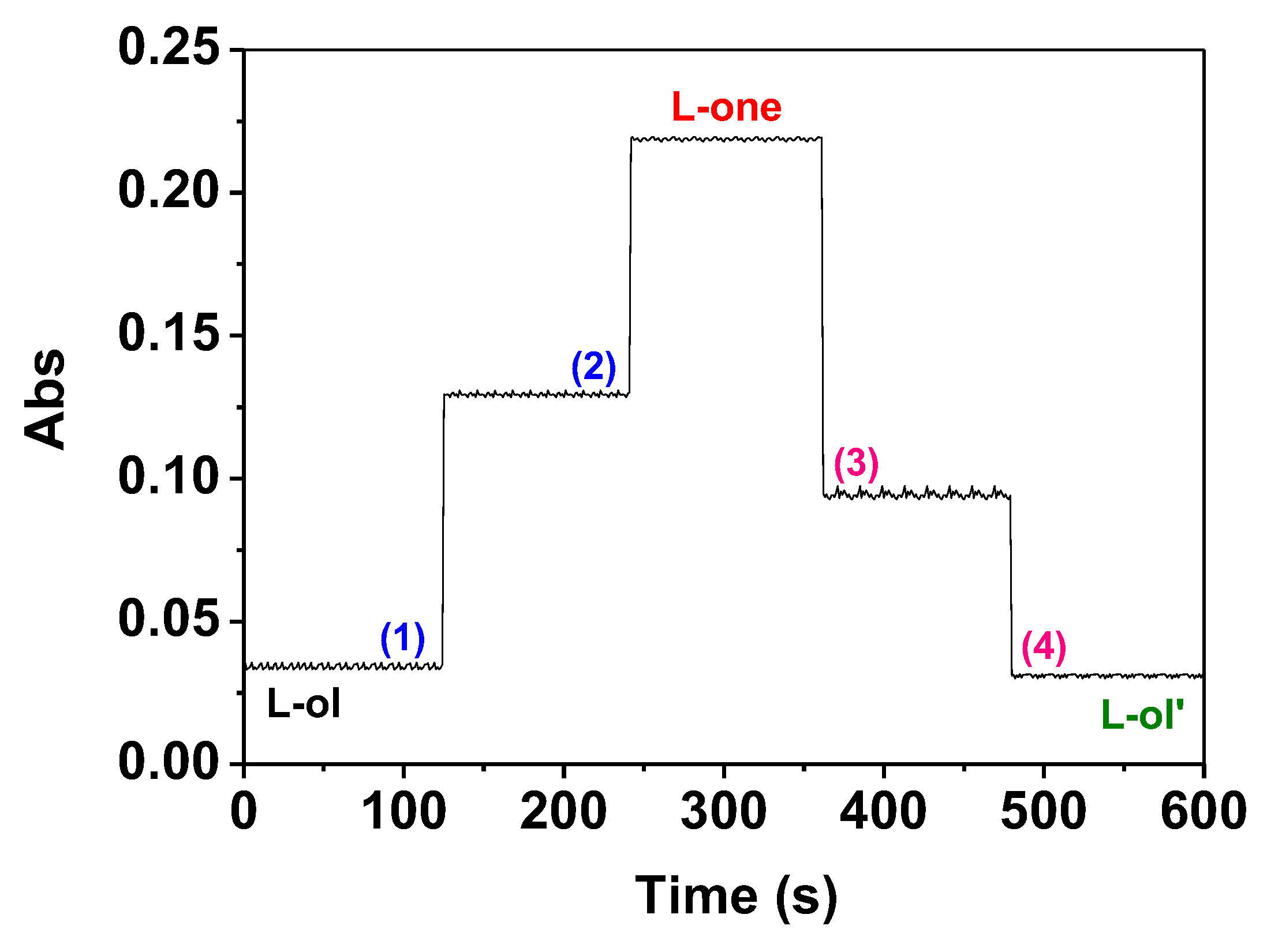

Figure 7. Time course UV-vis absorption response of L-ol (10 μM) to (1) 20 μM, (2) 50 μM HOCl, and in-situ formed L-one to (3) 100 μM (4) 500 μM GSH in PBS aqueous buffer (DMSO: H2O = 9:1, 20 mM, pH = 7.4).
Figure 7. Time course UV-vis absorption response of L-ol (10 μM) to (1) 20 μM, (2) 50 μM HOCl, and in-situ formed L-one to (3) 100 μM (4) 500 μM GSH in PBS aqueous buffer (DMSO: H2O = 9:1, 20 mM, pH = 7.4).
Molecules 24 02455 g007
Molecules 24 02455 g008 550

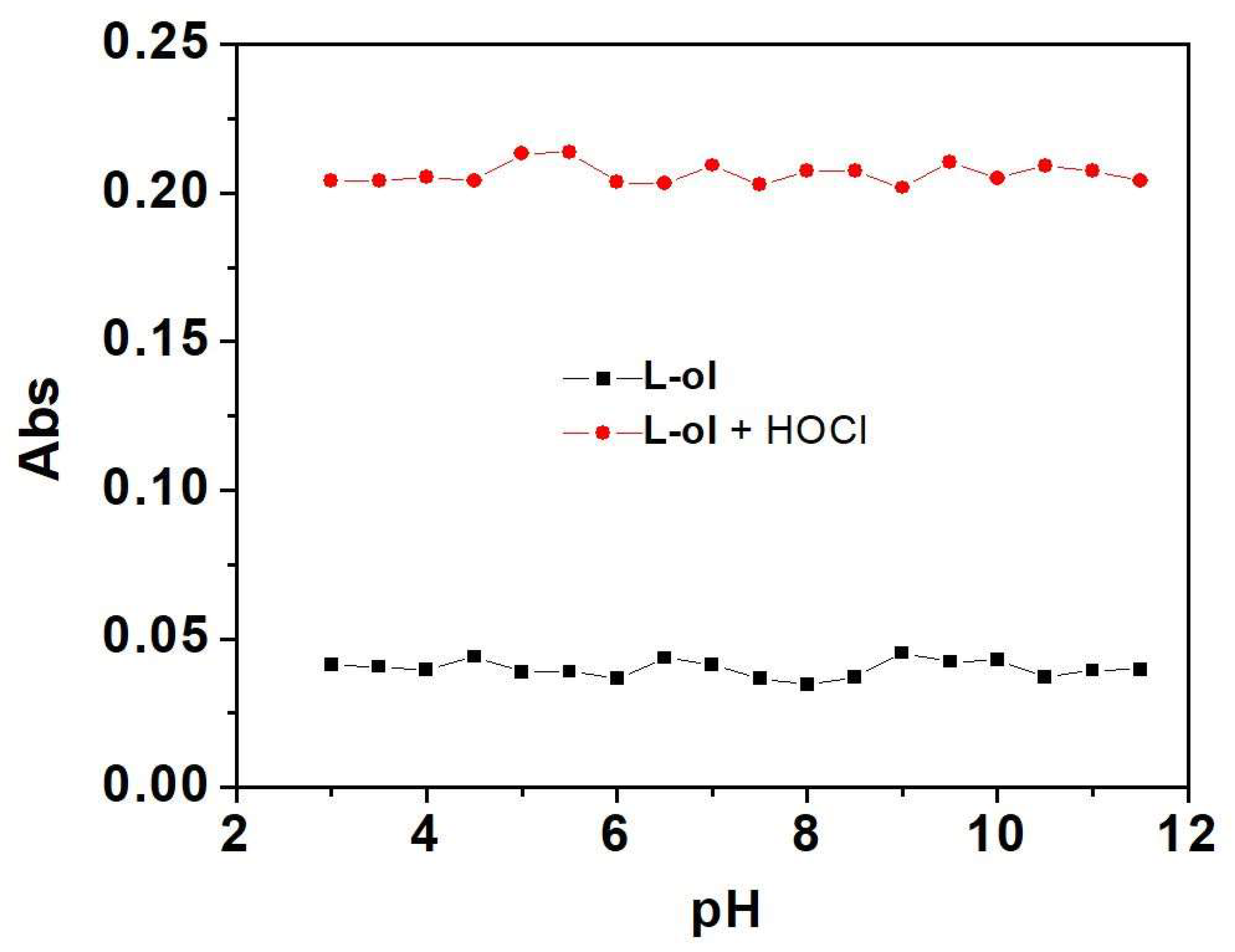

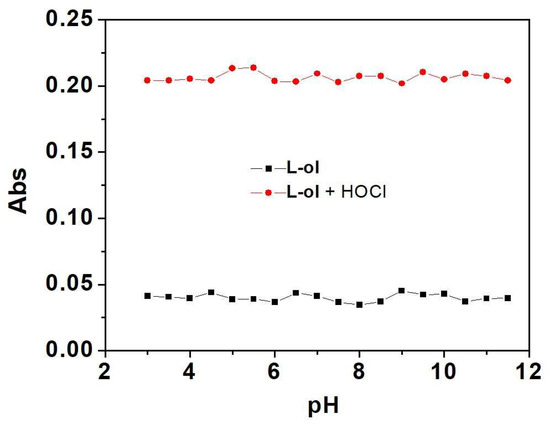

Figure 8. Effect of pH on the absorbance of L-ol (10 μM) at 619 nm in the absence and presence of HOCl (50 μM).
Figure 8. Effect of pH on the absorbance of L-ol (10 μM) at 619 nm in the absence and presence of HOCl (50 μM).
Molecules 24 02455 g008
Molecules 24 02455 g009 550

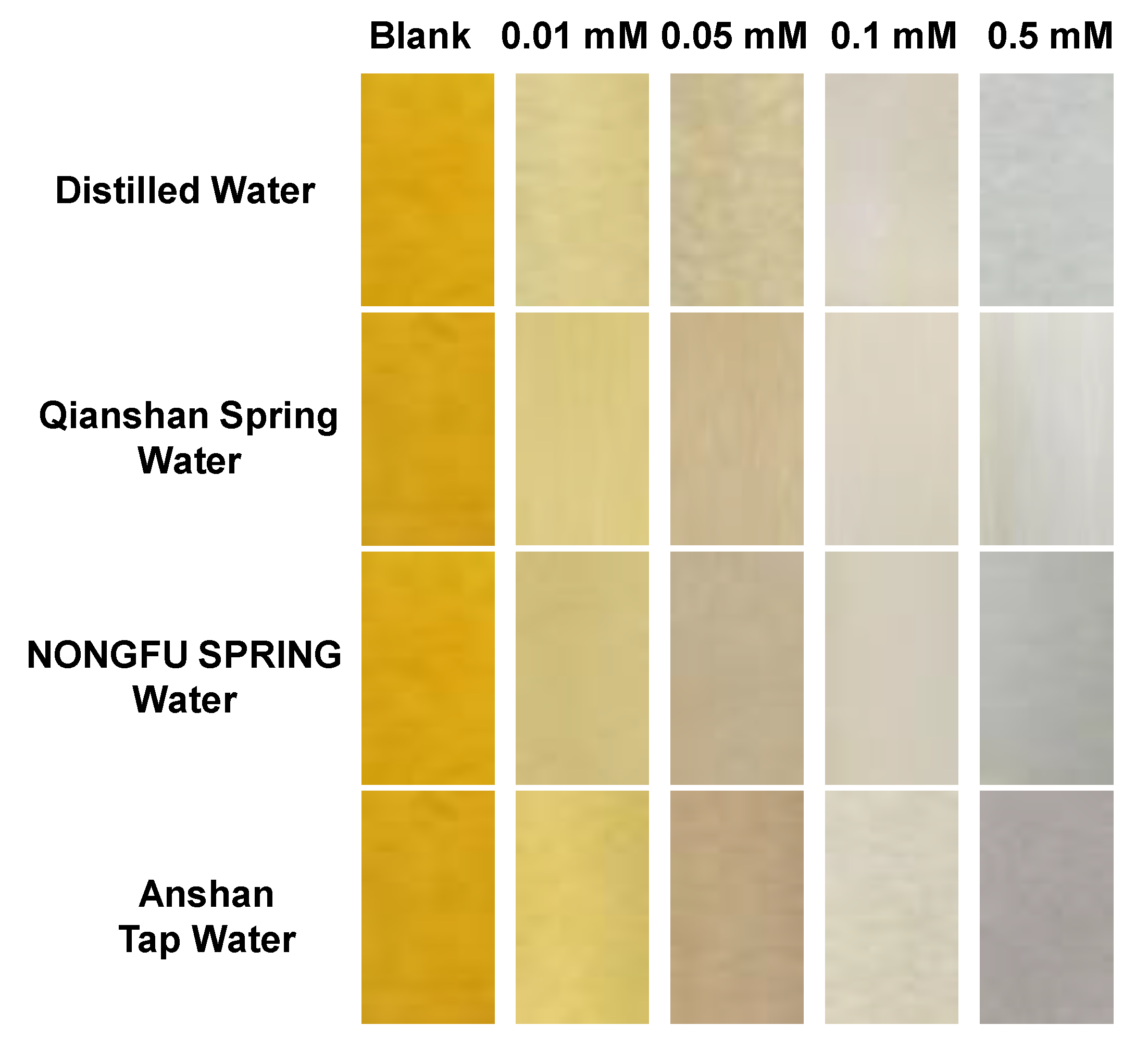

Figure 9. Color responses of L-ol-coated chromatography plates towards different concentrations of HOCl (0–0.5 mM) in several natural water samples.
