Fine-Tuning the Activation Mode of an 1,3-Indandione-Based Ruthenium(II)-Cymene Half-Sandwich Complex by Variation of Its Leaving Group

by
Stephan Mokesch
1,
Daniela Schwarz
1,
Michaela Hejl
1,
Matthias H. M. Klose
1,
Alexander Roller
1,
Michael A. Jakupec
1,2,
Wolfgang Kandioller
1,2,* and
Bernhard K. Keppler
1,2
1
Institute of Inorganic Chemistry, Faculty of Chemistry, University of Vienna, Waehringer Straße 42, A-1090 Vienna, Austria
2
Research Cluster “Translational Cancer Therapy Research”, University of Vienna, Waehringer Straße 42, A-1090 Vienna, Austria
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(13), 2373; https://doi.org/10.3390/molecules24132373
Submission received: 30 May 2019 / Revised: 21 June 2019 / Accepted: 22 June 2019 / Published: 27 June 2019
(This article belongs to the Special Issue Medicinal Importance of Ruthenium Compounds)

Abstract

:
Fine-tuning of the properties of a recently reported 1,3-indandione-based organoruthenium complex is attempted to optimize the stability under physiological conditions. Previous work has shown its capacity of inhibiting topoisomerase IIα; however, fast aquation leads to undesired reactions and ligand cleavage in the blood stream before the tumor tissue is reached. Exchange of the chlorido ligand for six different N-donor ligands resulted in new analogs that were stable at pH 7.4 and 8.5. Only a lowered pH level, as encountered in the extracellular space of the tumor tissue, was capable of aquating the complexes. The 50% inhibitory concentration (IC50) values in three human cancer cell lines differed only slightly, and their dependence on the utilized leaving group was smaller than what would be expected from their differences in cellular accumulation, but in accordance with the very minor variation revealed in measurements of the complexes’ lipophilicity.

1. Introduction

In 1976, the ruthenium complex fac-[Ru(NH3)3Cl3] was reported to cause filamentous growth of E. coli, indicative of an inhibitory effect on cell division; however, poor aqueous solubility hindered further advances [1]. A major step toward clinical use of ruthenium-based metallodrugs is the development of NAMI-A and IT-139 (NKP-1339, Figure 1), two octahedral RuIII complexes which are thought to be activated by reduction to the more reactive RuII species in the hypoxic tumor milieu [2]. IT-139 is on the verge of phase II clinical trials, whereas the clinical development of NAMI-A has been terminated [3].
Besides RuIII complexes, the class of organometallic RuII compounds has shown promising results with novel modes of action compared to clinically established platinum drugs, depending on the attached ligand systems. These so-called piano-stool complexes consist of a facially coordinated arene (e.g., cym = η6-p-cymene) and the remaining three coordination sites are in most cases occupied by one bidentate and one labile monodentate ligand. Under proper conditions, the monodentate leaving group is substituted by a water molecule, yielding the biologically active species. The best-known complexes of this compound class are RAPTA-C and RM175 [4,5]. RM175 is a half-sandwich complex where biphenyl (bip) is the facially bound arene, ethylenediamine is the N,N-chelating ligand, and the last valence is occupied by a chlorido ligand (see Figure 1). This positively charged complex can interact with DNA both in a hydrophobic manner (by the bip moiety) and by covalent binding to guanine residues. However, there is no clear indication as of yet whether RM175 exhibits selectivity for tumor cells over normal cells [6]. A new trend is the exploitation of possible synergistic effects and increased cytotoxic activity by synthesizing complexes of chelating agents that have biological activity on their own, e.g., derivatives of naphthoquinones [7], flavonoids [8], indoloquinolines [9], or thiomaltol (see Figure 1) [10,11]. Naphthoquinones, for example, are able to generate reactive oxygen species via redox-cycling [12]. 1,3-Indandion-2-carboxamides, on the other hand, have interesting topoisomerase-inhibiting properties [13,14].
However, the major drawback for many organoruthenium complexes is the insufficient stability under physiological conditions, preventing these active complexes from reaching the tumor tissue. Experiments in our working group showed rapid aquation, especially for complexes bearing an O,O-coordination motif, which would lead to premature reaction with biomolecules in the blood stream.
Substitution of the chlorido leaving group by different N-donors might be a possible solution and provides many advantages. Heterocyclic N-donor ligands bind stronger to this type of organometallics and are, therefore, less easily replaced by water. Along with this increased stability, the aqueous solubility, the lipophilicity, and the cell permeability can be increased [11,15,16]. Additionally, this approach might enable pH-dependent activation in the hypoxic tumor tissue. The selectivity of antitumor organometallics with chlorido leaving groups hinges on the difference in chloride concentration [17]. However, within the tumor tissue, a lower extracellular pH level is usually encountered [18]. By carefully considering this fact, we chose N-donors which can be protonated and subsequently cleaved off at this lowered pH level, leading to the formation of the more reactive aqua complexes, ready to interact with biological binding partners, i.e., proteins or DNA [11]. Half-sandwich ruthenium azole complexes have been synthesized by numerous working groups in the past. Vock et al. proposed a combination of the activity of Sadler’s [Ru(cym)(en)Cl] complex (en = ethylenediamine) with that of NAMI-A [19]. Apart from the ruthenium field, N-donors have been used in the synthesis of iron-based [20], osmium-based [21], and platinum-based antitumor compounds [22]. Choosing pyridine as a N-donor adds the possibility of light activation, as utilized in photoactivated chemotherapy (PACT) [23,24]. Another approach is the exchange of the labile leaving group by trichlorogermyl, which also resulted in an increased stability and cytotoxicity [25].
In our previous work, we have shown that organometallic 1,3-indanones exhibit promising antiproliferative properties and the capacity of inhibiting topoisomerase IIα, a key enzyme in all major DNA functions [26]. In this study, we modified the most promising candidate and substituted the chlorido leaving group with different N-donors. The aim was to increase the stability as well as the solubility. Additionally, a structure–activity relationship study with regard to the impact of the different leaving groups on cytotoxicity and cellular accumulation was attempted.

2. Results and Discussion

2.1. Synthesis and Characterization

A series of organometallics was synthesized, in accordance with Scheme 1, starting from the previously reported complex [(chlorido)(1,3-dioxo-κO1-1H-inden-2(3H)-ylidene)(benzylamino)methanolato-κO2)](η6-p-cymene) ruthenium(II) (complex 1a) [26]. After dissolving in THF, the chlorido ligand was abstracted by an equimolar amount of AgNO3. The appropriate N-donor molecules (i.e., N-methylimidazole (MeImid) (complex 1b), pyrazole (HPz) (complex 1c), indazole (HInd) (complex 1e), pyridine (Pyr) (complex 1f), and morpholine (Morph) (complex 1g) were added, followed by addition of NaPF6. Racemic mixtures of the organometallics were obtained in good yields by removal of sodium chloride and precipitation from DCM/Et2O. In contrast, the benzimidazole (BIm) complex (complex 1d) was synthesized via a different route. The ligand L1 2-((benzylamino)(hydroxy)methylene)-1H-indene-1,3(2H)-dione [26] was deprotonated by NaOMe and precursor [(dichlorido)(κN1-benzimidazole)(η6-p-cymene)] ruthenium(II) [19] was added. The complex was again precipitated in moderate yield upon treatment with NaPF6. Formation and purity of the complexes was confirmed by elemental analysis, 1D/2D-NMR measurements, and ESI-MS. Furthermore, the solubility in a minimal essential medium (MEM; 1% DMSO) and the decomposition point of complexes 1b–1g were determined.
1H and 13C-NMR measurements clearly confirmed the successful replacement of the chlorido ligand by the respective N-donor, due to small shifts of the coordinated heterocycle and the facially coordinated p-cymene ring. As observed for the chlorido complex (complex 1a), the methylene protons of the benzyl group were diastereotopic for complexes 1b–g leading to two separate signals with geminal couplings of about 15 Hz. In addition, four diastereotopic signals of the p-cymene ring protons and two partially overlapping doublets of the isopropyl group were recorded, which can be explained by the presence of a chiral metal center. The same behavior was found in 13C experiments where six distinct signals for the carbon atoms of the p-cymene ring and the two peaks for the isopropyl methyl groups were recorded.
Single crystals of complexes 1b–1f suitable for X-ray diffraction analysis were obtained by slow diffusion method and the solid state structures of three examples are presented in Figure 2. It has to be mentioned that suitable crystals of complexes 1c, 1e, and 1f could only be obtained by exchanging the hexafluorophosphate with triflate. Crystallographic parameters, CCDC numbers and the other two crystal structures are given in the supporting information (Chart S1 and Tables S1–S11, Supplementary Materials). The most important bond lengths and angles are listed in Table 1 and compared to the chlorido analogue (complex 1a). For instance, the distance of the chlorido ligand to the ruthenium center, as well as the distance to the respective N-atom, is in good accordance with similar organoruthenium compounds [11].
In chlorido complex (complex 1a), the bond length of the coordinated keto-function (1.267 Å) is longer than that of the other one (1.222 Å), as is expected. However, the higher electron density of the ruthenium center, due to the lower electronegativity of the N-donors, as opposed to the chlorido ligand, leads to more similar keto bond lengths. The distance of the metal center to the stabilizing aromatic ring is slightly shorter in complex 1a than for complexes 1b–1f.

2.2. Lipophilicity

It stands to reason that the higher the lipophilicity, the higher the cell accumulation; as far as passive diffusion is concerned, the higher efficiency with which normal cell function is compromised. As a consequence, lipophilicity is an important factor in drug development, described by the partition coefficient logP, which is routinely determined by the distribution of a compound in 1-octanol/water. However, 1-octanol, a solvent said to closely mimic the solubilizing behavior of cell membranes, forms emulsions with water [27]. Additionally, the shake-flask method, seemingly easy, requires long sample preparation, has a low sample throughput, and lacks reproducibility, as it hinges on exact temperature control and consistent equilibration time allotted for every analyte. The time-consuming nature of this method may also lead to decomposition of the analyte. A concentration-, flow rate-, and column length-independent method is the determination of the capacity factor (k) via HPLC. The capacity factor is a measure for the equilibrium concentration between a polar phase (eluent) and an apolar phase (C18 column coating) and higher resemblance to the partition coefficient in water was found (1-octanol will be achieved if the eluent is 100% water). Extrapolation to this theoretical setup results in the highly comparable factor logkw. The percentage of methanol in the eluent at which logk is equal to zero is Φ0 [27,28,29].
Both parameters (logkw and Φ0) were determined for complexes 1a–g (shown in Scheme 1) (see Table 2). A minimum of R2 = 0.998 was obtained for every capacity factor. The most hydrophilic compound was the morpholine complex 1g (logkw = 5.14 and Φ0 = 59.73) and the most lipophilic one was complex 1e (HInd, logkw = 5.94 and Φ0 = 68.88). In aqueous systems, the chlorido complex 1a hydrolyzed quickly to the more reactive aqua complex. Therefore, the determined lipophilicity of complex 1a (logkw = 5.41 and Φ0 = 63.19) can be attributed to the aquated species and was situated between these limits (see respective tables in Supplementary Materials, Tables S12 and S13).
In general, it can be seen that the lipophilicity-determining factors are the O,O-chelating ligand and the facial arene, as all compounds behaved quite similarly. Due to the small numeric differences in the measured lipophilicity factors, complexes 1a–1c and 1f exhibited a different lipophilic ranking, depending on whether logkw or Φ0 was the observed variable. It is noteworthy that said lipophilicities varied within 20% and 30% of the entire measured range for all seven compounds.

2.3. pH-Dependent Stability

The stability under physiological conditions is a vital part of the process of developing a new drug. Additionally, N-donor leaving groups equip piano-stool complexes with an elegant pH-switch. Theoretically, they can be protonated at lower pH values, as found in the extracellular matrix of the tumor tissue, and are therefore cleaved off. The resulting aqua complex is highly reactive and able to interact with biological targets. To put this theory to the test, the stability of complexes 1a–g was investigated at different pH values, i.e., 5.5, 6.5, 7.4, and 8.5. Spectra were recorded over a period of 24 h, with 40 µM solutions (1% DMSO in water) in the range of 250–700 nm. The chosen pH values represented the physiologically relevant conditions; a pH value of 8.5 is the highest pH found in the human body (in the duodenum), a pH value of 7.4 is the average pH of human blood, and a pH value of 6.5 is the pH found in the extracellular matrix of solid tumors [30].
All compounds proved to be stable at pH 7.4 (blood pH, Figure S2, Supplementary Materials) and pH 8.5 (duodenal pH, Figure S1, Supplementary Materials). Only complexes 1d (BIm) and 1e (HInd) precipitated to some extent at pH 7.4 (loss of absorbance without change in spectrum, Figure S3, Supplementary Materials). At pH 6.5 (tumor pH, Figure S4, Supplementary Materials), all compounds remained stable for 24 h as well. At pH 5.5, all test compounds lost their N-donor ligand within the first hour and the active aqua complex analogous to complex 1a was released, confirming our approach. Since the leaving groups of complexes 1b–g were fully cleaved off at pH 5.5, the organometallics should be able to reach the tumor environment intact, where only a minor amount was first activated. However; the aqua complex was readily removed by reaction with biological nucleophiles and therefore the equilibrium was shifted towards the aquation of complexes 1b–g.
Since the pH value of the stock solution is lowered with acetic acid, not the aqua species was observed, but rather a labile acetato complex. As can be seen in Figure S5 (Supplementary Materials), it exhibits a drastically different absorption spectrum and therefore functions as an unambiguous indicator for drug activation. The acetato ligand is a hard ligand and is not favored by the soft RuII center ion. At pH 8.5, no acetato adduct was detected, even after addition of 10 eq NaOAc, allowing for the conclusion that only if the stable N-donor has been protonated and has cleaved off, the acetato complex can form.
Furthermore, spectra were recorded in solutions with and without chloride ions (see Figure 3 for the spectra of pyridine complex 1f). Since the investigated organometallics behaved in the same manner in both conditions, it is obvious that their method of action is chloride-independent as opposed to platinum compounds.

2.4. Light Activation of Complex 1f

Photoactivated chemotherapy (PACT) is an up-and-coming area of research. The idea is that transition metal complexes undergo ligand dissociation (once they have accumulated within the tumor tissue) by light irradiation [24]. Ligand systems based on the pyridine motif are especially suited for this purpose. Therefore, pyridine complex 1f was investigated for its potential to be activated upon light irradiation. The observed peak at 278 nm slowly decreased and peaks at 264, 273, and 321 nm increased. After 75 min, no more change was observed, signifying the completion of the reaction. Two well-separated isosbestic points were observed at 276 and 306 nm, indicating a well-defined hydrolysis reaction (see Figure 4). Apart from complex 1f, no other compound showed any leaving group cleavage upon irradiation.

2.5. Biological Activity and Cellular Accumulation Studies

The antiproliferative activity of the complexes was studied in four human cancer cell lines in vitro. In each cell line, differences between the cytotoxic potencies of the compounds are rather small (Table 3). In the more sensitive cell lines SW480 and CH1/PA-1, differences are slightly more pronounced, with 50% inhibitory concentration (IC50) values ranging from 6 to 17 μM in the former and from 8 to 16 μM in the latter. Overall, the IC50 values are markedly lower than those of compounds with different 1,3-dioxoindan-2-carboxamide derivatives as the chelating ligand, which have been previously investigated alongside with the chlorido complex 1a that acts as the basis for this N-donor variation study [26]. While complex 1a is among the complexes with the least pronounced antiproliferative effects here, increases in activity brought about by the N-donor ligands never exceeded a factor of 2 in terms of IC50 value. Due to the small differences, there is no evident correlation between lipophilicity and antiproliferative activity (Figure S14, Supplementary Materials).
Ruthenium accumulation was measured by means of inductively coupled plasma mass spectrometry (ICP-MS) upon 2 h exposure of SW480 cells to 50 µM of each compound. Given the fact that differences in cytotoxicity are not pronounced, it is rather remarkable that cellular accumulation is quite different (Table 3). The benzimidazole complex 1d yielded the highest cellular ruthenium values (>400 fg/cell), while that of the chlorido analog 1a is almost fiftyfold lower (<10 fg/cell). Generally, all N-donor complexes were accumulated to a higher extent (at least eight times) than the latter. Thus, the 2 h endpoint measurements suggested that azole complexes require higher cellular uptake than the chlorido analog for a comparable effect. Results for the six azole complexes differed only by factors of up to six among each other, with complexes having IC50 values of <10 µM in SW480 cells (complexes 1d, 1f, and 1g) showing higher accumulation than those with IC50 values of >10 µM (complexes 1b, 1c, and 1e).

3. Materials and Methods

3.1. Materials

All solvents were purchased from commercial sources and distilled prior to use. 1-Methylimidazole (99%, Sigma-Aldrich, Vienna, Austria), pyrazole (98%, Sigma-Aldrich, Vienna, Austria), benzimidazole (≥98%, Sigma-Aldrich, Vienna, Austria), indazole (≥98%, Polivalent95, Chisinau, Moldavia), pyridine (>99%, Fisher Scientific, Vienna, Austria), morpholine (≥99.5%, Aldrich, Vienna, Austria), silver nitrate (≥99.5%, Aldrich, Vienna, Austria), and sodium hexafluorophosphate (95.5%, Fisher Scientific, Vienna, Austria) were purchased and used without further purification. 2-((Benzylamino)(hydroxy)methylene)-1H-indene-1,3(2H)-dione, [(Chlorido)(1,3-dioxo-κO1-1H-inden-2(3H)-ylidene)(benzylamino)methanolato-κO2)](η6-p-cymene)ruthenium(II) [26] (complex 1a), and [(dichlorido)(κN1-Benzimidazole)(η6-p-cymene)] ruthenium(II) [19] were synthesized as described elsewhere.
Melting points were determined with a Büchi Melting Point M-560. The solubility was determined by dissolving the compound in DMSO and subsequent dilution to a final concentration of 1% DMSO/MEM solution (minimal essential medium) and 1% DMSO/MSP solution (medium with serum proteins). The highest concentrated dilution, where no precipitation of the compound occurred, was the determined solubility. The NMR spectra were recorded at 25 °C using a Bruker FT-NMR spectrometer Avance IIITM 500 MHz. 1H-NMR spectra were measured at 500.10 MHz and 13C-NMR spectra were recorded at 125.75 MHz in deuterated methanol (CD3OD). 2D-NMR spectra were measured using a gradient-enhanced mode. CHN elemental analyses were performed with a Eurovector EA3000 Elemental Analyzer in the microanalytical laboratory of the University of Vienna. Single crystals of complexes 1b–1f suitable for X-ray diffraction analysis were grown by precipitation from DCM/Et2O at 4 °C. The X-ray intensity data were measured on Bruker D8 Venture or X8 APEX II diffractometer equipped with multilayer monochromators, Mo K/α INCOATEC microfocus sealed tubes and Kryoflex cooling devices (Bruker, Karlsruhe, Germany). The structures were solved by direct methods and refined by full-matrix least-squares techniques. Non-hydrogen atoms were refined with anisotropic displacement parameters. Hydrogen atoms were inserted at calculated positions and refined with a riding model separately as rotating groups. The following software was used: Bruker SAINT software package using a narrow-frame algorithm for frame integration, SADABS [33] for absorption correction, OLEX2 [34] for structure solution, refinement, molecular diagrams and graphical user-interface, Shelxle [35] for refinement and graphical user-interface, SHELXS-2013 [36] for structure solution, SHELXL-2013 [37] for refinement, and Platon [38] for symmetry check. Electronspray ionization mass spectra were recorded on a Bruker AmaZon SL ion trap mass spectrometer (Bruker Daltonics GmbH, Hamburg, Germany).

3.2. General Ligand Exchange Procedure

A solution of complex 1a (1 eq) and silver nitrate (1.4 eq) were suspended in THF and stirred for 2 h at room temperature under an argon atmosphere. Then, the appropriate N-donor (1.2 eq) was added and the mixture was stirred for further 2 h under the same conditions followed by addition of sodium hexafluorophosphate (1.3 eq). After another 2 h under the same conditions, the THF was removed and the residue remained in DCM. After a filtration step, the solution was concentrated and precipitated from DCM/Et2O.

3.3. Synthesis of Complexes 1b–g

[(κN2-N-Methylimidazole)(1,3-dioxo-κO1-1H-inden-2(3H)-ylidene)(benzylamino)methanolato-κO2)](η6-p-cymene)ruthenium(II) hexafluorophosphate (complex 1b)
The synthesis was performed according to the general procedure for ligand exchange, using complex 1a (110 mg, 200 µmol), silver nitrate (48 mg, 280 µmol), N-methylimidazole (20 µL, 240 µmol), and sodium hexafluorophosphate (42 mg, 260 µmol), yielding yellow crystals (120 mg, 81%). m.p.: >187 °C (decomp.), solubility: 0.30 mg/mL = 0.40 mM (MEM, 1% DMSO); 1H-NMR (500.10 MHz, MeOD) δ: 1.29 (d, 3J(H,H) = 7 Hz, 3H, CH3-f), 1.31 (d, 3J(H,H) = 7 Hz, 3H, CH3-f), 2.13 (s, 3H, CH3-g), 2.71–2.76 (m, 1H, He), 3.65 (s, 3H, H10′), 4.61 (d, 2J(H,H) = 15 Hz, H, H2′), 4.76 (d, 2J(H,H) = 15 Hz, H, H2′), 5.58–5.63 (m, 2H, Hb), 5.74–5.81 (m, 2H, Hc), 6.67 (s, 1H, H7′), 7.07 (s, 1H, H8′), 7.32–7.46 (m, 5H, H4′, H5′, H6′), 7.48–7.63 (m, 5H, H4, H5, H6, H7, H9′), 9.10 (t, 3J(H,H) = 6 Hz, 1H, NH); 13C-NMR (125.75 MHz, MeOD) δ: 17.7 (CH3-g), 22.3 and 22.6 (2CH3-f), 32.0 (Ce), 34.9 (C10′), 44.4 (C2′), 82.3 and 82.5 (Cb), 84.5 and 84.7 (Cc), 98.5 (C2), 99.2 (Cd), 103.5 (Ca), 121.8 (C4, C7), 123.7 (C8′), 128.4 (C5, C6), 128.5 (C4′, C6′), 129.8 (C7′), 130.0 (C5′), 134.1 (C9′), 136.7 (C7a), 138.4 (C3a), 140.5 (C3′), 167.0 (C1′), 192.3 (C3), 193.6 (C1); m/z 596.148, mth: 596.149; elemental analysis calcd. for C31H32F6N3O3PRu·0.5H2O: C, 49.67; H, 4.44; N, 5.61%; found: C, 49.66; H, 4.24; N, 5.76%.
[(κN2-1H-Pyrazole)(1,3-dioxo-κO1-1H-inden-2(3H)-ylidene)(benzylamino)methanolato-κO2)](η6-p-cymene)ruthenium(II) hexafluorophosphate (complex 1c)
The synthesis was performed according to the general procedure for ligand exchange, using complex 1a (110 mg, 200 µmol), silver nitrate (48 mg, 280 µmol), pyrazole (16 mg, 240 µmol), and sodium hexafluorophosphate (42 mg, 260 µmol), yielding yellow crystals (102 mg, 70%). m.p.: >137 °C (decomp.), solubility: 0.28 mg/mL = 0.39 mM (MEM, 1% DMSO); 1H-NMR (500.10 MHz, MeOD) δ: 1.22 (d, 3J(H,H) = 7 Hz, 3H, CH3-f), 1.27 (d, 3J(H,H) = 7 Hz, 3H, CH3-f), 2.06 (s, 3H, CH3-g), 2.61–2.69 (m, 1H, He), 4.69 (d, 2J(H,H) = 15 Hz, H, H2′), 4.73 (d, 2J(H,H) = 15 Hz, H, H2′), 5.60–5.67 (m, 2H, Hb), 5.80–5.86 (m, 2H, Hc), 6.37 (s, 1H, H8′), 7.17 (s, 1H, H9′), 7.32–7.68 (m, 9H, H4, H5, H6, H7, H4′, H5′, H6′), 7.83 (s, 1H, H7′), 7.98–8.00 (m, 1H, NH-HPz), 9.09 (t, 3J(H,H) = 6 Hz, 1H, NH), 13C-NMR (125.75 MHz, MeOD) δ: 17.9 (CH3-g), 22.4 and 22.5 (2CH3-f), 32.1 (Ce), 44.4 (C2′), 81.4 and 81.6 (Cb), 85.4 (Cc), 98.4 (C2), 100.7 (Cd), 103.7 (Ca), 108.3 (C8′), 121.9 and 122.1 (C4, C7), 128.3 (C5, C6), 128.5 (C4′, C6′), 129.8 (C5′), 134.5 (C7′), 136.5 (C7a), 138.4 (C3a), 140.3 (C3′), 143.0 (C9′), 166.8 (C1′), 192.2 (C3), 193.5 (C1); m/z 582.133, mth: 582.132; elemental analysis calcd. for C30H30F6N3O3PRu: C, 49.59; H, 4.16; N, 5.78%; found: C, 49.36; H, 3.99; N, 5.76%.
[(κN2-Benzimidazole)(1,3-dioxo-κO1-1H-inden-2(3H)-ylidene)(benzylamino)methanolato-κO2)](η6-p-cymene)ruthenium(II) hexafluorophosphate (complex 1d)
[(Dichlorido)(κN1-Benzimidazole)(η6-p-cymene)]ruthenium(II) [19] (109 mg, 260 µmol) was added to a solution of N-benzyl-1,3-dioxo-2,3-dihydro-1H-inden-2-carboxamide [25] (80 mg, 290 µmol) and sodium methanolate (20 mg, 315 µmol) in methanol (30 mL). The mixture was irradiated for 5 min at 50 °C. Then, sodium hexafluorophosphate (63 mg, 370 µmol) was added and the mixture was stirred for further 4.5 h at room temperature. The precipitate was filtered off and washed with n-Hexane. This afforded the product as a brown powder (129 mg, 65%). m.p.: >216 °C (decomp.), solubility: 0.29 mg/mL = 0.37 mM (MEM, 1% DMSO); 1H-NMR (500.10 MHz, MeOD) δ: 1.29 (d, 3J(H,H) = 7 Hz, 3H, CH3-f), 1.33 (d, 3J(H,H) = 7 Hz, 3H, CH3-f), 2.06 (s, 3H, CH3-g), 2.74–2.82 (m, 1H, He), 4.68 (d, 2J(H,H) = 15 Hz, H, H2′), 4.73 (d, 2J(H,H) = 15 Hz, H, H2′), 5.51 (s, 1H, NH-BenzIm), 5.69–5.77 (m, 2H, Hb), 5.87–6.00 (m, 2H, Hc), 7.33–7.68 (m, 13H, H4, H5, H6, H7, H4′, H5′, H6′, H8′, H9′, H10′, H11′), 7.92–7.95 (m, 1H, H7′), 9.00 (t, 3J(H,H) = 6 Hz, 1H, NH); 13C-NMR (125.75 MHz, MeOD) δ: 18.1 (CH3-g), 22.5 and 22.6 (2CH3-f), 32.2 (Ce), 44.5 (C2′), 81.6 and 81.7 (Cb), 84.8 and 85.2 (Cc), 98.3 (C2), 99.8 (Cd), 104.4 (Ca), 119.1 (C7′), 114.2, 121.8, 121.9, 125.0, 125.8, 128.5, 128.6, 129.9, 134.0, 143.7 (C4, C5, C6, C7, C4′, C5′, C6′, C8′, C9′, C10′, C11′), 134.2, 136.5, 138.2, 140.4, 141.4 (C3a, C7a, C3′, C8a’, C12a’), 166.6 (C1′), 192.1 (C3), 193.4 (C1); m/z 632.149, mth: 632.149; elemental analysis calcd. for C34H32F6N3O3PRu: C, 52.58; H, 4.15; N, 5.41%; found: C, 52.34; H, 3.82; N, 5.40%.
[(κN2-1H-Indazole)(1,3-dioxo-κO1-1H-inden-2(3H)-ylidene)(benzylamino)methanolato-κO2)](η6-p-cymene)ruthenium(II) hexafluorophosphate (complex 1e)
The synthesis was performed according to the general procedure for ligand exchange, using complex 1a (110 mg, 200 µmol), silver nitrate (48 mg, 280 µmol), indazole (28 mg, 240 µmol), and sodium hexafluorophosphate (42 mg, 260 µmol), yielding yellow crystals (120 mg, 81%). m.p.: >190 °C (decomp.), solubility: 0.06 mg/mL = 0.08 mM (MEM, 1% DMSO); 1H-NMR (500.10 MHz, MeOD) δ: 1.29 (d, 3J(H,H) = 7 Hz, 3H, CH3-f), 1.31 (d, 3J(H,H) = 7 Hz, 3H, CH3-f), 2.11 (s, 3H, CH3-g), 2.71–2.78 (m, 1H, He), 4.71 (dd, 2J(H,H) = 15 Hz, 3J(H,H) = 5 Hz, H, H2′), 4.84 (dd, 2J(H,H) = 15 Hz, 3J(H,H) = 5 Hz, H, H2′), 5.72–5.77 (m, 2H, Hb), 5.92–5.97 (m, 2H, Hc), 7.16–7.81 (m, 14H, H4, H5, H6, H7, H4′, H5′, H6′, H7′, H8′, H9′, H10′, H11′), 8.08 (s, 1H, NH-HInd), 9.17 (t, 3J(H,H) = 6 Hz, 1H, NH); 13C-NMR (125.75 MHz, MeOD) δ: 16.5 (CH3-g), 21.0 and 21.2 (2CH3-f), 30.7 (Ce), 43.2 (C2′), 80.5 and 80.6 (Cb), 84.2 and 84.3 (Cc), 97.0 (C2), 99.6 (Cd), 102.7 (Ca), 109.6 (C11′), 120.3, 120.5, 120.7, 122.1, 127.0, 127.2, 128.5, 128.7, 132.7, 132.8, 137.0 (C4, C5, C6, C7, C4′, C5′, C6′, C7′, C8′, C9′, C10′), 135.1, 136.9, 139.2, 141.9 (C3a, C7a, C3′, C11a’), 165.5 (C1′), 190.8 (C3), 192.1 (C1); m/z 631.140, mth: 631.149; elemental analysis calcd. for C34H32N3O3RuPF6·0.5H2O: C, 51.98; H, 4.23; N 5.35%; found: C, 51.85; H, 4.24; N, 5.50%.
[(κN-Pyridine)(1,3-dioxo-κO1-1H-inden-2(3H)-ylidene)(benzylamino)methanolato-κO2)](η6-p-cymene)ruthenium(II) hexafluorophosphate (complex 1f)
The synthesis was performed according to the general procedure for ligand exchange, using complex 1a (60 mg, 110 µmol), silver nitrate (26 mg, 150 µmol), pyridine (11 µL, 130 µmol), and sodium hexafluorophosphate (23 mg, 140 µmol), yielding yellow crystals (72 mg, 89%). m.p.: >174 °C (decomp.), solubility: 0.35 mg/mL = 0.47 mM (MEM, 1% DMSO); 1H-NMR (500.10 MHz, MeOD) δ: 1.31 (d, 3J(H,H) = 7 Hz, 3H, CH3-f), 1.33 (d, 3J(H,H) = 7 Hz, 3H, CH3-f), 2.11 (s, 3H, CH3-g), 2.75–2.81 (m, 1H, He), 4.64 (dd, 2J(H,H) = 15 Hz, 3J(H,H) = 5 Hz, H, H2′), 4.83 (dd, 2J(H,H) = 15 Hz, 3J(H,H) = 5 Hz, H, H2′), 5.62–5.69 (m, 2H, Hb), 5.81–5.87 (m, 2H, Hc), 7.33–7.70 (m, 11H, H4, H5, H6, H7, H4′, H5′, H6′, H8′), 7.88–7.92 (m, 1H, H9′), 8.22–8.24 (m, 2H, H7′), 9.13 (t, 3J(H,H) = 6 Hz, 1H, NH); 13C-NMR (125.75 MHz, MeOD) δ: 17.6 (CH3-g), 22.3 and 22.6 (2CH3-f), 32.0 (Ce), 44.5 (C2′), 83.0 and 83.2 (Cb), 84.5 and 84.8 (Cc), 98.3 (C2), 99.4 (Cd), 104.7 (Ca), 121.9 (C4, C7), 127.3 (C5, C6), 128.4 and 128.5 (C4′, C6′), 130.0 (C5′), 134.2 (C8′), 136.4 (C7a), 138.4 (C3a), 140.5 (C3′), 140.7 (C9′), 153.4 (C7′), 166.7 (C1′), 191.9 (C3), 193.4 (C1); m/z 593.138, mth: 593.138; elemental analysis calcd. for C32H31N2O3RuPF6: C, 52.10; H, 4.24; N, 3.80%; found: C, 51.83; H, 4.28; N, 3.78%.
[(κN-Morpholine)(1,3-dioxo-κO1-1H-inden-2(3H)-ylidene)(benzylamino)methanolato-κO2)](η6-p-cymene)ruthenium(II) hexafluorophosphate (complex 1g)
The synthesis was performed according to the general procedure for ligand exchange, using complex 1a (110 mg, 200 µmol), silver nitrate (48 mg, 280 µmol), morpholine (21 µL, 240 µmol), and sodium hexafluorophosphate (42 mg, 260 µmol), yielding a green powder (85 mg, 57%). m.p.: >155 °C (decomp.), solubility: 0.22 mg/mL = 0.29 mM (MEM, 1% DMSO); 1H-NMR (500.10 MHz, MeOD) δ: 1.34 (d, 2J(H,H) = 7 Hz, 6H, 2CH3-f), 2.13 (s, 3H, CH3-g), 2.54–2.60 (m, 1H, H7′), 2.66–2.874 (m, 1H, He), 2.90–2.95 (m, 1H, H7′), 3.10–3.20 (m, 1H, H7′), 3.24–3.31 (m, 1H, H7′), 3.40–3.48 (m, 1H, H8′), 3.51–3.62 (m, 2H, H8′), 3.65–3.70 (m, 1H, H8′), 3.83–3.86 (m, 1H, NH-Morph), 4.67 (d, 2J(H,H) = 15 Hz, H, H2′), 4.78 (d, 2J(H,H) = 15 Hz, H, H2′), 5.61–5.70 (m, 2H, Hb), 5.78–5.81 (m, 2H, Hc), 7.25–7.67 (m, 9H, H4, H5, H6, H7, H4′, H5′, H6′), 9.27 (t, 3J(H,H) = 6 Hz, 1H, NH); 13C-NMR (125.75 MHz, MeOD) δ: 15.9 (CH3-g), 20.7 and 20.9 (2CH3-f), 30.5 (Ce), 42.9 (C2′), 51.8 and 52.5 (C7′), 66.7 and 66.9 (C8′), 79.7 and 80.2 (Cb), 83.8 and 84.0 (Cc), 93.6 (C2), 99.6 (Cd), 103.0 (Ca), 120.5 and 120.6 (C4, C7), 126.3 (C5, C6), 127.0 (C6′), 128.4 (C4′), 132.9 (C5′), 135.5 (C7a), 137.2 (C3a), 138.8 (C3′), 164.0 (C1′), 191.9 (C3), 194.9 (C1); m/z 601.163, mth: 601.164; elemental analysis calcd. for C31H35N2O4RuPF6·0.5H2O: C, 49.34; H, 4.81; N, 3.71%; found: C, 49.51; H, 4.71; N, 3.79%.

3.4. Methods

The capacity factors k were determined with the use of an RP-UHPLC. The necessary chromatograms were recorded with a Dionex UltiMate 3000 RS UHPLC system (Thermo Fisher Scientific, Bedford, MA, USA) controlled by the Dionex Chromeleon 7.2 software. The following conditions were utilized: mobile phase: MeOH/0.1% formic acid (FA) in water (Milli-Q, 18.2 MΩ·cm, Milli-Q Advantage A10, Darmstadt, Germany); column temperature, 25 °C; flow rate, 0.6 mL/min; UV-VIS detection set at 210, 225, 250, and 320 nm; samples of complexes 1a–g: 1 mM in MeOH; Vinj = 5 µL; external dead time marker KI: 0.5 mM in MeOH:water (0.1% FA) (1:1), Vinj = 0.8 µL; all samples were filtered through a 0.45 µM regenerated cellulose membrane filter (Minisart RC 4, Sartorius AG, Göttingen, Germany) prior to injection. The capacity factors were then calculated as logk = log[(tR − t0)/t0], where tR and t0 are the retention times of the analyte and the dead time marker, respectively, at the respective MeOH:0.1% FA in water ratio. Every retention time was determined in isocratic mode for the different eluent ratios to obtain capacity factors in the linear range (−0.5 ≤ logk ≤ 1.5) [27] in triplicate. A plot of logk against the % of the organic eluent yielded logkw (intercept) and S (slope). Φ0, the factor most closely resembling logP, was then determined as follows: Φ0 = −logkw/S [28].
Stability measurements were performed on a Lambda 35 UV/VIS spectrometer (Perkin Elmer, Boston, MA, USA). Samples of complexes 1a–g: 40 µM in PBS (pH 7.4) and isotonic saline phosphate buffer with 0.9% sodium chloride (pH 8.5), diluted isotonic acetic acid (pH 5.5), and acetate buffer (pH 6.5) with 1% DMSO. UV-VIS spectra were recorded hourly for 24 h at 37 °C. Temperature control was maintained by a PTP-6 Peltier System (Perkin Elmer, Boston, MA, USA).
Light activation studies were performed on the same UV-VIS spectrometer. Fourty microliters of solutions (MeOH) were irradiated with a conventional desk lamp, and every 2.5–10 min (depending on progress) a wavelength scan (250–700 nm) was recorded.
CH1/PA-1 (ovarian teratocarcinoma) cells were a generous gift from Lloyd R. Kelland (CRC Centre for Cancer Therapeutics, Institute of Cancer Research, Sutton, UK). A549 (non-small cell lung cancer), SW480, and HCT116 (both colon cancer) cells were kindly provided by the Institute of Cancer Research, Department of Medicine I, Medical University of Vienna, Austria. All cell lines were grown as monolayer cultures in Eagle’s MEM supplemented with L-glutamine (4 mM), sodium pyruvate (1 mM) and 1% (v/v) non-essential amino acid solution (all from Sigma-Aldrich) and 10% (v/v) heat-inactivated fetal calf serum (FCS, BioWest) in 75-cm2 flasks (Starlab) at 37 °C under a humidified atmosphere containing 5% CO2 in air.
Antiproliferative activity of the compounds was determined with the colorimetric MTT assay (MTT = 3-(4,5-dimethyl-2-thiazolyl)-2,5-diphenyl-2H-tetrazolium bromide). CH1/PA-1, HCT116, SW480, and A549 cells with cell numbers of 1 × 103, 1.5 × 103, 2 × 103, and 3 × 103, respectively, were seeded in 100 μL per well into 96-well microculture plates (Starlab). After 24 h, test compounds were dissolved in DMSO (Fisher Scientific), serially diluted in complete MEM not to exceed a final DMSO content of 0.5% (v/v) and added in 100 μL per well. After 96 h, the drug-containing medium was replaced with 100 µL of RPMI 1640/MTT mixture, i. e., 6 parts of RPMI 1640 medium (Sigma-Aldrich; supplemented with 10% heat-inactivated fetal bovine serum and 4 mM l-glutamine), 1 part of MTT solution in phosphate-buffered saline (5 mg/mL; both from Sigma-Aldrich). After incubation for 4 h, the MTT-containing medium was replaced with 150 μL DMSO per well to dissolve the formazan product formed by viable cells. Optical densities at 550 nm (and at the reference wavelength of 690 nm) were measured with a microplate reader (ELx808, Bio-Tek). The IC50 values relative to untreated controls were interpolated from concentration–effect curves. At least three independent experiments were performed, each with triplicates per concentration level.
Cellular accumulation of the compounds was studied based on a previously described method [39] with modifications as follows: SW480 cells with a number of 1.8 × 105 per well were seeded into 12-well plates in aliquots of 1 mL complete MEM and incubated at 37 °C for 24 h. Then, cells were exposed for 2 h at 37 °C to 50 μM solutions of the test compounds (containing 0.5% DMSO) in 500 µL of fresh complete MEM upon exchange of the medium. Afterwards, cells were washed three times with PBS, and lyzed with 0.4 mL sub-boiled HNO3 per well for 1 h at room temperature. Ruthenium content was quantified by ICP-MS using an Agilent 7500ce quadrupole ICP-MS instrument (Agilent Technologies, Waldbronn, Germany) equipped with a CETAC ASX-520 autosampler (Nebraska, USA) and a MicroMist nebulizer. Ruthenium and indium standards were obtained from CPI International (Amsterdam, The Netherlands). The instrument was equipped with nickel cones and operated at an RF power of 1560 W, with argon as the plasma gas (15 L/min), carrier gas (1.0–1.1 L/min) and make-up gas (0.1–0.2 L/min). The Agilent MassHunter software package (Workstation Software, Version B.01.01, Build 123.11, Patch 4, 2012) was used for data processing. Results are based on at least three independent experiments, each comprising triplicate samples. The instrument was tuned on a daily basis for maximum sensitivity and doubly charged species as well as oxide rates were <5%.

4. Conclusions

Starting from the reported ligand L1 and the chlorido complex 1a, six complexes with different N-donor ligands (methylimidazole, pyrazole, benzimidazole, indazole, pyridine, and morpholine) were synthesized and characterized via 1D and 2D-NMR spectroscopy, elemental analysis, and in five cases by X-ray diffraction studies. The introduction of these leaving groups increased the solubility in all cases but one. The isolated compounds were found to be highly stable under physiological conditions (pH 7.4–8.5) and might therefore reach the tumor tissue intact. Under the hypoxic and slightly acidic conditions of the tumor tissue, they may be activated by protonation of the N-donor and subsequent aquation. Since all compounds are stable at the highest pH occurring in the intestinal tract, they could potentially be administered orally (in a form resistant to gastric acid). Within the tumor tissue, they can be activated by aquation to their corresponding and more reactive aqua complex, which is then able to interact with biological targets. The MTT assay and assessment of the lipophilicity of the obtained complexes showed only little variation.

Supplementary Materials

The following data are available online, Chart S1. ORTEP-representations of 1b–f, Table S1. X-ray data for 1b, Table S2. Data collection and structure refinement of 1b, Table S3. Sample and crystal data of 1c, Table S4. Data collection and structure refinement of 1c, Table S5. Sample and crystal data of 1d, Table S6. Data collection and structure refinement of 1d, Table S7. Sample and crystal data of 1e, Table S8. Data collection and structure refinement of 1e, Table S9. X-ray data for 1f, Table S10. Data collection and structure refinement of 1f, Table S11. Experimental parameters and CCDC-Codes, Table S12. Death time determination for the relevant MeOH percentages in the eluent, Table S13. Determination of logk for 1a–g in triplicate, Figure S1. UV-Vis spectra of 40 µM 1b and 1c at pH 8.5 in 1% v/v DMSO/H2O (0.9% NaCl, phosphate buffer) at 37 °C, Figure S2. UV-Vis spectra of 40 µM 1b and 1c at pH 7.4 in 1% v/v DMSO/PBS at 37 °C, Figure S3. UV-Vis spectra of 40 µM 1e at pH 7.4 in 1% v/v DMSO/PBS at 37 °C, Figure S4. UV-Vis spectra of 40 µM 1f at pH 6.5 in 1% v/v DMSO/H2O (acetate buffer) at 37 °C, Figure S1. UV-Vis spectra of 40 µM 1f at pH 5.5 in 1% v/v DMSO/H2O (0.9 % NaCl, AcOH) at 37 °C, Figure S14. Graphical comparison of IC50-values, Figure S15. Concentration–effect curves in A549 (top) and CH1/PA-1 (bottom) cells, Figure S2. Concentration–effect curves in HCT116 (top) and SW480 (bottom) cells.

Author Contributions

Conceptualization, W.K. and B.K.K.; methodology, W.K. and B.K.K.; validation, M.A.J., W.K., and B.K.K.; formal analysis, S.M., D.S., M.H., A.R., and M.H.M.K.; investigation, S.M., D.S., M.H., A.R., and M.H.M.K.; resources, M.A.J., W.K., and B.K.K.; data curation, M.A.J., A.R., W.K., and B.K.K.; writing of original draft preparation, S.M., A.R., M.H.M.K., M.A.J., and W.K.; writing of review and editing, W.K.; visualization, S.M., A.R., M.H.M.K., M.A.J., and W.K.; supervision, W.K. and B.K.K.; project administration, W.K. and B.K.K.; funding acquisition, W.K. and B.K.K.

Funding

This research received no external funding.

Acknowledgments

We thank the University of Vienna and the Research Platform “Translational Cancer Therapy Research” for financial support.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Durig, J.R.; Danneman, J.; Behnke, W.D.; Mercer, E.E. The Induction of Filamentous Growth in Escherichia Coli by Ruthenium and Palladium Complexes. Chem. Biol. Interact. 1976, 13, 287–294. [Google Scholar] [CrossRef]
  2. Alessio, E. Thirty Years of the Drug Candidate NAMI-A and the Myths in the Field of Ruthenium Anticancer Compounds: A Personal Perspective: Thirty Years of the Drug Candidate NAMI-A and the Myths in the Field of Ruthenium Anticancer Compounds: A Personal Perspective. Eur. J. Inorg. Chem. 2017, 2017, 1549–1560. [Google Scholar] [CrossRef]
  3. Trondl, R.; Heffeter, P.; Kowol, C.R.; Jakupec, M.A.; Berger, W.; Keppler, B.K. NKP-1339, the First Ruthenium-Based Anticancer Drug on the Edge to Clinical Application. Chem Sci 2014, 5, 2925–2932. [Google Scholar] [CrossRef]
  4. Bergamo, A.; Gaiddon, C.; Schellens, J.H.M.; Beijnen, J.H.; Sava, G. Approaching Tumour Therapy beyond Platinum Drugs. J. Inorg. Biochem. 2012, 106, 90–99. [Google Scholar] [CrossRef] [PubMed]
  5. Renfrew, A. Ruthenium(II) Arene Compounds as Versatile Anticancer Agents. Chim. Int. J. Chem. 2009, 63, 217–219. [Google Scholar] [CrossRef]
  6. Bergamo, A.; Masi, A.; Peacock, A.F.A.; Habtemariam, A.; Sadler, P.J.; Sava, G. In Vivo Tumour and Metastasis Reduction and in Vitro Effects on Invasion Assays of the Ruthenium RM175 and Osmium AFAP51 Organometallics in the Mammary Cancer Model. J. Inorg. Biochem. 2010, 104, 79–86. [Google Scholar] [CrossRef] [PubMed]
  7. Kubanik, M.; Kandioller, W.; Kim, K.; Anderson, R.F.; Klapproth, E.; Jakupec, M.A.; Roller, A.; Söhnel, T.; Keppler, B.K.; Hartinger, C.G. Towards Targeting Anticancer Drugs: Ruthenium(ii)–Arene Complexes with Biologically Active Naphthoquinone-Derived Ligand Systems. Dalton Trans. 2016, 45, 13091–13103. [Google Scholar] [CrossRef]
  8. Kurzwernhart, A.; Kandioller, W.; Bartel, C.; Bächler, S.; Trondl, R.; Mühlgassner, G.; Jakupec, M.A.; Arion, V.B.; Marko, D.; Keppler, B.K.; et al. Targeting the DNA-Topoisomerase Complex in a Double-Strike Approach with a Topoisomerase Inhibiting Moiety and Covalent DNA Binder. Chem. Commun. 2012, 48, 4839. [Google Scholar] [CrossRef]
  9. Filak, L.K.; Kalinowski, D.S.; Bauer, T.J.; Richardson, D.R.; Arion, V.B. Effect of the Piperazine Unit and Metal-Binding Site Position on the Solubility and Anti-Proliferative Activity of Ruthenium(II)- and Osmium(II)- Arene Complexes of Isomeric Indolo[3,2- c ]Quinoline—Piperazine Hybrids. Inorg. Chem. 2014, 53, 6934–6943. [Google Scholar] [CrossRef]
  10. Hanif, M.; Schaaf, P.; Kandioller, W.; Hejl, M.; Jakupec, M.A.; Roller, A.; Keppler, B.K.; Hartinger, C.G. Influence of the Arene Ligand and the Leaving Group on the Anticancer Activity of (Thio)Maltol Ruthenium(II)–(Η6-Arene) Complexes. Aust. J. Chem. 2010, 63, 1521. [Google Scholar] [CrossRef]
  11. Hackl, C.M.; Legina, M.S.; Pichler, V.; Schmidlehner, M.; Roller, A.; Dömötör, O.; Enyedy, E.A.; Jakupec, M.A.; Kandioller, W.; Keppler, B.K. Thiomaltol-Based Organometallic Complexes with 1-Methylimidazole as Leaving Group: Synthesis, Stability, and Biological Behavior. Chem. -Eur. J. 2016, 22, 17269–17281. [Google Scholar] [CrossRef] [PubMed]
  12. Shang, Y.; Chen, C.; Li, Y.; Zhao, J.; Zhu, T. Hydroxyl Radical Generation Mechanism During the Redox Cycling Process of 1,4-Naphthoquinone. Environ. Sci. Technol. 2012, 46, 2935–2942. [Google Scholar] [CrossRef] [PubMed]
  13. Minderman, H.; Wrzosek, C.; Cao, S.; Utsugi, T.; Kobunai, T.; Yamada, Y.; Rustum, Y.M. Mechanism of Action of the Dual Topoisomerase-I and -II Inhibitor TAS-103 and Activity against (Multi)Drug Resistant Cells. Cancer Chemother. Pharmacol. 2000, 45, 78–84. [Google Scholar] [CrossRef] [PubMed]
  14. Jung, J.-K.; Ryu, J.; Yang, S.-I.; Cho, J.; Lee, H. Synthesis Andin Vitro Cytotoxicity of 1,3-Dioxoindan-2-Carboxylic Acid Arylamides. Arch. Pharm. Res. 2004, 27, 997. [Google Scholar] [CrossRef] [PubMed]
  15. Schmidlehner, M.; Kuhn, P.-S.; Hackl, C.M.; Roller, A.; Kandioller, W.; Keppler, B.K. Microwave-Assisted Synthesis of N-Heterocycle-Based Organometallics. J. Organomet. Chem. 2014, 772–773, 93–99. [Google Scholar] [CrossRef]
  16. Schuecker, R.; John, R.O.; Jakupec, M.A.; Arion, V.B.; Keppler, B.K. Water-Soluble Mixed-Ligand Ruthenium(II) and Osmium(II) Arene Complexes with High Antiproliferative Activity. Organometallics 2008, 27, 6587–6595. [Google Scholar] [CrossRef]
  17. Dougan, S.J.; Sadler, P.J. The Design of Organometallic Ruthenium Arene Anticancer Agents. Chim. Int. J. Chem. 2007, 61, 704–715. [Google Scholar] [CrossRef]
  18. Gillies, R.J.; Liu, Z.; Bhujwalla, Z. 31P-MRS Measurements of Extracellular PH of Tumors Using 3-Aminopropylphosphonate. Am. J. Physiol.-Cell Physiol. 1994, 267, C195–C203. [Google Scholar] [CrossRef] [PubMed]
  19. Vock, C.A.; Scolaro, C.; Phillips, A.D.; Scopelliti, R.; Sava, G.; Dyson, P.J. Synthesis, Characterization, and in Vitro Evaluation of Novel Ruthenium(II) Η6-Arene Imidazole Complexes. J. Med. Chem. 2006, 49, 5552–5561. [Google Scholar] [CrossRef]
  20. Vančo, J.; Šindelář, Z.; Dvořák, Z.; Trávníček, Z. Iron-Salophen Complexes Involving Azole-Derived Ligands: A New Group of Compounds with High-Level and Broad-Spectrum in Vitro Antitumor Activity. J. Inorg. Biochem. 2015, 142, 92–100. [Google Scholar] [CrossRef]
  21. Egger, A.; Cebrián-Losantos, B.; Stepanenko, I.N.; Krokhin, A.A.; Eichinger, R.; Jakupec, M.A.; Arion, V.B.; Keppler, B.K. Hydrolysis and Cytotoxic Properties of Osmium(II)/(III)-DMSO-Azole Complexes. Short Communication. Chem. Biodivers. 2008, 5, 1588–1593. [Google Scholar] [CrossRef] [PubMed]
  22. Van Zutphen, S.; Pantoja, E.; Soriano, R.; Soro, C.; Tooke, D.M.; Spek, A.L.; den Dulk, H.; Brouwer, J.; Reedijk, J. New Antitumour Active Platinum Compounds Containing Carboxylate Ligands in Trans Geometry: Synthesis, Crystal Structure and Biological Activity. Dalton Trans 2006, 8, 1020–1023. [Google Scholar] [CrossRef] [PubMed]
  23. Betanzos-Lara, S.; Salassa, L.; Habtemariam, A.; Novakova, O.; Pizarro, A.M.; Clarkson, G.J.; Liskova, B.; Brabec, V.; Sadler, P.J. Photoactivatable Organometallic Pyridyl Ruthenium(II) Arene Complexes. Organometallics 2012, 31, 3466–3479. [Google Scholar] [CrossRef]
  24. Chen, Y.; Lei, W.; Jiang, G.; Hou, Y.; Li, C.; Zhang, B.; Zhou, Q.; Wang, X. Fusion of Photodynamic Therapy and Photoactivated Chemotherapy: A Novel Ru(ii) Arene Complex with Dual Activities of Photobinding and Photocleavage toward DNA. Dalton Trans 2014, 43, 15375–15384. [Google Scholar] [CrossRef] [PubMed]
  25. Deacon-Price, C.; Romano, D.; Riedel, T.; Dyson, P.J.; Blom, B. Synthesis, Characterisation and Cytotoxicity Studies of Ruthenium Arene Complexes Bearing Trichlorogermyl Ligands. Inorganica Chim. Acta 2019, 484, 513–520. [Google Scholar] [CrossRef]
  26. Mokesch, S.; Novak, M.S.; Roller, A.; Jakupec, M.A.; Kandioller, W.; Keppler, B.K. 1,3-Dioxoindan-2-Carboxamides as Bioactive Ligand Scaffolds for the Development of Novel Organometallic Anticancer Drugs. Organometallics 2015, 34, 848–857. [Google Scholar] [CrossRef]
  27. Valkó, K. Application of High-Performance Liquid Chromatography Based Measurements of Lipophilicity to Model Biological Distribution. J. Chromatogr. A 2004, 1037, 299–310. [Google Scholar] [CrossRef] [PubMed]
  28. Nasal, A.; Siluk, D.; Kaliszan, R. Chromatographic Retention Parameters in Medicinal Chemistry and Molecular Pharmacology. Curr. Med. Chem. 2003, 10, 381–426. [Google Scholar] [CrossRef]
  29. Hartmann, T.; Schmitt, J. Lipophilicity—Beyond Octanol/Water: A Short Comparison of Modern Technologies. Drug Discov. Today Technol. 2004, 1, 431–439. [Google Scholar] [CrossRef]
  30. Wang, Z.; Ma, G.; Zhang, J.; Yuan, Z.; Wang, L.; Bernards, M.; Chen, S. Surface Protonation/Deprotonation Controlled Instant Affinity Switch of Nano Drug Vehicle (NDV) for PH Triggered Tumor Cell Targeting. Biomaterials 2015, 62, 116–127. [Google Scholar] [CrossRef]
  31. Varbanov, H.P.; Göschl, S.; Heffeter, P.; Theiner, S.; Roller, A.; Jensen, F.; Jakupec, M.A.; Berger, W.; Galanski, M.; Keppler, B.K. A Novel Class of Bis- and Tris-Chelate Diam(m)Inebis(Dicarboxylato)Platinum(IV) Complexes as Potential Anticancer Prodrugs. J. Med. Chem. 2014, 57, 6751–6764. [Google Scholar] [CrossRef] [PubMed]
  32. Göschl, S.; Varbanov, H.P.; Theiner, S.; Jakupec, M.A.; Galanski, M.; Keppler, B.K. The Role of the Equatorial Ligands for the Redox Behavior, Mode of Cellular Accumulation and Cytotoxicity of Platinum(IV) Prodrugs. J. Inorg. Biochem. 2016, 160, 264–274. [Google Scholar] [CrossRef] [PubMed]
  33. Sheldrick, G.M. SADABS; University of Göttingen: Niedersachsen, Germany, 1996. [Google Scholar]
  34. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  35. Hübschle, C.B.; Sheldrick, G.M.; Dittrich, B. ShelXle: A Qt Graphical User Interface for SHELXL. J. Appl. Crystallogr. 2011, 44, 1281–1284. [Google Scholar] [CrossRef] [PubMed]
  36. Sheldrick, G.M. SHELXS; University of Göttingen: Niedersachsen, Germany, 1996. [Google Scholar]
  37. Sheldrick, G.M. SHELXL; University of Göttingen: Niedersachsen, Germany, 1996. [Google Scholar]
  38. Spek, A.L. Structure Validation in Chemical Crystallography. Acta Crystallogr. D Biol. Crystallogr. 2009, 65, 148–155. [Google Scholar] [CrossRef] [PubMed]
  39. Klose, M.H.M.; Hejl, M.; Heffeter, P.; Jakupec, M.; Meier, S.M.; Berger, W.; Keppler, B.K. Post-Digestion Stabilization of Osmium Enables Quantification by ICP-MS in Cell Culture and Tissue. Analyst 2017. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds 1ag are available from the authors.

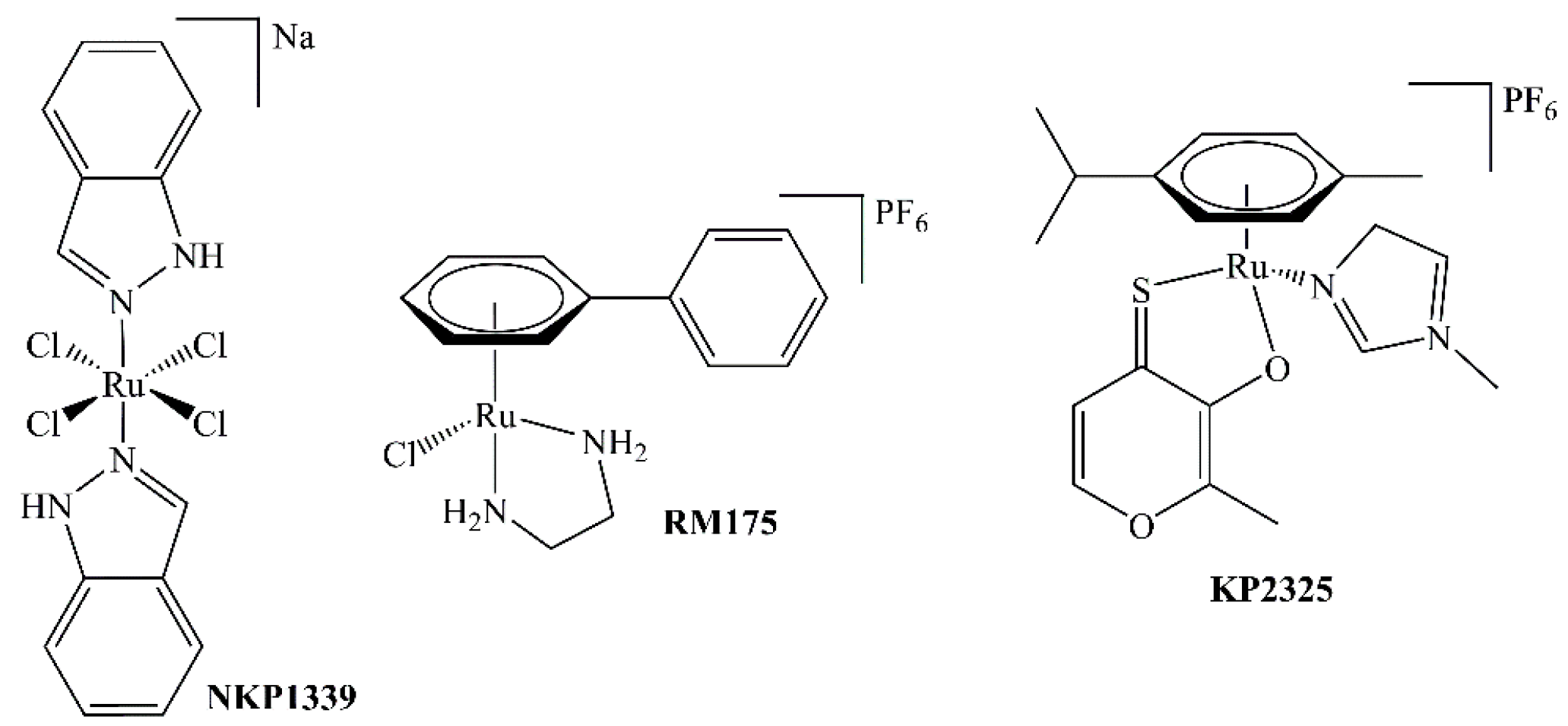

Figure 1. Structures of NKP1339, RM175, and KP2325.
Figure 1. Structures of NKP1339, RM175, and KP2325.
Molecules 24 02373 g001

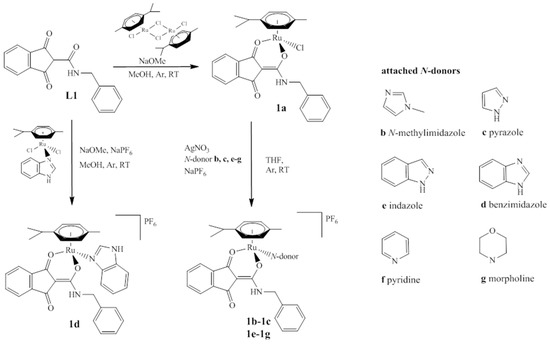

Scheme 1. Synthesis of chlorido complexes 1a and its derivatives 1b–g bearing different monodentate N-donors (see right). The organometallics were obtained either by reaction of L1 with benzimidazole precursor (1d) or by exchanging the chlorido group of 1a yielding compounds 1b, 1c, 1eg.
Scheme 1. Synthesis of chlorido complexes 1a and its derivatives 1b–g bearing different monodentate N-donors (see right). The organometallics were obtained either by reaction of L1 with benzimidazole precursor (1d) or by exchanging the chlorido group of 1a yielding compounds 1b, 1c, 1eg.
Molecules 24 02373 sch001

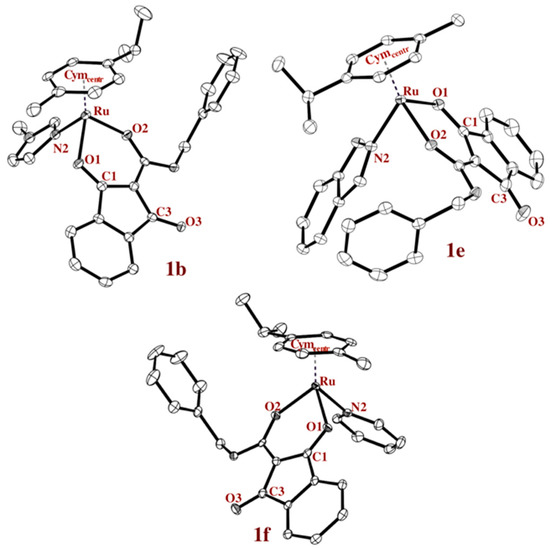

Figure 2. ORTEP representations of complexes 1b (MeIm), 1e (HInd), and 1f (Pyr) drawn at the 50% probability level (hydrogen atoms and counter ions are omitted for clarity).
Figure 2. ORTEP representations of complexes 1b (MeIm), 1e (HInd), and 1f (Pyr) drawn at the 50% probability level (hydrogen atoms and counter ions are omitted for clarity).
Molecules 24 02373 g002

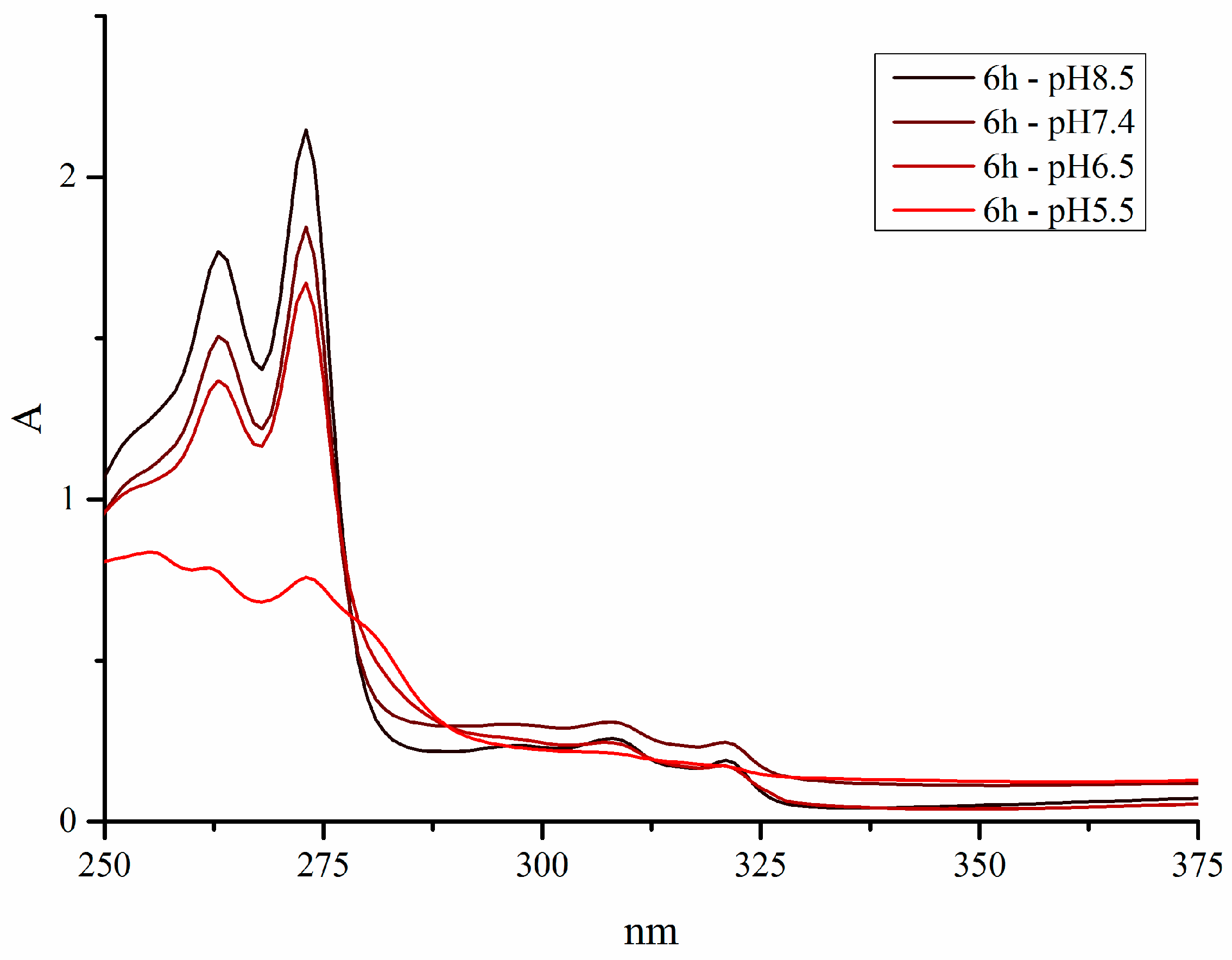

Figure 3. UV-VIS spectra of pyridine complex 1f at pH 5.5, 6.5, 7.4, and 8.5 in 1% (v/v) DMSO/H2O (0.9% NaCl).
Figure 3. UV-VIS spectra of pyridine complex 1f at pH 5.5, 6.5, 7.4, and 8.5 in 1% (v/v) DMSO/H2O (0.9% NaCl).
Molecules 24 02373 g003

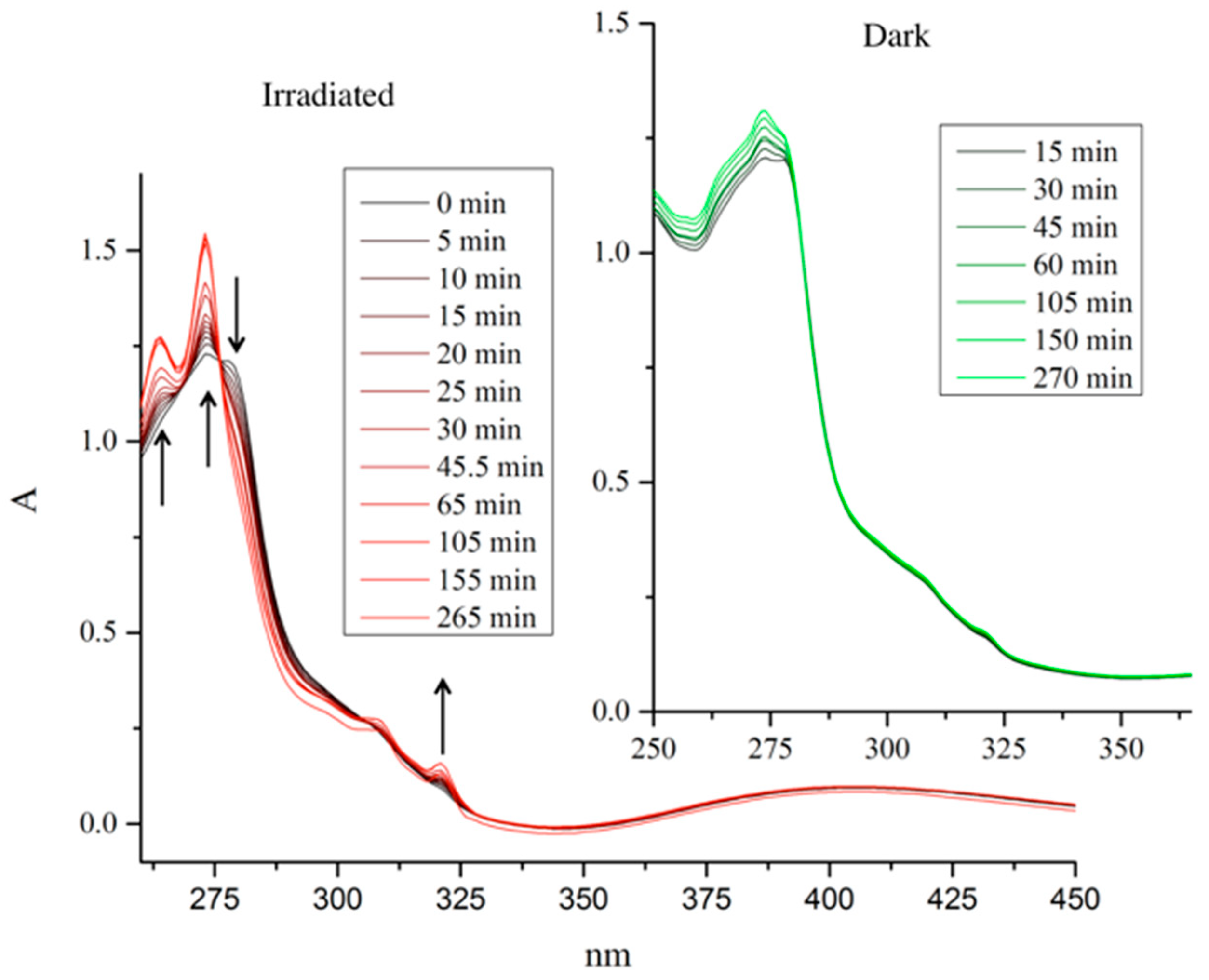

Figure 4. UV-VIS spectra of pyridine complex 1f in MeOH in the light (red) and in the dark (green).
Figure 4. UV-VIS spectra of pyridine complex 1f in MeOH in the light (red) and in the dark (green).
Molecules 24 02373 g004
Table 1. Selected bond lengths (Å) and angles (°).
Table 1. Selected bond lengths (Å) and angles (°).
1a [25]1b (MeIm)1c (HPz)1d (BIm)1e (HInd)1f (Pyr)
Ru-O12.107(2)2.086(2)
2.085(2)
2.077(2)2.073(2)2.0751(9)2.0786(15)
2.0847(15)
2.0775(15)
Ru-O22.080(2)2.098(2)
2.104(2)
2.095(2)2.097(2)2.0893(9)2.0948(15)
2.0970(14)
2.0923(14)
Ru-N2 (Cl)2.419(8)2.093(2)
2.091(2)
2.099(3)2.124(4)2.0979(10)2.1151(18)
2.1090(18)
2.1094(18)
O1-Ru-O290.0(8)88.76(8)
89.37(8)
89.79(9)90.16(7)90.07(3)89.96(6)
89.71(6)
90.10(6)
C1-O1-Ru-O28.92(2)1.60(5)4.68(2)3.14(9)7.28(6)7.79(2)
Ru-Cymcentr1.6391.654
1.656
1.6601.6571.6561.657
1.657
1.657
C1-O11.267(3)1.267(3)
1.267(3)
1.270(4)1.260(3)1.2637(15)1.268(3)
1.270(3)
1.263(3)
C3-O31.222(3)1.234(4)
1.228(4)
1.268(4)1.275(3)1.2328(17)1.227(3)
1.228(3)
1.231(3)
Slippage0.0320.025
0.028
0.0240.0250.0170.016
0.012
0.008
Table 2. Lipophilicity parameters for complexes 1a–g.
Table 2. Lipophilicity parameters for complexes 1a–g.
Intercept logkwσR2Slope SΦ0
1a5.410.07470.9997−0.085563.19
1b5.490.00830.9996−0.088861.84
1c5.360.02340.9996−0.084163.72
1d5.550.04050.9983−0.084365.87
1e5.940.02200.9999−0.086368.88
1f5.250.06360.9994−0.084562.07
1g5.140.02780.9999–0.086059.73
Table 3. Inhibition of cancer cell growth in four human cancer cell lines; 50% inhibitory concentrations (IC50) (µM; means ± standard deviations), obtained by the MTT assay (exposure time: 96 h) and cellular accumulation assessed by inductively coupled plasma mass spectrometry (ICP-MS) quantification of ruthenium (or platinum in the case of cisplatin) in SW480 cells (exposure time: 2 h).
Table 3. Inhibition of cancer cell growth in four human cancer cell lines; 50% inhibitory concentrations (IC50) (µM; means ± standard deviations), obtained by the MTT assay (exposure time: 96 h) and cellular accumulation assessed by inductively coupled plasma mass spectrometry (ICP-MS) quantification of ruthenium (or platinum in the case of cisplatin) in SW480 cells (exposure time: 2 h).
CH1/PA-1SW480HCT116A549fg Ru or Pt/Cell
1a12.5 ± 4.412.4 ± 0.424.8 ± 6.423.4 ± 2.58.4 ± 2.8
1b16.2 ± 2.610.9 ± 1.024.6 ± 8.521.4 ± 1.797 ± 28
1c11.5 ± 2.015.2 ± 0.622.4 ± 6.022.9 ± 3.567 ± 27
1d10.6 ± 1.88.8 ± 1.318.8 ± 5.819.0 ± 0.8405 ± 128
1e11.0 ± 3.016.8 ± 3.125.1 ± 7.123.7 ± 6.4114 ± 35
1f8.2 ± 2.06.3 ± 1.120.2 ± 6.422.1 ± 3.2231 ± 93
1g12.2 ± 2.79.2 ± 1.823.8 ± 7.618.9 ± 1.4123 ± 32
Cisplatin a0.077 ± 0.006 3.3 ± 0.2 6.2 ± 1.212 ± 2
a IC50 from ref. [31] and cellular platinum accumulation from ref. [32].
