Research on the Effect of Carbon Defects on the Hydrophilicity of Coal Pyrite Surface from the Insight of Quantum Chemistry
1
Department of Environmental Engineering, North China Institute of Science and Technology, Beijing 101601, China
2
School of Chemical and Environmental Engineering, China University of Mining and Technology, Beijing 10083, China
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(12), 2285; https://doi.org/10.3390/molecules24122285
Submission received: 30 May 2019
/
Revised: 17 June 2019
/
Accepted: 18 June 2019
/
Published: 19 June 2019
(This article belongs to the Special Issue Recent Advances in DFT: Theory, Simulations and Applications)
Abstract
:To investigate the effect of carbon defects on the hydrophilicity of the whole surface of the coal pyrite, the adsorption of the single H2O molecule at different sites of the coal pyrite surface was studied with the DFT calculation. It was found that, like the ideal pyrite, the single H2O molecule can stably adsorb at the doping-position, the ortho-position and the meta-position of the coal pyrite. The covalent bond and anti-bond were formed between O (water molecule) and Fe (the coal pyrite) through the Fe 3d orbital and O 2p orbital. Meanwhile, the S–H bond was replaced by the C–H bond. But away from the carbon defect centre, the adsorption of the single H2O molecule increased gradually and the Fe–O covalent bond strength between the single H2O molecule and the pyrite strengthened, which eventually became close to that of the undoped coal pyrite surface.
1. Introduction
Pyrite usually exists in magmatite rocks, contact metasomatic deposits and hydrothermal deposits. Coal pyrite is the pyrite produced in the coal environment and formed with the formation of coal. The floatability of pyrite is usually determined by its own nature, and the same is true for coal pyrite. The nature of coal pyrite is closely related to its lattice defects. Compared with pyrite, defects appear in the lattice of coal pyrite, and then the special physical and chemical properties form, which enhance its floatability [1]. To remove the coal pyrite during the flotation process efficiently, it is very important for the subsequent flotation desulfurization to study the hydrophobicity of the surface of coal pyrite and its forming mechanism. Many scholars have studied the relationship between the lattice defects of coal pyrite and its hydrophobicity [2,3,4]. The authors [5,6] found that there existed doped carbon on the coal pyrite surface and only simulated the effect of carbon defects on the doping-position of coal pyrite. This finding revealed the mechanism of change in hydrophobicity at the doping-position using DFT. However, the macroscopic hydrophobicity of coal pyrite not only reflects the hydrophobic change at the doping-position but also reflects the overall change in hydrophobicity at all regions of the coal pyrite surface. Meanwhile, it was not accurate to determine the structure and electronic properties of pyrite only using DFT, resulting in a small band gap of strongly associated semiconductor materials. Many authors often employed the DFT+U method to calculate the electronic structure and properties of the simulated pyrite and found that the band gap was closer to the experimental value of 0.95 eV [7]. Zhang et al. [8] explored the effect of different U values on the band gap and finally concluded that the bulk pyrite band gap was 1.02 eV with a U value of 2.0 eV. Sun et al. [9] came to a conclusion that when the U value was 2.0 eV, the band gap of the bulk pyrite was 1.03 eV. Additionally, Li et al. [10] found that the band gap was 0.95 eV using the GGA+U with a U value of 1.2 eV.
The Density Functional Theory (DFT) based on the first-principles method can give deep insights about the adsorption configuration between the adsorbates and the surface. Meanwhile, it can subsequently reveal the adsorption mechanism of the adsorbates on the surface. Chen et al. [11,12,13,14] and Li et al. [15,16] investigated the adsorption mechanism of H2O, CaOH, and O2 on the pyrite surface. The above study showed that it is feasible to calculate the adsorption of the molecule on the pyrite surface based on the Density Functional Theory. The previous study only [5,6] calculated the influence of the substituted and adsorbed carbon atoms on the adsorption of the single water molecule at the carbon atom doping- and adsorption position. The adsorption process, when the water molecule adsorbs on the other position of the whole one carbon atom-substituted pyrite surface, was not studied to reveal the mechanism of the whole coal pyrite’s hydrophilicity.
Based on the previous research, the adsorption processes of water molecules are simulated at the doping-position, ortho-position and meta-position of coal pyrite surface with the DFT+U method. The adsorption configuration, adsorption strength, bonding properties and bond strength, charge transfer and density of states of water molecules adsorbed at different positions on the coal pyrite surface containing carbon defects are compared with respect to adsorption energy, bond population and Mulliken charge population. The mechanism of the overall weakening of the hydrophilicity of coal pyrite under the condition of carbon defects is fully explained at the molecular level.
2. Calculation Methods and Model
2.1. Calculation Methods
In the process of structural optimizations, the module of CASTEP was used and the exchange-correlation interaction among electrons was described by the generalized-gradient approximation (GGA)-PW91. [17,18]. The interactions between the ionic cores and the valence electrons (Fe 3d64s2, S 3s23p4, C 2s22p2) were modelled with ultra-soft pseudopotentials (USP) [19]. We used a cut-off of 350 eV for the plane-wave basis expansion [15] and a Monkhorst-Pack [20,21] k-point sampling density of 4 × 4 × 4 mesh. To more accurately describe the delocalization of electrons in the transition metal compound, the Hubbard U value of 1.2 eV was used to correct the orbit of Fe 3d. The Fe 3d was treated by the adoption of the Hubbard U correction in the paper and specified by tests in the previous paper [22,23].
Furthermore, we optimized the carbon atom and water molecule in a 20 × 20 × 20 Å cubic cell with Brillouin zone sampling restricted to the Gamma point in the calculation process. The other parameters were consistent with those reported above.
The strengths of the interactions between the adsorbates (water molecules) and the adsorbent (pyrite surface) were expressed by the adsorption energy (Eads) in the paper [24,25,26,27], defined as:
where Eads is the adsorption energy and X is the carbon atoms or water molecules. n is the number of carbon atoms or water molecules. EX/slab is the energy of the pyrite surface with water molecules. Eslab and EX are the energy of the pyrite surface and H2O, respectively. The more negative the Eads, the stronger the interaction between the adsorbate and mineral surface.
Eads = EX/slab − nEX − Eslab,
2.2. Surface Model
In the paper, the FeS2 (100) 2 × 2 × 1 supercell surface model cut from the optimized pyrite bulk cell was used as the undoped pyrite surface, which had 15 atomic layers, 15 Å vacuum layers and the bottom 9 atomic layers fixed.
The pyrite surface model doped with carbon atoms was optimized by impurity substitution energy [28]. The impurity substitution energy was the energy required to replace atoms in the surface lattice with impurity atoms, which measured the difficulty of substitution, defined as:
where △E is the impurity substitution energy and Etotal/C is the energy of the pyrite surface substituted by the carbon atom. Etotal/perfect is the energy of a perfect pyrite surface. EX and EC are the energies of the iron atom (or sulfur atom) and carbon atom, respectively. n is the number of carbon, sulfur or iron atoms. The △E was negative, which means that the substituted structure was feasible. The larger the negative value, the more stable the structure. The impurity substitution energy and substitution model are shown in Table 1 and Figure 1, respectively, after the sulfur and iron atoms of the ideal pyrite surface were substituted by carbon atoms.
ΔE = Etotal/C + EX − Etotal/perfect − EC,
It can be seen from Table 1 that △E was negative after the substitution of a carbon atom for a sulfur atom, and the △E of HS had a larger negative value. However, the △E of F was positive (△E = 51.2 kJ/mol). It was indicated that the sulfur atom of the pyrite surface could be spontaneously replaced by the carbon atom, and stable configurations were finally formed (shown in Figure 1c,d). Conversely, the iron atom can only be substituted by a certain amount of additional energy. The high-position sulfur atom and the low-position were, respectively, three coordination (unsaturated state) and four coordination (saturated state) so that it was easier for the high-position sulfur to be substituted. Simultaneously, because the properties of carbon atoms were close to those of sulfur atoms, but different from those of iron atoms, it was more difficult for iron atoms to be substituted, which was consistent with the theoretical calculations of isomorphism occurrence.
3. Results and Discussion
3.1. Adsorption Configurations and Adsorption Energies
With the doped carbon atom as the centre of the coal pyrite, the “doping region” of coal pyrite means that the water molecule was adsorbed on the iron atom, which was connected to the carbon atom. The “ortho region” means that the adsorption site of the iron atom was not connected to the carbon atom and that the doped carbon atom did not directly participate in adsorption and bonding. The “meta region” means that the adsorption site was farther away from the centre, as shown in Figure 2. The “undoped region” means that the pyrite was ideal, with no carbon atom. The different adsorption sites of H2O on the coal pyrite surface are shown in Figure 2.
Previous studies [5,6] have shown that the adsorption model of H2O on the pyrite surface (in Figure 3a) was more stable, which was selected as the basic model to explore the influence of doped carbon atoms on the adsorption configurations, Eads, bonding, charge transfer and density of states (DOS) of H2O on the pyrite surface in the paper.
The adsorption configurations and adsorption energies of water molecules on the ideal pyrite surface and the doping-position, ortho-position and meta-position of the surface doped with carbon atoms are shown in Figure 3 and Table 2.
Our results revealed that the adsorption energies of the water molecule at the doping-position, ortho-position and meta-position of the pyrite surface doped with carbon atoms were lager than that of the ideal surface, and the adsorption energy respectively decreased, which gradually approached but remained lower than the Eads (−79.19 kJ/mol) of the ideal surface [22]. These results suggest that the water was easier to adsorb on the ideal surface and it was indicated that H2O can still be spontaneously adsorbed on any position of the pyrite surface doped with carbon atoms, but only the adsorption strength was relatively weaker. Meanwhile, with the distance from the doping centre, the negative value of adsorption energy of H2O on the surface increased gradually. The doping carbon atom had the greatest influence on the adsorption of H2O at the doping site, and the farther away from the doping centre, the smaller the adsorption effect.
The above results showed that the macroscopic overall weakening of the hydrophilicity of coal pyrite doped by carbon atoms was due to the weakening of the adsorption of the water molecule at various positions (doping-position, ortho-position and meta-position) on the surface, which ultimately resulted in the coal pyrite showing the property of easier flotation during the process of slime flotation.
3.2. Analysis of Bonding
The Mulliken population [29] showed the strength of the interaction between the bonding atoms after the adsorbate adsorbed on the adsorbent. Generally, the larger the bond Mulliken population, the shorter the bond length, and the stronger the covalent bond formed between atoms. The bond Mulliken population and bond length after adsorption of H2O on different sites of the pyrite surface are shown in Table 3.
After H2O was adsorbed on the modified pyrite surface, the Fe–O covalent bond was formed and the bond population increased and approached that of the ideal surface gradually [23]. The Mulliken population results showed that the strength of the Fe–O bond increased gradually, and the farther away from the doping centre of carbon atoms, the more stable the adsorption of the water molecule was, which was in accordance with the results of Eads.
The electron density and the charge density difference with respect to both O and Fe were further analysed. The deeper the red in the charge density map, the greater the charge density there. The red was deeper and therefore exhibited more electron cloud between O and Fe, which indicated that the bond between them was strong, as shown in Figure 4. In the charge density difference map, the red region indicated an increase in electron density, and the blue region indicated a decrease, as shown in Figure 5. With the deviation from the doping centre, there were more charge density distributions and obvious charge transfers between the iron atom and the oxygen atom, which gradually approached but remained lower than that of the ideal surface. These results indicated that the interaction between the water molecule and the modified pyrite surface became stronger gradually with the distance of the doping centre, but was lower than that of the ideal surface.
3.3. The Charge Transfer
The charge transfer refers to the loss and transfer of electrons between atoms after adsorption of adsorbate on the surface of the adsorbent, which was expressed by the Mulliken charge population (MCP), as shown in Table 4, Table 5, Table 6 and Table 7, before adsorption (BA) and after adsorption (AA) of H2O on the surface of the ideal pyrite and at different positions of pyrite doped with carbon atoms.
Similar to the MCP results of atoms on the ideal surface, after the adsorption of H2O at the different sites of the pyrite surface with carbon defects, whether the water molecule adsorbed at the doping-position, ortho-position or meta-position, the negative charge of the oxygen atom in the water molecule also decreased due to the loss of approximately 0.20 e of the O 2p orbital, and the positive charge of the Fe atom on the surface also increased due to the gain of approximately 0.07 e, which may be the similar adsorption results of the single water molecule at various positions. Finally, electron aggregation enabled H2O to be stably adsorbed on the pyrite surface.
3.4. The Density of States (DOS)
The interaction between H2O and the coal pyrite was mainly through the interaction between O of the former, and C and Fe of the latter. Therefore, only the PDOS values of O, C and Fe were plotted before and after adsorption [30].
After H2O was adsorbed on the different locations of the pyrite surface doped by carbon atoms (shown in Figure 6b–d), similarly to the results of the ideal surface [19], the covalent bond and anti-bond were formed between the water molecule and the pyrite surface through the O 2p orbital and the Fe 3d orbital. The bonding energy between Fe and O was very strong, while the anti-bonding was quite weak. However, the strength of the covalent bond increased with the distance from the carbon defect centre, which was close to that of the ideal pyrite surface.
4. Conclusions
(1) The calculation results of the adsorption energy showed that whether the water molecules were adsorbed on the doping-position, the ortho-position or the meta-position of the coal pyrite, the water molecules can adsorb on all positions of the surface spontaneously. With the distance from the defect centre, the negative value of adsorption energy increased gradually, which was close to that of the ideal surface.
(2) The Fe–O covalent bond was mainly formed after adsorption, and the strength of covalent bonding was doping-position < ortho-position < meta-position, lower than the ideal surface. The interaction between the water molecule and the pyrite surface mainly depended on the covalent bonding and anti-bonding through the 2p orbital of the oxygen atom and the 3d orbital of the iron atom.
(3) It was not only shown that, compared with the undoped surface, the hydrophilicity of the coal pyrite surface with carbon defects decreased at the defect site, but also that the degree of hydrophilicity reduction decreased gradually with the distance of the ortho-position and the meta-position from the defect centre. Whatever the doped site or the undoped site, the hydrophilicity decreased. The weakening of the hydrophilicity at the doping-position, ortho-position and meta-position resulted in the overall weakening of the hydrophilicity on the coal pyrite surface from the molecular level.
Author Contributions
Conceptualization, P.X. and W.L.; Methodology, P.X.; Software, W.L.; Validation, P.X.; Formal Analysis, P.X.; Investigation, P.X.; Resources, P.X.; Data Curation, P.X.; Writing-Original Draft Preparation, P.X.; Writing-Review & Editing, P.X.; Visualization, P.X.; Supervision, R.M.; Project Administration, P.X.; Funding Acquisition, P.X.
Funding
The authors would like to thank “the Fundamental Research Funds for the Central Universities” (3142017102), the Self-Funded Project of Hebei Science and Technology Plan (15273813), and a Project Funded by National Natural Science Foundation of China (51674137).
Acknowledgments
We would like to thank Jianhua Chen and Yuqiong Li of Guangxi University for helping us correcting some parameters.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Xie, G. Mineral Processing, 3rd ed.; China University of Mining and Technology Press: Xuzhou, China, 2012; pp. 413–414. [Google Scholar]
- Shao, X.; Tang, Y.; Wang, P. The ESCA study of coal pyrite and pyrite. Anal. Util. Coal Qual. 1994, 2, 9–18. [Google Scholar]
- Wang, W. Physical and Chemical characteristics of fine pyrite in coal. Univ. J. Geol. 2013, 19, 601–602. [Google Scholar]
- Yu, J. Study on the Physical and Chemical Characteristics of Coal-Pyrite and its Inhibitors. Ph.D. Thesis, China University of Mining and Technology (Beijing), Beijing, China, 2013. [Google Scholar]
- Xi, P. Quantum Chemistry Investigation on the Physicochemical Property of Coal Pyrite and its Inhibitory Regularities. Ph.D. Thesis, China University of Mining and Technology (Beijing), Beijing, China, 2017. [Google Scholar]
- Xi, P.; Liu, W.; Han, Y. Study on the mechanism of coal pyrite crystal lattice defects and floatability. J. China Coal Soc. 2016, 41, 997–1003. [Google Scholar]
- Schlegel, P.; Wachter, P. Optical properties, phonons and electronic structure of iron pyrite (FeS2). J. Phys. C Solid State Phys. 1976, 9, 3363–3369. [Google Scholar] [CrossRef]
- Zhang, Y.; Hu, J. Law Effect of surface stoichiometry on the band gap of the pyrite FeS2(100) surface. M. Phys. Rev. B 2012, 085314-1-6. [Google Scholar]
- Sun, R.; Chan, M.K.Y.; Ceder, G. First-principles electronic structure and relative stability of pyrite and marcasite: Implications for photovoltaic performance. Phys. Rev. B 2011, 235311-1-12. [Google Scholar] [CrossRef]
- Li, Y.; Chen, J.H.; Zhao, C.H. Influence of external electric field on the electronic structure and optical properties of pyrite. Rsc Adv. 2017, 7, 56676–56681. [Google Scholar] [CrossRef] [Green Version]
- Chen, J.; Long, X.; Chen, Y. Comparison of Multilayer Water Adsorption on the Hydrophobic Galena (PbS) and Hydrophilic Pyrite (FeS2) Surface: A DFT Study. J. Phys. Chem. C 2014, 118, 11657–11665. [Google Scholar] [CrossRef]
- Chen, J.; Li, Y.; Zhong, S. Quantum chemical study of adsorption of hydroxyl and hydroxyl calcium on pyrite (100) surface bearing vacancy defects. Chinese J. Nonferrous Metals. 2013, 23, 859–865. [Google Scholar]
- Chen, J.; Lan, L.; Chen, Y. Computational simulation of adsorption and thermodynamic study of xanthate dithiophosphate and dithiocarbamate on galena and pyrite surfaces. Min. Eng. 2013, 46–47, 136–143. [Google Scholar] [CrossRef]
- Zhao, C.; Chen, J.; Li, Y.; Huang, D.W.; Li, W. DFT study of interactions between calcium hydroxyl ions and pyrite, marcasite, pyrrhotite surfaces. Appl. Surf. Sci. 2015, 355, 577–581. [Google Scholar] [CrossRef]
- Li, Y.; Chen, J.; Lan, L. Adsorption of O2 on pyrite and galena surfaces. Chin. J. Nonferrous Met. 2012, 22, 1184–1194. [Google Scholar]
- Li, Y. First Principle Study of the Influences of Lattice Defects on the Electronic Structures and Flotation Behaviors of Pyrite Crystal. Ph.D. Thesis, Guangxi University, Nanning, China, 2011. [Google Scholar]
- Segall, M.D.; Lindan, P.J.D.; Probert, M.J.; Pickard, C.J.; Hasnip, P.J.; Clark, S.J.; Payne, M.C. First-principles simulation: ideas, illustrated and the CASTEP code. J. Phys. Condens. Matter. 2002, 14, 2717–2744. [Google Scholar] [CrossRef]
- Perdew, J.P.; Chevary, J.A.; Vosko, S.H.; Jackson, K.A.; Pederson, M.R.; Singh, D.J.; Fiolhais, C. Atoms, molecules, solids, and surfaces: Applications of the generalized gradient approximation for exchange and correlation. Phy. Rev. B Condens. Matter Mater. Phys. 1992, 46, 6671–6687. [Google Scholar] [CrossRef] [PubMed]
- Vanderbilt, D. Soft self-consistent pseudopotentials in a generalized eigenvalue formalism. Phys. Rev. B 1990, 4, 7892–7895. [Google Scholar] [CrossRef] [PubMed]
- Monkhorst, H.J.; Pack, J.D. Special points for Brillouin-zone integrations. Phys. Rev. B Solid State 1976, 13, 5188–5192. [Google Scholar] [CrossRef]
- Pack, J.D.; Monkhorst, H.J. Special points for Brillouin-zone integrations. Phys. Rev. B Solid State 1977, 16, 1748–1749. [Google Scholar] [CrossRef]
- Xi, P.; Shi, C.; Yan, P. DFT study on influence of sulfur on the hydrophobicity of pyrite surfaces in the process of oxidation. App. Sur. Sci. 2019, 466, 964–969. [Google Scholar] [CrossRef]
- Pfrommer, B.; CÔté, M.; Louie, S.; Cohen, M. Relaxation of crystals with the quasi-Newton method. J. Comput. Phys. 1997, 131, 233–240. [Google Scholar] [CrossRef]
- Xi, P.; Liu, W.; Yang, Z. Quantum chemistry investigation on influence of sulfur atom adsorption in sulfur material to the coal pyrite hydrophobicity. J. China Coal Soc. 2017, 42, 1290–1296. [Google Scholar]
- Han, Y.; Liu, W.; Zhou. Interactions between kaolinite Al-OH surface and sodium hexametaphosphate. App. Surf. Sci. 2016, 387, 759–765. [Google Scholar] [CrossRef]
- Han, Y.; Liu, W.; Chen. DFT simulation of the adsorption of sodium silicate species on kaolinite surfaces. App. Surf. Sci. 2016, 370, 403–409. [Google Scholar] [CrossRef]
- Yang, Z.; Liu, W.; Zhang, H. DFT study of the adsorption of 3-chloro-2-hydroxypropyl trimethylammonium chloride on montmorillonite surfaces in solution. App. Surf. Sci. 2018, 436, 58–65. [Google Scholar] [CrossRef]
- He, Q. Study of Gold-Bearing Electronic Structure and Flotation Behavior. Master’ Thesis, Guangxi University, Nanning, China, 2015. [Google Scholar]
- Mulliken, R.S. Electronic population analysis on LCAO-MO molecular wave functions. IV. bonding and antibonding in LCAO and Valence-bond theories. J. Chem. Phy. 1955, 23, 2343–2346. [Google Scholar] [CrossRef]
- Segall, M.D.; Shah, R.; Pickard, C.J.; Payne, M.C. Population analysis of plane-wave electronic structure calculation of bulk materials. Phys. Rev. B 1996, 54, 16317–16320. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are not available from the authors. |

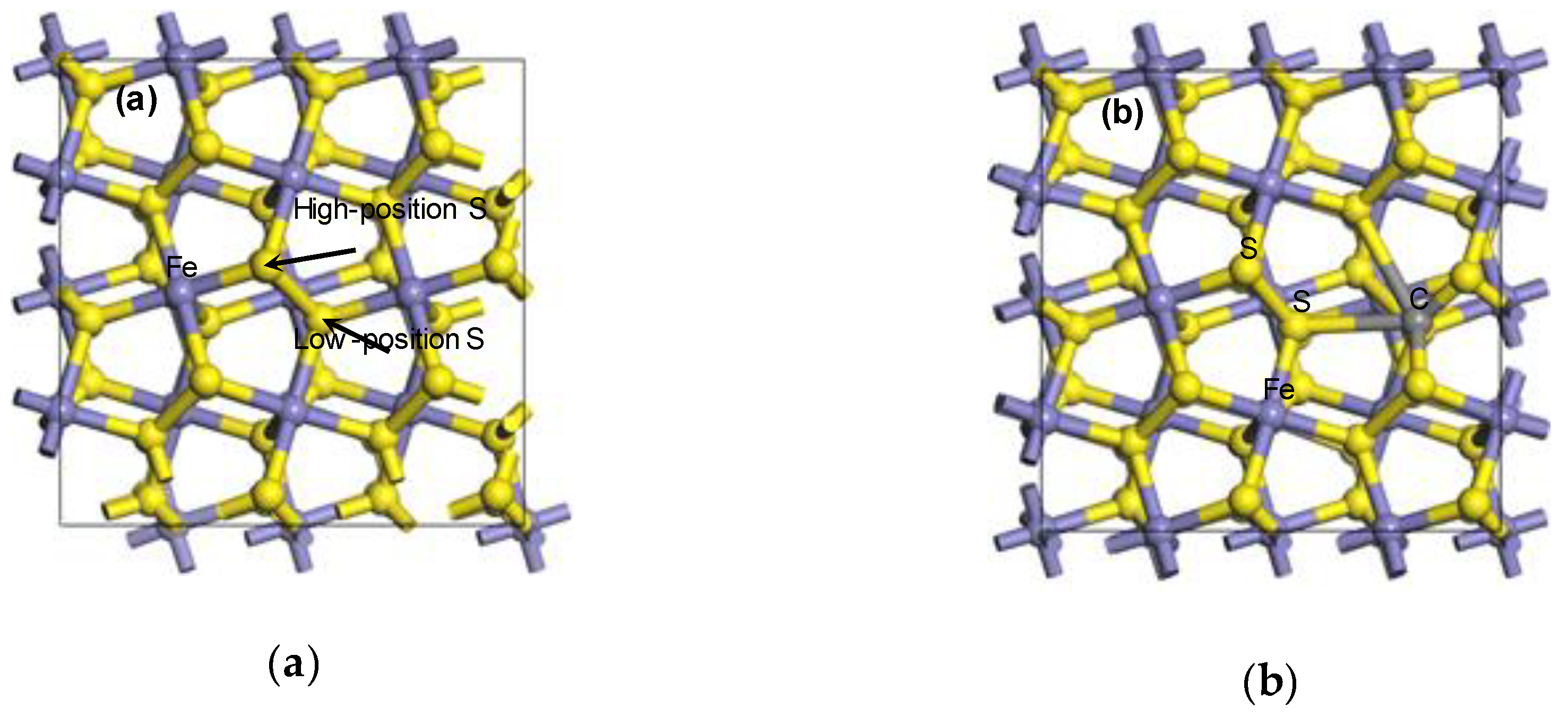

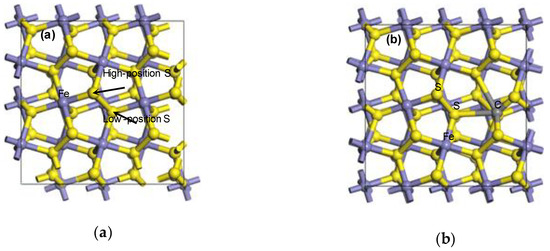

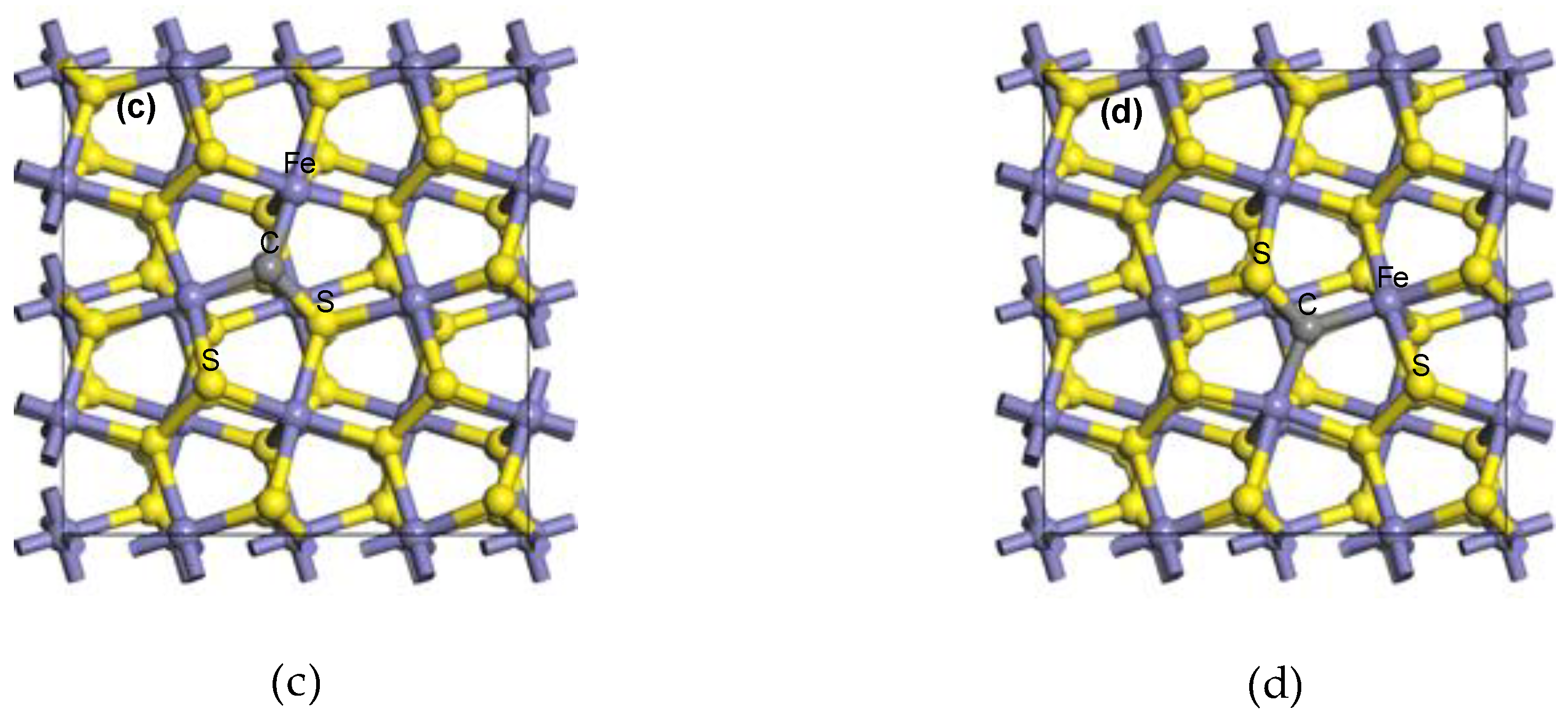

Figure 1.
The doping model of one carbon atom-substituted pyrite surface: (a) I; (b) F; (c) HS; (d) LS.
Figure 1.
The doping model of one carbon atom-substituted pyrite surface: (a) I; (b) F; (c) HS; (d) LS.

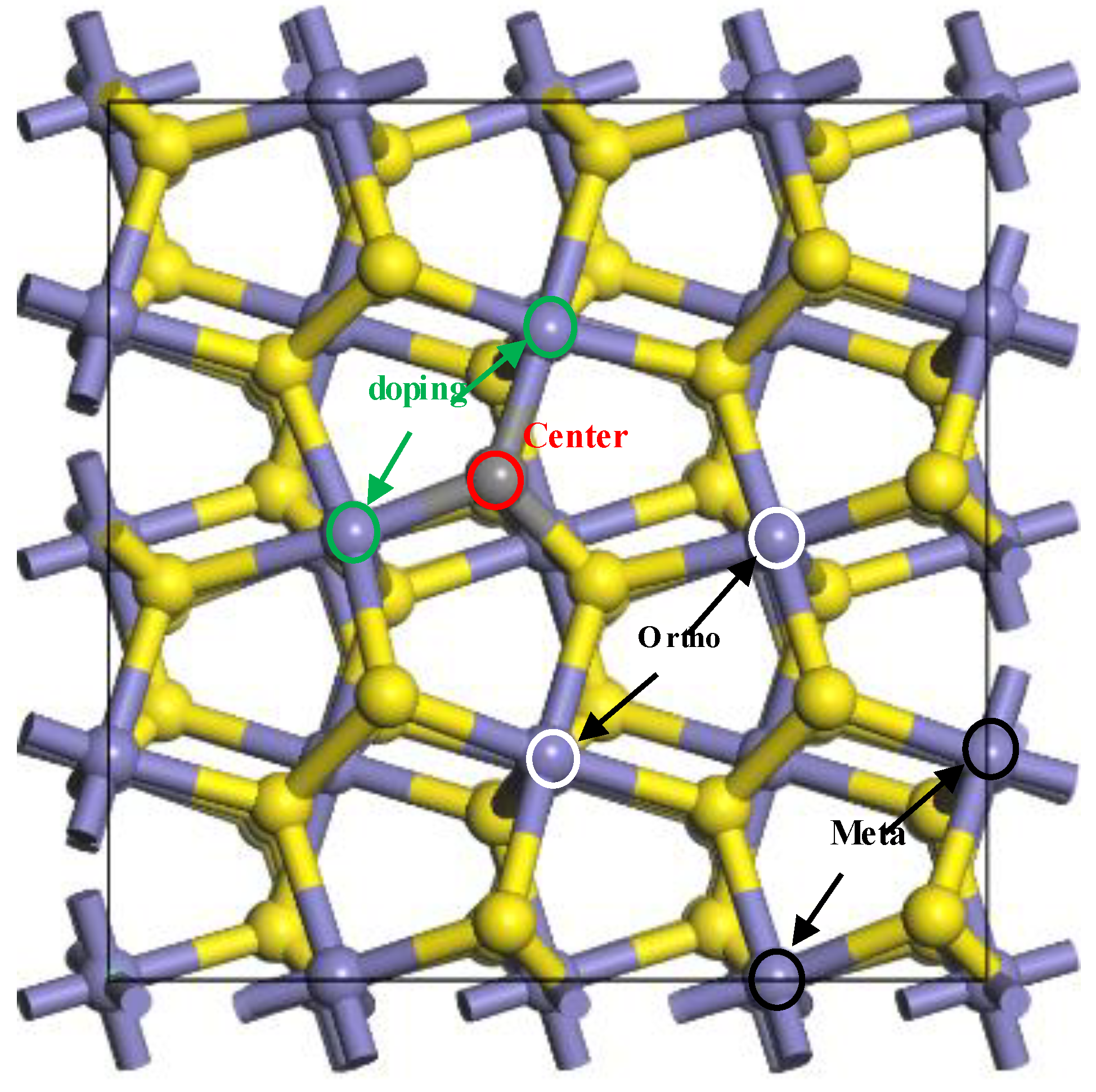

Figure 2.
The different adsorption sites of H2O on the coal pyrite surface.

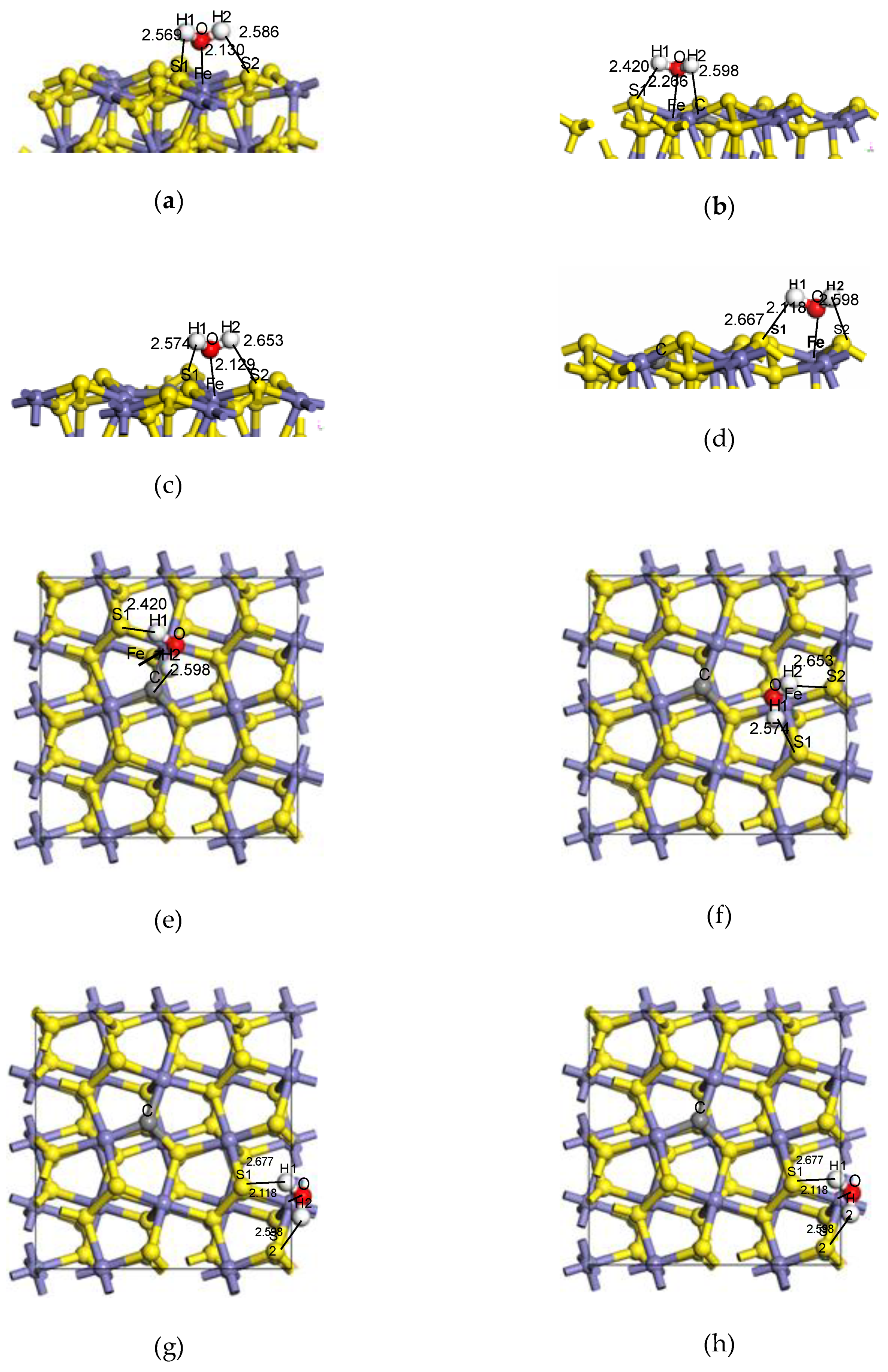

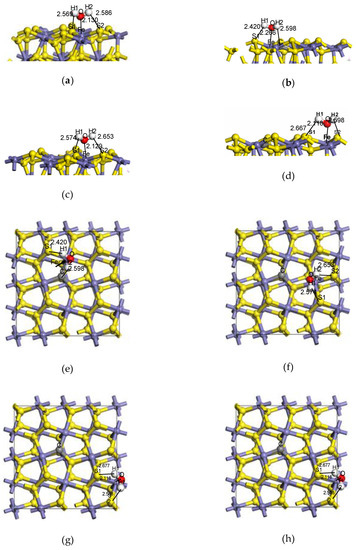

Figure 3.
The adsorption configuration of H2O on different sites of the coal pyrite surface. Side view: (a) ideal surface; (b) doping-position; (c) ortho-position; Top view: (d) meta-position. (e) ideal surface; (f) doping-position; (g) ortho-position; (h) meta-position.
Figure 3.
The adsorption configuration of H2O on different sites of the coal pyrite surface. Side view: (a) ideal surface; (b) doping-position; (c) ortho-position; Top view: (d) meta-position. (e) ideal surface; (f) doping-position; (g) ortho-position; (h) meta-position.

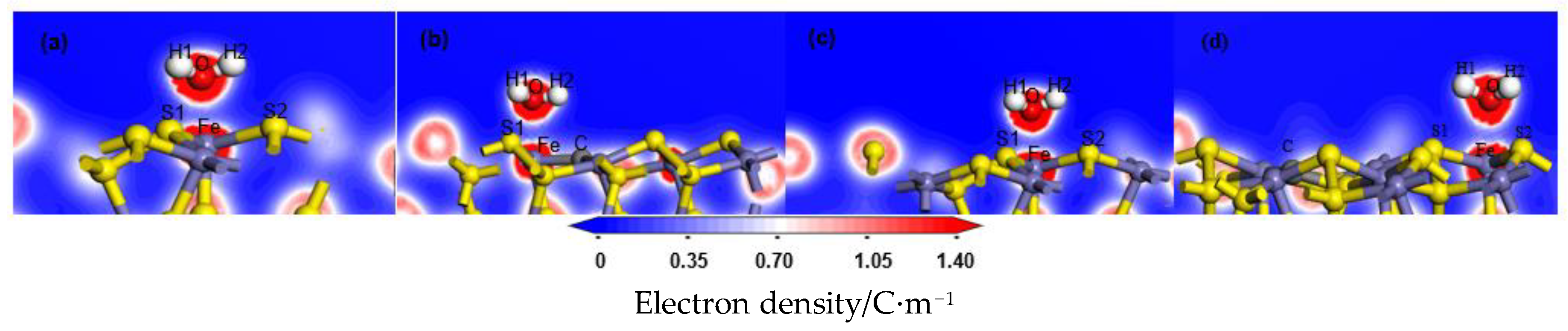

Figure 4.
Electron density after H2O adsorption on the coal pyrite surfaces: (a) ideal surface; (b) doping-position; (c) ortho-position; (d) meta-position.
Figure 4.
Electron density after H2O adsorption on the coal pyrite surfaces: (a) ideal surface; (b) doping-position; (c) ortho-position; (d) meta-position.

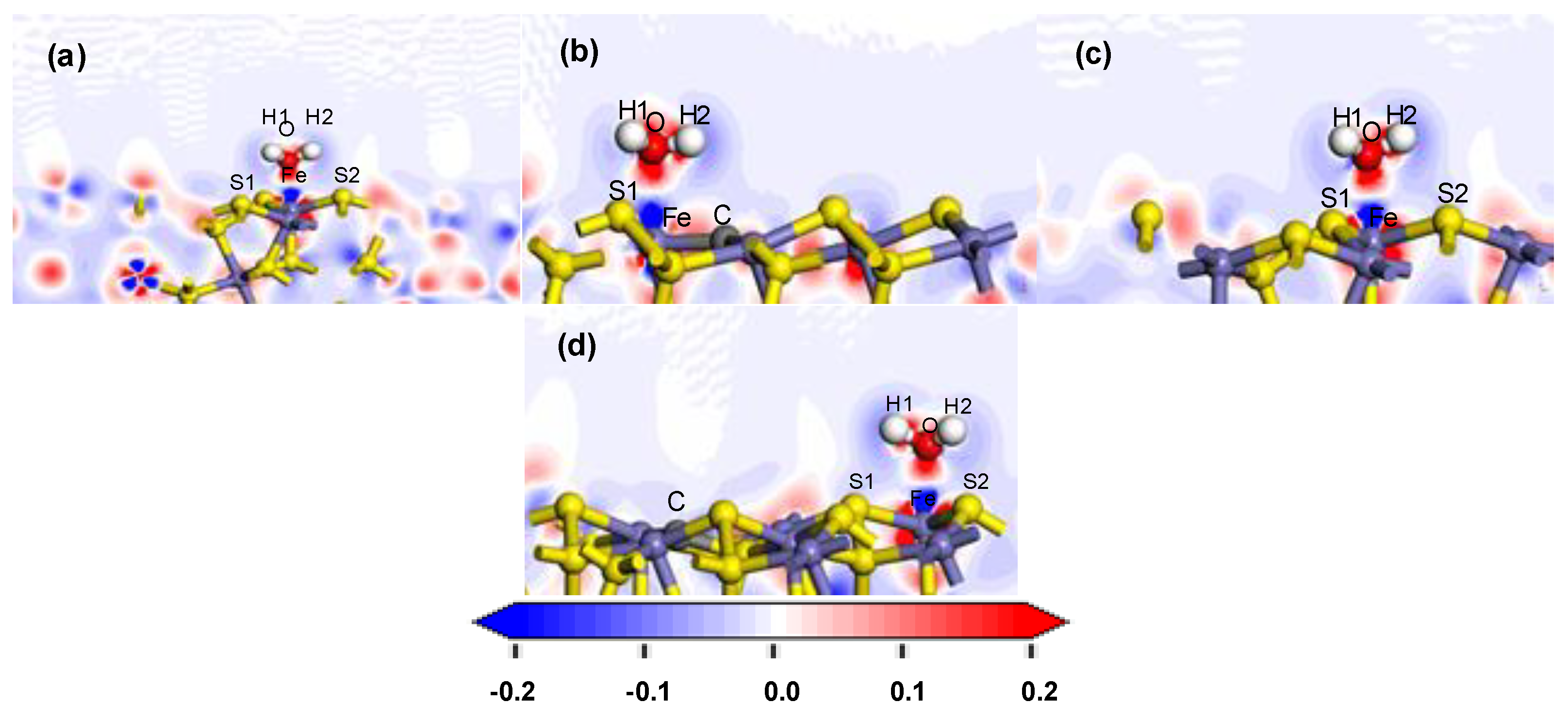

Figure 5.
Charge density difference after H2O adsorption on the coal pyrite surface: (a) ideal surface; (b) doping-position; (c) ortho-position; (d) meta-position.
Figure 5.
Charge density difference after H2O adsorption on the coal pyrite surface: (a) ideal surface; (b) doping-position; (c) ortho-position; (d) meta-position.

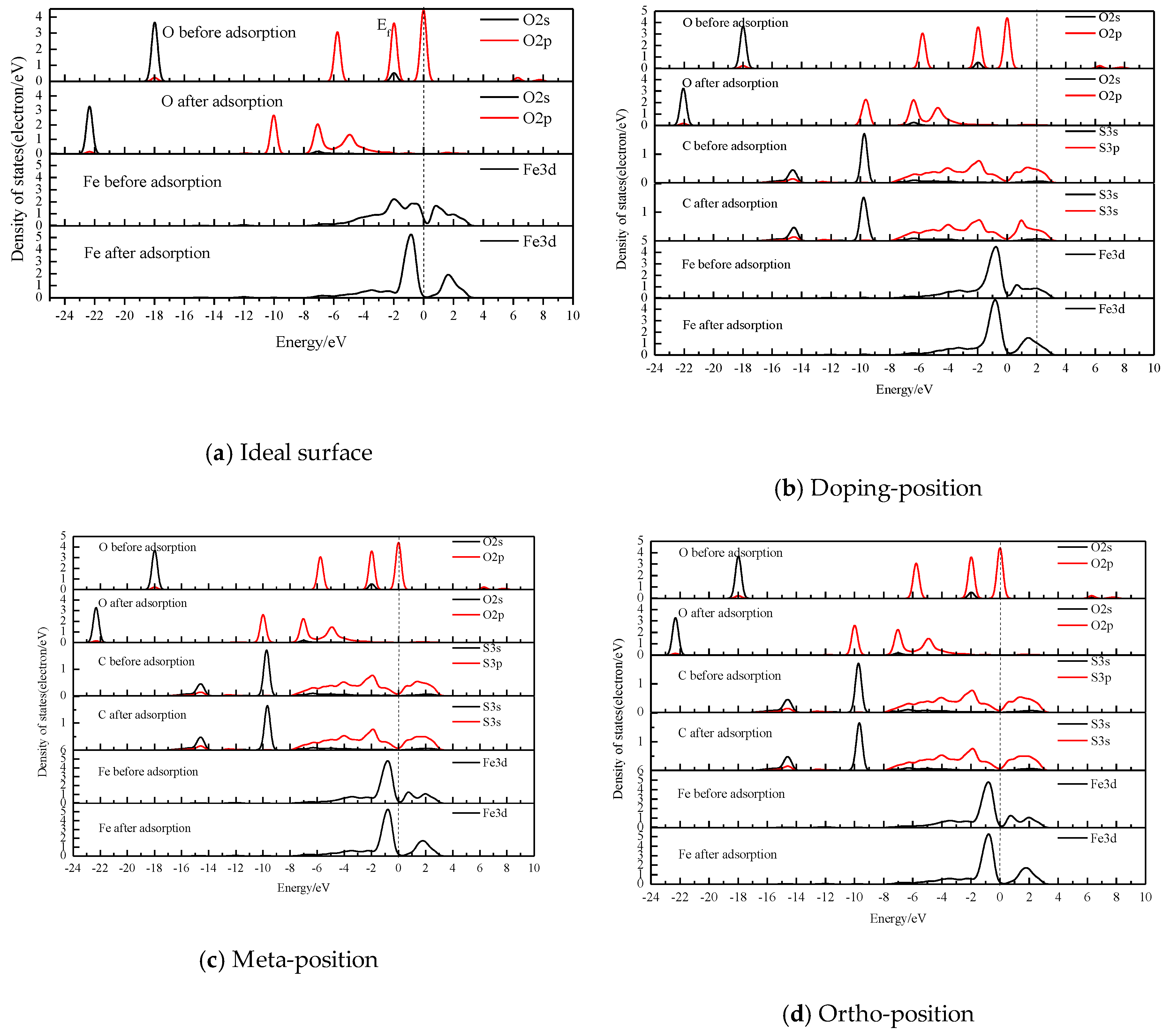

Figure 6.
Density of states (DOS) of atoms before and after H2O adsorption at different sites of pyrite surfaces.
Figure 6.
Density of states (DOS) of atoms before and after H2O adsorption at different sites of pyrite surfaces.
Table 1.
Impurity substitution energy of the pyrite surface substituted by carbon atoms on different sites.
Table 1.
Impurity substitution energy of the pyrite surface substituted by carbon atoms on different sites.
| Substitution Site | △E/kJ/mol |
|---|---|
| F | 51.24 |
| HS | −126.90 |
| LS | −58.12 |
Note: For the sake of simplicity, I represents the model of the ideal pyrite surface. F represents the surface model after replacing iron atoms with carbon atoms. HS represents the surface model after replacing the high-position S atoms with carbon atoms. LS represents the surface model after replacing the low-position S atoms with carbon atoms.
Table 2.
Eads of H2O on different sites of the pyrite surface with carbon defects.
| Adsorption Configuration | Eads/(kJ/mol) |
|---|---|
| doping-position | −50.18 |
| ortho-position | −67.13 |
| meta-position | −69.35 |
Table 3.
Mulliken population after H2O adsorption on different sites of the coal pyrite surface.
| Adsorption Model | Bond | Population | Length |
|---|---|---|---|
| doping-position | Fe–O | 0.10 | 2.266 |
| H1–S1 | 0.01 | 2.420 | |
| H2–C | −0.00 | 2.598 | |
| ortho-position | Fe–O | 0.13 | 2.129 |
| H1–S1 | 0.01 | 2.574 | |
| H2–S2 | −0.01 | 2.653 | |
| meta-position | Fe–O | 0.13 | 2.118 |
| H1-S1 | −0.01 | 2.667 | |
| H–-S2 | 0.01 | 2.598 |
Table 4.
Mulliken charge population (MCP) of atoms on the ideal pyrite surface.
| Atomic Label | Adsorption Status | s | p | d | T | Charge/e |
|---|---|---|---|---|---|---|
| Fe | BA | 0.40 | 0.52 | 6.90 | 7.82 | 0.18 |
| AA | 0.32 | 0.42 | 7.10 | 7.84 | 0.16 | |
| O | BA | 1.89 | 5.16 | 0.00 | 7.05 | −1.05 |
| AA | 1.87 | 4.98 | 0.00 | 6.84 | −0.84 | |
| H1 | BA | 0.47 | 0.00 | 0.00 | 0.47 | 0.53 |
| AA | 0.54 | 0.00 | 0.00 | 0.54 | 0.46 | |
| H2 | BA | 0.47 | 0.00 | 0.00 | 0.47 | 0.53 |
| AA | 0.53 | 0.00 | 0.00 | 0.53 | 0.47 | |
| S1 | BA | 1.86 | 4.27 | 0.00 | 6.14 | −0.14 |
| AA | 1.85 | 4.30 | 0.00 | 6.15 | −0.15 | |
| S2 | BA | 1.87 | 4.29 | 0.00 | 4.16 | −0.16 |
| AA | 1.85 | 4.32 | 0.000 | 6.17 | −0.17 |
Table 5.
MCP of atoms at the doping-position.
| Atomic Label | Adsorption Status | s | p | d | T | Charge/e |
|---|---|---|---|---|---|---|
| Fe | BA | 0.33 | 0.37 | 7.08 | 7.78 | 0.22 |
| AA | 0.31 | 0.38 | 7.03 | 7.72 | 0.28 | |
| O | BA | 1.89 | 5.16 | 0.00 | 7.05 | −1.05 |
| AA | 1.87 | 4.97 | 0.00 | 6.85 | −0.85 | |
| H1 | BA | 0.47 | 0.00 | 0.00 | 0.47 | 0.53 |
| AA | 0.54 | 0.00 | 0.00 | 0.54 | 0.46 | |
| H2 | BA | 0.47 | 0.00 | 0.00 | 0.47 | 0.53 |
| AA | 0.53 | 0.00 | 0.00 | 0.53 | 0.47 | |
| S1 | BA | 1.86 | 4.28 | 0.00 | 6.14 | −0.14 |
| AA | 1.85 | 4.32 | 0.00 | 6.17 | −0.17 | |
| C | BA | 1.60 | 2.90 | 0.00 | 4.50 | −0.50 |
| AA | 1.60 | 2.91 | 0.00 | 4.51 | −0.51 |
Table 6.
MCP of atoms at the ortho-position.
| Atomic Label | Adsorption Status | s | p | d | T | Charge/e |
|---|---|---|---|---|---|---|
| Fe | BA | 0.34 | 0.43 | 7.15 | 7.92 | 0.08 |
| AA | 0.32 | 0.42 | 7.10 | 7.84 | 0.16 | |
| O | BA | 1.89 | 5.16 | 0.00 | 7.05 | −1.05 |
| AA | 1.86 | 4.98 | 0.00 | 6.85 | −0.85 | |
| H1 | BA | 0.47 | 0.00 | 0.00 | 0.47 | 0.53 |
| AA | 0.54 | 0.00 | .0.00 | 0.54 | 0.46 | |
| H2 | BA | 0.47 | 0.00 | 0.00 | 0.47 | 0.53 |
| AA | 0.53 | 0.00 | 0.00 | 0.53 | 0.47 | |
| S1 | BA | 1.86 | 4.25 | 0.00 | 6.10 | −0.10 |
| AA | 1.85 | 4.30 | 0.00 | 6.15 | −0.15 | |
| S2 | BA | 1.86 | 4.27 | 0.00 | 6.13 | −0.13 |
| AA | 1.85 | 4.30 | 0.00 | 6.15 | −0.15 |
Table 7.
MCP of atoms at the meta-position.
| Atomic Label | Adsorption Status | s | p | d | T | Charge/e |
|---|---|---|---|---|---|---|
| Fe | BA | 0.34 | 0.43 | 7.14 | 7.91 | 0.09 |
| AA | 0.32 | 0.42 | 7.10 | 7.84 | 0.16 | |
| O | BA | 1.89 | 5.16 | 0.00 | 7.05 | −1.05 |
| AA | 1.86 | 4.98 | 0.00 | 6.84 | −0.84 | |
| H1 | BA | 0.47 | 0.00 | 0.00 | 0.47 | 0.53 |
| AA | 0.53 | 0.00 | 0.00 | 0.53 | 0.47 | |
| H2 | BA | 0.47 | 0.00 | 0.00 | 0.47 | 0.53 |
| AA | 0.54. | 0.00 | 0.00 | 0.54 | 0.46 | |
| C | BA | 1.60 | 2.90 | 0.00 | 4.50 | −0.50 |
| AA | 1.60 | 2.90 | 0.00 | 4.50 | −0.50 |
