One-Step Regioselective Synthesis of Benzofurans from Phenols and α-Haloketones

by
Bingqiao Wang
†,
Qiu Zhang
†,
Juan Luo
,
Zongjie Gan
,
Wengao Jiang
and
Qiang Tang
*
College of Pharmacy, Center for Lab Teaching and Management, Chongqing Medical University, No.1 Yixueyuan Road, Chongqing 400016, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work and should be considered co-first authors.
Molecules 2019, 24(11), 2187; https://doi.org/10.3390/molecules24112187
Submission received: 16 May 2019 / Revised: 3 June 2019 / Accepted: 7 June 2019 / Published: 11 June 2019
(This article belongs to the Section Organic Chemistry)
Browse Figures
Versions Notes

Abstract

:
Reported here is the direct synthesis of naphthofurans and benzofurans from readily available phenols and α-haloketones promoted by titanium tetrachloride which combines Friedel–Crafts-like alkylation and intramolecular cyclodehydration into one step. This simple protocol allows for the formation of a variety of high value naphthofurans and benzofurans within which a series of cyclic and acyclic groups are readily incorporated. This process demonstrates the advantages of high levels of regioselectivity, broad substrate scope, and moderate to excellent yields.

Graphical Abstract

1. Introduction

Benzofuran derivatives, especially naphthofurans, constitute a valuable class of heterocyclic compounds due to their natural occurrence and remarkable biological activities [1,2]. Currently, more than 30 drugs bearing a benzofuran moiety have been approved by the United States Food and Drug Administration (USFDA) [3,4]. Furthermore, naphthofurans have attracted significant attention in recent years owing to their powerful paradigm in the development and design of potential anticancer drugs [5], dual inhibitors of Alzheimer’s disease [6,7], inhibitors of human protein kinase [8], and regulators of the nuclear receptor [9], as well as other bioactivities [10,11]. Several representative bioactive compounds possessing a naphthofuran or benzofuran skeleton are listed in Figure 1 [12,13]. Therefore, the development of novel synthetic methods for their direct preparation from readily accessible materials is very important.
Because of the aforementioned importance, numerous approaches have been reported for the preparation of these scaffolds through transition-metal catalysis, Lewis or Brønsted acid catalyzed, or base-promoted cyclizations [14,15]. Many of these methods rely on harsh conditions, expensive transition metals, or substrates that are difficult to obtain. The strategy using phenols and α-haloketones as starting materials to obtain benzofurans is one of the most convenient routes. 3-Substituted benzo[b]furan 4 can be easily synthesized by a stepwise [16,17,18] or a one-step method [19,20] which involves o-alkylation of simple phenols with α-haloketone followed by intramolecular cyclization (Scheme 1a). However, there are seldom reports concerned with the synthesis of 2-substituted benzo[b]furans using α-haloketone and phenols as starting materials [21]. Recently, Arias et al. have reported that 2-aryl benzo[b]furan 5 can be obtained with excellent regioselectivity under refluxing temperature using neutral alumina as a promoter and xylene as a solvent [22]. Nevertheless, the scope of α-haloketone is limited to only aryl ketone, without any alkyl ketone being employed (Scheme 1b). To continue our research [18], we report here that 2-alkyl benzo[b]furan 6 can be regioselectively formed directly from α-haloketones and phenols in the presence of titanium tetrachloride (Scheme 1c).

2. Results and Discussion

In order to develop a concise approach to naphthofuran, 2-naphthol (1a) and 2-chloroacetone (2a) were selected as model substrates (Table 1). To our delight, the reaction took place smoothly and proceeded to completion in ten hours when titanium tetrachloride was used in the presence of trifluoroethanol (TFE). The desired product 6a (Table 1) was formed regioselectively, without any other isomer being detected (entry 8).
As a matter of fact, no conversion to the desired product was observed when commonly used Brønsted acids or other Lewis acids were tested (Table 1, entries 1–4). When TMSOTf or BF3.Et2O was used, the reaction produced numerous by-products and finally provided only a few furan products (Table 1, entries 5 and 6). Using reaction conditions reported in the literature [22], the reaction did take place but produced an inseparable mixture of 4a and 6a (Table 1, entry 7). Moreover, it was discovered that increasing or decreasing the amount of titanium tetrachloride led to lower reaction efficiency (Table 1, entries 9–11). Note that slightly higher reaction temperature is beneficial to both reaction rate and efficiency. Actually, only a trace amount of 6a was detected by TLC when the reaction mixture was stirred at room temperature overnight, and the reaction turned out to be complex if prolonging the reaction time (Table 1, entry 13). The reaction could be carried out in several conventional solvents (CH2Cl2 and toluene) in addition to TFE, although resulting in significantly diminished conversions and a longer reaction time (Table 1, entries 14 and 15). Other solvents (CH3CN, Et2O and THF) were also screened at their refluxing temperatures, but no new product could be detected after stirring overnight (Table 1, entry 16). The effect of catalyst amount and reaction temperature in this reaction was then investigated.
With an optimal set of catalysis conditions selected, we were then poised to test the one-pot process and evaluate the substrate scope of this reaction. When the reaction was conducted in refluxing TFE in the presence of titanium tetrachloride, we were delighted to find that both 1- and 2-naphthols functioned efficiently in the reaction with 2-chloroacetone, with nearly single isomer being isolated (Table 2, 6a–6d, 99:1 rr). The yields and reaction rates for 1-naphthol, in general, were a little better than those of 2-naphthol. Bromo-substituted naphthols were also highly effective regardless of the position of the bromo group on the phenyl ring (Table 2, 6c and 6d, 89% and 66% yields, respectively). Additionally, simple 3-chloro-2-butanone was also highly effective in the current protocol (Table 2, 6e and 6f, 74% and 76% yields, respectively).
Regioisomers were obtained in the reactions of other acyclic α-haloketones (Table 2, 6g–6l). The phenomenon of isomerization was particularly obvious for the reaction of 2-chloro-3-pentanone stirred at room temperature (Table 2, 6g, 2:1 rr). However, the problem caused by isomerization was readily overcome by slightly raising the reaction temperature and dropping α-haloketones into the reaction mixture. By employing the above-mentioned procedures, the desired products were afforded with high regioselectivity and good yields (Table 2, 6g, 9:1 rr; 6h, 10:1 rr).
We next examined the scope of cyclic α-chloroketone which finally produced furans with four cycles (Table 3). It was gratifying to find that these reactions were completed in 3–10 h to afford the corresponding tetracyclic products with moderate to excellent yields. Importantly, the transformation is not limited to six-membered cyclic α-chloroketone, as five-, seven-, and eight-membered cyclic α-chloroketones are competent substrates. Interestingly, both reaction rate and yield for six-membered cyclic α-chloroketone (Table 3, 7b, 7e, 7i, and 7m) were better than those of other cyclic α-chloroketones. Intriguingly, all the reactions of 1-naphthol with cyclic α-chloroketones proceeded to completion in 3 h, offering products with excellent yields (Table 3, 7e–7g). However, the reactions of bromo-substituted naphthols, such as 6-bromo or 7-bromo-2-naphthol, required longer reaction times (10–24 h) and offered only moderate yields of naphthofurans 7h, 7j–7l, and 7n–7o (Table 3).
To further extend the reaction scope, we carried out the reaction with phenols. First, we used 2-chlorocyclohexanone to examine the reactivity of various substituted phenols. Gratifyingly, all alkyl- or alkoxy-substituted phenols reacted successfully with 2-chlorocyclohexanone to produce the desired benzofurans 9a–9h (Table 4) with excellent yields. Additionally, it was found that the substituent patterns (ortho-, meta- and para-) on the benzene ring showed no observed effects on the reaction outcomes (Table 4, 9b–9d). Note that the reaction exhibits sensitivity to steric constraints on the phenol substrate, that is, the Friedel–Crafts-like alkylation occurs preferentially at the less hindered position, which can be demonstrated by the formation of a single isomer (Table 4, 9c). Unfortunately, phenols incorporating an electron-withdrawing group did not react under these conditions. For example, no new spot was detected by TLC when 4-nitrophenol was employed to react with 2-chlorocyclohexane for 24 h. Moreover, phenols bearing a strong electron-donating substituent, such as methoxyl, failed to give better yields (Table 4, 9e and 9f, 72% and 73% yields, respectively), although the reaction rates were faster than that of non-substituted phenol. On the other hand, the reactions of phenols with acyclic α-haloketones were also examined, which proceeded smoothly (Table 4, 9i–9k, 77–81% yields).
To gain insight into the reaction mechanism, we carried out the reaction with unsymmetrically substituted haloketone 2m (Scheme 2), under the optimized conditions. Pleasingly, both the desired furan 6m and isomer 6f (Scheme 2) were isolated in nearly equal amounts. However, reactions for α-halo aromatic ketones, such as 2-bromoacetophenone and 2-bromo-1-phenylpentanone, failed to occur. These facts suggested that oxy-allyl cation may be one of the key intermediates for the reaction between α-halo alkyl ketones and phenols.
It is reported that azepinium ions can be generated by the ether cleavage reaction of 2-methoxy-2H-azepine derivatives with titanium tetrachloride as a Lewis acid [23,24]. Furthermore, titanium tetrachloride is also a powerful dehydrating agent and demonstrates a prominent effect in the condensation reaction of triketones to yield furans [25]. Apart from the reaction paths reported in the literature (Scheme 1a,b) [22], another reaction route for the one-pot synthesis of benzofuran was proposed in Scheme 3 [26,27]. First, oxy-allyl cation I, evolved from 2m with the aid of titanium tetrachloride, reacts with 1b to produce Friedel–Crafts type intermediate II or III (Scheme 3). Then, due to the powerful dehydration ability of titanium tetrachloride, intramolecular cyclodehydration of the intermediate II or III easily takes place to obtain benzofuran 6m or 6f (Scheme 3).

3. Experimental Section

3.1. General Information

Nuclear magnetic resonance spectra (1H and 13C) were recorded on 400 and 600 MHz spectrometers (Bruker, Karlsruhe, Germany) with tetramethylsilane (TMS) as an internal standard.The splitting patterns are designated as singlet (s), doublet (d), triplet (t), quartet (q), dd (doublet of doublets), m (multiplets), etc. All first-order splitting patterns were assigned on the basis of the appearance of the multiplet. Splitting patterns that could not be easily interpreted were designated as multiplet (m) or broad (br). High resolution mass spectral analysis (HRMS) was performed on an ESI-QTOP mass spectrometer (Bruker Solari XFT-ICR-MS system). Purification was done by column chromatography and preparative TLC using silica gel. TLC analyses were performed on commercial glass plates (Qingdao Haiyang Chemical Co., Ltd, Qingdao, China) bearing a 0.25-mmlayer of silica gel GF254.Visualization was performed using a UV lampor chemical stains like KMnO4 and I2. Commercially available materials were used as received.
All reactions were carried out under nitrogen atmosphere. Dehydrated solvents were purchased from commercial suppliers (Alfa Aesar, Ward Hill, MA, USA; Adamas, Shanghai, China) and stored under nitrogen atmosphere. Unless otherwise noted, materials were obtained from commercial suppliers and used without further purification. Some of the α-chloroketones and bromoketones were prepared using literature methods [28,29].

3.2. General Procedure for the Reaction between Phenol and α-Haloketone

To a 25 mL two-necked flask equipped with a reflux condenser, fresh distilled 2,2,2-trifluoroethanol (1.0 mL), phenol (1.0 mmol), and titanium tetrachloride (1.0 mmol) were added under nitrogen atmosphere. Then, a mixture of α-haloketone (1.2 mmol) in 2,2,2-trifluoroethanol (1.0 mL) was dropped into the reaction mixture under refluxing temperature. After completion of the reaction (monitored by TLC), the mixture was quenched with a saturated aqueous solution of NH4Cl (20 mL). After filtration of the mixture, the water layer was extracted by dichloromethane (3 × 10 mL) and dried with anhydrous sodium sulphate. The organic mixture was concentrated under reduced pressure, and separated by silica-gel column chromatography using ethyl acetate−hexane as eluent in increasing polarity to yield the desired furan compound.

3.2.1. Characterizations of Naphthofuran 6 (Table 2)

2-Methylnaphtho[2,1-b]furan (6a) [30]. The title compound was obtained as white solid (76%), mp: 39–40 °C, and the analytical data are consistent with those in the literature. 1H NMR (600 MHz, CDCl3) δ 8.07 (d, J = 8.2 Hz, 1H), 7.93 (d, J = 8.1 Hz, 1H), 7.65 (d, J = 8.8 Hz, 1H), 7.60 (d, J = 8.9 Hz, 1H), 7.55 (t, J = 7.5 Hz, 1H), 7.46 (t, J = 7.5 Hz, 1H), 6.87 (s, 1H), 2.56 (s, 3H); 13C NMR (150 MHz, CDCl3) δ 154.7, 151.9, 130.3, 128.7, 127.4, 125.9, 124.2, 124.2, 123.8, 123.4, 112.1, 101.7, 14.3; GC-MS (m/z): 182.1 [M]+.
2-Methylnaphtho[1–b]furan (6b) [31]. The title compound was obtained as colorless oil (80%), and the analytical data are consistent with those in the literature. 1H NMR (600 MHz, CDCl3) δ 8.27 (d, J = 8.2 Hz, 1H), 7.91 (d, J = 8.2 Hz, 1H), 7.74–7.51 (m, 3H), 7.45 (d, J = 7.6 Hz, 1H), 6.51 (s, 1H), 2.58 (s, 3H); 13C NMR (150 MHz, CDCl3) δ 154.6, 149.9, 130.8, 128.3, 126.1, 124.6, 124.4, 123.0, 121.2, 119.7, 119.3, 103.7, 14.2.
7-Bromo-2-methylnaphtho[2,1-b]furan (6c) [32]. The title compound was obtained as white solid (89%), mp: 91–92 °C, and the analytical data are consistent with those in the literature. 1H NMR (600 MHz, CDCl3) δ 8.06 (d, J = 1.8 Hz, 1H), 7.90 (d, J = 8.7 Hz, 1H), 7.60 (dd, J = 8.8, 1.8 Hz, 2H), 7.53 (d, J = 8.9 Hz, 1H), 6.81 (s, 1H), 2.55 (s, 3H); 13C NMR (150 MHz, CDCl3) δ 155.3, 151.9, 131.4, 130.6, 129.0, 125.8, 125.2, 124.3, 122.7, 117.8, 113.1, 101.6, 14.2.
8-Bromo-2-methylnaphtho[2,1-b]furan (6d). The title compound was obtained as white solid (66%), mp: 93–94 °C. 1H NMR (600 MHz, CDCl3) δ 8.20 (d, J = 1.9 Hz, 1H), 7.77 (d, J = 8.7 Hz, 1H), 7.59 (s, 2H), 7.52 (dd, J = 8.7, 2.0 Hz, 1H), 6.80 (s, 1H), 2.55 (d, J = 0.8 Hz, 3H); 13C NMR (150 MHz, CDCl3) δ 155.2, 152.3, 130.3, 128.6, 128.5, 127.5, 125.9, 123.6, 123.5, 120.0, 112.5, 101.6, 14.2; HRMS (ESI) calcd for C13H10BrO (M + H)+: 260.9910. Found: 260.9909.
1,2-Dimethylnaphtho[2,1-b]furan (6e) [33]. The title compound was obtained as yellowish oil (74%), and the analytical data are consistent with those in the literature. 1H NMR (600 MHz, CDCl3) δ 8.40 (d, J = 8.3 Hz, 1H), 7.96 (d, J = 8.1 Hz, 1H), 7.65 (d, J = 8.8 Hz, 1H), 7.63–7.53 (m, 2H), 7.53–7.38 (m, 1H), 2.57 (s, 3H), 2.49 (s, 3H); 13C NMR (150 MHz, CDCl3) δ 151.3, 149.9, 130.7, 128.9, 128.7, 125.8, 124.0, 123.8, 123.2, 123.0, 112.1, 111.7, 11.8, 11.4.
2,3-Dimethylnaphtho[1,2-b]furan (6f) [30]. The title compound was obtained as yellowish solid (71%), mp: 201–202 °C, and the analytical data are consistent with those in the literature. 1H NMR (400 MHz, CDCl3) δ 8.26 (d, J = 8.3 Hz, 1H), 7.92 (d, J = 8.2 Hz, 1H), 7.64 (d, J = 8.5 Hz, 1H), 7.61–7.51 (m, 2H), 7.51–7.36 (m, 1H), 2.50 (s, 3H), 2.24 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 149.8, 148.9, 130.9, 128.3, 126.0, 125.7, 124.3, 122.5, 121.1, 119.7, 117.9, 110.9, 12.00, 8.1.
2-Ethyl-3-methylnaphtho[1,2-b]furan (6g). The title compound was obtained as yellowish oil (88%). 1H NMR (600 MHz, CDCl3) δ 8.27 (d, J = 8.2 Hz, 1H), 7.91 (d, J = 8.2 Hz, 1H), 7.63 (d, J = 8.4 Hz, 1H), 7.54 (t, J = 7.5 Hz, 2H), 7.43 (t, J = 7.5 Hz, 1H), 2.86 (q, J = 7.6 Hz, 2H), 2.25 (s, 3H), 1.36 (t, J = 7.6 Hz, 3H); 13C NMR (150 MHz, CDCl3) δ 154.9, 148.9, 130.9, 128.3, 126.0, 125.7, 124.3, 122.5, 121.2, 119.8, 118.0, 109.9, 19.9, 13.1, 8.0; HRMS (ESI) calcd for C15H15O (M + H)+: 211.1117. Found: 211.1118.
2-Ethyl-1-methylnaphtho[2,1-b]furan (6h) [26]. The title compound was obtained as yellowish oil (80%), and the analytical data are consistent with those in the literature. 1H NMR (400 MHz, CDCl3) δ 8.41 (d, J = 8.3 Hz, 1H), 7.96 (d, J = 8.1 Hz, 1H), 7.74–7.53 (m, 3H), 7.53–7.41 (m, 1H), 2.87 (q, J = 7.6 Hz, 2H), 2.59 (s, 3H), 1.36 (t, J = 7.6 Hz, 3H); 13C NMR (100 MHz, CDCl3) δ 155.0, 151.3, 130.7, 129.0, 128.9, 125.8, 124.0, 123.7, 123.3, 123.1, 112.2, 110.8, 19.6, 13.2, 11.3.
2-Benzyl-1-phenylnaphtho[2,1-b]furan (6i) [34]. The title compound was obtained as yellow oil (70%), and the analytical data are consistent with those in the literature. 1H NMR (400 MHz, CDCl3) δ 7.90 (d, J = 8.2 Hz, 1H), 7.71 (dd, J = 12.8, 8.7 Hz, 2H), 7.63 (d, J = 8.9 Hz, 1H), 7.58–7.44 (m, 5H), 7.38 (t, J = 7.5 Hz, 1H), 7.35–7.20 (m, 6H), 4.08 (s, 2H); 13C NMR (100 MHz, CDCl3) δ 152.7, 151.7, 138.2, 133.9, 130.7, 130.6, 128.8, 128.7, 128.6, 128.6, 127.8, 126.5, 125.8, 125.0, 124.1, 123.2, 122.2, 120.0, 112.3, 32.6.
2-Benzyl-3-phenylnaphtho[1,2-b]furan (6j) [35]. The title compound was obtained as yellow oil (74%), and the analytical data are consistent with those in the literature. 1H NMR (400 MHz, CDCl3) δ 8.29 (d, J = 8.2 Hz, 1H), 7.92 (d, J = 8.1 Hz, 1H), 7.67 (s, 2H), 7.56 (ddd, J = 8.1, 5.1, 2.1 Hz, 3H), 7.53–7.45 (m, 3H), 7.45–7.19 (m, 6H), 4.32 (s, 2H); LCMS (ESI) calcd for C25H19O (M + H)+: 335.1. Found: 335.0.
2-Butyl-1-propylnaphtho[2,1-b]furan (6k). The title compound was obtained as yellowish oil (83%). 1H NMR (400 MHz, CDCl3) δ 8.24 (d, J = 8.1 Hz, 1H), 7.92 (d, J = 8.2 Hz, 1H), 7.63 (d, J = 8.9 Hz, 1H), 7.62–7.50 (m, 2H), 7.44 (dd, J = 11.1, 4.0 Hz, 1H), 3.03–2.87 (m, 2H), 2.88–2.69 (m, 2H), 1.87–1.67 (m, 4H), 1.42 (dd, J = 15.0, 7.5 Hz, 2H), 1.06 (t, J = 7.4 Hz, 3H), 0.96 (t, J = 7.4 Hz, 3H); 13C NMR (100 MHz, CDCl3) δ 154.4, 151.6, 130.7, 129.1, 128.4, 125.9, 124.1, 123.7, 123.2, 122.5, 116.2, 112.3, 30.9, 27.3, 26.0, 23.4, 22.5, 14.1, 14.0; HRMS (ESI) calcd for C19H23O (M + H)+: 267.1743. Found: 267.1741.
2-Butyl-3-propylnaphtho[1,2-b]furan (6l). The title compound was obtained as yellowish oil (84%). 1H NMR (400 MHz, CDCl3) δ 8.26 (d, J = 8.3 Hz, 1H), 7.90 (d, J = 8.2 Hz, 1H), 7.57 (ddd, J = 17.6, 16.0, 8.2 Hz, 3H), 7.50–7.36 (m, 1H), 2.82 (dt, J = 9.9, 7.5 Hz, 2H), 2.68 (dd, J = 15.8, 7.9 Hz, 2H), 1.91–1.72 (m, 2H), 1.67 (dd, J = 15.7, 7.6 Hz, 2H), 1.51–1.33 (m, 2H), 0.98 (ddt, J = 16.3, 8.9, 7.4 Hz, 6H); 13C NMR (100 MHz, CDCl3) δ 154.1, 149.1, 130.8, 128.3, 125.9, 125.0, 124.3, 122.3, 121.2, 119.8, 118.3, 115.8, 23.5, 23.4, 22.6, 22.5, 22.1, 14.1, 13.9; HRMS (ESI) calcd for C19H23O (M + H)+: 267.1743. Found: 267.1744.
2-Ethylnaphtho[1,2-b]furan (6m) [36].The title compound was obtained as yellowish oil (40%). 1H NMR (600 MHz, CDCl3) δ 8.27 (d, J = 8.3 Hz, 1H), 7.91 (d, J = 8.2 Hz, 1H), 7.65–7.51 (m, 3H), 7.50–7.38 (m, 1H), 6.51 (d, J = 0.9 Hz, 1H), 2.92 (qd, J = 7.5, 0.9 Hz, 2H), 1.40 (t, J = 7.6 Hz, 3H). 13C NMR (150 MHz, CDCl3) δ 160.3, 149.8, 130.9, 128.3, 126.1, 124.4, 124.4, 122.9, 121.2, 119.7, 119.4, 102.1, 21.9, 12.2.

3.2.2. Characterizations of Naphthofuran7 (Table 3)

9,10-Dihydro-8H-cyclopenta[b]naphtho[1,2-d]furan (7a). The title compound was obtained as white solid (72%), mp: 125–126 °C. 1H NMR (400 MHz, CDCl3) δ 8.05 (d, J = 8.1 Hz, 1H), 7.90 (d, J = 8.1 Hz, 1H), 7.59 (s, 2H), 7.51 (t, J = 7.4 Hz, 1H), 7.43 (t, J = 7.5 Hz, 1H), 3.16–2.99 (m, 2H), 2.91 (t, J = 7.2 Hz, 2H), 2.73–2.52 (m, 2H); 13C NMR (100 MHz,, CDCl3) δ 162.0, 157.3, 130.4, 128.5, 127.5, 125.8, 124.2, 124.1, 123.1, 122.2, 121.7, 113.0, 27.9, 25.0, 23.9; HRMS (ESI) calcd for C15H13O (M + H)+: 209.0961. Found: 209.0960.
8,9,10,11-Tetrahydronaphtho[2,1-b]benzofuran (7b) [37]. The title compound was obtained as yellowish oil (86%), and the analytical data are consistent with those in the literature. 1H NMR (400 MHz, CDCl3) δ 8.25 (d, J = 8.2 Hz, 1H), 7.94 (d, J = 8.1 Hz, 1H), 7.75–7.60 (m, 2H), 7.60–7.50 (m, 1H), 7.50–7.37 (m, 1H), 3.21–3.03 (m, 2H), 2.85 (t, J = 4.8 Hz, 2H), 2.14–1.86 (m, 4H); 13C NMR (150 MHz, CDCl3) δ 153.3, 151.5, 130.6, 129.5, 128.7, 125.7, 123.8, 123.7, 123.5, 122.5, 114.3, 112.3, 23.8, 23.2, 23.1, 22.6.
9,10,11,12-Tetrahydro-8H-cyclohepta[b]naphtho[1,2-d]furan (7c). The title compound was obtained as yellowish oil (78%). 1H NMR (400 MHz, CDCl3) δ 8.46 (d, J = 8.4 Hz, 1H), 7.94 (d, J = 8.1 Hz, 1H), 7.63 (d, J = 8.8 Hz, 1H), 7.61–7.52 (m, 2H), 7.45 (t, J = 7.5 Hz, 1H), 3.37–3.17 (m, 2H), 3.03 (d, J = 5.9 Hz, 2H), 2.13–1.77 (m, 6H); 13C NMR (100 MHz, CDCl3) δ 155.8, 150.7, 130.8, 129.1, 128.8, 125.6, 124.1, 123.7, 123.1, 123.0, 118.3, 112.2, 29.6, 28.5, 28.0, 26.1, 25.8;HRMS (ESI) calcd for C17H17O (M + H)+: 237.1274. Found: 237.1276.
8,9,10,11,12,13-Hexahydrocycloocta[b]naphtho[1,2-d]furan (7d). The title compound was obtained as white solid (71%).1H NMR (400 MHz, CDCl3) δ 8.37 (d, J = 8.3 Hz, 1H), 7.95 (d, J = 8.1 Hz, 1H), 7.62 (q, J = 8.8 Hz, 2H), 7.58–7.52 (m, 1H), 7.50–7.42 (m, 1H), 3.30–3.12 (m, 2H), 3.12–2.88 (m, 2H), 1.96 (dt, J = 12.6, 6.3 Hz, 2H), 1.89–1.73 (m, 2H), 1.68–1.53 (m, 2H), 1.46 (dd, J = 11.2, 5.5 Hz, 2H);13C NMR (100 MHz, CDCl3) δ 155.0, 151.3, 130.6, 129.0, 128.6, 125.8, 123.8, 123.8, 123.0, 122.6, 115.6, 112.4, 29.6, 28.1, 26.7, 26.0, 25.8, 23.3;HRMS (ESI) calcd for C18H19O (M + H)+: 251.1430. Found: 251.1435.
7,8,9,10-Tetrahydronaphtho[1,2-b]benzofuran (7e) [36].The title compound was obtained as yellowish oil (92%), and the analytical data are consistent with those in the literature. 1H NMR (400 MHz, CDCl3) δ 8.29 (d, J = 8.3 Hz, 1H), 7.93 (d, J = 8.2 Hz, 1H), 7.65 (d, J = 8.4 Hz, 1H), 7.61–7.50 (m, 2H), 7.51–7.37 (m, 1H), 2.99–2.81 (m, 2H), 2.81–2.61 (m, 2H), 2.14–1.96 (m, 2H), 1.96–1.80 (m, 2H); LCMS (ESI) calcd for C16H15O (M + H)+: 223.1. Found: 223.3.
8,9,10,11-Tetrahydro-7H-cyclohepta[b]naphtho[2,1-d]furan (7f) [38]. The title compound was obtained as white solid (84%), mp: 38–39 °C, and the analytical data are consistent with those in the literature. 1H NMR (400 MHz, CDCl3)δ 8.25 (d, J = 8.3 Hz, 1H), 7.91 (d, J = 8.2 Hz, 1H), 7.63 (d, J = 8.5 Hz, 1H), 7.54 (ddd, J = 8.5, 5.5, 2.0 Hz, 2H), 7.43 (ddd, J = 8.1, 6.9, 1.2 Hz, 1H), 3.14–2.97 (m, 2H), 2.89–2.71 (m, 2H), 2.00–1.75 (m, 6H); 13C NMR (100 MHz, CDCl3) δ 155.8, 148.2, 130.8, 128.3, 126.0, 125.7, 124.2, 122.5, 121.22, 119.8, 117.7, 117.2, 30.8, 29.4, 28.4, 26.5, 23.5.
7,8,9,10,11,12-Hexahydrocycloocta[b]naphtho[2,1-d]furan (7g) [38]. The title compound was obtained as colorless oil (87%), and the analytical data are consistent with those in the literature. 1H NMR (400 MHz, CDCl3) δ 8.29 (d, J = 8.3 Hz, 1H), 7.93 (d, J = 8.2 Hz, 1H), 7.65 (d, J = 8.5 Hz, 1H), 7.57 (t, J = 8.1 Hz, 2H), 7.45 (t, J = 7.4 Hz, 1H), 3.18–2.99 (m, 2H), 2.99–2.82 (m, 2H), 2.03–1.72 (m, 4H), 1.68–1.44 (m, 4H); 13C NMR (100 MHz, CDCl3) δ 154.3, 148.8, 130.8, 128.4, 126.0, 125.2, 124.3, 122.5, 121.3, 119.8, 117.7, 115.0, 28.3, 27.6, 26.5, 26.1, 25.6, 21.6.
3-Bromo-9,10-dihydro-8H-cyclopenta[b]naphtho[1,2-d]furan (7h). The title compound was obtained as white solid (61%), mp: 36–37 °C. 1H NMR (600 MHz, CDCl3) δ 8.06 (s, 1H), 7.93 (d, J = 8.7 Hz, 1H), 7.60 (dd, J = 18.5, 8.8 Hz, 2H), 7.51 (d, J = 8.9 Hz, 1H), 3.06 (t, J = 6.8 Hz, 2H), 3.00–2.89 (m, 2H), 2.77–2.56 (m, 2H); 13C NMR (150 MHz, CDCl3) δ 162.7, 157.3, 131.5, 130.4, 128.9, 125.9, 125.8, 122.1, 122.0, 121.8, 117.9, 114.0, 27.9, 25.0, 23.8; HRMS (ESI) calcd for C15H12BrO (M + H)+: 287.0066. Found: 287.0068.
3-Bromo-8,9,10,11-tetrahydronaphtho[2,1-b]benzofuran (7i). The title compound was obtained as white solid (77%). 1H NMR (400 MHz, CDCl3) δ 8.04 (dd, J = 9.2, 5.4 Hz, 2H), 7.68–7.53 (m, 2H), 7.49 (d, J = 8.9 Hz, 1H), 3.00 (t, J = 4.8 Hz, 2H), 2.83 (t, J = 5.0 Hz, 2H), 2.04–1.84 (m, 4H); 13C NMR (100 MHz, CDCl3) δ 153.9, 151.5, 131.8, 130.7, 128.8, 126.8, 125.2, 122.7, 122.6, 117.5, 114.1, 113.3, 23.7, 23.0, 23.0, 22.5; HRMS (ESI) calcd for C16H14BrO (M + H)+: 301.0223. Found: 301.0220.
3-Bromo-9,10,11,12-tetrahydro-8H-cyclohepta[b]naphtho[1,2-d]furan (7j). The title compound was obtained as yellowish oil (65%). 1H NMR (400 MHz, CDCl3) δ 8.29 (d, J = 9.0 Hz, 1H), 8.06 (d, J = 2.0 Hz, 1H), 7.56 (ddd, J = 25.1, 13.7, 5.5 Hz, 3H), 3.34–3.09 (m, 2H), 3.01 (d, J = 6.1 Hz, 2H), 2.06–1.76 (m, 6H); 13C NMR (100 MHz, CDCl3) δ 156.4, 150.7, 132.1, 131.0, 128.7, 127.2, 124.8, 123.2, 123.0, 118.1, 117.2, 113.2, 29.5, 28.5, 27.9, 26.0, 25.7; HRMS (ESI) calcd for C17H16BrO (M + H)+: 315.0379. Found: 315.0381.
3-Bromo-8,9,10,11,12,13-hexahydrocycloocta[b]naphtho[1,2-d]furan (7k). The title compound was obtained as white solid (68%), mp: 36–37 °C. 1H NMR (600 MHz, CDCl3) δ 8.20 (s, 1H), 8.07 (s, 1H), 7.60 (s, 2H), 7.52 (s, 1H), 3.13 (s, 2H), 2.98 (s, 2H), 1.93 (s, 2H), 1.78 (s, 2H), 1.58 (s, 2H), 1.45 (s, 2H); 13C NMR (150 MHz, CDCl3) δ 155.5, 151.4, 132.0, 130.9, 128.9, 127.0, 124.7, 122.8, 122.7, 117.4, 115.5, 113.4, 29.5, 28.0, 26.6, 26.0, 25.7, 23.3; HRMS (ESI) calcd for C18H18BrO (M + H)+: 329.0536. Found: 329.0534.
2-Bromo-9,10-dihydro-8H-cyclopenta[b]naphtho[1,2-d]furan (7l). The title compound was obtained as white solid (62%), mp: 35–36 °C 1H NMR (600 MHz, CDCl3) δ 8.18 (d, J = 1.9 Hz, 1H), 7.78 (d, J = 8.7 Hz, 1H), 7.59 (dd, J = 22.5, 8.9 Hz, 2H), 7.52 (dd, J = 8.7, 2.0 Hz, 1H), 3.15–3.02 (m, 2H), 3.02–2.84 (m, 2H), 2.68 (dd, J = 14.2, 7.4 Hz, 2H); HRMS (ESI) calcd for C15H12BrO (M + H)+: 287.0066. Found: 287.0069.
2-Bromo-8,9,10,11-tetrahydronaphtho[2,1-b]benzofuran (7m). The title compound was obtained as white solid (81%). 1H NMR (400 MHz, CDCl3) δ 8.31 (d, J = 1.8 Hz, 1H), 7.76 (d, J = 8.7 Hz, 1H), 7.64–7.53 (m, 2H), 7.50 (dd, J = 8.7, 1.9 Hz, 1H), 3.04 (t, J = 4.7 Hz, 2H), 2.83 (t, J = 4.9 Hz, 2H), 1.96 (dd, J = 6.7, 3.9 Hz, 4H); 13C NMR (100 MHz, CDCl3) δ 153.8, 151.9, 130.3, 129.5, 128.9, 127.1, 125.8, 123.4, 121.8, 119.8, 114.1, 112.7, 23.7, 22.97, 22.92, 22.5; HRMS (ESI) calcd for C16H14BrO (M + H)+: 301.0223. Found: 301.0220.
2-Bromo-9,10,11,12-tetrahydro-8H-cyclohepta[b]naphtho[1,2-d]furan (7n). The title compound was obtained as yellowish oil (68%). 1H NMR (400 MHz, CDCl3) δ 8.54 (d, J = 1.7 Hz, 1H), 7.78 (d, J = 8.7 Hz, 1H), 7.66–7.45 (m, 3H), 3.31–3.10 (m, 2H), 3.01 (d, J = 6.2 Hz, 2H), 2.10–1.73 (m, 6H); 13C NMR (100 MHz, CDCl3) δ 156.3, 151.1, 130.6, 129.8, 129.2, 126.9, 125.5, 123.8, 122.4, 119.9, 118.1, 112.6, 29.5, 28.5, 27.9, 25.97, 25.58; HRMS (ESI) calcd for C17H16BrO (M + H)+: 315.0379. Found: 315.0377.
2-Bromo-8,9,10,11,12,13-hexahydrocycloocta[b]naphtho[1,2-d]furan (7o). The title compound was obtained as colorless oil (70%). 1H NMR (600 MHz, CDCl3) δ 8.45 (d, J = 1.8 Hz, 1H), 7.78 (d, J = 8.7 Hz, 1H), 7.58 (d, J = 1.9 Hz, 2H), 7.51 (dd, J = 8.7, 1.9 Hz, 1H), 3.22–3.09 (m, 2H), 3.09–2.86 (m, 2H), 2.07–1.90 (m, 2H), 1.88–1.73 (m, 2H), 1.58 (d, J = 6.3 Hz, 2H), 1.52–1.40 (m, 2H);13C NMR (150 MHz, CDCl3) δ 155.3, 151.7, 130.5, 129.7, 129.1, 127.1, 125.4, 123.6, 121.9, 120.0, 115.5, 112.8, 29.4, 27.9, 26.7, 26.0, 25.6, 23.2; HRMS (ESI) calcd for C18H18BrO (M + H)+: 329.0536. Found: 329.0538.

3.2.3. Characterizations of Benzofuran 9 (Table 4)

1,2,3,4-Tetrahydrodibenzo[b,d]furan (9a) [39]. The title compound was obtained as colorless oil (68%), and the analytical data are consistent with those in the literature. 1H NMR (600 MHz, CDCl3) δ 7.42 (ddd, J = 5.7, 3.3, 1.1 Hz, 2H), 7.21 (pd, J = 7.2, 3.8 Hz, 2H), 2.76 (tt, J = 6.3, 1.8 Hz, 2H), 2.64 (tt, J = 6.0, 1.9 Hz, 2H), 2.04–1.92 (m, 2H), 1.92–1.79 (m, 2H); 13C NMR (150 MHz, CDCl3) δ 154.3, 154.0, 128.9, 123.0, 122.1, 118.4, 112.9, 110.8, 23.46, 23.0, 22.7, 20.5.
6-Methyl-1,2,3,4-tetrahydrodibenzo[b,d]furan (9b). The title compound was obtained as colorless oil (76%). 1H NMR (600 MHz, CDCl3) δ 7.25 (d, J = 7.6 Hz, 1H), 7.10 (t, J = 7.5 Hz, 1H), 7.01 (d, J = 7.3 Hz, 1H), 2.76 (ddd, J = 8.1, 4.1, 1.9 Hz, 2H), 2.62 (tt, J = 5.9, 1.8 Hz, 2H), 2.51 (s, 3H), 2.02–1.91 (m, 2H), 1.91–1.78 (m, 2H); 13C NMR (150 MHz, CDCl3) δ 152.6, 152.2, 127.3, 123.0, 121.1, 119.9, 114.8, 112.0, 22.5, 22.0, 21.7, 19.5, 14.0; HRMS (ESI) calcd for C13H15O (M + H)+: 187.1117. Found: 187.1121.
7-Methyl-1,2,3,4-tetrahydrodibenzo[b,d]furan (9c) [40]. The title compound was obtained as yellowish oil (82%), and the analytical data are consistent with those in the literature. 1H NMR (600 MHz, CDCl3) δ 7.28 (d, J = 7.8 Hz, 1H), 7.21 (d, J = 0.5 Hz, 1H), 7.01 (d, J = 7.8 Hz, 1H), 2.81–2.68 (m, 2H), 2.61 (tt, J = 5.9, 1.8 Hz, 2H), 2.46 (s, 3H), 2.01–1.90 (m, 2H), 1.90–1.77 (m, 2H); 13C NMR (150 MHz, CDCl3) δ 153.7, 152.3, 131.9, 125.3, 122.3, 116.8, 111.6, 110.1, 22.4, 21.9, 21.7, 20.6, 19.5.
8-Methyl-1,2,3,4-tetrahydrodibenzo[b,d]furan (9d) [40]. The title compound was obtained as colorless oil (72%), and the analytical data are consistent with those in the literature. 1H NMR (600 MHz, CDCl3) δ 7.30 (d, J = 8.3 Hz, 1H), 7.22 (s, 1H), 7.03 (dd, J = 8.2, 1.2 Hz, 1H), 2.75 (ddd, J = 8.0, 4.1, 1.8 Hz, 2H), 2.62 (tt, J = 5.9, 1.8 Hz, 2H), 2.46 (s, 3H), 2.03–1.92 (m, 2H), 1.91–1.79 (m, 2H);13C NMR (150 MHz, CDCl3) δ 154.1, 152.7, 131.5, 129.0, 124.0, 118.4, 112.6, 110.2, 23.5, 23.0, 22.8, 21.4, 20.5.
6-Methoxy-1,2,3,4-tetrahydrodibenzo[b,d]furan (9e). The title compound was obtained as yellow oil (70%). 1H NMR (600 MHz, CDCl3) δ 7.11 (t, J = 7.8 Hz, 1H), 7.02 (dd, J = 7.7, 0.9 Hz, 1H), 6.74 (dd, J = 7.9, 0.5 Hz, 1H), 4.00 (s, 3H), 2.84–2.69 (m, 2H), 2.69–2.52 (m, 2H), 1.99–1.89 (m, 2H), 1.89–1.78 (m, 3H); 13C NMR (150 MHz, CDCl3) δ 154.2, 145.0, 143.2, 130.5, 122.8, 113.2, 111.0, 105.5, 56.0, 23.4, 22.9, 22.7, 20.6; HRMS (ESI) calcd for C13H15O2 (M + H)+: 203.1067. Found: 203.1066.
8-Methoxy-1,2,3,4-tetrahydrodibenzo[b,d]furan (9f) [41]. The title compound was obtained as colorless oil (71%), and the analytical data are consistent with those in the literature. 1H NMR (600 MHz, CDCl3) δ 7.27 (d, J = 8.8 Hz, 1H), 6.87 (d, J = 2.6 Hz, 1H), 6.79 (dd, J = 8.8, 2.6 Hz, 1H), 3.84 (s, 3H), 2.71 (ddd, J = 6.2, 4.8, 1.7 Hz, 2H), 2.59 (tt, J = 5.8, 1.7 Hz, 2H), 2.00–1.89 (m, 2H), 1.89–1.77 (m, 2H); 13C NMR (150 MHz, CDCl3) δ 154.6, 154.0, 148.2, 128.4, 112.0, 110.0, 109.9, 100.5, 54.9, 22.5, 21.9, 21.6, 19.5.
8-(tert-Butyl)-1,2,3,4-tetrahydrodibenzo[b,d]furan (9g). The title compound was obtained as colorless oil (80%), and the analytical data are consistent with those in the literature. 1H NMR (600 MHz, CDCl3) δ 7.39 (d, J = 1.9 Hz, 1H), 7.31 (d, J = 8.6 Hz, 1H), 7.27–7.24 (m, 1H), 2.75–2.69 (m, 2H), 2.63 (ddd, J = 7.7, 4.0, 1.8 Hz, 2H), 1.98–1.90 (m, 2H), 1.89–1.78 (m, 2H), 1.37 (s, 9H); 13C NMR (150 MHz, CDCl3) δ 153.1, 151.4, 144.2, 127.4, 119.7, 113.5, 111.8, 109.0, 33.7, 30.9, 22.5, 22.0, 21.7, 19.5.
6-Benzyl-1,2,3,4-tetrahydrodibenzo[b,d]furan (9h). The title compound was obtained as yellowish oil (85%). 1H NMR (600 MHz, CDCl3) δ 7.35–7.27 (m, 5H), 7.24–7.19 (m, 1H), 7.13 (t, J = 7.5 Hz, 1H), 6.98 (d, J = 7.3 Hz, 1H), 4.26 (s, 2H), 2.88–2.72 (m, 2H), 2.64 (tt, J = 5.8, 1.7 Hz, 2H), 2.06–1.92 (m, 2H), 1.87 (dtd, J = 9.0, 6.0, 2.8 Hz, 2H); 13C NMR (150 MHz, CDCl3) δ 153.9, 152.8, 140.5, 129.0, 128.7, 128.39, 126.0, 124.2, 123.6, 122.4, 116.4, 113.1, 77.3, 77.1, 76.9, 35.5, 23.6, 23.0, 22.7, 20.6; HRMS (ESI) calcd for C19H19O (M + H)+: 263.1430. Found: 263.1433.
2,3-Dimethylbenzofuran (9i) [30]. The title compound was obtained as yellow oil (73%), and the analytical data are consistent with those in the literature. 1H NMR (600 MHz, CDCl3) δ 7.48–7.39 (m, 1H), 7.39–7.32 (m, 1H), 7.23–7.15 (m, 2H), 2.38 (d, J = 0.6 Hz, 3H), 2.16 (d, J = 0.7 Hz, 3H); 13C NMR (150 MHz, CDCl3) δ 152.8, 149.4, 129.4, 122.0, 120.9, 117.5, 109.4, 108.7, 10.8, 6.9.
2,3,5-Trimethylbenzofuran (9j) [30]. The title compound was obtained as colorless oil (81%), and the analytical data are consistent with those in the literature. 1H NMR (600 MHz, CDCl3) δ 7.23 (d, J = 8.3 Hz, 1H), 7.18 (s, 1H), 7.00 (dd, J = 8.2, 1.3 Hz, 1H), 2.43 (s, 3H), 2.36 (s, 3H), 2.12 (s, 3H); 13C NMR (150 MHz, CDCl3) δ 152.2, 150.6, 131.3, 130.5, 124.1, 118.5, 109.9, 109.4, 21.7, 11.8, 7.9.
5-Methoxy-2,3-dimethylbenzofuran (9k). The title compound was obtained as yellow oil (77%). 1H NMR (600 MHz, CDCl3) δ 7.25 (d, J = 8.8 Hz, 1H), 6.86 (d, J = 2.6 Hz, 1H), 6.79 (dd, J = 8.8, 2.6 Hz, 1H), 3.85 (s, 3H), 2.36 (s, 3H), 2.12 (s, 3H); 13C NMR (150 MHz, CDCl3) δ 154.5, 150.4, 147.7, 130.0, 110.0, 109.7, 108.8, 100.6, 54.9, 10.9, 7.0; HRMS (ESI) calcd for C11H13O2 (M + H)+: 177.0910. Found: 177.0909.

4. Conclusions

In conclusion, we have found that titanium tetrachloride can act as an efficient Lewis acid catalyst and a strong dehydrating agent to promote the regioselective Friedel–Crafts-like alkylation and subsequent intramolecular cyclodehydration. This process provides a general method for the preparation of a wide range of naphthofurans and benzofurans from readily available phenols and α-haloketones.

Supplementary Materials

The following are available online. The NMR spectra for all the synthesized compounds.

Author Contributions

Data Curation, B.W., Q.Z., and Q.T.; Writing—Original Draft Preparation, Q.T.; Writing—Review and Editing, J.L. and Q.T.; Project Administration, Q.T., Z.G., and W.J.

Funding

This research was funded by the Fundamental and Advanced Research Projects of Chongqing City, China (No. cstc2018jcyjA0150).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dawood, K.M. Benzofuran derivatives: A patent review. Expert Opin. Ther. Pat. 2013, 23, 1133–1156. [Google Scholar] [CrossRef] [PubMed]
  2. Boto, A.; Alvarez, L. Furan and its derivatives. In Heterocycles in Natural Product Synthesis; Wiley-VCHVerlagGmbH&Co.KGaA: Weinheim, Germany, 2011; pp. 97–152. [Google Scholar]
  3. Smith, D.T.; Vitaku, E.; Njardarson, J.T. Dearomatization approach to 2-trifluoromethylated benzofuran and dihydrobenzofuran products. Org. Lett. 2017, 19, 3508–3511. [Google Scholar] [CrossRef] [PubMed]
  4. Radadiya, A.; Shah, A. Bioactive benzofuran derivatives: An insight on lead developments, radioligands and advances of the last decade. Eur. J. Med. Chem. 2015, 97, 356–376. [Google Scholar] [CrossRef] [PubMed]
  5. Srivastava, V.; Negi, A.S.; Kumar, J.K.; Faridi, U.; Sisodia, B.S.; Darokar, M.P.; Luqman, S.; Khanuja, S.P.S. Synthesis of 1-(3′,4′,5′-trimethoxy) phenyl naphtho[2,1b]furan as a novel anticancer agent. Bioorg. Med. Chem. Lett. 2006, 16, 911–914. [Google Scholar] [CrossRef] [PubMed]
  6. Mathiyazhagan, K.; Kumaran, A.; Arjun, P. Isolation of natural naphthoquinones from juglans regia and in vitro antioxidant and cytotoxic studies of naphthoquinones and the synthetic naphthofuran derivatives. Russ. J. Bioorg Chem 2018, 44, 346–353. [Google Scholar] [CrossRef]
  7. Kumar, A.; Srivastava, G.; Srivastava, S.; Verma, S.; Negi, A.S.; Sharma, N. Investigation of naphthofuran moiety as potential dual inhibitor against BACE-1 and GSK-3β: Molecular dynamics simulations, binding energy, and network analysis to identify first-in-class dual inhibitors against Alzheimer’s disease. J. Mol. Model. 2017, 16, 911–914. [Google Scholar] [CrossRef]
  8. Cozza, G.; Sarno, S.; Ruzzene, M.; Girardi, C.; Orzeszko, A.; Kazimierczuk, Z.; Zagotto, G.; Bonaiuto, E.; Di Paolo, M.L.; Pinna, L.A. Exploiting the repertoire of CK2 inhibitors to target DYRK and PIM kinases. Biochim. Et Biophys. Acta Proteins Proteom. 2013, 1834, 1402–1409. [Google Scholar] [CrossRef]
  9. Le Guével, R.; Oger, F.; Lecorgne, A.; Dudasova, Z.; Chevance, S.; Bondon, A.; Barath, P.; Simonneaux, G.; Salbert, G. Identification of small molecule regulators of the nuclear receptor HNF4α based on naphthofuran scaffolds. Biorg. Med. Chem. 2009, 17, 7021–7030. [Google Scholar] [CrossRef]
  10. Phan, P.-T.T.; Nguyen, T.-T.T.; Nguyen, H.-N.T.; Le, B.-K.N.; Vu, T.T.; Tran, D.C.; Pham, T.-A.N. Synthesis and bioactivity evaluation of novel 2-salicyloylbenzofurans as antibacterial agents. Molecules 2017, 22, 687. [Google Scholar] [CrossRef]
  11. Ma, Y.; Zheng, X.; Gao, H.; Wan, C.; Rao, G.; Mao, Z. Design, synthesis, and biological evaluation of novel benzofuran derivatives bearing N-aryl piperazine moiety. Molecules 2016, 21, 1684. [Google Scholar] [CrossRef]
  12. Kotoku, N.; Higashimoto, K.; Kurioka, M.; Arai, M.; Fukuda, A.; Sumii, Y.; Sowa, Y.; Sakai, T.; Kobayashi, M. Xylarianaphthol-1, a novel dinaphthofuran derivative, activates p21 promoter in a p53-independent manner. Bioorg. Med. Chem. Lett. 2014, 24, 3389–3391. [Google Scholar] [CrossRef] [PubMed]
  13. Lumb, J.-P.; Trauner, D. Biomimetic synthesis and structure elucidation of rubicordifolin, a cytotoxic natural product from rubia cordifolia. J. Am. Chem. Soc. 2005, 127, 2870–2871. [Google Scholar] [CrossRef] [PubMed]
  14. Moldoveanu, C.; Mangalagiu, I.; Isac, D.L.; Airinei, A.; Zbancioc, G. A new pathway for the synthesis of a new class of blue fluorescent benzofuran derivatives. Molecules 2018, 23, 1968. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, Q.; Jiang, P.; Guo, M.; Yang, J. Synthesis of new 2-arylbenzo[b]furan derivatives via palladium-catalyzed Suzuki cross-coupling reactions in aqueous media. Molecules 2018, 23, 2450. [Google Scholar] [CrossRef] [PubMed]
  16. Bai, W.-J.; Xie, J.-H.; Li, Y.-L.; Liu, S.; Zhou, Q.-L. Enantioselective synthesis of chiral β-aryloxy alcohols by ruthenium-catalyzed ketone hydrogenation via dynamic kinetic resolution (DKR). Adv. Synth. Catal. 2010, 352, 81–84. [Google Scholar] [CrossRef]
  17. Ando, K.; Kawamura, Y.; Akai, Y.; Kunitomo, J.-I.; Yokomizo, T.; Yamashita, M.; Ohta, S.; Ohishi, T.; Ohishi, Y. Preparation of 2-, 3-, 4- and 7-(2-alkylcarbamoyl-1-alkylvinyl)benzo[b]furans and their BLT1 and/or BLT2 inhibitory activities. Org. Biomol. Chem. 2008, 6, 296–307. [Google Scholar] [CrossRef] [PubMed]
  18. Zhang, Q.; Luo, J.; Wang, B.; Xiao, X.; Gan, Z.; Tang, Q. Titanium tetrachloride promoted cyclodehydration of aryloxyketones: Facile synthesis of benzofurans and naphthofurans with high regioselectivity. Tetrahedron Lett. 2019, 60, 1337–1340. [Google Scholar] [CrossRef]
  19. Wang, Z.; Gu, J.; Jing, H.; Liang, Y. Novel one-pot synthesis of 3-phenylnaphtho[2,3-b]furan and 3-phenylbenzofurans under microwave irradiation and solvent-free conditions. Synth. Commun. 2009, 39, 4079–4087. [Google Scholar] [CrossRef]
  20. Wang, H.-S.; Chan, C.-K.; Chang, M.-Y. Ga(OTf)3-mediated synthesis of substituted benzofurans. Tetrahedron 2016, 72, 5132–5141. [Google Scholar] [CrossRef]
  21. Erian, A.; Sherif, S.; Gaber, H. The chemistry of α-haloketones and their utility in heterocyclic synthesis. Molecules 2003, 8, 793. [Google Scholar] [CrossRef]
  22. Arias, L.; Vara, Y.; Cossío, F.P. Regioselective preparation of benzo[b]furans from phenols and α-bromoketones. J. Org. Chem. 2012, 77, 266–275. [Google Scholar] [CrossRef] [PubMed]
  23. Kubota, Y.; Satake, K.; Okamoto, H.; Kimura, M. Electrophilic behavior of the π delocalized azepinium ion: Friedel–Crafts reactions with benzenes and five-membered aromatic heterocycles. Org. Lett. 2005, 7, 5215–5218. [Google Scholar] [CrossRef] [PubMed]
  24. Satake, K.; Kubota, Y.; Cordonier, C.E.J.; Okamoto, H.; Kimura, M. Synthesis of a delocalized azepinium ion and investigation of its electrophilic character. Angew Chem. Int. Ed. 2004, 43, 736–738. [Google Scholar] [CrossRef] [PubMed]
  25. Luo, J.; Lu, D.; Peng, Y.; Tang, Q. Paal-Knorr furan synthesis using titanium tetrachloride as dehydrating agent: A concise furan synthesis from α-haloketones and β-dicarbonyl compounds. Asian J. Org. Chem. 2017, 6, 1546–1550. [Google Scholar] [CrossRef]
  26. Luo, J.; Zhou, H.; Hu, J.; Wang, R.; Tang, Q. Efficient catalytic-free method to produce alpha-aryl cycloalkanones through highly chemoselective coupling of aryl compounds with oxyallyl cations. RSC Adv. 2014, 4, 17370–17377. [Google Scholar] [CrossRef]
  27. Tang, Q.; Chen, X.; Tiwari, B.; Chi, Y.R. Addition of indoles to oxyallyl cations for facile access to α-indole carbonyl compounds. Org. Lett. 2012, 14, 1922–1925. [Google Scholar] [CrossRef] [PubMed]
  28. Laskovics, F.M.; Schulman, E.M. Mechanism of the reaction of hexachloroacetone with enamines. A new, convenient synthesis of .alpha.-chloro ketones, .beta.-chloro enamines, and allylic chloro enamines. J. Am. Chem Soc. 1977, 99, 6672–6677. [Google Scholar] [CrossRef]
  29. Tanemura, K.; Suzuki, T.; Nishida, Y.; Satsumabayashi, K.; Horaguchi, T. A mild and efficient procedure for alpha-bromination of ketones using N-bromosuccinimide catalysed by ammonium acetate. Chem. Commun. 2004, 470–471. [Google Scholar] [CrossRef] [PubMed]
  30. Fu, R.; Li, Z. Direct synthesis of 2-methylbenzofurans from calcium carbide and salicylaldehyde p-tosylhydrazones. Org. Lett. 2018, 20, 2342–2345. [Google Scholar] [CrossRef]
  31. Yamamoto, Y.; Matsui, K.; Shibuya, M. A combined experimental and computational study on the cycloisomerization of 2-ethynylbiaryls catalyzed by dicationic arene ruthenium complexes. Chem. A Eur. J. 2015, 21, 7245–7255. [Google Scholar] [CrossRef]
  32. Sharma, U.; Naveen, T.; Maji, A.; Manna, S.; Maiti, D. Palladium-catalyzed synthesis of benzofurans and coumarins from phenols and olefins. Angew Chem. Int. Ed. 2013, 52, 12669–12673. [Google Scholar] [CrossRef] [PubMed]
  33. Mishra, A.K.; Biswas, S. Brønsted acid catalyzed functionalization of aromatic alcohols through Nnucleophilic substitution of hydroxyl group. J. Org. Chem. 2016, 81, 2355–2363. [Google Scholar] [CrossRef] [PubMed]
  34. Li, W.-T.; Nan, W.-H.; Luo, Q.-L. Metal-free sequential reaction via a propargylation, annulation and isomerization sequence for the one-pot synthesis of 2,3-disubstituted benzofurans. Rsc Adv. 2014, 4, 34774–34779. [Google Scholar] [CrossRef]
  35. Liu, Z.; Liu, L.; Shafiq, Z.; Wu, Y.-C.; Wang, D.; Chen, Y.-J. InCl3-catalyzed propargylation of indoles and phenols with propargylic acetates: Application to the syntheses of benzofurans and naphthofurans. Synthesis 2007, 2007, 1961–1969. [Google Scholar] [CrossRef]
  36. Lee, D.-H.; Kwon, K.-H.; Yi, C.S. Dehydrative C–H alkylation and alkenylation of phenols with alcohols: Expedient synthesis for substituted phenols and benzofurans. J. Am. Chem. Soc. 2012, 134, 7325–7328. [Google Scholar] [CrossRef] [PubMed]
  37. Ghosh, M.; Santra, S.; Mondal, P.; Kundu, D.; Hajra, A. Diversified synthesis of furans by coupling between enols/1,3-dicarbonyl compounds and nitroolefins: Direct access to dioxa[5]helicenes. Chem. Asian J. 2015, 10, 2525–2536. [Google Scholar] [CrossRef]
  38. Orovecz, O.; Kovács, P.; Kolonits, P.; Kaleta, Z.; Párkányi, L.; Szabó, É.; Novák, L. Rearrangement of allyl aryl ethers; VI: Reaction of naphthols with cycloalkadienes. Synthesis 2003, 2003, 1043–1048. [Google Scholar]
  39. Gao, H.; Xu, Q.-L.; Keene, C.; Kürti, L. Scalable, Transition-metal-free direct oxime O-arylation: Rapid access to O-arylhydroxylamines and substituted benzo[b]furans. Chem. A Eur. J. 2014, 20, 8883–8887. [Google Scholar] [CrossRef]
  40. Alemagna, A.; Baldoli, C.; Del Buttero, P.; Licandro, E.; Maiorana, S. Nucleophilic aromatic substitution on tricarbonylchromium-complexed haloarenes: Synthesis of O-aryloximes and their cyclization to benzofurans. Synthesis 1987, 1987, 192–196. [Google Scholar] [CrossRef]
  41. Yagoubi, M.; Cruz, A.C.F.; Nichols, P.L.; Elliott, R.L.; Willis, M.C. Cascade palladium-catalyzed direct intramolecular arylation/alkene isomerization sequences: Synthesis of indoles and benzofurans. Angew Chem. Int. Ed. 2010, 49, 7958–7962. [Google Scholar] [CrossRef]
Sample Availability: All data generated and/or compound samples analyzed during this study are included in this article and are available from the corresponding author on reasonable request.
Molecules 24 02187 g001 550

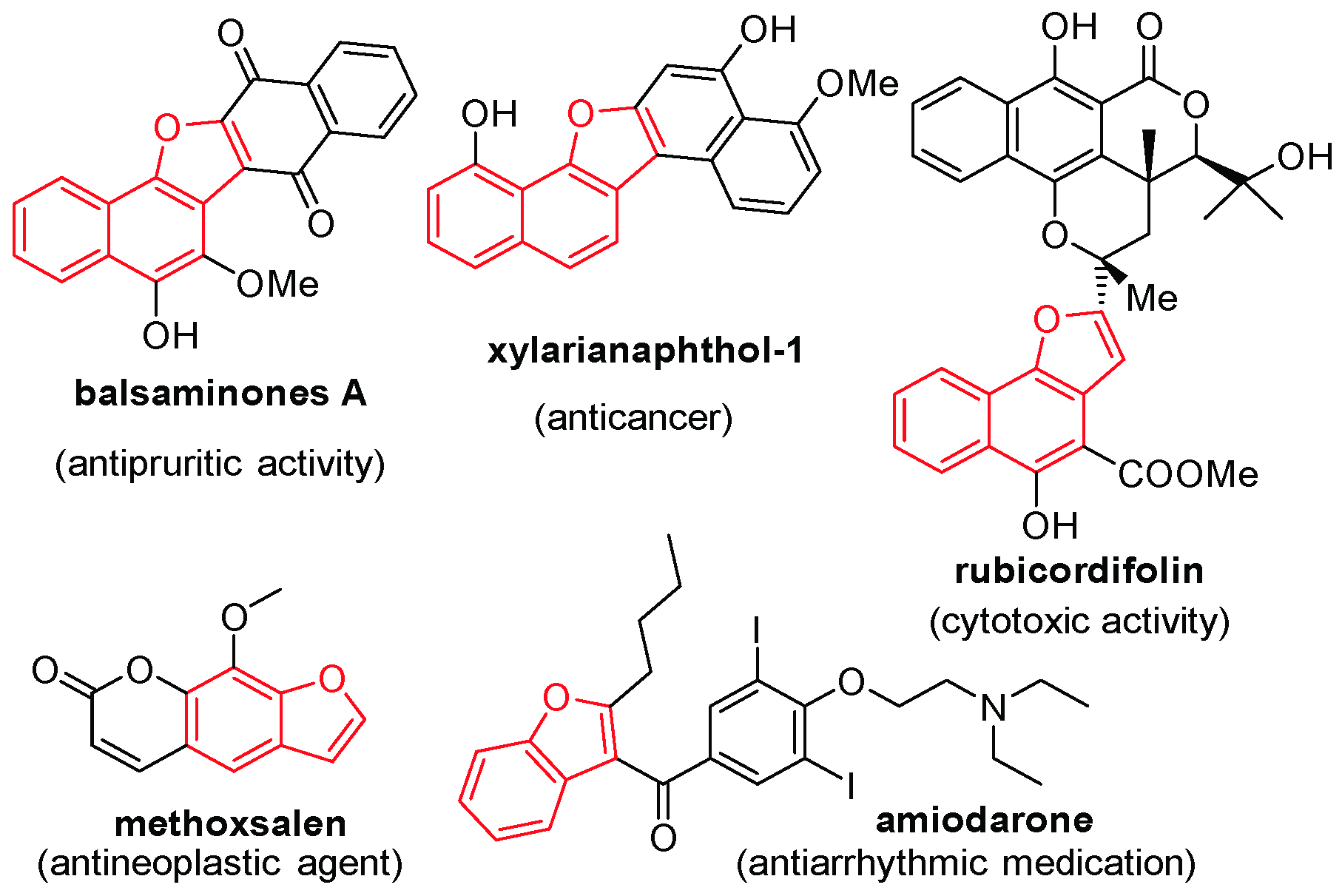

Figure 1. Representative drugs containing benzofuran core.
Figure 1. Representative drugs containing benzofuran core.
Molecules 24 02187 g001
Molecules 24 02187 sch001 550

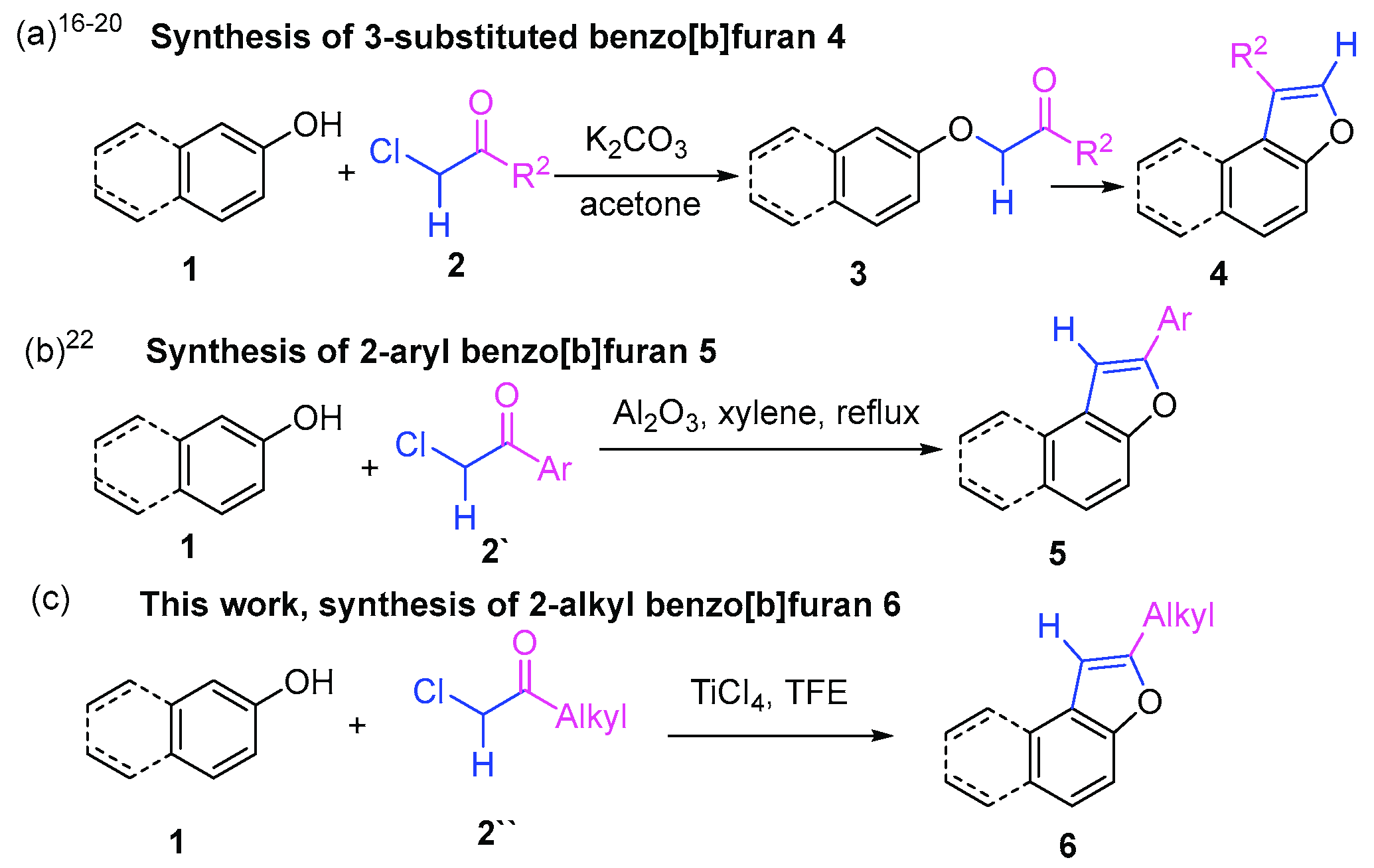

Scheme 1. Synthesis of benzofurans from α-haloketones and phenols.
Scheme 1. Synthesis of benzofurans from α-haloketones and phenols.
Molecules 24 02187 sch001
Molecules 24 02187 sch002 550

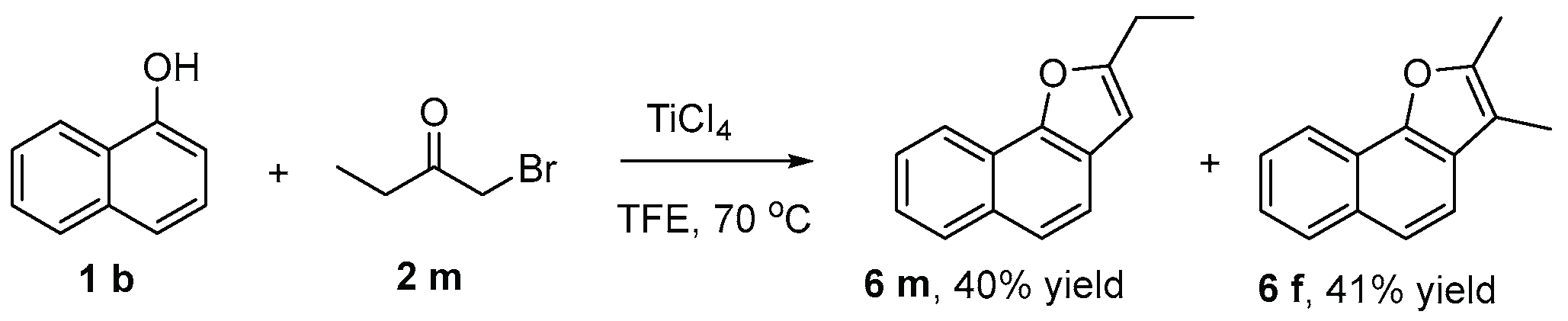

Scheme 2. Mechanism research.
Scheme 2. Mechanism research.
Molecules 24 02187 sch002
Molecules 24 02187 sch003 550

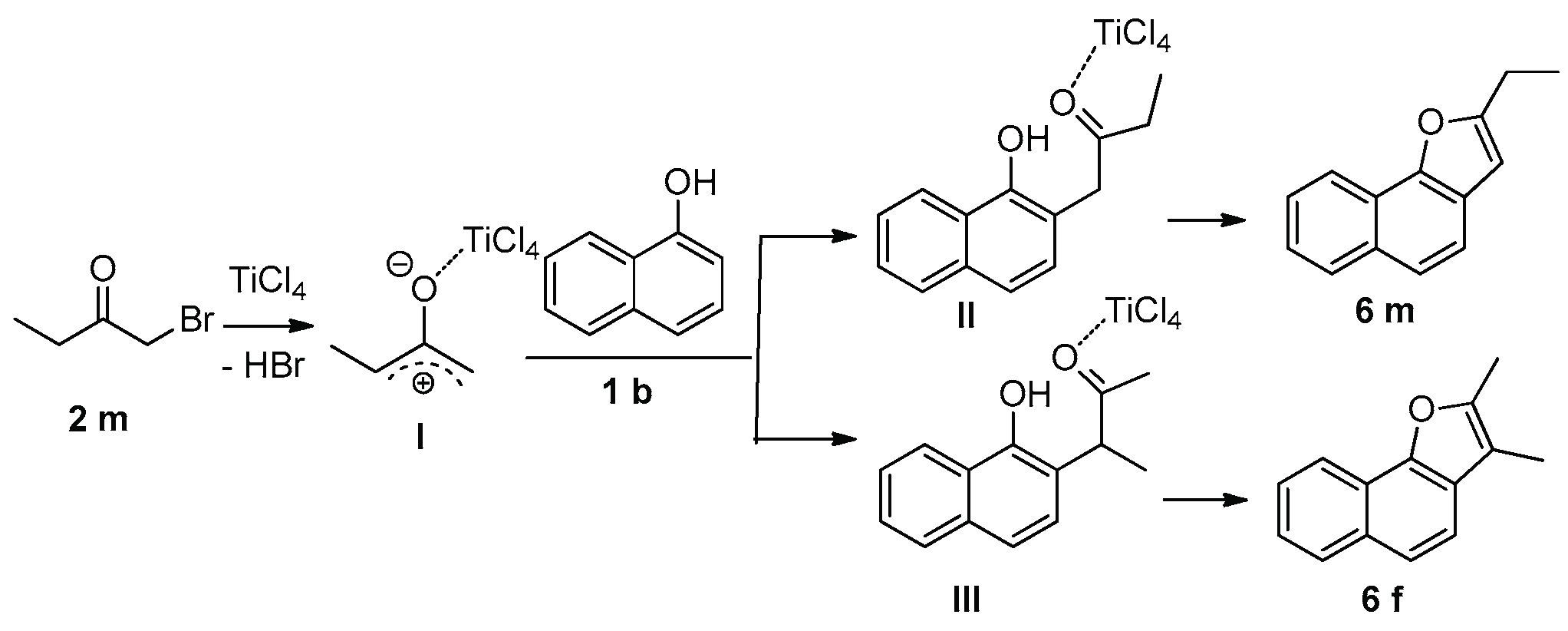

Scheme 3. Proposed mechanism.
Scheme 3. Proposed mechanism.
Molecules 24 02187 sch003
Table
Table 1. Model reaction optimization a.
Table 1. Model reaction optimization a.
Molecules 24 02187 i001
EntryAcidSolventT (°C)Yield of 6a b
1HClTFE70NA
2TsOHTFE70NA
3ZnCl2TFE70NA
4AlCl3TFE70NA
5TMSOTfTFE7014
6BF3.Et2OTFE7026
7Al2O3xylene150-- d
8TiCl4 (1.0 eq)TFE7076%
9TiCl4 (0.2 eq)TFE7016%
10TiCl4 (0.5 eq)TFE7038%
11TiCl4 (1.5 eq)TFE7071%
12TiCl4TFE5045%
13TiCl4TFE25<10%
14TiCl4CH2Cl24034%
15TiCl4Toluene11038%
16TiCl4Solvent crefluxNA
a The mole ratio between 1a and 2a is 1:1.2. b Isolated yields. c Solvents: ACN, Et2O, THF. d An inseparable mixture of 4a and 6a was obtained.
Table

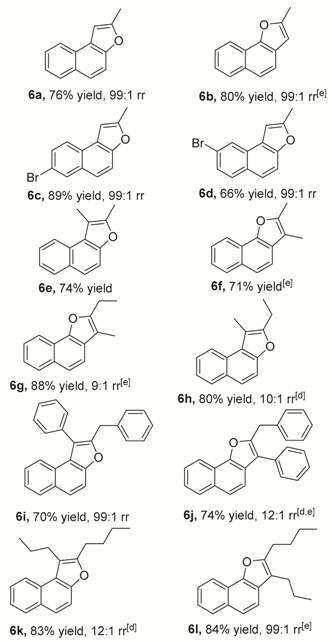

Table 2. Reaction of naphthols with different acyclic α-haloketones a, b, c.
Table 2. Reaction of naphthols with different acyclic α-haloketones a, b, c.
Molecules 24 02187 i002
Molecules 24 02187 i003
a The molar ratio between naphthol 1, haloketone 2 and TiCl4 is 1:1.2:1. b Isolated yield. c The ratio of regioisomers was determined by crude 1H NMR (see Supplementary Materials). d The products were inseparable when purified by chromatography on silica gel. e Using 1-napthol as starting material.
Table

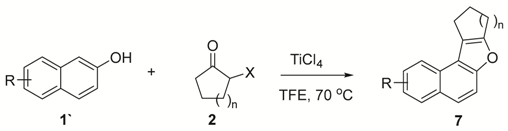

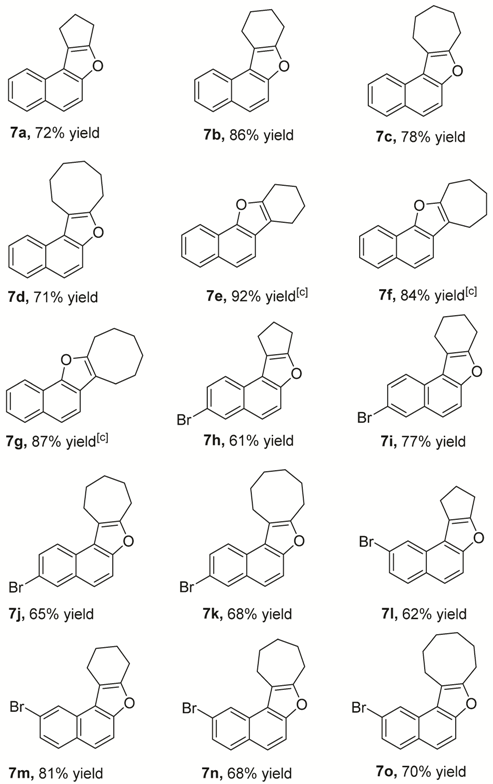

Table 3. Reaction of naphthols with different cyclic α-haloketones a, b.
Table 3. Reaction of naphthols with different cyclic α-haloketones a, b.
Molecules 24 02187 i004
Molecules 24 02187 i005
a The molar ratio between naphthol 1 and haloketone 2 is 1:1.2. b Isolated yield. c Using 1-napthol as starting material.
Table

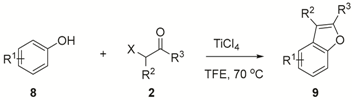

Table 4. Reaction of phenols with different α-haloketones a, b.
Table 4. Reaction of phenols with different α-haloketones a, b.
Molecules 24 02187 i006
Molecules 24 02187 i007
a The molar ratio between phenol 8 and haloketone 2 is 1:1.2. b Isolated yield.
