NMR-Fragment Based Virtual Screening: A Brief Overview

Department of Chemistry, Ben-Gurion University of the Negev, Beer-Sheva 8410501, Israel
*
Author to whom correspondence should be addressed.
Molecules 2018, 23(2), 233; https://doi.org/10.3390/molecules23020233
Submission received: 22 November 2017 / Revised: 12 December 2017 / Accepted: 12 December 2017 / Published: 25 January 2018
(This article belongs to the Special Issue Recent Advances in Biomolecular NMR Spectroscopy)

Abstract

:
Fragment-based drug discovery (FBDD) using NMR has become a central approach over the last twenty years for development of small molecule inhibitors against biological macromolecules, to control a variety of cellular processes. Yet, several considerations should be taken into account for obtaining a therapeutically relevant agent. In this review, we aim to list the considerations that make NMR fragment screening a successful process for yielding potent inhibitors. Factors that may govern the competence of NMR in fragment based drug discovery are discussed, as well as later steps that involve optimization of hits obtained by NMR-FBDD.

1. Introduction: Fragment Screening as a Central Approach in Lead Molecule

A lead molecule is usually defined as a small molecule with a molecular weight (MW) of approximately 500 Da, which can bind its target through H-bonds with no more than five hydrogen bond donors and no more than 10 hydrogen bond acceptors, is flexible enough with rotatable bonds to allow functional binding to the target, and favorably lipophilic with partition coefficient (cLogP, a measure of hydrophobicity) less than 5. All these properties form the basis to develop a lead molecule into a promising drug candidate [1,2], an early step in the process of translating small molecules into medicines. Subsequent steps in a lead-to-drug process usually involve optimization cycles by synthesis of structurally related analogs and activity related measurements.
Lead molecules have been discovered mainly through identification of active compounds by screening of large chemical databases. Along with high throughput screening (HTS) and virtual screening, fragment based screening (FBS) has been established as a central approach in finding the initial “Hits” that can readily be developed into “Leads” [3,4,5,6,7,8] (Figure 1). Most of the published data related to drug discovery is originated from HTS, whereas FBS contributes only minor portion (3%) of the published data (Figure 1a). Approved FDA drugs that were originated from FBDD where mainly developed using crystallography or NMR (Figure 1b), however, in 2017 most of the development was using NMR.
The idea behind FBS is to test fragment molecules that are small enough, thus covering a larger chemical space [9,10]. FBS generally offers higher hit rates and binding efficiencies compared with HTS [11,12]. Nevertheless, due to their small size, fragment hits are usually weak binders and must be developed into higher affinity larger molecules in order to be ultimately developed into a lead molecule. HTS and FBS have been considered as complementary approaches in drug discovery. Some of the pharmaceutical and biotech industries used FBDD in conjunction with HTS that shorten the early phase of the drug discovery process providing robust lead compound series [13]. Wu et al. described the advantages of FBDD and HTS approaches in a screening strategy designated as HTS by NMR, presenting ligand discovery by fragment-based approach. The approach combines basic combinatorial chemistry principles with NMR spectroscopy to screen larger libraries of compound fragments [14].
Targets can be screened by HTS only if the inhibition they induce can produce an obvious readout. Thus, biochemical and cell based assays used in HTS screening are usually not suitable to detect the weak binding interactions of fragment molecules to their macromolecule target. Variety of biophysical binding techniques were adapted to detect weak interactions between fragment molecules and their targets [15]. Since the pioneering study published in 1996 by Shuker et al. [8], NMR has become the most popular technique for application in FBS, as it can detect weak binding between the fragment and target macromolecule, with a KD in the low mM-range [16].
Since the early 1990s, advances in data acquisition techniques, combinatorial chemistry, high-throughput screening approaches, genome sequencing, short-interfering RNA (siRNA) tools and gene expression profiling [17] have helped to design and optimize drugs for the pharmaceutical industry [18]. In particular, high-throughput screening (HTS) became a dominant approach for the discovery of hit molecules [19]. By the early 2000s, companies were building multimillion compound libraries, which were the source for many current clinical candidates [20]. However, when screened against novel or more difficult targets the vast majority compound libraries sometimes yielded few hits (<1%) or, in more problematic cases, yielded hits that were false positives [21,22]. Examples for difficult or novel targets can be protein-protein interactions [23] and range of targets outside the ribosome, the cell wall synthesis and DNA gyrase that comprise clinical targets for the most successful antibiotics [24]. In fact, an estimated number of combinations of the spatial arrangement of atoms in a drug-like molecule (MW of 500 Da) in a standard HTS library is 1060, and the chemical space each molecule covers is therefore very limited [25,26] and thus results in a low hit rate for HTS. Compared with small fragment molecules, drug-like molecules possess functional groups that may pose more steric hindrance or electrostatic repulsion in a binding site [27,28].
A variety of mechanism-based assays for HTS that are mechanism-based were described in the literature. One such case for a broad mechanism to identify small molecules for cardiovascular disease was described that can provide high content phenotypic screening [29]. Phenotypic high-throughput drug screens, also called chemical genetic or in vivo screens, investigate the ability of individual compounds from a small molecule collection to inhibit a biological process or disease model in living cells or intact organisms. A protease cleavage assay would be another specific example for mechanism based HTS assays [30]. This assay used cellular FRET based methods, developed using fluorescent proteins or dyes linked by a protease. Cleavage of the probe is measured by a change in fluorescence upon activation of proteases such as caspase-3 [31] and hepatitis virus (HCV) NS2/3 [32]. In addition, HTS largely depends on the development of a good, usually one-step primary assay that yields readout of a biochemical/cellular reaction. As a consequence, targets that don’t form a readout may be considered mistakenly as non-druggable or may not gain proper recognition as a “bona fide” drug target. Therefore, further improvements in drug discovery have directed researchers’ attention toward defining druggable targets and developing a more rational and focused approaches, concentrating on the quality, rather than the quantity of hits and leads.
Although combinatorial chemistry had struggles in its earlier days, there are few lead molecules that came from the HTS compared to other approaches. However, a significant number of drugs in clinical trials originated from HTS campaigns, validating HTS as a bona fide mechanism for hit finding [33]. In the recent years FBDD has emerged as a major approach of hit to lead discovery in research of human diseases, where conventional approaches in drug discovery have failed [34].
The concept of drug design has gained much attention, especially with the progression of the fragment-based philosophy (Figure 2) over the past 20 years. Fragment linking is one of the powerful ways to develop a fragment hit into a lead compound. The concept was first introduced by Jencks in 1981, based on the theory of additivity of binding free energies with the idea that large molecules can be considered as the combination of two or more fragments that contain all the features necessary for binding to the target protein. Hence, linked molecules with micromolar affinities can be obtained from fragments that bind in the millimolar range, a central principle presented in the onset of FBS approach [35]. FBS is a rapid and economic alternative to HTS [36] and has been established as a mainstream strategy to discover novel high-quality drug-like molecules in both industry and academia [34,37,38,39,40]. FBS adds novelty and flexibility to lead molecule generation proficiencies and increases the probability of success in lead molecule development [41]. FBS takes a different approach to that of HTS and virtual screening; instead of screening libraries of million compounds to find drug-sized hit molecules, FBS begins with limited collections of low MW compounds (150–300 Da). Unlike HTS where the readout is usually based on a biochemical process of the target macromolecule using a functional assay, FBS monitors the binding of small molecules with high binding energy per atom to the its binding partner (ligand efficiency) [27]. Thus, development of a biochemical or cell-based assay is not required in FBS; instead the direct binding of small molecules to the target macromolecule is monitored.
Fragment molecules are usually defined as functional chemical groups with less than 20 non-hydrogen (or ‘heavy’) atoms. Such small molecules present low complexity, owing to their low MW, which allows an efficient exploration of diversified chemical space [42]. The small molecule size brings binding flexibility, as the fragment molecule can bind to various loci of a target in several ways. Although the binding of additional fragment to the same site brings additional intrinsic binding energy to the target [35], the transition from fragments into lead molecules constitutes the bottleneck in FBS. Nevertheless, more and more options to overcome these time and resource consuming problems are becoming available, and several molecules developed using this method have been approved by the FDA (Figure 2) or are being studied in clinical trials [34].
This review describes the identification of fragment molecules and their optimization steps into lead-molecules, specifically focusing on NMR as a specialized tool adapted for FBS and optimization. The principles behind the strategic approach of FBS are also discussed in comparison with other available technologies for screening. A survey on the current design of small molecule libraries adapted for NMR screening is presented. Finally, the impact of FBS on the development of candidate molecules in the current drug development pipeline and future directions of FBS are discussed.

2. Detection Methods Used for FBS

The binding of fragments is often very weak, and therefore biophysical techniques with high detection sensitivity such as NMR [52,53,54], SPR [55], microscale thermophoresis (MST) [56], capillary electrophoresis [57], weak affinity chromatography [58], biolayer interferometry/ultra-filtration [59], native mass spectrometry [60], isothermal titration calorimetry [61], and X-ray crystallography [62] are used to monitor the binding interactions. Although X-ray crystallography offers the most detailed delineation of protein–ligand binding modes, its application in primary FBS has been limited thus far. Since high concentrations of fragments are necessary to compensate weak binding (high KD) in protein pockets, the concentration of the fragment molecules is limited by the aqueous solubility [63]. In addition, in X-ray crystallography the target macromolecule needs to be crystalizable alone and with the fragment molecule. Although many new technologies have been developed over the past decade, NMR based screening of small molecules is advantageous, as it presents high sensitivity for weakly-bound target-ligand complexes [64,65,66]. NMR measures in solution, does not require any modification of the molecule and therefore is best suited for FBS [64,65,66].
Computer-aided techniques are also used for fragment screening, for example molecular docking. Molecular docking is the generation of hypothetical computer-guided protein–ligand complexes as a means for understanding the mechanism of action or as a starting point for structure-based ligand optimization. The application of docking to predict binding of small molecules remains a challenge due to the following reasons: (1) fragment molecules are small in size and have low MW, as a result, a number of interaction sites on protein surfaces (closely related energy minima) might be found to theoretically accommodate the fragment binding, which would lead to false docking positions. Even if fragments are placed into the correct pocket, if the binding pocket is large, it still might result in incorrect binding modes [67]; (2) fragments usually have weak target affinities than drug-like molecules with higher KD values of over than 3 orders of magnitude i.e., in a range of (μM–mM) [68], therefore scoring functions are not always accurate enough to predict the binding modes of fragments [69].
However, instead of empirical scoring functions, Shoichet and co-workers used physics-based scoring function to prioritize active fragments [70]. They employed in silico fragment screening to find AmpC β-lactamase inhibitors [70] and used a total of 137,639 fragment molecules from the ZINC database, docked into an apo AmpC crystal structure (PDB ID code 1KE4) using the docking software DOCK3.5.54. Among the hits obtained, forty-eight top ranked fragments were subjected to an in vitro enzyme inhibition assay and 23 molecules with Ki values in the range of 0.7–9.2 mM were identified. Although the Ki values present low potency of inhibition, the inhibitors are presumed to be specific. Moreover, this in silico FBS study yielded a higher hit rate (48%) than both virtual screening and HTS of drug-sized molecules due to better coverage of chemotypes at the fragment level.
In another example, Caflisch and colleagues developed a fragment-based procedure, called anchor-based library tailoring (ALTA) used for docking of large libraries of compounds to find inhibitors for EphB4 tyrosine kinase [71]. ALTA starts by decomposition of the compound library into rigid fragments followed by docking and ranking of the fragments. In addition, they have used pharmacophore constraints to preselect compounds for docking which adeptly reduced the library size. Optimization as a follow up step after FBS is therefore beneficial for bringing fragment molecules into the desired size and efficacy.
Computational methods have been developed to identify and characterize hot spots for fragment binding [72]. However, binding modes and computation of free energies by docking experiments are not yet sufficiently accurate to correctly predict early structure-activity relationships (SAR) around weak-affinity fragments [73]. Despite the success of many examples of docking in FBDD, applying docking in FBDD remained challenging because of possible promiscuous binding modes, the lack of handles to fit fragments into the pocket, and biases in docking scoring functions [74,75,76,77].

3. Design of Fragment Libraries

One important consideration for the screening setup is the choice of fragment libraries designed for FBDD [78]. The most common fragment libraries, designed for screening against an extensive variety of targets, are diverse sets of compounds with high pharmacophore diversity or physicochemical properties such as molecular mass, lipophilicity etc. [79]. The molecules are filtered to remove functional groups that may contribute to additional chemical reactivity, toxicity, and false positives [22,80,81,82,83].
Molecules in HTS libraries fulfill Lipinski’s “rule of five” [84], which occasionally enforces researchers to compromise on the disposition properties (absorption, distribution, metabolism, and excretion, ADME) to obtain potent inhibitors. By analogy to the Lipinski’s “rule of five”, molecules in libraries adapted for FBS obey the “rule of three” (Ro3) [85], in which a molecule has: (1) a molecular weight ≤300 Da; (2) a hydrophilicity value, clogP ≤ 3; (3) number of hydrogen bond donors and acceptors ≤3; (4) number of rotatable bonds ≤3; and also, (5) to a lesser extent, a molecular polar surface area ≤60 Å2. The Ro3 proposed by Astex [85] has been widely applied to design fragment screening pools. Fragments that are screened in combination with X-ray crystallography or NMR are usually well soluble (e.g., can reach to 25–200 mM) in aqueous buffer and structural information is available for further optimization of the hits [48,86].
However, the simplicity of fragments of Ro3-compliant libraries limits the diversity and can produce hits that are difficult to optimize due to a lack of synthetically more accessible functionality [87,88] i.e., unavailability of structural information or lack of activity-determining features (scaffold with suitable functional groups). Moreover, fragments with a MW range of 150–300 Da that bind to the same site in close proximity can be further optimized into larger molecules with better binding affinities [89,90] by subsequent steps of linking, growing, and merging.
Since the number of theoretical compounds increases exponentially with MW, smaller compounds enable a more efficient exploration of chemical space [91]. In addition, fragment molecules could easily bind a particular subsite within a binding site in comparison to a larger molecule that fits in size to the binding pocket [92].
Predesigned fragment libraries are becoming increasingly available directly from chemical vendors and Table 1 lists some of the commercial suppliers. These libraries offer a diverse range of collections which can be expanded with more targeted and novel sets of compounds. The commercial libraries provide a reliable, high quality, and cost effective diverse selection of compounds.

4. NMR Techniques for Screening

NMR is a versatile technique that can be used for screening, optimization, and validation of binding of a small molecule to its target macromolecule. Both ligand-based and target-based NMR spectra are extensively used in FBDD [95], yield typical throughput of 1–1000 compounds per screen, and require costly instrumentation [68]. Target-based methods, although very helpful, involve complex, expensive and time-consuming two-dimensional (2D) experiments with an isotopically labelled protein. Since structural information is usually required, a high level of backbone amide resonance assignment is necessary. To identify the binding mechanism the peaks in the 15N-HSQC data are assigned to every amino acid residue in the protein sequence. Ligand-based methods do not require structural information and involve rapid acquisition of one dimensional (1D) data. Ligand-based methods require much lower target molecule concentrations than target-based methods and work well for high molecular weight proteins. Ligand-based methods, such as STD, perform poorly on smaller proteins (<15–20 kDa) where target-based methods succeed [96]. Most ligand-based methods, however, provide no information about the ligand-binding site, which must be obtained from additional experiments. Target-based methods however, can actually be more informative than ligand based methods and relatively fast when small proteins are used [97]. Solution protein NMR spectroscopy is valuable for target-based drug discovery as it provides information on the target-ligand binding mechanism such as hit identification, ranking ligand binding affinities, and mapping the ligand binding site. In another example of target based methods, solid-state magic angle-spinning (MAS) NMR procedure is widely applicable to small membrane proteins expressed in bacteria [98]. Although numerous restrictions are imposed by the high molecular weight of target (around 40 kDa), there are several relaxation-optimized NMR techniques to tackle the relaxation and linewidth problems these days. Thus, making NMR a high throughput approach in hit generation and characterization [99].
Though several other biophysical methods are utilized for FBDD, NMR was the first and remains an important method for the discovery of new drugs. The first study on FBDD using NMR published by Shuker et al. in 1996 made use of chemical shift changes in 2D HSQC spectra of a protein to identify fragments that bind to the protein. Guided by NMR, relevant fragments were optimized, their binding site relative to each other determined and then fragments were linked to yield a high affinity ligand [8]. Using 2D spectra limits the method to relatively small biomolecules (<~40–60 kDa) at high concentrations, for obtaining high quality spectra in a reasonable amount of time. However, NMR is very versatile and since this pioneering study, several approaches for different stages of the drug discovery process have been applied for FBS. For the primary screen of a fragment library, one-dimensional ligand-detecting NMR methods are most commonly used, for several reasons: 1D spectra of small molecules are faster and easier to detect than 1D or 2D spectra of the target biomolecule. Using small molecules that yield uncrowded spectra avoids costly isotope labeling and even allows measuring samples containing several fragments at once. A major advantage of ligand-based detection methods is that these are not limited by the size of the target biomolecule and do not require a high concentration of the target. These ligand-based detection methods (schematically presented in Figure 3) exploit the differences in the physical properties of the ligand in its bound and free state. Although the measured signal originates from the unbound fragment, it still contains information from the bound state, in which the fragment behaves like a molecule of the size of the target rather than a small molecule, if the dissociation of the fragment from the target is within the timescale of the experiment.
The most widely used ligand-based method is the saturation transfer difference (STD) experiment [100]. This experiment uses a train of selective pulses to saturate signals of the protein that are in an area of the spectrum with no signals originating from the fragments (e.g., methyl protons of the proteins below 0 ppm). The saturation is transferred throughout the protein and to any bound fragments, causing a decrease in signal intensity. Comparing 1D spectra of the fragments with and without the saturation pulses reveals those fragments that bind to the protein. WaterLOGSY utilizes the sign inversion of the Nuclear Overhauser Effect of Water between the binary ligand bound state and the ternary state where the ligand is bound to the target protein [66,101]. This experiment also uses selective excitation, like the STD, however, instead of the protein the water is excited. Recent advances in NMR technology benefit from this experiment as well. The use of hyperpolarized water significantly increases the sensitivity. As protein signals are enhanced as well, this method can also be used to determine whether the protein is aggregated or intact and thus, eliminate false positives [102].
A ligand bound to a much larger target will adopt the relaxation properties of the large target in its bound state. A large protein tumbles at a much slower pace than a small molecule, which leads to much faster relaxation times. The Carr Purcell Maiboom Gill (CPMG) sequence can be used to determine the relaxation time T2 of the fragments in their free form and in a sample containing the target biomolecule. Fragments with reduced relaxation times are those that bind to the target [103,104]. The relaxation times is indirectly proportional to the line width at half height. Thus, shorter relaxation times of larger molecules lead to line broadening. Since the peak consists of a large contribution from the unbound state with a narrow line and a smaller contribution from the bound state with broad a line, the main effect observed in the 1D spectrum is a reduction in intensity. The large difference in relaxation times of the bound and unbound from can also be used to filter out resonances originating from the protein and the complex, for example by using a long echo time in the CPMG experiment or adding a filter to the STD experiment. Just as a ligand bound to a larger molecule will adopt the relaxation properties of that molecule, the ligand will also adopt the diffusion properties of the target and diffuse at a much slower pace than the free ligand. The diffusion rate of the free ligands and of the ligand in a sample containing the target molecule can be measured by NMR in an experiment called DOSY (Diffusion Ordered Spectroscopy) [104].
Sometimes spectral crowding and background noise from the biomolecule can be a hindrance. In this case, a ligand labeled with 19F might be a solution. 19F has only a slightly lower sensitivity than protons, but offers a much larger chemical shift range and eliminates the background from the target. The relatively high speed, low background signal/interference and ability to probe diverse pharmaceutical/environmental parameters in protein-observed 19F-NMR experiments helped to discover and characterize selective ligands for bromodomain-containing proteins [96]. Measuring the 19F relaxation rates of the free ligands and ligands in a sample with the biomolecule will identify those ligands that bind to the target by a shorter relaxation time, just like for the proton experiment [105].
Target-based methods require 2D experiments or even higher dimensionality and are thus more time consuming. Often isotope labeling of the target is required (for example 15N labeling for HSQC spectra, plus 2H labeling for larger proteins) and larger concentrations are required, making these experiments costlier. However, they do offer other advantages and are very useful for further characterization after an initial 1D screen identifying promising fragments. Target-based experiments can be utilized to obtain structural information at an atomic level, which is not available with any other technique. Titrating a ligand into a sample of the target molecule and measuring 2D HSQC spectra at each point allows the determination of the binding site of the ligand, as the chemical shift of the resonances involved in binding will change [106]. It should be noted, that chemical shift changes may also arise due to induced conformational changes at a site distant from the binding site or due to dimerization. Thus, chemical shift changes must be analyzed carefully. Changes that cannot be mapped to a single site, for example, are most likely due to conformational changes. Changes that can be mapped to a single site but are accompanied by line broadening could be due to dimerization, which could be confirmed by measuring relaxation properties. For more details see for example [106]. Depending on the binding affinity, the chemical shift of a protein resonance might gradually shift with increasing ligand concentration (slow exchange, tight binding) or gradually disappear and then reappear at the new position (slow exchange, tight binding). Titration experiments can also be used to determine binding constants for the ligand target interaction.

5. Optimization: Growing, Merging, and Linking Fragments into Potent Inhibitors

Fragment optimization to obtain a drug-like lead compound is an important step in FBDD. Unless the optimization of hits from a high throughput screen, which are larger in size and already have better binding affinities, fragments require extensive optimization through growing, merging and/or linking. Fragment growing is the easiest method of obtaining molecule with better binding properties by starting from a single fragment and extending its pattern of interactions with the target molecule using medicinal chemistry (Figure 4). However, atomic resolution structures obtained by crystallography or high-field NMR are essential for growing the fragment into a lead compound. One example for fragment growing is the drug AT7519 by Astex, an inhibitor of cyclin dependent kinase (CDK) [107]. Out of 500 fragments, 30 fragments possessing indazole moiety were identified that bind to the ATP binding site of CDK. Figure 4 (Growing panel) shows the development steps from the fragment indazole to the drug AT7519. In this case, fragment growing of the initial ‘indazole’ hit 1 led to a compound 2 with a 60-fold increase in potency. Removal of the phenyl ring of the indazole yielded a compound with an IC50 of 47 nM with only a small decrease in ligand efficiency (AT7519). AT7519 is currently in Phase II clinical trials and has shown good indications against a range of human tumor cell lines.
Two fragments that have some common structural features and bind to overlapping sites on the target but are otherwise different, can be merged to yield a more potent molecule. Figure 4 (Merging panel, left) shows the example of the development of an inhibitor of the mycobacterial tuberculosis cytochrome P450 CYP121 [108]. Two fragments with a similar phenylamine moiety were detected using X-ray crystallography. These two overlapping fragments were merged to yield an efficient inhibitor with 15–60-fold improvement of binding affinity comparing to the binding values of the two separated fragments. A more recent example for merging is also presented in Figure 4 (Merging panel, right) where two fragments containing 5 or 6 aza-membered non-aromatic heterocyclic moiety were systematically merged together using structural information from X-ray crystallography. The merged fragments yielded small molecule inhibitors which have 100-fold improvement in potency over the initial fragments [109].
If two fragments are identified that bind to slightly different sites of the target but are still close in space, these fragments can be linked, for example, by attaching a “bridge” between them, to obtain a larger molecule with better binding properties. Linking two fragments is a difficult task, as the orientation of the two fragments must be maintained exactly. Fesik and coworkers reported one of the first successful examples of fragment linking using NMR screening against apoptotic protein Bcl-XL (Figure 4, Linking panel, top) where the initial fragment linking using an alkene as the linker lead to a significant increase in potency [110]. Using a different linker led to the compound ABT263 with a Ki < 0.5 nM. This drug is currently tested in phase II clinical trials for the treatment of cancer. Recently, Judd and coworkers reported an example of fragment linking using 19F-NMR against the aspartic acid protease β-secretase (BACE-1, Figure 4, Linking panel, bottom), where the initial fragment linking with an alkyne gave a significant increase in potency [111]. Further elaboration led to the development of a new molecule which ultimately exhibits a more than 360-fold increase in potency while maintaining reasonable ligand efficiency. However, in several studies dockings has been utilized following fragment screening to obtain drug-sized molecules [112,113].

5.1. Using NMR to Guide the Optimization of Fragments

NMR provides not only powerful methods for the screening stage, but can also be utilized for the optimization of the fragments. Although it can be used at any stage and for any of the described optimization methods, the use Structure-Activity relationships (SAR) by NMR is especially popular. SAR by NMR was first described by Shuker et al. in 1996 [8] and is based on NMR-guided optimization and linking of two fragments that bind to subsites of the target molecule. After identifying a first fragment through screening, the library is screened again with saturating concentrations of the first identified fragment to be able to identify fragments that bind near the binding site of the first fragment. The scientists in the original study mainly used 2D 15N-HSQC target detected spectra to develop an inhibitor for the immunosuppressant FK506. Target detected spectra are required to be able to screen for fragments binding near each other, which would not be possible with 1D spectra. However, target detected spectra are limited to proteins up to a certain size and require the assignment of the protein resonances. NMR techniques that do not require the assignment of the target molecule are often based on the Nuclear Overhauser Effect (NOE). One popular method is NOE matching, in which the experimental NOE data is compared to NOE data of predicted binding positions of the small molecule to the target to identify the actual binding position [114]. Another is SAR by ILOEs (Inter ligand NOEs) in which NOE interactions between the bound fragments are detected directly [115]. ILOEs provide information about the orientation and distance of the fragments to each other, which is important information for creating a linker. As SAR by NMR enables the development of highly potent and specific compounds it continues to be one of the most popular and successful NMR techniques for FBDD [116,117,118,119,120]. There have been other remarkable examples where SAR by NMR was used as a primary optimization technique to find potent inhibitors such as Bcl-2 [121] and HSP90 [122] inhibitors. Abbott laboratories developed an inhibitor of Bcl-2 family proteins using NMR-based screening, parallel synthesis and structure-based design. ABT-737, a small-molecule inhibitor of the apoptotic proteins Bcl-2, Bcl-XL and Bcl-w, with improved potency were shown to induce regression of solid tumor. Hajduk and co-workers reported the discovery of novel HSP90 inhibitors using a multiple fragment based design approaches for the treatment of cancer [122]. They developed two initial hits which intriguingly linked together using a fragment linking approach, to yield novel inhibitors with micromolar range activities. Design of linking chemistry is challenging as most fragments are expected to bind into the same binding cavity. The linking, however, is expected to retain all chemical bonds of the newly larger molecule with the target without altering or affecting the position, orientation, or the bonding with the target of the two individual fragments.
Another option for target detected optimization is the use of fluorinated target proteins. The introduction of selected 19F labels into the protein provides a probe with high sensitivity and significantly reduces overlap and enables target detection of larger proteins. Although care must be taken that the modification of the protein does not alter the structure and function of the protein nor the binding of the fragment to the binding site, this method offers a promising approach [114,123].

5.2. Virtual Screening and Virtual Filtration

Some important questions persist on the fundamental and the practical aspects of growing/merging and linking of fragment hits. Two of these aspects regard the utility of molecular docking for prioritizing fragments, and the specificity of fragment inhibitors towards potent molecules. The low-throughput nature of FBS as well as the tedious optimization procedure that follows makes computational docking of drug-sized molecules an attractive tool to prioritize fragments from the much larger commercially available dataset. Only hundreds to thousands of fragments can be screened using most fragment screening techniques in a single screening trial, whereas, more than 250,000 fragments are commercially available [124] leaving a large portion of fragment libraries untested. Since commercially available fragments are too numerous to be screened experimentally, complementary conventional tools can be advantageous. Computational chemistry tools are used to explore larger commercially available fragment databases and can significantly improve the efficiency of the individual steps of FBDD, such as fragment library design, active site categorization, fragment hit discovery, and hit-to-lead-to-candidate optimization [125]. Moreover, many recent reviews are available that discerningly and comprehensively compare docking methodologies, scoring functions and their wide applications in drug discovery [126,127,128].
There are many databases used for virtual screening of drug-sized molecules (not fragments, Table 2) some of which are collections of commercially available compounds, such as ZINC [124]. In addition, most pharmaceutical companies typically maintain their own internal database of previously synthesized compounds. An alternative to the commercial collection is the open NCI database [129], a set of compounds that have been screened for anticancer activity over the past few decades and for research purposes subsets of this collection are available upon request for the virtual screening (http://dtp.nci.nih.gov/branches/dscb/repo_open.html).
A report by Peach et al. [130] describes a combined approach of docking with pharmacophore filtering for improved virtual screening. The relatively simple method for reducing the number of false positives was developed in order to filter out the ligands with high rank order by virtual screening. In fact, this technique uses a docking program for pose generation only, irrespective of scoring functions, followed by receptor-based pharmacophore filtering.

6. Successful Attempts of Molecules Derived from FBDD

In the past decade, FBS has become a successful approach for developing new inhibitors against complex targets. The anti-melanoma drug vemurafenib, a selective inhibitor of B-Raf kinase was the first FDA-approved drug discovered by employing high concentration screening (HCS) and FBS using X-ray crystallography [131]. Thereafter, Bcl-2 inhibitor venetoclax has been approved for the treatment of chronic lymphocytic leukemia [132], originated from NMR screening [110]. Recently, LEE011 (also known as Ribociclib or Kisqali), a selective cyclin dependent kinase inhibitor (CDK4/6) that was developed by the Novartis Institutes for BioMedical Research (NIBR) in collaboration with Astex Pharmaceuticals has been approved by the FDA. FBDD led to the development of LEE011 using structure-guided drug discovery and the crystal structure of the cancer target CDK4 [133]. It received the FDA approval in combination with an aromatase inhibitor letrozole [51] as a first-line treatment in post-menopausal women with hormone receptor positive, human epidermal growth factor receptor-2 negative (HR+/HER2−) advanced (metastatic) breast cancer.
Concomitantly, the low throughput nature of fragment testing makes computational methods such as docking, a suitable option to prioritize fragments from the large commercially available dataset. Certainly, numerous groups have used docking to prioritize fragments for testing [112,113]. Recently, Spiliotopoulos and co-workers presented high throughput docking of fragment molecules to the N-terminal bromodomain of the Bromodomain containing protein 4 (BRD4) and the cAMP-response element-binding protein (CREBBP) bromodomain using anchor-based library tailoring (ALTA, mentioned in Section 2) [134]. Some examples using a combined approach of FBDD with virtual screening which have led to the development of potent inhibitors based on optimized fragments are summarized in Table 3 and Table 4.

7. Recent Improvements: Fragment Based Virtual Screening (FBVS)

The basis for FBS is that binding of functional chemical groups to the target can build up a drug-like molecule [159,160]. T7 primase, an essential protein domain encoded by the bacteriophage T7 gene 4-helicase-primase [161], was chosen as a drug target to select small-molecule inhibitors of DNA replication using FBS. T7 DNA primase is a slow enzyme displaying a rate constant of ~4 s−1 [162]. The weak catalytic activity of DNA primase renders a formidable challenge of adapting a functional assay to HTS, and therefore was an ideal candidate for FBS. T7 primase is also an excellent model for bacterial primases [161] that serve as novel targets for a new class of antibiotics [163,164,165]. We have combined FBS and virtual screening (FBVS, Figure 5) to select small molecules that target the bacterial primase. Specifically, by using the Maybridge Ro3 fragment library, composed of 1000 fragments, we have prepared 100 NMR samples containing a mix of 10 fragments and 50 μM T7 primase each. The 1D Saturation Transfer Difference (STD) spectra of these samples were measured and fragments showing saturation transfer were identified by a decrease in the peak intensity at specific chemical shift values. The hits were ranked based on the number of peaks affected and by the percentage of intensity change. The indole and methyl quinoline-6-carboxylate fragments were the highest-ranking ones. We then shortened the lengthy optimization process by searching the ZINC database [166], which contains the structures of tens of millions of compounds. In this virtual filtration step, drug-like molecules containing fragment molecules found at first by NMR-FBS were selected. This search yielded a few hundred to a few thousand molecules per fragment-molecule. The computer program Autodock [167] was then used to perform in-silico docking of those compounds to the active site of the T7 primase by using its crystal structure [168] (PDB ID 1nui). The drug-like molecules were ranked based on their relative binding energies and the top 18 small molecules from this list were purchased. Five of the drug-like molecules were found to inhibit T7 DNA replisome through specific inhibition of DNA primase. The binding of the small molecules identified using FBVS was validated using [15N, 1H] TROSY HSQC spectra of 15N, D labeled T7 primase in the absence and upon binding of selected small molecules and a mechanism of binding was proposed [161].

8. Summary and Future Directions

In the last few years fragment based screening has becoming a main stream approach in drug discovery, and has thus far yielded ~30 drug in various stages in the clinical pipeline.
The combination of FBS with computational techniques such as virtual screening and docking allows to benefit from these different approaches. Each contributes specialized advantages and together bring genuine complementation that can build a better inhibitor. FBVS is one example for utilizing NMR-fragment based screening with virtual screening to gain a high success rate in a rapid, inexpensive manner, without the need for intervention of medicinal chemistry in the early stage to grow the fragment molecules into larger, more potent drug-sized inhibitors. The proof-of-concept study of FBVS on T7 primase serves as a basis for the development of lead molecules against other drug targets. Target selection should not be limited to proteins but can direct the search of fragments toward other macromolecules such as nucleic-acids, depends on the NMR method used for screening of the fragment molecules in the first step of FBVS. The modular arrangement of FBVS not only allows to change the first step of fragment screening but also to modify the later steps of virtual filtration and docking based on available improved resources.
We envision that in the future, FBS-NMR will become more popular in drug discovery and will yield potent inhibitors for popular drug targets including G-protein coupled receptors, nuclear receptors, ion channels or enzymes (e.g., kinases, ATPase, proteases, deacetylases, etc.). With the advance of computer aided-techniques in drug design and enlargement of small molecule libraries, the modular nature of FBVS will be updated with any technological advancement. Specifically, we believe that analysis of FBS can become automatic to yield novel lead molecules for drug target even those that were traditionally considered as “non-druggable” or challenging such as protein-protein interactions. The use in NMR as a tool for screening but also for optimization and validation can provide detailed plan for SAR cycles that will allow to add onto the pre-existing small molecule inhibitors improvements to design larger spectrum medicines or alternatively inhibitors with larger selectivity. The ability of NMR to provide detailed knowledge of the binding site and mode can then be used to build up a better drug-like molecule on the basis of the fragment hit. The use of NMR technique for screening is not limited to size of the macromolecular target, however, in the optimization and validation steps (after fragment molecules were found in the initial screening) protein target size is limited up to 40 kDa and in turn requires the assignment of backbone and side-chain resonances to elucidate the complete binding information of the small molecule. For example, NMR was used to identify novel allosteric ‘hot spots’ on traditionally targeted proteins such as those present in protein kinases and intrinsically disordered proteins [54].
Large molecular weight targets comprising multi-subunit protein complexes pose a major limitation mainly for NMR spectroscopy but also to X-ray spectroscopy. In the hit-to-lead optimization phase structural data is the rate limiting step to monitor rationality for compound expansion and introduce new chemical alterations. Prior information of the target structure doesn’t mean that small molecule hit binding will be easily validated structurally. In order to use NMR as a complementary technique to provide means for structural information at atomic resolution for these types of targets, NMR active isotope labelling and multidimensional experiments is necessary. Size remains the main limitation, however multiple labelling schemes and experiments are readily available, making it now possible to handle assemblies as big as the 1 mega Dalton proteasome complex [169,170].

Acknowledgments

We thank Sabine-Ruth Akabayov for critical reading of the manuscript and helpful discussions. Supported by grant no. 2016142 from the U.S.-Israeli Binational Science Foundation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Guo, Z.R. Strategy of molecular drug design: Hits, leads and drug candidates. Yao Xue Xue Bao 2008, 43, 898–904. [Google Scholar] [PubMed]
  2. Hughes, J.P.; Rees, S.; Kalindjian, S.B.; Philpott, K.L. Principles of early drug discovery. Br. J. Pharmacol. 2011, 162, 1239–1249. [Google Scholar] [CrossRef] [PubMed]
  3. Dalvit, C.; Fagerness, P.E.; Hadden, D.T.; Sarver, R.W.; Stockman, B.J. Fluorine-NMR experiments for high-throughput screening: Theoretical aspects, practical considerations, and range of applicability. J. Am. Chem. Soc. 2003, 125, 7696–7703. [Google Scholar] [CrossRef] [PubMed]
  4. Diercks, T.; Coles, M.; Kessler, H. Applications of NMR in drug discovery. Curr. Opin. Chem. Biol. 2001, 5, 285–291. [Google Scholar] [CrossRef]
  5. Huth, J.R.; Sun, C.; Sauer, D.R.; Hajduk, P.J. Utilization of NMR-derived fragment leads in drug design. Methods Enzymol. 2005, 394, 549–571. [Google Scholar] [CrossRef] [PubMed]
  6. Pellecchia, M.; Sem, D.S.; Wuthrich, K. NMR in drug discovery. Nat. Rev. Drug. Discov. 2002, 1, 211–219. [Google Scholar] [CrossRef] [PubMed]
  7. Pellecchia, M.; Bertini, I.; Cowburn, D.; Dalvit, C.; Giralt, E.; Jahnke, W.; James, T.L.; Homans, S.W.; Kessler, H.; Luchinat, C.; et al. Perspectives on NMR in drug discovery: A technique comes of age. Nat. Rev. Drug Discov. 2008, 7, 738–745. [Google Scholar] [CrossRef] [PubMed]
  8. Shuker, S.B.; Hajduk, P.J.; Meadows, R.P.; Fesik, S.W. Discovering high-affinity ligands for proteins: SAR by NMR. Science 1996, 274, 1531–1534. [Google Scholar] [CrossRef] [PubMed]
  9. Reymond, J.-L.; Visini, R.; Awale, M. Enumeration of Chemical Fragment Space. In Fragment-Based Drug Discovery Lessons and Outlook; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2016; pp. 57–74. ISBN 9783527683604. [Google Scholar]
  10. Hall, R.J.; Mortenson, P.N.; Murray, C.W. Efficient exploration of chemical space by fragment-based screening. Prog. Biophys. Mol. Biol. 2014, 116, 82–91. [Google Scholar] [CrossRef] [PubMed]
  11. Baker, M. Fragment-based lead discovery grows up. Nat. Rev. Drug Discov. 2013, 12, 5–7. [Google Scholar] [CrossRef] [PubMed]
  12. Schultes, S.; de Graaf, C.; Haaksma, E.E.J.; de Esch, I.J.P.; Leurs, R.; Krämer, O. Ligand efficiency as a guide in fragment hit selection and optimization. Drug Discov. Today Technol. 2010, 7, e157–e162. [Google Scholar] [CrossRef] [PubMed]
  13. Barker, J.; Hesterkamp, T.; Whittaker, M. Integrating HTS and fragment-based drug discovery. DDW Drug Discov. World 2008, 9, 69. [Google Scholar]
  14. Wu, B.; Zhang, Z.; Noberini, R.; Barile, E.; Giulianotti, M.; Pinilla, C.; Houghten, R.A.; Pasquale, E.B.; Pellecchia, M. HTS by NMR of combinatorial libraries: A fragment-based approach to ligand discovery. Chem. Biol. 2013, 20, 19–33. [Google Scholar] [CrossRef] [PubMed]
  15. Hoffer, L.; Renaud, J.P.; Horvath, D. Fragment-based drug design: Computational & experimental state of the art. Comb. Chem. High. Throughput Screen. 2011, 14, 500–520. [Google Scholar] [CrossRef] [PubMed]
  16. Fielding, L. NMR methods for the determination of protein–ligand dissociation constants. Prog. Nucl. Magn. Reson. Spectrosc. 2007, 51, 219–242. [Google Scholar] [CrossRef]
  17. Starkuviene, V.; Pepperkok, R. The potential of high-content high-throughput microscopy in drug discovery. Br. J. Pharmacol. 2007, 152, 62–71. [Google Scholar] [CrossRef] [PubMed]
  18. Butcher, E.C. Can cell systems biology rescue drug discovery? Nat. Rev. Drug Discov. 2005, 4, 461–467. [Google Scholar] [CrossRef] [PubMed]
  19. Macarron, R.; Banks, M.N.; Bojanic, D.; Burns, D.J.; Cirovic, D.A.; Garyantes, T.; Green, D.V.; Hertzberg, R.P.; Janzen, W.P.; Paslay, J.W.; et al. Impact of high-throughput screening in biomedical research. Nat. Rev. Drug Discov. 2011, 10, 188–195. [Google Scholar] [CrossRef] [PubMed]
  20. Macarron, R. Critical review of the role of HTS in drug discovery. Drug Discov. Today 2006, 11, 277–279. [Google Scholar] [CrossRef] [PubMed]
  21. Barker, A.; Kettle, J.G.; Nowak, T.; Pease, J.E. Expanding medicinal chemistry space. Drug Discov. Today 2013, 18, 298–304. [Google Scholar] [CrossRef] [PubMed]
  22. Baell, J.B.; Holloway, G.A. New substructure filters for removal of pan assay interference compounds (PAINS) from screening libraries and for their exclusion in bioassays. J. Med. Chem. 2010, 53, 2719–2740. [Google Scholar] [CrossRef] [PubMed]
  23. Scott, D.E.; Bayly, A.R.; Abell, C.; Skidmore, J. Small molecules, big targets: Drug discovery faces the protein-protein interaction challenge. Nat. Rev. Drug Discov. 2016, 15, 533–550. [Google Scholar] [CrossRef] [PubMed]
  24. Lewis, K. Platforms for antibiotic discovery. Nat. Rev. Drug Discov. 2013, 12, 371. [Google Scholar] [CrossRef] [PubMed]
  25. Dobson, C.M. Chemical space and biology. Nature 2004, 432, 824–828. [Google Scholar] [CrossRef] [PubMed]
  26. Reymond, J.L.; Awale, M. Exploring chemical space for drug discovery using the chemical universe database. ACS Chem. Neurosci. 2012, 3, 649–657. [Google Scholar] [CrossRef] [PubMed]
  27. Hopkins, A.L.; Groom, C.R.; Alex, A. Ligand efficiency: A useful metric for lead selection. Drug Discov. Today 2004, 9, 430–431. [Google Scholar] [CrossRef]
  28. Abad-Zapatero, C.; Metz, J.T. Ligand efficiency indices as guideposts for drug discovery. Drug Discov. Today 2005, 10, 464–469. [Google Scholar] [CrossRef]
  29. Etzion, Y.; Muslin, A.J. The application of phenotypic high-throughput screening techniques to cardiovascular research. Trends Cardiovasc. Med. 2009, 19, 207–212. [Google Scholar] [CrossRef] [PubMed]
  30. Inglese, J.; Johnson, R.L.; Simeonov, A.; Xia, M.; Zheng, W.; Austin, C.P.; Auld, D.S. High-throughput screening assays for the identification of chemical probes. Nat. Chem. Biol. 2007, 3, 466–479. [Google Scholar] [CrossRef] [PubMed]
  31. Jones, J.; Heim, R.; Hare, E.; Stack, J.; Pollok, B.A. Development and application of a GFP-FRET intracellular caspase assay for drug screening. J. Biomol. Screen. 2000, 5, 307–318. [Google Scholar] [CrossRef] [PubMed]
  32. Whitney, M.; Stack, J.H.; Darke, P.L.; Zheng, W.; Terzo, J.; Inglese, J.; Strulovicil, B.; Kuo, L.C.; Pollok, B.A. A Collaborative Screening Program for the Discovery of Inhibitors of HCV NS2/3 cis-Cleaving Protease Activity. J. Biomol. Screen. 2002, 7, 149–154. [Google Scholar] [CrossRef] [PubMed]
  33. Roy, A.; McDonald, P.R.; Sittampalam, S.; Chaguturu, R. Open access high throughput drug discovery in the public domain: A Mount Everest in the making. Curr. Pharm. Biotechnol. 2010, 11, 764–778. [Google Scholar] [CrossRef] [PubMed]
  34. Erlanson, D.A.; Fesik, S.W.; Hubbard, R.E.; Jahnke, W.; Jhoti, H. Twenty years on: The impact of fragments on drug discovery. Nat. Rev. Drug Discov. 2016, 15, 605–619. [Google Scholar] [CrossRef] [PubMed]
  35. Jencks, W.P. On the attribution and additivity of binding energies. Proc. Natl. Acad. Sci. USA 1981, 78, 4046–4050. [Google Scholar] [CrossRef] [PubMed]
  36. Kumar, A.; Voet, A.; Zhang, K.Y.J. Fragment Based Drug Design: From Experimental to Computational Approaches. Curr. Med. Chem. 2012, 19, 5128–5147. [Google Scholar] [CrossRef] [PubMed]
  37. Scott, D.E.; Coyne, A.G.; Hudson, S.A.; Abell, C. Fragment-based approaches in drug discovery and chemical biology. Biochemistry 2012, 51, 4990–5003. [Google Scholar] [CrossRef] [PubMed]
  38. De Kloe, G.E.; Bailey, D.; Leurs, R.; de Esch, I.J. Transforming fragments into candidates: Small becomes big in medicinal chemistry. Drug Discov. Today 2009, 14, 630–646. [Google Scholar] [CrossRef] [PubMed]
  39. Mashalidis, E.H.; Sledz, P.; Lang, S.; Abell, C. A three-stage biophysical screening cascade for fragment-based drug discovery. Nat. Protoc. 2013, 8, 2309–2324. [Google Scholar] [CrossRef] [PubMed]
  40. Blundell, T.L.; Jhoti, H.; Abell, C. High-throughput crystallography for lead discovery in drug design. Nat. Rev. Drug Discov. 2002, 1, 45–54. [Google Scholar] [CrossRef] [PubMed]
  41. Wasko, M.J.; Pellegrene, K.A.; Madura, J.D.; Surratt, C.K. A Role for Fragment-Based Drug Design in Developing Novel Lead Compounds for Central Nervous System Targets. Front. Neurol. 2015, 6, 197. [Google Scholar] [CrossRef] [PubMed]
  42. Hann, M.; Leach, A.; Burrows, J.; Griffen, E. 4.18-Lead Discovery and the Concepts of Complexity and Lead-Likeness in the Evolution of Drug Candidates. In Comprehensive Medicinal Chemistry II; Elsevier: Amsterdam, The Netherlands, 2006; pp. 435–458. [Google Scholar]
  43. Erlanson, D.A.; Braisted, A.C.; Raphael, D.R.; Randal, M.; Stroud, R.M.; Gordon, E.M.; Wells, J.A. Site-directed ligand discovery. Proc. Natl. Acad. Sci. USA 2000, 97, 9367–9372. [Google Scholar] [CrossRef] [PubMed]
  44. Maly, D.J.; Choong, I.C.; Ellman, J.A. Combinatorial target-guided ligand assembly: Identification of potent subtype-selective c-Src inhibitors. Proc. Natl. Acad. Sci. USA 2000, 97, 2419–2424. [Google Scholar] [CrossRef] [PubMed]
  45. Boehm, H.J.; Boehringer, M.; Bur, D.; Gmuender, H.; Huber, W.; Klaus, W.; Kostrewa, D.; Kuehne, H.; Luebbers, T.; Meunier-Keller, N.; et al. Novel inhibitors of DNA gyrase: 3D structure based biased needle screening, hit validation by biophysical methods, and 3D guided optimization. A promising alternative to random screening. J. Med. Chem. 2000, 43, 2664–2674. [Google Scholar] [CrossRef] [PubMed]
  46. Nienaber, V.L.; Richardson, P.L.; Klighofer, V.; Bouska, J.J.; Giranda, V.L.; Greer, J. Discovering novel ligands for macromolecules using X-ray crystallographic screening. Nat. Biotechnol. 2000, 18, 1105–1108. [Google Scholar] [CrossRef] [PubMed]
  47. Ekstrom, J.L.; Pauly, T.A.; Carty, M.D.; Soeller, W.C.; Culp, J.; Danley, D.E.; Hoover, D.J.; Treadway, J.L.; Gibbs, E.M.; Fletterick, R.J.; et al. Structure-activity analysis of the purine binding site of human liver glycogen phosphorylase. Chem. Biol. 2002, 9, 915–924. [Google Scholar] [CrossRef]
  48. Hartshorn, M.J.; Murray, C.W.; Cleasby, A.; Frederickson, M.; Tickle, I.J.; Jhoti, H. Fragment-based lead discovery using X-ray crystallography. J. Med. Chem. 2005, 48, 403–413. [Google Scholar] [CrossRef] [PubMed]
  49. Bollag, G.; Tsai, J.; Zhang, J.; Zhang, C.; Ibrahim, P.; Nolop, K.; Hirth, P. Vemurafenib: The first drug approved for BRAF-mutant cancer. Nat. Rev. Drug Discov. 2012, 11, 873–886. [Google Scholar] [CrossRef] [PubMed]
  50. Souers, A.J.; Leverson, J.D.; Boghaert, E.R.; Ackler, S.L.; Catron, N.D.; Chen, J.; Dayton, B.D.; Ding, H.; Enschede, S.H.; Fairbrother, W.J.; et al. ABT-199, a potent and selective BCL-2 inhibitor, achieves antitumor activity while sparing platelets. Nat. Med. 2013, 19, 202–208. [Google Scholar] [CrossRef] [PubMed]
  51. Hortobagyi, G.N.; Stemmer, S.M.; Burris, H.A.; Yap, Y.S.; Sonke, G.S.; Paluch-Shimon, S.; Campone, M.; Blackwell, K.L.; Andre, F.; Winer, E.P.; et al. Ribociclib as first-line therapy for HR-positive, Advanced Breast Cancer. N. Engl. J. Med. 2016, 375, 1738–1748. [Google Scholar] [CrossRef] [PubMed]
  52. Schade, M. NMR fragment screening: Advantages and applications. IDrugs 2006, 9, 110–113. [Google Scholar] [PubMed]
  53. Schade, M.; Oschkinat, H. NMR fragment screening: Tackling protein-protein interaction targets. Curr. Opin. Drug Discov. Dev. 2005, 8, 365–373. [Google Scholar]
  54. Harner, M.J.; Frank, A.O.; Fesik, S.W. Fragment-based drug discovery using NMR spectroscopy. J. Biomol. NMR 2013, 56, 65–75. [Google Scholar] [CrossRef] [PubMed]
  55. Neumann, T.; Junker, H.D.; Schmidt, K.; Sekul, R. SPR-based Fragment Screening: Advantages and Applications. Curr. Top. Med. Chem. 2007, 7, 1630–1642. [Google Scholar] [CrossRef] [PubMed]
  56. Niesen, F.H.; Berglund, H.; Vedadi, M. The use of differential scanning fluorimetry to detect ligand interactions that promote protein stability. Nat. Protoc. 2007, 2, 2212–2221. [Google Scholar] [CrossRef] [PubMed]
  57. Austin, C.; Pettit, S.N.; Magnolo, S.K.; Sanvoisin, J.; Chen, W.; Wood, S.P.; Freeman, L.D.; Pengelly, R.J.; Hughes, D.E. Fragment screening using capillary electrophoresis (CEfrag) for hit identification of heat shock protein 90 ATPase inhibitors. J. Biomol. Screen. 2012, 17, 868–876. [Google Scholar] [CrossRef] [PubMed]
  58. Duong-Thi, M.D.; Meiby, E.; Bergstrom, M.; Fex, T.; Isaksson, R.; Ohlson, S. Weak affinity chromatography as a new approach for fragment screening in drug discovery. Anal. Biochem. 2011, 414, 138–146. [Google Scholar] [CrossRef] [PubMed]
  59. Wartchow, C.A.; Podlaski, F.; Li, S.; Rowan, K.; Zhang, X.; Mark, D.; Huang, K.S. Biosensor-based small molecule fragment screening with biolayer interferometry. J. Comput. Aided Mol. Des. 2011, 25, 669–676. [Google Scholar] [CrossRef] [PubMed]
  60. Pedro, L.; Quinn, R.J. Native Mass Spectrometry in Fragment-Based Drug Discovery. Molecules 2016, 21, 984. [Google Scholar] [CrossRef] [PubMed]
  61. Ladbury, J.E.; Klebe, G.; Freire, E. Adding calorimetric data to decision making in lead discovery: A hot tip. Nat. Rev. Drug Discov. 2010, 9, 23–27. [Google Scholar] [CrossRef] [PubMed]
  62. Gill, A.L.; Frederickson, M.; Cleasby, A.; Woodhead, S.J.; Carr, M.G.; Woodhead, A.J.; Walker, M.T.; Congreve, M.S.; Devine, L.A.; Tisi, D.; et al. Identification of novel p38alpha MAP kinase inhibitors using fragment-based lead generation. J. Med. Chem. 2005, 48, 414–426. [Google Scholar] [CrossRef] [PubMed]
  63. Jhoti, H.; Cleasby, A.; Verdonk, M.; Williams, G. Fragment-based screening using X-ray crystallography and NMR spectroscopy. Curr. Opin. Chem. Biol. 2007, 11, 485–493. [Google Scholar] [CrossRef] [PubMed]
  64. Meyer, B.; Klein, J.; Mayer, M.; Meinecke, R.; Möller, H.; Neffe, A.; Schuster, O.; Wülfken, J.; Ding, Y.; Knaie, O. Saturation transfer difference NMR spectroscopy for identifying ligand epitopes and binding specificities. In Leucocyte Trafficking, Ernst Schering Research Foundation Workshop; Springer: Berlin, Germany, 2004; pp. 149–167. [Google Scholar]
  65. Lucas, L.H.; Price, K.E.; Larive, C.K. Epitope mapping and competitive binding of HSA drug site II ligands by NMR diffusion measurements. J. Am. Chem. Soc. 2004, 126, 14258–14266. [Google Scholar] [CrossRef] [PubMed]
  66. Dalvit, C.; Fogliatto, G.; Stewart, A.; Veronesi, M.; Stockman, B. WaterLOGSY as a method for primary NMR screening: Practical aspects and range of applicability. J. Biomol. NMR 2001, 21, 349–359. [Google Scholar] [CrossRef] [PubMed]
  67. Nayal, M.; Honig, B. On the nature of cavities on protein surfaces: Application to the identification of drug-binding sites. Proteins 2006, 63, 892–906. [Google Scholar] [CrossRef] [PubMed]
  68. Carr, R.A.E.; Congreve, M.; Murray, C.W.; Rees, D.C. Fragment-based lead discovery: Leads by design. Drug Discov. Today 2005, 10, 987–992. [Google Scholar] [CrossRef]
  69. Leach, A.R.; Shoichet, B.K.; Peishoff, C.E. Prediction of protein-ligand interactions. Docking and scoring: Successes and gaps. J. Med. Chem. 2006, 49, 5851–5855. [Google Scholar] [CrossRef] [PubMed]
  70. Teotico, D.G.; Babaoglu, K.; Rocklin, G.J.; Ferreira, R.S.; Giannetti, A.M.; Shoichet, B.K. Docking for fragment inhibitors of AmpC beta-lactamase. Proc. Natl. Acad. Sci. USA 2009, 106, 7455–7460. [Google Scholar] [CrossRef] [PubMed]
  71. Kolb, P.; Kipouros, C.B.; Huang, D.; Caflisch, A. Structure-based tailoring of compound libraries for high-throughput screening: Discovery of novel EphB4 kinase inhibitors. Proteins 2008, 73, 11–18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Landon, M.R.; Lancia, D.R., Jr.; Yu, J.; Thiel, S.C.; Vajda, S. Identification of hot spots within druggable binding regions by computational solvent mapping of proteins. J. Med. Chem. 2007, 50, 1231–1240. [Google Scholar] [CrossRef] [PubMed]
  73. Ciulli, A.; Abell, C. Fragment-based approaches to enzyme inhibition. Curr. Opin. Biotechnol. 2007, 18, 489–496. [Google Scholar] [CrossRef] [PubMed]
  74. Hubbard, R.E.; Chen, I.; Davis, B. Informatics and modeling challenges in fragment-based drug discovery. Curr. Opin. Drug. Discov. Dev. 2007, 10, 289–297. [Google Scholar]
  75. Chen, Y.; Pohlhaus, D.T. In silico docking and scoring of fragments. Drug Discov. Today Technol. 2010, 7, e149–e156. [Google Scholar] [CrossRef] [PubMed]
  76. Friedman, R.; Caflisch, A. Discovery of Plasmepsin Inhibitors by Fragment-Based Docking and Consensus Scoring. ChemMedChem 2009, 4, 1317–1326. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Verdonk, M.L.; Giangreco, I.; Hall, R.J.; Korb, O.; Mortenson, P.N.; Murray, C.W. Docking Performance of Fragments and Druglike Compounds. J. Med. Chem. 2011, 54, 5422–5431. [Google Scholar] [CrossRef] [PubMed]
  78. Keserű, G.M.; Erlanson, D.A.; Ferenczy, G.G.; Hann, M.M.; Murray, C.W.; Pickett, S.D. Design Principles for Fragment Libraries: Maximizing the Value of Learnings from Pharma Fragment-Based Drug Discovery (FBDD) Programs for Use in Academia. J. Med. Chem. 2016, 59, 8189–8206. [Google Scholar] [CrossRef] [PubMed]
  79. Ray, P.C.; Kiczun, M.; Huggett, M.; Lim, A.; Prati, F.; Gilbert, I.H.; Wyatt, P.G. Fragment library design, synthesis and expansion: Nurturing a synthesis and training platform. Drug Discov. Today 2017, 22, 43–56. [Google Scholar] [CrossRef] [PubMed]
  80. Baell, J.; Walters, M.A. Chemistry: Chemical con artists foil drug discovery. Nature 2014, 513, 481–483. [Google Scholar] [CrossRef] [PubMed]
  81. Hann, M.; Hudson, B.; Lewell, X.; Lifely, R.; Miller, L.; Ramsden, N. Strategic Pooling of Compounds for High-Throughput Screening. J. Chem. Inf. Comput. Sci. 1999, 39, 897–902. [Google Scholar] [CrossRef] [PubMed]
  82. Rishton, G.M. Reactive compounds and in vitro false positives in HTS. Drug Discov. Today 1997, 2, 382–384. [Google Scholar] [CrossRef]
  83. Walters, W.P.; Murcko, M.A. Prediction of ‘drug-likeness’. Adv. Drug Deliv. Rev. 2002, 54, 255–271. [Google Scholar] [CrossRef]
  84. Lipinski, C.A.; Lombardo, F.; Dominy, B.W.; Feeney, P.J. Experimental and computational approaches to estimate solubility and permeability in drug discovery and development settings. Adv. Drug Deliv. Rev. 1997, 23, 3–25. [Google Scholar] [CrossRef]
  85. Congreve, M.; Carr, R.; Murray, C.; Jhoti, H. A ‘rule of three’ for fragment-based lead discovery? Drug Discov. Today 2003, 8, 876–877. [Google Scholar] [CrossRef]
  86. Lepre, C.A. Practical aspects of NMR-based fragment screening. Methods Enzymol. 2011, 493, 219–239. [Google Scholar] [CrossRef] [PubMed]
  87. Erlanson, D.A.; Wells, J.A.; Braisted, A.C. Tethering: Fragment-based drug discovery. Annu. Rev. Biophys. Biomol. Struct. 2004, 33, 199–223. [Google Scholar] [CrossRef] [PubMed]
  88. Schuffenhauer, A.; Ruedisser, S.; Marzinzik, A.L.; Jahnke, W.; Blommers, M.; Selzer, P.; Jacoby, E. Library design for fragment based screening. Curr. Top. Med. Chem. 2005, 5, 751–762. [Google Scholar] [CrossRef] [PubMed]
  89. Siegal, G.; Ab, E.; Schultz, J. Integration of fragment screening and library design. Drug Discov. Today 2007, 12, 1032–1039. [Google Scholar] [CrossRef] [PubMed]
  90. Babaoglu, K.; Shoichet, B.K. Deconstructing fragment-based inhibitor discovery. Nat. Chem. Biol. 2006, 2, 720–723. [Google Scholar] [CrossRef] [PubMed]
  91. Leach, A.R.; Hann, M.M. Molecular complexity and fragment-based drug discovery: Ten years on. Curr. Opin. Chem. Biol. 2011, 15, 489–496. [Google Scholar] [CrossRef] [PubMed]
  92. Hall, D.R.; Kozakov, D.; Whitty, A.; Vajda, S. Lessons from Hot Spot Analysis for Fragment-Based Drug Discovery. Trends Pharmacol. Sci. 2015, 36, 724–736. [Google Scholar] [CrossRef] [PubMed]
  93. Pollack, S.J.; Beyer, K.S.; Lock, C.; Müller, I.; Sheppard, D.; Lipkin, M.; Hardick, D.; Blurton, P.; Leonard, P.M.; Hubbard, P.A.; et al. A comparative study of fragment screening methods on the p38α kinase: New methods, new insights. J. Comput. Aided Mol. Des. 2011, 25, 677–687. [Google Scholar] [CrossRef] [PubMed]
  94. Baurin, N.; Aboul-Ela, F.; Barril, X.; Davis, B.; Drysdale, M.; Dymock, B.; Finch, H.; Fromont, C.; Richardson, C.; Simmonite, H.; et al. Design and characterization of libraries of molecular fragments for use in NMR screening against protein targets. J. Chem. Inf. Comput. Sci. 2004, 44, 2157–2166. [Google Scholar] [CrossRef] [PubMed]
  95. Takeuchi, K.; Wagner, G. NMR studies of protein interactions. Curr. Opin. Struct. Biol. 2006, 16, 109–117. [Google Scholar] [CrossRef] [PubMed]
  96. Urick, A.K.; Calle, L.P.; Espinosa, J.F.; Hu, H.; Pomerantz, W.C. Protein-Observed Fluorine NMR Is a Complementary Ligand Discovery Method to 1H CPMG Ligand-Observed NMR. ACS Chem. Biol. 2016, 11, 3154–3164. [Google Scholar] [CrossRef] [PubMed]
  97. Li, Y.; Kang, C. Solution NMR Spectroscopy in Target-Based Drug Discovery. Molecules 2017, 22, 1399. [Google Scholar] [CrossRef]
  98. Castellani, F.; van Rossum, B.; Diehl, A.; Schubert, M.; Rehbein, K.; Oschkinat, H. Structure of a protein determined by solid-state magic-angle-spinning NMR spectroscopy. Nature 2002, 420, 98–102. [Google Scholar] [CrossRef] [PubMed]
  99. Dias, D.M.; Ciulli, A. NMR approaches in structure-based lead discovery: Recent developments and new frontiers for targeting multi-protein complexes. Prog. Biophys. Mol. Biol. 2014, 116, 101–112. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  100. Mayer, M.; Meyer, B. Group Epitope Mapping by Saturation Transfer Difference NMR to Identify Segments of a Ligand in Direct Contact with a Protein Receptor. J. Am. Chem. Soc. 2001, 123, 6108–6117. [Google Scholar] [CrossRef] [PubMed]
  101. Dalvit, C.; Pevarello, P.; Tatò, M.; Veronesi, M.; Vulpetti, A.; Sundström, M. Identification of compounds with binding affinity to proteins via magnetization transfer from bulk water. J. Biomol. NMR 2000, 18, 65–68. [Google Scholar] [CrossRef] [PubMed]
  102. Chappuis, Q.; Milani, J.; Vuichoud, B.; Bornet, A.; Gossert, A.D.; Bodenhausen, G.; Jannin, S. Hyperpolarized Water to Study Protein-Ligand Interactions. J. Phys. Chem. Lett. 2015, 6, 1674–1678. [Google Scholar] [CrossRef] [PubMed]
  103. Meiboom, S.; Gill, D. Modified Spin-Echo Method for Measuring Nuclear Relaxation Times. Rev. Sci. Instrum. 1958, 29, 688–691. [Google Scholar] [CrossRef]
  104. Hajduk, P.J.; Olejniczak, E.T.; Fesik, S.W. One-Dimensional Relaxation- and Diffusion-Edited NMR Methods for Screening Compounds That Bind to Macromolecules. J. Am. Chem. Soc. 1997, 119, 12257–12261. [Google Scholar] [CrossRef]
  105. Garavis, M.; Lopez-Mendez, B.; Somoza, A.; Oyarzabal, J.; Dalvit, C.; Villasante, A.; Campos-Olivas, R.; Gonzalez, C. Discovery of selective ligands for telomeric RNA G-quadruplexes (TERRA) through 19F-NMR based fragment screening. ACS Chem. Biol. 2014, 9, 1559–1566. [Google Scholar] [CrossRef] [PubMed]
  106. Williamson, M.P. Using chemical shift perturbation to characterise ligand binding. Prog. Nucl. Magn. Reson. Spectrosc. 2013, 73, 1–16. [Google Scholar] [CrossRef] [PubMed]
  107. Squires, M.S.; Feltell, R.E.; Wallis, N.G.; Lewis, E.J.; Smith, D.M.; Cross, D.M.; Lyons, J.F.; Thompson, N.T. Biological characterization of AT7519, a small-molecule inhibitor of cyclin-dependent kinases, in human tumor cell lines. Mol. Cancer Ther. 2009, 8, 324–332. [Google Scholar] [CrossRef] [PubMed]
  108. Hudson, S.A.; McLean, K.J.; Surade, S.; Yang, Y.Q.; Leys, D.; Ciulli, A.; Munro, A.W.; Abell, C. Application of fragment screening and merging to the discovery of inhibitors of the Mycobacterium tuberculosis cytochrome P450 CYP121. Angew. Chem. Int. Ed. Engl. 2012, 51, 9311–9316. [Google Scholar] [CrossRef] [PubMed]
  109. Nikiforov, P.O.; Surade, S.; Blaszczyk, M.; Delorme, V.; Brodin, P.; Baulard, A.R.; Blundell, T.L.; Abell, C. A fragment merging approach towards the development of small molecule inhibitors of Mycobacterium tuberculosis EthR for use as ethionamide boosters. Org. Biomol. Chem. 2016, 14, 2318–2326. [Google Scholar] [CrossRef] [PubMed]
  110. Petros, A.M.; Dinges, J.; Augeri, D.J.; Baumeister, S.A.; Betebenner, D.A.; Bures, M.G.; Elmore, S.W.; Hajduk, P.J.; Joseph, M.K.; Landis, S.K.; et al. Discovery of a potent inhibitor of the antiapoptotic protein Bcl-xL from NMR and parallel synthesis. J. Med. Chem. 2006, 49, 656–663. [Google Scholar] [CrossRef] [PubMed]
  111. Jordan, J.B.; Whittington, D.A.; Bartberger, M.D.; Sickmier, E.A.; Chen, K.; Cheng, Y.; Judd, T. Fragment-Linking Approach Using (19)F-NMR Spectroscopy To Obtain Highly Potent and Selective Inhibitors of beta-Secretase. J. Med. Chem. 2016, 59, 3732–3749. [Google Scholar] [CrossRef] [PubMed]
  112. Murray, C.W.; Callaghan, O.; Chessari, G.; Cleasby, A.; Congreve, M.; Frederickson, M.; Hartshorn, M.J.; McMenamin, R.; Patel, S.; Wallis, N. Application of fragment screening by X-ray crystallography to beta-secretase. J. Med. Chem. 2007, 50, 1116–1123. [Google Scholar] [CrossRef] [PubMed]
  113. Huang, J.W.; Zhang, Z.; Wu, B.; Cellitti, J.F.; Zhang, X.; Dahl, R.; Shiau, C.W.; Welsh, K.; Emdadi, A.; Stebbins, J.L.; et al. Fragment-based design of small molecule X-linked inhibitor of apoptosis protein inhibitors. J. Med. Chem. 2008, 51, 7111–7118. [Google Scholar] [CrossRef] [PubMed]
  114. Arntson, K.E.; Pomerantz, W.C.K. Protein-Observed Fluorine NMR: A Bioorthogonal Approach for Small Molecule Discovery. J. Med. Chem. 2016, 59, 5158–5171. [Google Scholar] [CrossRef] [PubMed]
  115. Becattini, B.; Pellecchia, M. SAR by ILOEs: An NMR-based approach to reverse chemical genetics. Chemistry 2006, 12, 2658–2662. [Google Scholar] [CrossRef] [PubMed]
  116. Hajduk, P.J.; Dinges, J.; Schkeryantz, J.M.; Janowick, D.; Kaminski, M.; Tufano, M.; Augeri, D.J.; Petros, A.; Nienaber, V.; Zhong, P.; et al. Novel Inhibitors of Erm Methyltransferases from NMR and Parallel Synthesis. J. Med. Chem. 1999, 42, 3852–3859. [Google Scholar] [CrossRef] [PubMed]
  117. Hajduk, P.J.; Gomtsyan, A.; Didomenico, S.; Cowart, M.; Bayburt, E.K.; Solomon, L.; Severin, J.; Smith, R.; Walter, K.; Holzman, T.F.; et al. Design of Adenosine Kinase Inhibitors from the NMR-Based Screening of Fragments. J. Med. Chem. 2000, 43, 4781–4786. [Google Scholar] [CrossRef] [PubMed]
  118. Oost, T.K.; Sun, C.; Armstrong, R.C.; Al-Assaad, A.-S.; Betz, S.F.; Deckwerth, T.L.; Ding, H.; Elmore, S.W.; Meadows, R.P.; Olejniczak, E.T.; et al. Discovery of Potent Antagonists of the Antiapoptotic Protein XIAP for the Treatment of Cancer. J. Med. Chem. 2004, 47, 4417–4426. [Google Scholar] [CrossRef] [PubMed]
  119. Petros, A.M.; Huth, J.R.; Oost, T.; Park, C.M.; Ding, H.; Wang, X.; Zhang, H.; Nimmer, P.; Mendoza, R.; Sun, C.; et al. Discovery of a potent and selective Bcl-2 inhibitor using SAR by NMR. Bioorg. Med. Chem. Lett. 2010, 20, 6587–6591. [Google Scholar] [CrossRef] [PubMed]
  120. Sun, Q.; Burke, J.P.; Phan, J.; Burns, M.C.; Olejniczak, E.T.; Waterson, A.G.; Lee, T.; Rossanese, O.W.; Fesik, S.W. Discovery of small molecules that bind to K-Ras and inhibit Sos-mediated activation. Angew Chem. Int. Ed. Engl. 2012, 51, 6140–6143. [Google Scholar] [CrossRef] [PubMed]
  121. Oltersdorf, T.; Elmore, S.W.; Shoemaker, A.R.; Armstrong, R.C.; Augeri, D.J.; Belli, B.A.; Bruncko, M.; Deckwerth, T.L.; Dinges, J.; Hajduk, P.J.; et al. An inhibitor of Bcl-2 family proteins induces regression of solid tumours. Nature 2005, 435, 677–781. [Google Scholar] [CrossRef] [PubMed]
  122. Huth, J.R.; Park, C.; Petros, A.M.; Kunzer, A.R.; Wendt, M.D.; Wang, X.; Lynch, C.L.; Mack, J.C.; Swift, K.M.; Judge, R.A.; et al. Discovery and design of novel HSP90 inhibitors using multiple fragment-based design strategies. Chem. Biol. Drug Des. 2007, 70, 1–12. [Google Scholar] [CrossRef] [PubMed]
  123. Norton, R.S.; Leung, E.W.; Chandrashekaran, I.R.; MacRaild, C.A. Applications of (19)F-NMR in Fragment-Based Drug Discovery. Molecules 2016, 21, 860. [Google Scholar] [CrossRef] [PubMed]
  124. Irwin, J.J.; Shoichet, B.K. ZINC—A free database of commercially available compounds for virtual screening. J. Chem. Inf. Model. 2005, 45, 177–182. [Google Scholar] [CrossRef] [PubMed]
  125. Overington, J.P.; Al-Lazikani, B.; Hopkins, A.L. How many drug targets are there? Nat. Rev. Drug Discov. 2006, 5, 993–996. [Google Scholar] [CrossRef] [PubMed]
  126. Brooijmans, N.; Kuntz, I.D. Molecular recognition and docking algorithms. Annu. Rev. Biophys. Biomol. Struct. 2003, 32, 335–373. [Google Scholar] [CrossRef] [PubMed]
  127. Glen, R.C.; Allen, S.C. Ligand-Protein Docking: Cancer Research at the Interface between Biology and Chemistry. Curr. Med. Chem. 2003, 10, 763–777. [Google Scholar] [CrossRef] [PubMed]
  128. Halperin, I.; Ma, B.; Wolfson, H.; Nussinov, R. Principles of docking: An overview of search algorithms and a guide to scoring functions. Proteins Struct. Funct. Genet. 2002, 47, 409–443. [Google Scholar] [CrossRef] [PubMed]
  129. Milne, G.W.; Nicklaus, M.C.; Driscoll, J.S.; Wang, S.; Zaharevitz, D. National Cancer Institute Drug Information System 3D database. J. Chem. Inf. Comput. Sci. 1994, 34, 1219–1224. [Google Scholar] [CrossRef] [PubMed]
  130. Peach, M.L.; Nicklaus, M.C. Combining docking with pharmacophore filtering for improved virtual screening. J. Cheminform. 2009, 1, 6. [Google Scholar] [CrossRef] [PubMed]
  131. Tsai, J.; Lee, J.T.; Wang, W.; Zhang, J.; Cho, H.; Mamo, S.; Bremer, R.; Gillette, S.; Kong, J.; Haass, N.K.; et al. Discovery of a selective inhibitor of oncogenic B-Raf kinase with potent antimelanoma activity. Proc. Natl. Acad. Sci. USA 2008, 105, 3041–3046. [Google Scholar] [CrossRef] [PubMed]
  132. Roberts, A.W.; Davids, M.S.; Pagel, J.M.; Kahl, B.S.; Puvvada, S.D.; Gerecitano, J.F.; Kipps, T.J.; Anderson, M.A.; Brown, J.R.; Gressick, L.; et al. Targeting BCL2 with Venetoclax in Relapsed Chronic Lymphocytic Leukemia. N. Engl. J. Med. 2016, 374, 311–322. [Google Scholar] [CrossRef] [PubMed]
  133. Day, P.J.; Cleasby, A.; Tickle, I.J.; O’Reilly, M.; Coyle, J.E.; Holding, F.P.; McMenamin, R.L.; Yon, J.; Chopra, R.; Lengauer, C.; et al. Crystal structure of human CDK4 in complex with a D-type cyclin. Proc. Natl. Acad. Sci. USA 2009, 106, 4166–4170. [Google Scholar] [CrossRef] [PubMed]
  134. Spiliotopoulos, D.; Caflisch, A. Fragment-based in silico screening of bromodomain ligands. Drug Discov. Today Technol. 2016, 19, 81–90. [Google Scholar] [CrossRef] [PubMed]
  135. Butowski, N.; Colman, H.; De Groot, J.F.; Omuro, A.M.; Nayak, L.; Wen, P.Y.; Cloughesy, T.F.; Marimuthu, A.; Haidar, S.; Perry, A.; et al. Orally administered colony stimulating factor 1 receptor inhibitor PLX3397 in recurrent glioblastoma: An Ivy Foundation Early Phase Clinical Trials Consortium phase II study. Neuro Oncol. 2016, 18, 557–564. [Google Scholar] [CrossRef] [PubMed]
  136. Wang, Y.S.; Strickland, C.; Voigt, J.H.; Kennedy, M.E.; Beyer, B.M.; Senior, M.M.; Smith, E.M.; Nechuta, T.L.; Madison, V.S.; Czarniecki, M.; et al. Application of fragment-based NMR screening, X-ray crystallography, structure-based design, and focused chemical library design to identify novel microM leads for the development of nM BACE-1 (beta-site APP cleaving enzyme 1) inhibitors. J. Med. Chem. 2010, 53, 942–950. [Google Scholar] [CrossRef] [PubMed]
  137. Zhu, Z.; Sun, Z.Y.; Ye, Y.; Voigt, J.; Strickland, C.; Smith, E.M.; Cumming, J.; Wang, L.; Wong, J.; Wang, Y.S.; et al. Discovery of cyclic acylguanidines as highly potent and selective beta-site amyloid cleaving enzyme (BACE) inhibitors: Part I—Inhibitor design and validation. J. Med. Chem. 2010, 53, 951–965. [Google Scholar] [CrossRef] [PubMed]
  138. Taylor, B.; Fernandez Barrat, C.; Woodward, R.L.; Inglesby, P.A. Synthesis of 2-Oxopropanethioamide for the Manufacture of Lanabecestat: A New Route for Control, Robustness, and Operational Improvements. Org. Process Res. Dev. 2017, 21, 1404–1412. [Google Scholar] [CrossRef]
  139. Wyatt, P.G.; Woodhead, A.J.; Berdini, V.; Boulstridge, J.A.; Carr, M.G.; Cross, D.M.; Davis, D.J.; Devine, L.A.; Early, T.R.; Feltell, R.E.; et al. Identification of N-(4-piperidinyl)-4-(2,6-dichlorobenzoylamino)-1H-pyrazole-3-carboxamide (AT7519), a novel cyclin dependent kinase inhibitor using fragment-based X-ray crystallography and structure based drug design. J. Med. Chem. 2008, 51, 4986–4999. [Google Scholar] [CrossRef] [PubMed]
  140. Howard, S.; Berdini, V.; Boulstridge, J.A.; Carr, M.G.; Cross, D.M.; Curry, J.; Devine, L.A.; Early, T.R.; Fazal, L.; Gill, A.L.; et al. Fragment-based discovery of the pyrazol-4-yl urea (AT9283), a multitargeted kinase inhibitor with potent aurora kinase activity. J. Med. Chem. 2009, 52, 379–388. [Google Scholar] [CrossRef] [PubMed]
  141. Woodhead, A.J.; Angove, H.; Carr, M.G.; Chessari, G.; Congreve, M.; Coyle, J.E.; Cosme, J.; Graham, B.; Day, P.J.; Downham, R.; et al. Discovery of (2,4-dihydroxy-5-isopropylphenyl)-[5-(4-methylpiperazin-1-ylmethyl)-1,3-dihydroisoindol-2-yl]methanone (AT13387), a novel inhibitor of the molecular chaperone Hsp90 by fragment based drug design. J. Med. Chem. 2010, 53, 5956–5969. [Google Scholar] [CrossRef] [PubMed]
  142. Brough, P.A.; Aherne, W.; Barril, X.; Borgognoni, J.; Boxall, K.; Cansfield, J.E.; Cheung, K.M.; Collins, I.; Davies, N.G.; Drysdale, M.J.; et al. 4,5-diarylisoxazole Hsp90 chaperone inhibitors: Potential therapeutic agents for the treatment of cancer. J. Med. Chem. 2008, 51, 196–218. [Google Scholar] [CrossRef] [PubMed]
  143. Addie, M.; Ballard, P.; Buttar, D.; Crafter, C.; Currie, G.; Davies, B.R.; Debreczeni, J.; Dry, H.; Dudley, P.; Greenwood, R.; et al. Discovery of 4-Amino-N-[(1S)-1-(4-chlorophenyl)-3-hydroxypropyl]-1-(7H-pyrrolo[2,3-d]pyrimidin-4-yl)piperidine-4-carboxamide (AZD5363), an Orally Bioavailable, Potent Inhibitor of Akt Kinases. J. Med. Chem. 2013, 56, 2059–2073. [Google Scholar] [CrossRef] [PubMed]
  144. Perera, T.P.S.; Jovcheva, E.; Mevellec, L.; Vialard, J.; De Lange, D.; Verhulst, T.; Paulussen, C.; Van De Ven, K.; King, P.; Freyne, E.; et al. Discovery and Pharmacological Characterization of JNJ-42756493 (Erdafitinib), a Functionally Selective Small-Molecule FGFR Family Inhibitor. Mol. Cancer Ther. 2017, 16, 1010–1020. [Google Scholar] [CrossRef] [PubMed]
  145. Artis, D.R.; Lin, J.J.; Zhang, C.; Wang, W.; Mehra, U.; Perreault, M.; Erbe, D.; Krupka, H.I.; England, B.P.; Arnold, J.; et al. Scaffold-based discovery of indeglitazar, a PPAR pan-active anti-diabetic agent. Proc. Natl. Acad. Sci. USA 2009, 106, 262–267. [Google Scholar] [CrossRef] [PubMed]
  146. May, P.C.; Dean, R.A.; Lowe, S.L.; Martenyi, F.; Sheehan, S.M.; Boggs, L.N.; Monk, S.A.; Mathes, B.M.; Mergott, D.J.; Watson, B.M.; et al. Robust central reduction of amyloid-beta in humans with an orally available, non-peptidic beta-secretase inhibitor. J. Neurosci. 2011, 31, 16507–16516. [Google Scholar] [CrossRef] [PubMed]
  147. Agnelli, G.; Haas, S.; Ginsberg, J.S.; Krueger, K.A.; Dmitrienko, A.; Brandt, J.T. A phase II study of the oral factor Xa inhibitor LY517717 for the prevention of venous thromboembolism after hip or knee replacement. J. Thromb. Haemost. 2007, 5, 746–753. [Google Scholar] [CrossRef] [PubMed]
  148. Rudin, C.M.; Hann, C.L.; Garon, E.B.; Ribeiro de Oliveira, M.; Bonomi, P.D.; Camidge, D.R.; Chu, Q.; Giaccone, G.; Khaira, D.; Ramalingam, S.S.; et al. Phase II study of single-agent navitoclax (ABT-263) and biomarker correlates in patients with relapsed small cell lung cancer. Clin. Cancer Res. 2012, 18, 3163–3169. [Google Scholar] [CrossRef] [PubMed]
  149. Jensen, M.R.; Schoepfer, J.; Radimerski, T.; Massey, A.; Guy, C.T.; Brueggen, J.; Quadt, C.; Buckler, A.; Cozens, R.; Drysdale, M.J.; et al. NVP-AUY922: A small molecule HSP90 inhibitor with potent antitumor activity in preclinical breast cancer models. Breast Cancer Res. 2008, 10, R33. [Google Scholar] [CrossRef] [PubMed]
  150. Wylie, A.A.; Schoepfer, J.; Jahnke, W.; Cowan-Jacob, S.W.; Loo, A.; Furet, P.; Marzinzik, A.L.; Pelle, X.; Donovan, J.; Zhu, W.; et al. The allosteric inhibitor ABL001 enables dual targeting of BCR-ABL1. Nature 2017, 543, 733–737. [Google Scholar] [CrossRef] [PubMed]
  151. Stokvis, E.; Rosing, H.; Crul, M.; Rieser, M.J.; Heck, A.J.; Schellens, J.H.; Beijnen, J.H. Quantitative analysis of the novel anticancer drug ABT-518, a matrix metalloproteinase inhibitor, plus the screening of six metabolites in human plasma using high-performance liquid chromatography coupled with electrospray tandem mass spectrometry. J. Mass Spectrom. 2004, 39, 277–288. [Google Scholar] [CrossRef] [PubMed]
  152. Sandanayaka, V.; Mamat, B.; Mishra, R.K.; Winger, J.; Krohn, M.; Zhou, L.M.; Keyvan, M.; Enache, L.; Sullins, D.; Onua, E.; et al. Discovery of 4-[(2S)-2-{[4-(4-chlorophenoxy)phenoxy]methyl}-1-pyrrolidinyl]butanoic Acid (DG-051) as a novel leukotriene A4 hydrolase inhibitor of leukotriene B4 biosynthesis. J. Med. Chem. 2010, 53, 573–585. [Google Scholar] [CrossRef] [PubMed]
  153. Erlanson, D.A. Introduction to fragment-based drug discovery. Top. Curr. Chem. 2012, 317, 1–32. [Google Scholar] [CrossRef] [PubMed]
  154. Buchholz, B.; Klanke, B.; Schley, G.; Bollag, G.; Tsai, J.; Kroening, S.; Yoshihara, D.; Wallace, D.P.; Kraenzlin, B.; Gretz, N.; et al. The Raf kinase inhibitor PLX5568 slows cyst proliferation in rat polycystic kidney disease but promotes renal and hepatic fibrosis. Nephrol. Dial. Transplant. 2011, 26, 3458–3465. [Google Scholar] [CrossRef] [PubMed]
  155. Buchanan, S.G.; Hendle, J.; Lee, P.S.; Smith, C.R.; Bounaud, P.Y.; Jessen, K.A.; Tang, C.M.; Huser, N.H.; Felce, J.D.; Froning, K.J.; et al. SGX523 is an exquisitely selective, ATP-competitive inhibitor of the MET receptor tyrosine kinase with antitumor activity in vivo. Mol. Cancer Ther. 2009, 8, 3181–3190. [Google Scholar] [CrossRef] [PubMed]
  156. VanderPorten, E.C.; Taverna, P.; Hogan, J.N.; Ballinger, M.D.; Flanagan, W.M.; Fucini, R.V. The Aurora kinase inhibitor SNS-314 shows broad therapeutic potential with chemotherapeutics and synergy with microtubule-targeted agents in a colon carcinoma model. Mol. Cancer Ther. 2009, 8, 930–939. [Google Scholar] [CrossRef] [PubMed]
  157. Rasina, D.; Otikovs, M.; Leitans, J.; Recacha, R.; Borysov, O.V.; Kanepe-Lapsa, I.; Domraceva, I.; Pantelejevs, T.; Tars, K.; Blackman, M.J.; et al. Fragment-Based Discovery of 2-Aminoquinazolin-4(3H)-ones As Novel Class Nonpeptidomimetic Inhibitors of the Plasmepsins I, II, and IV. J. Med. Chem. 2016, 59, 374–387. [Google Scholar] [CrossRef] [PubMed]
  158. Lee, K.L.; Ambler, C.M.; Anderson, D.R.; Boscoe, B.P.; Bree, A.G.; Brodfuehrer, J.I.; Chang, J.S.; Choi, C.; Chung, S.; Curran, K.J.; et al. Discovery of Clinical Candidate 1-{[(2S,3S,4S)-3-Ethyl-4-fluoro-5-oxopyrrolidin-2-yl]methoxy}-7-methoxyisoquinoline-6-carboxamide (PF-06650833), a Potent, Selective Inhibitor of Interleukin-1 Receptor Associated Kinase 4 (IRAK4), by Fragment-Based Drug Design. J. Med. Chem. 2017, 60, 5521–5542. [Google Scholar] [CrossRef] [PubMed]
  159. Filippakopoulos, P.; Qi, J.; Picaud, S.; Shen, Y.; Smith, W.B.; Fedorov, O.; Morse, E.M.; Keates, T.; Hickman, T.T.; Felletar, I.; et al. Selective inhibition of BET bromodomains. Nature 2010, 468, 1067–1073. [Google Scholar] [CrossRef] [PubMed]
  160. Nicodeme, E.; Jeffrey, K.L.; Schaefer, U.; Beinke, S.; Dewell, S.; Chung, C.W.; Chandwani, R.; Marazzi, I.; Wilson, P.; Coste, H.; et al. Suppression of inflammation by a synthetic histone mimic. Nature 2010, 468, 1119–1123. [Google Scholar] [CrossRef] [PubMed]
  161. Ilic, S.; Akabayov, S.R.; Arthanari, H.; Wagner, G.; Richardson, C.C.; Akabayov, B. Identification of DNA primase inhibitors via a combined fragment-based and virtual screening. Sci. Rep. 2016, 6, 36322. [Google Scholar] [CrossRef] [PubMed]
  162. Ilic, S.; Akabayov, S.R.; Froimovici, R.; Meiry, R.; Vilenchik, D.; Hernandez, A.; Arthanari, H.; Akabayov, B. Modulation of RNA primer formation by Mn(II)-substituted T7 DNA primase. Sci. Rep. 2017, 7, 5797. [Google Scholar] [CrossRef] [PubMed]
  163. Biswas, T.; Resto-Roldan, E.; Sawyer, S.K.; Artsimovitch, I.; Tsodikov, O.V. A novel non-radioactive primase-pyrophosphatase activity assay and its application to the discovery of inhibitors of Mycobacterium tuberculosis primase DnaG. Nucleic Acids Res. 2013, 41, e56. [Google Scholar] [CrossRef] [PubMed]
  164. Kuron, A.; Korycka-Machala, M.; Brzostek, A.; Nowosielski, M.; Doherty, A.; Dziadek, B.; Dziadek, J. Evaluation of DNA primase DnaG as a potential target for antibiotics. Antimicrob. Agents Chemother. 2014, 58, 1699–1706. [Google Scholar] [CrossRef] [PubMed]
  165. Agarwal, A.; Louise-May, S.; Thanassi, J.A.; Podos, S.D.; Cheng, J.; Thoma, C.; Liu, C.; Wiles, J.A.; Nelson, D.M.; Phadke, A.S.; et al. Small molecule inhibitors of E. coli primase, a novel bacterial target. Bioorg. Med. Chem. Lett. 2007, 17, 2807–2810. [Google Scholar] [CrossRef] [PubMed]
  166. Delmore, J.E.; Issa, G.C.; Lemieux, M.E.; Rahl, P.B.; Shi, J.; Jacobs, H.M.; Kastritis, E.; Gilpatrick, T.; Paranal, R.M.; Qi, J.; et al. BET bromodomain inhibition as a therapeutic strategy to target c-Myc. Cell 2011, 146, 904–917. [Google Scholar] [CrossRef] [PubMed]
  167. Asangani, I.A.; Dommeti, V.L.; Wang, X.; Malik, R.; Cieslik, M.; Yang, R.; Escara-Wilke, J.; Wilder-Romans, K.; Dhanireddy, S.; Engelke, C.; et al. Therapeutic targeting of BET bromodomain proteins in castration-resistant prostate cancer. Nature 2014, 510, 278–282. [Google Scholar] [CrossRef] [PubMed]
  168. Kato, M.; Ito, T.; Wagner, G.; Richardson, C.C.; Ellenberger, T. Modular Architecture of the Bacteriophage T7 Primase Couples RNA Primer Synthesis to DNA Synthesis. Mol. Cell 2003, 11, 1349–1360. [Google Scholar] [CrossRef]
  169. Griswold, I.J.; Dahlquist, F.W. Bigger is better: megadalton protein NMR in solution. Nat. Struct. Mol. Biol. 2002, 9, 567–568. [Google Scholar] [CrossRef] [PubMed]
  170. Mainz, A.; Religa, T.L.; Sprangers, R.; Linser, R.; Kay, L.E.; Reif, B. NMR spectroscopy of soluble protein complexes at one mega-dalton and beyond. Angew. Chem. Int. Ed. Engl. 2013, 52, 8746–8751. [Google Scholar] [CrossRef] [PubMed]

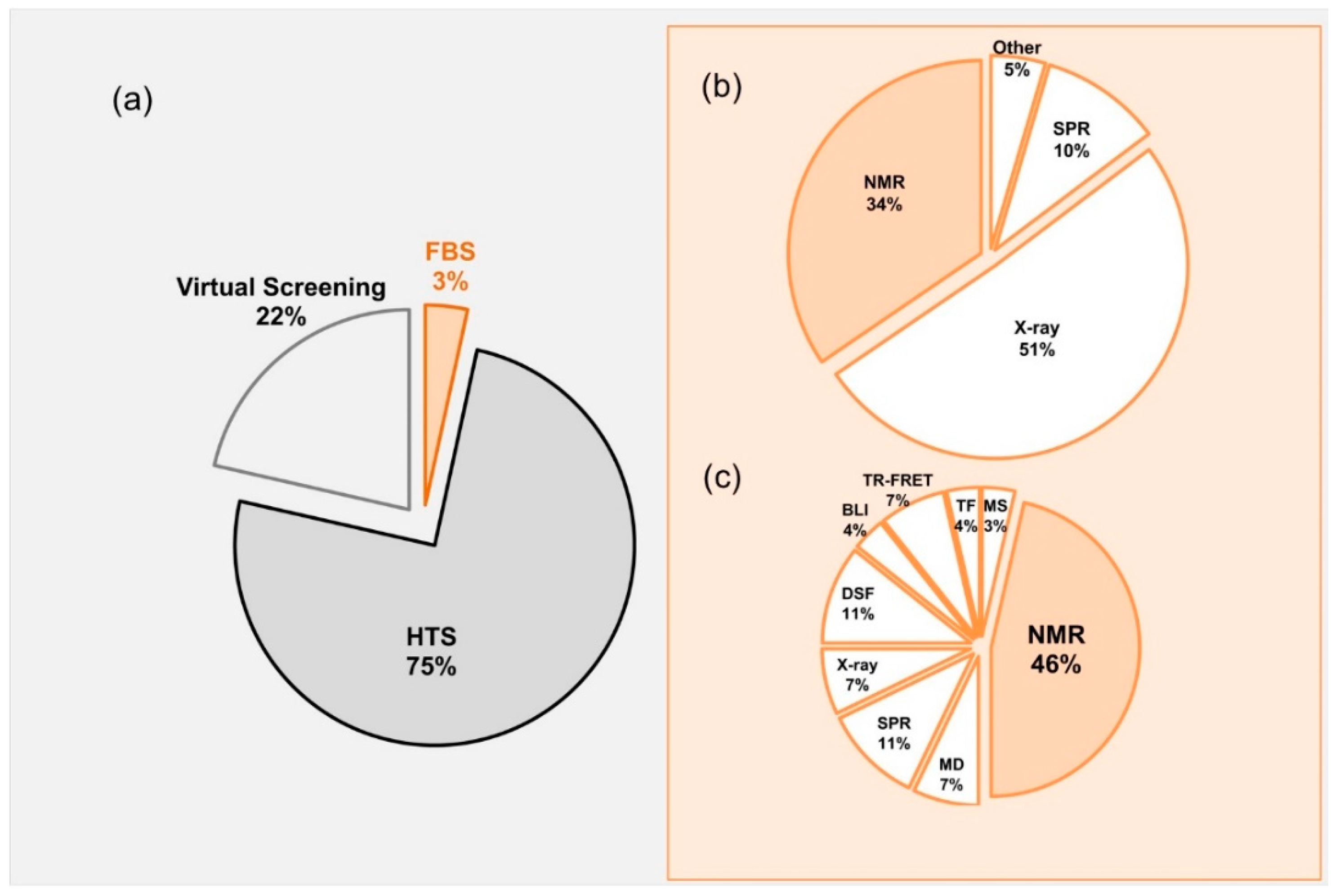

Figure 1. (a) Pie-chart representing contributions of different techniques in Drug Discovery. The numbers obtained by a PubMed search of keywords containing terms referring to high-throughput screening, fragment-screening, and virtual screening focusing only in research articles; (b) Approved FDA drugs from 2017 and development methods. The information was collected from KEGG-DRUG website (http://www.genome.jp/kegg/drug/br08319.html?id=D01441); (c) Values representing pubmed entries and published for 2017. NMR, Nuclear magnetic resonance; MD, Molecular dynamics; MS, Mass Spectrometry; SPR, surface plasmon resonance; DSF, differential scanning fluorimetry; BLI, biolayer interferometry; X-ray, Crystallography.
Figure 1. (a) Pie-chart representing contributions of different techniques in Drug Discovery. The numbers obtained by a PubMed search of keywords containing terms referring to high-throughput screening, fragment-screening, and virtual screening focusing only in research articles; (b) Approved FDA drugs from 2017 and development methods. The information was collected from KEGG-DRUG website (http://www.genome.jp/kegg/drug/br08319.html?id=D01441); (c) Values representing pubmed entries and published for 2017. NMR, Nuclear magnetic resonance; MD, Molecular dynamics; MS, Mass Spectrometry; SPR, surface plasmon resonance; DSF, differential scanning fluorimetry; BLI, biolayer interferometry; X-ray, Crystallography.
Molecules 23 00233 g001

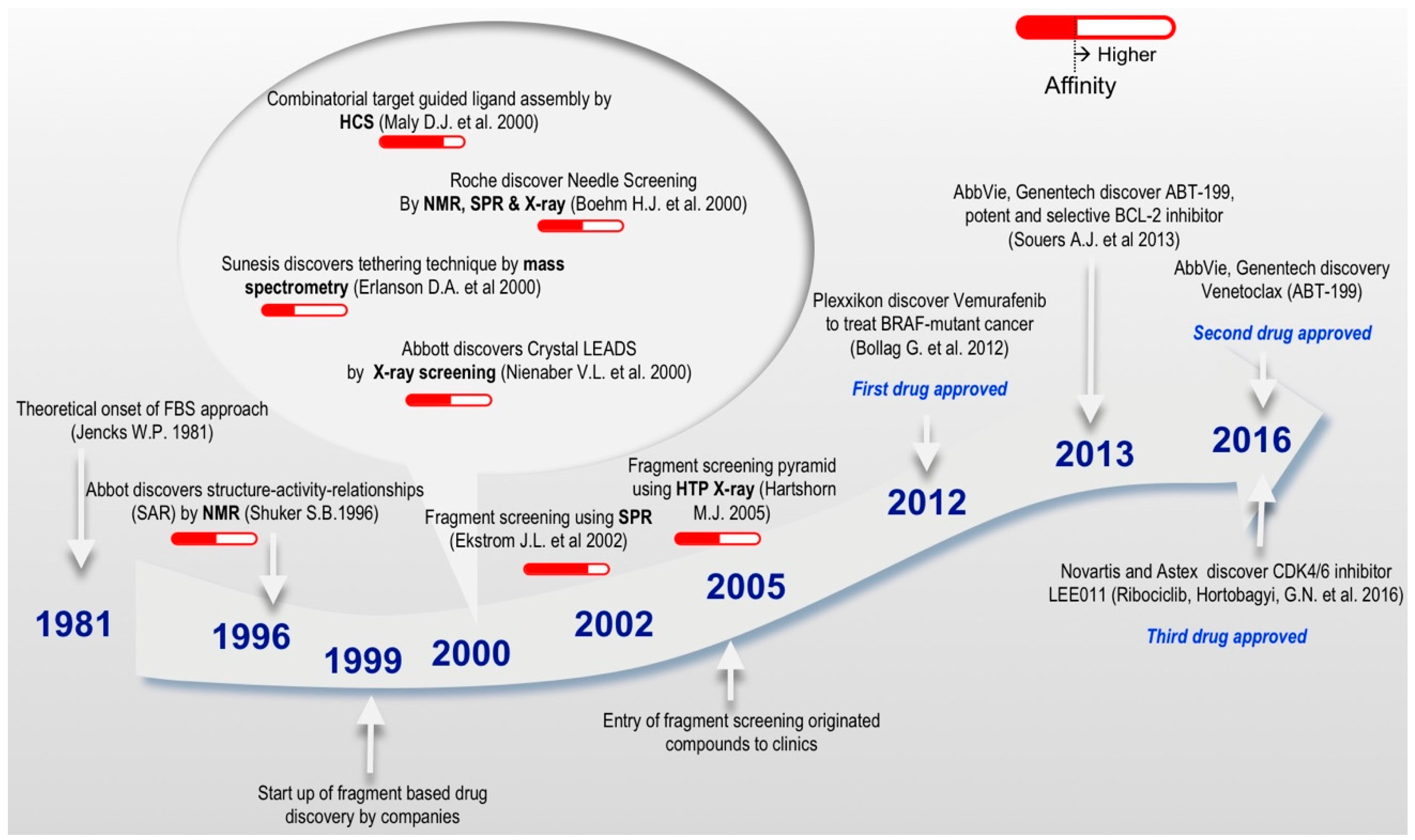

Figure 2. Timeline—selected landmarks which significantly influenced the development of FBDD. The range of affinity describes detection of compound binding to macromolecular target. Solid Red colored bars represent weak affinity in the range of 100 µM–10 mM and hollow red colored bars represent strong affinity in the range of 1 µM–100 µM. The development of FBDD was started in 1981 by Jencks W.P. [35] and then in 1996 ‘SAR by NMR’ by Shuker S.B. et al. [8]. Most of the discoveries occurred in 2000 among which Erlanson D.A. et al. discovered Tethering techniques [43], Maly D.J. et al. used combinatorial target guided ligand assembly [44], Boehm H.J. et al. discovered needle screening [45] and Nienaber V.L. et al. discovered crystal leads [46]. In 2002 Ekstrom J.L. et al. used fragment screening by SPR [47] and in 2005 Hartshorn M.J. et al. used fragment screening by X-ray crystalloraphy [48]. Bollag G. et al. discovered the first approved drug Vemurafenib in 2012 [49], Souers A.J. et al. discovered ABT-199, a potent selective BCL-2 inhibitor in 2013 [50], and Hortobagyi G.N. et al. discovered recently the third approved drug LEE011 in 2016 [51].
Figure 2. Timeline—selected landmarks which significantly influenced the development of FBDD. The range of affinity describes detection of compound binding to macromolecular target. Solid Red colored bars represent weak affinity in the range of 100 µM–10 mM and hollow red colored bars represent strong affinity in the range of 1 µM–100 µM. The development of FBDD was started in 1981 by Jencks W.P. [35] and then in 1996 ‘SAR by NMR’ by Shuker S.B. et al. [8]. Most of the discoveries occurred in 2000 among which Erlanson D.A. et al. discovered Tethering techniques [43], Maly D.J. et al. used combinatorial target guided ligand assembly [44], Boehm H.J. et al. discovered needle screening [45] and Nienaber V.L. et al. discovered crystal leads [46]. In 2002 Ekstrom J.L. et al. used fragment screening by SPR [47] and in 2005 Hartshorn M.J. et al. used fragment screening by X-ray crystalloraphy [48]. Bollag G. et al. discovered the first approved drug Vemurafenib in 2012 [49], Souers A.J. et al. discovered ABT-199, a potent selective BCL-2 inhibitor in 2013 [50], and Hortobagyi G.N. et al. discovered recently the third approved drug LEE011 in 2016 [51].
Molecules 23 00233 g002

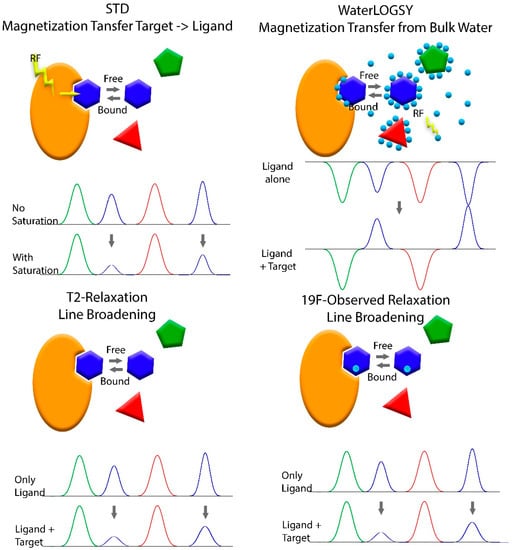

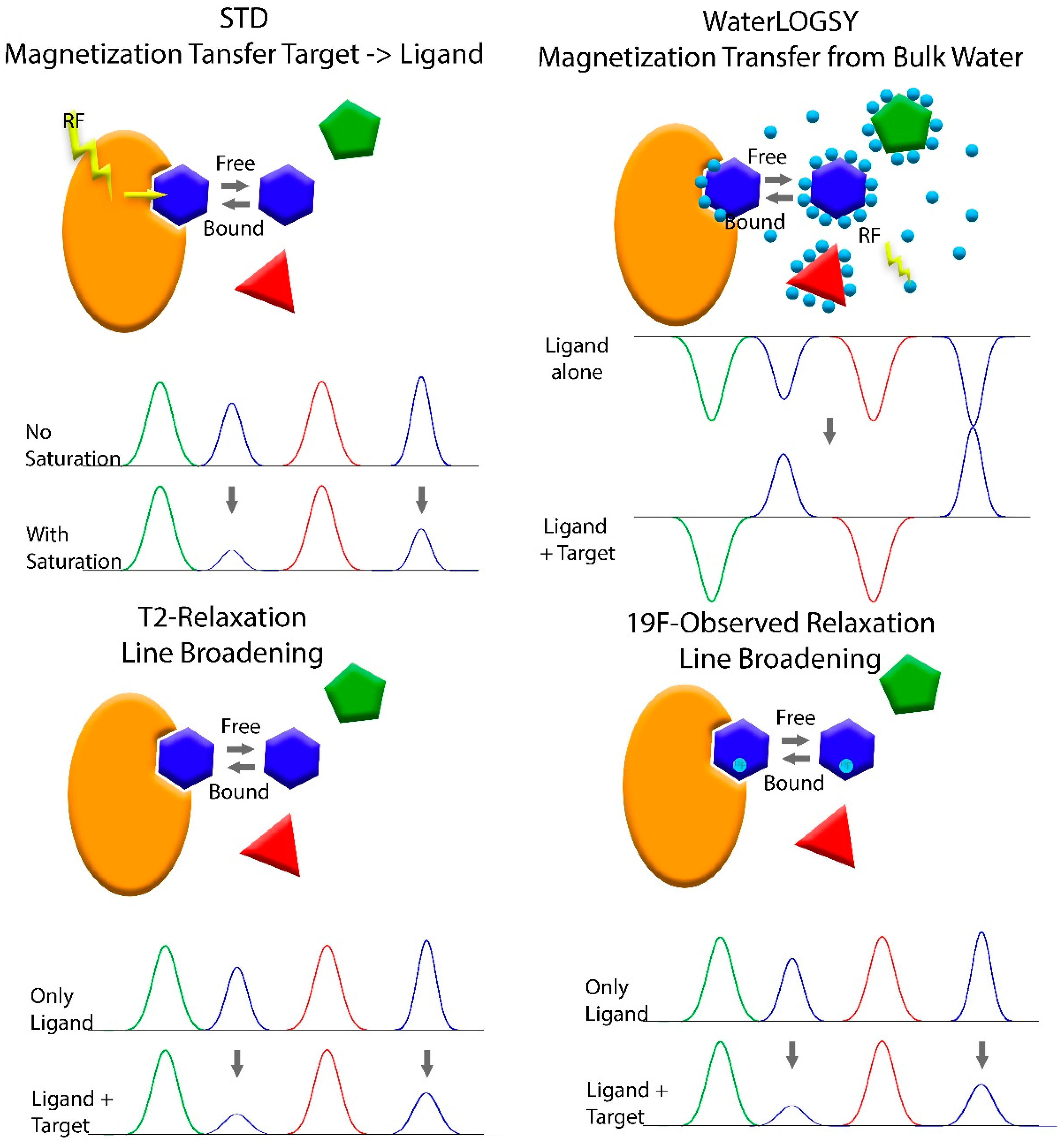

Figure 3. Schematic representation of different ligand detected methods used in fragment based screening.
Figure 3. Schematic representation of different ligand detected methods used in fragment based screening.
Molecules 23 00233 g003

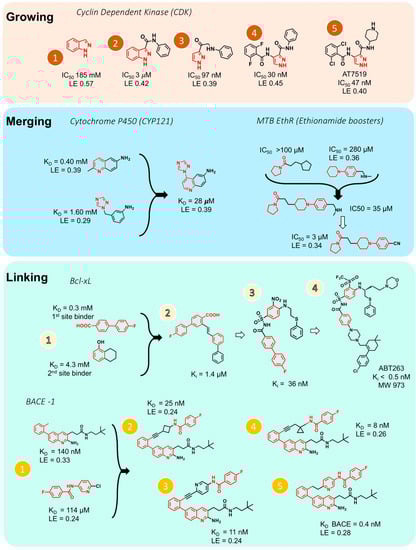

Figure 4. Different hit-to-lead optimization strategies (fragment growing, merging and linking approach). Upper: growing of fragments into inhibitor for cyclin dependent kinase (CDK) [107]. Middle: merging of fragments for inhibitors for cytochrome P450 (CYP121) [108], and Mtb EthR (Ethionamide boosters) [109]. Bottom: Linking of fragments into inhibitors for Bcl-XL [110] and β-secretase, BACE-1 [111]. KD, dissociation constant; LE, ligand efficiency; Ki, inhibition constant; IC50, concentration for 50% inhibition. Panel 1 (Growing) was adopted from Dan Erlanson’s blog (http://practicalfragments.blogspot.co.il/).
Figure 4. Different hit-to-lead optimization strategies (fragment growing, merging and linking approach). Upper: growing of fragments into inhibitor for cyclin dependent kinase (CDK) [107]. Middle: merging of fragments for inhibitors for cytochrome P450 (CYP121) [108], and Mtb EthR (Ethionamide boosters) [109]. Bottom: Linking of fragments into inhibitors for Bcl-XL [110] and β-secretase, BACE-1 [111]. KD, dissociation constant; LE, ligand efficiency; Ki, inhibition constant; IC50, concentration for 50% inhibition. Panel 1 (Growing) was adopted from Dan Erlanson’s blog (http://practicalfragments.blogspot.co.il/).
Molecules 23 00233 g004

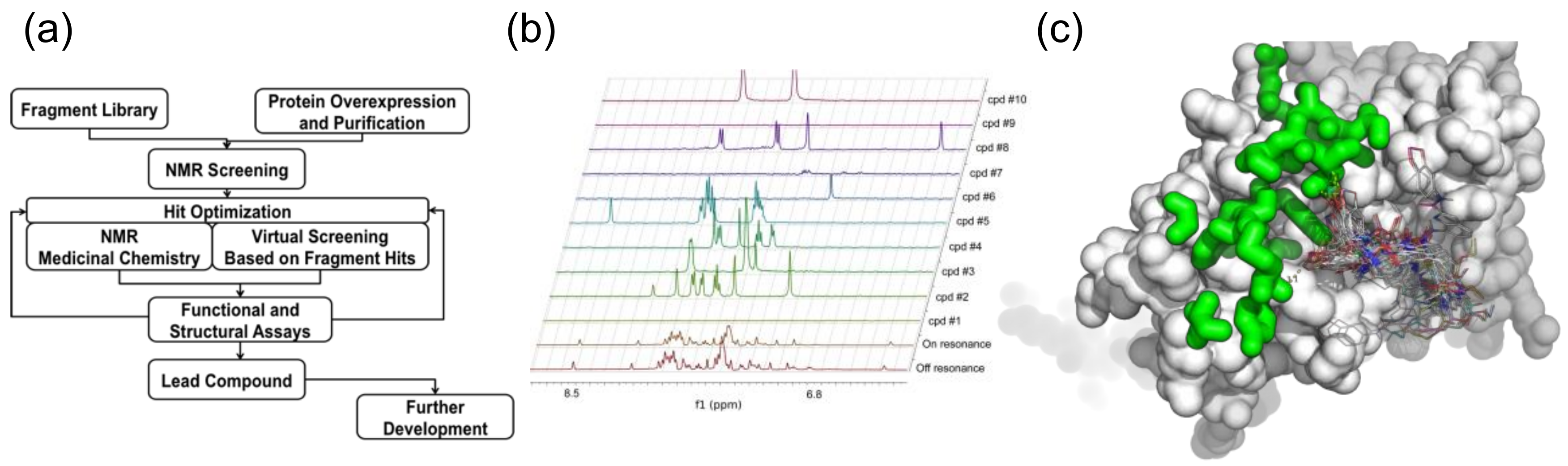

Figure 5. NMR Fragment-based virtual screening. (a) Schematic representation of FBVS. The approach combines NMR-FBS with optimization steps using virtual screening; (b) Using NMR (STD) and a fragment library, fragment molecules that bind a protein target are identified. Every experiment involves mixing of 10 fragment molecules and T7 primase (off/on resonance indicate spectra of fragments mixture). The difference between the off to the on-resonance spectra is the STD. The fragment molecules represent scaffolds for the next step of virtual filtration, i.e., using virtual filter to select larger compounds containing the fragment molecules from a database of multimillion drug-like molecules; (c) Thousands of drug-like molecules for each scaffold are then, using docking software, inserted into a targeted binding site using the atomic resolution structure of the target macromolecule. Hits are ranked on the basis of the binding energy. Ten to twenty candidate compounds are then selected and tested for their ability to inhibit the biochemical target.
Figure 5. NMR Fragment-based virtual screening. (a) Schematic representation of FBVS. The approach combines NMR-FBS with optimization steps using virtual screening; (b) Using NMR (STD) and a fragment library, fragment molecules that bind a protein target are identified. Every experiment involves mixing of 10 fragment molecules and T7 primase (off/on resonance indicate spectra of fragments mixture). The difference between the off to the on-resonance spectra is the STD. The fragment molecules represent scaffolds for the next step of virtual filtration, i.e., using virtual filter to select larger compounds containing the fragment molecules from a database of multimillion drug-like molecules; (c) Thousands of drug-like molecules for each scaffold are then, using docking software, inserted into a targeted binding site using the atomic resolution structure of the target macromolecule. Hits are ranked on the basis of the binding energy. Ten to twenty candidate compounds are then selected and tested for their ability to inhibit the biochemical target.
Molecules 23 00233 g005
Table 1. List of commercial suppliers of fragment libraries.
Table 1. List of commercial suppliers of fragment libraries.
Commercial SupplierLibrary NameNumber of FragmentsRemarks
ACB Block19F-NMR-oriented Fragment library1280Ro3 compliant
Fragment Library for NMR760Ro3 compliant
AsinexFragment library Building blocks>22,000Modified Ro3
AnalyticonFragments from natural products5000FRGx: fragments from
nature; Ro3 compliant
ASDIFragment screening collection1700Ro3 compliant
Diversity fragment library6800Ro3 compliant
BIONETFluorine Fragment Library461Ro3 compliant and substructure filtering by PAINS
BiofocusBioFocus’ 3D-biased fragment sets1500Modified Ro3
Surface plasmon resonance (SPR) screening used [ 93]
ChemBridgeFragment library>7000Ro3 compliant
ChemBridge Microformat Library20,000Ro3 compliant
Charles RiverCore fragment library1500Modified Ro3 compliant
Kinase focused fragment library500
19F labeled fragment library500
ChemDiv3D designed fragment library>4000Ro3 compliant
Enamine“Simple” fragment library126,597Ro3 compliant ≤20 heavy atoms from screening collection
Ro3 Fragment Library44,600
sp3 Rich Fragment Libraries14,000
PPI Fragment Library3500
Fluorinated Fragment Library2100
Brominated Fragment Library1200
Covalent Fragment Libraries3000
Essential Fragment Library190
Single Pharmacophore Fragments3200
Carboxylic Acid Fragment Library4300
Golden Fragment Library1794
InFarmatikConsolidated library with different subsets (diverse 3-D fragments, GPCR, kinase)1700Ro3 compliant
IOTA PharmaceuticalsFragment library1500mainly Ro3 compliant fragments
Key OrganicsFragment library~26,000multiple subsets with assured solubility and Ro3 compliant
2nd generation subsets1166Ro3 compliant
assured aqueous solubility
Fragments from nature183Ro3 compliant, assured solubility and high Fsp3 content
CNS fragment library700
Brominated library1656
Fluorinated fragments1950
Life ChemicalsMultiple subsets31,000Brominated, covalent, Fsp3-enriched, and covalent subsets.
14,000 of which are Ro3 compliant
Diversity Fragments set3500
19F-Fluorine-Based Fragment Library1300
Maybridge (Thermo-Fischer)Fragment library for NMR>30,000Ro3 compliant
Dedicated to NMR applications. A smaller 1000-fragment subset is also available, probably to identify more hits [ 94]
Diversity Fragment Library2500Latest addition
Ro3 compliant
Guaranteed soluble at 200 mM in DMSO and 1 mM in PBS
Maybridge Bromo-Fragment Collection1500Fragment library for X-ray based fragment screening
Maybridge Fluoro-Fragment Collection5300Fragment library for 19F-NMR based applications
OtavaFragment libraryTotal of 12,486General Ro3 compliant
Chelator Fragment Library1023
Halogen-Enriched (Bromine) Fragment Library618
used for X-ray crystallography based fragment screening
OTAVA’s 19F-NMR Fluorine-containing Fragment Library1077
PrestwickFragment Library2230Ro3 compliant
Contains set of known drugs MW < 300, together new 910 fragments derived from drug molecules
PyxisFragment Library317Based on scaffolds that are found in existing drugs
TimTecStructurally diverse fragment library3200Modified Ro3
Vitas-MCommercial fragment library18,932Ro3 compliant
Zenobia TherapeuticsCommercial fragment library968Ro3 compliant
Fragments derived from different design paradigms, cores from drugs, higher Fsp3, flexible cores
Note: Fragment library in bold can be used exclusively for NMR based applications.
Table 2. Virtual Screening libraries.
Table 2. Virtual Screening libraries.
Libraries Used for Virtual ScreeningLibrary NameNumber of CompoundsRemarks
ZINC http://blaster.docking.org/zinc/Total purchasable35,724,825Free database of commercially-available compounds.
Compounds available in ready-to-dock, 3D formats.
Drug like17,900,742
Fragment like847,909
Lead like6,053,287
ChemNavigator iResearch Library (www.chemnavigator.com)iResearch Library>160 million chemical samplesPaid library
Commercially accessible screening compounds from international chemistry suppliers
National Cancer Institute (NCI) https://dtp.cancer.gov/organization/dscb/obtaining/default.htmlNCI/Developmental Therapeutics program (DTP) Open Chemicals Repository>200,000Compounds available free of charge
MDL Inc. http://www.iop.vast.ac.vn/theor/conferences/smp/1st/kaminuma/ChemDraw/acd.htmlAvailable Chemicals Directory (ACD)351,600 3D modelsPaid library
Compounds available in 3D models
CCDC’s Cambridge Structural Database http://www.ccdc.cam.ac.uk/products/csd/Cambridge Structural Databaseover 900,000 entriesRepository for small-molecule organic and metal-organic crystal structures
Highly curated and comprehensive resource of unique database with accurate 3D structures
PubChem http://pubchem.ncbi.nlm.nih.gov/Pubchem substance
Pubchem compound
PubChem BioAssay
234,688,140
93,553,459
1,252,796
Three databases of PubChem are linked within the NCBI’s
Provides a fast-chemical structure similarity search tool
Table 3. Fragment derived compounds in clinical stage of development representing method of detection.
Table 3. Fragment derived compounds in clinical stage of development representing method of detection.
Drug & Ref.CompanyTargetStatusMethod of Detection
LEE011 (ribociclib) [51]Novartis/AstexCyclic dependent kinase CDK4/6 (Breast cancer)ApprovedX-ray Crystallography
Vemurafenib [131]PlexxikonB-Raf-V600E (metastatic melanoma)ApprovedHCS/X-ray
Venetoclax [50]AbbVie/GenentechSelective Bcl-2 (recalcitrant chronic lymphocytic leukaemia)ApprovedTarget-detected NMR
PLX3397 [135]PlexxikonFMS, KIT, and FLT-3-ITD (Cancer)PhaseIIIFunctional assays/X-ray Crystallography
Verubecestat (MK-8931) [136,137]MerckBACE1 (Alzheimer’s disease)PhaseIIINMR/Crystallography
AZD3293 (lanabecestat) [138]AstraZeneca/Astex/LillyBACE1 (Alzheimer’s disease)PhaseIIIX-ray crystallography/NMR/calorimetry
AT7519 [139]AstexCDK1,2,4,5,9 (Multiple myeloma)PhaseIIX-ray Crystallography
AT9283 [140]AstexAurora, JAK2 (Multiple myeloma)PhaseIIX-ray Crystallography
AT13387 [141]AstexHSP90 (gastrointestinal stromal tumours)PhaseIILigand-detected NMR/Crystallography
NVP-AUY922 [142]VernalisHSP90 (cancer)Phase IILigand-observed NMR screening
AZD5363 [143]AstraZeneca/Astex/CR-UKAKT Serine threonine protein kinase (Cancer)PhaseIIX-ray Crystallography
Erdafitinib (JNJ-42756493) [144]J & J/AstexFGFR1-4 (Cancer)PhaseIIX-ray Crystallography
Indeglitazar [145]Plexxikonpan-PPAR agonist (Type II Diabetes melitus)PhaseIIHCS/X-ray Crystallography
LY2886721 [146]LillyBACE1 (Alzheimer’s disease)PhaseIICo-crystallization
LY517717 [147]Lilly/ProthericsFXa (thrombotic)PhaseIIX-ray Crystallography
Navitoclax (ABT-263) [148]AbbottBcl-2/Bcl-xL (Cancer)PhaseIINMR
NVP-AUY922 [149]Vernalis/NovartisHSP90 (Breast cancer)PhaseIIX-ray Crystallography
Onalespib (AT13387) [141]AstexHSP90 (Cancer)PhaseIINMR/X-ray Crystallography
AT9283 [140]AstexAurora (Cancer)PhaseIIX-ray Crystallography
ABL001 [150]NovartisBCR-ABL 1 (Chronic myeloid leukaemia)PhaseIX-ray Crystallography
ABT-518 [151]AbbottMMP-2 & 9 (Cancer)PhaseISAR by NMR/ LCMS/Mass spectrometry
DG-051 [152]deCODELTA4H (cardiovascular and inflammatory)PhaseIX-ray Crystallography
IC-776 [153]Lilly/ICOSLFA-1 (autoimmune diseases)PhaseINMR
PLX-4032 [131]PlexxikonB-RafV600E (metastatic melanoma)PhaseIHCS/X-ray
PLX5568 [154]PlexxikonRaf kinase (Polycystic Kidney Disease)PhaseIHCS/X-ray
SGX-523 [155]SGXMet tyrosine kinase (Tumour)PhaseIX-ray/HCS
SNS-314 [156]SunesisAurora kinase (Cancer)PhaseIMass Spectrometry
Note: Some of the information of the Table 3 was adopted from Dan Erlanson’s blog (http://practicalfragments.blogspot.co.il/).
Table 4. Recent examples of FBS that yielded lead molecules.
Table 4. Recent examples of FBS that yielded lead molecules.
Entry & Ref.TargetMethodsLibraryFragmentLeadLead IC50 (nM)
1 [157]Plm * I, II and IV of Plasmodium parasites (malaria)NMR
STD
ChemBridge containing 976 Astex Ro3 compliant compounds Molecules 23 00233 i001 Molecules 23 00233 i002plmI, 10,000
plmII, 3200
plmIII, 130
2 [114]BACE1 *19F-NMR SPR19F fragment library Molecules 23 00233 i003 Molecules 23 00233 i0040.8
3 [158]IRAK4 * autoimmune diseasesSTD NMR and biochemical assaysGlobal Fragment Initiative library 2592 fragment Molecules 23 00233 i005 Molecules 23 00233 i00655
* Plm-plasmepsin, BACE1-β-secretase, IRAK4- Interleukin-1 Receptor Associated Kinase 4.

Share and Cite

MDPI and ACS Style

Singh, M.; Tam, B.; Akabayov, B. NMR-Fragment Based Virtual Screening: A Brief Overview. Molecules 2018, 23, 233. https://doi.org/10.3390/molecules23020233

AMA Style

Singh M, Tam B, Akabayov B. NMR-Fragment Based Virtual Screening: A Brief Overview. Molecules. 2018; 23(2):233. https://doi.org/10.3390/molecules23020233

Chicago/Turabian Style

Singh, Meenakshi, Benjamin Tam, and Barak Akabayov. 2018. "NMR-Fragment Based Virtual Screening: A Brief Overview" Molecules 23, no. 2: 233. https://doi.org/10.3390/molecules23020233

Article Metrics

Back to TopTop
