Cube-Rhombellane Related Structures: A Drug Perspective
Department of Chemistry, Faculty of Chemistry and Chemical Engineering,Babes-Bolyai University, Arany J. street 11, Cluj 400028, Romania
*
Author to whom correspondence should be addressed.
Received: 12 September 2018 / Accepted: 2 October 2018 / Published: 4 October 2018

Abstract

:
Rhombellanes represent a new class of structures, of which homeomorphs may be synthesized as real molecules. Cube-rhombellane is a double-shell structure, with vertices of degree 3 and 6, respectively. Several hypothetical structures/molecules were proposed and computed using molecular graph theory and coordination chemistry principles. Some geometries were optimized at the B3LYP/6-31G (d, p) level of theory, followed by harmonic vibrational frequency analysis at the same level of theory, single point data were collected in view of molecular stability evaluation. Some of the bioactive functionalized structures were also proposed and explored by molecular mechanics (MM)-based conformational analysis, to check their internal mobility. Drug-like properties of the proposed molecular structures were compared with some existing nano-molecules (fullerenes, nanotubes). ADME and other physico-chemical characteristics were computed using commercial software. Substructures of the proposed molecules, useful in a future synthesis, were provided by retro combinatorial synthesis (RECAP). Computational results obtained are promising regarding ADME properties, drug-likeness and nano-properties.
Keywords:
rhombellane; topology; DFT; pharmacological properties

1. Introduction

Crystal engineering and self-assembly have recently promoted new classes of finite and periodic crystalline solids, with promising applications in material science and biosciences [1,2,3,4,5,6,7]. The self-assembly principles have been applied to synthesize nano-sized spheroid architectures, based on Platonic and Archimedean solids. A variety of appropriate (as angles) ligands have been used in such syntheses to provide homeomorphs (see below) of the above solids. As metals to join the ligands, the most used was Pd2+ [3,4,5,6], then Zn2+ [7] or Cu2+ [8]. There are some polyhedra (like cuboctahedron, rhombicuboctahedron, etc.), eventually called “faceted polyhedra” [9], containing both open and closed faces; for the synthesis of such structures, self-assembly of triangles and squares is needed [7]. The procedure of structure self-assembly was termed “molecular meccano” [10]. The single-shell spherical structures, possessing large hollows, could be functionalized, both endo- and/or exohedrally. A self-assembled double-shell structure, a sphere-in-sphere, molecular “Russian doll”, was also reported [11].
Rhombellanes are structures with all strong rings being rhombs/squares, some of them forming local propellane substructures; they have been proposed by Diudea in 2017 [12]. Propellane is an organic molecule, first synthesized in 1982 [13]; by IUPAC nomenclature, it is named tricyclo[1.1.1.01,3]pentane, a hydrocarbon with formula C5H6. The reduced form of propellane, C5H8, eventually named bicyclo[1.1.1]pentane, has only rhomb/square rings; it can be represented as K2.3- the complete bipartite graph. The two bridge carbon atoms can be functionalized, e.g., by bromine or COOH, or even by repeating the K2.3 motif, as in the polymer called staffane [14].
A rhombellane was defined by Diudea [15,16,17] as the structure having: (a) All strong rings are squares/rhombs; (b) Vertex classes consist of all non-connected vertices; (c) Omega polynomial has a single term: 1X|E|; (d) Line-graph of the parent graph has a Hamiltonian circuit; (e) It contains at least one K2.3 subgraph.
Construction of the cube-rhombellane (1) is illustrated in Figure 1, left. Each square face forms a K2.3 rhombellane by joining the opposite corners with homeomorphic diagonals; these diagonals are joint together in an adamantane motif (in red); K2.3 and adamantane are both “tiles” [18], not polyhedra [19], cf. Steinitz theorem [20].
A homeomorph of a graph contains on each parent edge one (or more) point(s) of degree two, e.g., the cube homeomorph 2 in Figure 1 (middle). The structure (3) (Figure 1, right), which is the homeomorph of (1) has seventy points/atoms; the vertex connectivity in (3) is 6; 3 and 2, respectively.
To synthesize 3 as a molecule, one may start from 1,2,3,4,5,6-Hexahydroxy-cyclohexane, that may form an ether 4 (also can be an amine) (Figure 2), which is a (hyper) homeomorph of the cube (2) and the “core” of rbl(C)-homeomorph 3; the vertices of connectivity 6 will be just the hexahydroxy-cyclohexane while the three-connected points may be 1,3,5-trihydroxycyclohexane or its derivatives (e.g. hexahydroxycyclohexane, 1,3,5-trihydroxybenzene, etc.) [21].
There is a trend in supramolecular chemistry in the synthesis of Platonic or Archimedean polyhedral clusters by chemical fragments, eventually with metallic ions complexing suitable ligands. In this respect, homeomorphs of the cube, of various chemical composition, have been already synthesized [6,8,22,23]. For cubane and related structures see refs. [24,25,26].
Cube-rhombellane 1 comprises an adamantane motif (Figure 3, left) that, in homeomorphs, becomes a hyper-adamantane, e.g., an ADA-ether (Figure 3, middle and right).An ADA-cube-rbl 5 (Figure 4, left) is a functionalized hyper-adamantane, consisting of a rbl-core bound by six units (one for each face of the cube) derived from benzene-1,2,4,5-tetracarboxylic acid. Then, by completing the second/external shell (by adding four or eight tri-connected units), double-shell Cube-rbl-amides 6/7 (Figure 4, middle and right) are obtained [21]; the envelope of 7 (or the second, external shell) will be counted as 8.
All the molecular structures discussed herein are hypothetical molecules, not yet synthesized.
The aim of this paper is to introduce the cube-rhombellanes, belonging to the newly introduced structural class, as possible biologically active compound candidates.

2. Results

The structures discussed in the following are listed in Table 1. The cube-rhombellane homeomorphs are named as: Cube-rbl-(a.b.c.d)-amide/ester, where the a.b.c.d bits represent: hexa-connected unit, tri-connected unit, connection to the second shell and the tri-connected units in the second/external shell, respectively. Structures were designed and computed by our original Nano Studio software [27].

2.1. DFT Results

Cube-rbl-amide, 7:(6(6).B(3).Mt(2).8BMt(3)).420, (Tb2(1); Tb2 = Table 2Figure 5, left), a double shell cluster with eight three-connected units in the second shell, has a tetrahedral T symmetry and is built from two larger fragments: the outer layer 8:(0.0.0.8BMt(3)).288 (Tb2(2), Figure 5, middle) and the encapsulated core cluster 4:(6(6).B(3).0.0)).120, (Tb2(4)). The two fragments are bounded together by twelve -CH2-O- linkers (see the bit Mt(2)) which connect the aromatic rings from the outer shell with the cyclohexane carbon atoms from the inner structure. Each cyclohexane ring is linked to three distinct benzene rings in the outer shell.
The core 4:(6(3).B(3).0.0).108, (Tb2(5)) has a tetrahedral Td arrangement of four aromatic and four cyclohexane rings; if all eight units are identical, as in 4:(6(3).6(3).0.0).132 (Tb2(6)), the symmetry of the structure is Oh. When three hydroxyl groups are attached to each cyclohexane ring in equatorial positions, as in 4:(6(6).B(3).0.0).120, (Tb2(4)), during geometry optimization the symmetry is lowered to T, attributed to the orientation of the hydrogen atoms in the hydroxyl groups and a small distortion in the carbon framework.
A similar structural deviation can be observed when attaching -CH2OH groups to the benzene rings aligned on the C2 symmetry axe in the envelope 8:(0.0.0.8BMt(3)).288, (Tb2(2)). In the cluster 8:(0.0.Mt(2−OH).8BMt(3)).336, (Tb2(3), Figure 5, right), these aromatic rings have a different orientation, being rotated by nearly 60° with respect to the opposite one lying on the same C2 rotational axe.
There are two types of aromatic rings in the envelopes 8:(0.0.0.8BMt(3)).288 and 8:(0.0.Mt(2−OH).BMt(3)).336 (one three−connected and the other four connected). These fragments have been optimized as molecules (Tb2(10) and Tb2(11), respectively). Their symmetry corresponds to the symmetry axes along which they are aligned.
Full geometry optimizations were performed using B3LYP/6−31G (d, p) on structures listed in Table 2. Computational results confirm that the investigated compounds have a good stability, attributed on the rather large HOMO−LUMO energy gaps. The binding energy, expressed as the difference between the total energy of the structure and the energies of the constituent atoms, shows that all the compounds are energetically feasible. Cluster 7:(6(6).B(3).Mt(2).8BMt(3)).420, (Tb2(1)), with eight three−connected units in the second shell, has the largest energy gap (4.390 eV) compared to the molecules with incomplete second shell (Tb2(7):4.020 eV; Tb2(8): 3.692 eV; Tb2(9): 4.276 eV) – for their complete name see Table 1. A similar trend can be seen for their binding energy Ebind/N (Table 2).

2.2. Bioactivity Evaluation

Rhombellanic structures discussed in this section are also listed in Table 1.

2.2.1. MM Computations

MM−energies [29] for the structures Tb3(1 to 3) were minimized (the shaded values—in kcal/mol—Table 3). The corresponding MM−energies for the reference fullerenes C60, C70 and nanotube (5,5), are: 2354.76; 1980.58; 2015.98, respectively. Only the structure Ada−C−rbl.276 (1) was also optimized at the B3LYP level of theory (Table 2—entry 9). The compounds Tb3(1 to 3) were further computed in order to assess their drug-like properties and consecutively their bioactive conformations.

2.2.2. Globularity

Globularity [30] of rhombellanes, computed in a molecular dynamics (MD)-related manner, is superior to that of fullerene C70. The rhombellaneC_rbl.348 (Tb3(2), Figure 6) has computationally a globularity close to 1 – globularity of a perfect sphere (see Figure 7).

2.2.3. ADME Properties Evaluation

Values of ADME [31,32] properties are listed in Table 4. Disposition of a pharmaceutical compound in organism is regarded as a function of compound lipophilic/hydrophilic properties, binding to serum proteins and permeability among cellular membranes. Env_264 (Tb3(3)) shows close to nanotube (5,5), the polarizability QPpolrz and decahexane gas partition coefficient QPlogPC16 values; the other investigated parameters are less optimistic in terms of drug likeness when compared to nanotubes and fullerenes C70 and C60.
When evaluating membrane permeability, rhombellanes show poor CNS permeability; BBB, i.e., blood brain barrier, (see QPPMDCK parameter—Table 5 or CNS values—Table 6) is not crossed by rhombellanes in contrast with the nanotubes and fullerenes, which show high penetration coefficient values. An exception is remarked for rhombellanes, particularly for C_rbl_348(Tb3(2)), which computationally express good skin permeability (parameter QPlogKp—Table 5).
Log S, the aqueous solubility of a compound, affects its absorption and distribution. A low solubility is correlated with modes absorption. 80% of the drugs on the market have log values greater than (−)4. In comparison with nanotubules and fullerenes some rhombellanes have decent solubilities ((−)6.95;(−)9.82).
In contrast to fullerenes and nanotubules, which are highly lipophilic (e.g., log P = 57 for nanotube 3,3), rhombellanes are hydrophilic (log P for the rhombellane C_rbl_348 (Tb3(2)) = (−)22.15) (see Supplementary Materials).
Orally, there is no potential absorption for rhombellanes (Table 6). Drug-like properties of rhombellanes are close to those of fullerenes and nanotubules (having only one extra violation of Lipinski‘s Rule of five [33] and Rule of three [34], respectively—Table 6).
A set of descriptors were computed (see Supplementary Materials—S2). The number of aromatic atoms is increased in rhombellanes in comparison with fullerenes and nanotubules and consecutively the atomic contribution to log P.
Flexibility of rhombellanes is about 30 times bigger than that of C70, according to Kier flexibility index [35]. Total hydrophobic van der Walls area and total positive van der Walls areas reflect the same properties. (see Supplementary Material S2).
Rhombellanes carry more chemical information than fullerenes and nanotubules, when considering connectivity−based descriptors. Energy profiles (Figure 8), calculated using a MM2 force field [29] (the energy descriptors are calculated using the potential energy (in kcal/mol) from the stored 3D conformations) vary according to the same dynamics and confirm their internal mobility, higher than of the reference nano−molecules (fullerenes and nanotubes—see Table 3).

2.2.4. RECAP Analysis

For the identification of the molecular building blocks of rhombellane derivatives listed in Table 3, an analysis was performed using the Retrosynthetic Combinatorial Analysis Procedure (RECAP) method [36], the results being listed in Table 7.
Some RECAP novel molecules suggested for the synthesis using templates arising from RECAP analysis are shown in Table 8. (full output is given in Supplementary Material S3).
RECAP result structures, given in Table 7 and Table 8, show the chemical synthetic space of rhombellanes. Frequency of computed appearance reveals the following: 6−connected hexagonal rings (frequency (%): 1.252–8.493, Table 7, entries 1 to 6); 3−connected hexagonal rings (frequency (%): 2.877–14.358, Table 7, entries 7 to 10), with more plausible substructures those having a higher frequency. Substitution of aromatic core seems to be an important variable in the synthesis; stereochemistry of compounds has an important impact. Water molecules show a high frequency (94.106) suggesting its role as a reaction medium and possibly its formation as a by-product.
When analyzing the entire RECAP results, including all compounds (over 1000 results—see Supplementary Material S3), two major clusters were identified (Figure 9). Density analysis also demonstrates clusters identity. Among the novel molecules suggested synthesis using templates arising from RECAP analysis some structures, collected in Table 8, show ether constructions, possibly useful in a real synthesis.

3. Methods

Rhombellanes are constructed by the “rhombellation” procedure; it starts with diagonalizing each face of an all−rhomb map Rh0 by a joint point (called “rbl−point”); then, add new vertices opposite to the parent vertices and join each of them with the rbl−vertices lying in the proximity of each parent vertex, thus local Rh−cells being formed. The process can continue, considering the envelope Rhn as “Rh0” for Rhn+1, in this way shell by shell being added to the precedent structure. Since the two diagonals of a rhomb may be topologically different, each generation may consist of two isomers.
Density functional theory (DFT) was used to investigate the stability of a series of rhombellanes (Table 2). Geometry optimizations was performed at the B3LYP/6−31G (d, p) level of theory using tight convergence criteria as implemented in the Gaussian 09 suite [28]. Harmonic vibrational frequencies obtained at the same level of theory confirmed that a true stationary point has been obtained. The obtained computational DFT results are collected in Table 2: the point group symmetry (PG), HOMO−LUMO energy gap (Egap), binding energy (Ebind), binding energy per number of heavy atoms (Ebind/N), and the total energy (Etot). DFT optimized Cartesian coordinates are given in Supplementary Material S4.
To obtain the ground state geometry of structure Tb2(11), multiple starting geometries were considered. The lowest energy configuration was the one where the hydroxyl groups are located on the same side of the benzene ring, while all carbonyl oxygen atoms are located on the opposite side. This arrangement is in agreement with the fragments observed in the double−shell cluster 7:(6(6).B(3).Mt(2).8BMt(3)).420 (Tb2(1)).
Molecular mechanics (MM) were utilized in order to explore the internal molecular mobility, accessed in the potential bioactivity study of these compounds. MMFF94 force field [29] was used to sample for 10 conformation poses of molecular structures Tb3(1 to 5). Steric energy of each pose (kcal/mol) was computed (Table 3). Each structure was minimized for maximum of 100 times, 10 conformations were sampled and conformational energy for each sample computed (kcal/mol).
Globularity (the state of being globular [30]) of rhombellanes was computed in comparison with that of fullerene C70. Globularity correlates with bioactivity of molecules or with manifestation of bioactivity (i.e., bioactive molecules are globular). Results were interpreted according to globularity descriptor definition (i.e., a sphere shape molecule has globularity equal to 1). MD was used to explore globularity. The descriptor was computed for 200 conformations corresponding to 200 MD steps computed for a target temperature of 310.15K, uth a step interval of 1fs, frame interval of 1fs, and a heating/cooling rate of 1 kcal/atom/ps. For each structure the computation was terminated after 200 steps.
ADME properties evaluation was performed using QikProp [37] module included in Schrodinger software. A series of descriptors related to bioactivity and drug-ability of these compounds were computed (see supplemental material S2 and refs. [38,39,40]). Also, a comparative energy profile was calculated using the same module.
Retrosynthetic Combinatorial Analysis (RECAP) [41] was performed using a Knime workflow (RetroPath2.0); the analysis of structures revealed 10 molecular motives, utilizable as starting points for further fusion (Table 8).
RECAP computes a molecule by breaking certain bonds, estimated to be those that can be reformed by common reliable chemistry. Each resulting fragment is assigned a unique extended SMILES name that retains the chemical context of the broken bond. By applying this fragmentation methodology to a collection of compounds, statistics on individual fragments can be gathered and the fragments subsequently recombined in the “synthesis” procedure to generate new molecules.
RECAP resulted molecules were computed as clusters in order to identify their dispersion and correlation to chemical space. To make a cluster representation, the density analysis of resulted clusters was performed. RECAP analysis was used to generate novel molecules that can be, eventually, utilized in rhombellane synthesis.

4. Discussions

An active compound is a collection of molecular fragments according to fragment−based drug design principles. These fragments possess a specific three−dimensional arrangement that defines the whole properties of the compound: geometric, steric, conformational, topological, electronic and physicochemical properties define key aspects of bioactivity. By the medicinal chemistry point of view these properties define the therapeutic, metabolic and toxic properties.
Physicochemical properties are crucial to the pharmaceutical and pharmacokinetic phases of drug action; the pharmacodynamics are less discussed here and will be approached in another paper concerning these compounds.
Electronic properties reflect electron distribution within the drug molecule and determine the nature of the precise binding interaction between the drug and its receptor through hydrogen bonding and other interactions. On this subject computed conformational energies of rhombellanes take positive values, whereas rhombellanes envelopes possess negative energies (Table 3). All 10 distinct conformational samples for each structure present alternate conformational energies suggesting an encouraging conformational mobility specific for drug carriers and bio−nano−devices. Their energy profile, when compared to each other, is balanced, presenting the same proportional energy variation (Figure 8).
Geometric, steric, and topological (globularity included) properties describe the structural arrangement of the atoms within the drug molecule and influence the interaction with the target.
Physicochemical properties reflect the solubility and absorption characteristics (in aqueous and lipid environments) of the drug and its ability to cross barriers, such as the blood–brain barrier, on its way toward the receptor. Thus, a highly significant property of drug molecules is their solubility (both in aqueous and non−aqueous environments), because only in solution can they interact with the cellular and subcellular structures that carry drug receptors, thus triggering pharmacological reactions. Partition coefficients are extremely important when understanding the properties of drug molecules. Most successful drugs exhibit solubility to some extent both in water and lipid environments; however, there are a few examples in which solubility in only one of these phases correlates with pharmacological activity.
Solubility is a function of many molecular parameters. Ionization, molecular steric structure, size, and electronic structure (by heteroatom presence), all influence the basic interactions between a solvent and the solute. Physicochemical properties are important in determining the ability of a drug molecule to survive the pharmacokinetic phase and to reach the region of the receptor−important both in bioactive molecules and in drug transporters. In this regard, rhombellanes present absorption properties comparable with carbon nanostructures. CNS penetration is less favorable in comparison to nanotubes and fullerenes.
The correct geometry, conformation, and stereochemistry of a molecule enable it to gain access to the receptor microenvironment [42,43]. However, it is the electronic molecular structure that finally decides the electrostatic, hydrogen bonding, and other drug–receptor binding interactions to actually occur.
The effect of electron distribution in organic molecules is manifested directly (short range) or indirectly (long range). Inductive forces, as van der Waals bonds or dipole−dipole interactions, are the result of polarization or polarizability—the permanent or induced distortions of the electron distribution within a molecule. These forces are especially important in studies of quantitative structure–activity relationships (QSAR) because the electronic effect of a substituent can, by resonance or an inductive or field effect, change the stereo−electronic properties of a molecule and thus influence its biological activity.
Statistical analysis is used frequently in bioinformatics. Density−based clustering defines clusters as areas of higher density than the remainder of the data set. In this study, OPTICS was used for clustering the RECAP results; OPTICS [44] is a generalization of DBSCAN which avoids the need to choose an appropriate value for the range parameter epsilon and produces a hierarchical result related to that of linkage clustering.
Based on this findings future developments of these compounds will be carried on. Using reverse synthesis techniques a chemical synthesis will be tested. Furthermore optimized compounds refined regarding geometry and outer surface and inner core—shell and envelope—are intended to be tested against biological targets.

5. Conclusions

Rhombellanes represent a new class of hypothetical structures, of which homeomorphs may be synthesized as real molecules. Cube−rhombellane, in the first step of rhombellation operation, is a double−shell structure showing vertices of degree 3 and 6 respectively, which may be realized by means of cyclohexane (and/or benzene) derivatives. Some suggestions of molecular realization of cube−rhombellane as functionalized structures (ether core, ester or amide envelope) were given. Topology of the discussed structures was detailed. Quantum calculations supported the herein hypothesis: both substructures (at every level of complexity) and the whole double−shell molecules show negative binding energy and a rather high energy gap, proving that all the compounds are energetically feasible in the hope of a real synthesis.
Rhombellanes seem to be appropriate and worthwhile molecules for medicinal chemistry. This new class of compounds may be an alternative to classical nano−structures regarding carrier, drug like properties and use for creating bio−nano devices. In contrast to fullerenes and nanotubules, where most of functionalization (and derivatives) occur symmetrically, rhombellanes present a variety of distinct derivatization sites thus making them easier to be chemically manipulated. As drug carriers, rhombellanes show decent membrane-passing properties. In close relation with fullerenes and nanotubules, our compounds present “per se” drug-like properties which could be further developed to access a novel chemical space.

Supplementary Materials

The following are available online. S1: globularity, S2: descriptors, S3: RECAP results, S4: DFT coordinates.

Author Contributions

Authors contributed equally to this manuscript.

Funding

This work was supported by GEMNS project granted in the European Union’s Seventh Framework Program under ERA−NET EuroNanoMed II (European Innovative Research and Technological Development Projects in Nanomedicine) [Funding number PN-III-ID-57, no. 8/2015].

Conflicts of Interest

The authors declare that there is no conflict of interest.

References

  1. Sun, Q.F.; Iwasa, J.; Ogawa, D.; Ishido, Y.; Sato, S.; Ozeki, T.; Sei, Y.; Yamaguchi, K.; Fujita, M. Self-assembled M24L48 polyhedra and their sharp structural switch upon subtle ligand variation. Science 2010, 328, 1144–1147. [Google Scholar] [CrossRef] [PubMed]
  2. Bunzen, J.; Iwasa, J.; Bonakdarzadeh, P.; Numata, E.; Rissanen, K.; Sato, S.; Fujita, M. Self-assembly of M24L48 polyhedra based on empirical prediction. Angew. Chem. Int. Ed. 2012, 51, 3161–3163. [Google Scholar] [CrossRef] [PubMed]
  3. Harris, K.; Fujita, D.; Fujita, M. Giant hollow MnL2n spherical complexes: Structure, functionalisation and applications. Chem. Commun. 2013, 49, 6703–6712. [Google Scholar] [CrossRef] [PubMed]
  4. Fujita, D.; Ueda, Y.; Sato, S.; Mizuno, N.; Kumasaka, T.; Fujita, M. Self-assembly of tetravalent Goldberg polyhedra from 144 small components. Nature 2016, 540, 563–566. [Google Scholar] [CrossRef]
  5. Fujita, D.; Ueda, Y.; Sato, S.; Yokoyama, H.; Mizuno, N.; Kumasaka, T.; Fujita, M. Self-assembly of M30L60 icosidodecahedron. Chem 2016, 1, 91–101. [Google Scholar] [CrossRef]
  6. Suzuki, K.; Tominaga, M.; Kawano, M.; Fujita, M. Self-assembly of an M6L12 coordination cube. Chem. Commun. 2009, 1638–1640. [Google Scholar] [CrossRef] [PubMed]
  7. Lu, J.; Mondal, A.; Moulton, B.; Zaworotko, M.J. Polygons and faceted polyhedra and nanoporous networks. Angew. Chem. Int. Ed. 2001, 40, 2113–2116. [Google Scholar] [CrossRef]
  8. Abrahams, B.F.; Egan, S.J.; Robson, R. A very large metallosupramolecular capsule with cube−like 43 topology assembled from twelve Cu(II) centers and eight tri−bidentate tri−anionic ligands derived from 2,4,6−triphenylazo−1,3,5−trihydroxybenzene. J. Am. Chem. Soc. 1999, 121, 3535–3536. [Google Scholar] [CrossRef]
  9. Holden, A. Shapes, Space and Symmetry; Columbia University Press: New York, NY, USA, 1971. [Google Scholar]
  10. Cantrill, S.J.; Pease, A.R.; Stoddart, J.F. A molecular meccano kit. J. Chem. Soc. Dalton Trans. 2000, 3715–3734. [Google Scholar] [CrossRef]
  11. Sun, Q.-F.; Murase, T.; Sato, S.; Fujita, M. A sphere-in-sphere complex by orthogonal self-assembly. Angew. Chem. Int. Ed. 2011, 50, 10318–10321. [Google Scholar] [CrossRef] [PubMed]
  12. Diudea, M.V. Rhombellanes—A new class of nanostructures. In Proceedings of the Bio-Nano-Math-Chem International Conference 2017, Cluj, Romania, 26–30 June 2017. [Google Scholar]
  13. Wiberg, K.B.; Walker, F.H. [1.1.1]Propellane. J. Am. Chem. Soc. 1982, 104, 5239–5240. [Google Scholar] [CrossRef]
  14. Kazynsky, P.; Michl, J. Staffanes: A molecular−size tinkertoy construction set for nanotechnology. Preparation of end−functionalized telomers and a polymer of [1.1.1]propellane. J. Am. Chem. Soc. 1988, 110, 5225–5226. [Google Scholar] [CrossRef]
  15. Diudea, M.V. Hypercube related polytopes. Iran. J. Math. Chem. 2018, 9, 1–8. [Google Scholar]
  16. Diudea, M.V. Rhombellanic crystals and quasicrystals. Iran. J. Math. Chem. 2018, 9, 167–178. [Google Scholar]
  17. Diudea, M.V. Rhombellanes—A new class of structures. Intl. J. Chem. Model. 2018, 9. in press. [Google Scholar]
  18. Blatov, V.A.; O’Keeffe, M.; Proserpio, D.M. Vertex-, face-, point-, Schläfli-, and Delaney-symbols in nets, polyhedra and tilings: Recommended terminology. Cryst. Eng. Comm. 2010, 12, 44–48. [Google Scholar] [CrossRef]
  19. Diudea, M.V. Multi-Shell Polyhedral Clusters; Springer: Dordrecht, The Netherlands, 2018. [Google Scholar]
  20. Steinitz, E. Polyeder und Raumeinteilungen. Enzykl. Math. Wiss. 1922, 3, 1–139. [Google Scholar]
  21. Diudea, M.V. Cube-rhombellane: From graph to molecule. Intl. J. Chem. Model. 2018, 9. in press. [Google Scholar]
  22. Do Carmo, D.R.; Paim, L.L.; Dias Filho, N.L.; Stradiotto, N.R. Preparation, characterization and application of a nanostructured composite: Octackis (cyanopropyldimetylsiloxy) octasilsesquioxane. Appl. Surface Sci. 2007, 253, 3683–3689. [Google Scholar] [CrossRef]
  23. Do Carmo, D.R.; Bicalho, U.O.; Silveira, T.F.; Dias Filho, N.L.; Paim, L.L. Determination of copper in different ethanolic matrices using a chloropropyl silica gel modified with a nanostructured cubic octa(3−aminopropyl)octasilsesquioxane. J. Chem. 2013, 1–11. [Google Scholar] [CrossRef]
  24. Eaton, P.E.; Cole, T.W. The cubane system. J. Am. Chem. Soc. 1964, 86, 962–964. [Google Scholar] [CrossRef]
  25. Pichierri, F. Hypercubane: DFT-based prediction of an Oh-symmetric double-shell hydrocarbon. Chem. Phys. Lett. 2014, 612, 198–202. [Google Scholar] [CrossRef]
  26. Hopf, H.; Liebman, J.F.; Perks, H.M. Cubanes, fenestranes, ladderanes, prismanes, staffanes and other oligocyclobutanoids. In PATAI’s Chemistry of Functional Groups; Patai, S., Rappoport, Z., Eds.; John Wiley & Sons: New York, NY, USA, 2009. [Google Scholar]
  27. Nagy, C.L.; Diudea, M.V. Nano-Studio Software; Babes-Bolyai University: Cluj, Romania, 2009. [Google Scholar]
  28. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09; Revision E.01; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  29. Schrödinger; Release 2009-1; LLC: New York, NY, USA, 2009.
  30. Medeleanu, M.; Ciubotariu, D.; Ciubotariu, C. New shape descriptors for quantitative treatment of steric effect. III. A new globularity measure for QSPR/QSAR Studies. Chem. Bull. “POLITEHNICA” Univ. Timisoara 2006, 31, 1–2. [Google Scholar]
  31. Balani, S.K.; Devishree, V.S.; Miwa, G.T.; Gan, L.S.; Wu, J.T.; Lee, F.W. Strategy of utilizing in vitro and in vivo ADME tools for lead optimization and drug candidate selection. Curr. Top Med. Chem. 2005, 5, 1033–1038. [Google Scholar] [CrossRef] [PubMed]
  32. Ntie−Kang, F. An in silico evaluation of the ADME profile of the Streptome DB database. Springer Plus 2013, 2, 353. [Google Scholar] [CrossRef] [PubMed]
  33. Lipinski, C.A.; Lombardo, F.; Dominy, B.W.; Feeney, P.J. Experimental and computational approaches to estimate solubility and permeability in drug discovery and development settings. Adv. Drug Deliv. Rev. 2001, 46, 3–26. [Google Scholar] [CrossRef]
  34. Veber, D.F.; Johnson, S.R.; Cheng, H.Y.; Smith, B.R.; Ward, K.W.; Kopple, K.D. Molecular properties that influence the oral bioavailability of drug candidates. J. Med. Chem. 2002, 45, 2615–2623. [Google Scholar] [CrossRef] [PubMed]
  35. Kier, L.B. An index of flexibility from molecular shape descriptors. Prog. Clin. Biol. Res. 1989, 291, 105–109. [Google Scholar] [PubMed]
  36. Lewell, X.Q.; Judd, D.B.; Watson, S.P.; Hann, M.M. RECAP−retrosynthetic combinatorial analysis procedure: a powerful new technique for identifying privileged molecular fragments with useful applications in combinatorial chemistry. J. Chem. Inf. Comput. Sci. 1998, 38, 511–522. [Google Scholar] [CrossRef] [PubMed]
  37. QikProp; Schrödinger, LLC: New York, NY, USA, 2009.
  38. Lungu, C.N.; Bratanovici, B.I.; Mirabela, G.M.; Antoci, V.; Mangalagiu, I.I. Hybrid imidazole−pyridine derivatives: An approach to novel anticancer DNA intercalators. Curr. Med. Chem. 2018, in press. [Google Scholar]
  39. Lungu, C.N.; Diudea, M.V.; Putz, M.V. Ligand shaping in induced fit docking of MraY inhibitors. Polynomial discriminant and laplacian operator as biological activity descriptors. Int. J. Mol. Sci. 2017, 18, 1377. [Google Scholar] [CrossRef] [PubMed]
  40. Lungu, C.N. C−C Chemokine Receptor Type 3 Inhibitors: Bioactivity prediction using local vertex invariants based on thermal conductivity layer matrix. Studia Univ. “Babes-Bolyai” Chemia 2018, 63, 177–188. [Google Scholar] [CrossRef]
  41. Delepine, B.; Duigou, T.; Carbonell, P.; Faulon, J.L. RetroPath2.0: A retrosynthesis workflow for metabolic engineers. Metab. Eng. 2018, 45, 158–170. [Google Scholar] [CrossRef] [PubMed]
  42. Lungu, C.N.; Diudea, M.V. Binding site and potency of teixobactin and other lipid II ligands by statistical base scoring of conformational space maps. Curr. Comp.-Aided Drug Des. 2018, 14, 29–34. [Google Scholar] [CrossRef] [PubMed]
  43. Lungu, C.N.; Diudea, M.V.; Putz, M.V.; Grudzińsk, P.I. Linear and branched PEIs (polyethylenimines) and their property space. Int. J. Mol. Sci. 2016, 17, 555. [Google Scholar] [CrossRef] [PubMed]
  44. Kriegel, H.P.; Peer, J.; Sander, J.; Zimek, A. Density-based clustering. Wires. Data Min. Knowl. 2011, 1, 231–240. [Google Scholar] [CrossRef]
  • Sample Availability: Not applicable.

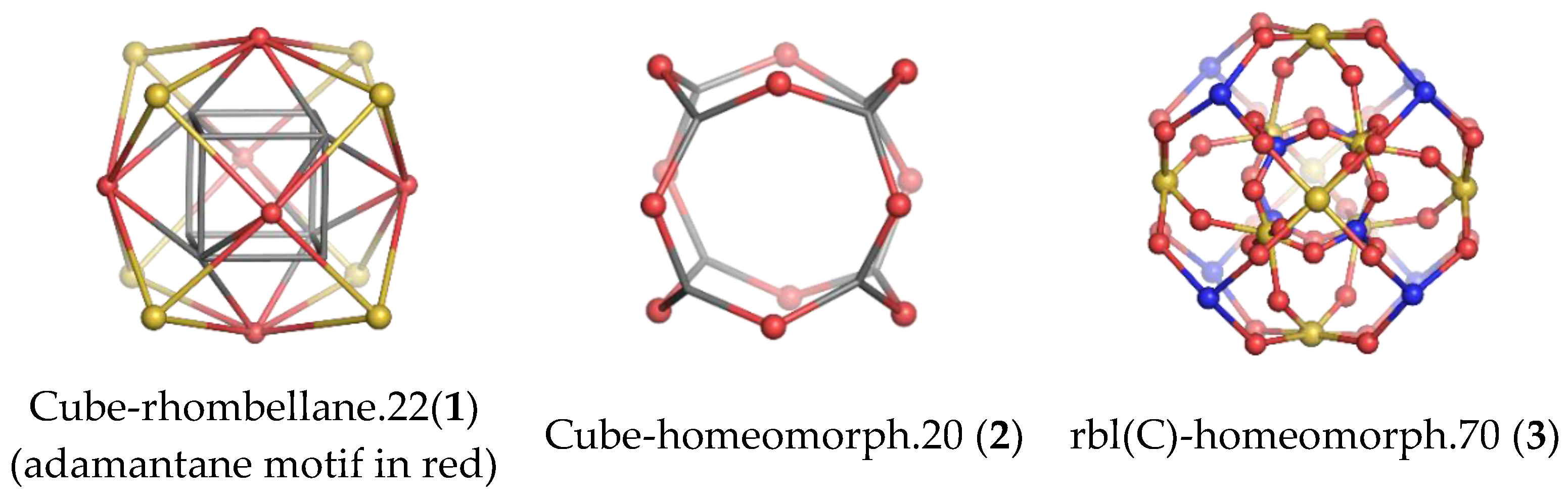

Figure 1. Cube-rhombellane and its related homeomorphs.
Figure 1. Cube-rhombellane and its related homeomorphs.
Molecules 23 02533 g001
Figure 2. Cube-rbl-core(4) structures.
Figure 2. Cube-rbl-core(4) structures.
Molecules 23 02533 g002

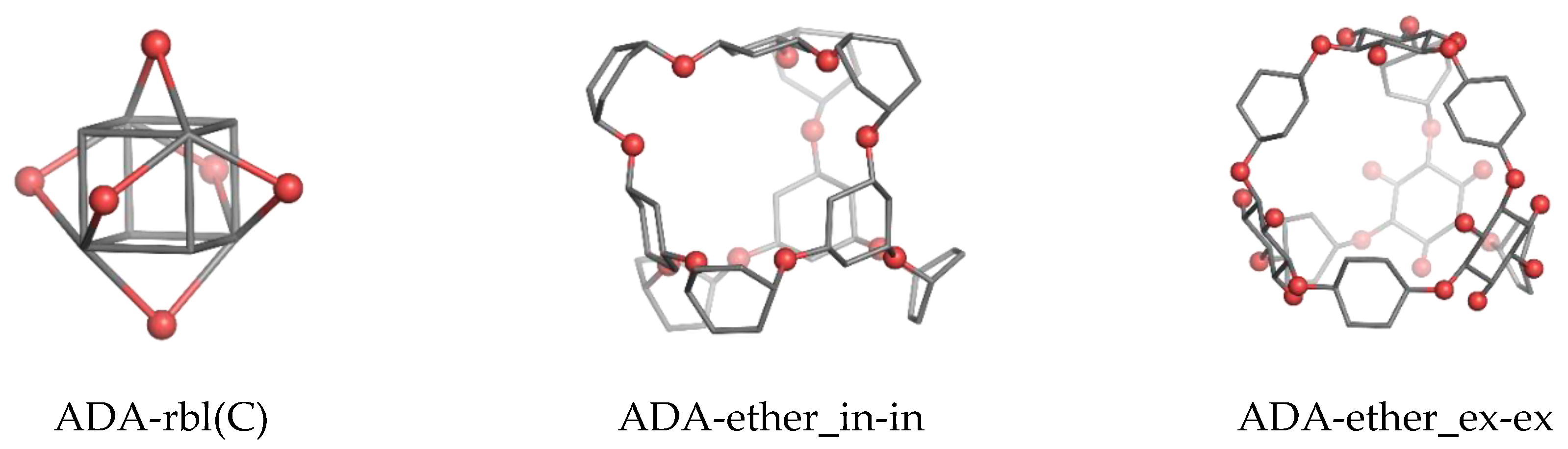

Figure 3. Adamantane motif in cube rhombellanes.
Figure 3. Adamantane motif in cube rhombellanes.
Molecules 23 02533 g003

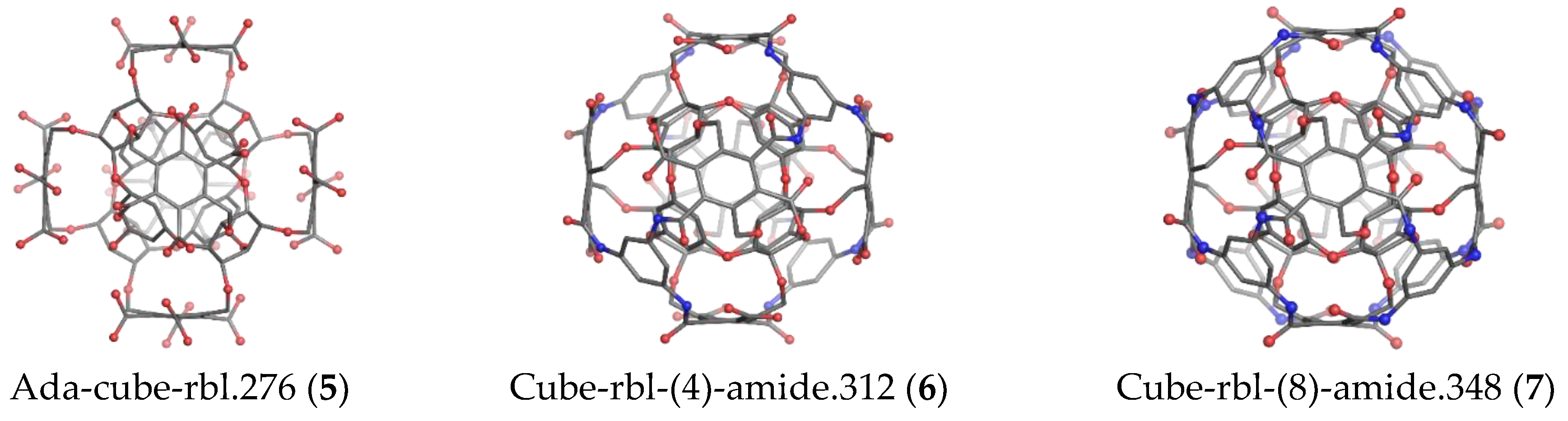

Figure 4. Cube-rhombellanes.
Figure 4. Cube-rhombellanes.
Molecules 23 02533 g004

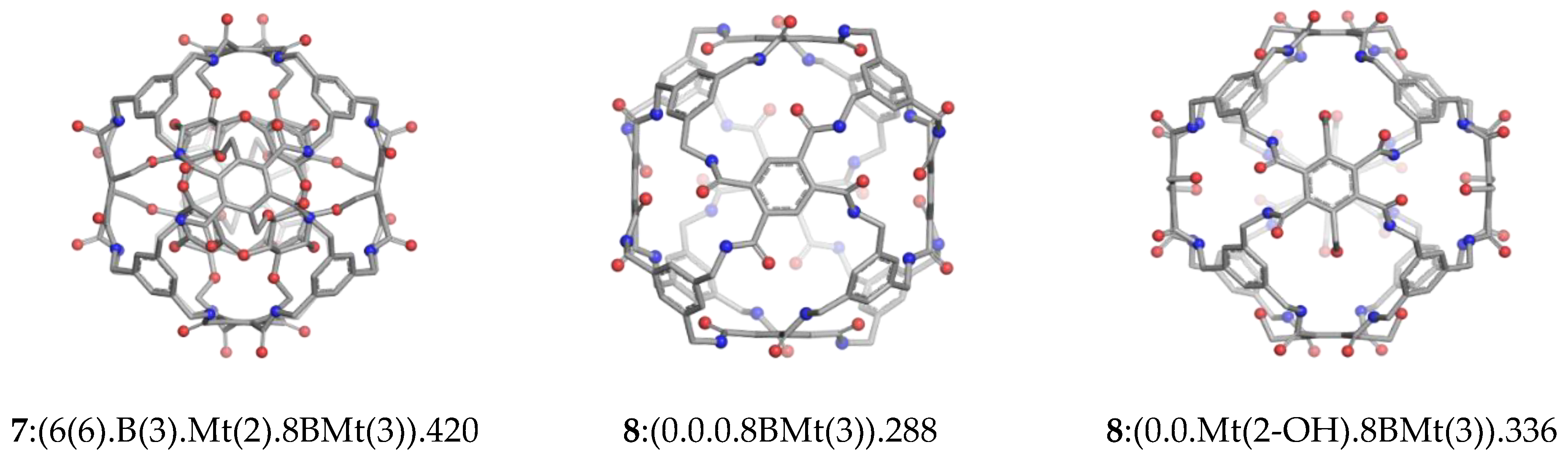

Figure 5. DFT optimized Cube-rhombellane structures: Cube-rbl-amide.420 (Tb2(1)) and its envelopes on 288 (Tb2(2)) and 336 (Tb2(3)) atoms; for structural specification see Table 1.
Figure 5. DFT optimized Cube-rhombellane structures: Cube-rbl-amide.420 (Tb2(1)) and its envelopes on 288 (Tb2(2)) and 336 (Tb2(3)) atoms; for structural specification see Table 1.
Molecules 23 02533 g005

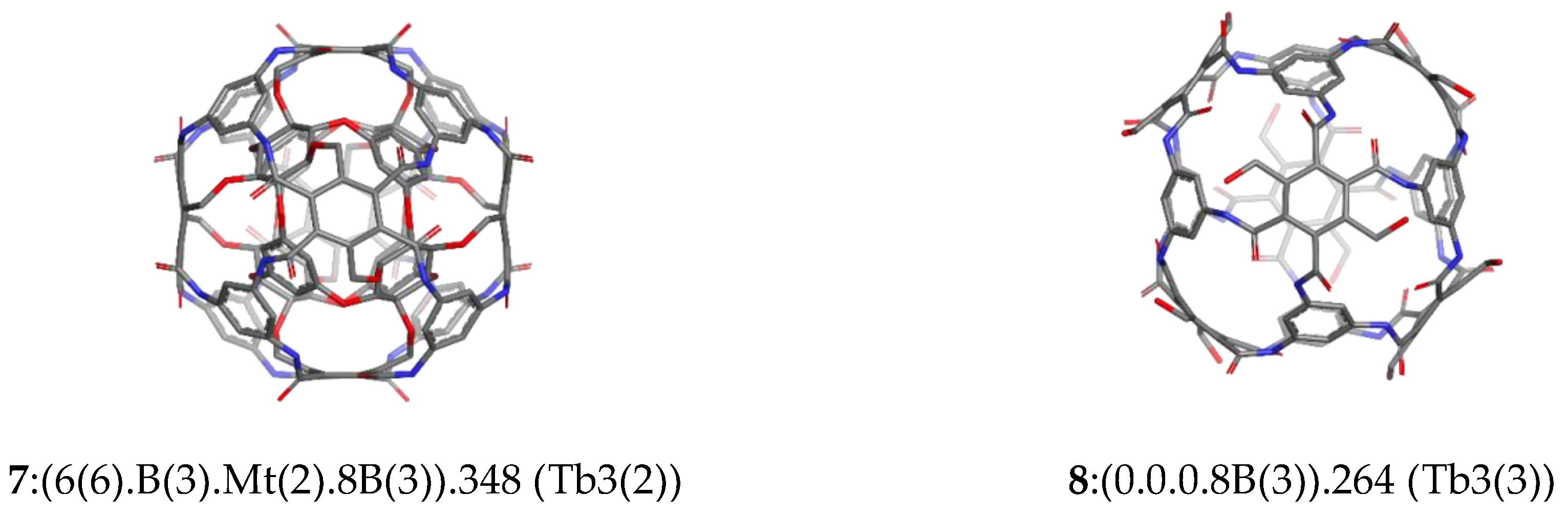

Figure 6. Cube rhombellane structures (Table 3).
Figure 6. Cube rhombellane structures (Table 3).
Molecules 23 02533 g006

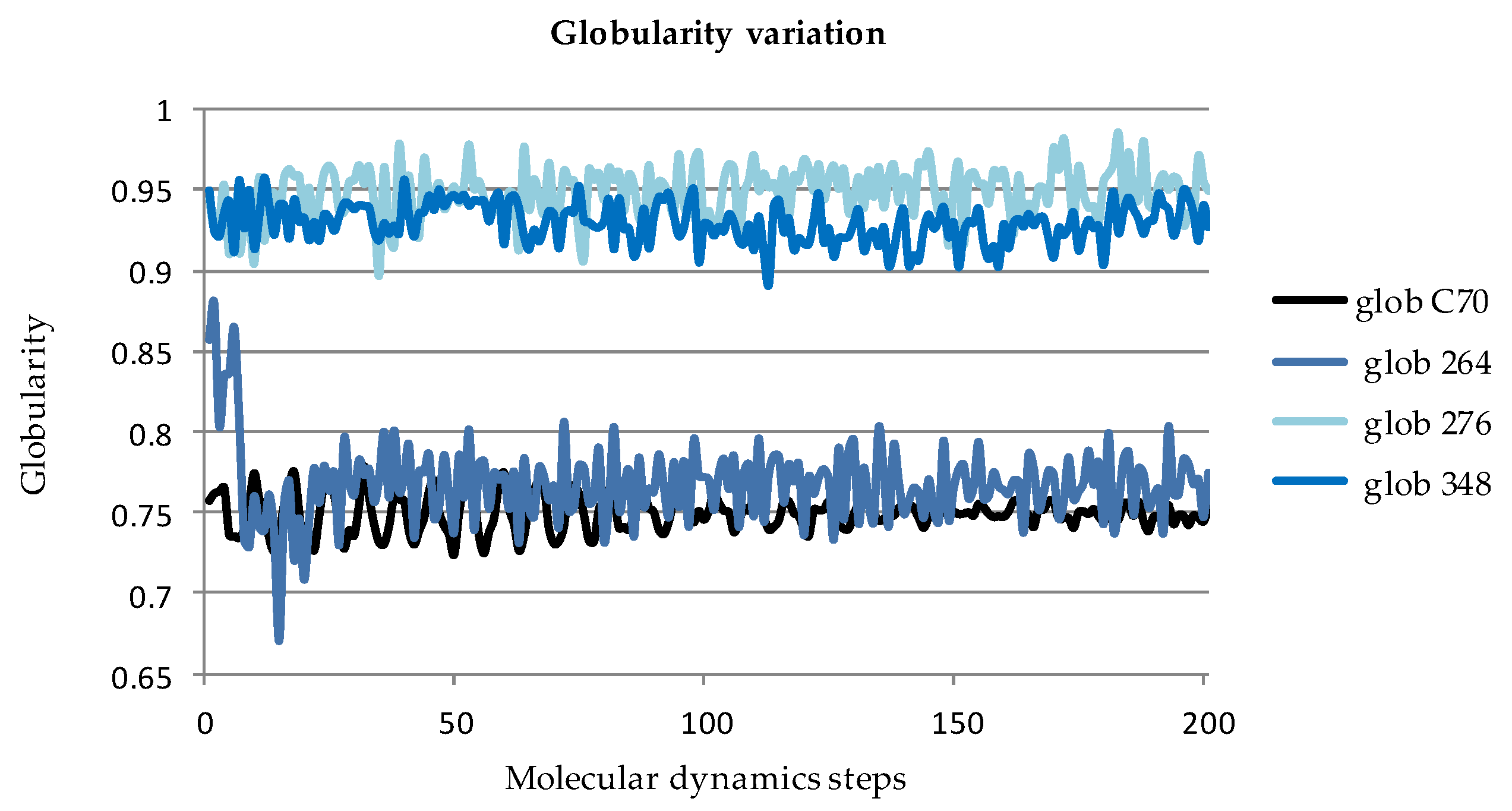

Figure 7. Computed globularity for some rhombellane related structures and fullerene C70 (see Supplementary Material S1).
Figure 7. Computed globularity for some rhombellane related structures and fullerene C70 (see Supplementary Material S1).
Molecules 23 02533 g007

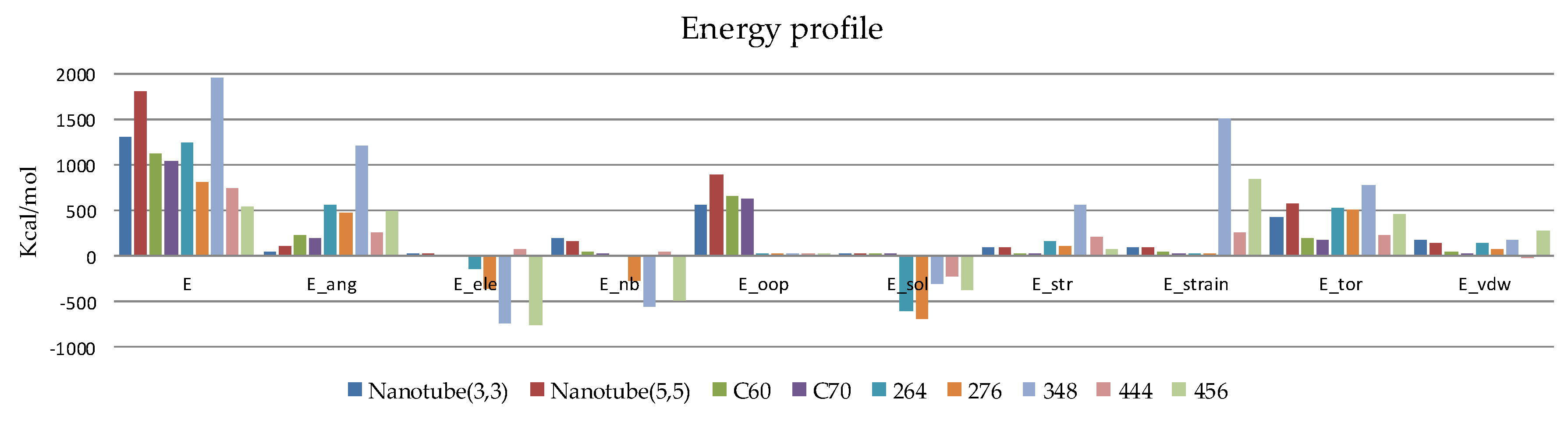

Figure 8. The energy profile (in kcal/mol) of the compounds listed in Table 3. Used abbreviations: E—potential energy; E_ang—angle between potential energy; E_ele—electrostatic component of potential energy; E_oop—out of plane potential energy; E_sol—solvation energy; E_str—bond stretch potential energy; E_strain—local strain energy; E_tor—torsional potential energy; E_vdw—van der Waals component of potential energy.
Figure 8. The energy profile (in kcal/mol) of the compounds listed in Table 3. Used abbreviations: E—potential energy; E_ang—angle between potential energy; E_ele—electrostatic component of potential energy; E_oop—out of plane potential energy; E_sol—solvation energy; E_str—bond stretch potential energy; E_strain—local strain energy; E_tor—torsional potential energy; E_vdw—van der Waals component of potential energy.
Molecules 23 02533 g008

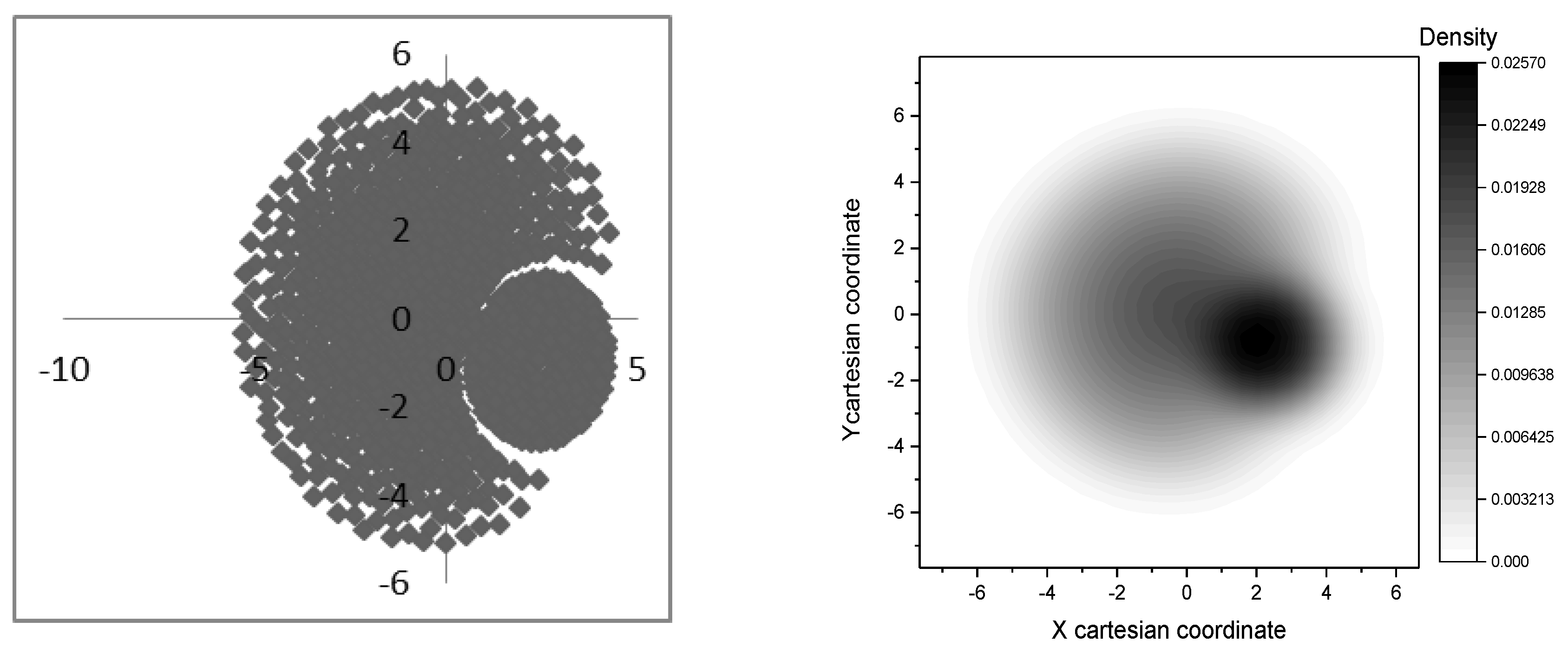

Figure 9. RECAP cluster analysis (left); cluster point to point representation (cluster density – right).

Figure 9. RECAP cluster analysis (left); cluster point to point representation (cluster density – right).
Molecules 23 02533 g009
Table 1. Cube-rhombellanes: structure; v = no. vertices/atoms; type.
Table 1. Cube-rhombellanes: structure; v = no. vertices/atoms; type.
StructurevCHNOTableType IType II
C-rbl42019215624482(1)Ether; Amide7:(6(6).B(3).Mt(2).8BMt(3))
Env (420)28813210824242(2)Amide8:(0.0.0.8BMt(3))
Env (420)33614413224362(3)Amide8:(0.0. Mt(2-OH).8BMt(3))
Core12048480242(4)Ether4:(6(6).B(3).0.0)
Core10848480122(5)Ether4:(6(3).B(3).0.0)
Core13260600122(6)Ether4:(6(3).6(3).0.0)
C-rbl (4)264132840482(7)Ether; Ester6:((6(6).Mt(2).4B(3))
C-rbl (4)300144840722(8)Ether; Ester6:((6(6).Mt(2-COOH).4B(3))
Ada-C-rbl276120840722(9); 3(1)Ether5:(6(6).B(3).Mt(2).0)
C-rbl34816810824483(2)Ether; Amide7:(6(6).B(3).Mt(2).8B(3))
Env (348)2641208424363(3)Amide8:(0.0.0.8B(3))
C-rbl44419218024483(4)Ether; Amide7:(6(6).6(3).Mt(2).8BMt(3))
C-rbl45615619224843(5)Ether; Amide7:(6(6).6(6).Mt(2).8BMt(3))
Env = envelope; B = benzene; Mt = methylene; (n) = fragment connectivity.
Table 2. Computational results obtained at the B3LYP/6-31G (d, p) level of theory using the Gaussian 09 suite [28]: the point group symmetry (PG), HOMO-LUMO energy gap (Egap), binding energy (Ebind), binding energy per number of heavy atoms (Ebind/N), and the total energy (Etot).
Table 2. Computational results obtained at the B3LYP/6-31G (d, p) level of theory using the Gaussian 09 suite [28]: the point group symmetry (PG), HOMO-LUMO energy gap (Egap), binding energy (Ebind), binding energy per number of heavy atoms (Ebind/N), and the total energy (Etot).
FormulaTotal AtomsPGEgap (eV)Ebind (a.u.)Ebind/N (kcal/mol)Etot (a.u.)
1C192H156N24O48420T4.390−93.497−222.236−12334.939
2C132H108N24O24288T4.451−65.811−229.427−8215.224
3C144H132N24O36336T4.965−73.981−227.568−9589.441
4C48H48O24120T6.104−24.528−236.370−3663.244
5C48H48O12108Td6.200−22.601−213.768−2760.590
6C48H72O12132Oh6.139−24.906−260.481−2774.902
7C132H84O48264T4.020−59.334−206.849−8690.700
8C144H84O72300T3.692−67.266−195.418−10953.399
9C120H84O72276T4.276−59.767−195.335−10039.276
10C12H15N3O333C36.282−6.854−238.962−856.290
11C16H22N4O648C25.220−9.666−233.289−1293.368
Table 3. MM conformational energies for the molecular structures Tb3(1 to 5) (kcal/mol).
Table 3. MM conformational energies for the molecular structures Tb3(1 to 5) (kcal/mol).
Ada−C−rbl.276 (1)C_rbl.348 (2)Env.264 (3)C_rbl.444 (4)C_rbl.456 (5)
1412.1521876.9133.294754.6771334.91
2411.5091888.4133.281770.9381275.35
3407.5471872.15133.086776.4121301.15
4445.8241931.21105.310793.8521354.78
5387.8431916.52150.839778.0741305.25
6392.2511858.42141.293820.6621303.09
74134031866.64136.255774.1671283.52
8421.0861857.53108.876779.6481301.57
9435.5971907.43125.237821.9271293.61
10439.5881867.08155.056816.6591336.80
Table 4. Hydrophilic/lipophilic partition related descriptors: QPpolrz − predicted polarizability in Å3 n.v. (−)13.0−70.0; QPlogPC16−predicted hexadecane/gas partition coefficient n.v. (−)4−18; QPlogPoct−predicted octanol/gas partition coefficient n.v. (−)8.0−35.0; QPlogPw−predicted water/gas partition coefficient n.v. (−)4.0 −45.0; QPlogKhsa− prediction of binding to human serum albumin n.v. (−)1.5−1.5; QPlogPo/W−predicted octanol/water partition coefficient n.v. (−)2−6.5.
Table 4. Hydrophilic/lipophilic partition related descriptors: QPpolrz − predicted polarizability in Å3 n.v. (−)13.0−70.0; QPlogPC16−predicted hexadecane/gas partition coefficient n.v. (−)4−18; QPlogPoct−predicted octanol/gas partition coefficient n.v. (−)8.0−35.0; QPlogPw−predicted water/gas partition coefficient n.v. (−)4.0 −45.0; QPlogKhsa− prediction of binding to human serum albumin n.v. (−)1.5−1.5; QPlogPo/W−predicted octanol/water partition coefficient n.v. (−)2−6.5.
MoleculeQPpolrzQPlogPC16QPlogPoctQPlogPwQPlogKhsaQPlogPo/w
Nanotube (5,5)172.5640.95870.16114.09610.55323.631
Nanotube (3,3)102.77225.30841.656.6715.88113.667
C7058.2816.25822.2723.892.8538.587
C6050.01714.39818.7163.4442.2927.599
C_rbl_456 (3(5)196.7259.101191.881189.665−17.697−26.217
C_rbl_444 (3(4))192.17854.083166.025152.579−14.823−18.859
C_rbl_348 (3(2))180.49846.315169.989151.045−4.982−11.232
Ada−C−rbl_276 (3(1))155.70658.948155.222120.044−11.895−5.558
Env_264 (3(3))152.49749.581157.638151.739−12.271−25.591
Regarding of binding to albumin (QPlogKhsa parameter—Table 4), nanotube (3,3) and C70, C60 show optimal albumin binding; rhombellanes do not reflect such a property.
Table 5. Membrane related properties: QPlogS− predicted aqueous solubility n.v.(−)6.5 −0.5; ClQPlogS−conformation−independent predicted aqueous solubility n.v. (−)6.5 −0.5; QPlogHERG − predicted IC50 value for blockage of HERG K+ channels n.v. concentration below (−)5; QPPCaco− predicted apparent Caco−2 cell permeability (in nm/sec). Caco−2 cells are a model for the gutblood barrier n.v. < 25por, >500 excellent; QPlogBB−predicted brain/blood partition coefficient n.v. (−)3−1.2; QPPMDCK− predicted apparent MDCK cell permeability (blood brain barrier − in nm/sec), n.v. < 25por, > 500 excellent; QPlogKp− predicted skin permeability n.v. (−)8−1.0.
Table 5. Membrane related properties: QPlogS− predicted aqueous solubility n.v.(−)6.5 −0.5; ClQPlogS−conformation−independent predicted aqueous solubility n.v. (−)6.5 −0.5; QPlogHERG − predicted IC50 value for blockage of HERG K+ channels n.v. concentration below (−)5; QPPCaco− predicted apparent Caco−2 cell permeability (in nm/sec). Caco−2 cells are a model for the gutblood barrier n.v. < 25por, >500 excellent; QPlogBB−predicted brain/blood partition coefficient n.v. (−)3−1.2; QPPMDCK− predicted apparent MDCK cell permeability (blood brain barrier − in nm/sec), n.v. < 25por, > 500 excellent; QPlogKp− predicted skin permeability n.v. (−)8−1.0.
MoleculeQPlogSCIQPlogSQPlogHERGQPPCacoQPlogBBQPPMDCKQPlogKp
Nanotube (5,5)−55.716−55.716−11.2719906.0380.1925899.2933.712
Nanotube (3,3)−32.425−32.425−6.4559906.0380.1925899.2931.726
C70−17.329−17.329−4.8639906.0380.1925899.2930.714
C60−14.534−14.534−4.6349906.0380.1925899.2930.517
C_rbl_456 (Tb3(5)2−6.1829.5370−13.4890.0020.76
C_rbl_444 (Tb3(4))2−12.72229.7420−12.2020.0070.52
C_rbl_348 (Tb3(2))2−17.99516.1560−6.5230.003−6.921
Ada−C−rbl_276(Tb3(1))2−14.58437.7240−24.6850−24.438
Env_264 (Tb3(3))23.15829.9210−11.7750−12.728
Table 6. Drug−like properties of rhombellane derivatives.
Table 6. Drug−like properties of rhombellane derivatives.
MoleculeCNSHuman Oral AbsorptionRule of Five ViolationRule of Three Violation
Nanotube (5,5)1121
Nanotube (3,3)1121
C701121
C601121
C_rbl_456 (Tb3(5)−2132
C_rbl_444 (Tb3(4))−2132
C_rbl_348 (Tb3(2))−2132
Ada−C−rbl _276 (Tb3(1))−2132
Env_264 (Tb3(3))−2132
Table 7. RECAP analysis result: molecules represented as 2D formulas, molecular mass (M), and the corresponding frequency of appearance (%) in the analysis.
Table 7. RECAP analysis result: molecules represented as 2D formulas, molecular mass (M), and the corresponding frequency of appearance (%) in the analysis.
StructureFrequency (%)StructureFrequency (%)
Molecules 23 02533 i001
M = 31.295
1.212 Molecules 23 02533 i002
M = 30.820
1.212
Molecules 23 02533 i003
M = 29.809
1.212 Molecules 23 02533 i004
M = 251.659
3.773
Molecules 23 02533 i005
M = 31.034
4.692 Molecules 23 02533 i006
M = 30.612
8.493
Molecules 23 02533 i007
M = 10.646
2.877 Molecules 23 02533 i008
M =14.352
4.721
Molecules 23 02533 i009
M =10.492
14.352 Molecules 23 02533 i010
M =14.358
6.556
Table 8. Molecular fragments identified by RECAP novel molecules for further fusion, molecular mass (M) of the compounds are given below their formula.
Table 8. Molecular fragments identified by RECAP novel molecules for further fusion, molecular mass (M) of the compounds are given below their formula.
Molecules 23 02533 i011 Molecules 23 02533 i012 Molecules 23 02533 i013
M =256.254M = 284.22M = 224.256
Molecules 23 02533 i014 Molecules 23 02533 i015 Molecules 23 02533 i016
M = 198.306M = 246.303M = 230.304
Molecules 23 02533 i017 Molecules 23 02533 i018 Molecules 23 02533 i019
M = 214.305M = 262.302M = 278.301
Molecules 23 02533 i020 Molecules 23 02533 i021 Molecules 23 02533 i022
M = 376.446M = 312.45M = 294.3
