Electrophilic Trifluoromethylselenolation of Boronic Acids

Institute of Chemistry and Biochemistry (ICBMS-UMR CNRS 5246), Université de Lyon, Université Lyon 1, CNRS, F-69622 Lyon, France
CERMEP—In Vivo Imaging, Groupement Hospitalier Est, F-69677 Lyon, France
Author to whom correspondence should be addressed.
Molecules 2017, 22(5), 833;
Received: 1 May 2017 / Revised: 13 May 2017 / Accepted: 15 May 2017 / Published: 19 May 2017


Trifluoromethylselenylated compounds are emergent compounds with interesting physicochemical properties that still suffer from a lack of efficient synthetic methods. We recently developed an efficient one-pot strategy to generate in situ CF3SeCl and use it in various reactions. Herein, we continue our study of the reactivity scope of this preformed reagent. Cross-coupling reactions with aromatic and heteroaromatic boronic acids have been investigated. The expected products have been obtained, using a stoichiometric amount of copper, with moderate yields.

Graphical Abstract

1. Introduction

Fluorinated compounds play a more and more important role in various fields of application. Among all the fluorinated substituents, the CF3 group occupies a particular place due to its specific properties [1,2,3,4,5,6,7,8,9,10,11,12,13]. Furthermore, the association of this CF3 moiety with chalcogens leads to new fluorinated substituents with very interesting electronic and physicochemical properties. This has been well illustrated by CF3O- and CF3S-molecules [14,15,16,17,18], especially due to their high lipophilicities (Hansch–Leo parameters: πR(OCF3) = 1.04, πR(SCF3) = 1.44) [19] which contribute to their favoring of membrane permeation and, consequently, increase their bioavailability. In the series of chalcogens, the CF3Se group has been less investigated. However, selenylated compounds also play an important role in various fields of application, from materials to life sciences [20,21,22,23,24,25,26,27,28,29,30,31]. This is illustrated, for example, by the drug Ebselen [32,33,34,35]. Furthermore, the Hansch–Leo lipophilicity parameter of the CF3Se group has been recently measured to πR(SeCF3) = 1.29 [36].
Despite the strong interest in this group, synthetic methods to obtain trifluoromethylselenylated molecules are still limited. Trifluoromethylation of selenylated compounds has recently been investigated for the first time [37,38,39,40,41,42,43,44,45,46,47,48,49]. Although this strategy gave good results, the preliminary preparation of selenylated adducts can be a drawback. Late stage direct trifluoromethylselenolation appears to be the most versatile approach. Nucleophilic reactions have been the most investigated, with a large panel of organic compounds from nucleophilic substitutions onto halogen compounds or diazonium salts, to cross-coupling reactions with halogen substrates or boronic acids [50,51,52,53,54,55,56,57,58,59,60,61,62,63,64]. Nevertheless, this approach required the preparation of CF3Se anions using a stoichiometric amount of selenium metal. Electrophilic trifluoromethylselenolations have been less described. The only available reagent for such reactions is CF3SeCl, which is volatile, potentially toxic and, until recently, difficult to synthesize [65,66].
To favor a safe and easy handling of this reagent, we have recently described an efficient procedure to generate in situ this species from benzyl trifluoromethyl selenide (1). This strategy has already been applied to electrophilic aromatic substitutions [67] and reactions with Grignard reagents and lithium alkynides [36].

2. Results and Discussion

In our objective to extend the scope of the reactivity of CF3SeCl, following our one-pot strategy, we decided to study the trifluoromethylselenolation of boronic acids.
The reaction was first optimized with biphenyl boronic acid (2a). All the attempts are summarized in Table 1.
The use of CuI as a catalyst with bipyridine L1 led to the expected compounds with a very low yield (Entry 1). With Cu(OAc)2, a better yield was observed, but was still low (Entry 2). In order to improve this encouraging result, the base or ligand first had to be removed. Without the base, the reaction failed, although a small amount of 3a was observed without L1 (Entries 3–4). This led us to reduce the quantity of the ligand, and 40% of 3a was then formed (Entry 5). Next, various other ligands (Figure 1) were screened without success (Entries 6–12); bipyridine L1 remained the more efficient.
The influence of the nature of the base was then explored. A good yield was obtained with Cs2CO3, whereas K3PO4 led to a similar result to that of K3CO3 (Entries 13–14). Surprisingly, CsF, often used in cross-coupling reactions with boronic acid, provided a low yield (Entry 15). Organic nitrogen bases appeared to be deleterious for the reaction (Entries 16–17). This could be explained by a competitive copper coordination between these bases and L1. At higher temperatures, no improvement was observed but, on contrary, this resulted in a decrease of yield (Entry 18). This may be due to the outgassing of the highly volatile CF3SeCl reagent.
Catalytic amounts of copper (II) and ligand were then tested, but lower yields were observed (Entries 19–20). Again, heating proved to be deleterious (Entry 21). Inspired by our previous work with a sulfur series [68], some water (7 eq.) was added resulting, in this case, in a non-significant effect (Entry 22). Consequently, stoichiometric conditions (Entry 13) remained the better ones.
These conditions were applied to other aromatic boronic acids (Scheme 1).
Only moderate yields were obtained with substituted aromatic compounds, whatever the donor or acceptor electronic character of the substituents. In heteroaromatic series, the same moderate results were observed.
When these lukewarm results were obtained, some amounts of CF3SeSeCF3 were detected as well as homocoupling products from the boronic reagents. This could be rationalized by the high reactivity of CF3SeCl, which leads to a competition between the kinetically low coupling reaction and the more rapid dimerization. The homocoupling reaction could then come from the lack of CF3SeCl for the expected reaction. Despite the use of an excess of preformed CF3SeCl, no better results were observed. Furthermore, during the preliminary formation of CF3SeCl, one equivalent of benzyl chloride was also formed, which could possibly disturb the cross-coupling reaction.

3. Materials and Methods

Commercial reagents were used as supplied. Reagent 1 was synthesized following procedures described in the literature [36,67]. Anhydrous solvents were used as supplied. NMR spectra were recorded on a Bruker AV 400 (Billerica, MA, USA) spectrometer at 400 MHz (1H-NMR), 101 MHz (13C-NMR), and 376 MHz (19F-NMR), or on a Bruker AV 300 spectrometer at 300 MHz (1H-NMR) and 282 MHz (19F-NMR). Multiplicities are indicated as follows: s (singlet), d (doublet), t (triplet), q (quartet), p (quintet), sext (sextet), m (multiplet), b (broad). All coupling constants are reported in Hz.

3.1. Synthesis of Benzyl Trifluoromethyl Selenide (1)

To a dry round-bottom flask equipped with a magnetic stirrer, benzylselanocyanate (13.7 g, 70.0 mmol, 1.0 equiv.) and dry THF (140 mL) were added. The flask was evacuated and refilled with nitrogen three times, and then trifluoromethyl trimethylsilane (TMSCF3) (20.7 mL, 140 mmol, 2.0 equiv.) was added. The reaction mixture was cooled to 0 °C, and then tetrabutylammonium fluoride (TBAF) in THF 1 M (14.0 mL, 14.0 mmol, 0.2 equiv.) was added dropwise. After 10 min at 0 °C under nitrogen, the reaction was allowed to warm to 23 °C and was stirred for 7 h. The conversion was checked by 19F-NMR with PhOCF3 as an internal standard. The reaction mixture was then partitioned between water and pentane, and the aqueous layer was extracted with pentane. The combined organic layers were washed with brine, dried over MgSO4, filtered through a pad of silica (rinsed with pentane) and concentrated to dryness (under moderate vacuum). The crude residue was purified by chromatography (pentane: 100) to afford the desired product 1 as a colorless liquid (11.7 g, 70% yield). 1H-NMR (300 MHz, CDCl3): δ = 7.37−7.27 (massif, 5H), 4.26 (s, 2H). 19F-NMR (282 MHz, CDCl3): δ = −34.47 (s, 3F). The results are in accordance with the literature [38].

3.2. Typical Procedure

Solution A: To a flame-dried flask equipped with a magnetic stirrer, BnSeCF3 (1) (0.40 mmol, 1.1 equiv.), SO2Cl2 (0.40 mmol, 1.1 equiv.) and anhydrous acetonitrile (1 mL) were added under nitrogen. The reaction mixture was stirred for 6 h at 20 °C.
Solution B: To a flame-dried flask equipped with a magnetic stirrer, biphenylboronic acid 2 (0.36 mmol, 1 equiv.), copper (II) acetate (0.36 mmol, 1 equiv.), bypirydine (L1) (0.36 mmol, 1 equiv.) and cesium carbonate (0.36 mmol, 1 equiv.) were added under nitrogen.
Solution A was then poured into solution B by syringe and the mixture was stirred at 20 °C for 16 h. Conversion was checked by 19F-NMR with PhOCF3 as an internal standard. The reaction mixture was partitioned between CH2Cl2 and water. The aqueous layer was extracted with CH2Cl2 and the combined organic layers were washed with brine, dried over MgSO4, filtered and concentrated to dryness. The crude residue was purified by flash chromatography to afford the desired product 3. Molecules 22 00833 i002
Synthesis of 4-[(trifluoromethyl)selanyl]-1,1′-biphenyl (3a). Eluent for flash chromatography: cyclohexane/AcOEt 98:2. 1H-NMR (300 MHz, CDCl3) δ = 7.83 (m, 2H), 7.65−7.60 (massif, 4H), 7.50 (m, 2H), 7.42 (m, 1H). 19F-NMR (282 MHz, CDCl3) δ = −36.05 (s, 3F). The results are in accordance with the literature [57]. Molecules 22 00833 i003
Synthesis of 1-bromo-4-[(trifluoromethyl)selanyl]benzene (3b). Eluent for flash chromatography: pentane 100%. 1H-NMR (300 MHz, CDCl3) δ = 7.60 (m, 2H), 7.53 (m, 2H). 19F-NMR (282 MHz, CDCl3) δ = −36.03 (s, 3F). The results are in accordance with the literature [61]. Molecules 22 00833 i004
Synthesis of 1-methoxy-4-[(trifluoromethyl)selanyl]benzene (3c). Eluent for flash chromatography: cyclohexane/toluene 9:1. 1H-NMR (300 MHz, CDCl3) δ = 7.66 (m, 2H), 6.91 (m, 2H), 3.83 (s, 3H). 19F-NMR (282 MHz, CDCl3) δ = −37.18 (s, 3F). The results are in accordance with the literature [61]. Molecules 22 00833 i005
Synthesis of methyl 4-[(trifluoromethyl)selanyl]benzoate (3d). Eluent for flash chromatography: cyclohexane/EtOAc 97:3 to 95:5. 1H-NMR (300 MHz, CDCl3) δ = 8.04 (m, 2H), 7.81 (m, 2H), 3.94 (s, 3H). 19F-NMR (282 MHz, CDCl3) δ = −35.21 (s, 3F). The results are in accordance with the literature [57]. Molecules 22 00833 i006
Synthesis of 3-[(trifluoromethyl)selanyl]quinoline (3e). Eluent for flash chromatography: cyclohexane/Et2O 8:2. 1H-NMR (300 MHz, CDCl3) δ = 9.14 (s, 1H), 8.65 (d, J = 1.8 Hz, 1H), 8.21 (d, J = 8.7 Hz, 1H), 7.86 (m, 2H), 7.67 (m, 1H). 19F-NMR (282 MHz, CDCl3) δ = −35.50 (s, 3F). The results are in accordance with the literature [53]. Molecules 22 00833 i007
Synthesis of 3-[(trifluoromethyl)selanyl]-1-benzothiophene (3f). Eluent for flash chromatography: cyclohexane/toluene 98:2. 1H-NMR (300 MHz, CDCl3) δ = 8.02 (d, J = 7.7 Hz, 1H), 7.96 (s, 1H), 7.92 (m, 1H), 7.51 (m, 1H), 7.44 (m, 1H). 19F-NMR (282 MHz, CDCl3) δ = −35.66 (s, 3F). The results are in accordance with the literature [57].

4. Conclusions

In our study of its reactivity scope, we have demonstrated that CF3SeCl, in situ preformed, could react with boronic acids to perform trifluoromethylselenolation of aromatic or heteroaromatic compounds. However, moderate yields were generally observed due to the overly high reactivity of CF3SeCl and the presence of generated benzyl chloride. This points out the major issue of this one-pot strategy; the subsequently formed benzyl chloride may limit this approach by inducing side-reactions. Furthermore, the high reactivity of CF3SeCl, which can easily dimerize, could also constitute a drawback with reactions which are kinetically too low. This underlines the necessity of developing new reagents, that are isolable, easy to handle and have a modular reactivity that is easier to control.


Clément Ghiazza held a doctoral fellowship from la Région Rhône Alpes. The authors are grateful to the CNRS and the French Ministry of Research for financial support. The French Fluorine Network is also acknowledged for its support.

Author Contributions

All the experiments have been performed by Clément Ghiazza. Anis Tlili and Thierry Billard have supervised and discussed this research. Thierry Billard has written this manuscript. All authors are aware of this manuscript and have agreed for its publication.

Conflicts of Interest

The authors declare no conflicts of interest.


  1. Smart, B.E. Fluorine substituent effects (on bioactivity). J. Fluor. Chem. 2001, 109, 3–11. [Google Scholar] [CrossRef]
  2. Becker, A. Inventory of Industrial Fluoro-Biochemicals; Eyrolles: Paris, France, 1996. [Google Scholar]
  3. Fujiwara, T.; O’Hagan, D. Successful fluorine-containing herbicide agrochemicals. J. Fluor. Chem. 2014, 167, 16–29. [Google Scholar] [CrossRef]
  4. Gillis, E.P.; Eastman, K.J.; Hill, M.D.; Donnelly, D.J.; Meanwell, N.A. Applications of Fluorine in Medicinal Chemistry. J. Med. Chem. 2015, 58, 8315–8359. [Google Scholar] [CrossRef]
  5. Hagmann, W.K. The Many Roles for Fluorine in Medicinal Chemistry. J. Med. Chem. 2008, 51, 4359–4369. [Google Scholar] [CrossRef] [PubMed]
  6. Hird, M. Fluorinated liquid crystals—Properties and applications. Chem. Soc. Rev. 2007, 36, 2070–2095. [Google Scholar] [CrossRef] [PubMed]
  7. Pagliaro, M.; Ciriminna, R. New fluorinated functional materials. J. Mater. Chem. 2005, 15, 4981–4991. [Google Scholar] [CrossRef]
  8. Theodoridis, G. Chapter 4 Fluorine-Containing Agrochemicals: An Overview of Recent Developments. In Advances in Fluorine Science; Tressaud, A., Ed.; Elsevier: Amsterdam, The Netherlands, 2006; Volume 2, pp. 121–175. [Google Scholar]
  9. Wang, J.; Sánchez-Roselló, M.; Aceña, J.L.; del Pozo, C.; Sorochinsky, A.E.; Fustero, S.; Soloshonok, V.A.; Liu, H. Fluorine in Pharmaceutical Industry: Fluorine-Containing Drugs Introduced to the Market in the Last Decade (2001–2011). Chem. Rev. 2014, 114, 2432–2506. [Google Scholar] [CrossRef] [PubMed]
  10. Zhou, Y.; Wang, J.; Gu, Z.; Wang, S.; Zhu, W.; Aceña, J.L.; Soloshonok, V.A.; Izawa, K.; Liu, H. Next Generation of Fluorine-Containing Pharmaceuticals, Compounds Currently in Phase II–III Clinical Trials of Major Pharmaceutical Companies: New Structural Trends and Therapeutic Areas. Chem. Rev. 2016, 116, 422–518. [Google Scholar] [CrossRef] [PubMed]
  11. Jeschke, P. The unique role of halogen substituents in the design of modern agrochemicals. Pest Manag. Sci. 2010, 66, 10–27. [Google Scholar] [CrossRef] [PubMed]
  12. Chopra, D.; Row, T.N.G. Role of organic fluorine in crystal engineering. CrystEngComm 2011, 13, 2175–2186. [Google Scholar] [CrossRef]
  13. Berger, R.; Resnati, G.; Metrangolo, P.; Weber, E.; Hulliger, J. Organic fluorine compounds: A great opportunity for enhanced materials properties. Chem. Soc. Rev. 2011, 40, 3496–3508. [Google Scholar] [CrossRef] [PubMed]
  14. Toulgoat, F.; Alazet, S.; Billard, T. Direct Trifluoromethylthiolation Reactions: The “Renaissance” of an Old Concept. Eur. J. Org. Chem. 2014, 2415–2428. [Google Scholar] [CrossRef]
  15. Xu, X.-H.; Matsuzaki, K.; Shibata, N. Synthetic Methods for Compounds Having CF3–S Units on Carbon by Trifluoromethylation, Trifluoromethylthiolation, Triflylation, and Related Reactions. Chem. Rev. 2015, 115, 731–764. [Google Scholar] [CrossRef]
  16. Tlili, A.; Toulgoat, F.; Billard, T. Synthetic Approaches to Trifluoromethoxy-Substituted Compounds. Angew. Chem. Int. Ed. 2016, 55, 11726–11735. [Google Scholar] [CrossRef]
  17. Leroux, F.R.; Manteau, B.; Vors, J.-P.; Pazenok, S. Trifluoromethyl ethers—Synthesis and properties of an unusual substituent. Beilstein J. Org. Chem. 2008, 4, 13. [Google Scholar] [CrossRef]
  18. Ben-David, I.; Rechavi, D.; Mishani, E.; Rozen, S. A novel synthesis of trifluoromethyl ethers via xanthates, utilizing BrF3. J. Fluor. Chem. 1999, 97, 75–78. [Google Scholar] [CrossRef]
  19. Leo, A.; Hansch, C.; Elkins, D. Partition coefficients and their uses. Chem. Rev. 1971, 71, 525–616. [Google Scholar] [CrossRef]
  20. Abdulah, R.; Miyazaki, K.; Nakazawa, M.; Koyama, H. Chemical forms of selenium for cancer prevention. J. Trace Elem. Med. Biol. 2005, 19, 141–150. [Google Scholar] [CrossRef]
  21. Bodnar, M.; Konieczka, P.; Namiesnik, J. The Properties, Functions, and Use of Selenium Compounds in Living Organisms. J. Environ. Sci. Health C Environ. Carcinog. Ecotoxicol. Rev. 2012, 30, 225–252. [Google Scholar] [CrossRef]
  22. Brown, K.M.; Arhur, J.R. Selenium, selenoproteins and human health: A review. Public Health Nutr. 2001, 4, 593–599. [Google Scholar] [CrossRef]
  23. Combs, G.F.; Gray, W.P. Chemopreventive agents: Selenium. Pharmacol. Therap. 1998, 79, 179–192. [Google Scholar] [CrossRef]
  24. Holben, D.H.; Smith, A.M. The diverse role of selenium within selenoproteins: A review. J. Am. Diet. Assoc. 1999, 99, 836–843. [Google Scholar] [CrossRef]
  25. Kyriakopoulos, A.; Behne, D. Selenium-containing proteins in mammals and other forms of life. Rev. Physiol. Biochem. Pharmacol. 2002, 145, 1–46. [Google Scholar]
  26. Lu, J.; Holmgren, A. Selenoproteins. J. Biol. Chem. 2009, 284, 723–727. [Google Scholar] [CrossRef]
  27. Rayman, M.P. The importance of selenium to human health. Lancet. 2000, 356, 233–241. [Google Scholar] [CrossRef]
  28. Romashov, L.V.; Ananikov, V.P. Self-Assembled Selenium Monolayers: From Nanotechnology to Materials Science and Adaptive Catalysis. Chem. Eur. J. 2013, 19, 17640–17660. [Google Scholar] [CrossRef]
  29. Wessjohann, L.A.; Schneider, A.; Abbas, M.; Brandt, W. Selenium in chemistry and biochemistry in comparison to sulfur. Biol. Chem. 2007, 388, 997–1006. [Google Scholar] [CrossRef]
  30. Angeli, A.; Tanini, D.; Viglianisi, C.; Panzella, L.; Capperucci, A.; Menichetti, S.; Supuran, C.T. Evaluation of selenide, diselenide and selenoheterocycle derivatives as carbonic anhydrase I, II, IV, VII and IX inhibitors. Bioorg. Med. Chem. 2017, 25, 2518–2523. [Google Scholar] [CrossRef]
  31. Pacuła, A.J.; Kaczor, K.B.; Wojtowicz, A.; Antosiewicz, J.; Janecka, A.; Długosz, A.; Janecki, T.; Ścianowski, J. New glutathione peroxidase mimetics—Insights into antioxidant and cytotoxic activity. Bioorg. Med. Chem. 2017, 25, 126–131. [Google Scholar] [CrossRef] [PubMed]
  32. Lynch, E.D.; Gu, R.; Pierce, C.; Kil, J. Reduction of acute cisplatin ototoxicity and nephrotoxicity in rats by oral administration of allopurinol and ebselen. Hear. Res. 2005, 201, 81–89. [Google Scholar] [CrossRef]
  33. Singh, N.; Sharpley, A.L.; Emir, U.E.; Masaki, C.; Herzallah, M.M.; Gluck, M.A.; Sharp, T.; Harmer, C.J.; Vasudevan, S.R.; Cowen, P.J.; et al. Effect of the Putative Lithium Mimetic Ebselen on Brain Myo-Inositol, Sleep, and Emotional Processing in Humans. Neuropsychopharmacology 2016, 41, 1768–1778. [Google Scholar] [CrossRef]
  34. Thangamani, S.; Younis, W.; Seleem, M.N. Repurposing ebselen for treatment of multidrug-resistant staphylococcal infections. Sci. Rep. 2015, 5, 11596. [Google Scholar] [CrossRef] [PubMed]
  35. Singh, N.; Halliday, A.C.; Thomas, J.M.; Kuznetsova, O.V.; Baldwin, R.; Woon, E.C.Y.; Aley, P.K.; Antoniadou, I.; Sharp, T.; Vasudevan, S.R.; et al. A safe lithium mimetic for bipolar disorder. Nat. Commun. 2013, 4, 1332. [Google Scholar] [CrossRef]
  36. Glenadel, Q.; Ismalaj, E.; Billard, T. Electrophilic Trifluoromethyl- and Fluoroalkylselenolation of Organometallic Reagents. Eur. J. Org. Chem. 2017, 2017, 530–533. [Google Scholar] [CrossRef]
  37. Billard, T.; Langlois, B.R. A new simple access to trifluoromethyl thioethers or selenoethers from trifluoromethyl trimethylsilane and disulfides or diselenides. Tetrahedron Lett. 1996, 37, 6865–6868. [Google Scholar] [CrossRef]
  38. Billard, T.; Large, S.; Langlois, B.R. Preparation of trifluoromethyl sulfides or selenides from trifluoromethyl trimethylsilane and thiocyanates or selenocyanates. Tetrahedron Lett. 1997, 38, 65–68. [Google Scholar] [CrossRef]
  39. Billard, T.; Langlois, B.R.; Large, S. Synthesis of Trifluoromethyl Selenides. Phosphorus Sulfur Silicon Relat. Elem. 1998, 136, 521–524. [Google Scholar] [CrossRef]
  40. Billard, T.; Roques, N.; Langlois, B.R. Synthetic Uses of Thio- and Selenoesters of Trifluoromethylated Acids. 1. Preparation of Trifluoromethyl Sulfides and Selenides. J. Org. Chem. 1999, 64, 3813–3820. [Google Scholar] [CrossRef]
  41. Large, S.; Roques, N.; Langlois, B.R. Nucleophilic Trifluoromethylation of Carbonyl Compounds and Disulfides with Trifluoromethane and Silicon-Containing Bases. J. Org. Chem. 2000, 65, 8848–8856. [Google Scholar] [CrossRef]
  42. Blond, G.; Billard, T.; Langlois, B.R. New stable reagents for the nucleophilic trifluoromethylation. Part 4: Trifluoromethylation of disulfides and diselenides with hemiaminals of trifluoroacetaldehyde. Tetrahedron Lett. 2001, 42, 2473–2475. [Google Scholar] [CrossRef]
  43. Magnier, E.; Vit, E.; Wakselman, C. A Convenient Access to Perfluoroalkyl Selenoethers and Selenyl Chlorides. Synlett 2001, 1260–1262. [Google Scholar] [CrossRef]
  44. Pooput, C.; Medebielle, M.; Dolbier, W.R. A New and Efficient Method for the Synthesis of Trifluoromethylthio- and Selenoethers. Org. Lett. 2004, 6, 301–303. [Google Scholar] [CrossRef]
  45. Pooput, C.; Dolbier, W.R.; Médebielle, M. Nucleophilic Perfluoroalkylation of Aldehydes, Ketones, Imines, Disulfides, and Diselenides. J. Org. Chem. 2006, 71, 3564–3568. [Google Scholar] [CrossRef]
  46. Cherkupally, P.; Beier, P. Alkoxide-induced nucleophilic trifluoromethylation using diethyl trifluoromethylphosphonate. Tetrahedron Lett. 2010, 51, 252–255. [Google Scholar] [CrossRef]
  47. Potash, S.; Rozen, S. General Synthesis of Trifluoromethyl Selenides Utilizing Selenocyanates and Fluoroform. J. Org. Chem. 2014, 79, 11205–11208. [Google Scholar] [CrossRef]
  48. Ma, J.-J.; Yi, W.-B.; Lu, G.-P.; Cai, C. Trifluoromethylation of thiophenols and thiols with sodium trifluoromethanesulfinate and iodine pentoxide. Catal. Sci. Technol. 2016, 6, 417–421. [Google Scholar] [CrossRef]
  49. Nikolaienko, P.; Rueping, M. Trifluoromethylselenolation of Aryldiazonium Salts: A Mild and Convenient Copper-Catalyzed Procedure for the Introduction of the SeCF3 Group. Chem. Eur. J. 2016, 22, 2620–2623. [Google Scholar] [CrossRef]
  50. Kondratenko, N.V.; Kolomeytsev, A.A.; Popov, V.I.; Yagupolskii, L.M. Synthesis and Reactions of Trifluoromethylthio(seleno)- and Pentafluorophenylthio(seleno)-copper. Synthesis 1985, 667–669. [Google Scholar] [CrossRef]
  51. Zhu, P.; He, X.; Chen, X.; You, Y.; Yuan, Y.; Weng, Z. Copper-mediated synthesis of α-trifluoromethylthio- and seleno-α,β-unsaturated carbonyl compounds. Tetrahedron 2014, 70, 672–677. [Google Scholar] [CrossRef]
  52. Rong, M.; Huang, R.; You, Y.; Weng, Z. Synthesis of propargylic and allylic trifluoromethyl selenoethers by copper-mediated trifluoromethylselenolation of propargylic chlorides and allylic bromides. Tetrahedron 2014, 70, 8872–8878. [Google Scholar] [CrossRef]
  53. Chen, C.; Ouyang, L.; Lin, Q.; Liu, Y.; Hou, C.; Yuan, Y.; Weng, Z. Synthesis of CuI Trifluoromethylselenates for Trifluoromethylselenolation of Aryl and Alkyl Halides. Chem. Eur. J. 2014, 20, 657–661. [Google Scholar] [CrossRef]
  54. Chen, C.; Hou, C.; Wang, Y.; Hor, T.S.A.; Weng, Z. Copper-Catalyzed Trifluoromethylselenolation of Aryl and Alkyl Halides: The Silver Effect in Transmetalation. Org. Lett. 2014, 16, 524–527. [Google Scholar] [CrossRef]
  55. Wu, C.; Huang, Y.; Chen, Z.; Weng, Z. Synthesis of vinyl trifluoromethyl selenoethers. Tetrahedron Lett. 2015, 56, 3838–3841. [Google Scholar] [CrossRef]
  56. Wang, Y.; You, Y.; Weng, Z. Alkynyl trifluoromethyl selenide synthesis via oxidative trifluoromethylselenolation of terminal alkynes. Org. Chem. Front. 2015, 2, 574–577. [Google Scholar] [CrossRef]
  57. Lefebvre, Q.; Pluta, R.; Rueping, M. Copper catalyzed oxidative coupling reactions for trifluoromethylselenolations—Synthesis of R-SeCF3 compounds using air stable tetramethylammonium trifluoromethylselenate. Chem. Commun. 2015, 51, 4394–4397. [Google Scholar] [CrossRef]
  58. Hou, C.; Lin, X.; Huang, Y.; Chen, Z.; Weng, Z. Synthesis of β-Trifluoromethylthio- and β-Trifluoromethylseleno-α,β-unsaturated Ketones through Copper-Mediated Trifluoromethylthio(seleno)lation. Synthesis 2015, 47, 969–975. [Google Scholar] [CrossRef]
  59. Aufiero, M.; Sperger, T.; Tsang, A.S.K.; Schoenebeck, F. Highly Efficient C-SeCF3 Coupling of Aryl Iodides Enabled by an Air-Stable Dinuclear PdI Catalyst. Angew. Chem. Int. Ed. 2015, 54, 10322–10326. [Google Scholar] [CrossRef]
  60. Tian, Q.; Weng, Z. A Convenient Process for the Preparation of Heteroaryl Trifluoromethyl Selenoethers. Chin. J. Chem. 2016, 34, 505–510. [Google Scholar] [CrossRef]
  61. Matheis, C.; Wagner, V.; Goossen, L.J. Sandmeyer-Type Trifluoromethylthiolation and Trifluoromethylselenolation of (Hetero)Aromatic Amines Catalyzed by Copper. Chem. Eur. J. 2016, 22, 79–82. [Google Scholar] [CrossRef]
  62. Matheis, C.; Krause, T.; Bragoni, V.; Goossen, L.J. Trifluoromethylthiolation and Trifluoromethylselenolation of α-Diazo Esters Catalyzed by Copper. Chem. Eur. J. 2016, 22, 12270–12273. [Google Scholar] [CrossRef]
  63. Fang, W.-Y.; Dong, T.; Han, J.-B.; Zha, G.-F.; Zhang, C.-P. Expeditious trifluoromethylthiolation and trifluoromethylselenolation of alkynyl(phenyl)iodoniums by [XCF3] (X = S, Se) anions. Org. Biomol. Chem. 2016, 14, 11502–11509. [Google Scholar] [CrossRef]
  64. Wang, J.; Zhang, M.; Weng, Z. A general method for synthesis of Se-trifluoromethyl esters through Iron-catalyzed trifluoromethylselenolation of acid chlorides. J. Fluor. Chem. 2017, 193, 24–32. [Google Scholar] [CrossRef]
  65. Dale, J.W.; Emeleus, H.J.; Haszeldine, R.N. Organometallic and organometalloidal fluorine compounds. Part XIV. Trifluoromethyl derivatives of selenium. J. Chem. Soc. 1958, 2939–2945. [Google Scholar] [CrossRef]
  66. Yarovenko, N.N.; Shemanina, V.N.; Gazieva, G.B. Preparation of hexafluorodimethyl diselenide from salts of trifluoroacetic acid, and some of its properties. Russ. J. Gen. Chem. 1959, 29, 924–927. [Google Scholar]
  67. Glenadel, Q.; Ismalaj, E.; Billard, T. Benzyltrifluoromethyl (or Fluoroalkyl) Selenide: Reagent for Electrophilic Trifluoromethyl (or Fluoroalkyl) Selenolation. J. Org. Chem. 2016, 81, 8268–8275. [Google Scholar] [CrossRef]
  68. Glenadel, Q.; Alazet, S.; Tlili, A.; Billard, T. Mild and Soft Catalyzed Trifluoromethylthiolation of Boronic Acids: The Crucial Role of Water. Chem. Eur. J. 2015, 21, 14694–14698. [Google Scholar] [CrossRef]
Sample Availability: Not available.

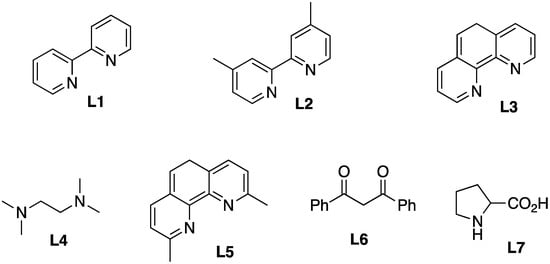

Figure 1. Ligands used in Table 1.
Figure 1. Ligands used in Table 1.
Molecules 22 00833 g001

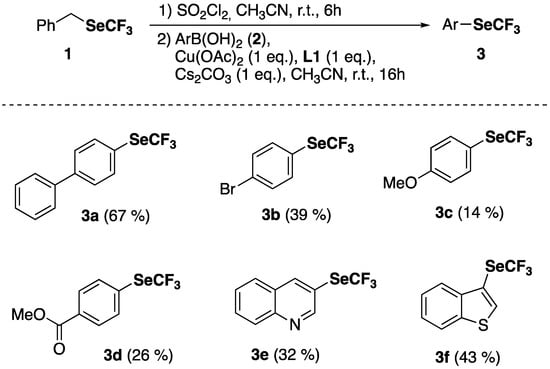

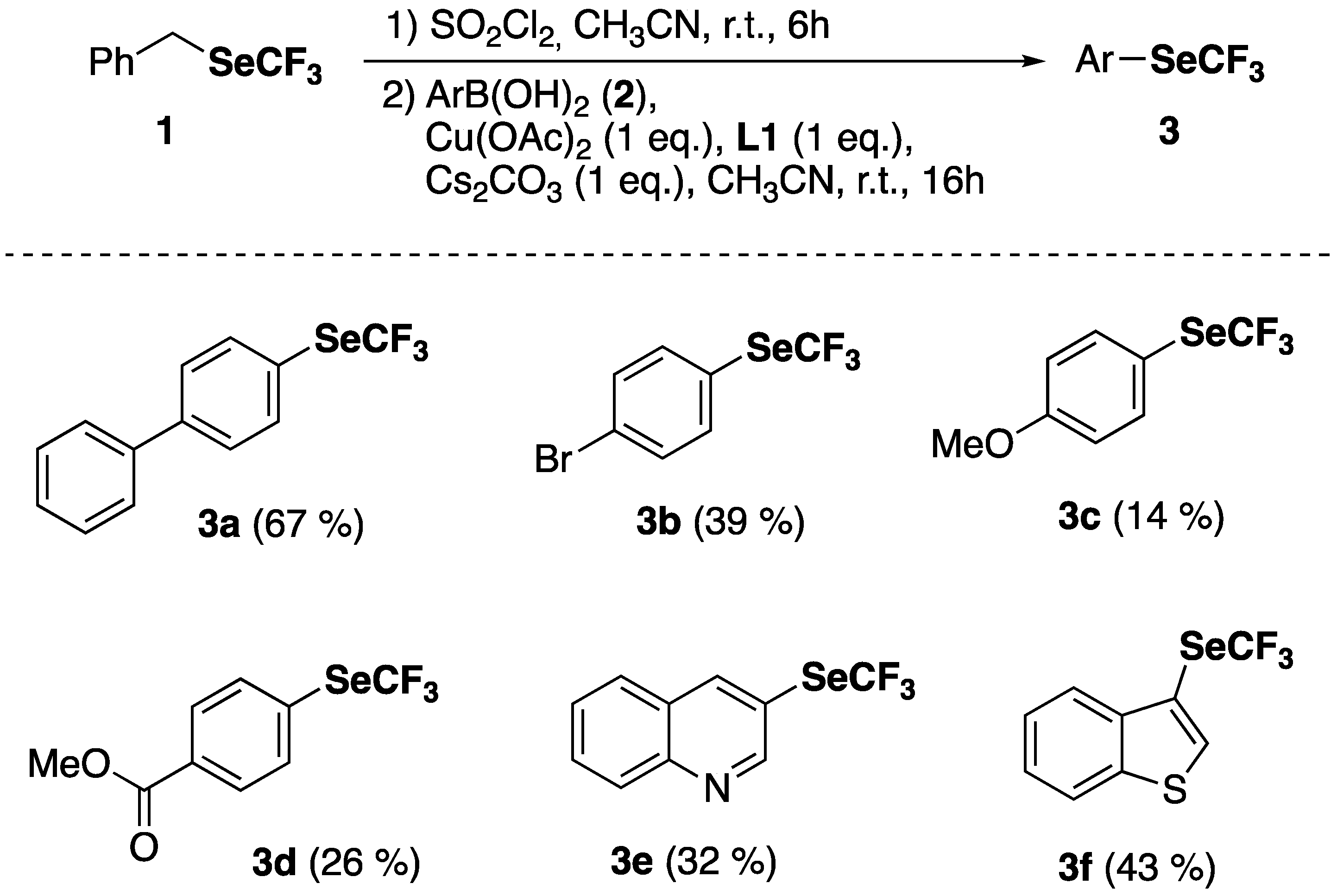

Scheme 1. Trifluoromethylselenolation of aromatic boronic acids. Yields shown are those of the isolated products.
Scheme 1. Trifluoromethylselenolation of aromatic boronic acids. Yields shown are those of the isolated products.
Molecules 22 00833 sch001

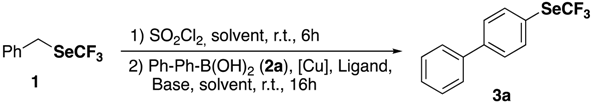

Table 1. Coupling reaction between CF3SeCl, generated in situ, and boronic acid 3a.
Table 1. Coupling reaction between CF3SeCl, generated in situ, and boronic acid 3a.
Molecules 22 00833 i001
Entry[Cu]Ligand aBaseSolvent3a (%) b
1CuI (1 eq.)L1 (2 eq.)K2CO3 (1 eq.)CH3CN5
2Cu(OAc)2 (1 eq.)L1 (2 eq.)K2CO3 (1 eq.)CH3CN23
3Cu(OAc)2 (1 eq.)L1 (2 eq.)-CH3CN0
4Cu(OAc)2 (1 eq.)-K2CO3 (1 eq.)CH3CN4
5Cu(OAc)2 (1 eq.)L1 (1 eq.)K2CO3 (1 eq.)CH3CN40
6Cu(OAc)2 (1 eq.)L2 (1 eq.)K2CO3 (1 eq.)CH3CN14
7Cu(OAc)2 (1 eq.)L3 (1 eq.)K2CO3 (1 eq.)CH3CN3
8Cu(OAc)2 (1 eq.)PPh3 (1 eq.)K2CO3 (1 eq.)CH3CN0
9Cu(OAc)2 (1 eq.)L4 (1 eq.)K2CO3 (1 eq.)CH3CN6
10Cu(OAc)2 (1 eq.)L5 (1 eq.)K2CO3 (1 eq.)CH3CN3
11Cu(OAc)2 (1 eq.)L6 (1 eq.)K2CO3 (1 eq.)CH3CN0
12Cu(OAc)2 (1 eq.)L7 (1 eq.)K2CO3 (1 eq.)CH3CN0
13Cu(OAc)2 (1 eq.)L1 (1 eq.)Cs2CO3 (1 eq.)CH3CN70
14Cu(OAc)2 (1 eq.)L1 (1 eq.)K3PO4 (1 eq.)CH3CN48
15Cu(OAc)2 (1 eq.)L1 (1 eq.)CsF (1 eq.)CH3CN6
16Cu(OAc)2 (1 eq.)L1 (1 eq.)Et3N (1 eq.)CH3CN0
17Cu(OAc)2 (1 eq.)L1 (1 eq.)Pyridine (1 eq.)CH3CN0
18 cCu(OAc)2 (1 eq.)L1 (1 eq.)Cs2CO3 (1 eq.)CH3CN37
19Cu(OAc)2 (0.2 eq.)L1 (0.2 eq.)Cs2CO3 (1 eq.)CH3CN56
20Cu(OAc)2 (0.2 eq.)L1 (0.4 eq.)Cs2CO3 (1 eq.)CH3CN50
21 cCu(OAc)2 (0.2 eq.)L1 (0.2 eq.)Cs2CO3 (1 eq.)CH3CN-
22 dCu(OAc)2 (0.2 eq.)L1 (0.2 eq.)Cs2CO3 (1 eq.)CH3CN60
a See Figure 1 for ligand structures. b Yield was determined by 19F-NMR spectroscopy by using PhOCF3 as an internal standard. c 50 °C instead of r.t. d Addition of 7 eq. of H2O.
