Molecules 2017, 22(12), 2278; doi:10.3390/molecules22122278

Communication
A Water Cluster Conduit in Crystal
School of Chemical Engineering and Pharmaceutics, Henan University of Science and Technology, Luoyang 471023, China
*
Author to whom correspondence should be addressed.
Received: 25 October 2017 / Accepted: 14 December 2017 / Published: 20 December 2017

Abstract

:
The crystal structure of compound (1), [CuCl(phen)(H2NCH2COO)]∙4H2O, reveals an unusual hydrogen-bond water cluster aggregate T6(2)6(2). Four water molecules in (1) form an isolated water cluster, [(H2O)14]n, resembling a “phenanthro-[1,2]phenanthrene polymer structure shape” along the ac plane. The two face-face parallel [(H2O)14]n planes are bridged by Cl atoms in [CuCl(phen) (H2NCH2COO)] with a strong O-H∙∙∙Cl hydrogen bond to form a water cluster conduit.
Keywords:
glycine; water cluster; nanometer sized; crystal; hydrogen-bond

1. Introduction

Water is the most abundant compound on Earth, and is very difficult to eliminate from other solvents (even when there is no water in the synthesis steps). Furthermore, it is not present in the solvents used for crystallization where hydrates can be obtained. The presence of water molecules in any crystal structure can play an important role in stabilizing some supramolecular species, as the number of hydrogen bond acceptors and donors can differ from those of anhydrous compounds [1,2]. Structural studies on discrete water clusters within the lattice of a crystal host have significantly advanced our understanding of the behavior of bulk water [3,4,5,6]. Elucidating the assembly of discrete water aggregates, and understanding how water aggregates interact with a crystal host, are still challenging scientific endeavors [7,8,9,10,11,12,13]. A number of water oligomers have been extensively studied using X-ray diffraction methods [14,15,16,17,18,19,20,21,22,23,24]. The aggregation of lattice water molecules in crystals, into hydrogen-bonded clusters as well as infinite networks, has generated considerable interest [25,26,27,28,29,30,31,32,33,34]. Infantes et al. [35,36] examined about 1400 hydrated structures, retrieved from the Cambridge Structural Database (CSD), and performed classifications of water/water motifs, using statistics regarding their relative frequencies. The established classification system is as follows: D (discrete chain), R (discrete rings), C (infinite chains), T (infinite tapes), and L (infinite layers). In Reference [37], a proper analysis was lacking, which should be done when reporting any new water morphologies in a crystal lattice. With this in mind, and with the help of the Cambridge Crystallographic Data Centre (CCDC), we performed a Cambridge Structural Database (CSD) search for the phenanthrene structure-shaped motif with 14 water molecules, of which the aggregate is T6(2)6(2). We did not find any phenanthrene structure-shaped patterns in CCDC. Therefore, there is presently no structural information available for a discrete, phenanthrene structure-shaped (H2O)14 cluster, nor for its participation in the stabilization of a suramolecular assembly. In this paper, we report on an unusual hydrogen-bond water cluster, [(H2O)14]n, which can form nanometer-sized water cluster conduits (with a diameter of about 12.034 Å) using a strong O-H∙∙∙Cl hydrogen bond.

2. Results

CuCl2·2H2O (1.70 g, 0.01 mol) was added to a heat solution (80~90 °C) of glycine (H2NCH2COOH) (0.75 g, 0.01 mol) and NaOH (0.40 g, 0.01 mol) in 40 mL of water. The reaction mixture was stirred at about 90 °C for 10 min. Then phenanthroline (3.55 g, 0.02 mol) was added, and the solution was stirred for another 4~5 h at about 90 °C. After filtering out the precipitate, the resulting solution was left to stand undisturbed. Upon slow evaporation at room temperature, blue crystals were obtained from the mother liquor. They were all collected, dried, and submitted for elemental analysis. The compound (1) was achieved with a yield of 75%. The single crystals X-ray confirmed that the blue crystal was [CuCl(phen)(H2NCH2COO)]∙4H2O (1). The elemental analysis supports this formulation.
Figure 1 shows the hydrogen bond interaction between [CuCl(phen) (H2NCH2COO)] and the water cluster [(H2O)14]n, and view of the water-chloride T12(3) aggregate. Figure 2 shows the nanometer-sized water cluster conduit. Table 1 and Table 2 list the hydrogen bonds and π-π interactions, respectively.

3. Discussion

The compound (1) contains one [CuCl(phen) (H2NCH2COO)] and four water molecules. There is no obvious bonding interaction between the [CuCl(phen)(H2NCH2COO)] groups with the shortest distance of Cu∙∙∙Cu 7.010(1) Å (Figure 1, left). The coordination environments of each Cu(II) atom is pentacoordinated with three N atoms from phenanthroline ligands and NH2 of glycine, one O atom from carboxy of glycine, and one Cl atom in a distorted square pyramidal geometry. Three nitrogen atoms and one oxygen atom occupy the basal sites with Cu-N distances of 2.000(5)~2.028(5) Å and Cu-O distances of 1.950(4) Å. The coordinated chloride occupies the apical position with Cu(1)-Cl(1) distances of 2.577(2) Å. The bite angle of chelating glycine and phenanthroline ligands O(1)-Cu(1)-N(3) and N(1)-Cu(1)-N(2) is 83.8(2)° and 81.9(2)°, respectively. The Cu atom with the phenanthroline ligand are quite planar, and the maximum atom deviation from the least squares plane is 0.039(3) Å. The glycine ligand with the Cu atom is nearly planar, with the largest deviation of 0.203(1) Å for O(2). The dihedral angle between the glycine moiety and phenanthroline group is 11.58°. In the crystal building, the [CuCl(phen)(H2NCH2COO)] is held together by means of face-to-face π-π interactions among the aromatic phenanthroline ligands and a glycine Cu five-membered chelating ring to form layers parallel to the ac plane.
It is especially interesting to note that four water molecules in compound (1) form a water cluster, [(H2O)14]n. To best our knowledge, this T6(2)6(2) aggregate represents a new water cluster structure, which has not been reported before [35,36,37]. The water cluster [(H2O)14]n units are strongly held together by O-H∙∙∙O interactions with the O∙∙∙O distance ranging from 2.408 to 2.755 Å (average: 2.612 Å) and the O∙∙∙O∙∙∙O angle ranging from 98.80° to 133.00° (average: 117.58°). These values are comparable to the values in ice Ih [38]. The water molecules O3w and O4w on the C2 symmetry create C4 infinite chains, and the O1w and O2w are linked to O3w and O4w molecules, respectively, to form a “phenanthrene structure shape”. There is a pair of independent water cluster polymers in compound 1. Each water layer is almost planar, with the largest atom deviation from the least squares plane of water cluster being 0.736 Å for one and 0.747 Å for the other, respectively (Supplementary Materials Figure S5). The dihedral angle between the two adjacent water cluster planes is 30.50°. The distances of the parallel water cluster plane are about 12.0 Å (Supplementary Materials Figure S6). It should be noted that the isolated water cluster [(H2O)14]n forms a similar geometry configuration to that of “phenanthro-[1,2]phenanthrene polymer”. Also, there are three longer bonds (2.755, 2.753, and 2.742 Å) and three shorter bonds (2.408, 2.410, and 2.607 Å) in the hexamer unit.
The two adjacent infinite water cluster polymers, [(H2O)14]n, are linked by a strong O-H∙∙∙Cl hydrogen bond [39]. The Cl atom in the [CuCl(phen) (H2NCH2COO)] group joins the two adjacent water clusters with the distance of Cl∙∙∙O1w 3.080 Å and Cl∙∙∙O2w 3.223 Å, and the angle of O1w∙∙∙Cl∙∙∙O2w 48.85°, respectively (Figure 1, right). If we consider an extended motif, the four water molecules (2O1w, O2w, O3w, and O4w) in the T6(2)6(2) water aggregate and chloride generates a cyclic motif T12(3). These water-chloride aggregate to join the two face-face parallel infinite water cluster polymers, forming a nanometer-sized water cluster conduit (Figure 2). The diameter of the water cluster conduit is about 12.0 Å. The strong hydrogen-bonding ability of the Ow∙∙∙Cl linker employed here plays a crucial role in promoting and stabilizing the aggregation of the water channel, thereby leading to the infinite nanometer-sized water cluster conduit in the crystal structure.
There are some intermolecular hydrogen bonds between the amino-group and carboxy group in [CuCl(phen)(H2NCH2COO)] and water clusters [(H2O)14]n. The donor and acceptor distances are O1w∙∙∙O1 2.921 Å, O1w∙∙∙O2 3.005 Å, and O2w∙∙∙N3 3.043 Å, respectively. Compared with the interior hydrogen bond in water cluster polymers, the exterior ones are easily separated, which reflects the relatively weak interactions. The hydrogen-bonding parameters give more evidence about the stability of water cluster polymers. The average Ow∙∙∙Ow separation of 2.612 Å in a water cluster polymer is significantly shorter than the average O∙∙∙Ow and N∙∙∙Ow separation of 2.990 Å.
To gain more insight into the properties relative to water clusters, the dehydration behavior of compound (1) was investigated using thermogravimetric analysis. The TG and DTG curves of compound (1) are shown in Figure 3. The first step (58 °C–80 °C) corresponds to the loss of one water molecule with the heat-absorption peaks (found 4.35% calc. 4.23%). The second step, occurring between 160 °C and 260 °C, corresponds to the loss of another water molecule (found 4.24% calc. 4.23%). The third step, between 300 °C and 400 °C, corresponds to the decomposition of the other two water molecules and the anion H2NCH2COO. The residual compound is perhaps CuCl(phen)(HCOO) (found 14.84% calc. 14.34%). Above 450 °C, there are larger errors between the calculated values and the tested values, which, on the one hand, may be due to experimental error, and on the other hand, may be due to the decomposing debris of molecules.

4. Materials and Methods

The C, H, and N elemental analyses were performed on a Perkin-Elmer elemental analyzer. Crystals data were collected on an Enraf-Nonius CAD-4 diffractometer with graphite monochromated Mo Kα radiation (λ = 0.71073 Å). Intensities were corrected for Lorentz and polarization effects and empirical absorption, and data reduction was carried out. The structure was analyzed by the direct method. These data can be observed at the Cambridge Crystallographic Data Center via www.ccdc.cam.ac.uk/data-request/cif. The CCDC number is 644280.
A typical experimental procedure for compound (1) is below: Cupric chloride, sodium hydroxide, H2NCH2COOH, phenanthroline, and other chemical reagents were obtained from commercial sources and used without further purification. To a 100-mL flask, 0.01 mol of CuCl2∙2H2O (1.70 g), 0.01 mol of NaOH (0.40 g), and 0.01 mol H2NCH2COOH (0.75 g) in 40 mL of deionized water, as well as 0.20 mol (3.55 g) of phenanthroline in 20 mL of ethanol was added while stirring at a temperature 80~90 °C. The reaction was maintained for 4~5 h until the solution to clarification, following which the solution was filtered. After filtering out the precipitate, the resulting solution was allowed to stand at room temperature. Deep blue single crystals suitable for X-ray measurements were obtained over one week. From the element analysis below and the single crystal X-ray, we concluded that the compound (1) is [CuCl(phen)(H2NCH2COO)]∙4H2O. Anal. Calc. for C40H56Cl2Cu2N8O13: C, 39.50%; H, 4.70%; N, 9.87%, Cu; 14.93%, Cl, 8.35%; O, 22.57%. Found: C, 39.32%; H, 4.80%; N, 9.68%.

5. Conclusions

In summary, a water cluster conduit in [CuCl(phen)(H2NCH2COO)]∙4H2O crystal was assembled. The water cluster aggregate mode, T6(2)6(2), and water-chloride extended aggregate mode, T12(3), have not been predicted theoretically nor previously reported experimentally. We also found that this structure of water cluster polymer was much like that of the phenanthro-[1,2]phenanthrene polymer in configuration. Water molecules, which have two hydrogen atoms and two lone pairs enabling them to participate in four hydrogen bonds in a tetrahedral arrangement, may be comparable with carbon sp3 covalent chemistry, and form various geometry structures, similar to the carbon atom. This new structural data definitely enhances the understanding of the one-dimensional and two-dimensional structural aspects of water.

Supplementary Materials

The supplementary materials are available online.

Author Contributions

Fangfang Jian conceived and designed the experiments and wrote the paper; E Liu performed the experiments and analyzed the data; Jiao Xu contributed references; all authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Desiraju, G.R. Hydration in organic crystals: Prediction from molecular structure. J. Chem. Soc. Chem. Commun. 1991, 6, 426–428. [Google Scholar] [CrossRef]
  2. Son, H.S.; Hong, B.H.; Lee, C.-W.; Yun, S.; Kim, K.S. A new type of helix pattern in polyalanine peptide. J. Am. Chem. Soc. 2001, 123, 514–515. [Google Scholar] [CrossRef] [PubMed]
  3. Atwood, J.L.; Barbour, L.J.; Ness, T.J.; Raston, C.L.; Raston, P.L. A well-resolved ice-like (H2O)8 cluster in an organic supramolecular complex. J. Am. Chem. Soc. 2001, 123, 7192–7193. [Google Scholar] [CrossRef] [PubMed]
  4. Doedens, R.J.; Yohannes, E.; Khan, M.I. Novel water clusters in the crystalline state: Structures of a symmetrical, cyclic hexamer and an ‘opened-cube’ octamer. Chem. Commun. 2002, 1, 62–63. [Google Scholar] [CrossRef]
  5. Moorthy, J.N.; Natarajan, R.; Venugopalan, P. Characterization of a planar cyclic form of water hexamer in an organic supramolecular complex: An unusual self-assembly of bimesityl-3,3’-dicarboxylic acid. Angew. Chem. Int. Ed. 2002, 41, 3417–3420. [Google Scholar] [CrossRef]
  6. Ghosh, S.K.; Bharadwaj, P.K. A dodecameric water cluster built around a cyclic quasiplanar hexameric core in an organic supramolecular complex of a cryptand. Angew. Chem. Int. Ed. 2004, 43, 3577–3580. [Google Scholar] [CrossRef] [PubMed]
  7. Sun, D.; Xu, H.R.; Yang, C.F.; Wei, Z.H.; Zhang, N.; Huang, R.B.; Zheng, L.S. Encapsulated Diverse Water Aggregates in Two Ag(l)/4,4’-Bicarboxylate Hosts: 1D Water Tape and Chain. Cryst. Growth Des. 2010, 10, 4642–4649. [Google Scholar] [CrossRef]
  8. Luo, G.G.; Xiong, H.B.; Dai, J.C. Syntheses, Structural Characterization, and Properties of {[Cu(bPP)2(H2O)2](tp)center dot 7H2O} and {[Cu(bPP)2(H2O)](ip)center dot 7H2O} Complexes. New Examples of the ORGANIC anionic Template Effect on Induced Assembly of Water Clusters (bpp=1,3-Bis(4-pyridyl)propane,tp=Terephthalate,ip=isophthalate). Cryst. Growth Des. 2011, 11, 507–515. [Google Scholar]
  9. Luo, G.G.; Xiong, H.B.; Sun, D.; Wu, D.L.; Huang, R.B.; Dai, J.C. A Discrete spirocyclic (H2O)(9) Cluster and 1D Novel Water with Chain Tetrameric and Octameric Clusters in Cationic Hosts. Cryst. Growth Des. 2011, 11, 1948–1956. [Google Scholar] [CrossRef]
  10. Luo, G.G.; Wu, D.L.; Wu, J.H.; Xia, J.X.; Liu, L.; Dai, J.C. Direct observation of conformational change of adipate dianions encapsulated in water clusters. CrystEngComm 2012, 14, 5377–5380. [Google Scholar] [CrossRef]
  11. Buck, U.; Huisken, F. Infrared Spectroscopy of Size-Selected Water and Methanol Clusters. Chem. Rev. 2000, 100, 3863–3890. [Google Scholar] [CrossRef] [PubMed]
  12. Head-Gordon, T.; Hura, G. Water structure from scattering experiments and simulation. Chem. Rev. 2002, 102, 2651–2669. [Google Scholar] [CrossRef] [PubMed]
  13. Das, M.C.; Maity, S.B.; Bharadwaj, P.K. Supramolecular association of water molecules forming discrete clusters in the voids of coordination polymers. Curr. Opin. Solid State Mater. Sci. 2009, 13, 76–90. [Google Scholar] [CrossRef]
  14. Zuhayra, M.; Kampen, W.U.; Henze, E.; Soti, Z.; Zsolnai, L.; Huttner, G.; Oberdorfer, F. A planar water tetramer with tetrahedrally coordinated water embedded in a hydrogen bonding network of [Tc4(CO)12-(mu3-OH)4∙4H2O]. J. Am. Chem. Soc. 2006, 128, 424–425. [Google Scholar] [CrossRef] [PubMed]
  15. Long, L.-S.; Wu, Y.-R.; Huang, R.-B.; Zheng, L.-S. A well-resolved uudd cyclic water tetramer in the crystal host of [Cu(adipate)(4,4-bipyridine)]∙(H2O)2. Inorg. Chem. 2004, 43, 3798–3800. [Google Scholar] [CrossRef] [PubMed]
  16. Pal, S.; Sankaran, N.B.; Samanta, A. Structure of a self-assembled chain of water molecules in a crystal host. Angew. Chem. Int. Ed. 2003, 42, 1741–1743. [Google Scholar] [CrossRef] [PubMed]
  17. Saha, B.K.; Nangia, A. First example of an ice-like water hexamer boat tape structure in a supramolecular organic host. Chem. Commun. 2006, 1825–1827. [Google Scholar] [CrossRef] [PubMed]
  18. Custelcean, R.; Afloroaei, C.; Vlassa, M.; Polverejan, M. Formation of Extended Tapes of Cyclic Water Hexamers in an Organic Molecular Crystal Host. Angew. Chem. Int. Ed. 2000, 39, 3094–3096. [Google Scholar] [CrossRef]
  19. Ye, B.-H.; Ding, B.-B.; Weng, Y.-Q.; Chen, X.-M. Formation of one-dimensional metal-water chain containing cyclic water hexamers. Inorg. Chem. 2004, 43, 6866–6868. [Google Scholar] [CrossRef] [PubMed]
  20. Bharadwaj, P.K. Coexistence of Water Dimer and Hexamer Clusters in 3D Metal-Organic Framework Structures of Ce(III) and Pr(III) with Pyridine-2,6-dicarboxylic Acid. Inorg. Chem. 2003, 42, 8250–8254. [Google Scholar]
  21. Mukhopadhyay, U.; Bernal, I. Self-Assembled Hexameric Water Clusters Stabilized by a Cyano-Bridged Trimetallic Complex. Cryst. Growth Des. 2005, 5, 1687–1689. [Google Scholar] [CrossRef]
  22. Tadokoro, M.; Fukui, S.; Kitajima, T.; Nagao, Y.; Ishimaru, S.; Kitagawa, H.; Isobe, K.; Nakasuji, K. Structures and phase transition of multi-layered water nanotube confined to nanochannels. Chem. Commun. 2006, 1274–1276. [Google Scholar] [CrossRef] [PubMed]
  23. Ma, B.-Q.; Sun, H.-L.; Gao, S. Observation of an octameric water cluster containing a book-shaped hexamer in a 4f-3d complex. Chem. Commun. 2005, 2336–2338. [Google Scholar] [CrossRef] [PubMed]
  24. Liao, Y.-C.; Jiang, Y.-C.; Wang, S.-L. Discrete water hexamers and template-assisted molecular recongnition in an elastic zincophosphate lattice. J. Am. Chem. Soc. 2005, 127, 12794–12795. [Google Scholar] [CrossRef] [PubMed]
  25. Keutsch, F.N.; Cruzan, J.D.; Saykally, R.J. The Water Trimer. Chem. Rev. 2003, 103, 2533–2578. [Google Scholar] [CrossRef] [PubMed]
  26. Carballo, R.; Covelo, B.; Lodeiro, C.; Vazquez-Lopez, E.M. One-dimensional fluorescent stacking structure based on zinc mixed-complex salt encapsulated within an ‘ice-like’ three-dimensional hydrogen-bonded water network. CrystEngComm 2005, 7, 294–296. [Google Scholar] [CrossRef]
  27. Sreenivasulu, B.; Vittal, J.J. Helix inside a Helix: Encapsulation of Hydrogen-Bonded Water Molecules in a Staircase Coordination Polymer. Angew. Chem. Int. Ed. 2004, 43, 5769–5772. [Google Scholar] [CrossRef] [PubMed]
  28. Kim, H.-J.; Jo, H.J.; Kim, J.; Kim, S.-Y.; Kim, D.; Kim, K. Supramolecular self-assembly of tin(IV) porphyrin channels stabilizing single-file chains of water molecules. CrystEngComm 2005, 7, 417–420. [Google Scholar] [CrossRef]
  29. Cheruzel, L.E.; Pometun, M.S.; Cecil, M.R.; Mashuta, M.S.; Wittebort, R.J.; Buchanan, R.M. Structures and Solid-State Dynamics of One-Dimensional Water Chains Stabilized by Imidazole Channels. Angew. Chem. Int. Ed. 2003, 42, 5452–5455. [Google Scholar] [CrossRef] [PubMed]
  30. Mukherjee, A.; Saha, M.K.; Nethaji, M.; Chakravarty, A.R. Helical supramolecular host with aquapores anchoring alternate molecules of helical water chains. Chem. Commun. 2004, 716–717. [Google Scholar] [CrossRef] [PubMed]
  31. Neogi, S.; Bharadwaj, P.K. An Infinite Water Chain Passes through an Array of Zn(II) Metallocycles Built with a Podand Bearing Terminal Carboxylates. Inorg. Chem. 2005, 44, 816–818. [Google Scholar] [CrossRef] [PubMed]
  32. Liu, Q.-Y.; Xu, L. (H2O)12-containing infinite chain encapsulated in supramolecular open framework built of cadmium(II), 1,3-di(4-pyridyl)propane and 5-sulfoisophthalic acid monosodium salt. CrystEngComm 2005, 7, 87–89. [Google Scholar] [CrossRef]
  33. Assaf, K.I.; Ural, M.S.; Pan, F.F.; Georgiev, T.; Simova, S.; Rissanen, K.; Gabel, D.; Nau, W.M. Water Structure Recovery in Chaotropic Anion Recognition: High-Affinity Binding of Dodecaborate Clusters to γ-Cyclodextrin. Angew. Chem. Int. Ed. 2015, 54, 6956–6960. [Google Scholar] [CrossRef]
  34. Neogi, S.; Savitha, G.; Bharadwaj, P.K. Structure of Discrete (H2O)12 Clusters Present in the Cavity of Polymeric Interlinked Metallocycles of Nd(III) or Gd(III) and a Podand Ligand. Inorg. Chem. 2004, 43, 3771–3773. [Google Scholar] [CrossRef] [PubMed]
  35. Infantes, L.; Chisholm, J.; Motherwell, S. Extended motifs from water and chemical functional groups in organic molecular crystals. CrystEngComm 2003, 5, 480–486. [Google Scholar] [CrossRef]
  36. Infantes, L.; Motherwell, S. Water clusters in organic molecular crystals. CrystEngComm 2002, 4, 454–461. [Google Scholar] [CrossRef]
  37. Mascal, M.; Infantes, L.; Chisholm, J. Water Oligomers in Crystal Hydrates—What’s News and What Isn’t? Angew. Chem. Int. Ed. 2006, 45, 32–36. [Google Scholar] [CrossRef] [PubMed]
  38. Eisenberg, D.; Kauzmann, W. The Structure and Properties of Water; Oxford University Press: New York, NY, USA, 1969. [Google Scholar]
  39. Banerjee, S.; Murugavel, R. Formation of One-Dimensional Water Inside an Organic Solid: Supramolecular Architectures Derived by the Interaction of Aminobenzoic Acids with Nitrogen Bases and H2SO4. Cryst. Growth Des. 2004, 4, 545–552. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compound [CuCl(phen)(H2NCH2COO)]∙4H2O are available from the authors.

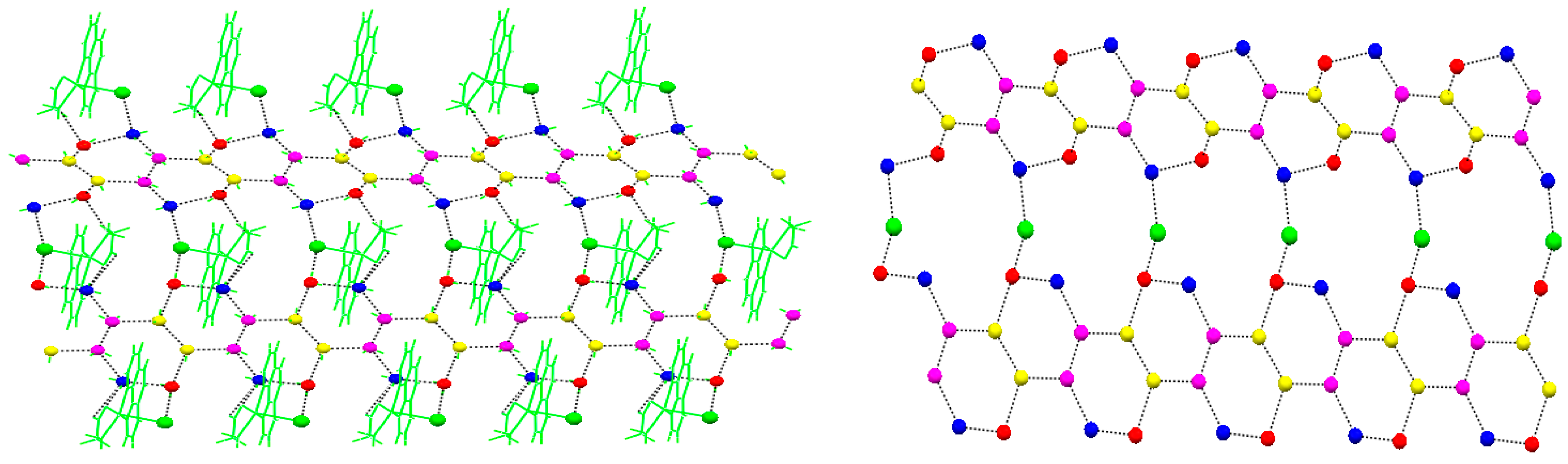

Figure 1. (Left) Depicting the hydrogen bond interaction of [CuCl(phen) (H2NCH2COO)] with the water cluster; (Right) View of the water–chloride T12(3) aggregate. The water clusters and Cl atoms are depicted as a ball and stick model for clarity. Colors are as follows: blue, O1w; red, O2w; pink, O3w; yellow, O4w; black dashed, hydrogen bond; green and capped stick, [CuCl(phen)(H2NCH2COO)] group and hydrogen atom.
Figure 1. (Left) Depicting the hydrogen bond interaction of [CuCl(phen) (H2NCH2COO)] with the water cluster; (Right) View of the water–chloride T12(3) aggregate. The water clusters and Cl atoms are depicted as a ball and stick model for clarity. Colors are as follows: blue, O1w; red, O2w; pink, O3w; yellow, O4w; black dashed, hydrogen bond; green and capped stick, [CuCl(phen)(H2NCH2COO)] group and hydrogen atom.
Molecules 22 02278 g001

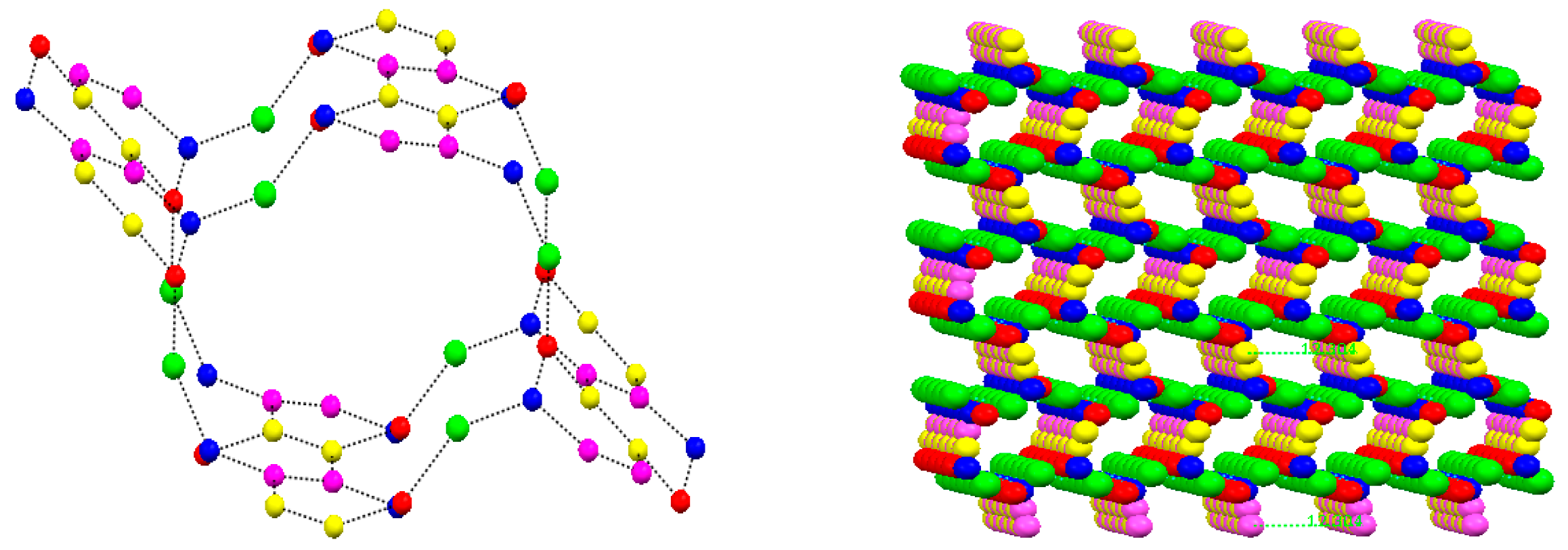

Figure 2. (Left) The formation of the water cluster cavity; (Right) View of the nanometer-sized water cluster conduit in the a axis. The Cl atoms are detained and [CuCl(phen) (H2NCH2COO)] is omitted for clarity. Colors are as follows: blue, O1w; red, O2w; pink, O3w; yellow, O4w; Green, Cl atom.
Figure 2. (Left) The formation of the water cluster cavity; (Right) View of the nanometer-sized water cluster conduit in the a axis. The Cl atoms are detained and [CuCl(phen) (H2NCH2COO)] is omitted for clarity. Colors are as follows: blue, O1w; red, O2w; pink, O3w; yellow, O4w; Green, Cl atom.
Molecules 22 02278 g002

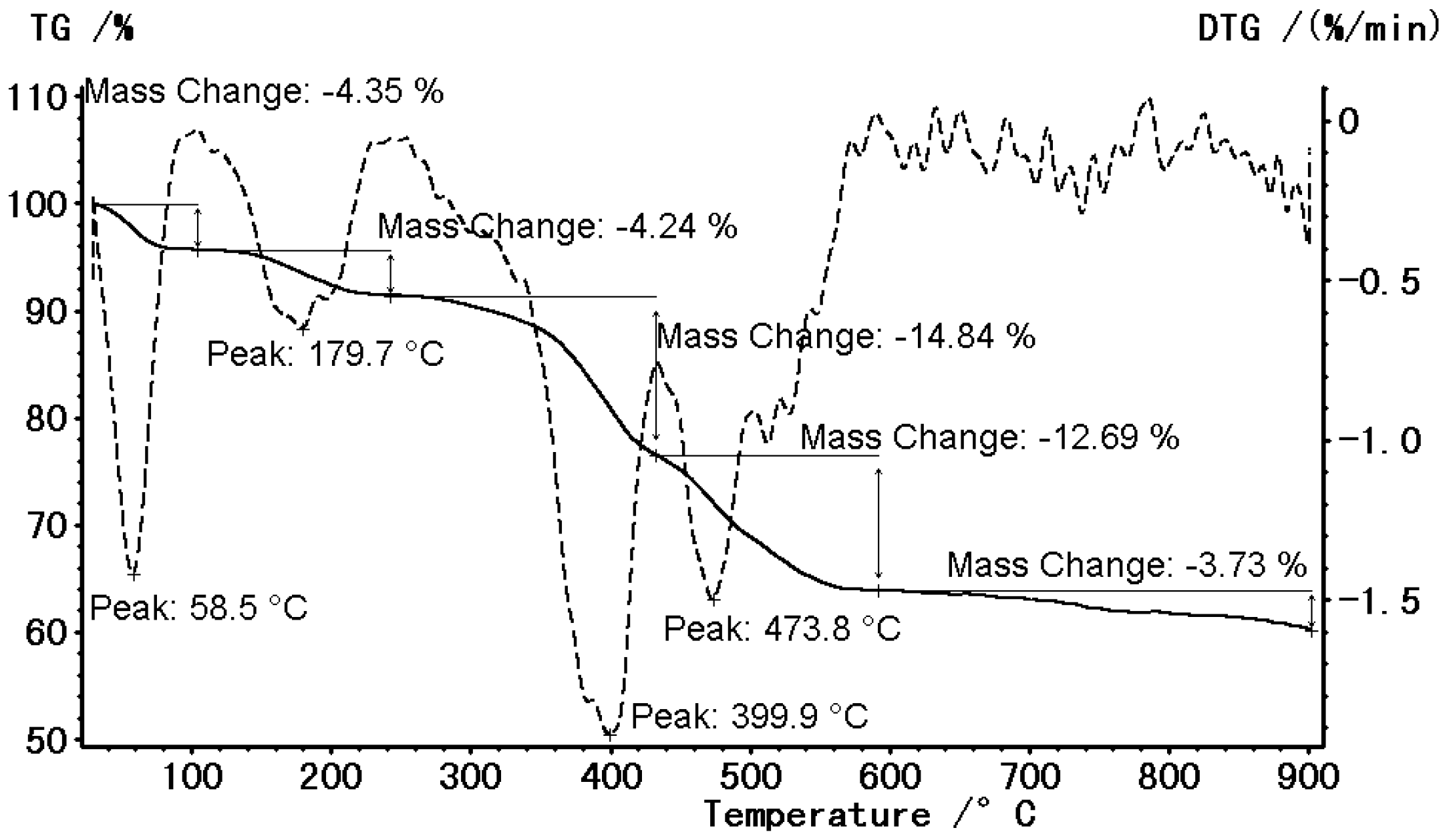

Figure 3. TG and DTG analysis for compound (1).
Figure 3. TG and DTG analysis for compound (1).
Molecules 22 02278 g003
Table 1. Geometrical parameters of hydrogen bonds (Å, deg) for the water cluster.
Table 1. Geometrical parameters of hydrogen bonds (Å, deg) for the water cluster.
LengthAngle
O1w-O12.920(1)O2w F…O1w…O3w C114.39
O1w-O23.005(1)O2w F…O1w…O184.88
O1w-Cl(1) A3.080(2)O2w F…O1w…O2109.56
O1w-O3w C2.757(1)O2w F…O1w…Cl(1) A99.34
O2w-O1w B2.743(1)O3w C…O1w…O196.28
O2w-O4w C2.754(1)O3w C…O1w…O2115.53
N3-O2w C3.043O3w C…O1w…Cl(1) A126.05
O2w B-Cl(1)3.223(1)O1w B…O2w…O4w C98.83
O3w-O4w2.403(1)O1w B…O2w…N3 C94.22
O3w-O3w D2.412(1)O1w B…O2w…Cl(1) B103.79
O4w-O4w E2.608(1)O4w C…O2w…N3 C91.39
Symmetry code: A, −x, −1/2 + y, 1/2 − z; B, 1 + x, y, z; C, 1 − x, −1/2 + y, 1/2 − z; D, 1 − x, 1 − y, −z; E, −x, 1 − y, z; F, −1 + x, y, z.
Table 2. π-π interactions (face-to-face) in complex (1) a.
Table 2. π-π interactions (face-to-face) in complex (1) a.
Ring(i)→Ring(j)/CDistance between the (i,j) Ring Centroids (Å)Dihedral Angle (i,j) (Deg)Distance of Centroid (i) from Ring (j) (Å)
R1R4 i3.5280.673.354
R2R33.6182.103.379
R2R4 ii3.8440.923.372
R2R4 i3.5880.923.379
R4R4 ii3.5280.673.389
R4R4 i3.8650.003.389
a Symmetry code: (i) = −x, 1 − y, 1 − z; (ii) = 1 − x, 1 − y, 1 − z. R(i)/R(j) denotes the ith/jth rings of phen: R(1) = Cu(1)/N(1)/C(12)/C(11)/N(2); R(2) = N(1)/C(1)/C(2)/C(3)/C(4)/C(12); R(3) = N(2)/C(10)/C(9)/C(8)/C(7)/C(11); R(4) = C(4)/C(5)/C(6)/C(7)/C(11)/C(12).
