Open AccessArticle

Synthesis of Novel UV Absorbers Bisindolylmethanes and Investigation of Their Applications on Cotton-Based Textile Materials

1
Sanko Holding, ISKO Division, Organize Sanayi Bölgesi, 3. Cadde, İnegöl, Bursa 16400, Turkey
2
Department of Chemistry, Faculty of Art and Sciences, Yildiz Technical University, Davutpasa Campus, Esenler, Istanbul 34220, Turkey
*
Author to whom correspondence should be addressed.
Academic Editor: Wim Dehaen
Molecules 2016, 21(6), 718; https://doi.org/10.3390/molecules21060718
Received: 14 April 2016 / Revised: 25 May 2016 / Accepted: 27 May 2016 / Published: 3 June 2016
(This article belongs to the Collection Heterocyclic Compounds)

Abstract

Nowadays modified textiles, especially UV-protective, antibacterial and antimicrobial ones, have become the focus of great interest. In this study, several new UV absorbers, bis(indolyl)methane derivatives, were synthesized and grafted onto polyvinyl alcohol polymer (PVA). Their application properties on cotton-based textile materials were determined; the UV protection factor values of the modified fabrics were measured (UPF); and the antibacterial features of the fabrics were tested.
Keywords: UV protection; indolyl compounds; textile applications UV protection; indolyl compounds; textile applications

1. Introduction

As a consequence of ozone layer deterioration, more UV radiation reaches the Earth’s surface, a major part of which is destructive to human health. It is known that long-term exposure to UV radiation causes harmful effects on the human skin, some of which are sunburn, erythema, skin aging and, most importantly, the risk of skin cancer [1,2]. In this case, the use of protective textile garments becomes a focus of great interest. UV radiation also causes unfavorable effects on synthetic materials. In wearable textiles, changes due to UV radiation can be observed in the physical and mechanical properties of synthetic materials such as color fading or decrease in tensile strength [3]. Previously, some studies proved that dye on fabrics reduces the transmission of ultraviolet radiation through the fabrics [4,5,6,7,8,9,10], but the light-induced fading of dyes is another problem. Nevertheless, light, bleached, uncolored cotton fabrics, which are especially needed in summer, usually do not provide enough UV protection. Protection properties of such textiles should be improved. Modifying cotton with light-absorbing materials in the UV range, especially in the UVB and UVA ranges, can be a solution for this problem. For effective application on cotton- or cellulose-based materials, UV absorbers should contain reactive groups to form covalent bonds with cellulose as well as UV-absorbing parts to increase the protection properties. A number of different types of UV absorbers have been proposed, but mostly benzophenone, phenyl ester, cinnamic acid and hydroxyphenylbenzotriazole derivatives could be of commercial value [11]. Inorganic salts can be used for modification of cotton fabrics with UV absorbers, but removal of solid waste products is problematic and causes environmental damage. Most of the formerly researched UV absorbers are water-insoluble and applications of dispersions and suspensions on fabrics are difficult [12,13,14]. Furthermore, these types of noncovalent interactions between cotton and organic molecules are weak and it is hard to keep the molecules on the cotton’s surface. Previously, some water-soluble and sulphonic acid groups containing UV absorbers were synthesized and applied to cotton [15,16,17,18], but a wide range of applications could not be found. There are some studies in the literature where brominated benzotriazole-type UV absorbers were grafted onto polyvinyl amine and applied on cotton [19]. In a similar study, an application was made using an electrostatic layer-by-layer self-assembly technique and increased washing fastness was observed [20].
Heterocyclic compounds are found in many natural and synthetic products with a wide range of pharmacological activities, such as antiviral, anticancer, antibacterial, antifungal, anticonvulsant, antiparkinsonian and anti-inflammatory activities, which can be well illustrated by the large number of drugs in the market containing this function group. We know that the reason for the very important biological activities of this type of heterocyclic organic compound is because of the presence of its characteristic N-C-O groups. The indole ring system is the most important heterocyclic group available in natural compounds. Several indole derivatives are reported to have antimicrobial activity [21]. It is known that bis(indolyl)methanes induce apoptosis in human cancer cells [22], and their derivatives are known as important intermediates in organic synthesis and pharmaceutical chemistry and they exhibit various physiological properties. Previously, the reactions of indole with carbonyl groups were studied in the presence of catalytic amounts of 1,3-dibromo-5,5-dimethylhydantoin and the corresponding bis(indolyl)methanes were obtained [23]. In this study, several UV-active bis(indolyl)methanes were prepared as new compounds and the UV-absorbing behaviors were investigated both in solution and polymer substrate. Polymers were dissolved and printed on 100% cotton undyed fabrics. UPF (Ultraviolet Protection Factor) values of the fabrics were measured and antibacterial effects were tested. In the textile field, these compounds that showed good UV absorber properties have been examined by us for the first time.

2. Results and Discussion

2.1. Synthesis

Our synthesis started with the reaction of 5-methyl-1H-indole (1) with 1,4-dibromobutane to afford 1-(4-bromobutyl)-5-methyl-1H-indole (2) as the new compound which was reacted with 2,4-dichlorobenzaldehyde, p-fluorobenzaldehyde and 2,5-dimethoxybenzaldehyde in the presence of 1,3-dibromo-5,5-dimethylhydantoin (DBDMH) to give 35 in good yields (Scheme 1 and Scheme 2).
It is easy to see compounds 35 as UV-absorbing chromophores from their UV spectra (Table 1). The 1H-NMR spectra of 35 displayed singlets at 5.78–6.13 ppm due to CH protons in addition to other signals. In the IR spectra of the compounds, carbonyl bands were absent which clearly confirmed that a condensation with aryl aldehydes had taken place. In addition to the 13C-NMR and FTIR spectral data which were in agreement with the proposed structures, the mass spectra of all new compounds showed the expected molecular ion peaks.
Compounds 35 were grafted with PVA in DMF as a solvent to give polymers 68 for textile applications (Scheme 3).
We also synthesized compounds 1014 as new compounds from 9 which were prepared from 1 with 1,3-dibromopropane with 1-naphtaldehyde, 2-naphtaldehyde, pyrene-1-carbaldehyde, phenanthrene-9-carbaldehyde and 9H-fluorene-2-carbaldehyde, respectively, under the same conditions (Scheme 4 and Scheme 5). Introduction of these aldehydes into the indolyl group chromophore improved their UV absorbance. The configuration of the new compounds was inferred from their NMR, IR and mass data. The 1H-NMR spectra of compounds 1014 contained the singlet peaks of CH beetween two indole rings, indicating that the reaction took place. Compounds 1014 were also grafted with PVA to give 1519 for textile applications (Scheme 6).
The new polymers (68; 1519) were characterized by 1H-NMR and GPC. The 1H-NMR spectra of all polymeric compounds were taken in DMSO-d6 and compared with response compounds. The molecular weights (Mw and Mn) of the polymers were measured by GPC and summarized in Table 2. Figure 1 shows 1H-NMR spectra of compound 3 and its polymer 6 and Figure 2 also shows the GPC result of compound 3 as an example.

2.2. Textile Applications

Compounds 68 and 1519 were dissolved in DMSO, mixed with printing paste and applied on 100% cotton undyed fabrics, using a flatbed screen method [24]. The fabrics were tested during AATCC 183:2014 standard at a temperature of 21 °C and 66% relative humidity [25]. The results showed that the UPF value of 27 of standard fabric increases up to 40+. According to standard specimens a UPF, UV-protection value between 15 and 24 is good, between 25 and 39 is very good, and 40 or greater is excellent. That means both UVA and UVB transmission through the fabrics decreased and excellent protection was obtained (Table 3). All printed fabrics were washed 25 times according to the BS EN ISO 6330 5A standard [26]. The fabrics’ UPF values were also tested after 25 washing cycles. The UPF values are the same as the unwashed fabrics, at 40+. In accordance with this, we still have the protective property after multiple washing cycles.
Antibacterial activities were tested according to the AATCC147-2011 standard, at a temperature of 37 ± 2 °C, and 18–24 h incubation time for the Staphylococcus aureus (AATCC 6538 Gram+) microorganism [27]. The results showed that antibacterial activities were achieved (Table 4). We used nontoxic materials at both synthesis and application steps. Nevertheless, we tested the coated fabrics during the OEKO TEX 100 standard for PAH (Polyaromatic hydrocarbon), APEO (Alkylphenyl etoxylate) and phthalate contents. According to the results, it can be said that the fabrics do not have toxic effects.

3. Materials and Methods

3.1. General Information

Reactions were monitored using thin-layer chromatography (TLC). Resulting residue was purified by silica gel chromatography with a solvent mixture to afford the title compounds. PVA was used as Mowiol 1888: Ma: 130,000 g/mol, Pw: 2700 was supplied from Kuraray. UV absorption spectra were recorded on an Agilent Technologies 8453 spectrophotometer (Santa Clara, CA, USA). IR spectra were obtained with a “Perkin Elmer, FT-IR” system and were reported in terms of frequency of absorption (cm−1). Melting points were determined with “Gallenkamp” digital thermometer equipment (Northhampton, UK). All melting points are uncorrected. NMR spectra were determined with a “Bruker Ac-500 MHz NMR” (Rheinstetten, Germany). TMS (tetramethylsilane) was used as the internal standard and CDCl3 was used as the solvent. Signal multiplicities in the NMR spectra were reported as follows: s—singlet, brs—broad singlet, d—doublet, dd—doublet of doublets, and m—multiplet. Mass spectra were measured with an Agilent 6890N GC-System-5973 IMSD or Agilent LC-MSD Trap SL. Gel Permeation Chromatography (Visotek) was carried out with THF solvent using polystyrene standards. All tests related to textile applications were done by third party laboratories having accreditation. Transmittance or blocking tests of erythemally weighted ultraviolet radiation through fabrics (AATCC 183:2014) and toxicity tests (EOKOTEX 100) were conducted in Intertek laboratories, Istanbul/Turkey. Domestic washing and drying procedures tests for textiles (BS EN ISO 6330 5A) were done by Sanko Holding-ISKO division, R & D laboratories, Bursa/Turkey. Antibacterial activity assessments of textile materials (AATCC147-2011) tests were conducted in Ekoteks laboratories, Istanbul/Turkey.

3.2. Synthesis of 2 and 9

To 5-methyl-1H-indole (2 mmol) dissolved in 5 mL 2-butanone at 55 °C, KOH (4 mmol) was added and the mixture stirred for 1 h. Then 1,4-dibromobutane for compound (2) and 1,3-dibromopropane for compound (9) was added and the reaction completed in 2 h. The progress of the reaction was monitored by TLC. The residue was removed and the mixture evaporated and purified by column chromatography (10:1; n-hexane/EtOAc).
1-(4-Bromobutyl)-5-methyl-1H-indole (2). Colorless oil; Yield = 70%; Rf = 0.76 (1:5; EtOAc/n-hexane); FTIR (ATR): υ = 3032, 3011, 2918, 2851, 1673, 1488, 1445, 1355 cm−1; 1H-NMR (CDCl3, 500 MHz): δ = 1.72 (p, J = 6.62 Hz, 2H, CH2), 1.88 (p, J = 6.9 Hz, 2H, CH2), 2.36 (s, 3H, CH3), 3.25 (t, J = 6.62 Hz, 2H, CH2), 4.02 (t, J = 6.62 Hz, 2H, CH2), 6.32 (d, J = 3.15 Hz, 1H, ArH), 6.94 (d, J = 3.15 Hz, 2H, ArH), 7.13 (d, J = 8.51 Hz, 1H, ArH), 7.33 (s, 1H, ArH) ppm; GC-MS (EI, 70 eV): m/z = 265 (M+).
1-(3-Bromopropyl)-5-methyl-1H-indole (9). Colorless oil; Yield = 75%; Rf = 0.82 (1:10; EtOAc/n-hexane); FTIR (ATR): υ = 3023, 3001, 2942, 2853, 1670, 1501, 1443, 1355 cm−1; 1H-NMR (CDCl3, 500 MHz): δ = 2.24 (p, J = 6.30 Hz, 2H, CH2), 2.37 (s, 3H, CH3), 3.20 (t, J = 6.30 Hz, 2H, CH2), 4.21 (t, J = 6.30 Hz, 2H, CH2), 6.33 (dd, J = 0.94; 3.15 Hz, 1H, =CH), 6.96 (dd, J =1.57; 8.51 Hz, 1H, =CH), 7.01 (d, J = 3.15 Hz, 1H, ArH), 7.18 (d, J = 8.19 Hz, 1H, ArH), 7.34 (s, 1H, ArH) ppm; LCMS (ESI-QTOF) m/z: calcd for C12H14BrN 251.0309; Found 253.0361 [M + H]+.

3.3. General Procedure of Bromoalkylbis(indolyl)methanes (35, 1014)

The syntheses were accomplished according to the general procedure in the literature [23]. A mixture of carbonyl compound/indole/DBDMH: 2/1/0.05 mmol was stirred at 55 °C under solvent-free conditions for 2 h. The progress of the reaction was monitored by TLC (15:1; n-hexane/EtOAc). The residue recrystallized from methanol.
3,3′-((2,4-Dichlorophenyl)methylene)bis(1-(4-bromobutyl)-5-methyl-1H-indole (3). Colorless crystals; mp 141–142 °C; Yield = 55%; Rf = 0.32 (1:8; EtOAc/n-hexane);FTIR (ATR): υ = 3081, 3012, 2927, 2874, 2856, 1585, 1463, 1359, 1100 cm−1; 1H-NMR (DMSO-d6, 500 MHz): δ = 1.64–1.80 (m, 8H, CH2), 2.27 (s, 6H, CH3), 3.47 (t, J = 6.62 Hz, 4H, CH2), 4.10 (t, J = 6.62 Hz, 4H, CH2), 6.05 (s, 1H, CH), 6.70 (s, 2H, ArH), 6.94 (d, J = 8.19 Hz, 2H, ArH), 7.00 (s, 2H, ArH), 7.15 (d, J = 8.51 Hz, 1H, ArH), 7.31 (dd, J = 2.20; 8.51 Hz, 1H, ArH), 7.35 (d, J = 8.19 Hz, 2H, ArH), 7.63 (s, 1H, ArH) ppm; 13C-NMR (DMSO-d6, 125 MHz): δ = 21.1 (2 × CH3), 28.4 (2 × CH2), 34.5 (2 × CH2), 35.6 (CH), 44.4 (CH2), 109.7 (=CH), 114.7 (Cq), 118.3 (2 × CAr), 122.8 (2 × CAr), 126.9 (Cq), 127.1 (Cq), 127.2 (CAr), 128.7 (CAr), 131.1 (CAr), 133.6 (Cq), 134.7 (Cq), 140.8 (Cq) ppm; UV (λmax, CH2Cl2): 315 nm (c = 3.5 × 10−4, A = 1.52, ε = 4 × 10−3); LCMS (ESI-QTOF) m/z: calcd for C33H34Br2Cl2N2 686.0465; Found 687.0522 [M + H]+.
3,3′-((4-Fluorophenyl)methylene)bis(1-(4-bromobutyl)-5-methyl-1H-indole (4). Colorless crystals; mp 118–119 °C; Yield = 67%; Rf = 0.22 (1:8; EtOAc/n-hexane); FTIR (ATR): υ = 3028, 3009, 2957, 2920, 2854, 1602, 1549, 1504, 1485, 1453, 1359, 1012 cm−1; 1H-NMR (DMSO-d6, 500 MHz): δ = 1.67–1.71 (p, 4H, CH2), 1.75–1.80 (p, 4H, CH2), 2.27 (s, 6H, CH3), 3.48 (t, J = 6.62 Hz, 4H, CH2), 4.10 (t, J = 6.62 Hz, 4H, CH2), 5.78 (s, 1H, CH), 6.75 (s, 2H, ArH), 6.92 (d, J = 8.19 Hz, 2H, ArH), 7.06 (s, 2H, ArH), 7.10 (d, J = 8.82 Hz, 2H, ArH), 7.31–7.34 (m, 4H, ArH) ppm; 13C-NMR (CDCl3, 125 MHz): δ = 21.5 (2 × CH3), 28.8 (2 × CH2), 30.0 (2 × CH2), 32.1 (CH), 33.1 (2 × CH2), 45.3 (2 × CH2), 55.5 (CH3), 56.6 (CH3), 108.8 (CAr), 110.6 (CAr), 111.8 (CAr), 116.5 CAr), 117.6 (Cq), 119.9 (CAr), 122.9 (CAr), 127.2 (CAr), 127.7 (Cq), 128.0 (Cq), 134.3 (Cq), 135.0 (Cq), 151.4 (Cq), 153.4 (Cq) ppm; UV (λmax, CH2Cl2): 310 nm (c = 2.2 × 10−4, A = 1.42, ε = 6.4 × 103); LCMS (ESI-QTOF) m/z: calcd for C33H35Br2FN2 636.1150; Found 637.1241 [M + H]+.
3,3′-((2,5-Dimethoxyphenyl)methylene)bis(1-(4-bromobutyl)-5-methyl-1H-indole (5). Colorless crystals; mp 102 °C; Yield = 60%; Rf = 0.12 (1:15; EtOAc/n-hexane); FTIR (ATR): υ = 3022, 3000, 2939, 2862, 2831, 1616, 1588, 1545, 1489, 1450, 1363, 1024 cm−1; 1H-NMR (DMSO-d6, 500 MHz): δ = 1.72–1.76 (p, 4H, CH2), 1.80–1.85 (p, 4H, CH2), 2.32 (s, 6H, CH3), 3.53 (t, J = 6.62 Hz, 4H, CH2), 3.62 (s, 3H, OCH3), 3.79 (s, 3H, OCH3), 4.15 (t, J = 6.62 Hz, 4H, CH2), 6.13 (s, 1H, CH), 6.66 (d, J = 2.83 Hz, 1H, ArH), 6.76 (s, 2H, ArH), 6.80 (dd, J = 3.15; 8.82 Hz, 1H, ArH), 6.97 (d, J = 8.51 Hz, 2H, ArH), 7.01 (d, J = 8.82 Hz, 1H, ArH), 7.07 (s, 2H, ArH), 7.37 (d, J = 8.51 Hz, 2H, ArH) ppm; 13C-NMR (CDCl3, 125 MHz): δ = 21.5 (2 × CH3), 28.8 (2 × CH2), 30.0 (2 × CH2), 32.1 (CH), 33.1 (2 × CH2), 45.3 (2 × CH2), 55.5 (CH3), 56.6 (CH3), 108.8 (CAr), 110.6 (CAr), 111.8 (CAr), 116.5 CAr), 117.6 (Cq), 119.9 (CAr), 122.9 (CAr), 127.2 (CAr), 127.7 (Cq), 128.0 (Cq), 134.3 (Cq), 135.0 (Cq), 151.4 (Cq), 153.4 (Cq) ppm; UV (λmax, CH2Cl2): 300 nm (c = 2.4 × 10−4, A = 1.77, ε = 7.2 × 103); LCMS (ESI-QTOF) m/z: calcd for C33H38Br2N2O2 677.1377; Found 678.1409 [M + H]+.
3,3′-((Naphthalene-1-yl)methylene)bis(1-(4-bromopropyl)-5-methyl-1H-indole (10). Colorless crystals; mp 127–130 °C; Yield = 61%; Rf = 0.58 (1:15; EtOAc/n-hexane); FTIR (ATR): υ = 3030, 3011, 2957, 2861, 1610, 1600, 1504, 1462, 1453, 1354, 1100 cm−1; 1H-NMR (CDCl3, 500 MHz): δ 2.13 (p, J = 6.30 Hz, 4H, CH2), 2.26 (s, 6H, CH3), 3.08 (p, J = 6.30 Hz, 4H, CH2), 4.05 (t, J = 6.30 Hz, 4H, CH2), 6.36 (s, 2H, =CH), 6.47 (s, 1H, CH), 6.95 (dd, J = 0.94; 8.19 Hz, 2H, ArH), 7.10 (s, 2H, ArH), 7.14 (d, J = 7.25 Hz, 1H, ArH), 7.17 (d, J = 8.19 Hz, 2H, ArH), 7.23–7.29 (m, 2H, ArH), 7.34–7.38 (m, 1H, ArH), 7.67 (d, J = 8.19 Hz, 1H, ArH), 7.80 (d, J = 7.88 Hz, 1H, ArH), 8.03 (d, J = 8.51 Hz, 1H, ArH) ppm; 13C-NMR (CDCl3, 125 MHz): δ = 21.3 (2 × CH3), 30.3 (2 × CH2), 32.7(2 × CH2), 35.8 (CH), 43.8 (2 × CH2), 109.0 (2 × CAr), 117.6 (2 × Cq), 119.7 (2 × CAr), 123.2 (CAr), 124.5 (CAr), 125.2 (CAr), 125.5 (CAr), 125.6 (CAr), 125.9 (CAr), 126.9 (CAr), 127.9 (2 × Cq), 128.2 (2 × Cq), 128.3 (CAr), 128.6 (CAr), 131.8 (Cq), 134.0 (Cq), 135.0 (2 × Cq), 139.7 (Cq) ppm; UV (λmax, CH2Cl2): 290 nm (c = 2.0 × 10−4, A = 1.79, ε = 8.9 × 103); LCMS (ESI-QTOF) m/z: calcd for C35H34Br2N2 640.1088; Found 641.0988 [M + H]+.
3,3′-((Naphthalene-2-yl)methylene)bis(1-(4-bromopropyl)-5-methyl-1H-indole (11). Colorless crystals; mp 101–103 °C; Yield = 65%; Rf = 0.55 (1:15; EtOAc/n-hexane); FTIR (ATR): υ = 3022, 2964, 2920, 1628, 1597, 1522, 1482, 1362, 1222, 1088, 823 cm−1; 1H-NMR (CDCl3, 500 MHz):δ = 2.18 (p, J = 6.30 Hz, 4H, CH2), 2.25 (s, 6H, CH3), 3.16 (t, J = 6.30 Hz, 4H, CH2-N), 4.10 (p, J = 6.30 Hz, 4H, CH2-Br), 5.89 (s, 1H, CH), 6.47 (s, 2H, =CH), 6.95 (dd, J = 1.57; 8.51 Hz, 2H, ArH), 7.12 (s, 2H, ArH), 7.17 (d, J = 8.51 Hz, 2H, ArH), 7.34–7.35 (m, 2H, ArH), 7.42 (dd, J = 8.51 Hz, 1H, ArH), 7.64–7.70 (m, 3H, ArH), 7.73–7.75 (m, 1H, ArH) ppm; 13C-NMR (CDCl3, 125 MHz): δ = 21.4 (2 × CH3), 30.4 (2 × CH2), 32.8 (2 × CH2), 40.1 (CH), 44.0 (2 × CH2), 109.3 (2 × CAr), 116.6 (Cq), 118.0 (2 × Cq), 119.8 (2 × CAr), 123.3 (2 × CAr), 125.2 (CAr), 125.6 (CAr), 126.6 (CAr), 127.6 (CAr), 127.7 (2 × CAr), 127.9 (CAr), 128.2 (2 × Cq), 132.3 (Cq), 133.6 (2 × Cq), 135.0 (2 × Cq), 141.8 (Cq) ppm; UV (λmax, CH2Cl2): 310 nm (c = 1.2 × 10−4, A = 1.77, ε = 1.4 × 104); LCMS (ESI-QTOF) m/z: calcd for C35H34Br2N2 640.1088; Found 641.1889 [M + H]+.
3,3′-((Pyren-1-yl)methylene)bis(1-(4-bromopropyl)-5-methyl-1H-indole (12). Colorless crystals; mp 133–135 °C; Yield = 72%; Rf = 0.49 (1:15; EtOAc/n-hexane); FTIR (ATR): υ = 3025, 2922, 1636, 1592, 1550, 1451, 1361, 1222, 1158, 785 cm−1; 1H-NMR (CDCl3, 500 MHz): δ = 2.13 (p, J = 6.30 Hz, 4H, CH2), 2.22 (s, 6H, CH3), 3.10 (t, J = 6.30 Hz, 4H, CH2), 4.03–4.06 (m, 4H, CH2), 6.35 (s, 2H, =CH), 6.79 (s, 1H, CH), 6.96 (dd, J = 1.26; 8.19 Hz, 2H, ArH), 7.09 (s, 2H, ArH), 7.19 (d, J = 8.19 Hz, 2H, ArH), 7.72 (d, J = 7.88 Hz, 1H, ArH), 7.91 (d, J = 8.82 Hz, 2H, ArH), 7.95–7.97 (m, 3H, ArH), 8.06–8.10 (m, 2H, ArH); 8.33 (d, J = 9.46 Hz, 1H, ArH) ppm; 13C-NMR (CDCl3, 125 MHz): δ = 21.4 (2 × CH3), 30.4 (CH2), 30.6 (CH2), 32.8 (2 × CH2), 36.3 (CH), 43.9 (2 × CH2), 100.9 (CAr), 108.9 (CAr), 109.0 (CAr), 116.5 (Cq), 117.0 (Cq), 118.0 (2 × Cq), 119.8 (CAr), 120.7 (CAr), 123.2 (CAr), 123.4 (CAr), 123.9 (CAr), 124.8 (CAr), 124.9 (CAr), 125.0 (Cq), 125.2 (Cq), 125.8 (CAr), 126.5 (CAr), 126.7 (CAr), 127.2 (CAr), 127.6 (CAr), 127.9 (Cq), 128.1 (CAr), 128.3 (Cq), 128.4 (Cq), 128.7 (Cq), 130.0 (Cq), 130.9 (Cq), 131.4 (Cq), 135.1 (Cq), 137.9 (Cq) ppm; UV (λmax, CH2Cl2): 346 nm (c = 1.6 × 10−4, A= 1.60, ε = 1.0 × 104); LCMS (ESI-QTOF) m/z: calcd for C41H36Br2N2 714.1245; Found 685.0317 [M + H − 2Me]+.
3,3′-((Phenanthren-9-yl)methylene)bis(1-(4-bromopropyl)-5-methyl-1H-indole (13). Colorless crystals; mp 168–171 °C; Yield = 75%; Rf = 0.58 (1:15; EtOAc/n-hexane); FTIR (ATR): υ = 3071, 3021, 2961, 2921, 1603,1550, 1484, 1364, 1228, 1018, 785 cm−1; 1H-NMR (CDCl3, 500 MHz): δ = 2.12–2.16 (m, 4H, CH2), 2.25 (s, 6H, CH3), 3.04–3.09 (m, 4H, CH2), 4.04–4.07 (m, 4H, CH2), 6.39 (s, 1H, CH), 6.42 (s, 2H, =CH), 6.49 (d, J = 8.19 Hz, 2H, ArH),6.94–6.98 (m, 2H, ArH), 7.12 (d, J = 8.19 Hz, 1H, ArH), 7.16 (s, 2H, ArH), 7.18–7.20 (m, 2H, ArH), 7.37–7.43 (m, 2H, ArH), 7.50–7.56 (m, 2H, ArH), 8.10 (t, J = 8.19 Hz, 1H, ArH), 8.69 (d, J = 8.19 Hz, 1H, ArH) ppm; 13C-NMR (CDCl3, 125 MHz): δ = 21.3 (2 × CH3), 30.3 (2 × CH2), 32.7 (2 × CH2), 35.9 (CH), 43.9 (2 × CH2), 109.0 (CAr), 109.3 (CAr), 116.4 (2 × Cq), 117.3 (Cq), 117.5 (Cq), 119.4 (CAr), 119.6 (CAr), 119.8 (CAr), 122.3 (CAr), 122.9 (CAr), 123.2 (CAr), 123.3 (CAr), 125.2 (CAr), 125.9 (CAr), 126.0 (CAr), 126.3 (CAr), 126.5 (CAr), 128.0 (Cq), 128.2 (Cq), 128.3 (Cq), 128.5 (CAr), 128.8 (CAr), 129.9 (Cq), 130.8 (CAr), 131.4 (Cq), 131.8 (Cq), 133.8 (CAr), 135.1 (Cq), 138.0 (Cq) ppm; UV (λmax, CH2Cl2): 296 nm (c = 1.6 × 10−4, A = 1.47, ε = 9.1 × 103); LCMS (ESI-QTOF) m/z: calcd for C39H36Br2N2 690.1245; Found 691.4354 [M + H]+.
3,3′-((9H-Fluoren-2-yl)methylene)bis(1-(4-bromopropyl)-5-methyl-1H-indole (14). Colorless crystals; mp 193–196 °C; Yield = 60%; Rf = 0.42 (1:15; EtOAc/n-hexane); FTIR (ATR): υ = 3019, 2959, 2916, 1608, 1573,1483, 1395, 1361, 1226, 1023, 790, 737 cm−1; 1H-NMR (CDCl3, 500 MHz): δ = 2.19 (p, J = 6.30 Hz, 4H, CH2), 2.26 (s, 6H, CH3), 3.17 (t, J = 6.30 Hz, 4H, CH2), 3.76 (s, 2H, CH2), 4.09–4.12 (m, 4H, CH2), 6.43 (s, 1H, CH), 6.48 (s, 2H, =CH), 6.94 (d, J = 8.51 Hz, 2H, ArH), 7.12 (d, J = 3.48 Hz, 2H, ArH), 7.17 (d, J = 8.51 Hz, 2H, ArH), 7.26–7.29 (m, 2H, ArH), 7.41 (s, 1H, ArH), 7.43 (d, J = 7.56 Hz, 1H, ArH), 7.62 (dd, J = 1.57; 7.88 Hz, 1H, ArH), 7.67 (d, J = 7.56 Hz, 1H, ArH), 7.84 (s, 1H, ArH) ppm; 13C-NMR (CDCl3, 125 MHz): δ = 21.4 (2 × CH3), 30.4 (2 × CH2), 32.8 (2 × CH2), 36.9 (CH2), 40.1 (CH), 43.9 (2 × CH2), 108.9 (CAr), 109.2 (CAr), 116.6 (Cq), 118.2 (Cq), 118.3 (Cq), 119.8 (CAr), 120.1 (CAr), 121.1 (CAr), 123.1 (CAr), 123.2 (CAr), 125.0 (CAr), 125.2 (CAr), 126.2 (CAr), 126.6 (CAr), 127.2 (CAr), 127.4 (CAr), 127.9 (Cq), 128.0 (Cq), 128.2 (Cq), 128.4 (CAr), 133.8 (CAr), 135.0 (Cq), 135.3 (Cq), 139.8 (Cq), 141.8 (Cq), 143.1 (Cq), 143.3 (Cq), 143.4 (Cq) ppm; UV (λmax, CH2Cl2): 307 nm (c = 2.0 × 10−4, A = 1.50, ε = 7.5 × 103); LCMS (ESI-QTOF) m/z: calcd for C38H36Br2N2 678.1245; Found 679.1143 [M + H]+.

3.4. Synthesis of Polymers (68, 1519)

First 40 mg PVA dissolved in 2 mL DMF at 120 °C, then 50 mg K2CO3 was added and stirred for 1 h. At the end of this time, 100 mg bromoalkylbis(indolyl)methane/1 mL DMF was added dropwise to the reaction mixture. The reaction was completed in 3 h. Crushed ice was added to the mixture and centrifuged and the residue dried in an oven.
Polymer (6). Light orange solid; yield = 47%; FTIR (ATR): υ = 3348, 3026, 2930, 2874, 1557, 1486, 1367, 1165, 1049, 831 cm−1; 1H-NMR (DMSO-d6, 500 MHz): δ = 1.30–1.32 (m, n6H, CH3), 1.41–1.47 (m, 8H, CH2), 1.50–1.53 (m, n6H, CH3), 1.78–1.84 (m, n4H, CH2), 2.32 (s, 6H, CH3), 3.32–3.33 (m, n2H, CH), 3.50 (t, J = 6.30 Hz, 4H, CH2), 4.07 (t, J = 6.93 Hz, 4H, CH2), 6.15 (s, 1H, CH), 6.53 (s, 2H, ArH), 6.98 (d, J = 8.19 Hz, 2H, ArH), 7.03 (s, 2H, ArH), 7.17 (d, J = 4.72 Hz, 2H, ArH), 7.27 (d, J = 8.51 Hz, 2H, ArH), 7.50 (d, J = 1.57 Hz, 1H, ArH) ppm; UV (λmax, DMSO):315 nm (c = 0.5 × 10−4, A = 0.60, ε = 1.2 × 104).
Polymer (7). Light brown solid; yield = 52%; FTIR (ATR): υ = 3340, 3043, 2932, 2855, 1661,1600, 1504, 1485, 1363, 1217, 1091, 793 cm−1; 1H-NMR (DMSO-d6, 500 MHz): δ = 1.29–1.31 (m, n6H, CH3), 1.39–1.45 (m, 8H, CH2), 1.49–1.51 (m, n6H, CH3), 1.77–1.83 (m, n4H, CH2), 2.31 (s, 6H, CH3), 3.31–3.34 (m, n2H, CH), 3.52 (t, J = 6.30 Hz, 4H, CH2), 4.12 (t, J = 6.93 Hz, 4H, CH2), 6.00 (s, 1H, CH), 6.73 (s, 2H, ArH), 6.91 (d, J = 8.51 Hz, 2H, ArH), 7.16 (s, 2H, ArH), 7.12 (d, J = 8.82 Hz, 2H, ArH), 7.31–7.34 (m, 4H, ArH) ppm; UV (λmax, DMSO): 310 nm (c = 0.5 × 10−4, A = 1.90, ε = 3.8 × 104).
Polymer (8). Orange solid; yield = 47%; FTIR (ATR): υ = 3372, 3019, 2933, 2871, 1661,1589, 1547, 1460, 1366, 1211, 1094, 714 cm−1; 1H-NMR (DMSO-d6, 500 MHz): δ = 1.38–1.39 (m, n6H, CH3), 1.43–1.49 (m, 8H, CH2), 1.51–1.54 (m, n6H, CH3), 1.79–1.85 (m, n4H, CH2), 2.30 (s, 6H, CH3), 3.41–3.45 (m, n2H, CH), 3.61 (s, 3H, OCH3), 3.50 (t, J = 6.30 Hz, 4H, CH2), 3.81 (s, 3H, OCH3), 4.07 (t, J = 6.93 Hz, 4H, CH2), 6.15 (s, 1H, CH), 6.64 (d, J = 3.15 Hz, 1H, ArH), 6.79 (s, 2H, ArH), 6.82 (dd, J = 3.15; 8.82 Hz, 1H, ArH), 6.99 (d, J = 8.19 Hz, 2H, ArH), 7.04 (d, J = 8.82 Hz, 1H, ArH), 7.08 (s, 2H, ArH), 7.34 (d, J = 8.51 Hz, 2H, ArH) ppm; UV (λmax, DMSO): 315 nm (c = 0.5 × 10−4, A = 1.63, ε = 3.26 × 104).
Polymer (15). Light brown solid; yield = 65%; FTIR (ATR): υ = 3381, 3041, 2918, 2858, 1662, 1595, 1485, 1435, 1385, 1173, 1089, 786 cm−1; 1H-NMR (DMSO-d6, 500 MHz): δ = 1.26–1.28 (m, n6H, CH3), 1.32–1.33 (m, n6H, CH3), 1.44–1.48 (m, 4H, CH2), 1.91–1.95 (m, 4H, CH2), 2.34 (s, 6H, CH3), 3.32–3.33 (m, n2H, CH), 3.37 (t, J = 6.30 Hz, 4H, CH2), 4.16 (t, J = 6.93 Hz, 4H, CH2), 6.26 (s, 2H, =CH), 6.47 (s, 1H, CH), 6.95 (dd, J = 0.94; 8.51 Hz, 2H, ArH), 7.09 (s, 2H, ArH), 7.12 (d, J = 7.25 Hz, 1H, ArH), 7.19 (d, J = 8.51 Hz, 2H, ArH), 7.22–7.31 (m, 2H,ArH), 7.34–7.38 (m, 1H, ArH), 7.66 (d, J = 8.51 Hz, 1H, ArH), 7.81 (d, J = 7.88 Hz, 1H, ArH), 8.12(d, J = 8.51 Hz, 1H, ArH) ppm; UV (λmax, DMSO): 283 nm (c = 2.0 × 10−4, A = 1.20, ε = 6.0 × 103).
Polymer (16). Light brown solid; yield = 60%; FTIR (ATR): υ = 3338, 3049, 2921, 2856, 1655, 1596, 1484, 1458, 1383, 1172, 1089, 788 cm−1; 1H-NMR (DMSO-d6, 500 MHz): δ = 1.18–1.21 (m, n6H, CH3), 1.29–1.31 (m, n6H, CH3), 1.41–1.45 (m, 4H, CH2), 1.89–1.93 (m, 4H, CH2), 2.31 (s, 6H, CH3), 3.31–3.34 (m, n2H, CH), 3.31 (t, J = 6.30 Hz, 4H, CH2), 4.06 (t, J = 6.93 Hz, 4H, CH2), 5.91 (s, 1H, CH), 6.45 (s, 2H, =CH), 6.93 (dd, J = 1.57; 8.19 Hz, 2H, ArH), 7.12 (s, 2H, ArH), 7.17 (d, J = 8.19 Hz, 2H, ArH), 7.34–7.35 (m, 2H, ArH), 7.41(dd, J = 8.19 Hz, 1H, ArH), 7.62–7.68 (m, 3H, ArH), 7.71–7.74 (m, 1H, ArH) ppm; UV (λmax, CH2Cl2): 278 nm (c = 1.0 × 10−4, A = 1.00, ε = 1.0 × 104).
Polymer (17). Light brown solid; yield = 75%; FTIR (ATR): υ = 3367, 3036, 2923, 2858, 1657, 1600, 1486, 1435, 1385, 1245, 1090, 796 cm−1; 1H-NMR (DMSO-d6, 500 MHz): δ = 1.27–1.32 (m, n6H, CH3), 1.34–1.37 (m, n6H, CH3), 1.96–1.98 (m, 4H, CH2), 2.13 (p, J = 6.30 Hz, 4H, CH2), 2.34 (s, 6H, CH3), 3.32–3.33 (m, n2H, CH), 3.10 (t, J = 6.30 Hz, 4H, CH2), 4.03–4.06 (m, 4H, CH2), 6.32 (s, 2H, =CH), 6.51 (s, 1H, CH), 6.94 (dd, J = 1.26; 8.19 Hz, 2H, ArH), 7.01 (s, 2H, ArH), 7.20 (d, J = 8.19 Hz, 2H, ArH), 7.72 (d, J = 7.88 Hz, 1H, ArH), 7.79 (d, J = 8.82 Hz, 2H, ArH), 7.95–7.97 (m, 3H, ArH), 8.06–8.10 (m, 2H, ArH); 8.36 (d, J = 9.46 Hz, 1H, ArH) ppm; UV (λmax, CH2Cl2): 349 nm (c = 0.2 × 10−3, A = 2.45, ε = 1.2 × 104).
Polymer (18). Light brown solid; yield = 70%; FTIR (ATR): υ = 3305, 3019, 2918, 2857, 1662, 1618, 1485, 1432, 1364, 1167, 1064, 766 cm−1; 1H-NMR (DMSO-d6, 500 MHz): δ = 1.28–1.31 (m, n6H, CH3), 1.36–1.39 (m, n6H, CH3), 1.94–1.97 (m, 4H, CH2), 2.12–2.16 (m, 4H, CH2), 2.25 (s, 6H, CH3), 3.04–3.09 (m, 4H, CH2), 3.28–3.31 (m, n2H, CH), 4.04–4.07 (m, 4H, CH2), 6.28 (s, 1H, CH), 6.40 (s, 2H, =CH), 6.49 (d, J = 8.19 Hz, 2H, ArH), 6.94–6.98 (m, 2H, ArH), 7.12 (d, J = 8.19 Hz, 1H, ArH), 7.16 (s, 2H, ArH), 7.18–7.20 (m, 2H, ArH), 7.37–7.43 (m, 2H, ArH), 7.49–7.52 (m, 2H, ArH), 8.11 (t, J = 8.19 Hz, 1H, ArH), 8.61 (d, J = 8.19 Hz, 1H, ArH) ppm; UV (λmax, CH2Cl2): 300 nm (c = 0.5 × 10−4, A = 0.50, ε = 1.0 × 104).
Polymer (19). Light brown solid; yield = 60%; FTIR (ATR): υ = 3386, 3019, 2929, 1622, 1615, 1488, 1437, 1388, 1180, 1098, 776 cm−1; 1H-NMR (DMSO-d6, 500 MHz): δ = 1.25–1.29 (m, n6H, CH3), 1.33–1.38 (m, n6H, CH3), 1.94–1.97 (m, 4H, CH2), 2.19 (p, J = 6.30 Hz, 4H, CH2), 2.26 (s, 6H, CH3), 3.17 (t, J = 6.30 Hz, 4H, CH2), 3.22–3.27 (m, n2H, CH), 3.73 (s, 2H, CH2), 4.11–4.15 (m, 4H, CH2), 6.43 (s, 1H, CH), 6.48 (s, 2H, =CH), 6.94 (d, J = 8.19 Hz, 2H, ArH), 7.12 (d, J = 3.48 Hz, 2H, ArH), 7.17 (d, J = 8.19 Hz, 2H, ArH), 7.26–7.29 (m, 2H, ArH), 7.41 (s, 1H, ArH), 7.43 (d, J = 7.56 Hz, 1H, ArH), 7.62 (dd, J = 1.57; 7.56 Hz, 1H, ArH), 7.67 (d, J = 7.56 Hz, 1H, ArH), 7.84 (s, 1H, ArH) ppm; UV (λmax, CH2Cl2): 308 nm (c = 0.5 × 10−4, A = 1.22, ε = 2.4 × 104).

4. Conclusions

In conclusion, bis(indolyl)methanes, which are found in cruciferous plants and marine sources, have shown different pharmaceutical activities such as anticancer, antiviral and antimicrobial properties. In this study, these compounds have been used for the first time in the textile industry as UV absorbers. They increased the UV protection factor of undyed fabric from +27 to +40–50. This shows that they are quite active compounds as UV absorbers. Furthermore, all printed fabrics were washed 25 times according to standard procedure and the results indicated that the novel compounds also carry antibacterial properties.

Acknowledgments

The authors gratefully acknowledge the financial support of this work by the Ministry of Science, Industry and Technology (SANTEZ, Project No. 0048.STZ.2013-1) and SANKO Holding-ISKO Division.

Author Contributions

N.O., H.N.E. and A.H. conceived and designed the experiments and textile applications; H.N.E. and A.A. performed the experiments; N.O. analyzed the data; N.O. and H.N.E. wrote the paper. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. World Health Organization. Environmental Health Criteria 160WHO/EHG/95.16. 2012. Available online: http://www.who.int/uv/publications (accessed on 3 February 2016).
  2. Matsumura, Y.; Ananthaswamy, H.N. Toxic effects of ultraviolet radiation on the skin. Toxicol. Appl. Pharm. 2004, 195, 298–308. [Google Scholar] [CrossRef] [PubMed]
  3. Kaczmarek, H. Changes of polymer morphology caused by UV irradiation: 2 surface destruction of polymer blends. Polymer 1996, 37, 547–553. [Google Scholar] [CrossRef]
  4. Kursun, S.; Ozcan, G. An investigation of UV protection of swimwear fabrics. Text. Res. J. 2010, 80, 1811–1818. [Google Scholar] [CrossRef]
  5. Czajkowski, W.; Paluszkiewicz, P.; Stolarski, R.; Kazmierska, M.; Grzesiak, E. Synthesis of reactive UV absorbers, derivatives of monochlorotriazine, for improvement in protecting properties of cellulose fabrics. Dyes Pigment. 2006, 71, 224–230. [Google Scholar] [CrossRef]
  6. Rosinskaya, C.; Djani, M.; Kizil, Z.; Weinberg, A. Improvement of UV protection of cotton fabrics dyed with binary mixtures of the reactive dyes. Melliand Int. 2003, 9, 147–148. [Google Scholar]
  7. Diffey, B.L. Sun protection with closing. Br. J. Dermatol. 2001, 144, 449–450. [Google Scholar] [CrossRef] [PubMed]
  8. Gambichler, T.; Avermaete, A.; Bader, A.; Altmeyer, P.; Hoffman, K. Ultraviolet protection by summer textiles. Ultraviolet transmission measurements verified by determination of the minimal erythema dose with solar-simulated radiation. Br. J. Dermatol. 2001, 144, 484–489. [Google Scholar] [CrossRef] [PubMed]
  9. Rupp, J.; Hringer, A.B.; Yonenaga, A.; Hilden, J. Textiles for protection against harmful ultraviolet radiation. ITB Int. Text. Bull. 2001, 6, 8–19. [Google Scholar]
  10. Srinivasan, M.; Gatewood, B. Relationship of dye characteristics to UV protection provided by cotton fabric. Text. Chem. Color Am. Dyest. Rep. 2000, 32, 36–43. [Google Scholar]
  11. Hironori, O. Development of UV absorbers for sun protective fabrics. Text. Res. J. 2011, 81. [Google Scholar] [CrossRef]
  12. Akrman, J.; Prikryl, J. Application of benzotriazole reactive UV absorbers to cellulose and determining sun protection of treated fabric spectrophotometrically. J. Appl. Polym. Sci. 2008, 108, 334–341. [Google Scholar] [CrossRef]
  13. An, Q.F.; Li, L.S.; Lu, D.D. A functional polysiloxane with benzophenone derivative ultraviolet absorbing side groups: Synthesis, morphology, and its performance on fabrics. J. Appl. Polym. Sci. 2007, 104, 680–687. [Google Scholar] [CrossRef]
  14. Tragoonwichian, S.; O’Rear, E.A.; Yanumet, N. Broad ultraviolet protection by copolymerization of 2-3-(2H-benzotriazol-2-yl)-4-hydroxyphenyl ethyl methacrylate and 2-hydroxy-4-acryloxybenzophenone on cotton via admicellar polymerization. J. Appl. Polym. Sci. 2008, 108, 4004–4013. [Google Scholar] [CrossRef]
  15. Wang, J.; Guo, X.H.; Li, L. Macromolecular networks assembled by cyclodextrin inclusive associations. Chem. Ind. Eng. Prog. 2008, 27, 1556–1560. [Google Scholar]
  16. El Tahlawy, K.; El Nagar, K.; Elhendawy, A.G. Cyclodextrin-4 Hydroxybenzophenone inclusion complex for UV protective cotton fabric. J. Text. Inst. 2007, 98, 453–462. [Google Scholar] [CrossRef]
  17. Uddin, M.J.; Cesano, F.; Bonino, F.; Bordiga, S.; Spoto, G.; Scarano, D.; Zecchina, A. Photoactive TiO2 films on cellulose fibers: Synthesis and characterization. J. Photochem. Photobiol. A Chem. 2007, 189, 286–294. [Google Scholar] [CrossRef]
  18. Ma, W.; Jiang, X.; Liu, Y.; Tang, B.T.; Zhang, S.F. Synthesis of a novel water-soluble polymeric UV-absorber for cotton. Chin. Chem. Lett. 2011, 22, 1489–1491. [Google Scholar] [CrossRef]
  19. Cui, Z.H.; Wang, X.D.; Guo, J.C.; Chen, W.G. Synthesis, spectroscopic properties and applications of novel N-heterocycle-containing benzotriazoles as UV absorbers. Chin. Chem. Lett. 2012, 23, 1019–1022. [Google Scholar] [CrossRef]
  20. Wang, Q.; Hauser, P.J. Developing a novel UV protection process for cotton based on layer-by-layer self-assembly. Carbohydr. Polym. 2010, 81, 491–496. [Google Scholar] [CrossRef]
  21. Osawa, T.; Namiki, M. Structure elucidation of streptindole, a novel genotoxic metabolite isolated from intestinal bacteria. Tetrahedron Lett. 1983, 24, 4719–4722. [Google Scholar] [CrossRef]
  22. Zeligs, M.A. Diet and estrogen status: The cruciferous connection. J. Med. Food 1998, 1, 67–82. [Google Scholar] [CrossRef]
  23. Hojati, S.F.; Zeinali, T.; Nematdoust, Z. A novel method for synthesis of bis(indolyl)methanes using 1,3-Dibromo-5,5-dimethylhydantoin as a highly efficient catalyst under solvent-free conditions. Bull. Korean Chem. Soc. 2013, 34, 117–120. [Google Scholar] [CrossRef]
  24. Oecotextiles. Available online: https://oecotextiles.wordpress.com/tag/flat-screen-printing/ (accessed on 2 February 2016).
  25. The American Association of Textile Chemists and Colorists. Transmittance or Blocking of Erythemally Weighted Ultraviolet Radiation through Fabrics; AATCC: Research Triangle Park, NC, USA, 2014. [Google Scholar]
  26. Standard EN ISO 6330:2012, ISO 6330:2012, Textiles. Domestic washing and drying procedures for textile testing. Available online: https://www.iso.org/obp/ui/#iso:std:43044:en (accessed on 15 March 2015).
  27. Standard AATCC147-2011, Antibacterial Activity Assessment of Textile Materials. Oekotex 100. Available online: https://www.oeko-tex.com/en/manufacturers/manufacturers.xhtml (accessed on 5 February 2016).
  • Sample Availability: Samples of the compounds 219 are available from the authors.

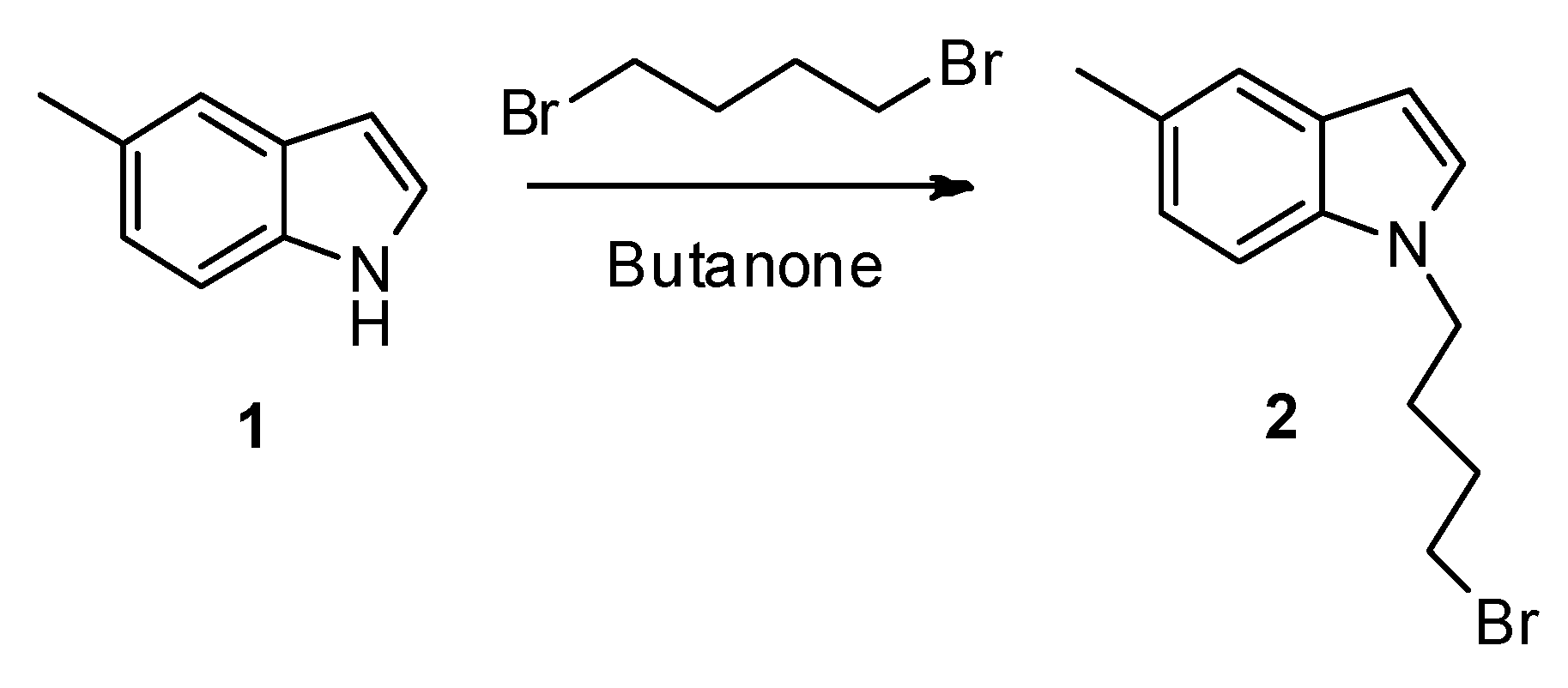

Scheme 1. Preparation of 2.
Scheme 1. Preparation of 2.
Molecules 21 00718 sch001

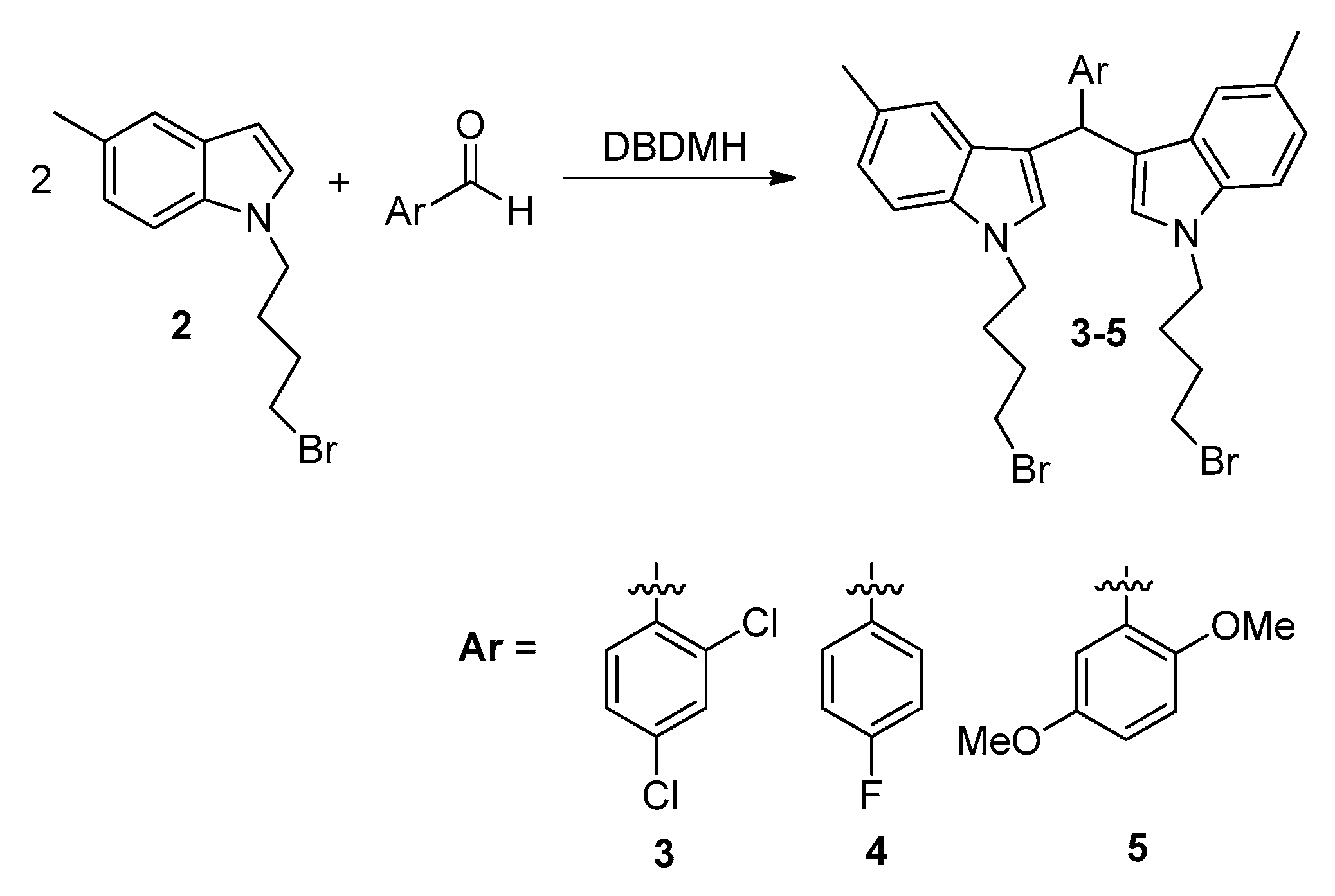

Scheme 2. Synthesis of 35.
Scheme 2. Synthesis of 35.
Molecules 21 00718 sch002
Scheme 3. Polymers 68.
Scheme 3. Polymers 68.
Molecules 21 00718 sch003

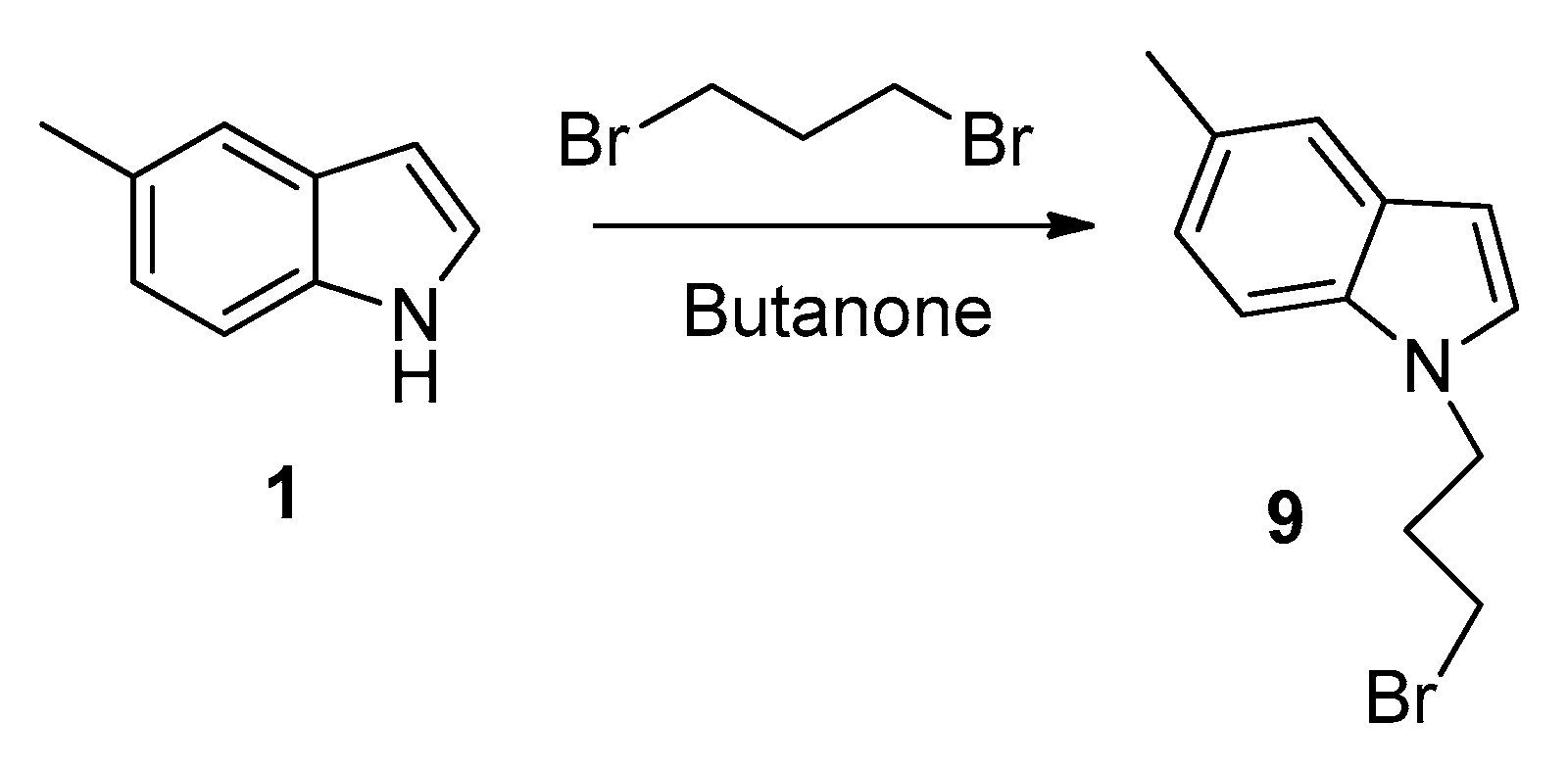

Scheme 4. Preparation of 9.
Scheme 4. Preparation of 9.
Molecules 21 00718 sch004

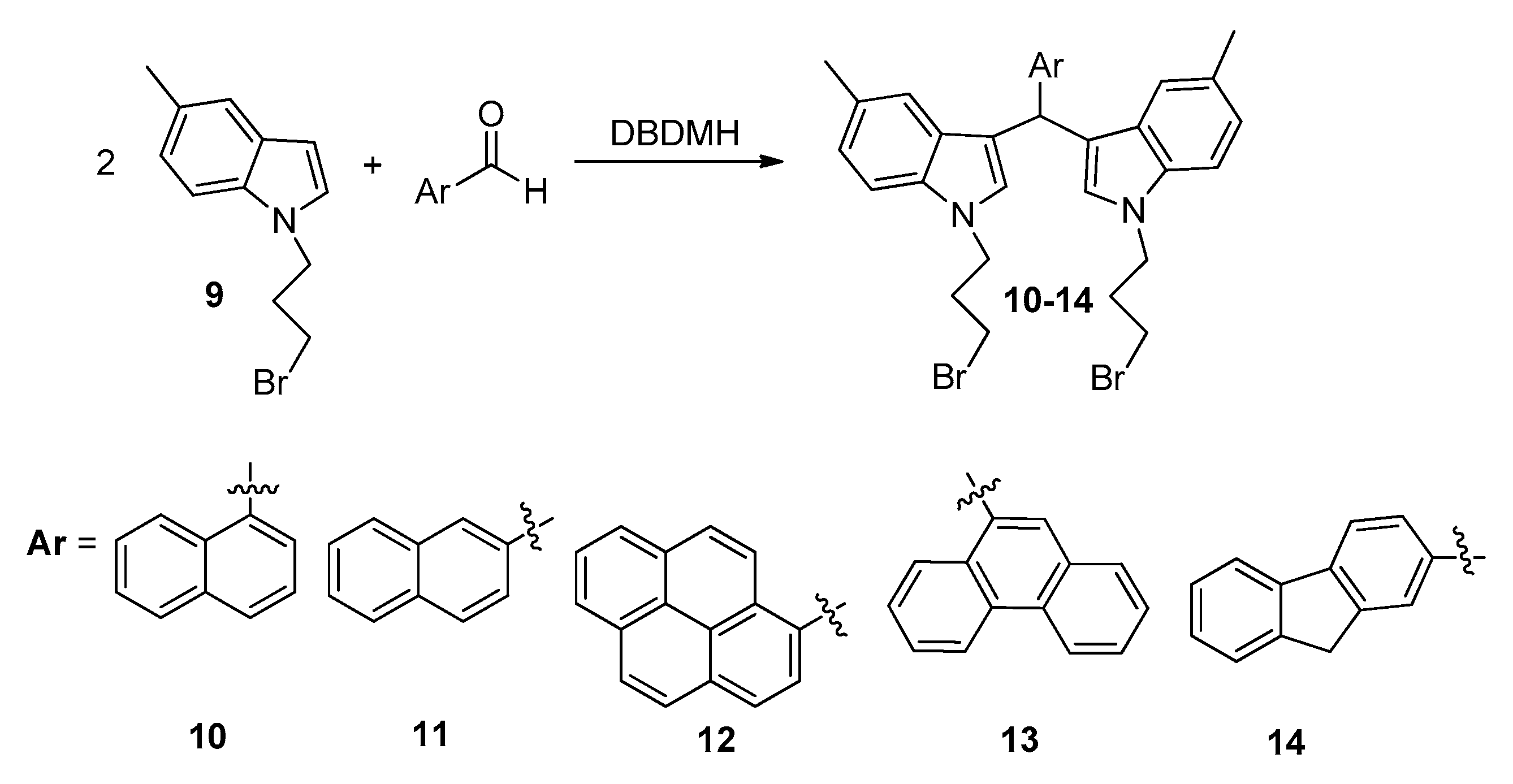

Scheme 5. Synthesis of 1014.
Scheme 5. Synthesis of 1014.
Molecules 21 00718 sch005

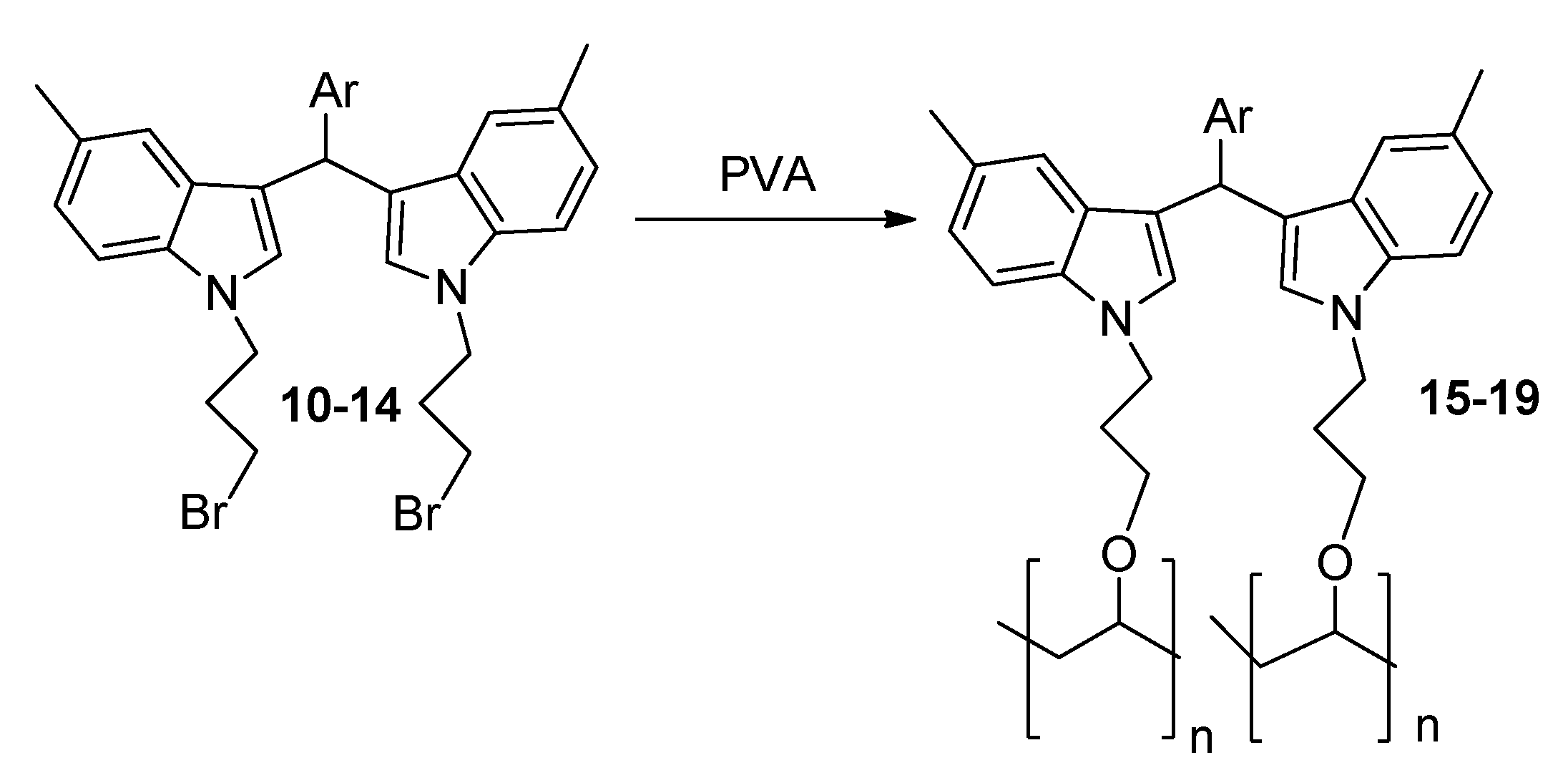

Scheme 6. Synthesis of 1519.
Scheme 6. Synthesis of 1519.
Molecules 21 00718 sch006
Figure 1. 1H-NMR spectra of compounds 3 and 6, respectively, in DMSO-d6.
Figure 1. 1H-NMR spectra of compounds 3 and 6, respectively, in DMSO-d6.
Molecules 21 00718 g001

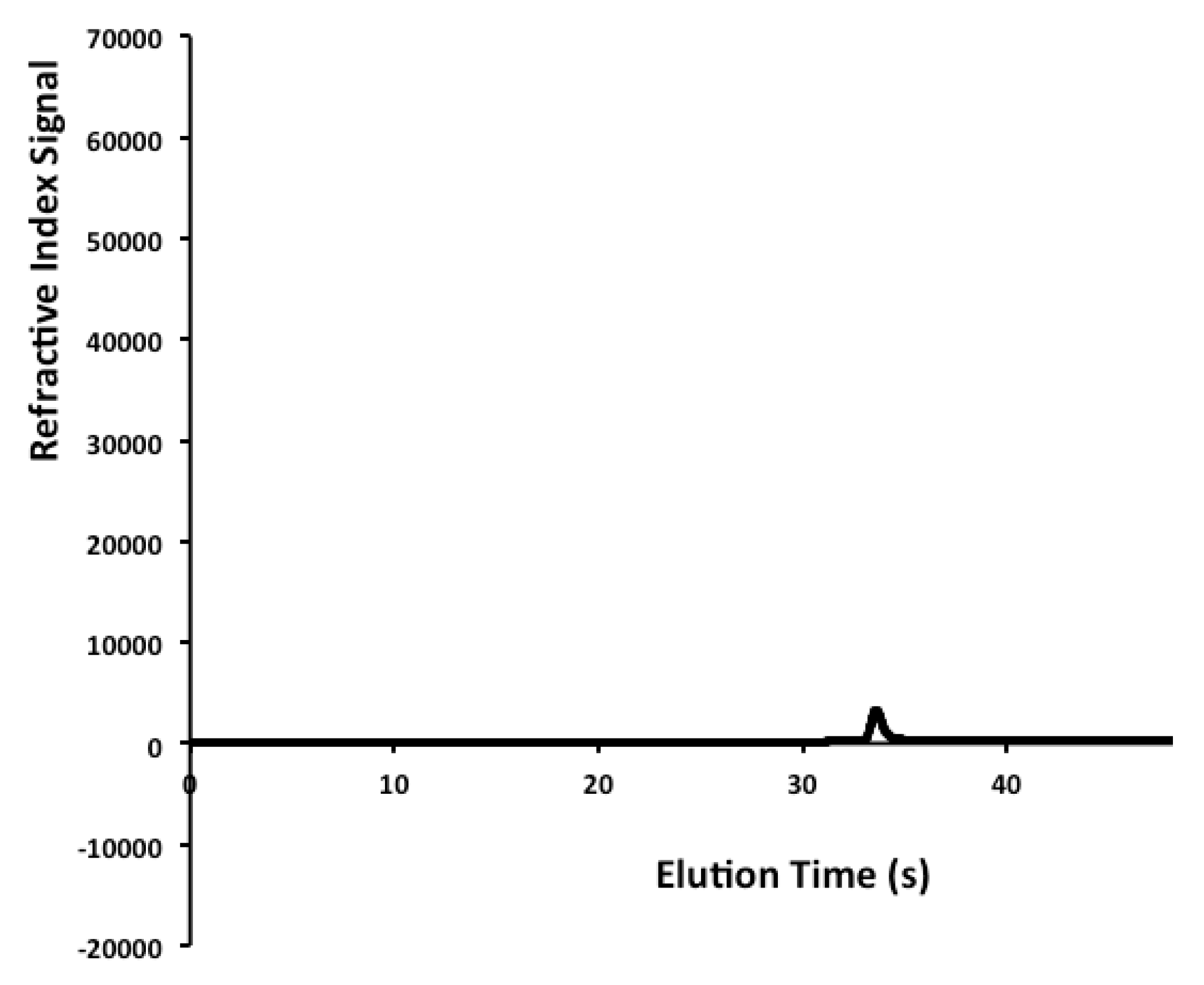

Figure 2. GPC result of compound 3.
Figure 2. GPC result of compound 3.
Molecules 21 00718 g002
Table 1. Properties of new compounds.
Table 1. Properties of new compounds.
ProductTime (h)Yield (%)Mp (°C)λmax/nm (Absorbance)
2370oil-
3255141–142315 (1.52)
4267118–119310 (1.42)
5260102300 (1.77)
6352-315 (0.60)
7252-310 (1.90)
8247-315 (1.63)
9275oil-
10261127–130290 (1.79)
11265101–103310 (1.77)
12472133–135346 (1.60)
13475168–171296 (1.47)
14460193–196307 (1.50)
15465-283 (1.20)
16460-278 (1.00)
17475-349 (2.45)
18470-300 (0.50)
19460-308 (1.22)
Table 2. GPC results of the polymers 68, 1519.
Table 2. GPC results of the polymers 68, 1519.
PolymerMw (×105 g/mol)Mn (×105 g/mol)
65.0344.908
75.0894.635
85.0424.712
1515.3515.14
1611.0110.99
1710.827.684
188.3147.627
195.0654.950
Table 3. UV protective features of absorbers.
Table 3. UV protective features of absorbers.
UV Absorber Printed FabricUVA Transmittance * (315–400 nm)UVB Transmittance * (280–315 nm)UPFUVA Blocking (%)UVB Blocking (%)UPF Label
reference5.652.0233.3794.3597.9827
60.300.101300.199.7099.9040+
72.150.22216.7797.8599.7840+
83.220.38146.1296.7999.6240+
152.150.12300.9097.8599.8840+
161.470.10381.0598.5399.9040+
170.800.051314.4399.2099.9540+
181.520.05594.0098.4899.9540+
190.3849.981604.1899.6299.9840+
* average.
Table 4. Antibacterial features of absorbers.
Table 4. Antibacterial features of absorbers.
Fabric PrintedWashesBacteria GrowthInhibition Zone (mm) *
reference-+
625-0
725-0
825-0
1525-0
1625-0
1725-0
1825-0
1925-0
* width of clear zone of inhibition. (positive = There is bacterial growth; negative = There is not bacterial growth).
