Abstract

:
In this work, the potential of CO2 mineral carbonation of brucite (Mg(OH)2) derived from the Mount Tawai peridotite (forsterite based (Mg)2SiO4) to produce thermodynamically stable magnesium carbonate (MgCO3) was evaluated. The effect of three main factors (reaction temperature, particle size, and water vapor) were investigated in a sequence of experiments consisting of aqueous acid leaching, evaporation to dryness of the slurry mass, and then gas-solid carbonation under pressurized CO2. The maximum amount of Mg converted to MgCO3 is ~99%, which occurred at temperatures between 150 and 175 °C. It was also found that the reduction of particle size range from >200 to <75 µm enhanced the leaching rate significantly. In addition, the results showed the essential role of water vapor in promoting effective carbonation. By increasing water vapor concentration from 5 to 10 vol %, the mineral carbonation rate increased by 30%. This work has also numerically modeled the process by which CO2 gas may be sequestered, by reaction with forsterite in the presence of moisture. In both experimental analysis and geochemical modeling, the results showed that the reaction is favored and of high yield; going almost to completion (within about one year) with the bulk of the carbon partitioning into magnesite and that very little remains in solution.
Keywords:
CO2 sequestration; forsterite; ex-situ; in situ; mineral carbonation

1. Introduction

Carbon dioxide (CO2) is the principal greenhouse gas released into the atmosphere during fuel combustion, particularly due to the extensive use of fossil fuels for energy production from coal, oil, and natural gas since the industrial revolution [1]. Moreover, atmospheric CO2 has recently surpassed 400 ppm, and is predicted to increase to nearly 1000 ppm by the end of the 21st Century [2,3]. The related global temperature rise (exceeding 2 °C) [3] will almost certainly result in irreversible climate change with potentially disastrous consequences.
Researchers have studied ways to mitigate the amount of greenhouse gases released into the atmosphere by sequestration of CO2 through different approaches, including aquifer storage, deep sea storage, and mineral carbonation in particular [1,4,5,6,7,8,9,10,11,12,13,14]. Minerals and rocks rich in magnesium (Mg2+)/calcium (Ca2+) are commonly considered as candidates due to their wide availability, low cost, and environmentally benign nature. [8,12,15] During mineral carbonation, CO2 reacts with Mg2+ or Ca2+-rich minerals (e.g., olivine and gypsum) to form solid carbonates, which are expected to be stable over geologic time periods. The minerals olivine [(Mg,Fe)2SiO4] and forsterite [Mg2SiO4], containing up to 33.6 wt. % Mg, have the highest capacity to trap CO2 as magnesium carbonates, and a high rate of dissolution among rock-forming silicate minerals [16]. Formation of magnesite from forsterite, the Mg-end member of the olivine solid solution series, is thermodynamically favorable based on the negative Gibbs free energy of Reaction (1).
1/2Mg2SiO4 + CO2→MgCO3 + 1/2SiO2 + 95 kJ/mol
According to Lackner et al. [17] the chemical reactions in mineral carbonation process can be very slow under ambient conditions and, therefore, activation processes such as exposure to acid, heat [8], and water [18,19,20,21] have been used to accelerate the carbonation rate. These processes are tedious and require additional energy input, which has made acid/heating approach less attractive than some others. The rates of carbonation can be raised by increasing surface areas of the mineral or its intermediates and by elevating the temperatures, resulting in lower kinetic constraints [15,16,22,23,24,25,26,27,28,29]. Moreover, an in situ CO2 sequestration system with mineral carbonation can be treated as a fully-coupled problem between rock deformation, pore-fluid flow, heat transfer, mass transport, and chemical reaction processes. Three types of models are commonly employed in computational petroleum geoscience and engineering research methodologies. These approaches are geological/geochemical (conceptual), mathematical, and/or numerical simulation.
The purpose of this study was to do ex situ (laboratory) studies of the factors affecting the rates of (forsterite) mineral carbonation (i.e., particle size, water vapor, and reaction temperature) in support of an in situ geochemical conceptual model. A transport reaction modeling software PHREEQC (version 2.18, US Geological Survey (USGS), Reston, WV, USA), was applied for simulating the chemical reactions and transport processes in the forsterite mineral carbonation process. Pre-treatment of forsterite in a quantitative equivalent of mineral acid (HCl), i.e., dissolution to neutrality, was taken as a suitably fast process (in extracting most of the Mg ion) for practical experimentation. One advantage of this process is that the formation of magnesium carbonate (MgCO3) releases heat, which can in principle be cycled back to other endothermic steps (see Reactions (2)–(4) in Section 3.3) through heat integration in a commercial process.

2. Results and Discussion

2.1. Mineral Characterization

The elemental composition of the peridotite mineral was determined by XRF analysis as MgO (51.9%), SiO2 (41.1%) as major components with minor levels of FeO, Al2O3, Na2O, K2O, and CaO (see details in Table 1).
XRD analysis of the HCl-cleaned starting material (Figure 1) shows a characteristic pattern of olivine (2θ = 11.8°, 23.6°, 29.3°, 31.1°, 33.6°, 40.8°, and 43.6°), with some contamination by quartz or free silica (2θ = 20.9°, 26.5°, 50.5° and 68.7°). In view of the fairly low level of Fe and its own capacity for carbonation (as FeCO3), modeling studies (vide infra) were based for simplicity on the pure forsterite composition (Mg2SiO4), the Mg-end member of the olivine solid solution series.
Morphological and structural changes in the olivine (nominal composition Mg1.84Fe0.16SiO4) at various stages during chemical pretreatment and carbonation, viz., after leaching in HCl, neutralization and precipitation of Mg2+ [as Mg(OH)2], and exposure to humid CO2 at 4.8 bar and 150 °C, are best seen by SEM micrographs and powder XRD in Figure 2 and Figure 3, respectively.
By SEM, the fresh olivine sample (Figure 2a) consisted typically of polycrystalline grains in the millimeter size range. After acid leaching and neutralization of the sieved fraction <75 μm (Figure 2b), the grains became finer (<5 μm) and the structure more amorphous. In agreement with the findings of Bearat et al. [30] and Kwon et al. [18], this is likely due to an amorphous SiO2 residue after leaching, any (hexagonal) brucite likely being nanocrystalline. Under humid CO2, the development of polyhedral and more sheet-like crystallites (Figure 2c) was evident, probably representing (hydrated) magnesium carbonate, and finally (Figure 2d), the rhombohedral habit typical of magnesite (MgCO3) was evident.
Figure 3 shows XRD data obtained after the same stages of treatment in parallel with the SEM analyses. Diffractogram 3a reveals that although unreacted olivine (Mg1.84Fe0.16SiO4 main reflection at 2θ = 11.8°) is predominant after only 15 min exposure to humid CO2, hydromagnesite (HM = Mg5(CO3)4(OH)24H2O main reflection at 2θ = 31.3°) and a little magnesite (M = MgCO3 main reflection at 2θ = 43.15°), had already formed from brucite [Mg(OH)2] precursor, itself created in the leaching/neutralization stage. At longer exposure times (Figure 3b,c), reflections due to brucite and hydromagnesite were progressively replaced by those of magnesite (2θ = 32.25°, 43.15°, 54.25°). The ultimate disappearance of olivine is intriguing since it implies direct steam-activated carbonation of the (chemically un-pretreated) mineral, for which evidence has been reported elsewhere [31]. The abundance of quartz (as co-product) cannot be taken as a reliable indicator of the progress of carbonation because it is also a phase contaminant in the original mineral (see Figure 1). Furthermore, similar chemical treatment (flux extraction of Mg2+) from serpentinites did not produce quartz but instead a silica residue of unusual structure [27]. The unsystematic peak intensity of quartz seen here by XRD may be due merely to local inhomogeneity in the samples.

2.2. Effect of Particle Size on the Carbonation of Olivine

The leaching rate was found to be much slower than the optimal carbonation rate (achievable at 175 °C vide infra), such that the production of magnesite in these experiments reflects mainly variations in the rate and efficiency of extraction of soluble Mg2+ ion by acid treatment. Figure 4 shows that decreasing the grain size from >200 μm to <75 μm caused the limiting degree of Mg2+ leaching to increase from 35% to 99%, respectively. It is well-known and intuitively obvious that the reaction rate and carbonation degree can be raised by increasing the surface area, e.g., by grinding/sieving, as shown for example by Garcia et al. [32]. In this work, the smallest particle size (d < 75 μm) is the only one offering the prospect of full leaching (99%) in a practical time. As a rule of thumb, 1–2 h for a terrestrial (ex-situ) process to achieve >90% conversion is taken as a realistic practical target to limit the scale (and associated costs) of any future installation for CO2 sequestration. This particle cut and leaching procedure (2 h at 60 °C) were therefore applied as standard for all samples in subsequent tests described below.

2.3. Effect of Temperature on the Carbonation of Olivine

The temperature dependence of the carbonation process was studied over the interval from ambient to 175 °C. The effect of temperature on the amount of Mg conversion after standard leaching treatment (99% extraction) is illustrated in Figure 5. As expected, the temperature had an important effect on the mineral carbonation process consisting of Mg extraction and subsequent MgCO3 precipitation. The amount of Mg converted at the desired temperatures was measured continuously several times. The maximum extent of carbonation of (99%) was attained at temperatures in excess of 150 °C. The quantification of the MgCO3 formed in the mineral carbonation process was carried out by titration against HCl at room temperature. Pokrovsky et al. [33] demonstrated that the dissolution rate of magnesite at 150 °C is lower than at 25 °C whereas the rates at 100 and 150 °C in acidic solutions are almost the same [34], suggesting a strong decrease of the apparent activation energy above 100 °C. According to Saldi et al. [34] the tendency for dissolution rates of MgCO3 to decrease with increasing temperature could benefit CO2 sequestration efforts by making magnesite more resistant to dissolution in deeper (hotter) strata, thus preserving the petrophysical integrity of deep carbonate-rich confining reservoirs.
It is clear from Figure 5 that several competing factors in the carbonation process reach equilibrium in the temperature range between 150 and 175 °C. Probably the key factor is the relative humidity (RH). Previous work has shown that carbonation accelerates on cooling below 200 °C in a fixed partial pressure of steam or RH ≥ 20% [35]. Since the presence of liquid water has been shown to be important, it can also be argued that the effect of temperature on the solubility of CO2 may influence the carbonation rate. Chen et al. [36] indicated that increasing temperature from 25 °C to 150 °C generally helps the precipitation of magnesite. The carbonate solubility product (Ksp), Henry’s constant (KH), and the first- and second-order dissociation constants of carbonic acid (Ka1, Ka2) are all functions of temperature. Increasing the reaction temperature decreases the value of Ksp and increases the KH value, which lowers the amount of CO2 gas in solution at a given pressure. The dissociation constants of carbonic acid (Ka1 and Ka2) are also increased by increasing temperature and promoting solution speciation and carbonation. Thus, increasing temperature has conflicting effects, lowering the level of dissolved CO2 gas via its effect on KH but promoting magnesite precipitation via effects on Ka1, Ka2, and Ksp. Furthermore, temperature impacts on the kinetics of magnesite precipitation [37] and also affects the type of Mg-carbonate formed. It is well-known that magnesite precipitation kinetics at ambient temperatures are exceedingly slow, and that metastable hydrated carbonates such as hydromagnesite, dypingite, and nesquehonite almost invariably form instead.

2.4. Effect of Water Concentration

Formal carbonation of forsterite [Reaction (1)] does not involve water molecules explicitly, so any beneficial effect of added water is clearly a kinetic effect. As shown in Figure 6, an indication of the importance of water is seen in the modest level of CO2 removal in its absence. By analogy with recent works on brucite and serpentinites, almost regardless of the CO2 pressure utilized, the presence of water vapor in high relative humidity appears crucial to obtaining practical carbonation rates [20,31,38], evidently by establishing a highly polar thin-film aqueous overlayer that facilitates CO2 ingress into the bulk particle. This is supported by independent studies simulating in situ or geochemical carbon sequestration where CO2 was assumed to be in the supercritical state. Felmy et al. [39] studied high-surface-area forsterite in the presence of water-saturated scCO2. They concluded that the nature of the water in contact with the reacting surface is a key factor in the enhanced magnesite formation. When excess water was added to the forsterite particles, a thin water film was formed on the forsterite surface promoting magnesite formation. Loring et al. [40] declared that this water film provides a distinctive situation for the magnesite formation by decreasing the effective Mg2+ dehydration energy and simplifying the transformation of nesquehonite to magnesite. Otherwise, the presence of liquid water can allow the formation of magnesium bicarbonate in solution that decomposes upon drying to magnesium carbonate. Moreover, Schaef et al. [41,42] revealed that the addition of water to the saturated system noticeably increases the rate of mineral carbonation, facilitating the overall conversion of nesquehonite to magnesite. No evidence of further carbonation was observed under unsaturated conditions below 50 °C. A similar promoting effect of water on brucite carbonation under scCO2 was reported by Loring et al. [43] using in situ Fourier-Transform Infrared (FTIR) spectroscopic experiments.
To investigate the effect of humidity, the concentration of water vapor was set at various levels, 5, 10, and 20 vol % prior to carbonation of the brucite extract at 175 °C. As illustrated in Figure 6, above 5 vol % steam, the degree of carbonation increases by almost double in the presence of water vapor such that within 5 min, complete removal of CO2 (15 vol %) was achieved. However, levels of water vapor exceeding 20 vol % had no additional effect on the rate of removal of CO2. It can be concluded that water vapor is able to solvate CO2, generate carbonate ions and protons [44], and increase the carbonation degree of Mg(OH)2 as derived from olivine. Moreover, the aforementioned modest uptake of CO2 (~7 vol %) under “dry” conditions may be due to adventitious water not fully removed from the Mg(OH)2-containing residue. Vitillo [45] declared that in the presence of water vapor, MgCO3 crystalline phase reappeared increasingly, while the magnesium oxide periclase (MgO) phase gradually disappeared. These observations are well in agreement with the thermodynamic data on MgO, Mg(OH)2, and MgCO3 systems. The promoting effect of water may be attributed to faster reaction kinetics by offering alternative routes to magnesite via hydrocarbonate intermediates such as dypingite.
As a comparison to related work on Mg(OH)2 in the literature, Siriwardane and Stevens [46] reported good absorption kinetics and reasonable capacity for CO2 in plug-flow reactor experiments over a promoted brucite (~3 mol CO2/kg or 20 mol %) in “moist” helium at 200 °C. However, the promotional effect of water per se was not explored and the sorbent surface area was low (~2.5 m2·g−1). This compares with our thermogravimetric work [38] showing that Mg(OH)2 extracted from the mineral is typically obtained in high-surface-area form (~25 m2·g−1). These are evidently important factors in attainment of almost quantitative (~100%) carbonation at lower temperature (150–175 °C) in this work, specifically the higher water levels utilized and the better dispersion of brucite derived from the mineral. Based on the thermodynamic equilibrium of Mg(OH)2 formation from MgO, Siriwardane and Stevens [46] showed that is likely to form Mg(OH)2 under the high steam environment, which accounts for the subsequent CO2 uptake. It is important to note that the Mg(OH)2 system has the far lower heat of sorption. This confirms that the regeneration heat (input) needed to displace CO2 from MgCO3 by water (to form Mg(OH)2) is significantly lower than that required for the decomposition of MgCO3 (to MgO + CO2).

2.5. Kinetic Analysis of Mg Extraction by HCl

Different kinetic analyses including expressions for product layer diffusion, film diffusion, chemical reaction control, and a combination of chemical reaction control (Equations (4)–(7), respectively, in Section 3.5), were used to evaluate the integral rate data. The extent of forsterite dissolution, XE, is taken as fitting parameter but this is actually measured from the amount of magnesite, i.e., the extent of carbonation (= RCO2 in Equation (2)), because dissolution is much slower than carbonation (of the Mg(OH)2 extract). Direct carbonation of unreacted forsterite is probably even slower. Thus, dissolution is rate-determining in the overall process. The two best-fit results are illustrated in Figure 7a,b, but the first, a combination of chemical reaction control and product layer diffusion (Equation (7)) provided the highest correspondence with the measured data. Thus, it can be concluded that a combination of chemical reaction control and product layer diffusion is rate-limiting for Mg extraction.
Activation energies (Ea) for mineral dissolution were determined from simple log/log plots of the time-independent rate k at various temperatures. These values are presented in Table 2, from which the Arrhenius plots shown in Figure 8 were obtained. Once again, the quality of fit was best for the combination of product layer diffusion and chemical reaction control (R2 = 0.9917) as compared to product layer diffusion only (R = 0.9764). Considering these models as the controlling mechanisms during the dissolution of forsterite, the Ea value was 15.5 kJ/mol for product layer diffusion control, and 16.0 kJ/mol for the combination of product layer diffusion and chemical reaction control. It is likely that the chemical reaction is initially rate-limiting but product layer diffusion gradually becomes rate limiting as the product layer of silica builds up and the unreacted surface area decreases. According to Gharabaghi et al. [47] a low value of Ea indicates that product layer diffusion is rate-controlling, Therefore, considering the values of multiple regression coefficients for different models and calculated Ea for two selected models, it could be concluded that the dissolution rates of forsterite are kinetically regulated by the combination of chemical reaction control and product layer diffusion.
The rate constants generated in this study on forsterite are faster than corresponding rate constants reported by Pokrovsky and Schott [48], who only worked at the temperature of 25 °C. Comparison of photomicrographs showing the surface of forsterite presented by Pokrovsky and Schott [48] and the samples from this study (see Figure 2) demonstrates they consist of euhedral and larger crystals due to small adhering particles and their agglomeration in acid solution at the temperature of 25 °C. In the present study, the rate constants are increased because of the far higher density of activated sites per unit surface area at higher temperatures.

2.6. Thermodynamic Considerations on the Mineral Carbonation

As regards the effect of temperature on the system, two physical mechanisms interact; the increase of olivine solubility with temperature and, conversely, the reduction of magnesite solubility with increasing temperature. Heat treatment was reported by O’Connor et al. [49] to remove sorbed water and activate the mineral surface. They suggested that the carbonation phase occurs quickly in the olivine powders at high temperatures, from which we expect an increase in the available reactivity of mineral surface with removal of sorbed water and CO2 uptake by the mineral surface and, therefore, more rapid reaction.
Additionally, elevated temperature causes an increase of the olivine dissolution rate, which enhances the overall reaction kinetics. Our results concur with this (see Figure 5) up to the maximum temperature studied (175 °C). The lowest CO2 concentration considered was 0.5% (volume fraction of CO2 unconsumed) indicating olivine samples have efficiently precipitated CO2 as carbonate phase, which is in agreement with the findings of Kwon et al. [18]. Interestingly, the CO2 sequestration capacity of olivine mineral seen here over the temperature range of 150–175 °C was higher than in previous studies [50,51,52,53,54,55]. We tentatively suggest that this effect is due to either an increase of the available surface area or available moisture (or a combination of both factors). At the highest temperatures, (e.g., the range of 150–175 °C), Hänchen et al. [56] suggest the olivine samples released more Mg into the solution, which seems a reasonable assumption to adopt here and is confirmed by the calculation shown below. At lower temperatures (less than 100 °C), King et al. [12] found that MgCO3 precipitation was kinetically hindered due to the high activation energy for the de-solvation of the strongly hydrated Mg2+ ions (Reaction (2)). According to Hänchen et al. [57] during low temperature experiments, hydromagnesite [Mg5(CO3)4(OH)2•4H2O] was precipitated from the solution (Reaction (3)) instead of magnesite (MgCO3). When the temperature was increased (up to 125 °C), hydromagnesite was transformed to MgCO3 albeit slowly (more than 15 h).
Mg2SiO4 (sol) + 2CO2 (gas) + 2H2O (liq.)→2 MgCO3 (sol) + H4SiO4 (aq.)
5Mg2SiO4 (sol) + 8CO2 (gas) + 20H2O (liq.)→2[4MgCO3•Mg(OH)2•4H2O] (sol) + 5H4SiO4 (aq.)
The work of Hänchen et al. [57] is intriguing, as we found the evidence of hydromagnesite formation in our samples, suggesting that this phase may be as a metastable “intermediate” phase [38] with respect to magnesite, but kinetically favored as a first reaction product under certain conditions (e.g., at low temperature conditions).

2.7. Geochemical Modeling

Equilibrium simulations were performed using PHREEQC (version 2.18—Parkhurst and Appello [58] with data from the Lawrence Livermore National Laboratory (LLNL, Livermore, CA, USA, supplied with the code). The first, very simple calculations examined the saturation state of a solution (initially pure water) when equilibrated with either magnesite, or both magnesite and carbon dioxide gas. Figure 9 shows the saturation index of both solutions with respect to magnesium phases which could be formed from the elements in the simulated system. In each case, the solutions suggest saturation with brucite, Mg(OH)2, would be reached above 25 °C, so the simulations were repeated, but allowing brucite to precipitate when it would otherwise be oversaturated at ambient pressure and it is these conditions which are shown in Figure 9. It is interesting to note that the solution remains undersaturated with respect to hydromagnesite at all temperatures and the influence of CO2 saturation is negligible. This reinforces the view that hydromagnesite is an artifact of rapid precipitation, i.e., a process under kinetic control, in preference to magnesite (in line with experiments by Konigsberger et al. [59] and Power et al. [60]), which, under equilibrium conditions, is the dominant magnesium-bearing phase.
Secondly, attempts were made to simulate the reaction of CO2 gas with forsterite in the presence of water, with and without varying amounts of HCl. These results also suggest considerable disequilibrium, in that magnesite would not be the dominant “sink” for magnesium in the presence of the silicate ions liberated from forsterite dissolution. Examination of the saturation state of solutions in which CO2 was sequentially added to forsterite-water mixtures, always suggested a greater tendency for sepiolite precipitation, in preference to magnesite. Over the temperature interval 1 to 175 °C, CO2 gas was sequentially “reacted” (numerically) with an excess of forsterite in the presence of water and these simulations were repeated in the presence of HCl to represent any carry-over of the acid from the previous processing step. Although we recognize that the presence of hydrochloric acid has little influence on the thermodynamic equilibrium position, it has a major role in promoting a rapid increase in the forsterite dissolution kinetics, so it was considered here. In all cases, thermodynamic equilibrium was only reached when sepiolite was allowed to precipitate, which effectively prevented magnesite formation. No evidence of other phases being important in these reactions was seen and the influence of residual HCl was negligible.
Experimentally, no evidence of sepiolite formation was seen and magnesite certainly dominates the solid phase assemblage after carbonation in this work and in the previous studies cited above. Our observations are that forsterite dissolves and magnesite and amorphous silica precipitate as reaction products (see Figure 2 and Figure 3). Experimental studies on the stability of sepiolite have demonstrated that if the silica activity value is high in alkaline solutions, sepiolite precipitates [61,62,63]. From this, we must assume that the kinetics of sepiolite formation are very slow indeed and consequently it was excluded from the mineral assemblage in subsequent calculations. Figure 10 shows the solution chemistry predicted in a system where forsterite is carbonated by gaseous CO2 in the presence of water. One mole of forsterite (in excess) was sequentially reacted with 0.2 mol of CO2 gas, allowing equilibrium to be reached with both amorphous silica and all possible magnesium phases except sepiolite (which was prevented from forming in the simulations). At all temperatures between 25 °C and 175 °C carbonation is predicted to cause dissolution of forsterite and precipitation of magnesite and amorphous silica, with no other magnesium-bearing phases reaching equilibrium, except sepiolite which was allowed to remain oversaturated in the pore solution.
The solid phase chemistry is shown in Figure 11, which plots the ratio of forsterite dissolved against magnesite precipitated (mole ratio) against the number of moles of carbon dioxide consumed by the reaction. This is in effect the “yield” of the reaction, showing the moles of product formed as a function of the moles of reactant consumed. The theoretical stoichiometry (see Equation (1), above) is that two moles of forsterite react with one mole of CO2 to produce one mole of magnesite and one mole of amorphous silica. These simulations suggest that this condition is reached quite rapidly. After reaction of only 0.9 mol of CO2, the reaction is 97% complete in stoichiometric terms; that is to say the bulk of the CO2 reacts to form magnesite and very little partitions into the liquid phase (cf. Figure 10). Figure 11 shows that the temperature does have an effect on the extent of reaction and efficiency of carbonation in terms of the overall yield. The pseudo steady-state conditions established after reaction of 0.2 mol of CO2 are maintained if further reaction is simulated, such that the solution chemistry remains constant, as does the ratio of forsterite and CO2 consumed to the quantities of amorphous silica and magnesite precipitated. This is shown in Figure 12, where an excess of carbon dioxide eventually exhausts the reserve of forsterite, maintaining the stoichiometry of the reaction throughout. It must be stated that since the simplistic geochemical reaction path modeling is used in this study, many physical processes, such as material deformation, pore-fluid flow, heat transfer, advection, diffusion/dispersion, are ignored, although they should be considered in future work, as they are expected to be important during industrial-scale-up. In addition, because the chemical dissolution-front instability is also neglected in this study, many important factors, such as mineral reactive surface area, mineral dissolution ratio, solute dispersion, medium anisotropy, medium and fluid compressibility, have also been ignored. To consider these factors appropriately, more comprehensive chemical-transport modeling will be required.

3. Experimental and Modeling Section

3.1. Materials

Three kilograms of olivine mineral were excavated and collected from different depths of the Mont Tawai peridotite stratum in Malaysia. Although this source is local, the results can be considered as broadly representative of peridotite as the mineral composition is typical. The samples were crushed by a mechanical grinder and sieved into four different size ranges: <75 µm, 75–125 µm, 125–200 µm and >200 µm. Subsequently, they were dried to a constant weight at 120 °C for 2 h. Ten grams of each size fraction were mixed separately in 500 mL of 0.01 M hydrochloric acid (HCl, QRëC reagent grade, 37%) solution to remove impurities.
The olivine samples were characterized using scanning electron microscopy (SEM, S-4700 Hitachi, Tokyo, Japan) and X-ray diffraction (XRD, X’Pert powder, PANalytical, Almelo, The Netherlands), while elemental composition was measured by X-ray fluorescence (XRF, PW-1410, PANalytical, Almelo, The Netherlands). The carbonation yield of the olivine was determined using a total carbon analyzer (TCA, CS844, LECO Corp., St. Joseph, MI, USA).

3.2. Experimental Apparatus

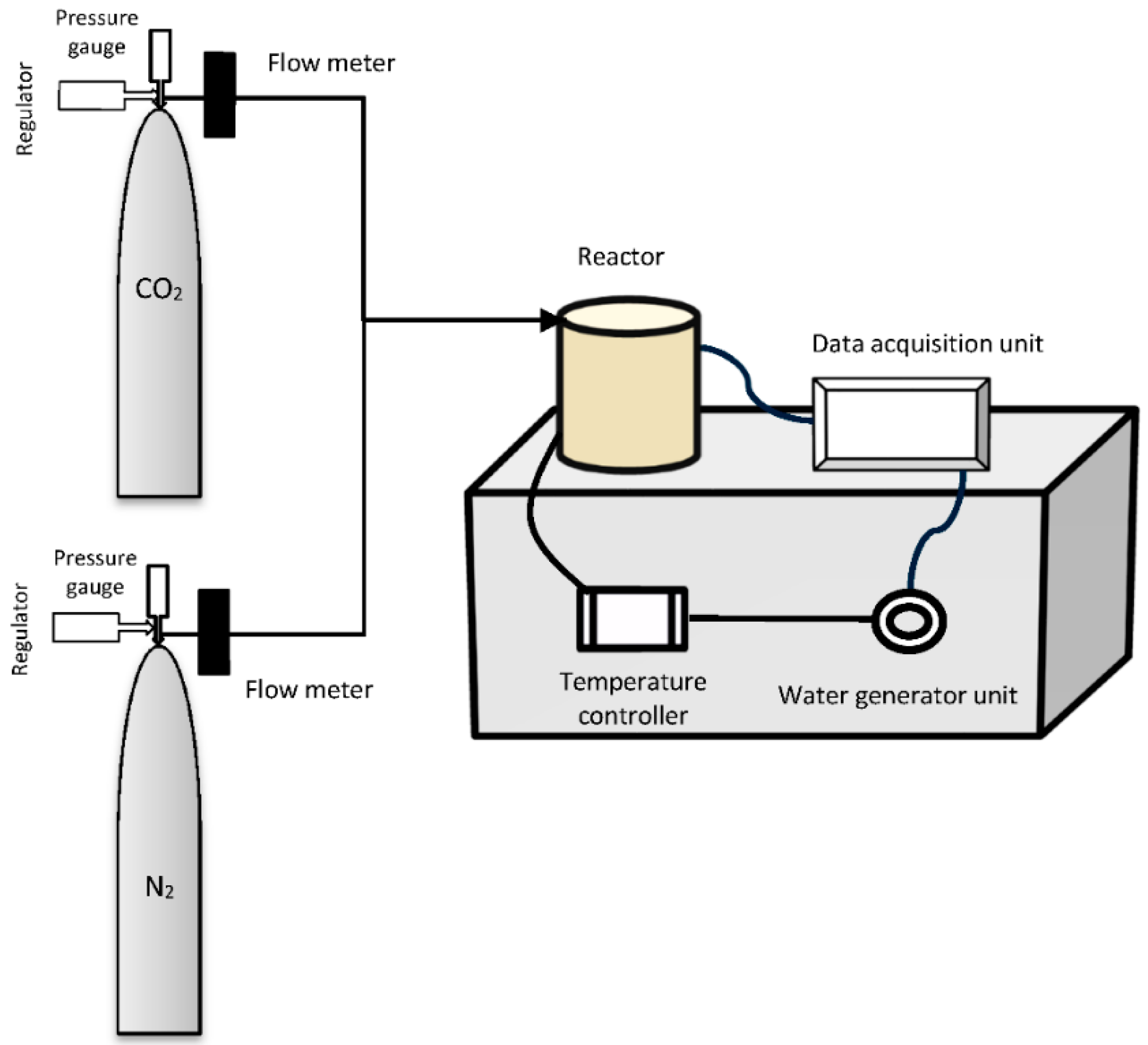

The experimental equipment for CO2 mineralization consisted of a CO2 analyzer system mounted in a flow system connected to a cylindrical (500 mm × 10 mm (d)) autoclave reactor with the means to supply diluted CO2 and flushing with pure N2 (Figure 13). CO2 was introduced into the reactor at different partial pressures (up to 30%). Two flow meters (FM-1050, Matheson Tri-gas, Basking Ridge, NJ, USA) were used to control the flow rate of the inlet gases. The autoclave reactor was loaded with mineral and acid, then placed in a furnace where the temperature was measured and controlled using a thermocouple inserted directly into the reactor.
A water vapor generator was used to humidify the gas stream. CO2 consumption was measured as the difference between supply and vent level at fixed flow (with integration over time) using an optical IR-sensor (GMP221, Vaisala Oyj, Helsinki, Finland), according to Equation (1):
CO 2 uptake  ( m o l g ) = i n ( pCO 2  in pCO 2  out ) i × Δ t × Q R × T × M
where pCO2 out and pCO2 in are mean value of pCO2 (atm) at the inflow and outflow (equilibrium supplyP = 4.8 bar), Δt and Q are time interval (min) and flow rate (L/min), respectively, R and T are gas constant (0.082057 l.atm/mol.K) and temperature (K), respectively, and M is the mass of forsterite (g).

3.3. Experimental Procedure

In this study, 1 M HCl was used for dissolution of Mg from the mineral matrix of peridotite and the dissolution experiment was conducted in a separate vessel. When a stoichiometric amount of HCl solution was added to olivine powder in a reaction vessel and stirred with a magnetic stirrer at 60 °C for two h, the entire mass formed a slurry. This slurry was then transferred into the autoclave reactor and neutralized by adding a base (NaOH: Fisher Chemicals reagent grade, with purity 99.999%) until the final pH was increased to above seven. Before heating the reactor, it was purged with nitrogen in order to replace the air inside the reactor, then the reactor was pre-heated to 175 °C for 1 h to dry the slurry and cooled to ambient. CO2 gas (SFE grade, with a purity of 99.99% contained in a dip-tube cylinder and purchased from MOX Company, KL, Malaysia) was passed through the dried slurry at a typical flue gas level (15 vol %) or 4.8 bar pressure (Ptot = 32 bar) in the absence or presence of water vapor. The temperature of the carbonation process was studied over the interval from ambient to 175 °C.
The reactions involved in the extraction of Mg and carbonation are as follows:
4HCl (liquid) + Mg2SiO4 (solid) → 2MgCl2 (aqueous) + SiO2 (solid) + 2H2O (liquid)
In this reaction scheme (Reaction (4)), forsterite dissolves in HCl, forming soluble MgCl2 (Mg2+ remains in solution), and leaves behind insoluble SiO2. [15] Magnesium hydroxide [Mg(OH)2] is precipitated by neutralization with NaOH (Reaction (5)). Then, by passing CO2, Mg(OH)2 is converted to MgCO3 in a gas-solid carbonation process (Reaction (6)).
MgCl2 + 2NaOH → Mg(OH)2 + 2NaCl
Mg(OH)2 + CO2 → MgCO3 + H2O
The effect of water vapor level on carbonation was studied in the range 5–20 vol % H2O, corresponding to a range of relative humidity 18%–72% RH. After completion of the experiment, the samples were collected and filtered using <75 µm pore size Whatman filter papers. The MgCO3 formed in the sample was quantified by titration against HCl. For the titration, a certain amount of solid (0.5 g) was weighed in a conical flask. Then, 20 mL of 1 M HCl was added into the flask and was allowed about two hours to react with the MgCO3. The excess HCl was then back-titrated using 0.1 M NaOH solution. From the difference in titrant volume, the HCl consumed was calculated from which the content of MgCO3 was deduced.

3.4. Estimation of Carbonation Yield

The extent of CO2 mineral carbonation Y C O 2 was estimated using the TCA method, which is based on the mineralogy of samples tested and the capacity of carbon sequestrated   ( 1 R C O 2 ) [64]. R C O 2 is considered as the weight fraction of CO2 that can be trapped in a specific amount of mineral. According to Gadikota et al. [64] the capacity of CO2 sequestration in forsterite (Mg2SiO4) can be expressed as follows:
W C O 2 W f o = ( 1 R C O 2 ) = Y M g M W M g × M W C O 2
where W f o and W C O 2 are weights of forsterite before its mineral carbonation and CO2 sequestrated in the solid phase (i.e., magnesite), respectively. Y M g is the mass fraction of Mg2+ in the forsterite (i.e., 34.55%) that can react with carbon dioxide to form stable magnesite. M W m g and M W C O 2 are the formula weights of Mg2+ (48.61 mol/g in the forsterite) and CO2 (44.01 mol/g), respectively, in the carbonated forsterite (2MgCO3 & SiO2—see (Reaction (1))). Therefore, Y C O 2 is the amount of carbon dioxide sequestrated (as magnesite) relative to the maximum capacity of CO2 sequestration in forsterite ( 1 R C O 2 = 31.27 % ) .
Y C O 2 = R C O 2 × [ 3.67 × weight fraction of carbon in MgCO 3 1 ( 3.67 × weight fraction of carbon in MgCO 3 ) ] × 100 %
where 3.67 is the CO2/C mass ratio. The carbonation yields of the forsterite and the effect on these of key empirical variables—reaction temperature, time, and particle size, are compared below.

3.5. Modeling System and Kinetic Analysis

Thermodynamic calculations were performed with the PHREEQC program software (version 2.18) with data from the LLNL [58]. Forsterite is the Mg-end member of the forsterite-fayalite solid solution series, and is included in the LLNL database. This program was used to estimate the dissolution and carbonation of forsterite samples in order to predict CO2 uptake processes and potentials. Moreover, thermodynamic equilibrium constants for the mineral carbonation reactions of forsterite were provided by model databases. In doing so, reaction kinetics were implemented by using a BASIC interpreter. The possibility of implementing reactions kinetic into the code as BASIC statements was also used to predict the reaction progress over time. Consequently, the quality and validity of the model system and the determined rate and equilibrium parameters were verified against the results of carbonation experiments with forsterite samples. The data from a sequence of laboratory efforts were applied for that purpose, which were performed in the aqueous autoclave mini reactor.
The kinetic analysis of the forsterite dissolution rates was determined according to “standard integral analysis Levenspiel’s method” [65] in Mg-rich solution using HCl. The results were set into several heterogeneous reaction models represented by integral rate equations and then the multiple regression coefficients (R) were calculated. The shrinking core model described by Dri et al. [66] was applied for the constant size of forsterite particles. Based on this method, reaction rates take place at the outer surface of the unreacted particles, and heterogeneous reactions are controlled by the product layer diffusion (Equation (4)), film diffusion (Equation (5)) and chemical reaction control (Equation (6)). In addition, the possibility of having a compound effect of “chemical reaction control” and “product layer diffusion” was investigated using Equation (7).
k t = 1 3 ( 1 X E ) 2 3 + 2 ( 1 X E )
k t = 1 3 ( 1 X E ) 1 3
k t = X E
k t = [ 1 3 ( 1 X E ) 2 3 + 2 ( 1 X E ) ] + [ 1 3 ( 1 X E ) 1 3 ]
In these equations. “t” is time (s) and “k” (s−1) and “ X E denote the rate constant and the extent of reaction, respectively.

4. Conclusions

This work has experimentally and numerically modeled the process by which carbon dioxide gas may be sequestered, in situ by reaction with forsterite and/or its extracted intermediate brucite (ex situ) in the presence of moisture. In both cases, we have found that the reaction is favored resulting in a high carbonate yield; going almost to completion with the bulk of the carbon partitioning into magnesite and that very little remaining in solution. In the presence of water vapor, the degree of mineral carbonation was increased, we suggest, due to an alternative carbonation pathway providing for faster reaction kinetics [64]. Despite the observations made in other studies, we suggest that hydromagnesite is an intermediate in these carbonation experiments but is converted into magnesite on the (hours) timescale of reaction studied here, although the mechanism is as yet unclear. Hydromagnesite is less desirable as final product as it corresponds to only 80% sequestration (relative to magnesite) on a molar basis. Moreover, we recognize that this system is itself not at thermodynamic equilibrium, but maybe take a very long period and recrystallization as sepiolite (Mg4Si6O15(OH)2·6H2O) is one possible outcome. However, we have found no evidence that this occurs over the period of one year. The clay mineral sepiolite is known to form in nature from dolomite/silica assemblages in the presence of water, but its formation kinetics are slow and we do not expect its formation to occur spontaneously in an industrial carbonation plant. Thus, we propose that the carbonation of readily available forsterite is a viable route for carbon sequestration.
From the computational perspective, a CO2 sequestration system with mineral carbonation can be treated as a fully-coupled problem between rock deformation, pore-fluid flow, heat transfer, mass transport, and chemical reaction processes. The results obtained from this study establish the viability of a geochemical model that can be used in to simulate the dynamic processes involved in CO2 sequestration in the Mount Tawai peridotite, Malaysia.

Acknowledgments

The authors appreciate the Division of Research & Technology in IAU-Mahabad Branch for financial support and the Universiti Teknologi Malaysia (UTM) for chemical and structural analyses. The authors are also grateful to Sahar Zarza and Shahram M. Aminpour for valuable comments.

Author Contributions

O.R. conceived and designed the experiments. J.H. assisted with manuscript draft and consultation. R.J. did the interpretation of the due analyses. M.T. contributed in the simulation section and consultation. A.B. prepared the samples and some parts of the revised manuscript.”

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rahmani, O.; Junin, R.; Tyrer, M.; Mohsin, R. Mineral carbonation of red gypsum for CO2 sequestration. Energy Fuels 2014, 28, 5953–5958. [Google Scholar] [CrossRef]
  2. Sanderson, B.M.; O’Neill, B.C.; Kiehl, J.T.; Meehl, G.A.; Knutti, R.; Washington, W.M. The response of the climate system to very high greenhouse gas emission scenarios. Environ. Res. Lett. 2011, 6, 034005. [Google Scholar] [CrossRef]
  3. Bodman, R.W.; Rayner, P.J.; Karoly, D.J. Uncertainty in temperature projections reduced using carbon cycle and climate observations. Nat. Clim. Chang. 2013, 3, 725–729. [Google Scholar] [CrossRef]
  4. Bachu, S.; Gunter, W.D.; Perkins, E.H. Aquifer disposal of CO2: Hydrodynamic and mineral trapping. Energy Convers. Manag. 1994, 35, 269–279. [Google Scholar] [CrossRef]
  5. Sanna, A.; Uibu, M.; Caramanna, G.; Kuusik, R.; Maroto-Valer, M.M. A review of mineral carbonation technologies to sequester CO2. Chem. Soc. Rev. 2014, 43, 8049–8080. [Google Scholar] [CrossRef] [PubMed]
  6. Kaszuba, J.P.; Janecky, D.R.; Snow, M.G. Carbon dioxide reaction processes in a model brine aquifer at 200 °C and 200 bars: Implications for geologic sequestration of carbon. Appl. Geochem. 2003, 18, 1065–1080. [Google Scholar] [CrossRef]
  7. Xu, T.F.; Apps, J.A.; Pruess, K. Numerical simulation of CO2 disposal by mineral trapping in deep aquifers. Appl. Geochem. 2004, 19, 917–936. [Google Scholar] [CrossRef]
  8. Maroto-Valer, M.M.; Fauth, D.J.; Kuchta, M.E.; Zhang, Y.; Andrésen, J.M. Activation of magnesium rich minerals as carbonation feedstock materials for CO2 sequestration. Fuel Process. Technol. 2005, 86, 1627–1645. [Google Scholar] [CrossRef]
  9. Palandri, J.L.; Kharaka, Y.K. Ferric iron-bearing sediments as a mineral trap for CO2 sequestration: Iron reduction using sulfur-bearing waste gas. Chem. Geol. 2005, 217, 351–364. [Google Scholar] [CrossRef]
  10. Flaathen, T.K.; Gislason, S.R.; Oelkers, E.H.; Sveinbjörnsdóttir, A.E. Chemical evolution of the Mt. Hekla, Iceland, groundwaters: A natural analogue for CO2 sequestration in basaltic rocks. Appl. Geochem. 2009, 24, 463–474. [Google Scholar] [CrossRef]
  11. Gislason, S.R.; Wolff-Boenisch, D.; Stefansson, A.; Oelkers, E.H.; Gunnlaugsson, E.; Sigurdardottir, H.; Sigfusson, B.; Broecker, W.S.; Matter, J.M.; Stute, M.; et al. Mineral sequestration of carbon dioxide in basalt: A pre-injection overview of the CarbFix project. Int. J. Greenh. Gas Control 2010, 4, 537–545. [Google Scholar] [CrossRef]
  12. King, H.E.; Plümper, O.; Putnis, A. Effect of Secondary Phase Formation on the Carbonation of Olivine. Environ. Sci. Technol. 2010, 44, 6503–6509. [Google Scholar] [CrossRef] [PubMed]
  13. Qafoku, O.; Kovarik, L.; Kukkadapu, R.K.; Ilton, E.S.; Arey, B.W.; Tucek, J.; Felmy, A.R. Fayalite dissolution and siderite formation in water-saturated supercritical CO2. Chem. Geol. 2012, 332, 124–135. [Google Scholar] [CrossRef]
  14. Rahmani, O.; Tyrer, M.; Junin, R. Calcite precipitation from by-product red gypsum in aqueous carbonation process. RSC Adv. 2014, 4, 45548–45557. [Google Scholar] [CrossRef]
  15. Lackner, K.S.; Wendt, C.H.; Butt, D.P.; Joyce, E.L.; Sharp, D.H. Carbon dioxide disposal in carbonate minerals. Energy 1995, 20, 1153–1170. [Google Scholar] [CrossRef]
  16. Olsson, J.; Bovet, N.; Makovicky, E.; Bechgaard, K.; Balogh, Z.; Stipp, S.L.S. Olivine reactivity with CO2 and H2O on a microscale: Implications for carbon sequestration. Geochim. Cosmochim. Acta 2012, 77, 86–97. [Google Scholar] [CrossRef]
  17. Lackner, K.S.; Butt, D.P.; Wendt, C.H. Progress on binding CO2 in mineral substrates. Energy Convers. Mgmt. 1997, 38, S259–S264. [Google Scholar] [CrossRef]
  18. Kwon, S.; Fan, M.H.; DaCosta, H.M.D.; Russell, A.G.; Armistead, G.R. Factors affecting the direct mineralization of CO2 with olivine. J. Environ Sci. 2011, 23, 1233–1239. [Google Scholar] [CrossRef]
  19. Larachi, F.; Gravel, J.P.; Grandjean, B.P.A.; Beaudoin, G. Role of steam, hydrogen and pretreatment in chrysotile gas–solid carbonation: Opportunities for pre-combustion CO2 capture. Int. J. Greenh. Gas Control 2012, 6, 69–76. [Google Scholar] [CrossRef]
  20. Fricker, K.J.; Park, A.H.A. Effect of H2O on Mg(OH)2 carbonation pathways for combined CO2 capture and storage. Chem. Eng. Sci. 2013, 100, 332–341. [Google Scholar] [CrossRef]
  21. Fagerlund, J.; Zevenhoven, R. An experimental study of Mg(OH)2 carbonation. Int. J. Greenh. Gas Control 2011, 5, 1406–1412. [Google Scholar] [CrossRef]
  22. McGrail, B.P.; Schaef, H.T.; Ho, A.M.; Chien, Y.J.; Dooley, J.J.; Davidson, C.L. Potential for carbon dioxide sequestration in flood basalts. J. Geophys. Res. 2006, 111, 12201–12213. [Google Scholar] [CrossRef]
  23. Oelkers, E.H.; Cole, D.R. Carbon Dioxide Sequestration A Solution to a Global Problem. Elements 2008, 4, 305–310. [Google Scholar] [CrossRef]
  24. Matter, J.M.; Broecker, W.S.; Stute, M.; Gislason, S.R.; Oelkers, E.H.; Stefansson, A.; Wolff-Boenisch, D.; Gunnlaugsson, E.; Axelsson, G.; Bjornsson, G. Permanent Carbon Dioxide Storage into Basalt: The CarbFix Pilot Project, Iceland. Energy Procedia 2009, 1, 3641–3646. [Google Scholar] [CrossRef]
  25. Schaef, H.T.; McGrail, B.P.; Owen, A.T. Basalt- CO2–H2O interactions and variability in carbonate mineralization rates. Energy Procedia 2009, 1, 4899–4906. [Google Scholar] [CrossRef]
  26. Tian, S.; Jiang, J.; Li, K.; Yan, F.; Chen, X. Performance of steel slag in carbonation–calcination looping for CO2capture from industrial flue gas. RSC Adv. 2014, 4, 6858–6862. [Google Scholar] [CrossRef]
  27. Highfield, J.; Lim, H.Q.; Fagerlund, J.; Zevenhoven, R. Activation of serpentine for CO2 mineralization by flux extraction of soluble magnesium salts using ammonium sulphate. RSC Adv. 2012, 2, 6535–6541. [Google Scholar] [CrossRef]
  28. Chu, D.H.; Vinoba, M.; Bhagiyalakshmi, M.; Baek, I.H.; Nam, S.C.; Yoon, Y.; Kim, S.H.; Jeong, S.K. CO2 mineralization into different polymorphs of CaCO3 using an aqueous-CO2 system. RSC Adv. 2013, 3, 21722–21729. [Google Scholar] [CrossRef]
  29. Gulliver, D.M.; Lowry, G.V.; Gregory, K.B. CO2 concentration and pH alters subsurface microbial ecology at reservoir temperature and pressure. RSC Adv. 2014, 4, 17443–17453. [Google Scholar] [CrossRef]
  30. Bearat, H.M.J.; McKelvy, M.J.; Chizmeshya, A.V.G.; Gormley, D.; Nunez, R.; Carpenter, R.W.; Squires, K.; Wolf, G.H. Carbon sequestration via aqueous olivine mineral carbonation:  Role of passivating layer formation. Environ. Sci. Technol. 2006, 40, 4802–4808. [Google Scholar] [CrossRef] [PubMed]
  31. Fagerlund, J.; Highfield, J.; Zevenhoven, R. Kinetics studies on wet and dry gas-solid carbonation of MgO and Mg(OH)2 for CO2 sequestration. RSC Adv. 2012, 2, 10380. [Google Scholar] [CrossRef]
  32. Garcia, B.; Beaumont, V.; Perfetti, E.; Rouchon, V.; Blanchet, D.; Oger, P.; Dromart, G.; Huc, A.Y.; Haeseler, F. Experiments and geochemical modelling of CO2 sequestration by olivine: Potential, quantification. Appl. Geochem. 2010, 25, 1383–1396. [Google Scholar] [CrossRef]
  33. Pokrovsky, O.S.; Golubev, S.V.; Schott, J.; Castillo, A. Calcite, dolomite and magnesite dissolution kinetics in aqueous solutions at acid to circumneutral pH, 25 to 150 °C and 1 to 55 atm pCO2: New constraints on CO2 sequestration in sedimentary basins. Chem. Geol. 2009, 265, 20–32. [Google Scholar] [CrossRef]
  34. Saldi, G.D.; Jordan, G.; Schott, J.; Oelkers, E. Magnesite growth rates as a function of temperature and saturation state. Geochim. Cosmochim. Acta 2009, 73, 5646–5657. [Google Scholar] [CrossRef]
  35. Highfield, J.; Chen, J.; Bu, J.; Åbacka, J.; Fagerlund, J.; Zevenhoven, R. Steam-promoted gas-solid carbonation of magnesia and brucite below 200 °C. In Proceedings of the 4th International Conference on Accelerated Carbonation for Environmental and Materials Engineering (ACEME 2013), Leuven, Belgium, 9–12 April 2013.
  36. Chen, Z.Y.; O’Connor, W.K.; Gerdemann, S.J. Chemistry of aqueous mineral carbonation for carbon sequestration and explanation of experimental results. Environ. Prog. 2006, 25, 161–166. [Google Scholar] [CrossRef]
  37. Saldi, G.D.; Daval, D.; Morvan, G.; Knauss, K.G. The role of Fe and redox conditions in olivine carbonation rates: An experimental study of the rate limiting reactions at 90 and 150 °C in open and closed systems. Geochim. Cosmochim. Acta 2013, 118, 157–183. [Google Scholar] [CrossRef]
  38. Highfield, J.; Åbacka, J.; Chen, J.; Nduagu, E.; Zevenhoven, R. Overview of the ÅAU/ICES collaboration in ex-situ CO2 mineralization. In Proceedings of the 13th International Conference on Carbon Dioxide Utilization (ICCDU 2015), Singapore, Singapore, 5–9 July 2015. paper 251.
  39. Felmy, A.R.; Qafoku, O.; Arey, B.W.; Hu, J.Z.; Hu, M.; Schaef, H.T.; Ilton, E.S.; Hess, N.J.; Pearce, C.I.; Feng, J.; et al. Reaction of water-saturated supercritical CO2 with forsterite: Evidence for magnesite formation at low temperatures. Geochim. Cosmochim. Acta 2012, 91, 271–282. [Google Scholar] [CrossRef]
  40. Loring, J.S.; Thompson, C.J.; Wang, Z.; Joly, A.G.; Sklarew, D.S.; Schaef, H.T.; Ilton, E.S.; Rosso, K.M.; Felmy, A.R. In situ infrared spectroscopic study of forsterite carbonation in wet supercritical CO2. Environ. Sci. Technol. 2011, 45, 6204–6210. [Google Scholar] [CrossRef] [PubMed]
  41. Schaef, H.T.; McGrail, B.P.; Loring, J.L.; Bowden, M.E.; Arey, B.W.; Rosso, K.M. Forsterite [Mg2SiO4)] carbonation in wet supercritical CO2: An in situ high-pressure X-ray diffraction study. Environ. Sci. Technol. 2013, 47, 174–181. [Google Scholar] [CrossRef] [PubMed]
  42. Schaef, H.T.; Windisch, C.F., Jr.; McGrail, B.P.; Martin, P.F.; Rosso, K.M. Brucite [Mg(OH2)] carbonation in wet supercritical CO2: An in situ high pressure X-ray diffraction study. Geochim. Cosmochim. Acta 2011, 75, 7458–7471. [Google Scholar] [CrossRef]
  43. Loring, J.S.; Thompson, C.J.; Zhang, C.Y.; Wang, Z.M.; Schaef, H.T.; Rosso, K.M. In situ infrared spectroscopic study of brucite carbonation in dry to water-saturated supercritical carbon dioxide. J. Phys. Chem. A 2012, 116, 4768–4777. [Google Scholar] [CrossRef] [PubMed]
  44. Kwak, J.H.; Hu, J.Z.; Turcu, R.V.F.; Rosso, K.M.; Ilton, E.S.; Wang, C.; Sears, J.A.; Engelhard, M.H.; Felmy, A.R.; Hoyt, D.W. The role of H2O in the carbonation of forsterite in supercritical CO2. Int. J. Greenh. Gas Control 2011, 5, 1081–1092. [Google Scholar] [CrossRef]
  45. Vitillo, J.G. Magnesium-based systems for carbon dioxide capture, storage and recycling: From leaves to synthetic nanostructured materials. RSC Adv. 2015, 5, 36192–36239. [Google Scholar] [CrossRef]
  46. Siriwardane, R.V.; Stevens, R.W., Jr. Novel regenerable magnesium hydroxide sorbents for CO2 capture at warm gas temperatures. Ind. Eng. Chem. Res. 2009, 48, 2135–2141. [Google Scholar] [CrossRef]
  47. Gharabaghi, M.; Irannajad, M.; Azadmehr, A.R. Leaching kinetics of nickel extraction from hazardous waste by sulphuric acid and optimization dissolution conditions. Chem. Eng. Res. Des. 2013, 91, 325–331. [Google Scholar] [CrossRef]
  48. Pokrovsky, O.S.; Schott, J. Forsterite surface composition in aqueous solutions: A combined potentiometric, electrokinetic, and spectroscopic approach. Geochim. Cosmochim. Acta 2000, 64, 3299–3312. [Google Scholar] [CrossRef]
  49. O’Connor, W.K.; Dahlin, D.C.; Rush, G.E.; Dahlin, C.L.; Collins, W.K. Carbon dioxide sequestration by direct mineral carbonation: Process mineralogy of feed and products. Miner. Metall. Process. 2002, 19, 95–101. [Google Scholar]
  50. Na, B.K.; Koo, K.K.; Eum, H.M.; Lee, H.; Song, H.K. CO2 recovery from flue gas by PSA process using activated carbon. Korean J. Chem. Eng. 2001, 18, 220–227. [Google Scholar] [CrossRef]
  51. Yong, Z.; Mata, V.; Rodriguez, A.E. Adsorption of carbon dioxide onto hydrotalcite-like compounds (HTlcs) at high temperatures. Ind. Eng. Chem. Res. 2001, 40, 204–209. [Google Scholar] [CrossRef]
  52. Ko, D.; Siriwardane, R.V.; Biegler, L.T. Optimization of pressure swing adsorption and fractionated vacuum pressure swing adsorption processes for CO2 capture. Ind. Eng. Chem. Res. 2005, 44, 8084–8094. [Google Scholar] [CrossRef]
  53. Reynolds, S.P.; Ebner, A.D.; Ritter, J.A. New pressure swing adsorption cycles for carbon dioxide sequestration. Adsorption 2005, 11, 531–536. [Google Scholar] [CrossRef]
  54. Xu, X.C.; Song, C.S.; Miller, B.G.; Scaroni, A.W. Adsorption separation of carbon dioxide from flue gas of natural gas-fired boiler by a novel nanoporous “molecular basket” adsorbent. Fuel Process. Technol. 2005, 86, 1457–1472. [Google Scholar] [CrossRef]
  55. Hicks, J.C.; Drese, J.H.; Fauth, D.J.; Gray, M.L.; Qi, G.G.; Jones, C.W. Designing adsorbents for CO2 capture from flue gas-hyperbranched aminosilicas capable of capturing CO2 reversibly. J. Am. Chem. Soc. 2008, 130, 2902–2903. [Google Scholar] [CrossRef] [PubMed]
  56. Hänchen, M.; Prigiobbe, V.; Storti, G.; Seward, T.M.; Mazzotti, M. Dissolution kinetics of forsteritic olivine at 90–150 °C including effects of the presence of CO2. Geochim. Cosmochim. Acta 2006, 70, 4403–4416. [Google Scholar] [CrossRef]
  57. Hänchen, M.; Prigiobbe, V.; Baciocchi, R.; Mazzotti, M. Precipitation in the Mg-carbonate system—effects of temperature andCO2 pressure. Chem. Eng. Sci. 2008, 63, 1012–1028. [Google Scholar] [CrossRef]
  58. Parkhurst, D.L.; Appelo, C.A.J. User’s Guide to PHREEQC (Version 2) a Computer Program for Speciation, Batch-Reaction, One-Dimensional Transport, and Inverse Geochemical Calculations; Water-Resources Investigations Report 99–4259; U.S. Geological Survey: Reston, WV, USA, 1999; p. 312.
  59. Konigsberger, E.; Konigsberger, L.C.; Ager, H.G. Low-temperature thermodynamic model for the system Na2CO3–MgCO3–CaCO3–H2O. Geochim. Cosmochim. Acta 1999, 63, 3105–3119. [Google Scholar] [CrossRef]
  60. Power, I.M.; Harrison, A.L.; Dipple, G.M.; Wilson, S.A.; Kelemen, P.B.; Hitch, M.; Southam, G. Carbon mineralization: From natural analogues to engineered systems. Rev. Miner. Geochem. 2013, 77, 305. [Google Scholar] [CrossRef]
  61. Wollast, R.; Mackenzie, F.T.; Bricker, O.P. Experimental precipitation and genesis of sepiolite at earth-surface conditions. Am. Miner. 1968, 53, 1645–1662. [Google Scholar]
  62. Christ, C.L.; Hostetler, B.P.; Siebert, R.M. Studies in the system MgO–SiO2–CO2–H2O: III. Am. J. Sci. 1973, 273, 65–83. [Google Scholar] [CrossRef]
  63. Birsoy, R. Formation of sepiolite-palygorskite and related minerals from solution. Clays Clay Miner. 2002, 50, 736–745. [Google Scholar] [CrossRef]
  64. Gadikota, G.; Matter, J.; Kelemen, P.; Park, A.H.A. Chemical and morphological changes during olivine carbonation for CO2 storage in the presence of NaCl and NaHCO3. Phys. Chem. Chem. Phys. 2014, 16, 4679. [Google Scholar] [CrossRef] [PubMed]
  65. Levenspiel, O. Chemical Reaction Engineering, 2nd ed.; John Wiley and Sons: New York, NY, USA, 1972. [Google Scholar]
  66. Dri, M.; Sanna, A.; Maroto-Valer, M.M. Dissolution of steel slag and recycled concrete aggregate in ammonium bisulphate for CO2 mineral carbonation. Fuel Process. Technol. 2013, 113, 114–122. [Google Scholar] [CrossRef]
  • Sample Availability: Not available.

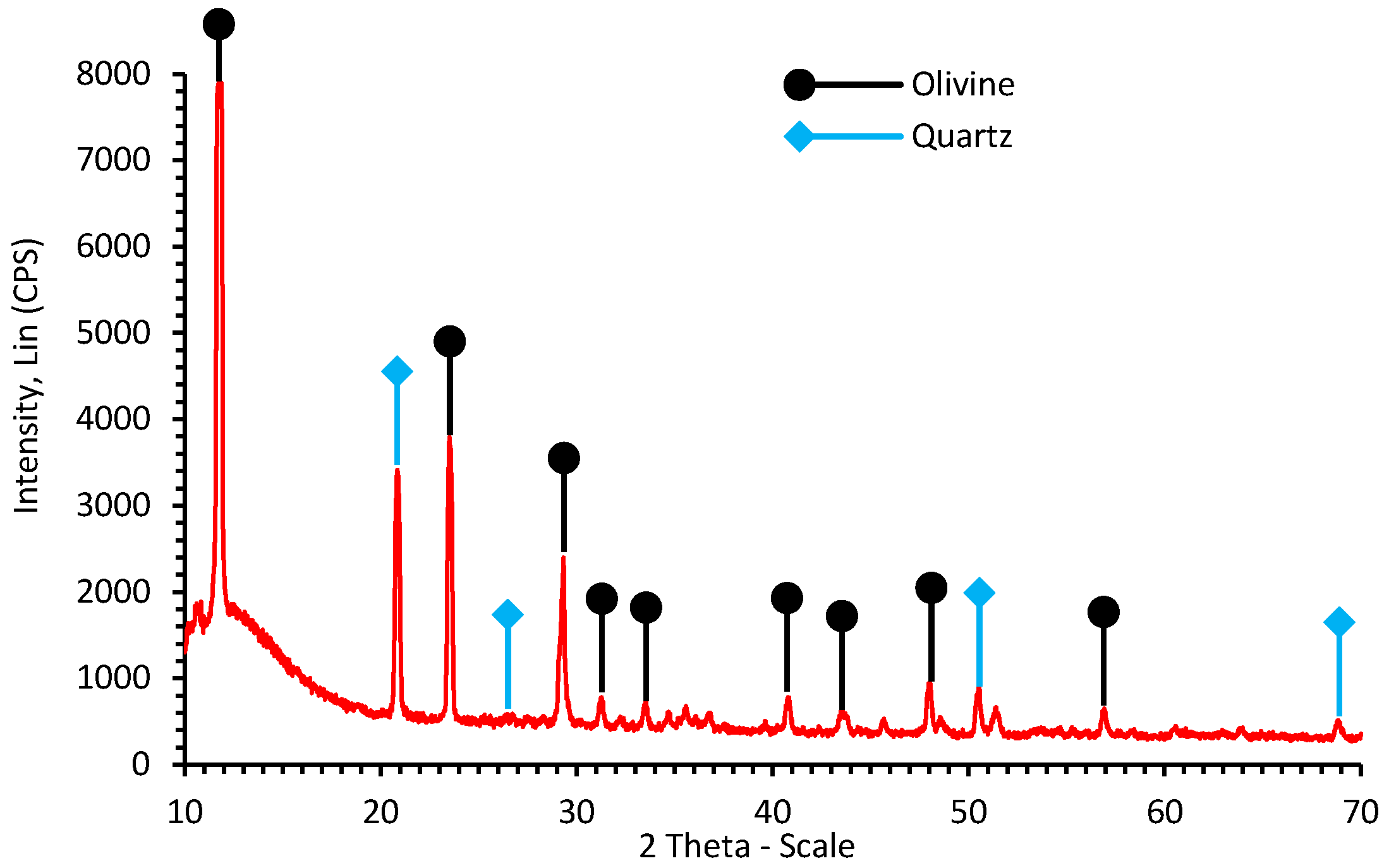

Figure 1. XRD pattern of the starting peridotite mineral.
Figure 1. XRD pattern of the starting peridotite mineral.
Molecules 21 00353 g001
Figure 2. SEM images showing (a) the fresh olivine mineral, and morphological changes during chemical pretreatment and carbonation: (b) the leached/neutralized sample in the presence of humid CO2 at 150 °C during 15 min; (c) 90 min; and (d) 120 min.
Figure 2. SEM images showing (a) the fresh olivine mineral, and morphological changes during chemical pretreatment and carbonation: (b) the leached/neutralized sample in the presence of humid CO2 at 150 °C during 15 min; (c) 90 min; and (d) 120 min.
Molecules 21 00353 g002

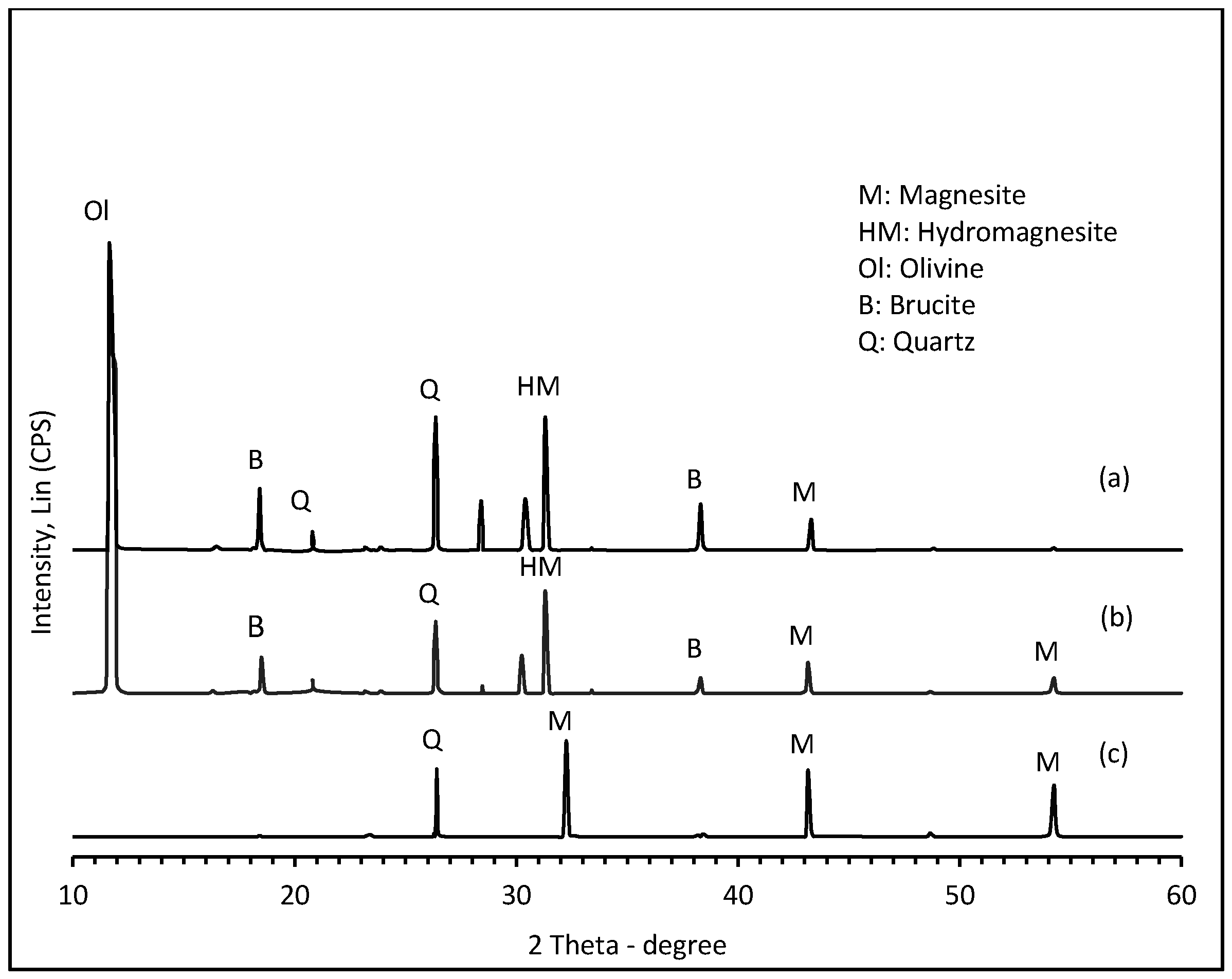

Figure 3. XRD patterns showing structural changes in the olivine mineral during progressive carbonation: (a) after acid leaching, neutralization, and initial exposure of the damp residue to humid CO2 (PCO2 = 4.8 bar, T = 150 °C) during 15 min; (b) after 90 min; and (c) after 120 min.
Figure 3. XRD patterns showing structural changes in the olivine mineral during progressive carbonation: (a) after acid leaching, neutralization, and initial exposure of the damp residue to humid CO2 (PCO2 = 4.8 bar, T = 150 °C) during 15 min; (b) after 90 min; and (c) after 120 min.
Molecules 21 00353 g003
Figure 4. Effect of particle size on Mg2+ leaching over a range of time intervals as measured by the volume of CO2 uptake in the subsequent mineral carbonation process (at 175 °C and 2 h).
Figure 4. Effect of particle size on Mg2+ leaching over a range of time intervals as measured by the volume of CO2 uptake in the subsequent mineral carbonation process (at 175 °C and 2 h).
Molecules 21 00353 g004

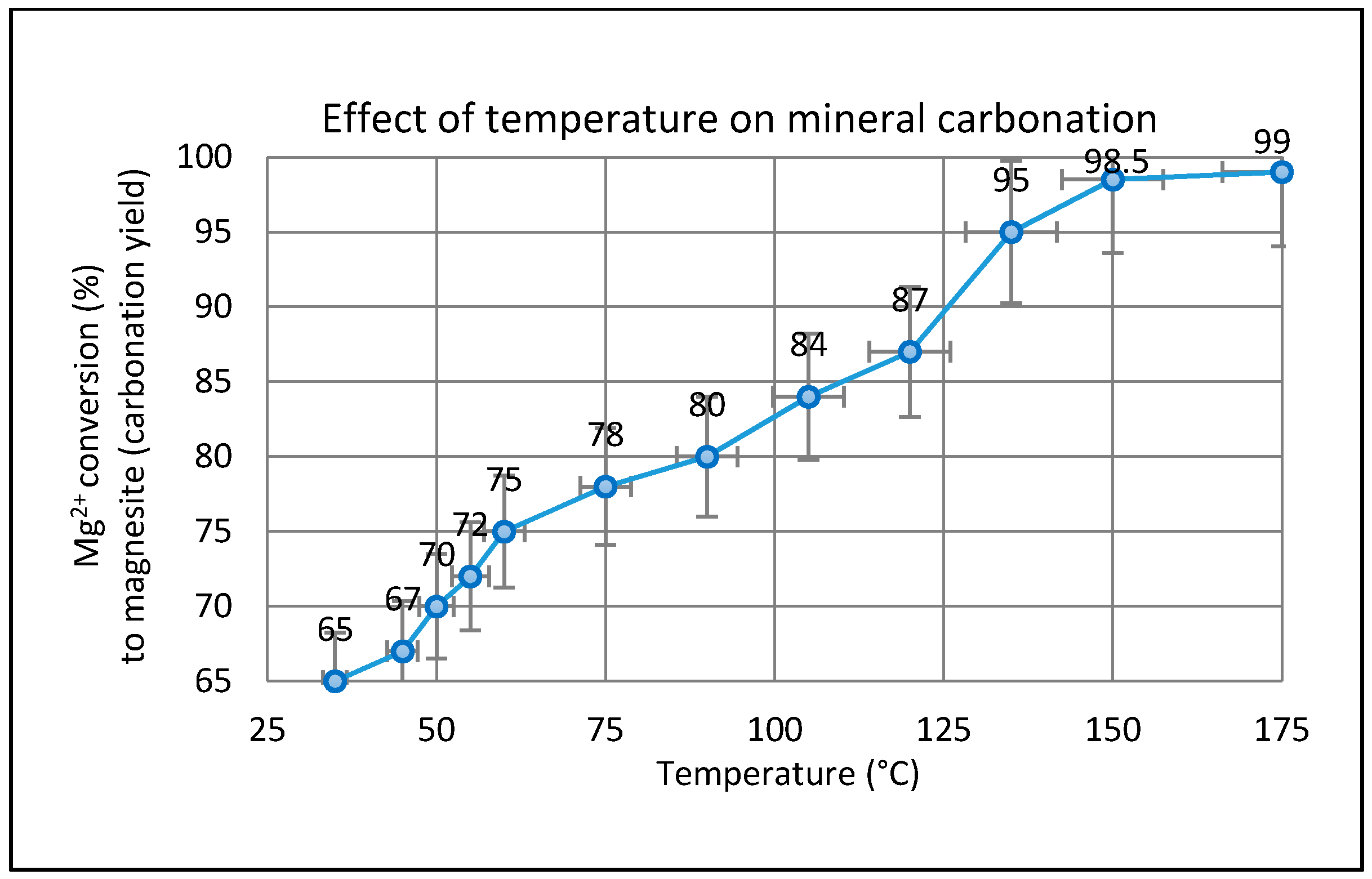

Figure 5. The effect of reaction temperature in gas-solid carbonation of fully extracted Mg2+ ion (as Mg(OH)2) to yield MgCO3 (PCO2 = 4.8 bar, humid CO2, t = 2 h).
Figure 5. The effect of reaction temperature in gas-solid carbonation of fully extracted Mg2+ ion (as Mg(OH)2) to yield MgCO3 (PCO2 = 4.8 bar, humid CO2, t = 2 h).
Molecules 21 00353 g005

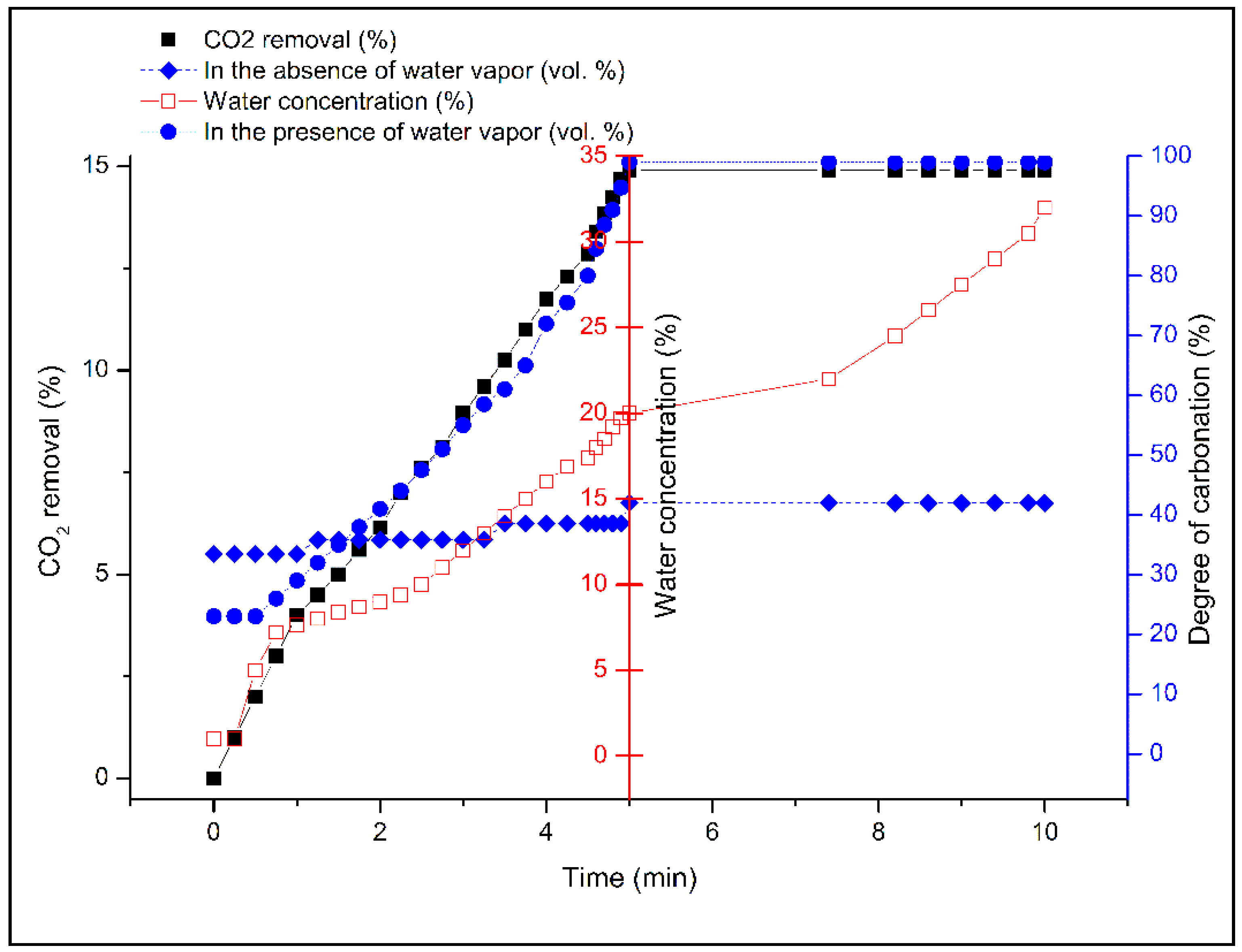

Figure 6. Effect of the presence or absence of water vapor on the rate of CO2 absorption at 175 °C on 10 g Mg2SiO4 (d < 75 μm) activated by chemical pre-treatment and exposed to 0.5 L/min CO2 gas (PCO2 = 4.8 bar, PH2O = 1.6–6.4 bar or 18%–72% RH).
Figure 6. Effect of the presence or absence of water vapor on the rate of CO2 absorption at 175 °C on 10 g Mg2SiO4 (d < 75 μm) activated by chemical pre-treatment and exposed to 0.5 L/min CO2 gas (PCO2 = 4.8 bar, PH2O = 1.6–6.4 bar or 18%–72% RH).
Molecules 21 00353 g006
Figure 7. Kinetic analysis of olivine dissolution rate (in HCl) by plotting the combination of chemical reaction control and product layer diffusion (a) and the product layer diffusion (b) vs. time at various reaction temperatures.
Figure 7. Kinetic analysis of olivine dissolution rate (in HCl) by plotting the combination of chemical reaction control and product layer diffusion (a) and the product layer diffusion (b) vs. time at various reaction temperatures.
Molecules 21 00353 g007
Figure 8. The Arrhenius plots for the extraction of Mg from forsterite using two selected models of the combination of product layer diffusion and chemical reaction control and the product layer diffusion.
Figure 8. The Arrhenius plots for the extraction of Mg from forsterite using two selected models of the combination of product layer diffusion and chemical reaction control and the product layer diffusion.
Molecules 21 00353 g008

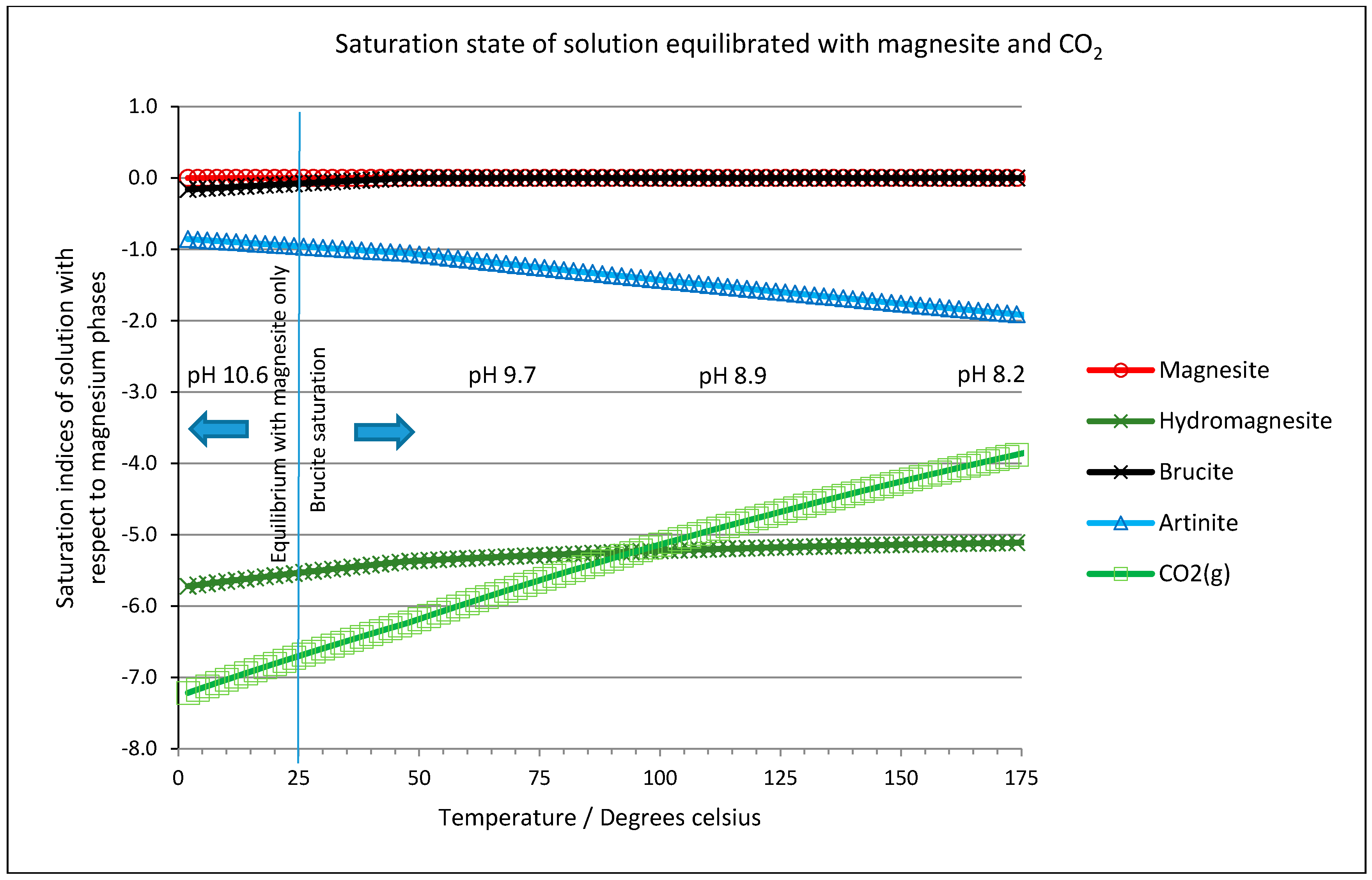

Figure 9. Saturation state of a solution equilibrated with magnesite and carbon dioxide gas (PCO2 = 4.8 bar), allowing brucite to precipitate above 25 °C.
Figure 9. Saturation state of a solution equilibrated with magnesite and carbon dioxide gas (PCO2 = 4.8 bar), allowing brucite to precipitate above 25 °C.
Molecules 21 00353 g009

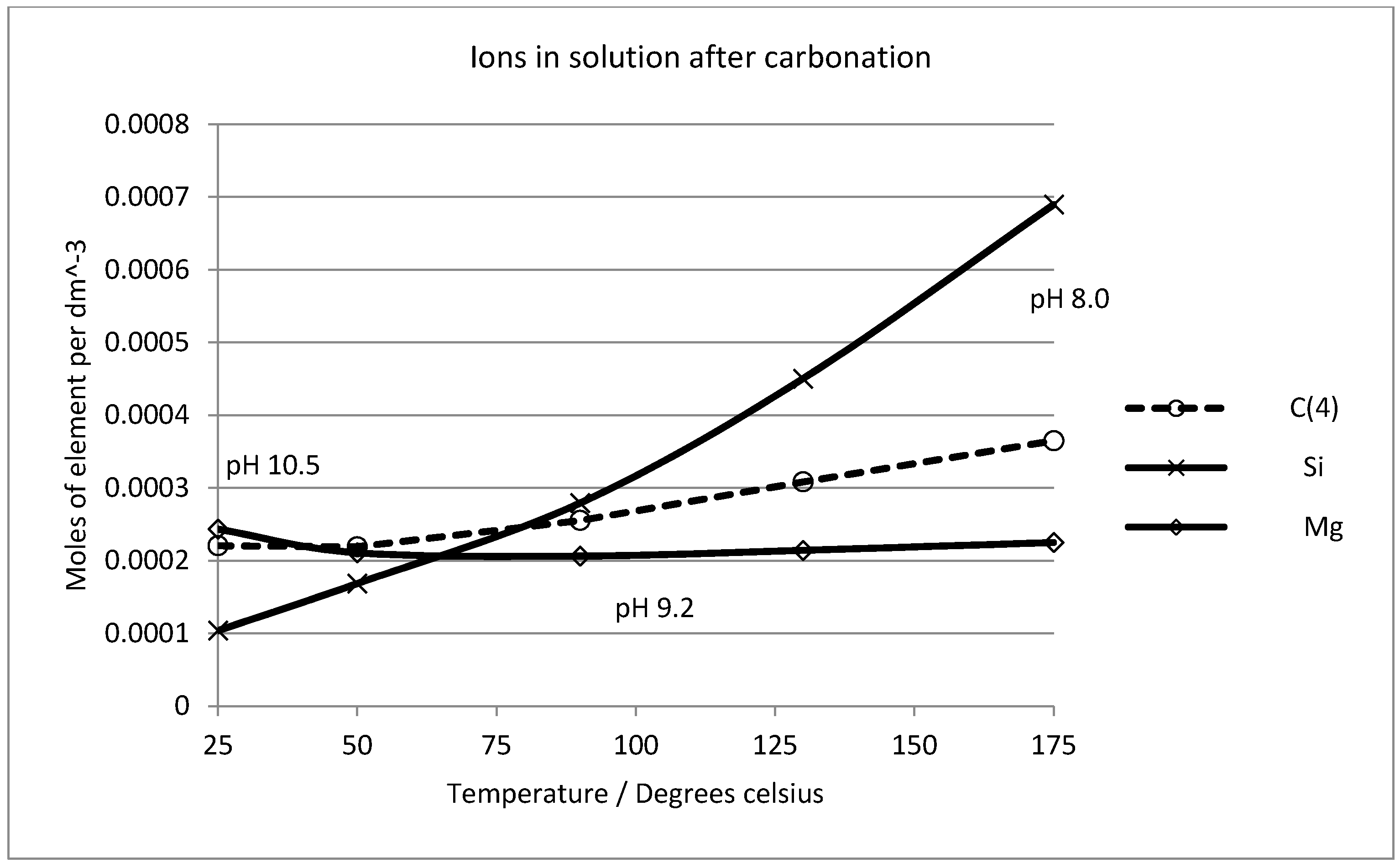

Figure 10. Solution chemistry predicted after reaction of excess forsterite (1 mol) with carbon dioxide gas (0.2 mol of CO2) over the temperature interval (25 °C to 175 °C).
Figure 10. Solution chemistry predicted after reaction of excess forsterite (1 mol) with carbon dioxide gas (0.2 mol of CO2) over the temperature interval (25 °C to 175 °C).
Molecules 21 00353 g010

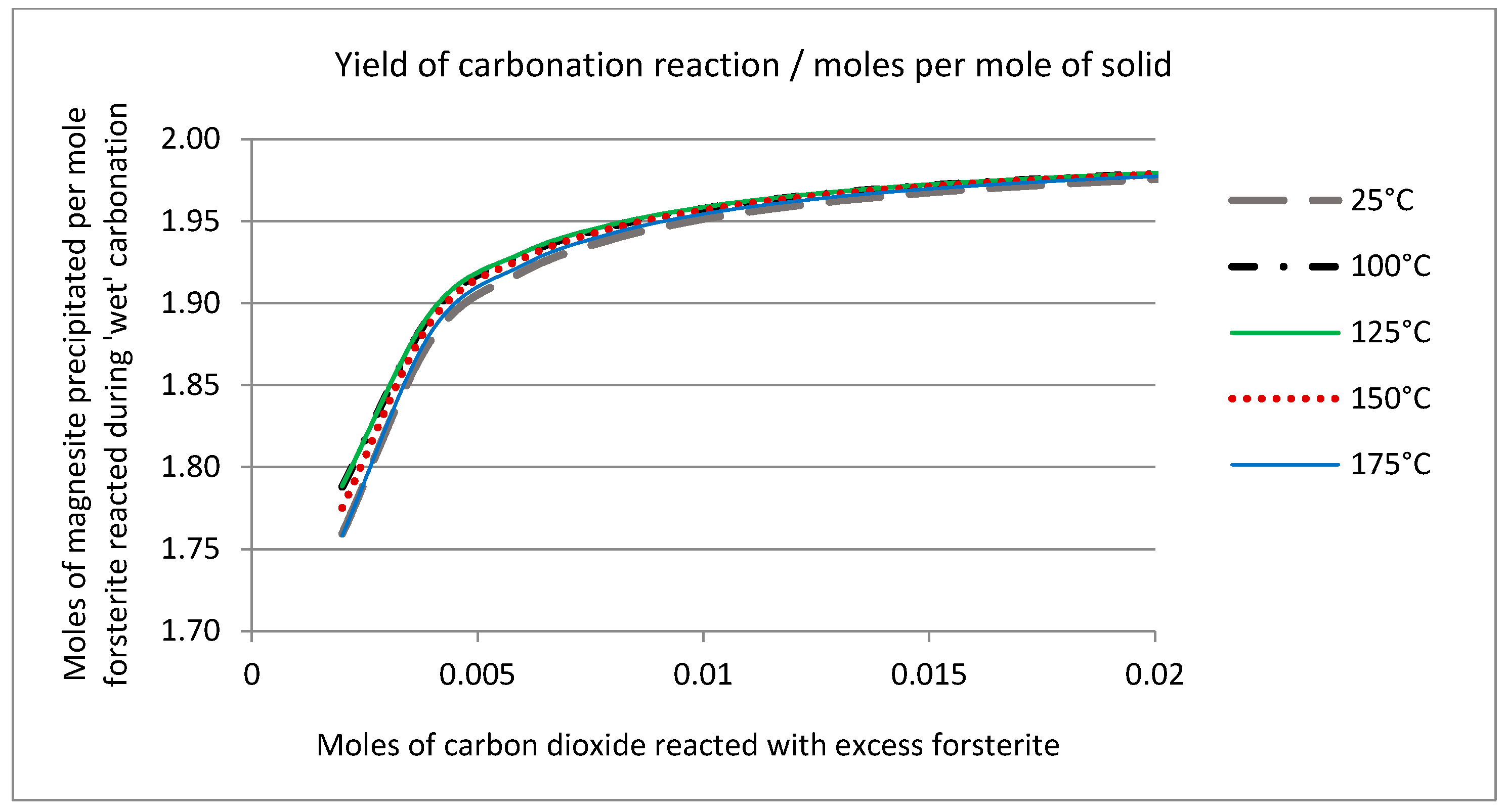

Figure 11. Solid phase chemistry predicted after reaction of excess forsterite (1 mol) with carbon dioxide gas over the temperature interval (25 °C to 175 °C) expressed as moles of magnesite precipitated/moles forsterite reacted, as a function of carbon dioxide consumed.
Figure 11. Solid phase chemistry predicted after reaction of excess forsterite (1 mol) with carbon dioxide gas over the temperature interval (25 °C to 175 °C) expressed as moles of magnesite precipitated/moles forsterite reacted, as a function of carbon dioxide consumed.
Molecules 21 00353 g011
Figure 12. Solid phase chemistry predicted after reaction of one mole of forsterite with excess carbon dioxide gas at 25 °C, showing the stoichiometric relationship between moles of reactant (forsterite) consumed to moles of product (magnesite and quartz) precipitated.
Figure 12. Solid phase chemistry predicted after reaction of one mole of forsterite with excess carbon dioxide gas at 25 °C, showing the stoichiometric relationship between moles of reactant (forsterite) consumed to moles of product (magnesite and quartz) precipitated.
Molecules 21 00353 g012
Figure 13. Schematic diagram of experimental set-up for CO2 sequestration in chemically pretreated peridotite mineral from Mount Tawai, Malaysia.
Figure 13. Schematic diagram of experimental set-up for CO2 sequestration in chemically pretreated peridotite mineral from Mount Tawai, Malaysia.
Molecules 21 00353 g013
Table 1. Chemical composition of fresh peridotite mineral (wt. %) as determined by XRF analysis.
Table 1. Chemical composition of fresh peridotite mineral (wt. %) as determined by XRF analysis.
Al2O3CaOFeOMgOK2OSiO2Na2OCr2O3Volatiles
C + CO2H2O
0.2040.0615.96951.9210.00541.0720.0830.034<0.3520.291
Number of ions on the basis of O
AlCaFeNaMgKSiNaCr-
0.0010.0040.1610.0011.8120.0040.9950.008--
Table 2. The rate constant calculation for every experiment at different temperatures.
Table 2. The rate constant calculation for every experiment at different temperatures.
Kinetic Analysiskln kT (°C)T (K)1/T
Combination of chemical reaction control and product layer diffusion9.0243 × 10−5−9.313175448.150.00223
5.0135 × 10−5−9.9007125398.150.00251
3.0101 × 10−5−10.410975348.150.00287
1.0028 × 10−5−11.510125298.150.00335
Product layer diffusion9.0635 × 10−5−9.3086175448.150.00223
4.0244 × 10−5−10.1205125398.150.00251
2.0153 × 10−5−10.812175348.150.00287
1.0014 × 10−5−11.511525298.150.00335
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
