Molecules 2016, 21(3), 339; https://doi.org/10.3390/molecules21030339

Article
A Peptoid-Based Fluorescent Sensor for Cyanide Detection
College of Pharmacy, Research Institute of Pharmaceutical Sciences, Seoul National University, 1 Gwanak-ro, Gwanak-gu, Seoul 151-742, Korea
*
Author to whom correspondence should be addressed.
Academic Editor: Scott Reed
Received: 22 January 2016 / Accepted: 7 March 2016 / Published: 10 March 2016

Abstract

:
Peptoids, N-substituted glycine oligomers, are versatile peptidomimetics with diverse biomedical applications. However, strategies to the development of novel fluorescent peptoids as chemical sensors have not been extensively explored, yet. Here, we synthesized a novel peptoid-based fluorescent probe in which a coumarin moiety was incorporated via copper(I)-catalyzed azide-alkyne cycloaddition reaction. Fluorescence of the newly generated coumarin-peptoid was dramatically quenched upon coordination of the Cu2+ ion, and the resulting peptoid-Cu2+ complex exhibited significant Turn-ON fluorescence following the addition of CN. The rapid and reversible response, combined with cyanide selectivity of the synthesized peptoid, reflects a multistep photo-process and supports its utility as a new type of CN sensor.
Keywords:
fluorescence; peptoid; cyanide sensor

1. Introduction

Peptoids, N-substituted glycine oligomers, are versatile mimics of peptides and are known to interact with various biological targets [1,2]. The proteolytic stability of peptoids, along with improved cell permeability relative to peptides, has led to their wide application as ligands for biological targets in various biomedical fields [3,4,5,6,7,8]. However, their significant conformational flexibility, combined with lack of hydrogen bonding ability, impose a major challenge for exploitation of peptoids in the drug discovery program.
Extensive studies have been devoted to enhancing the structural and functional capabilities of peptoids (including foldamers) [9,10,11]. Construction of peptoids with homogeneously-populated conformers remains a difficult task due to the low energy barrier of cis/trans-isomerization [12,13,14]. In particular, the development of new strategies to constrain flexible peptoids that adopt certain secondary structures is still challenging. To expand the applications of peptoids, understanding the physicochemical propensity that controls optimal conformations is essential. One of the methods to accomplish this goal is to attach fluorophores to the peptoid backbone and monitor interactions [15].
The 1,2,3-triazolyl group synthesized by the copper(I) catalyzed azide-alkyne [3+2] cycloaddition reaction coordinates with metal ions, with N2 or N3 directly involved in coordination [16,17]. Owing to their metal binding capacity [9,18,19,20,21,22,23,24,25,26,27], combined with ease of incorporation of fluorophore modules using solid-phase synthesis, peptoids present a good platform for the development of novel fluorescence sensors or functional peptidomimetics. In addition, understanding metal binding interactions with proteins is critical because human bodies are under the tight regulation of metal concentration inside and outside cells [28]. As a proof of concept to demonstrate a fluorescent peptoid sensor that can mimic the copper binding motif in many proteins, a simplified form of scaffold with functional diversities needs be explored.
Coumarins are one of the extensively used fluorophores because of their small size, high quantum yield, and efficient membrane permeability. Metal-complexed coumarin derivatives are versatile sensor molecules [29,30,31,32,33,34]. Recently, increasing numbers of triazolyl coumarin motifs have been utilized for various biological applications, such as the development of anti-inflammatory [35], anticancer [36], and antibacterial agents [37]. These compounds have also been explored as selective chemosensors [35,38,39,40,41]. In addition to the various advantages, including fast response and high sensitivity, development of new fluorescence sensor molecules for selective detection of ions is an active focus of biochemical research. Among the anions, efficient detection of the cyanide anion is particular interest due to severe toxicity issues related to human health [42,43,44,45]. In addition to wide industrial applications, the release of CN is harmful to the environment. So far, limited studies have explored the development and utility of peptoid-derived fluorescence sensors [15,46,47].
In this study, we have reported the synthesis and characterization of a novel peptoid-based fluorescence probe. The coumarin moiety was incorporated into the peptoid backbone via copper(I) catalyzed azide-alkyne [3+2] cycloaddition reaction. The fluorescence of the coumarin-peptoid was quenched by coordination with Cu2+ ion. The peptoid-Cu2+ complex exhibited significant Turn-ON fluorescence upon the addition of CN. In view of its utility in rapid, selective, and reversible detection of CN, our newly-generated peptoid molecule may serve as a novel type of CN sensor.

2. Results

2.1. Synthesis of Coumarin-Attached Peptoids

The synthesis of coumarin-attached peptoids is depicted in Figure 1. We expected that the coumarin unit at residue 1 would have a π-π interaction with any aromatic unit attached at residue 3. We limited the size of the peptoid as a trimer in our design, which would be a minimal length in terms of the number of atoms for metal complexation while avoiding the complicated NMR characterization of peptoids due to the presence of many rotamers.
The amine building block containing the acetylene group was incorporated using the standard solid phase method to accommodate alkyne peptoid 1 [48]. The peptoid was subsequently connected with azido-coumarin 2 via Cu(I)-catalyzed Huisgen 1,3-dipolar cycloaddition (CuAAC) using copper sulfate and sodium ascorbate in tert-butyl alcohol/water solution (v/v = 1:1) [49].

2.2. Spectroscopic Features of Free CP3

Figure 2 shows the absorption and emission spectra of the free form of CP3. UV spectra disclosed maximum absorption at around 350 nm in most solvents, with additional absorption bands at longer wavelengths, as shown in Table 1. In aprotic polar solvents, such as DMF and DMSO, typical coumarin emission observed at ~430 nm decreased and a new emission band at longer wavelengths was observed. CP3 displayed dual emission. Excitation at 347 nm produced emission spectra with a maximum wavelength at 429 nm whereas excitation at 441 nm led to an additional emission band maximized at ~492 nm. The emission band at 429 nm represents 7-OH* of 7-hydroxycoumarin, while that at ~492 nm is likely to be 7-O* of coumarin in the excited state. This dual emission was previously reported to occur due to the equilibrium between 7-OH* and 7-O* of coumarin derivatives in the excited states [50].

2.3. Fluorescence Changes with Formation of the CP3-Cu2+ Complex

First, we explored the metal coordination ability of the coumarin-peptoid CP3 in various solvents using fluorescence spectroscopy. The changes in emission spectra induced upon the addition of Cu2+ are shown in Figure 3. The maximal emission band at 492 nm was markedly decreased in the presence of increasing concentrations of Cu2+ in DMF. A similar trend was observed upon addition of Cu2+ to CP3 solution in DMSO. This decrease in fluorescence appears to be related to photoinduced electron transfer (PET) based on dramatic fluorescent intensity changes with no spectral shift [51,52].
In the presence of protic solvents, such as H2O and methanol, the quenching effect upon addition of Cu2+ was different. No spectral changes were observed in water, while the addition of Cu2+ resulted in a decrease of emission at 423 nm in methanol, but to a lesser extent than in DMF/DMSO. Even excess amounts of Cu2+ ion (35 equiv.) did not induce fluorescence quenching in water, indicating a constrained peptoid structure, presumably due to π-π stacking between coumarin and the benzene unit (Figure S1).
Considering the chelation-induced fluorescence changes in CP3 upon addition of Cu2+, we determined the stoichiometry of the peptoid-Cu2+ complex. Figure 4 shows Job plot analysis demonstrating a maximum at a mole fraction of 0.5, suggesting a 1:1 stoichiometry for the CP3-Cu2+ complex. The binding constant (Kd) of the peptoid-Cu2+ complex was 0.64 ± 0.093 μM in DMF and 0.65 ± 0.36 μM in MeOH:CHCl3 (v/v = 1:5), as measured from an equilibrium binding titration experiment (Figure S2, Table S1). Changes in absorption spectra between free and Cu2+-complexed CP3 are shown in Figure 4b.

2.4. The CP3-Cu2+ Complex as a Cyanide Sensor

Next, we examined whether the peptoid-Cu2+ complex is dissociated in the presence of anions. As shown in Figure 5a the peptoid-Cu2+ complex exhibited Turn-ON fluorescence upon the addition of cyanide ions. Emission at 492 nm (solid black line) quenched in the presence of Cu2+ (dotted black line) was recovered by the addition of increasing amounts of cyanide. Turn-ON fluorescence is attributable to the formation of a [Cu(CN)x]n− complex [53], resulting in release of the free form of fluorescent coumarin-peptoid. Interestingly, this fluorescence change was reversed when Cu2+ ion was re-added to the same solution (Figure 5b). Notably, the ON/OFF switch response of CP3 was reproducible and rapid. All fluorescence emission spectra were recorded after each addition of the ion solutions was equilibrated for 1 min. Figure 5c demonstrates the kinetic profile of the fluorescence intensity increase at 492 nm when 5 μM of the cyanide anion was added to the 1 μM of CP3-Cu2+ complex. The kinetic trace was best fit to a single exponentional rate equation. The rate constant was measured as the increase in fluorescence intensity was 0.028 s−1, which corresponds to a half-life (t1/2) of 25.2 s. The data demonstrate a rapid sensing of CP3-Cu2+ complex for cyanide ion.
To determine the selectivity of peptoid-Cu2+ in anion sensing, we measured the recovered fluorescence increase following binding to various anions, including halogens, phosphate, azide, and sulfur anions (Figure 6). Among these, only the cyanide anion induced a fluorescence increase for CP3-Cu2+. The observed selectivity for the cyanide anion along with the rapid and reversible sensing properties of peptoid-Cu2+ supports its potential utility as a new class of cyanide sensor.
The 1-D NMR spectra of free CP3 and CP3-Cu2+ complex were compared, as shown in Figure S3a. In the complex, peaks in the aromatic proton region were shifted upfield. The data support the formation of 2-hydroxy coumarin via tautomerization, which may be promoted by Cu2+ coordination at the 2-hydroxy position.

2.5. CP4 Displays Different Spectroscopic Features to CP3

We additionally examined the spectroscopic features of the 7-methoxy analogue, CP4, to gain further insights into the mechanism of coumarin-peptoid. As shown in Figure 7, the emission peak at 492 nm observed with CP3 in DMF/DMSO was absent, resulting in a sole emission band at 418 nm. Furthermore, no fluorescence changes were observed, even upon addition of 10 equiv. of Cu2+ ion either in DMF or DMSO solvent (Figure 7). This result supports our hypothesis that the hydroxy group is critical for metal coordination with Cu2+, which is facilitated by the electron density redistribution within CP3.

3. Discussion

The unique photophysical properties of hydroxycoumarin have been documented, both spectroscopically and theoretically [54,55,56,57]. Here, we constructed a peptoid coordinated with Cu2+ where a fluorescent coumarin module was attached via click chemistry.
Figure 8 depicts the proposed mechanism of fluorescence sensing based on our observations with CP3. Excited state proton transfer (ESPT) appears to be related to the shift in electron density from hydroxyl to carbonyl group in 7-hydroxycoumarin. Redistribution of the electron density within CP3 upon photo-excitation explains the enhanced acidity of 7-hydroxycoumarin moiety, triggering photoinduced proton transfer to the solvent [54]. The pKa of the 7-hydroxy group of coumarin is ~7.7 in the ground state, while photoexcitation enhances the acidity of the hydrogen-bonded proton to ~0.45 in the S1 state [56]. The resulting anion of CP3 is highly emissive with a maximum peak at 492 nm.
Photoinduced electron transfer (PET) additionally occurs in the (tautomerized, 2O) anionic coumarin fluorophore in the presence of Cu2+, thereby inducing fluorescence quenching at 492 nm. PET within the peptoid-Cu2+ complex was featured by large fluorescence intensity changes with no spectral shift. This OFF response with Cu2+ was subsequently reversed by the addition of cyanide ion, leading to an OFF-ON fluorescent response. This phenomenon is attributable to the formation of a stable [Cu(CN)x]n− complex [58,59]. The observed photo-driven processes were rapid, switchable, and reproducible.
Hydroxycoumarin-based chemosensors have been reported previously [40,55], but our molecule utilizes the unique photophysical characteristic of photo-excited enol-to-keto conversion in 7-hydroxycoumarin. In the previous report, the anion of 7-hydroxycoumarin was shown to be directly involved in metal coordination [55], whereas photo-excited enol-to-keto conversion resulted in metal coordination with the hydroxy anion at the C2 position in our molecule. Coumarin was used as a fluorescence reporter as well as coordination ligand. The excited state of 7-hydroxy-4-methylcoumarin is reported to favor the keto form, with the S1 potential energy minima of the enol/keto form separated by a 17–20 kcal/mol energy barrier. In the ground state, the enol form is more stable whereas the keto form is more stable by 0.6 kcal/mol in the S1 state [56]. Our NMR results were consistent with the reported enol-to-ketone transformation in the presence of Cu2+ ion, revealing upfield-shifted peaks in the aromatic region (Figure S3a).
Cu2+ is known to have strong paramagnetic properties due to the faster electron-relaxation time (Ts) of Cu2+. Therefore, the Cu2+ complex is hard to characterize by NMR. Various studies have reported severe line broadening of the Cu2+ binding to metalloproteins and used other experimental methods than NMR (including CD, EPR, UV-Vis, X-ray crystallography, etc.) [28,60,61]. Initially, we tried to get a crystal for X-ray crystallography, which will unequivocally reveal the metal-complexed peptoid, but the crystal was not obtained. The absorption spectra are, in general, critical to verify the differences in the binding of ligands to metal. However, the absorption spectra of Cu2+ solution were overlapped with those of CP3 in DMSO and DMF (λmax = 300 nm in DMSO; λmax = ~280 in DMF), which imposed difficulties in obtaining reliable titration data based on the absorbance. Even though we observed absorption spectral changes between free CP3 and the CP3-Cu2+ complex (Figure 4b), the only binding stoichiometry that we determined for the CP3-Cu2+ complex was from the fluorescence data. This issue may be resolved once the structural information of the CP3-metal complex is obtained.
CP3 in the aqueous system does not exhibit fluorescence quenching by Cu2+, possibly due to the constrained conformation resulting from π-π stacking interactions, which does not afford optimal geometry for coordination with Cu2+. We performed a simulated annealing analysis followed by energy minimization of each conformer. An ensemble of energy-minimized structures with the lowest E values is depicted in Figure S1. The trans-trans rotamer showed the lowest energy (9.7 kcal/mol), furnishing π-π stacking interactions between the benzene ring and coumarin unit.
In summary, we have developed peptoid-Cu2+ complex that effectively acts as a CN sensor. Photo induced proton transfer resulted in conversion of the 7-hydroxycoumarin moiety to its tautomeric form, facilitating metal coordination within the peptoid. The current form of the peptoid-Cu2+ complex only working in aprotic polar solvents represents a drawback for practical applications, which requires more systematic approaches to develop peptoid sensors working in aqueous solution. Although detailed mechanistic analyses are yet to be conducted, our understanding on the peptoid-based sensor design can be enriched by the knowledge obtained in the present work with a newly developed coumarin-attached peptoid-Cu2+ probe.

4. Experimental Section

4.1. General

Unless specified, all reagents and starting materials were ACS grade or higher and were used without further purification. All reactions were monitored by thin-layer chromatography on a TLC silica gel 60 F254 plate (Merck, Darmstadt, Germany), and compounds were visualized under UV light (254, 365 nm, VL-4.LC, Vilber Lourmat, Eberhardzell, Germany). Flash column chromatography was performed using ZEOprep silica gel (230~400 mesh, Zeochem, Lake Zurich, Switzerland) with hexane, ethyl acetate, dichloromethane, and methanol as eluents. 1H (300, 800 MHz) and 13C-NMR (75, 200 MHz) spectra were recorded on a GEMINI 2000 (VARIAN, Palo Alto, CA, USA) and FT-NMR Avance III HD (Bruker, Billerica, MA, USA). Chemical shifts (δ) are reported in parts per million (ppm) and coupling constants (J) are given in hertz (Hz). All ESI-MS were undertaken on a 6130 Single Quadrupole LC/MS (Agilent Technologies, Santa Clara, CA, USA) and high-resolution mass spectra (HR-MS) were acquired under fast atom bombardments (FAB) condition on a JMS-700 MStation (JEOL, Tokyo, Japan). UV-Vis and fluorescence spectra were obtained using a Lambda 25 (Perkin Elmer, Waltham, MA, USA) and FP-6500 (Jasco, Tokyo, Japan). High-performance liquid chromatography (HPLC) analysis was performed on a YL9100 reversed-phase HPLC (Younglin, Anyang, South Korea).

4.2. Synthesis of N-(2-Amino-2-oxoethyl)-2-(2-(benzylamino)-N-(2-methoxyethyl)acetamido)-N-(prop-2-yn-1-yl)acetamide (Solid Phase Peptide Synthesis) (1)

Peptoid oligomer was synthesized on MBHA resin (0.43 mmol/g) using a conventional peptoid synthesis protocol to generate an amide group at the C-terminus of the peptoids [2]. The Fmoc protected resin was swollen in N,N-dimethylformamide (DMF) for 30 min before starting oligomer synthesis. The Fmoc group was removed with 20% piperidine in DMF. Acylations using 1 M bromoacetic acid (BrAA, 10 equiv.) and 1 M N,N′-diisopropylcarbodiimide (DIC, 10 equiv.) in DMF followed by nucleophilic displacement step using 0.5–2 M amine (propargyl amine, 2-methoxyethylamine, benzylamine) in DMF were repeated until desired peptoid was obtained. The resin was cleaved with 95% trifluoroacetic acid (TFA) in H2O for 1 h with occasional agitation (180 rpm). The filtered solution was purged with N2 to remove TFA. The crude compounds were dissolved in 50% acetonitrile/H2O and lyophilized two times to remove residual trifluoroacetic acid (HPLC purity: 93.6%). 1H-NMR (300 MHz, DMSO-d6): δ 9.32 (bs, s, 2H), 7.51–7.40 (m, 5H), 4.46/4.42* (2 × s, 1H), 4.27–4.22 (m, 2H), 4.13–4.07 (m, 6H), 3.93/3.89* (2 × s, 1H), 3.8 (bs, s, 1H), 3.46–3.40 (m, 4H) 3.30/3.25* (2 × t, 1H), 3.19 (m, 3H) (rotamer peaks*). 13C-NMR (75 MHz, DMSO-d6): δ 169.7, 169.5*, 169.3*, 169.1*, 168.4, 168.0*, 167.8*, 167.4*, 166.5, 165.9*, 158.8, 158.4*, 158.0*, 157.5*, 131.6, 131.5*, 130.3, 130.23*, 130.17, 129.1, 128.7, 79.1, 78.9*, 78.8*, 78.5*, 76.1, 75.7*, 75.2*, 74.9*, 69.5, 69.4*, 69.3*, 69.2*, 58.34, 58.30*, 58.1, 58.0*, 50.1, 49.9*, 49.0*, 48.9*, 48.6*, 48.1, 48.0*, 47.4, 46.9*, 46.7*, 46.5, 46.2*, 37.3, 37.2*, 35.7*, 35.4* (rotamer peaks*). HR-MS (m/z): 375.2034 (calculated for C19H27N4O4 [M + H]+, 375.2032).

4.3. Synthesis of 3-Azido-7-hydroxycoumarin (2a) and 3-Azido-7-methoxycoumarin (2b)

The compounds 2a and 2b were synthesized according to the reported method [49].
3-Azido-7-hydroxycoumarin (2a). 1H-NMR (300 MHz, MeOH-d4): δ 7.40 (s, 1H). 7.37 (d, J = 2.1 Hz, 1H), 6.80 (d, J = 2.4 Hz, 1H), 6.77 (d, J = 2.4 Hz, 1H), 6.72 (d, J = 2.1 Hz, 1H).
3-Azido-7-methoxycoumarin (2b). 1H-NMR (300 MHz, CDCl3): δ 7.31 (d, J = 8.4 Hz, 1H), 7.18 (s, 1H), 6.89–6.84 (m, 2H), 3.87 (s, 3H).

4.4. Synthesis of N-(2-Amino-2-oxoethyl)-2-(2-(benzylamino)-N-(2-methoxyethyl)acetamido)-N-((1-(7-hydroxy-2-oxo-2h-chromen-3-yl)-1h-1,2,3-triazol-4-yl)methyl)acetamide (CP3)

Copper (II) sulfate pentahydrate (0.3 M in water, 35 μL, 0.0104 mmol) and sodium ascorbate (1 M in water, 42 μL, 0.0416 mmol) were added to a mixture of alkyne peptoid, 1 (39 mg, 0.104 mmol) and 3-Azido-7-hydroxycoumarin, 2a (20 mg, 0.104 mmol) in water and tert-butyl alcohol (v/v = 1:1, 4 mL). The reaction mixture was stirred at room temperature for 24 h in the dark. After removing the solvent under reduced pressure, the crude material was purified by column chromatography (MeOH/DCM, 1:10) afforded CP3 as a yellow solid (30 mg, 50%). 1H-NMR (800 MHz, DMSO-d6): δ 11.01 (bs, s, 1H), 9.24 (bs. s, 2H), 8.71/8.67*/8.47*/8.41* (4 × s, 1H), 8.61/8.59*/8.58* (4 × s, 1H), 7.77–7.75 (m, 1H), 7.50–7.39 (m, 5H), 6.92 (d, J = 8.4 Hz, 1H), 6.87 (d, J = 8.7 Hz, 1H), 4.72/4.71* (2 × s, 1H), 4.68/4.62* (2 × s, 1H), 4.61/4.59* (2 × s, 1H), 4.30/4.26* (2 × s, 1H), 4.13 (bs, s, 2H), 4.08 (m, 2H), 3.88 (d, J = 7.4 Hz, 1H), 3.85 (bs, m, 1H), 3.50–3.46 (m, 2H), 3.44–3.40 (m, 2H), 3.19 (dd, J1 = 13.3, J2 = 2.7 Hz, 3H) (rotamer peaks*). 13C-NMR (200 MHz, DMSO-d6): δ 169.88, 169.65*, 169.57*, 169.39*, 168.67, 168.11*, 168.12*, 167.57*, 166.47, 166.46*, 165.80*, 165.79*, 162.59, 162.57*, 162.54*, 162.51*, 158.05, 157.89*, 157.73*, 157.58*, 156.25, 156.23*, 156.21*, 154.66, 154.65*, 154.61*, 154.59*, 143.31, 143.14*, 143.10*, 142.85*, 136.33, 136.15*, 136.10*, 131.52, 131.43*, 131.39*, 130.98, 130.96*, 130.93*, 130.22, 130.18*, 130.10*, 129.01, 128.64, 128.61*, 128.59*, 124.64, 124.7*, 124.38*, 124.24*, 119.17, 119.16*, 119.13*, 114.34, 114.33*, 110.27, 110.26*, 110.25*, 102.17, 102.14*, 69.31, 69.28*, 69.27*, 69.21*, 58.29, 58.25*, 57.97, 57.95*, 50.16, 50.13*, 49.88*, 49.86*, 49.09, 48.99*, 48.84*, 48.59, 48.21*, 47.29, 47.26*, 46.95*, 46.58*, 46.52*, 46.50*, 46.25*, 46.22*, 42.34, 41.87*, 41.59* (rotamer peaks*). HR-MS (m/z): 578.2368 (calculated for C28H32N7O7 [M + H]+, 578.2363). 1H- and 13C-NMR spectra of CP3 are available in the Supplementary Materials (Figure S4).

4.5. Synthesis of N-(2-Amino-2-oxoethyl)-2-(2-(benzylamino)-N-(2-methoxyethyl)acetamido)-N-((1-(7-methoxy-2-oxo-2h-chromen-3-yl)-1h-1,2,3-triazol-4-yl)methyl)acetamide (CP4)

The synthetic procedure described above was used for the preparation of CP3. 3-Azido-7-methoxycoumarin, 2b (14.5 mg, 0.067 mmol) and alkyne peptoid, 1 (25 mg, 0.067 mg) were used. The reaction mixture was purified by column chromatography to obtain 23 mg (58%) of CP4 as a pale yellow solid. 1H-NMR (800 MHz, DMSO-d6): δ 9.21 (bs, s, 2H), 8.74/8.70*/8.50*/8.44* (4 × s, 1H), 8.67/8.66*/8.65* (4 × s, 1H), 7.87–7.85 (m, 1H), 7.49–7.39 (m, 5H), 7.18–7.16 (m, 1H), 7.09 (d, J = 8.6 Hz, 1H), 4.73/4.72* (2 × s, 1H), 4.68/4.63* (2 × s, 1H), 4.62/4.60* (2 × s, 1H), 4.30/4.27* (2 × s, 1H), 4.13 (d, J = 4.4 Hz, 2H), 4.08 (dd, J1 = 11.9, J2 = 3.9 Hz, 2H), 3.91 (d, J = 2.7, 3H), 3.88 (d, J = 8.3 Hz, 1H), 3.85 (d, J = 10.2 Hz, 1H), 3.50–3.46 (m, 2H), 3.44–3.40 (m, 2H), 3.19 (dd, J1 = 13.6, J2 = 2.9 Hz, 3H) (rotamer peaks*). 13C-NMR (200 MHz, DMSO-d6): δ 169.87, 169.64*, 169.55*, 169.38*, 168.86, 168.12*, 168.02*, 167.57*, 166.51, 166.84*, 163.47, 163.45*, 163.43*, 163.40*, 157.68, 157.53*, 156.10, 156.09*, 154.53, 154.52*, 154.48*, 154.46*, 143.37, 143.20*, 143.16*, 142.91*, 135.80, 135.79*, 135.62*, 135.55*, 131.59, 131.47*, 130.64, 130.62*, 130.60*, 130.19, 130.15*, 130.08*, 129.00, 128.64, 128.60*, 128.59*, 124.62, 124.46*, 124.36*, 124.22*, 120.08, 120.07*, 120.05*, 113.57, 113.54*, 111.45, 111.44*, 111.43*, 100.73, 100.72*, 100.69*, 69.31, 69.27*, 69.21*, 58.29, 58.25*, 57.97, 57.95*, 56.20, 50.18, 50.15*, 49.90*, 49.88*, 49.11, 49.07*, 49.01*, 48.83*, 48.59*, 48.20*, 47.25, 46.94*, 46.51*, 46.49*, 46.27*, 46.25*, 42.35, 42.33*, 41.88*, 41.59* (rotamer peaks*). HR-MS (m/z): 592.2510 (calculated for C29H34N7O7 [M + H]+, 592.2520). 1H- and 13C-NMR spectra of CP4 are available in the Supplementary Materials (Figure S5).

4.6. Spectroscopic Measurements

Fluorescence emission spectra were obtained at 20 °C using a JASCO FP-6500 spectrofluorometer (Jasco). The equilibrium binding titration experiments of peptoid with Cu2+ or other anions were performed as follows. 0.5–2 µL of metal or anion stock solutions (10 mM in DMSO) were added into 1 µM peptoid solutions in quartz cuvette, and the mixture was equilibrated for 1 min to ensure full binding before measurements. The slit widths used for measurement were 3 nm for both excitation and emission with medium sensitivity, but was adjusted depending on the strength of the fluorescence signal. The kinetic measurement was performed on the same instruments. The fluorescence intensity was recorded at 492 nm with 0.01 s time intervals without incubation time. For spectroscopic measurement, all stock solutions of peptoids and the sodium or potassium salts of anions (NaCN, NaHSO3, Na2HPO4, NaN3, Na2SO4, NaSCN, Na2S2O5, NaNO3, NaClO4, NaNO2, KF, KCl, KBr, KI) were prepared in DMSO (1% water). Absorption spectra were obtained at room temperature using a Lamda 20 UV-Vis spectrometer (Perkin Elmer, MA, USA) with 1.0 cm quartz cells. All measurements were triplicated. The CP3-Cu2+ complex for the absorption spectra was obtained by adding CuSO4 to CP3 solution with stirring for 12 h at ambient temperature followed by purification described above. The ESI-MS spectrum of CP3-Cu2+ is available in Figure S6.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/21/3/339/s1.

Acknowledgments

This work was supported by National Research Foundation of Korea (NRF) grants funded by the Korean government (MSIP) (2009-0083533 and NRF-2015R1A2A2A01007646).

Author Contributions

B.L. performed the experiments and analyzed the data; J.L. designed the experiments, analyzed the data, and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Simon, R.J.; Kania, R.S.; Zuckermann, R.N.; Huebner, V.D.; Jewell, D.A.; Banville, S.; Ng, S.; Wang, L.; Rosenberg, S.; Marlowe, C.K. Peptoids: A modular approach to drug discovery. Proc. Natl. Acad. Sci. USA 1992, 89, 9367–9371. [Google Scholar] [CrossRef] [PubMed]
  2. Figliozzi, G.M.; Goldsmith, R.; Ng, S.C.; Banville, S.C.; Zuckermann, R.N. Synthesis of n-substituted glycine peptoid libraries. Methods Enzymol. 1996, 267, 437–447. [Google Scholar] [PubMed]
  3. Culf, A.S.; Ouellette, R.J. Solid-phase synthesis of n-substituted glycine oligomers (α-peptoids) and derivatives. Molecules 2010, 15, 5282–5335. [Google Scholar] [CrossRef] [PubMed]
  4. Mondragon, L.; Orzaez, M.; Sanclimens, G.; Moure, A.; Arminan, A.; Sepulveda, P.; Messeguer, A.; Vicent, M.J.; Perez-Paya, E. Modulation of cellular apoptosis with apoptotic protease-activating factor 1 (α-1) inhibitors. J. Med. Chem. 2008, 51, 521–529. [Google Scholar] [CrossRef] [PubMed]
  5. Udugamasooriya, D.G.; Dineen, S.P.; Brekken, R.A.; Kodadek, T. A peptoid “antibody surrogate” that antagonizes vegf receptor 2 activity. J. Am. Chem. Soc. 2008, 130, 5744–5752. [Google Scholar] [CrossRef] [PubMed]
  6. Zuckermann, R.N.; Martin, E.J.; Spellmeyer, D.C.; Stauber, G.B.; Shoemaker, K.R.; Kerr, J.M.; Figliozzi, G.M.; Goff, D.A.; Siani, M.A.; Simon, R.J. Discovery of nanomolar ligands for 7-transmembrane g-protein-coupled receptors from a diverse n-(substituted)glycine peptoid library. J. Med. Chem. 1994, 37, 2678–2685. [Google Scholar] [CrossRef] [PubMed]
  7. Hara, T.; Durell, S.R.; Myers, M.C.; Appella, D.H. Probing the structural requirements of peptoids that inhibit HDM2-p53 interactions. J. Am. Chem. Soc. 2006, 128, 1995–2004. [Google Scholar] [CrossRef] [PubMed]
  8. Ross, T.M.; Zuckermann, R.N.; Reinhard, C.; Frey, W.H., II. Intranasal administration delivers peptoids to the rat central nervous system. Neurosci. Lett. 2008, 439, 30–33. [Google Scholar] [CrossRef] [PubMed]
  9. Maayan, G.; Ward, M.D.; Kirshenbaum, K. Metallopeptoids. Chem. Commun. 2009, 7, 56–58. [Google Scholar] [CrossRef] [PubMed]
  10. Fowler, S.A.; Blackwell, H.E. Structure-function relationships in peptoids: Recent advances toward deciphering the structural requirements for biological function. Org. Biomol. Chem. 2009, 7, 1508–1524. [Google Scholar] [CrossRef] [PubMed]
  11. Holub, J.M.; Jang, H.; Kirshenbaum, K. Clickity-click: Highly functionalized peptoid oligomers generated by sequential conjugation reactions on solid-phase support. Org. Biomol. Chem. 2006, 4, 1497–1502. [Google Scholar] [CrossRef] [PubMed]
  12. Laursen, J.S.; Engel-Andreasen, J.; Fristrup, P.; Harris, P.; Olsen, C.A. Cis-trans amide bond rotamers in β-peptoids and peptoids: Evaluation of stereoelectronic effects in backbone and side chains. J. Am. Chem. Soc. 2013, 135, 2835–2844. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Moure, A.; Sanclimens, G.; Bujons, J.; Masip, I.; Alvarez-Larena, A.; Perez-Paya, E.; Alfonso, I.; Messeguer, A. Chemical modulation of peptoids: Synthesis and conformational studies on partially constrained derivatives. Chemistry 2011, 17, 7927–7939. [Google Scholar] [CrossRef] [PubMed]
  14. Caumes, C.; Roy, O.; Faure, S.; Taillefumier, C. The click triazolium peptoid side chain: A strong cis-amide inducer enabling chemical diversity. J. Am. Chem. Soc. 2012, 134, 9553–9556. [Google Scholar] [CrossRef] [PubMed]
  15. Fuller, A.A.; Seidl, F.J.; Bruno, P.A.; Plescia, M.A.; Palla, K.S. Use of the environmentally sensitive fluorophore 4-N,N-dimethylamino-1,8-naphthalimide to study peptoid helix structures. Biopolymers 2011, 96, 627–638. [Google Scholar] [CrossRef] [PubMed]
  16. Huang, S.; Clark, R.J.; Zhu, L. Highly sensitive fluorescent probes for zinc ion based on triazolyl-containing tetradentate coordination motifs. Org. Lett. 2007, 9, 4999–5002. [Google Scholar] [CrossRef] [PubMed]
  17. Rosenthal, J.; Lippard, S.J. Direct detection of nitroxyl in aqueous solution using a tripodal copper(II) bodipy complex. J. Am. Chem. Soc. 2010, 132, 5536–5537. [Google Scholar] [CrossRef] [PubMed]
  18. Jefferson, E.A.; Gantzel, P.; Benedetti, E.; Goodman, M. A multinuclear Ca2+ complex of a linear n-protected glycyl-dipeptoid derivative. J. Am. Chem. Soc. 1997, 119, 3187–3188. [Google Scholar] [CrossRef]
  19. Lee, B.C.; Chu, T.K.; Dill, K.A.; Zuckermann, R.N. Biomimetic nanostructures: Creating a high-affinity zinc-binding site in a folded nonbiological polymer. J. Am. Chem. Soc. 2008, 130, 8847–8855. [Google Scholar] [CrossRef] [PubMed]
  20. Maayan, G. Conformational control in metallofoldamers: Design, synthesis and structural properties. Eur. J. Org. Chem. 2009, 2009, 5699–5710. [Google Scholar] [CrossRef]
  21. Izzo, I.; Ianniello, G.; De Cola, C.; Nardone, B.; Erra, L.; Vaughan, G.; Tedesco, C.; De Riccardis, F. Structural effects of proline substitution and metal binding on hexameric cyclic peptoids. Org. Lett. 2013, 15, 598–601. [Google Scholar] [CrossRef] [PubMed]
  22. Knight, A.S.; Zhou, E.Y.; Pelton, J.G.; Francis, M.B. Selective chromium(VI) ligands identified using combinatorial peptoid libraries. J. Am. Chem. Soc. 2013, 135, 17488–17493. [Google Scholar] [CrossRef] [PubMed]
  23. Maayan, G.; Zabrodski, T.; Baskin, M.; Kaniraj, P. Click to bind: Microwave-assisted solid-phase synthesis of peptoids incorporating pyridine–triazole ligands and their copper(II) complexes. Synlett 2014, 26, 461–466. [Google Scholar] [CrossRef]
  24. Nalband, D.M.; Warner, B.P.; Zahler, N.H.; Kirshenbaum, K. Rapid identification of metal-binding peptoid oligomers by on-resin x-ray fluorescence screening. Biopolymers 2014, 102, 407–415. [Google Scholar] [CrossRef] [PubMed]
  25. Knight, A.S.; Zhou, E.Y.; Francis, M.B. Development of peptoid-based ligands for the removal of cadmium from biological media. Chem. Sci. 2015, 6, 4042–4048. [Google Scholar] [CrossRef] [PubMed]
  26. Prathap, K.J.; Maayan, G. Metallopeptoids as efficient biomimetic catalysts. Chem. Commun. 2015, 51, 11096–11099. [Google Scholar] [CrossRef] [PubMed]
  27. Baskin, M.; Maayan, G. A rationally designed metal-binding helical peptoid for selective recognition processes. Chem. Sci. 2016. [Google Scholar] [CrossRef]
  28. De Ricco, R.; Potocki, S.; Kozlowski, H.; Valensin, D. Nmr investigations of metal interactions with unstructured soluble protein domains. Coord. Chem. Rev. 2014, 269, 1–12. [Google Scholar] [CrossRef]
  29. Jung, H.S.; Han, J.H.; Habata, Y.; Kang, C.; Kim, J.S. An iminocoumarin-cu(II) ensemble-based chemodosimeter toward thiols. Chem. Commun. 2011, 47, 5142–5144. [Google Scholar] [CrossRef] [PubMed]
  30. Xu, Z.; Liu, X.; Pan, J.; Spring, D.R. Coumarin-derived transformable fluorescent sensor for Zn2+. Chem. Commun. 2012, 48, 4764–4766. [Google Scholar] [CrossRef] [PubMed]
  31. Hou, J.T.; Li, K.; Yu, K.K.; Wu, M.Y.; Yu, X.Q. Coumarin-dpa-cu(II) as a chemosensing ensemble towards histidine determination in urine and serum. Org. Biomol. Chem. 2013, 11, 717–720. [Google Scholar] [CrossRef] [PubMed]
  32. Yeh, J.-T.; Chen, W.-C.; Liu, S.-R.; Wu, S.-P. A coumarin-based sensitive and selective fluorescent sensor for copper(II) ions. New J. Chem. 2014, 38, 4434–4439. [Google Scholar] [CrossRef]
  33. Kim, M.J.; Swamy, K.M.; Lee, K.M.; Jagdale, A.R.; Kim, Y.; Kim, S.J.; Yoo, K.H.; Yoon, J. Pyrophosphate selective fluorescent chemosensors based on coumarin-DPA-Cu(II) complexes. Chem. Commun. 2009, 7215–7217. [Google Scholar] [CrossRef] [PubMed]
  34. Garcia-Beltran, O.; Cassels, B.K.; Perez, C.; Mena, N.; Nunez, M.T.; Martinez, N.P.; Pavez, P.; Aliaga, M.E. Coumarin-based fluorescent probes for dual recognition of copper(II) and iron(III) ions and their application in bio-imaging. Sensors 2014, 14, 1358–1371. [Google Scholar] [CrossRef] [PubMed]
  35. Stefani, H.A.; Gueogjan, K.; Manarin, F.; Farsky, S.H.; Zukerman-Schpector, J.; Caracelli, I.; Pizano Rodrigues, S.R.; Muscara, M.N.; Teixeira, S.A.; Santin, J.R.; et al. Synthesis, biological evaluation and molecular docking studies of 3-(triazolyl)-coumarin derivatives: Effect on inducible nitric oxide synthase. Eur. J. Med. Chem. 2012, 58, 117–127. [Google Scholar] [CrossRef] [PubMed]
  36. Zhang, W.J.; Li, Z.; Zhou, M.; Wu, F.; Hou, X.Y.; Luo, H.; Liu, H.; Han, X.; Yan, G.Y.; Ding, Z.Y.; et al. Synthesis and biological evaluation of 4-(1,2,3-triazol-1-yl)coumarin derivatives as potential antitumor agents. Bioorg. Med. Chem. Lett. 2014, 24, 799–807. [Google Scholar] [CrossRef] [PubMed]
  37. Shi, Y.A.; Zhou, C.H. Synthesis and evaluation of a class of new coumarin triazole derivatives as potential antimicrobial agents. Bioorg. Med. Chem. Lett. 2011, 21, 956–960. [Google Scholar] [CrossRef] [PubMed]
  38. Ho, I.T.; Lai, T.L.; Wu, R.T.; Tsai, M.T.; Wu, C.M.; Lee, G.H.; Chung, W.S. Design and synthesis of triazolyl coumarins as Hg2+ selective fluorescent chemosensors. Analyst 2012, 137, 5770–5776. [Google Scholar] [CrossRef] [PubMed]
  39. Zhou, Y.; Liu, K.; Li, J.-Y.; Fang, Y.; Zhao, T.-C.; Yao, C. Visualization of nitroxyl in living cells by a chelated copper(II) coumarin complex. Org. Lett. 2011, 13, 1290–1293. [Google Scholar] [CrossRef] [PubMed]
  40. Shi, D.T.; Wei, X.L.; Sheng, Y.; Zang, Y.; He, X.P.; Xie, J.; Liu, G.; Tang, Y.; Li, J.; Chen, G.R. Substitution pattern reverses the fluorescence response of coumarin glycoligands upon coordination with silver(I). Sci. Rep. 2014, 4, 4252. [Google Scholar] [CrossRef] [PubMed]
  41. Maity, D.; Govindaraju, T. Conformationally constrained (coumarin-triazolyl-bipyridyl) click fluoroionophore as a selective Al3+ sensor. Inorg. Chem. 2010, 49, 7229–7231. [Google Scholar] [CrossRef] [PubMed]
  42. Xu, Z.; Chen, X.; Kim, H.N.; Yoon, J. Sensors for the optical detection of cyanide ion. Chem. Soc. Rev. 2010, 39, 127–137. [Google Scholar] [CrossRef] [PubMed]
  43. Jung, H.S.; Han, J.H.; Kim, Z.H.; Kang, C.; Kim, J.S. Coumarin-cu(II) ensemble-based cyanide sensing chemodosimeter. Org. Lett. 2011, 13, 5056–5059. [Google Scholar] [CrossRef] [PubMed]
  44. Li, J.; Gao, J.; Xiong, W.W.; Li, P.Z.; Zhang, H.; Zhao, Y.; Zhang, Q. Pyridinium-fused pyridinone: A novel “turn-on” fluorescent chemodosimeter for cyanide. Chem. Asian J. 2014, 9, 121–125. [Google Scholar] [CrossRef] [PubMed]
  45. Peng, M.-J.; Guo, Y.; Yang, X.-F.; Suzenet, F.; Li, J.; Li, C.-W.; Duan, Y.-W. Coumarin–hemicyanine conjugates as novel reaction-based sensors for cyanide detection: Convenient synthesis and ict mechanism. RSC Adv. 2014, 4, 19077–19085. [Google Scholar] [CrossRef]
  46. Fisher, A.E.O.; Naughton, D.P. Novel peptoids for the detection and suppression of reactive oxygen and nitrogen species. Biochem. Soc. Trans. 2003, 31, 1302–1304. [Google Scholar] [CrossRef] [PubMed]
  47. Fuller, A.A.; Holmes, C.A.; Seidl, F.J. A fluorescent peptoid ph-sensor. Biopolymers 2013, 100, 380–386. [Google Scholar] [CrossRef] [PubMed]
  48. Burkoth, T.S.; Fafarman, A.T.; Charych, D.H.; Connolly, M.D.; Zuckermann, R.N. Incorporation of unprotected heterocyclic side chains into peptoid oligomers via solid-phase submonomer synthesis. J. Am. Chem. Soc. 2003, 125, 8841–8845. [Google Scholar] [CrossRef] [PubMed]
  49. Sivakumar, K.; Xie, F.; Cash, B.M.; Long, S.; Barnhill, H.N.; Wang, Q. A fluorogenic 1,3-dipolar cycloaddition reaction of 3-azidocoumarins and acetylenes. Org. Lett. 2004, 6, 4603–4606. [Google Scholar] [CrossRef] [PubMed]
  50. Li, C.; Henry, E.; Mani, N.K.; Tang, J.; Brochon, J.-C.; Deprez, E.; Xie, J. Click chemistry to fluorescent amino esters: Synthesis and spectroscopic studies. Eur. J. Org. Chem. 2010, 2010, 2395–2405. [Google Scholar] [CrossRef]
  51. De Silva, A.P.; Gunaratne, H.Q.N.; Gunnlaugsson, T.; Huxley, A.J.M.; McCoy, C.P.; Rademacher, J.T.; Rice, T.E. Signaling recognition events with fluorescent sensors and switches. Chem. Rev. 1997, 97, 1515–1566. [Google Scholar] [CrossRef] [PubMed]
  52. Valeur, B.; Berberan-Santos, M.N. Chemical sensing via fluorescence. In Molecular Fluorescence: Principles and Applications, 2nd ed.; Wiley-VCH: Weinheim, Germany, 2012; pp. 409–478. [Google Scholar]
  53. Kurnia, K.; Giles, D.E.; May, P.M.; Singh, P.; Hefter, G.T. Cyanide thermodynamics 2. Stability constants of copper(I) cyanide complexes in aqueous acetonitrile mixtures. Talanta 1996, 43, 2045–2051. [Google Scholar] [CrossRef]
  54. Westlake, B.C.; Paul, J.J.; Bettis, S.E.; Hampton, S.D.; Mehl, B.P.; Meyer, T.J.; Papanikolas, J.M. Base-induced phototautomerization in 7-hydroxy-4-(trifluoromethyl)coumarin. J. Phys. Chem. B 2012, 116, 14886–14891. [Google Scholar] [CrossRef] [PubMed]
  55. Kobayashi, H.; Katano, K.; Hashimoto, T.; Hayashita, T. Solvent effect on the fluorescence response of hydroxycoumarin bearing a dipicolylamine binding site to metal ions. Anal. Sci. 2014, 30, 1045–1050. [Google Scholar] [CrossRef] [PubMed]
  56. Georgieva, I.; Trendafilova, N.; Aquino, A.J.A.; Lischka, H. Excited-state proton transfer in 7-hydroxy-4-methylcoumarin along a hydrogen-bonded water wire. J. Phys. Chem. A 2007, 111, 127–135. [Google Scholar] [CrossRef] [PubMed]
  57. Moriay, T. Excited-state reactions of coumarins in aqueous solutions. I. The phototautomerization of 7-hydroxycoumarin and its derivative. Bull. Chem. Soc. Jpn. 1983, 56, 6–14. [Google Scholar] [CrossRef]
  58. Shang, L.; Zhang, L.H.; Dong, S.J. Turn-on fluorescent cyanide sensor based on copper ion-modified cdte quantum dots. Analyst 2009, 134, 107–113. [Google Scholar] [CrossRef] [PubMed]
  59. Wang, M.; Xu, J.; Liu, X.; Wang, H. A highly selective pyrene based “off–on” fluorescent chemosensor for cyanide. New J. Chem. 2013, 37, 3869–3872. [Google Scholar] [CrossRef]
  60. Tanaka, T.; Mizuno, T.; Fukui, S.; Hiroaki, H.; Oku, J.; Kanaori, K.; Tajima, K.; Shirakawa, M. Two-metal ion, Ni(II) and Cu(II), binding alpha-helical coiled coil peptide. J. Am. Chem. Soc. 2004, 126, 14023–14028. [Google Scholar] [CrossRef] [PubMed]
  61. Gaggelli, E.; Kozlowski, H.; Valensin, D.; Valensin, G. Nmr studies on Cu(II)-peptide complexes: Exchange kinetics and determination of structures in solution. Mol. BioSyst. 2005, 1, 79–84. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Not avaiable.

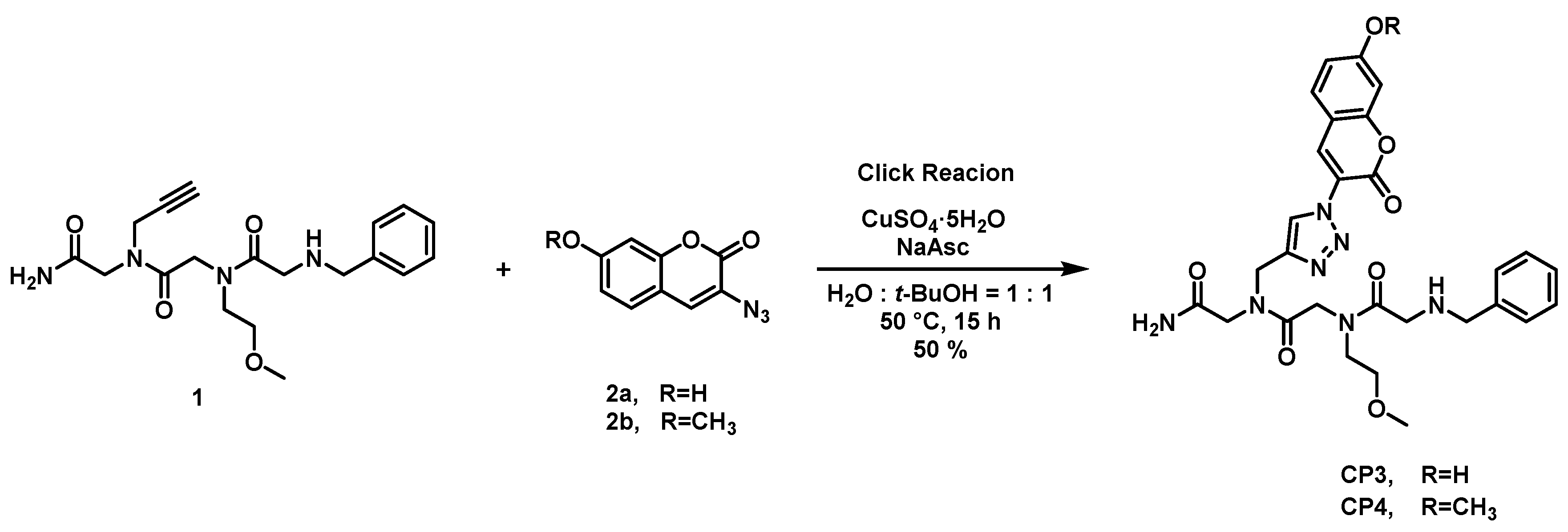

Figure 1. Synthesis of coumarin-attached peptoids.
Figure 1. Synthesis of coumarin-attached peptoids.
Molecules 21 00339 g001

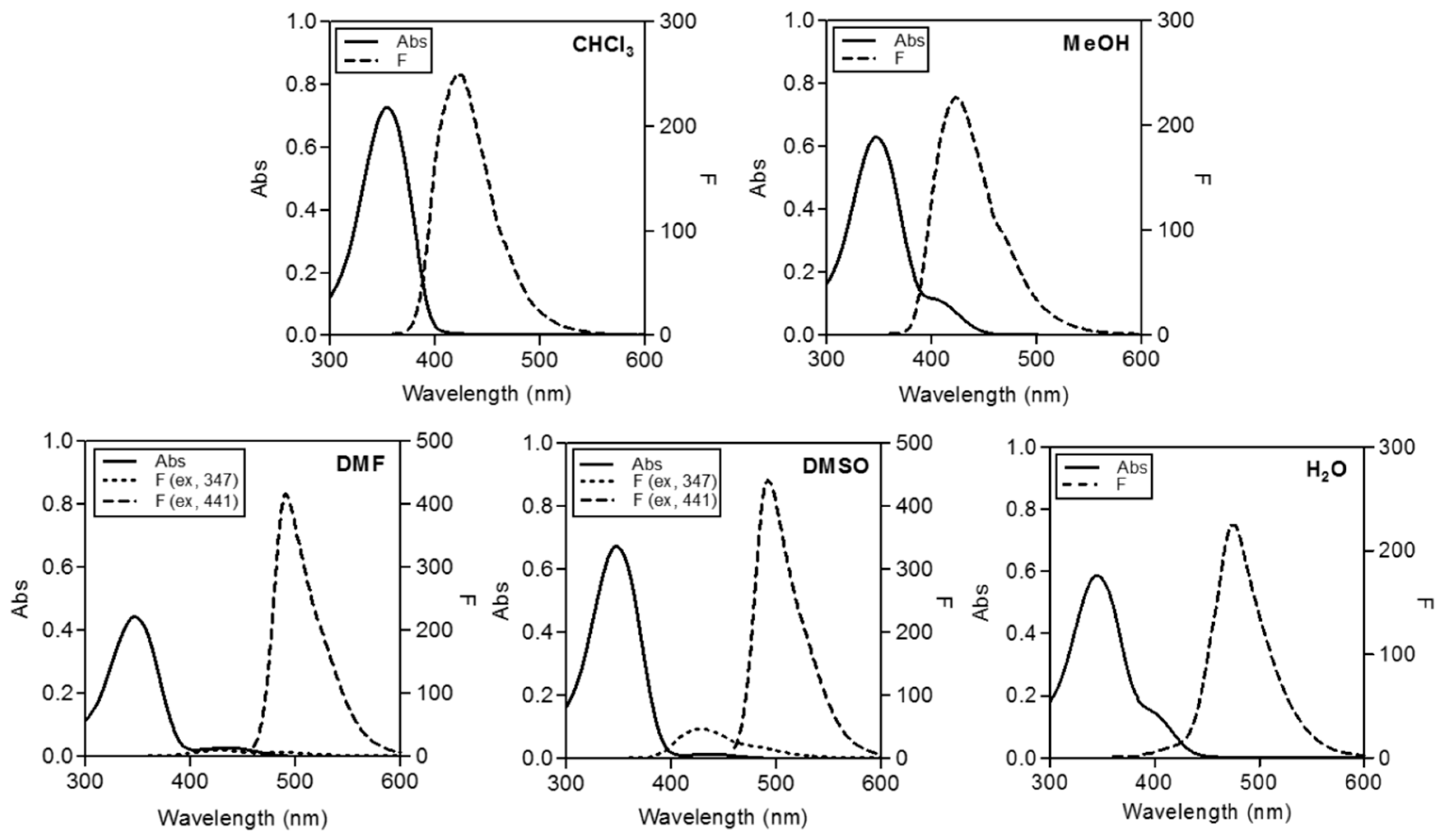

Figure 2. Spectroscopic features of CP3 (1 μM for fluorescence, 50 μM for absorbance) in various solvents.
Figure 2. Spectroscopic features of CP3 (1 μM for fluorescence, 50 μM for absorbance) in various solvents.
Molecules 21 00339 g002
Figure 3. Changes in emission spectra upon addition of Cu2+. CP3 (1 μM) was titrated against increasing amounts of Cu2+ (0 to 35 µM) in various solvents with excitation at 441 nm for DMSO and DMF, 347 nm for MeOH and 344 nm for H2O, respectively.
Figure 3. Changes in emission spectra upon addition of Cu2+. CP3 (1 μM) was titrated against increasing amounts of Cu2+ (0 to 35 µM) in various solvents with excitation at 441 nm for DMSO and DMF, 347 nm for MeOH and 344 nm for H2O, respectively.
Molecules 21 00339 g003

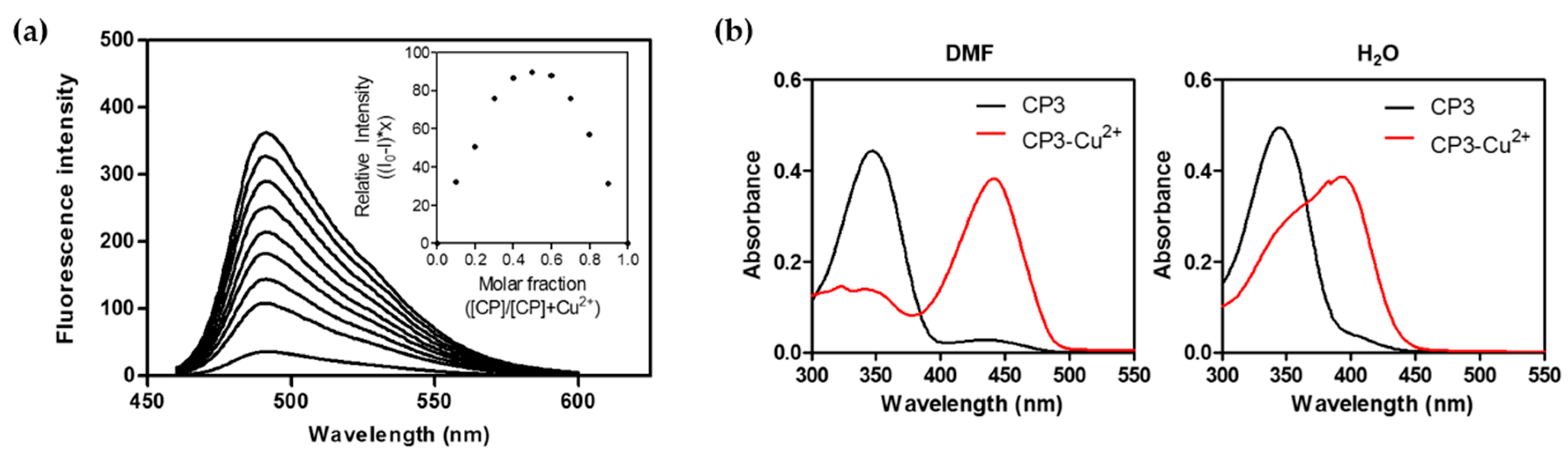

Figure 4. Spectroscopic features of CP3 in the presence of Cu2+. (a) Job plot data on emission changes upon addition of Cu2+ in DMF at 492 nm (λex = 441 nm). The X-axis represents the molar fraction of CP3 and the Y-axis represents relative fluorescence intensity at an invariant total concentration of 1 μM; (b) UV-Vis spectra of CP3 (50 μM) and CP3-Cu2+ (50 μM) in DMF and H2O.
Figure 4. Spectroscopic features of CP3 in the presence of Cu2+. (a) Job plot data on emission changes upon addition of Cu2+ in DMF at 492 nm (λex = 441 nm). The X-axis represents the molar fraction of CP3 and the Y-axis represents relative fluorescence intensity at an invariant total concentration of 1 μM; (b) UV-Vis spectra of CP3 (50 μM) and CP3-Cu2+ (50 μM) in DMF and H2O.
Molecules 21 00339 g004

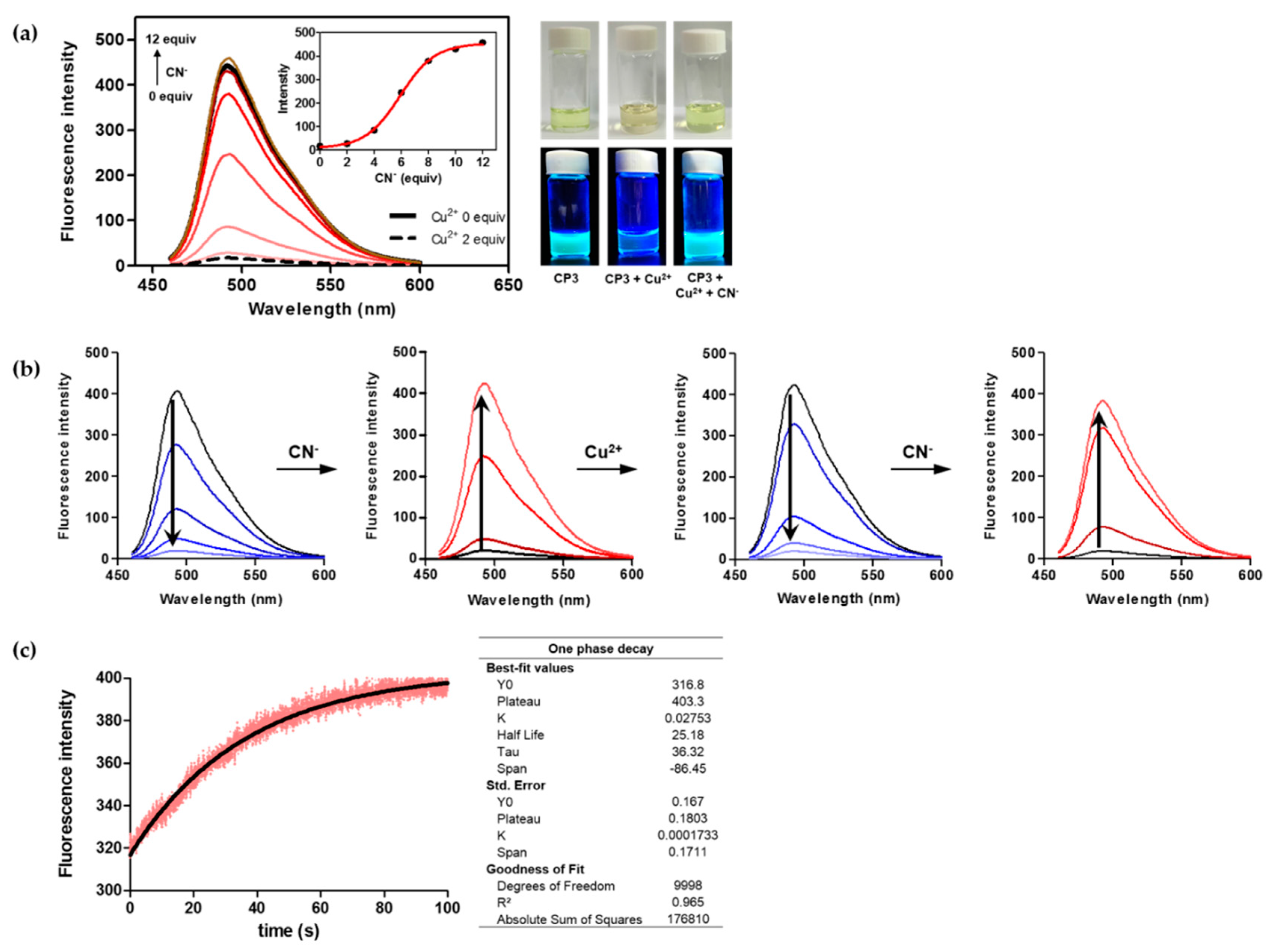

Figure 5. Fluorescence response of CP3-Cu2+ to CN. (a) Emission increase upon addition of CN (0 to 12 μM) to CP3-Cu2+ (1 μM) in DMSO (λex = 441 nm). Insert : changes in fluorescence intensity of the solution measured at 492 nm; (b) rapid and reversible ON/OFF switching property of CP3-Cu2+ (1 μM) with CN (0 to 12 μM) in DMSO; and (c) measurement of the time course for the cyanide detection by CP3-Cu2+ (1 μM) as monitored by fluorescence increase in DMSO. The black line represents the fit of the data.
Figure 5. Fluorescence response of CP3-Cu2+ to CN. (a) Emission increase upon addition of CN (0 to 12 μM) to CP3-Cu2+ (1 μM) in DMSO (λex = 441 nm). Insert : changes in fluorescence intensity of the solution measured at 492 nm; (b) rapid and reversible ON/OFF switching property of CP3-Cu2+ (1 μM) with CN (0 to 12 μM) in DMSO; and (c) measurement of the time course for the cyanide detection by CP3-Cu2+ (1 μM) as monitored by fluorescence increase in DMSO. The black line represents the fit of the data.
Molecules 21 00339 g005

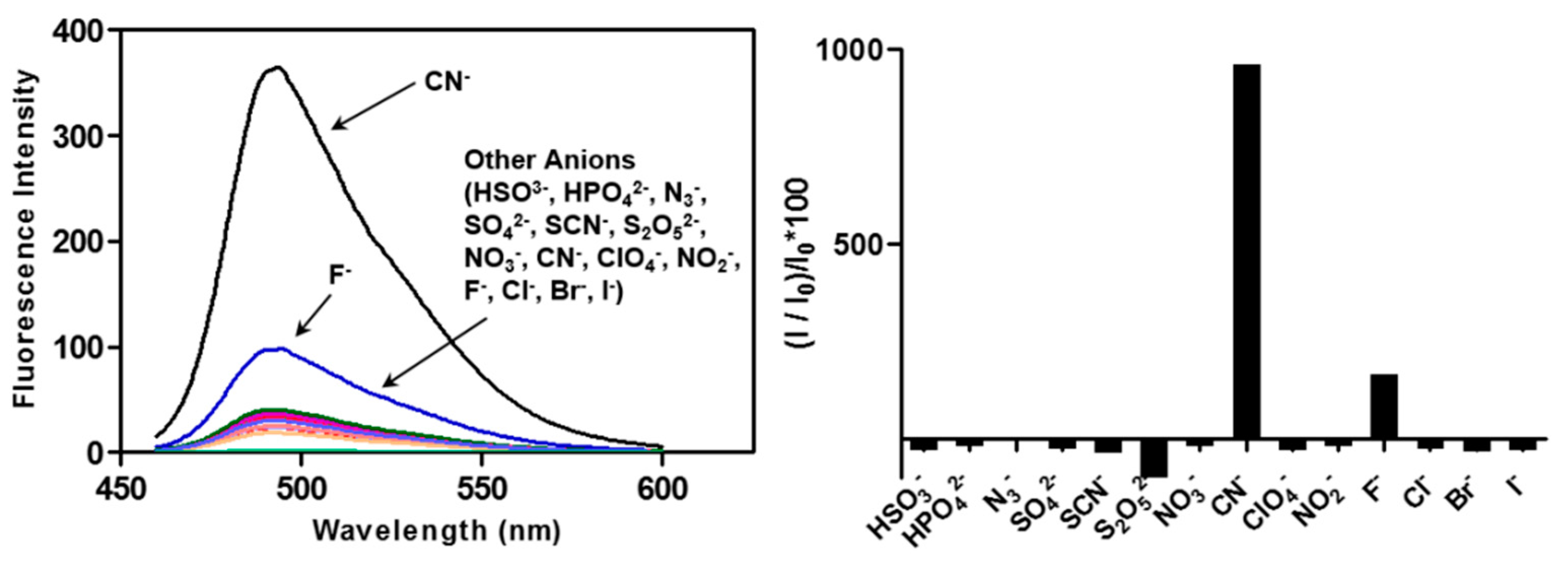

Figure 6. Selectivity of CP3-Cu2+ for cyanide among various anions examined in DMSO solution. Changes in emission spectra of CP3-Cu2+ (1 μM) in DMSO upon addition of 20 equiv. of various anions (CN, HSO3, HPO42−, N3, SO42−, SCN, S2O52−, NO3, ClO4, NO2, F, Cl, Br, I) (λex = 441 nm).
Figure 6. Selectivity of CP3-Cu2+ for cyanide among various anions examined in DMSO solution. Changes in emission spectra of CP3-Cu2+ (1 μM) in DMSO upon addition of 20 equiv. of various anions (CN, HSO3, HPO42−, N3, SO42−, SCN, S2O52−, NO3, ClO4, NO2, F, Cl, Br, I) (λex = 441 nm).
Molecules 21 00339 g006

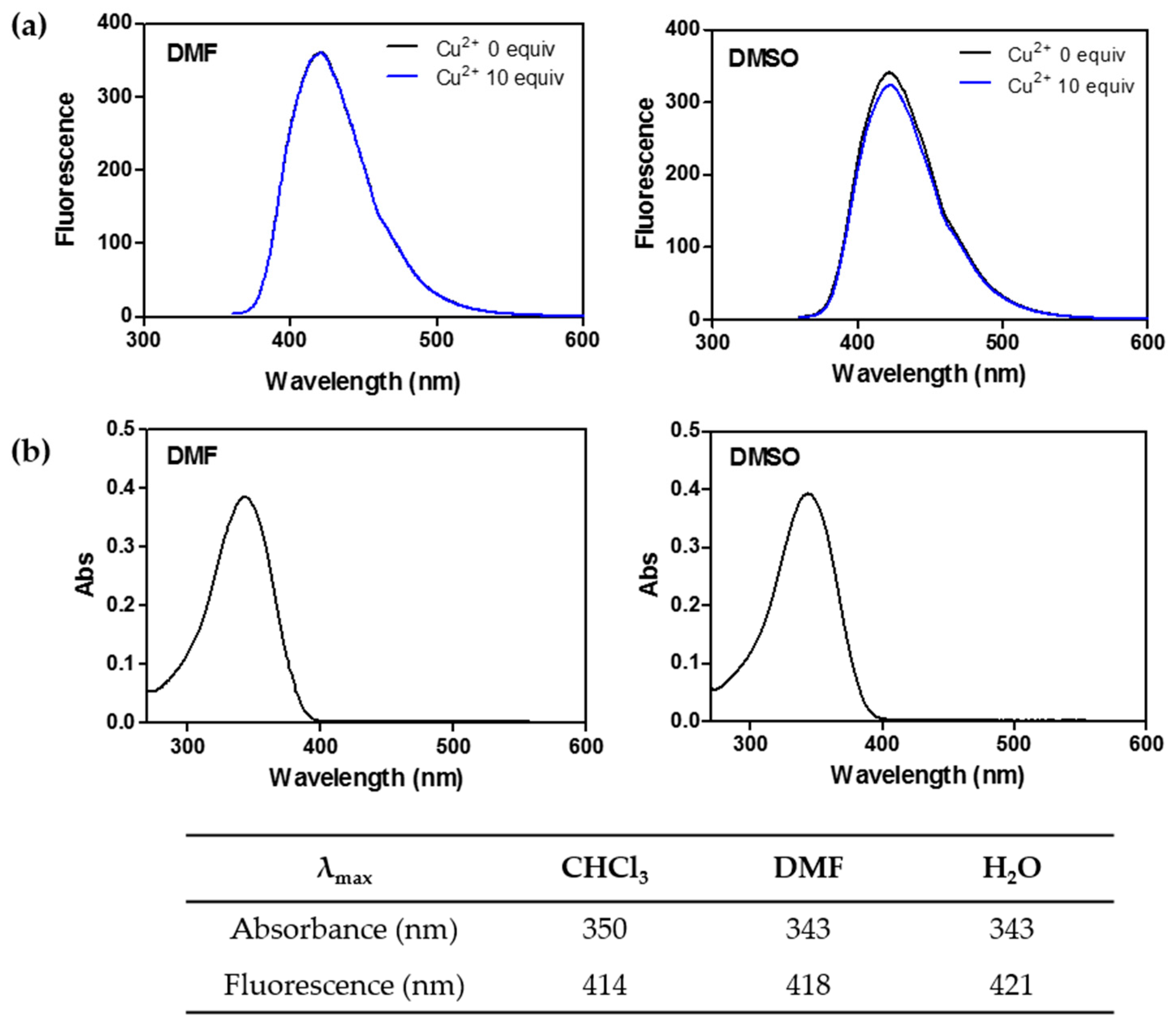

Figure 7. Spectroscopic features of 7-methoxy coumarin-peptoid (CP4) as a control. (a) fluorescence spectra of CP4 (1 μM) in response to the presence of Cu2+ (0 to 10 μM) in DMF and DMSO (λex = 343 nm, λem = 418 nm, slit widths = 3 nm for excitation and 5 nm for emission); (b) absorption spectra of CP4 (50 μM) in DMF and DMSO (λmax = 343 nm).
Figure 7. Spectroscopic features of 7-methoxy coumarin-peptoid (CP4) as a control. (a) fluorescence spectra of CP4 (1 μM) in response to the presence of Cu2+ (0 to 10 μM) in DMF and DMSO (λex = 343 nm, λem = 418 nm, slit widths = 3 nm for excitation and 5 nm for emission); (b) absorption spectra of CP4 (50 μM) in DMF and DMSO (λmax = 343 nm).
Molecules 21 00339 g007

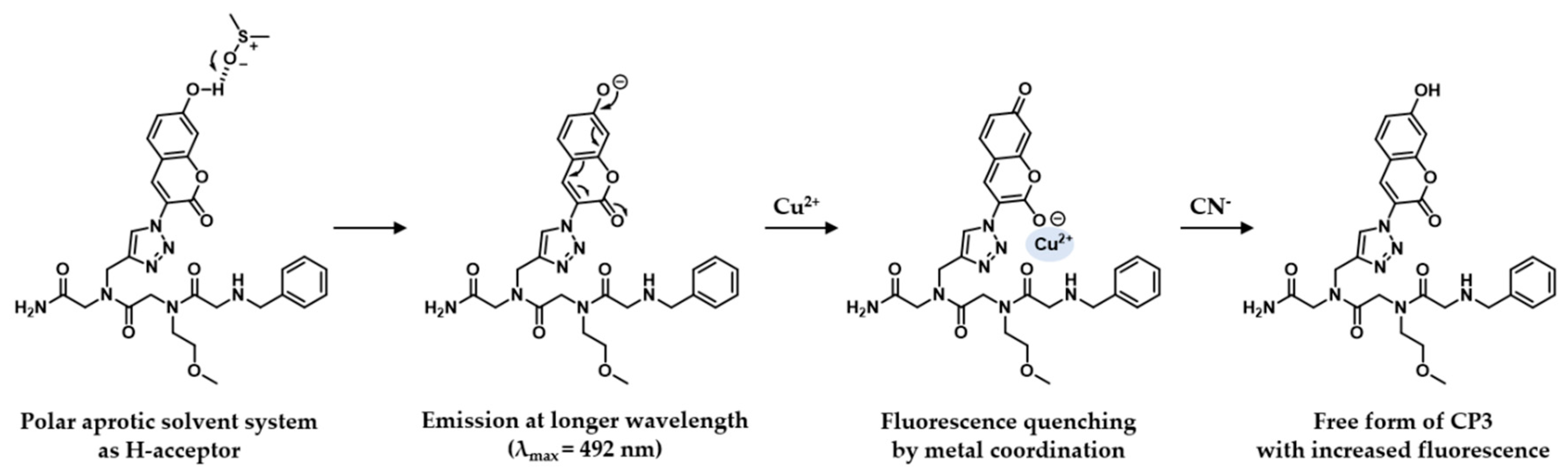

Figure 8. Proposed mechanism underlying fluorescence sensing of coumarin peptoids.
Figure 8. Proposed mechanism underlying fluorescence sensing of coumarin peptoids.
Molecules 21 00339 g008
Table 1. Spectroscopic values of CP3.
Table 1. Spectroscopic values of CP3.
WavelengthCHCl3MeOHDMFDMSOH2O
λex (nm)357347347/441347/441344
λem (nm)425423429/492429/492475
Stokes shift (nm)687682/5182/51131
