Fluorination Effects on NOS Inhibitory Activity of Pyrazoles Related to Curcumin

Abstract

A series of new (E)-3(5)-[β-(aryl)-ethenyl]-5(3)-phenyl-1H-pyrazoles bearing fluorine atoms at different positions of the aryl group have been synthesized starting from the corresponding β-diketones. All compounds have been characterized by elemental analysis, DSC as well as NMR (¹H, ¹³C, ¹⁹F and ¹⁵N) spectroscopy in solution and in solid state. Three structures have been solved by X-ray diffraction analysis, confirming the tautomeric forms detected by solid state NMR. The in vitro study of their inhibitory potency and selectivity on the activity of nNOS and eNOS (calcium-calmodulin dependent) as well as iNOS (calcium-calmodulin independent) isoenzymes is presented. A qualitative structure–activity analysis allowed the establishment of a correlation between the presence/absence of different substituents with the inhibition data proving that fluorine groups enhance the biological activity. (E)-3(5)-[β-(3-Fluoro-4-hydroxyphenyl)-ethenyl]-5(3)-phenyl-1H-pyrazole (13), is the best inhibitor of iNOS, being also more selective towards the other two isoforms.

1. Introduction

We have been working for the last years on two different topics: (i) nitric oxide synthase (NOS) inhibitors [1,2,3], and (ii) curcumin and curcuminoid pyrazoles [4,5,6,7]. This prompted us to study the effects of new curcuminoid pyrazoles on the three NOS isoforms and analyze them by structure–activity relationships hoping to find potent/isoform specific NOS inhibitors.

Nitric oxide (NO^●) is a free radical that serves as a multifunctional messenger affecting multiple aspects of mammalian physiology. Nitric oxide synthase (NOS) catalyzes the formation of NO^● from the terminal guanidino nitrogen of L-arginine. There are several homologous but separate NOS genes in mammals. Endothelial NOS (eNOS) and neuronal NOS (nNOS) enzymes are produced constitutively and they are Ca²⁺-calmodulin dependent [8]. Macrophage NOS is expressed under basal conditions and does not depend on calcium for its activity; it is an inducible NOS isoform (iNOS), which is a component of the host’s resistance to infection. The use in medicinal chemistry of different inhibitors of the NOS isoforms (nNOS, eNOS, iNOS, and mitochondrial NOS or mtNOS [9,10]) is an important goal; several families have been explored: guanidines, citrullines, amidines, isothioureas [11,12], imidazoles [13,14], benzoxazolinones [15,16] and 1H-indazoles [1,3,17,18,19]. More recently 4,5-dihydropyrazoles have been reported as nNOS/iNOS selective inhibitors [20]. The most relevant contributions to this topic are a series of publications that use azines as selective nNOS inhibitors [21,22,23,24,25,26].

The rediscovery of the biological properties of curcumin has led to an impressive number of publications [27,28,29,30,31,32,33,34,35,36,37,38,39]. Prominent among these compounds are curcuminoid pyrazoles. Besides our own contributions [5,6], a large number of papers have been devoted to them due to their interesting properties (Figure 1).

Already in 1991, Flynn et al. prepared pyrazole 1 from curcumin, which is still one of the most significant compounds of this family, as well as compound 2, and described their 5-lipooxygenase and cyclooxygenase inhibitory properties [40]. Subsequent modification did not improve 1 but other pharmacological properties were discovered, including inhibitor of endothelial cell proliferation [41] and cytotoxicity [42,43], as well as antioxidant and anti-inflammatory activity [44]. Schubert et al. made an important advance in preparing N-substituted pyrazole derivatives such as 3 (aimed at treating Alzheimer’s and Parkinson diseases), known as CNB001 [45,46,47], and 5 (CNB023) [48] and other authors prepared 4 that binds to the amyloid β peptide [49]. Compound 6 is an antiplatelet inhibitor [50]. Our previous works correspond to compound 1 and to pyrazoles 7–11 (Figure 1) [5,6].

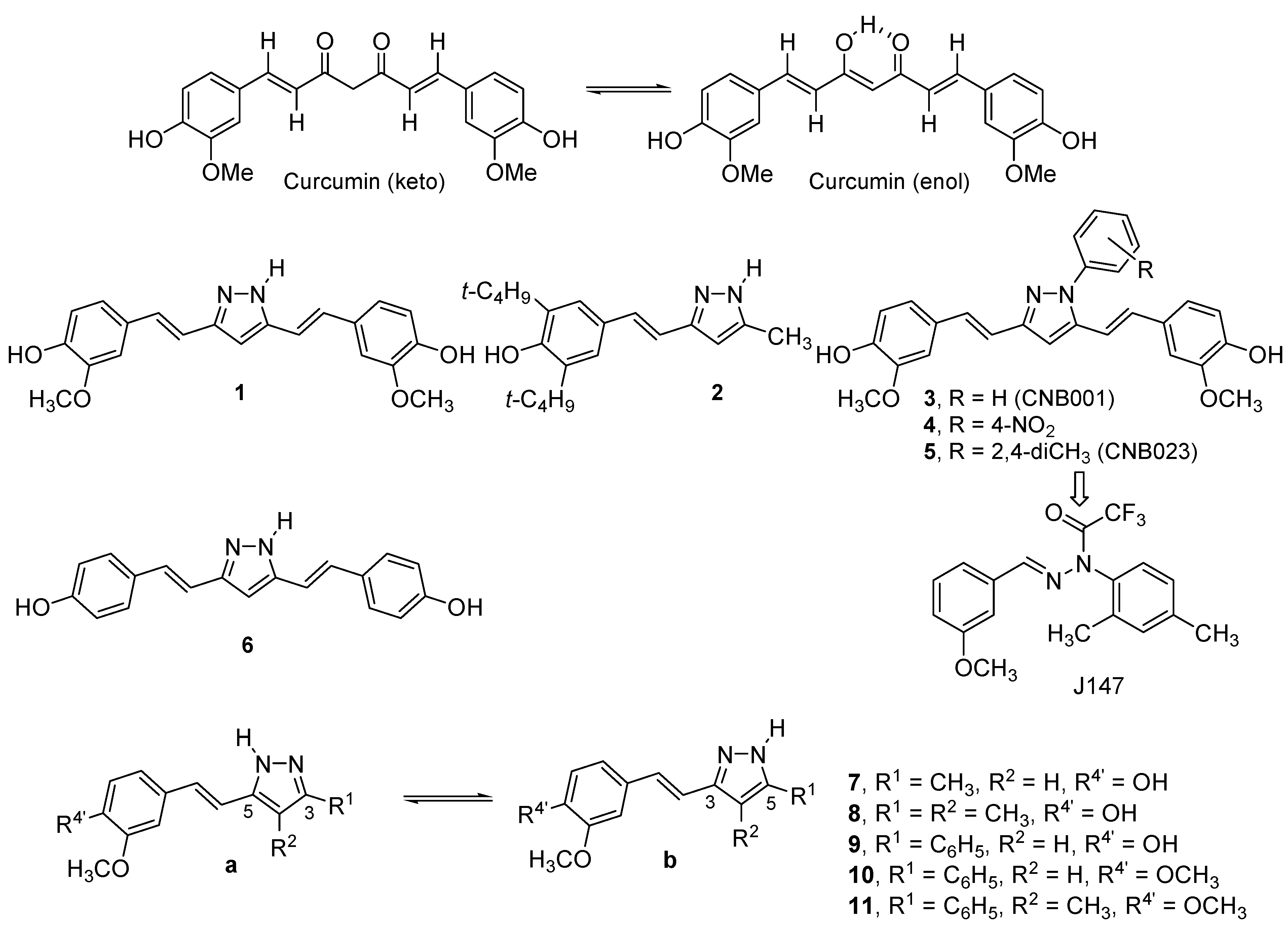

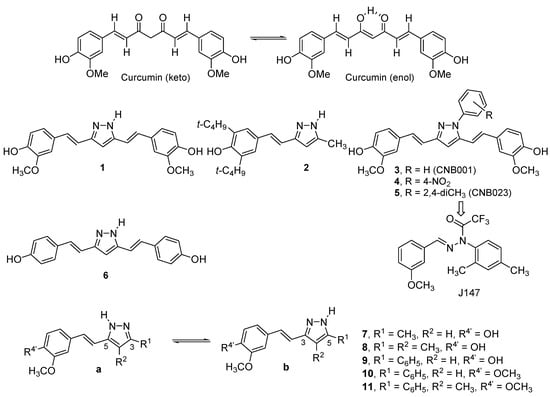

Figure 1. Curcuminoid pyrazoles, from the literature 1–6 and reported in our previous works 7–11, with the definition of tautomers a (5-styryl) and b (3-styryl).

Figure 1. Curcuminoid pyrazoles, from the literature 1–6 and reported in our previous works 7–11, with the definition of tautomers a (5-styryl) and b (3-styryl).

In most papers dealing with curcumin, its relationship with iNOS is cited [51,52,53,54,55,56,57,58,59,60,61,62]. However, there are very few papers where curcumin is associated with the nNOS [63,64].

This is the first time in which the effects of curcuminoids on the three NOS isoforms have been simultaneously examined. Of all the literature pyrazoles related to curcumin [39,40,41,42,43,44,45,46,47,48,49], none report NOS assays; only the paper concerning J147, a non-pyrazole neurotrophic drug with iNOS properties, describes 5 (CNB023), a precursor of J147 [48].

In the present publication, we will report the unpublished biological results concerning the pyrazole series, 7–11, and the synthesis, structure and biological evaluation of a new series of pyrazoles bearing fluorine atoms, 12–16, designed to improve their physicochemical and medicinal properties [65].

2. Results and Discussion

2.1. Synthesis and Characterization by NMR Spectroscopy

All the compounds discussed in this work were prepared by reaction of hydrazine with the corresponding β-diketones [66,67,68]. With the exception of curcumin, which is commercially available, and was used after purification by crystallization from ethanol-water, the β-diketones were obtained as described elsewhere, according to the scheme depicted in Figure 2 [4,7]. The synthesis and characterization of pyrazoles 1 and 7–11, have been previously described by us [5,6]. Full characterization of pyrazoles 12–16 is reported in the experimental section.

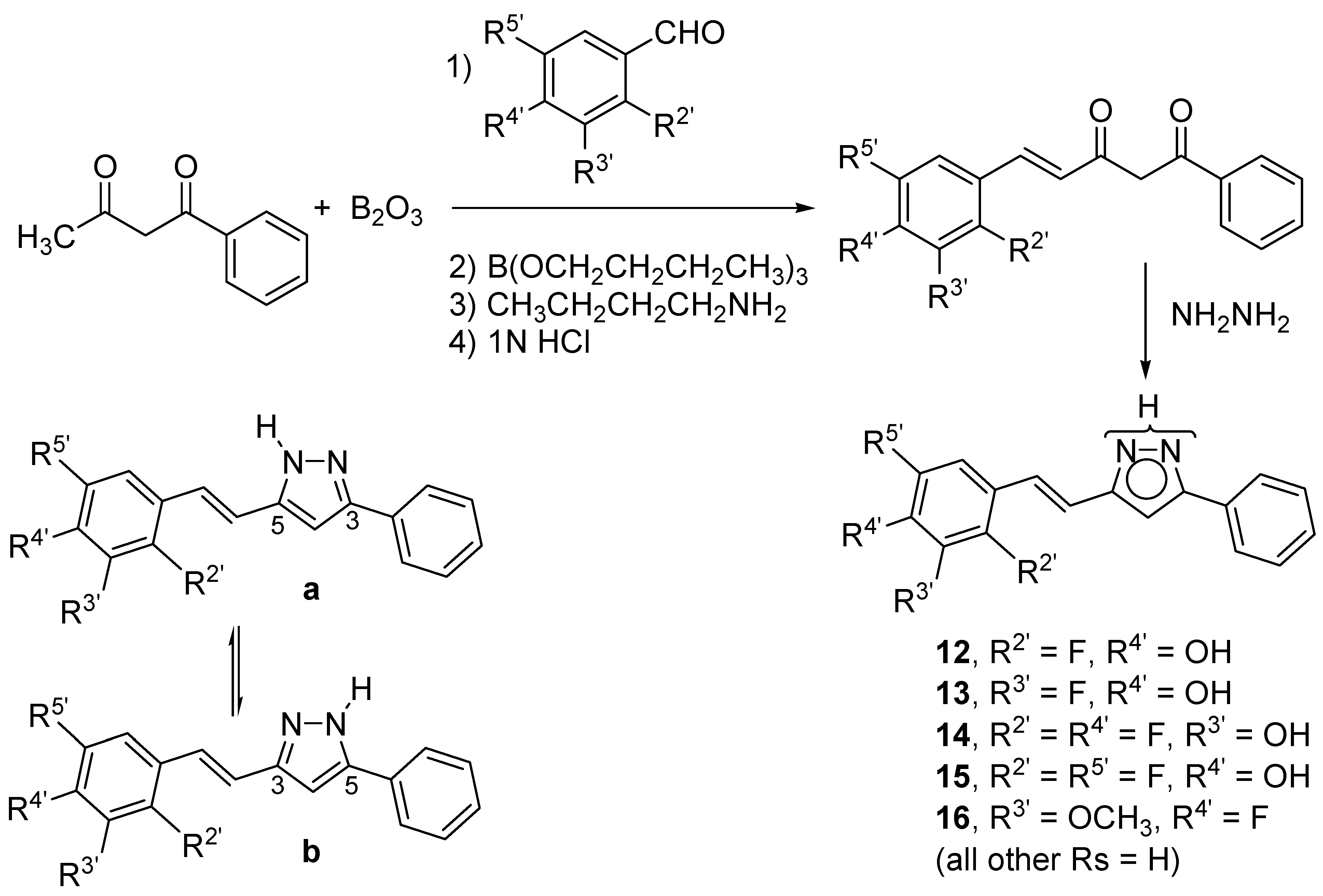

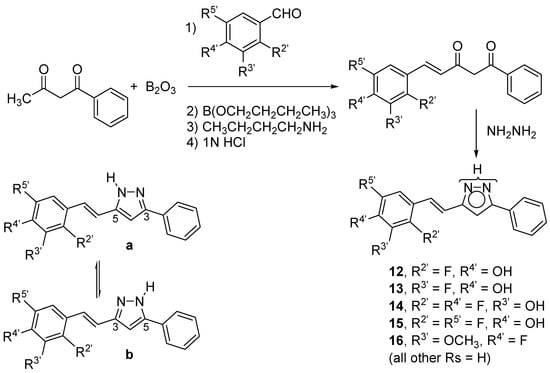

Figure 2. Synthetic scheme used to prepare pyrazoles 12–16, that can exist in two tautomeric forms a and b.

Figure 2. Synthetic scheme used to prepare pyrazoles 12–16, that can exist in two tautomeric forms a and b.

Concerning tautomerism, in the case of 1, both tautomers are identical. In solution, either in DMSO-d₆ or HMPA-d₁₈, pyrazoles 7–10 proved to exist as a mixture of both forms a and b in different ratios: 7a/7b, 50:50 (HMPA); 8a/8b, 65:35 (HMPA); 9a/9b, 64:36 (DMSO) and 10a/10b, 60:40 (DMSO). For 11, a large predominance of 11a (DMSO) and only this form (HMPA) was established [5].

The structures of the new pyrazoles 12–16 have been established by ¹H, ¹³C, ¹⁵N and ¹⁹F-NMR in solution and in solid state. All chemical shift and coupling constant data are given in the Supplementary files. The assignments of the signals to the different nuclei are based on: (i) homonuclear and heteronuclear 2D experiments; (ii) the auto-consistency of the coupling constants values; and (iii) the comparison with other NH-pyrazoles where tautomerization is blocked [5,69]. From our solution studies in DMSO-d₆, we conclude that both tautomers coexist: 12a/12b, 67:33; 13a/13b, 60:40; 14a/14b, 54:46; 15a/15b, 60:40 and 16a/16b, 57:43. In two cases (13 and 16), we have also used HMPA-d₁₈, a solvent with a hydrogen-bond basicity larger than that of DMSO-d₆, resulting in an 8% population increase of tautomer a (see Supplementary Files for ¹H-NMR and Table 1 for ¹⁹F-NMR data). Using this 8% correction, we have prepared a list of a/b proportion for all pyrazoles 7–16 (Table 2).

As in our previous studies, ratios have been determined by integration of the ¹H-NMR signal intensities (see Supplementary Files). Moreover, in the present paper tautomers populations have been corroborated by integration of the ¹⁹F-NMR signal intensities given in Table 1.

Solid state NMR spectral data indicate the presence of only one form for pyrazoles 12–16, the one corresponding to the major tautomer a detected in solution, and also in agreement with the X-ray crystallography determination of the structures of 12, 13 and 16 that will be discussed in the next section. Attention should be paid to the upfield effect observed on the ¹⁹F-NMR chemical shifts on going from solution to solid phase.

Table 1. ¹⁹F-NMR in solution and solid state of pyrazole derivatives (chemical shifts δ in ppm, J coupling constants in Hz).

Compound	Solvent (Temp)	F2′	F3′	F4′	F5′
12	DMSO-d6	−116.1 (67%)
	295 K	−116.8 (33%)
	MAS 300 K	−107.7
13			−136.0 (60%)
	DMSO-d6		3J = 4J = 10.8
	295 K		−136.2 (40%)
			3J = 4J = 10.2
	DMSO-d6		−136.0
	360 K
	HMPA-d18		−137.3 (67%)
	295 K		−137.6 (33%)
	MAS 300 K		−129.2
14	DMSO-d6	−136.4 (54%)		−132.1 (54%)
	295 K	−137.0 (46%)		−132.8 (46%)
	MAS 300 K	−130.7		−126.8
15	DMSO-d6	−121.3 (60%)			−140.6
	295 K	−122.1 (40%)
	MAS 300 K	−114.2			−134.8
16	DMSO-d6			−135.4 (57%)
	295 K			−136.3 (43%)
	HMPA-d18			−136.9 (65%)
	295 K			−137.8 (35%)
	CDCl3 295 K			−135.5
	MAS 300 K			−132.6

Table 1. ¹⁹F-NMR in solution and solid state of pyrazole derivatives (chemical shifts δ in ppm, J coupling constants in Hz).

Compound	Solvent (Temp)	F2′	F3′	F4′	F5′
12	DMSO-d6	−116.1 (67%)
	295 K	−116.8 (33%)
	MAS 300 K	−107.7
13			−136.0 (60%)
	DMSO-d6		3J = 4J = 10.8
	295 K		−136.2 (40%)
			3J = 4J = 10.2
	DMSO-d6		−136.0
	360 K
	HMPA-d18		−137.3 (67%)
	295 K		−137.6 (33%)
	MAS 300 K		−129.2
14	DMSO-d6	−136.4 (54%)		−132.1 (54%)
	295 K	−137.0 (46%)		−132.8 (46%)
	MAS 300 K	−130.7		−126.8
15	DMSO-d6	−121.3 (60%)			−140.6
	295 K	−122.1 (40%)
	MAS 300 K	−114.2			−134.8
16	DMSO-d6			−135.4 (57%)
	295 K			−136.3 (43%)
	HMPA-d18			−136.9 (65%)
	295 K			−137.8 (35%)
	CDCl3 295 K			−135.5
	MAS 300 K			−132.6

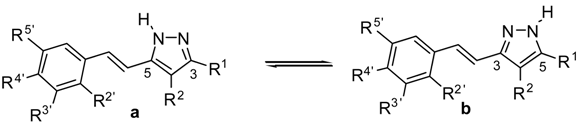

Table 2. Proportion of tautomer a (b = 100 − a) for pyrazoles 7 to 16 in DMSO-d₆.

Compound	7	8	9	10	11	12	13	14	15	16
% a	42 [a]	57 [b]	64	60	85 [c]	67	60	54	60	57

^[a] 50% in HMPA-d₁₈; ^[b] 65% in HMPA-d₁₈; ^[c] large excess in HMPA-d₁₈.

Table 2. Proportion of tautomer a (b = 100 − a) for pyrazoles 7 to 16 in DMSO-d₆.

Compound	7	8	9	10	11	12	13	14	15	16
% a	42 [a]	57 [b]	64	60	85 [c]	67	60	54	60	57

^[a] 50% in HMPA-d₁₈; ^[b] 65% in HMPA-d₁₈; ^[c] large excess in HMPA-d₁₈.

We have illustrated the spectra obtained in ¹⁹F-NMR, with the example depicted in Figure 3, which corresponds to compound (E)-3(5)-[β-(3-fluoro-4-hydroxyphenyl)-ethenyl]-5(3)-phenyl-1H-pyrazole (13), concentration 0.078 M, in the temperature range of 290–360 K. The dynamic NMR experiment has permitted us to estimate the barrier separating both tautomers to be 71 kJ·mol⁻¹, by using the Eyring equation: ΔG_T^‡(kJ·mol⁻¹) = 19.12 × T_c (10.32 + logT_c/k_c) (k_c = Δν_max × π/$\sqrt{2}$), a valid approach for systems in which the populations of the two sites are equal [70] using the following data: T_c = 350 K, Δν_max = 79.8, 13a/13b ratio of 60:40 and k_c (s⁻¹) = 177. A close value of 69 kJ·mol⁻¹ was found for (E)-3(5)-[β-(4-fluoro-3-methoxyphenyl)-ethenyl]-5(3)-phenyl-1H-pyrazole (16) when performing a similar experiment.

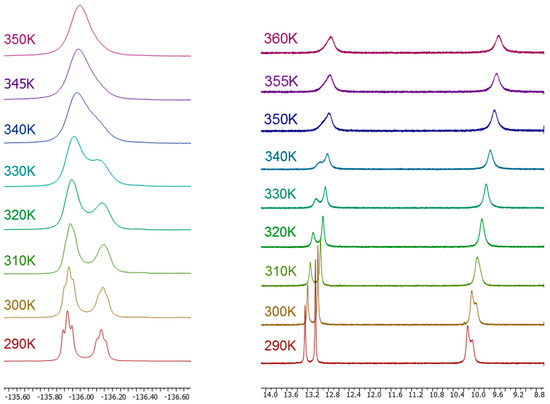

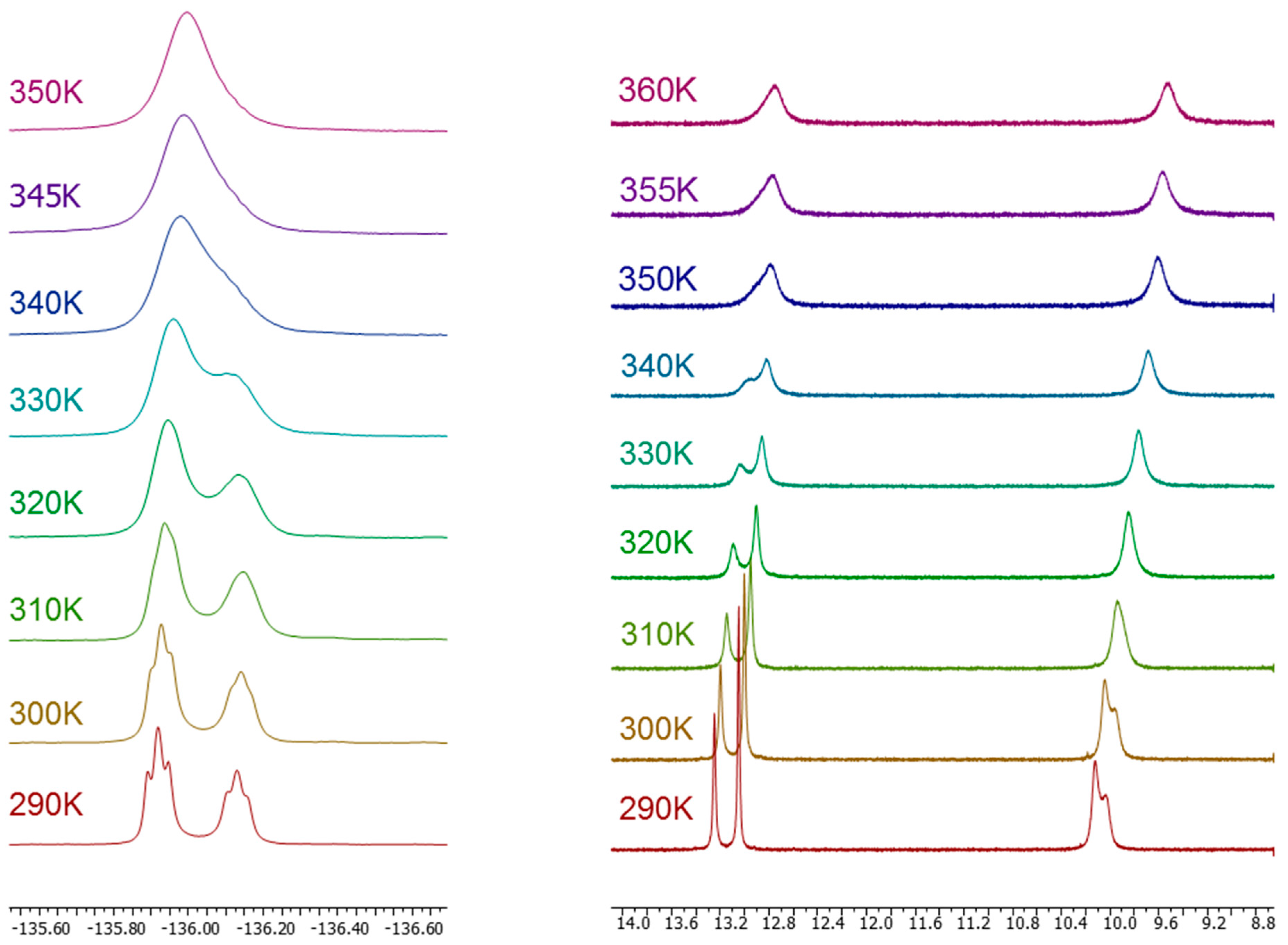

Figure 3. ¹⁹F-NMR spectra (left) and ¹H-NMR spectra (right) of compound 13 in DMSO-d₆ (11 mg in 0.5 mL) in the temperature range of 290–360 K.

Figure 3. ¹⁹F-NMR spectra (left) and ¹H-NMR spectra (right) of compound 13 in DMSO-d₆ (11 mg in 0.5 mL) in the temperature range of 290–360 K.

2.2. Crystal and Molecular Structures

Suitable single crystals for X-ray diffraction studies were obtained for 12 from ethyl acetate-hexane, for 13 from dichloromethane-ethanol-hexane and for 16 from dichloromethane-hexane. In all cases, the crystallized molecule corresponds to the a tautomeric form, in agreement with solid NMR data.

Compounds 12 and 13 are isostructural and crystallize in the monoclinic P2₁/n space group. For this reason, only the former will be described in detail since the results can be extended to the latter.

Figure 4 shows the labeling of the asymmetric unit of 12 that corresponds to one single molecule. This molecule is not completely planar due to the twist of the phenyl ring with respect to the pyrazole moiety, the dihedral angle between them is 25.4(2)°. Excluding this phenyl ring, the rest of the atoms slightly deviated from the mean molecular plane. This fact suggests an extended electronic delocalization over this part of the molecule.

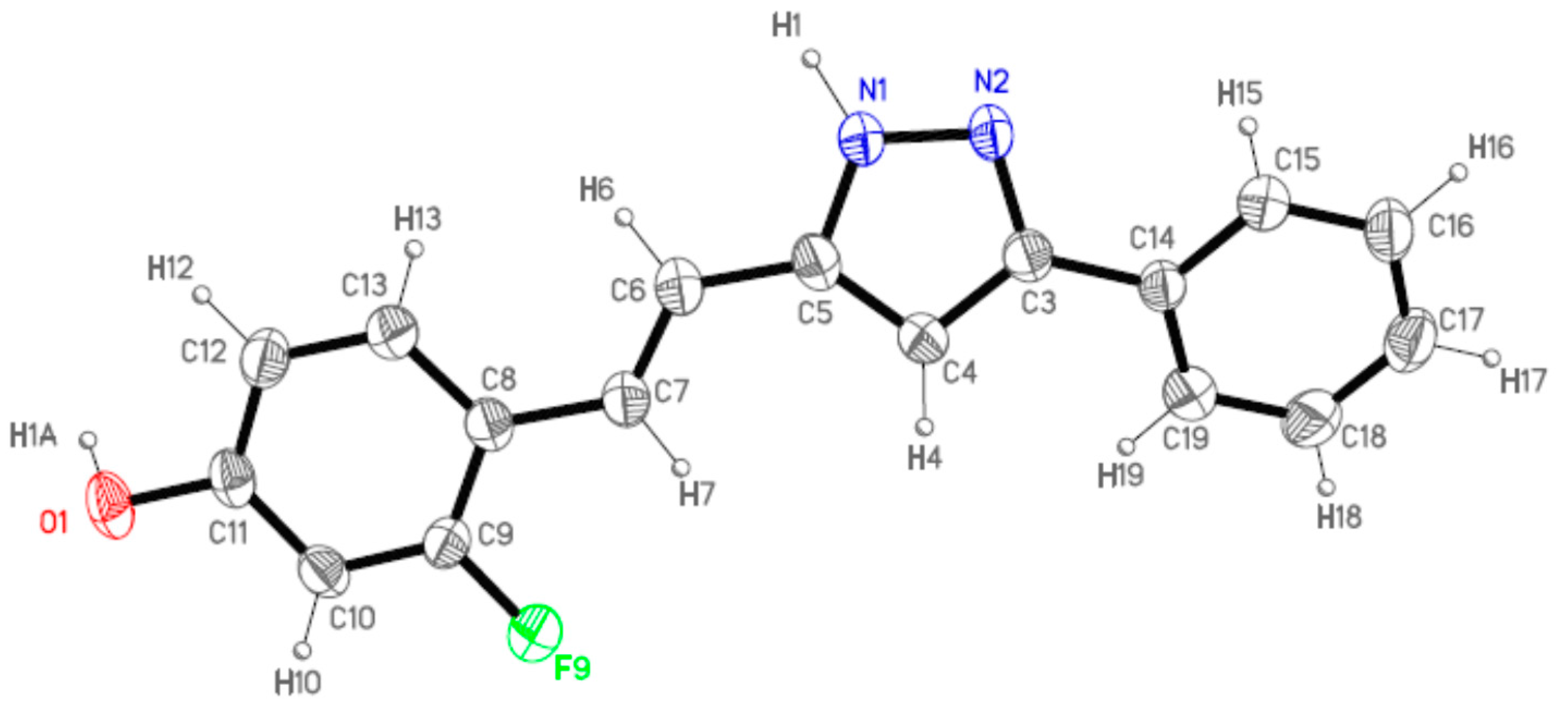

Figure 4. ORTEP (Oak Ridge Thermal Ellipsoid Plot) (40% ellipsoid probability) of 12 showing the labeling of the asymmetric unit.

Figure 4. ORTEP (Oak Ridge Thermal Ellipsoid Plot) (40% ellipsoid probability) of 12 showing the labeling of the asymmetric unit.

Each molecule forms intermolecular hydrogen bonds with the adjacent molecules leading to the formation of tetramers as can be shown in Figure 5 and Table 3. Every pyrazole nitrogen atom is asymmetrically hydrogen bonded to the phenol group of a different molecule, N1-H1···O1#1 and N2···H1A-O1#2 (See footnote ^[a] in Table 3). The tetramer is closed by the equivalent interactions of the latter with the nitrogen atoms on the centrosymmetric molecule to the initial one. The cycle so formed consists of N1···O1#1···N2#3-N1#3···O1#2···N2 (#3: 1 − x, 1 − y, 1 − z). Additionally, each molecule participates in a second tetrameric unit through its phenol group spreading out the intermolecular contacts in a bidimensional way (Figure 5).

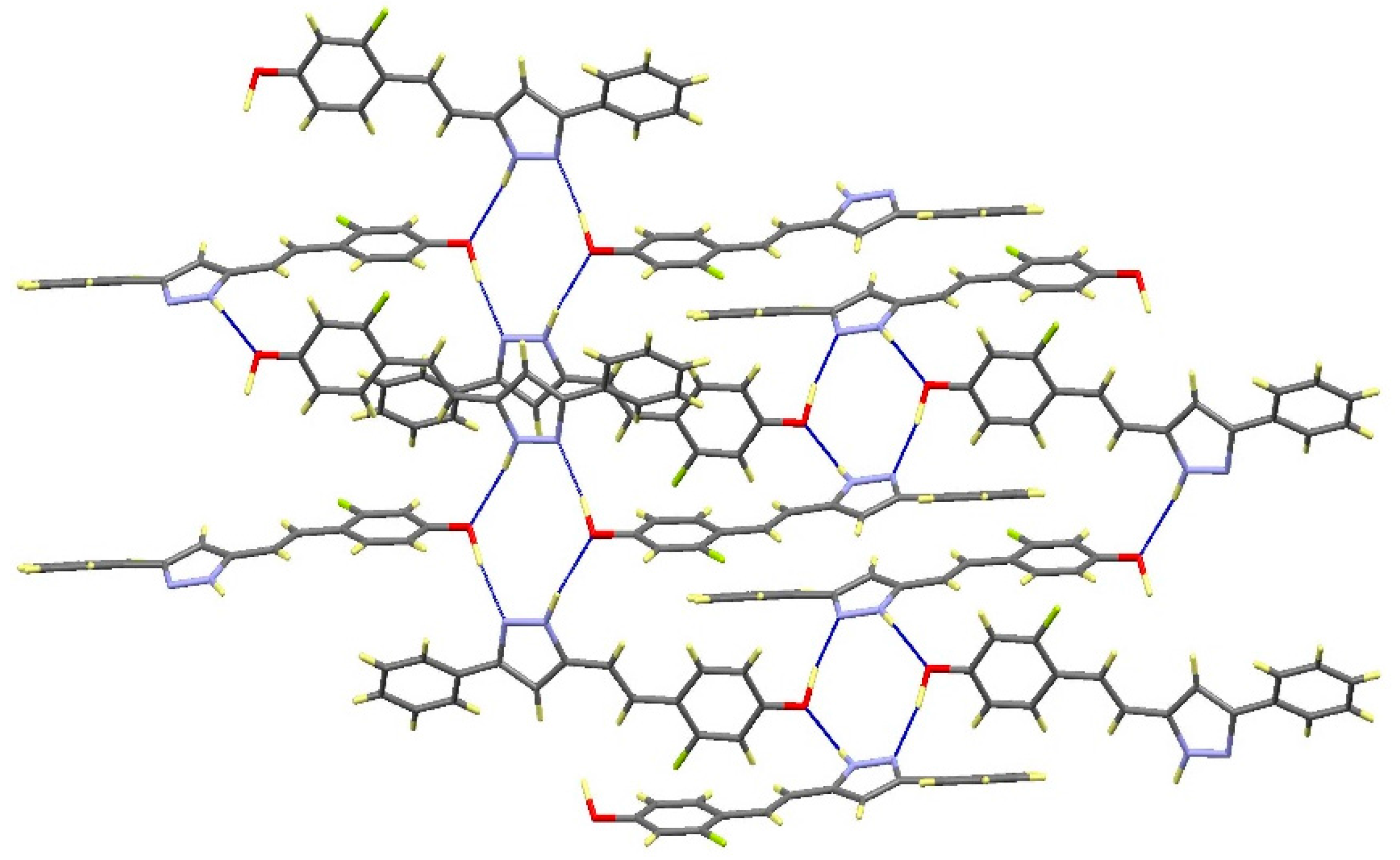

Figure 5. View of the packing for 12 showing the tetrameric units.

Figure 5. View of the packing for 12 showing the tetrameric units.

Table 3. Hydrogen bonds (Å and °) for compounds 12, 13 and 16.

Comp	D-H···A [a]	Symmetry Operations	d(D-H)	d(H···A)	d(D···A)	<(DHA)
12	N1-H1···O1#1	#1 –x + 1/2, y + 1/2, −z + 3/2	0.98	1.98	2.899(2)	154.1
	N2···H1A-O1#2	#2 x + 1/2, −y + 1/2, z − 1/2	1.01	1.72	2.711(2)	164.3
13	N1-H1···O1#1	#1 – x + 3/2, y + 1/2, −z + 1/2	1.02	1.86	2.871(3)	171.1
	N2···H1A-O1#2	#2 x − 1/2, −y + 3/2, z + 1/2	1.08	1.69	2.736(3)	161.8
16	N1-H1···N2#1	#1 − x, −y + 2, −z + 1	1.02	1.92	2. 852(2)	150.2

^[a] #1, #2 correspond to symmetry transformations used to generate equivalent atoms.

Table 3. Hydrogen bonds (Å and °) for compounds 12, 13 and 16.

Comp	D-H···A [a]	Symmetry Operations	d(D-H)	d(H···A)	d(D···A)	<(DHA)
12	N1-H1···O1#1	#1 –x + 1/2, y + 1/2, −z + 3/2	0.98	1.98	2.899(2)	154.1
	N2···H1A-O1#2	#2 x + 1/2, −y + 1/2, z − 1/2	1.01	1.72	2.711(2)	164.3
13	N1-H1···O1#1	#1 – x + 3/2, y + 1/2, −z + 1/2	1.02	1.86	2.871(3)	171.1
	N2···H1A-O1#2	#2 x − 1/2, −y + 3/2, z + 1/2	1.08	1.69	2.736(3)	161.8
16	N1-H1···N2#1	#1 − x, −y + 2, −z + 1	1.02	1.92	2. 852(2)	150.2

^[a] #1, #2 correspond to symmetry transformations used to generate equivalent atoms.

Compound 16 crystallizes in the monoclinic P2₁/c space group. The asymmetric unit also corresponds to one molecule with a labeling scheme analogous to that shown in Figure 4 for compound 12, but differently from 12, both substituents on the pyrazole are twisted relative to this ring suggesting that the electronic delocalization is not extended (See Supplementary Files). Each molecule interacts with the adjacent centrosymmetric one forming dimers linked by symmetric hydrogen bonds between the pyrazole nitrogen atoms, N1-H1···N2#1 (Figure 6). No significant additional contacts have been observed. The presence of the methoxy group in 16 limits the chances of interactions leading to the formation of only isolated dimers instead of the extended network found in compounds 12 and 13.

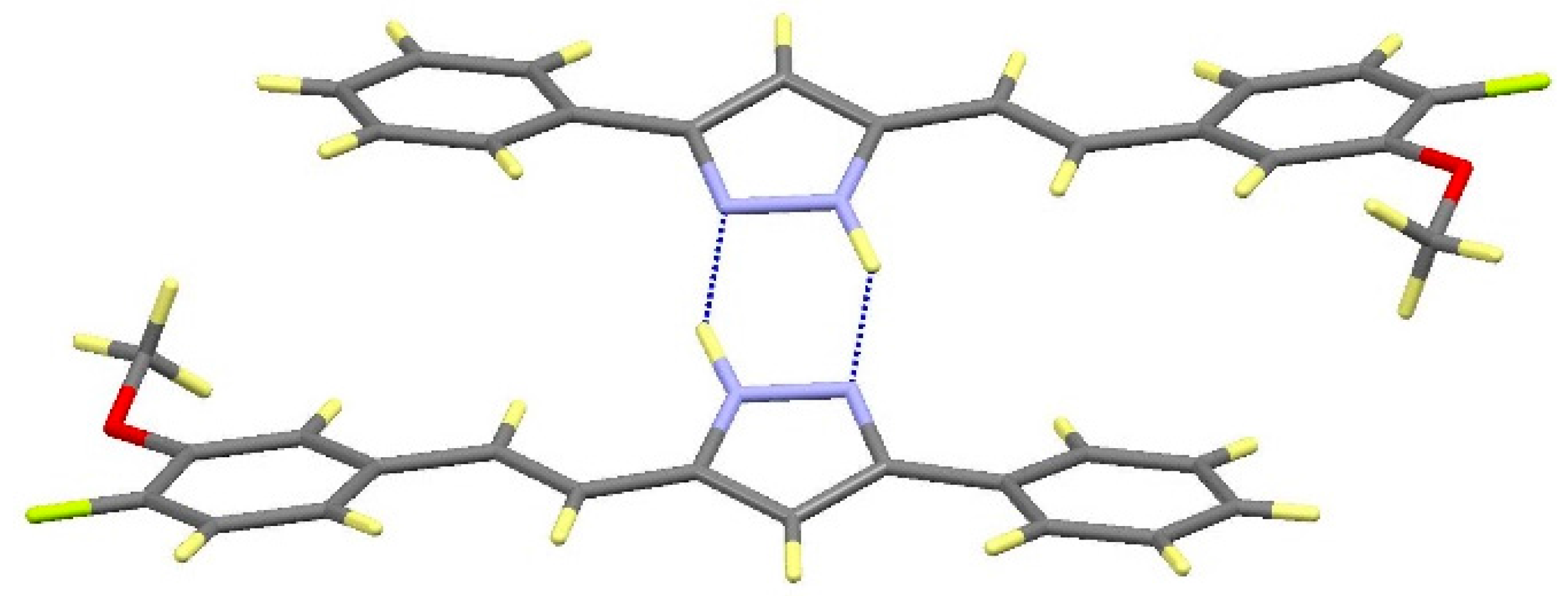

Figure 6. View of the dimer in 16.

Figure 6. View of the dimer in 16.

2.3. NOS Inhibitory Activity

NOS activity was measured following the conversion of l-³H-arginine to l-³H-citrulline according to the Bredt et al. [71] protocol and full details are given in the Experimental Section. The NOS inhibitory activities of the whole set of pyrazoles (1, 7–16) are gathered in Table 4.

In preliminary experiments, we found that compounds 12–16 of the second series were much more active against NOS isoforms than the first ones. Therefore, they were assayed at concentrations enough to produce NOS inhibition similar to compounds 7–11. As can be seen, 50 μM of 12–16 yields an inhibition of NOS isoforms comparable to 1 mM of 1, 7–11. This result means that pyrazoles 12–16 are about 20-fold more potent than pyrazoles 1, 7–11.

A qualitative structure–activity analysis of the data points out that, for the first series, it comes as a surprise that while curcumin and the curcuminoids are predominantly iNOS and seldom nNOS inhibitors, the curcuminoid pyrazole 1 shows the three activities in comparable amounts being predominantly an eNOS inhibitor. A 4-methyl group decreases the potency when there is a 3(5)-methyl group (compare 7 and 8) but increases it when there is a 3(5)-phenyl group (compare 10 and 11). Concerning potency, the best compounds are the derivatives 9 and 7 both showing about 84% inhibition but towards different isoforms (nNOS vs. eNOS) followed by 1 (77% towards eNOS).

For pyrazoles 12–16, all of them 3(5)-phenyl derivatives, it appears that concerning nNOS the best compound is 12 but it is equally as potent as an iNOS inhibitor, with the remaining compounds being less active. Compound 13 is not only a better iNOS inhibitor, but is also more selective towards the other two isoforms than 12. Finally, against eNOS all show similar, but weak, activity.

When comparing our results with those obtained for two standard NOS inhibitors, 7-nitro-1H-indazole and 4,5,6,7-tetrafluoro-1H-indazole [3], but under different conditions (50 μM vs. 1 mM), our curcuminoid pyrazoles are more potent and present different selectivities (Table 4). If compound 9 is similar in selectivity (nNOS) to 4,5,6,7-tetrafluoro-1H-indazole, compound 13 is higher in potency (iNOS) to 7-nitro-1H-indazole, but much more selective.

Table 4. Percentage of inhibition of nNOS, iNOS and eNOS activities in the presence of the tested curcuminoid pyrazoles 1, 7–11 using 1 mM/EtOH and curcuminoid pyrazoles 12–16 using 50 μM/DMSO, with the most interesting values in bold. Both series compared to control (0% inhibition). Experimental data represent the means ± S.E.M. of three independent experiments (n = 3) each one performed in triplicate.

Compound	R 1		R 2	R 4′	nNOS	iNOS	eNOS	Predominant
1			H	OH	51.2 ± 1.2	65.3 ± 2.1	77.4 ± 0.1	eNOS
7	CH3		H	OH	61.7 ± 1.6	45.6 ± 1.8	84.1 ± 0.7	eNOS
8	CH3		CH3	OH	29.9 ± 0.7	46.4 ± 3.2	19.2 ± 1.8	iNOS
9	C6H5		H	OH	84.9 ± 0.1	63.5 ± 1.9	60.3 ± 1.5	nNOS
10	C6H5		H	OCH3	20.0 ± 0.2	48.0 ± 0.9	23.4 ± 2.9	iNOS
11	C6H5		CH3	OCH3	19.0 ± 0.6	62.1 ± 1.2	40.6 ± 2.2	iNOS
Compound	R 2′	R 3′	R 4′	R 5′	nNOS	iNOS	eNOS	Predominant
12	F	H	OH	H	65.9 ± 6.2	65.8 ± 1.2	37.6 ± 1.8	n/iNOS
13	H	F	OH	H	36.8 ± 1.5	83.7 ± 6.3	37.4 ± 2.3	iNOS
14	F	OH	F	H	24.1 ± 2.3	33.6 ± 4.7	40.3 ± 1.6	eNOS
15	F	H	OH	F	38.9 ± 1.4	36.3 ± 1.2	44.2 ± 0.0	eNOS
16	H	OCH3	F	H	21.7 ± 0.3	46.0 ± 5.4	39.3 ± 3.5	iNOS
1H-indazoles [a]
7-nitro [3]	----				88.0	84.0	----	n/iNOS
4,5,6,7-tetrafluoro [3]	----				98.7	43.3	67.5	nNOS

^[a] 1 mM.

Table 4. Percentage of inhibition of nNOS, iNOS and eNOS activities in the presence of the tested curcuminoid pyrazoles 1, 7–11 using 1 mM/EtOH and curcuminoid pyrazoles 12–16 using 50 μM/DMSO, with the most interesting values in bold. Both series compared to control (0% inhibition). Experimental data represent the means ± S.E.M. of three independent experiments (n = 3) each one performed in triplicate.

Compound	R 1		R 2	R 4′	nNOS	iNOS	eNOS	Predominant
1			H	OH	51.2 ± 1.2	65.3 ± 2.1	77.4 ± 0.1	eNOS
7	CH3		H	OH	61.7 ± 1.6	45.6 ± 1.8	84.1 ± 0.7	eNOS
8	CH3		CH3	OH	29.9 ± 0.7	46.4 ± 3.2	19.2 ± 1.8	iNOS
9	C6H5		H	OH	84.9 ± 0.1	63.5 ± 1.9	60.3 ± 1.5	nNOS
10	C6H5		H	OCH3	20.0 ± 0.2	48.0 ± 0.9	23.4 ± 2.9	iNOS
11	C6H5		CH3	OCH3	19.0 ± 0.6	62.1 ± 1.2	40.6 ± 2.2	iNOS
Compound	R 2′	R 3′	R 4′	R 5′	nNOS	iNOS	eNOS	Predominant
12	F	H	OH	H	65.9 ± 6.2	65.8 ± 1.2	37.6 ± 1.8	n/iNOS
13	H	F	OH	H	36.8 ± 1.5	83.7 ± 6.3	37.4 ± 2.3	iNOS
14	F	OH	F	H	24.1 ± 2.3	33.6 ± 4.7	40.3 ± 1.6	eNOS
15	F	H	OH	F	38.9 ± 1.4	36.3 ± 1.2	44.2 ± 0.0	eNOS
16	H	OCH3	F	H	21.7 ± 0.3	46.0 ± 5.4	39.3 ± 3.5	iNOS
1H-indazoles [a]
7-nitro [3]	----				88.0	84.0	----	n/iNOS
4,5,6,7-tetrafluoro [3]	----				98.7	43.3	67.5	nNOS

^[a] 1 mM.

In an attempt to go further in the understanding of the effect of the fluorine atom position on the inhibitory activity, a statistical analysis of the results was carried out using a Free–Wilson matrix [72,73,74,75,76] (see Supplementary Files) differentiating the fluorine atoms according to their position. Considering that compounds 1, 7–11 of the first series are 20 times less potent than those of the second series, we have divided their percentages of inhibition by 20 and have reported the normalized values together with those of the second series of pyrazoles 12–16, in Table 5.

The hydroxy group at position 3′ significantly lowers the potency towards all isoforms, in the order iNOS > nNOS >> eNOS. A fluorine atom at position 5′ also decreases the potency vs. nNOS and iNOS but to a lesser degree, and has almost no effect on the eNOS. Fluorine atoms at positions 2′, 3′ and 4′ increase the inhibitory activity vs. the three isoforms. The effect is usually larger on the iNOS (66, 84, 46) than on the other isoforms, contributing to the selectivity. With respect to the nNOS, the most discriminating groups are, F2′ (largest, 66) and F4′ (lowest, 22), but the position of the fluorine atom seems to have no effect (38, 37, 39) on the eNOS. We have graphically represented these conclusions in Figure 7.

Table 5. NOS values for compounds 1, 7–16 and regression results in percentage units.

Compound	nNOS	iNOS	eNOS
1	2.560	3.265	3.870
7	3.085	2.280	4.205
8	1.495	2.320	0.960
9	4.245	3.175	3.015
10	1.000	2.400	1.170
11	0.950	3.105	2.030
12	65.9	65.8	37.6
13	36.8	83.7	37.4
14	24.1	33.6	40.3
15	38.9	36.3	44.2
16	21.7	46.0	39.3
F2′	66	66	38
F3′	37	84	37
F4′	22	46	39
F5′	−27	−30	7
OH-3′	−64	−78	−37
n	11	11	11
R2	0.995	0.997	0.994

Table 5. NOS values for compounds 1, 7–16 and regression results in percentage units.

Compound	nNOS	iNOS	eNOS
1	2.560	3.265	3.870
7	3.085	2.280	4.205
8	1.495	2.320	0.960
9	4.245	3.175	3.015
10	1.000	2.400	1.170
11	0.950	3.105	2.030
12	65.9	65.8	37.6
13	36.8	83.7	37.4
14	24.1	33.6	40.3
15	38.9	36.3	44.2
16	21.7	46.0	39.3
F2′	66	66	38
F3′	37	84	37
F4′	22	46	39
F5′	−27	−30	7
OH-3′	−64	−78	−37
n	11	11	11
R2	0.995	0.997	0.994

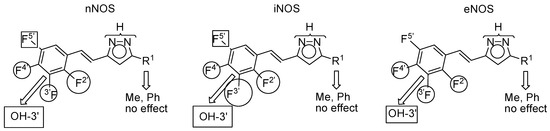

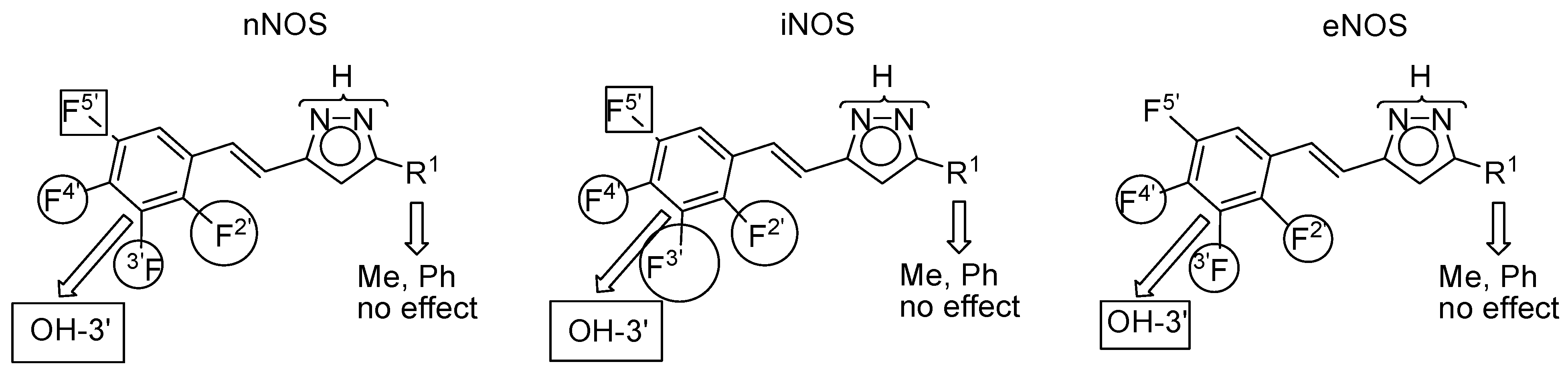

Figure 7. Circles, increase the activity; rectangles, decrease the activity. The size represents the importance of the effect.

Figure 7. Circles, increase the activity; rectangles, decrease the activity. The size represents the importance of the effect.

3. Experimental Section

3.1. General

All chemicals cited in the synthetic procedures are commercial compounds. Melting points were determined by DSC with a SEIKO DSC 220 C connected to a model SSC5200H disk station. Thermograms (sample size 0.003–0.005 g) were recorded with a scan rate of 5.0 °C. Column chromatography was performed on silicagel (Merck 60, 70–230 mesh) and elemental analyses using a Perkin-Elmer 240 apparatus (PerkinElmer, Waltham, MA, USA).

The nomenclature used in the text and in the experimental is not in accordance with IUPAC rules where, for all of the compounds with phenolic hydroxyl groups, the phenol system has the highest priority; however, using IUPAC nomenclature here would be at the expense of comparability and clarity. For instance, compound 12 would be (E)-3-fluoro-4-(2-(3-phenyl-1H-pyrazol-5-yl)vinyl)phenol under IUPAC rules, rather than (E)-3(5)-[β-(2-fluoro-4-hydroxyphenyl)-ethenyl]-5(3)-phenyl-1H-pyrazole. Having decided to prioritize comparability over correct nomenclature, we have named all of the compounds as pyrazole derivatives (Figure 8).

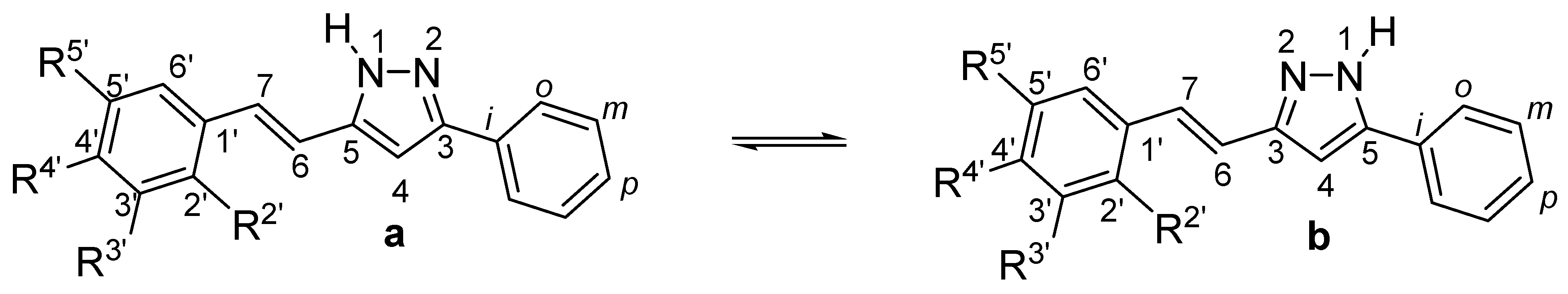

Figure 8. Atom numbering for NMR assignments.

Figure 8. Atom numbering for NMR assignments.

3.2. NMR Parameters

Solution NMR spectra were recorded on a Bruker DRX 400 (9.4 Tesla, 400.13 MHz for ¹H, 100.62 MHz for ¹³C, 40.54 MHz for ¹⁵N and 376.50 MHz for ¹⁹F, (Bruker Española S.A., Madrid, Spain) spectrometer with a 5-mm inverse-detection H-X probe equipped with a z-gradient coil (¹H, ¹³C, ¹⁵N) and with a QNP 5 mm probe (¹⁹F), at 295 K. Chemical shifts (δ in ppm) are given from internal solvent, DMSO-d₆ 2.49 for ¹H and 39.5 for ¹³C, HMPA-d₁₈ 2.51 to the upfield multiplet for ¹H and 35.8 for ¹³C. External references were used for ¹⁵N and ¹⁹F, nitromethane and CFCl₃, respectively. Coupling constants (J in Hz) are accurate to ±0.2 Hz for ¹H, ±0.8 Hz for ¹⁹F and ±0.6 Hz for ¹³C. Typical parameters for ¹H-NMR spectra were spectral width 6500 Hz and pulse width 7.5 μs at an attenuation level of 0 dB. Typical parameters for ¹⁹F-NMR spectra were spectral width 55 kHz, pulse width 13.75 μs at an attenuation level of −6 dB and relaxation delay 1 s. Typical parameters for ¹³C-NMR spectra were spectral width 21 kHz, pulse width 10.6 µs at an attenuation level of −6 dB and relaxation delay 2 s; WALTZ-16 was used for broadband proton decoupling; the FIDs were multiplied by an exponential weighting (lb = 2 Hz) before Fourier transformation. 2D (¹H-¹³C) gs-HMQC and (¹H-¹³C) gs-HMBC were acquired and processed using standard Bruker NMR software and in non-phase-sensitive mode [77]. Gradient selection was achieved through a 5% sine truncated shaped pulse gradient of 1 ms. Selected parameters for (¹H-¹³C) gs-HMQC and gs-HMBC spectra were spectral width 3500 Hz for ¹H and 20.5 kHz for ¹³C, 1024 × 256 data set, number of scans 2 (gs-HMQC) or 4 (gs-HMBC) and relaxation delay 1 s. The FIDs were processed using zero filling in the F1 domain and a sine-bell window function in both dimensions was applied prior to Fourier transformation. In the gs-HMQC experiments GARP modulation of ¹³C was used for decoupling. Selected parameters for (¹H-¹⁵N) gs-HMQC spectra were spectral width 6500 Hz for ¹H and 12.5 kHz for ¹⁵N, 1024 × 256 data set, number of scans 4, relaxation delay 1 s. The FIDs were processed using zero filling in the F₁ domain and a sine-bell window function in both dimensions was applied prior to Fourier transformation.

Variable-temperature experiments (DNMR) were recorded with the same spectrometer with a QNP 5 mm probe and a Bruker BVT 3000 temperature unit was used to control the temperature of the cooling gas stream and an exchanger to achieve low temperatures.

Solid-state ¹³C (100.73 MHz) and ¹⁵N (40.60 MHz) CPMAS NMR spectra have been obtained on a Bruker WB 400 spectrometer (Bruker Española S.A.) at 300 K using a 4 mm DVT probehead. Samples were carefully packed in a 4-mm diameter cylindrical zirconia rotor (Bruker Española S.A.) with Kel-F end-caps. Operating conditions involved 3.2 μs 90° ¹H pulses and decoupling field strength of 86.2 kHz by TPPM sequence. ¹³C spectra were originally referenced to a glycine sample and then the chemical shifts were recalculated to the Me₄Si (for the carbonyl atom (glycine) δ = 176.1 ppm) and ¹⁵N spectra to ¹⁵NH₄Cl and then converted to nitromethane scale using the relationship: δ ¹⁵N (nitromethane) = δ ¹⁵N (ammonium chloride) − 338.1 ppm. Typical acquisition parameters for ¹³C-CPMAS were: spectral width, 40 kHz; recycle delay, 30–100 s; acquisition time, 30 ms; contact time, 5 ms; and spin rate, 12 kHz. In order to distinguish protonated and unprotonated carbon atoms, the NQS (Non-Quaternary Suppression) experiment by conventional cross-polarization was recorded; before the acquisition the decoupler is switched off for a very short time of 25 μs [78,79,80]. For ¹⁵N, CPMAS were: spectral width, 40 kHz; recycle delay, 30–100 s; acquisition time, 35 ms; contact time, 6 ms; and spin rate, 6 kHz.

Solid-state ¹⁹F (376.94 MHz) NMR spectra have been obtained on a Bruker WB 400 spectrometer (Bruker Española S.A.) using a MAS DVT BL2.5 X/F/H double resonance probehead. Samples were carefully packed in 2.5 mm diameter cylindrical zirconia rotors with Kel-F end-caps. Samples were spun at the magic angle at rates of 25 kHz and the experiments were carried out at ambient probe temperature.

The typical acquisition parameters ¹⁹F{¹H} MAS were: spectral width, 75 kHz; recycle delay, 10 s; pulse width, 2.5 μs and proton decoupling field strength of 100 kHz by SPINAL-64 sequence; recycle delay, 10 s; acquisition time, 25 ms; 128 scans; and spin rate, 25 kHz.

The ¹⁹F spectra were referenced to ammonium trifluoroacetate sample and then the chemical shifts were recalculated to the CFCl₃ (δCF₃CO₂⁻NH₄⁺ = −72.0 ppm).

3.3. General Procedure for the Preparation of Pyrazole Derivatives (12–16)

Compounds 12–16 were prepared by reacting the corresponding β-diketones [4,7] (1 mmol) with hydrazine hydrate 98% (1.5 mmol) in acetic acid (5 mL). After heating at reflux for 2 h the reaction mixture was poured into water. The precipitate was filtered off, washed with water and dried. The solid was purified by column chromatography using ethyl acetate/hexane as eluent or by crystallization.

(E)-3(5)-[β-(2-Fluoro-4-hydroxyphenyl)-ethenyl]-5(3)-phenyl-1H-pyrazole (12). Compound 12 was prepared from (E)-5-(2-fluoro-4-hydroxyphenyl)-1-phenylpent-4-ene-1,3-dione. The compound was purified by column chromatography using ethyl acetate/hexane as eluent (7:3). Yellow crystals were obtained after recrystallization from EtOH/H₂O. Yield: (290 mg, 82%); mp: 217.3 °C; ¹H-NMR: (400.13 MHz, DMSO-d₆) δ = 6.60 (³J_F = 12.8, ⁴J_H5′ = 2.4, H_3′), 6.65 (³J_H6′ = 8.5, ⁴J_H3′ = 2.4, H_5′), 6.91 (H₄), 6.99 (³J_H7 = 16.9, H₆), 7.17 (³J_H6 = 16.9, H₇), 7.30 (Hp), 7.41 (Hm), 7.53 (m, H_6′), 7.80 (Ho), 10.12 (OH), 13.06 (67%, NH), 13.23 (33%, NH); ¹³C-NMR: (100.62 MHz, DMSO-d₆) δ = 99.3 (33% C₄), 100.0 (67% C₄), 102.8 (²J_F = 24.3, C_3′), 112.3 (C_5′), 114.9 (C₆), 122.0 (C₇), 122.1 (C_1′), 125.1 (Co), 127.4 (Cp), 128.2 (C_6′), 128.7 (Cm), 133.6 (Ci), 142.3 (67% C₅), 142.9 (33% C₅), 150.9 (67%, C₃), 151.0 (33%, C₃), 158.7 (C_4′), 160.5 (¹J_F = 247.3, C_2′); ¹⁹F-NMR: (376.50 MHz, DMSO-d₆) δ = −116.1 (67%), −116.8 (33%); ¹³C-NMR: (100.73 MHz, CPMAS) δ = 96.9 (C₄), 108.0 (C_3′), 113.6 (C_5′), 117.9 (C₆, C_1′), 122.0 (C₇), 124.3 (Co), 126.5 (Cm, Cp), 128.5 (C_6′), 130.2 (Ci), 144.0 (C₅), 152.2 (C₃), 156.2 (C_4′), 161.4/158.8 (C_2′); ¹⁵N-NMR: (40.60 MHz, CPMAS) δ = −111.9 (N₂), −177.2 (N₁); ¹⁹F-NMR: (376.94 MHz, MAS) δ = −107.7. Anal. calcd. for C₁₇H₁₃FN₂O: C 72.85, H 4.67, N 9.99. Found: C 72.31, H 4.58, N 9.96.

(E)-3(5)-[β-(3-Fluoro-4-hydroxyphenyl)-ethenyl]-5(3)-phenyl-1H-pyrazole (13). Compound 13 was prepared from (E)-5-(3-fluoro-4-hydroxyphenyl)-1-phenylpent-4-ene-1,3-dione.The compound was obtained as yellow crystals after recrystallization from EtOH/CH₂Cl₂/hexane. Yield: (500 mg, 51%); mp: 231.3 °C; ¹H-NMR: (400.13 MHz, DMSO-d₆) δ = 6.85 (60%, H₄), 6.90–7.24 (40% H₄, H₆, H₇, H_5′, H_6′), 7.24–7.51 (H_2′, Hm, Hp), 7.76 (40%, Ho), 7.80 (60%, Ho), 10.03 (40%, OH), 10.12 (60%, OH), 13.05 (60%, NH), 13.25 (40%, NH); ¹³C-NMR: (100.62 MHz, DMSO-d₆) δ = 99.3 (40%, C₄), 100.0 (60%, C₄), 113.4 (²J_F = 18.6, C_2′), 114.0 (60%, C₆), 117.9 (60%, C_5′), 119.7 (40%, C₆ and 40%, C_5′), 123.1 (40%, C_6′), 123.4 (60%, C_6′), 125.1 (Co), 127.4 (60%, Cp), 128.1 (60%, C₇), 128.5 (40%, C₇ and 40%, Cp), 128.6 (60%, Cm), 128.8 (40%, Cm), 129.0 (60%, C_1′ and 40%, Ci), 129.3 (40%, C_1′), 133.6 (60%, Ci), 142.2 (60%, C₅), 142.8 (40%, C₅), 144.5 (²J_F = 12.7, 40%, C_4′), 145.0 (²J_F = 12.3, 60%, C_4′), 150.9 (60%, C₃), 151.1 (40%, C₃), 151.2 (¹J_F = 240.8, C_3′). ¹⁵N-NMR: (40.54 MHz, DMSO-d₆) δ = −179.7 (40%, N₁), −177.3 (60%, N₁). ¹⁹F-NMR: (376 MHz, DMSO-d₆) δ = −136.0 (³J_H2′ = ⁴J_H5′ = 10.8, 60%, F₃), −136.2 (³J_H2′ = ⁴J_H5′ = 10.2, 40%, F₃); ¹³C-NMR: (100.73 MHz, CPMAS) δ = 97.9 (C₄), 109.1 (C_2′), 114.7 (C_5′), 122.9 (C_6′), 125.6 (C₆), 126.3 (Co), 128.1 (Cm, Cp), 130.4 (C₇), 131.6 (C_1′), 132.3 (Ci), 143.1 (C₅), 144.9 (C_4′), 151.8 (C₃), 156.9/154.6 (C_3′); ¹⁵N-NMR: (40.60 MHz, CPMAS) δ = −120.0 (N₂), −168.5 (N₁); ¹⁹F-NMR: (376.94 MHz, MAS ) δ = −129.2; Anal. calcd. for C₁₇H₁₃FN₂O: C 72.85, H 4.67, N 9.99. Found: C 72.54, H 4.70, N 9.89.

(E)-3(5)-[β-(2,4-Difluoro-3-hydroxyphenyl)-ethenyl]-5(3)-phenyl-1H-pyrazole (14). Compound 14 was prepared from (E)-5-(2,4-difluoro-3-hydroxyphenyl)-1-phenylpent-4-ene-1,3-dione. The compound was purified by column chromatography using ethyl acetate/hexane as eluent (7:3) to give a pale yellow solid. Yield: (319 mg, 59%); mp: 195.9 °C; ¹H-NMR: (400.13 MHz, DMSO-d₆) δ = 6.98–7.23 (H₄, H₆, H₇, H_5′, H_6′), 7.30 (Hp), 7.42 (Hm), 7.80 (Ho), 10.30 (OH), 13.17 (54%, NH), 13.33 (46%, NH); ¹³C-NMR: (100.62 MHz, DMSO-d₆) δ = 99.9 (46%, C₄), 100.7 (54%, C₄), 111.9 (²J_F = 18.6, C_5′), 115.9 (³J_F = 8.2, ³J_F = 3.6, C_6′), 117.8 (C₆), 120.7 (46%, C_1′), 121.3 (54%, C_1′), 123.6 (C₇) 125.1 (Co), 127.6 (Cp), 128.8 (Cm), 133.5 (Ci), 134.0 (²J_F = ²J_F = 16.1, C_3′), 141.8 (54%, C₅), 143.0 (46%, C₅), 150.2 (¹J_F = 245.6, ³J_F = 5.8, C_2′), 151.0 (54%, C₃), 151.7 (¹J_F = 240.6, C_4′), 153.3 (46%, C₃); ¹⁵N-NMR: (40.54 MHz, DMSO-d₆) δ = −178.3 ( 54%, N1); ¹⁹F-NMR: (376.50 MHz, DMSO-d₆) δ = −137.0 (46%, F₂), −136.4 (54%, F₂), −132.8 (46%, F₄), −132.1 (54%, F₄); ¹³C-NMR: (100.73 MHz, CPMAS) δ = 97.1 (C₄), 111.2 (C_5′), 119.4 (C_6′), 121.7 (C₆, C_1′), 123.6 (C₇), 126.8 (Ci, Co), 129.0 (Cp), 132.3 (Cm), 135.5 (C_3′), 142.5 (C₅), 150.1 (C_2′), 153.1 (C_4′), 153.7 (C₃); ¹⁵N-NMR: (40.60 MHz, CPMAS) δ = −191.7 (N₁), −93.9 (N₂); ¹⁹F-NMR: (376.94 MHz, MAS) δ = −130.7 (F₂), −126.8 (F₄). Anal. calcd. for C₁₇H₁₂F₂N₂O: C 68.45, H 4.05, N 9.39. Found: C 68.57, H 4.09, N 9.22.

(E)-3(5)-[β-(2,5-Difluoro-4-hydroxyphenyl)-ethenyl]-5(3)-phenyl-1H-pyrazole (15). Compound 15 was prepared from (E)-5-(2,5-difluoro-4-hydroxyphenyl)-1-phenylpent-4-ene-1,3-dione. The compound was purified by column chromatography using ethyl acetate/hexane as eluent (5:5) to give a pale yellow solid. Yield: (319 mg, 59%); mp: 232.6 °C; ¹H-NMR: (400.13 MHz, DMSO-d₆) δ = 6.78 (⁴J_F5 = 7.4, ³J_F2 = 11.6, H_3′), 6.91(60% H₄), 6.99 (40% H₄), 7.06 (³J_H7 = 16.6, H₆), 7.15 (³J_H6 = 16.6, H₇), 7.31 (Hp), 7.42 (Hm), 7.58 (H_6′), 7.80 (Ho), 10.60 (OH), 13.12 (60%, NH), 13.28 (40%, NH); ¹³C-NMR: (100.62 MHz, DMSO-d₆) δ = 99.6 (40%, C₄), 100.6 (60%, C₄), 105.0 (²J_F2 = 26.6, C_3′), 113.4 (²J_F5 = 21.1, ³J_F2 = 5.4, C_6′), 114.9 (60%, C_1′), 115.3 (40%, C_1′), 116.2 (60%, C₆), 120.1 (40% C₆), 120.8 (60% C₇), 122.0 (40% C₇), 125.1 (Co), 127.5 (60%, C_p), 128.3 (40%, Cp), 128.7 (Cm), 133.5 (Ci), 142.0 (60%, C₅), 143.0 (40%, C₅), 145.7 (C_4′), 148.1 (¹J_F = 236.9, C_5′), 151.0 (C₃), 155.7 (¹J_F = 244.6, C_2′); ¹⁵N-NMR: (40.54 MHz, DMSO-d₆) δ = −178.6 ( 60%, N1); ¹⁹F-NMR: (376.50 MHz, DMSO-d₆) δ = −140.6 (F₅), −122.1(40% F₂), −121.3 (60%, F₂); ¹³C-NMR: (100.73 MHz, CPMAS) δ = 98.4 (C₄), 109.8 (C_3′), 110.6 (C_6′), 116.8 (C₆), 119.8 (C_1′), 124.9/123.7 (C₇), 128.1 (Co), 128.9 (Cm), 129.3 (Ci), 130.9 (Cp), 143.9 (C₅), 148.0 (C_4′), 148.9 (C₃), 153.5/150.9 (C_5′), 157.5/154.8 (C_2′); ¹⁵N-NMR: (40.60 MHz, CPMAS) δ = −141.1 (N₂), −152.2 (N₁); ¹⁹F-NMR: (376.94 MHz, MAS) δ = −134.8 (F₅), −114.2 (F₂). Anal. calcd. for C₁₇H₁₂F₂N₂O: C 68.45, H 4.05, N 9.39. Found: C 68.14, H 4.16, N 9.20.

(E)-3(5)-[β-(4-Fluoro-3-methoxyphenyl)-ethenyl]-5(3)-phenyl-1H-pyrazole (16). Compound 16 was prepared from (E)-5-(4-fluoro-3-methoxyphenyl)-1-phenylpent-4-ene-1,3-dione. The compound was obtained as yellow crystals after recrystallization from CH₂Cl₂/hexane. Yield: (499 mg, 55%); mp: 150.3 °C; ¹H-NMR: (400.13 MHz, DMSO-d₆) δ = 3.90 (OCH₃), 6.90 (57%, H₄), ~7.0 (43%, H₄), 7.06–7.26 (H₆, H₇, H_5′, H_6′) 7.20–7.50 (H_2′, Hm, Hp), 7.77 (43%, Ho), 7.80 (57%, Ho), 13.10 (57%, NH), 13.29 (43%, NH); ¹³C-NMR: (100.62 MHz, DMSO-d₆) δ = 56.0 (OCH₃), 99.4 (43%, C₄), 100.3 (57%, C₄), 110.9 (C_2′), 115.9 ( ²J_F ≈ 18, 57% C_5′, 57% C₆), 116.0 ( ²J_F ≈ 23, 43%, C_5′), 119.4 (57% C_6′, 43% C₆), 121.5 (43%, C_6′), 125.1 (Co), 127.4 (57%, Cp), 128.1 (43%, Cp), 128.3 (43%, C₇), 128.7 (57% Cm), 128.9 (57%, C₇), 129.0 (C_1′, 43% Cm), 133.5 (57%, Ci), 134.1 (43%, Ci), 142.0 (57%, C₅), 142.9 (43%, C₅), 147.4 (²J_F = 10.9, C_3′), 150.9 (C₃), 151.1 (¹J_F ≈ 246.1, 43%, C_4′), 151.3 (¹J_F ≈ 249.5, 57%, C_4′); ¹⁵N-NMR: (40.54 MHz, DMSO-d₆) δ = −179.2 (43%, N₁), −177.6 (57%, N₁); ¹⁹F-NMR: (376.50 MHz, DMSO-d₆) δ = −136.3 (43%), −135.4 (57%); ¹³C-NMR: (100.76 MHz, CPMAS) δ = 56.7 (OCH₃), 102.7 (C₄), 113.8 (C_2′), 114.2 (C_5′), 115.0 (C₆), 118.4 (C_6′), 124.3/127.2 (Co), 128.3 (Cm, Cp), 130.5 (C₇), 133.6 (C_1′, Ci), 142.1 (C₅), 148.2 (C_3′), 152.1 (C₃, C_4′); ¹⁵N-NMR: (40.60 MHz, CPMAS) δ = −181.1(N₁), −94.7 (N₂); ¹⁹F-NMR: (376.94 MHz, MAS) δ = −132.6; Anal. calcd. for C₁₈H₁₅FN₂O: C 73.45, H 5.14, N 9.52. Found: C 73.13, H 5.13, N 9.60.

3.4. In Vitro nNOS, iNOS and eNOS Activities Determination

l-Arginine, l-citrulline, N-(2-hydroxymethyl)piperazine-N′-(2-ethanesulfonic acid) (HEPES), d-l-dithiothreitol (DTT), leupeptin, aprotinin, pepstatin, phenylmethyl-sulfonyl fluoride (PMSF), hypoxantine-9-β-d-ribofuranosid (inosine), ethylene glycol-bis-(2-aminoethylether)-N,N,N′,N′-tetraacetic acid (EGTA), bovine serum albumin (BSA), Dowex-50W (50 X 8–200), FAD, NADPH and 5,6,7,8-tetrahydro-l-biopterin dihydrochloride (H₄-biopterin) were obtained from Sigma-Aldrich Química (Madrid, Spain). l-[³H]-arginine monohydrochloride (45–70 Ci/mmol, 1 mCi/mL) was obtained from Perkin Elmer Life Sciences (PerkinElmer). Tris(hydroxymethyl)aminomethane (Tris-HCl) and calcium chloride were obtained from Merck (Darmstadt, Germany). Calmodulin from bovine brain was obtained from Alexis Biochemicals (Enzo Life Sciences, Grupo Taper, Seville, Spain), recombinant iNOS (specific activity of 3.9 μmol/min/mg protein) and eNOS (Cayman Chemical, specific activity 3 μmol/min/mg protein) were obtained from Cayman Chemical (Vitro S.A, Madrid, Spain).

For nNOS activity determination, C57BL/6 mice (3-months old, 25–30 g) (The Jackson Laboratory, Bar Harbor, Maine, ME, USA) were housed in the animal facility of the University of Granada under specific pathogen-free conditions, and in a controlled 12 h light/dark cycle at 22 ± 2 °C. Mice had unlimited access to water and rodent chow until the day of the experiment. All experiments were performed according to the Spanish Government Guide and the European Community Guide for animal care. The experimental paradigm was published elsewhere [81]. Briefly, mice were killed by cervical dislocation and brain was quickly collected, washed, and homogenized in an ice-cold buffer (51 mM Tris, 1 mM DTT, 10 μg/mL leupeptin, 10 μg/mL pepstatin, 10 μg/mL aprotinin, 1 mM PMSF, pH 7.6). The crude homogenate was centrifuged twice at 1000 g at 4 °C, and sonicated (10 s × 6). Aliquots of the supernatant were either stored at −80 °C for total protein quantification [82] or immediately used for nNOS activity measurement. For iNOS and eNOS activity determination, recombinant enzymes were used.

The rationale for the use of different sources of pure NOS isoforms comes from their relative abundance in normal tissue. Neuronal NOS (nNOS) is abundant in the brain, and it is a suitable source to obtain a pure, endogenous form, allowing the study of its kinetic properties [83]. However, iNOS is not constitutively expressed in normal tissue (or it is expressed at very low level), and it is only present in high amounts during inflammation; therefore, it is much more convenient to obtain it from a commercial source. In the case of eNOS, it is also expressed at low levels in vascular areas and, although it may be induced during inflammation, this seems to only occur in neutrophils. Thus, endogenous source of eNOS is also not appropriate for in vitro assays.

NOS activity was measured following the conversion of l-³H-arginine to l-³H-citrulline according to the Bredt et al. protocol [71]. Enzyme activity was referred as pmol l-³H-citrulline/min/mg protein. The final incubation volume was 100 μL and consisted of 10 μL of an aliquot of homogenized brain (for nNOS measurement) or recombinant enzyme (for iNOS or eNOS measurement) added to a buffer with a final concentration of 25 mM Tris-HCl, 0.5 mM DTT, 30 μM H₄-biopterin, 10 μM FAD, 0.5 mM inosine, 1 mg/mL BSA, 0.5 mM CaCl₂ (or 1 mM for iNOS measurement), 10 μM l-arginine, and 50 nM l-[³H]-arginine, 10 μg/mL calmodulin (only for constitutive isoforms), at pH 7.6. Final volume also include 10 μL of each pyrazole compound dissolved in EtOH or DMSO to give a final concentration of 1 mM or 50 μM, respectively. The activity of the different NOS isoforms was also assayed in the presence of each vehicle (EtOH or DMSO) to discard any non-specific effect of the compounds. Neither EtOH nor DMSO had significant effects of the NOS activity measured. The reaction was started by the addition of 10 μL of NADPH (0.75 mM final) and continued for 30 min at 37 °C. Control incubations were performed by the omission of NADPH. The reaction was stopped adding 400 μL of cold 0.1 M HEPES, 0.1 M EGTA, and 0.175 mg/mL l-citrulline, pH 5.5. The reaction mixture was decanted onto a 2 mL column packet with Dowex-50W ion-exchange resin (Na⁺ form) and eluted with 1.2 mL of water. l-³H-citrulline was quantified by liquid scintillation counting in a Beckman LS-6000 system (Beckman Coulter, Fullerton, CA, USA). The retention of l-[³H]-arginine in this process was greater than 98%. Specific enzyme activity was determined by subtracting the control value. Statistical analysis: Data are expressed as the mean ± SEM. Statistical analysis was performed by Student’s t-test. A p < 0.05 was considered statistically significant.

3.5. Single-Crystal X-ray Analysis

Data collection for 13 and 16 was carried out at room temperature on a Bruker Smart CCD diffractometer and on a Xcalibur, Atlas CCD diffractometer for 12, using in all cases graphite-monochromated Mo-Kα radiation (λ = 0.71073 Å) operating at 50 kV and 40 mA for 12, at 50 kV and 30 mA for 13 and 16. The exposure times were 3.37 s for 12 and 20 s for 13 and 16 in omega.

A summary of the fundamental crystal and refinement data is given in Table 6. The structures were solved by direct methods and refined by full-matrix least-squares procedures on F² (SHELXL-97) [84]. All non-hydrogen atoms were refined anisotropically. All hydrogen atoms were included in their calculated positions and refined riding on the respective carbon atoms.

Table 6. Crystal data and Refinement Data for 12, 13 and 16.

Crystal Data	12	13	16
CCDC	1040404	1040405	1040406
Empirical formula	C17H13FN2O	C17H13FN2O	C18H15FN2O
Formula wt	280.29	280.29	294.32
Crystal system	Monoclinic	Monoclinic	Monoclinic
Space group	P21/n	P21/n	P21/c
a/Å	12.5535(10)	12.3701(12)	16.245(5)
b/Å	7.4573(4)	7.4538(7)	12.187(4)
c/Å	15.0727(11)	15.2521(15)	7.559(2)
a α/°	90	90	90
b β/°	106.759(8)	105.101(2)	94.205(6)
γ/°	90	90	90
V/Å3	1351.1(2)	1357.7(2)	3280.0(3)
Z	4	4	4
Dc/g/cm3	1.378	1.371	1.310
μ(Mo-Ka)/mm−1	0.097	0.096	0.091
F(000)	584	584	616
θ range/°	3.39 to 25.01	1.90 to 27.00	1.26 to 27.00
Index ranges	−14,−8,−14 to 14, 8, 17	−15,−9,−19 to 15, 8, 17	−20,−15,−9 to 20, 15, 5
Reflections collected	5657	10842	13044
Unique reflections	2370	2972	3259
[Rint]	[0.0278]	[0.0564]	[0.0593]
Completeness to θ	99.7%	99.7%	99.9%
Data/restraints/params	2370/0/190	2972/0/192	3259/0/199
Goodness-of-fit on F2	0.997	0.997	0.995
R1	0.0437	0.0507	0.0379
(reflns obsd) [I > 2 s(I)] [a]	(1664)	(1415)	(1548)
wR2 (all data) [b]	0.1218	0.1631	0.0867

^[a] R1 = Σ||F_o| − |F_c||/Σ|F_o|; ^[b] wR2 = {Σ[w(F_o² − F_c²)²]/Σ[w(F_o²)²]}.

Table 6. Crystal data and Refinement Data for 12, 13 and 16.

Crystal Data	12	13	16
CCDC	1040404	1040405	1040406
Empirical formula	C17H13FN2O	C17H13FN2O	C18H15FN2O
Formula wt	280.29	280.29	294.32
Crystal system	Monoclinic	Monoclinic	Monoclinic
Space group	P21/n	P21/n	P21/c
a/Å	12.5535(10)	12.3701(12)	16.245(5)
b/Å	7.4573(4)	7.4538(7)	12.187(4)
c/Å	15.0727(11)	15.2521(15)	7.559(2)
a α/°	90	90	90
b β/°	106.759(8)	105.101(2)	94.205(6)
γ/°	90	90	90
V/Å3	1351.1(2)	1357.7(2)	3280.0(3)
Z	4	4	4
Dc/g/cm3	1.378	1.371	1.310
μ(Mo-Ka)/mm−1	0.097	0.096	0.091
F(000)	584	584	616
θ range/°	3.39 to 25.01	1.90 to 27.00	1.26 to 27.00
Index ranges	−14,−8,−14 to 14, 8, 17	−15,−9,−19 to 15, 8, 17	−20,−15,−9 to 20, 15, 5
Reflections collected	5657	10842	13044
Unique reflections	2370	2972	3259
[Rint]	[0.0278]	[0.0564]	[0.0593]
Completeness to θ	99.7%	99.7%	99.9%
Data/restraints/params	2370/0/190	2972/0/192	3259/0/199
Goodness-of-fit on F2	0.997	0.997	0.995
R1	0.0437	0.0507	0.0379
(reflns obsd) [I > 2 s(I)] [a]	(1664)	(1415)	(1548)
wR2 (all data) [b]	0.1218	0.1631	0.0867

^[a] R1 = Σ||F_o| − |F_c||/Σ|F_o|; ^[b] wR2 = {Σ[w(F_o² − F_c²)²]/Σ[w(F_o²)²]}.

CCDC 1040404, 1040405 and 1040406 contain the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: deposit@ccdc.cam.ac.uk).

4. Conclusions

We have evaluated and compared the potency and selectivity of two series of curcuminoid pyrazoles, compounds 7–11 without fluorine and compounds 12–16 containing fluorine, as inhibitors of the different nitric oxide synthase (NOS) isoforms, and found that as a whole they are mostly iNOS inhibitors, contrary to the one derived from curcumin, pyrazole 1, which is predominantly eNOS. One of the most interesting compounds is (E)-3(5)-[β-(3-fluoro-4-hydroxyphenyl)-ethenyl]-5(3)-phenyl-1H-pyrazole (13), as it is not only the best inhibitor of iNOS, but also more selective towards the other two isoforms.

Tautomerism studies on both series have been achieved by means of multinuclear NMR (DMSO and HMPA) to establish the predominant tautomer, 5-styryl a or 3-styryl b, in each case. The effect of the 4-methyl group in the pyrazole ring, which increases the average potency in the 3(5)-methyl series and decreases it in the 3(5)-phenyl series, seems related to the fact that, in the first case, there is a change of tautomerism (7b vs. 8a), while in the second one, both tautomers are the same (10a and 11a). The most potent eNOS inhibitor, 7, has the lowest percentage of a tautomer.

The analysis of substituent effects on the percentages of NOS inhibition demonstrates the importance of the introduction of fluorine atoms and opens a new avenue to search for new active substances.
