Molecules 2015, 20(7), 13205-13215; https://doi.org/10.3390/molecules200713205

Article
New Cembranoid Diterpenes from the Cultured Octocoral Nephthea columnaris
1
Graduate Institute of Marine Biology, National Dong Hwa University, Pingtung 94450, Taiwan
2
National Museum of Marine Biology & Aquarium, Pingtung 94450, Taiwan
3
Department of Neurosurgery, Kaohsiung Chang Gung Memorial Hospital and Chang Gung University College of Medicine, Kaohsiung 83301, Taiwan
4
Chinese Medicine Research and Development Center, China Medical University Hospital, Taichung 40447, Taiwan
5
Department of Neurosurgery, Xiamen Chang Gung Memorial Hospital, Xiamen 361028, China
6
Department of Marine Biotechnology and Resources, Asia-Pacific Ocean Research Center, National Sun Yat-sen University, Kaohsiung 80424, Taiwan
7
Institute of Oceanography, National Taiwan University, Taipei 10617, Taiwan
8
School of Pharmacy, College of Pharmacy, China Medical University, Taichung 40402, Taiwan
9
Graduate Institute of Natural Products, Kaohsiung Medical University, Kaohsiung 80708, Taiwan
10
Center for Molecular Medicine, China Medical University Hospital, Taichung 40447, Taiwan
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Academic Editors: Derek J. McPhee and John Beutler
Received: 24 June 2015 / Accepted: 17 July 2015 / Published: 21 July 2015

Abstract

:
Two new 15-hydroxycembranoid diterpenes, 2β-hydroxy-7β,8α-epoxynephthenol (1) and 2β-hydroxy-11α,12β-epoxynephthenol (2), were isolated from extracts of the octocoral Nephthea columnaris along with a new natural cembrane, epoxynephthenol (3) and a known sterol, nephalsterol A (4). The structures of cembranes 13 were elucidated by spectroscopic methods and comparison of the spectroscopic data with those of related analogues. The cytotoxicity of metabolites 14 against a panel of tumor cells is also described.
Keywords:
Nephthea columnaris; octocoral; cembrane; nephalsterol; cytotoxicity

1. Introduction

Previous chemical investigations of octocorals belonging to the genus Nephthea, collected off the waters of Taiwan, have yielded numbers of secondary metabolites, including steroids [1,2,3,4,5,6,7,8,9], sesquiterpenoids [3,5,6,10,11,12] and diterpenoids [10,13,14,15,16]. In our continuing studies, a sample collected off the coast of Southern Tip, Taiwan, identified as Nephthea columnaris (family Nephtheidae) (Figure 1) yielded three 15-hydroxycembranoid diterpenes, including two new compounds, 2β-hydroxy-7β,8α-epoxynephthenol (1) and 2β-hydroxy-11α,12β-epoxynephthenol (2), and a new natural cembrane, epoxynephthenol (3), along with a known sterol, nephalsterol A (4) [1,17] (Figure 1). In this paper, we report the isolation, structure determination and cytotoxicity of compounds 14.

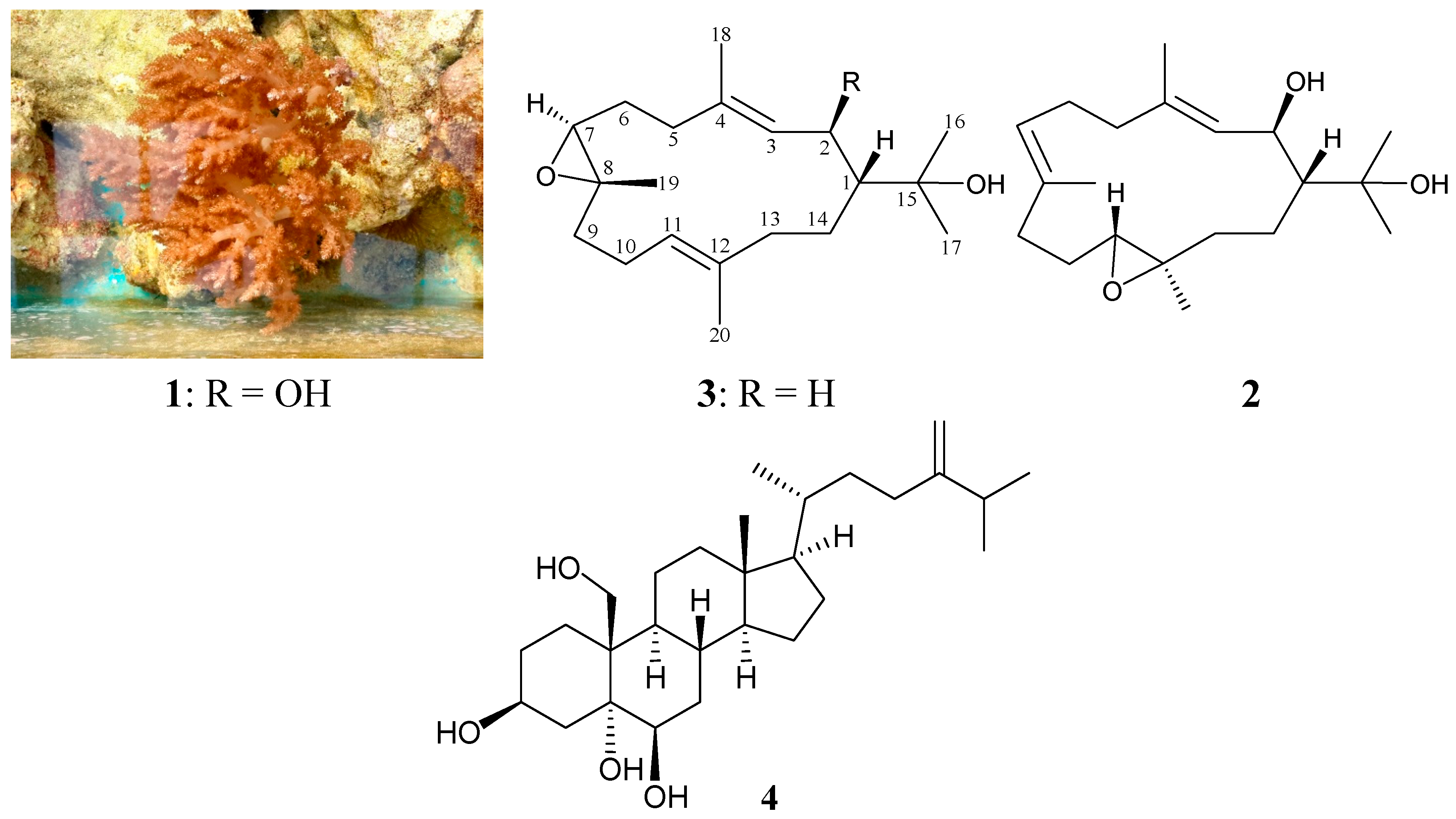

Figure 1. The soft coral Nephthea columnaris and the structures of 2β-hydroxy-7β,8α-epoxynephthenol (1), 2β-hydroxy-11α,12β-epoxynephthenol (2), epoxynephthenol (3) and nephalsterol A (4).
Figure 1. The soft coral Nephthea columnaris and the structures of 2β-hydroxy-7β,8α-epoxynephthenol (1), 2β-hydroxy-11α,12β-epoxynephthenol (2), epoxynephthenol (3) and nephalsterol A (4).
Molecules 20 13205 g001

2. Results and Discussion

2β-Hydroxy-7β,8α-epoxynephthenol (1) was isolated as a colorless oil. The molecular formula for this compound was determined to be C20H34O3 (corresponding to four unsaturations) using HRESIMS (C20H34O3 + Na, m/z 345.23989, calcd. 345.24002). Comparison of the 13C-NMR and DEPT data with the molecular formula indicated there must be two exchangeable protons, which required the presence of two hydroxy groups. This deduction was supported by a broad absorption at 3361 cm–1 in the IR spectrum. The 13C-NMR data for 1 confirmed the presence of twenty carbon signals (Table 1), characterized by DEPT spectrum as five methyls, six sp3 methylenes, three sp3 methines (including two oxymethines), two sp3 oxygenated quaternary carbons, two sp2 methines and two sp2 quaternary carbons. Based on the 1H- and 13C-NMR spectra (Table 1), 1 was determined to contain two isolated methyl-bearing trisubstituted double bonds. The presence of a trisubstituted epoxide containing a methyl substituent was established from the signals of an oxygenated quaternary carbon (δC 60.2, C-8) and an oxymethine (δC 62.3; δH 2.61, 1H, dd, J = 6.0, 5.6 Hz, CH-7) and further confirmed by the proton signal of a methyl singlet at δH 1.28 (3H, s, H3-19). Thus, from the reported data, the proposed skeleton of 1 was suggested to be a cembrane-type diterpene with two rings.
Table 1. 1H (400 MHz, CDCl3) and 13C (100 MHz, CDCl3) NMR data, 1H-1H COSY and HMBC correlations for cembrane 1.
Table 1. 1H (400 MHz, CDCl3) and 13C (100 MHz, CDCl3) NMR data, 1H-1H COSY and HMBC correlations for cembrane 1.
PositionδH (J in Hz)δC, Multiple1H-1H COSYHMBC
11.49 m54.9, CHH-2, H2-14C-2, -15
24.51 dd (10.0, 9.6)71.4, CHH-1, H-3C-1, -3, -4, -15
35.40 dd (9.6, 1.2)127.3, CHH-2, H3-18C-5, -18
4 136.2, C
52.35–2.17 m34.5, CH2H2-6C-3, -4, -6, -7, -18
61.78–1.69 m27.1, CH2H2-5, H-7C-4, -5, -7, -8
72.61 dd (6.0, 5.6)62.3, CHH2-6C-5, -6, -8, -9
8 60.2, C
92.07 ddd (13.2, 4.8, 3.6); 1.08 m39.1, CH2H2-10C-7, -8, -10, -11, -19
102.22 m; 1.93 m23.3, CH2H2-9, H-11C-9
115.14 dd (8.4, 7.6)123.3, CHH2-10, H3-20C-10, -13, -20
12 139.7, C
132.17 m; 1.96 m42.5, CH2H2-14C-11, -12, -14
141.29 m; 0.80 dddd (14.4, 11.6, 3.2, 3.2)28.6, CH2H-1, H2-13C-1, -2, -13, -15
15 75.1, C
161.28 s30.1, CH3 C-1, -15, -17
171.28 s23.9, CH3 C-1, -15, -16
181.84 d (1.2)17.9, CH3H-3C-3, -4, -5
191.28 s16.2, CH3 C-7, -8, -9
201.53 s15.4, CH3H-11C-11, -12, -13
From the 1H-1H COSY spectrum of 1 (Table 1), it was possible to differentiate among the separate H-3/H-2/H-1/H2-14/H2-13, H2-5/H2-6/H-7 and H2-9/H2-10/H-11 spin systems. These data, together with the HMBC correlations between H-1/C-2; H-2/C-1, -3, -4; H-3/C-5; H2-5/C-3, -4, -6, -7; H2-6/C-4, -5, -7, -8; H-7/C-5, -6, -8, -9; H2-9/C-7, -8, -10, -11; H2-10/C-9; H-11/C-10, -13; H2-13/C-11, -12, -14; and H2-14/C-1, -2, -13, observed in an HMBC experiment, established the connectivity from C-1 to C-14 in a 14-membered ring. The vinyl methyls attached at C-4 and C-12 were confirmed by the HMBC correlations between H-3, H2-5/C-18; H3-18/C-3, -4, -5; and H-11/C-20; H3-20/C-11, -12, -13, and were further supported by the allylic couplings between H-3/H3-18 and H-11/H3-20. An isopropyl carbinol group at C-1 was elucidated by the HMBC correlations between H3-16/C-1, -15, -17; H3-17/C-1, -15, -16; and H-1, H-2, H2-14/C-15. The C-7/8 epoxide group was confirmed by the HMBC correlations between H2-5, H2-6, H2-9/C-7; H2-6, H-7, H2-9/C-8; and H3-19/C-7, -8, -9. Thus, the remaining hydroxy group was positioned at C-2, an oxygen-bearing methine (δH 4.51, 1H, dd, J = 10.0, 9.6 Hz; δC 71.4, CH-2). Based on the above findings, the planar structure of 1 was established.
The relative configuration of 1 was elucidated mainly from a NOESY spectrum as being compatible with that of 1 ascertained using molecular mechanics calculations (MM2) [18], which suggested the most stable conformation to be as shown in Figure 2, in which the calculated close contacts of atoms in space were consistent with the NOESY correlations. The β-orientation of H-1, its NOESY correlation with H-3, but not with H-2, and the existence of large coupling constants between H-1/H-2 (J = 10.0 Hz) and H-2/H-3 (J = 9.6 Hz), indicated that the dihedral angles between H-1/H-2 and H-2/H-3 are approximately 180° [19] and the configurations of both chiral carbons C-1 and C-2 were assigned as R*-form. No correlation was found between H-3/H3-18 and H-11/H3-20, indicating that C-3/4 and C-11/12 carbon-carbon double bonds had an E-configuration. An NOESY interaction could be observed between H-7 and H3-18, but H-7 did not correlate with H3-19, revealing that H-7 and Me-19 should be α- and β-oriented, respectively. Furthermore, comparison of the NMR chemical shifts and coupling pattern of CH-7 (δH 2.61, 1H, dd, J = 6.0, 5.6 Hz; δC 62.3) and C-8 (δC 60.2) in 1 with those of a known cembrane analogue, (2R,7S,8S)-sarcophytoxide (δH2.60, 1H, t, J = 5.6 Hz; δC 62.3, CH-7; δC 60.1, C-8) [20], indicated that the chiral carbons C-7 and C-8 possessed S*-configuration.

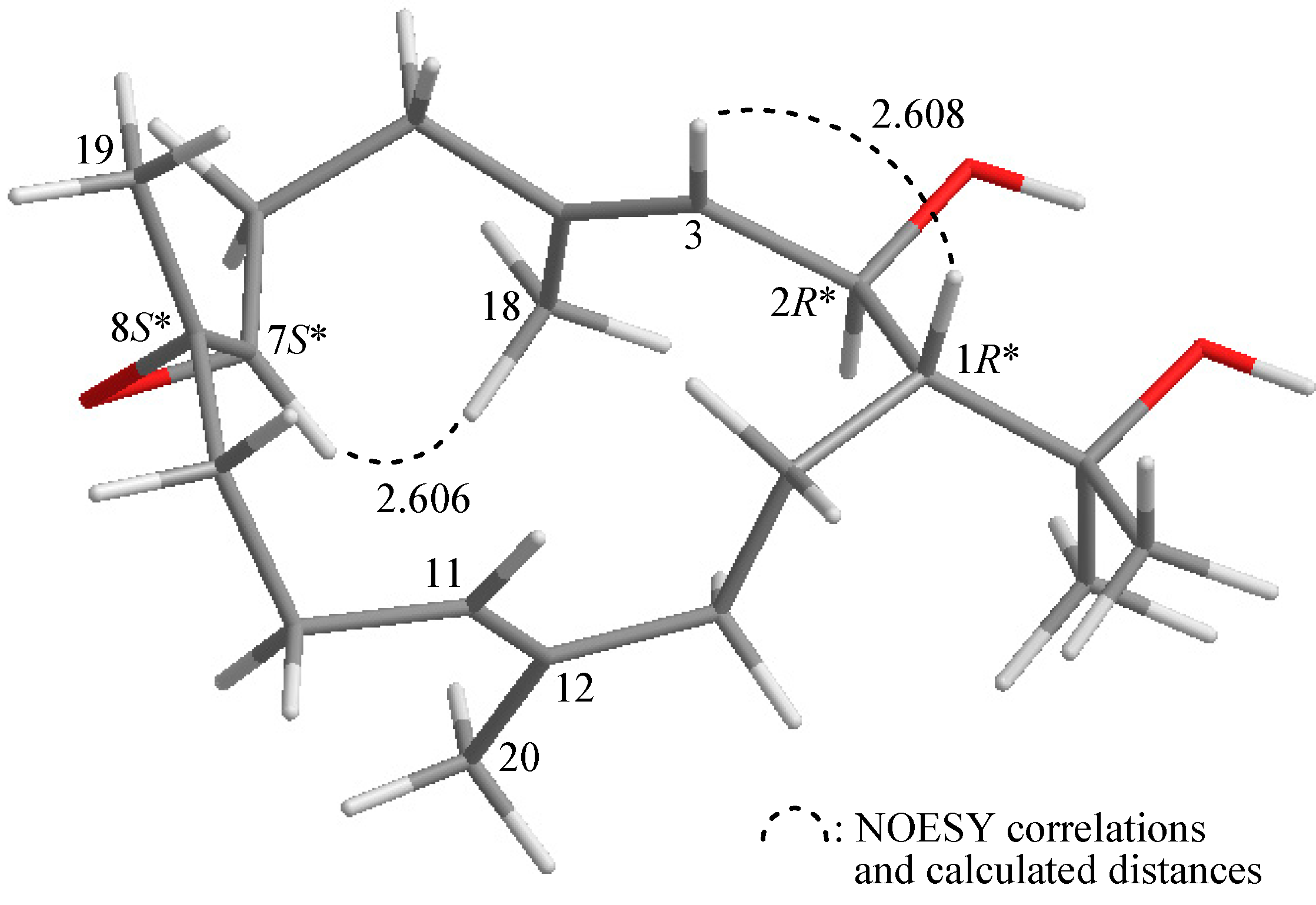

Figure 2. The computer-generated model of 1 using MM2 force field calculations and the calculated distance (Å) between selected protons with key NOESY correlations.
Figure 2. The computer-generated model of 1 using MM2 force field calculations and the calculated distance (Å) between selected protons with key NOESY correlations.
Molecules 20 13205 g002
2β-Hydroxy-11α,12β-epoxynephthenol (2) had the same molecular formula as that of 1, C20H34O3, with four degrees of unsaturation, as determined by HRESIMS. The spectroscopic data (IR, MS, 1H- and 13C-NMR) of 2 were very similar to those of 1. However, the optical rotation of 2 [α]D24 –3, c 0.5, MeOH) was substantially different from that of 1 ( [α]D23 –43, c 0.8, MeOH), indicating that these two compounds are isomers. The NMR chemical shifts for 7,8-epoxy (δH 2.61, 1H, dd, J = 6.0, 5.6 Hz, H-7; δC 62.3, CH-7; 60.2, C-8) and 11,12-olefinic (δH 5.14, 1H, dd, J = 8.4, 7.6 Hz, H-11; δC 123.3, CH-11; 139.7, C-12) groups in 1 were found to be shifted by comparison of these data with those of 2H 5.02, 1H, dd, J = 8.0, 6.4 Hz, H-7; δC 124.7, CH-7; 133.0, C-8; δH 2.67, 1H, dd, J = 9.6, 2.8 Hz, H-11; δC 62.8, CH-11; 61.1, C-12) (Table 2), indicating that the 7,8-epoxy and 11,12-olefinic groups in compound 1 were replaced by olefinic and epoxy groups, respectively, in 2. The 2D NMR correlations observed fully supported the locations of functional groups (Table 2). On the basis of the above observations, the planar structure of cembrane 2 was established.
Table 2. 1H (400 MHz, CDCl3) and 13C (100 MHz, CDCl3) NMR Data, 1H-1H COSY and HMBC correlations for cembrane 2.
Table 2. 1H (400 MHz, CDCl3) and 13C (100 MHz, CDCl3) NMR Data, 1H-1H COSY and HMBC correlations for cembrane 2.
PositionδH (J in Hz)δC, Multiple1H-1H COSYHMBC
11.38 ddd (10.0, 4.8, 2.0)54.4, CHH-2, H2-14C-2, -3, -13, -14, -15, -16, -17
24.46 dd (10.0, 8.8)71.0, CHH-1, H-3C-1, -3, -4, -15
35.18 d (8.8)127.9, CHH-2, H3-18C-1, -5, -18
4 140.8, C
52.33 m; 1.95 m39.9, CH2H2-6C-3, -4, -6, -7, -18
62.31 m; 2.18 m24.2, CH2H2-5, H-7C-5, -7, -8
75.02 dd (8.0, 6.4)124.7, CHH2-6, H3-19C-6, -9, -19
8 133.0, C
92.20 m; 1.98 m36.8, CH2H2-10C-7, -8, -10, -19
102.00 m; 1.28 m24.4, CH2H2-9, H-11C-8, -9, -11, -12
112.67 dd (9.6, 2.8)62.8, CHH2-10C-10
12 61.1, C
132.16 m; 0.99 m42.3, CH2H2-14C-1, -11, -12, -14, -20
141.12–0.95 m26.1, CH2H-1, H2-13C-1, -2, -13, -15
15 74.7, C
161.26 s29.9, CH3 C-1, -15, -17
171.30 s24.0, CH3 C-1, -15, -16
181.77 s15.2, CH3H-3C-3, -4, -5
191.64 s14.9, CH3H-7C-7, -8, -9
201.18 s15.8, CH3 C-11, -12, -13
In order to deduce the relative stereochemistry at C-1/C-2/C-3 fragments, proton-proton coupling constant analysis revealed the same stereochemistry as in 1. This was confirmed from the NOESY correlation between H-1 and H-3 and large coupling constants were recorded between H-1/H-2 (J = 10.0 Hz) and H-2/H-3 (J = 8.8 Hz) and the configurations of both chiral carbons C-1 and C-2 were assigned as R*-form. No correlation was found between H-3/H3-18 and H-7/H3-19, indicating that C-3/4 and C-7/8 carbon-carbon double bonds had an E-configuration. One proton attaching at C-13 and resonating at δH 0.99 was found to show interactions with H-1 and H-11 and was assigned arbitrary as H-13β. The other proton attaching at C-13, H-13α, showed interaction with H3-20, but not with H-1, confirming that H-11 and Me-20 should be β- and α-oriented, respectively. Moreover, comparison of the NMR chemical shifts and coupling pattern of CH-11 (δH 2.67, 1H, dd, J = 9.6, 2.8 Hz; δC 62.8) and C-12 (δC 61.1) in 2 with those of a known cembrane analogue, sinugibberol (δH 2.69, 1H, dd, J = 10.4, 2.9 Hz; δC 62.1, CH-11; δC 61.2, C-12) [21], indicated that the chiral carbons C-11 and C-12 possessed R*-configuration.
Cembrane 3, obtained as a colorless oil, showed an [M + Na]+ signal at m/z 329.24507 in the HRESIMS, suggesting the molecular formula C20H34O2 (calcd. C20H34O2 + Na, 329.24510), with four degrees of unsaturation. The IR absorption of 3 at 3421 cm–1 indicated the presence of hydroxy functionality. It was found that the 1H- and 13C-NMR data of 3 (Table 3) were similar to those of 1, except that the signals corresponding to the C-2, a hydroxy-bearing oxymethine group in 1H 4.51, 1H, dd, J = 10.0, 9.6 Hz; δC 71.4, CH-2) were replaced by a methylene group in 3H 2.32, 1H, m; 1.85, 1H, ddd, J = 14.0, 8.0, 6.4 Hz; δC 28.9, CH2-2). In the NOESY experiment of 3, H-3 correlated with H-1, H-7 and H-11, indicating that the configurations of chiral carbons C-1 and C-7 should be assigned as R*- and S*-forms, respectively. No correlation was found between H-3/H3-18 and H-11/H3-20, indicating that C-3/4 and C-11/12 carbon-carbon double bonds had an E-configuration. Comparison of the NMR chemical shifts and coupling pattern of CH-7 (δH 2.86, dd, J = 5.6, 4.8 Hz; δC 62.2) and C-8 (δC 59.9) in 3 with those of a known cembrane analogue, epoxynephthenol acetate (δC 62.3, CH-7; δC 60.0, C-8) [22], (δH 2.87, t, J = 5.3 Hz; δC 62.2, CH-7; δC 59.9, C-8) [23], (δC 62.1, CH-7; δC 59.7, C-8) [24], indicating the chiral carbons C-7 and C-8 possessed S*-configuration. In a previous study, compound 3 as presented here had been obtained by reduction of epoxynephthenol acetate and named as epoxynephthenol [25]. To the best of our knowledge, this is the first time that cembrane 3 has been obtained from a natural source. The spectroscopic data of 3 were also reported in this study.
Table 3. 1H (400 MHz, CDCl3) and 13C (100 MHz, CDCl3) NMR data, 1H-1H COSY and HMBC correlations for cembrane 3.
Table 3. 1H (400 MHz, CDCl3) and 13C (100 MHz, CDCl3) NMR data, 1H-1H COSY and HMBC correlations for cembrane 3.
PositionδH (J in Hz)δC, Multiple1H-1H COSYHMBC
11.26 m48.0, CHH2-2, H2-14C-2, -15
22.32 m; 1.85 ddd (14.0, 8.0, 6.4)28.9, CH2H-1, H-3C-3, -4, -14, -15
35.34 ddq (8.0, 8.0, 1.2)127.0, CHH2-2, H3-18C-2, -5, -18
4 131.7, C
52.28 m; 2.19 m36.4, CH2H2-6C-3, -4, -6, -7, -18
61.78–1.65 m25.3, CH2H2-5, H-7C-5, -7, -8
72.86 dd (5.6, 4.8)62.2, CHH2-6C-5, -6, -8, -9
8 59.9, C
92.04 ddd (13.2, 6.4, 2.8); 1.23–1.17 m38.7, CH2H2-10C-7, -8, -10, -11
102.23 m; 1.94 m23.3, CH2H2-9, H-11C-8, -9, -11
115.09 ddq (7.2, 7.2, 1.2)124.9, CHH2-10, H3-20C-10, -13, -20
12 135.0, C
132.18–2.12 m36.4, CH2H2-14C-1, -11, -12, -14, -20
141.73 m; 1.34 m28.8, CH2H2-13, H-1C-1, -2, -12, -13, -15
15 73.7, C
161.20 s27.8, CH3 C-1, -15, -17
171.21 s27.0, CH3 C-1, -15, -16
181.67 br s15.7, CH3H-3C-3, -4, -5
191.29 s17.0, CH3 C-7, -8, -9
201.55 br s15.1, CH3H-11C-11, -12, -13
A known sterol, nephalsterol A (= 24-methylcholesta-24(28)-ene-3β,5α,6β,19-tetraol) (4), was also obtained in this study. This compound had been previously isolated from the soft corals Nephthea erecta [1] and Nephthea albida [17], respectively. The 1H- and 13C-NMR data of 4 were identical to those of known sterols described previously [1,17], confirming that 4 was nephalsterol A.
The cytotoxicity of compounds 14 against the proliferation of a limited panel of tumor cell lines, including MOLT-4 (human acute lymphoblastic leukemia), SUP-T1 (human T-cell lymphoblastic lymphoma), U-937 (human histiocytic lymphoma), DLD-1 (human colorectal adenocarcinoma), LNCaP (human prostatic carcinoma) and MCF7 (human breast adenocarcinoma) was studied. The results showed that compounds 13 are not cytotoxic toward the above cells (IC50 > 20 μg/mL). Sterol 4 was found to exhibit cytotoxicity toward above cells (IC50 = 22.5, 32.4, 38.6, 44.2, 11.6 and 9.8 μM). The anticancer agent doxorubicin was used as the positive control and exhibited IC50 values of 0.04, 0.09, 0.42, 0.20, 0.35 and 1.99 μM against MOLT-4, SUP-T1, U-937, DLD-1, LNCaP and MCF7 cells, respectively.

3. Experimental Section

3.1. General Procedures

Optical rotation values were measured with a Jasco P-1010 digital polarimeter (Japan Spectroscopic Corporation, Tokyo, Japan). IR spectra were obtained on a Varian Digilab FTS 1000 FT-IR spectrophotometer (Varian Inc., Palo Alto, CA, USA); absorptions are reported in cm1. NMR spectra were recorded on a Varian Mercury Plus 400 NMR spectrometer using the residual solvent signals (CDCl3, δH 7.26 ppm for 1H-NMR and δC 77.1 ppm for 13C-NMR) as the internal standard. Coupling constants (J) are given in Hz. ESIMS and HRESIMS were recorded using a Bruker 7 Tesla solariX FTMS system (Bruker, Bremen, Germany). Column chromatography was performed on silica gel (230–400 mesh, Merck, Darmstadt, Germany). TLC was carried out on precoated Kieselgel 60 F254 (0.25 mm, Merck); spots were visualized by spraying with 10% H2SO4 solution followed by heating. Normal-phase HPLC (NP-HPLC) was performed using a system comprised of a Hitachi L-7110 pump (Hitachi Ltd., Tokyo, Japan), a Hitachi L-7455 photodiode array detector and a Rheodyne 7725 injection port (Rheodyne LLC, Rohnert Park, CA, USA). A normal-phase column (Supelco Ascentis® Si Cat #: 581515-U, 25 cm × 21.2 mm, 5 μm, Sigma-Aldrich Co., St. Louis, MO, USA) was used for HPLC. The reversed phase HPLC (RP-HPLC) was performed using a system comprised of a Hitachi L-2130 pump, a Hitachi L-2455 photodiode array detector and a Rheodyne 7725 injection port. A reversed phase column (Supelco Ascentis® Si Cat #: 581343-U, 25 cm × 10.0 mm, 5 μm, Sigma-Aldrich Co.) was used for RP-HPLC.

3.2. Animal Material

Specimens of the octocoral Nephthea columnaris (Studer, 1895) were collected by hand using SCUBA equipment off the coast of the Southern Taiwan, and transplanted to five 0.6-ton cultivating tanks equipped with a flow-through sea water system in February 2012. The cultured octocorals for this research work were collected from the tanks in May 2013. Living reference specimen are being maintained in the authors’ marine organism cultivating tank and a voucher specimen (NMMBA-TWSC-12005) was deposited in the National Museum of Marine Biology and Aquarium, Taiwan.

3.3. Extraction and Isolation

Sliced bodies of Nephthea columnaris (wet weight 800.0 g, dry weight 76.6 g) were extracted with a mixture of methanol (MeOH) and dichloromethane (DCM) (1:1, 1.6 L × 5). The extract was partitioned between ethyl acetate (EtOAc) and water (1:1, 0.8 L × 6). The concentrated EtOAc layer (7.4 g) was separated on silica gel and eluted using n-hexane/EtOAc (stepwise, 100:1–pure EtOAc) to yield 17 fractions A–Q. Fraction J was chromatographed on NP-HPLC using a mixture of n-hexane and acetone (2:1) to afford 14 fractions J1–J14. Fraction J3 was separated by NP-HPLC using a mixture of n-hexane and acetone (2:1) as the mobile phase to yield six fractions J3A–J3F. Fraction J3B was purified by RP-HPLC using a mixture of acetonitrile and water (1:1, flow rate: 2.0 mL/min) to afford 1 (2.3 mg, tR = 16 min) and 2 (1.4 mg, tR = 55 min). Fraction F was chromatographed on NP-HPLC using a mixture of n-hexane and acetone (4:1) to afford eight fractions F1–F8. Fraction F3 was separated by RP-HPLC using a mixture of methanol and water (17:3, flow rate: 1.0 mL/min) to afford 3 (1.8 mg, tR = 27 min). Fraction L was chromatographed on NP-HPLC using a mixture of n-hexane and acetone (5:2) to afford 16 fractions L1–L16. Fraction L9 was separated by NP-HPLC using a mixture of DCM and acetone (5:1, flow rate: 3.0 mL/min) as the mobile phase to afford 4 (1.9 mg, tR = 122 min).
2β-Hydroxy-7β,8α-epoxynephthenol (1): colorless oil; [α]D23 –43 (c 0.77, MeOH); IR (neat) νmax 3361 cm−1; 1H (400 MHz, CDCl3) and 13C (100 MHz, CDCl3) NMR data, see Table 1; ESIMS: m/z 345 [M + Na]+; HRESIMS: m/z 345.23989 (calcd for C20H34O3 + Na, 345.24002).
2β-Hydroxy-11α,12β-epoxynephthenol (2): colorless oil; [α]D24 –3 (c 0.52, MeOH); IR (neat) νmax 3419 cm−1; 1H (400 MHz, CDCl3) and 13C (100 MHz, CDCl3) NMR data, see Table 2; ESIMS: m/z 345 [M + Na]+; HRESIMS: m/z 345.23987 (calcd for C20H34O3 + Na, 345.24002).
Epoxynephthenol (3): colorless oil; [α]D24 –63 (c 0.60, MeOH); IR (neat) νmax 3421 cm−1; 1H (400 MHz, CDCl3) and 13C (100 MHz, CDCl3) NMR data, see Table 3; ESIMS: m/z 329 [M + Na]+; HRESIMS: m/z 329.24507 (calcd for C20H34O2 + Na, 329.24510).
Nephalsterol A (4): white solid; [α]D25 +11 (c 0.63, MeOH) (ref. [1] [α]D25 +2.8 (c 0.12, MeOH); ref. [16] [α]D24 +2.6 (c 0.347, MeOH)); IR (neat) νmax 3352 cm−1; The 1H (400 MHz, DMSO-d6) and 13C (100 MHz, DMSO-d6) NMR data of 4 were in full agreement with those reported previously [1,17]; ESIMS: m/z 471 [M + Na]+.

3.4. Molecular Mechanics Calculations

Implementation of the MM2 force field [18] in CHEM3D PRO software from CambridgeSoft Corporation (Cambridge, MA, USA; ver. 9.0, 2005) was used to calculate molecular models.

3.5. MTT Antiproliferative Assay

MOLT-4, SUP-T1, U-937, DLD-1, LNCaP and MCF7 cells were obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA). Cells were maintained in RPMI 1640 medium supplemented with 10% fetal calf serum, 2 mM glutamine and antibiotics (100 units/mL penicillin and 100 μg/mL streptomycin) at 37 °C in a humidified atmosphere of 5% CO2. Cells were seeded at 4 × 104 per well in 96-well culture plates before treatment with different concentrations of the tested compounds. The compounds were dissolved in dimethyl sulfoxide (less than 0.02%) and made concentrations of 1.25, 2.5, 5, 10 and 20 μg/μL prior to the experiments. After treatment for 72 h, the cytotoxicity of the tested compounds was determined using a MTT cell proliferation assay (thiazolyl blue tetrazolium bromide, Sigma-M2128). The MTT is reduced by the mitochondrial dehydrogenases of viable cells to a purple formazan product. The MTT-formazan product was dissolved in DMSO. Light absorbance values (OD = OD570 − OD620) were recorded at wavelengths of 570 and 620 nm using an ELISA reader (Anthos labtec Instrument, Salzburg, Austria) to calculate the concentration that caused 50% inhibition (IC50), i.e., the cell concentration at which the light absorbance value of the experiment group was half that of the control group. These results were expressed a percentage of the control ± SD established from n = 4 wells per one experiment from three separate experiments [26,27,28].

4. Conclusions

A series of cembrane-based diterpenoid and steroid metabolites were isolated from soft corals belonging to the genus Nephthea, collected off the waters of Taiwan. Our continued investigation on the chemical constituents of N. columnaris has led to the isolation of two new cembranoids, 2β-hydroxy-7β,8α-epoxynephthenol (1) and 2β-hydroxy-11α,12β-epoxynephthenol (2), a new natural cembrane, epoxynephthenol (3) and a known sterol, nephalsterol A (4). To the best of our knowledge, this is the first time to study the natural products from N. columnaris. Nephasterol A (4) exhibited moderate cytotoxicity against MOLT-4, SUP-T1, U-937, DLD-1, LNCaP and MCF7 cells.

Acknowledgments

This research was supported by grants from the National Dong Hwa University; the Kaohsiung Chang Gung Memorial Hospital (Grant No. CMRPG8C1281); the National Museum of Marine Biology and Aquarium; the Asia-Pacific Ocean Research Center, National Sun Yat-sen University; the Ministry of Science and Technology (Grant No. NSC 103-2911-I-002-303; MOST 104-2911-I-002-302; MOST 103-2325-B-039-008; MOST 103-2325-B-039-007-CC1; MOST 103-2325-B-291-001; and NSC 101-2320-B-291-001-MY3, MOST 104-2325-B-291-001; MOST 104-2320-B-291-001-MY3); the National Health Research Institutes (NHRI-EX103-10241BI), and in part from the grant from Chinese Medicine Research Center, China Medical University (the Ministry of Education, the Aim for the Top University Plan), Taiwan, awarded to Yang-Chang Wu and Ping-Jyun Sung.

Author Contributions

Yang-Chang Wu and Ping-Jyun Sung designed the whole experiment and contributed to manuscript preparation. Ting-Hsi Hsiao and Ching-Hsiao Cheng researched data and wrote the manuscript. Tung-Ying Wu, Mei-Chin Lu, Wu-Fu Chen and Zhi-Hong Wen analyzed the data and performed data acquisition. Chang-Feng Dai identified the soft coral.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Duh, C.Y.; Wang, S.K.; Chu, M.J.; Dai, C.F.; Sheu, J.H. Bioactive sterols from the Formosan soft coral Nephthea erecta. J. Fish Soc. Taiwan 1997, 24, 127–135. [Google Scholar]
  2. Duh, C.Y.; Wang, S.K.; Chu, M.J.; Sheu, J.H. Cytotoxic sterols from the soft coral Nephthea erecta. J. Nat. Prod. 1998, 61, 1022–1024. [Google Scholar] [CrossRef] [PubMed]
  3. El-Gamal, A.A.H.; Wang, S.K.; Dai, C.F.; Duh, C.Y. New nardosinanes and 19-oxygenated ergosterols from the soft coral Nephthea armata collected in Taiwan. J. Nat. Prod. 2004, 67, 1455–1458. [Google Scholar] [CrossRef] [PubMed]
  4. Su, J.H.; Lin, F.Y.; Huang, H.C.; Dai, C.F.; Wu, Y.C.; Hu, W.P.; Hsu, C.H.; Sheu, J.H. Novel steroids from the soft coral Nephthea chabrolii. Tetrahedron 2007, 63, 703–707. [Google Scholar] [CrossRef]
  5. Cheng, S.Y.; Dai, C.F.; Duh, C.Y. Sesquiterpenoids and artificial 19-oxygenated steroids from the Formosan soft coral Nephthea erecta. J. Nat. Prod. 2007, 70, 1449–1453. [Google Scholar] [CrossRef] [PubMed]
  6. Cheng, S.Y.; Huang, Y.C.; Wen, Z.H.; Chiou, S.F.; Wang, S.K.; Hsu, C.H.; Dai, C.F.; Duh, C.Y. Novel sesquiterpenes and norergosterol from the soft corals Nephthea erecta and Nephthea chabrolii. Tetrahedron Lett. 2009, 50, 802–806. [Google Scholar] [CrossRef]
  7. Cheng, S.Y.; Huang, Y.C.; Wen, Z.H.; Hsu, C.H.; Wang, S.K.; Dai, C.F.; Duh, C.Y. New 19-oxygenated and 4-methylated steroids from the Formosan soft coral Nephthea chabrolii. Steroids 2009, 74, 543–547. [Google Scholar] [CrossRef] [PubMed]
  8. Wang, S.K.; Puu, S.Y.; Duh, C.Y. New 19-oxygenated steroids from the soft coral Nephthea chabrolii. Mar. Drugs 2012, 10, 1288–1296. [Google Scholar] [CrossRef] [PubMed]
  9. Wang, S.K.; Puu, S.Y.; Duh, C.Y. New steroids from the soft coral Nephthea chabrolii. Mar. Drugs 2013, 11, 571–580. [Google Scholar] [CrossRef] [PubMed]
  10. Duh, C.Y.; Wang, S.K.; Weng, Y.L.; Chiang, M.Y.; Dai, C.F. Cytotoxic terpenoids from the Formosan soft coral Nephthea brassica. J. Nat. Prod. 1999, 62, 1518–1521. [Google Scholar] [CrossRef] [PubMed]
  11. Cheng, S.Y.; Huang, K.J.; Wang, S.K.; Wen, Z.H.; Hsu, C.H.; Dai, C.F.; Duh, C.Y. New terpenoids from the soft corals Sinularia capillosa and Nephthea chabrolii. Org. Lett. 2009, 11, 4830–4833. [Google Scholar] [CrossRef] [PubMed]
  12. Cheng, S.Y.; Shih, N.L.; Hou, K.Y.; Ger, M.J.; Yang, C.N.; Wang, S.K.; Duh, C.Y. Kelsoenethiol and dikelsoenyl ether, two unique kelsoane-type sesquiterpenes, from the Formosan soft coral Nephthea erecta. Bioorg. Med. Chem. Lett. 2014, 24, 473–475. [Google Scholar] [CrossRef] [PubMed]
  13. Sheu, J.H.; Su, J.H.; Sung, P.J.; Wang, G.H.; Dai, C.F. Novel meroditerpenoid-related metabolites from the Formosan soft coral Nephthea chabrolii. J. Nat. Prod. 2004, 67, 2048–2052. [Google Scholar] [CrossRef] [PubMed]
  14. El-Gamal, A.A.H.; Wang, S.K.; Dai, C.F.; Chen, I.G.; Duh, C.Y. Prenylbicyclogermacrane diterpenoids from the Formosan soft coral Nephthea pacifica. J. Nat. Prod. 2005, 68, 74–77. [Google Scholar] [CrossRef] [PubMed]
  15. Su, J.H.; Ahmed, A.F.; Sung, P.J.; Wu, Y.C.; Sheu, J.H. Meroditerpenoids from a Formosan soft coral Nephthea chabrolii. J. Nat. Prod. 2005, 68, 1651–1655. [Google Scholar] [CrossRef] [PubMed]
  16. Hsiao, T.H.; Sung, C.S.; Lan, Y.H.; Wang, Y.C.; Lu, M.C.; Wen, Z.H.; Wu, Y.C.; Sung, P.J. New anti-inflammatory cembranes from the cultured soft coral Nephthea columnaris. Mar. Drugs 2015, 13, 3443–3453. [Google Scholar] [CrossRef] [PubMed]
  17. Wang, G.S.; Li, F.Y.; Zeng, L.M.; Ma, L.B.; Tu, G.Z. Structure determination of nephalsterol A and B with 19-hydroxy group from soft corals Nephthea. Chem. J. Chin. Univ. 1992, 13, 623–627. [Google Scholar]
  18. Allinger, N.L. Conformational analysis. 130. MM2. A hydrocarbon force field utilizing V1 and V2 torsionalterms. J. Am. Chem. Soc. 1977, 99, 8127–8134. [Google Scholar] [CrossRef]
  19. Silverstein, R.M.; Webster, F.X.; Kiemle, D.J. Spectrometric Identification of Organic Compounds, 7th ed.; John-Wiley & Sons, Inc.: Hoboken, NJ, USA, 2005; pp. 171–172. [Google Scholar]
  20. Bowden, B.F.; Coll, J.C.; Heaton, A.; König, G.; Bruck, M.A.; Cramer, R.E.; Klein, D.M.; Scheuer, P.J. The structures of four isomeric dihydrofuran-containing cembranoid diterpenes from several species of soft coral. J. Nat. Prod. 1987, 50, 650–659. [Google Scholar] [CrossRef]
  21. Hou, R.S.; Duh, C.Y.; Chiang, M.Y.; Lin, C.N. Sinugibberol, a new cytotoxic cembranoid diterpene from the soft coral Sinularia gibberosa. J. Nat. Prod. 1995, 58, 1126–1130. [Google Scholar] [CrossRef] [PubMed]
  22. Ishii, T.; Zhaoqi, Z.; Vairappan, C.S. A new cembrane diterpene from the Bornean soft coral Nephthea sp. Molecules 2010, 15, 3857–3862. [Google Scholar] [CrossRef] [PubMed]
  23. Yan, X.H.; Guo, Y.W.; Zhu, X.Z.; Mollo, E.; Cimino, G. Studies on chemical constituents of the soft coral Spongodes sp. from the South China Sea. Chin. J. Nat. Med. 2004, 2, 199–201. [Google Scholar]
  24. Blackman, A.J.; Bowden, B.F.; Coll, J.C.; Frick, B.; Mahendran, M.; Mitchell, S.J. Studies of Australian soft corals. XXIX several new cembranoid diterpenes from Nephthea brassica and related diterpenes from a Sarcophyton species. Aust. J. Chem. 1982, 35, 1873–1880. [Google Scholar] [CrossRef]
  25. Schmitz, F.J.; Vanderah, D.J.; Ciereszko, L.S. Marine natural products: Nephthenol and epoxynephthenol acetate, cembrene derivatives from a soft coral. J. Chem. Soc. Chem. Commun. 1974, 407–408. [Google Scholar] [CrossRef]
  26. Alley, M.C.; Scudiero, D.A.; Monks, A.; Hursey, M.L.; Czerwinski, M.J.; Fine, D.L.; Abbott, B.J.; Mayo, J.G.; Shoemaker, R.H.; Boyd, M.R. Feasibility of drug screening with panels of human tumor cell lines using a microculture tetrazolium assay. Cancer Res. 1988, 48, 589–601. [Google Scholar] [PubMed]
  27. Scudiero, D.A.; Shoemaker, R.H.; Paull, K.D.; Monks, A.; Tierney, S.; Nofziger, T.H.; Currens, M.J.; Seniff, D.; Boyd, M.R. Evaluation of a soluble tetrazolium/formazan assay for cell growth and drug sensitivity in culture using human and other tumor cell lines. Cancer Res. 1988, 48, 4827–4833. [Google Scholar] [PubMed]
  28. Lu, M.C.; Hwang, S.L.; Chang, F.R.; Chen, Y.H.; Chang, T.T.; Hung, C.S.; Wang, C.L.; Chu, Y.H.; Pan, S.H.; Wu, Y.C. Immunostimulatory effect of Antrodia camphorata extract on functional maturation of dendritic cells. Food Chem. 2009, 113, 1049–1057. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds 14 are not available from the authors.
