Open AccessArticle

Investigation of a Quantitative Method for the Analysis of Chiral Monoterpenes in White Wine by HS-SPME-MDGC-MS of Different Wine Matrices

Department of Food Science & Technology, Oregon State University, Wiegand Hall, Corvallis, OR 97331, USA
*
Author to whom correspondence should be addressed.
Academic Editors: Susan E. Ebeler and Helene Hopfer
Molecules 2015, 20(4), 7359-7378; https://doi.org/10.3390/molecules20047359
Received: 16 March 2015 / Revised: 16 April 2015 / Accepted: 16 April 2015 / Published: 22 April 2015
(This article belongs to the Collection Wine Chemistry)

Abstract

A valid quantitative method for the analysis of chiral monoterpenes in white wine using head-space solid phase micro-extraction-MDGC-MS (HS-SPME-MDGC-MS) with stable isotope dilution analysis was established. Fifteen compounds: (S)-(−)-limonene, (R)-(+)-limonene, (+)-(2R,4S)-cis-rose oxide, (−)-(2S,4R)-cis-rose oxide, (−)-(2R,4R)-trans-rose oxide, (+)-(2S,4S)-cis-rose oxide, furanoid (+)-trans-linalool oxide, furanoid (−)-cis-linalool oxide, furanoid (−)-trans-linalool oxide, furanoid (+)-cis-linalool oxide, (−)-linalool, (+)-linalool, (−)-α-terpineol, (+)-α-terpineol and (R)-(+)-β-citronellol were quantified. Two calibration curves were plotted for different wine bases, with varying residual sugar content, and three calibration curves for each wine base were investigated during a single fiber’s lifetime. This was needed as both sugar content and fiber life impacted the quantification of the chiral terpenes. The chiral monoterpene content of six Pinot Gris wines and six Riesling wines was then analyzed using the verified method. ANOVA with Tukey multiple comparisons showed significant differences for each of the detected chiral compounds in all 12 wines. PCA score plots showed a clear separation between the Riesling and Pinot Gris wines. Riesling wines had greater number of chiral terpenes in comparison to Pinot Gris wines. Beyond total terpene content it is possible that the differences in chiral terpene content may be driving the aromatic differences in white wines.
Keywords: monoterpenes; chiral; MDGC-MS; Riesling; Pinot Gris monoterpenes; chiral; MDGC-MS; Riesling; Pinot Gris

1. Introduction

Monoterpene compounds are known to be important aroma compounds in aromatic white wines [1,2,3]. While it is noted that monoterpenes are important to aromatic white wine varieties, enantiomers of monoterpene compounds have been little explored in wine. Enantiomers are chiral molecules that are non-superimposable mirror images of each other. Many molecules are enantiomers, with one enantiomer being “active” and the other “inactive” such as with many pharmaceuticals. In wine, enantiomers of volatile aroma compounds have been found to have different perception thresholds and aroma descriptions [4]. For instance, (R)-(+)-limonene has a perception threshold of 200 ppb and an aroma of fresh, citrus and orange-like, while (S)-(−)-limonene has a perception threshold of 500 ppb and aroma described as harsh, turpentine-like, lemon note [5].
In nature many chiral compounds are enantio-pure or only found in one form. Unlike many other wine aroma compounds, terpenes are primarily derived from grapes, a natural source. These terpenes are present in bound forms in the grape (known as glycosides, as they are bound to sugars) and are not aromatically active. Once the terpenes are unbound, or free, they contribute to aroma [6]. There are some free forms in grapes but much of the free terpene content of wine is released during fermentation [6]. The free forms are released from their sugars due to enzymes, typically found in the yeast. However there are enzyme treatments (using glycosidase enzymes) that can increase the free terpene content of wine. Therefore the chiral terpene content of wine may be due to either viticulture or winemaking processes. It is entirely possible that these chiral compounds may be enantio-pure in wine or be present in all or some of their enantiomers. Due to their various properties and content in wine, the concentration of enantiomers or enantiomer excess has potential to explain relationships between wine chemistry, wine sensory, place of origin or different viticultural or winemaking processes that have been problematic or less explored in the past.
While the properties of chiral compound in wine are known, and mentioned above, measurement of the different enantiomers is challenging. The first record of enantiomeric separation in wine dates back to the mid 1800s with Pasteur’s separation of tartaric acid enantiomers [7,8,9]. Since this achievement chemists have looked for improved methods for the analysis and separation of chiral compounds. Derivatization of analytes with chiral reagents to form diastereomers and then chromatographically separated on achiral phases has been widely employed [10]. However this method has not been found to be successful for a range of chiral compounds, specifically chiral volatile aroma compounds.
Direct separation of enantiomeric compounds on chiral amide-based GC stationary phase (e.g., Chirasil-val) was demonstrated in the mid 1960s [11,12]. These columns allowed for excellent separation of amino acids but had limited application for analysis of most volatile compounds. With the introduction of chiral cyclodextrin-based GC stationary phases in the late 1970s and 1980s, chemists were provided with the ability to directly separate a large number of underivatized chiral compounds [13]. For example, several early studies demonstrated separations of cyclic and acyclic enantiomers with a range of functional groups including lactones, terpene hydrocarbons, carbonyls, alcohols, spiroketals, and oxiranes [14,15,16].
For the analysis of grapes and wines, cyclodextrin stationary phases have been used to establish the enantiomeric distribution of isomeric 3,4-dihydro-3-oxoedulans in Riesling wine [17], and solerone (5-oxo-4-hexanolide) and Riesling acetal (2,2,6,8-tetramethyl-7,11-dioxatricyclo[6.2.1.01,6]undec-4-ene) in brandy and Riesling [18]. Guth [19] separated the eight possible isomers of wine lactone (3a,4,5,7a-tetrahydro-3,6-dimethylbenzofuran-2(3H)-one) on a cyclodextrin stationary phase and determined that the predominate isomer occurring in Gewurztraminer wine was the 3S,3aS,7aR-isomer which has an intense sweet coconut-like aroma and an aroma threshold of 0.02 pg/L in air. The proposed study in this paper employs two different cyclodextrin columns in sequence using heart-cutting MDGC-MS to measure chiral terpenes in white wines, producing a more sensitive method for measurement of these compounds. Specifically compound stability over the course of analysis was investigated as was impact of wine matrix. Monoterpenes are important to white wine aroma, but not much is known about the contribution of chiral monoterpenes. Measurement of these chiral compounds has become more accessible as now measurement can be achieved with minimum sample preparation. The aim of this study was to produce a robust, reproducible and sensitive GC-MS based method to easily measure chiral monoterpenes. This method would then be used to investigate chiral monoterpene differences in Pinot Gris and Riesling wines.

2. Results and Discussion

2.1. Separation of Chiral Mono-Terpenes in MDGC-MS

A chromatogram of all 15 chiral monoterpenes and isotopes is found in Figure 1. All of the compounds showed good resolution. The elution order for linalool oxide and rose oxide isomers (standards were only available as isomer mixtures) were confirmed from previous methods investigating chiral compounds using the same column configuration as this method [20].

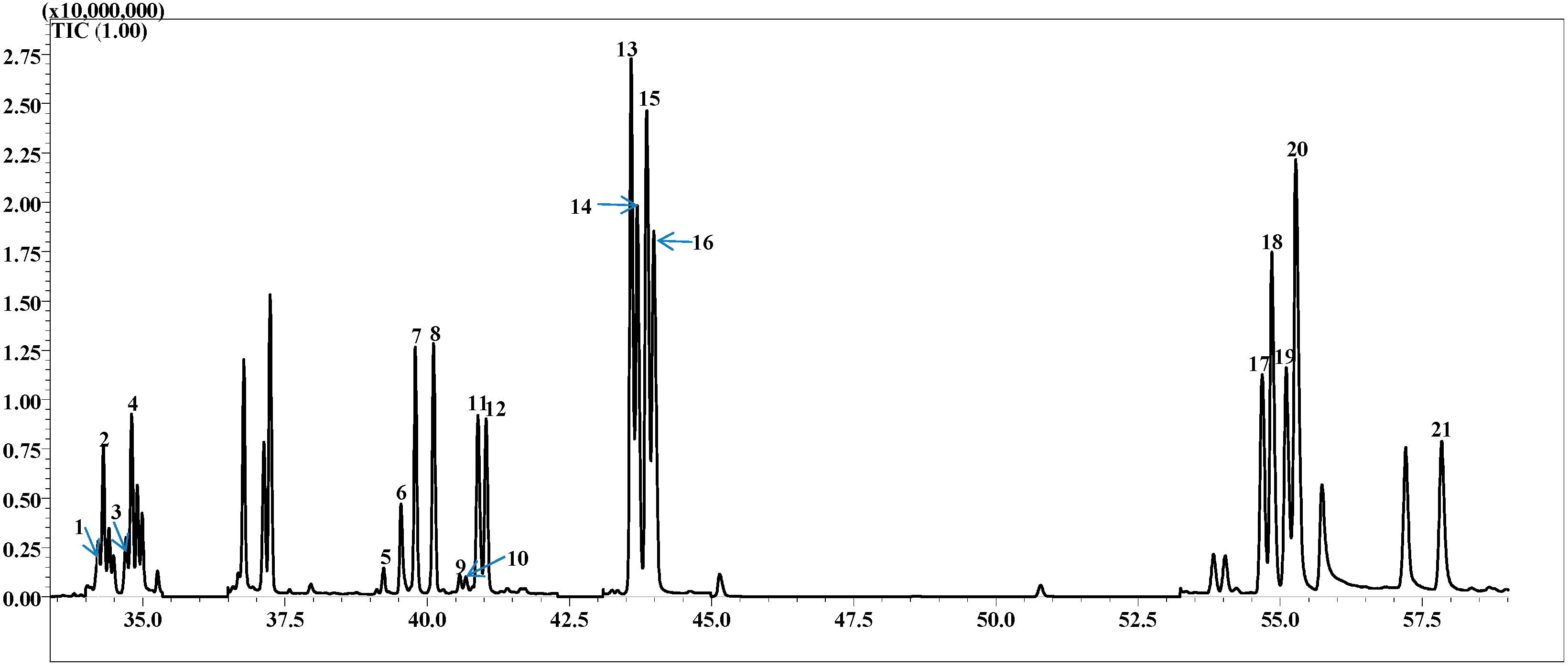

Figure 1. Separation of chiral monoterpenes and deuterium isotopes mixture using MDGC-MS. Numbers referred to the compounds: (1) d3-(S)-(−)-limonene, (2) (S)-(−)-limonene, (3) d3-(R)-(+)-limonene, (4) (R)-(+)-limonene, (5) (−)-(2S,4R)-cis-rose oxide, (6) (+)-(2R,4S)-cis-rose oxide, (7) (2R,5R)-(+)-trans-linalool oxide, (8) (2R,5S)-(−)-cis-linalool oxide, (9) (−)-(2R,4R)-trans-rose oxide, (10) (+)-(2S,4S)-trans-rose oxide, (11) (2S,5S)-(−)-trans-linalool oxide, (12) (2S,5R)-(+)-cis-linalool oxide, (13) d3-(R)-(−)-linalool, (14) (R)-(−)-linalool, (15) d3-(S)-(+)-linalool, (16) (S)-(+)-linalool, (17) d3-(−)-α-terpineol, (18) (−)-α-terpineol, (19) d3-(+)-α-terpineol, (20) (+)-α-terpineol, (21) (R)-(+)-β-citronellol.
Figure 1. Separation of chiral monoterpenes and deuterium isotopes mixture using MDGC-MS. Numbers referred to the compounds: (1) d3-(S)-(−)-limonene, (2) (S)-(−)-limonene, (3) d3-(R)-(+)-limonene, (4) (R)-(+)-limonene, (5) (−)-(2S,4R)-cis-rose oxide, (6) (+)-(2R,4S)-cis-rose oxide, (7) (2R,5R)-(+)-trans-linalool oxide, (8) (2R,5S)-(−)-cis-linalool oxide, (9) (−)-(2R,4R)-trans-rose oxide, (10) (+)-(2S,4S)-trans-rose oxide, (11) (2S,5S)-(−)-trans-linalool oxide, (12) (2S,5R)-(+)-cis-linalool oxide, (13) d3-(R)-(−)-linalool, (14) (R)-(−)-linalool, (15) d3-(S)-(+)-linalool, (16) (S)-(+)-linalool, (17) d3-(−)-α-terpineol, (18) (−)-α-terpineol, (19) d3-(+)-α-terpineol, (20) (+)-α-terpineol, (21) (R)-(+)-β-citronellol.
Molecules 20 07359 g001

2.2. Validation of the Quantitative Method

2.2.1. Linearity of Calibration Curve in Different Wine Matrix

Many reports have investigated the effect of non-volatile compounds on the perception of aroma compounds in wine, such as residual sugar, ethanol content, polyphenol, total acidity and so on [21,22,23]. Calibration curves performed in a synthetic matrix may not be representative of measurements taken in wines with diverse non-volatile compounds. In this study, two kinds of white wines with distinct different residual sugar contents were chosen as base wines for the calibration curves; Low wine (L) base for lower residual sugar content (3.7 g/L) and High wine (H) base for higher residual sugar content (64.1 g/L). These wines were found to appropriate to determine the effect of the non-volatile matrix on all wines measured in this study (data not shown). As can be seen in Table 1, there were some differences between the two kinds of calibration curves, especially for compounds of limonene and rose oxide isomers, thus two calibration curves were used in this study. Wines with corresponding residual sugar measurements were matched to the appropriate calibration curve. Wines with residual sugar content less than 19 g/L used the L calibration curve, while H calibration curve was used if the residual sugar content was greater than 19 g/L. The choice of 19 g/L as the dividing point was set based on spiked recovery study of wines with diverse residual sugar content (Table 2).
Table 1. Calibration curve information of 15 chiral monoterpenes in different de-aromatized wine matrices.
Table 1. Calibration curve information of 15 chiral monoterpenes in different de-aromatized wine matrices.
Compounds 1ISTD 2Ions Chosen 3 (m/z)De-aromatized Low (L) Base 5De-aromatized High (H) Base 5
L first 4L middle 4L last 4H first 4H middle 4H last 4
SlopeSlopeSlopeSlopeSlopeSlope
21107, 121, 1360.21 a0.12 b0.10 b0.14 a0.11 b0.10 b
42107, 121, 1360.23 a0.12 b0.10 b0.12 a0.12 a0.11 a
53139, 69, 830.14 a0.33 c0.25 b0.21 a0.32 c0.29 b
63139, 69, 830.13 a0.28 c0.24 b0.19 a0.30 b0.28 b
7394, 93, 1110.01 a0.02 a0.02 a0.01 a0.02 a0.03 a
8394, 93, 1110.01 a0.02 a0.02 a0.01 a0.02 a0.03 a
93139, 69, 830.09 a0.17 b0.15 b0.11 a0.14 b0.16 b
103139, 69, 830.07 a0.13 b0.13 b0.09 a0.11 ab0.13 b
11394, 93, 1110.01 a0.02 a0.02 a0.01 a0.02 a0.03 a
12394, 93, 1110.01 a0.02 a0.02 a0.01 a0.02 a0.03 a
143121, 93, 1360.01 a0.01 a0.01 a0.01 a0.01 a0.01 a
164121, 93, 1360.01 a0.01 a0.01 a0.01 a0.01 a0.01 a
18559, 81, 1210.07 a0.06 a0.06 a0.06 a0.06 a0.06 a
20659, 81, 1210.05 a0.05 a0.05 a0.05 a0.05 a0.05 a
21695, 109, 1230.03 a0.04 a0.03 a0.03 a0.03 a0.03 a
1 The numbers for compounds are the same with Figure 1; 2 ISTD=internal standard; 3 Numbers in bold are quantification ions; 4 R2 for each curve is 0.99; 5 The one way ANOVA test was only performed among fiber age inside each matrix. Letter superscripts within each matrix are significantly different from one another at p < 0.05 by Tukey’s HSD test.
Table 2. LOD, LOQ, percent spiked recovery, reproducibility and standard stability for wine samples with different matrix.
Table 2. LOD, LOQ, percent spiked recovery, reproducibility and standard stability for wine samples with different matrix.
CompoundsLOD (ug/L)LOQ (ug/L)Spiked Recovery (%)Riesling Reproducibility (RSD) gPinot Gris Reproducibility (RSD ) hStandards Stability (RSD) i
in PG Dry ain PG Medium Dry bin RS Dry cin RS Medium Dry din RS Medium Sweet ein RS Sweet f
20.100.3410694908710311415.600.0012.1
40.080.27104939311110611215.910.0011.1
50.00020.0011011291191351371190.000.0015.2
60.00030.0019911213210312510512.980.0013.0
70.731.0972102901181109718.3517.2710.7
80.440.7072101931121139718.1314.2911.0
90.0010.003991161261131201230.000.0012.9
100.00060.0029410211411811011415.570.0012.8
110.280.937610310311611810015.120.0015.6
120.331.117210097115114960.0015.2612.8
140.030.12101981061011021030.000.009.5
160.080.251021001099810110212.570.009.5
180.190.621009611210410710213.3514.214.3
200.150.49989510610110310214.8516.004.8
210.020.0898103968110810715.6011.0115.0
a Three “dry” style Pinot Gris wines; b Four “medium dry” style Pinot Gris wines; c One “dry” style Riesling wine; d Four “medium dry” style Riesling wine; e Seven “medium sweet” style Riesling wine; f Seven “sweet” style Riesling wine; g 2011 dry Riesling, 10.8% alcohol content (v/v), 0.58 g/L residual sugar; h 2013 Pinot Gris, 11.8% alcohol content (v/v), 16.43 g/L residual sugar; i The fourth level of Standards.
One of the differences observed between the L and H calibration curves was the slope. A lower slope for 2 and 4 (limonene isomers) and higher slope for 5, 6, 9 and 10 (rose oxide isomers) was found in the H base calibration curve compared with the L base calibration curve. Rose oxide isomers seemed more easily released from the diluted wine solution with higher residual sugar content, while limonene isomers were retained longer in the same wine base. Other work has shown that high concentrations of fructose in model wine solutions have strong odorant retaining effects in headspace extraction [24]. However, another study showed the extraction of esters was not affected by sugar content in a varying saccharose content (0–200 g/L) synthetic wine using HS-SPME-HRGC [25], suggesting that the impact of sugar concentration on extraction for HS-SPME measurements varies depending on the volatile compound being measured. Our results showed that the measurement for concentration of chiral monoterpenes in wine with a high residual sugar would not be accurate if a calibration curve from a dry wine were utilized to calculate the concentration of terpenes, especially for limonene and rose oxide isomers. This suggested a strong matrix effect on the investigated compounds.
Several other method factors were investigated to ensure accurate and repeatable measurements of the chosen chiral monoterpenes. HS-SPME was used as it is an inexpensive and reproducible method to measure volatile compounds [26,27,28]. In our study, single fiber repeatability was investigated in both wine bases. Calibration curves were divided into three parts, based on the age (or usage) of a new fiber; the beginning (first 8–10 days of fiber life), middle use (within 8–13 days of fiber life) and at the last life of fiber (last 10 days of fiber life). In total, six calibration curves were plotted in terms of wine matrix and fiber age over 300 injections; L first, L middle, L last, H first, H middle and H last. A significant change in slope for compounds 2, 4, 5, 6, 9 and 10 was noted from first to last intervals for both wine bases (Table 1). Interestingly, limonene isomers (2 and 4) had decreasing affinity for the SPME fiber in single fiber durability. Rose oxide isomers (5, 6, 9 and 10) showed a greater affinity for the fiber during the middle interval, in comparison with the decreasing affinity noted for other compounds. 7, 8, 11, 12, 14, 16, 18, 20 and 21were not affected by the life of the SPME fiber. The reason for the poor repeatability of single fiber was not clear. It was reported that SPME fibers suffer from some weakness, such as limited lifetime and sample carryover [29]. The carry over effect had been eliminated in our study by re-desorption in the heater port for 10 min, lengthening this time did not improve compound affinity over time. One report mentioned poor reproducibility from one fiber to another, and suggested a new calibratation each time the fiber was changed [30]. To eliminate the error due to single fiber variance, chemical composition was determined using calibration curves from the same time period.

2.2.2. Limit of Detection (LOD), Limit of Quantitation (LOQ), Wine Reproducibility and Internal Standards Stability

LOD and LOQ data are reported in Table 2. The LOQ ranges from 1 ng/L to 1.11 μg/L and these limits are lower than the known olfactory thresholds for the measured compound found in Section 3.1, Table 5. The detected LOQ (µg/L) values are also lower than previous methods measuring chiral terpenes [2,31,32]. Wine reproducibility values varied around 15% (RSD %) for all compounds in Riesling and Pinot Gris wines. Reproducibility of 14, 16, 18 and 20 were the best of all compounds, with an RSD of less than 10%. This study showed that all the terpenes in the standards and wines were stable and did not degrade or react under the chosen storage conditions (−18 °C).

2.2.3. Accuracy

The majority of the spiked recoveries fell within 80%–120%, although there were some exceptions (Table 2). Compounds 7, 8, 11 and 12 in PG dry style were about 70% and 5 and 9 in most wine styles was approximately 130%. As mentioned before in Table 1, compounds 7, 8, 11 and 12 had greater retention in L base, which may explain the low calculated recovery. Concentrations of 7, 8, 11 and 12 from Pinot Gris dry white wine were adjusted to 100% by a recovery factor (multiply by 1.4 for 7, 8 and 12; by 1.3 for 11). A possible explanation for the spiked recoveries for 5 and 9 (~130%) may be due to the very low concentrations measured. Reports show that systematic errors may be present for some monoterpenes at very low concentration, especially close to the LOQ if the internal standard was not analogous to that compound being quantified, thus leading to non-linear responses [33] and recovery values higher than 100% [34]. Compounds 5 and 9 (rose oxide isomers) were calculated using d3-linalool as the internal standard as a deuterium labeled rose oxide isotope was not available.

2.2.4. Temperature Stability

The temperature stability of the chiral monoterpenes at key steps of the method was investigated as studies have shown that these compounds may degrade at high temperatures [35,36]. The extraction temperature during headspace sampling and the injector temperature were investigated for seven of the chiral monoterpenes (Table 3).
Table 3. Average variation (peak area ratio) of seven monoterpene standards based on injection and extraction temperature.
Table 3. Average variation (peak area ratio) of seven monoterpene standards based on injection and extraction temperature.
StandardsInjector Temperature (°C)Extraction Temperature (°C)
2002302504060
2091.594.293.894.993.8
1497.197.997.998.797.9
2198.5100.099.9100.099.9
4100.0100.0100.0100.0100.0
288.785.889.589.689.5
615.815.414.514.314.5
869.062.864.764.564.7
The stability of the terpenes at temperatures of 200 °C, 230 °C and 250 °C were determined. The range of injector temperatures was chosen because they are higher than the boiling point of all compounds and lower than the column maximum temperature. T-test and one way ANOVA were performed and no significant differences were found due to injector and extraction temperatures (α = 0.05, Table 3). The results showed that the chosen temperatures did not impact the adsorption of the compounds onto the SPME fiber or any degradation of the compounds when injected into the GC.

2.3. Wine Analysis

All of the measured chiral monoterpenes were found in 12 white wines except for 5, 9 and 10. P refers to Pinot Gris wines and R refers to Riesling wines. The concentrations of all the compounds detected in investigated wines, except 14 and 16, were below perception threshold detected in air or ethanol solutions (Table 4). ANOVA with Tukey multiple comparisons showed significant differences for all of the detected chiral compounds. 7, 8, 12, 18 and 20 were detected in all 12 white wines. Compound 21 was not detectable in R2 wine. 14 and 16 were found in all six Riesling wines and three Pinot Gris wines. Interestingly, 5 and 11 were only detected in five and six wines respectively. The presence of only one rose oxide isomer (5) is consistent with another report of (−)-cis-rose oxide present at high enantiomeric excess in grape musts [4]. These results suggest that the profile of chiral mono-terpenes may have the potential to differentiate diverse wines.
Table 4. Multiple Comparisons (Tukey) of the average concentration of 12 chiral monoterpenes for 12 white wines.
Table 4. Multiple Comparisons (Tukey) of the average concentration of 12 chiral monoterpenes for 12 white wines.
(2) S-(−)-limonene (p < 0.0001)(4) R-(+)-limonene (p < 0.0001)(5) Rose Oxide Isomer (p < 0.0001)
WineConc (µg/L)Conf. Int. *WineConc (µg/L)Conf. Int. *WineConc (µg/L)Conf. Int. *
R611.88AR610.94AP60.33A
R410.56ABR49.1ABR50.3A
R39.19ABR38.22ABR40.11AB
R58.61ABR57.24ABP50.02AB
R14.29ABCR13.62ABCP10.02AB
R22.79ABCDP51.71ABCDP2ndAB
P52.33ABCDP61.39ABCDP3ndAB
P62.19ABCDP11.29ABCDP4ndAB
P11.57ABCDP20.75ABCDR1ndAB
P20.83ABCDR20.21ABCDR2ndAB
P3ndABCDP4ndABCDR3ndAB
P4ndABCDP3ndABCDR6ndAB
(7) Linalool Oxide Isomer (p < 0.001)(8) Linalool Oxide Isomer (p < 0.001)(11) Linalool Oxide Isomer (p = 0.000)
WineConc (µg/L)Conf. Int. *WineConc (µg/L)Conf. Int. *WineConc (µg/L)Conf. Int. *
R544.3AR534.28AR514.42A
R242.69ABR222.25ABR46.7AB
R434.5ABCR120.03ABP55.06 A B
R129.01ABCR418.28ABR14.2 A B
R325.42ABCR316.17 A BP64.05 A B
P19.85 A BCR613.62 A BP43.4 A B
P49.73 A BCP410.66 A BP1nd A B
P39.69 A BCP39.89 A BP2nd A B
P68.9 A BCP59.78 A BP3nd A B
R68.37 AB CP19.25 A BR2nd A B
P54.99 AB CP68.58 A BR3nd A B
P24.69 AB CP27.61 A BR6nd A B
(12) Linalool oxide isomer (p < 0.0001)(18) (−)-α-Terpineol (18) (p < 0.0001)(16) S-(+)-Linalool (p < 0.0001)
WineConc (µg/L)Conf. Int. *WineConc (µg/L)Conf. Int. *WineConc (µg/L)Conf. Int. *
R517.82AR658.84AR646.49A
R414.86ABR330.61ABR337.99AB
R214.23ABR426.93ABR429.17ABC
R110.96ABCR212.77 A BR213.47 A BC
R310.35ABCDP612.33 A BP612.59 A BC
P65.1 A BCDP512 A BP512.51 A BC
P45.03 A BCDR111.82 A BR111.54 A BC
P54.35 AB CDR57.27 A BR59.67 A BC
P34.26 AB CDP15.26 A BP15.44 AB C
P23.69 AB CDP4nd A BP4nd AB C
P13.62 AB CDP3nd A BP2nd AB C
R61.02 ABC DP2`nd A BP3nd AB C
(20) (+)-α-Terpineol (p < 0.0001)(18) (−)-α-Terpineol (18) (p < 0.0001)(21) R-(+)-β-citronellol (p < 0.0001)
WineConc (µg/L)Conf. Int. *WineConc (µg/L)Conf. Int. *WineConc (µg/L)Conf. Int. *
R465.52AR476.12AP28.3A
R354.09ABR659.47ABP65.78 A B
R650.21ABR553.57ABCR35.72 A B
R547.6ABR351.66ABCDP55.38 A BC
R131.08 A BCR135.71 A BCDEP44.64 AB CD
R227.98 A BCR230.28 A BCDER44.03 ABC DE
P115.12 AB CP118.87 AB CDEP13.85 AB DEF
P514.07 AB CP517.72 AB CDER53.75 AB DEF
P613.57 AB CP317.29 ABC DER13.62 ABC EF
P413.45 AB CP416.77 ABC DER62.99 ABCD F
P25.79 AB CP615.45 ABC DEP32.97 ABCD F
P35.22 AB CP27.7 ABCD ER2nd ABCD G
* Numbers with different superscripts within each compound are significantly different from one another at p < 0.05 by Tukey’s HSD test.
PCA of the chiral monoterpenes showed a clear separation between the Riesling and Pinot Gris wines, with Riesling wines containing more chiral terpenes than Pinot Gris wines (Figure 2). While the Pinot Gris wines all grouped in the same relative area, the Riesling wines were further separated into two groups on F2. Specifically, half of the wines were correlated with 5, 6, 7, 8, 9, 10, 11, and 12 and the other half correlated to 2, 4, 14, 16, 18 and 20.
It would be interesting to determine the origins of the differences in chiral monoterpenes. The ANOVA and PCA results suggest there is some difference in grape varieties as the Pinot Gris and Riesling wines group in a similar area. This differentiation by grape variety was expected, as it is known that the precursors to these terpenes are formed in the grape [6,37]. It was anticipated that the Pinot Gris wines would have lower concentrations and a less complex composition of monoterpenes than the Riesling wines, as Riesling wines are considered to be a more aromatic varietal. The further separation on the right side of the PCA plot, namely the vertical separation of Riesling, may be due to a number of factors. There are many mechanisms for release of terpenes from their bound forms including enzyme additions, pH of juice and wine, yeast strain used for fermentation, fermentation temperature and other viticulture and winemaking practices [38,39,40,41,42]. The further separation of the Riesling wines is most likely due to viticultural or winemaking practices. Specifically R1, R2 and R5 are characterized as higher concentrations of the four linalool oxide isomers and three of the rose oxide isomers. R3 and R4 are best characterized by limonene and α-terpineol isomers and R6 characterized by linalool isomers.

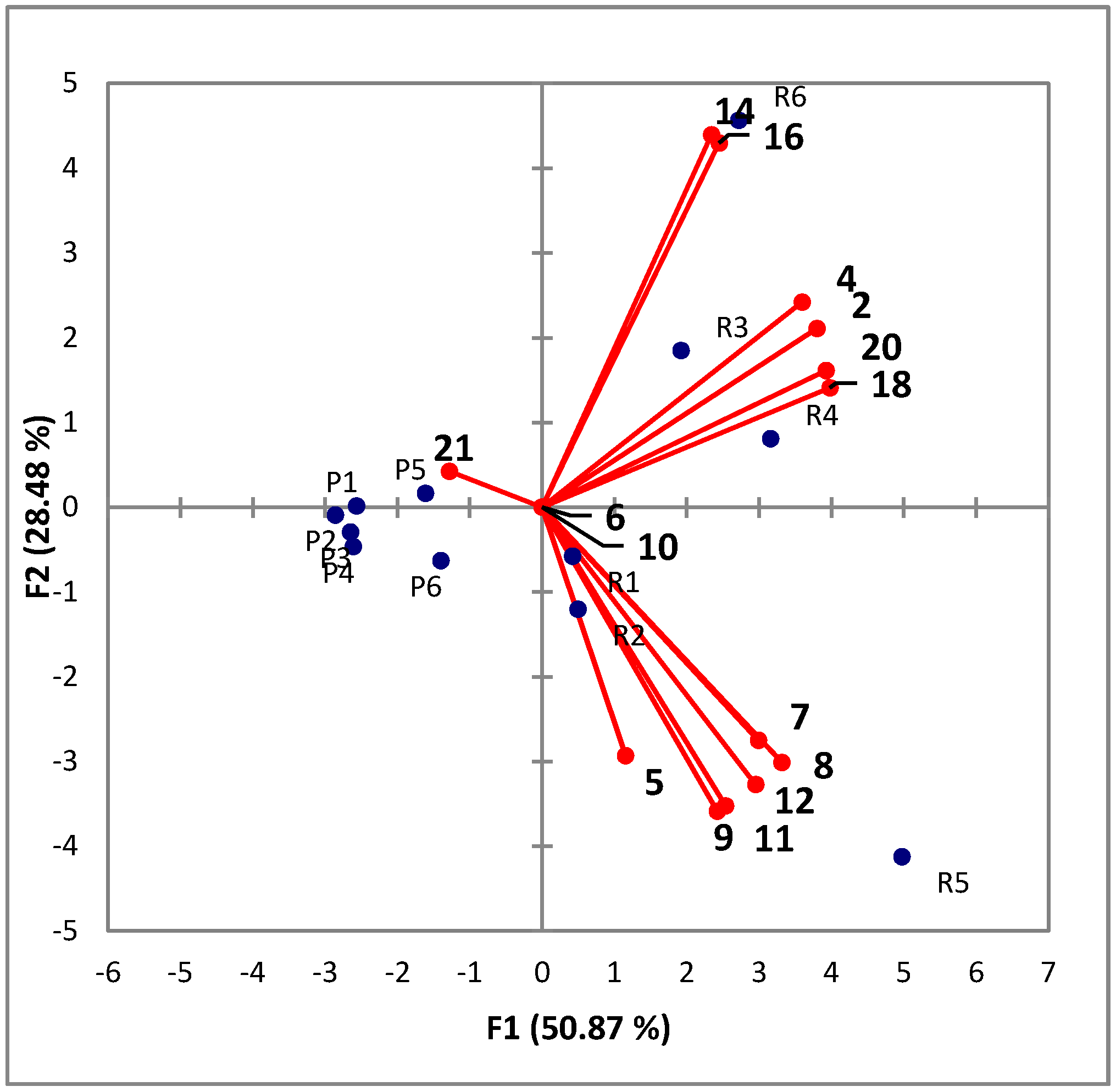

Figure 2. PCA plot of 12 white wines on concentration of chiral mono-terpenes.
Figure 2. PCA plot of 12 white wines on concentration of chiral mono-terpenes.
Molecules 20 07359 g002
The higher concentrations of linalool-oxides in the R1, R2 and R5 may correlate to ripeness in the grapes prior to fermentation, as these oxides are typically formed from oxidation and cyclization of linalool [43]. Alternatively linalool oxides are also produced from Botrytis cinerea metabolism, and this may be the defining factor between the Riesling wines [44], although none of the wines chosen were late harvest or styles of Riesling associated with Botrytis cinerea. However those wines with higher levels of linalool oxides isomers also contained high levels of rose oxides isomers. Formation of rose oxide isomers is from a different source, namely yeast metabolism. There are two different reductive pathways known in yeast that result in rose oxide formation [45]. The limonene and α-terpineol found in R3 and R4 is quite interesting as acidic environments, such as in wine, result in the formation of α-terpineol from limonene [46]. Therefore it was anticipated that wines with higher concentrations of α-terpineol would have lower concentrations of limonene isomers. But α-terpineol is also one of the most abundant terpenes produced by yeast [47], therefore the terpene content of these two Riesling wines may be due to a combination of factors. The high levels of linalool in R6 may also be due to several factors, such as a high level of linalool-glycosides in the grapes and then of release of this into the free form. But it could also be related to the low transformation of linalool after fermentation resulting in retention of more linalool than the other wines. As stated before linalool degrades to linalool oxides in the presence of oxygen, but it may also be degraded by Botrytis cinerea [48]. It has also been found that higher levels of caffeic and gallic acid can stop the degradation of linalool in wine [49]. Therefore the nonvolatile composition, which was not investigated beyond sugar content in this study, may be more favorable for linalool retention.
Finally it is of great interest to determine if the differences in the chiral monoterpene content of these wines is also present in sensory perception. We have stated earlier in the paper that all of these compounds are present at levels below their known perception threshold, but current perception thresholds may not be realistic in wine, as the solution they are tested in plays an important role and most perception thresholds are measured in water or a water and ethanol solution [50,51,52]. To add to this complexity it is known that the perception threshold of some monoterpenes, specifically linalool, changes when it is in a mixture with other monoterpenes [53]. Therefore further research investigating the sensory impact of these compounds is important. It will be able to determine how the compound impacts aroma individually and then in combination with other chiral terpenes.

3. Experimental Section

3.1. Chemicals

The following standards were obtained from Sigma Chemical Co. (St. Louis, MO, USA): (S)-(−)-limonene, (R)-(+)-limonene, (−)-rose oxide, linalool oxide, linalool, α-terpineol, and (R)-(+)-β-citronellol (Table 5). The chemical structure of the standards were showed in Figure 3. D3-(±)-α-terpineol and d3-(±)-linalool were purchased from CDN Isotopes (Pointe-Claire, QC, Canada). D3-(±)-limonene was not available from a commercial source. Synthesis information can be found in Section 3.2. Other chemicals, including methylvinyl ketone (99%, CAS# 78-94-4), isoprene (CAS# 78-79-5), aluminum chloride (CAS# 7446-70-0), magnesium sulfate (CAS# 7487-88-9), d3-methyl-triphenylphosphonium iodide (95 atom %D, CAS# 1560-56-1), and sodium amide (98%, CAS# 7782-92-5) were purchased from Sigma Chemical Co. Sodium sulfate (anhydrous, CAS# 7757-82-6) was from Mallinckrodt AR® (St. Louis, MO, USA); Potassium carbonate (anhydrous, CAS# 584-08-7) from EMD (Billerica, MA, USA). Organic solvents used were HPLC grade, absolute ethyl alcohol (anhydrous) was from Pharmco-AAPER (Vancouver, WA, USA), dichloromethane and n-hexane (95%) were from EMD, ethyl ether (anhydrous) was from Macron Fine Chemicals (Center Valley, PA, USA). Milli-Q water was obtained from a Millipore Continental water system. Residual sugar of each wine was analyzed in duplicate according to the revised Rebelein method [54]. Alcohol content was analyzed using an Alcolyzer Wine M (Anton Paar GmbH, Graz, Austria).

3.2. D3-Limonene Synthesis

3.2.1. Synthesis of 4-Acetyl-1-methylcyclohexane

Dichloromethane (3 mL) was placed in a 5 mL beaker on an ice bath. Methylvinyl ketone (500 µL) and isoprene (500 µL) were slowly pipetted into the beaker, and a small spatula tip of anhydrous AlCl3 was added. This solution was stirred for 2 h at room temperature. The resulting mixture was diluted with diethyl ether (5 mL) and then washed with 10% Na2SO4 solution (x2). The upper layer was separated and dried with magnesium sulphate. The resulting compound was checked with GC-MS. The yield of 4-acetyl-1-methylcyclohexane was around 1 mL.
Table 5. Odor descriptors, purity, CAS# and perception threshold (µg/L) for chemical standards.
Table 5. Odor descriptors, purity, CAS# and perception threshold (µg/L) for chemical standards.
CompoundsOdorsPurity (%)CAS No. bPerception Threshold (µg/L)
1 a N/AN/AN/A
2Harsh, turpentine-like, lemon note [4]89.65989-54-8500 [4]
3 a N/AN/AN/A
4Fresh, slightly orange note [4]99.05989-27-5200 [4]
5Herbal, green, floral, hay green, earthy, heavy [31]99.016409-43-150 [31,32]
6Floral, green, clean, sharp, light, rose green [31]99.016409-43-10.5 [31,32]
7Earthy, leafy [33]97.060047-17-83000–4000 [34]
8Stronger earthy, leafy [33]97.060047-17-83000–4000 [34]
9Floral green, green herbal, minty, fruity [31]99.016409-43-1160 [31,32]
10Herbal, green, floral, fruity, herbal, rose, citrus (bitter peel) [31]99.016409-43-180 [31,32]
11Sweet, floral, creamy [33]97.060047-17-83000–4000 [34]
12Sweet, floral, creamy [33]97.060047-17-83000–4000 [34]
13 99.41216673-02-7N/A
14Woody, lavender [31]99.078-70-60.8 [35]
15 99.41216673-02-7N/A
16Sweet, petigrain [31]99.078-70-67.4 [35]
17 99.9203633-12-9N/A
18Coniferous odor, tarry, cold pipe like [36]96.098-55-5300,000 [37]
19 99.9203633-12-9N/A
20Heavy floral lilac-like odor [36]96.098-55-5300,000 [37]
21Slightly oily light rosy-leafy, petal-like odor with irritating top note [38]98.01117-61-950 [38]
a synthesized in the lab; b compounds with the same CAS No. were from the isomer mixture.

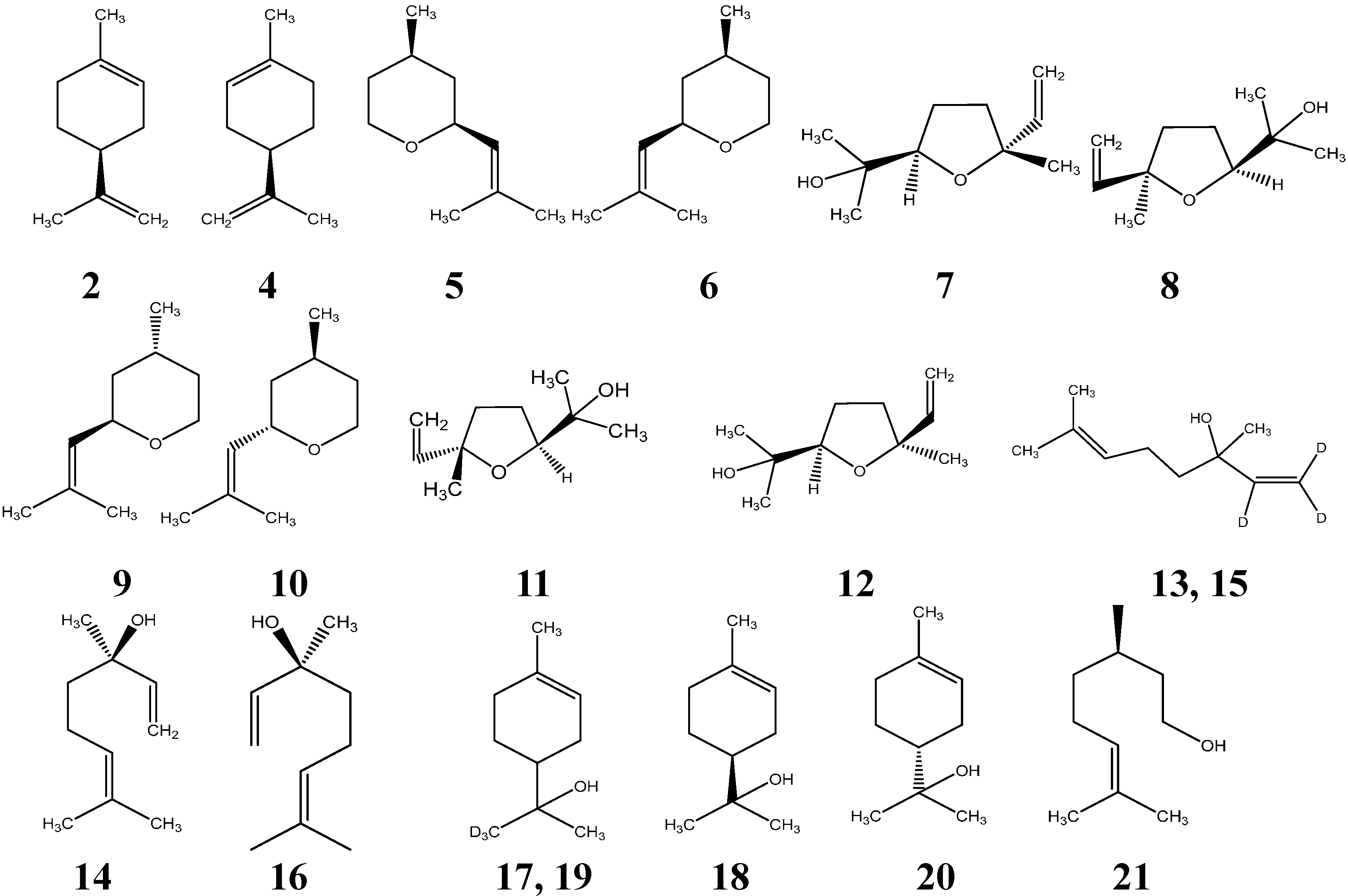

Figure 3. Chemical structures of the chiral monoterpene isomers.
Figure 3. Chemical structures of the chiral monoterpene isomers.
Molecules 20 07359 g003

3.2.2. D3-Limonene Synthesis

Anhydrous ethyl ether (10 mL) was added to a three-necked flask with continual nitrogen blowing. With vigorous stirring, 4-acetyl-1-methylcyclohexene (1 mL) and d3-methyltriphenylphosphonium iodide (around 0.5 g) was added to the ethyl ether. The flask was closed with its caps and stirred vigorously for 10 min, after that, around sodium amide solution (2.5–3 g) dissolved in anhydrous ethyl ether (10 mL) was slowly added. The mixture was stirred vigorously for 15 min. The solution was allowed to cool to room temperature and transferred to a separatory funnel. The mixture was diluted with hexane (30 mL) and washed with 10% aqueous solution K2CO3 (10 mL ×2). The upper layer was retained and dried with 10% Na2SO4 (10 mL ×2), then dried with Mg2SO4. The resulting compound was concentrated by gently boiling the organic layer on a hot plate. The final compound was thick residue with yellow color and orange aroma. Three ions were different (71, 124, and 139) in comparison to regular limonene (68, 121, and 136), showing that hydrogen was replaced by deuterium in three places.

3.3. Sample Preparation

All wine samples were diluted immediately prior to analysis. Each wine (0.9 mL) was added to milli-Q water (8.06 mL) in 20 mL amber glass, screw cap vials, 22.5 × 75.5 mm, followed by the composite isotopically-labelled internal standard solution (40 µL). The volumes used were equivalent to a 10-fold dilution of the wine sample [55]. Sodium chloride (4.5–5.0 g) was added to the SPME vial and vials were tightly capped. Samples were then incubated initially for 10 min at 60 °C, during which time the vial was agitated at 500 rpm (5 s on, 2 s off). The sample was extracted for 50 min with no further agitation. The fiber was then injected into the first GCMS for 10 min at 250 °C followed by further conditioned in an NDL heater for 10 min at 250 °C.

3.4. Solid Phase Micro-Extraction Coupled with MDGC-MS

Three-phase Stableflex SPME fibers (50/30 µm DVB/CAR/PDMS, 2 cm, 24 Ga) were purchased from Supelco (Poznań, Poland). The fiber was conditioned at 250 °C for 1 h before analysis. All samples were extracted at 4 °C using a Shimadzu AOC-5000 plus auto-sampler fitted with a stack cooler set. Heart cut-MDGC-MS analyses were performed using a Shimadzu GC-2000 plus with a split/splitless injector coupled to a Shimadzu QP 2010 GC-mass spectrometer using a Dean switch. The first GC column was a RtX-wax, 30 m in length, 0.25 mm ID, and 0.5 µm of film thickness (Crossbond® Carbowax® polyethylene glycol, Restek Corporation, Bellefonte, PA, USA). Method parameters for the first GC oven were as follows; injector temperature at 230 °C. The column oven was held at 65 °C for 3 min, and then increased to 145 °C at 4 °C·min−1, at which the temperature was kept constant for 10 min, then further increased to 230 °C at 4 °C·min−1 and held at this temperature for 15 min. Flow control mode was set using pressure mode at a constant 235 kpa, switching pressure was 200 kpa. The cut windows for further separation on second GC column were: 7.85–8.50 min; 12.00–14.00 min; 14.25–15.80 min; 15.85–17.25 min, 18.50–21.25 min; 22.00–26.00min; 26.75–30.00 min, 33.00–38.00 min, 38.50–45.00 min. The second GC contained two columns connected in sequence. An Rt®-βDEXsm connected with Rt®-βDEXse (alkylated β-cyclodextrin in cyanopropyl-dimethyl polysiloxane, Restek Corporation), 60 min length, 0.25 mm ID, and 0.25 µm of film thickness. The second oven program began at the same time as the first as is as follows; the column oven was held at 40 °C for 10 min, then increased to 125 °C at 3.0 °C·min−1 holding for 10 min, followed by an increase of 3.0 °C·min−1 to 135 °C, then further increased to 170 °C at 2.0 °C·min−1, held for 2 min, finally increased to 230 °C at 15.0 °C min-1 and held at this temperature for 8 min. The total run time was 83.17 min. GCMS transfer line temperature was 230 °C; ion source temperature was 200 °C. Spectra were acquired using electron impact ionization (EI, 70 eV) in a full scan mode from 3 min to 83 min with scan range of m/z 33–303 Da at 0.20 sec event time. Detector was run at a variable gain factor for each compound from 0.80 to 1.35.
Identification of all chiral monoterpenes was based on the comparison of retention time and mass spectra with authentic standards and NIST11 database. Quantitation of all compounds was based on calibration curves calculated from peak area ratios (peak area of the monoterpene standard/peak area of the corresponding isotope standard) were plotted against the concentration ratios (monoterpene standard/the corresponding isotope standard) for six series of monoterpene concentrations.

3.5. Validation of the Quantitative Method

3.5.1. Linearity of Calibration Curve in Different Wine Matrix

All 15 chiral monoterpenes were quantified using six point calibration curves. Two de-aromatized wines were prepared as the base wine: one was a 2012 Pinot Grigio, alcohol content 12.3%, residual sugar 3.7 g/L, defined as the Low RS (L) wine base; another one was a 2012 late harvest Riesling, alcohol content 9.6%, residual sugar 64.1 g/L, defined as the High RS (H) wine base. Wine (100 mL) was de-aromatized using a rotary evaporator (Buchi heating bath B-490, Newcastle, DE, USA) at 35 °C water bath and 135 rpm rotation for 2 h under 63 cmHg vacuum. The dearomatized wine was adjusted with ethanol solution to its original alcohol content and dH2O was added to bring the volume up to the original 100 mL, ensuring the same nonvolatile matrix. The dearomatized wine contained only trace amounts of linalool oxide and α-terpineol isomers. These concentrations were subtracted to from the calibration curves to ensure accurate measurements.
Six point calibration curves for all compounds were plotted. Compounds were added to de-aromatized wine base at specific concentrations (Table 6) in 20 mL amber glass, screw cap vials, 22.5 × 75.5 mm, followed by the composite isotopically-labelled internal standard solution (40 µL), to make a final volume of 9.0 mL.
Over the lifetime of the SPME fiber, the partition coefficients of volatile compounds with the SPME fiber may have varied thus resulting in poor fiber repeatability. Calibration curves were divided into three parts at the beginning of a new fiber, middle use of fiber and at the last life of fiber. In total six kinds of calibration curves were plotted in terms of wine matrix and fiber over time. Each calibration curve was generated in triplicate (Table 6).

3.5.2. Limit of Detection (LOD), Limit of Quantitation (LOQ), Wine Reproducibility and Internal Standards Stability

LOD and LOQ (Table 2) were calculated as in [56] and [57]. Two wine samples (2011 dry Riesling, ALC of 10.8%, RS of 0.58 g/L; 2013 Pinot Gris, ALC of 11.8%, RS of 16.43 g/L) were measured every 2 days over the course of the analysis period to determine stability and reproducibility. The wine samples were all kept frozen (at −18 °C) prior to analysis. The Standard 4 point of the calibration curve was made fresh and measured every 2 days over the course of the analysis period to measure internal standard stability (Table 2).
Table 6. Six point concentrations of each compound for calibration.
Table 6. Six point concentrations of each compound for calibration.
CompoundStandard 1(µg/L)Standard 2 (µg/L)Standard 3 (µg/L)Standard 4 (µg/L)Standard 5 (µg/L)Standard 6 (µg/L)
20.000.651.292.585.167.74
40.000.771.523.046.089.12
50.000.040.080.170.340.50
60.000.170.330.661.321.98
70.003.066.0912.1424.3236.46
80.003.176.3112.5825.2037.78
90.000.060.120.230.470.71
100.000.020.040.090.180.27
110.002.334.649.2518.5327.77
120.002.494.959.8619.7529.62
140.002.454.889.7219.4829.20
160.002.364.699.3418.7128.05
180.002.885.7211.4122.8634.28
200.004.809.5519.0538.1557.19
210.001.022.034.058.1212.17

3.5.3. Accuracy

The accuracy of the analytical method was evaluated by calculating the recoveries (Table 2) of the standard addition. Different styles of wines (dry, medium dry, medium sweet and sweet) were selected, each of them spiked to standard four concentrations. The spiked recoveries were calculated by the difference of concentration of compounds between spiked wine and original wine divided by the real concentration of compounds in standard 4. The two kinds of varieties (Riesling and Pinot Gris) were investigated, respectively, in duplicate.

3.5.4. Temperature Stability

Seven chiral monoterpenes, (+)-α-terpineol, (−)-linalool, (R)-(+)-β-citronellol, (R)-(+)-limonene, (S)-(−)-limonene, (+)-(2R,4S)-cis-rose oxide, and (−)-(2S,4R)-cis-rose oxide were chosen to detect temperature stability. Each compound was added to milli-Q water at concentrations close to standard 6 and extracted with SPME at 60 °C for 50 min; the purity (peak area ratio of these compounds to corresponding isomers) was investigated at injector temperature of 200 °C, 230 °C and 250 °C, respectively. The extraction temperature was performed at 40 °C and 60 °C as injector temperature at 250 °C.

3.6. Chiral Mono-Terpene Contents in 12 White Wines

Twelve white wines from Riesling and Pinot Gris grape varieties were donated from top companies all over the world, including New Zealand, Australia, Italy and USA. Detailed information about the 12 wines is listed in Table 7. Wine type was categorized according to European regulation [58]: wine with residual sugar content not exceeding 4 g/L can be considered as “dry”; between 4 g/L and 12 g/L as “medium dry”; not exceeding 45 g/L as “medium sweet”, above 45 g/L as “sweet” wine. All of the wines were sampled and stored at −18 °C before analysis.
Table 7. Riesling and Pinot Gris white wine samples from different regions.
Table 7. Riesling and Pinot Gris white wine samples from different regions.
Wine CodeVintageRegionSub-RegionAlcohol Content (v/v)Residual Sugar Content (g/L)Wine Type [40]
P12011ItalyFriuli Grave12.50%0.86Dry
P22013OregonWillamette Valley13.17%2.68Dry
P32012OregonWillamette Valley13.89%3.95Dry
P42013OregonWillamette Valley12.62%4.23Medium dry
P52013AustraliaLimestone Coast14.06%5.49Medium dry
P62013New ZealandAuckland12.91%7.41Medium dry
R12013AustraliaEden valley11.63%3.72Dry
R22012OregonWillamette Valley13.17%2.68Dry
R32012WashingtonColumbia Valley12.92%5.69Medium dry
R42012WashingtonYakima valley12.52%15.00Medium sweet
R52012New YorkFinger lakes11.43%15.27Medium sweet
R62013WashingtonColumbia Valley7.07%95.83Sweet

3.7. Data Analysis

T-test, ANOVA and Tukey multiple comparison were calculated with XLSTAT-Pro 2014 (Addinsoft). Principle Component Analysis (PCA) using Pearson correlation matrix was also calculated with XLSTAT-Pro 2014 (Addinsoft, New York, NY, USA).

4. Conclusions

It is possible to measure different monoterpene enantiomers in white wine using an HS-SPME-MDGC-MS method. This method was able to quantify concentrations of the different enantiomers down to 1 ng/L. It is not possible to use a single calibration curve for all wines as a significant matrix effect, related to sugar content, was noted. Additionally, the fiber age also impacted the measurement of some of the chiral terpenes. In particular the rose oxide isomers, and limonene isomers were most impacted by fiber life and the matrix. However this method resulted in good separation and sensitive, accurate and reproducible measurement of chiral monoterpenes when different wine matrixes were used. A difference in chiral monoterpene content was noted between Pinot Gris and Riesling wines, with Riesling wines containing a larger number of the chiral terpenes than Pinot Gris wines. Terpenes are known to impact the floral and citrus aromatics of wine, but the identification and quantitation of the individual isomers may explain differences in these aromatics between wines. Further investigations will determine if the different terpene isomers impact wine aroma.

Acknowledgments

This project was funded by the Oregon Wine Board and the Oregon Wine Research Institute.

Author Contributions

Elizabeth Tomasino conceived the experiments. Mei Song and Elizabeth Tomasino designed the experiments, analyzed the data and wrote the paper. Mei Song and Ying Xia performed the experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References and Notes

  1. Skinkis, P.A.; Bordelon, B.P.; Wood, K.V. Comparison of monoterpene constituents in traminette, gewurztraminer, and riesling winegrapes. Am. J. Enol. Vitic. 2008, 59, 440–445. [Google Scholar]
  2. Dziadas, M.; Jeleń, H.H. Analysis of terpenes in white wines using SPE-SPME-GC/MS approach. Anal. Chim. Acta 2010, 677, 43–49. [Google Scholar] [CrossRef] [PubMed]
  3. Park, S.K.; Noble, A.C. Monoterpenes and monoterpene glycosides in wine aromas. In ACS Symposium Series; American Chemical Society: Washington, DC, USA, 1993; Volume 536, pp. 98–109. [Google Scholar]
  4. Brenna, E.; Fuganti, C.; Serra, S. Enantioselective perception of chiral odorants. Tetrahedron Asymmetry 2003, 14, 1–42. [Google Scholar] [CrossRef]
  5. Friedman, L.; Miller, J.G. Odor Incongruity and chirality. Science 1971, 172, 1044–1046. [Google Scholar] [CrossRef] [PubMed]
  6. Mateo, J.J.; Jiménez, M. Monoterpenes in grape juice and wines. J. Chromatogr. A 2000, 881, 557–567. [Google Scholar] [CrossRef] [PubMed]
  7. Gal, J. The discovery of biological enantioselectivity: Louis pasteur and the fermentation of tartaric acid, 1857—A review and analysis 150 yr later. Chirality 2008, 20, 5–19. [Google Scholar] [CrossRef] [PubMed]
  8. Mason, S. The origin of chirality in nature. Trends Pharmacol. Sci. 1986, 7, 20–23. [Google Scholar] [CrossRef]
  9. Vallery-Radot, R. Louis Pasteur—His life and labours; D. Appleton and Co.: New York, NY, USA, 1885. [Google Scholar]
  10. Srinivas, N.; Shyu, W.; Barbhaiya, R. Gaschromatographic determination of enantiomers as diastereomers following pre-column derivatization and applications to pharmacokinetic studies: A review. Biomed. Chromatogr. 1995, 9, 1–9. [Google Scholar] [CrossRef] [PubMed]
  11. Gil-Av, E.; Feibush, B.; Charles-Sigler, R. Separation of enantiomers by gas liquid chromatography with an optically active stationary phase. Tetrahedron Lett. 1966, 8, 1009–1015. [Google Scholar] [CrossRef]
  12. Frank, H.; Nicholson, G.; Bayer, E. Chiral polysiloxanes for resolution of optical antipodes. Angew. Chem. Int. Ed. Engl. 1967, 9, 3345–3347. [Google Scholar]
  13. Ebeler, S.E.; Sun, G.M.; Vickers, A.K.; Stremple, P. Gas chromatographic analysis of chiral aroma compounds in wine using modified cyclodextrin stationary phases and solid phase microextraction. In Aroma Active Compounds in Foods; American Chemical Society: Washington, DC, USA, 2001; pp. 45–56. [Google Scholar]
  14. König, W.; Krebber, R.; Wenz, G. Enantioselective capillary gas chromatography on the basis of host-guest interactions with modified cyclodextrins. J. High Resolut. Chromatogr. 1989, 12, 641–644. [Google Scholar] [CrossRef]
  15. Nowotny, H.; Schmalzing, D.; Wistuba, D.; Schurig, V. Extending the scope of enantiomer separation on diluted methylated β-cyclodextrin derivatives by high-resolution gas chromatography. J. High Resolut. Chromatogr. 1989, 12, 383–393. [Google Scholar] [CrossRef]
  16. Mosandl, A.; Hener, U.; Hagenauer-Hener, U.; Kustermann, A. Direct enantiomer separation of chiral γ-lactones from food and beverages by multidimensional gas chromatography. J. High Resolut. Chromatogr. 1989, 12, 532–536. [Google Scholar] [CrossRef]
  17. Schmidt, G.; Neugebauer, W.; Winterhalter, P.; Schreier, P. Synthesis and enantiodifferentiation of isomeric 2,3,5,6,8,8a-hexahydro-2,5,5,8a-tetramethyl-7h-1-benzopyran-7-ones (3,4-dihydro-3-oxoedulans). J. Agric. Food Chem. 1995, 43, 1898–1902. [Google Scholar] [CrossRef]
  18. Dollmann, B.; Full, G.; Schreier, P.; Winterhalter, P.; Guntert, M.; Sommer, H. Synthesis and enaniotdifferentiation of riesling acetals. Phytochem. Anal. 1995, 6, 106–111. [Google Scholar] [CrossRef]
  19. Guth, H. Determination of the configuration of wine lactone. Helv. Chim. Acta 1996, 79, 1559–1571. [Google Scholar] [CrossRef]
  20. A Guide to the Analysis of Chiral Compounds by GC; Resteck Corp: Belleftone, PA, USA, 1997.
  21. Jackson, R.S. Wine Science; Principles,Practices and Perceptions, 2nd ed.; Academic Press: San Diego, CA, USA, 2000. [Google Scholar]
  22. Muñoz-González, C.; Martín-Álvarez, P.J.; Moreno-Arribas, M.V.; Pozo-Bayón, M.Á. Impact of the nonvolatile wine matrix composition on the in vivo aroma release from wines. J. Agric. Food Chem. 2013, 62, 66–73. [Google Scholar] [CrossRef] [PubMed]
  23. Sorrentino, F.; Voilley, A.; Richon, D. Activity coefficients of aroma compounds in model food systems. AIChE J. 1986, 32, 1988–1993. [Google Scholar] [CrossRef]
  24. Villamor, R.R.; Evans, M.A.; Mattinson, D.S.; Ross, C.F. Effects of ethanol, tannin and fructose on the headspace concentration and potential sensory significance of odorants in a model wine. Food Res. Int. 2013, 50, 38–45. [Google Scholar] [CrossRef]
  25. Rodrıguez-Bencomo, J.; Conde, J.; Rodrıguez-Delgado, M.; Garcıa-Montelongo, F.; Pérez-Trujillo, J. Determination of esters in dry and sweet white wines by headspace solid-phase microextraction and gas chromatography. J. Chromatogr. A 2002, 963, 213–223. [Google Scholar] [CrossRef] [PubMed]
  26. Tuduri, L.; Desauziers, V.; Fanlo, J.L. Potential of solid-phase microextraction fibers for the analysis of volatile organic compounds in air. J. Chromatogr. Sci. 2001, 39, 521–529. [Google Scholar] [CrossRef] [PubMed]
  27. Djozan, D.; Bahar, S. Solid-phase microextraction of aliphatic alcohols based on polyaniline coated fibers. Chromatographia 2004, 59, 95–99. [Google Scholar] [CrossRef]
  28. Popp, P.; Paschke, A. Solid phase microextraction of volatile organic compounds using carboxen-polydimethylsiloxane fibers. Chromatographia 1997, 46, 419–424. [Google Scholar] [CrossRef]
  29. Abolghasemi, M.M.; Karimi, B.; Yousefi, V. Periodic mesoporous organosilica with ionic liquid framework as a novel fiber coating for headspace solid-phase microextraction of polycyclic aromatic hydrocarbons. Anal. Chim. Acta 2013, 804, 280–286. [Google Scholar] [CrossRef] [PubMed]
  30. Pozo-Bayón, M.; Pueyo, E.; Martın-Alvarez, P.; Polo, M. Polydimethylsiloxane solid-phase microextraction-gas chromatography method for the analysis of volatile compounds in wines: Its application to the characterization of varietal wines. J. Chromatogr. A 2001, 922, 267–275. [Google Scholar] [CrossRef] [PubMed]
  31. Pena, R.M.; Barciela, J.; Herrero, C.; Garcia-Martin, S. Optimization of solid-phase microextraction methods for GC-MS determination of terpenes in wine. J. Sci. Food Agric. 2005, 85, 1227–1234. [Google Scholar] [CrossRef]
  32. Peña-Alvarez, A.; Capella, S.; Juárez, R.; Labastida, C. Determination of terpenes in tequila by solid phase microextraction-gas chromatography-mass spectrometry. J. Chromatogr. A 2006, 1134, 291–297. [Google Scholar] [CrossRef] [PubMed]
  33. Perkins, M.L.; D’Arcy, B.R.; Lisle, A.T.; Deeth, H.C. Solid phase microextraction of stale flavour volatiles from the headspace of UHT milk. J. Sci. Food Agric. 2005, 85, 2421–2428. [Google Scholar] [CrossRef]
  34. Garrido-Frenich, A.; Romero-González, R.; Martínez-Vidal, J.; Plaza-Bolaños, P.; Cuadros-Rodríguez, L.; Herrera-Abdo, M. Characterization of recovery profiles using gas chromatography-triple quadrupole mass spectrometry for the determination of pesticide residues in meat samples. J. Chromatogr. A 2006, 1133, 315–321. [Google Scholar] [CrossRef] [PubMed]
  35. Garneau, F.X.; Collin, G.; Gagnon, H. Chemical composition and stability of the hydrosols obtained during essential oil production. I. The case of Melissa officinalis L. and Asarum canadense L. Am. J. Essent. Oils Nat. Prod. 2014, 2, 54–62. [Google Scholar]
  36. Garneau, F.X.; Collin, G.; Gagnon, H. Chemical composition and stability of the hydrosols obtained during essential oil production. II. The case of Picea glauca (Moench) Voss., Solidago puberula Nutt., and Mentha piperita L. Am. J. Essent. Oils Nat. Prod. 2014, 2, 29–35. [Google Scholar]
  37. Versini, G.; Carlin, S.; Nicolini, G.; Dellacassa, E.; Carrau, F. Updating of varietal aroma components in wines. In Vitiviniculture in the Southern Emishpere, Proceedings of the 7th Latin-American Congress of viticulture and winemaking, Mendoza, Argentina, 28 November–3 December 1999; pp. 323–349.
  38. Gunata, Z.; Bitteur, S.; Brillouet, J.M.; Bayonove, C.; Cordonnier, R. Sequential enzymic hycrolysis of potentially aromatic glycosides from grape. Carbohydr. Res. 1988, 183, 139–149. [Google Scholar] [CrossRef]
  39. Zoecklein, B.W.; Marcy, J.E.; Williams, J.M.; Jasinski, Y. Effect of native yeasts and selected strains ofsaccharomyces cerevisiaeon glycosyl glucose, potential volatile terpenes, and selected aglycones of white riesling (Vitis vinifera L.) wines. J. Food Compos. Anal. 1997, 10, 55–65. [Google Scholar] [CrossRef]
  40. Fernández-González, M.; Di Stefano, R.; Briones, A. Hydrolysis and transformation of terpene glycosides from muscat must by different yeast species. Food Microbiol. 2003, 20, 35–41. [Google Scholar] [CrossRef]
  41. Maicas, S.; Mateo, J.J. Hydrolysis of terpenyl glycosides in grape juice and other fruit juices: A review. Appl. Microbiol. Biotechnol. 2005, 67, 322–335. [Google Scholar] [CrossRef] [PubMed]
  42. Macaulay, L.E.; Morris, J.R. Influence of cluster exposure and winemaking processes on monoterpenes and wine olfactory evaluation of Golden Muscat. Am. J. Enol. Vitic. 1993, 44, 198–204. [Google Scholar]
  43. Rapp, A.; Marais, J. The shelf life of wine: Changes ina roma substances during storage and ageining of white wines. In Shelf Life Studies of Food and Beverages. Chemical, Biological, Physical and Nutritional Aspects; Elsevier Science Publishers: Amsterdam, The Netherlands, 1993; pp. 891–921. [Google Scholar]
  44. Shimizu, J.; Uehara, M.; Watanabe, M. Transformation of terpenoids in grape must by Botrytis cinerea. Agric. Biol. Chem. 1982, 46, 1339–1344. [Google Scholar] [CrossRef]
  45. Koslitz, S.; Renaud, L.; Kohler, M.; Wust, M. Stereoselective formation of the varietal Aroma Compound Rose Oxide during Alcoholic Fermentation. J. Agric. Food Chem. 2008, 56, 1371–1375. [Google Scholar] [CrossRef] [PubMed]
  46. Tatum, J.; Nagy, S.; Berry, R. Degradation products formed in canned single-strength orange juice during storage. J. Food Sci. 1975, 40, 707–709. [Google Scholar] [CrossRef]
  47. Carrau, F.M.; Medina, K.; Boido, E.; Farina, L.; Gaggero, C.; Dellacassa, E.; Versini, G.; Henschke, P.A. De novo synthesis of monoterpenes by Saccharomyces cerevisiae wine yeasts. FEMS Microbiol. Lett. 2005, 243, 107–115. [Google Scholar] [CrossRef] [PubMed]
  48. Bock, G.; Benda, I.; Schreier, P. Biotransformation of linalool by Botrytis cinerea. J. Food Sci. 1986, 51, 659–662. [Google Scholar] [CrossRef]
  49. Lambropoulos, I.; Roussis, I.G. Inhibition of the decrease of volatile esters and terpenes during storage of a white wine and a model wine medium by caffeic acid and gallic acid. Food Res. Int. 2007, 40, 176–181. [Google Scholar] [CrossRef]
  50. Cullere, L.; Cacho, J.; Ferreira, V. An assessment of the Role Played by some Oxidation-Related Aldehydes in Wine Aroma. J. Agric. Food Chem. 2007, 55, 876–881. [Google Scholar] [CrossRef] [PubMed]
  51. Frank, S.; Wollmann, N.; Schieberle, P.; Hofmann, T. Reconstitution of the flavor signature of Dornfelder Red Wine on the Basis of the Natural Concentrations of Its Key Aroma and Taste Compounds. J. Agric. Food Chem. 2011, 59, 8866–8874. [Google Scholar] [CrossRef] [PubMed]
  52. Audouin, V.; Bonnet, F.; Vickers, Z.M.; Reineccius, G.A. Limitations in the use of odor activity values to determine important odorants in foods. In ACS Symposium Series; American Chemical Society: Washington, DC, USA, 1999; Volume 782, pp. 156–171. [Google Scholar]
  53. Rapp, A.; Mandery, H. Wine aroma. Experientia 1986, 42, 873–884. [Google Scholar] [CrossRef]
  54. Rebelein, H. Rapid method for the determination of the alcohol, sugar and total SO2 contents (by distillation) in wine and fruit juices and also for determining blood alcohol. Chem Mikrobiol. Technol. Leb. 1973, 2, 112–121. [Google Scholar]
  55. Tomasino, E. Characterization of Regional Examples of New Zealand Pinot Noir by Means of Sensory and Chemical Analysis. PhD Thesis, Lincoln University, Lincoln, New Zealand, February 2011. [Google Scholar]
  56. Callejon, R.M.; Gonzalez, A.G.; Troncoso, A.M.; Morales, M.L. Optimization and validation of headspace sorptive extraction for the analysis of volatile compounds in wine vinegars. J. Chromatogr. A 2008, 1204, 93–103. [Google Scholar] [CrossRef] [PubMed]
  57. Miller, J.N.; Miller, J.C. Statistic and Chemometrics for Analytical Chemistry; Pearson Education Limited: Edinburgh, UK, 2005. [Google Scholar]
  58. Regulation (2005). (EC) No 1512/2005 amending Regulation (EC) No 753/2002 laying down certain rules for applying Council Regulation (EC) No 1496/1999 as regards the description, designation, presentation and protection of certain wine sector products (OJ L 241, 17.9. 2005). 2005.
  • Sample Availability: Samples of the compounds are not available from the authors.
Back to TopTop
