Review

Modification of Purine and Pyrimidine Nucleosides by Direct C-H Bond Activation

Department of Chemistry and Biochemistry, Florida International University, Miami, FL 33199, USA
*
Author to whom correspondence should be addressed.
Molecules 2015, 20(3), 4874-4901; https://doi.org/10.3390/molecules20034874
Received: 15 February 2015 / Revised: 11 March 2015 / Accepted: 13 March 2015 / Published: 17 March 2015
(This article belongs to the Special Issue Nucleoside Modifications)

Abstract

:
Transition metal-catalyzed modifications of the activated heterocyclic bases of nucleosides as well as DNA or RNA fragments employing traditional cross-coupling methods have been well-established in nucleic acid chemistry. This review covers advances in the area of cross-coupling reactions in which nucleosides are functionalized via direct activation of the C8-H bond in purine and the C5-H or C6-H bond in uracil bases. The review focuses on Pd/Cu-catalyzed couplings between unactivated nucleoside bases with aryl halides. It also discusses cross-dehydrogenative arylations and alkenylations as well as other reactions used for modification of nucleoside bases that avoid the use of organometallic precursors and involve direct C-H bond activation in at least one substrate. The scope and efficiency of these coupling reactions along with some mechanistic considerations are discussed.

Graphical Abstract

1. Introduction

Transition metal catalyzed traditional cross-coupling reactions have contributed significantly to the formation of new carbon-carbon bonds and to the synthesis of biaryl compounds. With few exceptions, the traditional Pd-catalyzed coupling reactions require two activated substrates, one is the organometallic, alkene (Heck reaction), or terminal alkyne (Sonogashira reaction) and the other is the halide or triflate [1,2]. The most often used Stille, Suzuki, Negishi, Kumada and Hiyama reactions need an organometallic (Sn, B, Zn, Mg, and Si) component and a halide or pseudohalide. Owing to the high impact of these reactions in organic synthesis, natural product synthesis and pharmaceutical applications, the 2010 Nobel Prize in Chemistry was awarded jointly to Richard F. Heck, Ei-ichi Negishi and Akira Suzuki [3]. Pd-catalyzed cross-coupling reactions are carried out under mild conditions and can be performed in the presence of most functional groups. The mechanisms in most cases follow three major steps of: (i) oxidative addition, (ii) transmetallation, and (iii) and reductive elimination [1,2].
Transition metal-catalyzed cross-coupling reactions which are based on direct C-H functionalization have been recently developed [4,5,6,7,8,9]. These methodologies, which eliminate the use of organometallic substrates, compete with traditional Pd-catalyzed cross-couplings in the development of new strategies for the formation of carbon-carbon bonds. These reactions require only one activated substrate (C-H activation) and sometimes even no activation is required for either substrate (double C-H activation). They are atom efficient and avoid the synthesis of often unstable activated substrates. Major challenges associated with C-H functionalization reactions include: (i) the need for developing regioselective activation of specific C-H bonds in the presence of other C-H bonds; (ii) low chemoselectivity which means it is necessary to protect sensitive functional groups before performing the coupling; and (iii) the necessity to work at high temperature needed to activate C-H bonds with intrinsic low activity, which often causes decomposition of the substrates. Pd and Cu are two of the most common transition metal catalyst used for the C-H functionalization.
Transition metal-catalyzed approaches towards the synthesis of base-modified nucleosides can be divided into five major categories as depicted in Figure 1. The first two approaches are based on cross-couplings between two activated components. One involves reactions between metal-activated nucleoside bases and halides (Figure 1, Path a) while the second employs couplings between halo (or triflate) modified nucleoside bases and organometallics (Path b). These approaches were extensively reviewed [10,11,12] and are not discussed in this account. The next two approaches are based on cross-couplings between only one activated component and require C-H activation at the second substrate. One involves reactions between C-H activated bond in nucleoside bases and halides (Path c), while the second employs couplings between halo-modified nucleoside bases and arenes, which, in turn, require selective C-H activation (Path d). The last approach involves cross-couplings between two inactivated substrates [cross-dehydrogenative coupling (CDC) reactions; Path e]. Direct C-H functionalization approaches (Paths c-e) alleviate some drawbacks associated with the synthesis of modified nucleosides employed in traditional Pd-catalyzed cross-coupling reactions (Paths a-b). They also avoid usage of the toxic organotin components, which are problematic during biological studies, or the sometimes unstable organoboronic substrates.

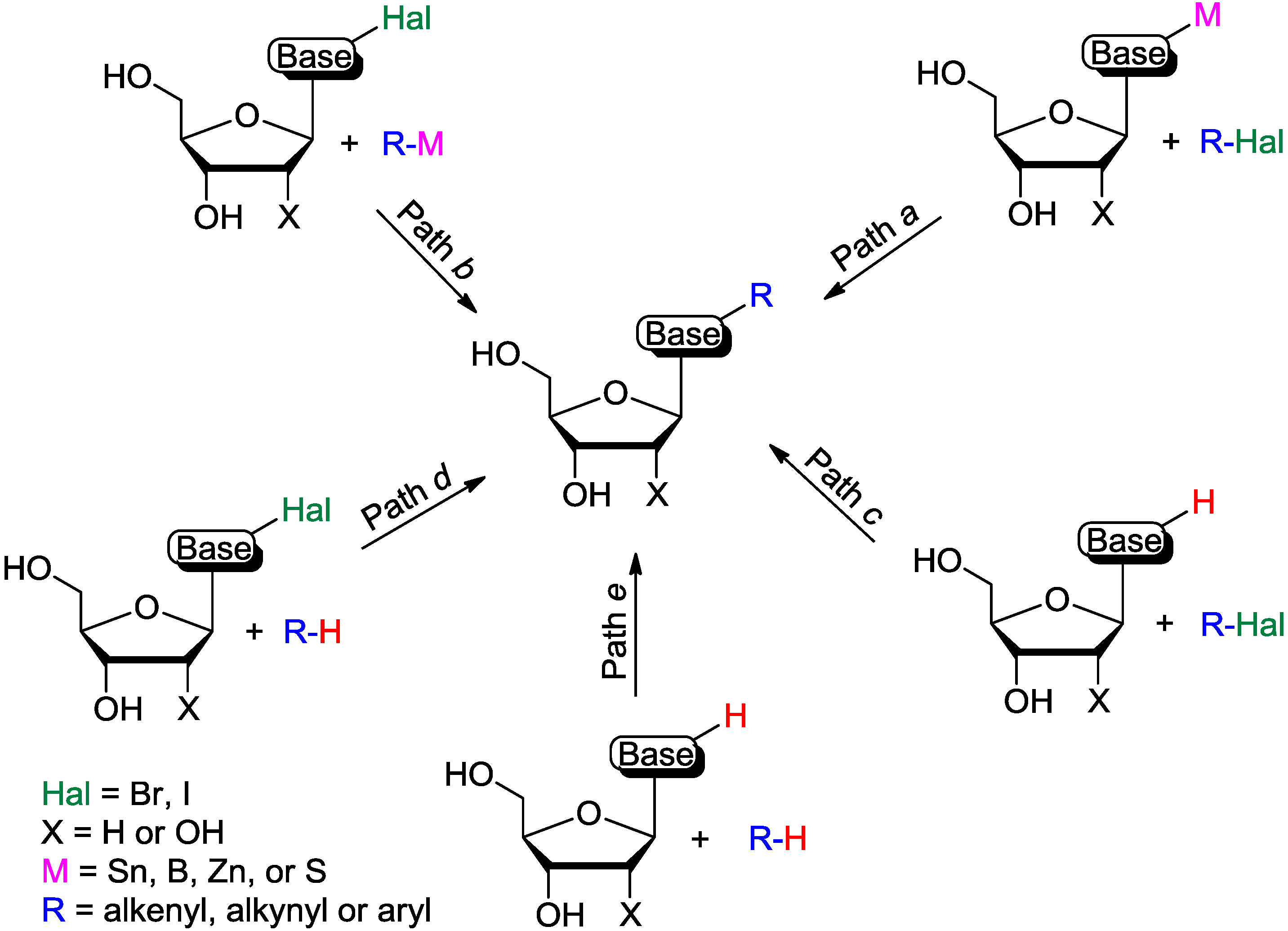

Figure 1. Transition metal catalyzed cross-coupling approaches towards the synthesis of base-modified nucleosides.
Figure 1. Transition metal catalyzed cross-coupling approaches towards the synthesis of base-modified nucleosides.
Molecules 20 04874 g001
Numerous C5 or C6 modified pyrimidine nucleosides and C2 or C8 modified purine nucleosides have been synthesized in last 40 years employing the transition-metal assisted cross-coupling reactions [10]. Some of them show potent biological activity and/or are utilized as mechanistic or labelling probes (Figure 2). For example, the (E)-5-(2-bromovinyl)-2′-deoxyuridine (1, BVDU) has been found to be a highly potent and selective anti-herpes agent [13]. The bicyclic furanopyrimidine-2-one nucleoside analogues bearing an aryl side chain 2 display remarkable antiviral potency against the Varicella-Zoster virus [14]. The 5-thienyl- 3 or 5-furyluridine 4 were used as molecular beacons for oligonucleotide labeling [15,16,17,18]. The 8-pyrenyl-2'-deoxyguanosine 5 serves as a probe for the spectroscopic study of the reductive electron transfer through DNA [19,20]. Furthermore, the 8-vinyl and 8-ethynyladenosines 6 show cytotoxic activity against tumor cell lines [21], while oligodeoxynucleotides modified with the 8-alkynyl-dG possess thrombin inhibitory activity [22].

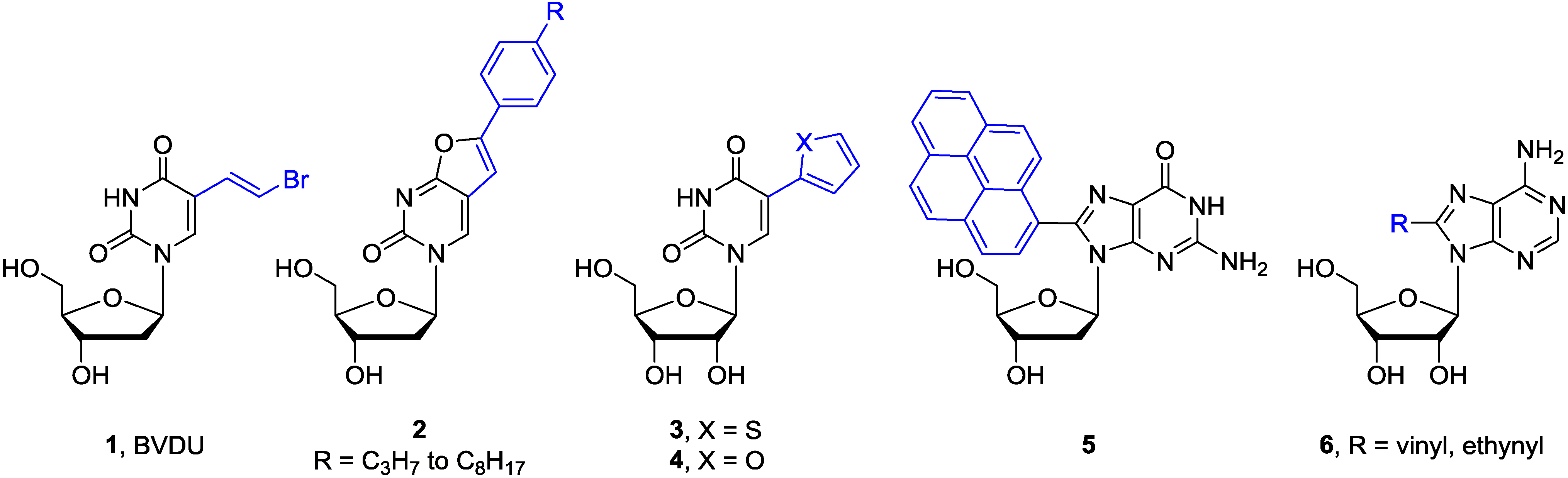

Figure 2. Selected base-modified pyrimidine and purine nucleosides.
Figure 2. Selected base-modified pyrimidine and purine nucleosides.
Molecules 20 04874 g002

2. Direct Activation of C8-H Bond in Purine and Purine Nucleosides

2.1. Cross-Coupling of Adenine Nucleosides with Aryl Halides

Hocek and coworkers reported the first example of direct arylation of adenosine 7 with aryl halides by selective activation of the C8-H bond which gave access to 8-arylated adenosine analogues 9. The cross-coupling occurred in the presence of a stoichiometric amount of CuI (3 equiv.) and a catalytic load of Pd(OAc)2 (5 mol %) in DMF at elevated temperature (100 °C/22 h or 150 °C/5 h) to produce 9 in 50%–68% yields (Scheme 1, Table 1 entry 1) [23]. The authors were able to improve the coupling conditions (e.g., shortening reaction time and lowering the reaction temperature), as compared to their earlier work on C8-H arylation of purines and adenines [24,25] (vide infra), by addition of piperidine to the reaction mixture. They assumed [23] that formation of dimethylamine, as a side product of the prolonged heating of the DMF solvent during the C8-H arylation of purines, favorable influenced the rate of the arylation reaction, which is consistent with Fairlamb’s findings [26,27]. Consequently, they found that the addition of higher boiling secondary amine such as piperidine (4 equiv.) was beneficial to the coupling reactions. Couplings of 7 with aryl iodines also produced N6,8-diarylated byproducts 11 in 12%–18% yield, whereas only 8-arylated products 9 were isolated when less reactive aryl bromine were employed.

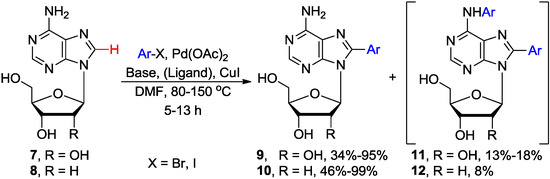

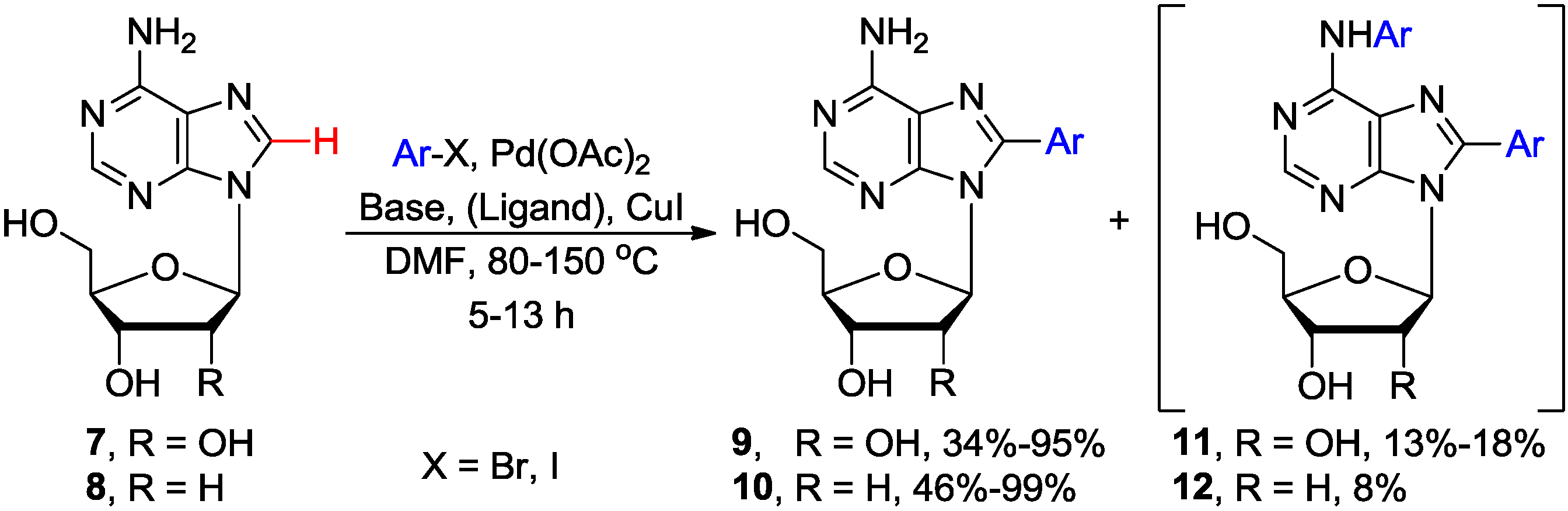

Scheme 1. Pd-catalyzed direct C8-H arylation of adenosine 7 and 2'-deoxyadenosine 8 with aryl halides.
Scheme 1. Pd-catalyzed direct C8-H arylation of adenosine 7 and 2'-deoxyadenosine 8 with aryl halides.
Molecules 20 04874 g004
Table 1. Effect of different bases on Pd-catalyzed direct C8-H arylation of adenosine 7 and 2'-deoxyadenosine 8 with aryl halides.
Table 1. Effect of different bases on Pd-catalyzed direct C8-H arylation of adenosine 7 and 2'-deoxyadenosine 8 with aryl halides.
EntryBase/LigandSubstratesArTemp. (°C)Time (h)ProductsYield (%)Reference
1Piperidine74-Tol-I1505968[23]
2Piperidine84-Tol-I12551031[23]
3Cs2CO38Ph-I80131084[27]
4Cs2CO3/Pyridine7Ph-I12013930–95 a[27]
5Cs2CO3/Piperidine84-Tol-I80151085[26]
a The yield depends on the substitution at the pyridine ring.
When 2'-deoxyadenosine 8 was subjected to this direct arylation protocol desired 8-arylated products 10 were produced only after the temperature was lowered to 125 °C (31% after 5 h; entry 2). It is worth noting that this protocol was applicable to unprotected nucleosides and allowed for the first time the single-step introduction of the aryl group at the C8 position without the need to (i) halogenate nucleoside substrates, or (ii) use expensive arylboronic acids or toxic arylstannanes [10].
Fairlamb and coworkers independently developed a Pd-catalyzed direct C8-arylation of adenosine 7 with aryl iodine in the presence of Cs2CO3 as a base (instead of piperidine), Pd(OAc)2 and 3 equiv. of CuI (DMF/120 °C/13 h) to give 9 in good to high yields (Table 1, entry 3) [27]. In addition to 9, small quantities (~3%) of the N6-arylated byproducts (e.g., 11) were also produced. Coupling of 7 with 0.5 equiv of 1,4-diiodobenzene yielded 1,4-di-(8-adenosinyl)benzene, albeit in low yield. The less stable 2'-deoxyadenosine 8 could also be arylated under these conditions but the synthesis required lower temperature (80 °C/13 h; 84%) to avoid substantial deglycosylation, which was observed at 120 °C. The authors also found that microwave heating was ineffective due to significant decomposition. However addition of the pyridine substituted with an EWG (e.g., 3-nitropyridine) provided 8-arylated product 9 in up to 95% yield (Table 1, entry 4). It was hypothesized that the electron-deficient pyridines can stabilize active Pd(0) species and increase the reactivity (electrophilicity) of the Pd(II) species and that their beneficial effect is substrate dependent [27]. The direct C8-H arylation of 2'-deoxyadenosine 8 with aryl iodides catalyzed by Pd-nanoparticles (60 °C, 15 h) to give access to 8-arylated product 10 (50% yield) have been recently reported [28].
Fairlamb and coworkers also demonstrated that a combination of a stoichiometric amount of Cs2CO3 with a substoichiometric amount of piperidine provided the best yield for Pd/Cu-mediated C8 arylation of 2'-deoxyadenosine 8 with various aryl halides (80 °C, 15 h) to give 10 in 32%–95% yields (Table 4 entry 5) [26]. They also noted that sequential direct arylation of 8 with iodo(bromo)benzene followed by Suzuki-Miyaura cross-coupling of the resulting 8-bromophenyl-2'-deoxyadenosine gave convenient access to the new class of rigid organofluorescent nucleosides (RONs) analogues [29]. The arylation conditions were also extended to the adenosine analogues modified at either the ribose or the adenine moieties. Thus, 2'-deoxy-2'-fluoroadenosine 13 gave the 8-arylated product 14 almost quantitatively (94% isolated yield) under similar conditions; probably because the 2'-fluoro substituent is known to increase the stability of the N-glycosylic bond and to favor the syn conformation (Scheme 2). Coupling of 2-fluoro-2'-deoxyadenosine 15 with iodobenzene also effected 8-arylation concomitant with the displacement of fluorine by piperidine to give the 2,8-disubstituted 2'-deoxyadenosine 16 (Scheme 3) [26]. The chemistry of these couplings has been discussed in recent reviews [11,30].

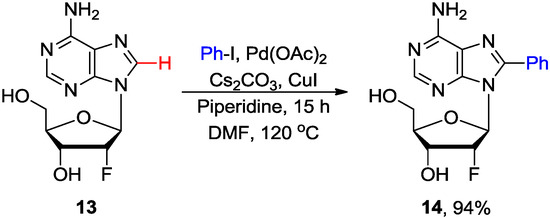

Scheme 2. Pd-catalyzed direct C8-H arylation of 2'-deoxy-2'-fluoroadenosine 13 with iodobenzene.
Scheme 2. Pd-catalyzed direct C8-H arylation of 2'-deoxy-2'-fluoroadenosine 13 with iodobenzene.
Molecules 20 04874 g005

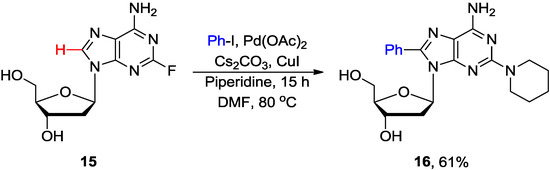

Scheme 3. Pd-catalyzed direct arylation of 2-fluoro-2'-deoxyadenosine 15 with iodobenzene.
Scheme 3. Pd-catalyzed direct arylation of 2-fluoro-2'-deoxyadenosine 15 with iodobenzene.
Molecules 20 04874 g006
These Pd-catalyzed/Cu-mediated methodologies were successfully applied to the synthesis of numerous 8-arylated purines and adenines. In 2006, Hocek and coworkers elaborated the original protocol for the efficient direct C8-H arylation of 6-phenylpurine analogues 17 using aryl iodides in the presence of Cs2CO3 and CuI to give 18 (Scheme 4) [24]. This route required prolonged heating at high temperature (160 °C/60 h) in DMF. Furthermore, it was essential to perform the coupling with strict exclusion of air to avoid formation of two byproducts, sometimes, in substantial yields (6%–54%). One byproduct was 19, which was formed by double arylation at C8 position and the ortho position of the phenyl ring at C6. The other byproduct was the 8,8'-bispurine dimer. Various 6,8,9-trisubstituted and 2,6,8,9-tetrasubstituted purine analogues were synthesized using this approach in combination with Suzuki cross-coupling reaction and Cu-catalyzed N-arylation at 9 position [24,25]. These conditions (Cs2CO3 or piperidine) were successfully employed for the synthesis of 8,9-disubstituted adenines but 6-N-(di)arylated byproducts were observed [24,25]. This protocol was also applied for direct C8-H arylation of adenines anchored to solid phase via 6-N amino group (in the presence of piperidine as base) [31].

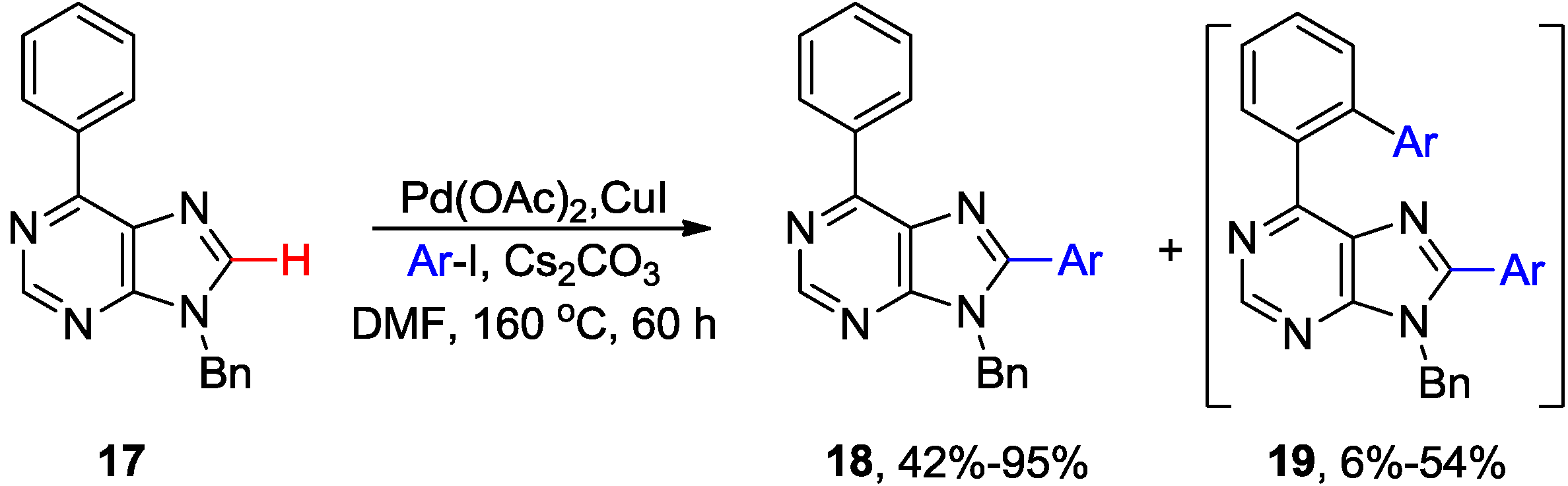

Scheme 4. Pd/Cu-mediated direct C8-H arylation of 6-phenylpurines with aryl halides.
Scheme 4. Pd/Cu-mediated direct C8-H arylation of 6-phenylpurines with aryl halides.
Molecules 20 04874 g007
Alami and coworkers developed a microwave-assisted direct C8 arylation of free-(NH2) 9-N-protected adenine 20 with aryl halides catalyzed by Pd(OH)2/C (Pearlman's catalyst) in the presence of CuI (Scheme 5) [32]. Reaction took only 15 min at 160 °C in NMP solvent when Cs2CO3 was used as base to give 21 in up to 90% yield. The application of Pd(OH)2/C catalyst allowed coupling with aryl bromides and even less reactive aryl chlorides [33]. Sequential combination of C8-arylation with ArCl and 6-N-arylation with ArBr or ArI (using Xantphos [34] instead of CuI) provides access to disubstituted adenines 22 [33].

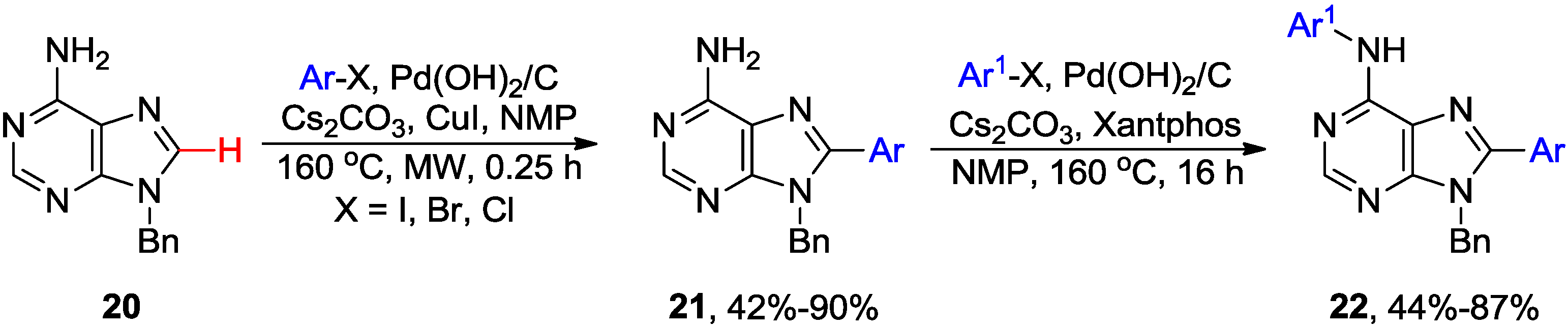

Scheme 5. Microwave-assisted direct C8-H arylation of 9-N-benzyladenine with aryl halides.
Scheme 5. Microwave-assisted direct C8-H arylation of 9-N-benzyladenine with aryl halides.
Molecules 20 04874 g008
Fairlamb and coworkers reported a detailed mechanism for the direct C8-arylation of adenine ring with aryl halides mediated by Pd and Cu in the presence of Cs2CO3 [26,27]. The authors noted that the use of a stoichiometric amount of Cu(I) is key to the direct arylation of the adenine ring and that the process parallels the arylation of imidazole ring at the 2 position [35]. As depicted in Scheme 6, Cu(I) was proposed to assist the C-H functionalization process by an initial coordination to the adenine N7 atom. The subsequent base-assisted deprotonation leads to the formation of 8-cuprioadenine intermediate A or N-heterocyclic carbene like cuprates, which can then undergo a standard Pd(0) catalytic cycle for cross-coupling with aryl halides. This process resembles Sonogashira's reaction between alkynylcuprates and halides [26,27]. The requirement for excess of CuI was attributed to the high binding affinity of Cu(I) for both the substrate and presumably the 8-arylated product(s). The dinucleoside copper(I) complex between 7-N and 6-NH atoms of the adenine have been identified as important intermediate [26].

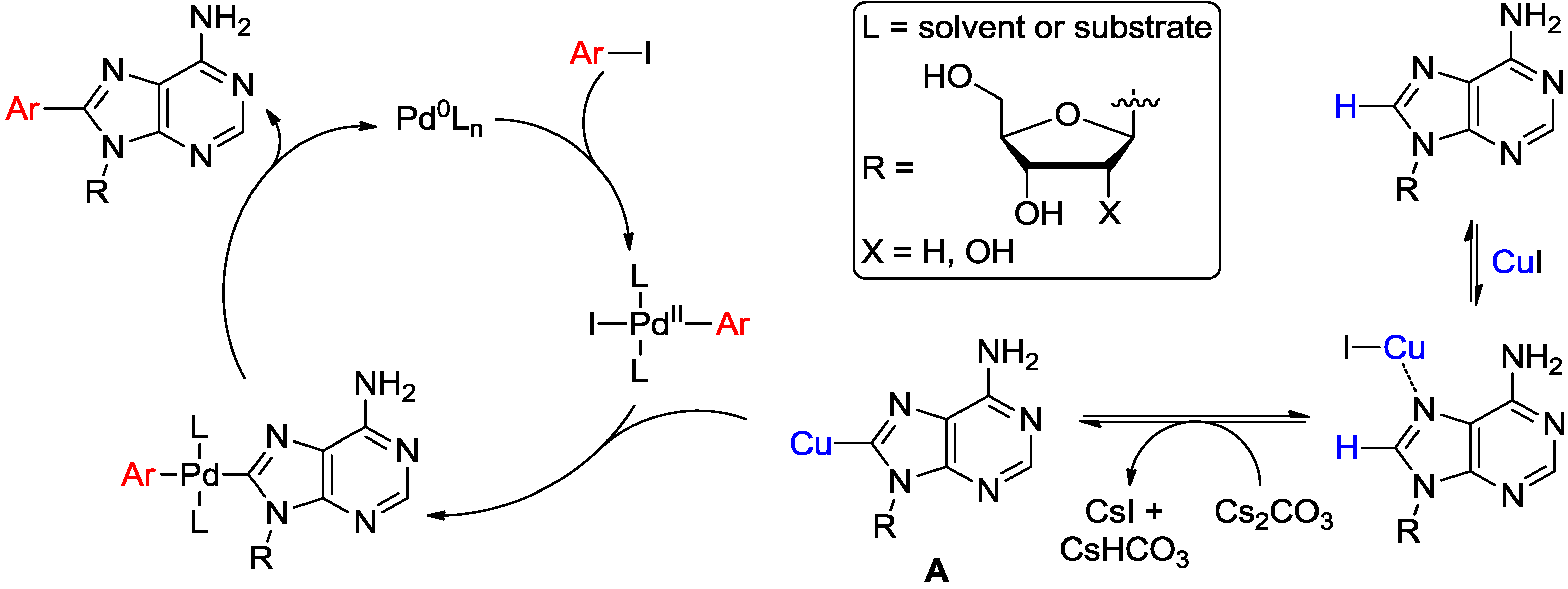

Scheme 6. Proposed mechanism for the direct arylation at C8 position of adenosine [26,27].
Scheme 6. Proposed mechanism for the direct arylation at C8 position of adenosine [26,27].
Molecules 20 04874 g009

2.2. Cross-Coupling of Inosine and Guanine Nucleosides with Aryl Halides

Guanosine 23 was found to be a poor substrate for the direct C8 arylation as indicated by the low yield (15%) of 8-phenylated product 25 under the conditions (120 °C) which were effective for adenosine analogues (Scheme 7) [26]. Analogous arylation of 2'-deoxyguanosine 24 at lower temperature (80 °C) yielded product 26 but only in 6% yield. The authors hypothesized that in the case of guanine substrates, CuI-coordination most probably occurs at sites distal to C8 hampering efficient arylation. A similar inhibitory effect, associated with the ionizable protons in the guanine moiety was observed during the Suzuki couplings with 8-haloguanine nucleosides [36]. The authors also suggested that guanine-type nucleosides are poor substrates for direct C8-H arylation due to the lack of the "templating" role of exocyclic 6-amino group present in adenine nucleosides.

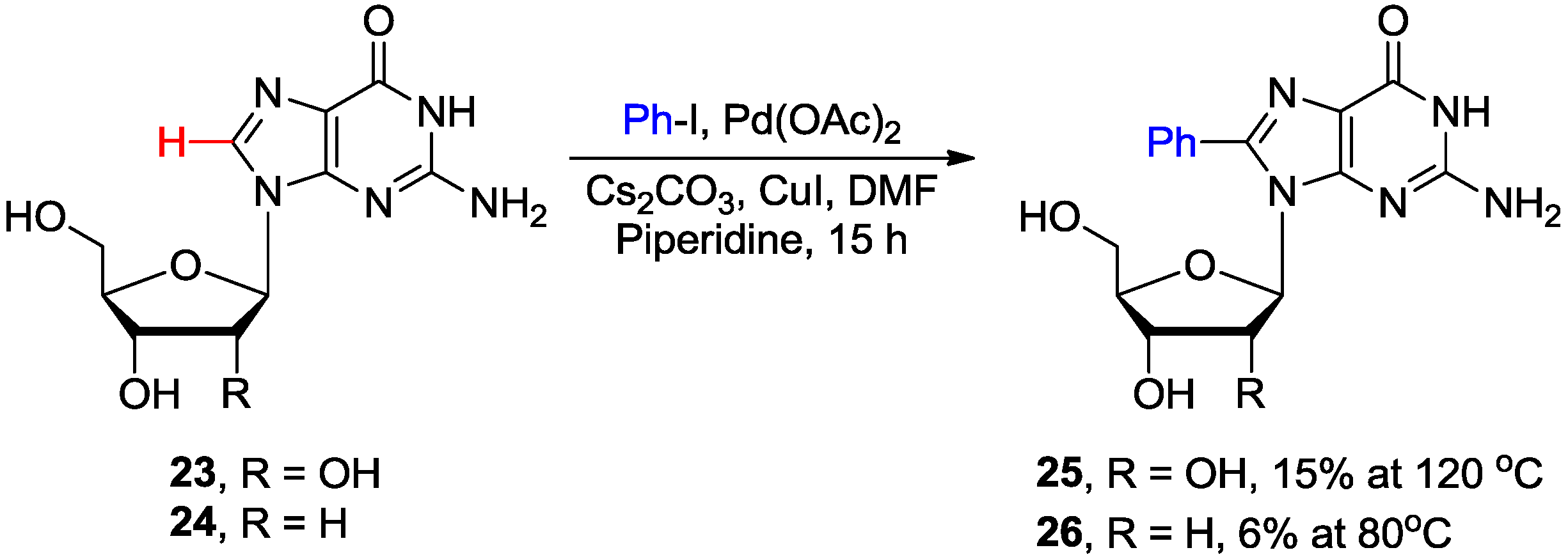

Scheme 7. Direct C8-H arylation of guanosine 23 and 2'-deoxyguanosine 24 with iodobenzene.
Scheme 7. Direct C8-H arylation of guanosine 23 and 2'-deoxyguanosine 24 with iodobenzene.
Molecules 20 04874 g010
The Pd-catalyzed/Cu-mediated direct C8-H arylation of inosine 27 proceeded proficiently to afford 8-phenylated product 29 in good yield (60%) at 120 °C (Scheme 8) [26]. The analogous functionalization of 2'-deoxyinosine 28, due to the stability of the glycosylic bond, had to be carried out at lower temperature to give product 30 but in only 19% yield.

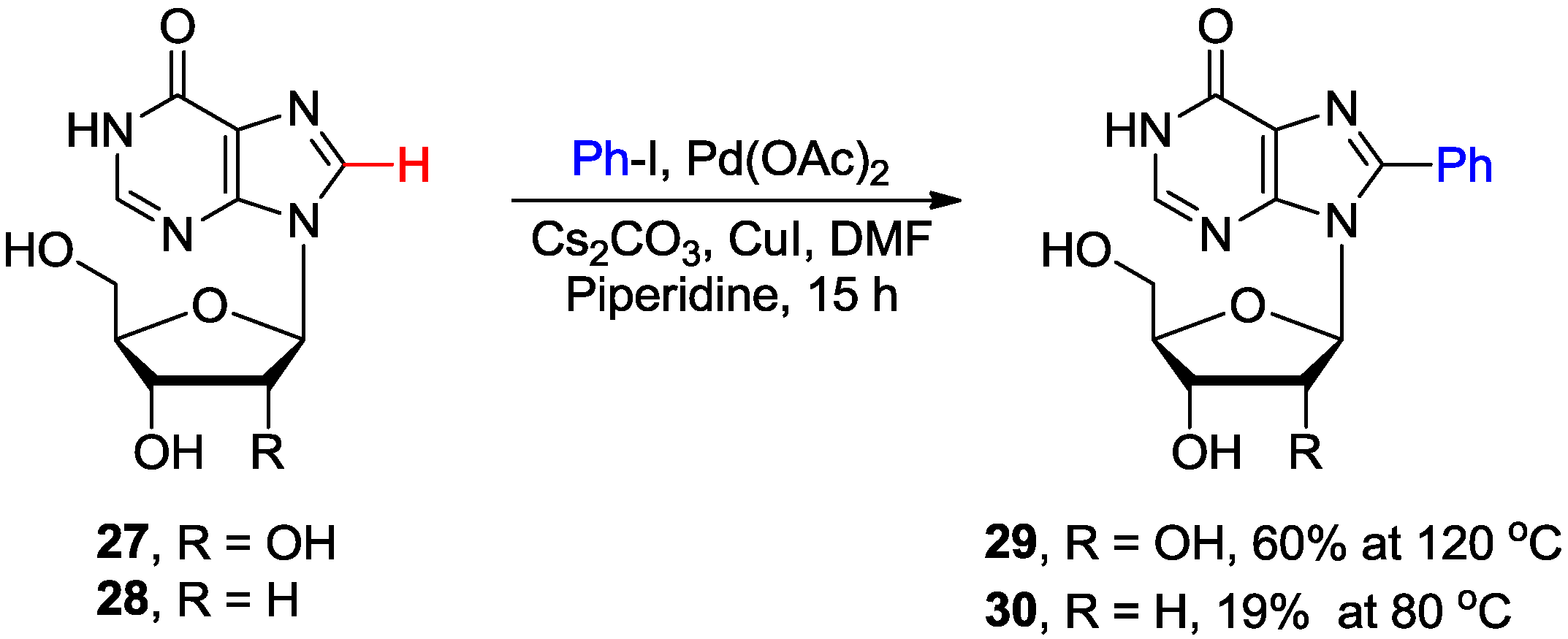

Scheme 8. Direct C8-H arylation of inosine 27 and 2'-deoxyinosine 28 with iodobenzene.
Scheme 8. Direct C8-H arylation of inosine 27 and 2'-deoxyinosine 28 with iodobenzene.
Molecules 20 04874 g011
Recently, Pérez and coworkers synthesized the 8-arylated inosine analogues via a microwave-assisted Pd/Cu-catalyzed direct C8-H arylation [37]. In order to increase the solubility of the nucleoside substrate, 2',3'-O-isopropylideneinosine 29 was employed to couple with iodopyridines or aryl iodides, by adopting Fairlamb’s protocol [26,29], to produce 30 in only 1 h at 120 °C (Scheme 9).

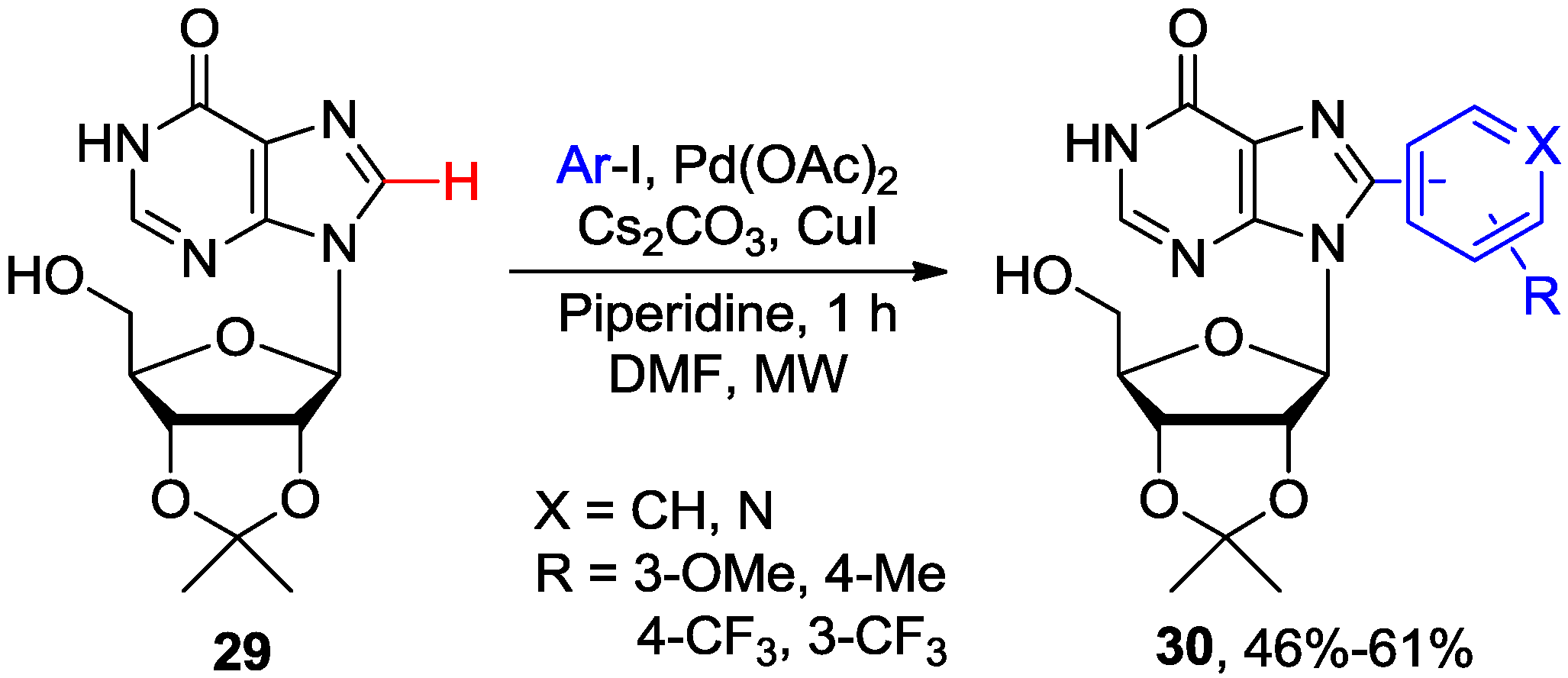

Scheme 9. Microwave-assisted direct C8-H arylation of inosine 29 with aryl iodides.
Scheme 9. Microwave-assisted direct C8-H arylation of inosine 29 with aryl iodides.
Molecules 20 04874 g012

2.3. Synthesis of Fused Purines via Inter- or Intramolecular Direct C8-H Arylation

Hocek and coworkers developed a direct C8-H arylation of 9-N-phenylpurine 31 for the synthesis of fused purine analogues of type 32 with e-fusion (position 8 and 9 of purine ring). Thus, Pd-catalyzed intermolecular double direct C-H arylation of 6-methyl-9-N-phenylpurine 31 with 1,2-diiodobenzene gave 32 (R = CH3) in modest yield (35%). Alternatively, the sequential Suzuki coupling of 9-(2-bromophenyl)adenine 33 (R = NH2) with 2-bromophenylboronic acid 34 followed by intramolecular C8-H arylation also gave the desired product 32 (R = NH2) in moderate to high yields which preserves the base-pairing and major groove facets of the intact adenine ring (Scheme 10) [38]. However, attempted intramolecular oxidative coupling of 8,9-diphenyladenine failed to give 32.

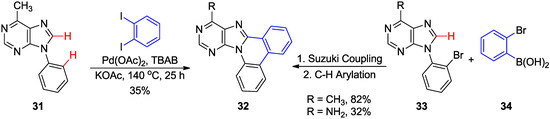

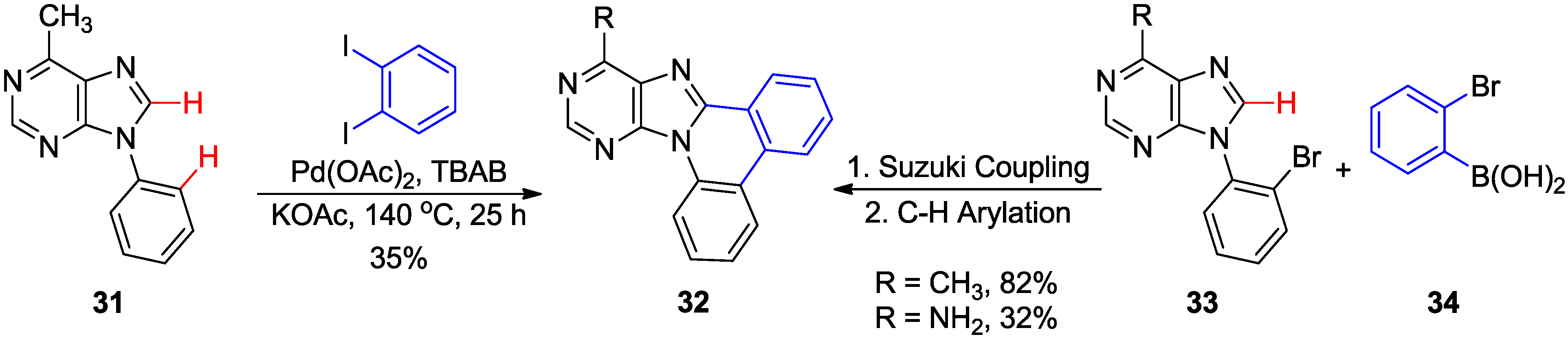

Scheme 10. Pd-catalyzed cyclization of 9-N-arylpurines via C8-H activation.
Scheme 10. Pd-catalyzed cyclization of 9-N-arylpurines via C8-H activation.
Molecules 20 04874 g013
The purines 37 with five or six-membered e-fused rings were also synthesized by intramolecular cyclizations of 9-(2-chlorophenylalkyl)purines 35 (n = 1 or 2; X = Cl) employing conditions developed by Fagnou [39] for direct arylation with aryl halides [Pd(OAc)2/tricyclohexylphoshine/K2CO3 in DMF] (Scheme 11) [38,40]. Domínguez and coworks reported the synthesis of five-membered ring analogue 36 by Cu-catalyzed direct C8-H arylation of 9-(2-iodophenylmethyl)purines 35 (n = 1, X = I) in 58% yield [41].

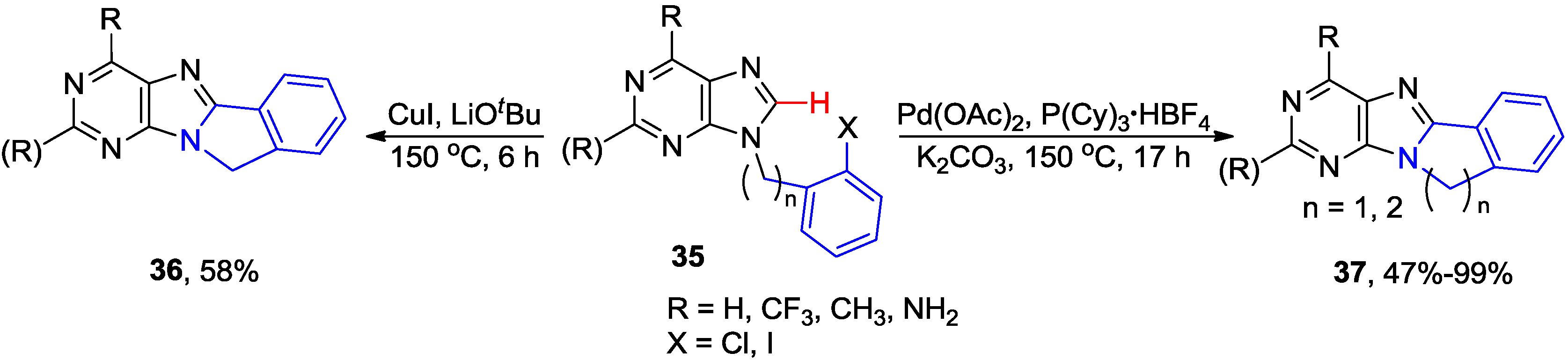

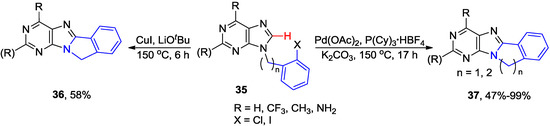

Scheme 11. Pd/Cu-catalyzed intramolecular cyclization of 9-N-substituted purines via C8-H activation.
Scheme 11. Pd/Cu-catalyzed intramolecular cyclization of 9-N-substituted purines via C8-H activation.
Molecules 20 04874 g014
The five-, six- or seven-membered e-fused purines 39 have been prepared by the intramolecular double C-H activation (at C8 and ortho position of the phenyl ring) of 9-N-phenylalkylpurines 38 in the presence of Pd catalyst and silver salt oxidant in high to excellent yields (Scheme 12) [42]. The seven-, eight-, or nine-membered e-fused purines of type 40 were prepared by the one-pot coupling of 38 with iodobenzene [42]. The reaction sequence was believed to be initiated by direct intermolecular C8-H arylation of 38 with iodobenzene followed the intramolecular cross-dehydrogenative-arylation between two phenyl rings to give product 40.

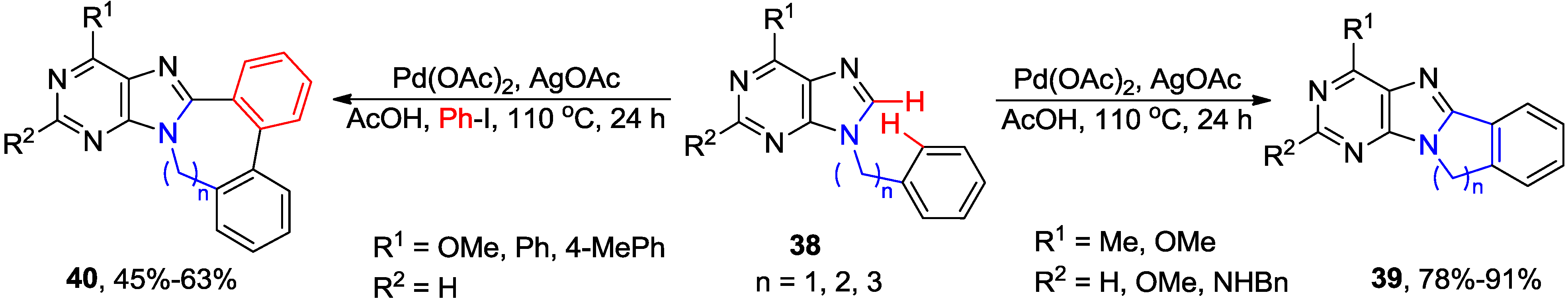

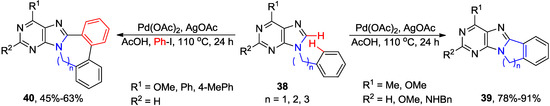

Scheme 12. Pd-catalyzed intramolecular cross-dehydrogenative arylation of 9-N-substituted purines via C8-H bond activation.
Scheme 12. Pd-catalyzed intramolecular cross-dehydrogenative arylation of 9-N-substituted purines via C8-H bond activation.
Molecules 20 04874 g015

2.4. Miscellaneous Direct C8-H Functionalizations

You and co-workers reported intermolecular Pd/Cu-catalyzed regioselective C8-H cross-coupling of 1,3-diethyl xanthine 41 (R1 = R2 = Et, R3 = H) with electron-rich furans 42a and thiophenes 42b [43]. For example coupling of 41 with 2-methylthiophene in the presence of catalytic amount of the copper salt gave diheteroarene product of type 43 in 96%, indicating the tolerance of the free NH group at the 9 position to the reaction conditions (Scheme 13). The differences in the electron density of two heteroarene components was believed to facilitate the reactivity and selectivity in the two metalation steps [44] of the catalytic cycle of this cross-dehydrogenative arylation reaction.

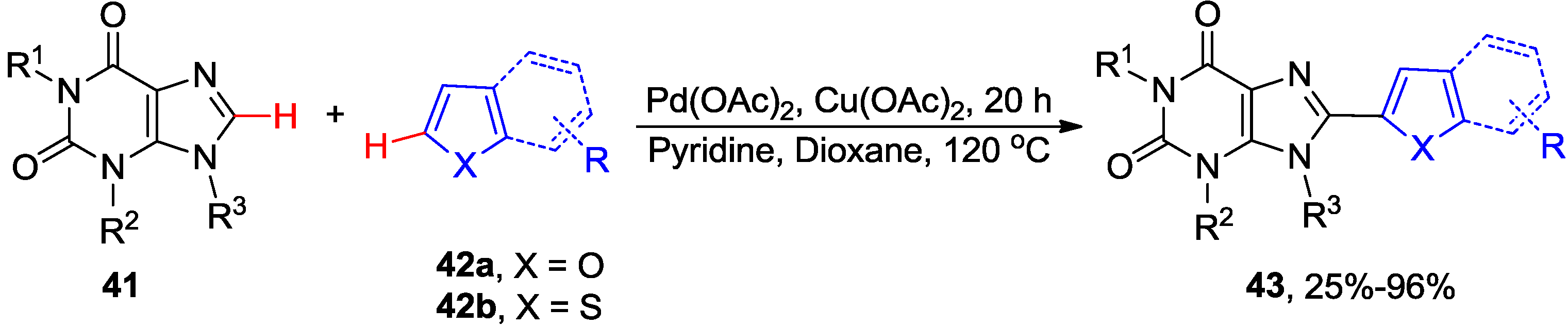

Scheme 13. Pd/Cu-catalyzed cross-dehydrogenative arylation of purines with heteroarenes.
Scheme 13. Pd/Cu-catalyzed cross-dehydrogenative arylation of purines with heteroarenes.
Molecules 20 04874 g016
The 8-alkenyl adenine analogues 45 have been synthesized via microwave-assisted direct C8-H alkenylation of 9-N-benzyladenines 20 with alkenyl bromides 44 (Scheme 14) [32]. Analogous Pd/Cu-mediated C8 alkenylations of 6-(benzylthio)-9-N-benzylpurines with styryl bromides provided access to 6,8,9-trisubstituted purines [45]. The optimized conditions (Pd/CuI/tBuOLi) were applicable for the selective alkenylation of caffeine, benzimidazole and other aromatic azole heterocycles [45,46]. These are significant developments since it was reported that 8-bromoadenosine was not a good substrate for Mizoroki-Heck reaction [47] making modification at 8 position via direct functionalization of C8-H bond a desirable transformation.

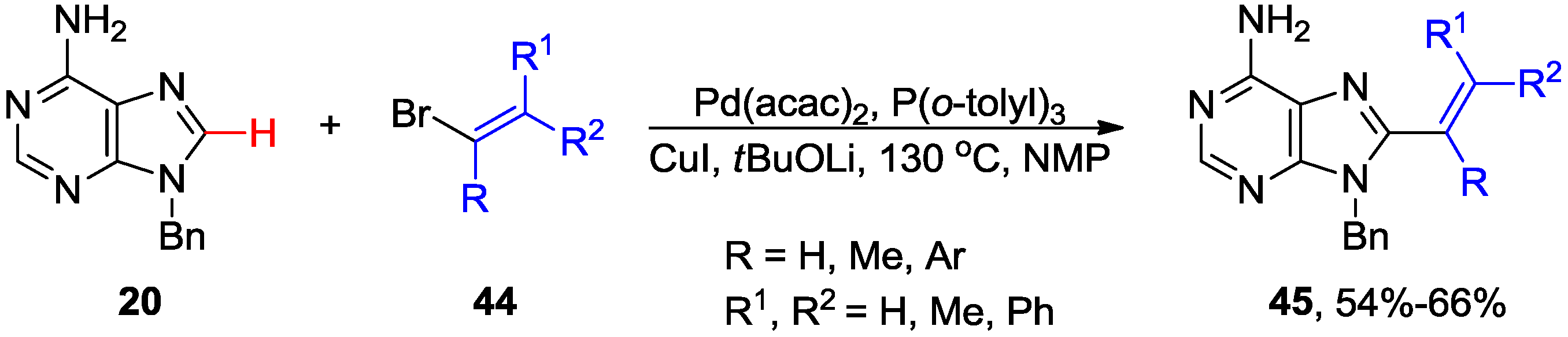

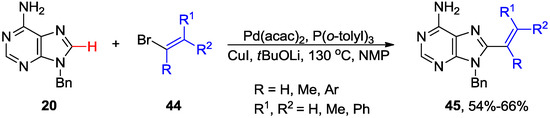

Scheme 14. Pd-catalyzed direct C8-H alkenylation of 9-N-benzyladenine with alkenyl halides.
Scheme 14. Pd-catalyzed direct C8-H alkenylation of 9-N-benzyladenine with alkenyl halides.
Molecules 20 04874 g017
Modification of biologically important 7-deazapurines by direct C-H activation have also been explored (Scheme 15). Thus, regioselective Pd-catalyzed direct C8-H arylation of the 6-phenyl-7-deazapurine analogue 46 (R1 = Bn) with aryl halides gave corresponding 8-arylated products 46a albeit in low to moderate yields (0%–41%) [48]. Alternatively, Ir-catalyzed C-H borylation of 46 (R = Ph, R1 = Bn) followed by Suzuki coupling with aryl halides afforded 46a in high yields (79%–95%). Interestingly, Ir-catalyzed C-H borylation was not successful with purines suggesting that the complexation of Ir catalyst to N7 nitrogen might be responsible for the lack of reactivity [48]. The regioselective Pd/Cu-catalyzed direct C8-H amination of the 6-phenyl-7-deazapurine analogue 46 (R1 = Bn) with N-chloro-N-sulfonamides provided the 8-amino-7-deazapurine analogues 46b [49]. However, subjection of the 6-chloro-7-deazapurine 46 (R1 = Bn) to the similar coupling conditions produced a complex mixture. Remarkably, application of conditions, developed by Suna and co-workers for direct C5-H amination of uracils (see Scheme 33), to the same substrate 46 (R = Cl, R1 = Bn) provided 7-amino-7-deazapurine analogue 46c in 60% [50]. Cu-catalyzed direct C-H sulfenylation of 6-substituted-7-deazapurines 46 (R1 = H) with aryl or alkyl disulfides provided 7-aryl(or alkyl)sulfanyl products 46d (47%–96%) in addition to minor quantities of 7,8-bis(sulfanyl) byproducts [51].

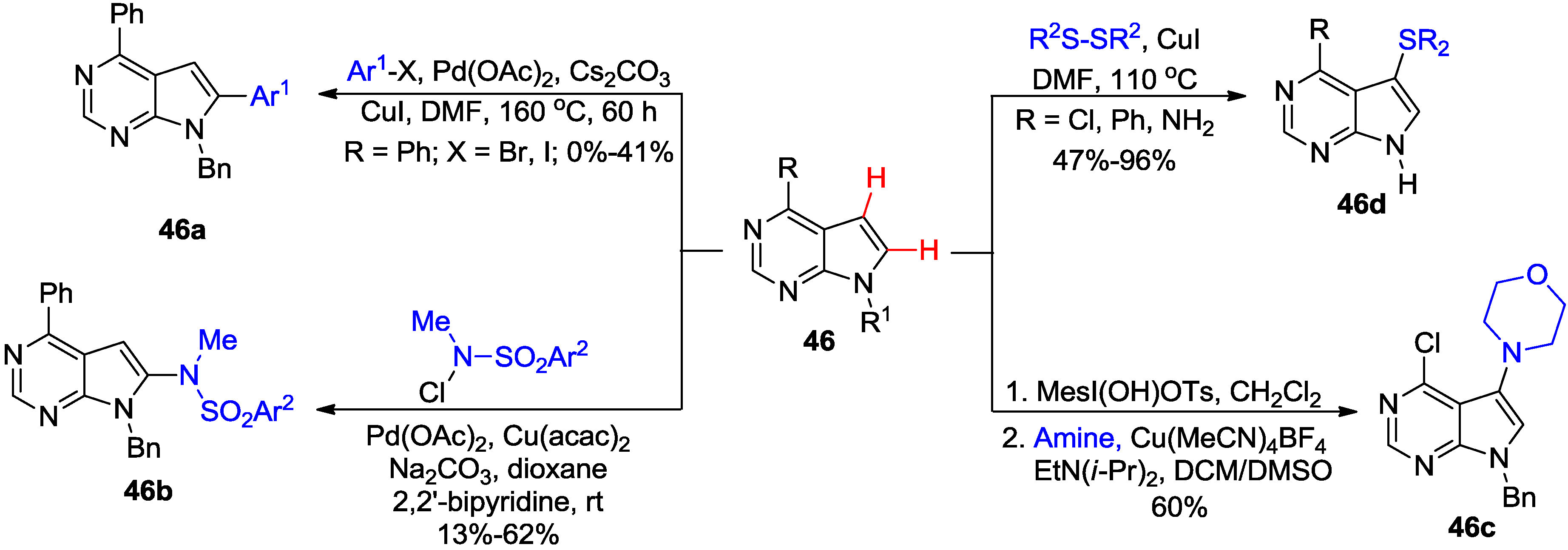

Scheme 15. Transition-metal catalyzed direct C-H activation of 7-deazapurines.
Scheme 15. Transition-metal catalyzed direct C-H activation of 7-deazapurines.
Molecules 20 04874 g018

3. N1-Directed Modifications of C6-Substituted Purine Nucleosides via ortho C-H Bond Activation

The Cu-catalyzed direct C-H activation/intramolecular amination reaction of the 2',3',5'-tri-O-acetyl-6-N-aryladenosines 47 were employed for the synthesis of fluorescent polycyclic purine and purine nucleosides of type 48 (Scheme 16) [52]. It was found that addition of Ac2O significantly improved the reaction rate (2 h at 80 °C) when Cu(OTf)2 (5 mol %) was used as copper source and PhI(OAc)2 was used as the oxidant. The 6-N-aryladenosines substrates 47 containing electron-withdrawing groups in the benzene ring gave better yields (~85%–92%) than those bearing electron donating groups (~45%–62%). The proposed catalytic cycle involves initial coordination of Cu(OTf)2 to the 6-NH····N1 tautomer of substrate 47 at N1 position followed by electrophilic substitution yielding Cu(II) intermediate bridging N1 position of the purine ring and ortho position in the aryl ring. Subsequent reductive elimination then provides the fused product 48.

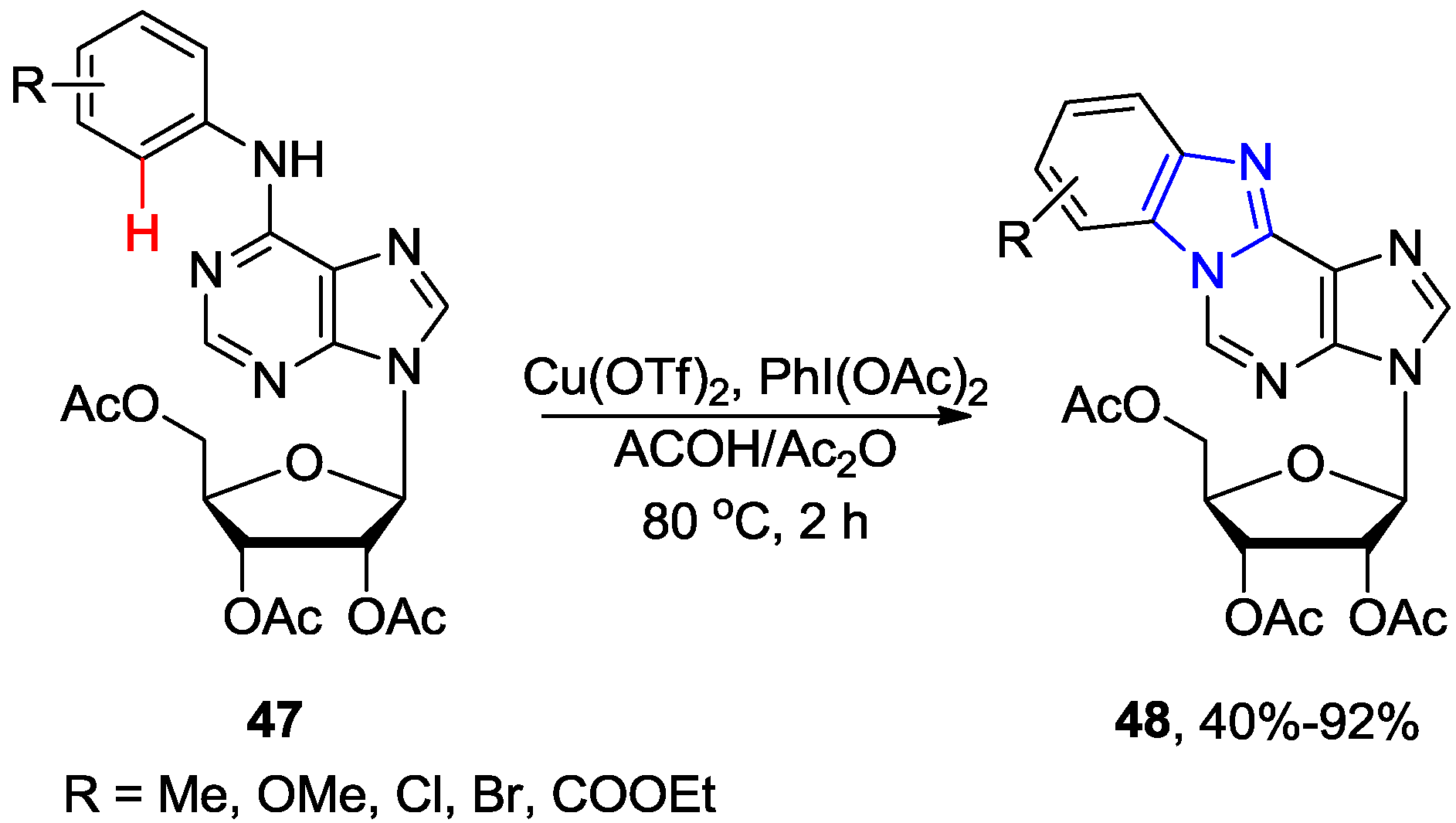

Scheme 16. Cu-catalyzed intramolecular direct ortho C-H activation/amination of 6-N-aryladenosines.
Scheme 16. Cu-catalyzed intramolecular direct ortho C-H activation/amination of 6-N-aryladenosines.
Molecules 20 04874 g019
Qu and coworkers developed a Pd-catalyzed strategy for the regioselective ortho monophenylation of 6-arylpurine nucleosides (e.g., 49) via (N1 purine nitrogen atom)-directed C−H activation using a large excess (30 equiv.) of iodobenzene (Scheme 17) [53]. It was essential to perform the reaction under an inert N2 atmosphere at 120 °C in the presence of AcOH in order to synthesize 50 in excellent yield (85%). It was believed that AcOH might help (i) to overcome the poisoning of the catalyst attributed to the multiple nitrogens present in purine ring, and (ii) to facilitate the reductive elimination step. However, the phenylation reaction was not successful when PhI was replaced with PhBr or PhCl.
It is noteworthy that the conditions described by Qu and coworkers (Pd(OAc)2/AgOAc/AcOH) are selective for the arylation at the ortho site of the C6-phenyl ring, while the CuI-catalyzed coupling of 49 with aryl halides in the presence of Pd(OAc)2/piperidine produced exclusively C8-arylated product 51 [23], or a mixture of double arylated products 50/51 in addition to 8,8'-dimers when analogous purine substrates 49 and Pd(OAc)2/Cs2CO3 were used [24,25].

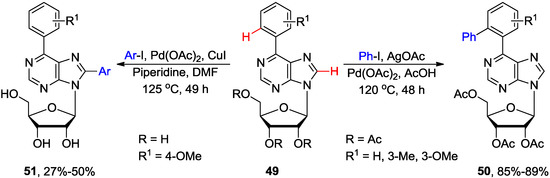

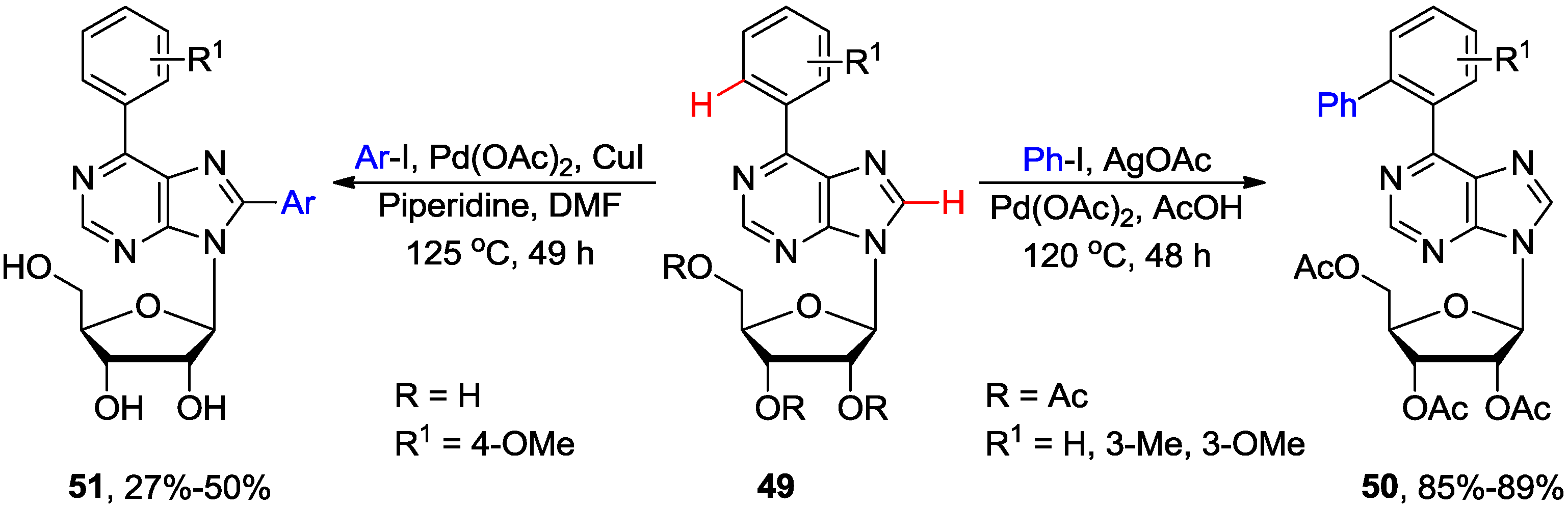

Scheme 17. Direct C-H arylation at the ortho position in 6-arylpurine nucleosides vs. C8-H arylation.
Scheme 17. Direct C-H arylation at the ortho position in 6-arylpurine nucleosides vs. C8-H arylation.
Molecules 20 04874 g020
Lakshman and coworkers reported direct arylation of 6-arylpurine nucleosides of type 52 by the Ru-catalyzed C-H bond activation (Scheme 18) [54]. The coupling usually required only 2 equiv. of aryl halides and K2CO3 or Cs2CO3 as a base to give mixture of the mono and diarylated ortho products 53 and 54 in ratio of approximately of 2–7 to 1 with no 8-arylated byproducts detected. It is noteworthy that these conditions were applicable to acid-sensitive substrates such as 2'-deoxynucleosides as opposed to the previously described Pd-catalyzed arylation promoted by AcOH [53]. Both aryl iodides and bromides gave arylated products in good yield, but aryl iodides proceeded with higher yields and better product ratio. Also, aryl halides bearing EWG gave higher yields compared to the ones bearing EDG.

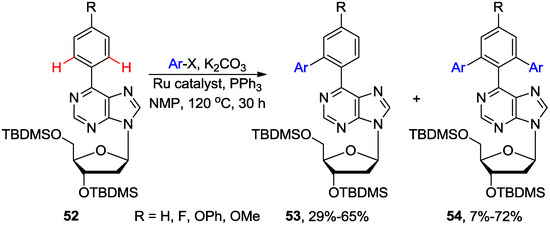

Scheme 18. Ru-Catalyzed N1-directed ortho C-H arylation of 6-phenylpurine nucleosides.
Scheme 18. Ru-Catalyzed N1-directed ortho C-H arylation of 6-phenylpurine nucleosides.
Molecules 20 04874 g021
A possible mechanism for this direct ortho-arylation was proposed involving purinyl N1-directed electrophilic attack by the aryl/RuIV complex A on the ortho position of the C6-aryl ring atom of the substrate 52 (Scheme 19) [54]. Subsequent reductive-elimination of the five-membered Ru complex B gave product 53. The 2-amino-6-arylpurine nucleosides were unreactive, indicating that the presence of C2-amino group is critical and often inhibits the reactivity of purine nucleoside towards C-H activation reactions.

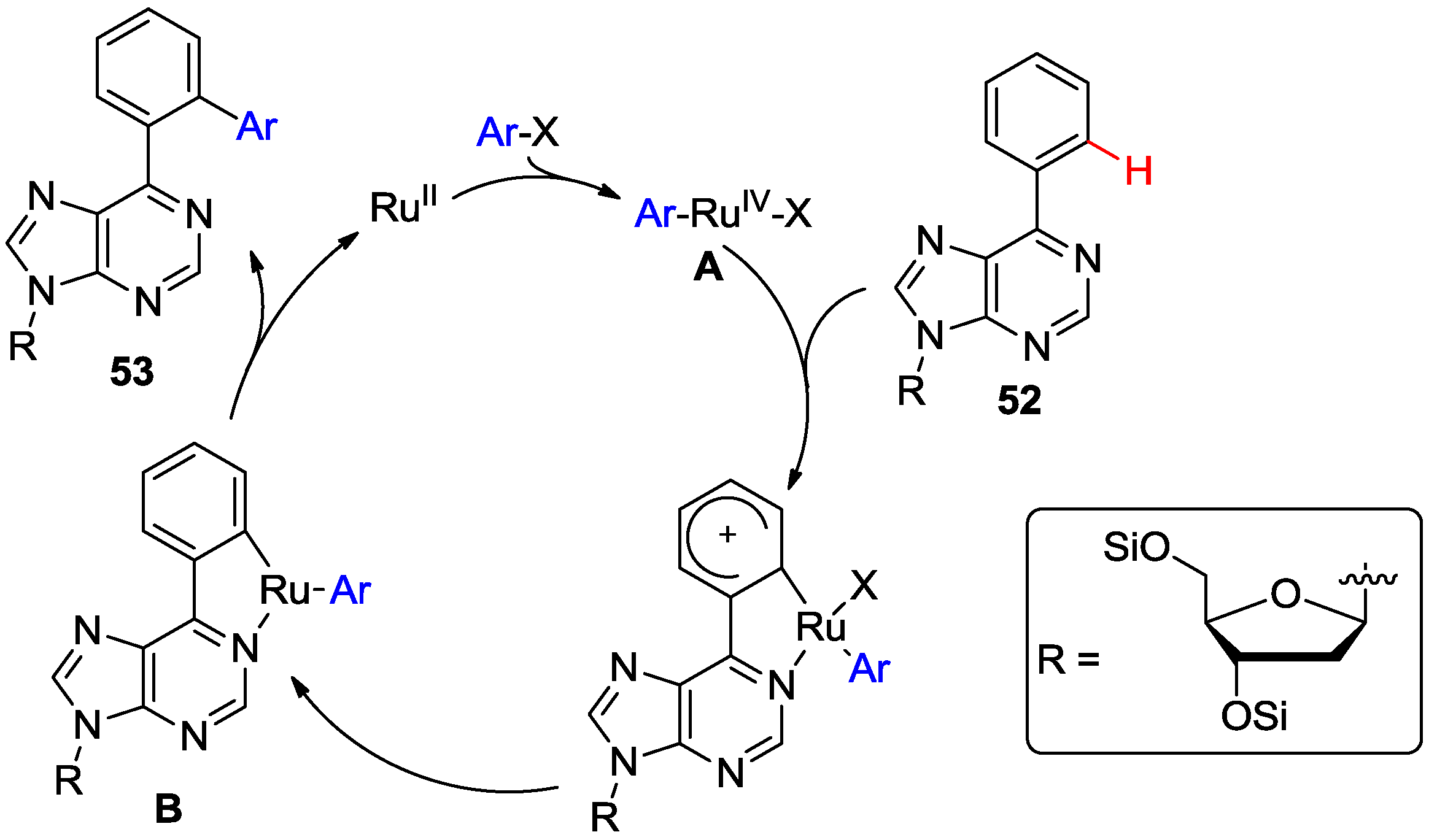

Scheme 19. Proposed mechanism for the Ru-catalyzed N1-directed C-H bond activation of 6-phenylpurine nucleoside [54].
Scheme 19. Proposed mechanism for the Ru-catalyzed N1-directed C-H bond activation of 6-phenylpurine nucleoside [54].
Molecules 20 04874 g022
The Pd-catalyzed C-H bond activation and oxidation of the silyl protected C6-aryl ribonucleosides of type 55, as well as the 2'-deoxy counterparts (e.g., 56), in the presence of PhI(OAc)2 as a stoichiometric oxidant in MeCN provided access to monoacetoxylated products 57 or 58 in good yields (Scheme 20) [55]. Increasing the loading of PhI(OAc)2 to 3 equiv gave mainly the diacetoxylated products 59 or 60. The involvement of the N1-purinyl atom in this N-directed C-H bond activation was demonstrated by isolation and crystallographic characterization of the dimeric PdII-containing cyclopalladated C6 naphthylpurine derivative. The latter complex, together with PhI(OAc)2, was shown to be effective in catalyzing oxidation of substrate 56 to 58.

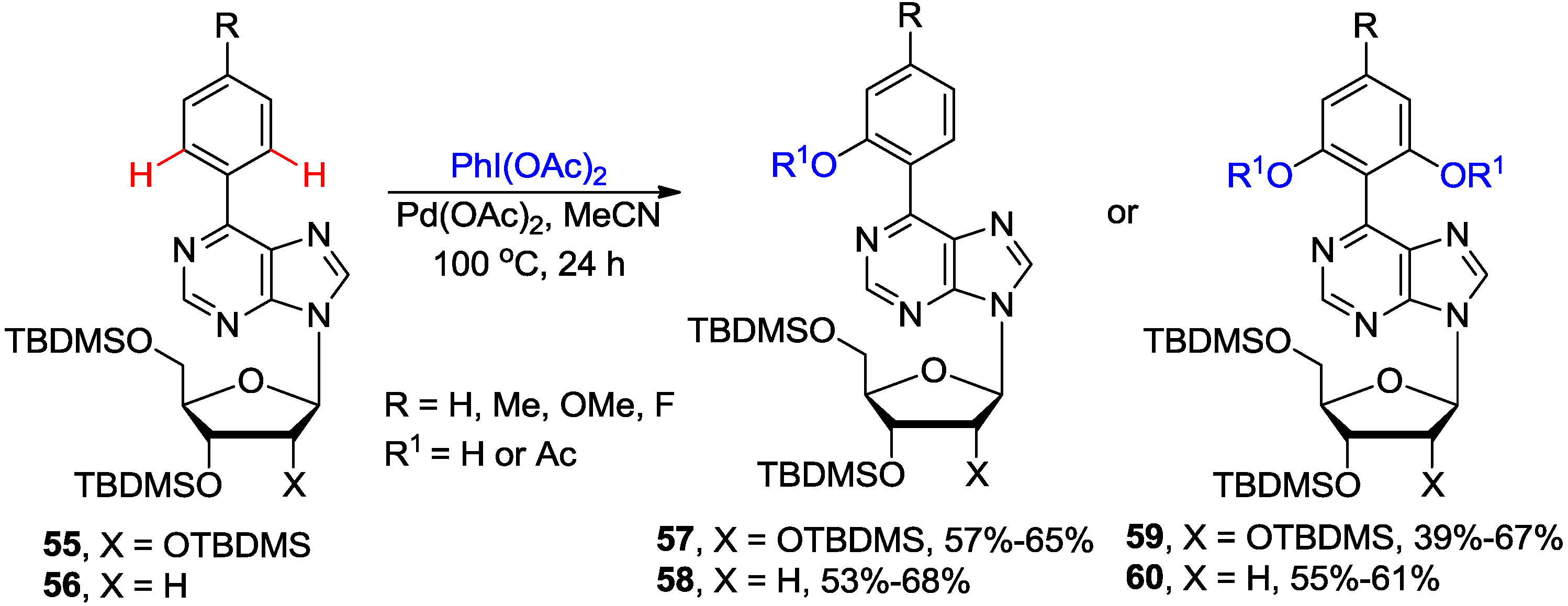

Scheme 20. Pd-Catalyzed N1-directed ortho C-H acetoxylation of 6-arylpurine nucleosides.
Scheme 20. Pd-Catalyzed N1-directed ortho C-H acetoxylation of 6-arylpurine nucleosides.
Molecules 20 04874 g023
Chang and coworkers reported Rh-catalyzed intermolecular amidation of 6-phenylpurine nucleosides with sulfonyl azides via purinyl N1-assisted C-H activation (Scheme 21) [56]. Amidation of 6-arylpurine nucleoside 61 proceeded smoothly and with excellent ortho-selectivity to afford product 63 in 70% yield. The presence of a free amino group at the C2 position of purine substrate 62 inhibits once more the coupling efficiency to give amidation product 64 in 45% yield. No glycosylic bond cleavage was noted under the optimized conditions. It is worth noting that the coupling conditions require no additional oxidant and release N2 as the only byproduct.

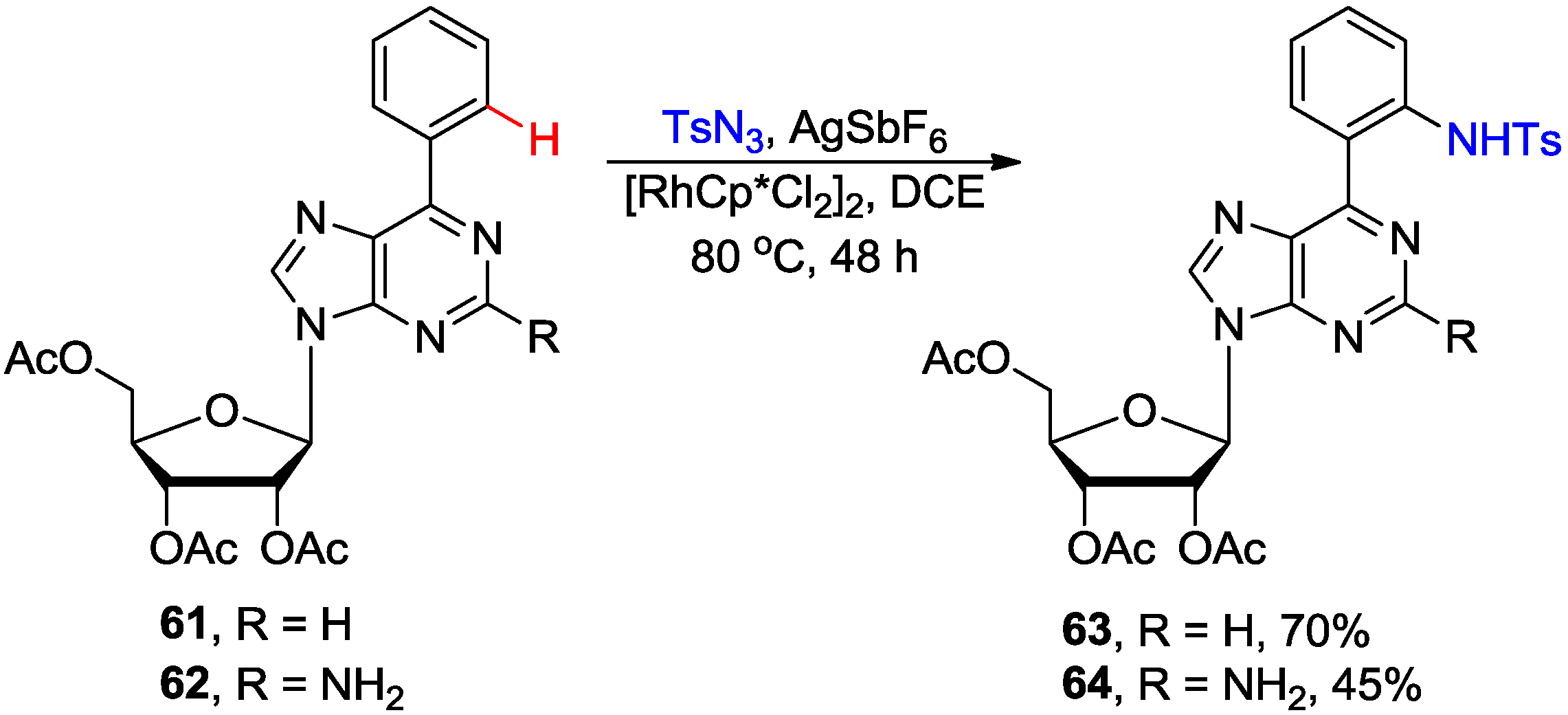

Scheme 21. Rh-catalyzed intermolecular direct ortho C-H amidation of 6-phenylpurine nucleosides.
Scheme 21. Rh-catalyzed intermolecular direct ortho C-H amidation of 6-phenylpurine nucleosides.
Molecules 20 04874 g024

4. Direct Activation of C5-H or C6-H Bond in Uracils and Uracil Nucleosides

4.1. Cross-Coupling with Aryl Halides

Direct C-H arylation of the pyrimidine nucleosides is currently limited to uracil bases. The main challenge which needed to be overcome was a regioselective activation of the C5-H or C6-H bond of the uracil ring. Also lacking are efficient conditions which could be applicable to the natural uridine and 2'-deoxyuridine analogues. Hocek and coworkers reported the regioselective C-H arylations of 1,3-dimethyluracil (65, DMU, R = Me) with aryl halides. Thus, arylation in the presence of Pd(OAc)2 and Cs2CO3 mainly formed the 5-arylated uracil analogues 66, while coupling in the presence of Pd catalyst and CuI (3 equiv.) preferentially formed the 6-arylated derivatives 67 (Scheme 22) [57,58]. Interestingly, Cu-mediated arylation in the absence of Pd catalyst gave exclusively 6-aryluracils 67 albeit in lower yields. These couplings required high temperature (160 °C) and long time (48 h) and were not applicable to the synthesis of unsubstituted uracils. Also the electron-deficient aryl bromides were poor substrates. In order to prepare the unprotected uracil derivatives, these protocols were also applied to N-benzyl protected uracil derivatives. Subsequent debenzylation (e.g., 67, R = Bn) afforded efficiently 5- or 6-aryled uracil derivatives [57,58]. The experimental results indicated that different mechanisms are involved in these diverse arylation reactions [57,58].

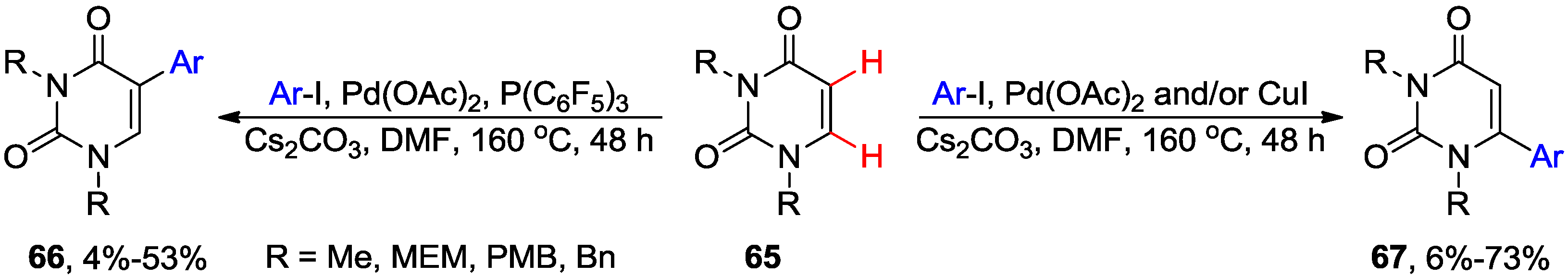

Scheme 22. Catalyst-controlled direct C5-H or C6-H arylation of uracil analogues with aryl halides.
Scheme 22. Catalyst-controlled direct C5-H or C6-H arylation of uracil analogues with aryl halides.
Molecules 20 04874 g025
Kim and coworkers reported the direct arylation of 1,3-dimetyluracil 65 with aryl bromides (including electron-deficient ones) in the presence of Pd(OAc)2, K2CO3 and PivOH (130 °C/12 h/DMF to give predominantly C5 arylated products 66 in up to 79% yield. A small amount of 6-arylated isomers 67 were also observed [59]. However, application of this condition to 1-(tetrahydrofuran-2-yl)-3-benzyluracil 68 (a substrate having a glycosylic bond) resulted in severe decomposition. Nonetheless lowering the temperature to 100 °C (12 h) allowed the isolation of the 5-phenyluracil analogue 69 as the sole product in 55% yield (Scheme 23) [59]. The intramolecular C6-H arylation of the uracil derivatives bearing a Morita-Baylis-Hillman adduct at the N1 position in the presence of TBAB and Pd(OAc)2 provided a convenient access to the azepine scaffold [60].

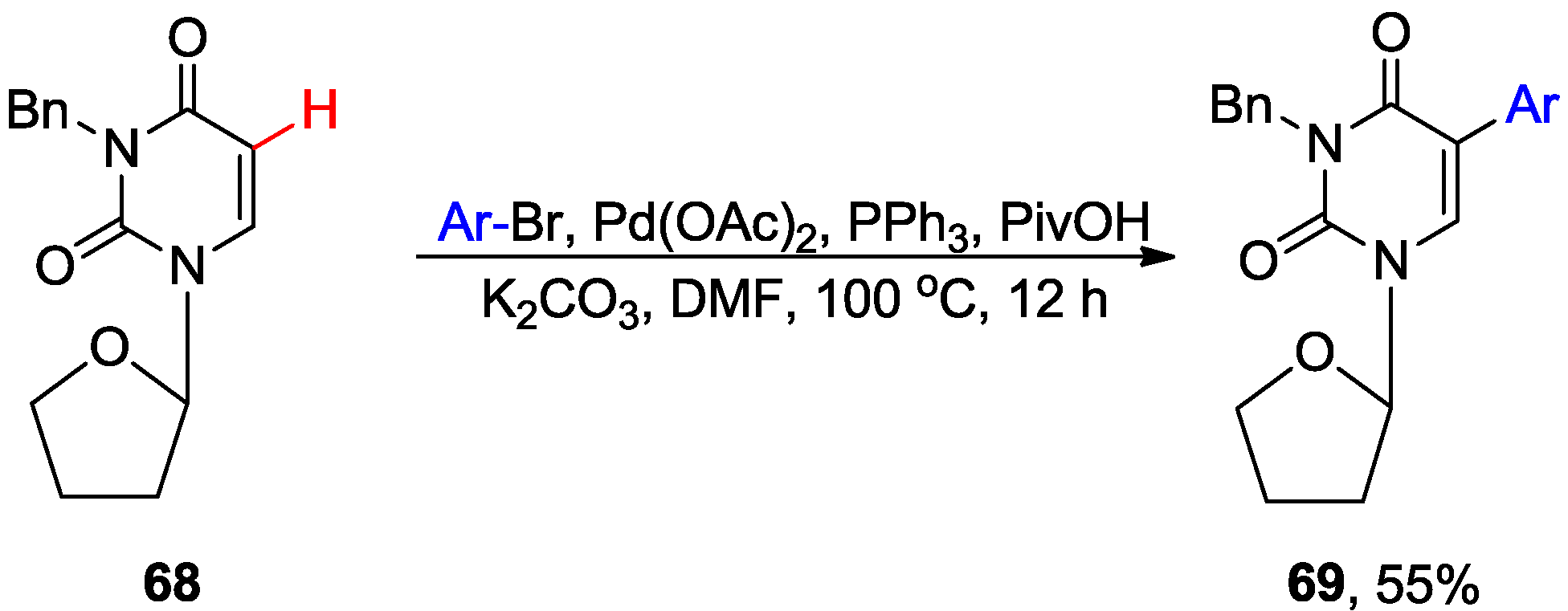

Scheme 23. Pd-catalyzed direct C5-H arylation of 1-(tetrahydrofuran-2-yl)-3-benzyluracil.
Scheme 23. Pd-catalyzed direct C5-H arylation of 1-(tetrahydrofuran-2-yl)-3-benzyluracil.
Molecules 20 04874 g026
Chien and coworkers further explored the base-dependence of direct activation of uracil C6-H in the presence of Cu catalysts for the synthesis of 6-aryl uracil and 2-aryl-4-pyridone derivatives. The authors found that the CuBr-mediated arylation of DMU 65 (R = H) with aryl iodides (2 equiv.) in the presence of t-BuOLi in DMF at reflux gave the C6-arylated derivatives 71 (R1 = H) [61]. The 5-substituted DMU analogues 70 (R1 = Me) afforded the 5,6-disubstituted derivatives 71 (R1 = Me) but in lower yields (Scheme 24). Both N1 and N3 positions in the uracil ring have to be protected for the reactions to proceed.

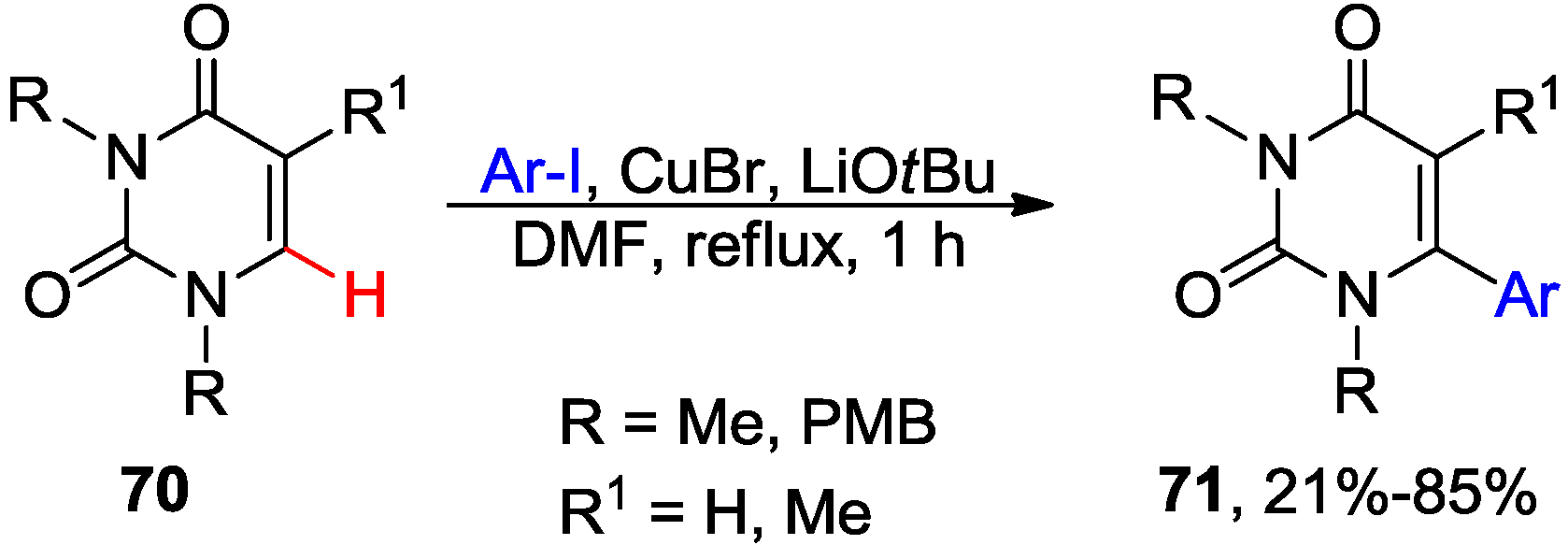

Scheme 24. Cu-mediated direct C6-H arylation of 1,3-disubstituteduracil 70 with aryl iodides.
Scheme 24. Cu-mediated direct C6-H arylation of 1,3-disubstituteduracil 70 with aryl iodides.
Molecules 20 04874 g027
Based on the literature reports, the mechanism for the direct arylation of uracil analogues (e.g., DMU, 65) with aryl halides at either the C5 or C6 position in the presence of Pd or Cu/(Pd) are summarized in Scheme 25. The coupling with only Pd(OAc)2 was proposed to proceed via an electrophilic metalation-deprotonation (EMD) mechanism [5,9] (path a, complex A), and thus follow the regioselectivity of substitution at the C5 position to give 66 [59]. The formation of the C5 arylated products was also suggested [57] to proceed via the concerted metalation-deprotonation (CMD) mechanism [9,62] (complex B). On the other hand, direct C-H arylation in the presence of CuI or in combination with Pd(OAc)2 was hypothesized to proceed via an Ullmann-type mechanism [27,63], which involves the formation of a carbanion by the abstraction of the most acidic C6-H [64,65,66] in the uracil ring (e.g., 65) with base (path b). Subsequent cupration, transmetallation and reductive elimination leading to the formation of C6 arylated uracil 67 [57,61]. Alternatively, addition of the copper center of the arylcopper(III) complex C to the more nucleophilic C5-position in 65 followed by either base-promoted anti-elimination or Heck-type syn β-hydrogen elimination has been also proposed for C6-arylation [61]. Moreover, Heck-type carbopalladation of the 5,6-double bond of 65 with ArPdX species has been also considered for the arylation of uracil ring with aryl halides [59].

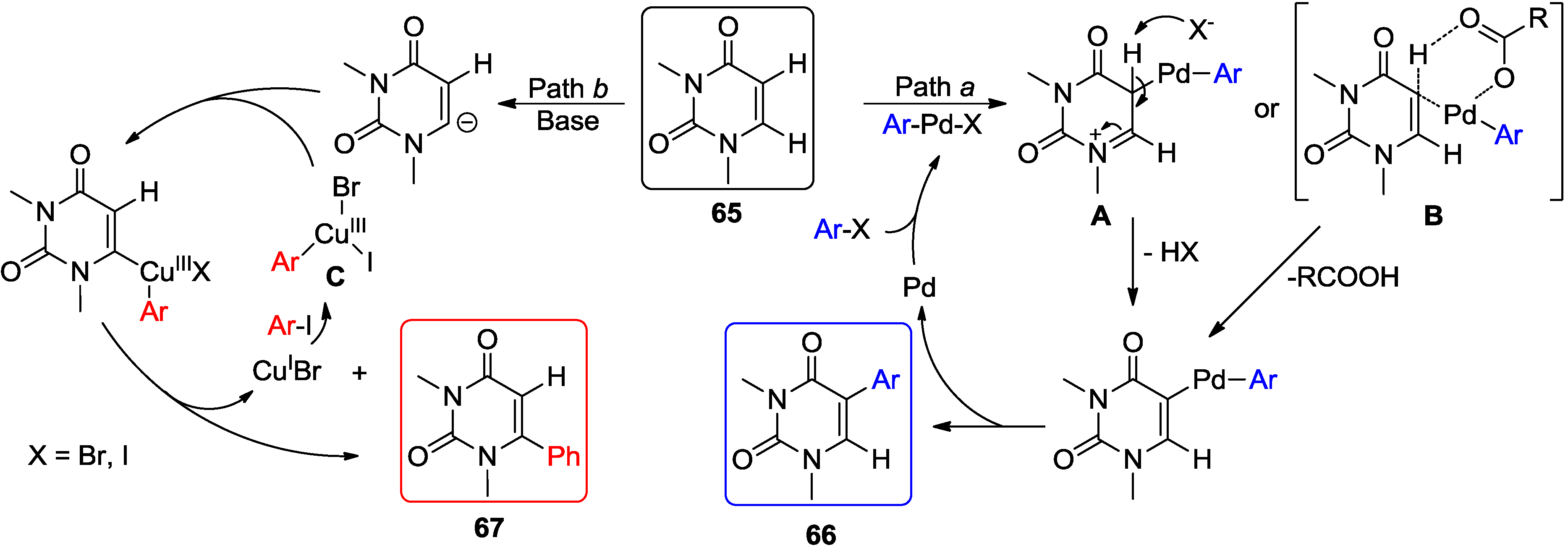

Scheme 25. Proposed mechanisms for the regioselective direct arylation of DMU [59,61].
Scheme 25. Proposed mechanisms for the regioselective direct arylation of DMU [59,61].
Molecules 20 04874 g028

4.2. Cross-Dehydrogenative Coupling with Arenes and Heteroarenes at C5 Position

Cross-couplings which required double C-H activation both at uracil and arene substrates have also been developed. Thus, Do and Daugulis reported a highly regioselective CuI/phenantroline-catalyzed oxidative direct arylation of DMU 65 with arenes (e.g., 3-methylanisole 72) to give C6-arylated uracil 73 as a sole product in 61% yield (130 °C, 48 h) (Scheme 26) [67]. The protocol used iodine as a terminal oxidant and required only a small excess of the arene (1.5–3.0 equiv.). This overall cross-dehydrogenative arylation was believed to proceed by in situ iodination of one of the coupling components (e.g. 3-methylanisole 72 to give 4-iodo-3-methylanisole 72') followed by Cu-catalyzed direct arylation at the most acidic bond in the DMU substrate (C6-H). Recently, an efficient (~70%–80%) and regioselective C-6 arylation of DMU 65 with arylboronic acids in the presence of Pd(OAc)2 and ligand (1,10-phenanthroline) at 90 °C for 16 h has been also developed [68]. The coupling failed, however, when unsubstituted uracil or 2',3',5'-tri-O-acetyl-3-N-methyluridine was used as substrate or when the heteroaromatic boronic acids were employed [68].

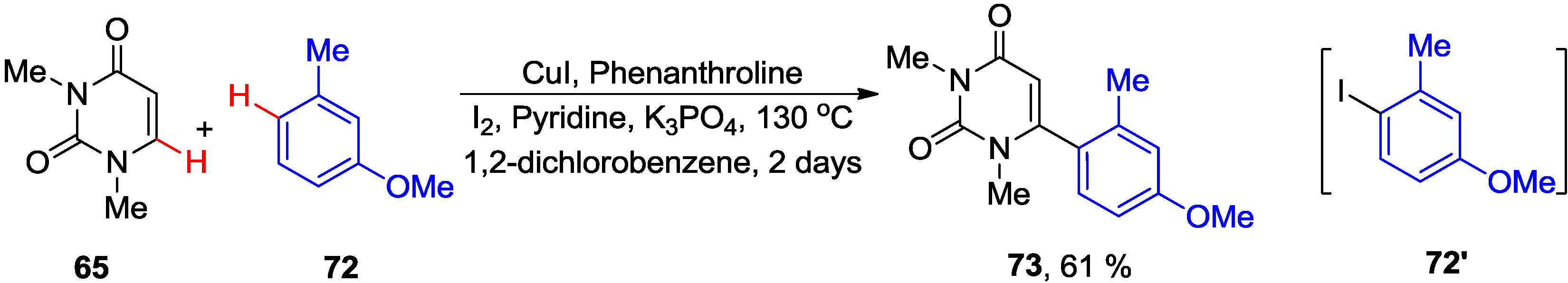

Scheme 26. Sequential iodination/direct C6-H arylation of DMU 65 with arenes.
Scheme 26. Sequential iodination/direct C6-H arylation of DMU 65 with arenes.
Molecules 20 04874 g029
The Pd-catalyzed cross-dehydrogenative coupling (CDC) of DMU 65 with benzene or xylenes 74 in the presence of PivOH and AgOAc at reflux was found to produce 6-aryluracil analogue 67 as the major product. Minor quantities of 5-arylated counterpart 66 and uracil dimeric byproducts were also formed (Scheme 27a) [59,69]. It is believed that the 6-arylation occurred via CMD process involving PdII(L)(OPiv) species. Deprotonation occurred at the more acid hydrogen at C6 of uracil ring, followed by a second CMD process to give the 6-arylated uracil product 67. Interestingly, reaction of DMU 65 with mesitylene led only to the formation of 5,5- and 5,6-DMU dimers. Also, application of this protocol to 2',3',5'-tri-O-acetyl-3-N-benzyluridine 75 gave only the C5-C5 dimer 76 in 43% yield (Scheme 27b) [69].

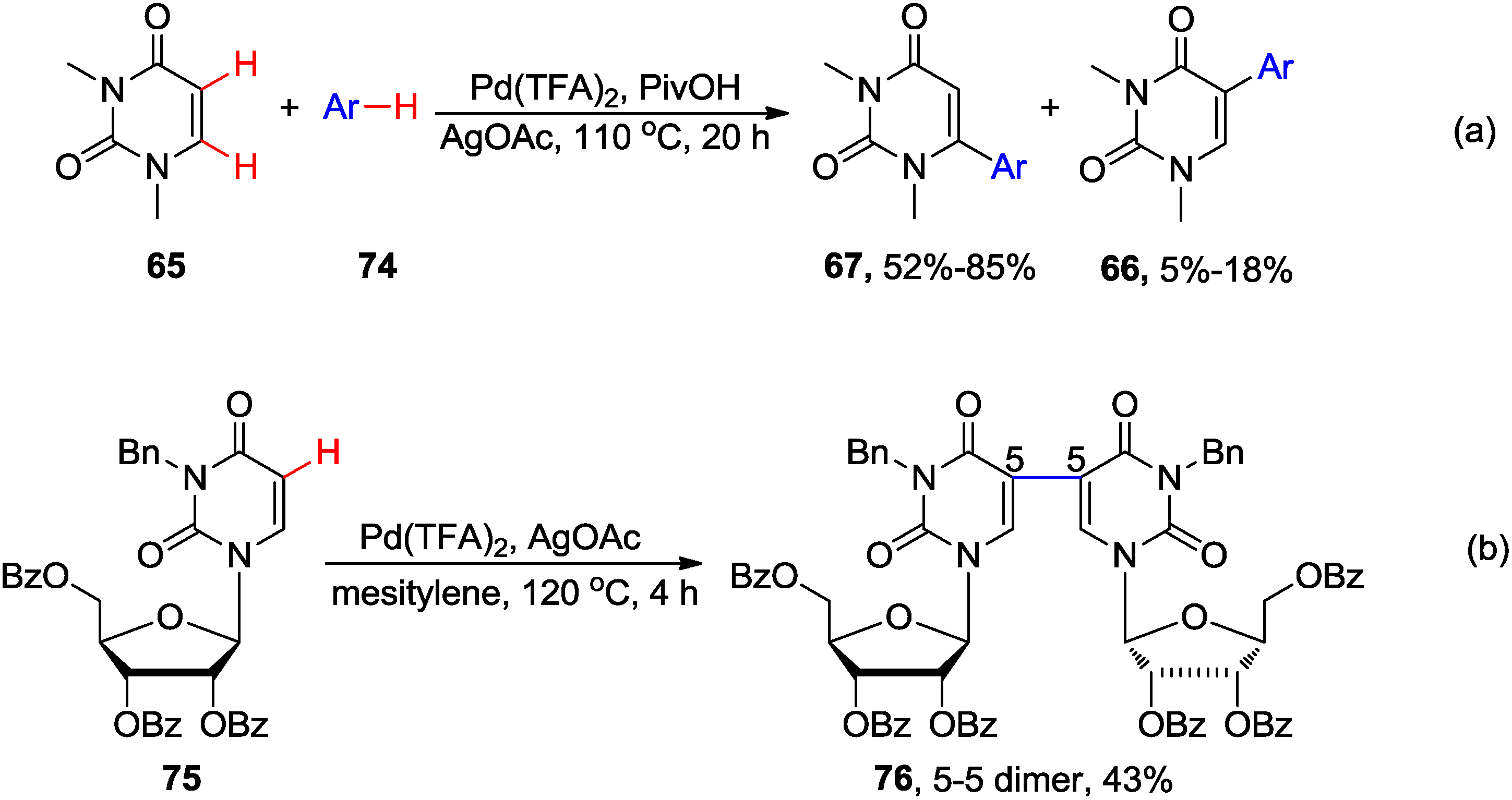

Scheme 27. Pd-catalyzed cross-dehydrogenative coupling of uracils and uracil nucleosides.
Scheme 27. Pd-catalyzed cross-dehydrogenative coupling of uracils and uracil nucleosides.
Molecules 20 04874 g030
The Pd-catalyzed cross-dehydrogenative heteroarylation between 1,3-dialkyluracils 77 and pyridine-N-oxides 78 (3 equiv.) substrates in the presence of Ag2CO3 at 140 °C for 12 h gave 5-(2-pyridyl-N-oxide)uracils 79 in good-to-high yields (Scheme 28) [70]. As expected, the 3-substituted pyridine-N-oxides gave products 83 with excellent regioselectivity at the less bulky site. The coupling, however, was not compatible with either 1,3-dibenzoyluracil or unprotected uracil substrates. Reduction of N-oxides 79 with PCl3 in toluene yielded the corresponding 5-uracil derivatives substituted with a 2-pyridyl ring. The electrophilic palladation at the C5 of uracil and the coordination of the palladium atom to N-oxide was believed to control the regioselectivity (at C5 of the uracil ring and C2 of pyridine oxide) of these double C-H activation cross-couplings.

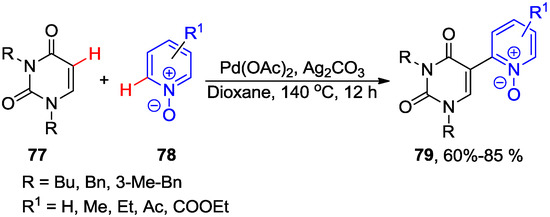

Scheme 28. Synthesis of 5-(2-pyridyl-N-oxide)uracils 79 via cross-dehydrogenative arylation.
Scheme 28. Synthesis of 5-(2-pyridyl-N-oxide)uracils 79 via cross-dehydrogenative arylation.
Molecules 20 04874 g031

4.3. Cross-Dehydrogenative Alkenylation at C5 Position

The discovery of the potent antiviral activity of E-5-(2-bromovinyl)-2'-deoxyuridine (1, BVDU) led to the exploration of synthetic routes based on the oxidative coupling of uridine nucleosides with alkenes. Such routes avoided the use of mercury that was central to Walker’s synthetic approach involving the condensation of 5-mercurated 2'-deoxyuridine with methyl acrylate and radical decarboxylation-bromination sequence [71]. They also seem advantageous to other coupling protocols which employ coupling between 5-halouracil nucleosides and organometallics or methyl acrylate [10,72]. In 1987, Itahara reported the oxidative coupling of uracil nucleosides 80 with maleimides 81 which gave 5-substituted coupling products of type 82 (Scheme 29) [73]. Using stoichiometric amounts of Pd(OAc)2 was however necessary. The yields for uridine and 2'-deoxyuridine substrates were lower (4%–22%) than those of the DMU substrate (~20%–50%). The yields for DMU substrate slightly increased in the presence reoxidants such as AgOAc, Na2S2O8 or Cu(OAc)2.

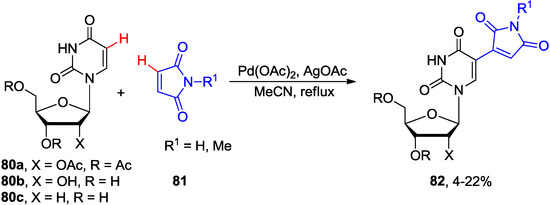

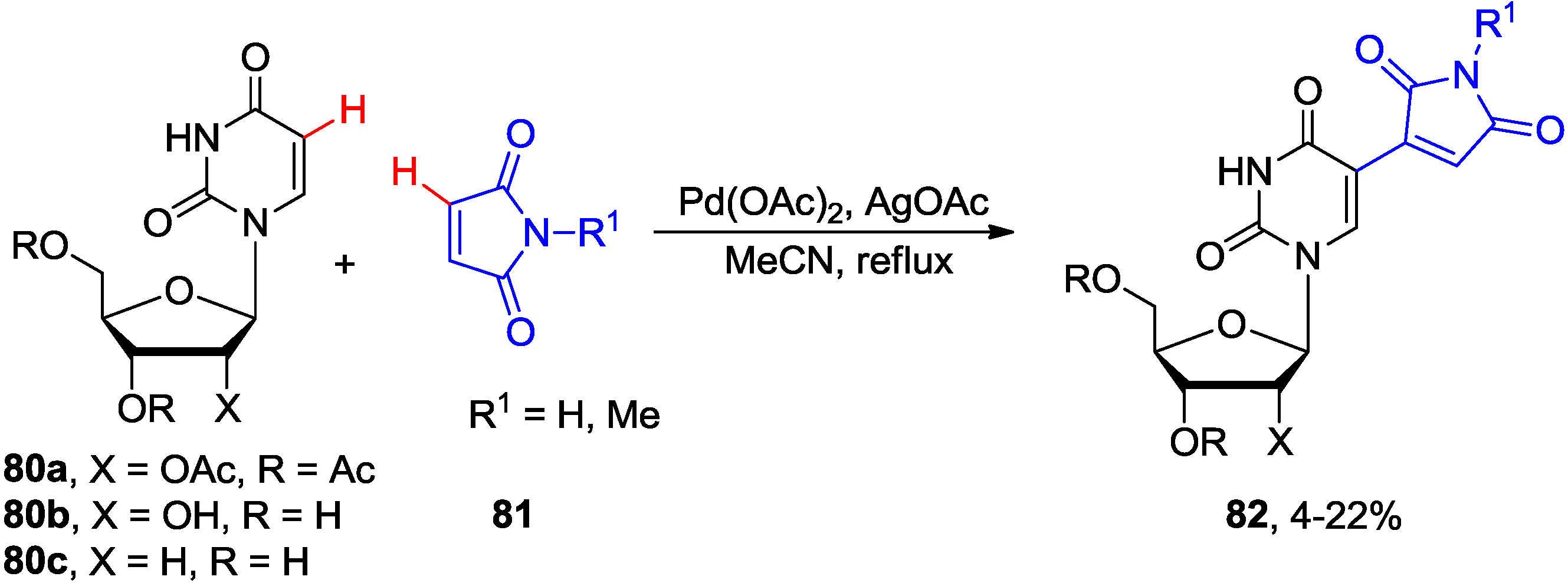

Scheme 29. Pd-mediated oxidative coupling of uridine and 2'-deoxyuridine with maleimides.
Scheme 29. Pd-mediated oxidative coupling of uridine and 2'-deoxyuridine with maleimides.
Molecules 20 04874 g032
Also in 1987, Hirota and coworkers reported the oxidative coupling of uridine 80b and 2'-deoxyuridine 80c with methyl acrylate or styrene using either stoichiometric amounts of Pd(OAc)2 in MeCN at ambient temperature or catalytic loading of Pd(OAc)2 in the presence of tert-butyl perbenzoate as the reoxidant to generate 5-vinyl uridine analogues 84 (Scheme 30) [74]. The couplings proceeded stereoselectively to give the trans isomers. The reaction conditions were compatible with unprotected and protected uridine substrates, though, coupling of 2',3'-di-O-isopropylideneuridine with methyl acrylate produced also the 5',6-cyclouridine byproduct in 23% yield.

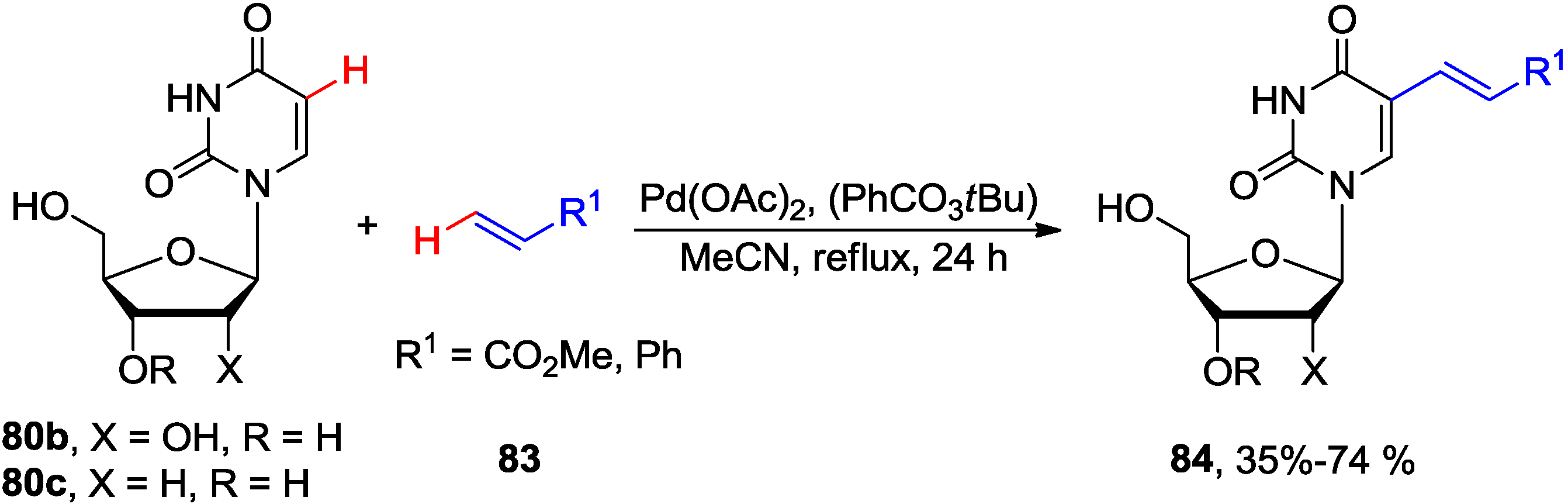

Scheme 30. Stoichiometric and catalytic oxidative coupling of uracil nucleosides with methyl acrylate.
Scheme 30. Stoichiometric and catalytic oxidative coupling of uracil nucleosides with methyl acrylate.
Molecules 20 04874 g033
Yun and Georg recently reported Pd-catalyzed cross-dehydrogenative coupling of 1,3-disubstituted uracils as well as protected uridine 85 and 2'-deoxyuridine derivatives 88 with tert-butyl acrylate in the presence of AgOAc and PivOH in DMF at 60 °C/24 h to give 5-alkenyl products 87 and 89 in 66% and 75% yield, respectively (Scheme 31) [75]. The coupling occurred with the regio- (C5) and stereoselectivity (E-isomer). However, 3-N-methyl protection at the uracil ring was necessary. The coupling was postulated to occur via the electrophilic palladation pathway [76] at the C5 position of the uracil ring followed by deprotonation with the pivalate anion to give palladated intermediate. Coordination with the alkenes via transmetallation, and subsequent β-elimination provided 5-alkenyluracil derivatives.

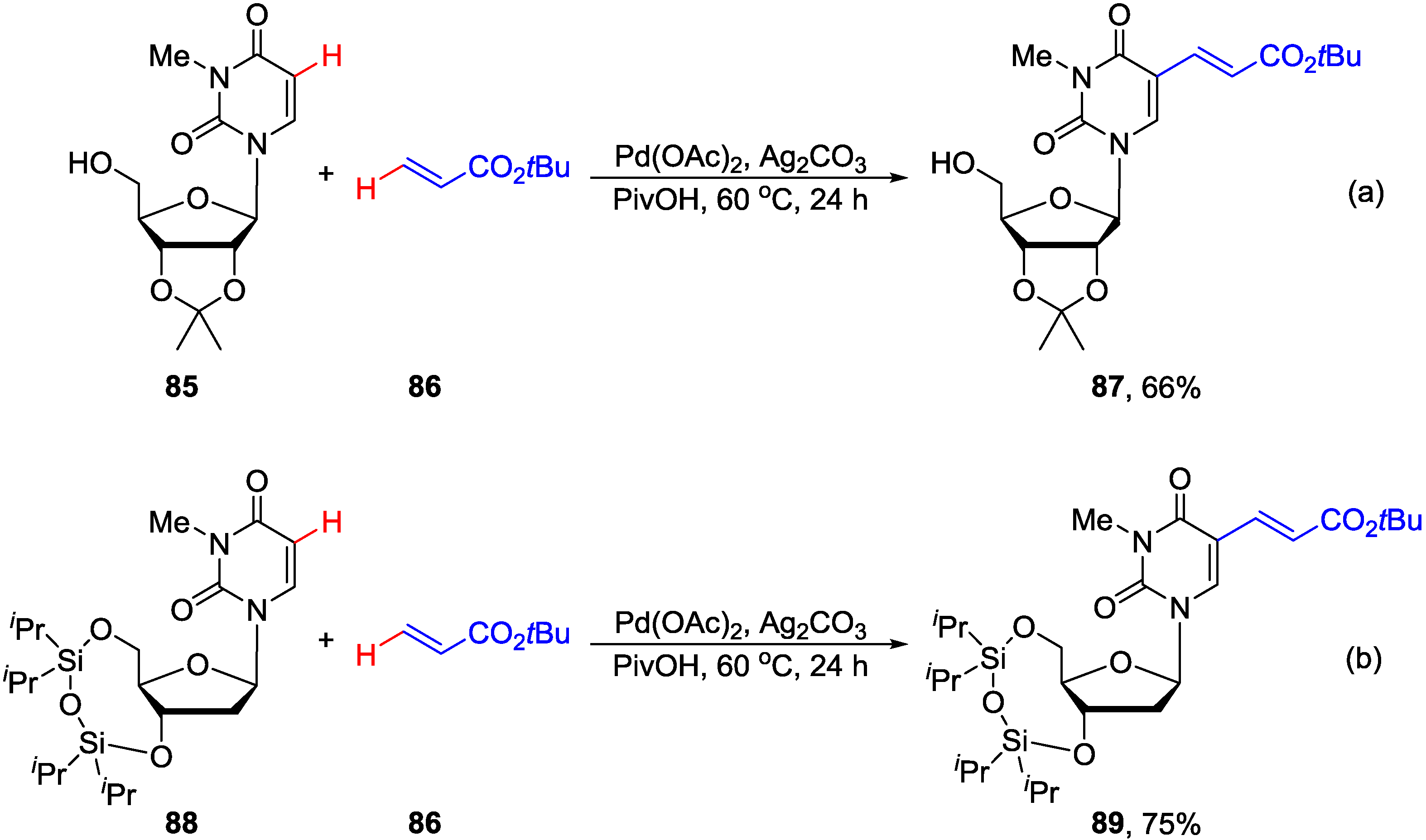

Scheme 31. Pd-Catalyzed cross-dehydrogenative alkenylation of uracil nucleosides.
Scheme 31. Pd-Catalyzed cross-dehydrogenative alkenylation of uracil nucleosides.
Molecules 20 04874 g034

4.4. Miscellaneous Direct C-H Functionalizations

Pd-catalyzed direct C-H acetoxylation at the electron-rich C5 position of uracil nucleosides with PhI(OAc)2 under reasonably mild conditions (60 °C, 3–5 h) have been also developed (Scheme 32) [77]. The acyl protected uridine 80a and silyl protected 2'-deoxyuridine 80d were compatible with these conditions to give the corresponding 5-acetoxy products 90 in 55% and 25% yields, respectively. The reaction was proposed to proceed via oxidative electrophilic palladation at the electron rich C5 position to give the 5-palladauracil intermediate followed by oxidation to give Pd(IV) intermediate, which yielded 5-acetoxyluridine via the reductive elimination of Pd(II).

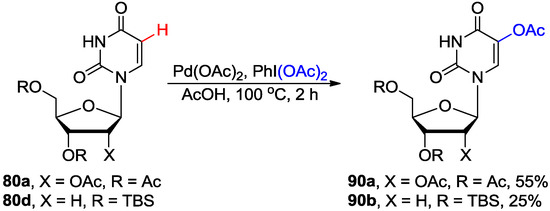

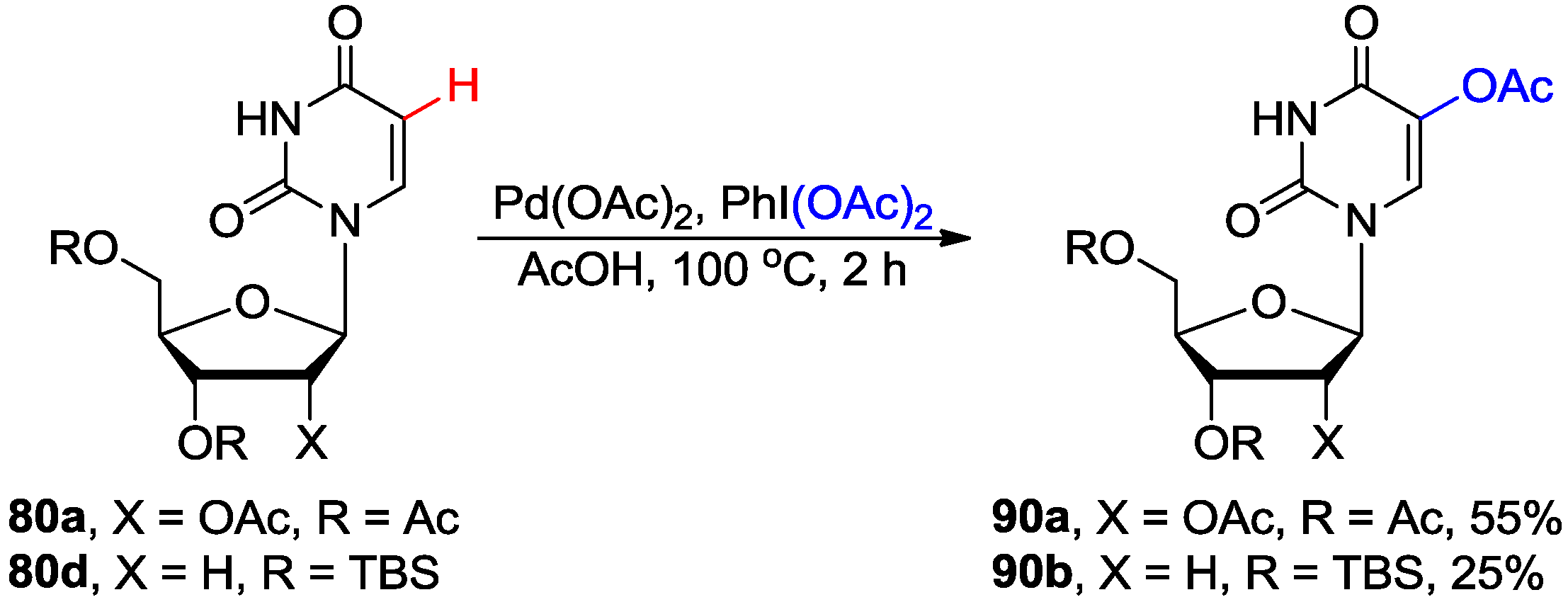

Scheme 32. Pd-catalyzed acetoxylation of uracil nucleosides.
Scheme 32. Pd-catalyzed acetoxylation of uracil nucleosides.
Molecules 20 04874 g035
The Cu-catalyzed intermolecular C5-H amination of DMU 65 with 4-bromoaniline in the presence of [hydroxy(tosyloxy)iodo]mesitylene has been recently developed (Scheme 33) [50]. The regioselectivity of this C5 amination was proposed to be controlled via the formation of iodonium salt intermediate 91, which is consistent with C5 electrophilic aromatic substitution that is typical for uracil ring. Subsequent Cu-catalyzed amination gave the 5-amino product 92 in 65% overall yield.

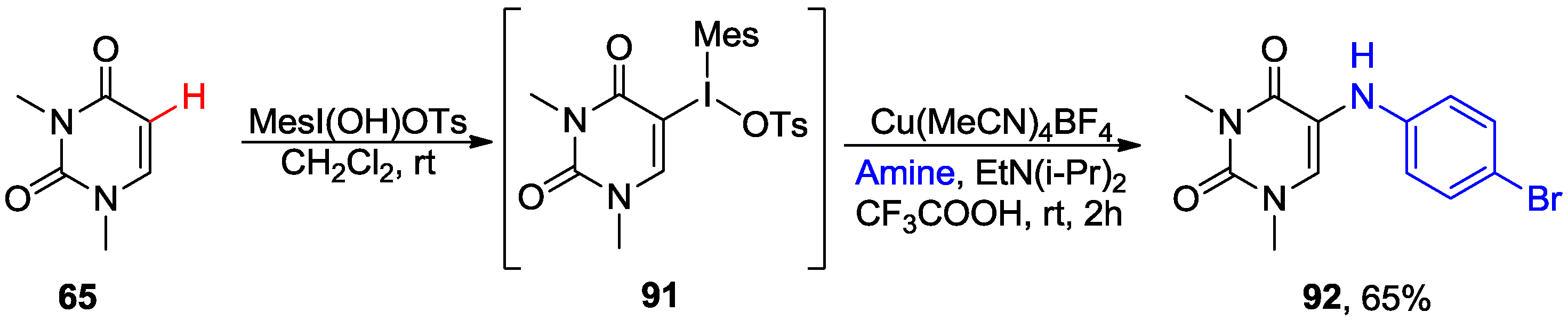

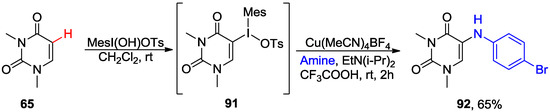

Scheme 33. Cu-catalyzed direct C5-H amination of 1,3-dimethyluracil 65.
Scheme 33. Cu-catalyzed direct C5-H amination of 1,3-dimethyluracil 65.
Molecules 20 04874 g036
Majumdar and coworkers reported the synthesis of pyrrolo[3,2-d]pyrimidine derivatives of type 94 by the intramolecular dehydrogenative coupling of the 5-amidouracils 93 via the selective activation of uracil C6-H bond in the presence of Cu(OTf)2 (Scheme 34) [78]. This coupling between Csp2-H (in the uracil ring) and Csp3-H (in the side chain) bonds was not, however, successful when R2 = H. The authors suggested that coupling most probably involved single electron transfer (SET) processes and might require a more stable tertiary radical on the side chain to proceed.

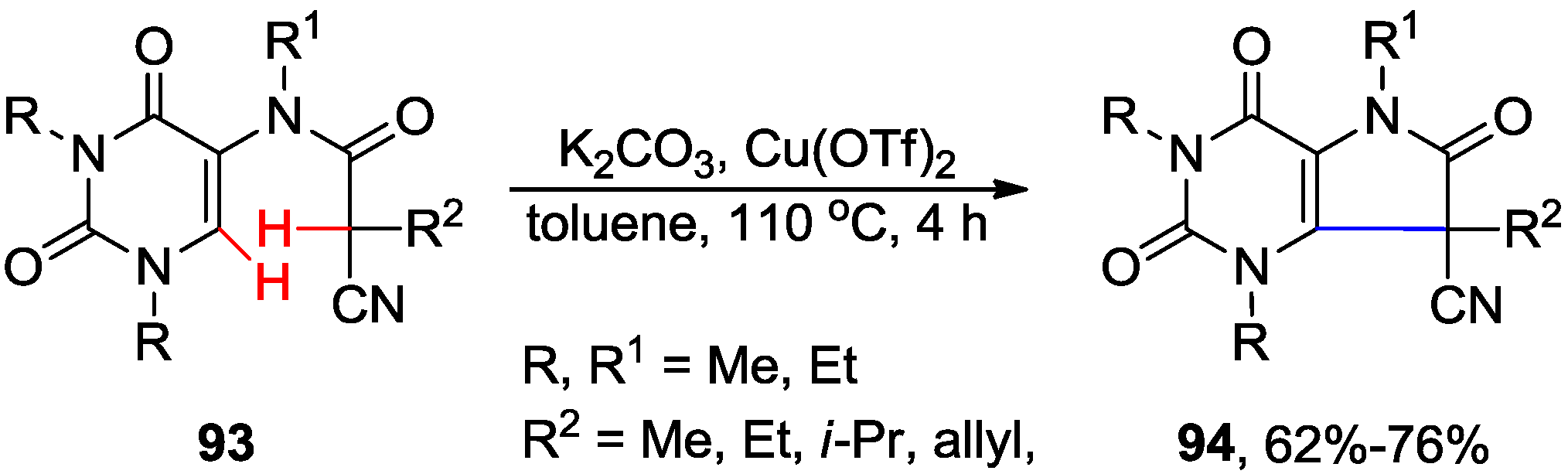

Scheme 34. Intramolecular cross-dehydrogenative cyclization at C6 of uracil ring.
Scheme 34. Intramolecular cross-dehydrogenative cyclization at C6 of uracil ring.
Molecules 20 04874 g037
Recently, C5-H trifluoromethylation of DMU 65 by means of electrophilic, nucleophilic or radical “CF3” species in an effort to synthesize 6-aryl-5-(trifluoromethyl)uracils (e.g, 96) by direct activations of both C5-H and C6-H bonds in consecutive manner has been attempted (Scheme 35) [79]. Thus, reactions of 65 with electrophilic (Umemoto's or Togni’s) or nucleophilic (Rupert’s) reagents in combination with Pd or Cu catalyst either failed or led to the formation of 5,5- or 5,6-dimeric products or 5-CF3 product in low yields. However, radical trifluoromethylation of 65 with sodium trifluoromethanesulfinate in the presence of tert-butyl hydroperoxide provided 1,3-dimethyl-5-(trifluoromethyl)uracil 95 in 67% yield [79]. The subsequent direct arylation at C6-H of 95 with 4-iodotoluene in the presence of Pd(OAc)2 and CuI/CsF afforded desired 5,6-disubstituted uracils 96 albeit in low yield (25%); probably because of the electron-withdrawing effect of the CF3 group at the 5 position on the pyrimidine ring. This C6-H arylation was not applicable to other aryl halides and often was accompanied by cleavage of the CF3 group due to hydrolysis followed by decarboxylation, especially when Cs2CO3 was used as the base.

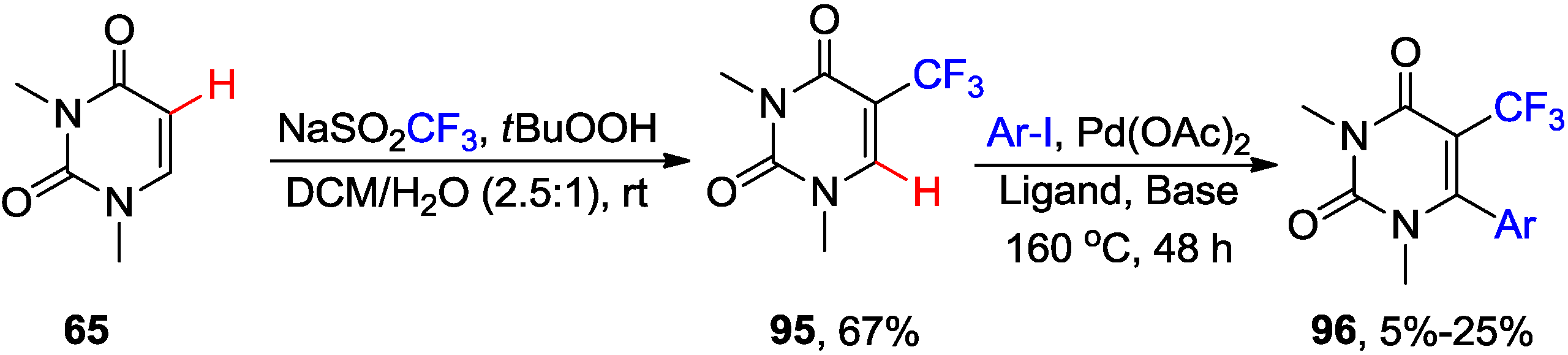

Scheme 35. Synthesis of 6-aryl-5-(trifluoromethyl)uracils by direct activation of C5-H and C6-H bonds.
Scheme 35. Synthesis of 6-aryl-5-(trifluoromethyl)uracils by direct activation of C5-H and C6-H bonds.
Molecules 20 04874 g038

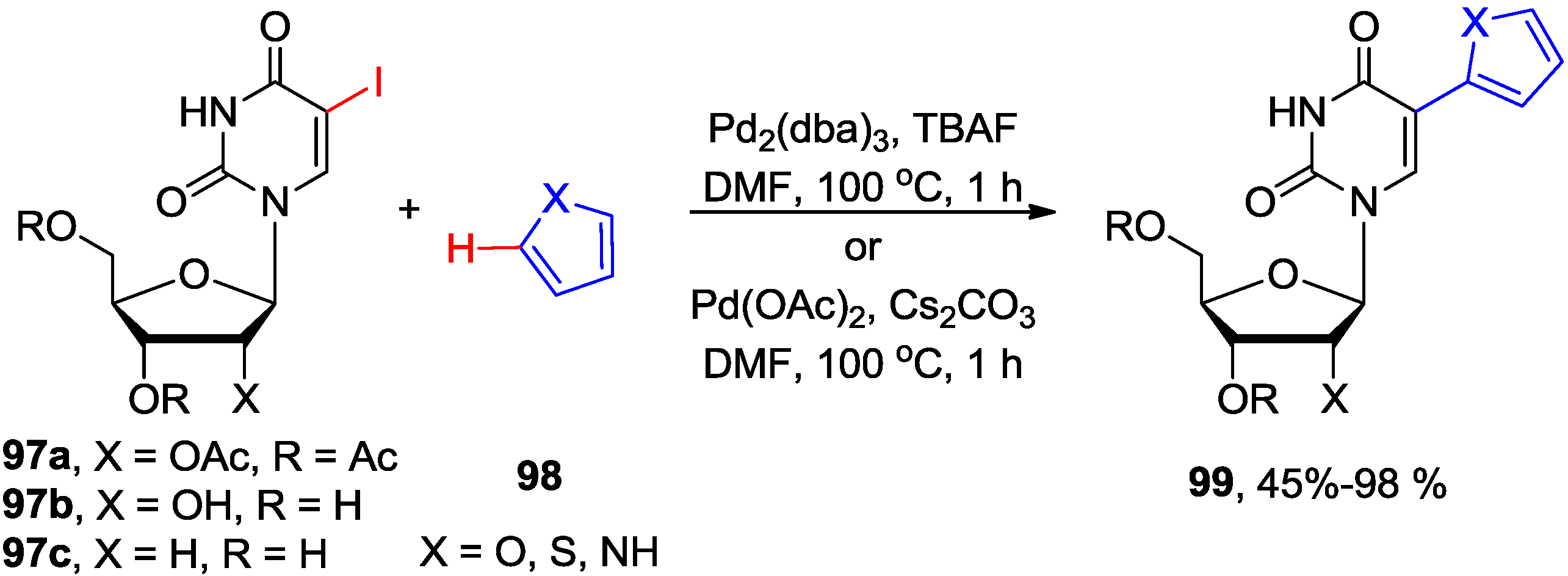

5. Coupling of 5-Halouracil Nucleosides with Arenes and Heteroarenes

The lack of regioselectivity in direct activation of uracil derivatives (C5-H vs. C6-H) during cross-couplings with aryl halides, and fact that coupling conditions are usually unsuitable for unprotected uracils and natural nucleosides, were recently overcome by switching the halide substituents from aryl halides to uracil ring and allowing to react of 5-halouridines with arenes instead. Wnuk and coworkers found that the 5-iodouracil nucleosides 97 coupled with simple arenes or heteroaromatics 98 in the presence of Pd2(dba)3 and TBAF in DMF under milder condition (100 °C/1–2 h) to give the 5-arylated uracil nucleosides 99 in high yields (Scheme 36) [80].
Scheme 36. Pd-catalyzed cross-coupling of 5-halouracil nucleosides with arenes and heteroarenes.
Scheme 36. Pd-catalyzed cross-coupling of 5-halouracil nucleosides with arenes and heteroarenes.
Molecules 20 04874 g039
This TBAF-promoted protocol, which proceeded without the necessity of adding ligands and/or additives, worked efficiently with the natural uracils and uracil nucleosides, and was compatible with the stability of the glycosylic bond for 2'-deoxyuridine substrates (e.g., 97c). The 5-(2-furyl, or 2-thienyl, or 2-pyrrolyl)uridine derivatives 99, that are important RNA and DNA fluorescent probes [15,16,17,18], were synthesized in up to 98% yields without the necessity of using organometallic substrates. The arylation proceeded also when TBAF was replaced with Cs2CO3 base with or without the presence of PivOH [80]. The analogous coupling of 5-iodocytidines with arenes failed to afford 5-arylated products.
The fact that 3-N-methyl-5-iodouracil substrates, which lack the ability to tautomerize to the enol form, did not undergo these couplings with arenes indicates that the C4-alkoxide (enol form of uracil) may participate in the intramolecular processes of hydrogen abstraction as depicted in Figure 3. The mechanism pathway, after the initial oxidative-addition of palladium to C5-halogen bond, might involve electrophilic aromatic palladation assisted by C4-alkoxide (e.g., A) or direct proton abstraction assisted by C4-alkoxide (e.g., B) [80]. This would be in agreement with earlier finding [7,81] that direct arylation is facilitated by a Pd-coordinated carboxylate group, which also can assist in intramolecular proton abstraction.

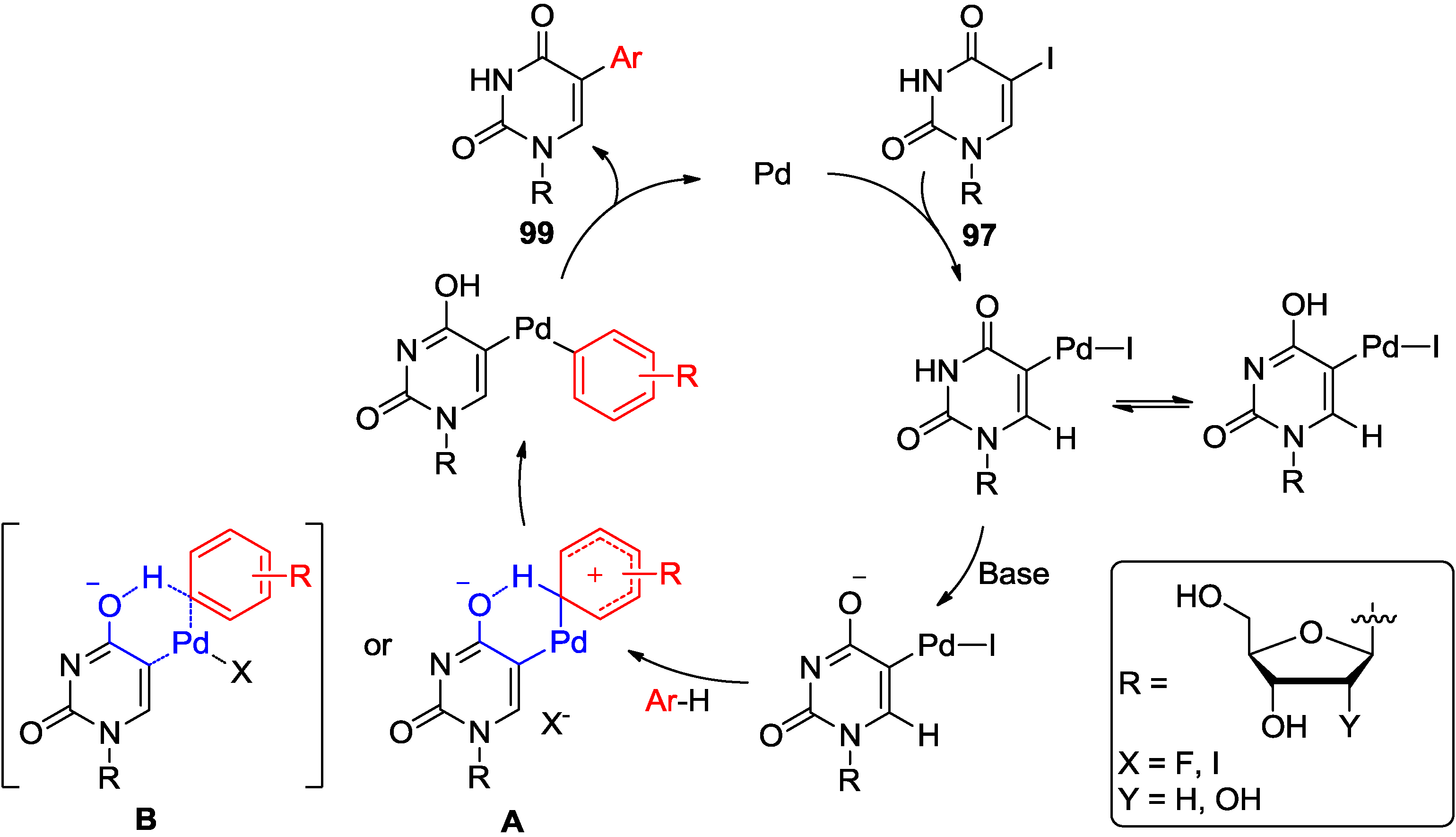

Figure 3. The plausible mechanism for the Pd-catalyzed arylation of 5-iodouridine with arenes.
Figure 3. The plausible mechanism for the Pd-catalyzed arylation of 5-iodouridine with arenes.
Molecules 20 04874 g003

6. Conclusions

The use of the Pd(cat.)/Cu(stoich) system in the presence of bases such as Cs2CO3 and/or piperidine in DMF effects direct regioselective arylation of purine nucleosides at the 8 position. Protected and deprotected adenosine, 2'-deoxyadenosine as well as inosine or guanosine derivatives coupled efficiently under these conditions with aryl halides to give access to 8-arylated products in up to 99% yields. The C8-H functionalization process is proposed to occur via 8-cupriopurine intermediates or N-heterocyclic carbene like cuprates, which subsequently can undergo a standard Pd(0)-catalytic cycle for cross-coupling with aryl halides. The cross-dehydrogenative arylation protocols which involve C8-H bond activation have been also developed for the synthesis of purine fused ring systems. Intramolecular N1-purinyl nitrogen directed C-H bond activation was utilized for direct ortho modification (arylation, amination or acetoxylation) of the aryl rings at C6 position of purine nucleosides.
In the case of pyrimidine nucleosides, direct arylation protocols have only been developed for uracil bases, which, in turn, usually require protection at the 1-N and 3-N positions. The biggest challenge how to overcome regioselective C-H activation at the C5 or C6 position of uracil ring have been accomplished by employing different catalysts and ligands. For the cross-coupling with aryl halides, it was found that Pd-based catalytic systems were effective to promote C5 arylation, whereas Pd/Cu or Cu-mediated systems affected C6 arylation with good selectivity. The C5 arylation is proposed to proceed via the electrophilic or concerted metalation-deprotonation mechanisms, while the C6 arylation likely to occur via a cuprate intermediates. Pd-catalyzed cross-dehydrogenative coupling of uracil nucleosides with alkenes or arenes, in the presence of oxidants, were developed to give convenient access to 5-alkenyl/aryl derivatives. The 5-acetoxy and 5-amino derivatives were also synthesized by direct activation of C5-H bond in uracil ring. No examples of couplings involving direct C-H activation of cytosine ring have been reported.
The transition-metal catalyzed syntheses of the modified nucleobases by direct C-H bond activations have been substantially improved in the past decade. However, despite improved coupling efficiency and availability of milder reaction conditions applicable to the less stable deoxynucleosides, application of the direct C-H functionalization approaches to nucleotides and/or short (deoxy)oligonucleotides fragments still will require developing the conditions compatible both with solvent requirements for water-soluble nucleotides and stability of phosphate esters.

Acknowledgments

YL would like to thank Florida International University Graduate School (FIU) for the Dissertation Year Fellowship.

Author Contributions

Study concept and design (YL, SFW). Drafting of the manuscript and preparation of the schemes (YL). Critical review of the manuscript (YL, SFW).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Meijere, A.D.; Diederich, F. Metal-Catalyzed Cross-Coupling Reactions; Wiley-VCH Verlag GmbH: Weinheim, Germany, 2008. [Google Scholar]
  2. Kambe, N.; Iwasaki, T.; Terao, J. Pd-catalyzed cross-coupling reactions of alkyl halides. Chem. Soc. Rev. 2011, 40, 4937–4947. [Google Scholar] [CrossRef] [PubMed]
  3. The Nobel Prize in Chemistry Announcement. Available online: http://www.nobelprize.org/nobel_prizes/chemistry/laureates/2010/# (accessed on 12 March 2015).
  4. Ackermann, L.; Vicente, R.; Kapdi, A.R. Transition-metal-catalyzed direct arylation of (hetero)arenes by C-H bond cleavage. Angew. Chem. Int. Ed. Engl. 2009, 48, 9792–9826. [Google Scholar] [CrossRef] [PubMed]
  5. Fagnou, K. Mechanistic considerations in the development and use of azine, diazine and azole N-oxides in palladium-catalyzed direct arylation. Top. Curr. Chem. 2010, 292, 35–56. [Google Scholar] [PubMed]
  6. Su, Y.X.; Sun, L.P. Recent progress towards transition-metal-catalyzed direct arylation of heteroarenes. Mini Rev. Org. Chem. 2012, 9, 87–117. [Google Scholar] [CrossRef]
  7. Lafrance, M.; Fagnou, K. Palladium-catalyzed benzene arylation: incorporation of catalytic pivalic acid as a proton shuttle and a key element in catalyst design. J. Am. Chem. Soc. 2006, 128, 16496–16497. [Google Scholar] [CrossRef] [PubMed]
  8. Liégault, B.; Lapointe, D.; Caron, L.; Vlassova, A.; Fagnou, K. Establishment of broadly applicable reaction conditions for the Palladium-catalyzed direct arylation of heteroatom-containing aromatic compounds. J. Org. Chem. 2009, 74, 1826–1834. [Google Scholar] [CrossRef] [PubMed]
  9. Joo, J.M.; Touré, B.B.; Sames, D. C−H Bonds as ubiquitous functionality: A general approach to complex arylated imidazoles via regioselective sequential arylation of all three C−H bonds and regioselective N-alkylation enabled by SEM-group transposition. J. Org. Chem. 2010, 75, 4911–4920. [Google Scholar] [CrossRef] [PubMed]
  10. Agrofoglio, L.A.; Gillaizeau, I.; Saito, Y. Palladium-assisted routes to nucleosides. Chem. Rev. 2003, 103, 1875–1916. [Google Scholar] [CrossRef] [PubMed]
  11. De Ornellas, S.; Williams, T.J.; Baumann, C.G.; Fairlamb, I.J.S. (Eds.) Catalytic C-H/C-X bond functionalisation of nucleosides, nucleotides, nucleic acids, amino acids, peptides and proteins. In C-H and C-X Bond Functionalization: Transition Metal Mediation; The Royal Society of Chemistry: London, UK, 2013.
  12. Shaughnessy, K. Palladium-catalyzed functionalization of unprotected nucleosides in aqueous media. Molecules 2015, in press. [Google Scholar]
  13. De Clercq, E.; Descamps, J.; de Somer, P.; Barr, P.J.; Jones, A.S.; Walker, R.T. (E)-5-(2-Bromovinyl)-2'-deoxyuridine: A potent and selective anti-herpes agent. Proc. Natl. Acad. Sci. USA 1979, 76, 2947–2951. [Google Scholar]
  14. McGuigan, C.; Barucki, H.; Blewett, S.; Carangio, A.; Erichsen, J.T.; Andrei, G.; Snoeck, R.; de Clercq, E.; Balzarini, J. Highly potent and selective inhibition of varicella-zoster virus by bicyclic furopyrimidine nucleosides bearing an aryl side chain. J. Med. Chem. 2000, 43, 4993–4997. [Google Scholar] [CrossRef] [PubMed]
  15. Greco, N.J.; Tor, Y. Simple fluorescent pyrimidine analogues detect the presence of DNA abasic sites. J. Am. Chem. Soc. 2005, 127, 10784–10785. [Google Scholar] [CrossRef] [PubMed]
  16. Srivatsan, S.G.; Tor, Y. Using an emissive uridine analogue for assembling fluorescent HIV-1 TAR constructs. Tetrahedron 2007, 63, 3601–3607. [Google Scholar] [CrossRef] [PubMed]
  17. Noé, M.S.; Ríos, A.C.; Tor, Y. Design, synthesis, and spectroscopic properties of extended and fused pyrrolo-dC and pyrrolo-C analogs. Org. Lett. 2012, 14, 3150–3153. [Google Scholar] [CrossRef] [PubMed]
  18. Wicke, L.; Engels, J.W. Postsynthetic on column RNA labeling via Stille coupling. Bioconjugate Chem. 2012, 23, 627–642. [Google Scholar] [CrossRef]
  19. Valis, L.; Mayer-Enthart, E.; Wagenknecht, H.A. 8-(Pyren-1-yl)-2′-deoxyguanosine as an optical probe for DNA hybridization and for charge transfer with small peptides. Bioorg. Med. Chem. Lett. 2006, 16, 3184–3187. [Google Scholar] [CrossRef] [PubMed]
  20. Wanninger-Weiß, C.; Valis, L.; Wagenknecht, H.A. Pyrene-modified guanosine as fluorescent probe for DNA modulated by charge transfer. Bioorg. Med. Chem. 2008, 16, 100–106. [Google Scholar] [CrossRef] [PubMed]
  21. Manfredini, S.; Baraldi, P.G.; Bazzanini, R.; Marangoni, M.; Simoni, D.; Balzarini, J.; De Clercq, E. Synthesis and cytotoxic activity of 6-vinyl- and 6-ethynyluridine and 8-vinyl- and 8-ethynyladenosine. J. Med. Chem. 1995, 38, 199–203. [Google Scholar] [CrossRef] [PubMed]
  22. He, G.X.; Krawczyk, S.H.; Swaminathan, S.; Shea, R.G.; Dougherty, J.P.; Terhorst, T.; Law, V.S.; Griffin, L.C.; Coutré, S.; Bischofberger, N. N2- and C8-Substituted oligodeoxynucleotides with enhanced thrombin inhibitory activity in vitro and in vivo. J. Med. Chem. 1998, 41, 2234–2242. [Google Scholar] [CrossRef] [PubMed]
  23. Cerna, I.; Pohl, R.; Hocek, M. The first direct C-H arylation of purine nucleosides. Chem. Commun. 2007, 4729–4730. [Google Scholar] [CrossRef]
  24. Čerňa, I.; Pohl, R.; Klepetářová, B.; Hocek, M. Direct C−H arylation of purines:  Development of methodology and its use in regioselective synthesis of 2,6,8-trisubstituted purines. Org. Lett. 2006, 8, 5389–5392. [Google Scholar] [CrossRef] [PubMed]
  25. Čerňa, I.; Pohl, R.; Klepetářová, B.; Hocek, M. Synthesis of 6,8,9-tri- and 2,6,8,9-tetrasubstituted purines by a combination of the Suzuki cross-coupling, N-arylation, and direct C−H arylation reactions. J. Org. Chem. 2008, 73, 9048–9054. [Google Scholar] [CrossRef] [PubMed]
  26. Storr, T.E.; Baumann, C.G.; Thatcher, R.J.; De Ornellas, S.; Whitwood, A.C.; Fairlamb, I.J. S. Pd(0)/Cu(I)-mediated direct arylation of 2′-deoxyadenosines: Mechanistic role of Cu(I) and reactivity comparisons with related purine nucleosides. J. Org. Chem. 2009, 74, 5810–5821. [Google Scholar] [CrossRef] [PubMed]
  27. Storr, T.E.; Firth, A.G.; Wilson, K.; Darley, K.; Baumann, C.G.; Fairlamb, I.J. S. Site-selective direct arylation of unprotected adenine nucleosides mediated by palladium and copper: Insights into the reaction mechanism. Tetrahedron 2008, 64, 6125–6137. [Google Scholar] [CrossRef]
  28. Baumann, C.G.; De Ornellas, S.; Reeds, J.P.; Storr, T.E.; Williams, T.J.; Fairlamb, I.J.S. Formation and propagation of well-defined Pd nanoparticles (PdNPs) during C–H bond functionalization of heteroarenes: are nanoparticles a moribund form of Pd or an active catalytic species? Tetrahedron 2014, 70, 6174–6187. [Google Scholar] [CrossRef]
  29. Storr, T.E.; Strohmeier, J.A.; Baumann, C.G.; Fairlamb, I.J. S. A sequential direct arylation/Suzuki-Miyaura cross-coupling transformation of unprotected 2'-deoxyadenosine affords a novel class of fluorescent analogues. Chem. Commun. 2010, 46, 6470–6472. [Google Scholar] [CrossRef][Green Version]
  30. Ornellas, S.D.; Storr, T.E.; Williams, T.J.; Baumann, C.G.; Fairlamb, I.J. S. Direct C-H/C-X coupling methodologies mediated by Pd/Cu or Cu: An examination of the synthetic applications and mechanistic findings. Curr. Org. Synth. 2011, 8, 79–101. [Google Scholar] [CrossRef]
  31. Vaňková, B.; Krchňák, V.; Soural, M.; Hlaváč, J. Direct C–H arylation of purine on solid phase and its use for chemical libraries synthesis. ACS Comb. Sci. 2011, 13, 496–500. [Google Scholar] [CrossRef] [PubMed]
  32. Sahnoun, S.; Messaoudi, S.; Peyrat, J.F.; Brion, J.D.; Alami, M. Microwave-assisted Pd(OH)2-catalyzed direct C−H arylation of free-(NH2) adenines with aryl halides. Tetrahedron Lett. 2008, 49, 7279–7283. [Google Scholar] [CrossRef]
  33. Sahnoun, S.; Messaoudi, S.; Brion, J.D.; Alami, M. A site selective C-H arylation of free-(NH2) adenines with aryl chlorides: Application to the synthesis of 6,8-disubstituted adenines. Org. Biomol. Chem. 2009, 7, 4271–4278. [Google Scholar] [CrossRef] [PubMed]
  34. Ngassa, F.N.; DeKorver, K.A.; Melistas, T.S.; Yeh, E.A.H.; Lakshman, M.K. Pd−Xantphos-Catalyzed Direct Arylation of Nucleosides. Org. Lett. 2006, 8, 4613–4616. [Google Scholar] [CrossRef] [PubMed]
  35. Bellina, F.; Cauteruccio, S.; Rossi, R. Palladium- and copper-mediated direct C-2 arylation of azoles—including free (NH)-imidazole, -benzimidazole and -indole—Under base-free and ligandless conditions. Eur. J. Org. Chem. 2006, 2006, 1379–1382. [Google Scholar] [CrossRef]
  36. Western, E.C.; Shaughnessy, K.H. Inhibitory effects of the guanine moiety on Suzuki couplings of unprotected halonucleosides in aqueous media. J. Org. Chem. 2005, 70, 6378–6388. [Google Scholar] [CrossRef] [PubMed]
  37. Gigante, A.; Priego, E.M.; Sánchez-Carrasco, P.; Ruiz-Pérez, L.M.; Vande Voorde, J.; Camarasa, M.J.; Balzarini, J.; González-Pacanowska, D.; Pérez-Pérez, M.J. Microwave-assisted synthesis of C-8 aryl and heteroaryl inosines and determination of their inhibitory activities against Plasmodium falciparum purine nucleoside phosphorylase. Eur. J. Med. Chem. 2014, 82, 459–465. [Google Scholar] [CrossRef] [PubMed]
  38. Čerňa, I.; Pohl, R.; Klepetářová, B.; Hocek, M. Intramolecular direct C-H arylation approach to fused purines. Synthesis of purino[8,9-f]phenanthridines and 5,6-dihydropurino[8,9-a]isoquinolines. J. Org. Chem. 2010, 75, 2302–2308. [Google Scholar] [CrossRef] [PubMed]
  39. Campeau, L.C.; Parisien, M.; Jean, A.; Fagnou, K. Catalytic direct arylation with aryl chlorides, bromides, and iodides: Intramolecular studies leading to new intermolecular reactions. J. Am. Chem. Soc. 2005, 128, 581–590. [Google Scholar] [CrossRef]
  40. Iaroshenko, V.O.; Ostrovskyi, D.; Miliutina, M.; Maalik, A.; Villinger, A.; Tolmachev, A.; Volochnyuk, D.M.; Langer, P. Design and synthesis of polycyclic imidazole-containing N-heterocycles based on C-H activation/cyclization reactions. Adv. Synth. Catal. 2012, 354, 2495–2503. [Google Scholar] [CrossRef]
  41. Barbero, N.; SanMartin, R.; Dominguez, E. Ligand-free copper(I)-catalysed intramolecular direct C-H functionalization of azoles. Org. Biomol. Chem. 2010, 8, 841–845. [Google Scholar] [CrossRef] [PubMed]
  42. Meng, G.; Niu, H.Y.; Qu, G.R.; Fossey, J.S.; Li, J.P.; Guo, H.M. Synthesis of fused N-heterocycles via tandem C-H activation. Chem. Commun. 2012, 48, 9601–9603. [Google Scholar] [CrossRef]
  43. Xi, P.; Yang, F.; Qin, S.; Zhao, D.; Lan, J.; Gao, G.; Hu, C.; You, J. Palladium(II)-catalyzed oxidative C−H/C−H cross-coupling of heteroarenes. J. Am. Chem. Soc. 2010, 132, 1822–1824. [Google Scholar] [CrossRef] [PubMed]
  44. Stuart, D.R.; Fagnou, K. The catalytic cross-coupling of unactivated arenes. Science 2007, 316, 1172–1175. [Google Scholar] [CrossRef] [PubMed]
  45. Vabre, R.; Chevot, F.; Legraverend, M.; Piguel, S. Microwave-Assisted Pd/Cu-Catalyzed C-8 Direct Alkenylation of Purines and Related Azoles: An Alternative Access to 6,8,9-Trisubstituted Purines. J. Org. Chem. 2011, 76, 9542–9547. [Google Scholar] [CrossRef] [PubMed]
  46. Sahnoun, S.; Messaoudi, S.; Brion, J.D.; Alami, M. Pd/Cu-catalyzed direct alkenylation of azole heterocycles with alkenyl halides. Eur. J. Org. Chem. 2010, 2010, 6097–6102. [Google Scholar] [CrossRef]
  47. Lagisetty, P.; Zhang, L.; Lakshman, M.K. Simple methodology for Heck arylation at C-8 of adenine nucleosides. Adv. Synth. Catal. 2008, 350, 602–608. [Google Scholar] [CrossRef]
  48. Klecka, M.; Pohl, R.; Klepetarova, B.; Hocek, M. Direct C-H borylation and C-H arylation of pyrrolo[2,3-d]pyrimidines: synthesis of 6,8-disubstituted 7-deazapurines. Org. Biomol. Chem. 2009, 7, 866–868. [Google Scholar] [CrossRef] [PubMed]
  49. Sabat, N.; Klecka, M.; Slavetinska, L.; Klepetarova, B.; Hocek, M. Direct C-H amination and C-H chloroamination of 7-deazapurines. RSC Advances 2014, 4, 62140–62143. [Google Scholar]
  50. Sokolovs, I.; Lubriks, D.; Suna, E. Copper-catalyzed intermolecular C–H amination of (hetero)arenes via transient unsymmetrical λ3-iodanes. J. Am. Chem. Soc. 2014, 136, 6920–6928. [Google Scholar] [CrossRef] [PubMed]
  51. Klecka, M.; Pohl, R.; Cejka, J.; Hocek, M. Direct C-H sulfenylation of purines and deazapurines. Org. Biomol. Chem. 2013, 11, 5189–5193. [Google Scholar] [CrossRef] [PubMed]
  52. Qu, G.R.; Liang, L.; Niu, H.Y.; Rao, W.H.; Guo, H.M.; Fossey, J.S. Copper-catalyzed synthesis of purine-fused polycyclics. Org. Lett. 2012, 14, 4494–4497. [Google Scholar] [CrossRef] [PubMed]
  53. Guo, H.M.; Jiang, L.L.; Niu, H.Y.; Rao, W.H.; Liang, L.; Mao, R.Z.; Li, D.Y.; Qu, G.R. Pd(II)-catalyzed ortho arylation of 6-arylpurines with aryl iodides via purine-directed C−H activation: A new strategy for modification of 6-arylpurine derivatives. Org. Lett. 2011, 13, 2008–2011. [Google Scholar] [CrossRef] [PubMed]
  54. Lakshman, M.K.; Deb, A.C.; Chamala, R.R.; Pradhan, P.; Pratap, R. Direct arylation of 6-phenylpurine and 6-arylpurine nucleosides by Ruthenium-catalyzed C-H bond activation. Angew. Chem. Int. Ed. 2011, 50, 11400–11404. [Google Scholar] [CrossRef]
  55. Chamala, R.R.; Parrish, D.; Pradhan, P.; Lakshman, M.K. Purinyl N1-directed aromatic C–H oxidation in 6-arylpurines and 6-arylpurine nucleosides. J. Org. Chem. 2013, 78, 7423–7435. [Google Scholar] [CrossRef] [PubMed]
  56. Kim, J.Y.; Park, S.H.; Ryu, J.; Cho, S.H.; Kim, S.H.; Chang, S. Rhodium-catalyzed intermolecular amidation of arenes with sulfonyl azides via chelation-assisted C–H bond activation. J. Am. Chem. Soc. 2012, 134, 9110–9113. [Google Scholar] [CrossRef] [PubMed]
  57. Čerňová, M.; Pohl, R.; Hocek, M. Switching the regioselectivity of direct C–H arylation of 1,3-dimethyluracil. Eur. J. Org. Chem. 2009, 22, 3698–3701. [Google Scholar] [CrossRef]
  58. Čerňová, M.; Čerňá, I.; Pohl, R.; Hocek, M. Regioselective direct C–H arylations of protected uracils. Synthesis of 5- and 6-aryluracil bases. J. Org. Chem. 2011, 76, 5309–5319. [Google Scholar] [CrossRef] [PubMed]
  59. Kim, K.H.; Lee, H.S.; Kim, J.N. Palladium-catalyzed direct 5-arylation of 1,3-dimethyluracil with aryl bromides: An electrophilic metalation–deprotonation with electrophilic arylpalladium intermediate. Tetrahedron Lett. 2011, 52, 6228–6233. [Google Scholar] [CrossRef]
  60. Lee, H.S.; Kim, K.H.; Kim, S.H.; Kim, J.N. Palladium-catalyzed synthesis of benzo[c]pyrimido[1,6-a]azepine scaffold from Morita–Baylis–Hillman adducts: Intramolecular 6-arylation of uracil nucleus. Tetrahedron Lett. 2012, 53, 497–501. [Google Scholar] [CrossRef]
  61. Cheng, C.; Shih, Y.C.; Chen, H.T.; Chien, T.C. Regioselective arylation of uracil and 4-pyridone derivatives via copper(I) bromide mediated C–H bond activation. Tetrahedron 2013, 69, 1387–1396. [Google Scholar] [CrossRef]
  62. Gorelsky, S.I.; Lapointe, D.; Fagnou, K. Analysis of the palladium-catalyzed (aromatic) C–H bond metalation–deprotonation mechanism spanning the entire spectrum of arenes. J. Org. Chem. 2011, 77, 658–668. [Google Scholar] [CrossRef] [PubMed]
  63. Bellina, F.; Cauteruccio, S.; Rossi, R. Efficient and practical synthesis of 4(5)-aryl-1H-imidazoles and 2,4(5)-diaryl-1H-imidazoles via highly selective palladium-catalyzed arylation reactions. J. Org. Chem. 2007, 72, 8543–8546. [Google Scholar] [CrossRef] [PubMed]
  64. Sievers, A.; Wolfenden, R. Equilibrium of formation of the 6-carbanion of UMP, a potential intermediate in the action of OMP decarboxylase. J. Am. Chem. Soc. 2002, 124, 13986–13987. [Google Scholar] [CrossRef] [PubMed]
  65. Yeoh, F.Y.; Cuasito, R.R.; Capule, C.C.; Wong, F.M.; Wu, W. Carbanions from decarboxylation of orotate analogs: Stability and mechanistic implications. Bioorg. Chem. 2007, 35, 338–343. [Google Scholar] [CrossRef] [PubMed]
  66. Amyes, T.L.; Wood, B.M.; Chan, K.; Gerlt, J.A.; Richard, J.P. Formation and stability of a vinyl carbanion at the active site of orotidine 5'-monophosphate decarboxylase:  pKa of the C-6 proton of enzyme-bound UMP. J. Am. Chem. Soc. 2008, 130, 1574–1575. [Google Scholar] [CrossRef] [PubMed]
  67. Do, H.Q.; Daugulis, O. A general method for Copper-catalyzed arene cross-dimerization. J. Am. Chem. Soc. 2011, 133, 13577–13586. [Google Scholar] [CrossRef] [PubMed]
  68. Mondal, B.; Hazra, S.; Roy, B. Pd(II)-catalyzed regioselective direct arylation of uracil via oxidative Heck reaction using arylboronic acids. Tetrahedron Lett. 2014, 55, 1077–1081. [Google Scholar] [CrossRef]
  69. Kim, K.H.; Lee, H.S.; Kim, S.H.; Kim, J.N. Palladium(II)-catalyzed oxidative homo-coupling of 1,3-dimethyluracil derivatives. Tetrahedron Lett. 2012, 53, 1323–1327. [Google Scholar] [CrossRef]
  70. Kianmehr, E.; Rezaeefard, M.; Rezazadeh Khalkhali, M.; Khan, K.M. Pd-catalyzed dehydrogenative cross-coupling of pyridine-N-oxides with uracils. RSC Adv. 2014, 4, 13764–13767. [Google Scholar] [CrossRef]
  71. Jones, A.S.; Verhelst, G.; Walker, R.T. The synthesis of the potent anti-herpes virus agent, E-5-(2-bromovinyl)-2′-deoxyuridine and related compounds. Tetrahedron Lett. 1979, 20, 4415–4418. [Google Scholar] [CrossRef]
  72. Ashwell, M.; Jones, A.S.; Kumar, A.; Sayers, J.R.; Walker, R.T.; Sakuma, T.; de Clercq, E. The synthesis and antiviral properties of (E)-5-(2-bromovinyl)-2'-deoxyuridine-related compounds. Tetrahedron 1987, 43, 4601–4608. [Google Scholar] [CrossRef]
  73. Itahara, T. Oxidative coupling of uracil derivatives with maleimides by Palladium acetate. Chem. Lett. 1986, 15, 239–242. [Google Scholar] [CrossRef]
  74. Hirota, K.; Isobe, Y.; Kitade, Y.; Maki, Y. A simple synthesis of 5-(1-alkenyl)uracil derivatives by Palladium-catalyzed oxidative coupling of uracils with olefins. Synthesis 1987, 1987, 495–496. [Google Scholar] [CrossRef]
  75. Yu, Y.Y.; Georg, G.I. Dehydrogenative alkenylation of uracils via palladium-catalyzed regioselective C-H activation. Chem. Commun. 2013, 49, 3694–3696. [Google Scholar] [CrossRef]
  76. Le Bras, J.; Muzart, J. Intermolecular dehydrogenative Heck reactions. Chem. Rev. 2011, 111, 1170–1214. [Google Scholar]
  77. Lee, H.S.; Kim, S.H.; Kim, J.N. Pd(II)-Catalyzed acetoxylation of uracil via electrophilic palladation. Bull. Korean Chem. Soc. 2010, 31, 238–241. [Google Scholar] [CrossRef]
  78. Roy, B.; Hazra, S.; Mondal, B.; Majumdar, K.C. Cu(OTf)2-catalyzed dehydrogenative C–H activation under atmospheric oxygen: An expedient approach to pyrrolo[3,2-d]pyrimidine derivatives. Eur. J. Org. Chem. 2013, 2013, 4570–4577. [Google Scholar] [CrossRef]
  79. Ćerňová, M.; Pohl, R.; Klepetářová, B.; Hocek, M. C-H trifluoromethylations of 1,3-dimethyluracil and reactivity of the products in C-H arylations. Heterocycles 2014, 89, 1159–1171. [Google Scholar] [CrossRef]
  80. Liang, Y.; Gloudeman, J.; Wnuk, S.F. Palladium-catalyzed direct arylation of 5-halouracils and 5-halouracil nucleosides with arenes and heteroarenes promoted by TBAF. J. Org. Chem. 2014, 79, 4094–4103. [Google Scholar] [CrossRef] [PubMed]
  81. Lafrance, M.; Rowley, C.N.; Woo, T.K.; Fagnou, K. Catalytic intermolecular direct arylation of perfluorobenzenes. J. Am. Chem. Soc. 2006, 128, 8754–8756. [Google Scholar] [CrossRef] [PubMed]

Share and Cite

MDPI and ACS Style

Liang, Y.; Wnuk, S.F. Modification of Purine and Pyrimidine Nucleosides by Direct C-H Bond Activation. Molecules 2015, 20, 4874-4901. https://doi.org/10.3390/molecules20034874

AMA Style

Liang Y, Wnuk SF. Modification of Purine and Pyrimidine Nucleosides by Direct C-H Bond Activation. Molecules. 2015; 20(3):4874-4901. https://doi.org/10.3390/molecules20034874

Chicago/Turabian Style

Liang, Yong, and Stanislaw F. Wnuk. 2015. "Modification of Purine and Pyrimidine Nucleosides by Direct C-H Bond Activation" Molecules 20, no. 3: 4874-4901. https://doi.org/10.3390/molecules20034874

Article Metrics

Back to TopTop
