Molecules 2014, 19(11), 18656-18675; doi:10.3390/molecules191118656

Article
Synthesis and in Vitro Antitumor Activity of a Novel Series of 2-Pyrazoline Derivatives Bearing the 4-Aryloxy-7-chloroquinoline Fragment
1
Heterocyclic Compounds Research Group, Department of Chemistry, Universidad del Valle, Apartado Aéreo 25360, Colombia
2
Department of Inorganic and Organic Chemistry, Universidad de Jaén, Jaén 23071, Spain
*
Author to whom correspondence should be addressed; Tel.: +57-315-484-6665; Fax: +57-2339-3248.
Received: 24 September 2014; in revised form: 4 November 2014 / Accepted: 6 November 2014 / Published: 14 November 2014

Abstract

:
A new series of NH-pyrazoline derivatives 6 was synthesized by cyclocondensation reaction of novel [(7-chloroquinolin-4-yl)oxy]chalcones 5 with hydrazine hydrate. The treatment of pyrazolines 6 with acetic anhydride or formic acid yielded the N-acetyl- or N-formylpyrazoline derivatives 78, respectively. These novel 2-pyrazoline derivatives 68 were evaluated by the U.S. National Cancer Institute (NCI). Compounds 7b,d,f and 8c,f showed remarkable antitumor activity against 58 cancer cell lines, with the most important GI50 values from in vitro assays ranging from 0.48 to 1.66 μM. The 2-pyrazoline derivatives bearing the 4-aryloxy-7-chloroquinoline fragment are thus considered to be useful leads for the rational design of new antitumor agents.
Keywords:
microwave irradiation; Claisen-Schmidt condensation; chalcones; cyclocondensation reaction; 2-pyrazolines; antitumor activity

1. Introduction

The identification of novel structures that can be potentially useful in designing new, potent selective and less toxic anticancer agents is still a major challenge for medicinal chemistry researchers [1]. It is well known that many natural or synthetic chalcones are highly active in a large pharmaceutical and medicinal applications [2,3]. Several strategies for the synthesis of these systems based on formation of carbon-carbon new bonds have been reported and among them the direct Aldol and Claisen-Schmidt condensations still occupy prominent position [4]. Chalcones are found to be effective as antimicrobial [5], antiviral [6], cardiovascular [7] and anti-inflammatory [8] agents; as well as their recognized synthetic utility. After the pioneering works of Fischer and Knoevenagel in the late nineteenth century [9], the reaction of α,β-unsaturated aldehydes and ketones with hydrazines became one of the most popular method for the preparation of 2-pyrazolines, which have attracted interest due to their diverse biological activities such as antitumor, immunosuppressive, antibacterial, anti-inflammatory, anticancer, antidiabetic and antidepressants [1,10,11,12,13,14,15,16]. Among the existing various pyrazoline type derivatives, 1-acetylpyrazolines have been identified as one of the most promising scaffolds, which were found to display fungicidal and insecticidal activities [17]. Examples of such systems are shown in Figure 1.

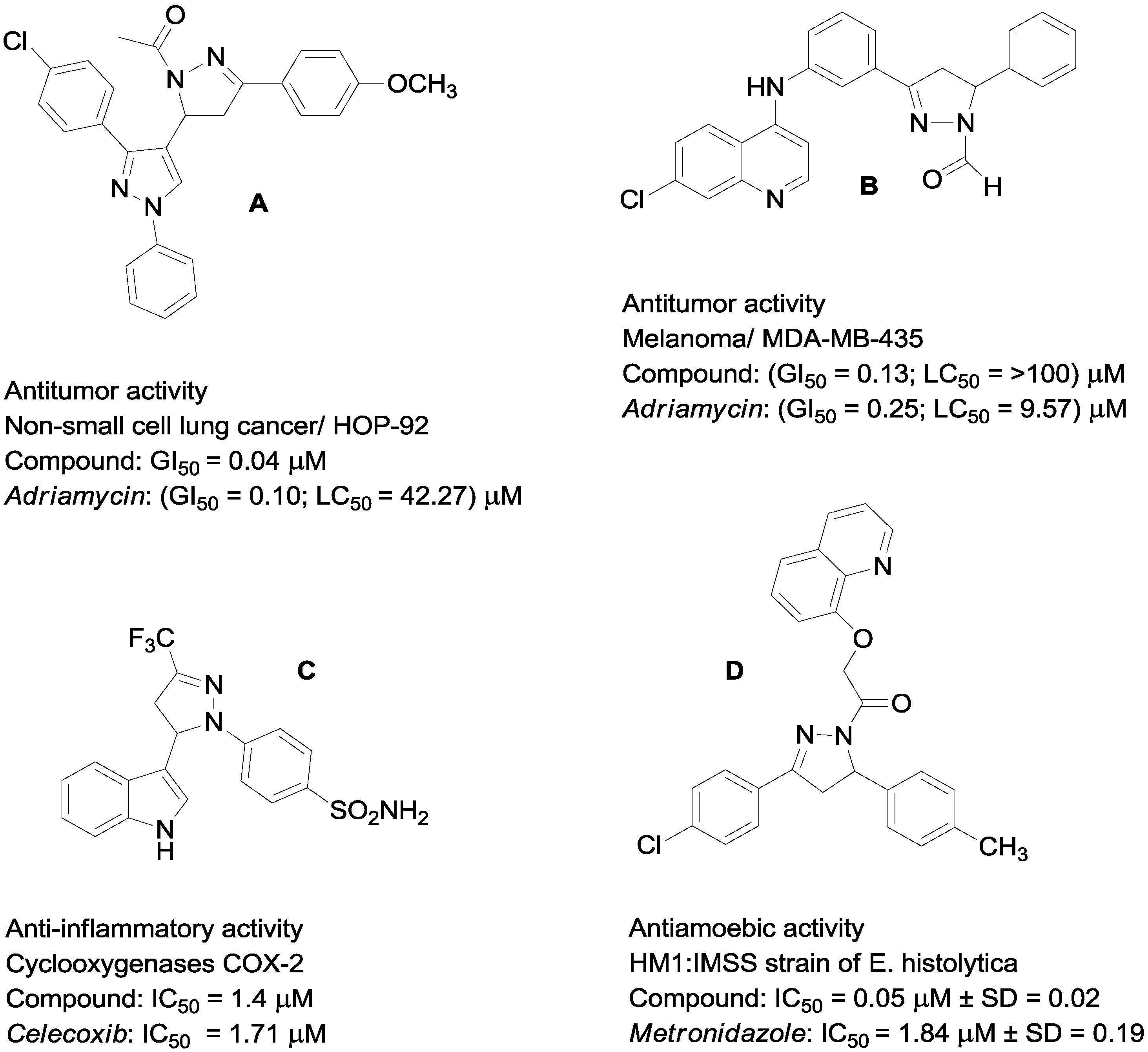

Figure 1. Some pyrazolines with remarkable biological activity.
Figure 1. Some pyrazolines with remarkable biological activity.
Molecules 19 18656 g001
On the other hand, the quinoline motive occurs in several natural compounds (cinchona alkaloids) and pharmacologically active substances displaying a broad range of biological activity [18]. In recent years it have been reported that the incorporation of these active pharmacophores in the structure of new heterocyclic compounds could potentiate their biological activity [19,20]. Prompted by the above mentioned biological properties of chalcones, pyrazolines and the additional value of having quinoline motives in their structures and in continuation with our current studies directed toward the synthesis of novel nitrogen containing heterocyclic compounds with biological activity [21,22,23,24,25,26], we have decided to explore a series of new pyrazolines containing the 4-aryloxy-7-chloroquinoline fragment in their structures derived from chalcones as starting materials. The results discussed in this paper reflect our efforts in discovering new potential anticancer chemotherapeutic agents.

2. Results and Discussion

2.1. Chemistry

In order to obtain the new key chalcone derivatives 5 as starting materials for the synthesis of the target products 68, the synthesis of the precursor 4-(7-chloroquinolin-4-yloxy)-3-methoxybenzaldehyde (3) was performed by the selective nucleophilic aromatic substitution (SNAr) of the 4-chlorine atom on 4,7-dichloroquinoline (1) with 4-hydroxy-3-methoxybenzaldehyde (2). This SNAr process was carried out by microwave irradiation of the reagents for 6 min at a power of 100 W and temperature of 100 °C. The present protocol is quite convenient and environmentally friendly, since the reaction proceeds under mild reaction conditions when compared to classical methods [27]. Then the Claisen-Schmidt condensation of precursor 3 with several aromatic acetophenones led to the formation of 5 in good to excellent yields (58%–95%) (Scheme 1 and Experimental Section).

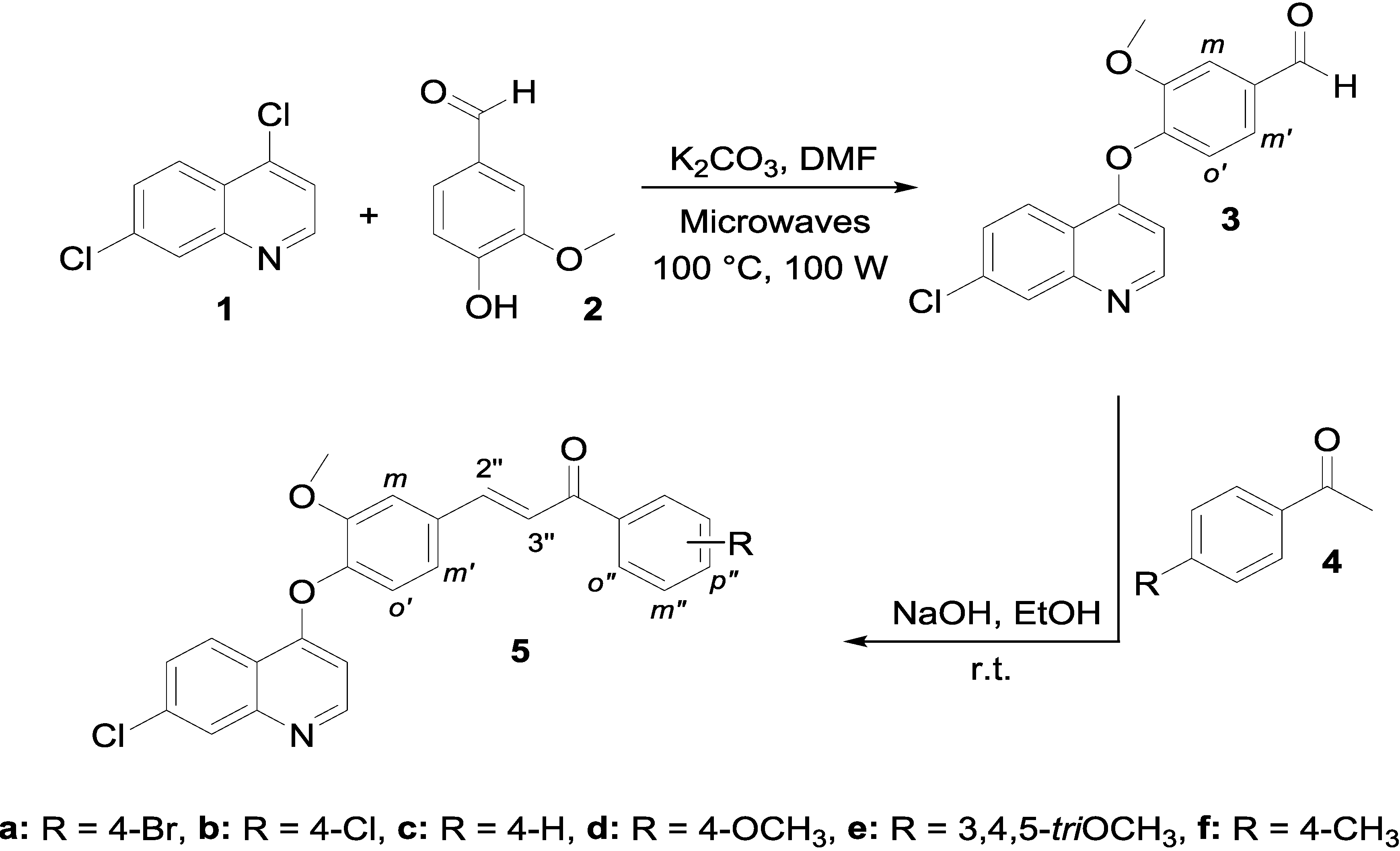

Scheme 1. Synthesis of novel [(7-chloroquinolin-4-yl)oxy]chalcones 5.
Scheme 1. Synthesis of novel [(7-chloroquinolin-4-yl)oxy]chalcones 5.
Molecules 19 18656 g002
The Claisen-Schmidt condensation was conducted in ethanol at room temperature, using drops of 20% sodium hydroxide solution as catalyst. The IR spectrum of compound 5a, for example, showed a characteristic absorption band at 1662 cm−1 corresponding to the stretching vibration of the carbonyl group. Two doublets at 7.81 and 7.45 ppm with J = 15.7 Hz which correspond to protons H-2'' and H-3'' were observed in the 1H-NMR spectrum of compound 5a, confirming the E-configuration for the double bond of the α,β-unsaturated carbonyl moiety.
Chalcones 5 were reacted with hydrazine hydrate, heating to reflux in EtOH, in order to accomplish the synthesis of the NH-pyrazolines 6 (Scheme 2), which were obtained in acceptable to excellent yields (71%–96%). Substitution on N-1 of pyrazolines 6 was carried out by treating either with acetic anhydride or with formic acid under stirring at room temperature for 10–30 min, to afford the novel N-acetyl- or N-formylpyrazoline derivatives 78 respectively (Scheme 2). These new pyrazolines 68, were fully characterized by means of spectroscopic techniques such as FT-IR, 1H-NMR, 13C-NMR and MS (see Experimental Section). As an example, in the IR spectrum of compound 8b, an absorption band is observed at 1,674 cm−1 which corresponds to the stretching vibration of the C=O amide functionality and a broad stretching band for the C=N and C=C functionalities is observed at 1591 cm−1. In the 1H-NMR spectrum the protons on the diastereotopic center C-4', of the pyrazoline ring appears as two double-doublets at δ = 3.33 and 3.98 ppm with 2JAM = 18.2, 3JAX = 5.1 and 3JMX = 11.6 Hz, while the H-5' proton is observed as a double-doublet at 5.64 ppm with 3JMX = 11.6 and 3JAX = 5.1 Hz. All carbon atoms were completely assigned using DEPT-135, HSQC and HMBC techniques. Finally, mass spectra of compounds 68 showed also well-defined molecular ions.

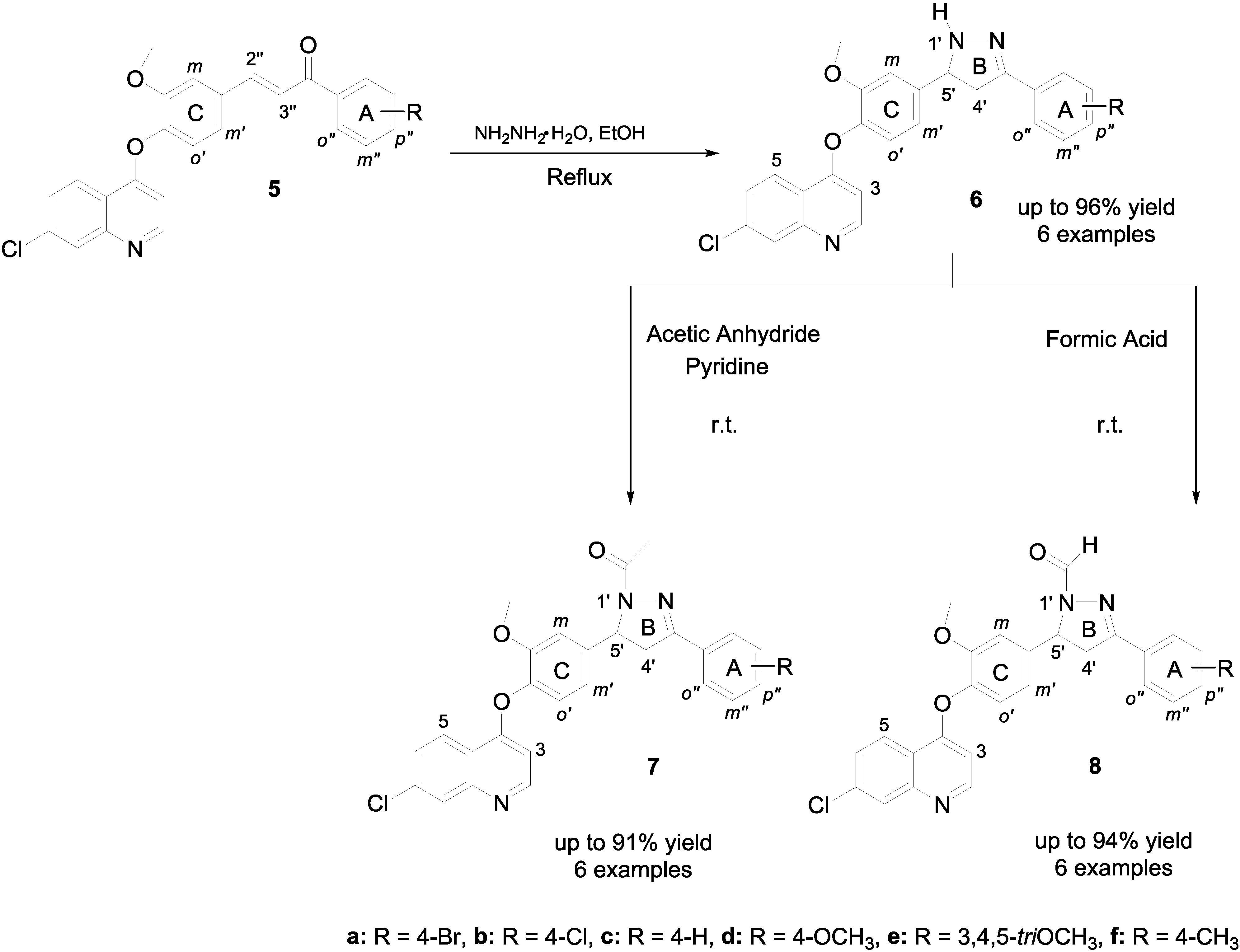

Scheme 2. Synthesis of new NH, N-acetyl and N-formylpyrazolines 68.
Scheme 2. Synthesis of new NH, N-acetyl and N-formylpyrazolines 68.
Molecules 19 18656 g003

2.2. Anticancer Activity

As a preliminary screening, structures of all new compounds (i.e., 68 series) were submitted to the Developmental Therapeutics Program (DTP) at National Cancer Institute (NCI) for evaluation of their anticancer activity against different human tumor cell lines. Thirteen of the submitted structures (i.e., 6be; 7b,d,e,f and 8bf) were selected and subjected to the preliminary evaluation against the 58 tumor cell lines at a single dose of 10 μM after 48 h of incubation. The output from the single dose screening was reported as a mean graph available for analysis by the COMPARE program (data are not shown). The results of this first assay showed that compounds 7b,d,f and 8c,f were active. Then, active compounds passed to a second stage in order to determine their cytostatic activity against the 58 tumor cell lines represented in leukemia, melanoma, lung, colon, brain, breast, ovary, kidney and prostate panels; where the testing results were expressed according to the following three parameters: GI50 which is the molar concentration of the compounds required to inhibit the growing of the cell lines to 50% (relative to untreated cells). TGI as the molar concentration that causes total growth inhibition, and LC50 which is a parameter of cytotoxicity and reflects the molar concentration needed to kill 50% of the cells [28]. The active compounds were evaluated at five concentration levels (100, 10, 1.0, 0.1, and 0.01 μM) and the test consisted of a 48 h continuous drug exposure protocol using sulforhodamide B (SRB) protein assay to estimate cell growth. Details of this evaluation method, and the complementary information related with the activity pattern over all cell lines, have been published [29,30,31,32,33]. As an outstanding result, compounds 7b,d,f and 8c,f exhibited remarkable activities, with GI50 ranges from 10−7 to 10−6 M, nevertheless, a raw comparison of the activities of our obtained compounds 68 with respect to the activity reported for the standard drug adriamycin, used by NCI as control, reflects that the activities displayed for our compounds were lower than for the standard drug control as follows: compounds 7d, 7f and 8f displayed activities with GI50 values of 1.66, 0.48 and 1.13 × 10−6 M respectively, against the SNB-75 cell line (CNS Cancer panel), while this value was 0.07 × 10−6 M for the standard drug adriamycin; compound 7b displayed GI50 value of 1.40 × 10−6 M against BT-549 (breast cancer panel), while the value against the same cell line for adriamycin was 0.23 × 10−6 M; finally the compound 8c displayed GI50 value of 1.50 × 10−6 M against HOP-92 (non-small cell lung panel), while the value was 0.10 × 10−6 M for the standard drug adriamycin. The above results suggest that the compounds 7b,d,f and 8c,f are promising structures, of the obtained compounds, for our future drug development antitumor studies. On the other hand, the cytotoxicity associated with the latter compounds, measured as LC50 are around 100 μM, for most cell lines, indicating a low toxicity of such compounds for normal human cell lines as required for potential antitumor agents (see Table 1).
Table 1. In vitro testing expressed as growth inhibition of cancer cell lines for compounds 7b,d,f and 8c,f and the standard drug adriamycin a.
Table 1. In vitro testing expressed as growth inhibition of cancer cell lines for compounds 7b,d,f and 8c,f and the standard drug adriamycin a.
Panel/Cell LineCompoundsStandard Drug
7b7d7f8c8fDoxorubicin (Adriamycin), NSC 123127 d
GI50 b (µM)LC50 c (µM)GI50 b (µM)LC50 c (µM)GI50 b (µM)LC50 c (µM)GI50 b (µM)LC50 c (µM)GI50 b (µM)LC50 c (µM)GI50 b (µM)LC50 c (µM)
Leukemia
CCRF-CEM>100>100>100>100>100>100>100>50>500.08100.00
HL-60(TB)>100>100>100>100>100>100>100>50>500.1289.33
K-562>100>100>100>100>100>100>50>500.19100.00
MOLT-4>100>100>100>100>100>100>100>50>500.03100.00
RPMI-8226>100>100>100>100>100>100>100>50>500.08100.00
SR>100>100>100>100>100>100>100>100>50>500.03100.00
Non-Small Cell Lung
A549/ATCC>100>100>1008.87>100>50>500.06100.00
EKVX>10051.7>100>100>1003.67>1007.75>500.4147.97
HOP-622.36>1003.37>1004.30>10012.4>1001.68>500.0767.61
HOP-922.32>1003.03>10030.1>1001.50>1009.10>500.1042.27
NCI-H2262.47>1002.78>1005.38>1005.24>1001.81>500.056.40
NCI-H23>10011.9>1002.71>1004.82>1006.93>500.1513.15
NCI-H460>100>100>10018.5>100>50>500.0251.29
NCI-H522>1007.57>100>100>1005.28>1002.72>500.032.80
Colon Cancer
COLO 205>100>100>100>100>100>100>50>500.184.33
HCC-2998>100>100>100>100>100>100>100>100>50>500.2621.68
HCT-116>1002.61>1000.68>1006.07>1002.50>500.0854.58
HCT-15>100>100>100>100>100>100>100>100>50>506.46100.00
HT29>100>100>100>100>100>100>50>500.1267.45
KM12>100>100>100>100>100>100>100>100>50>500.2792.68
SW-620>100>100>100>100>100>100>100>100>50>500.0958.61
CNS Cancer
SF-268>1009.28>10038.4>10023.2>10011.3>500.1030.48
SF-2954.22>1005.02>1002.52>1005.58>1004.41>500.1069.98
SF-5392.58>1002.40>10011.7>10010.3>1003.85>500.1227.23
SNB-19>100>10026.8>10037.4>10026.6>1009.53>500.0449.77
SNB-751.66>1001.6648.60.48>1003.31>1001.1338.80.073.30
U2513.09>1004.51>1001.41>10019.8>1006.50>500.0430.62
Melanoma
LOX IMVI>100>100>100>100>100>50>500.0750.35
MALME-3M>100>100>100>100>100>100>50>500.123.97
M14>100>10093.0>100>100>1005.83>10014.2>500.184.05
MDA-MB-435>100>100>100>100>100>100>100>50>500.259.57
SK-MEL-215.9>1007.1390.915.8>1008.68>1007.3945.20.171.06
SK-MEL-28>100>100>100>100>100>100>50>500.2115.92
SK-MEL-5>100>100>100>100>100>1002.18>100>50>500.080.49
UACC-257>100>100>100>100>100>100>50>500.148.15
UACC-62>100>1005.35>100>100>1006.76>10011.2>500.120.74
Ovarian Cancer
IGROV1>100>1006.29>10038.2>10035.0>10024.8>500.17100.00
OVCAR-3>1005.40>100>100>10018.6>100>50>500.3984.33
OVCAR-4>100>100>1004.17>100>500.3774.30
OVCAR-5>100>100>100>100>100>100>100>100>50>500.41100.00
OVCAR-8>1003.63>100>1004.91>100>500.1043.25
NCI/ADR-RES>100>100>1003.23>100>50>507.16100.00
SK-OV-3>1006.01>10032.4>1004.56>1007.20>500.22100.00
Renal Cancer
786-02.63>1004.52>1001.17>10011.5>1005.07>500.1351.64
A4984.09>10015.2>10013.1>1006.90>1005.73>500.101.90
ACHN>1004.03>1002.76>10017.4>1004.39>500.08100.00
CAKI-1>100 3.32>100>100>100>1005.20>100>50>500.95100.00
RXF 393>100>1005.04>1003.57>10015.4>1004.16>500.104.69
SN12C2.63>100>100>100>100>100>100>100>50>500.0772.44
UO-31>100>100>100>10013.5>100>50>500.4926.18
Prostate Cancer
PC-3>100-->100>1002.80>100>50>500.3287.10
DU-145>100>100>100>100>100>100>100>100>50>500.11100.00
Breast Cancer
MCF7>100>10029.4>100>100>1005.70>100>50>500.0351.29
MDA-MB-231/ATCC>1007.52>10011.3>10028.5>1004.23>500.5134.75
HS 578T2.94>1005.15>1002.60>1005.60>1001.82>500.3385.70
BT-5491.40>1004.00>1003.48>1002.24>1003.96>500.2321.33
T-47D2.85>1005.54>1002.28>10010.3>1002.90>500.0685.70
MDA-MB-4684.22>1007.43>10020.7>1002.17>1002.59>500.052.52
a Data obtained from NCI’s in vitro disease-oriented human tumor cell lines screen [27,28,29,31,32]; b GI50 was the drug concentration resulting in a 50% reduction in the net protein increase (as measured by SRB staining) in control cells during the drug incubation. Determined at five concentration levels (100, 10, 1.0, 0.1, and 0.01 μM); c LC50 is a parameter of citotoxicity and reflects the molar concentration needed to kill 50% of the cells; d The values of activity against human tumor cell lines displayed by adriamycin correspond to the reported by NCI at highest concentration of 10−4 M.

3. Experimental Section

3.1. General Information

Commercially available starting materials, reagents and solvents were used as supplied. Microwave reactions were performed in glass vessels (10 mL) using a CEM Discover Focused Microwave Synthesis SystemTM apparatus, with power output from 0 to 300 W. TLC analyses were performed on Merck silica gel 60 F254 aluminum plates. Melting points were determined in a Büchi melting point apparatus and are uncorrected. IR spectra were performed on a Shimadzu FTIR 8400 spectrophotometer in KBr disks. The 1H- and 13C-NMR spectra were run on a Bruker DPX 400 spectrophotometer operating at 400 MHz and 100 MHz, respectively, using chloroform-d and dimethylsulfoxide-d6 as solvents and tetramethylsilane as internal reference. The mass spectra were obtained on a Hewlett Packard HP Engine-5989 spectrometer (equipped with a direct inlet probe) operating at 70 eV. The elemental analyses were obtained using a Thermo-Finnigan Flash EA1112 CHN (Elemental Microanalysis Ltd, Devon, UK) elemental analyzer.

3.2. Chemistry

3.2.1. General Procedure for the Synthesis of Compound 3 under Microwave Irradiation

A mixture of 4,7-dichloroquinoline 1 (0.5 g, 2.5 mmol), vanillin 2 (0.38 g, 2.5 mmol), potassium carbonate (1 g, 7.2 mmol) in N,N-dimethylformamide was submitted to microwave irradiation for 6 min at a power of 100 W and a temperature of 100 °C. The reaction mixture was cooled and cold water was added. The precipitate of 4-[(7-Chloroquinolin-4-yl)oxy]-3-methoxybenzaldehyde (3) formed was filtered and recrystallized from ethanol. Beige solid; 80% yield; mp: 140–142 °C. FTIR ʋ (cm−1): 1701 (C=O), 1591 and 1563 (C=N and C=C) 1H-NMR (CDCl3) δ ppm 3.82 (s, 3H, OCH3), 6.43 (d, J = 5.2 Hz, 1H, H-3), 7.32 (d, J = 8.0 Hz, 1H, Ho'), 7.53 (dd, J = 9.0, 2.0 Hz, 1H, H-6), 7.55 (dd, J = 8.0, 1.6 Hz, 1H, Hm'), 7.59 (d, J = 1.6 Hz, 1H, Hm), 8.09 (d, J = 2.0 Hz, 1H, H-8), 8.30 (d, J = 9.0 Hz, 1H, H-5), 8.65 (d, J = 5.2 Hz, 1H, H-2), 9.99 (s, 1H, CHO). 13C-NMR (CDCl3) δ ppm 56.1, 104.1, 111.6, 119.5, 122.8, 123.4, 125.2, 127.3, 128.1, 135.2, 136.3, 147.6, 150.3, 152.1, 152.3, 160.9, 190.7. MS (70 eV) m/z (%): 313 (84, M+), 197 (99), 176 (100), 162 (87), 135 (43), 99 (54). Anal. Calcd. For C17H12ClNO3: C, 65.08; H, 3.86; N, 4.46. Found: C, 64.98; H, 3.89; N, 4.41.

3.2.2. General Procedure for the Synthesis of Chalcones 5af

A mixture of aldehyde 3 (300 mg, 1 mmol), the appropriate acetophenone 4 (1 mmol), 20% aq NaOH (0.8 mL) and 95% EtOH (30 mL) was stirred at room temperature for 2 h. The solid formed was filtered and washed with ethanol. No further purification was needed and products were used such as were obtained.
(E)-1-(4-Bromophenyl)-3-[4-((7-chloroquinolin-4-yl)oxy)-3-methoxyphenyl]prop-2-en-1-one (5a). White solid; 93% yield; mp: 177–179 °C. FTIR ʋ (cm−1): 1662 (C=O), 1605 and 1585 (C=N and C=C). 1H-NMR (CDCl3) δ ppm 3.82 (s, 3H, OCH3), 6.43 (d, J = 5.3 Hz, 1H, H-3), 7.22 (d, J = 8.2 Hz, 1H, Ho'), 7.28 (d, J = 1.6 Hz, 1H, Hm), 7.34 (dd, J = 8.2, 1.6 Hz, 1H, Hm'), 7.45 (d, J = 15.7, 1H, =CH), 7.53 (dd, J = 8.9, 2.0 Hz, 1H, H-6), 7.65 (d, J = 8.5 Hz, 2H, Ho''), 7.81 (d, J = 15.7, 1H, =CH), 7.89 (d, J = 8.5 Hz, 2H, Hm''), 8.08 (d, J = 2.0 Hz, 1H, H-8), 8.33 (d, J = 8.9 Hz, 1H, H-5), 8.64 (d, J = 5.3 Hz, 1H, H-2). 13C-NMR (CDCl3) δ ppm 56.1, 103.6, 112.7, 119.5, 122.1, 123.3, 123.6, 127.1, 128.0, 128.2, 128.7, 130.2, 132.0, 133.8, 136.2, 136.8, 144.2, 144.3, 150.2, 151.9, 152.3, 161.4, 189.2. MS (70 eV) m/z (%): 493 (75, M+), 495 (100), 414 (46), 315 (33), 183 (40), 160 (45). Anal. Calcd. For C25H17BrClNO3: C, 60.69; H, 3.46; N, 2.83. Found: C, 60.49; H, 3.40; N, 2.87.
(E)-1-(4-Chlorophenyl)-3-[4-((7-chloroquinolin-4-yl)oxy)-3-methoxyphenyl]prop-2-en-1-one (5b). White solid; 95% yield; mp: 168–170 °C. FTIR ʋ (cm−1): 1661 (C=O), 1603 and 1587 (C=C and C=N). 1H-NMR (CDCl3) δ ppm 3.82 (s, 3H, OCH3), 6.43 (d, J = 5.2 Hz, 1H, H-3), 7.22 (d, J = 8.2 Hz, 1H, Ho'), 7.29 (d, J = 1.7 Hz, 1H, Hm), 7.35 (dd, J = 8.2, 1.7 Hz, 1H, Hm'), 7.45 (d, J = 15.8, 1H, =CH), 7.49 (d, J = 8.5 Hz, 2H, Ho''), 7.53 (dd, J = 8.9, 2.0 Hz, 1H, H-6), 7.81 (d, J = 15.8, 1H, =CH), 7. 98 (d, J = 8.5 Hz, 2H, Hm''), 8.09 (d, J = 2.0 Hz, 1H, H-8), 8.33 (d, J = 8.9 Hz, 1H, H-5), 8.64 (d, J = 5.2 Hz, 1H, H-2). 13C-NMR (CDCl3) δ ppm 56.0, 103.7, 112.7, 119.5, 122.0, 123.2, 123.5, 127.1, 128.0, 128.1, 128.7, 130.1, 132.0, 133.8, 136.2, 136.8, 144.2, 144.3, 150.2, 152.0, 152.2, 161.4, 189.2. MS (70 eV) m/z (%): 449 (100, M+), 414 (38), 271 (46), 160 (35), 139 (58), 111 (41). Anal. Calcd. For C25H17Cl2NO3: C, 66.68; H, 3.81; N, 3.11. Found: C, 66.35; H, 3.79; N, 3.07.
(E)-3-[4-((7-Chloroquinolin-4-yl)oxy)-3-methoxyphenyl]-1-phenylprop-2-en-1-one (5c). White solid; 89% yield; mp: 157–159 °C. FTIR ʋ (cm−1): 1661 (C=O), 1603 and 1583 (C=N and C=C). 1H-NMR (CDCl3) δ ppm 3.81 (s, 3H, OCH3), 6.43 (d, J = 5.3 Hz, 1H, H-3), 7.22 (d, J = 8.2 Hz, 1H, Ho'), 7.30 (d, J = 1.6 Hz, 1H, Hm), 7.34 (dd, J = 8.2, 1.6 Hz, 1H, Hm'), 7.47–7.63 (m, 5H, =CH, H-6, Ho'' and Hp''), 7.80 (d, J = 15.6, 1H, =CH), 8.03 (d, J = 7.3 Hz, 2H, Hm''), 8.08 (d, J = 1.8 Hz, 1H, H-8), 8.33 (d, J = 8.8 Hz, 1H, H-5), 8.64 (d, J = 5.3 Hz, 1H, H-2). 13C-NMR (CDCl3) δ ppm 56.0, 103.7, 112.6, 119.5, 122.0, 122.7, 123.2, 123.5, 127.1, 128.0, 128.6, 128.7, 133.0, 134.0, 136.1, 138.1, 143.8, 144.1, 150.2, 151.9, 152.2, 161.4, 190.3. MS (70 eV) m/z (%): 415 (100, M+), 313 (30), 237 (39), 176 (48), 160 (31), 105 (60), 77 (56). Anal. Calcd. For C25H18ClNO3: C, 72.20; H, 4.36; N, 3.37. Found: C, 72.01; H, 4.34; N, 3.39.
(E)-3-[4-((7-Chloroquinolin-4-yl)oxy)-3-methoxyphenyl]-1-(4-methoxyphenyl)prop-2-en-1-one (5d). White solid; 62% yield; mp: 190–192 °C. FTIR ʋ (cm−1): 1655 (C=O), 1606 (C=N and C=C). 1H-NMR (CDCl3) δ ppm 3.80 (s, 3H, OCH3-Ar.C), 3.88 (s, 3H, OCH3-Ar.A), 6.43 (d, J = 5.3 Hz, 1H, H-3), 6.98 (d, J = 8.9 Hz, 2H, Ho''), 7.20 (d, J = 8.0 Hz, 1H, Ho'), 7.28 (d, J = 1.6 Hz, 1H, Hm), 7.33 (dd, J = 8.0, 1.6 Hz, 1H, Hm'), 7.50–7.54 (m, 2H, =CH, H-6), 7.79 (d, J = 15.6, 1H, =CH), 8.04 (d, J = 8.9 Hz, 2H, Hm''), 8.07 (d, J = 1.9 Hz, 1H, H-8), 8.33 (d, J = 8.9 Hz, 1H, H-5), 8.63 (d, J = 5.3 Hz, 1H, H-2). 13C-NMR (CDCl3) δ ppm 55.5, 56.0, 103.7, 112.6, 114.0, 119.5, 121.8, 122.5, 123.2, 123.5, 127.1, 128.0, 130.7, 131.1, 134.3, 136.1, 142.9, 143.9, 150.2, 151.9, 152.2, 161.4, 163.6, 188.4. MS (70 eV) m/z (%): 445 (13, M+), 313 (85), 176 (98), 135 (100). Anal. Calcd. For C26H20ClNO4: C, 70.03; H, 4.52; N, 3.14. Found: C, 70.00; H, 4.50; N, 3.18.
(E)-3-[4-((7-Chloroquinolin-4-yl)oxy)-3-methoxyphenyl]-1-(3,4,5-trimethoxyphenyl)prop-2-en-1-one (5e). White solid; 58% yield; mp: 200–202 °C. FTIR ʋ (cm−1): 1650 (C=O), 1586 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm 3.79 (s, 3H, OCH3-Ar.A), 3.83 (s, 3H, OCH3-Ar.C), 3.92 (s, 6H, OCH3 × 2-Ar.A), 6.55 (d, J = 5.3 Hz, 1H, H-3), 7.42 (d, J = 8.3 Hz, 1H, Ho'), 7.45 (s, 2H, Ho''), 7.68–7.84 (m, 4H, H-6, Hm, Hm', =CH), 7.98 (d, J = 15.8, 1H, =CH), 8.09 (d, J = 2.0 Hz, 1H, H-8), 8.37 (d, J = 8.9 Hz, 1H, H-5), 8.70 (d, J = 5.3 Hz, 1H, H-2). 13C-NMR (DMSO-d6) δ ppm 56.1, 56.5, 61.0, 103.6, 106.4, 113.0, 119.5, 121.6, 122.4, 123.2, 123.5, 127.1, 128.0, 133.3, 134.1, 136.1, 142.9, 143.6, 144.1, 150.2, 151.9, 152.2, 153.3, 161.4, 189.0. MS (70 eV) m/z (%): 505 (100, M+), 490 (97), 195 (63), 160 (32). Anal. Calcd. For C28H24ClNO6: C, 66.47; H, 4.78; N, 2.77. Found: C, 66.42; H, 4.71; N, 2.69.
(E)-3-[4-((7-Chloroquinolin-4-yl)oxy)-3-methoxyphenyl]-1-(p-tolyl)prop-2-en-1-one (5f). White solid; 85% yield; mp: 182–183 °C. FTIR ʋ (cm−1): 1658 (C=O), 1604 and 1564 (C=N and C=C). 1H-NMR (CDCl3) δ ppm 2.43 (s, 3H, CH3), 3.81 (s, 3H, OCH3), 6.43 (d, J = 5.3 Hz, 1H, H-3), 7.21 (d, J = 8.0 Hz, 1H, Ho'), 7.29 (d, J = 2.0 Hz, 1H, Hm), 7.30–7.34 (m, 3H, Ho'', Hm'), 7.47–7.54 (m, 2H, H-6, =CH), 7.79 (d, J = 15.6, 1H, =CH), 7.94 (d, J = 8.3 Hz, 2H, Hm''), 8.08 (d, J = 1.8 Hz, 1H, H-8), 8.33 (d, J = 9.0 Hz, 1H, H-5), 8.63 (d, J = 5.3 Hz, 1H, H-2). 13C-NMR (CDCl3) δ ppm 21.7, 56.0, 103.7, 112.6, 119.5, 121.9, 122.7, 123.2, 123.5, 127.1, 128.0, 128.7, 129.4, 134.2, 135.5, 136.1, 143.3, 143.9, 144.0, 150.2, 151.9, 152.2, 161.4, 189.8. MS (70 eV) m/z (%): 429 (61, M+), 313 (76), 176 (100), 135 (32), 119 (64), 91 (58). Anal. Calcd. For C26H20ClNO3: C, 72.64; H, 4.69; N, 3.26. Found: C, 72.59; H, 4.59; N, 3.33.

3.2.3. General Procedure for the Synthesis of the NH-Pyrazolines 6af

A mixture of chalcone 5 (100 mg, 0.20 mmol), hydrazine hydrate (0.26 mmol) in absolute ethanol (15 mL) was heated under reflux for 1 h until complete consumption of the chalcone (TLC control). The solid formed was filtered and washed of cold ethanol/water (1:0.5) mixture. No further purification was required.
4-(4-(3-(4-Bromophenyl)-4,5-dihydro-1H-pyrazol-5-yl)-2-methoxyphenoxy)-7-chloroquinoline (6a). White solid; 96% yield; mp: 230–232 °C. FTIR ʋ (cm−1): 3331 (NH), 1611 and 1587 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm 2.95 (dd, J = 16.3, 11.2 Hz, 1H, H-4'a), 3.51 (dd, J = 16.3, 11.2 Hz, 1H, H-4'b), 3.73 (s, 3H, OCH3), 4.96 (m, 1H, H-5'), 6.44 (d, J = 5.3 Hz, 1H, H-3), 7.09 (dd, J = 8.3, 1.5 Hz, 1H, Hm'), 7.29 (d, J = 8.3 Hz, 1H, Ho'), 7.32 (d, J = 1.5 Hz, 1H, Hm), 7.51–7.62 (m, 4H, Ho'', Hm''), 7.68 (dd, J = 8.9, 2.0 Hz, 1H, H-6), 8.07 (d, J = 2.0 Hz, 1H, H-8), 8.35 (d, J = 8.9 Hz, 1H, H-5), 8.68 (d, J = 5.3 Hz, 1H, H-2), Not observed (s, 1H, NH).13C-NMR (-d6) δ ppm 41.6, 56.8, 63.8, 104.6, 113.6, 119.7, 120.1, 122.7, 124.5, 126.1, 127.1, 127.9, 129.4, 131.2, 132.6, 135.2, 138.1, 141.6, 143.5, 149.1, 150.2, 151.2, 153.2. MS (70 eV) m/z (%): 507 (38, M+), 509 (100), 495 (65), 414 (31), 312 (81), 285 (29), 183 (62), 176 (46), 155 (32), 135 (39), 99 (29), 69 (52). Anal. Calcd. For C25H19BrClN3O2: C, 59.02; H, 3.76; N, 8.26. Found: C, 59.13; H, 3.80; N, 8.31.
7-Chloro-4-(4-(3-(4-chlorophenyl)-4,5-dihydro-1H-pyrazol-5-yl)-2-methoxyphenoxy)quinoline (6b). White solid; 95% yield; mp: 223-225 °C. FTIR ʋ (cm−1): 3333 (NH), 1611 and 1589 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm 2.97 (dd, J = 16.3, 10.8 Hz, 1H, H-4'a), 3.52 (dd, J = 16.3, 10.8 Hz, 1H, H-4'b), 3.74 (s, 3H, OCH3), 4.98 (m, 1H, H-5'), 6.49 (d, J = 5.1 Hz, 1H, H-3), 7.10 (dd, J = 8.0, 1.8 Hz, 1H, Hm'), 7.26 (d, J = 8.0 Hz, 1H, Ho'), 7.30 (d, J = 1.8 Hz, 1H, Hm), 7.43 (d, J = 8.5 Hz, 2H, Ho''), 7.56 (dd, J = 9.0, 2.0 Hz, 1H, H-6), 7.66 (d, J = 8.5 Hz, 2H, Hm''), 8.05 (d, J = 2.0 Hz, 1H, H-8), 8.36 (d, J = 9.0 Hz, 1H, H-5), 8.68 (d, J = 5.1 Hz, 1H, H-2), Not observed (s, 1H, NH). 13C-NMR (DMSO-d6) δ ppm 41.4, 56.8, 65.2, 103.4, 112.2, 114.2, 119.1, 119.7, 120.3, 122.5, 124.3, 125.8, 126.0, 127.1, 127.4, 127.7, 128.0, 128.5, 129.2, 133.3, 134.0, 135.3, 153.1. MS (70 eV) m/z (%): 463 (92, M+), 449 (64), 312 (87), 298 (38), 285 (37), 271 (34), 177 (52), 162 (40), 151 (98), 139 (100), 111 (40). Anal. Calcd. For C25H19Cl2N3O2: C, 64.66; H, 4.12; N, 9.05. Found: C, 64.57; H, 4.09; N, 9.11.
7-Chloro-4-(2-methoxy-4-(3-phenyl-4,5-dihydro-1H-pyrazol-5-yl)phenoxy)quinoline (6c). White solid; 81% yield; mp: 178–179 °C. FTIR (ʋ (cm−1): 3345 (NH), 1612 and 1589 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm 2.99 (dd, J = 16.1, 10.7 Hz, 1H, H-4'a), 3.53 (dd, J = 16.1, 10.7 Hz, 1H, H-4'b), 3.75 (s, 3H, OCH3), 4.98 (m, 1H, H-5'), 6.51 (d, J = 4.9 Hz, 1H, H-3), 7.12 (d, J = 8.2 Hz, 1H, Hm'), 7.24 (d, J = 8.2 Hz, 1H, Ho'), 7.29–7.43 (m, 4H, Hm, Hm'', Hp''), 7.59–7.70 (m, 3H, Ho'', H-6), 8.05 (s, 1H, H-8), 8.36 (d, J = 8.8 Hz, 1H, H-5), 8.68 (d, J = 4.9 Hz, 1H, H-2), Not observed (s, 1H, NH). 13C-NMR (DMSO-d6) δ ppm 41.2, 56.7, 63.9, 104.4, 112.6, 113.2, 119.0, 119.7, 120.1, 122.9, 124.2, 125.8, 126.0, 127.1, 127.8, 127.9, 128.5, 128.8, 129.2, 133.3, 134.5, 135.4, 153.2. MS (70 eV) m/z (%): 431 (5, M+), 327 (64), 312 (100), 176 (40). Anal. Calcd. For C25H20ClN3O2: C, 69.85; H, 4.69; N, 9.77. Found: C, 69.71; H, 4.75; N, 9.69.
7-Chloro-4-(2-methoxy-4-(3-(4-methoxyphenyl)-4,5-dihydro-1H-pyrazol-5-yl)phenoxy)quinoline (6d). White solid; 76% yield; mp: 214–216 °C. FTIR ʋ (cm−1): 3215 (NH), 1568 and 1503 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm 2.91 (dd, J = 16.3, 10.9 Hz, 1H, H-4'a), 3.49 (dd, J = 16.3, 10.9 Hz, 1H, H-4'b), 3.73 (s, 3H, OCH3-Ar.C), 3.78 (s, 3H, OCH3-Ar.A), 4.90 (m, 1H, H-5'), 6.45 (d, J = 5.2 Hz, 1H, H-3), 6.96 (d, J = 8.8 Hz, 2H, Ho''), 7.10 (dd, J = 8.2, 1.5 Hz, 1H, Hm'), 7.28 (d, J = 8.2 Hz, 1H, Ho'), 7.33 (d, J = 1.5 Hz, 1H, Hm), 7.59 (d, J = 8.8 Hz, 2H, Hm''), 7.67 (dd, J = 8.9, 2.0 Hz, 1H, H-6), 8.07 (d, J = 2.0 Hz, 1H, H-8), 8.35 (d, J = 8.9 Hz, 1H, H-5), 8.68 (d, J = 5.2 Hz, 1H, H-2), Not observed (s, 1H, NH). 13C-NMR (DMSO-d6) δ ppm 40.5, 54.7, 55.3, 62.9, 103.1, 111.6, 113.5, 118.4, 119.0, 122.1, 123.4, 125.4, 126.3, 126.5, 126.9, 134.3, 139.7, 142.2, 148.5, 149.1, 150.5, 152.4, 158.9, 160.5. MS (70 eV) m/z (%): 459 (6, M+), 461 (8), 135 (100). Anal. Calcd. For C26H22ClN3O3: C, 67.90; H, 4.82; N, 9.14. Found: C, 67.85; H, 4.86; N, 9.09.
7-Chloro-4-(2-methoxy-4-(3-(3,4,5-trimethoxyphenyl)-4,5-dihydro-1H-pyrazol-5-yl)phenoxy)-quinoline (6e). White solid; 71% yield; mp: 226–227 °C. FTIR ʋ (cm−1): 3216 (NH), 1572 and 1507 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm Not observed (dd, 1H, H-4'a, overlapped with water signal), 3.53 (dd, J = 16.1, 10.7 Hz, 1H, H-4'b), 3.75 (s, 3H, OCH3-Ar.C), 3.76 (s, 3H, OCH3-Ar.A), 3.84 (s, 6H, OCH3 × 2-Ar.A), 4.96 (m, 1H, H-5'), 6.50 (d, J = 5.0 Hz, 1H, H-3), 6.97 (s, 2 H, Ho''), 7.12 (d, J = 8.2 Hz, 1H, Hm'), 7.25 (d, J = 8.2 Hz, 1H, Ho'), 7.31 (s, 10H, Hm), 7.65 (dd, J = 8.9, 1.4 Hz, 1H, H-6), 8.05 (d, J = 1.4 Hz, 1H, H-8), 8.36 (d, J = 8.9 Hz, 1H, H-5), 8.68 (d, J = 5.0 Hz, 1H, H-2), Not observed (s, 1H, NH). 13C-NMR (DMSO-d6) δ ppm 41.4, 56.7, 56.9, 63.9, 104.4, 104.8, 105.0, 113.3, 119.7, 120.0, 122.9, 124.2, 124.9, 127.1, 127.9, 129.0, 129.4, 137.8, 139.6, 141.6, 143.1, 149.4, 153.2, 153.6, 161.2. MS (70 eV) m/z (%): 519 (2, M+), 521 (8), 313 (62), 210 (55), 195 (100), 176 (66). Anal. Calcd. For C28H26ClN3O5: C, 64.68; H, 5.04; N, 8.08. Found: C, 64.59; H, 5.09; N, 8.13.
7-Chloro-4-(2-methoxy-4-(3-(p-tolyl)-4,5-dihydro-1H-pyrazol-5-yl)phenoxy)quinoline (6f). White solid; 80% yield; mp: 179–181 °C. FTIR ʋ (cm−1): 3335 (NH), 1601 and 1574 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm 2.33 (s, 3H, CH3), 2.95 (dd, J = 16.0, 10.5 Hz, 1H, H-4'a), 3.50 (dd, J = 16.0, 10.5 Hz, 1H, H-4'b), 3.74 (s, 3H, OCH3), 4.94 (m, 1H, H-5'), 6.50 (d, J = 4.6 Hz, 1H, H-3), 7.11 (d, J = 8.2 Hz, 1H, Hm'), 7.20 (d, J = 7.5 Hz, 2H, Ho''), 7.24 (d, J = 8.2 Hz, 1H, Ho'), 7.31 (s, 2H, Hm, NH), 7.55 (d, J = 7.5 Hz, 2H, Hm''), 7.65 (d, J = 8.8 Hz, 1H, H-6), 8.05 (s, 1H, H-8), 8.36 (d, J = 8.8 Hz, 1H, H-5), 8.68 (d, J = 4.6 Hz, 1H, H-2). 13C-NMR (DMSO-d6) δ ppm 21.2, 56.7, 63.8, 104.4, 113.3, 119.7, 120.0, 122.8, 124.2, 126.0, 127.1, 127.9, 129.4, 131.2, 132.6, 135.3, 138.1, 141.6, 143.1, 149.5, 150.3, 151.7, 153.2, 161.6. MS (70 eV) m/z (%): 443 (3, M+), 445 (24), 176 (42), 119 (100), 91 (58). Anal. Calcd. For C26H22ClN3O2: C, 70.34; H, 5.00; N, 9.47. Found: C, 70.07; H, 5.03; N, 9.50.

3.2.4. General Procedure for the Synthesis of the N-Acetylpyrazolines 7af

A mixture of the NH-pyrazoline 6 (50 mg, 0.10 mmol), acetic anhydride (2 mL) and pyridine (3 drops) was stirred at room temperature for 10 min until complete consumption of the NH-pyrazoline (TLC control). Then, water (3 mL) was added and the resulting precipitate was collected by filtration, washed with water and recrystallized from ethanol.
1-(3-(4-Bromophenyl)-5-[4-(7-chloroquinolin-4-yloxy)-3-methoxyphenyl]-4,5-dihydro-1H-pyrazol-1-yl)ethanone (7a). White solid; 91% yield; mp: 244–245 °C. FTIR ʋ (cm−1): 1665 (C=O), 1585 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm Not observed (dd, 1H, H-4'a, overlapped with water signal), 2.35 (s, 3H, CH3), 3.71 (s, 3H, OCH3), 3.91 (dd, J = 18.1, 11.8 Hz, 1H, H-4'b), 5.64 (dd, J = 11.8, 4.8 Hz, 1H, H-5'), 6.43 (d, J = 5.3 Hz, 1H, H-3), 6.85 (dd, J = 8.2, 1.8 Hz, 1H, Hm'), 7.14 (d, J = 1.8 Hz, 1H, Hm), 7.26 (d, J = 8.2 Hz, 1H, Ho'), 7.65–7.71 (m, 3H, H-6, Ho''), 7.73–7.77 (m, 2H, Hm''), 8.07 (d, J = 2.0 Hz, 1H, H-8), 8.33 (d, J = 8.8 Hz, 1H, H-5), 8.67 (d, J = 5.3 Hz, 1H, H-2). 13C-NMR (DMSO-d6) δ ppm 21.9, 42.2, 56.0, 60.0, 100.0, 103.7, 111.4, 118.0, 119.0, 123.0, 123.3, 123.9, 127.0, 127.5, 128.8, 130.5, 131.9, 134.9, 140.4, 140.8, 149.7, 151.3, 153.0, 153.5, 167.9. MS (70 eV) m/z (%): 549 (34, M+), 551 (44), 509 (63), 368 (56), 285 (32), 43 (100). Anal. Calcd. For C27H21BrClN3O3: C, 58.87; H, 3.84; N, 7.63. Found: C, 58.35; H, 3.79; N, 7.70.
1-(3-(4-Chlorophenyl)-5-[4-(7-chloroquinolin-4-yloxy)-3-methoxyphenyl]-4,5-dihydro-1H-pyrazol-1-yl)ethanone (7b). White solid; 91% yield; mp: 236–238 °C. FTIR ʋ (cm−1): 1666 (C=O), 1595 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm 2.35 (s, 3H, CH3), 3.25 (dd, J = 17.8, 4.4 Hz, 1H, H-4'a), 3.72 (s, 3H, OCH3), 3.91 (dd, J = 17.8, 11.7 Hz, 1H, H-4'b), 5.65 (dd, J = 11.7, 4.4 Hz, 1H, H-5'), 6.47 (d, J = 4.5 Hz, 1H, H-3), 6.88 (d, J = 7.5 Hz, 1H, Hm'), 7.13 (s, 1H, Hm), 7.23 (d, J = 7.5 Hz, 1H, Ho'), 7.52 (d, J = 8.0 Hz, 2H, Ho''), 7.65 (d, J = 8.8 Hz, 1H, H-6), 7.81 (d, J = 8.0 Hz, 2H, Hm''), 8.05 (s, 1H, H-8), 8.33 (d, J = 8.8 Hz, 1H, H-5), 8.67 (d, J = 4.5 Hz, 1H, H-2). 13C-NMR (DMSO-d6) δ ppm 22.1, 42.6, 56.7, 60.2, 104.4, 112.6, 118.8, 119.7, 123.1, 124.2, 127.1, 127.2, 127.9, 128.8, 129.3, 135.1, 135.4, 141.7, 142.0, 150.3, 151.8, 153.2, 153.6, 161.4, 168.2. MS (70 eV) m/z (%): 505 (33, M+), 463 (55), 368 (41), 285 (31), 179 (54), 43 (100). Anal. Calcd. For C27H21Cl2N3O3: C, 64.04; H, 4.18; N, 8.30. Found: C, 63.97; H, 4.00; N, 8.36.
1-(5-[4-(7-Chloroquinolin-4-yloxy)-3-methoxyphenyl]-3-phenyl-4,5-dihydro-1H-pyrazol-1-yl)ethanone (7c). White solid; 90% yield; mp: 240–241 °C. FTIR ʋ (cm−1): 1663 (C=O), 1597 and 1570 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm 2.36 (s, 3H, CH3), 3.20–3.30 (m, 1H, H-4'a), 3.72 (s, 3H, OCH3), 3.93 (dd, J = 16.6, 12.6 Hz, 1H, H-4'b), 5.61–5.67 (m, 1H, H-5'), 6.49 (s, 1H, H-3), 6.89 (d, J = 6.9 Hz, 1H, Hm'), 7.13 (s, 1H, Hm), 7.22 (d, J = 6.9 Hz, 1H, Ho'), 7.48 (s, 3H, Ho'', Hp''), 7.64 (d, J = 7.7 Hz, 1H, H-6), 7.81 (s, 2H, Hm''), 8.04 (s, 1H, H-8), 8.33 (d, J = 7.7 Hz, 1H, H-5), 8.67 (s, 1H, H-2). 13C-NMR (DMSO-d6) δ ppm 22.2, 42.8, 56.6, 60.4, 104.8, 112.9, 118.8, 120.1, 123.4, 124.6, 127.6, 127.8, 127.9, 128.4, 129.3, 135.2, 135.5, 141.6, 142.0, 151.0, 152.4, 153.2, 154.3, 161.4, 167.9. MS (70 eV) m/z (%): 471 (75, M+), 429 (100), 368 (57), 178 (31), 145 (82), 104 (41), 43 (67). Anal. Calcd. For C27H22ClN3O3: C, 68.71; H, 4.70; N, 8.90. Found: C, 68.40; H, 4.75; N, 8.91.
1-(5-[4-(7-Chloroquinolin-4-yloxy)-3-methoxyphenyl]-3-(4-methoxyphenyl)-4,5-dihydro-1H-pyrazol-1-yl)ethanone (7d). White solid; 75% yield; mp: 238–239 °C. FTIR ʋ (cm−1): 1663 (C=O), 1607 and 1576 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm 2.34 (s, 3H, CH3), 3.22 (dd, J = 17.8, 2.8 Hz, 1H, H-4'a), 3.72 (s, 3H, OCH3-Ar.C), 3.81–3.94 (m, 4H, OCH3-Ar.A, H-4'b), 5.58–5.64 (m, 1H, H-5'), 6.49 (d, J = 2.8 Hz, 1H, H-3), 6.88 (d, J = 7.4 Hz, 1H, Hm'), 7.03 (d, J = 7.4 Hz, 2H, Ho''), 7.12 (s, 1H, Hm), 7.22 (d, J = 7.4 Hz, 1H, Ho') 7.64 (d, J = 8.2 Hz, 1H, H-6) 7.75 (d, J = 7.4 Hz, 2H, Hm'') 8.04 (s, 1H, H-8) 8.33 (d, J = 8.2 Hz, 1H, H-5) 8.67 (d, J = 2.8 Hz, 1H, H-2). 13C-NMR (DMSO-d6) δ ppm 22.1, 42.8, 56.0, 56.7, 59.9, 100.2, 104.4, 112.5, 114.9, 118.7, 119.7, 123.1, 124.2, 124.5, 127.1, 127.9, 128.7, 135.3, 141.6, 142.3, 150.6, 151.8, 153.2, 154.4, 161.4, 168.3. MS (70 eV) m/z (%): 501 (74, M+), 459 (67), 175 (40), 134 (42), 43 (100). Anal. Calcd. For C28H24ClN3O4: C, 67.00; H, 4.82; N, 8.37. Found: C, 67.15; H, 4.87; N, 8.29.
1-(5-[4-(7-Chloroquinolin-4-yloxy)-3-methoxyphenyl]-3-(3,4,5-trimethoxyphenyl)-4,5-dihydro-1H-pyrazol-1-yl)ethanone (7e). White solid; 73% yield; mp: 223–224 °C. FTIR ʋ (cm−1): 1659 (C=O), 1603 and 1572 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm 2.36 (s, 3H, CH3) 3.28 (dd, J = 18.1, 4.0 Hz, 1H, H-4'a) 3.73 (s, 3H, OCH3-Ar.C) 3.76 (s, 3H, OCH3-Ar.A) 3.82–3.96 (m, 7H, OCH3 × 2-Ar.A and H-4'b) 5.64 (dd, J = 11.3, 4.0 Hz, 1H, H-5') 6.49 (d, J = 4.8 Hz, 1H, H-3) 6.89 (d, J = 8.2 Hz, 1H, Hm') 7.06–7.16 (m, 3H, Hm and Ho'') 7.23 (d, J = 8.2 Hz, 1H, Ho') 7.65 (d, J = 8.9 Hz, 1H, H-6) 8.05 (s, 1H, H-8) 8.34 (d, J = 8.9 Hz, 1H, H-5) 8.68 (d, J = 4.8 Hz, 1H, H-2). 13C-NMR (DMSO-d6) δ ppm 22.1, 42.8, 56.7, 57.1, 60.1, 60.7, 104.4, 106.0, 112.5, 118.7, 119.7, 123.1, 124.2, 127.1, 127.2, 127.9, 135.3, 141.2, 141.6, 142.2, 150.3, 151.8, 153.2, 153.8, 154.5, 161.5, 168.1. MS (70 eV) m/z (%): 561 (100, M+), 519 (73), 504 (32), 285 (19), 236 (36), 97 (33), 83 (36), 57 (53), 43 (52). Anal. Calcd. For C30H28ClN3O6: C, 64.11; H, 5.02; N, 7.48. Found: C, 64.38; H, 5.10; N, 7.56.
1-(5-[4-(7-Chloroquinolin-4-yloxy)-3-methoxyphenyl]-3-(p-toluyl)-4,5-dihydro-1H-pyrazol-1-yl)-ethanone (7f). White solid; 85% yield; mp: 250–251 °C. FTIR ʋ (cm−1): 1663 (C=O), 1601 and 1576 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm 2.35 (s, 3H, CH3-Ar.A), 2.37 (s, 3H, CH3-Ar.B) 3.22 (dd, J = 17.7, 3.7 Hz, 1H, H-4'a) 3.72 (s, 3H, OCH3) 3.90 (dd, J = 17.7, 9.6 Hz, 1H, H-4'b) 5.62 (dd, J = 9.6, 3.7 Hz, 1H, H-5') 6.49 (d, J = 4.4 Hz, 1H, H-3) 6.88 (d, J = 7.4 Hz, 1H, Hm') 7.12 (s, 1H, Hm) 7.22 (d, J = 7.4 Hz, 1H, Ho') 7.29 (d, J = 6.9 Hz, 2H, Ho'') 7.65 (d, J = 8.4 Hz, 1H, H-6) 7.70 (d, J = 6.9 Hz, 2H, Hm'') 8.04 (s, 1H, H-8) 8.34 (d, J = 8.4 Hz, 1H, H-5) 8.67 (d, J = 4.4 Hz, 1H, H-2). 13C-NMR (DMSO-d6) δ ppm 21.3, 22.1, 42.7, 56.7, 59.9, 104.5, 112.5, 118.7, 119.7, 123.1, 124.2, 126.6, 127.3, 127.9, 128.6, 129.4, 135.3, 140.6, 141.6, 142.2, 150.3, 151.8, 153.2, 154.6, 161.4, 168.1. MS (70 eV) m/z (%): 485 (86, M+), 443 (100), 159 (68), 118 (43), 91 (29), 43 (44). Anal. Calcd. For C28H24ClN3O3: C, 69.20; H, 4.98; N, 8.65. Found: C, 69.27; H, 4.88; N, 8.31.

3.2.5. General Procedure for the Synthesis of the N-Formylpyrazolines 8af

A mixture of the NH-pyrazoline 6 (50 mg, 0.10 mmol) and formic acid (2 mL) was stirred at room temperature for 30 min until complete consumption of the NH-pyrazoline (TLC control). Then, the adding of crushed ice to the solution precipitated a solid which was filtered, washed with water and recrystallized from ethanol.
3-(4-Bromophenyl)-5-[4-(7-chloroquinolin-4-yloxy)-3-methoxyphenyl]-4,5-dihydro-1H-pyrazole-1-carbaldehyde (8a). White solid; 94% yield; mp: 230–231 °C. FTIR ʋ (cm−1): 1674 (C=O), 1593 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm 3.28–3.36 (m, 1H, H-4'a), 3.73 (s, 3H, OCH3), 3.91–4.03 (m, 1H, H-4'b), 5.60–5.66 (m, 1H, H-5'), 6.50 (d, J = 1.9 Hz, 1H, H-3), 6.96 (d, J = 6.7 Hz, 1H, Hm'), 7.18 (s, 1H, Hm), 7.25 (d, J = 6.7 Hz, 1H, Ho'), 7.59–7.82 (m, 5H, Hm'', H-6, Ho''), 8.05 (s, 1H, H-8), 8.34 (d, J = 8.3 Hz, 1H, H-5), 8.68 (d, J = 1.9 Hz, 1H, H-2), 8.95 (s, 1H, CHO). 13C-NMR (DMSO-d6) δ ppm 42.2, 55.8, 58.6, 99.5, 103.6, 111.4, 118.3, 118.8, 122.9, 123.8, 124.0, 126.8, 127.4, 128.7, 131.8, 134.8, 137.4, 140.5, 150.3, 151.2, 152.9, 155.3, 159.9, 160.8. MS (70 eV) m/z (%): 535 (47, M+), 537 (64), 354 (25), 197 (30), 176 (92), 85 (66), 83 (100), 47 (33). Anal. Calcd. For C26H19BrClN3O3: C, 58.17; H, 3.57; N, 7.83. Found: C, 58.09; H, 3.55; N, 7.87.
3-(4-Chlorophenyl)-5-[4-(7-chloroquinolin-4-yloxy)-3-methoxyphenyl]-4,5-dihydro-1H-pyrazole-1-carbaldehyde (8b). White solid; 92% yield; mp: 206–209 °C. FTIR ʋ (cm−1): 1674 (C=O), 1591 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm 3.33 (dd, J = 18.2, 5.1 Hz, 1H, H-4'a), 3.73 (s, 3H, OCH3), 3.98 (dd, J = 18.2, 11.6 Hz, 1H, H-4'b), 5.64 (dd, J = 11.6, 5.1 Hz, 1H, H-5'), 6.49 (d, J = 5.0 Hz, 1H, H-3), 6.95 (d, J = 8.0 Hz, 1H, Hm'), 7.18 (s, 1H, Hm), 7.25 (d, J = 8.0 Hz, 1H, Ho'), 7.53 (d, J = 8.3 Hz, 2H, Ho''), 7.65 (d, J = 8.8 Hz, 1H, H-6), 7.82 (d, J = 8.3 Hz, 2H, Hm''), 8.05 (s, 1H, H-8), 8.34 (d, J = 8.8 Hz, 1H, H-5), 8.67 (d, J = 5.0 Hz, 1H, H-2), 8.94 (s. 1H, CHO). 13C-NMR (DMSO-d6) δ ppm 42.3, 55.9, 58.6, 99.5, 103.6, 111.5, 118.2, 118.8, 122.9, 123.8, 126.8, 127.4, 128.5, 128.9, 129.7, 134.8, 135.2, 140.5, 149.5, 151.2, 152.9, 155.2, 160.0, 160.8. MS (70 eV) m/z (%): 491 (95, M+), 311 (33), 176 (100), 153 (61), 138 (54), 85 (38), 83 (59), 43 (25). Anal. Calcd. For C26H19Cl2N3O3: C, 63.43; H, 3.89; N, 8.53. Found: C, 63.11; H, 3.96; N, 8.42.
5-[4-(7-Chloroquinolin-4-yloxy)-3-methoxyphenyl]-3-phenyl-4,5-dihydro-1H-pyrazole-1-carbaldehyde (8c). White solid; 88% yield; mp: 208–210 °C. FTIR ʋ (cm−1): 1676 (C=O), 1585 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm Not observed (dd, 1H, H-4'a, overlapped with water signal), 3.72 (s, 3H, OCH3), 3.99 (dd, J = 18.1, 11.8 Hz, 1H, H-4'b), 5.64 (dd, J = 11.8, 5.0 Hz, 1H, H-5'), 6.44 (d, J = 5.3 Hz, 1H, H-3), 6.92 (dd, J = 8.2, 1.8 Hz, 1H, Hm'), 7.19 (d, J = 1.8 Hz, 1H, Hm), 7.28 (d, J = 8.2 Hz, 1H, Ho'), 7.46–7.53 (m, 3H, Ho'', Hp''), 7.67 (dd, J = 8.8, 2.1 Hz, 1H, H-6), 7.79–7.85 (m, 2H, Hm''), 8.07 (d, J = 2.1 Hz, 1H, H-8), 8.34 (d, J = 8.8 Hz, 1H, H-5), 8.67 (d, J = 5.3 Hz, 1H, H-2), 8.97 (s, 1H, CHO). 13C-NMR (DMSO-d6) δ ppm 41.6, 55.5, 57.9, 103.2, 111.5, 117.9, 118.4, 122.0, 122.9, 126.0, 126.7, 127.9, 130.0, 130.2, 134.1, 139.7, 140.7, 140.5, 149.0, 150.7, 151.9, 155.4, 159.9, 160.2. MS (70 eV) m/z (%): 457 (100, M+), 176 (72), 145 (59), 119 (65), 104 (55). Anal. Calcd. For C26H20ClN3O3: C, 68.20; H, 4.40; N, 9.18. Found: C, 68.12; H, 4.52; N, 9.03.
5-[4-(7-Chloroquinolin-4-yloxy)-3-methoxyphenyl]-3-(4-methoxyphenyl)-4,5-dihydro-1H-pyrazole-1-carbaldehyde (8d). White solid; 86% yield; mp: 239–240 °C. FTIR ʋ (cm−1): 1670 (C=O), 1603 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm Not observed (dd, 1H, H-4'a, overlapped with water signal), 3.71 (s, 3H, OCH3-Ar.C ) 3.81 (s, 3H, OCH3-Ar.A) 3.94 (dd, J = 17.9, 11.7 Hz, 1H, H-4'b) 5.60 (dd, J =11.7, 4.1 Hz, 1H, H-5') 6.44 (d, J = 4.9 Hz, 1H, H-3) 6.90 (d, J =8.0 Hz, 1H, Hm') 7.03 (d, J = 8.3 Hz, 2H, Ho'') 7.18 (s, 1H, Hm) 7.27 (d, J = 8.0 Hz, 1H, Ho') 7.66 (d, J = 8.5 Hz, 1H, H-6) 7.75 (d, J = 8.3 Hz, 2H, Hm'') 8.06 (s, 1H, H-8) 8.33 (d, J = 8.5 Hz, 1H, H-5) 8.67 (d, J = 4.9 Hz, 1H, H-2) 8.93 (s, 1H, CHO). 13C-NMR (DMSO-d6) δ ppm 42.4, 55.4, 55.9, 58.2, 103.6, 111.4, 114.3, 118.1, 118.8, 122.9, 123.8, 126.0, 126.8, 127.4, 128.4, 129.7, 134.8, 139.7, 140.8, 149.6, 150.7, 152.9, 155.9, 159.7, 161.2. MS (70 eV) m/z (%): 487 (100, M+), 175 (70), 149 (87), 134 (99). Anal. Calcd. For C27H22ClN3O4: C, 66.46; H, 4.54; N, 8.61. Found: C, 66.26; H, 4.56; N, 8.58.
5-[4-(7-Chloroquinolin-4-yloxy)-3-methoxyphenyl]-3-(3,4,5-trimethoxyphenyl)-4,5-dihydro-1H-pyrazole-1-carbaldehyde (8e). White solid; 83% yield; mp: 241–243 °C. FTIR ʋ (cm−1): 1674 (C=O), 1593 (C=N and C=C), 1036. 1H-NMR (DMSO-d6) δ ppm 3.38 (dd, J = 18.1, 5.0 Hz, 1H, H-4'a), 3.71 (s, 3H, OCH3-Ar.C), 3.73 (s, 3H, OCH3-Ar.A), 3.84 (s, 6H, OCH3x2-Ar.A), 3.96 (dd, J = 18.1, 11.8 Hz, 1H, H-4'b), 5.64 (dd, J = 11.8, 5.0 Hz, 1H, H-5'), 6.44 (d, J = 5.3 Hz, 1H, H-3), 6.91 (dd, J = 8.3, 1.3 Hz, 1H, Hm'), 7.09 (s, 2H, Ho''), 7.18 (d, J = 1.3 Hz, 1H, Hm), 7.30 (d, J = 8.3 Hz, 1H, Ho'), 7.67 (dd, J = 9.0, 1.8 Hz, 1H, H-6), 8.07 (d, J = 1.8 Hz, 1H, H-8), 8.34 (d, J = 9.0 Hz, 1H, H-5), 8.68 (d, J = 5.3 Hz, 1H, H-2), 8.97 (s, 1H, CHO). 13C-NMR (DMSO-d6) δ ppm 42.5, 55.9 56.1, 58.4, 60.2, 103.5, 104.3, 111.3, 118.1, 118.8, 123.0, 123.8, 126.1, 126.8, 127.4, 134.8, 139.7, 140.4, 140.7, 149.5, 151.2, 152.8, 153.1, 156.1, 159.8, 160.8. MS (70 eV) m/z (%): 561 (1, M+), 547 (100). Anal. Calcd. For C29H26ClN3O6: C, 63.56; H, 4.78; N, 7.67. Found: C, 63.32; H, 4.48 N, 7.61.
5-[4-(7-Chloroquinolin-4-yloxy)-3-methoxyphenyl]-3-(p-toluyl)-4,5-dihydro-1H-pyrazole-1-carbaldehyde (8f). White solid; 86% yield; mp: 233–235 °C. FTIR ʋ (cm−1): 1668 (C=O), 1601 (C=N and C=C). 1H-NMR (DMSO-d6) δ ppm 2.37 (s, 3H, CH3), Not observed (dd, 1H, H-4'a, overlapped with water signal), 3.72 (s, 3H, OCH3), 3.96 (dd, J = 18.1, 11.7 Hz, 1H, H-4'b), 5.62 (dd, J = 11.7, 4.8 Hz, 1H, H-5'), 6.45 (d, J = 5.2 Hz, 1H, H-3), 6.91 (d, J = 6.5 Hz, 1H, Hm'), 7.18 (s, 1H, Hm), 7.24–7.36 (m, 3H, Ho', Ho''), 7.61 - 7.76 (m, 3H, H-6, Hm''), 8.07 (d, J = 2.0 Hz, 1H, H-8), 8.34 (d, J = 9.0 Hz, 1H, H-5), 8.68 (d, J = 5.2 Hz, 1H, H-2), 8.95 (s, 1H, CHO). 13C-NMR (DMSO-d6) δ ppm 21.0, 42.4, 55.9, 58.3, 103.6, 111.4, 117.8, 118.2, 122.9, 123.8, 126.7, 126.8, 127.4, 128.0, 128.6, 129.4, 132.4, 134.2, 135.6, 140.5, 149.8, 152.9, 155.6, 159.8, 160.9. MS (70 eV) m/z (%): 485 (1, M+), 471(100). Anal. Calcd. For C27H22ClN3O3: C, 68.71; H, 4.70; N, 8.90. Found: C, 68.66; H, 4.78; N, 8.93.

3.3. Anticancer Activity

The human tumor cell lines of the cancer screening panel were grown in RPMI 1640 medium containing 5% fetal bovine serum and 2 mM l-glutamine. For a typical screening experiment, cells are inoculated into 96 well microtiter plates. After cell inoculation, the microtiter plates were incubated at 37 °C, 5% CO2, 95% air and 100% relative humidity for 24 h prior to addition of tested compounds. After 24 h, two plates of each cell line were fixed in situ with TCA, to represent a measurement of the cell population for each cell line at the time of sample addition (Tz). The samples were solubilized in dimethyl sulfoxide (DMSO) at 400-fold the desired final maximum test concentration and stored frozen prior to use. At the time of compounds addition, an aliquot of frozen concentrate was thawed and diluted to twice, the desired final maximum test concentration with complete medium containing 50 µg/mL gentamicin. Additional four, 10-fold or ½ log serial dilutions were made to provide a total of five drug concentrations plus control. Aliquots of 100 µL of these different sample dilutions were added to the appropriate microtiter wells already containing 100 µL of medium, resulting in the required final sample concentrations [30]. After the tested compounds were added, the plates were incubated for an additional 48 h at 37 °C, 5% CO2, 95% air, and 100% relative humidity. For adherent cells, the assay was terminated by the addition of cold TCA. Cells were fixed in situ by the gentle addition of 50 µL of cold 50% (w/v) TCA (final concentration, 10% TCA) and incubated for 60 min at 4 °C. The supernatant was discarded, and plates were washed five times with tap water and air dried. Sulforhodamine B (SRB) solution (100 µL) at 0.4% (w/v) in 1% acetic acid was added to each well, and plates were incubated for 10 min at room temperature. After staining, unbound dye was removed by washing five times with 1% acetic acid and the plates were air dried. Bound stain was subsequently solubilized with 10 mM trizma base, and the absorbance was read on an automated plate reader at a wavelength of 515 nm. Using the seven absorbance measurements [time zero (Tz), control growth in the absence of drug (C), and test growth in the presence of drug at the five concentration levels (Ti)], the percentage growth was calculated at each of the drug concentrations levels. Percentage growth inhibition was calculated as: [(Ti − TZ)/(C − TZ)] × 100 for concentrations for which Ti > Tz, and [(Ti − TZ)/TZ] × 100 for concentrations for which Ti < Tz. Three dose response parameters were calculated for each compound. Growth inhibition of 50% (GI50) was calculated from [(Ti − TZ)/(C − TZ)] × 100 = 50, which is the drug concentration resulting in a 50% lower net protein increase in the treated cells (measured by SRB staining) as compared to the net protein increase seen in the control cells. The drug concentration resulting in total growth inhibition (TGI) was calculated from Ti = Tz. The LC50 (concentration of drug resulting in a 50% reduction in the measured protein at the end of the drug treatment as compared to that at the beginning) indicating a net loss of cells following treatment was calculated from [(Ti − TZ)/TZ] × 100 = −50. Values were calculated for each of these three parameters if the level of activity is reached; however, if the effect was not reached or was exceeded, the value for that parameter was expressed as greater or less than the maximum or minimum concentration tested [30,31,32,33].

4. Conclusions

Novel series of NH 6af, N-acetyl 7af and N-formyl 8af pyrazoline derivates were synthesized starting from chalcones 5 bearing a quinoline motive in their structures, through an interesting synthetic methodology, affording those products in acceptable to excellent yields and in short reaction times. The antitumor evaluation data revealed that derivatives 7b,d,f and 8c,f exhibited remarkable activity with GI50 values in the range from 10−7 to 10−6 M against different cancer cell lines. Owing to the results obtained, chemical studies are being conducted to improve the antitumor activities of such compounds.

Acknowledgments

This work was financially supported by Colciencias and Universidad del Valle. The authors wish to credit The Developmental Therapeutics Program (DTP) of the National Cancer Institute of the United States (U.S.) for performing the screening of compounds. Authors thank ‘‘Servicios Técnicos de Investigación de la Universidad de Jaén’’ and the staff for data collection.

Author Contributions

The authors AM, JQ, RA, MN, JC and BI designed and accomplished research. Also, they analyzed data and wrote the paper together. Finally, all authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Manna, F.; Chimenti, F.; Fioravanti, R.; Bolasco, A.; Secci, D.; Chimenti, P.; Ferlini, C.; Scambia, G. Synthesis of some pyrazole derivatives and preliminary investigation of their affinity binding to P-glycoprotein. Bioorg. Med. Chem. Lett. 2005, 15, 4632–4635. [Google Scholar] [CrossRef] [PubMed]
  2. Ebenezer, W.J.; Wight, P. Ketones: α,β-unsaturated ketones. In Comprehensive Organic Function Group Transformation; Katrizky, A.R., Meth-Cohn, O., Ress, C.W., Eds.; Pergmon Press: Oxford, UK, 1995; Volume 3, p. 206. [Google Scholar]
  3. Singh, P.; Anand, A.; Kumar, V. Recent developments in biological activities of chalcones: A mini review. Eur. J. Med. Chem. 2014, 85, 758–777. [Google Scholar] [CrossRef] [PubMed]
  4. Kreher, U.P.; Rosamila, A.; Raston, C.L.; Scott, J.L.; Strauss, C.R. Direct preparation of monoarylidene derivatives of aldehydes and enolizable ketones with DIMCARB. Org. Lett. 2003, 5, 3107–3110. [Google Scholar] [CrossRef] [PubMed]
  5. Ahluwalia, V.K.; Nayal, L.; Kalia, N.; Bala, S.; Tehim, A.K. Synthesis and antimicrobial activity of substituted 3,4-dihydro-2H-1-benzopyrans. Ind. J. Chem. 1987, 26B, 384–386. [Google Scholar]
  6. Ninomiya, Y.; Shimma, N.; Ishitsuka, H. Comparative studies on the antirhinovirus activity and the mode of action of the rhinovirus capsid binding agents, chalcone amides. Antivir. Res. 1990, 13, 61–74. [Google Scholar] [CrossRef] [PubMed]
  7. Marmo, E.; Caputi, A.P.; Cataldi, S. Experimental investigation of 4-(3',4',5'-trimethoxycinnamoyl)-1-piperaziny l-pyrrolidinyl maleate (67350): Effect on the cardiovascular system and on certain smooth muscles. Farmaco Prat. 1973, 28, 132–160. [Google Scholar] [PubMed]
  8. Herencia, F.; Ferrándiz, M.L.; Ubeda, A.; Domínguez, J.; Charris, J.E.; Lobo, G.M.; Alcaraz, M.J. Synthesis and anti-inflammatory activity of chalcone derivatives. Bioorg. Med. Chem. Lett. 1998, 8, 1169–1174. [Google Scholar] [CrossRef] [PubMed]
  9. Fischer, E.; Knovenagel, O. Ueber die verbindungen des phenylhydrazins mit acroleïn, mesityloxyd und allylbromid. Ann. Chem. 1887, 239, 194–206. [Google Scholar] [CrossRef]
  10. Ratković, Z.; Juranić, Z.D.; Stanojković, T.; Manojlović, D.; Vukićević, R.D.; Radulović, N.; Joksović, M.D. Synthesis, characterization, electrochemical studies and antitumor activity of some new chalcone analogues containing ferrocenyl pyrazole moiety. Bioorg. Chem. 2010, 38, 26–32. [Google Scholar] [CrossRef] [PubMed]
  11. Karthikeyan, M.S.; Holla, B.S.; Kumari, N.S. Synthesis and antimicrobial studies on novel chloro-fluorine containing hydroxy pyrazolines. Eur. J. Med. Chem. 2007, 42, 30–36. [Google Scholar] [CrossRef] [PubMed]
  12. Holla, B.; Akberali, P.; Shivananda, M. Studies on arylfuran derivatives Part X. Synthesis and antibacterial properties of arylfuryl-∆(2)-pyrazolines. Farmaco 2000, 55, 256–263. [Google Scholar] [CrossRef] [PubMed]
  13. Bansal, E.; Srivastava, V.K.; Kumar, A. Synthesis and anti-inflammatory activity of 1-acetyl-5-substitutedaryl-3-(β-aminonaphthyl)-2-pyrazolines and β(substitutedaminoethyl)amidonaphthalenes. Eur. J. Med. Chem. 2001, 36, 81–92. [Google Scholar] [CrossRef] [PubMed]
  14. Ahn, J.H.; Kim, H.-M.; Jung, S.H.; Kang, S.K.; Kim, K.R.; Rhee, S.D.; Yang, S.-D.; Cheon, H.G.; Kim, S.S. Synthesis and DP-IV inhibition of cyano-pyrazoline derivatives as potent anti-diabetic agents. Bioorg. Med. Chem. Lett. 2004, 14, 4461–4465. [Google Scholar] [CrossRef] [PubMed]
  15. Prasad, Y.R.; Rao, A.L.; Prasoona, L.; Murali, K.; Kumar, P.R. Synthesis and Antidepressant activity of some 1,3,5-triphenyl-2-pyrazolines and 3-(2’’-hydroxynaphthalen-1-yl)-1,5-diphenyl-2-pyrazolines. Bioorg. Med. Chem. Lett. 2005, 15, 5030–5034. [Google Scholar] [CrossRef]
  16. Reddy, M.V.R.; Billa, V.K.; Pallela, V.R.; Mallireddigari, M.R.; Boominathan, R.; Gabriel, J.L.; Reddy, E.P. Design, synthesis, and biological evaluation of 1-(4-sulfamylphenyl)-3-trifluoromethyl-5-indolyl pyrazolines as cyclooxygenase-2 (COX-2) and lipoxygenase (LOX) inhibitors. Bioorg. Med. Chem. 2008, 16, 3907–3916. [Google Scholar] [CrossRef] [PubMed]
  17. Zhao, P.L.; Wang, F.; Zhang, M.Z.; Liu, Z.M.; Huang, W.; Yang, G.F. Synthesis, fungicidal, and insecticidal activities of β-methoxyacrylate-containing N-acetyl pyrazoline derivatives. J. Agric. Food Chem. 2008, 56, 10767–10773. [Google Scholar] [CrossRef] [PubMed]
  18. Chauhan, P.M.S.; Srivastava, S.K. Present trends and future strategy in chemotherapy of malaria. Curr. Med. Chem. 2001, 8, 1535–1542. [Google Scholar] [CrossRef] [PubMed]
  19. Chikhalia, K.H.; Patel, M.J.; Vashi, D.B. Design, synthesis and evaluation of novel quinolyl chalcones as antibacterial agents. ARKIVOC 2008, xiii, 189–197. [Google Scholar] [CrossRef]
  20. Azad, M.; Munawar, M.A.; Siddiqui, H.L. Antimicrobial Activity and Synthesis of Quinoline-Based Chalcones. J. Appl. Sci. 2007, 7, 2485–2489. [Google Scholar] [CrossRef]
  21. Insuasty, B.; Tigreros, A.; Orozco, F.; Quiroga, J.; Abonía, R.; Nogueras, M.; Sanchez, A.; Cobo, J. Synthesis of novel pyrazolic analogues of chalcones and their 3-aryl-4-(3-aryl-4,5-dihydro-1H-pyrazol-5-yl)-1-phenyl-1H-pyrazole derivatives as potential antitumor agents. Bioorg. Med. Chem. 2010, 18, 4965–4974. [Google Scholar] [CrossRef] [PubMed]
  22. Insuasty, B.; García, A.; Quiroga, J.; Abonia, R.; Nogueras, M.; Cobo, J. Synthesis of novel 6,6a,7,8-tetrahydro-5H-naphtho[1,2-e]pyrimido[4,5-b][1,4]diazepines under microwave irradiation as potential anti-tumor agents. Eur. J. Med. Chem. 2010, 45, 2841–2846. [Google Scholar] [CrossRef] [PubMed]
  23. Insuasty, B.; García, A.; Quiroga, J.; Abonia, R.; Ortiz, A.; Nogueras, M.; Cobo, J. Efficient microwave-assisted synthesis and antitumor activity of novel 4,4'-methylenebis[2-(3-aryl-4,5-dihydro-1H-pyrazol-5-yl)phenols]. Eur. J. Med. Chem. 2011, 46, 2436–2440. [Google Scholar] [CrossRef] [PubMed]
  24. Abonia, R.; Insuasty, D.; Castillo, J.; Insuasty, B.; Quiroga, J.; Nogueras, M.; Cobo, J. Synthesis of novel quinoline-2-one based chalcones of potential anti-tumor activity. Eur. J. Med. Chem. 2012, 57, 29–40. [Google Scholar] [CrossRef] [PubMed]
  25. Insuasty, B.; Becerra, D.; Quiroga, J.; Abonia, R.; Nogueras, M.; Cobo, J. Microwave-assisted synthesis of pyrimido[4,5-b][1,6]naphthyridin-4(3H)-ones with potential antitumor activity. Eur. J. Med. Chem. 2013, 60, 1–9. [Google Scholar] [CrossRef] [PubMed]
  26. Insuasty, B.; Montoya, A.; Becerra, D.; Quiroga, J.; Abonia, R.; Robledo, S.; Vélez, I.D.; Upegui, Y.; Nogueras, M.; Cobo, J. Synthesis of novel analogs of 2-pyrazoline obtained from [(7-chloroquinolin-4-yl)amino]chalcones and hydrazine as potential antitumor and antimalarial agents. Eur. J. Med. Chem. 2013, 67, 252–262. [Google Scholar] [CrossRef] [PubMed]
  27. Bueno, J.; Rojas Ruiz, F.A.; Villabona Estupiñan, S.; Kouznetsov, V.V. In vitro antimycobacterial activity of new 7-chloroquinoline derivatives. Lett. Drug. Des. Discov. 2012, 9, 1–9. [Google Scholar]
  28. Boyd, M.R.; Paull, K.D. Some practical considerations and applications of the National Cancer Institute in vitro anticancer drug discovery screen. Drug Dev. Res. 1995, 34, 91–109. [Google Scholar] [CrossRef]
  29. Hubbard, W.C.; Alley, M.C.; Gray, G.N.; Green, K.C.; Mclemore, T.L.; Boyd, M.R. Evidence for prostanoid biosynthesis as a biochemical feature of certain subclasses of non-small cell carcinomas of the lung as determined in established cell lines derived from human lung tumors. Cancer Res. 1989, 49, 826–832. [Google Scholar] [PubMed]
  30. Monks, A.; Scudiero, D.; Skehan, P.; Shoemaker, R.; Paull, K.; Vistica, D.; Hose, C.; Langley, J.; Cronise, P.; Vaigro-Wolff, A.; et al. Feasibility of a Heigh-Flux anticancer drug screen using a diverse panel of cultured human tumor cell lines. J. Natl. Cancer Inst. 1991, 83, 757–766. [Google Scholar] [CrossRef] [PubMed]
  31. Weinstein, J.N.; Myers, T.G.; O’connor, P.M.; Friend, S.H.; Fornace, A.J.; Kohn, K.W.; Fojo, T.; Bates, S.E.; Rubinstein, L.V.; Anderson, N.L.; et al. An information-intensive approach to the molecular pharmacology of cancer. Science 1997, 275, 343–349. [Google Scholar] [CrossRef] [PubMed]
  32. Grever, M.R.; Sehepartz, S.A.; Chabners, B.A. The National Cancer Institute: Cancer drug discovery and development program. Semin. Oncol. 1992, 19, 622–638. [Google Scholar] [PubMed]
  33. Collins, J.M. Developmental Therapeutics Program NCI/NIH. Available online: http://dtp.cancer.gov/branches/btb/ivclsp.html (accessed on 23 September 2014).
  • Sample Availability: Samples of the compounds are available from the authors.
