NMR Structural Study of the Prototropic Equilibrium in Solution of Schiff Bases as Model Compounds

Abstract

An NMR titration method has been used to simultaneously measure the acid dissociation constant (pK_a) and the intramolecular NHO prototropic constant ΔK_NHO on a set of Schiff bases. The model compounds were synthesized from benzylamine and substituted ortho-hydroxyaldehydes, appropriately substituted with electron-donating and electron-withdrawing groups to modulate the acidity of the intramolecular NHO hydrogen bond. The structure in solution was established by ¹H-, ¹³C- and ¹⁵N-NMR spectroscopy. The physicochemical parameters of the intramolecular NHO hydrogen bond (pK_a, ΔK_NHO and ΔΔG°) were obtained from ¹H-NMR titration data and pH measurements. The Henderson–Hasselbalch data analysis indicated that the systems are weakly acidic, and the predominant NHO equilibrium was established using Polster–Lachmann δ-diagram analysis and Perrin model data linearization.

1. Introduction

Schiff bases are a great topic of basic research, that to date have an important place in organic chemistry and they have a great versatility in different fields of study. They have different biologic applications as antitumor agents [1,2,3,4,5], in the strengthening of immune response for cancer, in leukemia, in HIV, as anticonvulsant, antibacterials, antifungal, antiinflammatory, as prodrugs [6,7,8,9,10,11,12,13,14,15] and as study models in the intramolecular hydrogen bond from cofactor pyridoxal-5-phosphate [16,17,18,19,20]. They are also of interest because of their solvatochromic, thermochromic and photochromic properties with applications in optical recording technology, molecular electronics and photonics [21,22,23,24,25,26,27,28,29,30].

The Schiff bases derived from ortho-hydroxyaromatic aldehydes that are pentaconjugated non-symmetric systems [31] in which proton transfer from the oxygen hydroxyl to the nitrogen of imine, through the NHO hydrogen bond is observed (Scheme 1) have been extensively studied in recent years [32,33,34,35,36,37,38,39,40,41,42,43,44,45,46].

Scheme 1. Prototropic 1,5 rearrangement in Schiff bases.

Scheme 1. Prototropic 1,5 rearrangement in Schiff bases.

In these investigations several analytical methods for determining the prototropic equilibrium have been applied, such as FT-IR spectroscopy and X-ray diffraction in the solid state [45,46,47,48], as well as solution ¹H-, ¹³C- and ¹⁵N-NMR [33,34,49,50,51]. This 1,5 tautomeric equilibrium is directly affected by the substituents [52,53,54,55,56] attached to both the phenyl group and the imine nitrogen which exert a strong influence on the acidity of the OH group, the basicity of the nitrogen atom and thus the NHO bond strength. Substituents also greatly increase the stability of the compounds by the effect of hydrogen bonding assisted by resonance (RAHB) [57,58,59]; preferences have been found in the position of the hydrogen either linked to oxygen (N∙∙∙H-O) or nitrogen (N-H∙∙∙O) [32,33,46,60] atoms and even being in the middle of both (O⁻∙∙∙H∙∙∙N⁺) [60,61].

For a prototropic acid-base-system HA in equilibrium, its equilibrium constant K_a is expressed by Equation (1), which after logarithms becomes the Henderson-Hasselbalch Equation (2):

(1)

(2)

Equation (2) is directly related to the chemical shifts of active nuclei in NMR, which are dependent on pH changes, this leads to Equation (3):

(3)

The pK_a is experimentally obtained, using the tabulation of log[(δ_max − δ_obs)/(δ_obs − δ_min)] against pH, where δ_min and δ_max are the chemical shifts in the inflection points in the titration curve, while δ_obs is the observed chemical shift during the course of the titration, so the equilibrium point is at point zero, which corresponds to pH = pKa [44,62,63,64,65,66,67]. This method has been extensively used because of its simplicity, however is limited by variability in pH readings and accuracy in measuring the volumes of the titrant.

Polster and Lachmann postulated the Gibbs triangle method, which later emerged as the absorbance diagram (A-diagram) or chemical shift diagram (δ-diagram), depending on the spectrometry used for the analysis of data from a titration, for the study of acid-base systems [62,68]. This method allows the evaluation of the quotient of acidity constants (ΔK_a) of two or more compounds, mainly in diprotic and polyprotic acid-base systems [68], on the bases of a ratio of distances from the Gibbs triangle which is independent of pH readings [68].

Later, Perrin et al. [69,70,71,72] also developed a mathematical model for the determination of ΔK_a for mixtures of isomers in equilibrium with independency from the pH readings by drawing δ-diagrams also, so this model can be applied to the analysis of acid-base equilibrium mainly in monoprotic systems. Then for two acids HA and HB, the quotient of their acidity constants ΔK_a, can be measured by the variation in chemical shifts due to changes in the acidity of the systems:

(4)

Equation (4), written in terms of chemical shifts when ΔK_a ≠ 1, allows the evaluation of ΔK_a as the slope of a straight line, Equation (5):

(δ_b − δ_B°)(δ_AH − δ_a) = ∆K_α(δ_a − δ_A°)(δ_BH − δ_b)

(5)

where δ_A°, δ_B° are the chemical shifts from species at the start of the titration, δ_a, δ_b are the chemical shifts observed during the titration, andδ_HA, δ_HB are the chemical shifts from species at the end of the titration.

In this contribution, both the Perrin and Polster-Lachmann models are applied to the study of intramolecular hydrogen bonds that involve prototropic equilibrium with the aim to find with accuracy and selectivity the position of the proton on the oxygen or nitrogen atoms. The model compounds were a set of Schiff base derivatives of 5-nitrosalicylaldehyde, 5-chlorosalicylaldehyde, 5-bromo-salicylaldehyde, salicylaldehyde, 5-methoxysalicyladehyde and 5-hydroxysalicyladehyde with benzylamine (compounds 1–6, Figure 1). The substituents were selected in order to cover a broad range of both electrodonating (ED) and electrowithdrawing (EW) groups whose electronic effects could modulate the NHO hydrogen bonding scheme. ¹H-NMR spectrometry was used as the titration method.

Figure 1. Schiff base derivatives of 1–6.

Figure 1. Schiff base derivatives of 1–6.

2. Results and Discussion

2.1. NMR Spectra

Synthesized compounds were identified by ¹H-, ¹³C- and ¹⁵N-NMR. The ¹H-NMR spectra of compounds 1–6 in DMSO-d₆ solution showed remarkable changes in the chemical shift of the acidic proton NHO in the range of 12.53–14.34 ppm, in response to the electronic character of the substituent R. Since a larger value in the chemical shift indicates a greater acidity of the proton, compound 1 has the largest acidity and compound 6 has the lowest acidity. Simultaneously the chemical shift of protons H3, H5, H6 and H7 were affected too.

The ¹³C spectra of all compounds showed clear shielding and deshielding effects, according to the substituent, mainly from C1 to C7. The chemical shifts of compound 1 were more affected than those of compounds 2–6, especially the carbon atoms C1 and C4. Compound 1, the NO₂ derivative, showed a chemical shift of 175.8 and 136.9 ppm for C1 and C4, respectively, where C1 is in the range of carbonyl chemical shifts (170 to 200 ppm) while C4 is in the range of nitro Schiff base compounds (130 to 150 ppm). The ¹⁵N chemical shift of compound 1 was −162.1 ppm, indicating an average between imine-enamine forms, therefore in this last compound the zwitterionic structure (Scheme 2a) is favored and the hydrogen H8 is localized with the nitrogen atom (⁺N–H∙∙∙O).

Scheme 2. Possible resonance and equilibrium structures for compounds 1–6.

Scheme 2. Possible resonance and equilibrium structures for compounds 1–6.

In the case of compounds 2–6 the chemical shifts of C1 appear at lower frequencies from 160.4 to 153.5 ppm, a region characteristic of OH structures (150–160 ppm) and the chemical shifts of the imine C7=N appear from 165.8 to 167.4 ppm, a less significant variation. The ¹⁵N chemical shifts for compounds 2–6 were in the range of −79.7 to −81.8 ppm (−50 to −90 ppm for imine), in agreement with a neutral N∙∙∙H–O tautomeric form with the hydrogen H8 is localized with the oxygen atom (Scheme 2b). The NMR chemical shifts of compounds 1, 3, 4 and 5 have already been reported [73] and are in agreement with the above mentioned results, except for the nitro derivative 1 for which the authors conclude that the N–H tautomer is present in solution instead of the zwitterion form proposed herein.

2.2. NMR Titration

All compounds were titrated in CD₃OD solution with NaOD, and only compound 2 was further titrated with DCl. ¹H-NMR spectra were recorded after each aliquot of titrant and simultaneously the pH was measured following each recorded spectrum. The resonances of H6 and H9 were used to plot pH vs. δ¹H, because these protons were most affected by deprotonation of the labile hydrogen.

Compound 2 was initially titrated with DCl, however hydrolysis occured with the acid titrant and only five ¹H spectra and their corresponding pH readings could be recorded, so subsequently all compounds were titrated with NaOD (Figure 2A).

Figure 2. (A) Titration curve of compounds 2–4; compound 2 was titrated with DCl; only the titration region with NaOD was used to calculate the pK_a values with the Henderson-Hasselbalch equation; (B) δ-Diagram of δ¹_H6 vs. δ¹_H9 of compounds 2–4; the initial data obtained was not linearized but after using the Perrin model the data became for linearized compounds 2 (Cl), 3 (Br) and 4 (H) to obtain the slope ΔK_NHO as shown in Scheme 3.

Figure 2. (A) Titration curve of compounds 2–4; compound 2 was titrated with DCl; only the titration region with NaOD was used to calculate the pK_a values with the Henderson-Hasselbalch equation; (B) δ-Diagram of δ¹_H6 vs. δ¹_H9 of compounds 2–4; the initial data obtained was not linearized but after using the Perrin model the data became for linearized compounds 2 (Cl), 3 (Br) and 4 (H) to obtain the slope ΔK_NHO as shown in Scheme 3.

The Henderson-Hasselbalch equation was used to measure pK_a values of the compounds by a graphical method with plots of pH against log[(δ_H9max − δ_H9obs)/(δ_H9obs − δ_H9min)] (Figure 3) from the titration curve, while ΔK_NHO was obtained from the δ-diagram (Figure 2B) using the Perrin model linearization [(δ_H9 − δ_H9°)(δ_H6e− δ_H6) vs. (δ_H6 − δ_H6°)(δ_H9e− δ_H9)] for compounds 2, 3, 4 and by Polster and Lachmann analysis for compounds 1, 5 and 6. Table 1 summarizes the physicochemical parameters obtained by the graphical methods mentioned above.

Figure 3. The experimental pK_a were found using the plot of the Henderson-Hasselbalch equation, when log[(δ_H9max − δ_H9obs)/(δ_H9obs − δ_H9min)] = 0 then the pH intercept is the pK_a value.

Figure 3. The experimental pK_a were found using the plot of the Henderson-Hasselbalch equation, when log[(δ_H9max − δ_H9obs)/(δ_H9obs − δ_H9min)] = 0 then the pH intercept is the pK_a value.

Table 1. Physicochemical parameters of compounds 1–6 at 296.15 ± 1 K in CD₃OD solution.

Compound	Ka/10−9	pKa	ΔKNHO	ΔpKNHO	ΔΔG° [a]
1	15.1	7.8	1.04(±0.05)	−0.017	−0.097
2	2.13	8.6	1.031(±0.002)	−0.0133	−0.075
3	1.44	8.8	0.986(±0.002)	0.006	0.036
4	3.33	8.4	0.841(±0.005)	0.0754	0.426
5	1.23	8.9	1.021(±0.014)	−0.01	−0.052
6	0.17	9.7	1.02(±0.02)	−0.001	−0.004

^[a] ΔΔG° = −RTlnΔK_NHO (kJ mol⁻¹ K⁻¹).

Table 1. Physicochemical parameters of compounds 1–6 at 296.15 ± 1 K in CD₃OD solution.

Compound	Ka/10−9	pKa	ΔKNHO	ΔpKNHO	ΔΔG° [a]
1	15.1	7.8	1.04(±0.05)	−0.017	−0.097
2	2.13	8.6	1.031(±0.002)	−0.0133	−0.075
3	1.44	8.8	0.986(±0.002)	0.006	0.036
4	3.33	8.4	0.841(±0.005)	0.0754	0.426
5	1.23	8.9	1.021(±0.014)	−0.01	−0.052
6	0.17	9.7	1.02(±0.02)	−0.001	−0.004

^[a] ΔΔG° = −RTlnΔK_NHO (kJ mol⁻¹ K⁻¹).

The pK_a values obtained by the Henderson-Hasselbalch equation for all compounds were greater than 7 and less than 11, showing that these compounds are weak acids, the pK_a value increases in the order NO₂ < H < Cl < Br < OMe < OH. Only compound 6 showed two pK_a values, the value of 9.7 belongs to NHO and the second value of 9.8 to the phenolic hydroxyl group C4-OH. On the other hand the ΔΔG° values, associated with the prototropic NHO equilibrium, are favored in the order NO₂ > Cl > OMe ≈ OH > Br > H.

Figure 2 shows the titration curve with full pH scale (A) and the δ-diagram (B) of compounds 2 to 4; only the data region titrated with NaOD was taken for the pK_a value calculation. All compounds should show the same shape of δ-diagram as they were titrated with NaOD. However, the titration curves of compounds 2, 3 and 4 showed an almost linear behavior, whereas those of compounds 1 and 5 showed one inflection point and those of compound 6 two inflection points (see Supporting Information). These results indicate that the initial structure of compounds 1–6, at the beginning of the titration, was not the same in agreement with the NMR data discussed above.

On the other hand, the prototropic 1,5-rearrangement (Scheme 3) can be envisaged as composed by two equilibria as depicted by in Figure 2. The quotient of the equilibrium constants K_HN and K_HO is defined as ΔK_NHO, corresponding to the equilibrium constant of the prototropic 1,5-tautomerism. The chemical shifts of H6 and H9 are the most sensitive to changes in the equilibrium positions, thus they were used as probes for K_HO and K_HN measurements, respectively.

Scheme 3. Equilibria variation in the prototropic 1,5-tautomeric equilibrium. The quotient of the equilibrium constants K_HN and K_HO is ΔK_NHO.

Scheme 3. Equilibria variation in the prototropic 1,5-tautomeric equilibrium. The quotient of the equilibrium constants K_HN and K_HO is ΔK_NHO.

Thus, the ΔK_NHO value allows one to establish the position of the NHO equilibrium. Therefore, if the ΔK_NHO value is equal to 1 then the system is in equilibrium N^δ+∙∙∙H∙∙∙O^δ− and both ΔpK_NHO and ΔΔG° are equal to zero; if the value of ΔK_NHO is higher than 1, both ΔpK_NHO and ΔΔG° are less than zero and labile hydrogen is predominantly positioned on the N atom, ⁺N–H∙∙∙O; and finally if ΔK_NHO is less than 1 then ΔpK_NHO and ΔΔG° are greater than zero and therefore the labile hydrogen is predominantly positioned on the O atom, N∙∙∙H–O.

Figure 4. Linearization of ¹H chemical shifts from the δ-diagram for compounds 2, 3 and 4 by Perrin model. (δ_H9 − δ_H9°)(δ_H6e − δ_H6) = ΔK_NHO (δ_H − δ_H6°)(δ_H9e − δ_H9), ΔK_NHO is the slope of the straight line. Compounds 2 (Cl) y = 1.031(±0.002)x + 8*10⁻⁵, R = 0.996; 3 (Br) y = 0.986(±0.002)x − 2*10⁻⁵, R = 0.994; 4 (H) y = 0.841(±0.005)x − 9*10⁻⁵, R = 0.983.

Figure 4. Linearization of ¹H chemical shifts from the δ-diagram for compounds 2, 3 and 4 by Perrin model. (δ_H9 − δ_H9°)(δ_H6e − δ_H6) = ΔK_NHO (δ_H − δ_H6°)(δ_H9e − δ_H9), ΔK_NHO is the slope of the straight line. Compounds 2 (Cl) y = 1.031(±0.002)x + 8*10⁻⁵, R = 0.996; 3 (Br) y = 0.986(±0.002)x − 2*10⁻⁵, R = 0.994; 4 (H) y = 0.841(±0.005)x − 9*10⁻⁵, R = 0.983.

Compounds 2, 3 and 4 were treated with the Perrin model (Figure 4) for the nonlinear behavior in the δ-diagram. In the case of compounds 1, 5 and 6 the Polster-Lachmann analysis seems to be more appropriate, because of the shape of the Gibbs triangle taken in the δ-diagram (Figure 5).

Figure 5. Polster-Lachmann analysis of the δ-diagram from compound 5. Point “A” shows the initial state, point “B” indicates a change on the compound (neutralization point), point “C” the final state and point “BC” is the experimental ΔK_NHO of the system. The dotted line A to C shows the shape of a triangle; the dotted line from vertex A to point BC shows the intercept in an ΔK_NHO equilibrium point.

Figure 5. Polster-Lachmann analysis of the δ-diagram from compound 5. Point “A” shows the initial state, point “B” indicates a change on the compound (neutralization point), point “C” the final state and point “BC” is the experimental ΔK_NHO of the system. The dotted line A to C shows the shape of a triangle; the dotted line from vertex A to point BC shows the intercept in an ΔK_NHO equilibrium point.

The Polster-Lachmann analysis is based on a ratio of distances established by the Gibbs triangle and the ΔK_NHO values are obtained from the chemical shifts of the titration data, hence from points A, B, C and BC in the δ-diagram, in agreement with Equation (6):

(6)

From δ-diagrams, the mechanism occurring in the course of the titration with NaOD, can be proposed (Scheme 4).

Scheme 4. Mechanism proposed during the titration with NaOD; the scheme is according to points in the δ-diagram of Figure 5.

Scheme 4. Mechanism proposed during the titration with NaOD; the scheme is according to points in the δ-diagram of Figure 5.

Compounds 1, 2, 5 and 6 begin at an initial state as acidic species (Point “A”), with a small increase of pH, the intramolecular hydrogen bond equilibrium is shifted from ⁺N-H∙∙∙O⁻ to N∙∙∙H-O, reaching the neutralization point of the solution (Point “B”); then, as long as the pH is increased compounds are deprotonated to become into the conjugated bases that precipitate as a salt (Point “C”). In the case of compounds 3 and 4, the initial state is at point “B” with the intramolecular hydrogen bond in the N∙∙∙H-O form, the addition of NaOD aliquots only shift the equilibrium to point “C” the conjugate base.

The δ-diagrams show the initial state in all compounds and indicate the most stable species in a methanol solution, so the stability of the NHO intramolecular hydrogen bond is affected by the electronic nature of the substituent as well as solvation of methanol; therefore, the structure of compounds 1, 5 and 6 with NO₂, OMe and OH substituents, respectively, stabilizes and direct the NHO equilibrium position by both mesomeric and inductive effects, although they have different ΔK_NHO values, whereas the halogen substituent in compounds 2 and 3 exert both electronegative and inductive effects; none of such effects are present in compound 4. Thus from the obtained ΔK_NHO values, the predominant NHO equilibrium in compounds 3 and 4 are the neutral N∙∙∙H–O form, while for the rest of the compounds the zwitterionic ⁺N–H∙∙∙O⁻ form is present (Scheme 2). In the particular case of compound 1, it is as an imine-enamine tautomeric form in agreement with ¹H, ¹³C and ¹⁵N pfg-HMQC spectroscopy mentioned above.

Finally, the obtained ΔK_NHO values (Table 1) are very close to the equilibrium point N^δ−∙∙∙H⁺∙∙∙O^δ− (ΔK_NHO = 1), which indicate a fast interchange of intramolecular hydrogen bond and the effect produced by both the substituent and the solvent that stabilize the systems in a preferred tautomeric form.

3. Experimental

3.1. General Remarks

Schiff bases 1 to 6 were obtained by condensation of the appropriate aromatic ortho-hydroxyaldehyde with benzylamine in toluene at 25 °C (Scheme 5). Solids products were filtered and dried under a vacuum. Compound 4 was a liquid and the excess of toluene was eliminated under vacuum. ¹H and ¹³C-NMR spectra were recorded in DMSO-d₆ on a JEOL ECA-500 spectrometer (¹H, 500.1 MHz; ¹³C, 125.7 MHz; ¹⁵N, 50.7 MHz) and the ¹⁵N chemical shifts were obtained by correlation of ¹H, ¹⁵N pfg-HMQC (see Supporting Information).

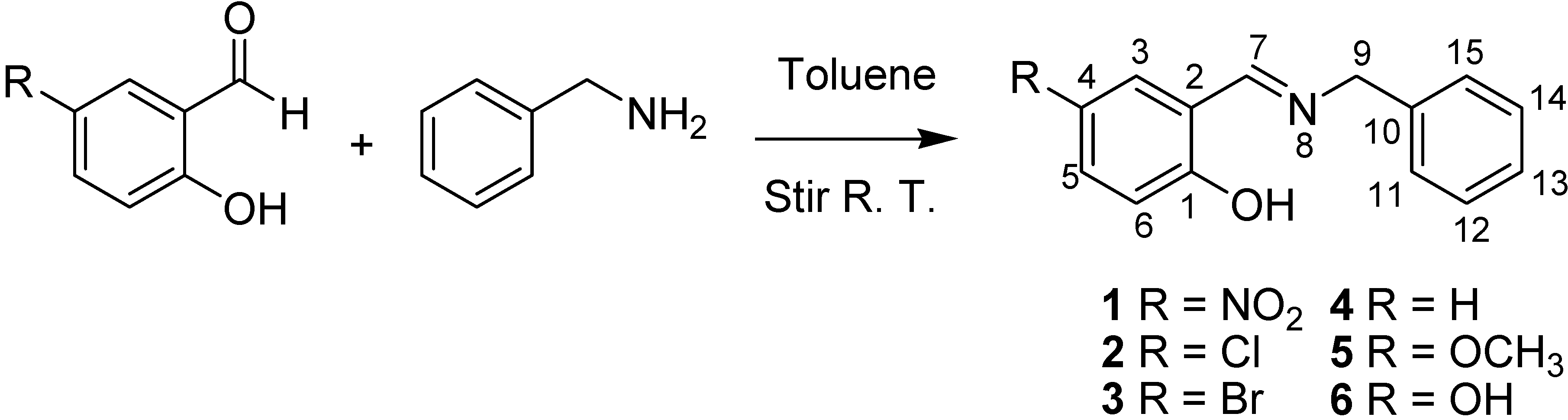

Scheme 5. Synthesis of Schiff bases.

Scheme 5. Synthesis of Schiff bases.

(E)-2-((Benzylimino)methyl)-4-nitrophenol (1). Compound 1 was prepared as reported [73] by condensation of 5-nitrosalicylaldehyde (0.5 g, 2.99 mmol) with benzylamine (0.32 g, 0.32 mL, 2.99 mmol) in toluene at room temperature (25 °C) and with a stirring time of 5 min. ¹H-NMR (DMSO-d₆): δ = 8.42 (d, ⁴J_H,H = 2.9 Hz, 1H, H3), 8.02 (dd, ³J_H,H = 9.5, ⁴J_H,H = 3.0 Hz, 1H, H5), 6.65 (d, ³J_H,H = 9.5 Hz, 1H, H6), 8.86 (s, 1H, H7), 4.84 (s, 2H, H9), 7.28–7.37 (m, 5H, H11-H15), 14.3 (broad signal, 1H, NHO) ppm. ¹³C-NMR (DMSO-d₆): δ = 175.8 (s, 1C, C1), 115.0 (s, 1C, C2), 132.1 (s, 1C, C3), 136.9 (s, 1C, C4), 129.5 (s, 1C, C5), 122.2 (s, 1C, C6), 167.4 (s, 1C, C7), 57.2 (s, 1C, C9), 135.5 (s, 1C, C10), 129.3 (s, 2C, C11, C15), 128.6 (s, 2C, C12, C14), 128.5 (s, 1C, C13) ppm. ¹⁵N-NMR (DMSO-d₆): δ = −162.1 (s, 1N, N8), −9.5 (s, 1N, N4) ppm.

(E)-2-((Benzylimino)methyl)-4-chlorophenol (2). Compound 2 was prepared by condensation of 5-chlorosalicylaldehyde (0.5 g, 3.19 mmol) with benzylamine (0.34 g, 0.34 mL, 3.19 mmol) in toluene at room temperature (25 °C) and with a stirring time of 5 min. Yield 0.73 g (93%). m.p. 359–360 K. FT-IR (ATR, cm⁻¹): 1628 (C=N), 1573 (asymmetrical C=C-O-H stretch), 1479 (symmetrical C=C-O-H stretch), 3069 (intramolecular hydrogen bonding N∙∙∙H-O, as a weak broad band). LC-MS-TOF in HPLC-methanol solution, m/z (%) calculated: 246.0686 (100); found: 246.0680 (100) [M+H]⁺, empirical formula C₁₄H₁₃NOCl. ¹H-NMR (DMSO-d₆): δ = 7.53 (d, ⁴J_H,H = 2.7 Hz, 1H, H3), 7.31 (dd, ³J_H,H=8.7, ⁴J_H,H = 2.7 Hz, 1H, H5), 6.87 (d, ³J_H,H = 8.8 Hz, 1H, H6), 8.64 (s, 1H, H7), 4.76 (s, 2H, H9), 7.23–7.34 (m, 5H, H11-H15), 13.4 (broad signal, 1H, NHO) ppm. ¹³C-NMR (DMSO-d₆): δ = 160.0 (s, 1C, C1), 120.2 (s, 1C, C2), 131.1 (s, 1C, C3), 122.5 (s, 1C, C4), 132.5 (s, 1C, C5), 119.0 (s, 1C, C6), 165.8 (s, 1C, C7), 62.4 (s, 1C, C9), 138.8 (s, 1C, C10), 129.1 (s, 2C, C11, C15), 128.3 (s, 2C, C12, C14), 127.7 (s, 1C, C13) ppm. ¹⁵N-NMR (DMSO-d₆): δ = −80.5 (s, 1N, N8) ppm.

(E)-2-((Benzylimino)methyl)-4-bromophenol (3). Compound 3 was prepared as reported [73] by condensation of 5-bromosalicylaldehyde (0.5 g, 2.48 mmol) with benzylamine (0.26 g, 0.27 mL, 2.48 mmol) in toluene at room temperature of 25 °C and with a stirring time of 5 min. ¹H-NMR (DMSO-d₆): δ = 7.64 (d, ⁴J_H,H = 2.5 Hz, 1H, H3), 7.41 (dd, ³J_H,H = 8.7 and ⁴J_H,H = 2.7 Hz, 1H, H5), 6.82 (d, ³J_H,H = 8.7 Hz, 1H, H6), 8.62 (s, 1H, H7), 4.75 (s, 2H, H9), 7.22–7.33 (m, 5H, H11-H15), 13.5 (broad signal, 1H, NHO) ppm. ¹³C-NMR (DMSO-d₆): δ = 160.4 (s, 1C, C1), 120.9 (s, 1C, C2), 134.0 (s, 1C, C3), 109.8 (s, 1C, C4), 135.3 (s, 1C, C5), 119.5 (s, 1C, C6), 165.7 (s, 1C, C7), 62.4 (s, 1C, C9), 138.8 (s, 1C, C10), 129.1 (s, 2C, C11, C15), 128.3 (s, 2C, C12, C14), 127.8 (s, 1C, C13) ppm. ¹⁵N-NMR (DMSO-d₆): δ = −81.8 (s, 1N, N8) ppm.

(E)-2-((Benzylimino)methyl)phenol (4). Compound 4 was prepared as reported [73] by condensation of salicylaldehyde (0.5 g, 0.42 mL, 4.09 mmol) with benzylamine (0.43 g, 0.44 mL, 4.09 mmol) in toluene at room temperature (25 °C) and with a stirring time of 5 min. ¹H-NMR (DMSO-d₆): δ = 7.44 (dd, ³J_H,H = 7.5, ⁴J_H,H = 1.7 Hz, 1H, H3), 6.87 (td, ³J_H,H = 7.4, ³J_H,H = 8.3 and ⁴J_H,H = 0.9, 1H, H4), 7.30 (t, d, ³J_H,H = 7.4, ³J_H,H = 8.2 and ⁴J_H,H = 1.7 Hz, 1H, H5), 6.85 (dd, ³J_H,H = 8.2 and ⁴J_H,H = 1.0 Hz, 1H, H6), 8.67 (s, 1H, H7), 4.76 (s, 2H, H9), 7.23–7.34 (m, 5H, H11-H15), 13.4 (s, 1H, NHO) ppm. ¹³C-NMR (DMSO-d₆): δ = 161.2 (s, 1C, C1), 119.2 (s, 1C, C2), 132.3 (s, 1C, C3), 119.1 (s, 1C, C4), 132.9 (s, 1C, C5), 117.0 (s, 1C, C6), 166.8 (s, 1C, C7), 62.7 (s, 1C, C9), 139.0 (s, 1C, C10), 129.0 (s, 2C, C11, C15), 128.2 (s, 2C, C12, C14), 127.6 (s, 1C, C13) ppm. ¹⁵N-NMR (DMSO-d₆): δ = −81.7 (s, 1N, N8) ppm.

S1-5 (E)-2-((Benzylimino)methyl)-4-methoxyphenol (5). Compound 5 was prepared as reported [73] by condensation of 5-methoxysalicylaldehyde (0.5 g, 0.40 mL, 3.28 mmol) with benzylamine (0.35 g, 0.35 mL, 3.28 mmol) in toluene at room temperature (25 °C) and with a stirring time of 5 min. ¹H-NMR (DMSO-d₆): δ = 7.04 (d, ⁴J_H,H = 3.1 Hz, 1H, H3), 6.95 (dd, ³J_H,H = 9.0 and ⁴J_H,H = 3.1 Hz, 1H, H5), 6.87 (d, ³J_H,H = 9.0, 1H, H6), 8.58 (s, 1H, H7), 4.74 (s, 2H, H9), 7.22–7.34 (m, 5H, H11-H15), 3.70 (s, 3H, H16), 12.8 (s, 1H, NHO) ppm. ¹³C-NMR (DMSO-d₆): δ= 155.0 (s, 1C, C1), 119.0 (s, 1C, C2), 115.4 (s, 1C, C3), 152.2 (s, 1C, C4), 119.8 (s, 1C, C5), 117.7 (s, 1C, C6), 166.6 (s, 1C, C7), 62.9 (s, 1C, C9), 139.1 (s, 1C, C10), 129.0 (s, 2C, C11, C15), 128.2 (s, 2C, C12, C14), 127.6 (s, 1C, C13), 55.9 (s, 1C, C16) ppm. ¹⁵N-NMR (DMSO-d₆): δ = −79.8 (s, 1N, N8) ppm.

(E)-2-((Benzylimino)methyl)benzene-1,4-diol (6). Compound 6 was prepared by condensation of 5-hydroxysalicylaldehyde (0.5 g, 3.62 mmol) with benzylamine (0.38 g, 0.39 mL, 3.62 mmol) in toluene at room temperature of 25 °C and with a stirring time of 5 min. Yield 0.73 g (89%). m.p. 397–399 K. FT-IR (ATR, cm⁻¹): 1641 (C=N), 1601 (asymmetrical C=C-O-H stretch), 1496 (symmetrical C=C-O-H stretch), 3311 (free phenolic O-H medium broad band), 3054 (intramolecular hydrogen bonding N∙∙∙H-O, as a weak broad band). LC-MS-TOF in HPLC-grade methanol, m/z (%) calculated: 228.1025 (100); found: 228.1022 (100) [M+H]⁺, empirical formula C₁₄H₁₄NO₂. ¹H-NMR (DMSO-d₆): δ= 6.83 (d, ⁴J_H,H = 3.0 Hz, 1H, H3), 6.76 (dd, ³J_H,H = 8.8, ⁴J_H,H = 3.0 Hz, 1H, H5), 6.68 (d, ³J_H,H = 8.9, 1H, H6), 8.58 (s, 1H, H7), 4.74 (s, 1H, H9), 7.23–7.34 (m, 5H, H11-H15), 9.00 (s, 1H, C4-OH), 12.5 (s, 1H, NHO) ppm. ¹³C-NMR (DMSO-d₆): δ= 153.5 (s, 1C, C1), 119.1 (s, 1C, C2), 117.0 (s, 1C, C3), 149.9 (s, 1C, C4), 120.5 (s, 1C, C5), 117.4 (s, 1C, C6), 166.8 (s, 1C, C7), 62.8 (s, 1C, C9), 139.3 (s, 1C, C10), 129.1 (s, 2C, C11, C15), 128.3 (s, 2C, C12, C14), 127.6 (s, 1C, C13) ppm. ¹⁵N-NMR (DMSO-d₆): δ= −79.7 (s, 1N, N8) ppm.

3.2. Sample Preparation, Titrant Solution and pH Meter

Solutions of compounds 1–6 (0.06–0.10 M) in CD₃OD (0.4–0.5 mL) and 1,4-dioxane as internal reference (0.5–1.5 μL, δ_H 3.53), were prepared in resonance tubes. The NaOD titrant solution, was prepared to 1.4 and 4.8% (v/v) from NaOD/D₂O (40%) in CD₃OD, while the DCl solution was prepared to 5% from DCl/D₂O (70%) in CD₃OD. The glass electrode was filled with a KCl standard solution and calibrated with phosphate buffer pH 7.0 and 4.0.

3.3. NMR Spectrometric Titration

The ¹H-NMR spectra were recorded in CD₃OD on a JEOL ECA-500 spectrometer at room temperature of 295.15 ± 1 K (22 ± 1 °C). An initial ¹H-NMR spectrum of the solutions was recorded and assigned as initial value for the titration. Subsequently the solutions were titrated with aliquots of the NaOD/D₂O solution base (3.0 μL), until invariant changes in the chemical shifts were observed; each ¹H-NMR spectrum as well as the corresponding pH reading were recorded simultaneously, after the addition of the base. Only compound 2 was further titrated with DCl (5%), to observe the behavior of the system at acidic pH.

3.4. NMR Titration Graphics (Figure 6, Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11)

Figure 6. (A) titration curve (pH vs. δ¹H9); (B) δ-diagram with Polster-Lachmann analysis (δ¹H6 vs. δ¹H9) and (C) plot of the semilogarithmic Henderson-Hasselbalch equation (pH vs. log[(δ_H9max − δ_H9obs)/(δ_H9obs − δ_H9min)]) of compound 1 (R = NO₂).

Figure 6. (A) titration curve (pH vs. δ¹H9); (B) δ-diagram with Polster-Lachmann analysis (δ¹H6 vs. δ¹H9) and (C) plot of the semilogarithmic Henderson-Hasselbalch equation (pH vs. log[(δ_H9max − δ_H9obs)/(δ_H9obs − δ_H9min)]) of compound 1 (R = NO₂).

Figure 7. (A) titration curve (pH vs. δ¹H9); (B) δ-diagram with Perrin model analysis (δ¹H6 vs. δ¹H9) and (C) plot of the semilogarithmic Henderson-Hasselbalch equation (pH vs. log[(δ_H9max − δ_H9obs)/(δ_H9obs − δ_H9min)]) of compound 2 (R = Cl). Only compound 2 was titrated with DCl solution.

Figure 7. (A) titration curve (pH vs. δ¹H9); (B) δ-diagram with Perrin model analysis (δ¹H6 vs. δ¹H9) and (C) plot of the semilogarithmic Henderson-Hasselbalch equation (pH vs. log[(δ_H9max − δ_H9obs)/(δ_H9obs − δ_H9min)]) of compound 2 (R = Cl). Only compound 2 was titrated with DCl solution.

Figure 8. (A) titration curve (pH vs. δ¹H9); (B) δ-diagram with Perrin model analysis (δ¹H6 vs. δ¹H9) and (C) plot of the semilogarithmic Henderson-Hasselbalch equation (pH vs. log[(δ_H9max − δ_H9obs)/(δ_H9obs − δ_H9min)]) of compound 3 (R = Br).

Figure 8. (A) titration curve (pH vs. δ¹H9); (B) δ-diagram with Perrin model analysis (δ¹H6 vs. δ¹H9) and (C) plot of the semilogarithmic Henderson-Hasselbalch equation (pH vs. log[(δ_H9max − δ_H9obs)/(δ_H9obs − δ_H9min)]) of compound 3 (R = Br).

Figure 9. (A) titration curve (pH vs. δ¹H9); (B) δ-diagram with Perrin model analysis (¹H6 vs. ¹H9) and (C) plot of the semilogarithmic Henderson-Hasselbalch equation (pH vs. log[(δ_H9max − δ_H9obs)/(δ_H9obs − δ_H9min)])of compound 4 (R = H).

Figure 9. (A) titration curve (pH vs. δ¹H9); (B) δ-diagram with Perrin model analysis (¹H6 vs. ¹H9) and (C) plot of the semilogarithmic Henderson-Hasselbalch equation (pH vs. log[(δ_H9max − δ_H9obs)/(δ_H9obs − δ_H9min)])of compound 4 (R = H).

Figure 10. (A) titration curve (pH vs. δ¹H9); (B) δ-diagram with Polster-Lachmann analysis (δ¹H6 vs. δ¹H9) and (C) plot of the semilogarithmic Henderson-Hasselbalch equation (pH vs. log[(δ_H9max − δ_H9obs)/(δ_H9obs − δ_H9min)]) of compound 5 (R = OMe).

Figure 10. (A) titration curve (pH vs. δ¹H9); (B) δ-diagram with Polster-Lachmann analysis (δ¹H6 vs. δ¹H9) and (C) plot of the semilogarithmic Henderson-Hasselbalch equation (pH vs. log[(δ_H9max − δ_H9obs)/(δ_H9obs − δ_H9min)]) of compound 5 (R = OMe).

Figure 11. (A) titration curve (pH vs. δ¹H5); (B) δ-diagram with Polster-Lachmann analysis (δ¹H6 vs. δ¹H5) and (C) plot of the semilogarithmic Henderson-Hasselbalch equation (pH vs. log[(δ_H5max – δ_H5obs)/(δ_H5obs – δ_H5min)])of compound 6 (R = OH) calculating the pK_a2. The pK_a2 value belong to deprotonation of intramolecular hydrogen bond N∙∙∙H-O, whereas pK_a3 correspond to free phenolic C4-OH. For this compound the plot of δ-diagram was done with ¹H6 vs. ¹H5 chemical shifts, since only this correlation showed a system with three slope changes similar to polyprotic system.

Figure 11. (A) titration curve (pH vs. δ¹H5); (B) δ-diagram with Polster-Lachmann analysis (δ¹H6 vs. δ¹H5) and (C) plot of the semilogarithmic Henderson-Hasselbalch equation (pH vs. log[(δ_H5max – δ_H5obs)/(δ_H5obs – δ_H5min)])of compound 6 (R = OH) calculating the pK_a2. The pK_a2 value belong to deprotonation of intramolecular hydrogen bond N∙∙∙H-O, whereas pK_a3 correspond to free phenolic C4-OH. For this compound the plot of δ-diagram was done with ¹H6 vs. ¹H5 chemical shifts, since only this correlation showed a system with three slope changes similar to polyprotic system.

3.5. Data Analysis

The calculations were performed on a Microsoft Excel worksheet. The data analysis of the semilogarithmic Henderson-Hasselbalch (Equation (3)) was applied to data that have adapted to this analysis method, using a dependent variable log[(δ_Hmax − δ_Hobs)/(δ_Hobs − δ_Hmin)]; H9 for compounds 1–5 and H5 for compound 6) (HX = H5 or H9) and pH as an independent variable for titration curves to find the pK_a values.

Data analysis for the δ-diagram by both Perrin and Polster-Lachmann analysis used H6 and H9 proton chemical shifts for the analysis in δ-diagram, since they are the proton chemical shifts adjacent to NHO intramolecular hydrogen bond and the most affected by deprotonation. Thus in the Perrin Analysis Equation (5) can be written as follows (Equation (7)):

(δ_H9 − δ_H9°)(δ_H6^e − δ_H6) = ∆K_NHO(δ_H6 − δ_H6°)(δ_H9^e − δ_H9)

(7)

where δ_H9° and δ_H6° are the chemical shifts from the species at the beginning of the titration, δ_H9 and δ_H6 the chemical shifts observed in the course of the titration, δ_H9^e and δ_H6^e are the chemical shifts from species at the end of the titration. Finally in the Polster-Lachmann analysis, the ratio of distances to calculate the ΔK_NHO value is established by the graphic method described by the Gibbs triangle [62,68].

4. Conclusions

The study of compounds 1–6 by NMR titration in methanol solution, confirmed the predominant tautomeric forms in solution, noting that the NHO prototropic equilibrium is dependent of the substituent and the solvent. The pK_a values obtained using the Henderson-Hasselbalch analysis showed that all compounds are weak acids. The strength and lability of the NHO intramolecular hydrogen bond are consequently affected by the mesomeric and inductive effects exerted by the substituents. The values of the K_NHO equilibrium constant indicate that the equilibrium is slightly shifted to the nitrogen atom when the substituent in the phenyl ring exerts a strong electronic effect, either ED or EW (R = NO₂, Cl, OMe and OH), and to the oxygen atom when Br or H in CD₃OD solutions. Nevertheless the ΔK_NHO values close to the unit, highlight that the proton is in the middle of both basic sites (O⁻∙∙∙H∙∙∙N⁺), in contrast to what is found in DMSO-d₆ solutions, where NMR data is in agreement with the neutral N∙∙∙H–O tautomer for most of the compounds except for the nitro derivative which is in the zwitterion ⁺N–H∙∙∙O form. Finally, we have demonstrated the simplicity, accuracy and versatility of both the Perrin and Polster-Lachmann analysis applied to the study of intramolecular hydrogen bonds.
