Molecules 2012, 17(9), 11103-11112; doi:10.3390/molecules170911103

Communication
A 3-D Metal-Organic Framework Constructed with Manganese(ΙΙ), 4,4'-Oxybis(benzoic acid) and 2,2'-Biphenyl: Synthesis, Crystal Structure and Photoelectric Property Characterization
1
College of Chemistry and Chemical Engineering, Guangxi University for Nationalities, Nanning 530006, China
2
Guangxi Key Laboratory of Chemistry and Engineering of Forest Products, Guangxi University for Nationalities, Nanning 530006, China
*
Author to whom correspondence should be addressed.
Received: 1 August 2012; in revised form: 2 September 2012 / Accepted: 6 September 2012 / Published: 14 September 2012

Abstract

:
Assembly of 4,4'-oxybis(benzoic acid) (H2L) with manganese chloride in the presence of 2,2'-biphenyl (2,2'-bpy) affords a new coordination polymer [Mn3L3(2,2'-bpy)2]n (1), in which the [MnL2]n layers are extended by L bridges resulting in a three-dimensional (3-D) coordination framework. The network structure of 1 has unusual (2,6)-connectivity and represents a new type of (812·123)(8)(3) topology. These identical and complementary networks are entangled to generate a self-penetrating supramolecular lattice. Moreover, the fluorescence spectrum of 1 exhibits fluorescent emission in the solution of methanol at room temperature. Electrochemical investigation illustrates the electrochemical properties of the title compound. The structure (C62H40Mn3N4O15)n is monoclinic with a = 14.2304(18), b = 17.019(2), c = 25.805(3) Å, α = γ = 90, β = 92.932(2)° and space group C2/c.
Keywords:
(3-D) coordination framework; 4,4'-oxybis(benzoic acid); self-penetrating topology; fluorescence; electrochemical properties

1. Introduction

The design and synthesis of metal-organic frameworks is of great interest due to their intriguing topologic architecture and significant application in many fields [1,2,3,4,5,6,7,8,9]. Among the variety of organic molecules used as linkers in the design of supramolecular networks, heterocyclic N rings and polycarboxylates are the most widely used ligands due to their structural rigidity and coordination mode flexibility [10,11,12,13,14]. In this work we report a novel three-dimensional (3-D) coordination polymer [Mn3(L)3(2,2'-bpy)2]n. The network structure of 1 has unusual (2,6)-connectivity and represents a new type of (812·123)(8)(3) self-penetrating topology.

2. Results and Discussion

2.1. Crystal Structure Descriptions

The self-assembly of MnCl2·4H2O with 4,4'-oxybis(benzoic acid) and 2,2'-biphenyl in H2O–CH3OH mixed solution was performed under weak acid conditions. If NaOH was not added into the reaction system, only unknown ropy precipitate was obtained. If methanol was replaced by ethanol under the same conditions, we could not obtain single crystals. Single crystal X-ray analysis of 1 reveals that the asymmetric unit consists of one and a half Mn(II) ions, one 2,2'-biphenyl and three L ligands, The Mn1 coordinate with two nitrogen atoms from one 2,2'-biphenyl (Mn1–N 2.261(4)–2.263(4) Å) and four oxygen atoms from three different bridging L ligands (Mn1–O 2.074(4)–2.403(4) Å), the Mn2 coordinate with six oxygen atoms from six L ligands (Mn2–O 2.178(4)–2.245(4) Å), each L ligand connect with four Mn atoms. We can see the environment of Mn in Figure 1.

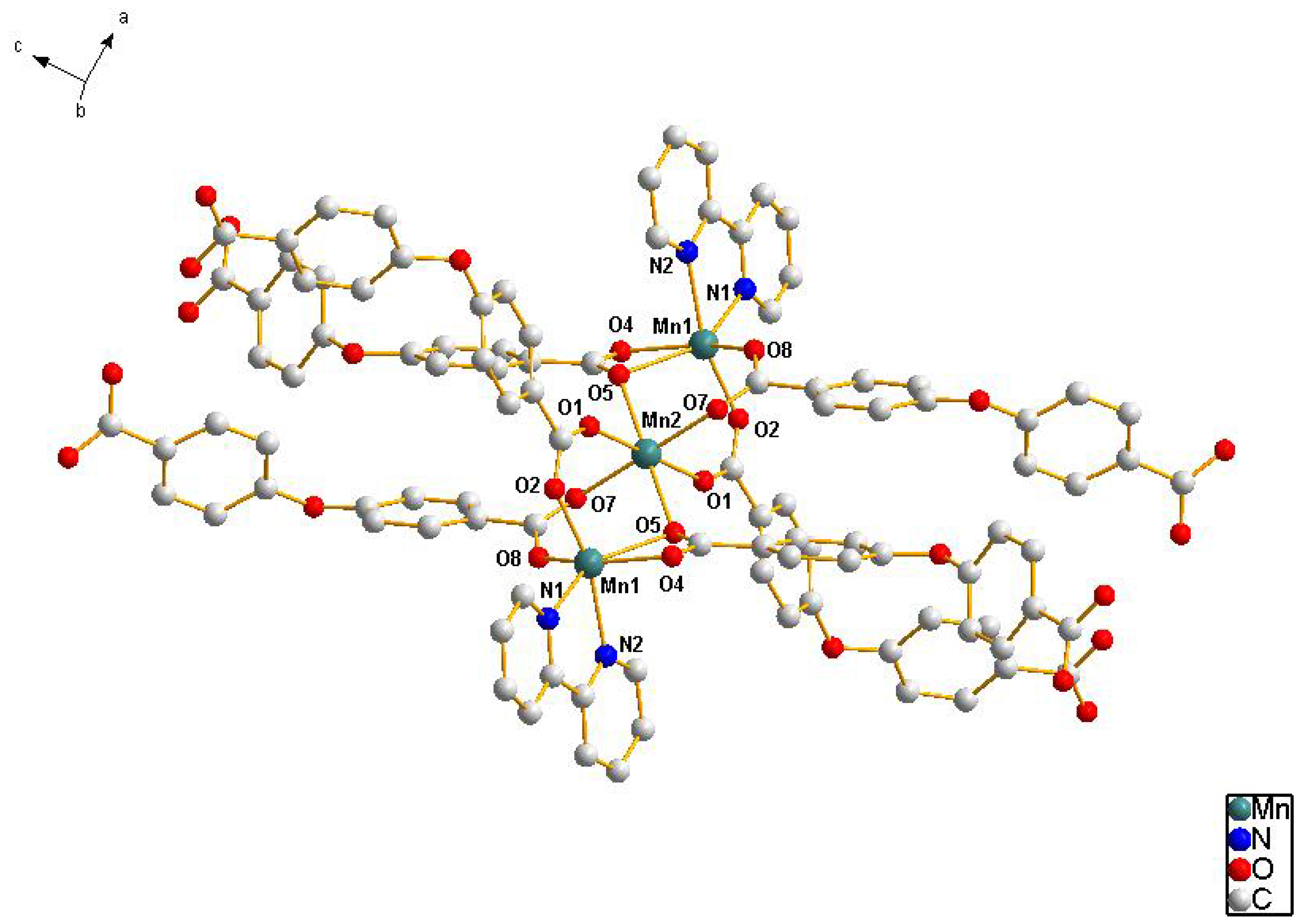

Figure 1. The coordination environment of 1. All H atoms are omitted for clarity.
Figure 1. The coordination environment of 1. All H atoms are omitted for clarity.
Molecules 17 11103 g001

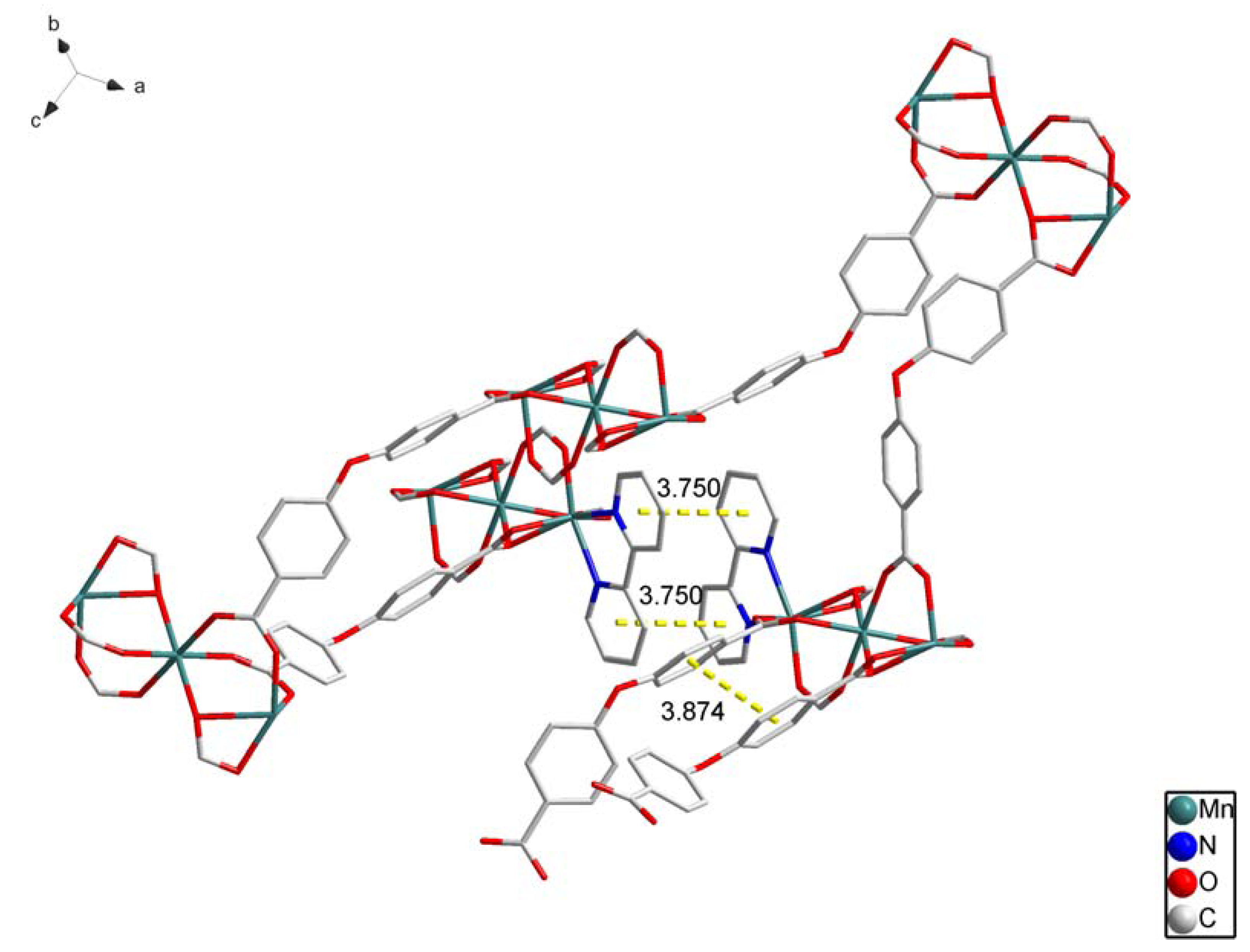

There are many π–π stacking interactions in the crystal (Figure 2). We can see the distance between two benzene rings from diffenent L ligands is 3.875(4) Å, and the dihedral angle is 5.4(4)°. The π–π stacking interactions also exist between one benzene ring and one pyridine ring (3.857(4) Å, 10.68(4)°).
Figure 2. The π-π stacking interactions of 1. All H atoms are omitted for clarity.
Figure 2. The π-π stacking interactions of 1. All H atoms are omitted for clarity.
Molecules 17 11103 g002
The manganese trimetallic unit bridged by six carboxylic groups, constitute a trimetallic second building unit (SBU) [Mn3(CO2)6N4] (Figure 3a), with non-bonding Mn·Mn distance of 3.658 Å. The trimetallic SBU, as a 6-connected node Figure 3b, is linked through bridging L to generate an extended 3-D metal-organic framework Figure 3c, and the distances between two cores of SBU are 15.455(3) and 15.049(3) Å, respectively. Long ligands usually lead to large voids and may further result in interpenetration and entangle structures. A large space of 1225.3 Å3 (19.6% of the unit-cell volume as evaluated by PLATON [15]) are available to accommodate guest molecule, we can see the big cavity exist in title compound Figure 4. As a result, each core of SBU are connected by four L ligands to generate a coordination layer along the bc plane, as illustrated in Figure 5, in which each SBU center acts as a 4-connected node by linking to four 2-connected ligands, displaying a familiar net topology. The two SBU center binding around each ligand are spaced by the distances of 15.050(3), 15.456(3) Å, respectively. Besides, esch SBU center also linked by the other two L ligands. These two-dimensional (2-D) layers are further extended into a 3-D coordination framework via the other L ligands. Thus, a 3-D (2,6)-connected network with the Schläfli symbol of (812·123)(8)(3) is generated, as depicted in Figure 6. The structural consistency and phase purity of 1 was confirmed by comparing the measured pattern calculated from single-crystal data with the experimental X-ray powder diffraction (XRPD) analysis at room temperature (Figure 7).

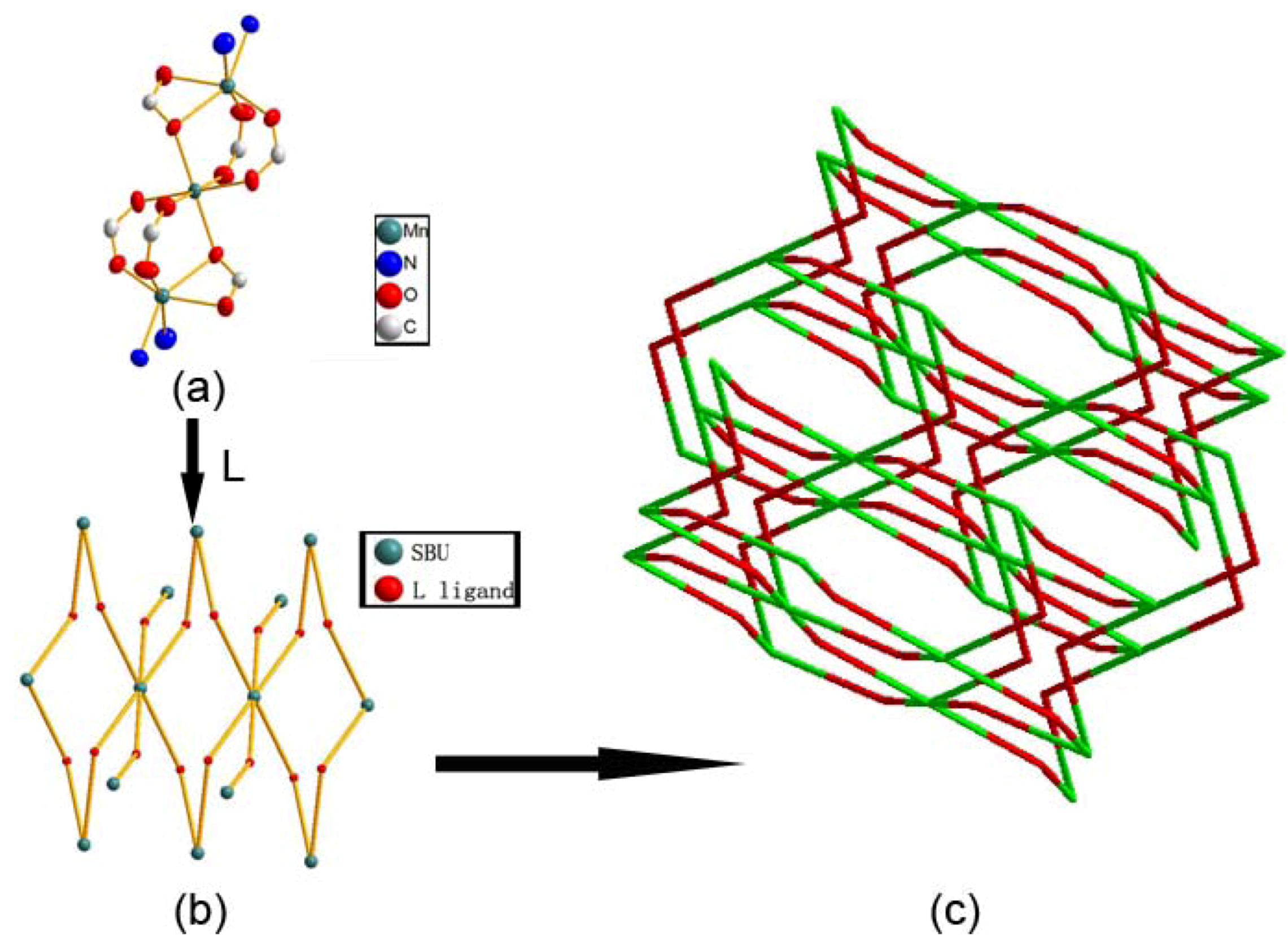

Figure 3. (a) Thermal ellipsoid-and-stick representation of SBU; (b) Each SBU as a 6-connected node bridged by L ligands to connected with other six SBU nodes; (c) A schematic view of the (2,6)-connected (812·123)(8)(3) topology of a 3-D coordination network in 1 (green: SBU; red: L ligand).
Figure 3. (a) Thermal ellipsoid-and-stick representation of SBU; (b) Each SBU as a 6-connected node bridged by L ligands to connected with other six SBU nodes; (c) A schematic view of the (2,6)-connected (812·123)(8)(3) topology of a 3-D coordination network in 1 (green: SBU; red: L ligand).
Molecules 17 11103 g003

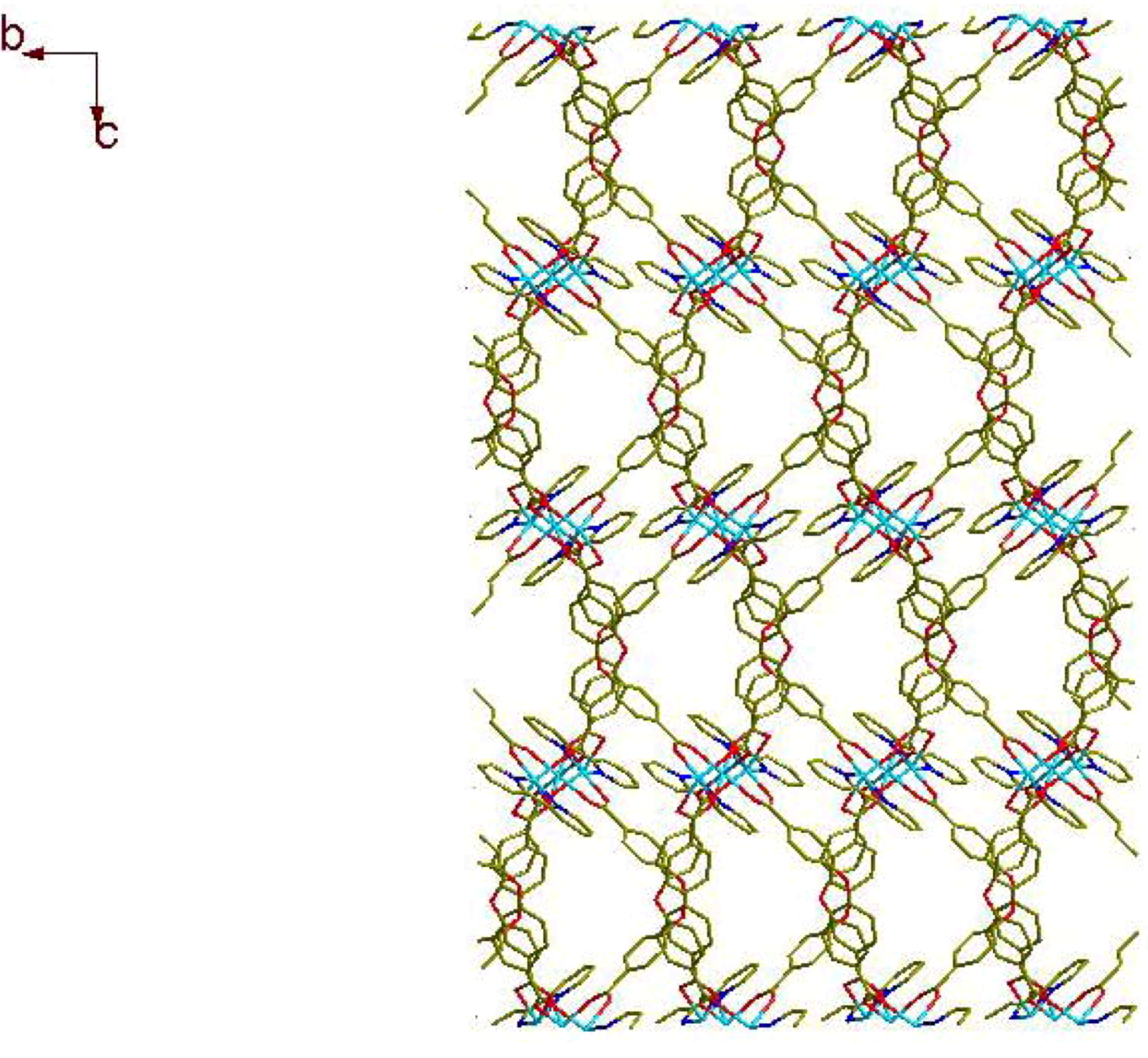

Figure 4. View of the big cavity in the 3-D coordination network.
Figure 4. View of the big cavity in the 3-D coordination network.
Molecules 17 11103 g004

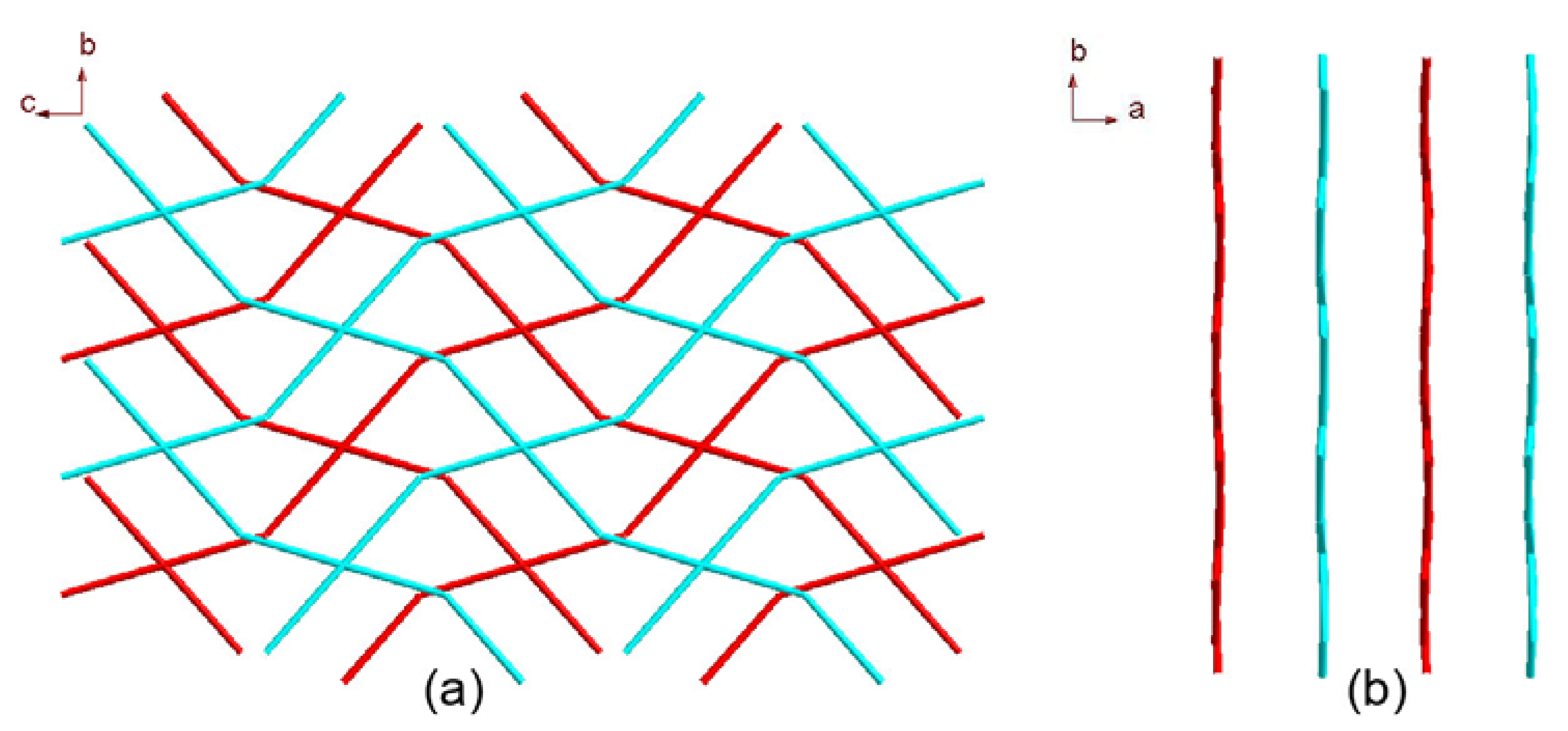

Figure 5. View of the [(SBU)L4]n coordination layer along (a) the a axis and (b) the c axis.
Figure 5. View of the [(SBU)L4]n coordination layer along (a) the a axis and (b) the c axis.
Molecules 17 11103 g005

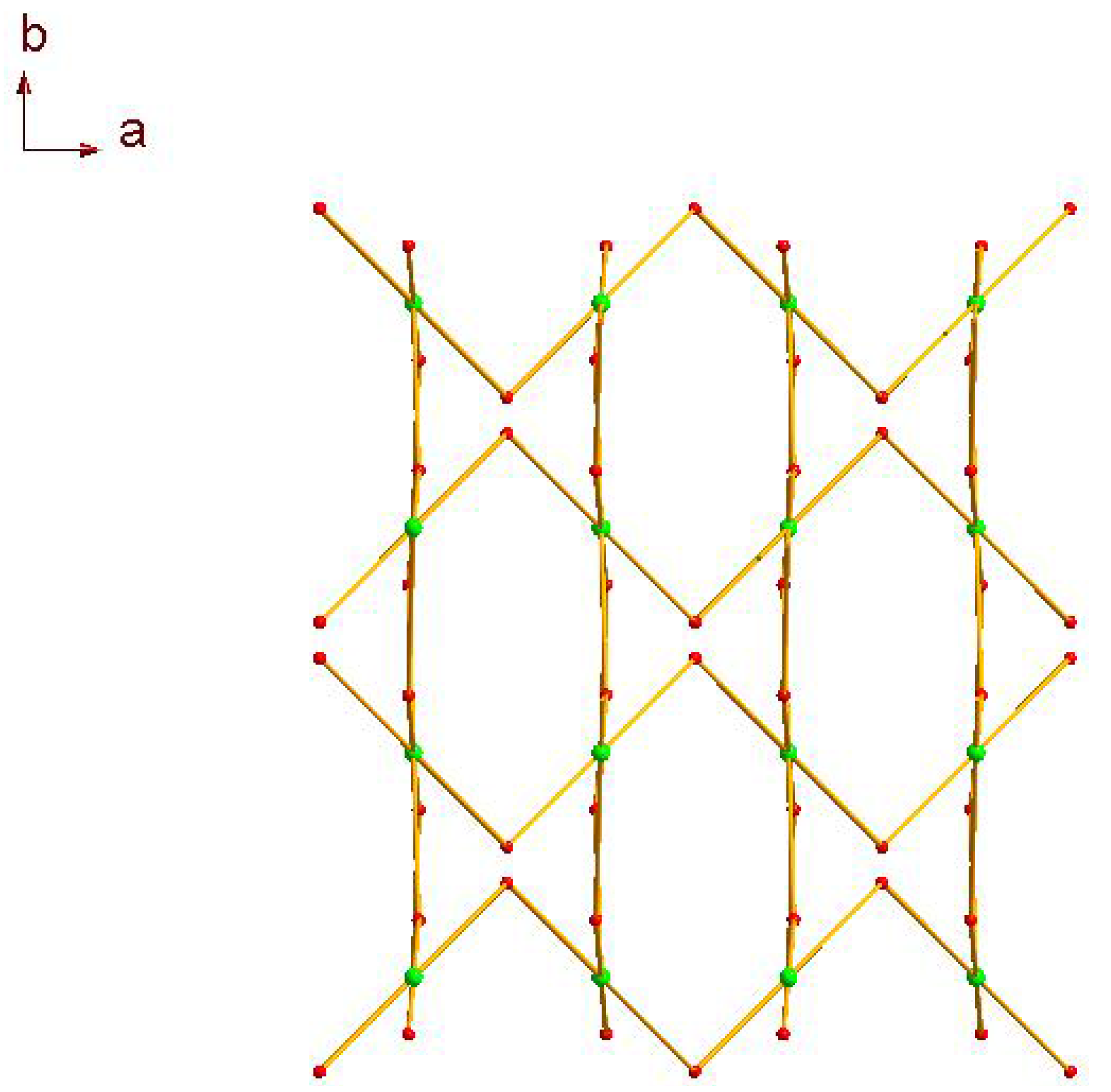

Figure 6. View of the 3-D coordination topology network created by the coordination layer and the L ligand.
Figure 6. View of the 3-D coordination topology network created by the coordination layer and the L ligand.
Molecules 17 11103 g006

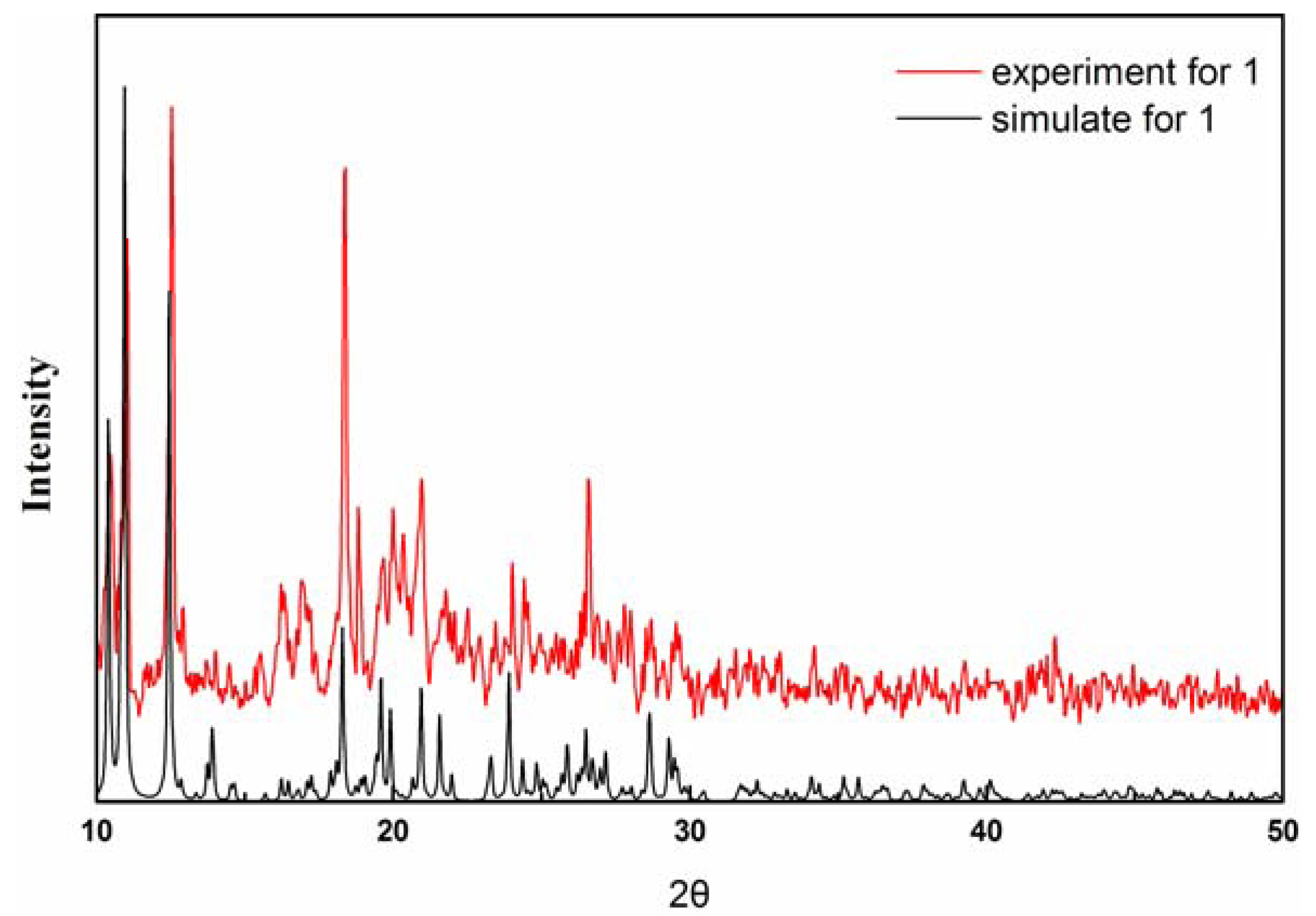

Figure 7. Simulated and experimental XRPD patterns for complex 1.
Figure 7. Simulated and experimental XRPD patterns for complex 1.
Molecules 17 11103 g007

2.2. Fluorescence Emission Properties

Compound 1 exhibits fluorescence emission around 328 nm upon excitation at 312 nm in the solution of methanol at room temperature (Figure 8), the emission peak of complex 1 is neither metal-to-ligand charge transfer (MLCT) nor ligand-to-metal transfer (LMCT), in nature, since the Mn(II) ions with 3d5 configuration, are difficult to oxidize or reduce, therefore, it may be assigned to the π–π* intraligand fluorescence.
Figure 8. Fluorescence emission spectra of complex 1 in the solution of methanol (λex = 312, λem = 328).
Figure 8. Fluorescence emission spectra of complex 1 in the solution of methanol (λex = 312, λem = 328).
Molecules 17 11103 g008

2.3. Electrochemical Properties

The electrochemical behavior of complex 1 in methanol and water solution has been investigated by cyclic voltammetry in the potential range from −0.2 to 0.8 V. The resulting cyclic voltammogram (CV) is shown in Figure 9. Complex 1 displays a couple of quasi-reversible oxidation and reduction waves with the reduction potential ranging from −0.1 to 0.2 V and the oxidation potential ranging from 0.2 to 0.5 V. The peaks of the reduction and the oxidation were assigned to the MnIV/MnII couple which corresponds to one electro-transfer process.

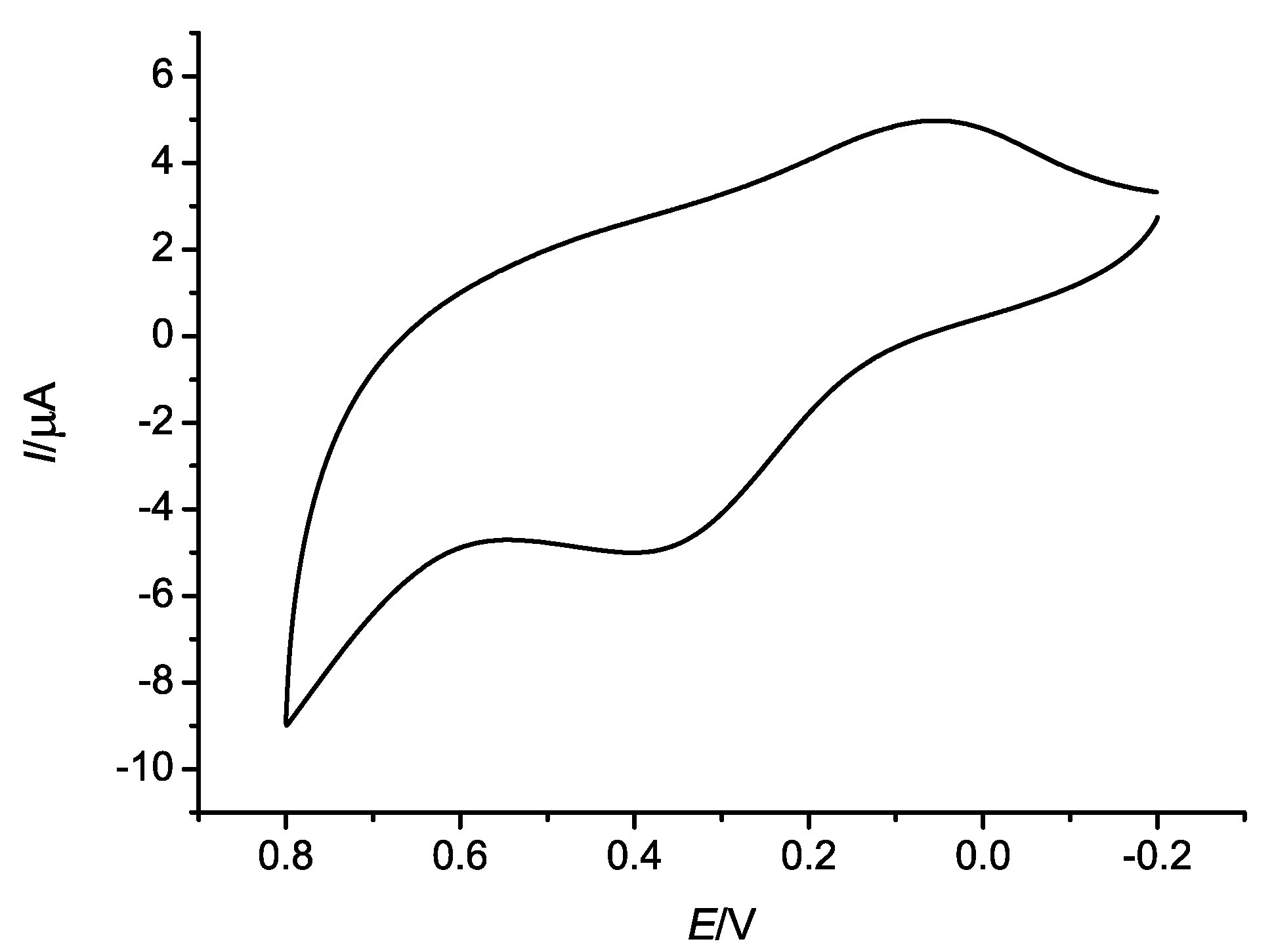

Figure 9. Cyclic voltammograms of complex 1 measured at room temperature.
Figure 9. Cyclic voltammograms of complex 1 measured at room temperature.
Molecules 17 11103 g009

3. Experimental

3.1. Materials and Instrumentation

All reagents and solvents were used directly as supplied commercially without further purification. Elemental analysis for C, H, and N was carried out on a Perkin-Elmer 2400 II elemental analyzer (Waltham, MA, USA). Excitation and emission spectra were acquired on a Perkin-Elmer instruments LS55 spectrofluorometer (Waltham, MA, USA). The X-ray powder diffraction (XRPD) was recorded on a XD-3 diffractometer (Beijing, China) at 36 kV, 25 mA for a Cu-target tube, and a graphite monochromator. Simulation of the XRPD spectra was carried out by the single-crystal data and diffraction-crystal module of the Mercury (Hg) program available free of charge via the Internet at http://www.iucr.org. Cyclic voltammetry were performed on a CHI760D electrochemical workstation. The three-electrode system consisted of a platinum wire counter electrode, a silver/silver chloride electrode, and a glassy carbon electrode (3.0 mm diameter) as working electrode. All electrochemical experiments were carried out in a conventional electrochemical cell holding methanol and water solution at room temperature.

3.2. Synthesis of (3-D) Coordination Framework 1

H2L (129.1 mg, 0.5 mmol) and 2,2'-biphenyl (77 mg, 0.5 mmol) were dissolved in the mixture of methanol (5 mL) and H2O (15 mL). Then an aqueous solution of sodium hydroxide was added dropwise with stirring to adjust the pH value of the solution being 5. Finally, aqueous solution of MnCl2·4H2O (10 mL, 97 mg, 0.5 mmol) was added. The mixture was kept heated at 130 °C for three days. After cooling to room temperature, the reaction solution was filtered to remove a small quantity of white precipitation. Kept slow evaporation of the filtrate at room temperature and three days later X-ray quality yellow block-shaped single crystals were obtained. The crystals were isolated, washed with carbinol and dried at room temperature (Yield: 65% based on Mn). Calcd. For C62H40Mn3N4O15: C 59.72, H 3.21, N 4.49%. Found: C 59.70, H 3.22, N 4.48%.

3.3. X-ray Structure Determination

Crystallographic data of the complex was collected on a Bruker SMART CCD diffractometer with graphite monochromated Mo-Ka radiation (λ = 0.71073 Å) at T = 296 K. Absorption corrections were applied by using the multi-scan program [16]. The structure was solved by direct methods and successive Fourier difference syntheses (SHELXS-97), and anisotropic thermal parameters for all nonhydrogen atomswere refined by full-matrix least-squares procedure against F2 (SHELXL-97) [17]. All nonhydrogen atoms were refined anisotropically. Hydrogen atoms were set in calculated positions and refined by a riding mode, with C–H = 0.93 Å and Uiso(H) = 1.2 Ueq(C) for aromatic H atoms. The potential space of the complex was created by the function of the PLATON. First, we use PLATON to open the cif file. Second, we use the SOLV function, the detail is click the SOLV button, which is just like a water tap, later, we hit RETURN of our keyboard to continue, then we can get the potential space. The crystallographic data and experimental details for the structure analysis are summarized in Table 1, and the selected bond lengths and angles are listed in Table 2. CCDC 869073 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via www.ccdc.cam.ac.uk/conts/retrieving.html (or from the Cambridge Crystallographic Data Centre, 12, Union Road, Cambridge CB2 1EZ, UK; fax: +44-1223-336033; e-mail: [email protected]).
Table 1. Experimental data for complex 1.
Table 1. Experimental data for complex 1.
Empirical formulaC62H40Mn3N4O15
Temperature (K)1245.80
Wavelength (Å)296(2)
Crystal system0.71073
space groupMonoclinic
a (Å)C2/c
b (Å)14.230(4)
c (Å)17.019(2)
α (°)25.805(3)
β (°)90
γ (°)92.932(2)
V (Å3)90
Z6241.5(9)
Dc (Mg/m3)4
µ (mm−1)1.326
F (000)0.664
Crystal size (mm)2540
θ range0.35 × 0.34 × 0.32
Reflections collected1.87–25.00
Independent reflections5493
Completeness to θ = 25.005493 [R(int) = 0.0012]
Absorption correction0.999
Max. and min. transmissionMulti-scan
Data/restraints/parameters0.8156 and 0.8008
Goodness-of-fit on F5493/0/381
R indices [I > 2σ(I)]1.07
R indices (all data)R1 = 0.0288, wR2 = 0.0732
Table 2. The selected bond lenths (Å) and angles (°) for complex 1.
Table 2. The selected bond lenths (Å) and angles (°) for complex 1.
Mn(1)-O(8) 2.0740(13)O(1)#3-Mn(2)-O(5)#2 93.51(5)
Mn(1)-O(2)#1 2.0820(13)O(5)-Mn(2)-O(5)#2 180.0
Mn(1)-O(4) 2.1794(13)O(4)-Mn(1)-N(2) 90.99(6)
Mn(1)-N(1) 2.2612(15)N(1)-Mn(1)-N(2) 71.66(6)
Mn(1)-N(2) 2.2625(17)O(8)-Mn(1)-O(5) 93.82(5)
Mn(1)-O(5) 2.4032(12)O(2)#1-Mn(1)-O(5) 105.45(5)
Mn(2)-O(7) 2.1782(12)O(4)-Mn(1)-O(5) 56.89(4)
Mn(2)-O(7)#2 2.1782(12)N(1)-Mn(1)-O(5) 148.94(5)
Mn(2)-O(1)#1 2.1801(12)N(2)-Mn(1)-O(5) 91.70(6)
Mn(2)-O(1)#3 2.1801(12)O(7)-Mn(2)-O(7)#2 180.00(6)
Mn(2)-O(5)#2.2451(12)O(7)-Mn(2)-O(1)#1 90.51(5)
Mn(2)-O(5)#2 2.2451(12)O(7)#2-Mn(2)-O(1)#1 89.49(5)
O(1)-Mn(2)#4 2.1801(12)O(7)-Mn(2)-O(1)#3 89.49(5)
O(2)-Mn(1)#5 2.0821(13)O(7)#2-Mn(2)-O(1)#3 90.51(5)
O(8)-Mn(1)-O(2)#1 92.42(6)O(1)#1-Mn(2)-O(1)#3 180.0
O(8)-Mn(1)-O(4) 150.68(5)O(7)-Mn(2)-O(5) 87.41(5)
O(2)#1-Mn(1)-O(4) 96.77(6)O(7)#2-Mn(2)-O(5) 92.59(5)
O(8)-Mn(1)-N(1) 111.11(6)O(1)#1-Mn(2)-O(5) 93.51(5)
O(2)#1-Mn(1)-N(1) 92.13(5)O(1)#3-Mn(2)-O(5) 86.49(5)
O(4)-Mn(1)-N(1) 96.35(5)O(7)-Mn(2)-O(5)#2 92.59(5)
O(8)-Mn(1)-N(2) 88.19(6)O(7)#2-Mn(2)-O(5)#2 87.41(5)
O(2)#1-Mn(1)-N(2) 162.76(6)O(1)#1-Mn(2)-O(5)#2 86.49(5)
Symmetry codes: #1 x,−y,z+1/2; #2 −x+3/2,−y+1/2,−z+1; #3 −x+3/2,y+1/2,−z+1/2; #4 −x+3/2,y−1/2,−z+1/2; #5 x,−y,z−1/2; #6 −x+2,y,−z+1/2.

4. Conclusions

In summary, a novel 3-D Mn(II) coordination polymer was obtained with the aid of H2L and 2,2'-biphenyl, which displays a new type of (2,6)-connected (812·123)(8)(3) self-penetrating topological network. Notably, this mode of coordination links three metal ions together and to be a SBU it represents the first appearance in the ligand of H2L. Compound 1 exhibits fluorescence in methanol solution at room temperature. We could also clearly observe some electrochemical properties in the title compound.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/17/9/11103/s1.

Acknowledgments

This work was financially supported by the Scientific Research Program of Education Department of Guangxi Zhuang Autonomous Region (Project No. 201010LX081), and the Scientific Research Program of Guangxi University for Nationalities (Project No. 2010QD019).

References

  1. Rosi, N.L.; Eckert, J.; Eddaoudi, M.; Vodak, D.T.; Kim, J.; O’Keeffe, M.; Yaghi, O.M. Hydrogen storage in microporous metal-organic frameworks. Science 2003, 300, 1127–1129. [Google Scholar] [CrossRef]
  2. Pan, L.; Sander, M.B.; Huang, X.; Li, J.; Smith, M.; Bittner, E.; Bockrath, B.; Johnson, J.K. Microporous metal organic materials: Promising candidates as sorbents for hydrogen storage. J. Am. Chem. Soc. 2004, 126, 1308–1309. [Google Scholar]
  3. Batten, S.R.; Robson, R. Interpenetrating nets: Ordered, periodic entanglement. Angew. Chem. Int. Ed. 1998, 37, 1460–1494. [Google Scholar] [CrossRef]
  4. Bu, X.H.; Tong, M.L.; Chang, H.C.; Kitagawa, S.; Batten, S.R. A neutral 3d copper coordination polymer showing 1D open channels and the first interpenetrating NbO-Type network. Angew. Chem. Int. Ed. 2004, 43, 192–195. [Google Scholar] [CrossRef]
  5. Tong, X.L.; Hu, T.L.; Zhao, J.P.; Wang, Y.K.; Zhang, H.; Bu, X.H. Chiral magnetic metal-organic frameworks of MnII with achiral tetrazolate-based ligands by spontaneous resolution. Chem. Commun. 2010, 46, 8543–8545. [Google Scholar]
  6. Bu, X.H.; Tong, M.L.; Xie, Y.B.; Li, J.R.; Chang, H.C.; Kitagawa, S.; Ribas, J. Synthesis, structures, and magnetic properties of the Copper(II), Cobalt(II), and Manganese(II) complexes with 9-Acridinecarboxylate and 4-Quinolinecarboxylate Ligands. Inorg. Chem. 2005, 44, 9837–9846. [Google Scholar] [CrossRef]
  7. Liu, F.C.; Zeng, Y.F.; Zhao, J.P.; Hu, B.W.; Bu, X.H.; Ribas, J.; Cano, J. An unusual 1D manganese Azido complex with novel EO/EO/EO/EE coordination mode: Synthesis, structure, and magnetic properties. Inorg. Chem. 2007, 46, 1520–1522. [Google Scholar]
  8. Zhao, J.P.; Hu, B.W.; Yang, Q.; Hu, T.L.; Bu, X.H. Single-Crystal-to-Single-Crystal transformation in unusual three-dimensional Manganese(II) frameworks exhibiting unprecedented topology and homospin ferrimagnet. Inorg. Chem. 2009, 48, 7111–7116. [Google Scholar] [CrossRef]
  9. Yang, Q.; Zhao, J.P.; Hu, B.W.; Zhang, X.F.; Bu, X.H. New Manganese(II) azido coordination polymers with nicotinic/isonicotinic acids as coligands: Synthesis, structure, and magnetic properties. Inorg. Chem. 2010, 49, 3746–3751. [Google Scholar] [CrossRef]
  10. Yaghi, O.M.; O’Keeffe, M.; Ockwig, M.N.W.; Chae, H.K.; Eddaoudi, M.; Kim, J. Reticular synthesis and the design of new materials. Nature 2003, 423, 705–714. [Google Scholar]
  11. Moulton, B.; Zaworotko, M. From molecules to crystal engineering: Supramolecular isomerism and polymorphism in network solids. Chem. Rev. 2001, 101, 1629–1658. [Google Scholar]
  12. Wang, X.L.; Qin, C.; Wang, E.B.; Xu, L.; Su, Z.M.; Hu, C.W. Interlocked and interdigitated architectures from self-assembly of long flexible ligands and cadmium salts. Angew. Chem. Int. Ed. 2004, 43, 5036–5040. [Google Scholar] [CrossRef]
  13. Lu, Y.J. Crystal engineering of Cu-containing metal-organic coordination polymers under hydrothermal conditions. Coord. Chem. Rev. 2003, 246, 327–347. [Google Scholar]
  14. Mukherjee, P.S.; Dalai, S.; Mostafa, G.; Zangrando, E.T.; Lu, H.T.; Rogez, G.; Mallah, T.; Chaudhuri, N.R. A three component fully interlocked 3-D network: Crystal structure and magnetic properties. Chem. Commun. 2001, 1346–1347. [Google Scholar] [CrossRef]
  15. Spek, A.L. Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 2003, 36, 7–13. [Google Scholar] [CrossRef]
  16. Blessing, R.H. An empirical correction for absorption anisotropy. Acta Crystallogr. 1995, 51, 33–38. [Google Scholar] [CrossRef]
  17. Sheldrick, G.M. SHELXTL97, Program for Refining Crystal Structure Refinement; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  • Sample Availability: Not available.
