Molecules 2012, 17(9), 11079-11088; doi:10.3390/molecules170911079

Article
Cyclizations Producing Hydrindanones with Two Methyl Groups at the Juncture Positions Mediated by Samarium Diiodide and Electrolysis
Faculty of Pharmaceutical Sciences, Tokushima Bunri University, Yamashiro-cho, Tokushima 770-8514, Japan
*
Authors to whom correspondence should be addressed.
Received: 29 June 2012; in revised form: 8 August 2012 / Accepted: 3 September 2012 / Published: 13 September 2012

Abstract

:
One-electron reductive intramolecular cyclization of enones with ketones or aldehydes mediated by samarium diiodide and electrolysis to afford cis-trimethyl- hydrindanolones. The reactions gave selectivities ranging from 1:1 to 100:0 depending on the conditions.
Keywords:
samarium diiodide; electrolysis; cyclization; hydrindanone

1. Introduction

Samarium diiodide has been used for many synthetic reactions [1,2,3,4] and the mechanism of its reactions has also been studied [5,6]. We are interested in preparing bicyclic compounds such as perhydroindenes [7,8], perhydronaphthalenes [9], and guaianes [10] and have published some results in this area. Compounds bearing methyl groups at the juncture positions are interesting from the synthetic point of view. For example deoxopinguisone (1) [11,12] and α-pinguisene (2) [13,14] (Figure 1) have four methyl groups in the bicyclo[4.3.0]nonane framework, all in a β-orientation; two of them are at the ring juncture positions, and have been synthetic targets [15,16]. We now planned to construct hydrindanone systems by 5-exo mode cyclization, although such a case involving a cascade cyclization giving one substituent at the ring-juncture position was described by Procter and his group [17,18]. Electrolysis is easy to carry out using water as a solvent, which is environmentally benign [19,20]. We now describe the carbon-carbon bond formation reactions leading from B to A mediated by SmI2 as well as electrolysis for the synthesis of hydrindanones (Figure 1).

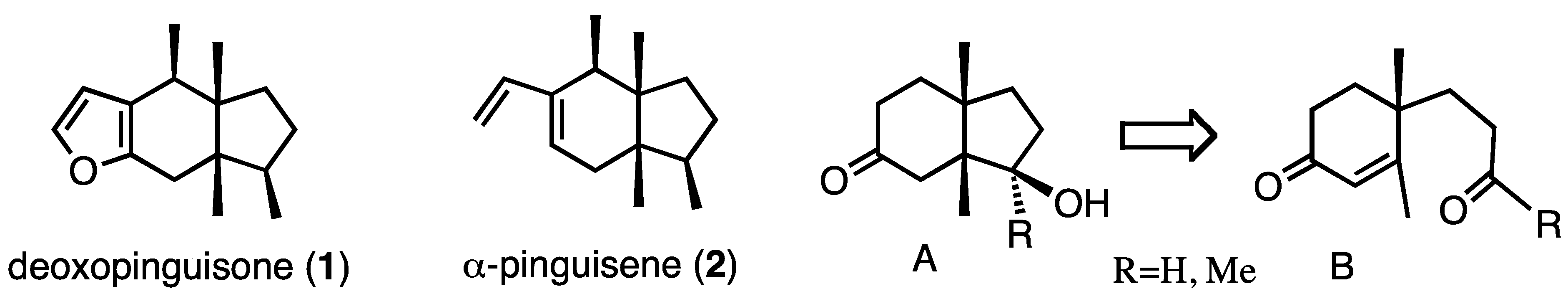

Figure 1. Target molecules and retrosynthesis.
Figure 1. Target molecules and retrosynthesis.
Molecules 17 11079 g001

2. Results and Discussion

For the synthetic work we chose compounds 9 and 10 (Scheme 1), which were prepared starting from ketone 3. Several routine reactions afforded aldehyde 9 and ketone 10. This route can also be used in chiral form, because compound 3 is now commercially available and easy to prepare [21].

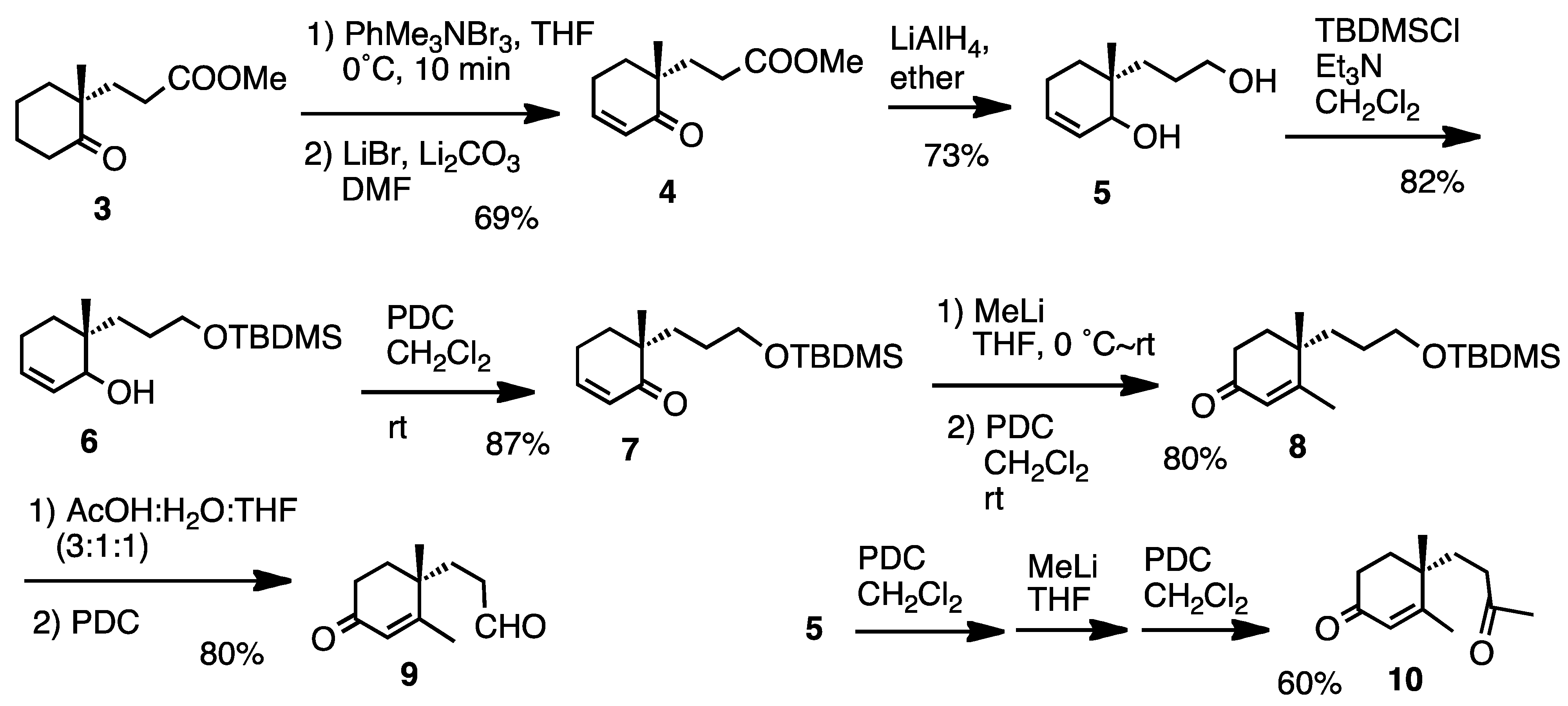

Scheme 1. Preparation of compounds 9 and 10.
Scheme 1. Preparation of compounds 9 and 10.
Molecules 17 11079 g003
Aldehyde 9 was subjected to reaction with SmI2 (3 equiv.) in THF with or without additives. The results are shown in Table 1. The products were isomeric keto-alcohols 11 and 12, whose stereochemistries were established from the NOESY spectra. Without an additive, the reactions proceeded smoothly and both compounds were obtained in a ratio of 87:13 in favor of compound 11 at 0 °C (entry 1). When the reaction temperature was raised to rt (entry 2), the ratio of compound 12 increased to 31%. The yields were always good. When MeOH was added as a proton source, the ratio was about 7:3 in favor of compound 11 (entries 3 and 4). The yield varied from 47% to 58%. The reason why the yields were not so high is presumably due to the simple reduction of the double bond to give the corresponding dihydro derivatives, which were not isolated but detected in GC-MS. The ratio of 11 and 12 did not change very much when using HMPA (entries 7 and 8), however, when NiI2 was added (entries 9 and 10) the ratio of 12 was slightly increased [22].
Table 1. The reaction of aldehyde 9 with SmI2. Molecules 17 11079 i001
Table 1. The reaction of aldehyde 9 with SmI2. Molecules 17 11079 i001
EntryAdditivesTemp (°C)Yield (%)Ratio
1112
1none0quant.8713
2nonertquant.6931
3MeOH 2 equiv.0587228
4MeOH 2 equiv.rt476931
5HMPA 12 equiv.0508218
6HMPA 12 equiv.rt448416
7NiI20quant.7525
8NiI2rtquant.5644
We next studied the reaction of ketone 10 under various conditions (Table 2). The products were isomeric keto-alcohols 13 and 14, and a mixture of bicyclic compounds 15, whose structures were determined by spectroscopic analyses. When ketone 10 was subjected to reaction with SmI2 without additive at 0 °C (entry 1), the products were 13 and 14 in a ratio of 84:16. In this case the major product had the hydroxy group in a β-orientation as determined by the NOESY spectrum (Table 2).
Table 2. The reaction of compound 10 with SmI2. Molecules 17 11079 i002
Table 2. The reaction of compound 10 with SmI2. Molecules 17 11079 i002
EntryAdditivesTemp. (°C)Yield (%)Ratio
131415
1none0quant.8416-
2nonert846733-
3MeOH 2 equiv.0quant.8416-
4MeOH 2 equiv.rtquant.5545-
5HMPA 12 equiv.078611722
6HMPA 12 equiv.rt71312940
7NiI20quant.5347-
8NiI2rt858614-
When the temperature was raised to rt (entry 2), the ratio of compound 14 increased. This tendency was the same as that of the aldehyde mentioned above. However, when HMPA was added, a third product 15 was also obtained (entries 5 and 6). The ratio of 15 was 40% of the products at rt from a total yield of 71% (entry 6). This product was formed by an aldol type condensation of the samarium enolate of the α,β-unsaturated enone. When NiI2 was added, the yield was high and the ratio of compound 12 was slightly increased (entries 7 and 8) [22].
Electrolysis does not use organic solvents and expensive reagents, but rather water and electric power. In order to compare the selectivity, compounds 9 and 10 were subjected to electrolysis conditions as shown in Table 3. The yields were moderate and the ratio was 11:12 = 62:38 in the case of aldehyde 9. The results were not very different from those of samarium iodide reduction. However, in the case of ketone 10, only β-alcohol 13 was formed selectively (entry 2).
Table 3. The electrolysis of 9 and 10. Molecules 17 11079 i003
Table 3. The electrolysis of 9 and 10. Molecules 17 11079 i003
EntrySolventAdditiveTime (h)SMYield (%)Ratio
1tBuOH-H2O (4:6)Et4NTsO295311:12 = 62:38
2tBuOH-H2O (4:6)Et4NTsO2107613:14 = 100:0
Comparison of the half-wave potentials of α,β-unsaturated carbonyls with those of corresponding saturated carbonyl compounds has been extensively studied in electrochemistry [23]. The first waves of carbonyl groups, referred to as SCE., are −2.45 V (cyclohexanone), −2.25 V (methyl ethyl ketone), −1.8 V (propionaldehyde), −1.55 V (cyclohex-2-en-1-one), −1.50 V (acrolein), and −1.42 V (methyl vinyl ketone), respectively [23]. Therefore, the reduction of α,β-unsaturated carbonyl moiety seems easier than that of the isolated ketone carbonyl group with electrochemistry, but the selectivity of the one-electron reduction of the carbonyl moiety using SmI2 depends on the stereoelectronic properties of the substrate [6]. Samarium transfers one-electron to the carbonyl group of the enone moiety to form a radical anion (C to D) (Figure 2). Then one more samarium atom reduces the ketone carbonyl group and the carbon-carbon bond is formed as shown by arrow a to afford E (alkene first mechanism [2]). The hydroxy group is outside the bicyclic ring formed, because the samarium ion radical is large and the outside position is more energetically favored than inside of the ring. Thus, this configuration is more or less predominant. However, with HMPA as the additive, the reducing power must be higher than that with samarium alone [24], and the enone moiety is susceptible to reduction to afford a samarium enolate D. Then the aldol-type cyclization occurs to afford bicyclic anion radical F from D (shown by arrow b in Figure 2). Further reduction of this anion radical F and protonation afford product 15. Electrolysis also creates a similar transition state leading to similar results. The reason why compound 10 produces 13 much more selectively is not clear at this stage. However, it is assumed that solvent molecules surround the methyl ketone carbonyl group resulting in the bulkier CO (solvent) moiety with consequent protrusion outside of the ring leading to the β-alcohol 13 [24].

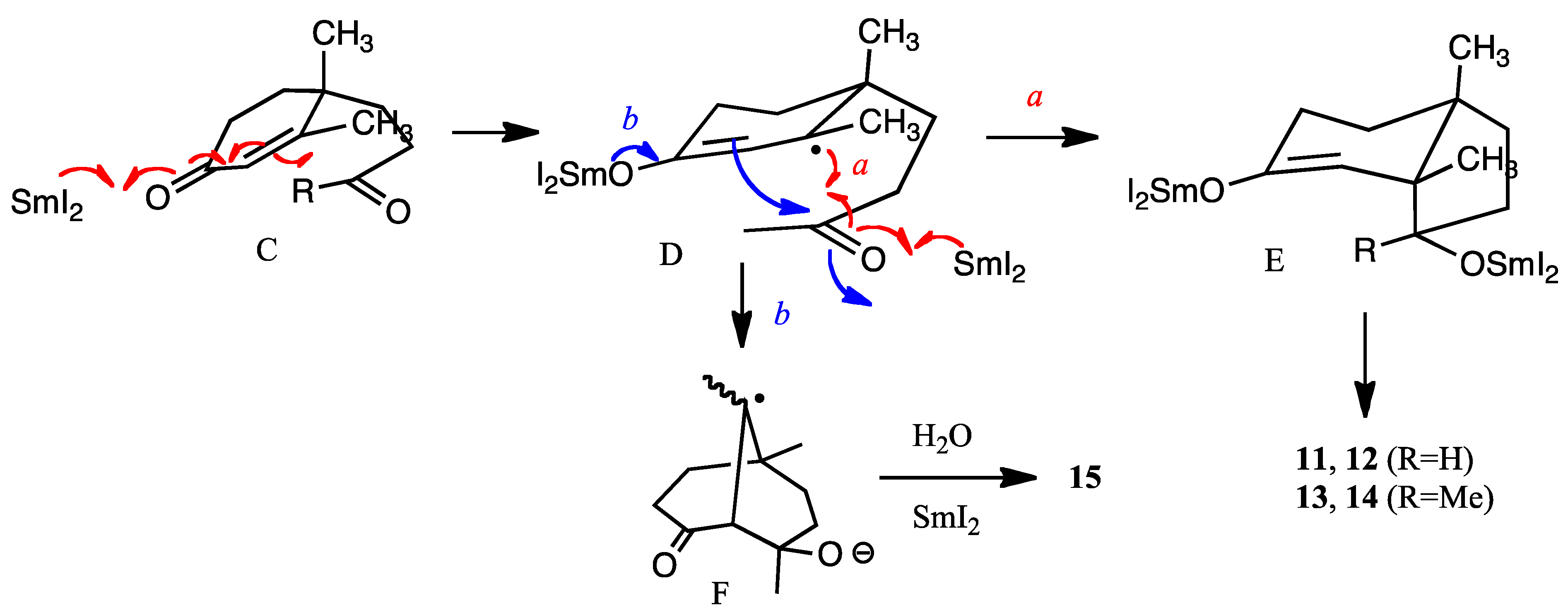

Figure 2. Mechanisms of reductive cyclization (R = H, Me).
Figure 2. Mechanisms of reductive cyclization (R = H, Me).
Molecules 17 11079 g002

3. Experimental

3.1. General

IR spectra were measured on a JASCO FT/IR-5300 spectrophotometer. The 1H and 13C-NMR spectra were taken using a Varian Unity 600 (at 600 MHz and 150 MHz, respectively) and a Varian Unity 200 (200 MHz and 50 MHz, respectively) spectrometer. Mass spectra including high-resolution mass spectra were recorded on a JEOL JMS-700 MStation. A Chemcopak Nucleosil 50-5 column (4.8 × 250 mm) was used for HPLC (JASCO pump system). For GC-MS an Agilent GC 6890 system equipped with a MS detector 5973 was used and the product ratios were determined by the area %. Silica gel 60 (70–230 mesh, Fuji Silysia) was used for column chromatography and silica gel 60 F254 plates (Merck) were used for TLC.

3.1.1. General Procedure for Smi2 Reduction

A solution of substrate in dry THF was introduced into a solution of SmI2 at a certain temperature. Saturated solution of sodium potassium tartrate was added and the solvent was evaporated. The mixture was extracted with ether and worked up as usual. The residue was purified by silica-gel column chromatography.

3.1.2. General Procedure for Electrolysis

Zn and Pt were used for the cathode and anode, respectively, with Et4NOTs in tBuOH-H2O (2:3) (20 mL), CCE at 100 mA (from −1.5 to −2.0 V vs. SCE) at rt. Work-up: benzene was added and most of the water was removed under reduced pressure. The residue was extracted with EtOAc and the organic layer was washed with Sat. NaCl solution. The organic layer was dried (MgSO4), and the filtrate was evaporated to give a residue, which was purified by silica-gel column chromatography or HPLC.

3.2. Preparation of Methyl 3-(1-Methyl-2-oxocyclohex-3-enyl)propanoate (4)

Ketone (3, 1 g, 0.5 mmol) was treated with phenyltrimethylammonium tribromide (1.9 g, 0.88 mmol) in THF (5 mL) at 0 °C for 10 min. After the usual work-up, the residue (925 mg) was successively treated with LiBr (585 mg, 5.6 mmol) and Li2CO3 (148 mg, 3.3 mmol) in DMF (4 mL) at 150 °C for 18 h. Usual work-up and purification afforded enone 4 (684 mg, 69%). Oil; IR (FT): 1730, 1660, 1630 cm−1; 1H-NMR (200 MHz, CDCl3): δ 1.09 (3H, s), 1.73–1.99 (4H, m), 2.03–2.47 (4H, m), 3.65 (3H, s), 5.91 (1H, dt, J = 10.2, 1.8 Hz), 6.89 (1H, dt, J = 10.2, 4.0 Hz); 13C-NMR (50 MHz, CDCl3): δ 21.4 (CH3), 22.9 (CH2), 28.9 (CH2), 31.1 (CH2), 33.4 (CH2), 43.7 (C), 51.4 (CH3), 128.2 (CH), 148.6 (CH), 173.9 (C), 203.1 (C); MS m/z 196 (M)+, 181, 165, 136, 110, 68 (base), 55, HRMS Found m/z 196.1078. Calcd for C11H16O3 196.1100.

3.3. Preparation of 6-(3-Hydroxypropyl)-6-methylcyclohex-2-en-1-ol (5)

A solution of enone 4 (172 mg, 0.88 mmol) in ether (20 mL) was treated with LiAlH4 (101 mg, 2.64 mmol) at 0 °C for 2 h. Usual work-up afforded the diol 5 (109 mg, 73%) after purification as a mixture of diatereomers. Oil; IR (FT): 3330, 3020, 1660 cm−1; 1H-NMR (200 MHz, CDCl3): δ 0.87 (3H, s), 0.88 (3H, s), 1.2–1.7 (12H, m), 1.92–2.08 (2H, m), 3.03 (2H, br s), 3.5–4.0 (6H, m), 5.5–6.0 (4H, m); 13C-NMR (50 MHz, CDCl3): δ 18.3 (CH3), 21.3 (CH3), 22.7 (CH2), 22.8 (CH2), 26.2 (CH2), 26.6 (CH2), 29.6 (CH2), 30.3 (CH2), 32.1 (CH2), 35.1 (CH2), 35.6 (C), 35.8 (C), 63.3 (CH2), 71.7 (CH), 72.2 (CH), 128.1 (CH), 128.6 (CH), 129.7 (CH), 129.8 (CH); MS (CI) m/z 169 [M-2+H]+, 153, 135 (base), 109; HRMS (CI) Found m/z 169.1223 [M-2+H]+. Calcd for C10H17O2 169.1229.

3.4. Preparation of 6-(3-t-Butyldimethylsilyloxypropyl)-6-methylcyclohex-2-en-1-ol (6)

A solution of diol (5, 480 mg, 2.6 mmol) in CH2Cl2 (6 mL) was treated with Et3N (0.5 mL, 3.4 mmol) and TBDMSCl (473 mg, 3.1 mmol) at rt for 18 h. Usual work-up and purification afforded silyl ether 6 (658 mg, 82%). Oil; IR (FT): 3400, 1660 cm−1; 1H-NMR (200 MHz, CDCl3): δ 0.04 (6H, s), 0.88 (9H, s), 0.89 (3H, s), 1.16–1.75 (6H, m), 1.92–2.04 (2H, m), 3.58 (1H, d, J = 6.6 Hz), 3.60 (2H, t, J = 7.0 Hz), 3.74 (1H, br s), 5.62–5.74 (1H, m), 5.79 (1H, dt, J = 9.2, 2.6 Hz); 13C-NMR (50 MHz, CDCl3): δ −5.3 (CH3), 18.4 (C), 21.4 (CH3), 22.9 (CH2), 26.0 (CH3), 26.5 (CH2), 29.7 (CH2), 31.5 (CH2), 35.7 (C), 64.0 (CH2), 72.0 (CH), 128.3 (CH), 130.0 (CH); MS (CI) m/z 284 (M)+, 267, 227, 135 (base), 93, 83, 75; HRMS (CI) Found m/z 284.2155 (M)+. Calcd for C16H32O2Si 284.2172.

3.5. Preparation of 6-(3-t-Butyldimethylsilyloxypropyl)-6-methylcyclohex-2-en-1-one (7)

A solution of alcohol 6 (68 mg, 0.24 mmol) was oxidized with PDC (270 mg, 0.72 mmol) in CH2Cl2 in the presence of molecular sieves 3A (201 mg) at rt for 18 h. Usual work-up afforded enone 7 (59 mg, 87%) after purification. Oil; IR (FT): 1680 cm−1; 1H-NMR (200 MHz, CDCl3): δ 0.03 (6H, s), 0.87 (9H, s), 1.07 (3H, s), 1.32–1.63 (4H, m), 1.69–1.97 (2H, m), 2.19–2.50 (2H, m), 3.56 (2H, t, J = 7.0 Hz), 5.88 (1H, dt, J = 10.2, 2.0 Hz), 6.83 (1H, dt, J = 10.2, 4.0 Hz); 13C-NMR (50 MHz, CDCl3): δ −5.4 (CH3X2), 18.2 (C), 21.7 (CH3), 23.1 (CH2), 25.9 (CH3X3), 27.4 (CH2), 32.3 (CH2), 33.5 (CH2), 44.2 (C), 63.5 (CH2), 128.6 (CH), 148.5 (CH), 204.4 (C); MS (CI) m/z 283 [M+H]+, 267, 225, 151 (base); CI-HRMS Found m/z 283.2097 [M+H]+. Calcd for C16H31O2Si 283.2093.

3.6. Preparation of 4-(3-t-Butyldimethylsilyloxypropyl)-3,4-dimethylcyclohex-2-en-1-one (8)

MeLi (0.88 mL, 1 mmol) was added to a stirred solution of enone 7 (39 mg, 0.22 mmol) and the mixture was stirred at 0°C for 22 h. Usual work-up afforded a residue 36 mg), which was successively treated with PDC (140 mg, 0.36 mmol) in CH2Cl2 (4 mL) at rt for 4 h. Usual work-up and purification afforded enone 8 (33 mg, 80%). Oil; IR (FT): 1680, 1620 cm−1; 1H-NMR (200 MHz, CDCl3): δ 0.04 (6H, s), 0.89 (9H, s), 1.14 (3H, s), 1.18–1.76 (6H, m), 1.90 (3H, d, J = 1.2 Hz), 2.39 (1H, J = 6.4 Hz), 2.43 (1H, dd, J = 6.4, 2.1 Hz), 3.5–3.7 (2H, m), 5.80 (1H, d, J = 1.2 Hz); 13C-NMR (50 MHz, CDCl3): δ −5.3 (CH3X2), 18.3 (C), 20.0 (CH3), 24.2 (CH3), 25.9 (CH3X3), 27.7 (CH2), 33.4 (CH2), 34.1 (CH2), 34.8 (CH2), 38.2 (C), 63.2 (CH2), 127.2 (CH), 168.9 (C), 199.3 (C); MS (CI) m/z 297 [M+H]+, 281, 239 (base), 57, CI-HRMS Found m/z 297.2226. Calcd for C17H33O2Si 297.2250.

3.7. Preparation of 3-(1,2-Dimethyl-4-oxocyclohex-2-enyl)propanal (9)

Enone 8 (67 mg, 0.23 mmol) was treated with AcOH:H2O:THF (3:1:1) (6 mL) at rt overnight. Usual work-up afforded a residue (25 mg), which was subjected to PDC (978 mg, 2.6 mmol) oxidation in CH2Cl2 (30 mL in the presence of molecular sieves 3A (903 mg) at rt for 2 h. Usual work-up afforded enone 9 (33 mg, 80%) after purification. Oil; IR (FT): 1720, 1670, 1620 cm−1; 1H-NMR (200 MHz, CDCl3): δ 1.16 (3H, s), 1.65–1.97 (4H, m), 1.88 (3H, d, J = 1.3 Hz), 2.19–2.60 (2H, m), 2.40 (2H, t, J = 5.8 Hz), 5.82 (1H, d, J = 1.3 Hz), 9.80 (1H, t, J = 1.3 Hz); 13C-NMR (50 MHz, CDCl3): δ 19.9 (CH3), 23.8 (CH3), 29.8 (CH2), 33.3 (CH2), 33.9 (CH2), 37.7 (C), 39.1 (CH2), 127.9 (CH), 167.3 (C), 198.9 (C), 201.3 (CH); MS m/z 180 (M+), 162, 152, 124, 109, 95 (base), 81, 67, 55; HRMS Found m/z 180.1151 (M)+. Calcd for C11H16O2 180.1151.

3.8. Preparation of 4-(3-Oxobutyl)-3,4-dimethylcyclohex-2-en-1-one (10)

Diol 5 (509 mg, 3 mmol) was oxidized with PDC (3.4 g, 9 mmol) in CH2Cl2 at rt overnight. Usual work-up afforded a residue (97 mg), which was treated with MeLi (9.3 mL, 10 mmol) in THF (30 mL) at rt for 16 h. The residue after usual work-up was further treated with PDC (2.6 g, 7 mmol) in CH2Cl2 at rt overnight. Usual work-up afforded enone 5 (349 mg, 60%) after purification. Oil; IR (FT): 1710, 1670, 1610 cm−1; 1H-NMR (200 MHz, CDCl3): δ 1.16 (3H, s), 1.64–1.97 (4H, m), 1.89 (3H, d, J = 1.1 Hz), 2.17 (3H, s), 2.23–2.58 (4H, m), 5 .83 (1H, d, J = 1.1 Hz); 13C-NMR (50 MHz, CDCl3): δ 19.9 (CH3), 24.0 (CH3), 30.1 (CH3), 31.6 (CH2), 33.3 (CH2), 34.0 (CH2), 37.8 (C), 38.5 (CH2), 127.7 (CH), 167.7 (C), 198.9 (C), 207.9 (C); MS m/z 194 (M+), 176, 124 (base), 109, 95, 79, 67, 55; HRMS Found m/z 194.1295 (M)+. Calcd for C12H18O2 194.1307.

3.9. (3R*,3aR*,7aS*)-3-Hydroxy-3a,7a-dimethylhexahydro-1H-inden-5(6H)-one (11))

Oil; IR (FT): 3440, 1710 cm−1; 1H-NMR (600 MHz, CDCl3): δ 0.90 (3H, s, 3a-CH3), 1.16 (3H, s, 7a-CH3), 1.55-1.74 (4H, m, H-1,1,2β,7β), 1.84 (1H, ddd, J = 15.5, 11.8, 4.9 Hz, H-7α), 2.12 (1H, dd, J = 14.4, 1.9 Hz, H-4β), 2.13-2.19 (1H, m, H-2α), 2.25 (1H, dtd, J = 14.4, 4.9, 1.9 Hz, H-6α), 2.29 (1H, dd, J = 14.4, 1.9 Hz, H-4α), 2.39 (1H, dddd, J = 14.4, 11.8, 6.0, 1.1 Hz, H-6β), 3.96 (1H, dd, J = 8.5, 6.6 Hz, H-3); 13C-NMR (150 MHz, CDCl3): δ 16.9 (3a-CH3), 22.3 (7a-CH3), 29.4 (C-2), 34.8 (C-1), 36.8 (C-7), 37.8 (C-6), 41.5 (C-7a), 47.5 (C-4), 50.7 (C-3a), 78.0 (C-3) , 212.5 (C-5); MS m/z 182 (M+), 164, 139, 124, 111 (base), 96, 84, 79, 69, 55; HRMS Found m/z 182.1298 (M)+. Calcd for C11H18O2 182.1307.

3.10. (3S*,3aR*,7aS*)-3-Hydroxy-3a,7a-dimethylhexahydro-1H-inden-5(6H)-one (12)

Oil; IR (FT): 3320, 1710 cm−1; 1H-NMR (600 MHz, CDCl3): δ 0.89 (3H, s, 3a-CH3), 1.04 (3H, s, 7a-CH3), 1.53 (1H, ddd, J = 12.9, 10.2, 6.5 Hz, H-1β), 1.60–1.71 (2H, m, H-2α,7α), 1.91–1.95 (1H, m, H-1α), 2.07 (1H, br d, J = 14.3 Hz, H-4β), 2.07–2.14 (1H, m, H-7β), 2.16–2.23 (1H, m, H-2β), 2.25-2.30 (1H, m, H-6β), 2.38 (1H, br d, J = 14.3 Hz, H-4α), 2.37–2.42 (1H, m, H-6α), 3.96 (1H, dd, J = 7.7, 4.5 Hz, H-3); 13C-NMR (150 MHz, CDCl3): δ 21.6 (3a-CH3), 23.4 (7a-CH3), 30.3 (C-2), 34.9 (C-1), 35.8 (C-7), 37.6 (C-6), 41.6 (C-7a), 45.5 (C-4), 51.3 (C-3a), 81.9 (C-3), 213.0 (C-5); MS (EI) m/z 182 (M+), 164, 139, 124, 111, 95, 84 (base), 69, 55; HRMS Found m/z 182.1308 (M)+. Calcd for C11H18O2 182.1307.

3.11. (3R*,3aR*,7aS*)-3-Hydroxy-3,3a,7a-trimethylhexahydro-1H-inden-5(6H)-one (13)

Oil; IR (FT): 3480, 1710 cm−1; 1H-NMR (600 MHz, CDCl3): δ 0.89 (3H, s, 3a-CH3), 1.15 (3H, s, 7a-CH3), 1.16 (3H, s, 3-CH3), 1.69 (1H, ddd, J = 14.2, 7.4, 4.9 Hz, H-7β), 1.77–1.81 (3H, m, H-1,2,2), 1.84 (1H, m, H-7α), 1.85–1.89 (1H, m, H-1), 1.96 (1H, dd J = 14.0, 1.1 Hz, H-4β), 2.20 (1H, dddd, J = 17.3, 9.3, 4.9, 1.1 Hz, H-6β), 2.28 (1H, d, J = 14.0 Hz, H-4α), 2.34 (1H, ddd, J = 17.3, 7.4, 4.9 Hz, H-6α); 13C-NMR (150 MHz, CDCl3): δ 16.7 (3a-CH3), 23.5 (3-CH3), 26.6 (7a-CH3), 36.1 (C-6), 36.3 (C-7), 37.1 (C-2), 37.6 (C-1), 42.7 (C-7a), 49.7 (C-4), 50.9 (C-3a), 84.1 (C-3), 213.7 (C-5); MS m/z 196 (M)+, 178, 150, 139, 123, 111, 84 (base), 69, 55; HRMS Found m/z 196.1452 (M)+. Calcd for C12H20O2 196.1464.

3.12. (3S*,3aR*,7aS*)-3-Hydroxy-3,3a,7a-trimethylhexahydro-1H-inden-5(6H)-one (14)

Oil; IR (FT): 3400, 1700 cm−1; 1H-NMR (200 MHz, CDCl3): δ 0.86 (3H, s), 0.98 (3H, s), 1.18 (3H, s), 1.40–1.50 (3H, m), 1.54-1.61 (2H, m), 1.71–1.79 (2H, m), 1.81–1.85 (1H, m), 1.88 (1H, d, J = 11.8 Hz), 1.88–1.94 (1H, m); 13C-NMR (50 MHz, CDCl3): δ 17.2 (CH3), 22.9 (CH3), 26.8 (CH3), 35.1 (CH2), 35.4 (CH2), 35.7 (CH2), 36.6 (CH2), 42.6 (CH2), 44.2 (C), 53.4 (C), 92.3 (C), 213.5 (C); MS m/z 196 (M+), 178, 151, 139, 125, 109, 95, 84 (base), 69, 55; HRMS Found m/z 196.1460 (M)+. Calcd for C12H20O2 196.1463.

3.13. 8-Hydroxy-5,8,9-trimethylbicyclo[3.3.1]nonan-2-one (Mixture of Diatereoisomers) (15)

Oil; IR (FT): 3420, 1700 cm−1; 1H-NMR (200 MHz, CDCl3): δ 0.90 (0.25H, s), 0.93 (0.75H, d, J = 7.1 Hz), 0.96 (0.75H, s), 1.08 (0.25H, s), 1.40 (0.75H, s), 1.42 (0.25H, s); 13C-NMR (150 MHz, CDCl3): δ 28.0, 28.7, 31.4, 35.8, 38.2, 39.5, 40.5, 65.5, 66.6, 69.9, 71.8, 214.1 (CO); HRMS Found m/z 196.1465 (M)+. Calcd for C12H20O2 196.1463.

4. Conclusions

We have developed methods to create cis-fused trimethylated hydrindanones in excellent- to high-yields by intra-molecular 5-exo cyclization mediated by SmI2 and electrolysis.

Acknowledgments

We thank Masami Tanaka and Yasuko Okamoto, Tokushima Bunri University, for measurement of 600 MHz NMR and mass spectra, respectively.

References

  1. Curran, D.P.; Porter, N.A.; Giese, B. Stereochemistry of Radical Reactions; Wiley-VCH Verlag GmbH: Weinheim, Germany, 1996. [Google Scholar]
  2. Procter, D.J.; Flowers, R.A.; Skrydstrup, T. Organic Synthesis Using Samarium Diiodide: A Practical Guide; The Royal Society of Chemistry: Cambridge, UK, 2010. [Google Scholar]
  3. Molander, G.A. Application of lanthanide reagents in organic synthesis. Chem. Rev. 1992, 92, 29–68. [Google Scholar]
  4. Molander, G.A.; Harris, C.R. Sequencing reactions with samarium (II) iodide. Chem. Rev. 1996, 96, 307–338. [Google Scholar]
  5. Flowers, R.A.; Prasad, E. Samarium (II) based reductants. In Handbook on the Physics and Chemistry of Rare Earths; Gschneidner, K.A., Jr., Bunzli, J.C., Pecharsky, V.K., Eds.; Elsevier: Amsterdam, The Netherlands, 2006; Volume 36, pp. 393–473. [Google Scholar]
  6. Sono, M.; Hanamura, S.; Furumaki, M.; Murai, H.; Tori, M. First direct evidence of radical intermediates in samarium diiodide induced cyclization by ESR spectra. Org. Lett. 2011, 13, 5720–5723. [Google Scholar]
  7. Sono, M.; Nakashiba, Y.; Nakashima, K.; Tori, M. Cyclization into hydrindanones using samarium diiodide. J. Org. Chem. 2000, 65, 3099–3106. [Google Scholar] [CrossRef]
  8. Sono, M.; Hashimoto, A.; Nakashima, K.; Tori, M. Total synthesis of coronafacic acid through 6-endo-trig mode intramolecular cyclization of an enone-aldehyde to a hydrindanone using samarium (II) iodide. Tetrahedron Lett. 2000, 41, 5115–5118. [Google Scholar] [CrossRef]
  9. Sono, M.; Onishi, S.; Tori, M. Cyclization into perhydronaphthalenones using samarium diiodide. Tetrahedron 2003, 59, 3385–3395. [Google Scholar] [CrossRef]
  10. Sono, M.; Tatara, H.; Ise, N.; Takaoka, S.; Tori, M. Preparation of seven- and eight-membered rings by carbon–carbon bond formation induced by samarium diiodide: 7-endo- and 8-endo-trig type cyclization to bicyclo[5.3.0]decanolone, bicyclo[5.4.0]undecanolone, and bicyclo[6.4.0]dodecanolone. Tetrahedron 2008, 64, 11096–11104. [Google Scholar] [CrossRef]
  11. Benešová, V.; Samek, Z.; Herout, V.; Šorm, F. On terpenes. CXCVIII. Isolation and structure of pinguisone from Aneura pinguis. Collec. Czeck. Chem. Commun. 1969, 34, 582–592. [Google Scholar]
  12. Nagashima, F.; Nishioka, E.; Kameo, K.; Nakagawa, C.; Asakawa, Y. Terpenoids and aromatic compounds from selected Ecuadorian liverworts. Phtochemistry 1991, 30, 215–217. [Google Scholar]
  13. Asakawa, Y.; Toyota, M.; Takemoto, T. Sesquiterpenes from Porella species. Phytochemistry 1978, 17, 457–460. [Google Scholar]
  14. Fukuyama, Y.; Tori, M.; Wakamatsu, M.; Asakawa, Y. Norpinguisone methyl ester and norpinguisanolide, pinguisane-type norsesquiterpenoids from Porella elegantula. Phytochemistry 1988, 27, 3557–3561. [Google Scholar] [CrossRef]
  15. Tori, M.; Makino, C.; Hisazumi, K.; Sono, M.; Nakashima, K. Synthesis of a homochiral ketone having a pinguisane skeleton using phenylethylamine as a chiral auxiliary: A formal total synthesis of deoxopinguisone. Tetrahedron: Asymmetry 2001, 12, 301–307. [Google Scholar] [CrossRef]
  16. Shiina, J.; Oikawa, M.; Nakamura, K.; Obata, R.; Nishiyama, S. Synthesis of pinguisane-type sesquiterpenoids acutifolone A, pinguisenol, and bisacutifolones by a Diels-Alder dimerization reaction. Eur.J. Org. Chem. 2007. [Google Scholar]
  17. Findley, T.J.K.; Sucunza, D.; Miller, L.C.; Davies, D.T.; Procter, D.J. A flexible, stereoselective approach to the decorated cis-hydrindane skeleton: Synthesis of the proposed structure of faurinone. Chem. Eur. J. 2008, 14, 6862–6865. [Google Scholar] [CrossRef]
  18. Helm, M.D.; Sucunza, D.; Da Silva, M.; Helliwell, M.; Procter, D.J. SmI2-mediated dialdehyde cyclization cascades. Tetrahedron Lett. 2009, 50, 3224–3226. [Google Scholar] [CrossRef]
  19. Sono, M.; Shoji, T.; Tamaki, T.; Kishi, S.; Tori, M. The stereochemistry of electrolysis and samarium diiodide-induced cyclization between carbonyl and enone system in inter- and intramolecular coupling. Heterocycles 2007, 72, 517–528. [Google Scholar] [CrossRef]
  20. Shono, T. Electroorganic Synthesis; Academic Press: London, UK, 1991. [Google Scholar]
  21. Pfau, M.; Revial, G.; Guingant, A.; d’Angelo, J. Enantioselective synthesis of quaternary carbon centers through Michael-type alkylation of chiral imines. J. Am. Chem. Soc. 1985, 107, 273–274. [Google Scholar] [CrossRef]
  22. Machrouhi, F.; Hamann, B.; Namy, J.L.; Kagan, H. Improved reactivity of diiodosamarium by catalysis with transition metal salts. Synlett 1996, 633–634. [Google Scholar]
  23. Wagenknecht, J.H.; Eberson, L.; Utley, J.H.P. Carbonyl Compounds. In Organic Electrochemistry, 3rd; Lund, H., Baizer, M.M., Eds.; Marcel Dekker Inc.: New York, NY, USA, 1991; pp. 433–464. [Google Scholar]
  24. Prasad, E.; Flowers, R.A. Reduction of ketones and alkyl iodides by SmI2 and Sm(II)-HMPA complexes. Rate and mechanistic studies. J. Am. Chem. Soc. 2002, 124, 6895–6899. [Google Scholar] [CrossRef]
  • Sample Availability: Not available.
