Molecules 2012, 17(9), 10928-10945; doi:10.3390/molecules170910928

Article
Systematic Study of the Physicochemical Properties of a Homologous Series of Aminobisphosphonates
1
School of Pharmacy, University of Eastern Finland, Biocenter Kuopio, P.O. Box 1627, FIN-70211 Kuopio, Finland
2
Laboratory of Inorganic Chemistry, Department of Chemistry, University of Helsinki, P.O. Box 55, FIN-00014 Helsinki, Finland
3
Department of Chemistry, University of Jyväskylä, P.O. Box 35, FIN-40014 Jyväskylä, Finland
*
Author to whom correspondence should be addressed.
Received: 7 August 2012; in revised form: 4 September 2012 / Accepted: 5 September 2012 / Published: 12 September 2012

Abstract

:
Aminobisphosphonates, e.g., alendronate and neridronate, are a well known class of molecules used as drugs for various bone diseases. Although these molecules have been available for decades, a detailed understanding of their most important physicochemical properties under comparable conditions is lacking. In this study, ten aminobisphosphonates, H2N(CH2)nC(OH)[P(O)(OH)2]2, in which n = 2–5, 7–11 and 15 have been synthesized. Their aqueous solubility as a function of temperature and pH, pKa-values, thermal stability, IR absorptions, and NMR spectral data for both liquid (1H, 13C, 31P-NMR) and solid state (13C, 15N and 31P-CPMAS NMR) were determined.
Keywords:
bisphosphonates; aqueous solubility; pKa; physicochemical properties

1. Introduction

Bisphosphonates (BPs), characterized by the presence of the P-C-P backbone, are stable analogues of naturally occurring pyrophosphate. The BPs were first synthesized about 150 years ago [1], but the golden age of these molecules started approximately 50 years ago [2]. Initially BPs were used as water softeners and in prevention of scaling, but their current therapeutic use stems from their high affinity for the bone mineral hydroxyapatite. In the clinic, BPs are mainly used for treatment of different bone diseases and calcium metabolism disorders [3,4], but they are also effective as bone imaging agents when linked to a gamma-emitting technetium isotope. They can also be bone-targeting promoieties, e.g., for anti-inflammatory drugs [5], as solvent extraction reagents for actinide ions [6] and are even present in a new class of herbicides [7]. Recently, BPs have been used as growth inhibitors for parasitic diseases like malaria [8] and in crystal engineering studies [9]. BPs have been also reported to be effective inhibitors of atherosclerosis [10] and nitrogen-containing BPs have been shown to be effective antitumor agents [11].
The medical use BPs can be divided into two categories, non-nitrogen-containing (NNBP) and nitrogen-containing (NBP) molecules, based on their different mechanism of action in living systems [12]. The NNBP compounds (e.g., etidronate, clodronate) lack a nitrogen atom at the bridging carbon substituents, whereas NBP compounds (e.g., pamidronate, alendronate and zoledronate) have at least one nitrogen atom incorporated at the bridging carbon side-chains. Moreover, BPs are also classified based on their potency in different generations. Typical examples of 1st generation BPs are the NNBP compounds mentioned above. NBP compounds with sp3 nitrogen as a part of alkyl side-chain are called 2nd generation compounds while the 3rd generation NBP compounds are those molecules in which the sp2 nitrogen is a part of a heterocyclic ring. The studied compounds here belong to the 2nd generation BPs.
Our group has studied BP compounds for more than 20 years. Recently, we became interested in preparing a series of aminobisphosphonates (ABPs) with variable chain lengths (n = 2–15), since it was obvious that the chain length could influence the solubility, i.e., pamidronate (1) was almost freely soluble in water whereas a compound with a longer chain, e.g., n = 10, was virtually insoluble in water and most common organic solvents. Moreover, although pamidronate (1), alendronate (2) and neridronate (4) are in drug use and they have been intensively studied by several groups, there is still some discrepant information, concerning their properties, e.g., there are variations in their pKa values published in the literature [13,14,15,16,17,18,19].
In this work, we describe the syntheses of the ten ABPs shown in Figure 1. Their aqueous solubilities and pKa-values as a function of carbon chain length were determined. The compounds were also characterized by IR and NMR spectroscopic methods. NMR spectra were recorded both for liquid (1H, 13C, 31P-NMR) and solid state samples (13C, 15N and 31P-NMR). Elemental analyses were measured determine out the number of water molecules (hydrates) in the samples and this data was confirmed with thermal analysis. We also attempted to measure accurate logP values (−1 to −4) with the conventional water-octanol system, but the solubility of ABPs in the octanol phase was minimal and it was thus difficult to obtain accurate reproducible values.
Figure 1. Structures of studied aminobisphosphonates.
Figure 1. Structures of studied aminobisphosphonates.
Molecules 17 10928 g001

2. Results and Discussion

2.1. Solubility of the ABPs

The studied compounds 110 were prepared according to the general method reported by Kieczykowski et al. [20]. All the compounds were readily obtained with >98% purity after crystallization from ethanol, water or a mixture of ethanol and water. Yields were typically between 75–100%, except for pamidronic acid (1) which was crystallized as a monosodium salt in 22% yield. Preparation of the compound with n = 6 was not successful using this method and the starting materials needed for compounds in which n = 12–14 were rather expensive and therefore not used.
Determination of the exact molecular composition (formula) was the key to determining the physicochemical data for the studied compounds exactly, since based on the earlier studies, e.g., for different clodronic acid derivatives [21] it is known that BPs may crystallize as hydrates containing up to five molecules of water. The number of water molecules in the studied compounds were measured using the traditional elemental analysis technique and the results were verified by thermal decomposition analysis. Table 1 provides the formulas of the amino(CH2)nbisphosphonates, their pH’s at saturated solution, and aqueous solubilities at 21 °C. However, only compounds 6 and 8 contained one water molecule each, even though the compounds were stored for days in an open vial.
Table 1. Prepared aminobisphosphonates with the formula determined from elemental analysis, the pH of their saturated solutions, and the aqueous solubilities at 21°C (agitation time 30 min).
Table 1. Prepared aminobisphosphonates with the formula determined from elemental analysis, the pH of their saturated solutions, and the aqueous solubilities at 21°C (agitation time 30 min).
CompoundnFormulaMWpHSolubility
(mg P/L) a(mgL) b
12C3H10NO7P2Na257.054.62263410928
23C4H13NO7P2249.101.9419057663
34C5H15NO7P2263.122.229444009
45C6H17NO7P2277.152.267643419
57C8H21NO7P2305.202.614262099
68C9H23NO7P2 · H2O337.232.514002066
79C10H25NO7P2333.263.2840217
810C11H27NO7P2 · H2O365.304.711058
911C12H29NO7P2361.314.05530
1015C16H37NO7P2417.427.79639
a phosphorus concentration in saturated solution; b compound solubility.
The accurate determination of solubility for the compounds here is demanding since the solubility is dependent on several factors, such as crystal size, stirring efficiency and stirring time. The values stated in Table 1 are good estimates for solubility, since the values in the table were measured under comparable conditions (temperature, stirring speed and time) for all the compounds, which were prepared and crystallized using the same protocol. However, compound 1 was crystallized as a monosodium salt which presumably made it more soluble than it would have been in the acidic form. The solubility for the studied compounds here are somewhat less than the solubility measured as a function of temperature using different agitation times of 30 min and 24 h, respectively. In general, in terms of water solubility, the studied compounds can be classified into three groups depending on the chain length: compounds 16 are soluble in gram quantities, compound 7 in quantities of hundreds of milligrams and the remaining compounds in tens of milligrams per liter (Figure S1). Most probably the reason for the poor solubility of the compounds with the longer carbon chains (n > 7) is increased hydrophobicity and carbon chain van der Waals forces that overcome hydrogen bonding forces between water and the heteroatoms in the ABPs.
The effect of temperature on solubility was also studied for compounds 2, 4 and 5 at 4.0 °C, 7.6 °C, 21.0 °C, 30.0 °C, 40.0 °C and 50.0 °C (Table S1). As expected, the solubility increased when the temperature was increased as shown in Figure 2. Interestingly, solubility was increased markedly for compounds 2 and 4 after 30 °C but for compound 5 the same effect was observed after 40.0 °C. In general, the solubility for the compounds was almost doubled, when the temperature was increased to about 40.0 °C, in the temperature transition from 7.6 °C to 50.0 °C.

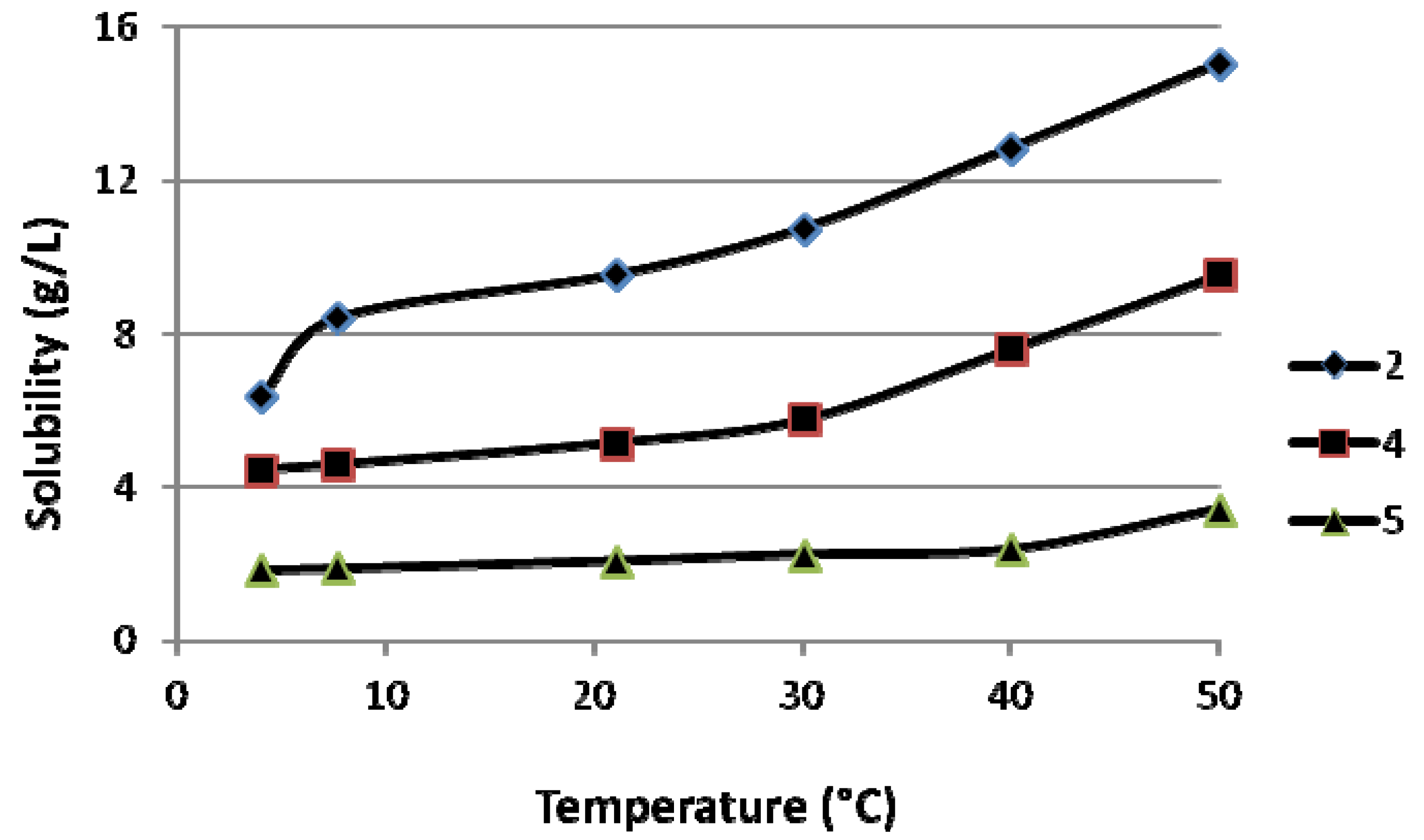

Figure 2. The effect of temperature on the aqueous solubility (mg/L) of ABPs 2, 4 and 5 (agitation time 30 min).
Figure 2. The effect of temperature on the aqueous solubility (mg/L) of ABPs 2, 4 and 5 (agitation time 30 min).
Molecules 17 10928 g002
As is shown in Figure 3, the effect of pH from 0.5 to 11.0 on solubility was studied for compounds 2, 4, 6, 8 and 9 (Table S2). Interestingly, pH had no major influence on the solubility of compounds 2, 4 and 6 and only at very low pH (pH 0.5), were the solubilities doubled as compared to the values at pH 1. Instead, compounds 8 and 9 which had low solubilities displayed a clear solubility minimum at about pH 2 with the values increasing at both low and elevated pH’s.

2.2. Protonation Constants for Compounds 1–5

The analysis of the data was initiated by plotting ZHversus pH [see Equation (3) and Figure S2 in the Supporting Information]. The neutralization titrations show that the stepwise deprotonation of H5L+ to H3L occurred in a very acidic pH range from values less than 1 to about 3 (ZH from 3 to 1). H3L is the major species from pH 3 to pH 5 when ZH = 1. H2L2− is the major species from pH 7 to pH 10 when ZH = 0 (three phosphonic acid groups). The negative ZH values that were obtained in the pH range from 10 to over 12 reveal that in alkaline solution, one proton can leave the ligands from the last phosphonic acid group, H2L2− to HL3−, and finally from the amino group, HL3− to L4−. In Figure S2 in the Supporting Information, the symbols show the measured values and solid lines are the ZH curves calculated from log β values.

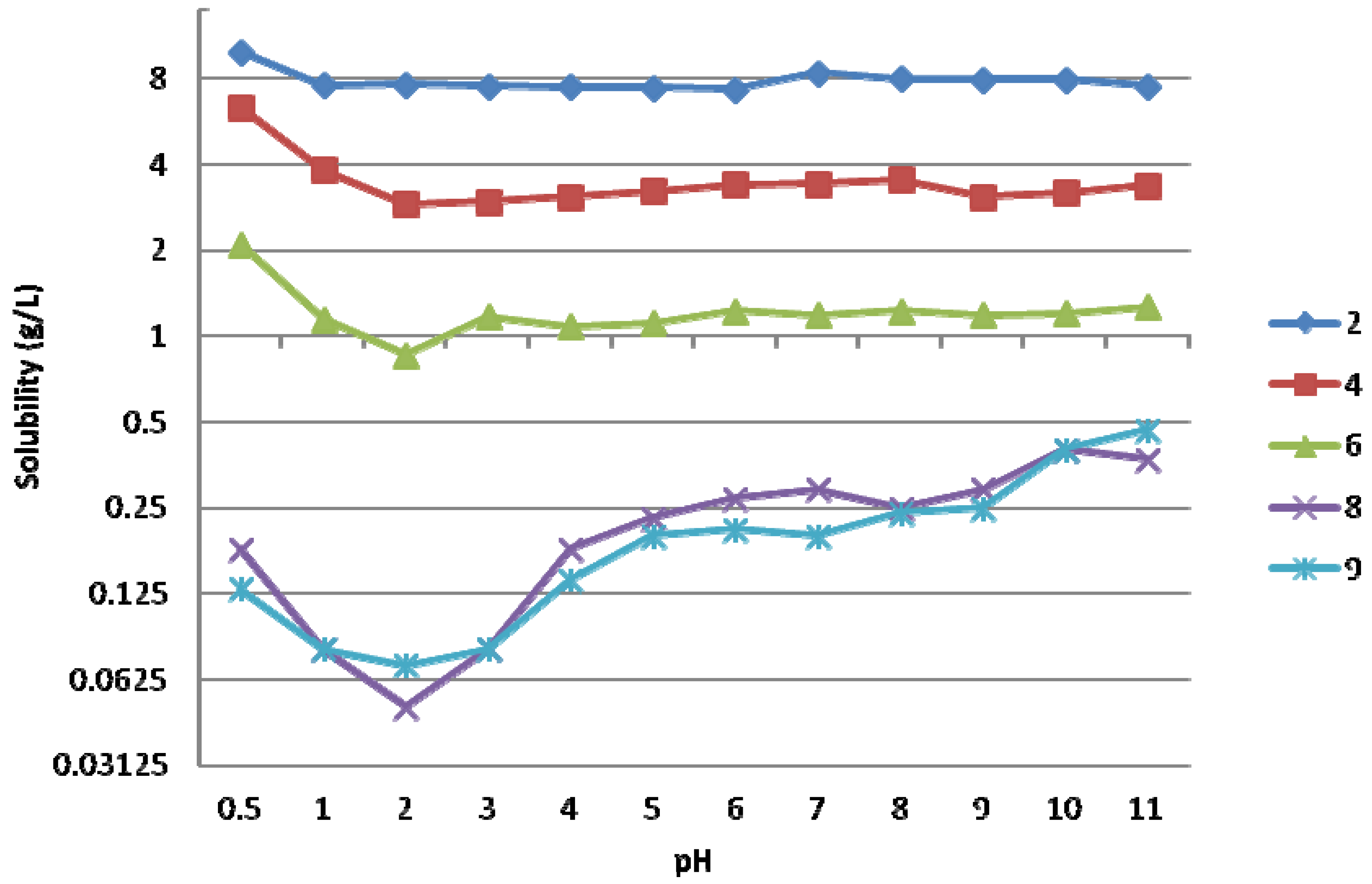

Figure 3. The effect of pH on the aqueous solubility (mg/L) of BP (a) 2, 4 and 6; (b) 8 and 9 (agitation time 30 min).
Figure 3. The effect of pH on the aqueous solubility (mg/L) of BP (a) 2, 4 and 6; (b) 8 and 9 (agitation time 30 min).
Molecules 17 10928 g003
Results were obtained from SUPERQUAD as overall stability constants (log β values); following the chosen zero level H2L2−. This zero level H2L2− was chosen in the calculations to avoid any accumulation of errors of protonation constants at different pH ranges. The log β results for reactions (4) and (5) obtained in the final refinements are listed in Table S3 (see Supporting Information) with error limits (±3σ), number of points/number of titrations and χ2/Σ statistics. All results for compounds 1, 2, 3, 4, and 5 were recalculated for the stepwise protonation constants, log K (or pKa) values, see Table 2. Although the values of the last protonation constants (pKa1 values) could be calculated from the experimental data, they should only be considered as approximate values. This is reflected also in the larger error limits for these constants as compared to the other constants.
The logK values for compounds 1, 2 and 4 from earlier studies can be found in literature, but they are not entirely comparable with each other because of the different experimental conditions used (e.g., background electrolyte, ionic strength, temperature or method) [13,14,15,16,17,18,19]. Although these values vary to some extent for each ligand, they do agree with each other on the whole, taking into consideration the different conditions. Furthermore, the results of this study correspond well to the literature values for compounds 1, 2 and 4. A detailed comparison of literature pKa values is given in Table 3 and Table 4.
Table 2. The stepwise protonation of compounds 1, 2, 3, 4, and 5 in this study.
Table 2. The stepwise protonation of compounds 1, 2, 3, 4, and 5 in this study.
Protonation Reactionlog KpKa
12345
L4− + H+⇋ HL3−12.86 a12.13 f12.0511.94 k11.65pKa5
HL3− + H+⇋ H2L2−10.04 b10.69 g10.7810.86 l10.67pKa4
H2L2− + H+⇋ H3L5.90 c6.26 h6.44 6.62 m6.75pKa3
H3L + H+⇋ H4L1.70 d2.12 i2.302.38 n2.52pKa2
H4L + H+⇋ H5L+1.06 e0.60 j0.620.941.08pKa1
Variations in the pKa values in the literature for compounds 1, 2 and 4: a 13.06–10.40; b 10.30–9.46; c 6.04–5.39; d 2.56–1.80; e 1.24 or lower; f 12.68–10.5; g 11.07–10.25; h 8.73–5.95; i 2.72–2.16; j 1.33 or lower; k 10.9; l 10.66–8.63; m 6.50–5.49; n 2.90–2.45.
The following general trend can be found in the results of this study: the lengthening of the CH2 chain between BP and amino groups decreases the value of the first protonation constant (pKa5, amino group) and increases the values of the other protonation constants (phosphonate groups) in most cases (Table 2). The same trend can be seen also in those earlier studies where a comparison is possible, e.g., for all pKa values with compounds 1 and 2 [14,17] and for pKa values of the phosphonate groups with compounds 1 and 2 [13,18] and with compounds 1 and 4 [16]. The protonation of the ligands is also illustrated in the percentage distribution curves calculated from log β values (see Figure S3 in the Supporting Information).
Table 3. The stepwise protonation of compound 1 in the literature [4,13,14,15,16,17,18].
Table 3. The stepwise protonation of compound 1 in the literature [4,13,14,15,16,17,18].
Protonation Reactioncompound 1 logKpKa
Ref.13Ref.14Ref.15Ref.4Ref.17Ref.18Ref.18
L4− + H+⇋ HL3−10.813.0610.9511.0212.1410.7410.40pKa5
HL3– + H+⇋ H2L2−9.910.309.809.9010.189.979.46pKa4
H2L2− + H+⇋ H3L5.835.856.015.866.046.015.39pKa3
H3L + H+⇋ H4L2.551.802.562.041.93--pKa2
H4L + H+⇋ H5L+-<1.2--1.24--pKa1
Table 4. The stepwise protonation of compounds 2 and 4 in the literature [4,13,14,17,18,19].
Table 4. The stepwise protonation of compounds 2 and 4 in the literature [4,13,14,17,18,19].
Protonation ReactionComp. 2 logKComp. 4 logKpKa
Ref.13Ref.14Ref.17Ref.18Ref.18Ref.19Ref.13Ref.4
L4− + H+⇋ HL3−11.612.6811.8211.410.512.0410.9-pKa5
HL3− + H+⇋ H2L2−10.511.0710.9610.6810.2510.778.6310.66pKa4
H2L2− + H+⇋ H3L8.736.366.39 6.385.956.215.496.50pKa3
H3L + H+⇋ H4L2.722.192.222.242.342.162.902.45pKa2
H4L + H+⇋ H5L+-<1.21.33--~1--pKa1
The pKa values were also determined for compounds 15 using the Sirius instrument. This comparison was done since this instrument is commonly used for the determination of pKa values in many laboratories and we wanted to study the accuracy and reliability of this automatic system. In general, in our hands the Sirius instrument was not able to measure the first pKa1 values near to 1, but rather reliable values for pKa2 and pKa3 values were observed for all studied compounds. In addition, for compounds 1 and 2, the remaining pKa values were consistent with the values shown in Table 2, but for compounds 35 clear differences were observed. Detailed results are shown in the Supporting Information (Table S4).

2.3. NMR Spectroscopy

1H, 13C and 31P-NMR spectroscopy are the best methods with which to analyze the chemical composition of BPs in liquid and solid states. However, liquid state NMR is more common and solid state measurements are typically used for poorly soluble compounds. The 13C and 31P-NMR chemical shift data both in liquid and solid states including also the solid state 15N-NMR chemical shifts for the studied compounds are given in Table S5 in the Supporting Information. Detailed 1H-NMR data is also given in the Supporting Information.
The 13C-NMR signals for the studied ABPs were easily assigned when starting from the bridging carbon resonance, which appeared as a characteristic triplet at approx. 79 ppm and 72–75 ppm in liquid and solid state spectra, respectively, due to the presence of deshielding OH group and the coupling to two phosphorus atoms. C-3 also appeared as a triplet (3JCP ca. 5 Hz) in the liquid state and C-2 was clearly broadened (2JCP < 1 Hz) as compared to other carbon signals due to phosphorous coupling. The assignment of carbon next to the amino group (CH2-N) was also straight forward and its shift varied from 41 to 45 and 38 to 42 ppm in liquid and solid state spectra, respectively. The rest of the chemical shifts were as expected, but it was impossible to assign the chemical shifts for compounds 610 in the solid state due to overlapping shifts and polymorphism which broadened the observed signals.
15N-CPMAS chemical shifts are typical for primary amines and do not vary extensively (Table S5). All liquid state 31P-NMR signals are also approx. at 19 ppm, this being a typical value for BP compounds. However, in the solid state 31P-NMR spectra, two signals for each compound were observed, since in the crystalline state the phosphorous atoms are always located in an unequal chemical environment. The 31P-NMR chemical shifts for acids 24 (compound 1 is monosodium salt) were also clearly different compared to acids 510 indicating that these groups have different crystal structures from each other.
A detailed analysis of 1H-NMR spectra for the studied compounds without iterative computerized methods is impossible, since the spin systems in compounds like these are more complicated than expected because of prochirality. It is commonly claimed in the literature that, for certain BPs, e.g., alendronate, the N-CH2-CH2-CH2-C(OH)P2 gives rise to a first order spin system, in which NCH2 group exists as a triplet (t), the middle CH2 as a quintet and the CH2-C group as t+t (last triplet due to phosphorous coupling). However, as shown in Figure 4, only the NCH2 group appears as a first order triplet with expected 1:2:1 intensities and the rest of CH2 groups give rise to a complicated multiplet. In fact, the R-CH2-C(OH)P2 fragment is a typical example of prochiral systems, in which CH2 protons become magnetically non-equivalent, forming an AB-spin system and they likely have different chemical shifts and coupling constants [22]. The same is true at least for the protons at the next CH2 group.

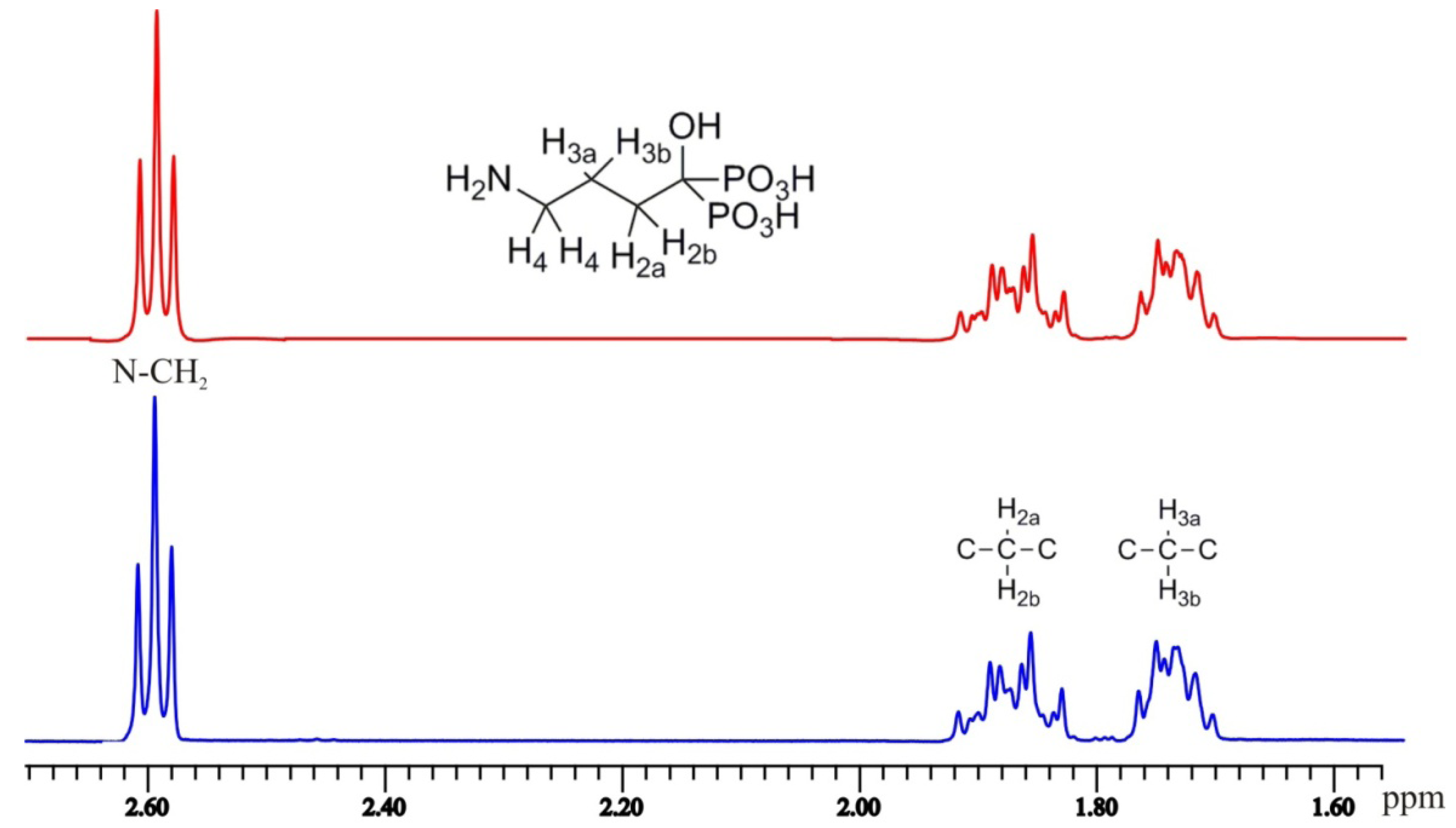

Figure 4. Observed (bottom) and calculated (upper) 1H-NMR spectrum of alendronic acid.
Figure 4. Observed (bottom) and calculated (upper) 1H-NMR spectrum of alendronic acid.
Molecules 17 10928 g004
The results from computerized analysis are given in Table 5 for compounds 15. A detailed analysis for the rest of the compounds was not realistic due to the broad signals and heavily overlapping peaks. Moreover, the values given in Table 5 are only good estimates for the coupling constants present in the studied molecules, since the spectral lines were rather broad (W1/2 = 1–1.5 Hz) due intra- and intermolecular hydrogen bonding. Iterative analysis showed clearly that CH2 protons had the same chemical shift, since geminal 2JHH coupling was missing, but different vicinal 3JHH coupling constants existed. 3JHP coupling constants were taken from coupled 31P-NMR spectra and 4JHP coupling constants were obtained from spectral analysis.
Table 5. 1H-NMR chemical shifts and coupling constant for compounds 15.
Table 5. 1H-NMR chemical shifts and coupling constant for compounds 15.
H-2aH-2bH-3aH-3bH-4H-5H-6
1shift (ppm)3JHH (Hz)3/4JHP (Hz)2.04 9.8, 5.8 13.42.04 10.0, 5.7 13.42.94 10.0, 5.8 0.92.94 9.8, 5.7 0.9
2shift (ppm)3JHH (Hz)3/4JHP (Hz)1.87 13.9, 4.4 13.51.87 11.7, 4.2 13.51.73 11.7, 8.8, 4.4 1.01.73 13.9, 5.4, 4.2 1.02.59 8.8, 5.4-
3shift (ppm)3JHH (Hz)3/4JHP (Hz)1.88 13.9, 5.6 113.61.88 11.8, 2.9 13.61,62 13.9, 5.9, 2.9 1.01.62 11.8, 9.4, 5.6 1.01.47 9.4, 6.9, 5.9 -2.70 6.9-
4shift (ppm)3JHH (Hz)3/4JHP (Hz)1.88 12.4, 4.0 13.31.88 13.4, 4.5 13.31.58 13.4, 7.2, 4.0 0.91.58 12.4, 7.9, 4.5 0.91.29 7.9, 7.8, 7.2-1.47 7.8, 7.1-2.61 7.1-
5shift (ppm)3JHH (Hz)3/4JHP (Hz)1.87 13.0, 4.313.31.87 13.0, 4.3 13.61.56 13.0, 6.0, 4.3 1.51.56 13.0, 7.7, 4.3 1.5221.46 7.1, 6.7-
14J2a4 = 1.9 Hz 2 H-4 and H-5 signals not analyzed due to the presence of heavily overlapping signals, H-7: 2.62 ppm, 3JHH = 7.1 Hz.
The results clearly indicate that the R and C(OH)P2 groups are almost entirely trans to each other in the R-CH2-CH2-C(OH)P2 part of the molecule containing three or more CH2 units between the amino and C(OH)P2 moieties, since both CH2 protons have one large trans (>11 Hz) and one gauche (4–6 Hz) coupling. In the case of pamidronate, coupling constants are about 6 and 10 Hz indicating that the amount of the trans conformation is diminished due to intramolecular hydrogen bonding and zwitter ion interaction between amino and phosphorous groups.

2.4. Thermal Analysis

Despite the fact that alkylaminobis(phosphonates) are a group of substances that have been widely investigated and are medically used substances, according to the literature, their thermoanalytical properties have been rarely determined in a comprehensive manner. In this study, thermoanalytical methods were utilized, in order to evaluate the thermal stability and potential hydrate stoichiometry of the examined compounds. Moreover, thermogravimetric studies were performed in parallel using two instruments with slightly different sample crucibles (tall and a shallow vessel), in order to evaluate the influence of “micro-atmospheric effects” that may prevail during heating inside the different crucibles used in the measurements.
For compounds which have a primary amine and an acidic phosphonate group in the same molecule, this enables the formation of zwitterions, at least for compounds having shorter alkylidene chains between the terminal groups. Indeed a few X-ray crystallographic studies have been conducted to reveal the inner salt nature of pamidronic (1-hydroxypropylidene chain) alendronic (1-hydroxybutylidene) and neridronic (1-hydroxyhexylidene) acids [23,24,25]. A similar zwitterionic behavior is generally observed also in aliphatic amino acids, the decomposition of which is typically initiated either via deamination or decarboxylation reaction, of which the latter is the more favored route among this type of amino acids [26]. With alkylaminobis(phosphonates), it is anticipated that the decomposition may more likely commence via deamination instead of a dephosphonation reaction due to the more stable nature of the phosphonate group. One also has to take into account the fact that special care must be taken in evaluating the potentiality of water molecules in these types of compounds, because the weight loss difference between cleavage of ammonia and one water crystal is nearly always the same for substances having formula weights around 300 g/mol as in this case. Therefore, a truly anhydrous substance can easily be misinterpreted as being a hydrate and vice versa when the analysis of the evolved gas components is not available. Therefore, it is crucial to apply in parallel to TGA, other characterization techniques as well. In this study, elemental analysis (see preceding sections), visual inspection in the melting apparatus and structural studies by X-ray powder diffraction were applied. It is noted that the successful powder structure determination of compounds 3 and 5 will be published elsewhere as they were not within the scope of this study.
The experimental and calculated Δwt-%, together with the temperature range of dehydration, decomposition onsets and estimated melting points (from DTA signal) can all be seen in Table 6 and the measured TG curves are given in the Supporting Information. The ABPs 15 with shorter 1-hydroxyalkylidene chains (varying from 2 to 7 carbons) all exhibited a weight loss of about 4–7 wt-% on a first step with temperature onsets varying from about 150 to 230 °C. It might seem that weight losses are in good agreement with the calculated cleavage values of one water of crystallization molecule present in each compound. However, as evidenced by visual monitoring in the melting point apparatus, elemental analyses, and by X-ray powder diffraction analyses all five compounds proved to be free of water of crystallization. Consequently, the first decomposition process for these compounds is in good agreement with the proposal that it is due to the cleavage of an amino group as NH3 (e.g., for compound 2 (exp. 7.02% calc. 6.84%; see detailed values for each compound in the Supporting information Table S6). The second decomposition step of 25 readily followed the first step and this is assumed to be due to the release of water (e.g., for 2 exp. 7.49% calc. 7.23%) which most likely originates from the cleavage of the hydroxyl group attached to C1-carbon. For 25, the major degradation reactions commence in a compound-specific manner above 250–300 °C with breakage of the C-P bond that leads to further pyrolysis of the samples [27]. It can be noted that overall the shorter alkyl chain compounds display somewhat lower decomposition temperatures than the longer alkyl chain versions (Table 6). In case of compound 1 (monosodium salt), the decomposition deviates slightly from the acids 25, as after the cleavage of the amino group between 100–200 °C, the subsequent larger weight loss (~14.2 wt-%) includes most likely the cleavage of the hydroxyl group as in 25 but concurrently, a more comprehensive degradation of the compound occurs in the temperature range of 200–300 °C. This large weight loss step is followed by a further pyrolysis of the product at a temperature above 300 °C. In addition, the higher residual weight at 700 °C is indicative of the formation of inorganic thermally stable Na-containing salt(s) together with charring. In an attempt to identify the black residue, X-ray powder diffraction data was evaluated, and as a result, sharp diffraction peaks characteristic for disodium diphosphate (Na2H2P2O7) were identified in the pattern along with broad scattering humps caused by the amorphous carbonized content (Supporting Information, Figure S4).
Table 6. Thermal properties of compounds 110.
Table 6. Thermal properties of compounds 110.
Comp.MW Δwt-% (%)Temp. range bTm cTd dRef. melting points
exp.calc.
1257.05anhydrous 149152-
2249.10anhydrous 223224234 (dec.) f
3263.12anhydrous 216220212 (dec.) f
4277.15anhydrous 205212247 f
5305.20anhydrous 193195-
6337.23 a5.005.34 (1 H2O)33–175 (81)134191-
7333.26anhydrous 181187-
8365.30 a4.434.93 (1 H2O)40–148 (72)127202-
9361.31anhydrous 181188-
10417.42anhydrous 175180-
a MW of hydrate; b temperature range of dehydration (onset T in parentheses); c from DTA signal of TG/DTA (decomposition coexists with melting on all compounds); d onset values; All temperatures are in °C and the Td results are shown as an average from both instruments. Values from the individual devices can be found in Supporting Information (Table S6); f see reference [28].
For compounds 610 with long alkyl chains, visual monitoring and the elemental analysis results indicate that only 6 and 8 are monohydrates (exp. 5.00 and 4.33 wt-% calc. 5.34 and 4.93 wt-%, respectively), whereas the others exist in an anhydrous form. For compounds 7, 9 and 10 the first weight loss step observed in the thermograms points to cleavage of the amino group, which occurs typically at about 200 °C, whereas the dehydration of compounds 6 and 8 occurs at significantly lower temperatures. In compound 6, dehydration is initiated at ~90 °C and this is readily followed by the cleavage of the amino group. Compound 8 exhibits a similar dehydration sequence with the exception that the deamination is initiated at the higher temperature of 200 °C (Table 6). The major decomposition stage (after cleavage of amino group) of these longer alkyl chained bisphosphonates occurs quite uniformly above 350 °C.
The influence of sample crucible was clearly evidenced in the TG analyses performed as somewhat different TG curve trends were observed at higher temperature ranges for all samples. As expected, the higher crucible used in TG/DTA seems to generate a less oxidizing environment above the sample surface. This is clearly visible in the measured TG curves as the residual weights (Figure S5) at the end the temperatures were always higher in the TG/DTA in contrast to the measurements made with TGA 7, and a shallower sample crucible (Table 6). Therefore, this suggests that there is a higher degree of charring of the samples in the case of the TG/DTA instrument. This was also noted visually. Although conditions seemed to be less oxidizing in the higher crucible, all samples degraded at a higher rate within the temperature range of ~350 to 550 °C, in contrast to the situation if the samples were heated in the shallow crucible (Figure S5). It can be assumed that somewhat better oxidation conditions were present in the shallow crucible, which may have caused the formation of temporarily-stable intermediate products, which then decomposed rapidly above 550 °C, thus surpassing the values of the weight residues (Table S6) found in TG/DTA run already at ~600 °C and terminating at near to zero weight at 700 °C. It can also be postulated that the evaporation of potential oxidation products of phosphorus at higher temperatures occurred more easily in a shallow crucible, in turn speeding up the weight loss. Finally, the TG curves were essentially identical in both instruments over a temperature range varying from 100 to 250 °C, indicating that dehydration/deamination processes along with the first steps of degradation were not affected by any micro-atmospheric effects.
Finally, melting temperatures of the compounds were evaluated from the DTA signals and were compared to the literature values, when available. With the anhydrous compounds, a decreasing trend in melting temperatures was observed in conjunction with an increase in the alkylidene chain lengths, as the highest melting point (223 °C) was determined for 2 and the lowest (175 °C) for 10. In the case of the two monohydrates, 6 and 8, the melting occurred concurrently with dehydration process that was observed at about 130 °C for both compounds. However, it should also be noted that nearly all melting endotherms seen on DTA curves overlapped significantly with coexisting dehydration/deamination and/or decomposition transitions, inevitably conferring some degree of inaccuracy in the determination of the melting temperatures.

3. Experimental

3.1. Materials and Instrumentation

4-Aminobutyric acid (97%), 8-aminocaprylic acid (99%), 12-aminododecanoic acid (95%), 5-aminovaleric acid (97%), β-alanine (98%), 9-bromo-1-nonanol (95%), 10-bromodecanoic acid (95%), 16-bromohexadecanoic acid (>99%), phosphorus acid (99%), methanesulfonic acid (>99.5%) and phosphorus trichloride (99%) were purchased from Sigma-Aldrich (Steinheim, Germany). 6-Amino-caproic acid (>99%) and 11-aminoundecanoic acid (97%) were purchased from Acros Organics (Geel, Belgium). D2O (99.90% D) used in the NMR measurements was purchased from Euriso-Top (Gif-Sur-Yvette, France). Aqueous 0.1 M NaOH was prepared from Titrisol ampoules (Merck, Darmstadt, Germany) and 0.1 M HNO3 from Convol ampoules (BDH, Mumbai, India). The background solution was prepared by dissolving NaNO3 in deionised water. NaNO3 and NaCl used in reference electrode were p.a. grade (Merck). The water used in the dilutions and titration solutions was purified with Milli-RO and Milli-Q water purification systems (Millipore, Billerica, USA).
Infrared spectra were recorded on a Thermo Nicolet Nexus 470 FTIR spectrometer (Thermo Electron Corporation, Vantaa, Finland) with the KBr pellet technique. Liquid state 1H, 13C and 31P-NMR spectra were recorded on a Bruker Avance DRX spectrometer (Bruker, Karlsruhe, Germany) operating at 500.1, 125.8 and 202.5 MHz, respectively. Measurements were performed at 300 K by using standard pulse sequences and sodium 3-(trimethylsilyl)-1-propionic acid (TSP) was used as the internal standard in D2O. The solid state 13C, 15N and 31P-CPMAS NMR spectra were recorded at 300 K with a Bruker Avance 400 spectrometer operating at 100.62, 44.55 and 161.98 MHz, respectively. The spectrometer was equipped with a dual CPMAS probehead and samples were packed in 4.0 mm zirconia rotors. The contact times for the CPMAS experiments were 2 ms for 13C, 3 ms for 15N and 5 ms for 31P. The relaxation delay was 5 s and the spin rate was 10 KHz. In the high-power broad band, 1H decoupling the pulse program was spinal64 for 13C and 15N, and tppm15 for 31P. Typically one hundred scans were completed for 13C and 31P, and thousands for 15N. The 13C and 15N chemical shifts were referenced to those of glycine (176.03 ppm for carbonyl carbon and −347.3 ppm for NH2) measured prior to each sample. The 31P-NMR chemical shifts are referenced to that of sodium alendronate measured before. All computerized spectral analysis was performed using PERCH NMR software, version 2010.1 (PERCH Solution Ltd, Kuopio, Finland). The starting materials for 6, 7 and 10 were synthesized according to Amara et al. [29].

3.2. Synthesis

Compounds were prepared according to the general method reported by Kieczykowski et al. [20], exemplified by the preparation of (4-amino-1-hydroxybutylidene)bisphosphonic acid (2; CAS Registry Number 66376-36-1): 4-aminobutyric acid (2.5 g, 24.2 mmol), phosphorus acid (2.0 g, 24.2 mmol) and methanesulfonic acid (11 mL) were put in a flask with a reflux condenser and a CaCl2-tube and the mixture was heated to 65 °C. PCl3 (4.3 mL, 48.4 mmol) was added dropwise and the mixture was maintained at 65–70 °C for 18 h (generally 16–20 h). Water (25 mL) was added to the cooled mixture and the solution was refluxed for 5 h. Some of the water was evaporated, EtOH was added and the product was allowed to crystallize at 8 °C. The product was collected by filtration and washed with EtOH yielding 5.1 g of 2 (85%) as white solid, yield 85%; 1H-NMR (D2O/NaOD, 500.1 MHz): δ 2.59 (2H, t, J = 7.0 Hz), 1.93–1.82 (2H, m), 1.78–1.69 (2H, m); 13C-NMR (D2O/NaOD, 125.8 MHz): 79.3 (t, 1JCP = 134.5 Hz), 44.6, 36.2, 30.2 (t, 2JCP = 5.0 Hz); 31P-NMR (D2O/NaOD, 202.5 MHz) δ 18.89 (s); IR (KBr) 3275, 2262, 1630, 1498, 1472, 1400, 1374, 1319, 1212, 1165, 1130, 1056, 994, 934, 825, 751, 725, 665 cm−1. Anal. Calcd. for C4H13NO7P2: C, 19.29; H, 5.26; N, 5.62; P, 24.9. Found: C, 19.19; H, 5.09; N, 5.51; P, 24.5.
(3-Amino-1-hydroxypropylidene)bisphosphonic acid (1; CAS Registry Number 40391-99-9). The pH was adjusted to 4.5 to obtain the monosodium salt, yield 22%; 1H-NMR (D2O/NaOD, 500.1 MHz) δ 2.97–2.90 (2H, t, J = 7.8 Hz), 2.10–1.99 (2H, m); 13C-NMR (D2O/NaOD, 125.8 MHz): 78.7 (t, 1JCP = 133.8 Hz), 40.9, 40.0 (t, 2JCP = 5.7 Hz); 31P-NMR (D2O/NaOD, 202.5 MHz): δ 18.46 (s); IR (KBr) 3354, 3188, 2792, 2364, 1719, 1615, 1528, 1409, 1343, 1327, 1282, 1173, 1045, 984, 937, 895, 855, 775, 715, 683, 614 cm−1. Anal. Calcd. for C3H10NO7P2Na: C, 14.02; H, 3.92; N, 5.45; P, 24.1. Found: C, 14.48; H, 4.41; N, 5.64; P, 23.3.
(5-Amino-1-hydroxypentylidene)bisphosphonic acid (3; CAS Registry Number 89732-96-7). Yield 86%; 1H-NMR (D2O/NaOD, 500.1 MHz): δ 2.70 (2H, t, J = 7.0 Hz), 1.94–1.82 (2H, m), 1.66–1.57 (2H, m), 1.51–1.43 (2H, m); 13C-NMR (D2O/NaOD, 125.8 MHz): 79.2 (t, 1JCP = 133.5 Hz), 42.9, 38.1, 34.3, 24.1 (t, 2JCP = 5.3 Hz); 31P-NMR (D2O/NaOD, 202.5 MHz): δ 18.92 (s); IR (KBr) 3209, 2959, 2331, 1617, 1503, 1468, 1452, 1219–939, 824, 663 cm−1. Anal. Calcd. for C5H15NO7P2: C, 22.82; H, 5.75; N, 5.32; P, 23.5. Found: C, 22.59; H, 5.82; N, 5.30; P, 23.5.
(6-Amino-1-hydroxyhexylidene)bisphosphonic acid (4; CAS Registry Number 79778-41-9). Yield 88%; 1H-NMR (D2O/NaOD, 500.1 MHz): δ 2.61 (2H, t, J = 7.0 Hz), 1.94–1.82 (2H, m), 1.62–1.53 (2H, m), 1.51–1.43 (2H, m), 1.34–1.26 (2H, m); 13C-NMR (D2O/NaOD, 125.8 MHz): 79.6 (t, 1JCP = 134.4 Hz), 43.5, 39.0, 34.7, 30.4, 26.9 (t, 2JCP = 5.2 Hz); 31P-NMR (D2O/NaOD, 202.5 MHz): δ 19.12 (s); IR (KBr) 3178, 2953, 2296, 1648, 1582, 1496, 1476, 1441, 1112, 1034, 997, 939, 905, 824, 777, 724, 657 cm−1. Anal. Calcd. for C6H17NO7P2: C, 26.00; H, 6.18; N, 5.05; P, 22.4. Found: C, 25.97; H, 6.17; N, 4.97; P, 22.2.
(8-Amino-1-hydroxyoctylidene)bisphosphonic acid (5; CAS Registry Number: 144050-49-7). Yield 75%; 1H-NMR (D2O/NaOD, 500.1 MHz): δ 2.62 (2H, t, J = 7.0 Hz), 1.93–1.81 (2H, m), 1.61–1.52 (2H, m), 1.50–1.41 (2H, m), 1.39–1.24 (6H, m); 13C-NMR (D2O/NaOD, 125.8 MHz): 78.9 (t, 1JCP = 132.4 Hz), 43.2, 38.4, 33.6, 33.0, 31.5, 29.0, 27.0 (t, 2JCP = 5.6 Hz); 31P-NMR (D2O/NaOD, 202.5 MHz): δ 19.05 (s); IR (KBr) 3327, 3150, 2901, 2848, 2276, 1650, 1620, 1541, 1471, 1398, 1334, 1300, 1224, 1151, 1079, 967, 842, 813, 767, 729, 647 cm−1. Anal. Calcd. for C8H21NO7P2: C, 31.48; H, 6.93; N, 4.59; P, 20.3. Found: C, 31.44; H, 6.98; N, 4.69; P, 20.5.
(9-Amino-1-hydroxynonylidene)bisphosphonic acid (6; CAS Registry Number: 144050-48-6). As an exception to the general method 6 was refluxed for 5 h in 2 M HCl instead of water and pH was adjusted to 7 to obtain the disodium salt. The product was recrystallized from water-ethanol, yield 63%; 1H-NMR (D2O/NaOD, 500.1 MHz): δ 2.59 (2H, t, J = 7.0 Hz), 1.93–1.79 (2H, m), 1.59–1.50 (2H, m), 1.50–1.38 (2H, m), 1.37–1.21 (8H, m); 13C-NMR (D2O/NaOD, 125.8 MHz): 79.6 (t, 1JCP = 134.6 Hz), 43.4, 39.0, 34.7, 33.2, 31.9, 31.7, 28.9, 27.2 (t, 2JCP = 5.2 Hz); 31P-NMR (D2O/NaOD, 202.5 MHz): δ 19.30 (s); IR (KBr) 3195, 2910, 2850, 1637, 1558, 1475, 1168, 1040, 906, 720, 672 cm−1. Anal. Calcd. for C9H23NO7P2 H2O: C, 32.05; H, 7.47; N, 4.15; P, 18.4. Found: C, 31.55; H, 6.88; N, 3.92; P, 18.6.
(10-Amino-1-hydroxydecylidene)bisphosphonic acid (7). As an exception to the general method 7 was refluxed for 5 h in 2 M HCl instead of water and the product was washed with water, yield 66%; 1H-NMR (D2O/NaOD, 500.1 MHz): δ 2.58 (2H, t, J = 7.0 Hz), 1.93–1.80 (2H, m), 1.60–1.50 (2H, m), 1.47–1.38 (2H, m), 1.37–1.23 (10H, m); 13C-NMR (D2O/NaOD, 125.8 MHz): 79.7 (t, 1JCP = 134.5 Hz), 43.4, 39.1, 34.7, 33.3, 31.9, 31.9, 31.5, 28.9, 27.2 (t, 2JCP = 5.1 Hz); 31P-NMR (D2O/NaOD, 202.5 MHz): δ 19.25 (s); IR (KBr) 3327, 2913, 2849, 2274, 1648, 1542, 1472, 1338, 1228, 1082, 970, 921, 810, 772, 742, 728, 647 cm−1. Anal. Calcd. for C10H25NO7P2: C, 36.04; H, 7.56; N, 4.20; P, 18.6. Found: C, 35.87; H, 7.65; N, 3.94; P, 18.2.
(11-Amino-1-hydroxyundecylidene)bisphosphonic acid (8; CAS Registry Number: 97815-71-9). Yield 100%; 1H-NMR (D2O/NaOD, 500.1 MHz): δ 2.58 (2H, t, J = 7.0), 1.92–1.80 (2H, m), 1.58–1.49 (2H, m), 1.46–1.37 (2H, m), 1.36–1.23 (12H, m); 13C-NMR (D2O/NaOD, 125.8 MHz): 79.6 (t, 1JCP = 134.4 Hz), 43.4, 39.1, 34.6, 33.3, 31.9, 31.9, 31.6, 31.4, 28.9, 27.2 (t, 2JCP = 5.2 Hz); 31P-NMR (D2O/NaOD, 202.5 MHz): δ 19.33 (s); IR (KBr) 3566, 3198, 2914, 2847, 2664, 2340, 1635, 1521, 1475, 1380, 1300, 1206, 1155, 1097, 1042, 989–930, 722, 668 cm−1. Anal. Calcd. for C11H27NO7P2 H2O: C, 36.17; H, 8.00; N, 3.83; P, 17.0. Found: C, 36.20; H, 8.03; N, 3.73; P, 17.2.
(12-Amino-1-hydroxydodecylidene)bisphosphonic acid (9; CAS Registry Number: 724457-78-7). The product was washed with hot water, yield 85%; 1H-NMR (D2O/NaOD, 500.1 MHz): δ 2.58 (2H, t, J = 7.0), 1.92–1.80 (2H, m), 1.58–1.49 (2H, m), 1.46–1.37 (2H, m), 1.36–1.23 (14H, m); 13C-NMR (D2O/NaOD, 125.8 MHz): 79.6 (t, 1JCP = 134.4 Hz), 43.4, 39.1, 34.6, 33.3, 31.9 (2C), 31.6, 31.5, 31.4, 28.9, 27.2 (t, 2JCP = 5.2 Hz); 31P-NMR (D2O/NaOD, 202.5 MHz): δ 19.35 (s); IR (KBr) 3326, 2916, 2849, 2360, 2342, 1647, 1542, 1472, 1333, 1227, 1067, 969, 935, 808, 773, 749, 730, 668, 648 cm−1. Anal. Calcd. for C12H29NO7P2: C, 39.89; H, 8.09; N, 3.88; P, 17.1. Found: C, 40.31; H, 8.18; N, 3.85; P, 17.0.
(16-Amino-1-hydroxyhexadecylidene)bisphosphonic acid (10). As an exception to the general method 10 was stirred for two days at 70 °C and refluxed over night after addition of water. The product was washed with methanol and hot water, yield 78%, IR 2918, 2850, 1647, 1542, 1471, 1333, 1230, 1055, 970, 916, 804, 777, 757, 728, 667 cm−1. Anal. Calcd. for C16H37NO7P2: C, 46.04; H, 8.93; N, 3.36; P, 14.8. Found: C, 47.41; H, 9.08; N, 3.46; P, 14.5.

3.3. Spectrophotometric Analysis

A Jasco V-530 UV/Vis spectrophotometer was used for phosphorus determination at 880 nm wavelength. Filtered liquid samples were diluted to the appropriate volume with Milli-Q water and were digested with the persulphate oxidation technique in acidic medium at elevated temperature to convert aminobisphosponates to orthophosphate. In an acidic medium, ammonium molybdate and antimony potassium tartrate react with orthophosphate to form a phosphomolybdic acid that is reduced to intensively colored molybdenum blue by ascorbic acid [30].

3.4. Determination of Solubility

Aqueous solubilities were determined at constant room temperature (21.0 °C) for compounds 110 (agitation time 30 min) and at constant 4.0 °C, 7.6 °C, 21.0 °C, 30.0 °C, 40.0 °C and 50.0 °C temperature for compounds 2, 4 and 5 by preparing a saturated solution of the compound in Milli-Q water without buffering (agitation time 24 h). The mixture containing an excess of the studied compound was first agitated for predetermined time with magnetic stirrer and before taking the sample mixture was allowed to stand for 24 h without stirring. The sample (about 5 mL) was taken from liquid above the solids, pH was measured and the sample was filtered through 0.2 µm membrane filter to remove any possible insoluble particles. The phosphorus concentration in the filtered sample solution was determined by using the spectrophotometric method described above. Samples for pH dependent solubility measurements were prepared from compounds 2, 4, 6, 8 and 9 as above, but now pH was adjusted to the desired value by using sodium hydroxide or hydrochloric acid solutions of the appropriate concentrations.

3.5. Determination of the Protonation Constants

The details of the experiments using (traditional) potentiometric titration are presented in the Supporting Information. The results of the determination by Sirius instrument are shown in the Supporting Information. Potentiometric titrations of the compounds were performed with the PCA200 apparatus (Sirius Analytical Instruments Ltd, Forest Row, East Sussex, UK).

3.6. Elemental Analysis

Elemental analyses (C, H, N) were accomplished with a ThermoQuest CE Instruments EA 1110-CHNS-O elemental analyzer (CE Instruments, Milan, Italy). Phosphorus contents of compounds were determined at 880 nm by Jasco V-530 spectrophotometer using molybdenum blue method as described above. Solid samples were decomposed with nitric acid by the microwave digestion technique using CEM MDS-81D Microwave System prior to phosphorus determination.

3.7. Thermal Analysis

Thermal decomposition paths with evaluation of crystal water content were obtained parallel with two instruments; Perkin Elmer STA 6000 thermogravimetric TG/DTA and Perkin Elmer TGA 7 analyzers (Perkin Elmer, Massachusetts, USA). Measurements were carried out in an open platinum crucible (the higher 5 mm crucible was used in TG/DTA and a shallower 2 mm crucible in TGA 7) under air atmosphere (flow rate of 45 mL/min) with a heating rate of 5 °C/min over the temperature range of 25−700 °C. The temperature calibration of STA 6000 was made using melting points of indium (156.60 °C) and zinc (419.5 °C) standards. For TGA 7 magnetic Curie-point calibration technique (Alumel, Ni, Perkalloy, Fe) was used. The weight balance of both instruments was calibrated by measuring a standard weight of 50 mg at room temperature. The sample weights used in the measurements were about 4–8 mg, and for each bisphosphonate, it was attempted to keep the same on both instruments. The melting/dehydration/decomposition behavior of the compounds was also visually monitored using a Stuart Scientific SMP3 melting point apparatus.

4. Conclusions

In summary, ten aminobisphosphonates, H2N(CH2)nC(OH)[P(O)(OH)2]2210 with variable chain lengths were prepared under similar conditions. As an exception compound 1 was isolated as a monosodium salt, whereas the other compounds were crystallized in their acidic forms. The common physicochemical and spectroscopic data of the bisphosphonates were measured. Only compounds 6 (n = 8) and 8 (n = 10) contained one molecule of water of crystallization. The solubility of the compounds was dependent on the chain length, since compounds 16 (n = 2–8) were soluble in gram per liter quantities, compound 7 in hundreds of milligrams per liter and the rest of the compounds only in tens of milligrams per liter. The decreasing trend in water solubility was most likely caused by the increasing lipophilicity of the compounds in parallel with the increase in alkyl chain length. As expected, temperature had also a clear effect on solubility, which was about doubled for compounds 2, 4 and 5, when the temperature was increased from 7.6 °C to 50.0 °C. However, pH had only a minimal effect on solubility of compounds 2, 4 and 6, while compounds 8 and 9 displayed minimal solubility at pH 2. The pKa values were determined accurately for the most soluble compounds 15, the pKa1-pKa5 values of which were in general 1, 2, 6, 10 and 12, respectively.
The 1H-NMR spectra for the studied compounds were complicated due to the prochiral R-CH2-C(OH)P2 fragment. Detailed 1H-NMR spectral analyses were performed for compounds 15 indicating that only pamidronate exhibited any remarkable intramolecular hydrogen bonding. The other NMR chemical shifts and coupling constants in both liquid 13C, 31P-NMR and solid state 13C, 15N and 31P-NMR samples were typical for these types of compounds. Thermoanalytical studies of these compounds revealed their relatively low thermal stability as the majority of the compounds degraded at about 200 °C, most likely via a deamination process.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/17/9/10928/s1.

Acknowledgments

We thank Niko Jukarainen for editing the manuscript, Maritta Salminkoski and Helena Vepsäläinen, School of Pharmacy, University of Eastern Finland, for their help in the synthesis and analytical work, Mari Ruuskanen for the layout of Figure 3. This work was supported by the Academy of Finland (Grant No. 132070), strategic funding of UEF and PhoSciNet COST action. We are grateful to Spec. Lab. Technician Reijo Kauppinen, Department of Chemistry, University of Jyväskylä, for his help with the CPMAS NMR measurements.

References

  1. Menschutkin, N. Über die Einwirkung des Chloracetyls auf phosphorige Saure. Ann. Chem. Pharmacol. 1865, 133, 317–320. [Google Scholar] [CrossRef]
  2. Russell, R.G.G. Bisphosphonates: The first 40 years. Bone 2011, 49, 2–19. [Google Scholar]
  3. Fleisch, H. Bisphosphonates in Bone Disease: From the Laboratory to the Patient; The Parthenon Publishing Group Inc.: New York, NY, USA, 1995. [Google Scholar]
  4. Casolaro, M.; Casolaro, I.; Spreafico, A.; Capperucci, C.; Frediani, B.; Marcolongo, R.; Margiotta, N.; Ostuni, R.; Mendichi, R.; Samperi, F.; et al. Novel therapeutic agents for bone resorption. Part 1. Synthesis and protonation thermodynamics of poly(amido-amine)s containing bis-phosphonate residues. Biomacromolecules 2006, 7, 3417–3427. [Google Scholar]
  5. Hirabayashi, H.; Sawamoto, T.; Fujisaki, J.; Tokunaga, Y.; Kimura, S.; Hata, T. Relationship between physicochemical and osteotropic properties of bisphosphonic derivatives: Rational design for osteotropic drug delivery system (ODDS). Pharm. Res. 2001, 18, 646–651. [Google Scholar] [CrossRef]
  6. Reddy, G.V.; Jacobs, H.K.; Gopalan, A.S.; Barrans, R.E., Jr.; Dietz, M.L.; Stepinski, D.C.; Herlinger, A.W. Synthesis of symmetrical methylenebis(alkyl hydrogen phosphonates) by selectivecleavage of methylenebis(dialkyl phosphonates) with morpholine. Synt. Commun. 2004, 34, 331–334. [Google Scholar] [CrossRef]
  7. Chuiko, A.L.; Lozinsky, M.O.; Jasicka-Misiak, I.; Kafarski, P. Herbicidal derivatives of aminomethylenebisphosphonic acid. Part IV. Hydroxyalkylidenebisphosphonates, iminomethylenebisphosphonates and ureidomethylenebisphosphonates J. Plant. Growth Regul. 1999, 18, 171–174. [Google Scholar] [CrossRef]
  8. Ghosh, S.; Chan, J.M.W.; Lea, C.R.; Meints, G.A.; Lewis, J.C.; Tovian, Z.S.; Flessner, R.M.; Loftus, T.C.; Bruchhaus, I.; Kendrick, H.; et al. Effects of bisphosphonates on the growth of Entamoeba histolytica and Plasmodium species in vitro and in vivo. J. Med. Chem. 2004, 47, 175–187. [Google Scholar] [CrossRef]
  9. Fu, R.; Hu, S.; Wu, X. Mix-solvothermal syntheses, characterization, and properties of new zinc diphosphonates with zn-o-p chains, layers, and 3d frameworks. Crystal Growth Des. 2007, 7, 1134–1144. [Google Scholar]
  10. Ylitalo, R. Bisphosphonates and atherosclerosis. Gen. Pharmacol. 2002, 35, 287–296. [Google Scholar]
  11. Liu, D.; Kramer, S.A.; Huxford-Phillips, R.C.; Wang, S.; Della Rocca, J.; Lin, W. Coercing bisphosphonates to kill cancer cells with nanoscale coordination polymers. Chem. Commun. 2012, 48, 2668–2670. [Google Scholar]
  12. Rogers, M.J. New insights into the molecular mechanisms of action of bisphosphonates. Curr. Pharm. Des. 2003, 9, 2643–2658. [Google Scholar] [CrossRef]
  13. Martell, A.E.; Smith, R.M. Critical Stability Constants Database; NIST: Gaithersburg, MD, USA, 2003. [Google Scholar]
  14. Kubíček, V.; Kotek, J.; Hermann, P.; Lukeš, I. Aminoalkylbis(phosphonates): Their complexation properties in solution and in the solid state. Eur. J. Inorg. Chem. 2007, 333–344. [Google Scholar]
  15. Zeevaart, J.R.; Jarvis, N.V.; Louw, W.K.A.; Jackson, G.E.; Cukrowski, I.; Mouton, C.J. Metal-ion speciation in blood plasma incorporating the bisphosphonate, 1-hydroxy-4-aminopropilydenediphosphonate (APD), in therapeutic radiopharmaceuticals. J. Inorg. Biochem. 1999, 73, 265–272. [Google Scholar] [CrossRef]
  16. Yates, A.J.; Rodan, G.A. Alendronate and osteoporosis. DDT 1998, 3, 69–78. [Google Scholar]
  17. Hägele, G.; Szakács, Z.; Ollig, J.; Hermens, S.; Pfaff, C. NMR-Controlled titrations: Characterizing aminophosphonates and related structures. Heteroatom Chem. 2000, 11, 562–582. [Google Scholar] [CrossRef]
  18. Boichenko, A.P.; Markov, V.V.; Le Kong, H.; Matveeva, A.G.; Loginova, L.P. Re-evaluated data of dissociation constants of alendronic, pamidronic and olpadronic acids. Cent. Eur. J. Chem. 2009, 7, 8–13. [Google Scholar] [CrossRef]
  19. Dyba, M.; Jezowska-Bojczuk, M.; Kiss, E.; Kiss, T.; Kozlowski, H.; Leroux, Y.; El Manouni, D. 1-Hydroxyalkane-1,1-diyldiphosphonates as potent chelating agents for metal ions. Potentiometric and spectroscopic studies of copper(II) co-ordination. J. Chem. Soc. Dalton Trans. 1996, 1119–1123. [Google Scholar]
  20. Kieczykowski, G.; Jobson, R.; Melillo, D.; Reinhold, D.; Grenda, V.; Shinkai, I. Preparation of (4-amino-1-hydroxybutylidene) bisphosphonic acid sodium salt, MK-217 (alendronate sodium). An improved procedure for the preparation of 1-hydroxy-1,l-bisphosphonica acids. J. Org. Chem. 1995, 60, 8310–8312. [Google Scholar] [CrossRef]
  21. Kivikoski, J.; Garcia-Ruiz, J.M.; Vepsäläinen, J.; Higes, F.; Pohjala, E.; Välisaari, J. Crystal growth and characterization of methylenebisphosphonate partial esters. J. Phys. D Appl. Phys. 1993, 26, B172–B175. [Google Scholar]
  22. Günther, H. NMR Spectroscopy, 2nd ed; Wiley: Chichester, UK, 1995; p. 207. [Google Scholar]
  23. Shkol'nikova, L.M.; Sotman, S.S.; Afonin, E.G. Crystal and molecular-structures of 2 complexones of the alkylidenediphosphone family- Monohydrate of dimethylaminomethylidenediphosphonic and alpha-oxy-gamma-aminopropylidendiphosphonic acids. Kristallografiya 1990, 35, 1442–1449. [Google Scholar]
  24. Ohanessian, J.; Avenel, D.; El Manouni, D.; Benramdane, M. The molecular structure of 4-amino 1-hydroxy butylidene-1 bisphosphonic acid (AHBBPA); an uncommon anhydrous hydroxybisphosphonic acid. Phosphorus Sulfur Silicon Relat. Elem. 1997, 129, 99–110. [Google Scholar] [CrossRef]
  25. Coiro, V.M.; Lamba, D. Structure of 6-amino-1-hydroxyhexylidenebis(phosphonic acid). Acta Cryst. Sect. C Cryst. Struct. Commun. 1989, 45, 446–448. [Google Scholar] [CrossRef]
  26. Simmonds, P.G.; Medley, E.E.; Ratcliff, M.A., Jr.; Shulman, G.P. Thermal decomposition of aliphatic monoaminomonocarboxylic acids. Anal. Chem. 1972, 44, 2060–2066. [Google Scholar] [CrossRef]
  27. Afonin, E.G.; Aleksandrov, G.G. Piperazinium and piperidinium trihydrogen1-hydroxyethane-1,1-diphosphonates. Russ. J. Gen. Chem. 2002, 72, 221–225. [Google Scholar] [CrossRef]
  28. Widler, L.; Jaeggi, K.A.; Glatt, M.; Müller, K.; Bachmann, R.; Bisping, M.; Born, A.-R.; Cortesi, R.; Guiglia, G.; Jeker, H.; et al. Highly potent geminal bisphosphonates. From pamidronate disodium (Aredia) to zoledronic acid (Zometa). J. Med. Chem. 2002, 45, 3721–3788. [Google Scholar]
  29. Amara, N.; Mashiach, R.; Amar, D.; Krief, P.; Spieser, S.; Bottomley, M.; Aharoni, A.; Meijler, M. Covalent inhibition of bacterial quorum sensing. J. Am. Chem. Soc. 2009, 131, 10610–10619. [Google Scholar]
  30. 4500-P Phosphorus#1 in Standard Methods for the Examination of Water and Wastewater. American Public Health Association, 1999. Available online: http://www.umass.edu/tei/mwwp/acrobat/sm4500P-E.PDF (accessed on 1 August 2012).
  • Sample Availability: Samples of the compounds 110 are available from the authors.
