Article

N-Substituted 5-Chloro-6-phenylpyridazin-3(2H)-ones: Synthesis, Insecticidal Activity Against Plutella xylostella (L.) and SAR Study

State Key Laboratory Breeding Base of Green Pesticides and Agricultural Bioengineering, Key Laboratory of Green Pesticides and Agricultural Bioengineering, Ministry of Education, Guizhou University, Guiyang 550025, China
*
Author to whom correspondence should be addressed.
Molecules 2012, 17(8), 9413-9420; https://doi.org/10.3390/molecules17089413
Received: 5 July 2012 / Revised: 27 July 2012 / Accepted: 30 July 2012 / Published: 6 August 2012

Abstract

A series of N-substituted 5-chloro-6-phenylpyridazin-3(2H)-one derivatives were synthesized based on our previous work; all compounds were characterized by spectral data and tested for in vitro insecticidal activity against Plutella xylostella. The results showed that the synthesized pyridazin-3(2H)-one compounds possessed good insecticidal activities, especially the compounds 4b, 4d, and 4h which showed > 90% activity at 100 mg/L. The structure-activity relationships (SAR) for these compounds were also discussed.
Keywords: pridazin-3(2H)-one; synthesis; insecticidal activity; SAR study; Plutella xylostella pridazin-3(2H)-one; synthesis; insecticidal activity; SAR study; Plutella xylostella

1. Introduction

The diamondback moth (Plutella xylostella L.) is a serious pest insect in many parts of the World [1,2]. Serious yield losses to crucifers (such as cabbage, cauliflower, broccoli, brussels sprouts and turnip) from the diamondback moth have become more common in recent years. Currently, insecticide application is the primary method for controlling this pest [2,3], but particularly severe diamondback moth resistance to insecticides has been resulting from the indiscriminate use of pesticides in many tropical and subtropical countries [4,5,6] so controlling the diamondback moth has become more and more difficult, and the development of novel insecticides for this insect has attracted more and more attention.
Pyridazinones, an important class of heterocyclic ring, have attracted more and more attention due to their broad-spectrum biological activity as plant virucides [7,8], antitumor agents [9], fungicides [10,11,12], insecticides [13,14], and herbicides [15,16,17]. In the insecticidal area, many pyridazin-3(2H)-one derivatives with good insecticidal activity have been discovered and commercialized, such as pyridaphenthion, pyidaben, NC-184, and NC-170 [18]. Moreover, some compounds containing N-substituted 6-phenylpyridazin-3(2H)-one moieties (Figure 1, 13) were reported, all of which showed excellent insecticidal activity against Spodoptera exigua (H.), Heliothis virescens, Tetranychus urticae, et al. [19,20,21]. In our previous study, several N-substituted 6-phenylpyridazin-3(2H)-one derivatives 4 were reported, which showed fungicidal activity against G. zeae, F. oxysporum and C. mandshurica to a certain extent [22]. However, in the process of developing novel insecticidal molecules, we noted that these compounds 14 have as a common structure (N-substituted 5–chloro-6-phenylpyridazin-3(2H)-one), see Figure 1). With this in mind, in an effort to discover new scope of application for compounds 4, we sought to test their insecticidal activity against Plutella xylostella (L.), and occasionally found that some of the pyridazin-3(2H)-one derivatives [22] showed 100% insecticidal activity against Plutella xylostella at 100 mg/L. In the current work, several new N-substituted 5–chloro-6-phenylpyridazin-3(2H)-one derivatives 4is were synthesized based on our previous synthetic route (Scheme 1) [22], the insecticidal activity and structure-activity relationship (SAR) for these compounds [including the compounds (4ah) in reference [22] against Plutella xylostella were evaluated and discussed, respectively.

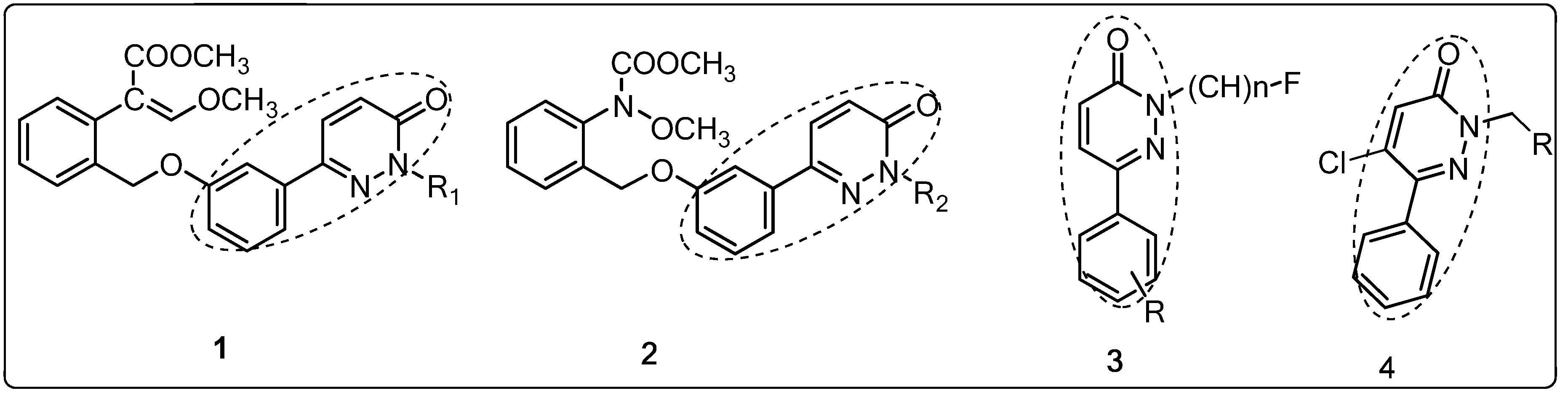

Figure 1. The common cores of biologically active compounds 1 to 4.
Figure 1. The common cores of biologically active compounds 1 to 4.
Molecules 17 09413 g001

2. Results and Discussion

2.1. Chemistry

The synthetic protocols of the title compounds was depicted in Scheme 1. Friedel-Crafts alkylation of benzene with mucochloric acid leads to γ-phenyldichlorocrotonolactone (7), then 7 reacts in a complex manner with hydrazine hydrate, with elimination of one atom of chlorine [23], to afford a high yields of 5–chloro-6-phenylpyridazin-3(2H)-one (8). Compounds 4as were then obtained in excellent yields by reaction of 8 with different halides based on our previous work [22]. The structures of the synthesized compounds were confirmed by 1H-NMR, 13C-NMR, IR and elemental analysis. All spectral and analytical data were consistent with the assigned structures.
Scheme 1. Synthetic route to N-substituted 5–chloro-6-phenylpyridazin-3(2H)-ones 4as.
Scheme 1. Synthetic route to N-substituted 5–chloro-6-phenylpyridazin-3(2H)-ones 4as.
Molecules 17 09413 g002

2.2. Insecticidal Activity

As indicated in Table 1, many of the synthesized compounds exhibited weak to excellent insecticidal activities against P. xylostella at 100 mg/L. Compounds 4b, 4d, 4h and 4t showed 100%, 93%, 97% and 84% activity at 100 mg/L, respectively. Compounds 4f, 4g and 4l showed moderate activities against P. xylostella at 100 mg/L (50%, 60% and 62%, respectively). When the concentration was 50 mg/L, compound 4b still showed 97% activity against P. xylostella, which was similar as that of chlorpyrifos (97%), and compound 4s possessed 84% activity on P. xylosella. In addition, compounds 4d and 4h also displayed >70% activity on P. xylostella at 50 mg/L. Moreover, when the concentration was 25 mg/L, the insecticidal activities were decreased, although we noted that compounds4b, 4d, 4h and 4s still possessed insecticidal activity to a certain extent (21%, 20%, 20% and 15%, respectively).

2.3. Structure-Activity Relationship (SAR) Study

The preliminary SAR analysis indicated that a big (in bulk) group with strong electronegativity at the 2-postion on the benzene (in a –CH2R group) has a positive influence enhancing the insecticidal activity of the synthesized compounds, that’s why the compounds 4b (–CH2R = 2-NO2-C6H4CH2-) and 4h (–CH2R = 2–CH3O-C6H4CH2-) showed higher activity than 4e (–CH2R = 2-F-C6H4CH2-) and 4m (–CH2R = 2–CH3-C6H4CH2-), therefore, we can speculate that both the bulk and electronegativity of the substituent group at the 2-position on benzene play important roles in the insecticidal activity against P. xylostella. In addition, the position of the group on benzene also a key factor for the activity, as we can see that compound 4b showed excellent activity, while compound 4c (–CH2R= 3-NO2-C6H4CH2-) and 4i (–CH2R=4-NO2-C6H4CH2-) showed little (or no) activity (4b >4c > 4i); a similar case can be found when the group was CH3O- (4h > 4j > 4k). Moreover, the introduction of 2-Cl-substituted pyridine and thiazole in group of –CH2R can also enhance insecticidal activity, e.g., compound 4b (–CH2R = 2-Cl-pyridine–CH2-) and 4t (–CH2R = 2-Cl-thiazole–CH2-) also displayed good insecticidal activity against P. xylostella.
Table 1. Insecticidal activity of the synthesized compounds against P. xylostella.
Table 1. Insecticidal activity of the synthesized compounds against P. xylostella.
Comp.Insecticidal activity (%) at a concentration of (mg/L)
1005025
4a20//
4b1009721
4c250/
4d937620
4e13//
4f50130
4g450/
4h977020
4i100/
4j45130
4k603013
4l62330
4m200/
4n15//
4o14//
4p210/
4q4310/
4r310/
4s846015
Blank control000
Chlorpyrifos1009767
Avermectin100100100

3. Experimental

3.1. Chemistry

Melting points were determined by using a XT-4 binocular microscope (Beijing Tech Instrument Co., Beijing, China) and are uncorrected. 1H and 13C-NMR spectra were recorded on a JEOL ECX 500 NMR spectrometer operating at room temperature and 500 MHz using acetone-d6 or CDCl3 as solvent and TMS as an internal standard. Infrared spectra were recorded by KBr using a Bruker VECTOR 22 spectrometer. Elemental analysis was performed using an Elemental Vario-III CHN analyzer. The course of the reactions was monitored by TLC; analytical TLC was performed on silica gel GF254. All reagents were of analytical grade or chemically pure. All anhydrous solvents were dried and purified according to standard techniques just before use. All the intermediates and title compounds were prepared according to the literature [22]. The properties for compounds 4ah were reported in our previous work [22]. The properties for 4is are listed as follows.
5–Chloro-2-(3-nitrobenzyl)-6-phenylpyridazin-3(2H)-one (4i): White solid; yield: 76%; m.p.: 79–80 °C; 1H-NMR (CDCl3) δ: 8.32 (s, 1H, Ph-H), 8.18, (J = 8.0 Hz, 1H, Ph-H), 7.81 (1H, J = 7.45 Hz, Ph-H), 7.47–7.56 (m, 6H, 6Ph-H), 7.15 (s, 1H, pyridazine-H), 5.43 (s, 2H, CH2); 13C-NMR (CDCl3) δ: 158.71, 148.49, 145.90, 140.21, 137.51, 135.12, 133.31, 129.82, 129.21, 129.02, 128.42, 123.83, 123.33, 54.61, 49.73; IR (KBr): ν 3058.0, 2951.0, 2834.1, 1673.6 cm−1; Anal. Calc. for C17H12ClN3O3: C 59.75, H 3.54, N 12.30. Found: C 59.69, H 3.60, N 12.33.
5-Chloro-2-(4-methoxybenzyl)-6-phenylpyridazin-3(2H)-one (4j): White solid; yield: 78%; m.p.: 138–140 °C; 1H-NMR (CDCl3) δ: 8.22 (d, 3J = 8.6 Hz, 2H, 2Ph-H), 7.63 (d, 3J = 8.6 Hz, 2H, 2Ph-H) 7.43–7.52 (m, 5H, 5Ph-H), 7.12 (s, 1H, pyridazine-H), 5.43 (s, 2H, CH2), 3.85 (s, 3H, OCH3); 13C-NMR (CDCl3) δ: 158.72,148.44, 145.91, 141.22 133.53, 132.16, 133.33, 128.82, 127.28, 127.08, 126.43, 122.88, 122.33, 53.89, 49.74; IR (KBr): ν 3016.2, 2961.3, 1672.6 cm1 Anal. Calc. for C18H15ClN2O2: C 66.16, H 4.63, N 8.57. Found: C 66.19, H 4.60, N 8.61.
5-Chloro-2-(3-methoxybenzyl)-6-phenylpyridazin-3(2H)-one (4k): White solid; yield: 76%; m.p.: 83–85 °C; 1H-NMR (CDCl3) δ: 7.82 (s, 1H, Ph-H), 7.64, (d, J = 7.45 Hz, 1H, Ph-H), 7.53–7.55 (m, 2H, Ph-H), 7.45–7.47 (m, 2H, Ph-H), 7.41 (d, J = 7.45 Hz, 1H, Ph-H), 7.12 (d, 1H, pyridazine-H), 7.06 (t, J = 7.4 Hz, 1H, Ph-H), 5.27 (s, 2H, CH2), 3.82 (s, 3H, OCH3); 13C-NMR (acetone-d6) δ:158.38, 157.32, 144.47, 139.10, 134.23, 129.32, 128.80, 128.46, 128.14, 124.60, 110.50, 55.12, 49.81; IR (KBr): ν 3058.0, 2951.0, 2834.1, 1673.6 cm−1; Anal. Calc. for C18H15ClN2O2: C 66.16, H 4.63, N 8.57. Found: C 66.21, H 4.58, N 8.58.
5-Chloro-2-(3-fluorobenzyl)-6-phenylpyridazin-3(2H)-one (4l): White solid; yield: 73%; m.p.: 82–84 °C; 1H-NMR (CDCl3) δ:8.32 (t, J = 1.7 Hz, 1H, Ph-H), 8.18 (d, J = 8.6 Hz, 1H, Ph-H), 7.80 (d, J = 7.45 Hz, 1H, Ph-H), 7.46–7.56 (m, 6H, 6Ph-H), 7.15 (s, 1H, pyridazine-H), 5.44 (s, 2H, CH2); 13C-NMR (CDCl3) δ:157.75, 147.46, 144.95, 140.23, 136.53, 135.14, 133.23, 129.85, 129.72, 129.07, 128.45, 123.94, 123.33, 56.63; IR (KBr): ν 3058.5, 2955.3, 2835.5, 1675.6 cm−1; Anal. Calc. for C17H12ClFN2O: C 64.87, H 3.84, N 8.90. Found: C 64.89, H 3.86, N 8.88.
5-Chloro-2-(2-methylbenzyl)-6-phenylpyridazin-3(2H)-one (4m): White solid; yield: 78%; m.p.: 78.6–79.8 °C; 1H-NMR (acetone-d6) δ: 7. 7.37–7.87 (m, 9H, Ph-H), 7.15 (s, 1H, pyridazine-H), 5.45 (s, 2H, CH2), 2.35 (s, 3H, CH3); 13C-NMR (acetone-d6)δ: 156.35, 154.41, 146.47, 137.01, 133.29, 128.28, 128.36, 127.85, 127.45, 127.16, 122.30, 120.31, 108.67, 52.03, 20.12; IR (KBr): ν 3041.0, 2956.0, 2834.4, 1674.6 cm−1; Anal. Calc. for C18H15ClN2O: C 69.57, H 4.86, N 9.01. Found: C 69.62, H 4.88, N 8.98.
5-Chloro-2-(3-methylbenzyl)-6-phenylpyridazin-3(2H)-one (4n): White solid; yield: 78%; m.p.: 95.4–96.8 °C; 1H-NMR (acetone-d6)δ: 7.40–8.07 (m, 9H, Ph-H), 7.19 (s, 1H, pyridazine-H), 5.38 (s, 2H, CH2), 2.29 (s, 3H, CH3); 13C-NMR (acetone-d6)δ: 157.35, 154.45, 145.15, 136.61, 134.24, 128.56, 128.16, 127.55, 127.35, 127.13, 121.33, 120.33, 108.47, 52.83, 20.72; IR (KBr): ν 3045.1, 2955.6, 2837.6, 1665.6 cm−1; Anal. Calc. for C18H15ClN2O: C 69.57, H 4.86, N 9.01. Found: C 69.49, H 4.81, N 9.03.
5-Chloro-2-(4-methylbenzyl)-6-phenylpyridazin-3(2H)-one (4o): White solid; yield: 83%; m.p.: 99–101 °C; 1H-NMR (acetone-d6) δ: 7.93(d, 3J = 8.6 Hz, 2H, 2Ph-H), 7.43 (d, 3J = 8.6 Hz, 2H, 2Ph-H) 7.23–7.52 (m, 5H, 5Ph-H), 7.13 (s, 1H, pyridazine-H), 5.54 (s, 2H, CH2), 2.17 (s, 3H, CH3); 13C-NMR (acetone-d6) δ: 158.36, 156.45, 144.16, 135.65, 134.27, 128.76, 128.56, 126.56, 126.35, 126.13, 120.33, 120.30, 108.77, 57.83, 19.02; IR (KBr): ν 3044.8, 2945.5, 2834.6, 1668.4 cm−1; Anal. Calc. for C18H15ClN2O: C 69.57, H 4.86, N 9.01. Found: C 69.56, H 4.79, N 9.02.
5-Chloro-2-(3–chlorobenzyl)-6-phenylpyridazin-3(2H)-one (4p): Light yellow solid; yield: 83%; m.p.: 98–99 °C; 1H-NMR (acetone-d6) δ: 7.83 (s, 1H, Ph-H), 7.65 (d, J = 8.6 Hz, 1H, Ph-H), 7.45–7.56 (m, 5H, 5Ph-H), 7.43 (d, J = 8.6 Hz, 1H, Ph-H), 7.12 (s, 1H, pyridazine-H), 5.31 (s, 2H, CH2); 13C-NMR (acetone-d6) δ: 158.53, 144.03, 137.84, 137.38, 133.54, 130.48, 129.73, 129.32, 129.05, 128.37, 128.31, 94.55, 54.63; IR (KBr): ν 3044.7, 3024.4, 1664.5 cm−1; Anal. Calc. for C17H12Cl2N2O: C 61.65, H 3.65, N 8.46. Found: C 61.59, H 3.68, N 8.50.
2-(2-Bromobenzyl)-5–chloro-6-phenylpyridazin-3(2H)-one (4q): Light yellow solid; yield: 74%; m.p.: 79.5–81.2 °C; 1H-NMR (acetone-d6) δ: 8.08 (dd, J1 = 1.15, J2= 8.55 Hz, 1H, Ph-H), 7.44–7.58 (m, 7H, Ph-H), 7.19 (t, J=7.45 Hz, 1H, Ph-H), 7.17 (s, 1H, pyridazine-H), 5.77 (s, 2H, CH2); 13C-NMR (acetone-d6) δ: 158.9, 148.70, 146.02, 140.31, 133.78, 133.23, 131.08, 129.81, 129.28, 129.24, 129.07, 128.91, 128.41, 125.41, 52.60; IR (KBr): ν 3054.7, 3024.6, 1674.5 cm−1; Anal. Calc. for C17H12BrClN2O: C 54.35, H 3.22, N 7.46. Found: C 54.40, H 3.25, N 7.50.
5-Chloro-2-(4–chlorobenzyl)-6-phenylpyridazin-3(2H)-one (4r): White solid; yield: 86%; m.p.: 124–126 °C; 1H-NMR (CDCl3) δ: 7.66 (d, 3J = 8.6 Hz, 2H, 2Ph-H), 7.45–7.55 (m, 5H, 5Ph-H), 7.21 (d, 3J = 8.6 Hz, 2H, 2Ph-H), 7.11 (s, 1H, pyridazine-H), 5.28 (s, 2H, CH2); 13C-NMR (CDCl3) δ: 158.67, 145.61, 139.83, 137.90, 135.29, 133.55, 131.05, 129.69, 129.31, 128.80, 128.40, 94.19, 54.80; IR (KBr): ν 3045.7, 3023.4, 1664.6 cm−1; Anal. Calc. for C17H12Cl2N2O: C 61.65, H 3.65, N 8.46. Found: C 61.63, H 3.65, N 8.41.
5-Chloro-2-((2–chlorothiazol-5-yl)methyl)-6-phenylpyridazin-3(2H)-one (4s): Light yellow solid; yield: 78%; m.p.: 76–78 °C; 1H-NMR (acetone-d6) δ: 7.53–7.97 (m, 4H, Ph-H), 7.22 (s, 1H, Pyridazine-H), 6.72 (s, 1H, Thiazole-H), 5.25 (s, 2H, CH2); 13C-NMR (acetone-d6) δ: 156.37, 145.76, 137.67, 136.49, 135.78, 135.46, 127.95, 127.65, 127.32, 126.96, 126.63, 126.33, 125.53, 93.64, 53.35; IR (KBr): ν 3035.3, 3022.6, 1673.5 cm−1; Anal. Calc. for C14H9Cl2N3OS: C 49.72, H 2.68, N 12.42. Found: C 49.75, H 2.64, N 12.38.

3.2. Insecticidal Bioassays

The insecticidal activities for the synthesized compounds against P. xylostella were evaluated using previously reported procedures [24,25,26]. Fresh cabbage discs (diameter 2 cm) were dipped into the prepared solutions containing compounds 4a to 4s for 10 s, dried in air and placed in a Petri dish (diameter 9 cm) lined with filter paper. Ten larvae of second-instar P. xylostella were carefully transferred to the Petri dish. Avermectin and chlorpyrifos were used as controls; three replicates were performed for each experiment. Mortalities were determined after 72 h. The results were summarized in Table 1.

4. Conclusions

In the present study, a series of N-substituted 5–chloro-6-phenylpyridazin-3(2H)-one derivatives were synthesized by employing mucochloric acid and benzene as the starting materials. The synthesized compounds were characterized by spectral data (1H-NMR, 13C-NMR, IR) and elemental analysis. The compounds were tested for insecticidal activity in vitro against P. xylostella. The results showed that the synthesized pyridazin-3(2H)-one compounds possessed weak to good insecticidal activities, especially the compounds 4b, 4d, and 4h whichshowed >90% activities at 100 mg/L. The preliminary SAR analysis indicated that a big (in bulk) group with strong electronegativity at the 2-postion on the benzene ring (in a –CH2R group) had a positive influence enhancing the insecticidal activity of the synthesized compounds; moreover, the introduction of a 2-Cl-substituted pyridine and thiazole in the –CH2R group can also enhance the insecticidal activity. Further studies are currently underway to optimize the structure to obtain better insecticidal activity in these N-substituted pyridazin-3(2H)-one derivatives.

Acknowledgements

We are grateful to the National Natural Science Foundation of China (No. 21162004), the Special Foundation of Governor for Outstanding talents in Guizhou (No.2011-38) and the Introduction of Talent Research projects of Guizhou University (No. 2011-24) for their financial support.

References

  1. Arora, R.; Battu, G.S.; Bath, D.S. Management of insect pests of coliflower with biopesticides. Indian J. Ecol. 2000, 27, 156–162. [Google Scholar]
  2. Talekar, N.S.; Shelton, A.M. Biology, ecology and management of the diamondback moth. Ann. Rev. Entomol. 1993, 38, 275–301. [Google Scholar] [CrossRef]
  3. Shelton, A.M.; Tang, J.D.; Roush, R.T.; Metz, T.D.; Earle, E.D. Field tests on managing resistance to Bt-engineered plants. Nat. Biotechnol. 2000, 18, 339–342. [Google Scholar]
  4. Andrews, K.L.; Sanchez, R.J.; Cave, R.D. Management of diamondback moth in Central America. In Diamondback moth Moth Management, Proceedings of the Second International Workshop, Tainan, Taiwan, 10-14 December 1990; pp. 487–497.
  5. Cheng, E.Y. Problems of control of insecticide-resistant Plutella xylostella. Pestic. Sci. 1988, 23, 177–188. [Google Scholar] [CrossRef]
  6. Perez, C.J.; Alvarado, P.; Miranda, F.; Narváez, C.; Hernández, L.; Vanegas, H.; Hruska, A.; Shelton, A.M. Assessment of insecticide resistance in five insect pests attacking field and vegetable crops in Nicaragua. J. Econ. Entomol. 2000, 93, 1779–1787. [Google Scholar] [CrossRef]
  7. Kasnar, B.; Wise, D.S.; Kucera, L.S.; Drach, J.C.; Townsend, L.B. Synthesis of 2′,3′-dideoxy- and 3′-azido-2′,3′-dideoxypyridazine nucleosides as potential antiviral agents. Nucleos. Nucleot. Nucl. 1994, 13, 459–479. [Google Scholar] [CrossRef]
  8. Zou, X.J.; Jin, G.Y.; Yang, Z. Synthesis of hydrazides of 1-aryl-1,4-dihydro-6-methyl-4- pyridazinone and their antiviral activity against TMV. Chin. J. Appl. Chem. 2001, 18, 599–601. [Google Scholar]
  9. Li, R.D.; Zhai, X.; Zhao, Y.F.; Yu, S.; Gong, P. Synthesis and anti-tumor activities of a novel series of tricyclic 1-anilino-5H-pyridazino[4,5-b]indoles. Arch. Pharm. 2007, 340, 424–428. [Google Scholar]
  10. Hiroshi, M.; Akio, M. Pyridazine compound and use thereof. EP Patent 1,767,529, 28 March 2007. [Google Scholar]
  11. Hiroshi, M.; Akio, M. Pyridazine compound and use thereof. WO Patent 2,006,001,175, 5 January 2006. [Google Scholar]
  12. Shinichiro, S.; Shinichiro, M.A.; Akio, M. Pyridazine compound and bactericide containing the same. JP Patent 2,007,182,430, 19 July 2007. [Google Scholar]
  13. Hoshino, K.; Koike, Y. Halopyridazines as insecticides. JP Patent 2,005,263,694, 29 September 2005. [Google Scholar]
  14. Ishimukai, M.; Matsusaka, M. Insecticides comprising dihalopyridazines. JP Patent 2,007,077,140, 29 March 2007. [Google Scholar]
  15. Yang, H.Z.; Xu, H.; Hu, X.H.; Zou, X.M.; Liu, B.; Zhu, Y.Q.; Hu, F.Z. Method for preparation of 3-substituted aminopyridazine derivatives with herbicidal activity. CN Patent 101,058,563, 24 October 2007. [Google Scholar]
  16. Hu, F.Z.; Zhang, G.F.; Zhu, Y.Q.; Zou, X.M.; Liu, B.; Yang, H.Z. Synthesis and biological activity of 3-aryloxy-6-(3,5-dimethyl-1H-pyrazol-1-yl)-pyridazine. Chin. J. Org. Chem. 2007, 27, 758–762. [Google Scholar]
  17. Zou, X.M.; Yang, H.Z.; Xu, H.; Liu, B.; Hu, X.H.; Zhu, Y.Q.; Hu, F.Z. Preparation of 4-(trifluoromethylphenyl)pyridazine derivatives as herbicides. CN Patent 1,962,642, 16 May 2007. [Google Scholar]
  18. Wu, J.; Song, B.A.; Hu, D.Y.; Yang, S. Research advance in insecticidal and acaricidal activities of pyridazine derivatives. Agrochemicals 2011, 50, 630–634. [Google Scholar]
  19. Ross, R.; Shaber, S.H.; Szapacs, E.M. Dihydropyridazinones and pyridazinones and use as fungicides and insecticides. EP Patent 0738716, 23 October 1996. [Google Scholar]
  20. Ross, R.; Shaber, S.H.; Szapacs, E.M. Dihydropyridazinones and pyridazinones and use as fungicides and insecticides. US Patent 5,635,494, 3 June 1997. [Google Scholar]
  21. Lai, H.K.; Paul, T.M.D. Pesticidal phenylpyridazinone derivatives. US Patent 6063781, 16 May 2000. [Google Scholar]
  22. Wu, J.; Song, B.A.; Chen, H.J.; Bhadury, P.; Hu, D.Y. Synthesis and Antifungal Activity of 5–Chloro-6-Phenylpyridazin-3(2H)-one Derivatives. Molecules 2009, 14, 3676–3687. [Google Scholar] [CrossRef]
  23. Drury, K. New methods in the chemistry of pyridazones. Angew. Chem. Intern. Eng. Ed. 1965, 4, 292–300. [Google Scholar] [CrossRef]
  24. Feng, Q.; Liu, Z.L.; Xiong, L.X.; Wang, M.Z.; Li, Y.Q.; Li, Z.M. Synthesis and insecticidal activities of novel anthranilic diamides containing modified N-pyridyl pyrazoles. J. Agric. Food Chem. 2010, 58, 12327–12336. [Google Scholar]
  25. Wang, Y.J.; Ou, X.M.; Pei, H.; Lin, X.M.; Yu, K. Toxicities of novel insecticide chlorfenpyr against several insects in lab. Agrochem. Res. Appl. 2006, 10, 20–23. [Google Scholar]
  26. Zhao, Q.Q.; Li, Y.Q.; Xiong, L.X.; Wang, Q.M. Design, synthesis and insecticidal activity of novel phenylpyrazoles containing a 2,2,2-trichloro-1-alkoxyethyl moiety. J. Agric. Food Chem. 2010, 58, 4992–4998. [Google Scholar]
  • Sample Availability: Samples of all the intermediates and the title compounds 4a-s are available from the authors.
