Molecules 2012, 17(5), 5319-5338; https://doi.org/10.3390/molecules17055319

Article
A Convenient Synthesis of Triflate Anion Ionic Liquids and Their Properties
1
Merck KGaA, PM-ABE, Ionic Liquids Research Laboratory, Frankfurter Str. 250, Darmstadt D-64293, Germany
2
Inorganic Chemistry, Henrich-Heine-University Düsseldorf, Universitätsstrasse 1, Düsseldorf D-40225, Germany
3
Inorganic Chemistry, Bergische University Wuppertal, Gauss Str. 20, Wuppertal D-42119, Germany
4
Professor Emeritus, Inorganic Chemistry, University Duisburg-Essen, Lotharstrasse 1, Duisburg D-47048, Germany
*
Author to whom correspondence should be addressed.
Received: 7 March 2012; in revised form: 13 April 2012 / Accepted: 13 April 2012 / Published: 7 May 2012

Abstract

:
A solvent- and halogen-free synthesis of high purity triflate ionic liquids via direct alkylation of organic bases (amines, phosphines or heterocyclic compounds) with methyl and ethyl trifluoromethanesulfonate (methyl and ethyl triflate) has been developed. Cheap and non-toxic dimethyl and diethyl carbonate serve as source for the methyl and ethyl groups in the preparation of methyl and ethyl triflate by this invented process. The properties of ionic liquids containing the triflate anion are determined and discussed.
Keywords:
methyl triflate; ethyl triflate; ionic liquids; viscosity

1. Introduction

Ionic liquids (ILs) with the triflate anion ([CF3SO3]; OTf) are of interest for practical application in various fields [1,2,3,4]. Triflate ionic liquids are hydrolytically stable and in many cases they are the preferred reaction media in comparison to ionic liquids with the hydrolytically unstable [PF6] or [BF4] anions. For example, the Claisen rearrangement of aromatic allyl esters in [EtDBU][OTf] results in the formation of 2,3-dihydrobenzofuran derivatives in up to 91% yield. The same reaction in [BMIM][PF6] or [BMIM][BF4] gives only 9–12% yield [5]. Recently it was demonstrated that [BMIM][OTf] is also a suitable reaction medium for fluorolactonization of unsaturated carboxylic acids [6]. The combination of [BMIM][OTf] with triflic acid (CF3SO3H, cat.) provides good conditions for the Schmidt reaction, i.e., the conversion of aryl alkyl ketones to the corresponding carboxamides [7]. In triflate ionic liquids polymerization of methyl methacrylate (MMA) generally yields the highest molecular weight [8]. These examples demonstrate the utility of triflate ionic liquids in organic synthesis or in polymer chemistry, but there are further applications for triflate ILs. Due to their high thermal and electrochemical stability these ionic liquids are of interest as heat transfer materials, lubricants and as components of electrolytes for electrochemical cells. The purity of ionic liquids is particularly important for their use in electrochemistry, and quality control should be always in the focus during the preparation of ILs for this application [2].
Typically triflate ionic liquids are prepared by means of the metathesis reaction of the corresponding chlorides, bromides or methylsulfates with metal triflates, CF3SO2OM, for instance M = K [9,10], Na [11], Li [12], Ag [13], with ammonium triflate [14] or triflic acid, CF3SO3H [15]. The ionic liquids prepared by means of this methodology have to be purified from the side products: metal chlorides or bromides, or HCl. The side products then need to be disposed of. The reactions referred above were carried out in organic solvents such as dichloromethane, chloroform, acetone, or methanol, but if we are considering ionic liquids as replacements for volatile organic solvents to perform chemical reactions, then logically the ionic liquids themselves should be produced without the use of organic solvents [16]. Mikami wrote “It is also important to underline that to justify the green solvents label, ionic liquids have to be prepared in an ecological way, without the generation of a large amount of waste material” [17].
Recently, the syntheses of ionic liquids under solvent free conditions were tested by application of microwave (MW), power ultrasound (US) and combined MW/US irradiation [18,19]. The authors have carried out the one pot synthesis of triflate ionic liquids by reacting pyridine or N-methylpyrrolidine, or N-methylimidazole with 1-chlorobutane or 1-chlorooctane in the presence of potassium triflate, KOTf. The reaction mixture was heated under MW-irradiation up to 180 °C after an initial step (10–15 min at 120 °C). This reaction gives the corresponding ionic liquids in 60% to 79% yield [18]. KCl is formed as a side product in this reaction. Replacement of 1-chloroalkanes by 1-bromoalkanes reduced the reaction temperature to 80–90 °C [19]. The yield of ionic liquids increased up to 90%, but KBr is formed as a side product. The final products prepared by means of this methodology have to be purified using organic solvents (acetone, dichloromethane, diethyl ether) to reduce the halogen (chloride or bromide) impurities [18,19].
According to an assessment recently carried out by Deetlefs and Seddon [20] applications of microwave (MW), ultrasound (US) or combined MW/US irradiation to the syntheses of ionic liquids do not meet the principles of green chemistry to the full extent. This technology provides only low-medium atom economy and has a poor E-factor value. Preparation of ionic liquids by alkylation of organic substances with a suitable alkylating reagent is much “greener” in comparison to the metathesis protocol.
Trifluoromethanesulfonic acid (triflic acid, CF3SO3H) is a very strong acid (H0 = −14.1 at 22 °C) [21]. It has a broad application as a catalyst [22] in Friedel-Crafts alkylation and acylation, Diels-Alder reactions, aldol condensations, hydrogenation of alkenes, cyclization and polymerization processes. Triflic acid is the starting material for the production of all variety of triflates, i.e., metal salts, organic salts, triflic anhydride and alkytriflates, CF3SO2OR. Methyl trfiflate, CF3SO2OCH3, was first synthesised by Gramstadt and Haszeldine by the reaction of silver triflate with methyl iodide [23] (Scheme 1).

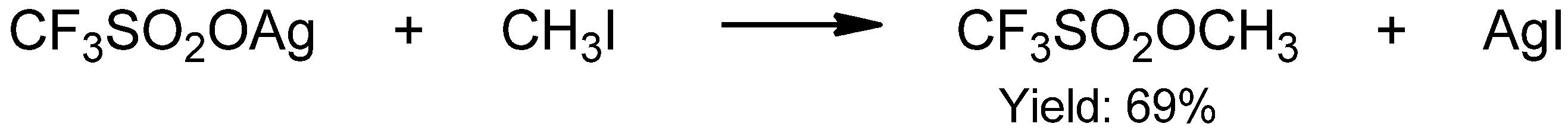

Scheme 1. Synthesis of methyl triflate by the reaction of silver triflate with methyl iodide [23].
Scheme 1. Synthesis of methyl triflate by the reaction of silver triflate with methyl iodide [23].
Molecules 17 05319 g003
Later on Booth et al. [24] used triflic anhydride as a starting material for the synthesis of methyl triflate, CF3SO2OCH3, via reaction with methanol (Scheme 2).

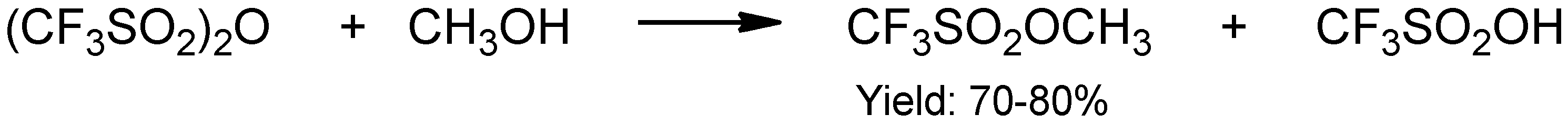

Scheme 2. Synthesis of methyl triflate by the reaction of triflic anhydride with methanol [24].
Scheme 2. Synthesis of methyl triflate by the reaction of triflic anhydride with methanol [24].
Molecules 17 05319 g004
This method can be used to prepare various alkyl triflates, CF3SO2OR, [25,26], but it is not very economical because half of the triflic anhydride is lost. The yield of methyl triflate in this reaction is also not satisfying. A simpler and less expensive procedure for methyl triflate preparation was developed Beard et al. [27] (Scheme 3), but additional efforts are required to utilize the side product, sulphuric acid, contaminated with toxic dimethylsulfate.

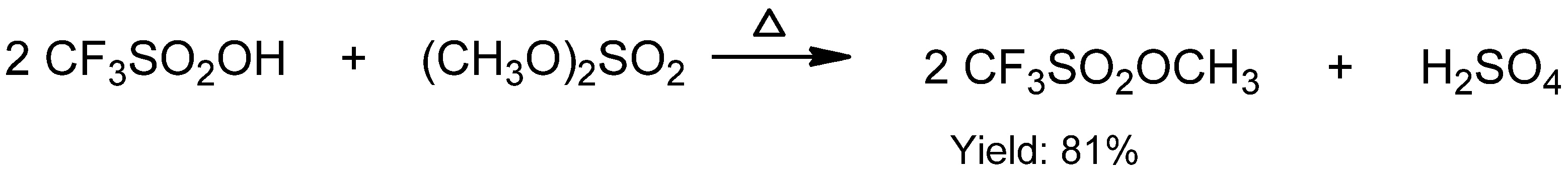

Scheme 3. Synthesis of methyl triflate by the reaction of triflic acid with dimethylsulfate [27].
Scheme 3. Synthesis of methyl triflate by the reaction of triflic acid with dimethylsulfate [27].
Molecules 17 05319 g005

2. Results and Discussion

Recently Merck KGaA (Darmstadt, Germany) has developed a new protocol for the preparation of methyl triflate [28] (Scheme 4).
Scheme 4. Synthesis of methyl triflate by the reaction of triflic anhydride with dimethylcarbonate [28].
Scheme 4. Synthesis of methyl triflate by the reaction of triflic anhydride with dimethylcarbonate [28].
Molecules 17 05319 g006
Commercial available dimethyl carbonate serves as source for the methyl groups in this reaction. This invented method provides a very convenient access to methyl triflate, CF3SO2OCH3. This chemical is formed in a very good yield and CO2 is the only side product in this process. Traces of triflic acid (which is typically present in the commercial triflic anhydride) are enough to catalyse the conversion of triflic acid anhydride and dimethyl carbonate into methyl triflate (Scheme 4). The possible mechanism of this reaction can be described as follows (Scheme 5).

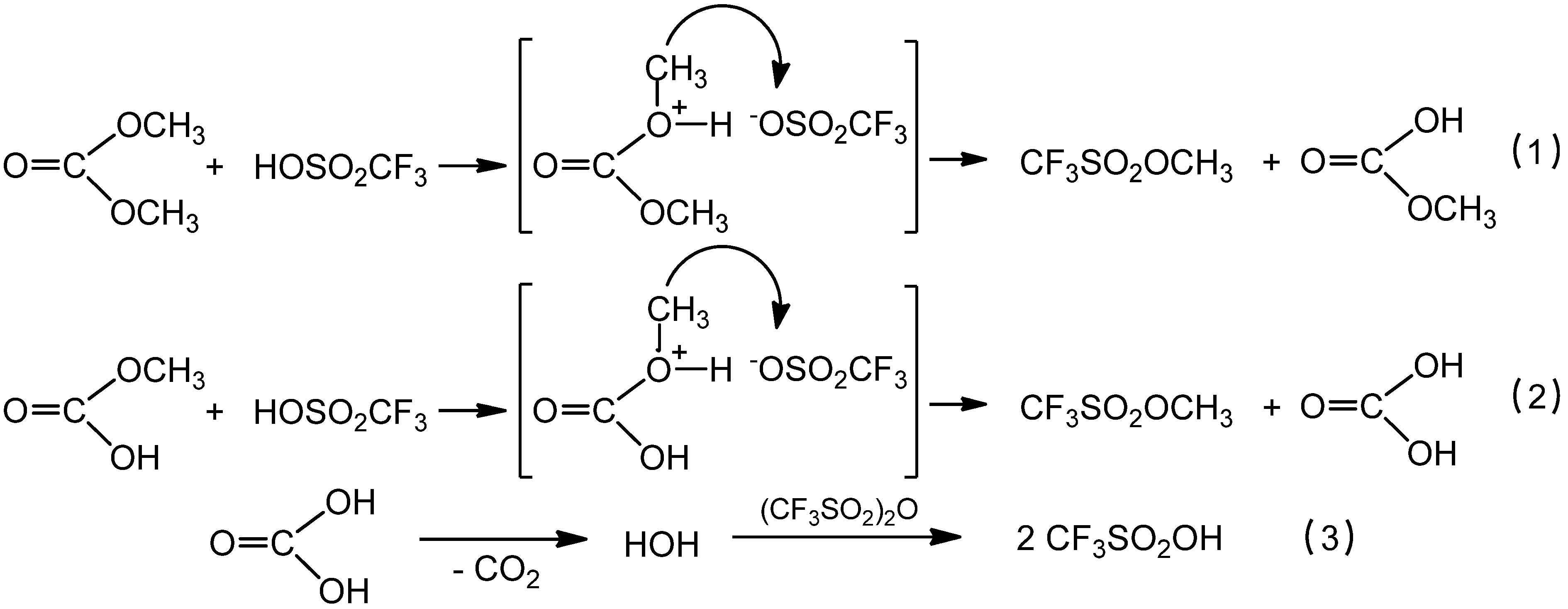

Scheme 5. Proposed mechanism of the reaction of triflic anhydride with dimethylcarbonate catalyzed by triflic acid.
Scheme 5. Proposed mechanism of the reaction of triflic anhydride with dimethylcarbonate catalyzed by triflic acid.
Molecules 17 05319 g007
In the first step triflic acid protonates dimethyl carbonate (Equation 1) inducing the methyl cation transfer to the triflate anion resulting in methyl triflate (Equations 1 and 2). Triflic acid is regenerated in the reaction of triflic anhydride with the water which is formed by decomposition of carbonic acid (Scheme 5, Equation 3). According to this mechanism the triflic acid anhydride plays a role as water scavenger.
The disadvantage of this method is the use of the relatively expensive starting material triflic acid anhydride. To reduce the production costs the combination of triflic acid and acyl or aryl chlorides can be used instead of triflic acid anhydride in this process (Scheme 6) [29]. Acyl or aryl chlorides (for instance cheap and readily available benzoyl chloride) play the role of scavenger of the alcohol and water which are generated as intermediates during the process.
Scheme 6. Syntheses of methyl and ethyl triflate by the reaction of triflic acid with dimethyl- and diethyl-carbonate in the presence of benzoyl chloride [29].
Scheme 6. Syntheses of methyl and ethyl triflate by the reaction of triflic acid with dimethyl- and diethyl-carbonate in the presence of benzoyl chloride [29].
Molecules 17 05319 g008
This method provides a very convenient and simple access not only to methyl triflate, but also to ethyl triflate (Scheme 6). Ethyl triflate or methyl triflate can easily be distilled out of the reaction mixture. The residue consists of ethyl or methyl benzoate, which are valuable products as well.
Ethyl triflate and methyl triflate are broadly used in synthetic organic chemistry to alkylate various substrates: N-heterocycles [30,31,32,33]; S,N-heterocycles [34]; organophosphorus compounds [35,36]; imines [37]; enol silyl ethers [38] and aromatic compounds [23,24].
1-Methylimidazole reacts with methyl triflate in dichloromethane yielding 1,3-dimethyl-imidazolium triflate [39]. Bonhöte et al. [40] have described the alkylation of 1-alkylimidazoles (Alk = CH3, C2H5, C4H9) with methyl or ethyl triflate in refluxing 1,1,1-trichloroethane. The yield of triflate ILs was good, but the use of chlorinated solvent was a drawback in this method.
The alkylation ability of methyl triflate is comparable to that of the Meerwein salt [41]. We have used the alkylation power of methyl triflate to convert ionic liquids with chloride or bromide counter-anions to the corresponding ILs with triflate anion (Scheme 7) [42,43].
Scheme 7. Preparation of triflate ionic liquids from corresponding chlorides or bromides [42,43].
Scheme 7. Preparation of triflate ionic liquids from corresponding chlorides or bromides [42,43].
Molecules 17 05319 g009
This is a very convenient method to prepare triflate ionic liquids with various substituents R and R'. The reaction progresses very fast at room temperature under solvent free conditions. The gaseous CH3Cl or very volatile CH3Br are the only side products in this process. Trimethylsilyl triflate is less active in these reactions, but more convenient to handle [42,43]. The side product, trimethylchlorosilane, can be easily utilised.
To avoid the formation of any side products, the direct alkylation of amines, phosphines or heterocyclic compounds with ethyl or methyl triflate is favored (Scheme 8) [28,29]. This water and halogen free process gives the possibility to prepare triflate ionic liquids of very high quality with residual water below 10 ppm and non-detectable halogenide impurities. This is particularly important for the electrochemical applications of ionic liquids [2].

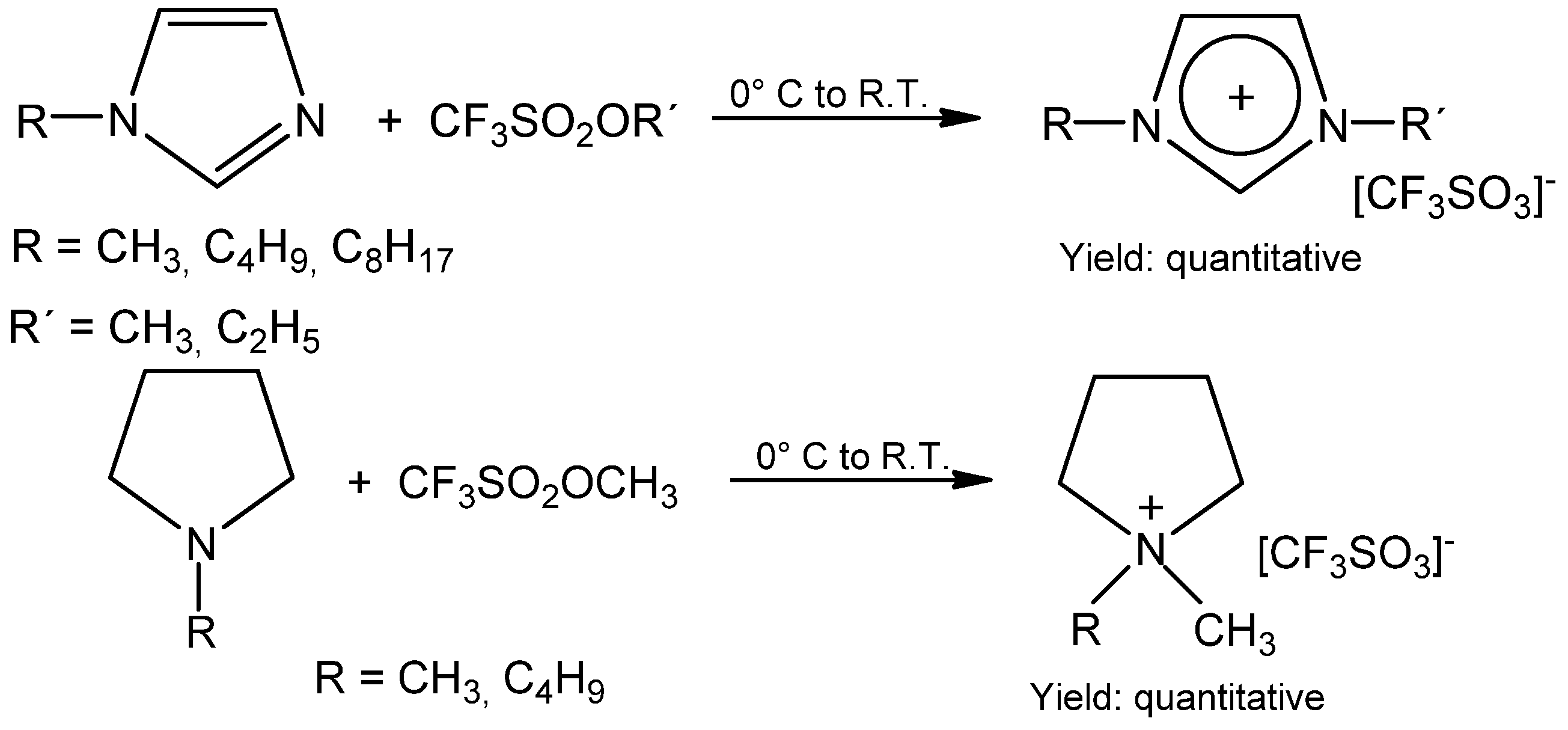

Scheme 8. Preparation of triflate ionic liquids by means of alkylation with methyl or ethyl triflate.
Scheme 8. Preparation of triflate ionic liquids by means of alkylation with methyl or ethyl triflate.
Molecules 17 05319 g010
This method can be applied to the alkylation of trialkylamines, trialkylphosphines, N,N,N',N'-tetra-methylguanidine and N,N,N',N'-tetramethylurea (see Experimental section). The synthesis can be carried out under solvent free conditions at 0 °C. The product yield is close to quantitative. It means that atom economy is very high (close to 100%) and the E-factor has an excellent value [20]. If a solid material is formed during the alkylation process (for example N,N-dimethylpyrrolidium triflate), diluting the reaction mixture with hexane, which can be easily regenerated, is favored.
2-Methyl-5-ethylpyridine and the 2,4,6-trimethylpyridine can be methylated with methyl triflate in quantitative yield (Scheme 9). But, if the steric hindrance is too strong, for example, in the case of 2,4,6-tris(t-butyl)pyridine, the reaction proceeds very slowly and the product yield is low (see Experimental section).

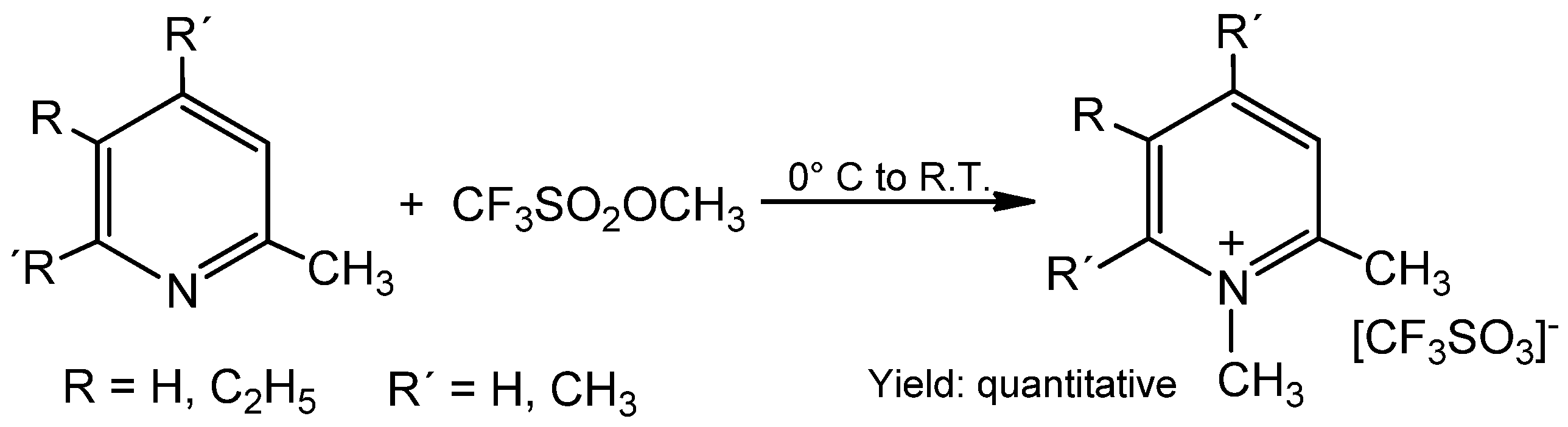

Scheme 9. Alkylation of substituted pyridines with methyl triflate.
Scheme 9. Alkylation of substituted pyridines with methyl triflate.
Molecules 17 05319 g011
Ionic liquids with the triflate anion possess high thermal stability (see Figure 1 and Table 1), good electrochemical stability (see Figure 2 and Table 2) and fairly low viscosity (see Table 3 and Table 4).

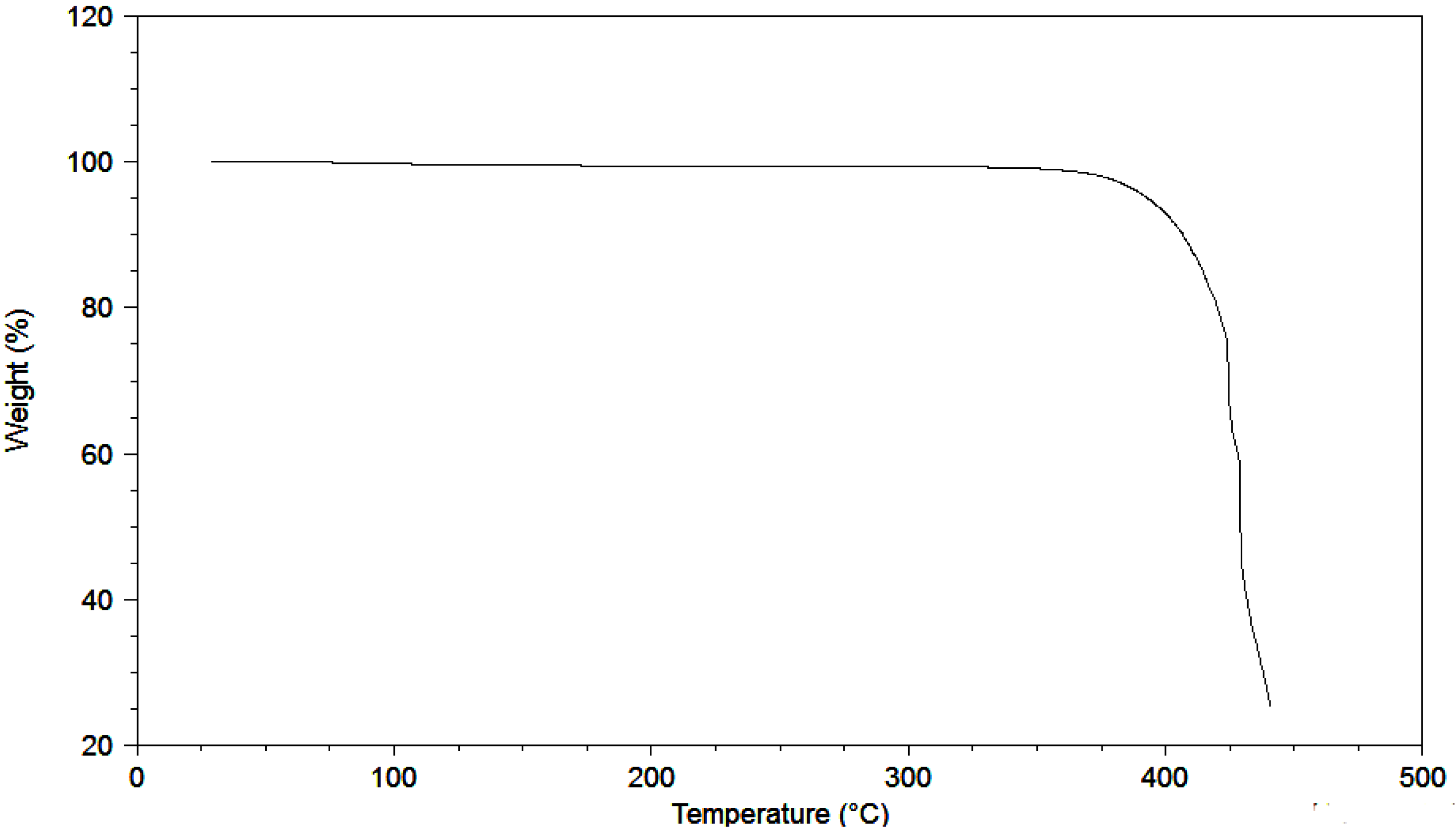

Figure 1. TGA of N-butyl-N-methylpyrrolidinium trifluoromethanesulfonate. Scan rate: 10 °C/min.
Figure 1. TGA of N-butyl-N-methylpyrrolidinium trifluoromethanesulfonate. Scan rate: 10 °C/min.
Molecules 17 05319 g001
Table 1. Isothermal TGA measurements at 200 °C and 250 °C.
Table 1. Isothermal TGA measurements at 200 °C and 250 °C.
Ionic LiquidWeight loss (% per day, 24 h), TGA isothermal mode at 200 °CWeight loss (% per day, 24 h), TGA isothermal mode at 250 °C
1-Butyl-1-methylpyrrolidinium [CF3SO3]0.282.8
1-Butyl-3-methylimidazolium [CF3SO3]0.555.9

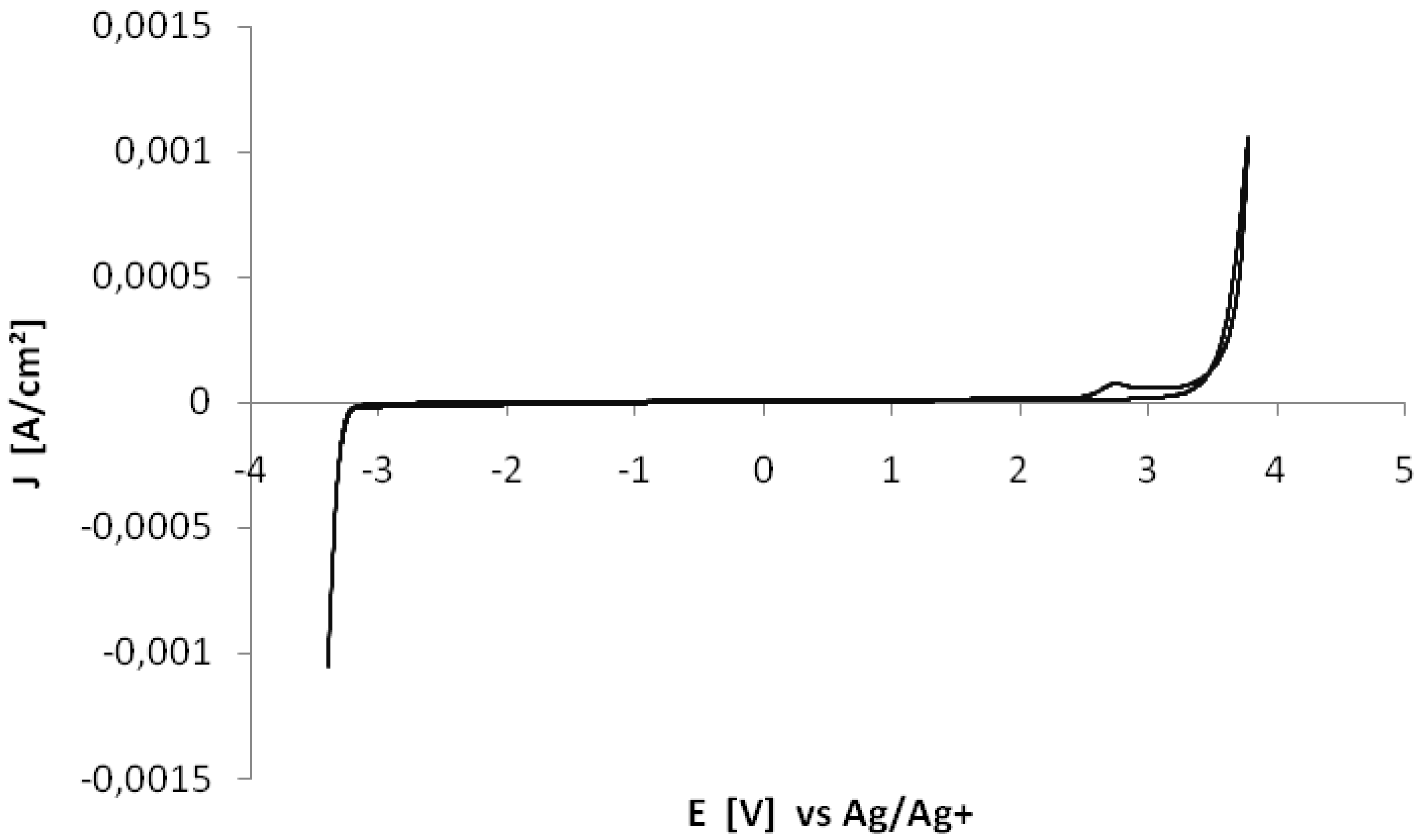

Figure 2. Cyclic voltammogram of N-butyl-N-methylpyrrolidinium trifluoromethanesulfonate. Scan rate: 20 mV/s.
Figure 2. Cyclic voltammogram of N-butyl-N-methylpyrrolidinium trifluoromethanesulfonate. Scan rate: 20 mV/s.
Molecules 17 05319 g002
Table 2. Electrochemical stability of triflate ionic liquids in comparison to the ionic liquids with [(C2F5)3PF3] and [BF4] anions.
Table 2. Electrochemical stability of triflate ionic liquids in comparison to the ionic liquids with [(C2F5)3PF3] and [BF4] anions.
Ionic Liquid E(ox), VE(red), VWindow, V
Tetrabutylammonium [(C2F5)3PF3]3.7−3.37.0
Methyl-trioctyl-ammonium [CF3SO3]3.4−3.46.8
1-Butyl-1-methylpyrrolidinium [CF3SO3]3.4−3.26.6
1-Butyl-3-methylimidazolium [CF3SO3]3.0−2.65.6
1-Ethyl-3-methylimidazolium [CF3SO3]2.8−2.55.3
1-Ethyl-3-methylimidazolium [BF4]2.6−2.65.2
Table 3. Viscosity of 1-ethyl-3-methylimidazolium triflate (EMIM OTF) in comparison to EMIM ionic liquids with alkylsulfate anions, [ROSO2O] [36].
Table 3. Viscosity of 1-ethyl-3-methylimidazolium triflate (EMIM OTF) in comparison to EMIM ionic liquids with alkylsulfate anions, [ROSO2O] [36].
CationAnionDynamic Viscosity, mPa·s
20 °C40 °C60 °C80 °C
Molecules 17 05319 i001[CH3OSO3]84372012
[CF3SO3]52261510
[C2H5OSO3]117472414
[C4H9OSO3]261904022
In spite of its higher molecular weight [EMIM][CF3SO3] is less viscous than [EMIM][CH3OSO3] (Table 3). The triflate anion is less coordinating than the CH3OSO3-anion. Weaker interaction between the [CF3SO3] anion and the EMIM-cation reduces the viscosity of triflate ionic liquids in comparison to methylsulfate ILs [44]. Nevertheless, triflate ILs are more viscous than ionic liquids with weekly coordinating anions such as [(C2F5)3PF3] [45] and [(CF3SO2)2N] (Table 4). The viscosity of triflate ionic liquids is influenced by water or organic solvents impurities (decrease of viscosity) and metal triflate impurities (increase of the viscosity value), which can remain in the triflate ILs after metathesis reaction.
Table 4. Viscosity and density of 1-hexyl-3-methylimidazolium triflate in comparison to ionic liquids with other anions.
Table 4. Viscosity and density of 1-hexyl-3-methylimidazolium triflate in comparison to ionic liquids with other anions.
Ionic LiquidKinematic Viscosity (20 °C), mm2/sDensity (20 °C), g/cm3Dynamic Viscosity (20 °C), mPa·s
1-Hexyl-3-methylimidazolium Chloride74531.057826
1-Hexyl-3-methylimidazolium [PF6]5481.30712
1-Hexyl-3-methylimidazolium [BF4]1951.15224
1-Hexyl-3-methylimidazolium [CF3SO3]1601.24198
1-Hexyl-3-methylimidazolium [(C2F5)3PF3]741.56115
1-Hexyl-3-methylimidazolium [(CF3SO2)2N]651.3890
The possible applications of triflate ionic liquids themselves or in combination with Brønsted acids for dehydration of alcohols, deprotection of ketals or synthesis of chromane derivatives are described in the cited patents applications [46,47,48].

3. Experimental

3.1. Chemicals

Commercially available chemicals have been used. Triflic acid and triflic acid anhydride was provided by Merck KGaA (Darmstadt, Germany) company and used without further purification. Methyl trifluoromethanesulfonate (methyl triflate) and ethyl trifluoromethanesulfonate (ethyl triflate) were obtained and distilled as described below and stored under a nitrogen atmosphere. Heterocyclic bases were distilled over CaH2 and stored under a nitrogen atmosphere.

3.2. Analytical Procedures

3.2.1. NMR Spectroscopy

NMR samples were measured in 5 mm precision glass NMR tube (Wilmad 507 or 528 PPT) at 24 °C. NMR spectra were recorded in the deuterium-locked mode on a Bruker Avance III spectrometer equipped with a 9.3980 T cryomagnet. The 1H- and 19F-NMR spectra were acquired using a 5 mm 1H/19F combination probe operating at 400.17 and 376.54 MHz respectively. 13C-NMR spectra were obtained using a 5 mm broad-band inverse probe operating at 100.61 MHz. Spectra were recorded using various memory sizes, optimal acquisition times, and relaxation delays (0.5–2 s). The 1H-NMR chemical shifts were referenced with respect to tetramethylsilane (TMS) using the chemical shifts for the solvents CH2Cl2 (5.32 ppm) and CH3CN (1.95 ppm). The 13C-NMR chemical shifts were referenced with respect to TMS using the chemical shifts for the solvents CH2Cl2 (53.5 ppm) and CH3CN (118.7 ppm). The 19F-NMR spectra were referenced with respect to CFCl3 using either the internal standards C6F6 (−162.9 ppm) or C6H5CF3 (−63.9 ppm) or externally to a neat CFCl3 reference sample at 24 °C.

3.2.2. Elemental Analysis

Elemental analysis was performed using a HEKATECH EA 3000 elemental analyser (HEKAtech GmbH, Wegberg, Germany) with Callidus software.

3.2.3. Thermal Analyses

The thermal analyses were performed using a NETZSCH 409C STA (Selb, Germany).

3.2.4. Viscosity

Viscosity and density of ionic liquids were measured on the viscosimeter SVM 3000 (Anton Paar, Graz, Austria).

3.2.5. Cyclic Voltammetry

For electrochemical stability measurements an Autolab PGSTAT 30 (Metrohm Autolab B.V., Utrecht, The Netherlands) was used. Cyclic voltammograms were recorded for 0.5 M solutions in CH3CN at glassy carbon (gc) working electrode; auxiliary electrode was Pt and Ag/AgNO3 (CH3CN) was used as reference electrode. The purity (quality) of triflate ionic liquids was proven by measuring of residual water (Karl-Fischer titration; 831 KF-Coulometer, Metrohm, Filderstadt, Germany) and chloride or bromide (ion-chromotography, Metrohm Advanced IC System; stationary phase: Metrosep A SUPP4-150). Contents of residual water and halides were below 100 ppm.

3.3. Syntheses

Methyl Trifluoromethanesulfonate (CF3SO2OCH3)

Method (a): Trifluoromethanesulfonic acid anhydride (2,300 g, 8.15 mol) was slowly added to freshly distilled dimethyl carbonate (808 g, 8.97 mol) under vigorous stirring at 25 °C. The solution was heated (approximately at 70 °C) until a moderate stream of CO2 runs through the H2SO4-filled bubbler. Stirring was continued for 48 h at 70 °C. The excess of dimethyl carbonate (b.p. 90 °C) was distilled off over a short column under a dry atmosphere. The yield of the colourless raw product is close to 100%. Purification by fractionated distillation gives 2,515 g (15.33 mol, 94% yield) of methyl trifluoromethanesulfonate (b.p. 94–96 °C); 1H-NMR (CD3CN) δ, ppm: 3.75 s; 19F-NMR (CD3CN) δ, ppm: −76.3 s.
Method (b): Trifluoromethanesulfonic acid (3,000 g, 19.99 mol) was slowly added to freshly distilled benzoyl chloride (2,810 g, 19.99 mol) with mechanical stirring under a very slight positive N2 pressure. After the addition was completed (45 min), the solution was heated to 80 °C. Freshly distilled dimethyl carbonate (1,715 g, 19.04 mol) was dropped slowly into the solution under vigorous stirring over a period of 7 h. During the addition a stream of CO2 and HCl passed through the H2SO4-filled bubbler. Stirring was continued for 4 h at 85 °C to complete the reaction. The raw product was distilled off with a short column under a dry atmosphere until the head-temperature increased above 115 °C. The yield of the colourless raw product is close to 100%. Purification by fractional distillation gives 2,906 g (17.12 mol, 93% yield) of methyl trifluoromethanesulfonate (b.p. 94–96 °C); 1H-NMR (CD3CN), δ, ppm: 3.76 s; 19F-NMR (CD3CN), δ, ppm: δ −76.3 s.

Ethyl Trifluoromethanesulfonate (CF3SO2OC2H5)

Trifluoromethanesulfonic acid (918 g, 6.12 mol) was slowly added to freshly distilled benzoyl chloride (860 g, 6.12 mol) under a very slight positive N2 pressure with mechanical stirring. After the addition was completed (20 min), the solution was heated to 95 °C. Freshly distilled diethyl carbonate (690 g, 5.83 mol) was then dropped slowly into the solution under vigorous stirring over a period of 3 h. During the addition a gas stream of of CO2 and HCl passed through the H2SO4-filled bubbler. Stirring was continued for 1 h at 100 °C to complete the reaction. The raw product was distilled off immediately over a short column under a dry atmosphere until the head-temperature raised above 125 °C. The yield of the colourless raw product was 92%. Purification by fractional distillation gives 874 g (4.91 mol, 84%) of ethyl trifluoromethanesulfonate (b. p. 112–114 °C); 1H-NMR (CD3CN), δ, ppm: 1.03 t (3H, CH3, 3JH,H = 7.2 Hz), 4.19 q (2H, CH2, 3JH,H = 7.2 Hz); 19F-NMR (CD3CN), δ, ppm: −76.4 s.

1,3-Dimethylimidazolium Trifluoromethanesulfonate [C5H9N2][CF3SO3]

Freshly distilled methyl trifluoromethanesulfonate (1,486 g, 9.06 mol) was dropped slowly into a mechanically stirred solution of N-methylimidazole (730 g, 8.89 mol) in hexane (1,000 mL) over a period of 16 h (1,300 g were dropped in at 0 °C and 159 g at 25 °C). Stirring (700 rpm) was continued for 12 h at 25 °C to complete the reaction. During this time the product precipitated as a colourless solid. The solvent and the excess of methyl trifluoromethanesulfonate (27 g, 0.17 mol) were decanted and finally the product was evaporated at 0.01 mbar and 25 °C for 6 h. 1,3-Dimethylimidazolium-trifluoromethanesulfonate was obtained as a colourless solid (2,189 g, 8.89 mol, quantitative yield, m.p.: 56 °C); 1H-NMR (CD3CN), δ, ppm: 3.85 s (6H, 2CH3), 7.37 s (2H), 8.52 s (1H); 19F-NMR (CD3CN), δ, ppm: −79.3 s (3F, CF3S); 13C-NMR (CD3CN), δ, ppm: 35.4 q, 120.8 q (CF3S), 123.2 d, m, 136.5 d, m; Anal. Calcd. for C6H9O3N2F3S: C, 29.27; H, 3.68; N, 11.38; S, 13.02. Found: C, 30.03; H, 4.10; N, 11.57; S, 13.50.

1-Ethyl-3-methylimidazolium Trifluoromethanesulfonate [C6H11N2][CF3SO3]

Freshly distilled ethyl trifluoromethanesulfonate (895 g, 5.02 mol) was dropped slowly into magnetically stirred N-methylimidazole (400 g, 4.87 mol) at 0 °C over a period of 6 h. Stirring (1,000 rpm) was continued for 12 h at 30 °C to complete the reaction. Finally the excess of ethyl trifluoromethanesulfonate (27 g, 0.15 mol) was evaporated at 0.01 mbar and 25 °C. The product (1,268 g, 4.87 mol, quantitative yield) was obtained as a clear and colourless liquid; 1H-NMR (CD3CN), δ, ppm: 1.44 t (3H, CH3, 3JH,H = 7.3 Hz), 3.86 s (3H, CH3), 4.20 q (2H, CH2, 3JH,H = 7.3 Hz), 7.44 s (1H), 7.50 s (1H), 8.70 s (1H); 19F-NMR (CD3CN), δ, ppm: −79.3 s (3F, CF3S); 13C-NMR (CD3CN), δ, ppm: 14.3 q, 35.4 q, 44.5 t, 120.8 q (CF3S), 121.7 d,m, 123.3 d,m, 135.9 d,m; Anal. Calcd. for C7H11O3N2F3S: C, 32.31; H, 4.26; N, 10.76; S, 12.32. Found: C, 32.47; H, 4.50; N, 10.86; S, 12.39.

1-Butyl-3-methylimidazolium Trifluoromethanesulfonate [C8H15N2][CF3SO3]

Method (a): Freshly distilled methyl trifluoromethanesulfonate (1,341 g, 8.17 mol) was dropped slowly into magnetically stirred N-butylimidazole (1,000 g, 8.05 mol) during 14 h at 0 °C. Stirring (1,000 rpm) was continued for 3 h at 25 °C to complete the reaction. Finally the excess of methyl trifluoromethanesulfonate (20 g, 0.12 mol) was evaporated at 0.01 mbar and 25 °C within 10 h. The product (2,321 g, 8.05 mol, quantitative yield) was obtained as a clear and nearly colourless liquid; 1H-NMR (CD3CN), δ, ppm: 0.93 t (3H, CH3, 3JH,H = 7.3 Hz), 1.33 m (2H, CH2), 1.82 m (2H, CH2), 3.86 s (3H, CH3), 4.17 q (2H, CH2, 3JH,H = 7.3 Hz), 7.42 s (1H), 7.47 s (1H), 8.68 s (1H); 19F-NMR (CD3CN), δ, ppm: −79.3 s (3F, CF3S); 13C-NMR (CD3CN), δ, ppm: 12.4 q, 18.6 t, 31.3 t, 35.5 q, 48.9 t, 120.8 q (CF3S), 122.0 d,m, 123.3 d,m, 136.0 d,m; Anal. Calcd. for C9H15O3N2F3S: C, 37.50; H, 5.24; N, 9.72; S, 11.12. Found: C, 37.30; H, 5.39; N, 9.60; S, 10.53.
Method (b): A mixture of 1-butyl-3-methylimidazolium chloride (1.04 g, 5.95 mmol) and methyl triflate (CF3SO2OCH3, 1.67 g, 10.2 mmol) was stirred at room temperature for 30 min. The residue was dried for 30 min in vacuum at 0.13 mbar and 120 °C (oil-bath temperature), giving 1.71 g (a quantitative yield) of 1-butyl-3-methylimidazolium triflate. The product was characterised by NMR spectroscopy. The spectra are identical to those of the product obtained by Method (a).
Method (c): A mixture of 1-butyl-3-methylimidazolium chloride (1.67 g, 9.56 mmol) and trimethylsilyl triflate ([CF3SO2OSi(CH3)3, 2.36 g, 10.6 mmol] was stirred at room temperature for 30 min. The residue was dried for 30 min in vacuum at 0.13 mbar and 120 °C (oil-bath temperature), giving 2.75 g (a quantitative yield) of 1-butyl-3-methylimidazolium triflate. The product was characterised by means of NMR spectroscopy. The spectra are identical to those of the product obtained by Method (a).

1-Hexyl-3-methylimidazolium-trifluoromethanesulfonate [C10H19N2][CF3SO3]

Method (a): A mixture of 1-hexyl-3-methylimidazolium chloride (1.80 g, 8.88 mmol) and methyl triflate (CF3SO2OCH3, 1.52 g, 9.26 mmol) was stirred at room temperature for 30 min. NMR measurements show the completeness of the reaction. The residue was dried for 30 min under vacuum at 0.13 mbar and 120 °C (oil-bath temperature), giving 2.80 g (a quantitative yield) of 1-hexyl-3-methylimidazolium triflate; 1H-NMR (CD3CN), δ, ppm: 0.87 m (3H, CH3), 1.29 m (6H, 3CH2), 1.81 m (2H, CH2), 3.82 s (3H, CH3), 4.11 t (2H, CH2), 7.35 d,d (1H, CH), 7.39 d,d (1H, CH), 8.55 br.s (1H, CH), 3JH,H = 6.9 Hz, JH,H = 1.5 Hz; 19F-NMR (CD3CN), δ, ppm: −78.1 s (3F, SCF3).
Method (b): A mixture of 1-hexyl-3-methylimidazolium chloride (1.81 g, 8.93 mmol) and trimethylsilyl triflate [CF3SO2OSi(CH3)3, 2.62 g, 9.26 mmol] was stirred at room temperature for 4 h. The residue was dried for 30 min under vacuum at 0.13 mbar and 120 °C (oil-bath temperature), giving 2.81 g (a quantitative yield) of 1-hexyl-3-methylimidazolium triflate. The product was characterised by means of NMR spectroscopy. The spectra are identical to those of the product obtained by Method (a).

3-Octyl-1-methylimidazolium-trifluoromethanesulfonate [C12H23N2][CF3SO3]

Freshly distilled methyl trifluoromethanesulfonate (1,010 g, 6.15 mol) was dropped slowly into magnetically stirred N-octylimidazole (1,100 g, 6.10 mol) over a period of 10 h at 0 °C. Stirring (1,000 rpm) was continued for 2 h at 20 °C and 1 hour at 40 °C to complete the reaction. Finally the excess of methyl trifluoromethanesulfonate (9 g, 0.05 mol) was evaporated at 0.01 mbar and 25 °C within 10 h. The product (2101 g, 6.10 mol, quantitative yield) was obtained as a clear and nearly colourless liquid; 1H-NMR (CD3CN), δ, ppm: 0.89 t (3H, CH3, 3JH,H = 7.0 Hz), 1.30 m (10H, 5CH2), 1.84 m (2H, CH2), 3.86 s (3H, CH3), 4.15 t (2H, CH2, 3JH,H = 7.3 Hz), 7.41 s (1H), 7.46 s (1H), 8.63 s (1H); 19F-NMR (CD3CN), δ, ppm: −79.3 s (3F, CF3S); 13C-NMR (CD3CN), δ, ppm: 14.7 q, 23.7 t, 27.0 t, 29.9 t, 30.1 t, 31.0 t, 32.8 t, 37.1 q, 50.8 t, 120.8 q (CF3S), 123.6 d, m, 125.0 d, m, 137.5 d, m; Anal. Calcd. for C13H23O3N2F3S: C, 45.34; H, 6.73; N, 8.13; S, 9.31. Found: C, 45.29; H, 6.78; N, 7.77; S, 8.61.

1-Butyl-3-ethylimidazolium-trifluoromethanesulfonate [C9H17N2][CF3SO3]

Freshly distilled ethyl trifluoromethanesulfonate (1,240 g, 6.96 mol) was dropped slowly into magnetically stirred N-butylimidazole (840 g, 6.76 mol) during 9 h at 0 °C. Stirring (1,000 rpm) was continued for 12 h at 30 °C to complete the reaction. Finally the excess of ethyl trifluoromethanesulfonate (35 g, 0.20 mol) was evaporated at 0.01 mbar and 25 °C. The product (2,045 g, 6.76 mol, quantitative yield) was obtained as a clear and colourless liquid; 1H-NMR (CD3CN), δ, ppm: 0.94 t (3H, CH3, 3JH,H = 7.3 Hz), 1.34 m (2H, CH2), 1.48 t (3H, CH3, 3JH,H = 7.3 Hz), 1.83 m (2H, CH2), 4.17 t (2H, CH2, 3JH,H = 7.3 Hz), 4.21 q (2H, CH2, 3JH,H = 7.3 Hz ), 7.48 s (1H), 7.49 s (1H), 8.73 s (1H); 19F-NMR (CD3CN), δ, ppm: −79.3 s (3F, CF3S); 13C-NMR (CD3CN), δ, ppm: 12.4 q, 14.2 q, 31.3 t, 44.5 t, 49.0 t, 120.8 q (CF3S), 121.8 d,m, 122.4 d,m, 135.0 d,m; Anal. Calcd. for C10H17O3N2F3S: C, 39.73; H, 5.67; N, 9.27; S, 10.61. Found: C, 39.13; H, 5.43; N, 9.32; S, 10.63.

N,N-Dimethylpyrrolidinium Trifluoromethanesulfonate [C7H14N][CF3SO3]

Freshly distilled methyl trifluoromethanesulfonate (272 g, 1.66 mol) was added slowly (within 45 min) to the stirred solution of N-methylpyrrolidine (141.1 g, 1.66 mol) in dry hexane (800 mL) at 0 °C. After that the reaction mixture was heated and kept reflux for 15 min (oil-bath temperature is 70–75 °C). After cooling to room temperature a white precipitate was filtered off, washed twice with hexane (100 mL) and dried under vacuum (0.3 mbar) at 110 °C for 3 h. The N,N-dimethylpyrrolidinium trifluoromethanesulfonate was obtained as a white solid material (409 g, 99%); 1H-NMR (CD3CN), δ, ppm: 2.17 m (4H, 2CH2), 3.07 s (6H, 2CH3), 3.45 m (4H, 2CH2); 19F-NMR (CD3CN), δ, ppm: −78.0 s (3F, CF3S); Anal. Calcd. for C7H14F3NO3S: C, 33.73; H, 5.66; N, 5.62; S, 12.86. Found: C, 33.66; H, 5.68; N, 5.60; S, 13.06.

N-Butyl-N-methylpyrrolidinium Trifluoromethanesulfonate [C9H20N][CF3SO3]

Freshly distilled methyl trifluoromethanesulfonate (990 g, 6.03 mol) was dropped slowly into magnetically stirred N-butylpyrrolidine (764 g, 6.00 mol) over a period of 24 h at 0 °C. Stirring (1,000 rpm) was continued for 3 h at 25 °C to complete the reaction. Finally the excess of methyl trifluoromethanesulfonate (5 g, 0.03 mol) was evaporated at 0.01 mbar and 25 °C within 10 h. The product (1,749 g, 6.00 mol, quantitative yield) was obtained as a clear and nearly colourless liquid; 1H-NMR (CD3CN), δ, ppm: 0.97 t (3H, CH3, 3JH,H = 7.4 Hz), 1.38 m (2H, CH2), 1.73 m (2H, CH2), 2.16 m (4H, 2CH2), 2.98 s (3H, CH3), 3.28 m (2H, CH2), 3.45 m (4H, CH2); 19F-NMR (CD3CN), δ, ppm: −79.2 s (3F, CF3S); 13C-NMR (CD3CN), δ, ppm: 12.5 q, 19.1 t, 21.0 t, 25.0 t, 47.8 q, 63.6 t, 63.9 t, 120.8 q (CF3S) ; Anal. Calcd. for C10H20O3NF3S: C, 41.23; H, 6.92; N, 4.81; S, 11.01. Found: C, 40.85; H, 6.81; N, 4.96; S, 10.42.

N,N-Dimethylpiperidinium Trifluoromethanesulfonate [C8H16N][CF3SO3]

Freshly distilled methyl trifluoromethanesulfonate (12.83 g, 78.2 mmol) was added slowly (within 45 min) to the stirred solution of N-methylpiperidine (7.76 g, 78.2 mol) in dry hexane (150 mL) at room temperature. The warm reaction mixture was left stirring for 30 min and then cooled down to room temperature. The white precipitate was filtered off, washed twice with hexane (10 mL) and dried under 0.3 mbar vacuum at 80 °C to give a white solid material (19.72 g, 96%). The melting point after crystallisation from methanol was 255–256 °C; 1H-NMR (CD3CN), δ, ppm: 1.79 m (6H, 3CH2), 3.02 s (6H, 2CH3), 3.27 m (4H, 2CH2); 19F-NMR (CD3CN), δ, ppm: −78.1 s (3F, CF3S); Anal. Calcd. for C8H16F3NO3S: C, 36.50; H, 6.13; N, 5.32; S, 12.18. Found: C, 33.44; H, 6.07; N, 5.31; S, 12.20.

N-Methyl-3-butylpyridinium Trifluoromethanesulfonate [C9H20N][CF3SO3]

Freshly distilled methyl trifluoromethanesulfonate (23.00 g, 0.14 mol) was dropped slowly into magnetically stirred 3-butylpyridine (18.13 g, 0.13 mol) over a 2 hour period at 0 °C. Stirring (800–1,000 rpm) was continued for 1 h at 25 °C to complete the reaction. Finally the excess of methyl trifluoromethanesulfonate (1.00 g, 0.01 mol) was evaporated at 0.01 mbar and 25 °C within 5 h. The title compound (40.13 g, 0.13 mol, quantitative yield) was obtained as a clear and pale yellow liquid; 1H-NMR (CD3CN), δ, ppm: 0.90 t (3H, CH3, 3JH,H = 7.3 Hz), 1.34 m (2H, CH2), 1.64 m (2H, CH2), 2.82 t (2H, CH2, 3JH,H = 7.8 Hz,), 4.37 s (3H, CH3), 7.93 m (1H, CH), 8.40 m (1H, CH), 8.67 m (1H, CH), 8.75 s (1H, CH); 19F-NMR (CD3CN), δ, ppm: −77.9 s (3F, CF3S).

N-Ethylpyridinium Trifluoromethanesulfonate [C7H10N][CF3SO3]

Method (a): A mixture of N-ethylpyridinium bromide (1.56 g, 8.29 mmol) and methyl triflate (CF3SO2OCH3, 1.67 g, 10.2 mmol) was stirred at room temperature for 30 min. The residue was dried for 30 min under vacuum (0.13 mbar) at 120 °C (oil-bath temperature), giving 2.13 g (a quantitative yield) of N-ethylpyridinium triflate; 1H-NMR (CD3CN), δ, ppm: 1.58 t (3H, CH3), 4.59 q (2H, CH2), 8.02 m (2H, 2CH), 8.49 t,t (1H, CH), 8.78 d (2H, 2CH), 3JH,H = 7.3 Hz, 3JH,H = 7.6 Hz, 3JH,H = 6.1 Hz, 4JH,H = 1.2 Hz; 19F-NMR (CD3CN), δ, ppm: −78.0 s (3F, CF3).
Method (b): A mixture of N-ethylpyridinium bromide (1.85 g, 9.84 mmol) and trimethylsilyl triflate [CF3SO2OSi(CH3)3, 2.54 g, 11.4 mmol) was stirred at room temperature for 4 h. The residue was dried for 30 min under vacuum (0.13 mbar) at 120 °C (oil-bath temperature), giving 2.53 g (a quantitative yield) of N-ethylpyridinium triflate. The product was characterised by means of NMR spectroscopy. The spectra are identical to those of the product obtained using Method (a).

N-Butylpyridinium Trifluoromethanesulfonate [C9H14N][CF3SO3]

Method (a): A mixture of N-butylpyridinium bromide (4.31 g, 19.9 mmol) and of methyl triflate (CF3SO2OCH3, 4.41 g, 26.9 mmol) was stirred at room temperature for 30 min. The residue was dried for 30 min under vacuum (0.13 mbar) at 120 °C (oil-bath temperature), giving 5.68 g (a quantitative yield) of N-butylpyridinium triflate; 1H-NMR (CD3CN), δ, ppm: 0.93 t (3H, CH3), 1.35 m (2H, CH2), 1.93 m (2H, CH2), 4.53 t (2H, CH2), 8.02 m (2H, 2CH), 8.50 t (1H, CH), 8.74 d (2H, 2CH), 3JH,H = 7.4 Hz, 3JH,H = 7.6 Hz, 3JH,H = 7.9 Hz, 3JH,H = 6.1 Hz; 19F-NMR (CD3CN), δ, ppm: −78.0 s (3F, CF3).
Method (b): A mixture of N-butylpyridinium bromide (1.42 g, 6.57 mmol) and of trimethylsilyl triflate [CF3SO2OSi(CH3)3, 1.73 g, 7.78 mmol) was stirred at room temperature for 4 h. The residue was dried for 30 min under vacuum (0.13 mbar) at 120 °C (oil-bath temperature), giving 1.87 g (a quantitative yield) of N-butylpyridinium triflate. The product was characterised by means of NMR spectroscopy. The spectra are identical to those described in the experiment (a).

1,2-Dimethyl-5-ethylpyridinium-trifluoromethanesulfonate

Freshly distilled methyl trifluoromethanesulfonate (45.0 g, 0.27 mol) was dropped slowly into magnetically stirred 5-ethyl-2-methylpyridine (32.0 g, 0.26 mol) over a period of 4 h at 0 °C. Stirring (1,000 rpm) was continued for 3 h at 25 °C to complete the reaction. Finally the excess of methyl trifluoromethanesulfonate (1.7 g, 0.01 mol) was evaporated at 0.01 mbar and 25 °C within 10 h. The product (75.3 g, 0.26 mol, quantitative yield) was obtained as a clear and nearly colourless liquid; 1H-NMR (CD3CN), δ, ppm: 1.29 t (3H, 3JH,H = 7.6 Hz, CH2CH3), 2.73 s (3H, CH3), 2.81 t (2H, 3JH,H = 7.6 Hz , CH2CH3), 4.17 s (3H, CH3), 7.80 d (1H, JH,H = 8.2), 8.24 d (1H, JH,H = 8.2), 8.56 s (1H). 19F-NMR (CD3CN), δ, ppm: −79.2 s (3F, CF3S); 13C-NMR (CD3CN), δ, ppm: 13.7 q , 19.2 q, 24.9 t, 45.5 q, 121.1 q (CF3S), 129.0 d, 143.1 d, 144.8 d, 145.8 s, 153.3 s Anal. Calcd. for C10H14O3NF3S: C, 42.10; H, 4.95; N, 4.91; S, 11.24. Found: C, 41.55; H, 4.83; N, 4.90; S, 11.40.

1,2,4,6-Tetramethylpyridinium Trifluoromethanesulfonate [C9H14N][CF3SO3]

Freshly distilled methyl trifluoromethanesulfonate (15.0 g, 0.09 mol) was dropped slowly into a magnetically stirred solution of 2,4,6-trimethylpyridine (10.0 g, 0.08 mol) in hexane (100 mL) over a period of 2 h at 25 °C. With the first drops a colourless solid material precipitated. Stirring (1,200 rpm) was continued for 1 h at 25 °C to complete the reaction. The deposit was isolated by filtration and washed twice with fresh hexane. Finally the product was evaporated at 0.01 mbar and 25 °C for 2 h. 1,2,4,6-Tetramethylpyridinium trifluoromethanesulfonate (23.5 g, 0.08 mol, quantitative yield) was obtained as a colourless solid (m.p.: 145 °C); 1H-NMR (CD3CN), δ, ppm: 2.51 s (3H, CH3), 2.71 s (6H, 2CH3), 3.94 s (3H, CH3), 7.56 s (2H, 2CH); 19F-NMR (376.54 MHz, CD3CN), δ, ppm: −79.3 s (3F, CF3S); 13C-NMR (CD3CN), δ, ppm: 21.8 q, 22.2 q, 40.9 q, 122.5 q (CF3S), 129.1 d, 156.3 s, 159.1 s; Anal. Calcd. for C10H14O3NF3S: C, 42.10; H, 4.95; N, 4.91; S, 11.24. Found: C, 42.59; H, 5.17; N, 4.98; S, 11.68.

1-Methyl-2,4,6,-tris(t-butyl)pyridnium Trifluoromethanesulfonate [C18H32N][CF3SO3]

Freshly distilled methyl trifluoromethanesulfonate (10.0 g, 60 mmol) was added to solid 2,4,6-tris(t-butyl)pyridine (1.0 g, 4 mmol). The suspension was heated to reflux (bath 100 °C) and forms a solution at 70 °C. After 8 h of stirring the solution was cooled down to room temperature (a suspension is formed again at 70 °C). The raw solid material contains only 6 % of the expected product. After two recrystallizations from dichloromethane/hexane (1/10, vol/vol), the colourless solid product obtained was evaporated at 0.01 mbar and 25 °C within 8 h to give the product (0.07 g, 0.2 mmol, 4% yield) as a colourless solid (m.p.: 186 °C); 1H-NMR (CD3CN), δ, ppm: 1,55 s (9H, 3CH3), 1.66 s (18H, 6CH3), 4.36 s (3H, NCH3), 7.92 s (2H, 2CH); 19F-NMR (CD3CN), δ, ppm: −79.3 s (3F, CF3S); Anal. Calcd. for C19H32O3NF3S: C, 55.45; H, 7.84; N, 3.40; S, 7.79. Found: C, 54.11; H, 7.80; N, 3.69; S, 7.75.

Methyl trioctylammonium Trifluoromethanesulfonate [(C8H17)3NCH3][CF3SO3]

Freshly distilled methyl trifluoromethanesulfonate (715 g, 4.36 mol) was dropped slowly into a magnetically stirred solution of trioctylamine (1,526 g, 4.31 mol) in dichloromethane (700 mL) within 24 h at 0 °C. Stirring (1,000 rpm) was continued for 3 h at 25 °C to complete the reaction. Dichloromethane (b.p. 40 °C) was distilled of under atmospheric pressure. Residual dichloromethane and the excess of methyl trifluoromethanesulfonate (7 g, 0.05 mol) were evaporated at 0.01 mbar within 14 h. During the evaporation the temperature was increased slowly to 65 °C to avoid the crystallization of the product. Methyl trioctylammonium trifluoromethanesulfonate (2,234 g, 4.31 mol, quantitative yield) was obtained as a colourless solid (m.p.: 52 °C); 1H-NMR (CD3CN), δ, ppm: 0.92 t (9H, 3CH3, 3JH,H = 6.7 Hz), 1.34 m (30H, 15CH2), 1.67 m (6H, 3CH2), 2.92 s (3H, NCH3), 3.16 m (6H, 3CH2); 19F-NMR (CD3CN), δ, ppm: −79.1 (s, 3F, CF3S); 13C-NMR (CD3CN), δ, ppm: 13.1 q, 21.4 t, 22.0 t, 25.5 t, 28.3 t, 28.4 t, 31.1 t, 47.6 q, 61.2 t, 120.9 q (CF3S); Anal. Calcd. for C26H54O3NF3S: C, 60.31; H, 10.51; N, 2.71; S, 6.19. Found: C, 59.82; H, 10.51; N, 2.76; S, 6.26.

Methyl triethylphosphonium Trifluoromethanesulfonate [(C2H5)3PCH3][CF3SO3]

Freshly distilled methyl trifluoromethanesulfonate (11.19 g, 68.2 mmol) was added slowly (within 10 min) to a stirred solution of triethylphosphine (8.05 g, 68.2 mmol) in dry hexane (150 mL) at room temperature. The warm reaction mixture was left stirring for 30 min and cooled down to room temperature. The white precipitate was filtered off, washed twice with hexane (10 mL) and dried under vacuum (0.3 mbar) at 60 °C to give the title compound (19.02 g, 99% yield) as a white solid material; 1H-NMR (acetone-d6): δ, ppm: 1.30 d,t, (9H, 3CH33JH,H = 7.7 Hz, 3JP,H = 18.8 Hz), 1.95 d (3H, PCH3, 2JP,H = 13.7 Hz), 2.40 d,q (6H, 3CH2, 2JP,H = 13.8 Hz); 19F-NMR (CD3CN), δ, ppm: −77.8 s (3F, CF3S); Anal. Calcd. for C8H18F3O3PS: C, 34.04; H, 6.43; S, 11.36. Found: C, 33.72; H, 6.57; S, 11.14.

Trihexyl tetradecylphosphonium Trifluoromethanesulfonate [(C6H13)3PC14H29][CF3SO3]

Method (a): A mixture of trihexyl tetradecylphosphonium chloride (1.75 g, 3.37 mmol) and methyl triflate (CF3SO2OCH3, 2.59 g, 15.8 mmol) was stirred at room temperature for 30 min. The residue was dried for 30 min under vacuum (0.13 mbar) at 120 °C (oil-bath temperature), giving 2.13 g (quantitative yield) of trihexyl tetradecylphosphonium triflate;1H-NMR (CD3CN), δ, ppm: 0.84–0.94 m (12H, 4CH3), 1.24–1.37 m (32H, 16CH2), 1.37–1.57 m (16H, 8CH2), 1.99–2.09 m (8H, 4CH2); 19F-NMR (CD3CN), δ, ppm: −78.0 s (3F, SCF3); 31P{1H}-NMR (CD3CN), δ, ppm: 33.5 s.
Method (b): A mixture of trihexyl tetradecylphosphonium chloride (1.64 g, 3.16 mmol) and trimethylsilyl triflate [CF3SO2OSi(CH3)3, 0.91 g, 4.09 mmol) was stirred at room temperature for 4 h. The residue was dried for 30 min under vacuum (0.13 mbar) at 120 °C (oil-bath temperature) to give 2.00 g (a quantitative yield) of the title compound, which was characterised by NMR spectroscopy. The spectra were identical to those of the product obtained by Method (a).

N"-Ethyl-N,N,N',N'-tetramethylguanidinium Trifluoromethanesulfonate [(CH3)2NC(NHC2H5)N(CH3)2] [CF3SO3]

Freshly distilled ethyl trifluoromethanesulfonate (870 g, 4.88 mol) was dropped slowly into magnetically stirred N,N,N',N'-tetramethylguanidine (560 g, 4.86 mol) during 9 h at 0 °C. Stirring (1,000 rpm) was continued for 12 h at 30 °C to complete the reaction. Finally the excess of ethyl trifluoromethanesulfonate (4 g, 0.02 mol) was evaporated at 0.01 mbar and 25 °C. The product (1,426 g, 4.86 mol, quantitative yield) was obtained as a clear and colourless liquid; [(CH3)2NC(C2H5NH) N(CH3)2][CF3SO3]: 1H-NMR (CD3CN), δ, ppm: 1.12 t (3H, 3JH,H = 7.1 Hz, CH2CH3), 2.88 s (12H, 2[N(CH3)2]), 3.25 q (2H, , 3JH,H = 7.1 Hz, CH2CH3), 6.46 s (1H, NH); 19F-NMR (CD3CN), δ, ppm: −79.1 s (3F, CF3S); 13C-NMR (CD3CN), δ, ppm: 12.1 q (CH2CH3), 39.1 q (N(CH3)2), 43.2 t (CH2CH3), 120.8 q (CF3S), 163.0 s; [(CH3)(CH2CH3)NC(CH3NH)N(CH3)2][CF3SO3]: 1H-NMR (CD3CN), δ, ppm: 1.20 t (3H, 3JH,H = 7.1 Hz, CH2CH3), 2.92 s (12H, [N(CH3)2]), 3.25 q (2H, 3JH,H = 7.1 Hz, CH2CH3), 6.46 s (1H, NH); 19F-NMR (CD3CN), δ, ppm: −79.1 s (3F, CF3S); 13C-NMR (CD3CN), δ, ppm: 14.2 q (CH2CH3), 38.9 q (N(CH3)2), 39.7 t (CH2CH3), 120.8 q (CF3S), 161.3 s; The ratio of isomers [(CH3)2NC(C2H5NH)N(CH3)2]: [(CH3)(CH2CH3)NC(CH3NH)N(CH3)2] was 2.3:1; Anal. Calcd. for C8H18O3N3F3S: C, 32.76; H, 6.19; N, 14.33; S, 10.93. Found: C, 32.72; H, 6.67; N, 15.35; S, 10.90.

N,N,N',N'-Tetramethyl-O-methylisouronium Trifluoromethanesulfonate [(CH3)2NC(OCH3)N(CH3)2] [CF3SO3]

Freshly distilled methyl trifluoromethanesulfonate (765 g, 4.66 mol) was dropped slowly into magnetically stirred N,N,N',N'-tetramethylurea (534 g, 4.60 mol) over a period of 9 h at 20 °C. Stirring (1,000 rpm) was continued for 12 h at 25 °C to complete the reaction. Finally the excess of methyltrifluoromethanesulfonate (10 g, 0.06 mol) was evaporated at 0.01 mbar and 25 °C. The product (1,288 g, 4.60 mol, quantitative yield) was obtained as a clear and colourless liquid; [(CH3)2N)2 COCH3][CF3SO3]: 1H-NMR (CD3CN), δ, ppm: 3.11 s (12H, 2[N(CH3)2]), 4.10 s (3H, OCH3); 19F-NMR (CD3CN), δ, ppm: −79.2 s (3F, CF3S); 13C-NMR (CD3CN), δ, ppm: 40.7 q (N(CH3)2), 62.9 q (OCH3), 120.8 q (CF3S); Anal. Calcd. for C7H15O4N2F3S: C, 30.00; H, 5.39; N, 10.00; S, 11.44. Found: C, 29.64; H, 5.34; N, 9.92; S, 10.93.

4. Conclusions

New economical syntheses of methyl and ethyl triflate from dimethyl- and diethyl carbonate and triflic acid has been developed. These chemicals were used in solvent and halogen free syntheses of high purity triflate ionic liquids via direct alkylation of organic bases: amines, phosphines or heterocyclic compounds. Ionic liquids with the triflate anion possess high thermal and electrochemical stability and fairly low viscosity.

Acknowledgements

The authors thank A. Amann (Merck KGaA, Darmstadt, Germany) and J. Hübner (Bergische University Wuppertal, Germany) for the analytics of the ionic liquids and viscosity, thermal and electrochemical stability measurements.

References and Notes

  1. Wasserscheid, P.; Welton, T. Ionic Liquids in Synthesis, 2nd ed; Wiley-VCH Verlag GmbH: Weinheim, Germany, 2008. [Google Scholar]
  2. Ohno, H. Electrochemical Aspects of Ionic Liquids; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2005. [Google Scholar]
  3. Dyson, P.J.; Geldbach, T.J. Metal Catalysed Reactions in Ionic Liquids; Springer: Dordrecht, The Netherlands, 2005. [Google Scholar]
  4. Holbrey, J.D. Industrial applications of ionic liquids. Chem. Today 2004, June, 35–37. [Google Scholar]
  5. Zulfigar, F.; Kitazume, T. Lewis acid-catalysed sequential reaction in ionic liquids. Green Chem. 2000, 2, 296–298. [Google Scholar] [CrossRef]
  6. Serguchev, Y.S.; Lourie, L.F.; Ponomarenko, M.V.; Rusanov, E.B.; Ignat’ev, N.V. Fluorolactonization of unsaturated carboxylic acids with F-TEDA-BF4 in ionic liquids. Tetrahedron Lett. 2011, 52, 5166–5169. [Google Scholar] [CrossRef]
  7. Epishina, M.A.; Kulikov, A.S.; Ignat’ev, N.V.; Schulte, M.; Makhova, N.N. The first example of the Schmidt reaction in ionic liquids. Mendeleev Commun. 2010, 20, 335–336. [Google Scholar] [CrossRef]
  8. Vygodskii, Y.S.; Mel’nik, O.A.; Lozinskaya, E.I.; Shaplov, A.S.; Malyshkina, I.A.; Gavrilova, N.D.; Lyssenko, K.A.; Antipin, M.Y.; Golovanov, D.G.; Korlyukov, A.A.; et al. The influence of ionic liquid’s nature on free radical polymerization of vinyl monomers and ionic conductivity of the obtained polymeric materials. Polym. Adv. Technol. 2007, 18, 50–63. [Google Scholar] [CrossRef]
  9. Choi, D.S.; Choi, D.W.; Park, E.J.; Chang, S.K.; Byun, I.S.; Kim, W.J. A Purification Method of Ionic Liquids to Obtain Their High Purity. WO2004/080974, 2004. [Google Scholar]
  10. Cammarata, L.; Kazarian, S.; Salter, P.; Welton, T. Molecular states of water in room temperature ionic liquids. Phys. Chem. Chem. Phys. 2001, 3, 5192–5200. [Google Scholar]
  11. Wasserscheid, P.; Hilgers, C. Halogen-Free Preparation of Ionic Fluids. EP118 EP1182196, 2002. [Google Scholar]
  12. Kim, H.G.; Lee, S.D.; Ahn, B.S.; Lee, J.S.; Kim, U.S.; Cho, B.W.; Kim, H.S. The Lithium Salts of Pyrrolidinium Type Zwitterion and the Preparation Method of the Same. WO2006/104305, 2006. [Google Scholar]
  13. Cama, L.D.; Wilkening, R.R.; Ratcliffe, R.W.; Wildonger, K.J.; Sun, W. Carbapenem Antibacterial Compounds, Compositions Containing such Compounds and Method of Treatment. US5994345, 1999. [Google Scholar]
  14. Fuller, J.; Carlin, R.T. Facile Preparation of Tetrafluoroborate and Trifluoromethanesulfonate Room-Temperature Ionic Liquids. In Proceedings of the 11th International Symposium on Molten Salts XI; Truvol, P.C., De Long, H.C., Stafford, C.R., Deki, S., Eds.; The Electrochemical Society, Inc.: Pennington, NJ, USA, 1998; 98–11, pp. 227–230. [Google Scholar]
  15. Tetsuo, N.; Yasutaka, T.; Megumi, T.; Masashi, Y.; Kazutaka, H.; Akihiro, N.; Hiroaki, T.; Kenji, S.; Takashi, H. Quaternary Ammonium Salt, Electrolyte, and Electrochemical Device. EP1642894 2006. EP1837333, 2007.. [Google Scholar]
  16. Ignatiev, N.; Welz-Biermann, U. New Technologies for Ionic Liquids Production. In Presented at the First Congress on Ionic Liquids, Salzburg, Austria, 19-23 June 2005.
  17. Koichi, M. Green Reaction Media in Organic Synthesis; Blackwell Publishing Ltd.: Oxford, UK, 2005; p. 50. [Google Scholar]
  18. Cravotto, G.; Gaudino, E.C.; Boffa, L.; Lévêque, J.-M.; Estager, J.; Bonrath, W. Preparation of second generation ionic liquids by efficient solvent-free alkylation of N-heterocycles with chloroalkanes. Molecules 2008, 13, 149–156. [Google Scholar] [CrossRef]
  19. Estager, J.; Lévêque, J.-M.; Cravotto, G.; Boffa, L.; Bonrath, W.; Draye, M. One-pot and solventless synthesis of ionic liquids under ultrasonic irradiation. Synlett 2007, 13, 2065–2068. [Google Scholar]
  20. Deetlefs, M.; Seddon, K.J. Assessing the greenness of some typical laboratory ionic liquid preparations. Green Chem. 2010, 12, 17–30. [Google Scholar] [CrossRef]
  21. Olah, G.A.; Prakash, G.K.S.; Molnar, A.; Sommer, J. Superacid Chemistry, 2nd ed; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2009; p. 38. [Google Scholar]
  22. Rakita, P.H. Triflic acid and its derivatives. A family of useful reagents for synthesis. Chem. Today 2004, 48–50, March/April. [Google Scholar]
  23. Gramstadt, T.; Haszeldine, R.N. Perfluoroalkyl derivatives of sulphur. Part VII. Alkyl trifluoromethunesulphonates as alkylating agents, trifluoromethanesulphonic anhydride as a promoter for esterification, and some reactions of trifluoromethanesulphonic acid. J. Chem. Soc. 1956, 173–180. [Google Scholar]
  24. Booth, B.L.; Haszeldine, R.N.; Laali, K. Alkyltrifluoromethanesulphonates as alkylating reagents for aromatic compounds. J. Chem. Soc. Perkin Trans. I 1980, 2887–2894. [Google Scholar]
  25. Burdon, J.; McLoughlin, V.C.R. Trifluoromfthanesulphonate esters and their alkylating properties. Tetrahedron 1965, 21, 1–4. [Google Scholar] [CrossRef]
  26. Dobbs, A.P.; Jones, K.; Veal, K.T. The generation and cyclisation of pyridinium radicals as a potential route to indolizidine alkaloids. Tetrahedron Lett. 1997, 38, 5383–5386. [Google Scholar] [CrossRef]
  27. Beard, C.D.; Baum, K.; Grakauskas, V. Synthesis of some novel trifluoromethanesulfonates and their reactions with alcohols. J. Org. Chem. 1973, 38, 3673–3677. [Google Scholar] [CrossRef]
  28. Ignatyev, N.; Schmidt, M.; Heider, U.; Sartori, P.; Kucheryna, A. Method for Producing Perfluoroalkanesulfonic Acid Esters. Merck Patent GmbH WO 2002/098844, EP 1 399 417 B1, 2002. [Google Scholar]
  29. Ignatyev, N.; Schmidt, M.; Heider, U.; Sartori, P.; Kucheryna, A. Method for Producing Perfluoroalkane Sulfonic Acid Esters and the Salts Thereof. Merck Patent GmbH WO 2003/053918, EP 1 472 217 B1, 2003. [Google Scholar]
  30. Bonhöte, P.; Dias, A.; Papageorgiou, N.; Kalyanasundaram, K.; Grätzel, M. Hydrophobic, highly conductive ambient-temperature molten salts. Inorg. Chem. 1996, 35, 1168–1178. [Google Scholar] [CrossRef]
  31. Denmark, S.E.; Forbes, D.C.; Hays, D.S.; DePue, J.S.; Wilde, R.G. Catalytic epoxidation of alkenes with oxone. J. Org. Chem. 1995, 60, 1391–1407. [Google Scholar] [CrossRef]
  32. Beer, L.; Britten, J.F.; Brusso, J.L.; Cordes, A.W.; Haddon, R.C.; Itkis, M.E.; MacGregor, D.S.; Oakley, R.T.; Reed, R.W.; Robertson, C.M. Prototypal dithiazolodithiazolyl radicals: Synthesis, structures, and transport properties. J. Am. Chem. Soc. 2003, 125, 14394–14403. [Google Scholar]
  33. Canac, Y.; Duhayon, C.; Chauvin, R. A diaminocarbene-phosphonium ylide: Direct access to C,C chelating ligands. Angew. Chem. 2007, 119, 6429–6431. [Google Scholar] [CrossRef]
  34. Ferreira, L.M.; Marques, M.M.B.; Glória, P.M.C.; Chaves, H.T.; Franco, J.-P.P.; Mourato, I.; Antunes, J.-R.T.; Rzepa, H.S.; Lobo, A.M.; Prabhakar, S. Reaction of aromatic nitroso compounds with chemical models of ‘thiamine active aldehyde’. Tetrahedron 2008, 64, 7759–7770. [Google Scholar]
  35. Riegel, S.D.; Burford, N.; Lumsdenb, M.D.; Decken, A. Synthesis and characterization of elusive cyclo-di-and-tri-phosphino-1,3-diphosphonium salts: Fundamental frameworks in catenaorganophosphorus chemistry. Chem. Commun. 2007, 4668–4670. [Google Scholar]
  36. Weigand, J.J.; Burford, N.; Decken, A.; Schulz, A. Preparation and characterization of a ligand-stabilized trimethylphosphane dication. Eur. J. Inorg. Chem. 2007, 4868–4872. [Google Scholar]
  37. Levin, V.V.; Kozlov, M.A.; Song, Y.-H.; Dilman, A.D.; Belyakov, P.A.; Struchkova, M.I.; Tartakovsky, V.A. Nucleophilic fluoroalkylation of iminium salts. Tetrahedron Lett. 2008, 49, 3108–3111. [Google Scholar]
  38. Maruoka, K.; Sato, J.; Yamamoto, H. Methylaluminum bis(4-bromo-2,6-di-tert-butylphenoxide) as a key reagent for effecting primary α-alkylation of carbonyl compounds. J. Am. Chem. Soc. 1992, 114, 4422–4423. [Google Scholar] [CrossRef]
  39. Zoller, U. The cheletropic fragmentation of hypervalent three-membered thiaheterocyclic intermediates. Tetrahedron 1988, 44, 7413–7426. [Google Scholar] [CrossRef]
  40. Bonhöte, P.; Dias, A.; Papageorgiou, N.; Kalyanasundaram, K.; Grätzel, M. Hydrophobic, highly conductive ambient-temperature molten salts. Inorg. Chem. 1996, 35, 1168–1178. [Google Scholar] [CrossRef]
  41. Kevill, D.N.; Lin, G.M.L. A comparison of leaving-group abilities in reactions of powerful methylating agents. Tetrahedron Lett. 1978, 11, 949–952. [Google Scholar] [CrossRef]
  42. Ignat’ev, N.V.; Welz-Biermann, U.; Kucheryna, A.I.; Willner, H. Close the Gap: Synthesis of Highly Unsymmetrical Ionic Liquids. In 231st ACS National Meeting, Atlanta, GA, USA, March 26-30, 2006. Abstract I&EC 126..
  43. Ignatyev, N.; Welz-Biermann, U.; Kucheryna, A.; Willner, H. Method for Producing Onium Salts Comprising Alkyl- or Aryl-Sulfonate Anions or Alkyl-Aryl-Carboxylate Anions Having a Low Halide Content. Merck Patent GmbH WO 2006/063656 A1, 2006. [Google Scholar]
  44. Ignat’ev, N.V.; Kucheryna, A.; Bissky, G.; Willner, H. How to Make Ionic Liquids More Liquid. In Ionic Liquids: Not Just Solvents Anymore; Brennecke, J.F., Rogers, R.D., Seddon, K.R., Eds.; American Chemical Society: Washington, DC, USA, 2007; ACS Symposium Series 975, Chapter 22. [Google Scholar]
  45. Ignat’ev, N.V.; Welz-Biermann, U.; Kucheryna, A.; Bissky, G.; Willner, H. New ionic liquids with tris(perfluoroalkyl)trifluorophosphate (FAP) anions. J. Fluorine Chem. 2005, 126, 1150–1159. [Google Scholar] [CrossRef]
  46. Ignatyev, N.; Welz-Biermann, U.; Koppe, K.; Barthen, P.; Frohn, H.-J. Dehydration of Alcohols to Form Alkenes or Ethers. Merck Patent GmbH WO 2007/014613, 2007. [Google Scholar]
  47. Ignatyev, N.; Koppe, K.; Frohn, H.-J.; Barthen, P. Splitting of Dialkoxyalkanes in Ionic Liquids. Merck Patent GmbH WO 2007/104380, 2007. [Google Scholar]
  48. Ignatyev, N.; Koppe, K.; Barthen, P.; Frohn, H.-J. Synthesis of Chromane Derivatives. Merck Patent GmbH WO 2008/086847 A2, 2008. [Google Scholar]
  • Sample Availability: Ionic Liquids are available from Merck KGaA, Darmstadt, Germany.
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
