Molecules 2012, 17(10), 11469-11483; https://doi.org/10.3390/molecules171011469

Article
Silica Gel-Mediated Organic Reactions under Organic Solvent-Free Conditions
Institute for Materials Chemistry and Engineering (IMCE), Kyushu University, Hakozaki, Higashi-ku, Fukuoka 812-8581, Japan
*
Author to whom correspondence should be addressed.
Received: 24 August 2012; in revised form: 18 September 2012 / Accepted: 20 September 2012 / Published: 27 September 2012

Abstract

:
Silica gel was found to be an excellent medium for some useful organic transformations under organic solvent-free conditions, such as (1) the Friedel-Crafts-type nitration of arenes using commercial aqueous 69% nitric acid alone at room temperature, (2) one-pot Wittig-type olefination of aldehydes with activated organic halides in the presence of tributyl- or triphenylphosphine and Hunig’s base, and (3) the Morita-Baylis-Hillman reaction of aldehydes with methyl acrylate. After the reactions, the desired products were easily obtained in good to excellent yields through simple manipulation.
Keywords:
aromatic nitration; green synthetic process; heterogeneous reaction; Morita-Baylis-Hillman reaction; one-pot Wittig-type olefination; solid reaction medium

1. Introduction

In the chemical industry, huge amounts of organic solvents have been used and are still wasted all over the World. The development of no-use or a large-scale cut in their use has, therefore, become an increasingly important issue of synthetic organic chemistry, from not only a practical but also an environmental point of view [1]. There have been several approaches to access to this problem, e.g., the developments of neat reactions that proceed under various conditions such as microwave irradiation, thermal heating, grinding, sonication, etc., or in organic or inorganic solid-media, or in ionic liquid-media under organic solvent-free reactions [2,3,4,5,6,7]. In this context, we have made our own efforts to contribute to this research field developing some useful synthetic methods that do not require any organic solvents as reaction media [8,9,10,11,12]. Silica gel has widely been utilized, not only as an effective adsorbent for chromatography, but also as a mild acid catalyst, an accelerator, or a reaction medium which is easily separable from the products after the reaction [7,13]. We report here the successful use of silica gel as a solid reaction medium for three synthetically useful organic transformations: aromatic nitration, Wittig-type olefination, and Morita-Baylis-Hillman reaction, in which no organic solvents are required.

2. Results and Discussion

2.1. Nitration of Aromatic Compounds with 69% Nitric Acid

Aromatic nitration is one of the most important and convenient methods to introduce nitro group(s) into aromatic nuclei, and a number of nitrating reagents and reaction conditions have so far been developed for this purpose [14,15]. So-called mixed acid (HNO3conc. + H2SO4conc.) has been the most popular way to generate the nitronium ion (NO2+) as the active species for the Friedel-Crafts-type nitration since nitric acid is a good nitronium ion precursor in terms of cheapness, handleability and atom economy. However, the development of more convenient and practical methods that do not require such strong acids, acidic additives, or even organic solvents has been strongly desired from an environmental point of view [1], and a variety of green chemical approaches using nitric acid as a nitration reagent have been made in recent years [16,17,18,19,20,21,22,23,24,25,26,27,28,29]. Although aromatic nitration using nitric acid has long been known, there are few examples in which nitric acid was simply used as a nitrating agent under solvent-free conditions [26,27,28,29]. We report here the usefulness of silica gel as a solid reaction medium for the aromatic nitration using commercial 69% nitric acid at room temperature [30,31].
Nitric acid can provide nitronium ion in equilibrium as shown in Scheme 1. Therefore, if one could develop an efficient dehydrating system for this process, concentration of the nitronium ion would be increased to react easily with aromatic compounds under mild and clean conditions leaving only water as a waste. Based on this idea, we tried to use silica gel as an absorbent for water and also as a dispersant for the substrates to achieve an activator-free and organic solvent-free nitration of non-activated and activated aromatic compounds.
Scheme 1. A scheme for the aromatic nitration using nitric acid in the absence of sulfuric acid.
Scheme 1. A scheme for the aromatic nitration using nitric acid in the absence of sulfuric acid.
Molecules 17 11469 g001
In Table 1 the results of the silica gel-mediated nitration of ethylbenzene (1 mmol) with 69% HNO3 under various conditions are summarized. Although an excess amount of nitric acid was needed for completion of the reaction, the nitration proceeded smoothly at room temperature in 500 mg of silica gel to give the desired products in almost quantitative yield. The reaction was obviously accelerated by the addition of silica gel [COSMOSIL 75SL-II-PREP (Nacalai Tesque)] (entries 6 vs. 8). The use of another kind of silica gel, such as Silica gel 40 (0.2–0.5 mm, Merck), Silica gel 60 (0.2–0.5 mm, Merck), BW-300 (40 μm, Fuji Silysia), Silica gel 60 (40–50 μm, Kanto Chemical), and Silica gel 60 N (63–210 μm, Kanto Chemical), also gave a similar result, but other inorganic solids having dehydrating ability like molecular sieves 4Å and anhydrous MgSO4 were less effective for this transformation. The concentration of nitric acid is crucial; When 60% nitric acid was used in place of 69% nitric acid, the product yield significantly dropped (entries 7 vs. 11).
Table 1. The nitration of ethylbenzene with nitric acid on silica gel a.
Molecules 17 11469 i001
Table 1. The nitration of ethylbenzene with nitric acid on silica gel a.
Molecules 17 11469 i001
Entry69% HNO3Silica gel bTimeYield cRatio d
mmolmgh%o-/p-
11.125011642/58
21.1250122443/57
32.025012643/57
44.025014543/57
56.050017043/57
68.050018144/56
78.05001297 (85)44/56
88.0none16046/54
98.0none128947/53
101.1 (60% HNO3)2501644/56
118.0 (60% HNO3)50012844/56
128.0 (60% HNO3)none1445/55
a Ethylbenzene (1 mmol) was used; b COSMOSIL 75SL-II-PREP (Nacalai Tesque) was used; c 1NMR yield using pentamethylbenzene as an internal standard. Isolated yield is given in parenthesis; d Determined by 1H-NMR.
The nitration of naphthalene with 1.1 eq of 69% nitric acid at room temperature for 1 h afforded mononitronaphthalene in good yield as a mixture of regioisomers (α/β = 97:3) (Table 2). The yield gradually increased as the reaction time was increased (entries 1 vs. 2), and when naphthalene was treated with two equivalents of nitric acid for 12 h, the products were obtained almost quantitatively (entry 4). As far as this substrate is concerned, little effect of silica gel was observed: comparable results were yielded under neat conditions (entries 1 vs. 5 and 4 vs. 6). This may be attributed to the inefficient dispersion of naphthalene on silica gel because both of them are solids at room temperature.
Table 2. The nitration of naphthalene with nitric acid on silica gel.
Molecules 17 11469 i002
Table 2. The nitration of naphthalene with nitric acid on silica gel.
Molecules 17 11469 i002
EntryNaphthalene69% HNO3Silica gel aTimeYield bRatio c
mmolmmolmgh%1-/2-
11.01.125017297/3
21.01.1250128296/4
31.01.5250129496/4
41.02.02501297 (94)97/3
55.05.5none17497/3
62.55.0none129597/3
a COSMOSIL 75SL-II-PREP; b 1NMR yield using pentamethylbenzene as an internal standard. Isolated yield is given in parenthesis; c Determined by 1H-NMR.
The nitration of m-cresol was also investigated. The high reactivity of this substrate tends to afford an oxidation product and tarry substances as byproducts. On the other hand, the use of silica gel with 1.1 eq of nitric acid largely improved the yield of the desired nitro compounds as shown in Scheme 2. The observed para-selectivity (64%–67%) appears to be slightly higher than the reported ones (40%–63%) obtained under other reaction conditions shown in Table 3. The nitration of phenols and related compounds using silica gel-supported nitric acid, which was prepared by treating silica gel with 8N nitric acid for 2 h followed by filtration and drying, has been reported [32]. In this case, however, the reaction was carried out in dichloromethane.

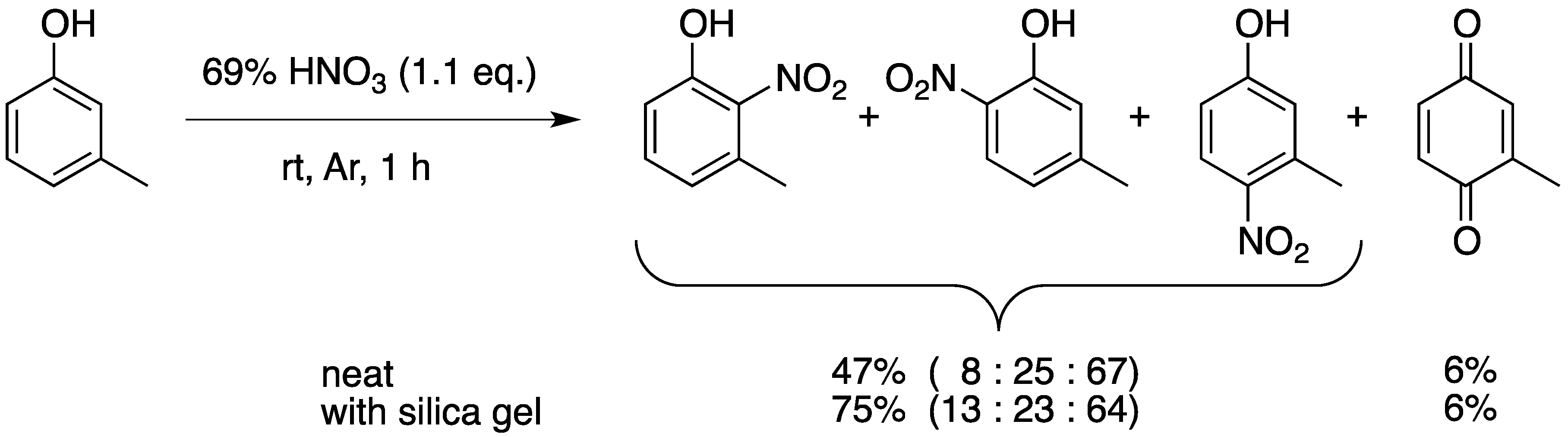

Scheme 2. The nitration of m-cresol using 69% nitric acid with or without silica gel.
Scheme 2. The nitration of m-cresol using 69% nitric acid with or without silica gel.
Molecules 17 11469 g002
Table 3. Some reported examples of the nitration of m-cresol under various conditions.
Table 3. Some reported examples of the nitration of m-cresol under various conditions.
Conditions Yield (%) (2:6:4)Reference
70% HNO3/H2SO4/0 °C (direct)36 (24:25:51)[33]
NaNO3/NaNO2/3M H2SO4/ether/rt91 (25:30:40)[34]
60% HNO3/Yb-Mo-HKSF/THF/rt 91 (14:29:57) [23]
Fe(NO3)3/Clayfen/ether/rt 54 (~:37:63)[35]

2.2. One-Pot Wittig-Type Olefination of Aldehydes

The Wittig reaction is one of the powerful tools to install a carbon-carbon double bond in a highly selective manner [36]. For the Wittig reaction using stabilized phosphonium ylides under solvent-free conditions, there have been various approaches, such as enantioselective reaction in chiral solid media [37], fusion of substrates under microwave irradiation [38,39], grinding of reagents [40,41,42], activated alumina promoted reaction [43], and rate acceleration by immediate solvent evaporation [44]. Although these methods are attractive and environmental friendly, some of the reactions needed special equipment like a microwave reactor or a ball-milling machine and produced unsatisfactory isolated yields of the products.
We report here a quite convenient method for the direct one-pot Wittig-type olefination of aldehydes using ethyl chloroacetate, a phosphine, and a base where the following three processes would take place: the phosphonium salt-formation, the ylide-formation, and the Wittig reaction to give the α,β-unsaturated esters as the final products (Scheme 3) [31]. The fact that silica gel can accelerate the Wittig reaction of aldehydes with stabilized phosphonium ylides in organic solvent has been reported [45].
Scheme 3. Whole process of a typical Wittig reaction using a stabilized phosphonium ylide.
Scheme 3. Whole process of a typical Wittig reaction using a stabilized phosphonium ylide.
Molecules 17 11469 g003
Taking benzaldehyde (1 mmol), ethyl chloroacetate (1 mmol), and triphenylphosphine (1 mmol), we first examined the effects of reaction medium and the base (Table 4). All the reactions were conducted at 90 °C by considering the melting point of triphenylphosphine. Among the reaction media tested, silica gel was found to be the best, and ethyl cinnamate was obtained almost quantitatively when diisopropylethylamine was employed as a base (entry 8). Neat conditions or the use of toluene, organic polymer or alumina as a reaction medium were not effective (entries 9–15). Interestingly, the use of a stronger base such as 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU) or phosphazene gave rise to unexpectedly low yields (entry 6 and 7). In these cases, their high nucleophilicity and strong basicity seem to cause the ammonium salt formation and/or the Darzens reaction, though the formation of such byproducts has not been ascertained experimentally. Suitable basicity and relatively low nucleophilicity of diisopropylethylamine would be a key of the present success. Simple treatment of the whole mixture with a mixture of hexane-ethyl acetate (20:1) through a column followed by evaporation of the solvents afforded the olefination product in a practically pure state.
Table 4. One-pot Wittig-type olefination of benzaldehyde under various conditions a.
Molecules 17 11469 i003
Table 4. One-pot Wittig-type olefination of benzaldehyde under various conditions a.
Molecules 17 11469 i003
EntryMediumBaseYield (%) bE/Z c
1silica gelnone1895/5
2silica gelPh3P3295/5
3silica gelNa2CO32992/8
4silica gelKOH4291/9
5silica gelEt3N8691/9
6silica gelDBU2589/11
7silica gelPhosphazene 2093/7
8silica geli-Pr2NEt 9993/7
9nonei-Pr2NEt6794/6
10toluene i-Pr2NEt4394/6
11PTFE di-Pr2NEt5693/7
12PSDVB ei-Pr2NEt5892/8
13alumina (acidic)i-Pr2NEt4093/7
14alumina (neutral)i-Pr2NEt3692/8
15alumina (basic)i-Pr2NEt4194/6
a Benzaldehyde (1 mmol), ethyl chloroacetate (1 mmol), triphenylphosphine (1 mmol), a base (1 mmol), and medium (1 g) were used; b GC yield using n-tetradecane as a standard; c Determined by GC; d PTFE: Polytetrafluoroethylene; e PSDVB: Poly(styrene-co-divinylbenzene).
The present silica gel-mediated one-pot olefination reaction was successfully applied to various aldehydes and ketones. As shown in Table 5, the reaction of aromatic aldehydes proceeded smoothly under the standard conditions to give the corresponding olefins in good to excellent yields (runs 2–6). On the other hand, the reaction of aliphatic aldehydes having acidic hydrogen atoms at the α-position of the carbonyl group produced a mixture of more than three olefination products as regio- (α,β-unsaturated and β,γ-unsaturated) and stereoisomers (E and Z) (entries 7 and 11). Moreover, in these cases, the aldol-type and other types of reactions that proceed through enolate formation became major. Such kind of side reactions, however, could be significantly suppressed by employing tributylphosphine at room temperature instead of triphenylphosphine at 90 °C (entries 8, 10, and 12). The observed superiority of tributylphosphine over triphenylphosphine suggests that the phosphonium salt-formation would be the rate-determining step of the present one-pot olefination.
Table 5. One-pot Wittig-type olefination of various aldehydes on silica gel a.
Molecules 17 11469 i004
Table 5. One-pot Wittig-type olefination of various aldehydes on silica gel a.
Molecules 17 11469 i004
EntryRCHOR3PTime (h)Yield (%) bE/Z c
1PhCHOn-Bu3P29995/5
24-MeOC6H4CHOPh3P69694/6
34-MeC6H4CHOPh3P69394/6
44-ClC6H4CHOPh3P69992/8
54-NCC6H4CHOPh3P29690/10
64-O2NC6H4CHOPh3P28390/10
7n-C6H13CHOPh3P61185/15
8n-C6H13CHOn-Bu3P24 d5496/4
9c-C6H13CHOPh3P67897/3
10c-C6H13CHOn-Bu3P24 d9998/2
11PhCH2CH2CHOPh3P61187/13
12PhCH2CH2CHOn-Bu3P6 d4697/3
a An aldehyde (1 mmol), ethyl chloroacetate (1 mmol), a phosphine (1 mmol), diisopropylethylamine (1 mmol), and silica gel (1 g) were used; b GC yield; c Determined by GC; d The reaction was carried out at room temperature.
Low reactivity of ketones enabled the highly chemoselective olefination of aldehydes in the presence of ketones. A typical example is shown in Scheme 4.

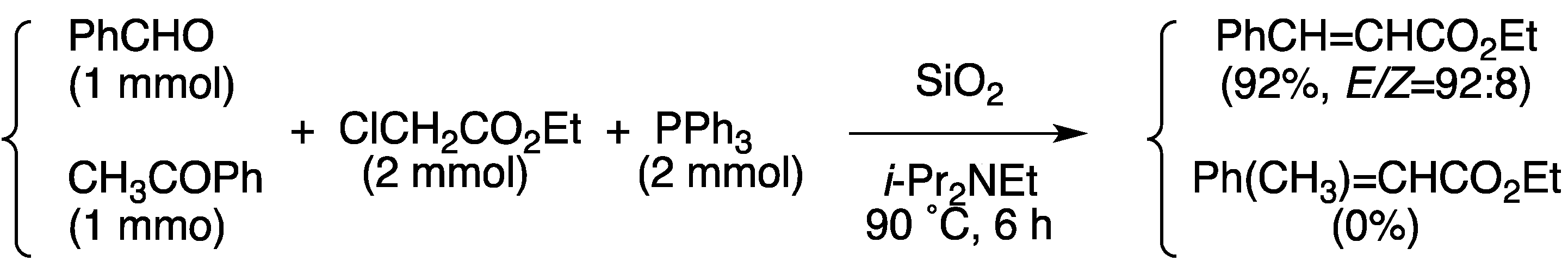

Scheme 4. The competitive reaction of benzaldehyde vs. acetophenone.
Scheme 4. The competitive reaction of benzaldehyde vs. acetophenone.
Molecules 17 11469 g004
Table 6 shows the applicability of the present silica gel-mediated one-pot olefination of aldehydes to other organic halides, such as benzyl chloride, α-bromo-γ-butyrolactone, and phenacyl bromide. As expected, the corresponding olefination products were conveniently obtained in good isolated yields.
Table 6. One-pot olefination of benzaldehyde with various halides on silica gel a.
Molecules 17 11469 i005
Table 6. One-pot olefination of benzaldehyde with various halides on silica gel a.
Molecules 17 11469 i005
EntryX, RYield (%) bE/Z c
1Cl, Ph6667/33
2α-Br-γ-butyrolactone5295/5
3Br, COPh85>99/1
a Benzaldehyde (1 mmol), a halide (1 mmol), triphenylphosphine (1 mmol), diisopropylethylamine (1 mmol), and silica gel 40 (0.2–0.5 mm, Merck, 1 g) were used; b Isolated yield; c Determined by GC.

2.3. The Morita-Baylis-Hillman Reaction

The Morita-Baylis-Hillman (MBH) reaction possesses the two most important requirements: atom economy and generation of multi-functional groups, and, therefore, it has attracted many synthetic chemists to explore different aspects of the MBH reaction [46,47,48,49,50]. As for the development of new reaction media [51,52,53,54], Basavaiah and Reddy have already demonstrated the usefulness of silica gel as a reaction medium for this reaction [51]. Therefore, we simply describe here a few additional results previously obtained by us [55].
As expected from its high nucleophilicity, 1,4-diazabicyclo[2.2.2]octane (DABCO) was proved to be the most effective catalyst among other amines examined like 4-dimethylaminopyridine (DMAP), triethylamine, and DBU, and as shown in Table 7, alumina, molecular sieves (MS4A), and NH-silica were found to be less effective than silica gel (entries 1-3 vs. 4). The reaction rate notably decreased when wet silica gel was employed (entry 5). Thus, the use of dried silica gel in combination with 1.5 eq of DABCO effectively promoted the reaction at room temperature affording the desired products in good isolated yields in a significantly short period of time for this type of reaction (entries 6–8).
Table 7. The Morita-Baylis-Hillman reaction in various solid media a.
Molecules 17 11469 i006
Table 7. The Morita-Baylis-Hillman reaction in various solid media a.
Molecules 17 11469 i006
EntryArCHODABCO (eq)MediumTime (h)Yield (%) b
14-NO2C6H4CHO1.1alumina562
24-NO2C6H4CHO1.1MS4A551
34-NO2C6H4CHO1.1NH-silica c542
4 d4-NO2C6H4CHO1.1silica gel483
5 e4-NO2C6H4CHO1.1silica gel1579
64-NO2C6H4CHO1.5silica gel490 f
74-F-3-NO2C6H3CHO1.5silica gel3.577 f
8C6F5CHO1.5silica gel3.579 f
a An aldehyde (0.5 mmol), methyl acrylate (5.5 mmol), and the medium (500 mg) were used; b GC yield using n-dodecane as a standard, unless otherwise stated; c Cromatorex® NH-DM1020 (75–150 μm, aminopropyl-modified type, Fuji Silysia Chemical); d Methyl acrylate (1.2 eq) was used; e Water (0.1 eq) was used as an additive; f Isolated yield.

3. Experimental

3.1. General

Infrared (IR) spectra were recorded on a Shimadzu FTIR-8600 spectrometer and JASCO FT/IR-4200. 1H-NMR and 13C-NMR spectra were measured on JEOL JNM-EX 400 and Bruker ADVACE III 600. Chemical shifts are given by δ relative to that of internal Me4Si (TMS) or the solvent (chloroform-d at 77.0 ppm in 13C-NMR). Mass spectra were obtained with Shimadzu GC-MS QP-5000. Fast atom bombardment mass spectra (FAB-MS) were obtained with Shimadzu/Kratos CONCEPT 1S or JEOL JMS-DX 303. Elemental analyses were performed at the service center of the elementary analysis of organic compounds, Kyushu University. High-resolution mass spectra (HRMS) were obtained on JEOL JMS-HX100A. Analytical thin layer chromatography (TLC) was performed on a silica gel plate (Merck, Silica gel 60 F254, 20 × 20 cm, 0.25 mm). Column chromatography was carried out with silica gel [Silica gel 60 (63–210 μm, Merck), or Silica gel 60N (63–210 μm, Kanto Chemical)] as an adsorbent. In experiments that required solvents and ethylbenzene were purchased from Sigma-Aldrich in an “anhydrous” form and used without any purification. Silica gel 40 (0.2–0.5 mm, Merck), Silica gel 60 (0.2–0.5 mm, Merck), BW-300 (40 μm, Fuji Silysia), Silica gel 60 (40–50 μm, Kanto Chemical), Silica gel 60 N (63–210 μm, Kanto Chemical), COSMOSIL 75SL-II-PREP (42–105 μm, Nacalai Tesque) and Cromatorex® NH-DM1020 (75–150 μm, aminopropyl-modified type, Fuji Silysia Chemical) were examined as the reaction medium. All reactions were carried out under argon. Other commercially available compounds were purchased from Tokyo Chemical Industry Co., Ltd., Wako Pure Chemical Industries, Ltd., Kanto Chemical Co., Inc., Nacalai Tesque Inc. and Sigma-Aldrich Co., and used without further purification. New products were fully characterized after purification by their physical constants, spectral and elemental analyses. For the products that are commercially available or already known compounds, the NMR and MS (in part) data as well as the CAS-registry numbers are given.

3.2. General Procedure for the Nitration of Aromatic Compounds on Silica Gel

A typical procedure is given for the preparation of nitronaphthalene. Pre-dried (at 110 °C for 8 h in vacuo) and stocked silica gel [COSMOSIL 75SL-II-PREP (Nacalai Tesque), 2.5 g] was charged in a round-bottom flask and dried for 5 min by heat gun (ca. 300 °C) in vacuo just before use. Naphthalene (1.28 g, 10 mmol) was added to the flask, and the mixture was stirred for 30 min at ambient temperature (ca. 25 °C). An aqueous 69% HNO3 solution (d = 1.42, 1.27 mL, 20 mmol) was gradually injected into the mixture over 1 h by syringe pump, and the mixture was stirred for 12 h. The reaction mixture was moved into a short column and eluted with ether. The eluate was washed with water, saturated NaHCO3 and brine, and dried over Na2SO4. After evaporation of the solvent, the residue was purified by column chromatography on silica gel (n-hexane/EtOAc = 19/1) to give 1.67 g (97%) of nitronaphthalene as a mixture of isomers (1-nitro/2-nitro = 96.5:3.5), recrystallization of which from ethanol gave pure 1-nitronaphthalene (1.4 g, 81%).
Ethylnitrobenzene (o-, p-isomer mixture) [29]. A colorless oil; 1H-NMR (CDCl3) δ 8.15 (d, 2H, J = 8.5 Hz, p-isomer), 7.87 (d, 1H, J = 8.0 Hz, o-isomer), 7.53 (t, 1H, J = 8.0 Hz, o-isomer), 7.38–7.31 (m, 2H+2H, mixture of isomers), 2.92 (q, 2H, J = 7.5 Hz, o-isomer), 2.76 (q, 2H, J = 7.6 Hz, p-isomer), 1.29 (t, 3H, J = 7.5 Hz, o-isomer), 1.28 (t, 3H, J = 7.6 Hz, p-isomer); 13C-NMR (CDCl3) δ 149.1, 138.7, 132.8, 131.0, 126.6, 124.3, 25.9, 14.7 (o-isomer), 151.9, 146.0, 128.5, 123.4, 28.7, 14.8 p-isomer); CA Registry No. 612-22-6 (o-isomer), 100-12-9 (p-isomer).
2-Nitro-m-cresol [23]. Yellow solid; 1H-NMR (CDCl3) δ 10.32 (s, 1H), 7.37 (dd, J = 8.4, 7.5 Hz, 1H), 7.01 (ddq, J = 8.4, 1.5, 0.6 Hz, 1H), 6.83 (ddq, J = 8.4, 1.5, 0.6 Hz, 1H), 2.62 (s, 3H); 13C-NMR (CDCl3) δ 155.3, 136.8, 135.3, 135.2, 124.0, 117.6, 22.4; CA Registry No. 4920-77-8.
4-Nitro-m-cresol [23]. Yellow solid; 1H-NMR (CDCl3) δ 8.06–8.04 (m, 1H), 6.77–6.75 (m, 2H), 5.96 (s, 1H), 2.61 (s, 3H); 13C-NMR (CDCl3) δ 159.8, 142.2, 137.5, 127.9, 118.9, 113.6, 21.5; CA Registry No. 2581-34-2.
6-Nitro-m-cresol [23]. Yellow solid; 1H-NMR (CDCl3) δ 10.61 (s, 1H), 7.98 (d, 1H,J = 8.7 Hz), 6.94 (ddq, 1H, J = 1.9, 0.8, 0.4 Hz), 6.78 (ddq, 1H, J = 8.7, 1.9, 0.6 Hz), 2.40 (s, 3H); 13C-NMR (CDCl3) δ 155.1, 149.8, 131.7, 124.9, 121,6, 119.6, 21.9; CA Registry No. 700-38-9.
Methyl-p-benzoquinone [16]. Yellow solid; 1H-NMR (CDCl3) δ 6.77 (d, 1H, J = 10.0 Hz), 6.72 (dd, 1H, J = 10.0, 2.5 Hz), 6.62 (dq, 1H, J = 2.5, 1.7 Hz), 2.07 (d, 3H, J = 1.7 Hz); 13C-NMR (CDCl3) δ 187.7, 187.6, 145.9, 136.6, 136.5, 133.3, 15.8; CA Registry No. 553-97-9.

3.3. General Procedure for the Silica Gel-Mediated One-Pot Wittig Olefination of Aldehydes

Typical procedure is given for the preparation of ethyl cinnamate: To silica gel (Merck’s Silica gel 40, 1 g) were added successively benzaldehyde (104.8 µL, 1 mmol), ethyl chloroacetate (108 µL, 1 mmol), diisopropylethylamine (175.1 µL, 1 mmol), and triphenylphosphine (265 mg, 1 mmol) [or tri-n-butylphosphine (202 mg, 1 mmol)] and the whole mixture was stirred for 6 h at 90 °C (or for 2 h at room temperature). The reaction mixture was moved into a short column and eluted with ether. The eluate was concentrated and purified by preparative TLC on silica gel to give 176.1 mg (>99%, E/Z = 93/7) of ethyl cinnamate.
Ethyl Cinnamate [56]. An oil; 1H-NMR (CDCl3) δ 7.69 (d, 1H, J = 16.1 Hz), 7.51–7.54 (m, 2H), 7.37–7.40 (m, 3H), 6.44 (d, 1H, J = 16.1 Hz), 4.27 (dd, 2H, J = 14.2, 7.3 Hz), 1.34 (t, 3H, J = 7.3 Hz); CA Registry Nos. 4192-77-2 (E-isomer), 4610-69-9 (Z-isomer).
Ethyl 4-Methoxycinnamate [57]. An oil (96%, E/Z = 94/6); 1H-NMR (CDCl3) δ 7.64 (d, 1H, J = 16.1 Hz), 7.48 (dd, 2H, J = 6.8, 2.0 Hz), 6.90 (dd, 2H, J = 6.8, 2.0 Hz), 6.31 (d, 1H, J = 16.1 Hz), 4.25 (dd, 2H, J = 14.2, 7.3 Hz), 3.84 (s, 3H), 1.33 (t, 3H, J = 7.3 Hz); CA Registry Nos. 24393-56-4 (E-isomer), 51507-22-3 (Z-isomer).
Ethyl 4-Methylcinnamate [57]. An oil (93%, E/Z = 94/6); 1H-NMR (CDCl3) δ 7.66 (d, 1H, J = 16.1 Hz), 7.42 (d, 2H, J = 8.3 Hz), 7.19 (d, 2H, J = 8.3 Hz), 6.39 (d, 1H, J = 16.1 Hz), 4.26 (dd, 2H, J = 14.2, 7.3 Hz), 2.37 (s, 3H), 1.34 (t, 3H, J = 7.3 Hz); CA Registry Nos. 24393-49-5 (E-isomer), 97585-04-1 (Z-isomer).
Ethyl 4-Chlorocinnamate [56]. An oil (99%, E/Z = 92/8); 1H-NMR (CDCl3) δ 7.63 (d, 1H, J = 16.1 Hz), 7.45 (dd, 2H, J = 6.8, 2.0 Hz), 7.36 (dd, 2H, J = 6.8, 2.0 Hz), 6.41 (d, 1H, J = 16.1 Hz), 4.27 (dd, 2H, J = 14.2, 7.3 Hz), 1.34 (t, 3H, J = 7.3 Hz); CA Registry Nos. 24393-52-0 (E-isomer), 63757-30-2 (Z-isomer).
Ethyl 4-Cyanocinnamate [56]. Colorless needles (96%, E/Z = 90/10); 1H-NMR (CDCl3) δ 7.68 (d, 2H, J = 8.3 Hz), 7.66 (d, 1H, J = 16.1 Hz), 7.61 (d, 2H, J = 8.3 Hz), 6.52 (d, 1H, J = 16.1 Hz), 4.29 (dd, 2H, J = 14.4, 7.1 Hz), 1.35 (t, 3H, J = 7.1 Hz); CA Registry Nos. 62174-99-6 (E-isomer), 92636-30-1 (Z-isomer).
Ethyl 4-Nitrocinnamate [56]. Light yellow needles (83%, E/Z = 90/10); 1H-NMR (CDCl3) δ 8.25 (d, 2H, J = 8.8 Hz), 7.71 (d, 1H, J = 16.1 Hz), 7.67 (d, 2H, J = 8.8 Hz), 6.56 (d, 1H, J = 16.1 Hz), 4.30 (dd, 2H, J = 14.2, 7.3 Hz), 1.36 (t, 3H, J = 7.3 Hz); CA Registry Nos. 24393-61-1 (E-isomer), 51507-21-2 (Z-isomer).
Ethyl 2-Nonenoate [43]. An oil (54%, E/Z = 85/15); 1H-NMR (CDCl3) δ 6.97 (dt, 1H, J = 15.6, 7.3 Hz), 5.81 (dt, 1H, J = 15.6, 1.5 Hz), 4.18 (dd, 2H, J = 14.2, 7.3 Hz), 2.19 (dd dd, 2H, J = 14.6, 8.8, 7.3, 1.5 Hz), 1.44 (dd, 2H, J = 14.6, 7.3 Hz), 1.24–1.35 (m, 6H), 1.29 (t, 3H, J = 7.3 Hz), 0.88 (t, 3H, J = 6.8 Hz); CA Registry Nos. 38112-59-3 (E-isomer), 72284-17-4 (Z-isomer).
Ethyl 3-Cyclohexylacrylate [57]. An oil (99%, E/Z = 97/3); 1H-NMR (CDCl3) δ 6.91 (dd, 1H, J = 16.1, 6.8 Hz), 5.76 (dd, 1H, J = 16.1, 1.5 Hz), 4.18 (dd, 2H, J = 14.2, 7.3 Hz), 2.13 (dt, 1H, J = 6.8, 1.5 Hz), 1.66–1.78 (m, 4H), 1.31–1.08 (m, 9H); CA Registry Nos. 17343-88-3 (E-isomer), 18521-02-3 (Z-isomer).
Ethyl 5-Phenyl-2-pentenoate [56]. An oil (46%, E/Z = 87/13); 1H-NMR (CDCl3) δ 7.29 (t, 2H, J = 7.3 Hz), 7.17–7.22 (m, 3H), 7.00 (dt, 1H, J = 15.6, 6.8 Hz), 5.85 (dt, 1H, J = 15.6, 1.5 Hz), 4.18 (dd, 2H, J = 14.2, 7.3 Hz), 2.78 (t, 2H, J = 7.3 Hz), 2.52 (dd, 2H, J = 7.3, 1.5 Hz), 1.28 (t, 3H, J = 7.3 Hz); CA Registry Nos. 55282-95-6 (E-isomer), 88842-13-1 (Z-isomer).
Stilbene[58]. Colorless solid (66%, E/Z = 67/33); 1H-NMR (CDCl3) δ 7.17–7.38 (m, 10H, E-isomer), 7.13–7.27 (m, 10H, Z-isomer), 6.61 (s, 2H, Z-isomer), 6.60 (s, 2H, E-isomer); CA Registry Nos. 103-30-0 (E-isomer), 645-49-8 (Z-isomer).
α-Benzylidene-γ-butyrolactone [59]. Yellow solid (52%, E/Z = 95/5); 1H-NMR (CDCl3) δ 7.59 (t, 1H, J = 2.9 Hz), 7.51 (d, 2H, J = 6.8 Hz), 7.41–7.47 (m, 3H), 4.48 (t, 2H, J = 7.3 Hz), 3.27 (dt, 1H, J = 11.7, 2.9 Hz); CA Registry Nos. 30959-91-2 (E-isomer), 40011-26-5 (Z-isomer).
Chalcone [59]. Colorless solid (85%, E/Z = 99.7/0.3); 1H-NMR (CDCl3) δ 7.95–8.04 (m, 2H), 7.82 (d, 1H, J = 16.1 Hz), 7.42–7.66 (m, 11H); CA Registry Nos. 614-47-1 (E-isomer), 614-46-0 (Z-isomer).

3.4. General Procedure for the Silica Gel-Mediated Morita-Baylis-Hillman Reaction

Typical procedure is given for the preparation of methyl 2-[hydroxy(4-nitrophenyl)methyl]acrylate: To a mixture of DABCO (0.084 g, 0.75 mmol) and silica gel (Merck’s Silica gel 40, 0.5 g), p-nitrobenzaldehyde (0.079 g, 0.5 mmol) and methyl acrylate (0.05 mL, 0.55 mmol) were added. The whole mixture was stirred at room temperature for 4 h. On completion of the reaction, the reaction mixture was moved into a short column and eluted with CH2Cl2. Evaporation of the solvent afforded the desired product, which was further purified by silica gel chromatography to give the pure product as an oil (0.111 g, 90%).
Methyl 2-(Hydroxy(4-nitrophenyl)methyl)acrylate [54]. An oil; 1H-NMR (CDCl3) δ 8.20 (dt, 2H, J = 9.1, 2.1 Hz), 7.57 (dt, 2H, J = 9.1, 2.1 Hz), 6.40 (d, 1H, J = 0.5 Hz), 5.88 (d, 1H, J = 0.5 Hz), 5.64 (d, 1H, J = 5.5 Hz), 3.74 (s, 3H), 3.36 (d, 1H, J = 6.0 Hz); 13C-NMR (CDCl3) δ 166.3, 148.9, 147.3, 141.1, 127.4, 127.1, 123.5, 72.3, 52.1; CA Registry No. 114106-93-3.
Methyl 2-[Hydroxy(4-fluoro-3-nitrophenyl)methyl]acrylate . A yellow oil (77%); IR (KBr) 3484, 1715, 1540, 1440, 1351, 1154; 1H-NMR (CDCl3) δ 8.07 (m, 1H), 7.68 (m, 1H), 7.27 (m, 1H), 6.40 (s, 1H), 5.95 (s, 1H), 5.59 (s, 1H), 3.75 (s, 3H), 3.59 (bs, 1H); 13C-NMR (CDCl3) δ 166.1, 156.03, 140.8, 138.7 (d, J = 5.0 Hz), 133.6 (d, J = 9.0 Hz), 127.0, 127.0, 124.0 (d, J = 2.0 Hz), 118.2 (d, J = 21.0 Hz), 71.66, 52.1; HRMS (FAB+) m/z calcd for C11H11O5NF (M+H) 256.0621, found 256.0619; Anal. calcd for C11H10O5NF: C: 51.77%; H: 3.95%; N: 5.49%; found: C: 51.71%; H: 3.93%; N: 5.44%.
Methyl 2-[Hydroxy(2,3,4,5,6-pentafluorophenyl)methyl]acrylate . Colorless solid (79%); IR (KBr) 3470, 1709, 1524, 1505, 1306, 1063, 997; 1H-NMR (CDCl3) δ 6.48 (s, 1H), 6.10 (s, 1H), 5.89 (s, 1H), 3.74 (s, 3H), 3.43 (bs, 1H); 13C-NMR (CDCl3) δ 165.8, 146.3–136.2 (m), 126.6, 114.9 (m), 64.1, 52.0; HRMS (FAB+) m/z calcd for C11H8O3F5 (M+H) 283.0394, found 283.0395; CA Registry No. 1019127-87-7.

4. Conclusions

We have demonstrated the utility of silica gel as a solid reaction medium for some useful organic transformations, in which silica gel served as a drying agent as well as an efficient dispersant providing better yields of the products than those obtained in the corresponding reactions performed in organic solvents or under neat conditions. They are: (1) aromatic nitration using commercial 69% nitric acid at room temperature, (2) one-pot Wittig-type olefination of aldehydes with organic halides by the aid of a phosphine and a base, and (3) the Morita-Baylis-Hillman reaction of aldehydes with methyl acrylate at room temperature. These protocols are highly convenient and environmentally friendly as the reactions proceed under organic solvent-free heterogeneous conditions and, in most cases, simple washing of the reaction mixture-containing silica gel with a minimally required amount of appropriate solvent with low polarity is enough to get the desired products with appreciable purities.

Acknowledgments

This work was partly supported by MEXT/JSPS KAKENHI (Grant-in-Aid for Exploratory Research 11874104, Young Scientists (B) 20750122 and 23750176 (for H.F.), and Scientific Research on Innovative Areas 22106536), MEXT Project of Integrated Research of Chemical Synthesis, and also Kyushu University P&P Programs “Green Chemistry”.
  • Sample Availability: Not available.

References

  1. Constable, D.J.C.; Dunn, P.J.; Hayler, J.D.; Humphrey, G.R.; Leazer, J.L., Jr.; Linderman, R.J.; Lorenz, K.; Manley, J.; Pearlman, B.A.; Wells, A.; et al. Key green chemistry research areas—a perspective from pharmaceutical manufactures. Green Chem. 2007, 9, 411–420. [Google Scholar] [CrossRef]
  2. Smith, K. Solid Supports and Catalysts in Organic Synthesis; Ellis Horwood/Prentice Hall: New York, NY, USA, 1992. [Google Scholar]
  3. Martins, M.A.P.; Frizzo, C.P.; Moreira, D.N.; Buriol, L.; Machado, P. Solvent-free heterocyclic synthesis. Chem. Rev. 2009, 109, 4140–4182. [Google Scholar] [CrossRef]
  4. Walsh, P.J.; Li, H.; de Parrodi, C.A. A green chemistry approach to asymmetric catalysis: solvent-free and highly concentrated reactions. Chem. Rev. 2007, 107, 2503–2545. [Google Scholar] [CrossRef]
  5. Cave, G.W.V.; Raston, C.L.; Scott, J.L. Recent advances in solventless organic reactions: Towards benign synthesis with remarkable versatility. Chem. Commun. 2001, 21, 2159–2169. [Google Scholar]
  6. Tanaka, K.; Toda, F. Solvent-free organic synthesis. Chem. Rev. 2000, 100, 1025–1074. [Google Scholar]
  7. Varma, R.S. Solvent-free organic syntheses using supported reagents and microwave irradiation. Green Chem. 1999, 1, 43–55. [Google Scholar] [CrossRef]
  8. Jin, Y.Z.; Yasuda, N.; Inanaga, J. Organic synthesis in solid media. Solvent-free Horner- Wadsworth-Emmons reaction in silica gel. Green Chem. 2002, 4, 498–500. [Google Scholar] [CrossRef]
  9. Jin, Y.Z.; Yasuda, N.; Furuno, H.; Inanaga, J. Organic synthesis in solid media. Silica gel as an effective and reusable medium for the selective allylation of aldehydes with tetraallyltin. Tetrahedron Lett. 2003, 44, 8765–8768. [Google Scholar] [CrossRef]
  10. 10 Ishida, S.; Hayano, T.; Furuno, H.; Inanaga, J. Hetero-Diels-Alder reaction catalyzed by self-organized polymeric rare earth complexes under solvent-free conditions. Heterocycles 2005, 66, 645–649. [Google Scholar] [CrossRef]
  11. Ishida, S.; Suzuki, S.; Hayano, T.; Furuno, H.; Inanaga, J. Heterogeneous catalysis of novel polymeric rare earth complexes under solvent-free conditions: Zero-emission synthesis of β-amino alcohols. J. Alloys Compd. 2006, 408-412, 441–443. [Google Scholar] [CrossRef]
  12. Furuno, H.; Ishida, S.; Suzuki, S.; Hayano, T.; Onitsuka, S.; Inanaga, J. Heterogeneous Lewis acid catalysis with self-organized polymeric rare earth arylsulfonates under solvent-free conditions. Heterocycles 2009, 77, 1007–1018. [Google Scholar] [CrossRef]
  13. Copéret, C.; Chabanas, M.; Saint-Arroman, R.P.; Basset, J.-M. Homogeneous and heterogeneous catalysis: Bridging the gap through surface organometallic chemistry. Angew. Chem. Int. Ed. 2003, 42, 156–181. [Google Scholar] [CrossRef]
  14. Olah, G.A.; Malhotra, R.; Narang, S.C. Nitration: Methods and Mechanisms; VCH: New York, NY, USA, 1989. [Google Scholar]
  15. Hoggett, J.G.; Moodie, R.B.; Penton, J.R.; Schofield, K. Nitration and Aromatic Reactivity; Cambridge University Press: Cambridge, UK, 2009. [Google Scholar]
  16. Smith, K.; Musson, A.; DeBoos, G.A. Superior methodology for the nitration of simple aromatic compounds. Chem. Commun. 1996, 4, 469–470. [Google Scholar]
  17. Waller, F.J.; Barrett, A.G.M.; Braddock, D.C.; Ramprasad, D. Lanthanide(III) triflates as recyclable catalysts for atom economic aromatic nitration. Chem. Commun. 1997, 613–614. [Google Scholar]
  18. Smith, K.; Musson, A.; DeBoos, G.A. A novel method for the nitration of simple aromatic compounds. J. Org. Chem. 1998, 63, 8448–8454. [Google Scholar] [CrossRef]
  19. Waller, F.J.; Barrett, A.G.M.; Braddock, D.C.; Ramprasad, D.; McKinnell, R.M.; White, A.J.P.; Williams, D.J.; Ducray, R. Tris(trifluoromethanesulfonyl)methide (“triflide”) anion: Convenient preparation, x-ray crystal structures, and exceptional catalytic activity as a counterion with ytterbium(III) and scandium(III). J. Org. Chem. 1999, 64, 2910–2913. [Google Scholar]
  20. Waller, F.J.; Barrett, A.G.M.; Braddock, D.C.; McKinnell, R.M.; Ramprasad, D. Lanthanide(III) and group IV metal triflate catalyzed electrophilic nitration: ‘nitrate capture’ and the role of the metal center. J. Chem. Soc. Perkin Trans. I 1999, 8, 867–871. [Google Scholar]
  21. Barrett, A.G.M.; Braddock, D.C.; Ducray, R.; McKinnell, R.M.; Waller, F.J. Lanthanide triflate and triflide catalyzed atom economic nitration of fluoro arenes. Synlett 2000, 11, 57–60. [Google Scholar]
  22. Shi, M.; Cui, S.-C.; Yin, W.-P. Highly efficient catalytic nitration of phenolic compounds by nitric acid with a recoverable and reusable Zr or Hf oxychloride complex and KSF. Eur. J. Org. Chem. 2005, 11, 2379–2384. [Google Scholar]
  23. Yin, W.-P.; Shi, M. Nitration of phenolic compounds by metal-modified montmorillonite KSF. Tetrahedron 2005, 61, 10861–10867. [Google Scholar] [CrossRef]
  24. Fang, D.; Shi, Q.-R.; Cheng, J.; Gong, K.; Liu, Z.-L. Regioselective mononitration of aromatic compounds using Brønsted acidic ionic liquids as recoverable catalysts. Appl. Catal. A. 2008, 345, 158–163. [Google Scholar] [CrossRef]
  25. Aridoss, G.; Laali, K.K. Ethylammonium nitrate (EAN)/Tf2O and EAN/TFAA: Ionic liquid based systems for aromatic nitration. J. Org. Chem. 2012, 76, 8088–8094. [Google Scholar] [CrossRef]
  26. Riego, J.M.; Sedin, Z.; Zaldívar, J.M.; Marziano, N.C.; Tortato, C. Sulfuric acid on silica-gel: an inexpensive catalyst for aromatic nitration. Tetrahedron Lett. 1996, 37, 513–516. [Google Scholar] [CrossRef]
  27. Shi, M.; Cui, S.-C. Electrophilic aromatic nitration using a mixed catalyst of lithium, molybdenum, ytterbium on silica gel. Adv. Synth. Catal. 2003, 345, 1329–1333. [Google Scholar] [CrossRef]
  28. Hajipour, A.R.; Ruoho, A.E. Nitric acid in the presence of P2O5 supported on silica gel—a useful reagent for nitration of aromatic compounds under solvent-free conditions. Tetrahedron Lett. 2005, 46, 8307–8310. [Google Scholar] [CrossRef]
  29. Yin, W.-P.; Shi, M. Indium triflate as a recyclable catalyst for the nitration of aromatic compounds without a halogenated solvent. J. Chem. Res. 2006, 2006, 549–551. [Google Scholar] [CrossRef]
  30. Jin, Y.Z.; Inanaga, J. Organic synthesis in silica gel without solvents. In Revival or New Generation; The 9th Tohwa University International Symposium: Fukuoka, Japan, 1999; pp. 33–36. [Google Scholar]
  31. Jin, Y.Z. Development of new synthetic organic reactions which proceed under environmentally friendly conditions. Ph.D. dissertation, Kyushu University, Fukuoka, Japan, March 2000. [Google Scholar]
  32. Tapia, R.; Torres, G.; Valderrama, J.A. Nitric acid on silica gel: A useful nitration reagent for activated aromatic compounds. Synth. Commun. 1986, 16, 681–687. [Google Scholar] [CrossRef]
  33. Sasaki, M.; Nodera, K.; Mukai, J.; Yoshida, H. Study on the nitration of m-cresol. A new selective method for the preparation of 3-methyl-6-nitrophenol. Bull. Chem. Soc. Jpn. 1977, 50, 276–279. [Google Scholar] [CrossRef]
  34. Thompson, M.J.; Zeegers, P.J. Study on the two-phase nitration of selected phenols. Tetrahedron Lett. 1988, 29, 2471–2474. [Google Scholar] [CrossRef]
  35. Cornelis, A.; Laszlo, P.; Pennetreau, P. Nitration of phenols by clay-supported ferric nitrate. Bull. Soc. Chim. Belg. 1984, 93, 961–972. [Google Scholar]
  36. Maryanoff, B.E.; Reitz, A.B. The Wittig olefination reaction and modifications involving phosphoryl-stabilized carbanions. Stereochemistry, mechanism, and selected synthetic aspects. Chem. Rev. 1989, 89, 863–927. [Google Scholar]
  37. Toda, F.; Akai, H. Enantioselective Wittig-Horner reaction in the solid state. J. Org. Chem. 1990, 55, 3446–3447. [Google Scholar] [CrossRef]
  38. Spinella, A.; Fortunati, T.; Soriente, A. Microwave accelerated Wittig reaction of stabilized phosphorus ylides with ketones under solvent-free conditions. Synlett 1997, 93–94. [Google Scholar]
  39. Thiemann, T.; Watanabe, M.; Tanaka, Y.; Mataka, S. Solvent-free Wittig olefination with stabilized phosphoranes—scope and limitations. New J. Chem. 2004, 28, 578–584. [Google Scholar] [CrossRef]
  40. Balema, V.P.; Wiench, J.W.; Pruski, M.; Pecharsky, V.K. Mechanically induced solid-state generation of phosphorus ylides and the solvent-free Wittig reaction. J. Am. Chem. Soc. 2002, 124, 6244–6245. [Google Scholar] [CrossRef]
  41. Leung S.H., Angel, S.A. Solvent-free Wittig reaction: A green organic chemistry laboratory experiment. J. Chem. Educ. 2004, 81, 1492–1493. [Google Scholar] [CrossRef]
  42. Nguyen, K.C.; Weizman, H. Greening Wittig reactions: Solvent-free synthesis of ethyl trans-cinnamate and trans-3-(9-Anthryl)-2-proppenoic acid ethyl ester. J. Chem. Educ. 2007, 84, 119–121. [Google Scholar] [CrossRef]
  43. Dhavale, D.D.; Sindkhedkar, M.D.; Mali, R.S. Activated alumina promoted stereoselective Wittig reaction. J. Chem. Res., Synop. 1995, 414–415. [Google Scholar]
  44. Orita, A.; Uehara, G.; Miwa, K.; Otera, J. Rate acceleration of organic reaction by immediate solvent evaporation. Chem. Commun. 2006, 4729–4731. [Google Scholar]
  45. Patil, V.J.; Mävers, U. Wittig reaction in the presence of silica gel. Tetrahedron Lett. 1996, 37, 1281–1284. [Google Scholar] [CrossRef]
  46. Basavaiah, D.; Rao, A.J.; Satyanarayana, T. Recent advance in the Baylis-Hillman reaction and applications. Chem. Rev. 2003, 103, 811–891. [Google Scholar]
  47. Basavaiah, D.; Rao, K.V.; Reddy, R.J. The Baylis-Hillman reaction: A novel source of attraction, opportunities, and challenges in synthetic chemistry. Chem. Soc. Rev. 2007, 36, 1581–1588. [Google Scholar]
  48. Declerck, V.; Martinez, J.; Lamaty, F. Cheminform abstract: aza-Baylis-Hillman Reaction. Org. Chem. 2009. [Google Scholar] [CrossRef]
  49. Basavaiah, D.; Reddy, B.S.; Badsara, S.S. Recent Contributions from the Baylis-Hillman reaction to organic chemistry. Chem. Rev. 2010, 110, 5447–5674. [Google Scholar] [CrossRef]
  50. Basavaiah, D.; Veeraraghavaiah, G. The Baylis-Hillman reaction: A novel concept for creativity in chemistry. Chem. Soc. Rev. 2012, 41, 68–78. [Google Scholar]
  51. Basavaiah, D.; Reddy, R.M. The Baylis-Hillman reaction: Rate acceleration in silica gel solid phase medium. Indian J. Chem. 2001, 40, 985–988. [Google Scholar]
  52. Shi, M.; Jiang, Y. The Baylis-Hillman reactions of aldehydes with methyl vinyl ketone in the presence of imidazole, binol and silica gel. J. Chem. Res. Synop. 2003, 564–566. [Google Scholar]
  53. Mack, J.; Shumba, M. Rate enhancement of the Morita-Baylis-Hillman reaction through mechanochemistry. Green Chem. 2007, 9, 328–330. [Google Scholar] [CrossRef]
  54. Jeong, Y.; Ryu, J.-S. Synthesis of 1,3-dialkyl-1,2,3-triazolium ionic liquids and their applications to the Baylis-Hillman reaction. J. Org. Chem. 2010, 75, 4183–4191. [Google Scholar] [CrossRef]
  55. Jin, Y.Z.; Inanaga, J. Kyushu University, Fukuoka, Japan, 2000, Unpublished work
  56. Leung, P.S.-W.; Teng, Y.; Toy, P.H. Chromatography-free Wittig reactions using a bifunctional polymeric reagent. Org. Lett. 2010, 12, 4996–4999. [Google Scholar] [CrossRef]
  57. Huang, Z.-Z.; Ye, S.; Xia, W.; Yu, Y.-H.; Tang, Y. Wittig-type olefination catalyzed by PEG-telluride. J. Org. Chem. 2002, 67, 3096–3103. [Google Scholar] [CrossRef]
  58. Byrne, P.A.; Gilheany, D.G. Unequivocal experimental evidence for a unified lithium salt-free Wittig reaction mechanism for all phosphonium ylide types: Reactions with β-heteroatom- substituted aldehydes are consistently selective for cis-oxaphosphetane-derived products. J. Am. Chem. Soc. 2012, 134, 9225–9239. [Google Scholar]
  59. Liu, D.-N.; Tian, S.-K. Stereoselective synthesis of polysubstituted alkenes through as phosphine- mediated three-component system of aldehydes, α-halo carbonyl compounds, and terminal alkenes. Chem. Eur. J. 2009, 15, 4538–4542. [Google Scholar] [CrossRef]
Back to TopTop
