Ruthenium(III) Chloride Catalyzed Acylation of Alcohols, Phenols, and Thiols in Room Temperature Ionic Liquids

by
Zhiwen Xi
1,
Wenyan Hao
1,
Pingping Wang
2 and
Mingzhong Cai
1,*
1
Department of Chemistry, Jiangxi Normal University, Nanchang 330022, China
2
Department of Chemistry, Jiujiang University, Jiujiang 332000, China
*
Author to whom correspondence should be addressed.
Molecules 2009, 14(9), 3528-3537; https://doi.org/10.3390/molecules14093528
Submission received: 3 July 2009 / Revised: 10 September 2009 / Accepted: 10 September 2009 / Published: 10 September 2009
Browse Figures
Versions Notes

Abstract

:
Ruthenium(III) chloride-catalyzed acylation of a variety of alcohols, phenols, and thiols was achieved in high yields under mild conditions (room temperature) in the ionic liquid 1-butyl-3-methylimidazolium hexafluorophosphate ([bmim][PF6]). The ionic liquid and ruthenium catalyst can be recycled at least 10 times. Our system not only solves the basic problem of ruthenium catalyst reuse, but also avoids the use of volatile acetonitrile as solvent.

Graphical Abstract

Introduction

The development of environmentally friendly synthetic procedures has become a major concern throughout the chemical industry due to continuing depletion of natural resources and growing environmental awareness [1,2,3,4]. One of the prime concerns of industry and academia is the search for replacements for environmentally damaging organic solvents used on a large scale, especially those which are volatile and difficult to contain. Room temperature ionic liquids, especially those based upon the 1,3-dialkylimidazolium cation, have attracted growing interest in the last few years [5,6,7,8,9]. They offer a possible alternative and ecologically sound medium compared to conventional organic solvents, as they are non-volatile, recyclable, thermally robust and excellent solvents for a wide range of organic and inorganic materials. Furthermore, their high compatibility with transition metal catalysts and limited miscibility with common solvents, enables easy product and catalyst separation with the retention of the stabilized catalyst in the ionic phase [10]. These and related ionic liquids have been successfully applied to hydrogenations [11], alkene dimerizations [12], Friedel-Crafts reactions [13,14], Diels-Alder reactions [15,16,17], Heck reactions [18,19,20], Bechmann condensations [21,22], Suzuki reactions [23,24,25,26], Baylis-Hillman reactions [27,28], Stille reactions [29], and Sonogashira reactions [30].
The acylation of alcohols, phenols, and thiols is a common practice in organic synthesis [31]. In these reactions, acid chlorides or anhydrides are often used as the acyl source in the presence of amine bases such as triethylamine, pyridine, or DMAP [31]. Some methods employing Bu3P [32], Sc(OTf)3 [33,34], Sc(NTf2)3 [35], TMSOTf [36,37], Cu(OTf)2 [38], InCl3 [39], In(OTf)3 [40], Bi(OTf)3 [41,42], and clays [43] have also been reported. However, many of these methods have some drawbacks such as low yields, long reaction times, harsh reaction conditions, use of hazardous materials (e.g., DMAP is highly toxic, Bu3P is flammable and air sensitive), and the use of expensive [33,34,35,36,37,40,41,42] and/or not readily available reagents [33,34,41,42]. Some of the reported methods work well on primary or secondary alcohols only and fail to protect tertiary alcohols or less reactive phenols. Recently, Kanta De described ruthenium chloride catalyzed acylation of alcohols, phenols, thiols, and amines [44]. The reaction proceeds in the presence of 5 mol% RuCl3 in acetonitrile at room temperature. Although this method has the major advantages of high yields, short reaction times, and compatibility with other protecting groups, the expensive homogeneous ruthenium catalyst can’t be recovered and reused and acetonitrile is volatile and toxic. These disadvantages have so far precluded its practical applications. In this paper, we describe the ruthenium-catalyzed acylation of alcohols, phenols, and thiols in room temperature ionic liquids.

Results and Discussion

As a suitable solvent for the acylation of alcohols, phenols, and thiols, the moisture stable and readily available 1-butyl-3-methylimidiazolium hexafluorophosphate ([bmim][PF6]) was chosen. The reaction of benzyl alcohol with acetic anhydride in the presence of 5 mol% RuCl3 in [bmim][PF6] at 40°C afforded the desired benzyl acetate in 92% yield in 10 min. The acylation of a variety of alcohols, phenols, and thiols with acetic anhydride in the presence of 5 mol% RuCl3 was investigated (Scheme 1), the experimental results are showed in Table 1. As shown in the Table, primary and secondary alcohols underwent the acetylation reactions in excellent yields (entries 1-4). Interestingly, tertiary alcohols can also be acetylated smoothly in high yields without any side products being observed (entry 5). Phenols are less reactive than alcohols toward acylation reactions but nevertheless they underwent acylation smoothly. Compared with the acylation of primary alcohols, the acylation of secondary or tertiary alcohols and phenols needed longer reaction times. The ionic liquid, [bmim][PF6], has the advantage of increase in reaction rate over acetonitrile as the solvent. For example, the acetylation reaction of 2-naphthol in [bmim][PF6] within 2.5 h gave the corresponding acetylated product in 93% yield (entry 14), the same reaction in acetonitrile required 10 h to go to completion, affording the acetylated product in 91% yield [44].
Table
Table 1. RuCl3-catalyzed acylation of alcohols, phenols, and thiols in [bmim][PF6]. a
Table 1. RuCl3-catalyzed acylation of alcohols, phenols, and thiols in [bmim][PF6]. a
EntrySubstrateTimeProductYield (%)b
1PhCH2OH10 min3a92
2 Molecules 14 03528 i0011.5 h3b91
3 Molecules 14 03528 i00210 min3c90
4 Molecules 14 03528 i00330 min3d93
5 Molecules 14 03528 i0043 h3e87
6 Molecules 14 03528 i0052 h3f89
7 Molecules 14 03528 i0062 h3g98
8 Molecules 14 03528 i0071.8 h3h92
9 Molecules 14 03528 i0082 h3i90
10 Molecules 14 03528 i0092 h3j95
11 Molecules 14 03528 i0102.5 h3k88
12 Molecules 14 03528 i0113 h3l90
13 Molecules 14 03528 i0123 h3m90
14 Molecules 14 03528 i0132.5 h3n93
15 Molecules 14 03528 i0142 h3o98
16PhSH1 h3p95
17n-BuSH35 min3q91
184-ClC6H4SH1.5 h3r90
194-CH3C6H4SH2 h3s92
a Reaction was carried out with 1 mmol of substrate, 1.2 equiv of Ac2O, and 5 mol% RuCl3 in 1.5 mL of [bmim][PF6] at 40 °C under Ar. b Yields refer to pure isolated products.
Molecules 14 03528 g001 550

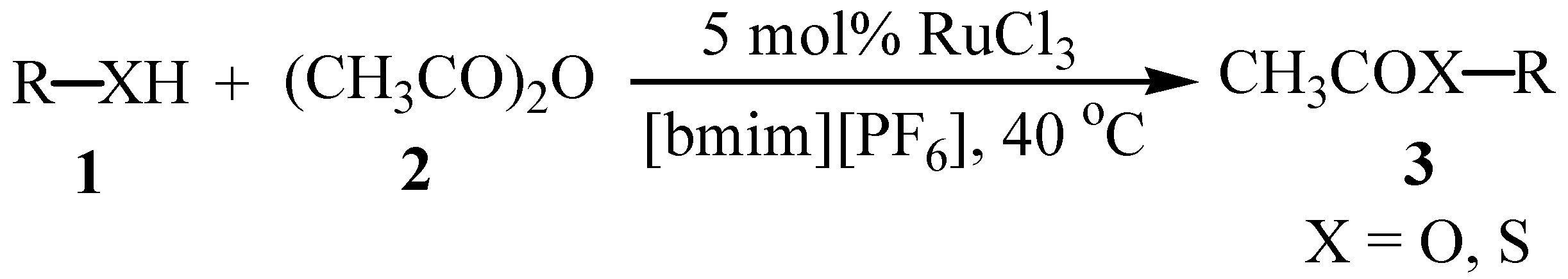

Scheme 1. RuCl3-catalyzed acylation reaction in [bmin][PF6].
Scheme 1. RuCl3-catalyzed acylation reaction in [bmin][PF6].
Molecules 14 03528 g001
To explore generality and scope further, the RuCl3-catalyzed acylation in [bmim][PF6] was examined using other functionally and sterically diverse alcohols or phenols, as listed in Table 1. When 2,6-dimethylphenol was subjected to the present method, acylation took place smoothly in excellent yield (Table 1, entry 12). Similarly, sterically hindered substrates, (entries 5 and 11) were acetylated to give a high yield of product. Resorcinol underwent acetylation smoothly to give benzene-1,3-diyl diacetate in 90% yield (entry 13, Table 1). This method can be extended to acetylation reactions of thiols, and a variety of thiols underwent acylation smoothly in excellent yields (entries 16-19). Although metal triflates (Otera [41,42] type and others [33,34,36,37,38]) have recently been reported as Lewis acid catalysts for acetylation reactions, these catalysts are expensive and commercially unavailable (in some cases). The strong Lewis acid character of metal triflates also makes them unsuitable in use with acid-sensitive substrates such as 1-ethynyl-1-cyclohexanol, necessitating the use of excess acetic anhydride and/or low temperatures (0 to –20 °C) to suppress competitive side reactions. Thus, 1-ethynyl-1-cyclohexanol was acetylated by Sc(OTf)3 at –20 °C using three equivalents of acetic anhydride, while Bi(OTf)3-catalyzed acetylation of the same compound required 10 equiv of acetic anhydride. The RuCl3-catalyzed acetylation of 1-ethynyl-1-cyclohexanol in [bmim][PF6] at 40 °C requires only 1.2 equiv of acetic anhydride. All the acetylated products were characterized by IR, 1H-NMR, 13C-NMR.
Isolation of the acetylated products from the [bmim][PF6] reaction mixtures can be conveniently achieved by extraction with diethyl ether three times. To evaluate the possibility of recycling the ionic liquid and ruthenium catalyst used in the reaction, benzyl alcohol and acetic anhydride were allowed to react in [bmim][PF6] at 40 °C for 10 min and then the product was extracted with diethyl ether for three times affording a cleaned, ionic liquid catalytic solution. After the recovered ionic liquid containing ruthenium catalyst was concentrated in vacuo (5.0 torr/r.t. for 1 hour), a second amount of reactants were added and the process was repeated up to 10 times. It seems that there was no effect on the rate and yield of the reaction during 1-10 cycles (Table 2), a result that is important from a practical point of view.
Table
Table 2. Ionic liquid and catalyst recycling in the acetylation of benzyl alcohol. a
Table 2. Ionic liquid and catalyst recycling in the acetylation of benzyl alcohol. a
CycleYield (%)bCycleYield (%)b
192690
291791
392890
490989
5911089
a Reaction was conducted under the conditions of 1.0 mmol of benzyl alcohol and 1.2 mmol of acetic anhydride in the presence of RuCl3 (5 mol%) in 1.5 mL of [bmim][PF6] at 40 °C for 10 min under Ar. b Isolated yield based on the benzyl alcohol used.

Experimental

General

All chemicals were of reagent grade and used as purchased. 1H-NMR (400 MHz) spectra and 13C-NMR (100 MHz) spectra were recorded on a Bruker AC-P400 spectrometer using CDCl3 as the solvent; TMS was the internal standard. IR spectra were determined on an FTS-185 instrument as neat films. All reactions were carried out in pre-dried glassware (150 °C, 4 h) cooled under a stream of dry Ar.

Typical procedure for the acetylation of benzyl alcohol in ionic liquids

Into a two-necked flask equipped with a magnetic stirring bar were placed ruthenium chloride (0.05 mmol), benzyl alcohol (1.0 mmol), acetic anhydride (1.2 mmol), and [bmim][PF6] (1.5 mL) under an Ar atmosphere. The mixture was stirred at 40 °C for 10 min, then cooled to 25 °C and extracted with diethyl ether (3 × 10 mL). The recovered ionic liquid containing ruthenium catalyst was concentrated in vacuo (5.0 torr/r.t. for 1 h) and reused in the next run. The combined ether extracts were washed with saturated NH4Cl solution (10 mL), 1 N NaHCO3 solution (10 mL), and brine (10 mL), dried over MgSO4, and concentrated under reduced pressure to give an oil, which was purified by SiO2 column chromatography (eluent(s): hexane/EtOAc, 19:1).
Benzyl acetate (3a) [44]: Oil. 1H-NMR: δ 7.43-7.34 (m, 5H), 5.14 (s, 2H), 2.13 (s, 3H); 13C-NMR: δ 170.94, 135.94, 128.62, 128.33, 128.31, 66.35, 21.07; IR: ν (cm-1) 3035, 2956, 1742, 1498, 1455, 1228, 1027, 736, 698.
Cyclohexyl acetate (3b) [44]: Oil. 1H-NMR: δ 4.76-4.71 (m, 1H), 2.04 (s, 3H), 1.87-1.34 (m, 10H); 13C-NMR: δ 170.64, 72.69, 31.63, 25.35, 23.80, 21.44; IR: ν (cm-1) 2937, 1737, 1486, 1452, 1240, 1045, 908, 734.
i-Pentyl acetate (3c) [44]: Oil. 1H-NMR: δ 4.09 (t, J = 6.8 Hz, 2H), 2.05 (s, 3H), 1.72-1.64 (m, 3H), 0.94 (d, J = 7.2 Hz, 6H); 13C-NMR: δ 171.25, 63.15, 37.30, 25.05, 22.44, 21.02; IR: ν (cm-1) 2961, 1743, 1466, 1367, 1234, 1123.
Methallyl acetate (3d): Oil. 1H-NMR: δ 4.98 (s, 1H), 4.93 (s, 1H), 4.50 (s, 2H), 2.10 (s, 3H), 1.76 (s, 3H); 13C-NMR: δ 170.74, 139.90, 112.88, 67.74, 20.32, 14.15; IR: ν (cm-1) 2959, 1741, 1454, 1375, 1232, 1027, 912, 734; Anal. Calc. for C6H10O2: C, 63.13; H, 8.83. Found: C, 62.89; H, 8.62%.
1-Ethynylcyclohexyl acetate (3e) [44]: Oil. 1H-NMR: δ 2.61 (s, 1H), 2.15-2.11 (m, 2H), 2.05 (s, 3H), 1.88-1.80 (m, 2H), 1.66-1.59 (m, 4H), 1.56-1.49 (m, 1H), 1.39-1.30(m, 1H); 13C-NMR: δ 169.30, 83.65, 75.10, 74.22, 36.90, 25.08, 22.44, 21.94; IR: ν (cm-1) 3287, 2938, 2862, 2112, 1745, 1447, 1367, 1229, 1025.
Phenyl acetate (3f) [44]: Oil. 1H-NMR: δ 7.40 (t, J = 8.0 Hz, 2H), 7.25 (t, J = 7.6 Hz, 1H), 7.11 (d, J = 8.0 Hz, 2H), 2.31 (s, 3H); 13C-NMR: δ 169.48, 150.73, 129.44, 125.83, 121.59, 21.13; IR: ν (cm-1) 3064, 2927, 1765, 1594, 1493, 1370, 1193, 748, 691.
4-Nitrophenyl acetate (3g) [44]: Oil. 1H-NMR: δ 8.28 (d, J = 8.8 Hz, 2H), 7.29 (d, J = 8.8 Hz, 2H), 2.36 (s, 3H); 13C-NMR: δ 168.46, 155.36, 146.15, 125.24, 122.48, 21.16; IR: ν (cm-1) 3113, 1762, 1591, 1521, 1487, 1348, 1193, 917, 868.
4-Iodophenyl acetate (3h) [45]: Oil. 1H-NMR: δ 7.67 (d, J = 8.8 Hz, 2H), 6.87-6.83 (m, 2H), 2.27 (s, 3H); 13C-NMR: δ 169.02, 150.53, 138.48, 123.81, 89.88, 21.11; IR: ν (cm-1) 3066, 2925, 1761, 1579, 1481, 1368, 1195, 1009, 908, 840.
4-Bromophenyl acetate (3i) [44]: Oil. 1H-NMR: δ 7.50 (d, J = 8.4 Hz, 2H), 7.00 (d, J = 8.4 Hz, 2H), 2.31 (s, 3H); 13C-NMR: δ 169.19, 149.67, 132.49, 123.45, 118.93, 21.12; IR: ν (cm-1) 3070, 2936, 1762, 1585, 1485, 1369, 1197, 1012, 907, 842.
4-Methylphenyl acetate (3j) [46]: Oil. 1H-NMR: δ 7.09 (d, J = 8.4 Hz, 2H), 6.89 (d, J = 8.4 Hz, 2H), 2.26 (s, 3H), 2.21 (s, 3H); 13C-NMR: δ 169.85, 148.42, 135.53, 129.99, 121.28, 21.16, 20.91; IR: ν (cm-1) 3035, 2926, 1763, 1508, 1369, 1195, 1018, 909, 845.
2,5-Dimethylphenyl acetate (3k) [47]: Oil. 1H-NMR: δ 7.13 (d, J = 7.6 Hz, 1H), 6.97 (d, J = 8.0 Hz, 1H), 6.84 (s, 1H), 2.33 (s, 3H), 2.32 (s, 3H), 2.16 (s, 3H); 13C-NMR: δ 169.44, 149.17, 136.93, 130.87, 126.90, 126.81, 122.40, 20.92, 20.85, 15.76; IR: ν (cm-1) 2926, 1768, 1578, 1510, 1369, 1214, 1110, 893, 810.
2,6-Dimethylphenyl acetate (3l) [44]: Oil. 1H-NMR: δ 7.09-7.04 (m, 3H), 2.32 (s, 3H), 2.15 (s, 6H); 13C-NMR: δ 168.85, 148.24, 130.11, 128.60, 125.89, 20.47, 16.31; IR: ν (cm-1) 2926, 1761, 1476, 1370, 1215, 1166, 910, 770.
Benzene-1,3-diyl diacetate (3m) [46]: Oil. 1H-NMR: δ 7.35 (t, J = 8.0 Hz, 1H), 6.98 (d, J = 8.0 Hz, 2H), 6.92 (t, J = 2.0 Hz, 1H), 2.27 (s, 6H); 13C-NMR: δ 168.97, 151.13, 129.68, 118.97, 115.46, 21.06; IR: ν (cm-1) 3077, 2939, 1769, 1600, 1486, 1371, 1199, 1125, 1015, 915.
2-Naphthyl acetate (3n) [44]: Oil. 1H-NMR: δ 7.87-7.79 (m, 3H), 7.56 (s, 1H), 7.49-7.46 (m, 2H), 7.25-7.22 (m, 1H), 2.36 (s, 3H); 13C-NMR: δ 169.72, 148.27, 133.72, 131.44, 129.43, 127.76, 127.64, 126.56, 125.72, 121.12, 118.54, 21.23; IR: ν (cm-1) 3059, 2926, 1756, 1599, 1512, 1373, 1217, 1154, 761.
Quinolin-8-yl acetate (3o) [48]: Oil. 1H-NMR: δ 8.89 (d, J = 2.0 Hz, 1H), 8.13-8.10 (m, 1H), 7.69-7.65 (m, 1H), 7.52-7.35 (m, 3H), 2.50 (s, 3H); 13C-NMR: δ 169.86, 150.51, 147.37, 141.19, 136.09, 129.53, 126.23, 125.98, 121.77, 121.55, 21.09; IR: ν (cm-1) 3042, 2935, 1764, 1598, 1500, 1368, 1208, 790.
S-Phenyl thioacetate (3p) [49]: Oil. 1H-NMR: δ 7.41 (s, 5H), 2.41 (s, 3H); 13C-NMR: δ 194.19, 134.52, 129.52, 129.28, 127.91, 30.29; IR: ν (cm-1) 3061, 2923, 1709, 1583, 1478, 1441, 1353, 1114, 950, 747.
S-n-Butyl thioacetate (3q) [50]: Oil. 1H-NMR: δ 2.87 (t, J = 7.6 Hz, 2H), 2.32 (s, 3H), 1.59-1.52 (m, 2H), 1.43-1.34 (m, 2H), 0.92 (t, J = 7.2 Hz, 3H); 13C-NMR: δ 196.04, 31.56, 30.61, 28.82, 21.93, 13.58; IR: ν (cm-1) 2961, 2874, 1694, 1465, 1354, 1136, 913, 735.
S-4-Chlorophenyl thioacetate (3r) [51]: Oil. 1H-NMR: δ 7.40 (d, J = 8.4 Hz, 2H), 7.35 (d, J = 8.4 Hz, 2H), 2.44 (s, 3H); 13C-NMR: δ 193.50, 135.85, 135.72, 129.50, 126.34, 30.27; IR (film): ν (cm-1) 3087, 2923, 1707, 1574, 1477, 1353, 1093, 952, 821.
S-4-Methylphenyl thioacetate (3s) [51]: Oil. 1H-NMR: δ 7.28 (d, J = 8.0 Hz, 2H), 7.20 (d, J = 8.0 Hz, 2H), 2.37 (s, 3H), 2.35 (s, 3H); 13C-NMR: δ 194.53, 139.72, 134.47, 130.08, 124.54, 30.11, 21.36; IR: ν (cm-1) 3025, 2923, 1708, 1598, 1494, 1352, 1117, 1094, 950, 807.

Conclusions

In summary, we have described the ruthenium-catalyzed room temperature acylation of alcohols, phenols, and thiols with acetic anhydride in an ionic liquid. Easy product isolation, facile recycling of the ionic liquid and catalyst, and avoiding use of easily volatile acetonitrile as solvent are important advantages of the developed methodology.

Acknowledgements

We thank the National Natural Science Foundation of China (Project No. 20862008), the Natural Science Foundation of Jiangxi Province of China (2008GQH0034), and the Graduates Innovation Foundation of Jiangxi Province of China (YC08A045) for financial support.
  • Sample Availability: Samples of the compounds 3a-s are available from the authors.

References and Notes

  1. Anastas, P.T.; Kirchhoff, M.M. Origins, current status, and future challenges of green chemistry. Acc. Chem. Res. 2002, 35, 686–694. [Google Scholar] [CrossRef]
  2. Trost, B.M. On inventing reactions for atom economy. Acc. Chem. Res. 2002, 35, 695–705. [Google Scholar] [CrossRef]
  3. Wulff, G. Enzyme-like catalysis by molecularly imprinted polymers. Chem. Rev. 2002, 102, 1–28. [Google Scholar] [CrossRef]
  4. Bergbreiter, D.E. Using soluble polymers to recover catalysts and ligands. Chem. Rev. 2002, 102, 3345–3384. [Google Scholar] [CrossRef]
  5. Welton, T. Room-temperature ionic liquids. solvents for synthesis and catalysis. Chem. Rev. 1999, 99, 2071–2084. [Google Scholar] [CrossRef]
  6. Larsen, A.S.; Holbrey, J.D.; Tham, F.S.; Reed, C.A. Designing ionic liquids: Imidazolium melts with inert carborane anions. J. Am. Chem. Soc. 2000, 122, 7264–7272. [Google Scholar]
  7. Song, C.E. Enantioselective chemo- and bio-catalysis in ionic liquids. Chem. Commun. 2004, 1033–1043. [Google Scholar] [CrossRef]
  8. Wu, W.Z.; Han, B.X.; Gao, H.X.; Liu, Z.M.; Jiang, T.; Huang, J. Desulfurization of flue gas: SO2 absorption by an ionic liquid. Angew. Chem. Int. Ed. 2004, 43, 2415–2417. [Google Scholar] [CrossRef]
  9. Dupont, J.; de Souza, R.F.; Suarez, P.A.Z. Ionic liquid (Molten Salt) phase organometallic catalysis. Chem. Rev. 2002, 102, 3667–3692. [Google Scholar] [CrossRef]
  10. Parvulescu, V.I.; Hardacre, C. Catalysis in ionic liquids. Chem. Rev. 2007, 107, 2615–2665. [Google Scholar] [CrossRef]
  11. Dyson, P.J.; Ellis, D.J.; Parker, D.G.; Welton, T. Arene hydrogenation in a room-temperature ionic liquid using a ruthenium cluster catalyst. Chem. Commun. 1999, 25–26. [Google Scholar]
  12. Ellis, B.; Keim, W.; Wasserscheid, P. Linear dimerisation of But-1-ene in biphasic mode using buffered chloroaluminate ionic liquid solvents. Chem. Commun. 1999, 337–338. [Google Scholar]
  13. Adams, C.J.; Earle, M.J.; Roberts, G.; Seddon, K.R. Friedel-crafts reactions in room temperature ionic liquids. Chem. Commun. 1998, 2097–2098. [Google Scholar]
  14. Stark, A.; Maclean, B.L.; Singer, R.D. 1-Ethyl-3-methylimidazolium halogenoaluminate ionic liquids as solvents for Friedel-crafts acylation reactions of ferrocene. J. Chem. Soc. Dalton Trans. 1999, 63–66. [Google Scholar] [CrossRef]
  15. Fischer, T.; Sethi, A.; Welton, T.; Woolf, J. Diels-Alder reactions in room-temperature ionic liquids. Tetrahedron Lett. 1999, 40, 793–796. [Google Scholar] [CrossRef]
  16. Lee, C.W. Diels-alder reactions in chloroaluminate ionic liquids: Acceleration and selectivity enhancement. Tetrahedron Lett. 1999, 40, 2461–2464. [Google Scholar] [CrossRef]
  17. Lusley, P.; Karodia, N. Phosphonium tosylates as solvents for the Diels-Alder reaction. Tetrahedron Lett. 2001, 42, 2011–2014. [Google Scholar] [CrossRef]
  18. Jeffery, T. Heck-type reactions in water. Tetrahedron Lett. 1994, 35, 3051–3054. [Google Scholar] [CrossRef]
  19. Calo, V.; Nacci, A.; Lopez, L.; Napola, A. Arylation of α-substituted acrylates in ionic liquids catalyzed by a Pd-benzothiazole carbene complex. Tetrahedron Lett. 2001, 42, 4701–4703. [Google Scholar]
  20. Carmichael, A.J.; Earle, M.J.; Holbrey, J.D.; McCormac, P.B.; Seddon, K.R. The heck reaction in ionic liquids: A multiphasic catalyst system. Org. Lett. 1999, 1, 997–1000. [Google Scholar] [CrossRef]
  21. Rex, X.R.; Larisa, D.Z.; Wei, O. Formation of ε-caprolactam via catalytic beckmann rearrangement using P2O5 in ionic liquids. Tetrahedron Lett. 2001, 42, 8441–8443. [Google Scholar]
  22. Peng, J.J.; Deng, Y.Q. Catalytic beckmann rearrangement of ketoximes in ionic liquids. Tetrahedron Lett. 2001, 42, 403–405. [Google Scholar] [CrossRef]
  23. Mathews, C.J.; Smith, P.J.; Welton, T. Palladium catalysed suzuki cross-coupling reactions in ambient temperature ionic liquids. Chem. Commun. 2000, 1249–1250. [Google Scholar]
  24. Xiao, J.C.; Twamley, B.; Shreeve, J.M. An ionic liquid-coordinated palladium complex: A highly efficient and recyclable catalyst for the Heck reaction. Org. Lett. 2004, 6, 3845–3847. [Google Scholar] [CrossRef]
  25. Jin, C.M.; Twamley, B.; Shreeve, J.M. Low-melting dialkyl- and Bis(polyfluoroalkyl)-substituted 1,1’-methylenebis(imidazolium) and 1,1’-methylenebis(1,2,4-triazolium) bis(trifluoromethane-sulfonyl)amides: Ionic liquids leading to bis(N-heterocyclic carbene) complexes of palladium. Organometallics 2005, 24, 3020–3023. [Google Scholar] [CrossRef]
  26. Wang, R.; Twamley, B.; Shreeve, J.M. A highly efficient, recyclable catalyst for C−C coupling reactions in ionic liquids: Pyrazolyl-functionalized N-heterocyclic carbene complex of palladium(II). J. Org. Chem. 2006, 71, 426–429. [Google Scholar] [CrossRef]
  27. Hsu, J.C.; Yen, Y.H.; Chu, Y.H. Baylis-Hillman reaction in [bdmim][PF6] ionic liquid. Tetrahedron Lett. 2004, 45, 4673–4676. [Google Scholar] [CrossRef]
  28. Machado, M.Y.; Dorta, R. Synthesis and characterization of chiral imidazolium salts. Synthesis 2005, 2473–2475. [Google Scholar]
  29. Handy, S.T.; Zhang, X. Organic synthesis in ionic liquids: The stille coupling. Org. Lett. 2001, 3, 233–236. [Google Scholar] [CrossRef]
  30. Fukuyama, T.; Shinmen, M.; Nishitani, S.; Sato, M.; Ryu, I. A copper-free sonogashira coupling reaction in ionic liquids and its application to a microflow system for efficient Catalyst recycling. Org. Lett. 2002, 4, 1691–1694. [Google Scholar] [CrossRef]
  31. Greene, T.W.; Wuts, P.G.M. Protective Groups in Organic Synthesis,3rd ed.; Wiley: New York, NY, USA, 1999; p. 150. [Google Scholar]
  32. Vedejs, E.; Diver, S.T. Tributylphosphine: A remarkable acylation catalyst. J. Am. Chem. Soc. 1993, 115, 3358–3359. [Google Scholar] [CrossRef]
  33. Ishihara, K.; Kubota, M.; Kurihara, H.; Yamamoto, H. Scandium trifluoromethanesulfonate as an extremely active acylation catalyst. J. Am. Chem. Soc. 1995, 117, 4413–4414. [Google Scholar] [CrossRef]
  34. Ishihara, K.; Kubota, M.; Kurihara, H.; Yamamoto, H. Scandium trifluoromethanesulfonate as an extremely active lewis acid catalyst in acylation of alcohols with acid anhydrides and mixed anhydrides. J. Org. Chem. 1996, 61, 4560–4567. [Google Scholar] [CrossRef]
  35. Ishihara, K.; Kubota, M.; Yamamoto, H. A new scandium complex as an extremely active acylation catalyst. Synlett 1996, 265–266. [Google Scholar] [CrossRef]
  36. Procopiou, P.A.; Baugh, S.P.D.; Flack, S.S.; Inglis, G.G.A. An extremely powerful acylation reaction of alcohols with acid anhydrides catalyzed by trimethylsilyl trifluoromethane-sulfonate. J. Org. Chem. 1998, 63, 2342–2347. [Google Scholar] [CrossRef]
  37. Procopiou, P.A.; Baugh, S.P.D.; Flack, S.S.; Inglis, G.G.A. An extremely fast and efficient acylation reaction of alcohols with acid anhydrides in the presence of trimethylsilyl trifluoromethanesulfonate as catalyst. Chem. Commun. 1996, 2625–2626. [Google Scholar]
  38. Chandra, K.L.; Saravanan, P.; Singh, R.K.; Sing, V.K. Lewis acid catalyzed acylation reactions: Scope and Limitations. Tetrahedron 2002, 58, 1369–1374. [Google Scholar] [CrossRef]
  39. Chakroborty, A.; Gulhane, R. Indium(III) chloride as a new, highly efficient, and versatile catalyst for acylation of phenols, thiols, alcohols, and amines. Tetrahedron Lett. 2003, 44, 6749–6753. [Google Scholar] [CrossRef]
  40. Chauhan, K.K.; Frost, C.G.; Love, I.; Waite, D. Indium Triflate: An efficient catalyst for acylation reactions. Synlett 1999, 1743–1744. [Google Scholar] [CrossRef]
  41. Orita, A.; Tanahashi, C.; Kakuda, A.; Otera, J. Highly efficient and versatile acylation of alcohols with Bi(OTf)3 as catalyst. Angew. Chem. Int. Ed. 2000, 39, 2877–2879. [Google Scholar] [CrossRef]
  42. Orita, A.; Tanahashi, C.; Kakuda, A.; Otera, J. Highly powerful and practical acylation of alcohols with acid anhydride catalyzed by Bi(OTf)3. J. Org. Chem. 2001, 66, 8926–8934. [Google Scholar] [CrossRef]
  43. Li, A.X.; Li, T.S.; Ding, T.H. Montmorillonite K-10 and KSF as remarkable acetylation catalysts. Chem. Commun. 1997, 1389–1390. [Google Scholar]
  44. Kanta De, S. Ruthenium(III) chloride catalyzed acylation of alcohols, phenols, thiols, and amines. Tetrahedron Lett. 2004, 45, 2919–2922. [Google Scholar] [CrossRef]
  45. Rozen, S.; Zamir, D. A novel aromatic iodination method using fluorine. J. Org. Chem. 1990, 55, 3552–3555. [Google Scholar] [CrossRef]
  46. Jin, T.S.; Ma, Y.R.; Zhang, Z.H.; Li, T.S. Sulfamic acid catalysed acetylation of alcohols and phenols with acetic anhydride. Synth. Commun. 1998, 28, 3173–3177. [Google Scholar] [CrossRef]
  47. Geppert, J.T.; Johnson, M.W.; Myhre, P.C.; Woods, S.P. Ipso nitration. Solvolytic behavior of 1,4-dimethyl-4-nitrocyclohexadienyl acetate and 1,4- dimethyl-4-nitrocyclohexadienol. J. Am. Chem. Soc. 1981, 103, 2057–2062. [Google Scholar]
  48. Anderson, W.K.; DeRuiter, J.; Heider, A.R. Vinylogous carbinolamine tumor inhibitors. 14. 1,3-dipolar cycloaddition reactions with tetrafluoroborate and trifluoromethanesulfonate salts of 1,2-dihydro- and 1,2,3,4-tetrahydroquinoline reissert compounds. J. Org. Chem. 1985, 50, 722–724. [Google Scholar] [CrossRef]
  49. Chakraborti, A.K.; Gulhae, R. Perchloric acid adsorbed on silica gel as a new, highly efficient, and versatile catalyst for acetylation of phenols, thiols, alcohols, and am. Chem. Commun. 2003, 1896–1897. [CrossRef]
  50. Ueno, Y.; Nozomi, M.; Okawara, M. Direct synthesis of protected thiols by tributylstannyl group. Chem. Lett. 1982, 1199–1202. [Google Scholar] [CrossRef]
  51. Douglas, K.T.; Yaggi, N.F.; Mervis, C.M. Leaving group effects in thiolester hydrolysis. Part 2. On the possibility of an elimination-addition (Keten) mediated pathway in S-acetylcoenzyme a basic hydrolysis and acetyl transfer. J. Chem. Soc. Perkin Trans. 1981, 171–174. [Google Scholar]
