Molecules 2007, 12(9), 2089-2105; https://doi.org/10.3390/12092089

Full Paper
Aqueous Barbier Allylation of Aldehydes Mediated by Tin
1
Instituto de Ciências Ambientais e Desenvolvimento Sustentável, Universidade Federal da Bahia -Campus Universitário Reitor Edgar Santos, Rua Professor José Seabra S/N - Barreiras - BA - 47805-100, Brazil
2
Departamento de Química Fundamental, Universidade Federal de Pernambuco, Cidade Universitária, Recife-PE 50670- 901, Brazil
*
Author to whom correspondence should be addressed.
Received: 16 June 2007; in revised form: 25 August 2007 / Accepted: 25 August 2007 / Published: 29 August 2007

Abstract

:
The aqueous tin-mediated Barbier reaction affords good to excellent yields and moderate syn diastereoselectivity under basic and acidic conditions. The high yields and stereoselectivity observed in the case of o-substituted aldehydes suggest a cyclic organotin intermediate or transition state in K2HPO4 solution. A practical and efficient aqueous tin allylation of methoxy- and hydroxybenzaldehydes can be carried out in HCl solution in 15 minutes to afford the corresponding homoallylic alcohols in high yields. Aliphatic aldehydes give moderate to excellent yields with reaction times ranging from 30 to 60 minutes. Under these conditions, crotylation gives exclusively the γ-product and the syn isomer is formed preferentially. For 2-methoxybenzaldehyde, an equilibration of the isomers to a syn/anti ratio of 1:1 can be observed after several hours. Control experiments with radical sources or scavengers give no support for radical intermediates. NMR studies suggest a mechanism involving an organotin intermediate. The major organotin species formed depends on the reaction medium and the reaction time. The use of acidic solution reduces the reaction times, due to the acceleration of the formation of the allyltin(IV) species.
Keywords:
Fast Barbier reaction; hydroxy and methoxy benzaldehydes; aqueous; tin

Introduction

Carbonyl allylation is an important synthetic transformation in organic and pharmaceutical chemistry because the homoallylic alcohols produced are valuable synthetic intermediates [1]. The study of organometallic reactions using water as (co)-solvent has attracted renewed interest [1,2], mainly due to the increasing importance of environmentally friendly methodologies [3]. The Barbier reaction mediated by several metals such as zinc [4], tin [5], indium [6], manganese [7] and others [8], historically performed in anhydrous solvents, has been widely studied in aqueous media. Moreover, the use of water, an economically and environmentally benign solvent, reduces the need to handle flammable and anhydrous solvents and protection and deprotection processes are often unnecessary.
Although several groups have reported Barbier allylations of hydroxylated aldehydes, specially carbohydrates, in water [9], and a systematic study of hydroxy and methoxy aldehydes and ketones with tetrallyltin in toluene has been published [10], no data are available about the behavior of hydroxy and methoxy benzaldehydes in aqueous Barbier allylations. In general, tin-mediated allylation of carbonyl compounds has been reported as being a slow reaction, with reaction times ranging between 1 and 24 hours, depending on the substrate and reaction conditions [11]. Some attempts to improve yield and selectivity or to reduce the reaction time with the use of tin nanoparticles in water [12] or of an electrochemical process in water [13] have been reported.
In this work, we report the Barbier reaction mediated by tin in basic and acidic aqueous media with reaction times ranging from 15 minutes to 24 hours, according to the medium (Scheme 1).
Scheme 1. The Barbier type reaction in aqueous medium.
Scheme 1. The Barbier type reaction in aqueous medium.
Molecules 12 02089 g006

Results and Discussion

The initial tests were performed with 2-hydroxy and 2-methoxybenzaldehydes in water and basic solution (K2HPO4), varying the reaction time. The best yields were achieved in 24 hours. Due to the importance of metallic salts in aqueous organometallic reactions [14] and previous unpublished results with the zinc mediated reaction, the catalyst, namely Pb(OAc)2, and solvents, alkaline solution (K2HPO4) and pure water, were tested in the reaction with tin and allyl and crotyl bromide (Table 1).
Table 1. Tin-mediated allylation of oxy-substituted benzaldehydes in aqueous media.
Table 1. Tin-mediated allylation of oxy-substituted benzaldehydes in aqueous media.
EntryAldehydeHalide Salt addedAdditiveYield (%)Syn/antia
12-CH3O-C6H4CHOC3H5Br73
22-CH3O-C6H4CHOC3H5BrK2HPO494
34-CH3O-C6H4CHOC3H5BrK2HPO480
43-CH3O-C6H4CHOC3H5BrK2HPO472
53-CH3O-C6H4CHOC3H5Br84
62-HO-C6H4CHOC3H5Br61
72-HO-C6H4CHOC3H5BrK2HPO485
83-HO-C6H4CHOC3H5BrK2HPO4b43
93-HO-C6H4CHOC3H5BrK2HPO4bPb(OAc)260
104-HO-C6H4CHOC3H5BrK2HPO4b25
114-HO-C6H4CHOC3H5BrK2HPO4bPb(OAc)271
122-CH3O-C6H4CHOC4H7BrK2HPO49865:35
133-CH3O-C6H4CHOC4H7BrK2HPO49850:50
144-CH3O-C6H4CHOC4H7Br8050:50
152-HO-C6H4CHOC4H7BrK2HPO48470:30
163-HO-C6H4CHOC4H7BrK2HPO48855:45
174-HO-C6H4CHOC4H7BrK2HPO47257:43
a The syn:anti ratio was determined using the ¹H-NMR signal areas for the methyl group of the homoallylic alcohols. b Dioxane (0.2 mL) was used as co-solvent.
The Barbier reaction afforded good yields with 2-methoxybenzaldehyde and 2-hydroxy-benzaldehyde in water (entries 1 and 6), which increased in alkaline solution (entries 2 and 7). With 4-methoxybenzaldehyde the best result was achieved in K2HPO4 solution (entry 3), while 3-methoxy-benzaldehyde, on the other hand, yielded better results in pure water (entries 4 and 5).
The hydroxylated aldehydes, except for 2-hydroxybenzaldehde (entry 7), gave best yields using Pb(OAc)2 as a catalyst (entries 9 and 11). Other metallic salts were also tested, but their presence only decreased the reaction yields. The next step was the Barbier reaction with crotyl bromide (Table 1), where, in addition to the reactivity, the diastereoselectivity was analyzed. In these reactions, both 2- and 3-methoxybenzaldehyde gave excellent yields in alkaline media (entries 12 and 13), and 4-methoxybenzaldehyde gave 80% of addition product (entry 14) in pure water. A similar behavior was observed for hydroxybenzaldehydes, with yields ranging between 72 – 88% (entries 15 – 17). In all these cases, no additive was necessary. Regarding the diastereoselectivity, only low syn selectivity was observed with ortho substituted aldehydes, affording ratios of 65:35 for 2-methoxybenzaldehyde (entry 12) and 70:30 for 2-hydroxybenzaldehyde (entry 15). The use of additives did not improve the yields or the diastereoselectivity. Even though the literature explained the syn diastereoselectivity via an acyclic intermediate [15, 16], in these particular cases the presence of a coordinating group in the ortho position could favor a cyclic transition state (Figure 1), as previously proposed in the literature [17]. This could explain the observed increase in the diastereoselectivity only with the ortho substituted aldehydes, suggesting a probable allyltin species as intermediate.

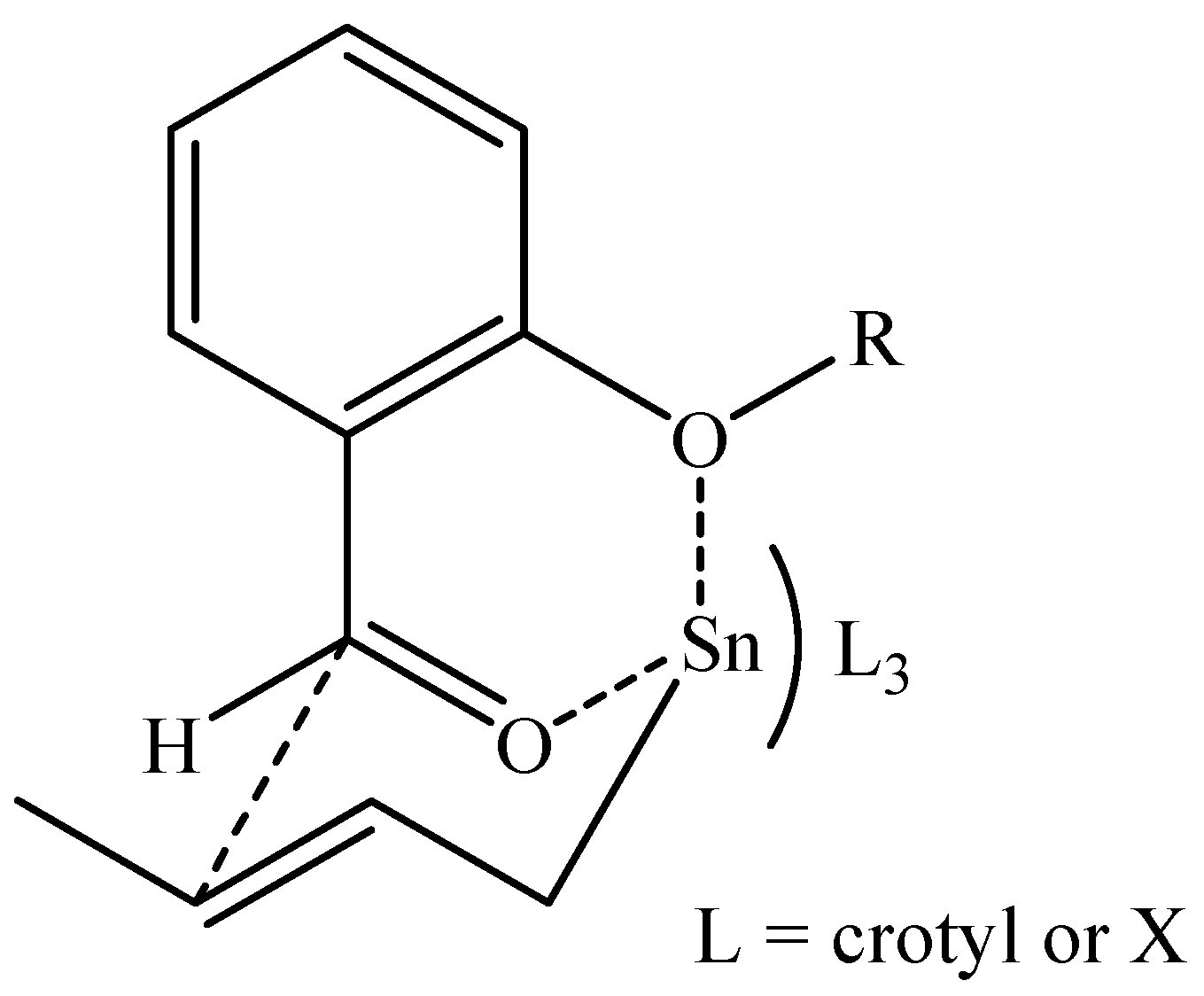

Figure 1. A cyclic transition state.
Figure 1. A cyclic transition state.
Molecules 12 02089 g001
The experimental conditions developed afforded good yields for the Barbier reaction, but the diastereoselectivity was still low and observed only with ortho substituted benzaldehydes, therefore new conditions were pursued in order to reduce the reaction times and increase the diastereoselectivity. Initially, it was suggested that use of acidic conditions might be beneficial due to enhancement of carbonyl reactivity. Hydrochloric acid solution, normally used for quenching the reaction, was tested and it reduced the reaction times to only one minute. When no acid solution was added, almost all the aldehyde was recovered. The allylation of aromatic and aliphatic aldehydes with allyl bromide using tin in acid solution at room temperature are shown in Table 2.
Table 2. Allylation of aromatic and aliphatic aldehydes with allyl bromide mediated by tin in acid solution at room temperature.
Table 2. Allylation of aromatic and aliphatic aldehydes with allyl bromide mediated by tin in acid solution at room temperature.
Molecules 12 02089 i001
EntryAldehydeAcid solutionTime (min)Yield (%)
1 a2-OCH3-C6H4CHOHCl597
2 a2-OCH3-C6H4CHOH2SO4598
3 a2-OCH3-C6H4CHOHNO3594
4 a2-OCH3-C6H4CHOCF3CO2H578
5 aC6H5CHOHCl593
6 a3-OCH3-C6H4CHOHCl598
7 a2-OH-C6H4CHOHCl598
8 a3-OH-C6H4CHOHCl541
9a, b3-OH-C6H4CHOHCl6054
10 a3,4-(OCH3)2-C6H3CHOHCl599
11 a3-OH-4-OCH3-C6H3CHOHCl560
12 an-C6H13CHOHCl3090
13 a(CH3)2CHCHOHCl6030
14cC6H5CHOHCl1592
15 c2-OCH3-C6H4CHOHCl1595
16 c3-OCH3-C6H4CHOHCl1596
17 c4-OCH3-C6H4CHOHCl1586
18 c4-F-C6H4CHOHCl1588
19 c2-OH-C6H4CHOHCl1570
20 c2-OH-3-OCH3-C6H3CHOHCl1580
21 c3-OH-4-OCH3-C6H3CHOHCl1585
22 c3,4-(OCH3)2-C6H3CHOHCl1592
23 cC6H5(CH2)2CHOHCl1565
a Aldehyde (0.2 mmol), allyl bromide (0.75 mmol), tin (0.5 mmol) in 1.0 mol L-1 HCl (2.0 mL). b Dioxane was used as co-solvent. c Aldehyde (0.5 mmol), allyl bromide (0.6 mmol), tin (0.5 mmol) in 0.25 mol L-1 HCl (2.0 mL).
Other acid solutions, such as H2SO4, HNO3, HBr and CF3CO2H, were tested at several concentrations and volumes, as well as several stirring times and all of them showed similar results, probably due to a general acid catalysis or acid activation of the metal surface. Allylation of benzaldehyde and methoxybenzaldehydes afforded homoallylic alcohols in excellent yields (entries 1 – 6). Allylation of 2-hydroxybenzaldehyde and 3,4-dimethoxybenzaldehyde produced also excellent yields (entries 7 and 10). 3-Hydroxy-4-methoxybenzaldehyde gave only a moderate yield (entry 11). For 3-hydroxybenzaldehyde, even after 1 hour of reaction, only a moderate yield was obtained (entries 8 and 9). Under the same conditions, 4-hydroxybenzaldehyde afforded only traces of product. Aliphatic aldehydes needed longer reaction times – 30 minutes for heptanaldehyde, with excellent yield (entry 12), and 1 hour for isobutyraldehyde, giving a low yield (entry 13). No aldehyde was recovered in any of the reactions. In these heterogeneous reactions efficient stirring was an important parameter for their success and reproducibility.
The initial tests were performed using excess of halide (3.2 equivalents) and concentrated acid solutions (1.0 mol L-1, entries 1 – 13) with excellent yields and 5 minutes reaction times. In order to reduce the waste of starting materials the ratio of aldehyde, halide and metal was modified. The best results were obtained in 15 minutes and using aldehyde, halide and tin in the ratio of 1:1.2:1 (entries 14 – 23), except for the aliphatic aldehydes and for 3-OH and 4-OH-benzaldehyde, whose yields decreased significantly. In order to evaluate the regio- and stereoselectivity, we also studied these conditions using crotyl bromide. The results of allylation of aromatic and aliphatic aldehydes with crotyl bromide using tin in HCl solution at room temperature are presented in Table 3. Crotylation occurred exclusively in the γ-position, with excellent yields with all aromatic aldehydes (entries 1 – 8). The aliphatic heptanaldehyde afforded a good yield after 1 hour (entry 9). Reducing the excess of crotyl halide and tin led to a significant decrease of the reaction yields, except with 3-phenylpropanal, benzaldehyde, 4-fluorbenzaldehyde, 2-methoxy and 2-hydroxybenzaldehyde, where excellent results were obtained (entries 10 –14).
It was observed that the syn/anti selectivity improved in comparison with some results published in the literature, in either organic or aqueous media [4b, 16b, 18]. Some examples on the literature had diastereoselectivity higher than 7:3, but in some cases the anti isomer was the major product [1b, 16a, 19].
Table 3. Allylation of aromatic and aliphatic aldehydes with crotyl bromide mediated by tin in HCl solution at room temperature.
Table 3. Allylation of aromatic and aliphatic aldehydes with crotyl bromide mediated by tin in HCl solution at room temperature.
Molecules 12 02089 i002
EntryAldehydeTime (min)Yield (%)Syn/Antia
1 bC6H5CHO59070 : 30
2 b2-OCH3-C6H4CHO59375 : 25
3 b3-OCH3-C6H4CHO59360 : 40
4 b4-OCH3-C6H4CHO57465 : 35
5 b2-OH-C6H4CHO59465 : 35
6 b3,4-(OCH3)2-C6H3CHO59870 : 30
7 b3-OH-4-OCH3-C6H3CHO59370 : 30
8 b4-F-C6H4CHO58565 : 35
9 bn-C6H13CHO609360 : 40
10 cC6H5CHO159870 : 30
11 c4-F-C6H4CHO159365 : 35
12 c2-OCH3-C6H4CHO159575 : 25
13 c2-OH-C6H4CHO158065 : 35
14 cC6H5(CH2)2CHO309075 : 25
15 b2-OCH3-C6H4CHO609160 : 40
16 b2-OCH3-C6H4CHO2406750 : 50
a The syn:anti ratio was determined by ¹H-NMR. b Aldehyde (0.2 mmol), crotyl bromide (0.75 mmol), tin (0.5 mmol) in 1.0 mol L-1 HCl (2.0 mL). c Aldehyde (0.5 mmol), crotyl bromide (0.6 mmol), tin (0.5 mmol) in 0.25 mol L-1 HCl (2.0 mL).
Other experiments were performed in 1.0 mol L–1 HCl solution with 2-methoxybenzaldehyde, where the reaction time was increased and a decrease of the diastereoselectivity was observed (entries 2, 15 and 16), suggesting the presence of an equilibration process under these reaction conditions. This equilibration could be explained by a symmetric oxonia-Cope type rearrangement or a solvolysis process [20, 21].
Comparing the two sets of data, the reaction in acid medium presents good to excellent yields with reduced reaction times for aromatic and aliphatic aldehydes and moderated syn diastereoselectivity for all cases. The reaction performed in basic medium presents good yields and moderated syn diastereoselectivity only for aldehydes containing the ortho chelating group. Therefore the reaction pathways should be distinct in basic and acidic conditions.
Regarding the mechanism of the Barbier reaction, the literature proposes three different mechanisms involving a single electron transfer (SET), a radical-anion formation or an organometallic reagent [1a]. The prevailing mechanism usually depends upon the metal, substrates and reaction conditions. Moyano and co-workers have described a theoretical study of the Barbier reaction, where the proposed mechanism involves a SET process [22]. This transference will be dependent upon the electron affinities (EA) of the reactants, since the radical anion preferably formed will be that derived from the species with higher EA [22,23]. In the Barbier reaction, the aromatic carbonyl compounds will have the largest EA, thus forming a radical anion. In addition, the reduction potential (E) of the aldehyde can influence its reactivity [7]. The measured reduction potential of the aldehydes and the calculated EA’s are presented in Table 4.
Table 4. Reduction potential (E) and electron affinity (EA) of substituted benzaldehydes and allyl bromide.
Table 4. Reduction potential (E) and electron affinity (EA) of substituted benzaldehydes and allyl bromide.
EntryReagentEA (kcal mol-1)E (V)
1C6H5CHO24.7–1.36
22-HO-C6H4CHO28.8–1.48
33-HO-C6H4CHO27.8–1.68
44-HO-C6H4CHO26.1–2.14
52-CH3O-C6H4CHO27.4–1.55
63-CH3O-C6H4CHO28.3–1.50
74-CH3O-C6H4CHO26.3–1.64
8CH2=CHCH2Br3.21–1.73a
a See reference [23].
Considering the results shown in Table 1, Table 2, Table 3 and Table 4, there is no direct correlation between the observed yields and the reduction potentials or the electron affinities. Nevertheless, the reduction potential can be used to rationalize the reactivity of the aromatic aldehydes, as lower reaction yields were obtained with 3-OH and 4-OH-benzaldehydes, which have the more negative reduction potentials (entries 3 and 4), which suggest a lower reactivity of the carbonyl compound. However, in acid medium, the lower yields could also be related to the fact that these two aldehydes are solids and almost insoluble in water, requiring dioxane as co-solvent. In basic medium, the yields with 3-OH and 4-OH-benzaldehydes were moderated to good (Table 1, entries 9, 11, 16 and 17), and in these cases the solubility should increase due to the formation of anionic species.
In order to obtain some mechanistic information, additional tests were performed with a radical initiator, dibenzoyl peroxide, and radical scavengers, phenol and 2,2,6,6-tetramethylpiperidine-N-oxyl (TEMPO) in K2HPO4 solution. For all the aldehydes examined, including unsubstituted benzaldehyde, very small variations, within the reproducibility of the reaction, were observed with all addictives. These results turn a radical and anion-radical chain mechanism less probable because neither radical initiators (peroxide) nor scavengers (phenol, TEMPO) had significant influence in the reaction [24].
In addition to these results, that are the unchanged behavior in the presence of radical initiators and inhibitors, the observation of small amounts of tetrallyltin at the end of our reactions in basic medium and the syn diastereoselectivity only for 2-substituted benzaldehydes, suggest that the mechanism involves organometallic species.
A mechanism involving an organometallic intermediate was already proposed by Whitesides, Marshall and Chan [9, 25, 26]. Recently, Chan et al. carried out a theoretical study of hydrolysis and carbonyl additions reactions for a series of allylmetals in gas phase [27]. The divalent metal allyl complexes of group 14 have similar reactivity toward hydrolysis and carbonyl addition. On the order hand, tetravalent group 14 metals form σ-complexes with allyl ligands and these complexes are less reactive toward hydrolysis than toward allylation. These results indicated that allyl complexes of tetravalent metals, such as allyl-SnBr3, are suitable for allylation in aqueous media.
Establishing a mechanism involving organotin species in aqueous medium is a challenging task, since only SnX4, with X = halides, in water yields a complex equilibrium whose species and concentrations depend upon the pH and halide nature.[28] For organotin species, these equilibria should be even more complex, since they can undergo hydrolysis and ligand exchanges [29].
As a result, an effort was undertaken to identify and characterize the predominant species responsible for the observed results. Initially the progress of the reaction of allyl bromide, metallic tin and benzaldehyde in pure water was monitored by extracting samples with CDCl3, followed by 1H- NMR analysis.
Figure 2. Partial 1H-NMR spectra in CDCl3 of the reaction of allyl bromide and tin in water after extraction. a) 15 minutes; b) 30 minutes; c) 1 h, d) 4 h and e) 8 h. Assignments: allyl bromide (I); tetrallyltin (II); triallyltin bromide (III); diallyltin dibromide (IV) and propene (V).
Figure 2. Partial 1H-NMR spectra in CDCl3 of the reaction of allyl bromide and tin in water after extraction. a) 15 minutes; b) 30 minutes; c) 1 h, d) 4 h and e) 8 h. Assignments: allyl bromide (I); tetrallyltin (II); triallyltin bromide (III); diallyltin dibromide (IV) and propene (V).
Molecules 12 02089 g002
Nonetheless, organotin species were observed only after the benzaldehyde was consumed. Consequently, the monitoring was also carried out in the absence of aldehyde, and the formation of organotin was observed in water, acidic and basic conditions. The reaction was carried out at room temperature in K2HPO4 solution and samples of the reaction mixture (1 mL) were extracted with CDCl3 (containing anisole as internal standard) at different time intervals and monitored by 1H-NMR. The only species observed in low concentration at 1.9ppm and 2JH-Sn = 63 Hz was characterized based upon the literature 1H-NMR data as tetrallyltin [30]. The allylation reaction was also tested using commercial tetrallyltin and 2-methoxybenzaldehyde in K2HPO4 solution, which after 6 hours afforded the homoallylic alcohol in 70% yield. Theses results indicate that the organotin formation in K2HPO4 solution was very slow, what could explain the need for such long reaction times.
However, the CDCl3 extraction could leave behind water soluble allyltin species in the aqueous media; therefore the reaction was also performed in D2O. First of all, the 1H-NMR spectrum of a commercial sample of tetrallyltin was obtained in D2O, but it has low solubility, almost generating two phases what did not allowed a clear assignment of the H-Sn coupling constant. The 119Sn spectrum was then obtained and a signal at –44 ppm was observed, which could be used to determine the presence of tetrallyltin. When the reaction of allyl bromide and tin was performed with K2HPO4 in D2O, the metal is partially or totally consumed depending on the reaction time, generating a grey suspension whose 1H-NMR spectrum was hard to analyze due to quite broad signals. The 119Sn-NMR spectrum was not conclusive, since no tetrallyltin was observed and only a broad signal at –530ppm was observed, a chemical shift characteristic of inorganic tin salts. After extraction with CDCl3 containing cyclohexane as an internal standard, 70% of tetrallyltin was recovered, suggesting that this is the main species generated under these conditions. Considering the difficulties to analyze the reaction in D2O and the lack of 119Sn-NMR data in D2O for the allyltin species, we continued the NMR studies in CDCl3.
The reaction performed in water was also monitored by 1H-NMR, after extraction with CDCl3, and formation of organotin was observed only after 30 minutes of vigorous stirring. The species initially observed had chemical shift of 1.9ppm and 2JH-Sn = 63 Hz, in agreement with data for tetrallyltin. The samples monitored after longer reaction times showed the formation of other species at 2.4ppm (2JH-Sn = 68 Hz) and 2.8ppm (2JH-Sn = 77 Hz), as shown in Figure 2. A change in the pH of the solution was also observed during the progress of the reaction from 6 to approximately 1, after 30 minutes.
To our knowledge, the only 1H-NMR data available for allyltin(IV) bromides in the literature are assigned to diallyltin dibromide [26]. However, in our experiments we observed tetrallyltin and two other organotin compounds.
Naruta et. al describe the 1H- and 119Sn-NMR spectra of allyltin (IV) chlorides prepared by the Kocheshkov redistribution reaction involving tetrallyltin and SnCl4 [30]. Based upon the chemical shifts and coupling constants of allyltin (IV) chlorides, [30,31] the doublets at 2.4ppm (2JH-Sn = 68 Hz) and 2.8ppm (2JH-Sn = 77 Hz) were assigned to the triallyltin bromide and diallyltin dibromide species, respectively. Another experiment was performed in order to corroborate these assignments. It is known that the addition of HX or X2 can be used to break the tin–carbon bonds yielding an alkane as by-product. [30] Therefore, HBr (50% in water) was added dropwise to tetrallyltin in deuterated chloroform and monitored by 1H-NMR. The same species obtained previously were observed at 2.4ppm, 2.8ppm and 3.2ppm (2JH-Sn = 105.6 Hz), respectively, as presented in Figure 3.

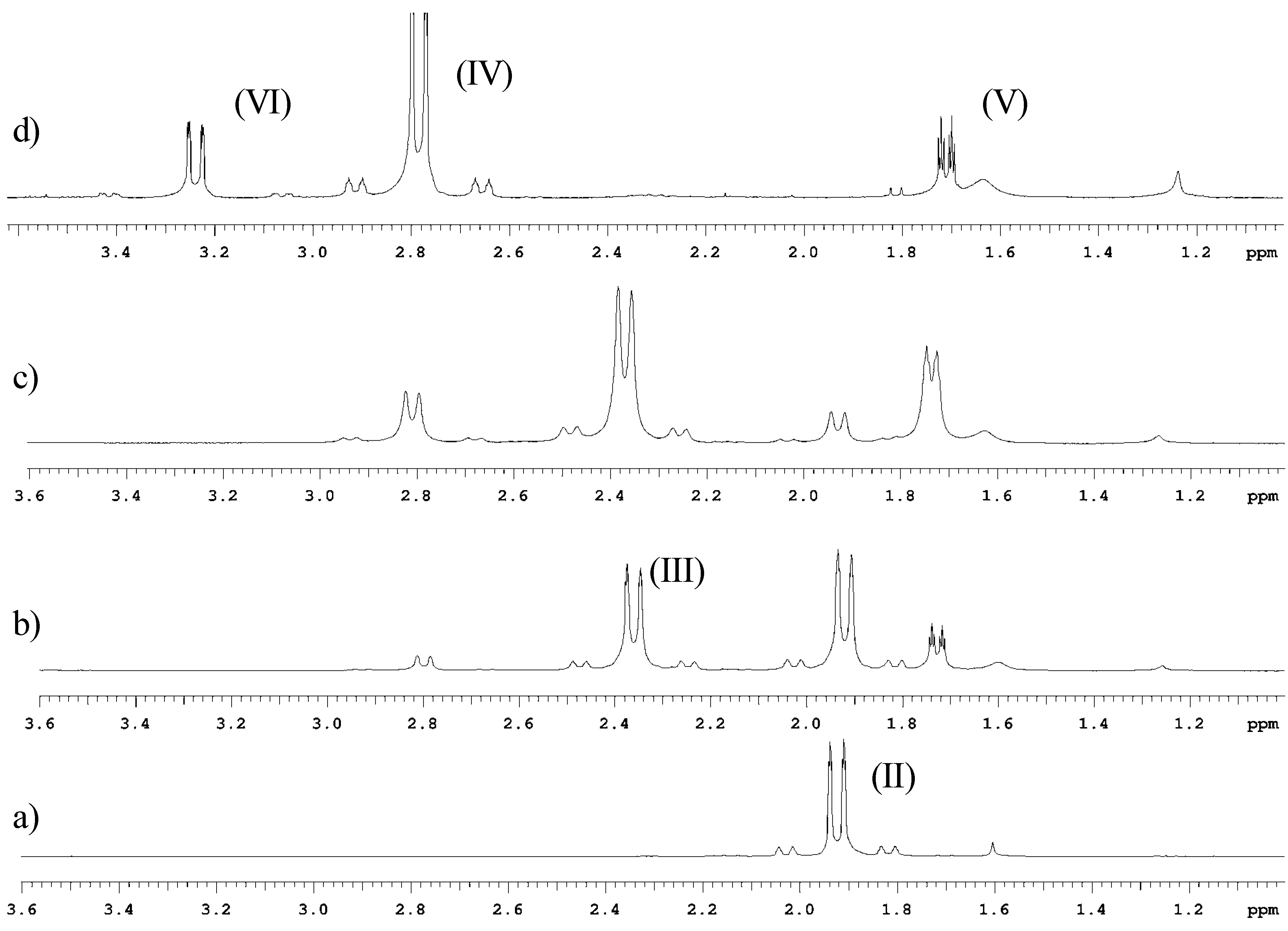

Figure 3. Partial 1H-NMR spectra in CDCl3 of the reaction of tetrallyltin with HBr(aq). (a) tetrallyltin; (b) first addition; (c) second addition, d) third addition. Assignments: tetrallyltin (II); triallyltin bromide (III); diallyltin dibromide (IV), propene (V) and allyltin tribromide (VI).
Figure 3. Partial 1H-NMR spectra in CDCl3 of the reaction of tetrallyltin with HBr(aq). (a) tetrallyltin; (b) first addition; (c) second addition, d) third addition. Assignments: tetrallyltin (II); triallyltin bromide (III); diallyltin dibromide (IV), propene (V) and allyltin tribromide (VI).
Molecules 12 02089 g003
After the characterization of allyltin(IV) bromide species in CDCl3, the reaction of allyl bromide and tin was performed in aqueous solutions of HCl and HNO3 (Figure 4). In these cases, significant formation of tetrallyltin and triallyltin bromide was observed after five minutes and most of the allyl bromide was consumed within 30 minutes and practically only one species giving a signal at 2.4ppm remained present, namely triallyltin bromide. The same compound was observed in the reactions performed in water, HCl and HNO3 aqueous solution, but the formation of this species was faster in acidic media than in pure water.

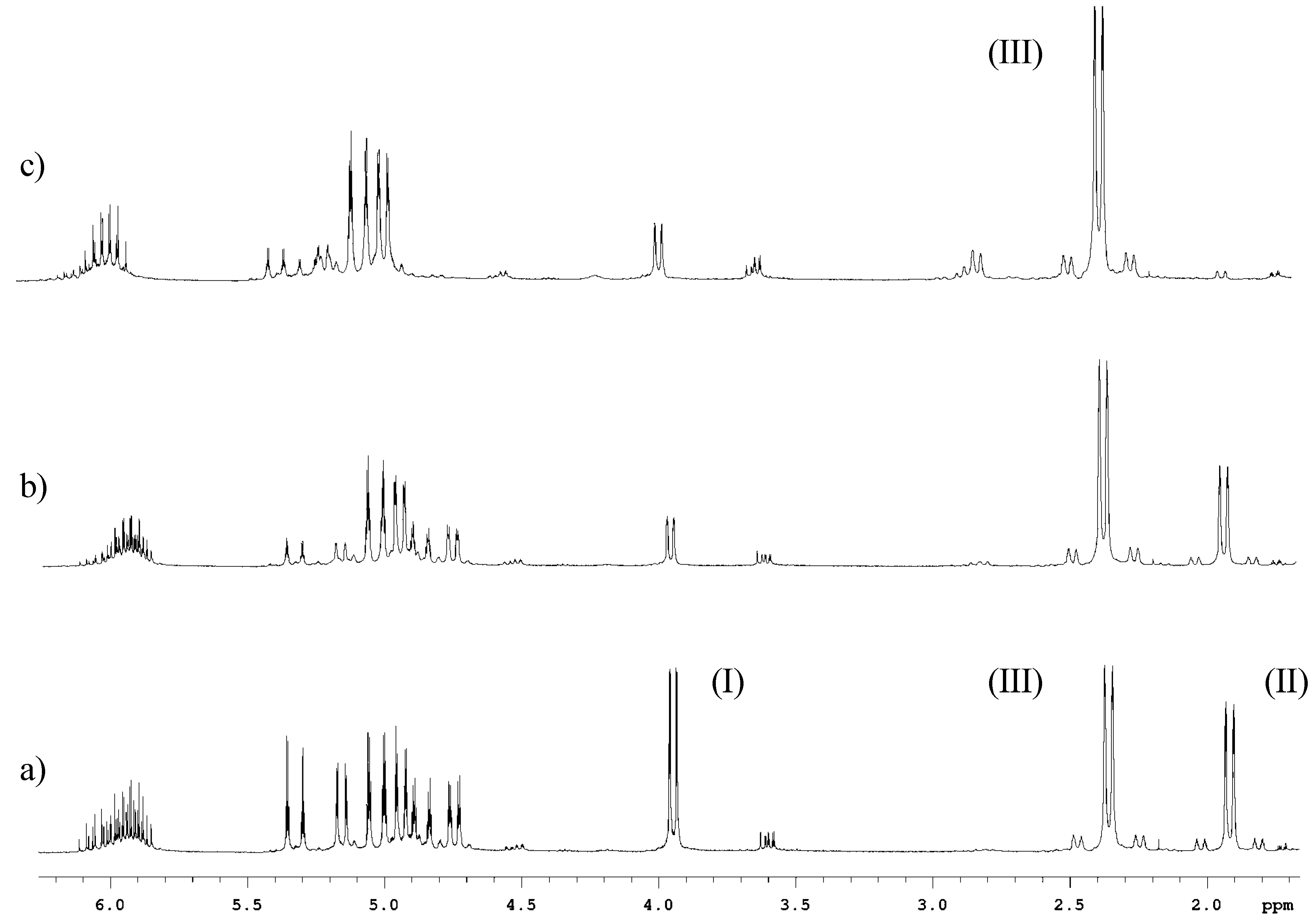

Figure 4. Partial 1H-NMR spectra in CDCl3 of the reaction of allyl bromide and metallic tin in HNO3 solution. a) 5 minutes; b) 15 minutes; c) 30 minutes. Assignments: allyl bromide (I), tetrallyltin (II); triallyltin bromide (III).
Figure 4. Partial 1H-NMR spectra in CDCl3 of the reaction of allyl bromide and metallic tin in HNO3 solution. a) 5 minutes; b) 15 minutes; c) 30 minutes. Assignments: allyl bromide (I), tetrallyltin (II); triallyltin bromide (III).
Molecules 12 02089 g004
The reactivity of tetrallyltin and triallyltin bromide was probed by adding to the CDCl3 solution small amounts of benzaldehyde followed by immediate 1H-NMR analysis as presented in Figure 5. It is clear that triallyltin bromide was consumed first suggesting that it is more reactive than tetrallyltin.
The formation of organotin(IV) halide species is probably the rate-determining step; therefore, the increase of the rate for the organometallic formation would decrease the allylation reaction times. Since HX can cleave Sn-C bonds, the carbonyl addition step should also be faster than the organotin decomposition in order to explain the observed high yields for the allylation reaction.

Conclusions

In summary, systematic studies of the aqueous Barbier allylations of hydroxy- and methoxy-substituted benzaldehydes mediated by tin were reported. The reactions exhibited good to excellent yields when mediated by tin in basic and in acidic medium, without the need to protect OH groups. Even though, the reaction yields were good to excellent in the majority of the aldehydes, the excess of halide and tin could be reduced only in the acid conditions, which also had the advantage of the shorter reaction times. Considering the short reaction time, the ratio 1:1.2:1 aldehyde, halide and tin for several methoxy- and hydroxybenzaldehydes and even for some aliphatic aldehydes, the acid conditions seem quite promising for preparative purposes. For the aliphatic aldehydes, the yields are moderate to excellent and reaction times ranging from 30 to 60 minutes. To our knowledge, the present reaction times are the shortest obtained for the tin-mediated Barbier allylations. In addition, the reactions were carried out under mild and convenient conditions, and no additive (except the HCl solution), no inert atmosphere was needed.

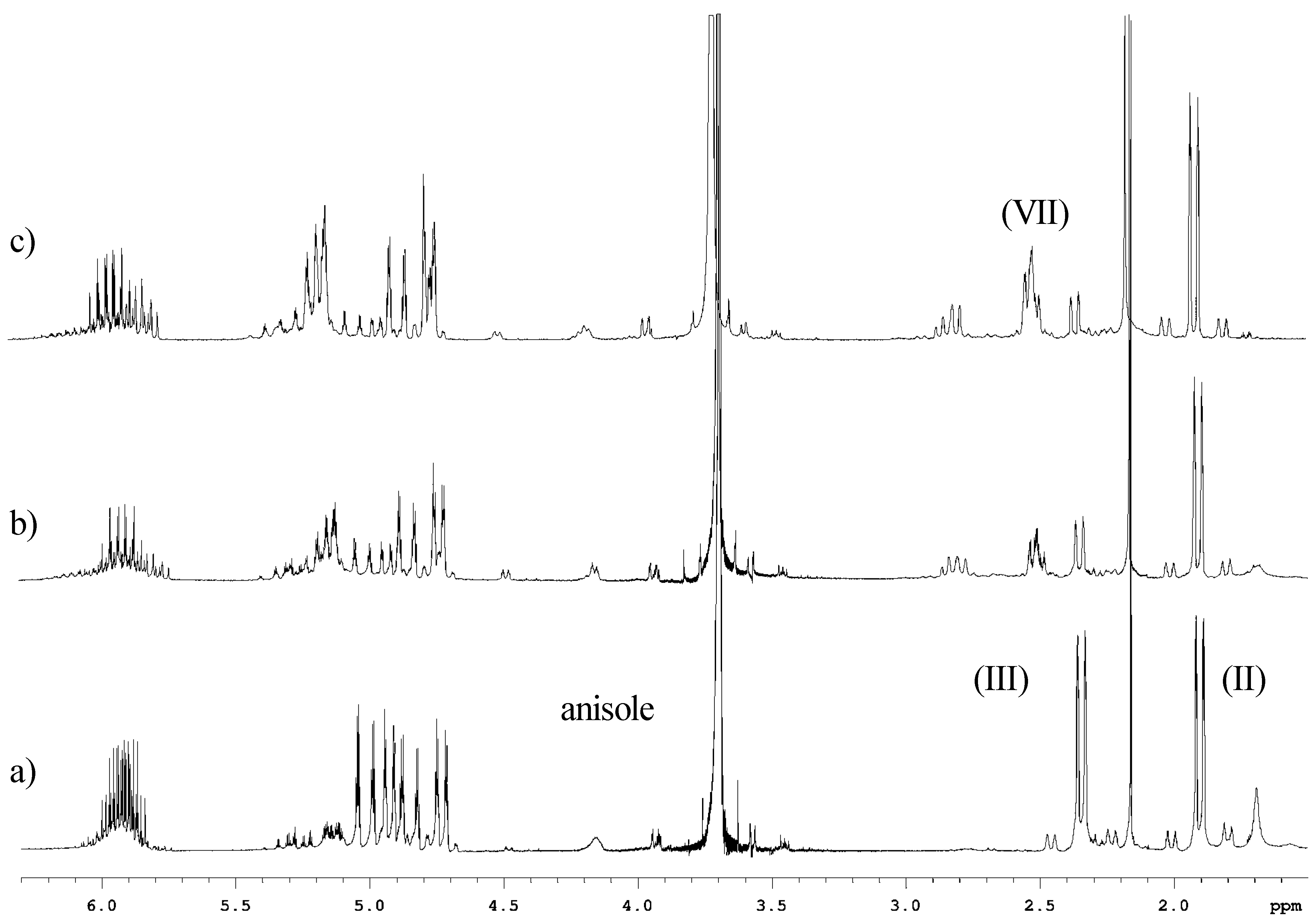

Figure 5. Partial 1H-NMR spectra in CDCl3 of the reaction of benzaldehyde and the tetrallyltin and triallyltin bromide mixture. a) Before addition of the aldehyde; b) first addition of benzaldehyde; c) second addition. Assignments: tetrallyltin (II); triallyltin bromide (III) and alcohol homoallylic (VII).
Figure 5. Partial 1H-NMR spectra in CDCl3 of the reaction of benzaldehyde and the tetrallyltin and triallyltin bromide mixture. a) Before addition of the aldehyde; b) first addition of benzaldehyde; c) second addition. Assignments: tetrallyltin (II); triallyltin bromide (III) and alcohol homoallylic (VII).
Molecules 12 02089 g005
Regarding the mechanism of the Barbier reaction mediated by tin, the experiments using radical initiators and inhibitors suggested that it should not involve a single electron transfer (SET), but more likely it should involve an organotin intermediate. The NMR studies suggest that the organotin formed depend upon the pH, where in basic conditions the major species observed was the tetrallyltin even after 24h reactions. On the other hand, under acidic conditions more than one species was observed, and their reactivity seems quite different. Furthermore, the decrease of the reaction times is due to the use of acid solution that acts as a catalyst for the allyltin(IV) bromide formation. As for the selectivity, the γ-product is obtained exclusively in crotylation, and the syn isomer is formed preferentially within a few minutes. An increase of the reaction time for 2-methoxybenzaldehyde led to a decrease of the syn/anti selectivity due to an equilibration process.

Experimental

General

All solvents and reagents were commercially available and used without further purification. Tin powder 325 mesh (99.8%) from Acros Organics was used. ¹H-NMR (300 MHz), ¹³C-NMR (75 MHz) and 119Sn (111.8 MHz) spectra were recorded on a VARIAN UNITY PLUS-300 instrument. Chemical shifts (δ) are reported in parts per million (ppm) relative to tetramethylsilane (TMS) as an internal standard to 1H and 13C spectra and coupling constants (J) are given in hertz (Hz). Neat SnCl4 at –148ppm used as 119Sn NMR standard. All products were known and their physical and spectroscopic data were compared with those of authentic samples.

General procedure for the Barbier reaction mediated by tin under basic conditions

Allyl halide (1.0 mmol), tin (0.5 mmol) and catalyst (0.06 mmol, when indicated) were added to aldehyde (0.2 mmol) water or saturated solution of K2HPO4 (2 mL) at 30°C. After 24 hours under vigorous stirring, the mixture was acidified with 2 mol L–1 HCl and extracted with CHCl3 (or CDCl3) (1 mL) containing cyclohexane (0.05 mmol) as internal quantitative standard. The extracts were analyzed directly by ¹H-NMR.

General procedure for the Barbier reaction mediated by tin under acidic conditions

Aldehyde (0.5 mmol), allyl or crotyl bromide (0.6 mmol) and tin (0.5 mmol) in HCl (2.0 mL, 0.25 mol L-1) were stirred at 30°C for the indicated time and then extracted with CHCl3 (or CDCl3) (1 mL) containing cyclohexane (or anisole) as internal quantitative reference. The extracts were analyzed directly by ¹H-NMR.

Procedure for the organotin intermediate formation

Tin powder (2.0 mmol) and allyl bromide (4.0 mmol) in saturated K2HPO4 solution (4 mL) were vigorous stirred at 30°C. Samples of the reaction mixture (1 mL) were extracted with CDCl3 (containing anisole as internal standard) in different time intervals and monitored by 1H- and 119Sn-NMR.

Reaction between 2-methoxybenzaldehyde and tetrallyltin

2-Methoxybenzaldehyde (0.3 mmol) and tetrallyltin (0.15 mmol) were added to saturated K2HPO4 solution (2.0 mL) and vigorously stirred at 30°C. After 6 h the reaction mixture was extracted with CDCl3 (containing anisole as internal standard) and analyzed by 1H-NMR.

Measurement of the reduction potential and electron affinity calculations

The reduction potential measurements were obtained by cyclic voltammetry, using vitreous carbon as the working electrode, Pt as auxiliary electrode and Ag/AgCl (3 mol L-1 KCl) as reference electrode and CH3CN as solvent. The electron affinities were calculated as the energy difference between the radical-anion and the neutral molecule, both at the neutral geometry, with the AM1 method.

Acknowledgments

This work was supported by CNPq, CAPES and FACEPE. Special thanks are due to Professor Ricardo L. Longo for his help on the electron affinity calculations.

References and Notes

  1. Li, C. J. Aqueous Barbier-Grignard Type Reaction: Scope, Mechanism, and Synthetic Applications. Tetrahedron 1996, 52, 5643–5668. [Google Scholar] [CrossRef]Tan, X. H.; Hou, Y. Q.; Huang, C.; Liu, L.; Guo, Q. X. SnCl2-mediated carbonyl allylation in fully aqueous media. Tetrahedron 2004, 60, 6129–6136. [Google Scholar]Tan, K. T.; Chng, S. S.; Cheng, H. S.; Loh, T. P. Development of a Highly α-Regioselective Metal-Mediated Allylation Reaction in Aqueous Media: New Mechanistic Proposal for the Origin of α-Homoallylic Alcohols. J. Am. Chem. Soc. 2003, 125, 2958–2963. [Google Scholar]Nicolau, K. C.; Ninchovic, S.; Sarabia, F.; Vourloumis, D.; He, Y.; Vallberg, H.; Finlay, M. R. V.; Yang, Z. Total Syntheses of Epothilones A and B via a Macrolactonization-Based Strategy. J. Am. Chem. Soc. 1997, 119, 7974–7991. [Google Scholar]
  2. Li, C. J. Organic Reactions in Aqueous Media with a Focus on Carbon-Carbon Bond Formations: A Decade Update. Chem. Rev. 2005, 105, 3095–3165. [Google Scholar](b)Li, C. J.; Chan, T. H. Organic Reactions in Aqueous Media; John Wiley & Sons: New York, 1997. [Google Scholar]
  3. Anastas, P. T.; Kirchhoff, M. M. Origins, Current Status, and Future Challenges of Green Chemistry. Acc. Chem. Res. 2002, 35, 686–694. [Google Scholar] [CrossRef]
  4. Petrier, C.; Luche, J. L. Allylzinc reagents additions in aqueous media. J. Org. Chem. 1985, 50, 910–912. [Google Scholar] [CrossRef]Marton, D.; Stivanello, D.; Tagliavini, G. Study of the Allylation of Aldehydes with Allyl Halides in Cosolvent/Water(Salt)/Zn and in Cosolvent/Water(Salt)/Zn/Haloorganotin Media. J. Org. Chem. 1996, 61, 2731–2737. [Google Scholar]Chung, W.; Higashiya, S.; Oba, Y.; Welch, J. Indium and zinc-mediated allylation of difluoroacetyltrialkylsilanes in aqueous media. Tetrahedron 2003, 59, 10031–10036. [Google Scholar]Lu, W. S.; Chan, T. H. Organometallic Reactions in Aqueous Media. Indium and Zinc-Mediated Allylation of Sulfonimines. J. Org. Chem. 2000, 65, 8589–8594. [Google Scholar]
  5. Nokami, J.; Otera, J.; Sudo, T.; Okawara, R. Allylation of aldehydes and ketones in the presence of water by allylic bromides, metallic tin, and aluminum. Organometallics 1983, 2, 191–193. [Google Scholar] [CrossRef]Zhou, J. Y.; Chen, Z. G.; Wu, S. H. Tin-promoted stereocontrolled intramolecular allylation of carbonyl-compounds - a facile and stereoselective method for ring construction. Chem. Commun. 1994, 2783–2784. [Google Scholar]
  6. Chan, T. H.; Li, C. J.; Lee, M. C.; Wei, Z. Y. 1993 Ru-Lemieux-Award-Lecture - Organometallic-type Reactions in Aqueous-Media - A New Challenge in Organic-Synthesis. Can. J. Chem. 1994, 72, 1181–1192. [Google Scholar] [CrossRef]Paquette, L. A.; Mitzel, T. M. Addition of Allylindium Reagents to Aldehydes Substituted at Cα or Cβ with Heteroatomic Functional Groups. Analysis of the Modulation in Diastereoselectivity Attainable in Aqueous, Organic, and Mixed Solvent Systems. J. Am. Chem. Soc. 1996, 118, 1931–1937. [Google Scholar]Chan, Y. H.; Yang, Y. J. Indium-Mediated Organometallic Reactions in Aqueous Media: The Nature of the Allylindium Intermediate. J. Am. Chem. Soc. 1999, 121, 3228–3229. [Google Scholar]
  7. Li, C. J.; Meng, Y.; Yi, X. H. Manganese-Mediated Carbon-Carbon Bond Formation in Aqueous Media: Chemoselective Allylation and Pinacol Coupling of Aryl Aldehydes. J. Org. Chem. 1998, 63, 7498–7504. [Google Scholar] [CrossRef]
  8. Miyamoto, H.; Daikawa, N.; Tanaka, K. Carbon-carbon bond formation using bismuth in a water medium. Tetrahedron Lett. 2003, 44, 6963–6964. [Google Scholar] [CrossRef]Chan, T. C.; Lau, C. P.; Chan, T. H. Iron–mediated allylation of aryl aldehydes in aqueous media. Tetrahedron Lett. 2004, 45, 4189–4191. [Google Scholar]
  9. Schimd, W.; Whitesides, G. M. Carbon-carbon bond formation in aqueous ethanol: diastereoselective transformation of unprotected carbohydrates to higher carbon sugars using allyl bromide and tin metal. J. Am. Chem. Soc. 1991, 113, 6674–6675. [Google Scholar] [CrossRef]
  10. Yasuda, M.; Fujibayashi, T.; Baba, A. Allylation of Carbonyl Compounds Bearing a Hydroxyl Group by Tetraallyltin: Highly Stereoselective Allylation in a Chelation-Controlled Manner. J. Org. Chem. 1998, 63, 6401–6404. [Google Scholar] [CrossRef]
  11. Wang, Z.; Zha, Z.; Zhou, C. Application of Tin and Nanometer Tin in Allylation of Carbonyl Compounds in Tap Water. Org. Lett. 2002, 4, 1683–1685. [Google Scholar] [CrossRef]
  12. Zha, Z.; Qiao, S. Q.; Jiang, J.; Wang, Y.; Miao, Q.; Wang, Z. Barbier-type reaction mediated with tin nano-particles in water. Tetrahedron 2005, 61, 2521–2527. [Google Scholar] [CrossRef]
  13. Zha, Z.; Hui, A.; Zhou, Y.; Miao, Q.; Wang, Z.; Zhang, H. A Recyclable Electrochemical Allylation in Water. Org. Lett. 2005, 7, 1903–1905. [Google Scholar] [CrossRef]
  14. Takahara, J. P.; Masuyama, Y.; Kumsu, Y. Palladium-catalyzed carbonyl allylation by allylic alcohols with stannous chloride. J. Am. Chem. Soc. 1992, 114, 2577–2586. [Google Scholar] [CrossRef]Bieber, L. W.; Malvestiti, I.; Storch, E. C. Reformatsky Reaction in Water: Evidence for a Radical Chain Process. J. Org. Chem. 1997, 62, 9061–9064. [Google Scholar]Lannou, M. I.; Hélion, F.; Namy, J. L. Catalytic Barbier-type reactions of lactones and esters mediated by the Mischmetall/SmI2(cat.) system or the Mischmetall/[SmI2/NiI2(cat.)](cat.). Tetrahedron Lett. 2002, 43, 8007–8010. [Google Scholar]
  15. Wada, M.; Ohki, H.; Akiba, K. –Y. Bismuth(III) Chloride Aluminum-promoted Allylation of Aldehydes to Homoallylic Alcohols in Aqueous Solvent. Bull. Chem. Soc. Jpn. 1990, 1738–1747. [Google Scholar] [CrossRef]
  16. Yamamoto, Y.; Yatagai, H.; Naruta, Y.; Maruyama, K. Erythro-selective addition of crotyl-trialkyltins to aldehydes regardless of the geometry of the crotyl unit. Stereoselection independent of the stereochemistry of precursors. J. Am. Chem. Soc. 1980, 102, 7107–7109. [Google Scholar]Zha, Z.; Quiao, S. Q.; Jiang, J.; Wang, Y.; Miao, Q.; Wang, Z. Barbier-type reaction mediated with tin nano-particles in water. Tetrahedron 2005, 61, 2521–2527. [Google Scholar]
  17. Paquette, L.A.; Mitzel, T.M. Comparative diastereoselectivity analysis of crotylindium and 3-bromoallylindium additions to α-oxy aldehydes in aqueous and nonaqueous solvent systems. J. Org. Chem. 1996, 61, 8799–8804. [Google Scholar] [CrossRef]Chung, W.; Chan, T. H. Indium-mediated organometallic reactions in aqueous media. Stereoselectivity in crotylation of sulfonimines bearing a proximal chelating group. J. Org. Chem. 2001, 66, 3467–3473. [Google Scholar]
  18. Furlani, D.; Marton, D.; Tagliavini, G.; Zordan, M. Hydrated sigma-bonded organometallic cations in organic-synthesis. 1. allyl-stannation, crotyl-stannation, 1-methylallyl-stannation, cyclohex-2-enyl-stannation, and cinnamyl-stannation of carbonyl-compounds in water. J. Organomet. Chem. 1988, 341, 345–356. [Google Scholar] [CrossRef]
  19. Sinha, P.; Roy, S. Barbier Reaction in the Regime of Metal Oxide: Carbonyl Allylation over SnO/Cu2O and Surface Diagnostics. Organometallics 2004, 23, 67–71. [Google Scholar] [CrossRef]
  20. Crosby, S. R.; Harding, J. R.; King, C. D.; Parker, G. D.; Willis, C. L. Oxonia-Cope Rearrangement and Side-Chain Exchange in the Prins Cyclization. Org. Lett. 2002, 4, 577–580. [Google Scholar] [CrossRef]
  21. Jasti, R.; Rychnovsky, S. D. Racemization in Prins Cyclization Reactions. J. Am. Chem. Soc. 2006, 128, 13640–13648. [Google Scholar] [CrossRef]
  22. Moyano, A.; Pericàs, M. A.; Riera, A.; Luche, J. L. A theoretical study of the Barbier reaction. Tetrahedron Lett. 1990, 31, 7619–7622. [Google Scholar] [CrossRef]
  23. Bard, A.J; Merz, A. Electrochemical reduction of allyl halides in nonaqueous solvents - a reinvestigation. J. Am. Chem. Soc. 1979, 101, 2959–2965. [Google Scholar] [CrossRef]
  24. Beckwith, A. L. J.; Bowry, V. W.; Ingold, K. U. Kinetics of nitroxide radical trapping. 1. Solvent effects. J. Am. Chem. Soc. 1992, 114, 4983–4992. [Google Scholar] [CrossRef]Bowry, V. W.; Ingold, K. U. Kinetics of nitroxide radical trapping. 2. Structural effects. J. Am. Chem. Soc. 1992, 114, 4992–4996. [Google Scholar]
  25. Marshall, J. A.; Hinkle, K. W. Synthesis of anti-Homoallylic Alcohols and Monoprotected 1,2-Diols through InCl3-Promoted Addition of Allylic Stannanes to Aldehydes. J. Org. Chem. 1995, 60, 1920–1921. [Google Scholar] [CrossRef]
  26. Chan, T. H.; Yang, Y.; Li, C. J. Organometallic Reactions in Aqueous Media. The Nature of the Organotin Intermediate in the Tin-Mediated Allylation of Carbonyl Compounds. J. Org. Chem. 1999, 64, 4452–4455. [Google Scholar] [CrossRef]
  27. Chung, L. W.; Chan, T. H.; Wu, Y.D. Theoretical study of Intrinsic reactivities of various allylmetals toward carbonyl and water. Organometallics 2005, 24, 1598–1607. [Google Scholar] [CrossRef]
  28. Taylor, M. J.; Coddington, J. M. The constitution of aqueous tin(IV) chloride and bromide solutions and solvent extracts studied by 119Sn NMR and vibrational spectroscopy. Polyhedron 1992, 11, 1531–1544. [Google Scholar] [CrossRef]
  29. Thoonen, S. H. L.; Deelman, B. J.; Koten, G. Synthetic aspects of tetraorganotins and organotin(IV) halides. J. Organomet. Chem. 2004, 689, 2145–2157. [Google Scholar] [CrossRef]
  30. Naruta, Y.; Nishigaichi, Y.; Maruyam, K. NMR study on transmetalation reaction between allyltins and SnCl4. Tetrahedron 1989, 45, 1067–1078. [Google Scholar] [CrossRef]
  31. Petrosyan, V.S. NMR-spectra and structures of organotin compounds. Prog. NMR Spectrosc. 1977, 11, 115–148. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of all the compounds are available from authors.
