¹H- and ¹³C-NMR Analysis of a Series of 1,2-Diaryl-1H-4,5-dihydroimidazoles

Abstract

An analysis of the ¹H- and ¹³C-NMR spectra of a series of 1,2-diaryl-1H-4,5-dihydroimidazoles and comparisons with 4,5-dihydroimidazoles having different substitution patterns are presented. The influence of different 1-aryl and 2-aryl group substituents on spectroscopic parameters of the heterocyclic ring and on the contributions of possible mesomeric structures in the system was determined. Spectroscopic features are coherent with the presence of two conjugated systems (Ar₁-N and Ar₂-C=N) which compete with the delocalization characteristics of the amidine system.

Introduction

1H-4,5-Dihydroimidazoles (2-imidazolines, I) are cyclic amidines of pharmacological interest owing to certain properties exhibited by some members of the class, such as antihypertensive [1], antihelminthic [2,3], hypoglycemic [5], antiinflamatory and analgesic activity [4]. These biological effects were attributed to activation of three groups of imidazoline receptors (I₁, I₂, I₃) [6]. From a chemical point of view, the synthesis and study of such compounds is of interest because they are synthetic intermediates in the preparation of 1,3-diazole derivatives [7,8,9,10,11,12] and of acyclic compounds carrying the ethylenediamine structural unit (>N-(CH₂)₂-N<)[12,13,14,15]. Imidazoline nuclei were also employed as a source of carbon units in transfer reactions [15,16]. N-Alkyl substituted compounds have been extensively investigated while the N-aryl derivatives have been less studied, with the latest reports on the latter coming mostly from our laboratories [12,13,14,17,18,19]. Spectroscopic analysis is a suitable method to throw light upon electronic perturbations inherent to a system and to exhibit its structural features. The scarce antecedents concerning this subject in imidazoline field led us to present in this work a ¹H- and ¹³C-NMR analysis of a series of 1,2-diaryl-1H-4,5-dihydroimidazoles 1-11 and a comparison with compounds 12-14 having different substitution patterns (Table 1).

Table 1. 1H-4,5-Dihydroimidazoles

Compound	R1	R2
1	C6H5	C6H5
2	4-CH3C6H4	C6H5
3	4-CH3OC6H4	C6H5
4	4-ClC6H4	C6H5
5	4-NO2C6H4	C6H5
6	3,4-(CH3O)2C6H3	C6H5
7	C6H5	4-CH3OC6H4
8	C6H5	4-ClC6H4
9	C6H5	3-NO2C6H4
10	4-NO2C6H4	4-NO2C6H4
11	2-NO2C6H4	4-NO2C6H4
12	CH3	C6H5
13	iso-C3H7	C6H5
14	C6H5	CH3

Table 1. 1H-4,5-Dihydroimidazoles

Compound	R1	R2
1	C6H5	C6H5
2	4-CH3C6H4	C6H5
3	4-CH3OC6H4	C6H5
4	4-ClC6H4	C6H5
5	4-NO2C6H4	C6H5
6	3,4-(CH3O)2C6H3	C6H5
7	C6H5	4-CH3OC6H4
8	C6H5	4-ClC6H4
9	C6H5	3-NO2C6H4
10	4-NO2C6H4	4-NO2C6H4
11	2-NO2C6H4	4-NO2C6H4
12	CH3	C6H5
13	iso-C3H7	C6H5
14	C6H5	CH3

Results and Discussion

The studied 1,2-diaryl-1H-4,5-dihydroimidazoles 1-11 are compounds capable of exhibiting cross conjugation, where different possibilities of electron delocalization must be evaluated in order to interpret their spectroscopic features. Thus, together with mesomeric structures typical of amidines (I-II) we should consider the resonance of the aniline system Ar-N1 (III) and the conjugation of the C2-aryl with the amidine C=N (IV) (Scheme 1). ¹H-NMR spectra of compounds 1-14 are presented in Table 2. Chemical shifts of the protons in the ethylenediamine moiety of the heterocyclic ring show accidental coincidence in compounds 1-4, 7-10 and yield a sharp singlet in the 3.98-4.20 ppm region. On the other hand, they appear as a centrosymmetric signal typical of an AA´BB´ system in compounds 5 and 6 and as two triplets in compound 11. In all cases, these protons appear at lower fields than those of 1-alkyl-2-aryl imidazolines 12, 13 used as reference. This fact reveals a lower electron density in the amidine system of the 1,2-diaryl derivatives due to the contribution of canonic forms III [20] (with positively charged N1) resulting from competition of the 1-aryl group for the N1 lone electron pair.

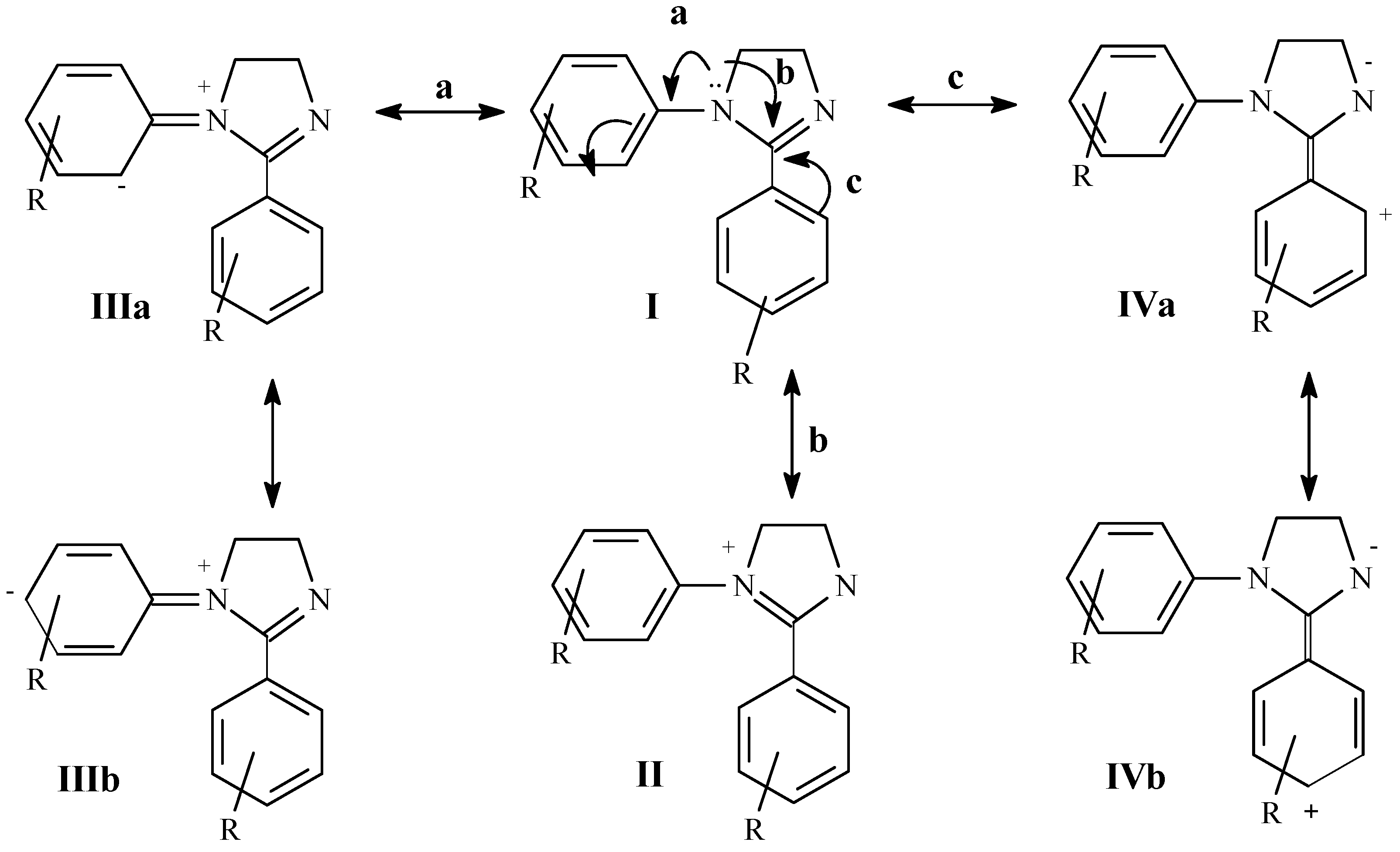

Scheme 1. Mesomeric structures in 1,2-diaryl-1H-4,5-dihydroimidazoles

Scheme 1. Mesomeric structures in 1,2-diaryl-1H-4,5-dihydroimidazoles

Taking compound 1 as reference, the presence of electron donors or lightly withdrawing substituents on the 1-aryl group (H, CH₃, Cl, OCH₃) in general does not lead to substantial changes in the heterocyclic hydrogen chemical shifts. In the case of the 1-p-nitrophenyl compound 5 a paramagnetic shift of 0.12 ppm is observed, also demonstrating a difference in the magnetic neighborhood of protons which appear as a centrosymmetric multiplet as a result of the contribution of structure V. The contribution of canonic structures III is revealed in the shielding observed for 1-aryl ortho and para hydrogens. However, this effect is less than that previously observed in N-aryl-ethylenediamines [19], since the N1 lone electron pair is also involved in electron delocalization of amidine system (I↔II).

As a particular feature of 1,2-diaryl-1H-4,5-dihydroimidazoles, 2-aryl ortho hydrogens appear at lower fields that the other aromatic hydrogens. This fact may be associated to the contribution of canonical form IVa. This does not occur in 1-alkyl-2-aryl derivatives (12, 13), in which phenyl hydrogens appear as singlets, thus indicating a benzene ring practically unperturbed by the amidine system and the essential contribution of structure II. Instead, in 1-aryl derivatives conjugation of N1 lone electron pair with the 1-aryl diminishes structure II contribution, thus making most important the conjugation of the amidine C=N and 2-aryl (IV).

Again using compound 1 as reference, the presence of electron donor substituents in the 2-aryl (OCH₃, Cl) causes a slight upfield shift of ethylene protons by a mesomeric effect, while 1-aryl resonances are practically unmodified. The shielding effect may be associated to the contribution of structure VI. On the contrary, introduction of a nitro group on a 2-arylsubstituent (9-11) induces a paramagnetic shift associated with substituent inductive and mesomeric effects, causing a decrease in the electron density on the heterocyclic ring (Scheme 2).

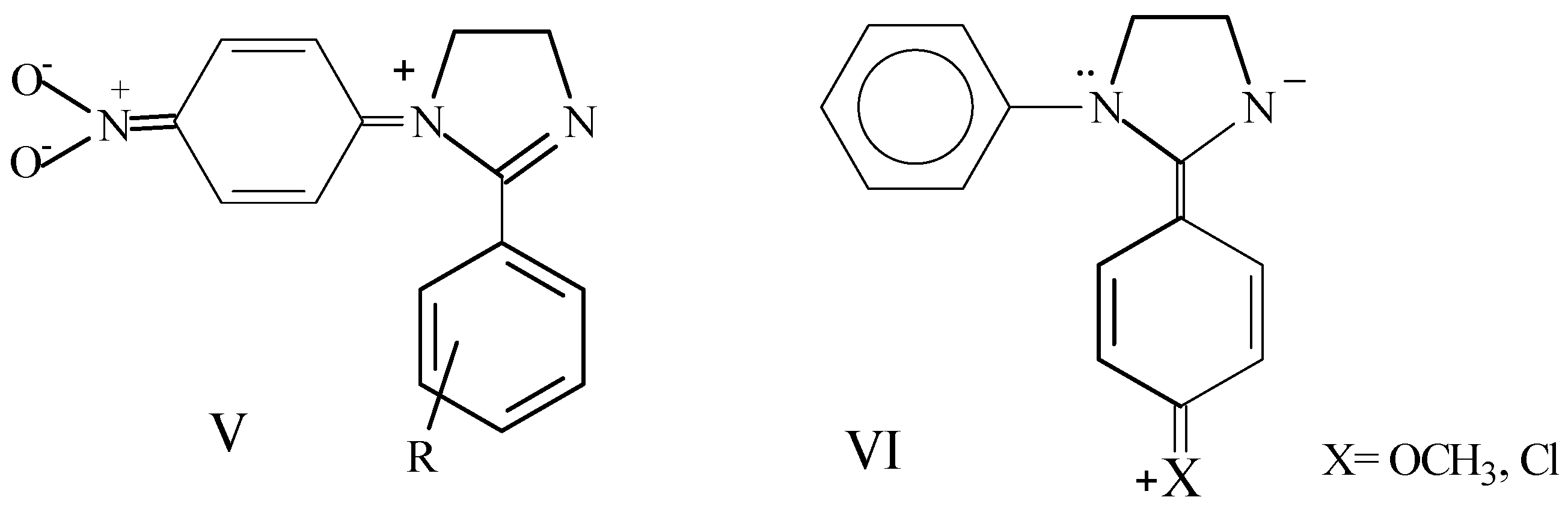

Scheme 2.

Scheme 2.

Table 2. ¹H-NMR of 1H-4,5-dihydroimidazoles (1-14) (δ ppm, J Hz)

Compd.	R1	R2	CH2-CH2	6H-8H	10H-12H	R
1	C6H5	C6H5	4.03 s	6H: 6.70, dd, J1=8.70, J2=1.01 8H: 6.96, t, J1=7.457H: 7.10, t, J1= 8.50	11H,12H: 7.20-7.35, m 10H: 7.45, d, J=7.02	–
2	4-CH3C6H4	C6H5	4.00 s	6H: 6.80, d, J=8.20 7H: 7.05, d, J= 8.20	11H,12H: 7.32-7.40, m 10H: 7.52, d, J=7.07	3.20, s, CH3
3	4-CH3OC6H4	C6H5	4.00 s	6H: 6.75, dd, J1=8.2, J2=2.20 7H: 7.00, dd, J1=8.2, J2=2.20	11H,12H: 7.20-7.33, m, 10H: 7.45 dd, J1=8.47, J2=1.72	3.75, s, CH3
4	4-ClC6H4	C6H5	4.01 s	6H: 6.65, dd, J1=6.67, J2=2.21 7H: 7.08, dd, J1=6.67, J2=2.21	11H,12H: 7.21-7.34, m 10H: 7.42, dd, J1=6.90, J2=1.54	–
5	4-NO2C6H4	C6H5	4.15 m [a]	6H: 6.67, dd, J1=7.02, J2=2.20 7H: 8.05, dd, J1=7.02, J2=2.20	10H-12H:7.47-7.51, m	–
6		C6H5	4.00 m [a]	6H: 6.31, d, J= 2.40 6´H: 6.44, dd, J1=8.40, J2=2.40 7´H: 6.90, d, J=8.40	11H,12H: 7.20-7.33, m 10H: 7.46, dd, J1=8.50, J2=1.80	3.52, s, OCH3 3.80, s, OCH3
7	C6H5	4-CH3OC6H4	3.90 s	6H: 6.78, m [b] 8H: 6.93-6.98, m 7H: 7.15, dd, J1=7.50, J2=2.10	11H: 6.78, m [b] 10H: 7.41, d, J=8.90	3.65, s, OCH3
8	C6H5	4-ClC6H4	3.98 s	6H: 6.74, dd, J1=8.50, J2=1.10 8H: 6.97, td, J1=7.50, J2=1.10 7H: 7.15, dd, J1=8.50, J2=7.50	11H: 7.20, d, J=8.50 10H: 7.39, d, J=8.50	–
9	C6H5		4.08 s	6H: 6.80, dd, J1=8.30, J2=1.3 8H: 7.02, t, J=7.80 7H: 7.18, dd, J1= 8.30, J2=7.80	11´H: 7.43, t, J=7.90 10´H: 7.75, td, J1=6.40, J2=1.50 12H: 8.12, td, J1=7.70, J2=1.50 10H: 8.40, t, J1=1.80	–
10	4-NO2C6H4	4-NO2C6H4	4.20 s	6H: 6.71, d, J=9.01 7H: 8.09, d, J=9.01	10H: 7.70, d, J=8.80 11H: 8.25, d, J= 8.80	–
11 [c]		4-NO2C6H4	4H:4.00 t, J=9.20 3H:4.20 t, J=9.20	6´H: 7.08, dd, J1 = 7.90 8H: 7.29, dt, J1 = 7.78, J2 = 1.20 7´H:7.42, dt, J1 = 7.78, J2 = 1.15 7H: 7.84, dd, J1=8.09, J2=1.15	10H: 7.61, d, J= 9.09 11H: 8.10, d, J=9.09	–
12	CH3	C6H5	3.80 m [a]	3.01, s, CH3	10H-12H: 7.30, s	–
13	CH(CH3)2	C6H5	3.50 m [a]	CH3 :1.00, d CH:2.30, m	7.30, s	–
14	C6H5	CH3	3.90 s	6H,8H: 6.80-6.90, m 7H: 7.40-7.50, m	2.10, s, CH3	–

[a] Centrosymmetric multiplet; [b] Exchangeable assignment; [c] Signals were unequivocally assigned by HMQC and HMBC spectra. Correlation between signal δ 4.20 ppm and C2 (160.9 ppm) in the HMBC spectrum confirm the assignment of protons in the ethylenediamine moiety.

Table 2. ¹H-NMR of 1H-4,5-dihydroimidazoles (1-14) (δ ppm, J Hz)

Compd.	R1	R2	CH2-CH2	6H-8H	10H-12H	R
1	C6H5	C6H5	4.03 s	6H: 6.70, dd, J1=8.70, J2=1.01 8H: 6.96, t, J1=7.457H: 7.10, t, J1= 8.50	11H,12H: 7.20-7.35, m 10H: 7.45, d, J=7.02	–
2	4-CH3C6H4	C6H5	4.00 s	6H: 6.80, d, J=8.20 7H: 7.05, d, J= 8.20	11H,12H: 7.32-7.40, m 10H: 7.52, d, J=7.07	3.20, s, CH3
3	4-CH3OC6H4	C6H5	4.00 s	6H: 6.75, dd, J1=8.2, J2=2.20 7H: 7.00, dd, J1=8.2, J2=2.20	11H,12H: 7.20-7.33, m, 10H: 7.45 dd, J1=8.47, J2=1.72	3.75, s, CH3
4	4-ClC6H4	C6H5	4.01 s	6H: 6.65, dd, J1=6.67, J2=2.21 7H: 7.08, dd, J1=6.67, J2=2.21	11H,12H: 7.21-7.34, m 10H: 7.42, dd, J1=6.90, J2=1.54	–
5	4-NO2C6H4	C6H5	4.15 m [a]	6H: 6.67, dd, J1=7.02, J2=2.20 7H: 8.05, dd, J1=7.02, J2=2.20	10H-12H:7.47-7.51, m	–
6		C6H5	4.00 m [a]	6H: 6.31, d, J= 2.40 6´H: 6.44, dd, J1=8.40, J2=2.40 7´H: 6.90, d, J=8.40	11H,12H: 7.20-7.33, m 10H: 7.46, dd, J1=8.50, J2=1.80	3.52, s, OCH3 3.80, s, OCH3
7	C6H5	4-CH3OC6H4	3.90 s	6H: 6.78, m [b] 8H: 6.93-6.98, m 7H: 7.15, dd, J1=7.50, J2=2.10	11H: 6.78, m [b] 10H: 7.41, d, J=8.90	3.65, s, OCH3
8	C6H5	4-ClC6H4	3.98 s	6H: 6.74, dd, J1=8.50, J2=1.10 8H: 6.97, td, J1=7.50, J2=1.10 7H: 7.15, dd, J1=8.50, J2=7.50	11H: 7.20, d, J=8.50 10H: 7.39, d, J=8.50	–
9	C6H5		4.08 s	6H: 6.80, dd, J1=8.30, J2=1.3 8H: 7.02, t, J=7.80 7H: 7.18, dd, J1= 8.30, J2=7.80	11´H: 7.43, t, J=7.90 10´H: 7.75, td, J1=6.40, J2=1.50 12H: 8.12, td, J1=7.70, J2=1.50 10H: 8.40, t, J1=1.80	–
10	4-NO2C6H4	4-NO2C6H4	4.20 s	6H: 6.71, d, J=9.01 7H: 8.09, d, J=9.01	10H: 7.70, d, J=8.80 11H: 8.25, d, J= 8.80	–
11 [c]		4-NO2C6H4	4H:4.00 t, J=9.20 3H:4.20 t, J=9.20	6´H: 7.08, dd, J1 = 7.90 8H: 7.29, dt, J1 = 7.78, J2 = 1.20 7´H:7.42, dt, J1 = 7.78, J2 = 1.15 7H: 7.84, dd, J1=8.09, J2=1.15	10H: 7.61, d, J= 9.09 11H: 8.10, d, J=9.09	–
12	CH3	C6H5	3.80 m [a]	3.01, s, CH3	10H-12H: 7.30, s	–
13	CH(CH3)2	C6H5	3.50 m [a]	CH3 :1.00, d CH:2.30, m	7.30, s	–
14	C6H5	CH3	3.90 s	6H,8H: 6.80-6.90, m 7H: 7.40-7.50, m	2.10, s, CH3	–

[a] Centrosymmetric multiplet; [b] Exchangeable assignment; [c] Signals were unequivocally assigned by HMQC and HMBC spectra. Correlation between signal δ 4.20 ppm and C2 (160.9 ppm) in the HMBC spectrum confirm the assignment of protons in the ethylenediamine moiety.

Compound 11 is the only 4,5-dihydroimidazole in which the proton signals of the ethylenediamine moiety are resolved and appear as two triplets. Assignment was unequivocally confirmed by two- dimensional heteronuclear correlation spectra (HMQC and HMBC). The lowest field triplet (δ: 4.20) corresponds to methylene adjacent to N=C and the one at δ: 4.00 to methylene bonded to N-aryl. Taking compound 10 as a reference, the shielding of the last methylene can be rationalized as the result of o-nitrophenyl twisting with respect to the amidine ring in order to avoid steric interaction with the vicinal 2-aryl group, thus determining the lowest contribution of structures III (with nitrogen positively charged). When comparing compounds 1 and 14, it can be seen in the former a shielding of meta hydrogens of 1-aryl which could be attributed to 2-aryl anisotropy.

¹³C-NMR spectra of compounds 1-11 are presented in Table 3. The typical signal is that corresponding to heterocyclic ring C2 which generally appears at 160-163 ppm. Taking compound 1 as a reference, the different substitution on 1- and 2-aryl groups affects its chemical shift in such way that the presence of electron donor groups (compounds 3, 6, 7) induces a shift to low fields while electron acceptor groups shields it in 0.8-1.5 ppm (compounds 5, 9-11).

Table 3. ¹³C-NMR of 1H-4,5-dihydroimidazoles 1-11 (δ ppm)

Compd.	1-Aryl	2-Aryl	2C	3C,4C	5C-12C	R
1	C6H5	C6H5	161.7	52.5, 53.9	5C: 142.1; 6C: 122.5; 7C,10C,11C: 128.6, 128.7, 128.0; 8C: 123.4; 9C: 130.7; 12C: 129.9	–
2	4-CH3C6H4	C6H5	162.0	52.7, 53.9	5C: 142.0; 6C: 123.0; 7C,10C,11C: 128.2, 128.9, 129.1; 8C: 131.0; 9C: 130.4; 12C: 128.5	CH3: 20.5
3	4-CH3OC6H4	C6H5	163.2	54.8, 55.1	5C: 136.1; 6C: 124.9; 7C: 113.8; 8C: 156.1; 9C: 130.9; 10C,11C: 127.8, 128.4; 12C: 129.4	–
4	4-ClC6H4	C6H5	162.1	52.8, 53.1	5C: 141; 6C: 123.5; 7C,10C,11C: 128.7, 128.5, 128.4; 8C: 128.4; 9C: 130.7; 12C: 130.1	–
5	4-NO2C6H4	C6H5	160.1	52.2, 52.9	5C: 147.4; 6C: 119.3; 7C: 124.2; 8C: 140.9; 9C: 131.4; 10C,11C: 128.0, 128.3; 12C: 131.4	–
6		C6H5	163.2	53.0, 54.1 [a]	5C: 136.4; 6: 108.2; 6´C,7´C: 111.3, 115.1; 7C: 149.2; 8C: 145.4; 9C: 131.1; 10C,11C: 129.1, 129.2; 12C: 130.1	CH3O: 55,2, 56.0 [a]
7	C6H5	4-CH3OC6H4	162.3 [b]	52.6, 54.0	5C: 143.6; 6C: 122.5; 7C: 128.3; 8C: 123.2; 9C: 123.6, 10C: 130.2; 11C: 113.3; 12C: 160.7 [b]	CH3O: 55,1
8	C6H5	4-ClC6H4	161.4	52.7, 53.9	5C: 142.6; 6C: 122.5, 7C,11C: 128.1, 128.6; 8C: 123.5; 9C: 129.7; 10C: 129.8; 12C: 135.6	–
9	C6H5		160.1	53.3, 54.4	5C: 142.4; 6C: 123.1; 7C: 129.1; 8C,10C,12C: 123.7, 124.4, 124.6; 9C: 132.8; 10´C: 134.3; 11C: 147.8; 11´C: 129.3	–
10	4-NO2C6H4	4-NO2C6H4	160.4	53.4, 54.9	6C,7C,10C, 11C: 121.9, 126.2, 127.2, 130.7; 9C: 137.9; 5C,8C,12C: 143.3, 147.3, 151.1	–
11 [c]		4-NO2C6H4	160.9	4C:54.5 3C:54.8	5C: 136.9; 6C: 145.6; 6´C: 128.6; 7C: 125.4; 7´C: 133.8; 8C: 126.7; 9C: 136.0; 10C: 129.5; 11C: 123.5; 12C: 148.7	–

[a] Exchangeable assignment. [b] Exchangeable assignment.[c] Signals were unequivocally assigned by HMQC and HMBC spectra.

Table 3. ¹³C-NMR of 1H-4,5-dihydroimidazoles 1-11 (δ ppm)

Compd.	1-Aryl	2-Aryl	2C	3C,4C	5C-12C	R
1	C6H5	C6H5	161.7	52.5, 53.9	5C: 142.1; 6C: 122.5; 7C,10C,11C: 128.6, 128.7, 128.0; 8C: 123.4; 9C: 130.7; 12C: 129.9	–
2	4-CH3C6H4	C6H5	162.0	52.7, 53.9	5C: 142.0; 6C: 123.0; 7C,10C,11C: 128.2, 128.9, 129.1; 8C: 131.0; 9C: 130.4; 12C: 128.5	CH3: 20.5
3	4-CH3OC6H4	C6H5	163.2	54.8, 55.1	5C: 136.1; 6C: 124.9; 7C: 113.8; 8C: 156.1; 9C: 130.9; 10C,11C: 127.8, 128.4; 12C: 129.4	–
4	4-ClC6H4	C6H5	162.1	52.8, 53.1	5C: 141; 6C: 123.5; 7C,10C,11C: 128.7, 128.5, 128.4; 8C: 128.4; 9C: 130.7; 12C: 130.1	–
5	4-NO2C6H4	C6H5	160.1	52.2, 52.9	5C: 147.4; 6C: 119.3; 7C: 124.2; 8C: 140.9; 9C: 131.4; 10C,11C: 128.0, 128.3; 12C: 131.4	–
6		C6H5	163.2	53.0, 54.1 [a]	5C: 136.4; 6: 108.2; 6´C,7´C: 111.3, 115.1; 7C: 149.2; 8C: 145.4; 9C: 131.1; 10C,11C: 129.1, 129.2; 12C: 130.1	CH3O: 55,2, 56.0 [a]
7	C6H5	4-CH3OC6H4	162.3 [b]	52.6, 54.0	5C: 143.6; 6C: 122.5; 7C: 128.3; 8C: 123.2; 9C: 123.6, 10C: 130.2; 11C: 113.3; 12C: 160.7 [b]	CH3O: 55,1
8	C6H5	4-ClC6H4	161.4	52.7, 53.9	5C: 142.6; 6C: 122.5, 7C,11C: 128.1, 128.6; 8C: 123.5; 9C: 129.7; 10C: 129.8; 12C: 135.6	–
9	C6H5		160.1	53.3, 54.4	5C: 142.4; 6C: 123.1; 7C: 129.1; 8C,10C,12C: 123.7, 124.4, 124.6; 9C: 132.8; 10´C: 134.3; 11C: 147.8; 11´C: 129.3	–
10	4-NO2C6H4	4-NO2C6H4	160.4	53.4, 54.9	6C,7C,10C, 11C: 121.9, 126.2, 127.2, 130.7; 9C: 137.9; 5C,8C,12C: 143.3, 147.3, 151.1	–
11 [c]		4-NO2C6H4	160.9	4C:54.5 3C:54.8	5C: 136.9; 6C: 145.6; 6´C: 128.6; 7C: 125.4; 7´C: 133.8; 8C: 126.7; 9C: 136.0; 10C: 129.5; 11C: 123.5; 12C: 148.7	–

[a] Exchangeable assignment. [b] Exchangeable assignment.[c] Signals were unequivocally assigned by HMQC and HMBC spectra.

It could be expected that the decrease in electron density on imidazoline ring induced by the presence of nitro substituent in aryl groups would exert a paramagnetic effect. Therefore, the observed diamagnetic effect must be associated to a decrease in the C-N bond order, so that the balance between both effects is the responsible for the shielding observed in the signal of carbons bonded to nitrogen atoms. A similar effect was reported in other nitrogen heterocyclic systems, when ring electron density decreased and polarization effects were overpassed by a diminution in bond order, leading to an effective upfield shift of the C to the heteroatom [21]. Carbons 4 and 5 of the 4,5-dihydroimidazole system (C3 and C4 respectively in Table 3) appear between 52.2 and 55.8 ppm and are affected in a similar way as C2 by the different substitution on aryl groups.

Conclusions

Spectroscopic features of 1,2-diaryl-1H-4,5-dihydroimidazoles are coherent with the presence of two conjugated systems (Ar₁-N and Ar₂-C=N), which are responsible of the observed differences with 1-alkyl-2-aryl derivatives. Thus, conjugation of N1 lone pair with 1-aryl competes with the electron delocalization typical of the amidine system, making most important conjugation of 2-aryl with amidine C=N. This determines the shielding of 1-aryl ortho and para hydrogens and deshielding of 2-aryl ortho hydrogens.

As a result of electron deficit on N1, ethylene hydrogens show in general a higher deshielding than those observed for 1-alkyl-2-aryl-1H-4,5-dihydroimidazoles, and substituent influence is rationalized on the basis of its inductive and mesomeric effects.

Experimental

General

Melting points were taken on a Büchi capillary apparatus and were uncorrected. The NMR spectra were obtained on a Bruker MSL 300 MHz spectrometer using deuteriochloroform as solvent at room temperature and the standard concentration of samples was 0.10 M. The HMQC and HMBC spectra were recorded using a Bruker AM-500 spectrometer. Chemical shifts are reported in parts per millon (δ) from tetramethylsilane. Signals are quoted as: s (singlet), d (doublet), dd (double doublet), t (triplet), dt (double doublet), td (triple doublet) and m (multiplet). J values are given in Hertz (Hz). Compounds 1, 2, 5 and 9 [17]; 3, 8 and 13 [12]; 4, 6 and 10 [18]; 7 [14]; 12 [22] and 14 [19] were prepared following literature procedures.
