Mechanism of Dy³⁺ and Nd³⁺ Ions Electrochemical Coreduction with Ni²⁺, Co²⁺, and Fe³⁺ Ions in Chloride Melts

Abstract

The present paper is devoted to the study of the processes of the mechanism of electrochemical coreduction of Dy³⁺ and Nd³⁺ ions with Ni²⁺, Co²⁺, and Fe³⁺ ions in the equimolar NaCl-KCl melt at 973 K and characterization of the synthesized samples. The performed voltammetry analysis of the electrochemical coreduction processes elucidated a significant difference in the values of the extraction potentials of the studied metals. This melt testifies that intermetallic compounds of Dy and Nd with Ni, Co, and Fe may be synthesized in the kinetic regime. The intermetallic phases of Dy and Nd with Ni, Co, and Fe are found to be formed along with the phases of metallic Ni, Co, and Fe either during electrolysis at the cathode current densities exceeding the limiting diffusion current of Ni²⁺, Co²⁺, and Fe³⁺ ions or in the potentiostatic regime at the potentials of the corresponding voltammetry curves. Therefore, the following interrelated key parameters affecting the electrochemical synthesis of Dy and Nd intermetallic compounds with Ni, Co, and Fe were determined: (i) composition of the electrolyte, i.e., concentrations of FeCl₃, CoCl₂, NiCl₂, DyCl₃, and NdCl₃; (ii) cathode current density or electrolysis potential and (iii) electrolysis time. The obtained samples were characterized by micro-X-ray diffraction analysis, cyclic voltammetry, and scanning electron microscopy methods.

1. Introduction

In the 21st century, emerging and conventional functional materials have a great impact on the quality of our lives. We have become technology-coddled, as technologies make our lives more comfortable. We are used to microwave ovens, laptops, digital phones, and high-speed transport. All these engineering achievements are possible because of new functional and construction materials. A special place should be given to the materials based on rare-earth intermetallic and refractory compounds, such as magnets, fluorescent substances, alloys for hydrogen accumulation, etc. Magnets, based on rare-earth metals (REM)—precisely, Nd-Fe-B—are becoming increasingly used, because of their record high characteristics as opposed to other permanent magnets. First, they exhibit higher magnetic fields and technical characteristics; secondly, these magnets are cheaper and more available due to the raw materials used for their fabrication. Apart from military–industrial complex and nuclear industry being traditional consumers of the novel materials, such fields as construction industry, oil and gas industry, chemical and metallurgical industries, medicine and microbiology, thermal energetics and machine building, wood working and food industries, radio electronics, and even outdoor advertisement are highly interested in new materials development.

Typical production processes for hard magnets, such as Nd-Fe-B, SmCo₅, and others include either thermal reduction of Co and REM oxides by Ca or alloying of the preliminary obtained metals with the subsequent heavy grinding in inert atmosphere [1,2,3]. Among the drawbacks of these technological processes are their complexity, process temperatures exceeding 1000 °C, and the labor-consuming separation process of the end product from the formed slag that requires a reducing agent, i.e., metallic calcium obtained by molten salts electrolysis. Therefore, development of efficient production methods for REM-based hard magnetic materials are of supreme importance.

Molten salt electrolysis is one of perspective methods for the production of hard magnetic materials based on multicomponent rare-earth compounds. The processes of electrochemical co-deposition of the components of the synthesized compounds at the cathode and their further atomic interaction with the formation of nano-, submicro-, and microdisperse intermetallic and refractory powders lay the basis for the electrochemical synthesis of rare-earth intermetallic and refractory compounds [4]. Low energy consumption, simplified synthesis process and possibility to monitor and control the synthesis process, composition, and morphology of the end product are key advantages of the electrochemical synthesis method. However, there is a lack of literature data on the production of multicomponent REM compounds, especially Nd- and Dy-containing ones, via the electrodeposition from ionic melts.

The electrochemical synthesis of the intermetallic Ln_xMe_y compounds (Ln = Dy, Nd; Me = Ni, Co, Fe) may be performed in three ways. The first one implies Nd and Dy electrodeposition from ionic melts on Ni, Co, or Fe (the iron triad) metallic substrates. In this case, the intermetallic compound is formed according to the reaction of Nd and Dy diffusion into the electrode bulk, which results in formation of diffusion coatings [5,6]. Thus, DyFe [7,8] Dy₂Ni₃ [9,10,11,12,13] intermetallic compounds were obtained in the form of diffusion coatings in molten KCl-LiCl containing Dy³⁺ ions. The alloy coatings of the DyNi₂, DyCo₃, and DyCo₂ compositions were synthesized by the currentless diffusion alloying of the Ni and Co samples at 773–973 K in the molten KCl-LiCl eutectic containing DyCl₃ [5]. In the second variant, soluble Fe, Ni, or Co consumable anodes serve as the sources of the iron triad ions. Edwar et al. obtained REM alloys with 3 d metals by the low-temperature electrolysis of molten salts containing Li and REM fluorides (sometimes with BaF₂ additions) using soluble Fe and Co anodes [14]. The third variant implies the addition of the iron triad and REM chlorides to the molten alkali chloride background electrolyte. The electrochemical coreduction of REM ions as well as Ni²⁺, Co²⁺, and Fe³⁺ ions on the cathode and their further atomic interaction result in the formation of highly disperse intermetallic powder. Papers [15,16,17,18,19] reported that it is possible to synthesize intermetallic compounds containing Sa, La, Ho, and Ce with Co and Ni. Later, the processes of electrochemical coreduction of Dy³⁺ with Al³⁺ ions [20], Ho³⁺ with Al³⁺ [21], and Sm³⁺ with Ni²⁺ ions [22] were studied in the KCl-LiCl eutectic. These studies proved that Dy and Ho intermetallic compounds with Al and Sa with Ni can be electrochemically synthesized. Reviews [23,24,25] reveal the state-of-the-art achievements in the electrochemical synthesis of intermetallic and refractory compounds based on refractory and REM metals in chloride melts. A vast diversity of the synthesized materials and potential of this production method are promising for creation of new functional and constructive materials.

The present paper is aimed at the study of the processes of the electrochemical coreduction mechanism of Dy³⁺ and Nd³⁺ ions with ions of the iron triad in the KCl-NaCl eutectic. It is important to demonstrate the potential and to determine the mechanism of the electrochemical synthesis of intermetallic Ln_xMe_y compounds (Ln = Dy, Nd; Me = Ni, Fe, Co).

2. Materials and Methods

2.1. Electrochemical Cell and Electrodes

The experiments were performed in the hermetically sealed, quartz, three-electrode cell in purified dry argon atmosphere. To eliminate the oxygen traces in the argon atmosphere, a zirconium pulp was put into the cell as a free oxygen getter. A glassy carbon crucible of 30 cm³ volume served simultaneously as a container for the melt and as an anode. A chloride–silver electrode Ag|KCl-NaCl (1:1)-AgCl (2.5 mol.%) was used as a reference electrode. A tungsten wire of 1.0 mm served as a cathode. An alundum tube dressed the tungsten wire leaving 40 mm uncovered. The area of the working electrode was calculated according to the immersion depth to the melt (10 ÷ 15 mm). The preparation and assembling of the cell were performed in the glove box mBraun Labstar 25 (MBRAUN, Garching, Germany) in pure argon atmosphere. To provide the operating temperature of 973 K, a shaft-type resistance furnace with silicon carbide heaters was used. The automatic regulation of the temperature was performed by an electronic regulator OVEN-TRM-1 with a chromel–alumel thermocouple, the accuracy of the temperature control was ±1 °C. Cyclic voltammograms and open-circuit potential measurements were obtained using an Autolab PGSTAT 30 device with IF-00 interface (Eco Chemie, Metrohm Autolab B.V., Utrecht, Netherlands). The voltammograms were processed using the software (GPES 4.9).

2.2. Methods for Analysis and Diagnostics of Cathode Deposits

To determine the phase and elemental composition of cathode deposits, an X-ray diffractometer D2 PHAZER (Bruker, Bremen, Germany); scanning electron microscope Tescan VEGA3LMH, which allows quantitative EDX chemical analysis (Tescan, Brno—Kohoutovice, Czech Republic); and X-ray fluorescent spectrometer Spektrscan MAKS GV (Spectron, St. Petersburg, Russia) were used.

2.3. Electrolyte Preparation

The KCl-NaCl equimolar melt was chosen as a background electrolyte. Chemically pure KCl and NaCl salts were preliminary dried in a vacuum oven for 10 h and then were annealed in an electric muffle for 5 h at 723 K. Dry chemically pure salts NdCl₃, DyCl₃, NiCl₂, CoCl₂, and FeCl₃ (Chemcraft, Kaliningrad, Russia) were used as sources of Nd, Dy, and iron triad metals.

3. Results and Discussion

3.1. Electroreduction of Nd³⁺ and Dy³⁺ Ions in the KCl-NaCl Equimolar Melt at 973 K

We previously studied the electroreduction of the Nd³⁺and Dy³⁺ions in the KCl-NaCl melt on the active electrode materials (Ag, Pt, and GC) using DyCl₃ and NdCl₃ obtained via dewatering of NdCl₃·6H₂O and DyCl₃·6H₂O by dehydrating agents NH₄Cl and CCl₄ [26,27,28]. Experimental conditions and purity of the used reagents as well as the material of the electrode have a great impact on the structure, state, and electrochemical behavior of the Nd³⁺ and Dy³⁺ ions in chloride melts. In the present study, the electrochemical reductions of Nd³⁺ and Dy³⁺ ions with Ni²⁺, Co²⁺, and Fe²⁺ ions were performed in the equimolar KCl-NaCl melt using chemically pure reagents and inert electrode materials (W) at 973 K.

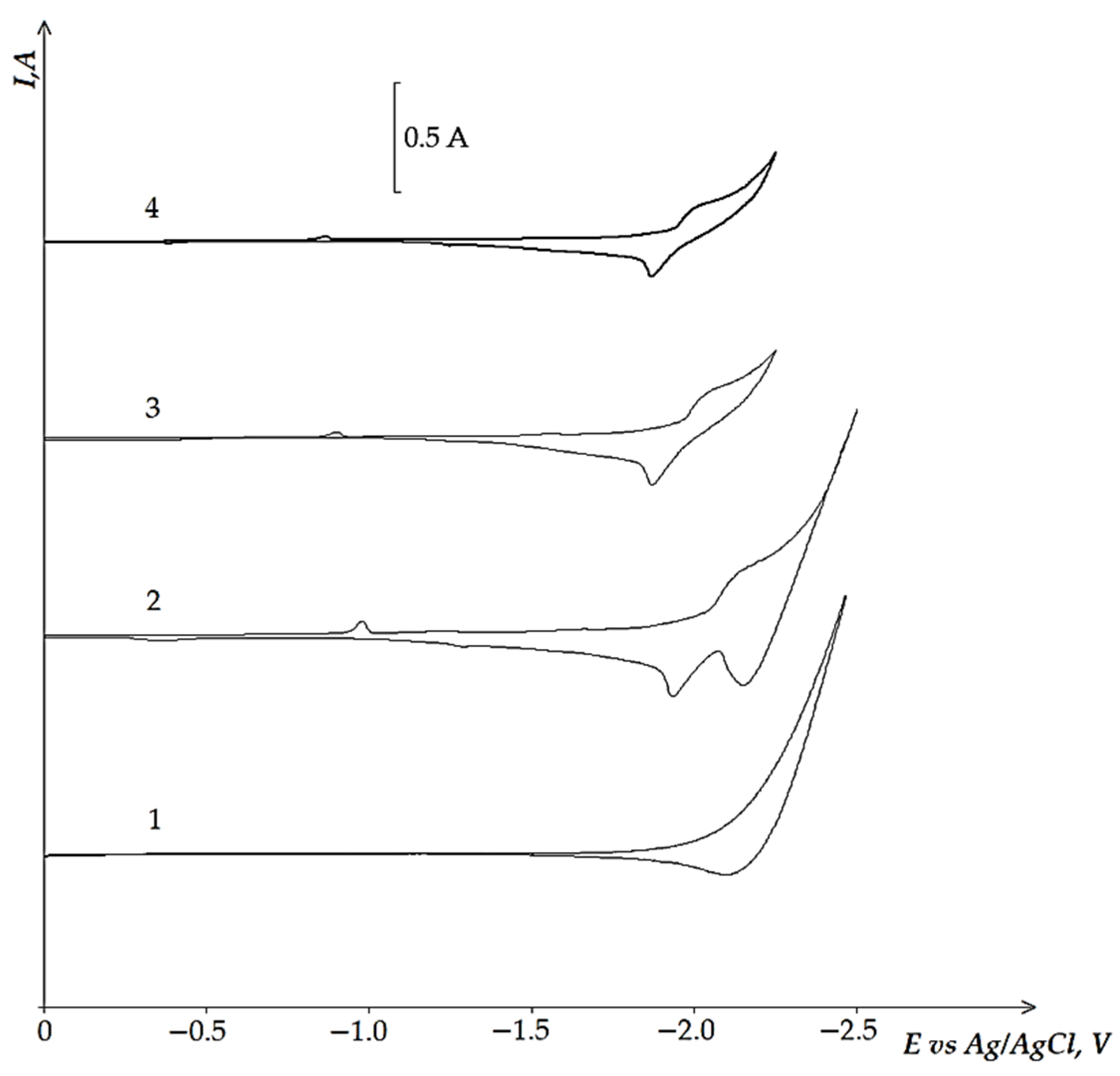

Figure 1 presents cyclic voltammetry dependences of the equimolar KCl-NaCl melt containing 4.0 × 10⁻⁴ mol/cm³ of NdCl₃ on the tungsten electrode at different polarization rates and at the temperature of 973 K. The absence of any other waves and low residual current of the voltammetry curve for the background KCl-NaCl electrolyte (Figure 1, curve 1) up to the potentials of the alkali metals extraction testifies to the high purity of the equimolar KCl-NaCl melt and approve its implementation in the proposed tasks. The addition of NdCl₃ to the equimolar KCl-NaCl melt results in the appearance of the potential region −(1.85 ÷ 2.05) V relative to the Ag/AgCl reference electrode, which corresponds to the Nd³⁺ ions reduction. The height of this reduction wave increases as the polarization rate increases. The reduction waves of Nd³⁺ ions do not have a clear diffusion peak, because the Nd³⁺ reduction potentials are close to the potentials of the alkali metals extraction. The increase in the polarization rate and the transition to the non-stoichiometric regimes do not result in diffusion peak formation. However, the reduction wave was noticed to shift towards the region of negative potentials and to expand. The cyclic voltammetry dependencies of the equimolar KCl-NaCl melt containing DyCl₃ (Figure 2) have only one wave of Dy³⁺ ions reduction in the potential region of −(1.9 ÷ 2.1) V and of the cathode product oxidation in the potential region of −(1.85 ÷ 2.05) V.

The analysis of the half-width of the Dy³⁺ and Nd³⁺ ions reduction waves according to the known diagnosis criteria [29,30] up to the polarization rates of 0.1 V/s elucidates that there are three electrons, which transfer during the cathode process. As the polarization rate increases, the half-width values of the Nd³⁺ and Dy³⁺ ions reduction waves increase. This testifies that the process of the Nd³⁺ and Dy³⁺ ions electrochemical reduction proceeds in the regime of controlled charge transfer rate.

Therefore, based on the structure of the chloride melts containing REM ions, the Nd³⁺ and Dy³⁺ ions were found to acquire the form of chloride LnCl₆³⁻ complexes (Ln = Dy and Nd). The reversible three-electron reaction of the electrochemical cathode reduction has the following form:

LnCl₆³⁻ + 3e ↔ Ln +6Cl⁻.

(1)

3.2. Electrochemical Reduction of the Iron Triad Metals in the KCl-NaCl Melt at 973 K

The electrochemical reduction of Ni²⁺, Co²⁺, and Fe³⁺ ions in ionic melts is reported in a limited number of papers, because these processes are successfully performed in water solutions. However, chloride melts are the best media for production of powders and coatings from the iron triad metals. Thus, papers [31,32,33] report on the regularities of the Co²⁺ ions electrochemical reduction in the molten NaCl-CoCl₂ and KCl-NaCl-CoCl₂ systems. Sytchev et al. [32] studied the KCl-NaCl-FeCl₃ (CoCl₂, NiCl₂) and KCl-NaCl-NaF(5 mol.%)-FeCl₃ (CoCl₂, NiCl₂) melts by the cyclic voltammetry at 973 K. The character of the iron triad ions electrochemical reduction was determined and it was concluded that the electrode processes with the iron triad ions are diffusion-controlled. According to the research reported in [32], two electrons participate in the elementary processes of electrochemical reduction of Fe³⁺, Co²⁺, and Ni²⁺ both in chloride and in chloride–fluoride melts.

To eliminate the influence of the experimental conditions and impact of different electrode materials, we performed the electrochemical reduction of the iron triad ions under conditions similar to those of Dy³⁺ and Nd³⁺ ions’ electrochemical reduction.

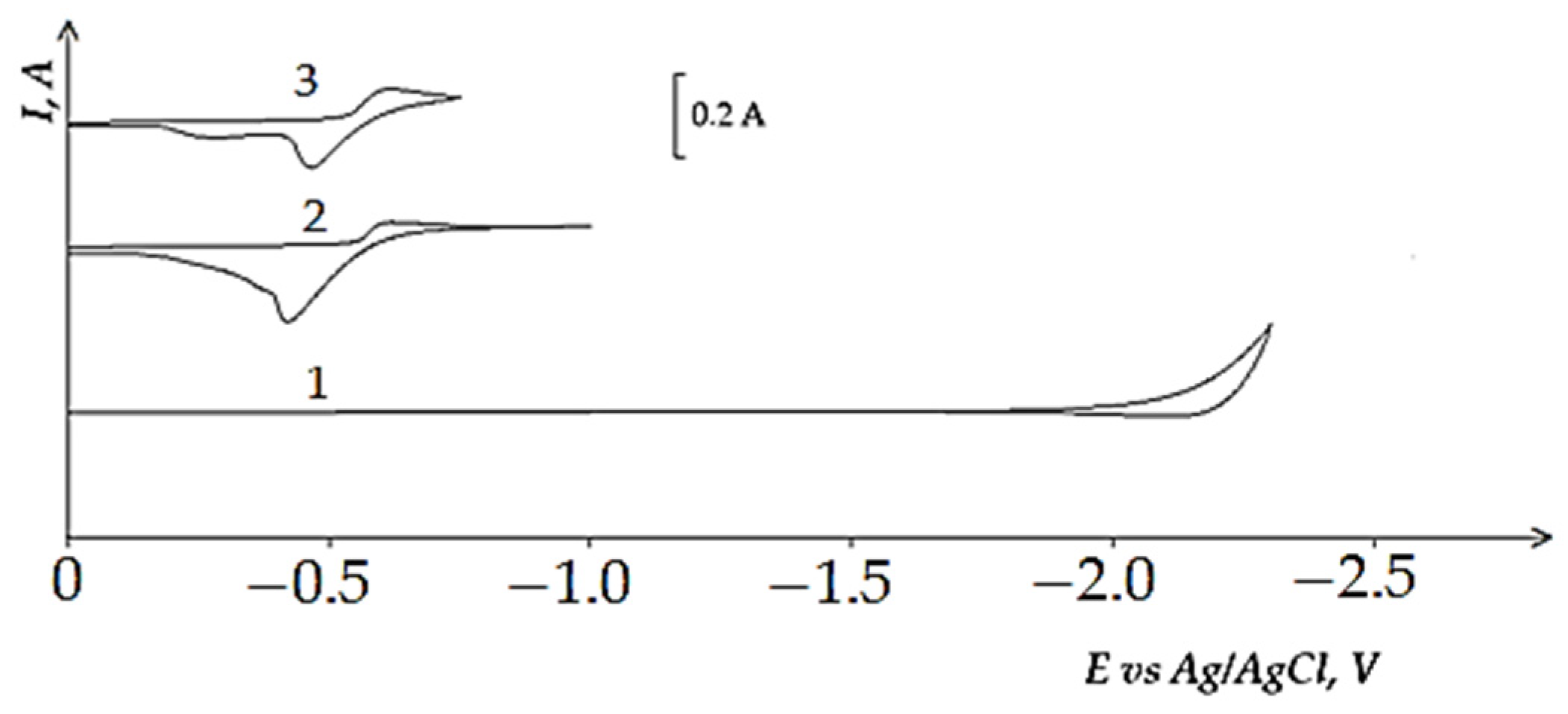

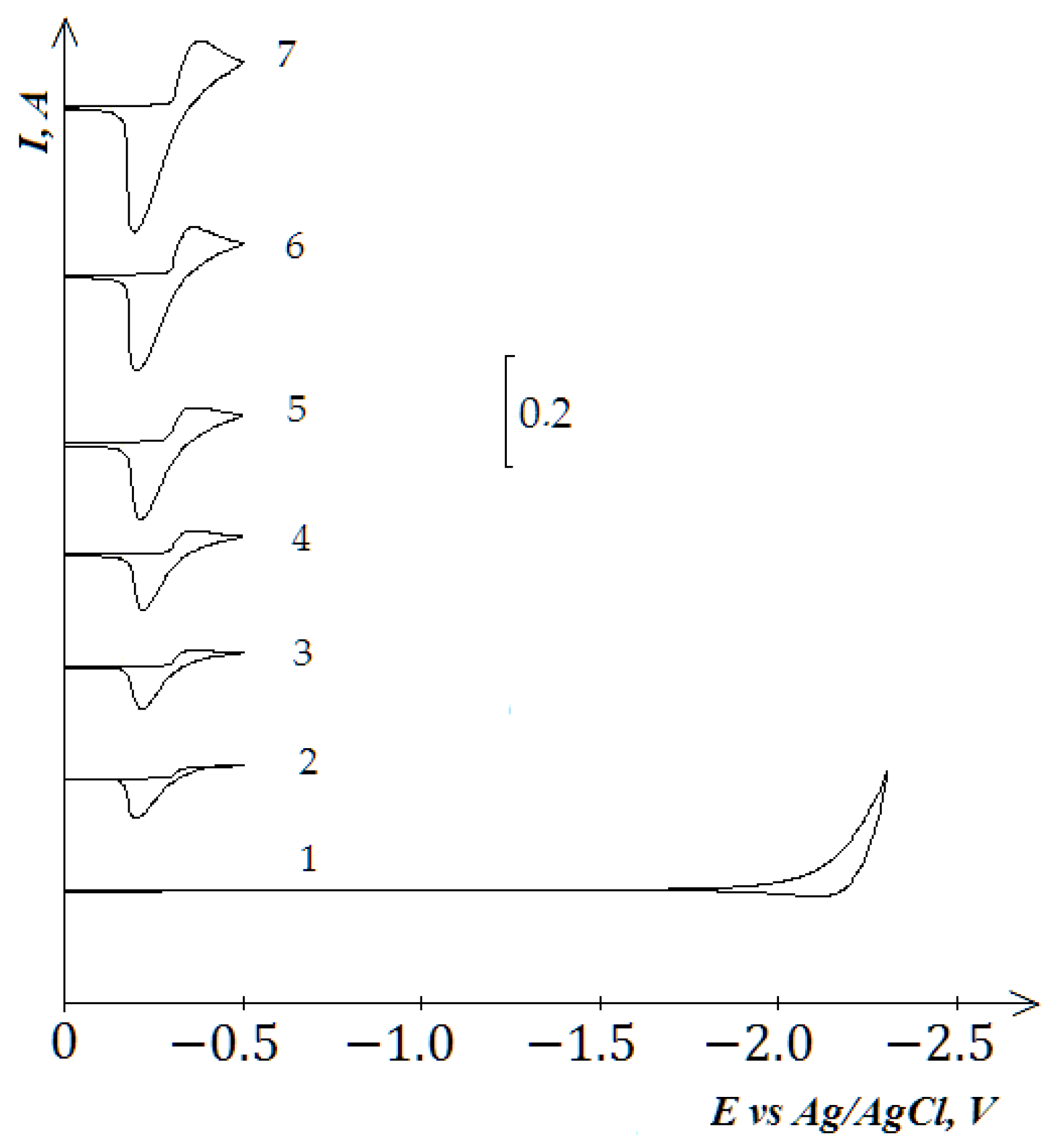

Figure 3 and Figure 4 present cyclic voltammograms recorded on the tungsten cathode during the electrochemical reduction of chloride Fe³⁺ and Co²⁺ complexes in the equimolar KCl-NaCl melt at 973 K. A wave of the Fe³⁺ and Co² chloride complexes reduction is observed on the cathodic branch of cyclic voltammetry curves in the regions of potentials −(0.5 ÷ 0.6) V, −(0.3 ÷ 0.4) V relative to the Ag/AgCl reference electrode. The X-ray diffraction analysis of the product of potentiostatic electrolysis obtained at the potentials of the wave termination illustrates that the cathode deposit is composed on metallic Fe and Co phases. The anodic branch of the cyclic voltammogram has one wave of metallic Co oxidation. In the case of metallic Fe oxidation, two waves are observed. If the polarization reaches −1.0 V, the voltammetry curve stages of the metallic Fe electrochemical oxidation are less noticeable. The analysis of the Fe³⁺ ions reduction according to the diagnostic criteria of the chronopotentiometric method illustrates a three-electrode process of Fe³⁺ ions reduction, which is controlled by diffusion:

Fe³⁺ + 3e ↔ Fe⁰

(2)

The oxidation of metallic Fe proceeds in two stages:

Fe⁰ − 2e ↔ Fe²⁺ and Fe²⁺ − 1e ↔ Fe³⁺

(3)

The number of electrons (n), which transfer during the electrochemical reduction of Co²⁺ ions, was calculated using the value of the wave half-width for the polarization rates less than 0.1 V/s using equation E_p/2 − E_p = 0.77RT/nF. It was found that n = 2.

Co²⁺ + 2e ↔ Co

(4)

Electrochemical behavior of Ni²⁺ ions is analogous to that of Co²⁺ ions, with the only exception that nickel ions reduce in the more positive region of potentials −(0.05 ÷ 0.1) V.

3.3. Electrochemical Coreduction of Nd and Dy Ions with Iron Triad Ions in the KCl-NaCl Melt at 973 K

According to the phase diagrams of the Dy-Ni and Nd-Ni double metallic systems [34,35] Nd³⁺ and Dy³⁺ ions form the following intermetallic compounds with nickel Ln₂Ni₁₇, LnNi₅, Ln₂Ni₇, LnNi₃, LnNi₂, LnNi, Ln₇Ni₃, Ln₃Ni, where Ln = Dy and Nd. Nourry et al. calculated a free Gibbs energy of intermetallic compounds formation in the double system Nd_xNi_y and found that NdNi₅ is the most stable phase (ΔG(NdNi₅) = −350 kJ/mol) [36]. As the Nd³⁺ concentration increases in the intermetallic compounds, the free Gibbs energy increases but its value does not exceed zero at 1073 K (ΔG(Nd₃Ni) = −110 kJ/mol). Among all analyzed phases, only NdNi₅, NdNi, DyNi₅, and DyNi are considered as congruently melting compounds. The rest are incongruently melting compounds that form according to the peritectic reaction. In the double Dy-Co system, there are two congruently melting compounds—Dy₂Co₁₇, DyCo₃—and five incongruently melting ones—Dy₂Co₇, DyCo₂, DyCo₃, Dy₁₂Co₇, Dy₃Co. The Nd-Co system has one congruently melting compound—Nd₂Co₁₇—and nine incongruently melting ones—NdCo₅, Nd₂Co₇, Nd₅Co₁₉, NdCo₃, NdCo₂, Nd₂Co₃, Nd₂Co_1.7, Nd₂Co₁₇, Nd₇Co₃, Nd₃Co. The phase diagram of the Dy-Fe system illustrates the formation of two congruently melting compounds Dy₂Fe₁₇ and DyFe₃ and two incongruently melting compounds Dy₆Fe₂₃ и DyFe₂. The phase diagram of the Nd-Fe system demonstrates the formation of only two incongruently melting compounds, Nd₂Fe₁₇ and Nd₅Fe₁₇ [34,35]. According to these data we may estimate that the electrochemical synthesis of dysprosium and neodymium intermetallic compounds with nickel and cobalt is more feasible than those with iron.

To determine the possibility of electrochemical coreduction of Nd³⁺ and Dy³⁺ ions with the iron triad ions, we performed voltammetry measurements of the equimolar KCl-NaCl melt containing Nd³⁺, Dy³⁺, Fe³⁺, Co²⁺, and Ni³⁺ ions. The experiments and electrochemical measurements were performed in three different ways:

(i)

First, measured portions of the NiCl₂, CoCl₂, and FeCl₃ were added to the equimolar melt and the voltammetry dependencies of the electrochemical reduction process were recorded. Then, NdCl₃ and DyCl₃ were added to the iron triad containing KCl-NaCl melt and the voltammetry dependence was recorded considering their bulk concentration in the background electrolyte.

(ii)

NdCl₃ and DyCl₃ were first added to the equimolar KCl-NaCl melt, the voltammetry dependence of the molten KCl-NaCl-NdCl₃ (DyCl₃) system was recorded; then, iron triad ions were added to the previously formed mixture and the voltammograms of electrochemical coreduction were recorded.

(iii)

The calculated amount of the background electrolyte compounds KCl and NaCl (1:1), NdCl₃ and DyCl₃, as well as NiCl₂, CoCl₂, and FeCl₃ were mixed in a dry powder form, put into a glassy carbon crucible and melted in the three-electrode cell in argon atmosphere of a dry box with continuously increasing temperature up to 973 K.

The experiments demonstrated that the sequence of iron triad and REM chlorides addition to the equimolar mixture does not affect the behavior of the voltammetry dependences of the electrochemical coreduction.

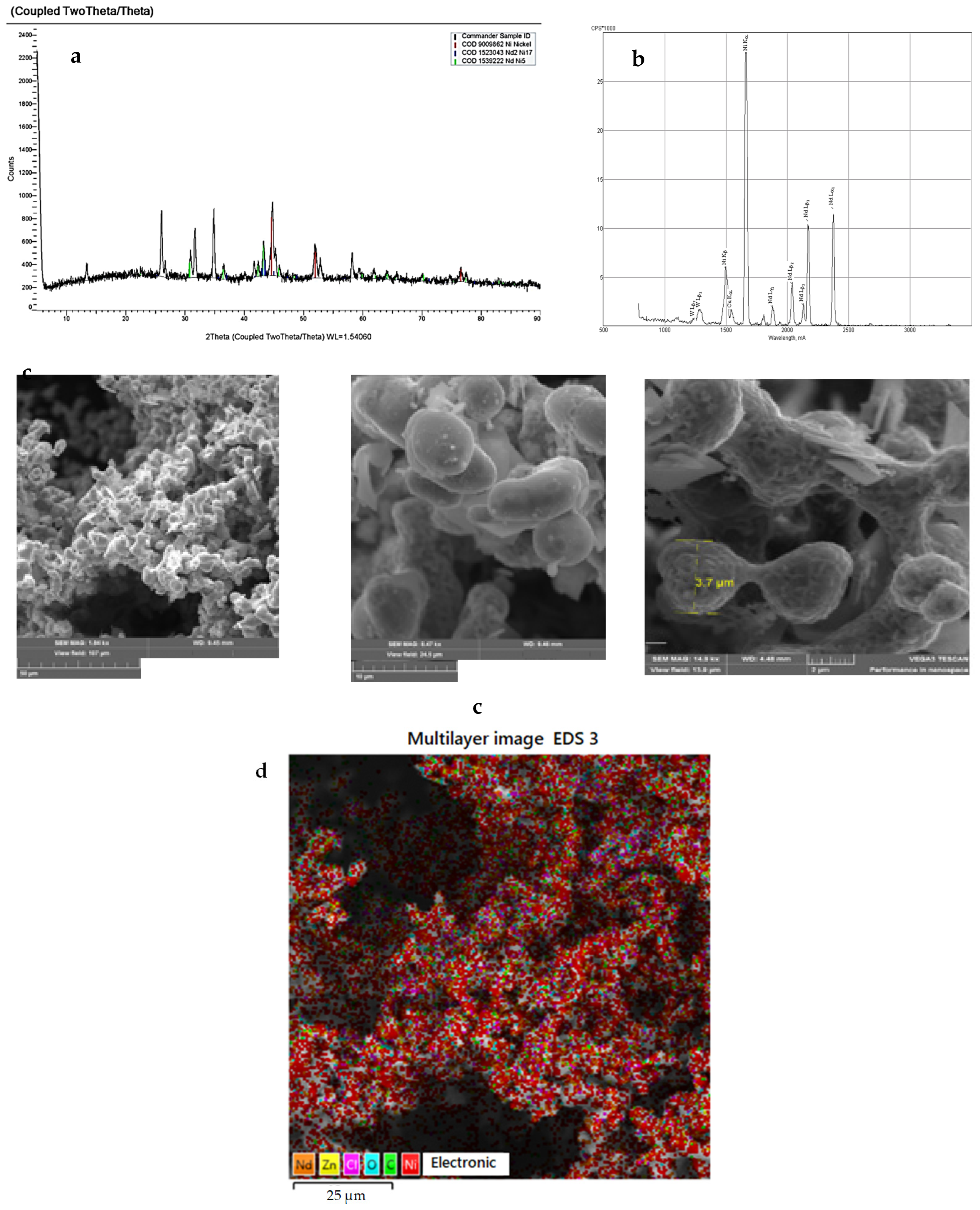

Figure 5 presents cyclic voltammograms of the process of electrochemical coreduction of NdCl₃ and NiCl₂. The addition of NdCl₃ to the KCl-NaCl-NiCl₂ chloride melt changes the pattern of voltammetry curves and results in the appearance of several extra reduction waves apart from the Ni²⁺ ions reduction waves at the potentials of −(0.0 ÷ 0.1) V (wave A). The reduction wave B was recorded at the potentials of −(0.7 ÷ 0.8) V, wave C appeared at the potentials of −(1.6 ÷ 1.7) V, wave D at the potentials of −(1.6 ÷ 1.7) V, and wave E at the potentials of −(1.9 ÷ 2.0) V (see Figure 5, curve 3). Wave E corresponds to the process of pure metallic Nd extraction (see Figure 2, curve 2). The appearance of the waves B, C, and D on the voltammogram is related to the reduction of Nd³⁺ ions with depolarization onto the preliminarily extracted metallic Ni on the tungsten cathode. These waves illustrate the formation of the intermetallic Nd_xNi_y phases of various compositions. Thus, according to the X-ray diffraction analysis, the cathode deposit after 5 h of potentiostatic electrolysis at the potentials of the wave B termination (−1.0 V) is mainly composed of preliminarily deposited metallic Ni phase and small amount of the Nd₂Ni₁₇ intermetallic phase. The obtained X-ray diffraction pattern (Figure 6a) demonstrates that the cathode deposit at the potentials of wave C (−1.5 V) is composed of the mixture of metallic Ni and intermetallic Nd₂Ni₁₇ and NdNi₅ phases and, according to the elemental analysis illustrated in Figure 6b, the electrolysis product contains mainly Ni and Nd elements. The obtained scanning electron microscopy (SEM) images illustrate microfine particles of elongated and round forms (Figure 6c). Their location at the surface of the studied sample is defined using the color mapping. The corresponding color map provided in Figure 6d testifies that intermetallic Nd_xNi_y phases are present in the analyzed sample. The cathode deposit at the termination of wave D is composed of metallic Ni, intermetallic NdNi₅ and NdNi₂ phases, and traces of the Nd₂Ni₁₇ phase. In addition, the more negative electrolysis potential results in higher Nd concentration in the intermetallic compounds. The anodic branch of the cyclic voltammogram also has 5 waves: A’, B’, C’, D’, and E’. The correspondence of the cathodic reduction waves and anodic electrochemical oxidation waves of the cathode cycle are verified by the voltammetry curves recorded before the reverse potentials, corresponding to the termination of each cathodic reduction wave (Figure 5, curves 4–7).

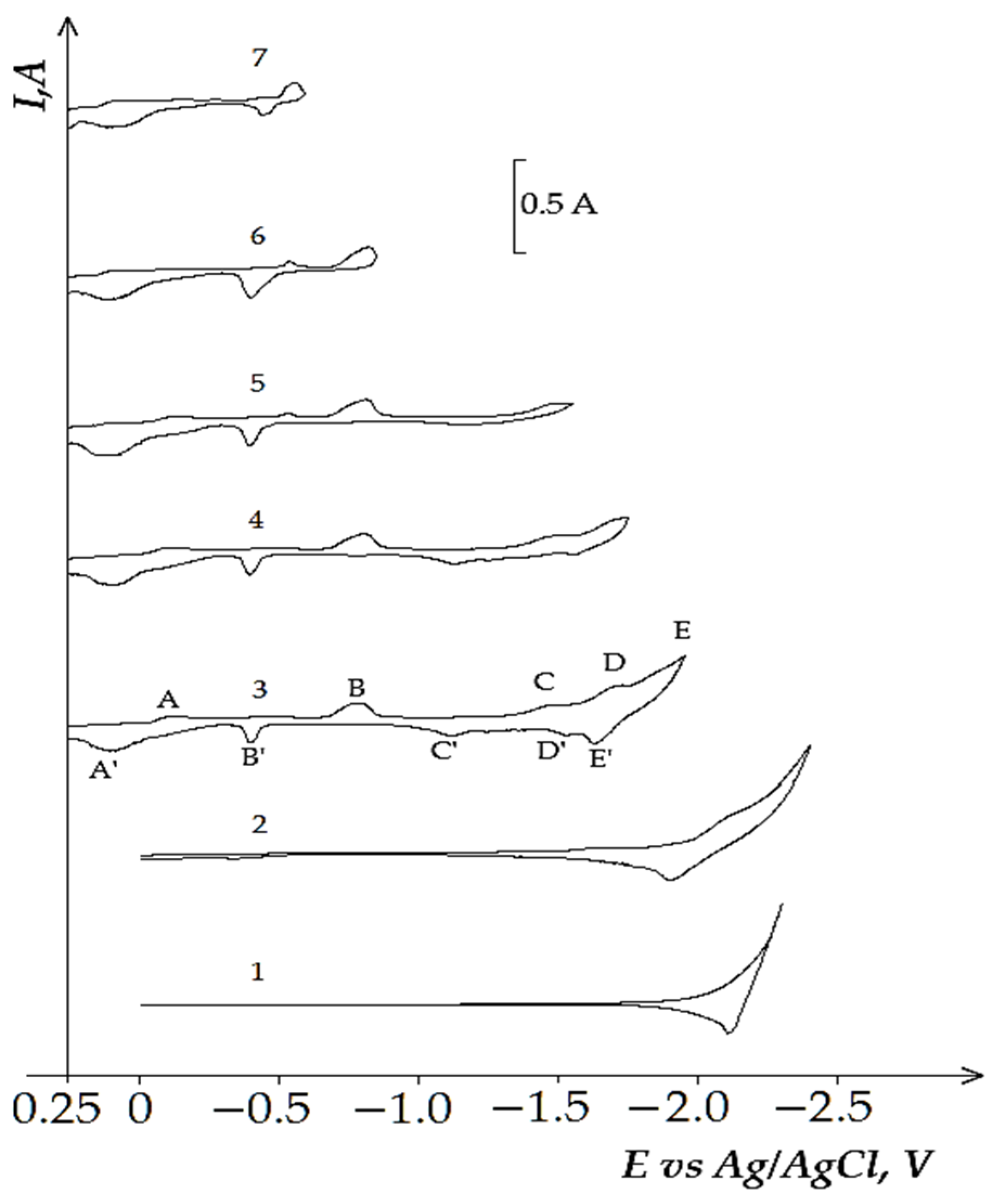

The analogous changes in the voltammograms are observed in the equimolar KCl-NaCl melt containing DyCl₃ and NiCl₂. Thus, the voltammetry dependence of the KCl- NaCl-DyCl₃-NiCl₂ melt (Figure 7) illustrates five reduction waves: wave A illustrates Ni²⁺ ions reduction V on the tungsten electrode at the potentials of −(0.0–0.1); waves B, C, and D are associated with the reduction of Dy³⁺ ions with the depolarization of the preliminarily extracted metallic Ni on the tungsten cathode, which results in the formation of various intermetallic compounds—Dy₂Ni₁₇, DyNi₅, and DyNi₂; wave E denotes the extraction of pure Dy on the intermetallic compounds. The anodic part of the cyclic voltammogram also illustrates five waves: A’, B’, C’, D’, and E’. Their correspondence to the cathodic reduction waves is verified by the voltammograms until the moment when the values of the reverse potentials become different, which corresponds to the termination of each cathodic reduction wave (Figure 7, curves 3–7). This suggestion is exemplified by the X-ray pattern of the obtained cathode deposits illustrated in Figure 8a, microphotographs of the surfaces of synthesized samples (Figure 8b), color map of the elemental distribution (Figure 8c), and their elemental analysis (Figure 8d). The cathode deposits were synthesized by electrolysis of the equimolar KCl-NaCl-DyCl₃ (3.0 × 10⁻⁴ mol/cm³)-NiCl2 (0.5 × 10⁻⁴ mol/cm³) melt for 2 h at 973 K and at the potentials corresponding to the wave C termination (−1.6 V vs. Ag/AgCl) and electrolytic cell voltage of 3.4 V. SEM images of the synthesized powder elucidate the formation of agglomerates composed of metallic Ni microparticles and DyNi₅ intermetallic compound. The X-ray pattern obtained by the X-ray diffraction microanalysis demonstrates the presence of Dy and Ni elements in the cathode deposit. The formation of the Dy-Ni phase is also observed at the color map of elements distribution.

Based on the aforesaid, the electrochemical processes during electrolysis of molten KCl-NaCl-NdCl₃ (DyCl₃)-NiCl₂ systems are described as follows:

wave A → Ni²⁺ + 2e = Ni

(5)

wave B 2 NdCl₆³⁻(DyCl₆³⁻) + 6e + 17Ni = Nd₂(Dy)₂Ni₁₇ +12Cl⁻

(6)

wave C NdCl₆³⁻(DyCl₆³⁻) + 3e + 5Ni = Nd(Dy)Ni₅ +6Cl⁻

(7)

wave D NdCl₆³⁻(DyCl₆³⁻) + 3e + 2Ni = Nd(Dy)Ni₂ +6Cl⁻

(8)

wave E NdCl₆³⁻(DyCl₆³⁻) + 3e = Nd(Dy) + 6Cl⁻

(9)

The process illustrated by wave D proceeds on the Nd(Dy)Ni₅ intermetallic compound and is accompanied with a certain depolarization. Extracted metallic Nd and Dy interact with Nd(Dy)Ni₅ and form phases with large Nd and Dy content.

2Nd(Dy) Ni₅ + 3Nd(Dy) = 5Nd(Dy) Ni₂

(10)

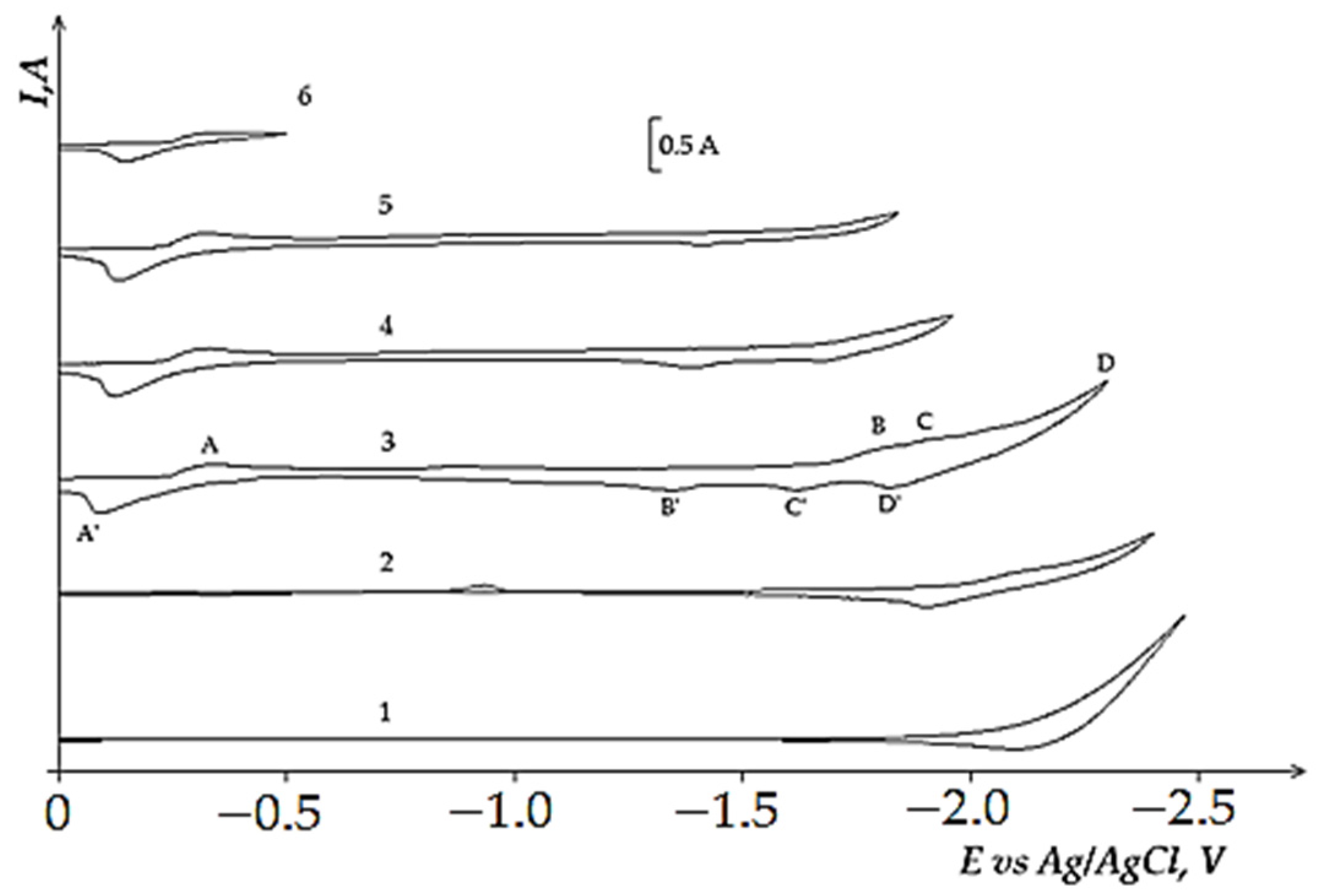

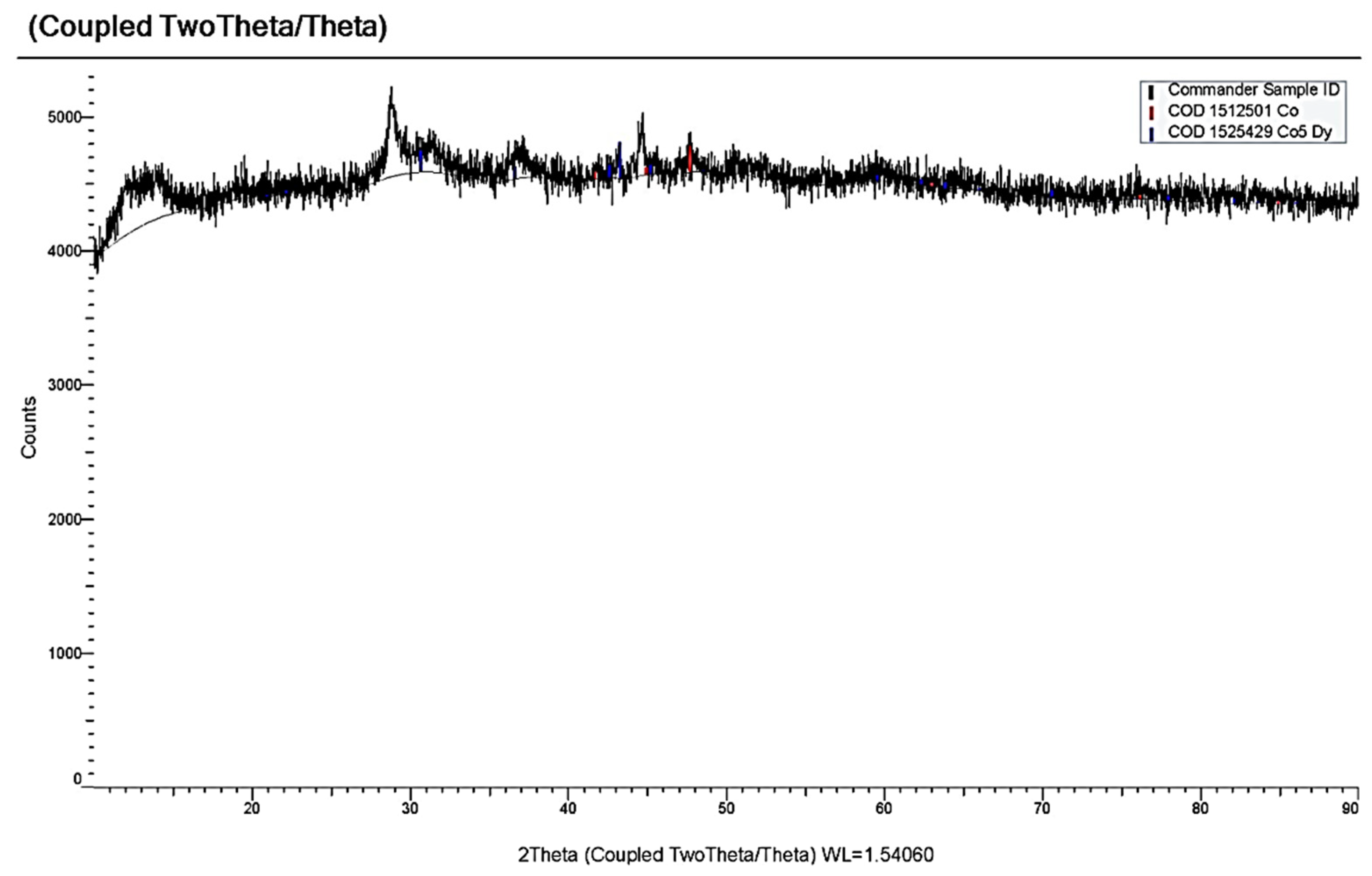

Figure 9 illustrates the voltammograms of the electrochemical coreduction process of DyCl₃ and CoCl₂. The addition of CoCl₂ to the molten KCl-NaCl-DyCl₃ (3.0 × 10⁻⁴ mol/cm³) system results in the appearance of the cathodic part of the voltammetry dependence, apart from the DyCl₆³⁻ ions reduction wave (Figure 9, curve 3, wave D) and other three waves. Wave A appears at the potentials of –(0.2 ÷ 0.25) V, wave B at −(1.6 ÷ 1.7) V, and wave C at −(1.8 ÷ 1.9) V. The electrochemical reduction of Co²⁺ ions to metallic cobalt is illustrated by wave A. The appearance of waves B and C on the voltammograms is associated with the dysprosium ions on the preliminarily extracted metallic Co on the tungsten electrode. The formation of intermetallic Dy_xCo_y phases of various compositions is illustrated by these waves, as in the case of the chloride KCl-NaCl-DyCl₃ melt with NiCl₂ concentration. The X-ray diffraction analysis of the cathode deposit obtained by the potentiostatic electrolysis at the potentials of the wave B termination (−1.7 V) performed during 5 h illustrated that the cathode deposit is mainly composed of the metallic Co phase and small amounts of DyCo₅ intermetallic compound (Figure 10). The electrolysis product at −1.7 V is composed of the metallic Co phase and intermetallic DyCo₅ and DyCo₂ phases. In addition, the more negative electrolysis potential results in higher Dy concentration in the intermetallic compounds. The anodic branch of the cyclic voltammogram has four waves (A’, B’, C’, D’) corresponding to the anode dissolution of metallic Co (A’), metallic Dy (D’), and intermetallic phases (B’ and C’). The anodic waves correspond to the cathodic reduction waves. This fact is verified by the voltammetry curves recorded before the potentials, corresponding to the termination of each cathodic reduction wave (Figure 9, curves 3–6).

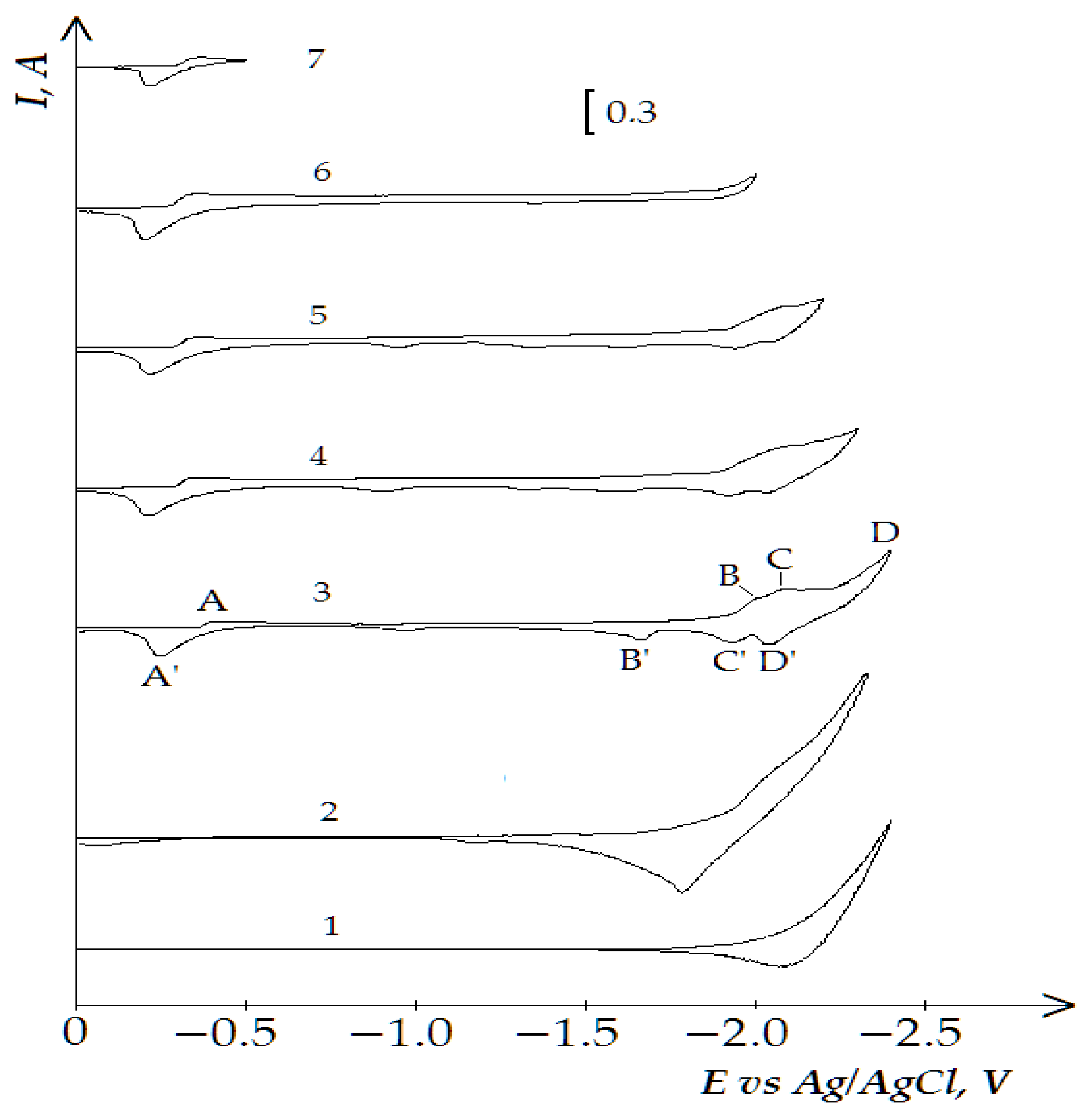

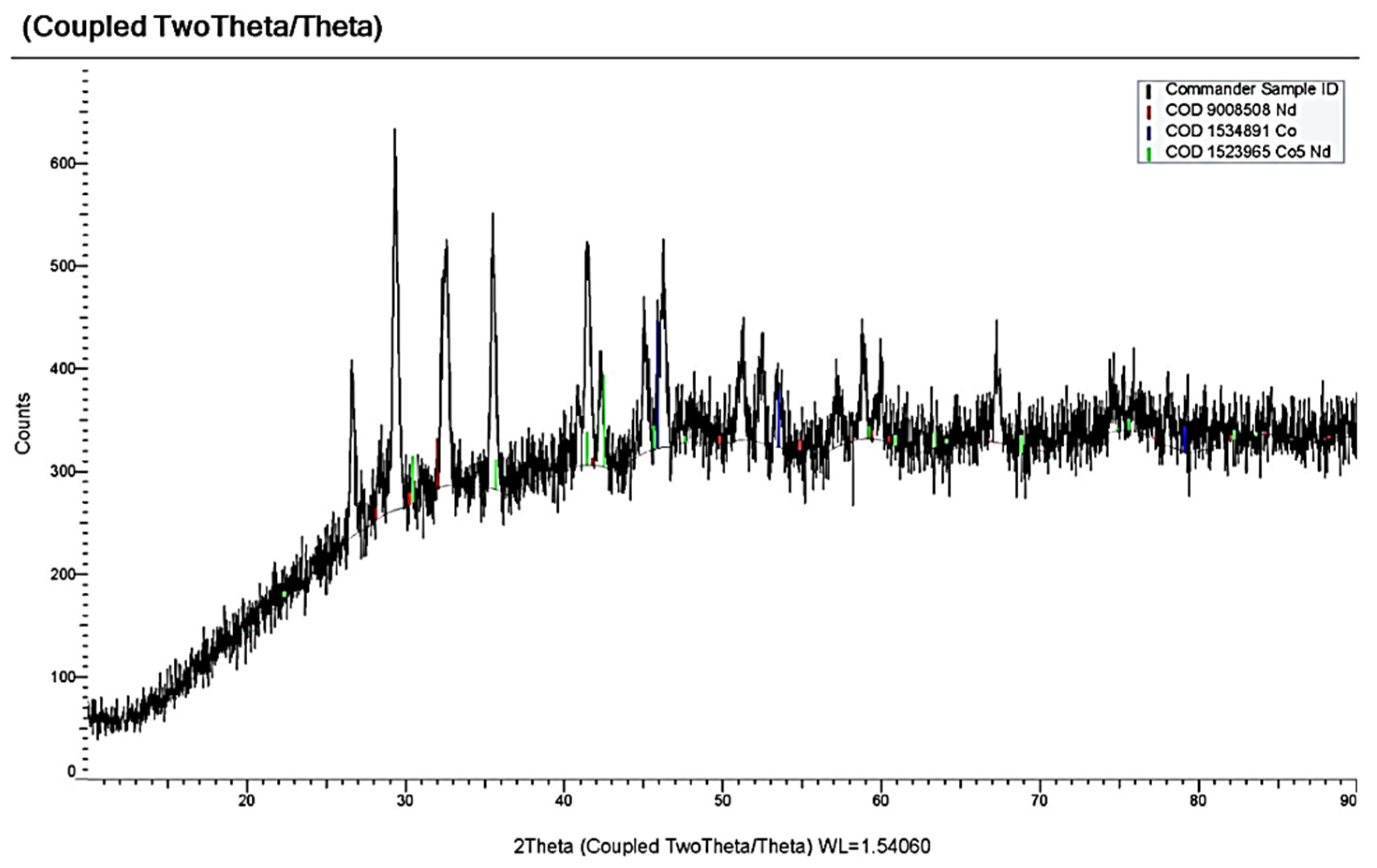

Figure 11 demonstrates four waves on the dependencies of the molten KCl-NaCl-NdCl₃-CoCl₂ system until the potential of the background electrolyte is reached: wave A appears at the potentials −(0.3 ÷ 0.4) V, an extended wave at the potentials −(1.9 ÷ 2.2) V, which tends to half halving on wave B at −(1.9 ÷ 2.1) V and wave C at −(2.1÷ 2.2) V (Figure 11). Wave A denotes the electrochemical reduction of Co²⁺ ions to metallic Co (see Figure 4). Waves B and C illustrate the electroreduction accompanied with depolarization of NdCl₆^3- complexes on the preliminary extracted metallic cobalt with further formation intermetallic neodymium and cobalt compounds NdCo_5, NdCo₂ (Figure 12), respectively. Wave D is associated with the electrochemical extraction of metallic Nd on the previously reduced Nd_xCo_y intermetallic compound. The anodic branch presents the electrochemical oxidation of the cathodic waves’ products. Besides, the anodic branch provides a more precise half halving of the cathodic waves B and C oxidation (waves B’ and C’).

Given the obtained data, the electrochemical processes that take place during the molten KCl-NaCl-NdCl₃ (DyCl₃)-CoCl₂ salts electrolysis are presented as follows:

wave B NdCl₆³⁻(DyCl₆³⁻) + 3e + 5 Co = Nd(Dy) Co₅ + 6Cl⁻

(11)

wave C NdCl₆³⁻(DyCl₆³⁻) + 3e + 2Co = Nd(Dy)Co₂ + 6Cl⁻

(12)

The addition of FeCl₃ to the KCl-NaCl-DyCl₃ melt results in the appearance of the well-reproducible wave of the Fe³⁺ ions reduction at the potentials −(0.5–0.6). This process is accompanied with the extraction of the phase of metallic Fe³⁺ phase (Figure 13, curves 3 and 4).

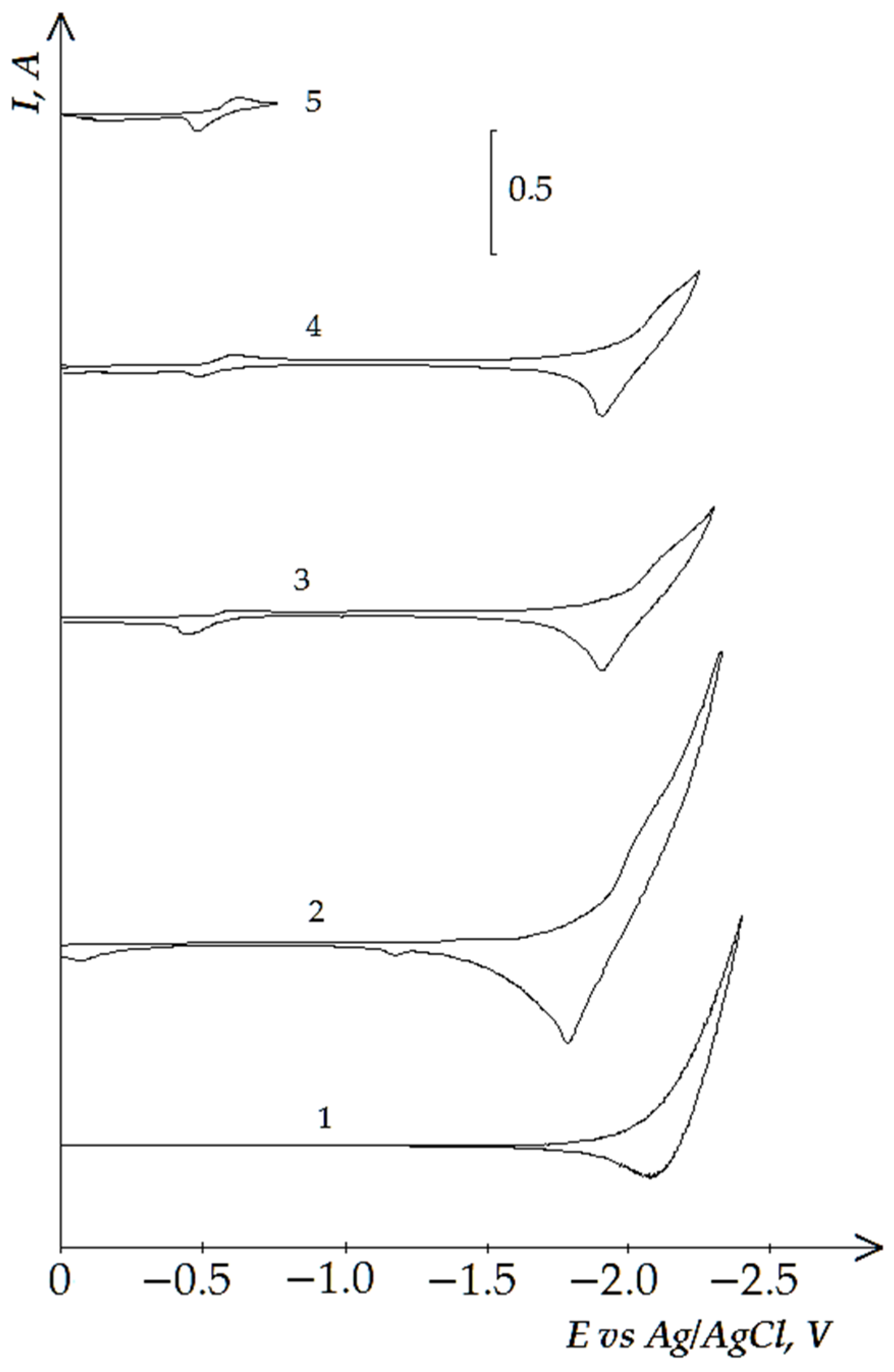

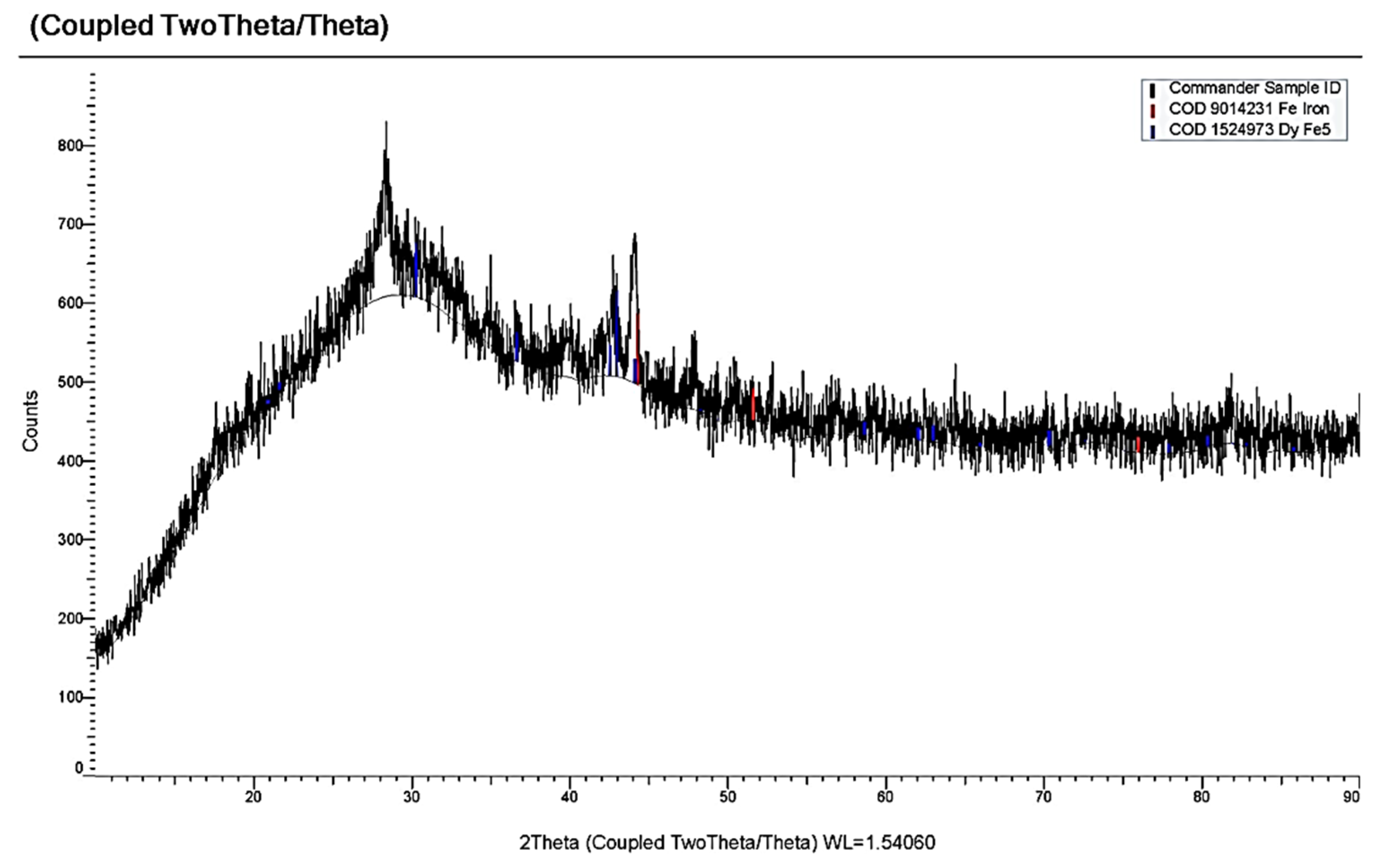

The wave of dysprosium chloride DyCl₆³⁻ complex’s extraction shifts insignificantly to the region of more positive potentials −(1.8–2.0) V. On the cathodic branch of the voltammetry dependence of the KCl-NaCl-DyCl₃-FeCl₃ melt, a clear wave of DyCl₆³⁻ reduction that may be associated with the formation of Dy_xFe_y intermetallic phases is not observed, as opposed to that of the melt containing CoCl₂ and NiCl₂. The anodic branch of the cyclic voltammogram has four waves related to the dissolution of the metallic Fe (A’) and Dy (D’) as well as the waves corresponding to the dissolution of the Dy_xFe_y intermetallic phases (B’ and C’). Figure 14 presents the X-ray pattern of the cathode deposit synthesized via electrolysis of the KCl-NaCl-DyCl₃-FeCl₃ melt at 973 K and electrolytic cell voltage of 2.8 V.

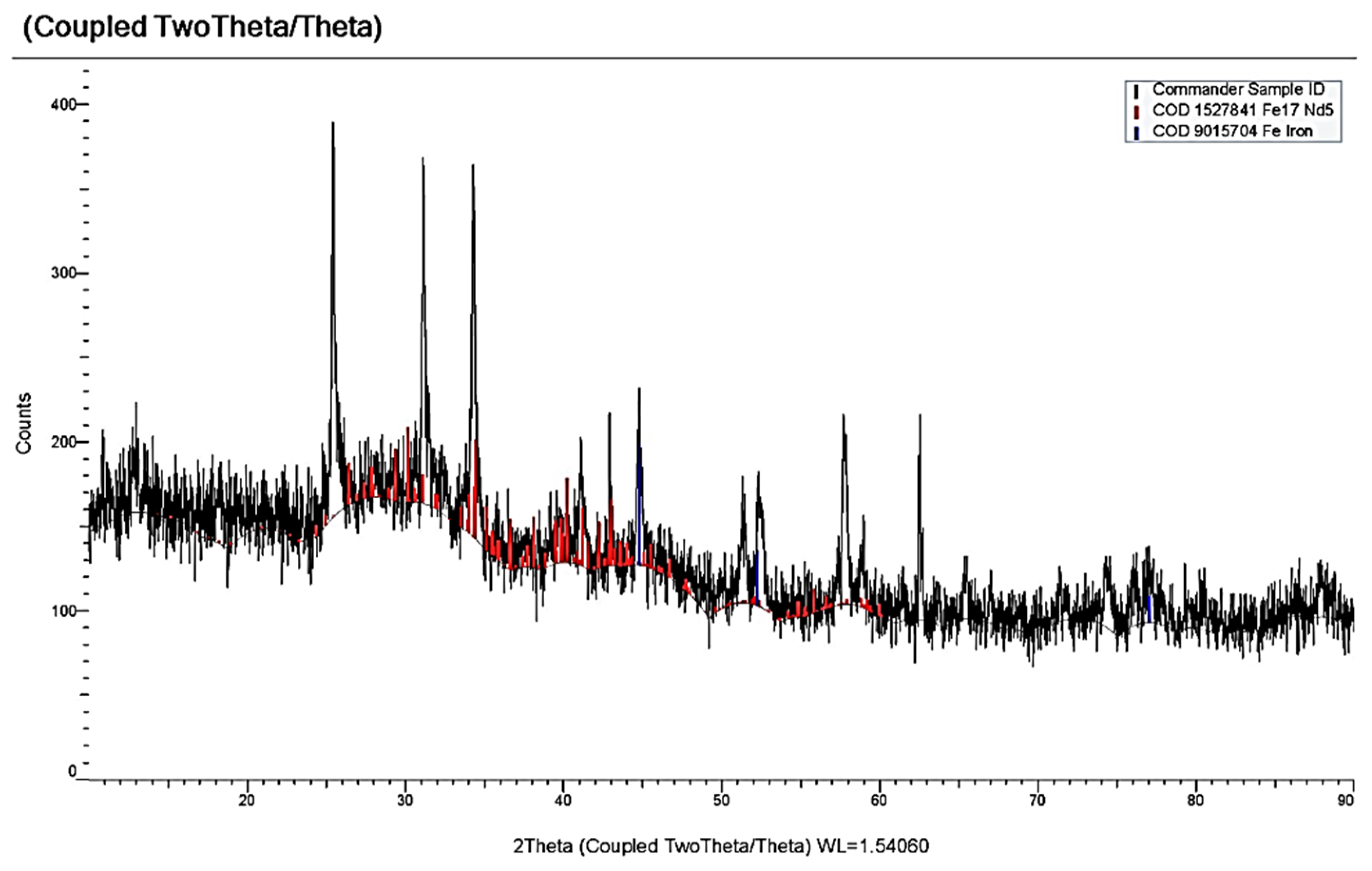

The addition of NdCl₃ to the KCl-NaCl-FeCl₃ melt results in the formation of Nd³⁺ ions at potentials of −(2.0–2.2) V (Figure 15). The main peculiarity of the NdCl₆³⁻ complex’s reduction in the KCl-NaCl-FeCl₃ melt is that the Nd³⁺ ions extraction on the tungsten electrode coated with deposited metallic Fe is accompanied by small depolarization, caused by the formation of Nd_xFe_y intermetallic compounds (Figure 16), as opposed to the similar process performed in the KCl-NaCl melt (Figure 1).

The comparative analysis of the voltammograms of the KCl-NaCl-DyCl₃ (NdCl₃)- MeCl_x (where Me = Ni, Co, Fe) melts illustrates that among the iron triad, Ni most actively interacts with metallic Dy and Nd; this interaction results in the formation of intermetallic La_xNi_y compounds (La = Nd and Dy). Co is the second most active metal of the iron triad, whereas Fe is the least active one. A similar comparison of Dy and Nd illustrates that Dy interacts more actively with the iron triad than Nd. Apart from that, a significant difference in the potentials of iron triad and Dy(Nd) extraction (~1.2 ÷ 1.5 V) testifies that the electrolytic synthesis of intermetallic Ln_xMe_y compounds (Ln = Dy, Nd; Me = Ni, Fe, Co) is possible only in the kinetic regime.

4. Conclusions

Based on the voltammetry studies of the electrochemical coreduction of Dy³⁺, Nd³⁺, Ni²⁺, Co²⁺, and Fe³⁺ ions in the equimolar KCl-NaCl melt at 973 K, it is shown that the electrochemical synthesis of these intermetallic compounds may be performed only in the kinetic regime. It is determined that the interaction activity resulting in the formation of intermetallic compounds between metallic Dy and Nd with the iron triad decreases in a row, starting with Ni, Co, and Fe; whereas, Dy is found to be more active in the aforesaid interactions than Nd.

It is shown that depending on the electrolysis regime (galvanostatic and potentiostatic), the process of the electrochemical synthesis consists of the following subsequent stages. It is found that only metallic Ni, Co, and Fe phases are extracted on the cathode during the galvanostatic electrolysis at cathode current densities smaller than the density of the limiting diffusion current of the iron triad ions electroreduction at the potentiostatic electrolysis up to the potentials of the limiting current of nickel, cobalt, and iron ions’ electrochemical reduction. The phases of intermetallic Ln_xMe_y compounds (Ln = Dy, Nd; Me = Ni, Fe, Co) were detected together with the metallic Ni, Fe, and Co phases on the voltammograms recorded during electrolysis at the cathode current density exceeding the limiting diffusion current of Ni²⁺, Co²⁺, and Fe³⁺ ions or during potentiostatic electrolysis at the potentials of the corresponding waves.

In addition, the higher cathode current density and more negative electrolysis potentials result in the smaller concentration of iron triad metals in the cathode deposit and higher concentration of the intermetallic phases, including intermetallic phases with great REM concentration. For this reason, the process of electrochemical synthesis of intermetallic compounds Ln_xMe_y compounds (Ln = Dy, Nd; Me = Ni, Fe, Co) is determined by the following interrelated parameters: composition of the electrolyte (concentrations of FeCl₃, CoCl₂, NiCl₂, DyCl₃, and NdCl₃), cathode current density of the electrolysis potential (electrochemical cell voltage), and electrolysis time. Further, we plan to perfect these regimes and to select the optimal parameters for the electrochemical synthesis, diagnose the samples, and determine the magnetic field characteristics.
