A Comparison of the Effect of Lead (Pb) on the Slow Vacuolar (SV) and Fast Vacuolar (FV) Channels in Red Beet (Beta vulgaris L.) Taproot Vacuoles

by
Agnieszka Siemieniuk
,
Zbigniew Burdach
and
Waldemar Karcz
*
Institute of Biology, Biotechnology and Environmental Protection, Faculty of Natural Sciences, University of Silesia in Katowice, 28 Jagiellońska St., 40-032 Katowice, Poland
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(23), 12621; https://doi.org/10.3390/ijms222312621
Submission received: 6 October 2021 / Revised: 19 November 2021 / Accepted: 20 November 2021 / Published: 23 November 2021
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Versions Notes

Abstract

:
Little is known about the effect of lead on the activity of the vacuolar K+ channels. Here, the patch-clamp technique was used to compare the impact of lead (PbCl2) on the slow-activating (SV) and fast-activating (FV) vacuolar channels. It was revealed that, under symmetrical 100-mM K+, the macroscopic currents of the SV channels exhibited a typical slow activation and a strong outward rectification of the steady-state currents, while the macroscopic currents of the FV channels displayed instantaneous currents, which, at the positive potentials, were about three-fold greater compared to the one at the negative potentials. When PbCl2 was added to the bath solution at a final concentration of 100 µM, it decreased the macroscopic outward currents of both channels but did not change the inward currents. The single-channel recordings demonstrated that cytosolic lead causes this macroscopic effect by a decrease of the single-channel conductance and decreases the channel open probability. We propose that cytosolic lead reduces the current flowing through the SV and FV channels, which causes a decrease of the K+ fluxes from the cytosol to the vacuole. This finding may, at least in part, explain the mechanism by which cytosolic Pb2+ reduces the growth of plant cells.

1. Introduction

It is well-established that the plant vacuole is a dynamic cellular compartment that can occupy more than 90% of the cell volume and is essential to plant growth and physiological characteristics [1,2,3,4]. Potassium (K+) constitutes a chief osmoticum, which plays a key role, among others, in regulating turgor and cell expansion [5]. Vacuolar turgor and vacuolar signalling depend on the concerted actions of the tonoplast transporters and channels. The potassium current across the tonoplast is primarily mediated by two main classes of tonoplast nonselective cation channels (NSCCs): slow-activating (SV) and fast-activating (FV) vacuolar channels. These channels differ in their selectivity, kinetics and activation factors. While the SV channels are permeable to mono and divalent cations; the FV channels are selective solely for monovalent cations [6,7].
Natural processes and human activities are the main causes of environmental contamination by heavy metals. Among the heavy metals, lead is one of the most phytotoxic elements, whose toxic effects have been extensively studied using a variety of plants, particularly with regard to its effects on plant growth and physiological characteristics [8,9,10,11,12]. Although lead is not an essential element for plants, it gets easily absorbed and accumulated in different plant organs [13,14]. One way to reduce heavy metal stress in plants is their detoxication by accumulating and compartmentalising them in the vacuole [15]. The tonoplast includes a number of transporters involved in the translocation of metal ions from the cytosol to the vacuole. The vacuolar pumps and transporters are involved in this process [2].
In spite of the abundant literature on the harmful effects of lead on plant cells, the mechanism of its toxic action has still not been sufficiently explained. Little is known about its effect on the activity of the vacuolar K+ channels, which constitute the major conductance of the vacuolar membrane [16] and are involved in plant cell expansion [5].
We began to explore the vacuolar K+ channels of red beet taproots due to a suspicion that these channels might be involved in the toxic effect of lead on plant cell growth. It was previously shown that the organic compound of lead (trimethyllead chloride, Met3PbCl) modulates the activity of the slow vacuolar (SV) channels in red beet taproot vacuoles [17,18,19]. In the present study, we compared the effect of lead (PbCl2) on the slow-activating (SV) and fast-activating (FV) vacuolar channels in red beet (Beta vulgaris L.) taproot vacuoles. In contrast to the SV channels, the FV channels have a significant probability of being open in intact resting cells, i.e., at a low cytosolic Ca2+ concentration and at voltages close to the resting tonoplast potential [20]. In addition, there are virtually no studies on the effect of lead (Pb) on the activity of the FV channels.
Here, we show that cytosolic lead reduces the currents flowing through the SV and FV channels, which causes a decrease of the K+ fluxes from the cytosol to the vacuole. It should also be added that the mechanisms by which cytosolic lead modulates the currents of both channels differ.

2. Results

2.1. Cytosolic Lead Diminished Whole-Vacuole SV Currents and Single-Channel Activity

The patch-clamp recordings, which were performed in the whole-vacuole configuration (macroscopic current), showed a typical SV-type channel activity in the vacuoles that had been isolated from Beta vulgaris L. taproots. The macroscopic currents exhibited a slow activation (Figure 1A, control) and a strong outward rectification of the steady-state currents at voltages that were more positive than +40 mV (Figure 1B, control).
Here, we decided to use a short period of exposure to lead (within 1 min), because the activity of SV in the channels decreases with time; this phenomenon is commonly known as “rundown” [21,22]. All voltage clamp data concerning the toxic effect of lead was recorded one minute after the control bath solution was replaced with PbCl2 solution. A one-minute exposure of the vacuoles to 100-µM PbCl2 caused a decrease in the SV outward current in the red beet vacuoles. For example, in the whole-vacuole configuration, the addition of 100-µM PbCl2 to the bath solution resulted in a 70% decrease in the SV outward current at +100 mV compared to the control (2.41 ± 0.17 nA, n > 5). Interestingly, the removal of PbCl2 from the bath medium diminished the inhibitory effect of lead by 60%.
When the single SV channel properties in the cytosolic side-out configuration were analysed (Figure 2), little channel activity could be recorded in the presence of PbCl2 (Figure 2A).
The single-channel recordings that were obtained at +100 mV in the control solution and in the presence of PbCl2 showed that lead decreased the unitary conductance of single SV channels by 9.8%; in the presence and absence of cytosolic PbCl2, the unitary conductance was 71.5 ± 6.1 and 79.2 ± 8.8 pS (n > 5), respectively (Figure 2B). However, the open probability of the single SV channels (Figure 2C) decreased by 60% at +100 mV in the presence of PbCl2 compared to the control (0.35 ± 0.014). Considering the average number of open SV channels per µm2 of the vacuolar membrane, which was calculated as the open probability of a single channel multiplied by the number of channels per µm2 (density of the channels; see Material and Methods), it should be stated that PbCl2 decreased the mean number of open channels by 87% compared to the control (165 channels per 1000 µm2) at +100 mV. Since changes in the macroscopic currents depend on either changes of the single-channel current amplitudes or changes in the mean number of open channels or a combination of both parameters, it should be noted that lead diminished the macroscopic currents of the SV channels via a mechanism that primarily involved a reduced number of open channels, while the unitary conductance of the single channels was decreased to a much lesser extent in the presence of PbCl2.

2.2. Cytosolic Lead Modulated the Whole-Vacuole FV Currents and Single-Channel Activity

There is general agreement that, at 100-mM KCl on both sides of the tonoplast and low cytosolic Ca2+ (<10 nM), typical whole-vacuole FV currents (Figure 3A) are observed. The whole vacuolar currents that were recorded in these conditions displayed instantaneous currents, which, at the positive potentials (outward current), were about three-fold greater compared to the one at the negative potentials (inward current) (Figure 3A,B).
When PbCl2 was added to the bath solution at a final concentration of 100 µM, the FV currents decreased by about 40–60% compared to the control in a range of voltages from +80 to +140 mV. For example, cytosolic lead diminished the outward current through the FV channels by 55% compared to the control (0.40 ± 0.021 nA, n > 5) at +100 mV (Figure 3A,B). At the negative potentials, PbCl2 did not significantly change the inward currents. Removing PbCl2 from the bath medium did not change the inhibitory effect of lead on the FV channels.
The recordings of the single-channel activity, which were obtained with and without lead, showed that PbCl2 significantly changed the unitary conductance of the single FV channels (Figure 4A).
The average single-channel conductance in the presence of PbCl2 at +100 mV was 35% lower compared to the control (7.98 ± 0.49 pS, n > 5) (Figure 4B). The recordings made in the outside-out configuration showed that the open probability of the single FV channels in the variant with lead at +100 mV was 41% lower compared to the control (0.38 ± 0.023, n > 5) (Figure 4C). Considering the average number of open FV channels per µm2 of the vacuolar membrane, which was calculated in the same way as for the SV channels, it should be stated that PbCl2 decreased the mean number of open FV channels by 47% compared to the control (275 channels per 1000 µm2) at +100 mV. Taking the above into account, it should be noted that, in the presence of lead, the macroscopic FV currents were diminished via a mechanism that involved the decrease to a similar extent in both the conductance and open probability of a channel.

3. Discussion

Lead is known to induce a wide range of toxic effects on plant cells. Many of these effects are due to the fact that, because of its similarity to Ca2+ (the similarity of the electron orbitals), Pb2+ can interfere with many intracellular processes in which calcium is involved [24].
In the present studies, we have shown that lead blocked the macroscopic current of the SV channels by 70% at +100 mV. In the presence of cytosolic lead, the open probability of the single channels decreased significantly (by 60% at +100 mV) compared to the control, while the unitary conductance of the single channels, which was measured at the same experimental conditions, decreased by only 9.8%. The inhibition of the SV channel currents was also observed in our earlier studies, which concerned the effect of organic lead (Met3PbCl) on the SV channels in red beet taproot vacuoles [18,19]. In these studies, we showed that trimethyllead chloride at 100 µM decreased significantly (by about one order of magnitude) the open probability of single channels and only slightly (by ca. 10%) their unitary conductance. From these results, we suggested that the Met3PbCl-binding site is located outside the channel selectivity filter and that the inhibitory effect of the compound on SV channels probably results from Met3PbCl-induced disorder in compatibility between membrane lipids and membrane proteins.
Taking into account the fact that Ca2+ activation of the SV channels is differentially mediated via two cytosolic Ca2+-sensing EF-hand motifs, EF-I or EF-II, that are located in the linker between the first and second Shaker-type unit [25,26], it can be speculated that blocking the SV outward currents by cytosolic Pb2+ might be due to the conformational changes of the SV channels as a result of the substitution of Pb2+ for Ca2+ ions in the EF-hand motifs. The question, however, is which one of these two motifs, EF-I or EF-II, is the site where Pb2 binds. This dilemma is related to the fact that, so far, studies on the Ca2+-binding sites to the EF-hand motif are controversial [6,25,26,27]. In addition, the activity of the voltage-dependent TPC1 (two-pore channel 1) channels can be regulated by both cytosolic and vacuolar Ca2+. Cytosolic Ca2+ results in the channels opening [28,29], whereas luminal Ca2+ prevents their opening [30]. The second possibility, but with significantly less probability, is a case in which cytosolic Pb2+ moves through the SV channel (Pb2+ has a lower ionic radius than that of K+ [31,32,33]) and blocks the channel as luminal Pb2+. However, this case is less probable, because the concentration of Pb2+ in the bath medium is 1000-fold lower than that of the K+ ions.
The FV channels are only permeable for monovalent cations and mediate K+ at very low concentrations of cytosolic Ca2+ and large voltages of either polarity [16,34,35,36,37]. Moreover, the FV channels are inhibited by the divalent cations from either side of the vacuolar membrane [20,38]. For the FV channels, the results obtained here in the control medium (without cytosolic Pb2+) were generally in good agreement with the data that has been published by other authors [20,34,35,39]. However, to the best of our knowledge, the results concerning the impact of cytosolic Pb2+ on the activity of the FV channels are now described in the literature for the first time. Our results clearly showed that cytosolic Pb2+ blocks the FV channels as a result of a significant decrease in both the open probability (by 41%) and unitary conductance of the single channels (by 35%). Since the structure of the FV channels has not yet been described in the literature, speculating about the impact of cytosolic Pb2+ on the activity of these channels is difficult.
It should also be added that, in the case of the SV channels, the inhibitory effect produced by PbCl2 could be reversed by 60% at +100 mV after removing the toxic cation, while, for the FV channels, this was not the case (toxic effect of lead was non-reversible). For the SV channels, the partial reversibility of the lead toxic effect may be related to the partial reversibility of Pb2+ binding in the sites occupied by Ca2+ in the EF-hand motifs (in line with the hypothesis proposed by us above). However, it is difficult to speculate about the non-reversibility of the toxic effect of Pb2+ on FV channels, because their molecular structure is not known so far.
Considering the data that was obtained here for both channels, it can be pointed out that cytosolic Pb2+ decreased the currents flowing through the SV and FV channels, which caused a decrease of the K+ fluxes from the cytosol to the vacuole. This finding may, at least in part, explain the mechanism by which cytosolic Pb2+ inhibits the growth of plant cells.

4. Materials and Methods

All of the patch-clamp experiments were performed on red beet (Beta vulgaris L.) taproot vacuoles that had been isolated using the nonenzymatic method previously described by Reference [40]. The vacuoles were mechanically isolated directly into an electrophysiological chamber (1 mL in volume) by rinsing the surface of fresh tissue slices with the bath solution. The effect of PbCl2 on the tonoplast SV and FV channels was studied.
The activity of the SV channels was measured in a bath solution containing 100-mM KCl, 2-mM MgCl2, 0.1-mM CaCl2, 5-mM MES, 5-mM Tris and 400-mM sorbitol, pH 7.5 and an osmolality of 650 mOsm (control). The solution for filling the pipettes contained 100-mM KCl, 2-mM MgCl2, 5-mM MES and 5-mM Tris, pH 5.5, and was adjusted to an osmolality of 580 mOsm with sorbitol. Symmetrical 100-mM K+ and micromolar cytosolic Ca2+ mediate the outward K+ currents (into the vacuole). However, due to the lack of any specific inhibitors of the SV channels, it was almost impossible to distinguish between the K+ and Ca2+ currents [41]. The concentration of PbCl2 (100 μM) was selected as the one that would cause a significant change in the SV activity in the whole-vacuole configuration and, also, because it is below the threshold concentration of many metal salts above which osmotic salt stress can occur [42].
In order to selectively measure the activity of the FV channels, the control bath solution contained 100-mM KCl, 0.5-mM EDTA, 5-mM MES, 5-mM Tris and 400-mM sorbitol, pH 7.5 and an osmolality of 650 mOsm. The pipettes were filled with a solution containing 100-mM KCl, 5-mM MES and 5-mM Tris, pH 6.0, adjusted to an osmolality of 580 mOsm with sorbitol.
Since the FV channels are blocked by higher levels of calcium, CaCl2 was excluded from the bath medium, and 0.5-mM EDTA was administered in order to exclusively register the FV current [43,44]. However, unlike those authors, EDTA was not added to the pipette solution, because in the physiological conditions of this experiment, vacuolar Ca2+ was present at a high concentration. Moreover, according to Reference [44], an abrupt increase in the inward FV current possibly reflects a sudden decrease in the free vacuolar Ca2+ when EGTA becomes the dominant buffer.
The osmolality of all of the solutions was controlled using a cryoscopic osmometer (Semi-Micro Osmometer K-7400, Knauer, Germany).
The experiments were performed in two patch-clamp configurations: a whole-vacuole and excised cytosolic side-out patch using an EPC-7 Plus amplifier (List-Medical-Electronic, Darmstadt, Germany) [21,22]. The current and voltage were in accordance with Reference [45], i.e., any positive (outward) currents indicated an efflux of cations into the vacuole. The reference AgCl electrode was connected to the bath medium via a 3% agar bridge filled with 100-mM KCl. The experimental data were stored using Patch-Master software (HEKA Electronic, Lambrecht, Germany). A five-pole Bessel filter with a sampling frequency of 1–100 kHz was used for signal filtration. The Bessel filter was an integral part of the EPC-7 Plus amplifier. The recordings were sampled at 10 kHz and filtered at a cut-off frequency of 1 kHz. The patch pipettes were prepared from borosilicate glass tubes (Kimax-51, Kimble Products, Toledo, OH, USA) using a pipette puller (model L/M-3-PA, List Medical, Darmstadt, Germany), fire-polished with a CPZ 101 microforge (List Medical, Darmstadt, Germany) and coated with Sylgard (Dow Corning, Midland, MI, USA). The patch electrode resistance was 2–4 MΩ, and the gigaseal resistance was within a range of 5–20 GΩ. Access to the vacuole interior was gained by breaking the tonoplast under the pipette with a voltage pulse within a range of 500–900 mV.
The exchange of the bath solution from the control medium for a new one containing PbCl2 was accomplished through the continuous perfusion of the measuring chamber using an SP200 infusion pump (World Precision Instruments, Sarasota, FL, USA). All of the experiments were conducted at room temperature (22 ± 1 °C).
The macroscopic SV currents were elicited by a series of voltage steps ranging from −80 to +120 mV in 20-mV steps with a holding potential of 0 mV. In the case of the whole-vacuole FV currents, a series of voltage from –140 to +140 mV (in 20-mV steps; holding potential of −40 mV) was applied.
Microscopic current traces were used to determine the distribution of the open–close times of a channel and the current amplitudes of the opened channels. The open probability was calculated as the total opening time normalised to the total recording time and the number of active channels in a patch [23,46]. The average number of open channels per µm2 of the vacuolar membrane was calculated as the open probability of a single channel multiplied by the number of channels per µm2 of the vacuolar membrane (density of the channels). The latter parameter (density) was calculated as the whole-vacuole current divided by the current of the single channel and surface area of the vacuole (in the range of 15–20 µm).
FitMaster (HEKA Electronic, Lambrecht, Germany) and Statistica for Windows (TIBCO Software Inc., Palo Alto, CA, USA, (2017) Statistica (data analysis software system) version 13. http://statistica.io) were used to elaborate and analyse the data.
The free Ca2+ concentration of the bath solution was calculated using the Ca-EGTA Calculator v1.2 program (University of California, Davis, CA, USA). All of the details about the composition of the solutions are given in the figure legends.

Statistical Analysis

The normal distribution was evaluated using the Shapiro–Wilk test (p > 0.05). If the normal distribution was confirmed, the statistical differences were analysed using the independent samples t-test (p < 0.05) or the paired t-test (p < 0.05). The nonparametric Mann–Whitney U test (asymptotic significance two-tailed) was used if the data did not have a normal distribution.

5. Conclusions

Using the patch-clamp technique, we compared the activity of two types of tonoplast cation channels, namely the slow-activating vacuolar (SV) and fast-activating (FV) vacuolar channels, in response to PbCl2. The patch-clamp experiments were conducted in the whole-vacuole and single-channel configurations in a symmetrical 100-mM KCl on both sides of the tonoplast.
From the experiments described here, we propose that cytosolic lead decreases the current flowing through the SV and FV channels. The current through the SV channels was primarily modulated by a decrease in the SV channels’ open probability, while the current through FV channels was modulated by a decrease in both the unitary conductance of single channels and their open probability. Taking into account the data that was obtained here for both channels, it can be pointed out that cytosolic Pb2+ blocks the current flowing through the SV and FV channels, which means a decrease in the K+ fluxes from the cytosol to the vacuole. This finding may, at least in part, explain the mechanism by which cytosolic Pb2+ inhibits the growth of plant cells.

Author Contributions

Conceptualisation, Z.B., A.S. and W.K.; methodology, Z.B., A.S. and W.K.; formal analysis, Z.B., A.S. and W.K.; writing—original draft preparation, Z.B., A.S. and W.K.; writing—review and editing, W.K. and supervision, W.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to thank Michele L. Simons for language correction of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jiang, Y.-T.; Yang, L.-H.; Ferjani, A.; Lin, W.-H. Multiple functions of the vacuole in plant growth and fruit quality. Mol. Hortic. 2021, 1, 4. [Google Scholar] [CrossRef]
  2. Martinoia, E. Vacuolar Transporters—Companions on a Longtime Journey. Plant Physiol. 2018, 176, 1384–1407. [Google Scholar] [CrossRef] [PubMed]
  3. Shitan, N.; Yazaki, K. Dynamism of vacuoles toward survival strategy in plants. Biochim. Biophys. Acta (BBA)—Biomembr. 2019, 1862, 183127. [Google Scholar] [CrossRef] [PubMed]
  4. Tan, X.; Li, K.; Wang, Z.; Zhu, K.; Tan, X.; Cao, J. A Review of Plant Vacuoles: Formation, Located Proteins, and Functions. Plants 2019, 8, 327. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Ragel, P.; Raddatz, N.; Leidi, E.O.; Quintero, F.J.; Pardo, J.M. Regulation of K+ Nutrition in Plants. Front. Plant Sci. 2019, 10, 281. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Hedrich, R.; Mueller, T.D.; Becker, D.; Marten, I. Structure and Function of TPC1 Vacuole SV Channel Gains Shape. Mol. Plant 2018, 11, 764–775. [Google Scholar] [CrossRef] [Green Version]
  7. D’Amore, A.; Gradogna, A.; Palombi, F.; Minicozzi, V.; Ceccarelli, M.; Carpaneto, A.; Filippini, A. The Discovery of Naringenin as Endolysosomal Two-Pore Channel Inhibitor and Its Emerging Role in SARS-CoV-2 Infection. Cells 2021, 10, 1130. [Google Scholar] [CrossRef] [PubMed]
  8. Aslam, M.; Aslam, A.; Sheraz, M.; Ali, B.; Ulhassan, Z.; Najeeb, U.; Zhou, W.; Gill, R.A. Lead Toxicity in Cereals: Mechanistic Insight into Toxicity, Mode of Action, and Management. Front. Plant Sci. 2021, 11, 587785. [Google Scholar] [CrossRef] [PubMed]
  9. Kumar, A.; Prasad, M.N.V. Plant-lead interactions: Transport, toxicity, tolerance, and detoxification mechanisms. Ecotoxicol. Environ. Saf. 2018, 166, 401–418. [Google Scholar] [CrossRef]
  10. Kurtyka, R.; Burdach, Z.; Siemieniuk, A.; Karcz, W. Single and combined effects of Cd and Pb on the growth, medium pH, membrane potential and metal contents in maize (Zea mays L.) coleoptile segments. Ecotoxicol. Environ. Saf. 2018, 161, 8–16. [Google Scholar] [CrossRef]
  11. Liao, J.; Cai, X.; Yang, Y.; Chen, Q.; Gao, S.; Liu, G.; Sun, L.; Luo, Z.; Lei, T.; Jiang, M. Dynamic study of the lead (Pb) tolerance and accumulation characteristics of new dwarf bamboo in Pb-contaminated soil. Chemosphere 2021, 282, 131089. [Google Scholar] [CrossRef] [PubMed]
  12. Zhao, Y.; Shang, D.; Ning, J.; Zhai, Y.; Sheng, X.; Ding, H. Subcellular distribution and chemical forms of lead in the red algae, Porphyra yezoensis. Chemosphere 2019, 227, 172–178. [Google Scholar] [CrossRef]
  13. Angulo-Bejarano, P.I.; Puente-Rivera, J.; Cruz-Ortega, R.; Hanus-Fajerska, E. Metal and Metalloid Toxicity in Plants: An Overview on Molecular Aspects. Plants 2021, 10, 635. [Google Scholar] [CrossRef] [PubMed]
  14. Singh, S.; Kapoor, D.; Khasnabis, S.; Singh, J.; Ramamurthy, P.C. Mechanism and kinetics of adsorption and removal of heavy metals from wastewater using nanomaterials. Environ. Chem. Lett. 2021, 19, 2351–2381. [Google Scholar] [CrossRef]
  15. Jogawat, A.; Yadav, B.; Narayan, O.P. Metal transporters in organelles and their roles in heavy metal transportation and sequestration mechanisms in plants. Physiol. Plant. 2021, 173, 259–275. [Google Scholar] [CrossRef]
  16. Pottosin, I.I.; Schonknecht, G. Vacuolar calcium channels. J. Exp. Bot. 2007, 58, 1559–1569. [Google Scholar] [CrossRef] [Green Version]
  17. Miśkiewicz, J.; Trela, Z.; Przestalski, S.; Karcz, W. Superstatistics analysis of the ion current distribution function: Met3PbCl influence study. Eur. Biophys. J. 2010, 39, 1397–1406. [Google Scholar] [CrossRef]
  18. Miśkiewicz, J.; Trela, Z.; Burdach, Z.; Karcz, W.; Balińska-Miśkiewicz, W. Long range correlations of the ion current in SV channels Met3PbCl influence study. PLoS ONE 2020, 15, e0229433. [Google Scholar] [CrossRef] [Green Version]
  19. Trela, Z.; Burdach, Z.; Przestalski, S.; Karcz, W. Effect of trimethyllead chloride on slowly activating (SV) channels in red beet (Beta vulgaris L.) taproots. Comptes Rendus Biol. 2012, 335, 722–730. [Google Scholar] [CrossRef]
  20. Tikhonova, L.I.; Pottosin, I.I.; And, K.D.; Schoenknecht, G. Fast-activating cation channel in barley mesophyll vacuoles Inhibition by calcium. Plant J. 1997, 11, 1059–1070. [Google Scholar] [CrossRef]
  21. Burdach, Z.; Siemieniuk, A.; Trela, Z.; Kurtyka, R.; Karcz, W. Role of auxin (IAA) in the regulation of slow vacuolar (SV) channels and the volume of red beet taproot vacuoles. BMC Plant Biol. 2018, 18, 102. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Burdach, Z.; Siemieniuk, A.; Karcz, W. Effect of Auxin (IAA) on the Fast Vacuolar (FV) Channels in Red Beet (Beta vulgaris L.) Taproot Vacuoles. Int. J. Mol. Sci. 2020, 21, 4876. [Google Scholar] [CrossRef] [PubMed]
  23. Bertl, A.; Slayman, C.L. Cation-selective channels in the vacuolar membrane of Saccharomyces: Dependence on calcium, redox state, and voltage. Proc. Natl. Acad. Sci. USA 1990, 87, 7824–7828. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Bressler, J.; Kim, K.-A.; Chakraborti, T.; Goldstein, G. Molecular Mechanisms of Lead Neurotoxicity. Neurochem. Res. 1999, 24, 595–600. [Google Scholar] [CrossRef] [PubMed]
  25. Schulze, C.; Sticht, H.; Meyerhoff, P.; Dietrich, P. Differential contribution of EF-hands to the Ca2+-dependent activation in the plant two-pore channel TPC1. Plant J. 2011, 68, 424–432. [Google Scholar] [CrossRef] [PubMed]
  26. Kintzer, A.F.; Stroud, R.M. Structure, inhibition and regulation of two-pore channel TPC1 from Arabidopsis thaliana. Nature 2016, 531, 258–264. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Guo, J.; Zeng, W.; Chen, Q.; Lee, C.; Chen, L.; Yang, Y.; Cang, C.; Ren, D.; Jiang, Y. Structure of the voltage-gated two-pore channel TPC1 from Arabidopsis thaliana. Nature 2015, 531, 196–201. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Becker, D.; Hedrich, R. Channelling auxin action: Modulation of ion transport by indole-3-acetic acid. Plant Mol. Biol. 2002, 49, 349–356. [Google Scholar] [CrossRef] [PubMed]
  29. Thiel, G.; Brüdern, A.; Gradmann, D. Small Inward Rectifying K+ Channels in Coleoptiles: Inhibition by External Ca2+ and Function in Cell Elongation. J. Membr. Biol. 1996, 149, 9–20. [Google Scholar] [CrossRef]
  30. Thiel, G.; Macrobbie, E.; Blatt, M. Membrane transport in stomatal guard cells: The importance of voltage control. J. Membr. Biol. 1992, 126, 1–18. [Google Scholar] [CrossRef] [PubMed]
  31. Kotch, F.W.; Fettinger, J.; Davis, J.T. A Lead-Filled G-Quadruplex: Insight into the G-Quartet’s Selectivity for Pb2+ over K+. Org. Lett. 2000, 2, 3277–3280. [Google Scholar] [CrossRef] [PubMed]
  32. Mosa, A.; El-Ghamry, A.; Trüby, P.; Omar, M.; Gao, B.; Elnaggar, A.; Li, Y. Chemo-mechanical modification of cottonwood for Pb2+ removal from aqueous solutions: Sorption mechanisms and potential application as biofilter in drip-irrigation. Chemosphere 2016, 161, 1–9. [Google Scholar] [CrossRef] [PubMed]
  33. Yu, Z.; Zhou, W.; Ma, G.; Li, Y.; Fan, L.; Li, X.; Lu, Y. Insights into the Competition between K+ and Pb2+ Binding to a G-Quadruplex and Discovery of a Novel K+–Pb2+–Quadruplex Intermediate. J. Phys. Chem. B 2018, 122, 9382–9388. [Google Scholar] [CrossRef] [PubMed]
  34. Allen, G.J.; Sanders, D. Control of ionic currents in guard cell vacuoles by cytosolic and luminal calcium. Plant J. 1996, 10, 1055–1069. [Google Scholar] [CrossRef]
  35. Hedrich, R.; Neher, E. Cytoplasmic calcium regulates voltage-dependent ion channels in plant vacuoles. Nature 1987, 329, 833–836. [Google Scholar] [CrossRef]
  36. Pottosin, I.; Dobrovinskaya, O.; Muñiz, J. Conduction of Monovalent and Divalent Cations in the Slow Vacuolar Channel. J. Membr. Biol. 2001, 181, 55–65. [Google Scholar] [CrossRef]
  37. Ward, J.M.; Schroeder, J. Calcium-Activated K+ Channels and Calcium-Induced Calcium Release by Slow Vacuolar Ion Channels in Guard Cell Vacuoles Implicated in the Control of Stomatal Closure. Plant Cell 1994, 6, 669–683. [Google Scholar] [CrossRef] [PubMed]
  38. Brüggemann, L.I.; Pottosin, I.I.; Schönknecht, G. Cytoplasmic magnesium regulates the fast activating vacuolar cation channel. J. Exp. Bot. 1999, 50, 1547–1552. [Google Scholar] [CrossRef]
  39. Hedrich, R. Ion Channels in Plants. Physiol. Rev. 2012, 92, 1777–1811. [Google Scholar] [CrossRef] [PubMed]
  40. Coyaud, L.; Kurkdjian, A.; Kado, R.; Hedrich, R. Ion channels and ATP-driven pumps involved in ion transport across the tonoplast of sugarbeet vacuoles. Biochim. Biophys. Acta (BBA)—Biomembr. 1987, 902, 263–268. [Google Scholar] [CrossRef]
  41. Hedrich, R.; Marten, I. TPC1—SV channels gain shape. Mol. Plant 2011, 4, 428–441. [Google Scholar] [CrossRef] [PubMed]
  42. Rucińska-Sobkowiak, R.; Nowaczyk, G.; Krzesłowska, M.; Rabęda, I.; Jurga, S. Water status and water diffusion transport in lupine roots exposed to lead. Environ. Exp. Bot. 2013, 87, 100–109. [Google Scholar] [CrossRef]
  43. Bonales-Alatorre, E.; Pottosin, I.; Shabala, L.; Chen, Z.-H.; Zeng, F.; Jacobsen, S.-E.; Shabala, S. Differential Activity of Plasma and Vacuolar Membrane Transporters Contributes to Genotypic Differences in Salinity Tolerance in a Halophyte Species, Chenopodium quinoa. Int. J. Mol. Sci. 2013, 14, 9267–9285. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Bonales-Alatorre, E.; Shabala, S.; Chen, Z.-H.; Pottosin, I. Reduced Tonoplast Fast-Activating and Slow-Activating Channel Activity Is Essential for Conferring Salinity Tolerance in a Facultative Halophyte, Quinoa. Plant Physiol. 2013, 162, 940–952. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Bertl, A.; Blumwald, E.; Coronado, R.; Eisenberg, R.; Findlay, G.; Gradmann, D.; Hille, B.; Köhler, K.; Kolb, H.A.; MacRobbie, E.; et al. Electrical measurements on endomembranes. Science 1992, 258, 873–874. [Google Scholar] [CrossRef] [PubMed]
  46. Molleman, A. Patch Clamping: An Introductory Guide to Patch Clamp Electrophysiology; Wiley: Hoboken, NJ, USA, 2003; ISBN 047148685X. [Google Scholar]
Ijms 22 12621 g001 550

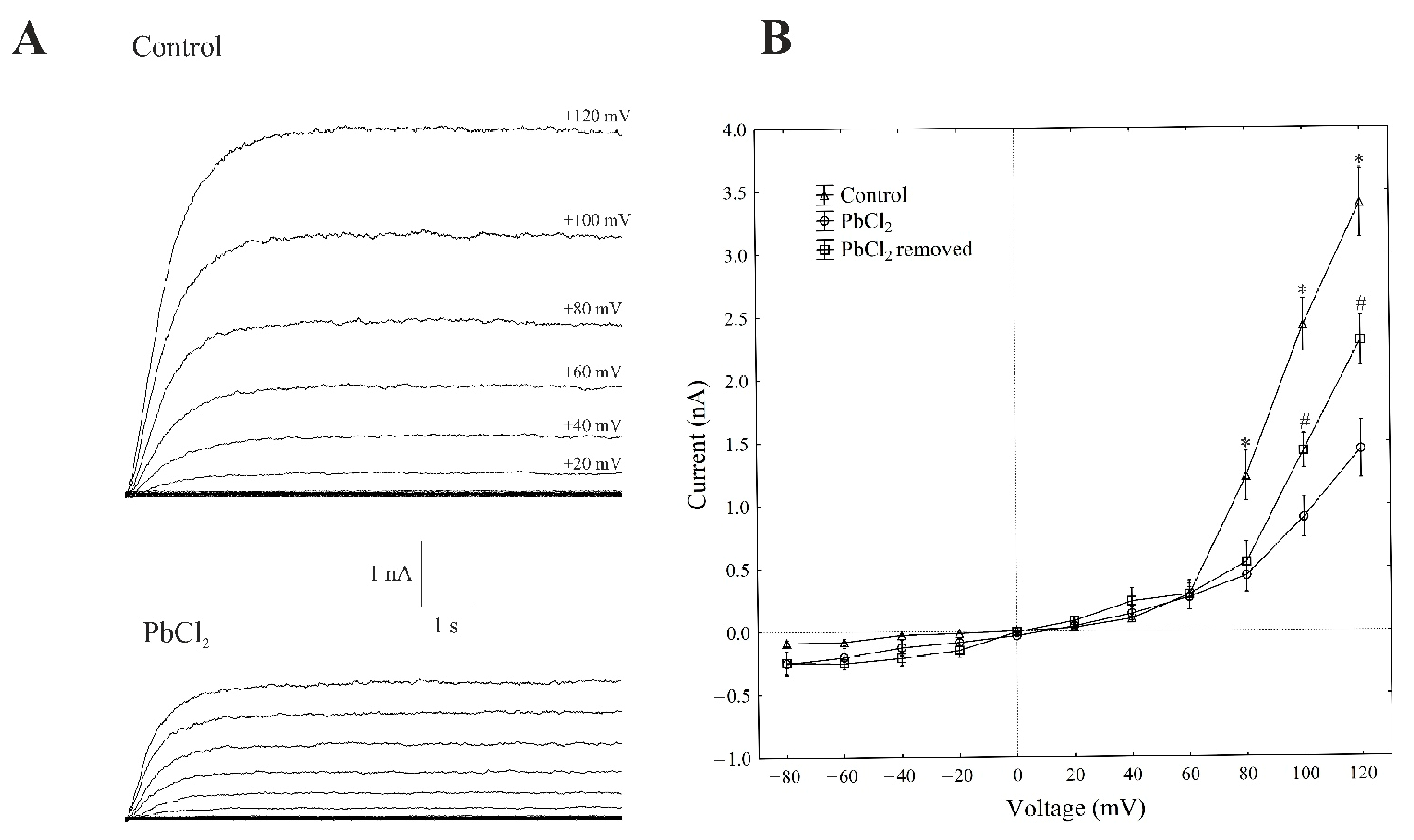

Figure 1. Effect of cytosolic 100-µM PbCl2 on the slow-activating currents in red beet taproot vacuoles. (A) An example of a whole-vacuole SV current recording in the control bath solution and in the presence of 100-µM PbCl2. The whole-vacuole SV current was recorded in a symmetrical 100-mM KCl 1 min after gaining access to the whole vacuole. In order to maintain the same time regime in the variant with PbCl2, the control bath solution was changed to a new one with lead within 1 min right after the required patch-clamp configuration was obtained. The macroscopic SV currents were elicited by a series of voltage steps ranging from −80 to +120 mV in 20-mV steps with a holding potential of 0 mV. (B) The current–voltage relationships in the absence and presence of 100-µM PbCl2 and after PbCl2 removal. The means ± SE of at least six different vacuoles are shown. The normal distribution was evaluated using the Shapiro–Wilk test (p > 0.05). The statistical differences between the control and PbCl2 at the same voltage were analysed using the unpaired t-test (p < 0.05). An asterisk (*) indicates a significant difference between control and PbCl2 variant, whereas a pound mark (#) indicates a significant difference between PbCl2 and PbCl2 removal variants.
Figure 1. Effect of cytosolic 100-µM PbCl2 on the slow-activating currents in red beet taproot vacuoles. (A) An example of a whole-vacuole SV current recording in the control bath solution and in the presence of 100-µM PbCl2. The whole-vacuole SV current was recorded in a symmetrical 100-mM KCl 1 min after gaining access to the whole vacuole. In order to maintain the same time regime in the variant with PbCl2, the control bath solution was changed to a new one with lead within 1 min right after the required patch-clamp configuration was obtained. The macroscopic SV currents were elicited by a series of voltage steps ranging from −80 to +120 mV in 20-mV steps with a holding potential of 0 mV. (B) The current–voltage relationships in the absence and presence of 100-µM PbCl2 and after PbCl2 removal. The means ± SE of at least six different vacuoles are shown. The normal distribution was evaluated using the Shapiro–Wilk test (p > 0.05). The statistical differences between the control and PbCl2 at the same voltage were analysed using the unpaired t-test (p < 0.05). An asterisk (*) indicates a significant difference between control and PbCl2 variant, whereas a pound mark (#) indicates a significant difference between PbCl2 and PbCl2 removal variants.
Ijms 22 12621 g001
Ijms 22 12621 g002 550

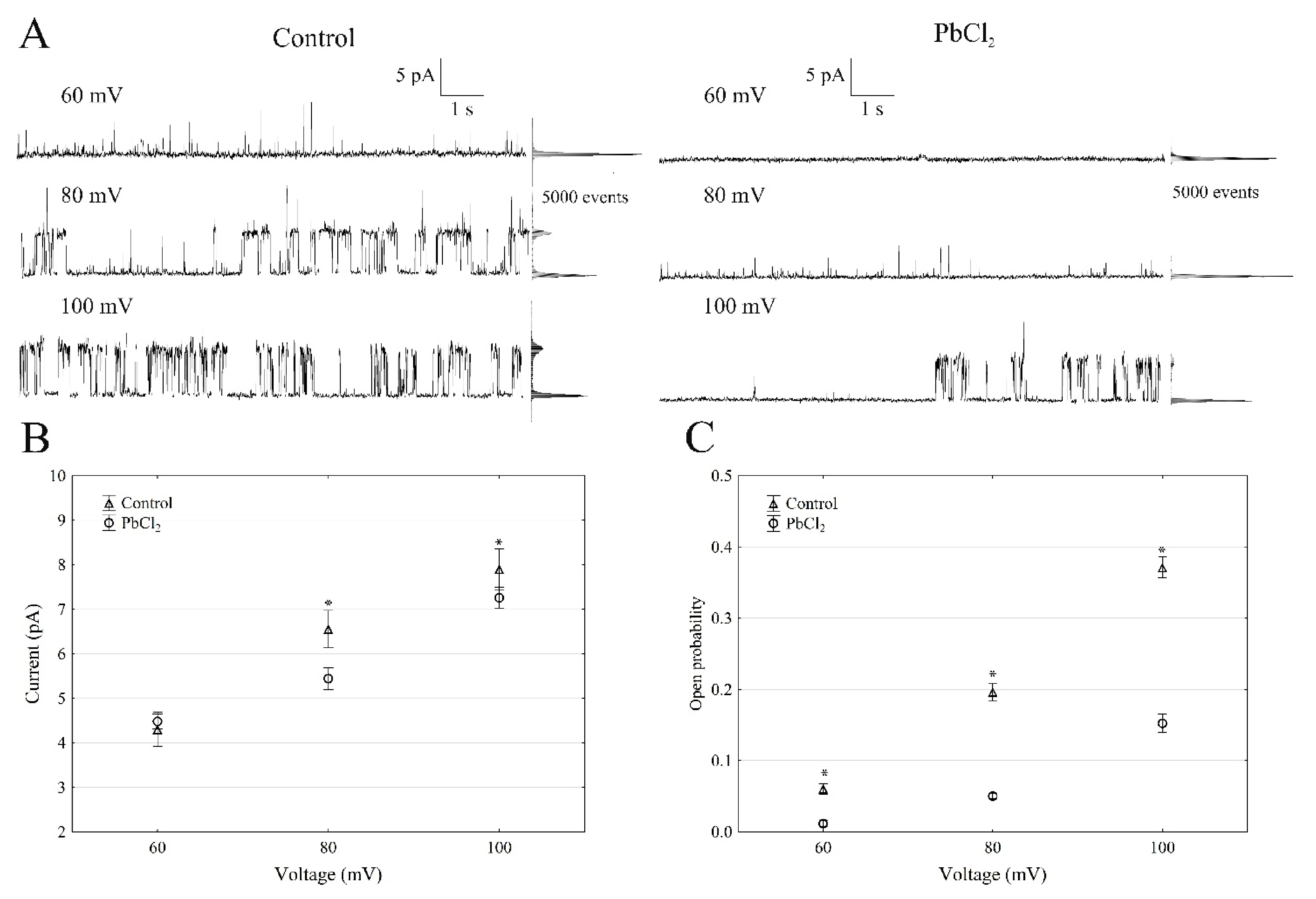

Figure 2. Effect of 100-µM PbCl2 on the single SV channel activity in red beet taproot vacuoles. (A) The representative single-channel activity of the outside-out patch in symmetrical 100-mM KCl and in the absence and presence of 100-µM PbCl2. The current traces are shown at the different membrane voltages (+60, +80 and +100 mV) that are indicated adjacent to the traces. The dotted lines indicate the closing state and the different opening ones. In this patch, at least two channels are opening. The corresponding amplitude histograms are shown to the right of the current traces. (B) The current amplitude of a single SV channel current as a function of the voltage (+60, +80 and +100 mV) that was obtained with and without PbCl2. The values of the current were obtained as the differences of the maximum of the current histograms and represent the open and closed states of a channel, respectively. The data points are the means (±SE) from at least eight independent experiments. The data did not have a normal distribution (Shapiro–Wilk test, p > 0.05); hence, any statistical differences between PbCl2 and the control within the same time and voltage were assessed using the nonparametric Mann–Whitney U test (p < 0.05). An asterisk (*) indicates a significant difference. (C) Open probability of the slow vacuolar (SV) channels as a function of the voltage (+60, +80 and +100 mV) in the control bath and in the presence of PbCl2. The open probability was calculated as the sum of the channel open times in the current traces, which were normalised to the total time of the traces divided by the number of active channels in a patch using FitMaster software (see, also, Reference [23]). The data points are the means (±SE) from eight independent experiments. The normal distribution was confirmed using the Shapiro–Wilk test (p > 0.05). The statistical differences of the open probability values between the control and the PbCl2 variants at the same voltage were analysed using the unpaired samples t-test (p < 0.05). An asterisk (*) indicates a significant difference.
Figure 2. Effect of 100-µM PbCl2 on the single SV channel activity in red beet taproot vacuoles. (A) The representative single-channel activity of the outside-out patch in symmetrical 100-mM KCl and in the absence and presence of 100-µM PbCl2. The current traces are shown at the different membrane voltages (+60, +80 and +100 mV) that are indicated adjacent to the traces. The dotted lines indicate the closing state and the different opening ones. In this patch, at least two channels are opening. The corresponding amplitude histograms are shown to the right of the current traces. (B) The current amplitude of a single SV channel current as a function of the voltage (+60, +80 and +100 mV) that was obtained with and without PbCl2. The values of the current were obtained as the differences of the maximum of the current histograms and represent the open and closed states of a channel, respectively. The data points are the means (±SE) from at least eight independent experiments. The data did not have a normal distribution (Shapiro–Wilk test, p > 0.05); hence, any statistical differences between PbCl2 and the control within the same time and voltage were assessed using the nonparametric Mann–Whitney U test (p < 0.05). An asterisk (*) indicates a significant difference. (C) Open probability of the slow vacuolar (SV) channels as a function of the voltage (+60, +80 and +100 mV) in the control bath and in the presence of PbCl2. The open probability was calculated as the sum of the channel open times in the current traces, which were normalised to the total time of the traces divided by the number of active channels in a patch using FitMaster software (see, also, Reference [23]). The data points are the means (±SE) from eight independent experiments. The normal distribution was confirmed using the Shapiro–Wilk test (p > 0.05). The statistical differences of the open probability values between the control and the PbCl2 variants at the same voltage were analysed using the unpaired samples t-test (p < 0.05). An asterisk (*) indicates a significant difference.
Ijms 22 12621 g002
Ijms 22 12621 g003 550

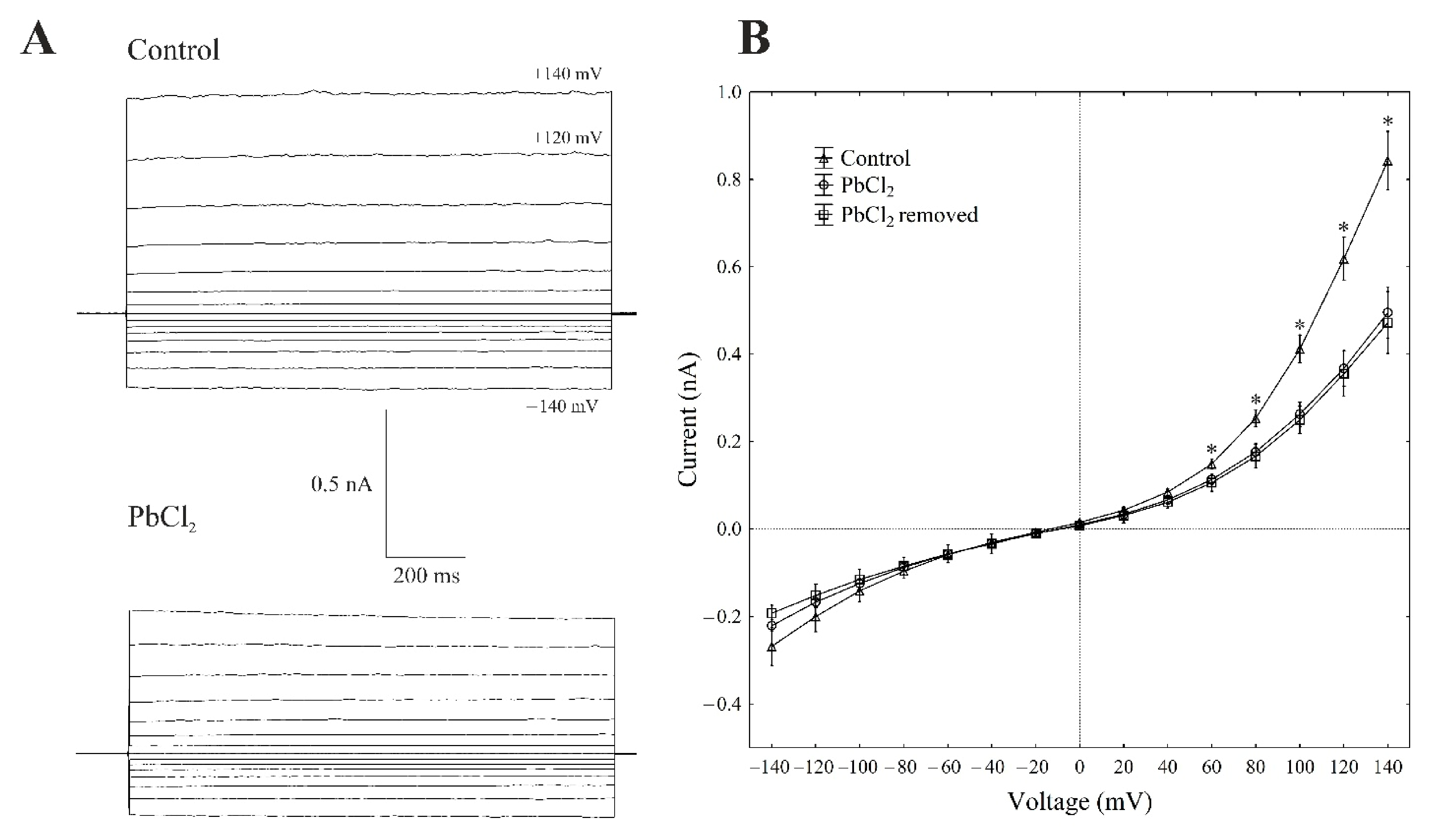

Figure 3. Effect of cytosolic 100-µM PbCl2 on the fast-activating currents in red beet taproot vacuoles. (A) An example of a whole-vacuole FV current recording in the control bath solution and in the presence of 100-µM PbCl2. The whole-vacuole FV current was recorded in a symmetrical 100-mM KCl 1 min after access to the whole vacuole was obtained. In order to maintain the same time regime in the variant with PbCl2, the solution was changed to a new one with lead within 1 min after the required patch-clamp configuration was obtained. The macroscopic FV currents were elicited by a series of voltages from −140 to +140 mV in 20-mV steps; a holding potential of −40 mV was applied. (B) The current–voltage relationships in the absence and presence of 100-µM PbCl2 and after PbCl2 removal. The means ± SE of at least eleven different vacuoles are shown. The normal distribution was evaluated using the Shapiro–Wilk test (p > 0.05). The statistical differences between the control and PbCl2 at the same voltage were analysed using the unpaired t-test (p < 0.05). An asterisk (*) indicates a significant difference between the control and PbCl2 variant.
Figure 3. Effect of cytosolic 100-µM PbCl2 on the fast-activating currents in red beet taproot vacuoles. (A) An example of a whole-vacuole FV current recording in the control bath solution and in the presence of 100-µM PbCl2. The whole-vacuole FV current was recorded in a symmetrical 100-mM KCl 1 min after access to the whole vacuole was obtained. In order to maintain the same time regime in the variant with PbCl2, the solution was changed to a new one with lead within 1 min after the required patch-clamp configuration was obtained. The macroscopic FV currents were elicited by a series of voltages from −140 to +140 mV in 20-mV steps; a holding potential of −40 mV was applied. (B) The current–voltage relationships in the absence and presence of 100-µM PbCl2 and after PbCl2 removal. The means ± SE of at least eleven different vacuoles are shown. The normal distribution was evaluated using the Shapiro–Wilk test (p > 0.05). The statistical differences between the control and PbCl2 at the same voltage were analysed using the unpaired t-test (p < 0.05). An asterisk (*) indicates a significant difference between the control and PbCl2 variant.
Ijms 22 12621 g003
Ijms 22 12621 g004 550

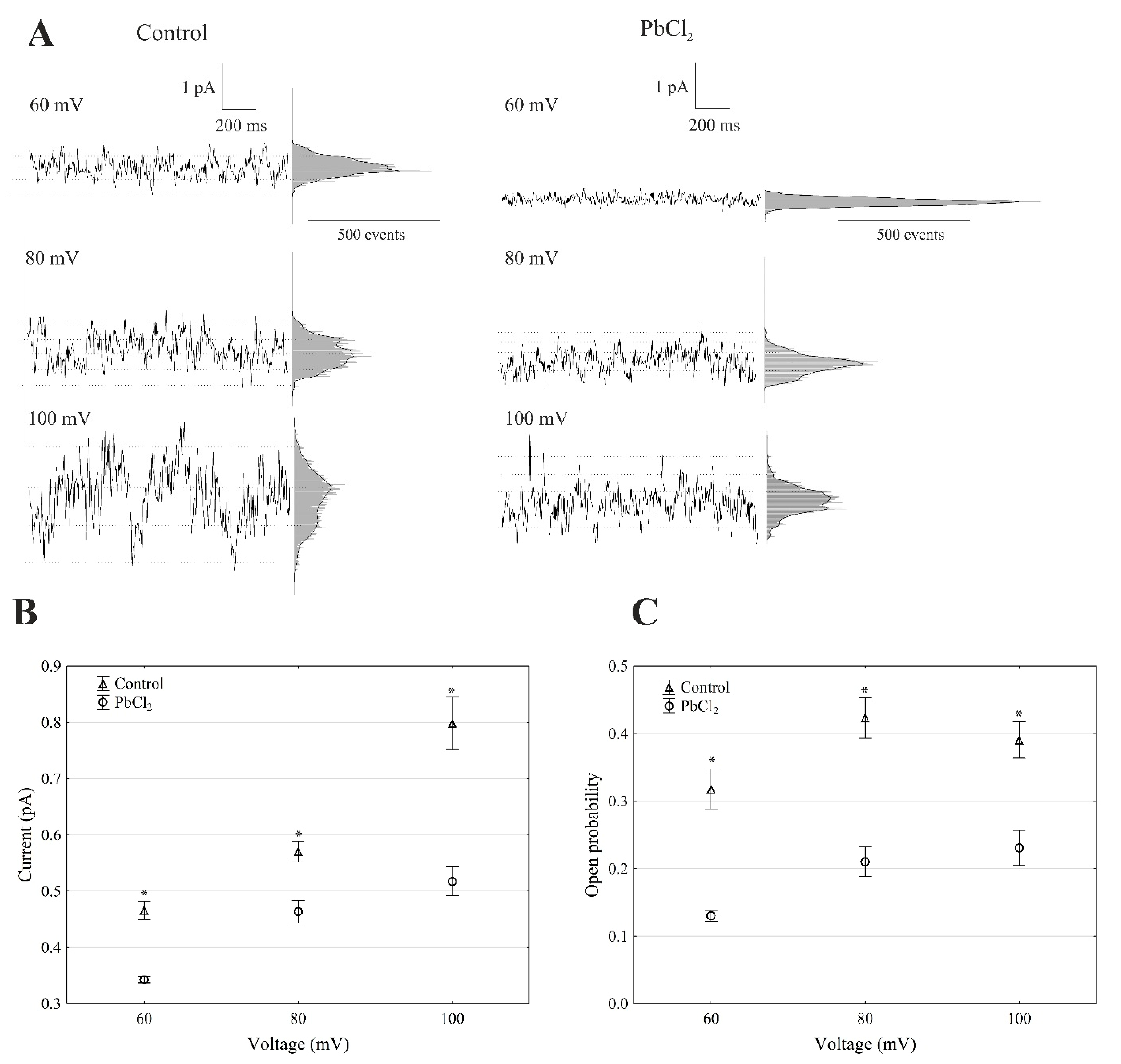

Figure 4. Effect of 100-µM PbCl2 on the single FV channel activity in red beet taproot vacuoles. (A) The representative single-channel activity of the outside-out patch in symmetrical 100-mM KCl and in the absence and presence of 100-µM PbCl2. The current traces are shown at the different membrane voltages (+60, +80 and +100 mV) that are indicated adjacent to the traces. The dotted lines indicate the closing state and different opening ones. In this patch, at least two channels were opening. The corresponding amplitude histograms are shown to the right of the current traces. (B) The current amplitude of the single FV channel current as a function of the voltage (+60, +80 and +100 mV) that was obtained with and without PbCl2. The values of the current were obtained as the differences of the maximums of the current histograms and represent the open and closed states of a channel, respectively. The data points are the means (±SE) from at least fifteen independent experiments. The data did not have a normal distribution (Shapiro–Wilk test, p > 0.05); hence, any statistical differences between PbCl2 and the control at the same time and voltage were assessed using the nonparametric Mann–Whitney U test (p < 0.05). An asterisk (*) indicates a significant difference. (C) Open probability of the fast vacuolar (FV) channels as a function of the voltage (+60, +80 and +100 mV) in the control bath and in the presence of PbCl2. The open probability was calculated as the sum of the channel open times in the current traces normalised to the total time of the traces divided by the number of active channels in the patch using FitMaster software (see, also, Reference [23]). The data points are the means (±SE) from five independent experiments. The normal distribution was confirmed using the Shapiro–Wilk test (p > 0.05). The statistical differences of open probability values between the control and the PbCl2 variants at the same voltage were analysed using the unpaired samples t-test (p < 0.05). An asterisk (*) indicates a significant difference.
Figure 4. Effect of 100-µM PbCl2 on the single FV channel activity in red beet taproot vacuoles. (A) The representative single-channel activity of the outside-out patch in symmetrical 100-mM KCl and in the absence and presence of 100-µM PbCl2. The current traces are shown at the different membrane voltages (+60, +80 and +100 mV) that are indicated adjacent to the traces. The dotted lines indicate the closing state and different opening ones. In this patch, at least two channels were opening. The corresponding amplitude histograms are shown to the right of the current traces. (B) The current amplitude of the single FV channel current as a function of the voltage (+60, +80 and +100 mV) that was obtained with and without PbCl2. The values of the current were obtained as the differences of the maximums of the current histograms and represent the open and closed states of a channel, respectively. The data points are the means (±SE) from at least fifteen independent experiments. The data did not have a normal distribution (Shapiro–Wilk test, p > 0.05); hence, any statistical differences between PbCl2 and the control at the same time and voltage were assessed using the nonparametric Mann–Whitney U test (p < 0.05). An asterisk (*) indicates a significant difference. (C) Open probability of the fast vacuolar (FV) channels as a function of the voltage (+60, +80 and +100 mV) in the control bath and in the presence of PbCl2. The open probability was calculated as the sum of the channel open times in the current traces normalised to the total time of the traces divided by the number of active channels in the patch using FitMaster software (see, also, Reference [23]). The data points are the means (±SE) from five independent experiments. The normal distribution was confirmed using the Shapiro–Wilk test (p > 0.05). The statistical differences of open probability values between the control and the PbCl2 variants at the same voltage were analysed using the unpaired samples t-test (p < 0.05). An asterisk (*) indicates a significant difference.
Ijms 22 12621 g004
