Next Article in Journal
Covalent Immobilisation of a Nanoporous Platinum Film onto a Gold Screen-Printed Electrode for Highly Stable and Selective Non-Enzymatic Glucose Sensing
Next Article in Special Issue
Rational Design and Synthesis of ZnWO4 Nanorods Decorated with SnS Nanodots with Enhanced Visible-Light Photocatalytic Performance
Previous Article in Journal
CO2 Hydrogenation to Synthetic Natural Gas over Ni, Fe and Co–Based CeO2–Cr2O3


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Catalysts
Volume 11
Issue 10
10.3390/catal11101160
catalysts-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles thumb_up
...
Endorse textsms
...
Comment
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Review

Impact of Doping and Additive Applications on Photocatalyst Textural Properties in Removing Organic Pollutants: A Review

by
Safia Syazana Mohtar
1,
Farhana Aziz
1,2,*,
Ahmad Fauzi Ismail
1,2,
Nonni Soraya Sambudi
3,
Hamidah Abdullah
4,
Ahmad Nazrul Rosli
5 and
Bunsho Ohtani
6
1
Advanced Membrane Technology Research Centre, School of Chemical and Energy Engineering, Faculty of Engineering, Universiti Teknologi Malaysia, Johor Bahru 81310, Johor, Malaysia
2
School of Chemical and Energy Engineering, Faculty of Engineering, Universiti Teknologi Malaysia, Johor Bahru 81310, Johor, Malaysia
3
Chemical Engineering Department, Universiti Teknologi PETRONAS, Persiaran UTP, Seri Iskandar 32610, Perak, Malaysia
4
Faculty of Chemical & Natural Resources Engineering, Universiti Malaysia Pahang, Pekan 26600, Pahang, Malaysia
5
Faculty of Science and Technology, Universiti Sains Islam Malaysia, Bandar Baru Nilai, Nilai 71800, Negeri Sembilan, Malaysia
6
Institute for Catalysis, Hokkaido University, Sapporo 001-0021, Japan
*
Author to whom correspondence should be addressed.
Catalysts 2021, 11(10), 1160; https://doi.org/10.3390/catal11101160
Submission received: 24 August 2021 / Revised: 22 September 2021 / Accepted: 24 September 2021 / Published: 26 September 2021
(This article belongs to the Special Issue Recent Advances in Photocatalysis for Wastewater Treatment: Synthesis of the Materials and Photocatalytic Reactors)
Browse Figures
Versions Notes

Abstract

:
The effect of ion doping and the incorporation of additives on photocatalysts’ textural properties have been reviewed. Generally, it can be summarised that ion doping and additives have beneficial effects on photocatalytic efficiency and not all have an increase in the surface area. The excessive amount of dopants and additives will produce larger aggregated particles and also cover the mesoporous structures, thereby increasing the pore size (Pd) and pore volume (Pv). An excessive amount of dopants also leads to visible light shielding effects, thus influence photocatalytic performance. Ion doping also shows some increment in the surface areas, but it has been identified that synergistic effects of the surface area, porosity, and dopant amount contribute to the photocatalytic performance. It is therefore important to understand the effect of doping and the application of additives on the textural properties of photocatalysts, thus, their performance. This review will provide an insight into the development of photocatalyst with better performance for wastewater treatment applications.

1. Introduction

Photocatalysis is a process involving light irradiation as an energy source to activate a catalyst that improves the rate of chemical reactions without being involved in the reaction [1]. UV-light or visible-light irradiation is typically used as the energy source for initiating the reaction. Fujishima and Honda introduced the concept of photocatalytic in 1972 when they discovered TiO2 as a photocatalyst for water splitting in a photo-electrochemical cell, producing hydrogen and oxygen. Since the discovery, many studies have reported that this technology has great potential in water treatment for degrading a wide range of recalcitrant organic compounds into easily biodegradable species or even to achieve total mineralization [2,3].
Controlling the textural properties such as surface area, particle sizes, and shapes is not an easy task in the field of nanoparticles research. Researchers have pointed out that poor photocatalytic performance is due to poor morphological and textural properties such as low surface areas and agglomeration [4,5]. Surface area is one of the key contributing factors to the improvement of photocatalytic activity. A high surface area has the advantage of improving incident light-harvesting, adsorbing organic molecules on the active surface, and providing more reactive sites for contaminant degradation in photocatalytic reactions. Apart from high photocatalytic activity, the large surface area indirectly promotes increased adsorption on the photocatalyst surface and therefore creates a synergistic effect for the removal of organic contaminants [6,7,8]. Few strategies have been applied to manipulate the textural properties of the photocatalyst and enhance its performance such as self-doping, metal and non-metal doping, and the addition of additives or adsorbents.
BET is one of the few available methods for surface area measurement and porosity. BET theory is widely used to test gas adsorption data and to produce a specific surface area result expressed in units of area per sample mass (m2 g−1). Briefly, this process involves allowing a clean and dry sample to absorb selected inert gas, such as nitrogen or krypton, at the temperature of the liquid nitrogen. The volume of adsorbed gas that forms one monolayer on the surface can be determined from the measured isotherm using the BET equation (see Figure 1).
Several research groups have reviewed the progress on various types of photocatalysts for wastewater treatment, although only a few systematic reviews have been published to date [9,10]. Most of the review focused on photocatalytic performance without looking in detail at the effects of modifications on the textural properties of the photocatalyst. Therefore, it is important to provide an updated and systematic overview of the progress made in this area, with an emphasis on the textural aspects of photocatalysts. This review analyses the effects of doping and the use of additives on the texture of photocatalysts for wastewater treatment. The correlation between specific SBET, Pd, Pv, and photocatalytic activity is revisited and projected to offer valuable insight into future developments in this area of study.

2. Dopants and Additives

Designing efficient photocatalytic materials for the degradation of organic contaminants is challenging due to the low selective adsorption capacity of photodegraded contaminants and the limited capability of solar light. Although metal oxide-based photocatalysts have shown great potential for degrading organic contaminants, their unresolved issues such as large band gaps, the high recombination rates of photogenerated hole h+VB and electron e−CB, and the photocarriers’ low separation efficiencies limits their application in real practice [11]. It is, therefore, crucial to identify or modify photocatalysts with a high selective adsorption capacity and an appropriate semiconducting band gap to enhance the exploitation of solar energy and increase the adsorption of photodegraded organic chemicals.
Accordingly, many recent studies on these ideas have been carried out by extending the wavelength range of the photoactivation to the visible light region and incorporating adsorbents to increase the surface area of the photocatalyst. A visible light active photocatalyst should obtain a band gap in the range of 1.23 eV to 3.10 eV, which spans the reduction and oxidation potentials of water [12]. Ion doping and the incorporation of additives are among the common approaches used to improve the adsorption capacity and photocatalytic activity of semiconductors. These approaches bring about the basic properties of the tunable surface that depend on the nature and composition of the dopants and additives. It is therefore important to understand the effect of doping and the incorporation of additives on the surface properties of photocatalysts.

2.1. Doping

Doping is a practical improvement technique for visible-light-driven photocatalysts by introducing foreign elements to a host semiconductor. It has been carried out in various techniques: self-doping, non-metal doping, metal doping, and co-doping. The introduced dopants act relatively straightforward by (i) improving the surface and interface properties; (ii) modifying the large band gap and electronic structure targeting for a more visible light harvest; and (iii) improving each step in the charging kinetics to reduce the massive recombination of photogenerated carriers [13]. Even though thermal instability of doped-photocatalysts has been a concern, they have exceptional physicochemical properties such as high specific surface areas, small crystallite size, and high crystallinity. In the context of this review, the effect of dopants on the photocatalyst texture is emphasized.

2.1.1. Self-Doping

Self-doping is introduced to narrow the band gap of semiconductors under moderate doping conditions for enhanced photocatalytic activity. It is considered a good alternative owing to its ability to fine-tune the electronic and band structures of semiconductors with minimal structural distortion [14,15]. Compared to bare semiconductors, self-doping photocatalysts have better structural properties, including high surface area, good contact with the metal substrate, the interconnectivity of active materials, and orderly perpendicular nanostructures [16,17,18]. These structural advantages offer more direct transport of electrons, thus improving conductivity when compared to disordered and non-oriented TiO2 nanoparticle structures.
Parameters such as the heating temperature and duration, reduced loading, and types of surfactants play significant roles in the textural characteristics of the synthesized photocatalyst during self-doping. As presented in Figure 2, a heating temperature ranging from 300 °C to 600 °C resulted in a reduced surface area caused by collapsed porous/mesoporous structure and aggregation into larger nanoparticles at very high temperatures (usually > 500 °C) [19]. In the meantime, Pd increased with heating time, providing more time for nanocrystal growth [20]. The amount of reductant also affects the textural characteristics of the semiconductors. As reported by Fang et al. [21], the increased amount of NaBH4 reductant in the synthesis of Ti3+ self-doped TiO2 decreased the particle size, thus, increasing the surface area. This was due to the restrained TiO2 growth by impurities produced during the calcination process. They also reported that the unit cell dimension was likely unaffected due to the unchanged d-spacing.
The high surface area enhances the incident light-harvesting, provides more active sites for organic molecules’ adsorption on the active surface, and therefore, increases the possibility of photodegradation [23]. As tabulated in Table 1, self-doped photocatalysts enhanced the SBET of the photocatalyst materials but are affected differently on Pd and Pv and have shown higher organic contaminants degradation compared to the bare ones. This indicates that instead of Pd and Pv, the surface area plays a more significant role in photodegradation activity by providing copious active reaction sites and enable more efficient use of the light source for degrading organic contaminants.

2.1.2. Metal and Non-Metal Doping

Alien ion doping with cationic metals, anionic non-metals, or non-metal molecules can extremely improve the overall performance of photocatalyst in degrading organic contaminants by affecting its electronic structure and morphology of the parent photocatalyst materials, as well as enhancing the surface area and porosity. Metal and non-metal doping can decrease the wide band gap semiconductors into the visible light range.
As shown in Table 2, metal and non-metal doping might control the surface area and pores of the particles. Vieira and co-workers [30] have reported that adding 0.5 wt.% Ce and 0.15 wt.% Nd enhanced the catalysts SBET by more than 100%. However, adding more than that is detrimental to the catalyst. In the study by Gao et al. [31], significant decrement in SBET of the respective Ag+–, Mn2+–, and Ni2+–doped TiO2 nanotubes by 54.5%, 51.2%, and 61.0% was observed. This was caused by partial pore blockages and framework defects. Similar findings were observed by Mecha et al. [32], in which, the reduction in surface area and Pv of Ag+–doped TiO2 by 89.0% and 80.2%, respectively, were caused by particles aggregation that generated a closely coagulated structure.
The enhanced SBET of doped photocatalysts, as tabulated in Table 2, increased the organic contaminant removal. More pollutants were adsorbed onto the surface of the catalyst, providing more available areas for electron-hole pair separation. Bakar and Ribeiro [43] reported increased Methyl Orange removal with SBET of S-doped TiO2. The high surface area and the large porous channels of nanorods were among the factors for enhanced performance. Similar results were obtained by Hinojosa-Reyes et al. [38] who studied the removal of 4-chlorophenol and naproxen sodium by various dosages of several metal-doped photocatalysts.
The synergistic effects between the texture and other factors are irrefutable. In several studies, the surface area and porous structure insignificantly affect the degradation of organic contaminants. For example, according to the findings by Vieira et al. [30], the adsorption capacity of Ce– and Nd–TiO2 photocatalysts were largely influenced by the zeta potential and charge density with a minor influence by the surface area. Meanwhile, Guo et al. [42] reported that the degradation of Methylene Blue by S-doped BiVO4 involved two synergistic factors, which were surface area and S-doping amount. According to their study, at the highest S-doping, in addition to the highest surface area, there was also an excess of S that has a visible light shielding effect, influencing the Methylene Blue degradation. These results were in agreement with those reported by Bakar and Ribeiro [43].

2.1.3. Co-Doping

Although self, metal, or non-metal doping enhances photocatalytic efficiency, in many cases, they perform as recombination centers due to the partially occupied impurity bands. Co-doping by two or more foreign ions overcomes the prevailing limitation by (i) passivating the impurity bands and reduce the recombination centers’ formation by improving the solubility limit of dopants; and (ii) modulating the charge equilibrium [63]. In addition, co-doping also affects the surface area and pore size of the photocatalyst.
As shown in Table 2, the SBET, Pd, and Pv of co-doped photocatalysts were mostly enhanced. Similar to the other doping types, parameters in co-doping preparation, such as loading and calcination temperature, also affect the textural properties. Dopants’ concentration, for example, affects the surface area and porosity of the co-doped photocatalysts. In the study by Zhao et al. [53], the SBET of K–Na-doped g-C3N4 increased with dopant loading. Since doping prevented the crystal growth, the formation of more secondary particles was encouraged and led to more intra-agglomerated pores for enhanced surface area. However, sufficient doping was required since the maximum Rhodamine B removal (up to 89%) under visible light was not obtained at the highest catalyst surface area. In contrast, Bhatia et al. [55] have reported a decrease in SBET of Bi and Ni co-doped TiO2 catalysts with increased concentration of Bi and Ni was due to the increase in grain size. The highest SBET co-doped catalyst resulted in the lowest band gap and removed up to 86% ofloxacin under solar light, which was 46% higher than that of Degussa TiO2. As most co-doping process involves calcination, the changes in physical properties are certain [56]. The works as tabulated in Table 2 involve calcination in the temperature range of 400 °C to 600 °C. The high temperature inhibits crystal growth and polymeric condensation, resulting in relatively smaller particle size and higher surface area. Furthermore, calcination decomposes organic residue in the metal matrix leaving spaces as pores, which incurs the generation of highly porous materials with either enhanced or reduced SBET [51,56].
The synergistic effects of co-dopants also play an important role in degrading organic contaminants in water and wastewater. Jin et al. [54] have reported the synergistic effect of indium and carbon on TiO2. Unlike carbon-only-doped TiO2, which has lower SBET, co-doped indium/carbon-TiO2 has a larger SBET. The SBET increased the indium concentration until a certain point before decreasing due to the obstructed pores and active sites by the excess dopant. The larger surface area facilitates the contact probability of catalyst surface and organic contaminants, enhances the active site of the response, and accelerates the photocatalytic decomposition reaction of organics’ aqueous solution. The high crystallinity and the mesoporosity of the co-doped photocatalysts help in the enhancement of the photocatalytic activity, explained by the high adsorption capacity because of faster and facile diffusion of the target molecule to the active sites through the porous network [58].

2.2. Additives

2.2.1. Surfactants

Controlling the morphology of photocatalyst materials is crucial in fabricating desired photocatalytic activities. Surfactants are among the materials that significantly play this role. Numerous studies have been reported on the application of surfactants as shape controllers or templates that are not only arranging crystals to grow into the desired structure, such as raspberry-like, rod-like, and quasi-spherical (Figure 3), but also alter SBET, Pv, and Pd. As reported by Wei et al. [64], surfactants such as CTAB, SDBS, and DEA inhibited TiO2 grain growth during solvothermal treatment, thus increasing the dispersion of particles. In addition, after the heating process, adsorbed surfactants in the TiO2 were decomposed, consequently increasing the SBET and Pv of the prepared catalyst.
The increased SBET, Pd, and Pv of surfactant-assisted photocatalysts might enhance the photodegradation of organic contaminants. Mohamed and Ismail [65] reported that increased SBET, Pv, and Pd of a MnFe2O4 nanocomposite with F127 triblock co-polymer surfactants molar ratio due to pore opening, resulting in the increased ciprofloxacin degradation up to 100% under visible light. In the study by Wang et al. [66], the PEG-ZnO catalysts with the smallest size and the highest SBET resulted in the highest Rhodamine B degradation after 30 min of UV irradiation. The sample also held the largest number of oxygen vacancies that act as electron donors, which implies both factors were significant in the dye degradation. Meanwhile, Ozturk and Pozan Soylu [67] reported that the higher surface area of HTAB-, SDS-, and PEG-assisted FeVO4 compared to bare FeVO4 resulted in a better performance. Up to 100% phenol was degraded with HTAB-assisted FeVO4 due to the strong metal oxide–surfactant interaction.
On the contrary, according to the findings by Sheikhnejad-Bishe et al. [68], CTAB-assisted sol-gel TiO2 with the highest surface area and the lowest particle size resulted in the lowest Methylene Blue degradation. They stated that imperfect crystallization and irregular structure caused deterioration in the photodegradation performance. In the study by Hao et al. [69], even though the highest adsorption capacity of CLS/SDS-ZnO catalysts was observed at the highest surface area, the photocatalytic degradation of Methylene Blue under UV light and sunlight was not the highest. Based on their findings, the SBET was not a significant factor for photodegradation, implying there are other significant factors such as crystallinity and specific crystal face affecting the photodegradation.

2.2.2. Carbonaceous Materials

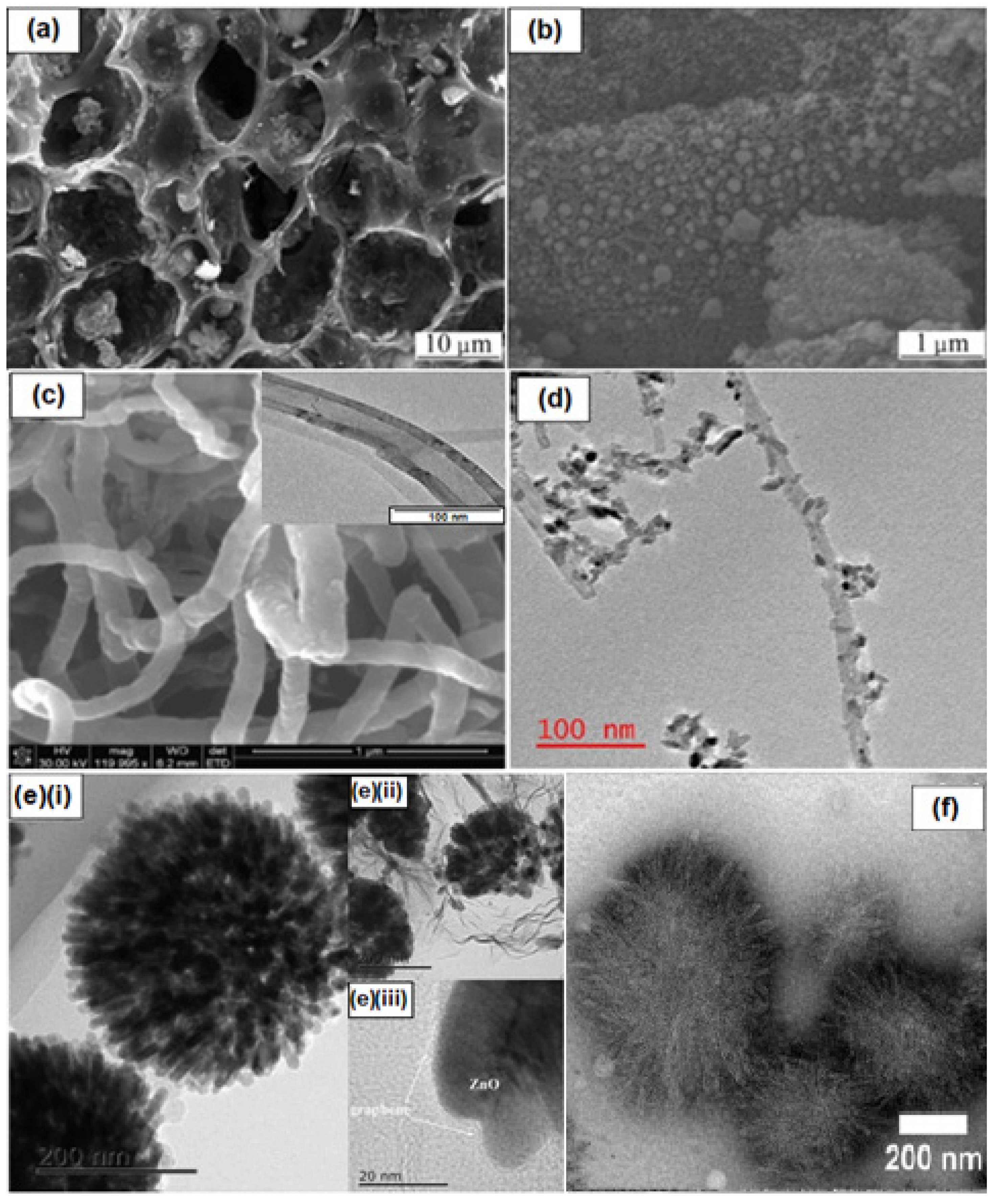

Carbonaceous materials as illustrated in Figure 4 are among the environmentally friendly materials that provide benefits for heterogeneous photocatalysts. They offer tunable electrical and structural properties, stability, and chemical inertness for potential use in the photodegradation process [70]. These materials simultaneously enhance the photocatalytic properties via three mechanisms: (i) high pollutant adsorption ability; (ii) enhanced absorption under visible light; and (iii) simple charge separation and transport processes [71].
AC is a common adsorptive carbonaceous material with a high 900 m2 g−1 to 1200 m2 g−1 typical surface area, an amorphous structure consisting of ranges in micropores (1 nm) and mesopores (>25 nm) (Figure 5a), in which the relative number is considerably related to the raw material [72,73,74]. Due to these structural features, AC has long been studied in the field of photocatalysts and has become a promising support material that offers various synergistic effects with semiconductors. As tabulated in Table 3, the addition of AC enhanced the surface area and pore distribution, subsequently increasing the performance of photodegradation. As shown in Figure 5b, the proportion of dispersed semiconductors not only occupied the surface of AC but also entered the pores [75]. A sufficient amount of semiconductors in the AC network might also increase the Pd, which hastens the adsorption affinity in tow catalysts. This could increase the contact between organic pollutant molecules and photocatalysts, thus, the photodegradation as well. An excess amount of photocatalyst, on the other hand, may only deteriorate the surface area and pore distribution caused by particle agglomeration and pores blockage [76]. As reported in several cases, even though a composite has a high surface area and well-distributed pores, the photodegradation performance was not necessarily as high. Meanwhile, El-Salamony et al. [77] and Suresh et al. [75] reported that different surface areas and pores distribution were obtained by different metal oxides but the same AC and amount loading. Interestingly, both studies found that the highest photodegradation performance was independent of SBET, Pd, and Pv. According to Suresh et al. [75], the performance degradation involves the synergistic effect of oxygen vacant sites, structural defects of metal oxides together with electron propagation capacity, the existence of surface oxygen on AC leading to the lasting absorption of light, delayed charge recombination, and sustenance. In some cases, the lower photocatalytic performance of AC-supported metal oxides in comparison with bare metal oxides has also been reported, despite the higher SBET, Pd, and Pv. Velasco et al. [78] have found that the decreased photocatalytic performance of AC-TiO2 compared to AC was associated with the decrease in porosity and blockage of active sites in AC after the TiO2 deposition. This led to the weak interaction between the metal oxide and the carbon material [74,78]. Meanwhile, Adamu et al. [79] reported that despite similar SBET, Pd, and Pv of Cu2O/TiO2 and AC-Cu2O/TiO2, the photodegradation of nitrate and oxalic acid in aqueous solution was decreased for the latter as the AC shielded or scattered the light source.
CNT has received significant attention as an additive due to its high surface area, high-quality active sites, electron–hole pairs suppression, and visible light active catalyst. In addition, CNT promotes greater morphology control and tunable structural properties of CNT semiconductors. As presented in Table 3, incorporating CNT, either functionalized, single-walled, or multi-walled, onto various semiconductors increased the surface area but varied for Pv and Pd. For example, in the study by Natarajan et al. [94], the SBET, Pv, and Pd were increased with CNT incorporation. The adsorption capacity increased compared to bare ones, enhancing the photocatalytic degradation under visible light up to 89% by providing more active sites that reduced the rate of electron–hole pair recombination. On the other hand, Abega et al. [80] have reported a reduction in Pd and Pv but an increase in the SBET for functionalized CNT and CNT/TiO2, as presented in Figure 5c,d, respectively. They suggested that the CNT/TiO2 nanocomposite involving the formation of chemical bonds leads to the formation of new material with different characteristics. The removal of Methyl Orange dye was reportedly increased by 55.3% when using the composite photocatalyst. Meanwhile, Zhu et al. [91] reported the decrement in Pv at a low loading of CNT onto ZnCr but increased SBET by 1.5 times. The Pv reduction was caused by the stacked structure of irregular particles, while the increasing SBET was due to the introduction of functionalized CNT inner pores. According to the group, the removal of almost all BPA from the synthetic solution under visible light was by the synergistic effect between metal oxides and functionalized CNTs, facilitating an effective separation of photogenerated electron–hole pairs.
Graphene has recently gained significant attention as an additive for photocatalysts owing to its superior surface (specific surface area of 2630 m2 g−1), electrical, and chemical properties [122]. Furthermore, graphene’s high carrier mobility (200,000 cm2 V−1 S−1), provides interface charge separation, prevents electron–hole recombination, and is capable of extending visible light absorbance for enhancing photocatalytic activity and pollutant degradation [70,123]. As presented in Table 3, the incorporation of graphene in the composite increases the surface area in various degrees, hence, adsorption capacity. This consequently improved the performance of the composite photocatalysts, wherein up to more than 99% organic contaminants were found to be degraded [107,109,112]. As reported by Zhang et al. [109], rGO-incorporated BiVO4 has a higher adsorption capacity compared to bare BiVO4. This was due to the interaction between the dyes and oxygen-containing functional groups on rGO by hydrogen bonding, electrostatic, or formation of π–π interactions. More adsorption of organic contaminants resulted in a higher removal since photocatalytic degradation occurs on the surface of the photocatalyst. Similar results were obtained by Suave et al. [107]. Pretreating graphene oxide with ozone improved both the adsorption capacity and photocatalytic activity. The improved photocatalytic activity was attributed to the larger surface area of graphene, enhanced adsorption of Methylene Blue, and its capability in inhibiting recombination between the photogenerated electrons and holes. Excess loading of graphene oxide, however, hindered the absorption of radiation by the composite, thus reducing its performance [114]. In some cases, a reduction in SBET was obtained with graphene loading but improved adsorption capacity and photodegradation activity. For example, Chen et al. [82] reported a decrease in ZnO–graphene nanocomposites SBET compared to ZnO but an increase in adsorption capacity. According to their findings, the ZnO nanospheres were well-dispersed on the graphene framework and most of the metal oxides were well-wrapped in this carbonaceous material (Figure 5e). Two factors were identified as a contributor to higher photodegradation and removal of Methylene Blue from an aqueous solution, which improved adsorption capacity due to the stacking of π–π between Methylene Blue and the π-conjugation regions of the graphene nanosheets in the nanocomposites and increased optical absorption in the UV- and visible-light regions.
CQDs, which are a new form of zero-dimensional carbon-based materials with an average size of 10 nm, have attracted widespread attention in recent years. They are amorphous and sp3 hybridized with excellent chemical and physical properties, good dispersibility, and well-defined optical and electrical characteristics [124]. The sole benefit of CQDs in photocatalytic studies relies on their role in inhibiting photogenerated charge carrier recombination, expanding visible light region, and enhancing interaction with semiconductors in forming stable composites through its conjugated π structure [125]. The comprehensive roles and mechanisms of CQDs as photocatalyst additives for organic pollutant degradation were already summarised by Sharma et al. [124]. Table 3 illustrates the textural characteristics and performance of CQDs as additives to various semiconductors. Zhao et al. [115] reported that during the growth of CQDs, the porous structure was created in the BiOBr matrix, resulting in increased Pv and Pd. The SBET was also increased with the CQDs loading, improving the adsorptive performance of photocatalysts. The photocatalytic activity of BiOBr/CQDs materials on Rhodamine B and PNP was significantly increased under visible-light irradiation due to the excellent electron transfer ability and exceptional light-harvesting capacity of CQDs. Similar results were found by Zhang et al. [119] who have studied nitrogen-doped CDs/BiOBr nanocomposite photocatalysts. However, they reported that an appropriate amount of CDs was needed to provide a more active site and effective reactant transport for enhanced photodegradation. In several studies, as shown in Table 3, decrements in SBET, Pd, and Pv were also observed with an exceptional organic contaminant removal. For instance, Das et al. [81] and Miao et al. [117] reported that the adsorption of CQDs onto metal oxides might be the cause of decrement in the surface area. Even so, Miao et al. [117] stated that the mesoporous structure was preserved and the composite material showed an open mesoporous structure that might increase the active sites for the adsorption of organic molecules. This resulted in higher Methylene Blue removal compared to the bare photocatalyst.
Fullerene (e.g., C60 and C70) is an attractive additive for photocatalysts, responding strongly under UV light and moderately under visible light. It has a close shell configuration that can effectively separate photogenerated charge carriers, hence, functioning as an electron acceptor or electron donor when coupled with semiconductors. In the study by Ju et al. [126], adding C60 onto ZnAlTi layered double oxide affected the photodegradation of Bisphenol A in a certain way, though not very stable. The highest degradation was obtained at the highest adsorption capacity, contributed by the largest surface area photocatalyst. Similar results were obtained by Ma et al. [127] who have studied the photodegradation activity of C70/BiOCl photocatalysts. The added C70 onto BiOCl increased the SBET from 1.5 m2 g−1 for bare BiOCl to 11.0 m2 g−1 for C70/BiOCl, which promoted the greater surface-active site for the degradation of up to 99.1% of Rhodamine B.

2.2.3. Clay

Abundant and commercially available, clay minerals are promising support materials for photocatalyst due to their high specific surface area, large Pv, and good mechanical and stable chemical properties [128]. These natural minerals also have a layered structure, a high cationic exchange capacity, and adsorptive properties either on the surface or within the interlaminar spaces via intercalation and substitution. Nowadays, clay minerals have been applied more frequently in the preparation of hybrid photocatalysts. Several reviews regarding state-of-the-art, synthesis, and applications of clay for photocatalysis could be found in the literature [129,130]. A number of semiconductors have been used for preparing clay-incorporated photocatalysts including metal oxides (e.g., ZnO and TiO2), salts (e.g., ZnS and CdS), and silver/silver halides (e.g., Ag/AgCl and Ag/AgBr) by the commonly used methods of sol-gel, hydrothermal, and solution mixing [129].
Incorporation between clay minerals and semiconductors can alter the adsorption behavior of photocatalysts, and different properties can be attained for the photocatalytic activity of organic compounds removal depending on the surface property of the clay minerals. The heterogeneous porosity of clay-incorporated semiconductors originates from the growth of complex agglomerates, named the house-of-cards, where the clay-like layered particles are casually distributed. In addition, the exfoliation of the clay layers exposed the structure, initiating accessibility to the internal surface.
Table 4 presents several works on clay-incorporated photocatalysts. As reported by previous studies, such as the other discussed additives, incorporating clay into photoactive materials increased the SBET of the composite photocatalysts. In the study by Chen et al. [131], the adsorption of Methylene Blue increased from 20% to 68% as the SBET of TiO2/MMT composite increased from 68.5 m2 g−1 to 209.5 m2 g−1, which were higher than that of TiO2. With such a large surface area, the composite samples exhibit a binary function for removing organic compounds from water through both adsorption and photocatalysis. According to the study by Belver et al. [132], by increasing the relative amount of TiO2, not only a higher concentration of photocatalytic active phase was achieved, but the available surface area was also decreased. Therefore, there should be an optimum value of the titania/clay ratio for the highest photodegradation activity.
Other types of clay, namely, smectite and sepiolite, were also used in preparing the ZnO/clay composite [136]. After calcination, the mesoporosity was observed once the clays assembled to ZnO, with total Pv ranges from 0.20 cm3 g−1 to 0.37 cm3 g−1. The corresponding SBET increased from typical lower values ZnO to higher values composites, which increased the Methylene Blue photodegradation efficiency compared to bare ZnO nanoparticle. Bel Hadjltaief et al. [143] have also reported an improved SBET of the ZnO photocatalyst when natural Tunisian clay was used as a support. The adsorption capacity for the dye molecules increased with the discoloration efficiency, amounting to 32.1% and 40.3%, respectively. Further increment was observed under UV light up to 78.9% and 63.6%, respectively, for 120 min irradiation time. In recent studies, another stage of modification was carried out onto clay/metal oxide composites. Metal dopants were incorporated onto the composite to introduce new energy levels among the valence and conduction bands of the metal oxides. Belver et al. [137] have prepared Ce-doped TiO2/clay heterostructures through a modified sol-gel method to control the anatase crystallization, achieving high- photocatalytic water purification performance under solar light. The presence of Ce stabilizes and improves the porous network by reducing the size of the anatase crystallites. A too high amount of Ce, however, causes detrimental effects since the Ce levels incorporated into the TiO2 band gap act as recombination centers for the electron–hole pairs. Bel Hadjltaief et al. [147] have reported an enhanced SBET of ZnO–TiO2/clay photocatalyst, which is due to the creation of a porous TiO2 phase on the clay surface. Pv slightly decreased upon ZnO incorporation to the catalyst, pointing to a slight pore blockage of the TiO2 surface. The photocatalytic activity, however, was improved compared to TiO2/clay composites.
Belver et al. [139] reported that the Zr-doped TiO2/clay catalyst degraded more antipyrine at low concentrations compared to the undoped sample at high solar irradiation intensities. The resulting Zr-doped TiO2/clay materials showed high surface area values and a disordered mesoporous structure homogeneously distributed over the delaminated clay layer, reaching SBET values close to 200 m2 g−1. The Zr doping, however, causes a small reduction in the micropore surface area. Silvestri and Foletto [141] have reported the preparation and characterizations of Fe2O3/TiO2/clay plates to be used as photocatalysts in the decolorization of organic pollutants under solar irradiation. The results showed that the plate with more Fe2O3 content presented a higher surface area and flexural strength, and a smaller band gap and crystallite size. According to the report, the synergistic effect of different photocatalyst materials might have favored the superior photocatalytic activity for the dye decolorization; up to 91% after 45 min under solar irradiation.

2.2.4. Silica

The composites of silica and semiconductors may devise the photocatalytic property from semiconductors, the high surface area, the mechanical and thermal stabilities from silica, and the extra benefits deriving from the chemical bonds between the two materials. Its incorporation might also reduce the production cost. The reaction between TiO2 precursors and silica happens either directly with silanols or indirectly through hydrolysis into titania monomers first, then by condensation with silanols [148]. Different types of silica from different sources can be applied as a photocatalyst support, and the effect varies depending on the structural characteristics, which holds both advantages and disadvantages. Mesoporous silica [149,150], silica gel [151], silica aerogel [152], silica xerogel [153], silica nanosphere [154], and quartz [155] have been studied as support for photocatalyst materials.
The enhanced surface area of the composite catalyst and the photocatalytic activity have been proven by many studies. For example, in the study by Najafidoust et al. [152], the addition of silica aerogel to BiOI increased the SBET of BiOI from 66 m2 g−1 to 206.4 m2 g−1. This was caused by the alteration in the flower-like structure of BiOI, which became more open and spread after the modification (Figure 6a,b). As presented in Figure 6c,d, the adsorption and degradation of Methylene Blue on silica-incorporated BiOI photocatalysts were higher compared to bare BiOI. The higher surface area has caused more pollutants to be trapped on the photocatalyst surface and more active phases to be exposed to visible light, which produces many electron–hole pairs. Excess amounts of silica aerogel, however, deteriorated the catalyst performance caused by the high accumulation of dye on the catalyst.
Similar results were obtained by Li et al. [156]. In their work, Fe3O4@TiO2 core–shell microspheres and SiO2 aerogels from industrial fly ash were used to prepare a ternary magnetic composite of Fe3O4@TiO2/SiO2 aerogel. The incorporation of SiO2 increased the SBET from 68.59 m2 g−1 for Fe3O4@TiO2 to 94.96 m2 g−1 and improved particle dispersion with a reduced average aggregates size. Moreover, the higher concentration of reactant molecules around the TiO2 photoactive layer caused a more rapid interaction with hydroxyl radicals that are primarily localized on the SiO2 aerogel surface. This is advantageous for photocatalytic decomposition. The photodegradation was found to be improved at low catalyst concentration but deteriorated at a higher concentration due to the light scattering and decline in surface active sites.
Pakdel et al. [157] reported that TiO2/SiO2 nanocomposites have an increased SBET and smaller Pd and Pv by adding a small amount of silica in the composite. However, further increasing silica loading obtained lower SBET and larger Pd and Pv nanocomposites caused by the formation of larger aggregated particles and blockage of the mesoporous structures. The synthesized TiO2/SiO2 nanocomposites possessed a higher selectivity, in which the presence of silica significantly boosted the initial dye adsorption and discoloration. In another study, a new mesoporous silica-protected plasmonic photocatalyst, Au/BiOCl@mSiO2, was prepared using a modified AcHE method followed by the UV light-induced photodeposition process [150]. The SBET, Pd, and Pv were lower than those in BiOCl@mSiO2. However, the photocatalytic decomposition of formaldehyde and Rhodamine B was higher under visible-light irradiation. This indicates that instead of surface area and pore characteristics, another factor such as oxygen reduction plays a major role in photocatalytic degradation.

2.2.5. Zeolite

Over the decades, zeolites have attracted remarkable attention among researchers and scientists due to their adaptability and flexibility. Owing to a high surface area ranging from 400 m2 g−1 to 650 m2 g−1 and a large Pv of more than 0.1 cm3 g−1, they perform as good adsorbents, ion exchangers, and molecular sieves. The strategies in expanding zeolite’s potential in a variety of scientific, industrial, and day-to-day applications continue thus far. Zeolites in water and wastewater photocatalysis are not unconventional. By having dual adsorptive and semiconducting traits, they are usually applied by photoactiving the rigid crystalline framework (Figure 7a) or by encapsulating with photoactive hosts (Figure 7b).
In a photocatalysis study, the incorporation of zeolite might not directly adsorb or degrade the organic contaminant. It could act as a support to finely dispersed semiconductors and thus improve the overall photocatalyst performance. Karimi-Shamsabadi and Nezamzadeh-Ejhieh [159] have reported that without nanoclinoptilolite support, the agglomeration of MnO-Ag2O particles caused the performance to have greatly deteriorated. Even though the nanoclinoptilolite has a relatively insignificant adsorption capacity and no photocatalytic properties, it performed as a stable host for MnO–Ag2O particles, protected the loaded metals from photocorrosion, and prevented electron–hole recombination for enhanced photocatalytic activity. In addition, nanocrystalline zeolites, which have greater external surface areas and reduced diffusion path lengths, could improve the electrons/holes transport to the photocatalyst surface before recombination. Guesh et al. [138] have also reported similar roles of zeolite in the TiO2/zeolite hybrid system for Methyl Orange removal.
Table 4 presents several works on zeolite-incorporated photocatalyst for removing organic contaminants. The ideal incorporation between zeolites and photoactive materials might promote a uniform pore size, higher surface area, polar environment, more internal active sites, and the exceptional adsorptive ability for enhanced photocatalytic activity efficiency [160].
In the findings by Zhang et al. [135], the SBET of TiO2/MoS2@zeolite and TiO2@zeolite composites was higher than that of zeolite but decreased in Pd. This was attributed to the uniform distribution of nano-TiO2 or TiO2/MoS2 onto the zeolite surface, prompted by the formation of some new quasi pores or micro-protrudes that led to the decrease in TiO2 agglomeration. Meanwhile, the TiO2/MoS2@zeolite composite compared to TiO2@zeolite composite has a lower SBET and a higher Pd. This was due to the more aggregation-adhesion of TiO2 and the formation of more mesopores or macropores by the coupling of TiO2 and MoS2. The removal of Methyl Orange by TiO2/MoS2@zeolite composite was still the highest, achieving 95%, due to the synergistic effect of improved TiO2/MoS2/zeolite adsorption capacity and photoactivity.
Similar results were found by Phan et al. [146]. The higher surface area of LaFeO3-zeolite than that of zeolite resulted in the higher removal rate of Rhodamine B of up to 97.6%, in which 14.5% removal was under dark conditions and, therefore, could largely facilitate the subsequent photo-Fenton degradation under visible light. Meanwhile, Chakraborty et al. [145] have reported that a greater removal of Rhodamine 6G by CuO/ZIF-8 might be ascribed to the higher specific surface area by nearly two times and enhanced light-harvesting properties. However, it should be noted that the photodegradation efficiency decreased for the higher loading of the metal oxides on ZIF-8. A too high nanoparticle loading causes aggregation that covers most of the ZIF-8 external surface in the nanocomposites. The specific surface area decreased, inhibiting the transfer efficiency of charge carriers in ZIF-8.
On the other hand, several studies have reported contradictory results, in which a higher organic contaminant removal was found at a lower surface area. For example, in the study by Nassar and Abdelrahman [161], the photoactivation of zeolite nanostructure by synthesis with aluminum-based precursors using a hydrothermal route resulted in different phases and crystallite sizes. Different precursors such as aluminum, aluminum isopropoxide, alumina, and sodium aluminate metals resulted in various phases of zeolite. The zeolite products, prepared using sodium aluminate precursor, have shown a greater performance, despite its lowest surface area. According to the study, the intra-particle, film, and bulk diffusion were reported as the rate-controlling mechanism of Methylene Blue adsorption. The removal efficiency increased with contact time and achieved 83.28% in 60 min by the adsorption process. Further removal was enhanced by photocatalytic degradation under UV light and reached about 100% within 180 min.
Similar results were obtained by Liao et al. [158]. The prepared composite zeolite-TiO2 photocatalyst, which has a lower surface area (293 m2 g−1) than that of zeolite (392 m2 g−1), has a higher Methylene Blue removal efficiency up to 93.6% within 60 min. The lower surface area was due to the TiO2 filling onto the mesopores of the zeolite that led to the formation of stack holes. Zeolite itself is a good adsorbent, contributing to the removal of Methylene Blue. However, the modified zeolite/TiO2 composite provided abundant TiO2 active sites and a high concentration of pollutants, thus accelerating the photocatalysis reaction.

3. Conclusions and Future Outlooks

This review summarises the effects of various doping and additives on the photocatalysts’ textural properties, with an emphasis on the organic contaminants’ removal efficiencies. The doping and additives incorporation could promote more efficient photocatalytic degradation with altered textural properties. The prevailing ideas of the improved surface area and porosity that resulted in a higher photocatalytic activity are unlikely to be true in every study. The role of surface area in the adsorption and photodegradation activities is highlighted in most studies, and its significance is comprehensively discussed in some literature. However, this is different in the case of porosity. Inclusive relevant discussions are scarce even though the role of porosity in molecules transport for adsorption and photodegradation is certain. This is important to determine the major factors in photodegradation and to define the synergistic between factors, if available.
In the light of our awareness and knowledge of the rise, existing and new problems are raised for the future. Anticipated research into photocatalysis is likely to grow rapidly, and the use of doping and additives as modification pathways is obvious due to their excellent advantages and the expansion of opportunities to revolutionize water and wastewater treatment. Even though photocatalysis involves complicated competing steps with multiple synergistic factors, the maximum utilization of light source and charge carrier transportation are the main considerations in designing high-performance photocatalysts. Controlling the desired surface area and the spatial and temporal distribution of the pores, which are among important factors in designing and optimizing photocatalysts, are yet to be resolved.

Author Contributions

Conceptualization, F.A.; writing—original draft preparation, S.S.M.; writing—review and editing, F.A.; supervision, F.A. and B.O.; project administration, N.S.S., H.A., A.N.R. and A.F.I.; funding acquisition, F.A. and B.O. All authors have read and agreed to the published version of the manuscript.

Funding

We gratefully acknowledge financial support from the Japan International Cooperation Agency (JICA) (grant number: R.J130000.7351.4B610) and the Universiti Teknologi Malaysia, Malaysia under Collaborative Research Grant (CRG) (grant number: Q.J130000.2451.08G35).

Data Availability Statement

Data sharing not applicable—no new data generated.

Conflicts of Interest

The authors declare that they have no conflict of interest.

Abbreviation

1,2-DCE1,2-dichloroethane
4NCB1-chloro-4-nitrobenzene
ACActivated carbon
BETBrunauer, Emmett, and Teller
CDsCarbon dots
CLSCalcium lignosulfonate
CNTCarbon nanotube
CQDsCarbon quantum dots
CTABCetyltrimethylammonium bromide
DEADiethanolamine
FESEMField emission scanning electron microscopy
HRSEMHigh-resolution scanning electron microscopy
HRTEM High-resolution transmission electron microscopy
HTABHexadecyltrimethylammonium bromide
MMTMontmorillonite
PdPore size
PEGPolyethylene glycol
PvPore volume
rGOReduced graphene oxide
SBETSpecific BET surface area
SDBSSodium dodecylbenzenesulfonate
SDSSodium dodecyl sulfate
SEMScanning electron microscopy
TCTetracycline hydrochloride
TEMTransmission electron microscopy
UVUltraviolet
ZIF-8Zeolitic imidazolate framework

References

  1. Ameta, R.; Solanki, M.S.; Benjamin, S.; Ameta, S.C. Chapter 6—Photocatalysis. In Advanced Oxidation Processes for Waste Water Treatment; Ameta, S.C., Ameta, R., Eds.; Academic Press: Cambridge, MA, USA, 2018; pp. 135–175. [Google Scholar]
  2. Byrne, C.; Subramanian, G.; Pillai, S.C. Recent advances in photocatalysis for environmental applications. J. Environ. Chem. Eng. 2018, 6, 3531–3555. [Google Scholar] [CrossRef]
  3. Pelaez, M.; Nolan, N.T.; Pillai, S.C.; Seery, M.K.; Falaras, P.; Kontos, A.G.; Dunlop, P.S.M.; Hamilton, J.W.J.; Byrne, J.A.; O’Shea, K.; et al. A review on the visible light active titanium dioxide photocatalysts for environmental applications. Appl. Catal. B 2012, 125, 331–349. [Google Scholar] [CrossRef] [Green Version]
  4. Hashem, A.M.; Abdel-Ghany, A.E.; Abuzeid, H.M.; El-Tawil, R.S.; Indris, S.; Ehrenberg, H.; Mauger, A.; Julien, C.M. EDTA as chelating agent for sol-gel synthesis of spinel LiMn2O4 cathode material for lithium batteries. J. Alloy. Compd. 2018, 737, 758–766. [Google Scholar] [CrossRef]
  5. Li, L.; Xu, M.; Chen, Z.; Zhou, X.; Zhang, Q.; Zhu, H.; Wu, C.; Zhang, K. High-performance lithium-rich layered oxide materials: Effects of chelating agents on microstructure and electrochemical properties. Electrochim. Acta 2015, 174, 446–455. [Google Scholar] [CrossRef]
  6. Gosavi, P.V.; Biniwale, R.B. Pure phase LaFeO3 perovskite with improved surface area synthesized using different routes and its characterization. Mater. Chem. Phys. 2010, 119, 324–329. [Google Scholar] [CrossRef]
  7. Khaledi, A.G.; Afshar, S.; Jahromi, H.S. Improving ZnAl2O4 structure by using chelating agents. Mater. Chem. Phys. 2012, 135, 855–862. [Google Scholar] [CrossRef]
  8. Tabesh, S.; Davar, F.; Loghman-Estarki, M.R. The effects of chelating agent type on the morphology and phase evolutions of alumina nanostructures. Ceram. Int. 2017, 43, 10247–10252. [Google Scholar] [CrossRef]
  9. Basavarajappa, P.S.; Patil, S.B.; Ganganagappa, N.; Reddy, K.R.; Raghu, A.V.; Reddy, C.V. Recent progress in metal-doped TiO2, non-metal doped/codoped TiO2 and TiO2 nanostructured hybrids for enhanced photocatalysis. Int. J. Hydrog. Energy 2020, 45, 7764–7778. [Google Scholar] [CrossRef]
  10. Chen, D.; Cheng, Y.; Zhou, N.; Chen, P.; Wang, Y.; Li, K.; Huo, S.; Cheng, P.; Peng, P.; Zhang, R.; et al. Photocatalytic degradation of organic pollutants using TiO2-based photocatalysts: A review. J. Clean. Prod. 2020, 268, 121725. [Google Scholar] [CrossRef]
  11. Dong, H.; Zeng, G.; Tang, L.; Fan, C.; Zhang, C.; He, X.; He, Y. An overview on limitations of TiO2-based particles for photocatalytic degradation of organic pollutants and the corresponding countermeasures. Water Res. 2015, 79, 128–146. [Google Scholar] [CrossRef]
  12. Jamzad, Z. Thymus and Satureja of Iran; Research Institute of Forests and Rangelands Press: Tehran, Iran, 2009. [Google Scholar]
  13. Umezawa, N.; Ye, J. Role of complex defects in photocatalytic activities of nitrogen-doped anatase TiO2. Phys. Chem. Chem. Phys. 2012, 14, 5924–5934. [Google Scholar] [CrossRef]
  14. Hong, S.P.; Kim, S.; Kim, N.; Yoon, J.; Kim, C. A short review on electrochemically self-doped TiO2 nanotube arrays: Synthesis and applications. Korean J. Chem. Eng. 2019, 36, 1753–1766. [Google Scholar] [CrossRef]
  15. Mishra, S.; Yogi, P.; Saxena, S.K.; Jayabalan, J.; Behera, P.; Sagdeo, P.R.; Kumar, R. Significant field emission enhancement in ultrathin nano-thorn covered NiO nano-petals. J. Mater. Chem. C 2017, 5, 9611–9618. [Google Scholar] [CrossRef]
  16. Grimes, C.A.; Mor, G.K. TiO2 Nanotube Arrays-Synthesis, Properties, and Applications; Springer: New York, NY, USA, 2009. [Google Scholar]
  17. Roy, P.; Berger, S.; Schmuki, P. TiO2 nanotubes: Synthesis and applications. Angew. Chem. Int. Ed. 2011, 50, 2904–2939. [Google Scholar] [CrossRef]
  18. Salari, M.; Aboutalebi, S.H.; Konstantinov, K.; Liu, H.K. A highly ordered titania nanotube array as a supercapacitor electrode. Phys. Chem. Chem. Phys. 2011, 13, 5038–5041. [Google Scholar] [CrossRef] [Green Version]
  19. Wen, M.; Zhang, S.; Dai, W.; Li, G.; Zhang, D. In situ synthesis of Ti3+ self-doped mesoporous TiO2 as a durable photocatalyst for environmental remediation. Chin. J. Catal. 2015, 36, 2095–2102. [Google Scholar] [CrossRef]
  20. Collazzo, G.C.; Jahn, S.L.; Carreño, N.L.V.; Foletto, E.L. Temperature and reaction time effects on the structural properties of titanium dioxide nanopowders obtained via the hydrothermal method. Braz. J. Chem. Eng. 2011, 28, 265–272. [Google Scholar] [CrossRef] [Green Version]
  21. Fang, W.; Xing, M.; Zhang, J. A new approach to prepare Ti3+ self-doped TiO2 via NaBH4 reduction and hydrochloric acid treatment. Appl. Catal. B 2014, 160–161, 240–246. [Google Scholar] [CrossRef]
  22. Kim, C.; Lee, S.; Kim, S.; Yoon, J. Effect of annealing temperature on the capacitive and oxidant-generating properties of an electrochemically reduced TiO2 nanotube array. Electrochim. Acta 2016, 222, 1578–1584. [Google Scholar] [CrossRef]
  23. Zhang, X.; Du, L.; Wang, H.; Dong, X.; Zhang, X.; Ma, C.; Ma, H. Highly ordered mesoporous BiVO4: Controllable ordering degree and super photocatalytic ability under visible light. Microporous Mesoporous Mater. 2013, 173, 175–180. [Google Scholar] [CrossRef]
  24. Wang, S.; Yang, X.; Wang, Y.; Liu, L.; Guo, Y.; Guo, H. Morphology-controlled synthesis of Ti3+ self-doped yolk–shell structure titanium oxide with superior photocatalytic activity under visible light. J. Solid State Chem. 2014, 213, 98–103. [Google Scholar] [CrossRef]
  25. Ding, Y.; Yang, F.; Zhu, L.; Wang, N.; Tang, H. Bi3+ self doped NaBiO3 nanosheets: Facile controlled synthesis and enhanced visible light photocatalytic activity. Appl. Catal. B 2015, 164, 151–158. [Google Scholar] [CrossRef]
  26. Dong, G.; Hou, J.; Wang, J.; Zhang, Y.; Chen, V.; Liu, J. Enhanced CO2/N2 separation by porous reduced graphene oxide/Pebax mixed matrix membranes. J. Membr. Sci. 2016, 520, 860–868. [Google Scholar] [CrossRef]
  27. Wu, D.; Yue, S.; Wang, W.; An, T.; Li, G.; Ye, L.; Yip, H.Y.; Wong, P.K. Influence of photoinduced Bi-related self-doping on the photocatalytic activity of BiOBr nanosheets. Appl. Surf. Sci. 2017, 391, 516–524. [Google Scholar] [CrossRef]
  28. Xu, Q.; Xu, G.; Yu, Q.; Yang, K.; Li, H. Nitrogen self-doped high specific surface area graphite carbon nitride for photocatalytic degradating of methylene blue. J. Nanopart. Res. 2019, 21, 224. [Google Scholar] [CrossRef]
  29. Jiang, L.; Yuan, X.; Zeng, G.; Liang, J.; Wu, Z.; Yu, H.; Mo, D.; Wang, H.; Xiao, Z.; Zhou, C. Nitrogen self-doped g-C3N4 nanosheets with tunable band structures for enhanced photocatalytic tetracycline degradation. J. Colloid Interface Sci. 2019, 536, 17–29. [Google Scholar] [CrossRef]
  30. Vieira, G.B.; Scaratti, G.; Rodembusch, F.S.; De Amorim, S.M.; Peterson, M.; Puma, G.L.; Moreira, R.D.F.P.M. Tuning the photoactivity of TiO2 nanoarchitectures doped with cerium or neodymium and application to colour removal from wastewaters. Environ. Technol. 2021, 42, 1038–1052. [Google Scholar] [CrossRef]
  31. Gao, X.; Zhou, B.; Yuan, R. Doping a metal (Ag, Al, Mn, Ni and Zn) on TiO2 nanotubes and its effect on Rhodamine B photocatalytic oxidation. Environ. Eng. Res. 2015, 20, 329–335. [Google Scholar] [CrossRef] [Green Version]
  32. Mecha, A.C.; Onyango, M.S.; Ochieng, A.; Jamil, T.S.; Fourie, C.J.S.; Momba, M.N.B. UV and solar light photocatalytic removal of organic contaminants in municipal wastewater. Sep. Sci. Technol. 2016, 51, 1765–1778. [Google Scholar] [CrossRef]
  33. Sahoo, C.; Gupta, A.K. Characterization and photocatalytic performance evaluation of various metal ion-doped microstructured TiO2 under UV and visible light. J. Environ. Sci. Health A 2015, 50, 659–668. [Google Scholar] [CrossRef]
  34. Dutta, D.P.; Ramakrishnan, M.; Roy, M.; Kumar, A. Effect of transition metal doping on the photocatalytic properties of FeVO4 nanoparticles. J. Photochem. Photobiol. A 2017, 335, 102–111. [Google Scholar] [CrossRef]
  35. Singh, J.; Rathi, A.; Rawat, M.; Kumar, V.; Kim, K.-H. The effect of manganese doping on structural, optical, and photocatalytic activity of zinc oxide nanoparticles. Compos. B Eng. 2019, 166, 361–370. [Google Scholar] [CrossRef]
  36. Venkataswamy, P.; Jampaiah, D.; Kandjani, A.E.; Sabri, Y.M.; Reddy, B.M.; Vithal, M. Transition (Mn, Fe) and rare earth (La, Pr) metal doped ceria solid solutions for high performance photocatalysis: Effect of metal doping on catalytic activity. Res. Chem. Intermed. 2018, 44, 2523–2543. [Google Scholar] [CrossRef]
  37. Tekin, G.; Ersöz, G.; Atalay, S. Visible light assisted Fenton oxidation of tartrazine using metal doped bismuth oxyhalides as novel photocatalysts. J. Environ. Manag. 2018, 228, 441–450. [Google Scholar] [CrossRef] [PubMed]
  38. Hinojosa-Reyes, M.; Camposeco-Solis, R.; Ruiz, F.; Rodríguez-González, V.; Moctezuma, E. Promotional effect of metal doping on nanostructured TiO2 during the photocatalytic degradation of 4-chlorophenol and naproxen sodium as pollutants. Mater. Sci. Semicond. Process. 2019, 100, 130–139. [Google Scholar] [CrossRef]
  39. Mohd Yatim, A.A.; Ismail, N.A.; Hamid, M.R.Y.; Mohd Adnan, M.A.; Phoon, B.L.; Johan, M.R.; Lee, K.M. Vanadium and nitrogen co-doped titanium dioxide (TiO2) with enhanced photocatalytic performance: Potential in wastewater treatment. J. Nanosci. Nanotechnol. 2020, 20, 741–751. [Google Scholar] [CrossRef] [PubMed]
  40. Lin, Y.-H.; Chou, S.-H.; Chu, H. A kinetic study for the degradation of 1,2-dichloroethane by S-doped TiO2 under visible light. J. Nanopart. Res. 2014, 16, 2539. [Google Scholar] [CrossRef]
  41. Zhou, Y.; Zhang, L.; Liu, J.; Fan, X.; Wang, B.; Wang, M.; Ren, W.; Wang, J.; Li, M.; Shi, J. Brand new P-doped g-C3N4: Enhanced photocatalytic activity for H2 evolution and Rhodamine B degradation under visible light. J. Mater. Chem. A 2015, 3, 3862–3867. [Google Scholar] [CrossRef]
  42. Guo, M.; Wang, Y.; He, Q.; Wang, W.; Wang, W.; Fu, Z.; Wang, H. Enhanced photocatalytic activity of S-doped BiVO4 photocatalysts. RSC Adv. 2015, 5, 58633–58639. [Google Scholar] [CrossRef]
  43. Bakar, S.A.; Ribeiro, C. Rapid and morphology controlled synthesis of anionic S-doped TiO2 photocatalysts for the visible-light-driven photodegradation of organic pollutants. RSC Adv. 2016, 6, 36516–36527. [Google Scholar] [CrossRef]
  44. Liu, Z.; Liu, J.; Wang, H.; Cao, G.; Niu, J. Boron-doped bismuth oxybromide microspheres with enhanced surface hydroxyl groups: Synthesis, characterization and dramatic photocatalytic activity. J. Colloid Interface Sci. 2016, 463, 324–331. [Google Scholar] [CrossRef] [PubMed]
  45. Zhang, S.; Wang, D.; Song, L. A novel F-doped BiOCl photocatalyst with enhanced photocatalytic performance. Mater. Chem. Phys. 2016, 173, 298–308. [Google Scholar] [CrossRef]
  46. Bezerra, P.C.S.; Calvacante, R.P.; Garcia, A.; Wender, H.; Martines, M.A.U.; Casagrande, G.A.; Giménez, J.; Marco, P.; Oliveira, S.C.; Machulek, A., Jr. Synthesis, characterization, and photocatalytic activity of pure and N-, B-, or Ag-doped TiO2. Braz. J. Chem. Eng. 2017, 28, 1788–1802. [Google Scholar] [CrossRef]
  47. Liu, Z.; Sun, K.; Wei, M.; Ma, Z. Phosphorus-doped cerium vanadate nanorods with enhanced photocatalytic activity. J. Colloid Interface Sci. 2018, 531, 618–627. [Google Scholar] [CrossRef]
  48. Dindar, B.; Güler, A.C. Comparison of facile synthesized N doped, B doped and undoped ZnO for the photocatalytic removal of Rhodamine B. Environ. Nanotechnol. Monit. Manag. 2018, 10, 457–466. [Google Scholar] [CrossRef]
  49. Chen, X.; Sun, H.; Zhang, J.; Guo, Y.; Kuo, D.-H. Cationic S-doped TiO2/SiO2 visible-light photocatalyst synthesized by co-hydrolysis method and its application for organic degradation. J. Mol. Liq. 2019, 273, 50–57. [Google Scholar] [CrossRef]
  50. Peter, C.N.; Anku, W.W.; Sharma, R.; Joshi, G.M.; Shukla, S.K.; Govender, P.P. N-doped ZnO/graphene oxide: A photostable photocatalyst for improved mineralization and photodegradation of organic dye under visible light. Ionics 2019, 25, 327–339. [Google Scholar] [CrossRef]
  51. El-Sheikh, S.M.; Zhang, G.; El-Hosainy, H.M.; Ismail, A.A.; O’Shea, K.E.; Falaras, P.; Kontos, A.G.; Dionysiou, D.D. High performance sulfur, nitrogen and carbon doped mesoporous anatase–brookite TiO2 photocatalyst for the removal of microcystin-LR under visible light irradiation. J. Hazard. Mater. 2014, 280, 723–733. [Google Scholar] [CrossRef]
  52. Wang, M.; Niu, C.; Liu, J.; Wang, Q.; Yang, C.; Zheng, H. Effective visible light-active nitrogen and samarium co-doped BiVO4 for the degradation of organic pollutants. J. Alloy. Compd. 2015, 648, 1109–1115. [Google Scholar] [CrossRef]
  53. Zhao, J.; Ma, L.; Wang, H.; Zhao, Y.; Zhang, J.; Hu, S. Novel band gap-tunable K–Na co-doped graphitic carbon nitride prepared by molten salt method. Appl. Surf. Sci. 2015, 332, 625–630. [Google Scholar] [CrossRef]
  54. Jin, Z.; Duan, W.; Duan, W.; Liu, B.; Chen, X.; Yang, F.; Guo, J. Indium doped and carbon modified P25 nanocomposites with high visible-light sensitivity for the photocatalytic degradation of organic dyes. Appl. Catal. A 2016, 517, 129–140. [Google Scholar] [CrossRef] [Green Version]
  55. Bhatia, V.; Ray, A.K.; Dhir, A. Enhanced photocatalytic degradation of ofloxacin by co-doped titanium dioxide under solar irradiation. Sep. Purif. Technol. 2016, 161, 1–7. [Google Scholar] [CrossRef]
  56. Fakhri, A.; Behrouz, S.; Asif, M.; Tyagi, I.; Agarwal, S.; Gupta, V.K. Synthesis, structural and morphological characteristics of NiO nanoparticles co-doped with boron and nitrogen. J. Mol. Liq. 2016, 213, 326–331. [Google Scholar] [CrossRef]
  57. Irfan, S.; Li, L.; Saleemi, A.S.; Nan, C.-W. Enhanced photocatalytic activity of La3+ and Se4+ co-doped bismuth ferrite nanostructures. J. Mater. Chem. A 2017, 5, 11143–11151. [Google Scholar] [CrossRef]
  58. El-Sheikh, S.M.; Khedr, T.M.; Hakki, A.; Ismail, A.A.; Badawy, W.A.; Bahnemann, D.W. Visible light activated carbon and nitrogen co-doped mesoporous TiO2 as efficient photocatalyst for degradation of ibuprofen. Sep. Purif. Technol. 2017, 173, 258–268. [Google Scholar] [CrossRef]
  59. Alam, U.; Khan, A.; Raza, W.; Khan, A.; Bahnemann, D.; Muneer, M. Highly efficient Y and V co-doped ZnO photocatalyst with enhanced dye sensitized visible light photocatalytic activity. Catal. Today 2017, 284, 169–178. [Google Scholar] [CrossRef]
  60. Zhu, X.; Pei, L.; Zhu, R.; Jiao, Y.; Tang, R.; Feng, W. Preparation and characterization of Sn/La co-doped TiO2 nanomaterials and their phase transformation and photocatalytic activity. Sci. Rep. 2018, 8, 12387. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Zhang, H.; Han, X.; Yu, H.; Zou, Y.; Dong, X. Enhanced photocatalytic performance of boron and phosphorous co-doped graphitic carbon nitride nanosheets for removal of organic pollutants. Sep. Purif. Technol. 2019, 226, 128–137. [Google Scholar] [CrossRef]
  62. Sun, H.; Yao, T.; Xie, X.; Lu, Y.; Wang, Y.; Xu, Z.; Han, J.; Chen, X. Ni, Eu-Co doping effect on the photocatalytic activity and magnetic recyclability in multifunctional single-phase photocatalysts Bi5FeTi3O15. J. Colloid Interface Sci. 2019, 534, 499–508. [Google Scholar] [CrossRef] [PubMed]
  63. Huang, F.; Yan, A.; Zhao, H. Influences of Doping on Photocatalytic Properties of TiO2 Photocatalyst. In Semiconductor Photocatalysis—Materials, Mechanisms and Applications; Cao, W., Ed.; IntechOpen: London, UK, 2016. [Google Scholar]
  64. Wei, J.; Wen, X.; Zhu, F. Influence of surfactant on the morphology and photocatalytic activity of anatase TiO2 by solvothermal synthesis. J. Nanomater. 2018, 2018, 3086269. [Google Scholar] [CrossRef]
  65. Mohamed, R.M.; Ismail, A.A. Impact of surfactant ratios on mesostructured MnFe2O4 nanocomposites and their photocatalytic performance. Ceram. Int. 2020, 46, 10925–10933. [Google Scholar] [CrossRef]
  66. Wang, J.; Yang, J.; Li, X.; Feng, B.; Wei, B.; Wang, D.; Zhai, H.; Song, H. Effect of surfactant on the morphology of ZnO nanopowders and their application for photodegradation of rhodamine B. Powder Technol. 2015, 286, 269–275. [Google Scholar] [CrossRef]
  67. Ozturk, B.; Pozan Soylu, G.S. Synthesis of surfactant-assisted FeVO4 nanostructure: Characterization and photocatalytic degradation of phenol. J. Mol. Catal. A Chem. 2015, 398, 65–71. [Google Scholar] [CrossRef]
  68. Sheikhnejad, O.; Feng, Z.; Rajabtabar, A.; Khodadad, E.; Mostofizadeh, A.; Huang, Y. Influence of temperature and surfactant on the photocatalytic performance of TiO2 Nanoparticles. Int. J. Electrochem. Sci. 2014, 9, 4230–4240. [Google Scholar]
  69. Hao, C.; Wang, J.; Cheng, Q.; Bai, Y.; Wang, X.; Yang, Y. Anionic surfactants-assisted solution-phase synthesis of ZnO with improved photocatalytic performance. J. Photochem. Photobiol. A 2017, 332, 384–390. [Google Scholar] [CrossRef]
  70. Khalid, N.R.; Majid, A.; Tahir, M.B.; Niaz, N.A.; Khalid, S. Carbonaceous-TiO2 nanomaterials for photocatalytic degradation of pollutants: A review. Ceram. Int. 2017, 43, 14552–14571. [Google Scholar] [CrossRef]
  71. Zhang, H.; Lv, X.; Li, Y.; Wang, Y.; Li, J. P25-graphene composite as a high performance photocatalyst. ACS Nano 2010, 4, 380–386. [Google Scholar] [CrossRef]
  72. Martins, A.C.; Cazetta, A.L.; Pezoti, O.; Souza, J.R.B.; Zhang, T.; Pilau, E.J.; Asefa, T.; Almeida, V.C. Sol-gel synthesis of new TiO2/activated carbon photocatalyst and its application for degradation of tetracycline. Ceram. Int. 2017, 43, 4411–4418. [Google Scholar] [CrossRef]
  73. Serp, P.; Corrias, M.; Kalck, P. Carbon nanotubes and nanofibers in catalysis. Appl. Catal. A 2003, 253, 337–358. [Google Scholar] [CrossRef]
  74. Velasco, L.F.; Parra, J.B.; Ania, C.O. Role of activated carbon features on the photocatalytic degradation of phenol. Appl. Surf. Sci. 2010, 256, 5254–5258. [Google Scholar] [CrossRef] [Green Version]
  75. Suresh, P.; Vijaya, J.J.; Kennedy, L.J. Photocatalytic degradation of textile dyeing wastewater through microwave synthesized Zr-AC, Ni-AC and Zn-AC. Trans. Nonferrous Met. Soc. China 2015, 25, 4216–4225. [Google Scholar] [CrossRef]
  76. Nguyen, C.H.; Tran, H.N.; Fu, C.-C.; Lu, Y.-T.; Juang, R.-S. Roles of adsorption and photocatalysis in removing organic pollutants from water by activated carbon–supported titania composites: Kinetic aspects. J. Taiwan Inst. Chem. Eng. 2020, 109, 51–61. [Google Scholar] [CrossRef]
  77. El-Salamony, R.A.; Amdeha, E.; Badawy, N.A.; Ghoneim, S.A.; Al-Sabagh, A.M. Visible light sensitive activated carbon-metal oxide (TiO2, WO3, NiO, and SnO) nano-catalysts for photo-degradation of methylene blue: A comparative study. Toxicol. Environ. Chem. 2018, 100, 143–156. [Google Scholar] [CrossRef]
  78. Velasco, L.F.; Fonseca, I.M.; Parra, J.B.; Lima, J.C.; Ania, C.O. Photochemical behaviour of activated carbons under UV irradiation. Carbon 2012, 50, 249–258. [Google Scholar] [CrossRef] [Green Version]
  79. Adamu, H.; McCue, A.J.; Taylor, R.S.F.; Manyar, H.G.; Anderson, J.A. Simultaneous photocatalytic removal of nitrate and oxalic acid over Cu2O/TiO2 and Cu2O/TiO2-AC composites. Appl. Catal. B 2017, 217, 181–191. [Google Scholar] [CrossRef]
  80. Abega, A.V.; Ngomo, H.M.; Nongwe, I.; Mukaya, H.E.; Sone, P.-M.A.K.; Mbianda, X.Y. Easy and convenient synthesis of CNT/TiO2 nanohybrid by in-surface oxidation of Ti3+ ions and application in the photocatalytic degradation of organic contaminants in water. Synth. Met. 2019, 251, 1–14. [Google Scholar] [CrossRef]
  81. Das, R.K.; Kar, J.P.; Mohapatra, S. Enhanced photodegradation of organic pollutants by carbon quantum dot (CQD) deposited Fe3O4@mTiO2 nano-pom-pom balls. Ind. Eng. Chem. Res. 2016, 55, 5902–5910. [Google Scholar] [CrossRef]
  82. Chen, D.; Wang, D.; Ge, Q.; Ping, G.; Fan, M.; Qin, L.; Bai, L.; Lv, C.; Shu, K. Graphene-wrapped ZnO nanospheres as a photocatalyst for high performance photocatalysis. Thin Solid Films 2015, 574, 1–9. [Google Scholar] [CrossRef]
  83. Gar Alalm, M.; Tawfik, A.; Ookawara, S. Enhancement of photocatalytic activity of TiO2 by immobilization on activated carbon for degradation of pharmaceuticals. J. Environ. Chem. Eng. 2016, 4, 1929–1937. [Google Scholar] [CrossRef]
  84. Gamage McEvoy, J.; Zhang, Z. Synthesis and characterization of Ag/AgBr–activated carbon composites for visible light induced photocatalytic detoxification and disinfection. J. Photochem. Photobiol. A 2016, 321, 161–170. [Google Scholar] [CrossRef]
  85. Cheng, S.; Chen, Q.; Xia, H.; Zhang, L.; Peng, J.; Lin, G.; Liao, X.; Jiang, X.; Zhang, Q. Microwave one-pot production of ZnO/Fe3O4/activated carbon composite for organic dye removal and the pyrolysis exhaust recycle. J. Clean. Prod. 2018, 188, 900–910. [Google Scholar] [CrossRef]
  86. Mahmoodi, N.M.; Abdi, J.; Taghizadeh, M.; Taghizadeh, A.; Hayati, B.; Shekarchi, A.A.; Vossoughi, M. Activated carbon/metal-organic framework nanocomposite: Preparation and photocatalytic dye degradation mathematical modeling from wastewater by least squares support vector machine. J. Environ. Manag. 2019, 233, 660–672. [Google Scholar] [CrossRef]
  87. Yang, Y.; Jin, H.; Liu, R.; Gan, H.; Wei, X. Dispersion of Ag–AgBr particles in activated carbon as a recyclable photocatalyst for adsorption and degradation of pollutants. J. Dispers. Sci. Technol. 2020, 41, 81–91. [Google Scholar] [CrossRef]
  88. Aazam, E.S. Visible light photocatalytic degradation of thiophene using Ag–TiO2/multi-walled carbon nanotubes nanocomposite. Ceram. Int. 2014, 40, 6705–6711. [Google Scholar] [CrossRef]
  89. Ahmad, M.; Ahmed, E.; Hong, Z.L.; Ahmed, W.; Elhissi, A.; Khalid, N.R. Photocatalytic, sonocatalytic and sonophotocatalytic degradation of Rhodamine B using ZnO/CNTs composites photocatalysts. Ultrason. Sonochem. 2014, 21, 761–773. [Google Scholar] [CrossRef] [PubMed]
  90. Mokhtar Mohamed, M.; Osman, G.; Khairou, K.S. Fabrication of Ag nanoparticles modified TiO2–CNT heterostructures for enhanced visible light photocatalytic degradation of organic pollutants and bacteria. J. Environ. Chem. Eng. 2015, 3, 1847–1859. [Google Scholar] [CrossRef]
  91. Zhu, Y.; Wu, P.; Yang, S.; Lu, Y.; Li, W.; Zhu, N.; Dang, Z.; Huang, Z. Synergetic effect of functionalized carbon nanotubes on ZnCr–mixed metal oxides for enhanced solar light-driven photocatalytic performance. RSC Adv. 2016, 6, 37689–37700. [Google Scholar] [CrossRef]
  92. Wang, X.; Fan, J.; Qian, F.; Min, Y. Magnetic BiFeO3 grafted with MWCNT hybrids as advanced photocatalysts for removing organic contamination with a high concentration. RSC Adv. 2016, 6, 49966–49972. [Google Scholar] [CrossRef]
  93. Liu, J.; Song, Y.; Xu, H.; Zhu, X.; Lian, J.; Xu, Y.; Zhao, Y.; Huang, L.; Ji, H.; Li, H. Non-metal photocatalyst nitrogen-doped carbon nanotubes modified mpg-C3N4: Facile synthesis and the enhanced visible-light photocatalytic activity. J. Colloid Interface Sci. 2017, 494, 38–46. [Google Scholar] [CrossRef]
  94. Natarajan, T.S.; Lee, J.Y.; Bajaj, H.C.; Jo, W.-K.; Tayade, R.J. Synthesis of multiwall carbon nanotubes/TiO2 nanotube composites with enhanced photocatalytic decomposition efficiency. Catal. Today 2017, 282, 13–23. [Google Scholar] [CrossRef]
  95. Farhadian, M.; Sangpour, P.; Hosseinzadeh, G. Preparation and photocatalytic activity of WO3–MWCNT nanocomposite for degradation of naphthalene under visible light irradiation. RSC Adv. 2016, 6, 39063–39073. [Google Scholar] [CrossRef]
  96. Oveisi, M.; Alinia Asli, M.; Mahmoodi, N.M. Carbon nanotube based metal-organic framework nanocomposites: Synthesis and their photocatalytic activity for decolorization of colored wastewater. Inorg. Chim. Acta 2019, 487, 169–176. [Google Scholar] [CrossRef]
  97. Shi, L.; Yao, L.; Si, W. One step to prepare CNTs modified porous g-C3N4 with excellent visible-light photocatalytic performance. J. Mater. Sci. Mater. Electron. 2019, 30, 1714–1723. [Google Scholar] [CrossRef]
  98. Liu, W.; Zhou, J.; Zhou, J. Facile fabrication of multi-walled carbon nanotubes (MWCNTs)/α-Bi2O3 nanosheets composite with enhanced photocatalytic activity for doxycycline degradation under visible light irradiation. J. Mater. Sci. 2019, 54, 3294–3308. [Google Scholar] [CrossRef]
  99. Hao, X.; Wang, G.; Chen, S.; Yu, H.; Quan, X. Enhanced activation of peroxymonosulfate by CNT-TiO2 under UV-light assistance for efficient degradation of organic pollutants. Front. Environ. Sci. Eng. 2019, 13, 77. [Google Scholar] [CrossRef]
  100. Thangavel, S.; Venugopal, G.; Kim, S.-J. Enhanced photocatalytic efficacy of organic dyes using β-tin tungstate–reduced graphene oxide nanocomposites. Mater. Chem. Phys. 2014, 145, 108–115. [Google Scholar] [CrossRef]
  101. Dang, X.; Zhang, X.; Lu, Z.; Yang, Z.; Dong, X.; Zhang, X.; Ma, C.; Ma, H.; Xue, M.; Shi, F. Construction of Au@TiO2/graphene nanocomposites with plasmonic effect and super adsorption ability for enhanced visible-light-driven photocatalytic organic pollutant degradation. J. Nanopart. Res. 2014, 16, 2215. [Google Scholar] [CrossRef]
  102. Min, Y.; Fan, J.; Xu, Q.; Zhang, S. High visible-photoactivity of spherical Cd0.5Zn0.5S coupled with graphene composite for decolorizating organic dyes. J. Alloy. Compd. 2014, 609, 46–53. [Google Scholar] [CrossRef]
  103. Chen, X.-J.; Dai, Y.-Z.; Wang, X.-Y.; Guo, J.; Liu, T.-H.; Li, F.-F. Synthesis and characterization of Ag3PO4 immobilized with graphene oxide (GO) for enhanced photocatalytic activity and stability over 2,4-dichlorophenol under visible light irradiation. J. Hazard. Mater. 2015, 292, 9–18. [Google Scholar] [CrossRef]
  104. Choi, J.; Reddy, D.A.; Islam, M.J.; Ma, R.; Kim, T.K. Self-assembly of CeO2 nanostructures/reduced graphene oxide composite aerogels for efficient photocatalytic degradation of organic pollutants in water. J. Alloy. Compd. 2016, 688, 527–536. [Google Scholar] [CrossRef]
  105. Kim, T.-W.; Park, M.; Kim, H.Y.; Park, S.-J. Preparation of flower-like TiO2 sphere/reduced graphene oxide composites for photocatalytic degradation of organic pollutants. J. Solid State Chem. 2016, 239, 91–98. [Google Scholar] [CrossRef]
  106. Alam, U.; Fleisch, M.; Kretschmer, I.; Bahnemann, D.; Muneer, M. One-step hydrothermal synthesis of Bi-TiO2 nanotube/graphene composites: An efficient photocatalyst for spectacular degradation of organic pollutants under visible light irradiation. Appl. Catal. B 2017, 218, 758–769. [Google Scholar] [CrossRef]
  107. Suave, J.; Amorim, S.M.; Moreira, R.F.P.M. TiO2-graphene nanocomposite supported on floating autoclaved cellular concrete for photocatalytic removal of organic compounds. J. Environ. Chem. Eng. 2017, 5, 3215–3223. [Google Scholar] [CrossRef]
  108. Ranjith, K.S.; Manivel, P.; Rajendrakumar, R.T.; Uyar, T. Multifunctional ZnO nanorod-reduced graphene oxide hybrids nanocomposites for effective water remediation: Effective sunlight driven degradation of organic dyes and rapid heavy metal adsorption. Chem. Eng. J. 2017, 325, 588–600. [Google Scholar] [CrossRef] [Green Version]
  109. Zhang, M.; Gong, J.; Zeng, G.; Zhang, P.; Song, B.; Cao, W.; Liu, H.; Huan, S. Enhanced degradation performance of organic dyes removal by bismuth vanadate-reduced graphene oxide composites under visible light radiation. Colloids Surf. A 2018, 559, 169–183. [Google Scholar] [CrossRef]
  110. Niu, J.; Dai, P.; Zhang, Q.; Yao, B.; Yu, X. Microwave-assisted solvothermal synthesis of novel hierarchical BiOI/rGO composites for efficient photocatalytic degardation of organic pollutants. Appl. Surf. Sci. 2018, 430, 165–175. [Google Scholar] [CrossRef]
  111. Zarrabi, M.; Haghighi, M.; Alizadeh, R.; Mahboob, S. Solar-light-driven photodegradation of organic dyes on sono-dispersed ZnO nanoparticles over graphene oxide: Sono vs. conventional catalyst design. Sep. Purif. Technol. 2019, 211, 738–752. [Google Scholar] [CrossRef]
  112. Mitra, M.; Ahamed, S.T.; Ghosh, A.; Mondal, A.; Kargupta, K.; Ganguly, S.; Banerjee, D. Polyaniline/reduced graphene oxide composite-enhanced visible-light-driven photocatalytic activity for the degradation of organic dyes. ACS Omega 2019, 4, 1623–1635. [Google Scholar] [CrossRef] [Green Version]
  113. Wei, X.-N.; Ou, C.-L.; Fang, S.-S.; Zheng, X.-C.; Zheng, G.-P.; Guan, X.-X. One-pot self-assembly of 3D CdS-graphene aerogels with superior adsorption capacity and photocatalytic activity for water purification. Powder Technol. 2019, 345, 213–222. [Google Scholar] [CrossRef]
  114. Rizal, M.Y.; Saleh, R.; Taufik, A. Characterization and photocatalytic activity of Ag/Mn3O4/graphene composites under visible light irradiation for organic dyes degradation. J. Environ. Chem. Eng. 2020, 8, 103610. [Google Scholar] [CrossRef]
  115. Zhao, C.; Li, W.; Liang, Y.; Tian, Y.; Zhang, Q. Synthesis of BiOBr/carbon quantum dots microspheres with enhanced photoactivity and photostability under visible light irradiation. Appl. Catal. A 2016, 527, 127–136. [Google Scholar] [CrossRef]
  116. Ming, F.; Hong, J.; Xu, X.; Wang, Z. Dandelion-like ZnS/carbon quantum dots hybrid materials with enhanced photocatalytic activity toward organic pollutants. RSC Adv. 2016, 6, 31551–31558. [Google Scholar] [CrossRef]
  117. Miao, R.; Luo, Z.; Zhong, W.; Chen, S.-Y.; Jiang, T.; Dutta, B.; Nasr, Y.; Zhang, Y.; Suib, S.L. Mesoporous TiO2 modified with carbon quantum dots as a high-performance visible light photocatalyst. Appl. Catal. B 2016, 189, 26–38. [Google Scholar] [CrossRef] [Green Version]
  118. Di, J.; Xia, J.; Huang, Y.; Ji, M.; Fan, W.; Chen, Z.; Li, H. Constructing carbon quantum dots/Bi2SiO5 ultrathin nanosheets with enhanced photocatalytic activity and mechanism investigation. Chem. Eng. J. 2016, 302, 334–343. [Google Scholar] [CrossRef]
  119. Zhang, Y.; Park, M.; Kim, H.Y.; Ding, B.; Park, S.-J. A facile ultrasonic-assisted fabrication of nitrogen-doped carbon dots/BiOBr up-conversion nanocomposites for visible light photocatalytic enhancements. Sci. Rep. 2017, 7, 45086. [Google Scholar] [CrossRef] [Green Version]
  120. Wang, J.; Tang, L.; Zeng, G.; Deng, Y.; Dong, H.; Liu, Y.; Wang, L.; Peng, B.; Zhang, C.; Chen, F. 0D/2D interface engineering of carbon quantum dots modified Bi2WO6 ultrathin nanosheets with enhanced photoactivity for full spectrum light utilization and mechanism insight. Appl. Catal. B 2018, 222, 115–123. [Google Scholar] [CrossRef]
  121. Wang, Q.; Wang, G.; Liang, X.; Dong, X.; Zhang, X. Supporting carbon quantum dots on NH2-MIL-125 for enhanced photocatalytic degradation of organic pollutants under a broad spectrum irradiation. Appl. Surf. Sci. 2019, 467, 320–327. [Google Scholar] [CrossRef]
  122. Stoller, M.D.; Park, S.; Zhu, Y.; An, J.; Ruoff, R.S. Graphene-based ultracapacitors. Nano Lett. 2008, 8, 3498–3502. [Google Scholar] [CrossRef]
  123. Bolotin, K.I.; Sikes, K.J.; Jiang, Z.; Klima, M.; Fudenberg, G.; Hone, J.; Kim, P.; Stormer, H.L. Ultrahigh electron mobility in suspended graphene. Solid State Commun. 2008, 146, 351–355. [Google Scholar] [CrossRef] [Green Version]
  124. Sharma, S.; Dutta, V.; Singh, P.; Raizada, P.; Rahmani-Sani, A.; Hosseini-Bandegharaei, A.; Thakur, V.K. Carbon quantum dot supported semiconductor photocatalysts for efficient degradation of organic pollutants in water: A review. J. Clean. Prod. 2019, 228, 755–769. [Google Scholar] [CrossRef]
  125. Chen, Y.; Bai, X. A review on quantum dots modified g-C3N4-based photocatalysts with improved photocatalytic activity. Catalysts 2020, 10, 142. [Google Scholar] [CrossRef] [Green Version]
  126. Ju, L.; Wu, P.; Lai, X.; Yang, S.; Gong, B.; Chen, M.; Zhu, N. Synthesis and characterization of Fullerene modified ZnAlTi-LDO in photo-degradation of Bisphenol A under simulated visible light irradiation. Environ. Pollut. 2017, 228, 234–244. [Google Scholar] [CrossRef] [PubMed]
  127. Ma, D.; Zhong, J.; Li, J.; Wang, L.; Peng, R. Enhanced photocatalytic activity of BiOCl by C70 modification and mechanism insight. Appl. Surf. Sci. 2018, 443, 497–505. [Google Scholar] [CrossRef]
  128. Dong, Y.; Liu, Z.; Chen, L. Removal of Zn(II) from aqueous solution by natural halloysite nanotubes. J. Radioanal. Nucl. Chem. 2012, 292, 435–443. [Google Scholar] [CrossRef]
  129. Liu, J.; Zhang, G. Recent advances in synthesis and applications of clay-based photocatalysts: A review. Phys. Chem. Chem. Phys. 2014, 16, 8178–8192. [Google Scholar] [CrossRef]
  130. Szczepanik, B. Photocatalytic degradation of organic contaminants over clay-TiO2 nanocomposites: A review. Appl. Clay Sci. 2017, 141, 227–239. [Google Scholar] [CrossRef]
  131. Chen, D.; Zhu, H.; Wang, X. A facile method to synthesize the photocatalytic TiO2/montmorillonite nanocomposites with enhanced photoactivity. Appl. Surf. Sci. 2014, 319, 158–166. [Google Scholar] [CrossRef]
  132. Belver, C.; Bedia, J.; Rodriguez, J.J. Titania–clay heterostructures with solar photocatalytic applications. Appl. Catal. B 2015, 176–177, 278–287. [Google Scholar] [CrossRef]
  133. Liu, Z.; Liu, Z.; Cui, T.; Dong, L.; Zhang, J.; Han, L.; Li, G.; Liu, C. Photocatalyst from one-dimensional TiO2 nanowires/synthetic zeolite composites. Mater. Express 2014, 4, 465–474. [Google Scholar] [CrossRef]
  134. Shams-Ghahfarokhi, Z.; Nezamzadeh-Ejhieh, A. As-synthesized ZSM-5 zeolite as a suitable support for increasing the photoactivity of semiconductors in a typical photodegradation process. Mater. Sci. Semicond. Process. 2015, 39, 265–275. [Google Scholar] [CrossRef]
  135. Zhang, W.; Xiao, X.; Zheng, L.; Wan, C. Fabrication of TiO2/MoS2@zeolite photocatalyst and its photocatalytic activity for degradation of methyl orange under visible light. Appl. Surf. Sci. 2015, 358, 468–478. [Google Scholar] [CrossRef]
  136. Akkari, M.; Aranda, P.; Ben Rhaiem, H.; Ben Haj Amara, A.; Ruiz-Hitzky, E. ZnO/clay nanoarchitectures: Synthesis, characterization and evaluation as photocatalysts. Appl. Clay Sci. 2016, 131, 131–139. [Google Scholar] [CrossRef]
  137. Belver, C.; Bedia, J.; Álvarez-Montero, M.A.; Rodriguez, J.J. Solar photocatalytic purification of water with Ce-doped TiO2/clay heterostructures. Catal. Today 2016, 266, 36–45. [Google Scholar] [CrossRef]
  138. Guesh, K.; Mayoral, Á.; Márquez-Álvarez, C.; Chebude, Y.; Díaz, I. Enhanced photocatalytic activity of TiO2 supported on zeolites tested in real wastewaters from the textile industry of Ethiopia. Microporous Mesoporous Mater. 2016, 225, 88–97. [Google Scholar] [CrossRef]
  139. Belver, C.; Bedia, J.; Rodriguez, J.J. Zr-doped TiO2 supported on delaminated clay materials for solar photocatalytic treatment of emerging pollutants. J. Hazard. Mater. 2017, 322, 233–242. [Google Scholar] [CrossRef] [PubMed]
  140. Maksod, I.H.A.E.; Al-Shehri, A.; Bawaked, S.; Mokhtar, M.; Narasimharao, K. Structural and photocatalytic properties of precious metals modified TiO2-BEA zeolite composites. Mol. Catal. 2017, 441, 140–149. [Google Scholar] [CrossRef]
  141. Silvestri, S.; Foletto, E.L. Preparation and characterization of Fe2O3/TiO2/clay plates and their use as photocatalysts. Ceram. Int. 2017, 43, 14057–14062. [Google Scholar] [CrossRef]
  142. Yang, L.; Wang, F.; Hakki, A.; Macphee, D.E.; Liu, P.; Hu, S. The influence of zeolites fly ash bead/TiO2 composite material surface morphologies on their adsorption and photocatalytic performance. Appl. Surf. Sci. 2017, 392, 687–696. [Google Scholar] [CrossRef]
  143. Bel Hadjltaief, H.; Ben Ameur, S.; Da Costa, P.; Ben Zina, M.; Elena Galvez, M. Photocatalytic decolorization of cationic and anionic dyes over ZnO nanoparticle immobilized on natural Tunisian clay. Appl. Clay Sci. 2018, 152, 148–157. [Google Scholar] [CrossRef]
  144. Bel Hadjltaief, H.; Galvez, M.E.; Ben Zina, M.; Da Costa, P. TiO2/clay as a heterogeneous catalyst in photocatalytic/photochemical oxidation of anionic reactive blue 19. Arab. J. Chem. 2019, 12, 1454–1462. [Google Scholar] [CrossRef] [Green Version]
  145. Chakraborty, A.; Islam, D.A.; Acharya, H. Facile synthesis of CuO nanoparticles deposited zeolitic imidazolate frameworks (ZIF-8) for efficient photocatalytic dye degradation. J. Solid State Chem. 2019, 269, 566–574. [Google Scholar] [CrossRef]
  146. Phan, T.T.N.; Nikoloski, A.N.; Bahri, P.A.; Li, D. Enhanced removal of organic using LaFeO3-integrated modified natural zeolites via heterogeneous visible light photo-Fenton degradation. J. Environ. Manag. 2019, 233, 471–480. [Google Scholar] [CrossRef] [PubMed]
  147. Bel Hadjltaief, H.; Ben Zina, M.; Galvez, M.E.; Da Costa, P. Photocatalytic degradation of methyl green dye in aqueous solution over natural clay-supported ZnO–TiO2 catalysts. J. Photochem. Photobiol. A 2016, 315, 25–33. [Google Scholar] [CrossRef] [Green Version]
  148. Hendrix, Y.; Lazaro, A.; Yu, Q.; Brouwers, J. Titania-silica composites: A review on the photocatalytic activity and synthesis methods. World J. Nano Sci. Eng. 2015, 51, 161–177. [Google Scholar] [CrossRef] [Green Version]
  149. Cheng, C.; Lu, D.; Shen, B.; Liu, Y.; Lei, J.; Wang, L.; Zhang, J.; Matsuoka, M. Mesoporous silica-based carbon dot/TiO2 photocatalyst for efficient organic pollutant degradation. Microporous Mesoporous Mater. 2016, 226, 79–87. [Google Scholar] [CrossRef]
  150. Yan, X.; Zhu, X.; Li, R.; Chen, W. Au/BiOCl heterojunction within mesoporous silica shell as stable plasmonic photocatalyst for efficient organic pollutants decomposition under visible light. J. Hazard. Mater. 2016, 303, 1–9. [Google Scholar] [CrossRef]
  151. Qu, R.; Li, C.; Liu, J.; Xiao, R.; Pan, X.; Zeng, X.; Wang, Z.; Wu, J. Hydroxyl radical based photocatalytic degradation of halogenated organic contaminants and paraffin on silica gel. Environ. Sci. Technol. 2018, 52, 7220–7229. [Google Scholar] [CrossRef]
  152. Najafidoust, A.; Haghighi, M.; Abbasi Asl, E.; Bananifard, H. Sono-solvothermal design of nanostructured flowerlike BiOI photocatalyst over silica-aerogel with enhanced solar-light-driven property for degradation of organic dyes. Sep. Purif. Technol. 2019, 221, 101–113. [Google Scholar] [CrossRef]
  153. Peter, A.; Mihaly-Cozmuta, L.; Mihaly-Cozmuta, A.; Nicula, C.; Cadar, C.; Jastrzębska, A.; Kurtycz, P.; Olszyna, A.; Vulpoi, A.; Danciu, V.; et al. Silver functionalized titania-silica xerogels: Preparation, morpho-structural and photocatalytic properties, kinetic modeling. J. Alloy. Compd. 2015, 648, 890–902. [Google Scholar] [CrossRef]
  154. Pal, A.; Jana, T.K.; Chatterjee, K. Silica supported TiO2 nanostructures for highly efficient photocatalytic application under visible light irradiation. Mater. Res. Bull. 2016, 76, 353–357. [Google Scholar] [CrossRef]
  155. Eddy, D.R.; Puri, F.N.; Noviyanti, A.R. Synthesis and photocatalytic activity of silica-based sand quartz as the supporting TiO2 photocatalyst. Procedia Chem. 2015, 17, 55–58. [Google Scholar] [CrossRef] [Green Version]
  156. Li, Z.-D.; Wang, H.-L.; Wei, X.-N.; Liu, X.-Y.; Yang, Y.-F.; Jiang, W.-F. Preparation and photocatalytic performance of magnetic Fe3O4@TiO2 core–shell microspheres supported by silica aerogels from industrial fly ash. J. Alloy. Compd. 2016, 659, 240–247. [Google Scholar] [CrossRef]
  157. Pakdel, E.; Daoud, W.A.; Seyedin, S.; Wang, J.; Razal, J.M.; Sun, L.; Wang, X. Tunable photocatalytic selectivity of TiO2/SiO2 nanocomposites: Effect of silica and isolation approach. Colloids Surf. A 2018, 552, 130–141. [Google Scholar] [CrossRef]
  158. Liao, G.; He, W.; He, Y. Investigation of microstructure and photocatalytic performance of a modified zeolite supported nanocrystal TiO2 composite. Catalysts 2019, 9, 502. [Google Scholar] [CrossRef] [Green Version]
  159. Karimi-Shamsabadi, M.; Nezamzadeh-Ejhieh, A. Comparative study on the increased photoactivity of coupled and supported manganese-silver oxides onto a natural zeolite nano-particles. J. Mol. Catal. A Chem. 2016, 418, 103–114. [Google Scholar] [CrossRef]
  160. Corma, A.; Garcia, H. Zeolite-based photocatalysts. Chem. Commun. 2004, 13, 1443–1459. [Google Scholar] [CrossRef] [PubMed]
  161. Nassar, M.Y.; Abdelrahman, E.A. Hydrothermal tuning of the morphology and crystallite size of zeolite nanostructures for simultaneous adsorption and photocatalytic degradation of methylene blue dye. J. Mol. Liq. 2017, 242, 364–374. [Google Scholar] [CrossRef]
Catalysts 11 01160 g001 550
Figure 1. Schematic diagram of surface area measurement method using BET.
Figure 1. Schematic diagram of surface area measurement method using BET.
Catalysts 11 01160 g001
Catalysts 11 01160 g002 550
Figure 2. SEM images of reduced r-TiO2 nanotube arrays prepared in annealing temperatures from 350 °C to 750 °C. Adapted with permission from [22]. Copyright Elsevier.
Figure 2. SEM images of reduced r-TiO2 nanotube arrays prepared in annealing temperatures from 350 °C to 750 °C. Adapted with permission from [22]. Copyright Elsevier.
Catalysts 11 01160 g002
Catalysts 11 01160 g003 550

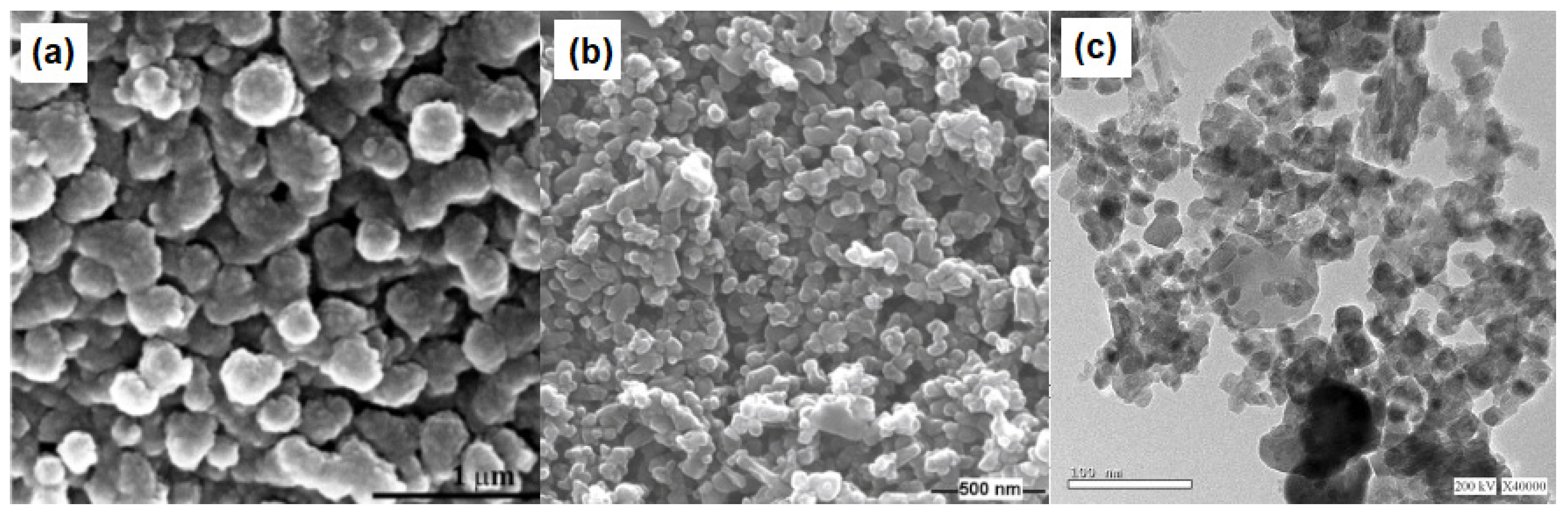

Figure 3. Various structures of surfactant-assisted photocatalysts: (a) raspberry-like; (b) rod-like; and (c) quasi-spherical. Adapted with permission from [65,67,68]. Copyright Elsevier and ESG.
Figure 3. Various structures of surfactant-assisted photocatalysts: (a) raspberry-like; (b) rod-like; and (c) quasi-spherical. Adapted with permission from [65,67,68]. Copyright Elsevier and ESG.
Catalysts 11 01160 g003
Catalysts 11 01160 g004 550
Figure 4. Carbonaceous additives of heterogenous photocatalyst for organic pollutant removal.
Figure 4. Carbonaceous additives of heterogenous photocatalyst for organic pollutant removal.
Catalysts 11 01160 g004
Catalysts 11 01160 g005 550
Figure 5. HRSEM images of (a) AC and (b) AC-supported Zr, (c) SEM image of functionalized CNT (inset: TEM), TEM images of (d) CNT/TiO2 nanohybrids, (e) (i) ZnO nanospheres and (e) (ii) ZnO–graphene nanocomposites, (e) (iii) HRTEM of ZnO–graphene nanocomposites, and (f) TEM images of CQD/Fe3O4@mTiO2. Adapted with permission from [75,80,81,82]. Copyright Elsevier and ACS Publications.
Figure 5. HRSEM images of (a) AC and (b) AC-supported Zr, (c) SEM image of functionalized CNT (inset: TEM), TEM images of (d) CNT/TiO2 nanohybrids, (e) (i) ZnO nanospheres and (e) (ii) ZnO–graphene nanocomposites, (e) (iii) HRTEM of ZnO–graphene nanocomposites, and (f) TEM images of CQD/Fe3O4@mTiO2. Adapted with permission from [75,80,81,82]. Copyright Elsevier and ACS Publications.
Catalysts 11 01160 g005
Catalysts 11 01160 g006 550
Figure 6. FESEM images of nanostructure flower-like photocatalysts: (a) BiOI; (b) silica aerogel/BiOI and effect of BiOI loading on Methylene Blue removal by BiOI and silica aerogel/BiOI photocatalysts: (c) adsorption; (d) degradation. Adapted with permission from [152]. Copyright Elsevier.
Figure 6. FESEM images of nanostructure flower-like photocatalysts: (a) BiOI; (b) silica aerogel/BiOI and effect of BiOI loading on Methylene Blue removal by BiOI and silica aerogel/BiOI photocatalysts: (c) adsorption; (d) degradation. Adapted with permission from [152]. Copyright Elsevier.
Catalysts 11 01160 g006
Catalysts 11 01160 g007 550
Figure 7. (a) Photoactivation of the rigid crystalline framework and (b) encapsulation of zeolite with semiconductors. Adapted with permission from [135,158]. Copyright MDPI and Elsevier.
Figure 7. (a) Photoactivation of the rigid crystalline framework and (b) encapsulation of zeolite with semiconductors. Adapted with permission from [135,158]. Copyright MDPI and Elsevier.
Catalysts 11 01160 g007
Table
Table 1. The photocatalytic performance of self-doped photocatalyst.
Table 1. The photocatalytic performance of self-doped photocatalyst.
SemiconductorBand Gap
(eV)		SBET
(m2 g−1)		Pd
(nm)		Pv
(cm3 g−1)		ContaminantLight Source* Removal Performance
(%)		Ref.
BareDopedBareDopedBareDopedBareDoped
TiO22.60-71.80-7.13-0.13Methylene BlueVis-100.00[19]
TiO22.875.4054.40----Rhodamine BVis45.0099.00[21]
TiO2--86.35---0.25Rhodamine BVis56.00100.00[24]
NaBiO31.6832.8036.20----Rhodamine B
Bisphenol A		Vis50.00
55.00		99.00
100.00		[25]
BiVO4/CeO22.336.7178.35--0.060.20Rhodamine B
Bisphenol A		Vis42.69
20.78		92.68
71.95		[26]
BiOBr2.730.220.24----Phenol
Rhodamine B		UV15.00
100.00		42.00
100.00		[27]
g-C3N42.564.62128.0634.8227.950.722.68Methylene BlueVis52.0088.00[28]
g-C3N42.4718.3629.7723.7514.870.100.11TetracyclineVis52.0076.78[29]
* Majority of the values were estimated from the C/C0 vs. time plot.
Table
Table 2. Summary on textural characteristics and photocatalytic performance of metal-, nonmetal-, and co-doping photocatalysts for organic contaminant removal.
Table 2. Summary on textural characteristics and photocatalytic performance of metal-, nonmetal-, and co-doping photocatalysts for organic contaminant removal.
Metal
Oxide		DopantBand Gap
(eV)		SBET (m2 g−1)Pd (nm)Pv (cm3 g−1)ContaminantLight Source* Removal Performance (%)Ref.
BareDopedBareDopedBareDopedBareDoped
MetalTiO2Ce

Nd		2.40

3.05		50.10107.90

87.46		----Methylene BlueVis7.0088.00[30]
Synthetic dye67.0015.00
Methylene Blue7.0088.00
Synthetic dye67.0012.00
TiO2Ag+3.12123.0056.00----Rhodamine BUV97.0098.00[31]
Al3+3.22123.00----96.00
Mn2+3.0061.00----98.00
Ni2+3.0648.00----92.00
TiO2Ag+3.0812.7113.927.788.132.16 × 10−22.45 × 10−2Methylene Blue-52.0060.00[33]
Fe2+2.5112.069.202.32 × 10−2Vis87.00
Fe3+2.4215.328.172.72 × 10−2-90.00
FeVO4Mn2+1.9827.4745.71----Methylene Blue-70.0076.00[34]
Malachite Green94.0098.00
Ti4+2.0838.23----Methylene BlueVis70.0070.00
Malachite Green94.0040.00
Zn2+2.0340.12----Methylene Blue-70.0098.00
Malachite Green94.0094.00
ZnOMn2+3.51------Methylene BlueUV85.0088.00[35]
Methyl Orange87.0093.30
Congo Red86.0093.00
CeO2Mn3+-49.4083.79.707.600.080.17Rhodamine B-32.0077.00[36]
Fe3+-72.36.100.14-72.00
La3+-56.64.500.11UV40.00
Pr3+-63.73.200.12-58.00
BiOClCu2+2.533.322.323.513.511.96 × 10−22.14 × 10−2TartrazineVis-91.00[37]
TiO2Ni2+2.8064.6095.40----4-Chlorophenol-68.9089.50[38]
Naproxen84.9084.00
Cu2+2.9059.50----4-ChlorophenolUV68.9090.20
Naproxen84.9087.40
Fe3+2.8084.40----4-Chlorophenol-68.9037.00
Naproxen84.9097.70
TiO2Vd2.8961.0575.70----Methylene BlueVis74.0096.00[39]
Non-metalTiO2N2.8761.0572.82----Methylene BlueVis74.0095.00[39]
TiO2S2.28120.00132----1,2-DCEVis16.0099.00[40]
g-C3N4P-26.8634.60----Rhodamine BVis75.0099.00[41]
BiVO4S2.441.723.18----Methylene BlueVis50.0099.00[42]
TiO2S2.8071.0089.00--0.410.48Methyl OrangeVis11.2094.30[43]
BiOBrB-8.908.60----Rhodamine BVis71.0099.30[44]
Phenol46.0078.30
BiOClF3.4716.4516.97----Rhodamine BVis78.9099.70[45]
Methylene Blue94.1092.50
TiO2N-69.5068.1011.3518.360.200.31Methylene BlueSolar60.0088.00[46]
B-126.406.960.3365.00
CeVO4P1.6637.0068.70----Methylene BlueVis39.20~100.00[47]
Methyl Orange25.8088.20
ZnON3.3815.9018.20--47.4447.26Rhodamine BVis90.46100.00[48]
TiO2/SiO2S3.1537.10148.60----PhenolVis13.30100.00[49]
TiO23.1658.50----75.80
ZnON2.954.4612.681----Brilliant Smart GreenVis66.0083.00[50]
ZnO/GO2.9122.128----100.00
Co-dopingTiO2V,N2.6561.05103.87----Methylene BlueVis74.0099.00[39]
TiO2S,N,C2.9226.285.12.203.60.2530.203Microcystin-LRVis11.00~100.00[51]
BiVO4N,Sm2.163.145.17----Methyl OrangeVis30.0095.00[52]
g-C3N4K,Na2.588.9046.90----Rhodamine BVis19.0089.00[53]
TiO2In,C2.6260.0092.00----Methylene BlueVis40.0092.00[54]
Reactive Red 438.0092.00
TiO2Bi,Ni2.89-74.00----OfloxacinSolar40.0086.00[55]
NiOB,N-70.00144.50----4NCBVis56.0084.00[56]
BiFeO3Le,Se1.973.3010.002.201.960.020.06Congo RedVis16.5032.50[57]
TiO2C,N2.9921.7072.402.80–8.709.300.050.27IbuprofenVis11.10100.00[58]
ZnOY,V2.386.9011.13----Rhodamine BVis48.0090.00[59]
TiO2Sn,La3.174.4085.70----Rhodamine BVis82.5099.00[60]
g-C3N4B,P2.618.4085.60--0.060.38OxytetracyclineVis35.0071.00[61]
Rhodamine B48.00100.00
Bi5FeTi3O15Ni,Eu2.168.8414.665.154.850.030.25Rhodamine BVis85.0099.00[62]
* Majority of the values were estimated from the C/C0 vs. time plot.
Table
Table 3. Summary of textural characteristics and photocatalytic performance of carbonaceous-based photocatalysts.
Table 3. Summary of textural characteristics and photocatalytic performance of carbonaceous-based photocatalysts.
BareSBET (m2 g−1)Pd (nm)Pv (cm3 g−1)Band Gap
(eV)		ContaminantLight Source* Degradation Efficiency (%)Ref.
BareCompositeBareCompositeBareComposite BareComposite
ACZrO2-423.86----4.81Textile dying wastewaterUV13.0032.00[75]
NiO404.243.2424.0047.00
ZnO247.763.1729.0082.00
TiOSO4-496.00-4.14-0.51-PhenolUV-58.00[76]
Naphthol Blue Black95.00
Reactive Black 598.00
TiO2-1101.00-3.30-0.91-Phenol-77.00
Naphthol Blue Black90.00
Reactive Black 585.00
TiO2-193.60-1.21-5.90 × 10−22.10Methylene BlueUV-67.00[77]
SnO51.201.156.40 × 10−21.2596.00
WO349.701.187.00 × 10−21.7060.00
NiO27.601.535.30 × 10−21.3594.00
Cu2O/TiO250.005126.7027.500.380.412.90NitriteUV57.6042.50[79]
Oxalic acid99.8096.90
TiO2-849.20-3.74-0.78-AmoxicillinSolar88.00100.00[83]
Ampicillin84.00100.00
Diclofenac64.0085.00
Paracetamol57.0070.00
Ag/AgBr-72.70-6.43-0.08-Methyl OrangeVis93.3095.45[84]
ZnO/Fe3O4-1282.29-1.85-0.49-Methylene BlueVis72.0090.00[85]
MOF150.70199.40--0.430.413.79Reactive Red 198UV87.0099.00[86]
Ag-Ag-Br62.38117.6879.108.48---Rhodamine BVis82.0099.90[87]
CNTAg-TiO248.00148.0011.5010.700.470.812.50ThiopheneVis47.0099.00[88]
ZnO31.40103.90-----Rhodamine BSolar15.0040.00[89]
TeVAg-81.00---0.12-Rhodamine BVis20.00100.00[90]
ZnCr13.9835.1542.1816.790.150.16-Bisphenol AVis80.00~100.00[91]
BiFeO38.9047.80----1.70Rhodamine BVis26.00~100.00[92]
mpg-C3N4223.10217.3017.2016.101.101.07-Methyl OrangeVis25.0088.00[93]
Rhodamine B4.0095.00
TC53.2067.13
TiO2196.50275.0011.8416.670.581.033.11Rhodamine BVis78.0089.00[94]
WO340.00160.00185.00164.00--2.68NaphthaleneVis18.0066.00[95]
MOF-499.00-3.52-0.44-Reactive Black 5UV45.0059.00[96]
TiO272.24106.1023.566.510.430.17-Methyl OrangeSolar31.4087.00[80]
C3N421.3049.30----2.68Rhodamine BVis81.0099.00[97]
α-Bi2O35.9017.20----2.75DoxycyclineVis62.0091.00[98]
TiO284.3995.91--0.250.25-PhenolUV50.00~100.00[99]
GrapheneZnO34.1022.35-----Methylene BlueVis66.5782.57[82]
β-SnWO40.5626.12----2.30Methyl OrangeVis55.0090.00[100]
Rhodamine B60.0091.00
Au/TiO2112.60115.40----3.252,4-DichlorophenolVis77.6095.40[101]
Cd0.5Zn0.5S10.8051.80----2.41Malachite GreenSolar45.0096.00[102]
Ag3PO40.147.553----2.102,4-DichlorophenolVis50.4198.43[103]
CeO211.3915.08-----Rhodamine BVis18.5085.00[104]
FTS225.00249.00--0.680.783.15Rhodamine BSolar60.0097.50[105]
Bi-TiO279.61158.80----2.78Methylene BlueVis60.0095.00[106]
Dinoseb29.0071.00
TiO255.0068.4018.7223.520.260.41-Methylene BlueUV-99.40[107]
Methyl Orange86.90
Ketoprofen44.90
ZnO2.3419.43-----Methylene BlueVis35.3093.90[108]
Rhodamine B29.3088.10
Methyl Orange22.6075.30
BiVO42.393.2910.6610.390.060.092.37Malachite GreenVis77.2999.50[109]
Rhodamine B64.9499.84
BiOI-45.57 5.36 0.171.58Methylene BlueVis43.0068.00[110]
ZnO41.00268.5013.2012.900.181.122.42Methylene BlueSolar26.0098.00[111]
PANI15.4135.06----2.74Malachite GreenVis61.0799.68[112]
Rhodamine B70.4699.35
Congo Red73.6698.73
CdS1.90175.00--4.00 × 10−30.29-Rhodamine BVis36.0098.90[113]
Ag/Mn3O416.9710.071.612.600.390.26-Congo RedVis-~100.00[114]
Methylene Blue~100.00
CQDs/CDsFe3O4@mTiO2489.00267.07----2.11CiprofloxacinVis31.0098.00[81]
Methylene Blue28.0095.00
Quinalphos48.0090.00
p-Nitrophenol10.0082.00
BiOBr6.6623.6510.4512.451.70 × 10−20.071.86Rhodamine BVis57.00~100.00[115]
ZnS-98.40-----Methylene BlueSolar68.0090.00[116]
Rhodamine B48.0073.00
TiO283.0053.003.503.400.080.04-Methylene BlueVis6.0098.00[117]
Bi2SiO530.8729.93 -Rhodamine BUV62.6092.90[118]
BiOBr15.3037.500.040.130.110.27-Rhodamine BVis70.0089.30[119]
Bi2WO642.6051.30-----Methyl OrangeVis47.3094.10[120]
Bisphenol A32.3099.50
MOF487.00198.00----2.35Rhodamine BVis64.00100.00[121]
* Majority of the values were estimated from the C/C0 vs. time plot.
Table
Table 4. Textural characteristics and photocatalytic degradation performance of clay- and zeolite-incorporated photocatalysts.
Table 4. Textural characteristics and photocatalytic degradation performance of clay- and zeolite-incorporated photocatalysts.
CompositeSBET (m2 g−1)Pd (nm)Pv (cm3 g−1)Band Gap
(eV)		ContaminantLight Source* Degradation Efficiency (%)Ref.
BareCompositeBareCompositeBareCompositeMetal OxideComposite
TiO2/MMT10.20209.5014.674.880.030.19-Methylene BlueVis24.0060.00[131]
TiO2/MMT58.00100.00--0.140.173.19Rhodamine BSolar-100.00[132]
Phenol76.00
TiO2/zeolite197.00433.00-----Methylene BlueUV-90.00[133]
NiO–ZSM-5380.00360.00--0.220.16-Malachite GreenUV-93.00[134]
TiO2/MoS2@zeolite18.50139.6020.709.00---Methyl OrangeSolar55.0095.00[135]
ZnO/CLO-96.00---0.252.98Methylene BlueUV38.0099.00[136]
ZnO/TSM
ZnO/Sep-1		-
-		50.50
103.60		-
-		0.20
0.37		3.10
3.01		92.00
48.00		99.00
98.00
TiO2/CLO58.00211.00--0.140.252.70Rhodamine BSolar-100.00[137]
Phenol76.00
TiO2-zeolite720.00415.00---0.10-Methyl OrangeUV96.0087.18[138]
TiO2-mordenite500.00304.00----96.0098.05
CLO/TiO2/Zr58.00210.00 -0.140.283.12AntipyrineSolar-90.00[139]
TiO2-zeolite-575.00-30.00---Malachite GreenUV8.009.00[140]
Pd-TiO2-zeolite247.0048.0088.00
Au-TiO2-zeolite210.0052.0093.00
Ag-TiO2-zeolite208.0056.0070.00
Fe2O3/TiO2/clay3.506.50-----Acid Orange 7Solar10.0091.00[141]
Zeolite/TiO231.8727.24--0.230.22-Rhodamine BVis70.0099.00[142]
ZnO/clay36.70132.102.245.680.130.26
-		Malachite GreenSolar-~100.00[143]
Congo Red97.00
Clay/TiO236.70116.702.247.060.130.26-Reactive Blue 19UV-99.60[144]
CuO/ZIF-831.8265.40-----Rhodamine 6GSolar36.0096.00[145]
LaFeO3-zeolite12.5388.4413.557.06-0.050.07Rhodamine BVis86.8397.60[146]
* Majority of the values were estimated from the C/C0 vs. time plot.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mohtar, S.S.; Aziz, F.; Ismail, A.F.; Sambudi, N.S.; Abdullah, H.; Rosli, A.N.; Ohtani, B. Impact of Doping and Additive Applications on Photocatalyst Textural Properties in Removing Organic Pollutants: A Review. Catalysts 2021, 11, 1160. https://doi.org/10.3390/catal11101160

AMA Style

Mohtar SS, Aziz F, Ismail AF, Sambudi NS, Abdullah H, Rosli AN, Ohtani B. Impact of Doping and Additive Applications on Photocatalyst Textural Properties in Removing Organic Pollutants: A Review. Catalysts. 2021; 11(10):1160. https://doi.org/10.3390/catal11101160

Chicago/Turabian Style

Mohtar, Safia Syazana, Farhana Aziz, Ahmad Fauzi Ismail, Nonni Soraya Sambudi, Hamidah Abdullah, Ahmad Nazrul Rosli, and Bunsho Ohtani. 2021. "Impact of Doping and Additive Applications on Photocatalyst Textural Properties in Removing Organic Pollutants: A Review" Catalysts 11, no. 10: 1160. https://doi.org/10.3390/catal11101160

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
