Article

Non-Perfect Propagation of Information to a Noisy Environment with Self-Evolution

1
International Centre for Theory of Quantum Technologies, University of Gdansk, Wita Stwosza 63, 80-308 Gdansk, Poland
2
Department of Algorithms and System Modeling, Faculty of Electronics, Telecommunications and Informatics, Gdansk University of Technology, Gabriela Narutowicza 11/12, 80-233 Gdansk, Poland
3
Faculty of Applied Physics and Mathematics, Gdansk University of Technology, Gabriela Narutowicza 11/12, 80-233 Gdansk, Poland
*
Author to whom correspondence should be addressed.
Entropy 2022, 24(4), 467; https://doi.org/10.3390/e24040467
Submission received: 19 January 2022 / Revised: 14 March 2022 / Accepted: 19 March 2022 / Published: 28 March 2022
(This article belongs to the Special Issue Quantum Darwinism and Friends)

Abstract

:
We study the non-perfect propagation of information for evolving a low-dimensional environment that includes self-evolution as well as noisy initial states and analyse the interrelations between the degree of objectivization and environment parameters. In particular, we consider an analytical model of three interacting qubits and derive its objectivity parameters. The numerical analysis shows that the quality of the spectrum broadcast structure formed during the interaction may exhibit non-monotonicity both in the speed of self-dynamics of the environment as well as its mixedness. The former effect is particularly strong, showing that—considering part of the environment as a measurement apparatus—an increase of the external magnetic field acting on the environment may turn the vague measurement into close to ideal. The above effects suggest that quantum objectivity may appear after increasing the dynamics of the environment, although not with respect to the pointer basis, but some other, which we call the generalized pointer or indicator basis. Furthermore, it seems also that, when the objectivity is poor, it may be improved, at least by some amount, by increasing the thermal noise. We provide further evidence of this by analysing the upper bounds on distance to the set of states representing perfect objectivity in the case of a higher number of qubits.

1. Introduction

Quantum mechanics works perfectly and is reliable in an appropriate regime. Nevertheless, it leaves us with cognitive discomfort, as a theory that pretends to be fundamental should describe whole physical reality, including the classical objective properties of the systems that are inter-subjectively verifiable by independent observers. The problem is that quantum formalism does not offer a simple footbridge from the quantum world to our actual world. This issue involves many aspects; it has a long history and huge literature [1]. In particular, it involves a highly non-trivial question: Is it possible to circumvent the fundamental restrictions (no-broadcasting [2,3]) on the processing of quantum information to explain the emergence of the objective nature of information redundancy in the actual world?
Thanks to Zurek’s quantum Darwinism concept [4], there are strong reasons to believe that the decoherence theory pioneered by Zeh [5] and developed by Zurek [6,7] and others [8,9] based on the system–environment (or, in the Bohr’s spirit: system–context [10]) paradigm offers the most promising approach to the emergence of classicality from the quantum world.
Quantum Darwinism (QD) considers a decohering environment E as a “witness” that monitors and can reveal the information about a system S . The environment consists of multiple independent N fragments, and objectivity emerges when interacting with the system led to redundant information proliferation about system S measured by quantum mutual information I ( S : E ) between the system and an accessible fragment of the environment, E E , where I ( S : E ) = H ( S ) + H ( E ) H ( S E ) is the mutual information between the system and part of the environment and H ( · ) is the von Neumann entropy (see [11] and the references therein). The term “objectivity” means that the state of the system satisfies the following:
Definition 1.
A system state S is objective when many independent observers can determine the state of S independently, without perturbing it, and arrive at the same result [12,13,14].
The different theoretical and experimental implementations of QD have been considered and discussed based on the information-theoretic condition:
I ( S : E ) = H ( S ) .
In many cases, the above relation is sufficient to identify correctly emergent objective properties in a quantum system in contact with an environment. Interestingly, sometimes the nature of the quantum-classical interplay may be richer. In particular, examples have been found in which QD can falsely announce objectivity, and it has been indicated that QD can be inconsistent with the emergence of objectivity when the condition (1) is used [14,15,16].
In connection with the QD, a problem arises: To identify quantum primitive information broadcasting state responsible for the emergence of the perceived objectivity. This issue was raised in [14], where it was proven that Bohr’s non-disturbance measurement, full decoherence and “strong independence” lead to the paradigmatic spectrum broadcast structure (SBS) responsible for objectivity, which can be written in the following form:
ϱ S E = i p i | ψ i ψ i | ϱ i E 1 ϱ i E N ,
where E is the accessible environment, E k E 1 , E 2 , , E N , E k E k = , E k E are the subenvironments. The conditional states { ϱ i E k } can be used to perfectly distinguish index i, where { | ψ i } is some diagonal basis of the S and { p i } its spectrum.
The basis { | ψ i } has a special role in the above picture. It represents the objective information about the quantum system. The above form (2) is agnostic about the physical mechanism leading to it. Hence, we shall call the basis { | ψ i } a generalised pointer basis (or, alternatively an indicator basis). In the case of quantum Darwinism, when determined by the interaction Hamiltonian, this basis becomes exactly the pointer basis. However, there may be other physical processes that lead to the above (2) structure. This is directly related to the main point of the present paper: any pointer basis is the generalized pointer basis but not vice versa.
The above SBS state clearly shows the meaning of the terms “objective”/inter-subjective used in Definition 1. This reveals the contextual nature of objectivity, which emerges as a property of a system dependent on the combined properties of the system and the environment. These states have a discord of zero; hence, only the “classic” spectrum of the system { p i } is broadcast to the environment, and therefore independent observers do not have access to quantum information.
It has been proven that SBS is a stronger condition than the QD, i.e., SBS implies QD [14]. The objective states with spectrum broadcast structure can be used as ideal “frames of reference” to which any real states can be compared. The SBS was identified in the many models of open quantum systems (see [17] and the references therein), and its simulations on a quantum computer were demonstrated [18]. It was also shown that the objectivity is subjective across quantum reference frames [19], including its dynamical aspects [20].
It was mentioned in [14] that the SBS-like states may open a “classical window” for life processes within the quantum world. Interestingly, the process of objectivization of information over time was analysed using quantum state discrimination and potential applications for the theory of evolution of senses were suggested [12]. Remarkably, in nature, there are thermal states the properties of which, seem to contradict objectivity suggesting that thermality and objectivity are mutually exclusive. Recently Le et al. [21] examined the overlap between thermal and objective states and showed that there are certain regimes in which exist states that are approximately thermal and objective.
As mentioned above, the SBS implies quantum Darwinism condition (1); however, the opposite implication does not hold. The discrepancy between the QD and SBS led to the discovery of a stronger version of quantum Darwinism (SQD) [22], where (1) is replaced by a stronger condition: A system state is objective if the following conditions hold simultaneously:
I ( S : E ) = χ ( S : E ) ,
I acc ( S : E k ) = H ( S ) ,
I ( E 1 E N | S ) = 0 ,
where χ ( S : E ) is the Holevo information in the pointer basis π , I acc ( S : E k ) is the accessible information and I ( E 1 E N | S ) is the conditional multipartite mutual information. It has been shown that SQD is equivalent to bipartite SBS, and it is sufficient and necessary for objectivity [22,23,24]. Thus, SBS and SQD are two extensions of the standard QD based on the quantum state structure and information, respectively [25].
However, in the limit of a large environment the standard QD works very well. In [11], the authors investigated a model based on imperfect C-NOT gates and showed that relevant quantities for QD exhibited similar dependence on the size E k of a fragment of environment E k , including scaling independent from the quality of the imperfect C-NOT gates and the size of the fragment of environment E k .

2. Aspects of Emergence of Objective Information on Quantum Ground

The fundamental elements of Zurek’s quantum Darwinism discovery were (1) The methodological identification that classical correlations between the system and environment and redundant character of the information about the system in the environment are a constitutive feature of objectivity. (2) Proof that this objective information is very special, unambiguously determined by a system–environment interaction. More precisely, the interaction chooses a basis, called the pointer basis, and this is the information concerning the question “In which state of the pointer basis is the system in?” that is replicated by interaction in the environment in a stable way. Quite remarkably, the latter feature is responsible for the strong cognitive power of the whole process.
This is the case for the following three reasons. First, the information-theoretic correlations between the system and parts of the environment have a classical, well-understood character. Second, a subject observing a part of the environment not only knows that the system is in some particular state but also knows exactly what the system state is, since the latter belongs to a special basis—the pointer basis. Third, by a repetition of an experiment of placing the system in the same state many times into the environment and observing some part of the latter, the subject is also able to learn (via a collection of the experiment statistics) about some parameters of the initial state of the system.
These correspond to the diagonal of the state written in the pointer basis. The parameters are revealed in this process. In this sense, we may understand the quantum Darwinism process as a process of objectivization that discloses the parameters of the system state.
In the present paper, we inquire as to whether and when the dynamical emergence of objectivity is possible in a more relaxed sense—namely, when one retains only the element (1) of Zurek’s program. More precisely, we only demand that the information about the system being in one of the elements of some basis is classically present in the environment—there are only classical correlations between system and environment. However neither the basis needs to be directly related to the system–environment interaction nor do the corresponding statistics need to directly correspond to some particular parameters of the initial state of the system. In this sense, the basis has only the character of the generalized pointer basis (see discussion below (2)).
Below, we show that this kind of objectivization can emerge in low-dimensional qubit systems. For this purpose, we examine the non-perfect propagation of information from system S to the noisy environment E with self-evolution and analyse interrelations between the degree of objectivization and environment parameters. We consider two different environments, the first composed of one observed and one unobserved qubit and the second one where there are seven observed qubits and one unobserved.
In particular, we consider an analytical model of three interacting qubits and derive its objectivity parameters. Then, we show that, if the imperfection of the C-NOT gate is known, the emergence of the objectivity albeit with respect to a different basis than the one associated with the gate itself—can be triggered by carefully chosen environment self-dynamics. For a seven-qubit environment, numerical calculations show that dynamics of the environment may help the emergence of relaxed objectivity to happen.

3. Analytical Model for Three Interacting Qubits

Let us now investigate a model of three interacting qubits, where we consider one of them as the observed system, and the remaining two constitute the observing environment E . In the following, we will derive a closed analytical formula for the objectivity parameters, viz. decoherence and orthogonalization, in a scenario where the information is widespread using imperfect C-NOT gate (C-INOT gate), and where the time evolution includes self-evolution of each of the qubits and their inter-environmental interaction.

3.1. Derivation of Objectivity Parameters

We model the C-INOT gates [11] defined by the formula:
U C - INOT 1 0 0 0 0 1 0 0 0 0 sin ( θ ) cos ( θ ) 0 0 cos ( θ ) sin ( θ ) ,
where θ [ 0 , π / 2 ] is the imperfection parameter. For θ = 0 , the gate reproduces the perfect C-NOT gate. It does not allow to model the two qubit identity unitary. In this work, we have chosen the Kronecker product convention where the primal structure of the matrix representation is determined by the first space involved in the product.
There is an infinite number of Hamiltonians that can realise the gate (4) after some fixed time of interaction. Here, we choose the following Hamiltonian:
H C - INOT 0 0 0 0 0 0 0 0 0 0 ( π / 2 ) ( 1 sin ( θ ) ) ( π / 2 ) cos ( θ ) 0 0 ( π / 2 ) cos ( θ ) ( π / 2 ) ( 1 + sin ( θ ) ) .
One may check that exp ( i t H C - INOT ) = U C - INOT for t = 1 . We denote by H C - INOT 1 , H C - INOT 2 , the Hamiltonians of C-INOT acting on the first and second qubits of the environment, respectively, conditioned by the system bit.
We assume that the total Hamiltonian is given by:
H TOTAL H C - INOT 1 + H C - INOT 2 + α 1 H 1 + α 2 H 2 + α 3 H 3 .
where
H 1 σ Z 1 1 2 1 1 2 ,
H 2 1 1 2 σ Z 1 1 2 + 1 1 2 1 1 2 σ Z ,
H 3 σ Z σ Z 1 1 2 + σ Z 1 1 2 σ Z + 1 1 2 σ Z σ Z + σ Z σ Z σ Z ,
with 1 1 2 denoting identity on a single qubit space. Here, H 1 is the self-evolution Hamiltonian of the central system; H 2 is the self-evolution of the environmental qubits that can be, e.g., caused by an external magnetic field; H 3 contains inter-qubit interactions, between each pair of the qubits plus the joint interaction between all three qubits via Z Z and Z Z Z coupling, respectively. α 1 , α 2 , α 3 0 are the interaction strength parameters.
Whereas (7b) easily generalizes for cases with more qubits in the environment, (7c) is specific for the two-qubit case. Further in this paper, we consider other inter-environmental interactions with larger environments.
One can rewrite H TOTAL = ( π α 1 ) 1 1 8 + M with 1 1 8 being the 3-qubit identity operator, and M a block-diagonal matrix, giving V exp ( i t M ) also of block-diagonal form, with blocks denoted by V 0 and V 1 . The explicit form of those matrices is given in Appendix A.
We assume that the initial system–environment state ϱ S E is given by:
ϱ S E = | + + | ϱ E 1 ϱ E 2 ,
where
ϱ E 1 = ϱ E 2 = ϱ p | 0 0 | + ( 1 p ) | 1 1 |
are the environment qubit states, p [ 0 , 0.5 ] .
We note that, for α 1 = α 3 = 0 the state ϱ is the termal state of the environment and p = e α 2 / β e α 2 / β + e α 2 / β , or 1 / β = 1 2 α 2 ln ( ( 1 p ) / p ) , where β is the inverse temperature. This holds because of the form of H 2 , i.e. the state | 1 is the ground state of the Hamiltonian. After the time evolution, given by exp ( i t H TOTAL ) , the joint state of the system and two qubit environment in the computational basis of the observed system is
ρ S E 1 E 2 comp = ( 1 / 2 ) V 0 E V 0 V 0 E V 1 V 1 E V 0 V 1 E V 1 ,
where each element of the 2 × 2 matrix is a block 4 × 4 matrix and E ϱ ϱ and V k exp ( i t M k ) , k = 0, 1. After tracing out the second environmental qubit, we find, again, in the computational basis, the following two qubit joint state of the system and observing qubit:
ρ S E 1 comp = ( 1 / 2 ) Tr 2 ( V 0 E V 0 ) Tr 2 ( V 0 E V 1 ) Tr 2 ( V 1 E V 0 ) Tr 2 ( V 1 E V 1 ) ,
where Tr 2 is the second qubit partial trace operation. Hence, we obtain the collective decoherence factor in the form
Γ = Tr 2 V 0 E V 1 Tr .
This equation is the value of the trace norm of a 2 × 2 upper off-diagonal block of the 4 × 4 matrix (11). The trace norm is defined as A Tr = T r ( A A ) .
The probabilities c 0 and c 1 of the system being in a state 0 or 1 of the computational basis are given by c i = ( 1 / 2 ) Tr ( V i E V i ) = 0.5 and are revealed to be constant in time. Conditioning upon the system state in the computational basis and tracing out the second environmental qubit, we find that the conditional states of the remaining (observing) qubit, denoted ϱ 0 and ϱ 1 , where ϱ i i | S ρ S E 1 | i S is a single qubit. Those states are obtained by a projection of the joint state of the system and part of the environment on one of the possible states of the system in the computational basis. If there is no coherence between different states of the system, then the off-diagonal elements should vanish, as is explicitly stated in the definition of SBSs.
The (generalized) fidelity [26] (also called the Bhattacharyya coefficient), used as a measure of state overlap [12] for two matrices ϱ 0 and ϱ 1 is defined as
F ( ϱ 0 , ϱ 1 ) Tr ϱ 0 ϱ 1 ϱ 0 .
The larger the value of the fidelity, the poorer the orthogonalization of the relevant observable. We provide explicit formulae for (12) and (13) in Appendix B.
The upper bound to the distance to the Spectrum Broadcast Structure [12,14] is
| | ρ S E 1 ρ S E 1 ( S B S ) | | 2 Γ + c 0 c 1 F ( ϱ 0 , ϱ 1 ) ,
which is true for some state ρ S E 1 ( S B S ) having the SBS form (2). The bound (14) can be applied to any state, not only qubit-qubit states. In Appendix C, we discuss the distance of the evolved state to the thermal state.

3.2. Generalised Pointer Basis Optimal for SBS

Since the constituent Hamiltonians in (7) do not commute with the C-INOT gate Hamiltonians, one cannot follow the paradigm of [6] and determine the generalized pointer basis from the interaction Hamiltonian only. In other words, this is the case when the generalized pointer basis (which may also be called the indicator basis) is a different object from the pointer basis known from quantum Darwinism.
Above in (11), we wrote the evolved state in the computational basis, and the calculations of (A12) and (A16) refer to this basis. On the other hand, one may ask the question, whether there exists some other basis of the observed system that manifests structure closer to SBS.
For the two environmental qubit cases with one of them being traced out, we shall look for the optimal SBS state—namely, the one that is the closest to the actual system–environment state represented in the computational basis ρ S E 1 comp (see (11)). To this aim, we minimize the distance of the latter to the SBS states, which, by definition, have the form:
ρ S E 1 S B S = p ˜ | ψ ψ | S | χ χ | E 1 + ( 1 p ˜ ) | ψ ψ | S | χ χ | E 1 .
Note that this form easily generalizes for environments of higher dimension with | χ χ | E 1 and | χ χ | E 1 replaced with orthogonal ϱ 0 E 1 and ϱ 1 E 1 :
ρ S E 1 S B S = p ˜ | ψ ψ | S ϱ 0 E 1 + ( 1 p ˜ ) | ψ ψ | S ϱ 1 E 1 .
In the two-qubit case, minimisation of the corresponding distance
ρ S E 1 comp ρ S E 1 S B S Tr
over all probability p ˜ , and state vectors | ψ , and | χ defining (15) gives the optimal SBS state:
ρ S E 1 opt S B S = p ˜ * | ψ * ψ * | S | χ * χ * | E 1 + ( 1 p ˜ * ) | ψ * ψ * | S | χ * χ * | E 1 .
The basis { | ψ * , | ψ * } for which the minimum of (17) is attained should be considered as a candidate for the generalised pointer (equiv. indicator) basis for the case when the total Hamiltonian (6) does not commute with the interaction Hamiltonians (5).
To be more specific, for | ψ and | χ being qubits, as in (15), we use the standard Bloch parametrization
| ψ = cos x ψ / 2 | 0 + sin x ψ / 2 exp i y ψ | 1 ,
with x ψ [ 0 , π ] , y ψ [ 0 , 2 π ] , and similarly for | χ . Further, without loss of generality, we assume p ˜ [ 0.5 , 1 ] . This last assumption assures continuity of the parameters obtained in the optimization, as without it the optimization has two possible equivalent solutions, viz. the one from (15) and the second one with p ˜ replaced with 1 p ˜ and states replaced with their orthogonal complements.
In the actual numerical calculations, we used unconstrained gradient search with a continuous map R [ 0.5 , 1 ] for the p ˜ parameter, and postprocessing of the resulting optimal values x ψ , y ψ , x χ , y χ R to obtain angles within the proper Bloch parameter range yielding the same qubit states. We illustrate the optimization of the SBS basis in Figure 1.

3.3. Marginal Cases

Another interesting marginal case is for maximally mixed environment, i.e., for p = 0.5 . Then, μ = 1 / 4 and ν = 0 , again leading to F ( ϱ 0 , ϱ 1 ) = 1 . This is in agreement with [27], as this case refers to maximal entropy of the environment, and thus its capacity is 0.
For fixed p 0.5 and θ < π / 2 , we see from (A16) that the orthogonalization factor is a function of r 4 . Thus, by changing the difference α 2 α 3 , we can adjust the total Hamiltonian so that the orthogonalization reaches its maximum. Thus, knowing the imperfections of the interaction θ , mixedness p environment, and the internal interaction H 3 , we can, e.g., manipulate the magnetic field H 2 acting on the environment, to improve the quality of the measurement. We illustrate this adjustment in the following section.

4. Central Interaction: Optimization of Spectrum Broadcast Structure for 2 Environmental Qubits

We now consider the case when α 1 = α 3 = 0 , and α 2 , θ 0 , i.e., with imperfect central interaction and self-evolution of environmental qubits with initial mixedness parameter p after time t = 1 , viz. at the time after which the central interaction has fully occurred.
We first note that, in the former Section 3, we considered the Spectrum Broadcast Structure obtained in the pointer basis [6], which was, in that case, equal to the computational basis of the observed system. Yet, it is possible to calculate the SBS distance for a different basis, viz. for the optimal basis, as introduced in Section 3.2.
We used the gradient method [28] to find the basis that minimizes the SBS distance. We note that the considered setup with only two qubits is very far from the one involving the macroscopic environment, and thus the objectivity present in this model can be only temporary since a single qubit is not able to induce full decoherence that is stable in time or orthogonalization of observables.
Yet, we are interested in the classical properties of the evolved system at a particular time moment, namely, the time that we denote as t = 1 , the time at which the measurement is supposed to occur. Still, this scenario illustrates the mechanism, and we leave the actual scaling of the discussed non-monotonic phenomena for further research.

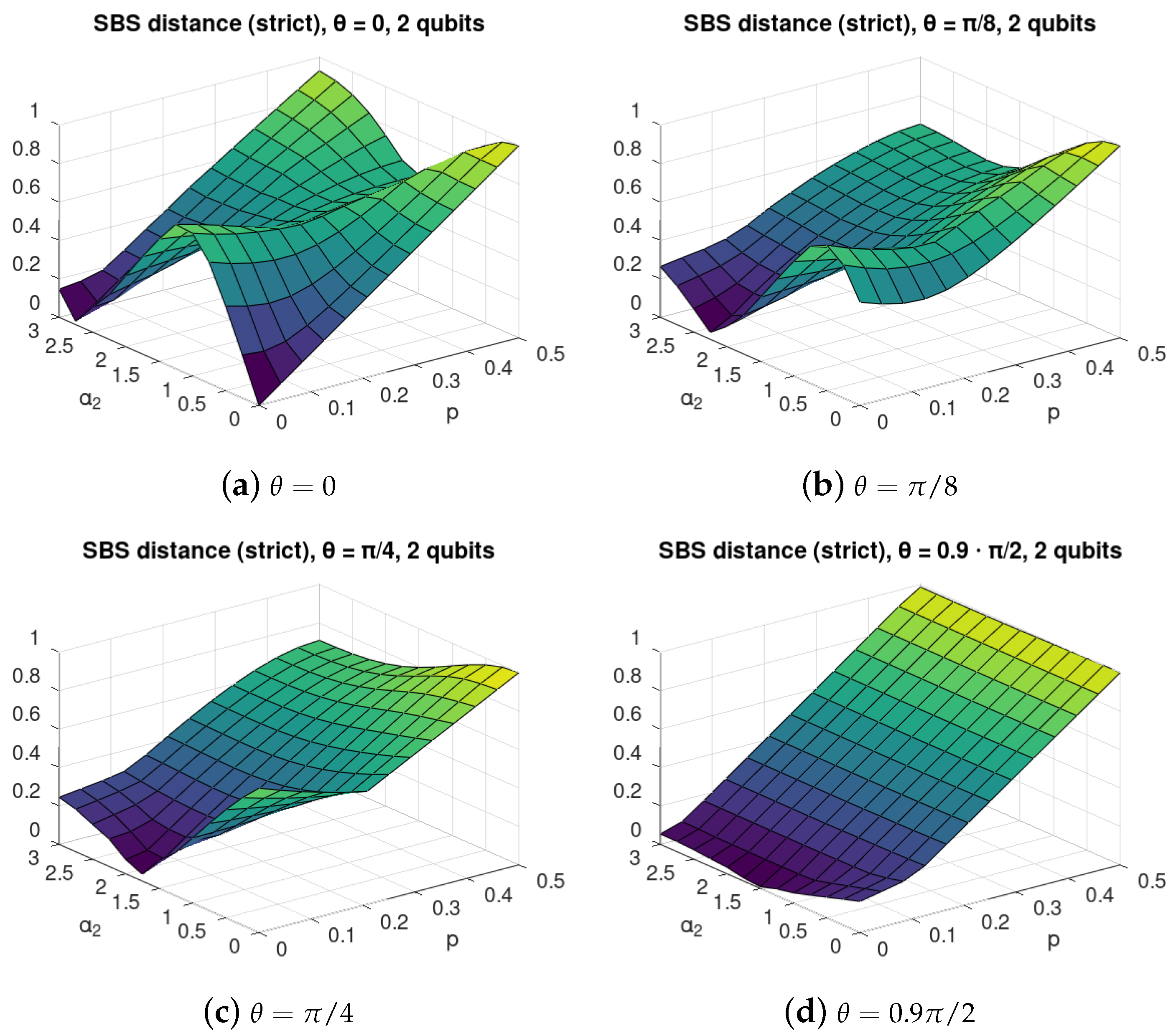

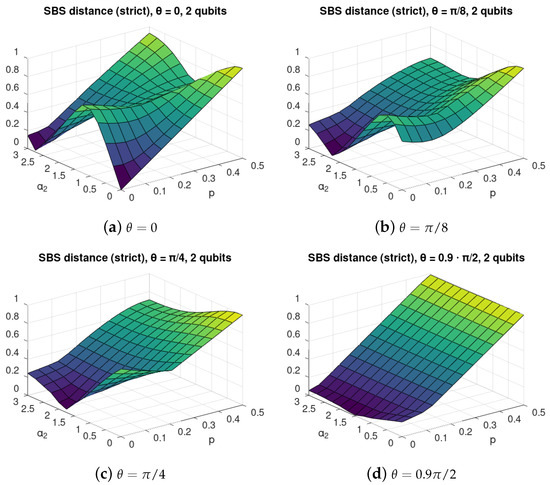

We performed the calculation of the SBS distance (17) for the case with α 1 = α 3 = 0 as a function of self-evolution of the environment parameter α 2 and environmental mixedness, or noise, parameter p for various C-INOT imperfection parameter θ . The results are shown in Figure 2. For better readability we show their marginal values for p = 0 in Figure 3a, and for α 2 = 0 in Figure 3b.
We observe that, for θ > 0 , there exist values of α 2 that allow improving the SBS structure of the evolved state; thus, the self-evolution can to some extent counter-act the interaction gate imperfections.
For the perfect C-NOT depicted in Figure 2a, we observe that, for small p, the self-evolution has a destructive influence on the SBS formation. On the other hand, for large values of p, adding some self-evolution may improve the SBS structure. This reveals that, for p close to 0.5 , the Hadamard basis is the actual optimal basis for SBS formation. For α 2 1.5 , we observe a surprising phenomenon—that increasing the environmental mixedness may also improve the SBS formation.
A similar situation of non-monotonicity in both α 2 and p can be clearly noticed in Figure 2b,c refering to imperfect C-NOT with θ = π / 8 and θ = π / 4 , respectively. For small α 2 0 with increasing environmental mixedness, the optimal SBS basis approaches the actual computational basis.
For large imperfections of C-NOT, with θ = 0.9 π / 2 , Figure 2d, we see that the SBS is being destroyed by noise in a monotonic way, but non-monotonicity in α 2 shows that the state is closest to SBS for α 2 1.5 .

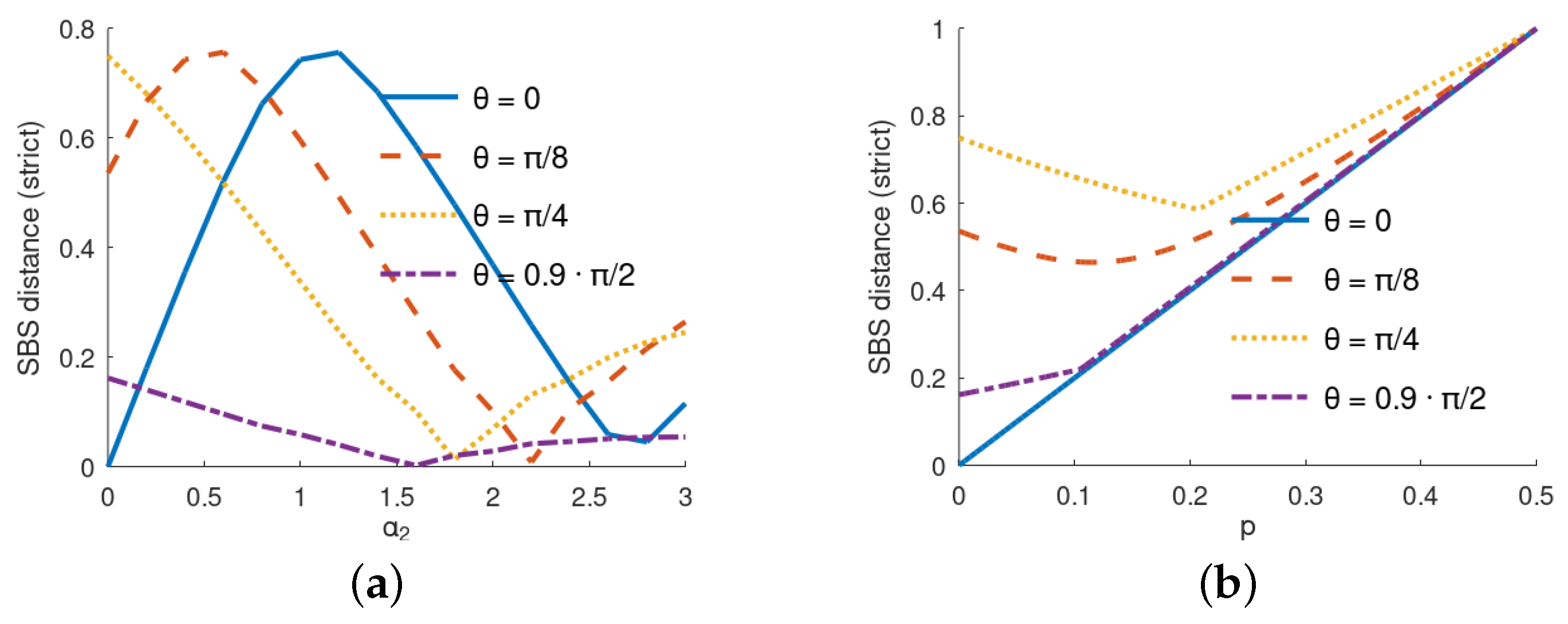

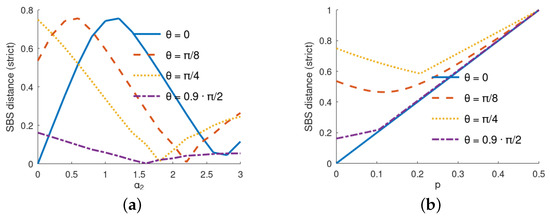

To better illustrate the non-monotonic phenomena, we depicted the marginal cases in Figure 3a, where we show the SBS distance depending on α 2 , and in Figure 3b, where the dependence on p is plotted.

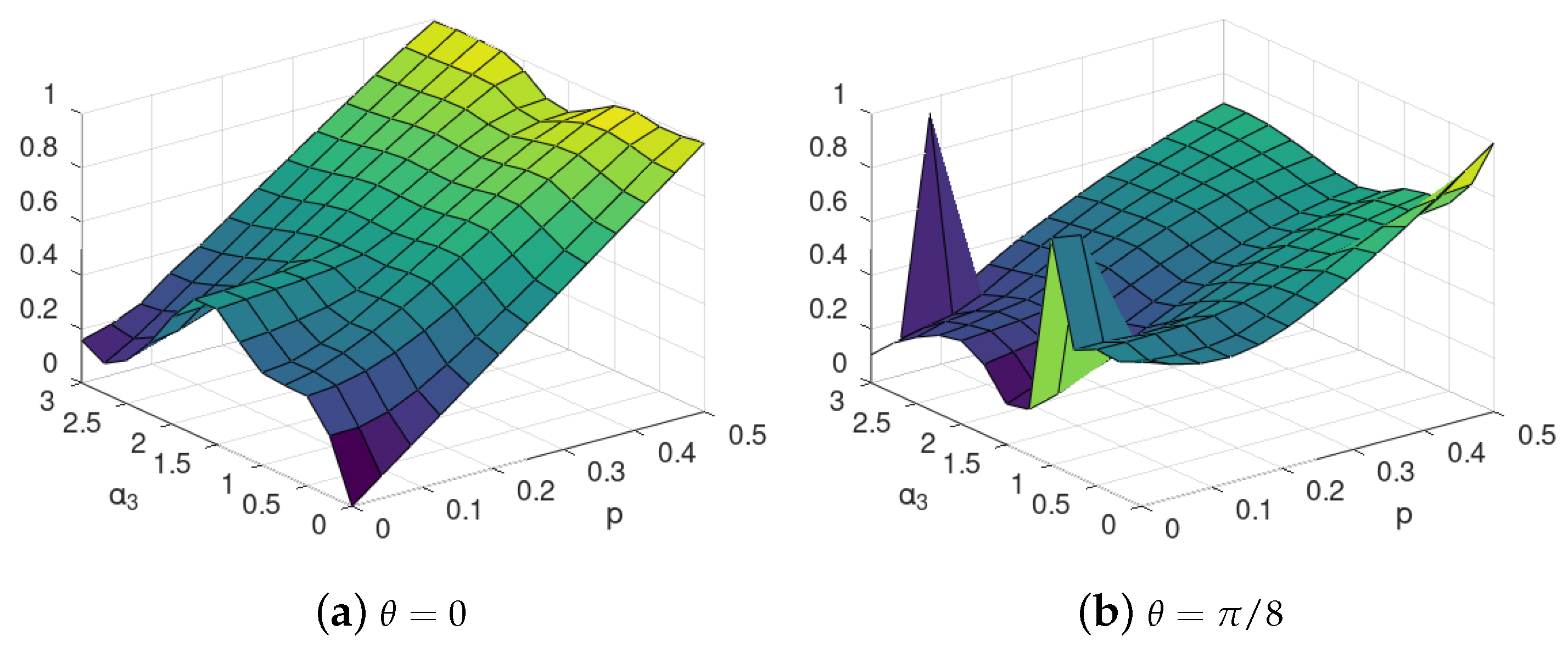

For the sake of completeness, let us consider another form of the interaction between the two environmental qubits—that is, the neighbour–neighbour interaction 2 1 1 2 σ Z σ Z . We plot this dependence in Figure 4. The same non-monotonic pattern can be seen as in Figure 2.

Importance of the Basis Choice

In the present section, we illustrate the emergence of different indicator bases than the pointer basis in another way, rougher than the one performed in Section 3.2. Rather than performing full optimization, we perform a partial one, fixing the first one of the two anticipated bases (standard or Hadamard) and analysing a specific parameter that will tell us which of the bases is closer to the optimum.
To be more specific, in the optimization of the quantity (17), we allowed for any SBS basis | ϕ of the observed system in the calculation of the minimal distance of ρ S E 1 comp from the SBS set.
Now, let us assume that the basis | ϕ is fixed, and the optimization is performed only over pure qubits | χ and p ˜ [ 0 , 1 ] . To this end, let us define the following subset of SBS states:
S | ψ σ : σ = p ˜ | ψ ψ | | χ χ | + ( 1 p ˜ ) | ψ ψ | | χ χ | , p ˜ [ 0 , 1 ] .
We define the distance D of the state ρ from the set S :
D ρ , S min σ S ρ σ Tr .

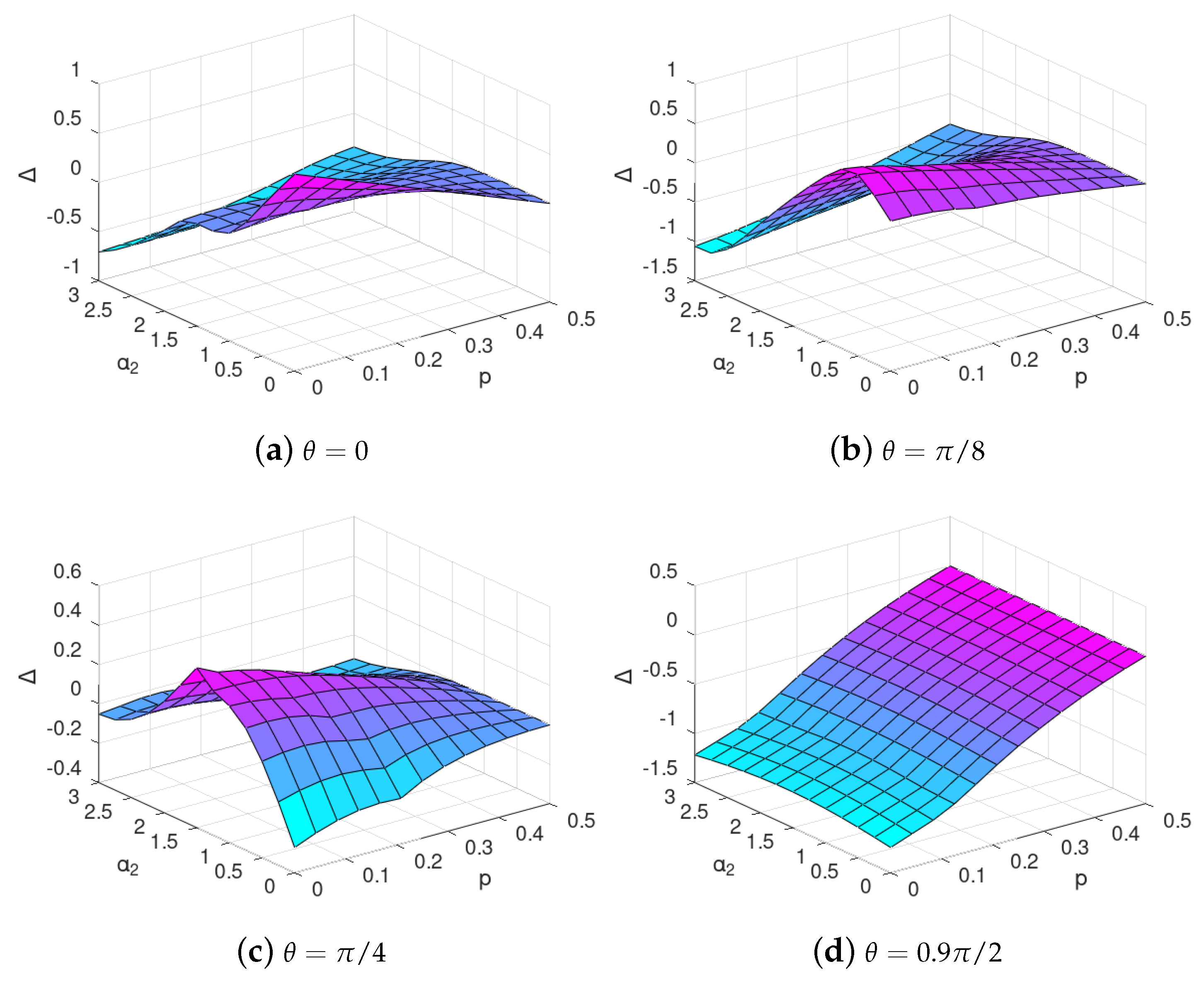

Now, we illustrate the difference between choices of different bases by comparing SBS distance if the basis of the SBS state is fixed to be either in the computational or in the Hadamard basis in (15). To this end, in Figure 5, we plot the difference between the minimized SBS-distance in the latter basis subtracted the minimized SBS distance in the former basis, viz.
Δ D ρ S E 1 comp , S | + D ρ S E 1 comp , S | 0 .
It can be easily seen that, even if we are not considering the optimal basis from (18) but restrict to the two simplest choices, the computational and Hadamard, the formation of the SBS structure favours either the former or the latter basis depending on the evolution and environment parameters, even though the pointer basis in quantum Darwinism sense does not change. One must remember that this is a very rough picture if compared to that of Section 3.2. However, it shows that some tendencies concerning the information about the system encoded in the environment may still be identified despite the use of less computational effort.

5. Central Interaction: Optimization of Spectrum Broadcast Structure for 8 Environmental Qubits

Next, we considered a case with a larger number N env of environmental qubits. In this case, we consider the broadcast Hamiltonian to be a sum
H int = i = 1 N env H C - INOT i ,
where H C - INOT i is defined by (5) with transformation over i-th environmental qubit controlled by the central system. We consider only the self-evolution of separate environmental qubits, and thus this is a direct generalization of the three-qubits case with α 1 = α 3 = 0 and arbitrary α 2 . The self-evolution Hamiltonian is (in analogy to the 3-qubit case from Section 3.1):
H 2 = α 2 i = 1 N env σ Z i ,
where σ Z i acts on i-th environmental qubit.

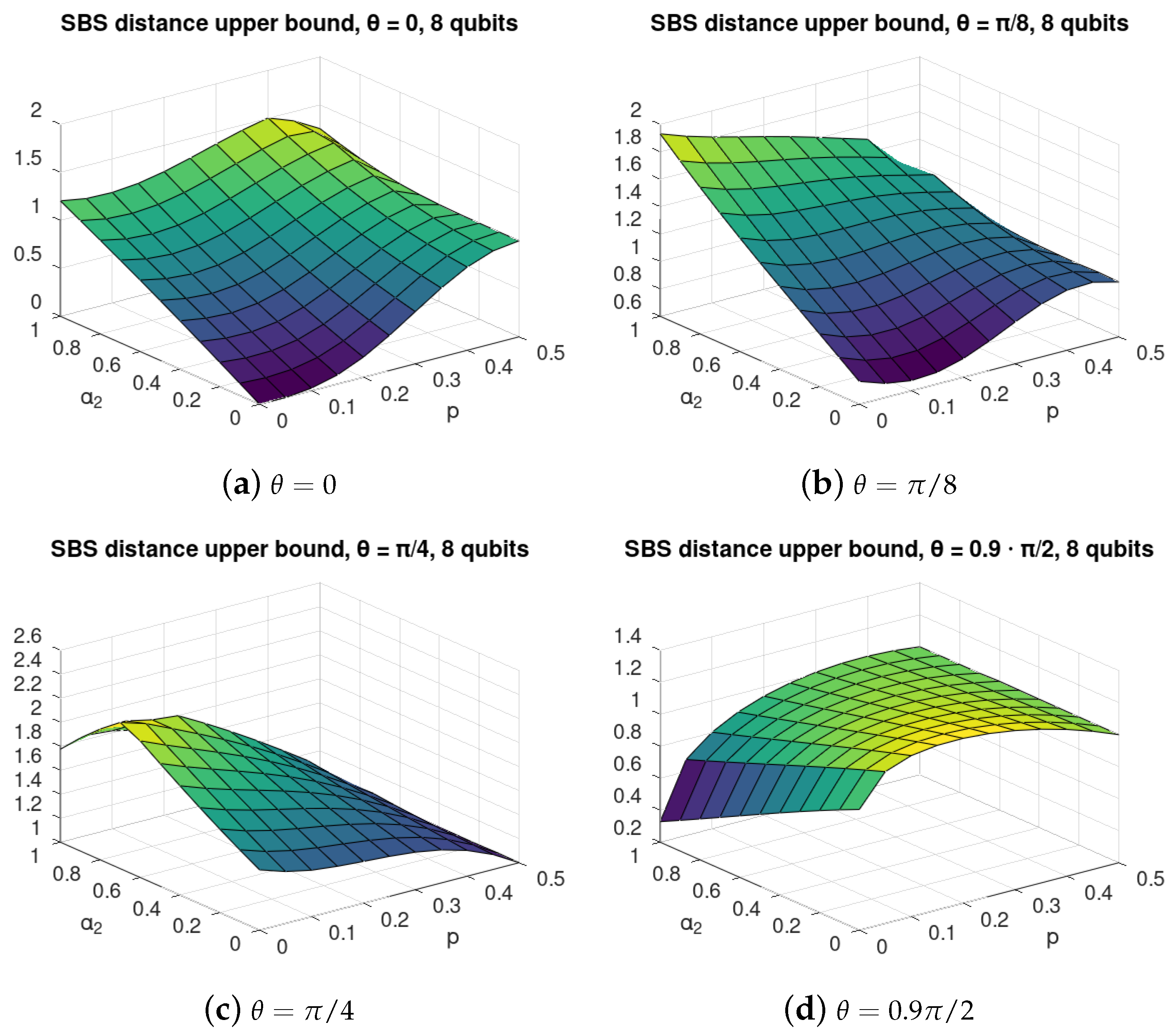

We performed numerical calculations for an 8-qubit environment. We assumed that 7 of these qubits constitute the observer, with the last qubit being trace-out. In all cases in this section, we considered the optimal SBS basis.
The optimization of (17) for environments of dimension larger is much more difficult; thus, we were not able to find the state (16) exactly. Instead, we calculated the upper bound of [12], cf. (14) to check if the non-monotonic phenomena that we observed for two qubits can be expected to occur also in this case. The results of the numerical optimization are shown in Figure 6. The calculated upper bounds suggest that there exists some regime of gate imperfection θ , where both self-evolution and noise of the environment can improve the SBS structure as in the case of a two-qubit environment (see Section 3 and Section 4).
We stress that the quantity (14) of [12] is only an upper bound, even though it can be applied to a state, and is easily computable. The calculation of (14) is purely algebraic and does not require any optimization procedure. On the other hand, since it provides only an upper bound, the exact results may diverge from those obtained with the bound, yet the similarity of behaviour of the plots obtained with the bound (see Figure 6) is similar to those derived using optimization of an exact formula (see Figure 2). This shows that the upper bound is able to properly grasp the non-monotonic tendencies occurring in both scenarios.
For perfect C-NOT, see Equation (4), with θ = 0 , for majority values of α 2 the SBS distance is gradually growing with increasing p, approaching value close to 1 for the maximal mixedness p 0.5 . For α 2 [ 0 , 1 ] the SBS distance is also increasing for p 0 . Yet, for large values of α 2 and p, a slightly non-monotonic behaviour is seen in p.
For θ = π / 8 , a clear improvement in SBS formation with increasing p can be seen in Figure 6b, where the optimal value of α 2 is increasing with p. For α 2 0 , it can be observed that the SBS is best formed for p 0.1 , which is also a surprising effect, confirming the previous observation that, with self-evolution of environment, it is possible that more noised (mixed) initial environment is more suitable for SBS formation that the pure environment. Even stronger effect is visible in Figure 6c. Still, it should be noted that, in those cases the SBS distance upper-bound is very large, close to 1, or even higher, and thus its behaviour may serve only as a preliminary suggestion regarding the behaviour of the actual distance to SBS of the formed states, and as such, should be followed by tight analytical approximations in the future.
In the case of large imperfections of C-INOT, viz.  θ = 0.9 π / 2 , see Figure 6d, a clear effect of improvement in SBS formation for increasing self-evolution of environment parameter α 2 occurs, which is especially strong for small p 0 .

6. Non-Central Interaction for Eight Qubits

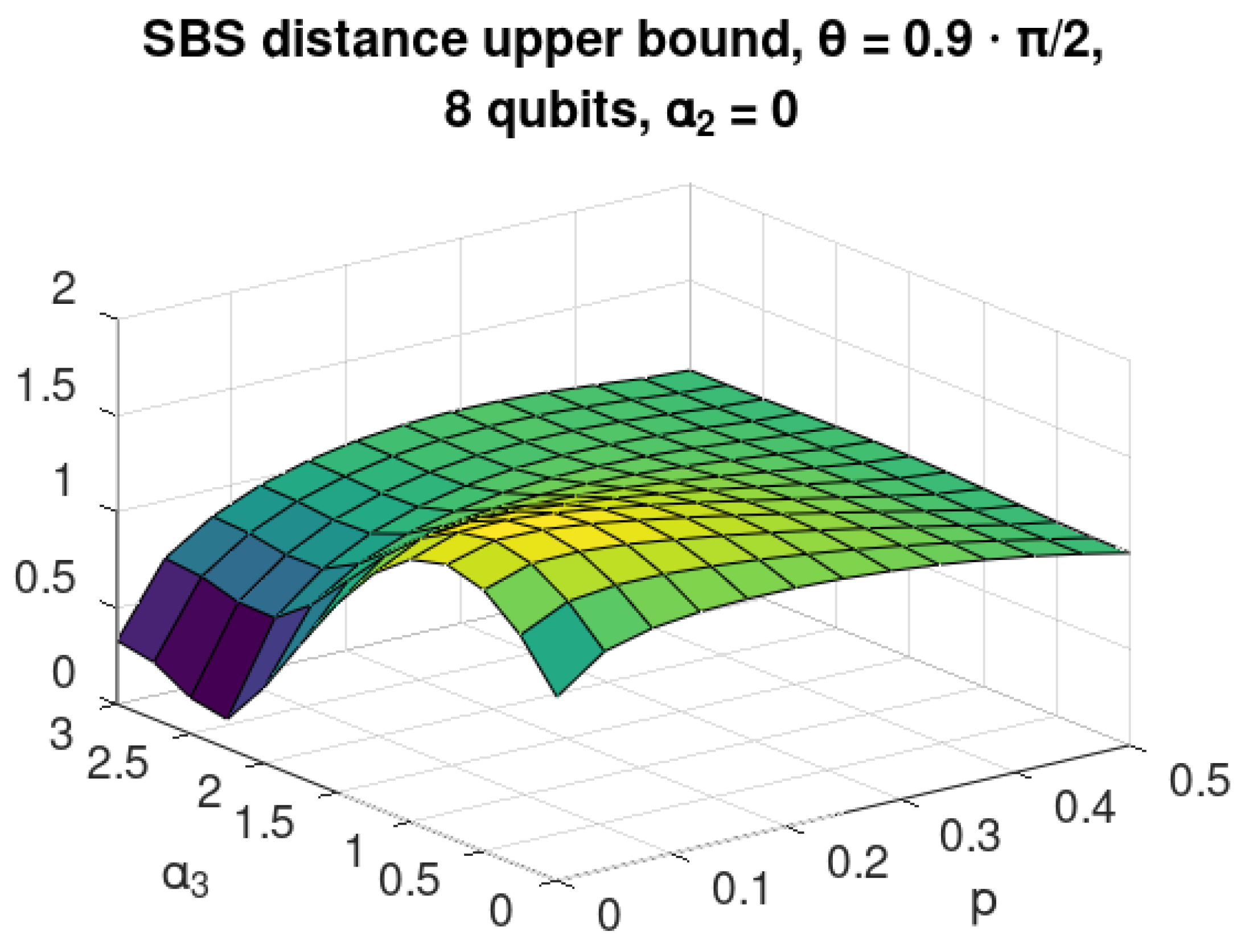

Now, let us consider the case with interaction between environmental qubits of the following neighbour–neighbour form:
H 3 = α 3 i = 1 N env σ Z i σ Z ( i mod N env + 1 ) ,
where N env is the number of qubits in the environment, and σ Z i acts on i-th qubit of the environment. We calculated the upper bound [12] for the case with α 1 = α 2 = 0 and eight qubits as a function of the imperfection of C-INOT parameter θ and environmental noise p. The results are show in Figure 7. A strong non-monotonicity in α 3 can be observed for low values of p, e.g., in the case of θ = 0.9 π / 2 , where taking α 3 2 can repair the effect of C-INOT imperfection.
The analogous situation takes place for fixed α 0.75 where the bound is decreasing with increasing initial noise for the region of p 0.1. One should remember, however, that, in this case, the numerical values of the bound are high, and the search for possible non-monotonous behaviour of the exact distance as a function of p should be continued.

7. Conclusions and Discussion

We examined the aspects of the emergence of objective information in the dynamic physical scenario in low-dimensional qubit systems. More precisely, we considered the non-perfect propagation of information from the system to the noisy environment with self-evolution, where the imperfect C-NOT gate [11] is accompanied by the presence of the self-dynamics of the environment, which—in general—may be in an initially mixed (thermal) state. We considered two different environments, the first composed of one observed and one unobserved qubit and the second one where there are seven observed qubits and one unobserved. In particular, we examined an analytical model of three interacting qubits, and we derived the objectivity parameters.
We considered examples with the system in the Hadamard state and showed that, if the imperfection of the C-NOT gate is known, the emergence of the objectivity—albeit with respect to a different basis than the one associated with the gate itself—can be enhanced by a carefully chosen environment self-dynamics, which may be interpreted only as an external magnetic field. The numerical optimization shows that the quality of the spectrum broadcast structure formed during the interaction may be non-monotonic both in the speed of self-dynamics of the environment as well as its mixedness. We interpret this phenomenon as the emergence of a new type of objectivity, which may be called a relaxed objectivization, since the statistics do not disclose any parameters of the initial state of the system but present to the observer some new ones, generated during the complex dynamical process.
We also discussed the case of eight qubits of environment and numerical calculations supporting the general conjecture, where the dynamics of the environment may help the emergence of objectivity to occur. This suggests that, even if the imperfectness of the C-NOT is large enough to destroy objectivity in the standard scenario [11], one may observe its “comeback” as a kind of phase transition due to the carefully tuned self-dynamics of the environment.
We believe that the above concept of the relaxed objectivization is interesting in itself because it concerns the general question of whether the system is in fully classical relation with the environment in the philosophical, purely existential sense—namely, that one is allowed to make a sensible claim that some of its property exists. In this sense, the present approach brings out the ontological aspect of emergent objectivity in a quantum world.
The possible cognitive and practical consequences lead two directions. First, if we are in the engineering paradigm, we know that objectivity (technically represented here by the SBS structure) makes the system–environment composition useless for coherent quantum information processing. This may be important in experiments monitoring a general interaction of a given system with a mesoscopic environment, including quantum memory and other coherent effects. In such cases, one should know methods to keep its state far from such an objective form.
The present analysis suggests that it can be done in a simple way—namely, by tuning an external magnetic field. Second, the present analysis may inspire several open questions concerning the possibility of the emergence of objectivity close to the original quantum Darwinism paradigm, yet more relaxed in certain physical scenarios [29].
For instance, we considered only the situation when the information was objectively “mirrored” in one environment (cf. [21]). Is it possible to observe the present, relaxed objectivity effect stable in time for a large number of environments as in the case of quantum Darwinism objectivity? If so, is it possible to find situations when, despite the “unfriendly circumstances”—environment dynamics, noise and deviation from the C-NOT gate interaction—the information about some parameters of the initial state of the system can still be easily retrieved from the environment?
Another question would be, whether and when the present objectivised basis can be exploited to read out some well-defined parameters of the whole dynamics. The original pointer basis was defined by a local element, i.e., a system–environment interaction Hamiltonian. Concerning our case: does one need to know all the global dynamics, or are there cases when knowledge of some parameters of the global dynamics (and, perhaps, its particular symmetries) is sufficient to determine our analogue of the pointer basis?
For more than two environments, the SBS structure is stronger than Strong Quantum Darwinism [22]. However, the concept of generalized pointer basis in those dynamical scenarios where interaction Hamiltonian alone does not determine objectivity may be, in full analogy, defined for Strong Quantum Darwinism, since the latter is also agnostic to the physical mechanism leading to it. The corresponding system environment state satisfying SQD is of a quite general form ϱ S E = i p i | ψ i ψ i | ϱ i E 1 E N but with a special property.
There must exist some isometries that act locally on the parts of environments U i E 1 U i E N : E 1 E N E 1 E 1 E N E N and transform the state ϱ S E into another state ϱ S EE in such a way that, after tracing out the E parts of the environment, one finds the SBS state defined in (2) (the domains of the isometries also involve those degrees of freedom that carry possible correlations between different parts of environments but are irrelevant for objectivity). If there are interactions between different parts of the environment, it is likely that objectivity will be encoded in the above general SQD form due to correlations produced by the interactions.
Searching for a generalized pointer basis in a dynamical system may be even more demanding, especially if the environment corresponds already to so-called macrofractions (see [14]). In those cases, most likely new analytical methods will be needed due to the complexity and numerical intractability of the problem.
Finally, the observed non-monotonicity of objectivity under the parameters of the two potentially “unfriendly” elements of the scenario—the speed of the environment dynamics and mixedness of its states seems counterintuitive. We believe that this requires further investigation in more complex models—both from the SBS as well as SQD perspective—and may lead to some applications that are difficult to identify at this present, early stage of analysis.

Author Contributions

Conceptualization P.M., P.H. and R.H.; Formal analysis and visualization P.M.; Interpretation P.M., P.H. and R.H.; Writing P.M., P.H. and R.H. All authors have read and agreed to the published version of the manuscript.

Funding

The work was supported by the Foundation for Polish Science (IRAP project, ICTQT, contract No. 2018/MAB/5, co-financed by EU within Smart Growth Operational Programme). The numerical calculations were conducted using OCTAVE 6.1 [30] and packages QETLAB 0.9 [31] and Quantinf 0.5.1 [32].

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
SBSspectrum broadcast structure
QDquantum Darwinism
SQDstrong quantum Darwinism
C-NOTcontrolled-NOT gate
C-INOTcontrolled imperfect-NOT gate
F fidelity
I ( S : E ) mutual information between the system and part of the environment
H ( · ) von Neumann entropy
χ ( S : E ) Holevo information between S and E

Appendix A

Direct calculations show that H TOTAL = ( π α 1 ) 1 1 8 + M , where 1 1 8 is the 3-qubit identity operator, and M M 0 0 0 M 1 is a block diagonal matrix with M 0 and M 1 given by:
M 0 ξ 1 0 0 0 0 ξ 2 0 0 0 0 ξ 2 0 0 0 0 ξ 3 ,
M 1 y x / 2 x / 2 0 x / 2 0 0 x / 2 x / 2 0 0 x / 2 0 x / 2 x / 2 y ,
where we denote:
ξ 1 π + 2 α 1 + 2 α 2 + 4 α 3 ,
ξ 2 π + 2 α 1 2 α 3 ,
ξ 3 π + 2 α 1 2 α 2 ,
x π cos ( θ ) ,
y π sin ( θ ) 2 α 2 + 2 α 3 .
We often use the following term:
w x 2 + y 2 .
Calculating the eigendecomposition of (A1b), we find that M 1 = U · D · U , where D is the diagonal matrix with elements ( 0 , 0 , w , w ) , and unitary U is given by:
U ( 1 / 2 ) 0 2 x / w ( w y ) / w ( w + y ) / w 2 2 y / w x / w x / w 2 2 y / w x / w x / w 0 2 x / w ( w + y ) / w ( w y ) / w .
Using this formula, we can calculate V exp ( i t M ) to be block diagonal with blocks V 0 and V 1 , where V 0 is the diagonal matrix with elements ( u 1 , u 2 , u 2 , u 3 ) ,
u i exp ( i t ξ i ) ,
and V 1 = R + i Q , with R and Q defined as follows:
R r 1 r 2 r 2 r 3 r 2 r 4 r 3 r 2 r 2 r 3 r 4 r 2 r 3 r 2 r 2 r 1 ,
Q q 1 q 2 q 2 0 q 2 0 0 q 2 q 2 0 0 q 2 0 q 2 q 2 q 1 ,
where
r 1 0.5 ( x 2 + ( w 2 + y 2 ) cos ( t w ) ) / w 2 , r 2 0.5 x y ( 1 cos ( t w ) ) / w 2 , r 3 0.5 x 2 ( 1 cos ( t w ) ) / w 2 , r 4 0.5 ( x 2 cos ( t w ) + w 2 + y 2 ) / w 2 ,
and
q 1 y sin ( t w ) / w , q 2 0.5 x sin ( t w ) / w .
One can check by direct calculations that the following identities hold:
r 1 2 + q 1 2 r 4 2 = 0 , q 2 2 + r 2 2 + r 3 2 + r 3 = 0 , r 1 r 2 + r 2 r 3 q 1 q 2 + r 2 = 0 , q 1 r 2 + q 2 r 1 q 2 r 3 q 2 = 0 , r 4 r 3 1 = 0 ,
and that r 3 [ 1 , 0 ] and r 4 [ 0 , 1 ] .

Appendix B

Using the notation of Appendix A, direct calculations show that, for Γ defined in (12), we have:
Γ = p s 1 + 2 ( u 1 u 2 * s 2 ) + ( 1 p ) s 1 + 2 ( u 2 u 3 * s 2 ) ,
where is the real part of a number, and
s 1 ( p 2 + ( 1 p ) 2 ) · r 4 ,
s 2 p ( 1 p ) · ( r 1 + i q 1 ) r 4 ( r 2 i q 2 ) 2 .
The states ϱ 0 and ϱ 1 , obtained by conditioning upon the system state in the computational basis and tracing out the second environmental qubit, are equal,
ϱ 0 = p 0 0 1 p ,
ϱ 1 = 1 + p ( 2 r 4 1 ) r 4 ( 1 2 p ) ( r 2 + i q 2 ) ( 1 2 p ) ( r 2 i q 2 ) p ( 1 2 r 4 ) + r 4 .
From the above, it follows that, for
μ = p ( 1 p ) ( 2 r 4 1 ) + 0.5 r 4 ,
we have
ϱ 0 ϱ 1 ϱ 0 μ 1 1 2 = ( p 0.5 ) r 4 p ( 1 p ) ( 1 2 p ) ( r 2 + i q 2 ) p ( 1 p ) ( 1 2 p ) ( r 2 i q 2 ) ( p 0.5 ) r 4 .
Using (A9), we find that the eigenvalues of (A14) are ± ν , where
ν = 0.5 1 2 p r 4 ( r 4 4 ( p p 2 ) · ( r 4 1 ) ) .
Thus, we have the following closed form for (13):
F ( ϱ 0 , ϱ 1 ) = μ + ν + μ ν .

Appendix C

The state of an environmental qubit is given as the average of (A12), and thus it equals
0.5 r 4 ( 0.5 p ) 0.5 ( 1 2 p ) ( r 2 + i q 2 ) 0.5 ( 1 2 p ) ( r 2 i q 2 ) 0.5 + r 4 ( 0.5 p ) .
Now, let us consider how close is this state to the Gibbs state, in particular directly after the short-term C-INOT interaction, i.e., for t = 1 ?
Since the Hamiltonians (7) are diagonal in computational basis and proportional to σ Z = 1 0 0 1 , the Gibbs state will also be diagonal, with the second diagonal value greater or equal the first (for σ Z | 1 is the ground state).
Recall that from the form of the thermal environment (9), we have p [ 0 , 0.5 ] . One can check that r 4 [ 0 , 1 ] , and thus r 4 ( 0.5 p ) 0 . Thereby, the second diagonal term of (A17) is greater or equal to the first, and thus the trace distance of the state (A17) from the closest thermal state is given by
0 0.5 ( 1 2 p ) ( r 2 + i q 2 ) 0.5 ( 1 2 p ) ( r 2 i q 2 ) 0 Tr ,
where · Tr denotes the trace norm. This is equal to
1 2 p r 2 2 + q 2 2 = ( 1 2 p ) r 4 2 + r 4 .
Direct calculations using (A9) show that either of the sides of (A19) can be rewritten also as
0.5 p x 1 cos t x 2 + y 2 1 + cos t x 2 + y 2 ) x 2 + 2 y 2 / ( x 2 + y 2 ) .
For fixed p and θ , the value of (A19) is a function of r 4 that depends on the difference α 2 α 3 . The same holds for F ( ϱ 0 , ϱ 1 ) , cf. (A16), as μ and ν are also functions of p, θ and r 4 , and thus there is a direct interplay between those two phenomena, the orthogonalization of observables and thermalization.

References

  1. Landsman, N.P. Between classical and quantum. Part Philos. Phys. 2007, 417–553. [Google Scholar] [CrossRef] [Green Version]
  2. Barnum, H.; Caves, C.M.; Fuchs, C.A.; Jozsa, R.; Schumacher, B. Noncommuting mixed states cannot be broadcast. Phys. Rev. Lett. 1996, 76, 2818–2821. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Piani, M.; Horodecki, P.; Horodecki, R. No-Local-Broadcasting Theorem for Multipartite Quantum Correlations. Phys. Rev. Lett. 2008, 100, 090502. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Zurek, W.H. Quantum Darwinism. Nat. Phys. 2009, 5, 181. [Google Scholar] [CrossRef]
  5. Zeh, H.D. On the interpretation of measurement in quantum theory. Found. Phys. 1970, 1, 69. [Google Scholar] [CrossRef]
  6. Zurek, W.H. Pointer basis of quantum apparatus: Into what mixture does the wave packet collapse? Phys. Rev. D 1981, 24, 1516. [Google Scholar] [CrossRef]
  7. Zurek, W.H. Decoherence, einselection, and the quantum origins of the classical. Rev. Mod. Phys. 2003, 75, 715. [Google Scholar] [CrossRef] [Green Version]
  8. Joos, E.; Zeh, H.D.; Kiefer, C.; Giulini, D.; Kupsch, J.; Stamatescu, I.-O. Decoherence and the Appearance of a Classical World in Quantum Theory, 2nd ed.; Springer: New York, NY, USA, 2003. [Google Scholar]
  9. Schlosshauer, M. Decoherence, the measurement problem, and interpretations of quantum mechanics. Rev. Mod. Phys. 2005, 76, 1267. [Google Scholar] [CrossRef] [Green Version]
  10. Auffeves, A.; Philippe Grangier, P. Recovering the quantum formalism from physically realist axioms. Sci. Rep. 2017, 7, 43365. [Google Scholar] [CrossRef]
  11. Touil, A.; Yan, B.; Girolami, D.; Deffner, S.; Zurek, W.H. Eavesdropping on the Decohering Environment: Quantum Darwinism, Amplification, and the Origin of Objective Classical Reality. Phys. Rev. Lett. 2022, 128, 010401. [Google Scholar] [CrossRef]
  12. Mironowicz, P.; Korbicz, J.; Horodecki, P. Monitoring of the process of system information broadcasting in time. Phys. Rev. Lett. 2017, 118, 150501. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Ollivier, H.; Poulin, D.; Zurek, W.H. Objective properties from subjective quantum states: Environment as a witness. Phys. Rev. Lett. 2004, 93, 220401. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Horodecki, R.; Korbicz, J.K.; Horodecki, P. Quantum origins of objectivity. Phys. Rev. A 2015, 91, 032122. [Google Scholar] [CrossRef] [Green Version]
  15. Pleasance, G.; Garraway, B.M. Application of quantum Darwinism to a structured environment. Phys. Rev. A 2017, 96, 062105. [Google Scholar] [CrossRef] [Green Version]
  16. Le, T.P.; Olaya-Castro, A. Objectivity (or lack thereof): Comparison between predictions of quantum Darwinism and spectrum broadcast structure. Phys. Rev. A 2018, 98, 032103. [Google Scholar] [CrossRef] [Green Version]
  17. Korbicz, J.K. Roads to objectivity: Quantum Darwinism, Spectrum Broadcast Structures, and Strong quantum Darwinism—A review. Quantum 2021, 5, 571. [Google Scholar] [CrossRef]
  18. Chisholm, D.A.; Guillermo García-Pérez, D.A.; Rossi, M.A.C.; Maniscalco, S.; Palma, G.M. Witnessing Objectivity on a Quantum Computer. arXiv 2021, arXiv:2110.06243. [Google Scholar] [CrossRef]
  19. Le, T.P.; Mironowicz, P.; Horodecki, P. Blurred quantum Darwinism across quantum reference frames. Phys. Rev. A 2020, 102, 062420. [Google Scholar] [CrossRef]
  20. Tuziemski, J. Decoherence and information encoding in quantum reference frames. arXiv 2020, arXiv:2006.07298v2. [Google Scholar]
  21. Le, T.P.; Winter, A.; Adesso, G. Thermality versus objectivity: Can they peacefully coexist? Entropy 2021, 23, 1506. [Google Scholar] [CrossRef]
  22. Le, T.P.; Olaya-Castro, A. Strong Quantum Darwinism and Strong Independence is equivalent to Spectrum Broadcast Structure. Phys. Rev. Lett. 2019, 122, 010403. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Feller, A.; Roussel, B.; Frérot, I.; Degiovanni, P. Comment on “Strong Quantum Darwinism and Strong Independence are Equivalent to Spectrum Broadcast Structure”. Phys. Rev. Lett. 2021, 126, 188901. [Google Scholar] [CrossRef] [PubMed]
  24. Le, T.P.; Olaya-Castro, A. Reply to Comment on “Strong Quantum Darwinism and Strong Independence are Equivalent to Spectrum Broadcast Structure”. arXiv 2021, arXiv:2101.10756. [Google Scholar]
  25. Le, T.P.; Olaya-Castro, A. Witnessing non-objectivity in the framework of strong quantum Darwinism. Quantum Sci. Technol. 2020, 5, 045012. [Google Scholar] [CrossRef]
  26. Fuchs, C.A.; van de Graaf, J. Cryptographic distinguishability measures for quantum-mechanical states. IEEE Trans. Inf. Theor. 1999, 45, 1216. [Google Scholar] [CrossRef] [Green Version]
  27. Zwolak, M.; Quan, H.T.; Zurek, W.H. Quantum Darwinism in a mixed environment. Phys. Rev. Lett. 2009, 103, 110402. [Google Scholar] [CrossRef] [Green Version]
  28. Polak, E. Optimization: Algorithms and Consistent Approximations; Springer: Berlin/Heidelberg, Germany, 1997; ISBN 0-387-94971-2. [Google Scholar]
  29. Roszak, K.; Korbicz, J.K. Glimpse of objectivity in bipartite systems for nonentangling pure dephasing evolutions. Phys. Rev. A 2020, 101, 052120. [Google Scholar] [CrossRef]
  30. Eaton, J.W.; Bateman, D.; Hauberg, S.; Wehbring, R. GNU Octave Version 6.1.0 Manual: A High-Level Interactive Language for Numerical Computations. 2020. Available online: https://www.gnu.org/software/octave/doc/v6.1.0/ (accessed on 17 February 2022).
  31. Johnston, N. QETLAB: A MATLAB Toolbox for Quantum Entanglement, Version 0.9. 2016. Available online: http://qetlab.com (accessed on 17 February 2022).
  32. Cubitt, T. Quantinf Matlab Package, Version 0.5.1. 2013. Available online: https://www.dr-qubit.org/matlab.html (accessed on 17 February 2022).
Figure 1. Sample results of SBS basis optimization (15) using the Bloch parametrization (19). We consider the state state after time t = 1 , with Hamiltonian (6) with parameters α 1 = α 3 = 0 , for different values of α 2 and environmental mixedness p, cf. (9), and perfect CNOT interaction. Figure 1a contains the minimized distance (17) obtained for p ˜ , x ψ and y ψ parameters shown in Figure 1b–d, respectively. Note thin Figure 1a is the same as in Figure 2a (seen from a different angle). For x ψ in Figure 1c, we used trigonometric transformation, and thus that the value 1 refers to the computational basis. Note that the phases factor y ψ of the Bloch qubit strongly fluctuates in the region where the computational basis is optimal, as in that case y ψ has no impact on the state. In Figure 1c, the yellow part corresponds to the standard basis and the light purple represents bases complementary to the standard basis. The latter bases are in general different from Hadamard basis, which can be seen by examination of the phases in Figure 1d. Each of the basis in the light purple region represents some generalised pointer basis (see the discussion at the beginning of Section 3.2).
Figure 1. Sample results of SBS basis optimization (15) using the Bloch parametrization (19). We consider the state state after time t = 1 , with Hamiltonian (6) with parameters α 1 = α 3 = 0 , for different values of α 2 and environmental mixedness p, cf. (9), and perfect CNOT interaction. Figure 1a contains the minimized distance (17) obtained for p ˜ , x ψ and y ψ parameters shown in Figure 1b–d, respectively. Note thin Figure 1a is the same as in Figure 2a (seen from a different angle). For x ψ in Figure 1c, we used trigonometric transformation, and thus that the value 1 refers to the computational basis. Note that the phases factor y ψ of the Bloch qubit strongly fluctuates in the region where the computational basis is optimal, as in that case y ψ has no impact on the state. In Figure 1c, the yellow part corresponds to the standard basis and the light purple represents bases complementary to the standard basis. The latter bases are in general different from Hadamard basis, which can be seen by examination of the phases in Figure 1d. Each of the basis in the light purple region represents some generalised pointer basis (see the discussion at the beginning of Section 3.2).
Entropy 24 00467 g001
Figure 2. SBS distance for C-INOT central interaction with various values of the gate imperfection parameter θ with 2 environmental qubits. Each value of θ = 0 , π / 8 , π / 4 , 0.9 π / 2 refers to different interactions between the central system and each of the environmental qubits, as given in (4). The axis α 2 describes the strength of the self-evolution of the environmental qubits, see (7b), and p refers to the initial mixedness of the environmental qubits, see (9). The figure illustrates non-monotonic dependence of the distance of the evolved state from the closes SBS state of the form (15) from the parameters α 2 and p. In particular, it can be seen that, in many cases, it is not the smallest value of mixedness that leads to states close to the SBS form but the “optimal” environment mixedness p depends on the value of the self-evolution strength α 2 .
Figure 2. SBS distance for C-INOT central interaction with various values of the gate imperfection parameter θ with 2 environmental qubits. Each value of θ = 0 , π / 8 , π / 4 , 0.9 π / 2 refers to different interactions between the central system and each of the environmental qubits, as given in (4). The axis α 2 describes the strength of the self-evolution of the environmental qubits, see (7b), and p refers to the initial mixedness of the environmental qubits, see (9). The figure illustrates non-monotonic dependence of the distance of the evolved state from the closes SBS state of the form (15) from the parameters α 2 and p. In particular, it can be seen that, in many cases, it is not the smallest value of mixedness that leads to states close to the SBS form but the “optimal” environment mixedness p depends on the value of the self-evolution strength α 2 .
Entropy 24 00467 g002
Figure 3. Illustration of non-monotonicity of SBS distance from the self-evolution of the environment parameter α 2 and environmental mixedness (noise) p. (a) Dependence of the SBS distance as a function of α 2 for α 1 = α 3 = p = 0 for various values of θ . (b) Dependence of the SBS distance as a function of p for α 1 = α 2 = α 3 = 0 for various values of θ .
Figure 3. Illustration of non-monotonicity of SBS distance from the self-evolution of the environment parameter α 2 and environmental mixedness (noise) p. (a) Dependence of the SBS distance as a function of α 2 for α 1 = α 3 = p = 0 for various values of θ . (b) Dependence of the SBS distance as a function of p for α 1 = α 2 = α 3 = 0 for various values of θ .
Entropy 24 00467 g003
Figure 4. SBS distance for interactions with C-INOT for various gate imperfection parameter θ with 2 environmental qubits. Visible is the dependence of the optimal environment mixedness p on the value of the inter-environmental-evolution strength α 3 for the Hamiltonian H 3 = 2 1 1 2 σ Z σ Z instead of (7c).
Figure 4. SBS distance for interactions with C-INOT for various gate imperfection parameter θ with 2 environmental qubits. Visible is the dependence of the optimal environment mixedness p on the value of the inter-environmental-evolution strength α 3 for the Hamiltonian H 3 = 2 1 1 2 σ Z σ Z instead of (7c).
Entropy 24 00467 g004
Figure 5. The difference Δ , see (22), of SBS distance for interaction with C-INOT various gate imperfection parameter θ with 2 environmental qubits if the SBS is restricted to be in the Hadamard basis subtracted with the SBS distance if the SBS is restricted to be in the computational basis. The warmer color indicates that the evolved state ρ S E 1 comp is closer to SBS in the computational basis, and the cooler colour is in those regions, where the evolved state is closer to SBS in the Hadamard basis.
Figure 5. The difference Δ , see (22), of SBS distance for interaction with C-INOT various gate imperfection parameter θ with 2 environmental qubits if the SBS is restricted to be in the Hadamard basis subtracted with the SBS distance if the SBS is restricted to be in the computational basis. The warmer color indicates that the evolved state ρ S E 1 comp is closer to SBS in the computational basis, and the cooler colour is in those regions, where the evolved state is closer to SBS in the Hadamard basis.
Entropy 24 00467 g005
Figure 6. SBS distance for C-INOT with various gate imperfection parameters θ with 8 environmental qubits. Each value of θ refers to a different interaction between the central system and each of the environmental qubits, as given in (4). The axis α 2 describes the strength of the self-evolution of the environmental qubits, see (24), and p refers to the initial mixedness of the environmental qubits, see (9). The figure illustrate non-monotonic dependence of the upper bound (14) on the distance of the actually evolved state from the closes SBS state of the form (15) on the parameters α 2 and p. In particular, it can be seen that, in many cases, it is not the smallest value of mixedness, which leads to states closing (in an upper bound sense) to the SBS form, but the “optimal” environment mixedness p depends on the value of the self-evolution strength α 2 .
Figure 6. SBS distance for C-INOT with various gate imperfection parameters θ with 8 environmental qubits. Each value of θ refers to a different interaction between the central system and each of the environmental qubits, as given in (4). The axis α 2 describes the strength of the self-evolution of the environmental qubits, see (24), and p refers to the initial mixedness of the environmental qubits, see (9). The figure illustrate non-monotonic dependence of the upper bound (14) on the distance of the actually evolved state from the closes SBS state of the form (15) on the parameters α 2 and p. In particular, it can be seen that, in many cases, it is not the smallest value of mixedness, which leads to states closing (in an upper bound sense) to the SBS form, but the “optimal” environment mixedness p depends on the value of the self-evolution strength α 2 .
Entropy 24 00467 g006
Figure 7. Upper bound on the distance to an SBS state for 8-qubit environment and α 1 = α 2 = 0 as a function of neighbour–neighbour interaction (25) strength α 3 and mixedness p of the environment.
Figure 7. Upper bound on the distance to an SBS state for 8-qubit environment and α 1 = α 2 = 0 as a function of neighbour–neighbour interaction (25) strength α 3 and mixedness p of the environment.
Entropy 24 00467 g007
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mironowicz, P.; Horodecki, P.; Horodecki, R. Non-Perfect Propagation of Information to a Noisy Environment with Self-Evolution. Entropy 2022, 24, 467. https://doi.org/10.3390/e24040467

AMA Style

Mironowicz P, Horodecki P, Horodecki R. Non-Perfect Propagation of Information to a Noisy Environment with Self-Evolution. Entropy. 2022; 24(4):467. https://doi.org/10.3390/e24040467

Chicago/Turabian Style

Mironowicz, Piotr, Paweł Horodecki, and Ryszard Horodecki. 2022. "Non-Perfect Propagation of Information to a Noisy Environment with Self-Evolution" Entropy 24, no. 4: 467. https://doi.org/10.3390/e24040467

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
