# Equilibrium and Non-Equilibrium Lattice Dynamics of Anharmonic Systems

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. The Self-Consistent Phonon Theory

#### 2.1. Determination of the State of Thermal Equilibrium at a Given T

#### 2.2. Previous Works/Implementations by Other Groups

- SCP implemented in the code ALAMODE–ANPHON by Tadano et al. in 2015 [26], where anharmonicity up to the fourth-order is extracted, similar to the present approach, and the self-consistent harmonic approximation is implemented.
- SCP is also implemented in the HiPHive package developed by Eriksson et al. [27].
- SCHA (Self-Consistent Harmonic Approximation) method by Ravichandran and Broido in 2018 [28] also calculates the effective phonon dispersion and lifetimes at finite temperatures.

#### 2.3. Summary

## 3. Non-Equilibrium Heat Transport in Anharmonic Systems

#### 3.1. Equations of Motion and Langevin Thermostats

#### 3.2. Entropy Generation Rate

#### 3.3. Heat Current

#### 3.4. Thermal Expansion and Renormalization of the Force Constants

#### 3.5. Correlation Functions $\langle Y{\eta}^{\u2020}\rangle $ and $\langle Y{Y}^{\u2020}\rangle $

#### 3.5.1. Displacement—Noise Correlations $\langle Y{\eta}^{\u2020}\rangle $ within NESCP

#### 3.5.2. Beyond NESCP

#### 3.5.3. Displacement Autocorrelations $\langle Y{Y}^{\u2020}\rangle $

#### 3.5.4. Beyond NESCP

#### 3.6. The Particular Case of Non-Equilibrium Self-Consistent Phonon Approximation: NESCP

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A. Calculation of Time Averages

## Appendix B. Explicit Form of the Correlation Functions Including the Atomic and Cartesian Indices

#### Appendix B.1. Lead Self-Energies σ α and Escape Rates Γ α

#### Appendix B.2. Noise Autocorrelation Functions

## Appendix C. Statement and Proof of the Donsker-Furutsu-Novikov (DFN) Relation

## References

- Harrington, T.J.; Gild, J.; Sarker, P.; Toher, C.; Rost, C.M.; Dippo, O.F.; McElfresh, C.; Kaufmann, K.; Marin, E.; Borowski, L.; et al. Phase stability and mechanical properties of novel high entropy transition metal carbides. Acta Mater.
**2019**, 166, 271–280. [Google Scholar] [CrossRef] [Green Version] - Miracle, D.B.; Senkov, O.N. A critical review of high entropy alloys and related concepts. Acta Mater.
**2017**, 122, 448–511. [Google Scholar] [CrossRef] [Green Version] - Hooton, D. A new treatment of anharmonicity in lattice thermodynamics: I. Lond. Edinb. Dublin Philos. Mag. J. Sci.
**1955**, 46, 422–432. [Google Scholar] [CrossRef] - Boccara, N.; Sarma, G. Theorie microscopique des transitions s’accompagnant d’ une modification de la structure cristalline. Phys. Phys. Fiz.
**1965**, 1, 219–228. [Google Scholar] [CrossRef] [Green Version] - Choquard, P. The Anharmonic Crystal; W. A. Benjamin, Inc.: New York, NY, USA, 1967. [Google Scholar]
- Ranninger, J. Lattice Thermal Conductivity. Phys. Rev.
**1965**, 140, A2031–A2046. [Google Scholar] [CrossRef] - Gillis, N.S.; Werthamer, N.R.; Koehler, T.R. Properties of Crystalline Argon and Neon in the Self-Consistent Phonon Approximation. Phys. Rev.
**1968**, 165, 951–959. [Google Scholar] [CrossRef] - Werthamer, N.R. Self-consistent phonon formulation of anharmonic lattice dynamics. Phys. Rev. B
**1970**, 1, 572–581. [Google Scholar] [CrossRef] - Feynman, R.P. Statistical Mechanics, a Set of Lectures; The Benjamin/Cummings Publishing Company, INC: Reading, MA, USA, 1972. [Google Scholar]
- Esfarjani, K.; Stokes, H.T. Method to extract anharmonic force constants from first principles calculations. Phys. Rev. B
**2008**, 77, 144112. [Google Scholar] [CrossRef] [Green Version] - Tadano, T.; Gohda, Y.; Tsuneyuki, S. Anharmonic force constants extracted from first-principles molecular dynamics: Applications to heat transfer simulations. J. Phys. Condens. Matters
**2014**, 26, 225402. [Google Scholar] [CrossRef] - Böttger, H. Principles of the Theory of Lattice Dynamics; Akademie-Verlag: Berlin, Germany, 1982. [Google Scholar]
- Broyden, C.G. A Class of Methods for Solving Nonlinear Simultaneous Equations. Math. Comput.
**1965**, 19, 577. [Google Scholar] [CrossRef] - Ohno, K.; Kawazoe, Y.; Esfarjani, K. Computational Materials Science: From Ab Initio to Monte Carlo Methods, 2nd ed.; Springer Series in Solid-State Sciences: Berlin/Heidelberg, Germany, 2018; pp. 1–427. [Google Scholar] [CrossRef]
- Esfarjani, K.; Liang, Y. Thermodynamics of anharmonic lattices from first-principles. arXiv
**2019**, arXiv:1911.00787. [Google Scholar] - Liao, B. (Ed.) Nanoscale Energy Transport; IOP Publishing: Bristol, UK, 2020; pp. 2053–2563. [Google Scholar] [CrossRef]
- Souvatzis, P.; Eriksson, O.; Katsnelson, M.I.; Rudin, S.P. Entropy Driven Stabilization of Energetically Unstable Crystal Structures Explained from First Principles Theory. Phys. Rev. Lett.
**2008**, 100, 095901. [Google Scholar] [CrossRef] [PubMed] - Souvatzis, P.; Eriksson, O.; Katsnelson, M.; Rudin, S. The self-consistent ab initio lattice dynamical method. Comput. Mater. Sci.
**2009**, 44, 888–894. [Google Scholar] [CrossRef] - Hellman, O.; Abrikosov, I.A.; Simak, S.I. Lattice dynamics of anharmonic solids from first principles. Phys. Rev. B
**2011**, 84, 180301. [Google Scholar] [CrossRef] [Green Version] - Hellman, O.; Steneteg, P.; Abrikosov, I.A.; Simak, S.I. Temperature dependent effective potential method for accurate free energy calculations of solids. Phys. Rev. B
**2013**, 87, 104111. [Google Scholar] [CrossRef] [Green Version] - Hellman, O.; Abrikosov, I.A. Temperature-dependent effective third-order interatomic force constants from first principles. Phys. Rev. B
**2013**, 88, 144301. [Google Scholar] [CrossRef] [Green Version] - Errea, I.; Calandra, M.; Mauri, F. First-principles theory of anharmonicity and the inverse isotope effect in superconducting palladium-hydride compounds. Phys. Rev. Lett.
**2013**, 111, 177002. [Google Scholar] [CrossRef] - Errea, I.; Calandra, M.; Mauri, F. Anharmonic free energies and phonon dispersions from the stochastic self-consistent harmonic approximation: Application to platinum and palladium hydrides. Phys. Rev. Condens. Matter Mater. Phys.
**2014**, 89, 064302. [Google Scholar] [CrossRef] [Green Version] - Bianco, R.; Errea, I.; Paulatto, L.; Calandra, M.; Mauri, F. Second-order structural phase transitions, free energy curvature, and temperature-dependent anharmonic phonons in the self-consistent harmonic approximation: Theory and stochastic implementation. Phys. Rev. B
**2017**, 96, 014111. [Google Scholar] [CrossRef] - Monacelli, L.; Errea, I.; Calandra, M.; Mauri, F. Pressure and stress tensor of complex anharmonic crystals within the stochastic self-consistent harmonic approximation. Phys. Rev. B
**2018**, 98, 024106. [Google Scholar] [CrossRef] [Green Version] - Tadano, T.; Tsuneyuki, S. Self-consistent phonon calculations of lattice dynamical properties in cubic SrTiO3 with first-principles anharmonic force constants. Phys. Rev. B Condens. Matter Mater. Phys.
**2015**, 92, 054301. [Google Scholar] [CrossRef] [Green Version] - Eriksson, F.; Fransson, E.; Erhart, P. The Hiphive Package for the Extraction of High-Order Force Constants by Machine Learning. Adv. Theory Simulations
**2019**, 2, 1800184. [Google Scholar] [CrossRef] - Ravichandran, N.K.; Broido, D. Unified first-principles theory of thermal properties of insulators. Phys. Rev. B
**2018**, 98, 85205. [Google Scholar] [CrossRef] [Green Version] - Roekeghem, A.V.; Carrete, J.; Mingo, N. Anomalous thermal conductivity and suppression of negative thermal expansion in ScF3. Phys. Rev. B
**2016**, 94, 020303. [Google Scholar] [CrossRef] [Green Version] - Carrete, J.; Vermeersch, B.; Katre, A.; van Roekeghem, A.; Wang, T.; Madsen, G.K.; Mingo, N. almaBTE: A solver of the space–time dependent Boltzmann transport equation for phonons in structured materials. Comput. Phys. Commun.
**2017**, 220, 351–362. [Google Scholar] [CrossRef] [Green Version] - van Roekeghem, A.; Carrete, J.; Mingo, N. Quantum Self-Consistent Ab-Initio Lattice Dynamics. Comput. Phys. Commun.
**2021**, 263, 107945. [Google Scholar] [CrossRef] - Donsker, M.; Lions, J. Fréchet-Volterra variational equations, boundary value problems, and function space integrals. Acta Math.
**1962**, 108, 147–228. [Google Scholar] [CrossRef] - Furutsu, K. On the Statistical Theory of Electromagnetic Waves in a Fluctuating Medium (II) Mathematical Basis of the Analogies to Quantum Field Theory; Government Press: Boulder, CO, USA, 1964. [Google Scholar]
- Novikov, E.A. Functionals and the random-force method in turbulence theory. Sov. Phys. JETP
**1965**, 20, 1290–1294. [Google Scholar] - Caroli, C.; Combescot, R.; Lederer, D.; Nozieres, P.; Saint-James, D. A direct calculation of the tunnelling current. II. Free electron description. J. Phys. Solid State Phys.
**1971**, 4, 2598–2610. [Google Scholar] [CrossRef] - Meir, Y.; Wingreen, N.S. Landauer formula for the current through an interacting electron region. Phys. Rev. Lett.
**1992**, 68, 2512–2515. [Google Scholar] [CrossRef] - Pastawski, H.M. Classical and quantum transport from generalized Landauer-Büttiker equations. Phys. Rev. B
**1991**, 44, 6329–6339. [Google Scholar] [CrossRef] [PubMed] - Mingo, N. Anharmonic phonon flow through molecular-sized junctions. Phys. Rev. B
**2006**, 74, 125402. [Google Scholar] [CrossRef] - Wang, J.; Wang, J.; Zeng, N. Nonequilibrium Green’s function approach to mesoscopic thermal transport. Phys. Rev. B
**2006**, 74, 033408. [Google Scholar] [CrossRef] [Green Version] - Dai, J.; Tian, Z. Rigorous formalism of anharmonic atomistic Green’s function for three-dimensional interfaces. Phys. Rev. B
**2020**, 101, 041301. [Google Scholar] [CrossRef] - Guo, Y.; Bescond, M.; Zhang, Z.; Luisier, M.; Nomura, M.; Volz, S. Quantum mechanical modeling of anharmonic phonon-phonon scattering in nanostructures. Phys. Rev. B
**2020**, 102, 195412. [Google Scholar] [CrossRef] - Luisier, M. Atomistic modeling of anharmonic phonon-phonon scattering in nanowires. Phys. Rev. B
**2012**, 86, 245407. [Google Scholar] [CrossRef] [Green Version] - Polanco, C.A. Nonequilibrium Green’s functions (NEGF) in vibrational energy transport: A topical review. Nanoscale Microscale Thermophys. Eng.
**2021**, 25, 1–24. [Google Scholar] [CrossRef] - Sääskilahti, K.; Oksanen, J.; Tulkki, J. Thermal balance and quantum heat transport in nanostructures thermalized by local Langevin heat baths. Phys. Rev. E
**2013**, 88, 012128. [Google Scholar] [CrossRef] [Green Version] - Bolsterli, M.; Rich, M.; Visscher, W.M. Simulation of Nonharmonic Interactions in a Crystal by Self-Consistent Reservoirs. Phys. Rev. A
**1970**, 1, 1086–1088. [Google Scholar] [CrossRef] - Le, N.Q.; Polanco, C.A.; Rastgarkafshgarkolaei, R.; Zhang, J.; Ghosh, A.W.; Norris, P.M. Effects of bulk and interfacial anharmonicity on thermal conductance at solid/solid interfaces. Phys. Rev. B
**2017**, 95, 245417. [Google Scholar] [CrossRef] - Feng, T.; Zhong, Y.; Shi, J.; Ruan, X. Unexpected high inelastic phonon transport across solid-solid interface: Modal nonequilibrium molecular dynamics simulations and Landauer analysis. Phys. Rev. B
**2019**, 99, 045301. [Google Scholar] [CrossRef] [Green Version] - Sääskilahti, K.; Oksanen, J.; Tulkki, J.; Volz, S. Role of anharmonic phonon scattering in the spectrally decomposed thermal conductance at planar interfaces. Phys. Rev. B
**2014**, 90, 134312. [Google Scholar] [CrossRef] [Green Version] - Chalopin, Y.; Esfarjani, K.; Henry, A.; Volz, S.; Chen, G. Thermal interface conductance in Si/Ge superlattices by equilibrium molecular dynamics. Phys. Rev. B
**2012**, 85, 195302. [Google Scholar] [CrossRef] - Chalopin, Y.; Volz, S. A microscopic formulation of the phonon transmission at the nanoscale. Appl. Phys. Lett.
**2013**, 103, 051602. [Google Scholar] [CrossRef] - Kubo, R. The fluctuation-dissipation theorem. Rep. Prog. Phys.
**1966**, 29, 255. [Google Scholar] [CrossRef] [Green Version] - Tian, Z.; Esfarjani, K.; Chen, G. Green’s function studies of phonon transport across Si/Ge superlattices. Phys. Rev. Condens. Matter Mater. Phys.
**2014**, 89, 235307. [Google Scholar] [CrossRef] [Green Version] - Esfarjani, K. Theory of Non-Equilibrium Heat Transport in Anharmonic Multiprobe Systems at High Temperatures. Entropy
**2021**, 23, 1630. [Google Scholar] [CrossRef] - Rahimi Tabar, M. Analysis and Data-Based Reconstruction of Complex Nonlinear Dynamical Systems; Springer: Berlin/Heidelberg, Germany, 2019. [Google Scholar]
- Dhar, A.; Roy, D. Heat transport in harmonic lattices. J. Stat. Phys.
**2006**, 125, 805. [Google Scholar] [CrossRef]

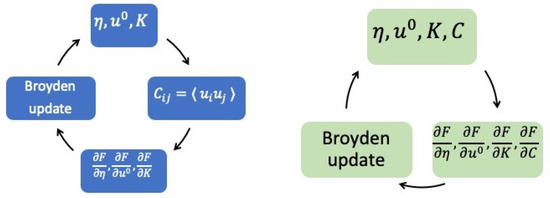

**Figure 1.**Flowcharts of two possible self-consistent procedures using Broyden’s algorithm depending on whether K and C are treated as dependent (

**left**) or independent parameters (

**right**).

**Figure 2.**The ND atom anharmonic structure is connected to two semi-infinite reservoirs in this example (called L and R). After elimination of the reservoirs’ degrees of freedom, the infinite system is replaced by an isolated “cluster” subject to thermostating forces ${\eta}_{L}$ and ${\eta}_{R}$ applied on the boundary, reflecting the equation of motion in Equation (33). As a result of this boundary condition, force constants $\varphi ,\psi ,\chi $ are replaced with effective force constants $\mathsf{\Phi},\mathsf{\Psi},X$ and a harmonic self energy $\sigma $.

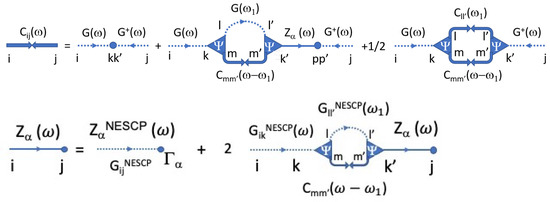

**Figure 3.**Feynman diagrams associated with the approximations of C and ${Z}_{\alpha}$: dashed lines represent $\mathbb{G}$, the Green’s function within NESCP; thick solid lines with two arrows facing each other represent the displacement autocorrelation C; and the solid lines ending with a dot are the noise-displacement correlation ${Z}_{\alpha}$.
